Myelin serves as an axonal insulator that facilitates rapid nerve conduction along axons. By transmission electron microscopy, a healthy myelin sheath comprises compacted membrane layers spiraling around the cross-sectioned axon. Previously we identified the assembly of septin filaments in the innermost non-compacted myelin layer as one of the latest steps of myelin maturation in the central nervous system (CNS) (Patzig et al., 2016). Here we show that loss of the cytoskeletal adaptor protein anillin (ANLN) from oligodendrocytes disrupts myelin septin assembly, thereby causing the emergence of pathological myelin outfoldings. Since myelin outfoldings are a poorly understood hallmark of myelin disease and brain aging we assessed axon/myelin-units in Anln-mutant mice by focused ion beam-scanning electron microscopy (FIB-SEM); myelin outfoldings were three-dimensionally reconstructed as large sheets of multiple compact membrane layers. We suggest that anillin-dependent assembly of septin filaments scaffolds mature myelin sheaths, facilitating rapid nerve conduction in the healthy CNS.https://doi.org/10.7554/eLife.43888.001
Fast, saltatory nerve impulse conduction in the central nervous system (CNS) of vertebrates is facilitated by the ensheathment of axons with multiple layers of insulating oligodendroglial membrane, termed myelin (Nave and Werner, 2014; Hartline and Colman, 2007). Myelin compaction along the extracellular membrane surface (intraperiod line) involves cholesterol-associated transmembrane proteins, such as proteolipid protein (PLP) (Simons et al., 2000; Werner et al., 2013), which exhibits adhesive forces (Bakhti et al., 2013; Bizzozero et al., 2001) that prevent splitting of myelin lamellae (Lüders et al., 2017; Möbius et al., 2016; Rosenbluth et al., 2006). At the intracellular membrane surface (major dense line), myelin basic protein (MBP) facilitates the tight association of myelin layers by covering the negatively charged headgroups of membrane phospholipids (Musse et al., 2008; Nawaz et al., 2009; Nawaz et al., 2013). The adhesive function of MBP can be counteracted by the presence of cyclic nucleotide phosphodiesterase (CNP), thereby regulating the developmental closure of cytoplasmic channels that flank compacted myelin (Snaidero et al., 2017). In mature myelin, CNP is thus largely confined to non-compacted myelin (Brunner et al., 1989; Trapp et al., 1988). The relevance of PLP, MBP and CNP for the regular ultrastructure of myelin is reflected by their high abundance in biochemically purified myelin membranes (Jahn et al., 2009) and the myelin defects in the corresponding mouse mutants.
In addition to the delamination of single myelin layers, pathological destabilization of myelin was observed as pathological outfoldings of entire stacks of compacted myelin membranes in several myelin mutants, (Patzig et al., 2016a) and upon normal brain aging (Peters, 2002; Sturrock, 1976). We recently found that myelin outfoldings correlate with a loss of septins, which are cytoskeletal proteins of comparatively lower abundance in the myelin proteome (Patzig et al., 2016a). Septins are widely expressed and control the rigidity of the membranes they are associated with (Bridges and Gladfelter, 2015; Gilden and Krummel, 2010). Localized in the non-compacted, adaxonal myelin layer adjacent to the inner-most compacted myelin membrane, myelin septin filaments are assembled from the monomers SEPT2, SEPT4, SEPT7 and SEPT8 in 1:1:2:2 stoichiometry (Patzig et al., 2016a). This marks a canonical but distinct composition of subunits when compared with the higher order structures of septins in other cell types (Barral and Kinoshita, 2008; Dolat et al., 2014). Recently, we proposed that septin filaments provide a scaffold that prevents detachment of the compacted myelin layers from the adaxonal myelin membrane and thus outfoldings of entire myelin sheaths (Patzig et al., 2016a).
Septins associate with the pleckstrin homology (PH)-domain containing adaptor protein anillin (ANLN) and its homologs in drosophila embryos (El Amine et al., 2013; Field et al., 2005; Liu et al., 2012), budding yeast (Eluère et al., 2012; Kang et al., 2013; Tasto et al., 2003) and mouse NIH3T3-fibroblasts (Kinoshita et al., 2002). Here, the role of anillin in the formation of contractile septin rings is a conserved step of cytokinesis (Piekny and Maddox, 2010) and essential for cell division (Zhang and Maddox, 2010). However, in post-mitotic cells the interactions between septins and anillin are not understood. In the adult CNS, expression of Anln mRNA is highest in myelinating oligodendrocytes when assessed by RNA-Seq (www.web.stanford.edu/group/barres_lab/cgi-bin/igv_cgi_2.py?lname=anln) (Zhang et al., 2014), single-cell transcriptomics (www.linnarssonlab.org/cortex) (Zeisel et al., 2015) and in situ-hybridization (mouse.brain-map.org/gene/show/44585) (Lein et al., 2007).
Here we show that oligodendroglial anillin serves a crucial function in myelination. Conditional mouse mutants lacking expression of the Anln-gene in mature oligodendrocytes fail to assemble septin filaments, display large myelin outfoldings similar to those of Sept8-mutant mice (Patzig et al., 2016a) and exhibit reduced nerve conduction velocity. This work thus establishes a crucial function for anillin-dependent assembly of myelin septin filaments in scaffolding CNS myelin to enable rapid nerve conduction, thereby demonstrating a vital function of anillin unrelated to cytokinesis.

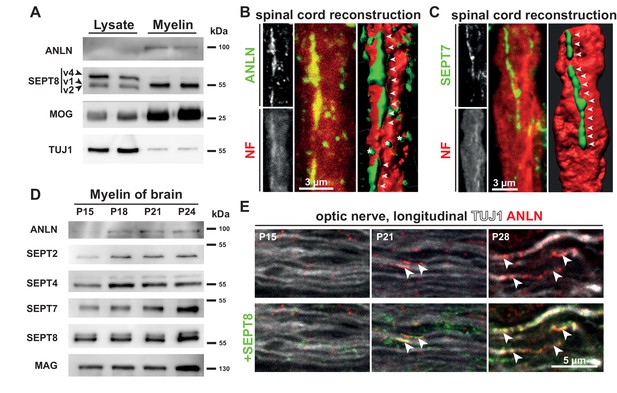

To address a functional connection between anillin and myelin septins, we first asked if the protein is also enriched in CNS myelin. Indeed, anillin was detected in myelin when biochemically purified from mouse brains at P75, while it was virtually undetectable in brain lysates when loading the same amount of protein (Figure 1A). This implies that anillin is enriched in myelin similar to SEPT8 variant 1 (SEPT8_v1; according to nomenclature at Ensembl.org) (Patzig et al., 2016a) or myelin oligodendrocyte glycoprotein (MOG) (Linnington et al., 1984). In comparison, the axonal marker Tubulin-beta3/TUJ1 was diminished in myelin compared to brain lysate (Figure 1A). To determine the localization of anillin, we performed immunohistochemistry and confocal microscopy of longitudinal spinal cord sections. We found that anillin-immunolabeling parallels but does not overlap with axonal neurofilament (NF) labeling (Figure 1B). Most anillin-immunolabeling was reminiscent of the longitudinal myelin septin filaments (Figure 1C) (Patzig et al., 2016a).
Considering that the abundance of Anln mRNA increases over 10-fold coinciding with the differentiation of oligodendrocyte progenitor cells to myelinating oligodendrocytes (Zhang et al., 2014) we tested whether the abundance of ANLN increases with the developmental maturation of myelin. Indeed, by immunoblotting of myelin purified from mouse brains at postnatal day 15 (P15), P18, P21 and P24, the abundance of ANLN increased (Figure 1D) similar to that of SEPT2. When immunolabeling ANLN together with SEPT8 on longitudinal optic nerve sections at P15, P21 and P28, first co-labeled structures were occasionally detected at P21 but frequently seen at P28 (Figure 1E). Also in other white matter tracts, ANLN-immunolabeling was largely in proximity to SEPT8-immunolabeling, as seen in the fimbria and the corpus callosum by immunohistochemistry of coronal brain sections from wild type mice at P75 (Figure 1—figure supplement 1A,B). Thus, expression of the cytoskeletal adaptor protein ANLN is strongly enriched in mature oligodendrocytes, in which it largely co-distributes with myelin septin filaments that localize to the non-compacted adaxonal myelin layer.

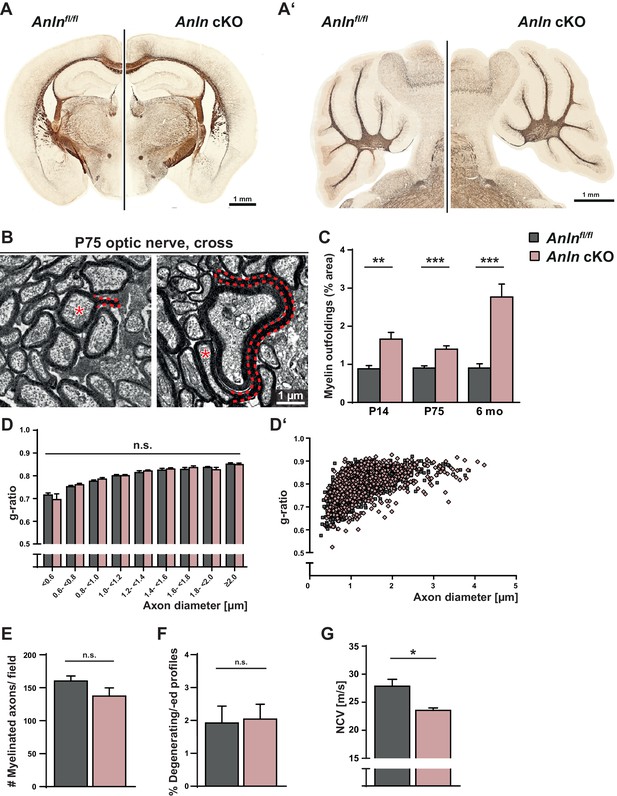

We previously noted that the presence of pathological myelin outfoldings in several myelin mutant mice correlates with reduced abundance of both myelin septins and ANLN (Patzig et al., 2016a). However, it remained unknown whether diminishment of ANLN represents a mere epiphenomenon of septin loss or if ANLN has a function in the assembly of septin filaments. To discriminate between these alternative hypotheses, we generated mouse mutants in which exon 4 of the Anln gene is flanked by loxP-sites (Figure 2—figure supplement 1A). Appropriate breedings yielded Anlnflox/flox;CnpCre/WT mice, in which Cre recombinase is expressed under control of the Cnp promoter (Lappe-Siefke et al., 2003) to mediate recombination (Figure 2—figure supplement 1B) in myelinating oligodendrocytes. Conditional mutants and control mice were born at the expected frequencies, and the major white matter regions developed normally as judged by light microscopic visualization of myelin upon silver impregnation (Figure 2A,A‘). However, electron microscopic analysis revealed the presence of numerous myelin outfoldings in the CNS of Anlnflox/flox;CnpCre/WT mice (Figure 2B,C), very similar to Sept8null/null and Sept8flox/flox;CnpCre/WT mutants (Patzig et al., 2016a). Analysis of myelin sheath thickness (Figure 2D,D‘), the percentage of myelinated axons (Figure 2E), degenerating/degenerated axons (Figure 2F) and secondary neuropathology (Figure 2—figure supplement 2) did not reveal further abnormalities in Anlnflox/flox;CnpCre/WT mice, implying that myelin outfoldings represent a very specific neuropathology.
To test if myelin outfoldings in Anlnflox/flox;CnpCre/WT mice impair CNS function in vivo, we measured nerve conduction in the spinal cord at 6 months of age. Indeed, nerve conduction velocity was reduced by 15.5% in Anlnflox/flox;CnpCre/WT compared to control mice (Figure 2G), very similar to Sept8-mutants (Patzig et al., 2016a). Considering that slowed nerve conduction can be caused by structural changes of the nodes of Ranvier (Arancibia-Cárcamo et al., 2017) we performed immunohistochemistry for the nodal and paranodal markers Nav1.6 and CASPR, respectively, and determined the density of the nodes (Figure 2—figure supplement 3A) as well as their length and diameter (as indicated in Figure 2—figure supplement 3B). This analysis did not reveal any nodal or paranodal abnormality in Anlnflox/flox;CnpCre/WT mice (Figure 2—figure supplement 3C–F). Although we cannot formally rule out other unidentified alterations in the CNS of Anlnflox/flox;CnpCre/WT mice, myelin outfoldings are the most likely cause of reduced nerve conduction velocity.

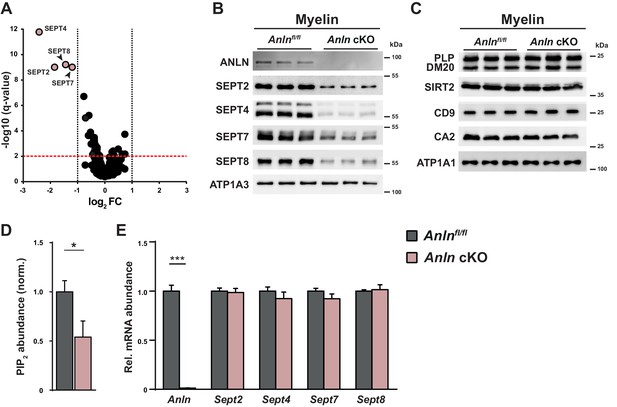

At the molecular level we asked whether recombination of the Anln-gene in mature oligodendrocytes affects the protein composition of myelin. As expected, ANLN was undetectable by immunoblot analysis of myelin purified from the brains of Anlnflox/flox;CnpCre/WT mice (Figure 2—figure supplement 1C). Interestingly, in these mutants the abundance of SEPT8 in myelin was reduced (Figure 2—figure supplement 1C). This prompted us to analyze the entire myelin proteome by quantitative label-free mass spectrometry (Figure 3—source data 1). ANLN was readily detectable in myelin purified from the brains of control mice but not identified in Anlnflox/flox;CnpCre/WT myelin (Figure 3—figure supplement 1A). The abundance of all myelin septins (SEPT2, SEPT4, SEPT7, SEPT8) was strongly reduced in myelin purified from the brains of Anlnflox/flox;CnpCre/WT mice (Figure 3A,B, Figure 3—figure supplement 1B). Interestingly, the abundance of two GTPases of the Rho-subfamily, CDC42 and RHOB, also appeared reduced, although less than the applied threshold of a 2-fold change (Figure 3—figure supplement 1B). Importantly, the abundance of the major myelin marker proteins (Figure 3—figure supplement 1C, Figure 3C) and cytoskeletal proteins associated with the actin cytoskeleton or microtubules (Figure 3—figure supplement 1D) was unaltered.
Since a reduction of the membrane phospholipid phosphatidylinositol (4,5)-bisphosphate (PtdIns(4,5)P2) in myelin of Ptenflox/flox;CnpCre/WT mice causes a loss of septins and ANLN (Patzig et al., 2016a), we asked whether vice versa the absence of ANLN from myelin affects PtdIns(4,5)P2–levels. Indeed, by quantitative assessment of label-free lipid extracts (Goebbels et al., 2010; König et al., 2008) we found a decreased abundance of PtdIns(4,5)P2 in myelin purified from the brains of Anlnflox/flox;CnpCre/WT compared to control mice (Figure 3D).
By qRT-PCR, cDNA-fragments for Sept2, Sept4, Sept7, Sept8 were amplified with equal efficiency from mutant and control corpus callosi (Figure 3E), suggesting that the loss of myelin septins is a posttranscriptional event secondary to ANLN-deficiency. Most likely, myelin septin monomers are degraded if not incorporated into filamentous higher order structures, the formation of which is facilitated by ANLN. The cDNA-fragments for Rhob and Cdc42 were also amplified with equal efficiency from mutant and control corpus callosi (Figure 3—figure supplement 1E). Conversely, cDNA fragments for Anln were virtually undetectable in Anlnflox/flox;CnpCre/WT corpus callosi (Figure 3E), indicating that expression of Anln mRNA in the adult CNS is strongly enriched in mature oligodendrocytes in accordance with RNA-Seq data (Zeisel et al., 2015; Zhang et al., 2014).

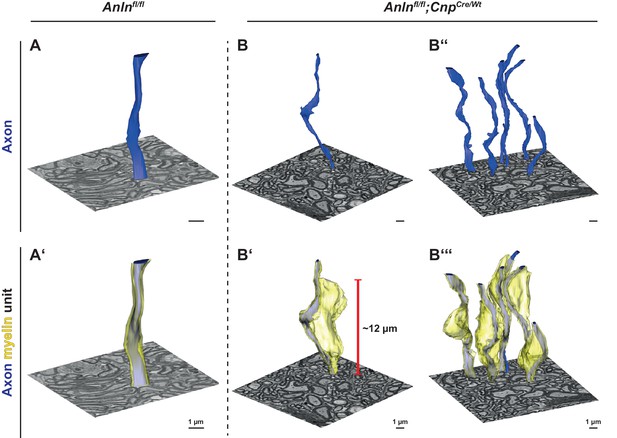

To determine the morphology of myelin outfoldings three-dimensionally, we performed focused ion beam-scanning electron microscopy (FIB-SEM) of optic nerves dissected from Anlnflox/flox;CnpCre/WT and control mice, covering a depth of about 23 µm in each tissue. In control nerves, reconstruction of axonal plasma membranes (false-colored in blue in Figure 4) and myelin (false-colored in yellow in Figure 4) revealed a largely regular association of myelinated axons with their myelin sheaths (exemplified in Figure 4A,A‘ and Video 1). In comparable blocks of optic nerves dissected from Anlnflox/flox;CnpCre/WT mice, FIB-SEM allowed the 3D-reconstruction of a number of myelin outfoldings (Figure 4B‘,B‘‘‘ and Video 2 and Video 3). Most of them were in internodal segments; we observed only a single myelin outfolding close to a node of Ranvier. The observed myelin outfoldings measured between 10 µm and 15 µm in length. Thus, myelin outfoldings do not adopt pin-needle-like shape but represent large sheets of compacted multilayered membrane stacks that extend for considerable distance away from the myelinated axon.
Outfoldings of compact CNS myelin are a neuropathological hallmark in numerous models of myelin-related disorders (Patzig et al., 2016a) and upon normal brain aging (Peters, 2002; Sturrock, 1976). Localized in the non-compacted adaxonal myelin layer, i.e. underlying the innermost compact myelin membrane, septin filaments scaffold the myelin structure, thereby preventing the emergence of myelin outfoldings (Patzig et al., 2016a). The phenotype of Anlnflox/flox;CnpCre/WT mice is very similar to that of mice lacking SEPT8, a septin monomer essential for the assembly of myelin septin filaments (Patzig et al., 2016a). Thus, the present study has revealed that anillin is critical for the assembly of septin filaments in CNS myelin and that the lack of these filaments causes myelin outfoldings associated with reduced nerve conduction velocity.
During yeast cytokinesis, PtdIns(4,5)P2 recruits the anillin homolog Mid2p to the membrane at the cleavage furrow, which in turn is critical for the polymerization of septin subunits into rings at the budding site of mother and daughter cells (Bertin et al., 2010; Liu et al., 2012). At the molecular level, the interactions between PtdIns(4,5)P2, anillin and septins are probably principally conserved between dividing cells and mature oligodendrocytes, which are post-mitotic. Yet, during cytokinesis, ANLN affects microtubules and myosin-dependent bundling of actin filaments (Hickson and O'Farrell, 2008a; Hickson and O'Farrell, 2008b). Since myelin wrapping involves actin disassembly (Nawaz et al., 2015; Zuchero et al., 2015) and myelin compaction requires trafficking of Mbp mRNA along microtubules (Müller et al., 2013; Thakurela et al., 2016), we point out that there is no evidence of fewer, thinner or non-compacted myelin sheaths in Anlnflox/flox;CnpCre/WT mice. Instead, ANLN is required during the latest stages of myelin maturation, i.e., for septin-dependent scaffolding of the myelin sheath rather than for its actin/tubulin-dependent biosynthesis and compaction.
Myelin is one of the most long-lived structures in the CNS (Toyama et al., 2013) with a particularly slow turnover rate of its components (Lasiene et al., 2009; Lüders et al., 2019; Yeung et al., 2014; Young et al., 2013). Failure to physically stabilize the myelin architecture causes myelin outfoldings and affects nerve conduction velocity. We therefore propose that PtdIns(4,5)P2/anillin-dependent scaffolding of myelin by septin filaments represents a crucial step of myelin maturation.
Embryonic stem cells (ES) harboring an engineered allele of the Anln gene were acquired from the European Conditional Mouse Mutagenesis Program (Eucomm). ES were microinjected into blastocysts derived from c57BL/6N mice, and embryos were transferred to pseudo-pregnant foster mothers, yielding two chimeric males. For ES clone EPD0545_1_F09, germline transmission was achieved upon breeding with c57BL/6N-females, yielding mice harboring the AnlnLacZ-neo allele. The lacZ-neo cassette was excised in vivo upon interbreeding with mice expressing FLIP recombinase (129S4/SvJaeSor-Gt(ROSA)26Sortm1(FLP1)Dym/J; backcrossed into c57BL/6N), yielding mice carrying the Anlnflox allele. To inactivate expression of ANLN in myelinating cells, exon four was excised in vivo upon appropriate interbreedings of Anlnflox mice with mice expressing Cre recombinase under control of the Cnp promoter (Lappe-Siefke et al., 2003). For simplicity, Anlnfl/fl;CnpCre/WT mice are also termed Anln conditional knockout (Anln cKO). Routine genotyping of the Anln allele as shown in Figure 2—figure supplement 1B was performed by PCR with sense primer P1 (5‘-GACATAGCCC TCAGTGTTCAGG; binding 5 ‘of the first loxP-site) in combination with antisense primers P2 (5‘-GAATCCTGCA TGGACAGACAG; binding the segment flanked by loxP-sites), and P3 (5‘-GAGCTCAGAC CATAACTTCG; binding 3 ‘of the third loxP site). PCR genotyping of the Cnp allele was with primers 2016 (5‘-GCCTTCAAAC TGTCCATCTC), 7315 (5‘-CCCAGCCCTT TTATTACCAC), 4193 (5‘-CCTGGAAAAT GCTTCTGTCCG) and 4192 (5‘-CAGGGTGTTA TAAGCAATCCC). Experimental mutant mice were analyzed together with littermate controls as far as possible. Mice were kept in the mouse facility of the Max Planck Institute of Experimental Medicine with a 12 hr light/dark cycle and 2–5 mice per cage. All experiments were approved by the Niedersächsisches Landesamt für Verbraucherschutz und Lebensmittelsicherheit (license 33.19-42502-04-15/1833) in agreement with the German Animal Protection Law.
Sample size was according to previous analyses of similar parameters, e.g. in (Patzig et al., 2016a). All quantifications were performed blinded with respect to the genotypes. Bar graphs display mean values and standard error of the mean (SEM). Statistical tests were performed in GraphPad Prism 6.0. Tests were chosen depending on experimental groups and as suggested by the software. To test for variance, F-test was performed in GraphPad Prism 6.0. GraphPad online test at http://graphpad.com/quickcalcs/Grubbs1.cfm was used to test for outliers; however, no outliers were removed from the data. Levels of significance were set at p<0.05 (*), p<0.01 (**), and p<0.001 (***). Exact p-values are given in the figure legends. For myelin proteome analysis, q-values were calculated by R data analysis as detailed in the section ‘Myelin proteome analysis’ and given in Figure 3—source data 1.
For conventional transmission electron microscopy, sample preparation by chemical fixation or by high pressure freezing and freeze substitution was performed as described (Möbius et al., 2010; Möbius et al., 2016; Patzig et al., 2016a; Patzig et al., 2016b). Myelinated and degenerated axons were assessed on electron micrographs of the optic nerves of 4–5 male mice per genotype chemically fixed at 6 mo of age. 15 randomly distributed non-overlapping electron micrographs were taken per optic nerve at 7000x magnification (one field = 220 µm²). Electron micrographs were assessed using ImageJ (Fiji) (Schindelin et al., 2012). A minimum of 1600 axons per mouse was assigned to one of three categories: healthy-appearing myelinated axons, healthy-appearing non-myelinated axons and degenerating/degenerated profiles. Axons were counted as myelinated if ensheathed by at least one complete layer of compact myelin. Degenerating/degenerated profiles were identified by the presence of tubovesicular structures and amorphous cytoplasm within an axon or the absence of an identifiable axon within a myelin sheath, respectively. The area occupied by myelin outfoldings was assessed by applying a point-hit counting method (Edgar et al., 2009; Patzig et al., 2016a) to the same electron micrographs. Briefly, a regular grid of 0.25 µm2 was placed on the images. The number of intercepts coinciding with myelin outfoldings was related to the evaluated area. g-ratios were calculated as ratio between axonal Feret diameter and Feret diameter of the corresponding myelin sheath. To this aim, the top left quarter of the same electron micrographs (one field = 55 µm²) was assessed, yielding a minimum of 200 myelinated axons per mouse.
For focused ion beam-scanning electron microscopy (FIB-SEM), optic nerves dissected from mice at 5.5 months of age were fixed for 24 hr in 4% formaldehyde (Serva) and 2.5% glutaraldehyde (Science Services) in 0.1 M phosphate buffer (PB). The samples were processed principally following the OTO protocol (www.ncmir.ucsd.edu/sbem-protocol) (Deerinck et al., 2010) with some modifications: Samples were washed in 0.1 M PB (3 × 15 min), incubated for 3 hr at 4°C in 2% osmium tetroxide (OsO4) (Electron Microscopy Sciences) and 0.25% potassium ferrocyanide (K4[Fe(CN)6]) (Electron Microscopy Sciences), washed with H2O (3 × 15 min) and then incubated with 0.1% thiocarbohydrazide (Sigma-Aldrich) for 1 hr at room temperature. For further contrast enhancement the tissue was treated with 2% OsO4 for 90 min at room temperature. The samples were then washed with H2O (3 × 15 min), contrasted overnight at 4°C with 2% uranyl acetate (SPI-Chem) and washed again with H2O (3 × 15 min), followed by dehydration in an increasing acetone series (30%, 50%, 75%, 90%, 3 × 100%). The tissue was infiltrated with increasing concentrations of Durcupan (Sigma-Aldrich, components A, B, C) for 2 hr each (25%, 50%, 75% Durcupan in acetone) and then incubated in 100% Durcupan overnight. Fresh Durcupan with accelerator (component D) was added to the samples for 5 hr before embedding the samples in resin blocks. The blocks were polymerized for 48 hr at 60°C.
The blocks were trimmed with a 90° diamond trimming knife (Diatome AG, Biel, Switzerland). The blocks were then attached to the SEM stub (Science Services GmbH, Pin 12.7 mm x 3.1 mm) by a silver filled epoxy resin (Epoxy Conductive Adhesive, EPO-TEK EE 129–4; EMS) and polymerized at 60° overnight. The samples were coated with a 10 nm platinum layer using the sputter coater EM ACE600 (Leica) at 35 mA current. Samples were placed into the Crossbeam 540 focused ion beam-scanning electron microscope (Carl Zeiss Microscopy GmbH). To ensure even milling and to protect the surface, a 400 nm platinum layer was deposited on top of the region of interest. Atlas 3D (Atlas 5.1, Fibics, Canada) software was used to collect the 3D data. Samples were exposed with a 15 nA current, and a 7 nA current was used to polish the surface. The images were acquired at 1.5 kV with the ESB detector (450 V ESB grid, pixel size x/y 2 nm) in a continuous mill-and-acquire mode using 700 pA for the milling aperture (z-step 50 nm).
For image analysis, alignments were done with TrackEM2 (Cardona et al., 2012), a plugin of Fiji (Schindelin et al., 2012). The following post-processing steps were performed in Fiji: The dataset was cropped and inverted before applying a Gaussian blurr (sigma 2) and local contrast enhancement (CLAHE: blocksize 56; histogram bins 100; maximum slope 1.5). The images were manually segmented using IMOD (Kremer et al., 1996).
Immunohistochemistry on sections of paraffin-embedded brains to determine neuropathology was performed as described (de Monasterio-Schrader et al., 2013; Patzig et al., 2016a), assessing five male mice per genotype at postnatal day 75 (P75). Antibodies were specific for MAC3 (Pharmingen 553322; 1:400), glial fibrillary acidic protein (GFAP) (NovoCastra NCL-L-GFAP-GA5; 1:200) or amyloid precursor protein (APP) (Chemicon MAB348; 1:1000). For quantification, the hippocampal fimbria was selected, and APP‐positive axonal spheroids were counted. Microscopy was as described (Patzig et al., 2016a). To quantify white matter area immunopositive for MAC3 or GFAP, the hippocampal fimbria was selected on micrographs and analyzed using an ImageJ plugin for semiautomated analysis (de Monasterio-Schrader et al., 2013; Lüders et al., 2017; Patzig et al., 2016a). Data were related to the mean of wild-type levels. Silver impregnation of myelin on histological sections was as described (Gallyas, 1979; Patzig et al., 2016a). Microscopy and image stitching was as described (Patzig et al., 2016a).
Immunohistochemistry on cryosectioned optic nerves to assess expression and localization of ANLN and myelin septins was as described (Patzig et al., 2016a). Antibodies were specific for ANLN (Acris AP16165PU-N; 1:200), SEPT7 (IBL18991; 1:1000), SEPT8 (ProteinTech Group 11769–1-AP; 1:500), TUJ1 (Covance MMS-435P; 1:1000), neurofilament (Covance SMI-31; 1:1500), myelin-associated glycoprotein (MAG clone 513; Chemicon MAB1567; 1:50), voltage-gated sodium channel Nav1,6 (alomonelabs ASC-009; 1:500) or contactin-associated protein (CASPR; Neuromabs 75–001; 1:500). Secondary antibodies were donkey α-rabbit-Alexa488 (Invitrogen A21206), donkey α-mouse-Alexa488 (Invitrogen A21202), donkey α-rabbit-Alexa555 (Invitrogen A31572), donkey α-mouse-Alexa555 (Invitrogen A31570), donkey α-goat-Cy3 (dianova 705-165-147) and donkey α-mouse Dyelight633 (Yo-Pro). Images were obtained by confocal microscopy (Leica SP5) as described (Patzig et al., 2016a). The LAS AF lite and Fiji were used to export the images as tif-files. Imaris was used for 3D-reconstructions. For quantification of nodal density, the frequency of occurrence of two CASPR-immunopositive paranodes was analyzed using Fiji. CASPR-immunopositivity was converted using a threshold and counted using ITNC plugin (n = 4 mice per genotype, one section each, five random micrographs of spinal cord white matter with a size of 2500 µm2 per micrograph). Statistical analysis was performed using GraphPad Prism 6.0.
A light-weight membrane fraction enriched for myelin was purified from mouse brains by sucrose density centrifugation and osmotic shocks as described (Jahn et al., 2013; Patzig et al., 2016a). For immunoblot analyses of myelin during development, male wild-type (c57Bl/6N) mice were used at the indicated ages. For proteome and immunoblot analyses of Anln cKO mice and control (Anlnfl/fl) littermates, n = 3 male mice at P75 were used. Protein concentrations were determined using the DC protein assay (BioRad). For PtdIns(4,5)P2 measurement, myelin was purified from n = 6 male mice per genotype at P75 with phosphatase inhibitor (Roche PhosSTOP; 1 tablet per 10 ml) added to the Tris-buffered saline and the sucrose solutions.
Differential quantitative label-free proteome analysis of myelin purified from the brains of male Anln cKO mice and control littermates at P75 was performed using a label-free quantification workflow essentially as described (Ambrozkiewicz et al., 2018; Patzig et al., 2016a). Briefly, protein fractions corresponding to 10 μg myelin protein were lysed and reduced in lysis buffer (7 M urea, 2 M thiourea, 10 mM DTT, 0.1 M Tris pH 8.5) containing 1% ASB-14 while shaking for 30 min at 37°C. Subsequently, samples were diluted with 10 volumes lysis buffer containing 2% CHAPS to reduce the ASB-14 concentration and processed according to an automated filter-aided sample preparation (FASP) protocol for in-solution digestion with trypsin. Aliquots of the recovered tryptic peptides were spiked with 10 fmol/μl Hi3 EColi standard (Waters Corporation) for protein quantification according to the TOP3 approach (Silva et al., 2006). This standard contains a set of quantified synthetic peptides representing the top six ionizing tryptic peptides derived from E. coli. Chaperone protein ClpB. Peptide samples were directly subjected to analysis by liquid chromatography coupled to electrospray mass spectrometry (LC-MS) on a Synapt G2-S quadrupole time-of-flight mass spectrometer equipped with ion mobility option (Waters Corporation). Analyses were performed in the ion mobility-enhanced data-independent acquisition mode with drift time-specific collision energies as described (Distler et al., 2014; Distler et al., 2016). Specifically, a novel data acquisition strategy with dynamic range enhancement (DRE) was used, in which a deflection lens cycles between full and reduced ion transmission during one scan. This method provides an optimal trade-off between identification rate (i.e. proteome depth) and dynamic range for correct quantification of high-abundant myelin proteins. Continuum LC-MS data were processed using Waters ProteinLynx Global Server (PLGS) version 3.0.2 and database searches were performed against the UniProtKB/Swiss-Prot mouse proteome (release 2016–07, 16806 entries) to which the sequence information for E. coli. Chaperone protein ClpB, porcine trypsin, and the reversed sequence of each entry was added. The false discovery rate (FDR) for protein identification was set to 1% threshold. As to the experimental design, myelin protein fractions from the CNS of three mice per condition (Anln cKO, Ctrl) were processed with replicate digestion, resulting in two technical replicates per biological replicate and thus in a total of 12 LC-MS runs to be compared in the freely available software ISOQuant (www.isoquant.net). This post-identification analysis included retention time alignment, exact mass and retention time (EMRT) and ion mobility clustering, data normalization, isoform/homology filtering, and calculation of absolute in-sample amounts for each detected protein as described (Ambrozkiewicz et al., 2018; Kuharev et al., 2015). FDR for both peptides and proteins was set to 1% threshold and only proteins reported by at least two peptides were quantified using the TOP3 method. The parts per million (ppm) abundance values (i.e. the relative amount (w/w) of each protein in respect to the sum over all detected proteins) were log2-transformed and significant changes in protein abundance were detected by moderated t-statistics with an empirical Bayes approach and false discovery (FDR)-based correction for multiple comparisons performed in RStudio (Ambrozkiewicz et al., 2018; Kammers et al., 2015). The genotype-dependent relative abundance of a protein in myelin was compared with high stringency and accepted as altered if both statistically significant (q-value <0.01) and exceeding a regulation factor threshold of 2-fold.
Purified myelin was thawed on ice in 1 ml of an acidic extraction solvent (Cho and Boss, 1995) containing 36% (v/v) CH3OH, 36% (v/v) CHCl3, 18% (v/v) 2.4 M HCl, and 9% (v/v) 0.4 M EDTA in a glass reaction vial (73750–13100, Kimble-Chase, Meiningen, Germany). The material was ground to homogeneity using a rotating Douncer (IKA, Staufen, Germany) on ice. Samples were mixed and incubated for 2 hr at 4°C while shaking on a Cat-Ing shaker (Ballrechten, Germany, city). Phases were separated by centrifugation for 2 min at 600 g, and the organic phase was collected into a fresh glass tube. Samples were re-extracted twice with 500 µl of CHCl3. The combined organic phases were washed twice using 1.5 ml of 0.5 M HCl in 50% (v/v) CH3OH. The first aqueous phase was discarded; after the second washing step the organic phase was collected into a fresh glass tube. The lipid extracts were analyzed in a double-blind experiment for phosphatidylinositol (4,5)-bisphosphate (PtdIns(4,5)P2) using combined thin layer chromatography (TLC) and gas chromatography (GC) essentially as previously described (Goebbels et al., 2010; König et al., 2008). Briefly, myelin samples were subjected to TLC on silica S60 plates (Merck, Darmstadt, Germany) using a developing solvent of CHCl3:CH3OH:NH4OH:H2O (57:50:4:11 v/v/v/v) (Perera et al., 2005). Lipids were identified by co-migration with authentic standards (5 μg; Avanti Polar Lipids, Alabaster, AL, USA), re-isolated and quantified according to their fatty acid content, as determined by GC. For GC analysis, re-isolated lipids were dissolved in MeOH/toluol (2:1 v/v), 5 μg of tripentadecanoin was added as an internal standard for quantification and the mixture transmethylated with 0.5 M sodium methoxide (Sigma-Aldrich, Munich, Germany) according to (Hornung et al., 2002). After 30 min incubation at room temperature, derivatization was terminated by adding 0.5 ml 5 M NaCl (Sigma-Aldrich, Munich, Germany) and 50 μl of 32% HCl (Carl Roth, Karlsruhe, Germany). Fatty acid methyl esters were extracted with 2 ml hexane (Carl Roth, Karlsruhe, Germany), the hexane phase was washed twice with 2 ml ddH2O and dried under streaming nitrogen. The lipid coat was resuspended in 10 μl acetonitrile (Carl-Roth, Karlsruhe, Germany) and transferred to GC vials (order number 702287.1, VWR, Darmstadt, Germany). GC analysis was performed using a GC2010plus gas chromatograph with flame ionization detection (Shimadzu, Jena, Germany) fitted with a DB-23 capillary column (30 m x 250 μm, 0.25 μm coating thickness; J and W, Agilent, Waldbronn, Germany). Helium flowed as a carrier gas at 1 ml min−1. Samples were injected at 220°C. The temperature gradient was 150°C for 1 min, 150–200°C at 8 °C min−1, 200–250°C at 25 °C min−1 and 250°C for 6 min as previously described (König et al., 2008). Fatty acids were identified according to authentic standards and quantified relative to the internal standard using GC-solution software (Shimadzu, Jena, Germany).
Immunoblotting was performed as described (Patzig et al., 2016a; Schardt et al., 2009). Antibodies were specific for ANLN (Acris AP16165PU-N; 1:1000), SEPT2 (ProteinTech Group 11397–1-AP; 1:500), SEPT4 (IBL JP18987; 1:500), SEPT7 (IBL JP18991; 1:5000), SEPT8 (ProteinTech Group 11769–1-AP; 1:2500), MAG ((Erb et al., 2003); kindly provided by N. Schaeren-Wiemers, Basel; 1:500), PLP/DM20 (A431 ((Jung et al., 1996); 1:5000), cyclic nucleotide phosphodiesterase (CNP) (Sigma C5922; 1:1000), MOG (clone 8–18 C5 (Linnington et al., 1984); 1:5000; kindly provided by C. Linington, Glasgow), SIRT2 (abcam 67299; 1:500), CD9 (abcam ab92726; 1:2000), CA2 ((Ghandour et al., 1980a; Ghandour et al., 1980b); 1:1000; kindly provided by S. Ghandour, Strasbourg), ATP1A1 (abcam ab7671; 1:2500), ATP1A3 (abcam ab2826; 1:1000), beta3-Tubulin (TUBB3/Tuj1) (Covance MMS-435P; 1:1000). Secondary HRP-coupled antibodies were anti-mouse (dianova 715-035-020; 1:1000), -rabbit (dianova 711-035-152; 1:1000), or -goat (dianova 705-035-003; 1:500). Immunoblots were scanned using the Intas ChemoCam system.
mRNA abundance was determined by qRT-PCR as described (Lüders et al., 2017; Patzig et al., 2016a) using corpus callosi dissected from 4 months old male and female mice of the indicated genotypes. mRNA abundance was analyzed in relation to the mean of the standard Ppia, which did not differ between genotypes. Statistical analysis was performed in GraphPad Prism 6.0. Primers were specific for Anln (forward 5‘-ACAATCCAAG GACAAACTTGC, reverse 5‘- GCGTTCCAGG AAAGGCTTA, Sept2 (forward 5‘-TCCTGACTGA TCTCTACCCAGAA, reverse 5‘-AAGCCTCTAT CTGGACAGTTCTTT), Sept4 (forward 5‘-ACTGACTTGT ACCGGGATCG, reverse 5‘-TCTCCACGGT TTGCATGAT), Sept7 (forward 5‘-AGAGGAAGGC AGTATCCTTGG, reverse 5‘-TTTCAAGTCC TGCATATGTGTTC), Sept8 (forward 5‘-CTGAGCCCCG GAGCCTGT, reverse 5‘-CAATCCCAGT TTCGCCCACA), Cdc42 (forward 5‘-GCTGTCAAGT ATGTGGAGTGCT, reverse 5'-GGCTCTTCTT CGGTTCTGG), Rhob (forward 5‘-CAGACTGCCT GACATCTGCT, reverse 5'-GTGCCCACGCT AATTCTCAG) and the standard Ppia (forward 5‘-CACAAACGGT TCCCAGTTTT, reverse 5‘-TTCCCAAAGA CCACATGCTT).
Structural insights shed light onto septin assemblies and functionCurrent Opinion in Cell Biology 20:12–18.https://doi.org/10.1016/j.ceb.2007.12.001
Phosphatidylinositol-4,5-bisphosphate promotes budding yeast septin filament assembly and organizationJournal of Molecular Biology 404:711–731.https://doi.org/10.1016/j.jmb.2010.10.002
NCMIR Methods for 3D EM: A New Protocol for Preparation of Biological Specimens for Serial Blockface Scanning Electron MicroscopyScience open.
Septin functions in organ system physiology and pathologyBiological Chemistry 395:123–141.https://doi.org/10.1515/hsz-2013-0233
Opposing actions of septins and sticky on anillin promote the transition from contractile to midbody ringThe Journal of Cell Biology 203:487–504.https://doi.org/10.1083/jcb.201305053
Differential expression of L- and S-MAG upon cAMP stimulated differentiation in oligodendroglial cellsJournal of Neuroscience Research 71:326–337.https://doi.org/10.1002/jnr.10497
Silver staining of myelin by means of physical developmentNeurological Research 1:203–209.https://doi.org/10.1080/01616412.1979.11739553
Anillin: a pivotal organizer of the cytokinetic machineryBiochemical Society Transactions 36:439–441.https://doi.org/10.1042/BST0360439
Rho-dependent control of anillin behavior during cytokinesisThe Journal of Cell Biology 180:285–294.https://doi.org/10.1083/jcb.200709005
Formation of conjugated Delta11Delta13-double bonds by Delta12-linoleic acid (1,4)-acyl-lipid-desaturase in pomegranate seedsEuropean Journal of Biochemistry 269:4852–4859.https://doi.org/10.1046/j.1432-1033.2002.03184.x
Myelin proteomics: molecular anatomy of an insulating sheathMolecular Neurobiology 40:55–72.https://doi.org/10.1007/s12035-009-8071-2
Detecting significant changes in protein abundanceEuPA Open Proteomics 7:11–19.https://doi.org/10.1016/j.euprot.2015.02.002
Coupling of septins to the axial landmark by Bud4 in budding yeastJournal of Cell Science 126:1218–1226.https://doi.org/10.1242/jcs.118521
Self- and actin-templated assembly of mammalian septinsDevelopmental Cell 3:791–802.https://doi.org/10.1016/S1534-5807(02)00366-0
Computer visualization of three-dimensional image data using IMODJournal of Structural Biology 116:71–76.https://doi.org/10.1006/jsbi.1996.0013
A novel myelin-associated glycoprotein defined by a mouse monoclonal antibodyJournal of Neuroimmunology 6:387–396.https://doi.org/10.1016/0165-5728(84)90064-X
Maintenance of high proteolipid protein level in adult central nervous system myelin is required to preserve the integrity of myelin and axonsGlia, 10.1002/glia.23549, 30637801.
Electron microscopy of the mouse central nervous systemMethods in Cell Biology 96:475–512.https://doi.org/10.1016/S0091-679X(10)96020-2
Making myelin basic protein -from mRNA transport to localized translationFrontiers in Cellular Neuroscience 7:169.https://doi.org/10.3389/fncel.2013.00169
Myelination of the nervous system: mechanisms and functionsAnnual Review of Cell and Developmental Biology 30:503–533.https://doi.org/10.1146/annurev-cellbio-100913-013101
Phosphatidylinositol (4,5) bisphosphate regulates membrane targeting of myelin basic proteinJournal of Neuroscience 29:4794–4807.https://doi.org/10.1523/JNEUROSCI.3955-08
The effects of normal aging on myelin and nerve fibers: a reviewJournal of Neurocytology 31:581–593.https://doi.org/10.1023/A:1025731309829
The SNARE protein SNAP-29 interacts with the GTPase Rab3A: implications for membrane trafficking in myelinating gliaJournal of Neuroscience Research 87:3465–3479.https://doi.org/10.1002/jnr.22005
Fiji: an open-source platform for biological-image analysisNature Methods 9:676–682.https://doi.org/10.1038/nmeth.2019
Simultaneous qualitative and quantitative analysis of the Escherichia coli proteome: a sweet taleMolecular & Cellular Proteomics : MCP 5:589–607.https://doi.org/10.1074/mcp.M500321-MCP200
Assembly of myelin by association of proteolipid protein with cholesterol- and galactosylceramide-rich membrane domainsThe Journal of Cell Biology 151:143–154.https://doi.org/10.1083/jcb.151.1.143
Changes in neurologia and myelination in the white matter of aging miceJournal of Gerontology 31:513–522.https://doi.org/10.1093/geronj/31.5.513
An anillin homologue, Mid2p, acts during fission yeast cytokinesis to organize the septin ring and promote cell separationThe Journal of Cell Biology 160:1093–1103.https://doi.org/10.1083/jcb.200211126
The transcriptome of mouse central nervous system myelinScientific Reports 6:25828.https://doi.org/10.1038/srep25828
CNS myelin wrapping is driven by actin disassemblyDevelopmental Cell 34:152–167.https://doi.org/10.1016/j.devcel.2015.06.011
Beth StevensReviewing Editor; Boston Children's Hospital, United States
Gary L WestbrookSenior Editor; Vollum Institute, United States
David A LyonsReviewer; University of Edinburgh, United Kingdom
Wendy B MacklinReviewer; University of Colorado Anschutz Medical Campus, United States
In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.
[Editors’ note: minor issues and corrections have not been included, so there is not an accompanying Author response.]
Congratulations, we are pleased to inform you that your article, "Anillin facilitates septin assembly to prevent pathological outfoldings of central nervous system myelin", has been accepted for publication in eLife.
This study represents an important advance on their previous study from these authors, identifying septins as crucial to the maintenance of mature myelin morphology in the CNS, and seems entirely appropriate for publication in eLife as a 'Research Advance' paper. Here, the authors assess the role of the cytoskeletal adaptor anillin in CNS myelination: they convincingly show that anillin is expressed and localized similarly to septin in myelinating glia, and that its disruption leads to very specific effects on myelin maintenance. The authors further demonstrate that anillin appears essential to the localization of septin proteins to myelin itself, which is a key observation central to the premise that anillin is a key regulator of septin assembly for myelin maintenance. Specific reviewer comments are included below.
"Anillin facilitates septin assembly to prevent pathological outfoldings of central nervous system myelin", by Erwig et al., represents an important advance on their previous study identifying septins as crucial to the maintenance of mature myelin morphology in the central nervous system, and seems entirely appropriate for publication in eLife. In their new study, Erwig et al. assess the role of the cytoskeletal adaptor anillin in CNS myelination: they find that it is expressed and localised similarly to septin in myelinating glia, and that its disruption leads to very specific effects on myelin maintenance, i.e. the formation of myelin outfoldings. The authors further demonstrate that anillin appears essential to the localisation of septin proteins to myelin itself, which is a key observation central to the premise that anillin is a key regulator of septin assembly for myelin maintenance.
The experiments incorporate the generation and analyses of conditional knockout mice, biochemistry, mass spec analyses of myelin, robust assessments of protein localisation over time, detailed electron microscopic assessments of myelination in mutants, electrophysiological assessments of function, and 3D electron microscopy-based reconstructions of outfolding pathologies. The core analyses are carried out to the absolute highest standard, the presentation is clear, and the conclusions drawn entirely in line with the data, and further supported by additional controls, e.g. that dysregulation of nodes of Ranvier may contribute to conduction impairments.
I don't actually have any major criticisms at all. One can always ask for more analyses and deeper mechanistic probing, but to me this manuscript already provides an important advance and could be published as it is.
This group has previously suggested in a beautiful paper published in eLife that anillin and septins form filaments along the myelin unit, which serves to maintain the normal compact organization of the myelin internode. They also convincingly showed that the absence of one of the septins results in aberrant sheath extension and the formation of myelin outfolding. In the current work, they examine the role of the adapter protein anillin which associates with septins and show that genetic deletion of the corresponding gene results in a similar neuropathology to mice lacking Sept8 (i.e., about 3% of the fibers exhibit myelin outfolding). They also found that the absence of anillin causes reduced expression of several cytoskeletal proteins including septins, as well as reduced level of phosphoinositides. They conclude that anillin is required for a septin-based scaffold of the myelin sheath.
This study by Erwig et al. focuses on the impact of septin assembly in central nervous system myelin. In an earlier eLife paper (Patzig et al., 2016), this group demonstrated that the loss of septins in myelin results in outfoldings of myelin, and that a septin-interacting protein, anillin, was also downregulated. This manuscript takes that observation further, demonstrating that conditional deletion of anillin results in essentially the same phenotype as the septin conditional deletion animals.
The data in this manuscript are well developed and convincing. The writing is straightforward. However, several points raise concerns as to whether this study moves the field forward significantly. The interaction of septins and anillin has been established for at least 15 years, and in many papers the concept that anillin "instructs" septin filament assembly is presented. Thus, the observation that loss of anillin acts comparably to that of septins is not unexpected. The involvement of anillin in septin filament assembly in myelin was clearly established in the earlier Patzig et al. paper, where many virtually identical analyses were conducted, demonstrating, for example, that the loss of septins induced loss of anillin protein but not RNA, and here, the loss of anillin induces loss of septin proteins but not RNA. This study clearly presents new information and as noted above the studies were executed well. Nevertheless, the new data primarily confirm published work showing that anillin is involved in septin organization in a number of cells, and the earlier Patzig study indicating that septin assembly including the involvement of anillin is crucial for myelin structure, i.e. it prevents the inappropriate outfolding of compacted myelin.
One element of this and the earlier Patzig study that is unexpected is that conduction velocity is altered at P75 in both types of septin/anillin knockouts but there is no obvious axonal pathology. Nevertheless, in both sets of animals the myelin outfoldings dramatically increase as the animals age. One unaddressed question is whether there is axonal pathology or greater conduction velocity change in 6M or older animals when myelin outfoldings increase.
Overall, this is a solid study, extending the earlier work of this group focused on the role of the septin assembly in myelin structure. However, the myelin outfolding outcome in mice conditionally deleted for anillin is not unexpected, and no significantly greater insight is provided by this study, with respect to understanding how septin assemblies regulate and prevent such outfoldings.https://doi.org/10.7554/eLife.43888.018
- Hauke B Werner
- Hauke B Werner
- Klaus-Armin Nave
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
We thank A Fahrenholz, D Hesse, U Kutzke, C Nardis, T Ruhwedel and M Schindler for technical support, S Ghandour, C Linington and N Schaeren-Wiemers for antibodies, and S Tenzer for discussions. AMS was funded by the Cluster of Excellence and Deutsche Forschungsgemeinschaft (DFG) Research Center Nanoscale Microscopy and Molecular Physiology of the Brain (CNMPB). K-AN holds an ERC Advanced Grant (‘MyeliNano‘). This work is supported by the Deutsche Forschungsgemeinschaft (DFG) (Grants WE 2720/2–2 and WE 2720/4–1 to HBW).
Animal experimentation: All experiments were approved by the Niedersächsisches Landesamt für Verbraucherschutz und Lebensmittelsicherheit (license 33.19-42502-04-15/1833) in agreement with the German Animal Protection Law.
