Structure and mechanism of a Hypr GGDEF enzyme that activates cGAMP signaling to control extracellular metal respiration

  1. Zachary F Hallberg
  2. Chi Ho Chan
  3. Todd A Wright
  4. Philip J Kranzusch
  5. Kevin W Doxzen
  6. James J Park
  7. Daniel R Bond  Is a corresponding author
  8. Ming C Hammond  Is a corresponding author
  1. University of California, Berkeley, United States
  2. University of Minnesota, United States
  3. Harvard Medical School, United States
  4. Dana-Farber Cancer Institute, United States
  5. Parker Institute for Cancer Immunotherapy at Dana-Farber Cancer Institute, United States
  6. University of Utah, United States
Research Article
  • Cited 0
  • Views 693
  • Annotations
Cite this article as: eLife 2019;8:e43959 doi: 10.7554/eLife.43959

Abstract

A newfound signaling pathway employs a GGDEF enzyme with unique activity compared to the majority of homologs associated with bacterial cyclic di-GMP signaling. This system provides a rare opportunity to study how signaling proteins natively gain distinct function. Using genetic knockouts, riboswitch reporters, and RNA-Seq, we show that GacA, the Hypr GGDEF in Geobacter sulfurreducens, specifically regulates cyclic GMP-AMP (3′,3′-cGAMP) levels in vivo to stimulate gene expression associated with metal reduction separate from electricity production. To reconcile these in vivo findings with prior in vitro results that showed GacA was promiscuous, we developed a full kinetic model combining experimental data and mathematical modeling to reveal mechanisms that contribute to in vivo specificity. A 1.4 Å-resolution crystal structure of the Geobacter Hypr GGDEF domain was determined to understand the molecular basis for those mechanisms, including key cross-dimer interactions. Together these results demonstrate that specific signaling can result from a promiscuous enzyme.

https://doi.org/10.7554/eLife.43959.001

eLife digest

Microscopic organisms known as bacteria are found in virtually every environment on the planet. One reason bacteria are so successful is that they are able to form communities known as biofilms on surfaces in animals and other living things, as well as on rocks and other features in the environment. These biofilms protect the bacteria from fluctuations in the environment and toxins.

For over 30 years, a class of enzymes called the GGDEF enzymes were thought to make a single signal known as cyclic di-GMP that regulates the formation of biofilms. However, in 2016, a team of researchers reported that some GGDEF enzymes, including one from a bacterium called Geobacter sulfurreducens, were also able to produce two other signals known as cGAMP and cyclic di-AMP. The experiments involved making the enzymes and testing their activity outside the cell. Therefore, it remained unclear whether these enzymes (dubbed ‘Hypr’ GGDEF enzymes) actually produce all three signals inside cells and play a role in forming bacterial biofilms.

G. sulfurreducens is unusual because it is able to grow on metallic minerals or electrodes to generate electrical energy. As part of a community of microorganisms, they help break down pollutants in contaminated areas and can generate electricity from wastewater. Now, Hallberg, Chan et al. – including many of the researchers involved in the 2016 work – combined several experimental and mathematical approaches to study the Hypr GGDEF enzymes in G. sulfurreducens.

The experiments show that the Hypr GGDEF enzymes produced cGAMP, but not the other two signals, inside the cells. This cGAMP regulated the ability of G. sulfurreducens to grow by extracting electrical energy from the metallic minerals, which appears to be a new, biofilm-less lifestyle. Further experiments revealed how Hypr GGDEF enzymes have evolved to preferentially make cGAMP over the other two signals.

Together, these findings demonstrate that enzymes with the ability to make several different signals, are capable of generating specific responses in bacterial cells. By understanding how bacteria make decisions, it may be possible to change their behaviors. The findings of Hallberg, Chan et al. help to identify the signaling pathways involved in this decision-making and provide new tools to study them in the future.

https://doi.org/10.7554/eLife.43959.002

Introduction

A cell’s sensory system is composed of complex signaling networks that permit timely responses to changes in environmental conditions, cues from neighboring cells, and feedback from contacting surfaces (Camilli and Bassler, 2006; Capra and Laub, 2012). How new signaling pathways emerge to control distinct functions remains an important underlying question (Rowland and Deeds, 2014). While highly conserved signaling enzymes are generally easy to identify at the sequence level, it is challenging to predict their specific activity or role (Danchin et al., 2018; Seshasayee et al., 2010). Another complication is that signaling enzymes often exhibit promiscuous or off-target activity when studied in vitro (Rowland and Deeds, 2014). In vivo confirmation of both their product and physiological function is essential.

In the domain Bacteria, the second messenger signaling pathway involving cyclic di-GMP (cdiG) is used almost universally to shift between a free-living and surface-attached biofilm state, which requires coordinated changes in physiology and gene regulation (Jenal et al., 2017; Römling et al., 2013). Multiple processes such as flagellar motility, exopolysaccharide production, quorum sensing, and pilus retraction are controlled by cdiG (Hengge, 2009). In pathogenic bacteria, cdiG regulates additional virulence factor secretion, host suppression, and defense mechanisms (Chen et al., 2014; Valentini and Filloux, 2016). These processes are each driven by specific sets of signaling enzymes: diguanylate cyclases harboring GGDEF domains and EAL/HD-GYP domain phosphodiesterases, which respectively synthesize or degrade cdiG in response to sensory modules fused directly to the enzyme or acting upstream.

A grand challenge in bacterial signaling is to understand how cdiG networks utilize only one intracellular output to control diverse adaptations. While many explanations to the ‘one signal, many phenotypes’ problem have been explored (Hobley et al., 2012; Sarenko et al., 2017; Hug et al., 2017), we recently discovered an unexpected alternative that involves a new activity for GGDEF enzymes. A sub-class of GGDEFs demonstrates promiscuous activity and is capable of producing all three known bacterial cyclic dinucleotides, cdiG, cyclic di-AMP (cdiA), and cyclic GMP-AMP (3′,3′-cGAMP, also called cyclic AMP-GMP) (Hallberg et al., 2016). The hybrid promiscuous (Hypr) GGDEF enzyme GSU1658 (renamed GacA for GMP-AMP cyclase) was hypothesized to regulate a new signaling pathway through activation of cGAMP-specific GEMM-Ib riboswitches in Geobacter sulfurreducens, an environmental bacterium known for its unique ability to perform extracellular electron transfer and accelerate bioremediation of subsurface contaminants (Kellenberger et al., 2015; Nelson et al., 2015). However, the physiological function of cGAMP signaling was not established, and it was unclear whether GacA regulated a single (only cGAMP) or multiple cyclic dinucleotide signaling pathways in vivo. Furthermore, there were general questions about the molecular mechanism of homodimeric GGDEF enzymes, the most abundant class of cyclic dinucleotide signaling enzymes in bacteria (Seshasayee et al., 2010), such as the function of highly conserved residues (Schirmer, 2016) and the identity of the general base, as well as specific questions for how Hypr variants could perform preferential synthesis of cGAMP, a heterodimeric product.

In this work, we show for the first time that GacA specifically affects cGAMP levels and cGAMP riboswitch transcripts in G. sulfurreducens and is important during bacterial growth on particulate acceptors, such as mineral Fe(III) oxides. In contrast, GacA is not essential for biofilm growth on electrodes, a phenotype associated with cdiG signaling. These results reveal that the general physiological function for cGAMP is to establish a transiently attached lifestyle that is distinct from the permanently attached biofilm lifestyle signaled by cdiG.

Furthermore, we sought to understand the molecular mechanism for GacA by obtaining a 1.4 Å-resolution structure of the Geobacter Hypr GGDEF domain bound to GTP. Combining this structure with kinetic analyses and mathematical modeling afforded insights into how GGDEF enzymatic activity is regulated in general as well as uncovered natural variations that give rise to cGAMP synthesis. Together, these genetic and biochemical analyses provide evidence that this cGAMP signaling pathway emerged from components of cdiG signaling to regulate a distinct surface-associated lifestyle, and gives a full picture of cGAMP signaling from the molecular to the cellular to the environmental level.

Results and discussion

GacA is necessary for Fe(III) particle-associated growth, but not electricity production at electrode surfaces

Geobacter isolates produce energy via contact-dependent electron transfer to extracellular metals, which exist as insoluble precipitates at neutral pH (Navrotsky et al., 2008). Stimulation of this biological metal reduction activity is useful for bioremediation of metal-rich sites and anaerobic oxidation of petroleum-based groundwater pollutants (Chang et al., 2005; Lovley et al., 2011; Rooney-Varga et al., 1999). Geobacter also can grow via electron transfer to electrode surfaces, where their biofilms produce electricity in bioelectrochemical devices that use wastewater or contaminated groundwater (Bond and Lovley, 2003; Logan and Rabaey, 2012; Lovley, 2012). The ability to transfer electrons to extracellular substrates requires multiple extracellular structures, including pili, polysaccharides, and cytochromes localized to the outer cell surface.

cGAMP-responsive riboswitches (GEMM-Ib family) are conserved upstream of many cytochrome, pilus assembly, and polysaccharide biosynthesis genes in most Geobacter species (Kellenberger et al., 2015; Nelson et al., 2015), suggesting a possible role for this cyclic dinucleotide in attachment to extracellular surfaces that serve as electron acceptors. The discovery of a GMP-AMP cyclase in Geobacter (GacA) (Hallberg et al., 2016) presented the hypothesis that GacA synthesizes cGAMP in vivo to alter gene expression via cGAMP-specific riboswitches. However, no Hypr GGDEF enzyme including GacA has been linked yet to intracellular cGAMP levels or to phenotypic changes in any organism.

To assess the physiological role of cGAMP signaling in G. sulfurreducens, we constructed a scarless gacA deletion strain and tested its ability to respire soluble and particulate extracellular electron acceptors (See Key Resources Table). The ΔgacA strain was defective in reducing Fe(III) oxide particles, including both akaganeite and amorphous insoluble Fe(III)-(oxyhydr)oxide, but grew normally with soluble compounds such as fumarate or Fe(III)-citrate (Figure 1A and B). Mutants lacking gacA always demonstrated a ~5 d lag during reduction of Fe(III) oxides, but if left exposed for over 14 d, the ∆gacA strain eventually produced Fe(II) at levels similar to wild type. Re-expressing gacA as a single copy on the chromosome restored Fe(III) reduction, and caused it to initiate sooner than wild type. In contrast, after a ~1 day lag, the rate and extent of growth as a biofilm attached to electrodes poised at −0.1 V vs SHE (a potential chosen to mimic Fe(III) oxides) was unaffected by deletion of gacA (Figure 1C).

GacA synthesizes cyclic GMP-AMP and controls Fe(III) particle respiration in vivo, whereas EsnD synthesizes cyclic di-GMP and controls electrode respiration.

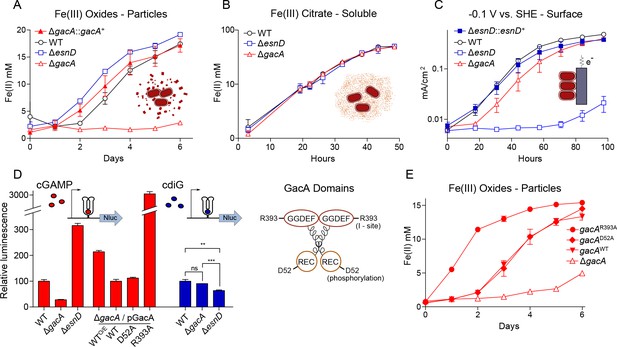

(A) G. sulfurreducens ΔgacA deletion strain is defective in the reduction of insoluble Fe(III) oxide particles (open triangles). Re-expressing gacA in the Tn7 site on the chromosome (filled triangles) restores Fe(III) reduction. An ΔesnD deletion strain (squares) exhibits no lag in Fe(III) oxide reduction compared to 2 d after inoculation for WT (circles). (B) Soluble Fe(III) citrate reduction is unaffected in either ΔgacA (triangles) and ΔesnD (squares) strains relative to WT (circles). (C) EsnD is required for robust electrode reduction (open squares) and re-expressing esnD in the Tn7 site on the chromosome (filled squares) restores electrode respiration to WT (circles) levels. GacA is not required for electrode respiration (triangles). (D) Strains containing riboswitches driving Nanoluc luciferase, reporting cellular levels of cGAMP (red bars) and cdiG (blue bars). The ΔgacA strains express GacA variants from the Tn7 chromosomal site (also see cartoon). Deleting gacA reduces cGAMP-dependent reporter levels by ~80% but has no effect on cdiG reporter levels. Deleting esnD reduces cdiG levels by ~20% and increases cGAMP levels to 3x WT. The Rec domain variant D52A produces cGAMP at levels comparable to WT, while the I-site variant R393A increases cGAMP levels to 30x WT. (E) Reduction of Fe(III) oxide particles in the ΔgacA deletion strain is rescued by re-expressing WT GacA and D52A variants, and exhibits significantly increased rate for the R393A variant that overproduces cGAMP. Representative biological replicates are shown for Fe(III) oxide reduction (n = 3), Fe(III) citrate reduction (n = 3), and electrode growth (n = 4). Nanoluc assays were performed in biological replicates (n = 3) in panel D. P values in panel D: ns > 0.05; **=0.001–0.01; ***<0.001. All error bars represent standard deviations.

https://doi.org/10.7554/eLife.43959.003

The ∆gacA defect with Fe(III) oxides was the opposite of mutants in esn genes encoding chemosensory, histidine kinase, and diguanylate cyclase response regulator proteins. Mutants in esn genes reduce Fe(III) oxides similar to wild type, but show poor biofilm growth on electrodes (Chan et al., 2017). One of these esn genes, esnD (GSU3376), encodes a GGDEF diguanylate cyclase that produces only cdiG based on biosensor analysis (Hallberg et al., 2016). We compared growth of a mutant lacking cdiG-producing EsnD under the same conditions used to study the mutant lacking cGAMP-producing GacA. The ∆esnD mutant reduced Fe(III) oxides more rapidly than wild type, but showed a > 3 d lag in colonizing electrode surfaces and never reached current levels observed in wild type (Figure 1A and C). Re-expressing esnD as a single copy integrated into the chromosome restored biofilm growth on −0.1 V vs. SHE electrodes (Figure 1C). These data support that cdiG contributes to biofilm growth on electrodes, while cGAMP is involved in reduction of Fe(III) oxide particles. In addition, the enhanced growth of ∆esnD mutants with Fe(III) oxides suggests an antagonistic effect of cyclic di-GMP on Fe(III) oxide reduction.

GacA is essential for production of intracellular cyclic GMP-AMP (cGAMP)

To test if deletion of gacA altered cGAMP levels within the cell, we developed a new luciferase-based reporter by cloning the cGAMP-specific pgcA riboswitch upstream of a nano-luciferase (NLuc) gene, then integrating this reporter as a single copy into the Tn7 insertion site of G. sulfurreducens. For these experiments, all constructs were grown under the same conditions to stationary phase under electron acceptor limitation. Luminescence in the cGAMP reporter strain declined over 80% when gacA was deleted, and recovered to wild type luminescence levels when gacA was re-expressed from its native promoter (Figures 1D, 2A and B). Over-expression of gacA from a constitutive promoter increased luminescence to 200% of wild type. This result links gacA to intracellular levels of cGAMP in Geobacter, and correlates with parallel LC/MS analysis of cell extracts, which also showed that cGAMP levels fell below the detection limit in the ∆gacA strain (Figure 2C).

Nanoluciferase fusion to WT cGAMP riboswitch and engineered cdiG riboswitch for in vivo cyclic dinucleotide analysis; riboswitch GSUR3008 variants that control pgcA (GSU1761) expression in Geobacter sulfurreducens.

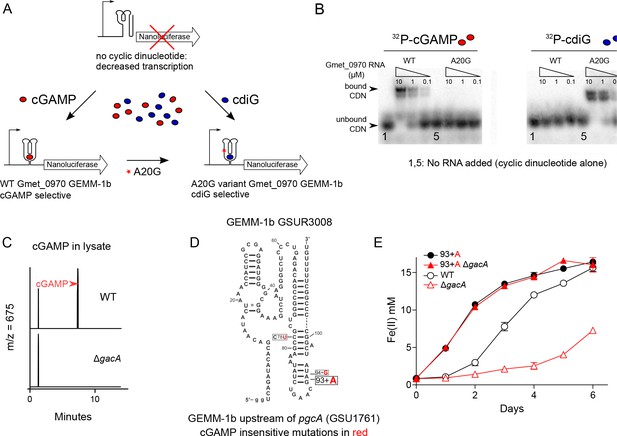

(A) Expression of nanoluciferase is induced by binding of cyclic dinucleotides to GEMM-1b riboswitch. An A to G variant in nucleotide 20 in the Gmet_0970 GEMM-1b riboswitch changes cGAMP selectivity to cdiG. (B) The WT and A20G variant of Gmet_0970 GEMM-1b riboswitch are selective for cGAMP and cdiG over a 100-fold range of riboswitch RNA concentration, respectively. (C) LC-MS chromatogram traces for the ion extraction of cGAMP (m/z = 675) from cell lysates for G. sulfurreducens PCA WT or ΔgacA strains. (D) Single nucleotide polymorphisms (SNP) highlighted in red in GSUR3008 that cause cGAMP insensitive variants to demonstrate constitutive expression of pgcA (GSU1761). The C78U and 94 + G variants were isolated in a previous study selecting for increased rate of Fe(III) oxide reduction in G. sulfurreducens (Tremblay et al., 2011). The cGAMP insensitive C78U variant was further confirmed by in-line probing (Kellenberger et al., 2015). The cGAMP insensitive 93 + A variant is described in this study. (E) The GSUR3008 93 + A mutation in G. sulfurreducens eliminates the requirement for GacA or cGAMP for Fe(III) oxide reduction due to the over-expression of pgcA that was confirmed by RNAseq. No other gene expression changes were detected. Raw reads are deposited in the NCBI SRA database PRJNA290373.

https://doi.org/10.7554/eLife.43959.005

The new cGAMP reporter assay also allowed us to interrogate roles of conserved residues in GacA that are critical for activity in diguanylate cyclases. GacA has an N-terminal CheY-like receiver domain and a C-terminal GGDEF domain. In WspR, a Pseudomonas aeruginosa diguanylate cyclase with similar domain architecture, phosphorylation of a conserved aspartate in the receiver domain promotes dimerization, leading to an active enzyme (De et al., 2008; Huangyutitham et al., 2013). In a G. sulfurreducensgacA background, expression of a GacAD52A variant with the phosphorylation site replaced by alanine produced similar levels of cGAMP as GacAWT. Expression of gacAD52A also restored Fe(III) oxide reduction to a ∆gacA mutant (Figure 1D and E). Thus, it appears that the conserved aspartate is not essential for GacA activation. Aspartate phosphorylation instead may deactivate GacA or the receiver domain may be activated through non-canonical mechanisms (Lin et al., 2009; Ocasio et al., 2015; Trajtenberg et al., 2014; Wang et al., 2009).

A second mechanism regulating canonical GGDEF domains involves a conserved allosteric inhibitory site (I-site) that binds cyclic dinucleotides. We previously showed that WT GacA co-purifies predominantly with cdiG bound and has low activity when expressed in E. coli, whereas the R393A I-site mutant of GacA does not purify with bound dinucleotides and exhibits increased in vitro activity (Hallberg et al., 2016). In extracts of cells overexpressing GacA, the major CDN present is cGAMP (Hallberg et al., 2016), yet GacA still purifies with bound cdiG, which supports the hypothesis that the I-site is specific for cdiG. When we expressed the GacAR393A variant insensitive to allosteric inhibition in a ∆gacA background, cGAMP-dependent luciferase reporter activity increased 30-fold compared to wild type. Expressing this highly active I-site mutant in the ∆gacA strain also led to the highest observed rates of Fe(III) oxide reduction, nearly doubling the level of Fe(II) produced at all time points (Figure 1D and E). These data suggest that occupancy of the I-site, rather than phosphorylation of the receiver domain, primarily regulates GacA activity. The increased Fe(III) reduction activity of the cGAMP-overproducing strain further supports a role for cGAMP in enhancing metal oxide reduction.

The ΔesnD strain also reduced amorphous insoluble Fe(III)-oxides more rapidly than the wild type strain (Figure 1A), leading to a hypothesis that deletion of esnD increased cGAMP levels in G. sulfurreducens. Consistent with this hypothesis, activity of the cGAMP reporter was 3-fold higher when esnD was deleted (Figure 1D). Using a different reporter construct comprised of an engineered cdiG-responsive riboswitch (Figures 1D, 2A and B), we confirmed that deletion of esnD caused a detectable decrease in cdiG, while cdiG levels did not change significantly in ∆gacA. These results support cGAMP synthesis by GacA being inhibited by intracellular cdiG levels. Mutation of the I-site appears to relieve this allosteric inhibition, as does lowering of cdiG levels in the ∆esnD strain, triggering corresponding increases in Fe(III) oxide reduction rates.

The global transcriptional response to altered cGAMP levels is focused on riboswitch regulons

Many GEMM-I riboswitches from Geobacter selectively bind cGAMP over other cyclic dinucleotides such as cdiG and are the founding members of the GEMM-Ib subclass. For example, in-line probing showed the riboswitch upstream of pgcA used for our reporter analysis was ~1200 fold more selective for cGAMP over cdiG (Kellenberger et al., 2015), and similar results were reported in (Nelson et al., 2015). The correlation we observed between increased Fe(III) oxide reduction and increased cGAMP levels, combined with the in vitro activity of cGAMP riboswitches, suggests that cGAMP could be a global effector of genes crucial to metal reduction.

There are 17 GEMM-I riboswitches in G. sulfurreducens, and in several cases, two riboswitches occur in tandem upstream of a gene or operon. When gacA was deleted, RNAseq analysis showed that transcription of all genes downstream of GEMM-Ib riboswitches declined (Figure 3A, Supplementary file 1). For example, deletion of gacA decreased expression of an operon containing outer membrane cytochromes OmcAHG (GSU2885-GSU2882, 16-fold decrease), an operon of uncharacterized lipoprotein transpeptidases (GSU0181-0183, 16-fold decrease), the extracellular cytochrome PgcA (10-fold decrease), a transcriptional regulator and genes within the pilMNOP operon (2–3 fold decrease), the extracellular multiheme cytochromes OmcST, (2–3 fold decrease), and multiple hypothetical genes (Figure 3A).

GEMM-1b riboswitch-controlled genes are downregulated in a ΔgacA deletion strain and upregulated in a ΔesnD deletion strain.

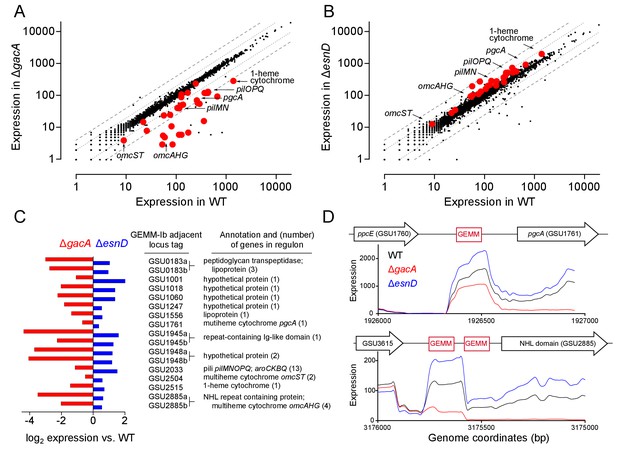

Full RNAseq expression data are in Supplementary file 1 (A) Comparison of all genes expressed in WT vs ΔgacA deletion strain. Each dot represents expression of a gene; red dots highlight GEMM-1b regulated genes. Dotted and dashed lines indicate 2- and 4-fold expression differences. Most GEMM-1b regulated genes have at least 2–4 fold decrease in expression compared to WT. (B) Comparison of all genes expressed in WT vs. a ΔesnD deletion strain, labeled as in part A). Most GEMM-1b regulated genes have at least a 2-fold increase in expression compared to WT. (C) GEMM-1b riboswitch transcripts are decreased in a ΔgacA deletion and increased in a ΔesnD deletion compared to WT. GEMM-1b sequences are listed by the first gene locus tag they regulate. Some genes have tandem GEMM-1b sequences upstream, these are labeled by their locus tags followed by ‘a’ and ‘b’. (D) RNAseq reads from WT, ΔgacA, and ΔesnD mapped to the upstream region of GSU1761 (top) and GSU2885 (bottom). GSU2885 is an example of a gene that is regulated by tandem riboswitches. Genes are not drawn to scale with the riboswitch sequences. RNAseq data are generated from biological replicates (n = 2).

https://doi.org/10.7554/eLife.43959.006

In contrast, cells lacking esnD showed a ~2 fold increase in expression of these same genes controlled by cGAMP-responsive riboswitches (Figure 3B). Every gene that showed a decrease in expression due to gacA deletion also showed an increase due to ∆esnD. The smallest effect was in the operon containing OmcST, which was previously reported to contain a riboswitch sensitive to both cGAMP and cdiG (Kellenberger et al., 2015). Interestingly, some hypothetical genes (GSU0919, GSU3250, and GSU3409), and the entire operon for the multiheme cytochrome OmcZ were downregulated in both ∆gacA and ∆esnD despite a lack of known riboswitch sequences, suggesting additional modes for cyclic dinucleotide regulation. As OmcZ is known to be essential for growth in electrode biofilms (Nevin et al., 2009), the unexpected decrease in OmcZ due to gacA deletion likely explains the lag in electrode growth seen in Figure 1C. This effect may be due to minor contribution by GacA to cdiG levels or from pleiotropic effects from cGAMP signaling or its many downstream effectors.

Closer inspection of intergenic regions confirmed lower riboswitch mRNA levels and increased termination near the cGAMP recognition site in ∆gacA mutants. A table showing the inverse relationship in riboswitch RNA levels between ΔgacA and ΔesnD strains is shown in Figure 3C and a map of two different untranslated regions is shown in Figure 3D. For example, in the tandem riboswitch upstream of the OmcAHG gene cluster, deletion of gacA eliminated detectable RNA by the second riboswitch sequence, while RNA levels in each riboswitch region increased ~2 fold in the ΔesnD strain.

Previously published experiments selecting for faster Fe(III) oxide reduction activity resulted in evolved G. sulfurreducens variants containing mutations in the pgcA GEMM-Ib riboswitch (GSUR3008) (Tremblay et al., 2011). Similarly, we identified a naturally evolved variant with a single A inserted after residue 93 of the pgcA riboswitch that had accelerated growth under laboratory conditions in which Fe(III) oxides were abundant. The A insertion is predicted to destabilize the riboswitch terminator, which in another terminator mutant we showed bypasses the need for cGAMP binding to turn on gene expression (Kellenberger et al., 2015). To test if faster Fe(III) reduction could be explained by cells becoming insensitive to cGAMP regulation, a scarless and markerless G. sulfurreducens strain was made to reconstruct this natural variation in a clean genetic background (Figure 2E). The Fe(III) oxide reduction rate was indeed increased in this 93+A strain. When gacA was deleted in this 93+A strain, pgcA expression and metal reduction rate remained high. Global transcriptional analysis showed that only expression of pgcA was increased, and was insensitive to cGAMP signaling, with no other cGAMP-dependent genes, genes for other electron transfer proteins, or genes for pili affected (data not shown).

These genetic and RNAseq experiments establish a unique phenotype controlled by 3’3’-cGAMP, and show that GacA is primarily responsible for formation of this second messenger. An opposing relationship for cGAMP and cdiG is established, with each cyclic dinucleotide enhancing extracellular electron transfer to a distinct type of surface. To our knowledge, this is the first time that these two contact-dependent electron transfer processes have been shown to be differentially regulated on a global scale. In this context, the signaling enzyme GacA presents an enigma: we previously discovered that this founding member of Hypr GGDEFs can produce mixtures of cdiG, cGAMP, and cdiA, depending on in vitro conditions (Hallberg et al., 2016). In the next sections, we employ biochemical analysis, mathematical modeling, and structural elucidation to determine how this homodimeric enzyme ‘breaks symmetry’ in several ways to produce the heterodimeric cGAMP signal in the cell. In addition, the role of several residues ultra-conserved across all GGDEF enzymes but with previously unassigned function is revealed.

GacA differs in mechanism from DncV and cGAS

To date, two other enzymes have been discovered that produce cGAMP or the related compound, mixed linkage cGAMP: DncV from Vibrio cholerae, and cGAS in metazoans (Davies et al., 2012; Sun et al., 2013; Wu et al., 2013). Both enzymes have one active site per monomer and operate via a two-step mechanism, wherein a linear dinucleotide intermediate is formed, rotated in the active site, then cyclized. Importantly, DncV and cGAS differ in the order in which the nucleotide linkages are formed (Figure 4A). DncV initially produces pppA[3′,5′]pG, utilizing ATP as the nucleophile donor and GTP as the electrophile acceptor, whereas cGAS produces pppG[2′,5′]pA (Gao et al., 2013; Kranzusch et al., 2014). Thus, these two enzymes have opposite preferences for the first phosphodiester bond formed.

Unlike DncV and cGAS, GacA uses either substrate in the first bond-forming step.

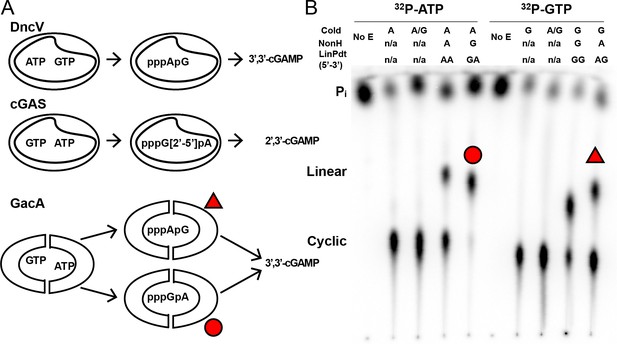

(A) Reaction pathways to form cyclic GMP-AMP by different dinucleotide cyclases, DncV from Vibrio cholerae, cGAS from mammalian cells, and GacA from Geobacter sulfurreducens. (B) Cellulose TLC analysis of radiolabeled products from enzymatic reactions with MBP-tagged GacA R393A (I-site mutant) with NTP substrates and nonhydrolyzable analogues. Trace amounts of α-32P-labeled ATP or α-32P-labeled GTP was doped in the reactions. Reactions were quenched with alkaline phosphatase to digest unreacted nucleotides, resulting in production of inorganic phosphate (Pi).

https://doi.org/10.7554/eLife.43959.008

In contrast, GacA is a homodimeric enzyme that has one nucleotide substrate binding site per GGDEF domain, or half of the active site per monomer. We observed that GacA generates both types of linear intermediates in the presence of nonhydrolyzable analogs (Figure 4B), which means that both ATP and GTP can serve as donor and acceptor. This result reveals a marked difference between GacA and the other two dinucleotide cyclases, DncV and cGAS, and is consistent with the increased promiscuity of GacA to produce homodimeric products, for example cdiG and cdiA.

Kinetic analysis and mathematical modeling reveal the mechanisms for GacA to produce predominantly cGAMP in vivo

To gain insight into how GacA preferentially produces cGAMP in vivo, it was necessary to establish a full kinetic model for the enzyme (Figure 5A). First, we measured initial rates for product formation with single substrates (ATP or GTP) using an enzyme-coupled assay for pyrophosphate detection (Burns et al., 2014). In these two cases, the kinetic model is greatly simplified because only one homodimeric product is generated, and this model has been validated for canonical GGDEF enzymes (Oliveira et al., 2015). Interestingly, kcat values are similar for production of cdiA and cdiG (0.03–0.04 sec−1). The main difference instead appears to be substrate binding, as GTP is the preferred substrate over ATP (Table 1). Second, to obtain values for the two heterodimeric equilibrium constants (e.g. KA|G, binding constant for ATP given GTP is pre-bound), we compared computationally modeled product ratios to experimental measurements to find KA|G and KG|A values that optimally fit the data (Figure 5B and C, Figure 5—figure supplement 1). In these models, kcat,AG was set conservatively to equal the catalytic rate constants determined for the homodimeric products (0.03 sec−1). This assumption is supported by the fact that ATP and GTP are equally competent as donor and acceptor (Figure 4B).

Figure 5 with 1 supplement see all
Kinetic analysis of GacA reveals that cooperative binding effects lead to preferential cGAMP production.

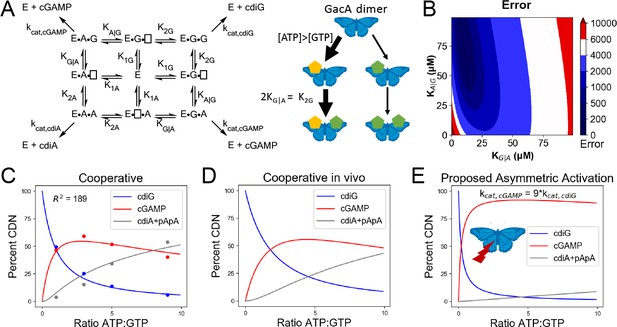

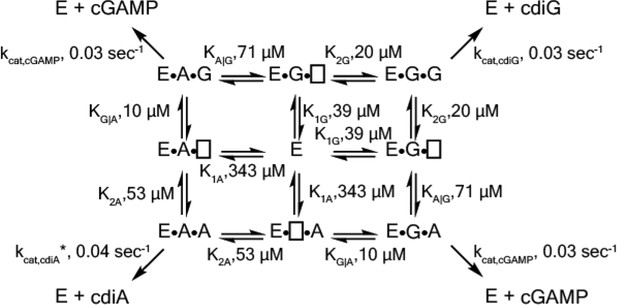

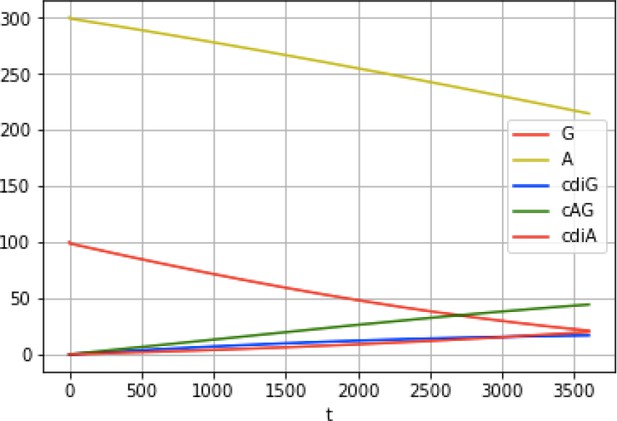

(A) Left, reaction pathways for GacA modeled using Python. ‘E’ represents the active enzyme, which is a GacA homodimer. ‘E•N•[ ]’ and ‘E•[ ]•N’ represent enzyme with NTP bound in the first or second half-active sites, respectively, which are treated as equivalent states. ‘E•N•N’ represents enzyme with two NTPs bound. The dissociation constant for the first NTP binding event is K1N, the second binding event is K2N for homodimeric products, and the second binding event is KX|Y for XTP binding after YTP to produce cGAMP. For example, KG|A is the dissociation constant for GTP given GacA already has ATP bound. Right, schematic summarizing kinetic parameters favoring cGAMP production in vivo. (B) Numerical solution of KG|A and KA|G was obtained by varying them between 0–100 µM and minimizing the least squares error (shown) for the modeled product ratios versus the experimental values. The minimum is observed at KG|A = 10 µM and KA|G = 71 µM, giving the best-fit curve shown in (C). (C) Modeled (lines) versus experimental (points) product ratios for GacA at different ATP to GTP ratios. Data points shown are an average of independent technical replicates (n = 3). (D) Modeled product ratios assuming cellular homeostasis of ATP and GTP levels (d[ATP]/dt = d[GTP]/dt = 0). (E) As in (D), except modeled with kcat,AG nine-fold higher than kcat,cdiG or kcat,cdiA. With asymmetric activation, GacA could produce cGAMP almost exclusively.

https://doi.org/10.7554/eLife.43959.009
Table 1
Kinetic parameters for WT GacA using non-cooperative and cooperative models.
https://doi.org/10.7554/eLife.43959.012
Non-cooperativeCooperative
K1A, µM80343
K2A, µM8053
kcat,cdiA, sec−10.040.03
K1G, µM2539
K2G, µM2520
kcat,cdiG,sec−10.040.03
KA|G, µM8071
KG|A, µM2510
kcat,cGAMP, sec−10.040.03
Model RMSD4118443

We found that the best-fit values to solve the full kinetic model were KA|G = 71 µM and KG|A = 10 µM (Table 1). This result shows that there is positive cooperativity (K1 > K2) facilitating binding of the second substrate for all reaction pathways. We also analyzed whether binding constants for the second nucleotide are different depending on whether enzyme first bound ATP or GTP, for example comparing KG|A to K2G and KA|G to K2A. This effect is termed selective cooperativity, as it affects the product ratios. Comparison of KG|A to K2G shows that there is a 2-fold enhancement of GTP binding to the A-bound vs. G-bound enzyme, which would lead to preferential cGAMP production (Figure 5A). Comparison of KA|G to K2A shows a 1.4-fold enhancement of ATP binding to the A-bound vs G-bound enzyme, but in this case the model fit is relatively insensitive to changes in KA|G value (Figure 5B), so this effect may or may not be significant. Taken together, the kinetic model provides support for selective cooperativity favoring cGAMP production by enhancing GTP binding to the A-bound enzyme. The A-bound form is favored under cellular conditions where ATP levels are typically 3-fold or more relative to GTP levels (Buckstein et al., 2008).

While performing the kinetic modeling, we observed that substrate depletion during in vitro reactions can skew product ratios over time. Since NTP levels are expected to be maintained at cellular homeostasis, we used the computational model to simulate in vivo product ratios with substrate concentrations remaining constant. This model demonstrates that GacA is predominantly a cGAMP synthase across the entire physiological range of substrate ratios (Figure 5D), and is unlikely to switch between producing different signals in vivo, as had been an alternative proposed function (Hallberg et al., 2016).

The kinetic model also allows us to estimate the impact of receiver (Rec) domain activation. While our data indicate that the traditional phosphorylation site D52 is not required for GacA activity in vivo (Figure 1D,E) and in vitro (Hallberg et al., 2016), alternative activation of Rec domains by S/T phosphorylation, kinase binding, or ligand binding has been shown (Lin et al., 2009; Ocasio et al., 2015; Trajtenberg et al., 2014; Wang et al., 2009). The low kcat values that we measured in vitro are in the range observed for other non-activated GGDEF enzymes (Wassmann et al., 2007), and activation has been shown to increase canonical GGDEF activity by up to 50-fold (Huangyutitham et al., 2013; Paul et al., 2007). While uniform effects on kcat values would not change product ratios, we used the kinetic model to simulate product ratios if kcat,AG was increased asymmetrically by activation more than kcat,diG or kcat,diA (Figure 5E). The result is that GacA can be almost fully selective (>90% cGAMP) if the proposed asymmetric activation leads to kcat,AG that is nine times kcat,diG or kcat,diA (Figure 5E), which would result from a difference in activation energy (ΔΔGo) of only 1.3 kcal/mol. Taken together, these results show how cooperative binding, including selective cooperativity induced by the first substrate bound, and tuning substrate affinities to cellular concentrations, could make GacA predominantly produce cGAMP. Mathematical modeling also led to the hypothesis that asymmetric activation could further favor GacA behaving exclusively as a cGAMP signaling enzyme in vivo.

X-ray crystal structure of Hypr GGDEF domain of G. metallireducens GacA bound to guanosine substrate

To gain insight into the molecular basis for function and mechanism of this signaling enzyme, we pursued structural characterization of the GacA GGDEF domain from Geobacter metallireducens in the presence of GTP, and obtained a 1.4 Å resolution x-ray crystal structure as an N-terminal fusion with T4 lysozyme (Table 2, Figures 6 and 7). The GacA GGDEF domain has a βααββαβαβ global topology that positions one guanosine substrate above the signature [G/A/S]G[D/E]E[F/Y] motif and can be overlaid with a canonical GGDEF domain with an RMSD value of 1.152 Å (Figures 6B and 8). A region behind the two alpha helices that support substrate binding is modified from a beta sheet to a helical/loop motif, and varies considerably between GGDEF structures (Chen et al., 2016; Dahlstrom et al., 2015; Deepthi et al., 2014; Yang et al., 2011). Electron density for three guanine nucleotides was found in the GacA structure, two in nucleotide-interacting regions that are conserved in other GGDEF domains (Figure 7) (Chan et al., 2004). One guanine nucleotide is bound near the canonical allosteric inhibitory site (I-site) (Chan et al., 2004; Christen et al., 2006) and the second nucleotide is bound in the active site above the GGDEF motif (Figures 6A and 7). For the latter, we were only able to find partial localized electron density for the alpha phosphate (Figure 7B). It is likely that GTP was hydrolyzed during crystallization but remained coordinated in the active site with density now visible for the guanosine and beta-gamma pyrophosphate (PPi). For clarity, we show both the original and modeled structures with the alpha phosphate. The final guanosine nucleotide binds at the T4 lysozyme-GGDEF interface and may act to stabilize the construct in a way that ATP cannot. To our knowledge, this is the first structure of a Hypr GGDEF domain.

Figure 6 with 1 supplement see all
The x-ray crystal structure of GmGacA Hypr GGDEF domain support the role of signature residues and the Goldilocks model.

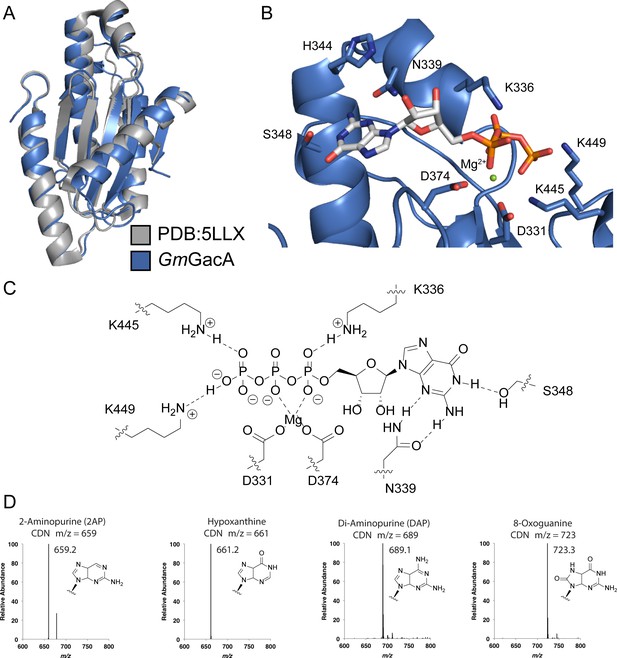

(A) Active site of the GacA Hypr GGDEF from G. metallireducens (Gmet_1914) with guanosine:PPi bound or modeled GTP based on partial alpha phosphate density. (B) Superposition of x-ray crystal structures of G. metallireducens GacA Hypr GGDEF (blue) and the Idiomarina sp. A28L bacteriophytochrome GGDEF (grey, PDB 5LLX), each with bound guanine nucleotides. Key interacting residues are labeled and shown as sticks. (C) Schematic illustrating the Goldilocks model that explains why the Ser348/GGEEF combination is inactive. In contrast, the flexible Asp side chain at position 348 permits either GGDEF or GGEEF enzymes to remain active. (D) LC/MS analysis of E. coli cell extracts overexpressing G. sulfurreducens GacA WT or D374E* mutant (* indicates that the numbering used corresponds to the G. metallireducens GacA structure, because GsGacA is shorter by one amino acid). Shown are representative MS spectra from integrating the retention time region that would contain the three cyclic dinucleotides. Expected masses are labeled for cdiG (m/z = 691), cGAMP (m/z = 675), and cdiA (m/z = 659). The major peak observed for inactive variants (m/z = 664) is potentially NAD from the lysate.

https://doi.org/10.7554/eLife.43959.013
Full x-ray crystal structure shows three guanine nucleotides bound.

(A) Full structure of the T4-Lysozyme-GmetGGDEF fusion showing the location of three guanine nucleotides (G1: active site; G2: I-site; G3: interface). The T4-Lysozyme is in orange and GmetGGDEF is in blue. (B) GTP binding pocket electron density. An Fo-Fc omit map of electron density contoured at 2.0 σ is shown for the bound G1 nucleotide. (C) Interactions of G2 nucleotide bound near the canonical I-site region of the Hypr GGDEF. (D) Interactions of G3 nucleotide at the interface between the T4-Lysozyme and GGDEF domains. The interactions between R145T4 and D314Gmet1914 are expected to occur only for GTP, which may explain our inability to obtain crystals in the presence of ATP.

https://doi.org/10.7554/eLife.43959.016

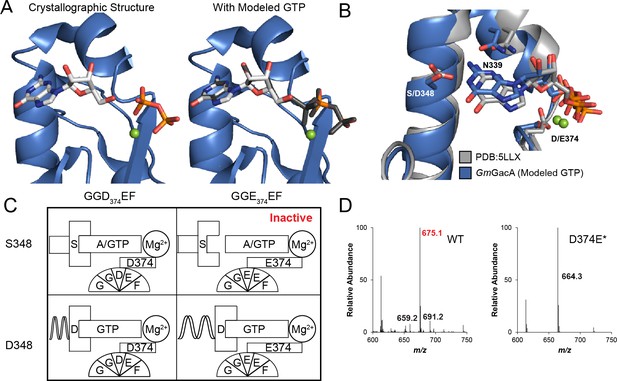

Hypr GGDEF domain structure overlay with canonical GGDEF domain; details of the nucleotide binding pocket.

(A) Overlay of Gmet_1914 GGDEF (blue) with the GGDEF domain of the I. marina light-activated GGDEF (Grey, PDB: 5LLX). (B) Active site of Gmet_1914 GGDEF in complex with GTP. Residues expected to interact with the GTP or Mg2+ cation are labeled. The alpha phosphate electron density was unable to be resolved, but was modeled into the structure. (C) Chemical scheme of active site interactions with GTP substrate. (D) LC-MS analysis of GacA with various unnatural NTP substrates. The structure of the purine base analog and the mass spectra of the homodimeric CDN produced are shown.

https://doi.org/10.7554/eLife.43959.017
Table 2
Crystallographic statistics
https://doi.org/10.7554/eLife.43959.018
T4Lys-Gmet_1914T4Lys-Gmet_1914
(S Anomalous)
Data Collection
Resolution (Å)35.75–1.35 (1.37–1.35)48.35–2.72 (2.86–2.72)
Wavelength (Å)1.115822.25418
Space groupC 21C 21
Unit cell dimensions: a, b, c (Å)70.68, 111.65, 55.3471.33, 111.96, 55.66
Unit cell dimensions: α, β, γ (°)90, 122.75, 9090.0, 123.10, 90.0
Molecules per ASU11
No. reflections: total51220161021
No. reflections: unique777659235
Completeness (%)97.8 (67.7)94.0 (74.9)
Multiplicity6.6 (3.1)6.6 (5.6)
I/σI21.6 (2.9)21.6 (13.8)
CC(1/2)1 (%)99.9 (86.2)99.4 (99.1)
Rpim2 (%)1.7 (22.2)2.5 (3.2)
No. sites17
Refinement
Resolution (Å)35.10–1.35
Free reflections (%)10
R-factor/R-free15.9/17.3
R.M.S. deviation: bond distances (Å)0.016
R.M.S. deviation: bond angles (°)1.560
Structure/Stereochemistry
No. atoms: nonhydrogen, protein2783
No. atoms: ligand71 (GTP, GMP, PPi)
No. atoms: water440
Average B-factor: nonhydrogen, protein18.7
Average B-factor: ligand28.0
Average B-factor: water33.9
Ramachandran plot: most favored regions97.7%
Ramachandran plot: additionally allowed2.3%
Protein Data Bank ID5VS9

A Goldilocks model for substrate recognition by GGDEF domains

Our structure of the Hypr GGDEF domain with bound guanosine plus PPi shows that two specific hydrogen-bonding interactions are made with the nucleobase, a Watson-Crick interaction with Ser348 and a sugar-face interaction with Asn339 (Figure 6B). The phosphate backbone is recognized via several specific interactions (Figure 8). In particular, a magnesium ion coordinates to the β and γ phosphates and is held in place by the side chain of Asp374 in the GGDEF motif.

A signature difference between Hypr and canonical GGDEF domains is that Hypr GGDEFs have Ser348, whereas the canonical GGDEFs have an aspartate residue at that position. We previously hypothesized that Ser348 would form hydrogen bonds on the Watson-Crick face of either guanine or adenine (Hallberg et al., 2016), and this can be seen in our structure. In fact, we have shown that Hypr GGDEFs can accept other purine NTPs as substrates (Figure 8). However, making the corresponding D-to-S mutant for canonical GGDEFs unexpectedly inactivates the enzyme in four out of five cases (Hallberg et al., 2016). One enzyme, GSU3350, remained active, but solely as a diguanylate cyclase.

Overlaying Hypr and canonical GGDEF domains provides a potential explanation for these earlier results (Figure 6B), although an important caveat to this analysis is that the Hypr GGDEF structure contains guanosine plus PPi bound instead of intact GTP in the case of the canonical GGDEF. To interact with serine, which is a shorter side chain than aspartate, the guanosine shifts toward the α2 helix in the Hypr GGDEF compared to GTP in the canonical structure. This shift maintains the hydrogen-bonding distance (2.6 Å in ImDGC and 2.7 Å in GmGacA), but requires a corresponding shift of other interactions that would stabilize GTP in the active site. In the Hypr GGDEF structure, the Mg2+ coordinating the phosphates also moves toward the α2 helix relative to the canonical structure, even though there is no bond between the guanosine and phosphates in our structure.

We hypothesized that this key compensatory shift is due to the presence of Asp374 in the GGDEF motif of GmGacA, which is shorter than the glutamate residue found in the GGEEF motif of the canonical enzyme whose structure was overlaid. To test whether the Mg2+-GGDEF interaction is indeed critical to GacA activity, we made the D374*E mutant of GsGacA, which converts the motif to GGEEF (the * indicates that the numbering used corresponds to the G. metallireducens GacA structure, because GsGacA is shorter by one amino acid). The D374*E mutant is inactive, as expected for the Ser348/GGEEF combination causing loss of substrate binding (Figure 6D, Figure 6—figure supplement 1). The S348*D/D374*E double mutant, which represents the Asp348/GGEEF combination, restores activity, but solely as a diguanylate cyclase. The S348*D mutant also becomes an active diguanylate cyclase.

Taken together, these observations support a ‘Goldilocks’ model for the GacA active site (Figure 6C), in which the residue interacting with the WC face of the nucleotide, Ser348, and the magnesium coordinated the GGDEF motif must be the appropriate distance apart. If the two components are too far apart, as in the Ser348/GGEEF case, substrate binding cannot occur. GacA mutants that represent Asp348/GGEEF and Asp348/GGDEF combinations retain activity because they also can match the right distance, the latter through flexibility of the aspartate side chains. However, these mutants become diguanylate cyclases because the S348D mutation drives specificity for GTP.

In support of this model, bioinformatics analysis shows that natural GGDEF enzymes with Ser/Thr at position 348 harbor the GGDE[F/Y] motif exclusively (Figure 6—figure supplement 1D), whereas GGDEF enzymes with Asp at position 348 are almost evenly divided between D and E at the central position of the motif (57% and 43%, respectively) (Figure 6—figure supplement 1E). To further demonstrate that the Goldilocks model applies to canonical GGDEF enzymes, we performed mutational analysis on WspR, a diguanylate cyclase from Pseudomonas aeruginosa (Hickman et al., 2005). The WspR mutants recapitulate the same activity trends that were shown for GacA (Figure 6—figure supplement 1B). Furthermore, the model explains our prior D-to-S mutagenesis results; the four inactive enzymes have a GGEEF motif, while the enzyme that retained activity, GSU3350, has a GGDEF motif.

Cross-dimer interactions affect GGDEF enzyme catalysis and cooperativity

While the Hypr GGDEF monomer structure gave some insights into substrate binding, the enzyme functions as a homodimer, with one NTP binding site per monomer. To elucidate the function of other conserved residues, we superimposed our structure onto both GGDEF domains of the C2 symmetric enzyme dimer structure from Idiomarina sp. A28L (Gourinchas et al., 2017). In both dimer structures, the glutamate residue that is the fourth residue in GGDEF is close to the GTP/guanosine:PPi bound to the opposite monomer, and in the case of GacA, is oriented appropriately to deprotonate the 3’ hydroxyl group from the substrate (Figure 9A). This observation strongly suggests that this glutamate is the general base that activates the nucleophile donor.

Figure 9 with 1 supplement see all
The GmGacA Hypr GGDEF domain structure reveals the molecular basis for hydroxyl activation and substrate-assisted cooperativity for GGDEF enzymes via cross-dimer interactions.

(A) The modeled dimer of GacA GGDEF domains shows that the Glu375 residue from one monomer is poised to deprotonate the 3’-OH of GTP bound in the other half active site. The blue GTP is bound by the blue protein monomer, whereas the grey-blue GTP is bound by the grey-blue protein monomer. (B) and (C) Comparison of the crystallized GGDEF dimer (grey/dark grey, PDB 5LLX) and the modeled GacA dimer (blue/grey-blue) reveals another cross-dimer residue in the half active site that has a different identity between the canonical (D581) and Hypr (Y304’) GGDEFs. (D) Y304' was rotated 180 degrees about the alpha carbon bond from the crystallized structure. (E) LC/MS analysis of E. coli cell extracts overexpressing G. sulfurreducens GacA WT or cross-dimer mutants (* indicates that the numbering used corresponds to the G. metallireducens GacA structure, because GsGacA is shorter by one amino acid). Shown are representative MS spectra from integrating the retention time region that would contain the three cyclic dinucleotides. Expected masses are labeled for cdiG (m/z = 691), cGAMP (m/z = 675), and cdiA (m/z = 659). The major peak observed for inactive variants (m/z = 664) is potentially NAD from the lysate.

https://doi.org/10.7554/eLife.43959.019

This glutamate was among the ultra-conserved residues in GGDEF domains that had no previously assigned function (Schirmer, 2016). Mutating this residue to glutamine knocks out catalytic activity of GacA (Figure 9E), which is in line with prior experiments demonstrating that this residue is required for canonical GGDEF function (Malone et al., 2007). Identifying this glutamate as the general base provides molecular insight into the regulatory mechanisms for GGDEF enzymes. Some GGDEF enzymes are activated by shifting oligomeric states, from monomer to dimer or even to higher order oligomers (Huangyutitham et al., 2013; Paul et al., 2007). Monomers are inactive because each monomer binds only one NTP. However, other GGDEF enzymes are predicted to be activated by changing the dimer conformation (Gourinchas et al., 2017; Zähringer et al., 2013). In these cases, the orientation of the two monomers can affect whether the newly identified general base is poised to deprotonate the 3′ hydroxyl across the dimer.

We observed another cross-dimer interaction with the guanosine substrate that had different residue identities for Hypr versus canonical GGDEFs. In the diguanylate cyclase dimer, Arg537 appears to form a cation-π interaction by stacking above the nucleobase in the opposite active site (Figure 9B). This conserved residue (94% of predicted diguanylate cyclases) also had no prior assigned function (Schirmer, 2016). Interestingly, the modeled dimer of the G. metallireducens Hypr GGDEF has a tyrosine (Tyr304) at this position, which is tucked away in the monomer structure (Figure 9C). However, with side chain rotation it can form a π-π stacking interaction with either adenine or guanine (Figure 9D, Figure 9—figure supplement 1). Thus, our analysis of the structures suggests that Arg537 is a previously unappreciated determinant of substrate specificity in diguanylate cyclases, which is replaced by other residues in Hypr GGDEF enzymes.

In support of this functional assignment, the corresponding Y304*R mutant was found to have a product ratio more skewed towards cdiG, which is consistent with the cation-π interaction favoring guanine over adenine (Figure 9E, Figure 9—figure supplement 1C). Also, an analysis of Hypr GGDEFs from different bacteria previously showed that two enzymes harboring an arginine produce more cdiG (Cabther_A1065 and Ddes1475), whereas enzymes harboring tyrosine, serine, alanine, or glutamine produce predominantly cGAMP (Hallberg et al., 2016). These results reveal that this cross-dimer interaction affects product distribution, leading us to propose a mechanism for the cooperative binding and putative asymmetric activation effects shown by kinetic modeling. As shown in the model, the status of one monomer, for example the identity of nucleotide substrate and/or Rec activation, can be communicated by residue(s) that make cross-dimer interactions to the substrate in the other monomer’s active site. For example, changes to the orientation of Tyr304 will tune the binding energy, possibly in a differential manner for guanosine or adenosine substrates. There may be other residues besides Tyr304 that are involved in this cross-dimer communication. Taken together, our analysis of the crystal structure shows that consideration of cross-dimer interactions may be key to unlocking residue functions for both Hypr and canonical GGDEFs.

Conclusions

For bacteria, obtaining energy is key to niche survival, whether in a host or outside environment. In dynamic anaerobic environments, where oxygen is unavailable or limiting, microbes must seek alternative electron acceptors. One such strategy that profoundly impacts Earth’s biogeochemistry is the process of extracellular electron transfer to metals, surfaces, and other cells. Use of environmental metal oxides as terminal electron acceptors by Geobacter requires cell-metal contact to facilitate electron transfer, and while attachment to surfaces is typically regulated by cdiG signaling, our results demonstrate that a separate mechanism has emerged for metal particle attachment. In retrospect, permanent biofilm-like attachment as driven by cdiG signaling would be a poor choice for interacting with environmental metal oxides, as Fe(III) oxides are usually nanophase (<100 nm), and a single metal particle cannot provide enough energy to support cell division (Levar, 2013; Zacharoff et al., 2017). Thus, based on energetics and size, metal oxides present a conundrum for metal-reducing bacteria: a surface that requires transient, rather than permanent, contact.

We hypothesize that cGAMP signaling — and thus GacA — arose as a divergent signaling system for this separate, transiently surface-associated state (Figure 10). Specifically, GacA helps coordinate electron transfer to Fe(III) oxides, but is not involved in permanent biofilm growth on electrodes, or planktonic growth with soluble metals. These phenotypes contrast with the involvement of a canonical cdiG-synthesizing GGDEF enzyme, EsnD, in biofilm-based electricity production on electrodes (Chan et al., 2017). Along with growing evidence that transient-attached and permanent-attached states are distinct stages in the biofilm lifestyles of bacteria (Lee et al., 2018), this study provides the first evidence that these modes can be signaled by two different cyclic dinucleotides. Whether this paradigm is more widespread or whether different mechanisms are present in other bacteria is the subject of future work.

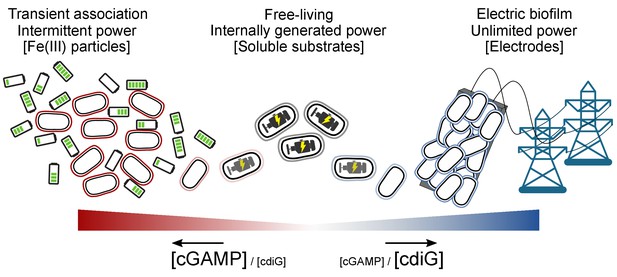

Proposed transient energy lifestyle controlled by cyclic GMP-AMP signaling that is distinct from cyclic di-GMP controlled electrical biofilm.

The second messenger cGAMP is synthesized by GacA, a Hypr GGDEF enzyme, and enhances Fe(III) particle reduction but is not required for growth on electrodes. Cyclic GMP-AMP enhances the transcription of over 30 genes by binding to riboswitches upstream of these genes, including cytochromes and pili. Cyclic di-GMP, commonly used by bacteria for permanently attached lifestyles, is important for growth on electrodes where there is an infinite supply of electron acceptor, but is not required for Fe(III) particle reduction where each particle has a finite electron accepting capacity. To our knowledge, this is the first time that these two contact-dependent electron transfer processes have been shown to be differentially regulated on a global scale.

https://doi.org/10.7554/eLife.43959.022

Interestingly, Vibrio cholerae has a completely distinct cGAMP signaling pathway from the GacA-cGAMP-riboswitch pathway analyzed in this study (Davies et al., 2012; Severin et al., 2018). As exemplified by GacA, Hypr GGDEFs likely arose from divergent evolution of diguanylate cyclase enzymes in ancestral deltaproteobacteria, as it is conserved across species of Geobacter, Myxobacteria, and others. In contrast, DncV is found in a pathogenicity island unique to the El Tor strain of V. cholerae that also contains a cGAMP-activated phospholipase (Severin et al., 2018). Activation of this phospholipase changes membrane fatty acid composition and inhibits cell growth (Severin et al., 2018), which contrasts with the riboswitch-driven transcriptional response and electron transfer phenotype in G. sulfurreducens.

A challenge we faced at the outset was to reconcile our in vivo observations that showed GacA produces cGAMP-specific phenotypes with prior in vitro observations that showed GacA to be a promiscuous dinucleotide cyclase. This paradox mirrors a common problem in studying two-component signaling: histidine kinases can phosphorylate non-cognate receiver domains in vitro, whereas this crosstalk is not observed in vivo. By combining biochemical analysis with mathematical modeling, we demonstrate that under standard cellular conditions, substrate-assisted cooperative binding biases production to give predominantly cGAMP in vivo (Figure 5A). The main side product, cdiG, is likely produced by GacA at sufficiently low amounts that a housekeeping phosphodiesterase can prevent cross-signaling in vivo, as shown for PdeH in E. coli (Sarenko et al., 2017). A new hypothesis that arises from the model is that with asymmetric activation, GacA can act as a completely selective enzyme in vivo (Figure 5E). One molecular mechanism that we propose here and would be very intriguing to explore in the future is that asymmetric activation could occur via modulation of a single Rec domain. These results run counter to the intuition that enzymes with homodimeric active sites can only produce symmetrical products. In fact, they lead to a newly intuitive explanation: active site symmetry is broken once the first substrate binds, and the identity of that substrate can influence the second binding event, giving rise to substrate-assisted selectivity. Our structural analysis further reveals a signature cross-dimer residue in Hypr GGDEFs that is poised to ‘read’ substrate identity and allosterically transfer that information to the other half active site (Figure 9B–D).

Combining structural and biochemical analyses also led to several insights into the function of GGDEF enzymes in general, in terms of substrate recognition and catalysis. The Goldilocks model explains why Ser348/GGEEF enzymes are non-functional and provides a basis of selectivity against pyrimidine substrates. The natural pyrimidine NTPs most likely are too short to interact with both the active site Mg2+ and residues that recognize the nucleobase, even if hydrogen bonds were matched. GGDEF enzymes capable of coordinating larger divalent metals or otherwise shortening the distance may be able to accommodate pyrimidine substrates. The identification of cross-dimer residues as the general base and involved in substrate recognition provides a molecular basis for activation mechanisms that involve conformational changes of the dimer.

From the broader perspectives of protein evolution and engineering, GacA provides an important case study for divergent evolution to a new in vivo function. Our results reveal functional intermediates in a potential mutational pathway to evolve cGAMP cyclases from diguanylate cyclases. First, only GGDEF not GGEEF enzymes are on pathway, followed by R304Y and D348S in either order. Importantly, this implies that cGAMP signaling can arise in any bacteria harboring GGDEF-type diguanylate cyclases. Another major finding is that this ‘promiscuous’ enzyme is the functional endpoint and in fact is attuned to play a highly specific role in the cell, as shown by phenotypic data that support its key role in cGAMP production and signaling. However, in vitro analysis or biochemical screening that does not account for cellular substrate concentration and homeostasis would result in an incorrect functional assignment. In fact, this in vitro ‘blindspot’ caused Hypr GGDEF enzymes to remain undiscovered until we performed an in vivo biosensor-based screen (Hallberg et al., 2016). Taken together, these insights are instructive for future efforts to discover and design signaling enzymes that produce other cyclic dinucleotides, besides the four currently known in bacteria and mammals.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or referenceAdditional information
Strain, strain
background
(G. sulfurreducens)
Laboratory collectionCell line maintained
in D. bond lab
Strain, strain
background
(G. sulfurreducens)
Tn7::cGAMP-nanolucthis workIntegrated using
pCGAMP-9
Strain, strain
background
(G. sulfurreducens)
Tn7::cdiG-nanolucthis workIntegrated using
pGGv2-2
Strain, strain
background
(G. sulfurreducens)
ΔgacAthis workDeleted using
pDGSU1658
Strain, strain
background
(G. sulfurreducens)
ΔgacA Tn7:: gacA OEthis workIntegrated using
pGSU1658-5
Strain, strain
background
(G. sulfurreducens)
ΔgacA Tn7::gacAWTthis workIntegrated using
pGSU1658-6
Strain, strain
background
(G. sulfurreducens)
ΔgacA Tn7::gacAD52Athis workIntegrated using
pGSU1658-7
Strain, strain
background
(G. sulfurreducens)
ΔgacA Tn7::gacAR393Athis workIntegrated using
pGSU1658-13
Strain, strain
background
(G. sulfurreducens)
ΔgacA Tn7::cAG-nanolucthis workIntegrated using
pCGAMP-9
Strain, strain
background
(G. sulfurreducens)
ΔgacA Tn7::cdiG-nanolucthis workIntegrated using
pGGv2-2
Strain, strain
background
(G. sulfurreducens)
ΔgacA Tn7::cAG-
nanoluc / pGacA+
this work
Strain, strain
background
(G. sulfurreducens)
ΔgacA Tn7::cAG
-nanoluc/pGacAWT
this work
Strain, strain
background
(G. sulfurreducens)
ΔgacA Tn7::cAG-
nanoluc / pGacAD52A
this work
Strain, strain
background
(G. sulfurreducens)
ΔgacA Tn7::cAG-
nanoluc / pGacAR393A
this work
Strain, strain
background
(G. sulfurreducens)
ΔesnDChan et al. (2017)
Strain, strain
background
(G. sulfurreducens)
ΔesnD Tn7::esnDOEthis workIntegrated using
pGSU3376-4
Strain, strain
background
(G. sulfurreducens)
ΔesnD Tn7::cAG-nanolucthis workIntegrated using
pCGAMP-9
Strain, strain
background
(G. sulfurreducens)
ΔesnD Tn7::cdiG-nanolucthis workIntegrated using
pGGv2-2
Strain, strain
background (E. coli)
S17-1; recA pro hsdR
RP4-2-Tc::Mu-Km::Tn7
Simon et al. (1983)Donor strain
Strain, strain
background (E. coli)
MFDpir;
RP4-2-Tc::[ΔMu1::aac(3)IV-
ΔaphA-Δnic35-ΔMu2::zeo]
ΔdapA::(erm-pir) ΔrecA
Ferrières et al. (2010)Donor strain for
Tn7 integration
Strain, strain
background (E. coli)
MFDpir/pTNS3;
MFDpir with plasmid
expressing tnsABCD
Choi et al. (2008)Used for integration
downstream of glmS
Strain, strain
background (E. coli)
BL21(DE3) starLife Technologies
Strain, strain
background (E. coli)
BL21(DE3) star
pET31b-Dp17;
pCOLADuet-GSU1658
Hallberg et al. (2016)For flow cytometry
analysis
Strain, strain
background (E. coli)
BL21(DE3) star
pET31b-Gm790p1-4delA;
pCOLADuet-GSU1658
Hallberg et al. (2016)For flow cytometry
analysis
Strain, strain
background (E. coli)
BL21(DE3) star
pET31b-Dp17;
pCOLADuet-WspR
this workFor flow cytometry
analysis
Strain, strain
background (E. coli)
BL21(DE3) star
pET31b-Gm790p1-4delA;
pCOLADuet-WspR
this workFor flow cytometry
analysis
Strain, strain
background (E. coli)
BL21(DE3) star
pET31b-Dp17;
pCOLADuet-WspR D226S
this workFor flow cytometry
analysis
Strain, strain
background (E. coli)
BL21(DE3) star
pET31b-Gm790p1-4delA;
pCOLADuet-WspR D226S
this workFor flow cytometry
analysis
Strain, strain
background (E. coli)
BL21(DE3) star
pET31b-Dp17;
pCOLADuet-WspR E370D
this workFor flow cytometry
analysis
Strain, strain
background (E. coli)
BL21(DE3) star
pET31b-Gm790p1-4delA;
pCOLADuet-WspR E370D
this workFor flow cytometry
analysis
Strain, strain
background (E. coli)
BL21(DE3) star
pET31b-Dp17;
pCOLADuet-WspR
D226S/E370D
this workFor flow cytometry
analysis
Strain, strain
background (E. coli)
BL21(DE3) star
pET31b-Gm790p1-4delA;
pCOLADuet-WspR
D226S/E370D
this workFor flow cytometry
analysis
Recombinant
DNA reagent
pRK2-Geo2Geobacter expression
vector
Recombinant
DNA reagent
pTn7C146Tn7 integrative vector,
derivative of pTJ1
Recombinant
DNA reagent
pGSU1658-1 (pGacA+)GSU1658 (gacA) in
pRK2-Geo2 under the
control of the acpP promoter
Recombinant
DNA reagent
pGSU1658-8 (pGacAWT)GSU1658 (gacA) in
pRK2-Geo2 under the
control of the native
gacA promoter
Recombinant
DNA reagent
pGSU1658-9 (pGacAD52A)GSU1658 (gacAD52A) in
pRK2-Geo2 under the control
of the native gacA promoter
Recombinant
DNA reagent
pGSU1658-17 (pGacAR393A)GSU1658 (gacAR393A) in
pRK2-Geo2 under the control
of the native gacA promoter
Recombinant
DNA reagent
pGSU3376-1GSU3376 (esnDOE) in
pRK2-Geo2 under the control
of the acpP promoter
Recombinant
DNA reagent
pGSU1658-5this workGSU1658 (gacAOE) under the
control of the acpP promoter
in Tn7 integrative vector
Recombinant
DNA reagent
pGSU1658-6this workGSU1658 (gacA) under the
control of the native gacA
promoter in Tn7 integrative
vector
Recombinant
DNA reagent
pGSU1658-7this workGSU1658 (gacAD52A) under the
control of the native gacA
promoter in Tn7 integrative
vector
Recombinant
DNA reagent
pGSU1658-13this workGSU1658 (gacAR393A) under
the control of the native
gacA promoter in Tn7
integrative vector
Recombinant
DNA reagent
pGSU3376-4this workGSU3376 (esnDOE) under the
control of the acpP promoter
in Tn7 integrative vector
Recombinant
DNA reagent
pK18mobsacBSimon et al. (1983)sacB suicide vector for
gene deletion
Recombinant
DNA reagent
pDGSU1658this workFlanking regions of GSU1658
in pK18mobsacB
Recombinant
DNA reagent
pET-MBP-GSU1658
R393A
Hallberg et al. (2016)Modified pET16a vector
containing the GSU1658
R393A mutant with an
N-terminal 6xHis-MBP tag
under the control of
the T7 promoter
Recombinant
DNA reagent
pET-MBP-GSU1658
S347D/R393A
this workModified pET16a vector
containing the GSU1658
S347D/R393A mutant with
an N-terminal 6xHis-MBP tag
under the control of the
T7 promoter
Recombinant
DNA reagent
pET-MBP-GSU1658
D373E/R393A
this workModified pET16a vector
containing the GSU1658
D373E/R393A mutant with
an N-terminal 6xHis-MBP tag
under the control of the
T7 promoter
Recombinant
DNA reagent
pET-MBP-GSU1658
S347D/D373E/R393A
this workModified pET16a vector
containing the GSU1658
S347D/D373E/R393A mutant
with an N-terminal 6xHis-MBP
tag under the control of
the T7 promoter
Recombinant
DNA reagent
pET24a T4Lysozyme-
GmetGGDEF
this workpET24a vector containing
the coding sequence for a
chimeric protein consisting
an N-terminal T4 lysozyme
E11Q mutant followed by
residues 294–459 of
Gmet_1914
Recombinant
DNA reagent
pET24a GSU1658Hallberg et al. (2016)pET24a vector containing
the WT GSU1658 coding
sequence with a C-terminal
6xHis tag under the control
of the T7 promoter
Recombinant
DNA reagent
pET24a GSU1658
D373E
this workpET24a vector containing
the GSU1658 D373E
coding sequence with a
C-terminal 6xHis tag under
the control of the T7 promoter
Recombinant
DNA reagent
pET24a GSU1658
E374Q
this workpET24a vector containing
the GSU1658 E374Q
coding sequence with a
C-terminal 6xHis tag under
the control of the T7 promoter
Recombinant
DNA reagent
pET24a GSU1658
Y303R
this workpET24a vector containing
the Y303R GSU1658
coding sequence with a
C-terminal 6xHis tag under
the control of the T7 promoter
Recombinant
DNA reagent
pCOLADuet-1
GSU1658
Hallberg et al. (2016)pCOLADuet-1 vector containing
the WT GSU1658 coding
sequence between the NdeI
and XhoI restriction sites.
Recombinant
DNA reagent
pCOLADuet-1 WspRthis workpCOLADuet-1 vector containing
the codon-optimized WT
WspR coding sequence between
the NdeI and XhoI restriction
sites.
Recombinant
DNA reagent
pCOLADuet-1 WspR
D226S
this workpCOLADuet-1 vector containing
the codon-optimized D226S
WspR coding sequence between
the NdeI and XhoI restriction sites.
Recombinant
DNA reagent
pCOLADuet-1 WspR
E370D
this workpCOLADuet-1 vector containing
the codon-optimized E370
WspR coding sequence between
the NdeI and XhoI restriction
sites.
Recombinant
DNA reagent
pCOLADuet-1 WspR
D226S/E370D
this workpCOLADuet-1 vector containing
the codon-optimized
D226S/E370D WspR coding
sequence between the NdeI
and XhoI restriction sites.
Recombinant
DNA reagent
(pCGAMP-1)this workThe promoter of GSU1761 with
cAG selective GEMM-1b
riboswitch cloned upstream
of nanoluciferase in pTOPO2.1
Recombinant
DNA reagent
(pCGAMP-9)this workcAG reporter-nanoluc fusion
in pTn7C146, subcloned from
pCAG-1
Recombinant
DNA reagent
pGGv2-1this workA cdiG selective variant
(A20G) GEMM-1b of Gmet_0970
replaced the GSU1761 GEMM-1b
riboswitch cloned upstream
of nanoluciferase in pTOPO2.1
Recombinant
DNA reagent
pGGv2-2this workcdiG reporter-nanoluc fusion
in pTn7C146 subcloned from
pGGv2-1
Recombinant
DNA reagent
pET31b-Gm790p1-4delAKellenberger et al. (2015)pET31b vector expressing
the Spinach1-GM790p1-4delA
(cAG-selective) biosensor
Recombinant
DNA reagent
pET31b-Dp17Wang et al. (2016)pET31b vector expressing
the Spinach2-Dp17
(cdiG-selective) biosensor
Sequence-based
reagent
Codon-optimized
WspR (oligonucleotide)
IDTATGCATAATCCGCATGAATCAAA
GACGGACCTGGGAGCTCCACTT
GACGGAGCCGTGATGGTTTTATT
AGTGGACGACCAGGCGATGATCG
GTGAGGCGGTCCGCCGTTCTCTG
GCTTCTGAAGCGGGCATCGACTTC
CATTTTTGCTCCGATCCGCAGCAA
GCGGTAGCGGTAGCCAATCAAATT
AAGCCCACGGTTATCCTGCAGGAT
CTGGTCATGCCTGGCGTGGATGG
GCTGACATTGTTAGCAGCTTATCG
CGGAAACCCTGCAACACGCGACAT
TCCGATCATTGTGCTGAGTACCAA
GGAGGAACCCACTGTTAAGTCAGC
TGCATTTGCAGCCGGGGCGAATG
TGCATTTGCAGCCGGGGCGAATG
ACTACCTGGTCAAACTTCCAGATG
CGATCGAATTAGTTGCTCGCATCC
GCTACCACAGTCGCAGCTACATCG
CGCTTCAGCAACGCGATGAAGCCT
ACCGCGCCTTGCGCGAATCCCAGC
AGCAGCTTCTTGAAACGAACCTGG
TTTTGCAGCGTCTGATGAACTCCG
ACGGTTTAACGGGTTTGTCTAATC
GCCGTCATTTTGATGAATACTTAG
AGATGGAATGGCGTCGTAGTTTGC
GTGAACAATCTCAGTTGTCATTACT
TATGATCGACGTCGACTACTTTAAA
TCGTACAACGATACCTTCGGCCATG
TAGCGGGTGACGAAGCATTACGTC
AAGTCGCTGGCGCGATCCGTGAAGG
GTGCTCCCGTTCTTCTGACCTTGCG
GCTCGCTATGGTGGAGAGGAGTTTG
CAATGGTTCTGCCTGGGACATCACCG
GGGGGCGCTCGCCTGTTGGCTGAGA
AAGTGCGTCGCACGGTGGAAAGTTTG
CAGATCTCGCATGATCAACCGCGTCCA
GGCTCGCATTTAACGGTGTCGATCGGC
GTATCCACCTTGGTTCCTGGAGGTGGA
GGCCAGACCTTTCGCGTTTTGATCGAA
ATGGCTGACCAGGCATTATACCAGGCC
AAAAATAATGGACGTAATCAGGTGGGA
TTGATGGAACAACCAGTACCTCCGGCA
CCTGCTGGA

General reagents and oligonucleotides

All oligonucleotides were purchased from Elim Biopharmaceuticals (Hayward, CA) or IDT (Coralville, IA). The codon-optimized WspR gene was purchased from IDT as a gBlock (See Key Resources Table). Cyclic dinucleotide standards were purchased from Axxora (Farmingdale, NY) or enzymatically synthesized. NTP stocks were purchased from New England Biolabs (Boston, MA).

Growth and medium conditions

All strains and plasmids used in this study are listed in the Key Resources Table. Antibiotics were used in the following concentration for E. coli; kanamycin 50 µg/mL; spectinomycin 50 µg/mL, chloramphenicol 25 µg/mL, carbenicillin 50 µg/mL, and ampicillin 100 µg/mL. For G. sulfurreducens; kanamycin 200 µg/mL and spectinomycin 50 µg/mL. G. sulfurreducens strains and mutants were grown in anoxic medium with excess acetate (20 mM) and limiting fumarate (40 mM) as described (Chan et al., 2015). Agar (1.5%) was added to the acetate-fumarate medium to culture for clonal isolates on semisolid surface in a H2:CO2:N2 (5:20:75) atmosphere in an anaerobic workstation (Don Whitley). All growth analyses were initiated by picking a single colony from acetate-fumarate agar using freshly streaked, −80°C culture stocks. When electrodes were used as the electron acceptor, fumarate was replaced with 50 mM NaCl to maintain a similar ionic strength.

When insoluble Fe(III) oxide or soluble Fe(III) citrate was used as the electron acceptor, a non-chelated mineral mix was used (Chan et al., 2015). XRD amorphous insoluble Fe(III)-(oxyhydr)oxide was produced by first synthesizing Schwertmannite (Fe8O8(OH)6(SO4)·nH2O), combining 10 g of Fe(II) sulfate in 1 L of water with 5.5 mL of 30% H2O2 overnight (Levar et al., 2017). The solids were centrifuged at 3,700 × g and re-suspended in dH2O three times to obtain Schwertmannite in a pH ~5 solution. This stable product could be added to basal medium and sterilized by autoclaving, resulting in ~30 mM Fe(III) (based on Fe(III) extractable by NH3OH). Autoclaving in pH 7 basal medium converts Schwertmannite into a high surface area, XRD amorphous insoluble Fe(III)-(oxyhydr)oxide and is the primary form of insoluble Fe(III) oxides presented in this study, which we refer to as simply Fe(III) oxides. Media containing akaganeite (β-FeOOH), another form of insoluble Fe(III) commonly synthesized by slow NaOH addition to FeCl3 solutions, was also used and showed similar growth trends but at a slower rate. Minimal medium containing 20 mM acetate as the electron donor and Fe(III) oxide or Fe(III) citrate as the sole electron acceptor was inoculated 1:100 from the acetate-fumarate grown culture. To monitor Fe(III) reduction over time, 0.1 mL of the Fe(III) medium was removed at regular intervals and dissolved in 0.9 mL of 0.5 N HCl for at least 24 hr in the dark. The acid extractable Fe(II) was measured using a modified FerroZine assay (Chan et al., 2015).

Three-electrode bioreactors with a working volume of 15 ml were assembled as previously described (Marsili et al., 2008). The potential of the polished graphite working electrode with a surface area of 3 cm2 was maintained at −0.10 V vs. standard hydrogen electrode (SHE) using a VMP3 multichannel potentiostat (Biologic), a platinum counter electrode and calomel reference. This potential mimics Fe(III) oxides used in parallel experiments. Reactors were inoculated as previously described (Chan et al., 2017). Bioreactors were maintained at 30°C under a constant stream of humidified N2:CO2 (80:20) scrubbed free of oxygen by passage over a heated copper furnace. In prior work, the oxygen concentration in the headspace of these reactors has been shown to be ~1 ppm.

Strain construction

The sucrose-SacB counter-selection strategy was used to generate a scarless gacA or esnD deletion strain (Chan et al., 2015). Supplementary file 2 lists primers and restriction enzymes used to generate the ~750 bp flanking fragments of the gacA or esnD sequences to ligate into pK18mobsacB. The E. coli S17-1 donor strain mobilized plasmids into G. sulfurreducens. To integrate downstream of the glmS gene using Tn7 (Damron et al., 2013), derivatives of E. coli MFDpir carrying pTNS3 (encoding the Tn7 transposase TnsABCD) and MFDpir carrying a modified suicide vector pTJ1 with the sequence of interest cloned between the n7L and n7R sites was combined with G. sulfurreducens recipient strains by centrifugation in the anoxic glovebox, then incubation of the cell mixture on top of a filter paper disk (Millipore GPWP04700) placed on 1.5% agar with acetate-fumarate plates for 4 hr before plating on spectinomycin selective medium. Amplification and sequencing of the insertion junction revealed that TnsABCD mediated Tn7 integration is site specific in G. sulfurreducens and is 25 bp downstream of the glmS (GSU0270) stop codon.

Plasmid and reporter construction

Plasmids expressing gacA and gacA site variants were cloned into pRK2-Geo2 (Chan et al., 2015) with the native promoter (replacing the acpP promoter) or over-expressed from the acpP promoter in pRK2-Geo2. The native gacA promoter was fused to gacA and gacA variants by extending two oligos coding for the gacA promoter with gacA PCR fragments using overlap PCR. The cGAMP selective riboswitch controlling GSU1761 was fused to the Nanoluc gene with overlap PCR and cloned into pTOPO2.1. The luminescent reporter provided a strong signal even at low levels of expression compared to GFP, and allowed us to circumvent the problem of high autofluorescence in crude protein lysates due to the abundance of cytochromes in G. sulfurreducens. The reporter was made by fusing the natural cGAMP-specific GSU1761 riboswitch upstream of the Nanoluc gene (pNL1.1, Promega). Analysis of the riboswitch expression platform suggests that cGAMP binding stabilizes anti-terminator formation and thus turns on expression of the Nanoluc reporter gene. The cGAMP selective GSU1761 riboswitch was replaced with a mutant Gmet_0970 riboswitch using Gibson assembly to generate a cdiG selective Nanoluc fusion. The cdiG selectivity of this mutant GEMM riboswitch is confirmed using gel-shift analysis (Figure 2). Tn7 integrative plasmids expressing gacA, gacA mutants, esnD and Nanoluc fusions were sub-cloned with either the native promoter or the acpP promoter into a derivative of pTJ1 (Damron et al., 2013) from the pRK2-Geo2 backbone by sequential digest with NheI and blunted with Klenow enzyme before digesting with AscI. Genes under the native promoter or acpP promoter were then ligated into the AscI and PmeI site into the pTJ1 derivative Tn7 integration plasmid. Cyclic dinucleotide Nanoluc fusion plasmids were subcloned into pRK2-Geo2 and Tn7 integrative plasmids to report cGAMP or cdiG levels in G. sulfurreducens strains.

For the crystallography construct, the T4 lysozyme sequence containing an E11Q inactivating mutation without stop codon was placed upstream of the Hypr GGDEF domain of Gmet_1914 (residues 294–459) sequence. This chimeric protein coding sequence was inserted between the NdeI and XhoI restriction sites of pET24a using restriction digest-ligation techniques. For in vitro analysis of mutants, site-directed-mutagenesis with the around-the-horn mutagenesis technique [https://openwetware.org/wiki/%27Round-the-horn_site-directed_mutagenesis] was used on a previously reported plasmid for expression of MBP-tagged R393A GSU1658 (Hallberg et al., 2016) to generate GacA mutant constructs. For WspR constructs used in flow cytometry assays, codon-optimized WspR (Key Resources Table) was inserted between the NdeI and XhoI restriction sites of pCOLADuet-1 using restriction digest-ligation techniques. This wild-type sequence was used as the template for round-the-horn mutagenesis. All primers and restriction enzyme used are listed in Supplementary file 2.

Nanoluc assay

G. sulfurreducens strains with either the cdiG- or the cGAMP-Nanoluc reporter integrated into the Tn7 site were grown to mid-log fumarate-limited medium (40 mM acetate and 80 mM fumarate), the same ratio of acetate:fumarate as in RNA-seq conditions, and lysed at room temperature for 5 min in a phosphate-buffered saline (PBS) solution containing 1 × BugBuster (Novagen) and 0.3 mg/ml DNase. 10 μl of the Nanoglo reagent (Promega) and 10 μl of the cell lysate were combined in a white-bottom, 96 well plate and luminescence was detected at 461 nm (Molecular Devices). Biological replicates (n = 3) were assayed. In assays where the luminescence exceeded the linear range of the spectrophotometer or deviated from steady-state, lysates were diluted in PBS before combining with the Nanoglo reagent.

RNA-seq

Total RNA was extracted from 10 mL of G. sulfurreducens electron acceptor limited culture grown to mid-log (0.25–0.3 OD). Cell pellets were washed in RNAprotect (Qiagen) and frozen at −80°C before RNA extraction using RNeasy with on column DNase treatment (Qiagen). Ribosomal RNA was depleted using RiboZero (Illumina) by the University of Minnesota Genomics Center before stranded synthesis and sequenced on Illumina HiSeq 2500, 125 bp pair-ended mode. Residual ribosomal RNA sequences (<1%) were removed before analysis using Rockhopper, an RNAseq analysis program specifically designed to analyze bacterial transcriptomes (McClure et al., 2013). Duplicate biological samples were analyzed for each strain. Each replicate had between 13–14 M passing filter reads. Rockhopper aligned the rRNA depleted reads to our laboratory re-sequenced and re-annotated G. sulfurreducens genome, then normalized read counts from each experimental replicate by the upper quartile gene expression before they are compared. Raw reads and re-sequenced genome data have been deposited to the NCBI SRA database PRJNA290373 (Chan et al., 2015). Full RNA-seq expression data are in Supplementary file 1.

Overexpression and purification of dinucleotide cyclase enzymes

Full-length proteins with N-terminal His6-MBP tags encoded in pET16-derived plasmids (cGAS and DncV plasmids are from (Kranzusch et al., 2014), WT GacA is from (Hallberg et al., 2016), and mutants are from this study) and the T4 lysozyme-Gmet_1914294-459 GGDEF chimera protein with C-terminal His6 tag encoded in pET24a were overexpressed in E. coli BL21 (DE3) Star cells harboring the pRARE2 plasmid encoding human tRNAs (Novagen). Briefly, an aliquot of the overnight starter culture was re-inoculated into LB with antibiotics (LB/Carb/Chlor for pET16, LB/Kan/Chlor for pET24a) and grown to an OD600 ~0.7, after which cultures were induced with 1 mM IPTG for 10 hr. After centrifugation to isolate the cell pellet, cells were lysed by sonication in lysis buffer (25 mM Tris-HCl (pH 8.2), 500 mM NaCl, 20 mM imidazole, and 5 mM beta-mercaptoethanol). Lysate was then clarified by centrifugation at 10,000 × g for 45 min at 4°C. Clarified lysate was bound to Ni-NTA agarose (Qiagen), and resin was washed with 3 × 20 mL lysis buffer prior to elution with lysis buffer supplemented with 500 mM imidazole. Purified proteins were dialyzed overnight at 4°C into storage buffer (20 mM HEPES-KOH (pH 7.5), 250 mM KCl, 1 mM TCEP, and 5% (v/v) glycerol). Proteins purified in this way were concentrated to ~5–10 mg/mL, flash frozen in liquid nitrogen, and stored at −80°C. Protein purity was assessed by SDS-PAGE.

The crystallization fusion construct, T4lysozyme-Gmet_1914294-459-His6, was further purified by size-exclusion chromatography on a Superdex 200 16/60 column in gel-filtration buffer (20 mM HEPES-KOH (pH 7.5), 250 mM KCl, 1 mM TCEP, and 5% (v/v) glycerol), and eluted protein was concentrated to 10 mg/mL. Purified protein was used immediately for x-ray crystallography or flash frozen in liquid nitrogen and stored at −80°C for biochemical experiments.

In vitro activity assay of dinucleotide cyclases using radiolabeled NTPs

In vitro activity assays were performed as previously described (Kranzusch et al., 2014) as independent technical replicates (n = 3, assays used the same stock enzyme preparation in separate reaction mixtures), with the following modifications. Enzyme (10 µM) was incubated in reaction buffer (50 mM Tris-HCl (pH 7.5), 100 mM NaCl, 10 mM MgCl2, and 5 mM dithiothreitol) with 100 µM each NTP substrate and/or nonhydrolyzable analog, and ~0.1 µCi radiolabeled [α-32P]-ATP or [α-32P]-GTP (Perkin Elmer) at 28°C for 1 hr. After the reaction, the mixture was treated with 20 U of Calf Intestinal Alkaline Phosphatase (NEB) at 28°C for 30 min to digest unincorporated NTPs, followed by heating to 95°C for 30 s to terminate the reaction. The reaction mixture (1 µL) was spotted onto a PEI-cellulose F thin layer chromatography plate (Millipore), and allowed to dry for 15 min at room-temperature. TLC plates were developed using 1 M KH2PO4 (pH 3.6) as the mobile phase. Plates were dried overnight and radiolabeled products were detected using a phosphor-imager screen (GE Healthcare) and Typhoon Trio +scanner (GE Healthcare).

In vitro activity assay of dinucleotide cyclases using pyrophosphatase assay

In vitro activity assays were performed as previously described for diguanylate cyclases (Burns et al., 2014) as independent technical replicates (n = 3, assays used the same stock enzyme preparation in separate reaction mixtures), with the following modifications. The EnzChek pyrophosphate kit (Life Technologies) was used according to the manufacturer’s instructions except the buffer was supplemented with KCl to a final concentration of 100 mM and MgCl2 to a final concentration of 10 mM, and the reactions were initiated with addition of ATP or GTP. Assays were performed in triplicate in Corning Costar 96 well black, clear-bottomed plates containing 1 µM protein and varying NTP concentrations (0–10 mM). Absorbance at 360 nm in each well was measured using a SpectraMax i3x plate reader (Molecular Devices) and SoftMax Pro 6.5.1 software. Subsequent analyses to determine enzymatic rates were performed using the Excel Solver package.

In vitro activity assay of dinucleotide cyclases using LC-MS

Activity assays with ATP, GTP, or mixtures of ATP and GTP were performed as described previously (Burhenne and Kaever, 2013; Hallberg et al., 2016) in independent technical replicates (n = 3, assays used the same stock enzyme preparation in separate reaction mixtures). For unnatural substrates, the reactions were performed using 5 μM GacA and 200 μM of unnatural NTP at 37°C for 16–20 hr. Prior to LC-MS analysis, samples were treated with a 60°C incubation as in ref. (Gentner et al., 2012) to ensure all analyzed CDN samples were monomeric. LC-MS analysis of enzyme reactions was performed using an Agilent 1260 Quadrupole LC-MS with an Agilent 1260 Infinity HPLC equipped with a diode array detector. Sample volumes of 10 µL were separated on a Poroshell 120 EC C18 column (50 mm length ×4.6 mm internal diameter, 2.7 µm particle size, Agilent) at a flow rate of 0.4 mL/min. For analysis of enzyme reactions, an elution program consisting of 0% B for 5 min, followed by linear elution of 0% to 10% B over 1.5 min, isocratic elution at 10% B for 2 min, linear elution of 10% to 30% B over 2.5 min, linear elution from 30% to 0% B over 10 min, and isocratic elution of 0% B for 4 min, 50 s was used. Solvent A was 10 mM ammonium acetate/0.1% acetic acid and solvent B was HPLC-grade methanol. Under these conditions, the retention times are 10.23 ± 0.02 min for cdiG, 10.56 ± 0.02 min for cGAMP, and 11.09 ± 0.05 min for cdiA. The assignment of cyclic dinucleotide identity was confirmed through analysis of the mass spectra in the positive ion mode using m/z range = 150 to 1000. Product ratios were quantified using peak integrations at 254 nm by comparison to standard curves generated for each cyclic dinucleotide at known concentrations.

Computational modeling of dinucleotide cyclase activity

We develop our mathematical derivation from the scheme presented in Figure 5A. This kinetic scheme assumes that the active dimer (E) remains at a constant total concentration throughout the reaction compared to inactive monomeric enzyme, which is not included in the model. The model also assumes that the rate-determining step is the production of the linear intermediate, which implies that the intermediate is efficiently converted to the cyclic dinucleotide. While the linear intermediate (pppGpG) is sometimes observed for diguanylate cyclases in vitro (Skotnicka et al., 2016), this may be due to the characterization of non-activated enzymes in vitro. We do not see significant buildup of any linear intermediates for in vitro or in vivo reactions with GacA, which supports our model.

With this assumption, our kinetic model contains 14 equations, describing the change in concentration of each relevant compound in the reaction:

(1) d[E]/dt=kn1G[EnG]k1G[E][G]+kn1G[EGn]k1G[E][G]+kn1A[EAn]k1A[E][A]+kn1A[EnA]k1A[E][A]+kcat[EGG]+kcat[EGA]+kcat[EAA]+kcat[EAG]
(2) d[EnG]/dt=k1G[E][G]kn1G[EnG]k2G[EnG][G]+kn2G[EGG]+knA|G[EAG]kA|G[EnG][A]
(3) d[EGn]/dt=k1G[E][G]kn1G[EGn]+kn2G[EGG]k2G[EGn][G]+knA|G[EGA]kA|G[EGn][A]
(4) d[EnA]/dt=k1A[E][A]kn1A[EnA]+knG|A[EGA]kG|A[EnA][G]+kn2A[EAA]k2A[EnA][A]
(5) d[EAn]/dt=k1A[E][A]kn1A[EAn]+kn2A[EAA]k2A[EAn][A]+knG|A[EAG]kG|A[Ean][G]
(6) d[EGG]/dt=k2G[EnG][G]kn2G[EGG]+k2G[EGn][G]kn2G[EGG]kcat[EGG]
(7) d[EGA]/dt=kA|G[EGn][A]knA|G[EGA]+kG|A[EnA]][G]knG|A[EGA]kcat[EGA]
(8) d[EAG]/dt=kA|G[EnG][A]knA|G[EAG]+kG|A[EAn][G]knG|A[EAG]kcat[EAG]
(9) d[EAA]/dt=k2A[EnA][A]kn2A[EAA]+k2A[EAn][A]kn2A[EAA]kcat[EAA]
(10) d[cdiA]/dt=kcat,cdiA[EAA]
(11) d[cdiG]/dt=kcat,cdiG[EGG]
(12) d[cAG]/dt=kcat,cAG[EAG]+kcat,cAG[EGA]
(13) d[A]/dt=k1A[E][A]+kn1A[EAn]k1A[E][A]+kn1A[EnA]kA|G[EGn][A]+knA|G[EGA]k2A[EnA][A]+kn2A[EAA]k2A[EAn][A]+kn2A[EAA]kA|G[EnG][A]+knA|G[EAG]
(14) d[G]/dt=k1G[E][G]+kn1G[EnG]k1G[E][G]+kn1G[EGn]k2G[EnG][G]+kn2G[EGG]k2G[EGn][G]+kn2G[EGG]kG|A[EnA][G]+knG|A[EGA]kG|A[EAn][G]+knG|A[EAG]

Where each variable is:

E, active enzyme

A and G, ATP and GTP

EnG, enzyme with binding pocket 1 empty and binding pocket 2 with GTP

EGn, enzyme with binding pocket 1 with GTP, binding pocket 2 empty

EnA, as EnG, except with ATP

EAn, as EGn, except with ATP

EGG, enzyme with two GTP bound

EAA, enzyme with two ATP bound

EAG, enzyme with ATP in binding pocket 1, GTP in binding pocket 2

EGA, enzyme with GTP in binding pocket 1, ATP in binding pocket 2

And where reverse rate constants of a reaction are denoted by ‘n’ (i.e. k1G is the forward rate constant for the first GTP binding event, whereas kn1G is the rate constant for GTP dissociating). Thus, the equilibrium constant values shown in Figure 3A are related to on/off rates by the following equations:

(15) K1A=kn1A/k1A
(16) K2A=kn2A/k2A
(17) K1G=kn1G/k1G
(18) K2G=kn2G/k2G
(19) KA|G=knA|G/kA|G
(20) KG|A=knG|A/kG|A

For the single-substrate case, we utilize the exact solution provided by Oliveira et al. to obtain all dissociation constants for the first and second binding events, as well as the catalytic rate constant. Importantly, this only gives dissociation constants, which we convert to on and off rate constants using an arbitrary assignment of kno. Because KD=koff/kon, and because the kcat values are <<1 sec−1, we arbitrarily set kon values to 1 µM−1sec−1. Thus, k1A,k2A,k1G,k2G,kA|G,andkG|A are all set to 1 µM−1sec−1.

To calculate endpoint product ratios, we performed numerical integration (using the Python ODEint solver package in NumPy) of the system of differential equations using the starting concentrations over an hour-long time course — equivalent in length to our experimental procedures — using 1 s intervals. As stated in the main text, the value of kcat,AG was set conservatively to the same value as kcat,diG (0.03 sec−1). The values for KA|G and KG|A were tested between 1 and 100 µM (corresponding to varying kno between 1 and 100 µM sec−1) using a step size of 1 µM. Thus, for each combination of KA|G and KG|A tested (10,000 possible combinations), we performed linear updates over 3,600 1 s steps of the 14 analytes, using the generic equation:

(21) [Analyte]t+1=[Analyte]t+td[Analyte]/dt
Example reaction time course via simulation.
https://doi.org/10.7554/eLife.43959.023

Because we do not include any noise in these equations, the simulation gives the same result each time.

The ratio of each cyclic dinucleotide, which was calculated for the 1 hr endpoint, is:

(22) ratioCDN=[CDN]1h/([cdiG]1h+[cAG]1h+[cdiA]1h)

We calculated the model error as the sum of the least squares difference between the experimental product ratios and modeled results (Equation 22) for each starting ATP/GTP ratio. The best fit values for KA|G and KG|A were the combination that gave the lowest model error (Figure 3B). Parameter values for the best fit kinetic model are shown below (also see Table 1):

Best fit kinetic model from combined experimental and simulation data.
https://doi.org/10.7554/eLife.43959.024

To model cellular homeostasis as shown in Figure 5D and E, the numerical integration program was run with d[A]/dt and d[G]/dt (Equations 13 and 14) set to zero.

Liquid culture growth of E. coli BL21 (DE3) Star for Nucleotide Extraction

BL21 (DE3) Star cells containing the pRARE2 plasmid (Novagen) and pET24a plasmid encoding synthase enzyme constructs were inoculated into LB/kan/chlor at 37°C with shaking at 250 rpm overnight. An aliquot of the starter culture was re-inoculated into LB/kan/chlor media and grown to an OD600 ~0.3, after which cultures were induced with 1 mM IPTG at 28°C for 4 hr. Cells were harvested by centrifugation at 4,700 rpm for 15 min at 4°C, and pellets were stored at −80°C.

Cell extraction and LC-MS analysis of E. coli.

Cyclic dinucleotides were extracted as described previously (Hallberg et al., 2016) from two biological replicates. LC-MS analysis of E. coli cell extracts was performed as described previously (Hallberg et al., 2016).

Crystallization and structure determination of T4Lys-Gmet_1914

Prior to crystallization, T4Lysozyme-Gmet_1914294–459 protein was incubated for 10 min at rt at a concentration of 6.5 mg ml−1 in the presence of 10 mM GTP and 10 mM MgCl2. The T4Lysozyme-Gmet_1914294–459–Guanosine nucleotide complex was crystallized in a hanging-drop vapor diffusion format using the final optimized crystallization conditions of 30 mM HEPES-KOH (pH 7.5), 300 mM Na(OAc), and 26% PEG-4000. Crystals were grown in Easy-Xtal 15-well trays (Qiagen) in 2 μl hanging drops with a 1:1 (protein:reservoir) ratio over 350 μl of reservoir solution. Crystals required incubation at 18°C for 2–4 days for complete growth, and then were transferred with a nylon loop to a new drop containing reservoir solution supplemented with 10% glycerol as a cryoprotectant and incubated for 30 s before flash-freezing in liquid nitrogen. Native and anomalous data were collected under cryogenic conditions at the Lawrence Berkeley National Laboratory Advanced Light Source (Beamline 8.3.1).

X-ray diffraction data were processed with XDS and AIMLESS (Kabsch, 2010) in the monoclinic spacegroup C 2. Phase information was determined with a combination of molecular replacement and sulfur single-wavelength anomalous dispersion (SAD). Briefly, iterative sulfur-SAD data sets were collected at ~7,235 eV and merged from independent portions of a large T4Lysozyme-Gmet_1914294–459 crystal as previously described (Lee et al., 2016a). A minimal core of T4-Lysozyme (PDB 5JWS) (Lee et al., 2016b) was used a search model for molecular replacement and sub-structure determination. The placed T4-Lysozyme fragment was then used to guide SAD identification of 17 sites with HySS in PHENIX (Adams et al., 2010) corresponding to 12 sulfur atoms in T4Lysozyme-Gmet_1914294–459 and 5 solvent ion positions. SOLVE/RESOLVE (Terwilliger, 1999) was used to extend phases to the native T4Lysozyme-Gmet_1914294–459 data processed to ~1.35 Å and model building and refinement were completed with Coot (Emsley and Cowtan, 2004) and PHENIX (Table 2).

Bioinformatic analysis of GGDEF variants

A Python-based program was developed to extract alignment data for a library of 139,801 putative GGDEF domain-containing proteins from the Uniprot database (obtained through Pfam, accession PF00990, http://pfam.xfam.org/, accessed 06/05/2014). In particular, positions critical for catalytic activity (i.e. the GG[D/E]EF sequence) and selectivity (i.e. positions 347 and 303 in GsGacA) were identified and analyzed for each sequence. Given previous results with some DGCs possessing altered signature motifs, we assigned any diguanylate cyclase with a [G/A/S]G[D/E][F/Y] motif to be active.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
    Genome scale mutational analysis of geobacter sulfurreducens reveals distinct molecular mechanisms for respiration and sensing of poised electrodes versus fe(III) Oxides
    1. CH Chan
    2. CE Levar
    3. F Jiménez-Otero
    4. DR Bond
    (2017)
    Journal of Bacteriology, 199, 10.1128/JB.00340-17, 28674067.
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
    Coot: model-building tools for molecular graphics
    1. P Emsley
    2. K Cowtan
    (2004)
    Acta Crystallographica Section D Biological Crystallography 60:2126–2132.
    https://doi.org/10.1107/S0907444904019158
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
    XDS
    1. W Kabsch
    (2010)
    Acta crystallographica. Section D, Biological crystallography 66:125–132.
    https://doi.org/10.1107/S0907444909047337
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
    Energetic and molecular constraints on the mechanism of environmental Fe(III) reduction by Geobacter
    1. CE Levar
    (2013)
    In: J Gescher, A Kappler, editors. Microbial Metal Respiration. Berlin, Heidelberg: Springer. pp. 29–48.
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
    Microbial communities associated with anaerobic benzene degradation in a petroleum-contaminated aquifer
    1. JN Rooney-Varga
    2. RT Anderson
    3. JL Fraga
    4. D Ringelberg
    5. DR Lovley
    (1999)
    Applied and Environmental Microbiology 65:3056–3063.
  58. 58
  59. 59
    More than enzymes that make or break cyclic Di-GMP-Local signaling in the interactome of GGDEF/EAL domain proteins of Escherichia coli
    1. O Sarenko
    2. G Klauck
    3. FM Wilke
    4. V Pfiffer
    5. AM Richter
    6. S Herbst
    7. V Kaever
    8. R Hengge
    (2017)
    mBio, 8, 10.1128/mBio.01639-17, 29018125.
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
    Reciprocal-space solvent flattening
    1. TC Terwilliger
    (1999)
    Acta Crystallographica Section D Biological Crystallography 55:1863–1871.
    https://doi.org/10.1107/S0907444999010033
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
    Geobacter sulfurreducens extracellular multiheme cytochrome PgcA facilitates respiration to fe(III) Oxides but not electrodes
    1. LA Zacharoff
    2. DJ Morrone
    3. DR Bond
    (2017)
    Frontiers in Microbiology, 8, 10.3389/fmicb.2017.02481, 29312190.
  77. 77

Decision letter

  1. George O'Toole
    Reviewing Editor; Dartmouth College, United States
  2. Gisela Storz
    Senior Editor; National Institute of Child Health and Human Development, United States
  3. Jacob G Malone
    Reviewer; John Innes Centre/University of East Anglia, United Kingdom

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "cGAMP signaling controls a transient surface-associated lifestyle" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Guest Editor and Gisela Storz as the Senior Editor. The following individual involved in the review of your submission has agreed to reveal his identity: Jacob G Malone (Reviewer #2).

Three experts and two editors have reviewed your manuscript, and discussed our decision. Based on the reviews and discussion, we ask that you revise your manuscript.

Summary

In this manuscript, Hallberg et al. explore the cGAMP signaling pathway of Geobacter. This work is highly impactful and novel for a number of reasons. It is the first study to demonstrate a physiological role for cGAMP in this bacterium, which had been previously speculated by the discovery of cGAMP-binding riboswitches. Interestingly, cyclic di-GMP (cdiG) and cGAMP appear to play opposing roles in either driving biofilm formation or iron reduction in solution, respectively. Additionally, the kinetic modeling and structural studies provide an explanation as to how the cGAMP synthase, GacA, which forms a homodimer can generate a mixed nucleotide product. Their findings have important implications on the potential evolutionary pathways for cdiG signaling that can lead to the generation of novel signals.

Major revisions

1) Reviewer #1 made several significant points regarding how the structural data is presented and interpreted. Please address each of the following points explicitly in the revised manuscript and the rebuttal, as the points have important implications for your proposed model and the interpretation of the data.

a) Subsection “X-ray crystal structure of Hypr GGDEF domain of G. metallireducens GacA bound to guanosine substrate”, structure of GacA's Hypr GGDEF domain bound to nucleotide: A structure of the GGDEF domain of GacA is presented bound to nucleotides. From the active site electron density shown in Figure 7, it seems the alpha phosphate is not resolved or not present, and only guanosine (plus pyrophosphate) was modeled. Much of the results focus on this active site coordinating guanosine and pyrophosphate in the crystal. Presumably, it is a result of GTP hydrolysis to GMP and pyrophosphate during the crystallization process although it is not clear why the alpha phosphate is not visible. GTP hydrolysis can be considered an off-pathways since no phosphodiester bond is formed. However, in the main figures, the authors chose to model GTP to depict a potential substrate pose, and much of the mechanistic discussion regarding substrate specificity and conservation of the active site in Hypr GGDEF vs. canonical GGDEF domains relies on this model. As part of this analysis, the Hypr GGDEF*guanosine*pyrophosphate structure was compared to a bona fide GGDEF*GTP complex. The structural arguments concerning distinct substrate preferences of the two enzymes are based on distance differences between the protein and nucleotide of less than an Ångstrom between the two complexes. Based on the available data, it is difficult to assess if the differences in nucleotide coordination originate from the artificial cleavage of the substrate, or – as the authors argue – from intrinsic difference in GTP coordination between the two enzyme sub-families, which could explain their distinct catalytic characteristics. This point is somewhat mitigated by the bioinformatic analysis of the GGDEF domain superfamily and mutational validation of the model. However, the authors should use caution when describing the crystal structure presented here. For example, at one point, it is argued that the Hypr GGDEF structure extends the short list of substrate-bound GGDEF proteins determined to date. While it is correct that only very few GGDEF protein structures were solved bound to substrate, it seems incorrect to discuss the Hypr GGDEF domain structure as one of them given that it is bound to a hydrolysed side product. Finally, the structure of substrate-bound PleD, a canonical GGDEF protein, was determined using a non-hydrolyzable analog (GTPalphaS; Wassmann et al., 2007). If attainable, a crystal structure of a GacA*GTPalphaS complex could provide the proper state for a comparative study with other substrate-bound GGDEF domains.

b) Structure presentation in main text: In general, the authors chose to show modeled structures in the main text to illustrate the proposed substrate bound state (see previous point) and predict the function of conserved active site residues. In order to emphasize experimental data over models and to avoid confusion, the crystallographically determined states should be shown in the main figures (alongside with these models).

c) Arguments regarding transient adhesion controlled by cGAMP: The title does not correspond well with the main conclusions that can be drawn from the experiments described in the manuscript. Specifically, the evidence supporting a role of cGAMP in controlling transient surface interaction appears rather indirect. The argument is based on the fact that colonization of electrodes by Geobacter sulfurreducens is usually associated with biofilm formation and cdiG signaling, whereas GacA facilitates interactions of the bacterium with Fe(III) particles through its production of cGAMP (without a major impact on biofilm formation of electrodes). Although cdiG- and cGAMP-producing enzymes have inverse effects on these two phenotypes (both in knock-out and overexpression studies), interaction kinetics between bacterial cells and Fe(III) particles were not assessed directly. It is possible that the RNA-seq data provides clues to implicate cellular processes usually associated with more transient interactions of bacteria with substrates, however such a discussion is missing in the present version of the manuscript. Furthermore, one cannot exclude mechanisms other than adhesion kinetics for how cGAMP may contribute to metal reduction specifically. Without further corroboration, it seems appropriate to adjust the title (and main text) to better represent the experimentally verified conclusions. Such modifications would not take away from the impact of this study, which was perceived as high.

2) All three reviewers felt that it was important to provide evidence for the role of the I-Site and its function. A couple of experiments were suggested along these lines: (i) purification of the enzyme to see if cdiG was indeed associated with the I-site (purifying GacA (and an inhibitory-site mutant) and analyzing the nucleotides that copurify with the protein – ideally, wild-type and the esnD-deletion strains would be used as expression hosts, but GacA expression in E. coli in the absence and presence of an active diguanylate cyclase may be a more accessible model system), and (ii) building an I-site mutant of GacA and assessing its effect. While including both of these experiments would be outstanding, either of the two experiments would speak to the fact that the I-site does indeed bind cdiG, and additionally, the genetic experiment would provide direct functional data for the I-site.

3) All three reviewers liked the kinetic model, although reviewer #3 felt that some additional data should be provided to support the model. We came to a consensus that the model should be included, but some text added to the Discussion highlighting which parts of the model need to be supported by additional experimentation in the future. In particular, it should be made clear that as long as the aspect of the model regarding the differential activation of the N-terminal domain is stated as a hypothesis that has arisen from the model and that this aspect of that model needs to be further explored in the future. We felt that this was an excellent opportunity to help drive the direction of the field.

https://doi.org/10.7554/eLife.43959.035

Author response

Major revisions

1) Reviewer #1 made several significant points regarding how the structural data is presented and interpreted. Please address each of the following points explicitly in the revised manuscript and the rebuttal, as the points have important implications for your proposed model and the interpretation of the data.

a) Subsection “X-ray crystal structure of Hypr GGDEF domain of G. metallireducens GacA bound to guanosine substrate”, structure of GacA’s Hypr GGDEF domain bound to nucleotide: A structure of the GGDEF domain of GacA is presented bound to nucleotides. From the active site electron density shown in Figure 7, it seems the alpha phosphate is not resolved or not present, and only guanosine (plus pyrophosphate) was modeled. Much of the results focus on this active site coordinating guanosine and pyrophosphate in the crystal. Presumably, it is a result of GTP hydrolysis to GMP and pyrophosphate during the crystallization process although it is not clear why the alpha phosphate is not visible. GTP hydrolysis can be considered an off-pathways since no phosphodiester bond is formed. However, in the main figures, the authors chose to model GTP to depict a potential substrate pose, and much of the mechanistic discussion regarding substrate specificity and conservation of the active site in Hypr GGDEF vs. canonical GGDEF domains relies on this model. As part of this analysis, the Hypr GGDEF*guanosine*pyrophosphate structure was compared to a bona fide GGDEF*GTP complex. The structural arguments concerning distinct substrate preferences of the two enzymes are based on distance differences between the protein and nucleotide of less than an Ångstrom between the two complexes. Based on the available data, it is difficult to assess if the differences in nucleotide coordination originate from the artificial cleavage of the substrate, or – as the authors argue – from intrinsic difference in GTP coordination between the two enzyme sub-families, which could explain their distinct catalytic characteristics. This point is somewhat mitigated by the bioinformatic analysis of the GGDEF domain superfamily and mutational validation of the model. However, the authors should use caution when describing the crystal structure presented here. For example, at one point, it is argued that the Hypr GGDEF structure extends the short list of substrate-bound GGDEF proteins determined to date. While it is correct that only very few GGDEF protein structures were solved bound to substrate, it seems incorrect to discuss the Hypr GGDEF domain structure as one of them given that it is bound to a hydrolysed side product. Finally, the structure of substrate-bound PleD, a canonical GGDEF protein, was determined using a non-hydrolyzable analog (GTPalphaS; Wassmann et al., 2007). If attainable, a crystal structure of a GacA*GTPalphaS complex could provide the proper state for a comparative study with other substrate-bound GGDEF domains.

We sincerely apologize for the inaccurate statement regarding the Hypr GGDEF structure being a substrate-bound structure, this was an oversight that we are glad to correct. The claim has been deleted.

To make things more clear (for readers and ourselves), we have included in the main Figure 6 the original structure with guanosine:PPi bound alongside the structure with GTP modeled based on partial localized density for the alpha phosphate. We added to Figure 8 the Fo-Fc omit map of electron density contoured at 2.0 σ for the bound guanosine nucleotide.

We also revised the main text throughout to discuss the structure with “guanosine” instead of “GTP”. For example:

“For the latter, we were only able to find partial localized electron density for the alpha phosphate (Figure 8). It is likely that GTP was hydrolyzed during crystallization but remained coordinated in the active site with density now visible for the guanosine and beta-gamma pyrophosphate (PPi). For clarity, we show both the original and modeled structures with the alpha phosphate. The final guanosine nucleotide binds at the T4 lysozymeGGDEF interface and may act to stabilize the construct in a way that ATP cannot.”

Finally, we kept the discussion of the GGDEF versus GGEEF structures, but added the appropriate caveats. Also, the text was edited to make clear that the structural analysis led to a hypothesis (rather than a conclusion) that then was tested by mutagenesis and bioinformatics analysis:

“Overlaying Hypr and canonical GGDEF domains provides a potential explanation for these earlier results (Figure 6B), although an important caveat to this analysis is that the Hypr GGDEF structure contains guanosine plus PPi bound instead of intact GTP in the case of the canonical GGDEF. […]To test whether the Mg2+-GGDEF interaction is indeed critical to GacA activity, we made the D374*E mutant of GsGacA, which converts the motif to GGEEF (the * indicates that the numbering used corresponds to the G. metallireducens GacA structure, because GsGacA is shorter by one amino acid).”

b) Structure presentation in main text: In general, the authors chose to show modeled structures in the main text to illustrate the proposed substrate bound state (see previous point) and predict the function of conserved active site residues. In order to emphasize experimental data over models and to avoid confusion, the crystallographically determined states should be shown in the main figures (alongside with these models).

We now include the original structure with guanosine:Ppi bound alongside the structure with GTP modeled based on partial localized density for the alpha phosphate in main Figure 6. We also include the modeled dimer showing the original, crystallized Tyr conformation in the monomer alongside the model showing with rotated Tyr. Because the number of figure panels is much expanded, we have broken up the original figure into two figures. The new Figure 6 focuses on interactions observed in the monomer, whereas the new Figure 9 focuses on crossdimer interactions.

c) Arguments regarding transient adhesion controlled by cGAMP: The title does not correspond well with the main conclusions that can be drawn from the experiments described in the manuscript. Specifically, the evidence supporting a role of cGAMP in controlling transient surface interaction appears rather indirect. The argument is based on the fact that colonization of electrodes by Geobacter sulfurreducens is usually associated with biofilm formation and cdiG signaling, whereas GacA facilitates interactions of the bacterium with Fe(III) particles through its production of cGAMP (without a major impact on biofilm formation of electrodes). Although cdiG- and cGAMP-producing enzymes have inverse effects on these two phenotypes (both in knock-out and overexpression studies), interaction kinetics between bacterial cells and Fe(III) particles were not assessed directly. It is possible that the RNA-seq data provides clues to implicate cellular processes usually associated with more transient interactions of bacteria with substrates, however such a discussion is missing in the present version of the manuscript. Furthermore, one cannot exclude mechanisms other than adhesion kinetics for how cGAMP may contribute to metal reduction specifically. Without further corroboration, it seems appropriate to adjust the title (and main text) to better represent the experimentally verified conclusions. Such modifications would not take away from the impact of this study, which was perceived as high.

Thank you for the feedback. We have changed the title to “Structure and mechanism of a Hypr GGDEF enzyme that activates cGAMP signaling to control extracellular metal respiration”

2) All three reviewers felt that it was important to provide evidence for the role of the I-Site and its function. A couple of experiments were suggested along these lines: (i) purification of the enzyme to see if cdiG was indeed associated with the I-site (purifying GacA (and an inhibitory-site mutant) and analyzing the nucleotides that copurify with the protein – ideally, wild-type and the esnD-deletion strains would be used as expression hosts, but GacA expression in E. coli in the absence and presence of an active diguanylate cyclase may be a more accessible model system), and (ii) building an I-site mutant of GacA and assessing its effect. While including both of these experiments would be outstanding, either of the two experiments would speak to the fact that the I-site does indeed bind cdiG, and additionally, the genetic experiment would provide direct functional data for the I-site.

The point about I-site function indeed is important. Experiment (i) has been done previously, so we have added a sentence to describe the results (subsection “GacA is essential for production of intracellular cyclic GMP-AMP (cGAMP)”):

“A second mechanism regulating canonical GGDEF domains involves a conserved allosteric inhibitory site (I-site) that binds cyclic dinucleotides. […] In extracts of cells overexpressing GacA, the major CDN present is cGAMP (Hallberg et al., 2016), yet GacA still purifies with bound cdiG, which supports the hypothesis that the I-site is specific for cdiG.”

In Figure 1D, we show the effect of complementation with GacA R393A (I-site) mutant on the riboswitch-luciferase reporter and in Figure 1E, we show the effect of complementation with GacA R393A (I-site) mutant on Fe(III) oxide reduction. These experiments seem similar to what the reviewers propose for experiment (ii).

3) All three reviewers liked the kinetic model, although reviewer #3 felt that some additional data should be provided to support the model. We came to a consensus that the model should be included, but some text added to the Discussion highlighting which parts of the model need to be supported by additional experimentation in the future. In particular, it should be made clear that as long as the aspect of the model regarding the differential activation of the N-terminal domain is stated as a hypothesis that has arisen from the model and that this aspect of that model needs to be further explored in the future. We felt that this was an excellent opportunity to help drive the direction of the field.

Thank you for the feedback. In particular, we have made clearer that differential activation is a hypothesis that comes out from the model by labeling the Figure 3E as “Proposed asymm. activation” and making the following text changes:

“While uniform effects on kcat values would not change product ratios, we used the kinetic model to simulate product ratios if kcat,AG was increased asymmetrically by activation more than kcat,diG or kcat,diA (Figure 5E). […] Taken together, these results show how cooperative binding, including selective cooperativity induced by the first substrate bound,and tuning substrate affinities to cellular concentrations, could make GacA predominantly produce cGAMP.”

We also moved the mechanistic hypothesis for asymmetric activation to the Discussion.

https://doi.org/10.7554/eLife.43959.036
