1. Chromosomes and Gene Expression
Download icon

Conversion of random X-inactivation to imprinted X-inactivation by maternal PRC2

  1. Clair Harris
  2. Marissa Cloutier
  3. Megan Trotter
  4. Michael Hinten
  5. Srimonta Gayen
  6. Zhenhai Du
  7. Wei Xie
  8. Sundeep Kalantry  Is a corresponding author
  1. University of Michigan, United States
  2. Tsinghua University, China
Research Article
Cite this article as: eLife 2019;8:e44258 doi: 10.7554/eLife.44258
8 figures, 1 table, 4 data sets and 6 additional files

Figures

Figure 1 with 1 supplement
Coincident accumulation of EED and H3K27me3 on the inactive X-chromosome in blastocyst-stage WT, Eed+/- and Eed-/- mouse embryos.

See also Figure 1—figure supplement 1. (A,B) RNA FISH detection of Xist RNA (white) and immunofluorescence (IF) detection of EED (red) and H3K27me3 (green) in representative female and male wild-type (WT) (A) or female Eed+/- and Eed-/- (B) E3.0 – E3.5 blastocyst embryos. Nuclei are stained blue with DAPI. Scale bars, 20 µm. Embryos ranged in size from 23 to 57 nuclei. Bar plots, percentage of nuclei with coincident accumulation of Xist RNA and EED and/or H3K27me3 enrichment in individual embryos. (C) Genotype and sex distribution of Eed+/- and Eed-/- mouse blastocyst embryos from the cross in (B). The difference between the frequency of Eed+/- vs Eed-/- male and female embryos is not significant (p>0.05, Two-tailed Student’s T-test).

https://doi.org/10.7554/eLife.44258.003

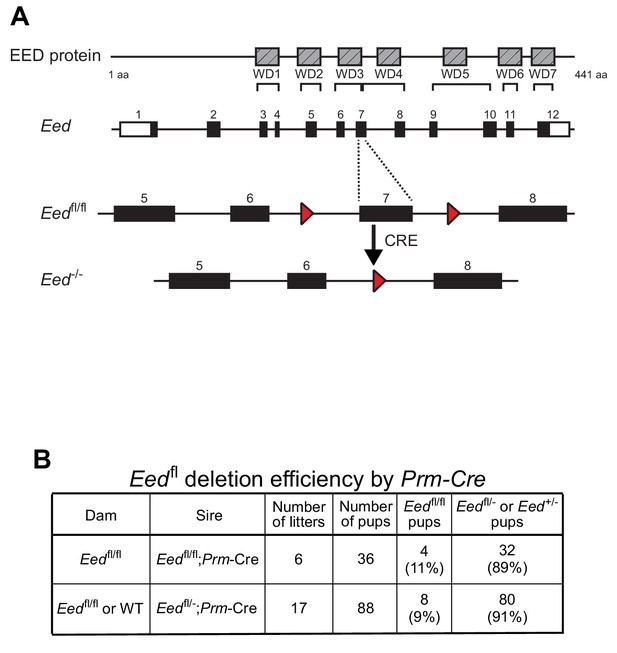

Figure 1—figure supplement 1
Generation of Eed-/- embryos.

(A) Schematic depicting the deletion of floxed Eed exon seven by CRE recombinase. (B) Breeding data showing the efficiency of Prm-Cre deletion of the Eedfl allele.

https://doi.org/10.7554/eLife.44258.004
Figure 2 with 1 supplement
Assessment of maternal and zygotic EED expression in early preimplantation embryos.

See also Figure 2—figure supplement 1, and Figure 2—source data 1. (A,B) Immunofluorescent (IF) detection of EED (red) and H3K27me3 (green) in 2- and 16-cell Eedfl/fl, Eedfl/- / Eed-/-, Eedm-/-, and Eedmz-/- embryos. Nuclei are stained blue by DAPI. (C) Dot plots of EED and H3K27me3 IF signals in the five genotypes (Eedfl/fl, Eedfl/-, Eed-/-, Eedm-/-, Eedmz-/-) at the ~2-cell,~4-cell, ~8-cell, and ~16-cell stage. Each dot represents an individual embryo. The gray line indicates mean fluorescence intensity. Pairwise statistical comparisons between all genotypes are included in Supplementary file 1. (D) Significance testing of differences in EED fluorescence intensity in ~2-cell embryos and ~16-cell embryos plotted in (C) (Two-tailed Student’s T-test). (E) Mean EED fluorescence intensity from data in (C) plotted across early embryogenesis. (F) Model of change in maternal, zygotic, and total EED expression levels during early embryonic development.

https://doi.org/10.7554/eLife.44258.005
Figure 2—source data 1

Raw IF intensity data of individual nuclei.

Fluorescence intensity values for individual nuclei of each embryo plotted in Figure 2C. All nuclei from individual embryos were averaged to calculate the mean fluorescence intensity of each embryo.

https://doi.org/10.7554/eLife.44258.007

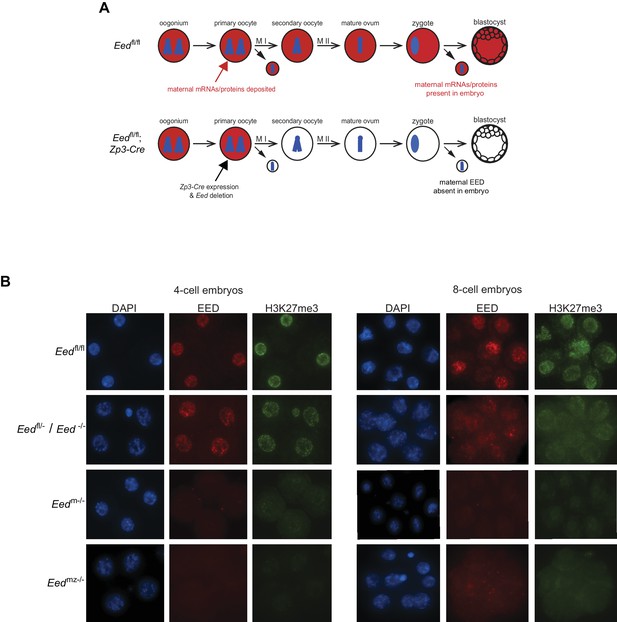

Figure 2—figure supplement 1
Analysis of EED and H3K27me3 fluorescence intensity in Eed mutants.

(A) Schematic depicting the deletion of Eed exon seven by Zp3-Cre used to generate embryos maternally null for Eed. (B) Representative images of Eedfl/fl, Eedfl/-, Eed-/-, Eedm-/-, and Eedmz-/- 4- and 8-cell embryos stained by IF for EED and H3K27me3. Nuclei are indicated by blue DAPI stain, EED stain is indicated in red, and H3K27me3 stain is indicated in green.

https://doi.org/10.7554/eLife.44258.006
Figure 3 with 1 supplement
Lack of defective X-inactivation initiation in Eed-/- blastocysts.

See also Figure 3—figure supplement 1. (A) Allele-specific X-linked gene expression heat map of female Eedfl/fl, Eedfl/-, and Eed-/- blastocysts. Four embryos each of Eedfl/fl, Eedfl/-, and Eed-/- genotypes were sequenced individually and only genes with informative allelic expression in all samples are plotted (see Materials and methods). Genes are ordered on the basis of allelic expression in Eedfl/fl embryos. (B) Average allelic expression of the RNA-Seq data shown in (A). The mean allelic expression of X-linked genes lacks significant difference between each combination of the three genotypes (p>0.05, Welch’s two-sample T-test). Pairwise statistical comparisons between all genotypes are included in Supplementary file 3. (C) Pyrosequencing-based quantification of allelic expression of X-linked genes Xist, Rnf12, Atrx and Pgk1 in Eedfl/fl, Eedfl/-, and Eed-/- blastocysts. Error bars represent the standard deviation of data from 3 to 6 independent blastocyst embryos. The mean allelic expression of all four genes lack significant difference between each combination of the three genotypes (p>0.05, Welch’s two-sample T-test). Pairwise statistical comparisons for all genes and between all genotypes are included in Supplementary file 4. (D) RNA FISH detection of Xist RNA (green), Rnf12 RNA (red), and IF detection of H3K27me3 (white) in representative Eedfl/fl or Eed-/- female blastocysts. Nuclei are stained blue with DAPI. Scale bars, 20 µm. Individual nuclei displaying representative categories of stains are shown to the right of each embryo. Embryos ranged in size from 39 to 100 nuclei. (E) Bar plot of percentage of nuclei with coincident accumulation of Xist RNA and H3K27me3 in individual Eedfl/fl and Eed-/- embryos. Each bar is an individual embryo. Embryo numbers under the bars correspond to the same embryos plotted in F). (F) Bar plots of percentage of nuclei with or without Xist RNA-coating and Rnf12 RNA expression in the embryos stained in D) and plotted in E). The numbers under the bars correspond to the same embryos plotted in E).

https://doi.org/10.7554/eLife.44258.008

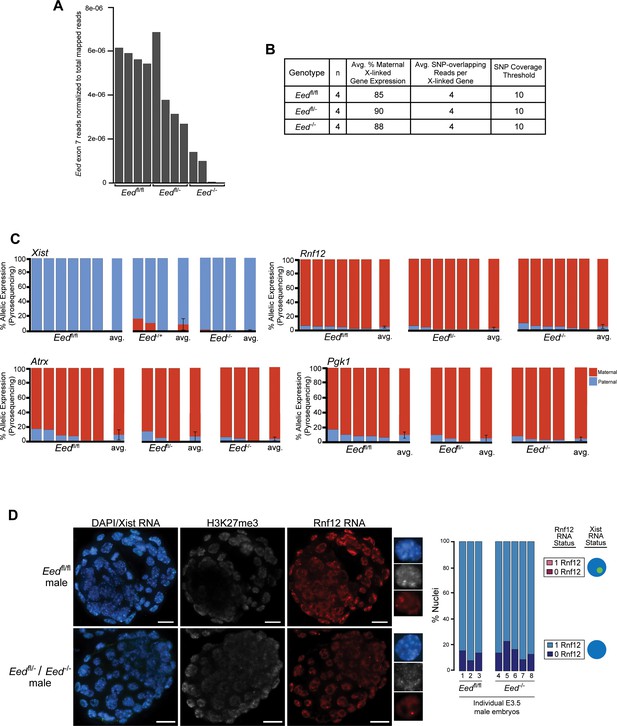

Figure 3—figure supplement 1
X-linked gene expression analysis in Eed-/- embryos.

(A) Validation of genotypes of E3.5 Eedfl/fl, Eedfl/-, and Eed-/- female blastocyst embryos. Eed exon 7 RNA-Seq reads are normalized to total mapped RNA-Seq reads. (B) Table describing the RNA-Seq genotypes, number of sequenced embryos, average % maternal X-linked gene expression, average number of SNPs per X-linked gene, and the SNP overlapping read coverage threshold. A comprehensive list of expression levels of all informative genes is included in Supplementary file 2. (C) Pyrosequencing-based quantification of allelic expression of X-linked genes Xist, Rnf12, Atrx, and Pgk1 in individual Eedfl/fl, Eedfl/-, and Eed-/- female blastocysts. Error bars, standard deviation of data from 3 to 6 independent embryos. The mean allelic expression of all four genes lacks significant difference between each combination of the three genotypes (p>0.05, Welch’s two-sample T-test). Pairwise statistical comparisons for all genes and between all genotypes are included in Supplementary file 4. (D) RNA FISH detection of Xist RNA (green), Rnf12 RNA (red), and IF detection of H3K27me3 (white) in representative Eedfl/fl and Eedfl/- or Eed-/- male blastocysts. Nuclei are stained blue with DAPI. Scale bars, 20 µm. Right of each embryo, individual nuclei displaying representative categories of stains. Embryos ranged in size from 56 to 65 nuclei. Bar plot, percentage of nuclei with or without Xist RNA-coating and Rnf12 RNA expression.

https://doi.org/10.7554/eLife.44258.009
Figure 4 with 1 supplement
Defective imprinted X-inactivation initiation in blastocysts lacking maternal EED.

See also Figure 4—figure supplement 1. (A) RNA FISH detection of Xist RNA (green) and IF stain for H3K27me3 (white) in representative Eedm-/- and Eedmz-/- female blastocysts. Nuclei are stained blue with DAPI. Scale bars, 20 µm. Eedfl/fl blastocyst from Figure 3D shown for comparison. Right, individual representative nuclei. Mutant embryos ranged in size from 46 to 80 nuclei. Bar plot shows percentage of nuclei in each embryo analyzed that displayed H3K27me3 enrichment on the Xist RNA-coated X-chromosome. (B) Maternal:paternal X-linked gene expression heat map of female Eedm-/- and Eedmz-/- blastocysts. Five Eedm-/- and three Eedmz-/- embryos were sequenced individually and only genes with informative allelic expression in all samples are plotted (see Materials and methods). Eedfl/fl, Eedfl/-, and Eed-/- data from Figure 3A shown for comparison. Genes are ordered on the basis of allelic expression in Eedfl/fl embryos. (C) Average maternal:paternal X-linked gene expression ratio from the RNA-Seq data shown in B). Eedfl/fl, Eedfl/-, and Eed-/- data from Figure 3B shown for comparison. The mean allelic expression of X-linked genes is significantly different between Eedm-/- and Eedfl/fl, and Eedmz-/- and Eedfl/fl blastocysts. (p<0.05, Welch’s two-sample T-test). Pairwise statistical comparisons between all genotype groups are included in Supplementary file 3. (D) Average normalized maternal and paternal X-linked gene expression in blastocysts. Maternal and paternal X-linked gene expression is significantly different between Eedm-/- and Eedmz-/- embryos compared to Eedfl/fl embryos (*, p<0.05, Two-tailed Student’s T-test). Pairwise statistical comparisons between all genotypes are included in Supplementary file 3. (E) Pyrosequencing-based quantification of allelic expression of X-linked genes in Eedm-/- and Eedmz-/- blastocysts. Eedfl/fl data from Figure 3C are shown for comparison. Error bars represent the standard deviation of data from 3 to 6 independent blastocyst embryos. The mean allelic expression of Xist, Rnf12, and Atrx is significantly different between Eedfl/fl and Eedm-/- embryos. The mean allelic expression of XistRnf12, Pgk1, and Atrx is significantly different between Eedfl/fl and Eedmz-/- embryos (p<0.05, Welch’s two-sample T-test). Pairwise statistical comparisons for all genes and between all genotypes are included in Supplementary file 4.

https://doi.org/10.7554/eLife.44258.010

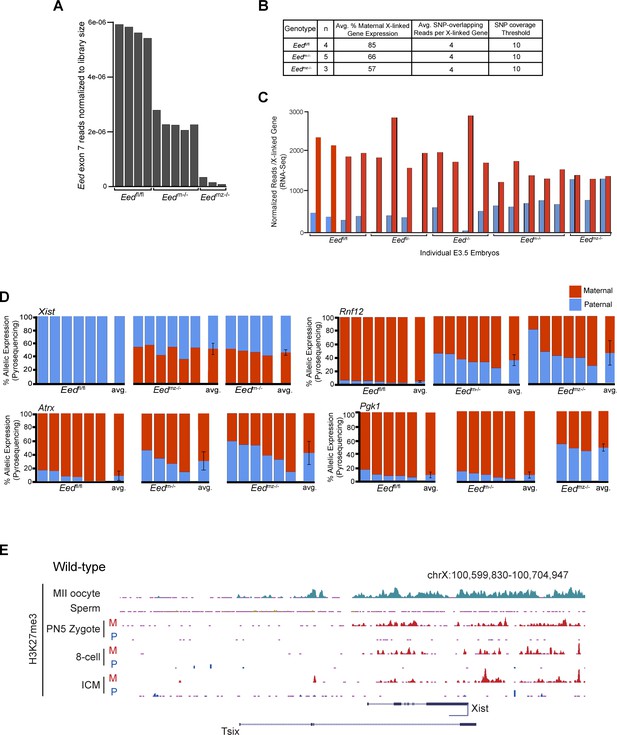

Figure 4—figure supplement 1
Generation and X-linked gene profiling of Eedm-/- and Eedmz-/- embryos.

(A) Validation of genotypes of E3.5 female embryos. Eed exon 7 RNA-Seq reads are normalized to total mapped RNA-Seq reads. (B) Table describing the RNA-Seq genotypes, number of sequenced embryos, average percentage maternal X-linked gene expression, average number of SNPs per X-linked gene, and the SNP overlapping read coverage threshold. A comprehensive list of expression levels of all informative genes is included in Supplementary file 2. (C) Normalized maternal or paternal reads per X-linked gene in individual Eedfl/fl, Eedfl/-, Eed-/-, Eedm-/-, and Eedmz-/- female E3.5 blastocysts. (D) Pyrosequencing-based quantification of allelic expression of X-linked genes Xist, Rnf12, Atrx, and Pgk1 in individual Eedfl/fl, Eedm-/-, and Eedmz-/- female E3.5 blastocysts. Error bars, standard deviation of data from 3 to 6 independent embryos. The mean allelic expression for Xist, Rnf12, and Atrx is significantly different between Eedfl/fl and Eedm-/- embryos (p<0.05, Welch’s two-sample T-test). The mean allelic expression for Xist, Rnf12, Atrx, and Pgk1 is significantly different between Eedfl/fl and Eedmz-/- embryos (p<0.05, Welch’s two-sample T-test). The mean allelic expression of Pgk1 is significantly different between Eedm-/- and Eedmz-/- embryos (p<0.05, Welch’s two-sample T-test). Pairwise statistical comparisons for all genes and between all genotypes are included in Supplementary file 4. (E) Allele-specific H3K27me3 ChIP-Seq at the Xist locus of wild-type MII oocyte, sperm, PN5 zygote, 8 cell embryo, and inner cell mass (ICM) (Zheng et al., 2016).

https://doi.org/10.7554/eLife.44258.011
RNA FISH analysis of X-inactivation in Eedm-/- and Eedmz-/- blastocysts.

(A,B) RNA FISH detection of Xist RNA (green) and Rnf12 RNA (red) in representative Eedm-/- and Eedmz-/- female (A) and Eedmz-/- male (B) blastocysts. Nuclei are stained blue with DAPI. Scale bars, 20 µm. Individual nuclei of representative categories of stain are shown to the right of each embryo. Eedfl/fl female data from Figure 3D shown for comparison. Mutant female embryos ranged in size from 46 to 80 nuclei. Fully developed mutant male embryos ranged in size from 53 to 110 nuclei. Delayed mutant male embryos ranged in size from 30 to 40 nuclei. Bar plot shows percentage of nuclei in each embryo with Xist RNA coats and/or Rnf12 RNA expression. Each bar represents an individual embryo and embryo numbers under the bars correspond to the same female embryos plotted in Figure 4A. *, p<0.05; **, p<0.01, Two-tailed Student’s T-test, between Eedm-/- and Eedfl/fl, or Eedmz-/- and Eedfl/fl. (C) Data showing the number of Eedm-/- embryos which can live to term compared to Eedfl/fl embryos. WT, wild-type. Table shows Eedm-/- litters sired by Mus musculus-derived male or Mus molossinus-derived male. Male Eedm-/- offspring are underrepresented compared to females, p=0.02, Two-tailed Student’s T-test.

https://doi.org/10.7554/eLife.44258.012
Figure 6 with 1 supplement
Switching of imprinted to random X-inactivation in E3.5 embryos lacking maternal EED.

See also Figure 6—figure supplement 1. (A,B) Allele-Specific Xist RNA FISH in Eedfl/+ and Eedm-/- male and female E3.0-E3.5 blastocyst embryos. Xist RNA expressed from the maternal X-chromosome is indicated in red and from the paternal X-chromosome in white. Representative embryos are depicted. Nuclei are stained blue with DAPI. Scale bars, 20 µm.

https://doi.org/10.7554/eLife.44258.013
Figure 6—figure supplement 1
Characterization of allele-specific Xist RNA FISH probe in cells and embryos.

(A) Female Trophoblast stem (TS) cells (top panel) and extraembryonic endoderm (XEN) stem cells (bottom panel) stained with an allele-specific Xist RNA FISH probe. Both TS cells and XEN cells express Xist from and undergo imprinted X-inactivation of the paternal X-chromosome (Kunath et al., 2005; Tanaka et al., 1998). The TS cells are derived from a cross of JF1 Mus molossinus dam with a 129/S1-derived Mus musculus sire. The XEN cells are generated from a cross of 129/S1 Mus musculus dam and JF1 Mus molossinus-derived sire. In the TS cells, the paternal-X is therefore Mus musculus derived while in the XEN cells the paternal-X is JF1 Mus molossinus derived. Mus musculus-specific Xist RNA FISH probe detects the complimentary Xist RNA in red and the Mus molossinus-specific Xist RNA FISH probe detects its complimentary Xist RNA in white. (B) Eedfl/+ female E3.5 embryos stained with the same allele-specific Xist RNA FISH probe as in (A). Top panels, representative stained embryo derived from a cross of Eedfl/fl;XJF1XJF1 Mus molossinus-derived dam with a Mus musculus sire. Bottom panels, representative stained embryo from an Eedfl/fl Mus musculus-derived dam with a JF1 Mus molossinus-derived sire (this embryo is also shown in Figure 6A). Due to imprinted X-inactivation, both E3.5 embryos are expected to express Xist RNA from their paternal X-chromosome.

https://doi.org/10.7554/eLife.44258.014
Switching of imprinted to random X-inactivation in 3–16 cell embryos lacking maternal EED.

(A,B) Allele-Specific Xist RNA FISH in Eedfl/+ and Eedm-/- female and male 3–16 cell embryos. Xist RNA expressed from the maternal X-chromosome is indicated in red and from the paternal X-chromosome in white. Representative embryos are depicted. Nuclei are stained blue with DAPI. Scale bars, 20 µm.

https://doi.org/10.7554/eLife.44258.015
Lack of PRC2 expression in human oocytes and a path to randomization of X-inactivation in early embryos.

(A) Expression levels by RNA-Seq of core PRC2 components in human and mouse oocytes. (B) Model of maternal PRC2 function during preimplantation mouse embryogenesis.

https://doi.org/10.7554/eLife.44258.016

Tables

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Gene (Mus)EedENSEMBLENSEMBL:
ENSMUSG00000030619
Chromosome 7:
89,954,654–89,980,983
reverse strand
Strain, strain
background
(Mus molossinus)
JF1/Ms;
Mus molossinus
JAXJAX:003720;
RRID:MGI:2164136
Strain, strain
background
(Mus musculus)
129/S1;
Mus musculus
JAXJAX:002448
Genetic reagent
(Mus musculus)
EedflMaclary et al. (2017)Lox sites inserted into the Eed gene in introns surrounding exon 7.
Genetic reagent
(Protamine-cre)
Prm-creO'Gorman et al. (1997);
JAX
JAX:003328
Genetic reagent
(Zp3-cre)
Zp3-creLewandoski et al. (1997); JAXJAX:003651
Biological
sample
(mouse embryo)
Mus musculus;
Mus molossinus
this paper2 cell stage to
blastocyst stage
embryos
Biological
sample (RNA)
Mus musculus;
Mus molossinus
this paperGenerated from
female
blastocysts
AntibodyMonoclonal EED
(Rabbit monoclonal)
Sewalt et al. (1998)Obtained from
Otte Lab;
Dilution:
Figure 1 –1:1000,
Figure 2 –1:2500
AntibodyPolyclonal H3K27me3
(Rabbit polyclonal)
MilliporeMillipore:#ABE44Dilution:
Figure 1 – 1:5000,
Figure 2 – 1:25000
AntibodyAlexa Fluor DαM
555 (secondaries)
InvitrogenInvitrogen:#A32773Dilution:
Figure 1 –1:300,
Figure 2 – 1:500
AntibodyAlexa Fluor DαRb
488 (secondaries)
InvitrogenInvitrogen:#A21206Dilution:
Figure 1 –1:300,
Figure 2 – 1:500
AntibodyAlexa Fluor DαRb
647 (secondaries)
InvitrogenInvitrogen:#A31573Dilution: 1:300
Sequence-based
reagent
Quasar dye 570Biosearch
Technologies
primer sequences in
Supplementary file 5
Allele-specific
probe dye;
labeled M. musculus-specific
oligo
Sequence-based
reagent
Quasar dye g70Biosearch
Technologies
primer sequences in
Supplementary file 5
Allele-specific
probe dye;
labeled M. molossinus-specific
oligo
Commercial assay
or kit
Dynabeads mRNA
DIRECT Kit
Thermo FisherThermoFisher:#610.11
Commercial assay
or kit
Takara SMARTer
Seq V4
stranded low
input kit
TakaraTakara:#634889
Commercial assay
or kit
BioPrime DNA
Labeling
System
InvitrogenInvitrogen:#18094011
Software,
algorithm
FastQChttp://www.bioinformatics.babraham.ac.uk/projects/fastqcRRID:SCR_014583
Software,
algorithm
Rhttps://www.r-project.orgRRID:SCR_001905Used in RNA-
Seq analysis
Software,
algorithm
VCFtoolsDanecek et al. (2011)RRID:SCR_001235Used in RNA
-Seq analysis
Software,
algorithm
STARDobin et al. (2013)RRID:SCR_015899Used in RNA-
Seq analysis
Software,
algorithm
HTSeqAnders et al. (2015)RRID:SCR_005514Used in RNA-
Seq analysis
Software,
algorithm
FeatureCountsLiao et al. (2014)RRID:SCR_012919Used in RNA-
Seq analysis
OtherDAPI stainInvitrogenInvitrogen:#D21490Dilution:
1:250,000
OtherCy3-dCTPGE HealthcareGEHealthcare:#PA53021
OtherFluorescein-12-UTPRocheRoche:
#11427857910
OtherCy5-CTPGE HealthcareGEHealthcare:#25801087
OtherSSCAmbionAmbion:#AM9765RNA FISH
hybridization
buffer, working
concentation:
4X; allele-specific RNA FISH, working
concentration
: 2X
OtherDextrane sulfateMilliporeMillipore:#S4030RNA FISH hybridization
buffer, working
concentation:
20%; allele-specific RNA FISH, working
concentration: 10%
OtherFormamide,
deionized
VWR Life SciencesVWR:#0606RNA FISH hybridization
buffer; AlSp working
concentation: 10%
OtherBSANew England
Biolabs
NEB:#B9001SIF blocking buffer,
working
concentration:
0.5 mg/ml
Otheryeast tRNAInvitrogenInvitrogen:#15401–029IF blocking buffer,
working
concentration:
50 ug/ml
OtherRNAase outInvitrogenInvitrogen:#10777–019IF blocking buffer,
working
concentration:
80 units/ml
OtherTween-20Thermo FisherThermoFisher:#
BP337-100
IF blocking buffer,
working
concentration:
0.2%
OtherPBSGibcoGibco:#14200IF blocking buffer,
working
concentation: 1X
OtherVectashieldVector LabsVectorLabs:
#H-1000
Mounting medium for IF/RNA FISH samples

Data availability

Sequencing data have been deposited in GEO under accession number GSE123173. The analyzed sequencing data are also included as Supplementary File 3.

The following data sets were generated
  1. 1
    NCBI Gene Expression Omnibus
    1. C Harris
    (2019)
    ID GSE123173. Conversion of Random X-inactivation to Imprinted X-inactivation by Maternal PRC2.
The following previously published data sets were used
  1. 1
    NCBI BioProject
    1. A Reich
    2. P Klatsky
    3. S Carson
    4. G Wessel
    (2011)
    ID PRJNA146903. The transcriptome of a human polar body accurately reflects its sibling oocyte.
  2. 2
    NCBI BioProject
    1. Institutet Karolinska
    (2015)
    ID PRJEB8994. Gene expression during the first three days of human development.
  3. 3
    NCBI BioProject
    1. H Kobayashi
    2. T Sakurai
    3. M Imai
    (2012)
    ID PRJDB21. Contribution of intragenic DNA methylation in mouse gametic DNA methylomes to establish oocyte-specific heritable marks.

Additional files

Supplementary file 1

Pairwise analysis of IF intensity data in Figure 2.

Statistical comparisons of EED and H3K27me3 IF intensities between all genotypes at each embryonic stage analyzed in Figure 2 (Two-tailed Student’s T-test).

https://doi.org/10.7554/eLife.44258.017
Supplementary file 2

Percentage of total X-linked gene expression from the paternal X-chromosome by RNA-Seq.

Analysis of each informative X-linked gene (>10 reads/SNP).

https://doi.org/10.7554/eLife.44258.018
Supplementary file 3

Pairwise analysis of RNA-Seq data.

Statistical comparisons of percent allelic expression from the paternal X-chromosome and normalized expression from the paternal- or maternal-X of all genotypes.

https://doi.org/10.7554/eLife.44258.019
Supplementary file 4

Pairwise analysis of Pyrosequencing data.

Statistical comparisons of Pyrosequencing data of Xist, Rnf12, Atrx, and Pgk1 RNAs in embryos of all genotypes.

https://doi.org/10.7554/eLife.44258.020
Supplementary file 5

Primer sequences and antibody information.

Primer sequences for Pyrosequencing, RT-PCR, genomic PCR, and allele-specific RNA FISH probes; and, antibody information.

https://doi.org/10.7554/eLife.44258.021
