Mechanism of completion of peptidyltransferase centre assembly in eukaryotes

  1. Vasileios Kargas
  2. Pablo Castro-Hartmann
  3. Norberto Escudero-Urquijo
  4. Kyle Dent
  5. Christine Hilcenko
  6. Carolin Sailer
  7. Gertrude Zisser
  8. Maria J Marques-Carvalho
  9. Simone Pellegrino
  10. Leszek Wawiórka
  11. Stefan MV Freund
  12. Jane L Wagstaff
  13. Antonina Andreeva
  14. Alexandre Faille
  15. Edwin Chen
  16. Florian Stengel
  17. Helmut Bergler
  18. Alan John Warren  Is a corresponding author
  1. Cambridge Institute for Medical Research, United Kingdom
  2. University of Cambridge, United Kingdom
  3. University of Konstanz, Germany
  4. University of Graz, Austria
  5. Maria Curie-Skłodowska University, Poland
  6. MRC Laboratory of Molecular Biology, United Kingdom
  7. University of Leeds, United Kingdom
Research Article
  • Cited 0
  • Views 1,412
  • Annotations
Cite this article as: eLife 2019;8:e44904 doi: 10.7554/eLife.44904

Abstract

During their final maturation in the cytoplasm, pre-60S ribosomal particles are converted to translation-competent large ribosomal subunits. Here, we present the mechanism of peptidyltransferase centre (PTC) completion that explains how integration of the last ribosomal proteins is coupled to release of the nuclear export adaptor Nmd3. Single-particle cryo-EM reveals that eL40 recruitment stabilises helix 89 to form the uL16 binding site. The loading of uL16 unhooks helix 38 from Nmd3 to adopt its mature conformation. In turn, partial retraction of the L1 stalk is coupled to a conformational switch in Nmd3 that allows the uL16 P-site loop to fully accommodate into the PTC where it competes with Nmd3 for an overlapping binding site (base A2971). Our data reveal how the central functional site of the ribosome is sculpted and suggest how the formation of translation-competent 60S subunits is disrupted in leukaemia-associated ribosomopathies.

https://doi.org/10.7554/eLife.44904.001

eLife digest

Biological machines called ribosomes make proteins in the cells of our body. Mammalian cells build roughly 7,500 new ribosomes every minute, each one containing 80 proteins and four RNA molecules. Problems that prevent ribosomes from assembling correctly have been linked to cancers such as leukemia, and a class of disorders called ribosomopathies that increase the likelihood of someone developing cancer. Understanding how ribosomes assemble could therefore help to develop new treatments for these diseases.

Ribosomes are mostly constructed in the cell nucleus, but the final stages of assembly occur in the cytoplasm of the cell. A protein called Nmd3 binds to the partly constructed ribosome to export it out of the nucleus. Then, the final ribosomal proteins integrate into the structure to form a key site called the peptidyltransferase centre (PTC), which is where the ribosome joins together amino acids when making new proteins for the cell. Questions remained about how these final assembly steps occur, and how Nmd3 is removed from the ribosome.

Kargas et al. have now examined how the PTC forms by using a method known as cryo-electron microscopy to determine the structures that the ribosome forms at different stages of assembly. This revealed that when the last two ribosomal proteins integrate into the ribosome, the ribosomal RNA goes through large shape changes that evict Nmd3 from the PTC. Quality control factors then check the structure of the newly formed ribosome and, if it passes their checks that it works correctly, license it to start making cell proteins.

This stage of ribosome assembly is likely to occur in the same way in all plant, animal and other eukaryotic species. The results presented by Kargas et al. will also help researchers to better understand the consequences of the mutations that affect ribosomal proteins in cancer cells. Ultimately, this knowledge may help to uncover new ways to treat cancer and ribosomopathies.

https://doi.org/10.7554/eLife.44904.002

Introduction

The assembly of eukaryotic ribosomes involves the concerted action of over 200 trans-acting assembly factors. Following their assembly in the nucleus, pre-60S ribosomal subunits are exported to the cytoplasm where they are converted to translation-competent particles. The pre-60S particle attains export competence following release of the GTPase Nog2 by binding of the adaptor protein Nmd3 that recruits the nuclear export receptor Crm1 (Xpo1) through a C-terminal leucine-rich nuclear export signal sequence (Ho et al., 2000; Thomas and Kutay, 2003; Trotta et al., 2003). Crm1-independent adaptors, including Arx1 (Hung and Johnson, 2006; Bradatsch et al., 2007), Bud20 (Bassler et al., 2012), Mex67 (Yao et al., 2007) and Ecm1 (Yao et al., 2010) facilitate pre-60S nuclear export.

Once the ribosomal precursor enters the cytoplasm, the final assembly factors are removed and the last remaining ribosomal proteins integrated. The AAA-ATPase Drg1 initiates the final cascade of cytoplasmic events by recycling the assembly factors Rlp24 and Nog1 (Kappel et al., 2012; Pertschy et al., 2007; Lo et al., 2010). Downstream cytoplasmic maturation events include the release and recycling of additional shuttling proteins including the export factors Arx1, Mex67 and Nmd3, removal of the GTPase Lsg1 as well as incorporation of late joining ribosomal proteins. The Arx1-Alb1 heterodimer is bound at the end of the peptide exit tunnel (Bradatsch et al., 2012; Leidig et al., 2014; Wu et al., 2016), from where it is released by the concerted action of the zinc-finger protein Rei1 and the cytosolic J protein Jjj1 (human DNAJC21) that stimulates the ATPase activity of the Hsp70 chaperone protein Ssa (Hung and Johnson, 2006; Lebreton et al., 2006; Demoinet et al., 2007; Meyer et al., 2007; Meyer et al., 2010; Lo et al., 2010).

Incorporation of Rei1 requires prior release of Nog1, whose C-terminal tail seals the exit tunnel as the particle transitions from the nucleolus to the cytoplasm (Wu et al., 2016). Interestingly, Rei1 also inserts into the exit tunnel (Greber et al., 2012; Greber et al., 2016) from where it is displaced during later cytoplasmic maturation steps by Reh1 (Ma et al., 2017). However, it is unclear when Reh1 is exchanged for Rei1 and how long Reh1 persists on the particle. A parallel branch of the cytoplasmic maturation pathway involves Yvh1-dependent exchange of uL10 for the placeholder protein Mrt4 to form the P-stalk (Kemmler et al., 2009; Lo et al., 2009; Rodríguez-Mateos et al., 2009).

The subsequent cytoplasmic maturation steps are crucial to correctly shape the peptidyltransferase centre (PTC), evolutionarily the oldest part of the ribosome, in a strictly controlled sequence of events. Single-particle cryo-electron microscopy (cryo-EM) has identified the binding sites for Nmd3 and Lsg1 on the intersubunit face of the 60S subunit (Ma et al., 2017; Malyutin et al., 2017). Nmd3 spans the tRNA corridor from the uL1 protein at the L1 stalk through the tRNA exit site and the PTC to interact with the anti-association factor eIF6 (yeast Tif6; herein called eIF6) at the sarcin-ricin loop (SRL), while Lsg1 embraces H69. The timing and mechanism of Nmd3 release remains unclear, but is dependent on the GTPase Lsg1 (Hedges et al., 2005) and the integration of ribosomal proteins eL40 (Fernández-Pevida et al., 2012) and uL16 (Hedges et al., 2005).

The eIF6 protein prevents premature joining of the ribosomal 60S and 40S subunits by binding to the SRL and ribosomal proteins uL14 and eL24 (Gartmann et al., 2010). Release of eIF6 in the cytoplasm is catalysed by EFL1 (elongation factor like GTPase 1, an EF-2 homolog) and its cofactor SBDS (Shwachman-Bodian-Diamond syndrome, yeast Sdo1) (Bécam et al., 2001; Senger et al., 2001; Menne et al., 2007; Finch et al., 2011; Wong et al., 2011; Weis et al., 2015). The recruitment of SBDS to the 60S subunit depends on the prior integration of uL16 into the PTC in vivo (Weis et al., 2015). Although recent structural studies suggest that eIF6 is released after Nmd3 (Weis et al., 2015; Ma et al., 2017), an alternate model posits that the binding of uL16 breaks the interaction of the Nmd3 N-terminus with eIF6, allowing the recruitment of SBDS to promote eIF6 removal prior to the eviction of Nmd3 (Lo et al., 2010; Malyutin et al., 2017; Patchett et al., 2017).

Maintaining the fidelity of late cytoplasmic 60S subunit maturation is crucial for all eukaryotic cells as defects in this process cause human developmental defects and cancer predisposition. Multiple mutations associated with human bone marrow failure and leukaemia target this pathway. For example, recurrent somatic mutations in the RPL10 gene (encoding the ribosomal protein uL16) have been identified in 10% of cases of paediatric T-cell acute lymphoblastic leukaemia (T-ALL) (De Keersmaecker et al., 2013). The T-ALL associated uL16-R98S missense variant impairs the release of both Nmd3 and eIF6 (De Keersmaecker et al., 2013). However, the underlying mechanism is unknown. Inherited mutations in the SBDS gene have been identified in 90% of individuals with Shwachman-Diamond syndrome (SDS), an autosomal recessive disorder characterized by poor growth, exocrine pancreatic insufficiency, skeletal abnormalities and bone marrow failure with an increased risk of progression to myelodysplastic syndrome (MDS) and acute myeloid leukaemia (AML) (Boocock et al., 2003; Warren, 2018). SDS is also associated with mutations in DNAJC21, the human homologue of yeast JJJ1 (Dhanraj et al., 2017; Tummala et al., 2016; D'Amours et al., 2018) and EFL1 (Stepensky et al., 2017).

To elucidate the mechanism of PTC completion and understand how this process in corrupted by leukaemia-associated mutations, we used single-particle cryo-EM and cross-linking mass spectrometry to delineate the sequential steps that lead to assembly of the key functional site of the ribosome. We show how integration of the final ribosomal proteins eL40 and uL16 initiates a hierarchical sequence of RNA and protein rearrangements that result in release of the essential nuclear export adaptor Nmd3, a key conserved step in PTC formation. Defective completion of the PTC causes developmental disorders associated with an increased propensity for malignant transformation. Hence, our atomic models not only illuminate the mechanism of PTC assembly but also suggest how mutations found in leukaemia disrupt this process.

Results

Overview of the pre-60S Lsg1 particles

We set out to determine the mechanism of cytoplasmic 60S subunit maturation and completion of PTC assembly by affinity purifying native pre-60S particles from S. cerevisiae using tandem affinity purification (TAP)-tagged Lsg1 as bait (Figure 1—figure supplement 1A) and subjecting them to immunoblotting (Figure 1—figure supplement 1B), cryo-EM analysis (Figure 1A, Figure 1—figure supplement 1C–F, Figure 1—figure supplements 24, Supplementary file 1A, B) and crosslinking mass spectrometry (XL-MX) (Figure 1—figure supplement 5A,B, Supplementary file 2). Immunoblotting revealed enrichment of the assembly factors Lsg1, Nmd3, Arx1 and eIF6 in the purified particles, but under-representation of ribosomal proteins uL16 and uL10 (P0) (Figure 1—figure supplement 1B). Analysis by single-particle cryo-EM with extensive 3D classification yielded a series of structures (hereafter termed states I-VI) that likely reflect sequential snapshots of final cytoplasmic pre-60S maturation (Figure 1A). The ability to capture state VI (lacking both Nmd3 and Lsg1) likely reflects ongoing maturation of the particles or possibly the dissociation of Lsg1 and Nmd3 during immunopurification. We refined all six pre-60S cryo-EM reconstructions to average resolutions of 3.1–3.9 Å with the local resolution extending to 2.3 Å in the core of the particles in states I and III (Figure 1—figure supplement 1E,F). The maps allowed us to fit and refine atomic models for all six assembly states, including the biogenesis factors Arx1, Lsg1, Nmd3, Rei1, Reh1, eIF6, ribosomal proteins eL40, uL16 and uL11 together with the 5S, 5.8S and 25S rRNA (Figure 1B, Figure 1—figure supplements 24, Supplementary file 1A, B). In addition, we identified density corresponding to the phosphatase (Baßler et al., 2017) and zinc finger (Zhou et al., 2019) domains of Yvh1 situated between uL11 in the P-stalk and eIF6 (Figure 1A, states I-II).

Figure 1 with 5 supplements see all

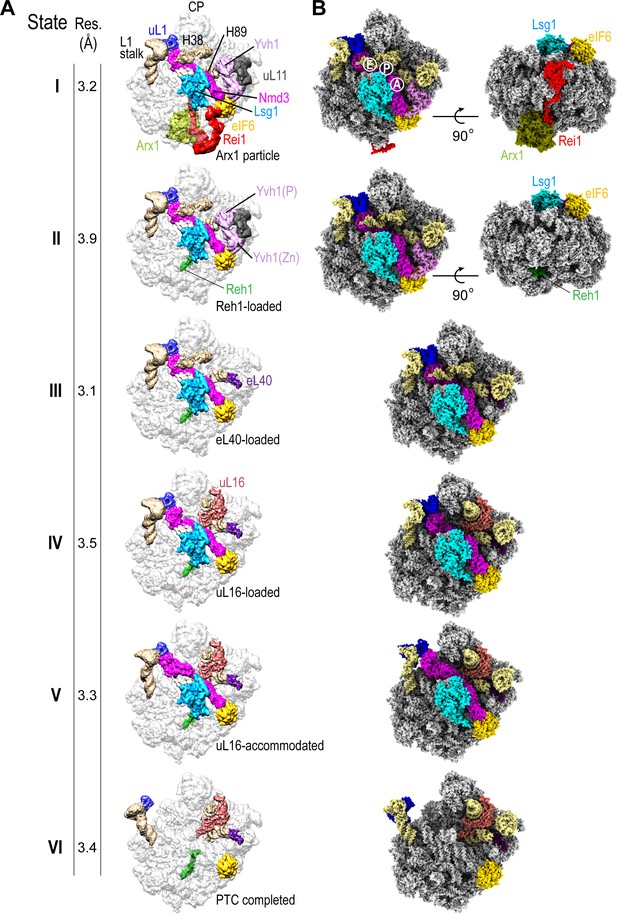

Sequential steps in late cytoplasmic 60S subunit maturation.

(A) Cryo-EM reconstructions of six cytoplasmic maturation states (I–VI). States, overall resolution, changes in protein composition and rRNA conformation are indicated. The phosphatase (P) and zinc finger (Zn) domains of Yvh1 are indicated in state II. (B) Atomic models of pre-60S states I-VI with rRNA and biogenesis factors highlighted.

https://doi.org/10.7554/eLife.44904.003

Sequential maturation of the cytoplasmic pre-60S subunit couples dramatic conformational rearrangements of two long flexible helices (the L1 stalk and H38) to recruitment of the final ribosomal proteins (eL40 and uL16) and assembly factor displacement (Figure 1A). In states I-III, the L1 stalk is displaced inwards with H38 in the ‘closed’ position. Rearrangement of H38 to the mature position (state IV) is followed by partial (state V) then full (state VI) retraction of the L1 stalk. Focused classification of the local density around the P-stalk (Figure 1—figure supplement 2) revealed that binding of ribosomal protein eL40 does not occur until state III, prior to the recruitment of uL16 in state IV. Although there is clear density for uL11 (state I) at the base of the P-stalk, uL10 was poorly defined in our maps, consistent with the paucity of uL10 protein in the Lsg1-TAP particles as detected by immunoblotting (Figure 1—figure supplement 1B). Focused classification around the P-stalk revealed that Yvh1 is predominantly bound in state I, is present at low occupancy in state II but is absent in state III. Thus, Yvh1 and eL40 do not appear to bind simultaneously to the same particle.

The homologous C-termini of Reh1 and Rei1 occupy the PET sequentially (Figure 1A). While the departure of Rei1 seems to be concurrent with Arx1 release, the C-terminus of Reh1 unexpectedly persists in the exit tunnel even after the departure of Nmd3 and Lsg1. The timing of the exchange of Rei1 for Reh1 (between states I-II) is consistent with XL-MS analysis that yielded crosslinks between Rei1, Arx1 and eL24, while Reh1 yielded crosslinks to eL24, but not to Rei1 or Arx1 (Figure 1—figure supplement 5A,B and Supplementary file 2). These data are also consistent with a previous structural snapshot (Ma et al., 2017) and with co-immunoprecipitation analysis (Parnell and Bass, 2009). We conclude that the exchange of Reh1 for Rei1 occurs at the time of Arx1 release, but that surveillance of the PET by Reh1 continues throughout the entire process of cytoplasmic pre-60S maturation.

While the overall structures of Rei1 and Reh1 are consistent with previous reports (Greber et al., 2016; Ma et al., 2017), our maps reveal additional density that corresponds to the N-termini of both Rei1 and Reh1 extending up across the surface of eL24 to directly interact with eIF6 subdomains C and D and with a loop that extends out from the α-helical domain of Lsg1 (residues G438-T456) (Figure 1A, state I). The Lsg1 α-helical domain (residues G474-D479) also interacts with uL14.

We unambiguously distinguished the helical C-termini of Reh1 and Rei1 within the PET based on specific side chain densities (Ma et al., 2017). Interestingly, the position of the extreme C-terminal leucine and glutamine residues of Rei1 and Reh1 differs compared with previous reports (Ma et al., 2017; Greber et al., 2016): the side chains of Q393 (Rei1) and Q432 (Reh1) form an electrostatic interaction with the base of U2875 (H89), while the backbone interacts with the base of U2978 (H93).

The coexistence of eIF6 and Reh1 on the same particle (Figure 1B) suggests that state VI is not simply a product of eIF6 rebinding but is a bona fide late pre-60S subunit maturation intermediate that lies downstream of Nmd3 and Lsg1 release. These data support the hypothesis that eIF6 is evicted after Nmd3 (Weis et al., 2015).

Nmd3 is assembled from existing ribosomal machinery

We set out to understand the mechanism of Nmd3 release, a key event in the completion of PTC assembly. Nmd3 extends across the entire tRNA binding cleft on the intersubunit face of the 60S subunit from uL1 at the L1 stalk through the E, P and A sites to contact Lsg1 and eIF6 at the SRL (Figure 1A,B). The cryo-EM density allowed us to build a complete atomic model for Nmd3 (residues T16-R404) including backbone atoms and side chains (Figure 2A), revealing a multi-domain architecture that includes two treble clef zinc fingers (that superimpose with an RMSD of 1 Å over 13 Cα atoms; Figure 2A, inset), two alpha-beta domains and two beta-barrel domains. The N-terminal treble clef zinc finger (residues 16–42, C19-C22-C35-C38) is grafted into an alpha-beta domain (residues 43–154) that is structurally related to ribosomal protein eL31. The second alpha-beta domain (residues 155–250) is structurally related to ribosomal protein eL22, while the two C-terminal beta-barrel domains have SH3 (251–310) and OB (311-400) folds, respectively. Although the combination of the SH3 and OB domains is similar in sequence and structure to eIF-5A-1, the domains are oriented differently with respect to each other. Thus, Nmd3 comprises a modular assembly of existing structural blocks associated with the ribosomal machinery combined together to form a functionally distinct protein.

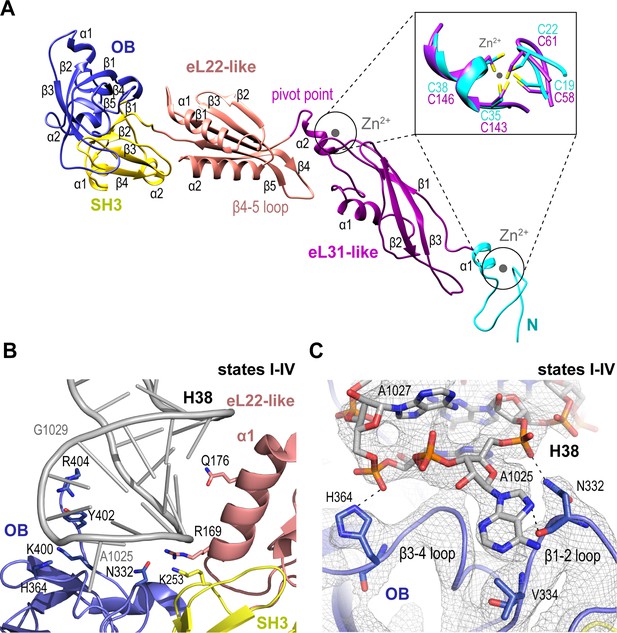

Nmd3 maintains the closed conformation of helix 38.

(A) The modular atomic structure of Nmd3 with the individual domains (OB, SH3, eL22-like, eL31-like and the two treble clef zinc fingers) indicated by colour coding. Inset shows the superposition of the two treble clef zinc fingers (RMSD ~1 Å). (B) Interaction of the Nmd3 OB, SH3 and eL22-like domains with the tip of H38. (C) Nmd3 stabilises an A1025 base-flip. Atomic model, derived from the state III map (grey mesh), shows the interaction between Nmd3 and the flipped-out base A1025.

https://doi.org/10.7554/eLife.44904.009

Nmd3 promotes H38 closure by stabilising a base flip at A2971

We sought to understand how Nmd3 maintains the ‘closed’ orientation of the L1 stalk (states I-IV) and H38 (states I-III) (Figure 1A). The Nmd3 OB domain holds the L1 stalk in the closed position, while the eL22-like, SH3 and OB domains, together with an extended C-terminal loop, encircle and distort the tip of H38 (Figure 2B,C). Specifically, two loops (β1–2 and β3–4) from the OB domain stabilize a base-flip of A1025. The side chain and backbone atoms of N332 contact the base and backbone phosphate of A1025. H364 contacts the backbone phosphate of A1027, while the side chains of Y402 and R404 contact the backbone phosphates of A1026-G1029. Within the SH3 domain, the side chain of K253 contacts the phosphate backbone of C1023. Helix α1 from the eL22-like domain (particularly the side chains of R169 and Q176) packs against the bases and backbone of H38 (G1020-C1023).

Nmd3 contacts Lsg1 and eIF6 throughout cytoplasmic maturation

Throughout the steps of pre-60S subunit maturation visualised herein, H69 adopts a conformation that differs from the mature ribosome (Ben-Shem et al., 2011) but that surprisingly persists even in the absence of Nmd3 and Lsg1 (state VI) (Figure 3A,B). Lsg1 stabilises a base flip at G2261 (H69) (Figure 3A), while the side chain of Lsg1 W142 stacks against the base of A2256 at the tip of H69 (Figure 3B). The altered conformation of H69 is also promoted by a β-hairpin in the SH3 domain of Nmd3 that stabilises a base flip in U2269 at the junction between H68 and H69 (Figure 3C). The Nmd3 SH3 domain makes additional interactions with the 25S rRNA using two short α-helices (SH3-α1 and SH3-α2) (Figure 3D). As the altered conformation of H69 is maintained even in the absence of both Nmd3 and Lsg1 (state VI), we suggest that H69 may only adopt the mature conformation after joining of the 60S and 40S subunits.

Figure 3 with 1 supplement see all

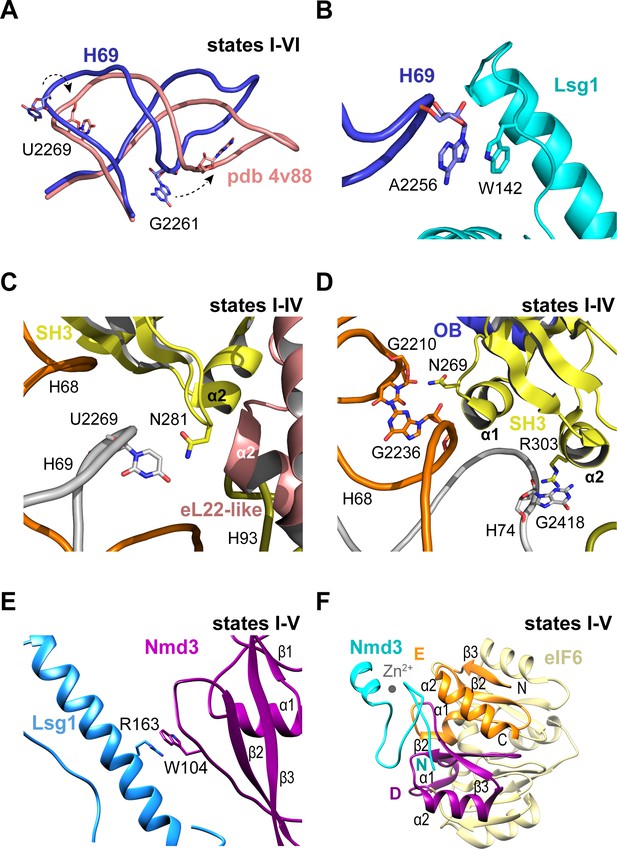

Nmd3 interacts with Lsg1 and eIF6 throughout 60S maturation.

(A) Conformation of H69 (states I-VI) differs from the mature 60S subunit (4v88, Ben-Shem et al., 2011). (B) Interaction of Lsg1 with the tip of H69. (C) Contact between Nmd3 residue N281 and base U2269 (H69). (D) Interactions of Nmd3 SH3 domain with H68 and H74. (E) Interaction between Lsg1 and the Nmd3 eL31-like domain. (F) Interaction of the Nmd3 N-terminal domain with the D and E domains of eIF6.

https://doi.org/10.7554/eLife.44904.010

Compared with the reconstituted Nmd3-Lsg1-60S particle (Malyutin et al., 2017), the Nmd3 eL31-like domain is rotated (60°) away from H89 towards the long α-helix of the Lsg1 GTPase domain in each of the native intermediates carrying Lsg1 and Nmd3 (states I-V) (Figure 1A). The interaction involves a stacking interaction between the side chain of Nmd3 residue W104 and the side chain of Lsg1 residue R163 (Figure 3E). Although focused classification of state III identified a subset of particles in which the Nmd3 eL31-like domain is rotated towards H89, this class lacks Lsg1 and Arx1, with Reh1 present in the PET. We suggest that the rotated conformation of the Nmd3 eL31-like domain in this subset of state III particles is a consequence of Lsg1 dissociation during sample preparation rather than a physiologically relevant ‘pre-Lsg1’ state.

We next assessed the dynamic properties of the N-terminus of Nmd3 in solution using NMR spectroscopy. Heteronuclear 1H {15N} NOE analysis of the Archaeoglobus fulgidus Nmd3 (residues 22–150) indicates that the N-terminal zinc finger (residues 22–43) has a higher degree of motion than the attached eL31 domain on the picosecond timescale (Figure 3—figure supplement 1A,B). Exchange broadened residues indicate the presence of a flexible linker between the two domains that is undergoing segmental motion. These data indicate that the Nmd3 N-terminal zinc finger has dynamic mobility that allows it to sample a range of positions in solution. However, the cryo-EM data indicate that the Nmd3 zinc finger remains bound to eIF6 subdomains D and E (total buried surface area of 107 Å2) throughout states I-V (Figure 3F), providing a click-lock that fixes the Nmd3 N-terminus in position throughout pre-60S maturation. Taken together, our data illustrate how the modular architecture of Nmd3 confers it with the flexibility to modulate its conformation depending on the specific stage of pre-60S maturation.

Loading of eL40 stabilises H89 to facilitate uL16 recruitment

In the late nuclear pre-60S particle purified using epitope-tagged Nog2, the N-terminal domain of Nog1 separates H89 into two strands, H89 adopting an upright position (Wu et al., 2016). We therefore sought to understand how H89 accommodates into its mature conformation to form one face of the u16-binding site. Focused classification around the H89 density revealed that in the absence of eL40 (states I-II), H89 adopts a range of conformations even with Yvh1 present (Figure 4A). However, following the departure of Yvh1, eL40 stabilises H89 in its near-mature conformation by forming two major contacts with the opposing H91, including a stacking interaction of A2847 (H89) with G2898 (H91) and base pairing between C2844 (H89) and G2898 (H91) (Figure 4B). An observed contact between Yvh1 and the side chain of uL6 K141 overlaps with the binding site for the N-terminus of eL40 in state III, raising the possibility that the recruitment of eL40 may destabilise Yvh1 to promote its departure from the pre-60S particle. In turn, the docking of uL16 to the upper surface of H89 promotes a dramatic ~65° rotation of H38 away from Nmd3 (Figure 4C), sandwiching uL16 in a cleft between H38 and H89 (Figure 4D).

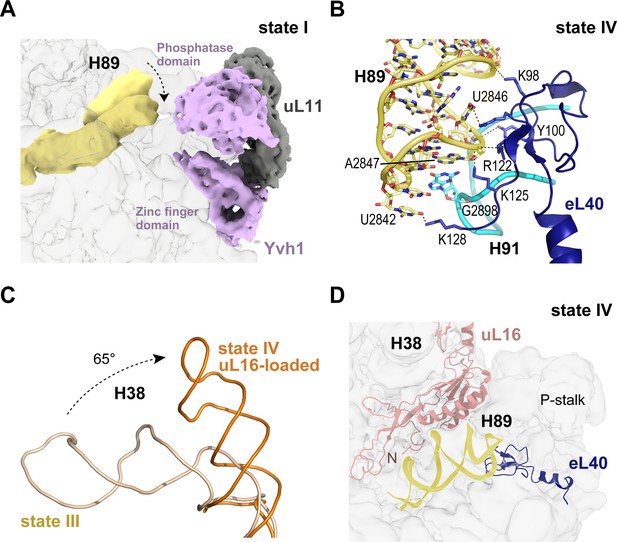

Binding of eL40 stabilises H89 to form the uL16 binding site.

(A) H89 is flexible in states I-II. Cryo-EM density map of Yvh1 is shown in purple; uL11 in grey. The mature conformation of H89 is shown in ribbon representation for comparison. (B) Atomic model of the interaction between eL40 and the tip of H89 and H91 (state IV). (C) Loading of uL16 induces a rotation of H38. The conformations of H38 in state III (wheat) compared with state IV (orange). (D) Conformation of H89 with eL40 and uL16 bound (state IV).

https://doi.org/10.7554/eLife.44904.012

A conformational switch in Nmd3 drives PTC completion

In mature, actively translating ribosomes with tRNA bound, the eukaryotic-specific loop (residues 102–112) of uL16 extends into the PTC (Schmidt et al., 2016). However, in states I-IV the eL22-like domain of Nmd3 extends into the PTC where it is surrounded by helices H64, H69-71, H80, H90 and H92-93 (Figure 5A). Residues on the surface of the eL22-like domain β-sheet make extensive interactions with the backbone of H80 (Figure 5B). Residue N205 (α2 helix) stabilises a stacking base pair interaction between C2308 (H64) and C2284 (H70) (Figure 5C). Furthermore, the β4–5 loop of Nmd3 stabilises the ‘closed’ conformation of base A2971 through specific interactions with the side chains of K204 (helix α2), K224, F242 (strand β5), Y240 and the backbone amide of S238 (β4–5 loop) (Figure 5D). As a result, the uL16 P-site loop is unable to extend into the PTC in state IV because of a steric clash with the Nmd3 β4–5 hairpin loop.

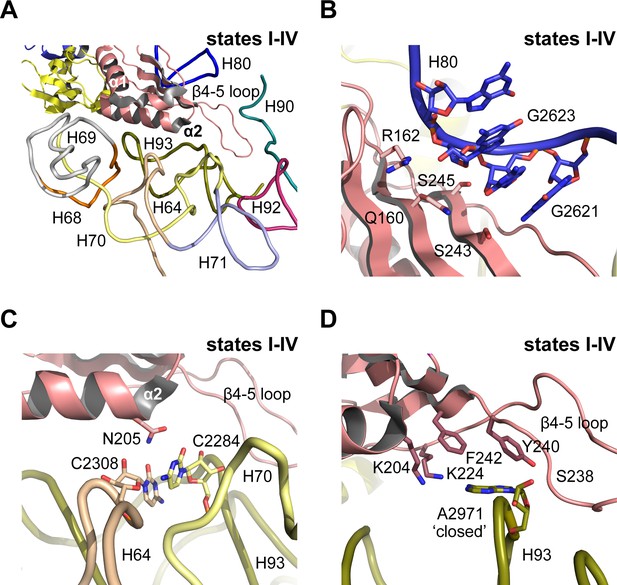

Nmd3 masks base A2971 in the peptidyltransferase centre.

(A) Interactions of Nmd3 with the PTC. (B) Interactions of the Nmd3 eL22-like domain β-sheet with H80. (C) Nmd3 residue N205 (helix α2) stabilises the junction between bases C2308 (H64) and C2284 (H70). (D) The β4–5 loop of the Nmd3 eL22-like domain maintains base A2971 (H93) in the ‘closed’ conformation.

https://doi.org/10.7554/eLife.44904.013

The initial docking of uL16 is fully compatible with retention of Nmd3 on the pre-60S particle (Figure 1A, Figure 6A,B). However, uL16 liberates H38 from the C-terminus of Nmd3 promoting partial (20°) (state V) and subsequently full (56°) retraction (state VI) of the L1 stalk (Figure 6B,C). Partial retraction of the L1 stalk (state V) is accompanied by a conformational switch in Nmd3 in which the OB, SH3 and eL22-like domains are displaced upwards and outwards from the P and E sites by ~20 Å through a pivot point between the flexible helical linker connecting the eL22- and eL31-like domains, while the N-terminus remains anchored to eIF6 and Lsg1 (Figure 6B,D). Displacement of the eL22-like domain breaks the interaction of residue N205 (helix α2) with C2308 (H64) and C2284 (H70) (Figure 5C), allowing helix α2 to form a new contact with H69 (Figure 6—figure supplement 1). Displacement of the β4–5 hairpin loop from the entrance to the PTC (state V) permits the uL16 P-site loop to extend into the PTC where the highly conserved, essential residue R110 coordinates A2971 in an ‘open’ flipped-up conformation (Figure 6B,C).

Figure 6 with 4 supplements see all

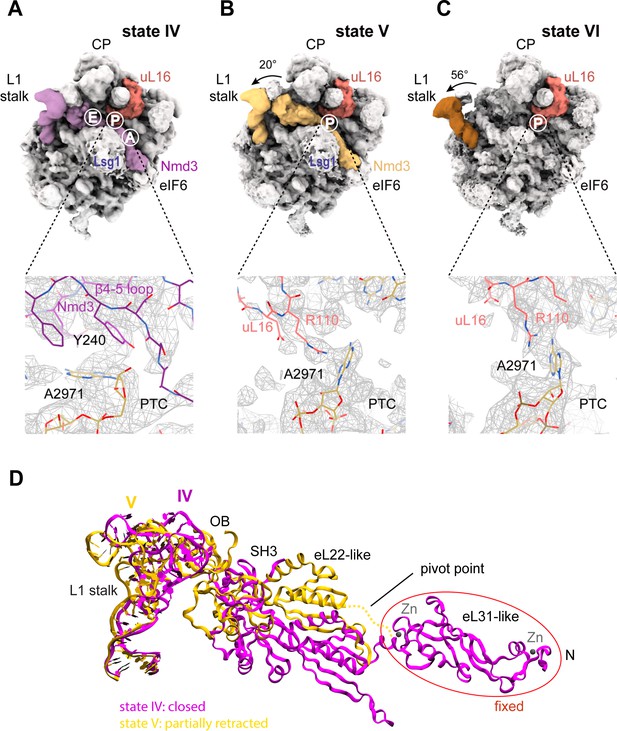

Mechanism of Nmd3 release.

(A) The Nmd3 β4–5 loop masks base A2971 (state IV). Insert shows base A2971 in the ‘closed’ position. H38 is ‘open’, the L1 stalk is ‘closed’ and uL16 is loaded. The A, P and E tRNA binding sites are indicated. (B) The uL16 P-site loop competes with the Nmd3 β4–5 loop for binding to base A2971 (state V). The L1 stalk is partially retracted (rotated by 20° relative to the fully closed L1 stalk); the Nmd3 β4–5 loop is displaced from the PTC. The uL16 P-site loop is bound to base A2971 in the flipped-out conformation. (C) The completed PTC (state VI). The L1 stalk is fully open (rotated by 56°), Nmd3 and Lsg1 have dissociated and the uL16 P-site loop is bound to base A2971 in the flipped-out conformation. (D) L1 stalk retraction promotes a conformational switch in the Nmd3 eL22-like domain. Atomic models for the L1 stalk and Nmd3 in states IV (magenta) and V (gold) are superimposed. The rotational pivot point between the eL31- and eL22-like domains is indicated.

https://doi.org/10.7554/eLife.44904.014

Genetic and biochemical analysis are consistent with an essential role for the uL16 P-site loop in Nmd3 release (Hofer et al., 2007; Bussiere et al., 2012; Sulima et al., 2014; Weis et al., 2015; Patchett et al., 2017). Furthermore, an nmd3-N205D allele rescued the fitness defect of yeast cells expressing the T-ALL-associated uL16-R98S mutant as the sole copy of uL16 (Figure 6—figure supplement 4). These data support a functional role for the interaction between Nmd3 residue N205 and helices H64 and H70 (Figure 5C) in stabilising the binding of Nmd3 to the 60S subunit. We conclude that the uL16 P-site loop drives the conformational equilibrium in favour of Nmd3 release by competing with Nmd3 for an overlapping binding site within the PTC.

Discussion

Mechanism of completion of PTC assembly

The cryo-EM structures reported here allow us to propose a mechanism for the completion of assembly of a functional PTC (Figure 7, Video 1). The sequential incorporation of eL40 and uL16 couples large-scale rRNA rearrangements to a conformational switch in Nmd3 that allows the P-site loop of uL16 to fully accommodate into the PTC to push the conformational equilibrium towards Nmd3 dissociation (Figure 6A–D, Figure 6—figure supplement 1). The incorporation of eL40 (state III) stabilises H89 to form one face of the uL16-binding platform and may also facilitate Yvh1 release by disrupting its interaction with uL6. While the initial docking of uL16 to the upper surface of H89 is still compatible with the retention of Nmd3 on the particle, it promotes a ~ 65° rotation of H38 away from Nmd3 to adopt its mature conformation, thereby sandwiching uL16 in the cleft formed by H38 and H89. Loss of the stabilising interactions between Nmd3 and the tip of H38 promotes partial retraction of the L1 stalk (state V). This is coupled to a conformational switch in the C-terminus of Nmd3 that displaces the SH3 and OB domains from the E site and the eL22-like domain from the P-site. The uL16 P-site loop now fully accommodates into the PTC by competing with Nmd3 for an overlapping binding site at base A2971, thus driving the conformational equilibrium in favour of Nmd3 dissociation. The side chain of uL16 residue R110 stabilises the flipped-out conformation of base A2971 to complete the assembly of a functional PTC.

Figure 7 with 1 supplement see all

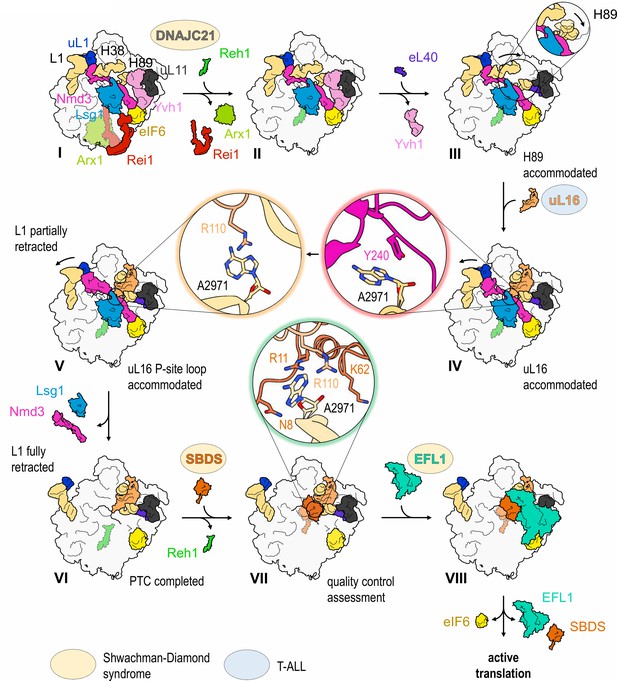

Mechanism of completion of PTC assembly and its quality control.

Insets show the sequential interactions of base A2971 with Nmd3, uL16 and SBDS during PTC completion. Models for 60S-bound EFL1 and SBDS are based on EMD-3145, EMD-3146 and EMD-3147 (Weis et al., 2015). Proteins targeted by mutations in Shwachman-Diamond syndrome (yellow) and paediatric T-ALL (blue) are highlighted.

https://doi.org/10.7554/eLife.44904.019
Video 1
Mechanism of completion of peptidyltransferase centre assembly.
https://doi.org/10.7554/eLife.44904.021

Our structures explain the essential roles of eL40 (Fernández-Pevida et al., 2012) and the u16 P-site loop (Patchett et al., 2017; De Keersmaecker et al., 2013; Hofer et al., 2007) in Nmd3 release. The extension of the uL16 P-site loop into the PTC that is observed in the mature ribosome in the presence of tRNA (Schmidt et al., 2016) is accomplished by a conformational switch in Nmd3 that allows uL16 to bypass the steric clash with the β4–5 loop of the Nmd3 eL22-like domain (Figure 6—figure supplement 2A). Importantly, the link between the Nmd3 N-terminus and eIF6 remains unbroken at this stage of the maturation process, contrary to a previous model (Malyutin et al., 2017). Indeed, the links between Nmd3, Lsg1 and eIF6 are maintained throughout states I-V.

Consistent with the studies on nucleolar pre-60S subunit maturation (Kater et al., 2017; Sanghai et al., 2018), our work does not support parallel 60S assembly pathways as suggested for the bacterial 50S subunit (Davis et al., 2016). In contrast, our data strongly support the concept that eukaryotic cytoplasmic 60S maturation proceeds in a linear, stepwise manner.

Mechanism of activation of Lsg1 GTP hydrolysis

The precise role of Lsg1 in Nmd3 release and the mechanism of Lsg1 GTPase activation remain unclear. It has been proposed that coupling of the flipped-out base G2261 in H69 to the Lsg1 Switch one region (that coordinates a magnesium ion in the active site) may regulate Lsg1 GTP hydrolysis (Malyutin et al., 2017). However, the G2261 base-flip appears to persist throughout all the stages of cytoplasmic 60S maturation visualised, even in the absence of Lsg1 (Figure 3A). By contrast, the Nmd3 eL22-like domain establishes a new contact with H69 as the L1 stalk retracts (Figure 6D, Figure 6—figure supplement 1). We speculate that this interaction of Nmd3 with H69 may transiently reposition base G2261, thereby relaying the change in conformation to the Switch one region to activate Lsg1 GTP hydrolysis.

The identification of a crosslink between the N-terminus of Lsg1 and the P-site loop of uL16 (Figure 1—figure supplement 5A,B and Supplementary file 2) raises the intriguing possibility that Lsg1 may proofread accommodation of the uL16 P-site loop into the PTC as the Nmd3 β4–5 loop is retracted. In this model, Lsg1 may act as a gatekeeper that licenses further progression of 60S subunit maturation by dissociating only once it senses that uL16 is correctly integrated. The disengagement of Lsg1 from the N-terminus of Nmd3 will further destabilise the interaction of Nmd3 with the 60S subunit, allowing retraction of the L1 stalk to pull Nmd3 completely off the intersubunit face.

Eviction of Nmd3 precedes the release of eIF6

Unexpectedly, our data reveal that the C-terminus of Reh1 is retained in the PET in a late assembly intermediate carrying eIF6 that is downstream of Lsg1 and Nmd3 release (state VI) (Figure 1A). Identification of this particle provides compelling evidence that eIF6 release by SBDS and EFL1 occurs after the dissociation of Nmd3 and Lsg1 as proposed (Weis et al., 2015) (Figure 7). This timing of events is consistent with the requirement for uL16 integration to allow SBDS binding both in vivo (Weis et al., 2015) and in vitro (Sulima et al., 2014) and with recent cryo-EM data (Weis et al., 2015; Ma et al., 2017; Malyutin et al., 2017). Importantly, we also note that the binding sites for SBDS, Nmd3 and Lsg1 are incompatible, precluding the removal of eIF6 before the departure of Lsg1 and Nmd3 (Figure 6—figure supplement 2B). We conclude that Nmd3 and Lsg1 are released prior to SBDS and EFL1 recruitment and that Lsg1 and Nmd3 function at least in part as placeholders for SBDS.

Proofreading the newly assembled PTC

This study reinforces the concept that SBDS and EFL1 interrogate the structural and functional integrity of the completed PTC by licensing removal of the anti-association factor eIF6 (Weis et al., 2015) (Figure 7). The side chain of SBDS residue R11 and the backbone of K62 interact with the side chain of R110 within the uL16 P-site loop that stabilises the flipped-out conformation of base A2971 (Figure 6—figure supplement 3A). In addition, there are interesting parallels between the interactions of the uL16 P-site loop with the N-terminus of SBDS (pdb 6qkl) (Weis et al., 2015) and the contacts of uL16 with the P-site tRNA during decoding (pdb 5gak) (Schmidt et al., 2016) (Figure 6—figure supplement 3B).

The PET of the large ribosomal subunit appears to be directly monitored initially in the nucleus by Nog1 (Wu et al., 2016) and subsequently throughout the entire process of cytoplasmic assembly by Rei1 (Greber et al., 2012; Greber et al., 2016) and Reh1 (Ma et al., 2017) in turn. Indeed, the direct interaction between the α-helical domain of Lsg1 and the N-termini of both Rei1 and Reh1 (Figure 1A) suggests how events at the PET and PTC might be coupled during cytoplasmic maturation. Docking analysis raises the possibility that the C-terminus of Reh1 may interact directly with the N-terminus of SBDS during late 60S maturation (Figure 6—figure supplement 3C). However, the functional relevance of this observation remains to be tested. It is conceivable that Reh1 may not be removed from the exit tunnel until the pioneer round of translation, but the precise timing and mechanism of Reh1 release require elucidation.

A coherent pathway targeted by mutations in leukaemia

Our data define a coherent pathway that is targeted by multiple mutations in sporadic and inherited forms of leukaemia (Figure 7). The association of the SDS clinical phenotype with mutations in several components of the 60S maturation pathway, including SBDS (Boocock et al., 2003), EFL1 (Stepensky et al., 2017) and DNAJC21 (Tummala et al., 2016; Dhanraj et al., 2017) provides compelling support for the hypothesis that SDS is a ribosomopathy (Menne et al., 2007; Finch et al., 2011). Importantly, given the high degree of conservation in the amino acid sequence and structure of the uL16 protein (Figure 7—figure supplement 1A,B), our cryo-EM data provide a mechanistic model that allows us to interpret the consequences of the recurrent uL16-R98S mutation found in paediatric T-ALL (De Keersmaecker et al., 2013). We propose that the uL16-R98S mutation may increase the flexibility of the P-site loop, reducing its ability to effectively compete with the Nmd3 eL22-like domain for the overlapping binding site at base A2971 in the PTC, thereby driving the equilibrium towards Nmd3 release.

Our study suggests that Yvh1 dissociates from the pre-60S particle prior to the binding of eL40 and uL16 (Figure 1A). However, while this work was under review, Yvh1 was reported to bind cytoplasmic pre-60S particles carrying eL40 and uL16 (Zhou et al., 2019). Perhaps explaining this discrepancy, our study has exclusively analysed native pre-60S particles, while Zhou et al examined particles purified from Rlp24-mutant cells or following treatment with the inhibitor diazaborine (Zhou et al., 2019). Interpretation of the structural intermediates in the Zhou study should take also account of the heterogeneity in the deposited maps due to the classification strategy used.

In conclusion, we have used single-particle cryo-EM to demonstrate the conformational changes during cytoplasmic 60S subunit maturation that couple incorporation of the ribosomal proteins eL40 and uL16 to the release of Nmd3 in what is likely to be a universal mechanism in eukaryotes. Our data not only reveal how the central functional site of the ribosome is assembled, but provide a framework to interpret the consequences of mutations linked to leukaemia-associated ribosomopathies.

Accession codes

The cryo-EM density maps have been deposited in the Electron Microscopy Data Bank with accession numbers EMD-10068, EMD-10071, EMD-4560, EMD-4636, EMD-4884 and EMD-4630. Atomic coordinates have been deposited in the Protein Data Bank, with entry codes 6RZZ, 6S05, 6QIK, 6QTZ, 6RI5 and 6QT0.

Materials and methods

SDS-PAGE and immunoblotting

Request a detailed protocol

Proteins present in crude extracts and purified pre-60S particles were separated on precast 4% to 12% NuPAGE gels (Novex life technologies) and blotted on a PVDF membrane (Carl Roth GmbH) using a tank-blot device (Hoefer). For immunoblotting, primary antibodies directed to pre-ribosome maturation factors or ribosomal proteins and a secondary goat anti-rabbit antibody (Sigma Aldrich) were used. All antibodies were described previously (Zisser et al., 2018; Loibl et al., 2014), except the eIF6 antibody that was purchased from GeneTex. Chemiluminescence signals were detected using the ChemiDoc Touch Imaging System (Bio-Rad) and the Clarity Western Blotting Detection Reagent as substrate.

Purification of Lsg1-TAP pre-60S particles

Request a detailed protocol

For the isolation of late cytoplasmic pre-60S particles Lsg1-TAP (Nissan et al., 2002) was used as bait protein. Purification was performed in the absence of GTPase inhibitor. Affinity purification was performed using rabbit IgG covalently linked to magnetic beads as described (Zisser et al., 2018). Briefly, the Lsg1-TAP strain was grown in two litres of YPD complete medium (2% (w/v) peptone, 1% (w/v) yeast extract, 2% (w/v) glucose, 0.002% (w/v) adenine) to an OD600 of 1.2 and cells were harvested by centrifugation for 2 min at 4000 x g. Cells were washed once in lysis buffer 1 (LB1; 20 mM HEPES, pH 7.5, 10 mM KCl, 2.5 mM MgCl2, 1 mM EGTA, 0.5 mM PMSF, 1 mM DTT and FY-protease inhibitor (Serva). Cell lysis was performed in LB1 after addition of 1.5 volumes of glass beads by vigorous shaking for 4 × 30 s in a bead mill (Merkenschlager) with constant CO2 cooling. After centrifugation for 30 min at 40,000 x g, the cleared lysates were loaded on 200 µl magnetic beads covalently coupled with rabbit IgG (Oeffinger et al., 2007) and incubated at 4°C for 90 min under constant mixing using an overhead rotator. After washing twice with 8 ml LB1 containing 1 mM DTT and once with 8 ml LB1 containing 100 mM NaCl and 1 mM DTT, beads were transferred to 0.5 ml reaction vials and pre-ribosomal particles eluted by overnight TEV cleavage in 150 µl LB1 containing 100 mM NaCl, 0.5 mM DTT and 2 µg of purified, RNAsin treated TEV protease. After removal of the resin by centrifugation for 5 min at 5000 x g, the pre-60S particles present in the supernatant were spotted onto grids and processed for cryo-EM freezing. SDS-PAGE and immunoblotting was used to monitor the quality of the isolated particles.

Cryo-EM sample preparation

Request a detailed protocol

Pre-60 ribosomal TAP-tagged Lsg1 particles purified from S. cerevisiae were incubated 10 min at 4°C in the presence of 0.5% (v/v) glutaraldehyde (Sigma-Aldrich) to reduce preferential orientation and DTT added to a final concentration of 6 mM. EM grids were prepared by adding 3 μL pre-60 ribosomal purified TAP-tagged Lsg1 particles (40 nM) to freshly glow-discharged Quantifoil R2/2 grids (PELCO easyGlow). Grids were blotted and flash frozen in liquid ethane at 100 K using a Vitrobot Mark IV (FEI Company).

Cryo-EM data acquisition

Request a detailed protocol

Grids were screened on a Tecnai T12 microscope (FEI Company) and data acquisition performed under low-dose conditions on a Titan Krios microscope (FEI Company) operated at 300 kV over two sessions of ~70 hr each. The two datasets were recorded on a Falcon III detector (FEI Company) at a nominal magnification of 75,000x (effective pixel size of 1.065 Å on the object scale) with a defocus range of −0.8 to −3.2 μm and a dose of ~63 e2. The acquisition of 7957 and 15,923 movies for each session was performed semi-automatically using EPU software (FEI Company).

Cryo-EM image processing

Request a detailed protocol

Movies were corrected for the effects of beam-induced motion using MotionCor2 (Zheng et al., 2017). Contrast transfer function (CTF) parameters were estimated using GCTF (Zhang, 2016). All subsequent data processing was performed in RELION (Scheres, 2012b; Scheres, 2012a; Kimanius et al., 2016). Electron micrographs showing signs of drift or astigmatism were discarded, resulting in a dataset of 7279 and 12,261 images. A total of 696,991 (dataset 1) and 724,890 (dataset 2) particles were selected automatically in RELION. Extracted particles were subjected to two rounds of 2D and 3D classification to discard defective particles, resulting in 370,687 (dataset 1) and 512,903 particles (dataset 2). 3D auto-refinement resulted in an initial cryo-EM reconstruction with an overall resolution of 3.1 Å and 3.4 Å for the two datasets. After movie refinement and particle polishing the ‘shiny’ particles were subjected to further 3D auto-refinement and post-processing to yield maps with an overall resolution of 2.9 Å (dataset 1) and 3.2 Å (dataset 2) based on the gold-standard Fourier Shell Correlation (FSC) criterion calculated within RELION (van Heel and Stöffler-Meilicke, 1985; Scheres and Chen, 2012). However, the final maps were clearly heterogeneous in composition. We therefore sorted the images into subsets by a succession of 3D classifications using signal subtraction in RELION (Penczek et al., 2006) (Figure 1—figure supplement 2). A mask with a voxel value of one inside and zero outside extended by four pixels with a soft edge of ten pixels was applied to the intersubunit interface, containing Lsg1, Nmd3, eIF6, uL16, H38 and H89, was used for the first round of focused classification, providing 10 classes for each dataset (Figure 1—figure supplement 2, mask 1). In dataset 2, a mask was applied around the L1 stalk, uL1 and the OB, SH3 and eL31-like domains of Nmd3 to separate the ‘open’ and ‘closed’ L1 stalk conformations (Figure 1—figure supplement 2, mask 2). Finally, identical classes from both datasets were merged to improve the overall resolution. A mask was applied around the P stalk in states I and II to reveal different conformations of H89 and the presence of Yvh1 (Figure 1—figure supplement 2, mask 3). Similarly, further classification (using masks 2 and 3) was performed in states III and IV to reveal eL40 (State III, subclass 1) and the retracted L1-stalk (State V, subclass 1), respectively. Image processing converged to yield six distinct classes (states I-VI) with global resolutions ranging from 3.1 to 3.9 Å (Figure 1—figure supplement 1E). Local resolution was estimated to range from 2.3 to 6.3 Å using ResMap (Kucukelbir et al., 2014) (Figure 1—figure supplement 1F, Figure 1—figure supplement 4).

Model building and refinement

Request a detailed protocol

As an initial starting model, the 3.0 Å crystal structure of the mature 60S subunit (Ben-Shem et al., 2011) (pdb 4v88) from S. cerevisiae was initially fitted as a rigid body into the cryo-EM map of state I using UCSF-Chimera (Pettersen et al., 2004). Atomic coordinates for Nmd3, Lsg1, eIF6 and uL1 (backbone atoms only) were taken from pdb code 5t62 (Malyutin et al., 2017); Rei1 and Arx1 from pdb code 5apn (Greber et al., 2016); Reh1 from pdb code 5h4p (Ma et al., 2017); eL40, uL16 and the mature conformation of H38 from pdb code 4v88 (Ben-Shem et al., 2011). Models were manually adjusted in Coot (Emsley and Cowtan, 2004) and further refined using Phenix (Adams et al., 2010) and REFMAC v5.8 adapted for EM-refinement (Amunts et al., 2014). Model evaluation was performed in MolProbity (Chen et al., 2010) (Supplementary file 1A). Cross-validation against overfitting was performed as described (Weis et al., 2015) (Figure 1—figure supplement 3). Buried surface areas were calculated using the gmx sasa routine in GROMACS (Van Der Spoel et al., 2005) using the double cubic lattice method (Eisenhaber et al., 1995) with a probe radius of 0.14 nm. Molecular visualization was performed in UCSF-Chimera (Pettersen et al., 2004), ChimeraX (Goddard et al., 2018), Pymol (The PyMOL Molecular Graphics System, Version 2.0.6 Schrödinger, LLC) and VMD (Humphrey et al., 1996).

Molecular dynamics flexible fitting (MDFF)

Request a detailed protocol

Flexible fitting of atomic models was initially performed using MDFF (Trabuco et al., 2008). The system was set up in vacuo and subjected to energy minimization for 50,000 steps (50 ps) to relax any steric clashes. A production run of 1,000,000 steps (one ns) was followed to fit the atoms into the EM density. The magnitude of the forces applied to the atoms (scaling factor ξ) was adjusted to 0.3 kcal/mol. To prevent overfitting, harmonic restraints were applied to maintain the secondary structure with a force constant of 200 kcal mol−1 rad−2. Default values were used to restrain hydrogen bonds, cis-peptide bonds and chiral centres. All steps were performed using the VMD visualization tool (Humphrey et al., 1996). The model was optimized in vacuo using NAMD2 (Phillips et al., 2005) and the CHARMM36 force field (Best et al., 2012) for proteins and nucleic acids.

Purification of Lsg1-TAP particles for XL-MS

Request a detailed protocol

Pre-ribosomal particles were purified from S. cerevisiae BY4741 cells by tandem affinity purification. Genomically expressed Lsg1-TAP was used as bait protein to isolate ribosome assembly intermediates. Therefore, 12 L YPD medium was inoculated from 300 ml overnight culture with an OD600 of 0.1 and grown at 30°C to OD600 = 0.8–1.0. Cells were harvested by centrifugation at 4300 x g and 4°C for 12 min. Cell pellets were resuspended in 80 ml cold lysis buffer (LB-P, 50 mM HEPES, pH 7.4, 100 mM KCl, 1.5 mM MgCl2, 0.1% (v/v) NP-40, 5% (v/v) glycerol, pefabloc 1:100, aprotinin and leupeptin 1:1000) and centrifuged at 4000 x g and 4°C for 5 min. Washed cell pellets were resuspended in 20 ml LB-P and dripped into liquid nitrogen. Frozen droplets of cell suspension were stored at −80°C until milling in a pre-cooled Retsch ball mill MM400 at 30 Hz for 2 × 60 s. 150 ml ice cold LB-P was added to the frozen cell powder which was thawed on a rolling mixer at 4°C. Cell debris was separated from S. cerevisiae lysate by centrifugation at 30,000 x g and 4°C for 20 min. The lysate was incubated with 1.2 ml equilibrated IgG sepharose beads (GE Healthcare) at 4°C for 3 hr. IgG beads were washed 3x with LB-P and 1x with LB-DTT (50 mM HEPES, pH 7.4, 100 mM KCl, 1.5 mM MgCl2, 0.1% (v/v) NP-40, 5% (v/v) glycerol, 1 mM DTT). IgG beads were loaded onto a 5 mL Polyprep column using 3 × 10 mL LB-DTT. The column was closed and IgG beads were incubated in 4.5 mL LB-DTT with 175 µl TEV protease (produced in-house, 1.5 µg/µL in 10% glycerol) at 4°C over night on a rolling incubator. IgG eluate was incubated with 1 mL equilibrated calmodulin affinity resin (Agilent) in 15 mL LB-CaCl2 (50 mM HEPES, pH 7.4, 100 mM KCl, 1.5 mM MgCl2, 0.02% (v/v) NP-40, 5% (v/v) glycerol, 2 mM CaCl2) at a final CaCl2 concentration of 2 mM on a rolling mixer at 4°C for 3 hr. Calmodulin beads were loaded onto a 5 mL Polyprep column using 2 × 20 mL LB-CaCl2 and washed with 1 × 10 mL LB-CaCl2. The column was closed and calmodulin beads were incubated with 550 µL LB-EGTA (50 mM HEPES, pH 7.4, 100 mM KCl, 1.5 mM MgCl2, 0.01% (v/v) NP-40, 5% (v/v) glycerol, 5 mM EGTA) for 20 min at 4°C on a rolling incubator. The eluate was collected and the elution was repeated 3x with 450 µL LB-EGTA. Eluates 1–4 were concentrated using an Amicon Ultra 10 K 0.5 mL filter (Merck Millipore) to a final volume of ca. 100 µl in crosslinking buffer (20 mM HEPES, pH 8.3, 5 mM MgCl2).

Chemical crosslinking coupled to mass spectrometry (XL-MS)

Request a detailed protocol

XL-MS was carried out essentially as described (Leitner et al., 2014). In short, roughly 100 µg of eluate was directly cross-linked with 1.5 mM disuccinimidyl suberate d0/d12 (DSS, Creativemolecules Inc), digested with trypsin and subsequently enriched for cross-linked peptides. LC-MS/MS analysis was carried out on an Orbitrap Fusion Tribrid mass spectrometer (Thermo Electron, San Jose, CA). Data were searched using xQuest in iontag mode against a database containing ribosomal proteins and known assembly factors (total of 380 proteins) of S. cerevisiae with a precursor mass tolerance of 10 ppm. For each experiment, only unique cross-links were considered and only high-confidence cross-linked peptides that were identified with a delta score (deltaS) below 0.95 and an Id-Score above 32, translating to an FDR of 0.2 (Erzberger et al., 2014), were selected for this study. Crosslinks were visualised by xiNET software (Combe et al., 2015).

NMR spectroscopy

Request a detailed protocol

All NMR data was collected at 298 K on an Avance II + 700 MHz spectrometer, equipped with a cryogenic triple-resonance TCI probe. 2D BEST-Trosy and standard 3D triple-resonance experiments were acquired with a sample of 100 μM 15N,13C labelled A. fulgidus Nmd3 (residues 22–150) in PBS buffer with 1.5 mM DTT at pH 7.2. Data were processed using Topspin 3.0 (Bruker) and analysed using SPARKY (T. D. Goddard and D. G. Kneller - University of California, San Francisco).

Plasmids

PCR was used to amplify the coding sequence for wild-type uL16 and Nmd3 plus 500 bp of upstream and downstream of the coding sequence using yeast genomic DNA as template. PCR products were cloned into vectors pRS316 (CEN, URA) and pRS313 (CEN, HIS) using NEBuilder HiFi DNA Assembly Master Mix (New England Biolabs). Partially overlapping primers containing the mutation were used to perform site-directed mutagenesis. For plasmids and primers, see Supplementary files 3A, B.

Genetic complementation assays

Request a detailed protocol

Haploid yeast cells (strain NE0206, see Supplementary file 3C) transformed with plasmids expressing wild type or mutant Nmd3 or vector alone were spotted in ten-fold serial dilutions onto solid synthetic defined -Ura -His medium containing glucose as carbon source for 2 days at 37 ˚C.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
    Coot: model-building tools for molecular graphics
    1. P Emsley
    2. K Cowtan
    (2004)
    Acta Crystallographica. Section D, Biological Crystallography 60:2126–2132.
    https://doi.org/10.1107/S0907444904019158
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85

Decision letter

  1. John Kuriyan
    Senior Editor; University of California, Berkeley, United States
  2. Nahum Sonenberg
    Reviewing Editor; McGill University, Canada
  3. Sebastian Klinge
    Reviewer; Rockefeller University, United States
  4. Alexey Amunts
    Reviewer

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Cytoplasmic 60S maturation landscape corrupted in leukemia." for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and John Kuriyan as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Sebastian Klinge (Reviewer #1); Alexey Amunts (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The authors used cryo-electron microscopy successfully to demonstrate the conformational changes during cytoplasmic 60S maturation that engender the release of Nmd3 and the incorporation of uL16.

Essential revisions:

The two reviewers are in agreement that the paper presents valuable data that advance the field of 60S ribosome assembly, and that the paper merits publication in eLife if the problems of presentations are rectified. Because the reviewers pointed out many shortcomings, the Reviewing Editor left the individual reviews intact below.

Most importantly, refined coordinate files of all states should be made available for the scientific community. Also, one of the reviewers after writing his/her review commented that a similar cryo-EM study just appeared in press (Zhou et al., in Nature Comm. Nature 10, Article number: 958 (https://www.nature.com/articles/s41467-019-08880-0#data-availability)), where Nmd3-TAP and uL16∆C-TAP were used for pull down. In general, the latter study is consistent with the current one. However, there is a discrepancy worth considering addressing: Zhou et al. particularly focus on the mechanism of how Yvh1 releases Mrt4 that is required for P stalk assembly. From the text, it appears that Yvh1 is bound to pre-60S containing eL40. While the coordinates have not been released, it appears to contradict the data in this paper that suggest that Yvh1 and eL40 are mutually exclusive, particularly in state III. Thus, the authors should clarify this point and perhaps other discrepancies.

Reviewer #1:

Here Kargas et al. have elucidated the mechanistic steps involved in cytoplasmic 60S maturation steps. The authors' elegant use of cryo-electron microscopy and their scholarly interpretation have shown that a series of conformational changes are fine-tuned to allow for the release of Nmd3 and the incorporation of uL16. The reported results are of high quality and should be published in eLife provided that the following points are addressed.

1) The cross-linking mass spectrometry data is quoted as a means of delineating a time course of protein-protein interaction. While the type of interactions seen for Rei1 and Reh1 with other factors is clearly indicative for mutually exclusive interactions, there are also numerous crosslinks that do not make immediate sense. Since only a single protein bait was used for the analyzed samples (Lsg1), numerous small subunit assembly factors are present in this sample, which have been cross-linked to large subunit assembly factors (Figure 1—figure supplement 5). These include Esf1, Sas10, Nan1, Enp2, Enp1, Utp30, Rrp7, Rrp9, Bud21, Utp6, Rrp5, Esf1, Puf6, Utp15, Utp4, Tsr3, and Enp2. Since the crosslinking and mass spectrometry data has had a supportive role for the interpretation of the data, it would therefore be very helpful for the authors to comment on the validity of all observed crosslinks and/or their limitations.

2) State VI lacks Nmd3 and Lsg1, the bait protein, and the authors argue (Results paragraph one) that these particles have continued to mature following the purification. An alternative interpretation would be that Lsg1 and Nmd3 have dissociated from a subpopulation of particles in which their affinity for the pre-60S particles is relatively low already. While this would not majorly change the authors' model, it may highlight a technical limitation of sample preparation. The authors' comments about this possibility would be very helpful.

3) In Figure 1A, low-pass filtered density for eL40 is shown in the composite image of State III. Since I was unable to see eL40 in the map of State III, did the authors mask out this protein for this reconstruction or was it inadvertently incorporated in State III?

4) Within the pdbs of states I-VI zinc ions are missing in several ribosomal proteins (including eL40) as well as the two zinc ions shown in Figure 2A, which belong to Nmd3. Given the high quality of these reconstructions and their ability to serve as future structural references, adding zinc ions would be very helpful for the scientific community.

5) Since there are six different states, it would be helpful to indicate in each figure, from which state a particular view originates. With this information the reader will be able to look at the correct pdb and EM map at the same time.

6) Local resolution is an important factor to consider for the interpretation of all assembly factors involved in this study. While Figure 1—figure supplement 1F shows a distribution of resolutions, it would be helpful to have a supplementary figure to Figure 1A to show local resolutions for all discussed ribosome assembly factors. These resolution estimations could be visualized using the latest features of Relion3 where low-pass filtering is also applied to these regions at their respective local resolution. Along similar lines, figures that show side chain and bases should be backed up with corresponding supplementary figures showing the corresponding density – ideally not low-pass filtered.

Reviewer #2:

Several models of pre-60S ribosome assemblies have been proposed recently in the literature. The most comprehensive studies focused on the early nuclear pre-60S maturation step by cryo-EM (Kater et al., 2017; Sanghai et al., 2018). The authors of the submitted manuscript have a long-standing interest in how the maturation process is affected in Shwachman-Diamond syndrome, and they published a series of related studies, including solid structural work explaining the mechanism of late eIF6 release from the nascent 60S ribosomal subunit (Weis et al., 2015). In the current work they further expand on that direction and characterize the 60S ribosomal subunit late maturation intermidiate using cryo-EM and cross-linking mass spectrometry. Particularly, the study describes characterization of S. cerevisiae pre-60S isolated using Lsg1-TAP as a bait. Intense computational analysis then resulted in six reconstructions at 3.1-3.9 Å resolution. For two of the reconstructions, namely states I and III, the models have been built and refined. The authors then analyzed the structural information and identified several putative consequent key steps in the assembly of the yeast 60S, leading to the conclusion that the incorporation of uL16 causes the release of the factor Nmd3, which is an important step in the maturation of the peptidyltransferase center. Since uL16 of human ribosomes is mutated in T-cell acute lymphoblastic leukemia, the authors propose a mechanism of an increased flexibility of the P-site loop that reduces its ability to effectively compete with the Nmd3.

While the study provides a comprehensive analysis of the late assembly of the yeast 60S and offers important fundamental insight for the ribosomal community, it is equally important that the quality of the presentation will match. That is not the case at the moment, which makes it difficult to follow some of the fine structural details. I would therefore suggest revising the presentation of the data so that the paper can be considered for a publication. For the revised version, I would also recommend adding line numbers so that it is easier for the authors to follow reviewers' comments.

Overall, not being an expert in the field of the 60S assembly, the description of the structural data sounds convincing, sensible and most detailed. It is also consistent with the previously published literature, and the conclusions regarding the PTC assembly are likely to be universal, and very interesting.

Specific comments regarding the presentation of the data:

– Abstract: The Abstract should be designed in the following way: introduction, main results, conclusion, importance. The first sentence is related to the importance and should be placed accordingly. In the second sentence, 'entire dynamic landscape' should be removed, because authors don't really know the entire landscape. It is also certainly not 'dynamic' because only individual snapshots are presented by cry-EM. Last sentence, the data concerns yeast ribosome, therefore leukemia related effects can only be suggested, whereas if authors are interested in 'illuminating', they should have worked with the relevant mutants of human ribosomes.

– Results and Figures:

While six high resolution maps were obtained in this study (states I-VI), only two models were built (states I and III), and some of the comparison is done on the level of the density maps. I consider it as a problem because it limits readers' accessibility to the reported information. There are certain basic standards in structural biology implying that the experimental data (density maps) are interpreted into models (atomic coordinates), which can be validated according to the tools originally developed for X-ray crystallography, the validated models are then used to discuss the molecular mechanisms. Here authors compromise those standards by skipping validation of the model building for states II, IV, V, VI or at least it is not reported in the current version of the manuscript. The authors should build the models, validate all of them, upload all the structural information to the public domain and present the validation details in the supplementary materials. Currently, Supplementary file 1A shows data from two models, whereas Supplementary file 1B shows data for a single model, the rest is missing.

All the figures should have consistent representation of the densities and the models. For example in Figure 2C and 2D the density is shown in two different modes and not in the same colors.

Figure 4A and 4D describes flexibility if H89. How can an atomic model from one study be compared with experimental density from another study? Please compare density with density or model with model.

Also for Figure 5; in 5A-C, it is the overall models that should be compared, especially given that the authors claim near atomic structures; in the bottom insets, the density should be shown in blue mesh, which is the standard for high resolution work and provides evidence of experimental data. The same goes for 5E, the current representation is not possible to track.

– Discussion:

There is quite a gap between reporting a structure of yeast ribosome to discussing a mechanism related to inherited forms of leukemia. The association of the clinical phenotype is certainly important, but such an implication should be justified and conservation between yeast and human ribosomes should be illustrated in the supplementary material.

https://doi.org/10.7554/eLife.44904.061

Author response

Essential revisions:

The two reviewers are in agreement that the paper presents valuable data that advance the field of 60S ribosome assembly, and that the paper merits publication in eLife if the problems of presentations are rectified. Because the reviewers pointed out many shortcomings, the Reviewing Editor left the individual reviews intact below.

Most importantly, refined coordinate files of all states should be made available for the scientific community. Also, one of the reviewers after writing his/her review commented that a similar cryo-EM study just appeared in press (Zhou et al., in Nature Comm. Nature 10, Article number: 958 (https://www.nature.com/articles/s41467-019-08880-0#data-availability)), where Nmd3-TAP and uL16∆C-TAP were used for pull down. In general, the latter study is consistent with the current one. However, there is a discrepancy worth considering addressing: Zhou et al. particularly focus on the mechanism of how Yvh1 releases Mrt4 that is required for P stalk assembly. From the text, it appears that Yvh1 is bound to pre-60S containing eL40. While the coordinates have not been released, it appears to contradict the data in this paper that suggest that Yvh1 and eL40 are mutually exclusive, particularly in state III. Thus, the authors should clarify this point and perhaps other discrepancies.

All the refined coordinate files have been deposited in EMDB and in the PDB for the scientific community.

With respect to the recently published study by Zhou et al. (Zhou et al., 2019), we agree that there are indeed some discrepancies with our study. There are a number of potential explanations for this. Importantly, we would like to emphasise that our study has focused entirely on the characterisation of purified native pre-60S particles. By contrast, the study by Zhou et al. examined particles purified from Rlp24 mutant cells or following the partial arrest of ribosome biogenesis with the chemical inhibitor diazaborine. The possibility that ribosome assembly may have been perturbed in the Zhou et al. study must therefore be considered when interpreting their structural intermediates. In addition, examination of the maps deposited by Zhou et al. shows apparent particle orientation bias and heterogeneity in the map densities. Indeed, in the online peer review document for their manuscript, Zhou et al. state that they “did not attempt to reconstruct factors at the exit tunnel, as densities at the exit tunnel were heterogeneous because of our classification approach”. In our study we felt that it was critical to rigorously classify the entire ribosomal subunit to allow us to draw what we believe to be robust conclusions about the structural intermediates we have identified.

Specific points with respect to the study by Zhou et al:

1) The map corresponding to state ‘RI’ in Figure 1 has density for uL16, but also appears to have clear density for Arx1 which should be absent when uL16 is bound. There is also heterogeneity in the conformation of H38, which is present in a mixture of ‘closed’ and ‘open’ conformations.

2) The density assigned to Lsg1 that lies over the surface of Tif6 in the particles represented in Figures 1E, F also appears to be present in the map corresponding to Figure 1D upon low pass filtering, but Lsg1 is clearly absent. We suggest that this density has been misassigned as an extension of Lsg1 (see also Ma et al., 2017). Instead, our data indicate that this density corresponds to the N-terminus of Rei1 (see Figure 1, state 1).

3) Zhou et al., Figure 1D is said to represent a “Pre-Lsg1” particle. However, it seems more likely to us that this represents a class from which Lsg1 has dissociated. Examination of the corresponding deposited map reveals that the density occupying the exit tunnel is likely Reh1, which we can clearly distinguish on the basis of specific side-chains such as Reh1 Y394 (G355 in Rei1), M401 (V362 in Rei1) and the presence of a distinct helical domain extending from residues R376-E391. The presence of Reh1 in the map corresponding to Figure 1D would be inconsistent with its assignment as an early “Pre-Lsg1” state. In fact, we also observed a similar intermediate in our own dataset (see subsection “Loading of eL40 stabilizes H89 to facilitate uL16 recruitment”) upon sub-classifying state III in which Nmd3 is rotated towards H89. However, Lsg1 is absent, Reh1 is in the PET and the particle lacks Arx1, Yvh1 and uL16. We conclude that this intermediate represents a non-physiological state that is more likely to be a consequence of Lsg1 dissociation and not a “Pre-Lsg1” particle.

4) The large size of our primary dataset allowed us to perform extensive focused classification that we believe has enabled us to resolve the marked compositional heterogeneity of the late cytoplasmic pre-60S particles. In addition, our data are also consistent with recent quantitative mass spectrometry and genetic results deposited in the bioRxiv (Nerurkar et al. 2019, doi: https://doi.org/10.1101/462333).

5) To address the editor’s comments, we have added the following text to our

manuscript:

“Our study suggests that Yvh1 dissociates from the pre-60S particle prior to the binding of eL40 and uL16 (Figure 1A). However, while this work was under review, Yvh1 was reported to bind cytoplasmic pre-60S particles carrying eL40 and uL16 (Zhou et al., 2019). Perhaps explaining this discrepancy, our study has exclusively analysed native pre-60S particles, while Zhou et al. examined particles purified from Rlp24-mutant cells or following treatment with the inhibitor diazaborine (Zhou et al., 2019). Interpretation of the structural intermediates in the Zhou study should also take account of the heterogeneity in the deposited maps due to the classification strategy used.”

Reviewer #1:

Here Kargas et al. have elucidated the mechanistic steps involved in cytoplasmic 60S maturation steps. The authors' elegant use of cryo-electron microscopy and their scholarly interpretation have shown that a series of conformational changes are fine-tuned to allow for the release of Nmd3 and the incorporation of uL16. The reported results are of high quality and should be published in eLife provided that the following points are addressed.

1) The cross-linking mass spectrometry data is quoted as a means of delineating a time course of protein-protein interaction. While the type of interactions seen for Rei1 and Reh1 with other factors is clearly indicative for mutually exclusive interactions, there are also numerous crosslinks that do not make immediate sense. Since only a single protein bait was used for the analyzed samples (Lsg1), numerous small subunit assembly factors are present in this sample, which have been cross-linked to large subunit assembly factors (Figure 1—figure supplement 5). These include Esf1, Sas10, Nan1, Enp2, Enp1, Utp30, Rrp7, Rrp9, Bud21, Utp6, Rrp5, Esf1, Puf6, Utp15, Utp4, Tsr3, and Enp2. Since the crosslinking and mass spectrometry data has had a supportive role for the interpretation of the data, it would therefore be very helpful for the authors to comment on the validity of all observed crosslinks and/or their limitations.

While we have demonstrated repeatedly that we are able to detect cross-links and protein-protein interactions with high confidence using the approach we have applied in this study (see for example Patel, Nature Commun, 2017; Erzberger et al., 2014; Leitner, Trends Biochem Sci. 2016), an extensive previous study from us also showed that useful information can be lost if too high cut-offs are used (Erzberger et al., 2014). We have therefore used settings and MS cut-offs for this study that translate to an expected FDR of roughly 20 percent for the identified cross-links. Thus, the overall list of detected cross-links will also contain false-positives, being a likely explanation for some of the crosslinks that were detected to small subunit assembly factors within this sample. Nonetheless, the links that are discussed in detail in the manuscript (Rei1: Arx1; Rei1 to eL24 and Reh1 to eL24), we do see in both independent samples and with even higher cut-offs (Id >36) or with multiple independent peptides, and are thus particularly trustworthy.

Furthermore, the crosslinking mass spectrometry (XL-MS) data for this study was obtained from two independent epitope-tagged Lsg1 sample preparations that were used as bait. As such, any delineation of a time-course or 60S subunit maturation has to be indirect, as the reviewer correctly points out. However, as XLMS is an ensemble technology, this means that in principle crosslinks from all distinct populations that were present in the sample will be detected. Thus, the list of detected cross-links will likely contain cross-links from the various states obtained by cryo-EM and in combination these techniques are then indeed able to generate valid information on the subunit maturation process of the 60S particle, as stated in the manuscript.

As written in the Materials and methods section, we have deliberately decided against a narrow search using only known 60S assembly factors, but have conducted a search against all ribosomal proteins and known assembly factors in S. cerevisiae (total of 380 proteins) in order to obtain a more general view on all populations that were present in the sample. The obtained crosslinks on numerous small subunit assembly factors will therefore likely stem from particles that were present in the sample due to the biochemical enrichment process and that were at the same time not numerous enough to constitute one of the distinct states detected by cryo-EM. In order to clarify above points we have added the following clarification and reference to the manuscript:

“For each experiment, only unique crosslinks were considered and only cross-linked peptides that were identified with a delta score (deltaS) below 0.95 and an Id-Score above 32, translating to an FDR of 0.2 (Erzberger et al., 2014), were selected for this study.”

2) State VI lacks Nmd3 and Lsg1, the bait protein, and the authors argue (Results paragraph one) that these particles have continued to mature following the purification. An alternative interpretation would be that Lsg1 and Nmd3 have dissociated from a subpopulation of particles in which their affinity for the pre-60S particles is relatively low already. While this would not majorly change the authors' model, it may highlight a technical limitation of sample preparation. The authors' comments about this possibility would be very helpful.

As the reviewer correctly points out, we cannot exclude the possibility that Lsg1 and Nmd3 may simply have dissociated from the state V particles due to low affinity, reflecting a potential technical limitation in the sample preparation. On the other hand, if this were the case, we might have expected to also identify an additional intermediate downstream of state V lacking Lsg1 but retaining Nmd3. Indeed, as we state in subsection “Loading of eL40 stabilizes H89 to facilitate uL16 recruitment”, focused classification of state III identified a population of particles in which Lsg1 is absent, but Nmd3 is retained but with its eL31-like domain rotated towards H89. We suggest that this represents a nonphysiological state rather than a “Pre-Lsg1” particle given that Reh1 is present in the PET and Arx1 is absent from these particles. This state may correspond to the class depicted by Zhou et al. in Figure 1D of their manuscript as a ‘Pre-Lsg1’ particle. Importantly, however, we agree with the reviewer that the possible dissociation of Nmd3/Lsg1 after state V does not significantly alter the conclusions that we wish to draw.

We have modified the text to clarify these points:

Results section:

“The ability to capture state VI (lacking both Nmd3 and Lsg1) likely reflects ongoing maturation of the particles or possibly the dissociation of Lsg1 and Nmd3 during immunopurification.”

“Although focused classification of state III identified a subset of particles in which the Nmd3 eL31-like domain is rotated towards H89, this class lacks Lsg1 and Arx1, with Reh1 present in the PET. We suggest that the rotated conformation of the Nmd3 eL31-like domain in this subset of state III particles is a consequence of Lsg1 dissociation during sample preparation rather than a physiologically relevant “pre-Lsg1” state.”

3) In Figure 1A, low-pass filtered density for eL40 is shown in the composite image of State III. Since I was unable to see eL40 in the map of State III, did the authors mask out this protein for this reconstruction or was it inadvertently incorporated in State III?

We apologise for the confusion. We have deposited an additional map “State III, subclass 1” which clearly shows the density for eL40. We have added the following sentence in subsection “Cryo-EM image processing”:

“Similarly, further classification (using masks 2 and 3) was performed in states III and IV to reveal eL40 (State III, subclass 1) and the retracted L1-stalk (State V, subclass 1), respectively.”

4) Within the pdbs of states I-VI zinc ions are missing in several ribosomal proteins (including eL40) as well as the two zinc ions shown in Figure 2A, which belong to Nmd3. Given the high quality of these reconstructions and their ability to serve as future structural references, adding zinc ions would be very helpful for the scientific community.

Thank you for pointing out this omission. We have updated the pdb files.

5) Since there are six different states, it would be helpful to indicate in each figure, from which state a particular view originates. With this information the reader will be able to look at the correct pdb and EM map at the same time.

Thank you for the suggestion. Done.

6) Local resolution is an important factor to consider for the interpretation of all assembly factors involved in this study. While Figure 1—figure supplement 1F shows a distribution of resolutions, it would be helpful to have a supplementary figure to Figure 1A to show local resolutions for all discussed ribosome assembly factors. These resolution estimations could be visualized using the latest features of Relion3 where low-pass filtering is also applied to these regions at their respective local resolution. Along similar lines, figures that show side chain and bases should be backed up with corresponding supplementary figures showing the corresponding density – ideally not low-pass filtered.

We have added Figure 1—figure supplement 4 to address this point. We also show density for the side-chain base interactions in Figure 2B, C and Figure 6 A-C.

Reviewer #2:

Specific comments regarding the presentation of the data:

– Abstract: The Abstract should be designed in the following way: introduction, main results, conclusion, importance. The first sentence is related to the importance and should be placed accordingly. In the second sentence, 'entire dynamic landscape' should be removed, because authors don't really know the entire landscape. It is also certainly not 'dynamic' because only individual snapshots are presented by cry-EM. Last sentence, the data concerns yeast ribosome, therefore leukemia related effects can only be suggested, whereas if authors are interested in 'illuminating', they should have worked with the relevant mutants of human ribosomes.

We have amended the title and Abstract as suggested.

Title: “Mechanism of completion of peptidyltransferase centre assembly in eukaryotes”

Abstract:

“During their final maturation in the cytoplasm, pre-60S ribosomal particles are converted to translation-competent large ribosomal subunits. Here, we present the mechanism of peptidyltransferase centre (PTC) completion that explains how integration of the last ribosomal proteins is coupled to release of the nuclear export adaptor Nmd3. Single-particle cryo-EM reveals that eL40 recruitment stabilizes helix 89 to form the uL16 binding site. The loading of uL16 unhooks helix 38 from Nmd3 to adopt its mature conformation. In turn, partial retraction of the L1 stalk is coupled to a conformational switch in Nmd3 that allows the uL16 P-site loop to fully accommodate into the PTC where it competes with Nmd3 for an overlapping binding site (base A2971). Our data reveal how the central functional site of the ribosome is sculpted and suggest how the formation of translation-competent 60S subunits is disrupted in leukaemia-associated ribosomopathies”

– Results and Figures:

While six high resolution maps were obtained in this study (states I-VI), only two models were built (states I and III), and some of the comparison is done on the level of the density maps. I consider it as a problem because it limits readers' accessibility to the reported information. There are certain basic standards in structural biology implying that the experimental data (density maps) are interpreted into models (atomic coordinates), which can be validated according to the tools originally developed for X-ray crystallography, the validated models are then used to discuss the molecular mechanisms. Here authors compromise those standards by skipping validation of the model building for states II, IV, V, VI or at least it is not reported in the current version of the manuscript. The authors should build the models, validate all of them, upload all the structural information to the public domain and present the validation details in the supplementary materials. Currently, Supplementary file 1A shows data from two models, whereas Supplementary file 1B shows data for a single model, the rest is missing.

Apologies for the confusion, but in fact the models for all six states were indeed built and submitted together with the validation reports and the maps for the initial review process and were commented on by reviewer 1. We have deposited the maps and models for states I-VI in the public domain and present the data collection, model validation and refinements in Supplementary file 1A and B.

All the figures should have consistent representation of the densities and the models. For example in Figure 2C and 2D the density is shown in two different modes and not in the same colors.

Apologies, we have corrected this.

Figure 4A and 4D describes flexibility if H89. How can an atomic model from one study be compared with experimental density from another study? Please compare density with density or model with model.

We apologise that our labelling of Figure 4 caused confusion. We were comparing density with an atomic model from our own study. We have amended Figure 4A to clarify that we are comparing the densities for H89 that we observed in our focused classification of state I. The atomic model for the tip of H89 that we have built in state IV is now shown separately in Figure 4B.

Also for Figure 5; in 5A-C, it is the overall models that should be compared, especially given that the authors claim near atomic structures; in the bottom insets, the density should be shown in blue mesh, which is the standard for high resolution work and provides evidence of experimental data. The same goes for 5E, the current representation is not possible to track.

We have modified the figures to take account of the reviewer’s comments, showing mesh in Figures 5A-C. Figure 5D shows atomic models of the closed and partially retracted states of Nmd3 for clarity.

– Discussion:

There is quite a gap between reporting a structure of yeast ribosome to discussing a mechanism related to inherited forms of leukemia. The association of the clinical phenotype is certainly important, but such an implication should be justified and conservation between yeast and human ribosomes should be illustrated in the supplementary material.

As the reviewer points out, our conclusions regarding the mechanism of PTC assembly are likely to be common to all eukaryotes. To support the discussion on the clinical relevance of our findings, we have added Figure 7—figure supplement 1 to show the conservation of uL16 sequence and structure. We have also included the following text:

“Importantly, given the high degree of conservation in the amino acid sequence and structure of the uL16 protein (Figure 7—figure supplement 1A, B)”

https://doi.org/10.7554/eLife.44904.062

Article and author information

Author details

  1. Vasileios Kargas

    1. Cambridge Institute for Medical Research, Cambridge, United Kingdom
    2. Department of Haematology, University of Cambridge, Cambridge, United Kingdom
    3. Wellcome Trust–Medical Research Council Stem Cell Institute, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Formal analysis, Investigation, Methodology, Writing—original draft, Writing—review and editing, Cryo-EM data acquisition, Data processing, Model building, Structure validation
    Contributed equally with
    Pablo Castro-Hartmann
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8588-7285
  2. Pablo Castro-Hartmann

    1. Cambridge Institute for Medical Research, Cambridge, United Kingdom
    2. Department of Haematology, University of Cambridge, Cambridge, United Kingdom
    3. Wellcome Trust–Medical Research Council Stem Cell Institute, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Formal analysis, Investigation, Methodology, Writing—original draft, Cryo-EM data acquisition, Data processing
    Contributed equally with
    Vasileios Kargas
    Competing interests
    No competing interests declared
  3. Norberto Escudero-Urquijo

    1. Cambridge Institute for Medical Research, Cambridge, United Kingdom
    2. Department of Haematology, University of Cambridge, Cambridge, United Kingdom
    3. Wellcome Trust–Medical Research Council Stem Cell Institute, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Formal analysis, Investigation, Writing—original draft, Writing—review and editing, Cryo-EM grid preparation, Data collection, Yeast genetics
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8201-5884
  4. Kyle Dent

    1. Cambridge Institute for Medical Research, Cambridge, United Kingdom
    2. Department of Haematology, University of Cambridge, Cambridge, United Kingdom
    3. Wellcome Trust–Medical Research Council Stem Cell Institute, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Formal analysis, Methodology, Cryo-EM data processing and structure determination
    Competing interests
    No competing interests declared
  5. Christine Hilcenko

    1. Cambridge Institute for Medical Research, Cambridge, United Kingdom
    2. Department of Haematology, University of Cambridge, Cambridge, United Kingdom
    3. Wellcome Trust–Medical Research Council Stem Cell Institute, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Writing—original draft, Writing—review and editing, Protein expression and NMR spectroscopy
    Competing interests
    No competing interests declared
  6. Carolin Sailer

    Department of Biology, University of Konstanz, Konstanz, Germany
    Contribution
    Formal analysis, Investigation, Methodology, Writing—original draft, Writing—review and editing, Crosslinking mass spectrometry data acquisition and analysis
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7735-6070
  7. Gertrude Zisser

    Institute of Molecular Biosciences, University of Graz, Graz, Austria
    Contribution
    Methodology, Writing—original draft, Writing—review and editing, Sample preparation
    Competing interests
    No competing interests declared
  8. Maria J Marques-Carvalho

    1. Cambridge Institute for Medical Research, Cambridge, United Kingdom
    2. Department of Haematology, University of Cambridge, Cambridge, United Kingdom
    3. Wellcome Trust–Medical Research Council Stem Cell Institute, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Investigation, Methodology, Writing—review and editing, Cryo-EM sample preparation, Data processing, Model building
    Competing interests
    No competing interests declared
  9. Simone Pellegrino

    1. Cambridge Institute for Medical Research, Cambridge, United Kingdom
    2. Department of Haematology, University of Cambridge, Cambridge, United Kingdom
    3. Wellcome Trust–Medical Research Council Stem Cell Institute, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Investigation, Writing—original draft, Writing—review and editing, Model building
    Competing interests
    No competing interests declared
  10. Leszek Wawiórka

    1. Cambridge Institute for Medical Research, Cambridge, United Kingdom
    2. Department of Haematology, University of Cambridge, Cambridge, United Kingdom
    3. Wellcome Trust–Medical Research Council Stem Cell Institute, University of Cambridge, Cambridge, United Kingdom
    4. Department of Molecular Biology, Maria Curie-Skłodowska University, Lublin, Poland
    Contribution
    Investigation, Writing—original draft, Writing—review and editing, Yeast genetics
    Competing interests
    No competing interests declared
  11. Stefan MV Freund

    MRC Laboratory of Molecular Biology, Cambridge, United Kingdom
    Contribution
    Conceptualization, Supervision, Investigation, Methodology, Writing—original draft, Writing—review and editing, NMR spectroscopy
    Competing interests
    No competing interests declared
  12. Jane L Wagstaff

    MRC Laboratory of Molecular Biology, Cambridge, United Kingdom
    Contribution
    Conceptualization, Validation, Investigation, Methodology, Writing—original draft, Writing—review and editing, NMR sprectroscopy
    Competing interests
    No competing interests declared
  13. Antonina Andreeva

    MRC Laboratory of Molecular Biology, Cambridge, United Kingdom
    Contribution
    Formal analysis, Investigation, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
  14. Alexandre Faille

    1. Cambridge Institute for Medical Research, Cambridge, United Kingdom
    2. Department of Haematology, University of Cambridge, Cambridge, United Kingdom
    3. Wellcome Trust–Medical Research Council Stem Cell Institute, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Data curation, Formal analysis, Validation, Methodology, Writing—original draft, Writing—review and editing, Data acquisition
    Competing interests
    No competing interests declared
  15. Edwin Chen

    Faculty of Biological Sciences, University of Leeds, Leeds, United Kingdom
    Contribution
    Resources, Data curation, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0742-9734
  16. Florian Stengel

    Department of Biology, University of Konstanz, Konstanz, Germany
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Validation, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1447-4509
  17. Helmut Bergler

    Institute of Molecular Biosciences, University of Graz, Graz, Austria
    Contribution
    Formal analysis, Supervision, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7724-309X
  18. Alan John Warren

    1. Cambridge Institute for Medical Research, Cambridge, United Kingdom
    2. Department of Haematology, University of Cambridge, Cambridge, United Kingdom
    3. Wellcome Trust–Medical Research Council Stem Cell Institute, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Investigation, Methodology, Writing—original draft, Project administration, Writing—review and editing, model building
    For correspondence
    ajw1000@cam.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9277-4553

Funding

Medical Research Council (MC_U105161083)

  • Alan John Warren

Bloodwise (12048)

  • Alan John Warren

Wellcome (108466/Z/15/Z)

  • Edwin Chen

Deutsche Forschungsgemeinschaft (Emmy Noether Programme STE 2517/1-1)

  • Florian Stengel

Deutsche Forschungsgemeinschaft (Collaborative Research Center 969 Project A06)

  • Florian Stengel

Fonds zur Förderung der Wissenschaftlichen Forschung (FWF Grants P26136)

  • Helmut Bergler

Fonds zur Förderung der Wissenschaftlichen Forschung (FWF Grants P29451)

  • Helmut Bergler

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Micheline Fromont-Racine, Ed Hurt, Arlen W Johnson, Sabine Rospert, John Woolford, Bernard L Trumpower and Juan P Ballesta for generous gifts of antibodies and strains. We acknowledge Diamond for access and support of the Cryo-EM facilities at the UK national electron bio-imaging centre (eBIC), (proposal EM17057), funded by the Wellcome Trust, MRC and BBSRC; the Astbury Biostructure Laboratory, in particular Dr. Rebecca Thompson, for cryo-EM data collection funded by the University of Leeds and the Wellcome Trust (108466/Z/15/Z); Dr. Dimitri Y Chirgadze for data collection at the Cryo-EM Facility, Department of Biochemistry, University of Cambridge, funded by the Wellcome Trust (206171/Z/17/Z; 202905/Z/16/Z), the Departments of Biochemistry and Chemistry, the Schools of Biological Sciences and Clinical Medicine and the University of Cambridge; the European NMR Large-Scale Facility (Utrecht, Holland); J Wilson for help with computing and D Merla for technical support. The work was supported by a Specialist Programme from Bloodwise (12048), the UK Medical Research Council (MC_U105161083, to AJW), the Austrian Science foundation FWF Grants (P26136 and P29451, to HB), a Wellcome Trust strategic award to the Cambridge Institute for Medical Research (100140), a core support grant from the Wellcome Trust and MRC to the Wellcome Trust-Medical Research Council Cambridge Stem Cell Institute, the Connor Wright Project and the Cambridge National Institute for Health Research Biomedical Research Centre. FS acknowledges funding from the German Science Foundation Emmy Noether Programme (STE 2517/1–1) and Collaborative Research Centre (SFB) 969, Project A06.

Senior Editor

  1. John Kuriyan, University of California, Berkeley, United States

Reviewing Editor

  1. Nahum Sonenberg, McGill University, Canada

Reviewers

  1. Sebastian Klinge, Rockefeller University, United States
  2. Alexey Amunts

Publication history

  1. Received: January 5, 2019
  2. Accepted: May 20, 2019
  3. Accepted Manuscript published: May 22, 2019 (version 1)
  4. Version of Record published: June 17, 2019 (version 2)

Copyright

© 2019, Kargas et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,412
    Page views
  • 301
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Structural Biology and Molecular Biophysics
    Emiko Uchikawa et al.
    Research Article
    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics
    Kenta Yamamoto et al.
    Research Article
