A multidisciplinary approach to a unique palaeolithic human ichnological record from Italy (Bàsura Cave)

  1. Marco Romano  Is a corresponding author
  2. Paolo Citton
  3. Isabella Salvador
  4. Daniele Arobba
  5. Ivano Rellini
  6. Marco Firpo
  7. Fabio Negrino
  8. Marta Zunino
  9. Elisabetta Starnini
  10. Marco Avanzini
  1. University of the Witwatersrand, South Africa
  2. CONICET-Consejo Nacional de Investigaciones Científicas y Técnicas, Argentina
  3. MUSE, Museo delle Scienze, Italy
  4. Museo Archeologico del Finale, Italy
  5. Università degli Studi di Genova, Italy
  6. Grotte di Toirano, Italy
  7. Soprintendenza Archeologia Belle Arti e Paesaggio per la Città Metropolitana di Genova e le province di Imperia, La Spezia e Savona, Italy
  8. Università di Pisa, Italy

Abstract

Based on the integration of laser scans, sedimentology, geochemistry, archeobotany, geometric morphometrics and photogrammetry, here we present evidence testifying that a Palaeolithic group of people explored a deep cave in northern Italy about 14 ky cal. BP. Ichnological data enable us to shed light on individual and group level behavior, social relationship, and mode of exploration of the uneven terrain. Five individuals, two adults, an adolescent and two children, entered the cave barefoot and illuminated the way with a bunch of wooden sticks. Traces of crawling locomotion are documented for the first time in the global human ichnological record. Anatomical details recognizable in the crawling traces show that no clothing was present between limbs and the trampled sediments. Our study demonstrates that very young children (the youngest about 3 years old) were active members of the Upper Palaeolithic populations, even in apparently dangerous and social activities.

https://doi.org/10.7554/eLife.45204.001

eLife digest

The fossil traces of Stone Age humans and other animals in the Grotta della Bàsura cave system in Italy have been studied since the 1950s. Italian archaeologist Virginia Chiappella published the first studies; she documented bones from an extinct cave bear, human and animal footprints, charcoal from torches, finger marks, and lumps of clay stuck on the walls. Since then, many more archeologists and anthropologists have studied the cave and its fossils. Yet there are still lessons to be learned from this prehistoric site.

Now, Romano et al. have combined a number of different approaches and used some of the latest technology and cutting-edge software to analyze 180 footprints and other tracks found in the cave. These trace fossils date to about 14,000 years ago, and the analysis revealed that they were left by a group of Stone Age humans who descended at least 400 meters into the cave. The group consisted of two adults, an adolescent and two children of about three and six years old. At one point they had to crawl through a low tunnel – something that has not previously been documented in the fossil record. The group were all barefoot, had no clothing on their arms and legs and used wooden torches to light the way.

Together, these findings suggest that young children were active group members during the late Stone Age, even when carrying out apparently dangerous activities. Romano et al. now hope that their multidisciplinary approach may help other scientists looking to understand how humans behaved elsewhere in the world at various points in history.

https://doi.org/10.7554/eLife.45204.002

Introduction

Discovered in 1950, the hypogeal part of the ‘Grotta della Bàsura’ is a large and deep cave that has produced some of the most important Italian Palaeolithic discoveries of the twentieth century (Chiappella, 1952; Tongiorgi and Lamboglia, 1954; Blanc, 1960; Lamboglia, 1960; Giacobini, 2008) consisting of traces of human activity, especially footprints, dating back to 14 ky cal. BP. Up till 1890 only the atrial part of the cavity was known where Neolithic and late Roman archaeological finds had been unearthed (Maineri, 1985). The cave opening is situated at 186 m a.s.l. about 1 km north of Toirano (Savona, Italy - 436253.433 E; 4887689.739 N), and extends 890 m into Mount S. Pietro with an elevation difference of +20/−22 m relative to that of the entrance (Figure 1).

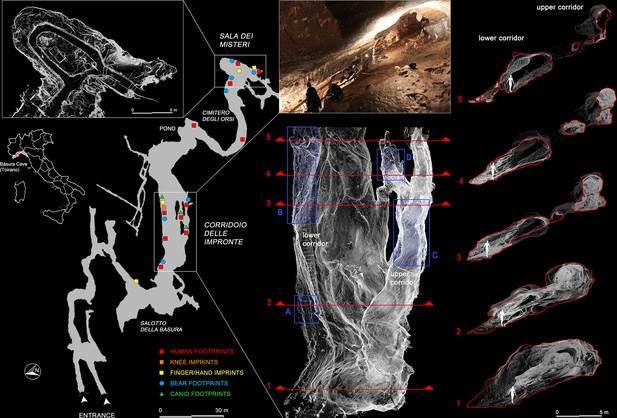

Planimetry of the ‘Grotta della Bàsura’ and location of human, bear and canid footprints.

White rectangles enclose the three-dimensional reconstructions, obtained via laser scanner, of the innermost room (‘Sala dei Misteri’ - left) and the main gallery (‘Corridoio delle impronte’ - right) of the cave, where the human footprints are preserved. Cross-sections obtained from the three-dimensional reconstruction of the main gallery are highlighted in red and show the branching of the ‘lower’ and ‘upper’ corridors, respectively. Blue rectangle indicate the four areas within the main gallery where most of the human footprints are concentrated (A and B for the lower corridor, C and D for the upper corridor).

https://doi.org/10.7554/eLife.45204.003

The inner rooms became accessible in 1950, after the rupture of a stalagmite column, placed a few dozen meters from the entrance, that prevented any access to the cave (Tongiorgi and Lamboglia, 1954; Blanc, 1960; Lamboglia, 1960). The exceptional prehistoric and paleontological value of the cave was firstly recognized by Virginia Chiappella (Chiappella, 1952) who was the first scholar to visit the site soon after its discovery. Chiappella identified several bones of Ursus spelaeus and traces both of animal and human frequentation (footprints, charcoals, digital tracks, lumps of clay adhering to the walls) in different areas of the cave within approximately 350 m of the entrance. Regrettably, destruction of most of the ichnological record occurred as a result of uncontrolled cave visits by local villagers and tourists lured to the remarkable discovery as a result of media reports (Blanc et al., 1960; De Lumley and Giacobini, 1985).

The first study of human footprints from the Cave of Bàsura was conducted by Pales (1960), based on original images and 13 plaster casts of the best-preserved specimens from various sectors of the cave. Analysis of the bone architecture of the footprint makers and the apparent relationship with remains of Ursus spelaeus, led the author to consider that the footprints were made by ‘Neanderthal-type’ producers. Subsequent analysis (de Lumley and Vicino, 1984), accompanied by radiometric dating, placed the prehistoric visitation of the Bàsura in the Upper Palaeolithic, between 12,000 and 14,000 years uncal BP (de Lumley and Vicino, 1984; De Lumley and Giacobini, 1985). Dating of charred wood fragments found on the trampled surface provided a more precise age for cave visitation at 12,340 years ± 160 years BP (Molleson et al., 1972; Molleson, 1985).

Based on the ichnological study of Pales, Blanc proposed that the inner room called ‘Sala dei Misteri’ was reached by multiple individuals, including a juvenile. Blanc (1960) described, from the same room, a group of seven human footprints identified by heel tracks positioned only a few centimeters from the main wall of the chamber to which numerous lumps of clay were attached. The close association of the footprints with lumps of clay resulted in it being considered the result of initiation rites involving young hunters. This hypothesis was supported by the presence of a stalagmite concretion (defined by Blanc as ‘acephalous sphinx’ or ‘zoomorphic stalagmite’) placed against the terminal wall of the ‘Sala dei Misteri’ (Mysteries’ Hall) chamber on which several sinuous furrows had been made intentionally by several individuals using their fingers. This interpretation is currently under review by two of the present authors (ES, MZ). The aim of this work is to review and improve understanding of the Grotta della Bàsura’s human ichnology, soil micromorphology, sedimentology and radiocarbon chronology. A preliminary report from this study focused on human footprints preserved in the innermost chamber of the cave (Citton et al., 2017).

In the present paper, we expanded our study to analyze and interpret all human traces (footprints and handprints as well as other traces) from the ‘Grotta della Bàsura’, providing new insight on the behavior, identity of the members, their exploratory techniques, and the social structure of an Upper Palaeolithic group.

Data

A total of 180 footprints and traces sensu lato were recorded and studied (Supplementary file 1). In addition to footprints (Figure 2), among the traces are digit and handprints on the clay-rich floor, and smears from hands dirtied with charcoal on the side walls of the cave (Figure 3) (Giannotti, 2008). A paleo-archaeological excavation was performed in 2016 in the ‘Sala dei Misteri’. This survey highlighted the total absence of archaeological material but led to the recovery, on the trampled palaeosurface, of numerous charcoal remains with bundles of Pinus t. sylvestris/mugo originally used to illuminate the cave. New radiometric dating on these charcoal samples constrains the exploration of the cave to the late Upper Palaeolithic, between 12,310 ± 60 and 12,370 ± 60 BP, that is from about 14,700 to 14,000 cal BP (Table 1).

Human footprints imprinted on muddy substrate in different moisture conditions.

C37, Human footprint referred to the Morph. 5 (‘lower corridor’). CA1 and C9, Human footprint referred to the Morph. 4 (‘upper corridor’). C33, Human footprint referred to the Morph. 3 (‘lower corridor’). SM15, Human footprint referred to the Morph. 3 (‘Sala dei Misteri’). CA8, Human footprint referred to the Morph. 3 (‘upper corridor’). SM5 and SM42, Human footprint referred to the Morph. 2 (‘Sala dei Misteri’). SM17 and SM18, Human footprint referred to the Morph. 1 (‘Sala dei Misteri’).

https://doi.org/10.7554/eLife.45204.004
Finger and hand prints.

C0, Two finger traces on the concretioned side-wall of the ‘lower corridor’. C26b, Finger traces (‘lower corridor’). C72, Hand print (‘lower corridor’). SM44, finger traces (‘Sala dei Misteri’). SM55, Finger flutings on the clay on the clay floor (‘Sala dei Misteri’). SM56, Finger flutings on a clay-coated stalagmite (‘Sala dei Misteri’). P8.1, P1.6, Coal dirtied handprints (‘Sala dei Misteri’).

https://doi.org/10.7554/eLife.45204.005
Table 1
Radiometric dating of charcoals collected from the trampling palaeosurface during 2017 excavations inside the ‘Sala dei misteri’.

*14C ages have been calibrated to calendar years with software program: OxCal, version 4.3. Used calibration curve: IntCal13.

https://doi.org/10.7554/eLife.45204.006
Sample
name
ProvenanceDated materialDescriptionLab. codeF14C ± 1σ14C Age (yr BP)
±1σ
Calibrated* dating result
(95.4 probability)
%C%Nδ13C
(in ‰;±1σ)
δ15N
(in ‰;±1σ)
C/N ratio
Bàsura SM B5 17Bsala dei misteri’, square B5, Unit 1Charcoal (AAA)Pinus t. sylvestris/mugoGrA-695980.2160 ± 0.001612310 ± 6012720–12110 cal BC71.4-‐25.24 ± 0.14--
Bàsura SM D6 33BSala dei misteri’,
square D6, Unit 1
charcoal (AAA)Pinus t. sylvestris/mugoGrA-695970.2145 ± 0.001612370 ± 6012830–12165 cal BC63.3-‐26.37 ± 0.14--

Digit and hand traces are preserved in several sectors of the cave (Figure 3). Most are unintentional traces related to cave exploration activities (Figure 3, C0, C26b, C72). Others, especially in the inner chamber (‘Sala dei Misteri’) which are still being studied, are very probably related to social or symbolic activities and can be instead considered intentional (Figure 3, SM55, SM56). Moreover, different sized bear and Canidae incertae sedis footprints are ubiquitously present (Figure 4), and are often associated with human prints. The available data regarding the footprints attributed to ‘canids’ suggest a very reduced number of individuals and a close association with the human prints. Should ongoing studies (Avanzini et al in prep.) confirm that the ichnnological association of Bàsura could prove crucial to shed new light on dog domestication in the Upper Paleolithic (Morey and Jeger, 2015; Perri, 2016; Lupo, 2017; Janssens et al., 2018).

Canidae incertae sedis and bear footprints.

C47-C48-C53 Canidae footprint on saturated mud (‘upper’ corridor). CA12 well preserved Canidae footprint (‘upper corridor’). SM12-SM41 bear footprint (Sala dei Misteri). C12 bear handprint (‘lower corridor’).

https://doi.org/10.7554/eLife.45204.007

Ursus sp. hibernation areas are still recognizable with well-preserved nests of both cubs and adult bears.

Preservation

Footprints are preserved in several areas of the cave, particularly in the innermost chamber (‘Sala dei Misteri’) and in the main gallery (‘Corridoio delle impronte’ – Footprints Corridor), which is divided into two corridors at different elevations of about 5 m (referred to as the lower and upper corridor, respectively) (Figure 1).

Flooding dynamics and cave geometry produced two different situations for sediment deposition and transport inside the cave. Detrital sediment comprising silty clay and well-sorted sandy sediment are most abundant on the floor of the ‘Sala dei Misteri’. Coarse lithologies comprising gravel-sized and larger (>2 mm) grains include a few fragments of bear bones. The sandy fraction comprises allogenic, surface-derived siliciclastic sediment. The ‘Sala dei Misteri’ appears to have undergone episodic filling and erosion as a result of catastrophic storms.

Sediment in the ‘Corridoio delle impronte’ comprises a large mud fraction and includes many coarse lithic fragments which are mainly carbonates (calcite and dolomite), suggesting an autogenic origin. Here, the trampled substrate is poorly consolidated and superimposed on a stalagmite crust. At the time when humans and other large mammals left their traces the cave substrate differed in different areas of the cave. In some areas, the substrate was plastic and in other areas it was waterlogged or submerged. Differing moisture content of the substrate accounts for the variable preservation of detail of the tracks (e.g. registration of plantar arch, heel and metatarsal regions, digit tips, track walls), particularly of the associated extra-morphologies (e.g. expulsion rims, slipping traces). The surface of the substrate and the footprints are cross-cut by mud cracks, suggesting a loss of moisture in sediments after trampling. Carbonate crusts (comprising both calcite and dolomite) cover many of the footprints in areas subjected to more intense dripping. Iron and manganese oxide coatings were found in the crust, probably due to repeated immersion in ponded water.

Results

Geometric morphometry performed on human footprints highlighted five main morphotypes (hereafter Morphs.) indicating a possible minimum number of five individuals entering the cave (Figure 5). This number is confirmed by the construction of morphological groups (Table 2) reconstructed through the overlapping of footprints that show a variability of less than 2% of the main parameters.

Figure 5 with 1 supplement see all

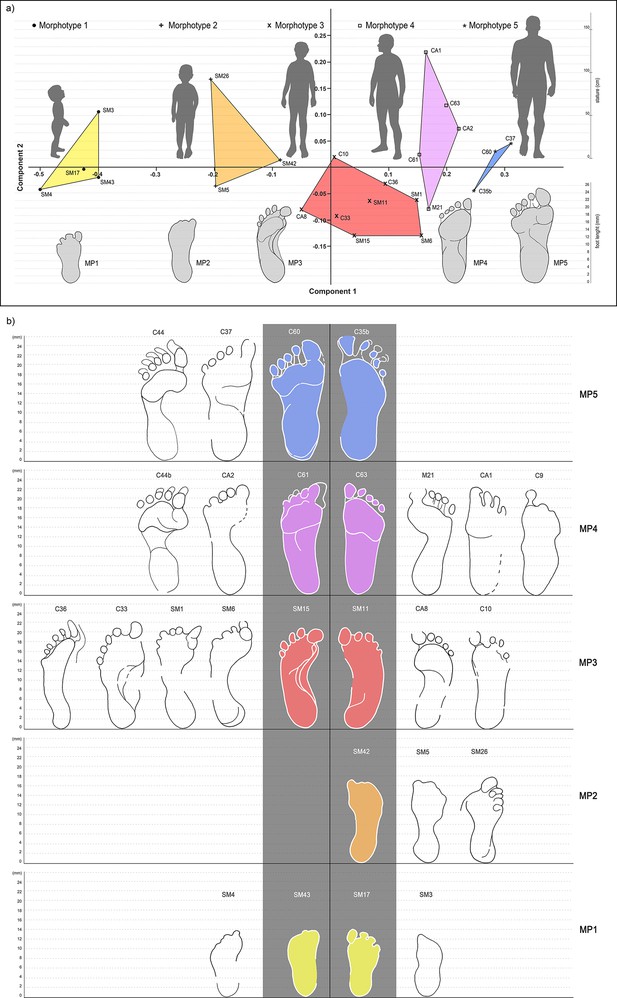

Principal Component Analysis based on the best-preserved footprints from ‘Sala dei Misteri’ and ‘Corridoio delle impronte’.

(a) The five morphotypes to which footprints have been referred are shown above. (b) Selected outlines of the best preserved footprints, for each recognized morphotype, are reported.

https://doi.org/10.7554/eLife.45204.008
Table 2
Footprint shape features after Robbins footprint recording form (1985, p.97–102).
https://doi.org/10.7554/eLife.45204.010
IDLeft (L) or right (R) footGeneral appearanceRelative length of toesToes region general appearance length - widthToe one positionBall region, general appearance length-widthArch regionHeel region, general appearanceHell posterior margin
LengthWidthMedial marginLateral margin
SM3Rshortbroad1, 2, ?short - broadextended, anteriorlystraightconcavecircularconvex pronouncedMorphotype 1
SM4L1,2,3,4,5short - broadextended, anteriorlyshort - moderateconcave
SM43Lshortbroad1,2, ?short - broadextended, anteriorlystraightconvexconvex pronounced
SM17Rshortbroad1,2,3,4,5short - broadextended, anteriorlystraight/concaveconvexconvex pronounced
SM5Rmoderatemoderate1,2,3,4,5short - broadextended oblique mediallylong - moderateconcaveconcaveconvex slightMorphotype 2
SM42Rmoderate1,2, ?extended oblique mediallyconcaveconvex pronounced
SM26Lmoderatebroad1,2,3,4,5short - moderateextended oblique laterallyconcaveconcaveconvex slight
CA8Rlongmoderate1,2,3,4,5moderate - broadextended oblique mediallylong - moderateconcavestraightoblongconvex pronouncedMorphotype 3
CA10Rlongmoderate1,2,3,4moderate - broadextended oblique mediallystraight/concavestraightoblongconvex pronounced
SM15Llongmoderate2,3,1,4,5moderate - broadextended oblique mediallylong - narrowconcavestraightoblongconvex pronounced
SM11Rlongmoderate1,2,3,4,5short - broadextended anteriorlystraight/concaveconvexoblongconvex pronounced
SM6Llongmoderate2,1,3,4,5short - broadflexed slightlong - narrowconcaveconvexoblongconvex pronounced
SM1Llongmoderate2,3,1,4,5short - broadextended oblique mediallymoderate - narrowunknownconvexcircularconvex pronounced
C33Llongbroad1,2,3,4,5long - broadextended oblique mediallylong - broadconcaveconvexoblongconvex pronounced
C36Llongvery narrow1,2,3,4,5moderate - narrowextended oblique laterallylong - narrowconcavestraightoblongconvex pronounced
CA1Rlong1,2,3,4moderate - broadextended anteriorlymoderate - narrowstraightoblongconvex, pronuncedMorphotype 4
CA2Llongmoderate1,2,3,4,5moderate - broadextended anteriorlymoderate - narrowconcavestraightoblongconvex pronunced
C61Llongmoderate1,2,3,4,5moderate - broadextended oblique mediallymoderate - narrowstraight/concavestraight/convexoblongconvex pronunced
C63Rlongmoderate1,2,3,4,5moderate - broadextended anteriorlymoderate - narrowstraight/concavestraight/concaveoblongconvex pronunced
M21Rlongmoderate1,2,3,4,5moderate - broadextended anteriorlymoderate - narrowconcavestraightoblongconvex pronunced
C9Rlongmoderate1extended anteriorlymoderate - narrowstraightconvexoblongconvex pronunced
C44bLlongbroad2,1,3,4,5short - broadextended oblique mediallymoderate - broadconcaveconvexoblongconvex, moderate
C60Llongbroad1,2,3,4,5moderate - broadextended oblique laterallymoderate - broadstraight/concavestraight/concavecircularconvex moderateMorphotype 5
C37Llongbroad1,2,3,4,5moderate - broadextended anteriorlymoderate - broadstraight/concavestraight/concavecircularconvex moderate
C35bRlongbroad1,2,3,4,5moderate - broadextended anteriorlymoderate - broadstraight/concavecircularconvex moderate
C44Llongbroad1,2,3,4,5moderate - broadextended anteriorlymoderate - broadconcavestraight/concaveoblongconvex pronunced

Morphs. 1 and 2 can be easily distinguished on the basis of the absolute footprint size. Morph. 1 includes footprints with a length of 13.55 ± 0.49 cm showing characters indicative of an early ontogenetic stage of the producer, such as digit traces and the heel area proportionally wider than those of the longer tracks. Morph. 2, with a length of 17 cm, is distinguished from Morph. one on the basis of a more pronounced plantar arch. Morph. 3 comprises footprints 20.83 ± 0.51 cm in length (Figure 5 and Table 3). The plantar area is characterized by a very pronounced medial embayment. This corresponds with a strongly convex external margin, as is shared together with a strong adduction of digit I trace, an overall larger divarication of digit traces and a consistent separation between adjacent digits II-III and IV-V.

Table 3
Measurements and elaboration data (foot index, stature, body mass and age) based on the best-preserved tracks from the ‘Sala dei Misteri’ and ‘Corridoio delle impronte’.

*Body mass: (a) Citton et al., 2017; (b) Bavdekar et al., 2006; (c) Grivas et al., 2008 (see text).

https://doi.org/10.7554/eLife.45204.011
LENGTHSWIDTHSANGLES
FOOTBALLARCHHEELBALLARCHHEELAngle of toe declination
IDLeft (L) or right (R) footDt1 (cmDt2(cm)Dt3(cm)Dt4(cm)Dt5(cm)medial (mtm-BL)(cm)lateral (mtl-BL)(cm)medial (ntu-BL)(cm)lateral (mttu-BL)(cm)medial (ccm-BL)(cm)lateral (ctul-BL)(cm)mtm-
horiz(cm)
mttu-horiz(cm)ctul-horiz(cm)T1-T5(degrees)max FL (cm)max FW (mtm-mtl) (cm)arc angle(degrees)Foot indexstature(cm)body mass *(kg)age
SM3R1312.310.59.25.56.82.32.45.54.74.3136200.4684.3611.78(a)Morpho
type 1
SM4L13.512.511.5119,810.2845.52.21.65.544.24013.56.5220.4887.6112.55(a)
SM43L13.513.510.59.45.56.52.21.865.54.613.56.5200.4887.6112.55(a)
SM17R14.213.813.512.610.810.28.55621.86.54.843214.26.8250.4892.1513.70(a)
13.55 ± 0.490.48 ± 0.0187.93 ± 3,2012.64 ± 0,79(a)<3
SM5R1716.815.5141312122,526.5535176.8280.40110.3219.50(a)Morpho
type 2
SM42R1716.812.511.5103.42.575.4177.2250.42110.3219.50(a)
SM26R1816.515142351828-116.8122.12(a)
170.41 ± 0,02110.3219.5(a)5–6
CA8R20.219.819.418.316.815137.59.22.627.564.53020.28-0.40131.0829.18(a)8–10 boy/9–11 girlMorpho
type 3
C10R20.519.218.416.515.512.56.58.52.82.675.55.63220.58-0.39133.0330.30(a)
SM15L20.520.518.517.51615.4136.57.8427463020.57450.34133.0330.30(a)
SM11R2120.219.71816.815.414.55.583.32.37.56.8630217.5400.36136.2832.28(a)
SM6L2121.520.518.81717.515.56.88.542.29.25.55.72021.59400.42139.5234.38(a)
SM1L21.221.320.820.418.517.414.86.88.73.82.58562021.38.5400.40138.2233.52(a)
C33L22.22119.517.314.815.510.767.82.52106.55.84522.210.5480.47144.0637.55(a)
C36L22.721.719.517.816.214.532.55.54822.7--147.3139.99(a)
20.83 ± 0.510.38 ± 0.03135.19 ± 3.3331.66± 2.05 (a)8–11
CA1R22.421.820.818.514.812.873.1822.48.5-0.38145.3645.48(b) - 46.66(c)Morpho
type 4
CA2L22.522212018.517.315.268.63.53.58.866.43022.58.5440.38146.0145.66(b) - 47.19(c)
C61L2321.720.82019.516.4148.59.53.837.56.55.430239450.39149.2546.57 (b) - 49.82(c)
C63R23.322.220.819.818.717147.99.53.53.88.56.75.33223.39420.39151.2047.12(b) - 51.39 (c)
M21R-21.621.320.719.216.714.67.810.53.52.49.64.86.2-9.842---
C9R22.585.522.58-0.36146.0145.66(b) - 47.19(c)
C44bL21.5212019.518.51513742.21.51055.52021.510.5500.49139.5243.84(b)
- 41.93 (c)
22.80 ± 0.420.38 ± 0.01147.96 ± 2.7546.21 ± 0.77 (b) - 48.76 ± 2.23 (c)>14 - adult
C60L25.324.222.721.4201814.8683.53.310.57.56.43525.311520.43164.1850.76(b)Morph
otype 5
C37L25.723.822.52119.518.414.767.83.73.510.57.573525.710.5550.41166.7751.48(b)
C35bR26.224.822.820.718.71713.75.87.23.72.79.576.74026.210.5-0.40170.0252.39(b)
C44L2523.522.520.81916.814.25.56.72.829.25.76452510500.40162.2350.21(b)
25.73 ± 0.450.41 ± 0.02166.99 ± 2.9351.54 ± 0.82 (b)>14 - adult

Morph. 4 (Figures 5 and 6) is represented by larger footprints (22.80 ± 0,42 cm in overall length) with roughly straight medial and lateral margins and a medial embayment less marked than that of Morph. 3. Digit tip traces are strongly aligned and oriented forward. Morph. 5 (Figures 5 and 7) includes footprints of 25.73 ± 0.45 cm in overall length and slightly concave margins, with a variably pronounced plantar embayment. The footprints of Morph. 5 are generally more robust and stockier than those of Morphs. 3 and 4, sharing with Morph. 4 the straight, forwardly oriented digit tips, and with Morph. 3 an adducted digit I trace.

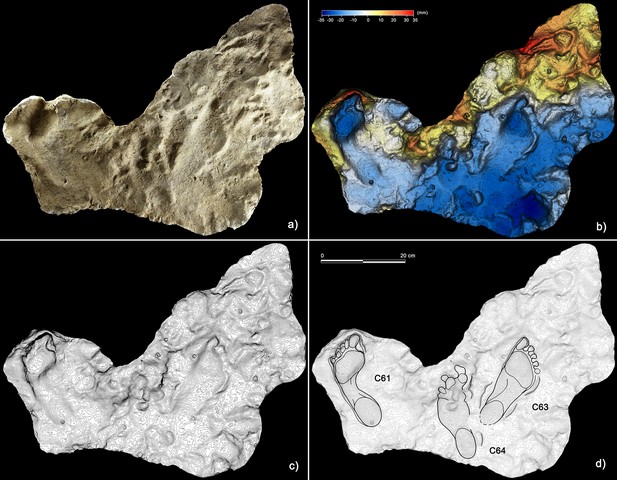

Plantigrade tracks from the ‘lower corridor’.

(a) Cast of the 1950s reproducing tracks C61, C63 and C64, preserved in the sector A of the ‘lower corridor’ (see Figure 1 main text). (b) Digital terrain model of the cast obtained from the HDI 3D Scanner. (c) Topographic profile with contour lines, obtained from b. (d) Interpretive draw. Note that the tracks C61 and C63 were most likely left by a producer (Morph. 4) crouched against the side-wall of the ‘lower corridor’.

https://doi.org/10.7554/eLife.45204.012

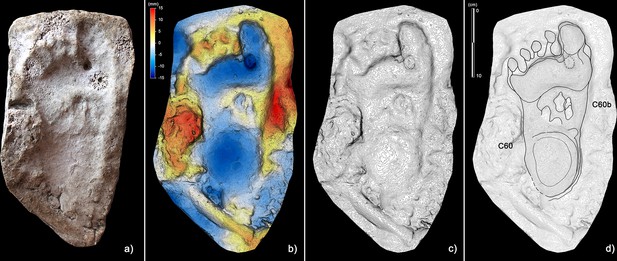

Plantigrade track from the ‘lower corridor’.

(a) Cast of the 1950s reproducing the track C60 preserved in the sector A of the ‘lower corridor’ (see Figure 1 main text). (b) Digital terrain model of the cast obtained from the HDI 3D Scanner. (c) Topographic profile with contour lines, obtained from b. (d) Interpretive draw. A superimposed partial canid track, C60b, is clearly recognizable in the metatarsal area of the human footprint (Morph. 5).

https://doi.org/10.7554/eLife.45204.013

Plantigrade tracks enabled us to estimate stature, weight and ontogenetic stage of the producers based on biometric measurements (Table 3) and the adopted formulas (see Methods). An estimation of the gender for Morph. 5 was also attempted (see Methods).

The group of human track producers entering the cave comprised: a three-year-old child about 88 cm tall (Morph. 1); a child at least 6 years old and about 110 cm tall (Morph. 2); a pre-adolescent, between 8 and 11 years old, about 135 cm tall (Morph. 3); a sub-adult to adult about 148 cm tall (Morph. 4); and an adult about 167 cm tall (Morph. 5). Estimate of the stature for the Morph. 5 is further supported by the length of the tibia derived from the available kneeling traces (see Methods). Our results concerning Morphs. 4 and 5, which are referred to adult individuals, are in agreement with the average stature of European Upper Palaeolithic people (162.4 ± 4.6 cm for males and 153.9 ± 4.3 cm for females) (Villotte et al., 2017).

Body mass estimates derived from footprint parameters suggests slender and muscular body proportions for all the trackmakers. Arch angle and footprint morphology suggests a male as the probable trackmaker of the largest footprint group. Differently, the gender result difficult to infer for morphotypes 1, 2, 3, 4, although Morph. 4 can be referred most probably to a female.

Digitigrade and semi-plantigrade footprints provide information on pedal postures and the behavior of the producers passing through different sub-environments of the cave. Both these footprint types were, in most cases, traced back to the same type of producer by comparison with complete footprints indicating complete foot support during locomotion. Some semi-plantigrade footprints (e.g. Figure 8, C44, C44b) show a strongly adducted trace of digit I and an apparent alignment with the other digits, probably because of the intra-rotation movements of the distal portion of the foot during the thrust phase. Footprints included in the Morph. 3 show a peculiar pedal morphology. While the resulting morphology of the digit I trace is explained by walking on a waterlogged substrate, the separation between digit pairs II-III and IV-V suggest an inherited familiar trait or a pathological condition of the producer’s feet. The producer was not incapacitated, showing the greatest mobility in the hypogeal environment.

Selection of semi-plantigrade and knee traces from the ‘lower corridor’ of the ‘Corridoio delle impronte’ in the Bàsura cave, indicating crawling locomotion of the producers.

(a) Associated metatarsal (C44) and knee (C45) traces allowing estimation of the tibial length of the producer. (b) Knee traces (C45, C42 and C41) imprinted on a plastic, waterlogged muddy substrate. (c) Metatarsal traces (C26, C44 and C44b) imprinted on a plastic, waterlogged muddy substrate. (d1) cast of the 1950s reproducing two knee (C41 and C42) and two metatarsal (C44, C44b) traces preserved in the area B of the ‘lower corridor’ (see Figure 1). (d2) Digital Terrain Model obtained from the HDI 3D Scanner. (d3) Topographic profile with contour lines, obtained from d2. (d4, Interpretive draw. In the knee trace, C42 are located the impressions of the patella (a), vastus medials (b), the fibular head (c), the patellar ligament (d) and the tibial tuberosity (e).

https://doi.org/10.7554/eLife.45204.014

In the lower corridor (Figure 9), a few of these footprints are associated with elongated traces imprinted by the producers’ knees resting on the substrate. Successions of kneeling traces can be clearly recognized for Morphs. 3, 4, and 5. Based on the overall size of the metatarsal and knee couples aligned on the substrate, crawling in a totally unknown environment is inferred for the whole group. These knee imprints (e.g. Figure 8, C42) show the muscle structure of the knee joint and adjacent regions. The patella, the patellar ligament (tendon), the tibial tuberosity, the fibular head, the basis of the vastus medial and the iliotibial band are recognizable and allow us to infer the body structure of the trackmakers.

Crawling locomotion in the ‘lower corridor’ (sector B in Figure 1).

(a) Color topographic profile obtained from the digital photogrammetric model. (b) Topographic contoured profile. (c) Interpretive draw of the track-bearing surface (numbers identify single tracks and traces and are to be intended as preceded by the letter C). (d1) Digital Terrain Model obtained from a cast of the 1950s reproducing a small area of the ‘lower corridor’. (d2) Topographic profile with contour lines, obtained from d1. (d3) Interpretive draw and timing of the different recognized tracks.

https://doi.org/10.7554/eLife.45204.015

Discussion

Successions of kneeling traces allowing one to infer a crawling locomotion for the trackmakers have never been reported before. Isolated kneeling traces (i.e. a footprint followed by a knee imprint of the same leg) have only previously been reported from the ‘Galerie Wahl’ at Fontanet cave and from the ‘Salle des Talons’ at Tuc d’Audoubert cave, France (Pastoors et al., 2015) but are not sufficient to infer crawling. In addition, the anatomic details clearly recognizable in the crawling traces from ‘Grotta della Bàsura’ enabled us to hypothesize that no clothing was interposed between the limb and the trampled sediments.

The integration of all available ichnological evidence with data on the complex morphology of the cave enabled us to reconstruct a detailed hypothesis for the events which took place by Paleolithic peoples while exploring the cave about 14,000 BP.

The short radiometric interval, documented by both previous radiocarbon dates and those derived from the latest research presented here (Table 1), together with interferences relating to the interrelations of the different footprints, suggest that all individuals entered the cave at the same time. In particular, the group of footprints C34, C35b, C36, C35 in the terminal part of the ‘Corridoio delle impronte’ provides relative timing of the impressions: C35 (Morph. 4) is superimposed on C36 (Morph. 3) and on C34 and C35b (both Morph. 5) (Figure 9, d3). In this specific case, the producer of Morph. 4 passed after the producers of Morphs 3 and 5, respectively. In the entrance of the same corridor, the timing is reversed: footprint C63 (Morph. 4) is superimposed by C64 (Morph. 3) proving that Morphs. 3 and 4 were made at the same time (Figure 10).

Timing of impressions of human footprints.

The interference between footprints attributed to different individuals suggests a single exploring event of the cave. In particular the cross-overlapping of MP3 and MP4 trackmakers confirms their contemporary entry into the main gallery.

https://doi.org/10.7554/eLife.45204.016

It is also difficult to assume that Morphs. 1 and 2 may have entered the deepest part of the cave without the presence of some older individual: if the older individuals who were leading the exploration were either Morphs. 3 or 4 the group consequently increases to include at least four individuals. No relationship can be established for the larger individual; however, as reported below, the fact that the footprints of this individual are regular and were closely followed on the same path by all the other individuals, suggests that the larger one was likely the leader of the synchronous exploration. Thus, all the available lines of evidence, particularly the complex interrelationship of the studied footprints, strongly suggest that a single exploration event by a heterogeneous group of five individuals is the most parsimonious and best supported hypothesis.

Five individuals, comprising two adults, an adolescent and two children, entered the cave barefoot and with a set of Pinus t. sylvestris/mugo bundles which were burned for illumination purposes. The adopted lighting system of several sticks enabled a longer period of lighting, as inferred from the fire wood illumination bundles adopted by the Bronze age salt miners at Hallstatt (Grabner et al., 2007; Grabner et al., 2010). Lighting bundles were usually made of resinous wood (Scots pine or Mountain pine), and called torch wood (Ast, 2001; Théry-Parisot et al., 2018). This interpretation fits with the archaeological evidence from the Bàsura Cave.

After a walk of approximately 150 m from the original opening of the cave and a climb of about 12 m, the group arrived at the ‘Corridoio delle impronte’. They proceeded roughly in single file, with the smallest individual behind, and walked very close to the side wall of the cave, a safer approach also used by other animals (e.g. Canidae incertae sedis and bears) when moving in a poorly lit and unknown environment. The slope of the tunnel floor, inclined by about 24°, may have further forced the individuals to proceed along the only flat area in the lower corridor, a couple of meters from the left wall of the cave. About 10 m from the ‘Corridoio delle impronte’, the cave roof drops to below 80 cm and members of the group were forced to crawl (Figure 11B), placing their hands (Figure 12) and knees (Figure 8b) on the clay substrate (Figure 9) (see also Video 1).

Reconstruction of the exploration routes chosen by the producers to enter and exit the cave.

(B) Crawling locomotion adopted by the producers to cross the ‘lower corridor’ and access to the innermost rooms of the cave. (C) Exit route passing through the ‘upper corridor’, traveled by the producers in complete erect walking. The smallest producers are not reported in the sketch.

https://doi.org/10.7554/eLife.45204.017
Human tracks from the ‘lower corridor’.

(a) Tracks C26, C26b, C25 and C24 from the sector B of the ‘lower corridor’ (see Figure 1 main text). (b) Digital terrain model obtained from high-resolution photogrammetry. (c) Topographic profile with contour lines, obtained from b. (d) Interpretive draw. C26b is interpreted as a partial hand-print of which only digit traces are preserved, interfering with a metatarsal trace deeply imprinted on a muddy, highly plastic, substrate.

https://doi.org/10.7554/eLife.45204.018
Video 1
Virtual exploration of the cave showing the crawling locomotion adopted by the Palaeolithic group to cross the main gallery and to access the innermost rooms of the cave.
https://doi.org/10.7554/eLife.45204.019

After a few meters, the group leader stopped, impressing two parallel calcigrade footprints, possibly to decide on the next movement and proceeded to cross the parts where the cave roof was at its lowest. The other individuals also stopped at the same place as the leader, and then proceeded along the same path by crawling and following the group leader, as indicated by the timing reconstructed from interactions between the tracks (Figure 9, d3).

After passing a bottleneck of blocks and stalagmites, the party descended for about ten meters along a steeply sloping surface. The whole group traversed a small pond, leaving deep tracks on the plastic waterlogged substrate, climbed a slope of 10 m beyond the ‘Cimitero degli orsi’, and finally arrived at the terminal room ‘Sala dei Misteri’, where they stopped. On the walls, several charcoal traces, generated by the torches, are preserved.

Some charcoal handprints produced by a flexed reaching up more than 170 cm on the roof of the ‘Sala dei Misteri’ confirm that the tallest individuals (Morphs. 4 and 5) were able to touch this part of the gallery. The fact that their footprints are not preserved relates to the loss of the central portion of the hall floor. In the same room, the adolescent and children started collecting clay from the floor and smeared it on a stalagmite at different levels according to height, as suggested by the breadth and relative distribution of the finger flutings on the karst structure. During their sojourn in the innermost room of the cave the young individual, that produced Morph. 2, imprinted ten clear heel traces (Citton et al., 2017), which are here interpreted as calcigrade tracks produced by a trackmaker who is momentarily standing-still to excavate and manipulate clay as was also recorded for the ‘Salle des Talons’ at Tuc d’Audoubert cave (Pastoors et al., 2015).

After stopping for several minutes (considering the quantity and ubiquity of the tracks), they exited and followed a route which did not always adhere to that followed on entry. After passing the small pond, they crossed the upper corridor following a more comfortable and safer route (Figure 11C). It is important to note that in the upper corridor all the prints point in the direction of the exit (Figures 11C and 13) while in the lower corridor, with the axis of the foot oriented parallel to the walls, most of the footprints are directed toward the interior of the cave.

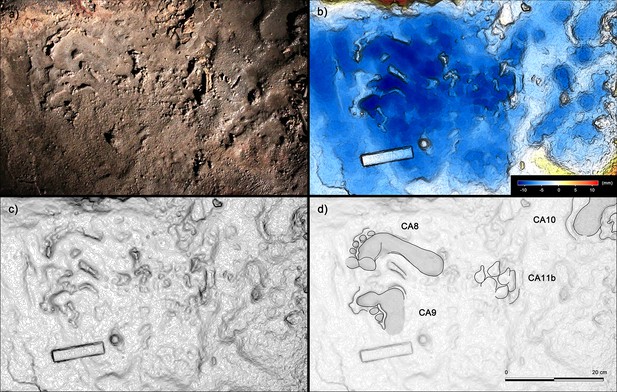

Shallow human tracks from the ‘upper corridor’.

(a) Tracks CA8, CA9, CA10 and Ca11b from the sector C of the ‘upper corridor’ (see Figure 1 main text). (b) Digital terrain model obtained from high-resolution photogrammetry. (c) Topographic profile with contour lines, obtained from b. (d) Interpretive draw. Tracks were impressed on a hard carbonate substrate covered by a thin muddy deposit, few millimeters in thickness.

https://doi.org/10.7554/eLife.45204.020

Concluding remarks

A holistic analysis comprising several lines of inter-related ichnological evidence enabled reconstruction of several snapshots depicting a small and heterogeneous group of Upper Palaeolithic people that explored a cave about 14,000 years ago (Video 1). They traversed the uneven topography of the cave floor and carried out social activities in the most remote room, leaving evidence in their traces of a unique testimony to human curiosity.

The lower corridor was traversed on entry into the cave and documents the first unequivocal evidence of crawling locomotion in the human ichnological record. This mode of locomotion was adopted by the explorers to obviate variation in the height of the cave roof. As no outgoing footprints were documented in the lower corridor it appears that the group chose to exit through the upper corridor, as the cave roof is higher and the substrate firmer. An additional reason for choosing this path of exit could have been the exploratory and curiosity factor to follow a different and unexplored path to reach the cave exit.

Anatomical features clearly registered on the substrate indicate that the lower limbs of the individuals were not covered with clothing. Our study also confirms that very young children actively participated in the activities of the Upper Palaeolithic populations, even in seemingly dangerous tasks, such as the deep exploration of the cave environment lit only with torches. As recently suggested for other European caves (Pastoors et al., 2015; Pastoors et al., 2017; Ledoux et al., 2017) the ‘Grotta della Bàsura’ site strongly supports the hypothesis that the cave exploration in Upper Paleolithic was carried out by groups of heterogeneous age and gender.

The Epigravettian necropolis of the Arene Candide Cave (AMS dates spanning 12,820–12,420 cal BP for the first phase and 12,030–11,180 cal BP for the second phase), consisted of a ‘mixed’ sample of people (males, females, adults, children) and suggests an Upper Palaeolithic people composition very similar to that highlighted in the ‘Grotta della Bàsura’ (Riel-Salvatore et al., 2018; Sparacello et al., 2018). The burial of a newborn infant, together with grave goods, recently discovered in the Arma di Veirana cave (Erli, Savona, Liguria) situated in a valley 10 km from the coast, further indicates that women and children systematically followed the movements of the group in the territory (F. N. pers. obs.) (Negrino et al., 2017) and shared, at least in part, the activities of men and had similar personal adornment. The tracks left in the Bàsura indicate that the behavior of hunter-gatherers was not always driven by subsistence requirements, but as manifested by many ethnographic examples, also by fun and frivolous activities.

Materials and methods

Chronology

Request a detailed protocol

Radiometric dating of charcoals previously established the presence of humans in the cave to the Upper Palaeolithic, around 12,340 ± 160 years BP (De Lumley and Giacobini, 1985). The stalagmite crust preserving the footprints and incorporating fragments of coal is dated to between 14,300 ± 800 and 13,100 ± 500 (Yokoyama et al., 1985). The final phase of stalagmite growth, which closed the entrance and sealed the ‘time capsule’, occurred at 12,000 ± 1100 (Yokoyama et al., 1985).

New radiometric dating of charcoal samples of Pinus t. sylvestris/mugo was undertaken in 2017 at a AMS facility at Groningen (NL) on (Table 1). Material was collected from the trampled palaeosurface during recent excavations inside the ‘Sala dei Misteri’ (Figure 14).

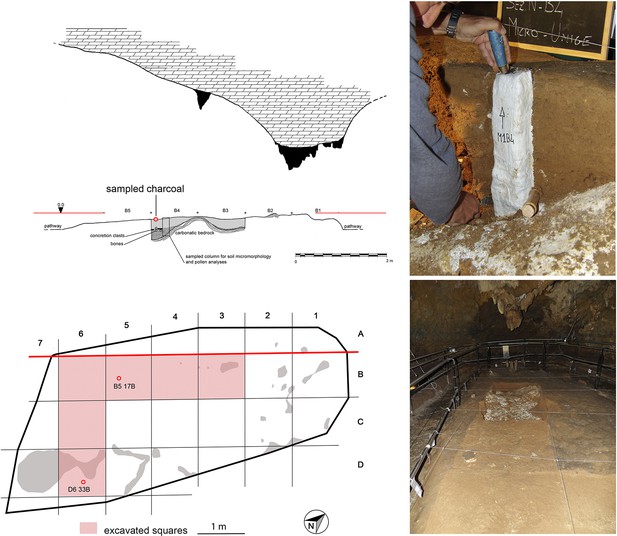

Profile and map of the archaeo-paleontological excavations in the Mysteries Hall (left), soil micromorphology sampling and view of the excavations (right).

The sampled charcoal for dating are highlighted by a red dot.

https://doi.org/10.7554/eLife.45204.021

Laser scanning acquisition

Request a detailed protocol

Documentation of the sequence of events was contextualized and visualized on the rough cave topography through three-dimensional mapping of the cave performed by laser-scanning. The main landmarks of the cave were digitally recorded using the laser scanner ScanStation2 Leica and ScanStation C10 Leica. The scans were performed at 360° (acquisition grid of the point cloud of 2 × 2 cm a probe 7 m and in correspondence to the areas with the highest concentration of traces, an acquisition grid of 0.5 × 0.5 cm probe 7 m). In total, 23 stations were run (nine in the ‘Sala dei Misteri’ and 14 in the ‘Corridoio delle impronte’ areas); 38 targets (16 in the ‘Sala dei misteri’ and 22 in the ‘Corridoio delle impronte’) were used for the point clouds registration. The Leica Geosystems HDS Cyclone 9.1 software was used to process the data. The recording shows a final alignment error of 2 mm for the model of the ‘Sala dei Misteri’ and 1 mm for the ‘Corridoio delle impronte’ (Video 1). From the models, reliefs were obtained at various degrees of detail that enabled georeferencing of all traces. The original cast performed in 1950 were digitally acquired via HDI Advance structured-light 3D Scanner R3x, with a resolution of 0.25 mm at 600 mm FOV (field of view). The data were processed with FlexScan3D Software (Figures 6, 7, 8d and 9d).

Digital photogrammetry

Request a detailed protocol

Several photogrammetric models were obtained using several photos taken with 24 Megapixel Canon EOS 750D (18 mm focal length). The software used to build models is Agisoft PhotoScan Pro (www.agisoft.com). High-resolution Digital Photogrammetry is based on Structure from Motion (SfM) (Ullman, 1979) and Multi View Stereo (MVS) (Seitz et al., 2006) algorithms and produces high-quality dense point clouds. The accuracy of the obtained models is up to 1 mm for close-range photography. The reconstructed 3D surfaces were then processed in the open-source software Paraview. False colored models with contour lines, highlighting general morphology and differential depth of impression of the traces, were obtained (Figures 9a, 12 and 13).

Analysis of human footprints

Request a detailed protocol

All recognized tracks (107 human traces) were analyzed directly in the field through a morphological approach using available landmarks (Robbins, 1985). The differential depth of each individual impression was analyzed directly in the field to infer the complex and multiphase biomechanics. All isolated footprints, and those associated with trackways, were drawn in the field on plastic film. All morphological and dimensional data collected in the field were double-checked by using photos and photogrammetric models.

In addition, the original casts of the footprints from the 1950s were also used and analyzed. Their positions in the cave were verified and it was established that all the footprints identified during the early explorations are still visible in situ (Figure 1, Table 4). Some of them have suffered alteration and loss of detail and others have been partially damaged. For this reason, in some instances, we have integrated morphometric data of the in situ footprints with those of plaster casts. In addition, the following two indices were considered: Footprint index (FI), equal to foot width/foot length x100 and Arch angle (Aa), represented by the angle between the footprint medial border line and the line that connect the most medial point of the footprint metatarsal region and the apex of the concavity of the arch of the footprint (Clarke, 1933). In the reconstruction of body dimensions and age, only the foot measurements derived from the better-preserved footprints were used (Table 3).

Table 4
Footprints and relative measures used for the Principal Component Analysis.

Anatomical abbreviations as in Materials and methods Section.

https://doi.org/10.7554/eLife.45204.022
FootprintsLengthsWidths
 IDIN SITUCAST 1950–51Dt1-BLDt2-BLDt3-BLBall medial (mtm-BL)Ball lateral (mtl-BL)Heel medial (ccm-BL)Heel lateral (ctul-BL)Ball (mtm-horiz)Heel (ctul-horiz)
(cm)(cm)(cm)(cm)(cm)(cm)(cm)(cm)(cm)
SM3X1312.310.59.22.32.45.54.3
SM4X13.512.511.510.282.21.65.54.2
SM43X13.513.510.59.42.21.864.6
SM17X14.213.813.510.28.521.86.54
SM5X1716.815.512122.526.55
SM42X1716.812.511.53.42.575.4
SM26X1816.515235
CA8XX20.219.819.415132.627.54.5
C10X20.519.215.512.52.82.675.6
SM15X20.520.518.515.4134276
SM11X2120.219.715.414.53.32.37.56
SM6X2121.520.517.515.542.29.25.7
SM1XX21.221.320.817.414.83.82.586
C33XX22.22119.515.510.72.52105.8
C36XX22.721.719.514.532.55.5
M21X21.621.316.714.63.52.49.66.2
CA1XX22.421.820.814.812.83.18
CA2X22.5222117.315.23.53.58.86.4
C61XX2321.720.816.4143.837.55.4
C63XX23.322.220.817143.53.88.55.3
C60XX25.324.222.71814.83.53.310.56.4
C37XX25.723.822.518.414.73.73.510.57
C35BXX26.224.822.81713.73.72.79.56.7

Principal Component Analysis

Request a detailed protocol

The 23 better preserved footprints were subjected to a Principal Component Analysis (PCA) using the software PAST 3.10 (Hammer et al., 2001). Homologous points were selected on the footprints for the measurements (Robbins, 1985) (Figure 15). These included nine anatomical lengths and widths (foot lengths (Dt1-BL, Dt2-BL, Dt3-BL); ball medial length (mtm-BL); ball lateral length (mtl-BL); heel medial length (ccm-BL); heel lateral length (ctul-BL); widths of ball (mtm-horiz.) and heel (ctul-horiz.) (Table 4). The raw data were log-transformed before the analysis to fit linear models and for the correspondence of the log transform to an isometric null hypothesis (Chinnery, 2004; Cheng et al., 2009; Romano and Citton, 2015; Romano and Citton, 2017; Romano, 2017). Missing entries were treated according to the ‘iterative imputation’ in PAST 3.10, preferable to the simple ‘mean value imputation’ (Hammer, 2013). The results of the PCA are reported in the scatter plots of Figure 5a, whereas the loadings for the first three principal components are provided as supplementary information (and Appendix 1 Tables A, B, Figure 5—figure supplement 1).

Adopted landmarks utilized to perform morphometric analysis, showed in two distinct morphotypes (Morphs 3 and 4) as example.

Landmarks in the distal portion of digit traces 4, 5, and in the medial, central and lateral portions of the sole trace were not considered reliable enough for the large variability, higher than the fixed error value (±0.5 cm).

https://doi.org/10.7554/eLife.45204.023

Stature

Request a detailed protocol

It is possible to estimate stature from foot length (Robbins, 1985; Oberoi et al., 2006; Krishan and Sharma, 2007; Kanchan et al., 2008; Pawar and Pawar, 2012). Stature varies with race, age, sex, heredity, climate and nutritional status. Based on skeletal evidence, it is thought that the body proportions of terminal Upper Palaeolithic individuals was similar to that of modern humans (Trinkaus, 1997; Ruff et al., 2005; Shackelford, 2007) but the foot length/stature ratio was considered highly uncertain, between 0.15 and 0.16. Consequently, we calculated the foot length/stature ratio based on a sample of terminal Upper Palaeolithic adult individuals (n.8) from the Italian Peninsula (Corrain, 1977; Paoli et al., 1980; Formicola et al., 1990; Mallegni and Fabbri, 1995; Mallegni et al., 2000). The calculated ratio is found to be 0.1541, which is close to those proposed for modern humans between the XIX and XX centuries (Robbins, 1985; Topinard, 1878). Stature estimation from the length of long bones is commonly used in forensic medicine. In this study, we used the percutaneous length of the tibia to check the stature of the Morph. 5 as this measurement is known to have a strong correlation with body height. We used the relation S = 101.85 + 1.81 x PCTL ±3.73 for male and S = 77.86 + 2.36 x PCTL ±2.94 for female (where S = stature and PCTL = Percutaneous tibial length) (Lemtur et al., 2017). For a tibial length of 35 cm, the stature of Morph. 5 is 165.2 ± 3.73 cm, which is comparable to the stature assumed from foot length (166.99 ± 2.93 cm).

Body mass

Request a detailed protocol

Body mass estimates were derived from footprint parameters, based on the assumption that human body proportions have been constant through time (Dingwall et al., 2013). Regression formulae are based on mature individuals ranging between 154 and 185 cm in stature (weight Kg = 4.71 + (1.82xFL)) (Dingwall et al., 2013; Bavdekar et al., 2006; Ashton et al., 2014) or on children (Grivas et al., 2008) with an average height of 147,44 cm (weigth Kg = −71.142 + (5.259xrigthFL). We have used these formulae for the individual taller than 147 cm (Table 3), stature: (b) (Bavdekar et al., 2006), (c) (Grivas et al., 2008). For the three smaller individuals, we used formulae based on extant Caucasian children between 6 and 11 years old (n. 7147) ranging in stature between 118.6 and 145.7 cm (Malina et al., 1973) to develop a mathematical relation between foot length and body mass for young individuals. The report is nonlinear and expressed by the formula mass = 2.2897 e0.126FL (Citton et al., 2017). No dataset are available for the smaller individual. We have therefore hypothesized the body mass of MP1 by the trend-line derived from previous formulae.

Age

Request a detailed protocol

Foot length varies according to age and gender. Studies on the relationship size/age of the foot in extant juvenile individuals (Fryar et al., 2012; Müller et al., 2012) have highlighted that 1-year-old individuals have a foot length equal to 13.07 ± 1.59 cm, reaching 24.4 ± 2.96 cm at the age of 13 years. The age estimation based on growth curves built on extant populations is very similar. However, we must bear in mind that the reference anthropometric data mainly refer to modern well-nourished populations, with a body mass most likely higher at the same age. Anthropometric studies suggest that the morphology of the foot changes and becomes more elongated when the arch stabilizes around the age of six (Müller et al., 2012). In extant human populations, from the fifth or sixth years of age, arch angles vary from 21° (3–4 years) to 43° (9–11 years) in young males, and from 26° (3–4 years) to 47° (9–11 years) in young females (Forriol and Pascual, 1990). As a result, morphotypes 2 and 3 seem to be similar, likely suggesting a corresponding similarity of age between producers of the two morphotypes. Growth curves based on extant populations with an average height similar of those of the Late Upper Paleolithic provided an estimate of the age of the trackmakers. For MP5, the wide and stout morphology is here interpreted as an adult stage with the partial collapse of the plantar arch.

Gender

Request a detailed protocol

Sex determination established from the foot has been proposed using Foot index and threshold values. However, this approach is not entirely accepted and some researchers pointed out that the threshold value could vary significantly between populations, thus making it very speculative that gender estimations could be determined from foot morphology (Walia et al., 2016). These variations could be due to fact that anatomic structures of the foot manifest ethnic and regional variations owing to climatic factors, physical activities, socio-economic status and nutritional conditions. Despite the method, uncertain arch angle and footprint morphology suggests a possible male as trackmaker of the largest footprint group. No definitive gender can be inferred for Morphotypes 1, 2, 3, 4.

Appendix 1

Appendix 1—table 1
Scores obtained from the Principal Component Analysis.
https://doi.org/10.7554/eLife.45204.027
IDPC 1PC 2PC 3PC 4PC 5PC 6PC 7PC 8PC 9
SM3−0.399130.10426−0.0640140.014386−0.0250720.0160540.0167160.0119340.0074328
SM4−0.50068−0.042109−0.0149070.0322870.0032614−0.0290280.019643−0.0269980.0033618
SM43−0.40104−0.019701−0.00548950.0187350.00169770.027812−0.00332840.0083841−0.0075861
SM17−0.42507−0.00527150.0617460.0063252−0.038382−0.016919−0.01640.0059965−0.0012712
SM5−0.1976−0.035523−0.0043672−0.032420.0243280.032498−0.025789−0.011295−0.0026746
SM42−0.0869430.013761−0.087840.050378−0.009608−0.0043334−0.0258380.0151480.0033864
SM26−0.206260.166230.063691−0.0210750.0452030.0078808−6,97E-02−0.013948−0.00040047
CA8−0.051293−0.0794090.054639−0.097538−0.026619−0.014175−0.0020640.0141860.00038865
C100.00581670.0195220.0058477−0.0353110.03647−0.000188010.0320560.0198860.0034661
SM150.040758−0.12904−0.0951570.0172280.043206−0.0346620.00082729−0.005932−0.0085001
SM110.06668−0.064129−0.032745−0.0234470.0344820.026778−0.00495650.00635190.0068743
SM60.15624−0.12859−0.0450210.0020611−0.0503370.0192140.001418−0.0080637−0.0071906
SM10.14791−0.061674−0.059992−0.00978490.000343440.00880160.0193860.010087−0.0078662
C330.0099173−0.091780.168380.0431670.0021726−0.0176240.0128480.010468−0.0049062
C360.094929−0.0298120.032258−0.0470490.00257170.013716−0.009842−0.021990.0015418
M210.16838−0.07960.0218920.019189−0.0113510.022302−0.00739460.00155770.014584
CA10.163910.21771−0.00259370.00407290.0067048−0.016137−0.0179770.012136−0.0084853
CA20.220890.072731−0.0220130.006969−0.00123920.0369270.012619−0.0038898−0.0063643
C610.152710.023445−0.066418−0.034022−0.0050802−0.045788−0.0011026−0.00175060.007746
C630.198830.1176−0.020327−0.025171−0.043065−0.0291820.0070871−0.013733−0.00144
C600.283810.0304530.0492680.0231−0.0210830.01058−0.0018458−0.0051978−0.00067736
C370.31090.0460520.0297040.054401−0.00198440.0167190.011316−0.00851630.0054307
C35B0.24634−0.0451220.0334590.0335180.033381−0.031244−0.017310.00517750.0031501
Appendix 1—table 2
Loadings for each principal components.

a, Dt1-BL; b, Dt2-BL; c, Dt3-BL; d, Ball medial (mtm-BL); e, Ball lateral (mtl-BL); f, Heel medial (ccm-BL); g, Heel lateral (ctul-BL); h, Ball (mtm-horiz); i, Heel (ctul-horiz). Anatomical abbreviations as in Methods section.

https://doi.org/10.7554/eLife.45204.028
PC 1PC 2PC 3PC 4PC 5PC 6PC 7PC 8PC 9
a0.36632−0.0317240.28459−0.154370.31322−0.38384−0.061146−0.36560.61412
b0.36721−0.0866340.19468−0.18930.19705−0.27853−0.3069−0.13269−0.74546
c0.34834−0.0625180.10263−0.17626−0.035551−0.093333−0.124220.882530.16995
d0.34521−0.150.03307−0.16341−0.13051−0.0191760.88858−0.036893−0.14898
e0.33106−0.13532−0.24619−0.50577−0.0658190.67412−0.2218−0.194390.099588
f0.35243−0.24194−0.733790.3425−0.19673−0.31842−0.1176−0.0704890.051056
g0.321860.93175−0.11450.050472−0.098530.0196410.025317−0.030012−0.030921
h0.30501−0.132130.507250.46978−0.570820.21548−0.15222−0.122690.031883
i0.245−0.051134−0.00267450.534990.682780.404170.101130.098963−0.039702
https://doi.org/10.7554/eLife.45204.026

Data availability

All the data are included in tables within the main text.

References

    1. Ast H
    (2001)
    Kienspan Und Unschlitt, beleuchtungimländlichenalltag
    Kulturbeilage Zum Amtsblatt Der Bezirkshauptmannschaft Wiener Neustadt.
    1. Bavdekar SB
    2. Sathe S
    3. Jani P
    (2006)
    Prediction of weight of indian children aged upto two years based on foot-length: implications for emergency areas
    Indian Pediatrics 43:125–130.
    1. Blanc AC
    (1960)
    Le palline d’argilla della Grotta della Bàsura
    Rivista Di Studi Liguri 26:9–25.
  1. Book
    1. Blanc AC
    2. Pales L
    3. Lamboglia N
    (1960)
    Le Vestigia Umane Nella Grotta Della Bàsura a Toirano
    Bordighera: Istituto Internazionale di Studi Liguri.
    1. Chiappella VG
    (1952)
    Orsi e uomini preistorici nella grotta della strega
    Rivista Del Comune 29:22–29.
    1. Clarke HH
    (1933)
    An objective method of measuring the height of the longitudinal arch in the foot examinations
    Research Quarterly. American Physical Education Association 4:99–107.
    1. Corrain C
    (1977)
    I resti scheletrici della sepoltura epigravettiana del “Riparo Tagliente’’ in Valpantena (Verona)
    Bollettino Del Museo Civico Di Storia Naturale Di Verona 4:35–79.
    1. De Lumley MA
    2. Giacobini G
    (1985)
    Le impronte di piedi umani
    Rivista Di Studi Liguri 51:362–366.
    1. Fryar CD
    2. Gu Q
    3. Ogden CL
    (2012)
    Anthropometric reference data for children and adults: United States, 2007-2010
    Vital and Health Statistics. Series 11, Data From the National Health Survey 11:1–48.
  2. Book
    1. Giacobini G
    (2008)
    La Grotta della Bàsura e il "mito neandertaliano"
    In: Arobba D, Maggi R, Vicino G, editors. Toirano E La Grotta Della Bàsura. Conoscere, Conservare E Gestire Il Patrimonio Archeologico E Paleontologico. Bordighera: Ist. Studi Liguri. pp. 21–27.
  3. Book
    1. Giannotti S
    (2008)
    La grotta della Bàsura (Toirano): rilettura e aggiornamento dei dati archeologici
    In: Arobba D, Maggi R, Vicino G, editors. Toirano E La Grotta Della Bàsura. Conoscere, Conservare E Gestire Il Patrimonio Archeologico E Paleontologico. Bordighera: Ist. Studi Liguri. pp. 233–246.
  4. Book
    1. Grabner M
    2. Klein A
    3. Reschreiter H
    4. Barth F-E
    (2010)
    In Mining in European History and Its Impact on Environment and Human Societies – Proceedings for the 1st Mining in European History-Conference of the SFB-HIMAT
    Anreiter P, editors. Innsbruck: University Press.
    1. Hammer Ø
    2. Harper DAT
    3. Ryan PD
    (2001)
    PAST: paleontological statistics software package for education and data analysis
    Palaeontologia Electronica 41:1–9.
  5. Book
    1. Hammer Ø
    (2013)
    PAST Paleontological Statistics Version 3.0: Reference Manual
    Oslo: University of Oslo.
    1. Lamboglia N
    (1960)
    Le vestigia umane Nella Grotta della bàsura a toirano
    Rivista Di Studi Liguri 26:1–5.
    1. Maineri D
    (1985)
    La scoperta della grotta della bàsura a toirano. Atti della tavola rotonda “La Grotta preistorica della Bàsura”, Toirano, 11-13 novembre 1983
    Rivista Di Studi Liguri 51:315–320.
    1. Malina RM
    2. Hamill PVV
    3. Johston FE
    4. Lemeshow S
    (1973)
    Selected body measurements of children 6-11 years: United States
    Vital Health Stat pp. 1–4.
    1. Mallegni F
    2. Bertoldi F
    3. Manolis S
    (2000)
    Palaeobiology of two gravettian skeletons from veneri cave (Parabita, Puglia, Italy)
    Homo : Internationale Zeitschrift FüR Die Vergleichende Forschung Am Menschen 51:235–257.
    1. Molleson T
    (1985)
    The antiquity of human footprints of tana della bàsura. Atti della tavola rotonda "La grotta preistorica della Bàsura, Toirano 11-13 novembre 1983
    Rivista Di Studi Liguri 51:367–372.
    1. Negrino F
    2. Benazzi S
    3. Hodgkins J
    4. Miller C
    5. Orr C
    6. Peresani M
    7. Riel-Salvatore J
    8. Strait D
    9. Gravel-Miguel C
    10. De Santis H
    11. Leger E
    12. Martini S
    13. Perroni E
    14. Laliberté A
    15. Pothier Bouchard G
    16. Starnini E
    17. Zerboni A
    (2017)
    On-going research and first data from middle and upper palaeolithic sites of Liguria region
    Bulletin Du Musée d'Anthropologie Préhistorique De Monaco 56:141–144.
    1. Oberoi DV
    2. Kuruvilla A
    3. Saralaya KM
    4. Rajeev A
    5. Ashok B
    6. Nagesh KR
    7. Rao NG
    (2006)
    Estimation of stature and sex from footprint length using regression formulae and standard footprint length formulae respectively
    Journal of Punjab Academy of Forensic Medicine & Toxicology 6:5–8.
    1. Pales L
    (1960)
    Le vestigia umane nella grotta della Bàsura a Toirano
    Rivista di Studi Liguri 26:9–90.
    1. Paoli G
    2. Parenti R
    3. Sergi S
    (1980)
    Gli scheletri mesolitici della caverna delle arene candide (Liguria)
    Memorie dell'Istituto Italiano Di Paleontologia Umana Roma 3:33–154.
  6. Book
    1. Riel-Salvatore J
    2. Gravel-Miguel C
    3. Maggi R
    4. Martino G
    5. Rossi S
    6. Sparacello VS
    (2018)
    New Insight into the Paleolithic Chronology and Funerary Ritual of Cavena delle Arene Candide
    In: Borgia V, Cristiani E, editors. Palaeolithic Italy – Advanced Studies on Early Human Adaptations in the Apennine Peninsula. Leiden: Sidestone Press. pp. 335–355.
  7. Book
    1. Robbins LM
    (1985)
    Footprints. Collection, Analysis, and Interpretation
    Charles C, editors. Illinois: Thomas Publisher.
  8. Conference
    1. Seitz SM
    2. Curless B
    3. Diebel J
    4. Scharstein D
    5. Szeliski R
    (2006) A comparison and evaluation of multi-view stereo reconstruction algorithms CVPR 2006
    2006 IEEE Computer Society Conference on Computer Vision and Pattern Recognition (CVPR'06). pp. 519–526.
    https://doi.org/10.1109/cvpr.2006.19
  9. Book
    1. Tongiorgi E
    2. Lamboglia N
    (1954)
    La Grotta Di Toirano
    Bordighera: Istituto Internazionale di Studi Liguri.
  10. Book
    1. Topinard P
    (1878)
    Anthropology
    London: Chapman and Hall.
    1. Ullman S
    (1979) The interpretation of structure from motion
    Proceedings of the Royal Society of London. Series B, Biological Sciences 203:405–426.
    https://doi.org/10.1098/rspb.1979.0006
    1. Yokoyama Y
    2. Guanjun S
    3. Nguyen Van H
    (1985)
    Dating of stalagmitic carbonates and bones of the bàsura cave at Toirano (Liguria, Italy) by the U-Th and U-Pa methods using alpha-and gamma-ray spectrometries
    Rivista Di Studi Liguri 51:373–378.

Article and author information

Author details

  1. Marco Romano

    Evolutionary Studies Institute (ESI), School of Geosciences, University of the Witwatersrand, Johannesburg, South Africa
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Investigation, Visualization, Methodology
    For correspondence
    marco.romano@uniroma1.it
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7629-3872
  2. Paolo Citton

    CONICET-Consejo Nacional de Investigaciones Científicas y Técnicas, Buenos Aires, Argentina
    Contribution
    Conceptualization, Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6503-5541
  3. Isabella Salvador

    MUSE, Museo delle Scienze, Trento, Italy
    Contribution
    Conceptualization, Resources, Data curation, Software, Formal analysis, Validation, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1058-3994
  4. Daniele Arobba

    Museo Archeologico del Finale, Finale Ligure Borgo, Italy
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6946-7579
  5. Ivano Rellini

    Dipartimento di Scienze della Terra, dell’Ambiente e della Vita (DISTAV), Università degli Studi di Genova, Genoa, Italy
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  6. Marco Firpo

    Dipartimento di Scienze della Terra, dell’Ambiente e della Vita (DISTAV), Università degli Studi di Genova, Genoa, Italy
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  7. Fabio Negrino

    Dipartimento di Antichità, Filosofia, Storia (DAFIST), Università degli Studi di Genova, Genoa, Italy
    Contribution
    Validation, Methodology
    Competing interests
    No competing interests declared
  8. Marta Zunino

    Grotte di Toirano, Toirano, Italy
    Contribution
    Funding acquisition, Investigation, Project administration
    Competing interests
    No competing interests declared
  9. Elisabetta Starnini

    1. Soprintendenza Archeologia Belle Arti e Paesaggio per la Città Metropolitana di Genova e le province di Imperia, La Spezia e Savona, Genoa, Italy
    2. Dipartimento di Civiltà e Forme del Sapere, Università di Pisa, Pise, Italy
    Contribution
    Supervision, Funding acquisition, Project administration
    Competing interests
    No competing interests declared
  10. Marco Avanzini

    MUSE, Museo delle Scienze, Trento, Italy
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Supervision, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared

Funding

Comune di Toirano

  • Elisabetta Starnini

Università di Genova

  • Ivano Rellini
  • Marco Firpo
  • Fabio Negrino

Museo delle Scienze

  • Isabella Salvador
  • Marco Avanzini

The funders provide financial assistance for fieldwork and publication fees.

Acknowledgements

This work was supported by the Soprintendenza Archeologia Belle Arti e Paesaggio per la Città Metropolitana di Genova e le province di Imperia, La Spezia e Savona, Genoa, Italy and the Municipality of Toirano. The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript. Matthew Bennet provided critical comments to an advanced manuscript draft. Bruce Rubidge and Jonah N Choiniere revised the English language and provided suggestions about the manuscript’s structure. We thank Jessica C Thompson; Ignacio Díaz Martínez; Julien Riel-Salvatore for reviewing and Ian Baldwin as the Senior Editor of eLIFE for his cooperation. Part of the research was supported by the National Geographic Early Career Grant to MR. (EC-53477R-18) "A multidisciplinary approach to a unique human ichnological record from the Grotta della Bàsura (Toirano, Savona Italy)".

Copyright

© 2019, Romano et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,623
    views
  • 513
    downloads
  • 14
    citations

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Marco Romano
  2. Paolo Citton
  3. Isabella Salvador
  4. Daniele Arobba
  5. Ivano Rellini
  6. Marco Firpo
  7. Fabio Negrino
  8. Marta Zunino
  9. Elisabetta Starnini
  10. Marco Avanzini
(2019)
A multidisciplinary approach to a unique palaeolithic human ichnological record from Italy (Bàsura Cave)
eLife 8:e45204.
https://doi.org/10.7554/eLife.45204

Share this article

https://doi.org/10.7554/eLife.45204

Further reading

    1. Evolutionary Biology
    Matthew Osmond, Graham Coop
    Research Article Updated

    Spatial patterns in genetic diversity are shaped by individuals dispersing from their parents and larger-scale population movements. It has long been appreciated that these patterns of movement shape the underlying genealogies along the genome leading to geographic patterns of isolation-by-distance in contemporary population genetic data. However, extracting the enormous amount of information contained in genealogies along recombining sequences has, until recently, not been computationally feasible. Here, we capitalize on important recent advances in genome-wide gene-genealogy reconstruction and develop methods to use thousands of trees to estimate per-generation dispersal rates and to locate the genetic ancestors of a sample back through time. We take a likelihood approach in continuous space using a simple approximate model (branching Brownian motion) as our prior distribution of spatial genealogies. After testing our method with simulations we apply it to Arabidopsis thaliana. We estimate a dispersal rate of roughly 60 km2/generation, slightly higher across latitude than across longitude, potentially reflecting a northward post-glacial expansion. Locating ancestors allows us to visualize major geographic movements, alternative geographic histories, and admixture. Our method highlights the huge amount of information about past dispersal events and population movements contained in genome-wide genealogies.

    1. Evolutionary Biology
    Dario Galanti, Jun Hee Jung ... Oliver Bossdorf
    Research Article

    Understanding the genomic basis of natural variation in plant pest resistance is an important goal in plant science, but it usually requires large and labor-intensive phenotyping experiments. Here, we explored the possibility that non-target reads from plant DNA sequencing can serve as phenotyping proxies for addressing such questions. We used data from a whole-genome and -epigenome sequencing study of 207 natural lines of field pennycress (Thlaspi arvense) that were grown in a common environment and spontaneously colonized by aphids, mildew, and other microbes. We found that the numbers of non-target reads assigned to the pest species differed between populations, had significant SNP-based heritability, and were associated with climate of origin and baseline glucosinolate contents. Specifically, pennycress lines from cold and thermally fluctuating habitats, presumably less favorable to aphids, showed higher aphid DNA load, i.e., decreased aphid resistance. Genome-wide association analyses identified genetic variants at known defense genes but also novel genomic regions associated with variation in aphid and mildew DNA load. Moreover, we found several differentially methylated regions associated with pathogen loads, in particular differential methylation at transposons and hypomethylation in the promoter of a gene involved in stomatal closure, likely induced by pathogens. Our study provides first insights into the defense mechanisms of Thlaspi arvense, a rising crop and model species, and demonstrates that non-target whole-genome sequencing reads, usually discarded, can be leveraged to estimate intensities of plant biotic interactions. With rapidly increasing numbers of large sequencing datasets worldwide, this approach should have broad application in fundamental and applied research.
