1. Chromosomes and Gene Expression
Download icon

Dynamic relocalization of replication origins by Fkh1 requires execution of DDK function and Cdc45 loading at origins

  1. Haiyang Zhang
  2. Meghan V Petrie
  3. Yiwei He
  4. Jared M Peace
  5. Irene E Chiolo
  6. Oscar M Aparicio  Is a corresponding author
  1. University of Southern California, United States
Research Article
  • Cited 1
  • Views 487
  • Annotations
Cite this article as: eLife 2019;8:e45512 doi: 10.7554/eLife.45512

Abstract

Chromosomal DNA elements are organized into spatial domains within the eukaryotic nucleus. Sites undergoing DNA replication, high-level transcription, and repair of double-strand breaks coalesce into foci, although the significance and mechanisms giving rise to these dynamic structures are poorly understood. In S. cerevisiae, replication origins occupy characteristic subnuclear localizations that anticipate their initiation timing during S phase. Here, we link localization of replication origins in G1 phase with Fkh1 activity, which is required for their early replication timing. Using a Fkh1-dependent origin relocalization assay, we determine that execution of Dbf4-dependent kinase function, including Cdc45 loading, results in dynamic relocalization of a replication origin from the nuclear periphery to the interior in G1 phase. Origin mobility increases substantially with Fkh1-driven relocalization. These findings provide novel molecular insight into the mechanisms that govern dynamics and spatial organization of DNA replication origins and possibly other functional DNA elements.

https://doi.org/10.7554/eLife.45512.001

Introduction

The spatial organization of chromosomal DNA elements within the nucleus is thought to derive from and contribute to the regulation of their activity (reviewed in Shachar and Misteli, 2017). For example, euchromatin and heterochromatin represent distinct forms of chromatin that are distinguished by their levels of transcriptional activity, replication timing, and subnuclear localization (reviewed in Caridi et al., 2017). Chromosomes partition into subdomains ranging from hundreds to thousands of kilobases in length that preferentially self-associate and are consequently referred to as topologically associated domains (TADs) (reviewed in Zhao et al., 2017). TAD boundaries correlate closely with replication timing domains, suggesting that replication timing is determined or influenced by this domain structure and/or vice-versa.

In budding and fission yeast, specific mechanisms defining replication timing are linked with chromosomal domain organization (reviewed in Aparicio, 2013; Yamazaki et al., 2013). Rif1, which is highly enriched at telomeres, is globally responsible for delayed replication timing of subtelomeric domains as well as internal late-replicating domains (Hafner et al., 2018; Hayano et al., 2012; Peace et al., 2014; Tazumi et al., 2012). Rif1 acts by directly antagonizing replication initiation triggered by Dbf4-dependent kinase (DDK) phosphorylation of MCM helicase proteins (Davé et al., 2014; Hiraga et al., 2014; Mattarocci et al., 2014). Against this inhibitory backdrop, specific origins are selected for early activation by mechanisms involving recruitment of Dbf4 (Dfp1 in fission yeast), which is one of several initiation proteins present in limited abundance and thus rate-limiting for origin firing (Mantiero et al., 2011; Patel et al., 2008; Tanaka et al., 2011; Wu and Nurse, 2009). In S. pombe, Dfp1 is recruited to kinetochores through heterochromatin protein Swi6 (Hayashi et al., 2009), and in S. cerevisiae, kinetochore protein Ctf19 recruits Dbf4 to stimulate firing of origins within ~25 kb of the centromere (Natsume et al., 2013), thus ensuring early centromere replication by distinct mechanisms regulating DDK activity. In S. cerevisiae, Fkh1 and/or Fkh2 (Fkh1/2) recruits Dbf4 to many origins distributed throughout chromosome arms, thereby ensuring earlier replication of many centromere-distal regions (Fang et al., 2017; Knott et al., 2012; Lõoke et al., 2013; Ostrow et al., 2014).

Chromosome conformation capture experiments suggest that early-firing origins cluster spatially in G1-phase prior to initiation and this clustering is dependent on Fkh1/2 (Duan et al., 2010; Knott et al., 2012). These studies also indicated that early origins generally occupy a distinct space than late origins. Further studies suggest that Fkh1/2 are enriched at TAD boundaries and control contacts among origins within TADs (Eser et al., 2017). The distinct spatial distributions suggested by these recent studies are in accord with earlier studies that examined the subnuclear distribution of individual origins by fluorescence microscopy. These seminal studies from Heun and Gasser showed that late-firing origins typically associate with the nuclear periphery during G1 phase whereas early-firing origins typically are found in the nuclear interior during G1 (Heun et al., 2001a; Heun et al., 2001b). Despite the observed correlations between origin localization in G1 and firing time in S, the main origin timing determinants mentioned above had not been elucidated and have not been examined for their impact on subnuclear localization of replication origin. In this study, we examined how origin stimulation by Fkh1 determines subnuclear origin localization. Our results suggest that origin relocalize from the nuclear periphery upon execution of the DDK-dependent step of replication initiation, which is stimulated by Fkh1. This may represent the initial stages in the coalescence of replication origins into clusters that will become replication factories.

Results

Fkh1-induced origin activation re-positions a subtelomeric origin in G1 phase

The association between replication timing and subnuclear localization of replication origins and the requirement of Fkh1/2 for the clustering of early-firing replication origins according to chromosome conformation capture studies led us to examine whether Fkh1 has any role in establishing the spatial positioning of origins within the nucleus. We adapted a system that we recently engineered that restores origin timing by induction of FKH1 expression in G1-arrested FKH1/2 mutant cells (Peace et al., 2016). This system has Fkh-activated origin ARS305 moved into a well characterized, late-replicating, subtelomeric region of chromosome V-R, replacing the endogenous, late-firing ARS501 (Figure 1A). In this context, we showed previously that ARS305V-R fails to replicate early in fkh1∆ fkh2∆ cells. However, induction of FKH1 expression in these cells in G1-phase results in early-firing of ARS305V-R in the ensuing S-phase. In the current study, we used fkh1∆ fkh2-dsm instead of fkh1∆ fkh2∆ cells; fkh1∆ fkh2-dsm cells are essentially null for replication timing control, but exhibit more normal growth and particularly, more normal cell and nuclear morphologies favorable for cytological analysis (Ostrow et al., 2017). To locate ARS305V-R (or ARS501) in vivo, we introduced tandem repeats of tetO binding sites adjacent to the origin and expressed TetR-Tomato protein (Figure 1A); we also expressed Nup49-GFP (Nup49 is a nuclear pore protein) to illuminate the nuclear envelope (Belgareh and Doye, 1997).

Figure 1 with 1 supplement see all

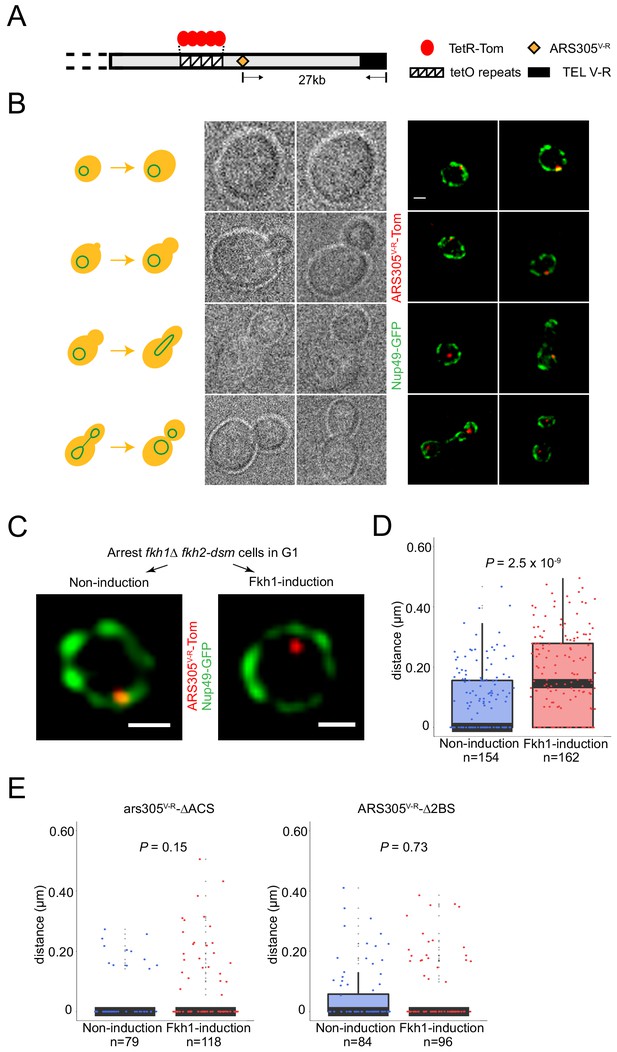

Fkh1-induced origin activation re-positions a subtelomeric origin in G1 phase.

(A) Schematic of chromosome V-R showing tetO repeats inserted adjacent to the ARS501 locus, which has been replaced with ARS305 (designated ARS305V-R); TetR-Tomato binds to and illuminates the locus as a single focus. (B) Images of cells from an unsynchronized culture of strain HYy132 (fkh1∆ fkh2-dsm ARS305V-R-Tomato NUP49-GFP GAL-FKH1) are shown sorted according to cell morphology; all images are at the same magnification: scale bar = 0.5 μm. (C) FKH1 induction scheme: HYy132 cells grown at 25°C in raffinose medium were arrested in G1 phase with 1x α-factor 2.5 hr, incubated an additional 2 hr in raffinose (Non-induction) or galactose (Fkh1-induction) with 1.7x α-factor, and images of live cells captured, examples of which are shown; scale bar = 0.5 μm. (D) The shortest distance from the ARS305V-R-Tomato focus to the nuclear periphery (Nup49-GFP) in each cell was measured and plotted as quartile boxplots (median shown as thick black segment) for non-induction and FKH1-induction; the result of a z-test comparing the two distributions is given as P. (E) Cells of fkh1∆ fkh2-dsm GAL-FKH1 NUP49-GFP strains HYy119 (ars305-∆ACSV-R-Tomato) and HYy120 (ars305-∆2BSV-R-Tomato) were treated and analyzed as above.

https://doi.org/10.7554/eLife.45512.002

Microscopic examination of cells showed a single Tomato focus per undivided nucleus (Figure 1B). Images of cells from an unsynchronized population were sorted according to budding morphology, which is reflective of cell cycle progression. The localization of the ARS305V-R-Tomato focus correlates with cell cycle stage, showing primarily peripheral localization in unbudded and small-budded cells and interior localization in larger-budded cells (Figure 1B). This is consistent with previous studies showing peripheral localization of subtelomeric/late-firing origins in G1 followed by relocalization to the interior during S phase (Heun et al., 2001a). Because origin timing is normally established in G1, we focused further analysis on origins in G1 phase cells.

In G1-arrested fkh1∆ fkh2-dsm cells, almost all cells exhibited peripheral localization of ARS305V-R (Figure 1C, left panel). Induction of FKH1, however, resulted in an increase in the proportion of cells with non-peripheral positioning of ARS305V-R (Figure 1C, right panel), suggesting that origin relocalization is associated with initiation timing re-programming by FKH1. We confirmed that relocalization is a direct result of FKH1 induction by demonstrating that neither the induction scheme (raffinose - > galactose) with a strain lacking inducible FKH1 nor a non-inducing change to a more favorable carbon source (raffinose - > dextrose) resulted in origin relocalization (Figure 1—figure supplement 1). To confirm the change in origin localization resulting from FKH1 induction, we created three-dimensional image reconstructions from confocal z-stacks and measured the shortest distance in three dimensions from the ARS305V-R focus to Nup49-GFP signal in the nuclear envelope amongst populations of cells. Statistical analysis of these measurements shows a significant increase in the distances associated with FKH1-induction versus non-induction (Figure 1D).

We tested whether the function of ARS305 is required for relocalization by introducing into the V-R locus ARS305 bearing a mutation of the ARS consensus sequence (ACS) (ars305-∆ACS), which is essential for ORC binding and origin function. Disruption of ARS305 function not only eliminated its relocalization in response to FKH1 induction but also resulted in an even more peripheral distribution, suggesting that a functional origin is required for relocalization away from the periphery (Figure 1E). We also tested ARS305 with mutations of two proximal Fkh1/2 binding sites (ars305-∆2BS), which retains origin function but is delayed in activation at its normal locus (Knott et al., 2012); ars305-∆2BSV-R did not relocalize upon FKH1 induction, confirming that Fkh1 acts through direct binding in cis to ARS305V-R (Figure 1E).

In the experiments above, relocalization of ARS305V-R involved induction of FKH1 from the GAL1/10 promoter, which results in higher than normal levels of Fkh1 protein (Peace et al., 2016). To determine whether this overabundance of Fkh1 was required for the origin relocalization, we compared localization of ARS305V-R with ARS501 in cells with native FKH1 (and FKH2) expression (Figure 2A). The analysis showed that ARS305V-R was significantly more distant from the nuclear periphery than ARS501 (Figure 2B). We also analyzed origin timing of ARS305V-R in FKH1 (fkh2-dsm) versus fkh1∆ (fkh2-dsm) cells by quantitative BrdU immunoprecipitation (QBU) of cells released from G1 phase into hydroxyurea (HU), in which early but not late origins fire efficiently. We found that ARS305V-R fired efficiently in HU in FKH1 but not fkh1∆ cells (Figure 2C and Figure 2—figure supplement 1). Thus, normal Fkh1 levels are able to overcome the effect that subtelomeric location has on subnuclear localization and initiation timing of ARS305V-R.

Figure 2 with 1 supplement see all

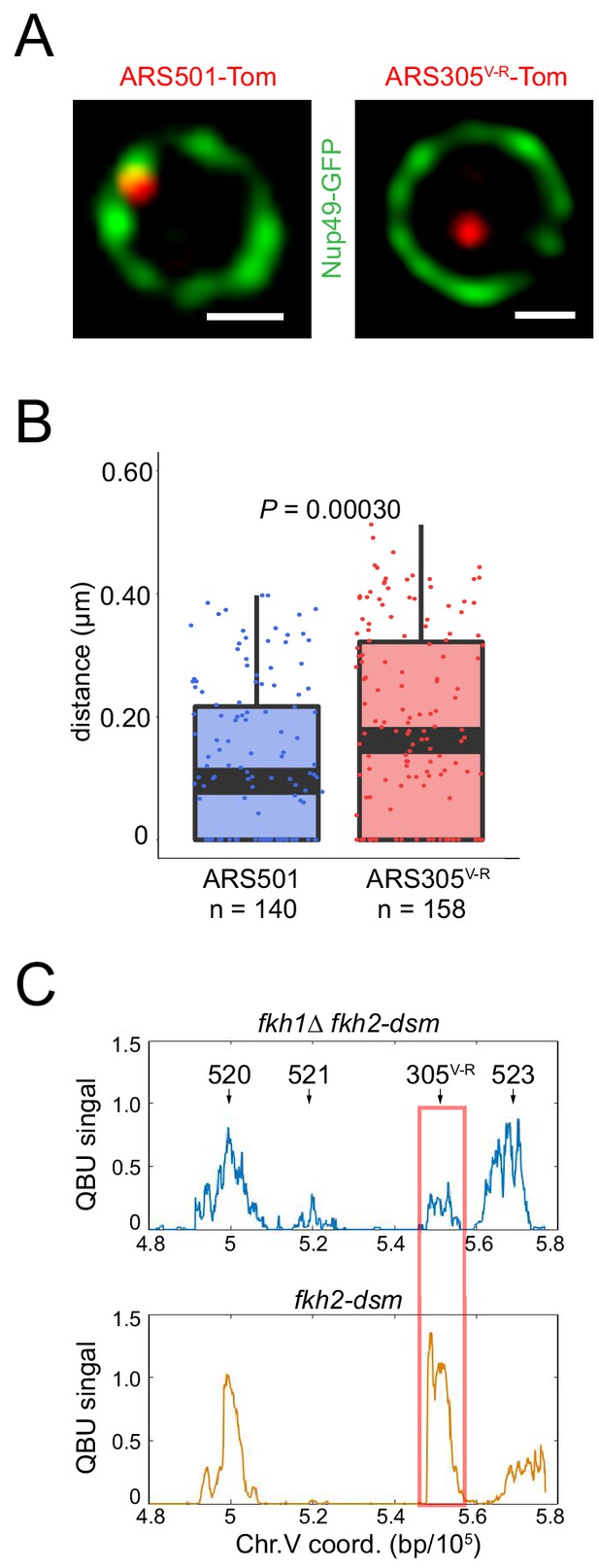

Normal dosage of Fkh1 is sufficient to relocalize ARS305V-R and advance its firing time.

(A) HYy160 (ARS501-Tomato NUP49-GFP) and HYy157 (ARS305V-R-Tomato NUP49-GFP) cells were arrested in G1 phase at 25°C with 1x α-factor 2 hr and images were collected; scale bar = 0.5 μm. (B) Distances from origin foci to nuclear periphery were determined, plotted as quartile boxplots, and analyzed by a z-test. (C) Quantitative BrdU-IP-Seq (QBU) analysis was performed with ARS305V-R-bearing strains HYy113 (fkh2-dsm) and HYy38 (fkh1∆ fkh2-dsm) after G1 block-and-release into hydroxyurea in the presence of BrdU; averaged data from three experimental replicates was plotted for the V-R region with the positions of several replication origins indicated; ARS305V-R resides at the ARS522 (aka: ARS501) locus.

https://doi.org/10.7554/eLife.45512.004

Fkh1 globally regulates subnuclear positioning of early origins in G1 phase

We tested whether the Fkh1-dependent localization of ARS305V-R is also responsible for ARS305 localization when residing at its native locus more distal from the telomere. We inserted a lacO array near ARS305 and expressed LacI-GFP and Nup49-GFP; imaging showed that the LacI-GFP focus is clearly distinguishable from the more diffuse Nup49-GFP signal (Figure 3A). Consistent with previous analysis, ARS305 was non-peripheral in most G1-arrested WT cells (Figure 3A) (Heun et al., 2001a), however, deletion of FKH1 significantly increased the proportion of cells in which ARS305 was closer to the periphery (Figure 3A). Consistent with this requirement for FKH1, elimination of the Fkh1/2 binding sites in ARS305 also resulted in peripheral localization (Figure 3—figure supplement 1A). Moreover, ars305-∆ACS, which lacks origin function (and Fkh1/2 binding) exhibits an even more peripheral distribution (Figure 3—figure supplement 1A), suggesting that origin function is required for interior localization in G1 and that Fkh1/2 stimulates this localization. Previous analysis showed that ARS305 initiation timing was significantly delayed in the absence of FKH1 or Fkh1/2 binding sites (Knott et al., 2012), so once again we observe a FKH1-dependent relationship between subnuclear localization in G1 phase with replication initiation timing in S phase.

Figure 3 with 1 supplement see all

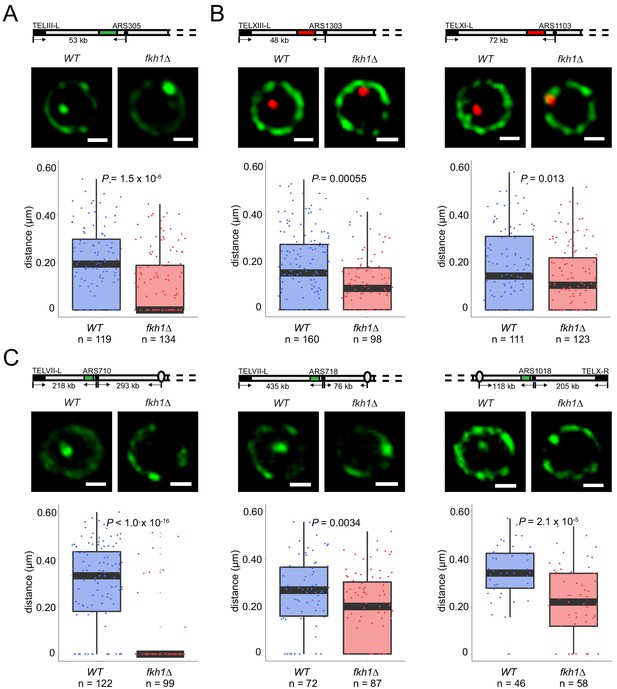

Fkh1 determines early origin positioning globally.

Diagrams of chromosomes with replication origins labeled with lacO/LacI-GFP (green-filled segment) or tetO/TetR-Tomato (red-filled segment) are shown above the corresponding images. Distances between origins (black-filled spheres) and telomeres, and in some cases centromeres (ovals), are indicated and include ~14 kb or 16 kb added by lacO or tetO repeats, respectively; elements are not drawn to scale. Cells of WT and fkh1∆ strains with ARS305-GFP (HYy151, HYy147) in (A), ARS1303-Tomato (HYy166, HYy173) and ARS1103-Tomato (HYy165, HYy172) in (B), ARS710-GFP (MPy6, MPy10), ARS718-GFP (MPy20, MPy21), and ARS1018-GFP (MPy19, MPy22) in (C), all expressing NUP49-GFP, were arrested in G1 phase at 25°C with 1x α-factor 2 hr and live images were captured; scale bar = 0.5 μm. Distances from origin foci to nuclear periphery were determined, plotted as quartile boxplots, and analyzed by a z-test.

https://doi.org/10.7554/eLife.45512.006

To determine whether other Fkh-activated origins’ localizations are also determined by FKH1, we performed similar tests by inserting a tetO array adjacent to a few additional Fkh-activated origins, expressing TetR-Tomato and Nup49-GFP, and deleting FKH1. Like ARS305, ARS1303 and ARS1103 were located closer to the periphery in G1-arrested fkh1∆ versus WT cells (Figure 3B). ARS305, ARS1303 and ARS1103 are relatively telomere proximal, residing 39, 32, and 56 kb from the nearest telomere respectively (the lacO or tetO arrays add ~14 or 16 kb, respectively to these distances), which might constrain the extent to which FKH1 influences their positioning. To address this possibility, we tested localization of several additional Fkh-activated origins that are more distal from telomeres, including: ARS710, ARS718, and ARS1018, residing at 204, 421, and 205 kb from the nearest telomere. All of these origins show significant reduction in distance from the nuclear periphery upon deletion of FKH1 (Figure 3C). We also observed similar results with ARS305 and ARS710 in G1 cells from an unsynchronized population (Figure 3—figure supplement 1B). In contrast, the peripheral localization in G1 of late origin ARS501, which is not Fkh-activated, was not altered by deletion of FKH1 (Figure 3—figure supplement 1C). These results suggest that FKH1 plays an expansive role in relocalizing replication origins from the nuclear periphery to the nuclear interior in G1 phase.

DDK- but not CDK-dependent step of replication initiation drives origin relocalization

Because our previous study indicated that Fkh1/2 was required for origin recruitment of Cdc45 in G1 phase (Knott et al., 2012), we tested the requirement for CDC7, which encodes the catalytic subunit of DBF4-dependent kinase (DDK), and is required for Cdc45 origin-loading (reviewed in Tanaka and Araki, 2013). We introduced the cdc7-as3 allele, the kinase activity of which is inhibited by ATP analog PP1 (Wan et al., 2006), and tested whether FKH1-induced origin relocalization occurs with inhibition of CDC7 function. Remarkably, ARS305V-R relocalization was eliminated by inhibition of Cdc7-as3 kinase with PP1 (Figure 4A, compare with non-induction in Figure 1D). These results suggest that DDK activity is required for origin relocalization in G1-arrested cells.

Figure 4 with 1 supplement see all

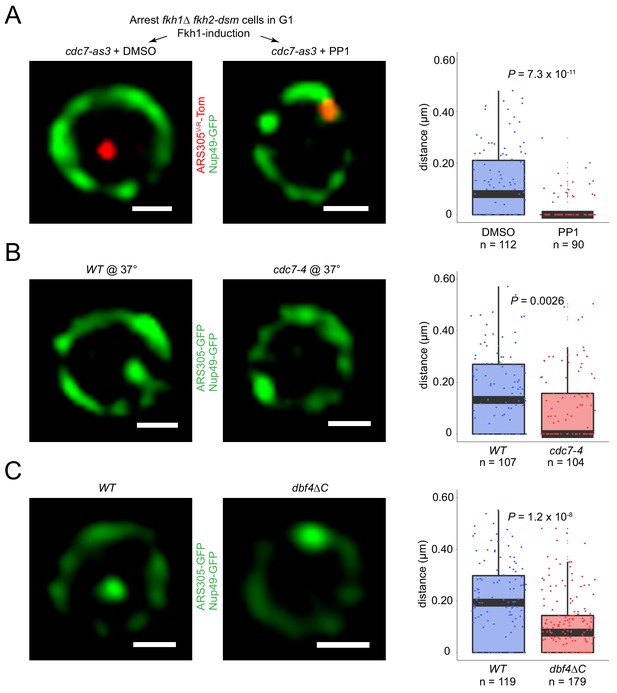

Origin localization in G1 is DDK regulated.

(A) HYy186 (fkh1∆ fkh2-dsm GAL-FKH1 ARS305V-R-Tomato NUP49-GFP cdc7-as3) cells were subjected to FKH1-induction scheme as described in Figure 1C legend except that PP1 or DMSO (vehicle) was included with α-factor, and images were captured. (B) Cells of ARS305-GFP NUP49-GFP strains HYy151 (WT) and HYy191 (cdc7-4) were arrested in G1 with 1x α-factor 2 hr at 25°C followed by 1 hr incubation at 37°C with 2x α-factor, and images were captured. (C) HYy181 (ARS305-GFP NUP49-GFP dbf4∆C) cells were arrested in G1 phase with 1x α-factor 2 hr at 25°C and live images were captured. The control experiment with WT cells (HYy151) is shown in Figure 3A. (A–C) Scale bar = 0.5 μm. Distances from origin foci to nuclear periphery were determined, plotted as quartile boxplots, and analyzed by a z-test.

https://doi.org/10.7554/eLife.45512.008

A role for DDK in G1 phase was unexpected as DDK activity has been reported to be low in α-factor-arrested G1 cells due to instability of Dbf4 (Nougarède et al., 2000; Oshiro et al., 1999). To provide further evidence for DDK’s role, we tested a native origin without FKH1 overexpression, and to inactivate CDC7, we chose the temperature-sensitive cdc7-4 allele (Hereford and Hartwell, 1974). For this experiment, G1-arrested WT and cdc7-4 cells bearing a lacO array inserted near ARS305 and expressing LacI-GFP were shifted to the non-permissive temperature and ARS305 location was determined. Compared to WT cells, cdc7-4 cells at the non-permissive temperature showed a significant increase in the proportion of cells with ARS305 near the nuclear periphery (Figure 4B). This result supports the conclusion that DDK activity is required for origin re-positioning in G1 phase cells.

Fkh1-origin binding is cell cycle-regulated, occurring in G1 and S phases (Ostrow et al., 2014), suggesting that the requirement for DDK activity in Fkh1-stimulated origin relocalization might be due to dependence of Fkh1 origin-binding on DDK. We tested this possibility by performing chromatin immunoprecipitation analysis of Fkh1 comparing WT and cdc7-as3 cells. The results showed that binding of Fkh1 to ARS305 and other Fkh-activated origins was largely unaffected by Cdc7 inhibition (Figure 4—figure supplement 1). Thus, Fkh1 origin binding appears to be independent of DDK activity, and, by inference, of the subcellular change in localization resulting from DDK inhibition. Alternatively, the requirement for DDK activity in Fkh1-stimulated origin relocalization may reflect Fkh1 acting upstream of DDK, which would comport with a recent report that a critical role of Fkh1 in origin stimulation is DDK recruitment through direct physical interaction with Dbf4 (Fang et al., 2017). We tested whether the same mechanism is responsible for Fkh1-induced origin re-positioning by testing the effect on ARS305 positioning in cells expressing Dbf4 lacking its C-terminus (dbf4∆C), which is required for interaction with Fkh1 (Fang et al., 2017). Deletion of DBF4’s C-terminus had a similar effect on origin localization as FKH1 deletion, with greater enrichment of ARS305 near the nuclear periphery (Figure 4C, compare with Figure 3A), consistent with Fkh1 and Dbf4 acting in the same pathway.

The essential function of DDK in origin firing is phosphorylation of MCM helicase subunits, particularly Mcm4, resulting in removal of auto-inhibition and enabling recruitment of helicase accessory protein Cdc45 through its loading factor Sld3 (reviewed in Tanaka and Araki, 2013). To test whether the requirement for Cdc7 kinase activity in origin relocalization reflects its function in Mcm4 helicase phosphorylation, we introduced into the cdc7-as3 strain an allele of MCM4, MCM4-DD/E(7)+DSP/Q(7) abbreviated herein as MCM4-14D, which contains 14 S/T->D substitutions that mimic critical DDK-phosphorylated residues in Mcm4, and suppresses reduced Cdc7 kinase activity (Randell et al., 2010). The presence of MCM4-14D restores ARS305V-R relocalization upon FKH1 induction in the cdc7-as3 strain inhibited by PP1 (Figure 5A). This supports the conclusion that the function of Cdc7 kinase required for origin relocalization is phosphorylation of Mcm4.

Figure 5 with 1 supplement see all

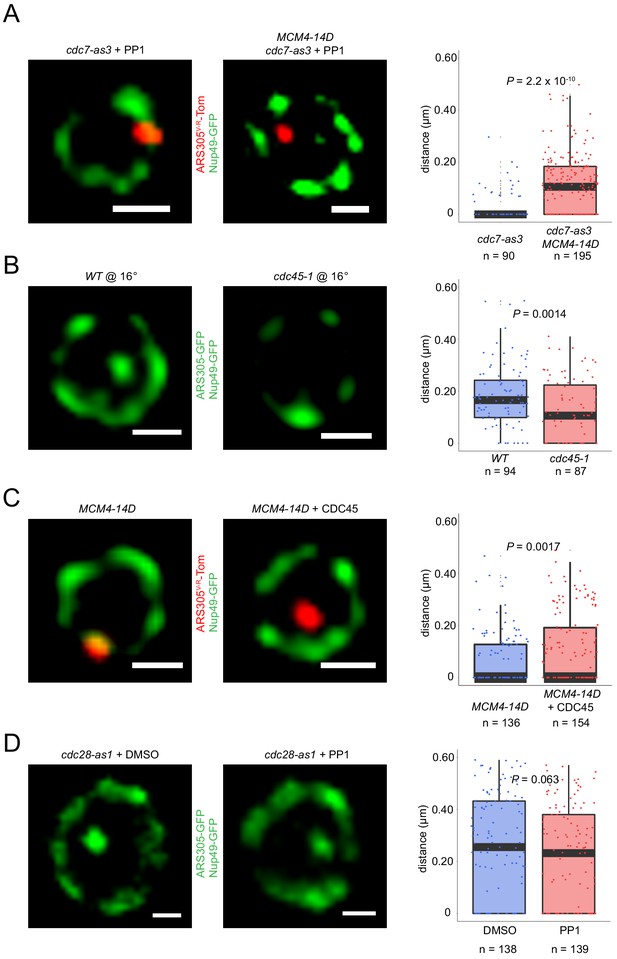

DDK regulation of origin localization reflects its phosphorylation of Mcm4 and consequent Cdc45 loading.

(A) Fkh1-induction scheme with PP1 as described in Figure 4A legend was carried out with fkh1∆ fkh2-dsm GAL-FKH1 ARS305V-R-Tomato NUP49-GFP strains HYy186 (cdc7-as3) and HYy177 (cdc7-as3 MCM4-14D), and images captured. (B) ARS305-GFP NUP49-GFP strains HYy151 (WT) and HYy184 (cdc45-1) were arrested in G1 with 1x α-factor 1 hr at 30°C followed by 2 hr incubation at 16°C with 1x α-factor, and images were captured. (C) Cells of strain HYy177 harboring no plasmid or high-copy plasmid expressing CDC45 were arrested in G1 with 1x α-factor 2 hr at 25°C and images captured. (D) ARS305-GFP NUP49-GFP strain HYy197 (cdc28-as1) cells were arrested in G1 phase with 0.5x α-factor 2 hr at 25°C, PP1 or DMSO was added and incubated one additional hour with 0.5x α-factor, and images were captured. (A–D) Scale bar = 0.5 μm. Distances from origin foci to nuclear periphery were determined, plotted as quartile boxplots, and analyzed by a z-test.

https://doi.org/10.7554/eLife.45512.010

We tested whether completion of the DDK-dependent step, that is Sld3 and Cdc45 loading, is required for origin relocalization by testing the effect of inactivation of CDC45 function. The cold-sensitive cdc45-1 allele exhibits interdependence with heat-sensitive alleles cdc7-4 and dbf4-1 in reciprocal temperature-shift experiments, tightly inhibits replication initiation, and reduces Sld3-origin association in G1 phase (Aparicio et al., 1999; Kamimura et al., 2001; Owens et al., 1997). We synchronized WT and cdc45-1 cells in G1 phase at the permissive temperature and shifted the cultures to semi-permissive temperature while maintaining the G1 arrest. Analysis showed that ARS305 was more peripherally localized in cdc45-1 cells at the semi-permissive temperature in G1 phase (Figure 5B). As origin binding of Cdc45 and Sld3 is interdependent and Cdc45-1 inactivation reduces Sld3-origin binding (Kamimura et al., 2001), these results suggest that assembly of Sld3-Cdc45 onto origins is required for origin relocalization.

Cdc45 is incorporated into replisomes as a component of the active helicase complex together with MCM and GINS. However, Cdc45 is present in low abundance and is likely limiting for the total number of active replisomes that may be simultaneously active (Mantiero et al., 2011; Tanaka et al., 2011). We noticed that the presence of Mcm4-14D was not sufficient to relocalize ARS305V-R in fkh1∆ fkh2-dsm cells in the absence of Fkh1 induction (Figure 5C), which might be contrary to expectations if the only function of Fkh1 is to physically recruit DDK, which has been rendered dispensable by Mcm4-14D. We note, however, that MCM4-14D does not suppress a deletion of CDC7 (S.P. Bell, personal communication) suggesting that residual DDK activity is required for sufficient origin firing, and hence, Fkh1 may act to target this residual activity to specific origins. Absent this targeting, we postulated that the limited abundance of Cdc45 would be further diluted amongst all licensed origins due to potentiation by Mcm4-14D. To test this idea, we introduced a high-copy plasmid expressing Cdc45 from its native promoter into the fkh1∆ fkh2-dsm MCM4-14D strain, and examined origin location. Consistent with the notion that Cdc45 is limiting for execution of the DDK-dependent step, expression of high copy Cdc45 significantly increased the frequency of ARS305 more distal from the periphery (Figure 5C). This finding supports the conclusion that full execution of the DDK-dependent step in the form of Cdc45 loading, as opposed to Mcm4 phosphorylation itself or phosphorylation of other targets is required for origin relocalization.

As the interior localization of early origins occurs in α-factor-arrested, G1 phase cells, cyclin-dependent kinase (CDK) activity would appear to be dispensable because G1 phase cells have very low levels of S/G2/M-CDK activities, and G1-CDKs, which are required for passage through Start, are inhibited by α-factor (reviewed in Mendenhall and Hodge, 1998). Nevertheless, low levels of S/G2/M-CDK activities in G1 phase cannot be ruled out, and indeed, it appears that low levels of DDK are involved. Thus, to address the possibility that CDK activity might be contributing to G1 phase origin dynamics, we tested the requirement for CDC28, the Cdk1 kinase, using analog-sensitive cdc28-as1 cells (Bishop et al., 2000). In G1-arrested cells, inhibition of Cdc28-as1 activity with PP1 did not alter localization of ARS305 (Figure 5D), although budding was inhibited upon release from α-factor arrest indicating effective inhibition of Cdc28-as1 (Figure 5—figure supplement 1A). Similarly, PP1 treatment of cycling cdc28-as1 cells did not alter distribution of ARS305 in G1 phase cells (Figure 5—figure supplement 1B), while DNA content analysis showed delayed entry of cells into S phase indicating effective inhibition of Cdc28-as1 (Figure 5—figure supplement 1C). Thus, CDK activity appears to be dispensable for normal, Fkh1-dependent positioning of ARS305. Overall, our findings indicate that DDK but not CDK activity stimulates origin relocalization in G1 phase.

Origin mobility increases with origin relocalization

Fkh1 might facilitate origin relocalization by promoting origin mobilization (release from the periphery or movement per se), or by increasing the stability of origin-origin interaction after relocalization. In addition to changes in location, replication origins exhibit decreased rate of mobility during progression into S phase (Heun et al., 2001b). We directly investigated how Fkh1 affects origin mobility by tracking the locations of ARS305 and ARS718 in individual WT and fkh1∆ cells over time, and applying mean square displacement (MSD) analyses (Marshall et al., 1997). The analysis shows significantly lower plateau of MSD curves in fkh1∆ cells (Figure 6A), consistent with less nuclear space explored. Calculation of the radius of constraint (Rc) and the corresponding volume of space explored reveals that ARS305 explores about 2.5-fold more volume and ARS718 explores about 3.8-fold more volume in WT than fkh1∆ cells. Tracings of the paths of origin foci show confinement proximal to the nuclear periphery in fkh1∆ cells (Figure 6B). Together, these data show that Fkh1 stimulates origin mobilization.

Figure 6 with 2 supplements see all

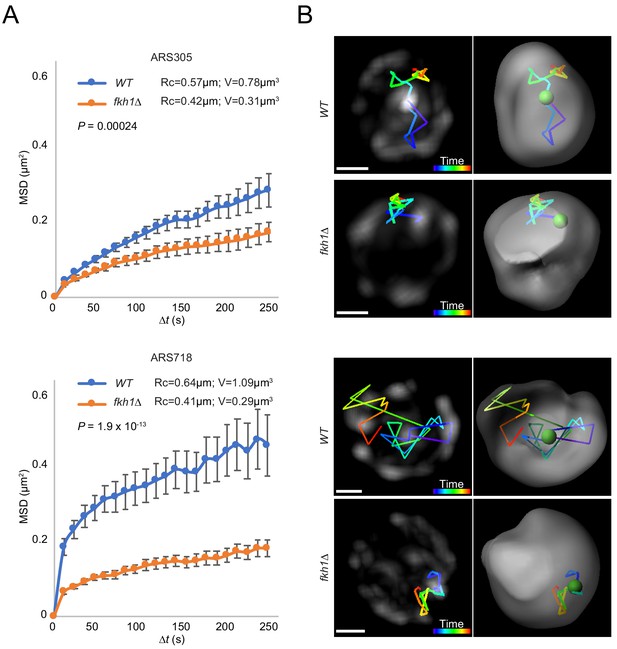

Origin mobility increases with origin relocalization.

(A) Mean-squared-displacement (MSD) analysis of tracking data for ARS305-GFP strains HYy151 (WT) and HYy147 (fkh1∆) and ARS718-GFP strains MPy20 (WT) and MPy21 (fkh1∆). Radius of constraint (Rc) and volume searched (V) are given, and statistical significance comparing WT and fkh1∆ was estimated by two-tailed Mann-Whitney test. (B) Images (left) and 3D reconstructions with Imaris (right) showing examples of tracks of origin focus over time (color corresponding to time progression); scale bar = 0.4 μm. Movies of the individual ARS305 time-courses are available as Figure 6—video 1 and Figure 6—video 2.

https://doi.org/10.7554/eLife.45512.012

Discussion

This study reveals new links between key molecular interactions in replication initiation and the localization and mobility of replication origins within the nucleus. In particular, we show that early origin specification in G1 phase by Fkh1 induces a change from peripheral to interior nuclear localization of Fkh1-activated origins. Quite remarkably, we find that origin relocalization requires execution of the DDK-dependent step of origin firing that loads Cdc45. That the DDK requirement reflects the key, recognized function of DDK in replication initiation, that is, phosphorylation of MCM proteins leading to Sld3-Cdc45 origin-loading, is demonstrated by the bypass of CDC7 requirement by phospho-mimetic mutations in MCM4-14D as well as the dependence on CDC45 function. This early execution of the DDK step was unexpected because DDK levels have been reported to be very low in α-factor-arrested G1 cells due to Dbf4 instability (Nougarède et al., 2000; Oshiro et al., 1999). Our findings provide direct evidence that DDK is active in G1 phase and has already established origin timing by late G1 phase in α-factor arrest. This finding explains previous observations that Sld3 and Cdc45 associate with early replication origins in G1 phase (Aparicio et al., 1999; Kamimura et al., 2001). Our findings are also consistent with a more recent study showing that Sld3- and Cdc45-origin association in G1 phase is DDK-dependent and CDK-independent, as well as the conclusion that DDK acts prior to and independently of S-CDK (Heller et al., 2011; Yeeles et al., 2015), the latter of which is dispensable for the observed origin relocalization.

The finding that Fkh1 and DDK are required for origin relocalization fits well with the recent finding that Fkh1 acts to stimulate origin firing by directly recruiting Dbf4 through physical interaction (Fang et al., 2017), and extends our understanding of the significance of this interaction to replication initiation via nuclear positioning of replication sites. As predicted by this interaction model, inactivation of DDK activity should phenocopy deletion of FKH1, as we have herein demonstrated with depletion of CDC7 function. Moreover, specific deletion of Dbf4’s C-terminus, which is required for interaction with Fkh1, also phenocopies deletion of FKH1. Furthermore, the absence of FKH1 and FKH2 function is bypassed by the MCM4-14D allele in the presence of increased levels of Cdc45. Together, these results support a mechanism involving Fkh1 recruitment of DDK activity to load Cdc45 at a subset of origins in G1, corresponding with a change in subnuclear positioning of these origins, and early firing in the subsequent S phase.

Chromosome conformation capture (Hi-C) experiments have indicated that early firing replication origins preferentially interact with each other, or ‘cluster’ in G1 phase (Duan et al., 2010). Related studies have shown that Fkh1/2 is required for these spatial interactions amongst early origins (Eser et al., 2017; Knott et al., 2012; Ostrow et al., 2017). We propose that the origin clustering interactions revealed by Hi-C experiments directly reflect origin localization to distinct nuclear territories as observed microscopically. Thus, localization to the nuclear interior might increase the likelihood for physical interaction amongst this subset of origins. Such interactions may be driven by cooperative interactions between Fkh1-bound origins recruiting limiting initiation factors such as Dbf4, Sld3 and Cdc45. This aggregation of origins selected for early/efficient activation has the inevitable consequence that replication initiation transforms these origin clusters into replication foci, which have been observed as concentrations of DNA synthesis and replication factors (Berezney et al., 2000; Frouin et al., 2003; Hozák et al., 1994; Kitamura et al., 2006; Nakamura et al., 1986; Newport and Yan, 1996). These assemblages may contribute to efficient chromosomal replication initiation and elongation in multiple ways, such as accretion of activities and co-factors directly required for DNA synthesis (e.g.: dNTP production), and scaffolding to co-localize and coordinate replication with related activities like chromatin assembly, cohesion establishment, topological resolution, and DNA repair.

It remains to be determined exactly what maintains either the peripheral or interior localization of origins or what drives relocalization between different subnuclear zones. While telomere tethering to the nuclear envelope has been assumed to cause the peripheral localization of telomere-proximal origins, we find that early origins distal from telomeres that are normally enriched in the nuclear interior, are closer to the nuclear periphery in cells lacking Fkh1, suggesting that perinuclear localization represents a default state for most origins irrespective of telomere tethering (Figure 7A). It is unclear what promotes this origin localization. Complete elimination of origin function results in even more peripheral distribution of the locus suggesting that peripheral localization is independent of an origin tethering mechanism, and that interior localization is linked to activation of origin function, which may occur, with less efficiency, in the absence of Fkh1/2. There may be passive exclusion from the interior where other activities like transcription may predominate in early G1, or there may be a dedicated tethering mechanism, though origin association with the periphery does not appear to be as stringently localized or as stable as that of telomeres (Hediger et al., 2002; Heun et al., 2001a; Heun et al., 2001b).

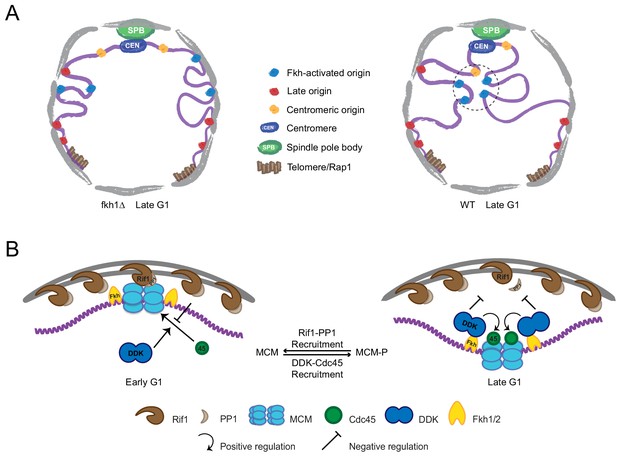

Model of origin localization linked to initiation.

(A) Absent Fkh1, most replication origins are enriched at nuclear periphery, however, Fkh1 binding to a subset of origins allows execution of the DDK-dependent step of initiation, resulting in release from the nuclear periphery and/or capture in the nuclear interior to form early origin clusters. (B) Hypothetical mechanism for origin tethering to the nuclear periphery regulated by Rif1-PP1 versus Fkh1-DDK-Cdc45 activities. Rif1 associates with inner nuclear membrane and with licensed replication origins, while associated PP1 antagonizes execution of the DDK-dependent step. Fkh1-dependent recruitment of DDK results in phosphorylation of MCM, Cdc45 loading and local release from Rif1 and PP1. See text for further discussion.

https://doi.org/10.7554/eLife.45512.015

In addition to subtelomeric origins, Rif1 regulates and associates with origins distal from telomeres and with the nuclear envelope, and therefore could potentially tether origins to the periphery (Figure 7A) (Hafner et al., 2018; Park et al., 2011; Peace et al., 2014). Rif1 interacts with Dbf4 and with the counteracting PP1 phosphatase, suggesting that the Rif1-origin interaction may be down-regulated by DDK-dependent phosphorylation of MCM proteins and/or Rif1 (Davé et al., 2014; Hiraga et al., 2014; Mattarocci et al., 2014). Thus, Fkh1-mediated, origin-specific recruitment of DDK may overwhelm Rif1-mediated PP1 inhibition locally and thereby release the origin from peripheral tethering (Figure 7B). Consequent Cdc45 loading might effectively prevent reversal of MCM phosphorylation and fully disrupt interaction with Rif1-PP1. Alternatively, MCM phosphorylation and/or Cdc45 loading might change the licensed origin’s biophysical properties, thereby forcing the origin to occupy and search different space and/or capture scaffolding factors, which may themselves be localized to the interior and thus stabilize interior localization. Future studies aimed at more detailed examination of how individual factors affect origin mobility should provide further insights.

Previous studies have concluded that peripheral localization of origins is neither necessary nor sufficient to regulate initiation timing. In one study, subtelomeric origin ARS501 remained late firing following excision (in α-factor-arrested G1 cells) from the chromosome, which allowed its diffusion away from the nuclear periphery, leading the authors to suggest that peripheral localization might promote a chromatin mark that maintains late timing (Heun et al., 2001a). However, we have shown that induction of Fkh1 (in α-factor-arrested cells) can reprogram timing of a Fkh-activated origin inserted into the ARS501 locus (Peace et al., 2016). We propose that the relevant chromatin mark is MCM phosphorylation, removal of which is promoted by peripheral localization and addition by DDK recruitment. Thus, excised ARS501 remains late despite its mobilization because DDK is limiting and already recruited by Ctf19 and Fkh1/2 to other origins. Other studies have shown that tethering of early origins to the nuclear periphery does not delay their activation (Ebrahimi et al., 2010; Zappulla et al., 2002). However, both origins in these previous studies, ARS305 and ARS607, are Fkh-activated origins that we have shown can overcome the replication initiation delay associated with peripheral localization. Overall, these previous findings fit neatly into our model, which suggests that interior origin localization is a consequence rather than a cause of early timing.

Materials and methods

Plasmid constructions

Plasmids are listed in Supplementary file 1. Plasmids were constructed using Gibson Assembly kit (SGI cat#GA1200) unless otherwise indicated. Restriction enzymes, T4 DNA ligase, and Klenow were from New England Biolabs and used according to their protocols. Mutagenesis was carried out using QuikChange Lightning Multi kit (Agilent cat#210515); sequence changes were confirmed by DNA sequencing (Retrogen Inc). STBLII cells were used for maintenance of plasmids containing tandem repeats (Invitrogen cat#10268019). Primer sequences for plasmid constructions are given in Supplementary file 2. NUP49-GFP was PCR-amplified from pUN100-GFP*-Nup49 (from V Doye) using primers Nup49-GFP-F and Nup49-GFP-R and subcloned into XhoI+SacI digested vectors pRS403 and pRS404 (Sikorski and Hieter, 1989) to yield p403-Nup49-GFP and p404-Nup49-GFP, respectively. Primers ADE2-up-F and ADE2-int-R and separately ADE2-farup-F and ADE2-up-R were used to amplify sequences of ADE2 for targeting and as a selectable marked; these were inserted into pbluescriptKS+ to create pblueKS-ADE2target. TetR-Tomato was PCR-amplified from plasmid p402-TetR-Tomato (from S Sabatinos) using primers TetR-Tom-F and TetR-Tom-R and inserted into PacI-digested pblueKS-ADE2target to generate pTetR-Tom-ADE2. 2.1kbp KpnI-SacI fragment containing LacI-GFP was subcloned from pAFS135 (from J Bachant) into pRS404 digested with same enzymes to create p404-LacI-GFP. Plasmids containing tetO (pGS004 from J Bachant) or lacO (pJBN164 from J Bachant) arrays were modified by introduction of genomic sequences to target integration near different origins. The following primer pairs were used to generate sequences adjacent to the indicated origins (with the corresponding chromosomal coordinates given in parentheses): primers ARS501-tetO-F and ARS501-tetO-R for ARS501 (V:547812–548329), primers ARS1103-tetO-F and ARS1103-tetO-R for ARS1103 (XI:54673–54996) and primers ARS1303-tetO-F and ARS1303-tetO-R for ARS1303 (XIII:31983–32247), and these were inserted into KpnI+ClaI digested pGS004 yielding pARS501-tetO, pARS1103-tetO, and pARS1303-tetO, respectively. Likewise, the following primer pairs were used to generate sequences adjacent to the indicated origins: primers ARS710-lacO-F and ARS710-lacO-R for ARS710 (VII:204305–204831), primers ARS718-lacO-F and ARS718-lacO-R for ARS718 (VII:422375–423281), and primers ARS1018-lacO-F and ARS1018-lacO-R for ARS1018 (X:539662–540395), and these were inserted into XhoI+KpnI digested pJBN164 yielding pARS710-lacO, pARS718-lacO, and pARS1018-lacO, respectively. Two adjacent regions near ARS305 were PCR-amplified using primer pair NotI-ARS305-5’ and XhoI-ARS305-5’ (III:37283–37778) and primer pair NotI-ARS305-3’ and KpnI-ARS305-3’ (III:37779–38282) and digested with NotI and XhoI and NotI and KpnI, respectively; these fragments were ligated into pRS404 digested with XhoI and KpnI. The XhoI-KpnI fragment was subcloned by digestion and ligation into pJBN164 digested with same enzymes to yield pARS305-lacO. Plasmids p501Δ-ARS305-ΔACS and p501Δ-ARS305-∆2BS were created by mutagenesis of p501Δ-ARS305 (Peace et al., 2016) with primers ARS305-∆ACS-mut1, ARS305-∆ACS-mut2 and ARS305-∆2BS-mut1, and ARS305-∆2BS-mut2, respectively. Plasmid p404-ars305∆-BInc was constructed as described for p306-ars305∆-BrdU-Inc (Zhong et al., 2013) except that p404-BrdU-Inc (Viggiani and Aparicio, 2006) was used instead of p306-BrdU-Inc. p404-ars305∆-BInc was digested with PmlI and KpnI, blunted-ended with Klenow, and ligated with T4 DNA ligase to remove the TRP1 selectable marker, yielding p400-ars305∆-BInc. The 1.5 kb SalI-SpeI fragment containing the KanMx cassette from pFA6-KanMx (Longtine et al., 1998) was ligated into SalI-SpeI-digested p400-ars305∆-BInc, creating pKanMx-ars305∆-BInc. The cdc45-1 allele was PCR-amplified from strain YB298 (from B Stillman) with primers Cdc45-F and Cdc45-R and inserted into SacI+KpnI digested pRS406 (Sikorski and Hieter, 1989) to create p406-cdc45-1.

Yeast strain constructions

All strains are congenic with SSy161, derived from W303-1a (RAD5) (Viggiani and Aparicio, 2006); complete genotypes are given in Supplementary file 3. Strain constructions were carried out by genetic crosses or lithium acetate transformations with linearized plasmids or PCR products generated with hybrid oligonucleotide primers having homology to target loci (Ito et al., 2001; Longtine et al., 1998); primer sequences for strain constructions are given in Supplementary file 2. Genomic alterations were confirmed by PCR analysis or DNA sequence analysis as appropriate.

FKH1 was deleted using primers Fkh1-up and Fkh1-down to amplify KanMx selectable marker from pFA6-KanMx (Longtine et al., 1998). FKH2 was replaced by fkh2-dsm in two steps: first, FKH2 was entirely replaced with URA3 (C. albicans) using pAG61 (Addgene), and the resulting strain was transformed with fkh2-dsm DNA from p405-fkh2-dsm (Ostrow et al., 2017) followed by selection on 5-FOA. GAL-FKH1 was introduced using p405-GAL-FKH1 and FKH1 was FLAG-tagged as described previously (Peace et al., 2016). ARS501 was replaced by ARS305 or mutant versions of ARS305 by transformation with p501∆-ARS305, p501∆-ARS305-∆ACS, or p501∆-ARS305-∆2BS as described previously (Peace et al., 2016). BrdU incorporation cassette was introduced, replacing ARS305, by transformation with BglII-digested p404-ARS305-BrdUInc. The cdc28-as1 allele was introduced by pop-in/pop-out of plasmid pJUcdc28-as1 digested with HindIII. The cdc7-as3 allele was introduced as described previously (Zhong et al., 2013); cdc7-4 was back-crossed from H7C4A1 (from L Hartwell) into the W303 background four times, with the final cross to HYy151. MCM4-DD/E+DSP/Q (referred to in text as MCM4-14D) was introduced by transformation with PacI-digested pJR179 (from SP Bell). The cdc45-1 allele was introduced by crossing with strain YB298 (from B Stillman) or by pop-in/pop-out with BglII-digested p406-cdc45-1. The dbf4∆C allele was constructed by insertion of a non-sense codon with the KanMx cassette from pFA6-KanMx (Longtine et al., 1998) using primers Dbf4-up and Dbf4-down. TetR-Tomato was introduced by transformation with PacI-digested pTetR-Tom-ADE2. LacI-GFP was introduced by transformation with HindIII-digested p404-LacI-GFP. The tetO or lacO arrays were introduced by transformation with pARS501-tetO, pARS1103-tetO, pARS1303-tetO, pARS305-lacO, pARS710-lacO, pARS718-lacO and pARS1018-lacO digested with PacI, PshAI, BlpI, NotI, PshAI, SnaBI, and BlpI, respectively.

Cell growth and synchronization

Cells were grown at 25°C unless otherwise indicated. For microscopy, cells were grown in complete synthetic medium supplemented with 15 μg/mL adenine (CSM+ade) +2% dextrose, unless otherwise indicated (raffinose or galactose); for QBU and ChIP-seq, cells were grown in YEP +2% dextrose, unless otherwise indicated (raffinose or galactose). G1 arrest was achieved by incubation with 2.5 nM (1x) α–factor (Sigma T6901); for most extended arrests, a fresh or additional dose of α–factor was added at time of induction/non-induction or at time of temperature shift as indicated in figure legend. PP1 (Tocris Biosciences) was added to 25 μM at the time of initial α–factor incubation. Reagents are listed in Supplementary file 4.

Live-cell fluorescence microscopy and image analysis

~5×106 cells were harvested by centrifugation and spread on agarose pads made of CSM+ade +4% dextrose. A DeltaVision wide-field deconvolution microscope was used to capture 28 Z-stacks in 0.25 μm increments for each image. SoftWorX software (Applied Precision/GE Healthcare) was used for deconvolution and three-dimensional reconstruction of nuclei, and for measuring the distance between replication origins and nuclear periphery. For experiments with mutant strains having irregularly shaped nuclei (e.g.: fkh1∆ fkh2-dsm), measurements were made in three-dimensions; otherwise, measurements were made in two dimensions using a few middle sections as previously described (Ryu et al., 2015). A z-test was applied to compare the distribution of measured distances. Images are max intensity projections of two to four middle Z-stacks.

Quantitative BrdU Immunoprecipitation (QBU)

QBU and analysis of sequencing reads was performed as described previously using KAPA Hyper Prep Kit (KK8504) (Haye-Bertolozzi and Aparicio, 2018). Data analysis was performed using 352 replication origins classified as Fkh-activated, Fkh-repressed, or Fkh-unregulated (Knott et al., 2012); the latter two classes are grouped together as ‘other origins’ in Figure 2—figure supplement 1. Reagents are listed in Supplementary file 4.

Chromatin immunoprecipitation analyzed by sequencing (ChIP-seq)

ChIP-seq and analysis of sequencing reads was performed as described previously using KAPA Hyper Prep Kit (KK8504) (Ostrow et al., 2015). Data analysis was performed using 95 replication origins classified as Fkh-activated (Knott et al., 2012). Reagents are listed in Supplementary file 4.

Time-lapse video and MSD analysis

A DeltaVision wide-field deconvolution microscope was used to capture 20 Z-stacks in 0.30 μm increments for each time point. GFP signals were imaged every 12 s for 5 min, with 0.1 s exposure for each Z-stack and 32% of transmitted light using an LED source. All time-lapse movies were deconvolved using SoftWoRx. At least 20 individual cells with nearly stationary nuclei were used to track the trajectory of origin focus for each strain using Imaris (Bitplane), and MSD curves, Rc, and volumes were derived as previously described (Caridi et al., 2018); the error bars represent standard error.

Supplemental data files

Raw data, images, and analysis files are available and organized into folders corresponding to main and supplementary figures. Data is available at Dryad (https://dx.doi.org/10.5061/dryad.7bm444s).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
    Live imaging of telomeres: yku and sir proteins define redundant telomere-anchoring pathways in yeast
    1. F Hediger
    2. FR Neumann
    3. G Van Houwe
    4. K Dubrana
    5. SM Gasser
    (2002)
    Current Biology : CB 12:2076–2089.
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
    Replication factories and nuclear bodies: the ultrastructural characterization of replication sites during the cell cycle
    1. P Hozák
    2. DA Jackson
    3. PR Cook
    (1994)
    Journal of Cell Science 107:2191–2202.
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
    Regulation of Cdc28 cyclin-dependent protein kinase activity during the cell cycle of the yeast saccharomyces cerevisiae
    1. MD Mendenhall
    2. AE Hodge
    (1998)
    Microbiology and Molecular Biology Reviews : MMBR 62:1191–1243.
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
    A system of shuttle vectors and yeast host strains designed for efficient manipulation of DNA in Saccharomyces cerevisiae
    1. RS Sikorski
    2. P Hieter
    (1989)
    Genetics 122:19–27.
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62

Decision letter

  1. Bruce Stillman
    Reviewing Editor; Cold Spring Harbor Laboratory, United States
  2. Jessica K Tyler
    Senior Editor; Weill Cornell Medicine, United States
  3. Bruce Stillman
    Reviewer; Cold Spring Harbor Laboratory, United States
  4. Philippe Pasero
    Reviewer

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Dynamic relocalization of replication origins by Fkh1 requires execution of DDK function and Cdc45 loading at origins" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Bruce Stillman as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Jessica Tyler as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Philippe Pasero (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

The paper by Zhang et al. addresses a mechanism for the activation of a select subset of origins of DNA replication in the yeast S. cerevisiae that are dependent on the Fkh1/2 proteins for the normal timing of their activation during S phase. The authors show that in the absence of Fkh1/2, an origin of DNA replication associates with the nuclear periphery and upon expression of Fkh1, the origin re-localizes to the nuclear interior. The later movement is dependent upon DDK (Cdc7-Dbf4) kinase and Cdc45 activities, but not CDK. They present a plausible model in which Fkh1/2 recruits the rate limiting Dbf4 DDK subunit to the nuclear periphery by biding to Fkh1/2, countering the Rif1-PP1 dephosphorylation of Mcm4 and releasing the origin to the interior of the nucleus where Cdc45 binding prevents its re-localization to the nuclear periphery.

The paper generally is well presented and for the most part the data supports the conclusions, however, the reviewers have raised some points that could be addressed. These are listed below. Thus we ask that a revised paper be submitted for publication in eLife.

Essential revisions:

1) The correlation between release from the nuclear periphery and early replication timing leads to the reasonable speculation that sub-nuclear localization mechanistically regulates replication timing. Previous work has concluded that peripheral localization is neither necessary (Heun et al., 2001 https://www.ncbi.nlm.nih.gov/pubmed/11266454) nor sufficient (Zappulla et al, 2002 https://www.ncbi.nlm.nih.gov/pubmed/12062049) to regulate replication timing. Furthermore, earlier work from the Gasser and Brewer & Fangman labs suggested that an epigenetic mark is established at late origins in G1 through their interaction with the nuclear periphery and is maintained later on to determine their timing of initiation, regardless of their subnuclear organization. This model is not mutually exclusive with the one proposed by the authors and should be discussed. This should be addressed in the paper.

2) The view that the re-localization of Fkh1 origins does not depend on residual CDK activity in G1 is not fully supported by the experiment performed with clb5 clb6 mutants. Indeed, S-phase onset is only delayed by 30 minutes in this mutant. In principle, Clb3 and Clb4 could also support a residual CDK activity in alpha-factor arrested cells. It would have been more convincing to use a conditional cdc28 mutant.

3) A question that the authors do not address is why, in Figure 4—figure supplement 1 does Fkh1 bind non-Fkh1-activated origins? Or, put another way, why does Fkh1 not activate all the origins to which it binds? The manuscript focuses on Fkh1-regulated origins, but it would be important to show that the localization of late origins and Fkh1-independent origins does not depend on Fkh1 and/or DDK activity in G1.

4) The authors' model is difficult to integrate into a more comprehensive model of sub-nuclear localization. In fkh1∆ fkh2∆, are all origins at the nuclear periphery? If so, is there any DNA in the nuclear interior? Why is ARS305V-R-∆ACS confined to the nuclear periphery? In authors' model is that origins bind to the periphery unless released by DDK, but in the case of ARS305V-R-∆ACS, it seems that the origin is required to drive the locus away from the periphery. Why would a non-origin locus bind to periphery? Do all non-origin loci bind to the periphery? These questions should be addressed by testing if the ARS305 ACS is required for FKH1-dependent localization at its endogenous locus.

https://doi.org/10.7554/eLife.45512.024

Author response

Essential revisions:

1) The correlation between release from the nuclear periphery and early replication timing leads to the reasonable speculation that sub-nuclear localization mechanistically regulates replication timing. Previous work has concluded that peripheral localization is neither necessary (Heun et al., 2001 https://www.ncbi.nlm.nih.gov/pubmed/11266454) nor sufficient (Zappulla et al, 2002 https://www.ncbi.nlm.nih.gov/pubmed/12062049) to regulate replication timing. Furthermore, earlier work from the Gasser and Brewer & Fangman labs suggested that an epigenetic mark is established at late origins in G1 through their interaction with the nuclear periphery and is maintained later on to determine their timing of initiation, regardless of their subnuclear organization. This model is not mutually exclusive with the one proposed by the authors and should be discussed. This should be addressed in the paper.

We have added a paragraph to the end of the Discussion addressing these papers (and one additional) in the context of our model, which we think fit quite well.

2) The view that the re-localization of Fkh1 origins does not depend on residual CDK activity in G1 is not fully supported by the experiment performed with clb5 clb6 mutants. Indeed, S-phase onset is only delayed by 30 minutes in this mutant. In principle, Clb3 and Clb4 could also support a residual CDK activity in alpha-factor arrested cells. It would have been more convincing to use a conditional cdc28 mutant.

We have done exactly as suggested using the cdc28-as allele to inactive all forms of Cdk1-based CDK activity. The results, (subsection “DDK- but not CDK-dependent step of replication initiation drives origin relocalization”, last paragraph and Figure 5D and new Figure 5—figure supplement 1) show that Cdc28 activity is not required for normal localization of ARS305 in G1 cells. We performed these analyses with cells synchronized with alpha-factor prior to Cdc28 inhibition (Figure 5D), and with G1 cells following inhibition of Cdc28 (no alpha-factor treatment) (Figure 5—figure supplement 1B, C). We have eliminated the prior CLB5/6 results for brevity.

3) A question that the authors do not address is why, in Figure 4—figure supplement 1 does Fkh1 bind non-Fkh1-activated origins? Or, put another way, why does Fkh1 not activate all the origins to which it binds? The manuscript focuses on Fkh1-regulated origins, but it would be important to show that the localization of late origins and Fkh1-independent origins does not depend on Fkh1 and/or DDK activity in G1.

In response to the first pair of questions: The definition of Fkh-act was statistically conservative and is based on origin differences in BrdU incorporation levels (WT vs. fkh1∆fkh2∆) in HU in our original study (Knott et al., 2012). We also observe that some later-firing origins are delayed in firing in fkh1∆fkh2∆ cells in the absence of HU, including some telomere-proximal origins (see Figure 2A in Knott et al., 2012). Also, in subsequent studies we showed that overexpression of Fkh1 (Fkh1-OE) leads to increased early firing (in HU) of additional origins, and about half of the origins in previous Figure 4—figure supplement 3B that are designated “other origins” are Fkh1-OE-activated origins. So, most, if not all, Fkh-bound origins are stimulated, but not equally. For example, the number and spacing of Fkh1/2 sites appears to correlate with the level of stimulation (Looke et al., 2012). This is an interesting issue we are working on, but peripheral here, so to avoid this confusion, we have revised this figure (new Figure 4—figure supplement 1) to include only Fkh-activated origins, which directly corresponds to the statement in the text that this supplementary figure supports: “binding of Fkh1 to ARS305 and other Fkh-activated origins was largely unaffected by Cdc7 inhibition”

Regarding the second point: “it would be important to show that the localization […] does not depend on Fkh1 and/or DDK activity in G1,” we’d suggest that finding that late or Fkh1-independent origins’ localizations were due to Fkh1 and DDK would still be important, albeit less intuitive. Relocalization of specific genomic loci may have indirect consequences for positioning of sequences in cis. Nevertheless, we have analyzed ARS501 in WT and fkh1∆ cells and observe that ARS501 is robustly peripheral in both strains. We have added this data in the text (subsection “Fkh1 globally regulates subnuclear positioning of early origins in G1 phase”, last paragraph) and new Figure 3—figure supplement 1C.

4) The authors' model is difficult to integrate into a more comprehensive model of sub-nuclear localization. In fkh1∆ fkh2∆, are all origins at the nuclear periphery? If so, is there any DNA in the nuclear interior? Why is ARS305V-R-∆ACS confined to the nuclear periphery? In authors' model is that origins bind to the periphery unless released by DDK, but in the case of ARS305V-R-∆ACS, it seems that the origin is required to drive the locus away from the periphery. Why would a non-origin locus bind to periphery? Do all non-origin loci bind to the periphery? These questions should be addressed by testing if the ARS305 ACS is required for FKH1-dependent localization at its endogenous locus.

In the absence of FKH1, most of the origins we tested are closer to the periphery though not necessarily at the periphery, and origin DNA is only a small fraction of total DNA, so we don’t think the interior is devoid of DNA. In the case of 305V-R-∆ACS, telomere proximity may maintain its peripheral localization (we suspect that Fkh1-induced relocalization of that locus likely results in release of the V-R telomere from the periphery as well, but this requires more work to address). To begin to address the additional questions posed by the reviewers, we have, as requested by the reviewers, analyzed 305∆ACS (and ∆BS) at the endogenous locus. The results are similar as with the V-R locus with both mutations resulting in peripheral localization. Deletion of the ACS causes even more peripheral distribution. This suggests two things: that the locus need not be tethered by an origin to be peripheral but that origin functionality promotes interior localization. Thus, the licensed origin lacking Fkh1/2 binding sites may still occasionally capture DDK and relocalize.

The idea that Rif is required for peripheral origin tethering is merely speculation; the finding that the locus remains peripheral in the absence of an origin does not contradict the model (there could be different reasons for the peripheral localization in the two cases). We have included a comment on this in the discussion of the model (Discussion, fifth paragraph). Regardless, we don’t think the limited analysis here is sufficient to answer these interesting questions raised by our study. Further work analyzing more loci, particularly more telomere-distal loci will be required to properly and fully answer these questions.

https://doi.org/10.7554/eLife.45512.025
