High-throughput, single-particle tracking reveals nested membrane domains that dictate KRasG12D diffusion and trafficking

  1. Yerim Lee
  2. Carey Phelps
  3. Tao Huang
  4. Barmak Mostofian
  5. Lei Wu
  6. Ying Zhang
  7. Kai Tao
  8. Young Hwan Chang
  9. Philip JS Stork
  10. Joe W Gray
  11. Daniel M Zuckerman  Is a corresponding author
  12. Xiaolin Nan  Is a corresponding author
  1. Oregon Health and Science University, United States
  2. Wuhan University, China
Research Article
  • Cited 4
  • Views 1,681
  • Annotations
Cite this article as: eLife 2019;8:e46393 doi: 10.7554/eLife.46393

Abstract

Membrane nanodomains have been implicated in Ras signaling, but what these domains are and how they interact with Ras remain obscure. Here, using single particle tracking with photoactivated localization microscopy (spt-PALM) and detailed trajectory analysis, we show that distinct membrane domains dictate KRasG12D (an active KRas mutant) diffusion and trafficking in U2OS cells. KRasG12D exhibits an immobile state in ~70 nm domains, each embedded in a larger domain (~200 nm) that confers intermediate mobility, while the rest of the membrane supports fast diffusion. Moreover, KRasG12D is continuously removed from the membrane via the immobile state and replenished to the fast state, reminiscent of Ras internalization and recycling. Importantly, both the diffusion and trafficking properties of KRasG12D remain invariant over a broad range of protein expression levels. Our results reveal how membrane organization dictates membrane diffusion and trafficking of Ras and offer new insight into the spatial regulation of Ras signaling.

eLife digest

The Ras family of proteins play an important role in relaying signals from the outside to the inside of the cell. Ras proteins are attached by a fatty tail to the inner surface of the cell membrane. When activated they transmit a burst of signal that controls critical behaviors like growth, survival and movement. It has been suggested that to prevent these signals from being accidently activated, Ras molecules must group together at specialized sites within the membrane before passing on their message. However, visualizing how Ras molecules cluster together at these domains has thus far been challenging. As a result, little is known about where these sites are located and how Ras molecules come to a stop at these domains.

Now, Lee et al. have combined two microscopy techniques called ‘single-particle tracking’ and ‘photoactivated localization microscopy' to track how individual molecules of activated Ras move in human cells grown in the lab. This revealed that Ras molecules quickly diffuse along the inside of the membrane until they arrive at certain locations that cause them to halt. However, computer models consisting of just the ‘fast’ and ‘immobile’ state could not correctly re-capture the way Ras molecules moved along the membrane. Lee et al. found that for these models to mimic the movement of Ras, a third ‘intermediate’ state of Ras mobility needed to be included.

To investigate this further, Lee et al. created a fluorescent map that overlaid all the individual paths taken by each Ras molecule. The map showed regions in the membrane where the Ras molecules had stopped and possibly clustered together. Each of these ‘immobilization domains’ were then surrounded by an ‘intermediate domain’ where Ras molecules had begun to slow down their movement. Although the intermediate domains did not last long, they seemed to guide Ras molecules into the immobilization domains where they could cluster together with other molecules. From there, the cell constantly removed Ras molecules from these membrane domains and returned them back to their ‘fast’ diffusing state.

Mutations in Ras proteins occur in around a third of all cancers, so a better understanding of their dynamics could help with future drug discovery. The methods used here could also be used to investigate the movement of other signaling molecules.

Introduction

The plasma membrane has a complex and dynamic landscape that helps shape how diverse membrane-localized signaling molecules behave (Grecco et al., 2011; Staubach and Hanisch, 2011; Simons and Toomre, 2000; Schmick and Bastiaens, 2014; Varma and Mayor, 1998; Garcia-Parajo et al., 2014). Among others, the Ras small GTPases are prototypical examples of signaling molecules whose biological activities are directly regulated by the membrane (Zhou and Hancock, 2015; Abankwa et al., 2010). While biochemical aspects of how Ras interacts with downstream effectors such as Raf have been well studied (Simanshu et al., 2017; Cox and Der, 2010), the mechanisms through which the biological membrane defines the signaling activity and specificity of Ras are still poorly understood. Recent studies by us and others suggest that Ras signaling may involve the formation of multimers (dimers and/or clusters) in a membrane-dependent manner (Güldenhaupt et al., 2012; Nan et al., 2015; Spencer-Smith et al., 2017; Ambrogio et al., 2018; Prior et al., 2003; Inouye et al., 2000; Plowman et al., 2005), and that partitioning of Ras into nanoscopic membrane domains and interactions with scaffold proteins or structures likely constitute critical steps to Ras multimer formation and signaling (Zhou et al., 2015; Chung et al., 2018; Belanis et al., 2008; Shalom-Feuerstein et al., 2008; Chen et al., 2016). While previous high-resolution imaging experiments using immuno-EM (Prior et al., 2003; Plowman et al., 2005) or quantitative superresolution microscopy (Nan et al., 2015; Huang et al., 2015) were instrumental to revealing the existence of Ras multimers, the resulting images were mostly static and provided limited information about the spatiotemporal dynamics of Ras – membrane domain interactions.

Live-cell single-particle tracking (SPT) (Schmidt et al., 1996; Kusumi et al., 2005; Saxton and Jacobson, 1997) complements static imaging by providing information about molecular motions, and it has been used to study Ras dynamics on the membrane (Lommerse et al., 2006; Murakoshi et al., 2004; Lommerse et al., 2004). The underlying rationale is that interactions of Ras with different membrane domains and signaling partners would manifest as varied diffusion behavior. Indeed, using SPT, Murakoshi et al. observed transient events of Ras immobilization on the membrane, which became more frequent upon epidermal growth factor stimulation, potentially reflecting the formation of signaling complexes or interactions with raft domains (Murakoshi et al., 2004). Lommerse and colleagues also used SPT to probe Ras diffusion and similarly observed transient and context-dependent confinement of Ras in membrane regions not more than 200 nm in diameter (Lommerse et al., 2006).

These prior studies offered important initial insight into the potential connections between Ras diffusion, function, and membrane organization, but the technical constraints of traditional SPT limited the imaging throughput and depth of analysis in these studies. Typically, only a few tens of trajectories could be obtained from each experiment, which precluded detailed and quantitative characterization of the heterogeneous and stochastic nature of molecular diffusion. In consequence, while the studies consistently reported two diffusion states – a ‘free’ diffusion state and another ‘immobile’ state, it remains to be seen whether a two-state model adequately recapitulates Ras membrane dynamics (Lommerse et al., 2006; Murakoshi et al., 2004; Lommerse et al., 2004). Thus, the nature of the membrane domains occupied by each of these states and how Ras molecules transition between the states in connection with multimer formation and signaling remain unclear.

Recent years have seen significant advances in both experimental (Manley et al., 2008; Benke et al., 2012; Huang et al., 2018; Basu et al., 2018; English, 2015; Cutler et al., 2013) and data analysis strategies (Persson et al., 2013; Hansen et al., 2018; Liu et al., 2015; Jaqaman et al., 2008; Chenouard et al., 2014; Shen et al., 2017; Monnier et al., 2015; Ito et al., 2017; Lindén and Elf, 2018) of SPT, some of which have dramatically improved the information throughput. Among others, spt-PALM combines SPT with photoactivated localization microscopy (PALM) to enable single molecule tracking under dense labeling conditions through stochastic photoswitching (Manley et al., 2008). With spt-PALM, it is routine to acquire thousands of diffusion trajectories from a single cell. A growing list of software tools has also been developed to facilitate spt-PALM data analysis (Persson et al., 2013; Hansen et al., 2018; Jaqaman et al., 2008; Ito et al., 2017; Newby et al., 2018). For example, variational Bayes SPT (vbSPT) allows construction of a detailed diffusion model from spt-PALM data with parameters such as the number of states, the diffusion coefficient and the occupancy of each state, as well as the state transition rates even when the individual trajectories are short (Persson et al., 2013). Additional methods have also been introduced to quantitate various aspects of diffusion dynamics from SPT trajectories (Chenouard et al., 2014; Ito et al., 2017; Manzo and Garcia-Parajo, 2015). These advances help overcome the limitations of conventional SPT and make it possible to analyze Ras membrane dynamics in much greater depth.

Here, we report our efforts on combining spt-PALM with detailed trajectory analysis to reveal previously unknown aspects of Ras diffusion on the cell membrane. With carefully controlled expression levels and photoactivation rate, spt-PALM trajectories of PAmCherry1-tagged KRasG12D (KRas with an activating mutation and thus primarily GTP-bound) consistently reported three diffusion states, including a fast diffusion state, an immobile state, and a previously unidentified diffusion state with intermediate mobility. Leveraging the large number of trajectories, we were able to spatially map the diffusion states to distinctive membrane domains, estimate the size and lifetime of each domain, and define the spatial relationship between the domains. Moreover, in analyzing how KRasG12D transitions from one diffusion state to another, we discovered that KRasG12D diffusion follows a non-equilibrium steady state (NESS) model with net mass flow from the fast state to the immobile state, potentially coupled to the endocytic trafficking and membrane recycling of KRasG12D. Based on these results, we propose a new model to describe the membrane dynamics of KRasG12D, where nested membrane nanodomains dictate the diffusion and trafficking, with implications in Ras multimer formation and signaling.

Results

KRasG12D diffuses on the membrane in three distinct states

To investigate the lateral diffusion properties of KRasG12D under controlled expression levels, we established isogenic U2OS cells stably expressing PAmCherry1-KRasG12D under doxycycline (Dox) regulation (Nan et al., 2015). The expression level of PAmCherry1-KRasG12D could be tuned from a level below that of the endogenous KRas at <1 ng/mL Dox to highly over-expressed at 5–10 ng/mL Dox (Figure 1A). Initially data were collected from cells expressing KRasG12D at a moderate level by inducing at 2 ng/mL Dox. The photoactivatable fluorescent protein PAmCherry1 has been widely used for quantitative PALM and spt-PALM (Subach et al., 2009). Owing to the good single-molecule brightness of activated PAmCherry1, we were able to track individual PAmCherry1-KRasG12D molecules at frame rates up to ~83 Hz (i.e.,~12 ms/frame) with a low excitation dose (~400 W/cm2 at 561 nm). The low spontaneous photoactivation rate of PAmCherry1 also permits clean single-molecule imaging even at high expression levels, yielding as many as hundreds of thousands of trajectories per cell via spt-PALM (Figure 1B and Video 1). Under these conditions, the average trajectory lengths were ~4 and~5 frames for data acquired at 12 ms/frame and 35 ms/frame rates, respectively (Figure 1—figure supplement 1). Despite the faster frame rate, data acquired at 12 ms/frame had a lower signal-to-noise ratio, causing a more frequent loss of molecules during tracking to yield significantly shorter trajectories (~50 ms average duration) than data acquired at 35 ms/frame (~175 ms average duration). We therefore used both frame rates in this work for the benefit of better temporal resolution or spatial precision.

Figure 1 with 6 supplements see all

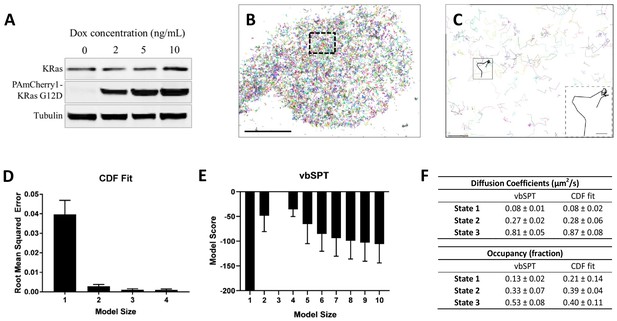

Defining the membrane diffusion model of KRasG12D using spt-PALM and vbSPT.

(A) Western blot showing the increasing expression level of PAmCherry1-KRasG12D with increasing doxycycline (Dox) concentration; (B) Example trajectory map of membrane KRasG12D acquired at 12 ms frame rate using total internal reflection fluorescence (TIRF) illumination. Each line represents an individual Ras molecule coordinate over time acquired for the duration of the movie (20 min). Only a subset of all trajectories is plotted. Scale bar: 10 μm; (C) Expanded view of the boxed region in B). Only a subset of all of the trajectories in the boxed region is shown to allow unhindered view of individual Ras trajectories. Inset shows a KRasG12D trajectory displaying multiple diffusion states. Scale bars: main figure: 1 μm; inset: 200 nm; (D) Determining the optimal model size for KRasG12D membrane diffusion using CDF fitting, with smaller root mean squared error indicating a better model (n = 8); (E) Determining the optimal model size for KRasG12D membrane diffusion using vbSPT, with smaller absolute model score (i.e., score of zero being the best global model) indicating a better model (n = 5); (F) Comparing the model parameters obtained from CDF fit and vbSPT, both using a three-state model for KRasG12D membrane diffusion. State transition probabilities were not inferred from CDF fit and therefore not included in the comparison. Error bars are 95% confidence intervals (CIs).

Video 1
Clip of a raw spt-PALM video showing PAmCherry1-KRasG12D diffusion on U2OS cell membrane.

Data acquired at 35 ms/frame. Cells were induced with 5 ng/mL doxycycline before imaging.

A close inspection of the individual trajectories clearly shows larger diffusive steps intermittent with moments of transient entrapment, indicating the presence of multiple diffusion states and frequent state transitions (Figure 1C and inset). Similar observations were reported for both HRas and KRas in previous low throughput SPT experiments, where two diffusion states – a ‘fast’ state and an ‘immobile’ diffusion state – were detected (Lommerse et al., 2006; Murakoshi et al., 2004).

Since spt-PALM offers a much larger number of trajectories, we first asked whether KRasG12D diffusion on the cell membrane could indeed be described by a simple two-state model. To this end, we used two methods to analyze the Ras diffusion trajectories. The first approach fits cumulative distribution function (CDF) for Brownian motion to the squared displacements of Ras trajectories to extract diffusion coefficients and the respective occupancies of the diffusion states (Schütz et al., 1997). The second method, vbSPT, treats particle diffusion and the associated state transitions with a Hidden Markov Model and performs model selection through variational inference (Persson et al., 2013). Of note, vbSPT is well suited for analyzing large numbers of short trajectories such as those obtained via spt-PALM.

We found that particle densities higher than 0.03 µm−2 per frame under our experimental conditions (12 ms/frame with the fastest diffusion rate at ~1 µm2/s) led to occasional misconnected trajectories, and that even a small fraction of such misconnected trajectories could lead to skewed model outputs with vbSPT (Figure 1—figure supplement 2). In addition, the threshold for maximum particle displacement between adjacent frames also had an impact on trajectory misconnection, although to a lesser extent as tested with simulated trajectories (Figure 1—figure supplements 2 and 3). Thus, for diffusion model construction, we chose to use a high frame rate (12 ms/frame) and a low particle density (<0.03 µm−2) to eliminate misconnected trajectories while maintaining a sufficient number of trajectories.

Using trajectories acquired and analyzed with the above precautions, both CDF fitting and vbSPT yielded similar three-state models for KRasG12D diffusion on the membrane of live U2OS cells. Specifically, CDF fitting to a three-state model had significantly lower residual error compared to a single- or a two-state model and further increasing the model size did not decrease the error (Figure 1D), indicating that a three-state model is sufficient to describe the data. For vbSPT, a score equal to zero indicates the best model, a condition that was met with a three-state model but not with larger or smaller size models (Figure 1E). To rule out the possibility of imprecise single-molecule localizations causing vbSPT to misinterpret two-state spt-PALM data as three states, we performed vbSPT analysis on simulated trajectories based on a two-state model with varying localizations errors (0, 20, 40, 80, 100 nm) added. Even at the highest localization errors (100 nm), vbSPT correctly retrieved a two-state model (Figure 1—figure supplement 4) from the simulated data, suggesting that the three-state model derived from experimental spt-PALM data is unlikely a result of localization errors in SPT.

The diffusion coefficient and the occupancy for each of the diffusion states were in good agreement between the two analysis methods and within each method when applied to different cells under the same conditions, as evidenced by the small errors (Figure 1F). Datasets with high particle densities can return models with different sizes, sometimes also with aberrant model parameters (Figure 1—figure supplement 2B–D and Figure 1—figure supplement 5A–B); even so, the histogram of all vbSPT-derived diffusion coefficients still showed three distinct clusters (Figure 1—figure supplement 3C) corresponding to the three states listed in Figure 1F. Thus, we concluded that the membrane diffusion of KRasG12D under our experimental conditions is best described by a three-state model, demonstrating the existence of an intermediate state not detected in previous studies. Between the two methods, vbSPT was used for most subsequent analyses in the remainder of this work because it infers the transition probabilities and state identities for every time step whereas CDF does not.

The diffusion coefficient of the slowest state in Figure 1F is comparable to that expected from single-molecule localization error (~40 nm, Figure 1—figure supplement 6), which implied that the actual diffusion of KRasG12D in this state may be even slower than it appeared. To test this hypothesis, we acquired spt-PALM data at a slower frame rate (35 ms/frame) to improve the localization accuracy of slowly moving molecules since more photons could now be collected for each PAmCherry1 molecule in a single frame (Figure 1—figure supplement 6). Indeed, these datasets reported a significantly smaller diffusion coefficient (0.02 µm2/s) for the slowest state than that obtained earlier (0.08 µm2/s) using data taken at 12 ms/frame. This result suggests that the slowest diffusion state of KRasG12D is essentially an immobile state, consistent with previous reports (Lommerse et al., 2006; Murakoshi et al., 2004).

KRasG12D diffusion states correspond to distinct membrane domains

The diffusion model presented in Figure 2A summarizes the results from the spt-PALM trajectory analyses using vbSPT. Each circle represents one of the diffusion states with arrows indicating the transition probabilities between pairs of states. A notable feature of this model is that there appears to be a defined state transition path: KRasG12D molecules always transition between the fast (F) and the immobile (I) states by going through the intermediate (N) state, and direct transitions between the fast and the immobile states almost never occur. In order to confirm this transition path, we compared the distribution of step sizes relative to the immobile state steps, since different step sizes reflect different diffusion coefficients. Consistent with the state transition path observed in Figure 2A, the histogram of step sizes immediately adjacent to the immobile steps corresponded to the intermediate diffusion state (Figure 2B, blue) while the distribution of the remaining steps had a broader peak implying a mixture of both fast and intermediate diffusion steps (Figure 2B, where the black color indicates a mixture of states). As expected, the step sizes assigned to the immobile states (Figure 2B, red) are even smaller compared to that of the other two states. The clear separation of these three step size distributions confirms the above-mentioned transition path through the intermediate state. The distinctions in step sizes among the three states were even more obvious on data taken at 35 ms/frame, which had better single-molecule localization precision (Figure 2—figure supplement 1). Thus, the intermediate state is not merely a state with intermediate mobility but effectively an obligatory link between the immobile and the fast states of KRasG12D.

Figure 2 with 2 supplements see all

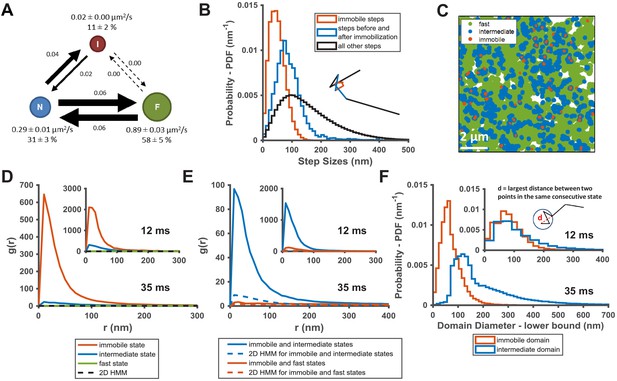

KRasG12D diffusion states are associated with distinct membrane domains.

(A) The three-state model for KRasG12D diffusion with F, N, and I, representing the fast, the intermediate, and the immobile states, respectively. Model parameters were inferred using vbSPT on spt-PALM datasets with at least 30,000 trajectories obtained on cells induced with 2 ng/mL Dox. The arrows indicate state transitions (i.e. the probability of switching to a different state in the next frame) and the area of the circle and the thickness of the arrows are both roughly scaled to reflect their relative values. All parameters were derived from data acquired at 12 ms frame interval except for the diffusion coefficient of the immobile state, which was inferred from data taken at 35 ms frame interval. Error bars are 95% CIs (n = 8); (B) Step size histograms for immobilization events (red), one step before or after the immobilization event (blue), and all other steps (black). A diffusion step was part of an immobilization event if immobile state was assigned to that trajectory segment by vbSPT (n = 14, see Materials and methods); (C) Map of the membrane locations where KRasG12D molecules exhibit specific diffusion states (referred to as state coordinates) within a one-minute duration (taken from a spt-PALM dataset of ~20 min total duration). Red, blue, and green dots represent locations of the immobile, the intermediate, and the fast states, respectively, with each rendered circles scaled proportionally to the mean diffusion coefficient for the state; (D) Pair correlation analysis on the averaged state coordinates across multiple, one-minute segments of longer spt-PALM datasets. The same color coding as in B) was used to distinguish the three states. For this analysis, molecules in the same diffusion state in successive frames only contributed a single, averaged state coordinate. The average state coordinates of all molecules captured within a one-minute segment were used for correlation analysis, and the results from multiple one-minute segments were averaged to yield the plot. The negative control was generated through a 2D Markovian simulation, and the resulting trajectories were analyzed the same as the experiment (see Materials and methods); (E) Cross correlation analysis between pairs of diffusion states. The state coordinates were processed the same way as in D) prior to the correlation analysis, except that the correlation was performed between two different diffusion states. The negative control was generated through a 2D Markovian simulation, and the resulting trajectories were analyzed the same as the experiment (see Materials and methods); (F) Estimating the lower bound size for the immobile and the intermediate domains. The estimation was based on the maximum distance traveled by the molecule while in the same diffusion state. *D-F) The main panel shows results inferred from data taken at 35 ms frame intervals for improved localization precision. The inset shows the data taken at 12 ms/frame (n = 14 for 12 ms and n = 7 for 35 ms datasets).

The observed state transition path may arise from at least two potential scenarios. In the first scenario, fast diffusing KRasG12D may transition into the intermediate then the immobile state through spontaneous conformational changes unrelated to slow or static membrane structures. Alternatively, the immobile states could be caused by KRasG12D transiently binding to stationary molecules or structures (termed ‘immobilization sites’ or ‘immobilization domains’) residing in membrane regions (referred to as ‘intermediate domains’) that confer intermediate mobility to KRasG12D. Consequently, these intermediate domains would act as transition zones between membrane regions where KRasG12D exhibits fast diffusion and the sites of KRasG12D immobilization, yielding the observed state transition path. In either case, the intermediate and the immobile states of KRasG12D would be temporally and spatially correlated. It is only in the latter case, however, that we would observe multiple visits to the same intermediate or immobilization domains by different KRasG12D molecules, provided that both domains have lifetimes longer than our temporal resolution. Of note, even in the second scenario, KRasG12D targeting to the intermediate or the immobilization domains may be accompanied by changes in conformation.

To distinguish between the two scenarios, we performed auto- and cross-correlation analysis on the locations of KRasG12D exhibiting a certain diffusion state (referred to hereafter as state coordinates). We first visually examined the spatial distributions of the states by slicing each raw image stack into one-minute time substacks and plotting the state coordinates on the same map, with each color representing one of the states (Figure 2C, Figure 2—figure supplement 2, and Video 2). Each diffusion trajectory typically contributes only a few points to the plots as limited by its short duration, and the points from multiple trajectories accumulate over time (up to 1 min in this case) to ‘paint’ a map of the membrane regions associated with each diffusion state. Despite yielding relatively short trajectories, the rapid turn-over of PAmCherry1 allowed more efficient sampling (‘painting’) of the membrane domains by KRasG12D in the field of view. As shown in Figure 2C, the intermediate state locations and the immobile state locations not only co-clustered, but also each appeared to self-cluster. Specifically, regions corresponding to the intermediate states (blue) often connect to give rise to nanoscopic domains a few hundred nm in size, and the vast majority of the immobilization sites (red) are surrounded by the intermediate domains. By contrast, regions corresponding to the fast state occupy the majority of the membrane area. While both the intermediate and the immobilization domains appeared to be dynamic, a time-lapse domain map (Video 2) showed that at least some of these domains could last a few minutes (to be further addressed below in Figure 3). Thus, spatial mapping of the KRasG12D state coordinates provided visual evidence for the physical presence of nested, nanoscopic domains conferring the distinct KRasG12D diffusion states.

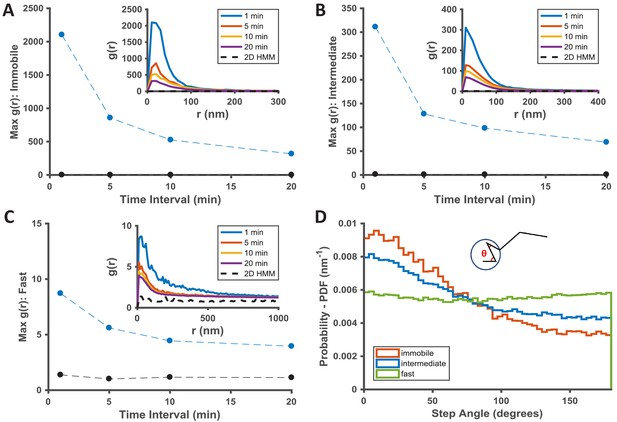

Temporal properties of the KRasG12D-associated immobile and intermediate domains.

(A–C) Pair correlation analysis of the state coordinates at different time intervals (1, 5, 10, and 20 min). The amplitude (maximal g(r) value) of the pair correlation function at each time interval was plotted in the main panel with the raw pair correlation plots shown in the inset. A-C show pair correlation functions of averaged coordinates for the immobile, the intermediate, and the fast states, respectively (see Materials and methods). The negative control in each case was generated through a 2D Markovian simulation, and the resulting trajectories were analyzed the same as the experiment (see Materials and methods); D) Deflection angle analysis on KRasG12D diffusion trajectories separated by diffusion states (red: immobile; blue: intermediate; green: fast). The deflection angle was calculated as the angle between two successive segments of the trajectory while the molecule was in the same diffusion state. *Results shown for data acquired at 12 ms/frame (n = 14).

Video 2
Time-lapse (1 min/frame) video of the domain map calculated from individual trajectories within each substack.

Red: immobilization domains (sites); blue: intermediate domains; green: fast (free) domains. The image area is around 10 × 10 μm2.

We next used pair correlation function (g(r)) to quantitate the spatial relationship between the KRasG12D diffusion states (Figure 2D–E). The function g(r) measures the ratio of the number of particles located a distance (r) from a given particle to that expected from a complete spatial randomness (see Materials and methods). Here, the g(r) could be calculated for particles in the same diffusion state (auto-correlation) or between two different diffusion states (cross-correlation); in either case, amplitudes of g(r) significantly greater than that expected for a random distribution indicate spatial clustering. When multiple KRasG12D molecules visit the same domain, each at a different time point but exhibiting the same diffusion state, g(r) would detect spatial auto-correlation for the given state. To avoid false clustering due to the same molecule staying in the same state across multiple frames, we used the averaged state coordinate for each continuous trajectory segment that stayed in the same state for more than two consecutive time points (see Materials and methods). Results from both datasets taken at 35 ms/frame (main panels) and those at 12 ms/frame (inset) are shown for comparison (Figure 2D–E).

Consistent with the visual observation earlier (Figure 2C), coordinates of the immobile and the intermediate states each showed significant clustering in the g(r) plots averaged across each 1 min raw image stacks, whereas g(r) of the fast state was barely above random across the full range of r analyzed (Figure 2D). All g(r) negative controls were generated with a 2D Markovian simulation of diffusing particles with no associated domains (see Materials and methods), and the simulated trajectories were processed through the same analysis pipeline as the experimental data. As expected, the averaged state coordinates of the simulated negative control had values close to one and showed no peak in the g(r) plots. Furthermore, g(r) based on spatial cross-correlation analysis clearly indicated co-clustering between the immobile and the intermediate state positions but not with the fast diffusion state (Figure 2E).

Transient nanodomains mediate the intermediate and the immobile states of KRasG12D

We also estimated the lower-bound size of the domains associated with the immobile and the intermediate states of KRasG12D by calculating the maximum distance a molecule traveled while in a domain (i.e., longest distance between two points within consecutive steps taken while in the same state). Shown in the main panel of Figure 2F are the histograms of the estimated domain sizes determined from data taken at 35 ms/frame, based on which we determined that the mean diameters of the intermediate and the immobile membrane domains were approximately ~200 nm and ~70 nm, respectively. This is consistent with the notion that most immobilization domains are likely surrounded by intermediate domains. The distinction between the two domains became much less significant with data taken at 12 ms/frame (Figure 2F, inset), which we attributed to the shorter trajectory durations (~50 ms at 12 ms/frame compared to ~175 ms at 35 ms/frame; see Figure 1—figure supplement 1), which in turn was due to the lower photon yield per frame from single PAmCherry1 molecules at this fast frame rate. In essence, the molecules failed to sample a large enough area within the short duration of the trajectories to report the domain size accurately. In addition, the distribution of the minimum intermediate domain size appeared to have at least two peaks at ~120 nm and ~230 nm, implying that there may potentially be multiple types of intermediate domains (Figure 2F).

To understand the temporal behavior of the immobilization and the intermediate domains associated with KRasG12D, we extended g(r) calculations as in Figure 2 from one minute to longer time intervals. The rationale was that, as the time interval for calculating g(r) increases beyond the lifetime of a domain, the chance of observing KRasG12D molecules visiting the same domain (i.e., exhibiting the same diffusion state in close proximity) should decrease, resulting in lower g(r) amplitudes. Indeed, as shown in Figure 3A–C, for dataset acquired at 12 ms frame interval, the peak amplitudes of g(r) for both the immobile (Figure 3A) and the intermediate (Figure 3B) states decreased significantly after ~5 min with further decay at increasing time intervals, indicative of finite lifetimes for both nanodomains, likely on the order of minutes on average (see also Figure 2—figure supplement 1 for results with data taken at 35 ms/frame). For the limited temporal resolution of this analysis, we likely only detected relatively stable domains with lifetimes longer than 1 min, and the presence of more transient intermediate or immobilization domains should not be ruled out.

To gain insight into how KRasG12D interacts with the different membrane domains, we also analyzed the frame-to-frame deflection angle for the molecules within each domain. The deflection angle measures the relationship between the current and the preceding step: a complete random walk would yield a flat distribution of deflection angles, whereas a preference for acute angles indicates more ‘returning’ steps. The measurement will likely be affected by localization error: for individual angles, larger localization error (relative to the step sizes) would add significant noise to the measured angles; for ensemble measurement of a large number of angles, however, the localization error would affect all angles in an unbiased manner. Thus, despite the finite localization precision at our frame rates, we expect that the measured step angles to reflect the interactions between KRasG12D and the membrane domains. Indeed, as shown in Figure 3D, KRasG12D molecules trapped in either the immobilization or the intermediate domains (the red and the blue lines) were more likely to exhibit acute deflection angles, potentially due to backward movements at the domain boundaries. Between the two domains, the enrichment of acute angles was more significant for the immobile state because the associated domains were smaller, such that KRasG12D molecules had a higher chance of hitting the domain boundaries. In comparison, KRasG12D molecules in the fast state exhibit (Figure 3D, the green line) equal probabilities of moving in all directions, consistent with Brownian motion.

KRasG12D is constitutively depleted from the immobile state and replenished to the fast state

The small variance in the estimated model parameters from data taken on different cells, be it from the same or different samples (Figure 2A), led us to hypothesize that KRasG12D membrane diffusion is in a steady state. To verify this, we divided each spt-PALM dataset with a minimum of 40,000 trajectories into four quarters (each with ~10,000 trajectories and typically ~5 min long) and computed the diffusion model for each quarter using vbSPT. As Figure 4A shows, the model parameters for all four quarters were essentially identical, which is the case for all qualifying datasets, confirming that KRasG12D diffusion is indeed in a steady state, at least in U2OS cells and at the investigated time scales (up to ~20 min).

Figure 4 with 1 supplement see all
KRasG12D diffusion on the cell membrane is in a non-equilibrium steady state.

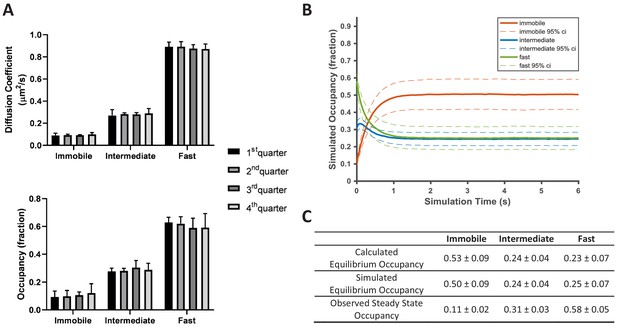

(A) Time invariance of the KRasG12D diffusion model. A single ~20 min spt-PALM dataset was segmented into four quarters with each quarter containing ~10,000 trajectories (in ~5 mins), each analyzed separately using vbSPT to obtain the model parameters such as the diffusion coefficients (upper panel) and the state occupancies (lower panel). Results from multiple spt-PALM datasets were grouped and plotted (n = 4); B) Temporal evolution of the KRasG12D diffusion model in simulated runs. The system was setup according to the experimental model parameters (number of states, state occupancies, diffusion coefficients, and state transition rates) as shown in Figure 2A. The system was then allowed to evolve based on the input, with the new state occupancies recorded every time step (12 ms) and plotted (see Materials and methods). Similar to Figure 2A, only movies with minimum of 30,000 trajectories were simulated (n = 8); C) Table summarizing the calculated, simulated, and experimentally observed occupancies for each of the states. *All error represents 95% CIs.

In contradiction to KRasG12D diffusion being in a steady state, however, we found that the diffusion model as presented in Figure 2A cannot self-sustain. When using experimentally derived model parameters to simulate how the three-state system evolves over time (see Materials and methods), we observed that the system quickly deviated from its initial configuration and instead stabilized at an entirely different set of state occupancies (Figure 4B). In the new, ‘equilibrated’ system configuration, KRasG12D spends as much as ~50% of its time in the immobile state, significantly more than the observed steady state occupancy of ~11%. The fast state is the opposite: the population residing in this state is significantly reduced from ~58% to ~25%. By contrast, the intermediate state changes only slightly (~31% vs ~24% for the experimental observations and the simulations, respectively). We confirmed that the simulated equilibrium probabilities were consistent with the principle of detailed balance (Zuckerman, 2010) (Figure 4C). Next, we also verified that the experimentally determined state occupancies in Figure 2A were not an artifact of vbSPT, since vbSPT correctly retrieved the steady state model parameters when applied to simulated trajectories from steady state models with varying input parameters (Figure 4—figure supplement 1). Therefore, we concluded that the model in Figure 2A represents a non-equilibrium steady state (NESS).

To further characterize the NESS, we calculated the mass flow for each of the three KRasG12D diffusion states as the change in state occupancy per time interval. A positive net flow rate or a ratio of in- vs out-flux greater than one indicates an accumulation of mass for the state, while a negative flow rate or a ratio of flux less than one indicates the opposite. As shown in Figure 5A and B, within the NESS there is a net influx of KRasG12D molecules to the immobile state and a net outflux of molecules from the fast state, whereas the in- and out-fluxes for the intermediate state are comparable. We also calculated the mass flow for each of the three arms in the diffusion model in Figure 2A – in the clockwise direction, it would be the flow from the fast state to the intermediate state (F to N), intermediate to immobile (N to I), and immobile to fast (I to F). The results of this calculation are shown in Figure 5C, where a positive value in the y axis (net mass flow between a pair of states) indicates mass flow in the designated direction, and a negative value indicates flow in the opposite direction. Consistent with results in Figure 5A and B, the dominant net mass flow through the NESS is unidirectional – from the fast state to the intermediate to the immobile state (Figure 5C) – with minimal ‘leakage’ from the fast to the immobile state.

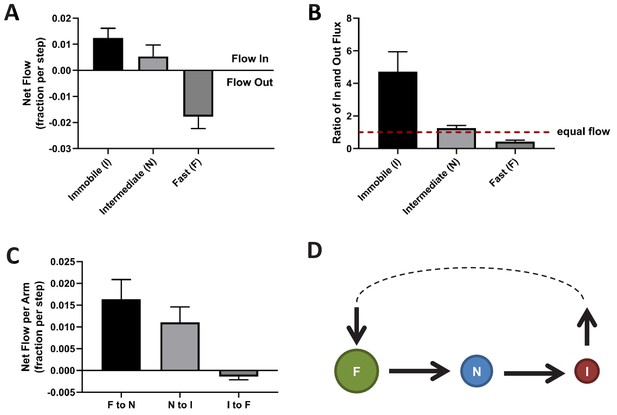

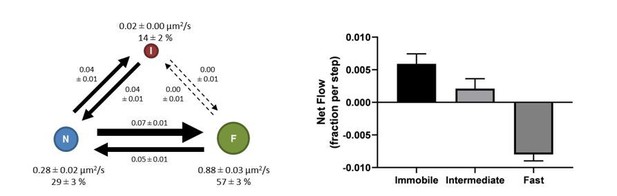

Directional mass flow between KRasG12D diffusion states.

(A) Net mass flow per state, defined as the difference between the influx (positive) and the outflux (negative) for each state and expressed as the fraction (of total KRasG12D population) entering (positive, flow in) or leaving (flow out, negative) the state per time interval; (B) Ratio of in- and outflux for each state. A ratio of one (dashed line) represents equal in- and outflux for the state, greater than one represents more influx than outflux, and less than one represents net outflux of mass from the state; (C) Net mass flow per arm (pair of states) in the KRasG12D diffusion model (Figure 2A). F to N and N to I are not significantly different. The states were ordered in a clock-wise direction, and the net mass flow in the direction was calculated as the difference between forward and backward mass flows, with a positive value indicating net flow in the indicated direction and a negative value the opposite direction; (D) Model for KRasG12D trafficking between the diffusion states and between the membrane system and the environment (cytosol). Arrows indicate the directional mass flow, and the dashed line represents unknown mechanisms connecting the fast and the immobile states. *All error bars are 95% CIs (n = 22).

These results are consistent with the simulated system relaxation to equilibrium shown in Figure 4B, where the immobile and the fast diffusion states changed occupancies the most. For the KRasG12D NESS system to be sustained over time as we observed experimentally, KRasG12D would need to be replenished into the fast diffusion state and removed from the immobile state. Indeed, KRasG12D has previously been shown to undergo a constant exchange between the plasma membrane and the cytosol, and internalized KRasG12D is collected at recycling endosomes and transported back to the plasma membrane (Schmick et al., 2014; Schmick et al., 2015). Our analyses suggest that the loss of KRasG12D from the membrane could be through the immobile state, and the replenishment through the fast state. At present, it is unclear whether the intermediate state has no exchange with the cytosol or has active exchange with equal gain and loss. Accordingly, the membrane trafficking of KRasG12D should follow the model presented in Figure 5D, where the arrows indicate the net mass flow between the connected states as well as between the states (F or I) and the environment (such as the cytosol).

KRasG12D diffusion model is invariant over a range of expression levels

Next, we sought to investigate whether experimental conditions such as expression level would alter the diffusion properties of KRasG12D. An important observation on Ras nanocluster (multimer) formation is that the fraction of clustered molecules remains constant over a broad range of expression levels (Plowman et al., 2005). This unusual property has led to two hypothetical mechanisms of membrane nanocluster formation: one based on protein self-nucleation (Plowman et al., 2005) and another involving actomyosin activity (Gowrishankar et al., 2012). These active mechanisms are in contrast to passive localization of Ras to existing membrane nanodomains (e.g. via diffusion), which was thought to result in concentration-dependent multimer formation and therefore be inconsistent with the constant fraction of clustered Ras. To date, it remains controversial as to which mechanism mediates Ras multimer formation, including the basic question of whether membrane nanodomains are involved. We reasoned that, if KRasG12D multimers form in membrane nanodomains – for example the intermediate and/or the immobilization domains in this case – then the observed fraction(s) of KRasG12D in either or both the intermediate and the immobile states should also be independent of expression level, as for the fraction of Ras molecules in multimers (clusters).

To address this question, we induced PAmCherry1-KRasG12D at a range of expression levels using different Dox concentrations (Figure 1A). Similar to our previous report (Nan et al., 2015), the expression level of PAmCherry1-KRasG12D responded well to varying Dox concentrations in the isogenic cells used in this study, with the protein expression at 0 ng/mL being extremely low (only due to occasional leakage in tetR suppression) and that at 10 ng/mL about 5–10 fold higher than endogenous KRasG12D. When measured in terms of protein density at the membrane, the tuning range corresponds to <10 molecules per µm2 at 0 ng/mL Dox to >300 molecules per µm2 at 10 ng/mL Dox.

By comparing estimated model parameters using spt-PALM data of PAmCherry1-KRasG12D at different Dox concentrations, we found that KRasG12D diffusion properties remained essentially the same across the range of expression levels investigated (Figure 6A–B and Figure 6—figure supplement 1). This model invariance is reflected across all conditions: not only was a three-state model optimal for describing the diffusion of KRasG12D as judged with vbSPT (not shown) and with CDF (Figure 6—figure supplement 2), but the diffusion coefficients of each state, the state occupancies, as well as the transition probabilities between each pair of states, were indistinguishable within the error bars.

Figure 6 with 3 supplements see all

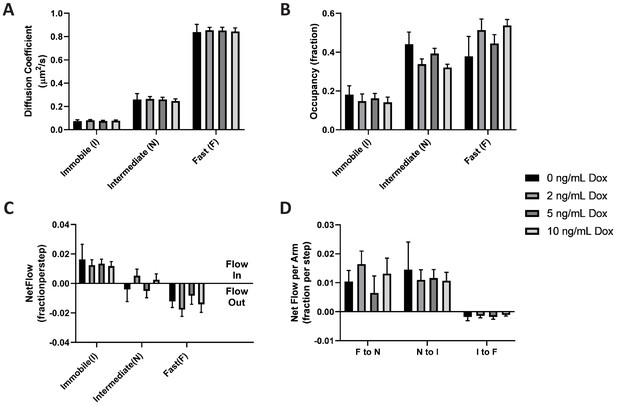

KRasG12D diffusion properties remain constant over a broad range of expression levels.

Spt-PALM trajectories of KRasG12D were acquired at 12 ms/frame after inducing the cells at 0, 2, 5, and 10 ng/mL Dox for 36–48 hr, and the diffusion models were inferred as described previously using vbSPT. All aspects of the diffusion model discussed earlier, including diffusion coefficients (A), state occupancies (B), net mass flow per state (C), and net mass flow per arm (pair of states, (D) at the different Dox concentrations were analyzed and compared. Error bars represent 95% CIs (n = 12 for 0 ng/mL Dox, n = 22 for 2 ng/mL Dox, n = 30 for 5 ng/mL Dox, and n = 18 for 10 ng/mL Dox).

As expected, the net mass flow rates (expressed as the change in state occupancy per time interval) of KRasG12D within the system also remained the same across all the Dox concentrations (Figure 6C–D). A similar observation was made when we acquired the trajectories at 35 ms/frame (Figure 6—figure supplement 3). Thus, we concluded that KRasG12D diffusion and trafficking on the membrane remains constant over the range of tested KRasG12D expression levels. Equivalently, the partitioning of KRasG12D in each of the three diffusive states – and the corresponding membrane domains – is stable and independent of KRasG12D protein density on the membrane. This result coincides with the prior observation that the fraction of Ras in multimers remains constant at widely varying membrane densities (Plowman et al., 2005), implying that Ras multimer formation and nanodomain localization may be correlated processes.

Discussion

Membrane nanodomains have been implicated in the regulation of many membrane-resident cellular processes such as Ras signaling (Grecco et al., 2011; Staubach and Hanisch, 2011; Simons and Toomre, 2000; Schmick and Bastiaens, 2014; Varma and Mayor, 1998; Garcia-Parajo et al., 2014), but studying the complex and heterogeneous membrane compartments in a living cell has remained a challenge. Using spt-PALM and detailed trajectory analysis, we were able to uncover rich details of how KRasG12D localizes and interacts with the membrane. Our results suggest that KRasG12D diffusion on the membrane is best recapitulated with a model that comprises three states – a fast state, an immobile state, and a previously unknown intermediate state. Leveraging the large number of diffusion trajectories, we were able to map the locations where KRasG12D exhibits specific diffusion states. These maps revealed membrane nanodomains corresponding to the intermediate and the immobile states of KRasG12D. The intermediate nanodomains encompass the immobilization sites in a nested configuration, such that KRasG12D almost always transitions between the fast and the immobile states through the intermediate state. We also found that KRasG12D membrane diffusion is in a non-equilibrium steady state, with KRasG12D constitutively removed from the membrane through the immobile sites and replenished as fast diffusing molecules, potentially coupled to KRasG12D trafficking via endocytosis and recycling. Importantly, partitioning of KRasG12D into the three states remains invariant over a wide range of KRasG12D expression levels, demonstrating that KRasG12D diffusion and trafficking through the three mobility states and associated nanodomains is in a maintained, homeostatic condition. Together, these data start to paint a clear picture of the spatiotemporal dynamics of KRasG12D on the membrane, providing the basis for understanding the mechanisms of Ras multimer formation and signaling.

Based on these findings, we propose a new model for Ras membrane diffusion and trafficking as shown in Figure 7. In this model, Ras experiences at least three types of membrane environments: a ‘regular’ membrane region in which Ras freely diffuses with large step sizes, a ‘transition zone’ or intermediate domain with increased viscous drag and reduced step size, and within the latter an ‘immobilization’ site where Ras interacts with relatively static structures or molecules. Both the transition zones and the immobilization sites have finite lifetimes, some up to minutes, during which freely diffusing KRasG12D molecules could enter the transition zone, slow down, then either return to the fast state or become trapped at the immobilization sites. During entrapment, a fraction of the trapped KRasG12D molecules leaves the plasma membrane to enter the cycle of KRasG12D trafficking. This is in agreement with the current understanding that the removal of KRas from the membrane through endocytosis is concentration dependent and that the localization of KRas to the plasma membrane is an energy driven, PDEδ and Arl2-mediated enrichment process (Schmick et al., 2014; Schmick et al., 2015). Our work adds important details to this trafficking model in that the removal of KRasG12D from the plasma membrane likely occurs during the entrapment phase and its recycling primarily takes place in membrane regions conferring fast mobility. Additionally, the transient entrapment of KRasG12D could also provide an effective mechanism to locally concentrate Ras molecules to facilitate multimer formation, which arguably is a critical step for signaling (Chen et al., 2016; Tian et al., 2007; Nussinov et al., 2019). Thus, the various membrane nanodomains directly influence the mobility, trafficking, and potentially multimer formation and signaling of KRasG12D, although details of the trafficking and multimer formation processes are yet to be defined.

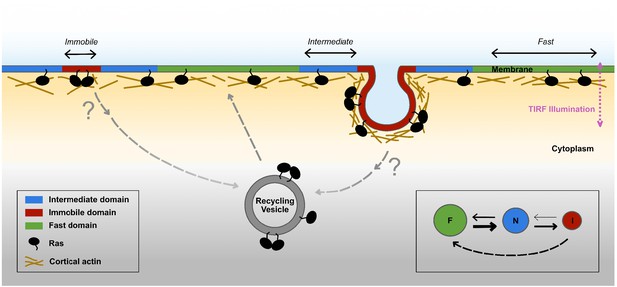

Proposed model for membrane nanodomains regulating KRasG12D mobility and trafficking.

For KRasG12D, the cell membrane comprises of at least three different compartments conferring each of the three diffusion states , namely the fast (and free), the intermediate, and the immobile diffusion states, depicted as green, blue, and red regions, respectively. The membrane compartments associated with the immobile and the intermediate states of KRasG12D are nanoscopic membrane structures. KRasG12D is continuously removed from the immobile state, some of which may be mediated via endocytosis. Internalized KRasG12D molecules are eventually transported back to the membrane as fast diffusing species through incompletely understood recycling processes. KRasG12D immobilization domains could locally enrich KRasG12D molecules to facilitate KRasG12D multimer formation and potentially signaling. The arrows in the inset (bottom right) indicate mass flows between each pair of states.

The three-state diffusion model proposed in this study refines existing models of KRasG12D membrane diffusion by introducing a previously unresolved intermediate state and capturing the role of membrane nanodomains in KRasG12D diffusion. While heterogeneous diffusion properties of KRasG12D and other Ras isoforms have been reported, the prior studies lacked the throughput or spatiotemporal resolutions to determine whether two states, namely a fast diffusion state and an immobile state, are adequate to recapitulate KRasG12D diffusion on the membrane. With the diffusion model defined, we were able to subsequently demonstrate that the intermediate and immobile states of KRasG12D are each associated with a distinct membrane domain. The measured sizes of the immobilization and the intermediate domains of KRasG12D were ~70 nm and ~200 nm, respectively, consistent with previous beliefs that nanoscopic membrane domains regulate Ras organization on the membrane. We note that, although a three-state model best fits our data, the model could still be an over-simplification. Among other possibilities, both endocytic and non-endocytic mechanisms may contribute to the immobilization of Ras but cannot be distinguished based on diffusion properties since Ras is immobile in both cases. In fact, there are also indications of more than one type of intermediate domains judging from the estimated domain size (Figure 2F and Figure 2—figure supplement 1).

An important feature of the model in Figure 7 is that the membrane nanodomains associated with the immobile state of KRasG12D are surrounded by those associated with the intermediate state, creating a nested configuration between the two nanodomains. A plausible scenario is that the structures that trap KRasG12D preferentially form in the membrane regions enriched in certain proteins or lipids and/or more densely packed. In this scenario, KRasG12D would have to travel through the intermediate zone to access the immobilization structures, explaining the state transition pathway in Figure 2A. This scenario is also consistent with the observation that the intermediate domains are on average larger in size than the immobilization domains, and that the two nanodomains have similar lifetimes (to the extent of our temporal resolution). In support of this hypothetic scenario, a growing body of literature demonstrates the importance of phosphatidylserine in KRas clustering and activation (Zhou et al., 2015; Cho et al., 2016; Zhou et al., 2017; Ariotti et al., 2014). In addition to the KRas tail encoding for phosphatidylserine specificity, a significant fraction of phosphatidylserine display slow motion on the membrane as well (Zhou et al., 2017; Kay et al., 2012).

Aside from the steady state partitioning of KRasG12D in the different membrane domains, our data also offered important insight into the membrane dynamics of KRasG12D. We measured a constant flow of KRasG12D from the fast state to the immobile state. Without exchanging KRasG12D with the cytosol, this directional flow would have caused net loss of KRasG12D from the fast state and accumulation in the immobile state as described in Figure 4B–C, yet the experimentally observed state configuration (Figure 2A) remained stable over time (Figure 4A). We therefore reasoned that KRasG12D needs to be constantly removed from the immobile state (‘sink’) and replenished via the fast state (‘source’), potentially coupled to membrane trafficking such as endocytosis and recycling (Schmick et al., 2014; Schmick et al., 2015; Roy et al., 2002; Rocks et al., 2005; Lu et al., 2009), since previous studies have shown that endocytosis is a primary mechanism for KRasG12D removal from the plasma membrane (Schmick et al., 2014). In support of this, the lifetime of the immobilization domains was estimated to be on the order of 2–5 min on average (Figure 3A–B), which is typical of many endocytic systems (Mayor et al., 2014; Kaksonen et al., 2005). The exact mechanism of KRasG12D internalization, however, remains incompletely understood at present.

It is noteworthy that the spatial partitioning of KRasG12D and more generally the diffusion model were invariant over a broad range of KRasG12D expression levels, which coincides with previous observations where the clustered fraction of KRas or HRas was independent of the protein expression level (Plowman et al., 2005; Tian et al., 2007). This corroborates the idea that membrane partitioning of Ras and perhaps many other membrane resident molecules are in an actively maintained, homeostatic condition. This intriguing property of certain membrane proteins (Plowman et al., 2005; Sharma et al., 2004) has drawn much attention and led to at least two mechanistic models of multimer formation, one based on self-nucleation (Plowman et al., 2005) and the other driven by actomyosin (Gowrishankar et al., 2012). Both mechanisms assumed the different states of the protein on the plasma membrane to be in equilibrium. Our results argue that the mass exchange between the plasma membrane and the cytosol breaks the equilibrium and has to be taken into account in order to accurately model the partitioning behavior of membrane proteins. A clear, mechanistic understanding of this property is important to understand how Ras functions on the membrane, since the Ras multimers have been strongly implicated in signaling. Further experimental and computational work along this line is currently underway.

A fundamental albeit implicit result from the present study is the importance of experimental parameters in accurately determining the diffusion model, a critical step for in-depth analysis of protein dynamics on the membrane. While there are many different software packages for analyzing spt-PALM trajectories, the importance of controlling the particle density during image acquisition has not previously been recognized to our knowledge. Imaging at a per frame particle density of 0.05–0.1 per µm2, which is typical for single-molecule localization microscopy, yielded varying estimated model parameters in our early attempts to track KRasG12D with spt-PALM (Figure 1—figure supplements 15). Using simulations, we found the source of variability to be a small fraction of misconnected trajectories mostly caused by fast moving molecules. In order to minimize the trajectory misconnection, we kept the density of activated PAmCherry1 in each frame to below 0.03 per µm2 at an acquisition rate of 12 ms/frame (Figure 1—figure supplements 2 and 3). With this precaution, we were able to yield a highly consistent diffusion model from trajectories acquired in different cells and under different conditions. This was critical to defining a previously unresolved state with intermediate mobility (D ~ 0.3 µm2/s) and to all subsequent analyses. We recommend the same precautions to be taken for studies of other membrane molecules.

In summary, our work sheds new light on how complex nanodomains organize on the membrane to dictate Ras diffusion and trafficking. The insights gained here offer useful guidance to future experiments that aim at determining the molecular and structural identities of the Ras-associated membrane nanodomains and defining the mechanisms of Ras multimer formation and signaling. The results demonstrate the utility of high-throughput SPT and trajectory analysis in uncovering rich details of the spatiotemporal dynamics of Ras on the membrane, which should be readily applicable to studies of other membrane molecules or processes in cellular compartments.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Cell line (Homo-sapiens)U2OSATCCRRID: CVCL_0042
ATCC Cat#:
HTB_96
Parent cell line for generating U2OS-tetR
Cell line (Homo-sapiens)U2OS-tetRThis paper.RRID: CVCL_XZ88Single U2OS clone stably expressing the tet repressor (tetR).
Cell line (Homo-sapiens)U2OS-tetR
PA-mCherry1-KRas G12D
This paper.RRID: CVCL_XZ89Single U2OS cell clone stably expressing PAmCherry1-KRasG12Dunder Doxycycline regulation
Antibodyanti-RAS
(mouse monoclonal)
AbcamRRID: AB_941040
Abcam Cat#: ab55391
Mouse monoclonal antibody
Antibodyanti-beta-Tubulin
(mouse monoclonal)
Thermo
Fisher
RRID: AB_86547
ThermoFisher Cat#: 32–2600
Mouse monoclonal antibody
Software, algorithmvbSPTPerssonet al.
RRID: SCR_017554Algorithm for extracting diffusion parameters from SPT data
Software, algorithmμManagerInvitrogenRRID: SCR_000415Micro-manager open source microscopy platform

Cell culture

Request a detailed protocol

KRasG12D was genetically fused to PAmCherry1, a red fluorescent protein, to ensure high labeling specificity and efficiency. The PAmCherry1-KRasG12D coding sequence is placed under a CMV promoter regulated by the TetOn operon. The construct was transduced via lentivirus into an isogenic U2OS-tetR cell line (RRID:CVCL_XZ88) that constitutively expresses the tet repressor (tetR); the cell line was derived from the parent U2OS (human osteosarcoma, ATCC; RRID:CVCL_0042; verified via third party STR analysis). Single cell clones were subsequently isolated and screened to yield isogenic cell lines (RRID:CVCL_XZ89) that express the PAmCherry1-KRasG12D fusion protein under doxycycline (Dox) regulation. Cell lines were tested for mycoplasma regularly using standard in-house PCR test.

Western blotting

Request a detailed protocol

Cells were cultured in 6-well plates for 24–48 hr before lysing with a RIPA buffer (Thermo Scientific, 89901) supplemented with an inhibitor cocktail (ThermoFisher, 88668). Cell lysates were then harvested, sonicated, and centrifuged. The supernatant is assayed using BCA and analyzed using a Bris-Tris gel (4–12%, ThermoFisher NP0323). Protein transfer was performed on a low fluorescence PVDF membrane (EMD Millipore, IPFL10100). The membrane was then immunostained for fluorescence detection using a Li-COR Odyssey. The antibodies used for this study were: KRas (mouse monoclonal, Abcam ab55391, RRID:AB_941040, used at 1:200 dilution), Tubulin (mouse monoclonal, ThermoFisher 32–2600, RRID:AB_86547, used at 1:500 dilution).

Cell treatment for single particle tracking

Request a detailed protocol

Cells were grown in fluorobrite DMEM (Thermo Fisher Scientific A1896701) with 10% FBS in 8-well Lab-Tek chambers and Dox-induced for 1.5 days before imaging. Cells were serum starved for at least 12 hr prior to data acquisition.

Single-particle tracking was performed on a custom single-molecule localization microscopy setup, as previously described (Creech et al., 2017). Briefly, the setup was constructed around a Nikon Ti-U microscope, equipped with a high numerical aperture (NA) objective lens (Nikon 60x, NA = 1.49 oil immersion) for total internal reflection fluorescence (TIRF) imaging, lasers emitting at 405 nm (Coherent, OBIS) and 561 nm (Opto-Engine) for photoactivation and excitation, respectively, and an electron-multiplied charge-coupled display (EM-CCD, Andor iXon+) for single molecule detection. All image acquisition was done using micro-manager (Edelstein et al., 2014) (RRID:SCR_000415) and processed using in-house Matlab scripts (Creech et al., 2017).

Particle density optimization

Request a detailed protocol

We found that particle densities higher than 0.03 µm−2 per frame under our experimental conditions (12 ms/frame with the fastest diffusion rate at ~1 µm2/s) led to occasionally misconnected trajectories, and that even a small fraction of such misconnected trajectories could lead to incorrect model outputs with vbSPT (Figure 1—figure supplements 2 and 3, and 5). In addition, the threshold for maximum displacement between adjacent frames also had an impact on trajectory misconnection, although to a lesser extent for the values tested using simulated trajectories (Figure 1—figure supplements 2 and 3). Thus, for diffusion model construction, we chose to use a high frame rate (12 ms/frame) and a low particle density (<0.03 µm−2) to eliminate misconnected trajectory segments while maintaining a sufficient number of trajectories. However, it is beneficial to obtain more trajectories to accurately infer the model parameters with vbSPT (RRID: SCR_017554), especially for the transition probabilities (Persson et al., 2013). As demonstrated in Figure 6—figure supplement 1, the diffusion coefficients and the occupancies typically converged with only a few thousand trajectories, but the transition probabilities required significantly more trajectories to converge. Thus, we usually acquired spt-PALM data at higher particle densities once the model size has been defined; for these datasets, we could safely enforce a three-state model during vbSPT data analysis, since the diffusion model should not depend on the rates of frame acquisition rate and photoactivation. This strategy allowed more flexibility in spt-PALM data acquisition and robustness in the subsequent analyses.

Trajectory connection for single particle tracking

Request a detailed protocol

We constructed single-molecule diffusion trajectories of PAmCherry1-KRasG12D by connecting the centroid positions of the same particles in successive frames. Particles in adjacent frames were deemed to be the same particle if their centroids were within a certain threshold distance. To define the threshold distance, we first constructed the trajectories using a large (~2,000 nm) distance, from which a step size histogram could be obtained (see Figure 1—figure supplement 3). The step size histogram from PAmCherry1-KRasG12D typically consists of two segments; signal and noise. The first segment comprises the signal with the first peak around ~70 nm and extending to ~500 nm, and all step sizes beyond ~500 nm was attributed to noise originating from misconnected trajectories generated by the unrealistically large threshold distance. Based on this histogram, we reconstructed the diffusion trajectories using 500 nm as the threshold distance for 12 ms frame acquisition, and 800 nm for 35 ms frame rate movies (using the same method). A new step size histogram was then obtained, which was essentially identical to the first segment of the original step size histogram, confirming that the new threshold distance eliminated most of the misconnected trajectories. The step size histograms of trajectories obtained under the same conditions were also highly consistent, allowing us to set the same threshold value for each condition. Trajectories were terminated if multiple particles were found within the threshold distance in the next frame. Further, all movies acquired at 12 ms frame rate had the additional constraint of having fewer than 0.03 particles/µm2 for every frame to lower the chance of misconnecting two different particles in adjacent frames. Thus, all resulting trajectories were constructed without ambiguity.

2D Markov simulation

Request a detailed protocol

We relied on 2D simulations that mimic experimental observations for both experiment optimization and as controls for some of the analysis. Simulations were used to determine the thresholds used for trajectory synthesis (particle density threshold as shown in Figure 1—figure supplement 2, and connection distance threshold as shown in Figure 1—figure supplement 3), as well as a negative control to test the null hypothesis for spatial clustering (Figure 2 and 3) and equilibrium state analysis (Figure 4).

The inputs to the simulations were experimentally derived diffusion parameters: number of trajectories, diffusion coefficients, occupancies, transition matrix, frame rate, and the trajectory density. The trajectory density and the number of trajectories are used to determine the width of the simulation space. At the start of the simulation, every particle is randomly assigned a coordinate and a state based on the occupancies. Once a state is assigned, particles are assigned new coordinates by drawing displacements for each dimension from the corresponding X ~ N(0, 2Dt), where each state has a different diffusion coefficient. At the next time step, a new state is randomly assigned to every particle based on its current state and the transition probability matrix. This process is repeated for the total simulation time. When the simulation was used as the negative control (Figures 2, 3 and 4), the simulation was run for every single movie acquired and the results were compared to the experiment.

State assignment and averaging

Request a detailed protocol

States for each trajectory segment were assigned using vbSPT (contained in field est2.sMaxP, refer to the vbSPT manual). The state assignment is based on trajectory displacements, not the coordinates (e.g. if a trajectory has three coordinates, then two states are returned for the two steps). In order to prevent over counting for the pair correlation analysis (Figure 2 and 3), in the case of a single molecule staying in the same domain for multiple frames, we averaged all of the coordinates (including both ends) that were assigned the same state for consecutive time points in a single trajectory.

Pair correlation function

Request a detailed protocol

Pair correlation function, or g(r), in general, measures the deviation of the particle density from the expected value from a reference particle as a function of distance. More specifically, g(r) was calculated for each particle by counting the number of other particles within a circular shell at distance of r and r + 10 nm and dividing by the expected number of particles assuming uniform distribution. Therefore, when the observed number of particles for a given distance is equal to the expected number of particles given complete spatial randomness, g(r)=1 and signifies random distribution of particles. Accordingly, g(r)>1 indicates clustering behavior since there are more observed particles around each particle than expected, and g(r)<1 represents cases where there are fewer particles than expected. Every movie was sliced into non-overlapping time segments (1, 5, 10, 20 min) and the average position for each state segment was extracted (as described in State Classification and Averaging) such that every coordinate represented a continuous track for an individual particle in a domain. Therefore, the coordinates used to calculate the pair correlation function represented either different particles that visited the same domain or the same particle that left the domain and returned at a later time. The resulting coordinates were separated into each of the three states, and the g(r) was calculated for the coordinates of a given state within the given time slice. In cross pair correlation function analysis, g(r) was calculated for a given pair of different states.

Statistical analysis

Request a detailed protocol

Sample size is shown for each figure in the figure captions as ‘n’ and was not predetermined. All results on model parameters and subsequent quantifications such as mass-flow rates are shown as arithmetic mean ±95% confidence interval. Spt-PALM datasets with insufficient number of trajectories to fully fit up to a 10-state model (e.g. Figure 1E) using vbSPT were discarded. The full raw dataset, including an outlier with abnormally long average trajectory length and all the discarded datasets are presented in Figure 6—figure supplement 1.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
    Ras Nanoclusters: versatile lipid-based signaling platforms
    1. Y Zhou
    2. JF Hancock
    (2015)
    Biochimica Et Biophysica Acta (BBA) - Molecular Cell Research 1853:841–849.
    https://doi.org/10.1016/j.bbamcr.2014.09.008
  66. 66

Decision letter

  1. Roger J Davis
    Reviewing Editor; University of Massachusetts Medical School, United States
  2. Philip A Cole
    Senior Editor; Harvard Medical School, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Lee and colleagues utilize high throughput spt-PALM combined with rigorous analysis approaches to determine the diffusion characteristics of an active mutant of Kras on live cell membranes. They report three diffusion states and identified a previously unidentified intermediate mobile state. They provide evidence for distinct membrane domains corresponding to different diffusion states and show that the transition from the fast state to immobile state has to go through the intermediate state. They further suggest that KRas is depleted from the membrane via the immobile state and replenished to the fast state via endocytosis and recycling. This work provides several new insights into the membrane behaviors of KRas. The experimental approaches are thorough and rigorous.

Decision letter after peer review:

Thank you for submitting your article "High-throughput single-particle tracking reveals nested membrane nanodomains that dictate Ras diffusion and trafficking" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Philip Cole as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Essential revisions:

1) KRas has two different isoforms (KRas4A and KRas4B) and various mutant forms. Considering that different KRas versions may have different diffusion characteristics, please include the specific information of the KRas construct used in this study and provide the rationale on focusing on the G12D mutant. Moreover, since the analysis is restricted to KRasG12D, this should be acknowledged in the title and Abstract.

2) The interpretation of the 3 states identified by the vbSPT analysis that underpin the model proposed in Figure 7 is unclear. Intuitively one would expect that a molecule that goes from a fast diffusion state to immobilization may transit through an intermediate diffusion state and the question arises to what extent the method and SPT imaging parameters influence the identification of the third intermediate state. The transition rates and the spatial correlation between the intermediate diffusion state and the slow/immobile state could also arise from analyzing trajectories without the necessary simultaneous high spatial and temporal resolution so that molecules transition from free to immobile appear to be in a third intermediate state due to the limited resolution. Can the authors exclude this possibility and ensure that the statement that the third state is 'an obligatory link' is not an overinterpretation?

3) What are the domains sizes when the data were taken with 12 ms/frame rates (subsection “KRas diffusion states correspond to distinct membrane domains”, third paragraph)? Are the data of the step angles (Figure 3D) consistent with domain sizes of <70 nm for immobile diffusion given the localization precision of the experiment?

4) The authors speculate that the transition between the intermediate into the immobile state could be caused by conformational changes or transient binding events (or both). However, both of these processes are much faster than the transition observed with spt-PALM. Further, there are alternative explanations for two spatially correlated diffusion states such as intermediate diffusion in membrane domains and protein-protein interactions within in these domains (immobile diffusion), interaction with cortical actin versus interaction with effector proteins etc.

5) Figure 5. The authors conclude KRas is in a non-equilibrium steady state (NESS). Could KRas at the plasma membrane be in an steady state equilibrium when one takes non-membrane bound KRAS into account that is not being detected? How is a NESS model consistent with the active mechanisms of multimer formation that is discussed later in the manuscript (subsection “KRas diffusion model is invariant over a range of expression levels”, first paragraph)?

6) The authors provide no evidence that the 'immobile domain' (i.e. the domains in which KRas is immobile, as distinct from the domains being immobile) are membrane invaginations as depicted in Figure 7.

7) To demonstrate that KRas is depleted from the membrane via the immobile state and replenished to fast state via endocytosis and recycling, experiments should be repeated with inhibition of the endocytic pathway.

8) The use of the dox-regulated expression system is good because this prevents over-expression problems. The data to support this is presented in Figure 1A. However, the endogenous and recombinant Ras proteins are presented in different strips – it is therefore not obvious how these should be compared. At a minimum, the figure legend text should state that the exposure times for the endogenous and recombinant Ras images were the same.

9) Are the transition rates influences by the (average) trajectory length i.e. the probability that a molecule undergoes transition? What is the average trajectory length?

https://doi.org/10.7554/eLife.46393.sa1

Author response

Essential revisions:

1) KRas has two different isoforms (KRas4A and KRas4B) and various mutant forms. Considering that different KRas versions may have different diffusion characteristics, please include the specific information of the KRas construct used in this study and provide the rationale on focusing on the G12D mutant. Moreover, since the analysis is restricted to KRasG12D, this should be acknowledged in the title and Abstract.

We completely agree and have updated the manuscript accordingly, including the title, the Abstract, the main text and all the figure legends, to reflect the specific isoform and mutant form used in the current work.

The reason that we focused on KRasG12D in this study was two-fold. First, the G12D mutant is constitutively active, making it convenient to study potential connections between Ras diffusion and signaling via perturbations (e.g. dynamin inhibition) without having to stimulate the cells with serum or growth factors first. Second, from our unpublished preliminary results, KRas WT and G12D appear to be highly similar – if not identical – in both spatial organization and diffusion dynamics, thus results on KRasG12D are actually representative of KRas properties in general. For considerations on the length and focus of this manuscript, we chose to not discuss KRas signaling or the comparison between KRas WT and G12D at this point; work in these directions is currently underway.

2) The interpretation of the 3 states identified by the vbSPT analysis that underpin the model proposed in Figure 7 is unclear. Intuitively one would expect that a molecule that goes from a fast diffusion state to immobilization may transit through an intermediate diffusion state and the question arises to what extent the method and SPT imaging parameters influence the identification of the third intermediate state. The transition rates and the spatial correlation between the intermediate diffusion state and the slow/immobile state could also arise from analyzing trajectories without the necessary simultaneous high spatial and temporal resolution so that molecules transition from free to immobile appear to be in a third intermediate state due to the limited resolution. Can the authors exclude this possibility and ensure that the statement that the third state is 'an obligatory link' is not an overinterpretation?

Thank you for bringing up this very important question, and our answer is yes – we are confident that the intermediate state is a true state and an obligatory link between the fast and the immobile states instead of an artefact of unresolved state mixing based on the evidence below,

- Spt-PALM data acquired at 35 ms/frame and those at 12 ms/frame gave rise to the same, 3-state diffusion model with consistent occupancy for all three states (Figure 2A and Figure 6—figure supplement 1). This suggests that the intermediate state is unlikely a result of insufficient time resolution that led to unresolved transitions between the fast and the immobile states, because we would have otherwise observed significantly higher occupancy for the intermediate state at 35 ms/frame. In fact, from the model presented in Figure 2A, it is clear that the transition probabilities between each pair of states were low (< 0.1 in each case), suggesting that state transitions were rare events compared with image acquisition, therefore the states could be clearly resolved at both 12 ms and 35 ms time resolutions.

- To also exclude the possibility that insufficient spatial resolution (or localization precision in this case) caused an artefactual ‘intermediate’ state, we have performed additional computer simulations to define the impact of localization error on vbSPT model output.

The details of the simulations could be found in the new Figure 1—figure supplement 4. Results from these simulations show that, even at localization errors as high as 100 nm, vbSPT will not yield a three-state model if the underlying diffusion follows two states (see Figure 1—figure supplement 4A). Of note, the single-molecule localization errors in our experiments were typically around 25 nm (at 35 ms/frame) to 40 nm (at 12 ms/frame). Thus, we do not think that the intermediate state was a result of insufficient spatial resolution (precision) either.

- We are also confident about the three-state model because of the consistency across the data acquired from different cells and even under different Dox concentrations, when spt-PALM data were acquired under optimal image acquisition conditions (Figure 1). As we also discussed in the manuscript, even when spt-PALM data were acquired under non-optimal conditions (e.g. particle density too high), at which point vbSPT model output would exhibit significant variability, the resulting diffusion coefficients for all the states still clustered around three values: ~0.05 µm2/s, ~0.25 µm2/s, and ~0.80 µm2/s. These results further suggest that KRasG12D indeed exhibits three diffusion states.

- Last but not least, the three-state model was confirmed independently by Dr. Thomas Turbyville and colleagues at the NCI RAS Initiative, where they have used a different tagging strategy (the Halo-tag) that afforded single-molecule tracking at 5 ms/frame. This personal communication after we completed the manuscript and did not play a role in how we defined our diffusion model, it offers additional evidence for our conclusions.

In retrospect, we did not arrive at this consistent three-state model without substantial efforts. The major obstacle, as alluded above and also pointed out by the reviewer, was that the imaging and data processing parameters did have an impact on the consistency of the model output. That was why we focused on the importance of carefully controlling the data acquisition conditions in the first subsection in Results (with 6 figure supplements to Figure 1), with the hope to inform fellow scientists of the steps necessary to accurately define the diffusion model using spt-PALM and vbSPT.

As the reviewer also alluded to, the fact that the various datasets all led to a three-state model with define state transition path should not be just a coincidence. It may represent organizationally and biophysically plausible scenario for membrane proteins to transition from a fast (F) state to an immobile (I) state by going through an intermediate (N) state, which could otherwise be an abrupt change in mobility. While we do not have data for a large number of membrane proteins to certify the generality of this statement, our preliminary data indicate that the same applies to both KRAS WT. A recent study on b2-adrenergic receptor (Schwenzer et al., bioRxiv; http://dx.doi.org/10.1101/406488; posted on September 3, 2019) also revealed a similar scenario where the receptor transitions between the F state and the I state via an N state (see Figure 3 therein). Thus, the same three-state configuration may be more generally applicable to many other targets.

We have updated our manuscript based on the discussions above.

3) What are the domains sizes when the data were taken with 12 ms/frame rates (subsection “KRas diffusion states correspond to distinct membrane domains”, third paragraph)? Are the data of the step angles (Figure 3D) consistent with domain sizes of <70 nm for immobile diffusion given the localization precision of the experiment?

The average domain sizes for the intermediate and the immobile states were measured to be ~80 nm and ~100 nm when the images were acquired at 12 ms/frame (Figure 2F, inset), and hence our statement ‘… The distinction between the two domains became much less significant with data taken at 12 ms/frame. …’. Apologies for missing the word ‘less’ in our original text, which has now been corrected. Prompted by this question, we have also revised the following sentence ‘… which we attribute to the low localization precision of PAmCherry1 molecules at this fast frame rate …’ to ‘…which we attributed to the shorter trajectory durations (~50 ms at 12 ms/frame compared to ~175 ms at 35 ms/frame; see Figure 1—figure supplement 1), which in turn was due to the lower photon yield per frame from single PAmCherry1 molecules at this fast frame rate’.

The way that we estimated the domain size associated with a specific diffusion state of KRasG12D was to measure the maximum distance between two localizations of KRasG12D while in the state. Thus, the measured domain size depends on three factors: the actual domain size, the spatial precision, and lastly the efficiency of domain sampling. While moving within a membrane domain, PAmCherry1-KRasG12D molecules report their locations to ‘paint’ the outline of the domain; the longer these molecules can be tracked, the better sampling of the domain is, and the more accurate the estimated domain size is. Thus, for domain size measurements, data taken at 35 ms/frame will be more reliable because of the better spatial precision and the longer duration of the trajectories (~175 ms on average at 35 ms/frame vs. ~50 ms on average at 12 ms/frame). In comparison, domain sizes measured from data taken at ~12 ms/frame will have smaller contributions from the actual motions of the molecules and instead be dominated by localization precision (~40 nm localization error, or 40*sqrt(2) ~ 56 nm error for point-to-point measurements) for both the immobilization and the intermediate domains. This resulted in a much smaller difference between the estimated sizes for the two domains from data taken at 12 ms/frame; it is also part of the reason why we combined information from both frame rates depending on the type of analysis.

The precision of step angle measurements (Figure 3D) will be affected by the localization error, particularly when the steps are short (relative to the localization error). That said, the localization error will add uncertainty to all measured step angles in an unbiased manner. Thus, the overall distribution of the step angle (not individual angles) would be similar to the true distribution, especially when the sample size is large as in our case (e.g. >50k for each domain with pooled data). This explains why we were able to observe clear differences in the step angle distributions for the fast, the intermediate, and the immobile states of KRASG12D.

Based on this analysis, we think that the step angle distributions reflect the nature of the interactions between KRasG12D and the respective membrane domains. In particular, the small size (<70 nm) of the immobilization domain is consistent with the observed enrichment of acute angles (Figure 3D). This is because the preference for acute angles is primarily associated with the domain boundary (if the molecules prefer to stay within the current domain instead of crossing over to another; it’d be the opposite if the molecules prefer to escape). By contrast, for steps inside the domain, there would be no preference for any particular angles. Thus, the smaller the domain, the higher probability the molecules will hit the boundary during diffusion, and the stronger the preference for acute angles (again, if the molecules prefer to stay within the current domain). This should also explain why the enrichment of acute angles for the intermediate domain is not as significant as the immobilization domain.

4) The authors speculate that the transition between the intermediate into the immobile state could be caused by conformational changes or transient binding events (or both). However, both of these processes are much faster than the transition observed with spt-PALM. Further, there are alternative explanations for two spatially correlated diffusion states such as intermediate diffusion in membrane domains and protein-protein interactions within in these domains (immobile diffusion), interaction with cortical actin versus interaction with effector proteins etc.

Apologies for the confusion. We did not mean to exclude other mechanisms that could give rise to the various diffusion states of KRASG12D. Our work focused on the role of membrane organization – that is, the nanodomains – in governing the diffusion and trafficking of KRASG12D. The mechanisms through which the nanodomains confer different mobilities for KRASG12D are currently unknown. As pointed out by the reviewers, conformational changes, transient binding (including that to proteins, lipids, or other types of molecules), and molecular packing, could all impact KRASG12D diffusion. Thus, KRASG12D diffusion state transitions can be viewed as domain crossing events potentially accompanied by conformational changes, transient binding events (including that with cortical actin), or other events.

We would also like to use this opportunity to clarify that, although conformational changes and transient binding events are expected to be much faster than our frame rate (12 ms/frame or slower), distinct states can be captured and resolved as long as the molecules stay in each state sufficiently long. For example KRASG12D stayed in each state for a few 100 ms on average (judging from the state transition rates in Figure 2A), thus the individual states can be captured at 12-35 ms/frame with little ambiguity. We continue to work on improving the spatial and temporal resolution of spt-PALM experiments, such that even more details during state transitions can be captured, to help address questions including whether there are multiple types of immobilization and/or intermediate domains.

5) Figure 5. The authors conclude KRas is in a non-equilibrium steady state (NESS). Could KRas at the plasma membrane be in an steady state equilibrium when one takes non-membrane bound KRAS into account that is not being detected?

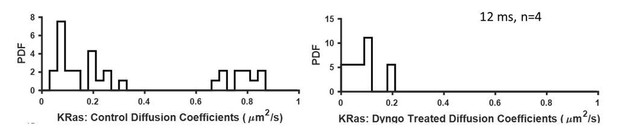

Yes, we think that membrane-bound and cytoplasmic KRAS should be in an equilibrium steady state as a whole (unless there is significant loss of KRAS from this system via processes such as exocytosis).

While the sub-system of membrane-bound KRAS is in a non-equilibrium steady state, the whole system comprising both membrane-bound (detected by TIRF) and cytoplasmic (not detected by TIRF) KRAS should constitute an equilibrium steady state. Here, the cytoplasmic compartment serves to receive KRAS removed from the cell membrane (likely via the immobile state) and replenish KRAS to the cell membrane (at membrane locations that support fast diffusion), establishing a ‘cycle’ of KRAS trafficking through which an equilibrium can be maintained. In fact, the continuous exchange of Ras proteins between the plasma membrane and the cytoplasm has been observed on HRAS and NRAS (Rocks et al., 2005) and more recently on KRAS (Schmick et al., 2014; 2015). Our data and model are consistent with the previous reports on RAS trafficking.

How is a NESS model consistent with the active mechanisms of multimer formation that is discussed later in the manuscript (subsection “KRas diffusion model is invariant over a range of expression levels”, first paragraph)?

At present we do not have sufficient data to conclude on the relationship between the NESS model and the mechanisms of KRAS multimer formation. How RAS forms multimers still remains unclear and was only touched upon in our work. What our data revealed was that nanodomain localization and multimer formation are likely correlated processes, because the fraction of KRAS in multimers (from previous reports) and that in nanodomains (from our data) are both constant over a broad range of KRAS expression levels. In addition, the fact that membrane-bound KRASG12D is in a NESS begs for re-examination of previous models for RAS multimer formation, since previous active or passive models assumed an equilibrium steady state for membrane-bound RAS. This may change current views in the field that disfavor the passive mechanisms (which would have resulted in an expression level-dependent fraction of clustered RAS in an equilibrium system), but a more systematic investigation would be necessary to better define how RAS forms multimers.

6) The authors provide no evidence that the 'immobile domain' (i.e. the domains in which KRas is immobile, as distinct from the domains being immobile) are membrane invaginations as depicted in Figure 7.

There were indeed no data provided to prove that the KRasG12D immobilization domains are membrane invaginations in Figure 7. For the scope of this work, we meant to depict some potential scenarios where KRAS could be internalized. In addition to the membrane invaginations, we also drew some immobilization domains as ‘flat’ membrane regions in the original Figure 7. These scenarios were included because previous literature reports suggested that although endocytosis is primarily responsible for KRAS internalization, non-endocytic mechanisms should not be ruled out (Schmick et al., 2014; 2015). The same papers described how recycling vesicles return KRAS to the plasma membrane. We did not mean to dive into this subject here other than citing literature.

To clarify the purpose of having Figure 7, we have modified the schematic to reflect the facts a) that both endocytic and non-endocytic compartments (both potentially linked to the KRAS immobilization domains) could be involved; and b) that the exact mechanisms through which KRASG12D is removed from the immobilization is currently unknown (hence the question marks). We have also softened the language in relevant sections.

7) To demonstrate that KRas is depleted from the membrane via the immobile state and replenished to fast state via endocytosis and recycling, experiments should be repeated with inhibition of the endocytic pathway.

Analyzing KRASG12D diffusion in the presence of endocytosis inhibitors is a great suggestion. We actually performed such experiments but chose not to include the data in this manuscript because we would like to focus on the nested nanodomains and the NESS model. For the importance of this issue, we would like to discuss some of our preliminary results (Author response image 1). These results also suggest that identifying the sites of KRAS immobilization, internalization, and recycling would require a larger body of work (which is currently underway). For the current work, we have modified the text to clearly state ‘KRASG12D immobilization sites are linked to endocytosis’ as a hypothesis based on literature evidence instead of a conclusion at present.

Author response image 1
Effect of dynamin inhibition (with Dyngo 4a) on KRasG12D diffusion.

Shown in the plots were diffusion constants for all detected states by vbSPT. Untreated cells (left) were used as control (similar to that shown in Figure 1—figure supplement 5C). Right, U2OS-PAmCherry1-KRasG12D cells were treated with Dyngo 4a (50 µM) for 30 min prior to spt-PALM and imaged for another 30 min before switching to a new sample.

In preliminary studies, we found that treatment with a dynamin inhibition (dyngo 4a) trapped all KRASG12D in the immobile state (see Author response image 1). After dynamin treatment, KRASG12D accumulates on the membrane (data not shown) and interestingly, the majority of KRASG12D molecules become immobile. Dynamin is involved in many types of endocytic vesicles. Thus, the trapping of KRASG12D in the immobile state could suggest that a) stopping KRASG12D internalization cuts off recycling but not accumulation of KRAS to the immobile state; and b) that pre-endocytic membrane structures may be sufficient to trap KRASG12D.

Using correlative superresolution microscopy, we also obtained preliminary evidence that KRASG12D may interact with multiple types of potentially ‘static’ membrane structures, some of which membrane vesicles adherent to the cortical actin, potentially serving as KRAS immobilization sites (https://doi.org/10.1017/S1431927619006834). We expect this complete body of work will be shared with the community in the near future.

8) The use of the dox-regulated expression system is good because this prevents over-expression problems. The data to support this is presented in Figure 1A. However, the endogenous and recombinant Ras proteins are presented in different strips – it is therefore not obvious how these should be compared. At a minimum, the figure legend text should state that the exposure times for the endogenous and recombinant Ras images were the same.

The strips in the original western blot (as in the original Figure 1A) did have the same exposure, which led to the estimation that exogenous KRASG12D and endogenous KRAS levels were comparable at 2 ng/mL Dox. Prompted by this question, we have re-examined the western blot results and decided not to make this statement based on existing results.

Specifically, in reviewing the original data, we realized that there was a technical glitch that made all the bands appear as doublets (including the RAS bands), which should not have been the case based on our past experience and literature. We thus have re-run the western blot to correct for the issue. For the new western blot, we had to use a different RAS antibody (Abcam ab55391) because the original antibody had recently been discontinued (sc-521; product link https://www.scbt.com/p/k-ras-2b-antibody-c-19?requestFrom=search). The relative abundance between the endogenous KRAS and PAmCherry1-KRASG12D appeared to be different from what we observed using sc-521. The origin of this difference is unclear to us at present, but it could be due to differences in specificity (Waters et al., Sci. Signal., v10, 2017; http://doi.org/10.1126/scisignal.aao3332). In light of this, we have changed the text to reflect the fact the western blots were only semi-quantitative in quantifying the relative abundance of the endogenous vs. exogenous KRAS, particularly when the isoform specificity of the antibodies is not as well defined.

9) Are the transition rates influences by the (average) trajectory length i.e. the probability that a molecule undergoes transition? What is the average trajectory length?

When using vbSPT to analyze spt-PALM data, the average trajectory length does have an impact on the extracted model parameters. In general, the longer the average trajectory, the more accurate the model parameters are (Persson et al., 2013). Thus, it is better to use datasets with longer average trajectory length. That said, the effect seems modest and only becomes significant at trajectory lengths of >100 (data points), which is impractical in most spt-PALM experiments using fluorescent proteins.

For example, for PAmCherry1-KRASG12D spt-PALM, the average trajectory lengths were ~4 frames and ~5 frames for data acquired at 12 ms/frame and 35 ms/frame, respectively (Figure 1—figure supplement 1) under our imaging conditions. These values were typical of spt-PALM experiments using fluorescent proteins (see the Persson et al. reference above). The vbSPT algorithm was actually developed to specifically address this challenge (among others); it is able to resolve events at a time scale as long as 10x the average trajectory length, thanks to the stochastic nature of the events, the large number of trajectories, and the presence of a reasonable number of long trajectories. Therefore, longer SPT trajectories could indeed reveal additional events not captured by our current experimental configuration.

To investigate how the average trajectory length would impact the transition rates, we have taken a group of datasets (12 ms/frame; minimum 10,000 trajectories) and deleted all trajectories shorter than 5 frames. Of these, 6 datasets remained to still contain a sufficient number of trajectories (4,000 – 7,500 trajectories each) for vbSPT to run successfully. These correspond to about ~1/4 of the original number of trajectories in each case. Analyzing the filtered datasets yielded a similar diffusion model (see Author response image 2), demonstrating a net mass flow within the system in the same direction and with similar amplitudes. Also similar are the lack of transitions between the F state and the I state as well as the roughly balanced in-and-out flows of the N state.

Author response image 2
Diffusion model (left) and net mass flow analysis (right) using filtered spt-PALM data after removing trajectories shorter than 5 frames.

However, we need to point out that, while 4,000-7,500 trajectories are typically sufficient for vbSPT to converge on the model size and the diffusion constants, they are usually NOT sufficient for vbSPT to converge on the transition rates. Thus, despite the similarities between the resulting model (Author response image 2) and that shown in Figure 2A, there are some differences in the transition rates. With the limited information at hand, it is difficult to assess which approach is better for ensuring accurate transition rate computation – using long trajectories, or a larger number but somewhat shorter trajectories. Since it is usually difficult to increase the trajectory length, the common approach is to try use a larger number of shorter trajectories as we did in this work. That said, we are experimenting with other tagging strategies (e.g. SNAP and Halo tags) so organic fluorophores can be used to allow for acquisition of longer trajectories.

https://doi.org/10.7554/eLife.46393.sa2

Article and author information

Author details

  1. Yerim Lee

    1. Department of Biomedical Engineering, Oregon Health and Science University, Portland, United States
    2. OHSU Center for Spatial Systems Biomedicine (OCSSB), Oregon Health and Science University, Portland, United States
    Contribution
    Data curation, Software, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0164-5551
  2. Carey Phelps

    1. Department of Biomedical Engineering, Oregon Health and Science University, Portland, United States
    2. OHSU Center for Spatial Systems Biomedicine (OCSSB), Oregon Health and Science University, Portland, United States
    Contribution
    Data curation, Software, Formal analysis, Visualization, Methodology
    Competing interests
    No competing interests declared
  3. Tao Huang

    1. Department of Biomedical Engineering, Oregon Health and Science University, Portland, United States
    2. OHSU Center for Spatial Systems Biomedicine (OCSSB), Oregon Health and Science University, Portland, United States
    Contribution
    Data curation, Software, Formal analysis, Visualization
    Competing interests
    No competing interests declared
  4. Barmak Mostofian

    1. Department of Biomedical Engineering, Oregon Health and Science University, Portland, United States
    2. OHSU Center for Spatial Systems Biomedicine (OCSSB), Oregon Health and Science University, Portland, United States
    Contribution
    Formal analysis, Visualization, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0568-9866
  5. Lei Wu

    1. Department of Biomedical Engineering, Oregon Health and Science University, Portland, United States
    2. OHSU Center for Spatial Systems Biomedicine (OCSSB), Oregon Health and Science University, Portland, United States
    3. Department of Oral Maxillofacial-Head Neck Oncology, School and Hospital of Stomatology, Wuhan University, Wuhan, China
    Contribution
    Data curation, Investigation
    Competing interests
    No competing interests declared
  6. Ying Zhang

    1. Department of Biomedical Engineering, Oregon Health and Science University, Portland, United States
    2. OHSU Center for Spatial Systems Biomedicine (OCSSB), Oregon Health and Science University, Portland, United States
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  7. Kai Tao

    1. Department of Biomedical Engineering, Oregon Health and Science University, Portland, United States
    2. OHSU Center for Spatial Systems Biomedicine (OCSSB), Oregon Health and Science University, Portland, United States
    Contribution
    Data curation, Investigation
    Competing interests
    No competing interests declared
  8. Young Hwan Chang

    1. Department of Biomedical Engineering, Oregon Health and Science University, Portland, United States
    2. OHSU Center for Spatial Systems Biomedicine (OCSSB), Oregon Health and Science University, Portland, United States
    Contribution
    Software, Methodology
    Competing interests
    No competing interests declared
  9. Philip JS Stork

    Vollum Institute, Oregon Health and Science University, Portland, United States
    Contribution
    Resources, Methodology
    Competing interests
    No competing interests declared
  10. Joe W Gray

    1. Department of Biomedical Engineering, Oregon Health and Science University, Portland, United States
    2. OHSU Center for Spatial Systems Biomedicine (OCSSB), Oregon Health and Science University, Portland, United States
    Contribution
    Resources, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9225-6756
  11. Daniel M Zuckerman

    1. Department of Biomedical Engineering, Oregon Health and Science University, Portland, United States
    2. OHSU Center for Spatial Systems Biomedicine (OCSSB), Oregon Health and Science University, Portland, United States
    Contribution
    Supervision, Methodology, Writing—review and editing
    For correspondence
    zuckermd@ohsu.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7662-2031
  12. Xiaolin Nan

    1. Department of Biomedical Engineering, Oregon Health and Science University, Portland, United States
    2. OHSU Center for Spatial Systems Biomedicine (OCSSB), Oregon Health and Science University, Portland, United States
    3. Knight Cancer Early Detection Advanced Research (CEDAR) Center, Oregon Health and Science University, Portland, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    nan@ohsu.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0597-0255

Funding

National Institutes of Health (U54 CA209988)

  • Young Hwan Chang
  • Joe W Gray
  • Xiaolin Nan

National Science Foundation (MCB1715823)

  • Daniel M Zuckerman

Damon Runyon Cancer Research Foundation

  • Xiaolin Nan

M.J. Murdock Charitable Trust

  • Joe W Gray
  • Xiaolin Nan

Prospect Creek Foundation

  • Joe W Gray
  • Xiaolin Nan

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors would like to thank many colleagues for their helpful discussions, including those at OHSU (Drs. Laura Heiser, Xubo Song, Molly Kulesz-Martin, Pamela Cassidy, and others) and at the Frederick National Laboratory for Cancer Research (Drs. Frank McCormick (also at UCSF), Thomas Turbyville, Dwight Nissley, and others). Research in the Nan lab was supported by startup funds from the Knight Cancer Institute at OHSU, the Damon Runyon Cancer Research Foundation, the M J Murdock Charitable Trust, and the Prospect Creek Foundation. XN is also supported by a Cancer Systems Biology Consortium (CSBC) grant (U54 CA209988, PI: Joe Gray) and by the Knight Caner Early Detection Advanced Research (CEDAR) Center at OHSU. YL is currently supported by OHSU Center for Spatial Systems Biomedicine (OCSSB). DMZ acknowledges support from the OCSSB and the National Science Foundation under grant MCB 1715823. We also thank Ms. Julia Shangguan (Nan Lab) for graphic illustrations and Dr. Martin Lindén (University of Uppsala) for helpful discussions on vbSPT.

Senior Editor

  1. Philip A Cole, Harvard Medical School, United States

Reviewing Editor

  1. Roger J Davis, University of Massachusetts Medical School, United States

Publication history

  1. Received: February 26, 2019
  2. Accepted: October 30, 2019
  3. Accepted Manuscript published: November 1, 2019 (version 1)
  4. Version of Record published: March 6, 2020 (version 2)

Copyright

© 2019, Lee et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,681
    Page views
  • 318
    Downloads
  • 4
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Physics of Living Systems
    Elizabeth Eck et al.
    Research Article

    Thermodynamic models of gene regulation can predict transcriptional regulation in bacteria, but in eukaryotes chromatin accessibility and energy expenditure may call for a different framework. Here we systematically tested the predictive power of models of DNA accessibility based on the Monod-Wyman-Changeux (MWC) model of allostery, which posits that chromatin fluctuates between accessible and inaccessible states. We dissected the regulatory dynamics of hunchback by the activator Bicoid and the pioneer-like transcription factor Zelda in living Drosophila embryos and showed that no thermodynamic or non-equilibrium MWC model can recapitulate hunchback transcription. Therefore, we explored a model where DNA accessibility is not the result of thermal fluctuations but is catalyzed by Bicoid and Zelda, possibly through histone acetylation, and found that this model can predict hunchback dynamics. Thus, our theory-experiment dialogue uncovered potential molecular mechanisms of transcriptional regulatory dynamics, a key step toward reaching a predictive understanding of developmental decision-making.

    1. Physics of Living Systems
    William T Ireland et al.
    Research Article Updated

    Advances in DNA sequencing have revolutionized our ability to read genomes. However, even in the most well-studied of organisms, the bacterium Escherichia coli, for ≈65% of promoters we remain ignorant of their regulation. Until we crack this regulatory Rosetta Stone, efforts to read and write genomes will remain haphazard. We introduce a new method, Reg-Seq, that links massively parallel reporter assays with mass spectrometry to produce a base pair resolution dissection of more than a E. coli promoters in 12 growth conditions. We demonstrate that the method recapitulates known regulatory information. Then, we examine regulatory architectures for more than 80 promoters which previously had no known regulatory information. In many cases, we also identify which transcription factors mediate their regulation. This method clears a path for highly multiplexed investigations of the regulatory genome of model organisms, with the potential of moving to an array of microbes of ecological and medical relevance.
