Structure of the Helicobacter pylori Cag type IV secretion system

  1. Jeong Min Chung
  2. Michael J Sheedlo
  3. Anne M Campbell
  4. Neha Sawhney
  5. Arwen E Frick-Cheng
  6. Dana Borden Lacy  Is a corresponding author
  7. Timothy L Cover  Is a corresponding author
  8. Melanie D Ohi  Is a corresponding author
  1. University of Michigan, United States
  2. Vanderbilt University School of Medicine, United States
  3. University of Michigan School of Medicine, United States
  4. Veterans Affairs Tennessee Valley Healthcare System, United States
Research Article
  • Cited 0
  • Views 2,657
  • Annotations
Cite this article as: eLife 2019;8:e47644 doi: 10.7554/eLife.47644

Abstract

Bacterial type IV secretion systems (T4SSs) are molecular machines that can mediate interbacterial DNA transfer through conjugation and delivery of effector molecules into host cells. The Helicobacter pylori Cag T4SS translocates CagA, a bacterial oncoprotein, into gastric cells, contributing to gastric cancer pathogenesis. We report the structure of a membrane-spanning Cag T4SS assembly, which we describe as three sub-assemblies: a 14-fold symmetric outer membrane core complex (OMCC), 17-fold symmetric periplasmic ring complex (PRC), and central stalk. Features that differ markedly from those of prototypical T4SSs include an expanded OMCC and unexpected symmetry mismatch between the OMCC and PRC. This structure is one of the largest bacterial secretion system assemblies ever reported and illustrates the remarkable structural diversity that exists among bacterial T4SSs.

https://doi.org/10.7554/eLife.47644.001

eLife digest

Helicobacter pylori is a species of bacterium that can colonize the human stomach, causing changes that greatly increase the risk of ulcers and stomach cancer. Some strains of H. pylori produce a protein called CagA, which alters how stomach cells grow and divide. The bacterium injects CagA directly into stomach cells using a syringe-like structure called a type IV secretion system.

Type IV secretion systems are found in many species of bacteria and are involved in a variety of processes, including the exchange of genes between neighboring bacteria. The systems typically have at least 12 components. Previous studies have revealed how the components of some of these systems fit together to form working machines. However, the type IV secretion system that delivers CagA (called the Cag T4SS) contains additional components and it remains unclear how these components are organized in the structure.

A technique called cryo-electron microscopy uses electrons to visualize proteins that have been rapidly frozen so they can be captured and imaged in their natural shape and form. Chung, Sheedlo et al. extracted the Cag T4SS apparatus directly from H. pylori and used cryo-electron microscopy to determine its shape to a high level of detail. These images were then used to build a detailed model of the Cag T4SS that included many of its components.

The model shows that the Cag T4SS is larger and more complex than other type IV secretion systems that have been studied previously. Therefore, Chung, Sheedlo et al. propose that the Cag T4SS is specially adapted to work in the stomach.

These findings open the door for future research to define how individual components of the Cag T4SS help to inject CagA into stomach cells. In addition, future research will allow researchers to understand how the type IV secretion systems found in different bacterial species carry out a wide range of roles.

https://doi.org/10.7554/eLife.47644.002

Introduction

Bacterial pathogens are a threat to global health and have evolved elaborate strategies to infect their hosts. Many effects of bacteria on host cells require the actions of bacterial secretion systems. Bacterial type IV secretion systems (T4SS) are a diverse class of molecular machines that mediate interbacterial DNA transfer through conjugation as well as delivery of effector proteins into host cells. T4SSs are found in a wide range of bacterial species, including many species that cause human disease, such as Helicobacter pylori, Legionella pneumophila, Bordetella pertussis, Brucella, and Bartonella (Christie et al., 2014; Grohmann et al., 2018).

T4SSs in Gram-negative bacteria contain a minimum of 12 components (designated VirB1-VirB11 and VirD4 in prototype systems), organized into an outer membrane core complex (OMCC), an inner membrane complex (IMC), and in some species an extracellular pilus (Christie et al., 2014; Grohmann et al., 2018; Waksman, 2019). High-resolution structures have been determined for OMCCs from two minimized T4SSs (Xanthomonas citri T4SS and a portion of the OMCC from the pKM101 conjugation system) (Sgro et al., 2018; Chandran et al., 2009). T4SSs in several bacterial species, including Helicobacter pylori and Legionella pneumophila, contain additional components, which are not present in the minimized systems (Grohmann et al., 2018; Frick-Cheng et al., 2016; Schroeder, 2017; Ghosal et al., 2017; Chang et al., 2018; Chetrit et al., 2018; Ghosal et al., 2019; Hu et al., 2019). The H. pylori Cag T4SS is of particular interest because of its role in translocating CagA (a bacterial oncoprotein) into host cells, an important step in gastric cancer pathogenesis (Fischer, 2011; Backert et al., 2017). In addition to containing unique components, the H. pylori Cag T4SS has an OMCC much larger in size and more intricate than those in minimized systems, and contains a periplasmic sub-complex not seen in minimized T4SSs (Grohmann et al., 2018; Chang et al., 2018; Hu et al., 2019). Here we report the use of single particle cryo-EM to determine the structure of a transmembrane Cag T4SS complex extracted and purified from H. pylori. The structure can be divided into three major regions: the OMCC, a periplasmic ring complex (PRC), and a central stalk. The OMCC has a structural organization markedly different from that of T4SS OMCCs in other species, and there is an unexpected symmetry mismatch between the 14-fold-symmetric OMCC and a contiguous 17-fold-symmetric PRC. We propose that the observed structural differences between the Cag T4SS and previously described minimized T4SSs have important functional implications for how T4SSs secrete various kinds of effectors.

Results

Cag T4SS complexes were purified from H. pylori as described (Frick-Cheng et al., 2016) and visualized by single particle cryo-EM (Figure 1 and Figure 1—figure supplement 1A,B). The resulting structure is a large mushroom-shaped complex,~410 Å wide by ~460 Å long, with features that closely match those of the Cag T4SS detected in intact H. pylori using cryo-electron tomography (Chang et al., 2018; Hu et al., 2019) (Figure 1A,B). The global resolution of the map is 5.4 Å when no symmetry is imposed, with the highest resolution regions found near the center of the complex (Figure 1A and Figure 1—figure supplement 1C–E). Although particles adopt a preferred orientation in vitrified ice, both en face and side views are present, which allowed for 3D reconstruction (Figure 1—figure supplement 1B,F). The map can be divided into three major regions: an intricately organized domed cap that is associated with the outer membrane (OMCC), a hollow ring-like mid-region localized within the periplasm (PRC), and a tapered density that extends from the PRC to the inner membrane (Stalk) (Figure 1A and Video 1). Blurry density around the PRC, also visible in cryo-ET images (Chang et al., 2018; Hu et al., 2019), may represent a dynamic or less-structured portion of the T4SS (Figure 1B). Using symmetry, focused refinement, and symmetry expansion, we determined a 3.7 Å resolution map of the OMCC and a 3.5 Å map of the PRC (Figure 1C, Figure 1—figure supplement 2, Videos 2 and 3). The resolution of the OMCC and PRC maps made it possible to trace the secondary structure in these regions (Figure 1D and Videos 2 and 3). Since only a small number of T4SS particles seen in vitrified ice contained the Stalk density, it was not possible to determine the symmetry or obtain high resolution of this part of the complex. An axial section through the map in Figure 1D shows a large cavity running through the Cag T4SS, starting from where the OMCC spans the outer membrane (OM) and extending to the bottom of the PRC (Figure 1E,F). The tapered end of the Stalk begins in the PRC channel and continues through the inner membrane (IM). Models developed from cryo-ET analyses of both the H. pylori and L. pneumophila T4SSs propose a channel in this region of the complex (Ghosal et al., 2017; Chang et al., 2018; Chetrit et al., 2018; Ghosal et al., 2019; Hu et al., 2019). A central section through the longitudinal plane of 3D density suggests there may be a channel that runs through the Stalk (Figure 1B,F). However, due to the low resolution of the Stalk, this channel cannot be clearly visualized in the 3D map.

Figure 1 with 2 supplements see all

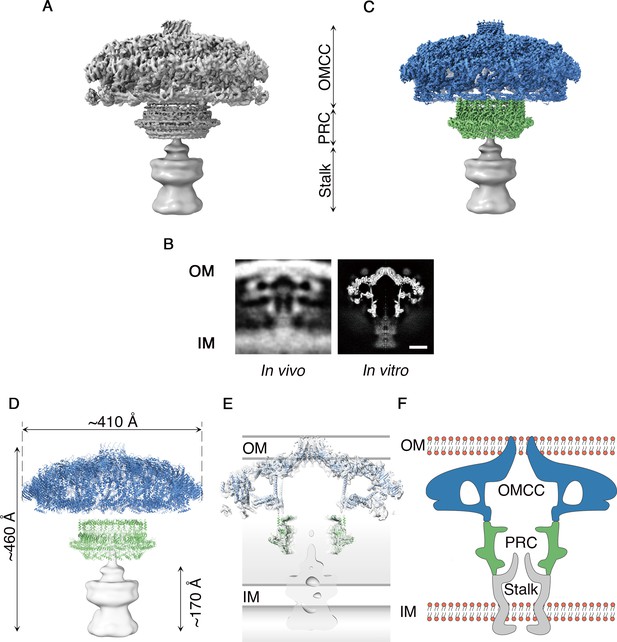

Cryo-EM structure of the H. pylori Cag T4SS.

(A) Reconstruction of the H. pylori Cag T4SS particles with no applied symmetry at 5.4 Å, showing three parts: the outer membrane core complex (OMCC), periplasmic ring complex (PRC), and Stalk density. The Stalk was not well defined in the structure and has been gaussian filtered to a resolution of 15 Å. (B) Comparison of central sections through the longitudinal plane of the T4SS 3D density determined by cryo-ET of intact H. pylori (left panel, EMD: 7474) (Chang et al., 2018) or by cryo-EM of purified particles (this study) (right panel). OM, Outer membrane, IM, inner membrane. Scale bar, 10 nm C. Combined high resolution structure of the H. pylori Cag T4SS that includes the 3.8 Å OMCC (blue) with 14-fold symmetry, the 3.5 Å PRC (green) with 17-fold symmetry, and the gaussian filtered Stalk (gray). (D) Secondary structure model of the refined OMCC (blue) and PRC (green) with gaussian filtered Stalk (gray). (E) Central axial slice view showing how refined structures of the OMCC (blue) and PRC (green) fit into the 3D map of the Cag T4SS (light gray). (F) Cartoon schematic showing the organization of the H. pylori Cag T4SS in relation to the OM and IM. OMCC (blue), PRC (Green) and Stalk (Gray).

https://doi.org/10.7554/eLife.47644.003
Video 1
Movie showing the cryo-EM density maps of the H. pylori T4SS.
https://doi.org/10.7554/eLife.47644.006
Video 2
Movie showing the cryo-EM density of the H. pylori T4SS and the molecular map of the OMCC sub-complex.
https://doi.org/10.7554/eLife.47644.007
Video 3
Movie showing the cryo-EM density of the H. pylori T4SS and the molecular map of the PRC sub-complex.
https://doi.org/10.7554/eLife.47644.008

The OMCC, with 14-fold symmetry, makes up the ‘mushroom cap’ of the T4SS and is organized into a central and outer ring connected by ‘spokes’ (Figure 2). The outer ring of the OMCC surrounds a central chamber that is ~270 Å wide and tapers to a ~ 35 Å opening at the top (Figure 2B). As seen in OMCCs from minimized T4SSs (Sgro et al., 2018; Chandran et al., 2009), the H. pylori Cag T4SS OMCC contains both an outer layer (O-layer) and a thinner inner layer (I-layer) (Figure 3A). ‘Spokes’ and outer rings are visible in both the O-layer and I-layer of the Cag T4SS (Figure 3B and Figure 3—figure supplement 1), but are not present in OMCCs from minimized T4SSs. The resolution of the cap is high enough to begin mapping the molecular organization of individual OMCC components (Figure 4A,B). Previous mass spectrometry and Western blot analyses indicated that the isolated complexes contain CagY, CagX, CagM, CagT, and Cag3 (Frick-Cheng et al., 2016). In the map, we can trace and identify portions of CagY (residues 1677–1816 and 1850–1907), CagX (residues 349–510), and CagT (residues 26–269) (Figure 4C and Figure 4—figure supplement 1A–C, left panels).

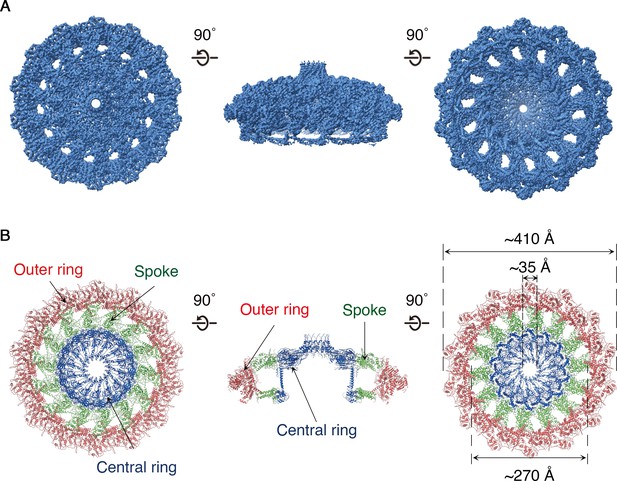

Structure of the H. pylori Cag T4SS OMCC.

(A) 3.8 Å resolution cryo-EM density map of the Cag T4SS OMCC rotated 90° around the X-axis. The structure has 14-fold symmetry. Left panel represents view of the OMCC looking in from outer membrane towards the inner membrane, and right panel represents the view looking out from the inner membrane towards the outer membrane. (B) Secondary structure model of the OMCC. In the en face view on the left (i.e. view looking in from the outer membrane), the structure has a central ring (blue) and outer ring (red) connected by 14 spokes (green). The middle panel represents a central slice of the OMCC. The right panel shows the view looking out from the inner membrane.

https://doi.org/10.7554/eLife.47644.009
Figure 3 with 1 supplement see all

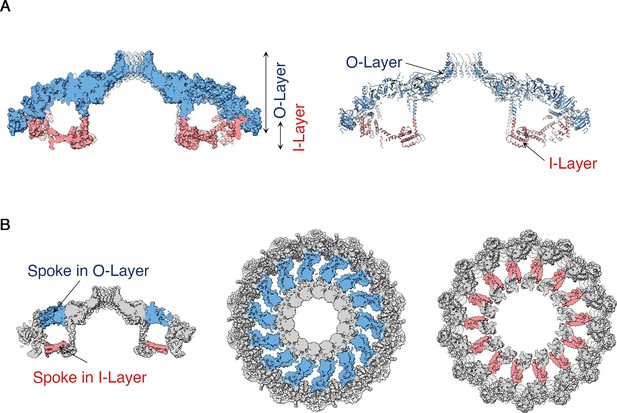

Structural features of the H. pylori Cag T4SS OMCC I-Layer and O-layer.

(A) Central axial slice view of the OMCC highlighting the position of the outer-layer (O-layer) and inner-layer (I-layer) colored in blue and red, respectively. Left panel, Surface representation; Right panel, Ribbon representation of secondary structure model. (B) Central axial slice view (left) and two cross sections of the OMCC highlighting the position of the spokes in O-layer (middle panel, blue, looking in from the outer membrane) and I-layer (right panel, red, looking out from the inner membrane).

https://doi.org/10.7554/eLife.47644.010
Figure 4 with 2 supplements see all

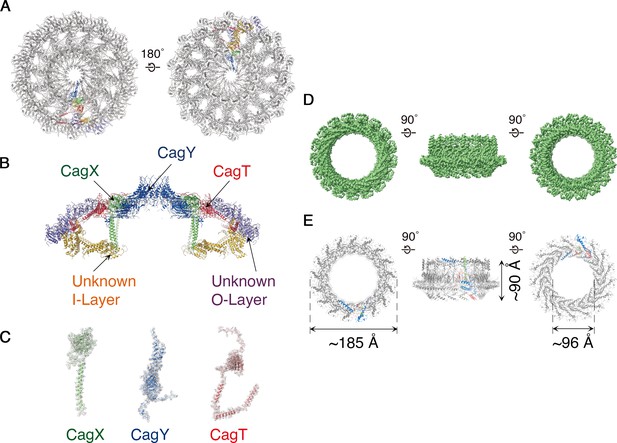

Molecular organization of the H. pylori Cag T4SS.

(A) Secondary structure model of the OMCC. The left panel represents view looking in from the outer membrane and the right panel represents the view looking out from the inner membrane. (A–C) Blue, CagY; Green, CagX; Red, CagT; Gold, I-layer; and Purple, O-layer. (B) Central axial slice view of the secondary structural model of the OMCC highlighting the position of CagY, CagX, CagT, I-layer, and O-layer. (C) Cryo-EM densities with built models of CagX, CagY, and CagT. Cryo-EM density map is in gray mesh and model is shown as ribbon diagram. (D) 3.5 Å resolution cryo-EM density map of the Cag T4SS PRC rotated 90° around the X-axis. The structure has 17-fold symmetry. (E) Secondary structure model of the PRC. Chain 1 (67 residues, green), Chain 2 (96 residues, blue) and Chain 3 (136 residues, red). In both D and E the left panel represents view looking in from outer membrane and right panel represents the view looking out from the inner membrane.

https://doi.org/10.7554/eLife.47644.012

CagY forms the crest of the cap-like structure of the OMCC and is comprised of β-sheets intertwining to position two helices per protomer atop the cap (Figure 4A–C and Figure 4—figure supplement 1A, left panel). We predict that these helices breach the outer membrane, resulting in the formation of a channel (Figure 4B). The C-terminal portion of CagX is comprised of two β-sheets preceded by a long helix (Figure 4C and Figure 4—figure supplement 1B, left panel). This helix extends from the top of the O-layer through the central chamber into the I-layer of the OMCC (Figure 4B). Adjacent to CagX, we traced a continuous chain 243 residues long corresponding to CagT (Figure 4C). It includes a globular subdomain consisting of two β-sheets followed by a long C-terminal extension of three helices that contribute to the spoke and extend toward the edge of the map (Figure 4B and Figure 4—figure supplement 1C, left panel). A predicted lipidation site within the N-terminal tail of CagT (Fischer, 2011; Akopyants et al., 1998) was not observed in the cryo-EM map, but the N-terminus of CagT is positioned for this interaction with the outer membrane.

Extending to the edge of the O-layer, we have constructed poly-alanine models of protein(s) that we could not identify (Figure 4A,B and Figure 4—figure supplement 1D). These components fill the remaining density within the spokes and consist predominantly of a repetitive fold composed of repeating units of β-sheets flanked by helices (Figure 4A,B and Figure 4—figure supplement 1D). We predict that Cag3 is a component of the OMCC periphery based on a previous study showing that Cag T4SS complexes isolated from a Δcag3 mutant strain lacked peripheral components of the OMCC (Frick-Cheng et al., 2016; Hu et al., 2019), but we were unable to obtain a register. Within the I-layer we have observed at least two distinct bundles of helices of ~200 residues and ~300 residues (Figure 4A,B and Figure 4—figure supplement 1E). Based on structural studies of the X. citri T4SS (Grohmann et al., 2018), the I-layer of the Cag T4SS is predicted to contain portions of CagY and CagX, but none of the poly-alanine models allowed us to unambiguously attribute any portion of CagY, CagX, or other T4SS components to this region.

The PRC, with 17-fold symmetry (Figure 4D,E and Figure 4—figure supplement 2), is a short hollow tube, 90 Å tall and 185 Å wide with 96 Å internal diameter (Figure 4D,E), connecting the OMCC and the Stalk regions of the Cag T4SS (Figure 1A). Although PRCs have not been detected in structural studies of E. coli or X. citri T4SSs (Waksman, 2019), this region was identified in cryo-ET studies of both H. pylori and L. pneumophila T4SSs (Ghosal et al., 2017; Chang et al., 2018; Chetrit et al., 2018; Ghosal et al., 2019; Hu et al., 2019). The protein(s) in this region of the cryo-EM maps were modeled as three distinct polyalanine chains (Figure 4—figure supplement 1F–H). This portion of the H. pylori Cag T4SS structure is predicted to contain CagM (Waksman, 2019; Chang et al., 2018), but the three polyalanine chains could not be unambiguously attributed to CagM or other T4SS components. A symmetry mismatch occurs between the OMCC and PRC, going from 14-fold symmetry in the OMCC to 17-fold symmetry in the PRC. While the OMCC, PRC, and Stalk make physical contact in the lower resolution structure with no applied symmetry (Figure 5), in the refined structures these connections are lost because of the symmetry mismatch. Analysis of the 5.4 Å structure suggests that the connection between OMCC and PRC may occur by contacts between the 14 α-helices extending from the N-terminus of CagX and the 17 unidentified α-helices extending up from the PRC (Figure 1A,E, and Figure 5). The tips of these α-helices are presumed to be flexible, since the corresponding densities are not well defined in the higher resolution maps (Figure 4D).

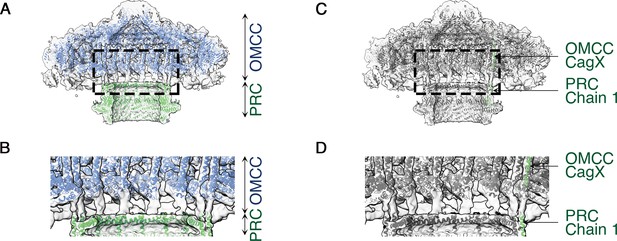

C1 symmetry density map showing connection of the OMCC to the PRC.

(A) Central axial slice view showing refined structures of the OMCC (blue) and PRC (green) fit into the C1 3D map of the Cag T4SS (light gray). The map is contoured at a low level to show less-ordered features. (B) Zoomed-in view of the region delimited by the dashed line in (a) showing the connection region of OMCC and PRC. (C) Central axial slice view showing refined structures of OMCC CagX (top, green) and PRC Chain 1 (bottom, green) fit into the C1 3D map of Cag T4SS complex (light gray). (D) Zoomed-in view of the region delimited by the dashed line in (c) showing candidates for the connection of OMCC and PRC.

https://doi.org/10.7554/eLife.47644.015

Discussion

Overall, the H. pylori OMCC is much larger (410 Å diameter) than other structurally characterized OMCCs (225 Å in X. citri and 170 Å in pKM101 conjugation system) (Sgro et al., 2018; Chandran et al., 2009) (Figure 6), and the components are more intertwined. While the inner chamber of the H. pylori OMCC is larger than what is seen in the E. coli and X. citri structures, the dimension of the H. pylori outer membrane pore, at 35 Å, is smaller than the X. citri outer membrane pore (45 Å) but larger than the E. coli outer membrane pore (25 Å) (Figure 6B). The dimensions of the H. pylori OMCC resemble those of the L. pneumophila Dot/Icm T4SS (Ghosal et al., 2017; Chetrit et al., 2018; Ghosal et al., 2019), but there is very little sequence relatedness when comparing components of the H. pylori and L. pneumophila T4SSs, and the L. pneumophila T4SS OMCC has 13-fold symmetry instead of 14-fold symmetry (Chetrit et al., 2018; Ghosal et al., 2019). The C-terminal portion of CagY is structurally similar to VirB10 and TraF homologs (Figure 6 and Figure 4—figure supplement 1A), and the C-terminal portion of CagX is structurally similar to VirB9 and TraO homologs (Figure 6 and Figure 4—figure supplement 1B). Both CagY and CagX are much larger in size than characterized VirB/Tra homologs (Fischer, 2011; Backert et al., 2017), and correspondingly, CagX has a long α-helix that is absent in the structures of TraO or VirB9 (4, 5) (Figure 6 and Figure 4—figure supplement 1B). Consistent with the limited sequence relatedness of CagT to VirB7 homologs (Fischer, 2011; Backert et al., 2017), there is relatively little structural relatedness when comparing CagT with VirB7 except for an N-terminal portion that contains little secondary structure (Figure 6 and Figure 4—figure supplement 1C).

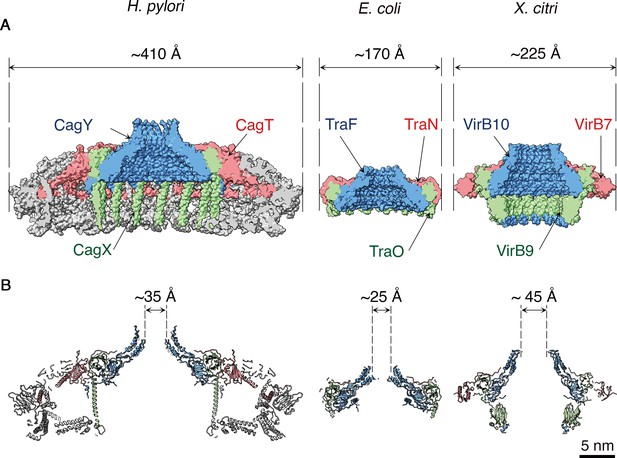

Structural comparison of H. pylori Cag T4SS OMCC components with E. coli and X. citri OMCC components.

Side views (A) and central axial slice views (B) of H. pylori Cag T4SS (left), E. coli pKM101 T4SS (middle; PDB 3JQO [Chandran et al., 2009]) and X. citri T4SS (right; PDB 6GYB [Sgro et al., 2018]). Structural homologs CagY, TraF, and VirB10 are labeled blue. Structural homologs CagX, TraO, and VirB9 are labeled green. Structural homologs CagT, TraN, and VirB7 are labeled red. Scale bar, 5 nm.

https://doi.org/10.7554/eLife.47644.016

In summary, these results provide the first high resolution structure of a transmembrane complex from a non-canonical T4SS and provide important new insights into a bacterial T4SS that contributes to the pathogenesis of gastric cancer. The Cag T4SS structure differs markedly from structures of previously described T4SSs, including the presence of an expanded OMCC with components that are more structurally intertwined and an unexpected symmetry mismatch between the OMCC and PRC. We predict that these differences will have important functional implications for the mechanism of CagA translocation.

Materials and methods

Purification of the H. pylori Cag T4SS core complex

Request a detailed protocol

The purification of the Cag T4SS complex was done using a previously described approach (Frick-Cheng et al., 2016) with reduced deoxycholate concentration (0.025%).

EM sample preparation

Request a detailed protocol

For cryo-EM, 5 ul of the Cag T4SS sample (as purified) was applied to a glow discharged ultrathin continuous carbon film on Lacey 400 mesh copper grids (TED PELLA). The sample was applied to a grid, incubated for 60 s and vitrified by plunge-freezing in a slurry of liquid ethane using a FEI Vitrobot at 4°C and 100% humidity.

Cryo-EM data collection

Request a detailed protocol

All the images were collected on the Titan Krios electron microscope (Thermo Fisher) equipped with a K2 Summit Direct Electron Detector (Gatan) operated at 300 kV and having a nominal pixel size of 1.64 Å per pixel. Micrographs were acquired using Leginon software (Suloway et al., 2005). The total exposure time was 8 s and frames were recorded every 0.2 s, resulting in a total accumulated dose of ~60 e−2 using a defocus range of −0.5 to −3.5 μm.

Image processing

Request a detailed protocol

All the Video frames were first dose-weighted and aligned using Motioncor2 (Zheng et al., 2017). The contrast transfer function (CTF) values were determined by Gctf (Zhang, 2016). Image processing was carried out using cryoSPARC, RELION 2.1 and 3.0 (Punjani et al., 2017Scheres, 2012Zivanov et al., 2018). Using RELION, approximately 25,000 particles were manually picked from 4600 micrographs and extracted using a box size of 510 pixels (836.4 Å) (Supplementary file 1). The extracted particles were exported to cryoSPARC and used to generate representative two-dimensional (2D) class averages in both cryoSPARC and RELION, and approximately 24,000 (cryoSPARC) and 23,000 (RELION) particles were kept in good class averages. These particles were then subjected to 3D classification with a reference-free initial 3D model. The best 3D class (~17,000 in cryoSPARC and ~20,000 particles in RELION) was used as reference for 3D auto-refinement with and without C14 symmetry (low-pass filtered to 60 Å). Finally, a solvent mask and B-factor were applied to improve the overall features and resolution of the 3D maps with and without C14 symmetry, resulting in reconstruction of 3D maps with a global resolution of 4.1 Å and 5.4 Å, respectively (Supplementary file 1 and Figure 1—figure supplement 1). Estimation of per-particle defocus values (CTF-refinement) was applied to the selected particles using RELION. With the CTF-refined particle stack, C14 symmetry-imposed refinement with a soft mask around the OMCC region of the Cag T4SS core complex was done, resulting in a 3.8 Å resolution 3D map that contained improved features (Figure 1—figure supplement 1 and Figure 1—figure supplement 2C). Based on the inspection of the asymmetrically refined 3D map showing 14-fold symmetry, relion_particle_symmetry_expand was used to enlarge the particle stack (Zivanov et al., 2018). After signal subtraction and alignment-free 3D classification of the expanded particles using a soft mask around an asymmetric unit (~290,000 particles), one highly populated 3D class was produced which contains ~250,000 expanded particles. The 3D class was then subjected to the masked 3D refinement with local angular searches, resulting in reconstruction of the 3D map at 3.7 Å resolution (Figure 1—figure supplement 2D). All resolutions were calculated using the gold-standard 0.143 FSC.

To resolve the lower region of the core complex (PRC), signal subtraction for each individual particle containing the PRC signal was used with a soft mask (Supplementary file 1 and Figure 4—figure supplement 2A). The subtracted particles were then subjected to the alignment-free focused 3D classification (five classes). Visual inspection of the 3D classes showed that the PRC has 17-fold symmetry. The best 3D class of the PRC (~20,000 particles) was then subjected to a masked 3D refinement with local angular searches. This process was done using either C1, C12, C14 or C17 symmetry. Only the reconstruction using C17 symmetry improved in resolution, resulting in 3D reconstruction of the PRC at 3.5 Å (Figure 4—figure supplement 2C–E). Resolutions were calculated using the gold-standard 0.143 FSC. Image processing steps are summarized in Supplementary file 1.

Model building, refinement, and validation

Request a detailed protocol

There were no high-resolution structures for any of the known components of the OMCC except for a crystal structure of a small region in CagX (Zhang et al., 2017). Density maps of the OMCC and PRC were of sufficient quality for building de novo models of regions of CagY, CagX, and CagT in COOT (Figure 4 and Figure 4—figure supplement 1), facilitated by the small crystal structure of CagX and homology models of OMCC components from E. coli and X. citri (Sgro et al., 2018; Chandran et al., 2009). A homology model for a C-terminal region of CagY was constructed from VirB10 (PDB-3JQO) using the Swiss Model server. The CagX crystal structure (PDB-5H3V) and the CagY model were placed within the asymmetric unit of the electron density map using UCSF Chimera (Pettersen et al., 2004). These models were manually adjusted and extended in COOT (Emsley and Cowtan, 2004). Density corresponding to CagT was modeled de novo in COOT, and the three proteins (CagT, CagX, and CagY) were further refined in real space using Phenix while applying secondary structure restraints (Adams et al., 2002). Once the asymmetric unit was constructed, 14-fold symmetry was applied in Phenix, and the entire model of the OMCC was subjected to one more round of refinement. Secondary structure elements were built de novo into the remaining density of the OMCC and the PRC asymmetric units in COOT. These models were refined in Phenix as described above, and the entire model was generated by applying 14-fold and 17-fold symmetry to the OMCC and PRC, respectively. The resolution of each individual model was estimated by Fourier Shell correlation against the map used to construct it using the Phenix Cryo-EM Validation tool. Molprobity scores, Clashscores and Ramachandran plots were used to validate the models that were constructed (Chen et al., 2010; Afonine et al., 2018) (Supplementary file 2). Supplementary file 3 shows the FSCs of the half maps against the refined model agree with each other, suggesting that the models are not over-refined. Programs used for structure determination and refinement were accessed through SBGrid (Morin et al., 2013). Structures were rendered using Chimera and ChimeraX (Pettersen et al., 2004; Goddard et al., 2018).

Data availability

Request a detailed protocol

The cryo-EM volumes have been deposited in the Electron Microscopy Data Bank under accession codes EMD-20023 (T4SS C1 reconstruction), EMD-20020 (Focused OMCC Reconstruction), EMD-20022 (OMCC Asymmetric Reconstruction), EMD-20021 (Focused PRC Reconstruction). Map coordinates have been deposited in the Protein Data Bank under accession numbers 6OEE (CagT), 6OEG (CagX), and 6ODI (CagY), 6OEF (O-layer), 6OEH (I-Layer), and 6ODJ (PRC).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
    Coot: model-building tools for molecular graphics
    1. P Emsley
    2. K Cowtan
    (2004)
    Acta Crystallographica. Section D, Biological Crystallography 60:2126–2132.
    https://doi.org/10.1107/S0907444904019158
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29

Decision letter

  1. Andrew P Carter
    Reviewing Editor; MRC Laboratory of Molecular Biology, United Kingdom
  2. Gisela Storz
    Senior Editor; National Institute of Child Health and Human Development, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Structure of the Helicobacter pylori Cag Type IV Secretion System" for consideration as a short report by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Gisela Storz as the Senior Editor. The reviewers have opted to remain anonymous.

Following discussion among the reviewers, we would like to invite you to prepare a revised submission. There was strong support for publishing your paper. It is the first near-atomic structure of the transmembrane subcomplex from a non-canonical T4SS and this allows for exciting comparisons to previously determined structures.

Summary:

In this study, Chung et al. used cryo-EM to reveal a near-atomic structure of the membrane-spanning Helicobacter pylori Cag T4SS complex. The authors, in their earlier study, used negative staining electron microscopy to report the overall shape of the Helicobacter pylori Cag T4SS transmembrane complex and revealed that this complex is comprised of five H. pylori proteins, CagM, CagT, Cag3, CagX, and CagY. This is an extension of their previous work. Here, the authors used cryoEM to resolve the membrane-spanning complex at 3-7 Å resolution. The authors showed that the transmembrane cag T4SS has three sub-complexes: a 14-fold symmetric outer membrane core complex (OMCC), 17-fold symmetric periplasmic complex (PRC), and connecting the PRC to the inner membrane is a stalk domain. They discovered an unexpected mismatch in symmetry between the OMCC and the PRC. Using previously reported structures and where possible, by using homology modeling the authors were able to model part of the OMCC. For rest of the OMCC and PRC map, the authors modeled with polyalanine chains. The stalk domain did not resolve well. This is the first near atomic structure of the OMCC/PRC transmembrane subcomplex from a noncanonical T4SS (canonical conjugative T4SS are 12-component minimized systems). This is a really exciting and dramatic advance in resolution in our structural understanding of the Cag T4SS. It is particularly interesting to compare this structure to the previously-determined structures of related systems. The new structural info is wonderful, but surprisingly the paper contains very little new biological insight.

Essential revisions:

1) Some of the structural figures do not clearly depict what the authors are describing, and should be clarified before publication.

a) Figure 2B does not successfully show the existence of a chamber – I would recommend reconfiguring the third (right-most) image to a central slice akin to Figure 1E or Figure 3A.

b) Figure 4A could be removed as it is confusing and unclear, and does not show anything that Figure 4B does not. However, I also find Figure 4B to be overly dense and unclear. The colours of CagY and the unknown O-layer are too similar. Perhaps the authors could present Figure 4B as in Figure 4E, in which only one of the symmetric units is shown in colour with the others being gray. As in Figure 4E, two orthogonal views would help. I think this is an important point, because the overall organization of the complex is currently hard to understand even after close examination.

c) Similarly, Figure 6A is confusing and unnecessary because the colours are inconsistent with Figure 6B, and most of the coloured area in the H. pylori structure are concealed. Figure 6B is much clearer, and effectively illustrates the comparisons made in the text by on its own, as is.

2) The authors can only build part of the OMCC and PRC and rest of the density it fitted with polyalanine chains. The authors mention these additional protein densities as 'unknown' protein densities. Since from their earlier paper it is already known which all proteins form the OMCC and PRC and they have purified particles, the authors in their future work might wish to perform cross-linking mass-spectrometry and identify these additional densities in the OMCC and in the PRC. This will reveal the exact constituents of the OMCC and PRC and provide interesting new insights.

3) Flowchart in the Supplementary File 1 needs major revision as is the flowchart is difficult to follow. Please consider following:

a) The wording '2D filtered' with cryoSPARC gives a wrong impression. This could be something like selected 'good' particles?

b) You could make another box just below (~24,000 particles ‘2D filtered’) and write ‘ab initio model generation’ then go ‘C1 symmetry’.

c) After 3D refinement (in cryoSPARC), when you are showing, C14 symmetrization, show only the OMCC, showing the PRC and providing 4.1 Å resolution is confusing.

d) In Relion, after 23,000 particles/2D filtered – mention what model was used.

e) Spelling mistake '3D classification'.

f) 'after particle CTF correction', replace: 'after per-particle" CTF refinement'.

g) Focused 3D classification: PRC+Stalk 14 fold symmetry, not sure what this is showing.

h) Focused 3D refinement: C14 symmetry: only show the OMCC, C17 symmetry only show the PRC at their appropriate levels and show a composite. The stalk is much lower resolution.

i) The OMCC map is 3.7 Å or 3.8 Å?

4) The membrane-spanning complex is constituted of the OMCC, PRC and the stalk. In the conjugative T4SS, a similar stalk density was reported by Low et al. However, two recent in situ studies by Chetrit et al. (2018) and Ghosal et al. (2017) have reported that there this a 'channel' below the PRC in the Legionella T4SS. Since the Legionella T4SS system matches with the Cag system in terms of number of components, shape and appearance, it is likely that the Cag system also has a channel in situ and it collapsed during detergent purification to form the stalk density. The authors should discuss this.

https://doi.org/10.7554/eLife.47644.042

Author response

Essential revisions:

1) Some of the structural figures do not clearly depict what the authors are describing, and should be clarified before publication.

a) Figure 2B does not successfully show the existence of a chamber – I would recommend reconfiguring the third (right-most) image to a central slice akin to Figure 1E or Figure 3A.

b) Figure 4A could be removed as it is confusing and unclear, and does not show anything that Figure 4B does not. However, I also find Figure 4B to be overly dense and unclear. The colours of CagY and the unknown O-layer are too similar. Perhaps the authors could present Figure 4B as in Figure 4E, in which only one of the symmetric units is shown in colour with the others being gray. As in Figure 4E, two orthogonal views would help. I think this is an important point, because the overall organization of the complex is currently hard to understand even after close examination.

c) Similarly, Figure 6A is confusing and unnecessary because the colours are inconsistent with Figure 6B, and most of the coloured area in the H. pylori structure are concealed. Figure 6B is much clearer, and effectively illustrates the comparisons made in the text by on its own, as is.

We thank the reviewers for providing constructive suggestions for how to improve the way we present the H. pylori T4SS structure. In response, we have made the following changes:

i) Figure 2B is now shown as a central section through the longitudinal plane of 3D density.

ii) Figure 4A has been removed and replaced with two views of the OMCC with single copies of CagX, CagY, and CagT colored. Figure 4B now shows only a central slice of the OMCC.

iii) Figure 6A has been removed and Figure 6B is now Figure 6A. We have also included images of a central section through the longitudinal plane of 3D density of the H. pylori, E. coli, and X. citri OMCCs to make it easier to visualize and compare the channels created by CagY, TraF, and VirB10, respectively. This is now Figure 6B.

We have also now included videos, Video 1-3, of the H. pylori T4SS and the OMCC and PRC sub-complexes that should also help readers more clearly see the organization of this complex.

2) The authors can only build part of the OMCC and PRC and rest of the density it fitted with polyalanine chains. The authors mention these additional protein densities as 'unknown' protein densities. Since from their earlier paper it is already known which all proteins form the OMCC and PRC and they have purified particles, the authors in their future work might wish to perform cross-linking mass-spectrometry and identify these additional densities in the OMCC and in the PRC. This will reveal the exact constituents of the OMCC and PRC and provide interesting new insights.

We thank the reviewers for this suggestion. We agree that crosslinking followed by mass spectrometry analysis will be an important avenue to pursue in our future work, and we agree that such experiments have the potential to provide important information about the organization of the T4SS, especially the region of the cryo-EM map that we could not assign to specific components. We anticipate that getting the final results from this type of analysis will be challenging because of the low protein concentration of the purified complexes coupled with the sample aggregation that we continue to fight against. For these reasons, the execution and analysis of this experiment would likely take substantially longer than two months to complete. Therefore, the revised manuscript does not contain new data based on crosslinking and mass spectrometry analysis.

3) Flowchart in the Supplementary File 1 needs major revision as is the flowchart is difficult to follow. Please consider following:

a) The wording '2D filtered' with cryoSPARC gives a wrong impression. This could be something like selected 'good' particles?

b) You could make another box just below (~24,000 particles ‘2D filtered’) and write ‘ab initio model generation’ then go ‘C1 symmetry’.

c) After 3D refinement (in cryoSPARC), when you are showing, C14 symmetrization, show only the OMCC, showing the PRC and providing 4.1 Å resolution is confusing.

d) In Relion, after 23,000 particles/2D filtered – mention what model was used.

e) Spelling mistake '3D classification'.

f) 'after particle CTF correction', replace: 'after per-particle" CTF refinement'.

g) Focused 3D classification: PRC+Stalk 14 fold symmetry, not sure what this is showing.

h) Focused 3D refinement: C14 symmetry: only show the OMCC, C17 symmetry only show the PRC at their appropriate levels and show a composite. The stalk is much lower resolution.

i) The OMCC map is 3.7 Å or 3.8 Å?

Using the reviewer suggestions, we have now revised Supplementary file 1 so that it will be easier for readers to follow.

4) The membrane-spanning complex is constituted of the OMCC, PRC and the stalk. In the conjugative T4SS, a similar stalk density was reported by Low et al. However, two recent in situ studies by Chetrit et al. (2018) and Ghosal et al. (2017) have reported that there this a 'channel' below the PRC in the Legionella T4SS. Since the Legionella T4SS system matches with the Cag system in terms of number of components, shape and appearance, it is likely that the Cag system also has a channel in situ and it collapsed during detergent purification to form the stalk density. The authors should discuss this.

We agree with the reviewers that it is likely that the T4SS stalk has a ‘channel’ that runs from the cytoplasmic side of the inner membrane to the top of the stalk. This has also been proposed in models developed from cryo-ET analysis of both the H. pylori and L. pneumophila T4SSs. We have now added the following sentence to the manuscript:

“Models developed from cryo-ET analysis of both the H. pylori and L. pneumophila T4SSs propose a channel in this region of the complex (Chang et al., 2018; Ghosal et al., 2017). A central section through the longitudinal plane of 3D density suggests there may be a channel that runs through the Stalk (Figure 1B, F). However, due to the low resolution of the Stalk this channel cannot be clearly visualized in the 3D map.”

https://doi.org/10.7554/eLife.47644.043
