USP49 potently stabilizes APOBEC3G protein by removing ubiquitin and inhibits HIV-1 replication

  1. Ting Pan
  2. Zheng Song
  3. Liyang Wu
  4. Guangyan Liu
  5. Xiancai Ma
  6. Zhilin Peng
  7. Mo Zhou
  8. Liting Liang
  9. Bingfeng Liu
  10. Jun Liu
  11. Junsong Zhang
  12. Xuanhong Zhang
  13. Ryan Huang
  14. Jiacong Zhao
  15. Yonghong Li
  16. Xuemei Ling
  17. Yuewen Luo
  18. Xiaoping Tang
  19. Weiping Cai
  20. Kai Deng
  21. Linghua Li  Is a corresponding author
  22. Hui Zhang  Is a corresponding author
  1. Sun Yat-sen University, China
  2. Guangzhou Eighth People’s Hospital, Guangzhou Medical University, China
Research Article
  • Cited 0
  • Views 501
  • Annotations
Cite this article as: eLife 2019;8:e48318 doi: 10.7554/eLife.48318

Abstract

The antiviral activity of host factor apolipoprotein B mRNA editing enzyme catalytic polypeptide-like 3G (APOBEC3G, A3G) and its degradation mediated by human immunodeficiency virus type 1 (HIV-1) Vif protein are important topics. Although accumulating evidence indicates the importance of deubiquitination enzymes (DUBs) in innate immunity, it is unknown if they participate in A3G stability. Here, we found that USP49 directly interacts with A3G and efficiently removes ubiquitin, consequently increasing A3G protein expression and significantly enhancing its anti-HIV-1 activity. Unexpectedly, A3G degradation was also mediated by a Vif- and cullin-ring-independent pathway, which was effectively counteracted by USP49. Furthermore, clinical data suggested that USP49 is correlated with A3G protein expression and hypermutations in Vif-positive proviruses, and inversely with the intact provirus ratio in the HIV-1 latent reservoir. Our studies demonstrated a mechanism to effectively stabilize A3G expression, which could comprise a target to control HIV-1 infection and eradicate the latent reservoir.

https://doi.org/10.7554/eLife.48318.001

Introduction

Human apolipoprotein-B-mRNA-editing enzyme catalytic polypeptide-like 3G (APOBEC3G, A3G) is a member of the cellular polynucleotide cytidine deaminase family. It can be incorporated into vif-deficient human immunodeficiency virus type1 (HIV-1) virions and mediates C–U conversion in the newly synthesized minus-stranded HIV-1 DNA to trigger the breakage of viral DNA or the generation of G-to A lethal hypermutations, resulting in a premature stop codon or mutated viral protein (Harris et al., 2003; Mangeat et al., 2003; Sheehy et al., 2002; Zhang et al., 2003). Alternatively, A3G can physically block the reverse transcription process (Bishop et al., 2008; Iwatani et al., 2007; Pollpeter et al., 2018). Because of these combined effects, A3G exerts potent antiviral activity. Meanwhile, it also induces sub-lethal hypermutations, which would not significantly impair viral infectivity but indicate an important driving force for HIV-1 genetic variations. This ultimately aids in viral evolution or facilitates viral responses to selective pressures such as the development of antiviral drug resistance or the evasion of immune surveillance (Jern et al., 2009; Kim et al., 2010; Mulder et al., 2008; Sadler et al., 2010; Zhang et al., 2003). However, the HIV-1 accessory protein viral infectivity factor (Vif) can effectively antagonize the antiviral activity of A3G by inducing its degradation through the ubiquitin–proteasome system (UPS) (Kao et al., 2003; Mehle et al., 2004; Sheehy et al., 2003). Vif interacts with A3G through its N-terminal domain and has a SOCS-box motif within its C-terminal domain, which recruits ElonginB, ElonginC, and Cullin5 to form an E3 ubiquitin ligase complex, subsequently mediating the ubiquitination of A3G (Yu et al., 2003). CBF-β can increase the stability of HIV-1 Vif and promote assembly of the Vif-Cullin 5-E3-ubiquitin-ligase complex (Jäger et al., 2011; Zhang et al., 2011). Further, some clinical in vivo analyses of Vif-positive HIV-1 quasispecies indicated that A3G mediates lethal hypermutations and leads to the accumulation of G-to-A hypermutations in the Vif-positive HIV-1 genome, subsequently resulting in a large number of defective proviruses in the viral reservoir (Borzooee et al., 2018; Cuevas et al., 2015; De Pasquale et al., 2013; Kieffer et al., 2005). The expression level of A3G is also correlated with viremia and CD4 counts in the peripheral blood (Amoêdo et al., 2011; Jin et al., 2005; Kourteva et al., 2012; Pace et al., 2006; Ulenga et al., 2008; Vázquez-Pérez et al., 2009). Accordingly, partial mutations in the vif gene can impair its anti-A3G activity and increase the frequency of hypermutation (Fourati et al., 2010; Simon et al., 2005).

The homeostasis of eukaryotic cells is maintained by a well-tuned balance between the biosynthesis and degradation of proteins. Post-translational modification of proteins by ubiquitin (Ub) and their degradation by the UPS has emerged as a major regulatory process in virtually all aspects of cell biology. The UPS comprises the main non-lysosomal intracellular protein degradation pathway that consists of three major components, the proteasome holoenzymes, a number of ubiquitin ligases, and a broad spectrum of deubiquitinating enzymes (DUBs) (Bailey-Elkin et al., 2017; Ventii and Wilkinson, 2008). Ubiquitination is a dynamic and reversible process, and it has become increasingly apparent that deubiquitination also has an important function in regulating the ubiquitin-dependent pathway. However, In contrast to extensive studies on ubiquitination, the roles that deubiquitination play in host–virus relationships are less investigated (Bailey-Elkin et al., 2017; Banks et al., 2003; Nijman et al., 2005; Sowa et al., 2009). In addition to host DUBs, which play an important role in the maintenance of innate or acquired immunity, virus-encoded DUBs also affect the immune system to support their replication (Kumari and Kumar, 2018). Recently, some reports have indicated that DUBs directly bind viral proteins and affect their functions. For example, USP7 interacts with the Epstein–Barr nuclear antigen-1 (EBNA1) of Epstein-Barr virus and the ubiquitin E3 ligase ICP0 of the herpes simplex virus type-1 (HSV-1) to affect viral replication (Berardi et al., 2004; Holowaty et al., 2003). It also interacts with HIV-1 Tat and stabilizes this protein (Ali et al., 2017). Further, a USP14 inhibitor was found to inhibit the replication of Dengue viruses (Nag and Finley, 2012), whereas USP11 can interact with NP protein to inhibit influenza virus replication (Liao et al., 2010). However, the underlying mechanisms and their interactions with the USP have not been well elucidated.

Although the involvement of UPS in Vif-mediated A3G degradation is well known, whether DUB proteins participate in this important host-virus interaction is completely unknown. In this study, we screened a DUB-targeting siRNA library and found that USP49 participates in the stability of A3G protein. Further, we aimed to elucidate the association between USP49 and A3G in the presence of Vif, which could occur during natural HIV-1 infection. Our findings provide important insights into the role of USP49 in Vif-mediated A3G degradation. By enhancing the expression of A3G protein, USP49 exerts potent anti-HIV-1 activity and is involved in the generation of defective proviruses.

Results

Screening of a DUB-RNAi library identifies that USP18/41/49 regulates the expression of APOBEC3G

The human genome encodes approximately 100 putative DUBs. Based on the composition in relation to the catalytic motif, DUBs can be grouped into at least five subfamilies as follows: the ubiquitin-specific proteases/ubiquitin-specific processing proteases (USPs), the ubiquitin C-terminal hydrolases (UCHs), the ovarian tumor proteases (OTUs), the Josephin or Machado-Joseph disease protein domain proteases (MJDs), and the Jab1/MPN domain-associated metalloisopeptidase (JAMM) domain proteins (Liu et al., 2018; Nijman et al., 2005) (Figure 1A). We purchased a DUB siRNA library targeting 86 DUB genes and developed a cell-based high throughput system to screen DUB proteins that participate in the stability of an A3G-GFP fusion protein in 293 T cells (Figure 1—figure supplement 1). After two rounds of screening, we identified siRNAs specifically for USP18, USP41, or USP49 that could facilitate Vif-mediated A3G degradation (Figure 1B).To further validate our screening results, we subsequently used DUB-specific siRNAs to knock down the expression of DUBs and co-transfected these with A3G-HA- and Vif-HA-expressing plasmids. After 48 hr, we performed a western blot to confirm that these DUBs could counteract Vif-mediated A3G degradation (Figure 1C). Further, the overexpression of USP18, USP41, or USP49 also supported this result. Among them, USP49 was the most capable of inhibiting this interaction (Figure 1D). Considering A3G exerts its antiviral effect in the cytoplasm (Gallois-Montbrun et al., 2007), we first constructed GFP-tagged DUB proteins. When these GFP-tagged proteins were transfected into HEK293T cells, we found that USP18 and USP41 were mainly distributed in the cytoplasm, whereas USP49 was distributed in both the nucleus and cytoplasm (Figure 1—figure supplement 2).

Figure 1 with 4 supplements see all

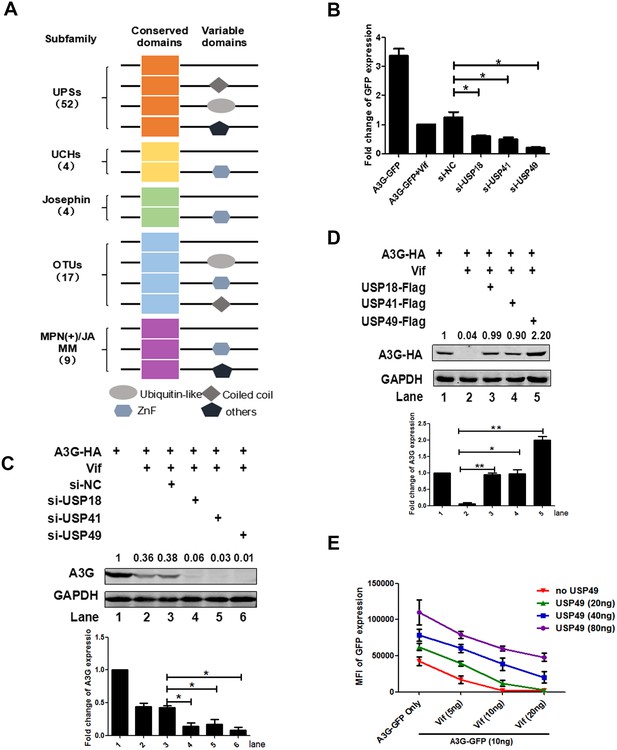

Screening of a DUB-RNAi library identifies that USP 18/41/49 regulates the expression of A3G.

(A) Domain organization of five DUB subfamilies. (B) HEK293T cells were seeded into a 96-well plate with 20,000 cells/well, and then transfected with plasmids expressing A3G-GFP and Vif-HA, as well as siRNAs specific for USP18, USP41, or USP49 respectively. The GFP expression was detected with a PE Envision at 48 hr post-transfection. Error bars represent the SEM of three independent experiments.* p<0.05. (C) HEK293T cells were transfected with plasmids expressing A3G-HA and Vif-HA, as well as siRNAs specific for USP18, USP41, or USP49 respectively. After 48 hr, cells were lysed and Western blot was performed with the indicated antibodies. Representative data were shown and plotted with at least three independent experiments.* p<0.05. (D) HEK293T cells were transfected with plasmids expressing A3G-HA, Vif-HA, and one of plasmid expressing USP18-Flag, USP41-Flag, USP49-Flag. After 48 hr, cells were lysed and Western blot was performed with the indicated antibodies. Representative data were shown and plotted with at least three independent experiments.* p<0.05, **p<0.01. (E) HEK293T cells were transfected with indicated amounts of plasmids expressing A3G-GFP, Vif-HA, or USP49-Flag. The GFP expression was detected with a PE Envision at 48 hr post-transfection. Error bars represent the SEM of three independent experiments.

https://doi.org/10.7554/eLife.48318.002

To define the biological relevance of these findings, we examined the expression of these DUBs in natural HIV-1-target cells and found that the expression of USP41 in primary CD4+T cells was quite low (Figure 1—figure supplement 3A), whereas the expression of USP18 and USP49 was high (Figure 1—figure supplement 3A-C). By comparing the sequences of these DUBs among anthropoids, we found that USP49 is the most conserved (Figure 1—figure supplement 4A-B). Thus, we chose USP49 as the major target for further investigations of mechanisms. To better understand the interaction between these DUBs and the Vif-A3G pathway, we co-transfected these three plasmids at different amounts into HEK293T cells. The results showed that USP49 significantly suppressed the downregulation of A3G when Vif levels were moderate. However, with an abundance of Vif protein, the protective effect of USP49 was quite limited (Figure 1E). Taken together, we identified that USP49 counteracts Vif-mediated A3G degradation in a dose-dependent manner.

USP49 enhances the inhibitory effect of A3G on HIV-1 infectivity

To evaluate the inhibitory effect of DUB proteins on the Vif-positive HIV-1 replication, we co-transfected 293 T cells with USP49-specific siRNA, pNL4-3ΔVif, and various amounts of A3G- and Vif-expressing plasmids. After determining the dose-effect relationships among A3G, USP49, and Vif, shown in Figure 1E, we transfected Vif and A3G at a ratio 1:2. After normalization to HIV-1 p24 antigen for the resulting pseudotyped viruses, TZM-bl cells were infected. The results showed that the knockdown of endogenous USP49 could enhance the infectivity of HIV-1 in the presence of Vif (Figure 2A). When we transfected Vif and A3G at a ratio 1:1, the overexpression USP49 was found to inhibit HIV-1 infection and the inhibitory effect occurred in a dose-dependent manner (Figure 2B). Meanwhile, we sequenced the target motif of A3G on HIV-1 protease (the prot (nt 2280–2631)) region to detect hypermutations. The sequencing indicated that proviral DNAs in cells with a lower infectivity but a higher USP49 dose have more G-to-A hypermutations (Figure 2—figure supplement 1A) To explore the potential synergistic effect of USP49 and A3G on the infectivity of Vif-positive HIV-1 virions, HIV-1NL4-3ΔEnv particles were produced with increasing amounts of USP49 in the presence of A3G. After normalization to HIV-1 p24, TZM-bl cells were infected with these viral particles and virus infectivity was determined by luciferase assay. As shown in Figure 2C, USP49 regulated the infectivity of HIV-1 in a dose-dependent manner. Further, we generated viral particles overexpressing USP49 in the presence or absence of A3G. We found that USP49 alone did not have any antiviral effect (Figure 2D). Moreover, we examined the effects of USP49 on the viral infectivity with or without downregulation of endogenous A3G in primary CD4+ T cells, which express both USP49 and endogenous A3G. We transfected siRNA with nucleofection to knockdown the endogenous USP49 or endogenous A3G level and then these cells were infected with HIV-1NL4-3ΔEnvΔVif-GFP pseudotyped viruses. Results showed that siUSP49 could down-regulate the endogenous A3G and then inhibit HIV-1 infectivity (Figure 2E and Figure 2—figure supplement 2).Combined with these data, this result indicates that USP49 exerts its potent antiviral effect through A3G.

Moreover, we generated an HIV-1 construct with the Vif-Y40H-mutant, which naturally occurs in HIV-1-infected patients and exhibits a weakened anti-A3G effect (Simon et al., 2005). When Vif-Y40H-mutated HIV-1 viruses were used to infect primary CD4+T cells, their infectivity was impaired (Figure 2F). However, in the primary CD4+T cells with shRNA-mediated USP49-knockdown, the infectivity of Vif-Y40H-mutated HIV-1 almost returned to wildtype levels (Figure 2F). Furthermore, we sequenced the proviral DNA in the cultures at the 21 day time point and analyzed the hypermutation with HYPERMUT soft online. We have not found any reversion of the Y40H mutation in the proviral DNA. Meanwhile, compared with suppression of USP49, there is a lower frequency of G-to-A hypermutation in proviral DNAs in the Y40H mutation control sample (Figure 2—figure supplement 1B). This result verifies that the inhibition of USP49 can promote the degradation of A3G and subsequently reduce the hypermutation in virus.These data indicated that the anti-A3G effect of Vif can be enforced by depletion of the A3G protein stabilizer USP49, alternatively supporting the fact that USP49 enhances the anti-HIV-1 effect of A3G.

Figure 2 with 2 supplements see all

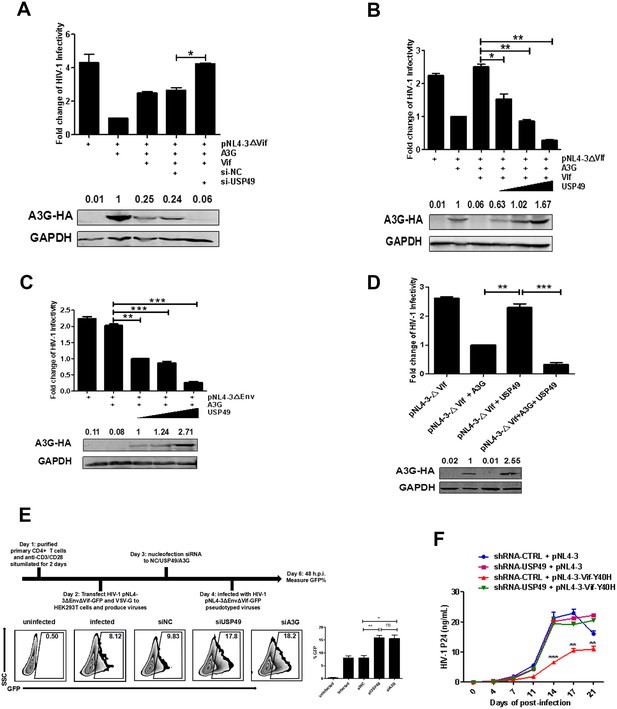

USP49 enhances the inhibitory effect of A3G on the infectivity of HIV-1.

(A) HEK293T cells were first transfected with USP49-specific siRNA. After 12 hr, cells were co-transfected with pcDNA3.1-A3G-HA, pcDNA3.1-Vif-HA, and pNL4-3ΔVif. Culture supernatants were harvested at 72 hr post-transfection and then infected TZM-bl cells. After 48 hr, cells were harvested and the HIV-1 infectivity was detected by luciferase assay. Error bars represent the SEM of three independent experiments. *p<0.05. (B) HEK293T cells were co-transfected with pcDNA3.1-A3G-HA, pNL4-3ΔVif, and plasmids expressing Vif-HA or USP49-Flag respectively. Culture supernatants were harvested at 72 hr post-transfection and then allowed to infect TZM-bl cells. After 48 hr, cells were harvested and the HIV-1 infectivity was detected by luciferase assay. Error bars represent the SEM of three independent experiments. *p<0.05, **p<0.01. (C) HEK293T cells were co-transfected with pcDNA3.1-A3G-HA, pNL4-3ΔEnv, and different amounts of USP49-Flag-expressing plasmid respectively. Culture supernatants were harvested at 72 hr post-transfection and then infected TZM-bl cells. After 48 hr, cells were harvested and the HIV-1 infectivity was detected by luciferase assay. Error bars represent the SEM of three independent experiments. **p<0.01, ***p<0.001. (D) HEK293T cells were transfected with pNL4-3ΔVif, pcDNA3.1-A3G-HA plus pNL4-3ΔVif, or pNL4-3ΔVif plus USP49-Flag plasmids respectively. Culture supernatants were harvested at 72 hr post-transfection and then allowed to infect TZM-bl cells. After 48 hr, cells were harvested and the HIV-1 infectivity was detected by luciferase assay. Error bars represent the SEM of three independent experiments. ***p<0.001. (E) The primary CD4+T cells were stimulated with anti-CD3/28 for 2 days and then nucleofected with indicated siRNAs. After 24 hr, cells were infected with pNL4-3ΔEnvΔVif-GFP pseudotyped viruses. The infectivity were detected by flow cytometr on 48 h.p.i. Representative data were shown and plotted with at least three independent experiments.* p<0.05, **p<0.01. (F) HEK293T cells were transfected with pNL4-3 or Vif-Y40H-mutated-pNL4-3 respectively. Culture supernatants were harvested at 72 hr post-transfection and then allowed to infect shRNA-KD-USP49 primary CD4+ T cells. Cell supernatants were harvested for detecting HIV-1 P24 by ELISA Kit on several time points. Error bars represent the SEM of three independent experiments. The difference of p24 production from HIV-1NL4-3VifY40H infection between shRNA-NC and shRNA-KD-USP49 in primary CD4+ T cells at several time points was statistically analyzed. **p<0.01, ***p<0.001.

https://doi.org/10.7554/eLife.48318.007

USP49 enhances the expression of A3G even in the absence of HIV-1 vif

Unexpectedly, in the absence of Vif, USP49 knockdown with siRNA also significantly decreased A3G stability, which could be rescued by MG132 (Figure 3A,B), suggesting that A3G could be degraded through a Vif-independent pathway. When DUBs were overexpressed, they promoted A3G protein expression in a dose-dependent manner (Figure 3C). Given that A3G can be packaged into HIV-1 virions to exert its anti-HIV-1 activity, we next evaluated the effects of USP49 on the levels of A3G in HIV-1 virions. For this, we co-transfected 293 T cells with A3G-HA- and USP49-Flag-expressing plasmids, along with pNL4-3ΔVif. USP49 enhanced A3G levels in both cell lysates and viral particles (Figure 3D). Further, we have also performed a dose-dependent assay with over-expression of USP49 in the HIV-1NL4-3 viruses and we have found an amount of A3G protein in the HIV-1NL4-3 viral particles (Figure 3—figure supplement 1). Alternatively, the depletion of endogenous USP49 with USP49-specific siRNA also reduced the level of A3G in both ΔVif virus-producing cells and viral particles (Figure 3E). Taken together, we found that USP49 stabilizes A3G in both a Vif-dependent and Vif-independent manner.

Figure 3 with 2 supplements see all

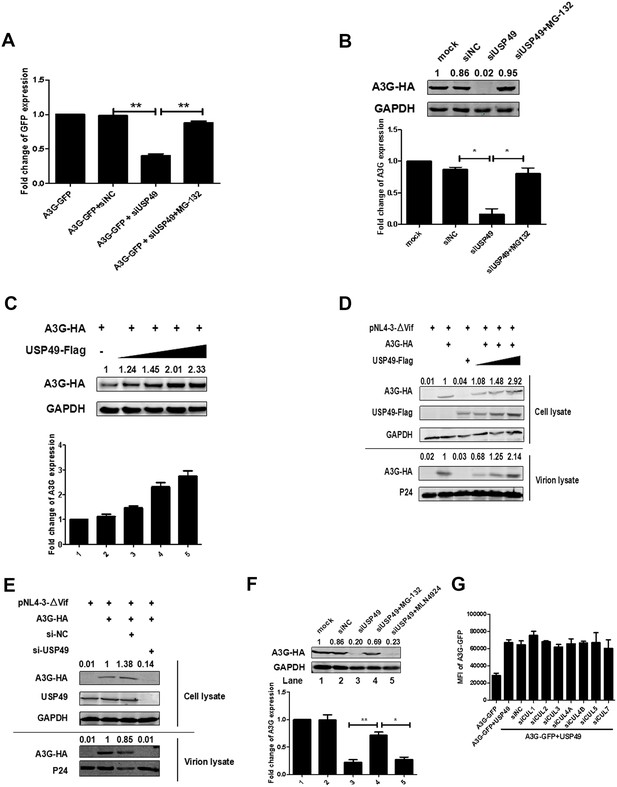

USP49 enhances the expression of A3G even in absence of Vif.

(A) HEK293T cells were transfected with A3G-GFP-expressing plasmid and siRNA specific for USP49. MG132 was treated for 12 hr before harvest. The GFP expression was detected with a PE Envision at 48 hr post-transfection. Error bars represent the SEM of three independent experiments. **p<0.01. (B) HEK293T cells were transfected with A3G-HA-expressing plasmid and siRNA specific for USP49. MG132 was treated for 12 hr before harvest. After 48 hr post-transfection, cells were lysed and Western blot was performed with the indicated antibodies. Representative data were shown and plotted with at least three independent experiments.* p<0.05. (C) HEK293T cells were transfected with A3G-HA-expressing plasmid, and different amounts of USP49-Flag-expressing plasmid. After 48 hr, cells were lysed and Western blot was performed with the indicated antibodies. Representative data were shown and plotted with at least three independent experiments. (D) HEK293T cells were transfected with pcDNA3.1-A3G-HA, pcDNA3.1-USP49-Flag, and pNL4-3ΔVif. After 48 hr, cell pellets and supernatants were collected respectively. Cell pellets were lysed and subjected to immunoblotting with anti-HA, anti- Flag, and anti-GAPDH antibodies. Viral particles were collected from filtered supernatants by ultracentrifugation. The pelleted viral particles were lysed and detected by western blotting with anti-HA and anti-p24 antibodies. (E) HEK293T cells were transfected with pcDNA3.1-A3G-HA, pNL4-3, and a USP49-specific siRNA, After 48 hr, cell pellets and supernatants were collected respectively. Cell pellets were lysed and subjected to immunoblotting with anti-HA, anti- Flag, and anti-GAPDH antibodies. Viral particles were collected from filtered supernatants by ultracentrifugation. The pelleted viral particles were lysed and detected by western blotting with anti-HA and anti-p24 antibodies. (F) HEK293T cells were transfected with pcDNA3.1-A3G-HA and a USP49-specific siRNA. MG132 (10 uM) or MLN4924 (20 uM) was treated for 12 hr before harvest. After 48 hr post-transfection, cells were lysed and Western blot was performed with the indicated antibodies. Representative data were shown and plotted with at least three independent experiments.* p<0.05, **p<0.01. (G) HEK293T cells were transfected with pcDNA3.1-A3G-GFP, pcDNA3.1-USP49-FLAG and indicated siRNAs. The GFP expression was detected with a PE Envision at 48 hr post-transfection. Error bars represent the SEM of three independent experiments.

https://doi.org/10.7554/eLife.48318.010

Regarding the Vif-independent A3G degradation pathway, we speculated that an E3 protein and USP49 form a feedback loop to maintain the intracellular homeostasis of A3G under normal conditions. To determine the host E3 protein(s) that might be involved in A3G interactions, we first examined the possible involvement of the Vif-mediated Cullin5/Elongin B/C pathway. Although MG132 blocked this effect, a NEDD8 inhibitor MLN4924, which can inhibit the cullin-RING subtype of ubiquitin ligases, was ineffective (Figure 3F) (Stanley et al., 2012). Further, siRNAs specific for Cullin1–seven did not affect this process (Figure 3G). Moreover, we have also confirmed the knockdown efficiency of siRNA with qPCR (Figure 3—figure supplement 2). Collectively, although we cannot identify the specific E3 ligase at present, we at least excluded the involvement of the cullin-RING subtype of E3 ligases.

USP49 directly interacts with A3G and deubiquitinates the K48-linked ubiquitination of A3G mediated by vif

Considering that USP49 could enhance the expression of A3G directly, we next assessed whether USP49 binds A3G. It has been reported that A3G is mainly distributed in the cytoplasm, where it exerts its antiviral effect; interestingly, USP49 was also found to be partly localized to the cytoplasm (Figure 1—figure supplement 2). Confocal laser scanning microscopy showed the colocalization of A3G and USP49 in the cytoplasm (Figure 4A), raising the possibility that USP49 and A3G interact directly. We therefore performed a co-immunoprecipitation experiment and found a strong interaction between Flag-USP49 and HA-A3G (Figure 4B). Meanwhile, HA-tagged A3G also interacted with endogenous USP49 (Figure 4C).We have also performed the experiment with RNase A treatment and found that the interaction between A3G and USP49 is direct and not mediated by RNA (Figure 4D). Since USP49 is a deubiquitination enzyme, we first examined whether it regulates the level of A3G ubiquitination in cells. As shown in Figure 4E, overexpression of USP49 resulted in a significant decrease in the poly-ubiquitination of A3G, whereas overexpression of the USP49-C262A mutant, which lost DUB enzymatic activity, failed to alter A3G ubiquitination (Luo et al., 2017). It is known that ubiquitin contains seven lysine (K) residues including K6, K11, K27, K29, K33, K48, and K63, through which poly-ubiquitin chains are linked to the substrate proteins. As the ubiquitination of A3G depends on the type of K48, we overexpressed K48 ubiquitin and confirmed that the ubiquitination of A3G is regulated by USP49. However, we found that the K48-linked ubiquitination was suppressed when the mutant K48R was used (Figure 4F), which is consistent with previous studies (Mehle et al., 2004; Turner et al., 2016).

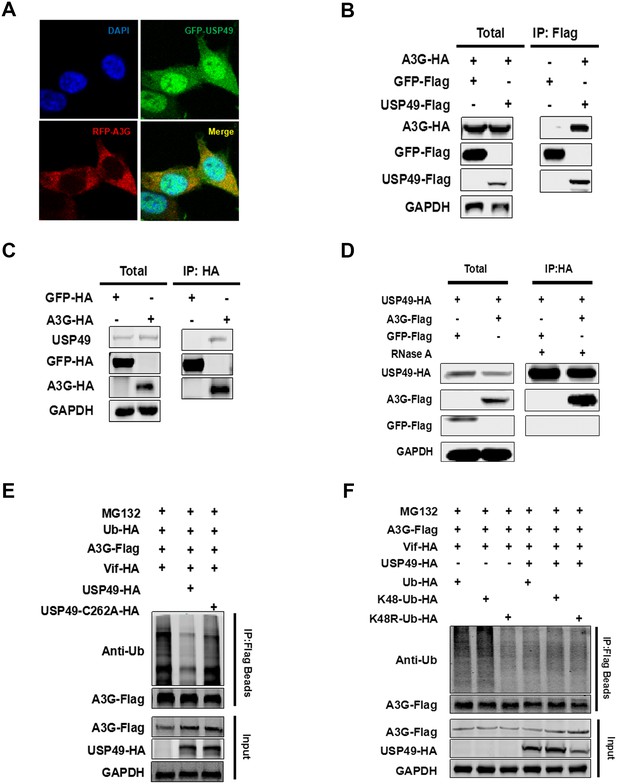

USP49 directly interacts with A3G and deubiquitinates the K48-linked ubiquitination of A3G.

(A) HEK293T cells were co-transfected with plasmids expressing USP49-GFP or A3G-RFP. After 48 hr, the cells were fixed with 4% paraformaldehyde, and localization of USP49 and A3G was detected using confocal microscopy. (B) HEK293T cells were co-transfected with plasmids expressing Flag-USP49 or HA-A3G, or the indicated vectors. The cell lysates were immunoprecipitated using Flag beads and analyzed by immunoblotting with the indicated antibodies. (C) Hela cells were co-transfected with plasmids expressing HA-GFP or HA-A3G. The cell lysates were immunoprecipitated using HA beads and analyzed by immunoblotting with the indicated antibodies. (D) HEK293T cells were co-transfected with plasmids expressing HA-USP49 and Flag-A3G. The cell lysates were immunoprecipitated using HA beads and then treated with RNase A (20 ug/mL) for 1 hr. After that, samples were analyzed by immunoblotting with the indicated antibodies. (E) HEK293T cells were co-transfected with plasmids expressing USP49-HA, Vif-HA, Ub-HA, or A3G-Flag. Cells were treated with 10 uM MG132 for 24 hr before harvest. After 48 hr post-transfection, the cells were subjected to the denaturing immunoprecipitation using an anti-Flag beads followed by immunoblot analysis using the indicated antibodies. (F) HEK293T cells were transfected with the indicated plasmids expressing HA-ubiquitin, Flag-A3G, HA-Vif, or HA-USP49. After 24 hr, the cells were treated with 10 μM MG132 for 24 hr; the indicated types of ubiquitination were detected and quantified by the denaturing immunoprecipitation and western blotting.

https://doi.org/10.7554/eLife.48318.013

USP49 expression correlates with A3G and HIV-1 disease progression

The correlation between A3G or its hypermutation and important clinical parameters such as viral load and CD4 counts in the peripheral blood has been supported by multiple lines of evidence (Amoêdo et al., 2011; Jin et al., 2005; Kourteva et al., 2012; Pace et al., 2006; Ulenga et al., 2008; Vázquez-Pérez et al., 2009). This led us to investigate whether the expression of USP49 in host CD4+ T cells might affect the A3G-induced hypermutation in the HIV-1 genome by modulating the concentration of A3G protein. To determine the relevance of A3G regulation by USP49 in vivo, we performed intracellular staining to detect A3G protein levels in primary CD4+ T cells that were isolated from newly-diagnosed individuals with HIV-1 infections (n = 21). As shown in Figure 5, we observed a positive correlation between USP49 mRNA levels and A3G protein expression (Figure 5A). Along with the correlation between A3G protein expression and CD4 counts, we also found a significant correlation between USP49 expression and CD4 counts (Figure 5B,C). Conversely, a negative correlation between plasma HIV-1 RNA levels and USP49 expression was observed (Figure 5D). However, we did not find any correlation between USP18 mRNA expression and A3G, CD4 counts, or viral load (Figure 5—figure supplement 1). These results suggested that the expression of USP49 in CD4 T-cells of HIV-1 infected individuals could be involved in HIV-1 disease progression.

Figure 5 with 1 supplement see all

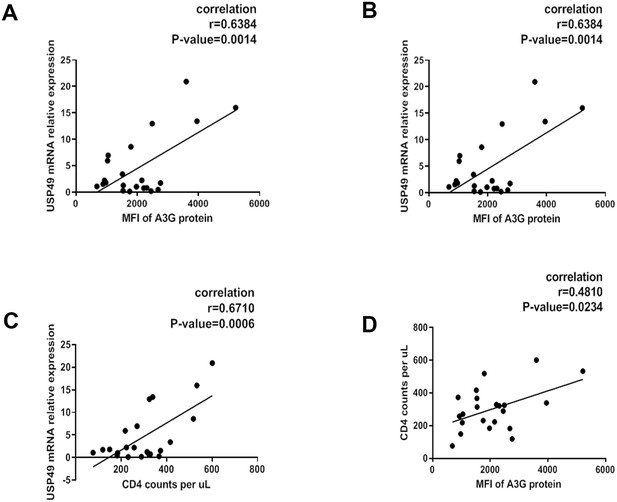

Associations of plasma HIV-1 RNA levels, CD4+ T cell counts and USP49 mRNA expression levels in the newly-diagnosed HIV-1-infected individuals.

(A) Correlation between the expression of A3G protein level and the USP49 mRNA level in the CD4+T cells isolated from the newly-diagnosed HIV-1-infected individuals (n = 21). Pearson correlation coefficient and p value are listed. (B) Correlation between the count of CD4+T cells and the USP49 mRNA level in the CD4+T cells isolated from the newly-diagnosed HIV-1-infected individuals. Pearson correlation coefficient and p value are listed. (C) Correlation between the count of CD4+T cells and the A3G protein level in the CD4+T cells isolated from the newly-diagnosed HIV-1-infected individuals. Pearson correlation coefficient and p value are listed. (D) Correlation between the plasma HIV-1 RNA levels and the USP49 mRNA level in the CD4+T cells isolated from the newly-diagnosed HIV-1-infected individuals. Pearson correlation coefficient and p value are listed.

https://doi.org/10.7554/eLife.48318.014

USP49 affects the defective proviruses in HIV-1-latently-infected CD4 T-cells

Accumulating evidence indicates that A3G induces sub-lethal hypermutations in the Vif-positive HIV-1 genome and plays an important role in the production of defective proviral DNA in the HIV-1 reservoir (Borzooee et al., 2018; Cuevas et al., 2015; De Pasquale et al., 2013; Kieffer et al., 2005). A3G-induced hypermutations in vif and env genes of proviruses in vivo have been reported by several groups (Fourati et al., 2010; Simon et al., 2005). To study the influence of USP49 on hypermutation, the sequences of vif and env, amplified from the proviral DNA of CD4+T cells of seven HIV-1-infected individuals receiving suppressive cART, were used to determine the magnitude of A3G-mediated sublethal hypermutations in vivo. As a reference sequence, the virion-associated RNA from viral outgrowth of the same subject was also sequenced. The percentage of G-to-A mutations was quantified with an online Hypermut software. A positive correlation between the percentage of G-to-A mutations and USP49 expression and A3G protein expression was observed in these seven subjects (Figure 6A–D).

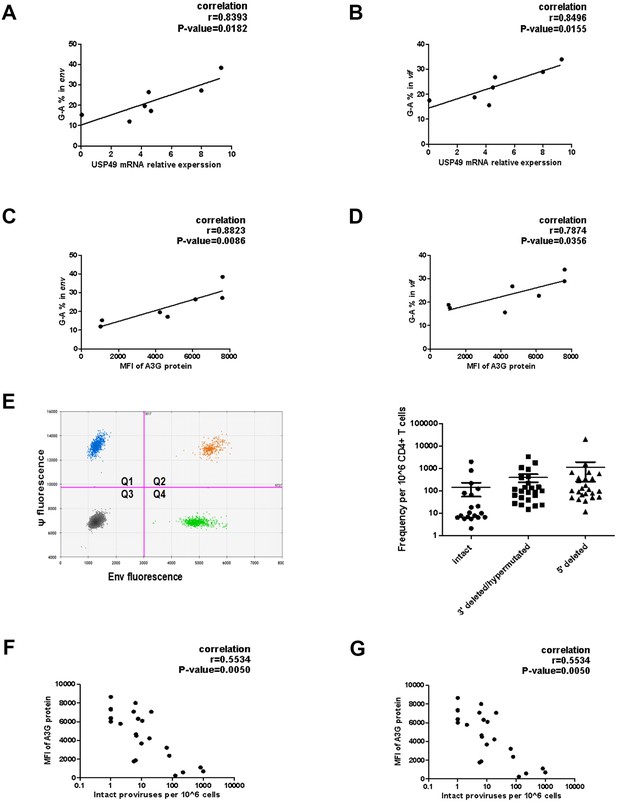

Associations of defective proviruses and USP49 mRNA expression levels in the CD4+ T cells isolated from HIV-1-infected individuals receiving suppressive cART.

(A–B) The percentage of G-to-A in env and vif population sequences correlates with USP49 mRNA expression level in the CD4+ T cells from HIV-1-infected individuals (n = 7). Pearson correlation coefficient and p value are listed. (C–D) The percentage of G-to-A in env and vif population sequences correlates with A3G protein level in the CD4+ T cells from HIV-1-infected individuals (n = 7). Pearson correlation coefficient and p value are listed. (E) Representative IPDA results from a patient’s CD4+ T cell sample. Boxed areas are expanded to show individual positive droplets (Left). IDPA results on CD4+ T cells from HIV-1-infected individuals (n = 24) with plasma HIV-1 RNA below the limit of detection (right). (F) Correlation between the intact proviruses and the A3G protein level in the CD4+T cells isolated from the indicated clinical HIV-1 patients. Pearson correlation coefficient and p value are listed. (G) Correlation between the intact proviruses and the USP49 mRNA level in the CD4+T cells isolated from the indicated clinical HIV-1 patients. Pearson correlation coefficient and p value are listed.

https://doi.org/10.7554/eLife.48318.016

We next analyzed the expression of USP49 in CD4+T cells isolated from HIV-1-infected individuals receiving suppressive cART and its possible correlation with the ratio of defective proviruses in the resting CD4 T-lymphocytes. A newly-developed intact proviral DNA assay (IPDA) based on droplet digital PCR was used to quantitatively analyze intact proviruses and defective proviruses (n = 24; Figure 6E) (Bruner et al., 2019). By analyzing 24 clinical samples, we observed a significant negative correlation between USP49 mRNA levels, as well as A3G protein expression, and the ratio of intact proviruses (Figure 6F,G). Combined with the G to A hypermutation measurements, these data suggest that USP49 contributes to the generation of defective proviruses in the HIV-1 latently-infected cells and therefore the actual size of the viral reservoir.

Discussion

USP49 is a DUB for which the function is relatively unknown. Recently, it has been shown that USP49 interacts with p53, dual-specificity protein phosphatases (DUSP), or FKBP51 in the nucleus, and consequently suppresses the ubiquitination of these proteins (Luo et al., 2017; Tu et al., 2018; Zhang et al., 2019). Regarding innate immunity, it can negatively regulate cellular antiviral responses via the deconjugation of K63-linked ubiquitin in STING, an adaptor protein that senses cytoplasmic DNA and is involved in various innate immune responses (Ye et al., 2019). Our data indicate that although USP49 is mainly distributed in the nucleus, it also exists in the cytoplasm. We also revealed a novel function for USP49 in the cytoplasm; specifically, it stabilizes A3G by counteracting Vif-mediated A3G ubiquitination by removing the ubiquitin from A3G. As a result, it significantly enhances the anti-HIV-1 activity of A3G. Our data also verified that its anti-HIV-1 effects are mainly due to the stabilization of A3G.

By studying the protection of A3G from degradation through DUB knockdown, we unexpectedly found that a Vif-independent degradation pathway for A3G. This pathway occurs via the UPS as MG132 could also block the degradation and ubiquitination of A3G. This phenomenon could explain why there are some ubiquitination sites on A3G that are not located at the C-terminus of A3G and not regulated by Vif (Albin et al., 2013; Iwatani et al., 2009; Turner et al., 2016). We attempted to identify the host E3 protein(s) that could be involved in A3G ubiquitination. At least, we found that the cullin family is not involved, as the inhibitor MLN4924 was ineffective and siRNAs for Cullin1-7 did not affect this process. Further, the depletion of elonginB and elonginC also did not affect the degradation of A3G, which clearly distinguishes this effect from the Vif-dependent degradation pathway.

It is well known that APOBEC proteins are not only involved in anti-HIV-1 immunity, but also counteract many viruses such as hepatitis B virus, adeno-associated virus, and some herpes viruses (Bulliard et al., 2011; Nakaya et al., 2016; Narvaiza et al., 2009; Suspène et al., 2005; Xu et al., 2007). They also play a key role in genome stability (Esnault et al., 2005; Narvaiza et al., 2012). Especially, they are involved in the development of mutations in tumors, which is a key factor for tumorigenesis and the development of drug-resistance or the escape from immune surveillance (Burns et al., 2013a; Burns et al., 2013b; Law et al., 2016; Swanton et al., 2015). It remains largely unknown how APOBEC3 proteins maintain their stability under these conditions. We identified that DUBs prevent the Vif-independent degradation of A3G, showing a new mechanism underlying the regulation of APOBE3 protein expression. Given the importance of the A3G protein and the potential functions of DUBs, future studies hold significant promise to exploit these novel mechanisms and develop therapeutic antiviral or antitumor agents. Nevertheless, considering that there are hundreds of E3 proteins, the identification of the E3 protein required for the Vif-independent degradation of A3G is interesting but beyond the scope of the current study.

The development of A3G-mediated sub-lethal hypermutations in the Vif-positive HIV-1 genome in vitro and in vivo has been widely accepted (Borzooee et al., 2018; Cuevas et al., 2015; De Pasquale et al., 2013; Jern et al., 2009; Kieffer et al., 2005; Kim et al., 2010; Mulder et al., 2008; Sadler et al., 2010; Zhang et al., 2003). Given that USP49 protects A3G from the Vif-dependent and Vif-independent degradation pathway, it is important to study the possible correlation between USP49 expression and A3G expression, and subsequently HIV-1 disease progression. In this report, we found a correlation between USP49 expression and A3G protein expression in vivo, as well as some important parameters related to HIV-1 disease progression and the components of the viral reservoir, through clinical correlation analysis. Although these data are preliminary, they support the hypothesis that the stabilization of A3G protein could lead to sub-lethal hypermutations or eventually lethal hypermutations in the HIV-1 genome, resulting in the accumulation of defective proviruses. Therefore, USP49 and A3G could comprise a strong driving force to contain the actual viral reservoir. Moreover, our data indicated that the expression of USP49 protein in HIV-1-infected individuals could be used to indicate the quality of defective proviruses and the actual size of the viral reservoir, potentially serving as a possible new biomarker to evaluate the prognosis of HIV-1-infected patients. In summary, our work not only provides a new host antiviral mechanism, but also suggests an important opportunity for the development of new methods to control HIV-1 infection and eradicate the viral reservoir.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or
reference
IdentifiersAdditional
information
Strain, strain background (Escherichia coli)E. coli DH5α: F-, φ 80dlacZ ΔM15,
Δ(lacZYA -argF) U169, deoR, recA1, endA1, hsdR17 (rK-, mK+), phoA, supE44, λ-, thi −1, gyrA96, relA1
TakaraCat#9057
Cell line (Homo sapiens)HEK293TATCCCRL-3216;
RRID:
CVCL_0063
female
Cell line (Homo sapiens)HelaATCCCCL-2; RRID:
CVCL_0030
female
Cell line (Homo sapiens)TZM-blNIH AIDS Reagent ProgramCat#8129female
Biological sample (Homo sapiens)Blood samples from healthy individualsGuangzhou Blood Center, Guangzhouhttp://www.gzbc.org/
Biological sample (Homo sapiens)Blood samples from HIV-1-infected individualsDepartment of Infectious Diseases, Guangzhou 8th People’s Hospital, Guangzhouhttp://gz8h.com.cn/
AntibodyMouse Monoclonal Anti-HA-Tag AntibodyMBLCat#M180-3Dilution
1:1000
AntibodyRabbit Anti-DDDDK Tag Polyclonal Antibody, UnconjugatedMBLCat#PM020Dilution
1:1000
AntibodyRabbit Polyclonal Anti-GAPDH AntibodyProteintechCat#10494–1-APDilution
1:1000
Antibodybeta Actin Mouse McAbProteintechCat#66009–1-IgDilution
1:1000
AntibodyUSP49 Rabbit Polyclonal antibodyProteintechCat#18066–1-APDilution
1:500
AntibodyUSP18 (D4E7) Rabbit mAbCell Signaling Technology
(CST)
Cat#4813Dilution
1:1000
AntibodyAnti-APOBEC3G/A3G antibodyAbcamCat#ab75560Dilution
1:200
AntibodyGFP (D5.1) XP Rabbit mAbCell Signaling Technology
(CST)
Cat#2956Dilution
1:1000
AntibodyUbiquitin Rabbit Polyclonal antibodyProteintechCat#10201–2-APDilution
1:1000
AntibodyIRDye 680RD Goat anti-Mouse IgG (H + L), 0.5 mg AntibodyLI-COR BiosciencesCat#926–68070Dilution
1:10000
AntibodyIRDye 800CW Goat Anti-Rabbit IgG, Conjugated AntibodyLI-COR BiosciencesCat#926–32211Dilution
1:10000
AntibodyGoat Anti-Mouse IgG H and L (DyLight 488) preadsorbedAbcamCat#ab96879Dilution
1:500
AntibodyGoat Anti-Mouse IgG H and L (DyLight 594) preadsorbedAbcamCat#ab96881Dilution
1:500
AntibodyEZviewTM Red Anti-HA Affinity GelSigma-AldrichCat# A2220-10ML30 ul/sample
AntibodyANTI-FLAG M2 Affinity GelSigma-AldrichCat# E6779-1ML30 ul/sample
Recombinant DNA reagentVSV-G glycoprotein-expression vectorPMID: 9306402Addgene Plasmid #12259Dr. Didier Trono (School of Life Sciences, Ecole Polytechnique Fédérale de Lausanne, Lausanne, Switzerland)
Recombinant DNA reagentLentiviral packaging construct pCMVΔR8.2PMID:
9306402
Addgene Plasmid
#12263
Dr. Didier Trono (School of Life Sciences, Ecole Polytechnique Fédérale de Lausanne, Lausanne, Switzerland)
Sequence-based reagentsiRNA LibraryRiboBiohttp://www.ribobio.com/
Chemical compound, drugTRIzolTM ReagentThermoFisherCat#15596018
Chemical compound, drugTriton X-100Sigma-AldrichCat#T8787-50ML
Chemical compound, drugPenicillin-Streptomycin,LiquidThermoFisherCat#15140122
Commercial assay or kitBD IMag Human CD4+ T Lymphocyte Enrichment Set-DMBD
Biosciences
Cat#557939
Commercial assay or kitHIV-1 p24 ELISA KitAbcamCat#ab218268
Software, algorithmPrism 5GraphPadhttps://www.graphpad.com/scientific-software/prism/
Software, algorithmFlowJo V10Tree Starhttps://www.flowjo.com/
Software, algorithmOdyssey CLX ImagerLI-COR
Biosciences
https://www.licor.com/bio/products/imaging_systems/odyssey/
Software, algorithmImage Studio Lite Ver 4.0LI-COR
Biosciences
https://www.licor.com/bio/products/software/image_studio_lite/
Software, algorithmHypermuthttps://www.hiv.lanl.gov/content/sequence/HYPERMUT/hypermut.html

Plasmid constructions

Request a detailed protocol

HIS-FLAG-USP49 was purchased from Vigene bioscience (cat# CH806995). USP49C262A mutant was generated by PCR-based site-directed mutagenesis. Other USP49 deletion mutants were sub-cloned into pcDNA3.1 vector with HA or FLAG tag. The vector pLKO.3G, which contains a U6 promoter and gfp selection gene was purchase from Addgene, was used for expression of USP49 shRNA or scrambled control. The pGFP-USP49 was generated by sub-cloning usp49 gene into pEGFP-C1 vector. The pcDNA3.1-A3G-HA/FLAG, pcDNA3.1-GFP-HA/FLAG, and pcDNA3.1-ub-HA/FLAG, pet28a-Vif and pet32a-A3G were constructed as described previously (Chen et al., 2017). The pNL4-3-Vif-Y40H mutant was generated by digestion of pNL4-3 with Apa I and EcoR I, and followed by PCR-based site-directed mutagenesis. All the constructs were confirmed by sequencing.

Cell culture and transfection

Request a detailed protocol

HEK293T and Hela cells were obtained from ATCC. TZM-bl cells were obtained from NIH AIDS Reagent Program.. All cells have been tested for mycoplasma using a PCR assay and confirmed to be mycoplasma-free. These cells were grown at 37°C with 5% CO2 in Dulbecco’s modified Eagle’s medium (DMEM) (Invitrogen) supplemented with 10% fetal bovine serum (FBS) (Invitrogen) and 1% penicillin–streptomycin (Invitrogen). The cells were transfected with the indicated plasmids or siRNAs by lipofectamine 2000 (Invitrogen). The procedures described by the manufacturer were followed.

DUB siRNA library screening

Request a detailed protocol

All the smart pools of siRNAs were obtained from RiboBio (Guangzhou, China). These siRNAs were utilized for screening. Briefly, HEK293T cells are seeded into a 96-well plate with 20,000 cells/well, and then transfected with plasmids A3G-GFP, Vif-HA and various siRNAs per well. The GFP expression was detected with a PE Envision (PerkineElmer) at 48 hr post-transfection.

Co–immunoprecipitation and western blotting

Request a detailed protocol

Co-IP and western blotting assays were performed as previously described (Pan et al., 2018). In brief, cells were lysed with the lysis buffer (150 mM NaCl, 50 mM Tris–HCl [pH 7.5], 1 mM EDTA,1% Triton X-100, 0.5% NP-40), plus PMSF and protease inhibitor cocktail for 30 min at 4°C. The cell lysates were clarified by centrifugation at 18,000 g for 30 min at 4°C, then mixed with anti-HA or anti-Flag agarose beads (Sigma) and incubated at 4°C for 4 hr, followed by washing four times with cold lysis buffer and eluting in gel loading buffer. The immunoprecipitated samples were analyzed by SDS-PAGE and detected by western blotting. Quantity One program (Biorad) was used to quantify the western blotting results. The information of antibodies were shown in Key resources table in the supplemental material.

The purification of pseudotyped HIV–one viruses

Request a detailed protocol

Human 293 T cells were transfected with pNL4-3-ΔEnvGFP or pNL4-3-ΔVif and other indicated plasmids. After 48 hr of transfection, cell supernatants were collected, centrifuged at 4°C for 10 min at 8000 rpm (≈ 7000 g) and filtered through a 0.45 μm filter to remove cellular debris. Then the cell-free supernatants were concentrated by ultracentrifugation through a 20% sucrose cushion at 4°C for 2 hr at 45,000 rpm (≈ 40,000 g) (HITACHI Preparative Ultracentrifuge, CP80WX). The pellets were re-suspended in RIPA buffer containing protease inhibitor cocktail and subjected to immunoblotting.

Virus infectivity assay

Request a detailed protocol

Human 293 T cells were co-transfected with pNL4-3-ΔVif or pVSV-G plus pNL4-3ΔEnv-GFP, in the presence or absence of pcDNA3.1-A3G-HA or pcDNA3.1-USP49-FLAG. The virus-containing supernatant were collected at 48 hr after transfection and filtered by a 0.45 μm filter. After normalization for HIV-1 p24 by enzyme-linked immunosorbent assay (ELISA, Clonetech), TZM-bl cells (2.5 × 105 cells per well in 24-well plates) were infected with viruses which containing 5 ng of p24 antigen. And then, luciferase enzyme activity was determined at 72 hr post infection.

In vivo deubiquitination assay

Request a detailed protocol

For the in vivo deubiquitination assay, HEK293T cells were co-transfected with plasmids expressing HA-USP49 wild-type (WT) or HA-USP49 with a mutant at Cys 262 to Ala (C262A mutant), Flag-A3G, and Ub-HA. After 2 days, cells were treated with MG132 (10 uM) for 24 hr before being harvested. The cell extracts were subjected to immunoprecipitation with the indicated antibodies for 4 hr at 4°C. Then, the precipitated immunocomplexes were separated by SDS–PAGE and blotted with anti-Ub and anti-A3G antibody.

Human subjects

Request a detailed protocol

Peripheral blood for the isolation of primary CD4 cells was obtained from HIV-1-infected individuals. One part of HIV-1-infected individuals had been on cART for at least 12 months and had maintained undetectable HIV-1 viremia (<50 HIV-1 RNA copies per ml of plasma). Another part was the newly diagnosed HIV-1 patients with high HIV-1 RNA copies in plasma. All the HIV-1-infected individuals were recruited from Guangzhou Eighth People's Hospital. Buffy coats derived from the blood of healthy donors were used in in vitro experiments. All human samples were anonymously coded in accordance with the local ethical guidelines (as stipulated by the Declaration of Helsinki). The Ethics Review Board of Sun Yat-Sen University and the Ethics Review Board of Guangzhou 8th People’s Hospital approved this study. Written informed consents were provided by all study participants, and the protocol was approved by the IRB of Guangzhou Eighth People's Hospital (Guangzhou, China).

Isolation and culture of primary CD4+ T cell and HIV-1 infection

Request a detailed protocol

Peripheral blood mononuclear cells (PBMCs) were obtained from healthy donors and isolated using Ficoll gradient centrifugation, followed by culturing in the conditioned RPMI 1640 medium. The CD4+ T cells were then isolated by MACS microbead-negative sorting using human CD4+ T cell isolation kit (BD Bioscience). The purity of CD4+ T cell fraction was higher than 95%. Then the CD4+ T cells from healthy donors were activated by 1 μg/ml anti-CD3/CD28 mAbs and 100 U/ml IL-2 for 3 days, followed by infection with HIV-1NL4-3, HIV-1NL4-3VifY40H, or HIV-1 reporter viruses. The HIV-1 viruses were generated by transfecting 293 T cells with pNL4-3 or pNL4-3 VifY40H. Productive infection was determined by P24 ELISA kit.

RNA isolation and real-time PCR (qRT-PCR)

Request a detailed protocol

Cellular viral DNA/RNA was isolated from the CD4 T-cells of HIV-1 infected individuals according to the instructions using AllPure DNA/RNA Micro Kit (Magen, R5112-02). Then cDNA was synthesized using a SuperScript III reverse transcriptase kit (Qiagen, Valencia, CA). The qRT-PCR reactions were performed in triplicate using SYBR Green (TaKaRa, Otsu, Japan) and normalized to endogenous actin and GAPDH mRNA levels using gene-specific primers for each target (see Supplementary file 1).

Nested RT-PCR and sequencing

Request a detailed protocol

RNA from CD4+ T cells was extracted with an RNase minikit (Qiagen) and used for amplification of viral vif or partial env genes (V1-V3 region). The first-round PCR was performed using a one-step RT-PCR kit (TaKaRa, Otsu, Japan), and second-round PCR was performed with High Fidelity Prime Star (TaKaRa, Otsu, Japan), following the manufacturer’s instructions. The primers used for this experiment are listed in Supplementary file 1. For clonal sequencing, PCR products were TA cloned into the pMD-18 T vector (TaKaRa, Otsu, Japan) and 10 clones were sequenced for each sample.

Hypermutation analysis

Request a detailed protocol

The percentages of G-to-A mutations were quantified with online Hypermut software (www.hiv.lanl.gov/content/sequence/HYPERMUT/hypermut.html) (Rose and Korber, 2000; Simon et al., 2005). Virion-associated RNA from viral outgrowth of the same subject was also sequenced as a reference sequence.

Intact proviral DNA assay (IPDA)

Request a detailed protocol

The procedures for IPDA described previously were followed with minor modifications (Bruner et al., 2019). In general, the IPDA is performed on DNA from 2 × 106 CD4+ T cells. Genomic DNA is extracted using the QIAamp DNA Mini Kit (Qiagen) with precautions to avoid excess DNA fragmentation. Quantification of intact, 5’deleted, and 3’deleted and/or hypermutated proviruses was carried out using primer/probe combinations optimized for subtype B HIV-1. The primer/probe mix consists of oligonucleotides for two independent hydrolysis probe reactions that interrogate conserved regions of the HIV-1 genome to discriminate intact from defective proviruses (Supplementary file 1). HIV-1 reaction A targets the packaging signal (Ψ) that is a frequent site of small deletions and is included in many large deletions in the proviral genome. The Ψ amplicon is positioned at HXB2 coordinates 692–797. This reaction uses forward and reverse primers, as well as a 5’6-FAM-labeled hydrolysis probe. Successful amplification of HIV-1 reaction A produced FAM fluorescence in droplets containing Ψ, detectable in channel 1 of the droplet reader. HIV-1 reaction B targets the RRE of the proviral genome, with the amplicon positioned at HXB2 coordinates 7736–7851. This reaction used forward and reverse primers, as well as two hydrolysis probes: a 5’VIC-labeled probe specific for wild-type proviral sequences, and a 5’unlabelled probe specific for APOBEC3G hypermutated proviral sequences (Supplementary file 1). Successful amplification of HIV-1 reaction B produced a VIC fluorescence in droplets containing a wild-type form of RRE, detectable in channel 2 of the droplet reader, whereas droplets containing a hypermutated form of RRE were not fluorescent.

Droplets containing HIV-1 proviruses were scored as follows. Droplets positive for FAM fluorescence only, which arises from Ψ amplification, was scored as containing 3′ defective proviruses, with the defect attributable to either APOBEC3G mediated hypermutation or 3′ deletion. Droplets positive for VIC fluorescence only, which arises from wild-type RRE amplification, was scored as containing 5′ defective proviruses, with the defect attributable to 5′ deletion. Droplets positive for both FAM and VIC fluorescence was scored as containing intact proviruses. Double-negative droplets contained no proviruses or rare proviruses with defects affecting both amplicons.

Digital droplet PCR

Request a detailed protocol

The procedures for ddPCR described previously were followed with minor modifications (Bruner et al., 2019). Briefly, The ddPCR was performed on the Bio-Rad QX200 AutoDG Digital Droplet PCR system using the appropriate manufacturer supplied consumables and the ddPCR Supermix for probes (no dUTPS) (Bio-Rad Laboratories). For HIV-1 proviral discrimination reactions, 600 ng of genomic DNA was analyzed in each reaction well. Uninfected donor CD4+T cells was performed for each IPDA run as a negative control while qualified genomic DNA of J-Lat 6.3 cell line was analyzed in each IPDA run as a positive control. Multiple replicate wells were performed for each reaction type to ensure a consistent quantification, and replicate wells were merged during analysis to increase IPDA dynamic range. Results are expressed as intact proviral DNA copies per 106 CD4+ T cells.

Statistics

Statistics analysis were performed with GraphPad Prism 6. All of data were reported as mean ± SEM. For multiple comparisons, a one-way followed by the Bonferroni’s correction (only two groups were compared) was applied. Correlation was estimated by Pearson correlation coefficients (for parametric data). Differences were found to be significant when P was less than 0.05, 0.01, or 0.001, as indicated by single (*), double (**), or triple asterisks (***) within the figures. Most graphs were produced using Prism.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65

Decision letter

  1. Guangxia Gao
    Reviewing Editor; Institute of Biophysics, Chinese Academy of Sciences, China
  2. Päivi M Ojala
    Senior Editor; University of Helsinki, Finland

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "USP49 potently stabilizes APOBEC3G protein and inhibits HIV-1 replication" for consideration by eLife. Your article has been reviewed by two peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Päivi Ojala as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

In this paper, the authors identified the deubiquitinase USP49 as a factor that stabilizes the host antiviral factor APOBEC3G (A3G). USP49 interacted with and removes ubiquitins from A3G, and thereby prevents the degradation of A3G. Analysis of clinical samples of HIV-1 infected patients revealed that USP49 expression is directly correlated with hypermutation rate and inversely correlated with intact proviruses in latent reservoirs. While the reviewers found the paper interesting, some essential revisions are needed before it can be published.

Essential revisions:

1) The authors should provide more solid and systematic data to show that USP49 inhibits HIV-1 infectivity through A3G. Particularly, in Figure 2B, please show by Western blotting that A3G levels are rescued in cells and its virion incorporation is increased in a USP49 dose-dependent manner. Furthermore, please show that the inhibition of viral replication is associated with increased hypermutation of the proviral DNAs in target cells.

2) The authors should provide more quantitative data to show that the effects are significant. Specifically, the authors should quantitate the Western blot bands and plot the results of 2-3 independent experiments. Representative Western blots with adequate exposure may be needed such that the effects may look more obvious. This requirement applies to Figure 1C,D, and Figure 3B,E,F. New experiments may not be needed here.

3) The authors should show that USP49 works with the endogenous A3G to inhibit HIV-1 infectivity. Particularly, in Figure 2D, the authors should compare effects of USP49 on the viral infectivity with or without downregualtion of endogenous A3G. A different cell line may be needed in which the endogenous A3G is expressed at a functionally detectable level.

The full reviews are listed below. The rationale for the revisions may be better understood in the context of the full reviews. In addition, the comments should be helpful for the authors to improve the manuscript.

Reviewer #1:

In this paper, the authors screened siRNAs targeting deubiquitinases for those involved in Vif-mediated degradation of A3G and identified USP49 as one that promoted the stability of A3G. The authors further demonstrated that USP49 interacted with A3G and reduced its ubiquitination. In HIV-infected patients, the expression levels of USP49 correlated well with A3G expression and disease progression parameters including CD4+ T cell counts and viral loads. Furthermore, the expression levels of USP49 correlated with the hypermutation rates of the Vif-positive proviruses. These are important findings that would be interesting to a broad audience of eLife, though the paper should be better written and some concerns need to be addressed before publication.

1) Figure 2D. USP49 is expected to aid the endogenous A3G to inhibit HIV-1 infectivity. But we do not see that effect here. One explanation is that in these cells there is little or no endogenous A3G. In this case a cell line that expresses A3G at a level functionally detectable should be used to analyze the effect of USP49 with or without A3G downregulation. In the whole paper, A3G was overexpressed. It is important to show that USP49 works with the endogenous A3G to inhibit HIV infectivity.

2) Figure 3E. Was USP49-Flag co-expressed in this experiment? If no, where is the USP49-Flag panel from? If yes, it should be indicated in the figure legend. In the latter case, the experiment would have been too complicated. Maybe the endogenous ESP49 was mistakenly labeled as USP49-Flag?

Reviewer #2:

Deubiquitinating enzymes (DUBs) can regulate the stability of proteins. The authors found that a DUB, USP49, directly interacts with A3G and removes ubiquitins from A3G, increasing its steady state levels and its antiviral activity. It was also observed that Vif can mediate degradation of A3G by a cullin-ring-independent pathway that is counteracted by USP49. Analysis of clinical samples revealed that USP49 expression is directly correlated with hypermutation and inversely correlated with intact proviruses in latent reservoirs.

Overall, some innovative experiments that explore the role of deubiquitinating enzymes in Vif-mediated degradation of APOBEC3G are described. While some of the results are strong, others are not as convincing. Additional results that support and strengthen some major conclusions are needed.

Figure 1E: At the low dose of Vif, GFP expression is increased to ~1.7-fold compared to the no Vif control. Is this due to a Vif-independent effect or is this just variation between experiments? Three independent transfection experiments should be done and provide error bars, and to establish the reproducibility of the results.

It is stated that USP49 significantly suppressed downregulation of A3G at moderate levels of Vif, but the effect was limited at high levels of Vif. However, the fold increase in the GFP expression seems higher when high levels of Vif were transfected.

Figure 2B: The dose-dependent suppression of infectivity with increasing levels of USP49 in the presence of A3G and Vif is convincing. The authors should provide western blots in parallel to show a dose-dependent increase in steady-state levels of A3G in cells and in virion-incorporated A3G. In addition, the authors should provide data indicating that the dose-dependent decrease in infectivity is accompanied with higher frequencies of G-to-A hypermutation of proviral DNAs in infected cells.

Figure 2E: A Y40H Vif mutant was used to carry out the experiments over 21 days. The authors should sequence the proviral DNA in the cultures at the 21-day time point to verify that the rescue in virus was not due to reversion of the Y40H mutation and due to suppression of USP49.

Figures 3D and 3E: the rescue in A3G-HA levels in cells and in virion lysates is very mild and not convincing. As stated above, a dose-dependent rescue of A3G levels and their virion incorporation should be shown by performing quantitative western blots and at least three independent experiments.

Figure 3F: The result that MLN4924 did not rescue A3G levels is not convincing; multiple experiments with quantitative western blots should be shown.

Figure 3G: Did the authors verify that the siRNA knockdowns of the cullins were effective in reducing the steady-state levels of cullins? How efficient was the knockdown and is it possible that residual amounts of cullins remaining were sufficient to induce degradation of A3G-GFP?

The vertical axis should indicate that a fold decrease in GFP expression was being measured to avoid confusion.

Figure 4B and 4C: The IP experiments should be performed with and without RNase treatment to show that the interaction between A3G and USP49 is direct and not an indirect interaction mediated by both proteins binding to RNA.

Figure 6E – 6G: More informative figure legends and methods description are needed to clarify these results.

https://doi.org/10.7554/eLife.48318.020

Author response

Essential revisions:

1) The authors should provide more solid and systematic data to show that USP49 inhibits HIV-1 infectivity through A3G. Particularly, in Figure 2B, please show by Western blotting that A3G levels are rescued in cells and its virion incorporation is increased in a USP49 dose-dependent manner. Furthermore, please show that the inhibition of viral replication is associated with increased hypermutation of the proviral DNAs in target cells.

We appreciate the suggestions and apologize for missing the solid Western blot data in our results which we have now corrected. We would like to emphasize our revisions by the following points:

A) In the new Figure 2A-2C, we illustrated that A3G levels in the cell were rescued by USP49, through Western blotting. Meanwhile, we have also quantitated the Western blot bands and retrieved data from three independent experiments.

B) In the newly-added Figure 2—figure supplement 1A, we sequenced the target motif of A3G on HIV-1 protease (the prot (nt 2280-2631)) region to detect hypermutations. Proviral DNAs from samples with reduced infectivity have more G-to-A hypermutations, which are correlated with A3G protein level and USP49 level.

2) The authors should provide more quantitative data to show that the effects are significant. Specifically, the authors should quantitate the Western blot bands and plot the results of 2-3 independent experiments. Representative Western blots with adequate exposure may be needed such that the effects may look more obvious. This requirement applies to Figure 1C,D, and Figure 3B,E,F. New experiments may not be needed here.

According to the editors and reviewer’s suggestions, all of these experiments (including Figure 1C,D and Figure 3B,C,F) shown here now represent at least three independent experiments (results with adequate exposure) and we quantitated the Western blot bands with Image J software.

3) The authors should show that USP49 works with the endogenous A3G to inhibit HIV-1 infectivity. Particularly, in Figure 2D, the authors should compare effects of USP49 on the viral infectivity with or without downregualtion of endogenous A3G. A different cell line may be needed in which the endogenous A3G is expressed at a functionally detectable level.

Thanks for this suggestion. We originally used 293T cell line even though it does not have endogenous A3G. Although H9 cell line serves as a typical non-permissive cell and is frequently used for endogenous A3G study, it has a low expression of USP49 protein level (data not shown). Per suggestion, we decided to examine the effects of USP49 on the viral infectivity with or without downregulation of endogenous A3G in primary CD4+ T cells, which express both endogenous USP49 and endogenous A3G. We transfected siRNA with nucleofection to knockdown the endogenous USP49 or endogenous A3G level and then these cells were infected with HIV-1NL4-3ΔEnv pseudotyped viruses. Results in the new Figure 2E showed that USP49 worked with endogenous A3G to inhibit HIV-1 infectivity. Furthermore, the intracellular staining indicated the expression of A3G protein levels were decreased by the siRNA knockdown of USP49.

Reviewer #1:

In this paper, the authors screened siRNAs targeting deubiquitinases for those involved in Vif-mediated degradation of A3G and identified USP49 as one that promoted the stability of A3G. The authors further demonstrated that USP49 interacted with A3G and reduced its ubiquitination. In HIV-infected patients, the expression levels of USP49 correlated well with A3G expression and disease progression parameters including CD4+ T cell counts and viral loads. Furthermore, the expression levels of USP49 correlated with the hypermutation rates of the Vif-positive proviruses. These are important findings that would be interesting to a broad audience of eLife, though the paper should be better written and some concerns need to be addressed before publication.

Thanks for these positive comments. We have gone through the whole manuscript very carefully to eliminate any grammar or presentational errors.

1) Figure 2D. USP49 is expected to aid the endogenous A3G to inhibit HIV-1 infectivity. But we do not see that effect here. One explanation is that in these cells there is little or no endogenous A3G. In this case a cell line that expresses A3G at a level functionally detectable should be used to analyze the effect of USP49 with or without A3G downregulation. In the whole paper, A3G was overexpressed. It is important to show that USP49 works with the endogenous A3G to inhibit HIV infectivity.

Thanks for the reviewer’s comments. We originally used 293T cell line even though it does not have endogenous A3G. Although H9 cell line serves as a typical non-permissive cell and is frequently used for endogenous A3G study, it has a low expression of USP49 protein level (data not shown). Per suggestion, we decided to examine the effects of USP49 on the viral infectivity with or without downregulation of endogenous A3G in primary CD4+ T cells, which express both endogenous USP49 and endogenous A3G. We transfected siRNA with nucleofection to knockdown the endogenous USP49 or endogenous A3G level and then these cells were infected with HIV-1NL4-3ΔEnv pseudotyped viruses. Results in the new Figure 2E showed that USP49 worked with endogenous A3G to inhibit HIV-1 infectivity. Considering the nucleofection and infection may lead to many cell death and the cells is insufficient for western blot, we performed intracellular staining of A3G protein. The flow cytometry data indicated the expression of A3G protein levels were decreased by the siRNA knockdown of USP49 and A3G (Figure 2—figure supplement 2).

2) Figure 3E. Was USP49-Flag co-expressed in this experiment? If no, where is the USP49-Flag panel from? If yes, it should be indicated in the figure legend. In the latter case, the experiment would have been too complicated. Maybe the endogenous ESP49 was mistakenly labeled as USP49-Flag?

We apologize for this mistake. The endogenous USP49 was mistakenly labeled as USP49-Flag. We have carefully corrected all the presentational mistakes in the revised manuscript. We will remember this lesson and will be extremely careful in all our research works and post-work presentations.

Reviewer #2:

Deubiquitinating enzymes (DUBs) can regulate the stability of proteins. The authors found that a DUB, USP49, directly interacts with A3G and removes ubiquitins from A3G, increasing its steady state levels and its antiviral activity. It was also observed that Vif can mediate degradation of A3G by a cullin-ring-independent pathway that is counteracted by USP49. Analysis of clinical samples revealed that USP49 expression is directly correlated with hypermutation and inversely correlated with intact proviruses in latent reservoirs.

Overall, some innovative experiments that explore the role of deubiquitinating enzymes in Vif-mediated degradation of APOBEC3G are described. While some of the results are strong, others are not as convincing. Additional results that support and strengthen some major conclusions are needed.

Thanks for the constructive comments. We have performed additional experiments to provide more solid data and support our major conclusions.

Figure 1E: At the low dose of Vif, GFP expression is increased to ~1.7-fold compared to the no Vif control. Is this due to a Vif-independent effect or is this just variation between experiments? Three independent transfection experiments should be done and provide error bars, and to establish the reproducibility of the results.

To address the reviewer’s concerns, we have repeated this experiment many times with proper amounts of plasmids. Through many times of experiments, we feel that the approximate 1.7-fold increase observed in the previous work was due to the variations between the experiments. The Vif-independent effect is observed at the 1st lane, which indicates that while the amount of USP49 increased, A3G level also increased in the absence of Vif expression.

The new Figure 1E were representative of three independent experiments and the error bars were provided. Meanwhile, we have corrected the Y axis title as “MFI of A3G-GFP expression” in the revised Figure for better understanding.

It is stated that USP49 significantly suppressed downregulation of A3G at moderate levels of Vif, but the effect was limited at high levels of Vif. However, the fold increase in the GFP expression seems higher when high levels of Vif were transfected.

Thanks for the comments and we have adjusted the amount of three plasmids (emphasize contrast in the levels) and obtained a more significant result in the new Figure 1E.

Figure 2B: The dose-dependent suppression of infectivity with increasing levels of USP49 in the presence of A3G and Vif is convincing. The authors should provide western blots in parallel to show a dose-dependent increase in steady-state levels of A3G in cells and in virion-incorporated A3G. In addition, the authors should provide data indicating that the dose-dependent decrease in infectivity is accompanied with higher frequencies of G-to-A hypermutation of proviral DNAs in infected cells.

Thanks for the suggestions and we have now added the western blotting data in our results. In the new Figure 2B, we have shown through Western blot that A3G levels were rescued in cell by USP49 in dose-dependent manner. Meanwhile, we have also quantitated the Western blot bands and the results were representative of three independent experiments. Meanwhile, in the new Figure 2—figure supplement 1A, we sequenced the target motif of A3G on HIV-1 protease (the prot (nt 2280-2631)) region to detect hypermutations. The sequencing indicated that proviral DNAs in cells with lower infectivity (has a higher USP49 dose) have more G-to-A hypermutations. These G-to-A hypermutations were caused by A3G protein, which was correlated with USP49 level.

Figure 2E: A Y40H Vif mutant was used to carry out the experiments over 21 days. The authors should sequence the proviral DNA in the cultures at the 21-day time point to verify that the rescue in virus was not due to reversion of the Y40H mutation and due to suppression of USP49.

Thanks for the reviewer’s suggestion, we sequenced the proviral DNA in the cultures at the 21-day time point and analyzed the hypermutation. The results are shown in the new Figure 2—figure supplement 1B. We have not found any reversion of the Y40H mutation in the cell-free virion RNA. Meanwhile, compared with suppression of USP49, there is a lower frequency of G-to-A hypermutation in proviral DNAs in the Y40H mutation control sample. This result verifies that the inhibition of USP49 can promote the degradation of A3G and subsequently reduce the hypermutation in virus.

Figures 3D and 3E: the rescue in A3G-HA levels in cells and in virion lysates is very mild and not convincing. As stated above, a dose-dependent rescue of A3G levels and their virion incorporation should be shown by performing quantitative western blots and at least three independent experiments.

Thanks for the reviewer’s suggestion, we have repeated the experiments regarding Figure 3D and 3E. Meanwhile, according to the reviewer’s suggestion, we have performed a dose-dependent assay with over-expression of USP49 in the new Figure 3D. All these experiments shown here represent at least three independent experiments and we quantitated the Western blot bands of A3G with Image J.

Figure 3F: The result that MLN4924 did not rescue A3G levels is not convincing; multiple experiments with quantitative western blots should be shown.

According to the reviewer’s suggestion, we have repeated the western blot multiple times and quantitated the Western blot bands with Image J. All these experiments shown here represent at least three independent experiments and representative data were showed in the new Figure 3F. The result now clearly indicates that MLN4924 did not rescue A3G levels.

Figure 3G: Did the authors verify that the siRNA knockdowns of the cullins were effective in reducing the steady-state levels of cullins? How efficient was the knockdown and is it possible that residual amounts of cullins remaining were sufficient to induce degradation of A3G-GFP?

Thanks for the reviewer’s comment. To address your concerns, we first detected the knockdown efficiency of these siRNAs by qRT-PCR and the results demonstrated that the knockdown efficiency of siRNA is more than 70% (Figure 3—figure supplement 2A).

Moreover, two more experiments proved the efficiency of siRNAs (Figure 3—figure supplement 2B,C). One was that the siRNA knockdown of Cullin5 decreased the degradation of A3G through Vif-dependent way. This indicates that the siRNA for Cullin5 was very effective. Another experiment was that the expression of AID increased when Cullin7 was inhibited by the siRNA. Cullin7 is involved in the degradation of AID, which was reported by our group recently (Luo et al., 2019). In both experiments, the effects of Cullins were significantly inhibited by siRNA. If these Cullins are involved in the Vif-independent degradation of A3G, the current 70% knockdown efficiency would be enough to cause detectable changes in the results. However, we did not see any effect of the Cullin1-7 knockdown (by siRNA) on the A3G-GFP expression. Therefore, according to our existing experimental results, we believe that Cullin1-7 do not participate in the Vif-independent degradation pathway of A3G.

The vertical axis should indicate that a fold decrease in GFP expression was being measured to avoid confusion.

Thanks for the reviewer’s suggestion. We have corrected the vertical axis to “MFI of GFP Expression” in the revised Figure 3G.

Figure 4B and 4C: The IP experiments should be performed with and without RNase treatment to show that the interaction between A3G and USP49 is direct and not an indirect interaction mediated by both proteins binding to RNA.

Thanks for the reviewer’s suggestion. We have performed the experiment with RNase A treatment in the new Figure 4D and found that the interaction between A3G and USP49 is direct and not mediated by RNA.

Figure 6E – 6G: More informative figure legends and methods description are needed to clarify these results.

Thanks for the reviewer’s comments. We have described the details of IPDA methods in the revised manuscript. These methods were reported by Siliciano’s lab in 2019 (Katherine et al., 2019). It is a quantitative approach for measuring the reservoir of latent HIV-1 proviruses.

In general, the IPDA was performed on DNA from 2 × 106 CD4+ T cells. Genomic DNA was extracted using the QIAamp DNA Mini Kit (Qiagen) with precautions to avoid excess DNA fragmentation. Quantification of intact, 5’deleted, and 3’deleted and/or hypermutated proviruses was carried out using primer/probe combinations optimized for subtype B HIV-1. The primer/probe mix consists of oligonucleotides for two independent hydrolysis probe reactions that interrogate conserved regions of the HIV-1 genome to discriminate intact from defective proviruses (Supplementary file 2). HIV-1 reaction A targets the packaging signal (Ψ) that is a frequent site of small deletions and is included in many large deletions in the proviral genome. The Ψ amplicon is positioned at HXB2 coordinates 692–797. This reaction used forward and reverse primers, as well as a 5’6-FAM-labelled hydrolysis probe. Successful amplification of HIV-1 reaction A produced FAM fluorescence in droplets containing Ψ, detectable in channel 1 of the droplet reader. HIV-1 reaction B targets the RRE of the proviral genome, with the amplicon positioned at HXB2 coordinates 7736-7851. This reaction used forward and reverse primers, as well as two hydrolysis probes: a 5’VIC-labelled probe specific for wild-type proviral sequences, and a 5’unlabelled probe specific for APOBEC3G hypermutated proviral sequences (Supplementary file 2). Successful amplification of HIV-1 reaction B produced a VIC fluorescence in droplets containing a wild-type form of RRE, detectable in channel 2 of the droplet reader, whereas droplets containing a hypermutated form of RRE were not fluorescent.

Droplets containing HIV-1 proviruses were scored as follows. Droplets positive for FAM fluorescence only, which arises from Ψ amplification, was scored as containing 3′ defective proviruses, with the defect attributable to either APOBEC3G mediated hypermutation or 3′ deletion. Droplets positive for VIC fluorescence only, which arises from wild-type RRE amplification, was scored as containing 5′ defective proviruses, with the defect attributable to 5′ deletion. Droplets positive for both FAM and VIC fluorescence was scored as containing intact proviruses. Double-negative droplets contained no proviruses or rare proviruses with defects affecting both amplicons.

These explanations were added to the manuscript in the Materials and methods section.

https://doi.org/10.7554/eLife.48318.021

Article and author information

Author details

  1. Ting Pan

    Institute of Human Virology, Key Laboratory of Tropical Disease Control of Ministry of Education, Guangdong Engineering Research Center for Antimicrobial Agent and Immunotechnology, Zhongshan School of Medicine, Sun Yat-sen University, Guangzhou, China
    Contribution
    Data curation, Formal analysis, Funding acquisition, Validation, Investigation, Methodology, Writing—original draft, Project administration
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7106-7312
  2. Zheng Song

    Institute of Human Virology, Key Laboratory of Tropical Disease Control of Ministry of Education, Guangdong Engineering Research Center for Antimicrobial Agent and Immunotechnology, Zhongshan School of Medicine, Sun Yat-sen University, Guangzhou, China
    Contribution
    Resources, Data curation, Formal analysis, Validation, Methodology
    Competing interests
    No competing interests declared
  3. Liyang Wu

    Institute of Human Virology, Key Laboratory of Tropical Disease Control of Ministry of Education, Guangdong Engineering Research Center for Antimicrobial Agent and Immunotechnology, Zhongshan School of Medicine, Sun Yat-sen University, Guangzhou, China
    Contribution
    Data curation, Formal analysis, Validation
    Competing interests
    No competing interests declared
  4. Guangyan Liu

    Institute of Human Virology, Key Laboratory of Tropical Disease Control of Ministry of Education, Guangdong Engineering Research Center for Antimicrobial Agent and Immunotechnology, Zhongshan School of Medicine, Sun Yat-sen University, Guangzhou, China
    Contribution
    Resources, Data curation, Formal analysis, Validation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5891-1830
  5. Xiancai Ma

    Institute of Human Virology, Key Laboratory of Tropical Disease Control of Ministry of Education, Guangdong Engineering Research Center for Antimicrobial Agent and Immunotechnology, Zhongshan School of Medicine, Sun Yat-sen University, Guangzhou, China
    Contribution
    Resources, Validation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4934-4221
  6. Zhilin Peng

    Institute of Human Virology, Key Laboratory of Tropical Disease Control of Ministry of Education, Guangdong Engineering Research Center for Antimicrobial Agent and Immunotechnology, Zhongshan School of Medicine, Sun Yat-sen University, Guangzhou, China
    Contribution
    Resources, Validation, Methodology
    Competing interests
    No competing interests declared
  7. Mo Zhou

    Institute of Human Virology, Key Laboratory of Tropical Disease Control of Ministry of Education, Guangdong Engineering Research Center for Antimicrobial Agent and Immunotechnology, Zhongshan School of Medicine, Sun Yat-sen University, Guangzhou, China
    Contribution
    Resources, Data curation, Validation
    Competing interests
    No competing interests declared
  8. Liting Liang

    Institute of Human Virology, Key Laboratory of Tropical Disease Control of Ministry of Education, Guangdong Engineering Research Center for Antimicrobial Agent and Immunotechnology, Zhongshan School of Medicine, Sun Yat-sen University, Guangzhou, China
    Contribution
    Data curation, Validation, Methodology
    Competing interests
    No competing interests declared
  9. Bingfeng Liu

    Institute of Human Virology, Key Laboratory of Tropical Disease Control of Ministry of Education, Guangdong Engineering Research Center for Antimicrobial Agent and Immunotechnology, Zhongshan School of Medicine, Sun Yat-sen University, Guangzhou, China
    Contribution
    Resources, Data curation, Validation
    Competing interests
    No competing interests declared
  10. Jun Liu

    Institute of Human Virology, Key Laboratory of Tropical Disease Control of Ministry of Education, Guangdong Engineering Research Center for Antimicrobial Agent and Immunotechnology, Zhongshan School of Medicine, Sun Yat-sen University, Guangzhou, China
    Contribution
    Resources, Software
    Competing interests
    No competing interests declared
  11. Junsong Zhang

    Institute of Human Virology, Key Laboratory of Tropical Disease Control of Ministry of Education, Guangdong Engineering Research Center for Antimicrobial Agent and Immunotechnology, Zhongshan School of Medicine, Sun Yat-sen University, Guangzhou, China
    Contribution
    Resources, Software, Methodology
    Competing interests
    No competing interests declared
  12. Xuanhong Zhang

    Institute of Human Virology, Key Laboratory of Tropical Disease Control of Ministry of Education, Guangdong Engineering Research Center for Antimicrobial Agent and Immunotechnology, Zhongshan School of Medicine, Sun Yat-sen University, Guangzhou, China
    Contribution
    Resources, Methodology
    Competing interests
    No competing interests declared
  13. Ryan Huang

    Institute of Human Virology, Key Laboratory of Tropical Disease Control of Ministry of Education, Guangdong Engineering Research Center for Antimicrobial Agent and Immunotechnology, Zhongshan School of Medicine, Sun Yat-sen University, Guangzhou, China
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  14. Jiacong Zhao

    Institute of Human Virology, Key Laboratory of Tropical Disease Control of Ministry of Education, Guangdong Engineering Research Center for Antimicrobial Agent and Immunotechnology, Zhongshan School of Medicine, Sun Yat-sen University, Guangzhou, China
    Contribution
    Resources, Methodology
    Competing interests
    No competing interests declared
  15. Yonghong Li

    Infectious Disease Center, Guangzhou Eighth People’s Hospital, Guangzhou Medical University, Guangzhou, China
    Contribution
    Resources, Validation, Methodology
    Competing interests
    No competing interests declared
  16. Xuemei Ling

    Infectious Disease Center, Guangzhou Eighth People’s Hospital, Guangzhou Medical University, Guangzhou, China
    Contribution
    Resources, Investigation, Methodology
    Competing interests
    No competing interests declared
  17. Yuewen Luo

    Institute of Human Virology, Key Laboratory of Tropical Disease Control of Ministry of Education, Guangdong Engineering Research Center for Antimicrobial Agent and Immunotechnology, Zhongshan School of Medicine, Sun Yat-sen University, Guangzhou, China
    Contribution
    Resources, Methodology
    Competing interests
    No competing interests declared
  18. Xiaoping Tang

    Infectious Disease Center, Guangzhou Eighth People’s Hospital, Guangzhou Medical University, Guangzhou, China
    Contribution
    Resources, Investigation, Methodology
    Competing interests
    No competing interests declared
  19. Weiping Cai

    Infectious Disease Center, Guangzhou Eighth People’s Hospital, Guangzhou Medical University, Guangzhou, China
    Contribution
    Resources, Investigation, Methodology
    Competing interests
    No competing interests declared
  20. Kai Deng

    Institute of Human Virology, Key Laboratory of Tropical Disease Control of Ministry of Education, Guangdong Engineering Research Center for Antimicrobial Agent and Immunotechnology, Zhongshan School of Medicine, Sun Yat-sen University, Guangzhou, China
    Contribution
    Resources, Methodology
    Competing interests
    No competing interests declared
  21. Linghua Li

    Infectious Disease Center, Guangzhou Eighth People’s Hospital, Guangzhou Medical University, Guangzhou, China
    Contribution
    Resources, Investigation, Methodology
    For correspondence
    llheliza@126.com
    Competing interests
    No competing interests declared
  22. Hui Zhang

    Institute of Human Virology, Key Laboratory of Tropical Disease Control of Ministry of Education, Guangdong Engineering Research Center for Antimicrobial Agent and Immunotechnology, Zhongshan School of Medicine, Sun Yat-sen University, Guangzhou, China
    Contribution
    Funding acquisition, Investigation, Project administration, Writing—review and editing
    For correspondence
    zhangh92@mail.sysu.edu.cn
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3620-610X

Funding

National Special Research Program of China for Important Infectious Diseases (2018ZX10302103)

  • Hui Zhang

National Special Research Program of China for Important Infectious Diseases (2017ZX10202102)

  • Hui Zhang

National Natural Science Foundation of China (Key Program 81730060)

  • Hui Zhang

The International Collaboration Program of the Natural Science Foundation of China and the US NIH (81561128007)

  • Hui Zhang

The Joint-Innovation Program in Healthcare for Special Scientific Research Projects of Guangzhou (201803040002)

  • Hui Zhang

The Science and Technology Planning Project of Guangzhou (201704020226)

  • Ting Pan

Pearl River S and T Nova Program of Guangzhou (201806010118)

  • Ting Pan

National Natural Science Foundation of China (81971918)

  • Ting Pan

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by the National Special Research Program of China for Important Infectious Diseases (2018Z × 10302103 and 2017Z × 10202102), the Important Key Program of the Natural Science Foundation of China (81730060), the International Collaboration Program of the Natural Science Foundation of China and the US NIH (81561128007), and the Joint-Innovation Program in Healthcare for Special Scientific Research Projects of Guangzhou (201803040002) to HZ. This work was also supported by the National Natural Science Foundation of China (8197080527), the Science and Technology Planning Project of Guangzhou (201704020226), and the Pearl River S and T Nova Program of Guangzhou (201806010118) to TP.

Ethics

Human subjects: All human samples were anonymously coded in accordance with the local ethical guidelines (as stipulated by the Declaration of Helsinki). The Ethics Review Board of Sun Yat-Sen University and the Ethics Review Board of Guangzhou 8th People's Hospital approved this study.Written informed consents were provided by all study participants, and the protocol was approved by the IRB of Guangzhou Eighth People's Hospital (Guangzhou, China).

Senior Editor

  1. Päivi M Ojala, University of Helsinki, Finland

Reviewing Editor

  1. Guangxia Gao, Institute of Biophysics, Chinese Academy of Sciences, China

Publication history

  1. Received: May 9, 2019
  2. Accepted: August 8, 2019
  3. Accepted Manuscript published: August 9, 2019 (version 1)
  4. Version of Record published: August 20, 2019 (version 2)

Copyright

© 2019, Pan et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 501
    Page views
  • 135
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Immunology and Inflammation
    2. Microbiology and Infectious Disease
    Lu Yu et al.
    Research Article
    1. Evolutionary Biology
    2. Microbiology and Infectious Disease
    Peter Major et al.
    Research Article Updated
