Maternal spindle transfer overcomes embryo developmental arrest caused by ooplasmic defects in mice

  1. Nuno Costa-Borges  Is a corresponding author
  2. Katharina Spath
  3. Irene Miguel-Escalada
  4. Enric Mestres
  5. Rosa Balmaseda
  6. Anna Serafín
  7. Maria Garcia-Jiménez
  8. Ivette Vanrell
  9. Jesús González
  10. Klaus Rink
  11. Dagan Wells
  12. Gloria Calderón
  1. Embryotools, Parc Cientific de Barcelona, Spain
  2. Nuffield Department of Women's and Reproductive Health, University of Oxford, United Kingdom
  3. Juno Genetics, Winchester House, Oxford Science Park, United Kingdom
  4. Genomics and Bioinformatics, Centre for Genomic Regulation, Spain
  5. PCB Animal Facility, Parc Cientific de Barcelona, Spain
Research Article
  • Cited 0
  • Views 931
  • Annotations
Cite this article as: eLife 2020;9:e48591 doi: 10.7554/eLife.48591

Abstract

The developmental potential of early embryos is mainly dictated by the quality of the oocyte. Here, we explore the utility of the maternal spindle transfer (MST) technique as a reproductive approach to enhance oocyte developmental competence. Our proof-of-concept experiments show that replacement of the entire cytoplasm of oocytes from a sensitive mouse strain overcomes massive embryo developmental arrest characteristic of non-manipulated oocytes. Genetic analysis confirmed minimal carryover of mtDNA following MST. Resulting mice showed low heteroplasmy levels in multiple organs at adult age, normal histology and fertility. Mice were followed for five generations (F5), revealing that heteroplasmy was reduced in F2 mice and was undetectable in the subsequent generations. This pre-clinical model demonstrates the high efficiency and potential of the MST technique, not only to prevent the transmission of mtDNA mutations, but also as a new potential treatment for patients with certain forms of infertility refractory to current clinical strategies.

eLife digest

Infertility is a growing problem that affects millions of people worldwide. Medical procedures known as in vitro fertilization (IVF) help many individuals experiencing infertility to have children. Typically in IVF, a woman’s egg cells are collected, fertilized with sperm from a chosen male and grown for a few days in a laboratory, before returning them to the woman’s body to continue to develop.

However, there are some women whose egg cells cannot develop into a healthy baby after they have been fertilized. Many of these patients use egg cells from donors, instead. This greatly improves the chances of the IVF treatment being successful, but the resultant children are not genetically related to the intended mothers.

Previous studies suggested that a cell compartment known as the cytoplasm plays a crucial role in allowing fertilized egg cells to develop normally. A new technique known as maternal spindle transfer, often shortened to MST, makes it possible to replace the entire cytoplasm of a compromised egg cell. This is achieved by transplanting the genetic material of the compromised egg cell into a donor egg cell with healthier cytoplasm that has previously had its own genetic material removed. Using this technique, it is possible to generate human egg cells for IVF that have the genetic material from the intended mother without the defects in the cytoplasm that may be responsible for infertility. However, it is not clear whether this approach would be a safe and effective way to treat infertility in humans.

Costa-Borges et al. applied MST to infertile female mice and found that the technique could permanently correct deficiencies in the cytoplasms of poor quality egg cells, allowing the mice to give birth to healthy offspring. Further experiments studied the offspring and their descendants over several generations and found that they also had higher quality egg cells and normal levels of fertility.

These findings open up the possibility of developing new treatments for infertility caused by problems with egg cells, so experiments involving human egg cells are now being performed to evaluate the safety and effectiveness of the technique.

Introduction

Infertility disorders are a growing problem that affects millions of couples worldwide (WHO, 2017). Although assisted reproductive technologies (ARTs) have evolved and can now successfully address many challenging cases (Huang and Rosenwaks, 2014; Niederberger et al., 2018), conventional IVF treatment continues to fail a significant percentage of infertile women, with many ultimately ending-up being enrolled in egg donation programs (Lutjen et al., 1984; Sauer et al., 1990; Trounson et al., 1983). The use of donated oocytes is effective at significantly improving the chances of successful IVF treatment, however, the resultant children are not genetically related to the intended-mothers. Therefore, it is desirable to develop new reproductive strategies that can allow the treatment of these patients with genetically related oocytes.

Oocyte quality is defined as the competence of the oocyte to develop into a chromosomally normal blastocyst with potential to sustain a pregnancy up to a healthy live birth. Frequently, poor quality oocytes fail to fertilize or produce embryos that arrest during the first stages of development (Hardy et al., 2001; Meskhi and Seif, 2006; Pellicer et al., 1995) either due to nuclear or cytoplasmic defects (Conti and Franciosi, 2018; Eppig, 1996; Liu and Keefe, 2004). Accumulated evidence suggests that aberrant meiosis or early developmental failure is caused mainly by deficiencies in the oocyte cytoplasmic machinery (Hoffmann et al., 2012; Liu et al., 2003; Liu et al., 1999; Liu et al., 2000; Liu and Keefe, 2007; Reader et al., 2017), which contains a vast diversity of critical components, including organelles, mRNAs, proteins, ribosomes and many other factors (Bianchi et al., 2015; Sathananthan, 1997). Mitochondria are the most numerous organelles in the cytoplasm and play an essential role by supplying the ATP needed for the oocyte to support critical events, such as: maturation, spindle formation and segregation of chromosomes and chromatids (Chappel, 2013; May-Panloup et al., 2007). Dysfunctions at the mitochondrial level and deficiencies affecting other cytoplasmic factors have been correlated with inadequate oocyte developmental competence (Eichenlaub-Ritter, 2012; Liu et al., 2002; Van Blerkom, 2011; Van Blerkom et al., 1995), particularly in older infertile patients (Babayev and Seli, 2015; Fragouli et al., 2015; Igarashi et al., 2016; Wells, 2017).

Techniques like cytoplasmic transfer (Cohen et al., 1998; Lanzendorf et al., 1999) or the injection of purified mitochondria (Fakih MHSM et al., 2015; Kristensen et al., 2017 have been proposed as potential methods to restore the viability of compromised oocytes in IVF patients with a history of poor embryo development or repeated implantation failures with conventional treatments. Although live births have been reported following the use of these techniques (Cohen et al., 1998; Fakih MHSM et al., 2015; Huang et al., 1999; Lanzendorf et al., 1999) their safety and/or benefits to treat infertility has been questioned. Cytoplasmic transfer experiments were abandoned due to concerns that heteroplasmy (i.e., the co-existence of two distinct mtDNA genomes) might have negative clinical consequences (Darbandi et al., 2017; Isasi et al., 2016; Kristensen et al., 2017). An alternative strategy, which avoided heteroplasmy by utilizing autologous injection of mitochondria from the patient's own germline cells attracted much attention as a possible new treatment to revitalize deficient oocytes (Johnson et al., 2004; White et al., 2012). Multiple studies in animal models showed apparent benefits of the addition of mitochondria to oocytes of compromised quality (El Shourbagy et al., 2006; Hua et al., 2007; Yi et al., 2007) and IVF births were reported after transfer of oogonial precursor cell-derived mitochondria (Fakih MHSM et al., 2015). However, the source and quality of the mitochondria used are unclear and a recent randomized clinical study conducted using mitochondria derived from autologous oogonial stem cells failed to demonstrate improvements in embryo developmental or clinical outcomes (Labarta et al., 2019). Thus, current data from human clinical research do not support the notion that the addition of further mitochondria derived from the same individual is capable of correcting cytoplasmic deficiencies (mitochondria or other) that may be present in poor quality oocytes. Furthermore, the safety of the procedure is yet to be verified. Of note, a recent study suggested that autologous mitochondrial supplementation may induce a phenotypic effect in the heart of resultant mice (St John et al., 2019).

An approach that may offer greater promise in terms of its capacity to address infertility problems of maternal (oocyte) origin is the transfer of the nuclear genome from an affected oocyte or zygote into a new ‘healthy’ cytoplasm. These techniques, known globally as mitochondrial replacement techniques (MRTs) were originally proposed to prevent the transmission of inherited mitochondrial diseases (Craven et al., 2010; Hyslop et al., 2016; Paull et al., 2013; Tachibana et al., 2009). Indeed, a clinical application of maternal spindle transfer (MST) to prevent the transmission of Leigh Syndrome was recently reported, resulting the birth of an unaffected child (Zhang et al., 2017). However, the potential of MRTs to overcome infertility remains unclear, as most studies utilizing this approach have not had this as their main focus, instead concentrating on their potential to avoid mitochondrial diseases; examination of nuclear-cytoplasmic interactions in oocytes and zygotes (Liu and Keefe, 2004; Liu and Keefe, 2007); the origin of female aneuploidies Palermo et al., 2002; or the decreased developmental capability of aged oocytes in animal models (Yamada and Egli, 2017).

Here, we explored the feasibility of the MST technique as a reproductive tool to overcome embryo developmental arrest. To test our hypothesis, a detailed series of proof-of-concept experiments were conducted to assess the safety and the efficiency of the technique using mouse models, which, in a clinical context, could represent donors and patients with oocytes of good and poor developmental competence, respectively. Additionally, advanced molecular techniques were used to evaluate in detail the heteroplasmy levels induced by the procedure in early embryonic-stages and in multiple important organs, including some with high metabolic demand, collected from male and female mice generated by MST. The mice were bred and followed up to ascertain their health, fertility and welfare, as well as, to study the fate of the heteroplasmy in the offspring of the MST female progenitors over five generations.

Results

MST among sibling B6CBAF1 oocytes is feasible without impairing embryo development

In a first set of experiments we aimed to optimize the MST protocol and to determine whether the manipulation of the spindle-chromosome complex is feasible without impairing the developmental potential of reconstructed oocytes. We performed reciprocal MST among sibling oocytes from the mouse hybrid B6CBAF1 strain (Figure 1a). Enucleation and reconstruction (karyoplast-cytoplast fusion) of oocytes were first assessed with freshly collected oocytes. Enucleation was successful in 98.9% of oocytes (n = 790) and reconstruction was achieved in 96.1% (n = 321), confirmed using a microscope with polarized light that allows visualization of the birefringence of the spindle microtubules (Figure 1b–c and Figure 1—figure supplement 1). Next, MST was carried out with both fresh and cryopreserved B6CBAF1 oocytes that were vitrified and warmed using the open Cryotop system (97.7% survival, n = 600). In this set of experiments, spindles were taken from fresh oocytes and transferred into either fresh (fresh-sp/fresh-cyt) or vitrified-warmed cytoplasts (fresh-sp/vitrified-cyt) and vice-versa, that is spindles from vitrified oocytes transferred to fresh (vitrified-sp/fresh-cyt) or vitrified-warm cytoplasts (vitrified-sp/vitrified-cyt). The resultant oocytes from the different groups were then fixed after reconstruction and processed for evaluation of the spindle apparatus and chromosomes distribution by immunofluorescence microscopy (Figure 1e–f and Figure 1—figure supplement 2). All oocytes analyzed presented a spindle with a normal barrel shape and with the chromosomes aligned at the MII plate (fresh-sp/fresh-cyt n = 20, fresh-sp/vitrified-cyt n = 15, vitrified-sp/fresh-cyt n = 15, vitrified-sp/vitrified-cyt n = 16; Figure 1e–f), regardless of whether fresh or vitrified gametes were used as spindle or cytoplast donors (Figure 1—figure supplement 2). These observations indicated that the conditions used to perform the manipulation of the spindle-chromosome complex were neither damaging to its structure nor altering of the distribution of the chromosomes. Furthermore, there was no evidence that the procedure was inducing premature activation of the oocytes.

Figure 1 with 2 supplements see all

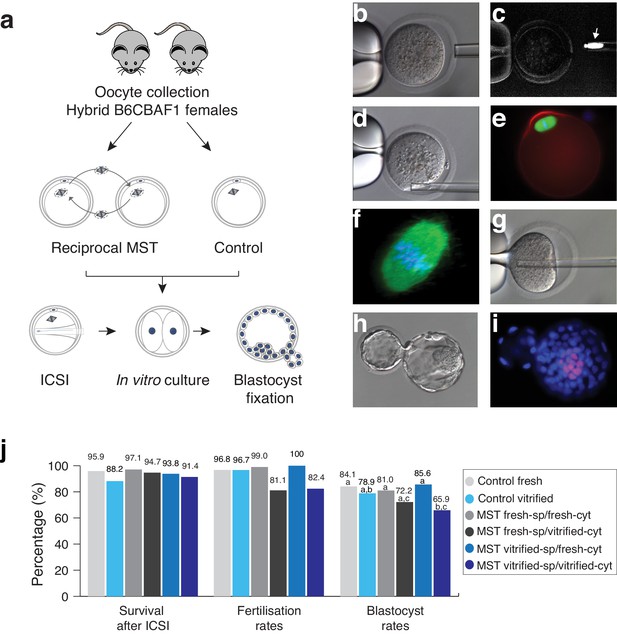

Maternal spindle transfer (MST) between sibling fresh B6CBAF1 mouse oocytes does not impair embryo development.

(a) Schematic representation of the experimental design used to validate the different steps of the technique. (b) Detail of the enucleation procedure with confirmation of the spindle isolation under polarized light. (c) The birefringence of the meiotic spindle is indicated by an arrow. (d) Details of oocyte reconstruction by placing the spindle transfer in the perivitelline space of the enucleated oocyte. (e) Representative oocyte reconstructed by MST and processed by immunofluorescence for detection of microtubules (green), microfilaments (red) and DNA (blue). (f) Confocal microscopy detail of the meiotic spindle structure in an oocyte reconstructed by MST at a high magnification (600x) showing a normal barrel shape spindle (green) and aligned chromosomes in the metaphase plate (blue). (g) Piezo- ICSI performed with a blunt-end pipette in a MST oocyte. (h) Hatching blastocyst generated by MST at 120 hr post-ICSI. (i) Fixed MST blastocyst processed for total cell counts. (j) ICSI survival, fertilisation and blastocyst rates in sibling fresh and vitrified oocytes processed by MST and non-manipulated controls. See also Figure 1—figure supplements 1 and 2.

Subsequently, in an independent set of samples, we compared the in vitro development of reciprocal MST experiments using fresh and vitrified B6CBAF1 oocytes, after insemination by ICSI (Figure 1j and Figure 1—figure supplement 1). High enucleation (98.7%, n = 399) and fusion (98.2%, n = 394) rates were achieved in all MST groups (see also Table 1) and almost all oocytes that were prepared with fresh (99%, n = 100) or vitrified (100%, n = 90) spindles, and transferred into fresh cytoplasts, developed to the two-cell stage on the next morning (Figure 1h–j and Table 1). Interestingly, a significantly lower proportion of inseminated oocytes composed of vitrified spindles transferred into vitrified cytoplasts (vitrified-sp/vitrified-cyt) developed to the two-cell stage (82.4%, n = 85) compared with non-manipulated fresh (96.8%, n = 94, p=0.001) or vitrified (96.7%, n = 90, p=0.001) controls. Poorer development was also observed for the fresh-sp/vitrified-cyt group (81.1%, n = 90) (Figure 1j and Table 1). On the contrary, when spindles from vitrified oocytes were transferred into fresh cytoplasts (vitrified-sp/fresh-cyt, n = 90), two-cell stage (100%) and blastocyst formation (85.6%) rates were high and equivalent to fresh controls (96.8% and 84.1%, respectively) or to MST oocytes where fresh spindles were transferred into fresh cytoplasts (fresh-st/fresh-cyt, n = 100, 99% and 81%, respectively) (Figure 1j and Table 1). Additionally, the mean number of total cells (mean ± SD, n) in the blastocysts obtained in the fresh-st/fresh-cyt group (177.8 ± 26.7, n = 81) was equivalent to controls (192 ± 29.5; n = 79). No differences were found either in the number of inner cell mass cells that were positive for the Oct4 pluripotency marker between fresh-st/fresh-cyt and control groups (22.4 ± 3.5; n = 14 versus 25.3 ± 5.6; n = 10, see also Figure 1i). Taken together, the experiments performed among sibling B6CBAF1 oocytes, showed that MST is technically feasible in the mouse without impacting the in vitro developmental competence of the oocyte. Experiments indicate that vitrification induces changes that make cryopreserved oocytes unsuitable for use as cytoplasts. However, the spindle apparatus does not appear to be damaged during vitrification or MST procedures. When recipient cytoplasts were derived from fresh oocytes, blastocyst development rates were equivalent to those obtained for non-manipulated controls, regardless of whether the spindle originated from a fresh or vitrified oocyte.

Table 1
Efficiency and in vitro developmental rates of B6CBAF1 mouse oocytes processed by MST using fresh and vitrified oocytes.
n oocytes processed by MSTIn vitro development for up 96 hr post-ICSI
Groupn initialEnucleated (%)Fused (%)ICSI survival (%)n culturedTwo-cells (%)Blastocysts (%)Total cell counts (± SD)Oct4+
Control fresh98N/AN/A94 (95.9)9491 (96.8)*79 (84.1)*192.1 (29.5)25.3 (5.6)
Control vitrified102N/AN/A90 (88.2)9087 (96.7)*71 (78.9)*,†N/AN/A
MST FreshSp/FreshCyt107107 (100)103 (96.2)100 (97.1)10099 (99)*81 (81)*177.8 (26.7)22.4 (3.5)
MST FreshSp/VitriCyt9696 (100)95 (98.9)90 (94.7)9073 (81.1)65 (72.2)*,‡N/AN/A
MST VitriSp/FreshCyt9896 (97.9)96 (100)90 (93.8)9090 (100)*77 (85.6)*N/AN/A
MST VitriSp/VitriCyt9895 (96.9)93 (97.9)85 (91.4)8570 (82.4)56 (65.9),N/AN/A
  1. *, †, ‡ Values with different superscripts differ significantly within the same column (p<0.05; Chi-square test or Fisher's test).

MST overcomes embryo development arrest in NZB oocytes

After careful optimization and validation of the different steps of the MST protocol, the effectiveness of the technique as a strategy to overcome embryo developmental arrest was evaluated. Two different oocyte strains were employed: the hybrid B6CBF1 (resultant from the cross between C57BL/6JRj females and CBA/Jrj males), and the New Zealand Black (NZB/OlaHsd) strains. The NZB strain holds two interesting characteristics. Firstly, NZB mice present a poor reproductive performance (Fernandes et al., 1973; Hansen CT and Whitney, 1973) and, secondly, the genetic background of the NZB strain has diverged genetically from most other mouse laboratory strains, including the hybrid B6CBAF1 strain, accompanied by characteristic differences in mtDNA sequences (Bielschowsky and Goodall, 1970). These two features are particularly relevant to the experimental design of this study as, in a clinical context, the NZB strain could be considered analogous to a subfertile patient (especially those with a history of poor in vitro embryo development), and the B6CBAF1 strain, a donor of proven fertility. Additionally, single nucleotide polymorphisms in the divergent mtDNA of the NZB strain provides an opportunity to evaluate the carryover of organelles and resultant heteroplasmy induced by MST procedures (see Materials and methods). Experiments were thus carried out between the two mouse strains, so that meiotic spindles were transferred from fresh NZB oocytes into fresh B6CBAF1 cytoplasts and vice-versa (Figure 2a). Once reconstructed, oocytes were inseminated using ICSI in parallel with non-manipulated oocytes from both strains and cultured in vitro until the blastocyst stage (Figure 2a). Enucleation and fusion rates were identical in both MST groups, and no differences were found in terms of survival to ICSI compared to controls (Figure 2b and Table 2). As expected, NZB control oocytes presented significantly lower fertilization rates than B6CBAF1 control oocytes, measured as two-cell stage development (Figure 2b and Table 2). Additionally, while blastocyst formation rates were close to 80% in the B6CBAF1 control group (77.8%, n = 144), most of the injected oocytes from the NZB control group arrested their development before reaching this stage (5.6% developed into blastocysts, n = 159, Figure 2b and Table 2). Remarkably, when the meiotic spindles from NZB oocytes were transferred into B6CBAF1 cytoplasts (NZB-sp/B6-cyt), the blastocyst formation rates were 10-fold higher (51.4%, n = 212, p<0.0001) compared to the non-manipulated NZB control (Figure 2b and Table 2). In the reciprocal MST group, B6CBAF1 spindles transferred into NZB cytoplasts (B6-sp/NZB-cyt), blastocysts were not obtained (0%, n = 110), indicating that cytoplasmic factors are likely to be responsible for the lower fertilisation and massive developmental arrest observed at preimplantation stages in the NZB strain (Figure 2b,c and Table 2).

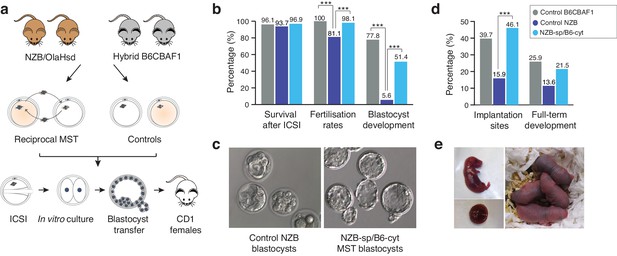

Meiotic spindle transfer between NZB/OlaHsd and B6CBAF1 oocytes.

(a) Schematic representation of the experimental design. (b) Comparison between in vitro developmental rates in MST embryos and controls. (c) Representative blastocyst images from NZB oocytes fertilized by ICSI and cultured for 96 hr (left) or MST embryos where NZB spindle was transferred into B6 strain cytoplasts (right) fertilized by ICSI and cultured for 96 hr. Note the improved blastocyst morphology upon MST. (d) In vivo development rates between MST and controls. (e) Representative neonate generated by MST with its corresponding placenta (left) and 2 day-old MST pups (right). Statistical significance was calculated with Chi-square or Fisher’s exact test. *** indicates p-values<0.05.

Table 2
Efficiency and in vitro developmental rates of non-manipulated control and MST oocytes.
n oocytes processed by MSTIn vitro development for up 96 hr post-ICSI
Groupn initialEnucleated (%)Fused (%)ICSI survival (%)CulturedTwo-cell (%)Morula (%)Blastocysts (%)
Control B6CBAF1155N/AN/A149 (96.1)144144 (100.0)*121 (84.1)*112 (77.8)*
Control NZB193N/AN/A181 (93.7)159129 (81.1)36 (22.6)9 (5.6)
MST B6-St/NZB-Cyt156149 (95.5)144 (96.6)132 (91.7)11093 (70.5)11 (8.3)0 (0.0)
MST NZB-St/B6-Cyt270238 (88.1)228 (95.7)221 (96.9)212208 (98.1)*169 (79.7)*109 (51.4) §
  1. *,†,‡,§ Values with different superscripts differ significantly within the same column (p<0.05; Chi-square test or Fisher's test).

At 96 hr post-insemination, embryos produced in the different experimental groups were vitrified and their competence to develop in vivo determined when synchronized pseudo-pregnant females were available for transfer. A total of 65 MST blastocysts from the NZB-sp/B6-cyt MST group were then warmed (100% survival) and transferred non-surgically into six recipients, which resulted in 14 live pups (21.5%) (Figure 2d,e and Table 3). This birth rate is comparable (p>0.05) with results obtained from the B6CBAF1 control group (15 live pups (25.9%) out of 58 blastocysts transferred into five recipients). Consistent with expectations, only six pups developed to term from 44 morulas/blastocysts (13.6%) transferred into five recipients from the control NZB group. All living pups were born healthy and respired normally. Caesarean sections at 18.5 dpc were performed in two recipients of each group to evaluate the size and weight of the placentas and the corresponding pups, with no significant differences found between groups (Table 4). These results suggest that MST procedures do not typically induce an overgrowth phenotype of the type described for certain other techniques, such as somatic cell nuclear transfer (Costa-Borges et al., 2010). Overall, these experiments confirmed that MST, with cytoplast donation from a distantly related mouse strain, is highly effective at overcoming the in vitro developmental arrest phenotype of NZB mice and that the resultant embryos are competent to develop to term with high efficiency.

Table 3
In vivo developmental rates of non-manipulated control and MST oocytes.
In vivo development
Groupn transferred n implantation sites (%)n full-term (%)
Control B6CBAF15823 (39.7)*15 (25.9)
Control NZB447 (15.9)6 (13.6)
MST B6-St/NZB-CytN/AN/AN/A
MST NZB-St/B6-Cyt6530 (46.1)*14 (21.5)
  1. *, † Values with different superscripts differ significantly within the same column (p<0.05; Chi-square test or Fisher's test).

Table 4
Average weights of placentas and pups generated from control and MST oocytes.
Average weight
Group n Placentas (± SD)Pups (± SD)
Control B6CBAF13134.1 (23.3)802.1 (153.2)
Control NZB3171.1 (27.9)747.9 (76.9)
MST B6-St/NZB-CytN/AN/AN/A
MST NZB-St/B6-Cyt4168.3 (14.1)923.5 (146.5)

mtDNA carryover analysis of biopsied cells and the complementary embryos

The extent of mtDNA carryover induced by MST was evaluated in embryos at different preimplantation developmental stages. Spindles from NZB oocytes were transferred into B6CBAF1 cytoplasts and the resultant MST oocytes were fertilized by ICSI and cultured in vitro (Figure 3a). Afterwards, biopsies were performed to remove second polar bodies from embryos at the two-cell stage, single cells (blastomeres) from 6 to 8 cell stage embryos, or to excise a cluster of 4–8 trophectoderm cells from blastocysts (Figure 3—figure supplement 1). The biopsies and their corresponding embryos were then analyzed individually to ascertain whether mtDNA heteroplasmy levels in the biopsied cells are representative of the values found in the complementary embryo (Figure 3a).

Figure 3 with 2 supplements see all

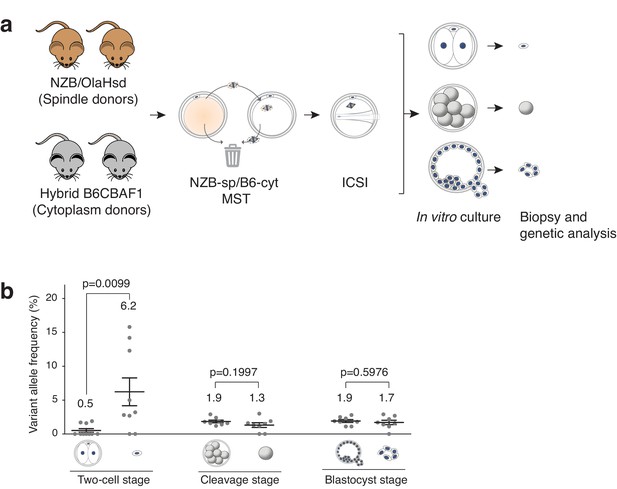

Analysis of mtDNA carryover in biopsied cells and complementary embryos from MST between NZB/OlaHsd and B6CBAF1 strain oocytes.

(a) Schematic representation of the experimental design. (b) Variant allele frequencies detected in embryo specimens. Dots represent allele frequencies of individual samples. Unpaired t-test was used to compare frequencies between biopsies and corresponding entire embryos. ns = not significant. See also Figure 3—figure supplements 12.

To determine mtDNA carryover, a high-throughput sequencing protocol was developed based upon quantification of a single nucleotide polymorphism (SNP) in mtDNA using Ion PGM sequencer (ThermoFisher, see Materials and methods for further details). The SNP utilized for this purpose is located at position m.3932 and exists as a guanine (G) in the B6CBAF1 strain and an adenine (A) in the NZB strain. The presence of different alleles at m.3932 was confirmed by minisequencing analysis using genomic DNA (gDNA) from tail tips of B6CBAF1 and NZB mice (Figure 3—figure supplement 2). This sequencing protocol was carefully validated. Initially, protocol accuracy and sensitivity was assessed by analyzing different ratios of G and A alleles in artificially constructed samples, composed of gDNA from both mouse strains mixed in different ratios. For the purpose of these experiments, the G base (derived from B6CBAF1) was considered the reference allele and the A base (from NZB) the variant allele (Figure 3—figure supplement 2 and Supplementary file 1). To verify validity of mtDNA carryover assessment by analysis of a single SNP and to ensure reliability of the utilized sequencing platform, four additional SNPs (B6CBAF1/NZB: m.2798C/T; m.2814T/C; m.3194T/C; m.3260A/G) were analyzed on a different sequencer (Illumina’s MiSeq). The presence of different alleles was also confirmed by minisequencing (see Materials and methods and Supplementary file 2 for further details; and Figure 3—figure supplement 2).

Analysis of mtDNA carryover after MST in biopsied cells and the complementary embryos (Figure 3a), revealed that the mean variant (NZB) allele frequencies obtained from polar bodies were significantly higher compared to the mean frequencies in the complementary two-cell-stage embryos (6.2 ± 6.2% SD versus 0.5 ± 0.8% SD; p=0.0095) (Figure 3b). By contrast, there was no significant difference in mtDNA allele frequencies between biopsied blastomeres and trophectoderm samples when compared to the corresponding embryos (cleavage-stage: 1.3 ± 1.0% SD versus 1.9 ± 0.6% SD, respectively; blastocyst stage: 1.7 ± 0.9% SD versus 1.9 ± 0.6% SD, respectively). Moreover, the mean heteroplasmy levels were similar between all embryonic samples (except polar bodies) (Figure 3b and Supplementary file 3). These experiments demonstrate that cleavage stage or blastocyst biopsy are preferable over biopsy of second polar bodies as methods for determining the mtDNA carryover levels found in preimplantation embryos. The results also suggest that while some mitochondria remain associated with the meiotic spindle, and are unavoidably transferred to the recipient cytoplast, the vast majority of these organelles do not persist into later developmental stages, with most being expelled into the second polar body at the completion of meiosis II.

Developmental potential of MST mice and mtDNA heteroplasmy fate

To ascertain the long-term health status and fertility of the mice generated by MST, follow up studies were then conducted over five generations. Ten mice (three females and seven males) generated by MST were selected for mating with wild type (WT) mice. At 21 days after birth, the resultant offspring were weaned, and the size and gender ratio of the litters were assessed. All parental MST mice (F1) were fertile and produced a total of 78 pups, with a mean litter size of 7.8 ± 1.4 pups/animal and no significant deviations in the expected male-female ratio (59% and 41% respectively, Supplementary file 4). All pups (F2) were born alive, respired normally and grew to adulthood without manifesting any physiological or behavioral alteration. The fertility of these mice was assessed for a total of 5 generations, by selecting random males and females from litters (n = 9 in F2 and n = 4 between F3 and F5). Similarly, these mice also displayed normal fertility and produced viable offspring, without alterations in the expected gender ratio (Supplementary file 4).

Gross necropsies of the parents and offspring were performed during the five generations, with no pathological findings observed. In the 239 mice analyzed, all organs showed a normal size, texture and morphological appearance. Additionally, F1 mice generated by MST B6-sp/B6-cyt (n = 3), MST NZB-sp/B6-cyt (n = 5) and control B6 (n = 4) groups were also processed for histopathological examinations, which were performed in vital organs including heart, kidney, liver and brain, as well as, in tibial and quadriceps skeletal muscle and urinary bladder smooth muscle. Reproductive systems and accessory glands of both males (testis, epididymis, seminal vesicles, prostate, coagulating glands, ampullary glands and bulbourethral glands) and females (ovaries, oviducts, uterine horns) were also assessed. Except for a pericardium focal inflammation in one animal of the B6 control group, none of the animals showed any lesions or visible abnormalities (Figure 4—figure supplements 1 and 2). Taken together, these results support the notion that MST can efficiently produce viable and fertile offspring.

A source of great concern in MRTs field has been the reversion of mtDNA heteroplasmy observed in embryonic stem cells (ESCs) derived from pronuclear transfer or MST generated embryos (Hyslop et al., 2016; Kang et al., 2016; Paull et al., 2013). To evaluate whether heteroplasmy was transmitted through generations and whether homoplasmy was restored, the ratios of the mtDNA alleles attributable to B6CBAF1 and NZB were assessed through several generations. Multiple organs were assessed, including those with different metabolic demands: brain; heart; liver; kidneys (Jenuth et al., 1997; Sharpley et al., 2012). A total of six mice (four male and two female) from F1 were sacrificed at adult age (12 weeks old). The mean heteroplasmy level in this group of mice was low at 2.3 ± 1.3% (mean ± SD, n = 6) ranging from mean frequencies of undetectable values to 3.5% in individual mice (Figure 4a, Supplementary file 5). Moreover, heteroplasmy levels were similar among different tissue types from the same mouse (Figure 4b) and showed no differences between males and females.

Figure 4 with 3 supplements see all

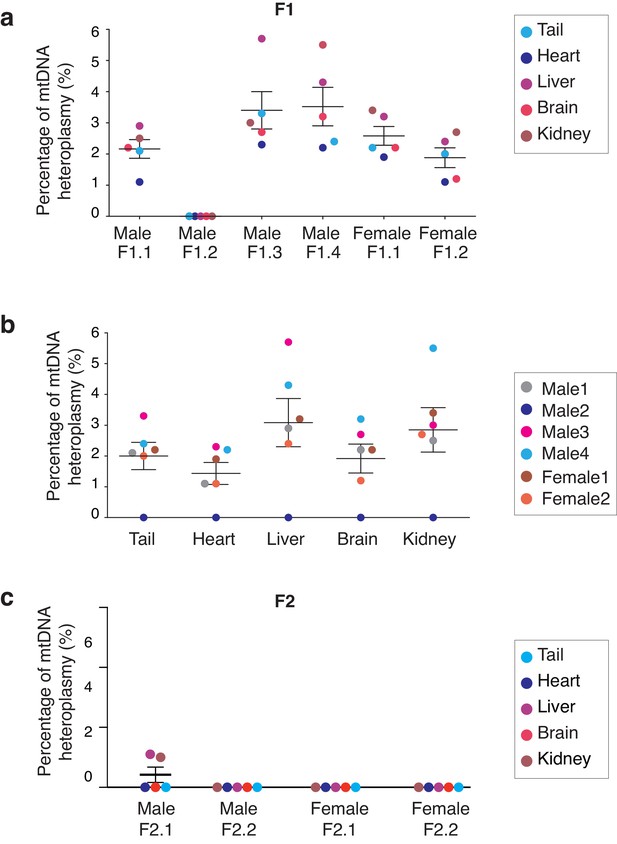

Analysis of mitochondrial heteroplasmy levels in adult mice born by MST.

(a) Mitochondrial heteroplasmy levels in several organs from 4 male and two female adult MST mice (F1) are maintained below 6%. (b) Mitochodrial heteroplasmy levels are not significantly different among several organs from F1 mice (one-way ANOVA’s p>0.05). (c) MST-derived mice from F2 showed undetectable levels of mtDNA heteroplasmy, except for low levels in liver and kidney in one female (F2.2). Horizontal lines represent median and standard errors of the mean. See also Figure 4—figure supplement 3.

Finally, the fate of the heteroplasmy was examined in adult mice derived from the MST female lineage. Four mice (two males and two females) were selected at random from each litter, through five generations. Mitochondrial DNA heteroplasmy levels were reduced to 0.4 ± 0.6% (mean ± SD, n = 4) on average in F2 mice (Figure 4c and Supplementary file 5) and decreased to undetected levels in subsequent generations (F3 to F5, Supplementary file 5). These quantifications based on a single SNP in an Ion PGM sequencer were corroborated by using an additional sequencing platform (Illumina’s MiSeq) and 5 SNPs, as described above. Artificially constructed samples, composed of gDNA from both mouse strains mixed in different ratios, and gDNA from 5 organs of selected adult mice from F1-3 generations were analyzed (Figure 3—figure supplement 2, Figure 4—figure supplement 3, Supplementary files 2 and 6). These results suggest that low levels of mtDNA heteroplasmy resultant from MST typically result in a homoplasmic state in offspring within a few generations, without reversion (Supplementary files 5 and 6). However, it is acknowledged that different mtDNA haplogroups or mtDNA genomes affected by specific mutations might have differences in the efficiency with which they replicate, influencing the speed at which homoplasmy is attained as well as the risk if reversion.

Discussion

MST is a technique that was originally proposed to prevent the transmission of mitochondrial diseases. This proof of concept study provides insights into the feasibility of this technique as a potential new reproductive approach to overcome infertility problems characterized by repeated in vitro embryo development arrest caused by cytoplasmic deficiencies in the oocyte.

Herein, it is shown that MST can be carried out with high efficiency in the mouse, with successful enucleation and reconstruction achieved for >95% of oocytes. Furthermore, the data produced indicate that, as long as all the steps of the protocol are well optimized and care is taken to minimize the risk of damage to the oocyte, the procedure does not negatively affect the spindle apparatus or early embryo development. In the event of a future clinical application of MST in humans, it may be difficult to coordinate the retrieval of mature oocytes from patients and donors, due to the inherent variation in ovarian responses to hormonal stimulation. For this reason, the capacity of cryopreserved oocytes to substitute for fresh oocytes, when serving as spindle or cytoplast donors, was evaluated. The results indicated that fresh and vitrified oocytes are equally suitable for use as spindle donors, but superior results are obtained if the recipient cytoplast is fresh. This agrees with a previous report performed in non-human primates that had shown that fresh spindles transplanted into vitrified cytoplasts results in impaired (50%) fertilization after ICSI, while the reciprocal spindle transfer resulted in fertilization (88%) and blastocyst formation (68%) rates similar to fresh controls (Tachibana et al., 2009). This also represents an advantage in the clinical setting, where low-responders to ovarian stimulation could vitrify oocytes from repeated oocyte collections, and the accumulated oocytes be used for MST using freshly collected donor cytoplasts.

Additionally, MST was conducted between two distantly related mouse strains with the aim of simulating a clinical context, in which donors with oocytes of good reproductive competence provide cytoplasts for patients with a history of poor oocyte fertilization and/or high rates of failed embryo development. The experiments demonstrated how the successful replacement of the entire cytoplasm of compromised oocytes has the potential to overcome the massive embryo development arrest phenotype, which is observed in non-manipulated controls from a sensitive mouse strain (NZB). This strategy resulted in a highly significant (10-fold) increase in blastocyst formation rates, as well as an increased likelihood of embryo development to term, compared to non-manipulated control oocytes. These results highlight the importance of the cytoplasm on the potential of the oocyte to support embryo development in vitro and to lay the foundations for a successful pregnancy. Consistent with this data, Mitsui and colleagues showed that oocyte genomes from mice aged 10–12 months transferred into oocytes of young mice aged 3–5 months, resulted in increased term-development from 6.3% for in vivo aged oocytes to 27.1% for the reconstructed oocytes (Mitsui et al., 2009). Similarly, a recent study demonstrated that in vitro aged oocytes accumulate cytoplasmic deficiencies if they are maintained in culture for an extended period prior to fertilization, and that these deficiencies can be overcome with spindle transfer (Yamada and Egli, 2017). However, in both cases, studies were performed between oocytes from the same mouse strain and thus the potential of the technique to overcome infertility in a strain with poor fertility competence remained undetermined. It is noteworthy that the current study employed ICSI to inseminate oocytes, rather than conventional IVF, which resembles closely the standard protocol used in humans for oocytes that have been denuded of the surrounding cumulus cells.

Levels of mtDNA heteroplasmy caused by carryover of mitochondria in close proximity to spindle during the MST procedure were also evaluated. Clearly, this is an important consideration when utilizing MST technology to avoid transmission of mtDNA mutations responsible for serious inherited disorders, but it is also relevant to other variations in the mtDNA, or other defects affecting the mitochondrial organelle, which may potentially contribute to certain forms of embryonic developmental arrest. As well as assessing the extent of heteroplasmy at different embryonic stages, the levels were also assessed in multiple tissues in adulthood and over several generations. There are conflicting reports regarding the dynamics of mtDNA heteroplasmy during the lifetime of an individual, between organs or even during in vitro culture when ESCs have been derived from MRT embryos with heteroplasmic mtDNA (Hyslop et al., 2016; Kang et al., 2016; Paull et al., 2013). It is also unclear to what extent divergent mtDNA haplotypes in heteroplasmic organisms might lead to functional incompatibility, either between the two types of mitochondria or between the mitochondrial and nuclear genomes.

This study confirms that cells biopsied from MST embryos at the morula or blastocyst stages present minimal levels of heteroplasmy (<2.9% mtDNA from the spindle donor) and that these biopsy specimens are representative of the remainder of the embryo. On the contrary, the heteroplasmy levels were significantly higher in second polar bodies than in blastomere or trophectoderm biopsies. This agrees with data from Neupane and colleagues, who have shown that, in comparison to second polar bodies, mtDNA heteroplasmy in TE cells is more closely correlated with the levels in the blastocyst as a whole or the corresponding ESCs (Neupane et al., 2014). Alternatively, oocytes might be actively removing mitochondria transferred along with the spindle, since they may be disadvantageous as compared to the recipient’s own organelles (De Fanti et al., 2017). However, perhaps the most likely explanation is that when the meiotic spindle is transferred, a number of mitochondria accompany it. These mitochondria are likely to remain in the vicinity of the MII spindle and consequently it is inevitable that a disproportionate number of these mitochondria will pass into the second polar body. Regardless of the underlying mechanism, our data suggest that testing of blastomeres or TE biopsies is preferable to second polar body analysis for the quantification of mtDNA heteroplasmy levels. This also has relevance for the preimplantation genetic testing (PGT, also known as preimplantation genetic diagnosis – PGD) of mitochondrial disease in the human.

The data from our current study revealed that mtDNA heteroplasmy levels were low in all the adult mice produced, regardless of gender, or the type of organ (range 0–6%). Previous studies in monkeys and humans have shown that a minimal number of donor mitochondria are transferred using MRT (below 1–2%) (Craven et al., 2010; Hyslop et al., 2016; Paull et al., 2013; Tachibana et al., 2009). Nevertheless, since the meiotic spindle in mouse oocytes is much larger than that of the human, and given that multiple mitochondria are found in the vicinity of the spindle, it was expected that MST in mice would lead to higher mtDNA carryover levels. The surprisingly low heteroplasmic levels achieved during this study can likely be attributed to the use of birefringence microscopy during enucleation, which assists in minimizing the carryover of cytoplasm transferred along the meiotic spindle.

It has also been suggested that organs with a high-metabolic demand tend to accumulate higher heteroplasmy mtDNA levels (Jenuth et al., 1997; Meirelles and Smith, 1997), however, our data do not confirm this observation. This result could be explained by differences in mitochondrial haplotypes from mouse strains used, which could have a differential replication rate.

Some studies of heteroplasmic ESC lines derived from embryos carrying mtDNA mutations have shown changes in the levels of normal and mutant mtDNA during prolonged in vitro culture, with reversion back to a situation where mutant mtDNA predominates (Hyslop et al., 2016; Kang et al., 2016; Paull et al., 2013). This delayed efforts for the direct application of MRT-derived techniques in the clinical setting and raises some concerns for the first baby born using MST (Zhang et al., 2017). Nevertheless, the results presented here show a low level of mtDNA carryover in all adult organs analyzed, suggesting that the mechanism seen in ESCs in vitro might not necessarily represent the in vivo process. The results also agree with Sharpley et al, who showed that NZB and 129S6 mtDNA heteroplasmic haplotypes decrease over generations (Sharpley et al., 2012). In the current study, heteroplasmy was very low in the F2 progeny and undetected in the offspring of the subsequent generations (up to F5). The data collected from the analyzed organs suggests that heteroplasmy resultant from MST can be stable within an individual and can lead to an homoplasmic state within a few generations. However, additional work should be done in order to comprehensively assess how mtDNA heteroplasmy segregates in other organs.

On the other hand, the MST mice followed over five generations were apparently normal and showed good fertility (average of 7.8 pups per litter). This is a notable observation, as based on the literature, NZB/OlaHsd mice are expected to have small litter sizes (3.8 at weaning) (Fernandes et al., 1973; Hansen CT and Whitney, 1973). Additionally, histological examinations in F1 MST mice did not reveal any lesions in a selection of organs. Whether the MST technique can potentially reveal mitochondrial causes of infertility that are hereditary or aggravated with lifestyle or age is a question that remains to be answered and will require additional studies.

In conclusion, this study has demonstrated that MST can overcome a severe developmental arrest phenotype, associated with poor fertility and greatly reduced chances of an individual oocyte producing a pregnancy following in vitro fertilization. The results show that embryos produced using optimized MST techniques can give rise to apparently normal and fertile animals. Levels of heteroplasmy were low in the initial generation and undetectable in subsequent generations, indicating that homoplasmy for the mtDNA of the cytoplast donor is rapidly attained in this model. Given the high proportion of IVF cycles which are unsuccessful due to poor embryo development related to low oocyte quality, we believe that there is a need to further explore the potential of MST as a clinical treatment for infertility. Pre-clinical and clinical trials involving human oocytes, undertaken in a regulated and carefully controlled manner, is desirable, since such a therapy could represent the last chance for infertile patients to have genetically related children.

Materials and methods

Mice

Animal care and procedures were conducted according to protocols approved by the Ethics Committee on Animal Research (DAMM-7436) of the Parc Cientific of Barcelona (PCB), Spain. Hybrid (B6/CBA) and outbred CD1 females of 5–6 weeks of age (25–30 g), and male mice from the same genetic strains of 8–10 weeks of age (25–30 g) were purchased from Janvier Laboratories (France). New Zealand Black (NZB/OlaHsd) mice were purchased from Envigo (France). Upon arrival, all mice were quarantined and acclimated to the PCB Animals´ facility (PRAL) for approximately 1 week prior to use. Three to four mice were housed per cage in a room with a 12 hr light/dark cycle with ad libitum access to food and water.

Oocytes and sperm collection

Request a detailed protocol

For the collection of oocytes, hybrid B6CBAF1 and NZB females were induced to superovulate by intraperitoneal injection of 5 IU of pregnant mare serum gonadotropin (PMSG) followed 48 hr later by 5 IU of human chorionic gonadotropin (hCG). Cumulus–oocyte complexes from the both strains were released from the oviducts by 14–15 hr after hCG administration and treated with hyaluronidase (LifeGlobal) until cumulus cells dispersed. Once denuded, oocytes with good morphology were washed several times and kept in culture medium (Global total, LifeGlobal) under oil (Lifeguard, LifeGlobal) at 37.3°C, in an atmosphere with 7%CO2% and 7%O2 in air, until use. Sperms were collected from cauda epididymis and then diluted and incubated in medium supplemented with glucose (Global total for fertilization, LifeGlobal) at 37.3°C, in an atmosphere with 7%CO2% and 7%O2 in air, until use.

Spindle transfer, ICSI and embryo culture

Request a detailed protocol

Oocytes from B6CBAF1 or NZB strains were used as spindle chromosome-complex and cytoplasts donors. Procedures were performed using a piezo-driven (PiezoXpert, Eppendorf) micromanipulator. Oocytes first were exposed to small drops of hepes-buffered medium (Global total w/hepes, LifeGlobal) containing 5 µg/mL cytochalasin B (Sigma) covered with mineral oil for 3–5 min at 37°C. Afterwards, the meiotic spindle was aspirated into an enucleation pipette (Humagen) trying to remove the minimum amount of surrounding cytoplasm possible, and enucleation confirmed using a microtubule birefringence system (PolarAide, Vitrolife) to visualize the spindle apparatus (Figure 1—figure supplement 1). If the karyoplast removed contained a larger amount of cytoplasm, the extra cytoplasm was eliminated by pressing the cytoplasm against the zona pellucida. Karyoplasts were inserted below the zona pellucida of another enucleated oocyte (cytoplast) and fused using inactivated Sendai virus HVJ-E (GenomeOne, Cosmo Bio). All manipulations were performed on a 37°C heated stage (Okolab) of an Olympus IX73 inverted microscope, using Eppendorf micromanipulators. Non-manipulated control oocytes and those generated by MST were inseminated using a modified piezo-actuated ICSI technique, known as the ‘hole removal technique’. Briefly, this procedure is based on withdrawing the ICSI pipette and applying rapid suction simultaneously just after the sperm head has been injected to seal the oocyte membrane, which increases survival chances. The injected oocytes were then cultured in Global total medium (LifeGlobal) under oil at 37.3°C, in K-Minc incubators (Cook Medical), in an atmosphere with 7% CO2 and O2 in air.

Embryo biopsy and tubing of cells for molecular analysis

Request a detailed protocol

Embryos generated by MST were biopsied at different developmental stages, including: two-cell, morula or blastocyst stage. Regardless of the developmental stage, biopsies were performed in individual 5 µL droplets of Global total w/hepes medium covered with oil using a biopsy pipette with 19 µm of internal diameter (Eppendorf) with the assistance of laser shots to open a hole in the zona pellucida or to weaken the trophectoderm cells in the case of the blastocyst biopsy. After biopsy, both the biopsied cells and the complementary embryo were transferred individually to empty PCR tubes and stored at −80°C until processed for mtDNA allele frequencies determination.

Fluorescence analysis

Request a detailed protocol

For analysis of the spindle structure and chromosomes distribution, control and MST oocytes were fixed and extracted for 30 min at 37°C in a microtubule stabilizing buffer (MTSB-XF). A triple-labeling protocol was then used for the detection of microtubules, microfilaments and chromatin by fluorescence microscopy, as described previously (Messinger and Albertini, 1991). Briefly, fixed oocytes were first incubated in a mixture of mouse monoclonal anti α/β-tubulin antibodies, and then in a mixture of secondary antibody (chicken anti-mouse IgG) conjugated to Alexa Fluor 488 and of Alexa Fluor 594 phalloidin. Finally, all oocytes were washed in PBS blocking solution, incubated in Hoechst 33258, and put on a mounting solution droplet on a glass slide. Blastocysts processed for total cell counts were fixed in 4% PFA and permeabilized in 2.5% Triton-X100 for 25 min at room temperature. Afterwards, blastocysts were incubated overnight in blocking solution and then in rabbit monoclonal anti-Oct-4, washed 3 times in PBS blocking solution for 10 min at 37°C. After, they were incubated in secondary antibody (goat anti rabbit IgG) conjugated with Alexa Fluor 594, washed and incubated in Hoechst (10 µg/ml) for 10 min at room temperature and finally mounting solution droplet on a glass slide. Stained oocytes or blastocysts were examined using an epifluorescence microscope (Nikon E1000) fitted with specific filters for Hoechst, Fluorescein and Texas Red and a 50W mercury lamp. Digital images were acquired with E1000 Nikon software.

Oocyte and blastocyst vitrification and transfer

Request a detailed protocol

Oocytes and blastocysts were vitrified following the instructions provided by the manufacturer (Kitazato BioPharma Japan). Briefly, samples were exposed to equilibration solution (ES) for 15 min, transferred to VS1 for 30 s and then to VS2 for additional 30 s. Afterwards, they were loaded onto the surface strip of a classic Cryotop (Kitazato BioPharma Japan) and directly plunged into liquid N2. For warming, the Cryotop strip was transferred from the liquid nitrogen into a TS solution for 1 min at 37°C and then gradually moved to dilution solution (DS) for 3 min, to washing solution (WS) 1 for 5 min and, finally, to WS2 for an additional 1 min. Exposures to DS and WS solutions were performed at room temperature. After warming, samples were extensively washed and kept in culture medium under oil at 37.3°C, in an atmosphere with 7% CO2 and O2 in air.

Embryo transfer

Request a detailed protocol

Embryo transfers were performed non-surgically using a commercial non-surgical embryo transfer protocol (NSET, Paratechs). Briefly, an NSET device was coupled to a P2 pipette with volume adjusted to 1.8 μl. Between 8 and 12 blastocysts were loaded in each device within a culture medium droplet under a stereomicroscope. After loading the blastocysts, the volume in the P2 pipette was re-adjusted to 2 μl to create an air bubble and to avoid the loss of the embryos by capillarity. The recipient female assigned for transfer was then immobilized, and a NSET small speculum was carefully introduced in the vagina. With the animal still immobilized, the NSET device loaded with the embryos was introduced by the speculum through the cervix. When the base of the device got in contact with the speculum, the blastocysts were transferred by pressing the plunger of the pipette. Having the plunger of the pipette still pressed, NSET device was removed and checked under the stereomicroscope to confirm that all embryos had been correctly transferred. Finally, the speculum was removed and the female returned to its corresponding cage.

Birth control and follow-up of the offspring

Request a detailed protocol

In the majority of transferred females natural delivery was controlled at the day 20 of pregnancy (P20), while in a few cases, cesarean sections were performed on embryonic day 18.5 to collect information on the weight and size of the placentas and pups. Pups (F1) resultant from the embryo transfer procedures were checked for health status and grown up until sexual maturity age was reached. Having reached the adult age, F1 males and females from each experimental group were randomly selected for crossing with wild-type (WT) B6CBAF1 mice, so that their health status and fertility competency could be assessed. At day 21 after birth, the offspring of the F1xWT = F2 mice were weaned and the F2 animals were checked and sexed. The same strategy was repeated for a total of 5 generations, by selecting random males and females from litters (n = 9 in F2 and n = 4 between F3 and F5).

Histological analysis

Request a detailed protocol

For histological evaluation, tissue samples from 4 ICSI-B6 control, 3 B6-sp/B6-cyt MST and 5 NZB-sp/B6-cyt MST mice were collected at 6 weeks of age. Mice were perfused with PBS and 5% formaldehyde solution. Subsequently, tissues were fixed overnight at 4°C in 5% formaldehyde and embedded in paraffin wax, sliced in 4 μm sections and stained with hematoxylin and eosin staining (H and E). The atrium, valves and myocardium of heart, kidney, liver and gall bladder, forebrain, midbrain and hindbrain, tibial and quadriceps muscle, urinary bladder and reproductive organs (testis, epididymis, accessory glands, ovary and uterus) were evaluated. Histological analysis was carried out blindly using mouse identification codes for group assignment that were unknown to the evaluator.

Analysis of mitochondrial DNA carryover mtDNA carryover in embryo specimens and adult mouse tissues was determined by SNP quantification using a high-throughput sequencing protocol. Prior to sequencing, polymerase chain reaction (PCR) was performed to amplify the SNP located at m.3932 in the mtDNA (B6CBAF1: A; NZB: G). DNA from embryo specimens was obtained by alkaline lysis. After the addition of 0.75 μl nuclease-free water, 1.25 μl 0.1M DL-Dithiothreitol and 0.5 μl 1.0M Sodium hydroxide solution (per sample), cells were lysed at 65°C for 10 min. Genomic DNA (gDNA) from organs (tail tips, hearts, brains, livers and kidneys) was extracted using the DNeasy Blood and Tissue Kit from Qiagen. A single PCR mixture consisted of 1.5 μl HotMaster Taq DNA Buffer with Magnesium (5 Prime), 0.6 μl of 100 μm primer pool (5’-CCATACCCCGAAAACGTTGG-3’ and 5’-GGTTGGTGCTGGATATTGTGA-3’), 0.3 μl 10 nM dNTP Mix and 0.09 μl HotMaster Taq DNA Polymerase (5 Prime). The PCR mix was added to lysed embryo specimens along with 7.99 μl nuclease-free water and 2.5 μl 0.4M Tricine (per sample) and to 0.5 μl of gDNA along with 12.49 μl nuclease-free water (per sample). PCRs were performed using the following conditions: 96.0°C for one minute; 35 cycles of 94.0°C for 15 s, 58°C for 15 s and 65.0°C for 45 s; 65.0°C for two minutes. Successful amplification was verified by gel electrophoresis. Sequencing libraries were prepared from PCR amplicons using the Ion Plus Fragment Library Kit from ThermoFisher. Libraries were sequenced on the Ion Personal Genome Machine (PGM; ThermoFisher). The Torrent Variant Caller plugin (ThermoFisher) was used for SNP allele quantification. In order to increase variant calling accuracy the settings for ‘Somatic’ variants were set to ‘High Stringency’, to enable low frequency variant detection at a minimal false-positive call rate. The read depth was downsampled to 20,000 to increase accuracy of variant calls. A ‘HotSpot Region’ BED file, defining the exact genomic coordinate of the assessed nucleotide, in addition to a ‘Target Region’ BED file, was used.

Prior to the analysis of embryo specimens and tissue samples, validation experiments were performed. Minisequencing was used to confirm SNP alleles A and G at position m.3932 in B6CBAF1 and NZB mouse strains, respectively. PCR amplicons (1 μl) from gDNA (extracted from tail tips) of the B6CBAF1 and NZB mouse strains were treated with 0.5 μl EXOSAP-it (Affymetrix) and incubated at 37°C for 15 min and 80°C for 15 min. PCR amplicons (1.5 μl) were combined with 0.5 μl water, 2.5 μl SNaPshot Multiplex Ready Reaction Mix (ThermoFisher) and 0.5 μl primer (2 μM; 5’-AATAAATCCTATCACCCTT-3’; 5’-ATTGTGAAGTAGATGATGG-3’). Mixtures were incubated using the following conditions: 25 cycles of 96.0°C for ten seconds, 50°C for 5 s and 60°C for 30 s. Products were analyzed by capillary electrophoresis on a genetic analyser (ThermoFisher). The resulting data were analyzed using GeneMapper v4.0 software (Applied Biosystems). DNA mixing experiments were performed to ensure accuracy and sensitivity of the SNP quantification protocol. Sample mixtures were created by combining gDNA (extracted from tail tips) from both mouse strains at different ratios (B6CBAF1/NZB: 100/0; 98/2; 96/4; 94/6; 92/8; 90/10; 75/25; 50/50; 25/75; 0/100). Samples were sequenced and obtained ratios compared to those expected.

To ensure both the validity of assessment of a single SNP for mtDNA carryover analysis and the accuracy of the utilized sequencing platform (Ion PGM); a second set of experiments was performed, which included analysis of four additional SNPs (B6CBAF1 > NZB: m.2798C > T; m.2814T > C; m.3194T > C; m.3260A > G) utilizing Illumina’s MiSeq System sequencing platform. Minisequencing was used to confirm presence/absence of SNPs in B6CBAF1 and NZB mouse strains. PCR and minisequencing procedures were performed as described above. In brief, PCR was performed to amplify additional SNPs in gDNA from B6CBAF1 and NZB tail tips (m.2798 and m.2814: 5’-AACACTCCTCGTCCCCATTC-3; and 5’-TGGACCAACAATGTTAGGGC-3’; m.3194 and m.3260: 5’-GCCGTAGCCCAAACAATTTC-3’ and 5’-GGTCAGGCTGGCAGAAGTAA-3’). Amplicons were subjected to minisequencing with following primers: 5’-TCGTCCCCATTCTAATCGC-3’ and 5’-TGTTAGGAAGGCTAT-3’ (m.2798T); 5’-ATAGCCTTCCTAACA-3’ and 5’-AAGATTTTGCGTTCTACTA-3’ (m.2814); 5’-ATGAAGTAACCATAGCTAT-3’ and 5’-ATAGAACTGATAAAAGGAT-3’ (m.3194); 5’-CACTTATTACAACCCAAGA-3’ and 5’-GCAGAAGTAATCATATGTG-3’ (m.3260). Sequencing libraries were prepared from PCR amplicons using the TruSeq DNA Nano LT kit from Illumina and sequenced on the MiSeq System. Analysis was performed with Miseq Reporter and Illumina’s Somatic Variant Caller. Again, gDNA mixtures (B6CBAF1/NZB: 100/0; 99/1; 97/3; 90/10; 75/25; 50/50; 0/100) were sequenced and obtained ratios compared to those expected. Furthermore, gDNA samples from organs of three individual mice were sequenced and results compared to those obtained by PGM sequencing.

Quantification and statistical analysis

Request a detailed protocol

Experiments involving micromanipulation procedures were usually repeated between 6 to 9 times. Results obtained in the different replicates were pooled and analyzed together. Oocytes used for manipulation were always taken randomly from a common pool of oocytes collected from the 4–6 female mice used on each experimental day. In all experiments that involved embryo culture, control groups with non-manipulated oocytes were always processed and cultured in parallel together with the manipulated groups. All statistical analyses were performed using Prism 6.0 program (GraphPad). For comparisons of mean cell numbers, placentas and mice weights, mtDNA carryover values in embryo species and adult mouse tissues, a t-test or one-way ANOVA was performed, where the significance was set at p<0.05. For the analysis of oocyte/embryo proportions, chi-square test was performed and a p-value<0.05 was considered significant.

- Validation of established sequencing protocol for mtDNA carryover analysis measured by Ion PGM sequencer. Allele frequencies at position m.3932 in homoplasmic samples and artificially constructed heteroplasmic sample mixtures. See also Source data 1.

References

  1. 1
  2. 2
  3. 3
    Origin of inbred NZ mouse strains
    1. M Bielschowsky
    2. CM Goodall
    (1970)
    Cancer Research 30:834–836.
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
    Reproductive deficiency of NZB male mice. Possibility of a viral basis
    1. G Fernandes
    2. EJ Yunis
    3. RA Good
    (1973)
    Laboratory Investigation; a Journal of Technical Methods and Pathology 29:278–281.
  16. 16
  17. 17
    Catalog of NIH Rodents
    1. JF Hansen CT
    2. RA Whitney
    (1973)
    DHEW Publication (NIH).
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
    Mitochondrial genotype segregation in a mouse heteroplasmic lineage produced by embryonic karyoplast transplantation
    1. FV Meirelles
    2. LC Smith
    (1997)
    Genetics 145:445–451.
  41. 41
  42. 42
    Centrosome and microtubule dynamics during meiotic progression in the mouse oocyte
    1. SM Messinger
    2. DF Albertini
    (1991)
    Journal of Cell Science 100 ( Pt 2:289–298.
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
    Ultrastructure of the human egg
    1. AH Sathananthan
    (1997)
    Human Cell 10:21–38.
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
    Global Prevalence of Infertility, Infecundity and Childlessness
    1. WHO
    (2017)
    World Health Organization.
  61. 61
  62. 62
  63. 63

Decision letter

  1. Martin Pera
    Reviewing Editor; The Jackson Laboratory, United States
  2. Didier YR Stainier
    Senior Editor; Max Planck Institute for Heart and Lung Research, Germany

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Thank you for submitting your article "Maternal spindle transfer overcomes embryo developmental arrest caused by ooplasmic defects in mice" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Didier Stainier as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

In this manuscript, the authors present results of their study on the efficacy of cytoplasmic replacement in oocytes using mitochondrial spindle transfer (MST) for overcoming poor preimplantation development in the mouse model. MST can be performed after oocyte vitrification and frozen/thawed cytoplasts but not spindles show poor development after MST. Whole cytoplasmic replacement in mature oocytes from NZB/OlaHsd mice with donor cytoplasm derived from B6CBAF1 mice can rescue poor fertilization, cleavage and blastocyst formation typical for NZB mice.

Essential revisions:

1) Introduction and summary of the literature: "The introduction is very selective especially related to autologous mitochondrial supplementation and appears to have been crafted to sell the authors' point of view. There are data to suggest that mitochondrial supplementation works and the effect that is has on gene expression in embryos and on litter size. Furthermore, children have been produced using this approach. The authors are requested to ensure that there is scientific balance in the Introduction for each aspect discussed." Please revise.

2) "There is no detail about the depth of the sequencing. Ion Torrent is not a reliable sequencing platform – it produces too many unreliable reads – you need to use a more reliable platform such as MiSeq. The levels of heteroplasmy need to be assessed on a range of tissues to determine if you see uniform similarities in transmission. At the moment, these data are not convincing as too few tissues are assessed."

"Conclusions on mtDNA heteroplasmy are weak because results are based on detection of only one SNP difference between NZB/OlaHsd and B6CBAF1 strains. It is likely that mtDNA haplotypes of these two strains differ on more than 90 SNPs. Therefore, authors should monitor heteroplasmy on each of these positions. This should be done by whole mtDNA sequencing, which is required for conclusive heteroplasmy assays post MRT."

Please provide additional sequencing data to solidify this key point.

3) "All pups (F2) were born alive, respired normally and grew to adulthood without manifesting any physiological or behavioral alteration.” and “Gross necropsies of the parents and offspring were also performed during the 5 generations, with no pathological findings observed.” Where are these data and how much depth was there to these analyses? This is critical given that a recent paper has shown that autologous mitochondrial supplementation can lead to a heart defect. Clarify to what depth mice were studied at autopsy.

4) "Authors used NZB strain as an example of a poor breeder strain. Strikingly, F1 females derived from MST that are still genetically NZO produced large litters (~8 pups) according to Supplementary file 1. It seems that authors show only one litter, which seems to be large even in unmanipulated NZO strain. It would be useful to show if F1 females maintain high productivity over time compared to NZO females (which should be also included in the table). If MST transfer improved NZO female's fecundity this could indicate that their breeding problems are mitochondria related and replacing mitochondria could improve the performance of this strain. Which would be of interest also from the clinical perspective. This technique could potentially reveal mitochondrial causes of infertility in patients which can be hereditary in the female lineage Women treated for ooplasm deficiency could pass this to their daughters." Please comment on the reviewer's observation.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Maternal spindle transfer overcomes embryo developmental arrest caused by ooplasmic defects in mice" for further consideration at eLife. Your revised article has been favorably evaluated by Didier Stainier (Senior Editor), a Reviewing Editor, and three reviewers.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

Reviewers remain concerned about the strength of the evidence to show that the animals were indeed normal. Were any organs preserved for histological examination? If so, it would be reasonable to examine at least a subset of these. The reviewers feel that given the impetus to take this technology to the clinic, this information from your rather extensive preclinical study is of considerable importance. Any additional data related to this point would be most valuable.

Reviewer #1:

Whilst I am not convinced by the explanation for the use of Ion Torrent, it is not my primary concern.

I am primarily concerned about the lack of detail related to the health and well-being of the offspring. The subsection “Developmental potential of MST mice and mtDNA heteroplasmy fate” does not provide sufficient information to determine if the animals were healthy or not and no data are presented. There is also no detail in the Materials and methods section. Macroscopic and microscopic investigations need to be performed. Currently, there is a drive to push this form of assisted reproductive technology into clinical practice in various countries and the real question relates to the health and well-being of the offspring. A number of studies have offered accounts of the fate of mtDNA that is carried over. Your study requires some novelty and macroscopic and microscopic investigations would provide this.

I am not prepared to support the publication of a manuscript related to this form of assisted reproductive technology that does not deal with the crucial question about the health and well-being of the offspring. Three lines of text is simply not sufficient.

Reviewer #2:

Authors provided additional information requested by reviewers such as references, added text and supplementary data. Other comments were addressed in the rebuttal by providing references supporting their argument but without adding additional data (although cited papers did not always agree – see point 1).

I am satisfied with most of the issues addressed but would like to hear from other reviewers if their comments were sufficiently addressed.

1) Addressing comment 2 that 5 tissues are insufficient to determine transmission of heteroplasmy authors cited two papers (Sharpley et al., 2012; Jenuth et al., 1997) saying that they have tested "a similar number" of tissues when in fact they used twice as many (10 or 9).

Reviewer #3:

I believe that the revision did not address the main concern expressed by the reviewers that whole mtDNA sequencing (MiSeq) is required to validate conclusions on heteroplasmy. It is standard now to validate sequencing by two independent approaches. The author's arguments in the rebuttal are not convincing.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Maternal spindle transfer overcomes embryo developmental arrest caused by ooplasmic defects in mice" for further consideration by eLife. Your revised article has been evaluated by Didier Stainier (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance.

You will see that one reviewer continues to have concern over the scope of your assessment. Although these concerns stem from genuine concern over the interpretation of the study, we think that you have gone some way to address this with additional data. Therefore, some comment in the Discussion to indicate that additional work would be required to fully assess safety issues.

Reviewer #1:

I am pleased to see that the authors have taken on extra work to seek to validate their claims regarding the safety of MST.

I note that the authors have undertaken the histopathology analysis. However, I am surprised to see that they have restricted themselves to four organs. Likewise, as argued by one of the other reviewers, they do not carry out mtDNA analysis on all tissues. Therefore, the arguments they present are only partially valid. The reason for this is that mtDNA, and specifically mtDNA mutations (as in disease) or variants (in non-pathological situations), do not segregate neutrally, or evenly, amongst all the tissues / organs but rather in a random manner. Therefore, without having analysis of all tissues and organs (or at least 10 as agreed by another reviewer), the outcomes are only indicative of what has been analysed. I, further, note that muscle has not been analysed and myopathies are associated with mtDNA disease and, in the disease state, muscle often carries high loads of mutant mtDNA, which affects OXPHOS function (mtDNA encodes for key genes of the electron transfer chain that performs OXPHOS).

In conclusion, I think this is an important study but it is being held back though either reluctance or a lack of understanding of mtDNA genetics and, specifically, transmission and segregation of the mitochondrial genome. Either way, this results in the conclusions being inconclusive.

https://doi.org/10.7554/eLife.48591.sa1

Author response

Essential revisions:

1) Introduction and summary of the literature: "The introduction is very selective especially related to autologous mitochondrial supplementation and appears to have been crafted to sell the authors' point of view. There are data to suggest that mitochondrial supplementation works and the effect that is has on gene expression in embryos and on litter size. Furthermore, children have been produced using this approach. The authors are requested to ensure that there is scientific balance in the Introduction for each aspect discussed." Please revise.

We agree that the original Introduction as submitted was overly brief in describing previous studies on mitochondrial supplementation. This was due to the need to fully convey essential details to introduce our hypothesis, while keeping the text as succinct as possible. As stated by the reviewers, there are multiple studies in animal models that have described benefits of the technique to treat infertility (Yi et al., 2007; El Shourbagy et al., 2006; Hua et al., 2014) and, importantly, children resultant from the application of this technique have been born (Fakih et al., 2015). We have rewritten this section of our Introduction to better introduce autologous mitochondrial supplementation.

The following references have also been added to the current version of the manuscript:

Johnson, J., Canning, J., Kaneko, T., Pru, J.K., and Tilly, J.L. Germline stem cells and follicular renewal in the postnatal mammalian ovary. Nature. 2004; 428: 145–150.

White, Y.A., Woods, D.C., Takai, Y., Ishihara, O., Seki, H., and Tilly, J.L. Oocyte formation by mitotically active germ cells purified from ovaries of reproductive-age women. Nat Med. 2012; 18: 413–421.

Yi, Y.C., Chen, M.J., Ho, J.Y., Guu, H.F., and Ho, E.S.Mitochondria transfer can enhance the murine embryo development.J Assist Reprod Genet.2007;24:445–449.

El Shourbagy, S.H., Spikings, E.C., Freitas, M., and St. John, J.C.Mitochondria directly influence fertilisation outcome in the pig.Reproduction.2006;131:233–245.

Hua, S., Zhang, Y., Li, X.C., Ma, L.B., Cao, J.W., Dai, J.P. et al.Effects of granulosa cell mitochondria transfer on the early development of bovine embryos in vitro.Cloning Stem Cells.2007;9:237–246.

Fakih, M.H.S.M., Szeptycki, J., dela Cruz, D.B., Lux, C., Verjee, S., Burgess, C.M., Cohn, G.M., and Casper, R.F. The AUGMENT treatment: physician reported outcomes of the initial global patient experience. JFIV Reprod Med Genet. 2015; 3: 154.

St John JC, Makanji Y, Johnson JL, Tsai TS, Lagondar S, Rodda F, Sun X, Pangestu M, Chen P, Temple-Smith P. The transgenerational effects of oocyte mitochondrial supplementation. Sci Rep. 2019 Apr 30;9(1):6694.

2) "There is no detail about the depth of the sequencing. Ion Torrent is not a reliable sequencing platform – it produces too many unreliable reads – you need to use a more reliable platform such as MiSeq. The levels of heteroplasmy need to be assessed on a range of tissues to determine if you see uniform similarities in transmission. At the moment, these data are not convincing as too few tissues are assessed."

"Conclusions on mtDNA heteroplasmy are weak because results are based on detection of only one SNP difference between NZB/OlaHsd and B6CBAF1 strains. It is likely that mtDNA haplotypes of these two strains differ on more than 90 SNPs. Therefore, authors should monitor heteroplasmy on each of these positions. This should be done by whole mtDNA sequencing, which is required for conclusive heteroplasmy assays post MRT. "

Please provide additional sequencing data to solidify this key point.

We agree that depth of sequencing should be included in the manuscript to show reliability of data. In fact, care was taken to ensure that each sample was sequenced at great depth (mean: ~60,000 reads) to ensure high accuracy and sensitivity of variant calling. We now included mean sequencing coverages (± SDs and ranges) of alleles at the variant site in footnotes of Supplementary file 1, Supplementary file 2 and Supplementary file 4. In addition, we prepared an excel file for reviewers with source data for these analyses (see Source data files), listing exact sequencing coverages at the variant site in all processed samples. These files, together with footnotes included in relevant tables, show that sequencing depth was consistently high and sufficient for variant calling throughout all samples tested.

We agree that it is essential to obtain accurate sequencing reads when determining variant ratios. We believe that the Ion Torrent is a highly reliable sequencing platform and well‑suited for variant analysis. It is routinely used for this purpose in research as well as clinical diagnostics and forensics (see referencesYang et al., 2018; Singh et al., 2013; Heeke et al., 2018; Churchill et al., 2018; below for recent examples). Furthermore, comparison of the Ion Torrent to other sequencers, including MiSeq, has not shown differences in performance (see referenceQuail et al., 2012). In our laboratory we use both platforms, the MiSeq and the Ion Torrent. For the present project we decided to use the Ion Torrent because it allows deep sequencing at much lower cost and much higher sample throughput than the MiSeq. Importantly, the Ion Torrent is coupled with a powerful server for direct processing of generated sequencing data, utilising software specifically developed for Ion Torrent raw data analysis. The verified Torrent Variant Caller plug‑in was used to determine variant ratios. Optimised, pre-set parameters were applied for variant calling. Some parameters were further customised to increase variant calling accuracy: (1)Settings for “Somatic” variants analysed at “High Stringency” were applied to enable low frequency variant detection at a minimal false‑positive call rate. (2)The read depth was down sampled to 20,000, rather than 2,000 reads as recommended, to increase accuracy of variant calls. (3)A “HotSpot Region” BED file, defining the exact genomic coordinate of the assessed nucleotide, in addition to a “Target Region” BED file, was applied to increase variant calling sensitivity at the assessed locus. Additionally, sequencing results of all samples were visualized in the integrative genomics viewer (IGV) to confirm variant calls and to ensure variant calls/low-level heteroplasmies were not ignored. Overall, we believe that our data is very accurate. Of note, in addition to the known variant site we also assessed all other nucleotides in sequences flanking the variant site. No sequencing artefacts/errors were detected in any position in the ~100bp amplicons in any of the samples.

We have edited the Materials and methods section to further clarify this point.

We agree that it is important to assess heteroplasmy levels in a range of adult mice tissues to determine mtDNA transmission and possible unequal distribution. For these reasons, we tested a total of 110organs and tissues of different energy needs (22tails, 22hearts,22livers, 22brains and 22kidneys). These were derived from 22animals (10female and 12male mice) from five consecutive generations (6xF1, 4xF2, 4xF3, 4xF4 and 4xF5, please see Supplementary file 4). Detected heteroplasmy levels were always comparable between organ/tissue types of individual mice and between mice of same generation. Moreover, heteroplasmy levels in organs/tissues of F1mice were comparable to the heteroplasmy levels detected in embryo biopsies. This data suggests that the types of organs/tissues and numbers of mice/generations analysed were sufficient to assess mtDNA transmission. Of note, published studies of similar type assessed similar numbers and organs/tissues (see referencesJenuth et al., 1997; Sharpley et al., 2012) to what we present here.

Accurate mtDNA heteroplasmy levels can be obtained from the analysis of a single SNP, since all polymorphic sites are inherited together. In fact, the analysis of a single polymorphic nucleotide is routinely used for the quantification of heteroplasmy levels and mtDNA carry-over rates (see referencesJenuth et al., 1997; Sharpley et al., 2012; Tachibana et al., 2009; Hyslop et al., 2016). The SNP at position m.3932 was used for mtDNA quantification in the present study. Differing B6CBAF1 and NZB alleles were initially confirmed by minisequencing. High accuracy and high sensitivity in heteroplasmy detection using the specified polymorphic nucleotide was confirmed using artificial mixtures of genomic DNA (see Supplementary file 1). Of note, the analysis of single nucleotides for mtDNA heteroplasmy quantification is a well‑established procedure in our laboratory and has been extensively validated on a range of samples (including human) for several other research projects as well clinical diagnostics. Therefore, we believe that the conclusions drawn in the present study are legitimate.

3) "All pups (F2) were born alive, respired normally and grew to adulthood without manifesting any physiological or behavioral alteration.” and “Gross necropsies of the parents and offspring were also performed during the 5 generations, with no pathological findings observed. Where are these data and how much depth was there to these analyses? This is critical given that a recent paper has shown that autologous mitochondrial supplementation can lead to a heart defect." Clarify to what depth mice were studied at autopsy.

The health, reproductive performance and welfare were monitored in all mice born from F1 until F5 resultant from the MST-derived lineage (in total, 239 mice). All mice analysed grew healthy and those selected for mating presented good fertility condition. Additionally, at weaning (21 days after birth), all pups showed normal appearance and appropriate size with no differences detected among gender, nor were any episodes of premature death reported. A gross necropsy of all parental mice (F1-F5) was performed, meaning that organs were observed macroscopically with no pathological findings observed, in terms of size, texture or morphological appearance, as detailed in subsection “Developmental potential of MST mice and mtDNA heteroplasmy fate” of the revised manuscript. In addition, some organs (tail, heart, brain, kidneys and liver) were harvested for analysis of mtDNA heteroplasmy, as stated in the manuscript.

4) "Authors used NZB strain as an example of a poor breeder strain. Strikingly, F1 females derived from MST that are still genetically NZO produced large litters (~8 pups) according to Supplementary file 1. It seems that authors show only one litter, which seems to be large even in unmanipulated NZO strain. It would be useful to show if F1 females maintain high productivity over time compared to NZO females (which should be also included in the table). If MST transfer improved NZO female's fecundity this could indicate that their breeding problems are mitochondria related and replacing mitochondria could improve the performance of this strain. Which would be of interest also from the clinical perspective. This technique could potentially reveal mitochondrial causes of infertility in patients which can be hereditary in the female lineage Women treated for ooplasm deficiency could pass this to their daughters." Please comment on the reviewer's observation.

We thank the reviewer for this interesting observation. Our data indicate that over the five generations the MST-derived mice were crossed and followed, the litter size was large and stable (average of 7.4 pups, see Supplementary file 3). Based on the literature and information provided by the commercial provider (Invigo), poor reproductive performance is expected for NZB/OlaHsd mice, with litter sizes of 3.8 at weaning and colony output 0.5 young/female/week (Festing, 1976; Fernandes et al., 1973; Hansen et al., 1973). Unfortunately, we did not follow the NZB controls after F1, as the main aim of our study was to evaluate the health, welfare and reproductive performance of the mice resultant from MST. We could hypothesize based on this observation that the MST technique can potentially reveal mitochondrial or cytoplasmic causes of infertility, but we do not have a direct control group to support this finding. Our group is currently investigating this question as part of another study that is being carried out.

We have added this to the Discussion of the revised manuscript.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Reviewers remain concerned about the strength of the evidence to show that the animals were indeed normal. Were any organs preserved for histological examination? If so, it would be reasonable to examine at least a subset of these. The reviewers feel that given the impetus to take this technology to the clinic, this information from your rather extensive preclinical study is of considerable importance. Any additional data related to this point would be most valuable.

Reviewer #1:

Whilst I am not convinced by the explanation for the use of Ion Torrent, it is not my primary concern.

I am primarily concerned about the lack of detail related to the health and well-being of the offspring. The subsection “Developmental potential of MST mice and mtDNA heteroplasmy fate” does not provide sufficient information to determine if the animals were healthy or not and no data are presented. There is also no detail in the Materials and methods section. Macroscopic and microscopic investigations need to be performed. Currently, there is a drive to push this form of assisted reproductive technology into clinical practice in various countries and the real question relates to the health and well-being of the offspring. A number of studies have offered accounts of the fate of mtDNA that is carried over. Your study requires some novelty and macroscopic and microscopic investigations would provide this.

I am not prepared to support the publication of a manuscript related to this form of assisted reproductive technology that does not deal with the crucial question about the health and well-being of the offspring. Three lines of text is simply not sufficient.

Following this reviewer’s suggestions we have performed additional MST experiments both using both NZB and B6 strain oocytes. Blastocysts were transferred and 12 adult animals were examined in detail through histopathological analyses. For this set of experiments, necropsies and histological examination of the 12 animals (4 from resultant from ICSI in B6 strain, 3 from reciprocal MST in B6 and 5 NZB-sp/B6-cyt MST assays) was done blindly by the pathologist (see attached report where G1 = ICSI-B6, G2 = B6-sp/B6-cyt MST, G3 = NZB-sp/B6-cyt MST). We have also included representative findings in a new figure: Figure 4—figure supplement 1).

We have updated accordingly the Results section:

“Gross necropsies of the parents and offspring were performed during the 5 generations, with no pathological findings observed. In the 239 mice analysed, all organs showed a normal size, texture and morphological appearance. Additionally, histopathological examinations were performed in organs including heart, kidney, liver and brain, in the F1 mice generated for this purpose by MST B6-sp/B6-cyt (n=3), MST NZB-sp/B6-cyt (n=5) and control B6 (n=4) groups. Except for a pericardium focal inflammation in one animal of the B6 control group, neither of the animals showed any lesions or visible abnormalities (Figure 4—figure supplement 1). Taken together, these results support the notion that MST can efficiently produce healthy, fertile and viable offspring.”

And the Materials and methods section (Histological analysis):

“For histological evaluation, tissue samples from heart, liver, kidney and brain of 4 ICSI-B6 control, 3 B6-sp/B6-cyt MST and 5 NZB-sp/B6-cyt MST mice were collected at 6 weeks of age. Mice were first perfused with PBS and then with 5% formaldehyde solution. Subsequently, tissues were fixed overnight at 4°C in 5% formaldehyde and embedded in paraffin wax, sliced in 4-μm sections and stained with hematoxylin and eosin staining (H&E). The atrium, valves and myocardium of heart; both kidneys (through longitudinal and transverse sections), liver and gall bladder, forebrain, midbrain and hindbrain were evaluated. Histological analysis was carried out blindly using mouse identification codes for group assignment that were unknown to the evaluator.”

As stated by the pathologist in the report attached, macroscopic observations revealed that all animals were well nourished, well groomed and active; with no dermal lesions, nasal, ocular or genital discharges seen. Thoracic and abdominal viscera did not show abnormalities either. Additionally, histological analysis tissues performed in heart, kidney, liver and brain sections showed no apparent lesions in any of the organs evaluated in mice derived from NZB sp-/B6-cyt MST and B6-sp/B6-cyt MST embryos. Neither of the animals evaluated presented lesions of significance, except for one mouse derived from B6-ICSI control group that showed a pericardium inflammation.

In addition, we have also performed an extensive comparison between Ion PGM and Illumina MiSeq sequencing platforms using up to five different allele variants in tissues with known different heteroplasmy levels, please see detailed answer to reviewer #3 below.

Reviewer #2:

Authors provided additional information requested by reviewers such as references, added text and supplementary data. Other comments were addressed in the rebuttal by providing references supporting their argument but without adding additional data (although cited papers did not always agree – see point 1).

I am satisfied with most of the issues addressed but would like to hear from other reviewers if their comments were sufficiently addressed.

1) Addressing comment 2 that 5 tissues are insufficient to determine transmission of heteroplasmy authors cited two papers (Sharpley et al., 2012; Jenuth et al., 1997) saying that they have tested "a similar number" of tissues when in fact they used twice as many (10 or 9).

We are glad that the information provided in the previous revision mostly satisfied reviewer #2. We have included histological evidence that supports the notion that the mice generated by spindle transfer are normal and provided additional data that confirms the reliability of the Ion PGM platform used to determine heteroplasmy in the different organs of the mice of the different generations.

Reviewer #3:

I believe that the revision did not address the main concern expressed by the reviewers that whole mtDNA sequencing (MiSeq) is required to validate conclusions on heteroplasmy. It is standard now to validate sequencing by two independent approaches. The author's arguments in the rebuttal are not convincing.

As indicated in the previous revision of our manuscript, comparison of the Ion Torrent to other sequencers, including MiSeq, had not shown differences in performance (see reference Quail et al., 2012).

Nevertheless, we decided to address the reviewers concern by first doing a direct comparison of the performance and accuracy of the IonTorrent PGM machine and Illumina’s MiSeq; and secondly by not only assaying 1 SNP from one mtDNA amplicon, but for a total of 3 amplicons, analyzing a total of 5 mitochondrial SNPs (B6CBAF1/NZB: m.3932A/G, m.2798C/T; m.2814T/C; m.3194T/C; m.3260A/G):

We describe this in detail in the Materials and methods section:

“To ensure both the validity of assessment of a single SNP for mtDNA carryover analysis and the accuracy of the utilized sequencing platform (Ion PGM); a second set of experiments was performed, which included analysis of four additional SNPs (B6CBAF1>NZB: m.2798C>T; m.2814T>C; m.3194T>C; m.3260A>G) utilizing Illumina’s MiSeq System sequencing platform. […] Furthermore, gDNA samples from organs of three individual mice were sequenced and results compared to those obtained by PGM sequencing.”

We have also updated the Results section accordingly :

“To verify validity of mtDNA carryover assessment by analysis of a single SNP and to ensure reliability of the utilised sequencing platform, four additional SNPs (B6CBAF1/NZB: m.2798C/T; m.2814T/C; m.3194T/C; m.3260A/G) were analysed on a different sequencer (Illumina’s MiSeq). The presence of different alleles was also confirmed by minisequencing”

(see Materials and methods and Supplementary file 2 for further details; and Figure 3—figure supplement 2). And in the Results section:

“These quantifications based on a single SNP in an Ion PGM sequencer were corroborated by using an additional sequencing platform (Illumina’s MiSeq) and 5 SNPs, as described above. Artificially constructed samples, composed of gDNA from both mouse strains mixed in different ratios, and gDNA from 5 organs of selected adult mice from F1-3 generations were analysed (Figure 3—figure supplement 2, Figure 4—figure supplement 2, Supplementary files 2 and 6). These results suggest that low levels of mtDNA heteroplasmy resultant from MST typicallly result in a homoplasmic state in offspring within a few generations, without reversion (Supplementary files 5 and 6).”

These results are summarized in new Supplementary files 2 and 6 (with the corresponding source data in 2 data files). The direct comparison of measurements of 5 organ samples from MST mice from 3 generations between the 2 sequencing platforms is depicted in Figure 4—figure supplement 2.

Overall, our analyses show that there are no significant differences between the heteroplasmy levels regardless of whether we examine 1 mtDNA SNP or more; or the sequencing platform utilised. These new validations confirm that Ion PGM is reliable and well-suited for this type of variant analysis. Of note, the heteroplasmy levels of the offspring generated by MST is almost null from generation F3 (see Figure 4 and Figure 4—figure supplement 2 and Supplementary files 5 and 6), suggesting that the low mtDNA heteroplasmic levels result in homosplamic state in the offspring within a few generations and without reversion. Therefore, we believe that the conclusions drawn in the present study are legitimate.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Reviewer #1:

I am pleased to see that the authors have taken on extra work to seek to validate their claims regarding the safety of MST.

I note that the authors have undertaken the histopathology analysis. However, I am surprised to see that they have restricted themselves to four organs. Likewise, as argued by one of the other reviewers, they do not carry out mtDNA analysis on all tissues. Therefore, the arguments they present are only partially valid. The reason for this is that mtDNA, and specifically mtDNA mutations (as in disease) or variants (in non-pathological situations), do not segregate neutrally, or evenly, amongst all the tissues/organs but rather in a random manner. Therefore, without having analysis of all tissues and organs (or at least 10 as agreed by another reviewer), the outcomes are only indicative of what has been analysed. I, further, note that muscle has not been analysed and myopathies are associated with mtDNA disease and, in the disease state, muscle often carries high loads of mutant mtDNA, which affects OXPHOS function (mtDNA encodes for key genes of the electron transfer chain that performs OXPHOS).

In conclusion, I think this is an important study but it is being held back though either reluctance or a lack of understanding of mtDNA genetics and, specifically, transmission and segregation of the mitochondrial genome. Either way, this results in the conclusions being inconclusive.

In the previous version of our revised manuscript we had included histopathological examinations that had been performed in vital organs, including heart, kidney, liver and brain. We have now extended these examinations to additional tissues from the same animals, as suggested. We included the analysis in both skeletal tibial and quadriceps muscle and urinary bladder for smooth muscle. Additionally, we have also processed organs from the reproductive tract and accessory glands in both males (testis, epididymis, seminal vesicles, prostate, coagulating glands, ampullary glands and bulbourethral glands) and females (ovaries, oviducts, uterine horns). Taken together we have examined over 10 organs/tissues from each animal. None of the animals showed any lesions or visible abnormalities. Representative images from additional stainings are now included in Figure 4—figure supplements 1 and 2.

On the other hand, we have tried to tone down the claims that the MST animals were “healthy” and emphasized in the revised Discussion that the conclusions regarding the animals health and heteroplasmy levels are drawn only from the organs we assessed.
