Biochemical reconstitution of branching microtubule nucleation

  1. Raymundo Alfaro-Aco
  2. Akanksha Thawani
  3. Sabine Petry  Is a corresponding author
  1. Princeton University, United States
Short Report
  • Cited 2
  • Views 918
  • Annotations
Cite this article as: eLife 2020;9:e49797 doi: 10.7554/eLife.49797

Abstract

Microtubules are nucleated from specific locations at precise times in the cell cycle. However, the factors that constitute these microtubule nucleation pathways and their mode of action still need to be identified. Using purified Xenopus laevis proteins we biochemically reconstitute branching microtubule nucleation, which is critical for chromosome segregation. We found that besides the microtubule nucleator gamma-tubulin ring complex (γ-TuRC), the branching effectors augmin and TPX2 are required to efficiently nucleate microtubules from pre-existing microtubules. TPX2 has the unexpected capacity to directly recruit γ-TuRC as well as augmin, which in turn targets more γ-TuRC along the microtubule lattice. TPX2 and augmin enable γ-TuRC-dependent microtubule nucleation at preferred branching angles of less than 90 degrees from regularly-spaced patches along microtubules. This work provides a blueprint for other microtubule nucleation pathways and helps explain how microtubules are generated in the spindle.

Introduction

Microtubules are nucleated from specific locations in the cell, and several of these microtubule nucleation pathways converge to form a particular cytoskeletal architecture (Kollman et al., 2011; Lin et al., 2015; Lüders and Stearns, 2007). Importantly, microtubules in cells are nucleated by the microtubule nucleator γ-TuRC (Kollman et al., 2011; Zheng et al., 1995) and its co-nucleation factor XMAP215 (Flor-Parra et al., 2018; Gunzelmann et al., 2018; Thawani et al., 2018). At the same time, each microtubule nucleation pathway requires a unique set of nucleation effectors to recruit and regulate γ-TuRC at distinct cellular locations (Lin et al., 2015). The identity of most of these effectors remains elusive, along with a mechanistic understanding of how they constitute the different microtubule nucleation pathways that generate the cytoskeleton.

Microtubules can nucleate from pre-existing microtubules, termed branching microtubule nucleation (Petry et al., 2013), which amplifies microtubule number while preserving their polarity, as is needed in the mitotic spindle and in axons (Cunha-Ferreira et al., 2018; David et al., 2019; Kamasaki et al., 2013; Petry et al., 2013; Sánchez-Huertas et al., 2016). The eight-subunit protein complex augmin is required for branching microtubule nucleation in plant, human and Drosophila cells, and meiotic Xenopus egg extract, where its depletion leads to reduced spindle microtubule density, less kinetochore fiber tension, metaphase arrest, and cytokinesis failure (David et al., 2019; Decker et al., 2018; Goshima et al., 2008; Hayward et al., 2014; Ho et al., 2011; Kamasaki et al., 2013; Lawo et al., 2009; Nakaoka et al., 2012; Petry et al., 2011; Uehara et al., 2009). Augmin is necessary to recruit γ-TuRC to spindle microtubules (Goshima et al., 2007), and following the recombinant expression of augmin (Hsia et al., 2014), this activity was confirmed using purified proteins (Song et al., 2018).

In meiotic Xenopus egg extract, the Ran-regulated protein TPX2 is released near chromatin (Gruss et al., 2001), where it stimulates branching microtubule nucleation (Petry et al., 2013), potentially by activating γ-TuRC via nucleation activator motifs (Alfaro-Aco et al., 2017). Recently, TPX2 was also observed to form a co-condensate with tubulin along the microtubule lattice, which enhances the kinetic efficiency of branching microtubule nucleation (King and Petry, 2019). In meiotic Xenopus egg extract, TPX2 needs to bind to microtubules before augmin/γ-TuRC to result in a successful nucleation event (Thawani et al., 2019). In contrast, in mitotic Drosophila cells TPX2 is not required, and augmin can bind to microtubules before γ-TuRC (Verma and Maresca, 2019). Despite these numerous studies to characterize each individual protein component, exactly how augmin, TPX2 and γ-TuRC together mediate branching microtubule nucleation, and whether they alone constitute a minimal system that nucleates branched microtubules, remains unclear. Here, we use biochemical reconstitution of its purified components to mechanistically dissect branching microtubule nucleation.

Results and discussion

Branching microtubule nucleation has been studied in Xenopus egg extract, where it is elicited by the constitutively active version of Ran (RanQ69L) (Petry et al., 2013). In order to establish a controlled, minimal assay that furthers our mechanistic insight, we exposed a microtubule tethered to glass to sequential reaction mixtures of decreasing complexity and thereby regulated the availability of proteins necessary to stimulate branching microtubule nucleation. Using multicolor time-lapse total internal reflection (TIRF) microscopy, we first confirmed that an endogenous, pre-existing microtubule can serve as a template for branching microtubule nucleation when exposed to Ran-supplemented extract that releases branching factors (Figure 1A and Figure 1—video 1). This shows that a microtubule formed independent of Ran can serve as the site for binding of branching factors and subsequent nucleation events.

Figure 1 with 4 supplements see all
The proteins necessary for branching microtubule nucleation in Xenopus egg extract bind to a pre-existing microtubule independent of the nucleation event.

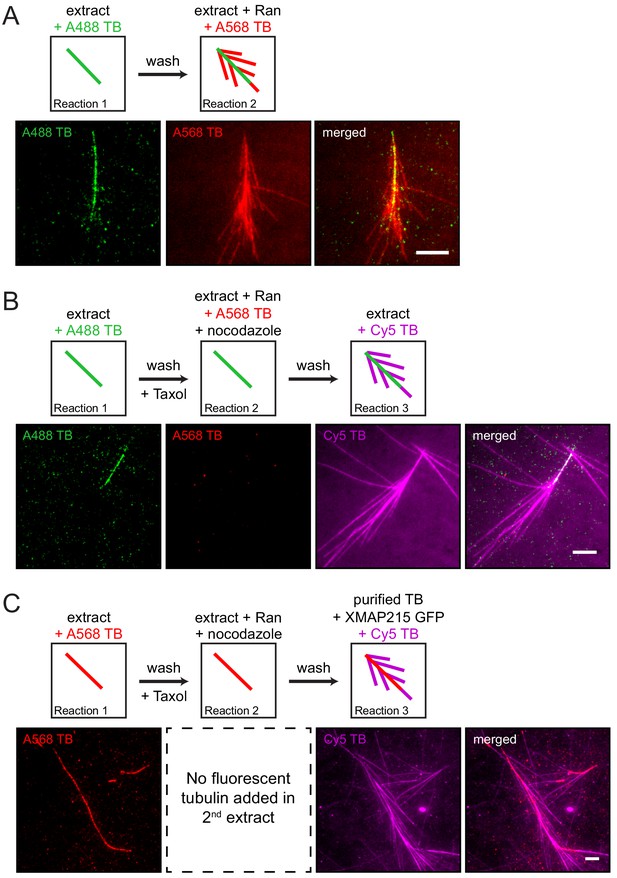

(A–C) Sequential reactions with Xenopus egg extract. (A) Single microtubules formed on the glass surface in the first extract supplemented with Alexa488 tubulin (green). A second extract supplemented with Alexa568 tubulin (red) and RanQ69L was subsequently introduced. New microtubules (red) nucleated from pre-existing microtubules (green). See Figure 1—video 1. (B) Single microtubules formed on the glass surface in the first extract supplemented with Alexa488 tubulin (green). A second extract supplemented with Alexa568 tubulin (red), RanQ69L and nocodazole was subsequently introduced, followed by a third extract supplemented with Cy5 tubulin (magenta). Branched microtubules (magenta) nucleated from pre-existing microtubules (green) via the branching factors released in the second extract, while no microtubules formed in the presence of nocodazole (red). See Figure 1—figure supplement 1 and Figure 1—figure supplement 2A. (C) Similar to (B), except that the first extract was supplemented with Alexa568 tubulin (red), the second extract contained no fluorescent tubulin, and the third extract reaction was substituted for purified Cy5 tubulin (magenta) and XMAP215. Branched microtubules (magenta) nucleated from pre-existing microtubules (red), which had been pre-loaded with branching factors in the second extract. See Figure 1—figure supplement 2B and Figure 1—video 2. For all experiments, images were collected approximately 5 min after the last solution was exchanged. Scale bars, 5 μm. The experiments were repeated three times with different Xenopus egg extracts.

To gain mechanistic insight, we hypothesized that all necessary Ran-regulated branching factors bind to the pre-existing microtubule prior to microtubule nucleation. To test this, Ran-regulated branching factors were allowed to bind to taxol-stabilized pre-existing microtubules in the presence of nocodazole, which inhibits new microtubule formation (Figure 1B and Figure 1—figure supplement 1). When another extract reaction was subsequently added, new microtubules nucleated almost exclusively from pre-existing microtubules, indicating that Ran-regulated branching factors bind to microtubules independent of their successful nucleation reactions (Figure 1B). Importantly, when RanQ69L was omitted and no branching factors were released in the second extract reaction, pre-existing microtubules simply elongated and branching microtubule nucleation was absent in the third reaction (Figure 1—figure supplement 2A).

To further test whether these microtubule-bound branching factors are sufficient for generating branches, we reduced the complexity of our assay by introducing only purified tubulin and GTP in the third reaction step. Surprisingly, short branched microtubules nucleated from pre-existing microtubules (Figure 1—figure supplement 2B), showing that upon binding of branching factors and γ-TuRC, tubulin is the only protein required to form new branched microtubules from the localized factors. Further addition of XMAP215 to the final tubulin reaction made the short branches grow longer (Figure 1C). This revealed that branched microtubules retained the polarity of the pre-existing microtubule, and new microtubules do not appear to nucleate from other branched microtubules, suggesting that the branching factors do not relocate between microtubules (Figure 1C and Figure 1—video 2). Thus, solely the deposition of branching factors and γ-TuRC to the pre-existing microtubule determines branching architecture.

Because the key for branching microtubule nucleation is to target γ-TuRC along the length of a microtubule, we verified as a proof of concept that purified γ-TuRC, when tethered along the microtubule lattice via artificial linkers, can still nucleate microtubules, which indeed was the case (Figure 2—figure supplement 1A–B). Therefore, if all branching factors are known, it should be possible to reconstitute branching microtubule nucleation from a template microtubule using only purified components. To test this, we purified the essential proteins for branching microtubule nucleation in Xenopus egg extract (Petry et al., 2013). The GFP-labeled eight-subunit X. laevis augmin holocomplex was co-expressed in insect cells and co-purified (Song et al., 2018), the native 2.2 MDa γ-TuRC was purified from Xenopus egg extract (Thawani et al., 2018), and GFP-TPX2 was expressed from E. coli and purified (King and Petry, 2019) (Figure 2—figure supplement 2A–C).

First, we assessed how the nucleator γ-TuRC gets targeted along the microtubule lattice. Purified TPX2, augmin and γ-TuRC were added in various combinations to surface-bound, GMPCPP-stabilized microtubules and imaged via TIRF microscopy (Figure 2A). γ-TuRC, visualized by a fluorescently-labeled antibody, bound along the length of microtubules in the presence of augmin (Figure 2B–C and Figure 2—source data 1) consistent with previous studies (Song et al., 2018). Unexpectedly, TPX2 alone marginally increased the binding of γ-TuRC to microtubules compared to non-specific γ-TuRC binding. A higher amount of γ-TuRC was recruited all along the microtubule lattice in the presence of both TPX2 and augmin (Figure 2B–C and Figure 2—source data 1). Surprisingly, augmin and TPX2 formed distinct puncta on microtubules, where γ-TuRC was recruited. Using negative stain electron microscopy, we visualized this binding at higher resolution and indeed observed that γ-TuRC is recruited to regularly spaced patches, where it accumulates (Figure 2D). Next, we tested whether the microtubule binding proteins augmin and TPX2 need to bind in a certain sequence. Surprisingly, microtubule-bound TPX2 increased the amount of augmin bound to the microtubule, whereas the presence of augmin did not change the level of bound TPX2 (Figure 2E–F and Figure 2—source data 2). In sum, TPX2 has the unexpected capacity to directly recruit γ-TuRC as well as augmin, which in turn targets more γ-TuRC along the microtubule lattice.

Figure 2 with 2 supplements see all

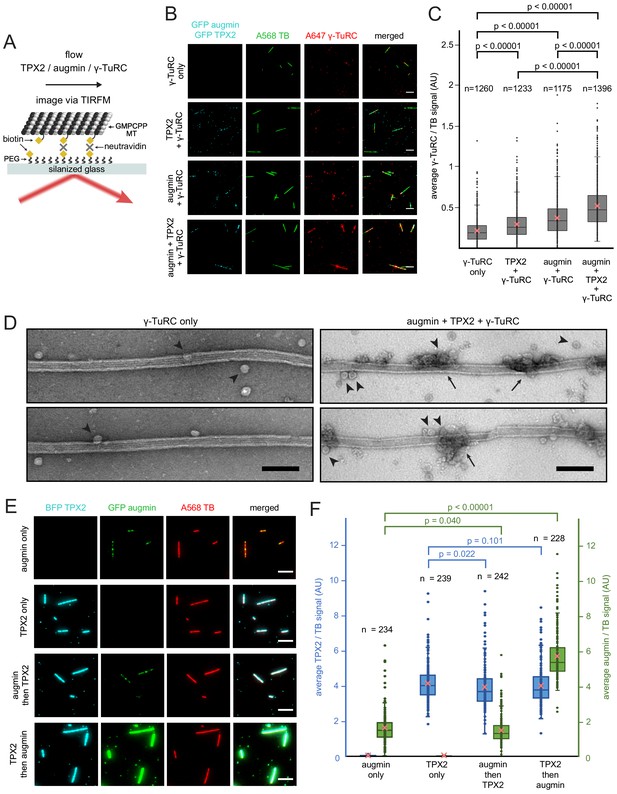

Binding of augmin, TPX2 and γ-TuRC to a template microtubule.

(A) Diagram of the experimental set-up. GMPCPP-stabilized microtubules were attached to a PEG-passivated cover glass with biotin-neutravidin links. (B) γ-TuRC (10 nM) visualized using Alexa647-labeled antibodies (red) along microtubules (green), in the absence or presence of GFP-augmin (50 nM) and GFP-TPX2 (50 nM) (cyan). Scale bars, 5 μm. (C) Boxplot of average γ-TuRC signal relative to the average tubulin signal, where each dot represents one microtubule from the experiment in (B). The number of microtubules (n) was obtained from four replicates using γ-TuRC purified from two different preps. (D) GMPCPP-stabilized microtubules incubated with γ-TuRC (10 nM) only or with augmin (50 nM), TPX2 (50 nM) and γ-TuRC (10 nM), visualized by electron microscopy after uranyl acetate staining. Ring-shaped structures that correspond to γ-TuRCs (arrowheads), and clusters of protein formed on microtubules (arrows) are visible. Scale bars, 100 nm. (E) GFP-augmin (50 nM) (green) and BFP-TPX2 (50 nM) (cyan) visualized along microtubules (red) by themselves or in sequential binding steps. Scale bars, 5 μm. (F) Boxplot of average BFP-TPX2 signal or GFP-augmin signal relative to the average tubulin signal, where each dot represents one microtubule from the experiment in (E). The number of microtubules (n) was obtained from two replicates. For (C) and (F), the boxes extend from 25th to 75th percentiles, the whiskers extend from minimum to maximum values, and the mean values are plotted as crosses. P-values were calculated from independent T-tests.

Having established that purified TPX2 and augmin recruit γ-TuRC to template microtubules, can they indeed cause branching microtubule nucleation? All three factors were bound to a stabilized microtubule as above, followed by addition of tubulin and GTP in polymerization buffer (Figure 3A). Remarkably, branching microtubule nucleation from a template microtubule occurred using only purified proteins (Figure 3B and Figure 3—video 1). Live microscopy allowed us to accurately distinguish branching microtubule nucleation from microtubules that were spontaneously nucleated before contacting the microtubule template (Figure 3—figure supplement 1). Thus, TPX2, augmin and γ-TuRC are sufficient to specifically nucleate new branched microtubules, which remain attached at the nucleation site on the template microtubule (Figure 3B). Occasionally, enough microtubules branched from a single microtubule template (Figure 3B, bottom) to create structures reminiscent of those created after TPX2, augmin and γ-TuRC were deposited from Xenopus egg extract (Figure 1—figure supplement 2B).

Figure 3 with 5 supplements see all
Biochemical reconstitution of branching microtubule nucleation using purified augmin, TPX2 and γ-TuRC.

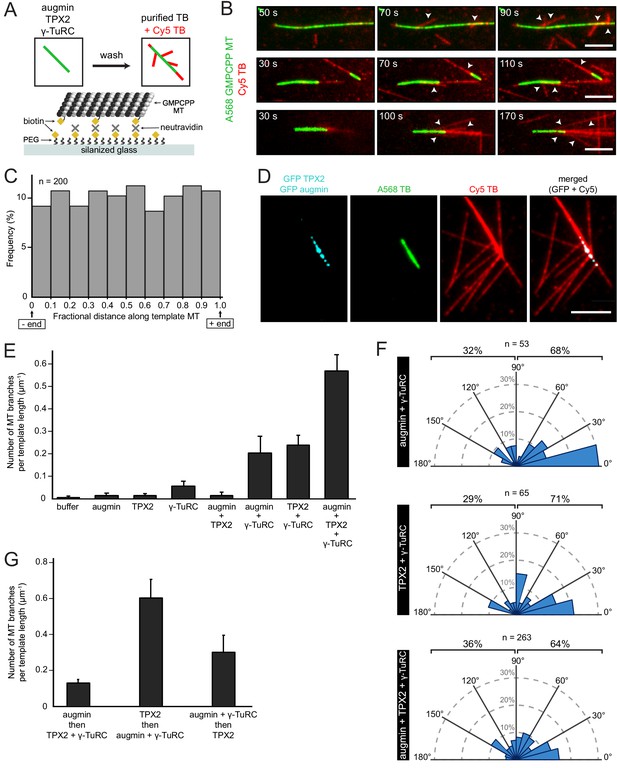

(A) Diagram of the experimental set-up. GMPCPP-stabilized microtubules were attached to a PEG-passivated cover glass with biotin-neutravidin links. Following the binding of augmin (50 nM), TPX2 (50 nM), and γ-TuRC (10 nM), nucleation of new microtubules was visualized using Cy5 tubulin. (B) Using the set-up in (A), the formation of microtubule branches (red, arrowheads) from GMPCPP-stabilized microtubules (green) was observed. Scale bars, 5 μm. See Figure 3—figure supplement 1A and Figure 3—video 1. (C) Fractional distance along the template microtubule where microtubule branches formed. The 0-point on the x-axis denotes nucleation at the minus-end of the template microtubule, while the 1-point denotes nucleation at the plus-end. The number of branching events (n) was obtained from twelve replicates using γ-TuRC purified from four different preps. (D) Same as (A), microtubule branches (red) grow from distinct GFP-augmin and GFP-TPX2 puncta (cyan) localized on GMPCPP-stabilized microtubules (green). (E) Number of microtubule branches per field of view after 4 min, normalized to the length of template microtubule available, for all the combinations of branching factors. Values are the mean of four replicates using γ-TuRC purified from one prep, and error bars represent standard error of the mean. (F) Angle of branching for three different combinations of branching factors. The number of branching events (n) was obtained from eight replicates using γ-TuRC purified from two different preps in the case of augmin + γ-TuRC and TPX2 + γ-TuRC, and from twelve replicates using γ-TuRC purified from four different preps in the case of augmin + TPX2 + γ-TuRC. (G) Number of microtubule branches per field of view after 4 min, normalized to the length of template microtubule available, for different binding sequences. Values are the mean of four replicates using γ-TuRC purified from one prep, and error bars represent standard error of the mean.

How are the nucleation sites spatially organized along the template microtubule? New microtubules nucleate all along the template microtubule without any preference for the template’s plus- or minus-ends (Figure 3C and Figure 3—source data 1), likely because the template microtubule was fully available for simultaneous binding of branching factors in our assay set-up. Thus, there is no signature on the stabilized microtubule lattice that determines where a branch occurs, only that microtubule nucleation events occur from distinct TPX2/augmin puncta distributed along the microtubule lattice (Figure 3D). Multiple microtubules can be generated from the same puncta as resolved by light microscopy (Figure 3D), which presumably nucleate from neighboring γ-TuRCs (Figure 2D). Because both TPX2 and augmin were concurrently tagged with GFP, an unlabeled version of TPX2 was used to confirm that augmin was indeed present in the observed puncta on template microtubules (Figure 3—figure supplement 2A).

What does each protein contribute to branching microtubule nucleation? To test this, each purified factor was assessed alone for its nucleation potential from a template microtubule, combined in pairs and ultimately altogether. Notably, γ-TuRC is essential for branching microtubule nucleation (Figure 3E and Figure 3—source data 2). Despite the fact that TPX2 can recruit tubulin (King and Petry, 2019), it alone or together with augmin cannot nucleate branched microtubules. γ-TuRC can infrequently bind to the microtubule lattice on its own (Figure 2D), leading to rare nucleation events without TPX2 and augmin (Figure 3E and Figure 3—source data 2). Not surprisingly, augmin and γ-TuRC can cause branching microtubule nucleation to a limited extent (Figure 3E, Figure 3—figure supplement 2B–C and Figure 3—source data 2), as augmin can directly recruit γ-TuRC to a pre-existing microtubule in vitro (Song et al., 2018). Surprisingly, TPX2 and γ-TuRC can also cause branching microtubule nucleation to a similar extent as augmin and γ-TuRC (Figure 3E, Figure 3—figure supplement 2D–E and Figure 3—source data 2). Although TPX2 only marginally recruits γ-TuRC to the microtubule lattice, its ability to form a co-condensate with tubulin (King and Petry, 2019), and to possibly activate γ-TuRC (Alfaro-Aco et al., 2017), may facilitate γ-TuRC-dependent microtubule nucleation from a pre-existing microtubule.

Similar to the pattern observed when both TPX2 and augmin are present, augmin or TPX2 alone with γ-TuRC also form distinct puncta along the microtubule lattice, implying that augmin may have a similar mode of binding to the microtubule lattice as TPX2. However, fewer of these puncta actually nucleate branched microtubules (Figure 3E, Figure 3—figure supplement 2C, Figure 3—figure supplement 2E and Figure 3—source data 2). Importantly, only when augmin, TPX2 and γ-TuRC are present, branching microtubule nucleation occurs most often (Figure 3E and Figure 3—source data 2). Branched microtubules are preferentially formed in angles < 90 degrees, with 0–15 degrees being the most common (Figure 3F and Figure 3—source data 3). This way, most branched microtubules maintain the same polarity as the mother microtubule, a hallmark of branching microtubule nucleation. The angle of microtubule branches did not drastically change when augmin or TPX2 were combined with γ-TuRC, only that augmin/γ-TuRC alone caused a higher proportion of shallow branch angles (Figure 3F and Figure 3—source data 3).

A key question that we next addressed with this system is whether TPX2 and augmin merely act as localizing factors, or whether they indeed activate γ-TuRC at the branching nucleation sites. To test whether branching was specifically stimulated, we counted the number of non-branched microtubules nucleated in the reactions shown in Figure 3E. Reactions where γ-TuRC was present have approximately twice as many non-branched microtubules per field of view compared to the reactions where γ-TuRC was absent. Notably, the addition of TPX2 or augmin does not change the number of non-branched microtubules (Figure 3—figure supplement 3A and Figure 3—source data 4). This suggests that the increase in branching microtubule nucleation by TPX2 and augmin is not just a result of increased microtubule nucleation overall, but specifically occurs from a pre-existing microtubule.

To more directly assess whether augmin or TPX2 increase the nucleation activity of γ-TuRC, we performed a microtubule nucleation assay in solution. Augmin did not enhance the nucleation activity of purified γ-TuRC in vitro (Figure 3—figure supplement 3B), consistent with previous studies (Song et al., 2018). A low concentration of TPX2 (10 nM) did not enhance the nucleation activity of γ-TuRC either (Figure 3—figure supplement 3C). A higher concentration of TPX2 (50 nM) was also tested, but at this concentration and in the absence of pre-formed microtubules, TPX2 forms co-condensates with tubulin in solution that nucleate microtubules in vitro (Figure 3—figure supplement 3D) (King and Petry, 2019), which precludes the accurate assessment of γ-TuRC-mediated microtubule nucleation at higher concentrations. These nucleation experiments suggest that TPX2 and augmin do not activate γ-TuRC in solution. There remains the possibility that they increase the nucleation activity of γ-TuRC specifically when bound to a microtubule. To evaluate whether the increase in branching microtubule nucleation activity in Figure 3E is larger than the increase in γ-TuRC binding in Figure 2C we calculated the ratio of branching to binding, and normalized it to the γ-TuRC only sample. Although the increase in branching when both TPX2 and augmin are present with γ-TuRC is marginally larger than what is expected from the increase in γ-TuRC localization alone, the difference is not statistically significant based on the current data.

Last, we tested whether branching microtubule nucleation is further enhanced by having XMAP215 present. Indeed, XMAP215 co-localizes to the template microtubule and appears to increase both microtubule nucleation rate and length (Figure 3—figure supplement 4). Exact quantification of this effect was not possible because branched microtubules were already formed before imaging was possible and microtubules quickly grew into each other, preventing the accurate identification of branching microtubule nucleation. Lastly, knowing that the binding sequence of TPX2 and augmin matters for maximum factor recruitment, does this have an effect on nucleation? Indeed, only when TPX2 was bound first and augmin/γ-TuRC second, a higher level of branching microtubule nucleation was measured (Figure 3G and Figure 3—source data 5).

Via an in vitro reconstitution, we demonstrate that the three factors TPX2, augmin and γ-TuRC are sufficient to cause branching microtubule nucleation and defined the roles of each protein. Although microtubule nucleation effectors alone, both as monomers or as phase-separated entities, can generate microtubules in vitro (Roostalu et al., 2015; Woodruff et al., 2017; King and Petry, 2019), γ-TuRC is required for physiological microtubule nucleation (Kollman et al., 2011; Thawani et al., 2018), and this reconstitution highlights the importance of including it when studying microtubule nucleation. Considered a poor nucleator, γ-TuRC that has been hypothesized to require activation (Lüders and Stearns, 2007). In our in vitro system, γ-TuRC’s activity could be tuned via the tubulin concentration and the presence of XMAP215. Assay conditions in which not all nucleation events occur at once were necessary in order to clearly identify and observe branching microtubule nucleation events and to differentiate them from microtubules growing over one another. Based on this, we could investigate the effect of TPX2 and augmin on the activity level of γ-TuRC. The microtubule nucleation capacity of γ-TuRC was not enhanced by TPX2 or augmin in solution, but these factors specifically enable γ-TuRC-dependent microtubule nucleation from a pre-existing microtubule. This can be explained if TPX2 and augmin act as localization factors, but there is also the possibility that they increase the nucleation activity of γ-TuRC specifically when bound to a microtubule. Our results do not conclusively support or rule our either of these models. In the future, single molecule and kinetic measurements along with structural studies are required to determine how exactly TPX2 and augmin interact with γ-TuRC, and whether they increase its activity to stimulate microtubule nucleation from a template microtubule.

Augmin can recruit γ-TuRC to the side of a pre-existing microtubule (Song et al., 2018), which can subsequently nucleate branched microtubules. This may be reflective of cell types where TPX2 is not needed for branching microtubule nucleation, such as mitotic Drosophila cells (Verma and Maresca, 2019). Unexpectedly, TPX2 with γ-TuRC can also cause branching microtubule nucleation to a similar extent as augmin with γ-TuRC. This could be explained by our observation that TPX2 increases γ-TuRC localization to microtubules to a small extent. Additionally, it was recently shown that TPX2 can recruit tubulin to the lattice of a pre-existing microtubule by forming a co-condensate (King and Petry, 2019), potentially making lattice-bound γ-TuRC more likely to nucleate branched microtubules. Finally, TPX2 contains γ-TuRC activator motifs that have been proposed to activate γ-TuRC (Alfaro-Aco et al., 2017). All three of these functions may be the reason why TPX2, which recruited less γ-TuRC than augmin, subsequently caused γ-TuRC-dependent branching microtubule nucleation at a similar level as augmin. Besides operating via these three modes in the full reconstitution, TPX2 additionally recruits more augmin, which in turn can localize more γ-TuRC. Finally, TPX2 alone creates a slightly wider angle distribution of branches, than augmin alone and both factors together. Thus, by bridging the microtubule and γ-TuRC with a defined architecture based on its h-shaped structure (Hsia et al., 2014; Song et al., 2018), augmin may keep the angle variation in a more shallow range, which is critical for creating parallel structures that retain microtubule polarity as is necessary in the spindle and axons.

Although TPX2 + γ-TuRC or augmin + γ-TuRC can nucleate microtubules from a pre-existing microtubule in this purified system, both factors are required in Xenopus egg extract for branching microtubule nucleation (Petry et al., 2013). This indicates that microtubule nucleation in a physiological environment is more stringently regulated. Another important difference is that while it is beneficial that TPX2 binds to microtubules before augmin in our in vitro reconstitution, TPX2 binding to microtubules is absolutely necessary for augmin/γ-TuRC binding and subsequent branching microtubule nucleation in Xenopus egg extract (Thawani et al., 2019). This implies that TPX2 directly regulates augmin’s binding to microtubules in Xenopus egg extract, in a manner that still needs to be uncovered.

In summary, TPX2, augmin and γ-TuRC are required for efficient branching microtubule nucleation in vitro. Surprisingly, TPX2, despite being only a single protein amongst large multi-subunit complexes, lies at the very heart of controlling this reaction, as demonstrated in this purified in vitro system and in Xenopus egg extract (Thawani et al., 2019). Finally, even though TPX2, augmin and γ-TuRC are sufficient to reconstitute the nucleation of branched microtubules in vitro, we cannot eliminate the possibility that other proteins are involved in additional regulation, such as the microtubule and augmin binding protein EML3 (Luo et al., 2019).

Mechanistic insight obtained from this work helps explain how microtubules are made within spindles to orchestrate chromosome segregation. It is analogous to the in vitro reconstitution of actin branching (Mullins et al., 1998), which paved the way to explain how the actin cytoskeleton supports cell locomotion. In this biochemical reconstitution, γ-TuRC was localized to a specific location, from which it nucleates a microtubule in vitro as it would occur in the cell. As such, this work serves as a platform to study how microtubule nucleation creates different microtubule architectures that support cell function. This approach presents a pioneering example for the biochemical reconstitution of other microtubule nucleation pathways or microtubule organizing centers. It also serves as a stepping-stone to reconstitute larger structures based on this microtubule nucleation pathway, such as the mitotic spindle.

Materials and methods

Cloning, expression and purification of proteins

Request a detailed protocol

DH5α E. coli cells (New England Biolabs, C2987I) were used for all cloning steps. Rosseta2 (DE3)pLysS cells (Novagen, 714034) were used for all protein expression in E. coli, and cultures were grown in TB Broth (Sigma-Aldrich, T0918), or in LB Broth (Sigma-Aldrich, L3522) for the expression of TPX2. Sf9 cells using the Bac-to-Bac system (Invitrogen) were used in the expression of augmin and XMAP215, and cultures were grown in Sf-900 III SFM (Gibco, 12658027).

Human RanQ69L with N-terminal Strep-6xHis-BFP, and human EB1 with C-terminal GFP-6xHis were expressed and purified as previously described (Thawani et al., 2019). Full-length Xenopus laevis TPX2 constructs were expressed and purified as previously described (King and Petry, 2019). Briefly, N-terminal Strep-6xHis-GFP TPX2 and Strep-6xHis-BFP TPX2 were cloned into pST50 vectors and expressed in E. coli for 7 hr at 25 ºC. Both proteins were affinity purified using Ni-NTA agarose beads (Qiagen, 30250) followed by gel filtration with a Superdex 200 HiLoad 16/600 column (GE Healthcare) in CSF-XB buffer (100 mM KCl, 10 mM K-HEPES, 1 mM MgCl2, 0.1 mM CaCl2, 5 mM EGTA, pH 7.7) + 10% w/v sucrose. Unlabeled TPX2 was generated by cleaving Strep-6xHis-GFP with TEV protease at 100:1 TPX2:TEV protease molar ratio overnight at 4 ºC. Full-length Xenopus laevis XMAP215 with C-terminal GFP-7xHis was expressed in Sf9 cells using the Bac-to-Bac system and purified as previously described (Thawani et al., 2018). Briefly, XMAP215 was affinity-purified using a HisTrap HP 5 ml column (GE Healthcare), followed by cation-exchange with a Mono S 10/100 GL column (GE Healthcare). The protein was dialyzed overnight into CSF-XB + 10% w/v sucrose. GFP-tagged Xenopus laevis augmin holocomplex was co-expressed in Sf9 cells using the Bac-to-Bac system and purified as previously described (Song et al., 2018). Briefly 1–2 liters of Sf9 cells (1.5–2.0 × 106 mL−1) were co-infected with different baculoviruses, each carrying a subunit of the augmin complex, at MOIs of 1–3. Cells were collected 72 hr after infection. HAUS6 had an N-terminal ZZ-tag and HAUS2 had a C-terminal GFP-6xHis. The remaining six subunits were untagged. Augmin holocomplex was affinity-purified using IgG-Sepharose (GE Healthcare, 17-0969-01) and eluted via cleavage with 100–200 µg of GST-HRV3C protease. The HRV3C protease was subsequently removed using a GSTrap 5 mL column (GE Healthcare). The sample was further purified and concentrated using Ni-NTA agarose beads. The protein was dialyzed overnight into CSF-XB + 10% w/v sucrose. All recombinant proteins were flash frozen and stored at −80 ºC. Protein concentrations were determined with Bradford dye (Bio-Rad, 5000205) or using a Coomassie-stained SDS-PAGE gel loaded with known concentrations of BSA (Sigma-Aldrich, B6917).

Native γ-TuRC was purified from Xenopus egg extract with some changes to previously described protocols (Zheng et al., 1995; Thawani et al., 2018). 5 ml of Xenopus egg extract were diluted 10-fold with CSF-XB + 10% w/v sucrose, 1 mM GTP, 1 mM DTT, and 10 μg ml−1 leupeptin, pepstatin and chymostatin. Large particles were removed by spinning at 3000 g for 10 min at 4°C. The supernatant was further diluted two-fold with buffer and passed through filters of decreasing pore size (1.2 µm, 0.8 µm and 0.22 µm). γ-TuRC was precipitated from the filtered extract by addition of 6.5% w/v polyethylene glycol (PEG) 8000 and incubated on ice for 30 min. After centrifugation for 20 min at 17,000 g at 4°C, the pellet was resuspended in 15 ml of the initial CSF-XB buffer supplemented with 0.05% NP-40. The resuspended pellet was centrifuged at 136,000 g at 4°C for 7 min. The supernatant was then precleared with protein A Sepharose beads (GE Healthcare, 45002971) for 20 min at 4°C. The beads were removed by spinning, 2–4 ml γ-tubulin antibody (1 mg ml−1) was added to the sample, and the sample was rotated at 4°C for 2 hr. After this, 1 ml of washed Protein A Sepharose beads was incubated with the sample on the rotator for 2 hr at 4°C. The beads were collected by spinning, and subsequently transferred to a column with the same buffer used to resuspend the PEG pellet. The beads were washed with the initial CSF-XB buffer supplemented with extra 150 mM KCl, then with CSF-XB buffer supplemented with 1 mM ATP, and finally with CSF-XB buffer to remove the ATP. For biotinylation of γ-TuRC, the beads were incubated with 25 µM of NHS-PEG4-biotin (Thermo Scientific, A39259) in CSF-XB buffer for 1 hr at 4°C, and unreacted reagent was washed away with CSF-XB buffer before elution with γ-tubulin peptide. 2 ml γ-tubulin peptide (amino acids 412–451) at 0.5 mg ml−1 in CSF-XB buffer was applied to the column and allowed to incubate overnight. The eluted sample was collected the following day, and it was concentrated using a 100 kDa MWCO centrifugal-filter (Amicon, UFC810024). This concentrated sample was loaded onto a 10–50% w/w sucrose gradient in the initial CSF-XB buffer, and centrifuged at 200,000 g for 3 hr at 4°C in a TLS55 rotor (Beckman Coulter). The sucrose gradient was fractionated manually from the top, and the fractions with the highest γ-tubulin signal by Western blotting were combined and concentrated using another 100 kDa MWCO centrifugal-filter. Purified γ-TuRC was always used within two days on ice without freezing.

Unlabeled cycled tubulin purified from bovine brain was obtained from a commercial source (PurSolutions, 032005). Before use, all proteins were pre-cleared of aggregates via centrifugation at 80,000 RPM for 15 min at 4 ºC in a TLA100 rotor (Beckman Coulter).

Tubulin labeling and polymerization of GMPCPP-stabilized microtubules

Request a detailed protocol

Bovine brain tubulin was labeled following previously described methods (Hyman et al., 1991). Using Cy5-NHS ester (GE Healthcare, PA15101) yielded 54–70% labeling. Using Alexa-568 NHS ester (Invitrogen, A20003) yielded 36–40% labeling. Labeling efficiency with biotin-PEG4-NHS (Thermo Scientific, A39259) was not calculated.

Single-cycled GMPCPP-stabilized microtubules were made as previously described (Gell et al., 2010). Briefly, 12 μM unlabeled tubulin + 1 μM Alexa-568 tubulin + 1 μM biotin tubulin was polymerized in BRB80 (80 mM Pipes, 1 mM EGTA, 1 mM MgCl2) in the presence of 1 mM GMPCPP (Jena Bioscience, NU-405L) for 1 hr at 37°C. For GMPCPP-stabilized microtubules without any labels, 14 μM unlabeled tubulin was polymerized. For GMPCPP-stabilized microtubules without biotin, 13 μM unlabeled tubulin + 1 μM Alexa-568 tubulin was polymerized.

Preparation of polyethylene glycol (PEG)-functionalized surfaces

Request a detailed protocol

Cover glasses (Carl Zeiss, 474030-9020-000) were silanized and reacted with PEG as previously described (Bieling et al., 2010), except that hydroxyl-PEG-3000-amine (Rapp Polymere, 103000–20) and biotin-PEG-3000-amine (Rapp Polymere, 133000-25-20) were used. Glass slides were passivated with poly(L-lysine)-PEG (SuSoS) (Bieling et al., 2010). Flow chambers for TIRF microscopy were assembled using double-sided tape.

Attachment of GMPCPP-stabilized microtubules to PEG-functionalized surfaces

Request a detailed protocol

The assay was performed following a previously described protocol with some changes (Roostalu et al., 2015). Flow chambers were incubated with 5% Pluronic F-127 in water (Invitrogen, P6866) for 10 min at room temperature and then washed with assay buffer (80 mM Pipes, 30 mM KCl, 1 mM EGTA, 1 mM MgCl2, 1 mM GTP, 5 mM 2-mercaptoethanol, 0.075% (w/v) methylcellulose (4000 cP; Sigma-Aldrich, M0512), 1% (w/v) glucose, 0.02% (v/v) Brij-35 (Thermo Scientific, 20150)) supplemented with 50 μg mL−1 k-casein (Sigma-Aldrich, C0406) and extra 0.012% (v/v) Brij-35. Flow chambers were then incubated with assay buffer containing 50 μg mL−1 NeutrAvidin (Invitrogen, A2666) for 3 min on a metal block on ice and subsequently washed with BRB80 (80 mM Pipes, 1 mM EGTA, 1 mM MgCl2). Next, flow chambers were incubated for 5 min at room temperature with biotin- and Alexa-568-labeled GMPCPP-stabilized microtubules diluted 1:2000 in BRB80. Unbound microtubules were removed by subsequent BRB80 washes.

Binding of proteins to GMPCPP-stabilized microtubules

Request a detailed protocol

To test the recruitment of γ-TuRC to a microtubule by augmin and TPX2, a mixture of GFP-TPX2 (50 nM), GFP-augmin (50 nM) and γ-TuRC (10 nM), which was previously incubated for 5 min on ice, was added to a flow chamber that had GMPCPP-stabilized microtubules attached to the surface as described above. This was incubated for 5 min at room temperature. Unbound proteins were removed with additional BRB80 washes. To visualize native γ-TuRC, Alexa-647 (Invitrogen) labeled antibodies against γ-tubulin (XenC antibody, 2 μg ml−1) were added to the flow chamber and incubated for 10 min at room temperature. Unbound antibody was removed with additional BRB80 washes, and the final solution was exchanged to BRB80 + 250 nM glucose oxidase (Crescent Chemical, SE22778.02), 64 nM catalase (Sigma-Aldrich, C40) and 1% (w/v) glucose. The sample was imaged immediately. For experiments where one or two of the proteins in the mixture were omitted, the volume was substituted with CSF-XB buffer. The same set-up was used when imaging the binding of GFP-augmin (50 nM) and GFP-TPX2 (50 nM) to microtubules in the presence of each other. In these cases, γ-TuRC was not included, and instead of adding XenC antibody, BRB80 + oxygen scavengers were added after the last unbound proteins were removed by BRB80 washes. In experiments where two proteins were bound to microtubules sequentially, unbound protein was removed by BRB80 washes before the second protein was added.

Microtubule nucleation assays on PEG-functionalized surfaces

Request a detailed protocol

For branching microtubule nucleation reactions in vitro, a mixture of TPX2 (50 nM), augmin (50 nM) and γ-TuRC (10 nM), which was previously incubated for 5 min on ice, was added to the chamber containing attached GMPCPP-stabilized microtubules and incubated for 5 min at room temperature. Unbound proteins were removed by additional BRB80 washes. The final assay mixture was flowed into the chambers: 80 mM Pipes, 30 mM KCl, 1 mM EGTA, 1 mM MgCl2, 1 mM GTP, 5 mM 2-mercaptoethanol, 0.075% (w/v) methylcellulose (4000 cP), 1% (w/v) glucose, 0.02% (v/v) Brij-35, 250 nM glucose oxidase, 64 nM catalase, 1 mg ml−1 BSA, 19 μM unlabeled bovine tubulin and 1 μM Cy5-labeled bovine tubulin. For experiments where XMAP215-GFP was added to this final reaction its concentration was 50 nM.

Microtubule nucleation from artificially-attached γ-TuRCs to microtubules

Request a detailed protocol

Coverslips were coated with dichlorodimethylsilane (Gell et al., 2010). Flow chambers for TIRF microscopy were assembled using double-sided tape and incubated for 5 min at room temperature with biotin- and Alexa-568-labeled GMPCPP-stabilized microtubules diluted 1:2000 in BRB80. A small number of microtubules attached non-specifically to the glass, and the rest were removed with BRB80 washes. The rest of the glass surface was blocked with 1% Pluronic F127, and the chamber was incubated for 3 min at room temperature with 500 μg mL−1 NeutrAvidin diluted in BRB80. Undiluted biotinylated γ-TuRC (10 nM) was incubated in the chamber for 10 min at room temperature, and after washing with BRB80 the final tubulin nucleation mix was added: 80 mM Pipes, 1 mM EGTA, 1 mM MgCl2, 1 mM GTP, 2.5 mM PCA, 25 nM PCD, 2 mM Trolox, 19 μM unlabeled bovine tubulin and 1 μM Cy5-labeled bovine tubulin.

Microtubule nucleation assays in solution

Request a detailed protocol

Microtubule nucleation reactions containing 9.5 μM unlabeled bovine tubulin, 0.5 μM Cy5-labeled bovine tubulin and 1.5 mM GTP in BRB80, were mixed with augmin, TPX2 or γ-TuRC. CSF-XB buffer was used when proteins were not added. Augmin was added at 50 nM, TPX2 was added at 10 nM or 50 nM, and γ-TuRC was added at 5 nM. The reactions were incubated at 37°C for 5 min. The nucleation mixture was then diluted 5-fold with warm BRB80, immediately diluted again 2-fold with 2% glutaraldehyde in BRB80, and left at RT for 5 min. The samples were then diluted 5-fold in BRB80, layered on top of a 5 ml cushion of 20% (vol/vol) glycerol in BRB80 prepared in a 15 ml Corex tube fitted with a custom insert to support a round poly-lysine–treated coverslip. The sample was centrifuged for 45 min at 25,000 g in an HB-6 rotor at 4°C. After centrifugation, the cushion was removed, and ice-cold methanol was added to the tube. The coverslip was mounted in Prolong Diamond (Invitrogen, P36965).

Sequential xenopus egg extract reactions

Request a detailed protocol

CSF extracts were prepared from Xenopus laevis oocytes as described previously (Murray and Kirschner, 1989; Hannak and Heald, 2006). When working with Xenopus laevis, all relevant ethical regulations were followed, and all procedures were approved by Princeton IACUC. Extract reactions were done in flow chambers prepared between glass slides and 22 × 22 mm, 1.5 coverslips (Fisherbrand, 12-541B) using double-sided tape. In all reactions 75% of the total volume was extract, and 25% was a combination of other components or CSF-XB (100 mM KCl, 10 mM K-HEPES, 1 mM MgCl2, 0.1 mM CaCl2, 5 mM EGTA, pH 7.7) + 10% w/v sucrose. All reactions were done in the presence of 0.5 mM sodium orthovanadate (NEB, P0758S) to avoid sliding of microtubules on the glass surface, and with 0.89 µM fluorescently-labeled tubulin. In reactions where BFP-RanQ69L was added, its concentration was 10 µM. When EB1-GFP was added its concentration was 85 nM. All proteins and chemicals added to egg extracts were stored or diluted into CSF-XB buffer + 10% w/v sucrose. Reaction mixtures were pipetted into the flow chambers to initiate microtubule formation.

For sequential extract reactions, individual microtubules were allowed to form on the glass surface from the first extract reaction for 5–8 min, and soluble, non-microtubule bound proteins were removed by washing with CSF-XB. For experiments with three sequential reactions, the CSF-XB wash was supplemented with 0.05 mM Taxol (Sigma-Aldrich, T7402). The second extract reaction was then introduced. In the case of Figure 1a the chamber was imaged immediately. For all other experiments, the second extract with 0.033 mM nocodazole (Sigma-Aldrich, M1404) was incubated in the chamber for 5 min, followed by the removal of unbound protein with CSF-XB if the third reaction was extract, or with BRB80 if the third reaction was purified tubulin. The third extract reaction was then introduced and imaged immediately. For experiments where the final reaction was purified tubulin, the final tubulin nucleation mix was added: 80 mM Pipes, 1 mM EGTA, 1 mM MgCl2, 1 mM GTP, 2.5 mM PCA, 25 nM PCD, 2 mM Trolox, 19 μM unlabeled bovine tubulin and 1 μM Cy5-labeled bovine tubulin. If XMAP215-GFP was added in this final reaction, its concentration was 25 nM.

TIRF microscopy and image analysis

Request a detailed protocol

Total internal reflection fluorescence (TIRF) microscopy was performed with a Nikon TiE microscope using a 100 × 1.49 NA objective. Andor Zyla sCMOS camera was used for acquisition, with a field of view of 165.1 × 139.3 µm. 2 × 2 binned, multi-color images were acquired using NIS-Elements software (Nikon). All adjustable imaging parameters (exposure time, laser intensity, and TIRF angle) were kept the same within experiments. For microtubule nucleation assays in vitro the TIRF objective was warmed to 33°C using an objective heater (Bioptechs, 150819–13). For all time-lapse imaging, multi-color images were collected every 2 s. Brightness and contrast were optimized individually for display, except for images in Figure 1—figure supplement 1, Figure 2, Figure 3—figure supplement 3 and Figure 3—figure supplement 4, where images belonging to the same experiment were contrast-matched.

Images used for the quantification of microtubule binding were analyzed using ImageJ (Schindelin et al., 2012). To segment microtubules, the tubulin signal was first thresholded via the Otsu method. Microtubules were isolated from the mask by setting the minimum particle area as 1 or 2 μm2. Average fluorescent signals per pixel, for the microtubule or bound proteins, were calculated for each microtubule. The average intensity from the reverse mask of the entire field of view was subtracted from the average intensity on each microtubule. For branching microtubule nucleation experiments in vitro, microtubules were counted manually using time-lapse experiments within the first 3.5 min of the reaction. Lengths of microtubules and branching angles were measured using ImageJ.

Negative stain electron microscopy

Request a detailed protocol

Unlabeled GMPCPP-stabilized microtubules diluted 1:500 were incubated for 5 min at room temperature with either γ-TuRC only or with a mixture of TPX2 (50 nM) + augmin (50 nM) + γ-TuRC. The samples were diluted 10-fold with BRB80 to reduce the number of unbound γ-TuRC molecules in the background, and 5 µl of this diluted sample was immediately applied onto glow-discharged grids (Electron Microscopy Sciences, CF400-Cu). The samples were stained with 2% uranyl acetate. Images were collected with a CM100 TEM (Philips) at 80 keV at a magnification of 64,000. Images were recorded using an ORCA camera.

Antibodies

Polyclonal XenC antibody was a gift from C. Wiese and was described previously (Wiese and Zheng, 2000). It was used to generate Alexa-647-labeled XenC antibody by first dialyzing antibodies in PBS buffer (50 mM NaPO4, 150 mM NaCl, pH 7.4). The reaction with Alexa-647-NHS-ester was done according to the protocol recommended by the manufacturer. Finally, the removal of unreacted dye was done via gel filtration in Bio-Gel P-30 Gel (Bio-Rad). On average, each XenC antibody was labeled with 2.5 Alexa-647 dye molecules. The polyclonal antibody used to purify γ-TuRC from Xenopus egg extract was generated against a purified γ-tubulin peptide (amino acids 412–451) through a commercial vendor (Genscript). The presence of γ-TuRC during its purification was tracked via Western blotting using the GTU88 (Sigma-Aldrich, T6557) antibody against γ-tubulin.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39

Decision letter

  1. Jens Lüders
    Reviewing Editor; IRB Barcelona
  2. Anna Akhmanova
    Senior Editor; Utrecht University, Netherlands
  3. Jens Lüders
    Reviewer; IRB Barcelona

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

In this manuscript, the authors use Xenopus augmin recombinantly produced in insect cells, purified native γ-TuRC from Xenopus egg extract, and recombinant TPX2 purified from E. coli to reconstitute the nucleation of microtubules from the lateral surface of pre-existing microtubules. This process, known as branching microtubule nucleation, is important, for example, for spindle formation and neuronal development. The authors show the same requirements for TPX2, augmin and γ-TuRC that was seen previously in extracts and suggest that these components are sufficient for branching nucleation. The work thus represents a useful step forward in our understanding of multicomponent microtubule nucleation and will be of interest to a broad community of cell biologists and biochemists.

Decision letter after peer review:

Thank you for submitting your article "Biochemical reconstitution of branching microtubule nucleation" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Jens Lüders as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Anna Akhmanova as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The manuscript "Biochemical reconstitution of branching microtubule nucleation" by Alfaro-Aco et al. uses Xenopus augmin recombinantly produced in insect cells, purified native γ-TuRC from Xenopus egg extract, and recombinant TPX2 purified from E. coli to reconstitute the nucleation of microtubules from the lateral surface of pre-existing microtubules.

Since the discovery of branching microtubule nucleation and its key player augmin, this nucleation mechanism has been analyzed largely in cell biological studies and a true mechanistic understanding is still lacking.

A set of papers from the Petry lab culminating with this manuscript has explored the contributions of augmin, TPX2 and γ-TuRC to branching microtubule nucleation. This manuscript shows the same requirement for TPX2, augmin and γ-TuRC that was seen previously in extracts and suggests that these components are sufficient for branching nucleation.

Essential revisions:

Overall, this is a well written, timely manuscript that establishes the minimal molecular requirements for branching microtubule nucleation. The reconstitution of the process by purified proteins constitutes an important achievement in the field and provides the basis for further mechanistic investigation.

However, the reviewers felt that the study lacks some novelty considering the authors' recently published reconstitution of augmin-dependent recruitment of γ-TuRC using the same purified components (Song et al., 2018). To address this the efficiency of the reconstitution of branching nucleation should be determined. A related issue is the question if and how γ-TuRC is activated in the reconstituted system and what the roles of TPX2 and augmin are in this regard.

1) Validating the success of reconstitution requires knowing the efficiency of the reconstitution. If only a small fraction of the proteins is active, then the reconstitution may be incomplete. Concentrations need to be reported for γ-TuRC with an estimate of the fraction of active γ-TuRCs.

2) Do TPX2 and augmin merely function as recruitment factors or do they activate γ-TuRC at the branching nucleation sites? Figure 3 - video 1: It is evident that in the optimal branching nucleation mix with TPX2, augmin, and γ-TuRC, a large number of microtubules are nucleated spontaneously and not from the lattice of existing microtubules. Unfortunately, only branching events are quantified in Figure 3E. Is branching specifically stimulated or is there an overall increased nucleation activity, which may also explain more branches? γ-TuRC alone is generally considered a weak nucleator, so the obvious question is what activates γ-TuRC in these assays? This could also be tested in a regular nucleation assay (without preformed microtubules).

3) It is hard to believe that TPX2 and γ-TuRC, without augmin, can induce branching nucleation, given that TPX2 has no ability to recruit γ-TuRC to existing microtubules (Figure 2—figure supplement 2). The authors show that the branch angle is slightly different from augmin-dependent nucleation (Figure 3F). Is this the only difference? The authors should investigate this peculiar phenomenon more thoroughly.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Biochemical reconstitution of branching microtubule nucleation" for further consideration by eLife. Your revised article has been evaluated by Anna Akhmanova (Senior Editor) and a Reviewing Editor.

All reviewers agree that the revisions have much improved the manuscript, but there are two remaining issues that need to be addressed before acceptance.

In the manuscript you argue that TPX2 and augmin are activation factors for γ-TuRC and not just localization factors. The evidence is that TPX2 and augmin do not activate γ-TuRC based nucleation away from the MT lattice, but do increase nucleation of branches from the MT lattice. However, this would actually be the definition of a localization factor, to give more nucleation from a specific location, without requiring activation. When comparing Figure 2C and 3E it seems that there is a stronger increase in branches (Figure 3E) than there is an increase in γ-TuRC on the lattice (Figure 2C). Given the size of the error and the spread of the data, is this a significant difference? At the very least it seems to be a small activation. We would like you to address this point more clearly in the paper. Also, if your conclusion is that the activation is indeed very small, you may want to consider changing the Abstract sentence "TPX2 and augmin do not act as mere localization factors, but enable γ-TuRC-dependent microtubule nucleation at preferred branching angles of less than 90 degrees from regularly-spaced patches along microtubules." to "TPX2 and augmin enable γ-TuRC-dependent microtubule nucleation at preferred branching angles of less than 90 degrees from regularly-spaced patches along microtubules."

We would also like to ask you to include the data shown in your rebuttal letter as part of Figure 3—figure supplement 2 (GFP-augmin, untagged TPX2 and γ-TuRC).

https://doi.org/10.7554/eLife.49797.sa1

Author response

Essential revisions:

Overall, this is a well written, timely manuscript that establishes the minimal molecular requirements for branching microtubule nucleation. The reconstitution of the process by purified proteins constitutes an important achievement in the field and provides the basis for further mechanistic investigation.

However, the reviewers felt that the study lacks some novelty considering the authors' recently published reconstitution of augmin-dependent recruitment of γ-TuRC using the same purified components (Song et al., 2018). To address this the efficiency of the reconstitution of branching nucleation should be determined. A related issue is the question if and how γ-TuRC is activated in the reconstituted system and what the roles of TPX2 and augmin are in this regard.

We thank the Reviewing Editor for this summary and for the excellent and helpful review process. We addressed all of these comments and thereby generated an improved manuscript, as explained in more detail below. The new manuscript provides more insight into the mechanism of branching microtubule nucleation by addressing the activity level of γ-TuRC and the role of TPX2 and augmin in enabling microtubule nucleation from a pre-existing microtubule.

1) Validating the success of reconstitution requires knowing the efficiency of the reconstitution. If only a small fraction of the proteins is active, then the reconstitution may be incomplete. Concentrations need to be reported for γ-TuRC with an estimate of the fraction of active γ-TuRCs.

We thank the reviewers for this excellent comment. We fully agree that this is an important issue that needs to be assessed and discussed.

First, the concentration of γ-TuRC added in each experiment along with the concentrations of the other proteins is now reported in each figure legend. In addition, a supplementary figure (Figure 2—figure supplement 2) was added, which displays SDS PAGE gels of the purified complexes and proteins, as well as a negative stain EM image of purified γ-TuRC that highlights the quality of the purified complexes.

Estimating the fraction of active γ-TuRC is a complex and challenging question that can be addressed at multiple levels.

i) The higher the tubulin concentration, the more γ-TuRCs will fire. However, when more γ-TuRCs fire, the smaller the time and “field of view” windows to observe that microtubules indeed branch as opposed to grow into/over a microtubule.

ii) Analogous to point (i), addition of XMAP215 visually increases the number of microtubule branches, suggesting that at least some of the γ-TuRCs that are not nucleating microtubules are in fact capable of doing so under more favourable conditions. However, this again makes the observation of true branches in space and time extremely difficult.

iii) In the negative stain EM images from Figure 2, we can see multiple γ-TuRCs recruited along the microtubule lattice and often to the same puncta on pre-existing microtubules. If we crudely compare the number of γ-TuRCs from these EM images with the number of microtubule branches in Figure 3, it is clear that most γ-TuRCs are not nucleating microtubules in our conditions. Again, these conditions are necessary to clearly observe branching microtubule nucleation take place and to differentiate it from other events.

iv) Last, because our native γ-TuRC purification cannot easily be equipped with a fluorescent tag, it is not possible to differentiate active versus non-active γ-TuRC using light microscopy. Even if that was possible, one could not exclude that the labeled γ-TuRC that did not fire is indeed fully intact and contains all subunits.

All of these points suggest that not all γ-TuRCs nucleate in these conditions. In fact, tuning the conditions so that microtubule nucleation by γ-TuRC, as well as spontaneous nucleation, is not happening all at once, e.g. by omitting XMAP215 and working at moderate tubulin concentrations, was necessary to make the findings reported in this manuscript. This is now clearly addressed both in the Results and in the Discussion section of the manuscript. We recognize that this comment is forming the basis of the next point (2), about whether TPX2 or augmin activate γ-TuRC, which we reply to below. Finally, it is possible that other proteins may be involved in increasing the efficiency of branching microtubule nucleation. We also better addressed this possibility in the discussion of the improved manuscript.

2) Do TPX2 and augmin merely function as recruitment factors or do they activate γ-TuRC at the branching nucleation sites? Figure 3 - video 1: It is evident that in the optimal branching nucleation mix with TPX2, augmin, and γ-TuRC, a large number of microtubules are nucleated spontaneously and not from the lattice of existing microtubules. Unfortunately, only branching events are quantified in Figure 3E. Is branching specifically stimulated or is there an overall increased nucleation activity, which may also explain more branches? γ-TuRC alone is generally considered a weak nucleator, so the obvious question is what activates γ-TuRC in these assays? This could also be tested in a regular nucleation assay (without preformed microtubules).

We thank the reviewers for highlighting these important questions. First, it is true that nonbranched microtubules form in the experiments described in Figure 3. Some of these microtubules are spontaneously generated in solution, as they grow from both ends and diffuse around. Others are nucleated by γ-TuRCs that are non-specifically bound to the glass surface, as these microtubules would not form without γ-TuRC, and they remain attached at the site of nucleation where only one end grows. We now quantified these non-branched microtubules and the graph is shown in a new Figure 3—figure supplement 3. The reactions that contain γ-TuRC have approximately twice as many non-branched microtubules, compared to the reactions where γ-TuRC is absent. This is expected if a significant proportion of the non-branched microtubules are nucleated by γ-TuRCs bound to the glass surface. Importantly, the addition of TPX2 or augmin does not change the number of non-branched microtubules. This means that the increase in branching microtubule nucleation by TPX2 and augmin is not a result of increased microtubule nucleation overall, but specifically by nucleating microtubules from pre-existing microtubules. This is now addressed in the Results section of Figure 3 in the manuscript and it represents a critical point that is also referred to in the Abstract and Discussion.

Second, to further address whether augmin or TPX2 increase the nucleation activity of γ-TuRC, we performed a microtubule nucleation assay in solution as suggested. The results are shown in a new Figure 3—figure supplement 3. Augmin did not enhance the nucleation activity of purified γ-TuRC in vitro consistent with a previous study (Song et al., 2018). We tested TPX2 at the same concentration (50 nM) that was used in the assays described in Figure 3. Unfortunately, at this concentration and in the absence of pre-formed microtubules, TPX2 forms co-condensates with tubulin and nucleates microtubules on its own (King and Petry, 2019). Because these microtubules grow close to each other and are subsequently fixed, it is not possible to count single microtubules. Additionally, quantifying tubulin intensity in this case is not useful because the TPX2 condensates recruit very high levels of tubulin (King and Petry, 2019). To circumvent this hurdle, we tested a lower TPX2 concentration (10 nM), at which TPX2 does not form co-condensates with tubulin. In this case, TPX2 alone did not enhance the nucleation activity of γ-TuRC.

Please note that we are in the process of developing a novel single molecules assay, in which individual γ-TuRCs are attached to the glass surface and can be observed nucleating microtubules live at the single molecule level (Thawani et al., in preparation). While this new assay belongs to its own story, and we could not include it in this eLife submission, we also find in this independent assay set-up that TPX2 in solution does not activate γ-TuRC.

These solution experiments, combined with the quantification of de novo microtubule nucleation, suggest that TPX2 and augmin are not mere localization factors and require a pre-existing microtubule to complete this reaction. We address this point in the Results section of these newly added experiments and come back to it in the edited Discussion, as well as the Abstract. Again, we thank you for pointing out this aspect that is critical for this study.

3) It is hard to believe that TPX2 and γ-TuRC, without augmin, can induce branching nucleation, given that TPX2 has no ability to recruit γ-TuRC to existing microtubules (Figure 2—figure supplement 2). The authors show that the branch angle is slightly different from augmin-dependent nucleation (Figure 3F). Is this the only difference? The authors should investigate this peculiar phenomenon more thoroughly.

We thank the reviewers for this comment. First, we repeated the experiment in Figure 2B-C more thoroughly with an important improvement. Before, the background fluorescence level was high, and we hypothesized that this could have masked the detection of γ-TuRC signal when only TPX2 was bound to the microtubule. Indeed, with an improved treatment of the glass surface, the background fluorescence could be reduced. Consequently, we could detect an increase in the level of γ-TuRC signal on microtubules when TPX2 was bound to the microtubule, compared to γ-TuRC alone. The difference is small, but statistically significant and reported in the updated Figure 2C and the respective Results section. This could contribute to the observed levels of branching microtubule nucleation with TPX2 and γ-TuRC alone. Additionally, it is known that TPX2 can recruit tubulin to the lattice of a pre-existing microtubule, potentially making the γ-TuRCs on the microtubule lattice more likely to nucleate new branched microtubules. Last, TPX2 contains γ-TuNA motifs, which have been proposed to activate γ-TuRC. All of these aspects are addressed in the Discussion section. Last, this also leads to a more concrete model of how TPX2 functions in the full reconstitution, which is now brought up in the discussion and nicely summarizes a model of branching microtubule nucleation.

Second, we do not see visual differences between the branched microtubules nucleated by TPX2 + γ-TuRC and by augmin + TPX2 + γ-TuRC, other than the angle distribution. We do see microtubule branches nucleated from distinct TPX2 puncta, similar to when both TPX2 and augmin are present together. This is now shown in the newly incorporated Figure 3—figure supplement 2. Also, we now address in the Discussion how augmin could contribute to a shallower angle distribution.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

All reviewers agree that the revisions have much improved the manuscript, but there are two remaining issues that need to be addressed before acceptance.

In the manuscript you argue that TPX2 and augmin are activation factors for γ-TuRC and not just localization factors. The evidence is that TPX2 and augmin do not activate γ-TuRC based nucleation away from the MT lattice, but do increase nucleation of branches from the MT lattice. However, this would actually be the definition of a localization factor, to give more nucleation from a specific location, without requiring activation. When comparing Figure 2C and 3E it seems that there is a stronger increase in branches (Figure 3E) than there is an increase in γ-TuRC on the lattice (Figure 2C). Given the size of the error and the spread of the data, is this a significant difference? At the very least it seems to be a small activation. We would like you to address this point more clearly in the paper. Also, if your conclusion is that the activation is indeed very small, you may want to consider changing the Abstract sentence "TPX2 and augmin do not act as mere localization factors, but enable γ-TuRC-dependent microtubule nucleation at preferred branching angles of less than 90 degrees from regularly-spaced patches along microtubules." to "TPX2 and augmin enable γ-TuRC-dependent microtubule nucleation at preferred branching angles of less than 90 degrees from regularly-spaced patches along microtubules."

We thank the reviewers for prompting us to compare the binding of γ-TuRC versus the branching activity in order to assess whether this supports an activation mechanism or rather enhanced localization.

To evaluate whether the increase in branching microtubule nucleation activity in Figure 3E is larger than the increase in γ-TuRC binding in Figure 2C we calculated the ratio of branching to binding, and normalized it to the γ-TuRC only sample (see Author response table 1 and Author response image 1). The increase in branching when both TPX2 and augmin are present with γ-TuRC is 4x higher than what is expected from the increase in γ-TuRC localization alone. This increase is 3x and 2x higher for TPX2 + γ-TuRC and augmin + γ-TuRC, respectively. However, the standard deviations associated with these ratios indicate relatively high variation in the data, particularly for γ-TuRC only, TPX2 γ-TuRC and augmin + γ-TuRC.

Author response table 1
Average BindingStd DevAverage BranchingStd Dev
gTuRC only0.212940.146380.057150.04711
TPX2 + gTuRC0.293490.185800.238630.09174
augmin + gTuRC0.373210.226190.204150.14939
TPX2 + augmin + gTuRC0.519050.262680.567890.14644
Branching / BindingNormalized Branching/BindingStd Dev
gTuRC only0.26841.00001.0733
TPX2 + gTuRC0.81313.02932.2437
augmin + gTuRC0.54702.03811.9365
TPX2 + augmin + gTuRC1.09414.07632.3154
Author response image 1

We thoroughly looked into different tests to assess statistical significance, based on the instruction upon our inquiry on how to best address this issue. However, we could not identify one that would allow us to directly compare ratios of two means from entirely different distributions. This is because each mean, for binding and for branching, has an error associated with it, and the measurements are not paired. While we can propagate this error to get the standard deviation of the ratios, the ratio itself is a single value and there is no sample size associated with it. We inquired with multiple expert sources, including local quantitative and data experts, only to come back to this answer. If the reviewers can suggest a specific statistical test that would be appropriate for this scenario and would work on this sample size, we would very much appreciate it and would gladly calculate the significance.

The only way to apply statistical tests was by ignoring the error of one of the means. To maintain a sample for which we could perform a T-test, we took the individual branching measurements and divided each by the average value of γ-TuRC binding (see Author response table 2).

Author response table 2
Individual branching measurementsIndividual branching measurements divided by the average bindingAverage of the individual branching/ binding ratios
γ-TuRC000.268392398
0.0748951470.51719484
0.0429442580.201673044
0.1107665040.520177064
TPX2 + γ-TuRC0.2813278680.9585603190.813061147
0.1595150740.543511104
0.1659934710.565584759
0.3476648511.185488405
augmin + γ-TuRC0.1399384270.3749589430.547017648
0.0393995510.105569387
0.3874467261.03814669
0.498251221.03814669
TPX2 + augmin + γ-TuRC0.6273853711.2087185651.094087931
0.4155289090.800556611
0.7432848061.43201003
0.4853462760.935066548

This procedure yielded four ratios on which we could perform statistical tests. A t-test using these values showed that the difference between γ-TuRC only and augmin + γ-TuRC is not significant at the 5% significance level. This would suggest that augmin does not increase branching microtubule nucleation beyond its increase in γ-TuRC recruitment. In contrast, the differences between γ-TuRC only and TPX2 + γ-TuRC, and γ-TuRC only and augmin + TPX2 + γ-TuRC, are significant at the 5% significance level. Yet, because we are ignoring the error and sample size associated with the average value of γ-TuRC binding, we are not confident to say that TPX2 and TPX2 + augmin are increasing branching microtubule nucleation beyond their increase in γ-TuRC recruitment.

Similarly, we also tried the reverse calculation, where we took individual binding measurements (more numerous because not as challenging, n > 1000) and divided each by the average branching measurement. Because the sample size here remained very large, the t-test showed that all of the differences are statistically significant. However, because we are ignoring the error and sample size associated with the average value of branching microtubule nucleation, we are again not confident to say that TPX2, augmin, or TPX2 + augmin are increasing branching microtubule nucleation beyond their increase in γ-TuRC recruitment.

We also used Z-scores to compare the branching/binding ratios, using the standard deviation from the propagation of error, and a sample size of 1. However, in this case one of the two relevant standard deviations is also ignored (see Author response table 3).

Author response table 3
Normalized Branching / BindingStd Dev
γ-TuRC only0.9999633271.073272955
TPX2 + γ-TuRC3.0292849112.243660565
augmin + γ-TuRC2.0380641771.936445753
TPX2 + augmin + γ-TuRC4.0763311282.315317404
Z-scores
Ignoring the StdDev of gTuRC onlyIgnoring the StdDev of the other sample
γ-TuRC only vs TPX2 + γ-TuRC-0.90446907Not significant1.890778645significant
γ-TuRC only vs augmin + γ-TuRC-0.536085686Not significant0.967229115Not significant
γ-TuRC only vs TPX2 + augmin + γ-TuRC-1.328702404Not significant2.866342442significant

For the comparison between γ-TuRC only vs TPX2 + γ-TuRC, and γ-TuRC only vs augmin + TPX2 + γ-TuRC, ignoring the standard deviation of γ-TuRC only shows that they are not significant. Ignoring the other standard deviation yields that the differences are significant. In the case of γ-TuRC only vs augmin + γ-TuRC, ignoring either of the standard deviations yields that the difference are not significant. However, analogous to the t-test, because we are ignoring one of the standard deviations, we are not confident about making a conclusive statement regarding the ability of TPX2 or augmin to increase branching microtubule nucleation beyond their increase in γ-TuRC recruitment.

We believe that the question of whether TPX2 and/or augmin activate γ-TuRC on microtubules to initiate branching microtubule nucleation is very important, but taking into account the information presented above, we do not feel comfortable making a conclusive statement at this point. This is something that requires new experimentation at the single molecule level, and potentially structural insight of the branching factors bound to each other, which is outside the scope of this study. We made sure to clarify and explain our attempt to address this point in the Results section of the manuscript. We also comment on this again in the Discussion. As suggested, we also changed the language in the Abstract to avoid stating that TPX2 / augmin act as more than localization factors. We hope that these efforts adequately addressed your insightful suggestion.

We would also like to ask you to include the data shown in your rebuttal letter as part of Figure 3—figure supplement 2 (GFP-augmin, untagged TPX2 and γ-TuRC).

We thank the reviewers for this suggestion. We agree that it is useful to include this data in the manuscript, and we created a new panel in Figure 3—figure supplement 2 to show this. To confirm, we had performed an additional experiment similar to the one described in Figure 3D with GFP-labeled augmin, but this time using an untagged version of TPX2. We see that augmin is present on the microtubule in puncta similar to the images where both augmin and TPX2 are concurrently labeled with GFP.
