Mechanisms underlying the response of mouse cortical networks to optogenetic manipulation

  1. Alexandre Mahrach
  2. Guang Chen
  3. Nuo Li
  4. Carl van Vreeswijk
  5. David Hansel  Is a corresponding author
  1. CNRS-UMR 8002, Integrative Neuroscience and Cognition Center, France
  2. Baylor College of Medicine, United States
Research Article
  • Cited 0
  • Views 1,319
  • Annotations
Cite this article as: eLife 2020;9:e49967 doi: 10.7554/eLife.49967

Abstract

GABAergic interneurons can be subdivided into three subclasses: parvalbumin positive (PV), somatostatin positive (SOM) and serotonin positive neurons. With principal cells (PCs) they form complex networks. We examine PCs and PV responses in mouse anterior lateral motor cortex (ALM) and barrel cortex (S1) upon PV photostimulation in vivo. In ALM layer five and S1, the PV response is paradoxical: photoexcitation reduces their activity. This is not the case in ALM layer 2/3. We combine analytical calculations and numerical simulations to investigate how these results constrain the architecture. Two-population models cannot explain the results. Four-population networks with V1-like architecture account for the data in ALM layer 2/3 and layer 5. Our data in S1 can be explained if SOM neurons receive inputs only from PCs and PV neurons. In both four-population models, the paradoxical effect implies not too strong recurrent excitation. It is not evidence for stabilization by inhibition.

Introduction

Local cortical circuits comprise several subclasses of GABAergic interneurons which together with the excitatory neurons form complex recurrent networks (Goldberg et al., 2004; Jiang et al., 2015; Karnani et al., 2016; Markram et al., 2004; Moore et al., 2010; Pfeffer et al., 2013; Tasic et al., 2018; Tremblay et al., 2016). The architecture of these networks depends on the cortical area and layer (Beierlein et al., 2003; Jiang et al., 2013; Rudy et al., 2011; Xu et al., 2013; Xu and Callaway, 2009).

Optogenetics is now classically used to reversibly inactivate a particular cortical area or neuronal population to get insights into their functions (Atallah et al., 2012; Guo et al., 2014b; Lee et al., 2012; Li et al., 2015; Svoboda and Li, 2018). Optogenetics has also been applied to isolate the different components (e.g. feedforward vs. recurrent) of the net input into cortical neurons (Lien and Scanziani, 2018; Lien and Scanziani, 2013). It can also be used to experimentally probe the architecture of local cortical circuits (Moore et al., 2018; Xu et al., 2013). However, because of the complexity of these networks and of their nonlinear dynamics, qualitative intuition and simple reasoning (e.g. ‘box-and-arrow’ diagrams) are of limited use to interpret the results of these manipulations.

‘Paradoxical effect’ designates the phenomenon that stimulation of a GABAergic interneuron population not only decreases the average activity of the principal cells (PCs) but also decreases the activity of the stimulated population (Murphy and Miller, 2009; Ozeki et al., 2009; Tsodyks et al., 1997). Intuitively, paradoxical effect arises when the stimulation induces a strong activity suppression in the PCs (Kato et al., 2017Moore et al., 2018), such that the overall (synaptic+stimulus) excitation to the stimulated population decreases. However, the precise conditions under which the paradoxical effect occurs are difficult to establish without mathematical modeling.

In simple models consisting of only two populations (one excitatory and one inhibitory) these conditions have been mathematically derived. The paradoxical effect occurs when the networks operates in the regime known as inhibition stabilized (inhibition stabilized networks, ISN) in which the total the total recurrent excitation is so strong that inhibition is necessary to prevent a blow up in the activity (Murphy and Miller, 2009; Ozeki et al., 2009; Tsodyks et al., 1997). Networks, with several inhibitory populations have been recently investigated (Garcia Del Molino et al., 2017; Litwin-Kumar et al., 2016; Sadeh et al., 2017). These studies considered network models with synaptic currents small compared to neuronal rheobase currents (Gerstner et al., 2014; Lapicque, 1909). However, interactions in cortex are stronger than what is assumed in these studies (Shadlen and Newsome, 1994).

Simple networks with strong interactions comprising one excitatory and one inhibitory population have been studied extensively. In a broad parameter range not requiring fine-tuning, such networks dynamically evolve into a state in which strong excitation is balanced by strong inhibition such that the net input into the neurons is comparable to their rheobases (van Vreeswijk and Sompolinsky, 1998; van Vreeswijk and Sompolinsky, 1996). The theory of balanced networks has been developed for a variety of single neuronal models including binary neurons (van Vreeswijk and Sompolinsky, 1998; van Vreeswijk and Sompolinsky, 1996), rate models (Harish and Hansel, 2015; Kadmon and Sompolinsky, 2015), leaky-integrate-and fire neurons (Hansel and Mato, 2013; Mongillo et al., 2012; Rosenbaum and Doiron, 2014; Roxin et al., 2011; Van Vreeswijk and Sompolinsky, 2005) and conductance-based models (Hansel and van Vreeswijk, 2012; Pattadkal et al., 2018).

In the present study, we investigate experimentally the effects of the photostimulation of PV interneurons on the anterior lateral motor cortex (ALM) and barrel cortex (S1) of the mouse. We show that two-population network models do not suffice to account for these effects. To overcome this limitation, we develop a theory for the paradoxical effect in balanced networks that takes into account the multiplicity of GABAergic neuronal populations. Combining analytical calculations and numerical simulations, we study the responses of these networks at population and single neuron level. For two-population balanced networks it has been shown that the paradoxical effect only occurs when the network is inhibition stabilized (Pehlevan and Sompolinsky, 2014; Wolf et al., 2014). Here we show that in contrast, in four-population networks, the paradoxical effect can occur even if the network is not inhibition stabilized. We conclude with prescriptions for experiments that according to the theory can be informative about network architectures in cortex.

Results

ALM layer 5 and S1 exhibit paradoxical effect but not ALM layer 2/3

We expressed a red-shifted channelrhodopsin (ReaChR) in PV interneurons to optogenetically drive local inhibition in the barrel cortex (S1) and anterior lateral motor cortex (ALM) of awake mice (Hooks et al., 2015). We used orange light (594 nm) to illuminate a large area of ALM or S1 (2 mm diameter), photostimulating a large proportion of PV interneurons (Figure 1A). We measured the light-induced effects on neural activity using silicon probe recordings. In both brain areas, putative PCs and putative PV neurons were identified based on spike width (Methods). Neurons with wide spikes were likely mostly PCs. Units with narrow spikes were fast spiking (FS) neurons and likely expressed parvalbumin (Cardin et al., 2009; Guo et al., 2014b; Olsen et al., 2012; Resulaj et al., 2018). We investigated the responses of these neurons as a function of the photostimulation intensity in ALM layer 2/3 and layer 5, and in S1.

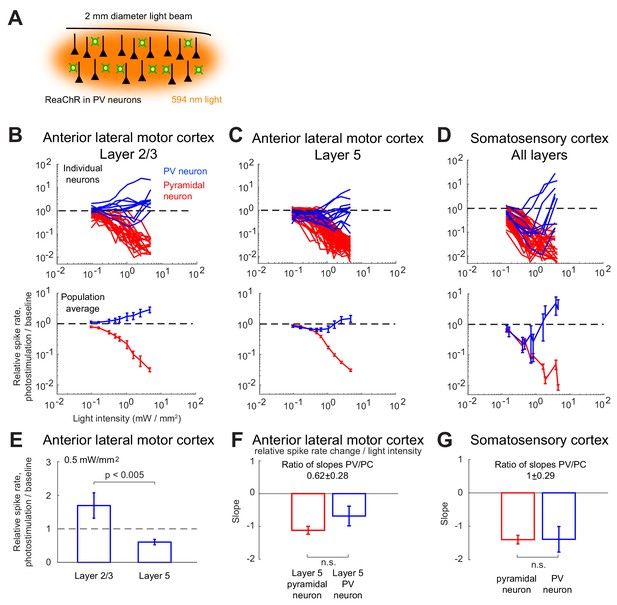

Effects of photostimulation of PV-positive interneurons in the mouse neocortex.

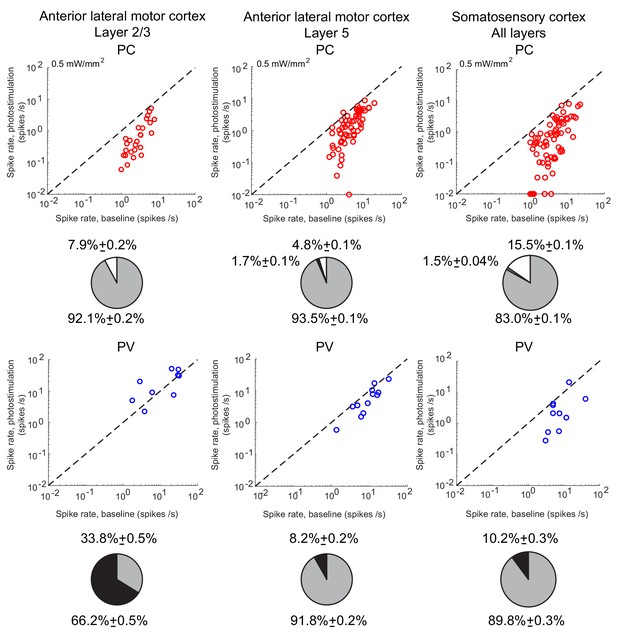

(A) Scheme of the experiment. (B–C) Normalized spike rate as a function of laser intensity in different layers and brain areas. Top, individual neuron responses of the PCs (red) and PV (blue) neurons; bottom, population average responses. (B) ALM: layer 2/3: n = 26 (PCs), n = 9(PV); (C) ALM layer 5: n = 62 (PCs), n = 12 (PV). (D) S1: n = 52 (PCs), n = 8 (PV). Mean ± s.e.m. across neurons, bootstrap. (E) Comparison of PV neurons’ normalized spike rates between ALM Layer 2/3 and Layer five at laser intensity 0.5 mW/mm2. (F).Slope of PCs and PVs’ normalized spike rate as a function of laser intensity. Data from ALM layer 5. Slopes are computed using data from 0.3 mW/mm2 and below, before the spike rate of PV neurons begin to increase. Mean ± SEM, bootstrap (Methods). (G) Same as (F) but for data from S1. In (F and G) the difference between the slopes for the PC and PV populations is not significant.

We found that in all recorded layers and areas, the population average activity of the PCs decreased with the optogenetic drive (Figure 1B, Figure 2). In contrast in ALM, the PV population exhibited a behavior which depended on the recorded layer.

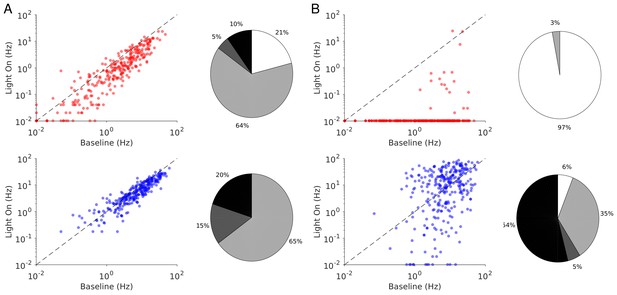

Spike rates of PCs (top) and PV neurons (bottom).

Dots correspond to individual neurons. Laser intensity is 0.5 mW/mm2. Pie charts represent the fraction of neurons with different types of changes. Mean ± s.e.m. bootstrap. Black, fraction of neurons with activity increase larger than 0.1 Hz. Light gray, fraction of neurons with activity decrease larger than 0.1 Hz. Dark gray, fraction of neurons with activity change smaller than 0.1 Hz. White, fraction of neurons with activity smaller than 0.1 Hz upon PV photostimulation.

In ALM layer 2/3, the population average firing rate of PV neurons monotonically increased with the photostimulation intensity. However, individual neuron responses were heterogeneous. Most PV neurons increased their spike rates from baseline with increased photostimulation intensity. Some PV neurons initially decreased their spike rates below baseline for low light intensity.

In ALM layer 5, the response of the PV population was non-monotonic. For low laser intensity, their activity paradoxically decreased with the optogenetic drive. The slope of the normalized firing rate v.s. laser intensity was significantly different from zero for both the PC and PV populations (Figure 1F). The ratio of their slopes was 0.62 ± 0.28. At high photostimulation intensity, the activity of the PV population increased. At intermediate photostimulation intensity (0.5 mW/mm2), the response of the PV neurons was significantly different between layer 2/3 and layer 5 (Figure 1E, p<0.005, unpaired t-test, two-tailed test).

Paradoxical decrease in PV neurons activity with the optogenetic drive was also observed in S1. Remarkably, the concomitant decrease of the PC and the PV population activities was proportional (Figure 1G, ratio of slopes PV/PC, mean ± SEM; S1, 1 ± 0.29).

In both ALM layer 5 and S1, there was also a large diversity of responses. Most PV neurons decreased their activity at low photostimulation intensity. At high laser intensity (5 mW/mm2), a fraction of PV neurons (6/12 in ALM layer 5 and 6/10 in S1) had a larger response than baseline, while the rest remained suppressed. Figure 2 shows the spike rates of PCs and PV neurons at an intermediate light intensity (0.5 mW.mm-2).

Network models

To assess the network mechanisms which may account for the experimental data from ALM and S1, we first considered models consisting of one excitatory and one inhibitory population. Since it is well established that cortical circuits involve a variety of inhibitory subpopulations, we later extended the theory to network models of four populations of neurons representing PCs and three subtypes of GABAergic interneurons in cortex. In all our models, neurons are described as integrate-and-fire elements. The data we seek to account for, were obtained in optogenetic experiments in which the laser diameter was substantially larger than the spatial range of neuronal interactions and comparable to the size of the area in which activity was recorded. Therefore, in all our models, we assume for simplicity that the connectivity is unstructured. We modeled the ReachR-optogenetic stimulation of the PV population as an additional external input, Iopto, into PV neurons. We assumed that it depends on the intensity of the laser, Γopto, as Iopto=I0log1+ΓoptoΓ0 where I0 and Γ0 are parameters (Figure 3—figure supplement 1; Hooks et al., 2015).

Two-population model

The two-population network is depicted in Figure 3A. It is characterized by four recurrent interaction parameters, Jαβ, and two feedforward interaction parameters, Jα0, α,β{E,I} (see Materials and methods).

Figure 3 with 3 supplements see all

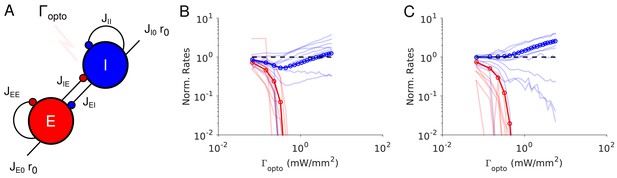

Paradoxical effects in the two-population model.

(A) The network. (B–C) Responses of PCs and PV neurons normalized to baseline vs. the laser intensity, Γopto, for different values of the recurrent excitation, jEE. (B) jEE=JEE/K, the network exhibits the paradoxical effect. (C) jEE = 0, the population activity of PV neurons is almost insensitive to small laser intensities. Red: PCs. Blue: PV neurons. Thick lines: population averaged responses. Thin lines: responses of 10 neurons randomly chosen in each population. Firing rates were estimated over 100s. Parameters: NE = 57600, N1 = 19200, K = 500 N1 = 19200. Other parameters as in Tables 12. Baseline firing rates are: rE=5.7Hz, rI=11.7Hz (B) and rE=1.5Hz, rI=5.7Hz (C). At the minimum of rI in (B), rE=0.06Hz.

Table 1
Connection strength matrix (rows: postsynaptic populations; columns: presynaptic populations).
JαβμA.ms.cm-2FeedforwardPCPV
PC172930
PV173636
  1. Parameters of the two-population model.

Table 2
Synaptic time constants.
ταβmsEI
E42
I22
  1. Default parameters of Model 1.

Results from numerical simulations of the model are depicted in Figure 3B and C where, the dependence of the population activities normalized to baseline, are plotted against the intensity of the laser, Γopto. Figure 3B shows the response of the network where the recurrent excitation, JEE, is non zero. The activity of the PV population, r1 varies non-monotonically with the laser intensity. For small intensities, r1 paradoxically decreases together with the activity of the PCs, rE. This paradoxical effect stems from the fact that the decrease in the activity of the PCs yields a reduction in the excitation to PV neurons which is not compensated for by the optogenetic drive. As a result, the net excitation to PV neurons diminishes yielding a decrease in rI. When rE becomes very small, this mechanism does not operate anymore and consequently, rI increases as Γopto is increased further. In Figure 3C, JEE is zero, rI monotonically increases with the light intensity whereas rE monotonically decreases. For small intensities, rI is close to a constant. It starts to increase appreciably only when rE0. Therefore, the PV response is not paradoxical.

Qualitatively this model seems to account for our experimental data from ALM layer 2/3, ALM layer 5 and S1. It would imply that in layer 5, JEE is sufficiently large to generate the paradoxical effect, while in layer 2/3 this is not the case. On closer inspection however, there are major discrepancies between the simulation results and the experimental data. In our recordings in both ALM layer 5 and S1, the PV population activity reaches a minimum while the PCs are still significantly active: relative to baseline the activity is 40% in ALM and 25% in S1. In contrast, in the two-population model, the minimum of the PV activity is reached (Appendix 1B) when excitatory neurons are virtually completely silenced (Figure 3B, Figure 3—figure supplement 2A). In fact one can show that for sufficiently large K, when rI is minimum, the activity of the excitatory population is exponentially small in K. As a result, to account for the data one needs to assume that K10.

In addition, in the experimental data the activities of the PC and PV populations in S1 decrease in equal proportions before the minimum of the PV activity (Figure 1B). This cannot be accounted for in a two-population model unless parameters are fine-tuned (Figure 3—figure supplement 3). Analytical calculations (Appendix 1B) supplemented with numerical simulations show that this proportional decrease only happens when the determinant of the interaction matrix, Jαβ, is close to zero. Moreover, the external input must also be fine-tuned so that the neurons have biologically realistic firing rates (Figure 3—figure supplement 3).

The experimental data from ALM layer 2/3 show that for already small light intensity the activity of PV neurons increases appreciably. This is in contrast with Figure 3C. In Figure 3—figure supplement 2B, we show that the two-population model can account for this feature only if the recurrent excitation is very weak in that layer and the connectivity is extremely sparse.

These discrepancies prompted us to investigate whether models with several populations of inhibitory neurons can account for our experimental data without fine-tuning. We focus on two four-population network models. Both consist of three populations representing PCs, PV and SOM neurons and a fourth population representing other inhibitory neurons. The main difference between the two models lies in the inhibitory populations from which SOM neurons receive inputs.

A four-population model with V1-like architecture (Model 1)

We first investigated the dynamics of a four-population network with an architecture that is similar to the one reported in layer 2/3 in V1 (Pfeffer et al., 2013) and S1 (Lee et al., 2013) (Figure 4A). The model consists of four populations representing PCs, PV, SOM and VIP neurons. SOM neurons do not interact with each other (Adesnik et al., 2012; Gibson et al., 1999; Hu et al., 2011). VIP neurons only project to the SOM population (Jiang et al., 2015; Pfeffer et al., 2013). All neurons except SOM receive inputs from sources external to the network (e.g. thalamus) (Beierlein et al., 2003; Beierlein et al., 2000; Cruikshank et al., 2010; Ma et al., 2006; Xu et al., 2013). The same architecture was considered in Litwin-Kumar et al. (2016).

Figure 4 with 2 supplements see all

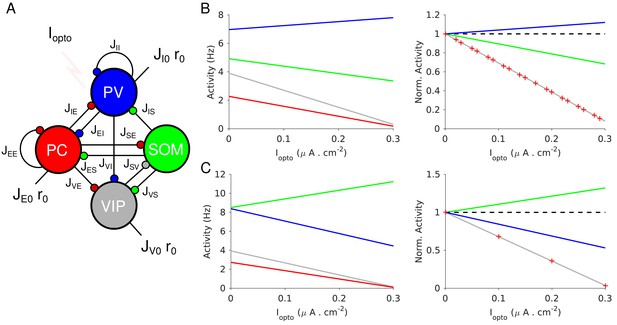

Population activities vs. Iopto in Model 1 in the large N, K limit.

(A) The network is composed of four populations representing PCs, PV, SOM and VIP neurons. The connectivity is as in Pfeffer et al. (2013). (B) Parameters as in Table 4. The activity of PV cells increases with Iopto while for the three other populations it decreases. (C) Parameters as in Table 5. The activity of SOM neurons increases with Iopto while for the three other populations it decreases. Right panels in B and C: the activities are normalized to baseline.

Following Pfeffer et al. (2013), the PV population does not project to the SOM population. Other studies have reported such a connection (Jiang et al., 2015). However, adding such a connection to Model 1 does not qualitatively affect the PC and PV responses (see Appendix 1C).

We considered parameter sets such that: 1) At baseline, the network is operating in the balanced state with all populations active; 2) the activity of the PC population decreases with the laser intensity as observed in our experiments.

Theory in the large N, K limit

It is instructive to consider the limit in which the number of neurons in the network, N, and the average number of connections per neuron, K, go to infinity. In this limit, the analysis of the stationary state of the network simplifies (see Materials and methods). This stems from the fact that when interactions are numerous, excitatory and inhibitory inputs are strong and only populations for which excitation is balanced by inhibition have a finite and non-zero activity. The average activities of the four populations are then completely determined by four linear equations, the balance equations, which reflect this balance. Solving this system of equations yields the population activities, rα, α = E, I, S, V, as a function of the external inputs to the network. In particular, when the laser intensity is sufficiently small, the four populations are active and their firing rates vary linearly with the current induced by the photostimulation (Appendix 1C).

Figure 4 plots the activities of the populations vs. the optogenetic input into PV neurons, Iopto, for two sets of interaction parameters. In Figure 4B, the activity of the PV population, rI, increases with Iopto. In contrast, in Figure 4C, rI decreases with Iopto: the response of the PV population is paradoxical.

To characterize for which interaction parameters the PV response is paradoxical, we consider the 4 × 4 susceptibility matrix χαβ. The element χαβα,β=E,I,S,V is the derivative of the population activity,rα, with respect to a small additional input, into population β, Iβ. Evaluated for small Iβ, χαβ characterizes by how much rα varies with an increasing but weak extra input into population β. Its sign indicates whether rα increases or decreases with Iβ. The elements of the susceptibility matrix can be decomposed in several terms corresponding to the contributions of different recurrent loops embedded in the network (Appendix 1C). Using this decomposition one can show whether the PV response is paradoxical or not depends on the interplay between two terms. One is the gain of the disinhibitory feedback loop PC-VIP-SOM-PC and the other is the product of the recurrent excitation, JEE, with the gain of the disinhibitory feedback loop VIP-SOM-VIP (Figure 4—figure supplement 1). Remarkably, PV neurons are not involved in these two terms. A straightforward calculation (Equation A37) then shows that the response of PV neurons increases with Iopto if the recurrent excitation is sufficiently strong, namely if

(1) JEE>JEE=JVEJES/JVS

The denominator in JEE* is the strength of the connection from the SOM population to the VIP population. The numerator is the gain of the pathway which connects these two populations via the PCs. When JEE>JEE* the negative contribution of the disinhibitory loop PC-VIP-SOM-PC dominates in the expression of χII. It is the opposite when JEE<JEE. The stability of the balanced state provides other necessary conditions that the interactions must satisfy (see Materials and methods). In particular, the determinant of the interaction matrix, J, must be positive.

The difference between the behaviors in Figure 4B and C can now be understood as follows: in Figure 4B, JEE>JEE* and χII=1.6>0, thus, rI increases with Iopto; in Figure 4C, JEE<JEE and χII=5.1<0 and thus, rI decreases. Remarkably, in both cases the activities of the PC and VIP populations normalized to baseline, are always equal (Figure 4B–C, right panel). This is a consequence of the balance of excitatory and inhibitory inputs into the SOM population which implies that rE and rV are proportional (see Materials and methods, Equation 19.3).

In Figure 4B, the activity of the SOM population decreases with the laser intensity. This also stems from the fact that JEE>JEE* (Appendix 1C, Equations A31-34). This qualitative behavior is therefore independent of parameter sets, provided that inequality (1) is satisfied. In contrast, for parameters for which JEE<JEE the activity of the SOM population either decreases or increases with Iopto depending on other parameters. Moreover, it is straightforward to prove that if JEE>JEE*, the product χEIχIE is positive (Appendix 1C). Since we assumed that rE decreases upon photostimulation of PV neurons, namely χEI<0, this implies that χIE is also negative. In other words, in Model 1, a non-paradoxical response of the PV population upon PV photostimulation implies that the PV activity decreases when PCs are photostimulated.

When Iopto is sufficiently large, the solution of the four balance equations will contain one or more populations for which rα < 0. Obviously such a solution is inconsistent. Instead, other solutions should be considered where at least one population has a firing rate which is zero and the firing rates of the other populations is determined by a new system of linear equations with lower dimensions (see Materials and methods, Appendix 1C). Consistency requires that in these solutions the net input is hyperpolarizing for the populations with rα = 0. As a consequence, the network population activities are in general piecewise linear in Iopto (Figure 4—figure supplement 2).

The large N, K analysis provides precious insights into the dynamics of networks with reasonable size and connectivity. In particular, we will show that the criterion for the paradoxical effect, Equation 1, remains valid up to small corrections. Although it is possible to treat analytically the dependence of rα on Iopto for finite K, these calculations are very technical and beyond the scope of this paper. Instead here, we proceed with numerical simulations.

Numerical simulations for JEE>JEE*

Figure 5 depicts the results of our numerical simulations of Model 1 for the same parameters as in Figure 4B (see Materials and methods, Tables 34). The response of PV neurons is non-paradoxical: the activity of the PV population increases monotonically with Γopto in the whole range (Figure 5A). Concurrently, the population activities of PC, SOM and VIP neurons monotonically decrease with Γopto (Figure 5A-B). For sufficiently large Γopto, PCs become very weakly active and the SOM and VIP populations dramatically reduce their firing rates. The variations with Γopto of rE, rI, rS and rV and are robust to changes in the average connectivity, K (Figure 5—figure supplement 1) and in qualitative agreement with the predictions of the large N, K limit (Figure 4B Appendix 1C, Figure 4—figure supplement 2).

Figure 5 with 3 supplements see all

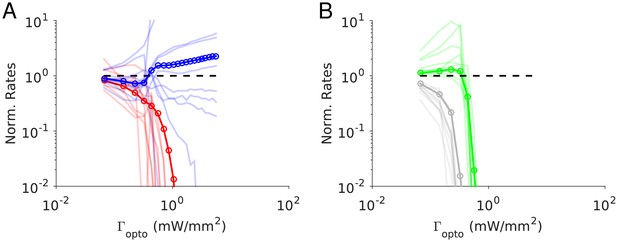

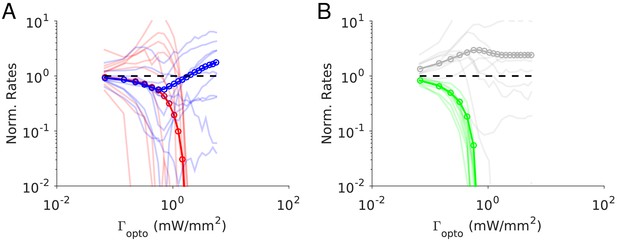

Numerical simulations of Model 1 for JEE>JEE*.

Responses of the neurons normalized to baseline vs. the intensity of the laser, Γopto. (A) Activities of PCs and PV neurons: the PV response is not paradoxical. (B) Activities of SOM and VIP neurons. Color code as in Figure 4. Thick lines: population averaged responses. Thin lines: responses of 10 neurons randomly chosen in each population. Firing rates were estimated over 100s. Parameters: K = 500, N = 76800. Other parameters as in Tables 34. The baseline activities are: rE = 3.3 Hz, rI = 6.5 Hz, rS = 5.9 Hz, rV = 3.5 Hz.

To test the robustness of our results with respect to changes in the interaction strengths, we generated 100 networks with Jαβ chosen at random within a range of ±10% of those of Figure 4B. All the networks exhibited a balanced state which was stable with respect to slow rates fluctuations in the large N, K limit. We simulated those networks with K = 500 and computed the population activity at baseline and for Γopto=0.07mW.mm-2. For all these networks, the results were consistent with the one of the control set: for Γopto=0.07mW.mm-2, rI was larger and rE, rS, rV were smaller than baseline (Figure 5—figure supplement 2). However, a small percentage of these networks (10%) exhibited oscillations with at most an amplitude 20% of their mean in the firing rates. Apart from that, the results were robust to changes in Jαβ.

In contrast to what happens in the large N, K limit (Figure 4B, right panel), in the results depicted in Figure 5 the activity of the PC and VIP populations are not proportional. Moreover, in the large K limit, PC and VIP neurons are inactivated before the SOM population is. For K = 500, VIP is the first population to be silenced followed by the SOM and finally the PC population. Simulations with increasing values of K show that these differences are due to substantial finite K effects (Figure 5—figure supplement 1).

Figure 5 also depicts the changes in the firing rates (normalized to baseline) with Γopto for several example neurons. These changes are highly heterogeneous across neurons within each population. Whereas the population average varies monotonically, individual cells activity can either increase or decrease and the response can even be non-monotonic with Γopto.

The heterogeneity in the single neuronal responses are also clear in Figure 6A–B that plots, for two different light intensities, the perturbed firing rate vs. baseline for PCs and PV neurons. Remarkably, in both populations a significant fraction of neuron exhibits a response which is incongruous with the population average. The pie charts in Figure 6 depict the fraction of PCs and PV neurons which increased, decreased, or did not change their firing rates. The fraction of neurons whose activity is almost completely suppressed, is also shown. Remarkably, even for Γopto=1.0mW.mm-2, some of the PCs show an activity increase. Moreover, the fraction of PV neurons whose firing rate increases is less for Γopto=1.0mW.mm-2 than Γopto=0.5mW.mm-2. It should be noted that in the model all PV neurons receive the same optogenetic input, therefore, the heterogeneity in the response is not due to whether or not the PV neurons were “infected”. This heterogeneity is solely due to the randomness in the connectivity.

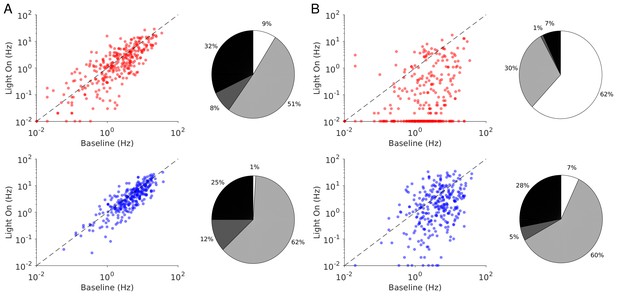

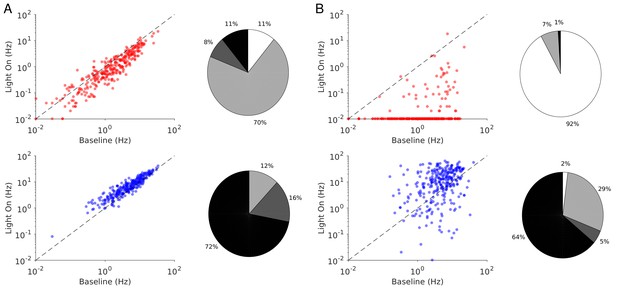

Single neuron firing rates in the PC and PV populations upon PV activation for two values of the light intensity (Model 1 with JEE>JEE*).

(A) Single neuron firing rates at baseline vs. at Γopto=0.5mW.mm-2. (B) Same for Γopto=1mW.mm-2. Top: PCs (red). Bottom: PV neurons (blue). Scatter plots of 300 randomly chosen PC and PV neurons. Pie charts for the whole population. The pie charts show the fraction of neurons which increase (black) or decrease (light gray) their activity compared to baseline. Dark gray: Fraction of neurons with relative change smaller than 0.1Hz. White: fraction of neurons with activity smaller than 0.1Hz upon PV photostimulation. Firing rates were estimated over 100s. Neurons with rates smaller than 0.01Hz are plotted at 0.01Hz. Parameters as in Figure 5.

Numerical simulations for JEE<JEE

Figure 7 depicts the results of our numerical simulations of Model 1 when JEE<JEE. Parameters are the same as in Figure 4C (see Materials and methods, Tables 35). The population activities of PCs and VIP neurons, rE and rV, decrease monotonically with the laser intensity, Γopto. Conversely, the variations of the activities of the PV and SOM populations, rI and rS, are non-monotonic with Γopto. For small light intensities, rI decreases and then abruptly increases with larger Γopto; rS exhibits the opposite behavior. Remarkably, when rI is minimum, rS is maximum for nearly the same value of Γopto. We show in Figure 7—figure supplement 1 that this proportional decrease only happens in a small region of parameter space when the determinant of the interaction matrix, Jαβ ϵβ, is close to zero.

Figure 7 with 5 supplements see all

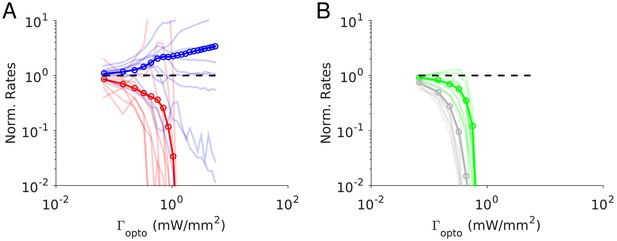

Numerical simulations of Model 1 for JEE<JEE.

Responses of the neurons normalized to baseline vs. the intensity of the laser, Γopto. (A) Activities of PCs and PV neurons: the PV response is paradoxical. (B) Activities of SOM and VIP neurons. Color code as in Figure 4. Thick lines: population averaged responses. Thin lines: responses of 10 neurons in each population. Firing rates were estimated over 100s. Parameters: K = 500, N = 76800. Other parameters as in Tables 35. The baseline activities are: rE = 4.8 Hz, rI = 11.2 Hz, rS = 7.1 Hz, rV = 5.3 Hz.

Table 3
Synaptic time constants.
ταβ (ms)PCPVSOMVIP
PC422N/A
PV224N/A
SOM2N/AN/A4
VIP424N/A
Table 4
Connection strength matrix for JEE>JEE (rows: postsynaptic populations; columns: presynaptic populations)
Jαβ (µA. ms.cm-2)FeedforwardPCPVSOMVIP
PC342026.4410
PV27442835.60
SOM0240014
VIP391235.2350
Table 5
Connection strength matrix for JEE<JEE (rows: postsynaptic populations; columns: presynaptic populations).
Jαβ (µA. ms.cm-2)FeedforwardPCPVSOMVIP
PC5217.434.432.80
PV3936.629.228.80
SOM024.20016.8
VIP3031.23114.60

This behavior is qualitatively similar to the one derived in the large N, K limit (Figure 4—figure supplement 2). As suggested by the large N, K analysis, the paradoxical response of the PV neurons in the simulations, is driven by the positive feedback loop PC-VIP-SOM-PC (Figure 4—figure supplement 1). Remarkably, when the activity of the PV neurons is minimum, the PCs are still substantially active (40% of baseline level). This is due to finite K corrections to the large N, K predictions (Figure 7—figure supplement 2). These corrections are strong and scale as 1K (Appendix 1C). Indeed, even for K as large as 2000, rE is still 25% of the baseline when rI is minimum.

We checked the robustness of these results with respect to changes in the interaction parameters as we did for JEE>JEE*. We found that for small light intensity all the 100 simulated networks were operating in the balanced state and exhibited the paradoxical effect (Figure 7—figure supplement 3).

Finally, the single neuron responses are highly heterogeneous. Figure 8 plots the perturbed activities of PCs and PV neurons vs. their baseline firing rates for two light intensities. In Figure 8A, the PV response is paradoxical. This is not the case in Figure 8B. Interestingly, the fraction of PV neurons incongruous with the population activity is larger for Γopto=0.5mW.mm-2 than for Γopto=1.0mW.mm-2. For both light intensities the activity of almost all the PCs is decreased.

Single neuron firing rates in the PC and PV populations upon PV activation for two values of the light intensity (Model 1 with JEE<JEE).

(A) Single neuron firing rates at baseline vs. at Γopto=0.5mW.mm-2. (B) Same for Γopto=1mW.mm-2. Top: PCs. Bottom: PV neurons. Scatter plots of 300 randomly chosen PC and PV neurons. Pie charts for the whole population. Firing rates were estimated over 100s simulation time. Neurons with rates smaller than 0.01Hz are plotted at 0.01Hz. Color code as in Figure 6. Parameters as in Figure 7.

Four-population network: Model 2

In S1, in the range of laser intensities in which the PV response is paradoxical, the decrease of the PC and PV activity is proportional. This feature of the data can be accounted for in Model 1 but only with a fine-tuning of the interaction parameters (Figure 7—figure supplement 1 and Figure 7—figure supplement 4). This prompted us to investigate whether a different architecture could account robustly for this remarkable property. Our hypothesis is that this property is a direct consequence of the balance of excitation and inhibition.

Theory in the large N,K limit

We first considered the three-population model depicted in Figure 9A. It consists of the PC, PV and SOM populations. SOM neurons receive strong inputs from PCs and PV neurons, but do not interact with each other and do not receive feedforward external inputs. In the large N, K limit, the balance of excitation and inhibition of the SOM population reads (see Materials and methods, Equation 20.2).

(2) JSErE-JSIrI=0

Therefore, the activities of the PC and PV populations are always proportional. However, as we show in (Appendix 1D) a three-population network with such an architecture cannot exhibit the paradoxical effect.

Figure 9 with 1 supplement see all
Network models with proportional change in the PC and PV activities upon photostimulation of the PV population.

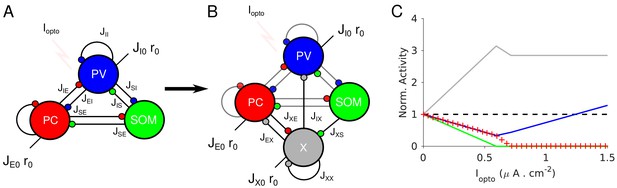

(A) A three-population network consisting of PCs, PV and SOM neurons. SOM neurons only receive projections from the PC and PV populations. (B) Model 2 consists of four populations: PC, PV, SOM and an unidentified inhibitory population, X. The population X projects to the PC, the PV population and to itself. The PC population projects to X. (C) Population activities normalized to baseline vs. Iopto in the large N, K limit. PC and PV populations decrease their activity with Iopto in a proportional manner. Parameters as in Tables 67. Baseline firing rates are: rE = 3.0 Hz, rI = 6.7 Hz, rS = 6.4 Hz, rX = 3.8 Hz.

We therefore considered a network model in which a third inhibitory population, referred to as ‘X’, is added without violating Equation (3) (Figure 9B). This requires that SOM neurons do not receive inputs from X neurons (Appendix 1D). This network exhibits the paradoxical effect if and only if JSEJEXJXS>JXXJESJSE, that is if the gain of the positive feedback loop, SOM-X-PC-SOM, is sufficiently strong (Appendix 1D). Obviously, this condition simplifies and reads

(3) JEXJXS>JXXJES

Remarkably, this inequality does not depend on JEE. This is in contrast to what happens in Model 1 where the paradoxical effect occurs only if JEE is small enough (see Equation (2)).

As in Model 1, we further required that the activity of the PC population increases with its feedforward external input. This adds the constraint (Appendix 1D):

(4) JIXJXS>JXXJIS

Equations (3-5) do not depend on JXI. For simplicity, we take JXI =0 and refer to the resulting architecture as Model 2.

In Figure 9C, the slope of the PV population activity changes from negative to positive while PCs are still active. This is because if SOM neurons are completely suppressed, the loop SOM-X-PC-SOM which is responsible for the paradoxical effect, is not effective anymore. Interestingly, the analytical calculations also show that, when the SOM population activity vanishes, the activity of the X population is maximum. Since the SOM population is inactive before PCs, there is a range of laser intensities where the activity of the latter keeps decreasing while the activity of the PV population increases. Once PCs are inactive, the activity of the X population do not vary with Iopto. This is because then they only receive a constant feedforward excitation from outside the network which is balanced by their strong recurrent mutual coupling, JXX.

Simulations for finite K

These features are also observed in our simulations depicted in Figure 10. For small laser intensities, the network exhibits a paradoxical effect where the activities of the PC and PV populations decrease with Γopto and in a proportional manner (Figure 10A), until the SOM neurons become virtually inactive (Figure 10B). At that value, rI is minimum and rX is maximum. For larger Γopto, rI increases while rE keeps decreasing and is still substantial. After rE has vanished, rX saturates but rI continues to increase. All these results are robust to changes in the connectivity, K (Figure 10—figure supplement 1) as well as to changes in the interaction parameters (Figure 10—figure supplement 2). Single neuron responses are more heterogeneous than in the experimental data (Figure 11). It should be noted however that we did not tune parameters to match the experimental heterogeneity.

Figure 10 with 3 supplements see all
Numerical simulations of Model 2.

Responses of the neurons normalized to baseline vs. the intensity of the laser, Γopto. (A) Activities of PCs and PV neurons: for small Γopto, the PV response is paradoxical and the suppression of the PC and PV population activities relative to baseline are the same. (B) Activities of SOM and X neurons. Color code as in Figure 9. Thick lines: population averaged responses. Thin lines: responses of 10 neurons randomly chosen in each population. Firing rates were estimated over 100s. Parameters: K = 500, N = 76800. Other parameters as in Tables 67. The baseline activities are: rE = 4.2 Hz, rI = 6.8 Hz rS = 7.0 Hz, rX = 3.9 Hz.

Single neuron firing rates in the PC and PV populations upon PV activation for two values of the light intensity (Model 2).

(A) Single neuron firing rates at baseline vs. at Γopto=0.5mW.mm-2. (B) Same for Γopto=1mW.mm-2. Top: PCs. Bottom: PV neurons. Scatter plots of 300 randomly chosen PC and PV neurons. Pie charts for the whole population. Firing rates were estimated over 100s. Neurons with rates smaller than 0.01Hz are plotted at 0.01Hz. Color code as in Figure 6. Parameters as in Figure 10.

Table 6
Default parameters of Model 2.

Synaptic time constants in Model 2.

ταβ (ms)PCPVSOMX
PC4224
PV2244
SOM22N/AN/A
X2N/A42
Table 7
Connection strength matrix (rows: postsynaptic populations; columns: presynaptic populations).
Jαβ (µA ms.cm-2)FeedforwardPCPVSOMVIP
PC4820303236
PV2940281632
SOM0261200
VIP242403622

Discussion

We studied the response of cortex to optogenetic stimulation of parvalbumin positive (PV) neurons and provided a mechanistic account for it. We photostimulated the PV interneurons in layer 2/3 and layer 5 of the mouse anterior motor cortex (ALM). In layer 2/3 photostimulation increased PV activity and decreased the response of the PCs on average. In contrast, in layer five the response of the PV population was paradoxical: both PC and PV activity decreased on average. This is similar to what we found in the mouse somatosensory cortex (S1) (Li et al., 2019). To account for these results, we first investigated the dynamics of networks of one excitatory and one inhibitory population of spiking neurons. We showed that two-population network models of strongly interacting neurons do not fully account for the experimental data. This prompted us to investigate the dynamics of networks consisting of more than one inhibitory population.

We considered two network models both consisting of one excitatory and three inhibitory populations. Interneurons are known to be unevenly distributed throughout the cortex. For instance, SOM neurons have been reported to be most prominent in layer five whereas VIP neurons are mostly found in layer 2/3 (Tremblay et al., 2016). Instead of giving a complete description of these layers and all neuronal populations they include, we propose here models with the minimal number of inhibitory populations that can account for the data.

The three inhibitory populations in Model 1 represent PV, somatostatin positive (SOM) and vasoactive intestinal peptide (VIP) interneurons with a connectivity similar to the one reported in primary visual cortex (Pfeffer et al., 2013) and S1 layer 2/3 (Lee et al., 2013). In Model 2, the first two inhibitory populations likewise represent PV and SOM neurons and the third population, denoted as X, represents an unidentified inhibitory subtype. The main difference with Model one is that here, the third population does not project to SOM neurons.

Depending on network parameters, the response of PV neurons in Model one can be paradoxical or not. To have equal relative suppression of the PCs and PV activities, however, interaction parameters have to be fine-tuned. In Model 2, the relative changes in the PC and PV activity are the same independent of interaction parameters.

For a two-population network, the paradoxical effect only occurs when it is inhibition stabilized (Pehlevan and Sompolinsky, 2014; Wolf et al., 2014). This is because the mechanism requires strong recurrent excitation. In the four-population networks we studied, however, the mechanism responsible for paradoxical effect is different. It involves a disinhibitory loop. In fact, strong recurrent excitation prevents the paradoxical effect in these networks. Therefore, the observation of the paradoxical effect upon PV photo-excitation is not a proof that the network operates in the ISN regime.

Strong vs. weak interactions

Cortical networks consist of a large number (N) of neurons each receiving a large number of inputs (K). Because N and K are large, one expects that a network behaves similar to a network where N and K are infinite. In this limit the analysis is simplified and the mechanisms underlying the dynamics are highlighted. When taking the large K limit one needs to decide how the interaction strengths scale with K. Two canonical scalings can be used: in one the interactions scale as 1/K (Hansel and Sompolinsky, 1992; Hennequin et al., 2018; Knight, 1972; Rubin et al., 2015), in the other as 1/K (Darshan et al., 2017; Renart et al., 2010; Rosenbaum et al., 2017; van Vreeswijk and Sompolinsky, 1996). These differ in the strength of the interactions. For instance, for K = 900 interactions are weaker by a factor 30 in the first scaling than in the second. Importantly, these two scalings give rise to qualitatively different dynamical regimes.

When interactions are strong, the excitatory and inhibitory inputs are both very large (of the order of K.1K=1). They, however, dynamically balance so that the temporal average of the net input and its spatial and temporal fluctuations are comparable to the rheobase (Van Vreeswijk and Sompolinsky, 2005; van Vreeswijk and Sompolinsky, 1998), Appendix 1A). In this balanced regime, the average firing rates of the populations are determined by a set of linear equations: the “balance equations”. These do not depend on the neuronal transfer function. For large but finite K, the network operates in an approximately balanced regime. In this regime, the population activities are well approximated by the balance equations, interspike intervals are highly irregular and firing rates are heterogeneous across neurons.

When the interactions are weak, excitatory and inhibitory inputs are both comparable to the rheobase even when K is large, but their spatial and temporal fluctuations vanish as K increases. The activity of the network is determined by a set of coupled non-linear equations which depends on the neuronal transfer function. For large but finite K, the firing of the neurons is weakly irregular and heterogeneities mostly arise from differences in the intrinsic properties of the neurons.

In which of these regimes does cortex operate in-vivo? This may depend on the cortical area and on whether the neuronal activity is spontaneous or driven (e.g. sensory, associative, or motor related). There are, however, several facts indicating that the approximate balanced regime may be ubiquitous. Many cortical areas exhibit highly irregular spiking (Shinomoto et al., 2009) and heterogeneous firing rates (Hromádka et al., 2008; Roxin et al., 2011). Excitatory and inhibitory postsynaptic potentials (PSPs) are typically of the order of 0.2 to 2mV or larger (Levy and Reyes, 2012; Ma et al., 2012; Pala and Petersen, 2015; Seeman et al., 2018). Model networks with PSPs of these sizes and reasonable number of neurons and connections exhibit all the hallmarks of the balanced regime (Amit and Brunel, 1997; Hansel and Mato, 2013; Hansel and van Vreeswijk, 2012; Lerchner et al., 2006; Pehlevan and Sompolinsky, 2014Argaman and Golomb, 2018Rao et al., 2019Roudi and Latham, 2007; Roxin et al., 2011 Van Vreeswijk and Sompolinsky, 2005). Moreover, there is experimental evidence of co-variation of excitatory and inhibitory inputs into cortical neurons (Haider et al., 2006; Shu et al., 2003). Finally, in cortical cultures synaptic strengths have been shown to approximately scale as 1/K (Barral and D Reyes, 2016). Therefore in this paper we focused on cortical network models in which interactions are strong, that is of the order of 1/K.

Model 1 accounts for the responses in ALM layer 2/3 and layer 5

In Model 1, whether the network exhibits a paradoxical effect depends on the value of the ratio ρ=JEE/JEE* where JEE*JVEJES/JVS. Here, Jαβ, α,β{E,S,V}, is the strength of the connection from population β to population α. When ρ > 1, the PV response is non-paradoxical and its activity increase can be substantial well before suppression of the PC activity. On the other hand when ρ > 1, the PV response is paradoxical and the PV activity reaches its minimum for light intensities at which the PCs are still substantially active.

In ALM layer 2/3, the activity of the PV population increases with the light intensity while the activity of the PC decreases on average. Remarkably, our experiments showed that the increase in the PV activity was already substantial for small light intensities, where the PCs were still significantly active. In ALM layer 5 the activity of the PV population initially decreased with the light intensity together with the activity of the PC population. As the light intensity is further increased, the PV activity reaches a minimum after which it increases. At this minimum, the PC activity is still substantial.

Thus, Model 1 accounts for our experimental findings in ALM layer 2/3 provided that JEE is sufficiently large. It accounts for the paradoxical effect in layer 5 provided that JEE is sufficiently small. Note that this does not mean that JEE, is larger in the former layer as compared to the latter. The interactions JVE, JES and JVS are likely to be layer dependent (Jiang et al., 2015) and therefore so is the value of JEE*.

Model 2 accounts for the paradoxical effect in S1 while model 1 would require fine-tuning

Similar to ALM layer 5, the PV response in S1 is paradoxical. Remarkably however, in S1 the relative suppression of the PC and PV activities is the same for low light intensity. Model 1 can account for this feature only when the interaction parameters are fine-tuned. In contrast, in Model 2 the co-modulation of the PC and PV activities stems from the architecture and therefore occurs in a robust manner. Furthermore, it can equally well account for the fact that in S1 the PV activity reaches its minimum when the PC population is active.

Note that in ALM layer 5 the difference between the slopes of the PC and PV population activities is not significantly different (p>0.05). Therefore, we cannot exclude that Model 2 describes ALM layer 5.

The main difference between Models 1 and 2 is that in Model 1, the third inhibitory population (VIP) projects to SOM neurons while in Model 2, the third population (X) does not. This suggests that population X is not the VIP population. For example, X could be chandelier cells that do not express the PV marker (Jiang et al., 2015) Alternatively, population X could describe the effective interaction of several inhibitory populations with PC and PV neurons.

Models 1 and 2 account for the heterogeneity of single neuron responses

The responses of PCs and PV neurons in the experimental data are highly heterogeneous across cells. Indeed in ALM layer 5 and S1, PV neurons on average show a paradoxical response but at the single neuron level the effect of the laser stimulation is very diverse. Moreover, the firing rate of a neuron can vary monotonically or non-monotonically with the laser intensity. For instance, when stimulated, the firing rates of many PV neurons increase, although, on average the activity is substantially smaller than baseline. Conversely, for some PV neurons the paradoxical effect is so strong that the laser completely suppresses their activity.

We observed an even larger diversity in single neuron responses in our simulations of Model 1 and 2. We should emphasize that in the simulated networks all the neurons were identical and the cells in the same population received the same feedforward constant external input. The only possible source of heterogeneity therefore comes from the randomness in the network connectivity. The effect of this randomness on the network recurrent dynamics is however non-trivial: one may think that the effect of the fluctuations in the number of connections from neuron to neuron should average out since in the models the number of recurrent inputs per neuron is large (K = 500 or more). This is not what happens because in our simulations populations which are active operate in the balanced excitation/inhibition regime (Roxin et al., 2011; van Vreeswijk and Sompolinsky, 1998; van Vreeswijk and Sompolinsky, 1996). In this state, relatively small homogeneity in the number of connections per neuron is amplified to a substantial inhomogeneity in the response. Thus, strong heterogeneity in the response of neurons is not a prima facie evidence for the heterogeneity of the level of Channelrhodopsin expression in the cells nor is it for the diversity of the single neuron intrinsic properties.

Limitations

We give here a qualitative account for the mechanisms underlying the responses of different cortical areas to optical stimulation. A quantitative analysis of the data, in particular of the heterogeneity is beyond our scope. Such an analysis would require a much larger number of PV neurons. Moreover, it would necessitate the use of more complicated neuronal models making the mathematical analysis intractable, limiting the investigation to simulations only and thus obscuring the mechanisms.

In our experiments, we expressed ReaChR in all PV neurons and in all layers in ALM. In particular, all PV neurons in layer 2/3 and layer five were simultaneously affected by the photostimulus. PCs in layer 2/3 project to layer 5 and receive feedback from the latter (Hooks et al., 2013Naka and Adesnik, 2016). Interlaminar interactions are likely to also contribute to the effect of the photostimulation.

In our models, we did not take into account such interactions. Including strong connections from layer 2/3 PCs to neurons in layer 5 and/or feedback connections from layer 5 neurons to layer 2/3, could alter our interpretations. In the absence of data that reveal the nature of interlaminar interactions, extending our model to incorporate these is impractical given the large number of parameters to vary. Experiments in ALM and S1 where the optogenetic marker is expressed in only one layer at a time would constraint models which include interlaminar interactions and facilitate their analysis (Moore et al., 2018).

There is a large amount of experimental evidence indicating that different synapses can exhibit diverse dynamics depending on their pre and postsynaptic populations (Ma et al., 2012). For instance, recent studies have shown that PCs to PV synapses are depressing while the PCs to SOM synapses are highly facilitating (Karnani et al., 2016; Xu et al., 2013). Synaptic facilitation and depression mechanisms could give rise to dynamics which will make the network responses depend on the duration of the photostimulation. Here, we did not take into account short term plasticity. Mice neocortex mostly comprises PV, SOM and 5HT3aR expressing interneurons. There is a growing amount of experimental evidence indicating that these populations include different subtypes which may have distinct connectivity patterns (Naka and Adesnik, 2016; Nigro et al., 2018; Tremblay et al., 2016). In the present work, we only considered three populations of identical interneurons: PV, SOM and VIP or X. As the number of populations increases, the number of interaction parameters increases quadratically, making it a great challenge to uncover even simple mechanisms that could underlie the network responses.

Comparison with previous theoretical work

The paradoxical effect was first described in Tsodyks et al. (1997) and Ozeki et al. (2009) for weak interactions using coarse grained two-population rate models (Wilson and Cowan, 1972). These models were extended in Rubin et al. (2015) to a spatially structured network to explain center-surround interactions and other contextual effects in primary visual cortex. They found that these effects can be accounted for if the neuronal transfer function is supralinear and the network is operating in the inhibition stabilized regime (ISN). With supralinear transfer functions, whether or not the network exhibits a paradoxical effect depends on the background rate of the inhibitory neurons. These models were further extended by Litwin-Kumar et al. (2016) to networks consisting of PC, PV, SOM and VIP neurons with an architecture similar to Pfeffer et al. (2013). They studied the effect of photostimulation of the different inhibitory populations on the responses and orientation tuning properties of the neurons. In a recent study (Sadeh et al., 2017) have investigated the effects of partial activation of PV neurons upon photostimulation in an ISN. They argued that depending on the degree of viral expression, the average response of the infected neurons can decrease or increase with the light intensity: it decreases only if a large proportion of the population is infected. (Garcia Del Molino et al., 2017) showed that due to the non-linearity in the neuronal transfer function, the response of the network to stimulation can be different for different background rates. In particular, they showed that it can reverse the response of SOM neurons to VIP stimulation.

All these works considered inhibition stabilized networks in which the total recurrent excitation is so strong that the activity would blow up in the absence of inhibitory feedback. With our notations, this means that GEjEE>1/K, where GE is the gain of the noise average transfer function (f-I curve) of the excitatory neurons. In fact, in these models all the interactions jαβ are of order 1/K so they are weak in our sense. Moreover, these studies considered networks that are so small that it is impossible to extrapolate their results to mouse cortex size networks. Here we studied large network models (N = 76800) with strong interactions, that is jαβ are of order 1/K operating in the balanced regime. Note that such networks are ISNs provided that jEE0. We showed that paradoxical effect can be present or not depending on the interaction parameters.

Since we used static synapses, changes in the background rates cannot reverse the paradoxical effect in our models. This is because with static synapses the balance equations are linear. One can recover this reversal if one introduces short-term plasticity which will make the balance equations nonlinear. We did not consider partial expression of channelrhodopsin in the PV population because our goal was to account for experimental data where virtually all neurons were infected. These effects have been studied in Gutnisky et al. (2017); Sanzeni et al. (2019) in strongly coupled networks of two populations yielding to the same conclusions as (Sadeh et al., 2017).

Predictions

Our theory (Model 1) predicts that in ALM layer 2/3 the activity of the SOM and VIP populations will decrease upon PV photostimulation (Figure 4B). It also predicts that upon PC photoinhibition, the PV activity will increase whereas the activity of the SOM and VIP populations will decrease (Figure 12A). This is because in Model 1 when the PV response is non-paradoxical (χII>0) the product XEI XIE is also positive (see Appendix 1C). Furthermore, in ALM layer 2/3 the population activity of PCs decreases upon PV photostimulation, XEI < 0. Hence, XIE is negative. The balance of the PC and the VIP inputs into SOM neurons implies that VIP and PC activity covary. Finally, in Appendix 1C we show that if XEE  > 0 and XIE < 0 then necessarily XSE > 0. Thus, in ALM layer 2/3, the SOM population activity should decrease upon PC photoinhibition (Figure 12A).

Predictions of the theory.

(A) In ALM layer 2/3, the activity of the PV population decreases upon photoinhibition of the PCs. (B) In ALM layer 2/3, photostimulation of VIP neurons increases the activity of the PV population. (C) In S1, PV and PC activity decrease proportionally upon photoinhibition of the latter. (D) In S1, the PC and PV responses are not proportional upon photoinhibition of the SOM population. (E) In S1, upon photostimulation of PV neurons and photoinhibition of the SOM population with a constant input, the PV response is paradoxical but PC and PV responses are no longer proportional.

In auditory and prefrontal cortex (Pi et al., 2013) as well as in S1 (Lee et al., 2013), photostimulation of VIP neurons, activates them (XVV > 0) and disinhibits the PCs (XEV > 0) through an inhibition of the SOM population (XSV > 0). If this is also true in ALM layer 2/3, our model predicts that photostimulation of VIP neurons should increase the PV activity (XIV > 0) (Appendix 1C, Figure 12B).

In S1 our theory (Model 2) predicts that the PC and PV activities will proportionally decrease upon PC photoinhibition (Equation (3), Appendix 1D, Figure 12C). Photostimulation of the SOM neurons modifies Equation (3) and consequently, the changes in PC and PV activity no longer covary (Figure 12D). Thus, our theory can be tested by photostimulating PV neurons as in our experiment, while also photostimulating SOM neurons with a second laser with constant power. In this case, the model predicts that S1 will still exhibit the paradoxical effect but that the responses of the PC and PV populations will no longer be proportional (Figure 12E).

Perspectives

We only considered response of the neurons for a large radius of the laser beam. In a recent study Li et al. (2019), have investigated the spatial profile of the response and its dependence on the light intensity. Our theory can be extended to incorporate spatial dependencies. Studying the interplay between the connectivity pattern and laser beam width in the response profile of the networks will provide further constraints on cortical architectures.

Due to the strong interactions in our models, the nonlinearity of the single neuron f-I curves hardly affects the population average responses. However, it influences the response heterogeneity that naturally arises in our theory (Figures 68). An alternative model for the paradoxical effect is the supralinear stabilized network (SSN) (Rubin et al., 2015) which relies on an expansive non-linearity of the input-output transfer function of the inhibitory populations. Whether this mechanism can account for our experimental data is an issue for further study. In particular, it would be interesting to know whether the SSN scenario can account for the strong heterogeneity in the responses and for the proportionality of the PC and PV population activities in S1. Answering these questions may provide a way to discriminate between the balance network and SSN theory.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Genetic reagent (Mus musculus)Pvalb-Ires-CreThe Jackson LaboratoryJAX #008069
Genetic reagent (Mus musculus)R26-CAG-LSL-ReaChR-mCitrineThe Jackson LaboratoryJAX #026294

Animals and surgery

Request a detailed protocol

The experimental data are from 9 PV-Ires-Cre x R26-CAG-LSL-ReaChR-mCitrine mice (age >P60, both male and female mice) (Hooks et al., 2015). three mice were used for photoinhibition in somatosensory cortex (S1). six mice were used for photoinhibition in anterior lateral motor cortex (ALM). All procedures were in accordance with protocols approved by the Janelia Research Campus and Baylor College of Medicine Institutional Animal Care and Use Committee.

Mice were prepared for photostimulation and electrophysiology with a clear-skull cap and a headpost (Guo et al., 2014a; Guo et al., 2014b). The scalp and periosteum over the dorsal surface of the skull were removed. A layer of cyanoacrylate adhesive (Krazy glue, Elmer’s Products Inc) was directly applied to the intact skull. A custom made headbar was placed on the skull (approximately over visual cortex) and cemented in place with clear dental acrylic (Lang Dental Jet Repair Acrylic; Part# 1223-clear). A thin layer of clear dental acrylic was applied over the cyanoacrylate adhesive covering the entire exposed skull, followed by a thin layer of clear nail polish (Electron Microscopy Sciences, Part# 72180).

Photostimulation

Request a detailed protocol

Light from a 594 nm laser (Cobolt Inc, Colbolt Mambo 100) was controlled by an acousto-optical modulator (AOM; MTS110-A3-VIS, Quanta Tech; extinction ratio 1:2000; 1µs rise time) and a shutter (Vincent Associates), coupled to a 2D scanning galvo system (GVA002, Thorlabs), then focused onto the brain surface (Guo et al., 2014a). The laser at the brain surface had a diameter of 2 mm. We tested photoinhibition in barrel cortex (bregma posterior 0.5 mm, 3.5 mm lateral) and ALM (bregma anterior 2.5 mm, 1.5 mm lateral).

To prevent the mice from detecting the photostimulus, a ‘masking flash’ pulse train (40 1 ms pulses at 10 Hz) was delivered using a LED driver (Mightex, SLA-1200–2) and 590 nm LEDs (Luxeon Star) positioned near the eyes of the mice. The masking flash began before the photostimulus started and continued through the end of the epoch in which photostimulation could occur.

The photostimulus had a near sinusoidal temporal profile (40 Hz) with a linear attenuation in intensity over the last 100–200 ms (duration: 1.3 s including the ramp). The photostimulation was delivered at ~7 s intervals. The power (0.5, 1.2, 2.2, 5, 12 mW for S1 photostimulation; 0.3, 0.5, 1, 1.5, 2, 3.3, 5, 8, 15 mW for ALM photostimulation) were chosen randomly. Because we used a time-varying photostimulus, the power values reported here reflect the time-average.

Electrophysiology

Request a detailed protocol

All recordings were carried out while the mice were awake but not engaged in any behavior. Extracellular spiking activity was recorded using silicon probes. We used 32-channel NeuroNexus silicon probes (A4 × 8–5 mm-100-200-177) or 64-channel Cambridge NeuroTech silicon probes (H2 acute probe, 25 μm spacing, two shanks). The 32-channel voltage signals were multiplexed, digitized by a PCI6133 board at 400 kHz (National Instruments) at 14 bit, demultiplexed (sampling at 25,000 Hz) and stored for offline analysis. The 64-channel voltage signals were amplified and digitized on an Intan RHD2164 64-Channel Amplifier Board (Intan Technology) at 16 bit, recorded on an Intan RHD2000-Series Amplifier Evaluation System (sampling at 20,000 Hz) using Open-Source RHD2000 Interface Software from Intan Technology (version 1.5.2), and stored for offline analysis.

A 1 mm diameter craniotomy was made over the recording site. The position of the craniotomy was guided by stereotactic coordinates for recordings in ALM (bregma anterior 2.5 mm, 1.5 mm lateral) or barrel cortex (bregma posterior 0.5 mm, 3.5 mm lateral).

Prior to each recording session, the tips of the silicon probe were brushed with DiI in ethanol solution and allowed to dry. The surface of the craniotomy was kept moist with saline. The silicon probe was positioned on the surface of the cortex and advanced manually into the brain at ~3 µm/s, normal to the pial surface. The electrode depth was inferred from manipulator depth and verified with histology. For ALM recordings, putative layer 2/3 units were above 450 µm and putative layer 5 units were below 450 µm (Hooks et al., 2013). For S1, our recording did not distinguish layers.

Data analysis

Request a detailed protocol

The extracellular recording traces were band-pass filtered (300–6 kHz). Events that exceed an amplitude threshold (four standard deviations of the background) were subjected to manual spike sorting to extract single units (Guo et al., 2014a).

Our final data set comprised of 204 single units (S1, 95; ALM, 109). For each unit, its spike width was computed as the trough to peak interval in the mean spike waveform (Guo et al., 2014a). We defined units with spike width <0.35 ms as FS neurons (31/204) and units with spike width >0.45 ms as putative pyramidal neurons (170/204). Units with intermediate values (0.35–0.45 ms, 3/204) were excluded from our analyses.

To quantify photoinhibition strength, we computed ‘normalized spike rate’ during photostimulation. For each neuron, we computed its spike rate during the photostimulus (1 s time window) and its baseline spike rate (500 ms time window before photostimulus onset). The spike rates under photostimulation were divided by the baseline spike rate. The ‘normalized spike rate’ thus reports the total fraction of spiking output under photostimulation. For normalized spike rate of individual neurons, each neuron’s spike rate with photostimulation was normalized by dividing its baseline spike rate (Figure 1B–D, top). For normalized spike rate of the neuronal population (Figure 1B–D, bottom), the spike rates with photostimulation were first averaged across the population (without normalization) and then normalized by dividing the averaged baseline spike rate.

Bootstrap was performed over neurons to obtain standard errors of the mean. For each round of bootstrapping, repeated 1000–10000 times, we randomly sampled with replacement neurons in the dataset. We computed the means of the resampled datasets. The standard error of the mean was the standard deviation of the mean estimates from bootstrap.

Network models

Request a detailed protocol

All the models we consider consist of strongly interacting leaky integrate-and-fire neurons. We first study networks of one excitatory (E) and one inhibitory (I) population. We then investigate two models comprising three inhibitory populations, namely parvalbumin positive (PV or I), somatostatin positive (SOM or S) and a third population either corresponding to the vasoactive intestinal peptide positive (VIP or V) neurons (Model 1) or to an unidentified population denoted by X (Model 2).

In all models the total number of neurons is N = 76800. In the two population model, 75% are excitatory and 25% inhibitory. In the four-population networks, 75% are excitatory and the number of cells is the same, N/12, for all GABAergic inhibitory population.

The data we seek to account for, were obtained in optogenetic experiments in which the laser diameter was substantially larger than the spatial range of neuronal interactions and comparable to the size of the cortical area were the recordings were performed. Therefore, in all models we assume for simplicity that the connectivity is unstructured: neuron (i, α), (α = E, I, S, V/X), is postsynaptically connected to neuron (j) (j, β) with probability

(5) Pijαβ=KαβNβ

For simplicity, we take Kαβ the same for all populations, Kαβ=K.

Neuron dynamics: The dynamics between spikes of the membrane potential of the neuron (i, α) is given by

(6) CMdViαtdt=-gleakαViαt-VR+Irecαit+Λextα+Λoptoαi

Here, Irecαit is the net recurrent input into neuron i,α, Λextα represents inputs from outside the circuit (e.g. thalamic excitation) to population α, and Λoptoαi is the optogenetic input into neuron (i, α).

We assumed that the capacitance, CM, is identical for all neurons and the leak conductance, gleakα, is identical for all the cells in the same population. We take CM=1μF.cm-2, gleakI=0.1mS.cm-2 and gleakE=gleakS=gleakV/X=0.05mS.cm-2.

Equation (2) has to be supplemented by a reset condition: if at time t the membrane potential of the neuron (i, α) crosses the threshold Viα(t)=Vth=50mV, the neuron fires a spike and its voltage is reset to the resting potential Viα(t+)=VR=70mV.

Recurrent inputs: The net recurrent input into neuron (i, α) is

(7) Irecαit=β,jjαβ ϵβ Cijαβ Sjαβt

where Cαβ is the connectivity matrix between (presynaptic) population β and (postsynaptic) population α, such that Cijαβ=1 if neuron (j, β) projects to neuron (i, α) and Cijαβ=0 otherwise. The parameter jαβ is the strength of the interaction from neurons in population β to neurons population α. We assumed it to depend on the pre and postsynaptic populations only. The polarity (excitation or inhibition) of the interaction is denoted by εβ. Therefore if β = E, εβ = 1 and εβ = -1 otherwise.

The function Sjαβt is

(8) Sjαβt=kfαβt-tβjk

where tβjk is the time at which neuron (j, β) has emitted its kth spike, the sum is over all the spikes emitted by neuron (j, β) prior to time t and

(9) fαβt=1ταβe-t/ταβ

where ταβ is the synaptic time constant of the interactions between neurons in population β and α.

External and optogenetic inputs: The feedforward input, Λextα, into the neurons in population α is described by inputs from 2K external neurons with constant firing rate r0 = 5 Hz and an interaction strength jα0, therefore, Λextα=2Kjα0r0.

We model the ReachR photostimulation as an additional external constant input to the stimulated population. For simplicity, we assume that this input, Λoptoαi=Λoptoα, is the same for all stimulated neurons. Unless specified otherwise, we only consider ΛoptoI=Λopto and Λoptoα=0 for αI.

In qualitative agreement with Figure 3, and Figures 5, 7, Figure 7—figure supplement 1, Figure 10; (Hooks et al., 2015) we take

(10) Λopto=Λ0αlog1+ΓoptoΓ0α

where Γopto is the laser intensity and Λ0 and Γ0 are parameters.

Architectures of the four-population models

Request a detailed protocol

The network of Model one is depicted in Figure 4A. In line with the results of Pfeffer et al. (2013), there are no connections from PV to SOM, VIP to PC and VIP to PV neurons. There is no mutual inhibition between SOM as well as between VIP neurons. All the populations except SOM receive feedforward external input.

The interaction matrix of the network is

(11) [jABεB]=[ jEEjEIjES0jIEjIIjIS0jSE00jSVjVEjVIjVS0 ]

The network of Model two is depicted in Figure 9B. SOM only receives projections from PCs and PV neurons. X neurons are recurrently connected and project to PCs and PV neurons. The PC and SOM populations project to the population X. All the populations except SOM receive feedforward external input.

The interaction matrix is

(12) [jABεB]=[ jEEjEIjESjEXjIEjIIjISjIXjSEjSI00jXE0jXSjXX ]

Numerical simulations: The dynamics of the models was integrated numerically using a second-order Runge-Kutta scheme (Press et al., 1986) without spike time interpolation. Unless specified otherwise the time step was Δt = 0.01 ms and the temporally averaged firing rates were estimated over 100s.

The balance equations

Request a detailed protocol

We consider recurrent networks of strongly interacting neurons (van Vreeswijk and Sompolinsky, 1996) in which order K excitatory synaptic inputs are sufficient to bring the voltage above threshold. To understand the behavior of such networks, it is imperative to analyse how it behaves when K goes to infinity. To this end, we scale the interactions as

(13) jαβ=JαβK

where Jαβ does not depend on K. Since a neuron receives on average K inputs from each of its presynaptic populations, the total interaction from population β to a neuron in population α is JαβK. To keep the relative strength of the optogenetic input, Λoptoα, as K increases we take

(14) Λoptoα=IoptoαK

where Ioptoα depends on the intensity of the laser:

(15) Ioptoα=I0αlog1+ΓoptoΓ0α

We take: I0α=I0=8nA and Γ0α=Γ0=0.5mW.mm-2.

The net input into the neurons must remain finite in the infinite K limit. This implies that up to corrections which are of the order of 1K,

(16) 2 Jα0 r0+Ioptoα+βJαβ ϵβ rβ=0

In a n-population network, these n equations determine the n firing rates, rα, α{1,...,n}.

This set of linear equations express the fact that, for the population activities to be finite, excitatory and inhibitory inputs to the neurons must compensate. These 'balance' equations have a unique solution (unless the determinant of the matrix Jαβϵβ is zero). To be meaningful the solution must be such that all population activities are positive. This constrains the feedforward and recurrent interaction parameters.

The stability of this balanced solution further constraints the interaction parameters and synaptic time constants. A necessary condition for the stability is that det[Jαβϵβ]>0. This condition guarantees that the 'balanced state' is stable with respect to divergence of the firing rates. A complete study of these constraints for our LIF networks is beyond the scope of this paper.

In all the models, we study parameter ranges in which, at baseline (Ioptoα=0), the network operates in a stable balanced state where distributions of rates exhibit a quasi-lognormal shape and spikes are emitted irregularly as in a Poisson process (Figure 5—figure supplement 3; Figure 7—figure supplement 5; Figure 10—figure supplement 3). For Ioptoα sufficiently large, it may happen that one or more population activity reaches zero. In this case, the network evolves to a partially balanced state in which the rates of the populations that remain active satisfy a reduced set of balanced equations. For example, if we consider a solution were the rate of population γ, rγ is zero and all other rates are positive, the reduced balance equations are

(17) 2 Jα0 r0+Ioptoα+βγJαβ ϵβ rβ=0,forαγ.

Consistency of this solution leads to the requirement that the input into population γ is hyperpolarizing.

(18) 2 Jγ0 r0+Ioptoγ+βγJγβ ϵβ rβ<0

Note that they may be multiple self-consistent solutions which are partially balanced.

Upon photostimulation of PV, in Model 1, the balanced equations are

(19.1) 2 JE0 r0+JEE rE-JEI rI-JES rS=0
(19.2) 2 JI0 r0+IoptoI+JIE rE-JII rI-JIS rS=0
(19.3) JSE rE-JSV rV=0
(19.4) 2 JV0 r0+JVE rE-JVI rI-JVS rS=0

In particular, Equation (19.3) implies that rE and rV are always proportional (JSE,JSV>0).

Similarly, in Model 2, the balanced equations are

(20.1) 2 JE0 r0+JEE rE-JEI rI-JES rS-JEX rX=0
(20.2) 2 JI0 r0+IoptoI+JIErE-JII rI-JIS rS-JIX rX=0
(20.3) JSE rE-JSI rI=0
(20.4) 2 JX0 r0+JVE rE-JVS rS-JXX rX=0

Equation (20.3) implies that in this network rE and rI are always proportional (JSE, JSI>0).

Appendix 1

Mean field theory

Let us consider a network consisting of n populations (e.g. n = 4) receiving feedforward input, Λextα, from an external population with constant firing rate, r0r0, and an optogenetic input, Λoptoα (Materials and Methods). The total input into neuron (i, α) is

(A1) Itotαit=Irecαit+Λextα+Λoptoα

If the size of the network, N, and mean connectivity, K are large and the synaptic time constants are sufficiently small compared to the membrane time constants, one can take the diffusion approximation and neglect the temporal correlations and write

(A2) Itotαit=uα+Aαζiα+Bαηiαt

where ζiα is an i.i.d. Gaussian with zero mean and unit variance, and ηiαt is a Gaussian white noise with zero mean and unit variance. The mean input, uα, is

(A3) uα=[<Itotαi(t)>]=Λextα+Λoptoα+Kβjαβϵβrβ

where the population average firing rate of population β is rβ=[rjβ] and rjβ is the firing rate of the neuron (j, β). Here <.> denotes temporal average (i.e. over ηiαt) and . is the average over the quenched disorder (ζiα). The latter stems from heterogeneities in the in-degree of the inputs into the neurons.

In Equation (A2), Aα is the variance of the quenched disorder which is given by

(A4) Aα=[<Itotαi(t)>2uα2]=Kβjαβ2qβ

while Bα is the variance of the temporal fluctuations (Van Vreeswijk and Sompolinsky, 2005; Roxin et al., 2011)

(A5) Bα=1τmαlimΔt0[1Δttt+Δt(dtItotαi(t)-<Itotαi(t)>)2]

In Equation (A4), qβ=[(rjβ)2].

Equations (A4-A5) have to be supplemented with the expression of the input-output transfer function which relates the average firing rate, riα, to the statistics of Itotαit,

(A6) riα=Φα(uα+Aα ζiα,Bα)
(A7) rα=Dζ Φα(uα+Aαζ,Bα)
(A8) qα=Dζ Φα(uα+Aαζ,Bα)2

where Dζ= 12πeζ2/2, and Φα is given by Capocelli and Ricciardi (1971)

(A9) Φαx,y=πτmαy Xα+Xα-dwew2erfcw-1

where Xα=xgleakαVRy, Xα+=xgleakαVThy and τα=CMgleakα is the membrane time constant of the neurons in population α.

With jαβ=JαβK, Λextα=2K and Λoptoα=IoptoαK (see Materials and methods), we obtain

(A10) uα=K2Jα0 r0+Ioptoα+βJαβ ϵβ rβ
(A11) Aα=βJαβ2qβ
(A12) Bα=1τmαβJαβ2rβ

For finite, but large K, the average activity of population α is

(A13) rα=Ψαuα,Aα,Bα

where Ψα is the right hand-side of Equation (A7).

In the limit where uα-, it can be shown that

(A14) Ψα[uα,Aα,Bα]-uατmαπBα(2Aα+Bα)3/2e-uα22Aα+Bα

In the large K limit, the activities, ra, have to satisfy a set of n linear balance equations (Equation (12), Materials and methods) and are given by

(A15) rα=-ϵαβJ-1αβ2 Jβ0 r0+Ioptoβ

We define the susceptibility matrix, Xαβ , as the derivative of the activity, ra, with respect to Ioptoβ,

(A16) χαβ=-ϵαJ-1αβ

At baseline Ioptoβ=0, the positivity of rα,α imposes conditions on the recurrent and feedforward interaction strengths, Jαβ and Jα0. The requirement that there are no 'partially' balanced solutions for which one or more of the n populations is inactive or saturates and the stability of the balanced solution imposes further constraints.

Two-population model

Large K limit

For a two-population (one excitatory E and one inhibitory I) network, solving Equation (13) gives for a perturbation, Iopto, upon I,

(A17) rE=2JIIJE0-JEIJI0r0-JEIIoptoΔ
(A18) rI=2JIEJE0-JEEJI0r0-JEEIoptoΔ

where Δ=JEIJIE-JEEJII.

The requirement that at baseline the network state is fully balanced and stable implies that

(A19) JE0JI0>JEIJII>JEEJIE

Therefore, Δ>0.

The susceptibilities with respect to a perturbation of I are

(A20) χEI=-JEIΔ
(A21) χII=-JEEΔ

which both are negative. Therefore, rE and rI decrease linearly with Iopto, that is the response of the I population is paradoxical.

It is useful to consider the susceptibilities normalized to baseline rate

(A22) χ¯EI=-JEI2JIIJE0-JEIJI0r0
(A23) χ¯II=-JEE2JIEJE0-JEEJI0r0

Equation (A19) implies that, χ¯EI is larger than χ¯II.

Moreover, whereas χ¯EI is independent of JEE, χ¯II depends on JEE. When JEE=0, χ¯II is zero: the PV activity is insensitive to Iopto.

The identity of the two normalized susceptibilities can only be achieved with a fine-tuning of the interaction parameters such that Δ0 for

(A24) JEEJEIJIE/JII

Concurrently, as JEEJEIJIE/JII, the activity of the two populations diverge as 1Δ with a constant ratio equal to JIEJII. Thus, to keep the activities finite, 2JIIJE0-JEIJI0r0 and 2JIEJE0-JEEJI0r0 must also tend to zero.

Finally, if Iopto=Iopto*2JE0JII/JEI-JI0r0, rE vanishes (Figure 3—figure supplement 1). When Iopto>Iopto*, the balance between the total external excitatory (optogenetic+feedforward) and recurrent inhibitory inputs into I implies that rI linearly increases with Iopto and the slope is 1/JII.

Finite K corrections to rE and rI near Iopto*

When K is finite, rI starts to increase with Iopto when rE is exponentially small in K. To show that, we have to derive the leading order correction to the activities near Iopto*.

We make the ansatz that when Iopto=Iopto*+δIlogKK, rE=νElogKK and rI=rI+νIlogKK, where νE and νI are O1 and rI=2JE0r0/JEI is the inhibitory firing rate at Iopto=Iopto* in the large K limit.

To leading order:

(A25.1) rI=ΨElogKδI+JIEνE-JIIνI,AI,BI
(A25.2) νElogKK=ΨElogKJEEνE-JEIνI,AE,BI

where Aα and Bα, α{E,I}, are the variance of the temporal and quenched noise in the large K limit (Equations (A11-A12)).

Equation (A25.1) implies that

(A26) δI+JIEνE-JIIνI=O1logK

Together with Equation (A25.2) one obtains

(A27) νElogKK=ΨE-JEIδI+νEΔlogK/JII,AE,BI

where Δ=JEIJIE-JEEJII.

For large K,

(A28) νEK=QJIIJEIδI+νEΔe-JEIδI+νEΔ2logK2AE+BEJII2

where Q=1τmEπBE2AE+BE3/2.

Since νE must be positive, JEIδI+νEΔ must also be positive, Equation (A28) then implies that to leading order

(A29) νE=1ΔJIIAE+BE2-JEIδI

Hence, νI is

(A30) νI=1ΔJIEAE+BE2-JEEδI

Therefore, both νE and νI decrease with δI. This holds for δIJIIJEIAE+BE2. Beyond this range rE is exponentially small, νI=δIJII and rI increases with Iopto.

In conclusion, when the response of the I population is minimum the firing rate of the excitatory population is exponentially small in K.

Four-population model: Model 1

Large K limit

In Model 1, the population susceptibilities in response to a perturbation of the PV population are given by Equation (A16)

(A31) χEI=JSVJEIJVS-JESJVI/Δ
(A32) χII=JSVJEEJVS-JESJVE/Δ
(A33) χSI=JSVJEIJVE-JEEJVI/Δ
(A34) χVI=JSEJSVχEI

where Δ=detJABϵB.

Note, in this model we do not take into account any PV to SOM connections. Nevertheless even If one includes these, the expressions of the PC and PV susceptibility will only differ by a scaling factor from the ones in A31 and A32 (because of Δ) and therefore their sign will depends on the same conditions than A31 and A32.

Interestingly, for stable solutions (Δ>0), then χII>0 implies that JEE JVS>JES JVE. while χEI<0 implies that JES JVI>JEI JVS. Therefore, JEE JVS JVI>JVE JES JVI. and JES JVI JVE>JEI JVS JVE. Combining the latter one has JEE JVS JVI>JEI JVS JVE. Therefore, JEE JVI>JEI JVE which is equivalent to χSI<0.

Similarly one can show that if χEE>0 and χIE<0 necessarily χSE>0.Let us consider a particular set of parameters for which a stable balanced solution exists when JEE=0(Δ(0)>0).

The susceptibility χII as a function of JEE is

(A35) χIIJEE=JSVJVSJEE-JVEJESΔJEE
(A36) Δ(JEE)=χ^EEJEE+Δ(0)

where χ^EEχEE.Δ(JEE)=JSV(JVIJISJIIJVS), is the numerator in the susceptibility χEE.

In our models, we assumed χEE>0. When JEE=0, Δ0 is positive thus, χII(0)<0. As JEE increases, the sign of χIIJEE depends on the order relationship between two quantities. The first one, JEE*, is the value of JEE for which the numerator in Equation (A35) changes sign

(A37) JEE*=JVEJESJVS

The second one, JEEc, is defined by ΔJEEc=0

(A38) JEEc=Δ0χ^EE

Therefore, for JEE>JEEc, the dynamics is unstable. Two cases can be distinguished:

  1. If JEE*<JEEc, then χII is an increasing function of JEE. It is negative if JEE<JEE* and becomes positive for JEE>JEE*.

  2. If JEE*<JEEc, χII is a decreasing function of JEE and is negative in all the region where the dynamics is stable.

The derivative of χII, (Equation (A35)), with respect to JEE, has the same sign as χEIχIE. Therefore, χEIχIE is positive in the first case and negative in the second.

Experimental data shows that the activity of the PC population decreases upon PV photostimulation, i.e., χEI<0. Therefore, if χII>0 as in ALM layer 2/3, χIE must be negative, i.e., the activity of the PV population decreases upon PC photostimulation.

Finite K

When Iopto is sufficiently strong, a fully balanced solution (rα>0,α) no longer exists in our case rE=rV=0 for Iopto>Iopto* where

Iopto*=JE0JISJVI-JIIJVS+JI0JEIJVS-JESJVI+JV0JESJII-JEIJISJESJVI-JEIJVS

To understand the network behavior after this point we need to consider finite K corrections.

Since the PC and VIP population activities decrease with Iopto, when Iopto is sufficiently large and due to the balance of the SOM input, rE and rV will both be at most O1K. Let us write: rEνEK and rVνVK where νE and νV are at most O1.

One should consider four cases:

1) νE and νV are O1

In this case, the average net input into the SOM population, uS=JSEνE-JSVνV, is O1 and the temporal fluctuations, BS, and heterogeneities, AS, are negligible. If uS is larger than the rheobase, Vth-VR/gleakS, rS is also O1. Otherwise, rS=0.

Because νE and νV are O1, uE and uV are o1K. Thus, to leading order,

(A39) 2JE0r0-JEIrI-JESrS=0
(A40) 2JV0r0-JVIrI-JVSrS=0

Moreover, the balance of the PV population implies that

(A41) 2JI0r0+Iopto-JIIrI-JISrS=0

Thus, there are three linear equations (Equations (A39-A41)) for two unknowns rI and rs. These cannot be satisfied and hence, in this case, there is no consistent solution.

2) νE=o1 and νV=O1

Here, to leading order, uS=JSVνV<0, while AS=BS=0. As a result, to leading order, rS=0. The activity of the PV population is then

(A42) rI=2JI0r0+Iopto/JII

Because νV is O1,

(A43) 2JV0r0-JVIrI=0

Equations (A42, A43) cannot both be satisfied. This solution is also inconsistent.

3) νE=O1 and νV=o1

In this case uS=JSEνE>0 and therefore rS can be O1. Equations (A39) and (A41) imply

(A44) 2JE0r0-JEIrI-JESrS=0
(A45) 2JI0r0+Iopto-JIIrI-JISrS=0

which determine rI and rS as rI=JESJI0-JISJE0r0+JESIoptoJESJII-JEIJIS and rS=JIIJE0-JEIJE0r0-JEIIoptoJESJII-JEIJIS.

Provided that the parameters are such that they are positive, νE is given by

(A46) rS=ΨSJSEνE,0,0

Finally, since νV=o1 consistency implies that

(A47) 2JV0r0JVIrIJVSrS<0

This solution is valid for a finite range of Iopto. It exists as long as rs>0 which implies that JE0JIIJEIJI0>Iopto>Iopto*.

4) νE=o1 and νV=o1

Here, uS=AS=BS=0 and thus, rS=0. This solution exists only for sufficiently large Iopto such that uE and uV are OK and negative. Therefore, PV is the only active population and rI is given by Equations (A40).

In conclusion, in this model at the minimum of rI, rE is of order 1K in contrast to the two-population case where rE is exponentially small in K.

Four-population model: Model 2

Large K limit

To get insights on the network architecture that could explain the proportional paradoxical effect observed in layer 5 of ALM and S1, we first considered a three-population network consisting of the PC, PV and SOM populations (Figure 9A).

In this network, the population activities are

(A48) rE=JSI2JESJI0-JISJE0r0+JESIoptoΔ
(A49) rI=JSEJSIrE
(A50) rS=2JIIJSE-JIEJSIJE0-JEIJSE-JEEJSIJI0r0-JEIJSE-JEEJSIIoptoΔ

where Δ=(JIIJSEJIEJSI)JES+(JEEJSIJEIJSE)JIS>0.

The full balance of the network activities implies

(A51) JESJIS>2JE0r02JI0r0+Iopto>JEIJII

The inequality on the left side stems from the positivity of the rates. The inequality on the right side stems from the fact that the balanced state is the only solution of the dynamics, namely that no partially balanced solution (in particular, rE=0, rI=O1 and rS=0 and rE=0, rI=O1 and rS=O1) exists.

rE and rI are proportional Equations (A49) and increase with Iopto. As a consequence, the network never exhibits the paradoxical effect.

In this three-population network, the proportionality of rE and rI stems from the balance of inputs into the SOM population. To account for the proportional paradoxical effect, we consider a network model with an additional inhibitory population, denoted X (Figure 9B). Because in this network the SOM neurons only receive inputs from PCs and PV neurons, here, the balance of the SOM input also ensure the proportionality of rE and rI.

The susceptibilities upon PV stimulation are

(A52) χEI=JSIJESJXX-JEXJXS/Δ
(A53) χII=JSEJSIχEI
(A54) χSI=JEEJSIJXX-JXEJSIJXE-JEIJSEJXX/Δ
(A55) χXI=JESJSIJXE+JEIJSEJXS-JEEJSIJXS/Δ

where Δ=detJABϵB (see Material and methods).

Paradoxicality implies that

(A56) JEX>JEX*JESJXXJXS

The susceptibilities upon PC stimulation are

(A57) χEE=JSIJIXJXS-JISJXX/Δ
(A58) χIE=JSEJSIχEE
(A59) χSE=JIXJSIJXE+JIIJSEJXX-JIEJSIJXX/Δ
(A60) χXE=JIEJSIJXS-JISJSIJXE-JIIJSEJXS/Δ

Therefore, the PC population activity increases upon PC stimulation if

(A61) JIXJXS>JISJXX

One can find a range of parameters (e.g. Figure 9C) such that:

  1. The relative decrease in the SOM population is larger than that in the E and I populations. As a consequence, as Iopto is increased, rS approaches zero when the PC and PV activities are still finite.

  2. As Iopto is increased further, the network settles into a partially balanced state where rE, rI and rX are finite and rI increases with Iopto, while rE continues to decrease.

Thus, rI reaches its minimum value when rE is finite even in the large K limit.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
    Definition experimentale de l’excitabilite
    1. L Lapicque
    (1909)
    Social Biology 77:280–283.
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
    Numerical Recipies: The Art of Super Computing
    1. WR Press
    2. BP Flannery
    3. SA Teulosky
    4. WT Vetterling
    (1986)
    Cambridge University Press.
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
    Irregular Activity in Large Networks of neurons
    1. C Van Vreeswijk
    2. H Sompolinsky
    (2005)
    In: C. C Chow, B Gutkin, D Hansel, C Meunier, J Dalibard, editors. Methods and Models in Neurophysics, 80. Elsevier. pp. 341–406.
    https://doi.org/10.1016/S0924-8099(05)80015-0
  84. 84
  85. 85
  86. 86
  87. 87

Decision letter

  1. David Kleinfeld
    Reviewing Editor; University of California, San Diego, United States
  2. Michael J Frank
    Senior Editor; Brown University, United States
  3. David Golomb
    Reviewer; Ben Gurion University, Israel
  4. Misha Tsodyks
    Reviewer; Weizmann Institute of Science, Israel

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Hansel and colleagues investigate the role of feedback in the stabilization of neuronal activity in cortex. The simplest models for feedback involve two populations of neurons, a single population of inhibitory neurons and a population of excitatory neurons. This class of models is sufficient to explain seeming paradoxical effects within the realm of cortical circuits, such as decreased overall inhibitory cell activity upon excitatory perturbation of inhibitory neurons. However, the authors show that "two population" models fail to offer robust solutions for the responses they observe in new, optogenetic perturbation experiments on neuronal dynamics in mouse sensory and motor cortices. Rather, a more complex model, with feedback among three classes of inhibitory neurons and associated constrained connectivity, along with a population of excitatory neurons, is needed. The "four population" models give rise to a second-order feature, disynaptic inhibition, to achieve stabilization of neuronal activity.

Decision letter after peer review:

Thank you for submitting your article "Mechanisms underlying the response of mouse cortical networks to optogenetic manipulation" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Michael Frank as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: David Golomb (Reviewer #1); Misha Tsodyks (Reviewer #3).

The reviewers have discussed the reviews with one another and the Senior Editor has drafted this decision to help you prepare a revised submission.

Summary:

The "paradoxical effect" is the phenomenon that stimulation of an inhibitory neuronal population decreases the average firing activity of neurons in that population. The conditions for its existence have been under debate, and the mechanistic impacts of various types of inhibitory interneurons has not been elucidated. The manuscript of Mahrach et al. addresses these two important issues, and is a big step forward in understanding cortical dynamics. The authors present new experimental data collected from PC and PV neurons in the anterior lateral motor cortex (ALM; layer 2/3 and layer 5) and the barrel cortex (S1; layer 5) during photostimulation of PV neurons. The data show paradoxical effects in layer 5 (i.e., at a low light intensity, increasing the stimulus decreases PV firing rates proportionally to that of PC cells), while showing non-paradoxical effects in layer 2/3. The results are novel and contradict the widespread notion that the paradoxical effect is an evidence for stabilization by inhibition, and the modeling suggests an architecture consistent with the results.

Essential revisions:

1) The manuscript is based on the analytical calculations, and it is expected that readers will try to replicate them. Therefore, it is important that their description will be as clear and as detailed as possible, which will enhance the readability of the paper.

2) Overall the paper rests on comparing how photostimulation of PV neurons drives population-wide rate activity between experiments and several different models. The paper would be strengthened if the authors used statistical tests to show that layer 2/3 is significantly different than layer 5, as well as showing that the proportional decrease of PV and PC cells is a robust observation. We would like to see some actual statistical comparisons between the data and the models. More to the point, the distribution of firing rates for baseline vs. photostimulation in Figure 2 (experiment) should be compared in some statistical way to those in Figure 6 (Model 1, JEE>JEE*), Figure 8 (Model 1, JEE<JEE*), and Figure 11 (Model 2). The pie charts in Figures 6, 8, 11 are nice but they should have some confidence bounds and then compared to the equivalent pie charts of Figure 2. This will go a long way in helping the narrative of the paper where models are accepted or rejected based on the three datasets shown in Figures 1-2.

3) The data are used to assess, dismiss, and propose possible network architectures. Using analytical results derived from a balanced network framework and simulations, they settle on significantly different architectures for each layer. However, some of the reviewers were not convinced that the more complex networks capture enough of the properties present in the data, and were not persuaded by their argument that Model 1 should be dismissed with regards to layer 5, and wary of the presence of inhibitory population 'X' in Model 2.

The dismissal of Model 1 with regards to layer 5 needs additional details. Currently, the authors dismiss Model 1 since it cannot robustly capture the fact that PC and PV activity decreases proportionally in the paradoxical regime.

a) Attaching some quantitative measures to the phrase "decreasing proportionally" would assist with this argument. Figure 7A and Figure 1B lower right potentially look similar "enough".

b) Further, Figure 7—figure supplement 3 shows that the right parameters yield a great proportional decrease. I believe that this parameter regime is potentially small, but ideally it would be nice to include a figure showing how small (to my knowledge, one like Figure 3—figure supplement 3 doesn't exist for this parameter regime).

4) Relatedly, the authors propose a series of improved network architectures over the traditional E,I-two population model that incorporate known interneuron subclasses (PV, SOM, and VIP). However, with every improvement the more complex models bring, I find additional questions regarding the data that is not captured.

a) For example, Model 1 provides a network that is able to provide a non-paradoxical response such that PV neurons increase in rate at low light stimulations. This is not achievable by the E,I network. However, the heterogeneity of neurons seen as a function of stimulus strength in Model 1 seems different than experimental results (relevant figures for comparison: Figure 1B, Figure 3C, and Figure 5A), and is not discussed in the text. I would've hoped that adding such a large change in the network would've been able to better capture the data.

b) I would also like to directly compare Figure 2 (left column) with Figure 6 (left or right column). The distribution of variability of firing rates seems different between Model 1 and the experimental results. However, the strength of stimulus is different in Figure 2 than in Figure 6 (0.5 for the experiments than 0.3 and 0.9 for the simulations), so I would request that Figure 2 be remade with one of these stimulation strengths. Having a similar pie chart appear in Figure 2 would also be helpful. Lastly, marginal histograms in both figures would assist with comparison.

Also, in regards to Figure 6, the authors comment that "Remarkably, even for 0.9 mW/mm2, some of the PCs show an activity increase." However, this was not observed in experiments.

5) To capture the final missing piece of the data (i.e., the proportional decrease of PC and PV cells), the authors propose an entirely new network architecture with inhibitory interneuron 'X'.

a) In addition to this new type of neuron, the authors must also add a connection from PV to SOM cells (otherwise, rE = 0 in the large network limit). While the authors suggest that 'X' may be chandelier cells, they do not discuss why this added connection from PV to SOM would be present in layer 5 but not layer 2/3.

b) Similar to my above comment, I would expect that such a drastic change in the network would be able to capture additional features of the experimental data, but the heterogeneity present in Figure 10A is drastically different than Figure 1B, right column.

Simulations must be made publicly available.

https://doi.org/10.7554/eLife.49967.sa1

Author response

Essential revisions:

1) The manuscript is based on the analytical calculations, and it is expected that readers will try to replicate them. Therefore, it is important that their description will be as clear and as detailed as possible, which will enhance the readability of the paper.

We have improved the clarity of the analytical calculations.

2) Overall the paper rests on comparing how photostimulation of PV neurons drives population-wide rate activity between experiments and several different models.

The paper would be strengthened if the authors used statistical tests to show that layer 2/3 is significantly different than layer 5, as well as showing that the proportional decrease of PV and PC cells is a robust observation.

We have included a statistical comparison between ALM layer 2/3 and layer 5 and S1 in the revised Figure 1. At moderate light intensity (0.5 mW/mm2), the relative spike rate of PV neurons are significantly different (p<0.005, unpaired t-test, Figure 1E).

As mentioned in the preamble, statistical analysis shows that the ratio of the slopes of the normalized response of the PC and PV populations is 1 ± 0.29 in S1 while in ALM layer 5 it is 0.62 ± 0.28. Therefore, ALM layer 5 can​ be described by Model 1.

We have modified the Discussion in accordance.

We would like to see some actual statistical comparisons between the data and the models. More to the point, the distribution of firing rates for baseline vs. photostimulation in Figure 2 (experiment) should be compared in some statistical way to those in Figure 6 (Model 1, JEE>JEE*), Figure 8 (Model 1, JEE<JEE*), and Figure 11 (Model 2).

The main purpose of our work is to gain an understanding of the network properties that give rise to the response to optical stimulation of the PV neurons. We investigate which network architecture may account in a qualitative manner for the responses observed experimentally. While our network models give rise to substantial heterogeneity, we did not try to match this heterogeneity with experimental data.

First of all, the number of PV neurons we recorded from in our experiment is too small to reliably estimate the heterogeneity in their responses. Secondly, to match this heterogeneity we would have needed quantitative data on the input-output relations of the PC and PV populations. Thirdly, even if this data were available, we would have to use more complicated neuronal models which would have made the mathematical analysis prohibitively complicated, limiting the investigation to simulations only and thus obscuring the mechanisms. Our goal instead was to investigate these mechanisms. As a result, a statistical comparison between model and experimental heterogeneity is not appropriate. We have added these considerations to the revised manuscript in the beginning of the “Limitations” subsection. We write:

“We give here a qualitative account for the mechanisms underlying the responses of different cortical areas to optical stimulation. […] Moreover, it would necessitate the use of more complicated neuronal models making the mathematical analysis intractable, limiting the investigation to simulations only and thus obscuring the mechanisms.”

The pie charts in Figures 6, 8, 11 are nice but they should have some confidence bounds and then compared to the equivalent pie charts of Figure 2.

The pie charts for the modelling are based on a very large number of neurons in the model networks (57600 for PCs and 6400 for PV neurons). As a result, in the analysis of the simulations, the error bars are tiny. We have included equivalent pie charts in the revised Figure 2.

This will go a long way in helping the narrative of the paper where models are accepted or rejected based on the three datasets shown in Figures 1-2.

We showed that a two-population model cannot account for the response in either ALM layer 2/3 and layer 5 as well as in S1. In contrast, we showed that the average response of ALM layer 2/3 and layer 5 can be accounted for by a four-population network with connectivity similar to that reported for V1 (our Model 1). If we fine-tuned the parameters, this model can also account for the proportional decrease in PC and PV neurons average activities observed in S1. For S1 we proposed an alternative network architecture (our Model 2) in which this proportional decrease occurs robustly without any fine-tuning. Nevertheless, we do not reject Model 1 in the manuscript. We have clarified this point in the Discussion. We now write for Model 1:

“In Model 1, whether the network exhibits a paradoxical effect depends on the value of the ratio ρ=JEE/JEE*where JEE*≡JVEJES/JVS. Here, Jαβ,α,β∈{E,S,V}, is the strength of the connection from population β to population α. When ρ > 1, the PV response is non-paradoxical and its activity increase can be substantial well before suppression of the PC activity. On the other hand when ρ < 1, the PV response is paradoxical and the PV activity reaches its minimum for light intensities at which the PCs are still substantially active. […] The interactions JVE,JES and JVS are likely to be layer dependent (Jiang et al., 2015) ​ and therefore so is the value of JEE*”​

For Model 2 we write:

“Similar to ALM layer 5, the PV response in S1 is paradoxical. Remarkably however, in S1 the relative suppression of the PC and PV activities is the same for low light intensity. Model 1 can account for this feature only when the interaction parameters are fine tuned. […] Furthermore,​ it can equally well account for the fact that in S1 the PV activity reaches its minimum when the PC population is active.”

3) The data are used to assess, dismiss, and propose possible network architectures. Using analytical results derived from a balanced network framework and simulations, they settle on significantly different architectures for each layer. However, some of the reviewers were not convinced that the more complex networks capture enough of the properties present in the data, and were not persuaded by their argument that Model 1 should be dismissed with regards to layer 5, and wary of the presence of inhibitory population 'X' in Model 2.

The dismissal of Model 1 with regards to layer 5 needs additional details. Currently, the authors dismiss Model 1 since it cannot robustly capture the fact that PC and PV activity decreases proportionally in the paradoxical regime.

a) Attaching some quantitative measures to the phrase "decreasing proportionally" would assist with this argument. Figure 7A and Figure 1B lower right potentially look similar "enough".

We compared the change in relative spike rate with light intensity of the PC and PV populations. This analysis was restricted to the lower light intensity (<0.3 mW.mm-2​), before the spike rate of PV neurons begin to increase. The PCs and PV neurons show proportional decrease in relative spike rate in S1 but not in ALM layer 5 (see above).

b) Further, Figure 7—figure supplement 3 shows that the right parameters yield a great proportional decrease. I believe that this parameter regime is potentially small, but ideally it would be nice to include a figure showing how small (to my knowledge, one like Figure 3—figure supplement 3 doesn't exist for this parameter regime).

Model 1 can​ account for the proportional decrease in S1 provided that the interaction strengths are fine-tuned. As suggested by the reviewers, we now add heatmaps in Figure 7—figure supplement 4 to show how exquisitely the parameters have to be fine-tuned. We modified the text accordingly and write after Figure 7:

“We show in Figure 7—figure supplement 4 that this proportional decrease only happens in a small region of parameter space when the determinant of the interaction matrix, Jαβϵβ, is close to zero.”

The fraction of the different subpopulations of neurons varies across the layers. We do not try to argue that the subpopulations included in Model 1 and Model 2 are the only subpopulations present in ALM and S1. Rather, we propose minimum models that underlie the response properties of these areas assuming that other subpopulations do not qualitatively affect the responses. We make this clearer in the revised manuscript. We write in the Discussion:

“Interneurons are known to be unevenly distributed throughout the cortex. For instance, SOM neurons have been reported to be most prominent in layer 5 whereas VIP neurons are mostly found in layer 2/3 (Tremblay et al., 2016). Instead of giving a complete description of these layers and all neuronal populations they include, we propose here models with the minimal number of inhibitory populations that can account for the data.”

With regard to Model 2, the inhibitory population X we introduced is not necessarily a specific subpopulation of inhibitory interneurons. Population X could equally describe the effective​ interaction of several populations with PC and PV. This is now explained in the discussion of Model 2:

“The main difference between Model 1 and Model 2 is that in Model 1, the third inhibitory population (VIP) projects to SOM neurons while in Model 2, the third population (X) does not. […] Alternatively, population X could describe the effective​ interaction of several inhibitory populations with PCs and PV neurons.”​

4) Relatedly, the authors propose a series of improved network architectures over the traditional E,I-two population model that incorporate known interneuron subclasses (PV, SOM, and VIP). However, with every improvement the more complex models bring, I find additional questions regarding the data that is not captured.

a) For example, Model 1 provides a network that is able to provide a non-paradoxical response such that PV neurons increase in rate at low light stimulations. This is not achievable by the E,I network. However, the heterogeneity of neurons seen as a function of stimulus strength in Model 1 seems different than experimental results (relevant figures for comparison: Figure 1B, Figure 3C, and Figure 5A), and is not discussed in the text. I would've hoped that adding such a large change in the network would've been able to better capture the data.

We agree that the heterogeneity in the model is different from that in the data. We have now discussed this in the manuscript (see our response to 2 above).

b) I would also like to directly compare Figure 2 (left column) with Figure 6 (left or right column). The distribution of variability of firing rates seems different between Model 1 and the experimental results. However, the strength of stimulus is different in Figure 2 than in Figure 6 (0.5 for the experiments than 0.3 and 0.9 for the simulations), so I would request that Figure 2 be remade with one of these stimulation strengths. Having a similar pie chart appear in Figure 2 would also be helpful. Lastly, marginal histograms in both figures would assist with comparison.

We have added pie charts in Figure 2 and now plot in Figure 6, 8 and 9 the responses to 0.5 mW.mm-2 (and to 1 mW.mm-2).

Also, in regards to Figure 6, the authors comment that "Remarkably, even for 0.9 mW/mm2, some of the PCs show an activity increase." However, this was not observed in experiments.

We agree that Model 1 has more heterogeneity than in the experimental data. See, however, our response to comment 2 above.

5) To capture the final missing piece of the data (i.e., the proportional decrease of PC and PV cells), the authors propose an entirely new network architecture with inhibitory interneuron 'X'.

a) In addition to this new type of neuron, the authors must also add a connection from PV to SOM cells (otherwise, rE = 0 in the large network limit). While the authors suggest that 'X' may be chandelier cells, they do not discuss why this added connection from PV to SOM would be present in layer 5 but not layer 2/3.

In Model 1 we use the architecture described by (Pfeffer et al., 2013) in which there is no PV to SOM connection. Other studies reported such a connection (​Jiang et al., 2015).​ We did not add this connection to keep the analysis as simple as possible. However, adding PV to SOM connection does not qualitatively affect the responses in Model 1. This is now explained in the Results. We write:

“Following (Pfeffer et al., 2013), the PV population does not project to the SOM population. Other studies have reported such a connection (Jiang et al., 2015).​ However, adding such a connection to Model 1 does not qualitatively affect the PC and PV responses (see Appendix 1C).”

b) Similar to my above comment, I would expect that such a drastic change in the network would be able to capture additional features of the experimental data, but the heterogeneity present in Figure 10A is drastically different than Figure 1B, right column.

Model 2 is superior to Model 1 since it accounts for the proportionality of the PC and PV response in S1. We agree however, that there is more heterogeneity in our simulations in Model 2 than in the experiments. See our response to comment 2 above. We now mentioned it in the Results section. We write:

“Single neuron responses are more heterogeneous than in the experimental data. It should be noted however that we did not tune parameters to match the experimental heterogeneity.”

We also changed the corresponding section in the Discussion. We now write:

“We observed an even larger diversity in single neuron responses in our simulations of Model 1 and 2.”

Simulations must be made publicly available.

Software will be uploaded to a GitHub repository.

https://doi.org/10.7554/eLife.49967.sa2
