Peptidoglycan-dependent NF-κB activation in a small subset of brain octopaminergic neurons controls female oviposition

  1. Ambra Masuzzo
  2. Gérard Manière
  3. Annelise Viallat-Lieutaud
  4. Émilie Avazeri
  5. Olivier Zugasti
  6. Yaël Grosjean
  7. C Léopold Kurz  Is a corresponding author
  8. Julien Royet  Is a corresponding author
  1. Aix-Marseille Université, CNRS, IBDM, France
  2. Centre des Sciences du Goût et de l'Alimentation, AgroSup Dijon, CNRS, INRA, Université Bourgogne Franche-Comté, France
Research Advance
  • Cited 2
  • Views 788
  • Annotations
Cite this article as: eLife 2019;8:e50559 doi: 10.7554/eLife.50559

Abstract

When facing microbes, animals engage in behaviors that lower the impact of the infection. We previously demonstrated that internal sensing of bacterial peptidoglycan reduces Drosophila female oviposition via NF-κB pathway activation in some neurons (Kurz et al., 2017). Although we showed that the neuromodulator octopamine is implicated, the identity of the involved neurons, as well as the physiological mechanism blocking egg-laying, remained unknown. In this study, we identified few ventral nerve cord and brain octopaminergic neurons expressing an NF-κB pathway component. We functionally demonstrated that NF-κB pathway activation in the brain, but not in the ventral nerve cord octopaminergic neurons, triggers an egg-laying drop in response to infection. Furthermore, we demonstrated via calcium imaging that the activity of these neurons can be directly modulated by peptidoglycan and that these cells do not control other octopamine-dependent behaviors such as female receptivity. This study shows that by sensing peptidoglycan and hence activating NF-κB cascade, a couple of brain neurons modulate a specific octopamine-dependent behavior to adapt female physiology status to their infectious state.

https://doi.org/10.7554/eLife.50559.001

Introduction

Since eukaryotes live in an environment heavily contaminated by microorganisms, they have forged, over time, extremely complex relationships. Some of these interactions are affecting tissues and organs other than those whose function is to directly eliminate invading microorganisms. Along these lines, growing evidence indicates that bidirectional communication between the gut microbiota and the Central Nervous System (CNS) impacts host behaviors including anxiety, cognition, nociception and social interactions (Cryan and O'Mahony, 2011; Sharon et al., 2016). Moreover, by modifying its behavior, an infected host can lower some of its physiological activities to concentrate its energy on pathogen elimination (Adamo, 1999; Adamo, 2014). On the other hand, manipulating host behavior is a way for microbes to reduce the defenses of their hosts (Elya et al., 2018; Keesey et al., 2017). The notion that hosts can react to microbes by changing their behaviors is called behavioral immunity and refers to a suite of mechanisms that allows organisms to detect the potential presence of disease-causing invaders and to engage in comportments that reduce the consequences of the infection at the level of the organism, the group and/or its offspring (de Roode and Lefèvre, 2012; Müller and Pawelec, 2014). Although reported for a long time in invertebrates and mammals, only recent studies, mainly in D. melanogaster and C. elegans, have started to unravel the molecular aspects of these peculiar host-microbe interactions and especially to directly link behavioral changes and immune activation (Cao et al., 2017; Kacsoh et al., 2015a; Kacsoh et al., 2015b; Kacsoh et al., 2013; Lee and Mylonakis, 2017; Toda et al., 2019; Yanagawa et al., 2014; Zhai et al., 2018). In a previous work, we have shown that some components of the NF-κB signaling cascade, which represents a major immune module in both invertebrates and vertebrates, are expressed outside classical immune organs and more precisely in some cells of the brain and the Ventral Nerve Cord (VNC) (Kurz et al., 2017). By performing functional studies, we demonstrated that the detection of a universal bacterial metabolite, called peptidoglycan (PGN), by neurons reduces female oviposition. Moreover, we demonstrated that octopamine (OA)-producing neurons which regulate many behaviors in flies, including oviposition, are also implicated in tuning egg-laying rate in response to bacteria (Kurz et al., 2017).

In the present study, we used genetic intersectional strategy to precisely map the neurons that, upon peptidoglycan sensing, trigger a reduction of female oviposition. Our results demonstrated that, out of around 20 neurons distributed in the brain and the VNC and expressing the immune modulator PGRP-LB (PeptidoGlycan-Recognition-Protein-LB), only a few are octopaminergic. We further demonstrated that peptidoglycan sensing and NF-κB activation in the VM III octopaminergic neuronal sub-cluster present in the brain is sufficient to modulate egg-laying, in infected females. Using calcium imaging, we showed that stimulation of brains by purified peptidoglycan blocks VM III octopaminergic neurons activity. Finally, our data are consistent with a model in which this peptidoglycan-dependent inhibition of brain neuronal activity impairs a specific ovulation event, called follicle trimming, hence functionally linking peptidoglycan detection to the reduction of egg production in infected females.

Results

The neuronal subpopulation of pLB1+ cells regulates egg-laying

pLB1-Gal4 is a reporter fly line that potentially recapitulates the in vivo expression pattern of one isoform of the immune regulator PGRP-LB (Kurz et al., 2017). By digesting bacteria-derived peptidoglycan inside the cells, this enzyme reduces the impact of peptidoglycan-dependent NF-κB signaling in cells that express it, thus acting as a negative regulator of the signaling cascade (Charroux et al., 2018). We have previously shown that cells expressing Gal4 in the pLB1 pattern (called pLB1+ cells) regulate egg-laying behavior in response to bacterial infection. The fact that the pLB1 expression pattern in the adult CNS delineates a network (Figure 1A–B) and that ectopic expression of proteins able to modify neuronal activity (such as Tetanus Toxin (TTx), Kir2.1 or Transient Receptor Potential cation channel, subfamily A, member 1 (TRPA1)) in these cells was sufficient to impact female egg-laying, suggested that at least some of the pLB1+ cells are neurons able to modulate oviposition (Kurz et al., 2017). However, since the pLB1-Gal4 line is also expressed in non-neuronal cells such as enterocytes or pericardiac cells (Charroux et al., 2018), we decided to confirm the neuronal identity of CNS-resident pLB1+ cells using imaging and functional assays. For that purpose, we used the flip-out method that allowed us to observe cells simultaneously positive for pLB1 and the pan-neuronal marker synaptobrevin (nSyb; nSyb>FLP/pLB1>stop>mGFP)(del Valle Rodríguez et al., 2011). This strategy confirmed the presence of a pLB1+ neuronal circuit in the brain and the VNC (Figure 1C–D) and outlined the position of the cell bodies. Considering data from the pLB1-Gal4 expression pattern as well as the intersectional strategy from multiple animals, we generated a map (Figure 1E) and a table (Table 1) with neuronal fibers and cell bodies of pLB1+ neurons. We detected pLB1+ neuronal projections in the SEZ of the brain (Figure 1A). In addition, the intersectional strategy using nSyb-LexA revealed, in the majority of the brains (12/20), a single pLB1+ neuron in the posterior part of the SEZ (Figure 1C) and few pLB1+ neurons in the same brain area in a minority of samples (5/20) (Table 1). In the VNC, the expression pattern was highly stereotyped with neuronal fibers present in all the segments, from the anterior thoracic segment (T1) to the Abdominal Ganglia (AbdG) (Figure 1B and E). From the analyses of all the samples (13/13), a network composed of 12 neurons and two isolated cell bodies localized in the posterior thoracic segment (T3) and the AbdG could be defined (Table 1, Figure 1D–E).

pLB1 is expressed in neurons modulating egg-laying via octopamine.

(A, B); Immunodetection of cells expressing pLB1-Gal4/UAS-Tomato-mCD8 (pLB1>mTomato) in females. For the homogeneity of the different images, the red signal corresponding to Tomato-mCD8 was converted in green. In the brain (A), pLB1 is expressed in the Sub Esophageal Zone (SEZ) (arrowhead). In the ventral nerve cord (VNC) (B), the network links the brain to T1, T2, T3 and the Abdominal Ganglia (AbdG).(C, D); Pattern of cells co-expressing the neuronal markers nSyb and the pLB1 driver (nSyb>FLP/pLB1>stop>mGFP). The GFP can only be expressed if the stop sequence inserted upstream of the gfp gene is flipped-out in pLB1+/nSyb+ cells. In the brain (C), neuronal projections are found in the SEZ (arrowhead) as well as a cell body (arrow). The inserted box is a magnification of the SEZ. In the VNC (D), 8 to 14 cell bodies are revealed in T3 and AbdG.(E); Map representing projections and cell bodies of neurons expressing pLB1 in brain and VNC. (F); Preventing the expression of the transient receptor potential cation channel, subfamily A, member 1 (TRPA1) in pLB1+ neurons impairs the egg-laying increase in non-infected mated females. The egg-laying ratio for 24 hours (24 h) corresponds to the number of eggs laid by a female at the restrictive temperature (29°C) over the average number of eggs laid by females of the same genotype at the permissive temperature (23°C). (G); RNAi-mediated inactivation of the octopamine-producing enzyme TβH in pLB1+ cells reduces egg-laying. For (A–D), immuno-staining against the neuropil marker nc82 was used to stain the organ. For (F), shown is the average egg-laying ratio per 24 hours ± SEM (29°C/23°C) from at least two independent trials with at least 16 females per genotype and condition used. An egg-laying ratio of 1 indicates an absence of difference between the test and the control. For (G), shown is the average number of eggs laid per fly per 24 hours ± SEM from at least three independent trials with at least 58 females per genotype and condition used. * indicates p<0.05, *** indicates p<0.0001; non-parametric ANOVA, Dunn’s multiple comparison test. Details including n values and genotypes can be found in the detailed lines, conditions and, statistics for the figure section.

https://doi.org/10.7554/eLife.50559.002
Table 1
Number and position of GFP-positive cells in the CNS of nSyb>FLP/pLB1>stop>mGFP flies.

The cells positive for GFP are counted.

https://doi.org/10.7554/eLife.50559.071
OrganpLB1+ neuronsN events/total flies
Brain0
1 in the SEZ
2-5 in the SEZ
6-10 in the SEZ
3/20
12/20
3/20
2/20
VNC8-14 in T3 and AbdG13/13

Some pLB1+/octopaminergic neurons control egg-laying in response to infection

We have previously shown that the over-expression of TRPA1 (an ion channel increasing the excitability of neurons) in pLB1+ cells, enhances oviposition rate (Kurz et al., 2017). In order to demonstrate that the identified pLB1+ neurons functionally regulate egg-laying, we tested whether TRPA1 over-expression effect on egg-laying could be suppressed by the expression of the pan-neuronal Gal4 inhibitor, Elav-Gal80 (Figure 1F). Whereas TRPA1 expression in pLB1+ cells doubled the number of eggs produced by non-infected females compared to controls when shifted from 23°C to 29°C (from 40 eggs per day to 80 on average, 29°C/23°C ratio of 1.84), this effect was completely suppressed by co-expressing the Elav-Gal80 transgene. These data demonstrated that pLB1+ cells activation modulates egg-laying and that among the pLB1+ cells, a neuronal subgroup is responsible for this control. Our published results demonstrated that peptidoglycan-dependent NF-κB activation in octopaminergic neurons inhibits female egg-laying upon bacterial infection and that over-expressing the OA-producing enzyme Tyramine-β-hydroxylase (TβH) in pLB1+ cells counteracts this phenotype (Kurz et al., 2017). However, whether the peptidoglycan effect on egg-laying was mediated cell-autonomously via the modulation of OA signaling in pLB1+ cells remained an open question. The fact that some pLB1+ cells were neurons, led us to hypothesize that these neurons could be octopaminergic and thus able to modulate egg-laying via this neurotransmitter. To test this hypothesis, we analyzed the effects of reducing OA production in pLB1+ cells on egg-laying (Figure 1G). OA is synthesized from tyrosine by the sequential actions of Tyrosine decarboxylase (Tdc2) and TβH. Flies in which TβH RNAi was overexpressed in pLB1+ cells (UAS-TβH-IR), and hence OA production reduced, laid significantly fewer eggs than control flies. This result demonstrated that some pLB1+ neurons are indeed octopaminergic and that OA itself is implicated in the ability of these neurons to control egg-laying. Consistently, data from brain single-cell transcriptomics showed that some, but not all, brain Tdc2+ neurons also express mRNAs coding for NF-κB pathway components (Davie et al., 2018).

pLB1+/Tdc2+ neurons are present in the brain VM III sub-cluster and the VNC

To precisely map pLB1+ octopaminergic neurons, we stained brains and VNCs of nSyb>FLP/pLB1>stop>mGFP adult flies with an antibody against Tdc2 (Figure 2A–B’). This strategy identified very few pLB1+/Tdc2+ neurons in the brain SEZ (Figure 2A–A” and Table 2A). Complementary intersectional experiments between pLB1-Gal4 and Tdc2-LexA drivers, together with immunostaining against Tdc2, confirmed the existence in the majority of the stained brains (15/19) of either one or two pLB1+/Tdc2+ neurons in the posterior part of the SEZ (Figure 2 and Figure 2—figure supplement 1 and Table 2B). Using the same strategy as for the brain, we identified in 12 out of 32 flies tested, between one to three pLB1+/Tdc2+ neurons in the posterior region of the VNCs (Figure 2B–B’ and Table 2A and Figure 2—figure supplement 1). In the absence of identified markers for the different octopaminergic clusters, it was difficult to unambiguously map these neurons. However, the position of the pLB1+ neurons along the dorso-ventral axis relative to Tdc2+ cells indicated that pLB1+/Tdc2+ neurons were part of the ventral midline (VM) cluster (Figure 2—figure supplement 2) (Busch et al., 2009). The latter can be further subdivided into three sub-clusters, based on their position along the antero-posterior axis (VM I, VM II, VM III respectively) (Busch et al., 2009; Schneider et al., 2012). The single pLB1+/Tdc2+ neuron observed in most of the cases always belonged to the VM III sub-cluster (Figure 2 and Figure 2—figure supplement 3 and Table 2A, B). These data demonstrated that few brain octopaminergic neurons are pLB1+ and that this sub-population specifically belongs to the VM cluster with an emphasis for a single neuron in the VM III sub-cluster. Since Tdc2 is a marker for both tyraminergic and octopaminergic neurons, it is important to highlight that all Tdc2+ VM neurons have been shown to produce octopamine (Schneider et al., 2012). Although 8–14 pLB1+ neurons are reproducibly detected in the VNC, very few are octopaminergic (Table 2A). Interestingly, the pLB1+/Tdc2- cells of the T3 segment of the VNC seemed to be 12 interconnected neurons. In an attempt to characterize these non-octopaminergic pLB1+ neurons, we used specific Abs for neuropeptides expressed in a similar location in the VNC. These experiments demonstrated that pLB1+ VNC cells are neither Allatostatin A (Chen et al., 2016), Bursicon (Peabody et al., 2008), CCAP (Crustacean cardioactive peptide) (Luan et al., 2006), nor Leucokinin (de Haro et al., 2010) producing neurons (Figure 2—figure supplements 47).

Figure 2 with 7 supplements see all
Some of the pLB1+ neurons are octopaminergic.

(A–B’); Immuno-detection in the brain Sub Esophageal Zone (SEZ; A–A’’) and ventral nerve cord (VNC; B–B’) of neurons expressing pLB1 (nSyb>FLP/pLB1>stop>mGFP) (A,B and B’) and producing the Tdc2 enzyme (A’, B and B’). In (A’’), the nuclear neuronal marker Elav was also immuno-detected. For (A), the inserted scheme represents the brain and the empty black square delineates the observed area. For (A-A’’), the inserted box is a magnification of the outlined box and the dashed line represents the ventral limit of the brain. For (B-B’), staining against nc82 was used to delineate the shape of the VNC. For (B–B’), the merged channels of the outlined box are separated on the images on the right. Arrows point to pLB1+/Tdc2+ cells in the VNC. Details including genotypes can be found in the detailed lines, conditions and, statistics for the figure section.

https://doi.org/10.7554/eLife.50559.005
Table 2
Number and position of pLB1+/Tdc2+ neurons.

(A); pLB1-Gal4, UAS>stop>GFPmCD8; LexAop-FLP/nSyb-LexA brains and ventral nerve cords (VNCs) stained with an anti-Tdc2 Ab. The cells positive for GFP and stained with the anti-Tdc2 Ab (pLB1+/Tdc2+) are counted (left). The cells positive for GFP and negative for the Tdc2 Ab (pLB1+/Tdc2-) are counted. (B); pLB1-Gal4, UAS>stop>GFPmCD8; LexAop-FLP/Tdc2-LexA brains and VNCs stained with an anti-Tdc2 Ab. The GFP+ cells (pLB1+/Tdc2+) also positive for Tdc2 Ab are counted (left). NR = non relevant. This intersectional strategy only reveals pLB1+/Tdc2+ cells.

https://doi.org/10.7554/eLife.50559.072
(A) OrganpLB1+/Tdc2+ neuronspLB1+/Tdc2- neuronsN events/total flies
(Strategy 1, see legend for details)
Brain0
1 in the VMV III cluster
1 in the VMV III cluster
2-5 in the VMV III cluster
0
0
2-4 in the SEZ
0
1/18
6/18
3/18
8/18
VNC0
1 in the AbdG and 2 in T3
8-14 in T3 and AbdG
8-14 in T3 and AbdG
11/14
3/14
(B) OrganpLB1+/Tdc2+ neuronspLB1+/Tdc2- neuronsN events/total flies
(Strategy 2, see legend for details)
Brain0
1 in the VMV III cluster
2 in the VMV III cluster
NR
NR
NR
4/19
13/19
2/19
VNC0
1 in the AbdG
2 in the AbdG
NR
NR
NR
9/18
7/18
2/18

pLB1+ neurons selectively control octopaminergic-dependent behaviors

It has been shown that a small subset of Tdc2 and Doublesex (Dsx) positive neurons (Tdc2+/Dsx+) present in the AbdG modulate OA-dependent behaviors, such as female receptivity, male rejection and egg deposition (Rezával et al., 2014). Since pLB1+ neurons also regulated egg deposition in mated females via OA (Figure 1G), as well as in virgins (Kurz et al., 2017), we tested whether these cells were involved in controlling other OA-dependent behaviors. As previously reported, we confirmed that virgin females in which Tdc2 neurons are inactivated (via the overexpression of Kir2.1, a potassium channel that hyperpolarizes neurons), presented an increased receptivity. Indeed, Tdc2-Gal4/UAS-Kir2.1 virgin presented a higher percentage of copulation and a lower latency than controls (Rezával et al., 2014) (Figure 3A–B). Furthermore, although not statistically significant, we observed a trend which suggested that the remating index of Tdc2-Gal4/UAS-Kir2.1 mated females was higher than in control flies (Figure 3—figure supplement 1), confirming previously published data (Rezával et al., 2014). Conversely, when we analyzed pLB1-Gal4/UAS-Kir.2.1 females, none of these OA-dependent behaviors were affected (Figure 3A–B, Figure 3—figure supplement 1). These results suggested that pLB1+/Tdc2+ neurons are different from the ones regulating receptivity and post-mating behaviors in physiological conditions. Consistently, pLB1+/Tdc2+ neurons were also detected in males, whereas Tdc2+/Dsx+ ones are sexually dimorphic and absent in adult males (Figure 3C–D’ and Figure 3—figure supplements 2 and 3) (Rezával et al., 2014). Besides intersectional strategy experiments using Dsx-FLP and Dsx-LexA drivers demonstrated that pLB1+ neurons in the brain and the VNC were Dsx - (Figure 3E–F’ and Figure 3—figure supplement 4). Altogether, these results demonstrated that the pLB1+/Tdc2+ neurons are different from the Tdc2+/Dsx+ neurons that control female receptivity and post-mating behavior, including egg deposition, in uninfected flies.

Figure 3 with 4 supplements see all

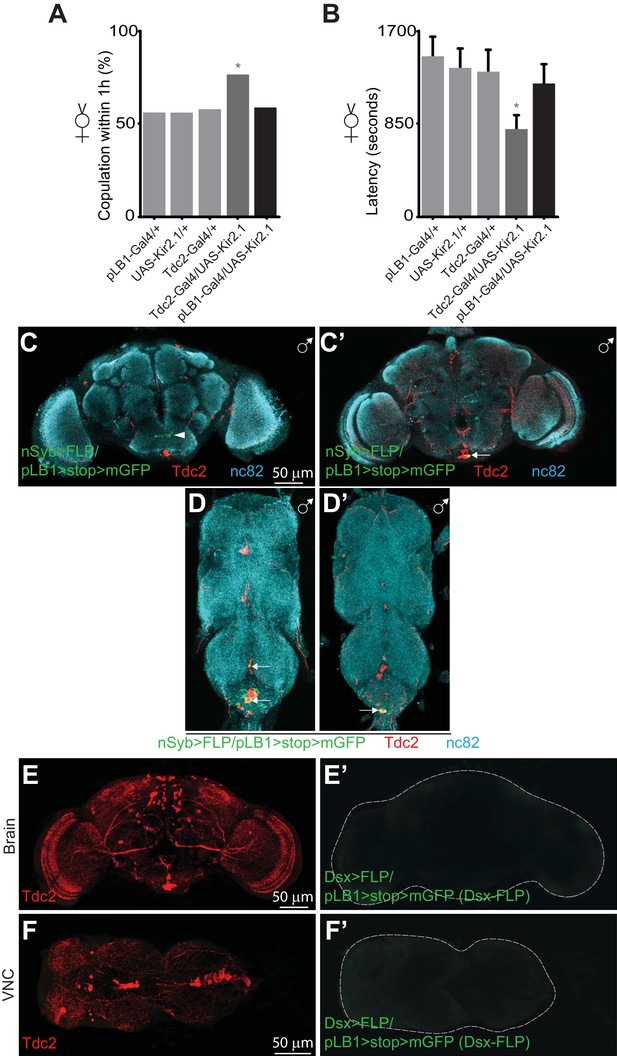

pLB1+ neurons are different from Tdc2+/Dsx+ neurons controlling receptivity.

Impairing the activity of pLB1+ neurons via UAS-Kir2.1 neither reduces virgin copulation percentage (A) nor mating latency (B). (C-D’); In adult males, immuno-detection in the CNS of neurons expressing pLB1 and producing the Tdc2 enzyme. (C and C’) are the brain anterior and posterior views, respectively. (D and D’) are the ventral nerve cord (VNC) ventral and dorsal views, respectively. In adult females, immuno-detection in the brain (E-E’) and VNC (F-F’) of Dsx+/pLB1+ cells and producing the Tdc2 enzyme; no signal for Dsx+/pLB1+ cells is detectable. For (A), shown is the copulation percentage for virgins within 1 hour (1h) from six independent trials with a total of 70–80 females per genotype and condition used. All the tested flies were pooled for the calculation and error bars are not appropriate for this kind of representation. For (B), shown is the average latency time before mating for virgins from four independent trials with a total of 24 to 40 females per genotype and condition used. For (C-D’), staining against nc82 was used to delineate the shape of the brain and VNC. Arrows indicate the position of pLB1+ cell bodies. Arrowheads indicate projections. * indicates p<0.05; Fisher exact t-test (A) and non-parametric t-test, Mann-Whitney test (B). Details including n values and genotypes can be found in the detailed lines, conditions and, statistics for the figure section.

https://doi.org/10.7554/eLife.50559.013

NF-κB activation in pLB1+/Tdc2+ neurons reduces egg-laying rate of infected females

The above results led us to functionally test whether pLB1+/Tdc2+ neurons were i) able to control oviposition rate and ii) the ones that modulated egg-laying rate upon peptidoglycan sensing via the NF-κB pathway. For that purpose, we tested the consequences of functionally inactivating pLB1+/Tdc2+ neurons using an intersectional strategy that combined Gal4/UAS, LexA/Lex-Aop and a flipable Gal80 inhibitor (del Valle Rodríguez et al., 2011). As previously shown, the ectopic expression of the neuronal inhibitor TTx in pLB1+ cells strongly reduced female egg-laying (Figure 4A) (Kurz et al., 2017). While this effect was suppressed by the ubiquitous expression of the Gal80 inhibitor (Tub-Gal80), it was reestablished when Gal80 expression was specifically suppressed in Tdc2+ cells (Figure 4A). This result showed that TTx expression in pLB1+/Tdc2+ cells is sufficient to decrease egg-laying. Conversely, ectopic activation of the thermosensitive TRPA1 protein in pLB1+/Tdc2+ neurons was sufficient to trigger an increase of egg-laying compared to controls (Figure 4B). Next, using an RNAi transgene (UAS-Fadd-IR) targeting a cytosolic component of the NF-κB called Fadd (Fas-associated death domain protein), we assayed whether downregulation of NF-κB signaling specifically in pLB1+/Tdc2+ neurons was sufficient to abolish the egg-laying drop observed in females injected with peptidoglycan (Figure 4C) (Leulier et al., 2002; Naitza et al., 2002). While control lines presented an egg-laying drop post peptidoglycan injection, this was no longer the case for females expressing the Fadd-IR transgene in pLB1+/Tdc2+ cells. This result showed that peptidoglycan-mediated activation of the NF-κB pathway in pLB1+/Tdc2+ neurons is the triggering event that reduces egg-laying upon bacterial peptidoglycan exposure.

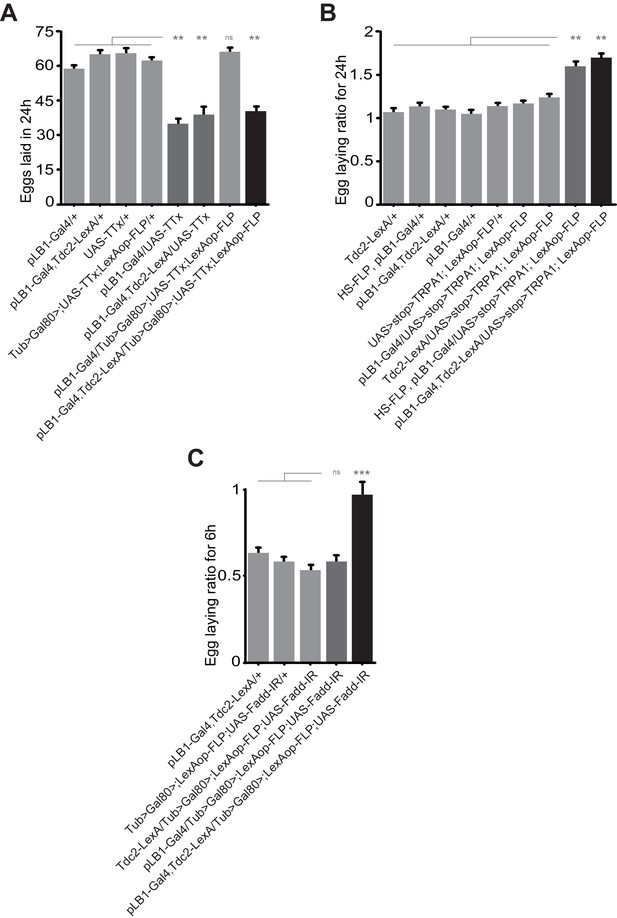

Egg-laying drop post peptidoglycan exposure is mediated by pLB1+/Tdc2+ neurons via the NF-κB pathway.

(A); Impairing the activity of octopaminergic pLB1+ neurons reduces egg-laying. The ubiquitously expressed Tub-Gal80 that inhibits the activity of Gal4 can be flipped-out in cells expressing the LexA. Thus, only in cells co-expressing the Gal4 and the LexA the UAS-TTx will be expressed. (B); Increasing the activity of pLB1+ neurons augments egg-laying. The ubiquitously expressed Tub-Gal80 can be flipped-out only in cells expressing the heat shock (HS) flippase or the LexA. Thus, only in cells co-expressing the Gal4 and the LexA the UAS-TRPA1 will be expressed. (C); Octopaminergic pLB1+ neurons control the egg-laying drop post-peptidoglycan injection via Fadd. Only cells co-expressing the Gal4 and LexA express the Fadd RNAi (UAS-Fadd-IR) transgene. For (A), shown are the average numbers of eggs laid per fly per 24 hours ± SEM from at least two independent trials with at least 20 females per genotype and condition used. For (B), shown are the average egg-laying ratios per fly per 24 hours ± SEM from three independent trials with at least 35 females per genotype and condition used. For (C), shown are the average egg-laying ratios per fly per 6 hours ± SEM from at least two independent trials with at least 20 females per genotype and condition used. * indicates p<0.05; ** indicates p<0.001; *** indicates p<0.0001; n.s. indicates p>0.05, non-parametric ANOVA, Dunn’s multiple comparison test. Details including n values and genotypes can be found in the detailed lines, conditions and, statistics for the figure section.

https://doi.org/10.7554/eLife.50559.018

Neurons that adapt female egg-laying behavior to infectious status are located in the brain

Next, to delineate which of the pLB1+ neurons located in the brain or the VNC were responsible for the egg-laying modulation in response to bacterial peptidoglycan, we used different strategies. First, we took advantage of the OTD-FLP transgene shown to be expressed in brain but not in VNC neurons (Asahina et al., 2014). We first tested whether this transgene was indeed expressed in brain pLB1+ cells. The presence of GFP+/Tdc2+ cells in brains of pLB1-Gal4/UAS>stop>GFP, OTD-FLP adult flies (OTD>FLP/pLB1>stop>mGFP), demonstrated that OTD is expressed in pLB1+/Tdc2+ neurons (Figure 5—figure supplement 1). Importantly, animals did not show any staining in the VNC, confirming the specificity of the OTD-FLP driver for the brain neurons (Figure 5—figure supplement 1). Once validated, this tool was used to test the effect of inactivating only brain pLB1+ neurons via the potassium channel Kir2.1. While control females laid an average of 60 eggs per day, ubiquitous inactivation of pLB1+ neurons via HS-FLP or targeted inactivation of brain pLB1+ neurons via the OTD-FLP, both resulted in a strong decrease of egg-laying rate with an average of 42 eggs per day (Figure 5A). These result was confirmed via a complementary approach using the Tsh-Gal80 abdominal driver inhibitor that blocks Gal4 activation in the thorax, including the VNC while sparing the brain Gal4 expressing cells. The efficiency of the Tsh-Gal80 transgene expression over pLB1-Gal4 was controlled and confirmed via microscopy (Figure 5—figure supplement 1). The egg-laying reduction seen upon Gal4-mediated Kir2.1 expression in pLB1+ cells was unaffected by Tsh-mediated expression of Gal80 (Figure 5B). Similar conclusions were drawn when UAS-Fadd-IR was used to modulate NF-κB pathway activity in vivo. Indeed, the suppression of egg-laying drop 6 hours post peptidoglycan injection mediated by the knockdown of the NF-κB cascade in Tdc2+ and pLB1+ cells was not observed when only thoracic neurons were targeted (Figure 5C) and persisted when Tsh-Gal80 was concomitantly expressed (Figure 5D). Taken together, these data supported a model in which the brain, and not the VNC pLB1+/Tdc2+ neurons, modulate egg-laying upon peptidoglycan-dependent NF-κB pathway triggering.

Figure 5 with 1 supplement see all

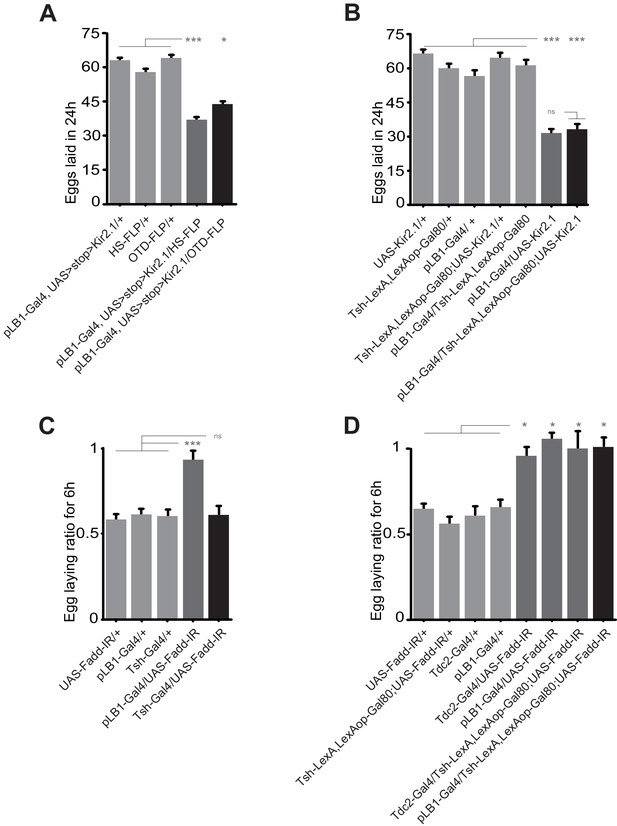

Egg-laying drop post peptidoglycan exposure is mediated by the brain, but not the VNC pLB1+ neurons.

(A); Impairing the activity of pLB1+ cells of the brain reduces egg-laying. Only in cells co-expressing the FLP and the Gal4 will the UAS>stop>Kir2.1 be effective. Heat shock (HS) is ubiquitous while OTD is brain-restricted. (B); pLB1+ cells of the VNC are dispensable for the modulation of the egg-lay. The expression of LexAop-Gal80 antagonizes the activity of Gal4, thus preventing the effects of UAS-Kir2.1. Tsh-LexA drives the expression of Gal80 in the fly thorax, including the VNC. (C); RNAi-mediated Fadd (Fadd-IR) inactivation in the Tsh-Gal4+ cells does not prevent egg-lay drop post peptidoglycan injection. (D); RNAi-mediated Fadd inactivation in pLB1+ cells of the brain, but not of the VNC prevents egg-lay drop post peptidoglycan injection. The expression of LexAop-Gal80 antagonizes the activity of Gal4, thus preventing the effects of UAS-Fadd-IR, only in cells co-expressing the Gal4 and the LexA. For (A and B), shown are the average numbers of eggs laid per fly per 24 hours ± SEM from at least two independent trials with at least 20 females per genotype and condition used. For (C and D), shown are the average egg-laying ratios per fly per 6 hours ± SEM from at least two independent trials with at least 20 females per genotype and condition used. * indicates p<0.05; ** indicates p<0.001; *** indicates p<0.0001; n.s. indicates p>0.05, non-parametric ANOVA, Dunn’s multiple comparison test. Details including n values and genotypes can be found in the detailed lines, conditions and, statistics for the figure section.

https://doi.org/10.7554/eLife.50559.022

Some neurons that adapt female egg-laying behavior to infectious status are connected to VNC and express endogenous PGRP-LB protein

One important issue relates to the neuronal projections of the brain pLB1+/Tdc2+ cells. Unfortunately, the weak expression of the pLB1-Gal4 driver, prevented us to identify them. To overcome this problem, we generated a pLB1-LexA driver using the same DNA fragment as for the pLB1-Gal4 line. This tool allowed us to perform intersectional strategies to unlock, via the flippase/FRT system, the strong Tdc2-Gal4 driver in pLB1+ cells. In brains of pLB1-LexA/Tdc2-Gal4, UAS>stop>mCD8-GFP; LexAop-FLP (pLB1>FLP/Tdc2>stop>mGFP) flies, we detected five neuronal cell bodies (Figure 6A) and their neuronal projections (Figure 6B–D). In addition to the neurons already detected with the pLB1-Gal4 driver in the VM cluster, two AL2 octopaminergic neurons were detected (Figure 6A, left panel). The position of the identified pLB1+/Tdc2+ neuron within the VM I cluster, its symmetrical (unpaired) nature as well as the shape of its ascending projections make it likely to belong to the OA-VUMa4 class of neurons (Busch et al., 2009) (Figure 6B). The projection pattern of the two AL2 asymmetrical neurons in the ocular lobes identified them as OA-AL2i1 (Figure 6C) (Busch et al., 2009). The highly intricate and overlapping pattern of the pLB1+/Tdc2+ VM II neuron projections impaired its precise identification (data not shown). However, this neuron of the VM cluster has unpaired ascending projections, and thus belongs to the VUM class. With regard to pLB1+/Tdc2+ VM III neuron, it sends symmetrical projections descending towards the VNC which look very much like the ones of the described VUMd2 class of neurons, a class exclusively located in the VM III sub-cluster (Figure 6D) (Busch et al., 2009). Combined with our previous results demonstrating that the brain pLB1+/Tdc2+ neurons can modulate egg-lay following peptidoglycan exposure, we propose that peptidoglycan may interfere with the activity of the VUMd2 neuron that sends projections in the VNC (Busch et al., 2009).

Brain pLB1+/Tdc2+ neurons project to the esophagus as well as to the VNC.

(A–D); Immuno-detection in the brain of cells co-expressing the Tdc2-Gal4 and the pLB1-LexA drivers (pLB1>FLP/Tdc2>stop>mGFP). The GFP can only be expressed under the control of Tdc2 if the stop sequence inserted upstream of the gfp gene is flipped-out in pLB1+/Tdc2+ cells. (A); Five cellular bodies (green arrows) are detected in anterior, antero-posterior and posterior parts of the brain. (B–D); Specific stacks of the brain showing the projection patterns (in black) of the neurons present in VM I (B), AL2 (C) and VM III (D). In (D), the area delimited by the green box in the left panel is magnified on the right panel to show the descending projections (red arrows). Staining against nc82 was used to delineate the shape of the brain. Details including genotypes can be found in the detailed lines, conditions and, statistics for the figure section.

https://doi.org/10.7554/eLife.50559.028

Since all functional data relied on the pLB1-Gal4 construct and although previous rescue experiments suggested that this driver at least partially mimics PGRP-LB endogenous pattern (Kurz et al., 2017), we generated a PGRP-LB::GFP line in which all endogenous PGRP-LB isoforms were tagged with GFP at the endogenous locus. Brains of PGRP-LB::GFP flies showed intracellular localization of PGRP-LB protein (probably the cytosolic isoforms) in neurons of the octopaminergic VM and AL2 clusters (Figure 7). Of interest, few PGRP-LB::GFP+, but Tdc2- cells, were also detected (Figure 7, arrow). This result unambiguously demonstrated that the endogenous immune regulator PGRP-LB is produced by a subclass of octopaminergic neurons of the AL2, VM II, and VM III sub-clusters, among which are the pLB1 neurons.

Endogenous PGRP-LB::GFP is expressed in Tdc2+ cells of the AL2 and VM clusters.

Detection of PGRP-LB::GFP fusion protein as well as Tdc2 cells expressing RFP (Tdc2>RFP) without immunostaining . Only the area of the brain containing the octopaminergic AL2, VM I, VM II, and VM III clusters is shown with stacks corresponding to anterior, antero-medial, postero-medial and posterior views. The inserted scheme represents the brain, the empty black square delineates the area observed and the dashed line represents the ventral limit of the brain. Arrowheads point to Tdc2+/PGRP-LB::GFP+ cells and the arrow points to a Tdc2 negative cell containing PGRP-LB::GFP proteins. Details including genotypes can be found in the detailed lines, conditions and, statistics for the figure section.

https://doi.org/10.7554/eLife.50559.029

Neurons that adapt female egg-laying behavior to infectious status are inhibited by peptidoglycan

To further test the effects of peptidoglycan on brain neurons, we performed calcium imaging using both in vivo and ex vivo methods. For that purpose, peptidoglycan solution was applied directly onto the brains of alive Tdc2-Gal4/UAS-GCaMP6s flies and GFP fluorescence intensity was monitored over time. We focused on octopaminergic neurons of the VM II/VM III sub-clusters (Figure 8—figure supplement 1) which, as shown above, contain the cells that express the pLB1 driver the most consistently and directly contact the VNC. In contrast to the control solution (Ringer's solution) (Video 1), brain stimulation by bacterial peptidoglycan induced a rapid and transient decrease of the GFP signal in VM II/III octopaminergic sub-clusters (Figure 8A–C and Video 2). To more precisely assay the response of pLB1+/Tdc2+ neurons upon peptidoglycan exposure, we performed ex vivo calcium imaging on dissected brains in which GCaMP6s was expressed in pLB1+/Tdc2+ cells only (pLB1>FLP/Tub>Gal80>,Tdc2>GCaMP6s, Figure 8D–F). For the ex vivo experiments with dissected brains, we focused on the posterior part of the brain in which only the pLB1+/Tdc2+ neuron of the VM III cluster is detectable. Fluorescence intensity quantifications showed that direct stimulation of dissected brains by peptidoglycan triggered a reduction of calcium levels in this VM III pLB1+/Tdc2+ neuron (Video 4) compared to control (Video 3). These results which indicated that peptidoglycan exposure inhibits pLB1+/Tdc2+ neuronal activity are coherent with functional data showing that blockage of pLB1+/Tdc2+ neurons by TTx or Kir2.1 overexpression reduces female egg-laying, a genetically triggered egg-lay drop that mimics the physiological response following peptidoglycan exposure. The differences observed between GCaMP kinetics in ex vivo (persistent drop post peptidoglycan stimulation) and in vivo (transient) experiments could reflect the fact that, for in vivo experiments, the imaged flies were alive with brains still connected to the rest of the nervous system including the VNC. In contrast, dissected brains disconnected from the periphery and the VNC were used for ex vivo experiments. Besides, whereas peptidoglycan was added to exposed brains still bathing in the surrounding hemolymph for the in vivo settings, it was added to brains bathing in Ringer’s solution for ex vivo experiments.

Video 1
Effect of Ringer's solution stimulation on Tdc2>GCaMP6s VM II/III neurons in vivo.

GFP recording of an in vivo Tdc2>GCaMP6s fly brain in the VM II/III octopaminergic sub-clusters region. Brains of flies from which the head capsule has been removed were exposed to Ringer's solution. GFP signal was recorded every 500 ms.

https://doi.org/10.7554/eLife.50559.032
Figure 8 with 1 supplement see all

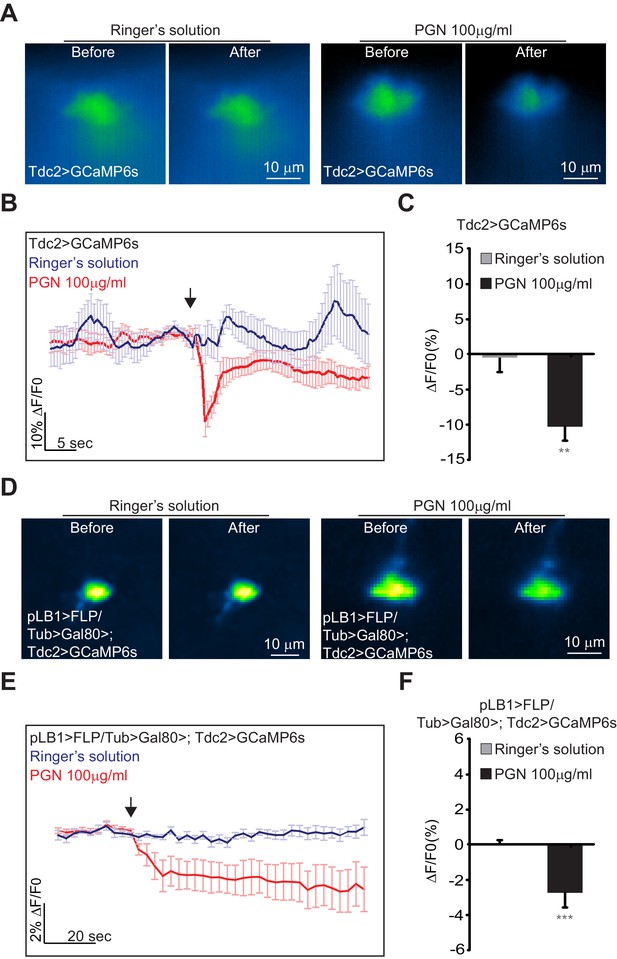

Real-time calcium imaging of Tdc2 VM II/III and pLB1+/Tdc2+ VM III neurons exposed to peptidoglycan.

(AF); Real-time calcium imaging using the calcium indicator GCaMP6s to reflect the in vivo neuronal activity of Tdc2 neurons (Tdc2>GCaMP6s) in VM II/VM III sub-clusters (AC) or the ex vivo neuronal activity of Tdc2+/pLB1+ VM III neuron pLB1>FLP/Tub>Gal80>,Tdc2>GCaMP6s (DF). (A); Representative images showing the GCaMP6s intensity before and after addition of either the control Ringer’s solution (left panels) or the peptidoglycan (right panels). The images represent the average intensity of 4 frames before or after Ringer or peptidoglycan solution. (B); Averaged ± SEM time course of the GCaMP6s intensity variations (ΔF/F0 %) for Tdc2+ neurons of the VM II/VM III sub-clusters. The addition of Ringer’s solution (n=8 flies) or peptidoglycan (n=13 flies) at a specific time is indicated by the arrow. (C); Averaged fluorescence intensity of negative peaks ± SEM for control (n=8) and peptidoglycan-treated flies (n=13). (D); Representative images showing the GCaMP6s intensity before and after the addition of either the control Ringer’s solution (left panels) or the peptidoglycan (right panels). The images represent the average intensity of 4 frames before or after Ringer or peptidoglycan solution. (E); Averaged ± SEM time course of the GCaMP6s intensity variations (ΔF/F0 %) for Tdc2+/pLB1+ neuron of the VM III sub-cluster. The addition of Ringer’s solution (n=10 flies) or peptidoglycan (n=12 flies) at a specific time is indicated by the arrow. (F); Averaged fluorescence intensity of negative peaks ± SEM for control (n=10) and peptidoglycan-treated flies (n=12) In (C), ** indicates p=0.001; in (F), *** indicates p=0.0001 non-parametric t-test, Mann-Whitney test. Details including n values and genotypes can be found in the detailed lines, conditions and, statistics for the figure section.

https://doi.org/10.7554/eLife.50559.030
Video 2
Effect of peptidoglycan solution stimulation on Tdc2>GCaMP6sVM II/III neurons in vivo.

GFP recording of an in vivo Tdc2>GCaMP6s fly brain in the VM II/III octopaminergic sub-clusters region. Brains of flies from which the head capsule has been removed were exposed to peptidoglycan solution. GFP signal was recorded every 500 ms.

https://doi.org/10.7554/eLife.50559.033
Video 3
Effect of Ringer's solution stimulation on pLB1>FLP/Tub>Gal80>,Tdc2>GCaMP6s VM III neurons ex vivo.

GFP recording of an ex vivo pLB1>FLP/Tub>Gal80>,Tdc2>GCaMP6s fly brain in the VM III octopaminergic sub-cluster region. Dissected brains were mounted in Ringer's solution and stimulated with the same control solution. GFP signal was recorded every 2 s.

https://doi.org/10.7554/eLife.50559.034
Video 4
Effect of peptidoglycan solution stimulation on pLB1>FLP/Tub>Gal80>,Tdc2>GCaMP6s VM III neurons ex vivo.

GFP recording of an ex vivo pLB1>FLP/Tub>Gal80>,Tdc2>GCaMP6s fly brain in the VM III octopaminergic cluster region. Dissected brains were mounted in Ringer's solution and stimulated with peptidoglycan solution. GFP signal was recorded every 2 s.

https://doi.org/10.7554/eLife.50559.035

pLB1+ neurons inhibition and peptidoglycan exposure temporary block mature oocytes release

We previously noticed that the egg-laying drop induced by bacterial or peptidoglycan injection was not associated with premature death of early-stage oocytes as described for wasp-exposed flies or insulin-related defects (Pritchett and McCall, 2012), but rather with a rapid accumulation of mature oocytes (stage 14) in the ovaries (Kacsoh et al., 2015b; Kurz et al., 2017). By quantifying the effects of peptidoglycan exposure over time, we showed that this phenotype was reversible (Figure 9A,B and Figure 9—figure supplement 1). Whereas 6 hours after peptidoglycan injection, the amounts of stage 14 and 11–13 oocytes increased and decreased respectively, the effects were less pronounced after 24 hours and no longer detectable 48 hours post-injection. We then tested whether similar phenotypes could be obtained by a Kir2.1-mediated temporary inactivation of pLB1+ neurons using the Gal4/Gal80ts system (Figure 9C–E). As for peptidoglycan injection, pLB1+ neurons transient inactivation led to stage 14 oocyte accumulation which was fully and progressively rescued by restoring normal pLB1+ neuronal function (Figure 9C–E, Figure 9—figure supplement 2).

Figure 9 with 2 supplements see all

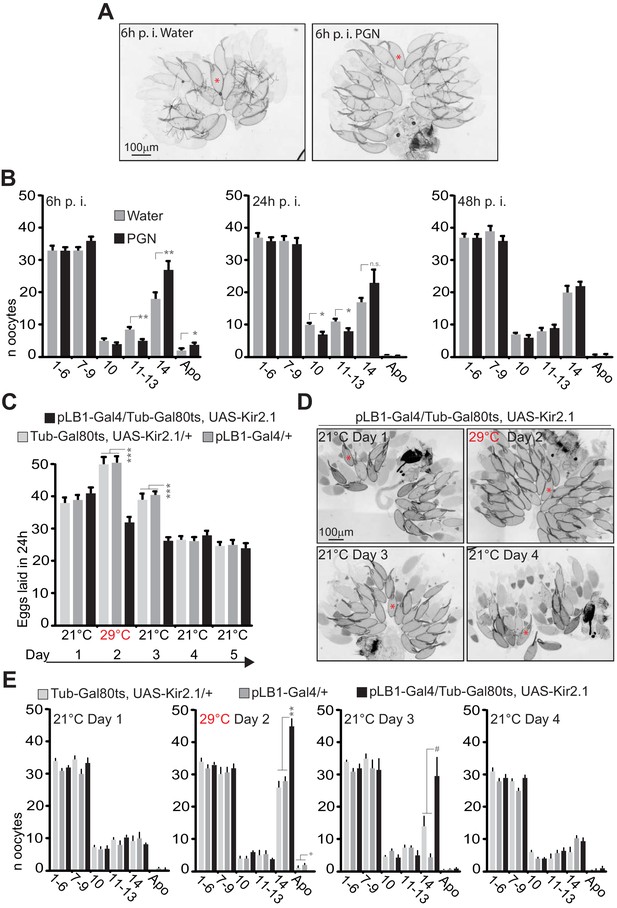

Peptidoglycan exposure as well as pLB1+ neurons conditional inactivation lead to a reversible mature oocyte accumulation.

(A–B); Injection of peptidoglycan triggers a reversible accumulation of mature oocytes (stage14). (A); 6 hours (6h) post-treatment (p.i.), stage 14 oocytes accumulate in the ovaries of peptidoglycan-injected flies. Transmission light microscopy images of ovaries dissected from control flies (water injected) or peptidoglycan-injected animals 6h post-treatment. (B); peptidoglycan injection modifies the quantity and quality of oocytes by 6 h, leading to an accumulation of mature stage (stage14) eggs. The dynamic over three different time points (6h-24h-48h) post-treatment was assayed. (C–E); pLB1+ neurons reduced activity leads to stage 14 oocyte accumulation. (C); The conditional inactivation of pLB1+ neurons reduces egg-laying. At 21°C, the ubiquitously produced Gal80ts inactivates the Gal4 and thus the Kir 2.1 protein expression. At 29°C, the Gal80ts doesn’t inactivate the Gal4, leading to the inhibited activity of pLB1+ neurons via Kir2.1. Switching back the animals to 21°C inhibits the Gal4 activity via Gal80ts. (D); Conditional inactivation of the pLB1+ neurons triggers a reversible stage 14 oocytes accumulation. Ovaries images of pLB1-Gal4/Tub-Gal80ts, UAS-Kir2.1 flies were acquired with transmission light microscopy for 4 days at two different temperatures. (E); pLB1+ neurons conditional inactivation modifies the quantity and quality of oocytes,leading to an accumulation of stage 14 oocytes. The dynamic over four different time points and two different temperatures is shown. It is important to note that the switch from 21°C to 29°C might be stressful for all the lines since stage 14 oocytes accumulated in all of them. In (A and D), a prototypical stage 14 oocyte is indicated with a red asterisk. In (B), shown are the average numbers over time of different oocyte stages ± SEM from two cumulated independent trials with at least 18 females per genotype and condition used. In (C), shown are the average numbers of eggs laid per fly per 24h ± SEM over 5 days from two cumulated independent trials with at least 59 females per genotype and condition used. In (E), shown are the average numbers of different oocyte stages ± SEM over 4 days for one representative assay out of two independent trials with at least 10 females per genotype and condition used. For (B) and (E), on the x axis, 1–6 corresponds to early stages (from stage 1 to stage 6)oocytes ; 7–9 corresponds to the sum of stages 7, 8 and 9; 10 is for stage 10; 11–13 is for the sum of stages 11, 12 and 13; 14 is for stage 14 and Apo is for apoptotic events, all identified via DAPI staining. * indicates p<0.05; ** indicates p<0.01; *** indicates p<0.0001; + and # indicate statistically significant differences between the test and the controls, but not all of them (see detailed statistics for Figure 9E). In (B), non-parametric t-test, Mann-Whitney test; in (C and E), non-parametric ANOVA, Dunn’s multiple comparison test between the genotypes or treatments. Details including n values and genotypes can be found in the detailed lines, conditions and, statistics for the figure section.

https://doi.org/10.7554/eLife.50559.036

Peptidoglycan exposure modulates egg-laying by inhibiting follicular cell trimming

An important step occurring before oviposition is the transfer of the mature oocyte from the ovary to the lateral oviduct. This step which requires the rupture of the follicular cell layer and consequently allows the release of the oocyte in the oviduct is called follicle trimming. This process is OA-dependent and allows the mature oocyte to reach the lateral oviduct prior to its fertilization (Lee et al., 2009). Therefore, we tested whether the egg-laying drop observed upon inactivation of pLB1+ cells and peptidoglycan exposure were associated with a defect in follicle trimming. Ovaries of control lines (pLB1-Gal4/+ and +/UAS-Kir2.1) and animals with inactivated pLB1+ neurons (pLB1-Gal4/UAS-Kir2.1) were dissected when the females were five day-old, while water-injected and peptidoglycan-injected animals were dissected 6 hours after treatment. Following a DAPI staining, stage 14 oocytes were counted and the ratio of stage 14 oocytes covered by follicular cells quantified. We confirmed that compared to control lines, the inactivation of pLB1+ cells via Kir2.1 overexpression as well as the injection of peptidoglycan led to an accumulation of stage 14 oocytes (Figure 10A–D, E and G). Also, we observed a decrease of follicle trimming on mature oocytes after inactivation of pLB1+ cells via Kir2.1 overexpression or peptidoglycan injection compared to controls (Figure 10F and H). These results suggested that peptidoglycan exposure leads to a decrease of the OA-dependent rupture of follicular cells around mature oocytes and subsequently reduces the number of eggs laid by infected females.

Impairing the activity of pLB1+ cells or injecting peptidoglycan leads to an accumulation of mature oocytes and a defect in follicular cells rupture.

(A–C); Reducing the activity of pLB1+ cells leads to an accumulation of mature oocytes (stage14). DAPI staining of ovaries from control flies (A and B) or animals with reduced activity of the pLB1+ cells (C). Mature oocytes are indicated with a red asterisk and an oocyte with follicular cells ruptured is indicated with a white arrow. (D); Follicular cells surrounding the mature oocytes are removed before the entry in lateral oviducts. DAPI staining of stage 14 oocytes with follicular cells partly removed (white arrow) or fully covering the oocyte (bottom). (E and G); Stage 14 oocytes accumulate in the ovaries when pLB1+ cells activity is impaired (E) or when peptidoglycan is injected (G). (F and H); The ratio of mature oocytes with removed follicular cells is decreased when pLB1+ cells activity is impaired (F) or when peptidoglycan is injected (H). For (E and G), shown is the average number of stage 14 oocytes per ovary ± SEM in 5 day-old females (E) or 6 hours post-treatment (G) from three independent trials with at least 50 ovaries per genotype and condition used. For (F and H), shown are the ratios of stage 14 oocytes with removed follicular cells ± SEM in 5 day-old females (F) or 6 hours post-treatment (H) from three independent trials with at least 50 ovaries per genotype and condition used. For (E and F), *** indicates p<0.0001; non-parametric ANOVA, Dunn’s multiple comparison test. For (G and H), *** indicates p<0.0001; non-parametric t-test, Mann-Whitney test. Details including n values and genotypes can be found in the detailed lines, conditions and, statistics for the figure section.

https://doi.org/10.7554/eLife.50559.040

Discussion

The present study demonstrated that some brain and VNC neurons are expressing endogenous peptidoglycan degrading enzyme PGRP-LB. Functional genetic intersection and calcium imaging data suggest a model in which, among them, very few brain pLB1+/Tdc2+ neurons belonging to the octopaminergic sub-cluster VM III sense peptidoglycan. The latter is likely to inhibit these (this) neurons leading to an NF-κB-dependent decrease of egg-laying in bacterially infected females (Kurz et al., 2017) (Figure 11). These results raise the question of the molecular and cellular mechanisms by which bacteria-derived peptidoglycan present in the hemolymph is able to reach this/these brain neuron/s. One model would be that circulating peptidoglycan can cross the blood-brain-barrier to reach brain neurons. In such a case, the selective expression of peptidoglycan sensor and NF-κB signaling components in some neurons, in this case, the pLB1+ neurons will confer them the ability to respond to peptidoglycan. In line with the idea that peptidoglycan can reach the brain, works in mice have shown that bacterial peptidoglycan derived from the gut microbiota can translocate into the brain where it is sensed by specific pattern-recognition receptors of the innate immune system (Arentsen et al., 2017; Arentsen et al., 2015). However, precisely mapping the peptidoglycan localization in the brain and identifying the exact path followed by this gut-born bacteria metabolite to reach the brain will require peptidoglycan tracing methods which are not yet available. Alternatively, peptidoglycan could also be sensed by the pLB1+/Tdc2+ neurons at the level of the peripheric axonal or dendritic projections using a retrograde transport to bring peptidoglycan close to the cell body and hence allowing NF-κB activation. Further works and additional tools will be required to address these important questions.

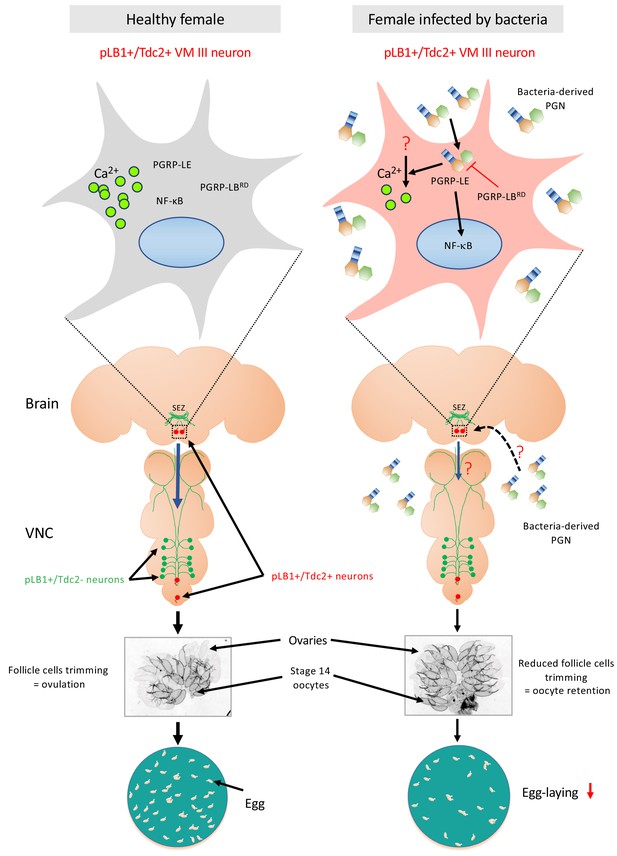

Diagram summarizing the effect of peptidoglycan sensing by pLB1+/Tdc2+ brain neurons on female oviposition.

(Left) Around 20 neurons distributed in the brain and the ventral nerve cord (VNC) express immune genes such as PGRP-LB (called pLB1+ neurons, labeled in green and red). Among them, very few are also expressing the enzyme Tdc2 indicating that they are octopaminergic neurons (labeled in red), with the most robust pLB1 expression for those localized in the brain ventral midline, the VM cluster (delineated by the box with dashed line and schematically magnified in the top box). In homeostasic conditions, mated females produce mature oocytes surrounded by follicular cells. Rupture of these follicular cells (trimming) leads to egg ovulation. (Right) Upon bacterial infection either systemic or enteric, cell wall peptidoglycan (PGN) is released by proliferating bacteria and transported into the hemolymph. Intracytosolic peptidoglycan sensing via the PGRP-LE Rc, in the very few brain pLB1+/Tdc2+ neurons (but not in the VNC pLB1+/Tdc2+ neurons), leads to cell-autonomous NF-κB pathway activation. This causes a reduction of follicular cells trimming in mature (stage 14) oocytes, hence a reduction of egg-laying in infected females. Since some pLB1+/Tdc2+ neurons of the VM cluster (VM III sub-cluster specifically) are sending descending projections toward the VNC and that the direct addition of peptidoglycan reduces their intracytosolic calcium level, we believe that peptidoglycan directly reduces the activity of these cells. Then, these brain pLB1+/Tdc2+ cells could mediate their effect via secondary neurons present in the VNC. It remains to be understood how PGN from the hemolymph is reaching brain neurons, how PGN stimulation reduces calcium levels, how this is linked to NF-κB pathway signaling and whether secondary neurons modulate ovulation. Moreover, we believe that pLB1+/Tdc2- neurons control other behaviors that are probably modulated by infection.

https://doi.org/10.7554/eLife.50559.041

It would be also important to understand how pLB1+/Tdc2+ VM III neurons regulate female egg-laying behavior in response to infection. Our results using the pLB1-LexA driver and a previously published anatomical map of brain octopaminergic neurons (Busch et al., 2009) indicate that some pLB1+/VM III neurons are sending descending neurites to the thoracic ganglia via cervical connectives. Analyzing the precise connectivity of these neurons will likely shed some light on these mechanisms.

A recent report showed that gut-resident Lactobacillus brevis can modify adult locomotion by acting on octopaminergic neurons via sugar metabolism (Schretter et al., 2018). This demonstrates that gut-associated bacteria have multiple ways to interact with the host behaviors. Alternatively, eukaryotes have developed different sensing mechanisms to adapt their behaviors to autochthonous or allochthonous bacteria. However, while the effects mediated by peptidoglycan on host egg-laying behavior are likely to be widespread since peptidoglycan is an universal bacterial cell-wall constituent, only bacteria producing xylose isomerase, such as Lactobacillus brevis, are expected to modify the walking activity of the colonized hosts. It should be mentioned that octopamine has also been shown to mediate neural regulation of immunity in C. elegans (Sellegounder et al., 2018).

Our data indicate that most pLB1+ neurons are not involved in controlling the egg-laying rate in response to infection and that a small fraction of them is octopaminergic. This suggests that most octopaminergic-dependent behaviors are unlikely to be affected by peptidoglycan exposure. Consistently, our data demonstrate that the receptivity of females to males, a behavior that is also under the control of octopamine, is not mediated by pLB1+ neurons. We, therefore, propose that by expressing sensors and effectors of the immune pathway in a small subset of neurons, flies render some of their behaviors controllable by bacteria-derived metabolite while maintaining others bacteria-unsensitive. Interestingly, pLB1+/Tdc2+ neurons that adapt female oviposition rate to their infectious status, are also present in males where they might regulate male-specific OA-dependent behaviors upon infection. One of the reported functions of octopaminergic circuitry is to modulate specific behaviors to environmental conditions (Crocker and Sehgal, 2008; Rezával et al., 2014; Youn et al., 2018). Such a modulatory function seems adapted to integrate immune signals allowing the fly to adapt to an environment enriched in microorganisms. Furthermore, the fact that some pLB1+ neurons are not octopaminergic, which is confirmed by using a PGRP-LB::GFP line in which all endogenous PGRP-LB protein isoforms are tagged, suggested that other neuronally controlled biological processes, yet to be identified, are likely to be influenced by PGN exposure. Identifying the exact nature of the non-octopaminergic pLB1+ neurons will be necessary to reveal the processes that they regulate. In addition, since pLB1+ neurons may represent only a subset of all the neurons that express immune pathway components, one could consider that other behaviors, yet to be identified, are controlled by bacteria.

The data from this study demonstrate that the response of few brain octopaminergic neurons to peptidoglycan is NF-κB pathway dependent, hence probably transcriptional. What are the NF-κB target genes mediating the effects of peptidoglycan in these neurons? Obvious candidates are the enzymes necessary for the production of octopamine itself which are Tdc2 and TβH. Consistently, providing ectopic TβH in pLB1+ neurons was shown to rescue egg-laying drop post infection (Kurz et al., 2017). Alternatively, antimicrobial peptides (AMPs) which are the main targets of NF-κB/Relish downstream of the innate immune pathways should also be considered. Although historically identified for their antimicrobial activity (Ezekowitz and Hoffmann, 1996), some recent reports indicate that AMPs play some important roles in the fly nervous system. Some AMPs, such as Metchnikowin, Drosocin, and Attacin, are implicated in sleep regulation (Dissel et al., 2015). Diptericin, a well-characterized AMP, is important for a kind of non-associative learning, where ethanol preference is modified upon exposure to predatory wasps (Bozler et al., 2017). In addition, AMPs expressed in the fly adult head are involved in modulating long-term memory (Barajas-Azpeleta et al., 2018). Finally, the innate immune receptor PGRP-LC and downstream signaling are implicated in the regulation of the homeostatic plasticity of neuromuscular junction synapse by NF-κB/Relish-dependent and independent processes (Harris et al., 2015; Harris et al., 2018). Further experiments will be necessary to test whether any of these cellular mechanisms are also at play in the regulation of neuronal-controlled behaviors by bacteria-derived metabolite in general and by PGN in particular.

Finally, it would be necessary to elucidate how neurons exposed to peptidoglycan modify intracytosolic calcium levels and identify a possible functional link with NF-κB signaling. Our previous and current results demonstrate that the egg-laying drop requires several elements of the IMD pathway, from the PGN-receptor PGRP-LE to the transcription factor NF-κB/Relish. It should be noted that a link between calcium levels and NF-κB activation in neurons has been reported in many mammalian studies (Lilienbaum and Israël, 2003; Lipton, 1997; O'Neill and Kaltschmidt, 1997). In addition, calcineurin, a Ca2+-dependent phosphatase was shown to promote NF-κB dependent immune responses in the Drosophila larvae (Dijkers and O'Farrell, 2007). As for the causality between peptidoglycan stimulation and calcium decrease and despite the kinetic that does not suggest the involvement of a stereotypical signaling cascade, it should first be tested whether this step requires the elements of the IMD (Immune deficiency) pathway. If not, other receptors yet to be identified may mediate this fast response to peptidoglycan. Intriguingly, a recent study using the fly embryo linked a rapid modification of the calcium concentration in fly hemocytes undergoing phagocytosis of apoptotic corpses with the subsequent activity of the JNK pathway, the first event being a pre-requisite for the second (Razzell et al., 2013).

Materials and methods

Key resources table
Reagent
type (species)
or resource
DesignationSource or
reference
IdentifiersAdditional
information
Genetic reagent
(D. melanogaster)
pLB1-Gal4(Kurz et al., 2017)
Genetic reagent
(D. melanogaster)
UAS-Kir2.1Bloomington Drosophila Stock Center
(Hardie et al., 2001)
BDSC Cat# 6595, RRID:BDSC_6595
Genetic reagent
(D. melanogaster)
UAS-TTxBloomington Drosophila Stock Center
(Sweeney et al., 1995)
BDSC Cat# 28838, RRID:BDSC_28838
Genetic reagent
(D. melanogaster)
UAS-TRPA1Bloomington Drosophila Stock CenterBDSC Cat# 26264, RRID:BDSC_26264
Genetic reagent
(D. melanogaster)
UAS-Fadd-IR(Khush et al., 2002)
Genetic reagent
(D. melanogaster)
UAS> stop> GFPmCD8Bloomington Drosophila Stock CenterBDSC Cat# 30125, RRID:BDSC_30125
Genetic reagent
(D. melanogaster)
nSyb-LexABloomington Drosophila Stock CenterBDSC Cat# 51951, RRID:BDSC_51951
Genetic reagent
(D. melanogaster)
Tdc2-LexABloomington Drosophila Stock CenterBDSC Cat# 52242, RRID:BDSC_52242
Genetic reagent
(D. melanogaster)
Tub>Gal80>Bloomington Drosophila Stock CenterBDSC Cat# 38879, RRID:BDSC_38879
Genetic reagent
(D. melanogaster)
LexAop-FLPBloomington Drosophila Stock CenterBDSC Cat# 55819, RRID:BDSC_55819
Genetic reagent
(D. melanogaster)
8XLexAop2-FLPBloomington Drosophila Stock CenterBDSC Cat# 55820, RRID:BDSC_55820
Genetic reagent
(D. melanogaster)
UAS>stop > Kir2.1
Genetic reagent
(D. melanogaster)
UAS>stop> TRPA1Bloomington Drosophila Stock CenterBDSC Cat# 66871, RRID:BDSC_66871
AntibodyRabbit polyclonal anti-Tdc2AbcamCat# ab128225, RRID:AB_111423891:1000
Chemical compoundPGN fromE. coliInvivogen14C14-MM
Software, algorithmFijiNIHhttps://fiji.sc/
Software, algorithmGraphPad Prism 6GraphPadRRID:SCR_002798

Drosophila melanogaster strains and maintenance

Request a detailed protocol

The following strains were used in this work: pLB1-Gal4 (Kurz et al., 2017); UAS-GFPnls (BDSC Cat# 4775, RRID:BDSC_4775); UAS-mCD8-Tomato (kindly provided by F. Schnorrer); UAS-TTx (Sweeney et al., 1995), (BDSC Cat# 28838, RRID:BDSC_28838); UAS-TRPA1 (BDSC Cat# 26264, RRID:BDSC_26264); UAS-Kir2.1 (BDSC Cat# 6595, RRID:BDSC_6595) (Hardie et al., 2001); UAS-Fadd-IR (Khush et al., 2002) (Kindly provided by P. Meier); Tdc2-Gal4 (kindly provided by H. Scholz); nSyb-LexA (BDSC Cat# 51951, RRID:BDSC_51951); Elav-Gal80 (kindly provided by D. Herman); UAS>stop>GFPmCD8 (BDSC Cat# 30125, RRID:BDSC_30125); w- (BDSC Cat# 3605, RRID:BDSC_3605); UAS-TβH-IR (BDSC Cat# 27667, RRID:BDSC_27667); Tdc2-LexA (BDSC Cat# 52242, RRID:BDSC_52242); Tub>Gal80> (BDSC Cat# 38879, RRID:BDSC_38879); LexAop-FLP (BDSC Cat# 55819, RRID:BDSC_55819); 8XLexAop2-FLP (BDSC Cat# 55820, RRID:BDSC_55820); UAS>stop>Kir2.1 (kindly provided by K Anderson’s lab); HS-FLP (kindly provided by F. Schnorrer); OTD-FLP (kindly provided by K Anderson’s Lab); Tsh-LexA, LexAop-Gal80 (kindly provided by S Birman’s Lab); Tsh-Gal4 (kindly provided by M. Landgraf); 13XLexAop2-GFPmCD8 (BDSC Cat# 32203, RRID:BDSC_32203); LexAop-2xhrGFPnls (BDSC Cat# 29955, RRID:BDSC_29955); Dsx-LexA (BDSC Cat# 54785, RRID:BDSC_54785); Dsx-FLP (kindly provided by S. Goodwin). UAS>stop>TRPA1 (BDSC Cat# 66871, RRID:BDSC_66871); Tub-Gal80ts, UAS-Kir2.1 (kindly provided by B. Prud’homme’s lab); UAS-GCaMP6s (BDSC Cat# 42746, RRID:BDSC_42746).

Flies were grown at 25°C on a yeast/cornmeal medium in 12h/12h light/dark cycle-controlled incubators. For 1 L of food, 8.2 g of agar (VWR, cat. #20768.361), 80 g of cornmeal flour (Westhove, Farigel maize H1) and 80 g of yeast extract (VWR, cat. #24979.413) were cooked for 10 min in boiling water. 5.2 g of Methylparaben sodium salt (MERCK, cat. #106756) and 4 mL of 99% propionic acid (CARLOERBA, cat. #409553) were added when the food had cooled down.

Cloning pLB1-LexA pLB1 DNA fragment corresponding to pLB1-Gal4 (Kurz et al., 2017) was cloned by Gateway into pBP nlsLexA::p65Uw vector (RRID:Addgene_26230). This vector was injected into y1w- P{nos-phiC31\int.NLS}X; P{CaryP}attP40 embryos (modified from BDSC Cat# 25709, RRID:BDSC_25709) and screened in F1 for white + transformants.

PGRP-LB::GFP

Request a detailed protocol

A PGRP-LB::GFP fusion protein transgenic line was obtained by inserting, via CRISPR mediated recombination, the eGFP cDNA at the C-term end of the PGRP-LB protein. The GFP cDNA was inserted in the 3’ most coding exon, resulting in all PGRP-LB isoforms (RA; RC and RD) tagged with GFP. The P donor PGRP-LB-GFP was obtained by cloning the GFP cDNA flanked by 1 kb of PGRP-LB homology arms into the Bluescript vector using the following primers (fw 5’ arm: CGGGCTGCAGGAATTCCAAACAGCTCGCACGCAAAATACAA, rv 5’ arm: AACAGCTCCTCGCCCTTGCTCACGACCTTGGGCGCAGCTGGC; fw 3’ arm: GCTGTACAAGCACCGGTCCACGTAGGCTGGATTGGAGGGCCCTCA, rv 3’ arm: GGGCCCCCCCTCGAGGCTGCCGCCGAAATCAATCCAATAGC). Guide RNA (GCTGCGCCCAAGGTCTAGGC), was cloned into pCFD3–dU6: 3 gRNA (RRID:Addgene_49410). y[1] M{w[+mC]=nos-Cas9.P}ZH-2A w[*] embryos were injected with both donor and guide vectors (pCFD3-gRNA ; P donor PGRP-LB::GFP). F1 larvae were screened for GFP expression and positive line were confirmed molecularly.

Oviposition assay

Request a detailed protocol

In order to ease the quantification of the laid eggs, a blue food dye (E133, Le meilleur du chef) was incorporated (1%) into the media used for the oviposition assays (Blue-tube). When the egg-laying index was used, it corresponds to the ratio between the number of eggs laid by a treated female and the average number of eggs per tube laid by the untreated animals during a specific time. An oviposition ratio of 1 indicates that the treatment did not impact the oviposition of the tested female during the time course of the experiment. PGN injections: one-day-old animals were harvested from tubes kept at 25°C. Males and females were mixed in one tube with no more than 40 individuals per tube and the proportion male: female was 1:1. Tubes were kept at 25°C and flies shifted to fresh tubes every 2 days. On day 5, females were used for injections. PGN or endotoxin-free water was used and injected using a nanojector (Nanojet II, Drummond Scientific Company, PA, USA). PGN is from E. coli (Invivogen, ref 14C14-MM, CA, USA) and was resuspended in endotoxin-free water at 200 μg/mL. 60 nL of PGN solution was injected in the thorax. All the flies including control animals were anesthetized on CO2 pad. Egg-lay assay: Treated animals were then transferred on fresh Blue-tube with dry yeast (Fermipan) added on top of each tube right before the egg-lay period. When PGN injection was tested, animals were allowed to lay eggs for 6h, two females per tube. Otherwise, flies were one per tube and laid eggs during 24h. In order to maximize the efficiency of the transgenes, animals were stored at 29°C one day before the treatment and kept at this temperature during the egg-lay assay (except for experiments involving thermosensitive transgenes). Injections were always performed between ZT0 and ZT6. Eggs were counted for each tube 6h or 24h later. The eggs were not blindly counted. Raw egg counts are available as Data source.

Mating assay

Request a detailed protocol

Virgin females were collected after eclosion and kept in groups of 10–15 individuals at 25°C, whereas naïve males where singularly isolated after eclosion and kept at 25°C. Mating experiments were performed in a behavioral room at 24°C. To assay fly receptivity, a 6 days-old virgin female was introduced in a laboratory made chamber (17 mm diameter x 8 mm height) with a naïve w- male. During 10 min, flies recovered from the flipping and adapted to the new chamber. Then, flies were recorded with a camera (Logitech HD pro webcam c920) for 1h and receptivity was quantified as the percentage of flies that mated within this time. Latency was defined as the time at which mating was starting. Successfully mated females were isolated in vials where they laid eggs for 48h at 25°C. Mated females were again introduced in a chamber with a naïve w- male to assay re-mating. The latter was defined as the percentage of mated pairs within 1h.

Ovaries content and trimming quantification

Request a detailed protocol

Flies were reared and harvested as for the oviposition assays. After a 20s EtOH bath, animals were dissected at RT in 1X phosphate-buffered saline (PBS), then ovaries were fixed for 10 min in 4% paraformaldehyde on ice and rinsed three times in 1X PBS. The ovaries were then incubated with DAPI in the dark for 10 min. Finally, ovaries were gently opened on a glass slide in a 1X PBS drop. Oocytes stages, apoptotic events and trimming were visually quantified per ovary using DAPI and an Axio-Imager APO Z1 apotome microscope (Zeiss, Germany).

Imaging and Immuno-cytochemistry

Request a detailed protocol

Adult brains and VNCs were dissected in PBS and fixed for 15 min in 4% paraformaldehyde at RT. After fixation, the tissues were rinsed three times for 10 min in PBS-T (PBS + 0.3% Triton X-100) and blocked in 2,5% bovine serum albumin (BSA; Sigma-Aldrich) in PBS-T for 30 min. Next, samples were incubated with the first antibody diluted in 0,5% BSA in PBS-T overnight at 4°C. The tissues were then washed three times and incubated with the secondary antibody diluted in 0,5% BSA in PBS-T for 2h at RT. Samples were rinsed three times and mounted on slides using Vectashield (Vector Laboratories, Ca, USA) fluorescent mounting medium, with or without DAPI. Images were captured with either a Leica SP8 confocal microscope (in this case, tissues were scanned with 20X oil immersion objective) or an AxioImager APO Z1 apotome microscope (10X or 20x air objectives were used). For the detection of endogenous PGRP-LB::GFP, brains of PGRP-LB::GFP Tdc2-Gal4/UAS-Tomato-mCD8 flies were dissected in PBS, fixed on ice for 3 min, washed three times and then mounted without immuno-staining. Images were captured with a Spinning Disk Ropper 2 Cam.

Calcium imaging

Request a detailed protocol

For in vivo calcium imaging studies, fed mated females were aged from 5 to 7 days. The preparation consisted of a fly suspended by the neck on a plexiglass block (2 × 2×2.5 cm). Flies were anesthetized on ice for 1h. The flies, with the proboscis facing the center of the block, were immobilized using an insect pine (0.1 mm diameter) placed on the neck. The ends of the pin were fixed on the block with beeswax (Deiberit 502, Siladent, 209212). Then the head was glued on the block with a drop of rosin (Gum rosin, Sigma-Aldrich, 60895); dissolved in ethanol at 70%) to avoid any movements. Therefore, the anterior part of the head is oriented towards the objective of the microscope. Flies were placed in a humidified box to allow the rosin to harden for 1h. A plastic coverslip with a hole corresponding to the head width was placed on top of the head and fixed on the block with beeswax. The plastic coverslip was sealed on the cuticle with two-component silicon (Kwik-Sil, World Precision Instruments). 100 µL of Ringer’s saline (130 mM NaCl, 5 mM KCl, 2 mM MgCl2, 2 mM CaCl2, 36 mM saccharose, 5 mM HEPES, pH 7.3) were placed on the head. The antenna area, the tracheas, and the fat body were removed. The gut was cut without damaging the brain to allow visual access to the ventral part of the SEZ. The exposed brain was rinsed twice with 100 µL of Ringer’s saline. GCaMP6s fluorescence was viewed with a Leica DM600B microscope under a 25x water objective. GCaMP6s was excited using a Lumencor diode light source at 482 nm ±25. Emitted light was collected through a 505–530 nm band-pass filter. Images were collected every 500ms using an Orca Flash 4.0 camera and processed using Leica MM AF 2.2.9. Each experiment consisted of 70 to 100 images (before application) followed by 160 images of recording after the addition of 100 µL Ringer’s saline (control) or 100 µL of PGN solution (200 µg PGN/mL diluted in Ringer’s saline for a final PGN concentration on the preparation of 100 µg/mL).

For the ex vivo calcium imaging, 5–7 day-old females were immobilized on ice and brains were dissected in Ringer’s saline and were located in a silicone (SYLGARD 184 Silicone Elastomer Kit, DOW) coated cover slip. To avoid any movements during the recording, brains were fixed to the silicone support by using two insect pins at the level of the optical lobes. A 50 µL drop of Ringer’s solution was used to cover the brain. GCaMP6s fluorescence was recorded with a Confocal spinning disk Yokogawa coupled with a Nikon Ti Eclipse inverted microscope and 2 CMOS capture cameras (Evolve 512) under a 20x air objective. For GCaMPs excitation, a laser wavelength at 491 nm (30% laser power; time of exposure 200 ms) was used. Images were taken every 2s and each experiment consisted in around 40 measurements (before application) followed by 100 recording images after the addition of 50 µL Ringer’s saline (control) or 50 µL of PGN solution (for a final PGN concentration on the preparation of 100 µg/mL). Data were analyzed using FIJI (https://fiji.sc/) as previously described (Silbering et al., 2012).

Statistical analyses and graphics

Request a detailed protocol

The Prism software (GraphPad Prism, RRID:SCR_002798) was used for statistical analyses. Our sets of data were tested for normality using the D'Agostino-Pearson omnibus test, and some of our data did not pass the normality test. Consequently, we used non-parametric tests for all the data sets, that is the unpaired ANOVA, Kruskal-Wallis test and specifically the Dunn's multiple comparisons test as well as the unpaired Mann-Whitney two-tailed test. In addition, for mating and remating datasets, we used the Fisher exact t-test. Moreover, we do not show one experiment representative of the different biological replicates, but all the data generated during the independent experiments in one graph.

Antibodies table

Request a detailed protocol
AntibodySourceDilution
Chicken anti-GFPAves Labs Cat# GFP-1020, RRID:AB_100002401:1000
Rabbit anti-RFPRockland Cat# 600-401-379, RRID:AB_22097511:1000
Rat anti-RFP [5F8]ChromoTek Cat# 5f8-100, RRID:AB_23360641:1000
Mouse anti-NC82DSHB Cat# nc82,
RRID:AB_2314866
1:40
Rat anti-Elav-7E8A10DSHB Cat# Rat-Elav-7E8A10 anti-elav, RRID:AB_5282181:50
Rabbit anti-Tdc2Abcam Cat# ab128225, RRID:AB_111423891:1000
Rabbit anti-A-AllatostatinJena Bioscience (ABD-062)1:2000
Rabbit anti-CCAPJena Bioscience (ABD-033)1:6000
Rat anti-leukokininP. Herrero’s lab gift1:1000
Rabbit anti-leukokininDick R Nässel's lab gift1:2000
Alexa Fluor 488 Donkey anti-Chicken IgY (IgG) (H+L)Jackson ImmunoResearch Labs Cat# 703-545-155, RRID:AB_23403751:500
Alexa Fluor568 donkey anti-mouse IgG (H+L)Thermo Fisher
Scientific Cat# A10037, RRID:AB_2534013
1:500
Alexa Fluor647 donkey anti-mouse IgG (H+L)Jackson ImmunoResearch Labs Cat# 715-605-151, RRID:AB_23408631:500
Alexa Fluor 488 donkey anti-rabbit IgG (H+L)Thermo Fisher Scientific Cat# A-21206, RRID:AB_25357921:500
Alexa Fluor 568 donkey anti-rabbit IgG (H+L)Thermo Fisher Scientific Cat# A10042, RRID:AB_25340171:500
Cy 3 donkey anti-rat IgG (H+L)Jackson ImmunoResearch Labs Cat# 712-165-153, RRID:AB_23406671:500
Alexa Fluor647 donkey anti-rat IgG (H+L)Jackson ImmunoResearch Labs Cat# 712-605-153, RRID:AB_23406941:500
Rabbit anti-BursiconB. White’s lab gift1 :2500

Detailed lines, conditions and, statistics for the figures

Lines and conditions used for Figure 1

Request a detailed protocol

For 1A and 1B:

Genotypes of tested animals

  • pLB1-Gal4; UAS-Tomato-mCD8

Reagents and tools

  • antibody against nc82; antibody against Tomato; Leica SP8 confocal microscope

For 1C, 1D:

Genotypes of tested animals

  • pLB1-Gal4, UAS > stop > GFPmCD8; LexAop-FLP/nSyb-LexA

Reagents and tools

  • antibody against nc82; antibody against GFP; Leica SP8 confocal microscope

For 1F:

Genotypes of tested animals (at 23°C: n flies/mean eggs exp1/mean eggs exp2 //at 29°C: n flies/mean eggs exp1/mean eggs exp2)

  • pLB1-Gal4/+ (20/43.7/49.4 //20/52.5/51.6)

  • UAS-TRPA1/+ (16/29.17/50.5 //19/39.4/46.6)

  • Elav-Gal80; UAS-TRPA1/+ (20/50.3/48.4 //20/52.7/45.7)

  • pLB1-Gal4/UAS-TRPA1 (17/43.4/45 //19/78/85)

  • Elav-Gal80; UAS-TRPA1/pLB1-Gal4 (19/41.7/41.7 //19/46.6/58.4)

Detailed statistics for Figure 1F

Request a detailed protocol
Dunn's multiple comparisons testSignificantSummaryAdjusted P Value
pLB1-Gal4/+ vs. +/UAS-TRPA1; Elav-Gal80Nons>0,9999
pLB1-Gal4/+ vs. +/UAS-TRPA1Nons>0,9999
pLB1-Gal4/+ vs. pLB1-Gal4/UAS-TRPA1Yes****<0,0001
pLB1-Gal4/+ vs. pLB1-Gal4/UAS-TRPA1; Elav-Gal80Nons>0,9999
+/UAS-TRPA1; Elav-G80 vs. 0 > UAS-TRPA1Nons>0,9999
+/UAS-TRPA1; Elav-G80 vs. pLB1 > UAS-TRPA1Yes****<0,0001
+/UAS-TRPA1;Elav-G80 vs. LB1 > UAS-TRPA1; Elav-Gal80Nons0,0793
+/UAS-TRPA1 vs. pLB1 > UAS-TRPA1Yes****<0,0001
+/UAS-TRPA1 vs. pLB1-Gal4/UAS-TRPA1; Elav-Gal80Nons>0,9999
pLB1-Gal4/UAS-TRPA1 vs. pLB1-Gal4/UAS-TRPA1; Elav-Gal80Yes*0,0189

For 1G:

Genotypes of tested animals (at 29°C: n flies/mean eggs exp1/mean eggs exp2/mean eggs exp3)

  • pLB1-Gal4/+ (59/71/73/72)

  • UAS-TβH-IR/+ (58/74/70/72)

  • pLB1-Gal4/UAS- TβH-IR (59/50/54/60.5)

Detailed statistics for Figure 1G

Request a detailed protocol
Dunn's multiple comparisons testSignificantSummaryAdjusted P Value
pLB1-Gal4/UAS-TβH IR vs+/UAS-TβH-IRYes****<0,0001
pLB1-Gal4/UAS-TβH-IR vs. pLB1-Gal4/+Yes****<0,0001
+/UAS-TβH-IR vs. pLB1-Gal4/+Nons>0,9999

Lines and conditions used for Figure 2

Request a detailed protocol

For 2A-A’’:

Genotypes of tested animals

  • pLB1-Gal4, UAS > stop > GFPmCD8; LexAop-FLP/nSyb-LexA

Reagents and tools

  • antibody against Tdc2; antibody against GFP; antibody against Elav; Leica SP8 confocal microscope

For 2B-B’:

Genotypes of tested animals

  • pLB1-Gal4, UAS > stop > GFPmCD8; LexAop-FLP/nSyb-LexA

Reagents and tools

  • antibody against Tdc2; antibody against GFP; antibody against nc82; Leica SP8 confocal microscope

Lines and conditions used for Figure 2—figure supplement 1

Request a detailed protocol

For 2A-A’’’:

Genotypes of tested animals

  • pLB1-Gal4, UAS > stop > GFPmCD8; LexAopFLP/Tdc2-LexA

Reagents and tools

  • antibody against Tdc2; antibody against GFP; antibody against nc82; Leica SP8 confocal microscope

For 2B-B’’’:

Genotypes of tested animals

  • pLB1-Gal4, UAS > stop > GFPmCD8; LexAopFLP/Tdc2-LexA

Reagents and tools

  • antibody against Tdc2; antibody against GFP; antibody against nc82; Leica SP8 confocal microscope

Lines and conditions used for Figure 2—figure supplement 2

Request a detailed protocol

Genotypes of tested animals

  • Tdc2-LexA, LexAop-GFPnls/LexAop-GFPmCD8

Reagents and tools

  • antibody against GFP; antibody against nc82; Leica SP8 confocal microscope

Lines and conditions used for Figure 2—figure supplement 3

Request a detailed protocol

Genotypes of tested animals

  • pLB1-Gal4, UAS > stop > GFPmCD8; LexAop-FLP/nSyb-LexA

Reagents and tools

  • antibody against Tdc2; antibody against GFP; Leica SP8 confocal microscope

Lines and conditions used for Figure 2—figure supplement 4

Request a detailed protocol

Genotypes of tested animals

  • pLB1-Gal4, UAS > stop > GFPmCD8; LexAopFLP/nSyb-LexA

Reagents and tools

  • antibody against Allatostatin A; antibody against GFP; antibody against nc82; Leica SP8 confocal microscope

Lines and conditions used for Figure 2—figure supplement 5

Request a detailed protocol

Genotypes of tested animals

  • pLB1-Gal4, UAS > stop > GFPmCD8; LexAopFLP/nSyb-LexA

Reagents and tools

  • antibody against Bursicon (from B. White); antibody against GFP; antibody against nc82; Leica SP8 confocal microscope

Lines and conditions used for Figure 2—figure supplement 6

Request a detailed protocol

Genotypes of tested animals

  • pLB1-Gal4, UAS > stop > GFPmCD8; LexAopFLP/nSyb-LexA

Reagents and tools

  • antibody against CCAP (From B. White); antibody against GFP; antibody against nc82; Leica SP8 confocal microscope

Lines and conditions used for Figure 2—figure supplement 7

Request a detailed protocol

Genotypes of tested animals

  • pLB1-Gal4, UAS > stop > GFPmCD8; LexAopFLP/nSyb-LexA

Reagents and tools

  • antibody against Leucokinin (from D. Nassel and P. Herrero); antibody against GFP; antibody against nc82; Leica SP8 confocal microscope

Lines and conditions used for Figure 3

Request a detailed protocol

For 3A:

Genotypes of tested animals (n flies/mean % exp1/mean % exp2/mean % exp3/mean% exp4/mean% exp5/mean % exp6)

  • pLB1-Gal4/+ (70/50%/50%/60%/60%/50%/55%)

  • UAS-Kir2.1/+ (70/60%/40%/80%/80%/50%/40%)

  • Tdc2-Gal4/+ (80/60%/60%/60%/40%/60%/50%)

  • Tdc2-Gal4/UAS-Kir2.1 (80/100%/70%/100%/70%/50%/67%)

  • pLB1-Gal4/UAS-Kir2.1 (80/70%/50%/80%/60%/30%/47%)

Detailed statistics for Figure 3A

Request a detailed protocol
Fisher's exact testSignificantSummaryAdjusted
P Value
pLB1-Gal4/+ vs. UAS-Kir2.1/+Nons1
pLB1-Gal4/+ vs. Tdc2-Gal4/+Nons0,87
pLB1-Gal4/+ vs. Tdc2-Gal4/UAS-Kir2.1Yes**0009
pLB1-Gal4/+ vs. pLB1-Gal4/UAS-Kir2.1Nons0.74
Tdc2-Gal4/+ vs. UAS-Kir2.1/+Nons0,87
Tdc2-Gal4/+ vs. Tdc2-Gal4/UAS-Kir2.1Yes*0018
Tdc2-Gal4/+ vs. pLB1-Gal4/UAS-Kir2.1Nons1
UAS-Kir2.1/+ vs. Tdc2-Gal4/UAS-Kir2.1Yes**0009
UAS-Kir2.1/+ vs. pLB1-Gal4/UAS-Kir2.1Nons0,74
Tdc2-Gal4/UAS-Kir2.1 vs. pLB1-Gal4/UAS-Kir2.1Yes*0028

For 3B:

Genotypes of tested animals (n flies/mean time in seconds exp1/mean time in seconds exp2/mean time in seconds exp3/mean time in seconds exp4)

  • pLB1-Gal4/+ (27/1528/1382/1395/1480)

  • UAS-Kir2.1/+ (24/1643/1160/1087/1740)

  • Tdc2-Gal4/+ (31/1896/640/1729/1171)

  • Tdc2-Gal4/UAS-Kir2.1 (40/770/674/815/868)

  • pLB1-Gal4/UAS-Kir2.1 (34/1214/931/1109/1443)

Detailed statistics for Figure 3B

Request a detailed protocol
Mann-Whitney testSignificantSummaryAdjusted
P Value
pLB1-Gal4/+ vs. UAS-Kir2.1/+Nons0,7341
pLB1-Gal4/+ vs. Tdc2-Gal4/+Nons0,5641
pLB1-Gal4/+ vs. Tdc2-Gal4/UAS-Kir2.1Yes**0,0081
pLB1-Gal4/+ vs. pLB1-Gal4/UAS-Kir2.1Nons0,3415
Tdc2-Gal4/+ vs. UAS-Kir2.1/+Nons0,8652
Tdc2-Gal4/+ vs. Tdc2-Gal4/UAS-Kir2.1Yes*0,0272
Tdc2-Gal4/+ vs. pLB1-Gal4/UAS-Kir2.1Nons0,7180
UAS-Kir2.1/+ vs. Tdc2-Gal4/UAS-Kir2.1Yes*0,0234
UAS-Kir2.1/+ vs. pLB1-Gal4/UAS-Kir2.1Nons0,6584
Tdc2-Gal4/UAS-Kir2.1 vs. pLB1-Gal4/UAS-Kir2.1Yes*0,0471

For 3C-D’:

Genotypes of tested animals

  • Males pLB1-Gal4, UAS > stop > GFPmCD8; LexAop-FLP/nSyb-LexA

Reagents and tools

  • antibody against Tdc2; antibody against GFP; antibody against nc82; Leica SP8 confocal microscope

For 3E-F’:

Genotypes of tested animals

  • pLB1-Gal4, UAS > stop > GFPmCD8/Dsx-FLP

Reagents and tools

  • antibody against Tdc2; antibody against GFP; Leica SP8 confocal microscope

Lines and conditions used for Figure 3—figure supplement 1

Request a detailed protocol

Genotypes of tested animals; (n flies/mean % exp1/mean % exp2/mean % exp3/mean% exp4) pLB1-Gal4/+ (44/0%/0%/0%/0%)

  • UAS-Kir2.1/+ (42/0%/0%/14%/0%)

  • Tdc2-Gal4/+ (55/0%/0%/0%/0%)

  • Tdc2-Gal4/UAS-Kir2.1 (53/20%/20%/4%/0%)

  • pLB1-Gal4/UAS-Kir2.1 (42/0%/0%/4%/0%)

Detailed statistics for Figure 3—figure supplement 1

Request a detailed protocol
Fisher's exact testSignificantSummaryAdjusted
P Value
pLB1-Gal4/+ vs. Tdc2-Gal4/UAS-Kir2.1Nons0,2
Tdc2-Gal4/+ vs. Tdc2-Gal4/UAS-Kir2.1Nons0,1
UAS-Kir2.1/+ vs. Tdc2-Gal4/UAS-Kir2.1Nons0,6
Tdc2-Gal4/UAS-Kir2.1 vs. pLB1-Gal4/UAS-Kir2.1Nons0,6

Lines and conditions used for Figure 3—figure supplement 2

Request a detailed protocol

Genotypes of tested animals

  • pLB1-Gal4, UAS > stop > GFPmCD8; LexAop-FLP/nSyb-LexA

Reagents and tools

  • antibody against Tdc2; antibody against GFP; antibody against nc82; Leica SP8 confocal microscope

Lines and conditions used for Figure 3—figure supplement 3

Request a detailed protocol

Genotypes of tested animals

  • pLB1-Gal4, UAS > stop > GFPmCD8; LexAop-FLP/nSyb-LexA

Reagents and tools

  • antibody against Tdc2; antibody against GFP; antibody against nc82; Leica SP8 confocal microscope

Lines and conditions used for Figure 3—figure supplement 4

Request a detailed protocol

For 4A-A’’’:

Genotypes of tested animals

  • pLB1-Gal4, UAS > stop > GFPmCD8; LexAop-FLP/Dsx-LexA

Reagents and tools

  • antibody against Tdc2; antibody against GFP; Leica SP8 confocal microscope

For 4B-B’’’:

Genotypes of tested animals

  • pLB1-Gal4, UAS > stop > GFPmCD8; LexAop-FLP/Dsx-FLP

Reagents and tools

  • antibody against Tdc2; antibody against GFP; Leica SP8 confocal microscope

Lines and conditions used for Figure 4

Request a detailed protocol

For 4A:

Genotypes of tested animals; (at 29°C: n flies/mean eggs exp1/mean eggs exp2/mean eggs exp3)

  • pLB1-Gal4/+ (34/51/65/-)

  • pLB1-Gal4, Tdc2-LexA/+ (51/70/63/63)

  • UAS-TTx/+ (38/61/72/-)

  • Tub >Gal80>; UAS-TTx; LexAop-FLP/+ (49/61/64/63)

  • pLB1-Gal4/UAS-TTx (39/27/44)

  • pLB1-Gal4, TDC2-LexA/UAS-TTx (20/39/-/-)

  • pLB1-Gal4/Tub >Gal80>; UAS-TTx; LexAop-FLP (50/65/71/62)

  • pLB1-Gal4, Tdc2-LexA/Tub >Gal80>; UAS-TTx; LexAop-FLP (54/40/41/42)

Detailed statistics for Figure 4A

Request a detailed protocol
Dunn's multiple
comparisons
test
SignificantSummaryAdjusted
P Value
+/Tub > Gal80>; UAS-TTx; LexAop-FLP vs. +/UAS-TTxNons>0,9999
+/Tub > Gal80>; UAS-TTx; LexAop-FLP vs. pLB1-Gal4,pTdc2-LexA/+Nons>0,9999
+/Tub > Gal80>; UAS-TTx; LexAop-FLP vs. pLB1-Gal4/Tub > Gal80>;UAS-TTx; LexAop-FLPNons>0,9999
+/Tub > Gal80>; UAS-TTx; LexAop-FLP vs. LB1_G4,Tdc2_LexA/Tub > Gal80>; UAS-TTx; LexAop-FLPYes****<0,0001
+/Tub > Gal80>; UAS-TTx; LexAop-FLP vs. pLB1-Gal4/UAS-TTxYes****<0,0001
+/Tub > Gal80>; UAS-TTx; LexAop-FLP vs. pLB1-Gal4,Tdc2-LexA/UAS-TTxYes****<0,0001
+/Tub > Gal80>; UAS-TTx; LexAop-FLP vs. pLB1-Gal4/+Nons>0,9999
+/UAS-TTx vs. pLB1-Gal4,Tdc2-LexA/+Nons>0,9999
+/UAS-TTx vs. pLB1-Gal4/Tub > Gal80>; UAS-TTx;LexAop-FLPNons>0,9999
+/UAS-TTx vs. pLB1-Gal4,Tdc2-LexA/Tub > Gal80>;UAS-TTx;LexAop-FLPYes****<0,0001
+/UAS-TTx vs. pLB1Gal4/UAS-TTxYes****<0,0001
+/UAS-TTx vs. pLB1Gal4,Tdc2-LexA/UAS-TTXYes****<0,0001
+/UAS-TTx vs. pLB1-Gal4/+Nons0,5856
pLB1-Gal4,Tdc2-LexA/+ vs. pLB1-Gal4/Tub > Gal80>; UAS-TTx;LexAop-FLPNons>0,9999
pLB1-Gal4,Tdc2-LexA/+ vs. pLB1-Gal4,Tdc2-LexA/Tub > Gal80>; UAS-TTx;LexAop-FLPYes****<0,0001
pLB1-Gal4,Tdc2-LexA/+ vs. pLB1-Gal4/UAS-TTxYes****<0,0001
pLB1-Gal4,Tdc2-LexA/+ vs. pLB1-Gal4,Tdc2-LexA/UAS-TTxYes****<0,0001
pLB1-Gal4,Tdc2-LexA/+ vs. pLB1-Gal4/+Nons>0,9999
pLB1-Gal4/Tub > Gal80>;UAS-TTx; LexAop-FLP vs. pLB1-Gal4,Tdc2-LexA/Tub > Gal80>;UAS-TTx;LexAop-FLPYes****<0,0001
pLB1-Gal4/Tub > Gal80>;UAS-TTx; LexAop-FLP vs. pLB1-Gal4/UAS-TTxYes****<0,0001
pLB1-Gal4/Tub > Gal80>;UAS-TTx; LexAop-FLP vs. pLB1-Gal4,Tdc2-LexA/UAS-TTxYes****<0,0001
pLB1-Gal4/Tub > Gal80>;UAS-TTx; LexAop-FLP vs. pLB1-Gal4/+Nons0,3232
pLB1-Gal4,Tdc2-LexA/Tub > Gal80>; UAS-TTx;LexAop-FLP vs. pLB1-Gal4/UAS-TTxNons>0,9999
pLB1-Gal4,Tdc2-LexA/Tub > Gal80>; UAS-TTx;LexAop-FLP vs. LB1-Gal4;Tdc2-LexA/UAS-TTxNons>0,9999
pLB1-Gal4,Tdc2-LexA/Tub > Gal80>; UAS-TTx;LexAop-FLP vs. pLB1-Gal4/+Yes***0,0003
pLB1-Gal4/UAS-TTx vs. pLB1-Gal4,Tdc2-LexA/UAS-TTxNons>0,9999
pLB1-Gal4/UAS-TTx vs. pLB1-Gal4/+Yes****<0,0001
pLB1-Gal4,Tdc2-LexA/UAS-TTx vs. pLB1-Gal4/+Yes**0,0054

For 4B:

Genotypes of tested animals (at 23°C: n flies/mean eggs exp1/mean eggs exp2/mean eggs exp3 //at 29°C: n flies/mean eggs exp1/mean eggs exp2/mean eggs exp3)

  • Tdc2-LexA/+ (35/42/45/36//37/42/39/41)

  • HS-FLP; pLB1-Gal4/+ (40/38.5/39/36//39/39.5/42/43)

  • pLB1-Gal4, Tdc2-LexA/+ (40/38/40/32//39/44/38/36)

  • pLB1-Gal4/+ (40/44/42/31//39/45/46/32)

  • UAS > stop > TRPA1; LexAop-FLP/+ (40/45/45/34//40/48/47/43)

  • pLB1-Gal4/UAS > stop > TRPA1; LexAop-FLP (40/39/37/35//40/44/44/42)

  • Tdc2-LexA/UAS > stop > TRPA1; LexAop-FLP (40/34/32/35//37/35/37/34)

  • HS-FLP; pLB1-Gal4/UAS > stop > TRPA1; LexAop-FLP (39/37/36/31//40/59/60/49)

  • pLB1-Gal4, Tdc2-LexA/UAS > stop > TRPA1; LexAop-FLP (40/37/32/28//40/54/57/51)

Detailed statistics for Figure 4B

Request a detailed protocol
Dunn's multiple comparisons testSignificant?SummaryAdjusted
P Value
Tdc2Lex > 0 vs. LB1Gal4/HS-FLP > 0Nons>0,9999
Tdc2Lex > 0 vs. LB1Gal4/Tdc2Lex > 0Nons>0,9999
Tdc2Lex > 0 vs. LB1Gal4 > 0Nons>0,9999
Tdc2Lex > 0 vs. 0 > stop > TRPA1/LexAopFLPNons>0,9999
Tdc2Lex > 0 vs. LB1G4/Tdc2Lex > stop > TRPA1/LexAopFLPYes****<0,0001
Tdc2Lex > 0 vs. LB1G4/HS-FLP > stop > TRAP1/LexAopFLPYes****<0,0001
Tdc2Lex > 0 vs. LB1G4 > stop > TRPA1/LexaopFLPNons>0,9999
Tdc2Lex > 0 vs. Tdc2Lex > stop > TRPA1/Lexaop-FLPNons0,7602
LB1Gal4/HS-FLP > 0 vs. LB1Gal4/Tdc2Lex > 0Nons>0,9999
LB1Gal4/HS-FLP > 0 vs. LB1Gal4 > 0Nons>0,9999
LB1Gal4/HS-FLP > 0 vs. 0 > stop > TRPA1/LexAopFLPNons>0,9999
LB1Gal4/HS-FLP > 0 vs. LB1G4/Tdc2Lex > stop > TRPA1/LexAopFLPYes****<0,0001
LB1Gal4/HS-FLP > 0 vs. LB1G4/HS-FLP > stop > TRAP1/LexAopFLPYes****<0,0001
LB1Gal4/HS-FLP > 0 vs. LB1G4 > stop > TRPA1/LexaopFLPNons>0,9999
LB1Gal4/HS-FLP > 0 vs. Tdc2Lex > stop > TRPA1/Lexaop-FLPNons>0,9999
LB1Gal4/Tdc2Lex > 0 vs. LB1Gal4 > 0Nons>0,9999
LB1Gal4/Tdc2Lex > 0 vs. 0 > stop > TRPA1/LexAopFLPNons>0,9999
LB1Gal4/Tdc2Lex > 0 vs. LB1G4/Tdc2Lex > stop > TRPA1/LexAopFLPYes****<0,0001
LB1Gal4/Tdc2Lex > 0 vs.
LB1G4/HS-FLP > stop > TRAP1/LexAopFLP
Yes****<0,0001
LB1Gal4/Tdc2Lex > 0 vs. LB1G4 > stop > TRPA1/LexaopFLPNons>0,9999
LB1Gal4/Tdc2Lex > 0 vs. Tdc2Lex > stop > TRPA1/Lexaop-FLPNons0,6815
LB1Gal4 > 0 vs. 0 > stop > TRPA1/LexAopFLPNons>0,9999
LB1Gal4 > 0 vs. LB1G4/Tdc2Lex > stop > TRPA1/LexAopFLPYes****<0,0001
LB1Gal4 > 0 vs. LB1G4/HS-FLP > stop > TRAP1/LexAopFLPYes****<0,0001
LB1Gal4 > 0 vs. LB1G4 > stop > TRPA1/LexaopFLPNons>0,9999
LB1Gal4 > 0 vs. Tdc2Lex > stop > TRPA1/Lexaop-FLPNons0,6919
0 > stop > TRPA1/LexAopFLP vs. LB1G4/Tdc2Lex > stop > TRPA1/LexAopFLPYes****<0,0001
0 > stop > TRPA1/LexAopFLP vs. LB1G4/HS-FLP > stop > TRAP1/LexAopFLPYes****<0,0001
0 > stop > TRPA1/LexAopFLP vs. LB1G4 > stop > TRPA1/LexaopFLPNons>0,9999
0 > stop > TRPA1/LexAopFLP vs. Tdc2Lex > stop > TRPA1/Lexaop-FLPNons>0,9999
LB1G4/Tdc2Lex > stop > TRPA1/LexAopFLP vs. LB1G4/HS-FLP > stop > TRAP1/LexAopFLPNons>0,9999
LB1G4/Tdc2Lex > stop > TRPA1/LexAopFLP vs. LB1G4 > stop > TRPA1/LexaopFLPYes****<0,0001
LB1G4/Tdc2Lex > stop > TRPA1/LexAopFLP vs. Tdc2Lex > stop > TRPA1/Lexaop-FLPYes****<0,0001
LB1G4/HS-FLP > stop > TRAP1/LexAopFLP vs. LB1G4 > stop > TRPA1/LexaopFLPYes****<0,0001
LB1G4/HS-FLP > stop > TRAP1/LexAopFLP vs. Tdc2Lex > stop > TRPA1/Lexaop-FLPYes**0,0012
LB1G4 > stop > TRPA1/LexaopFLP vs. Tdc2Lex > stop > TRPA1/Lexaop-FLPNons>0,9999

For 4C:

Genotypes of tested animals (at 29°C: n flies for water injection: PGN injection /mean eggs laid post water injection: PGN injection exp1/ mean eggs laid post water injection: PGN injection exp2)

  • pLB1-Gal4, Tdc2-LexA/+ (51:51/32:19/19:10)

  • Tub >Gal80>; LexAop-FLP; UAS-Fadd-IR/+ (52:52/26:16/28:17)

  • Tdc2-LexA/Tub >Gal80>; LexAop-FLP; UAS-Fadd-IR (58:58/24:14/25:14)

  • pLB1-Gal4/Tub >Gal80>; LexAop-FLP; UAS-Fadd-IR (58:58/26:16/33:17)

  • pLB1-Gal4, Tdc2-LexA/Tub >Gal80>; LexAop-FLP; UAS-Fadd-IR (47:47/37:30/23:22)

Reagents and tools

  • PGN/Water/Nanojector

Detailed statistics for Figure 4C

Dunn's multiple comparisons testSignificantSummaryAdjusted P Value
pLB1-Gal4,Tdc2-LexA/Tub > Gal80>; LexAop-FLP;UAS-Fadd IR vs. pLB1-Gal4,Tdc2-LexA/+Yes***0,0001
pLB1-Gal4,Tdc2-LexA/Tub > Gal80>; LexAop-FLP;UAS-Fadd IRvs. pLB1-Gal4/Tub > Gal80>; LexAop-FLP;UAS-Fadd IRYes****<0,0001
pLB1-Gal4,Tdc2-LexA/Tub > Gal80>; LexAop-FLP;UAS-Fadd IR vs. Tdc2-LexA/Tub > Gal80>; LexAop-FLP;UAS-Fadd IRYes****<0,0001
pLB1-Gal4,Tdc2-LexA/Tub > Gal80>; LexAop-FLP;UAS-Fadd IR vs. +/Tub > Gal80>; LexAop-FLP;UAS-Fadd IRYes****<0,0001
pLB1-Gal4,Tdc2-LexA/+ vs. pLB1-Gal4/Tub > Gal80>; LexAop-FLP;UAS-Fadd IRNons0,5730
pLB1-Gal4,Tdc2-LexA/+ vs. Tdc2-LexA/Tub > Gal80>; LexAop-FLP;UAS-Fadd IRNons>0,9999
pLB1-Gal4,Tdc2-LexA/+ vs. +/Tub > Gal80>; LexAop-FLP;UAS-Fadd IRNons>0,9999
pLB1-Gal4/Tub > Gal80>; LexAop-FLP;UAS-Fadd IR vs. Tdc2-LexA/Tub > Gal80>;L exAop-FLP;UAS-Fadd IRNons>0,9999
pLB1-Gal4/Tub > Gal80>; LexAop-FLP;UAS-Fadd IR vs. +/Tub > Gal80>; LexAop-FLP;UAS-Fadd IRNons>0,9999
Tdc2-LexA/Tub > Gal80>; LexAop-FLP;UAS-Fadd IR vs. +/Tub > Gal80>; LexAop-FLP;UAS-Fadd IRNons>0,9999

Lines and conditions used for Figure 5

Request a detailed protocol

For 5A:

Genotypes of tested animals (at 29°C: n flies/mean eggs exp1/mean eggs exp2)

  • pLB1-Gal4, UAS > stop > Kir2.1/+ (40/63/63)

  • HS-FLP/+ (34/58/58)

  • OTD-FLP/+ (39/63/66)

  • pLB1-Gal4, UAS > stop > Kir2.1/HS-FLP (40/35/39)

  • pLB1-Gal4, UAS > stop > Kir2.1/OTD-FLP (40/46/49)

Detailed statistics for Figure 5A

Request a detailed protocol
Dunn's multiple comparisons testSignificantSummaryAdjusted P Value
HS-FLP/+ vs. pLB1-Gal4,UAS > stop > Kir2.1/+Nons0,3044
HS-FLP/+ vs. OTD-FLP/+Nons0,1434
HS-FLP/+ vs. pLB1-Gal4,UAS > stop > Kir2.1/OTD-FLPYes**0,0060
HS-FLP/+ vs. pLB1-Gal4,UAS > stop > Kir2.1/HS-FLPYes****<0,0001
pLB1-Gal4, UAS > stop > Kir2.1/+ vs. OTD-FLP/+Nons>0,9999
pLB1-Gal4,UAS > stop > Kir2.1/+ vs. pLB1-Gal4,UAS > stop > Kir2.1/OTD-FLPYes****<0,0001
pLB1-Gal4,UAS > stop > Kir2.1/+ vs. pLB1-Gal4,UAS > stop > Kir2.1/HS-FLPYes****<0,0001
OTD-FLP/+ vs. pLB1-Gal4,UAS > stop > Kir2.1/OTD-FLPYes****<0,0001
OTD-FLP/+ vs. pLB1Gal4,UAS > stop > Kir2.1/HS-FLPYes****<0,0001
pLB1-Gal4,UAS > stop > Kir2.1/OTD-FLP vs. pLB1-Gal4, UAS > stop > Kir2.1/HS-FLPYes*0,0255

For 5B:

Genotypes of tested animals (at 29°C: n flies/mean eggs exp1/mean eggs exp2/ mean eggs exp3)

  • UAS-Kir2.1/+ (50/51/70/70)

  • Tsh-LexA, LexAop-Gal80/+ (48/50/70/68)

  • pLB1-Gal4/+ (49/51/59/56)

  • Tsh-LexA, LexAop-Gal80; UAS-Kir2.1/+ (50/46/70/68)

  • pLB1-Gal4/Tsh-LexA, LexAop-Gal80 (50/39/67/67)

  • pLB1-Gal4/UAS-Kir2.1 (69/28/28/41)

  • pLB1-Gal4/Tsh-LexA, LexAop-Gal80; UAS-Kir2.1 (56/21/37/40)

Detailed statistics for Figure 5B

Request a detailed protocol
Dunn's multiple
comparisons test
SignificantSummaryAdjusted
P Value
pLB1-Gal4/UAS-Kir2.1 vs. pLB1-Gal4/UAS-Kir2.1;Tsh-LexA, LexAop-Gal80Nons>0,9999
pLB1-Gal4/UASKir2.1 vs. pLB1-Gal4/Tsh-LexA, LexAop-Gal80Yes****<0,0001
pLB1-Gal4/UAS-Kir2.1 vs. +/Tsh-LexA, LexAop-Gal80; UAS-Kir2.1Yes****<0,0001
pLB1-Gal4/UAS-Kir2.1 vs. +/UAS-Kir2.1Yes****<0,0001
pLB1-Gal4/UAS-Kir2.1 vs. +/Tsh-LexA, Lexaop-Gal80Yes****<0,0001
pLB1-Gal4/UAS-Kir2.1 vs. pLB1-Gal4/+Yes****<0,0001
pLB1-Gal4/UASKir2.1; Tsh-LexA, LexAop-Gal80 vs. pLB1-Gal4/Tsh-LexA, LexAop-Gal80Yes****<0,0001
pLB1-Gal4/UAS-Kir2.1;Tsh-LexA, LexAop-Gal80 vs. +/Tsh-LexA, LexAop-Gal80; UAS-Kir2.1Yes****<0,0001
pLB1-Gal4/UAS-Kir2.1; Tsh-LexA, LexAop-Gal80vs. +/UAS-Kir2.1Yes****<0,0001
pLB1-Gal4/UAS-Kir2.1; Tsh-LexA, LexAop-Gal80 vs. +/Tsh-LexA, LexAop-Gal80Yes****<0,0001
pLB1-Gal4/UAS-Kir2.1; Tsh-LexA, LexAop-Gal80 vs. pLB1-Gal4/+Yes****<0,0001
pLB1-Gal4/Tsh-LexA, LexAop-Gal80 vs. +/Tsh-LexA, LexAop-Gal80;UAS-Kir2.1Nons>0,9999
pLB1-Gal4/Tsh-LexA, LexAop-Gal80 vs. +/UAS-Kir2.1Nons>0,9999
pLB1-Gal4/Tsh-LexA, LexAop-Gal80 vs. +/Tsh-LexA, LexAop-Gal80Nons>0,9999
pLB1-Gal4/Tsh-LexA, LexAop-Gal80 vs. pLB1-Gal4/+Nons>0,9999
+/Tsh-LexA, LexAop-Gal80;UAS-Kir2.1 vs. +/UAS-Kir2.1Nons>0,9999
+/Tsh-LexA, Lexaop-Gal80;UAS-Kir2.1vs. +/Tsh-LexA, LexAop-Gal80Nons>0,9999
+/Tsh-LexA, LexAop-Gal80;UAS-Kir2.1 vs. pLB1-Gal4/+Nons>0,9999
+/UAS-Kir2.1 vs. +/Tsh-LexA, LexAop-Gal80Nons>0,9999
+/UAS-Kir2.1 vs. pLB1-Gal4/+Nons0,1350
+/Tsh-LexA, LexAop-Gal80 vs. pLB1-Gal4/+Nons0,3431

For 5C:

Genotypes of tested animals (at 29°C: n flies for water injection: PGN injection/mean eggs laid post water injection: PGN injection exp1/mean eggs laid post water injection: PGN injection exp2)

  • UAS-Fadd-IR/+ (40:40/40:26/27:13)

  • pLB1-Gal4/+ (40:40/43:28/30:17)

  • Tsh-Gal4/+ (40:40/45:28/25:14)

  • pLB1-Gal4/UAS-Fadd-IR (40:36/43:40/28:26)

  • Tsh-Gal4/UAS-Fadd-IR (28:29/33:22/23:11)

Reagents and tools

  • PGN/Water/Nanojector

Detailed statistics for Figure 5C

Request a detailed protocol
Dunn's multiple comparisons testSignificantSummaryAdjusted P Value
pLB1-Gal4/+ vs. Tsh-Gal4/UAS-FaddIRNons>0,9999
pLB1-Gal4/+ vs. Tsh-Gal4/+Nons>0,9999
pLB1-Gal4/+ vs. pLB1-Gal4/UAS-FaddIRYes****<0,0001
pLB1-Gal4/+ vs. +/UAS-FaddIRNons>0,9999
Tsh-Gal4/UAS-FaddIRvs. Tsh-Gal4/+Nons>0,9999
Tsh-Gal-4/UAS-FaddIR vs. pLB1-Gal4/UAS-FaddIRYes****<0,0001
Tsh-Gal4/UAS-FaddIR vs. +/UAS-FaddIRNons>0,9999
Tsh-Gal4/+vs. pLB1-Gal4/UAS-FaddIRYes****<0,0001
Tsh-Gal4/+ vs. +/UAS-FaddIRNons>0,9999
pLB1-Gal4/UAS-FaddIR vs. +/UAS-FaddIRYes****<0,0001

For 5D:

Genotypes of tested animals (at 29°C: n flies/mean ratio eggs water vs PGN exp1+exp2)

  • UAS-Fadd-IR/+ (40/0.65)

  • Tsh-LexA, LexAop-Gal80; UAS-Fadd-IR/+ (36/0.56)

  • Tdc2-Gal4/+ (40/0.61) pLB1-Gal4/+ (38/0.66)

  • Tdc2-Gal4/UAS-Fadd-IR (40/0.96)

  • pLB1-Gal4/UAS-Fadd-IR (38/1.05)

  • Tdc2-Gal4/Tsh-LexA, LexAop-Gal80; UAS-Fadd-IR (14/1.00)

  • pLB1-Gal4/Tsh-LexA, LexAop-Gal80; UAS-Fadd-IR (32/0.92)

Reagents and tools

  • PGN/Water/Nanojector

Detailed statistics for Figure 5D

Dunn's multiple comparisons testSignificant?SummaryAdjusted
P Value
Tdc2-Gal4/UAS-Fadd IR; Tsh-Lexa, LexAop-Gal80 vs. +/UAS-Fadd IR;Tsh-LexA, LexAop-Gal80Yes*0,0236
Tdc2-Gal4/UAS-Fadd IR;Tsh-LexA, LexAop-Gal80 vs. Tdc2-Gal4/+Nons0,0759
Tdc2-Gal4/UAS-Fadd IR;Tsh-LexA, LexAop-Gal80 vs. Tdc2-Gal4/UAS-Fadd IRNons>0,9999
Tdc2-Gal4/UAS-Fadd IR;Tsh-LexA, LexAop-Gal80 vs. +/UAS-Fadd IRNons0,1743
Tdc2-Gal4/UAS-Fadd IR; Tsh-LexA, LexAop-Gal80 vs. pLB1-Gal4/+Nons0,2508
Tdc2-Gal4/UAS-Fadd IR;Tsh-LexA, LexAop-Gal80 vs. pLB1-Gal4/UAS-Fadd IRNons>0,9999
Tdc2-Gal4/UAS-Fadd IR;Tsh-LexA, LexAop-Gal80 vs. pLB1-Gal4/UAS-Fadd IR;Tsh-LexA, LexAop-Gal80Nons>0,9999
+/UAS-Fadd IR;Tsh-LexA, LexAopGal80 vs. Tdc2-Gal4/+Nons>0,9999
+/UAS-Fadd IR;Tsh-LexA, LexAop-Gal80 vs. Tdc2-Gal4/UAS-Fadd IRYes***0,0001
+/UAS-Fadd IR;Tsh-LexA, LexAop-Gal80 vs. +/UAS-Fadd IRNons>0,9999
+/UAS-Fadd IR;Tsh-LexA, LexAop-Gal80 vs. pLB1-Gal4/+Nons>0,9999
+/UAS-Fadd IR;Tsh-LexA, LexAop-Gal80 vs. pLB1-Gal4/UAS-Fadd IRYes****<0,0001
+/UAS-Fadd IR;Tsh-LexA, LexAop-Gal80 vs. pLB1-Gal4/UAS-Fadd IR;Tsh-LexA, LexAop-Gal80Yes**0,0036
Tdc2-Gal4/+ vs. Tdc2-Gal4/UAS-Fadd IRYes***0,0008
Tdc2-Gal4/+ vs. +/UAS-Fadd IRNons>0,9999
Tdc2-Gal4/+ vs. pLB1-Gal4/+Nons>0,9999
Tdc2-Gal4/+ vs. pLB1-Gal4/UAS-Fadd IRYes****<0,0001
Tdc2-Gal4/+ vs. pLB1-Gal4/UAS-Fadd IR;Tsh-LexA, LexAop-Gal80Yes*0,0180
Tdc2-Gal4/UAS-Fadd IR vs. +/UAS-Fadd IRYes**0,0036
Tdc2-Gal4/UAS-Fadd IR vs. pLB1-Gal4/+Yes**0,0078
Tdc2-Gal4/UAS-Fadd IR vs. pLB1-Gal4/UAS-Fadd IRNons>0,9999
Tdc2-Gal4/UAS-Fadd IR vs. pLB1-Gal4/UAS-Fadd IR;Tsh-LexA, LexAop-Gal80Nons>0,9999
+/UAS-Fadd IR vs. pLB1-Gal4/+Nons>0,9999
+/UAS-Fadd IR vs. pLB1-Gal4/UAS-Fadd IRYes****<0,0001
+/UAS-Fadd IR vs. pLB1Gal4/UAS-Fadd IR;Tsh-LexA, LexAop-Gal80Nons0,0601
pLB1-Gal4/+ vs. pLB1-Gal4/UAS-Fadd IRYes****<0,0001
pLB1-Gal4/+ vs. pLB1-Gal4/UAS-Fadd IR;Tsh-LexA, LexAop-Gal80Nons0,1049
pLB1-Gal4/UAS-Fadd IR vs. pLB1-Gal4/UAS-Fadd IR;Tsh-LexA, LexAop-Gal80Nons>0,9999

Lines and conditions used for Figure 5—figure supplement 1

Request a detailed protocol

For 1A-C’’’:

Genotypes of tested animals

  • pLB1-Gal4, UAS > stop > GFPmCD8/OTD-FLP

Reagents and tools

  • antibody against Tdc2; antibody against GFP; Leica SP8 confocal microscope

For 1D-D’:

Genotypes of tested animals

  • pLB1-Gal4; UAS-Tomato-mCD8/Tsh-LexA, LexAop-Gal80

Reagents and tools

  • antibody against nc82; antibody against GFP; Leica SP8 confocal microscope

Lines and conditions used for Figure 6

Request a detailed protocol

Genotypes of tested animals

  • pLB1-LexA/Tdc2-Gal4, UAS > stop > GFPmCD8; Lexaop-FLP

Reagents and tools

  • antibody against GFP; antibody against nc82; Leica SP8 confocal microscope

Lines and conditions used for Figure 7

Request a detailed protocol

Genotypes of tested animals

  • pgrp-lb::gfp/Tdc-2-Gal4, UAS-Tomato-mCD8GFP

Reagents and tools

  • No antibody staining; Leica SP8 confocal microscope

Lines and conditions used for Figure 8

Request a detailed protocol

For A-C: in vivo

Genotypes and number (n) of tested animals

  • Tdc2-Gal4, UAS-GCaMP6s

  • Ringer’s: n = 8 PGN: n = 13

Reagents and tools

  • Leica SP8 confocal microscope, PGN, Ringer’s solution

For D-F: ex vivo

Genotypes and number (n) of tested animals

  • pLB1-LexA; LexAop-FLP/Tub > Gal80>; Tdc2-Gal4, UAS-GCaMP6s

  • Ringer’s; n = 10 PGN; n = 12

Reagents and tools

  • Spinning Disk Ropper 2 Cam, PGN, Ringer’s solution

Detailed statistics for Figure 8C

Request a detailed protocol

Mann-Whitney test

Table AnalyzedData 1
Column BPGN 100 µg/mL
vsvs
Column CPGN 100 µg/mL VM1
Mann Whitney test
P value0,0010
Exact or approximate P value?Gaussian Approximation
P value summary***
Are medians signif. different? (p<0.05)Yes
One- or two-tailed P value?Two-tailed
Sum of ranks in column B,C97, 134
Mann-Whitney U6000

Detailed statistics for Figure 8F

Table AnalyzedData 1
Column ARinger's Solution
vsvs
Column BPGN 100microg/mL
Mann Whitney test
P value0,0001
Exact or approximate P value?Gaussian Approximation
P value summary***
Are medians signif. different? (p<0.05)Yes
One- or two-tailed P value?Two-tailed
Sum of ranks in column A,B173, 80
Mann-Whitney U2000

Lines and conditions used for Figure 9

Request a detailed protocol

For 9A:

Genotypes of tested animals

  • w-

Reagents and tools

  • Axio-Imager APO Z1 apotome microscope

For 9B:

Genotypes of tested animals (at 25°C: n flies for water injection: PGN injection)

(mix of two independent experiments; mean stage 1–6 post water injection: PGN injection/mean stage 7–9 post water injection: PGN injection/mean stage 10 post water injection: PGN injection/mean stage 11–13 post water injection: PGN injection/mean stage 14 post water injection: PGN injection/mean Apoptotic oocytes post water injection: PGN injection)

  • w- (17:20)

  • 6h p. i. (33:32.7/33.2:35.7/5:3.85/8.5:5/18.1:27/2.1:3.7)

  • 24h p. i. (36.7:36.5/36.1:35.2/9.5:7.3/11.2:8.1/17.3:23/0.5:0.3)

  • 48h p. i. (36.7:39/39:36/7:6/7.8:9/20.5:21.8/0.35:0.45)

Reagents and tools

  • PGN/Water/Nanojector

Detailed statistics for Figure 9B

Request a detailed protocol
Table Analyzedoocytes count
6 hr water/PGN combo
set 2 + set 1
Column Gst14 PGN200
vs.vs,
Column Ast14 water
Mann-Whitney test
P value0,0085
Exact or approximate P value?Exact
P value summary**
Significantly different (p<0.05)?Yes
One- or two-tailed P value?Two-tailed
Sum of ranks in column A,G238, 465
Mann-Whitney U85
Difference between medians
Median of column A15, n = 17
Median of column G24, n = 20
Difference: Actual9
Difference: Hodges-Lehmann7
Table Analyzedoocytes count
6 hr water/PGN combo
set 2 + set 1
Column Hst11-13 PGN200
vs.vs,
Column Bst 11–13 water
Mann Whitney test
P value0,0004
Exact or approximate P value?Exact
P value summary***
Significantly different (p<0.05)?Yes
One- or two-tailed P value?Two-tailed
Sum of ranks in column B,H434,5, 268,5
Mann-Whitney U58,5
Difference between medians
Median of column B9, n = 17
Median of column H5, n = 20
Difference: Actual-4
Difference: Hodges-Lehmann-3
Table Analyzedoocytes count 6 hr
water/PGN combo
set 2 + set 1
Column LApoptotic oocytes
vs.vs,
Column FApoptotic oocytes
Mann Whitney test
P value0,0350
Exact or approximate P value?Exact
P value summary*
Significantly different (p<0.05)?Yes
One- or two-tailed P value?Two-tailed
Sum of ranks in column F,L255,5, 447,5
Mann-Whitney U102,5
Difference between medians
Median of column F0, n = 17
Median of column L3,5, n = 20
Difference: Actual3,5
Difference: Hodges-Lehmann1
Table Analyzedoocytes count 24 hr
water/PGN combo
set 2 + set1
Column Hst11-13 PGN200
vs.vs,
Column Bst 11–13 water
Mann Whitney test
P value0,0155
Exact or approximate P value?Exact
P value summary*
Significantly different (p<0.05)?Yes
One- or two-tailed P value?Two-tailed
Sum of ranks in column B,H432,5, 308,5
Mann-Whitney U98,5
Difference between medians
Median of column B12, n = 18
Median of column H8,5, n = 20
Difference: Actual−3,5
Difference: Hodges-Lehmann-3
Table Analyzedoocytes count 24 hr
water/PGN combo
set 2 + set1
Column Ist10 PGN200
vs.vs,
Column Cst 10 water
Mann Whitney test
P value0,0266
Exact or approximate P value?Exact
P value summary*
Significantly different (p<0.05)?Yes
One- or two-tailed P value?Two-tailed
Sum of ranks in column C,I426, 315
Mann-Whitney U105
Difference between medians
Median of column C9,5, n = 18
Median of column I6, n = 20
Difference: Actual−3,5
Difference: Hodges-Lehmann-2

For 9C:

Genotypes of tested animals (n flies/mean eggs day 1 (21°C) exp1-2/mean eggs day 2 (29°C) exp 1–2/mean eggs day 3 (21°C) exp1−2/mean eggs day 4 (21°C) exp 1–2/mean eggs day 5 (21°C) exp 1–2)

  • pLB1-Gal4/+ (60/46.9–30.5/57.8–43.1/46.6–34.5/28.4–24.1/31.4–18.5)

  • Tub-Gal80ts, UAS-Kir2.1/+ (60/48–27.5/60-40.6/45–32.8/29-24.3/31–18)

  • pLB1-Gal4/Tub-Gal80ts, UAS-Kir2.1 (60/50-32/40.1–24.8/29.3–23.4/29.3–26.7/29.3–19.5)

Detailed statistics for Figure 9C

Request a detailed protocol
Dunn's multiple comparisons testSignificant?SummaryAdjusted
P Value
T80ts > Kir 29d2 vs. LB1 > 0 29d2Nons>0,9999
T80ts > Kir 29d2 vs. Lb1/T80ts > Kir 29d2Yes****<0,0001
LB1 > 0 29d2 vs. Lb1/T80ts > Kir 29d2Yes****<0,0001
T80ts > Kir 23d3 vs. LB1 > 0 23d3Nons0,6535
T80ts > Kir 23d3 vs. Lb1/T80ts > Kir 23d3Yes****<0,0001
LB1 > 0 23d3 vs. Lb1/T80ts > Kir 23d3Yes****<0,0001

For 9D:

Genotypes of tested animals

  • pLB1-Gal4/Tub-Gal80ts, UAS-Kir2.1

Reagents and tools

  • Axio-Imager APO Z1 apotome microscope

For 9E:

Genotypes of tested animals (n flies Day 1-2-3-4 (mix of two independent experiments)); mean stage 1–6 Day 1-2-3−4/mean stage 7–9 Day 1-2-3−4/mean stage 10 Day 1-2-3−4/mean stage 11–13 Day 1-2-3−4/mean stage 14 Day 1-2-3−4/mean Apoptotic oocytes Day 1-2-3-4)

  • pLB1-Gal4/+ (10-11-9-10; 30.9–31.8-31.4–28.6/30.1–30.7-32-25.3/6.6–3.9-6.4–4.2-/8–4.9-7.4–5.7/9.8–27.9-4.4–10.3/0.7–1.8-0.7–0.4)

  • Tub-Gal80ts, UAS-Kir2.1/+ (10-10-9-10; 33.9–34.1-34-31.3/34.5–30.2-35-28.2/7.3–4.1-4.6–6.1/9.6–5.4-7.4–3.8/9.2–26.1-13.8-6/0-1.1–0.5-0.2)

  • pLB1-Gal4/Tub-Gal80ts, UAS-Kir2.1 (10-9-11-10; 32-32-31.9–29.1/33.4–31.9-31.5–28.7/6.8–6.1-4.3–3.9/10.3–3.8-5-6.4/8.2–45.2-29.6–9.4/0.4-0-0.9–1)

Detailed statistics for Figure 9E

Day 2 (29°C)

Dunn's multiple
comparisons test
Significant?SummaryAdjusted
P Value
st14 Lb1 > 0 vs. st14 0/T80ts > KirNons>0,9999
st14 Lb1 > 0 vs. st14 LB1/T80ts > KirYes**0,0013
st14 0/T80ts > Kir vs. st14 LB1/T80ts > KirYes***0,0007
Dunn's multiple
comparisons test
Significant?SummaryAdjusted
P Value
Apoptotic oocytes LB1 > 0 vs. Apoptotic oocytes 0/T80ts > KirNons0,3395
Apoptotic oocytes LB1 > 0 vs. Apoptotic oocytes LB1/T80ts > KirYes**0,0021
Apoptotic oocytes 0/T80ts > Kir vs. Apoptotic oocytes LB1/T80ts > KirNons0,2155

Day 3 (21°C)

Dunn's multiple
comparisons test
Significant?SummaryAdjusted
P Value
st14 Lb1 > 0 vs. st14 0/T80ts > KirNons0,0586
st14 Lb1 > 0 vs. st14 LB1/T80ts > KirYes***0,0001
st14 0/T80ts > Kir vs. st14 LB1/T80ts > KirNons0,2082

Lines and conditions used for Figure 9—figure supplement 1

Request a detailed protocol

Genotypes of tested animals

  • w-

Reagents and tools

  • PGN/Water/Nanojector; Axio-Imager APO Z1 apotome microscope, DAPI

Lines and conditions used for Figure 9—figure supplement 2

Request a detailed protocol

Genotypes of tested animals

  • pLB1-Gal4/+

  • Tub-Gal80ts, UAS-Kir2.1/+

  • pLB1-Gal4/Tub-Gal80ts, UAS-Kir2.1

Reagents and tools

  • Axio-Imager APO Z1 apotome microscope, DAPI

Lines and conditions used for Figure 10

Request a detailed protocol

For 10A-C:

Genotypes of tested animals

  • pLB1-Gal4/+

  • UAS-Kir2.1/+

  • pLB1-Gal4/UAS-Kir2.1

Reagents and tools

  • DAPI

  • Axio-Imager APO Z1 apotome microscope

For 10D:

Genotypes of tested animals

  • w-

Reagents and tools

  • DAPI

  • Axio-Imager APO Z1 apotome microscope

For 10E and 10F:

Genotypes of tested animals (at 29°C: n flies/mean stage 14 exp1/mean stage 14 exp2/mean stage 14 exp3//trimming % exp1/trimming % exp2/trimming % exp3)

  • pLB1-Gal4/+ (64/11/12/15//30/24/19)

  • UAS-Kir2.1/+ (64/14/12/8//22/24/18)

  • pLB1-Gal4/UAS-Kir2.1 (61/25/26/35//8/7/3)

Detailed statistics for Figure 10E

Request a detailed protocol
Dunn's multiple
comparisons test
SignificantSummaryAdjusted
P Value
pLB1-Gal4/+ vs. +/UAS-Kir2.1Nons>0,9999
pLB1-Gal4/+ vs. pLB1-Gal4/UAS-Kir2.1Yes****<0,0001
+/UAS-Kir2.1 vs. pLB1-Gal4/UAS-Kir2.1Yes****<0,0001

Detailed statistics for Figure 10F

Request a detailed protocol
Dunn's multiple
comparisons test
SignificantSummaryAdjusted
P Value
pLB1-Gal4/+vs. +/UAS-Kir2.1Nons0,2023
pLB1-Gal4/+ vs. pLB1-Gal4/UAS-Kir2.1Yes****<0,0001
+/UAS-Kir2.1 vs. pLB1-Gal4/UAS-Kir2.1Yes****<0,0001

For 10G and 10H:

Genotypes of tested animals

  • w-

(at 29°C: n flies for water injection: PGN injection/mean stage 14 post water injection: PGN injection exp1/mean stage14 post water injection: PGN injection exp2/mean stage14 post water injection: PGN injection exp3//trimming% water: PGN exp1/trimming % water: PGN exp2/trimming % water: PGN exp3)

  • (55:57/12:20/14:27/15:23//18:8/19:7/19:11)

Reagents and tools

  • PGN/Water/Nanojector

Detailed statistics for Figure 10G

Request a detailed protocol
Mann-Whitney test
P value<0,0001
Exact or approximate P value?Exact
P value summary****
Significantly different (p<0.05)?Yes
One- or two-tailed P value?Two-tailed
Sum of ranks in column A,B2312, 4016
Mann-Whitney U772
Difference between medians
Median of column A12, n = 55
Median of column B21, n = 57
Difference: Actual9
Difference: Hodges-Lehmann8

Detailed statistics for Figure 10H

Request a detailed protocol
Mann-Whitney test
P value<0,0001
Exact or approximate P value?Exact
P value summary****
Significantly different (p<0.05)?Yes
One- or two-tailed P value?Two-tailed
Sum of ranks in column A,B3979, 2350
Mann-Whitney U696,5
Difference between medians
Median of column A0,2, n = 55
Median of column B0,07407, n = 57
Difference: Actual−0,1259
Difference: Hodges-Lehmann−0,1003

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53

Decision letter

  1. Bruno Lemaître
    Reviewing Editor; École Polytechnique Fédérale de Lausanne, Switzerland
  2. Utpal Banerjee
    Senior Editor; University of California, Los Angeles, United States
  3. Balint Z Kacsoh
    Reviewer; Geisel School of Medicine at Dartmouth, United States
  4. Kausik Si
    Reviewer; Stowers Institute for Medical Research, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your work entitled "Peptidoglycan-dependent NF-κB activation in a small subset of brain octopaminergic neurons controls female oviposition" for consideration by eLife. Your article has been reviewed by a Senior Editor, a Reviewing Editor, and three reviewers. The following individuals involved in review of your submission have agreed to reveal their identity: Balint Z Kacsoh (Reviewer #3).

Our decision has been reached after consultation between the reviewers and the reviewing editor. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife.

While all the reviewers find that the paper has many merits, they found that this paper contains fewer surprising results than the first one published in eLife. Thus, it was decided to reject the paper but allow resubmission. This will eventually give you more time to revise the paper and submit to eLife if you think that you can address the main critics. We cannot guarantee that reviewers will not come up with new objections upon resubmission, but we do make an attempt to find the same reviewers (unless you tell us not to).

To summarize, some of the main criticisms were:

1) Use ex vivo or in vivo Ca-imaging or methods such as CalexA or CaMPari to confirm that these neurons can be activated by PGN. Show that they indeed express PGRP-LB protein.

2) Strengthen the conclusions by showing that activation of just the PLB1+/ Tdc2+ neurons using TrpA1 or channel rhodopsin mimics the phenotype to test whether activation of these few neurons is enough to recapitulate the behavior.

3) Better characterize the output of these neurons.

4) Better characterize the egg deposition defects.

This is not a requirement, but the reviewing editor would find it interesting if the authors could decipher how Relish regulates the activity of these neurons. Can the silencing of Relish or Fadd in these neurons affect a gene involved in OA synthesis?

Finally, it should be mentioned that in a recent PNAS article, the laboratory of A. Heddi has generated (based on PGRP-LE) a detector of TCT that might allow its tracing and. this could be useful to mark TCT on sections.

At the time of current review of the manuscript, the editors and reviewers felt this paper would be appropriate for publication in eLife if the authors can reinforce their conclusions and provide more mechanistic insights on the process.

Reviewer #1:

In the present study, Masuzzo et al., follow up with their previous work (Kurz et al., 2017), in which they showed that bacterial infection or PGN reduces female egg laying through PGRP-LB-expressing OA neurons. Here, they use a battery of genetic intersectional methods to narrow down the responsible neurons to 1-2 OANs in the female's brain. Overall, the study is convincing, and the authors have made a remarkable effort to include all statistics and detailed description of the methods. Nevertheless, compared to their previous work, this paper contains fewer surprising results, and still leaves many of the previously unanswered questions open.

Major points:

1) Discussion section: the authors write 'However, precisely mapping the PG localization in the brain and identifying the exact path followed by this gut-born bacteria metabolite to reach the brain will require PGN tracing methods which are not yet available.' While I agree that this specific experiment is difficult, the paper would be strengthened significantly by the demonstration that PGN activates PGRP-LB expressing neurons in the brain. This can be achieved by ex vivo or in vivo Ca-imaging or methods such as CalexA or CaMPari. The lack of knowledge of how PGN or bacteria recruit PGRP-LB signaling in the brain is, in my opinion, the most significant weakness of this study. It appears to me that this could be addressed in a short time frame of a couple of months. In lieu of such evidence, the link between PGN and egg laying-regulating LB1-Gal4+ neurons in the brain remains weak.

2) Discussion section: the authors state that '2 brain and 10 VNC neurons are reproducibly expressing the PGN degrading enzyme PGRP-LB'. I assume this is based on the expression of pLB1-Gal4, which was used in Kurz et al., to rescue the PGRP-LB loss of function phenotype. Can the authors be 100% sure that all pLB1-Gal4 expressing cells truly express PGRP-LB without an antibody staining?

Reviewer #2:

In a previous (Kurz and Royet, 2017) elegant study, Kurz and Royet reported that internal sensing of bacterial PGN by a group of PRGP-LB expressing neurons are responsible for reducing female oviposition. They observed that PRGP-LB neurons are likely octopaminergic, and activation of NF-κB in these neurons are important for reduction in oviposition. Furthermore, they reported that inactivation of these PRGP-LB positive neurons by tetanus toxin, or activation by temperature sensitive TRPA1 channel can modulate egg laying. These observations raised two important questions: how octopaminergic neurons are activated by PGN, and how activation of these neurons in the CNS/PNS influence oviposition. In this paper they have taken the first step towards addressing these questions. Taking advantage of the genetic tools available in Drosophila they have beautifully isolated a small subset (in fact could be a single neuron) of neurons in the octopaminergic VM cluster in SOG that is necessary for the PGN-mediated alteration in oviposition.

Major issues:

While the observations reported in this paper are interesting, one can argue that it does not provide any new insight to the problem than what they have already published. Nonetheless, if indeed a single neuron can mediate PGN-dependent alteration of a very specific behavior, I think that should be worth publishing. However, to make that conclusion the authors at least need to do the following experiments and these experiments should not take more than two months. First, activation of just the PLB1+/ Tdc2+ neurons using TrpA1 or channelrhodopsin to test whether activation of these few neurons is enough to recapitulate the behavior. Other than few examples of 'command neurons", there are not too many examples where activation of one or two neurons recapitulates a specific behavior. Second, if the model is correct than the activity of these PLB1+/Tdc2+ neurons in SOG should be influenced by PGN. Again, using the same driver line, they should express calcium sensor GCamp and monitor activity as a change in fluorescence following application of PGN. The kinetics of the response would also carry valuable information. They can perform these experiments in isolated brain preparation with appropriate control. Finally, I would like to know if they have attempted to follow the output of these neurons from SOG or whether they have any clue to where it is going.

Reviewer #3:

Masuzzo et al., present their work, entitled, "Peptidoglycan-dependent NF-κB activation in a small subset of brain octopaminergic neurons controls female oviposition." In this study, the authors build upon their previous work (Kurz et al., 2017), which demonstrated that internal sensing of bacterial peptidoglycan reduces Drosophila female oviposition via NF-κB pathway activation in some neurons. However, until this paper, the neurons remained unknown. This study identifies several ventral nerve cord and brain octopaminergic neurons, expressing a NF-κB pathway components. Furthermore, the authors find that the brain neurons, specifically in the sub-esophageal zone, are required for oviposition depression, whereby activation triggers an egg-laying drop in response to infection. This was shown via peptidoglycan exposure or inhibition of PGRP-LB+ neuron activity, which subsequently impairs a specific ovulation event, thus linking PGN detection to the reduction of egg production.

The study uses particular GAL4 driver lines, i.e. pLB1, to observe a neuron requirement of TbBh-IR (Tyrosine decarboxylase) (Figure 1G), where when knocked down, flies oviposit fewer eggs. Using this finding, the authors stained against Tdc2 in brains and ventral nerve cords expressing pLB1>GFP to find the particular neurons of images. The authors then tested against other types of neuro peptides to rule out effects of other neuronal subtypes. While this demonstrated a series of negative results, they are very important to the identity of these cell types.

The authors then turn to identifying what pLB1 neurons do by comparing them to previously identified Tdc2 neurons. They authors do this inactivating them with UAS-Kir and find increased receptivity in female flies with marked Tdc2 neurons but not pLB1 neurons. Interestingly, pLB1+/Tdc2+ neurons were also detected in males, even though an egg laying response is the output (Figure 3C-D). To test functional significance, an intersectional line was generated and tested in an inducible manner via GAL80 and Tetx and kir, yielding strong reduction of oviposition. This was very elegantly performed in a temperature and temporally controlled manner. Additionally, the authors find that suppression of egg-laying drop 6 hours post PGN injection mediated by the knockdown of the NF-ΚB cascade in Tdc2+ and pLB1+ cells was not observed when only thoracic neurons were targeted, demonstrating functional relevance. The authors take this a step further and analyze the ovary, where they observe changes in follicle cell trimming (marked decrease in animals with PLb1GAL4>UASKir2.1) as the means by which fewer eggs are laid. This showed a remarkable increase in stage 14 oocyte numbers when pLb1 neurons were inhibited.

This is an extremely elegant and important study that highlights how a few neurons can respond to external stimuli and change subsequent internal physiology, in an octopamine-dependent manner. Flies are able to tune their responses and behavior by bacteria-derived metabolite! The manuscript is well written and reads as a story with a very logical flow. Additionally, I would like to commend the authors on the images, which are very high quality and I really enjoy having the cartoon depiction of the brains to accompany images (i.e. Figure 1).

Major comments:

I am left wanting more with respect to Figure 5 with respect to permanence or reversibility of the phenotype. The evidence that follicle cell trimming is altered and that there is an accumulation of stage 14 egg chambers is compelling. However, I am left wondering what the physiological relevance is to this particular phenotype. I would like to know if the eggs are simply delayed (diapause phenotype) and that these eggs will be laid, or perhaps they will not be laid at all? Thus, I would like to see an experiment that turns pLB1 GAL4 marked neurons back on (i.e. use UAS-shibireTS to turn off neurons to get ovary effect at 30C, then move them back to 22C and see how egg counts change) in order to see what the dynamics are of these eggs that are not yet laid. Alternatively, using the Kir construct with a GAL80 for temporal control in the same manner would be excellent. I believe that this experiment, regardless of the answer, will be important to perform to get at the underlying mechanism of what happens to the eggs. Images of ovaries (and associated quantification) after turning the pLB1 neurons back on would also be desired. Thus, can egg counts recover and does the ovary recover are important questions to finish answering.

Additionally, I do not see stage 11-12 egg chambers in the images of Figure 5C, but rather only stage 14 and stage 7/8 and below. Panels A and B have these later stage (11) egg chambers and have apoptosis on the DAPI staining, a hallmark of normal development. I would like to see this quantification as well, not on any new experimental animals, but on the existing ovary image. I believe that the authors have identified some really cool developmental biology regulation, which is not pointed out in the manuscript, but that should be highlighted. Perhaps these are not representative images, but the means by which the egg chambers are arrested is important to note. At minimum, the distribution of egg chamber stages should be quantified and talked about in the text. If the distribution is changed as the images suggest, please speculate on mechanism in the Discussion section - the mechanism does not need to be elucidated, just postulated about. This has the potential to be really exciting.

I believe that these two points are essential to the manuscript, as they could more fully demonstrate the functional significance what the physiological mechanism is that the neurons are communicating.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for submitting your article "Peptidoglycan-dependent NF-κB activation in a small subset of brain octopaminergic neurons controls female oviposition" for consideration by eLife. Your article has been reviewed by Utpal Banerjee as the Senior Editor, a Reviewing Editor, and three reviewers. The following individuals involved in review of your submission have agreed to reveal their identity: Balint Z Kacsoh (Reviewer #1); Kausik Si (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission. We are pleased to inform you that the reviewers were rather positive about the manuscript and suggest a number of revisions that you should try to address. I suspect that most of them involve text modification.

Summary:

Masuzzo et al., present their work, entitled, "Peptidoglycan-dependent NF-κB activation in a small subset of brain octopaminergic neurons controls female oviposition." In this study, the authors build upon their previous work (Kurz et al., 2017), which demonstrated that internal sensing of bacterial peptidoglycan reduces Drosophila female oviposition via NF-κB pathway activation in some neurons. Here, they further characterize the very specific neuronal circuitry, involved in the immune induced oviposition behaviours phenotype. This study now is a major achievement in the burgeoning field of the intersection of neuronal signaling and immunity.

Essential revisions:

1) In Figure 8, the authors now show the effect of PGN stimulation on GCaMP fluorescence in vivo and ex vivo using either a broad Tdc2-Gal4 driver or their specific intersectional approach. In Figure 8A, the authors provide images of Tdc2 > GCaMP before and after PGN addition. Unfortunately, from these images it is unclear what we are looking at exactly given that Tdc2 labels many neurons. At minimum the authors should provide a scheme to explain the figure.

2) The authors point out that PGN reduces GCaMP fluorescence very transiently in their in vivo experiments. In the ex vivo experiment however, this is not the case. Here, the inhibition appears permanent/lasting. What explains this difference?

3) The authors speculate which genes might be regulated by PGN in LB1 neurons. They do not mention, however, how PGN might regulate calcium levels in these cells. This should be added to the Discussion section given that this is likely the main reason for the behavioral phenotype they observe.

https://doi.org/10.7554/eLife.50559.047

Author response

While all the reviewers find that the paper has many merits, they found that this paper contains fewer surprising results than the first one published in eLife.

Of course, it is difficult to be authors and reviewers at the same time, but we do believe that the original manuscript contained exciting and surprising results. We were indeed very surprised that flies needed only a few neurons to regulate egg-laying post infection and we thought that genetically identifying this, or these, very few neuron(s) was an important achievement which really narrowed down the question. And this surprise was somewhat shared by reviewer 2 who wrote “there are not too many examples where activation of one or two neurons recapitulates a specific behavior”. In addition, we did not expect that these neurons will be located in the brain but rather in the VNC where most egg-laying controlling neurons are. These are the main reasons why we decided to submit our work to eLife. We would like also to mention that it is mentioned in eLife home page that this journal is interested to publish follow up of a previous manuscript. Which was exactly the case here. In any case, we are now providing new results in the revised version, which we think, really allow us to go further into the molecular mechanisms by which bacteria-derived PGN modulate fly behavior.

Thus, it was decided to reject the paper but allow resubmission. This will eventually give you more time to revise the paper and submit to eLife if you think that you can address the main critics. We cannot guarantee that reviewers will not come up with new objections upon resubmission, but we do make an attempt tofind the same reviewers (unless you tell us not to).

To summarize, some of the main criticisms were:

1) Use ex vivo or in vivo Ca-imaging or methods such as CalexA or CaMPari to confirm that these neurons can be activated by PGN.

We have performed in vivo and ex vivo calcium imaging with purified PGN and demonstrated that PGN stimulation induces a drop of Calcium level in pLB1 neurons.

Show that they indeed express PGRP-LB protein.

We have generated a fly line in which all endogenous PGRP-LB isoforms are GFP tagged and showed that endogenous PGRP-LB is indeed expressed in pLB1 neurons (and also in some non pLB1).

2) Strengthen the conclusions by showing that activation of just the PLB1+/ Tdc2+ neurons using TrpA1 or channel rhodopsin mimics the phenotype to test whether activation of these few neurons is enough to recapitulate the behavior.

We have performed the requested experiment that indicates that TrpA1 ectopic expression in pLB1+/Tdc2+ neurons is sufficient to stimulate egg laying.

3) Better characterize the output of these neurons.

We have, via the generation and characterization of a new pLB1lexA fly line, identified the precise nature of most plB1+/Tdc2+ neurons and showed that, at least for one the them, it sends projections towards the VNC.

4) Better characterize the egg deposition defects.

We have performed the requested experiments that confirms that stage 14 oocytes accumulation is transient and can be also obtained by only manipulating pLB1+ neurons.

Reviewer #1:

In the present study, Masuzzo et al., follow up with their previous work (Kurz et al., 2017), in which they showed that bacterial infection or PGN reduces female egg laying through PGRP-LB-expressing OA neurons. Here, they use a battery of genetic intersectional methods to narrow down the responsible neurons to 1-2 OANs in the female's brain. Overall, the study is convincing, and the authors have made a remarkable effort to include all statistics and detailed description of the methods. Nevertheless, compared to their previous work, this paper contains fewer surprising results, and still leaves many of the previously unanswered questions open.

Major points:

1) Discussion section: the authors write 'However, precisely mapping the PG localization in the brain and identifying the exact path followed by this gut-born bacteria metabolite to reach the brain will require PGN tracing methods which are not yet available.' While I agree that this specific experiment is difficult, the paper would be strengthened significantly by the demonstration that PGN activates PGRP-LB expressing neurons in the brain. This can be achieved by ex vivo or in vivo Ca-imaging or methods such as CalexA or CaMPari. The lack of knowledge of how PGN or bacteria recruit PGRP-LB signaling in the brain is, in my opinion, the most significant weakness of this study. It appears to me that this could be addressed in a short time frame of a couple of months. In lieu of such evidence, the link between PGN and egg laying-regulating LB1-Gal4+ neurons in the brain remains weak.

We agree with this reviewer that experiments showing a direct effect of PGN on pLB1+ neuronal activity will help us understand how PGN is regulating fly behavior. We had indeed intensively tried to combine pLB1-Gal4 driver with various Ca sensors (GCamp, CaMPari….) to test this. However, the pLB1-Gal4 driver is very weak and did not allow us to see any fluorescent expression of these brains before PGN stimulation making it impossible to monitor Calcium level after PGN stimulation. We circumvented this problem by two means.

- First, we teamed up with the laboratory of Yäel Grosjean in Dijon, France, to measure the effects of PGN stimulation on Tdc2 neurons in live flies using GCaMP sensor. Our results show that stimulation of brain of Tdc2G4-UAS-GCaMP6s with 100 µg/mL of PGN induces a decrease of GFP staining in VMII/III Tdc2 positive neurons. These new results are now presented in Figure 8.

- To precisely narrow down the effects of PGN on pLB1+/Tdc2+ neurons, we generated a new fly line, pLB1-lexA using the exact same DNA fragment that the one used to produce pLB1-Gal4 fly line. When used in combination with Tdc2-Gal4, we were able to detect GCaMP expression in pLB1+/Tdc2+ neurons. Using an ex vivo approach, dissected brains in which GCamp6S is expressed only in pLB1+/Tdc2+ neuron were stimulated with PGN. New results presented in Figure 8 show that PGN stimulation induces a drop of calcium levels in pLB1+/Tdc2+ VMIII neuron.

-Altogether these data show that PGN stimulation ofpLB1+/Tdc2+ VMIII neuron induces a drop of intracellular calcium levels in these cells and hence probably inhibits these neurons. Consistently, our genetic experiments showed that functional pLB1+/Tdc2+ neuron inactivation (via Kir.2.1 or TTx overexpression) also led to egg-laying drop. This suggested a model in which PGN recognition in brain pLB1+/Tdc2+ cell, inhibits this neuron, resulting in temporary egg-laying drop.

2) Discussion section: the authors state that '2 brain and 10 VNC neurons are reproducibly expressing the PGN degrading enzyme PGRP-LB'. I assume this is based on the expression of pLB1-Gal4, which was used in Kurz et al., to rescue the PGRP-LB loss of function phenotype. Can the authors be 100% sure that all pLB1-Gal4 expressing cells truly express PGRP-LB without an antibody staining?

- As mentioned by the reviewer, our previous eLife paper demonstrated isoforms specific rescue of PGRP-LB mutant egg-laying deficit post infection by pLB1-Ga4 mediated expression of PGRP-LB-RD. This indeed suggested that the pLB1-Gal4 driver is, at least partially mimicking endogenous expression of the PGRP-LB-RD isoform. To further and more directly demonstrated it, we generated two new fly lines. pLB1-LexA already mentioned above. When crossed to appropriate fluorescent reporters, this line highlighted the brain neurons already identified with pLB1-Gal4. In addition, two AL2/Tdc2 + neurons were labelled with this line. The second fly line that we generated is PGRP-LB::GFP in which the GFP cDNA was inserted, via CRISPR, at the endogenous PGRP-LB locus. Since the GFP is inserted in an exon shared by all isoforms, it is expected that PGRP-LB-RA, RC, and RD isoforms will be GFP-tagged. By imaging PGRP-LB::GFP brains, we revealed that some VM and AL2 octopaminergic neurons are clearly expressing endogenous PGRP-LB protein (new Figure 7). This further confirmed that the pLB1 (Gal4 and LexA) drivers are expressed in at least some of the cells that produce PGRP-LB. Few cells were also identified that were PGRP-LB::GFP positive and Tdc2 -, showing that pLB1 labels only a subset of PGRP-LB positive cells in the brain.

Reviewer #2:

In a previous (Kurz and Royet, 2017) elegant study, Kurz and Royet reported that internal sensing of bacterial PGN by a group of PRGP-LB expressing neurons are responsible for reducing female oviposition. They observed that PRGP-LB neurons are likely octopaminergic, and activation of NF-κB in these neurons are important for reduction in oviposition. Furthermore, they reported that inactivation of these PRGP-LB positive neurons by tetanus toxin, or activation by temperature sensitive TRPA1 channel can modulate egg laying. These observations raised two important questions: how octopaminergic neurons are activated by PGN, and how activation of these neurons in the CNS/PNS influence oviposition. In this paper they have taken the first step towards addressing these questions. Taking advantage of the genetic tools available in Drosophila they have beautifully isolated a small subset (in fact could be a single neuron) of neurons in the octopaminergic VM cluster in SOG that is necessary for the PGN-mediated alteration in oviposition.

Major points:

While the observations reported in this paper are interesting, one can argue that it does not provide any new insight to the problem than what they have already published. Nonetheless, if indeed a single neuron can mediate PGN-dependent alteration of a very specific behavior, I think that should be worth publishing. However, to make that conclusion the authors at least need to do the following experiments and these experiments should not take more than two months. First, activation of just the PLB1+/ Tdc2+ neurons using TrpA1 or channelrhodopsin to test whether activation of these few neurons is enough to recapitulate the behavior. Other than few examples of 'command neurons", there are not too many examples where activation of one or two neurons recapitulates a specific behavior.

- As requested by this reviewer, we have performed functional experiments in pLB1+/Tdc2+ neurons. Our previous data (Kurz et al., 2017) indicated that expression of the temperature sensitive TRPA1 channel in pLB1 + cells was sufficient to trigger an egg-laying boost. Using intersectional genetic strategy, we now showed that TRPA1 expression in pLB1+/Tdc2 + neurons produces similar results.

- In conclusion, when either activated or inhibited, pLB1 +/Tdc2+ neurons behave as pLB1 + cells as far as egg-laying behavior is concerned.

Second, if the model is correct than the activity of these PLB1+/Tdc2+ neurons in SOG should be influenced by PGN. Again, using the same driver line, they should express calcium sensor GCamp and monitor activity as a change in fluorescence following application of PGN. The kinetics of the response would also carry valuable information. They can perform these experiments in isolated brain preparation with appropriate control.

We agree with this reviewer that experiments showing a direct effect of PGN on pLB1 neuron activity will help us understand how PGN is regulating neuronal activity. We had indeed intensively tried to combine pLB1-Gal4 driver with various Ca sensors (GCamp, CaMPari….) to test this. However, the pLB1-Gal4 driver is very weak and did not allow us to see any fluorescent expression of these brains before stimulation making it impossible to monitor Calcium level after PGN stimulation. We circumvented this problem by two means.

- First, we teamed up with the laboratory of Yäel Grosjean in Dijon to measure the effects of PGN stimulation on Tdc2 neurons in live flies using GCaMP sensor. Our results show that stimulation of brain of Tdc2G4-UAS-GCaMP6s with 100 µg/mL of PGN induces a decrease of GFP staining in VMII/III Tdc2 positive neurons.

- To precisely narrow down the effects of PGN on pLB1 +/Tdc2 + neurons, we generated a new fly line, pLB1-lexA using the exact same DNA fragment that the one used to generate pLB1-Gal4 fly line. When used in combination with Tdc2-Gal4, we were able to detect GCaMP expression in pLB1/Tdc2 neurons. Using an ex vivo approach, dissected brains in which GCamp6S is expressed only in pLB1 + /Tdc2 + neuron were stimulated with PGN. New results presented in Figure 8 show that PGN stimulation induces a drop of calcium levels in pLB1 +/Tdc2+ VMIII neuron.

Altogether these data show that PGN stimulation of pLB1+/Tdc2+ VMIII neuron induces a drop of intracellular calcium levels in these cells and hence probably inhibits these neurons. Consistently, our genetic experiments showed that functional pLB1+/Tdc2+ neuron inactivation (via Kir.2.1 or TTx overexpression) also led to egg-laying drop. This suggested a model in which PGN recognition in brain pLB1+/Tdc2+ cell, inhibits this neuron, resulting in temporary egg-laying drop.

Finally, I would like to know if they have attempted to follow the output of these neurons from SOG or whether they have any clue to where it is going.

The pLB1-Gal4 driver that has been used throughout our previous paper (Kurz et al., 2017) and in this manuscript is very weak. Although we have tried very hard to combine it with all the possible UAS-fluorochromes, we had a very hard time to follow the neuronal projections of pLB1-Gal4 cells. To overcome this limitation, we have generated a new pLB1-LexA fly line using the exact same DNA fragment that the one used to generate pLB1-Gal4 fly line. When used in intersectional strategy to unlock the strong Tdc2-Gal4 driver, this line highlights the brain neurons already identified with pLB1-Gal4. In addition, two AL2/Tdc2 + neurons were labelled with this line. Interestingly, this line allowed us to see some neuronal projections of pLB1/Tdc2 cells which helped us to get the exact identity of the pLB1+/Tdc2 + neurons taking advantages of previously reported brain octopaminergic neuron map.

- In addition, this new tool allowed us to identify neurites coming from the pLB1/Tdc2 VMIII neurons and descending via the cervical connectives toward the VNC (New Figure 6).

Reviewer #3:

Masuzzo et al., present their work, entitled, "Peptidoglycan-dependent NF-κB activation in a small subset of brain octopaminergic neurons controls female oviposition." In this study, the authors build upon their previous work (Kurz et al., 2017), which demonstrated that internal sensing of bacterial peptidoglycan reduces Drosophila female oviposition via NF-κB pathway activation in some neurons. However, until this paper, the neurons remained unknown. This study identifies several ventral nerve cord and brain octopaminergic neurons, expressing a NF-κB pathway components. Furthermore, the authors find that the brain neurons, specifically in the sub-esophageal zone, are required for oviposition depression, whereby activation triggers an egg-laying drop in response to infection. This was shown via peptidoglycan exposure or inhibition of PGRP-LB+ neuron activity, which subsequently impairs a specific ovulation event, thus linking PGN detection to the reduction of egg production.

The study uses particular GAL4 driver lines, i.e. pLB1, to observe a neuron requirement of TbBh-IR (Tyrosine decarboxylase) (Figure 1G), where when knocked down, flies oviposit fewer eggs. Using this finding, the authors stained against Tdc2 in brains and ventral nerve cords expressing pLB1>GFP to find the particular neurons of images. The authors then tested against other types of neuro peptides to rule out effects of other neuronal subtypes. While this demonstrated a series of negative results, they are very important to the identity of these cell types.

The authors then turn to identifying what pLB1 neurons do by comparing them to previously identified Tdc2 neurons. They authors do this inactivating them with UAS-Kir and find increased receptivity in female flies with marked Tdc2 neurons but not pLB1 neurons. Interestingly, pLB1+/Tdc2+ neurons were also detected in males, even though an egg laying response is the output (Figure 3C-D). To test functional significance, an intersectional line was generated and tested in an inducible manner via GAL80 and Tetx and kir, yielding strong reduction of oviposition. This was very elegantly performed in a temperature and temporally controlled manner. Additionally, the authors find that suppression of egg-laying drop 6 hours post PGN injection mediated by the knockdown of the NF-ΚB cascade in Tdc2+ and pLB1+ cells was not observed when only thoracic neurons were targeted, demonstrating functional relevance. The authors take this a step further and analyze the ovary, where they observe changes in follicle cell trimming (marked decrease in animals with PLb1GAL4>UASKir2.1) as the means by which fewer eggs are laid. This showed a remarkable increase in stage 14 oocyte numbers when pLb1 neurons were inhibited.

This is an extremely elegant and important study that highlights how a few neurons can respond to external stimuli and change subsequent internal physiology, in an octopamine-dependent manner. Flies are able to tune their responses and behavior by bacteria-derived metabolite! The manuscript is well written and reads as a story with a very logical flow. Additionally, I would like to commend the authors on the images, which are very high quality and I really enjoy having the cartoon depiction of the brains to accompany images (i.e. Figure 1).

Major comments:

I am left wanting more with respect to Figure 5 with respect to permanence or reversibility of the phenotype. The evidence that follicle cell trimming is altered and that there is an accumulation of stage 14 egg chambers is compelling. However, I am left wondering what the physiological relevance is to this particular phenotype. I would like to know if the eggs are simply delayed (diapause phenotype) and that these eggs will be laid, or perhaps they will not be laid at all? Thus, I would like to see an experiment that turns pLB1 GAL4 marked neurons back on (i.e. use UAS-shibireTS to turn off neurons to get ovary effect at 30C, then move them back to 22C and see how egg counts change) in order to see what the dynamics are of these eggs that are not yet laid. Alternatively, using the Kir construct with a GAL80 for temporal control in the same manner would be excellent. I believe that this experiment, regardless of the answer, will be important to perform to get at the underlying mechanism of what happens to the eggs. Images of ovaries (and associated quantification) after turning the pLB1 neurons back on would also be desired. Thus, can egg counts recover and does the ovary recover are important questions to finish answering.

Additionally, I do not see stage 11-12 egg chambers in the images of Figure 5C, but rather only stage 14 and stage 7/8 and below. Panels A and B have these later stage (11) egg chambers and have apoptosis on the DAPI staining, a hallmark of normal development. I would like to see this quantification as well, not on any new experimental animals, but on the existing ovary image. I believe that the authors have identified some really cool developmental biology regulation, which is not pointed out in the manuscript, but that should be highlighted. Perhaps these are not representative images, but the means by which the egg chambers are arrested is important to note. At minimum, the distribution of egg chamber stages should be quantified and talked about in the text. If the distribution is changed as the images suggest, please speculate on mechanism in the Discussion section - the mechanism does not need to be elucidated, just postulated about. This has the potential to be really exciting.

I believe that these two points are essential to the manuscript, as they could more fully demonstrate the functional significance what the physiological mechanism is that the neurons are communicating.

- To respond to this reviewer concerns, we have performed two novel experiments.

- The first one is aimed at better characterizing the effects on PGN in the long term, using a kinetic. This allowed us to answer whether the blockage in egg-laying is temporary, delayed or more definitive. For that purpose, females were injected with either PGN or water and the number of oocytes at different stages and the number of apoptotic oocytes were quantified at 6, 24 and 48 hours post injection. The results show that at 6 hours post PGN injection, a slight reduction of stage 10 and 11-13 oocytes associated with an accumulation of stage 14 oocytes. At the same time point, PGN injection is inducing a slight increase of apoptotic oocytes. At 24 hours post PGN injection, the tendency is the same but apoptotic oocytes are no longer observed. At 48 hours post injection, all the measured parameters are identical in water and PGN injected females showing that the effects are fully reversible.

- The second experiment is aimed at testing whether and how a temporary blockage of pLB1 neuron is impacting ovary physiology. For that purpose, the UAS-Kir transgene was combined to the Gal80Ts modulator to temporary inactivate pLB1 cells. When pLB1-Gal4, UAS-Kir, Gal80ts flies were shifted from 21 to 29°C, an accumulation of stage 14 oocytes was observed. While this phenotype was still present 24 hours after shifting the flies back to 21°C, this was no longer the case after 48 hours. It should be mentioned that no sign of apoptosis was detected in these experiments. These experiments show that pLB1 neuron inactivation mimics most phenotypes observed when PGN is injected and that this phenomenon is reversible (New Figure 9, Figure 9—figure supplement 1 and Figure 10).

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for submitting your article "Peptidoglycan-dependent NF-κB activation in a small subset of brain octopaminergic neurons controls female oviposition" for consideration by eLife. Your article has been reviewed by Utpal Banerjee as the Senior Editor, a Reviewing Editor, and three reviewers. The following individuals involved in review of your submission have agreed to reveal their identity: Balint Z Kacsoh (Reviewer #1); Kausik Si (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission We are pleased to inform you that the reviewers were rather positive about the manuscript and suggest a number of revisions that you should try to address. I suspect that most of them involve text modification.

Summary:

Masuzzo et al., present their work, entitled, "Peptidoglycan-dependent NF-κB activation in a small subset of brain octopaminergic neurons controls female oviposition." In this study, the authors build upon their previous work (Kurz et al., 2017), which demonstrated that internal sensing of bacterial peptidoglycan reduces Drosophila female oviposition via NF-κB pathway activation in some neurons. Here, they further characterize the very specific neuronal circuitry, involved in the immune induced oviposition behaviours phenotype. This study now is a major achievement in the burgeoning field of the intersection of neuronal signaling and immunity.

Essential revisions:

1) In Figure 8, the authors now show the effect of PGN stimulation on GCaMP fluorescence in vivo and ex vivo using either a broad Tdc2-Gal4 driver or their specific intersectional approach. In Figure 8A, the authors provide images of Tdc2 > GCaMP before and after PGN addition. Unfortunately, from these images it is unclear what we are looking at exactly given that Tdc2 labels many neurons. At minimum the authors should provide a scheme to explain the figure.

We added a schematic representation of the brain and of the plane of imaging explaining the type of neurons we are imaging. There is a frontal view pointing to the VM cluster and a sagittal view detailing the sub-cluster. It is now the Figure 8—figure supplement 1 and the reference and legend had been added in the main text.

2) The authors point out that PGN reduces GCaMP fluorescence very transiently in their in vivo experiments. In the ex vivo experiment however, this is not the case. Here, the inhibition appears permanent/lasting. What explains this difference?

We suggest some possibilities in the text to explain the differences, directly below the description of the corresponding results.

3) The authors speculate which genes might be regulated by PGN in LB1 neurons. They do not mention, however, how PGN might regulate calcium levels in these cells. This should be added to the Discussion section given that this is likely the main reason for the behavioral phenotype they observe.

We added a section in the Discussion section to propose possible mechanisms involved. This remains speculative at this point.

https://doi.org/10.7554/eLife.50559.048

Article and author information

Author details

  1. Ambra Masuzzo

    Aix-Marseille Université, CNRS, IBDM, Marseille, France
    Contribution
    Conceptualization, Formal analysis, Investigation, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2933-8924
  2. Gérard Manière

    Centre des Sciences du Goût et de l'Alimentation, AgroSup Dijon, CNRS, INRA, Université Bourgogne Franche-Comté, Dijon, France
    Contribution
    Conceptualization, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  3. Annelise Viallat-Lieutaud

    Aix-Marseille Université, CNRS, IBDM, Marseille, France
    Contribution
    Conceptualization, Data curation, Investigation
    Competing interests
    No competing interests declared
  4. Émilie Avazeri

    Aix-Marseille Université, CNRS, IBDM, Marseille, France
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  5. Olivier Zugasti

    Aix-Marseille Université, CNRS, IBDM, Marseille, France
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  6. Yaël Grosjean

    Centre des Sciences du Goût et de l'Alimentation, AgroSup Dijon, CNRS, INRA, Université Bourgogne Franche-Comté, Dijon, France
    Contribution
    Conceptualization, Supervision, Project administration
    Competing interests
    No competing interests declared
  7. C Léopold Kurz

    Aix-Marseille Université, CNRS, IBDM, Marseille, France
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Validation, Investigation, Methodology, Writing—original draft, Writing—review and editing
    For correspondence
    leopold.kurz@univ-amu.fr
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7081-3208
  8. Julien Royet

    Aix-Marseille Université, CNRS, IBDM, Marseille, France
    Contribution
    Conceptualization, Supervision, Funding acquisition, Validation, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    julien.royet@univ-amu.fr
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5671-4833

Funding

Agence Nationale de la Recherche (11-LABX-0054)

  • Julien Royet

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank R Tavignot for help in screening for PGRP-LB::GFP transformants and JC Patel for advices with calcium imaging. This work was supported by CNRS and Agence Nationale de la recherche, ANR-11-LABX-0054 (Investissements d'Avenir–Labex INFORM), ANR BACNEURODRO (ANR-17-CE16-0023-01), Institut Universitaire de France to JR. This work was performed using France-BioImaging infrastructure supported by (ANR-10 INBS-04–01). Research in YG’s laboratory is supported by the CNRS, the ‘Université de Bourgogne Franche-Comté”, the Conseil Régional Bourgogne Franche-Comte (PARI grant), the FEDER (European Funding for Regional Economical Development), and the European Council (ERC starting grant, GliSFCo-311403).

Senior Editor

  1. Utpal Banerjee, University of California, Los Angeles, United States

Reviewing Editor

  1. Bruno Lemaître, École Polytechnique Fédérale de Lausanne, Switzerland

Reviewers

  1. Balint Z Kacsoh, Geisel School of Medicine at Dartmouth, United States
  2. Kausik Si, Stowers Institute for Medical Research, United States

Publication history

  1. Received: July 25, 2019
  2. Accepted: September 30, 2019
  3. Version of Record published: October 29, 2019 (version 1)

Copyright

© 2019, Masuzzo et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 788
    Page views
  • 97
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    Sarah Hersman et al.
    Research Article
    1. Neuroscience
    Paride Antinucci et al.
    Tools and Resources
