Shear stress activates ADAM10 sheddase to regulate Notch1 via the Piezo1 force sensor in endothelial cells

  1. Vincenza Caolo
  2. Marjolaine Debant
  3. Naima Endesh
  4. T Simon Futers
  5. Laeticia Lichtenstein
  6. Fiona Bartoli
  7. Gregory Parsonage
  8. Elizabeth AV Jones  Is a corresponding author
  9. David J Beech  Is a corresponding author
  1. Leeds Institute of Cardiovascular and Metabolic Medicine, School of Medicine, University of Leeds, United Kingdom
  2. Department of Cardiovascular Sciences, Centre for Molecular and Vascular Biology, Belgium
Research Article
  • Cited 5
  • Views 2,200
  • Annotations
Cite this article as: eLife 2020;9:e50684 doi: 10.7554/eLife.50684

Abstract

Mechanical force is a determinant of Notch signalling but the mechanism of force detection and its coupling to Notch are unclear. We propose a role for Piezo1 channels, which are mechanically-activated non-selective cation channels. In cultured microvascular endothelial cells, Piezo1 channel activation by either shear stress or a chemical agonist Yoda1 activated a disintegrin and metalloproteinase domain-containing protein 10 (ADAM10), a Ca2+-regulated transmembrane sheddase that mediates S2 Notch1 cleavage. Consistent with this observation, we found Piezo1-dependent increase in the abundance of Notch1 intracellular domain (NICD) that depended on ADAM10 and the downstream S3 cleavage enzyme, γ-secretase. Conditional endothelial-specific disruption of Piezo1 in adult mice suppressed the expression of multiple Notch1 target genes in hepatic vasculature, suggesting constitutive functional importance in vivo. The data suggest that Piezo1 is a mechanism conferring force sensitivity on ADAM10 and Notch1 with downstream consequences for sustained activation of Notch1 target genes and potentially other processes.

Introduction

Mammalian Notch proteins were identified following studies in D. melanogaster that linked genetic abnormality to wing notch (Siebel and Lendahl, 2017). Extensive research then revealed major roles in the transfer of information between cells in health and disease (Siebel and Lendahl, 2017). Each of the four Notch receptors (Notch1-4) is a membrane protein that is trans coupled to a membrane-anchored ligand such as Deltalike 4 (DLL4). Though the initiation of Notch signalling is often considered to occur through ligand-receptor complex formation, mechanical force also plays an important role in this activation whereby a pulling force arising from ligand endocytosis causes trans activation (Siebel and Lendahl, 2017; Gordon et al., 2015). Furthermore it became apparent that frictional force from fluid flow also stimulates Notch1, but how this force couples to the Notch mechanism is unknown (Fang et al., 2017; Mack et al., 2017; Lee et al., 2016; Jahnsen et al., 2015). Therefore mechanical forces would seem to play key roles in Notch regulation. Further information is needed on how this is achieved.

Piezo1 channels are key players in the sensing of shear stress and lateral force applied to plasma membranes (membrane tension) (Coste et al., 2010; Murthy et al., 2017; Li et al., 2014; Rode et al., 2017; Ranade et al., 2014; Wu et al., 2017; Maneshi et al., 2018; Wang et al., 2016; Beech and Kalli, 2019). While there are multiple candidate sensors, Piezo1 channels are notable because of broad agreement amongst investigators that they are direct sensors of physiological force. As such they are now considered to be bona fide force sensors that evolved to sense and transduce force as a primary function (Murthy et al., 2017; Wu et al., 2017; Beech and Kalli, 2019). Piezo1 channels are exquisitely sensitive to membrane tension (Lewis and Grandl, 2015) and readily able to confer force-sensing capacity on cells that are otherwise poorly sensitive (Coste et al., 2010; Li et al., 2014). Reconstitution of Piezo1 channels in artificial lipid bilayers generates force-sensing channels (Syeda et al., 2016) and native Piezo1 channels in excised membrane patches respond robustly to mechanical force in the absence of intracellular factors (Rode et al., 2017).

Global knockout of Piezo1 in mice is embryonic lethal just after the heart starts to beat, apparently because of failed vascular maturation (Li et al., 2014; Ranade et al., 2014; Beech and Kalli, 2019). Particular functional significance is thought to arise in endothelial cells, where requirements in cell adherence, migration and proliferation and angiogenesis, wound closure, vascular permeability and blood pressure have been described (Beech and Kalli, 2019). Human genetic studies have suggested importance specifically in lymphatic vasculature (Fotiou et al., 2015) and varicose vein formation (Fukaya et al., 2018). Piezo1, like Notch1 (Siebel and Lendahl, 2017), is not restricted to endothelial cells or vasculature (Murthy et al., 2017; Beech and Kalli, 2019). There are also roles in erythrocytes and immune cells, neural stem cells, skeletal muscle cells, fibroblasts and many other cells and systems, as reviewed recently (Beech and Kalli, 2019).

Piezo1 channels are Ca2+-permeable non-selective cationic channels, so when force causes them to open there is Ca2+ entry, elevation of the cytosolic Ca2+ concentration and regulation of Ca2+-dependent mechanisms (Coste et al., 2010; Murthy et al., 2017). Potentially relevant to such a system is Ca2+ and Ca2+-calmodulin regulation of ADAM10 (Nagano et al., 2004; Maretzky et al., 2015), a metalloprotease or sheddase that catalyses rate-limiting S2 cleavage of Notch1 prior to γ-secretase-mediated S3 cleavage and release of Notch1 intracellular domain (NICD), driving downstream transcription (Siebel and Lendahl, 2017; Alabi et al., 2018; Anders et al., 2001). Therefore, we speculated about a relationship between Piezo1 and Notch1. We focussed on endothelial cells where both proteins are prominent and have established functional significance (Siebel and Lendahl, 2017; Murthy et al., 2017; Li et al., 2014; Rode et al., 2017; Wu et al., 2017; Alabi et al., 2018).

Results

Shear stress-induced S3 cleavage of Notch1 is Piezo1 dependent

The canonical pathway for Notch1 activation involves cleavage at the S3 site, which generates NICD, a protein of about 110 kDa that can be detected by western blotting. The pathway was previously suggested to be activated by shear stress (Mack et al., 2017). We first tested if we could reproduce the shear stress activation, using cultured human microvascular endothelial cells (HMVEC-Cs) as a model of endothelium. Laminar shear stress of 10 dyn.cm−2 was applied to the cells for 1 hr and then abundance of NICD was measured. As expected, NICD was significantly increased (Figure 1a,b, Figure 1—figure supplement 1). We next validated a Piezo1-targeted siRNA for specific Piezo1 depletion (Figure 1—figure supplements 2 and 3). Strikingly, depletion of Piezo1 strongly reduced the amount of NICD in the shear stress condition, so much so that it became similar to that of the static control siRNA condition (Figure 1a,b). In some experiments there was unexpected reduction in NICD in the static (no shear stress) condition (Figure 1a) but accurate determination above non-specific background was technically challenging and the effect was not always evident. Although statistical analysis indicated no significant change in this basal NICD signal (Figure 1b), its existence in some individual experiments complicated our determination of whether shear stress induced an increase in NICD (Figure 1a,b). Nevertheless, in some individual experiments there was clearly no effect of shear stress on NICD after Piezo1 depletion (Figure 1a) and statistical analysis of all experiments confirmed no significant effect of shear stress (Figure 1b). The data suggest that Piezo1 is needed for normal elevation of NICD in shear stress and that it may be a factor regulating basal NICD.

Figure 1 with 5 supplements see all

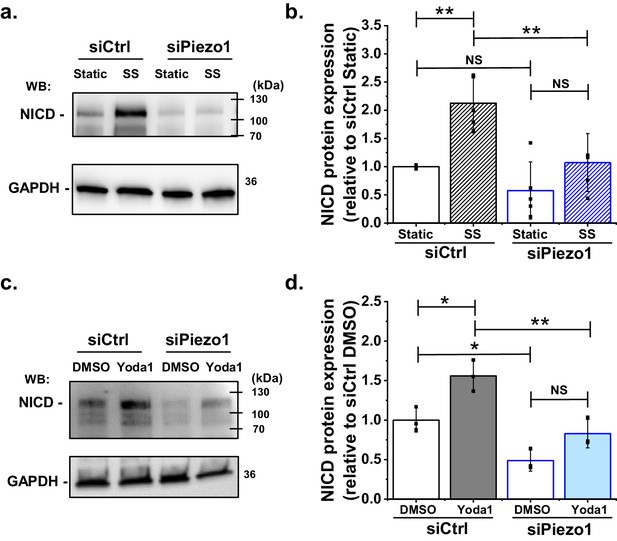

Shear stress induced S3 cleavage of Notch1 is Piezo1 dependent.

(a) Representative Western blot labelled with anti-NICD and anti-GAPDH (loading control) antibodies for HMVEC-Cs exposed to 10 dyn.cm−2 laminar shear stress (SS) for 1 hr. Static was without SS. Cells were transfected with control siRNA (siCtrl) or Piezo1 siRNA (siPiezo1). The expected mass of NICD is 110 kDa. Lower molecular bands were also apparent in some experiments and may have been degraded NICD. (b) Quantification of data of the type exemplified in (a), showing mean ± SD data for abundance of NICD normalized to siCtrl Static (n = 4). (c) Representative Western blot labelled with anti-NICD and anti-GAPDH antibodies for HMVEC-Cs treated for 30 min with 0.2 µM Yoda1 or vehicle (DMSO) after transfection with control siRNA (siCtrl) or Piezo1 siRNA (siPiezo1). (d) Quantification of data of the type exemplified in (c), showing mean ± SD for abundance of NICD normalized to siCtrl DMSO (n = 3). Statistical analysis: Two-way ANOVA test was used, indicating *p<0.05, **p<0.01 or not significantly different (NS).

Chemical activation of Piezo1 also increases NICD abundance

The above data could be explained by an indirect role of Piezo1 or by Piezo1 as the starting point: that is the sensor of shear stress that triggers downstream changes. To test if Piezo1 can be the starting point, we circumvented shear stress and specifically activated Piezo1 chemically by using a synthetic small-molecule agonist (Yoda1). Yoda1 is described to enhance the force sensitivity of Piezo1 channels (Syeda et al., 2015; Lacroix et al., 2018; Wang et al., 2018; Evans et al., 2018). There is inherent force in cell membranes and we previously showed that Yoda1 activates Piezo1 in endothelial cells without the need for applied exogenous force (Evans et al., 2018). Therefore we applied Yoda1 at 0.2 μM, the concentration previously reported for half-maximal activation of native endothelial Piezo1 channels (Evans et al., 2018). Strikingly, in static conditions, Yoda1 alone could stimulate increased NICD (Figure 1c,d). Piezo1 siRNA suppressed the Yoda1 effect (Figure 1c,d). In these experiments, the effect of Piezo1 to reduce basal NICD was statistically significant (Figure 1d). The data support the hypothesis that Piezo1 is the sensor for shear stress that then triggers downstream Notch1 processing. The data also suggest a constitutive role of Piezo1 in maintaining a basal level of Notch1 cleavage.

γ-secretase is required

S3 cleavage is mediated by γ-secretase (Siebel and Lendahl, 2017). Therefore we tested the role of γ-secretase by treating cells with 10 μM DAPT (N-[N-(3,5-difluorophenacetyl)-l-alanyl]-S-phenylglycine t-butylester), a commonly used γ-secretase inhibitor (Mack et al., 2017; Imbimbo, 2008). DAPT had an effect on NICD that was similar to that of Piezo1 siRNA, reducing basal NICD and ablating the ability of Yoda1 to increase NICD (Figure 1—figure supplements 4 and 5). Although DAPT inhibited Yoda1-evoked Ca2+ entry by about 30%, such a potentially non-specific effect was unlikely to have been sufficient to explain its effect on NICD (Figure 1—figure supplements 4 and 5). The data suggest that Piezo1-mediated and constitutively-generated NICD require γ-secretase.

There is Piezo1-dependent and Piezo1-mediated activation of the S2 cleavage enzyme, ADAM10

In the canonical Notch1 pathway, S2 cleavage is required prior to S3 cleavage. A mediator of S2 cleavage is ADAM10 (Siebel and Lendahl, 2017; Alabi et al., 2018). Therefore we measured ADAM10 enzymatic activity (Figure 2a). Importantly, even after only 30 min shear stress, there was significant increase in ADAM10 activity and this effect was abolished by Piezo1 depletion (Figure 2a). Similarly, in static conditions, Yoda1 activated ADAM10, again consistent with Piezo1 being the starting point (Figure 2b). The effect was prevented by the widely used ADAM10 inhibitor GI254023X ((2R,3S)−3-(Formyl-hydroxyamino)−2-(3-phenyl-1-propyl) butanoic acid[(1S)−2,2-dimethyl-1-methylcarbamoyl-1-propyl] amide) which is thought to act via the catalytic site (Ludwig et al., 2005Figure 2b). We also quantified the abundance of ADAM10’s cleaved form, a 62–64 kDa protein that is generated by proprotein convertase to enable enzymatic activity (Anders et al., 2001). The majority of ADAM10 was in the uncleaved form, a protein of 95 kDa that is inactive (Figure 2c, Figure 2—figure supplements 1 and 2). Yoda1 significantly increased the abundance of the cleaved form (Figure 2c,d, Figure 2—figure supplement 1). The data suggest that shear stress causes Piezo1-dependent activation of ADAM10 and that Piezo1 activation alone is sufficient to activate ADAM10.

Figure 2 with 3 supplements see all

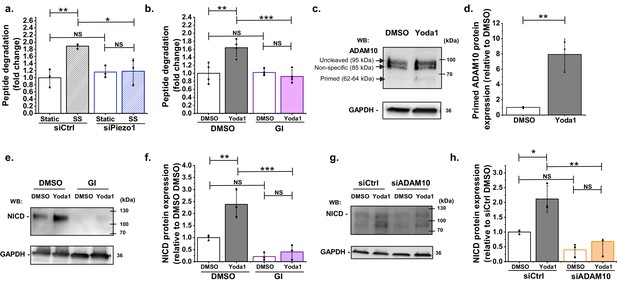

ADAM10 is important for Piezo1 regulation of NICD.

(a) ADAM10 enzyme activity assessed by specific peptide degradation and subsequent fluorescence emission after 30 min exposure of HMVEC-Cs to 10 dyn.cm−2 laminar shear stress (SS). Static was without SS. Cells were transfected with control siRNA (siCtrl) or Piezo1 siRNA (siPiezo1). Data are shown as mean ± SD data (n = 3) relative to static condition. (b) ADAM10 enzyme activity assessed after 30 min treatment of HMVEC-Cs with 0.2 µM Yoda1 in the absence or presence of 5 µM GI254023X (GI). Data are shown as mean ± SD data (n = 4) relative to DMSO condition. (c, d) Quantification of uncleaved (95 kDa) and cleaved (62–64 kDa) ADAM10 in HMVEC-Cs after treatment for 30 min with Yoda1 (0.2 µM). The 85 kDa band between the uncleaved and cleaved ADAM10 was non-specific labelling not related to ADAM10 (Figure 2—figure supplement 2). Data represent mean ± SD (n = 3) and normalization was to the reference protein, GAPDH. (e) Example Western blot labelled with anti-NICD and anti-GAPDH antibodies for HMVEC-Cs treated for 30 min with 0.2 µM Yoda1 or vehicle (DMSO) in the absence or presence of 5 µM GI254023X (GI). (f) Quantification of data of the type exemplified in (e), showing mean ± SD data for abundance of NICD normalized to DMSO (n = 3). (g) Representative Western blot labelled with anti-NICD and anti-GAPDH antibodies for HMVEC-Cs treated for 30 min with 0.2 µM Yoda1 or vehicle (DMSO) after transfection with control siRNA (siCtrl) or ADAM10 siRNA (siADAM10). (h) Quantification of data of the type exemplified in (g), showing mean ± SD data for abundance of NICD normalized to siCtrl DMSO (n = 3). Statistical analysis: Two-way ANOVA test was used for (a, b, f, h), indicating *p<0.05, **p<0.01, ***p<0.001; t-Test was used for (d), indicating **p<0.01; NS, not significantly different.

ADAM10 activation is required for the NICD effect

To investigate if ADAM10 activity is required for Piezo1 coupling to Notch1, we first tested the effect of the ADAM10 inhibitor, GI254023X. This agent strongly inhibited the ability of Yoda1 to increase NICD and suppressed basal NICD (Figure 2e,f). In these experiments we used 5 μM GI254023X. A 10-fold lower concentration of GI254023X (500 nM) also inhibited the Yoda1 effect on NICD (Figure 2—figure supplement 2), consistent with its nanomolar potency against ADAM10 (Ludwig et al., 2005). GI254023X (5 μM) had no effect on Yoda1-evoked Ca2+ entry, suggesting that it did not act non-specifically (Figure 2—figure supplements 2 and 3). To independently test the role of ADAM10 we developed specific ADAM10 depletion by ADAM10-targeted siRNA (Figure 2—figure supplement 2). The effect of this ADAM10 depletion was similar to that of GI254023X (Figure 2g,h cf Figure 2e,f; Figure 2—figure supplement 1), supporting the hypothesis that ADAM10 is between Piezo1 and Notch1. The data suggest that Piezo1-mediated stimulation of ADAM10 enzyme activity is necessary for basal and stimulated effects on Notch1 cleavage.

An ion pore blocker of Piezo1 inhibits ADAM10 activation

Activation of ADAM10 has been suggested to be mediated by Ca2+ (Nagano et al., 2004; Maretzky et al., 2015). Therefore, the ability of Piezo1 to activate ADAM10 could be due to the ion channel property of Piezo1, which allows influx of cations such as Ca2+ and Na+ in response to mechanical activation (Coste et al., 2010; Wu et al., 2017). To test this mechanism experimentally, we used Gd3+ (30 μM), which is a blocker of the Piezo1 channel pore (Coste et al., 2010). Importantly, Gd3+ inhibited the ability of Yoda1 to activate ADAM10, consistent with the hypothesis that ion permeation through Piezo1 channels is critical for ADAM10 activation (Figure 2—figure supplement 2). Gd3+ is not specific to Piezo1 channels but better agents are not currently known. The data suggest that the ion channel property of Piezo1 is critical in ADAM10 activation.

Piezo1 activation regulates Notch1 target genes

An implication of Piezo1 causing S2 and S3 cleavage of Notch1 is that the expression of Notch1 target genes should also be activated. Therefore we quantified Notch1-regulated gene expression, focussing initially on the HES1 gene which is Notch1- and flow- regulated (Mack et al., 2017), DLL4 which is itself Notch1 regulated (Caolo et al., 2010) and HEY1, another Notch1 target gene (Caolo et al., 2011). Yoda1 caused striking increases in the expression of HES1, DLL4 and HEY1 genes (Figure 3). These effects of Yoda1 were suppressed by Piezo1 siRNA (Figure 3a,b,c), DAPT (Figure 3d,e,f), ADAM10 siRNA (Figure 3g,h,i) and GI254023X (Figure 3j,k,l). Expression of another Notch1 target gene, HEY2 (Lobe, 1997), also appeared to be stimulated by Yoda1 but statistical significance was not achieved due to high variability in the response (Figure 3—figure supplement 1). Two other previously suggested Notch1 target genes (HEY2 Fischer et al., 2004 and JAG1 Foldi et al., 2010) were not significantly affected, suggesting selective effects on certain Notch1 target genes (Figure 3—figure supplement 1). Expression of two other potential targets, HES3 and HEYL, was not reliably detected and so effects of Yoda1 could not be determined. The data suggest that Piezo1 signalling via ADAM10 and γ-secretase to Notch1 and NICD is functionally important for downstream gene regulation.

Figure 3 with 1 supplement see all

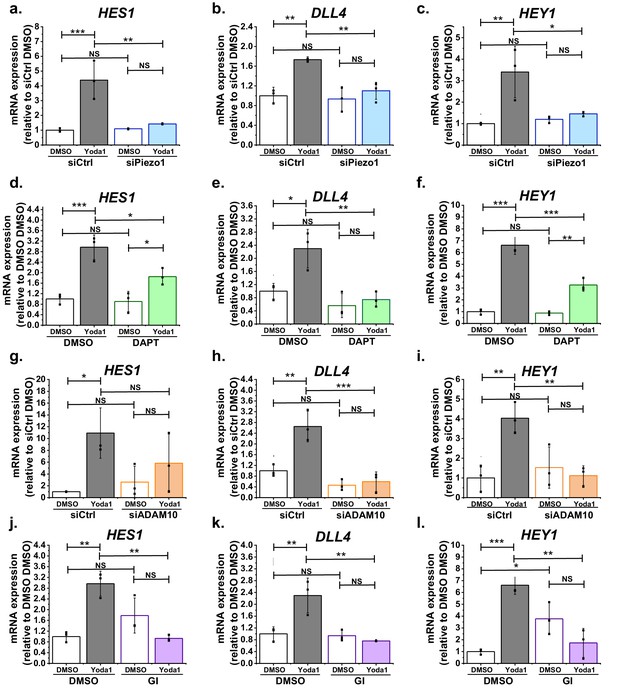

Function significance for downstream gene expression.

(a, b, c) Summarized mean ± SD (n = 3) quantitative PCR data for fold-change in HES1 (a), DLL4 (b) and HEY1 (c) mRNA in HMVEC-Cs treated for 2 hr with 0.2 µM Yoda1 or vehicle (DMSO) after transfection with control siRNA (siCtrl) or Piezo1 siRNA (siPiezo1). (d, e, f) Summarized mean ± SD (n = 3) quantitative PCR data for fold-change in HES1 (d), DLL4 (e) and HEY1 (f) mRNA in HMVEC-Cs treated for 2 hr with 0.2 µM Yoda1 in the absence or presence of 10 µM DAPT. (g, h, i) Summarized mean ± SD (n = 3) quantitative PCR data for fold-change in HES1 (g), DLL4 (h) and HEY1 (i) mRNA in HMVEC-Cs treated for 2 hr with 0.2 µM Yoda1 or vehicle (DMSO) after transfection with control siRNA (siCtrl) or ADAM10 siRNA (siADAM10). (j, k, l) Summarized mean ± SD (n = 3) quantitative PCR data for fold-change in HES1 (j), DLL4 (k) and HEY1 (l) mRNA in HMVEC-Cs treated for 2 hr with 0.2 µM Yoda1 in the absence or presence of 5 µM GI254023X (GI). Normalization and statistical analysis: mRNA expression was normalized to GAPDH mRNA abundance. Two-way ANOVA test was used, indicating *p<0.05, **p<0.01, ***p<0.001 or not significantly different (NS).

Piezo1-dependent regulation of Notch1 target genes by shear stress

The above data show that Piezo1 can activate Notch1 target genes but do not show that it is relevant to shear stress regulation of these genes. Therefore, we also investigated the effect of shear stress on HES1, DLL4 and HEY1 expression. As expected, shear stress upregulated the expression of all three genes (Figure 4a–c). Importantly, all of these effects were Piezo1-dependent (Figure 4a–c). There was a trend towards similar regulation of HES2 but expression of HEY2 and JAG1 was unaffected (Figure 4—figure supplement 1). The data suggest that shear stress coupling to Notch1 target genes is mediated by Piezo1.

Figure 4 with 3 supplements see all

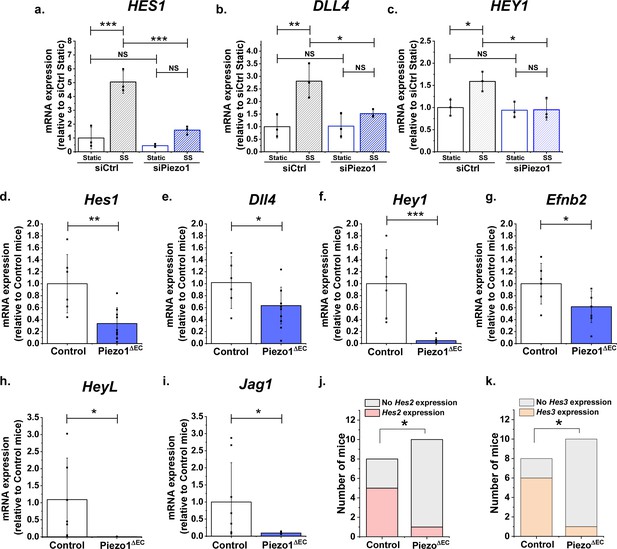

Endothelial Piezo1 is required for the gene expression of Notch1 targets in HMVEC-C exposed to shear stress and in mouse liver endothelial cells.

(a, b, c) Summarized mean ± SD (n = 3) quantitative PCR data for fold-change in HES1 (a), DLL4 (b) and HEY1 (c) mRNA in HMVEC-Cs exposed to 10 dyn.cm−2 laminar shear stress (SS) for 2 hr after transfection with control siRNA (siCtrl) or Piezo1 siRNA (siPiezo1). Hes1 (d), Dll4 (e), Hey1 (f) and Efnb2 (g) mRNA expression in liver endothelial cells freshly-isolated from control mice (Control, n = 6) and endothelial Piezo1 knockout mice (Piezo1ΔEC) (n = 9). HeyL (h) (Control mice, n = 7; Piezo1ΔEC mice, n = 7) and Jag1 (i) (Control mice, n = 8; Piezo1ΔEC mice, n = 9) mRNA expression in liver endothelial cells. Normalization and Statistical analysis: mRNA expression was normalized to abundance of Actb mRNA, which was not different between Control and Piezo1ΔEC (Figure 4—figure supplement 2). Hes2 (j) and Hes3 (k) mRNA expression in liver endothelial cells freshly-isolated from control mice (Control, n = 8) and Piezo1ΔEC mice (n = 10), represented as the number of mice with detectable expression or no detectable expression of the gene. Statistical analysis: Two-way ANOVA test was used for (a, b, c), indicating *p<0.05, **p<0.01, ***p<0.001. t-Test was used for (d, e, f, g, h, i) indicating significant difference of Piezo1ΔEC cf Control *p<0.05, **p<0.01, ***p<0.01. Fisher’s exact test was used for (j, k) indicating significant difference of Piezo1ΔEC cf Control *p<0.05. NS indicates not significantly different.

Endothelial Piezo1 is required for Notch1 target gene expression in mice

The above findings suggest that endothelial Piezo1 might be important for Notch1 target gene expression in vivo. Therefore, we conditionally disrupted Piezo1 specifically in endothelium of adult mice (Piezo1ΔEC mice), as previously described (Rode et al., 2017). Two weeks after disruption in vivo, endothelial cells were isolated and gene expression was measured acutely to reflect the normal Notch1 target gene expression in the endothelial cells of the mice. We elected to study hepatic microvascular endothelial cells because these cells were previously demonstrated to contain functional Piezo1 channels (Rode et al., 2017) and Notch1 has known relevance in liver endothelial sinusoids (Alabi et al., 2018; Cuervo et al., 2016). Importantly, expression of Hes1, Dll4 and Hey1 genes were all found to be downregulated in the Piezo1ΔEC condition (Figure 4d–f). Moreover, in contrast to some of our findings in HMVEC-Cs, there was similar downregulation of 5 other Notch1 target genes, including Efnb2, which is another Notch1- and flow-regulated gene (Mack et al., 2017; Jahnsen et al., 2015Figure 4g–k). Piezo1 gene expression was confirmed as depleted in these endothelial cells from Piezo1ΔEC mice, as expected, whereas expressions of the reference gene, Actb, and endothelial marker gene, Tek, were unaffected, suggesting specificity (Figure 4—figure supplement 2). We were unable to detect Hey2 expression in these endothelial cells. In contrast to the findings in isolated endothelial cells, whole liver showed no significant changes in expression of Hes1, Dll4, Hey1, Efnb2, HeyL or Jag1 in Piezo1ΔEC mice, consistent with the effects being restricted to the endothelial cell population (Figure 4—figure supplement 3). Expression of Hes2 and Hes3 could not be detected in whole liver samples. The data suggest that endothelial Piezo1 is normally required for physiological Notch1 target gene expression in vivo.

Discussion

The study has identified a connection between Piezo1 channels and Notch1 signalling and thus a novel mechanism by which Notch1 can be regulated and impacted by mechanical force. Based on our data we propose a pathway in which activation of Piezo1 channels leads to stimulation of ADAM10 for S2 cleavage of Notch1, which then enables intracellular S3 cleavage of Notch1 by γ-secretase and release of NICD for association with transcriptional regulators such as RBPJ and the control of multiple Notch1 target genes (Figure 5). In this way, Notch1 is coupled to an exceptional force sensor, the Piezo1 channel. Other mechanisms by which Notch1 achieves force sensitivity are not excluded but we suggest that Piezo1 is a mechanism of biological significance because we found that endothelial-specific disruption of Piezo1 in vivo disturbed Notch1-regulated gene expression in hepatic endothelial cells, a site known to be Notch-regulated. Our findings are consistent with prior studies of D melanogaster that inferred Notch to be downstream of Piezo (He et al., 2018) and so the proposed mechanism may have broad relevance.

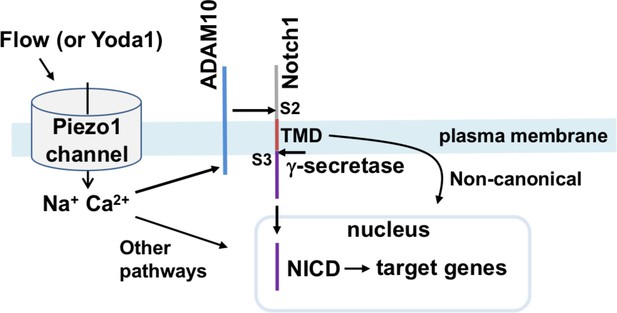

Summary of the proposed pathway.

Activation of Piezo1 channel by mechanical force (e.g. fluid flow) or chemical agonist (Yoda1) causes elevation of the intracellular Ca2+ concentration which stimulates enzymatic activity of ADAM10 to cause S2 and S3 Notch1 cleavage and release of NICD to drive target gene expression that includes increased expression of Hes1, Dll4, Hey1, HeyL, Jag1, Hes2, Hes3 and Efnb2 in hepatic vasculature of the mouse. In the schematic we also include the suggested contributions from ADAM10/Notch1/NICD independent signalling from Piezo1 and non-canonical Notch1 signalling via the Notch1 transmembrane domain (TMD), as described and referenced in the text.

The pathway proposed in Figure 5 is based primarily on evidence from our studies of human endothelial cells in culture (HMVEC-Cs) but we also investigated the relevance to endothelial cells in vivo by studying endothelium freshly isolated from whole liver of control and endothelial Piezo1 knockout (Piezo1ΔEC) mice. These hepatic experiments show that loss of Piezo1 in endothelium leads to reduced expression of multiple Notch1 target genes in endothelium. Therefore, the data suggest that Piezo1 positively impacts Notch1 target genes in vivo and that the pathway of Figure 5 is active in vivo. There were intriguing differences in the Notch1 target genes affected by Piezo1 in HMVEC-Cs compared with freshly-isolated mouse endothelium, with a greater range affected in the mouse cells. Such data suggest context-dependent regulation of Notch1 target genes by Piezo1 or endothelial cell heterogeneity. Piezo1 activates not only ADAM10/Notch1 signalling but also calpain (Li et al., 2014), eNOS (Li et al., 2014; Wang et al., 2016) and other signalling mechanisms (Beech and Kalli, 2019; Albarrán-Juárez et al., 2018). We speculate that these other pathways may also impact Notch1 target genes directly or indirectly, either to prevent or enhance the positive impact of Piezo1 via ADAM10 and Notch1.

The specific downstream implications of Piezo1-ADAM10/Notch1 signalling in the liver remain to be explicitly determined but we know that prior work showed important effects of endothelial-specific disruption of Notch1-regulated RBPJ on hepatic microvasculature (Alabi et al., 2018; Cuervo et al., 2016). Disruption of RBPJ in 6 week-old mice led to enlarged sinusoids between portal and central venules, and disruption earlier in postnatal development caused poor perfusion, hypoxia and liver necrosis (Cuervo et al., 2016). Therefore our observed requirement for Piezo1 in Notch1-regulated gene expression of hepatic endothelium suggests a positive role for the proposed Piezo1-ADAM10/Notch1 partnership in hepatic function. Moreover, roles of Piezo1 and Notch1 in chemotactic chemokine release, portal hypertension and liver fibrogenesis were recently suggested (Hilscher et al., 2019) and will be interesting to investigate further in regard to shear stress activation of Piezo1-ADAM10/Notch1 signalling. It is important to emphasise again, however, that Piezo1 signalling is extensive (Beech and Kalli, 2019) and therefore unlikely to be limited to ADAM10/Notch1. Therefore, studies of Piezo1ΔEC mice will not inform specifically about the role of the Piezo1-ADAM10/Notch1 pathway. We will be able to determine the specific significance in vivo only if we first determine how to specifically disrupt this pathway relative to others.

The signalling pathway linking Piezo1 to ADAM10 is not precisely known and may involve yet to be identified components. We suggest that ion permeation through the Piezo1 channels is a critical starting point because Gd3+, a blocker of the Piezo1 channel ion pore (Coste et al., 2010), prevented Yoda1 from stimulating ADAM10 activity. This suggests that cation flux is important. We suggest that it might be Ca2+ influx (Figure 5) because Ca2+ is an especially important intracellular messenger and prior work has shown Ca2+ and Ca2+-calmodulin-regulated mechanisms for S2 cleavage of Notch1 (Nagano et al., 2004; Maretzky et al., 2015), but signalling mediated by Na+ influx has also been suggested (Rode et al., 2017) and cannot yet be excluded. It should be emphasised that the ADAM10 activity was measured after 30 min exposure to Yoda1, which is longer than the time required for maximum intracellular Ca2+ elevation in response to Yoda1 (1 or 2 min). This time difference may reflect limited sensitivity of the ADAM10 activity assay compared with the intracellular Ca2+ assay, which is known to be highly sensitive. Ca2+ sensitivity of ADAM10 creates the potential for its regulation by various Ca2+ entry and Ca2+ release mechanisms. Piezo1 may, therefore, not be unique as a Ca2+ entry mechanism regulating ADAM10 unless it has privileged spatial relationship with it, which is currently unknown.

Our observation of shear stress activation of ADAM10 via Piezo1 is consistent with previous work describing activation of ADAM10 by shear stress in human platelets (Facey et al., 2016), which also express Piezo1 (Ilkan et al., 2017). The finding has implications for Notch1 signalling but also more widely because ADAM10 is a sheddase that also targets E- and VE-cadherin, CD44 and cellular prion protein (Nagano et al., 2004; Maretzky et al., 2005; Schulz et al., 2008; Jarosz-Griffiths et al., 2019). Therefore its shear stress regulation via Piezo1 may be broadly relevant, for example in adherens junction biology and cartilage integrity, where functional importance of Piezo1 is already suggested (Friedrich et al., 2019; Lee et al., 2014), and amyloid plaque formation, where Piezo1 was originally detected (Satoh et al., 2006) and has been suggested to have functional importance in combination with E coli infection (Velasco-Estevez et al., 2018).

A challenging aspect of our HMVEC-C experiments was the tendency for the inhibition or depletion of ADAM10/Piezo1 to reduce the constitutive abundance of NICD. This created a technical limitation because the basal abundance of NICD in static conditions sometimes became difficult to distinguish from non-specific background signals, leading the reference point for any effect of shear stress to be different and potentially unreliable. In some data sets the impression can be gained of an approximate doubling of the abundance of NICD in the ADAM10/Piezo1-depleted or inhibited condition. This could suggest ADAM10/Piezo1-independent stimulation of Notch1 by shear stress, a possibility that we do not exclude, but it is important to recognise the following: (1) Any such effect of shear stress was small relative to the robust effect seen in control conditions; (2) The total abundance of NICD in the shear stress ADAM10/Piezo1-inhibited or depleted condition was only about the same as (or less than) that of static control conditions; (3) No apparent ADAM10/Piezo1-independent effect of shear stress was validated by statistical significance; and (4) In some experiments there was no change in basal signal and yet the effect of shear stress was abolished by Piezo1 depletion (ADAM10 activity and HEY1 gene expression). Therefore we conclude that Piezo1 is the dominant mechanism for shear stress activation of ADAM10/Notch1 in HMVEC-Cs and suggest that this effect is relevant in vivo based on our studies of hepatic endothelium of Piezo1ΔEC mice.

It is unclear if the basal effect of Piezo1 on NICD in some experiments (Figure 1a,d) is functionally important or related to mechanical force. Our data suggest lack of relevance to the Notch1-regulated genes investigated in HMVEC-Cs, although there was a hint of an effect in some experiments on HES1 expression (Figure 4a). There are several possible explanations for a basal effect on NICD because multiple signalling pathways are activated by Piezo1 (Beech and Kalli, 2019). However, our favoured hypothesis is that basal mechanical activation of Piezo1 occurs via physical interaction of the cells with the substrate, which could explain the variability in the effect depending on the type of experiment. Previous work has shown that increasing substrate stiffness activates Piezo1 (Pathak et al., 2014). Another interesting possibility is that basal regulation, and indeed shear stress-regulation, depends on relationships of Piezo1 (Nourse and Pathak, 2017) and Notch1 (Polacheck et al., 2017) to cytoskeleton that depend on how cells interact with each other and the substrate. We previously showed that Piezo1 depletion affects cytoskeletal structure in endothelial cells (Li et al., 2014) and so there is a possibility that this plays a role in the interplay between Piezo1 and Notch1.

The pathway proposed (Figure 5) focusses on evidence from our study but, in addition, there may be relevance to non-transcriptional signalling through non-canonical exposure of the Notch1 transmembrane domain (TMD) to promote the formation of a complex of LAR phosphatase, TRIO guanidine-exchange factor and VE-cadherin and thus regulate barrier function (Polacheck et al., 2017) where Piezo1 has important roles (Friedrich et al., 2019; Zhong et al., 2020). Piezo1 signalling would be expected to increase availability of the TMD but this remains to be tested experimentally.

A prior report has suggested lack of specificity of Yoda1 for Piezo1 channels (Dela Paz and Frangos, 2018) but other prior studies have shown that genetic deletion of Piezo1 abolishes Yoda1’s effects (Rode et al., 2017; Friedrich et al., 2019; Cahalan et al., 2015; Romac et al., 2018) and that Piezo1 knockdown by RNA interference suppresses its effects (Wang et al., 2016; Albarrán-Juárez et al., 2018; Nonomura et al., 2018; Iring et al., 2019; Tsuchiya et al., 2018; Liu et al., 2018), consistent with Yoda1 having only Piezo1-mediated effects. Specific structure-activity requirements of Yoda1 at Piezo1 have been observed (Evans et al., 2018) and Yoda1 does not activate Piezo2, the only other Piezo channel (Syeda et al., 2015). Here we observed that Piezo1-specific siRNA suppressed or abolished Yoda1 effects. Although it is important to seek Piezo1-specific activation with agents such as Yoda1 (because mechanical force is not specific to Piezo1), such agents do not necessarily mimic activation by a physiological factor. Importantly, therefore, we showed that Yoda1 indeed mimicked the effect of laminar shear stress because shear stress similarly activated ADAM10, increased the abundance of NICD and stimulated Notch1 target gene expression in a Piezo1-dependent manner. Moreover, genetic disruption of endothelial Piezo1 in vivo, in the absence of Yoda1, led to loss of Notch1 signalling. Therefore Piezo1 regulation of the ADAM10/Notch1 pathway is physiological and not dependent on Yoda1.

In conclusion, we connect the Piezo1 mechanosensing ion channel with the extensive prior discoveries of the ADAM and Notch fields (Siebel and Lendahl, 2017; Alabi et al., 2018). The ability of Piezo1 to activate ADAM10 and Notch1 suggests that these mechanisms are downstream of Piezo1 and therefore linked via Piezo1 to changes in physiological force. There are likely to be broad-ranging implications for hepatic biology, as we suggest, but also for other biology linked to ADAM10 and Notch1 (Siebel and Lendahl, 2017; Alabi et al., 2018). Understanding how to specifically disrupt the Piezo1-ADAM10/Notch1 partnership will be important if we are to better decipher the roles of the pathway and explore its therapeutic potential.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Strain, strain background (Mus musculus, C57BL6/J, male)Piezo1flox/flox/Cdh5-CreUniversity of Leeds (Rode et al., 2017)N/A
Cultured cells (Homo sapiens)HMVEC-CsLonzaCat# CC-7030
Antibodyanti-cleaved Notch1 val1744 (D3B8) (Rabbit monoclonal)Cell Signaling TechnologyCat# 4147, RRID:AB_2153348WB (1:1000)
Antibodyanti-ADAM10 (Rabbit polyclonal)Merck MilliporeCat# AB19026, RRID:AB_2242320WB (1:1000)
Sequence-based reagentON-TARGET plus Control siRNADharmaconCat# L-001810
Sequence-based reagentON-TARGET plus SMARTpool Human siRNA ADAM10DharmaconCat# L-004503
Sequence-based reagentPiezo1 siRNASigma-AldrichN/AGCAAGUUCGUGCGCGGAUU[DT][DT]
Commercial assay or kitSensoLyte 520 ADAM10 Activity Assay KitAnaSpec IncCat# AS-72226Use kit directions
Chemical compound, drugGI 254023XTocris BioscienceCat# 3995
Chemical compound, drugDAPTSigma-AldrichCat# D5942
Chemical compound, drugYoda1Tocris BioscienceCat# 5586–10

Piezo1 mutant mice

Request a detailed protocol

All animal use was authorized by the University of Leeds Animal Ethics Committee and Home Office UK (Project Licence P606320FB to David J Beech). Genotypes were determined using real-time PCR with specific probes designed for each gene (Transnetyx, Cordova, TN). C57BL/6 J mice with Piezo1 gene flanked with LoxP sites (Piezo1flox) were described previously (Li et al., 2014). To generate tamoxifen (TAM) inducible disruption of Piezo1 gene in the endothelium (Piezo1ΔEC), Piezo1flox mice were crossed with mice expressing cre recombinase under the Cadherin5 promoter (Tg(Cdh5-cre/ERT2)1Rha) and inbred to obtain Piezo1flox/flox/Cdh5-cre mice. TAM (T5648, Sigma-Aldrich, Saint-Louis, MO) was dissolved in corn oil (C8267 Sigma-Aldrich) at 20 mg.ml−1. 10–12 week-old male mice were injected intra-peritoneal with 75 mg.kg−1 TAM for five consecutive days and studied 10–14 days later. Control mice were the same except they lacked cre, so they could not disrupt Piezo1 even though they were also injected with TAM.

Acute isolation of liver endothelial cells

Request a detailed protocol

Liver of 12–14 week-old male mice was used. Tissue was mechanically separated using forceps, further cut in smaller pieces and incubated at 37°C for 50 min, in a MACSMix Tube Rotator to provide continuous agitation, along with 0.1% Collagenase II (17101–015, Gibco, Waltham, MA) and Dispase Solution (17105–041, Gibco). Following enzymatic digestion samples were passed through 100 μm and 40 μm cell strainers to remove any undigested tissue. The suspension was incubated for 15 min with dead cell removal paramagnetic beads (130-090-101, Miltenyi Biotec GmbH, Bergisch Gladbach, Germany) and then passed through LS column (130-042-401, Miltenyi Biotec). The cell suspension was incubated with CD146 magnetic beads (130-092-007, Miltenyi Biotec 130-092-007) at 4°C for 15 min under continuous agitation and passed through MS column (130-042-201, Miltenyi Biotec). The CD146 positive cells, retained in the MS column, were plunge out with PEB and centrifuged at 1000 RPM for 5 min. Cell pellet was resuspended in RLT buffer (74004, Qiagen, Hilden, Germany) to proceed with RNA isolation.

Cell culture

Request a detailed protocol

HMVEC-Cs were cultured in endothelial medium 2 MV (EGM-2MV, CC-3202, Lonza, Basel, Switzerland) according to the manufacturer’s protocol. Sixteen hours before performing experiments, cells were cultured with starvation medium consisting of EGM-2MV but only 0.5% fetal bovine serum and without vascular endothelial growth factor A165 (VEGF A165) and basic fibroblast growth factor.

siRNA transfection

Request a detailed protocol

HMVEC-Cs were transfected with siRNA using Opti-MEM I Reduced Serum Medium (31985070, ThermoFisher Scientific, Waltham, MA) and Lipofectamine 2000 (11668019, ThermoFisher Scientific). For transfection of cells in 6-well plates, a total of 50 nmol siRNA in 0.1 mL was added to 0.8 mL cell culture medium per well. Medium was changed after 4 hr. After 48 hours cells were exposed to Yoda1 or SS and subjected to RNA or protein isolation. For Ca2+ measurement, cells were plated into a 96-well plate at a density of 25000 cells per well 24 hr after transfection, and Ca2+ entry was recorded 24 hr later.

RNA isolation and RT-qPCR

Request a detailed protocol

For isolated liver endothelial cells, RNA was isolated by using RNeasy micro-kit (74004, Qiagen). A total of 100 ng RNA per sample was subjected to Reverse Transcriptase (RT) by using iScript cDNA Synthesis kit (1708890, BioRad, Hercules, CA). For whole liver, RNA was isolated using phenol/chloroform extraction from snap frozen samples. A microgramme of RNA was used for RT (Superscript III Reverse Transcriptase, 18080044, Invitrogen, Carlsbad, CA). qPCR was performed using SyBR Green (1725122, Biorad). The sequences of PCR primers are shown in Supplementary file 1. Primers were synthetized by Sigma. qPCR reactions were performed on a LightCycler 480 Real Time PCR System (Roche, Basel, Switzerland). Samples were analysed using the comparative CT method, where fold-change was calculated from the ΔΔCt values with the formula 2-ΔΔCt.

ADAM10 enzyme activity

Request a detailed protocol

Activity was determined using the SensoLyte520 ADAM10 Activity Assay Kit (AS-72226, AnaSpec Inc, Fremont, CA), which is based on the FRET substrate 5‐FAM/QXL520 with excitation/emission of 490/520 nm. HMVEC-Cs were treated with or without Yoda1 for 30 min in the presence or absence of ADAM10 inhibitor. Cells were then washed with PBS and collected with Trypsin-EDTA. The pellet was resuspended in assay buffer, incubated on ice for 10 min and centrifuged at 10 000 g for 10 min at 4°C. The supernatants were plated on a 96‐well plate. The substrate solution was diluted in Assay Buffer, brought to 37°C was then mixed 1:1 with the sample. The fluorescence was measured every 2.5 min for 60 min at 37°C at excitation/emission of 490/520 nm Flexstation three microplate reader with SoftMax Pro 5.4.5 software (Molecular Devices, San Josa, CA).

Shear stress

Request a detailed protocol

Endothelial cells were seeded on glass slides (MENSJ5800AMNZ, VWR, Radnor, PA) coated with Fibronectin (F0895, Sigma-Aldrich). Sixteen hours before performing experiments, cells were cultured with starvation medium consisting of EGM-2MV but only 0.5% fetal bovine serum and without vascular endothelial growth factor A165 (VEGF A165) and basic fibroblast growth factor. The slides were placed in a parallel flow chamber and flow of starvation medium was driven using a peristaltic pump.

Measurement of intracellular Ca2+ concentration ([Ca2+]i)

Request a detailed protocol

Cells plated in 96-well plates were incubated for 1 hr in Standard Bath Solution (SBS, containing in mM: 130 NaCl, 5 KCl, 8 D-glucose, 10 HEPES, 1.2 MgCl2, 1.5 CaCl2, pH 7.4) supplemented with 2 μM fura-2-AM (F1201, Molecular Probes, Eugene, OR) and 0.01% pluronic acid. Cells were then washed in SBS at room temperature for 30 min, allowing deesterification to release free fura-2. Fluorescence (F) acquisition (excitation 340 and 380 nm; emission 510 nm) was performed on a Flexstation three microplate reader with SoftMax Pro 5.4.5 software (Molecular Devices). After 60 s of recording, Yoda1 was injected. Ca2+ entry was quantified after normalization (ΔF340/380 = F340/380(t)-F340/380(t = 0)).

Immunoblotting

Request a detailed protocol

Proteins were isolated in RIPA buffer supplemented with PMSF, protease inhibitor mixture, and sodium orthovanadate (RIPA Lysis Buffer System, sc24948, Santa Cruz, Dallas, TX). Samples were heated at 95°C for 5 min in SDS-PAGE sample buffer, loaded on a precast 4–20% polyacrylamide gradient gel (4561094, Biorad) and subjected to electrophoresis. Proteins were transferred onto a nitrocellulose membrane (Trans-Blot Turbo RTA Mini Nitrocellulose Transfer Kit, 1704270, BioRad) for 30 min using Trans-Blot Turbo Transfer System (BioRad). Membranes were blocked with 5% milk in Tris-buffered saline with Tween 0.05% for 1 hr at room temperature. The membranes were exposed to primary antibody overnight at 4°C, rinsed and incubated with appropriate horseradish peroxidase-labelled secondary antibody for 1 hr at room temperature. The detection was performed by using SuperSignal West Femto (34096, ThermoFisher Scientific) and visualized with a G-Box Chemi-XT4 (SynGene, Cambridge, UK). GAPDH was used as reference protein.

Reagents

Human cardiac microvascular endothelial cells (HMVEC-C, CC-7030, Lonza), DAPT (D5942, Sigma-Aldrich), GI254023X (3995, Tocris Bioscience, Bristol, UK), Yoda1 (5586/10, Tocris Bioscience), ON-TARGET plus Control siRNA (Dharmacon, Lafayette, CO), siRNA Piezo1 (Sigma-Aldrich: 5’- GCAAGUUCGUGCGCGGAUU[dT][dT]- 3’), ON-TARGET plus SMARTpool human siRNA ADAM10 (Dharmacon), cleaved Notch1 Val1744 D3B8 rabbit monoclonal (4147, Cell Signaling Technology, Danvers, MA), rabbit anti-ADAM10 (AB19026, Merck KGaA, Darmstadt, Germany), goat anti human VEGFR2 (AF357, R and D system, Minneapolis, MN), mouse anti-human PECAM-1 (CD31) (M0823, Agilent Dako, Santa Clara, CA), GAPDH mouse anti-human (10R-G109b, Fitzgerald Industries International, Acton, MA) and anti-mouse, anti-rabbit and anti-goat HRP conjugated secondary antibodies (Jackson ImmunoResearch, Ely, UK).

Statistical analysis

Request a detailed protocol

All averaged data are presented as mean ± standard deviation (SD). Statistical significance was determined using two-tailed t-test when only two groups were compared or by 2-way ANOVA followed by Tukey posthoc test when multiple groups were treated with vehicle control (DMSO) or Yoda1 were studied. When distribution of data were compared, two-tailed Fisher’s exact test was used. The genotypes of mice were blinded to the experimental investigator and studied at random according to Mendelian ratio. In all cases, statistical significance was assumed for probability (P) < 0.05. NS indicates when no significant difference was detected. Statistical tests were performed using OriginPro 8.6 software or GraphPad Prism 6.0. The letter n indicates the number of independent biological experiments and its value in each case is stated in figure legends. The number of replicates per independent experiment was one for western blotting, two for qPCR, four for Ca2+ assays and one for the ADAM10 activity assay.

Data availability

Source data files have been provided for all 11 data figures and indicated as such in each relevant figure legend.

References

Decision letter

  1. Karina Yaniv
    Reviewing Editor; Weizmann Institute of Science, Israel
  2. Olga Boudker
    Senior Editor; Weill Cornell Medicine, United States
  3. Julien Vermot
    Reviewer; Institut de Génétique et de Biologie Moléculaire et Cellulaire, France

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Notch1 has recently been shown to be activated by fluid shear stress in endothelial cells and to mediate flow-dependent gene regulation and stabilization of the vascular barrier. The mechanisms by which flow induces Notch1 activation have however remained unclear. Caolo et al. now provide data indicating that the mechanosensitive cation channel Piezo1 links fluid shear stress via calcium-dependent regulation of proteinases, to the activation of Notch1. These new findings, contribute to the broad understanding of Notch1 physiology and pathophysiology.

Decision letter after peer review:

[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]

Thank you for submitting your work entitled "Piezo1 channel activates ADAM10 sheddase to regulate Notch1 and gene expression" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by a Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Julien Vermot (Reviewer #3).

Having considered your plan for revisions, our decision has been reached after consultation between the editors. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife.

It is our view that the submitted plan does not address at all the main reviewers' comments (that were defined as "essential"), but mainly provides explanations as to why the experiments are not necessary or cannot be performed.

Specifically, in response to point 1, which was one of the major criticisms, the authors do not explain which experiments (if any) they plan to carry out. In response to point 2 and point 3, only a minor experiment would be performed.

Based on the submitted plan, we anticipate that a revised manuscript would not address the essential concerns raised by the reviewers and therefore we have decided against inviting re-submission.

Reviewer #1:

In this study Caolo and co-workers propose a mechanism linking between mechanical forces and Notch1 regulation in endothelial cells, which involves Piezo1 channels and ADAM10 enzymatic activity. Specifically, the authors use the small-molecule Yoda1 to activate Piezo1 channels in HMVECs and assess the cleavage and release of NICD, as well as the levels of expression of downstream Notch1 targets such as Hes1 and Dll4. Using a similar approach, the authors investigate also the potential role of Piezo1 as inducer of ADAM10 enzymatic activity, and show that this step is involved as well in NICD release. Finally, the authors propose that this mechanism is physiologically relevant by showing that liver endothelial cells isolated from Piezo1∆EC mice display specific downregulation of Notch1 target genes.

Overall, the work could be of potential interesting as it identifies a putative mechanistic link between mechanical forces and Notch activation. However, the data come across as being somewhat preliminary and quite speculative. While the presented experiments appear solid in terms of numbers, most assumptions are based solely on a single assay (Yoda1 agonist to activate Piezo1, enzymatic assay to assess ADAM10 activity, etc), making it difficult to reach accurate conclusions. Moreover, some of the results appear over-interpreted and too strong to be drawn from the presented data. For instance, while the authors aim to demonstrate the link between mechanical forces and Notch activation, there's only one experiment that applies actual shear stress, whereas the large majority is based solely on the addition of a small molecule to the medium.

An additional major weakness of this manuscript is that there is a significant imbalance between the characterization of HMVECs and mouse Piezo1∆EC liver endothelial cells. Given that mouse-derived ECs, which provide a more physiological platform, were available to the authors, it is unclear why they didn't use this system to characterize the proposed molecular mechanisms.

Finally, the manuscript is written in a rather superficial way, with no proper elaboration of the observed phenotypes and/or the significance of most of the results. The Introduction and Discussion could be significantly improved by a more detailed, critical, in depth analysis of the findings. Likewise, the Results section will benefit from a more elaborated presentation.

As a whole, this manuscript presents an interesting hypothesis, however it appears to lack the broad scope and impact necessary for publication in eLife, and therefore I believe it might suit better a more specialized journal.

Reviewer #2:

Notch1 has recently been shown to be activated by fluid shear stress in endothelial cells and to mediate flow-dependent gene regulation and stabilization of the vascular barrier. The mechanism by which flow induces Notch1 activation has however remained unclear. Caolo et al. now provide data indicating that the mechanosensitive cation channel Piezo1 links fluid shear stress via calcium-dependent regulation of proteinases to the activation of Notch1. This is an exciting new finding, which may be of broader relevance for the understanding of Notch1 physiology and pathophysiology. In several points the study, however, appears a little bit fragmentary and preliminary, and a couple of additional experiments are required to better support the major conclusions of this manuscript.

1) With one exception, all the in vitro data are based on activation of Piezo1 by Yoda1. While Yoda1 appears to be a specific activator of Piezo1, it remains an unphysiological way to stimulate the pathway. It is important that the authors test whether also a physiological endothelial stimulus, such as fluid shear stress, promotes the formation of NICD and the activation of Notch1 downstream gene expression in a Piezo1-dependent manner.

2) The authors use inducible endothelium-specific Piezo1-deficient mice to show that loss of Piezo1 in hepatic sinusoidal endothelial cells results in reduced expression of Notch1-regulated genes. This is an interesting finding but not sufficient to make a strong point as this could also be an indirect phenomenon. It is at least necessary to determine in the Piezo1-deficient liver endothelial cells the formation of NICD and the activity of ADAM10 and/or γ-secretase. To test the physiological significance of this observation, the authors should also consider studying sinusoid development after early postnatal induction of endothelial Piezo1 deficiency or later in adult animals in the context of liver regeneration after e.g. partial hepatectomy.

3) A recently published study describes that shear stress triggers DLL4-dependent proteolytic activation of Notch1 as a mechanism linking fluid shear stress to the stabilization of the endothelial barrier (doi: 10.1038/nature24998). Since this study suggests a somewhat different mechanism of shear stress-induced Notch1 activation, the authors need to discuss this manuscript and test whether Piezo1 mediates e.g. internalization of DLL4 as suggested in this publication.

Reviewer #3:

In this study, Caolo et al. are investigating the mechanism that provides force sensing properties to the notch receptor. The authors provide a nice explanation by implicating piezo1, a well-established stretch sensitive receptor, and a Ca2+-regulated transmembrane sheddase that mediates S2 Notch1 cleavage. The results are based on convincing in vitro and in vivo data and are expected to have a significant impact in the field.

I only have a few comments to improve the work:

I have an issue with the timing of the experiments: the authors are assessing fast responses related to piezo and calcium (seconds/minutes) but use tools such as siRNA or conditional KO that takes hours/days to inactivate function. Yoda1 is certainly a convincing way to specifically activate piezo directly but the loss of function approach looks more difficult. Is it possible to use a chemical blocker of piezo, even not extremely specific to piezo, to strengthen this point?

The authors implicate calcium and sodium transients mediated by piezo to explain adam10 activation but never test it. This might not be straightforward but would be a good way to back up the model proposed in the Figure 5.

The choice of 4 notch gene as downstream targets is a bit narrow, as there are certainly much more genes responding to NICD activation. A broader analysis (perhaps mRNAseq) would help to judge better the extent (and specificity) of the misregulation of the notch pathway.

It would be good to control that piezo and ADAM10 are not affecting the cytoskeletal properties of the cells by assessing whether endothelial cells shape and adhesion are normal upon siRNA treatments.

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Thank you for choosing to send your work entitled "Shear stress activates ADAM10 sheddase to regulate Notch1 via the Piezo1 force sensor in endothelial cells" for consideration at eLife.

The reviewers have looked at the revised version and discussed the reviews with one another. While as stated by the authors the paper is improved, the reviewers are still not fully convinced about the findings and feel that the new data do not fully address their major concerns. Accordingly, the changes summarized below will be essential in order for eLife to further consider this manuscript for publication.

1) Testing the effect of Piezo1 knockdown on shear stress induced generation of NICD was an important experiment missing from the manuscript. The authors have not been able to do the experiment in primary cells, however they did it in HMVECs. What they actually found was that both the basal as well as the stimulated level of the NICD was greatly reduced after knockdown of Piezo1, while the shear stress induced increase doesn't appear to be affected (Figure 1A of revised manuscript). This is not really convincing and needs to be further explored.

2) In Figure 1A the authors should provide the ratio of NICD intensity before and after stimulation in both conditions. Looking at the graphs, it seems that this ratio may not be different. This might suggest that piezo known down may have additional effect (such as on cell cytoskeletal properties) in addition to its shear sensing functions as previously suggested by reviewer #3. This point has not been fully addressed in this revised version.

3) It is not clear why the authors were not able to study the mechanism in whole livers. Any data supporting the proposed mechanism on the in vivo level would be absolutely required to strengthen the manuscript.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "Shear stress activates ADAM10 sheddase to regulate Notch1 via the Piezo1 force sensor in endothelial cells" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Karina Yaniv as Reviewing Editor and Olga Boudker as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, we are asking editors to accept without delay manuscripts, like yours, that they judge can stand as eLife papers without additional data, even if they feel that they would make the manuscript stronger. Thus the revisions requested below only address clarity and presentation.

Summary:

Notch1 has recently been shown to be activated by fluid shear stress in endothelial cells and to mediate flow-dependent gene regulation and stabilization of the vascular barrier. The mechanism by which flow induces Notch1 activation has however remained unclear. Caolo et al. now provide data indicating that the mechanosensitive cation channel Piezo1 links fluid shear stress via calcium-dependent regulation of proteinases, to the activation of Notch1. This is an exciting new finding, which may be of broader relevance for the understanding of Notch1 physiology and pathophysiology.

Revisions:

The reviewers were pleased with the way you responded to their concerns. However, they agree that their major comment regarding the in vivo work has not been successfully addressed. In particular, they refer to the inability to see changes in NICD levels in liver endothelial cells lacking Piezo1. While the reviewers understand that this may result from technical reasons, they feel that without these data the manuscript lacks conclusive in vivo evidence for the proposed mechanism linking Piezo1 and expression of Notch1 target genes. Therefore, they request the following changes so that this fact is reflected in the final manuscript:

1) You should add in the scheme (Figure 5) an arrow indicating the possibility of an Adam 10/Notch/NICD independent mechanism

2) You should also include the alternative mechanism of flow-induced Notch signalling described by Polacheck et al., 2017.

https://doi.org/10.7554/eLife.50684.sa1

Author response

[Editors’ note: The authors appealed the original decision. What follows is the authors’ response to the first round of review.]

Reviewer #1:

[…] Overall, the work could be of potential interesting as it identifies a putative mechanistic link between mechanical forces and Notch activation. However, the data come across as being somewhat preliminary and quite speculative. While the presented experiments appear solid in terms of numbers, most assumptions are based solely on a single assay (Yoda1 agonist to activate Piezo1, enzymatic assay to assess ADAM10 activity, etc), making it difficult to reach accurate conclusions. Moreover, some of the results appear over-interpreted and too strong to be drawn from the presented data. For instance, while the authors aim to demonstrate the link between mechanical forces and Notch activation, there's only one experiment that applies actual shear stress, whereas the large majority is based solely on the addition of a small molecule to the medium.

We successfully performed these experiments. The results strongly support relevance of our hypothesis to the physiological stimulus of shear stress.

In the new figure panels we show that shear stress promotes the formation of NICD and the activation of Notch1 downstream gene expression in a Piezo1-dependent manner.

These new data have enabled us to completely reorganise and greatly improve the physiological emphasis of the manuscript. Therefore, the new data are not contained as new stand-alone figures but integrated across the revised figures as a whole.

The original data showing that shear stress stimulates ADAM10 activity in a Piezo1-dependent manner have been retained and integrated in the revised structure of the manuscript.

In addition to the Figures/Legends/Results we revised the Discussion, Abstract and Title to improve the relevance to the physiological stimulus.

An additional major weakness of this manuscript is that there is a significant imbalance between the characterization of HMVECs and mouse Piezo1∆EC liver endothelial cells. Given that mouse-derived ECs, which provide a more physiological platform, were available to the authors, it is unclear why they didn't use this system to characterize the proposed molecular mechanisms.

As indicated above, we increased the physiological relevance of the data through the new shear stress results presented in the revised manuscript. As part of this, we performed deeper investigation of the mouse ECs and the results are positive. We now show that Piezo1 knockout in endothelium affects 8 Notch1-regulated genes: Hes1, Dll4, Hey1, HeyL, Jagged1, Hes2, Hes3 and Ephrin B2 (revised Figure 4).

We are not able to repeat all the mechanistic aspects in freshly-isolated ECs. This is because of technical limitations.

We worked to reliably detect NICD in the murine ECs but it has been challenging, we think because of susceptibility of NICD to degradation. The problem is compounded by the need to detect decrease from basal: from low abundance to even lower. In a pilot study we detected basal NICD (full length and degraded) but we only saw what seemed to be degraded NICD when we scaled up for the wildtype and knockout comparison. The data actually support our conclusion that NICD is decreased but we would be concerned about including the data because of the degradation problem. Therefore we are not able to include such data. We don’t yet know how to prevent this degradation, which is not so evident in HMVEC-Cs.

We would probably overcome such a technical challenge by culturing the mouse ECs but this would not add much value to the manuscript because of the similarity to the HMVEC-C approach.

The mechanism can’t be detected in whole liver because it is vascular-specific, as we show in the manuscript. We have worked to develop whole tissue staining of vascular NICD but, so far, it is not sufficiently robust for quantitative data analysis. In our group we have over 10 years of experience with Notch studies, so we don’t think this is because of a lack of our experience or capability, but rather a reflection of limitations of the available Notch1 tools.

We have recognised in the revised Discussion that our conclusions about some aspects of the pathway depend on data from cultured ECs (HMVEC-Cs). We also added recognition of the non-canonical pathway for Notch1 regulation (Polacheck et al., 2017).

Finally, the manuscript is written in a rather superficial way, with no proper elaboration of the observed phenotypes and/or the significance of most of the results. The Introduction and Discussion could be significantly improved by a more detailed, critical, in depth analysis of the findings. Likewise, the Results section will benefit from a more elaborated presentation.

We enhanced the manuscript throughout.

As a whole, this manuscript presents an interesting hypothesis, however it appears to lack the broad scope and impact necessary for publication in eLife, and therefore I believe it might suit better a more specialized journal.

Reviewer #2:

Notch1 has recently been shown to be activated by fluid shear stress in endothelial cells and to mediate flow-dependent gene regulation and stabilization of the vascular barrier. The mechanism by which flow induces Notch1 activation has however remained unclear. Caolo et al. now provide data indicating that the mechanosensitive cation channel Piezo1 links fluid shear stress via calcium-dependent regulation of proteinases to the activation of Notch1. This is an exciting new finding, which may be of broader relevance for the understanding of Notch1 physiology and pathophysiology. In several points the study, however, appears a little bit fragmentary and preliminary, and a couple of additional experiments are required to better support the major conclusions of this manuscript.

1) With one exception, all the in vitro data are based on activation of Piezo1 by Yoda1. While Yoda1 appears to be a specific activator of Piezo1, it remains an unphysiological way to stimulate the pathway. It is important that the authors test whether also a physiological endothelial stimulus, such as fluid shear stress, promotes the formation of NICD and the activation of Notch1 downstream gene expression in a Piezo1-dependent manner.

We successfully performed these experiments. The results strongly support relevance of our hypothesis to the physiological stimulus of shear stress.

In the new figure panels we show that shear stress promotes the formation of NICD and the activation of Notch1 downstream gene expression in a Piezo1-dependent manner.

These new data have enabled us to completely reorganise and greatly improve the physiological emphasis of the manuscript. Therefore, the new data are not contained as new stand-alone figures but integrated across the revised figures as a whole.

The original data showing that shear stress stimulates ADAM10 activity in a Piezo1-dependent manner have been retained and integrated in the revised structure of the manuscript.

In addition to the Figures/Legends/Results we revised the Discussion, Abstract and Title to improve the relevance to the physiological stimulus.

2) The authors use inducible endothelium-specific Piezo1-deficient mice to show that loss of Piezo1 in hepatic sinusoidal endothelial cells results in reduced expression of Notch1-regulated genes. This is an interesting finding but not sufficient to make a strong point as this could also be an indirect phenomenon. It is at least necessary to determine in the Piezo1-deficient liver endothelial cells the formation of NICD and the activity of ADAM10 and/or γ-secretase. To test the physiological significance of this observation, the authors should also consider studying sinusoid development after early postnatal induction of endothelial Piezo1 deficiency or later in adult animals in the context of liver regeneration after e.g. partial hepatectomy.

As indicated above, we increased the physiological relevance of the data through the new shear stress results presented in the revised manuscript. As part of this, we performed deeper investigation of the mouse ECs and the results are positive. We now show that Piezo1 knockout in endothelium affects 8 Notch1-regulated genes: Hes1, Dll4, Hey1, HeyL, Jagged1, Hes2, Hes3 and Ephrin B2 (revised Figure 4).

We are not able to repeat all the mechanistic aspects in freshly-isolated ECs. This is because of technical limitations.

We worked to reliably detect NICD in the murine ECs but it has been challenging, we think because of unexpected susceptibility of NICD to degradation. The problem is compounded by the need to detect a decrease from basal: from low abundance to even lower. In a pilot study we detected basal NICD (full length and degraded) but we have only seen what seems to be degraded NICD when we scaled up for the wildtype and knockout comparison. The data actually support our conclusion that NICD is decreased but we would be concerned about including the data because of the degradation. Therefore we are not able to include such data at the moment.

We would likely overcome such a technical challenge by culturing the mouse ECs but this would not add much value to the manuscript because of the similarity to the HMVEC-C approach.

The mechanism can’t be detected in whole liver because it is vascular-specific, as we show in the manuscript. We have worked to develop whole tissue staining of vascular NICD but, so far, it is not sufficiently robust for quantitative data analysis. In our group we have over 10 years of experience with Notch studies, so we don’t think this is because of a lack of our experience or capability, but rather a reflection of limitations of the available Notch1 tools.

It is questionable whether in vivo-relevant enzyme activity can be preserved during cell isolation and, to the best of our knowledge, there is no methodology for detection of ADAM10 activity in tissue sections.

We have recognised in the revised Discussion that our conclusions about some aspects of the pathway depend on data from cultured ECs (HMVEC-Cs).

Prior work has shown that endothelial Piezo1 is important for vascular development and structure. While we don’t show such changes specifically for the liver, it is expected that they will be seen in endothelial Piezo1 knockouts if studied at suitable time-points. However, such studies will not necessarily implicate Piezo1 signalling to Notch1 because Piezo1 regulates multiple distinct downstream pathways (Beech and Kalli, 2019). Future studies may be able to reveal how specific disruption of Piezo1 signalling to Notch1 can be achieved in vivo. We addressed these topics in the revised Introduction and Discussion.

3) A recently published study describes that shear stress triggers DLL4-dependent proteolytic activation of Notch1 as a mechanism linking fluid shear stress to the stabilization of the endothelial barrier (doi: 10.1038/nature24998). Since this study suggests a somewhat different mechanism of shear stress-induced Notch1 activation, the authors need to discuss this manuscript and test whether Piezo1 mediates e.g. internalization of DLL4 as suggested in this publication.

Our manuscript is about activation of canonical Notch1 regulation by Piezo1 as a mechanism for it to achieve force sensitivity. We do not exclude other pathways and recognise this in the revised manuscript. We added Discussion of the proposed non-canonical pathway for Notch1 regulation (Polacheck et al., 2017).

Reviewer #3:

I only have a few comments to improve the work:

I have an issue with the timing of the experiments: the authors are assessing fast responses related to piezo and calcium (seconds/minutes) but use tools such as siRNA or conditional KO that takes hours/days to inactivate function. Yoda1 is certainly a convincing way to specifically activate piezo directly but the loss of function approach looks more difficult. Is it possible to use a chemical blocker of piezo, even not extremely specific to piezo, to strengthen this point?

Unfortunately, the known chemical blockers of Piezo are very limited and lack specificity. We worked to address this limitation through recent screening of a library of more than 10,000 small-molecules against Piezo1. The work is on-going and not yet available to benefit studies such as the one described here.

Nevertheless, we have been able to show that Gd3+, a Piezo1 blocker (Coste et al., 2010), prevents Yoda1 from stimulating ADAM10 activation. We have added a specific section in the Results. The result suggests that it is indeed the fast Piezo1 ion-permeation mechanism that is responsible for the ADAM10/Notch1 activation. We speculate that effects such as ADAM10 activation and NICD formation are triggered quickly but that it then takes time for sufficient accumulation that is detectable by available assays, which are relatively insensitive. We can’t prove this, however, and don’t exclude other intermediates between Piezo1 and ADAM10. We added a paragraph on this topic to the Discussion.

The authors implicate calcium and sodium transients mediated by piezo to explain adam10 activation but never test it. This might not be straightforward but would be a good way to back up the model proposed in the Figure 5.

Testing the roles of Ca2+ or Na+ might be attempted by removing these ions from the extracellular medium, but this approach is problematic because these ions are very important for so many cellular processes. Such data are of questionable value. In place of this we favoured the Gd3+ approach, as indicated above. This has succeeded and supports the idea that cation flux is important – possibly Ca2+. The new paragraph in the Discussion, as indicated above, addresses this point.

The choice of 4 notch gene as downstream targets is a bit narrow, as there are certainly much more genes responding to NICD activation. A broader analysis (perhaps mRNAseq) would help to judge better the extent (and specificity) of the misregulation of the notch pathway.

We now more than doubled the number of genes tested for culture cells and freshly-isolated ECs from the mice. The new data are included in the revised / new figures. The data suggest a broad effect on these genes, especially in vivo (Figure 4).

Piezo1 regulates multiple distinct downstream pathways (Beech and Kalli, 2019). Therefore, RNAseq for wildtype vs Piezo1 knockouts will not yield information specific to the Notch hypothesis. We addressed this topic in the Discussion.

We plan studies to understand how specific disruption of Piezo1/ADAM10/Notch1 might be achieved in vivo. If successful, we would then expect to do RNAseq to determine any wider implications of this pathway.

It would be good to control that piezo and ADAM10 are not affecting the cytoskeletal properties of the cells by assessing whether endothelial cells shape and adhesion are normal upon siRNA treatments.

We previously published on the effect of Piezo1 siRNA on cytoskeletal properties in cultured endothelial cells (Li et al., 2014). There is tightening of plasma membrane-associated actin cytoskeleton and resistance of the cells to alignment in the direction of shear stress. The cells adhered to the substrate in culture and we routinely study endothelial cells from Piezo1 knockouts that adhere to the substrate, but we have seen altered adherence and it has been reported by others (Nonomura et al., 2018).

Piezo1 regulates multiple distinct downstream pathways, as reviewed recently by us (Beech and Kalli, 2019). We are not suggesting there is specific effect only on Notch1 signalling. We added more text to make this clearer in the Discussion.

[Editors’ note: what follows is the authors’ response to the second round of review.]

The reviewers have looked at the revised version and discussed the reviews with one another. While as stated by the authors the paper is improved, the reviewers are still not fully convinced about the findings and feel that the new data do not fully address their major concerns. Accordingly, the changes summarized below will be essential in order for eLife to further consider this manuscript for publication.

1) Testing the effect of Piezo1 knockdown on shear stress induced generation of NICD was an important experiment missing from the manuscript. The authors have not been able to do the experiment in primary cells, however they did it in HMVECs. What they actually found was that both the basal as well as the stimulated level of the NICD was greatly reduced after knockdown of Piezo1, while the shear stress induced increase doesn't appear to be affected (Figure 1A of revised manuscript). This is not really convincing and needs to be further explored.

Thank you for drawing attention to this important aspect. We had been too concise and not properly explained the data. Moreover, the example raw data of Figure 1A were not representative of the statistical outcome of the experiments and so we changed to another example.

The statistical outcome of the experiments is that stimulated NICD was reduced to the control level, whereas basal NICD was not affected and shear stress (SS) did not increase NICD above the basal level in the Piezo1 knockdown (siPiezo1) group (Figure 1B). We added “NS” (Not Significant) to Figure 1B to clarify the statistical outcome. Therefore, the concerns raised are not correct according to the statistical analysis. Nevertheless, we understand why there was concern and accordingly changed Figure 1A to another example, revised the text to help understanding and better recognised the complexity and potential limitations of the underlying data through addition of discussion.

More repetitions of the experiment could be done if these changes were felt to be unsatisfactory, but power calculation analysis using the known variance and anticipated effect size indicates that n=17 independent repeats per group would be required to achieve statistical significance for an effect of shear stress after knockdown of Piezo1. This implies that there is an effect to be detected, but one that is difficult to prove under these conditions. Such an n value would be much in excess of norms for this type of labourintensive and time-consuming experiment and could be construed as biased in favour of detecting an effect when a relatively small n value was sufficient to demonstrate significance in the control group.

We had previously used the absence of asterisks to indicate no significant difference but addition of “NS” makes it clearer. We therefore now inserted NS throughout all 11 data figures.

Below we briefly consider the issues regarding Figure 1A, B:

Knockdown of Piezo1 strongly reduced the amount of NICD in the Shear Stress (SS) condition, in fact so much so that it became similar to the Static condition (siCtrl). This result is seen in the example data of Figure 1A and quantitative data of Figure 1B, in which “SS siPiezo1” was not significantly (“NS”) different from “Static siCtrl”; whereas “SS siPiezo1” was significantly less than SS siCtrl (** P < 0.01). We added “NS” to Figure 1B to clarify.

From the quantitative data of Figure 1B we must conclude that knockdown of Piezo1 had no effect on basal NICD in these experiments. We have clarified by adding “NS” but we recognise that there is an appearance of decreased basal NICD in the mean data and such a decrease is evident in the individual experiment shown in Figure 1A (“Static siPiezo1” cf “Static siCtrl”). Moreover, related quantitative data of Figure 1D show significant effect on basal NICD (Figure 1D, “DMSO siPiezo1” cf “DMSO siCtrl”), apparently contradicting Figure 1B. The experiments of Figure 1B and Figure 1D were, however, not exactly the same. Most obviously the experiments of Figure 1d included DMSO, but Figure 1B was also done in a separate special chamber to enable shear stress studies. We suggest, therefore, that the ability of Piezo1 to regulate basal NICD is particularly sensitive to the cell environment (more sensitive than the effect of Piezo1 to enable induction of NICD by Shear Stress). We have added discussion of this topic.

We appreciate that any effect of treatment on basal NICD creates a challenge for determining the effect of shear stress on top of this because the reference point (basal NICD) is (or may be) different. We added discussion of this matter to better recognise it, explain that it is a potential limitation of the study and to suggest interpretations (e.g. about why there might be a basal effect and why it might be variably observed).

Importantly, the independent data of Figure 4 (B, C) cleanly demonstrate Piezo1-dependence of shear stress effects on Notch1-target gene activation without complication from basal effects.

We accept that the data are not as simple as might be hoped because of the issues around the basal signal. It is clear throughout the study that the topic of basal NICD regulation is an unexpected, interesting and relevant one, as is the topic of the effect of shear stress on top of the basal signal.

To the Results we added and revised as follows:

“Strikingly, depletion of Piezo1 strongly reduced the amount of NICD in the shear stress condition, so much so that it became similar to that of the static control siRNA condition (Figure 1A, B). […] The data suggest that Piezo1 is needed for normal elevation of NICD in shear stress and that it may be a factor regulating basal NICD.”

To the Discussion we added and revised as follows:

“A challenging aspect of our HMVEC-C experiments was the tendency for the inhibition or depletion of ADAM10/Piezo1 to reduce the constitutive abundance of NICD. […] We previously showed that Piezo1 depletion affects cytoskeletal structure in endothelial cells (9) and so there is a possibility that this plays a role in the interplay between Piezo1 and Notch1.”

2) In Figure 1A the authors should provide the ratio of NICD intensity before and after stimulation in both conditions. Looking at the graphs, it seems that this ratio may not be different. This might suggest that piezo known down may have additional effect (such as on cell cytoskeletal properties) in addition to its shear sensing functions as previously suggested by reviewer #3. This point has not been fully addressed in this revised version.

The first part of this point is closely related to point 1, to which we responded above.

If we normalise the “Static siPiezo1” data of the Figure 1B to 1.0, the “SS siPiezo1” NICD data appear almost two times larger (to be precise, 1.85 times). As you have identified, this is already apparent in the original presentation of Figure 1B. It remains the same in the revised version. It is important to note that changing the presentation does not change the fact that there was no significant difference. We have correctly reached conclusions based on the results of the statistical tests but now provide better explanation and discussion to help with the situation, as described in response to point 1.

We draw attention to the raw data of Figure 1A where the basal NICD signal in “Static siPiezo1” was seen to be weak and only just above background. Using such data as a reference, or normalisation, point is precarious and leads to large variation in the associated data. Moreover, it can be seen that the NICD signal was generally weak in the siPiezo1 group, which we think explains, at least in part, the high variance of these data points. We also added discussion about this point to the main manuscript, as described above.

Despite these difficulties, it is clear that the total amount of NICD achievable in the Shear Stress condition was much less after Piezo1 knockdown, and validated strongly by objective statistical analysis.

The second part of this point relates to additional effects of Piezo1 knockdown and potential roles of the cell cytoskeleton. We completely agree that Piezo1 has multiple effects and we worked to make this clearer in the Discussion. Our group has provided some of the evidence in the literature and we recently comprehensively reviewed all of the available evidence – we cite this work and other work. We now further enhanced the discussion on these points by providing more details on the cytoskeleton, referring to possible roles of Piezo1 in addition to shear stress sensing and developing a hypothesis for how Piezo1’s relationship to cytoskeleton might be an explanation for regulation of basal NICD.

We added discussion as follows:

“There are several possible explanations for a basal effect on NICD because multiple signalling pathways are activated by Piezo1. […] We previously showed that Piezo1 depletion affects cytoskeletal structure in endothelial cells (9) and so there is a possibility that this plays a role in the interplay between Piezo1 and Notch1.”

3) It is not clear why the authors were not able to study the mechanism in whole livers. Any data supporting the proposed mechanism on the in vivo level would be absolutely required to strengthen the manuscript.

We apologise that this wasn’t sufficiently clear. We worked to improve this section. Such data are in the section entitled “Endothelial Piezo1 is required for Notch1 target gene expression in mice” and associated Figure 4 and Figure 4—figure supplements 2 and 3. There was no change in Notch1-target gene expression in whole liver of endothelial-specific Piezo1 knockouts (Figure 4—figure supplements 2 and 3). Endothelium is a minor fraction of whole liver. When we separated the endothelium (without cell culture), we saw clear effects on Notch1-target genes (Figures 4). Therefore, we show data supporting the proposed mechanism at the in vivo level; i.e., using knockout mice and the study of freshly-isolated endothelium from whole liver.

We have worked to achieve NICD-specific staining in tissue sections but the quality of NICD antibodies is limited, especially for detecting a decrease of NICD below basal levels (the expected effect of Piezo1 knockout). We have added discussion to recognise this limitation.

Piezo1 signals to multiple pathways, not only ADAM10 and Notch1. Therefore, studies in search of a liver phenotype of Piezo1 knockouts will not specifically address the Piezo1ADAM10-Notch1 hypothesis and would cause a loss of focus that could be misleading by implying an in vivo role of Piezo1-ADAM10-Notch1 signalling that might actually be due to some other function of Piezo1.

We revised and enhanced the Discussion as follows:

“The specific downstream implications of Piezo1-ADAM10/Notch1 signalling in the liver remain to be explicitly determined but we know that prior work showed important effects of endothelial-specific disruption of Notch1-regulated RBPJ on hepatic microvasculature. […] We will be able to determine the specific significance in vivo only if we first determine how to specifically disrupt this pathway relative to others.”

If there are further experiments you would like us to consider, we would be grateful if you would take into account that the Covid-19 outbreak has caused our laboratories to be temporarily shut down and many of our animals to be culled. Significant time, planning and new resource would be needed to provide new in vivo data. Limits on current funding and contracts might prevent such work if our campus shutdown continues for an extended period.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Revisions:

The reviewers were pleased with the way you responded to their concerns. However, they agree that their major comment regarding the in vivo work has not been successfully addressed. In particular, they refer to the inability to see changes in NICD levels in liver endothelial cells lacking Piezo1. While the reviewers understand that this may result from technical reasons, they feel that without these data the manuscript lacks conclusive in vivo evidence for the proposed mechanism linking Piezo1 and expression of Notch1 target genes. Therefore, they request the following changes so that this fact is reflected in the final manuscript:

1) You should add in the scheme (Figure 5) an arrow indicating the possibility of an Adam 10/Notch/NICD independent mechanism

2) You should also include the alternative mechanism of flow-induced Notch signalling described by Polacheck et al., 2017.

We made the requested changes to Figure 5. We accordingly added this sentence to the Figure 5 legend:

“In the schematic we also include the suggested contributions from ADAM10/Notch1/NICD independent signalling from Piezo1 and non-canonical Notch1 signalling via the Notch1 transmembrane domain (TMD), as described and referenced in the text.”

We reference and describe the Polacheck work in the manuscript.

https://doi.org/10.7554/eLife.50684.sa2

Article and author information

Author details

  1. Vincenza Caolo

    Leeds Institute of Cardiovascular and Metabolic Medicine, School of Medicine, University of Leeds, Leeds, United Kingdom
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Investigation, Methodology, Project administration
    Contributed equally with
    Marjolaine Debant
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6215-2702
  2. Marjolaine Debant

    Leeds Institute of Cardiovascular and Metabolic Medicine, School of Medicine, University of Leeds, Leeds, United Kingdom
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Investigation, Visualization, Methodology
    Contributed equally with
    Vincenza Caolo
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5988-3395
  3. Naima Endesh

    Leeds Institute of Cardiovascular and Metabolic Medicine, School of Medicine, University of Leeds, Leeds, United Kingdom
    Contribution
    Formal analysis, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared
  4. T Simon Futers

    Leeds Institute of Cardiovascular and Metabolic Medicine, School of Medicine, University of Leeds, Leeds, United Kingdom
    Contribution
    Resources, Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Laeticia Lichtenstein

    Leeds Institute of Cardiovascular and Metabolic Medicine, School of Medicine, University of Leeds, Leeds, United Kingdom
    Contribution
    Resources, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3900-786X
  6. Fiona Bartoli

    Leeds Institute of Cardiovascular and Metabolic Medicine, School of Medicine, University of Leeds, Leeds, United Kingdom
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  7. Gregory Parsonage

    Leeds Institute of Cardiovascular and Metabolic Medicine, School of Medicine, University of Leeds, Leeds, United Kingdom
    Contribution
    Investigation, Methodology, Project administration
    Competing interests
    No competing interests declared
  8. Elizabeth AV Jones

    Department of Cardiovascular Sciences, Centre for Molecular and Vascular Biology, Leuven, Belgium
    Contribution
    Conceptualization, Funding acquisition
    For correspondence
    liz.jones@kuleuven.be
    Competing interests
    No competing interests declared
  9. David J Beech

    Leeds Institute of Cardiovascular and Metabolic Medicine, School of Medicine, University of Leeds, Leeds, United Kingdom
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Investigation, Methodology, Project administration
    For correspondence
    d.j.beech@leeds.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7683-9422

Funding

Wellcome (110044/Z/15/Z)

  • David J Beech

British Heart Foundation (RG/17/11/33042)

  • David J Beech

European Commission (H2020-MSCA-IF-2016 SAVE 748369)

  • Vincenza Caolo

Fonds Wetenschappelijk Onderzoek (G091018N)

  • Elizabeth AV Jones

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The study was supported by EU Marie Skłodowska Curie Individual Fellowship to VC and by grants from the Wellcome Trust and British Heart Foundation to DJB and a Fonds Wetenschappelijk Onderzoek grant G091018N to EAVJ. We thank Richard Cubbon for helpful comments on the manuscript.

Ethics

Animal experimentation: All animal use was authorized by the University of Leeds Animal Ethics Committee and Home Office UK (Project Licence P606320FB to David J Beech).

Senior Editor

  1. Olga Boudker, Weill Cornell Medicine, United States

Reviewing Editor

  1. Karina Yaniv, Weizmann Institute of Science, Israel

Reviewer

  1. Julien Vermot, Institut de Génétique et de Biologie Moléculaire et Cellulaire, France

Publication history

  1. Received: July 30, 2019
  2. Accepted: June 1, 2020
  3. Accepted Manuscript published: June 2, 2020 (version 1)
  4. Version of Record published: June 15, 2020 (version 2)

Copyright

© 2020, Caolo et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,200
    Page views
  • 394
    Downloads
  • 5
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Stem Cells and Regenerative Medicine
    Emma Carley et al.
    Research Article Updated

    While the mechanisms by which chemical signals control cell fate have been well studied, the impact of mechanical inputs on cell fate decisions is not well understood. Here, using the well-defined system of keratinocyte differentiation in the skin, we examine whether and how direct force transmission to the nucleus regulates epidermal cell fate. Using a molecular biosensor, we find that tension on the nucleus through linker of nucleoskeleton and cytoskeleton (LINC) complexes requires integrin engagement in undifferentiated epidermal stem cells and is released during differentiation concomitant with decreased tension on A-type lamins. LINC complex ablation in mice reveals that LINC complexes are required to repress epidermal differentiation in vivo and in vitro and influence accessibility of epidermal differentiation genes, suggesting that force transduction from engaged integrins to the nucleus plays a role in maintaining keratinocyte progenitors. This work reveals a direct mechanotransduction pathway capable of relaying adhesion-specific signals to regulate cell fate.

    1. Cell Biology
    Hongyan Hao et al.
    Research Article

    KASH proteins in the outer nuclear membrane comprise the cytoplasmic half of LINC complexes that connect nuclei to the cytoskeleton. Caenorhabditis elegans ANC-1, an ortholog of Nesprin-1/2, contains actin-binding and KASH domains at opposite ends of a long spectrin-like region. Deletion of either the KASH or calponin homology (CH) domains does not completely disrupt nuclear positioning, suggesting neither KASH nor CH domains are essential. Deletions in the spectrin-like region of ANC-1 led to significant defects, but only recapitulated the null phenotype in combination with mutations in the trans-membrane span. In anc-1 mutants, the ER, mitochondria, and lipid droplets were unanchored, moving throughout the cytoplasm. The data presented here support a cytoplasmic integrity model where ANC-1 localizes to the ER membrane and extends into the cytoplasm to position nuclei, ER, mitochondria, and likely other organelles in place.
