The NTP generating activity of pyruvate kinase II is critical for apicoplast maintenance in Plasmodium falciparum

  1. Russell P Swift
  2. Krithika Rajaram
  3. Cyrianne Keutcha
  4. Hans B Liu
  5. Bobby Kwan
  6. Amanda Dziedzic
  7. Anne E Jedlicka
  8. Sean T Prigge  Is a corresponding author
  1. Department of Molecular Microbiology and Immunology, Johns Hopkins Bloomberg School of Public Health, United States
Research Article
  • Cited 0
  • Views 426
  • Annotations
Cite this article as: eLife 2020;9:e50807 doi: 10.7554/eLife.50807

Abstract

The apicoplast of Plasmodium falciparum parasites is believed to rely on the import of three-carbon phosphate compounds for use in organelle anabolic pathways, in addition to the generation of energy and reducing power within the organelle. We generated a series of genetic deletions in an apicoplast metabolic bypass line to determine which genes involved in apicoplast carbon metabolism are required for blood-stage parasite survival and organelle maintenance. We found that pyruvate kinase II (PyrKII) is essential for organelle maintenance, but that production of pyruvate by PyrKII is not responsible for this phenomenon. Enzymatic characterization of PyrKII revealed activity against all NDPs and dNDPs tested, suggesting that it may be capable of generating a broad range of nucleotide triphosphates. Conditional mislocalization of PyrKII resulted in decreased transcript levels within the apicoplast that preceded organelle disruption, suggesting that PyrKII is required for organelle maintenance due to its role in nucleotide triphosphate generation.

Introduction

With increasing resistance to current front-line antimalarials, there is a crucial need to find new therapeutic interventions with novel mechanisms of action (Dondorp et al., 2009; Trape, 2001). The apicoplast organelle within the parasite has often been considered as a source of new drug targets since it is required for blood-stage survival, in addition to possessing evolutionarily distinct biochemical pathways that are not present in the human host (Goodman and McFadden, 2013; Janouskovec et al., 2010; Mukherjee and Sadhukhan, 2016). One pathway within the apicoplast that represents a source of potential drug targets is carbon metabolism, due to its predicted role in supporting metabolism within the organelle.

In order to fuel metabolism within the apicoplast, sources of reducing power, carbon backbones, and energy in the form of nucleotide triphosphates are required. It is hypothesized that the apicoplast meets these needs primarily through the import and metabolism of three-carbon phosphates generated by parasite glycolysis (Lim et al., 2010; Ralph et al., 2004; Zocher et al., 2012). These three-carbon phosphate compounds include dihydroxyacetone phosphate (DHAP) and phosphoenolpyruvate (PEP), which are imported into the organelle through the outer triose phosphate transporter (oTPT) and inner triose phosphate transporter (iTPT) embedded in the outer and inner apicoplast membranes, respectively (Figure 1; Lim et al., 2010; Lim et al., 2016; Mullin et al., 2006).

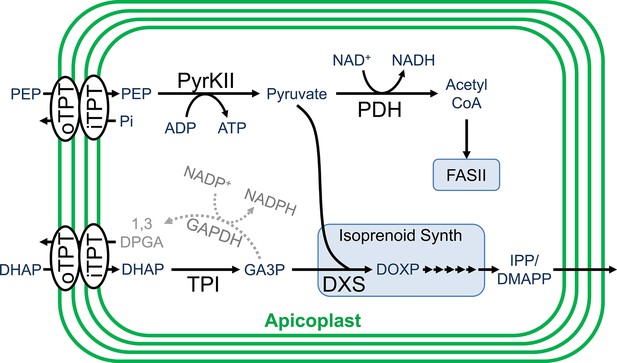

Carbon metabolism in the apicoplast.

Carbon backbones are imported into the apicoplast organelle in the form of 3-carbon phosphates by the apicoplast membrane outer triose phosphate transporter (oTPT) and inner triose phosphate transporter (iTPT). Pyruvate kinase II (PyrKII) converts the substrates phophoenolpyruvate (PEP) and adenosine diphosphate (ADP) into the products pyruvate and adenosine triphosphate (ATP). Pyruvate is used by PDH to generate acetyl CoA, which is fed into the FASII fatty acid biosynthesis pathway. Triose phosphate isomerase (TPI) converts dihydroxyacetone phosphate (DHAP) into glyceraldehyde-3-phosphate (GA3P). Pyruvate and GA3P are used by 1-deoxy-D-xylulose-5-phosphate (DOXP) synthase (DXS) to form DOXP, which is further converted by a series of enzymes to form the essential isoprenoid precursors isopentenyl pyrophosphate (IPP) and dimethylallyl pyrophosphate (DMAPP). Colored in gray, a hypothetical glyceraldehyde 3-phosphate dehydrogenase (GAPDH) could convert GA3P into 1,3-diphosphoglycerate (1,3-DPGA).

Within the apicoplast, DHAP is believed to be converted into glyceraldehyde 3-phosphate (GA3P) by the enzyme triose phosphate isomerase (TPI) (Ralph et al., 2004). GA3P and PEP are then fed into the methylerythritol phosphate (MEP) isoprenoid pathway (Lim and McFadden, 2010). These substrates first interact with 1-deoxy-D-xylulose-5-phosphate (DOXP) synthase (DXS) to form DOXP, which is further converted by a series of enzymes to form the essential isoprenoid precursors isopentenyl pyrophosphate (IPP) and dimethylallyl pyrophosphate (DMAPP) (Hunter, 2007). GA3P is also believed to be used for the generation of reducing power through its conversion into 1,3-diphosphoglycerate (1,3-DPGA) by glyceraldehyde 3-phosphate dehydrogenase (GAPDH), reducing NADP+ to NADPH in the process (Fleige et al., 2007; Waller et al., 1998). However, the functionality of the GAPDH cycle is questionable since GAPDH does not appear to localize to the apicoplast (Daubenberger et al., 2003).

The PEP imported into the apicoplast is believed to be used along with ADP as substrates by the enzyme pyruvate kinase II (PyrKII) to generate pyruvate and ATP, providing the only predicted source of these products within the apicoplast (Lim et al., 2010; Lim and McFadden, 2010; Israelsen and Vander Heiden, 2015; Maeda et al., 2009). The pyruvate generated enters into the MEP isoprenoid biosynthetic pathway (Lim and McFadden, 2010). Additionally, pyruvate can be converted into acetyl-CoA by pyruvate dehydrogenase (PDH), reducing NAD+ to NADH in the process, providing one of the few predicted sources of reducing power within the organelle (Zocher et al., 2012; Foth et al., 2005). The ATP generated presumably powers all energy requiring reactions within the organelle and provides adenine bases for RNA synthesis. However, it is not clear how the apicoplast acquires the remaining NTPs for RNA synthesis and other reactions since apicoplast transporters for NMPs or NDPs have not been described, and there are no other predicted sources of NTPs within the organelle (Ralph et al., 2004; Maeda et al., 2009). The activity of PyrKII from the closely related apicomplexan Toxoplasma gondii has been characterized in vitro and exhibits a strong substrate preference for GDP (Saito et al., 2008), suggesting the likely requirement for additional NTP sources. However, the substrate specificity of the P. falciparum PyrKII has not been characterized, and doing so may help elucidate its potential role in apicoplast nucleotide metabolism.

In order to interrogate the role and essentiality of the various proteins involved in carbon metabolism within the organelle, we used an apicoplast metabolic bypass line to generate a series of genetic deletions. Our results showed that both TPI and PDH are dispensable for blood-stage parasite survival, and do not require mevalonate for survival. Additionally, we demonstrated that oTPT, iTPT, and PyrKII are not only essential, but are also required for apicoplast maintenance. However, deletions in the FASII (Foth et al., 2005; van Schaijk et al., 2014) and MEP pathways, the only two pathways predicted to use pyruvate, did not result in the same phenotype. This suggested that organelle maintenance is not reliant on the pyruvate generated by PyrKII, but instead may rely on ATP (or possibly other NTPs) produced by the enzyme.

In vitro enzymatic characterization of PyrKII revealed activity with all NDPs and dNDPs that were tested, demonstrating broad substrate specificity. We hypothesized that PyrKII may be playing a critical role in NTP production within the apicoplast. To test this, we generated a parasite line that allowed us to conditionally mislocalize PyrKII and measure the rate of loss of apicoplast mRNA via microarray, as a proxy for measuring the change in NTP production. Using this approach, we found that mRNA levels within the organelle decreased relatively rapidly (within ~24–40 hr of inducing PyrKII mislocalization), while the organelle did not become disrupted until much later (~88–110 hr). These results help to support the hypothesis that PyrKII plays a critical role in NTP production within the apicoplast, with the removal of PyrKII resulting in a decrease in apicoplast transcript levels, likely causing the resulting organelle loss.

Results

Essentiality of the outer and inner triose phosphate transporters

For the apicoplast, carbon metabolism begins with the import of the three-carbon phosphate compounds PEP and DHAP, mediated by the outer and inner triose phosphate transporters (oTPT/iTPT) (Lim et al., 2010). Previous deletions in P. berghei demonstrated that oTPT is essential, while iTPT is dispensable in blood-stage parasites (Banerjee et al., 2012). To investigate the role and essentiality of carbon metabolism within the organelle of P. falciparum parasites, we attempted to delete the genes encoding oTPT (PF3D7_0508300) and iTPT (PF3D7_0530200) using Cas9-mediated genome editing (Ghorbal et al., 2014; Wagner et al., 2014). Deletions were generated in the PfMev apicoplast bypass line, which is engineered to convert supplemented mevalonate into isoprenoid precursors in the parasite cytosol, allowing these parasites to survive disruption of the apicoplast organelle (Swift et al., 2020). We confirmed the deletion of oTPT and iTPT, and the absence of parental parasites using genotyping PCR reactions (Figures 2a and 1). We were unable to amplify a gene from the apicoplast genome (sufB) in the PfMev Δotpt and PfMev Δitpt parasite lines, indicating that the organellar genome had been lost in both lines (Figure 2b; Gisselberg et al., 2013). To visualize the apicoplast, super-folder green (SFG) was appended to the first 55 amino acids of the P. falciparum ACP (api-SFG), constituting the signal and transit peptide to direct trafficking to the apicoplast, as previously described (Swift et al., 2020). Disruption of the apicoplast was confirmed via live epifluorescence microscopy, which showed multiple vesicles throughout the cell instead of the discrete intact structure that is typically observed in wild type parasites (Figure 2c; Gisselberg et al., 2013; Yeh and DeRisi, 2011). Additionally, upon removal of mevalonate both deletion lines failed to grow (Figure 2d). These results demonstrate that both oTPT and iTPT are required for apicoplast maintenance in addition to blood-stage parasite survival. While these results are consistent with what was found in P. berghei for oTPT they are notably in conflict with what was found for iTPT, which did not cause a significant growth defect in P. berghei when deleted (Banerjee et al., 2012).

Figure 2 with 1 supplement see all

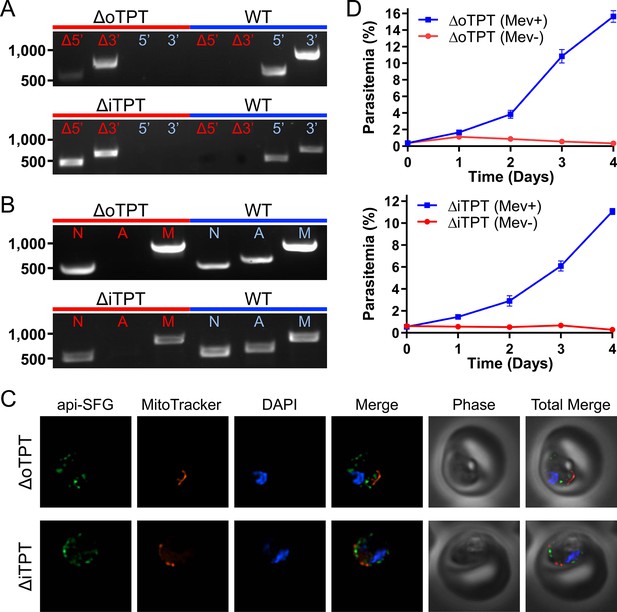

Characterization of the PfMev Δotpt and Δitpt parasite lines.

(A) Genotyping PCR confirming deletion of oTPT or iTPT, with amplification demonstrating integration of the drug resistance cassette at the 5’ and 3’ loci of the target gene (Δ5’ and Δ3’), and lack of wild type parasites due to failure to amplify at the wild type 5’ and 3’ loci in the PfMev Δotpt or Δitpt parasites, as compared to the parental control (WT). (B) Attempted PCR detection of the ldh, sufB, and cox1 genes from the nuclear (N), apicoplast (A), and mitochondrial (M) genomes, respectively. We failed to amplify sufB from the PfMev Δotpt or Δitpt parasite lines, indicating loss of the apicoplast organelle genome. (C) Live epifluorescence microscopy of the PfMev Δotpt and Δitpt parasite lines, which express api-SFG (green), and are also stained with MitoTracker (red) and DAPI (blue). Microscopy images represent fields that are 10 µM long by 10 µM wide. (D) Growth curves of the PfMev Δotpt and Δitpt parasite lines cultured with or without 50 μM mevalonate. Error bars represent the standard error of the mean from two independent experiments, each conducted in quadruplicate.

Deletion of carbon metabolizing enzymes

Once PEP and DHAP enter the apicoplast, they are metabolized by TPI and PyrKII. TPI is predicted to convert DHAP to GA3P, which is used by the MEP isoprenoid pathway (Ralph et al., 2004). TPI is also believed to be involved in the generation of reducing power (NADPH) by providing the substrate for a hypothetical GAPDH (Ralph et al., 2004). PyrKII is predicted to convert PEP and ADP into pyruvate and ATP within the organelle, providing the only predicted source of these compounds, with pyruvate being used by the downstream FASII and MEP pathways (Ralph et al., 2004). We were successful in deleting both TPI (PF3D7_0318800) and PyrKII (PF3D7_1037100) in PfMev parasites under mevalonate supplementation and confirmed the deletions by PCR (Figure 3a). Surprisingly, we found that the apicoplast appeared to be unaffected by the deletion of TPI. We were able to amplify the sufB gene using PCR, indicating that the apicoplast genome had been maintained after TPI deletion (Figure 3b). Consistent with this observation, the organelle appeared to have an intact morphology in epifluorescence microscopy images (Figure 3c). We also observed that PfMev Δtpi parasites did not require mevalonate supplementation (Figure 3d). These results demonstrate that TPI, and its proposed activity in converting DHAP to GA3P are not required for asexual blood-stage parasite survival.

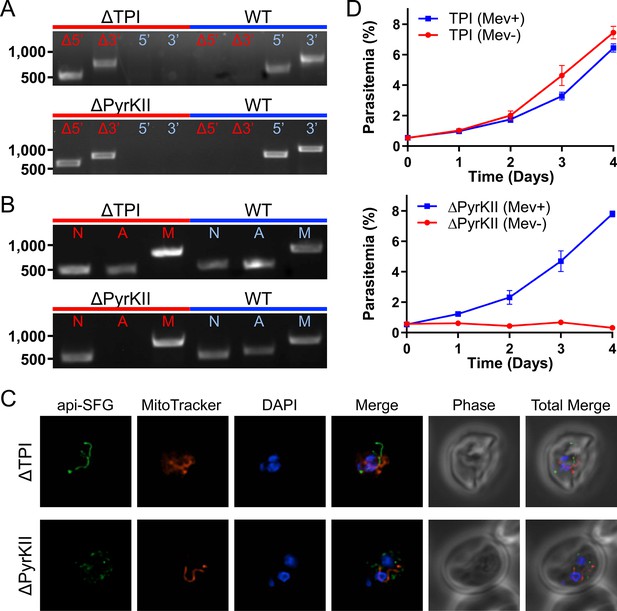

Characterization of the PfMev Δtpi and ΔpyrkII parasite lines.

(A) Genotyping PCR confirming deletion of TPI or PyrKII, with amplification demonstrating drug cassette integration at the 5’ and 3’ loci of the target gene (Δ5’ and Δ3’), and lack of wild-type parasites due to failure to amplify at the wild-type 5’ and 3’ loci in the PfMev Δtpi or ΔpyrkII parasite lines, as compared to the parental control (WT). (B) Attempted PCR detection of the ldh, sufB, and cox1 genes from the nuclear (N), apicoplast (A), and mitochondrial (M) genomes, respectively. We were successful in amplifying sufB from the PfMev Δtpi parasite line, indicating retention of the apicoplast organelle genome. We failed to amplify sufB from the PfMev ΔpyrkII parasite line, indicating loss of the apicoplast organelle genome. (C) Live epifluorescence microscopy of the PfMev Δtpi and ΔpyrkII parasite lines. These parasite lines express api-SFG (green) and are also stained with MitoTracker (red) and DAPI (blue). Microscopy images represent fields that are 10 µM long by 10 µM wide. (D) Growth curves of the PfMev Δtpi and ΔpyrkII parasite lines cultured with or without 50 μM mevalonate. Error bars represent the standard error of the mean from two independent experiments, each conducted in quadruplicate.

The deletion of PyrKII resulted in a different outcome, causing disruption of the apicoplast. This was evidenced by the failure to amplify sufB from the apicoplast organelle genome (Figure 3b) and was confirmed via epifluorescence microscopy, which showed the accumulation of multiple vesicles instead of an intact organelle (Figure 3c). Additionally, when we removed mevalonate from the growth medium, there was a rapid reduction in parasite growth (Figure 3d). These data demonstrate that PyrKII is not only essential for blood-stage parasite survival, but that it is also required for apicoplast maintenance. We also observed this phenotype for both PfMev Δotpt and PfMev Δitpt parasites (Figure 2), suggesting that apicoplast maintenance requires the import of PEP by oTPT and iTPT, likely for the generation of pyruvate and/or ATP by PyrKII.

The role of pyruvate in the apicoplast

Pyruvate generated by PyrKII can be used by the MEP pathway to generate isoprenoid precursors (Lim and McFadden, 2010). Additionally, pyruvate can also be used by PDH to generate acetyl-CoA, which enters into the FASII pathway, with PDH converting NAD+ to NADH in the process, potentially providing a key source of reducing power to the organelle (Ralph et al., 2004; Foth et al., 2005). In order to investigate the importance and role of pyruvate within the apicoplast, we generated deletions within the pathways that use pyruvate as a substrate. Specifically, we targeted the PDH E2 subunit of the PDH complex, in addition to the first enzyme of the MEP pathway, DXS.

We were successful in deleting the PDH E2 subunit (PF3D7_1020800) as well as DXS (PF3D7_1337200) in PfMev parasites under mevalonate supplementation and confirmed the deletions by PCR (Figure 4a). We also characterized the resultant apicoplast phenotypes in both of the deletion lines, using the previously described apicoplast genome PCR and epifluorescence microscopy techniques (Figure 4b and c). In both of the deletion lines, the apicoplast organelles appeared to be intact, indicating that these proteins are not required for apicoplast maintenance. We determined the essentiality of these proteins by testing whether the deletion lines could survive without the mevalonate supplement. We found that the PDH E2 deletion line grows equally well in the presence or absence of mevalonate, showing that PDH E2 is dispensable in blood-stage parasites. However, we found that PfMev Δdxs parasites are mevalonate-dependent, demonstrating that DXS is an essential enzyme (Figure 4d). Taken together, these results show that the enzymes predicted to use pyruvate can be deleted without causing the loss of the apicoplast, suggesting that the product of PyrKII that is required for organelle maintenance is likely ATP rather than pyruvate.

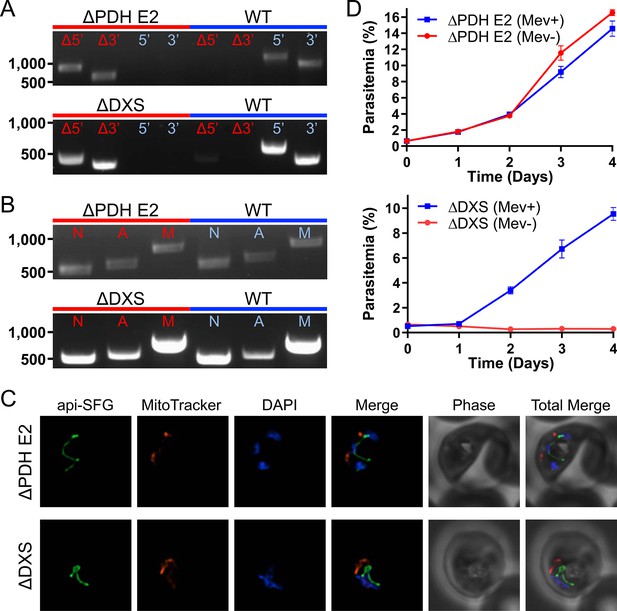

Characterization of the PfMev Δpdh E2 and Δdxs parasite lines.

(A) Genotyping PCR confirming deletion of PDH E2 or DXS, with amplification demonstrating drug cassette integration at the 5’ and 3’ loci of the target gene (Δ5’ and Δ3’), and lack of wild-type parasites due to failure to amplify at the wild-type 5’ and 3’ loci in the PfMev Δpdh E2 or Δdxs parasites, as compared to the parental control (WT). (B) Attempted PCR detection of the ldh, sufB, and cox1 genes from the nuclear (N), apicoplast (A), and mitochondrial (M) genomes, respectively. We successfully amplified sufB from the PfMev Δpdh E2 and Δdxs parasite lines, indicating retention of the apicoplast organelle genome. (C) Live epifluorescence microscopy of the PfMev Δpdh E2 and Δdxs parasite lines. These parasite lines express api-SFG (green) and are also stained with MitoTracker (red) and DAPI (blue). Microscopy images represent fields that are 10 µM long by 10 µM wide. (D) Growth curves of the PfMev Δpdh E2 and Δdxs parasite lines cultured with or without 50 μM mevalonate. Error bars represent the standard error of the mean from two independent experiments, each conducted in quadruplicate.

Enzymatic characterization of pure recombinant P. falciparum PyrKII

Since pyruvate does not seem to be required for apicoplast maintenance, we examined the nucleotide products of PyrKII. While PyrKII was previously localized to the apicoplast in P. falciparum, the enzyme has not been characterized (Maeda et al., 2009). The closely related apicomplexan T. gondii has a high substrate specificity for GDP, suggesting that GTP is the major product of this enzyme (Saito et al., 2008). Pyruvate kinase enzymes in other organisms have been shown to play a broader role in NTP generation and are potentially able to function as a general NDP kinase (Saeki et al., 1974). We hypothesized that if PyrKII has a low substrate specificity, it may be capable of generating several NTPs within the apicoplast.

We found that a codon harmonized version of PyrKII (Table 1—source data 1) could be expressed as a fusion protein with MBP (maltose-binding protein) in E. coli. We were able to cleave the MBP domain and obtain pure recombinant PyrKII for enzymatic characterization (Table 1—source data 2). We determined the kinetic parameters of PyrKII using a lactate dehydrogenase (LDH)-coupled spectrophotometric assay (Kahn and Marie, 1982). Our results show that PyrKII is fairly nonspecific, converting all the NDPs and dNDPs that were tested into the corresponding triphosphates (Table 1, Table 1—source data 3 and Table 1—source data 4). In comparison, the kcat/Km values for the T. gondii PyrKII were 337-fold higher for GDP than for ADP (Saito et al., 2008). However, for the P. falciparum PyrKII, the preference for GDP over ADP was less than two-fold, and the greatest difference in catalytic efficiency was between GDP and dCDP, which only differed by 38-fold. These results indicate that PyrKII lacks strong substrate specificity, and thus may play an important role in generating a variety of NTP and dNTP products in the apicoplast.

Table 1
Enzyme kinetics of pure recombinant PyrKII as compared to T. gondii PyrKII.

Activity of PyrKII was measured using various NDPs and dNDPs as substrates. Values and standard deviations from triplicate measurements are reported for the kinetic parameters Kcat and Km. The ratio Kcat/Km represents the catalytic efficiency. Kinetic parameters for T. gondii PyrKII from Saito and coworkers are shown for comparison (Saito et al., 2008).

SubstrateKcat (min−1)Km (mM)Kcat/Km
(mM−1 min−1)
Organism
ADP793 + / - 1860.25 + / - 0.113200P. falciparum
GDP397 + / - 450.07 + / - 0.045890
CDP438 + / - 691.01 + / - 0.13432
UDP252 + / - 400.82 + / - 0.22306
dADP401 + / - 310.38 + / - 0.041066
dGDP90 + / - 50.28 + / - 0.03318
dCDP78+ / - 30.52 + / - 0.12149
ADP2850 + / - 808.0 + / - 0.40360T. gondii
GDP6600+ / - 2400.05 + / - 0.006121,320

Tracking loss of the apicoplast after mislocalization of PyrKII

While PyrKII is essential for apicoplast maintenance, and can generate NTPs and dNTPs, it is not clear if loss of PyrKII results in the inhibition of apicoplast NTP/dNTP production. Genetic deletion of PyrKII in the PfMev line resulted in apicoplast disruption, but these deletion lines do not allow us to observe what led to the loss of the organelle. If PyrKII is critical for NTP production within the apicoplast, deletion of PyrKII should result in a rapid reduction of NTPs that would precede apicoplast disruption. In order to study the sequence of events leading to organelle loss, a conditional localization domain (CLD) was appended to the N-terminus of the endogenous PyrKII (Figure 5a and b). The CLD directs trafficking of the protein to the apicoplast, but will result in secretion into the parasitophorous vacuole (PV) upon the addition of the ligand Shield1 (Roberts et al., 2019). Growth curve determination of the PfMev CLD-PyrKII line demonstrated that the addition of Shield1 resulted in a reduction of parasite growth, beginning at 3 days post-induction (Figure 5c). We found that growth inhibition occurred faster using the CLD system, compared to the previously established TetR-DOZI knock down system (Ganesan et al., 2016), in which a reduction in growth could not be observed until 5 days post-induction (Figure 5—figure supplement 1). Thus, the PfMev CLD-PyrKII line was used for all subsequent experiments.

Figure 5 with 1 supplement see all

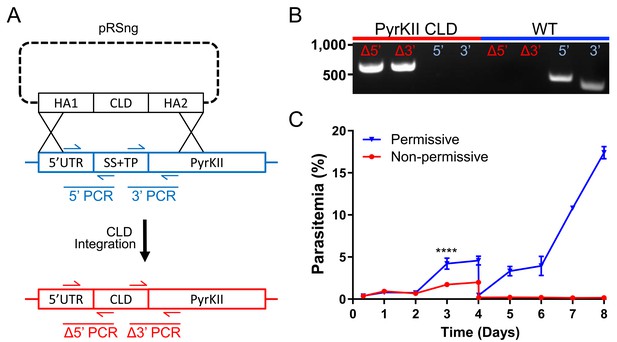

Growth of the PfMev CLD-PyrKII line under permissive and non-permissive conditional localization conditions.

(A) Schematic representation showing how the endogenous signal sequence (SS) and transit peptide (TP) of PyrKII were replaced with the CLD using plasmid pRSng. The positions of genotyping PCR products designed to identify the wild type locus (blue) or the recombinant locus (red) are shown. (B) Amplification of the 5’ and 3’ loci of the integrated region (Δ5’ and Δ3’) demonstrates integration of the CLD (PyrKII CLD), and lack of wild type parasites due to failure to amplify at the wild type 5’ and 3’ regions of the endogenous gene, as compared to the parental control (WT). (C) Synchronized PfMev CLD-PyrKII parasites were seeded at 0.5% parasitemia and cultured in the permissive (no Shield1) or non-permissive (500 nM Shield1) conditions for 8 days. Parasites were collected daily for determination of parasitemia by flow cytometry and were cut 1:10 on day 4. Treatment of the parasites with Shield1 resulted in a relatively rapid inhibition of parasite growth beginning at day 3 (two-way ANOVA, followed by Bonferroni’s correction; ****, p<0.0001). Error bars represent the standard error of the mean from two independent experiments, each conducted in quadruplicate.

To determine the effect on the apicoplast, mislocalization of PyrKII was induced in synchronized ring stage parasites and the morphology of the apicoplast was assessed via epifluorescence microscopy every ~24 hr for 5 days. Apicoplast disruption occurred ~88–110 hr (4–5 days) post-mislocalization (Figure 6a). The percentage of parasites containing an intact organelle was ~90–100% until the 64 hr time point, and then dropped precipitously in the transition between the second and third 48 hr growth cycle. Approximately 25% of the parasites contained an intact apicoplast at the 88 hr (day 4) time point, and less than 5% of the parasites contained an intact apicoplast at the 110 hr (day 5) time point (Figure 6b). Additionally, during this same experiment, RNA levels were measured as a proxy for NTP levels every 8 hr via microarray. The RNA levels of the Shield1-treated PfMev CLD-PyrKII parasites were plotted relative to control parasites. Apicoplast RNA levels drop approximately 24–40 hr after triggering mislocalization of PyrKII, whereas nuclear and mitochondrial RNA levels were not significantly reduced during this time period (Figure 6c). The most rapid decrease was observed with apicoplast mRNAs, perhaps a consequence of tRNAs and rRNAs forming relatively more stable folded structures (Figure 6—figure supplement 1).

Figure 6 with 4 supplements see all

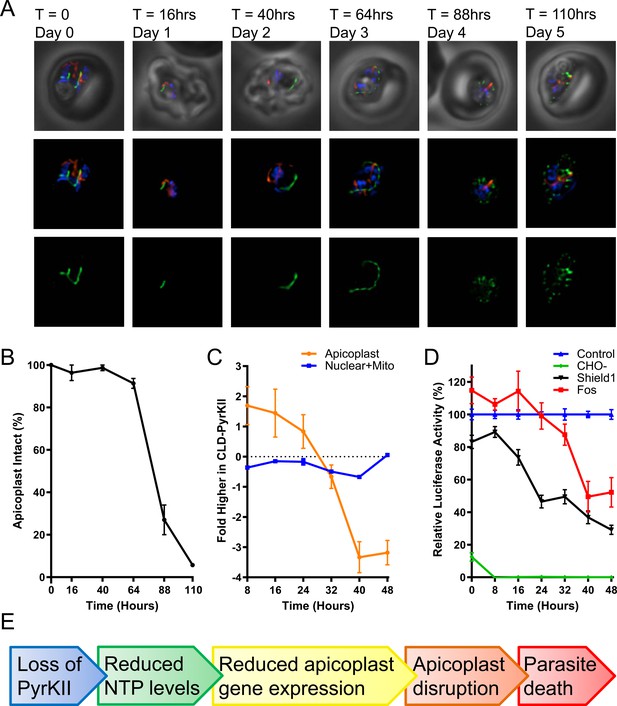

Characterization of PfMev CLD-PyrKII parasites after mislocalization of PyrKII.

(A) Live epifluorescence microscopy of the PfMev CLD-PyrKII parasite line after Shield1 treatment. This parasite line expresses api-SFG (green) and is also stained with MitoTracker (red) and DAPI (blue). Representative images show the state of the apicoplast organelle at the corresponding time points. Microscopy images represent fields that are 10 µM long by 10 µM wide. (B) Graph of the percentage of disrupted apicoplast organelles in synchronized PfMev CLD-PyrKII parasites after Shield1 treatment. At each time point, a minimum of 15 microscopy images were taken to determine apicoplast morphology (intact or disrupted) based on api-SFG fluorescence. The percentage of parasites containing an intact apicoplast dropped precipitously between the second and third growth cycle of the parasite, corresponding to the 64 and 88 hr time points. Error bars represent the standard deviation from three independent experiments with at least 20 observations each. (C) Synchronized ring-stage PfMev CLD-PyrKII parasites were treated with Shield1, with samples collected every 8 hr for microarray analysis (biological triplicates were collected). Nuclear and mitochondrial mRNA levels (blue) were compared to an untreated control and plotted as the fold difference. The same analysis for apicoplast genes (orange) shows that there is a sharp reduction in RNA levels in the treated parasites between 24 and 40 hr after Shield1 treatment. (D) Synchronized ring-stage PfMev CLD-PyrKII api-luciferase parasites were prepared for a 48 hr time course under four conditions, each of which contained 500 nM aTc: exchange into glucose-free medium (CHO-, green), 500 nM Shield1 treatment (Shield1, black), 50 µM fosmidomycin treatment (Fos, red), and no treatment (Control, blue). Samples were collected every 8 hr for analysis of luciferase activity (biological triplicates were collected, each with three technical replicates). We observed a significant reduction in luminescence ~8–24 hr after triggering mislocalization of PyrKII with Shield1. For parasites treated with fosmidomycin, luminescence levels did not meaningfully decrease until 24–40 hr, while levels in parasites cultured in glucose-free medium dropped within 8 hr. For all treatment groups, luminescence levels were compared to an untreated parasite control. Error bars represent the standard error of the mean. (E) Proposed progression of events leading from loss of PyrKII to parasite death.

The decrease in apicoplast RNA levels preceded organelle disruption, suggesting that inhibition of apicoplast gene transcription is an early consequence of interfering with PyrKII activity. To support this conclusion, we asked whether interfering with an unrelated apicoplast pathway would also perturb apicoplast gene transcription. Using real-time quantitative PCR (RT-qPCR), we tracked the levels of nuclear and apicoplast RNAs in the PfMev Δdxs parasite line after loss of the mevalonate supplement required for survival. Transcription was not significantly altered over 48 hr, indicating that loss of isoprenoid synthesis does not mimic the effect we observed after triggering mislocalization of PyrKII (Figure 6—figure supplement 2).

Tracking ATP levels in the apicoplast after mislocalization of PyrKII

In order to more directly demonstrate that PyrKII is important for NTP generation within the apicoplast, we conducted an additional experiment in which we directed the trafficking of firefly luciferase to the apicoplast in the PfMev CLD-PyrKII parasite line to measure ATP levels in the organelle upon the mislocalization of PyrKII. Trafficking of luciferase to the apicoplast was mediated by appending the N-terminal signal and transit peptide of ACP to the N-terminus of luciferase and correct localization was verified using a C-terminal mCherry tag (Figure 6—figure supplement 3). This luciferase construct was under the control of the TetR-DOZI knockdown system (Ganesan et al., 2016) and, as expected, removing aTc resulted in reduced levels of mCherry (Figure 6—figure supplement 3). Luciferase has been previously used as an ATP biosensor (Prioli et al., 1985), with changes in luminescence associated with changes in the level of ATP (Morciano et al., 2017). Once trafficking of luciferase to the apicoplast was confirmed, we synchronized the PfMev CLD-PyrKII api-luciferase parasite line and treated the culture with Shield1 to induce mislocalization of PyrKII from the apicoplast to the PV. We then analyzed the culture every 8 hr for 48 hr, measuring the change in luminescence over time (Figure 6d). We observed a significant reduction in luminescence approximately 8–24 hr after triggering mislocalization of PyrKII. As a control, we also treated the parasites with the apicoplast inhibitor fosmidomycin (Fos) at 100x its IC50 value (without addition of mevalonate) and observed a reduction in luminescence at later time points (24–40 hr). Transferring the parasites into glucose-free medium (CHO-) resulted in a rapid loss of luminescence, consistent with apicoplast ATP production being dependent on the glycolytic product PEP (Figure 1). Taken together, these results suggest that PyrKII is involved in the production of NTPs, which are required for apicoplast gene transcription and organelle maintenance (Figure 6e).

Discussion

The work outlined here has helped to better elucidate the role and importance of carbon metabolism within the apicoplast organelle. This work began by demonstrating that carbon import into the apicoplast, mediated by the outer and inner triose phosphate transporters (oTPT/iTPT) (Lim et al., 2010; Ralph et al., 2004), is required for apicoplast maintenance and parasite survival. Our findings for oTPT are consistent with previous work demonstrating that oTPT is required for blood-stage P. berghei survival (Banerjee et al., 2012), with a separate forward genetic screen suggesting that it is also essential in blood-stage P. falciparum (Zhang et al., 2018). However, our results for the deletion of iTPT are at odds with previous results showing that iTPT is dispensable in blood-stage P. berghei parasites (Banerjee et al., 2012). This inconsistency may be due to differences in metabolic requirements, or it could be due to the relative roles that oTPT and iTPT play in blood-stage P. berghei and P. falciparum parasites. However, the results found in this work are consistent with forward genetic screens conducted in P. berghei (Schwach et al., 2015) and P. falciparum, which suggest that iTPT is actually likely to be essential (Zhang et al., 2018).

Once PEP and DHAP are imported into the apicoplast, they are used as substrates by PyrKII and TPI, respectively. TPI is believed to convert DHAP into GA3P, providing the MEP pathway with one of its two initial substrates (Ralph et al., 2004). While the MEP pathway is essential, we demonstrated that TPI is dispensable. The dispensability of TPI can potentially be attributed to the lack of specificity of the upstream oTPT/iTPT transporters. Homologous transporters in plant plastids are relatively nonspecific and can import various triose phosphate compounds (Fischer et al., 1997). The P. falciparum oTPT and iTPT triose phosphate transporters were also demonstrated to be relatively nonspecific when tested in vitro, capable of importing 3-phosphoglyceric acid (3PGA), a compound not predicted to be used within the organelle (Lim et al., 2010). Thus, it is possible that the oTPT/iTPT transporters can import GA3P directly, bypassing the need for the conversion of DHAP to GA3P by TPI (Figure 7).

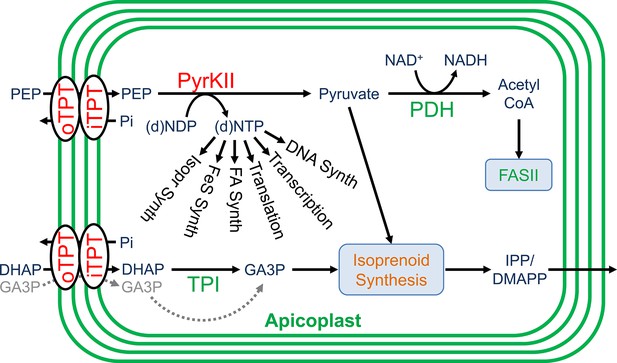

Roles of carbon metabolism proteins in the apicoplast.

Apicoplast proteins and pathways are colored according to gene deletion results (dispensable = green, essential = orange, and essential for apicoplast maintenance = red). Pyruvate kinase II (PyrKII) generates nucleoside triphosphate (NTP) products used for transcription, translation, and for several metabolic pathways including the synthesis of fatty acids (FA), isoprenoids (isopr) and iron-sulfur clusters (FeS). The dispensability of the triose phosphate isomerase (TPI) suggests that glyceraldehyde-3-phosphate (GA3P) may be directly imported by oTPT/iTPT for use in the isoprenoid synthesis pathway (gray arrow). This result also indicates that malaria parasites do not rely on a two-enzyme reductive pathway involving TPI and a hypothetical GAPDH enzyme.

Previously, TPI was also thought to be involved in the generation of reducing power within the apicoplast working along with a hypothetical GAPDH in a two-enzyme cycle. In this cycle, TPI would convert DHAP into GA3P, which would be used by GAPDH to generate 1,3-diphosphoglycerate (1,3-DPGA), converting NAD+ to NADH in the process (Fleige et al., 2007; Waller et al., 1998). The 1,3-DPGA would then presumably be exchanged for DHAP by oTPT/iTPT, forming an electron shuttle (Waller et al., 1998). This putative cycle would provide reducing power in the form of NADH or NADPH within the organelle, with the only other predicted sources being PDH and glutamate dehydrogenase (Ralph et al., 2004; Zocher et al., 2012; Laine et al., 2015). We were able to demonstrate that TPI is dispensable in blood-stage parasites. Additionally, the only GAPDH in P. falciparum has been shown to localize to the cytosol of the parasite (Daubenberger et al., 2003). Thus, this cycle is not essential and is likely not even present within the apicoplast.

PyrKII is the only predicted source of pyruvate within the apicoplast (Lim et al., 2010). We expected PyrKII to be essential for the generation of pyruvate needed by the MEP pathway, but we were surprised to find that PyrKII is required for apicoplast maintenance. To understand this phenomenon, we deleted the two proteins predicted to use pyruvate in the apicoplast, DXS and PDH. Deletion of DXS from the MEP pathway demonstrated that this protein is essential for parasite survival but is not required for organelle maintenance. Deletion of the PDH E2 subunit, which converts pyruvate into acetyl-CoA (Foth et al., 2005), revealed that this gene is not required for blood-stage parasite survival or apicoplast maintenance. The dispensability of PDH replicates what has been seen previously with the deletion of the PDH E1α and E3 subunits in P. yoelli (Pei et al., 2010) and the PDH E1α (Cobbold et al., 2013) and E3 (Laine et al., 2015) subunits of P. falciparum. The dispensability of both TPI and PDH is interesting because these are two of the few predicted sources of reducing power within the organelle (Ralph et al., 2004; Zocher et al., 2012; Foth et al., 2005). The dispensability of these proteins indicates that other sources of reducing power are capable of compensating for their loss during this stage of the parasite cycle. Overall, these results suggest that the requirement of PyrKII for organelle maintenance is not driven by a need for pyruvate by downstream metabolic pathways.

The findings for PyrKII in P. falciparum do not hold for all apicomplexan species, as the apicoplast-localized PyrKII has been shown to be dispensable in T. gondii parasites without any observed growth phenotype (Xia et al., 2019). Pyruvate should be required for fatty acid (FASII) and isoprenoid precursor synthesis in the apicoplast of T. gondii. The FASII pathway was thought to be essential for apicoplast maintenance and parasite survival (Mazumdar et al., 2006; however, recent studies show that several PDH subunits and FASII enzymes can be deleted; Krishnan et al., 2020; Liang et al., 2020). These FASII-null parasite lines grow poorly in vitro and one would expect the PyrKII deletion line to share this phenotype unless the apicoplast has some other source of pyruvate. Similarly, work on isoprenoid synthesis enzymes suggests that a source of apicoplast pyruvate is essential for parasite survival. Although T. gondii parasites can scavenge some host cell isoprenoids (Blume and Seeber, 2018; Imlay and Odom, 2014; Li et al., 2013), the apicoplast-localized synthesis enzyme LytB was shown to be essential (Nair et al., 2011). Thus, both the FASII and isoprenoid precursor synthesis pathways are required for normal in vitro growth of T. gondii tachyzoites, whereas PyrKII is not. As suggested previously (Xia et al., 2019), the dispensability of PyrKII may indicate that pyruvate can be imported into the apicoplast of T. gondii parasites.

Our work with PyrKII led us to focus on its role in nucleotide metabolism in the apicoplast. To investigate which NTPs or dNTPs PyrKII may be capable of generating, we determined the substrate specificity of pure recombinant protein. These assays demonstrated that PyrKII has a relatively broad substrate specificity, and the Km values shown in Table 1 could be consistent with the levels of NDPs in the apicoplast. The concentrations of nucleotides in the apicoplast have not been determined; however, NDP concentrations of 0.1–1 mM are typical for other cells and tissues (Traut, 1994). Thus, PyrKII may be capable of generating a variety of nucleoside triphosphates within the apicoplast. This finding is not unprecedented, as other pyruvate kinase enzymes have been shown to be relatively non-specific in their use of nucleotide substrates (Saeki et al., 1974; Abbe and Yamada, 1982; Boehme et al., 2013; Knowles et al., 2001; Plowman and Krall, 1965). We hypothesized that if PyrKII is required for NTP generation, then the loss of this enzyme would result in a decrease in mRNA levels in the apicoplast. To probe this question, we created two different parasite lines that allow for conditional control of the endogenous PyrKII enzyme. Parasites incorporating the aptamer-based knockdown method of Ganesan and coworkers (Ganesan et al., 2016) displayed a growth defect 5 days after triggering the knockdown of PyrKII (Figure 5—figure supplement 1), whereas parasites incorporating a conditional localization (CLD) approach (Roberts et al., 2019) grew poorly 3 days after initiating mislocalization (Figure 5). We used the CLD-PyrKII parasites to quantify mRNA levels during the 2-day period following PyrKII mislocalization. We found that apicoplast transcript levels dropped ~24–40 hr after PyrKII mislocalization, whereas nuclear transcript levels were not affected during this time period (Figure 6c). Importantly, this drop in apicoplast transcript levels preceded disruption of apicoplast morphology by over 50 hr, which was not observed until ~88–110 hr after mislocalization. This demonstrated that reduced apicoplast gene expression is an early event in the process of apicoplast disruption. This is in contrast to results from the analysis of apicoplast RNA levels in PfMev Δdxs parasites, which did not drop significantly upon removal of mevalonate and loss of isoprenoid synthesis (Figure 6—figure supplement 2).

Experiments with firefly luciferase strengthened the hypothesis that PyrKII generates NTPs in the apicoplast. We expressed luciferase in the apicoplast of PfMev CLD-PyrKII parasites and used it to probe ATP levels. Cellular ATP levels are known to fall rapidly in malaria parasites deprived of glucose (Teng et al., 2009). We observed significantly decreased luminescence after a short period in glucose-free medium (~20 min), linking parasite glycolysis to the activity of apicoplast luciferase (Figure 6d). Presumably, the glycolysis product PEP is required for the production of ATP by PyrKII in the apicoplast (Figure 7). Treatment with the isoprenoid biosynthesis inhibitor fosmidomycin has been shown to kill parasites within one 48 hr life cycle (Jomaa et al., 1999). We observed a reduction in luminescence 24–40 hr after treatment with 100x IC50 of fosmidomycin, consistent with parasite death during the second half of the parasite life cycle. Importantly, mislocalization of PyrKII resulted in lowered luminescence during the first half of the life cycle (8–24 hr), demonstrating that lowered ATP is an early consequence of reduced PyrKII activity. It is not clear why luciferase activity didn’t drop to zero after PyrKII mislocalization or fosmidomycin-treatment. It may be that other essential nutrients are depleted before apicoplast ATP is fully consumed.

Inhibition of NTP production within the apicoplast could result in parasite death through various molecular mechanisms due to the requirement of NTPs for a number of biochemical processes within the organelle. For example, within the MEP pathway the enzyme IspD uses CTP along with 2-C-methyl-D-erythritol 4-phosphate (MEP) to generate 4-diphosphocytidyl-2-C-methyl-D-erythritol (CDP-ME), which goes on to form the essential isoprenoid precursors IPP and DMAPP (Hunter, 2007). GTP is required for multiple steps of protein translation including translation initiation, peptide chain elongation, translation termination, and ribosome recycling, which are processes mediated by translational GTPases (Maracci and Rodnina, 2016). ATP is required for tRNA charging by aminoacyl-tRNA synthetases (Pang et al., 2014), iron-sulfur cluster formation by the SufC ATPase (Saini et al., 2010), DNA gyrase subunits (Mukherjee and Sadhukhan, 2016), as well as numerous other energy requiring pathways within the organelle (Lim and McFadden, 2010). Additionally, NTPs and dNTPs are required for transcription and DNA replication, respectively (Joyce and Steitz, 1995; Nudler, 2009). Thus, inhibiting the generation of these products would ultimately cause several important biochemical processes to fail within the organelle (Figure 7).

For plastid organelles ATP/ADP transport is typically mediated by a nucleotide transporter (NTT) (Fischer, 2011). While NTT is widespread in plastid organelles this transporter has not been found in Plasmodium (Facchinelli and Weber, 2011). With no other sources of ATP identified, this has led to the hypothesis that PyrKII is responsible for generating all ATP required within the organelle (Lim and McFadden, 2010).

While the NTP generating activity of PyrKII appears to be required for organelle maintenance and parasite survival, the import mechanism and the phosphorylation state (NMP, NDP, or NTP) of nucleotides remain unknown. We found that PyrKII is active against NDPs, but it has essentially no activity against NMPs. This suggests that nucleotides need to be imported as NDPs, or additional mechanisms for converting NMPs into NDPs would need to be present within the apicoplast. A putative UMP-CMP kinase (PF3D7_0111500) with predicted apicoplast localization could convert at least some NMPs to NDPs, but its substrate specificity has not been determined (Boucher et al., 2018; Zuegge et al., 2001). None of the other nucleotide kinases, purine interconversion and pyrimidine biosynthetic enzymes are predicted to localize to the apicoplast. Additionally, only single copies of the ribonucleotide reductase subunit genes and thymidylate synthase are present in Plasmodium. These enzymes presumably function in the cytoplasm to supply dNDPs for nuclear and organellar DNA synthesis. Thus, nucleotide transport should also be required for these deoxyribose nucleotides. Overall, nucleotide import and metabolism in the apicoplast are poorly studied and remain to be fully elucidated.

Taken together, the results herein help elucidate the role and importance of carbon metabolism within the apicoplast of P. falciparum parasites. We showed that PDH and TPI are dispensable for asexual parasite survival, raising additional questions as to how reducing power is sufficiently generated in the absence of these enzymes. Importantly, this work also demonstrated that PyrKII is essential for parasite survival and apicoplast maintenance. In addition to PyrKII being essential for P. falciparum parasite survival, PyrKII enzymes are also evolutionary distinct, and appear to occur only within apicomplexans, and thus may represent an attractive drug target for Plasmodium parasites (Chan et al., 2007). While the pyruvate generated by PyrKII is required to generate essential isoprenoid precursors in the MEP pathway, our results indicate that pyruvate is not needed for apicoplast maintenance. Instead, it appears that the requirement of PyrKII for organelle maintenance is driven by its role in NTP production within the apicoplast, with loss of this activity likely being the cause of subsequent apicoplast disruption. Loss of PyrKII activity in the apicoplast results in a reduction of apicoplast mRNA, tRNA and rRNA significantly prior to organelle disruption and parasite death. These observations provide new insight into carbon metabolism and the generation of reducing power within the apicoplast and demonstrate an unexpected role for PyrKII in apicoplast maintenance.

Materials and methods

P. falciparum culture and maintenance

Request a detailed protocol

Unless otherwise noted, blood-stage P. falciparum parasites were cultured in human erythrocytes at 1% hematocrit in a 10 mL volume of CMA (Complete Medium with Albumax) containing RPMI 1640 medium with L-glutamine (USBiological Life Sciences), supplemented with 20 mM HEPES, 0.2% sodium bicarbonate, 12.5 μg/mL hypoxanthine, 5 g/L Albumax II (Life Technologies) and 25 μg/mL gentamicin. Cultures were maintained in 25 cm2 gassed flasks (94% N2, 3% O2, 3% CO2) and incubated at 37°C. The PfMev parasite line (Swift et al., 2020) was used extensively in this project. This line expresses an apicoplast-localized green fluorescent protein and four enzymes capable of producing isoprenoid precursors from mevalonate, bypassing the need for the endogenous MEP isoprenoid pathway.

Generation of P. falciparum plasmid constructs for gene deletion

Request a detailed protocol

Target genes were deleted through Cas9-mediated gene editing methods developed by Dr. Jose-Juan Lopez-Rubio (Ghorbal et al., 2014). Homology repair plasmids pL8 or pRS (Swift et al., 2020) were used in combination with the Cas9-expressing pUF1-Cas9 plasmid (Ghorbal et al., 2014). Alternatively, genes were targeted for deletion using the pRSng plasmid in combination with the pCasG plasmid (Swift et al., 2020; Rajaram et al., 2020). The pRSng plasmid is a modified version of the pRS plasmid in which the guide RNA expression cassette was removed, and is thus reliant on gRNA expression from the pCasG plasmid. For generation of the deletion constructs, homology arms of ~300–600 bp were amplified from P. falciparum NF54 strain gDNA using the homology arm (HA) 1 and 2 forward and reverse primers corresponding to each gene (Supplementary file 1), and inserted into the repair plasmids using ligation-independent cloning (LIC) methods (In-Fusion, Clontech). The repair plasmids were digested with NotI for insertion of HA1, and with NgoMIV for insertion of HA2. Guide RNA sequences were synthesized as oligos (Supplementary file 1), annealed, and inserted using In-Fusion.

P. falciparum transfections for gene deletion

Request a detailed protocol

Transfections were conducted as previously described (Spalding et al., 2010). Briefly, 400 μL of red blood cells (RBCs) were electroporated with 75 μg each of the Cas9 expression plasmid and the corresponding homology repair plasmid. The transfected RBCs were mixed with synchronized schizont stage PfMev parasites and maintained in 10 mL CMA containing 50 μM mevalonate. After ~48 hr, 1.5 μM DSM1 and 2.5 nM WR99210 were added to ensure the retention of both transfection plasmids, in the presence of 50 µM mevalonate. After 7 days of drug selection, the parasites were switched to media containing only 50 µM mevalonate. Infected red blood cells (iRBC) were first observed 17 to 25 days after beginning drug selection. Once parasites were observed, 2.5 nM WR99210 was reintroduced into the growth medium to maintain the integrated hDHFR drug resistance cassette. Deletion of oTPT did not work with our first choice of gRNA, but was successful with a second gRNA sequence (Supplementary file 1). For each gene deletion, parasites from at least two independent transfections were characterized as described below.

Confirmation of knockout genotype

Request a detailed protocol

Primers were designed to screen for 5’ integration (Δ5’ reaction primers GOI.5’.F and pL8HA1.R) and 3’ integration (Δ3’ reaction primers pL8HA2.F and GOI.3’.R) of the gene disruption cassette, and the 5’ region (primers GOI.5’.F and GOI.5’WT.R) and 3’ region (primers GOI.3’WT.F and GOI.3’.R) of the gene of interest (GOI) (Supplementary file 1). The parental PfMev line was used as a control for these reactions. Details about the genotyping PCR reactions, including the anticipated amplicon sizes, are provided in Figure 2—figure supplement 1.

Confirmation of apicoplast loss

Request a detailed protocol

The presence of the apicoplast organellar genome was detected by PCR with primers specific for the sufB gene (PF3D7_API04700). Control PCR reactions amplified genes from the nuclear (lactate dehydrogenase, ldh, PF3D7_1324900) and mitochondrial (cytochrome c oxidase subunit 1, cox1, mal_mito_2) genomes (Supplementary file 1). For the PCR reactions, 1 µL of parasite culture was added to a 50 µL reaction volume. The parental PfMev line was used as a positive control for apicoplast genome detection. The expected amplicon sizes are 520 bp, 581 bp and 761 bp for ldh, sufB and cox1, respectively.

Live cell epifluorescence microscopy

Request a detailed protocol

Approximately 100 μL of a resuspended parasite culture was incubated with 30 nM MitoTracker CMX-Ros (Invitrogen) and 1 µg/mL 4′, 6-diamidino-2-phenylindole (DAPI) for 30 min at 37°C. Cells were then washed three times with 100 μL of CMA media and incubated for 5 min at 37°C after each wash. Cells were resuspended in 20 μL of CMA and then pipetted onto slides and sealed with wax for observation on a Zeiss AxioImager M2 microscope. A series of images spanning 5 µm were acquired with 0.2 µm spacing and images were deconvolved with VOLOCITY software (PerkinElmer) to report a single image in the z-plane.

Testing mevalonate dependence in PfMev deletion mutants via flow cytometry

Request a detailed protocol

Gene deletions generated in the PfMev line were tested to determine reliance on mevalonate for survival. Parasite lines were washed with 10 mL CMA three times to remove any mevalonate from the culture medium and then cultured in CMA alone or CMA with 50 μM mevalonate. Parasites were seeded in a 96-well plate (Corning) at a 0.5% starting parasitemia and 2% hematocrit in a total volume of 250 µL, in quadruplicate for each condition. Plates were incubated in chambers gassed with 94% N2, 3% O2, 3% CO2 at 37°C. Parasite samples were collected and the culture medium was exchanged daily for 4 days.

For growth curve determination, parasites were stained with SYBR Green (Invitrogen), and analyzed via flow cytometry. Parasitemia was counted on the same day as seeding, after which parasites were collected every 24 hr. Samples collected on days 1–3 were diluted 1:10 in PBS and stored in a 96-well plate at 4°C. On day 4, parasites were stained with SYBR Green by transferring 1 µL of parasite culture, or 10 µL of the 1:10 dilutions, to a 96-well plate containing 100 µL of 1x SYBR Green (Invitrogen) per well in PBS. Plates were incubated at room temperature for 30 min while shaking, under protection from light. Post-incubation, 150 µL of PBS was added to each well to dilute unbound SYBR Green dye. Samples were analyzed with an Attune Nxt Flow Cytometer (Thermo Fisher Scientific), with a 50 µL acquisition volume, and a running speed of 25 µL/minute with 10,000 total events collected.

Generation of the PyrKII E. coli expression vector

Request a detailed protocol

The P. falciparum Pyruvate Kinase II (PF3D7_1037100) was codon harmonized for expression in E. coli (Table 1—source data 1). The gene was synthesized encoding amino acids 42–745 of the protein, corresponding to the predicted mature protein after cleavage of the apicoplast trafficking peptide. The codon harmonized sequence was amplified using the primers listed in Supplementary file 1 and inserted into the EcoRI and HindIII sites of the pMAL-cHT expression vector (Muench et al., 2003) using LIC (In-Fusion, Clontech). The pMAL-cHT expression vector generates a fusion protein tagging the PyrKII protein with an N-terminal MBP (maltose binding protein) followed by a TEV (Tobacco Etch Virus) protease site and a six-histidine tag. Cleavage with TEV protease liberates a histidine-tagged PyrKII (Muench et al., 2003).

Expression and purification of recombinant PyrKII from E. coli

Request a detailed protocol

The pMAL-cHT PyrKII protein was purified from BL21 Star (DE3) E. coli cells (ThermoFisher) also harboring the pRIL plasmid from BL21-CodonPlus-RIL cells (Agilent). Cells harboring both plasmids were grown in LB medium, and shaken at 220 rpm at 37°C until an OD600 of 0.6 was reached. At this point, protein expression was induced with 0.4 mM isopropyl β-thiogalactoside (IPTG) and the cells were then incubated for an additional 4 hr at 27°C. Cells were lysed with 20 mM Tris-HCl at pH 7.5, 100 mM KCl, 1 mg/mL lysozyme (Sigma), 2.5 µg/mL DNAse I (Sigma), and 1 mM PMSF, followed by sonication. The MBP-PyrKII protein was purified from the resulting lysate using a 5 mL MBPTrap HP column (GE Healthcare), and eluted with 100 mM maltose. The resulting protein was then cleaved with TEV protease and further purified using a 5 mL HisTrap column (GE Healthcare). The protein was then eluted with an imidazole gradient, and peak fractions were collected, pooled, and concentrated for storage in 20 mM Tris-HCl (pH 7.5), 100 mM KCl, 10% glycerol at −80°C.

PyrKII enzyme assays

Request a detailed protocol

The activity of the recombinant PyrKII protein was determined by a continuous assay coupled to lactate dehydrogenase (LDH) (Saito et al., 2008), monitoring the oxidation of NADH via spectrophotometer at 340 nm. The reaction mixture for assaying PyrKII activity contained 1 μL of the PyrKII enzyme, 5 mM PEP (neutralized to pH 7), 10 mM MgCl2, 0.2 mM NADH, 2 units of rabbit muscle lactate dehydrogenase (Sigma), 26.5 mM Tris-HCl at pH 7.5, and 50 mM KCl. The PyrKII enzyme was diluted appropriately to ensure the reaction remained in the linear range. All reactions were initiated through the addition of a given NDP or dNDP. The concentrations assayed for ADP and GDP ranged from 0 mM to 3.0 mM, specifically at 0 μM, 4 μM, 12 μM, 37 μM, 111 μM, 333 μM, 1 mM, and 3 mM. CDP, UDP, TDP, dATP, dGDP, dCTP, and dTDP were assayed at concentrations between 0 mM to 6 mM, specifically at 0 μM, 125 μM, 250 μM, 500 μM, 1 mM, 2 mM, 4 mM, and 6 mM. The Km for PEP (0.64+ / - 0.05 mM) was measured with 3 mM ADP and PEP concentrations ranging from 0 mM to 20 mM. All reactions were carried out in a final volume of 100 μL in triplicate in a 96-well plate and monitored for 20 min. The initial enzyme velocity was calculated from a tangent that was fitted to the reaction curve. Kinetic parameters were calculated from Lineweaver-Burk plots (Table 1—source data 3 and Table 1—source data 4) and are presented as mean values with standard deviations.

Generation of the tetR-DOZI PyrKII parasite line

Request a detailed protocol

The PyrKII tetR-DOZI line was generated as previously described (Ganesan et al., 2016), using the pMG74 plasmid, generously provided by Dr. Jacquin Niles (Massachusetts Institute of Technology). The PyrKII pMG74 plasmid was generated by using the primers in Supplementary file 1. Briefly, the PyrKtetR.HA1.F and PyrKtetR.HA1.R primers were used to amplify the region of the gene corresponding to homology arm 1 (HA1), and the PyrKtetR.HA2.F and PyrKtetR.HA2.R primers were used to amplify the region of the gene corresponding to homology arm 2 (HA2). These products were joined in a second PCR reaction using the PyrKtetR.HA2.F and PyrKtetR.HA1.R primers, creating a combined HA1-HA2 fragment separated by EcoRV sites. This fragment was inserted into the pMG74 plasmid at the AscI and AatII restriction sites using LIC methods (In-Fusion, Clontech). This plasmid was then linearized with EcoRV for transfection into PfMev parasites. A gene specific pCasG plasmid was also generated, through digestion with BsaI and insertion of the guide RNA. Guide RNAs were synthesized as oligos (Supplementary file 1), annealed, and inserted in the pCasG plasmid using In-Fusion.

The linearized PyrKII pMG74 plasmid along with the corresponding pCasG plasmid were co-transfected into the PfMev line, using the transfection protocol described above. The parasites were selected for 7 days with 2.5 µg/mL blasticidin, 1.5 μM DSM1, and 500 nM anhydrotetracycline (aTc). After 7 days, the drug pressure was removed and the parasites were continuously cultured in CMA media containing 500 nM aTc. Parasites were observed between 20 and 30 days post-transfection, at which point 2.5 µg/mL blasticidin was re-introduced. Resulting parasites were single-cloned through limiting dilution.

Generation of the PyrKII conditional localization line

Request a detailed protocol

A conditional localization domain was appended to the endogenous PyrKII enzyme using markerless Cas9-mediated genome editing (Ghorbal et al., 2014). For insertion, a repair construct was generated with HA1 composed of the 250 nucleotides immediately upstream of the PyrKII gene, followed by the conditional localization domain (Roberts et al., 2019), and ending with HA2 composed of PyrKII nucleotides 124–373. This repair construct was designed to replace the first 41 amino acids of PyrKII (containing the signal peptide and most of the apicoplast transit peptide) with the CLD. A synthetic construct including HA1 and the CLD was generated with BsaI cloning sites for insertion of HA2. Primers PyrKCLD.HA2.F and PyrKCLD.HA2.R were used to amplify HA2 from gDNA and insert it into the BsaI sites using LIC. This repair construct was then amplified with the primers listed in Supplementary file 1 (PyrK.pRS.HA1.F, and PyrK.pRS.HA2.R) and inserted into a NotI cut pRSng plasmid using LIC (In-Fusion, Clontech). A gene-specific pCasG plasmid was generated as well. Guide RNAs were synthesized as oligos (Supplementary file 1), annealed, and inserted into the pCasG plasmid using In-Fusion.

The pRSng-CLD-PyrKII plasmid along with the gene-specific pCasG plasmid were co-transfected into the PfMev line, using methods described above. Parasites were selected for 14 days with 1.5 μM DSM1 and 2.5 nM WR99210, after which they were cultured with CMA medium. The parasites were then single-cloned via limiting dilution. The insertion of the CLD was validated using the primers listed in Supplementary file 1, screening for insertion as well as the potential presence of any contaminating wild-type parasites. Primers were designed to screen for 5’ integration (Δ5’ reaction primers PyrK.CLD.5.F and CLD.R) and 3’ integration (Δ3’ reaction primers PyrK.CLD.3.R and CLD.F) of the CLD, and the 5’ region (primers PyrK.CLD.5.F and PyrK. CLD.WT5.R) and 3’ region (primers PyrK.CLD.WT3.F and PyrK.CLD.3.R) of the pyrKII gene. The parental PfMev line was used as a control for these reactions.

TetR-DOZI PyrKII and CLD-PyrKII growth curves

Request a detailed protocol

Parasite lines were synchronized via magnetic purification (Mata-Cantero et al., 2014), by passage through a MACS LS column (Miltenyi Biotec) placed in a custom made magnet with a field strength of about 8000G 6 hr prior to initiating growth experiments. TetR-DOZI PyrKII parasites were washed three times with 10 mL CMA to remove aTc and then seeded at 0.5% starting parasitemia and 2% hematocrit in a 96-well plate. Quadruplicate cultures were set up with and without 500 nM aTc. Parasite samples were collected for quantification by flow cytometry (vide ante) at 16 hr and daily thereafter with the culture media exchanged at those time points. On day 4, parasites were cut 1:10. The growth curve for the CLD-PyrKII line was conducted similarly, with the exception that the parental line was not washed, as there was no need to remove any ligand. Quadruplicate cultures were set up with and without 500 nM Shield1. Data from two biological replicates for each line were analyzed using two-way ANOVA in Prism (GraphPad).

Tracking apicoplast loss via live epifluorescence microscopy

Request a detailed protocol

The CLD-PyrKII parasite line was synchronized via magnetic purification and used to seed a 50-mL culture flask at 1% parasitemia and 2% hematocrit. Six hours post-synchronization (mid-schizogeny) 500 nM Shield1 was added, representing time 0. Media containing 500 nM Shield1 were replaced at 16 hr and every 24 hr thereafter. Samples were collected at time points 0, 16, 40, 64, 88, and 110 hr and the morphology of the apicoplast was assessed via live epifluorescence microscopy. For each time point, parasites were collected and processed using the same protocol for live epifluorescence microscopy as described above. Apicoplast morphology was assessed by visual inspection of at least 15 parasites from each time point to determine whether the apicoplast was intact or disrupted. Average data are presented from three independent biological replicates.

Transcriptomic analysis of CLD-PyrKII parasites

Request a detailed protocol

Samples of the CLD-PyrKII parasite cultures described above were also prepared at 8 hr intervals for transcriptomic analysis. For each time point, 5 mL of parasite culture was centrifuged at 400 g for 5 min, and 100 µL of the pelleted cells were snap frozen with dry ice and stored at −80°C. RNA was extracted from 100 µL of packed RBC culture with Trizol Reagent and the PureLink Mini Kit (Invitrogen/Thermo Fisher Scientific). 1 mL Trizol was added to each sample, followed by high-speed disruption in tubes containing Lysing Matrix D (MP Biomedical) in a FastPrep 120 Instrument at speed 6 for 20 s. Homogenates were subsequently processed according to the PureLink Mini Kit manufacturer’s protocol (Invitrogen/Thermo Fisher Scientific), including on-column DNase treatment. Following elution of purified RNA from the PureLink columns with Nuclease-free water, quantitation was performed using a NanoDrop spectrophotometer and quality assessment determined by RNA ScreenTape analysis on an Agilent TapeStation 2200.

From 100 ng of total RNA, Cyanine-3 labeled cRNA was prepared using the Low Input Quick Amp Labeling Kit One-Color (Agilent). The eight time course samples were hybridized (along with the manufacturer’s RNA spike-in controls) according to standard protocol to the 8 sectors of an Agilent 8 × 15K platform microarray (AMADID 037237) (Kafsack et al., 2012) with separate microarray slides used for each biological replicate (in triplicate for each condition). Post-hybridization washes were performed, followed by scanning with the Agilent G2600D SureScan microarray scanner using scan protocol AgilentHD_GX_1color. Scan Control software automatically performed autofocus, autogain, and gal file download. Agilent’s Feature Extraction Software was used to assign grids, provide raw image files per array, and generate QC metric reports from the microarray scan data. The QC metric reports were used for quality assessment of all hybridizations and scans.

Txt files from the Feature Extraction software were imported into the Partek Genomics Suite (v7.0; Partek) for detailed analyses of gene expression. Within Partek, the gProcessedSignal was imported, and the intensity values were normalized to the 75th percentile, lower expressed genes were filtered out using a max cutoff of <= 0.5, and log transformation base 2.0 was performed. A two-way ANOVA with linear contrasts for treatment (PyrKII CLD) and time (8–56 hr) versus an untreated control was performed with outputs of p value, fold change, and mean ratio. Microarray data have been deposited to the National Center for Biotechnology Information Gene Expression Omnibus repository [GSE136169].

Microarray data were used to compare the average of all apicoplast or nuclear and mitochondrial RNA levels (above the threshold of detection) in the CLD-PyrKII parasite line treated with Shield1 as compared to an untreated control over the course of 56 hr. The RNA levels of the Shield1-treated CLD-PyrKII parasite line were plotted as the fold difference compared to an untreated control. The processed microarray data and calculations are shown in Supplementary file 2.

RT-qPCR of apicoplast and nuclear transcripts inPfMev Δdxs parasites

Request a detailed protocol

PfMev Δdxs parasites were synchronized and washed three times to remove mevalonate from the culture. Parasites were then seeded at 0.8% parasitemia in 2% hematocrit cultures and grown in the presence or absence of mevalonate. Samples of 4 mL of culture were collected every 8 hr for 48 hr, snap frozen with dry ice and stored at −80°C. Total RNA was extracted by adding 1 mL Trizol reagent to each sample followed by disruption in tubes containing Lysing Matrix D as described above. Homogenates were further processed using the RNeasy Plus Mini kit (Qiagen) according to the manufacturer’s instructions. From 350 ng of total RNA, cDNA was generated using the RevertAid First Strand cDNA Synthesis kit (Thermo Fisher). RT-qPCR was used to assess the abundance of one nuclear transcript, ldh (lactate dehydrogenase, PF3D7_1324900), and three apicoplast genome transcripts: EF-Tu (elongation factor Tu, PFC10_API0028), LSU (large subunit ribosomal RNA, PFC10_API0010) and ClpM (chaperone protein ClpM, PFC10_API0060). StepOne Real-Time PCR machines (Thermo Fisher) were used for quantification of cDNA using gene specific primers (Supplementary file 1) and the Power SYBR Green PCR Master Mix (Life Technologies 4367659). Serial dilutions of pure parasite DNA were used as standards for relative quantification. All samples were analyzed in triplicate in independent RT-qPCR experiments. The primer sequences used to amplify EF-Tu were taken from Briolant et al., 2010.

Change in luciferase-mediated luminescence in the apicoplast upon mislocalization of PyrKII

Request a detailed protocol

The p15-Mev-aSFG plasmid (Swift et al., 2020) was modified to express an apicoplast-localized luciferase in the PfMev CLD-PyrKII parasite line. To accomplish this, plasmid p15-p230-aFluc-mCh was constructed from plasmid p15-Mev-aSFG (Swift et al., 2020). This plasmid was digested with AvrII and AflII and a construct including firefly luciferase was inserted. The construct encodes the first 55 amino acids of ACP for localization to the apicoplast organelle, firefly luciferase containing the K549E mutation to limit peroxisomal trafficking, and a localization tag composed of a hemagglutinin tag (HA) appended to the red fluorescent protein mCherry. This protein-coding construct was then followed by a 10x aptamer sequence for tetR-DOZI knockdown (Ganesan et al., 2016). In this case, however, the 860 bp aptamer array found in pMG74 (Ganesan et al., 2016) was replaced with a 619 bp 10x aptamer array designed to be less repetitive and avoid issues with aptamer recombination (Rajaram et al., 2020). The sequence of the final construct including the new aptamers is shown in Figure 6—figure supplement 4. BamHI and HindIII were used to remove the mevalonate gene from p15-Mev-aSFG and insert the tetR-DOZI coding region, a p2A skip peptide and BSD, as found in pMG74 (Ganesan et al., 2016). We then added homology arms (HA) to facilitate site-specific integration into the p230p gene (PF3D7_0208900), which is dispensable in blood stage parasites (Marin-Mogollon et al., 2018). HA1 and HA2 were sewn together with PCR primers p230HA1.F and p230HA1.NotI.R (for HA1) and primers p230HA2.NotI.F and p230HA2.R (for HA2) and inserted into the NotI site in the backbone of p15-Mev-aSFG (Supplementary file 1). Primers p230HA1.F and p230HA2.R introduce SalI sites between HA1 and HA2, allowing the plasmid to be linearized prior to transfection (Figure 6—figure supplement 3). Guide RNA primers p230p.gRNA.F and p230p.gRNA.R were annealed and inserted into pCasG (Swift et al., 2020; Rajaram et al., 2020) as described above in the methods for gene knockout plasmids.

SalI-linearized p15-p230-aFluc-mCh plasmid along with the gene-specific pCasG plasmid were co-transfected into the PfMev CLD-PyrKII parasite line, using methods described above. Parasites were selected for 7 days with 1.5 μM DSM1 and 2.5 µg/mL blasticidin, after which they were cultured with CMA medium. The parasites were then single-cloned via limiting dilution. Integration of p15-p230-aFluc-mCh into the P230p locus was validated using the primers listed in Supplementary file 1. Primers were designed to screen for 5’ integration (Δ5’ reaction primers p230up.F and p15int.R) and 3’ integration (Δ3’ reaction primers p15int.F and p230down.R). Primers p230up.F and p230down.R were used to detect the parental PfMev CLD-PyrKII line (Figure 6—figure supplement 3). Live epifluorescence microscopy was conducted as described above except that MitoTracker was not used in order to observe native mCherry fluorescence. Red fluorescence was not observed unless the 500 nM aTc was added to enable proper gene expression (Figure 6—figure supplement 3).

The PfMev CLD-PyrKII api-luciferase line was used to assess relative ATP levels in the apicoplast organelle. Parasites maintained in 500 nM aTc were synchronized via magnetic purification and used to seed a 15 mL culture flask at 1% parasitemia and 2% hematocrit. Six hours post synchronization (mid-schizogeny) the culture was split into four 3.5 mL fractions and the media were replaced with different growth media, all of which contained 500 nM aTc: CMA, Glucose-free CMA (made with US Bio R9010), CMA with 500 nM Shield1, and CMA with 50 µM fosmidomycin. None of these conditions contained mevalonate. Triplicate 1 mL cultures were set up for each condition and luminescence measurements were taken, representing time 0. Luminescence was measured in black 96-well plates (Corning 3792) with 100 µL of parasite culture and 2 µL of 20 mM D-luciferin (PerkinElmer #122799) using an IVIS Spectrum (PerkinElmer). Measurements were made every 8 hr and the culture media were replaced at 16 and 40 hr. Biological duplicates were analyzed for the glucose-free condition while all other conditions were conducted in triplicate (each with technical triplicates).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
    The evolution, metabolism and functions of the apicoplast
    1. L Lim
    2. GI McFadden
    (2010)
    Philosophical Transactions of the Royal Society B: Biological Sciences 365:749–763.
    https://doi.org/10.1098/rstb.2009.0273
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70

Decision letter

  1. Dominique Soldati-Favre
    Reviewing Editor; University of Geneva, Switzerland
  2. Neil M Ferguson
    Senior Editor; Imperial College London, United Kingdom

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

In this study, the authors made use of the resource of an important new parasite line that bypasses the sole metabolic pathway within the Plasmodium plastid (apicoplast) that is essential during asexual culture. This allows them to test which apicoplast metabolic steps are essential, and to dissect whether they are important for metabolic pathways that serve the rest of the parasites, or are instead necessary for apicoplast maintenance. They demonstrate that pyruvate kinase II is essential for organelle maintenance due to its unexpected ability to generate a broad range of nucleotide triphosphates.

Decision letter after peer review:

Thank you for submitting your article "The NTP generating activity of pyruvate kinase II is critical for apicoplast maintenance in Plasmodium falciparum" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Neil Ferguson as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The authors provide a detailed genetic and functional study of six apicoplast proteins with central roles in Plasmodium organelle metabolism. Results for PDH and DXS are consistent with prior inhibitor and/or genetic studies of PDH and the MEP pathway. The important novelties of this study are (1) observation that iTPT (a proposed inner-membrane 3-carbon phosphate transporter) and the apicoplast-targeted pyruvate kinase II are essential for apicoplast biogenesis independent of their previously proposed roles in supporting MEP pathway isoprenoid synthesis and (2) the insightful proposal (with strong though not air-tight support) that PyrKII is essential for producing multiple NTPs needed for broad apicoplast metabolism.

Essential revisions:

1) The authors present microarray data showing diminished apicoplast versus nuclear RNA levels upon PyrKII mislocalization as evidence for a specific role for this enzyme in supporting RNA transcription. This experiment lacks a negative control to rule out that defects in RNA abundance can result non-specifically from any lethal apicoplast dysfunction. For example, is RNA abundance affected upon mevalonate washout from the DXS KO line, since DXS/MEP pathway activity is not expected to directly influence RNA abundance? A full microarray analysis is not necessary, and a simple RT-qPCR of SufB versus nuclear LDH would suffice.

2) Is broad NDP substrate specificity by PyrKII required for its essential role in apicoplast biogenesis apart from pyruvate production? Does a cytosolic PyrK homolog with much narrower substrate specificity rescue loss of the apicoplast PyrKII and its broad(er) NDP substrate specificity? (Suggestion: do an episomal rescue of their conditional mislocalization, where they transfect the CLD line with plasmids constitutively expressing PK variants with differing NTP specificities and ask which rescue(s) effects of mislocalizing the endogenous PKII).

3) It would be the best if authors can directly check the NTP/dNTP levels in apicoplast, by means like biosensors. It will also be important to see the how timing of NTP/dNTP/mRNA level changes correlate with the PyrK2 mislocalization. In addition, to further support the authors' model, would they see the same phenotypes if they CLD tag DXS in WT parasites (or other genes like DMT2 known to affect the apicoplast maintenance but do not affect NTP/dNTP levels)?

4) If PyrKII is essential for broad NTP production, where do the NDP precursors come from and why are they but not NTPs available in the apicoplast? The mechanisms here may be incompletely understood but explicit discussion of this point at the end of the paper seems warranted.

https://doi.org/10.7554/eLife.50807.sa1

Author response

Essential revisions:

1) The authors present microarray data showing diminished apicoplast versus nuclear RNA levels upon PyrKII mislocalization as evidence for a specific role for this enzyme in supporting RNA transcription. This experiment lacks a negative control to rule out that defects in RNA abundance can result non-specifically from any lethal apicoplast dysfunction. For example, is RNA abundance affected upon mevalonate washout from the DXS KO line, since DXS/MEP pathway activity is not expected to directly influence RNA abundance? A full microarray analysis is not necessary, and a simple RT-qPCR of SufB versus nuclear LDH would suffice.

The suggestion here is to use the DXS KO line and observe RNA abundance after removing mevalonate from the growth medium. We conducted this experiment with synchronized ΔDXS parasites and collected parasite samples at 8hr increments. We used three RT-qPCR probes to apicoplast RNAs in addition to the suggested LDH probes. The results are now shown in Figure 6—figure supplement 2 and show that there is no significant decrease in RNA abundance until hour 48 of the experiment. Thus, during most of the first growth cycle, apicoplast RNA levels are independent of isoprenoid synthesis.

2) Is broad NDP substrate specificity by PyrKII required for its essential role in apicoplast biogenesis apart from pyruvate production? Does a cytosolic PyrK homolog with much narrower substrate specificity rescue loss of the apicoplast PyrKII and its broad(er) NDP substrate specificity? (Suggestion: do an episomal rescue of their conditional mislocalization, where they transfect the CLD line with plasmids constitutively expressing PK variants with differing NTP specificities and ask which rescue(s) effects of mislocalizing the endogenous PKII).

The idea here is to provide more evidence that NTP production by PyrKII is essential for apicoplast biogenesis rather than pyruvate production. Earlier in the project we thought a lot about using other PyrK enzymes as probes, but we ran into several conceptual problems. The first has to do with demonstrated substrate specificity. The most homologous probe would be the apicoplast PyrKII from T. gondii since it is the only other type II pyruvate kinase that has been studied. While this enzyme has been shown to prefer GDP over ADP, no other nucleotides were tested. We would have to fully characterize recombinant TgPyrKII before we could determine whether it would be an appropriate probe of nucleotide metabolism. Even less is known about the specificity of the cytosolic P. falciparum PyrKI enzyme. Many pyruvate kinases from bacteria and other sources have also been studied, but none have been characterized with the full range of possible substrates. Regardless of which pyruvate kinase is chosen as a probe, the real problem has to do with proving that the probe is enzymatically active after expression in the apicoplast. If the probe fails to compensate for the loss of PyrKII, it could be because the probe enzyme has a different substrate specificity, or it could be because it is not active. This is a significant concern because the activity of type I pyruvate kinases is modulated by many factors including the binding of effectors like alanine, fructose 1,6-bisphosphate and potassium ions.

Instead of using a pyruvate kinase as a probe, we tried to express an enzyme that consumes pyruvate, without affecting the nucleotide pool. We chose the well-characterized lactate dehydrogenase (LDH) from P. falciparum as the probe with the hypothesis that LDH expression would deplete pyruvate and affect isoprenoid synthesis, but not cause apicoplast loss. Importantly, we had a method to confirm LDH activity in the apicoplast. Parasites expressing active LDH should require mevalonate supplementation to compensate for loss of isoprenoid synthesis.

We expressed LDH with an amino-terminal conditional localization domain (CLD) to control apicoplast localization and appended a carboxy-terminal mCherry protein for verifying localization with live fluorescence. We also included a new 10x aptamer array for an additional level of control using the TetR-DOZI system. We were able to obtain parasite clones with proper insertion of the transfection plasmid (see Author response image 1A). When we added anhydrotetracycline (aTC) to induce full production of LDH, we did not observe parasite death (see Author response image 1B). Expressed CLD-LDH-mCherry was largely apicoplast localized (M1=0.42, n=17), but often appeared as puncta in the region defined by the apicoplast (see Author response image 1C). Under mevalonate supplementation conditions, this result could be interpreted as confirming our hypothesis that pyruvate is not essential for apicoplast biogenesis. However, the parasites also grew without mevalonate. This result showed that the LDH probe did not deplete enough pyruvate to affect isoprenoid synthesis. Since we could not confirm LDH activity, we did not include these results in the paper. This example highlights why we would have had difficulty using another pyruvate kinase as a probe. Without a mechanism to assess the activity of the probe, it would be impossible to draw any conclusions from the experiment.

Author response image 1

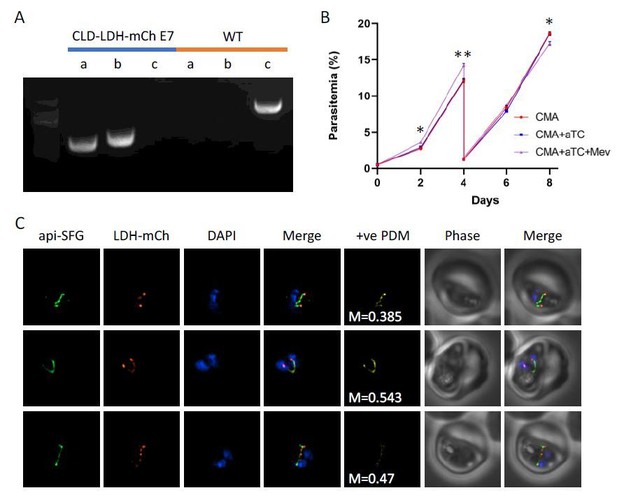

Expression and localization of lactate dehydrogenase (LDH) in the apicoplast.

A) Genotyping PCR confirming insertion of CLD-LDH-mCherry (clone E7), with amplification demonstrating plasmid integration at the 5’ and 3’ loci of the P230p locus (lanes a, b), and lack of wild-type parasites due to failure to amplify at the wild type locus (lane c), as compared to the parental control (WT). B) Growth curve of the CLD-LDH-mCh parasite line cultured with 500nM aTC (aTC), aTC and 50μM mevalonate (Mev), or without supplements (CMA). C) Live epifluorescence microscopy of the CLD-LDH-mCherry parasite line. This line expresses api-SFG (green) and CLD-LDH-mCherry (red), while DAPI (blue) marks the nucleus. Microscopy images represent fields that are 10μM long by 10μM wide and include Mander’s values and positive product of the differences from the mean (+vePDM) panels.

3) It would be the best if authors can directly check the NTP/dNTP levels in apicoplast, by means like biosensors. It will also be important to see the how timing of NTP/dNTP/mRNA level changes correlate with the PyrK2 mislocalization. In addition, to further support the authors' model, would they see the same phenotypes if they CLD tag DXS in WT parasites (or other genes like DMT2 known to affect the apicoplast maintenance but do not affect NTP/dNTP levels)?

This suggestion is similar to point 2, above, in that the idea is to better connect PyrKII to nucleotide metabolism in the apicoplast. We searched for an appropriate biosensor, but did not find one that would allow us to measure the levels of multiple nucleotides. Instead, we focused on using firefly luciferase to track the abundance of one nucleotide, ATP. We inserted a luciferase expression cassette into the P230p locus in PfMev CLD-PyrKII parasites. After confirming protein expression and localization, we conducted experiments to determine how mislocalization of PyrKII affects ATP levels in the apicoplast. Starting with synchronized parasites, we mislocalized PyrKII and quantified the change in luminescence every 8 hours for 48 hours. We found that mislocalization of PyrKII results in a decrease in the level of luminescence, suggesting that PyrKII may be playing an important role in ATP production/regeneration within the organelle (See Figure 6D in the manuscript). Figure 6—figure supplement 3 and Figure 6—figure supplement 4 provide additional information about this approach.

The second part of this question is similar to the first question, inquiring if the same trends in apicoplast RNA loss are the same between PyrKII and an essential apicoplast protein not required for organelle maintenance, such as DXS. We have conducted the experiment in which we remove mevalonate in DXS KO parasites and have shown that the loss of apicoplast RNA levels does not follow the same trend as that seen when mislocalizing PyrKII. While this experiment is not exactly the same as mislocalizing DXS it does approximate a similar effect that would have likely occur if we had, because mevalonate is bypassing the requirement for DXS, and is then removed. While we recognize that we were not measuring NTP/dNTP levels directly in that experiment, we believe that measuring RNA levels is a fair approximation.

4) If PyrKII is essential for broad NTP production, where do the NDP precursors come from and why are they but not NTPs available in the apicoplast? The mechanisms here may be incompletely understood but explicit discussion of this point at the end of the paper seems warranted.

Unfortunately, there aren’t very many studies that shed light on nucleotide metabolism in the apicoplast. We added a paragraph to the Discussion section describing apicoplast nucleotide metabolism and whether various metabolic steps appear to occur in the organelle.

https://doi.org/10.7554/eLife.50807.sa2

Article and author information

Author details

  1. Russell P Swift

    Department of Molecular Microbiology and Immunology, Johns Hopkins Bloomberg School of Public Health, Baltimore, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared
  2. Krithika Rajaram

    Department of Molecular Microbiology and Immunology, Johns Hopkins Bloomberg School of Public Health, Baltimore, United States
    Contribution
    Resources, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4830-5471
  3. Cyrianne Keutcha

    Department of Molecular Microbiology and Immunology, Johns Hopkins Bloomberg School of Public Health, Baltimore, United States
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  4. Hans B Liu

    Department of Molecular Microbiology and Immunology, Johns Hopkins Bloomberg School of Public Health, Baltimore, United States
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Bobby Kwan

    Department of Molecular Microbiology and Immunology, Johns Hopkins Bloomberg School of Public Health, Baltimore, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  6. Amanda Dziedzic

    Department of Molecular Microbiology and Immunology, Johns Hopkins Bloomberg School of Public Health, Baltimore, United States
    Contribution
    Data curation, Formal analysis, Investigation
    Competing interests
    No competing interests declared
  7. Anne E Jedlicka

    Department of Molecular Microbiology and Immunology, Johns Hopkins Bloomberg School of Public Health, Baltimore, United States
    Contribution
    Data curation, Investigation, Project administration
    Competing interests
    No competing interests declared
  8. Sean T Prigge

    Department of Molecular Microbiology and Immunology, Johns Hopkins Bloomberg School of Public Health, Baltimore, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Investigation, Visualization, Methodology, Project administration
    For correspondence
    sprigge@jhsph.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9684-1733

Funding

National Institute of Allergy and Infectious Diseases (R01AI065853)

  • Sean T Prigge

National Institute of Allergy and Infectious Diseases (R21AI101589)

  • Sean T Prigge

National Institute of General Medical Sciences (R25GM109441)

  • Cyrianne Keutcha

National Institute of Allergy and Infectious Diseases (T32AI007417)

  • Krithika Rajaram

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by the National Institutes of Health R01 AI065853 and R21 AI101589, the Johns Hopkins Malaria Research Institute, and the Bloomberg Family Foundation. CK was supported by NIH PREP grant R25GM109441 and KR was supported by NIH training grant T32AI007417.

Senior Editor

  1. Neil M Ferguson, Imperial College London, United Kingdom

Reviewing Editor

  1. Dominique Soldati-Favre, University of Geneva, Switzerland

Publication history

  1. Received: August 2, 2019
  2. Accepted: August 20, 2020
  3. Accepted Manuscript published: August 20, 2020 (version 1)
  4. Version of Record published: September 10, 2020 (version 2)

Copyright

© 2020, Swift et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 426
    Page views
  • 88
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics
    Roman O Fedoryshchak et al.
    Research Article

    PPP-family phosphatases such as PP1 have little intrinsic specificity. Cofactors can target PP1 to substrates or subcellular locations, but it remains unclear how they might confer sequence-specificity on PP1. The cytoskeletal regulator Phactr1 is a neuronally-enriched PP1 cofactor that is controlled by G-actin. Structural analysis showed that Phactr1 binding remodels PP1's hydrophobic groove, creating a new composite surface adjacent to the catalytic site. Using phosphoproteomics, we identified mouse fibroblast and neuronal Phactr1/PP1 substrates, which include cytoskeletal components and regulators. We determined high-resolution structures of Phactr1/PP1 bound to the dephosphorylated forms of its substrates IRSp53 and spectrin aII. Inversion of the phosphate in these holoenzyme-product complexes supports the proposed PPP-family catalytic mechanism. Substrate sequences C-terminal to the dephosphorylation site make intimate contacts with the composite Phactr1/PP1 surface, which are required for efficient dephosphorylation. Sequence specificity explains why Phactr1/PP1 exhibits orders-of-magnitude enhanced reactivity towards its substrates, compared to apo-PP1 or other PP1 holoenzymes.

    1. Biochemistry and Chemical Biology
    2. Microbiology and Infectious Disease
    Kuan-Yi Lu et al.
    Research Article

    Phosphatidylinositol 3-phosphate (PI(3)P) levels in Plasmodium falciparum correlate with tolerance to cellular stresses caused by artemisinin and environmental factors. However, PI(3)P function during the Plasmodium stress response was unknown. Here, we used PI3K inhibitors and antimalarial agents to examine the importance of PI(3)P under thermal conditions recapitulating malarial fever. Live cell microscopy using chemical and genetic reporters revealed that PI(3)P stabilizes the digestive vacuole (DV) under heat stress. We demonstrate that heat-induced DV destabilization in PI(3)P-deficient P. falciparum precedes cell death and is reversible after withdrawal of the stress condition and the PI3K inhibitor. A chemoproteomic approach identified PfHsp70-1 as a PI(3)P-binding protein. An Hsp70 inhibitor and knockdown of PfHsp70-1 phenocopy PI(3)P-deficient parasites under heat shock. Furthermore, PfHsp70-1 downregulation hypersensitizes parasites to heat shock and PI3K inhibitors. Our findings underscore a mechanistic link between PI(3)P and PfHsp70-1 and present a novel PI(3)P function in DV stabilization during heat stress.
