Selection on mutators is not frequencydependent
Abstract
The evolutionary fate of mutator mutations – genetic variants that raise the genomewide mutation rate – in asexual populations is often described as being frequency (or number) dependent. Mutators can invade a population by hitchhiking with a sweeping beneficial mutation, but motivated by earlier experiments results, it has been repeatedly suggested that mutators must be sufficiently frequent to produce such a driver mutation before nonmutators do. Here, we use stochastic, agentbased simulations to show that neither the strength nor the sign of selection on mutators depend on their initial frequency, and while the overall probability of hitchhiking increases predictably with frequency, the percapita probability of fixation remains unchanged.
Introduction
Mutator alleles have been found at considerable frequencies in populations of infectious and commensal bacteria (Matic et al., 1997; LeClerc et al., 1996; Oliver et al., 2000), viruses (Suárez et al., 1992), and pathogenic fungi (Healey et al., 2016; Billmyre et al., 2017; Boyce et al., 2017). Mutators are also believed to be widespread in many cancers (Loeb, 2011; Lengauer et al., 1997), and have been repeatedly observed to overtake microbial populations during laboratory evolution experiments (Sniegowski et al., 1997; Shaver et al., 2002; Barrick et al., 2009; NotleyMcRobb et al., 2002; Pal et al., 2007; Mao et al., 1997; Raynes and Sniegowski, 2014; Voordeckers et al., 2015). Yet, unlike directly beneficial mutations that are favored by natural selection because they increase an organism’s reproductive success (i.e., its fitness), mutator mutations generally do not appear to be inherently advantageous (Raynes and Sniegowski, 2014), except potentially in some viruses (Furió et al., 2005; Furió et al., 2007). Instead, mutators experience indirect selection, mediated by persistent statistical associations with fitnessaffecting mutations elsewhere in the genome. As a result, mutators may invade an adapting population by hitchhiking (Smith and Haigh, 1974) with linked beneficial mutations even when they have no effect on fitness of their own (Sniegowski et al., 2000).
Whether or not mutators can successfully hitchhike to fixation has often been described as depending on the initial prevalence of mutator alleles in a population  most commonly referred to as frequency or number dependence (Raynes and Sniegowski, 2014; Sniegowski et al., 2000). This view holds that to replace the resident nonmutators, mutators must generate a beneficial mutation that escapes genetic drift and sweeps to fixation before their nonmutator competitors do. Accordingly, it has been proposed that mutators may be expected to invade (i.e., are favored by selection) only when already present in sufficient numbers to produce the successful beneficial mutation first, and lose their advantage (i.e., are disfavored by selection) when too rare to do so (reviewed in Raynes and Sniegowski, 2014; Sniegowski et al., 2000).
This frequencydependent interpretation of mutator success has been primarily motivated by mutator dynamics observed in experimental studies of laboratory microbial populations. Most famously, in a series of pioneering experiments, Lin Chao and colleagues showed that mutator strains of the bacterium E. coli could supplant otherwise isogenic nonmutator strains by hitchhiking with beneficial mutations when initialized above a critical threshold frequency but would decline when initialized below it (Chao and Cox, 1983: reproduced in Figure 1A; Chao et al., 1983). Since then, a similar pattern has been recapitulated in several other studies in E. coli and S. cerevisiae (Thompson et al., 2006; Gentile et al., 2011; de Visser and Rozen, 2006; Le Chat et al., 2006). Critically, a frequencydependent framing of indirect selection on mutators implies a change in the sign or the strength of indirect selection with frequency. Here, we use stochastic, agentbased computer simulations to demonstrate that on the contrary, indirect selection on mutators is independent of frequency.
Results and discussion

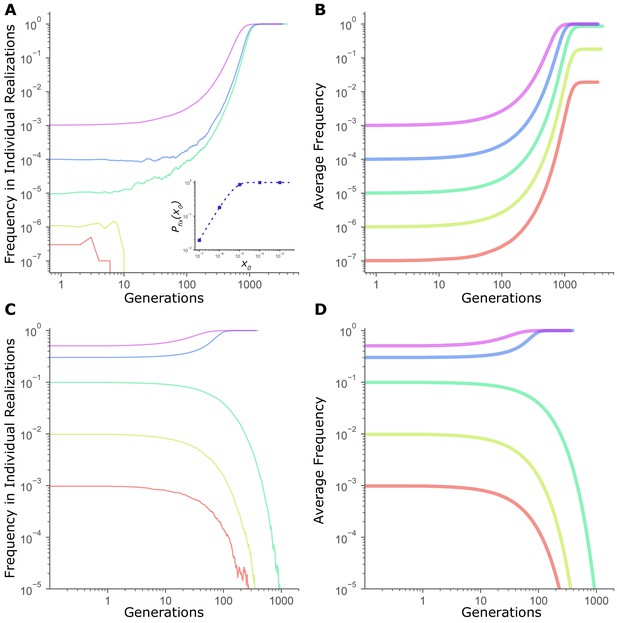

Our computer simulations (Raynes, 2019) model asexual populations that mimic microbial evolution experiments under generallyaccepted parameter values (Raynes et al., 2018). Figure 1B shows mutator frequency dynamics in randomly chosen simulations initialized across four logorders of starting frequency, ${x}_{0}$, which recapitulate experimental observations of the critical frequency threshold for hitchhiking reproduced in Figure 1A. As in Figure 1A, single, randomlychosen realizations (i.e., simulation replicates) started below a threshold frequency end in mutator loss, while randomlychosen realizations started above end in fixation (Figure 1B).
Critically, fixation of an allele in a finite population is a probabilistic process influenced both by selection and random genetic drift, and even beneficial mutations will frequently be lost by chance alone. As such, whether an allele is truly favored or disfavored by selection can only be ascertained by evaluating its expected behavior averaged across many replicate, independent realizations. Indeed, if we consider the expected mutator frequency averaged across many replicate simulations, the thresholdfrequency effect disappears (Figure 1C). Instead, the average mutator frequency ultimately rises above the starting frequency at all ${x}_{0}$, suggesting that mutators are, in fact, favored by selection in these populations regardless of starting frequency. (For more on why mutators are favored in large populations such as these see Raynes et al., 2018). The transient decline in average frequency seen in Figure 1C reflects selection against the deleterious load inherent to mutators (Kimura, 1967), and will be explored in a forthcoming publication].
To confirm that selection on mutators is independent of starting frequency, we measured the fixation probability of a mutator allele, ${P}_{fix}\left({x}_{0}\right)$, at each initial frequency, ${x}_{0}$ simulated in Figure 1. Given the stochasticity of the fixation process (and following Good and Desai, 2016; Raynes et al., 2018; Wylie et al., 2009), we compare ${P}_{fix}\left({x}_{0}\right)$ to the probability of fixation of a neutral allele, given simply by ${x}_{0}$. If a mutator is favored, we expect it to fare better than neutral (i.e., $P}_{fix}\left({x}_{0}\right)>{x}_{0$), and worse than neutral (i.e., $P}_{fix}\left({x}_{0}\right)<{x}_{0$) if disfavored. As Figure 2 shows, ${P}_{fix}\left({x}_{0}\right)$ exceeds the fixation probability of a neutral allele for all ${x}_{0}$, as anticipated in Figure 1C and confirming that the sign of selection on mutators does not depend on starting frequency.
Furthermore, while ${P}_{fix}\left({x}_{0}\right)$ of a mutator increases with ${x}_{0}$, it does so exactly as expected for a frequencyindependent mutation. Under frequencyindependent selection ${P}_{fix}\left({x}_{0}\right)$ is simply the probability that at least one of the ${x}_{0}N$ alleles reaches fixation (where N is the population size). By definition of frequencyindependent selection, the percapita fixation probability is a constant, written, ${P}_{fix}\left({x}_{0}=1/N\right)$. Correspondingly, ${P}_{fix}\left({x}_{0}\right)$ for any ${x}_{0}$ can be calculated as

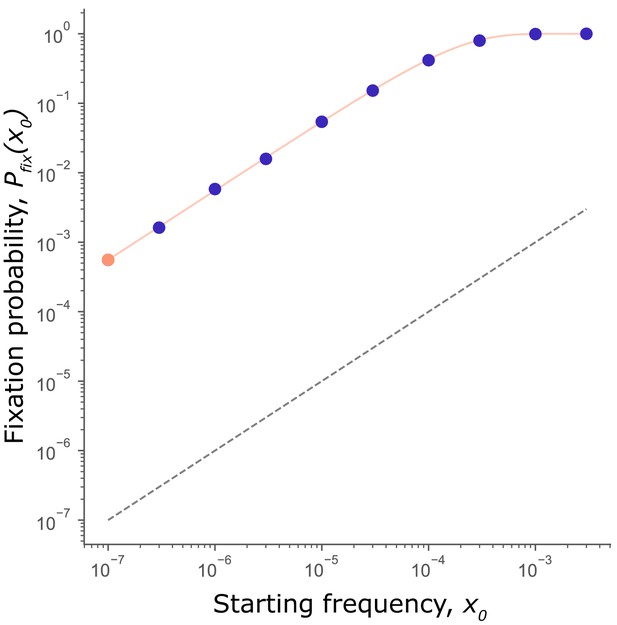

As the orange line in Figure 2 shows, ${P}_{fix}\left({x}_{0}\right)$ calculated with Equation 1 is indistinguishable from ${P}_{fix}\left({x}_{0}\right)$ observed in simulations, confirming that the percapita fixation probability is independent of ${x}_{0}$ and equal to ${P}_{fix}\left({x}_{0}=1/N\right)$ at any ${x}_{0}$. Thus, while the expected fixation probability of a mutator increases with ${x}_{0}$, the percapita fixation probability remains unchanged, confirming that individual mutators do not become more likely to hitchhike to fixation when present at higher frequencies in a population.

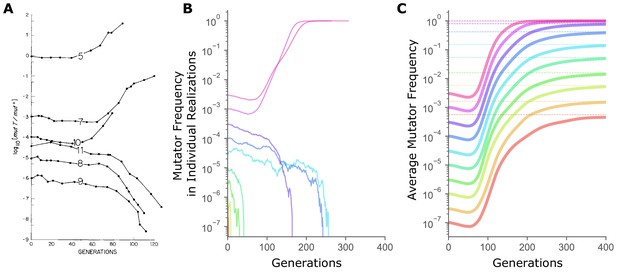

Why then do mutators in experimental populations appear destined to go extinct when initially rare (e.g. Chao and Cox, 1983)? Given that this behavior has been documented across different systems and selective environments (as well as in our stochastic simulations in Figure 1B), it seems unlikely to depend on any shared biological property of the experimental systems. Consider, however, that the percapita fixation probability of a mutator is relatively low – in our simulations, operating under realistic parameter values, ${P}_{fix}\left({x}_{0}=1/N\right)$ = 5.6×10^{−4}. Thus even when mutators are favored, most experimental replicates with rare mutators are expected to end in mutator extinction, and only those started at frequencies higher than roughly $1/{[NP}_{fix}\left({x}_{0}=1/N\right)]$ are expected to end mostly with mutator fixation. Considering only a single or even a few realizations at each starting frequency (as in Figure 1A or B) would, most likely, result in observing only the most expected outcome for each ${x}_{0}$. Indeed, all experimental studies that have documented the frequencybased transition included only a few populations at each starting frequency. Such limited sampling across a broad range of starting frequencies in these experiments would explain the sharp transition between fixation at high frequencies and loss at lower ones even when selection is frequencyindependent (see also Tanaka et al., 2003). We expect that observing the dynamics in Figure 1C would be possible with more experimental replication, which, however, may not always be experimentally feasible.
In fact, the critical frequencydependent transition observed in Figure 1A and 1B is not unique to mutators. Recall that ${P}_{fix}\left({x}_{0}\right)$ of any mutation not under frequencydependent selection, nevertheless, increases with starting frequency, ${x}_{0}$ (Equation 1). For example, even for a directly beneficial mutation, the probability of fixation from low frequencies is relatively low (Figure 3A Inset), Accordingly, as Figure 3A illustrates, single realizations of the dynamics of a directly beneficial mutation also exhibit a thresholdlike switch from fixation to loss. In contrast, expected frequency dynamics averaged across many independent realizations confirm that beneficial mutations are favored by selection independent of starting frequency (Figure 3B). Indeed, only for mutations under truly frequencydependent selection do both the individual realizations (Figure 3C) and the expected dynamics averaged across many realizations (Figure 3D) exhibit an actual frequencydependent transition.
In summary, our results demonstrate that neither the strength nor the sign of selection on mutators depend on initial frequency or number. Instead, we show that in populations favoring higher mutation rates, mutators consistently fare better than the neutral expectation (Figure 1 and Figure 2) regardless of starting frequency. Most importantly, the percapita probability of fixation remains unchanged with frequency. We conclude that the frequency threshold observed in earlier experiments is, therefore, an artifact of limited experimental sampling rather than a frequencydependent change in selective effect.
Materials and methods
Individualbased, stochastic simulations employed here have been previously described (Raynes et al., 2018). In brief, we consider haploid asexual populations of constant size, N, evolving in discrete, nonoverlapping generations according to the WrightFisher model (Ewens, 2004). Populations are composed of genetic lineages  subpopulations of individuals with the same genotype. A genotype is modeled as an array of 99 fitnessaffecting loci and 1 mutation rate modifier locus, which in a mutator state raises the genomic mutation rate mfold. For computational efficiency, simulations in Figure 1 assume constant fitness effects: beneficial mutations at the fitness loci increase fitness by a constant effect s_{ben}, while deleterious mutations decrease fitness by a constant effect s_{del}. We assume additive fitness effects and so calculate fitness of a lineage with x beneficial and y deleterious mutations as ${w}_{xy}=1+{xs}_{ben}{ys}_{del}$. In simulations in Figure 1—figure supplement 1, beneficial and deleterious fitness effects are randomly drawn from an exponential distribution with the mean s_{ben} = 0.1 and s_{del} = 0.1 respectively. Simulations start with the mutator allele at a frequency of ${x}_{0}$ and continue until it either fixes or is lost from a population.
Every generation the size of each lineage i is randomly sampled from a multinomial distribution with expectation $N\xb7{f}_{i}\xb7({w}_{i}/\stackrel{}{w})$, where ${f}_{i}$ is the frequency of the lineage in the previous generation, w_{i} is the lineage’s fitness, and $\stackrel{}{w}$ is the average fitness of the population ($\stackrel{}{w}=\sum {f}_{i}\bullet {w}_{i}$). Upon reproduction, each lineage acquires a random number of fitnessaffecting mutations M, drawn from a Poisson distribution with mean equal to the product of its size and its total perindividual mutation rate, $\left({U}_{ben}+{U}_{del}\right)$, where U_{ben} and U_{del} are the deleterious and beneficial mutation rates respectively. The number of beneficial and deleterious mutations is then drawn from a binomial distribution with n=M and P = ${U}_{ben}/\left({U}_{ben}+{U}_{del}\right)$ and new mutations are assigned to randomly chosen nonmutated fitness loci.
Data availability
Request a detailed protocolAll simulated data were generated in Julia 1.0. Simulation code is available under an open source MIT license at https://github.com/yraynes/MutatorFrequency (Raynes, 2019; https://github.com/elifesciencespublications/MutatorFrequency).
References
 1
 2
 3
 4

5
Competition between high and low mutating strains of Escherichia coliEvolution 37:125–134.
 6
 7
 8

9
The cost of replication fidelity in human immunodeficiency virus type 1Proceedings of the Royal Society B: Biological Sciences 274:225–230.https://doi.org/10.1098/rspb.2006.3732
 10
 11
 12

13
On the probability of fixation of mutant genes in a populationGenetics 47:713–719.

14
On the evolutionary adjustment of spontaneous mutation ratesGenetical Research 9:23–34.https://doi.org/10.1017/S0016672300010284
 15
 16
 17

18
Human cancers express mutator phenotypes: origin, consequences and targetingNature Reviews Cancer 11:450–457.https://doi.org/10.1038/nrc3063

19
Proliferation of mutators in A cell populationJournal of Bacteriology 179:417–422.https://doi.org/10.1128/jb.179.2.417422.1997
 20

21
Enrichment and elimination of mutY mutators in Escherichia coli populationsGenetics 162:1055–1062.
 22
 23
 24
 25
 26

27
Fitness evolution and the rise of mutator alleles in experimental Escherichia coli populationsGenetics 162:557–566.

28
The hitchhiking effect of a favourable geneGenetical Research 23:23–35.https://doi.org/10.1017/S0016672300014634
 29
 30

31
Heterogeneity of the mutation rates of influenza A viruses: isolation of mutator mutantsJournal of Virology 66:2491–2494.

32
The evolution of mutator genes in bacterial populations: the roles of environmental change and timingGenetics 164:843–854.
 33
 34
 35
Decision letter

Patricia J WittkoppSenior and Reviewing Editor; University of Michigan, United States

Timothy CooperReviewer
In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.
Acceptance summary:
Mutator genotypes have elevated mutation rates, introducing more deleterious, neutral, and beneficial mutations into a population each generation than ("wildtype") nonmutator genotypes. Prior work has shown that such mutator genotypes are unlikely to become fixed within a population when they exist at low frequencies. This study challenges that view and advances our understanding of evolutionary processes by showing that the probability of mutator genotypes fixing within a population are not dependent upon their starting frequency in the population. The authors argue and then show via many simulations that the probability of fixation does not change with starting frequency under the parameter space of a typical experimental evolution study.
Decision letter after peer review:
Thank you for submitting your article "Selection on mutators is not frequencydependent" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Patricia Wittkopp as the Senior and Reviewing Editor. The following individual involved in review of your submission has agreed to reveal their identity: Timothy Cooper (Reviewer #3).
The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.
Summary:
This study shows that the percapita probability of fixation of mutator genotypes, including the beneficial, neutral or deleterious mutations they produce, are not dependent on starting frequency. This goes against conventional wisdom because experiments with mutator genotypes of microbes have indicated that mutators fail to invade from low starting frequencies, i.e., below the level of their relative increases in beneficial mutation supply rate. The authors argue and then show via many simulations that the probability of fixation does not change with starting frequency under the parameter space of a typical experimental evolution study. This is a notable finding.
Essential revisions:
1) The primary concern raised (and supported by all three reviewers) is that the paper presents a straw man argument. As the authors note numerous times in the manuscript, the argument that selection for mutators is dependent on frequency is "common intuition". But the reviewers were not convinced that this intuition is widespread. They thought most people would agree that the probability of fixation is related to mutator frequency, but not that the selective coefficient/advantage for a given mutator changes with frequency in a population.
Basic evolutionary theory would suggest that if the selective advantage of a mutator is due to its linkage with a beneficial mutation, then this selective advantage will be related to the probability of causing a beneficial mutation (i.e., the ratio of beneficial and deleterious mutation rates). This should be independent of how many mutators there are in a population. Of course the probability that a mutator genotype will fix increases with the frequency of mutators. This is simply true for neutral and beneficial mutations in finite populations. In the case of a mutator genotype, it is also true because there is an increase of sampling of mutations and the probability that one of the mutators in the population hits on a beneficial mutation to hitchhike with. But the selective advantage of any individual mutator should not change. I guess what I am saying is that results of the paper seem to demonstrate what a careful consideration of mutators would suggest and that this research is not debunking some wideheld view. That being said, it is a clear and thoughtful demonstration of the phenomenon, which apparently has not been published before, and may contribute to the interpretation of experimental results.
2) A similar strawmanlike concern: Regarding relevance – the argument that the authors who have found evidence of frequencydependence (Chao and Cox, 1983, Thompson et al., 2006, Gentile et al., 2011, de Visser and Rozen, 2006, Le Chat et al., 2006) simply did not sample enough to find evidence of frequencyindependence is not satisfying because the pattern has replicated across systems and laboratories. This suggests there's more to the biological story here that your simulations fail to capture. What might this be? Please add a paragraph proposing reasons for this disconnect. For instance, could this be a property of the DFE, where one particular type of highly beneficial mutation trumps all, and the lucky genotype that acquires this mutation becomes destined to fix? Could this be a property of the degree of clonal interference or the effective population size, both of which alter drift?
3) About the methods: It seems as though the way the simulations are set up, all deleterious and all beneficial mutations have the same fitness cost/benefit. Is there a reason why the authors didn't draw from a distribution of fitness effects? I am not sure how much changing this would influence the results, but it does seem more biologically realistic. Perhaps commenting on this approach of simulations and parameters would be helpful.
https://doi.org/10.7554/eLife.51177.sa1Author response
Essential revisions:
1) The primary concern raised (and supported by all three reviewers) is that the paper presents a straw man argument. As the authors note numerous times in the manuscript, the argument that selection for mutators is dependent on frequency is "common intuition". But the reviewers were not convinced that this intuition is widespread. They thought most people would agree that the probability of fixation is related to mutator frequency, but not that the selective coefficient/advantage for a given mutator changes with frequency in a population.
Basic evolutionary theory would suggest that if the selective advantage of a mutator is due to its linkage with a beneficial mutation, then this selective advantage will be related to the probability of causing a beneficial mutation (i.e., the ratio of beneficial and deleterious mutation rates). This should be independent of how many mutators there are in a population. Of course the probability that a mutator genotype will fix increases with the frequency of mutators. This is simply true for neutral and beneficial mutations in finite populations. In the case of a mutator genotype, it is also true because there is an increase of sampling of mutations and the probability that one of the mutators in the population hits on a beneficial mutation to hitchhike with. But the selective advantage of any individual mutator should not change. I guess what I am saying is that results of the paper seem to demonstrate what a careful consideration of mutators would suggest and that this research is not debunking some wideheld view. That being said, it is a clear and thoughtful demonstration of the phenomenon, which apparently has not been published before, and may contribute to the interpretation of experimental results.
We agree that our conclusion that selection on mutators is not frequencydependent could be arrived at by a “careful consideration” of the evolutionary forces acting on them. However, as we now further emphasize in the paper, mutator dynamics have been repeatedly described as being frequency or numberdependent in the literature (Introduction, last paragraph). By definition this means that the fitness of an individual mutator allele would depend on its frequency and not only that the probability of fixation increases with frequency (which is true for a frequencyindependent allele as well). The goal of our paper is to clarify this feature of selection on mutators by providing a clear demonstration of frequency independence.
We also appreciate the concern that while we present this misconception as a “common intuition,” it may not be as widely held as we may think. In the revision we have attempted to be more careful about not mischaracterizing the extent to which this intuition has dominated the field. We instead reframe our description of this issue in the mutator literature, especially in the experimental literature (Abstract and Introduction, last two paragraphs), where it has been advanced in a number of very influential papers. Thank you for helping us to more accurately focus this point.
2) A similar strawmanlike concern: Regarding relevance – the argument that the authors who have found evidence of frequencydependence (Chao and Cox, 1983, Thompson et al., 2006, Gentile et al., 2011, de Visser and Rozen, 2006, Le Chat et al., 2006) simply did not sample enough to find evidence of frequencyindependence is not satisfying because the pattern has replicated across systems and laboratories. This suggests there's more to the biological story here that your simulations fail to capture. What might this be? Please add a paragraph proposing reasons for this disconnect. For instance, could this be a property of the DFE, where one particular type of highly beneficial mutation trumps all, and the lucky genotype that acquires this mutation becomes destined to fix? Could this be a property of the degree of clonal interference or the effective population size, both of which alter drift?
We thank you and the reviewers for raising this point. We had not previously recognized the opportunity to discuss the difference in experimental organisms and environments in our interpretation of mutator dynamics. You and the reviewers wonder if the explanation for the pattern could be biological. But on the contrary, for us the fact that this pattern has been observed in different systems and environments strengthens our claim of a single, theoretical explanation. Observations from diverse systems appear to preclude the possibility that any systemspecific selective property of a mutator or the available DFE could be responsible for the observation, since different alleles were used in different environments. This point is developed in the fifth paragraph of the Results and Discussion. Regarding the suggestion of a dependence in DFE we would also refer to our response to point 3, below.
Likewise, on first principles we could not see how clonal interference or population size effects could explain the apparent frequencydependent threshold in mutator dynamics observed in individual competitions, as the threshold effect disappears when many replicates of the same competition are considered. To test this question, we conducted additional simulations parameterized exactly as those in Figures 1B and 1C except the mutation rate of the nonmutators was set to 0. This eliminates any interference from the nonmutatators. As Author response image 1 shows (averaged across 5∙10^{4} simulation runs), the pattern in Figure 1B and 1C is recapitulated in the absence of interference – random individual simulation replicates (left panel) still appear to be frequencydependent, while average dynamics confirm that mutators are favored (i.e., increase in frequency) at all starting frequencies.
We find that the most satisfying (and parsimonious) explanation for previous experimental observations is, therefore, the limited sampling, common to all experiments. Our simulations show that such limited sampling would produce the frequencydependent switch even when selection is truly not frequencydependent. In the revision, we now discuss the likelihood of the biological explanation for the dynamics in different systems and the fact that the limited sampling is the most parsimonious explanation for this result in the fifth and sixth paragraphs of the Results and Discussion).
3) About the methods: It seems as though the way the simulations are set up, all deleterious and all beneficial mutations have the same fitness cost/benefit. Is there a reason why the authors didn't draw from a distribution of fitness effects? I am not sure how much changing this would influence the results, but it does seem more biologically realistic. Perhaps commenting on this approach of simulations and parameters would be helpful.
We thank you and the reviewers for this suggestion. Indeed, following our earlier work (Raynes et al., 2018 and 2019) we have assumed constant fitness effects for computational efficiency (as is now described in the first paragraph of the Materials and methods) given the large size of simulated populations. To confirm that drawing fitness effects from a distribution would not impact the conclusions of our study we have conducted additional simulations and include these in the revised manuscript. In these simulations, we allow for both beneficial and deleterious to be drawn from exponential distributions (with means equal to s_{ben} and s_{del} values used Figure 1). Given the added computational requirements, we have reduced the size of simulated populations (now 10^{6} vs. 10^{7} in Figure 1) and the number of starting frequencies. These new simulations (now reported in the Figure 1—figure supplement 1) recapitulate our main observation – individual, randomlychosen realization show a frequencydependent breakpoint while average frequency dynamics are consistent with positive selection at all starting frequencies.
