Integration of locomotion and auditory signals in the mouse inferior colliculus

  1. Yoonsun Yang
  2. Joonyeol Lee
  3. Gunsoo Kim  Is a corresponding author
  1. Institute for Basic Science (IBS), Republic of Korea
  2. School of Medicine, Sungkyunkwan University, Republic of Korea
  3. Sungkyunkwan University, Republic of Korea

Abstract

The inferior colliculus (IC) is the major midbrain auditory integration center, where virtually all ascending auditory inputs converge. Although the IC has been extensively studied for sound processing, little is known about the neural activity of the IC in moving subjects, as frequently happens in natural hearing conditions. Here, by recording neural activity in walking mice, we show that the activity of IC neurons is strongly modulated by locomotion, even in the absence of sound stimuli. Similar modulation was also found in hearing-impaired mice, demonstrating that IC neurons receive non-auditory, locomotion-related neural signals. Sound-evoked activity was attenuated during locomotion, and this attenuation increased frequency selectivity across the neuronal population, while maintaining preferred frequencies. Our results suggest that during behavior, integrating movement-related and auditory information is an essential aspect of sound processing in the IC.

Introduction

The inferior colliculus (IC) is the major auditory integration center in the midbrain, where virtually all ascending inputs from the auditory brainstem and descending cortical inputs converge (Adams, 1979; Adams, 1980; Malmierca, 2004; Winer and Schreiner, 2005). The IC plays a critical role in representing spectrotemporal features and communication sounds (Egorova et al., 2001; Escabı́ and Schreiner, 2002; Lesica and Grothe, 2008; Woolley and Portfors, 2013), and localizing sound sources (Bock and Webster, 1974; Schnupp and King, 1997; Lesica et al., 2010; Xiong et al., 2013; Ono and Oliver, 2014). While auditory response properties have been extensively studied, most IC neural activities have been recorded in stationary subjects, and little is known about IC activity in subjects engaged in locomotion.

The central nucleus of the IC predominantly receives auditory inputs. However, the shell region of the IC (the lateral and dorsal cortex) receives non-auditory projections such as somatosensory inputs (Cooper and Young, 1976; Morest and Oliver, 1984; Coleman and Clerici, 1987; Lesicko et al., 2016) and performs multi-sensory integration (Aitkin et al., 1978; Aitkin et al., 1981; Jain and Shore, 2006). This region has also been implicated in generating sound-driven behavior by projecting to motor-related regions (Huffman and Henson, 1990; Xiong et al., 2015). Although this multi-modal integration may serve a range of functions (Gruters and Groh, 2012), modulation of the IC activity during vocalization (Schuller, 1979; Tammer et al., 2004) or eye movements (Groh et al., 2001; Porter et al., 2006; Porter et al., 2007) suggests that the main role of non-auditory inputs is to provide motor-related information.

In order to accurately detect and localize sounds during movement, it is hypothesized that the auditory system distinguishes self-generated sounds from external ones (Poulet and Hedwig, 2002; Rummell et al., 2016; Schneider et al., 2018) and integrates movement-related signals with auditory information. Recent studies in behaving mice show that movements such as locomotion strongly modulate neural activity in the mouse primary auditory cortex (A1) (Schneider et al., 2014; Zhou et al., 2014; McGinley et al., 2015; Bigelow et al., 2019). While A1 neurons receive movement-related signals from sources outside the auditory pathway (Schneider et al., 2014; Nelson et al., 2013; Nelson and Mooney, 2016; Reimer et al., 2016), movement-related modulation is also found in subcortical auditory centers. In the medial geniculate body (MGB), for instance, sound-evoked activity is attenuated during locomotion (Williamson et al., 2015; McGinley et al., 2015). Motor-related modulation is also found in the auditory brainstem during vocalization, licking, and pinna orientation (Suga and Schlegel, 1972; Schuller, 1979; Kanold and Young, 2001; Singla et al., 2017). These subcortical modulation studies suggest that the integration loci for movement-related and auditory information are spread out along the auditory pathway.

Here, we investigated locomotion-related modulation of the IC neural activity in head-fixed mice. Our data show that both spontaneous and sound-evoked activities of IC neurons are strongly modulated during locomotion. Both excitation and suppression were found in spontaneous activity, whereas sound-evoked activity was mostly attenuated, decreasing frequency tuning width. Our results suggest that auditory midbrain neurons integrate movement-related information, which may be important for auditory processing during movement and acoustically guided behavior.

Results

Spontaneous neural activity of IC neurons is modulated during locomotion

We made extracellular recordings of spiking neural activity of IC neurons in awake head-fixed mice, placed on a passive treadmill. This preparation enabled us to observe the IC neural activity during locomotion. When the firing rates between stationary and walking periods were compared, in the absence of sound stimulus presentation, we found that the IC neuron firing rates could be strongly modulated during locomotion. Among the 96 recorded IC neurons, 51 (Figure 1A; 53%) significantly increased their firing during locomotion, whereas 22 (Figure 1B; 23%) decreased their firing (Figure 1C). In 23 neurons (24%), firing rates did not significantly differ between the stationary and walking periods. Neurons that increased firing showed a positive correlation between the firing rate and walking speed, whereas those that decreased firing showed a negative correlation (Figure 1D).

Figure 1 with 1 supplement see all
Spontaneous activity of IC neurons is modulated by locomotion.

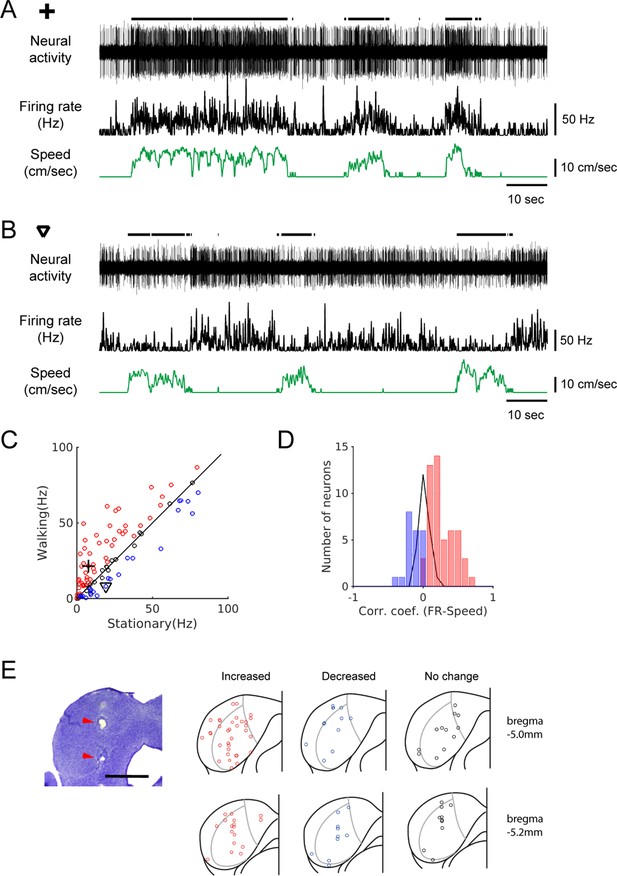

(A-B) Example recordings of spontaneous activity in IC neurons. During walking periods, the neuron in A increased firing (from 7.6 Hz to 21.6 Hz), whereas the neuron in B decreased firing (from 19.1 Hz to 8.2 Hz). In both cases, the smoothed firing rates (black middle traces) exhibit significant correlations with the speed of the treadmill (green traces) (A: r = 0.59; B: r = −0.24). Thick black lines above the neural records indicate walking periods. (C) Population plot comparing average spontaneous firing rates between stationary and walking conditions (n = 96 neurons). Red circles: increased, blue: decreased, black: no significant change in firing. Values for the example neurons in A (cross) and B (triangle) are also shown. (D) Histogram of correlation coefficients between smoothed firing rate and speed (color code as in C). (E) Photomicrograph of a Nissl section with lesion sites marked with red arrow heads (scale bar = 1 mm), and reconstructed recording locations are shown in two transverse sections (5.0 and 5.2 mm posterior to the bregma, respectively). Color code as in C.

Figure 1—source data 1

Source data for spontaneous activity modulation, and walking sound recording and playback.

https://cdn.elifesciences.org/articles/52228/elife-52228-fig1-data1-v2.xlsx

Subdivisions of the IC differ in cytoarchitecture and projection patterns (Morest and Oliver, 1984), with the lateral cortex, for example, known to receive somatosensory inputs (Lesicko et al., 2016). Therefore, we evaluated whether neurons that showed locomotion-related modulation are clustered in the shell region. Anatomical reconstruction of the recording locations did not show any clustering in terms of modulation or the direction of modulation (Figure 1E). Instead, all three types of modulations – increased (red), decreased (blue), or no change (black) - were found across the IC with no clear pattern.

When mice walk on a treadmill, their movements generate low-intensity sounds. These sounds may modulate IC neuron activity. We examined this contribution of auditory reafference by playing back recorded walking sounds at a level similar to the recording (30 dB, n = 25; Figure 1—figure supplement 1). We also presented the walking sounds at a substantially higher level (40 dB) to examine the variation in neural response. Playbacks evoked neural responses, but the response magnitudes did not significantly correlate with those induced by locomotion (Figure 1—figure supplement 1D–G). This suggests that although some of the observed modulation may be induced by walking sounds, it is unlikely that the modulation is mainly due to auditory reafference.

Neural modulation precedes locomotion onset

If the firing rate change starts before locomotion onset, it indicates that modulation is not simply due to auditory reafference (Schneider et al., 2014). We determined the relative timing of modulation by performing locomotion onset-triggered firing-rate averaging. We found that firing rate changes can begin well before the onset of locomotion (Figure 2A and B). In most of the 30 neurons that yielded a significant onset-triggered average (see Materials and methods), the onset of firing-rate modulation preceded the locomotion onset (Figure 2C, n = 30, median latency = −107 msec). These negative latencies were observed regardless of the direction of the modulation (Figure 2D; positive modulation: red bar, n = 22, –118 msec; negative modulation: blue bar, n = 8, –60 msec; Wilcoxon rank sum test, p=0.25). This demonstrates that neural modulation can begin before any detectable movement, and is, therefore, not simply an auditory response to walking sounds.

The onset of firing rate modulation precedes locomotion onset.

(A-B) Top: Example neural recordings, corresponding smoothed firing rates, and walking speed. Bottom: Spike rasters aligned at the onset of walking and the locomotion onset-triggered averages of firing rates. Blue shading indicates the 95% confidence interval of the average firing rates. Horizontal solid and dashed lines show the average spontaneous firing rate and the 2x standard deviation above (A) or below (B) the average, respectively. Vertical green lines indicate locomotion onset. Red arrows indicate modulation onset. (C) Histogram of the neural modulation latencies relative to locomotion onset (n = 30). Time zero indicates locomotion onset. (D) Modulation latencies for neurons with increased (red bar, n = 22) and decreased (blue bar, n = 8) firing during locomotion (Wilcoxon rank sum test, p=0.25). Bar graphs show the median latencies.

Figure 2—source data 1

Source data for locomotion onset-triggered firing rate averaging and neural modulation latencies.

https://cdn.elifesciences.org/articles/52228/elife-52228-fig2-data1-v2.xlsx

Locomotion modulates spontaneous activity in hearing-impaired mice

To further substantiate that non-auditory neural signals modulate IC activity during locomotion, we performed bilateral deafening by removing the middle ear ossicles and applying an ototoxin (kanamycin) to the cochlea (see Materials and methods; n = 4 mice). Systematic mapping of multi-unit responses to broadband noise across the IC showed that this deafening raised the hearing threshold to ≥70 dB, at least 40 dB higher than the threshold in normal mice (Figure 3A and B). We reasoned that in these mice, it would be highly unlikely that low-intensity walking sounds (~30 dB, Figure 1—figure supplement 1) would evoke neural responses. As demonstrated in Figure 3C, a neuron from a hearing-impaired mouse showed a robust increase in firing during locomotion, while the same neuron did not show any discernible response to broadband sound stimuli (Figure 3D). We observed both increases and decreases in neural firing during locomotion in hearing-impaired mice, as in normal-hearing mice (n = 34; Figure 3E and F). We confirmed anatomically that our recording sites in the hearing-impaired mice were in the IC, and as in normal mice, modulated neurons were found across the IC without any spatial pattern (Figure 3G).

Figure 3 with 1 supplement see all
Locomotion modulates spontaneous activity in hearing-impaired mice.

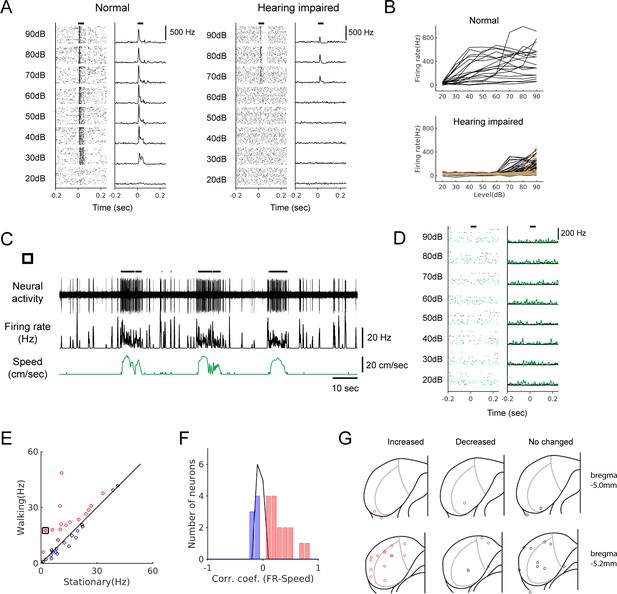

(A) Raster plots (30 trials shown for each level) and PSTHs of multi-unit responses to broadband sound (2–64 kHz, 50 msec duration) in the example sites from normal (left) and hearing-impaired (right) mice. Horizontal bars at the top denote the period of stimulus presentation. (B) Rate-level functions from multi-unit sites from a normal mouse (top, 20 sites) and two hearing-impaired mice (bottom, 40 sites (black) and 57 sites (brown); colors represent different mice, and curves from only two mice are shown for clarity). (C) Example neuron from a hearing-impaired mouse that showed a robust modulation in firing rate during locomotion. Thick black lines above the neural record indicate walking periods. (D) The neuron in C did not show any auditory response to broadband noise (black: stationary, green: locomotion). In the raster plots, 30 stationary trials (black dots) and 8–10 walking trials (green dots) are shown for each level. (E) Scatter plot comparing the average spontaneous firing rates between stationary and walking conditions in hearing-impaired mice (n = 34). Red: increased; blue: decreased; black: no significant change. Black square indicates the neuron in C. (F) Histogram of correlation coefficients (color code as in E). (G) Reconstructed recording locations as in Figure 1. Color code as in E.

Figure 3—source data 1

Source data for the effects of deafening, locomotion-induced modulation in hearing-impaired mice, and comparison of modulation between normal and hearing-impaired mice.

https://cdn.elifesciences.org/articles/52228/elife-52228-fig3-data1-v2.xlsx

Deafening may induce plasticity in the IC during the period before neural recording (8.2 ± 1.1 days; Chambers et al., 2016). However, not only that locomotion-modulated neurons were found in hearing-impaired mice, but also the modulation was similar to that in normal mice in terms of the types, magnitudes, and latencies (Figure 3—figure supplement 1). Although we cannot exclude the influence of deafening-induced plasticity, the existence of locomotion-modulated neurons in hearing-impaired mice with similar characteristics provides strong evidence that non-auditory signals modulate the activity of IC neurons during locomotion.

Sound-evoked activity of IC neurons is attenuated during locomotion

Attenuation of sound-evoked activity during locomotion has been shown in the auditory thalamus and cortex, but sources of subcortical attenuation remain unclear (Schneider et al., 2014; Zhou et al., 2014; Williamson et al., 2015; McGinley et al., 2015). We investigated whether the sound-evoked IC activity is also modulated during locomotion by presenting pure tones of different frequencies at 70 dB (Figure 4).

Figure 4 with 2 supplements see all
Sound-evoked activity of IC neurons is attenuated during locomotion.

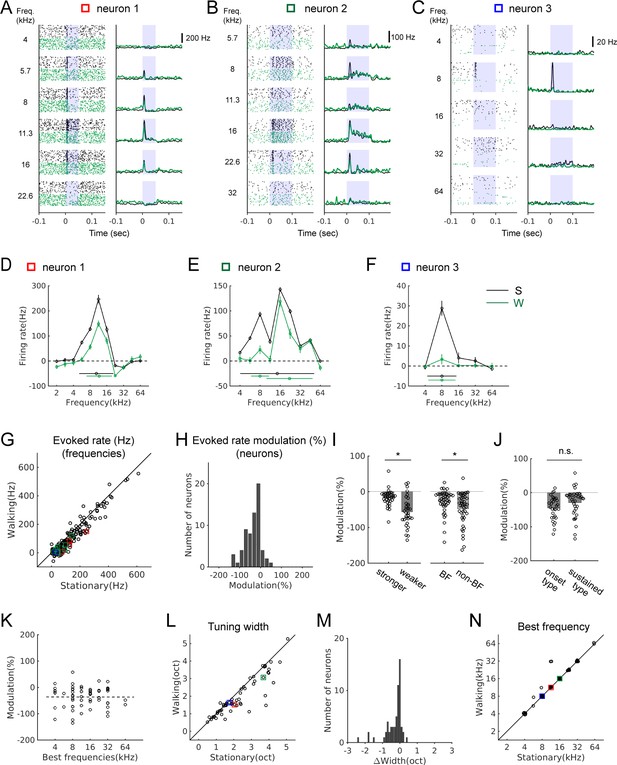

(A-C) Tone-evoked responses from three example IC neurons. Black spike rasters and PSTHs are from stationary trials, and green from walking trials. In each neuron, the same number of trials is shown for each condition (A: 35 trials; B: 25 trials; C: 92 trials). Blue shading indicates the period of sound stimulus presentation. Squares in different colors indicate the data points corresponding to the examples in the population plots in G, L, and N. (D-F) Tuning curves (black: stationary, green: walking) based on baseline-subtracted average firing rates at stimulus onset (see Materials and methods). Tuning widths are shown as horizontal bars in each condition (with the centroid shown as a circle at the center). The tuning curves are from the neurons shown in A-C, respectively. (G) Comparison of evoked rates between the stationary and walking conditions at all frequencies with excitatory responses (178 tones, 65 neurons). Values from the example neurons in A-C are indicated as squares in corresponding colors. (H) Histogram of percent evoked-rate modulation across the recorded neurons (n = 65). One-sample t-test for the zero mean, p=1.4×10−10. (I) Comparison of the percent evoked-rate modulation between neurons with weaker and stronger responses (the left two bars; stronger: above the median, n = 33; weaker: below the median, n = 32; t-test, p=0.0175), or between best and non-best frequencies (BF vs. non-BF) (the right two bars; n = 43 of 65 neurons that had responses at both best and non-best frequencies; paired t-test, p=6.98×10−4). Each data point denotes a neuron. (J) Percent evoked-rate modulation in neurons with responses only at the onset vs. neurons with sustained responses (onset type: n = 30; sustained type: n = 35; t-test, p=0.103). (K) Scatter plot of percent evoked-rate modulation as a function of best frequencies (n = 65; r = −0.0031, p=0.98). (L) Frequency tuning widths in octaves for stationary and walking conditions. (M) Histogram of tuning width changes (n = 60, one sample Wilcoxon signed rank test, p=3.0×10−7; mean change = −0.29 octaves). (N) Comparison of best frequencies (n = 60). In L-N, neurons that lost all excitatory responses in the walking condition, yielding the tuning width of 0, were not included (n = 5).

Figure 4—source data 1

Source data for modulation of sound-evoked responses during locomotion, relationships between spontaneous and evoked activity modulation, and spontaneous activity modulation in different response types.

https://cdn.elifesciences.org/articles/52228/elife-52228-fig4-data1-v2.xlsx

We found that most IC neurons with excitatory tone-evoked responses showed significant attenuation during locomotion (72%, n = 47/65; Figure 4A–C and G). Percent changes in evoked response across the population showed a significant shift toward negative values (Figure 4H, n = 65; one sample t-test, p=1.4×10−10) with a mean change of −36 ± 5%. Percent attenuation was greater in neurons with relatively weaker responses (below the median) than in those with stronger responses (above the median) (Figure 4I, left; stronger: −17 ± 4%, n = 33; weaker: −56 ± 7%, n = 32; t-test, p=0.0175). For individual neurons, average attenuations at non-best frequencies were greater than those at a neuron’s best frequency (Figure 4I, right; n = 43, –27 ± 5% (BF) vs. −48 ± 7% (non-BF); paired t-test, p=6.98×10−4). The greater attenuation of weaker responses within and across neurons may improve the signal-to-noise ratio across the neuronal population during locomotion.

To examine whether the degree of attenuation depends on neuronal response properties, we divided IC neurons into two response types: those that showed responses only at the onset of a stimulus (e.g., Figure 4C; n = 30), and those that showed sustained responses throughout the stimulus (e.g., Figure 4B; n = 35). We did not find significant differences between the two types (Figure 4J; −45 ± 6% vs. −29 ± 7%; t-test, p=0.103). The degree of attenuation also did not correlate with best frequencies, indicating the attenuation was global, rather than frequency-specific (Figure 4K, n = 65; r = −0.0031, p=0.98).

Attenuation of evoked activity indicates a decrease in response gain, and this may affect the frequency selectivity of a neuron. To examine this possibility, we constructed frequency tuning curves and quantified tuning widths as the spread around the centroid (Escabí et al., 2007; Ono et al., 2017; Figure 4D–F,L,M). In the stationary condition, the tuning widths ranged from 0.5 to 5 octaves with a mean of 2.2 octaves (n = 65). During locomotion, there was a significant decrease in the tuning widths across the population (Figure 4L–M, n = 60, excluding five neurons with tuning width of 0 during walking due to near-complete suppression; one sample Wilcoxon signed rank test, p=3.0×10−7; mean change = −0.29 octaves). In contrast, best frequencies did not change during locomotion in the vast majority of the neurons (n = 60, Figure 4N). Together, these results demonstrate sound-evoked activity in the IC is attenuated during locomotion, and this attenuation significantly sharpens frequency tuning across the population.

We next evaluated whether there is a relationship between the modulation of spontaneous and sound-evoked activity, which might indicate shared neural mechanisms. Attenuation of evoked activity occurred regardless of spontaneous activity modulation types, but the degree of attenuation correlated with the suppression of spontaneous activity (Figure 4—figure supplement 1). Therefore, locomotion-induced suppression of spontaneous and evoked activity may share common neural mechanisms, distinct from excitation. In addition, spontaneous modulation differed depending on the evoked response patterns. In the sustained type, positive modulation was the most common, whereas in the suppressed type, negative modulation was the most common (Figure 4—figure supplement 2). These correlations suggest an overlap between modulatory and sound-driven inputs, but this overlap is partial because the suppressed type can also be excited by locomotion.
