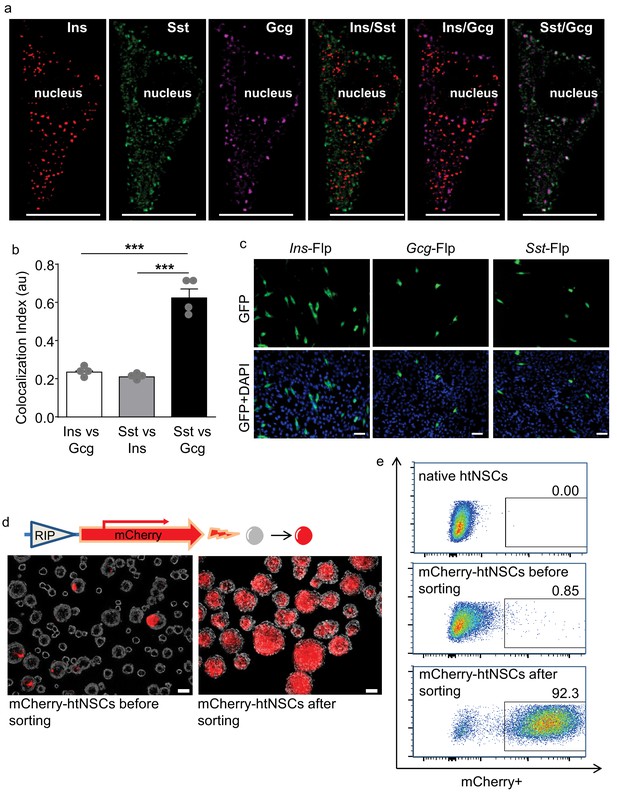

Using quantitative PCR, we found that cultured htNSCs expressed mRNAs of multiple hypothalamic and gastrointestinal hormones, evidently including pancreatic hormones such as insulin, glucagon, and somatostatin which led to our research interest of this study. In this background, we did immunostaining revealing that some subpopulations of htNSCs co-expressed insulin, glucagon and somatostatin (Figure 1a,b, Figure 1—figure supplement 1). All these peptides were found to exist in the vesicles within the cytoplasm of some htNSCs, according to immunostaining signals in puncta pattern revealed by these peptide antibodies. These peptides could be localized in the same or different vesicles; for instance, insulin-positive vesicles were often distinct from the vesicles positive for glucagon and somatostatin, while the latter two peptides were often co-localized in the same vesicles (Figure 1a,b). Using large dense-core vesicles (LDCV) and synaptic-like microvesicles (SLMV) markers (Figure 1—figure supplement 2), we revealed that insulin was present mostly in the LDCV while glucagon and somatostatin were often co-present predominantly in the SLMV.

Figure 1 with 5 supplements see all

Download asset Open asset

We then employed genetic approaches to evaluate the transcriptional capabilities of these cells in producing pancreatic hormones. To do so, we transfected primary htNSCs with Flp recombinase-dependent GFP reporter plasmid whose expression is driven by insulin, glucagon or somatostatin promoter (namely Ins-Flp, Gcg-Flp and Sst-Flp, respectively). The Ins promoter activity was found in ~7% of htNSCs, while the Gcg and Sst promoter activities were found in ~2% and~3% of htNSCs, respectively (Figure 1c), indicating that only small subpopulations of these cells significantly shared the genetic features of pancreatic islet cells.

We also examined if different pancreatic peptides are produced in same or different htNSCs. To do so, we constructed a Flp/Cre dual fluorescence reporter system (Figure 1—figure supplement 3a), as this system allowed us to simultaneously detect the gene promoter activities of two different peptides in the same cells. The specificity of Flp- versus Cre-dependent fluorescence in this reporter system was evaluated in various cell models including an unrelated cell line HEK293T (Figure 1—figure supplement 3b). Then, htNSCs were transfected with this reporter system together with Flp and Cre plasmids driven by different promoters, as indicated in Figure 1—figure supplement 4. We found that among htNSCs which displayed Ins promoter activation,~25% of them showed co-activation of Sst promoter, and 20% of them showed co-activation of Gcg promoter. We also found that ~44% of htNSCs with Gcg promoter activation showed co-activation of Sst promoter. Thus, multiple peptidyl hormones are co-expressed in subpopulations of htNSCs. According to the literature (Katsuta et al., 2010; Segerstolpe et al., 2016; Enge et al., 2017; De Krijger et al., 1992; van der Meulen and Huising, 2014; Jeon et al., 2009), co-existence of these pancreatic hormones in same cells could also be seen in some immature islets of Langerhans, indicating that there exists some developmental relationship between these htNSCs and the precursors of pancreatic islets.

In addition to pancreatic peptides, we observed that many of these htNSCs expressed gastrointestinal hormones such as galanin, vasoactive intestinal polypeptide (VIP), cholecystokinin (CCK) and pituitary adenylate cyclase-activating peptide (PACAP) as well as hypothalamic peptides such as neuropeptide Y (NPY), agouti-related peptide (AgRP), alpha melanocyte-stimulating hormone (α-MSH), corticotrophin-releasing factor (CRF), gonadotropin-releasing hormone (GnRH) and oxytocin in subcellular vesicles (some examples of these peptide immunostainings are shown in Figure 1—figure supplement 5). Notably, for any pairs of these peptides, they were always found to co-exist in some of htNSCs, and each of these peptides could be found present in insulin-positive htNSCs. Thus, htNSCs contain subpopulations that produce multiple peptides in bulk as well as single-cell levels.

Because insulin is a predominant pancreatic hormone, we designed to employ insulin promoter activity as a target for isolating a subpopulation(s) of htNSCs. To do so, we infected htNSCs with a lentiviral system containing mCherry expression driven by rat insulin promoter (RIP) which fluorescently labeled such population(s) of htNSCs. In our initial trial, indeed some htNSCs were made mCherry-positive by this method; however, most likely because RIP activity was not strong, it was insufficient for fluorescent flow cytometry (FACS) sorting-based cell isolation. To address this limitation, we increased the RIP activity through temporarily introducing Ngn3, Pdx-1 and MafA transcription factor cocktail to the cells, as suggested by the literature (Zhou et al., 2008; Chen et al., 2014; Ariyachet et al., 2016). After this cocktail was transiently applied to htNSCs via an adenoviral induction, RIP-driven mCherry fluorescence strikingly increased in many htNSCs (Figure 1d, left panel). With this success, mCherry-positive cells were abundantly sorted out via FACS (Figure 1e top vs. middle panel) and were subsequently established as a subpopulation(s) of insulin promoter-selected cells, as evaluated with microscopy (Figure 1d right panel) and also FACS (Figure 1e bottom panel). After a few generations of cell passaging, through which the cocktail completely disappeared, we confirmed that RIP-driven mCherry remained strong in a majority of cells indicating that these cells were induced to persistently have an enhanced level of insulin promoter activity.

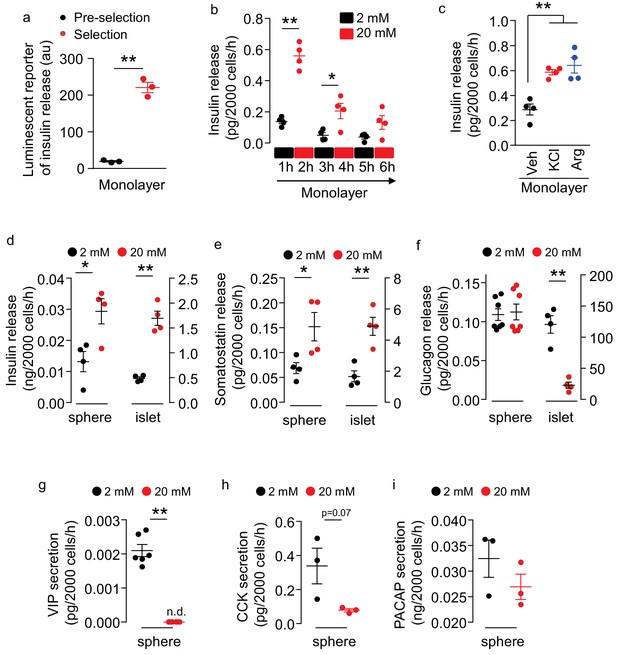

We assessed if these insulin promoter-selected htNSCs were able to release insulin. First, using a luminescent reporter which was known to sensitively report insulin secretion (Burns et al., 2015), we found that insulin secretion substantially increased in these insulin promoter-selected htNSCs compared to insulin secretion from htNSCs of pre-selection (Figure 2a). Using an ELISA which directly measured insulin, we found that these insulin promoter-selected htNSCs secreted insulin in a glucose-regulated manner. As shown in Figure 2b, we designed a test in which these htNSCs were subjected to 3 cycles of low-level (2 mM) and high-level (20 mM) glucose incubation, 1 hr each step. We found that high-level glucose led to ~3 fold increase of insulin release, which dropped to the baseline after glucose returned to the low level. Subsequent two repeats of high-glucose stimulation were still able to increase insulin release but in a gradually declining manner. Moreover, we subjected these htNSCs to potassium chloride or arginine, since both are known to stimulate pancreatic insulin secretion; our results confirmed that these htNSCs released insulin in response to either stimulation (Figure 2c). The insulin-secreting activity of these htNSCs was preserved over at least 10 passages of cell culture which we monitored.

Figure 2

Download asset Open asset

Of interest, compared to cells cultured in the monolayer (Figure 2b), insulin secretion increased >30 times by the same number of cells in the spheres (Figure 2d), suggesting that the 3D spheroid structure is important for optimizing insulin production and secretion. Also, compared to pancreatic islets, these htNSCs spheres showed a similar pattern of insulin secretion in response to glucose, although the capacity was much less comparable to that of pancreatic islets if according to the same number of cells (Figure 2d). Besides, some htNSCs in these spheres preserved the features of somatostatin and glucagon secretion, whether they responded to glucose or not (Figure 2e,f). Moreover, as exemplified in Figure 2g–i, these spheres had the capability of secreting other pancreatic/gastrointestinal peptides such as VIP, CCK and PACAP in glucose-stimulated or glucose-inhibited manners. Thus, we generated a model of htNSC spheres that can secrete multiple pancreatic/gastrointestinal peptides.

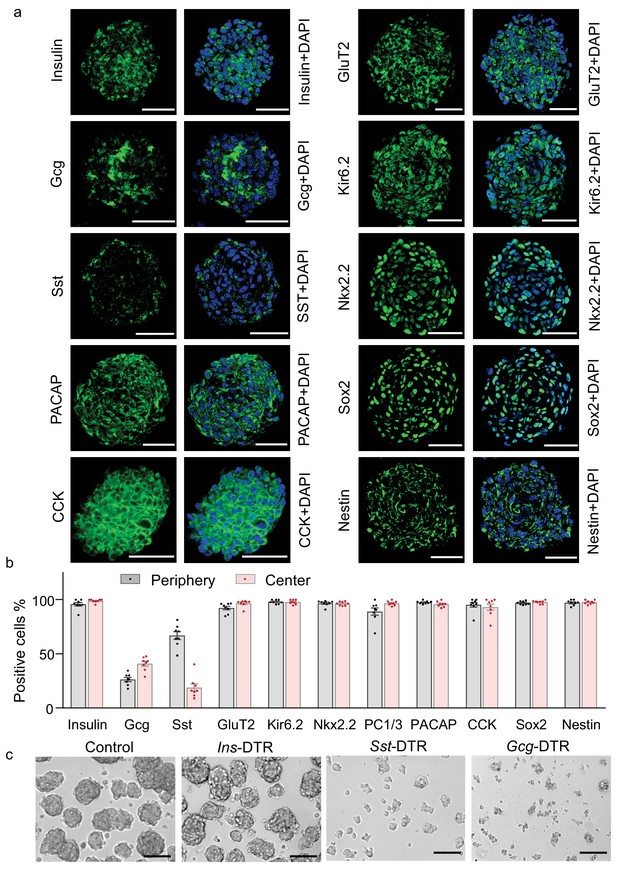

Since these htNSC spheres showed better secretion of insulin compared to its monolayer form, we wondered whether the spherical cellular organization could somewhat structurally resemble pancreatic islets, the majority mass of which are insulin-producing β cells surrounded and interspersed by glucagon-producing α and somatostatin-producing δ cells. We then examined all these pancreatic peptides in these htNSC spheres. Given the heterogeneous sizes of htNSC spheres, we analyzed both large size (Figure 3a–b) and small size (Figure 3—figure supplement 1), which showed consistent results. For further information, we compared these htNSC spheres to mouse pancreatic islets under the same immunostaining conditions (Figure 3—figure supplement 2). As expected, insulin was globally and widely present in these htNSC spheres, which were distributed both in the center and periphery, slightly differing from pancreatic islets in which insulin-positive cells were more in the center than the periphery. Also compared to pancreatic islets, these htNSC spheres contained higher percentages of somatostatin-positive cells but similar percentages of glucagon-positive cells. These cells were probably more established during the sphere development which led to increased promoter activities of these two peptides while insulin promoter activiy became weak and even faded out. Also, while glucagon- and somatostatin-positive cells were distributed typically in the periphery of pancreatic islets (Figure 3—figure supplement 2a–b), it was the case for somatostatin but not for glucagon in these htNSC spheres (Figure 3a–b, Figure 3—figure supplement 1a–b). Besides, these htNSC spheres expressed other pancreatic and gastrointestinal hormones such as PACAP and CCK, which seemed stronger compared to these peptides in pancreatic islets. In addition, we examined pancreatic islet biomarkers including proprotein convertase 1 (PC1/3), glucose transporter 2 (GLUT2), ATP-sensitive K⁺ channel KIR6.2, and NKX2.2. The results showed that all these biomarkers were widely expressed in these htNSC spheres (Figure 3a–b, Figure 3—figure supplement 1a–b), and each pattern was pretty similar to that in pancreatic islets (Figure 3—figure supplement 2). On the other hand, unlike the pancreatic islets which barely expressed NSC biomarkers Sox2 and nestin, both biomarkers were strongly and universally expressed in these htNSC spheres (Figure 3a–b, Figure 3—figure supplements 1–2), suggesting that this hypothalamic spherical model still kept the key features and molecular signatures of htNSCs.

Figure 3 with 2 supplements see all

Download asset Open asset

Recent studies revealed that electrical and structural coupling of different cell types in pancreatic islets could be important for the metabolic function of islets (Hoang et al., 2014; Briant et al., 2018). We hypothesized that that strategy of developing β cell therapy against diabetes might need to consider the importance of glucagon-producing and somatostatin-producing cells in 3D structure. In order to provide an insight into this idea, we determined the inter-relationships of insulin-, somatostatin- and glucagon-expressing cells in maintaining the 3D structure of insulin promoter-selected htNSC spheres. To do so, we employed promoter-driven diphtheria toxin (DT) receptor (DTR) which led to selective depletion of insulin-, somatostatin- or glucagon-positive cells in these htNSCs spheres after DT administration in the culture medium. Without surprise, htNSC spheres were completely damaged when either cell type was depleted. We then collected the dissociated cells from this DT treatment by which either of individual cell types was mostly eliminated, and examined if the remaining cells could eventually lead to spheres. Of interest, when insulin-positive cells were mostly missing, the remaining cells still effectively made spheres; in contrast, when either somatostatin- or glucagon-positive cells were mostly missing, despite that a lot of insulin-producing cells were present, these cells failed to form any spheres (Figure 3c). Thus, the co-presence of somatostatin- and glucagon-positive cells is crucial for making spheres and keeping insulin-positive cells.

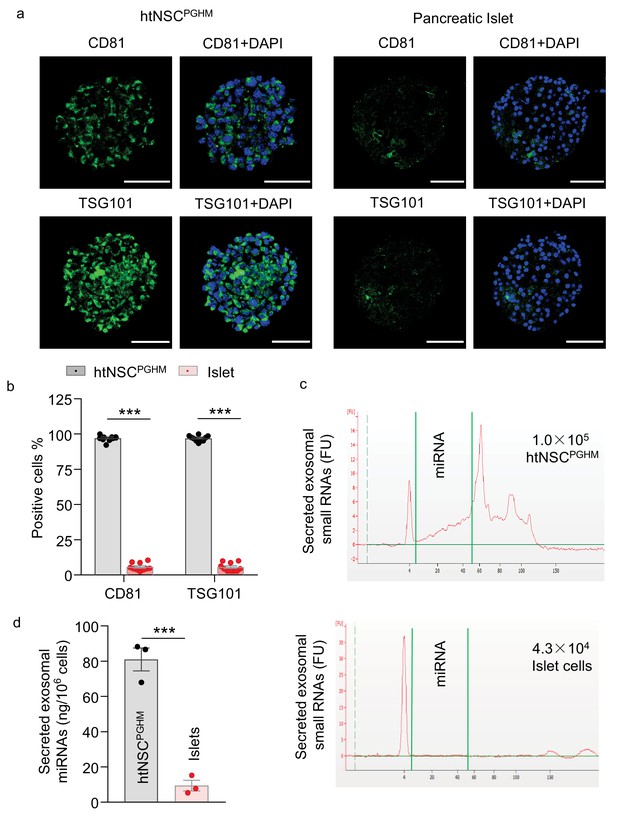

Given that recently we reported that htNSCs have a unique ability to abundantly secret miRNAs-containing exosomes, which suggested a new type of hypothalamic endocrine function (Zhang et al., 2017), we then evaluated if this key endocrine feature was retained in this model of insulin promoter-selected htNSC spheres. Using exosomal biomarkers CD81 and TSG101, we performed immunostaining for these htNSC spheres versus pancreatic islets. As shown in Figure 4a–b, we confirmed that both CD81 and TSG101 were strongly expressed in >90% of cells in these htNSC spheres, but these biomarkers were barely detected in pancreatic islets. Furthermore, we isolated exosomes from these htNSC spheres versus pancreatic islet cells and subjected them to the assay by small RNA bio-analyzer. As shown in Figure 4c–d, these htNSC spheres secreted a considerably high amount of exosomal miRNAs while pancreatic islet cells barely did so. Thus, this model of htNSCs spheres retained the unique function of htNSCs in releasing miRNAs-containing exosomes. Hence, given that these htNSC spheres can produce pancreatic and gastrointestinal as well as hypothalamic peptides in addition to miRNAs-containing exosomes, henceforth these spherical cells were named as htNSC^PGHM and these hypothalamic stem cells-derived spheres were also referred to be hypothalamic islets.

Figure 4

Download asset Open asset

Having appreciated the secretion of pancreatic hormones and the structural similarity compared to pancreatic islets, we intuitively asked if htNSC^PGHM spheres could have a therapeutic effect against insulin-deficient diabetes. Given our focus on endocrine secretion as well as our interest in practical application, we designed to explore several peripheral locations which have often used for cell implantation in research, including subcapsular spaces in kidneys, subcutaneous and intrahepatic spaces. To help the in vivo survival of htNSCs as we established previously (Li et al., 2012), these htNSC^PGHM cells were engineered via lentiviral induction to stably contain a potent anti-inflammatory gene, dominant-negative IκBα (GFP-conjugated, controlled by CMV promoter). However, despite these efforts, none of these peripheral locations turned out to be successful for the implantation of htNSCs due to the poor survival when ectopically implanted. As we continued to try other peripheral locations, we found that the great omentum was a suitable choice of implantation, with >50% implanted cell survival over a month. The great omentum is a peritoneum membrane of the abdominal cavity, which is mainly composed of fat and connective tissue and has abundant blood supply. In mice, the great omentum is mostly curled under the stomach’s greater curvature and can be spread up to provide a good physical support for implants. In our procedure, as indicated in Figure 5a, htNSC^PGHM spheres were embedded into 3D collagen matrices while solidified collagen matrices were compressed into collagen sheets with tension and rigidity similar to in vivo tissues, and cell-embedded collagen sheets were placed and secured into the great omentum flap of mice.

Figure 5

Download asset Open asset

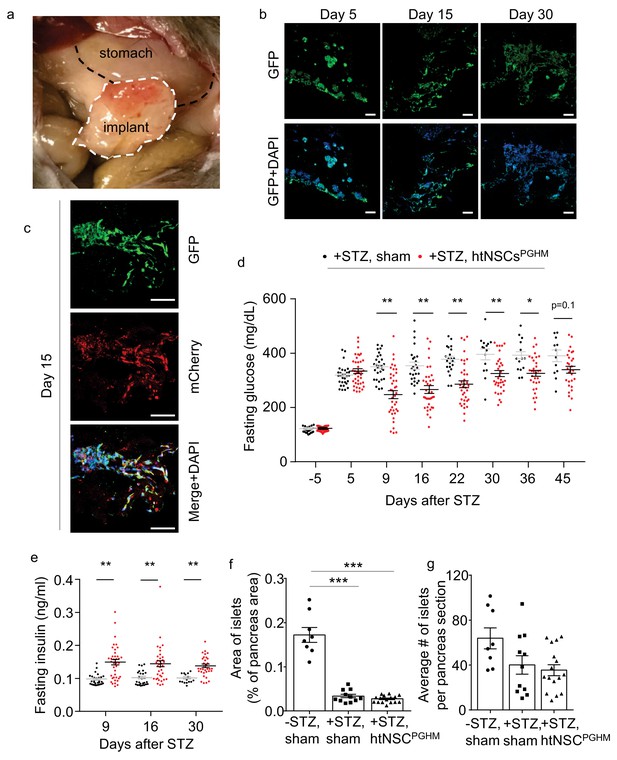

To profile if implantation of htNSC^PGHM spheres could provide an anti-diabetic effect, we employed streptozotocin (STZ) mouse model. Administration of STZ, an alkylating chemical that is well known for toxicity on pancreatic β cells, has been well established to cause severe hyperglycemia and mortality in mice. We adopted a protocol of single high-dose STZ injection to generate a severe diabetes and sickness model. Hyperglycemia (>350 mg/dL) was induced in ~80% of mice within 5–7 days after STZ administration, and roughly 50% of these mice died within 30–40 days (which slightly varied among different experiments when involving different procedural stresses). As represented in Figure 5a, these STZ-injected diabetic mice were implanted with htNSC^PGHM spheres in the great omentum vs. sham implantation (a group of mice without STZ injection was also included as a normal reference). Prior assessments also included subgroups of mice from this procedure to provide cell implants which were sectioned for the analysis of cell survival. As shown, about 50% of implanted cells survived over 1 month (Figure 5b), and these surviving cells were also positive for insulin promoter-driven mCherry (Figure 5c). Thus, we generated a model of hypothalamic islets in the periphery of the body when pancreatic islets were damaged, which allowed us to study if this model has any therapeutic significance.

We examined whether the ectopic implantation of htNSC^PGHM islets could treat diabetes in the STZ mouse model. As shown in Figure 5d, while overnight fasting blood glucose remained 350–500 mg/dL in majority of sham-operated STZ mice, blood glucose dropped below 300 mg/dL in a majority of mice with htNSC^PGHM implantation shortly after implantation, and many of them were lower than 250 mg/dL. These therapeutic effects remained for weeks or throughout the follow-up. Although a portion of animals (~25% of experimental mice) did not show an appreciable hypoglycemic effect, it was revealed at the end of the experiment that cells in the implants survived poorly in these mice. However, these hypoglycemic effects were considered moderate since these treated mice were still diabetic. Because insulin is an important factor for lowering blood glucose, and our generation of htNSC^PGHM was indeed based on insulin promoter for cell selection, we measured fasting plasma insulin levels of the implanted mice. As shown in Figure 5e, average plasma insulin levels in cell-implanted STZ mice were in general higher than the levels in sham controls, although they were still much below the reference of normal mice. Because the primary target of STZ is pancreatic islets, a relevant question was whether htNSC^PGHM spheres could induce regeneration of pancreatic islets. Through rigorous examination, we confirmed that pancreatic islets were similarly damaged between cell implantation and sham controls (Figure 5f,g), indicating that the effect of this treatment was not due to pancreatic islet protection in this STZ model. Despite that htNSC^PGHM were much less potent than pancreatic islets in releasing insulin, we had the advantage of implanting a large number of spheres (>100 times more than the number of pancreatic islets of a mouse), which should be significant for elevating plasma insulin and thus helped diabetic control in these STZ mice.

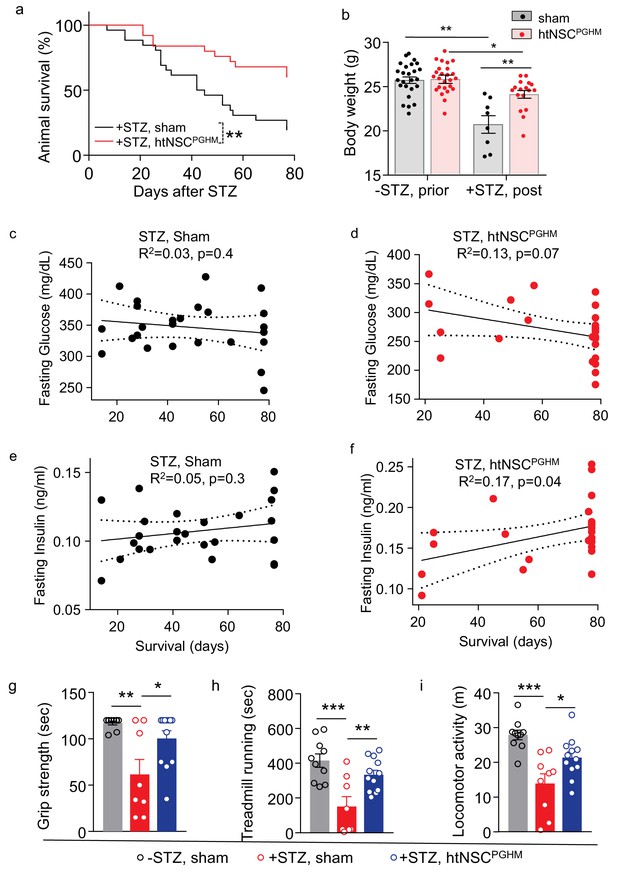

As expected, STZ-administrated mice with the sham operation displayed weight loss and severe sickness such as hypothermia, hunched appearance and inertia leading to death in majority of these mice. In contrast, STZ mice with successful implantation of htNSC^PGHM islets showed great resistance to all these sickness phenotypes. Because survival rate is an important indicator for the severity of fatal disease, we followed up a group of htNSC^PGHM-treated mice for their survival over an 80 day duration. Our results showed that mouse survival rate remarkably increased by this treatment (Figure 6a). While the majority of death occurred within 40 days after STZ injection in the sham group, death was greatly avoided when htNSC^PGHM islets were implanted. Improvement of general health by this treatment was also reflected by improved body weight (Figure 6b). For these mice over survival follow-up, we periodically measured blood glucose and insulin levels and examined if these metabolic profiles could be correlated with their survival. As shown in Figure 6c, there was a lack of correlation between hyperglycemia and survival in sham STZ model, suggesting that death of STZ mice was not simply a result of hyperglycemia when blood glucose levels were very high. While the sphere-treated STZ mice had a moderate reduction in hyperglycemia (they were still diabetic) and a much greater improvement of survival, the correlation analysis revealed only a tendency of relationship between blood glucose and survival (Figure 6d), indicating that the limited benefit of blood glucose drop might not be most important for the improved survival of these mice. In terms of blood inulin, there was also a lack of clear correlation between its level and the survival in sham STZ mice (Figure 6e). However, in sphere-treated STZ mice, the correlation between insulin and survival was marginally significant (Figure 6f), suggesting that elevation in blood insulin could have a partial contribution to the improved survival of these mice. We also subjected a group of implanted mice to a battery of behavioral tests, and as shown in Figure 6g–i, spheres-implanted STZ mice showed much less declines in muscle strength, treadmill running capability and voluntary locomotion, compared to STZ sham mice.

Figure 6

Download asset Open asset

We further investigated if the pro-survival and health-improving effects of htNSC^PGHM in STZ diabetes model could be secondary to the metabolic improvement of this treatment. To do so, we generated a clone of htNSC^PGHM in which insulin expression was genetically disrupted. In the protocol, htNSC^PGHM (as described in Figures 5–6) were infected with lentiviral shRNAs against Ins2 gene leading to an htNSC cell line for spheres named htNSC^PGHM-shIns. Somatostatin or glucagon was not targeted, since we found that they are important for forming spheres (Figure 3c). For comparison, we knocked down two additional pancreatic/gastrointestinal peptides by infecting htNSC^PGHM with shRNA lentiviruses against three genes including Ins2, Pacap and Cck, and this htNSC cell line leading to spheres referred as to htNSC^PGHM-shIPC. To target exosomes, htNSC^PGHM were infected with Rab27a shRNA lentiviruses, a method which inhibits exosomal release of htNSCs as we evaluated in our recent work (Zhang et al., 2017), and this htNSC cell line leading to its spheres was referred as to htNSC^PGHM-shRab. For the control, infection with scramble shRNA lentiviruses led to htNSC^PGHM-shCtrl cell line and its spherical model.

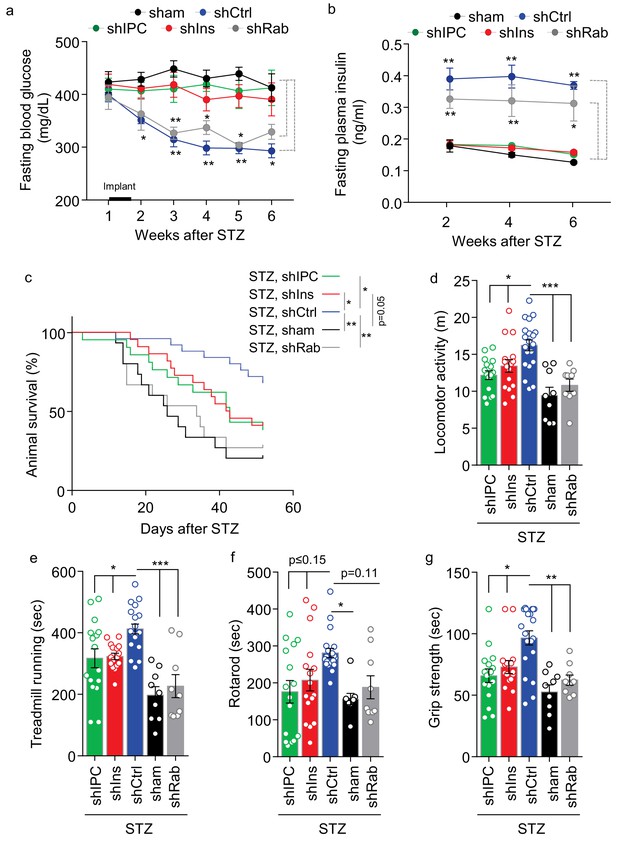

These different groups of shRNA-engineered htNSC^PGHM islets were implanted into STZ mice, which were monitored for health, survival and metabolic profiles. Consistently, htNSC^PGHM-shCtrl islets provided moderate effects in lowering blood glucose and elevating plasma insulin (Figure 7a,b), although these effects seemed slightly better compared to previous experiments which was likely due to our procedural improvements. In contrast, due to inhibition of insulin in these spheres, the glucose-lowering effect of this therapy was completely abrogated as observed in both htNSC^PGHM-shIns and htNSC^PGHM-shIPC groups (Figure 7a,b). These results suggest that an elevation of plasma insulin due to implanted htNSC^PGHM islets accounted for the moderate hypoglycemic effect of the treatment. To our surprise, these spheres still provided a dramatic although partially reduced effect in improving survival and general health of these STZ mice (Figure 7c) despite that diabetes in these mice was same severe as was STZ control (Figure 7a). On the other hand, exosomal inhibition in these spheres as represented in htNSC^PGHM-shRab group did not significantly affect the glucose-lowering or insulin-elevating benefits of the therapy (Figure 7a,b), but it completely abrogated htNSC^PGHM spheres from improving the survival of STZ mice (Figure 7c). In addition to survival follow-up, we further behaviorally assessed the general health of these STZ mice under the treatment of these different spheres. As shown in Figure 7d–g, while the treatment of control spheres did greatly improve all these behavioral functions compared to sham-operated STZ group, these improvements only marginally compromised when insulin in these spheres was inhibited but were completely abrogated when exosomes in these spheres were inhibited. Therefore, htNSC^PGHM spheres have differential roles in improving metabolic physiology versus general health, and multifaceted secretion of these spheres are mechanistically important for the different aspects of these therapeutic benefits.

Figure 7

Download asset Open asset

Plenti6.3TOV5DEST (Invitrogen) backbone was used to construct the dual Cre/Flp recombinase lentiviral reporter plasmid. A multi-cloning site was inserted into the SpeI/MluI-digested backbone, generating plenti6.3TOMCS. lox-STOP-lox (LSL) sequence was from Ai65(RCFL-tdT) targeting vector (Addgene# 61577). EF1a-mCherry sequence was from pSicoR-Ef1a-mCh-Puro-GFPi (Addgene# 31848). frt-neoSTOP-frt-EGFP-pA sequence was from pCAFNF-GFP (Addgene # 13772). A lentiviral vector harboring RIP (rat insulin promoter)-driven mCherry expression cassette was also constructed on plenti6.3TOMCS backbone, and the RIP sequence was from pLOX-IWgfp (Addgene # 12244). The generated vector was named RIPmCherry. The cDNA sequences of Cre (from Addgene plasmid#13775), codon-optimized Flp (FlpO, from Addgene plasmid#13793), DTR (Zhang et al., 2017), and PCR-amplified promoter sequences (for rat insulin 2, mouse glucagon and somatostatin) were inserted into CMV promoter-deleted plenti6.3TOMCS, generating Ins-Cre, Ins-FlpO, Ins-DTR, Gcg-Cre, Gcg-FlpO, Gcg-DTR, Sst-Cre, Sst-FlpO and Sst-DTR lentiviral vectors. Plasmids of pAd_Ngn3-I-nGFP (Addgene #19410), pAd_PdxI-I-nGFP (Addgene #19411) and pAd_MafA-I-nGFP (Addgene #19412) were purchased from Addgene. All shRNA lentiviral plasmids for individual genes were purchased from Mission lentiviral shRNA Library (Sigma). All plasmids were verified through restriction digestion and DNA sequencing. Recombinant adenoviruses were generated in HEK293 cells, purified and concentrated with Fast-Trap Adenovirus purification and concentration kit (Millipore), and titrated with Adeno-X Rapid Titer Kit (Clontech) according to the manufacturer’s instructions. Generation, concentration, and titration of lentiviruses have been described previously (Zhang et al., 2008). Briefly, HEK293T cells were co-transfected with the lentiviral vector and the packaging plasmids. The cell debris-removed, viral particle-containing culture medium was concentrated by ultracentrifugation at 82,000 g for 2 hr. The recombinant lentiviruses were reconstituted in a small volume of PBS to achieve a 1000X concentration, and titrated using p24 ELISA kit (ZeptoMetrix) according to the manufacturer’s instruction.

Primary culture of htNSCs was performed as similarly described previously (Esposito et al., 2012). In brief, the hypothalamus was dissected from newborn C57BL/6J mice, cut into pieces of approximately 1 mm³, and followed by digestion using TrypLE Express enzyme (Life Technologies) for 10 min at 37°C. After washes, cells were suspended in the NSC medium composed of neurobasal-A (Life Technologies), 0.25% GlutaMAX supplement (Life Technologies), 2% B27 without vitamin A (Life Technologies), 10 ng/ml EGF (Sigma-Aldrich),10 ng/ml bFGF (Life Technologies) and 1% penicillin–streptomycin and seeded in Ultra-Low Attachment 6-well plates (Corning). One week later, neurospheres were collected by centrifugation and trypsinized with TrypLE Express enzyme into single cells, passaged and maintained in neurosphere culture until experimental use. HEK293T cells were purchased from ATCC (CRL-3216) and were cultured in Dulbecco’s modified Eagle medium (DMEM) containing 10% fetal bovine serum and 1% penicillin-streptomycin. All cell lines used in this study were free of microbial (including mycoplasma) contamination and their morphology and growth characteristics were compared to published information to ensure their authenticity. IκBα-htNSCs cells were generated as previously described (Li et al., 2014). Cultured htNSCs cells were infected with RIPmCherry lentiviruses and Pdx-1, Ngn3, and MafA adenoviruses for two days, and then dissociated into filtration-sterilized sorting buffer containing 1x Phosphate Buffered Saline (Ca/Mg++ free), 2 mM EDTA, 25 mM HEPES pH 7.4, 1% Fetal Bovine Serum (Heat-Inactivated), 2% B27, and 1% penicillin-streptomycin. The mCherry+ cells at single-cell purity were isolated with MoFlo XDP cell sorter (Beckman Coulter) by the flow cytometry core facility of Albert Einstein College of Medicine. Cell ablation: htNSCs were infected with Ins-DTR, Gcg-DTR or Sst-DTR lentivirus for 48 hr and were subjected to 5 ng/mL of diphtheria toxin (DT) treatment for 24 hr. The post-treatment surviving cells were counted and re-seeded at the density of 1 × 10⁵ cells/mL to form spheres for 72 hr.

Cells were cultured in monolayer in laminin-coated coverslips. After reaching 80% confluence, cells were fixed 20 min at room temperature with 4% PFA. Cells were washed three times in cold PBS and incubated 20 min in permeabilization buffer (Triton X-100 0.05%, Goat serum 5%, PBS). Cells were incubated overnight at 4°C with primary antibodies against insulin (Cell Signaling, 1/100), glucagon (Proteintech, 1/100), somatostatin (Peninsula Laboratories International, 1/100), secretogranin 2 (Invitrogen, 1/250) and synaptophysin (Invitrogen, 1/250). GnRH (1/500), VIP, galanin (Abcam, 1/500), oxytocin (Peninsula, 1/500), CRF antibodies (Peninsula, 1/500). Cells were incubated in secondary antibodies (Goat anti-rabbit and goat anti-mouse conjugated with Alexa Fluor 488 and 555, respectively, Invitrogen, 1/500) and after 3 times of wish with cold PBS were mounted (VECTASHIELD mounting media with DAPI). In order to visualize the secretory vesicles in higher details, de-convolution analysis was performed based on the published methods in the literature (Blanco et al., 2011; van Steensel et al., 1996) which allowed to reduce background unspecific signals. Briefly, point spread function (PSF) of each channel (488, 555, 633) was designed according to Leica SP8 confocal microscope parameters (magnification, numerical aperture and media) and image resolution. Merged images were splitted and each channel was de-convolved for five iterations at the respective PSF with 3D de-convolution function in Image J software.

Spheroid immunofluorescence: htNSC^PGHM Spheres were collected 48 hr after seeding, fixed for 20 min at room temperature with 4% PFA and washed three times in cold PBS with mild centrifugation to avoid disruption of spheroid structure. Free settling (5 min) was employed to separate large-sized spheres in the bottom from small-sized spheres in the supernatant. Spheres were cryostat at 15 µm, then permeabilized and incubated with primary antibodies against pancreatic islet markers (Insulin 1/100, Cell Signaling; Glucagon 1/100, Proteintech; Somatostatin 1/100, Peninsula Laboratories International; Nkx2.2 1/100, EMD Millipore; GLUT2, Novus, 1/100; Kir6.2 1/500, Alomone Labs; PC1/PC3 1/100, EMD Millipore; SOX2 1/100, R and D Systems; Nestin 1/100, EMD Millipore; CD81 1/100, Santa Cruz; TSG101 1/100, Santa Cruz; CCK 1/50, Invitrogen; PACAP 1/100, Peninsula Laboratories International). Neurospheres were incubated with secondary antibody (Goat anti rabbit/mouse conjugated with Alexa Fluor 488, Invitrogen, 1/500) and mounted (Vecta shield mounting media with DAPI). Adult mouse pancreatic islets were isolated as described before (Lacy and Kostianovsky, 1967). Purified mouse islets were fixed 20 min at room temperature with 4% PFA and immunostained following the same procedure and antibodies listed above. All samples were analyzed by con-focal microscopy (Leica SP8 Confocal unit) and post-image analysis were performed with FIJI (Image J). The inner region within 2/3 radius was defined as the center of a sphere or pancreatic islet, while the outer region of 1/3 radius was defined as periphery of these structures.

Hormone release assay htNSCs cells were cultured and let 48 hr to develop spheroids organization. Spheroids were collected and centrifuged at 600 rpm and washed three times to eliminate culture media supplements. The spheroids were resuspended in secretion media (300 µL), consisting in glucose-free Neurobasal media without B27 supplement, BSA 5 mg/mL and stimulated with low or high glucose. Mouse pancreatic islets secretion assay was developed as previously described (Zúñiga-Hertz et al., 2015). Secretion supernatant was freshly used for ELISA quantification of Insulin (Alpco, 80-INSMSU-E01, E10) and somatostatin (LSBio LifeSpan BioSciences, Inc, LS-F12622) and by chemiluminescence for Glucagon (EMD Millipore, EZGLU-30K). Exosomal miRNA analysis: Secreted exosomes from cells were purified and analyzed as described previously (Zhang et al., 2017). In brief, cells were maintained in exosome-free medium, then exosomes from collected medium were immediately isolated through differential centrifugation. Isolated exosomes were assessed with picoRNA and small RNA chips via Agilent 2100 Bioanalyzer system at the Molecular Pathology Platform, Herbert Irving Comprehensive Cancer Center, Columbia University.

In vivo sphere implantation htNSCs and its derived cells were cultured in NSC medium composed of neurobasal-A, 2% B27 without vitamin A, GlutaMAX supplement, bFGF and EGF. Cells were seeded in Ultra-Low Attachment dishes (Corning) at 5 × 10⁵ cells·mL⁻¹ one day before cell implantation into mice. At the day of implantation, htNSC spheres were collected by low-speed centrifugation (300 rpm for 5 min), and mixed with high-concentration rat tail collagen solution (Corning) and gelled at 37°C for 30 min. The solidified cell-embedded collagen gel was gently compressed to remove liquid and form an implantable collagen sheet as previously described (Mi et al., 2010). During collagen gel solidification, a mouse was anesthetized, cleaned, shaved, sterilely prepared for abdominal section. A 0.5 to 1 cm middle section was created at about 0.5 cm below the chest xiphoid to expose the abdominal cavity. The great omentum flap was found and retrieved at the lower rim of the stomach, and was laid flat with occasional PBS moisturization. Cell-containing or empty collagen sheets were then wrapped and secured into the great omentum flap by sutures (Barthel et al., 2012). The omentum flap with the collagen sheet was returned to its original location at the end, and the mouse was closed for post-operation maintenance.

C57BL/6J mice were obtained from Jackson Laboratories and group-housed under standard conditions in a temperature- and humidity-controlled facility with 12 hr light:12 hr dark cycles. All mice in this study were kept on a standard normal chow diet obtained from LabDiet (5001, 4.07 kcal·gram⁻¹). All procedures of animal studies were approved by the Institutional Care and Use Committee of Albert Einstein College of Medicine (protocol #20171210, #20170812, #20171209, #20171208, #00001111). At the day of streptozotocin (STZ) administration, mice were briefly fasted for 4–6 hr and weighted. STZ powder was dissolved in sterile citrate buffer (pH 4.5) and was immediately i.p. injected into mice at the concentration of 180 mg/kg body weight according to the protocol established in the literature (Deeds et al., 2011). Subsequently, 2% sucrose in drinking water was supplied to mice in the first night after STZ administration to counteract hypoglycemia. STZ-induced diabetes in mice was confirmed by blood glucose measurements higher than 350 mg·dL⁻¹ in two consecutive days.

To analyze morphological changes in pancreatic islets, the pancreas was isolated together with spleen and fixed during 24 hr with PFA 4% at 4°C and subsequently replaced with ethanol absolute. Pancreas was immobilized in paraffin and sectioned. Ten 5µm-sections (each section separated by 5 µm) were mounted and stained with Hematoxylin and Eosin and subsequently scanned with a Perkin Elmer P250 High-Capacity Slide Scanner. Images were visualized and analyzed in Panoramic Viewer software (3DHISTECH Ltd). Islet area was calculated by dividing islet area (µm Gross, 2000) by the total area (µm Gross, 2000) of the pancreas section analyzed; the mean pancreatic islet area value per pancreas was calculated by the mean value of islet area analyzed in each of the ten sections analyzed divided by the total amount of pancreas sections (10 sections). To evaluate cell survival in implants, after mice euthanization the implants were recovered and fixed overnight in PFA 4% at 4°C. The fixation media was discarded and replaced with 30% sucrose and subsequently the implants were placed in Optimal cutting temperature media (Scigen Tissue Plus) and sectioned in cryostat in 10 µm sections. All sections were mounted in microscope slides and imaged for cells of mCherry fluorescence in Leica SP8 Confocal unit 20X magnification. Cell survival was measured as the percentage of GFP- or insulin promoter-selected cells in the total number of cells (by means of DAPI nuclear staining) per implant section. Serum samples obtained from mice under indicated conditions were measured for insulin using an ultrasensitive ELISA kit (ALPCO, 80-INSMSU-E01) according to the manufacturer’s instruction.

Animal survival was carefully and closely monitored on daily basis through checking dealth as well as terminal conditions according to the approved protocol. All behavior tests were performed in the behavioral testing room as previously described (Zhang et al., 2013). An Anymaze video-tracking system (Stoelting) equipped with a digital camera connected to a computer was used for the whole course of animal activities in training and experimental sessions of behavioral tests, including the following tests. (1) Grip test: Mouse was lifted by the tail and placed on a homemade square grid (1 cm mesh size), the grid was then inverted 30 cm over a soft pad, and the mouse was allowed to hang by paws for 2 to 10 min according to experimental conditions. The time that the mouse was able to hang was recorded during the test period. Three repeats were performed for each mouse with at least 10 min rest between each trial. (2) Rotarod: Mouse was trained on a rotarod (Columbus instruments) that was moving at a speed (4 to 6 r.p.m.) for a period of 1 to 2 min. After a 10 min rest, each mouse was given three trials, during which the rotarod started at 6 r.p.m. and accelerated by 2 to 3 r.p.m. per min until 10 min, and there was 30 min rest period between each trial. (3) Treadmill: Treadmill test was performed using a Treadmill Simplex II (Columbus Instruments), which has a capacity of exercising up to six mice simultaneously in individual lanes. Mouse was warmed up for protection against running injury and failure before experimental running. For acclimatization to the treadmill, mouse was placed on the treadmill running at a low speed (6–8 meter per min) for 2 to 5 min. The test session started at a speed of 8 meter per min, and the speed was increased by two meter per min every min for 10 min. The time at which the mouse retired was recorded. (4) Open field locomotion: Open field test was performed as described previously (Seibenhener and Wooten, 2015). Briefly, a white plastic chamber which measured 40 cm (length) x 40 cm (width) x 48 cm (height) was wiped with 75% ethanol before each trial. Then the mouse was put in the lower right corner of the chamber, facing to the wall. The route of the mouse in the chamber was monitored for 10 min.

All measured data were presented as mean ± SEM. Sample sizes with sufficient power were designed according to our published studies, relevant literature and preliminary studies. ANOVA and appropriate (such as Tukey) post-hoc tests were used for comparisons for experiments of involving more than two groups. Student’s t-test was used when studies involved only two groups for comparisons. Survival curves were analyzed using Log-rank (Mantel-Cox) survival test. Linear regression was performed when appropriate to analyze the relationships between survival and metabolic parameters. All key experiments were repeated at least twice independently. Data analyses did not encounter any outlier or other exclusions. Whenever necessary, experimental performers were blind to group information before data were obtained. Software for performing statistics included Excel and GraphPad Prism, and p value of less than 0.05 was considered statistically significant.

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

The authors sincerely thank Cai laboratory personnel and Einstein Pathology Core for providing technical supports. This study is supported NIH AG031774, DK099136, HL147477 and DK121435 (all to D Cai).

Animal experimentation: All animal procedures in this study were approved by the IACUC of Albert Einstein College of Medicine. (protocol #20171210, #20170812, #20171209, #20171208, #00001111).
