Chromatin accessibility dynamics and single cell RNA-Seq reveal new regulators of regeneration in neural progenitors
- Department of Biochemistry, University of Washington, United States
- Oregon Health Sciences Center For Early Detection Advanced Research Center (CEDAR), United States
- Department of Genome Sciences, University of Washington, United States
Abstract
Vertebrate appendage regeneration requires precisely coordinated remodeling of the transcriptional landscape to enable the growth and differentiation of new tissue, a process executed over multiple days and across dozens of cell types. The heterogeneity of tissues and temporally-sensitive fate decisions involved has made it difficult to articulate the gene regulatory programs enabling regeneration of individual cell types. To better understand how a regenerative program is fulfilled by neural progenitor cells (NPCs) of the spinal cord, we analyzed pax6-expressing NPCs isolated from regenerating Xenopus tropicalis tails. By intersecting chromatin accessibility data with single-cell transcriptomics, we find that NPCs place an early priority on neuronal differentiation. Late in regeneration, the priority returns to proliferation. Our analyses identify Pbx3 and Meis1 as critical regulators of tail regeneration and axon organization. Overall, we use transcriptional regulatory dynamics to present a new model for cell fate decisions and their regulators in NPCs during regeneration.
Introduction
In contrast to mammals, Xenopus tadpoles are able to undergo scarless healing and full regeneration of the limb, spinal cord, or tail after injury (Beck et al., 2009; Kakebeen and Wills, 2019; Lee-Liu et al., 2017; Tseng and Levin, 2008). While lifelong regenerative healing is a characteristic shared by many amphibians and fish, the regenerative capacity of Xenopus declines during metamorphosis, and is lost in the adult (Filoni and Bosco, 1981; Mitogawa et al., 2015; Suzuki et al., 2006). Xenopus therefore represents an especially useful model for understanding the cell-intrinsic and –extrinsic properties governing regeneration.
In Xenopus as in other regenerative animals, the event of a major injury triggers a rapid transcriptional remodeling of the injured tissue. It is now well-established that some aspects of this remodeling recapitulate developmental signaling events. In particular, developmental signaling pathways such as Wnt, FGF, BMP, TGF-ß, Notch and Shh are upregulated, and are required for full regeneration of the limb, tail, and spinal cord (Beck et al., 2003; Ho and Whitman, 2008; Slack et al., 2008; Taniguchi et al., 2014). Genome-wide transcriptomic studies have confirmed that numerous genes associated with embryonic development are re-expressed during regeneration (Chang et al., 2017; Lee-Liu et al., 2014; Love et al., 2011). However, these studies have been carried out on bulk regenerating tissue, making it difficult to identify what signals or factors are required to promote regeneration in specific cell types. Recently, single-cell transcriptomic analysis (scRNA-Seq) of both the regenerating Xenopus laevis tail and the regenerating axolotl limb have begun to identify the transcriptional signatures associated with distinct cell types (Aztekin et al., 2019; Gerber et al., 2018; Pelzer et al., 2020). These studies also highlighted intriguing distinctions between the models. The regenerating axolotl limb shows a transcriptional convergence between all connective tissue cell types, associated with the formation of the undifferentiated limb blastema (Gerber et al., 2018), while in the Xenopus tail, cell type identities are kept clearly intact as regeneration progresses (Aztekin et al., 2019). While these studies substantially advance our atlas of the genes expressed by different cell types in regeneration, they do not identify the transcription factors that interpret and respond to injury cues, nor the transcriptional regulatory elements that trigger changes in expression profiles.
To address these gaps, we sought to articulate the gene regulatory network and transcriptional dynamics associated with regeneration by specifically targeting NPCs, a critical cell type for regeneration. NPCs represent the focus of some therapeutic efforts to restore human motor function following spinal cord injury in regenerative medicine (Khazaei et al., 2019; Levi et al., 2018; Shin et al., 2015) and much effort has been applied to defining the in vivo and in vitro programs that guide their cell fate decisions in the developing spinal cord as well as in culture. During development, neural stem cells give rise to distinct domains of lineage-restricted progenitor cells defined by their expression of specific transcription factors across the dorsal ventral axis (Alaynick et al., 2011; Lai et al., 2016). The decision to exit the cell cycle and undergo terminal neuronal differentiation is directed by extrinsic cues, particularly repression of Notch signaling, which is highly conserved across vertebrates (Lara-Ramirez et al., 2019). Following amputation, the spinal cord first begins to repair by closing the open end to form the tube-like neural ampulla, a structure formed by ependymal cells. Progenitor cells then contribute to both growth and new differentiation as the newly regenerated spinal cord elongates (Beck et al., 2009; Gaete et al., 2012; Stefanelli, 1951). Therefore, neural progenitors must balance their decisions between proliferating to repopulate lost tissue and differentiating to mature neurons. The global transcriptional dynamics that govern these decisions, including the transcription factors required and their target sites across the genome, remain poorly defined.
To identify gene regulatory dynamics in neural progenitors during regeneration, we analyzed the transcription and chromatin accessibility profiles of neural progenitors purified from pax6:GFP transgenic Xenopus tropicalis tails over a regenerative timecourse. Using both ATAC-Seq and scRNA-Seq, we show that by 24 hr post amputation (hpa), pax6+ neural progenitors place a high priority on differentiation to motor and interneuron subtypes, and only later at 72hpa do they accessibilize genes associated with proliferation and self-renewal. By intersecting transcriptional and chromatin accessibility data, we identified candidate transcriptional regulators associated with both early and later changes in this neural progenitor gene expression profile. Further analysis of two of these, Pbx3 and Meis1, revealed similar loss-of-function phenotypes, including reduced tail regeneration and disorganization of regenerated neural tissues. Taken together, we present an integrated transcriptional regulatory analysis of regeneration in pax6-expressing NPCs that highlights both parallels and distinctions relative to embryonic development, and present novel candidates regulating regeneration in this critical cell type.
Results
Transgenic pax6:GFP is expressed in NPCs during regeneration
We selected the Xtr.Tg(pax6:GFP;cryga:RFP;actc1:RFP) transgenic line (hereafter abbreviated pax6:GFP) to track NPCs over the course of regeneration (Hartley et al., 2001; Hirsch et al., 2002; Horb et al., 2019; 31,88). Pax6 is a highly conserved paired box transcription factor essential for central nervous system development (Bel-Vialar et al., 2007; Osumi et al., 2008; Walther and Gruss, 1991). Because the expression pattern of this line has primarily been characterized earlier in development, we first wanted to confirm that GFP was found in a pattern consistent with pax6 expression and NPC distribution (Ericson et al., 1997; Hartley et al., 2001). To do so, we imaged whole mount tadpoles to identify where the pax6:GFP+ cells were localized anteroposteriorly in a stage 41 tadpole, finding that pax6 is expressed in the forebrain, hindbrain, eye, and spinal cord (Figure 1A). In lateral confocal images of whole-mount transgenic tails, we found that the GFP expression domain spanned the same dorsal ventral domain as the spinal cord (Figure 1B). Transverse sections of a stage 41 tadpole also revealed a broad dorsoventral pax6+ domain surrounding the central canal of the spinal cord (Figure 1C). GFP expression in transgenic tadpoles included much of the same domain as the NSC marker Sox2 (Figure 1D). Notably, both nuclear Sox2 and cytoplasmic GFP driven by pax6 are localized medially around the central canal, while markers associated with differentiated neurons such as Dcx and neurofilament are largely found in the spinal cord periphery (Figure 1E,F). Thus we concluded that we could use GFP expression to capture a large proportion of NPCs and thereby interrogate their population-level regulatory dynamics, although we can’t conclusively rule out the possibility that some NSCs are excluded from this domain, or that some differentiated neurons may be included in GFP-expressing cells.
Figure 1 with 1 supplement see all
Expression dynamics of pax6:GFP in the regenerating spinal cord.
(A) Left, cartoon depiction of a NF stage 41 tadpoles with known pax6+ domains colored green. Right, Stage 41, transgenic tadpole expressing GFP under the control of pax6 promoter tadpole. For all images in this figure, the green channel represents pax6 reporter GFP fluorescence and the cyan channel represents DAPI staining. (B) Confocal image of a lateral view of a whole-mount transgenic stage 41 tadpole. (C–F) Transverse cryosections through the posterior spinal cord of a transgenic stage 41 tadpole. (D–F) Immunofluorescence images of the spinal cord sections stained with (D) anti-Sox2, (E) anti-Dcx, and (F) anti-neurofilament. (G) Regeneration timecourse of Xtr.Tg(pax6:GFP) tadpole over the first 72 hr following tail amputation. The white box in the top photos correspond with enlarged green channel below. White arrows indicate amputation plane.
To better understand when NPCs enter the regenerating spinal cord, we amputated pax6:GFP transgenic tadpoles and followed reentry of GFP+ cells into the regenerating spinal cord tissue. Transgenic tadpoles were collected at 0 hr post amputation (0hpa), 6hpa, 24hpa, and 72hpa and imaged for reporter GFP fluorescence. We found that pax6:GFP+ cells can be clearly identified in the regenerating tail as early as 6hpa (Figure 1G). By 24hpa, the GFP+ cells are found in the bulb of the neural ampulla (Beck et al., 2009; Stefanelli, 1951). By 72hpa, GFP+ cells are present all along the anteroposterior axis of the regenerated spinal cord. From these experiments, we concluded that pax6:GFP+ cells are appropriately localized as they repopulate the regenerated spinal cord.
The chromatin accessibility profile of FACS-sorted NPCs is highly enriched for neural-specific regulatory regions
We set out to identify the chromatin accessibility signature of NPCs over a regeneration timecourse using ATAC-Seq (Buenrostro et al., 2013). To perform this cell-type specific genomic analysis of regeneration in neural progenitors, we optimized a method to isolate pax6:GFP+ fluorescent cells from transgenic tadpoles by flow cytometry (Figure 1—figure supplement 1) (see Materials and methods for details). The posterior third of stage 41 tadpole tails were amputated and ATAC-Seq libraries were made from amputated tail tips (uninjured) or the newly regenerated tissue at 0hpa, 6hpa, 24hpa, or 72hpa (Figure 2A). The timepoints were collected in two conditions. The first, ‘all-tissue’ libraries refer to libraries made from total tail tissue, which includes all of the cell types in the tail. The second, ‘pax6’ refers to libraries made from GFP+ sorted cells (Figure 2A). Each library was prepared from between 1200 and 4000 cells, either with no GFP gate applied and therefore containing all cell types (‘all tissue’) or with a GFP gate applied as in Figure 1—figure supplement 1C (‘pax6’). Sample preparation details for each library are detailed in Supplementary file 1a. Quantitative RT-PCR of sorted GFP+ cells confirmed highly elevated expression of gfp and pax6, with low levels of neuronal-specific tubb2b or cardiac actin, confirming the identity of these cells with low levels of contamination (Figure 1—figure supplement 1D). Libraries for each timepoint and condition were made in triplicate, multiplexed and sequenced on the Illumina Next-Seq platform (see Materials and methods for details). Read alignment and peak calling was performed using an inhouse pipeline detailed in Materials and methods; library QC metrics are reported in Supplementary file 1b and Figure 2—figure supplement 1. Sequenced libraries were selected for analysis if they met minimum ENCODE standards for ATAC-Seq libraries (www.encodeproject.org/atac-seq).
Figure 2 with 1 supplement see all

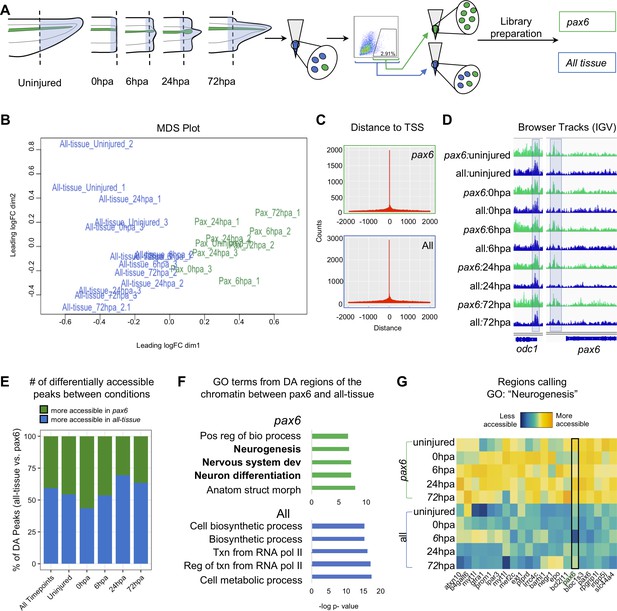

Pax6 ATAC-Seq libraries resolve accessible neural specific regions that were not identified in all-tissue libraries.
(A) Experimental design for FACS isolation of reporter cells for sequencing library preparations. (B) MDS plot of sequenced pax6 and all-tissue ATAC-Seq libraries. (C) Representative histograms showing distance of called peaks to transcription start sites (tss). (D) IGV browser tracks of a house keeping gene, odc and reporter line specific gene, pax6. Shaded bar in odc represents a peak retained in pax6 and all-tissue libraries; shaded bar in pax6 represents a peak called in pax6 libraries, but not in all-tissue. (E) Bar plot showing percent of differentially accessible (DA) peaks that are more accessible in pax6 or all-tissue libraries within an individual timepoint or across all timepoints. (F) Differentially accessible regions were annotated to the nearest TSS and used to call GO:BP terms. Top, GO terms from regions more accessible in pax6 libraries than in all-tissue libraries. Bottom, GO terms from regions more accessible in all-tissue libraries than pax6 libraries. (G) Heat map depicting accessibility of 21/254 randomly sampled peaks that call the GO term: Neurogenesis. pax6 promoter region is boxed.
Having verified the quality of ATAC-Seq libraries made from sorted pax6:GFP+ cells and bulk tail tissue, we first confirmed that the overall tissue conditions had chromatin accessibility signatures that could be easily differentiated. Taking an unbiased approach, we used multi-dimensional scaling (MDS) to identify how similar or different the pax6 and all-tissue libraries are overall. We found that the pax6 libraries cluster away from the clustered all-tissue libraries (Figure 2B). We then examined individual gene regulatory loci. The majority of peaks called were located within 500 bp of a transcription start site for both all tissue and pax6 libraries, confirming that the majority of ATAC-Seq signal is concentrated in nucleosome-depleted promoters, as expected (Buenrostro et al., 2013; Figure 2C). Both pax6 and all-tissue libraries shared common peaks around a control housekeeping promoter (odc) (Dhorne-Pollet et al., 2013) without any apparent significant differences in accessibility (Figure 2D, left). By contrast, upstream of the pax6 TSS, all pax6 library timepoints share a peak that is absent in all-tissue libraries (Figure 2D, right). From this first proof-of-principle test, we concluded that ATAC-Seq libraries from sorted cells can be used to identify chromatin accessibility differences in NPCs relative to other tissues, and that ATAC-Seq of these sorted cells can be used to find tissue-specific accessible regions that are beneath the detection sensitivity of bulk analysis of all of the tissues together. We then progressed to genome-wide analysis of differences between pax6:GFP+ calls and bulk tissue.
Our next goal was to identify categories of gene regulatory regions that have increased accessibility in NPCs relative to bulk tail tissue. To this end, we interrogated the global NPC chromatin signature by compiling all pax6 library peaks into one peak file and all of the all-tissue peaks into a second peak file and calling differentially accessible peaks between these two compiled files. We identified 3604 regions that were more accessible in the pax6 libraries than the all-tissue libraries, which we assigned to the nearest TSS, and used the associated gene names as input for gene ontology (GO) analysis using gProfileR2 (Raudvere et al., 2019; Figure 2E–F). Genes with increased accessibility in pax6:GFP+ cells showed statistically significant enrichment for neural-associated terms such as ‘Neurogenesis’, ‘Nervous system development’, and ‘Neuron differentiation,’ confirming the neural progenitor identity of our pax6:GFP cells (Figure 2F, top, and Supplementary file 1c). We visually confirmed the increased accessibility of regions calling the term ‘Neurogenesis’ with a heat map (Figure 2G). The reverse analysis identified 5251 regions that are more accessible in all-tissue libraries than pax6 libraries, which are associated with broad GO categories relating to ubiquitous cellular processes (i.e. ‘Cellular biosynthetic process’, ‘Transcription from RNA Polymerase II’, and Cellular metabolic process’) (Figure 2F, bottom, Supplementary file 1d). From this analysis, we concluded that the overall chromatin accessibility of NPCs is readily distinguished from bulk tissue and strongly reflects their distinct neural character.
Analysis of differentially accessible peaks between pax6 libraries reveals an early prioritization of neuronal differentiation in regeneration
Having established that the overall chromatin signature of NPCs could be used to identify neural-specific processes, we next identified the cellular processes being prioritized by NPCs at discrete regenerative stages. We therefore systematically identified differentially accessible regions of the chromatin that were uniquely accessible at each timepoint relative to the flanking timepoints and performed GO analysis on the genes neighboring these regions (Figure 3A–C). GO analysis returned ~30–100 terms, thus, to distill the list to main processes, we used ReviGO’s semantics algorithm to reduce redundancy of the GO terms (Supek et al., 2011). Supplementary files 1e-g contain the entire list of GO terms returned from gProfiler and Supplementary files 1h-j contain the results from ReviGO.
Figure 3
Differential accessibility analysis of pax6 libraries over regenerative time reveals chromatin accessibility prioritizes first tubule morphogenesis, followed by neural differentiation, and later proliferation.
From left to right, data represents the 6hpa timepoint, 24hpa timepoint, and 72hpa timepoint. (A–C) Venn diagrams depicting number of unique and shared peaks called in each of the timepoint contrasts within the pax6 libraries. The intersect represents peaks that were both becoming accessible at a given timepoint, then losing accessibility. The green number in each contrast represents the timepoint that is more accessible. (D–F) All regions represented in (A–C) were used for GO:BP analysis with gProfileR2. ReviGO was then used to reduce redundancy in output GO terms and identify main families of terms. Tree graphs depict the hierarchy of reduced GO list. The central grey circle is the vertex of the graph representing the set of all GO terms included in the data, the second level of circles are the families of GO terms called by ReviGO, and the third level of circles represents GO terms in each family. Terms provided are the family names. (G–I) Heatmap of accessibility of regions that were used to call GO terms: ‘Nephron Tubule Morphogenesis’, ‘Neuron Differentiation’, and ‘Neural Precursor Cell Proliferation’.
We first examined genes associated with regulatory regions that are uniquely accessible at 6hpa. Genes preferentially accessible at 6hpa called six families of GO terms (Figure 3D). Notably, ‘Nephron Tubule Morphogenesis’ was well represented, and included regulatory regions from foxd1, gata3, smo, sall1, osr1, pax2, stat1, hoxd11, wnt6, nog, wnt11, irx3, cited1 (Figure 3G). In addition to patterning the nephron, the majority of these genes are expressed in neural stem cells during dorsoventral neural patterning of the spinal cord and early differentiation (Alaynick et al., 2011; Delile et al., 2019). At this time in regeneration, we observe the spinal cord repairing itself by closing the neural tube and forming the neural ampulla. We have shown in Figure 1D that pax6:GFP+ cells populate the regenerated neural ampulla, therefore, we hypothesize that these cells represent ependymoglial cells with NSC character that have been described previously (Beck et al., 2009; Chernoff et al., 2018; McHedlishvili et al., 2007; Muñoz et al., 2015; O'Hara et al., 1992; Reimer et al., 2009).
We then identified regions that were most accessible at the 24hpa timepoint. This analysis recovered two main families of GO terms, the largest of which was ‘Neuron Development’ (Figure 3E). Strikingly, the majority of genes that call this GO term become more accessible from 6 to 24hpa, but lose that accessibility at 72hpa (Figure 3H). Genes with preferentially accessible regulatory regions at 24hpa include factors known to function in multiple aspects of neuronal differentiation and growth. Examples of these include neuritogenesis and growth cone formation (dclk2, rapgef2, auts2, nedd4l, unc5a), axonogenesis and axon guidance (dbn1, sema6a, fry, ptch1), neuronal migration (dclk2, rapgef2, auts2, pcdh18), and transcriptional regulation of neuron differentiation (skor2, isl1, nfatc4, vax2). The enrichment of these terms, and their specificity for functions carried out by differentiating neurons rather than proliferating progenitors, agrees well with previous published bulk RNA-Seq analysis (Chang et al., 2017) showing enrichment for similar neuronal morphogenesis terms, such as axonogenesis and dendritogenesis, in the first day post amputation.
Finally, we assessed the processes being prioritized at 72hpa. This analysis resulted in five main GO families being called (Figure 3F), including ‘neuronal precursor cell proliferation’. Notably, cell cycle and proliferation related terms were absent at the 6hpa and 24hpa timepoints. The regions calling this term were all more accessible at 72hpa than the 24hpa timepoint, however about half were not differentially accessible with respect to the uninjured tail (Figure 3I), suggesting that by 72hpa, these regions are regaining similarity to their uninjured state. Altogether, we were able to resolve processes specific to neural progenitor cell function at each timepoint. These suggest that NPCs first prioritize ependymal tube morphogenesis at 6hpa, neural differentiation at 24hpa, and cell proliferation at 72hpa.
Comparative analysis of uninjured and 24hpa tail single cell RNA-Seq data sets reveals expansion in differentiated neuronal clusters at 24hpa
Our ATAC-Seq analysis suggested that neural progenitor cells may place a high transcriptional regulatory priority on neuronal differentiation early in regeneration, at 24hpa. To determine whether this was reflected in the transcriptional profile and cell-type composition of neural cells, we used single-cell RNA-Seq to interrogate the profile of neural cell types present before and 24 hr after amputation. We sequenced the transcriptomes of individual NPCs from uninjured and regenerating tails, an analogous population to those collected for ATAC-seq. In total, we sequenced 2617 and 1,090 cells from uninjured and 24hpa tissues, respectively. Using Seurat we aligned the two data sets with their integrated analyses and used UMAP dimensional reduction to find clusters (Becht et al., 2018; Butler et al., 2018; Stuart et al., 2019). From this analysis, we revealed 19 unique clusters (Figure 4—figure supplement 1A), which were enriched for but not fully restricted to the neural lineage. A total of 781 uninjured cells and 296 cells from 24hpa cells fell into neural clusters, which comprised NPC/NSCs (defined by expression of sox2), transitioning neurons (neurog1; neurod1), and differentiated neurons (elavl4) (Figure 4—figure supplement 1B). To gain the highest-possible resolution of cell types within these broad neural clusters, we subsetted neural cells, re-performed dimensionality reduction and called eight unique sub-clusters, including spinal cord progenitors, floor plate progenitors, differentiating neurons, interneurons, motor neurons, vulnerable motor neurons, motor neurons (leptin+), and dopaminergic neurons (Figure 4A). These clusters agreed well with the neural cell types recently identified for tail regeneration in X. laevis, and we applied the same naming conventions (Aztekin et al., 2019).
Figure 4 with 1 supplement see all

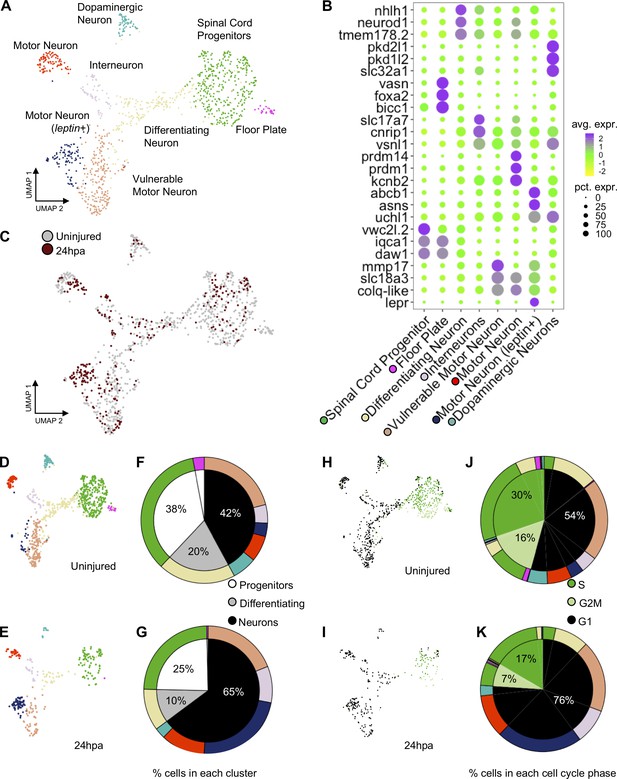

scRNA-Seq of uninjured and 24hpa tails reveals a transcriptional shift to differentiated neuronal types at 24hpa.
(A) UMAP projection of integrated uninjured and 24hpa neural lineage cells. seven distinct clusters were identified. (B) Dot plot of genes identified as differentially expressed between cell clusters. The top three genes exclusively expressed in each of the seven clusters are shown. Color of circle denotes average gene expression across one cluster and size of circle represents percent of cells in each cluster expressing each gene. (C) UMAP projection of neural cells colored by timepoint in the uninjured tails and 24hpa tails. UMAP projections of cell clusters split by timepoint to (D) uninjured and (E) 24hpa. (F–G) Sunburst diagrams showing (inside) the percentage of neural cells that are broadly stem cells, differentiating cells, or differentiated neurons and (outside) percentage of neural cells in each of the seven cell clusters called. Colors on outside of the sunburst chart correlate to cluster colors in (A/B). (H–I) UMAP projections of neural clusters colored by predicted cell cycle phase in the (H) uninjured tail and (I) 24hpa tail. (J–K) Sunburst diagrams showing the percentage of all neural cells predicted to be in each cell cycle phase (inside) and the percentage of each cell cluster predicted to be in each cell cycle phase (outside). (J) represents the distribution in the uninjured tail and (K) represents the distribution in the 24hpa tail. Colors on outside of the sunburst chart correlate to cluster colors in (A/B).
Several landmark insights emerged from this single-cell analysis of neural lineages in the tadpole tail. First, we were able to identify new candidate molecular markers for progenitors (vwcx2l.2, iqca1, daw1), floor plate progenitors (bicc, vasn), differentiating neurons (nhlh1, tmem178.2), motor neurons (prdm14, prdm1, kcnb2), leptin+ motor neurons (abcb1, asns, lepr), vulnerable motor neurons (mmp17, slc18a3, colq-like), interneurons (cnrip1, slc17a7), and dopaminergic neurons (pkd2l1, pkd1l2, slc32a1) (Figure 4B). The ‘vulnerable motor neurons’ term refers to vulnerability of specific neurons to degeneration in ALS (Kline et al., 2017). Representative genes for each cell type were identified by using differential expression analysis between cell clusters. Second, we found that cell type identities could be clearly assigned to these clusters at 24 hr after injury (Figure 4C). Unlike the connective tissues in the axolotl limb, which lose cell heterogeneity of gene expression after injury (Gerber et al., 2018), neural cells in the 24hpa Xenopus spinal cord maintain heterogeneous gene expression.
We next used our scRNA-Seq data to interrogate the hypothesis that neural lineages put an early priority on differentiation rather than proliferation. To address this question and to identify which neuronal types, if any, are being produced, we asked how the relative quantities of cell populations change following injury. To this end, we identified what percent of the total neural population is made up of each cluster under each condition. If neural lineages prioritize differentiation early in regeneration, we would expect to see a decline in proliferating progenitor cells and an increase in one or more differentiated neuronal types. Indeed, at 24hpa, we observe a decrease in the percent of NPCs and differentiating neurons with respect to the uninjured cells (Figure 4D–G). In agreement with our GO analysis of 24hpa ATAC-Seq data, we see an expansion in differentiated neuronal clusters including interneurons, vulnerable motor neurons, and motor neurons (leptin+) at 24hpa. Overall, NSCs are reduced from 38% to 25%, differentiating neurons are reduced from 20% to 10%, and differentiated neurons increase from 42% to 65%. As previously described, we noted that motor neurons (leptin+) are virtually absent in the uninjured tail but are abundant at 24hpa (Aztekin et al., 2019).
These transitions in cell type composition are consistent with the hypothesis that neuronal differentiation, especially to specific motor neuron types, is prioritized early in regeneration, with a decline in the relative abundance of proliferative cells.
Our hypothesis is that neuronal differentiation is prioritized early in regeneration while proliferation is decreased. To further test this hypothesis, we asked if we could see a shift in the transcriptomically defined cell cycle state accompanying the change in cell type representation. To this end we used the Seurat cell cycle phase predictor to predict the cell cycle phase of each cell in the neural lineage. In both the uninjured tail and at 24hpa, the NPCs are primarily predicted to be in S and G2M phases, the differentiating neurons are a mix of G2M and G1 phase, and the subtypes of differentiated neurons are primarily made up of G1 phase (Figure 4H/I). The uninjured tail neural lineage has 30% cells predicted in S phase, 16% cells predicted in G2M phase, and 54% cells predicted in G1 phase (Figure 5H/J). This distribution shifts markedly at the 24hpa timepoint, where the S phase falls to 17%, G2M falls to 7% and G1 increases to 76% (Figure 4I/K). Thus, at the 24hpa timepoint, there is a relative increase in the proportion of cells predicted to be in G1 phase and decrease in cells in G2/M/S phases. This correlates with the relative increase in differentiated neurons and decrease in spinal cord progenitors and differentiating cells and supports the hypothesis that NPCs are undergoing differentiation.
Figure 5

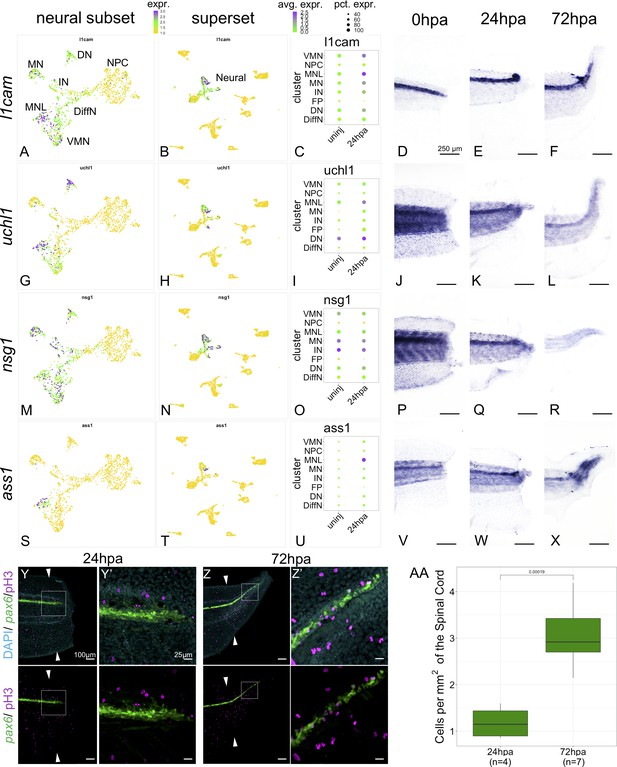

Markers of neuronal differentiation are increased at 24hpa and proliferation increases at 72hpa.
UMAP plots of expression in the neural restricted subset of scRNA-Seq for (A) l1cam, (G) uchl1, (M) nsg1, and (s) ass1. UMAP plots of expression in the superset scRNA-Seq dataset for (B) l1cam, (H) uchl1, (N) nsg1, and (T) ass1. Note that the topology of neural cell clusters is slightly different when subset and reclustered to give high neural cluster resolution (A,G,M,S) than when neural cells are analyzed together with all other cell types (E,K, Q, W), but the same cells and expression data are included in both cases. Dot plots representing average expression of (C) l1cam, (I) uchl1, (O) nsg1, and (U) ass1 per cluster and timepoint. In situ hybridization at 0hpa, 24hpa, and 72hpa for (D–F) l1cam, (J–L) uchl1, (P–R) nsg1, and (V–X) ass1. (Y–Z’) Representative images of 24hpa (Y/Y’) and 72hpa (Z/Z’) regenerated tails from a pax6:GFP transgenic tadpole stained for DAPI (cyan) and mitotic cells with phospho-histone3 (magenta). The white arrows indicate regeneration plane. (Y’) and (Z’) are enlarged images of the boxed areas in (Y) and (Z). (AA) Boxplot representing the number of cells per regenerated spinal cord area (mm2) at 24hpa and 72hpa. Statistics represent t-test performed between the two timepoints. Abbreviations: Neural Progenitor Cell (NPC), Differentiating Neuron (Diff), Interneuron (IN), Vulnerable Motor Neuron (VMN), Dopaminergic Neuron (DN), Motor Neuron Leptin+ (MNL), Motor Neuron (MN)).
-
Figure 5—source data 1
PH3 Cell Count and Regenerated Spinal Cord Area.
- https://cdn.elifesciences.org/articles/52648/elife-52648-fig5-data1-v2.csv
We validated expression of several differentiated neuronal genes by in situ hybridization (ISH). We examined l1cam, uchl1, nsg1 and ass1 as candidate neuronal differentiation markers. All these genes are strongly expressed in one or more differentiated neuronal populations but are lowly expressed or absent in NPCs and non-neural cell types by scRNA-SEQ (Figure 5A–C,G–I,M–O,S–U). When examined by ISH all four genes are most strongly and distinctly expressed in the neural ampulla at 24hpa (Figure 5E,K,Q,W). As a further test of the hypothesis that proliferation is not prioritized until 72hpa, we used phospho-histone H3 (PH3) staining to quantify mitotic cells in optical longitudinal sections of the spinal cord that overlap with the pax6 domain, finding that proliferative cells are significantly more abundant at 72hpa relative to 24hpa (Figure 5Y-AA). These findings further supported our model that differentiation is prioritized at 24hpa, and proliferation at 72hpa.
Gene regulatory network prediction reveals Pbx3 and Meis1 as candidate regulators of neuronal regeneration
To better understand the factors governing NPCs fate decisions, our next goal was to identify transcription factors that could be directing fate transitions. We therefore integrated our ATAC-Seq data, scRNA-Seq data, and used bulk RNA-Seq data to predict gene regulatory networks occurring over regenerative time. We used HOMER to identify transcription factor (TF) binding sites in differentially accessible peaks associated with called GO terms (Figure 3A–C; Heinz et al., 2010). We then used our previously published bulk-RNA-Seq data (Chang et al., 2017) to confirm each HOMER-identified transcription factor and its targets were expressed at the timepoint of interest. Next we restricted our analysis to differentially accessible regions of the chromatin where TF binding sites were accompanied by differential gene expression in the single-cell RNA-Seq. Differential gene expression was performed between the uninjured and 24hpa timepoints in scRNA-Seq following parameters detailed in Materials and methods. These stringent criteria revealed two regulatory circuits spanning from 6hpa to 72hpa. One circuit predicts Meis1 as a regulatory factor that binds motifs near runx2 and etv1 at 24hpa, and Etv1 as a regulatory factor that binds motifs near pbx3 at 24hpa (Figure 6A). Each of these four transcription factors also has numerous neuronal differentiation genes among its predicted targets. In our scRNA-Seq dataset, etv1, meis1, pbx3, and runx2 are all expressed in the neural cells and are therefore reasonable candidates to regulate neural cell fate transitions. Of these, pbx3 was the most restricted to the neural lineage (Figure 4—figure supplement 1E,G), and was found in several neuronal cell types. Pbx3 and Meis1 are homeodomain transcription factors thought to coregulate targets in B-cell leukemia and proximal-distal patterning of the regenerating axolotl limb (Li et al., 2016; Mercader et al., 2005). In Xenopus, Meis1 is well-studied for its roles in neural crest and posterior neural fate specification, working together with Pbx1 (Kelly et al., 2006; Maeda et al., 2001; Maeda et al., 2002; Salzberg et al., 1999). Neither pbx3 nor meis1 have been described in neural regeneration, and so we decided to probe the function of these genes in neural development and regeneration in Xenopus.
Figure 6

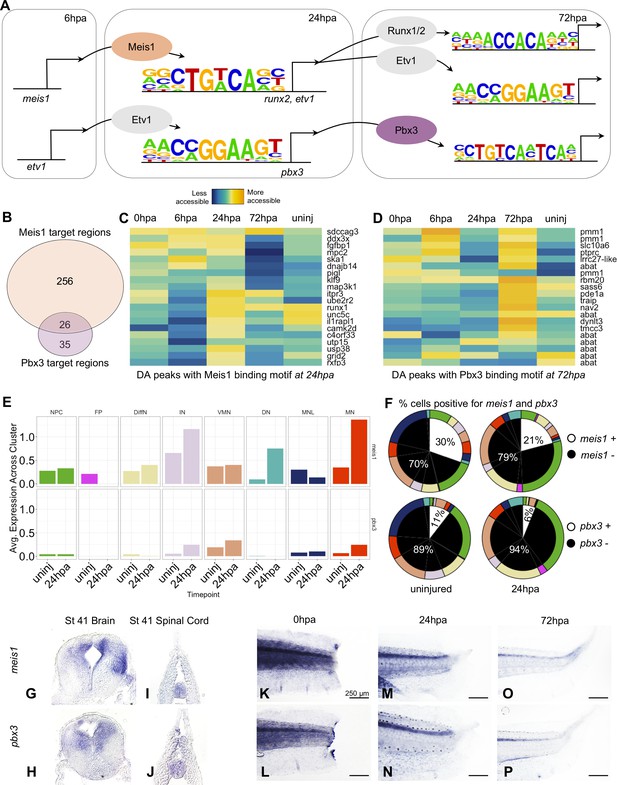

Gene regulatory network prediction identifies Meis1 and Pbx3 as key regulators of neural regeneration.
(A) Predicted gene regulatory networks across regenerative time were derived from integrative analysis between ATAC-Seq and RNA-Seq data (See analysis in Materials and methods). Meis1 and Pbx3 emerged as candidate regulators of regeneration. (B) Venn diagram showing the number of Meis1 and Pbx3 target regions found in differentially accessible regions of the chromatin. The overlap represents regions where both Meis1 and Pbx3 binding motifs were found. (C, D) Heatmaps showing accessibility of 20 differentially accessible regions of the chromatin identified with binding sites for (C) Meis1 or (D) Pbx3. (E) Average gene expression of meis1 and pbx3 in each neural cell cluster in the scRNA-Seq data in the uninjured and 24hpa timepoints. (Abbreviations: Neural Progenitor Cell (NPC), Differentiating Neuron(DiffN), Interneuron (IN), Vulnerable Motor Neuron (VMN), Dopaminergic Neuron (DN), Motor Neuron Leptin+ (MNL), Motor Neuron (MN)). (F) Sunburst diagram showing the percentage of neural cells that are either positive or negative for meis1 or pbx3 gene expression (inside) and the percentage of each neural cluster positive or negative for the genes (outside). (G–P) In situ hybridizations for meis1 and pbx3 in transverse sections of the head (G, H) and tail (I, J) at stage 41. In situ hybridizations for meis1 and pbx3 at (K, L) 0hpa, (M, N) 24hpa, and (O, P) 72hpa.
We assessed target regions and differential accessibility for Pbx3 and Meis1 in the ATAC-Seq data, and gene expression in the scRNA-Seq data. Considered across all regenerative timepoints, Pbx3 and Meis1 have both independent and overlapping targets. A large fraction (26/61) of Pbx3 targets are shared with Meis1 (Figure 6B). Meis1’s target peaks are preferentially increased in accessibility at 24hpa, while Pbx3’s are overall increased at 72hpa. Both transcription factors have numerous neuronal differentiation factors among their targets (Figure 6C,D). When we examined expression of meis1 and pbx3 in our scRNA-Seq data, we found that transcripts for both factors were detected in multiple differentiated neuronal types, initially at low levels and in a small proportion of cells (Figure 6E, and white portions of left pie charts in F). Following injury, at 24hpa, expression of meis1 increased to 30% of all neural cells (Figure 6F, upper right), driven by increases in interneurons (IN), dopaminergic neuron (DN), and especially motor neuron (MN) clusters (Figure 6E, top). At 24hpa expression of pbx3 increased to 11% of all neural cells (Figure 6F bottom right), driven by a strong increase in motor neuron expression (Figure 6E, bottom). Both factors are therefore expressed in cell types likely to be completing differentiation at 24hpa, most notably the motor neurons.
Previously, spatial expression patterns for meis1 have only been reported up to stage 29 (Maeda et al., 2002) and expression patterns for pbx3 have not been reported in Xenopus. Therefore, we used in situ hybridization to characterize their expression in the tadpole. At stage 41, both meis1 and pbx3 are expressed in the uninjured brain and spinal cord (Figure 6G–J). In the posterior tail, expression of both factors is weak and diffuse immediately following injury (Figure 6K,L). However, by 24hpa, expression of both factors increases in the spinal cord (Figure 6M,N). By 72hpa, expression persists more weakly in the spinal cord. These analyses therefore indicate that pbx3 and meis1 are expressed in the spinal cord, increase in neuronal subtypes at 24hpa, and contribute to increased promoter accessibility at their target genes at 24hpa (particularly for Meis1) and 72hpa (particularly for Pbx3), some of which are likely co-regulated by both factors.
Meis1 and Pbx3 are necessary for successful spinal cord and tail regeneration
We next asked whether Meis1 and Pbx3 are independently required for regeneration. To do so, we first injected morpholinos blocking translation of either meis1 or pbx3 into the dorsally fated blastomeres of 4 cell stage embryos to knockdown expression in the neural lineage (Figure 7—figure supplement 1B). Knockdown of either Meis1 or Pbx3 resulted in a similar phenotype in stage 41 tadpoles that included small or missing eyes, a shorter anteroposterior body axis and reduced pigment cell population (Figure 7—figure supplement 1C,D). We followed up on these phenotypes by repeating the injections with a second set of morpholinos against Pbx3 and Meis1. The second set of morpholinos phenocopy the original morpholino injections (Figure 7—figure supplement 1E,F). As a further confirmation, we designed and injected CRISPR guide RNAs targeting each of these genes together with Cas9 protein at the 4 cell stage, and were able to phenocopy the morpholino effects with this strategy as well (Figure 7—figure supplement 1G–J). When we stained stage 41 morphants with anti-neurofilament antibody, we found that their spinal cord and intersomitic axons were mispatterned, suggesting Meis1 and Pbx3 are necessary for proper development of the nervous system (Figure 7—figure supplement 2B–F). To bypass the early embryonic effects of Meis1 and Pbx3 knockdown, we designed the same MO sequences as tissue-permeable vivo-MOs. We injected either Pbx3 or Meis1 vivo-MO into the embryonic tail vein at the late tailbud stage (NF 35), and reared these embryos to stage 41 (Figure 7A). Neither vivo-MO caused gross morphological defects when delivered this way, but both vivo-MOs resulted in reduced axons in the spinal cord as assayed by neurofilament stains at stage 41 (Figure 7C,D), relative to control tadpoles injected with tracer only (Figure 7B).
Figure 7 with 2 supplements see all
Pbx3 and Meis1 are independently required for successful regeneration of neural tissues and tails in response to injury.
(A) Injection scheme for administering vivo-morpholino. Stage 35 tadpoles were injected with a tracer or vivo-morpholinos (VMO) targeting meis1 or pbx3 and allowed to grow 24 hr to stage 41. Stage 41 tadpoles were amputated and 24hpa regenerates were collected. (B–D) Stage 41, whole-mount tadpoles shown in brightfield and immunostained against neurofilament. The box in the middle image corresponds to the enlarged image below. These images are shown for (B) tracer injected, (C) Meis1 VMO injected, and (D) Pbx3 VMO injected tadpoles. (E–J) 24hpa and 72hpa regenerates were collected and stained for neurofilament (E–G) or PH3 (H–J). Top photos are in DIC and bottom photos are immunostained as indicated. White arrows indicate amputation plane. These images were collected for (E, H) tracer, (F, I) Meis1 VMO, and (G, J) Pbx3 VMO. (K) Regenerated tail and spinal cord lengths were measured and reported in boxplots. (L) Boxplot representing regenerated spinal cord area. (M) Boxplot representing PH3 cells per regenerated spinal cord area. Statistics represent a two-tailed t-test to determine significance between conditions. (ns = not significant, *<0.05, **<0.005, ***<0.0005, ****<0.00005).
-
Figure 7—source data 1
Regenerated Tail Length Data for Vivo-Morphants.
- https://cdn.elifesciences.org/articles/52648/elife-52648-fig7-data1-v2.csv
-
Figure 7—source data 2
PH3 Cell Count and Regnerated Spinal Cord Area for Vivo-Morphants.
- https://cdn.elifesciences.org/articles/52648/elife-52648-fig7-data2-v2.csv
To specifically assay the effect of Meis1 or Pbx3 knockdown on regeneration, we injected either Meis1 or Pbx3 vivo-MOs at stage 35 as described above, reared these embryos to stage 41 and amputated tails. At 72hpa, both Pbx3 and Meis1 knockdown tadpoles have reduced and disorganized neurofilament staining relative to tracer-injected controls (Figure 7F,G, compare with E). We quantified the length of the regenerated tail in control and knockdown tadpoles at 72hpa, and found that both Meis1 and Pbx3 knockdown tadpoles have significantly shorter regenerated tails and spinal cords relative to tracer-injected control tadpoles (Figure 7K). Spinal cord area (measured in confocal optical longitudinal sections) is also significantly reduced in both morphants at 72hpa (Figure 7L), although the density of PH3 positive nuclei is not significantly changed relative to controls (Figure 7H–J,M). Embryos injected with either Meis1 or Pbx3 MOs at the 4 cell stage also caused neurofilament defects during regeneration, as well as shortened regenerated tails and spinal cords (Figure 7—figure supplement 2G-AA), although, we cannot rule out that some aspects of these phenotypes may be attributable to embryonic growth and patterning defects in the starting tail tissue. We conclude that Meis1 and Pbx3 are not only required for proper neural development but also for proper regeneration of the tail and spinal cord.
Discussion
Neural lineage-specific analysis of regeneration identifies new regulatory factors and target genes
The full regeneration of a lost structure requires integrated gene regulatory decisions by multiple cell types. These have been documented through genome-wide transcriptomic analyses of the entire regenerating structure, such as the Xenopus tail (Chang et al., 2017; Love et al., 2011), spinal cord (Lee-Liu et al., 2014), or axolotl limb (Dwaraka et al., 2019). However, in bulk analyses it remains uncertain which cell types are up- or down-regulating particular genes, and increased expression in one cell type may be canceled out by decreases in another. These concerns are equally problematic in bulk-tissue analysis of gene regulatory dynamics (through methods such as ChIP-Seq or ATAC-Seq). In some cases, this problem can be addressed by explanting the tissue of interest (Chung et al., 2014), but for rare cell types or morphologically complex structures this is not a tenable solution. Here we present a major advance for vertebrate regeneration by using flow-cytometry and scRNA-Seq to coordinately study chromatin accessibility and gene expression in neural progenitors during regeneration, a critical cell type for spinal cord regeneration (Fei et al., 2014; Gaete et al., 2012; Muñoz et al., 2015). By isolating neural progenitors, we are able to identify a unique chromatin landscape for these cells, including regulatory peaks that cannot be detected in bulk tissue analysis.
It is important to note the potential limitations of our analysis as well. While our FACS approach utilizing the pax6:GFP transgenic line captures a broad domain of neural progenitor cells, we recognize that not every NPC may have been captured. For example, there may be some Sox2+ NPCs that are pax6-, and these cells may contribute to regeneration in a distinct way that we did not capture. In particular, our confocal sections (Figure 1) suggest that the pax6:GFP+ domain captures a large window of progenitors along the dorsoventral axis but does not capture the dorsal most Sox2+ NPCs. Future analyses using other NPC reporters, as well as domain-specific reporters for region-specific subtypes of both neural progenitors and differentiated neurons, would be necessary to fully round out the picture of what transcriptional priorities are shared among progenitor subtypes and which are region-specific. We may have also captured cells that were pax6+ and Sox2-. Specifically, we may have captured some cells that were recently pax6+ neural progenitors, and are now differentiating but retain GFP protein. This hypothesis would be well informed by birthdating neurons in the transgenic line to visualize if newborn neurons retain reporter GFP; however, for this set of experiments we acknowledge this potential caveat. Finally, while we find that Sox2 and pax6:GFP colocalize closely over much of their respective domains at stage 41, the very small size and delicacy of the regeneration bud at 24hpa precluded verification that these two markers continue to colocalize in the same way during the early stages of regeneration as the neural ampulla forms. Therefore while we expect that the spatial domains of these markers continue to overlap, and our scRNA-SEQ confirms that NPCs continue to express both of these markers, there may be subtleties to their spatial dynamics that reveal principles of NPC organization in regeneration that we did not capture.
Our study identified both novel candidate markers of specific neural lineages, and potential regulatory circuits directing regenerative decisions. Many of the genes we identified as differentially expressed and with differentially accessible promoters were not previously detected in bulk RNA-Seq or microarray analyses (Chang et al., 2017; Love et al., 2011). Of these, pbx3 stands out as a gene with expression that is well-restricted to the neural lineage, becomes further restricted to differentiated neurons following injury, has a differentially accessible promoter itself, and has a target motif upstream of multiple differentially-expressed neuronal genes. Nevertheless, pbx3 was not detected as differentially expressed in previous analyses of regeneration, likely because of the low overall expression levels of pbx3, and because expression changes are lineage-specific. Only by combining motif prediction from ATAC-Seq and the high-resolution expression data from scRNA-Seq did we bring this transcription factor to the top of our candidate list. Similarly, meis1, which is well-known as a regulator of neural and neural crest development (Erickson et al., 2010; Kelly et al., 2006; Machon et al., 2015; Mojsin and Stevanovic, 2010; Rataj-Baniowska et al., 2015; Stedman et al., 2009; Yamada et al., 2013), has not previously been detected in differential expression analyses during Xenopus regeneration. This may be because meis1 is more broadly expressed, and bulk RNA-Seq was unable to capture the heterogeneity of expression changes meis1 undergoes across multiple cell types.
Evidence for a temporal uncoupling of differentiation and proliferation in the regenerating neural lineage
We find that pax6+ neural progenitors place an early priority on neuronal differentiation, and specifically on formation of interneurons and motor neuron subtypes by 24hpa, shown as a model in Figure 8A–C. This is supported by the widespread accessibility enrichment of neuronal differentiation genes specifically at 24hpa, by the decline in relative proportion of neural progenitors and transitioning neurons in favor of motor neurons and interneurons, and by a reduction in the number of cells in S/G2/M phases of the cell cycle.
Figure 8
Model for neural progenitor regeneration.
(A) In normal development, neural progenitor cells make cell fate decisions to proliferate or differentiate. From this study we predict from our ATAC-Seq and scRNA-Seq analysis that neural progenitors first prioritize (B) migration and tube morphogenesis at 6hpa, followed by (C) neural differentiation at 24hpa, and then (D) turn on proliferation programs at 72hpa. (E) From integrative analysis of these data sets, we identified meis1 and pbx3 as candidate regulators of NPC regeneration at 24hpa and 72hpa. Loss-of-function experiments suggest Meis1 and Pbx3 are necessary for successful regeneration as well as proper axonal patterning. Magenta shaded spinal cord represents NPCs in regenerated spinal cord. Magenta axons represent axons in the regenerated spinal cord and tail tissue.
Our finding that pax6+ progenitors prioritize differentiation before proliferation in regeneration represents an intriguing counterpoint to embryonic development, in which regional-specific proliferative neural progenitors can only later make the decision to undergo neurogenesis and exit the cell cycle (Hardwick et al., 2015). Transcriptional analysis of proliferating blastemal cells as well as recent pre-publication work in later-stage tadpoles of Xenopus laevis suggests the same model may also hold true in that species (Pelzer et al., 2020; Tsujioka et al., 2015).
The cell cycle exit and differentiation of some of the existing pool of neural progenitors and differentiating neurons at 24hpa results in a decline in these cell types and an increase in motor and interneurons. Not all progenitor cells exit the cell cycle however, and a residual population remains, from which we propose that additional progenitors are made by proliferation after 24hpa, in agreement with the emphasis placed on progenitor proliferation seen by ATAC-Seq at 72hpa and mitotic analysis by PH3 (Figure 8D). We expect that the organized formation and outgrowth of neuronal structures remains important from 24 to 72hpa, as axons visibly elongate, and that pbx3 and meis1 are important regulators of these processes based on their target gene accessibility profiles (Figure 8E/F). Our model agrees with numerous findings that there is little proliferation after tail amputation prior to 48hpa (Contreras et al., 2009; Gaete et al., 2012; Love et al., 2011; Pelzer et al., 2020; Tsujioka et al., 2015) and with bulk RNA-Seq analysis showing a transcriptional upregulation of axonogenesis and other neuronal differentiation genes (Chang et al., 2017). Our analysis suggests that early changes in neural cell identity and distribution, as well as the genes driving them, may represent an important early phase of regeneration that precede proliferation. In other regenerative vertebrates, specifically the anole lizards and geckos, spinal cord regeneration is incomplete; it includes formation of new axons along an ependymal cell tube, but does not include proliferation of progenitor cells to make a complete spinal cord (Duffy et al., 1990; Tokuyama et al., 2018; Wang et al., 2012). An interesting future direction would be to pursue whether program supporting axonogenesis may therefore have persisted in amniote lineages, where other features of complete spinal cord regeneration have been lost.
Neural cell types preserve their identities in the regenerating Xenopus tail
The identities of specific neural cell types are readily assigned to the same clusters both before and after tail transection in Xenopus. This agrees with recent single-cell transcriptomic analysis of the regenerating Xenopus laevis tail and spinal cord, in which the majority of cell types can be clearly assigned at 1, 2 and 3 days after amputation (Aztekin et al., 2019; Pelzer et al., 2020). The predominant model for vertebrate regeneration remains the axolotl limb, in which the formation of a morphologically undifferentiated mesenchymal blastema has been well characterized through morphological, histological, transcriptional, and single-cell analysis (Currie et al., 2016; Gerber et al., 2018; McCusker et al., 2015). In the axolotl limb, scRNA-Seq shows that different connective tissue cell types lose their unique transcriptional identities early in regeneration and converge on a similar signature, as the blastema forms (Gerber et al., 2018). While the early Xenopus tail regenerate has also been described as a blastema (Gargioli and Slack, 2004; Tsujioka et al., 2015), its parallels to the axolotl blastema have been debated (Mochii et al., 2007), and our study confirms that diverse cell types retain well-discriminated transcriptional signatures as regeneration proceeds. This suggests that the molecular nature of the blastema may differ substantially between axolotls and Xenopus. In other regenerative contexts such as bone regeneration of the zebrafish fin, the formation of a blastema at the tip of each bony ray has been well documented (Knopf et al., 2011; Münch et al., 2013; Sousa et al., 2011). Global transcriptional responses to injury can therefore vary among regenerative vertebrate structures, which highlights the importance of multiple models for appendage regeneration.
Pbx3 and Meis1 are required for axon organization and for tail regeneration
We identify two transcription factors, Pbx3 and Meis1, as transcriptional regulators acting upstream of neuronal differentiation genes during regeneration (Figure 8E). We show that these factors are both expressed in the regenerating spinal cord, with increased expression in motor neuron subtypes during regeneration. Loss of function of either factor results in disorganized neurofilament outgrowth with a failure of successful axial tissue regeneration. These factors are predicted to bind upstream of several dozen differentially accessible neuronal differentiation factors and are thus well-placed to drive the prioritization of neuronal differentiation we observe. Loss of either factor does not result in a failure to form neurofilaments, but does result in grossly disrupted organization of neurofilaments and reduced regeneration of the tail and spinal cord. Our data therefore suggests these factors may be critical for the proper re-formation and organization of differentiated neuronal structures. We note that even though the differentially accessible targets of Pbx3 are preferentially found at 72hpa, when proliferation is increasing, many targets of Pbx3 are shared with Meis1, and Pbx3 itself increases in expression in neuronal types by 24hpa. We therefore propose that Pbx3 and Meis1 contribute to the ongoing differentiation of neuronal structures from 24hpa to 72hpa (Figure 8F). Intriguingly, loss of either Pbx3 or Meis1 results in reduced tail regeneration overall. This may be due to interactions between regenerating nerves or neuronal structures and other axial structures, as regeneration of appendages has been shown to be nerve dependent in Xenopus and other systems (Farkas and Monaghan, 2017).
Pbx3 and Meis1 may work independently or as part of a complex. Pbx3 and Meis1 are known to heterodimerize and coregulate targets upstream of hoxa9 during leukemia progression (Li et al., 2016; Machon et al., 2015). Meis1 also partners with the related protein Pbx1 in axolotl limb regeneration and neural development (French et al., 2007; Mercader et al., 2005; Mojsin and Stevanovic, 2010). Although their targets are incompletely overlapping in our regeneration data, they are co-expressed in several cell types, and so we do not rule out the possibility that they may also act as a complex in the tadpole tail. Neither pbx3 nor meis1 have been studied in neural regeneration. These two factors therefore represent exciting new candidates for regulating neuronal differentiation in regeneration.
Conclusion
Taken as a whole, our study presents a coordinated analysis of chromatin accessibility and single cell transcriptomics in the regenerating neural lineage. We show that neural progenitors temporally uncouple their regulation of differentiation and proliferation, placing an earlier priority on differentiation of motor neuron subtypes. This new model represents an intriguing contrast to embryonic development. We computationally identify multiple candidate regulators of neural progenitor fate decisions in a regenerative context, and specifically highlight pbx3 and meis1 as critical regulators of neural development and regeneration.
Materials and methods
Key resources can be found in the key resource table, Supplementary file 2. All data generated and analyzed in this paper can be found with the GEO accession GSE146837 (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE146837). Source files and analysis code can be found at https://gitlab.com/akakebee/kakebeen-et-al-2020 (Kakebeen, 2020; copy archived at https://github.com/elifesciences-publications/kakebeen-et-al-2020).
X. tropicalis husbandry and use
Request a detailed protocolUse of Xenopus tropicalis was carried out under the approval and oversight of the IACUC committee at UW, an AALAC-accredited institution. Ovulation of adult X. tropicalis and generation of embryos by natural matings were performed according to published methods (Khokha et al., 2002; Sive et al., 2010). Fertilized eggs were de-jellied in 3% cysteine in 1/9x modified frog ringer’s solution (MR) for 10–15 min. Embryos were reared as described (Khokha et al., 2002. Staging was assessed by the Nieuwkoop and Faber (1994) staging series. In this study we used both wild-type frogs and frogs from the triple transgenic line Xtr.Tg(pax6:GFP;cryga:RFP;actc1:RFP)Papal (Hartley et al., 2001; Hirsch et al., 2002; RRID:NXR_1.0021) reared and purchased from the National Xenopus Resource (https://www.mbl.edu/xenopus/; RRID:SCR_013731). Pax6 transgenic matings were performed by crossing a heterozygous transgenic frog to a wild-type frog. These matings yielded clutches with 50/50 wt/pax6:GFP+ populations.
Sectioning and imaging
Request a detailed protocolFor sectioning, tadpoles were fixed for 30 min in 10xMEMFA, 3.7% formaldehyde at room temperature. Tadpoles were then washed briefly in PBT and incubated in 4% sucrose in 1xPBS at 4C overnight. Tadpoles were embedded in Tissue Tek O.C.T. (Sakura 4583) in 10mmx10mmx5mm molds (Sakura 4565) and stored in the −80C until sectioning. Tadpoles were sectioned transversely at 14 µm with a cryostat (Leica). Sections that were not stained were baked onto slides on a heatblock and imaged within 24 hr to capture endogenous pax6 reporter fluorescence. Images were acquired with a Lecia SP8 and UPDATE camera.
X. tropicalis amputation assay
Request a detailed protocolX. tropicalis were sorted for transgenic reporter fluorescence for regeneration assays. Tadpoles were anesthetized with 0.05% ms-222 in 1/9x MR and tested for response to touching prior to amputation surgery. Once fully anesthetized, a sterilized scalpel was used to amputate the posterior third of the tail. Amputated tadpoles were removed from anesthetic media within 10 min of amputation into new 1/9x MR. Tadpoles were left to regenerate at a density of no more than 3 tadpoles to 1 mL of media.
Cell dissociation and fluorescent activated cell sorting (FACS)
Cell dissociation
Request a detailed protocolAt each timepoint, regenerating tadpoles were anesthetized until non-responsive to touch. A scalpel was used to amputate to the regenerated tail tissue (most posterior point to ~500 µm anterior of that point). Regenerated tail tips were collected and spun down at 1000xg. Media was taken off and ~60 tails were resuspended in 200 uL of 0.035 mg/ml liberase in PBS (Roche 05401119001). Tails were left to incubate for 20 min at room temperature. A p-200 was then used to pipet the tails up and down gently and break up tail tissue. Once no visible chunks were apparent, cells were spun down for 3 min at 1000xg. Supernatant was disposed and cells were washed with 180 uL of 1xPBS. Cells were then spun once more for 1 min at 1000xg and supernatant disposed. Cells were resuspended in 200–300 uL of 1xPBS and filtered through a 70 µm cell filter (Fisher 22-363-548) into a FACS tube. Cells were kept on ice until sorting.
FACS
Request a detailed protocolCell sorting and collecting were performed through on the BD FACS Aria III Cell Sorter (BD Biosciences). Wild-type samples were used as negative controls to set sorting gates to exclude any autofluorescence from our true GFP signal. Cells were sorted based on selection from three criteria. FSC x SSC were used to select for cells based on size and granularity. From this population, cells were visualized with the FSC-W x FSC-H dimensions to select for singlets and exclude doublets. The doublets were then visualized in a histogram where GFP was the x-axis. For GFP gate setting, selection gates were drawn for all area without cells in the wild-type tails. Here we assume that any GFP-signal is autofluorescence and need be selected against. Positive control transgenic tadpoles were used to test for GFP signal. Cells were passed through the sorter and collected through a 70 µm nozzle. Cells were collected into 50 uL of 1xPBS. For pax6 samples, GFP+ and GFP- cells were collected into separate tubes and for all-tissue samples, GFP+ and GFP- cells were collected into the same tube.
Quantitative RT-PCR
Request a detailed protocolFor RT-PCR, either GFP+ cells or GFP- cells were collected from the flow cytometer directly into RNA lysis buffer. Between 2000–4000 cells were collected for each condition from uninjured tail tips. Cells were then agitated at 42C for 45 min. RNA/DNA were extracted and purified from the lysed cells by phenol:chloroform extraction with subsequent ethanol precipitation. Samples were then DNAse treated to remove DNA. To make cDNA from the RNA, we used the Superscript III reverse transcriptase kit (ThermoFisher 18080044). Amplifications were carried with iQ SYBR Green Supermix (BioRad 1708882) for 40 cycles of: 95C:10 s, 57C:30 s after initial 2minutest at 95C. Primers used for gfp, pax6, actc1, tubb2 are provided Supplementary file 2.
ATAC-Seq library preparation
Request a detailed protocolWithin 30 min of cell sorting, cells were prepared for transposition. (See Supplementary file 1 for details of cells sorted for each sample). Cells were spun down for 3 min at 1000xg and supernatant was discarded. Cells were resuspended in 15 uL of TN5 reaction mix using the TN5 enzyme, buffer, and water from the Nextera DNA Sample prep kit (Illumina 15028212). Cells were transposed for 1 hr at 37C. Post transposition, cells were removed from 37C and DNA was purified using the Qiagen MinElute kit (Qiagen 28206). DNA was eluted in 10 uL of buffer EB. Purified DNA was then amplified using the 2xNEB PCR Master Mix (NEB M0541L), a universal forward primer, and an indexed reverse primer from the i7 Illumina series. Initial amplification as follows: 72C:5 min, 98C:30 s, then 5 cycles of 98C:10 s, 63C:30 s, 72C:1 min. 5 uL of the initial PCR product was then used for a 15 µl side qPCR reaction to determine how many more cycles to run to stop amplification prior to saturation. The side reaction was carried out as follows: 98C:30 s, then 30 cycles of 98C:10 s, 63C:30 s, 72C:1 min. The number of cycles was determined by taking the range of the starting and ending CT values and dividing that number by 4, then identifying how many cycles the sample had gone through at the derived CT value. The initial PCR reactions were then run for the calculated number of extra cycles and removed from the thermo cycler. Amplified samples were purified with the Qiagen MinElute kit and eluted in 20 uL of buffer EB. 5 uL of purified PCR product were run out on a 5% acrylamide gel in 1xTBE at 100V for ~45 min. Gels were stained with Ethidium Bromide and imaged on the gel imager (BioRad). Samples with sufficient periodic bands, relating to length of DNA to wrap a mono-, di-, tri- nucleosome, were then run out on a bioanalyzer. Library concentrations were taken using the Qubit high sensitivity dsDNA assay. Libraries were pooled by normalizing library concentrations to the lowest concentration and adding equal volumes of libraries for a minimum of 5 ng of each library.
Libraries were sequenced on the Illumina Next-Seq platform across three NextSeq 500 High Output Kit v2.5 (150 cycles, Illumina CAT. 20024907). Libraries were sequenced with, paired end, 75 bp reads at the Sound Genomics facility.
ATAC-Seq analysis pipeline
Trimming adaptors and alignment
Request a detailed protocolAdapters were trimmed from reads and low-quality sequences (Phred < 33) were removed using Trim Galore!. Reads were aligned to xtropicalis9.0 using Bowtie2 (option:–very-sensitive) (Langmead and Salzberg, 2012; Langmead et al., 2019). Duplicate reads were marked using Picard ‘MarkDuplicates’ (http://broadinstitute.github.io/picard/). Duplicate reads were removed using SAMtools. Bigwigs were generated using a custom script (https:// rpubs.com/achitsaz/98857) and visualized in IGV.
Peak calling
Request a detailed protocolPeaks were called using MACS2 (options:–nomodel–shif −100–extsize 200) (Zhang et al., 2008). Consensus peak set used for differential accessibility were called on a merged bam of all ATAC-seq files used in this experiment.
Peak annotation
Request a detailed protocolAnnotation and genomic feature enrichment analysis. Annotation of ATAC-seq peaks and genomic annotation enrichment analysis were performed using GenomicRanges (Lawrence et al., 2013), matching each peak to the nearest TSS using Xtropicalisv9.0.Named.primaryTrs.gff3 from Xenbase.
Differential accessibility analysis
Request a detailed protocolDifferential accessibility analysis in ATAC-seq peaks. Differential accessibility across ATAC-seq sample groups was determined as detailed in the edgeR users guide (Robinson et al., 2010). To define the regions for differential accessibility analysis, peaks were called on a merged bam of all ATAC-seq samples in this experiment. A matrix of counts for all samples was then generated using the ‘featureCounts’ in the Rsubread package (options: isPairedEnd = TRUE, maxFragLength = 2000). The counts matrix was filtered to select rows having at least one count per million in n−one samples to minimize the influence of variability at the threshold for sensitivity on the analysis.
Gene Ontology analysis
GO:BP analysis (gprofiler2)
Request a detailed protocolUsing differential accessibility flags, we identified all regions more accessible in the indicated contrast. The TSS annotation of these regions was used as input for gene ontology analysis. GO analysis was carried out using the ‘gprofiler2’ R package (Raudvere et al., 2019). The command ‘gost’ was used to call GO terms (options: query = DA peak list, organism=”hsapiens’, sources=”GO:BP’, evcodes = TRUE).
Reduce Redudancy (ReviGO)
Request a detailed protocolTo reduce redundancy of GO terms, we used the online resource ReviGO (http://revigo.irb.hr/) (Supek et al., 2011). We input GO IDs and p-values into ReviGO and used the following parameters to run the analysis: allowed similarity = tiny(0.4), p-values, database with GO term sizes = Homo sapiens, Semantic similarity measure = SimRel. We then saved the output. CSV file for further plotting and analysis in R.
Single cell RNA-Seq library preparation
Request a detailed protocolGFP+ cells from ~500 tails were collected for single cell analysis using the above methods but scaled for 500 tails. After sorting, cells were immediately washed with 1xPBS and diluted to a concentration of 1000 cells/µl based on the 10x Genomics guidelines. We aimed for capture of 10,000 cells using the 10x Genomics Platform. Single-cell mRNA libraries were prepared using the single-cell 3’ solution V2 kit (10x Genomics). Quality control and quantification assays were performed using a Qubit fluorometer (Thermo Fisher) and a D1000 Screentape Assay (Agilent). Libraries were sequences on an Illumina NextSeq 500 using 75-cycle, high output kits (reads 1: 26 cycles, i7 Index: eight cycles, read 2: 57 cycles). Each sample was sequenced to average read depth of 16 million total reads. This resulted in an average read depth of ~15,000 reads/cell after read depth normalization.
Single cell RNA-Seq data processing
Request a detailed protocolCellular barcodes and µMis were determined using Cell Ranger 2.0.2 (10X Genomics) and cells were filtered to include only high-quality cells. Cell ranger defaults for selecting cell-associated barcodes versus barcodes associated with empty partitions were used.
UMAP visualization and clustering
Clustering and integration of all cells in uninjured tail and 24hpa
Request a detailed protocolWe used Seurat V3.0 for analysis of scRNA-Seq data (Butler et al., 2018; Butler et al., 2018). To reduce dimensions and cluster cells for the uninjured and 24hpa data sets, we followed Seurat’s ‘Integrating stimulated vs. control PBMC datasets to learn cell-type specific responses’ vignette (https://satijalab.org/seurat/v3.1/immune_alignment.html). We created Seurat objects from CellRanger processed data with the command ‘CreateSeuratObject’ (options: min.cells = 5). We then removed cells that had less than 500 RNA features by subsetting data (options: subset = nFeature_RNA >500). Cells were normalized (‘NormalizeData’) and variable features were found with ‘FindVariableFeatures’ (options: selection.method = ‘vst’). Integration anchors for the two data sets were identified with ‘FindIntegrationAnchors’ (options: dims = 1:20) and the integration of the data sets was performed with ‘IntegrateData’ (options: dims = 1:20). The integrated data set was then scaled (‘ScaleData’) and principle components were found with the command ‘RunPCA’ (options: npcs = 60). We then reduced dimensions using Uniform Manifold Approximation and Projection (UMAP). We did so by using ‘RunUMAP’ (options: npcs = 40). Next we clustered cells by first finding nearest neighbors with ‘FindNeighbors’ (options: reduction=”pca’, dims = 40) and then calling clusters with ‘FindClusters’ (options: resolution = 0.7).
Subsetting of neural cells in uninjured tail and 24hpa
Request a detailed protocolWe used neural marker genes (sox2, neurog1, neurod1, and elavl4) to determine which cell clusters were neural cells. To subset the data set, we used ‘SubsetData’ (options: ident.use = c(1,4,5,13,15). The subset data was scaled, and principle components were called. ‘RunUMAP’ and ‘FindNeighbors’ was run (options: reduction=”pca’, dims = 1:20). ‘FindClusters’ was then run to establish neural clusters (options: resolution = 0.4).
Marker identification and differential expression analysis
Cluster markers
Request a detailed protocolTo identify genes that define each cluster, we used Seurat’s ‘FindMarkers’ command (options: ident.1 = Cluster of interest, min.pct = 0.3, only.pos = TRUE, assay = ‘RNA’). This command was run for all seven subset neural clusters.
Differential gene expression across timepoints
Request a detailed protocolTo identify genes that were differentially expressed between uninjured and 24hpa tail cells, the Seurat function ‘FindMarkers’ was used. (options: ident.1 = Cluster of interest_uninjured, ident.2 = Cluster of interest_24hpa, min.pct = 0.3, assay = ‘RNA’).
Cell cycle prediction analysis
Cell cycle prediction
View detailed protocolTo predict the cell cycle of cells sequenced in our scRNA-Seq, we followed the methods outlined in the Seurat Vignette ‘Cell-Cycle Scoring and Regression’ (https://satijalab.org/seurat/v3.1/cell_cycle_vignette.html). Genes defining ‘S’ phase and ‘G2M’ phase were called from a pre-loaded list of cell cycle markers from Kowalczyk et al. (2015). These genes were then used in the Seurat command ‘CellCycleScoring’ to predict cell cycle phases (options: s.features = s.genes (from Seurat), g2m.features=g2 m.genes(from Seurat), set.ident = TRUE).
Gene regulatory predictions
Motif Finding
Request a detailed protocolWe used the ‘findMotifsGenome.pl’ command to identify all known binding motifs from the Homer motif library in differentially accessible peaks (Heinz et al., 2010). The motifs were then appended to the ATAC-Seq differential accessibility table by matching peak names. This table gave us a called peak, the TSS annotation of that peak, motifs called in the peak, and transcription factor binders of the called motif.
Bulk RNA-Seq integration
Request a detailed protocolTSS annotations were used to vet table for genes that are expressed at the given timepoint. To do so, we subsetted the table for genes that were expressed in bulk RNA-Seq data from Chang et al. (2017).
GRN prediction across regenerative time
Request a detailed protocolUsing a homemade script, we identified DA regions at 6hpa that had binding motifs in 24hpa DA peaks. We then identified DA regions at 24hpa that had binding motifs in 72hpa DA peaks. To connect the timepoints, we identified targets of TFs with motifs at 24hpa, then asked whether those targets had binding motifs at 72hpa. To narrow down potential GRNs to follow up on, we asked whether the genes were expressed in neural cells in the scRNA-Seq data in the uninjured at 24hpa cells and whether they were differentially expressed.
Whole-Mount in situ hybridization
View detailed protocolEmbryos and larval tadpoles were fixed in 1xMEMFA, 3.7% Formaldehyde for 2–6 hr at room temperature or overnight at 4C. X. tropicalis multibasket in situ hybridization protocols were followed as described in Khokha et al. (2002). For plasmids used for in situ hybridization probes, see reagents table). Whole mount in situ tadpoles were imaged on a Leica M205-FA with a D5C550 camera.
Morpholino microinjections
Morpholinos were ordered from Gene Tools. BLAST searches for both morpholinos for Meis1 and Pbx3 using the X. tropicalis v9.1 genome identified just one target in the correct gene for each of the 4 MOs, and no off target binding elsewhere in the genome.
Dorsal blastomere injections
Request a detailed protocolWild-type X. tropicalis embryos were staged to NF stage 3 (4 cell). Using a microinjector, the two dorsally-fated blastomeres were both injected with 2 nL of morpholino mix. Morpholino mix contained a morpholino against meis1 (MO1:8 ng or MO2:16 ng) or against pbx3 (MO1:10 ng or MO2:10 ng) and a labeled dextran tracer (used at 2 mg/mL, ThermoFisher D1817). Embryos were screened at stage 18 for bilateral red fluorescence in the nervous system tissues. Neurulas were raised to stage 41 and used for regeneration assays. Morphant regenerates were collected at 24hpa, 48hpa, and 72hpa for measurement analysis.
Tail vein injections
Request a detailed protocolWild-type X. tropicalis embryos were staged to NF embryonic stage 35–36 (pre-hatching stage). Tadpoles were anaesthetized with MS-222 and moved from culture dish to an agarose coated dish in one drop. Surrounding media was removed. Using a microinjector, a pulled needle containing VIVO-morpholino and labeled dextran tracer was inserted into the ventral tail vein in the posterior tail and 3 × 2 nL injections were delivered (20 ng). Embryos were returned to fresh media and screened for tracer fluorescence in the blood stream. Injected tadpoles were grown 24 hr to stage 41 and amputated. At 24hpa, tadpoles to be collected at 72hpa were re-injected into the tail vein as before.
CRISPR-mediated mutation
sgRNA Design,Preparation, and Injection
Request a detailed protocolsgRNAs were designed targeting meis1 and pbx3 using CRISPRSCAN (https://www.crisprscan.org/?page=gene) (options: organism = ‘Frog-Xenopus tropicalis’, Gene = ‘pbx3’ or ‘meis1’, Cas9-NGG, In Vitro T7 promoter). PCR was performed as described in Bhattacharya et al. (2015). SgRNA was transcribed using T7 mMachine kit (Ambion). Guides were injected into 2 blastomeres of 4 cell embryos with 1.5 ng Cas9 (Bhattacharya et al., 2015; Nakayama et al., 2013). All guides were injected at a dose of 400 pg/embryo.
Immunohistochemistry
Whole-mount
View detailed protocolX. tropicalis tadpoles were fixed for 20 min in 10xMEMFA, 3.7% formaldehyde at room temperature. To preserve reporter fluorescence, tadpoles were kept dark upon fixing. Tadpoles were permeabilized by washing 3 × 20 min in PBS + 0.01% Triton x-100 (PBT). Tadpoles were blocked for 1 hr at room temperature in 10% CASblock (Invitrogen #00–8120) in PBT. Then tadpoles were incubated in primary antibody (1:50 neurofilament associated antigen, DSHB 3A10; 1:1000 Anti-Histone H3 (tri methly K9, Phospho S10), Abcam 14955) diluted in 100% CAS-block overnight at 4°C. Tadpoles were then washed 3 × 10 min at room temperature in PBT and reblocked for 30 min in 10% CAS-block in PBT. Secondary antibody (goat anti-mouse 488, ThermoFisher A11001 or goat anti-mouse 555, ThermoFisher A21422) were diluted 1:500 in 100% CAS-block and incubated for 2 hr at room temperature.
Sections
Request a detailed protocolSections were baked onto slides on a heat block for 1 hr. Once slide had cooled, a hydrophobic barrier was drawn around the sections with a PAP pen (cat) and left to dry. Once dry, sections were washed with PBT 3 × 10 min. Sections were then blocked for 1 hr in 10% CASBlock followed by incubation in primary antibody overnight at 4C (1:50 neurofilament associated antigen, DSHB 3A10; 1:100 anti-DCX, Cell Signaling Technology 4604S; 1:200 anti-Sox2, Cell Signaling Technology 2748S). The following day, primary antibody was removed and replaced with a brief wash in PBT. Sections were blocked for 30 min followed by 2 hr incubation in secondary antibody at room temperature (1:500 goat anti-mouse 555, ThermoFisher A21422; 1:500 goat anti-rabbit 594, ThermoFisher Cat. A-21422).
For both whole-mount and sections, tadpoles were then washed 3 × 20 min in PBT. Tadpoles were then incubated in 1:2000 DAPI (Sigma D9542) for 10 min before being washed with 1xPBS for 10 more minutes. Isolated tails were mounted on slides in ProLong Gold (ThermoFisher P36930). Images were acquired with a Leica SP8 confocal microscope.
Regenerated tissue measurement and analysis
Measurement
Request a detailed protocolTo measure regenerated length of spinal cord and tail, regenerated tails were mounted on slides and were imaged on the Images were acquired with a Lecia DM 5500 B microscope with the 10x or 20x objective. Using the Leica imaging software (LasX), measurements were taken from the amputation plane to the most posterior point of the axial tissues for tail length and amputation plane to most posterior point of the spinal cord for spinal cord length. We used morphological features such as disruption to somite chevron morphology to identify the amputation plane.
Analysis
We used the R package ggplot2 to plot boxplots of the regenerate measurement data. A single regenerated tadpole was treated as one measurement. A two-tailed t-test was used to test how different the uninjected controls were from the morphants. Statistical analysis was performed using the R package ggpubr.
PH3 cell quantification
Request a detailed protocol24hpa and 72hpa regenerated tails stained with anti-PH3 and DAPI were imaged on a Leica DM 5500 B Microscope with a 20x objective. Z-Stacks were acquired encompassing the entire spinal cord in focus, while excluding the most outer structures (i.e. epidermis) and max projected. In FIJI, the regenerated spinal cord in was identified and outlined in the DAPI channel to create a region of interest. The region of interest was transferred to the PH3 channel, and the area of the region was taken. PH3+ cells were counted manually within the region of interest. Quantifications were reported as PH3+ cells per spinal cord area. Significance was tested by using a two tailed t-test between conditions in question. This test was performed with the R package ggpubr.
Data availability
Sequencing data has been deposited in GEO under accession code GSE146837 (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE146837).
-
NCBI Gene Expression OmnibusID GSE146830. Chromatin accessibility dynamics and single cell RNA-Seq reveal new regulators of regeneration in neural progenitors.
-
NCBI Gene Expression OmnibusID GSE146836. Chromatin accessibility dynamics and single cell RNA-Seq reveal new regulators of regeneration in neural progenitors.
-
NCBI Gene Expression OmnibusID GSE146837. Chromatin accessibility dynamics and single cell RNA-Seq reveal new regulators of regeneration in neural progenitors.
-
NCBI Gene Expression OmnibusID GSE88975. RNA-Seq of Xenopus tail regeneration.
References
-
Dimensionality reduction for visualizing single-cell data using UMAPNature Biotechnology 4314.https://doi.org/10.1038/nbt.4314
-
Beyond early development: Xenopus as an emerging model for the study of regenerative mechanismsDevelopmental Dynamics 238:1226–1248.https://doi.org/10.1002/dvdy.21890
-
Musashi and plasticity of Xenopus and axolotl spinal cord ependymal cellsFrontiers in Cellular Neuroscience 12:45.https://doi.org/10.3389/fncel.2018.00045
-
Origin of spinal cord axons in the lizard regenerated tail: supernormal projections from local spinal neuronsThe Journal of Comparative Neurology 293:208–222.https://doi.org/10.1002/cne.902930205
-
Comparative analysis of the regenerative capacity of caudal spinal cord in larvae of serveral anuran amphibian speciesActa Embryologiae Et Morphologiae Experimentalis 2:199–226.
-
Pbx homeodomain proteins pattern both the zebrafish retina and tectumBMC Developmental Biology 7:85.https://doi.org/10.1186/1471-213X-7-85
-
Cell lineage tracing during Xenopus tail regenerationDevelopment 131:2669–2679.https://doi.org/10.1242/dev.01155
-
Cell cycle regulation of proliferation versus differentiation in the central nervous systemCell and Tissue Research 359:187–200.https://doi.org/10.1007/s00441-014-1895-8
-
Xenopus tropicalis transgenic lines and their use in the study of embryonic inductionDevelopmental Dynamics 225:522–535.https://doi.org/10.1002/dvdy.10188
-
TGF-β signaling is required for multiple processes during Xenopus tail regenerationDevelopmental Biology 315:203–216.https://doi.org/10.1016/j.ydbio.2007.12.031
-
Pbx1 and Meis1 regulate activity of the Xenopus laevis Zic3 promoter through a highly conserved regionBiochemical and Biophysical Research Communications 344:1031–1037.https://doi.org/10.1016/j.bbrc.2006.03.235
-
Techniques and probes for the study of Xenopus tropicalis developmentDevelopmental Dynamics 225:499–510.https://doi.org/10.1002/dvdy.10184
-
Making sense out of spinal cord somatosensory developmentDevelopment 143:3434–3448.https://doi.org/10.1242/dev.139592
-
Fast gapped-read alignment with bowtie 2Nature Methods 9:357–359.https://doi.org/10.1038/nmeth.1923
-
Software for computing and annotating genomic rangesPLOS Computational Biology 9:e1003118.https://doi.org/10.1371/journal.pcbi.1003118
-
Meis2 is essential for cranial and cardiac neural crest developmentBMC Developmental Biology 15:40.https://doi.org/10.1186/s12861-015-0093-6
-
Tail regeneration in the Xenopus tadpoleDevelopment, Growth & Differentiation 49:155–161.https://doi.org/10.1111/j.1440-169X.2007.00912.x
-
Regeneration of Xenopus laevis spinal cord requires Sox2/3 expressing cellsDevelopmental Biology 408:229–243.https://doi.org/10.1016/j.ydbio.2015.03.009
-
G:profiler: a web server for functional enrichment analysis and conversions of gene lists (2019 update)Nucleic Acids Research 47:W191–W198.https://doi.org/10.1093/nar/gkz369
-
Sonic hedgehog is a polarized signal for motor neuron regeneration in adult zebrafishJournal of Neuroscience 29:15073–15082.https://doi.org/10.1523/JNEUROSCI.4748-09.2009
-
A meis family protein caudalizes neural cell fates in XenopusMechanisms of Development 80:3–13.https://doi.org/10.1016/S0925-4773(98)00187-7
-
Defolliculation of Xenopus oocytesCold Spring Harbor Protocols 2010:pdb.prot5535.https://doi.org/10.1101/pdb.prot5535
-
The Xenopus tadpole: a new model for regeneration researchCellular and Molecular Life Sciences : CMLS 65:54–63.https://doi.org/10.1007/s00018-007-7431-1
-
Limb regeneration in Xenopus laevis frogletTheScientificWorldJournal 6 Suppl 1:26–37.https://doi.org/10.1100/tsw.2006.325
-
Notochord-derived hedgehog is essential for tail regeneration in Xenopus tadpoleBMC Developmental Biology 14:27.https://doi.org/10.1186/1471-213X-14-27
-
Tail regeneration in Xenopus laevis as a model for understanding tissue repairJournal of Dental Research 87:806–816.https://doi.org/10.1177/154405910808700909
-
Pax-6, a murine paired box gene, is expressed in the developing CNSDevelopment 113:1435–1449.
-
Involvement of gecko SNAP25b in spinal cord regeneration by promoting outgrowth and elongation of neuritesThe International Journal of Biochemistry & Cell Biology 44:2288–2298.https://doi.org/10.1016/j.biocel.2012.09.011
-
Model-based analysis of ChIP-Seq (MACS)Genome Biology 9:R137.https://doi.org/10.1186/gb-2008-9-9-r137
Decision letter
-
Marianne E BronnerSenior and Reviewing Editor; California Institute of Technology, United States
-
James R MonaghanReviewer; Northeastern University, United States
-
Amy SaterReviewer; University of Houston, United States
In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.
Acceptance summary:
This manuscript investigates the transcriptional changes in neural tissue accompanying tail regeneration in Xenopus tropicalis tadpoles. The key findings are that (1) the initial transcriptional response promotes neuronal differentiation, followed within 3 days by an increase in expression of genes associated with cell proliferation; and (2) meis1 and pbx3 emerge as important regulators of the neural regenerative response. This first finding in particular is novel and challenges the fundamental assumption that cell dedifferentiation and proliferation are the initial steps in regeneration. The novelty and potential significance of these observations, together with the overall quality of the work, merit publication in eLife. Moreover, the manuscript is very clearly presented, and the logical flow of the computational analyses is easy to follow.
Decision letter after peer review:
Thank you for sending your article entitled "Chromatin accessibility dynamics and single cell transcriptomics reveal new regulators of neural progenitor regeneration" for peer review at eLife. Your article is being evaluated by three peer reviewers, and the evaluation is being overseen by a Reviewing Editor and Marianne Bronner as the Senior Editor.
All of the reviewers find the manuscript interesting and think that it will be potentially very useful to the community. That said, they also raise substantial concerns that will require major revisions.
Reviewer #1:
The manuscript by Kakebeen et al., is addressing a fundamental question in developmental and regenerative biology. With the realization of human therapies for nervous system regeneration after spinal cord injury, it is important to understand the strategies for regeneration that nature has already solved. The advent of new techniques such as scRNAseq and ATAC-seq have generated opportunities to study changes in cell state and type in complex cell populations, which Kakebeen et al., has made progress with here. Considering the authors are addressing a classic question in regenerative biology using the latest techniques, they’re of great value to the study. Overall, the ATACseq and scRNAseq seem robust, but there are some significant flaws in the design of the study that limit the interpretation that can be made by the readers. These problems are described below.
1) The choice of pax6:GFP as the driver instead of Sox2 is a major drawback of the paper, unless major reinterpretation of the data is performed. The impression made from the Introduction and Results is that the study focuses on all NPCs. Based upon previous literature, this is likely not the case. Pax6 plays a well-established role in determining the dorsal/ventral fate of NSCs in the developing spinal cord across vertebrates, namely the pMN domain, and is expressed in a restricted intermediate dorsal/ventral zone of the vertebrate spinal cord (Pituello, 1997; Reimer et al., 2009). The image in Figure 1B needs to be of higher quality in order to determine the expression pattern of the transgene, but it looks to be and is most likely expressed in a canonical fashion in the intermediate D/V zone of the spinal cord. I would suggest a thinner cryosection and a zoom in on the spinal cord specifically. Pax6 has also been associated with controlling cell cycle exit in neural progenitor cells towards differentiation (Bel-Vialar, Medevielle, and Pituello, 2007; Osumi et al., 2008), which should be kept in mind throughout the study. Also, canonical D/V pax6 expression is maintained in mature axolotl salamander spinal cords and dorsal/ventral position of NSCs mainly remain stable after spinal cord regeneration in the axolotl (McHedlishvili et al., 2007). Considering all interpretation of the manuscript is under the assumption that all NPCs are marked and differentiation is not specific to a D/V region, the interpretation is missing a lot of likely very interesting findings on pax6 function and D/V patterning during spinal cord regeneration. As is, it is difficult to interpret exactly what the cell population the pax6:GFP cells are labeling and what they are differentiating into during regeneration (see next statement).
2) It should be explained why cre/lox lineage tracing was not used in the study. As presented, it is unclear if the cell population that is being sorted is exclusively the NSCs or does it include the neurons they differentiate into. Based upon the gene families that were identified from ATACseq including genes involved in neuritogenesis and growth cone formation, it is likely the authors also sorted differentiated neurons or cells in the process of differentiating. It is known that GFP protein can last for days long after the transgene is not expressed. Use of a Sox2 Cre driver Xenopus mated with a fluorescent cre reporter would have overcome the ambiguity of the cells that are being studied and provide a clear trajectory of NSC to differentiated cell types.
3) The in situ hybridizations in Figure 5 do not support the sequencing data. At stage 41, both genes look to be expressed in all mesodermal tissue such as muscle. In subsection “Gene regulatory network prediction reveals pbx3 and meis1 as candidate
regulators of neuronal regeneration”, it states "Of these, pbx3 was the most restricted to the neural lineage (Supp. 3 E/G)". This is emphasized again in the Discussion. The in situ hybridization shows pbx3 is expressed throughout the mesenchyme of the regenerating tail at 48dpa. It will be important to perform cross sections of tissues to show expression in the expected domains, which will likely be the intermediate DV regions of the spinal cord (see new interpretations of pax6 cells above). I would suggest commercially available FISH such as hybridization chain reaction (molecularinstruments.com) or RNAscope that has higher resolution in the cellular level.
Reviewer #2:
The manuscript by Kakebeen et al., ("Chromatin accessibility dynamics and single cell transcriptomics reveal new regulators of neural progenitor regeneration") investigates the transcriptional changes in neural tissue accompanying tail regeneration in Xenopus tropicalis tadpoles. The key findings are that (1) the initial transcriptional response promotes neuronal differentiation, followed within 3 days by an increase in expression of genes associated with cell proliferation; and (2) meis1 and pbx3 emerge as important regulators of the neural regenerative response. This first finding in particular is novel and challenges the fundamental assumption that cell dedifferentiation and proliferation are the initial steps in regeneration. The novelty and potential significance of these observations, together with the overall quality of the work, merit publication in eLife. Moreover, the manuscript is very clearly presented, and the logical flow of the computational analyses is easy to follow.
I have two points of concern. The first is that, while the authors claim that pbx3 is predicted to be a key transcriptional regulator of the neural regenerative response, the results in Figure 5 indicate that only a very small proportion of neural cells express pbx3. (I found Figure 5E-5F somewhat confusing, and it may be that clarification of the figure legends will address this issue). If my understanding of these results is correct, however, then I suggest the authors revise the text, since, as written, it implies that pbx3 is critical to the entire regenerative response.
The second is in regard to the morpholino oligonucleotide (MO) experiments. The authors use two different MOs for each of the two targets, in lieu of a mispair control. While the pbx3 MOs lead to quite similar results, the meis1 MOs produce somewhat distinct phenotypes (compare Figure 5 C-D, 5W-X). This may be a sample size issue, or it may arise from the apparent greater effectiveness of MO1 vs MO2. Given the ongoing discussion regarding MO use, I would like to see the authors address this point in some way, either experimentally (e.g., a western blot comparing effectiveness of the two MOs in regulating endogenous pbx3 [Abcam has an antibody that works for mammalian species and zebrafish], but other strategies would be suitable) or via discussion in the text, which might also include results of computational comparisons to identify any other predicted targets.
Reviewer #3:
In this manuscript, Kakebeen et al. analyzed chromatin accessibility and single cell transcriptomes from pax6-driven GFP positive cells during Xenopus tail regeneration. The authors utilized transgenic pax6:GFP to sort neural progenitor cells (NPCs) throughout this study. They used deep sequencing, ATACseq, and SCseq to define transcripts, biological processes, and transcription factors that are central to spinal cord regeneration in the regenerating Xenopus tail. The authors concluded that NPCs place an early priority on neuronal differentiation early after injury, and prioritize proliferation at later stages of regeneration. They go on to perform morpholino-based functional analysis on two candidate transcription factors, and concluded that meis1 and pbx3 are required for spinal cord development and regeneration.
Overall, bulk RNA-seq, ATACseq and SCseq offer a powerful combination of tools to infer new insights into the cellular and temporal regulation of endogenous spinal cord regeneration Xenopus. The battery of analyses performed on these datasets is well-executed, revealing an early emphasis (6 hpa) on neuronal differentiation and a later emphasis on neural progenitor replenishment (72 hpa). The authors also use their scRNA-seq dataset to define new markers for neural cell types. However, this hypothesized temporal regulation of NPC injury responses is weakened by the following concerns:
1) The entire study is based on the assumption that pax6 is a general marker for NPCs prior to and during regeneration, and that pax6:GFP recapitulates endogenous pax6 expression throughout the time course of regeneration. While all the conclusions from this study are based on these assumptions, pax6:GFP transgenic animals were poorly characterized (Figure 1 and Figure 1—figure supplement 1).
– Higher magnification images and extensive co-labeling with well-established NPC markers throughout regeneration are critical for this study.
– Confirming that the transgene recapitulates endogenous pax6 expression is also critical for the study. The authors state pax6:GFP is consistent with developmental expression of pax6, but this is assuming regeneration will fully recapitulate development, which is not always the case. An additional concern is the stability of GFP over fine time windows as narrow as 6 hours.
– From the low mag images in Figure 1D, it seems that the transgene is not restricted to the spinal cord. This observation is further supported by scRNA-seq (Figure S3A), which indicates that pax6 is expressed in many cell types beyond NPCs.
2) Even with a full characterization of the transgene, this reviewer is always concerned about drawing conclusions based on a single genetic tool. In this case, it is impossible to rule out the presence of pax6 negative progenitor cells that differentially contribute proliferation versus differentiation at different time points after injury. Further, equally impossible is to rule out technical cell dissociation limitations that may cause differential cell representations in the analysis.
3) The main premise of the study is that NPCs place an early priority on neuronal differentiation before prioritizing proliferation. This is an interesting and potentially relevant observation that warrants experimental support.
– Detailed elucidation of cell proliferation (rostral and caudal to the lesion), migration, and differentiation are recommended in this case.
– These studies would also address the possibility that proliferation is occurring rostral to lesion and that NPCs are recruited into the regenerate where they differentiate into neurons.
– The authors supported their conclusion that NPC proliferation is not abundant until 72 hpa by referencing Love et al., 2011 and their own work (Chang et al., 2017). Chang et al., 2017 does not mention cell proliferation and instead shows an emphasis on immune response at 72 hpa in whole tail. Love et al., 2011 does show an increase in cell proliferation in whole tail at 72 hpa. To support the authors' conclusion that this boost in cell proliferation is indeed happening in the spinal cord, a marker for cell proliferation should be used in the pax6:GFP expressing tadpoles following tail transection.
4) The authors followed up on their SCseq findings by performing functional analyses for meis1 and pbx3. Unfortunately, these studies present a number of major concerns that dampen the excitement about the study.
– The morpholino experiments do not follow recent guidelines for morpholino use. Proper controls are recommended in this case.
– It is unclear how the authors concluded CNS/spinal cord developmental defects based on the severe morpholino phenotypes that were obtained even at the lower doses. These phenotypes are consistent with generic, overall toxicity phenotypes that are common to morpholinos.
– The severe developmental phenotypes caused by meis1 and pbx3 cloud the interpretation of regeneration phenotypes in these morphants.
– Neurofilament stains for uninjured wildtype and morphant animals should be included in Figure 6.
– What is the effect of meis1 and pbx3 morpholinos on cell proliferation in both injured and uninjured tadpoles?
– The authors claim meis1 is required for the neuronal differentiation occurring at early timepoints during spinal cord regeneration. They show that axons in the regenerating tail are disorganized in meis1 morphants, but are these neurons the appropriate neuron type?
[Editors' note: further revisions were suggested prior to acceptance, as described below.]
Thank you for submitting your article "Chromatin accessibility dynamics and single cell RNA-Seq reveal new regulators of regeneration in neural progenitors" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Marianne Bronner as the Senior Editor The following individuals involved in review of your submission have agreed to reveal their identity: James R Monaghan (Reviewer #1); Amy Sater (Reviewer #2).
The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.
We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, we are asking editors to accept without delay manuscripts, like yours, that they judge can stand as eLife papers without additional data, even if they feel that they would make the manuscript stronger. Thus the revisions requested below only address clarity and presentation.
Summary:
This revised manuscript has addressed most of the concerns of the reviewers and is fundamentally suitable for publication after some edits in response to the few remaining issues raised by the reviewer. I ask you to address these to the best of your ability with editorial changes.
Revisions:
1) Subsection “Meis1 and Pbx3 are necessary for successful spinal cord and tail
regeneration” first paragraph: please add "antibody" after "anti-neurofilament"
2) The addition of Sox2 antibody staining and its overlap with pax6:GFP is informative. There is a small number of Sox2+ cells that are pax6:GFP negative, which the authors address in the text. However, reviewer 3 has two concerns with this data:
a) Sox2/pax6:GFP co-labelling is performed during tadpole development. This approach assumes pax6:GFP and Sox2 co-expression behave similarly in regeneration as in development, which is not necessarily the case.
b) The authors do not address pax6:GFP+ Sox2- cells. These cells, which are observed by histology and scRNA-seq analysis, could affect data interpretation in Figures 2 and 3.
3) pax6:GFP- Sox2+ NPCs do exist. How are these cells contributing to the differences seen in cell proliferation and differentiation during different stages of regeneration? Perhaps these are the pH3+ cells present at 24 hpa. These pax6:GFP- Sox2+ cells appear to be fewer in number, but their presence should be more clearly acknowledged in the text.
https://doi.org/10.7554/eLife.52648.sa1Author response
Reviewer #1:
1) The choice of pax6:GFP as the driver instead of Sox2 is a major drawback of the paper, unless major reinterpretation of the data is performed. The impression made from the Introduction and Results is that the study focuses on all NPCs. Based upon previous literature, this is likely not the case. Pax6 plays a well-established role in determining the dorsal/ventral fate of NSCs in the developing spinal cord across vertebrates, namely the pMN domain, and is expressed in a restricted intermediate dorsal/ventral zone of the vertebrate spinal cord (Pituello, 1997; Reimer et al., 2009). The image in Figure 1B needs to be of higher quality in order to determine the expression pattern of the transgene, but it looks to be and is most likely expressed in a canonical fashion in the intermediate D/V zone of the spinal cord. I would suggest a thinner cryosection and a zoom in on the spinal cord specifically. Pax6 has also been associated with controlling cell cycle exit in neural progenitor cells towards differentiation (Bel-Vialar, Medevielle, and Pituello, 2007; Osumi et al., 2008), which should be kept in mind throughout the study. Also, canonical D/V pax6 expression is maintained in mature axolotl salamander spinal cords and dorsal/ventral position of NSCs mainly remain stable after spinal cord regeneration in the axolotl (McHedlishvili et al., 2007). Considering all interpretation of the manuscript is under the assumption that all NPCs are marked and differentiation is not specific to a D/V region, the interpretation is missing a lot of likely very interesting findings on pax6 function and D/V patterning during spinal cord regeneration. As is, it is difficult to interpret exactly what the cell population the pax6:GFP cells are labeling and what they are differentiating into during regeneration (see next statement).
We have added new cryosections of the posterior spinal cord at stage 41 to Figure 1, which more clearly show the domain of pax6:GFP expression (Figure 1C), as well as the overlap between this domain and Sox2 protein expression (Figure 1D). These have highlighted that there is broad overlap between the GFP domain (which surrounds the central canal) and the Sox2 domain. We note that some GFP positive cells can be detected across the D/V axis of the spinal cord, and that while GFP expression is weaker in the dorsal-most potion of the spinal cord, there are also few Sox2+ cells that we could detect in this region and at this stage. Recognizing that the overlap is imperfect, we also have taken care to note in the text (both in the results for Figure 1 and in the discussion), that we may not have included every NPC in our FACS analysis, and to more precisely state that our findings apply to pax6+ NPCs.
2) It should be explained why cre/lox lineage tracing was not used in the study. As presented, it is unclear if the cell population that is being sorted is exclusively the NSCs or does it include the neurons they differentiate into. Based upon the gene families that were identified from ATACseq including genes involved in neuritogenesis and growth cone formation, it is likely the authors also sorted differentiated neurons or cells in the process of differentiating. It is known that GFP protein can last for days long after the transgene is not expressed. Use of a Sox2 Cre driver Xenopus mated with a fluorescent cre reporter would have overcome the ambiguity of the cells that are being studied and provide a clear trajectory of NSC to differentiated cell types.
While we agree a Sox2 Cre driver would be a powerful tool, there is not currently a line resembling this available in X. tropicalis. Given the 6-8 month generation time of X. tropicalis in our own breeding colony and the 3-month interval required between ovulations of each potential founder female, as well as the approximately $25k in sequencing costs that would be required to recapitulate the study, creating these data anew was beyond the scope of what we could take on in this study. However, we have added high-resolution cryosections comparing the pax6:GFP domain with Sox2 (NSC), Dcx (neurons) and neurofilament stains to better characterize the populations labeled (Figure 1D-F). These show that cytoplasmic GFP expression is in more medial cells of the spinal cord, as are the Sox2+ nuclei, while neuronal markers localize more the spinal cord periphery. We have highlighted in the Results sections that while the domain of GFP expression accords best with Sox2, not every NPC may be captured in our study, and some neurons may be have been included (Results first paragraph). The population-level conclusions in our ATAC-Seq data are not changed, especially when paired by the analysis of specific neural cell population dynamics we present through scRNA-Seq analysis.
3) The in situ hybridizations in Figure 5 do not support the sequencing data. At stage 41, both genes look to be expressed in all mesodermal tissue such as muscle. In subsection “Gene regulatory network prediction reveals pbx3 and meis1 as candidate
regulators of neuronal regeneration”, it states "Of these, pbx3 was the most restricted to the neural lineage (Supp. 3 E/G)". This is emphasized again in the Discussion. The in situ hybridization shows pbx3 is expressed throughout the mesenchyme of the regenerating tail at 48dpa. It will be important to perform cross sections of tissues to show expression in the expected domains, which will likely be the intermediate DV regions of the spinal cord (see new interpretations of pax6 cells above). I would suggest commercially available FISH such as hybridization chain reaction (molecularinstruments.com) or RNAscope that has higher resolution in the cellular level.
We have provided new in situs for meis1 and pbx3 in the new version of the figure (now Figure 6), and in particular have included cryosections to better show the spinal cord expression pattern in the tail, which spans a broad D/V domain (Figure 6G-J). A challenge of in situs for both factors is the very low overall level of their expression (which is likely a contributing factor to why they have not previously been identified in regeneration!) We think the new sections better show their expression in the uninjured context. Expression of both factors increases following injury, and the in situs at 24hpa and 72hpa more clearly show their localization in the spinal cord (Figure 6K-P).
Reviewer #2:
I have two points of concern. The first is that, while the authors claim that pbx3 is predicted to be a key transcriptional regulator of the neural regenerative response, the results in Figure 5 indicate that only a very small proportion of neural cells express pbx3. (I found Figure 5E-5F somewhat confusing, and it may be that clarification of the figure legends will address this issue). If my understanding of these results is correct, however, then I suggest the authors revise the text, since, as written, it implies that pbx3 is critical to the entire regenerative response.
We have edited the Results section and the figure legend for Figure 5 (now Figure 6) to better clarify the expression of these factors. Indeed, it is a relatively small proportion of neural cells that contain detectable levels of transcripts for these factors (it’s worth noting here that a larger proportion of cells may have some degree of expression, as scRNA-Seq captures only a fraction of transcripts for each cell). Because pbx3 and meis1 are expressed at low transcriptional levels and in only a small fraction of cells, we also find it impressive that they are both critical to a more extensive regenerative response. In the discussion, we speculate that this may be tied to the phenomenon of neural dependence, which has been described previously in multiple species, in which functional nerves are required for the ability of other tissue types to regenerate.
The second is in regard to the morpholino oligonucleotide (MO) experiments. The authors use two different MOs for each of the two targets, in lieu of a mispair control. While the pbx3 MOs lead to quite similar results, the meis1 MOs produce somewhat distinct phenotypes (compare Figure 5 C-D, 5W-X). This may be a sample size issue, or it may arise from the apparent greater effectiveness of MO1 vs MO2. Given the ongoing discussion regarding MO use, I would like to see the authors address this point in some way, either experimentally (e.g., a western blot comparing effectiveness of the two MOs in regulating endogenous pbx3 [Abcam has an antibody that works for mammalian species and zebrafish], but other strategies would be suitable) or via discussion in the text, which might also include results of computational comparisons to identify any other predicted targets.
a) We chose more representative images for meis1 MOs, which better show the concordance of phenotypes between the two MOs (Figure 7—figure supplement 1C/E). We also noted that no off-target binding was predicted for any of the MOs used in the Materials and methods section.
b) We have added to our morpholino experiments by designing CRISPR guides for both meis1 and pbx3. These guide RNAs phenocopied the morpholino results when injected with Cas9 protein (Figure 7—figure supplement 1G-N)
c) We attempted Western blot experiments for both Meis1 and Pbx3, but unfortunately were unable to see sufficiently strong bands for either protein to evaluate the degree of knockdown. This is likely because of the low and tissue-specific expression of both factors.
d) Finally, we used stage 41 tail vein injection of vivo-MO versions of pbx3 and meis1 MOs to bypass early embryonic effects (new Figure 7) (see responses to reviewer 3).
Reviewer #3:
1) The entire study is based on the assumption that pax6 is a general marker for NPCs prior to and during regeneration, and that pax6:GFP recapitulates endogenous pax6 expression throughout the time course of regeneration. While all the conclusions from this study are based on these assumptions, pax6:GFP transgenic animals were poorly characterized (Figure 1 and Figure 1—figure supplement 1).
– Higher magnification images and extensive co-labeling with well-established NPC markers throughout regeneration are critical for this study.
– Confirming that the transgene recapitulates endogenous pax6 expression is also critical for the study. The authors state pax6:GFP is consistent with developmental expression of pax6, but this is assuming regeneration will fully recapitulate development, which is not always the case. An additional concern is the stability of GFP over fine time windows as narrow as 6 hours.
– From the low mag images in Figure 1D, it seems that the transgene is not restricted to the spinal cord. This observation is further supported by scRNA-seq (Figure S3A), which indicates that pax6 is expressed in many cell types beyond NPCs.
a) We have added higher-resolution cross-sectional images of the GFP domain, as well as co-labeling with Sox2, Dcx and neurofilament to Figure 1C-F. These show that pax6:GFP labels cells in a broad D/V domain that surrounds the central canal, much like Sox2, while differentiated neuronal markers (Dcx, neurofilament) label the periphery. In recognition of the possibility that we have not captured every NSC, or may have captured some differentiated neurons, we added additional text to the Results and Discussion sections (see also response to reviewer 1).
b) Our initial imaging of the transgene was imperfect due to autofluorescence and bleed-through from the cardiac actin:RFP label; new images better show that expression is neural-specific.
2) Even with a full characterization of the transgene, this reviewer is always concerned about drawing conclusions based on a single genetic tool. In this case, it is impossible to rule out the presence of pax6 negative progenitor cells that differentially contribute proliferation versus differentiation at different time points after injury. Further, equally impossible is to rule out technical cell dissociation limitations that may cause differential cell representations in the analysis.
These are important caveats to consider, which we have addressed in the revised Results sections.
3) The main premise of the study is that NPCs place an early priority on neuronal differentiation before prioritizing proliferation. This is an interesting and potentially relevant observation that warrants experimental support.
– Detailed elucidation of cell proliferation (rostral and caudal to the lesion), migration, and differentiation are recommended in this case.
– These studies would also address the possibility that proliferation is occurring rostral to lesion and that NPCs are recruited into the regenerate where they differentiate into neurons.
– The authors supported their conclusion that NPC proliferation is not abundant until 72 hpa by referencing Love et al., 2011 and their own work (Chang et al., 2017). Chang et al., 2017 does not mention cell proliferation and instead shows an emphasis on immune response at 72 hpa in whole tail. Love et al., 2011 does show an increase in cell proliferation in whole tail at 72 hpa. To support the authors' conclusion that this boost in cell proliferation is indeed happening in the spinal cord, a marker for cell proliferation should be used in the pax6:GFP expressing tadpoles following tail transection.
We have generated a new data figure, Figure 5, that addresses these points.
a) We addressed the question of proliferation by adding quantification of PH3-positive cells to new Figure 5 Y-AA. Because the cell density in the spinal cord is low, PH3-positive cells were rarely captured in transverse sections, and so we used high resolution imaging to capture optical longitudinal sections instead, and looked for overlap between PH3-positive cells and the GFP domain (Materials and methods reflect accordingly). This analysis showed that mitotic cells are rare at 24hpa, and far more abundant at 72hpa (see particularly quantification data in new Figure 5AA). Although we did not have good tools to directly assay migration of proliferative cells in the spinal cord, we note that proliferative cells were rare in the spinal cord rostral to the injury site at either time point.
b) We also apologize strongly for the citation error, which has been corrected.
c) To address the question of neuronal differentiation, we elected to show the expression of several markers of differentiated neurons that our single-cell RNA-Seq identified. We chose 4 markers for this analysis, which all have strong expression in the regenerating neural ampulla at 24hpa (new Figure 5E, K, Q, W).
4) The authors followed up on their SCseq findings by performing functional analyses for meis1 and pbx3. Unfortunately, these studies present a number of major concerns that dampen the excitement about the study.
– The morpholino experiments do not follow recent guidelines for morpholino use. Proper controls are recommended in this case.
– It is unclear how the authors concluded CNS/spinal cord developmental defects based on the severe morpholino phenotypes that were obtained even at the lower doses. These phenotypes are consistent with generic, overall toxicity phenotypes that are common to morpholinos.
– The severe developmental phenotypes caused by meis1 and pbx3 cloud the interpretation of regeneration phenotypes in these morphants.
– Neurofilament stains for uninjured wildtype and morphant animals should be included in Figure 6.
– What is the effect of meis1 and pbx3 morpholinos on cell proliferation in both injured and uninjured tadpoles?
– The authors claim meis1 is required for the neuronal differentiation occurring at early timepoints during spinal cord regeneration. They show that axons in the regenerating tail are disorganized in meis1 morphants, but are these neurons the appropriate neuron type?
We have added to our MO experiments considerably, and have included a full new data figure (new Figure 7).
a) We were able to phenocopy the effects of the MOs by F0 CRISPR/Cas9 (Figure 7—figure supplement 1G-J)
b) We added neurofilament stains to the uninjured morphants as requested (Figure 7—figure supplement 2B-F)
c) Finally and most significantly, we agreed with the reviewer that the early embryonic defects clouded our ability to assess the roles of these two factors in tadpoles and specifically in regeneration. Therefore we had two of our MO sequences, one for pbx3 and one for meis1, resynthesized as tissue-permeable vivo-MOs. We optimized a tail-vein injection strategy to deliver these at late embryo stages and/or during regeneration. Both vivo-MOs cased a failure of the ventral intersomitic axons to properly elongate (new Figure 7C,D). During regeneration, these vivo-MOs resulted in reduced and mispatterned neurofilament staining in the regenerate when assayed at 72 hpa (new Figure 7E-G). Both vivo-MOs also resulted in reduced length of the tail and spinal cord, as well as a reduction in spinal cord area in the regenerate at 72hpa (new Figure 7K, L). (Results reported in the final paragraph of the Results section). We hope the reviewer will agree that this approach clarifies that Pbx3 and Meis1 are critical for proper regeneration, independent from their early embryonic functions, which we hope to further elucidate in a later study. As noted above in the response to Figure 2, we find it remarkable that the overall regeneration of the tail is impacted by the loss of function of these more specifically-expressed transcription factors, and speculate that this may be tied to the nerve dependence of regeneration, although a full interrogation of this connection is beyond the scope of the current paper.
[Editors' note: further revisions were suggested prior to acceptance, as described below.]
Revisions:
1) Subsection “Meis1 and Pbx3 are necessary for successful spinal cord and tail
regeneration” first paragraph: please add "antibody" after "anti-neurofilament"
Edit was made.
2) The addition of Sox2 antibody staining and its overlap with pax6:GFP is informative. There is a small number of Sox2+ cells that are pax6:GFP negative, which the authors address in the text. However, reviewer 3 has two concerns with this data:
a) Sox2/pax6:GFP co-labelling is performed during tadpole development. This approach assumes pax6:GFP and Sox2 co-expression behave similarly in regeneration as in development, which is not necessarily the case.
We address that this is an assumption made using this method. We suggest that our scRNA-seq results point to NPCs continuing to express both markers, but also note that this analysis does not capture spatial dynamics in regeneration.
b) The authors do not address pax6:GFP+ Sox2- cells. These cells, which are observed by histology and scRNA-seq analysis, could affect data interpretation in Figures 2 and 3.
We address how we are likely capturing pax6:GFP+ Sox2- cells. We note our hypothesis that these cells are derived from pax6:GFP neural progenitor cells but have since exited the progenitor state and still maintain GFP protein. We also suggest a way that we might address this point in the future.
3) pax6:GFP- Sox2+ NPCs do exist. How are these cells contributing to the differences seen in cell proliferation and differentiation during different stages of regeneration? Perhaps these are the pH3+ cells present at 24 hpa. These pax6:GFP- Sox2+ cells appear to be fewer in number, but their presence should be more clearly acknowledged in the text.
We address that we are capturing a broad selection of neural progenitors, however we are missing the dorsal most Sox2+ neural progenitor cell that are not also pax6:GFP+. We suggest follow up experiments that would address this concern in the future.
https://doi.org/10.7554/eLife.52648.sa2Article and author information
Author details
Anneke Dixie Kakebeen
Andrea Elizabeth Wills
Funding
National Institute of Neurological Disorders and Stroke (R01NS099124)
- Andrea Elizabeth Wills
National Institute of General Medical Sciences (T32GM007270)
- Anneke Dixie Kakebeen
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
Acknowledgements
We thank members of the Wills lab for critical comments during the preparation of this manuscript and support in frog husbandry. We thank Rosalind Bump for the 72hpa ass1 in situ hybridization image. We thank members of MF4 Supergroup and Regeneration Club for productive discussion and helpful suggestions throughout the course of this project. We thank the UW Pathology Flow Cytometry Core Facility for help with FACS. We thank the Reh lab for access and training on their cryostat. We thank Xenbase for curation of genomic and literature information and the National Xenopus Resource for frogs. ADK was supported by the Cellular and Molecular Biology Training Grant PHS NRSA T32GM007270 from NIGMS. This work was supported by NINDS R01NS099124 to AEW.
Ethics
Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocols (#4374) of the University of Washington, an AALAC-accredited institution. All surgeries were carried out under MS222 or Benzocaine anesthesia, and every effort was made to minimize suffering.
Senior and Reviewing Editor
- Marianne E Bronner, California Institute of Technology, United States
Reviewers
- James R Monaghan, Northeastern University, United States
- Amy Sater, University of Houston, United States
Publication history
- Received: October 11, 2019
- Accepted: April 25, 2020
- Accepted Manuscript published: April 27, 2020 (version 1)
- Version of Record published: May 26, 2020 (version 2)
Copyright
© 2020, Kakebeen et al.
This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
Metrics
-
- 6,444
- Page views
-
- 806
- Downloads
-
- 25
- Citations
Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.
Download links
A two-part list of links to download the article, or parts of the article, in various formats.
Downloads (link to download the article as PDF)
Open citations (links to open the citations from this article in various online reference manager services)
Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)
Chromatin accessibility dynamics and single cell RNA-Seq reveal new regulators of regeneration in neural progenitors
eLife 9:e52648.
https://doi.org/10.7554/eLife.52648
Further reading
-
- Developmental Biology
- Evolutionary Biology
Genetic studies in human and mice have established a dual role for Vsx genes in retina development: an early function in progenitors’ specification, and a later requirement for bipolar-cells fate determination. Despite their conserved expression patterns, it is currently unclear to which extent Vsx functions are also conserved across vertebrates, as mutant models are available only in mammals. To gain insight into vsx function in teleosts, we have generated vsx1 and vsx2 CRISPR/Cas9 double knockouts (vsxKO) in zebrafish. Our electrophysiological and histological analyses indicate severe visual impairment and bipolar cells depletion in vsxKO larvae, with retinal precursors being rerouted toward photoreceptor or Müller glia fates. Surprisingly, neural retina is properly specified and maintained in mutant embryos, which do not display microphthalmia. We show that although important cis-regulatory remodelling occurs in vsxKO retinas during early specification, this has little impact at a transcriptomic level. Our observations point to genetic redundancy as an important mechanism sustaining the integrity of the retinal specification network, and to Vsx genes regulatory weight varying substantially among vertebrate species.
-
- Developmental Biology
Single-cell transcriptome analysis of zebrafish cells clarifies the signalling pathways controlling skin formation and reveals that some cells produce proteins required for human teeth to acquire their enamel.
