Piezo1/2 mediate mechanotransduction essential for bone formation through concerted activation of NFAT-YAP1-ß-catenin

  1. Taifeng Zhou
  2. Bo Gao
  3. Yi Fan
  4. Yuchen Liu
  5. Shuhao Feng
  6. Qian Cong
  7. Xiaolei Zhang
  8. Yaxing Zhou
  9. Prem S Yadav
  10. Jiachen Lin
  11. Nan Wu
  12. Liang Zhao
  13. Dongsheng Huang
  14. Shuanhu Zhou
  15. Peiqiang Su  Is a corresponding author
  16. Yingzi Yang  Is a corresponding author
  1. Department of Developmental Biology, Harvard School of Dental Medicine, Harvard Stem Cell Institute, United States
  2. Department of Orthopaedic Surgery, Guangdong Provincial Key Laboratory of Orthopedics and Traumatology, First Affiliated Hospital of Sun Yat-sen University, Sun Yat-sen University, China
  3. Department of Spine Surgery, Sun Yat-sen Memorial Hospital, Sun Yat-sen University, China
  4. Department of Orthopedic Surgery, Nanfang Hospital, Southern Medical University, China
  5. Department of Operative Dentistry and Endodontics, Guanghua School of Stomatology, Sun Yat-sen University, China
  6. Department of Orthopedic Surgery and Beijing Key Laboratory for Genetic Research of Skeletal Deformity, Peking Union Medical College Hospital, Chinese Academy of Medical Sciences, China
  7. Department of Orthopedic Surgery, Brigham and Women's Hospital, United States
Research Article
  • Cited 4
  • Views 3,125
  • Annotations
Cite this article as: eLife 2020;9:e52779 doi: 10.7554/eLife.52779

Abstract

Mechanical forces are fundamental regulators of cell behaviors. However, molecular regulation of mechanotransduction remain poorly understood. Here, we identified the mechanosensitive channels Piezo1 and Piezo2 as key force sensors required for bone development and osteoblast differentiation. Loss of Piezo1, or more severely Piezo1/2, in mesenchymal or osteoblast progenitor cells, led to multiple spontaneous bone fractures in newborn mice due to inhibition of osteoblast differentiation and increased bone resorption. In addition, loss of Piezo1/2 rendered resistant to further bone loss caused by unloading in both bone development and homeostasis. Mechanistically, Piezo1/2 relayed fluid shear stress and extracellular matrix stiffness signals to activate Ca2+ influx to stimulate Calcineurin, which promotes concerted activation of NFATc1, YAP1 and ß-catenin transcription factors by inducing their dephosphorylation as well as NFAT/YAP1/ß-catenin complex formation. Yap1 and ß-catenin activities were reduced in the Piezo1 and Piezo1/2 mutant bones and such defects were partially rescued by enhanced ß-catenin activities.

Introduction

Mechanical forces are part of environmental cues that are sensed and responded to during embryonic development and adult life for proper morphogenesis and tissue/organ functions. Apart from the well-known complex networks of biochemical signaling that direct the development of higher vertebrate embryos, cells also constantly receive mechanical information from their environment in the form of biophysical stimuli such as stress, strain and fluid flow, which are generated by gravity, cell movement and cell-cell or cell-extracellular matrix (ECM) interactions. The process of mechanotransduction, conversion of mechanical forces into biological signals, is a fundamental physiologic process critical for revealing environmental features to almost all cells in an organism. However, despite the long-recognized key regulatory roles of mechanotransduction for embryonic development and sensory perception (Wozniak and Chen, 2009), little concrete information on the molecular mechanisms that integrate biophysical stimuli with gene regulation to guide fundamental events such as cell fate determination, proliferation and apoptosis is known. Among all organs, mechanotransduction is especially important in the skeleton system as its development and physiological functions require consistently sensing and responding to mechanical forces. A range of human conditions in which fetal movement is diminished were found to impact severely on skeletal development (Nowlan et al., 2010a). For instance, diseases of the neuromuscular system, such as congenital myotonic dystrophy (Wesström et al., 1986) or spinal muscle atrophy (Nicole et al., 2002) have a dramatic effect on skeletal development leading to smaller, thinner and weaker long bones, prone to postnatal fracture (Rodríguez et al., 1988a; Rodríguez et al., 1988b). Indeed, embryonic bone formation was reduced in experimentally induced muscle paralysis in chick (Hall and Herring, 1990) or genetically engineered ‘muscleless/reduced muscle’ mouse mutant embryos (Nowlan et al., 2010b). In postnatal life, rapid loss of bone mass and even osteoporosis in some cases due to a lack of load caused by prolonged bed rest, spinal cord injury or space flight and the bone anabolic effects of exercise are well documented. The major skeletal cells such as mesenchymal stem cells and the derived osteoblasts, chondrocytes and osteocytes are mechanical receptor cells that perceive and respond to forces, such as those generated by cell-ECM interactions or fluid shear stress (FSS). Ion channels including the transient receptor potential (TRP) polycystin family members have been found to regulate bone development (Katsianou et al., 2018). However, the molecular mechanisms whereby mechanical signals are sensed and converted by skeletal cells to biochemical signals leading to transcription factor activation (Huang and Ogawa, 2010) and eventually specific cellular responses such as cell fate determination (Duncan and Turner, 1995) remain largely unknown.

Recent advancement in mechanotransduction research (Ingber, 2006; Kelly and Jacobs, 2010; McMahon et al., 2008; Halder et al., 2012; Humphrey et al., 2014) has opened the door to providing molecular understanding of mechanical force sensing and downstream regulatory events in multiple biological systems. The mechanosensitive (MS) Piezo1 and Piezo2 channels are to date the best characterized biological force-sensing systems (Parpaite and Coste, 2017) that are involved in processes as diverse as perceiving touch or regulating the volume of red blood cells in mammals (Martinac, 2012; Coste et al., 2012; Murthy et al., 2017). The transcription factors Yap1 and Wwtr1 (also known as TAZ) in the Hippo signaling pathway have been identified as essential effectors of mechanotransduction (Halder et al., 2012; Aragona et al., 2013; Codelia et al., 2014; Wada et al., 2011; Dupont et al., 2011). The Piezo channels are the first type of MS channels documented to underlie a human disease linked to mechanical pathologies including a number of blood disorders and problems with proprioception (Chesler et al., 2016). While recent studies showed that Piezo1 in osteoblast cells and osteocytes are required for bone formation and regulating bone resorption in postnatal mice (Sun et al., 2019; Li et al., 2019; Wang et al., 2020), we additionally investigated in this study the functions and molecular mechanisms of both Piezo 1 and 2 channels in embryonic skeletal development and bone marrow stromal cells (BMSCs). Our work identifies Piezo1/2 and the downstream mechanotransduction pathways as key regulators that link mechanical microenvironment to a signal transduction cascade leading to nuclear transcriptional changes to promote bone formation in development and osteoblast differentiation from stem cells. Our studies provide mechanistic insights to decipher the functions of PIEZO1 in human skeleton. Human PIEZO1 SNPs are associated with body height reduction (Marouli et al., 2017). In a recent estimated bone mineral density (eBMD) GWAS of 426,824 individuals in the UK Biobank (Morris et al., 2019), novel genetic influences on osteoporosis in humans were identified with two SNPs (rs4238686, rs11643303) in PIEZO1 among the 1103 conditionally independent signals (423 novel) at genome-wide significance (Supplementary file 2 Table 2 Morris et al., 2019).

Results

Piezo 1 and 2 are expressed in the developing long bones

To test our hypothesis that the MS Piezo channels are key mechanosensors required for skeletal development and homeostasis, we first examined their expression in the developing limb buds, in which long bones form through endochondral ossification. At E12.5 to E14.5, when endochondral bone initiates, we found by whole mount in situ hybridization (WISH) that Piezo1 is mostly expressed in the interdigit region while Piezo2 is expressed in the forming digit and wrist (Figure 1a, Figure 1—figure supplement 1a,b). To further determine the expression of Piezo1 in the developing long bones, we performed in situ hybridization with Piezo1 probes using the RNAscope technology on sections (Wang et al., 2012). Piezo1 was most strongly expressed in the connective tissues associated with the muscle and weaker expression of Piezo1 expression was detected in the muscle and differentiating osteoblast cells in the perichondrium and periosteum (Figure 1—figure supplement 1c). The weak Piezo1 expression in the skeletal tissue prompted us to determine Piezo1 protein expression utilizing the Piezo1P1-tdT mice that allow sensitive detection of Piezo1 protein in vivo by expressing a C-terminus fusion protein of Piezo1 with the fluorescent tdTomato reporter from the Piezo1 locus (Ranade et al., 2014). As the direct red fluorescent signal was weak, we used anti-RFP antibodies to detect tdTomato (Figure 1b,c). Consistent with the in situ hybridization data (Figure 1—figure supplement 1c), Piezo1 protein was detected in the connective tissue, the associated muscle and differentiating osteoblast cells that express Osterix (Sp7) in the perichondrium and periosteum at E13.5, E15.5 and postnatal day 0 (P0) neonatal pups (Figure 1b,c). Piezo1 expression was also detected in the hypertrophic chondrocytes, tendons and ligaments (Figure 1b,c). To detect Piezo2 protein expression, we took an indirect approach using the Piezo2-EGFP-IRES-Cre (Piezo2EGFP-Cre) mice that express Piezo2-EGFP-Cre fusion protein from the endogenous Piezo2 locus (Woo et al., 2014). The EGFP signal was too weak to be reliably detected, so we crossed the Piezo2EGFP-Cre mouse with a Rosa-tdTomato reporter mouse (JAX stock # 007914). The tdTomato+ Piezo2 lineage cells (Piezo2+ cells and their descendants) included Sp7+ osteoblast cells, joint cells, sporadic growth plate chondrocytes, tendons and connective tissue cells in the muscle (Figure 1d, Figure 1—figure supplement 1d,e). Consistent with previous studies, Piezo2-derived tdTomato+ cells were found in the skin (Figure 1d). Taken together, these results show that both Piezo1 and 2 were expressed mostly in the differentiating osteoblasts in the developing skeleton and Piezo1 was also expressed in hypertrophic chondrocytes, suggesting that they may regulate mechanotransduction during bone development.

Figure 1 with 1 supplement see all

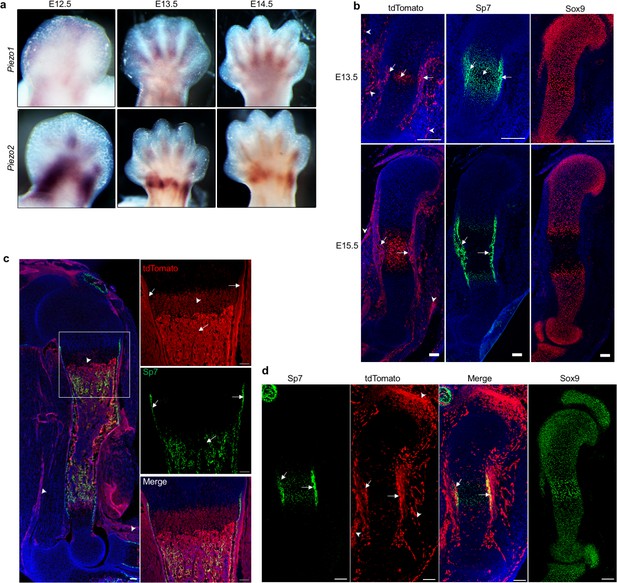

Characterization of Piezo1 and Piezo2 expression in the developing long bones.

(a) Expression of Piezo1 and Piezo2 examined by whole-mount in situ hybridization of embryonic limb buds at the indicated stages. (b) Immunostaining for tdTomato, Sp7 and Sox9 in consecutive humerus sections of the Piezo1-tdTomato forelimb buds. Arrows: Membranous tdTomato and nuclear Sp7 were found in the differentiating osteoblasts and hypertrophic chondrocytes in the same regions. Arrowheads: Extra-skeletal Piezo1-tdTomato expression. (c) Representative image of GFP and tdTomato fluorescent staining of humerus sections from the Piezo1-tdTomato; Sp7-Cre::GFP mouse at P0. The boxed region was shown in higher magnification in the right panel. Arrows: colocalization of tdTomato and GFP in the differentiating osteoblasts. Arrowheads: Hypertrophic chondrocyte or extra-skeletal expression of Piezo1-tdTomato. (d) Representative images of tdTomato costained with Sp7 or Sox9 on consecutive humerus sections from the E13.5 Piezo2Cre; Rosa26-tdTomato limb bud. Arrows: TdTomato costained with Sp7 in the differentiating osteoblasts. Arrowheads: Joint or extra-skeletal Piezo1-tdTomato expression. All scale bars, 100 μm. DAPI (blue) stain the nucleus.

Piezo 1 and 2 are required for bone formation and long bone growth

To investigate whether Piezo1/2 regulate skeletal development in vivo, we removed Piezo1 and/or Piezo2 in early limb bud mesenchyme before skeletogenesis starts using the floxed Piezo1 and Piezo2 lines (Woo et al., 2014; Cahalan et al., 2015) and the Prrx1-Cre line (Logan et al., 2002; Figure 2, Figure 2—source data 1). While both Piezo1-/- and Piezo2-/- mutants exhibit embryonic lethality, the Prrx1-Cre; Piezo1f/f (Piezo1 CKO) and Prrx1-Cre; Piezo2f/f (Piezo2 CKO) mice were viable at birth. However, the Piezo1 CKO mice exhibited multiple bone fractures in radius and ulna suggesting severely reduced bone formation (Figure 2a). The Piezo2 CKO mice exhibited grossly normal skeletal development with no bone fracture, but the Piezo1/2 double conditional (Piezo1/2 DKO) mutant mice demonstrated more severe skeletal defects including additional fractures in the femur (Figure 2a,b, Figure 2—source data 1, Figure 2—figure supplement 1a, Figure 2—figure supplement 1—source data 1). We also found that long bones were shortened in the absence of Piezo1, but not Piezo 2, and further shortening was observed in the Piezo1/2 DKO mutants (Figure 2b). These results indicate that while Piezo1 plays a major role, Piezo2 shares some of the Piezo1 functions in mesenchymal progenitor cells during skeletal development.

Figure 2 with 1 supplement see all

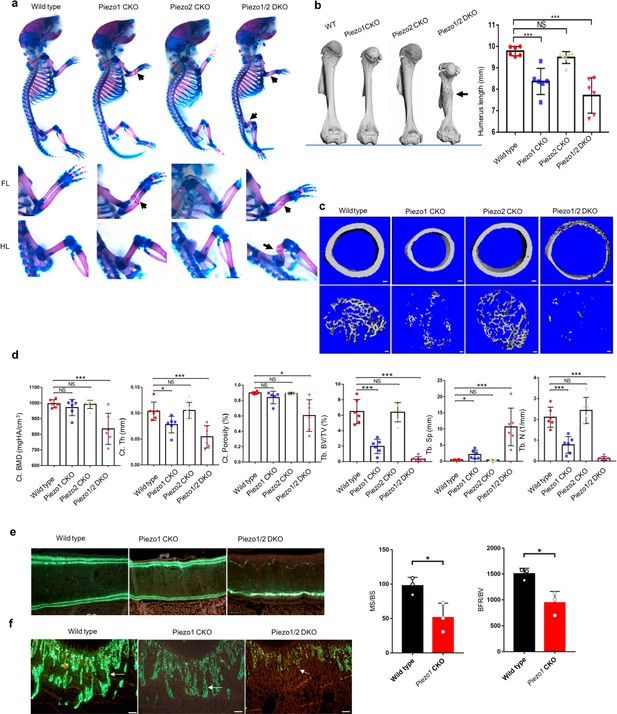

Loss of Piezo1 or both Piezo1/2 in embryonic limb mesenchyme led to reduced bone formation and spontaneous bone fractures in neonatal mice.

(a) Whole mount alizarin red and alcian blue staining of P0 mouse pups from the same litter. Bone fractures were indicated by arrows. The forelimb (FL) and hindlimb (HL) were taken out and shown in the lower panel. (b) Representative three dimensional μCT images of humerus from 3 weeks old littermate mice with the indicated genotypes. The humerus length was quantified (n = 6, mean ± SD). Bone fracture is indicated by an arrow. (c) Representative cross section μCT images of the cortical and trabecular femur bones from 3 weeks old littermate mice. (d) Quantified analysis of μCT data. Data are shown as means ± SD. (e, f) Histomorphometric analysis of distal femurs from wild type and Prrx-Cre driven Piezo1 CKO and Piezo1/2 DKO mutant mice. Representative images of double Calcein labeling in the cortical (e) and trabecular (f) bones were showed, and the dynamic bone formation parameters were only quantifiable in the wild type and Piezo1 CKO group, due to the severely reduced cortical bone formation in the Piezo1/2 DKO and little bone formation in the secondary spongiosa of the distal metaphysis in both Piezo1 CKO and Piezo1/2 DKO mutant mice. PO: periosteum; EO; endosteum. Scale bars: 50 μm (e); 100 μm (f). *p<0.05, **p<0.01, ***p<0.001, one-way ANOVA followed by Tukey’s multiple comparisons tests. In (e), p value is calculated by two-tailed unpaired Student’s t-test (Source data 1).

Mechanical stress increases postnatally and we found that Piezo1 expression was progressively increased in young mice (Figure 2—figure supplement 1b), suggesting that Piezo1 also regulates bone formation after birth in adult lives. However, Piezo2 mRNA expression was reduced in postnatal mice in the cortical bone (Figure 2—figure supplement 1b). The μCT analyses showed that both cortical and trabecular bone masses were reduced in the Piezo1 CKO mice and further reduced in the Piezo1/2 DKO mice at the age of P21. The Piezo2 CKO mice exhibited normal bone mass (Figure 2c,d, Figure 2—source data 1). The Prrx1-Cre; Piezo1f/+; Piezo2f/+ embryos or mice also did not show phenotypic difference compared with wild-type controls. We therefore focused our analyses on the Piezo1 CKO and Piezo1/2 DKO embryos and newborn mice. Analyses of postnatal bone development of Piezo1/2 mutant pups were performed by Masson’s Trichrome staining, which showed reduction of collagens in the trabecular and cortical bones of the P5 Piezo1 CKO and Piezo1/2 DKO mutant pups (Figure 2—figure supplement 1c). Bone formation was definitively examined by ELISA assays of serum procollagen type I N propeptide (PINP) levels (Figure 2—figure supplement 1c), which is considered clinically as the most sensitive bone formation marker (Samoszuk et al., 2008). Furthermore, histomorphometric analysis showed reduced mineralization apposition rate (MAR), and bone formation rate (BFR) in periosteum of the cortical bone of the Piezo1 CKO mice (Figure 2e, Figure 2—source data 1). Reduction of cortical bone formation in the Piezo1/2 DKO mutant mice or trabecular bone formation in both Piezo1 CKO and Piezo1/2 DKO mice were too severe to allow accurate quantification (Figure 2e,f). In the Piezo1/2 DKO mice, the secondary spongiosa was almost completely missing.

Reduction of bone formation in the Piezo1 CKO and Piezo1/2 DKO mutant mice was accompanied by increase in bone remodeling indicated by upregulated expression of osteoclast markers Cathepsin K (Ctsk) and Tartrate-resistant acid phosphatase (Acp5 or Trap) (Figure 2—figure supplement 1e,f). However, earlier in development at E16.5, there was no difference in osteoclast marker expression (data not shown) suggesting that increased osteoclast differentiation may have resulted from the changes in osteoblast cells. Indeed, quantitative gene expression analysis by qRT-PCR further showed that while early and mature osteoblast marker expression were reduced, Tnfsf11 (Rankl) and Acp5 expression, indicative of osteoclast differentiation, were increased in the Piezo1 CKO and Piezo1/2 DKO mutant at P0 (Figure 2—figure supplement 1g). Expression of Tnfrsf11b (Opg), which encodes a decoy receptor of Tnfsf11 to inhibit osteoclast differentiation, was also reduced. Therefore, reduced bone mass and density in the absence of Piezo channels is a combination of reduced bone formation and increased bone resorption, which resulted in not only bone fractures, but also reduced longitudinal bone growth and bone deformity such as bowing of the tibia (Figure 2—figure supplement 1a).

To understand the cellular mechanisms underlying the skeletal defects in the Piezo1/2 CKO mutant mice, we first examined chondrocyte and osteoblast differentiation. At E16.5 and P0, expression of the chondrocyte marker Sox9 and hypertrophic chondrocyte marker Col10a1 was similar in the wild-type control, Piezo1 CKO and Piezo1/2 DKO embryos (Figure 3a, Figure 3—figure supplement 1), suggesting cartilage formation and chondrocyte hypertrophy was not regulated by Piezo1/2 in development. However, expression of the early osteoblast marker Sp7 was markedly reduced at E16.5 and P0 in the ossifying regions of the developing Piezo1 CKO humerus and further reduced in the Piezo1/2 DKO humerus (Figure 3a and Figure 3—figure supplement 1), suggesting that Piezo1/2 are required to promote osteoblast differentiation in development. Bone mineralization and osteoblast maturation as indicated by von Kossa staining and secreted phosphoprotein 1 (Spp1, also known as Opn) immunofluorescent staining were also reduced in the trabecular and cortical bone areas at P0 (Figure 3d,e). When examined by BrdU labeling, we found that growth plate chondrocyte proliferation and the length of the proliferative regions were both reduced in the Piezo1 CKO and further reduced in the Piezo1/2 DKO mutant at E16.5 (Figure 3b, Figure 3—source data 1). Increased apoptosis was found in the bone and muscle of the Piezo1 CKO and Piezo1/2 DKO mutant at E16.5 by TUNEL assay (Figure 3c). These analyses indicate that Piezo1/2 MS channels are required for cartilage growth and bone formation in embryonic development, providing mechanistic insights into findings made in human populations that PIEZO1 SNPs are associated with reduced body height and eBMD (Marouli et al., 2017; Morris et al., 2019).

Figure 3 with 1 supplement see all

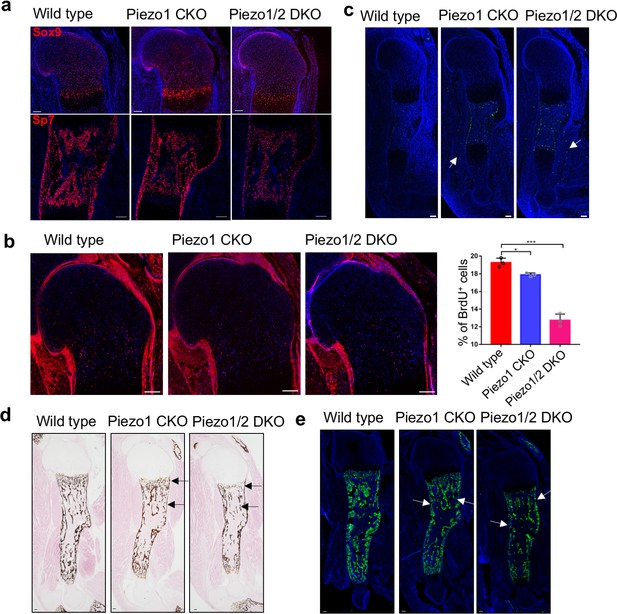

Loss of Piezo1 or both Piezo1/2 in embryonic limb mesenchyme led to reduced cartilage growth and osteoblast differentiation.

(a) Immunofluorescent images of Sox9 and Sp7 expression in the humerus sections of E16.5 embryos. (b) Representative BrdU of humerus sections of E16.5 embryos. The percentage of BrdU+ cells in the growth plate was quantified (n = 3, means ± SD). *p<0.05, **p<0.01, ***p<0.001, one-way ANOVA followed by Tukey’s multiple comparisons tests. Proliferative cartilage regions were indicated by double headed arrows (Figure 3—source data 1). (c) Representative TUNEL staining of humerus sections of E16.5 embryos. TUNEL signals in the muscle were indicated by arrows. (d) von Kossa staining and (e) Spp1 immunostaining of humerus sections from P0 littermate pups. Reduced staining was indicated by arrows. All scale bars, 100 μm. DAPI (blue) stain the nucleus.

Piezo 1 and 2 are required for bone formation and maintenance by mechanical forces

To understand more specifically the role of Piezo1/2 in bone development, we removed Piezo1/2 using the Sp7-Cre mouse line (Rodda and McMahon, 2006; Figure 4a–e, Figure 4—source data 1). Interestingly, the Sp7-Cre; Piezo1f/f (Piezo1CKO) and Sp7-Cre; Piezo1f/f; Piezo2f/f (Piezo1/2 DKO) mouse pups did not show limb bone fractures. However, multiple bone fractures were found in the ribs at P21 in the Piezo1CKO and Piezo1/2 DKO mice, but not the Piezo2 CKO mice (Figure 4a). μCT analyses showed that loss of Piezo1 or Piezo1/2 in Sp7+ cells led to reduced trabecular and cortical bones (Figure 4b, Supplementary file 1, Source data 1) and Sp7 expression (Figure 4c). Reduction in bone mass was more severe in the Prrx1-Cre-driven mutants compared to the Sp7-Cre-driven ones (Figure 2d and Supplementary file 1), suggesting that Piezo1/2 in Sp7- cells such as the muscle, tenocytes and chondrocytes may also promote to bone formation. These are consistent with previous studies showing muscle contraction promotes bone formation (Nowlan et al., 2010a). In addition, we found that when cultured under osteogenic conditions, mechanical stress slightly increased Piezo1 expression in the Prrx1 lineage cells, not the Sp7 lineage cells (Figure 4d). To further determine whether Piezo1/2 mediate the effects of mechanical stress in embryonic bone development, we decided to reduce both intrinsic and extrinsic mechanical forces by culturing mouse developing limb bud explants under static conditions, in which intact limb buds can grow and develop for several days (Storm and Kingsley, 1999; Smith et al., 2013; Neubert et al., 1974; Decker et al., 2014; Figure 5a,b, Figure 5—source data 1). We exploited this explant culture system to further interrogate the functions of Piezo1/2. Forelimb bud pairs were isolated from the left and right sides of E13.5 mouse embryos and treated for 4 days with PBS or Yoda, the only one molecule found to chemically regulate the opening of Piezo1 so far (Syeda et al., 2015), respectively, to minimize possible developmental variability from embryo to embryo. Bone development was slower in explant culture and there was no trabecular bone formation (Figure 5a,b). However, Yoda1 promoted bone formation and osteoblast differentiation in the wild type, but not the Piezo1/2 DKO limbs (Figure 5a), suggesting that Piezo1 was functional in the explant culture. Importantly, the drastic difference in bone formation between the wild-type control and the Sp7-Cre; Piezo1/2 DKO limbs developed in utero was eliminated (compare Figure 5b with Figure 4a,c). We next asked whether in adult life, bone loss under unloading conditions is caused by lack of Piezo1/2 stimulation. We adopted a mouse unloading model of Botulinum Toxin A (BTX)-induced hind limb muscle paralysis, which has gained prominence for its direct clinical relevance to immobilized patients, due to upper or lower motor neuron damage, muscular dystrophies or therapeutic bed rest (Morse et al., 2014; Velders et al., 2008; Warner et al., 2006). It has been shown that BTX injection causes loss of bone density, microstructure, and strength in both mice and rats. We therefore injected BTX into both the right quadriceps and the right calf muscles of 12 weeks old male mice. Left tibiae served as normal loading controls with only PBS injection to the same muscles. As a rapid and profound bone loss could be observed 1 week after BTX injection in male mice (Grimston et al., 2007), the mice were euthanized 10 days after BTX injection, and the tibiae were analyzed by μCT as shown previously (Judex et al., 2004). While BTX injection reduced bone mass in the wild-type mice, in the Sp7-Cre-driven Piezo1/2 DKO mice, BTX injection did not cause significant bone loss, although the bone mass was lower compared to that of the wild-type controls (Figure 5c, Figure 5—source data 1). Taken together, Piezo1/2 are required for embryonic bone development and adult bone mass maintenance by mechanical forces.

Figure 4 with 1 supplement see all

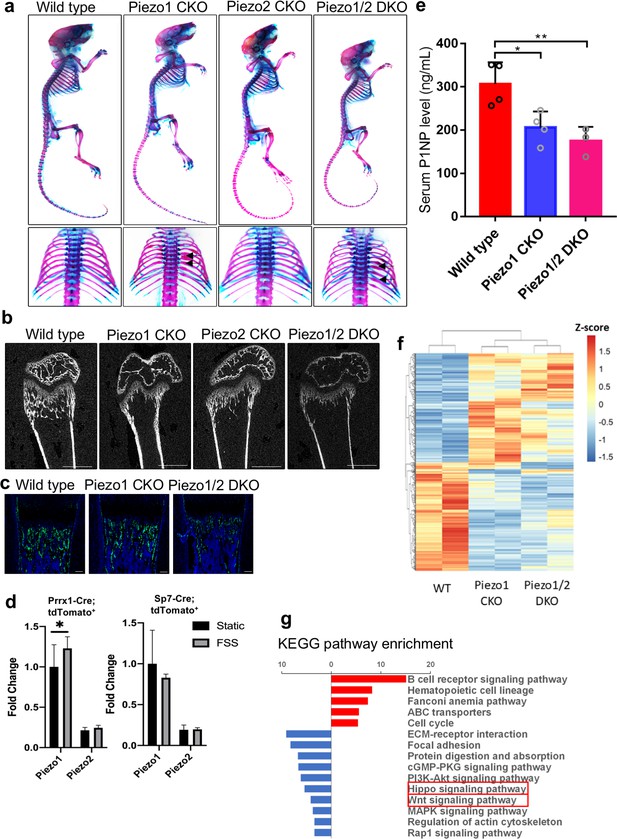

Loss of Piezo1 or Piezo1/2 in osteoblastic cells driven by the Sp7-GFP::Cre shows reduced bone mass and rib fractures.

(a) Whole mount alizarin red and alcian blue staining of P21 mice with indicated genotypes. Dorsal view of the ribcages was shown in the lower panel. Arrows indicate bone fractures in the ribs. (b) Representative 2D μCT images of the femurs from P21 mice with indicated genotypes. The quantified parameters are shown in Supplementary file 1. (c) Expression of Sp7-Cre::GFP in humerus sections of P0 pups with indicated genotypes. (d) tdTomato+ cells were sorted from long bones of the Prrx1-Cre;tdTomatofl/+ and Sp7-Cre;tdTomatofl/+ mice and cultured under osteogenic differentiation under static or fluid shear stress (FSS) condition. Piezo1 and Piezo2 expression were analyzed using RT-qPCR. (e) Serum PINP levels in 6 weeks old mice of indicated genotypes detected by ELISA. As all bones were affected by the Sp7-GFP::Cre driver, PINP levels were significantly reduced in both Piezo1 or Piezo1/2 mutants (n = 3–4, means ± SD). (f) RNA samples from the P0 humerus bone tissues of indicated Prrx1-Cre-driven mutants were subject to RNA seq. Heat-map analysis of differentially expressed genes with fold change increase >2.82 fold and reduction to <0.35 fold. Piezo1 CKO or Piezo1/2 DKO mutants showed similar alteration of gene expression genome wide. (g) KEGG pathway analysis of differentially expressed genes. Prominent reductions in Hippo and Wnt signaling were identified (boxed). *p<0.05, **p<0.01, ***p<0.001, one-way ANOVA followed by Tukey’s multiple comparisons tests when ANOVA was significant (Figure 4—source data 1).

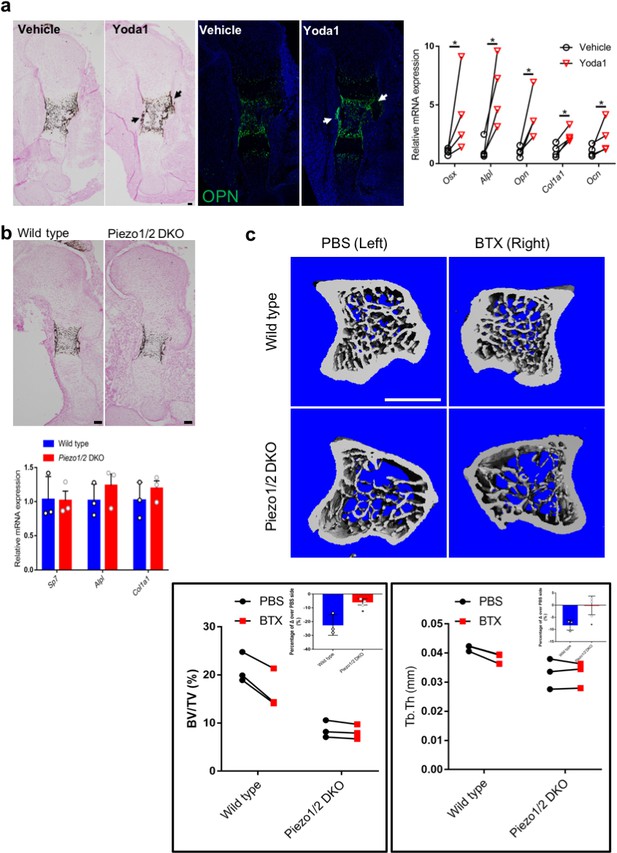

Loss of Piezo1/2 diminished reduction in bone formation caused by unloading in both embryonic development and adult life.

(a, b) Sections of the embryonic humerus from the limb bud dissected from E13.5 embryos and cultured for 4 days in BGJb medium under static conditions. Osteoblast differentiation was further determined by qRT-PCR anlysis of osteoblastic markers. (a) The right limb bud was treated with Yoda1 (400 nM), and the contralateral left limb bud was treated with equal volume of vehicle as control. Representative images of von Kossa or SPP1 staining of wild-type humerus from the cultured limbs. Scale bar: 100 μm. difference in osteoblast gene expression between limb bud pairs from the same embryo was shown on the right side. *p<0.05, according to paired ratio t test. (b) Representative images of von Kossa stained wild type or Sp7-Cre-driven Piezo1/2 DKO sections of the cultured humerus. Gene expression was shown below. No significant difference was found between the cultured wild type and Piezo1/2 DKO limbs. (c) Representative μCT images of the tibia metaphysis in an unloading model of BTX-induced muscle paralysis. The BTX-injected right leg and the PBS-injected contralateral left leg from male mice are shown. Scale Bar: 1 mm. The BV/TV and trabecular bone thickness of each inject mouse were analyzed and compared. *p<0.05, according to paired ratio t test. The percentage of difference between BTX and PBS injected side over the PBS injection side was calculated and shown in the inserts. *p<0.05, according to unpaired student t test (Figure 5—source data 1).

Yap1 and β-catenin activities were reduced in the Piezo1 CKO and Piezo1/2 DKO mutant bones

Severe bone reduction observed in the Piezo1 or Piezo1/2 mutants provided an unprecedented opportunity for us to identify the signaling pathways in bone development that are regulated by Piezo1/2 channels gated by mechanical forces. We therefore isolated the developing humerus and femur bone tissues from the P0 wild type, Prrx1-Cre driven Piezo1 CKO and Piezo1/2 DKO pups and genome-wide gene expression was examined by performing RNA sequencing. The up- and down-regulated genes were subject to Gene Ontology (GO) enrichment analysis and KEGG pathway mapping (Figure 4f, Figure 4—figure supplement 1). We found that changes in reduced gene expression were enriched for osteoblast differentiation in the GO analysis and the Wnt/β-catenin (Ctnnb1) and Hippo/Yap1 signaling pathways in the KEGG pathway mapping. Wnt/Ctnnb1 signaling is essential for osteoblast differentiation (Day et al., 2005; Hill et al., 2005; Hu et al., 2005; Glass et al., 2005; Gong et al., 2001), and Yap1 and Wwtr1 are essential effectors of mechanotransduction to regulate cell proliferation and differentiation (Halder et al., 2012; Aragona et al., 2013; Codelia et al., 2014; Wada et al., 2011; Dupont et al., 2011). Loss of Yap1/Wwtr1 activities inhibits osteoblast differentiation in bone formation (Kegelman et al., 2018; Pan et al., 2018). We therefore focused our analyses on Wnt/Ctnnb1 and Hippo/Yap1 signaling. We found that Ctnnb1 and Yap1/Wwtr1 protein levels were both reduced in the bones of Prrx1-Cre-driven Piezo1 CKO and Piezo1/2 DKO mutants at P0 and more reduction was found in the Piezo 1/2 DKO bone samples (Figure 6a,b, Figure 6—source data 1). In addition, by qRT-PCR analysis, we found that expression of transcriptional targets of both Yap1/Wwtr1 and Wnt/Ctnnb1 such as Ctgf (Ccn2)/Cyr61(Ccn1) and Tcf7/Lef1, respectively, were down-regulated in the Piezo1 CKO and Piezo1/2 DKO mutant bones (Figure 6c, Figure 6—source data 1). These results were further confirmed by in situ hybridization with a Ccn2 probe using the RNAscope technology (Figure 6d). Ccn2 expression was reduced in the developing humerus at E16.5 by removing Piezo1/2. These results show that Piezo1/2 activities may promote osteoblast differentiation by upregulating both Wnt/Ctnnb1 and Yap1 activities.

Figure 6 with 1 supplement see all

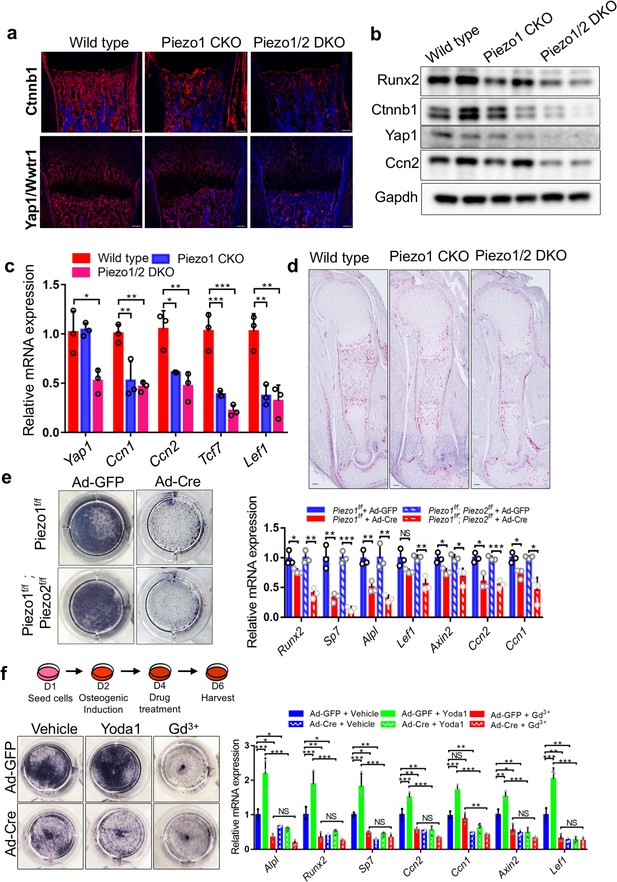

Loss of Piezo1/2 reduced Yap1 and Wnt/Ctnnb1 signaling activities and osteoblast differentiation in vivo and in vitro.

(a) Immunofluorescent staining of Ctnnb1 and Yap1/Wwtr1 in the humerus sections from the P0 Prrx1-Cre driven Piezo1 and Piezo1/2 mutants and littermate controls. (b) Western blot analyses of P0 femur bone tissue lysates from P0 pups. (c) qPCR analyses of gene expression from femur bone tissues of P0 pups (n = 3, means ± SD). (d) Ccn2 expression by RNAScope analysis of humerus sections of E16.5 embryos. (e) Alkaline phosphatase staining (left) and qPCR analyses (right, n = 3, means ± SD) in the indicated BMSCs infected with Ad-GFP or Ad-Cre 5 days after osteogenic induction. (f) Alkaline phosphatase staining (left) and qPCR analyses (right, n = 3, means ± SD) in Piezo1f/f;Piezo2f/f BMSCs treated with Piezo1 agonist (Yoda1) and antagonist (Gd3+) 6 days after osteogenic induction. The schematics of the induction process is shown on the top. All scale bars: 100 μm. DAPI (blue) stained the nucleus. *p<0.05, **p<0.01, ***p<0.001, two-tailed unpaired Student’s t-test (e) or one-way ANOVA followed by Tukey’s multiple comparisons tests when ANOVA was significant (c and f) (Figure 6—source data 1).

Mesenchymal stem cells (MSCs) from both the periosteum and bone marrow, give rise to osteoblasts (Bianco et al., 2010; Schipani and Kronenberg, 2008). We therefore determined whether BMSCs where MSCs are found also employ Piezo1/2 to regulate their osteoblast differentiation. Mammalian cells are surrounded by a mechanical microenvironment with neighboring cells and characteristic ECM, which provide mechanical cues that influence diverse biological processes including cell fate decisions (Halder et al., 2012; Humphrey et al., 2014). It is known that stem cells or progenitor cells differentiate optimally into distinct cell types when cultured at ECM elasticities that match the physiological ECM stiffness of their corresponding natural niche. Specifically, it was found that MSCs preferentially differentiate into osteoblasts when cultured on stiff surface in a rigid ECM environment, instead of adipocytes when cultured in a soft ECM environment (McBeath et al., 2004; Kilian et al., 2010). The stiff surface of regular tissue culture dishes supports osteoblast differentiation of BMSCs, which expressed both Piezo1/2, but Piezo1 expression was stronger (Figure 6—figure supplement 1a). However, loss of Piezo1 or Piezo1/2 by Cre Adenovirus (Ad-Cre) infection of the Piezo1f/f or Piezo1f/f; Piezo2f/f BMSCs (Figure 6—figure supplement 1a), respectively, led to reduced osteoblast differentiation and reduced Yap1/Wwtr1 and Wnt/Ctnnb1 signaling activities (Figure 6e, Figure 6—source data 1). Consistent with this, treating wild-type BMSCs with Yoda1 increased osteoblast differentiation as well as Wnt/Ctnnb1 and Yap1 transcriptional activities (Figure 6—figure supplement 1b, Figure 6—figure supplement 1—source data 1). Such osteogenic activity of Yoda1 was lost in the absence of Piezo1/2 (Figure 6f, Figure 6—source data 1), suggesting that Yoda1 activity in promoting osteoblast differentiation depends on Piezo1. In addition, blocking Ca2+ influx with Gadolinium (Gd3+), a potent blocker of Calcium channels including the Piezos (Coste et al., 2010), blocked osteoblast differentiation similar to loss of Piezo1/2 (Figure 6f). These results suggest that Piezo1/2 depend on Ca2+ influx and mediate mechanotransduction via the Wnt/Ctnnb1 and Yap1 pathways in regulating osteoblast differentiation of BMSCs.

Piezo1/2 sense both FSS and matrix rigidity

It is known that BMSCs and osteoblast lineage cells senses both FSS and ECM rigidity, which play critical roles in the fate determination of BMSCs reviewed by Vining and Mooney (2017). A role for FSS as regulator of cell function has been recognized in different biological systems including the canalicula in bones (Burger et al., 1995), where fluid flow is physiologically present. As a proof of concept study to test the roles of Piezo1 and Piezo2 in mechanotransduction in BMSCs, we first applied biomechanical stimulation via a simple rocking platform to monolayer BMSC cultures in vitro (Delaine-Smith et al., 2012; Wittkowske et al., 2016; Zhou et al., 2010). The rocking ‘see-saw’ systems generate oscillatory FSS (Zhou et al., 2010), which is capable of directing BMSCs toward osteogenic differentiation by increasing alkaline phosphatase (Alpl) activity and deposition of mineralized matrix (Delaine-Smith et al., 2012; Wittkowske et al., 2016). We found that FSS stimulated osteoblast differentiation of wild-type BMSCs while loss of Piezo1/2 completely abolished the response of BMSC to FSS in the osteogenic assay (Figure 7a, Figure 7—source data 1). Importantly, FSS upregulated protein levels of Ctnnb1 and Yap1, while levels of phosphorylated Ctnnb1 and Yap1, which are cytoplasmic and destined for degradation, were reduced by FSS in BMSCs, indicating that FSS activated both Ctnnb1 and Yap1 activities (Figure 7b). Piezo1/2 loss in BMSCs abolished osteogenic response to FSS, reduced Ctnnb1 and Yap1 protein levels and increased Ctnnb1 and Yap1 phosphorylation (Figure 7a,b). Interestingly, increased Yap1 phosphorylation was not accompanied by increase of phosphorylated and activated Stk4 (Mst1) or Lats1 kinases (Figure 7b), suggesting that FSS-stimulated Yap1 activation may be independent of the Stk3/4 and Lats kinase cascade that controls Yap1 phosphorylation in canonical Hippo signaling (Wu et al., 2003; Huang et al., 2005; Edgar, 2006; Pan, 2007). These results suggest that Piezo1/2 are key mechanical force sensors that relay FSS signals to promote osteoblast differentiation through Yap1 and Ctnnb1 signaling.

Figure 7 with 1 supplement see all

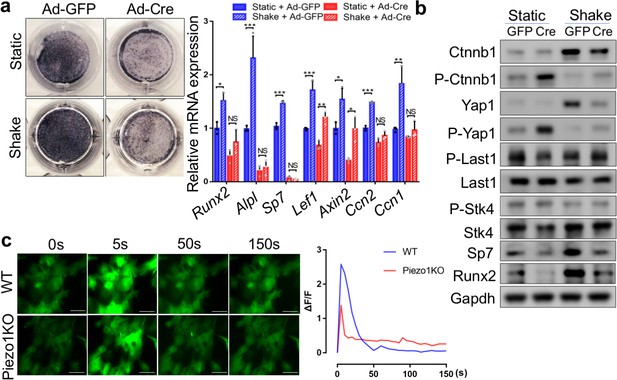

Piezo1 was required to sense mechanical forces generated by FSS and upregulate Yap1 and Ctnnb1 activities in primary mouse BMSCs.

(a) Alkaline phosphatase staining (left) and qPCR analyses (right) in BMSCs cultured with or without shaking during osteogenic induction (n = 3, means ± SD). *p<0.05, **p<0.01, ***p<0.001, one-way ANOVA followed by Tukey’s multiple comparisons tests (Figure 7—source data 1). (b) Western blotting analyses of cell lysates from BMSCs cultured under static or shaking conditions during osteogenic induction. (c) Representative images (left) of BMSCs with fluorescent GCaMP5G reporter at different time points after FSS. Scale bars: 80 μm. The fluorescent intensities of GCaMP5G were quantified (right) every 5 s (Figure 7—source data 1).

As Piezo1/2 are Calcium (Ca2+) permeable channels and Ca2+ signaling plays crucial roles in bone biology (Zayzafoon, 2006), we then determined whether Piezo1/2 regulate osteoblast differentiation through Ca2+ influx. To determine whether Piezo1/2 are required for mechanical force-induced Ca2+ influx in the BMSCs, we employed the PC::G5-tdT mouse strain, which expresses the green fluorescent calcium indicator protein GCaMP5G and the tdTomato red fluorescent protein when induced by Cre recombinase (Gee et al., 2014). The basal level Ca2+ signal was stronger in the wild-type BMSCs compared with the Piezo1/2 deficient BMSCs (Figure 6c, Figure 6—source data 1). More importantly, when BMSCs were subject to FSS, more robust Ca2+ influx was observed in the wild-type BMSCs compared to the Piezo-deficient ones (Figure 7c and Video 1). Furthermore, Yoda1 treatment led to more robust Ca2+ influx in the wild type, but not Ad-Cre induced Piezo1/2-deficient BMSCs (Figure 7—figure supplement 1, Video 2, Figure 7—figure supplement 1—source data 1). These results together indicate that Piezo1/2 channels in BMSCs sense FSS-like mechanical forces to allow Ca2+ influx, leading to osteoblast differentiation.

Video 1
Pseudovideo recording of the GFP signals of the intracellular Ca2+ sensor GCaMP5G after FSS stimulation.

Images were continuously taken at time intervals of 5 s, and this pseudovideo was made from the first parallel 30 images. Left: Ad-Cre virus infected primary BMSCs from the control PC::G5-tdT mice; Right: Ad-Cre virus infected primary BMSCs from the Piezo1fl/fl; PC::G5-tdT mice.

Video 2
Pseudovideo recording of the GFP signals of the intracellular Ca2+ sensor GCaMP5G after Yoda1 treatment.

Images were continuously taken at time intervals of 5 s, and this pseudovideo was made from the first parallel 60 images. Left: Ad-Cre virus infected primary BMSCs from the control PC::G5-tdT mice; Right: Ad-Cre virus infected primary BMSCs from the Piezo1fl/fl; PC::G5-tdT mice.

We next determined whether Piezo1/2 also sense mechanical stress induced by ECM rigidity, which is another major mechanical cue that promotes osteoblast differentiation and Yap1 activation (Halder et al., 2012; Dupont et al., 2011; McBeath et al., 2004; Meng et al., 2018). It is known that the plasma membrane stretches differentially when plated in matrices with different stiffness and cell spreading strongly correlates with matrix stiffness, osteoblast differentiation and Yap1 nuclear localization (Halder et al., 2012; Dupont et al., 2011; Meng et al., 2018; Sunyer et al., 2012; Eyckmans et al., 2012). Using this system, we plated BMSCs on soft (1 kPa) or stiff (40 kPa) hydrogels to test whether Piezo1/2 are also required to sense matrix stiffness. While the wild-type BMSC have difficulty spreading on a soft matrix (1 kPa) with diffused Yap1 localization in both cytoplasmic and nuclear compartments, on a stiff matrix (40 kPa), they spread to much larger areas with strong nuclear Yap1 localization (Figure 8a). Importantly, the Piezo1/2-deficient BMSCs plated on a stiff matrix behaved more like the wild-type BMSCs plated on a soft matrix. They showed weaker intracellular Ca2+ signaling (Figure 8—figure supplement 1, Figure 8—figure supplement 1—source data 1), were less spreading, contained less defined Yap1 nuclear localization (Figure 8a), and exhibited reduced Yap1 activities and osteoblast differentiation (Figure 8b). Osteogenic differentiation of BMSCs culture on the hydrogel was determined by ALP staining and quantifies as previously described (Figure 8b; Dupont et al., 2011). These results indicate that Piezo1/2 also promote osteoblast differentiation by sensing matrix stiffness that is known to regulates Yap1 nuclear localization.

Figure 8 with 1 supplement see all

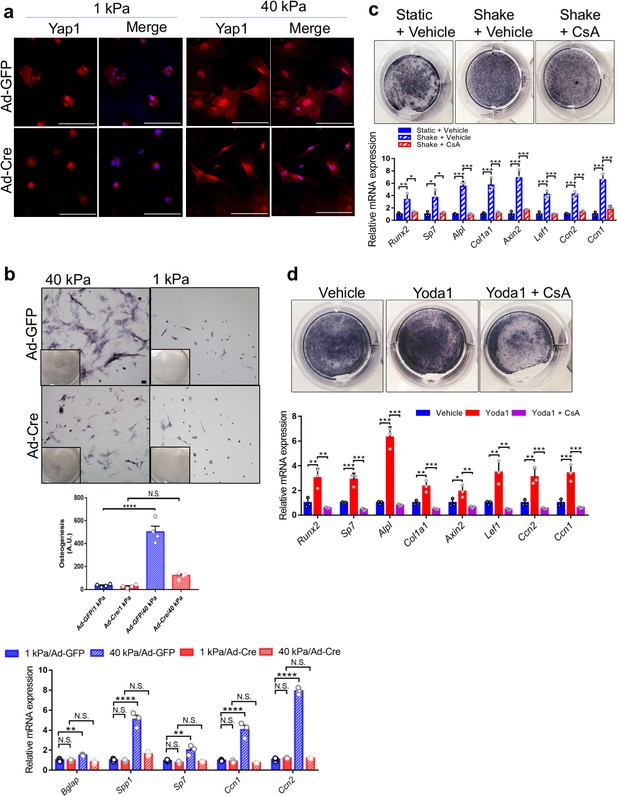

Piezo1 was required to sense ECM stiffness and upregulate Yap1 and Ctnnb1 activities in primary mouse BMSCs.

(a) Yap1 immunostaining of Piezo1f/f;Piezo2f/f BMSCs seeded on matrices with the indicated stiffness after Ad-GFP or Ad-Cre infection. Scale bars: 100 μm. (b) BMSC were infected with the indicated Ad-virus, plated on stiff (40 kPa) or soft (1 kPa) substrates and induced to differentiate into osteoblasts for 6 days. Representative alkaline phosphatase stainings images were shown. Scale bar: 100 mm. As shown previously (Dupont et al., 2011). Osteogenic differentiation was quantified by the alkaline-phosphatase-positive area determined with ImageJ as the number of blue pixels across the picture. This value was normalized to the number of cells (Hoechst/nuclei) for each picture (arbitrary units). RT-PCR anlaysis of BMSCs grown on the indicated hydrogels was shown below. (c) Alkaline phosphatase staining and qPCR analyses of primary mouse BMSCs treated with shaking with or without a Ppp3ca inhibitor CsA (n = 3, means ± SD). (d) Alkaline phosphatase staining and qPCR analyses of BMSCs treated with Yoda1 and CsA (n = 3, means ± SD). *p<0.05, **p<0.01, ***p<0.001, one-way ANOVA followed by Tukey’s multiple comparisons tests (b–d) (Figure 8—source data 1).

To determine whether Piezo1/2-dependent Ca2+ signaling regulates Yap1 and Ctnnb1 activities, we turned our attention to the calcium and calmodulin-dependent heterodimeric serine/threonine phosphatase calcineurin (Ppp3ca), which is a critical intracellular Ca2+ sensor. To test whether Ppp3ca is required in the Piezo1/2 initiated mechanotransduction pathway to promote osteoblast differentiation, we treated the mouse primary BMSCs with a commonly used Ppp3ca inhibitor, Cyclosporin A (CsA) (Liu et al., 1991). CsA treatment abolished osteoblast differentiation as well as Yap1 and Ctnnb1 activation enhanced by FSS or Yoda1 treatment (Figure 8c,d, Figure 8—source data 1, Figure 6—figure supplement 1b, Figure 6—figure supplement 1—source data 1). These results suggest that Ppp3ca may act downstream of Piezo1/2 in mechanotransduction to regulate Yap1 and Ctnnb1 activities during osteoblast differentiation.

Piezo1/2 act through Ppp3ca to regulate concerted activation of NFATc1, YAP1 and CTNNB1

Transcription factors in the nuclear factor of activated T cells (NFAT) family are major Ppp3ca substrates that regulate gene expression (Li et al., 2011; Hogan et al., 2003). We next investigated the roles of Ppp3ca and Nfatc1 in mediating Piezo1/2 regulation of mechanotransduction, as expression of constitutively nuclear NFATc1 variant (NFATc1nuc) in osteoblast leads to high bone mass (Winslow et al., 2006) and loss of Nfatc1/2 led to reduced osteoblast differentiation and bone formation (Winslow et al., 2006; Koga et al., 2005). We found that loss of Piezo1/2 together, led to a strong increase of Nfatc1 phosphorylation in the developing bone (Figure 9a, Figure 9—source data 1). Loss of Piezo1 alone also increased Nfatc1 phosphorylation, although to a lesser extent (Figure 9a). As Nfat transcription factors are highly phosphorylated and cytoplasmic in unstimulated cells, and an increase in intracellular Ca2+ leads to Nfatc1 dephosphorylation by Ppp3ca and its subsequent nuclear translocation to activate downstream gene expression (Liu et al., 1997; Masuda et al., 1997; Beals et al., 1997; Crabtree and Olson, 2002), these results suggest that Piezo1/2 activate Nfatc1 by inhibiting its phosphorylation in the developing bone. To further determine whether PIEZO1/2 regulate NFATc1 transcriptional activities, we first tested whether activation of PIEZO1 by Yoda1 alters transcriptional activities of NFATc1 in a luciferase assay in the HEK 293 T cells, in which endogenous PIEZO1 is expressed and mediates mechanosensation (Dubin et al., 2017; Bae et al., 2013Figure 9b, Figure 9—source data 1). Yoda1 treatment stimulated transcription activities of not only NFAT, but also YAP1 and CTNNB1, all of which were abolished by knocking down PIEZO1 (Figure 9b). These results indicate that activation of PIEZO1 upregulates NFATc1, YAP1 or CTNNB1 transcriptional activities. As Ppp3ca inhibition by CsA treatment suppressed the cellular and molecular effects of FSS or Yoda1 treatment in BMSCs (Figure 8c, d), Nfatc1 activation by Ppp3ca likely mediated Piezo1-dependent Yap1 and Ctnnb1 activation. Indeed, transcriptional activities of NFAT, YAP1 and CTNNB1 were mutually enhanced, with the only exception that YAP1 did not seem to enhance NFAT activities in HEK293T cells (Figure 9—figure supplement 1b, Figure 9—figure supplement 1—source data 1). To further understand the mechanism underlying YAP1 and CTNNB1 activation in concert with NFATc1, we first tested YAP1 and NFATc1 interaction by co-immunoprecipitation (Co-IP) assays and found such interaction was promoted by FSS or Yoda1 treatment, but inhibited by CsA or Gd3+ treatment (Figure 9c, Figure 9—source data 1, Figure 9—figure supplement 1b, Figure 9—figure supplement 1—source data 1). These results suggest that PIEZO1-induced Ca2+ signaling promoted NFATc1 interaction with YAP1. To further confirm that PIEZO1 may activate YAP1 by activating PPP3CA and NFATc1, we examined NFATc1 and YAP1 nuclear localization in HEK293 cells and found that both were robustly promoted by FSS (Figure 9d). In addition, overexpression of the catalytic subunit of PPP3CA promoted YAP1 dephosphorylation (Figure 9—figure supplement 1c, Figure 9—figure supplement 1—source data 1). Moreover, Yoda1 treatment mimicked the effects of FSS treatment or PPP3CA expression (Figure 9e, Figure 9—figure supplement 1c). Blocking Ca2+ influx with Gd3+ treatment or PPP3CA activity with CsA treatment both inhibited nuclear localization of NFATc1 and YAP1 induced by FSS or Yoda1 treatment (Figure 9e). Furthermore, NFATc1 interaction with YAP1 or CTNNB1 was synergistically promoted by the other, as presence of all three transcription factors robustly increased their interactions (Figure 9—figure supplement 1d, Figure 9—figure supplement 1—source data 1). It is important to note that like NFATc1, YAP1 and CTNNB1 are also activated by dephosphorylation. We therefore tested whether the Piezo1-mediated mechanotransduction promotes osteoblast differentiation by a concerted dephosphorylation of endogenous Yap1 and Ctnnb1 in mouse primary BMSCs. Indeed, Yoda 1 treatment quickly reduced Yap1 and Ctnnb1 phosphorylation (Figure 9f). Such activity of Yoda1 was abolished in the Piezo1/2-deficient BMSCs (Figure 9—figure supplement 1e). Conversely, blocking Ca2+ influx by Gd3+ treatment promoted Yap1 and Ctnnb1 phosphorylation while reducing their protein levels within 30 min (Figure 9—figure supplement 1f). Furthermore, in the mouse primary BMSCs, Ppp3ca was found to bind not only Nfatc1, but also Yap1 and Ctnnb1. These interactions were enhanced by Yoda1 treatment and inhibited by CsA (Figure 9g, Figure 9—source data 1). Taken together, our data indicate that Ca2+/Ppp3ca signaling activated by Piezo1 leads to concerted activation of Yap1 and Ctnnb1 with Nfat, all of which act together to regulate transcription changes that promote osteoblast differentiation and bone formation.

Figure 9 with 1 supplement see all

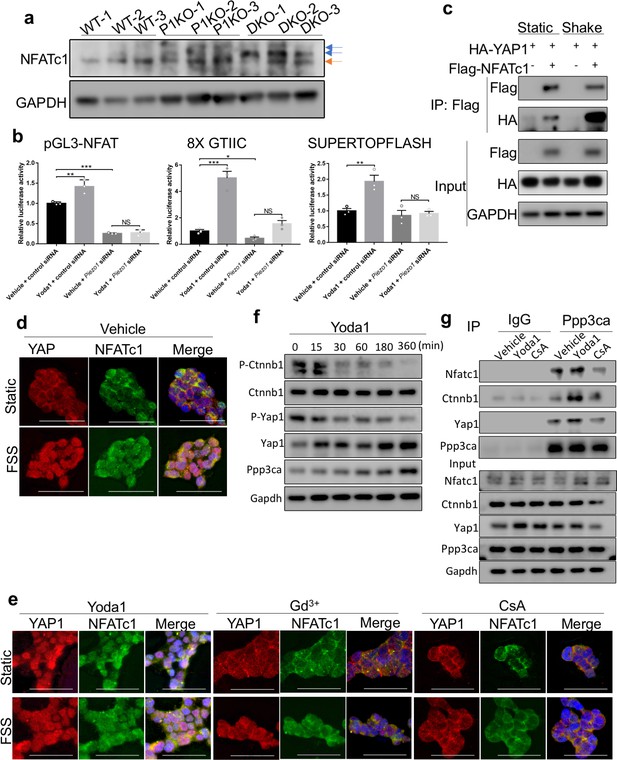

Concerted activation of NFATc1, Yap1 and Ctnnb1 by Piezo channel activation.

(a) Western blotting analysis of NFATc1 expression in bone tissue lysates from P0 pups. The slower migrating phosphorylated NFATc1 forms were indicated by blue arrows. (b) Luciferase reporter assays of NFATc1 (left), YAP1 (middle) and Ctnnb1 (right) activities in HEK293T cells (n = 3, means ± SD). *p<0.05, **p<0.01, ***p<0.001, two-tailed unpaired Student’s t-test and one-way ANOVA followed by Tukey’s multiple comparisons tests when ANOVA was significant (Figure 9—source data 1). Yoda1 treatment promoted transcription activities of NFATc1, YAP1 and Ctnnb1, which were abolished by PIEZO1 knocking down. (c) Immunoprecipitation (IP) assays of HEK293T cell lysates with the indicated expression constructs. Shaking promoted NFATc1 and YAP1 binding. (d, e) Immunostaining of YAP1 and NFATc1 in HEK293 cells with indicated treatments. Activation of PIEZO1 with Yoda1 or FSS through shaking promoted nuclear localization of both YAP1 and NFATc1, which was blocked by Gd3+ or CsA treatment. Scale bars, 100 μm. (f) Western blotting analyses of Yoda1 treated primary mouse BMSCs. Phosphorylated Ctnnb1 and Yap1 were quickly reduced. (g) IP assays of Ppp3ca binding to NFATc1, Yap1 and Ctnnb1 in mouse primary BMSCs. IP with IgG was a negative control. Yoda1 treatment promoted CnA binding to NFATc1, Yap1 and Ctnnb1, which was inhibited by CsA.

Enhanced Ctnnb1 activities partially rescued the bone defects of Piezo1/2 bone mutants

The well-established function of Wnt/Ctnnb1 signaling activities in both bone formation and maintenance led us to test whether reduced bone formation in the Piezo1/2 mutants could be rescued by enhancing the Wnt/Ctnnb1 activities. We injected pregnant females and new born mouse pups with BIO, a potent specific inhibitor for GSK3, a kinase that promotes Ctnnb1 degradation (Sato et al., 2004Figure 10—figure supplement 1a, Figure 10—figure supplement 1Source data 1). We found that BIO treatment increased long bone length and bone mass with reduced bone fractures in the Piezo1/2 DKO mice (Figure 10a, Figure 10—source data 1, Figure 10—figure supplement 1a,b). Further analyses showed that BIO treatment enhanced Sp7 and Spp1 expression while Ctsk expression was reduced (Figure 10b). Thus, increased Ctnnb1 activities enhanced osteoblast differentiation and maturation while osteoclast differentiation was inhibited. To test whether Ctnnb1 and Yap1 also enhances each other’s activity in BMSCs, we treated the BMSCs with BIO or XMU-MP-1, an inhibitor of Hippo kinase Stk3/4 (Fan et al., 2016), and found that while BIO increased Ctnnb1 protein levels and reduced Ctnnb1 phosphorylation as expected, it also increased Yap1 protein levels and reduced Yap1 phosphorylation (Figure 10—figure supplement 1c). Likewise, reduction of Yap1 phosphorylation caused by XMU-MP-1 treatment was also accompanied by increase in total and non-phosphorylated Ctnnb1 protein levels. In addition, blocking Yap1 transcription activity by Verteporfin (VP) (Liu-Chittenden et al., 2012) reduced the effects of BIO in promoting both Ctnnb1 and Yap1 levels, suggesting that Ctnnb1 requires Yap1 activity to be fully upregulated (Figure 10—figure supplement 1c). Consistently, BIO treatment of BMSCs in vitro partially rescued reduction of osteoblast differentiation due to Piezo1/2 loss (Figure 10—figure supplement 1d). However, while Ctnnb1 protein levels were increased by BIO treatment, the increase of Yap1 was less appreciable (Figure 10c), suggesting that while Ctnnb1 activation is essential for osteoblast differentiation and can promote Yap1 activation, Yap1 is also regulated by Piezo1/2 by Ctnnb1-independent pathways and it is the concerted activation of NFATc1, Yap1 and Ctnnb1 that constitutes a fully functional mechanotransduction pathway downstream of Piezo channels in promoting bone formation.

Figure 10 with 1 supplement see all

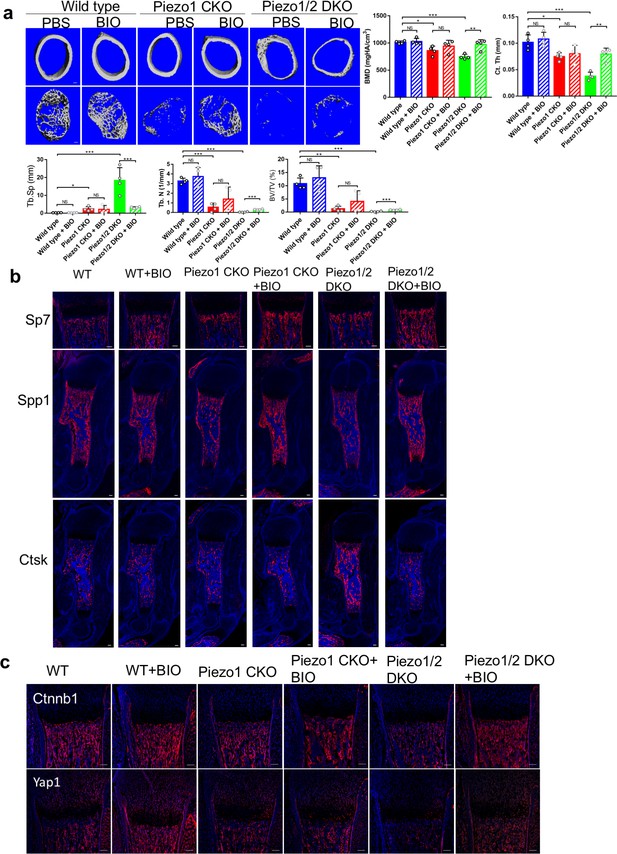

GSK3 inhibitor BIO partially rescued the bone development defects in the Piezo1/2 mutants.

(a) Representative cross section images and quantification of μCT scans of the femurs from P21 mice. N = 4. *p<0.05, **p<0.01, ***p<0.001, two-tailed unpaired Student’s t-test and one-way ANOVA followed by Tukey’s multiple comparisons tests when ANOVA was significant. Data are shown as means ± SD (Figure 10—source data 1). (b) Immunostaining of humerus sections from P0 mouse pups. (c) Representative immunofluorecent images of Yap1 and Ctnnb1 staining of humerus sections from P0 mouse pups with the indicated genotypes. All scale bars: 100 μm. DAPI (blue) stained the nucleus.

Discussion

Here, we have identified the mechanically activated cation channels.

Piezo1 and 2 as essential mechanosensors that promote osteoblast differentiation in both embryonic development and adult bone homeostasis. We have also identified a Piezo1/2-initiated mechanotransduction pathway in bone development. While Piezo2 is dispensable for bone development, it shares redundant functions with Piezo1. We show that Piezo1 and 2 are required to sense FSS and matrix rigidity, two crucial mechanical cues that promote osteoblast differentiation and bone formation, through intracellular Ca2+ signaling that regulates the concerted activation of NFAT, Yap1, and Ctnnb1 in controlling osteoblast cell fate. These findings fill a major knowledge gap in understanding how external mechanical forces, molecular force sensors, intracellular biological signaling pathways and nuclear transcriptional regulation drive final cellular outcomes are likely to act in skeleton and other tissues and organs. Human PIEZO1 single nucleotide polymorphisms (SNPs) are associated with body height reduction (Marouli et al., 2017) and may be osteoporosis based on a recent GWAS of UK Biobank (Morris et al., 2019). Piezo1/2 are also the first type of MS channels documented to underlie a human disease linked to mechanical pathologies including a number of blood disorders and problems with proprioception (Martinac, 2012; Coste et al., 2012; Murthy et al., 2017; Chesler et al., 2016). Therefore, our findings provide molecular insights into the integration between mechanical stimulation and biochemical signaling pathways in developmental and homeotic events in skeletal and other tissues and organs. It is interesting to note that our observations are consistent and supported by recently published work showing that Piezo1 is required in osteoblasts and osteocytes for bone formation or resorption in postnatal mice (Sun et al., 2019; Li et al., 2019).

The Wolff's law developed in the 19th century, that bone adapts to pressure, or a lack of it reflects the physiological importance of mechanotransduction in bone health. Great strides have been made to understand the cellular responses to mechanical loading since then, but little is known about how mechanical stimuli are sensed and transduced at molecular levels. ECM-cell and cell-cell interactions are fundamentally important components of the mechanoenvironment essential for bone formation and function. Much of the past attention has been focused on biochemical interactions in the mechanoenvironment. In this regard, the integrin signaling pathway and the downstream actomyosin cytoskeleton have been extensively studied and recognized as major players in assessment of the mechanics, by which cells initiate a series of mechanoregulatory processes (Humphrey et al., 2014). Our genetic and biochemical studies of the Piezo1/2 channel-dependent mechanotransduction provide an additional mechanism for sensing the mechanoenvironment and initiation of mechanotransduction. Outside the bone, PIEZO1 activates integrin-FAK (Ptk2) signaling in glioblastoma cells (Chen et al., 2018) and vascular endothelial cells (McHugh et al., 2012; Albarrán-Juárez et al., 2018). However, Piezo1-dependent mechanotransduction in endothelial cells could also be integrin-independent (Albarrán-Juárez et al., 2018). As integrin signaling is required for osteoblast differentiation during bone formation (Marie et al., 2014) and Piezo1/2 is required for cell spreading and Ptk2 activation in BMSCs (Figure 8a,b, Figure 8—source data 1, Figure 8—figure supplement 1b,c), it will be important to further examine integrin-independent and integrin-dependent Piezo1/2 activities in mechanotransduction of skeletal cells. It has been shown that PIEZO1 channels sense force directly transmitted through the bilayer and they are activated by bilayer tension in bleb membranes largely free of cytoskeleton gating at lower pressures (Cox et al., 2016). Therefore, it appears that removal of the cortical cytoskeleton and the mechanoprotection it provides sensitizes PIEZO1 channels. This raises the possibility that actomyosin cytoskeleton could also be part of a feedback adaptation process that dampens cellular responses to mechanical loading.

A major finding in this study is the Piezo1/2-dependent activation of Ppp3ca and concerted activation of the NFAT-Yap1-Ctnnb1 transcription factor network. Yap1 and Wwtr1 are essential effectors of mechanotransduced regulation of cell proliferation and differentiation (Halder et al., 2012; Aragona et al., 2013; Codelia et al., 2014; Wada et al., 2011; Dupont et al., 2011). The Wnt/Ctnnb1 signaling pathway plays critical roles in regulating osteoblast differentiation. Our findings here raise the possibility that Yap1/Wwtr1 could also be activated quickly by MS channels like Piezo1/2 in a noncanonical pathway, in addition to currently known Yap1 regulators including focal adhesion, actomyosin cytoskeleton and Hippo/Lats kinase cascade (Panciera et al., 2017). Furthermore, such regulation was executed together with Ctnnb1 activation, suggesting that Wnt/Ctnnb1 activity can also be activated by mechanotransduction via Yap1 and may mediate some of Yap1 activity in promoting bone formation. It is interesting to note that the AP-1 transcription factor (Fos–Jun dimers) is a major transcriptional partner of both NFAT (Macián et al., 2001) and YAP1/WWTR1 (Zanconato et al., 2015). Composite cis-regulatory elements containing NFAT:AP-1 or TEAD (the DNA binding partner of YAP1/WWTR1):AP-1 motifs are found in the regulatory regions of many target genes. Cooperative binding to these composite cis-regulatory elements have been found between NFAT or YAP1/WWTR1 with AP-1. Our findings here specifically advanced current understanding of Yap1 activation in mechanotransduction by connecting Piezo1/2 mediated Ca2+ signaling with a signaling cascade leading to downstream actomyosin cytoskeleton rearrangement and a concerted activation of key transcription factors including Yap1, Ctnnb1 and NFAT, all of which have been demonstrated to play key roles in promoting osteoblast differentiation. In light of the NFAT and Yap1 interactions we found here, it will be important to further test the role of AP-1 in NFAT interaction with YAP1; to find out whether cis-regulatory elements binding NFAT, AP-1 and TEAD in close vicinity form super enhancers and whether the genes they control are enriched in transcriptional responses to mechanical forces.

It is well established that fluid mechanical stimulation provides important mechanical stimuli to regulate bone development and regeneration in vitro and in vivo. FSS is known to acutely increase intracellular calcium concentrations in BMSCs, promote cell proliferation and upregulate osteogenic gene expression (Li et al., 2004). The important roles of intracellular calcium in osteoblast differentiation has been studied extensively (Zayzafoon, 2006; Eapen et al., 2010; Ishikawa et al., 2011; Choi et al., 2018). For instance, it is shown that Pannexin 3 functions as an ER Ca2+ channel to promote osteoblast differentiation. Pharmacological reduction or increase of intracellular Ca2+ concentration have been used to alter signaling pathways that regulate osteoblast differentiation. Our findings that Piezo1/2 regulate osteoblast differentiation by regulating Ppp3ca/NFAT- dependent YAP1 and Ctnnb1 activities advance our current understanding of mechanically stimulated Ca2+ signaling in bone cells. The vertebrate bone is a Ca2+ reservoir and highly regulated by both extra- and intracellular Ca2+ homeostasis, which depends to a large extent on Ca2+ channels. Several types of Ca2+ channels exist. However, despite the established functions of Ca2+ influx and calcineurin/NFAT signaling in promoting osteoblast differentiation and bone formation (Winslow et al., 2006; Koga et al., 2005; Sun et al., 2005; Cao et al., 2017), the physiological Ca2+ entry mechanisms that evoke calcineurin/NFAT activation were largely unexplored in the past. The members of the TRPV and TRPP family of ion channels are involved in the extracellular calcium homeostasis and/or intracellular Ca2+ signaling in response to mechanical stimuli in bone cells. However, physiological regulation of these ion channels in bone development and their roles in Ca2+ signaling remain unclear, hampering mechanistic understanding of their functions at the cellular and molecular levels.

The Piezo1/2-dependent Ca2+ signaling cascade in bone development we have identified opens the door to further understanding of many critical biological and medical processes in the skeletal system and beyond, given the importance of mechanotransduction and NFAT, Yap1, Ctnnb1 transcription factors in normal functions and diseases of many tissues and organs. For instance, how other Ca2+/Calmodulin signaling targets such as CAMKII act in the PIEZO1/2 initiated mechanotransduction should be investigated. In addition, despite the crucial functions of NFATc1 in osteoclast differentiation, the mechanisms that modulate Ca2+ oscillations during early osteoclastogenesis are still largely unknown. Although joint formation has been found to require movement and Piezo2 linage cells were found in the developing joints (Figure 1d), we did not observe abnormalities in joint formation in the Piezo1 CKO and Piezo1/2 DKO mutants. However, abnormal loading leads to cartilage damage and osteoarthritis as well as pathological bone alterations that may result in fracture when accumulated (Astur et al., 2016; Keaveny et al., 1999). Along this line, severe bone loss in astronauts due to the microgravity environment in space is a major obstacle of long-term space mission. In our preliminary study, expression of PIEZO1 and PIEZO2 in human BMSCs obtained from 11 male subjects showed a significant negative correlation with age (Figure 11, Figure 11—source data 1), suggesting that reduction of PIEZO channels might also contribute to bone aging. Further dissection of the Piezo1/2 function in a cell-type and age specific manner is likely to provide new insights into the underlying cellular and molecular mechanisms of mechanical forces in development and health.

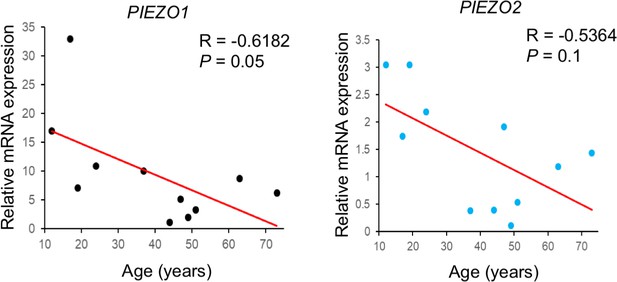

Expression of POEZO1/2 in human BMSCs.

QRT-PCR results using the cDNA of human BMSCs from 11 male subjects, between 12 to 75 years old. PIEZO1/2 Expression levels were normalized to GAPDH expression. The correlation between the expression of PIEZO1 or PIEZO2 and age was then calculated by Spearman’s correlation in Microsoft Excel (Figure 11—source data 1).

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Gene (M. musculus)Piezo1Gene ID: 234839
Gene (M. musculus)Piezo2Gene ID: 667742
Strain, strain background (C57BL/6J, Female and male)C57BL/6J Wild type miceJackson laboratoryCat# JAX:000664, RRID:IMSR_JAX:000664
Strain, strain background (C57BL/6J, Female and male)Piezo1-tdTomato miceJackson laboratoryCat# JAX:029214, RRID:IMSR_JAX:029214
Strain, strain background (C57BL/6J, Female and male)Piezo1fl/fl miceJackson laboratoryCat# JAX:029213, RRID:MSR_JAX:029213
Strain, strain background (C57BL/6J, Female and male)Piezo2fl/fl miceJackson laboratoryCat# JAX:027720, RRID:IMSR_JAX:027720
Strain, strain background (C57BL/6J, Female and male)Piezo2-GFP-IRES-Cre miceJackson laboratoryCat# JAX:027719, RRID:IMSR_JAX:027719
Strain, strain background (C57BL/6J, Female and male)Ai9 miceJackson laboratoryCat# JAX:007909, RRID:IMSR_JAX:007909
Strain, strain background (C57BL/6J, Female and male)Prrx1-Cre miceJackson laboratoryCat# JAX:005584, RRID:IMSR_JAX:005584
Strain, strain background (C57BL/6J, Female and male)Sp7-GFP::Cre miceJackson laboratoryCat# JAX:006361, RRID:IMSR_JAX:006361
Strain, strain background (C57BL/6J, Female and male)PC::GCaMP5G-tdTomato miceJackson laboratoryCat# JAX:024477, RRID:IMSR_JAX:024477
Cell line
(Homo sapiens)
HEK 293TATCCCat# ACS-4500, RRID:CVCL_4V93
Transfected
construct (M. musculus)
mPiezo1 siRNASigma-AldrichCat# SASI_
Hs01_00208584
Transfected
construct
(M. musculus)
siRNA Universal Negative ControlSigma-AldrichCat# SIC001
Biological
sample
(M. musculus)
Primary BMSCsFreshly isolated from M. musculus
AntibodyAnti-RFP
(Rabbit polyclonal)
RocklandCat# 600-401-379, RRID:AB_22097511:200 (IHC), 1:1000 (WB)
AntibodyAnti-Sp7
(Rabbit polyclonal)
AbcamCat# ab22552, RRID:AB_21944921:600 (IHC), 1:2000 (WB)
AntibodyAnti-SO9
(Rabbit polyclonal)
MilliporeCat# AB5535, RRID:AB_22397611:500 (IHC)
AntibodyAnti-OPN
(Goat polyclonal)
R and D systemsCat# AF808, RRID:AB_21949921:200 (IHC)
AntibodyAnti-Ctsk
(Rabbit polyclonal)
AbclonalCat# A1782, RRID:AB_27638241:100 (IHC)
AntibodyAnti-Trap
(Rabbit polyclonal)
AbclonalCat# A2528, RRID:AB_27644191:100 (IHC)
AntibodyAnti-BrdU
(mouse monoclonal)
BiolengdCat# 317902, RRID:AB_6040401:100 (IHC)
AntibodyAnti-Col10a1 (Rabbit polyclonal)AbclonalCat# A6889, RRID:AB_27674481:100 (IHC)
AntibodyAnti-YAP/TAZ (Rabbit monoclonal)CSTCat# 8418, RRID:AB_109504941:300 (IF), 1:200 (IHC), 1:1000 (WB)
AntibodyAnti-β-catenin (mouse monoclonal)BD BiosciencesCat# 610154, RRID:AB_3975551:400 (IHC), 1:2000 (WB)
AntibodyAnti-β-catenin (Rabbit polyclonal)AbclonalCat# A0316, RRID:AB_27571221:1000 (WB)
AntibodyAnti-NFAT2 (Rabbit polyclonal)AbclonalCat# A1539, RRID:AB_27622961:200 (IF), 1:100 (IHC), 1:1000 (WB)
AntibodyAnti-Phospho-YAP (Ser127) (Rabbit polyclonal)CSTCat# 4911, RRID:AB_22189131:1000 (WB)
AntibodyAnti-Phospho-β-catenin (Thr41/Ser45) (Rabbit polyclonal)CSTCat# 9565, RRID:AB_3317311:1000 (WB)
AntibodyNon-phospho (Active) β-Catenin (Ser33/37/Thr41) (D13A1) Rabbit mAbCSTCat# 8814S, RRID:AB_111272031:1000 (WB)
Antibodyβ-Actin (8H10D10) Mouse mAbCSTCat# 3700, RRID:AB_22423341:50,000 (WB)
AntibodyAnti-LATS1 (Goat polyclonal)Santa CruzCat# sc-9388, RRID:AB_21333671:1000 (WB)
AntibodyAnti-Phospho-LATS1 (Thr1079) (Rabbit monoclonal)CSTCat# 8654, RRID:AB_109716351:1000 (WB)
AntibodyAnti-FAK (mouse monoclonal)Santa CruzCat# sc-271126, RRID:AB_106143231:500 (WB)
AntibodyAnti-Phospho-FAK (pY397) (mouse monoclonal)BD BiosciencesCat# 611806, RRID:AB_3992861:1000 (WB)
AntibodyAnti-Mst1 (Rabbit monoclonal)CSTCat# 14946, RRID:AB_27986541:1000 (WB)
AntibodyAnti-Phospho-Mst1 (Thr183) (Rabbit monoclonal)CSTCat# 49332, RRID:AB_27993551:1000 (WB)
AntibodyAnti-RUNX2 (Rabbit polyclonal)ABclonalCat# A2851, RRID:AB_27646761:1000 (WB)
AntibodyAnti-CTGF (Rabbit polyclonal)ABclonalCat# A11067, RRID:AB_27583901:1000 (WB)
AntibodyAnti-Calcineurin (Rabbit polyclonal)AbclonalCat# A1063, RRID:AB_27581551:1000 (WB), 1:200 (IP)
AntibodyAnti-Flag (M2) (mouse monoclonal)SigmaCat# F1804, RRID:AB_2620441:2000 (WB), 1:1000 (IP)
AntibodyAnti-HA (3F10) (Rat monoclonal)RocheCat# 11867423001, RRID:AB_3909181:1000 (WB)
AntibodyAnti-c-Myc (9E10) (Mouse monoclonal)Santa CruzCat# sc-40, RRID:AB_6272681:1000 (WB)
AntibodyAnti-GAPDH (Rabbit monoclonal)CSTCat# 5174, RRID:AB_106220251:3000 (WB)
AntibodyAnti-DIG-AP conjugate (Sheep)RocheCat# 11093274910, RRID:AB_5144971:500 (ISH)
AntibodyAlexa Fluor 488 donkey anti-mouse (polyclonal)Life TechnologiesCat# A-21202, RRID:AB_1416071:500 (IHC)
AntibodyAlexa Fluor 488 donkey anti-rabbit (polyclonal)Life TechnologiesCat# A-21206, RRID:AB_25357921:500 (IHC)
AntibodyAlexa Fluor 488 donkey anti-goat (polyclonal)Life TechnologiesCat# A-11055, RRID:AB_25341021:500 (IHC)
AntibodyAlexa Fluor 568 donkey anti-mouse (polyclonal)Life TechnologiesCat# A10037, RRID:AB_25340131:500 (IHC)
AntibodyAlexa Fluor 568 donkey anti-rabbit (polyclonal)Life TechnologiesCat# A10042, RRID:AB_25340171:500 (IHC)
AntibodyAlexa Fluor 568 donkey anti-goat (polyclonal)Life TechnologiesCat# A-11057, RRID:AB_1425811:500 (IHC)
AntibodyECL Donkey anti-rabbitGE Healthcare Life ScienceCat# NA9340-1ml, RRID:AB_7721911:5000 (WB)
AntibodyECL Sheep anti-mouseGE Healthcare Life ScienceCat# NA9310-1ml, RRID:AB_7721931:5000 (WB)
AntibodyBovine anti-goat IgG HRPSanta CruzCat# sc-2350, RRID:AB_6348111:5000 (WB)
AntibodyDonkey Anti-Rat IgG AntibodySigmaCat# AP189P, RRID:AB_112144621:5000 (WB)
Recombinant DNA reagentpcDNA3.0-YAP-HA (plasmid)This paper
Recombinant DNA reagentpcDNA3.0-NFATc1-Flag (plasmid)This paper
Recombinant DNA reagentpcDNA3.0-β-catenin-Myc (plasmid)This paper
Recombinant DNA reagentpGL3-NFAT luciferase (plasmid)AddgeneRRID:Addgene_17870
Recombinant DNA reagent8XGTIIC-luciferase (plasmid)AddgeneRRID:Addgene_34615
Recombinant DNA reagentSuper 8X TOPFlash (plasmid)AddgeneRRID:Addgene_12456
Recombinant DNA reagentpTK-Renilla (plasmid)PromegaCat# E2241
Recombinant DNA reagentpcDNA3.0-Calcineurin A-S (plasmid)This paper
Sequence-based reagentPrimers listed in supplemental table
Commercial assay or kitGel Extraction KitOmegaCat# D2500
Commercial assay or kitRNAscope 2.5 HD Reagent KitACDCat# 322350
Commercial assay or kitRNAscope Probe Mm-Piezo1ACDCat# 500511
Commercial assay or kitRNAscope
Probe Mm-Ctgf
ACDCat# 314541
Commercial assay or kit1-Step NBT/BCIP Substrate SolutionLife TechnologiesCat# 34042
Commercial assay or kitIon 550 Chip KitLife TechnologiesCat# A34541
Commercial assay or kitIon AmpliSeq Transcriptome Mouse Gene Expression Panel, Chef-Ready KitLife TechnologiesCat# A36412
Commercial assay or kitDual-Luciferase Reporter AssayPromegaCat# E1910
Commercial assay or kitLipofectamine 3000Life TechnologiesCat# L3000001
Commercial assay or kitRAT/Mouse P1NP ELISA kitImmunodiagnostic Systems IncCat# AC33F1
Commercial assay or kitAlexa Fluor 594 Tyramide SuperBoostTM KitLife TechnologiesCat# B40944
Commercial assay or kitMasson’s TrichromeAbcamCat# ab150686
Commercial assay or kitTRAP staining kitSigma-AldrichCat# 387A
Commercial assay or kitTUNEL kitLife TechnologiesCat# C10617
Commercial assay or kitFAST SYBR Green Master MixLife TechnologiesCat# 4385612
Commercial assay or kitHigh-Capacity cDNA Reverse Transcription KitLife
Technologies
Cat# 4374966
 Chemical compound, drugDIG RNA labeling mixRocheCat# 11277073910
Chemical
compound, drug
Protector RNase inhibitorRocheCat# 03335399001
Chemical compound, drugT7 RNA polymeraseRocheCat# 10881767001
Chemical compound, drugT3 RNA polymeraseRocheCat# 11031163001
Chemical compound, drugLiClSigma-AldrichCat# L4408
Chemical compound, drugPhusion High-Fidelity DNA PolymeraseNew England BiolabsCat# M0530
Chemical compound, drugProteinase KSigma-AldrichCat# P2308
Chemical compound, drugGlutaraldehyde solutionSigma-AldrichCat# G5882
Chemical compound, drugYeast tRNASigma-AldrichCat# R8759
Chemical compound, drugBlocking reagentRocheCat# 11096176001
Chemical compound, drugBM-purpleRocheCat# 11442074001
Chemical compound, drugAlizarin Red SSigma-AldrichCat# A5533
Chemical compound, drugAlcian BlueSigma-AldrichCat# A9186
Chemical compound, drugRNAzol RTSigma-AldrichCat# R4533
Chemical compound, drugCalceinSigma-AldrichCat# C0875
Chemical compound, drugSliver nitrateSigma-AldrichCat# S8157
Chemical compound, drugSodium thiosulfateSigma-AldrichCat# 72049
Chemical compound, drugBGjb mediumLife TechnologiesCat# 12591038
Chemical compound, drugYoda1TOCRISCat# 5586
Chemical compound, drugCyclosporin ALC LaboratoriesCat# LC-C-6000
Chemical compound, drugGadolinium (III) chlorideSigma-AldrichCat# 439770
Chemical compound, drugβ-glycerophosphateSigma-AldrichCat# G9422
Chemical compound, drugL-ascorbic acidSigma-AldrichCat# A5960
Chemical compound, drugSulfo-SANPAHLife TechnologiesCat# 22589
Chemical compound, drugCollagen I, Rat tailCorningCat# 354236
Chemical compound, drugBIOSigma-AldrichCat# B1686
Chemical compound, drug40% (w/v) acrylamide stock solutionSigma-AldrichCat# A4058
Chemical compound, drug2% (w/v) bis-acrylamide stock solutionSigma-AldrichCat# M1533
Software, algorithmGraphPad PrismGraphPad PrismRRID:SCR_002798
Software, algorithmImageJImageJRRID:SCR_003070
Software, algorithmDAVIDDAVIDRRID:SCR_001881
Software, algorithmPhotoshopAdobeRRID:SCR_014199
Software, algorithmTranscriptome Analysis ConsoleLife TechnologiesRRID:SCR_016519

Mouse lines

Request a detailed protocol

All animal experiments were carried out according to protocols approved by the Harvard Medical School Institutional Animal Care and Use Committee. Mice described in the literature and purchased from the Jackson Laboratories: Piezo1P1-tdT (stock# 029214) (Ranade et al., 2014), Piezo2-EGFP-IRES-Cre (Piezo2tm1.1(cre)Apat, stock# 027719) (Woo et al., 2014), Piezo1f/f (stock# 029213) (Cahalan et al., 2015), Piezo2f/f (stock# 027720) (Woo et al., 2014), Prrx1-Cre (stock# 005584) (Logan et al., 2002), Sp7-GFP::Cre (stock# 006361) (Rodda and McMahon, 2006), Polr2aTn(pb-CAG-GCaMP5g,-tdTomato)Tvrd (PC::G5-tdT, stock# 024477) (Gee et al., 2014), Ai9 (Rosa26-TdTomato, stock# 007909). For embryos or neonatal mice, both male and female were used in the analyses as sex could not be clearly identified in embryos or neonatal mice. Sex-matched littermate mice were compared in postnatal mice at day 21. Three or more littermate groups were examined and representative images are shown.

RNA in situ hybridization

Request a detailed protocol

Whole mount RNA in situ hybridization was performed using digoxygenin-labeled anti-sense RNA probes as described before (Wilkinson and Nieto, 1993). The probes sequences were as described previously (mPiezo1 cDNA: base pairs 292–1054 of NM_001037298.1; mPiezo2 cDNA: base pairs 8,229–9298 of NM_001039485) (Wu et al., 2016). Tissue sections were subjected to in situ hybrization with the RNA Scope technology according to the manufacturer’s instruction (Advanced Cell Diagnostics).

Immunohistochemistry staining

Request a detailed protocol

Embryos and early-postnatal specimens were fixed in 4% (wt/vol) paraformaldehyde in phosphate-buffered saline (PBS) and processed for cryostat sections, which were blocked in 10% donkey serum and 0.1% Triton X-100 in PBS and Immunohistochemistry was performed with primary antibodies and secondary antibodies. Cryostat sections were mounted in mounting medium with DAPI from Vector laboratories (H-1200).

Quantification of osteoblast differentiation by alkaline phosphatase staining

Request a detailed protocol

Osteoblast differentiation was assayed by alkaline phosphatase (ALP) staining and quantified with ImageJ software as previously described (Dupont et al., 2011). For each sample, at least five low magnification (X20) pictures were taken for each sample, and osteogenic differentiation was quantified by the ALP+ area determined with ImageJ as the number of blue pixels across the picture. This value was normalized to the number of cells (Hoechst/nuclei) for each picture (arbitrary units).

Skeletal preparation and μCT scanning

Request a detailed protocol

Alcian blue staining for cartilage and Alizarin red staining for mineralized tissues were performed as described (Yang et al., 2003). μCT scanning of long bones was performed using a SCANCO μCT 35 according to standard procedures.

Bone histomorphometric analysis

Request a detailed protocol

Four weeks old wild type and Prrx1-Cre-driven Piezo1 CKO or Piezo1/2 DKO mice were subcutaneously injected with 20 mg/kg Calcein (Sigma) on days 4 and 1 before euthanization, respectively. Histomorphometric measurements were carried out semiautomatically with the OsteoMeasure image analyzer (OsteoMetric). Dynamic parameters including the mineralizing surface per bone surface (MS/BS) (percentage) and the bone formation rate per bone volume (BFR/BV) (percentage per year) were quantified. Analyses of bones from 3 mice per group were performed.

Von Kossa staining and Masson’s Trichrome staining

Request a detailed protocol

For von Kossa staining, cryostat sections were stained with 1% silver nitrate solution under a 60 W lamp for 1 hr. Slides were rinsed three times in distilled water. Sodium thiosulfate 5% was added to the slides for 5 min. Slides were rinsed three times in distilled water and counterstained with 0.1% nuclear fast red. Slides were rinsed three times in distilled water before mounted in mounting medium. For Masson’s Trichrome staining, the sections were re-fixed in Bouin’s solution for 1 hr at 56°C and then stained sequentially with Weigert’s iron hematoxylin solution, Biebrish scarlet-acid fuchsin solution, and aniline blue solution. Collagen is stained blue.

TUNEL assay

Request a detailed protocol

TUNEL assay was performed using a kit (Click-iT Plus TUNEL Assay for In Situ Apoptosis Detection, Life Technologies) according to the manufacturer’s protocol.

PINP ELISA analysis

Request a detailed protocol

Serum PINP levels were measured using a commercial kit from Immunodiagnostic Systems, according to the manufacturer’s instructions.

Cell culture

Request a detailed protocol

Mouse bone marrow stromal cells (BMSCs) were isolated as previously described with minor modifications (Khan et al., 2018). Briefly, femur and tibia bones were cut and the bone marrow was extracted under sterile conditions, dissociated and suspended in PBS and centrifuged immediately for 5 min at 300 g. The resulting pellet was suspended in culture medium (α-MEM supplemented with penicillin-streptomycin solution, sodium bicarbonate and 10% fetal bovine serum). BMSCs were cultured at 37°C and 5% CO2. The third passage cells were used for experiments. BMSCs were seeded and cultured in 12-well plates with osteogenic differentiation medium to induce osteoblast differentiation as described previously (Regard et al., 2013). HEK293T cells were maintained under standard conditions (DMEM supplemented with 10% FBS and 100 U/mL penicillin/streptomycin).

Mouse embryonic limb bud culture for bone and joint development

Request a detailed protocol

Mouse limbs were dissected from E13.5 embryos in PBS. The limbs were cultured as previously described (Storm and Kingsley, 1999). Briefly, the dissected fetal limbs were placed on a metal grid at the air-fluid interface with BGJb medium supplemented with 50 U/ml penicillin/streptomycin. Yoda1 (400 nM) was supplemented into the medium culturing right limbs, and equal volume of vehicle was supplemented into the medium culturing the left limbs (control). The limbs were maintained at 37°C in a 5% CO2 incubator. The medium was changed every 2 days. The cultured limbs were harvested and subjected to analyses 4 days after being cultured.

Transfection

Request a detailed protocol

After the cells attached to the culture dish and formed a monolayer with 70–80% confluency, the Ad-Cre or Ad-GFP virus (1:2000) was added to the medium. After 24 hr, the medium was changed, and the cells were cultured for another 24 hr before next step experiments. siRNA transfection was performed with Lipofectamine RNAi-MAX (Life Technologies) according to the manufacturer’s instructions. siRNA (Piezo1: SASI_Hs01_00208584) and MISSION siRNA Universal Negative Control were purchased from Sigma. The following luciferase reporters, Ctnnb1 reporter Super 8X TOPFlash (#12456), Yap1 reporter 8XGTIIC (#34615) and NFATc1 reporter pGL3-NFAT (#17870), were purchased from Addgene.

Mechanical loading

Request a detailed protocol

Oscillating fluid flow was generated using a horizontal bidirectional shaker (260350, Boekel Scientific Rocker II). BMSCs were cultured in osteogenic medium for 2 days followed by shaking (25 RPM; 20°; 12 hr shaking and 12 hr static) for 3 days (Wittkowske et al., 2016; Choi et al., 2019). Cell culture on hydrogels of different stiffness was performed as described (Meng et al., 2018; Tse and Engler, 2010).

Unloading by BOTOX-induced paralysis

Request a detailed protocol

12-week-old wild type and Sp7-Cre driven Piezo1/2 DKO male mice were anesthetized by isoflurane and then injected with 0.5U botulinum toxin (BTX, List Biological Laboratories) into both the right quadriceps and the right calf muscles. This treatment is a tibial unloading model by muscle paralysis and disuse. 24 hr after BTX injection, mice were unable to use their right hind limb. Left tibiae served as normal loading controls. Since a rapid and profound bone loss could be observed 1 week after BTX injection (Grimston et al., 2007), the mice were euthanized 10 days after injection and the tibiae were analyzed by μCT. A 0.8 mm thick section spanning the proximal tibia metaphysis was analyzed as shown in previous studies (Judex et al., 2004).

Quantitative real-time PCR

Request a detailed protocol

Total RNA from mouse humerus and femur tissues bone tissue devoid of bone marrow was prepared using the TRIZOL reagent (Life Technologies) or RNeasy Mini Kit (Qiagen) according to the manufacturer’s protocols. cDNA was synthesized from total RNA (1–3 μg) using SuperScript II Reverse Transcriptase with random primer (Life Technologies). QRT-PCR were performed using SYBR Select Master Mix on StepOnePlus thermal cycler from Applied Biosystems. Expression levels were always given relative to glyceraldehyde 3-phosphate dehydrogenase (Gapdh). The primer sequences of the genes are provided in the Supplementary file 2.

RNA sequencing

Request a detailed protocol

Total RNA was isolated from humerus and femur tissue tissues at P0 pups as described above. The libraries were constructed using Ion AmpliSeq Transcriptome Mouse Gene Expression Panel, Chef-Ready Kit according to the manufacturer’s protocols. The library qualities were checked by running on a BioAnalyzer 2100 and the concentrations were determined from the analysis profiles. Six barcoded libraries were pooled together on an equimolar basis and run using the Ion 550 Chip Kit. Genes with a change fold ≥2.82 or≤−0.35 were identified as differentially expressed genes and analyzed using the DAVID Bioinformatics Resources 6.8 (Huang et al., 2007).

Calcium imaging

Request a detailed protocol

Primary BMSCs from the PC::G5-tdT or Piezo1f/f; PC::G5-tdT mice were cultured as described above. GFP signal of GCaMP5G was excited at 480/505 nm and fluorescence emission was collected at 525 nm. Images were continuously taken by a Leica DM IRB microscope at time intervals of 5 s. Cells were stimulated either with shear force or Yoda1 (40 μM). All experiments were performed at room temperature (25°C). Fluorescence time series were analyzed using Image J software and converted to ΔF/F0 (ΔF/F0 = (F − F0)/F0), where F0 is the baseline fluorescence intensity.

Luciferase reporter assay

Request a detailed protocol

To measure the activity of YAP1/WWTR1, Wnt/Ctnnb1, and NFAT signaling, cells seeded in 96-well plates were cotransfected with the luciferase reporters of 8XGTIIC, 8XSuper Top-Flash or pGL3-NFAT, respectively, with pTK-Renilla (Promega) and effector plasmids. Luciferase activity was measured with a dual-luciferase reporter assay kit (Promega) according to the manufacturer’s instructions.

co-immunoprecipitation and immunoblotting

Request a detailed protocol

Bone tissues or cells were prepared using a lysis buffer [20 mM Tris (pH 7.4), 150 mM NaCl, 1% Triton X-100, 1 mM EDTA, 1 mM EGTA, 2.5 mM sodium pyrophosphate, 1 mM β-glycerophosphate, 1 mM sodium orthovanadate] or RIPA buffer (Santa Cruz Biotechnology), respectively, containing protease inhibitor mixture (Roche). Immnoprecipitates or total cell lysates were analyzed by Western blotting according to standard procedures.

Small molecule treatment

Request a detailed protocol

BIO was prepared as described previously (Sato et al., 2004). Pregnant females were injected with Bio by intraperitoneal injection at a concentration of 2 μM every day from E15.5 and the postnatal mice were injected every other day. Equivalent volumes of vehicle were injected as control. Yoda1 (100 nM), Gd3+ (100 nM), CsA (100 ng/mL) or Bio (1 μM) were added in cell culture medium after two days of osteogenic induction.

Statistical analysis

Request a detailed protocol

All data analysis in this study was carried out using GraphPad Prism 7 (GraphPad Software). Quantifications were done from at least three independent experimental groups. Statistical analysis between groups was performed by two-tailed Student’s t test to determine significance when only two groups were compared. One-way ANOVA with Tukey’s post-hoc tests were used to compare differences between multiple groups. p-Values of less than 0.05 and 0.01 were considered significant. Error bars on all graphs are presented as the SD of the mean unless otherwise indicated.

Study approval

Request a detailed protocol

The procedures for all animal experiments were reviewed and approved by the Harvard Medical School Institutional Animal Care and Use Committee.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
    Rare and low-frequency coding variants alter human adult height
    1. E Marouli
    2. M Graff
    3. C Medina-Gomez
    4. KS Lo
    5. AR Wood
    6. TR Kjaer
    7. RS Fine
    8. Y Lu
    9. C Schurmann
    10. HM Highland
    11. S Rüeger
    12. G Thorleifsson
    13. AE Justice
    14. D Lamparter
    15. KE Stirrups
    16. V Turcot
    17. KL Young
    18. TW Winkler
    19. T Esko
    20. T Karaderi
    21. AE Locke
    22. NG Masca
    23. MC Ng
    24. P Mudgal
    25. MA Rivas
    26. S Vedantam
    27. A Mahajan
    28. X Guo
    29. G Abecasis
    30. KK Aben
    31. LS Adair
    32. DS Alam
    33. E Albrecht
    34. KH Allin
    35. M Allison
    36. P Amouyel
    37. EV Appel
    38. D Arveiler
    39. FW Asselbergs
    40. PL Auer
    41. B Balkau
    42. B Banas
    43. LE Bang
    44. M Benn
    45. S Bergmann
    46. LF Bielak
    47. M Blüher
    48. H Boeing
    49. E Boerwinkle
    50. CA Böger
    51. LL Bonnycastle
    52. J Bork-Jensen
    53. ML Bots
    54. EP Bottinger
    55. DW Bowden
    56. I Brandslund
    57. G Breen
    58. MH Brilliant
    59. L Broer
    60. AA Burt
    61. AS Butterworth
    62. DJ Carey
    63. MJ Caulfield
    64. JC Chambers
    65. DI Chasman
    66. YI Chen
    67. R Chowdhury
    68. C Christensen
    69. AY Chu
    70. M Cocca
    71. FS Collins
    72. JP Cook
    73. J Corley
    74. JC Galbany
    75. AJ Cox
    76. G Cuellar-Partida
    77. J Danesh
    78. G Davies
    79. PI de Bakker
    80. GJ de Borst
    81. S de Denus
    82. MC de Groot
    83. R de Mutsert
    84. IJ Deary
    85. G Dedoussis
    86. EW Demerath
    87. AI den Hollander
    88. JG Dennis
    89. E Di Angelantonio
    90. F Drenos
    91. M Du
    92. AM Dunning
    93. DF Easton
    94. T Ebeling
    95. TL Edwards
    96. PT Ellinor
    97. P Elliott
    98. E Evangelou
    99. AE Farmaki
    100. JD Faul
    101. MF Feitosa
    102. S Feng
    103. E Ferrannini
    104. MM Ferrario
    105. J Ferrieres
    106. JC Florez
    107. I Ford
    108. M Fornage
    109. PW Franks
    110. R Frikke-Schmidt
    111. TE Galesloot
    112. W Gan
    113. I Gandin
    114. P Gasparini
    115. V Giedraitis
    116. A Giri
    117. G Girotto
    118. SD Gordon
    119. P Gordon-Larsen
    120. M Gorski
    121. N Grarup
    122. ML Grove
    123. V Gudnason
    124. S Gustafsson
    125. T Hansen
    126. KM Harris
    127. TB Harris
    128. AT Hattersley
    129. C Hayward
    130. L He
    131. IM Heid
    132. K Heikkilä
    133. Ø Helgeland
    134. J Hernesniemi
    135. AW Hewitt
    136. LJ Hocking
    137. M Hollensted
    138. OL Holmen
    139. GK Hovingh
    140. JM Howson
    141. CB Hoyng
    142. PL Huang
    143. K Hveem
    144. MA Ikram
    145. E Ingelsson
    146. AU Jackson
    147. JH Jansson
    148. GP Jarvik
    149. GB Jensen
    150. MA Jhun
    151. Y Jia
    152. X Jiang
    153. S Johansson
    154. ME Jørgensen
    155. T Jørgensen
    156. P Jousilahti
    157. JW Jukema
    158. B Kahali
    159. RS Kahn
    160. M Kähönen
    161. PR Kamstrup
    162. S Kanoni
    163. J Kaprio
    164. M Karaleftheri
    165. SL Kardia
    166. F Karpe
    167. F Kee
    168. R Keeman
    169. LA Kiemeney
    170. H Kitajima
    171. KB Kluivers
    172. T Kocher
    173. P Komulainen
    174. J Kontto
    175. JS Kooner
    176. C Kooperberg
    177. P Kovacs
    178. J Kriebel
    179. H Kuivaniemi
    180. S Küry
    181. J Kuusisto
    182. M La Bianca
    183. M Laakso
    184. TA Lakka
    185. EM Lange
    186. LA Lange
    187. CD Langefeld
    188. C Langenberg
    189. EB Larson
    190. IT Lee
    191. T Lehtimäki
    192. CE Lewis
    193. H Li
    194. J Li
    195. R Li-Gao
    196. H Lin
    197. LA Lin
    198. X Lin
    199. L Lind
    200. J Lindström
    201. A Linneberg
    202. Y Liu
    203. Y Liu
    204. A Lophatananon
    205. J Luan
    206. SA Lubitz
    207. LP Lyytikäinen
    208. DA Mackey
    209. PA Madden
    210. AK Manning
    211. S Männistö
    212. G Marenne
    213. J Marten
    214. NG Martin
    215. AL Mazul
    216. K Meidtner
    217. A Metspalu
    218. P Mitchell
    219. KL Mohlke
    220. DO Mook-Kanamori
    221. A Morgan
    222. AD Morris
    223. AP Morris
    224. M Müller-Nurasyid
    225. PB Munroe
    226. MA Nalls
    227. M Nauck
    228. CP Nelson
    229. M Neville
    230. SF Nielsen
    231. K Nikus
    232. PR Njølstad
    233. BG Nordestgaard
    234. I Ntalla
    235. JR O'Connel
    236. H Oksa
    237. LM Loohuis
    238. RA Ophoff
    239. KR Owen
    240. CJ Packard
    241. S Padmanabhan
    242. CN Palmer
    243. G Pasterkamp
    244. AP Patel
    245. A Pattie
    246. O Pedersen
    247. PL Peissig
    248. GM Peloso
    249. CE Pennell
    250. M Perola
    251. JA Perry
    252. JR Perry
    253. TN Person
    254. A Pirie
    255. O Polasek
    256. D Posthuma
    257. OT Raitakari
    258. A Rasheed
    259. R Rauramaa
    260. DF Reilly
    261. AP Reiner
    262. F Renström
    263. PM Ridker
    264. JD Rioux
    265. N Robertson
    266. A Robino
    267. O Rolandsson
    268. I Rudan
    269. KS Ruth
    270. D Saleheen
    271. V Salomaa
    272. NJ Samani
    273. K Sandow
    274. Y Sapkota
    275. N Sattar
    276. MK Schmidt
    277. PJ Schreiner
    278. MB Schulze
    279. RA Scott
    280. MP Segura-Lepe
    281. S Shah
    282. X Sim
    283. S Sivapalaratnam
    284. KS Small
    285. AV Smith
    286. JA Smith
    287. L Southam
    288. TD Spector
    289. EK Speliotes
    290. JM Starr
    291. V Steinthorsdottir
    292. HM Stringham
    293. M Stumvoll
    294. P Surendran
    295. LM 't Hart
    296. KE Tansey
    297. JC Tardif
    298. KD Taylor
    299. A Teumer
    300. DJ Thompson
    301. U Thorsteinsdottir
    302. BH Thuesen
    303. A Tönjes
    304. G Tromp
    305. S Trompet
    306. E Tsafantakis
    307. J Tuomilehto
    308. A Tybjaerg-Hansen
    309. JP Tyrer
    310. R Uher
    311. AG Uitterlinden
    312. S Ulivi
    313. SW van der Laan
    314. AR Van Der Leij
    315. CM van Duijn
    316. NM van Schoor
    317. J van Setten
    318. A Varbo
    319. TV Varga
    320. R Varma
    321. DR Edwards
    322. SH Vermeulen
    323. H Vestergaard
    324. V Vitart
    325. TF Vogt
    326. D Vozzi
    327. M Walker
    328. F Wang
    329. CA Wang
    330. S Wang
    331. Y Wang
    332. NJ Wareham
    333. HR Warren
    334. J Wessel
    335. SM Willems
    336. JG Wilson
    337. DR Witte
    338. MO Woods
    339. Y Wu
    340. H Yaghootkar
    341. J Yao
    342. P Yao
    343. LM Yerges-Armstrong
    344. R Young
    345. E Zeggini
    346. X Zhan
    347. W Zhang
    348. JH Zhao
    349. W Zhao
    350. W Zhao
    351. H Zheng
    352. W Zhou
    353. JI Rotter
    354. M Boehnke
    355. S Kathiresan
    356. MI McCarthy
    357. CJ Willer
    358. K Stefansson
    359. IB Borecki
    360. DJ Liu
    361. KE North
    362. NL Heard-Costa
    363. TH Pers
    364. CM Lindgren
    365. C Oxvig
    366. Z Kutalik
    367. F Rivadeneira
    368. RJ Loos
    369. TM Frayling
    370. JN Hirschhorn
    371. P Deloukas
    372. G Lettre
    373. EPIC-InterAct Consortium
    374. CHD Exome+ Consortium
    375. ExomeBP Consortium
    376. T2D-Genes Consortium
    377. GoT2D Genes Consortium
    378. Global Lipids Genetics Consortium
    379. ReproGen Consortium
    380. MAGIC Investigators
    (2017)
    Nature 542:186–190.
    https://doi.org/10.1038/nature21039
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
    StemBook
    1. E Schipani
    2. HM Kronenberg
    (2008)
    Cambridge: Harvard Stem Cell Institute.
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
  93. 93
  94. 94
  95. 95
  96. 96
  97. 97
  98. 98
  99. 99
  100. 100
  101. 101
  102. 102
  103. 103
  104. 104
  105. 105
  106. 106
  107. 107
  108. 108
  109. 109
  110. 110
  111. 111

Decision letter

  1. Mone Zaidi
    Reviewing Editor; Icahn School of Medicine at Mount Sinai, United States
  2. Clifford J Rosen
    Senior Editor; Maine Medical Center Research Institute, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This paper describes a new pathway for mechanotransduction in bone and its relevance during skeletal development. This involves the activation of Piezo 1/2 channels in osteoblast progenitors, which leads to calcium signals that activate calcineurin with further downstream effects on YAP1, NFATc1 and β-catenin to regulate bone formation and resorption.

Decision letter after peer review:

Thank you for submitting your article "Piezo1/2 mediate mechanotransduction essential for bone formation through concerted activation of NFAT-YAP-β-catenin" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by Mone Zaidi as the Reviewing Editor and Clifford Rosen as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The study explores a role for the Piezo proteins in bone formation using Prrx1 and Osx as the Cre tools. Piezo1 and Piezo2 were found to be expressed in long bones during embryonic development and to regulate osteoblastogenesis in response to mechanical forces. The experiments are methodologically sound, carefully conducted and well controlled. They provide major new insights, and are explained in a well crafted and logically presented manuscript. With that said, the Reviewers and Editors have expressed concerns that are summarized below. These concerns would need to be resolved in a revised version.

Essential revisions:

1) There is a concern about the overlap of the present manuscript and two prior publications in eLife from other groups, notably Sun et al., 2019 and Li et al., 2019), which document a role for mechanosensitive-responsive Piezo1/2 channels in bone formation. While it was recognized that those past reports were not as technically sophisticated as the present submission, there is a concern regarding novelty. That said, the reviewers recognized that the present study, apart from being cutting-edge, provided new insights into areas of skeletal development. It is therefore critical that the authors highlight how specifically this study adds new dimensions to previous work and moves the field forward.

2) There is the missed opportunity of making the manuscript more distinctive. For example, there is a clear difference in the sites of bone fracture, notably limb versus rib, in in Piezo1 CKOs driven by Prrx1 and Osx Cre, respectively. Studies examining the expression pattern of the Piezo1/2 proteins in sorted Prrx1-positive and Osx-positive osteoblast progenitors during differentiation under induced mechanotransduction conditions could shed light on this difference.

3) It was felt that the connection between Yap and Piezo activity was very interesting and was likely to be important for the growing Hippo-Yap field. However, insufficient evidence was presented to establish that activated Yap pathways contribute to osteoblast differentiation through Piezo. It was also unclear how precisely non-canonical Yap signaling plays a role – specifically, molecular mechanisms remained scanty. The authors would need to answer several key questions: (a) what are the respective functions of Yap1 and β-catenin in osteogenesis mediated by Piezo1/2; (b) what is the physiological function the NFAT/YAP/β-catenin complex; (c) what is the contribution of YAP1 to the rescue in Piezo1 and Piezo1/2 mutants by enhanced β-catenin activity; and (d) whether there is crosstalk between Wnt/β-catenin and Hippo/Yap signaling? The authors should comment in more depth on potential Hippo signaling in their system. This possibility is suggested by their data but does not come out well in the Discussion.

4) The authors show Piezo1/2 expression in long bone, but not in the axial skeleton or the skull. Specifically, are there abnormalities in craniofacial bones or teeth?

5) BTX treatment is not the best means to examine the mechanosensor function of Piezo proteins in bone formation, as injured muscle and nerves are known to alter bone formation indirectly. While the hind-limb suspension model or tibia axial loading would provide a better assessment, it would suffice to provide full histomorphometric analysis to confirm the function of the Piezo proteins in bone formation.

https://doi.org/10.7554/eLife.52779.sa1

Author response

Essential revisions:

1) There is a concern about the overlap of the present manuscript and two prior publications in eLife from other groups, notably Sun et al., 2019 and Li et al., 2019), which document a role for mechanosensitive-responsive Piezo1/2 channels in bone formation. While it was recognized that those past reports were not as technically sophisticated as the present submission, there is a concern regarding novelty. That said, the reviewers recognized that the present study, apart from being cutting-edge, provided new insights into areas of skeletal development. It is therefore critical that the authors highlight how specifically this study adds new dimensions to previous work and moves the field forward.

Thanks for the compliments that the present study, apart from being cutting-edge, provided new insights into areas of skeletal development”. We have read previous reports carefully: Sun et al., 2019, Li et al., 2019 and Wang et al., 2020. We also appreciate the suggestion from the reviewers and editors. We have now highlighted how specifically in our study adds new dimensions to previous work and moves the field forward in the Introduction, and Discussion, which are also summarized as follows:

1) While all of the recently published studies focus on postnatal bone and regulation of mature osteoblast/osteocyte functions by the mechanical force channel Piezo1, our studies also tackle the roles of both Piezo1 and 2 in early skeletal (cartilage and bone) development. We have stated in the Introduction that “mechanical forces are part of environmental cues that are sensed and responded to during embryonic development and adult life for proper morphogenesis and tissue/organ functions” and “despite the long-recognized key regulatory roles of mechanotransduction for embryonic development and sensory perception, little concrete information on the molecular mechanisms that integrate biophysical stimuli with gene regulation to guide fundamental events such as cell fate determination, proliferation and apoptosis is known”. Our study therefore emphasized on osteoblast differentiation from embryonic gmesenchymal progenitor cells and adult bone marrow stromal cells (BMSCs) where stem cells are found. Our work uncovered the temporal and spatial expression of Piezo1 and 2 in embryonic long bones in situ and their roles in osteoblast differentiation from embryonic mesenchymal progenitor cells or BMSCs. In addition, despite the lower expression levels of Piezo2 in the bone forming cells, it is important to know its functions. Our findings indicate that the role of Piezo2 in the skeleton should not be ignored. Despite the lack of apparent phenotypes in skeletal development in the Piezo2 mutants, Piezo2 loss did enhance the long bone phenotypes of Piezo1 mutants. Our studies of Piezo1/2 in early embryonic development and BMSCs together advance the current mechanistic understanding of mechanic force sensation and response in cell fate decision from progenitor or stem cells. Importantly, our studies provide new opportunities to understand how mechanical information from environment in the form of biophysical stimuli such as stress, strain and fluid flow generated by gravity, cell movement and cell-cell or cell-extracellular matrix (ECM) interactions, join well-known complex networks of biochemical signaling that direct the development of higher vertebrate embryos as well stem cell regulation during tissue regeneration.

2) It is satisfying to see that reduction of Yap1 activities by loss of Piezo1 function was shown in two of the three recently published work. Our study specifically advanced current understanding of Yap1 activation in mechanotransduction by connecting Piezo1/2 mediated Ca2+ signaling with a signaling cascade leading to downstream actomyosin cytoskeleton rearrangement and a concerted activation of key transcription factors including Yap1, β-catenin (Ctnnb1) and NFAT, all of which have been demonstrated to play key roles in promoting osteoblast differentiation. Our finding that the Piezo channels regulate noncanonical Yap1 activation independently of the Mst (Stk3 and 4)/Lats kinase cascade open new doors to further understanding regulation of not only Yap1, but also β-catenin and NFAT in many other physiological and pathological contexts, given the importance of mechanotransduction and these transcription factors in the normal functions and diseases of many tissues and organs. More details are provided in our response to Point 4.

3) All 4 studies include ours provided a good opportunity to compare notes and clarify some issues in the future. For example, three studies (Sun et al., 2019, Li et al., 2019, and ours showed that loss of Piezo1 in osteoblast lineage cells reduced bone formation and osteoblast differentiation, while Wang et al., 2020 indicated that loss of Piezo1 in osteoblast cells increased bone resorption without reducing bone formation.

2) There is the missed opportunity of making the manuscript more distinctive. For example, there is a clear difference in the sites of bone fracture, notably limb versus rib, in in Piezo1 CKOs driven by Prrx1 and Osx Cre, respectively. Studies examining the expression pattern of the Piezo1/2 proteins in sorted Prrx1-positive and Osx-positive osteoblast progenitors during differentiation under induced mechanotransduction conditions could shed light on this difference.

Thanks for the comments. As we pointed out in the manuscript, the Prrx1Cre and OsxCre (Sp7-Cre) are expressed in overlapping but different tissues and cells. In the limb, Prrx1Cre is expressed in all mesenchymal progenitor cells that give rise to cartilage, bone and tendon/ligament. Its activity is also found in the limb muscle, while Sp7-Cre expression is limited to osteoblast lineage cells and hypertrophic chondrocytes. However, Sp7 is expressed in all developing bones, many of them do not express Prrx1, for instance, the rib, which explains lack of rib phenotypes in the Prrx1Cre driven mutants. In the developing limb, tendon, ligament and muscle play critical roles transmitting the forces between skeletal and muscular tissues, and this function might require extra-skeletal Piezo1 function. This may explain why the Prrx1Cre driven Piezo1 mutants resulted in more severe bone defects. To further understand the difference between the Prrx1-positive and Sp7-positive osteoblast progenitors, we have also sorted the Prrx1-positive BMSCs and Sp7-positive osteoblast progenitors, cultured them and determined Piezo1/2 expression during osteoblast differentiation under induced mechanotransduction conditions. The protein levels were not high enough to be reliably detected in the cultured cells by Western blotting, but we found that mRNA expression of Piezo1 was slightly upregulated by fluid stress in the Prrx1 positive, but not Sp7 positive cells. There was no significant difference in Piezo2 expression, and its expression levels were much lower than those of Piezo1. The data have been added as the revised Figure 4D and p11 in the revised manuscript.

3) It was felt that the connection between Yap and Piezo activity was very interesting and was likely to be important for the growing Hippo-Yap field. However, insufficient evidence was presented to establish that activated Yap pathways contribute to osteoblast differentiation through Piezo. It was also unclear how precisely non-canonical Yap signaling plays a role – specifically, molecular mechanisms remained scanty. The authors would need to answer several key questions: (a) what are the respective functions of Yap1 and β-catenin in osteogenesis mediated by Piezo1/2; (b) what is the physiological function the NFAT/YAP/β-catenin complex; (c) what is the contribution of YAP1 to the rescue in Piezo1 and Piezo1/2 mutants by enhanced β-catenin activity; and (d) whether there is crosstalk between Wnt/β-catenin and Hippo/Yap signaling? The authors should comment in more depth on potential Hippo signaling in their system. This possibility is suggested by their data but does not come out well in the Discussion.

Thanks for agreeing that the connection between Yap and Piezo activity was very interesting and was likely to be important for the growing Hippo-Yap field. We have performed additional experiments and added discussion in our data interpretation to make our points more clear. Here are our answers to the raised questions:

a) What are the respective functions of Yap1 and β-catenin in osteogenesis mediated by Piezo1/2?

The phenotypes of neonatal bone fractures, reduced bone formation and increased bone resorption found in the Prrx1-Cre; Piezo1, Prrx1-Cre; Piezo1/2 or Sp7-Cre; Piezo1, Sp7-Cre; Piezo1/2 mutants were similar to those found in the Yap1/Taz and β-catenin mutants. Our rescuing experiments with BIO treatment (revised Figure 10 and Figure 10—figure supplement 1) indicate that at least part of the functions of Piezo1/2 induced Yap1 activation is to promote β-catenin activation. However, the incomplete phenotypic and Yap1 expression rescue by BIO treatment suggest that Yap1 has non-overlapping functions with β-catenin. A possible scenario is that Yap1 and β-catenin each have their unique targets to promote bone formation aside from enhancing each other’s activities. In addition, each also has its own parallel upstream regulatory pathways such as Piezo1/2 as explained in detail in (c). We have also performed new experiments (revised Figure 10—figure supplement 1C) as explained in the following (c) and (d) to make these points more clear in subsection “Enhanced Ctnnb1 activities partially rescued the bone defects of Piezo1/2 bone mutants” and Discussion paragraph three.

b) What is the physiological function the NFAT/YAP/β-catenin complex?

Our data indicate that the physiological function of the complex is to allow calcineurin-activated NFAT to coordinately activate YAP and β-catenin. In addition, such complex formation indicate that Yap was activated together with β-catenin, suggesting that β-catenin can also be activated by mechanotransduction via Yap1 and may mediate some of Yap1 activity in promoting bone formation. This point has been made more clear in Discussion paragraph three.

c) What is the contribution of YAP1 to the rescue in Piezo1 and Piezo1/2 mutants by enhanced b-catenin activity?

It is very likely that Yap1 and β-catenin each have their unique targets to promote bone formation aside from enhancing each other’s activities. In addition, each also has its own upstream regulatory pathways. While BIO treatment strongly upregulated β-catenin protein levels, the increase of Yap1 was less appreciable (Figure 10C), suggesting that while β-catenin activation is essential for osteoblast differentiation and can promote Yap1 activation (revised Figure 9—figure supplement 1A and revised Figure 10—figure supplement 1C), Yap1 is also regulated by Piezo1/2 via β-catenin-independent pathway(s). In addition, blocking Yap1 transcription activity by Verteporfin (VP)(Liu-Chittenden et al., 2012) reduced the effects of BIO in promoting both β-catenin and Yap levels, suggesting that β-catenin requires Yap1 activity to be fully upregulated, consistent with previous published results (Pan et al., 2018). It is possible that the incomplete Yap1 protein rescue by BIO treatment contributed to the incomplete phenotypic rescue of the Piezo1 and Piezo1/2 mutant by BIO treatment (revised Figure 10). It is the concerted activation of NFATc1, Yap and β-catenin that constitutes fully functional mechanotransduction pathways downstream of Piezo channels in promoting bone formation. More results and discussion have been added in subsection “Enhanced Ctnnb1 activities partially rescued the bone defects of Piezo1/2 bone mutants”.

d) whether there is crosstalk between Wnt/β-catenin and Hippo/Yap signaling?

Yes, definitely! The cross talk between Wnt/β-catenin and Hippo/Yap1 signaling have been shown by a number of previous publications. The exact nature of such crosstalk is likely to be context dependent and several crosstalk mechanisms may exist in parallel. In our study, the crosstalk was shown in revised Figure 9—figure supplement 1A. While β-catenin promoted Yap transcription activity, Yap also promoted β-catenin transcription activity. In addition, we also further investigated the crosstalk between endogenous Wnt/β-catenin and Hippo/Yap1 signaling in primary BMSCs during the revision (revised Figure 10—figure supplement 1C and subsection “Enhanced Ctnnb1 activities partially rescued the bone defects of Piezo1/2 bone mutants”). We showed that while Wnt/β-catenin signaling activation by BIO increased β-catenin protein levels and reduced β-catenin phosphorylation as expected, BIO treatment also increased Yap1 protein levels and reduced Yap1 phosphorylation. In addition, reduction of Yap1 phosphorylation by treating the cells with XMU-MP-1, an inhibitor of Hippo kinase Stk3/4 (or Mst1/2) (Fan et al., 2016), was also accompanied by increase in total and non-phosphorylated β-catenin protein levels, supporting a positive interaction between the Wnt/β-catenin and Hippo/Yap1 signaling pathways in the BMSCs. In addition, blocking Yap1 transcription activity by Verteporfin (VP)(Liu-Chittenden et al., 2012) reduced the effects of BIO in promoting both β-catenin and Yap1 levels, suggesting that β-catenin requires Yap1 activity to be fully upregulated (revised Figure 10—figure supplement 1C).

4) The authors show Piezo1/2 expression in long bone, but not in the axial skeleton or the skull. Specifically, are there abnormalities in craniofacial bones or teeth?

Like in the long bone, our preliminary results showed Piezo1 is also expressed in the osteoblast progenitor and differentiated osteoblast cells in the skull. Piezo2 is not expressed in osteoblast lineage cells in the developing cranial bone. However, we did not see consistent bone formation difference between the Piezo1 or Piezo2 mutants and the wild type controls at developmental or early postnatal stages. These data are consistent with similar findings in Wang et al., 2020. We have not yet examined Piezo1/2 expression in the developing teeth or spine, nor the phenotypes in the absence of Piezo1/2. These will be interesting topics for future thorough investigations.

5) BTX treatment is not the best means to examine the mechanosensor function of Piezo proteins in bone formation, as injured muscle and nerves are known to alter bone formation indirectly. While the hind-limb suspension model or tibia axial loading would provide a better assessment, it would suffice to provide full histomorphometric analysis to confirm the function of the Piezo proteins in bone formation.

It is known that muscle contractions and external gravitational loading are two primary sources of mechanical forces exerted on bone. It is necessary to test whether Piezo1/2 in osteoblast cells are required to sense mechanical forces exerted by muscle contractions using the established BTX injection model, while we agree that the BTX model has its limitations. The role of Piezo1 in an external gravitational loading (the hindlimb suspension (HS) model) and tibia axial loading have been shown by three recent papers published in eLife (Sun et al., 2019, Li et al., 2019, Wang et al., 2020). We are aware that there are indirect detrimental effects of BTX treatment on muscles, but at least some of these effects are not specific to the injected limbs and also found in the contralateral control limbs (Ellman et al., Calcif Tissue Int. 2014). By using the contralateral leg as the control, much of the indirect effects in the BTX model could be normalized. We would like to mention that none of the current loading and unloading models are perfect. Muscle atrophy is also found in the HS models and tibia axial loading is performed under artificial conditions. Studies in all these models collectively provide complementary insights into the roles of Piezo1/2.

While the BTX model is relevant in testing the role of Piezo1/2 in osteoblast mechanosensing (revised Figure 5C), we feel it is not feasible and necessary to confirm with full histomorphometric analysis the function of the Piezo proteins in bone formation within two months for the following reasons: 1, We have shown in multiple assays including histomorphometric analysis that bone formation was severely reduced in the Prrx1-Cre-driven Piezo1/2 mutant mice in the manuscript (Figure 2E, F). As defects in bone formation in the HS and tibia axial loading models have been demonstrated by histomorphometric analysis in the less severe Piezo1 osteoblast-specific mutants (Sun et al., 2019, Li et al., 2019), it is less likely that reduced bone formation did not contribute to blunted bone loss in the BTX-injected, more severe Sp7-Cre driven Piezo1/2 mutants. 2, We already found that loss of Piezo1/2 in early osteoblast cells led to very severe reduction of bone formation (Figure 2E, F), such that dynamic bone formation parameters was not quantifiable in our Piezo mutants. Lastly, I have talked to our colleague Dr. Roland Barron, an expert in histomorphometric analysis and the core at MGH and both told us that it is not possible for them to finish sample preparation and analyses within 2 months even if the mice were ready for BTX injection two months ago. We were told that the reasonable estimate is 4-6 months given the need for mouse breeding and their current work load.

https://doi.org/10.7554/eLife.52779.sa2

Article and author information

Author details

  1. Taifeng Zhou

    1. Department of Developmental Biology, Harvard School of Dental Medicine, Harvard Stem Cell Institute, Boston, United States
    2. Department of Orthopaedic Surgery, Guangdong Provincial Key Laboratory of Orthopedics and Traumatology, First Affiliated Hospital of Sun Yat-sen University, Sun Yat-sen University, Guangzhou, China
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  2. Bo Gao

    1. Department of Developmental Biology, Harvard School of Dental Medicine, Harvard Stem Cell Institute, Boston, United States
    2. Department of Spine Surgery, Sun Yat-sen Memorial Hospital, Sun Yat-sen University, Guangzhou, China
    Contribution
    Data curation, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  3. Yi Fan

    Department of Developmental Biology, Harvard School of Dental Medicine, Harvard Stem Cell Institute, Boston, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  4. Yuchen Liu

    Department of Developmental Biology, Harvard School of Dental Medicine, Harvard Stem Cell Institute, Boston, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Shuhao Feng

    1. Department of Developmental Biology, Harvard School of Dental Medicine, Harvard Stem Cell Institute, Boston, United States
    2. Department of Orthopedic Surgery, Nanfang Hospital, Southern Medical University, Guangdong, China
    Contribution
    Data curation, Formal analysis, Investigation
    Competing interests
    No competing interests declared
  6. Qian Cong

    Department of Developmental Biology, Harvard School of Dental Medicine, Harvard Stem Cell Institute, Boston, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  7. Xiaolei Zhang

    1. Department of Developmental Biology, Harvard School of Dental Medicine, Harvard Stem Cell Institute, Boston, United States
    2. Department of Operative Dentistry and Endodontics, Guanghua School of Stomatology, Sun Yat-sen University, Guangzhou, China
    Contribution
    Data curation, Investigation
    Competing interests
    No competing interests declared
  8. Yaxing Zhou

    Department of Developmental Biology, Harvard School of Dental Medicine, Harvard Stem Cell Institute, Boston, United States
    Contribution
    Formal analysis, Methodology
    Competing interests
    No competing interests declared
  9. Prem S Yadav

    Department of Developmental Biology, Harvard School of Dental Medicine, Harvard Stem Cell Institute, Boston, United States
    Contribution
    Data curation, Investigation
    Competing interests
    No competing interests declared
  10. Jiachen Lin

    1. Department of Developmental Biology, Harvard School of Dental Medicine, Harvard Stem Cell Institute, Boston, United States
    2. Department of Orthopedic Surgery and Beijing Key Laboratory for Genetic Research of Skeletal Deformity, Peking Union Medical College Hospital, Chinese Academy of Medical Sciences, Beijing, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  11. Nan Wu

    Department of Orthopedic Surgery and Beijing Key Laboratory for Genetic Research of Skeletal Deformity, Peking Union Medical College Hospital, Chinese Academy of Medical Sciences, Beijing, China
    Contribution
    Resources, Supervision
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9429-2889
  12. Liang Zhao

    Department of Orthopedic Surgery, Nanfang Hospital, Southern Medical University, Guangdong, China
    Contribution
    Resources, Supervision
    Competing interests
    No competing interests declared
  13. Dongsheng Huang

    Department of Spine Surgery, Sun Yat-sen Memorial Hospital, Sun Yat-sen University, Guangzhou, China
    Contribution
    Resources, Supervision
    Competing interests
    No competing interests declared
  14. Shuanhu Zhou

    Department of Orthopedic Surgery, Brigham and Women's Hospital, Boston, United States
    Contribution
    Resources, Investigation
    Competing interests
    No competing interests declared
  15. Peiqiang Su

    Department of Orthopaedic Surgery, Guangdong Provincial Key Laboratory of Orthopedics and Traumatology, First Affiliated Hospital of Sun Yat-sen University, Sun Yat-sen University, Guangzhou, China
    Contribution
    Resources, Supervision, Funding acquisition, Investigation, Project administration
    For correspondence
    supq@mail.sysu.edu.cn
    Competing interests
    No competing interests declared
  16. Yingzi Yang

    Department of Developmental Biology, Harvard School of Dental Medicine, Harvard Stem Cell Institute, Boston, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Validation, Investigation, Methodology, Project administration
    For correspondence
    yingzi_yang@hsdm.harvard.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3933-887X

Funding

National Institute of Dental and Craniofacial Research (R01DE025866)

  • Qian Cong
  • Yingzi Yang

National Institute of Arthritis and Musculoskeletal and Skin Diseases (R01AR070877)

  • Prem S Yadav
  • Yingzi Yang

National Cancer Institute (R01CA222571)

  • Yuchen Liu

China Scholarship Council (201806380049)

  • Taifeng Zhou

China Scholarship Council (201806210436)

  • Jiachen Lin

National Institute of Arthritis and Musculoskeletal and Skin Diseases

  • Yi Fan

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We are grateful to the Yang lab for stimulating discussions. YY, YF, YL, QC and PY are supported by the NIH grants R01DE025866 and R01AR070877. Taifeng Zhou, Xiaolei Zhang and Jiachen Lin are supported by visiting graduate student fellowships from the China Scholarship Council of the Chinese Ministry of Education.

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the NIH. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocols (#IS00000121-3) of the Harvard Medical School. The protocol was approved by the Committee on the Ethics of Animal Experiments of the Harvard Medical School.

Senior Editor

  1. Clifford J Rosen, Maine Medical Center Research Institute, United States

Reviewing Editor

  1. Mone Zaidi, Icahn School of Medicine at Mount Sinai, United States

Publication history

  1. Received: October 16, 2019
  2. Accepted: March 17, 2020
  3. Accepted Manuscript published: March 18, 2020 (version 1)
  4. Version of Record published: April 1, 2020 (version 2)

Copyright

© 2020, Zhou et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,125
    Page views
  • 683
    Downloads
  • 4
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    2. Stem Cells and Regenerative Medicine
    Massimo Ganassi et al.
    Research Article Updated

    Growth and maintenance of skeletal muscle fibres depend on coordinated activation and return to quiescence of resident muscle stem cells (MuSCs). The transcription factor Myogenin (Myog) regulates myocyte fusion during development, but its role in adult myogenesis remains unclear. In contrast to mice, myog-/-zebrafish are viable, but have hypotrophic muscles. By isolating adult myofibres with associated MuSCs, we found that myog-/- myofibres have severely reduced nuclear number, but increased myonuclear domain size. Expression of fusogenic genes is decreased, Pax7 upregulated, MuSCs are fivefold more numerous and mis-positioned throughout the length of myog-/-myofibres instead of localising at myofibre ends as in wild-type. Loss of Myog dysregulates mTORC1 signalling, resulting in an ‘alerted’ state of MuSCs, which display precocious activation and faster cell cycle entry ex vivo, concomitant with myod upregulation. Thus, beyond controlling myocyte fusion, Myog influences the MuSC:niche relationship, demonstrating a multi-level contribution to muscle homeostasis throughout life.

    1. Developmental Biology
    Graham Rykiel et al.
    Tools and Resources Updated

    Cardiac pumping depends on the morphological structure of the heart, but also on its subcellular (ultrastructural) architecture, which enables cardiac contraction. In cases of congenital heart defects, localized ultrastructural disruptions that increase the risk of heart failure are only starting to be discovered. This is in part due to a lack of technologies that can image the three-dimensional (3D) heart structure, to assess malformations; and its ultrastructure, to assess organelle disruptions. We present here a multiscale, correlative imaging procedure that achieves high-resolution images of the whole heart, using 3D micro-computed tomography (micro-CT); and its ultrastructure, using 3D scanning electron microscopy (SEM). In a small animal model (chicken embryo), we achieved uniform fixation and staining of the whole heart, without losing ultrastructural preservation on the same sample, enabling correlative multiscale imaging. Our approach enables multiscale studies in models of congenital heart disease and beyond.
