A fully automated high-throughput workflow for 3D-based chemical screening in human midbrain organoids

  1. Henrik Renner
  2. Martha Grabos
  3. Katharina J Becker
  4. Theresa E Kagermeier
  5. Jie Wu
  6. Mandy Otto
  7. Stefan Peischard
  8. Dagmar Zeuschner
  9. Yaroslav TsyTsyura
  10. Paul Disse
  11. Jürgen Klingauf
  12. Sebastian A Leidel
  13. Guiscard Seebohm
  14. Hans R Schöler  Is a corresponding author
  15. Jan M Bruder  Is a corresponding author
  1. Department for Cell and Developmental Biology, Max Planck Institute for molecular Biomedicine, Germany
  2. Westfälische Wilhelms-Universität Münster, Germany
  3. Max Planck Research Group for RNA Biology, Max Planck Institute for molecular Biomedicine, Germany
  4. Research Group for RNA Biochemistry, Department of Chemistry and Biochemistry, University of Bern, Switzerland
  5. Department of Cardiovascular Medicine, Institute for Genetics of Heart Diseases, University Hospital Münster, Germany
  6. Electron Microscopy Unit, Max Planck Institute for molecular Biomedicine, Germany
  7. Cellular Biophysics Group, Institute for Medical Physics and Biophysics, Westfälische Wilhelms-Universität Münster, Germany
https://doi.org/10.7554/eLife.52904
Share this article
Cite this article
  1. Henrik Renner
  2. Martha Grabos
  3. Katharina J Becker
  4. Theresa E Kagermeier
  5. Jie Wu
  6. Mandy Otto
  7. Stefan Peischard
  8. Dagmar Zeuschner
  9. Yaroslav TsyTsyura
  10. Paul Disse
  11. Jürgen Klingauf
  12. Sebastian A Leidel
  13. Guiscard Seebohm
  14. Hans R Schöler
  15. Jan M Bruder
(2020)
A fully automated high-throughput workflow for 3D-based chemical screening in human midbrain organoids
eLife 9:e52904.
https://doi.org/10.7554/eLife.52904
  2. Download BibTeX
  3. Download .RIS

Abstract

Three-dimensional (3D) culture systems have fueled hopes to bring about the next generation of more physiologically relevant high-throughput screens (HTS). However, current protocols yield either complex but highly heterogeneous aggregates (‘organoids’) or 3D structures with less physiological relevance (‘spheroids’). Here, we present a scalable, HTS-compatible workflow for the automated generation, maintenance, and optical analysis of human midbrain organoids in standard 96-well-plates. The resulting organoids possess a highly homogeneous morphology, size, global gene expression, cellular composition, and structure. They present significant features of the human midbrain and display spontaneous aggregate-wide synchronized neural activity. By automating the entire workflow from generation to analysis, we enhance the intra- and inter-batch reproducibility as demonstrated via RNA sequencing and quantitative whole mount high-content imaging. This allows assessing drug effects at the single-cell level within a complex 3D cell environment in a fully automated HTS workflow.

eLife digest

In 1907, the American zoologist Ross Granville Harrison developed the first technique to artificially grow animal cells outside the body in a liquid medium. Cells are still grown in much the same way in modern laboratories: a single layer of cells is placed in a warm incubator with nutrient-rich broth. These cell layers are often used to test new drugs, but they cannot recapitulate the complexity of a real organ made from multiple cell types within a living, breathing human body.

Growing three-dimensional miniature organs or 'organoids' that behave in a similar way to real organs is the next step towards creating better platforms for drug screening, but there are several difficulties inherent to this process. For one thing, it is hard to recreate the multitude of cell types that make up an organ. For another, the cells that do grow often fail to connect and communicate with each other in biologically realistic ways. It is also tough to grow a large number of organoids that all behave in the same way, making it hard to know whether a particular drug works or whether it is just being tested on a 'good' organoid.

Renner et al. have been able to overcome these issues by using robotic technology to create thousands of identical, mid-brain organoids from human cells in the lab. The robots perform a series of precisely controlled tasks – including dispensing the initial cells into wells, feeding organoids as they grow and testing them at different stages of development. These mini-brains, which are the size of the head of a pin, mimic the part of the brain where Parkinson's disease first manifests. They can be used to test new drugs for Parkinson's, and to better understand the biology of the brain. Perhaps more importantly, other types of organoids can be created using the same technique to model diseases that affect other areas of the brain, or other organs altogether. For example, Renner et al. also generated forebrain organoids using an automated approach for both generation and analysis.

This research, which shows that organoids can be grown and tested in a fully automated, reproducible and scalable way, creates a platform to quickly, cheaply and easily test thousands of drugs for Parkinson's and other difficult-to-treat diseases in a human setting. This approach has the potential to reduce research waste by increasing the chances that a drug that works in the lab will also ultimately work in a patient; and reduce animal experiments, as drugs that do not work in human tissues will not proceed to animal testing.

Introduction

A number of uniquely human diseases, including Parkinson’s disease, would greatly benefit from a comprehensive human cellular in vitro model that recapitulates key characteristics of midbrain tissues in a high-throughput-compatible format. Three-dimensional (3D) cell culture in general and the ability to generate organ-like aggregates (‘organoids’) in particular have found a rapid following over the past few years (Sato et al., 2009; Eiraku et al., 2011; Nakano et al., 2012; Lancaster et al., 2013; Quadrato et al., 2017; Paşca et al., 2015; Iefremova et al., 2017; Takasato et al., 2015; Dye et al., 2015; Takebe et al., 2013; McCracken et al., 2014; Pașca, 2018) due to their potential to mimic cellular niches more closely than 2D cell cultures. These approaches promise to develop next-generation high-throughput screens (HTS) that can provide more relevant predictions of drug efficacy and toxicity (Fatehullah et al., 2016; Ranga et al., 2014; Fang and Eglen, 2017; Dutta et al., 2017; Ho et al., 2018; Chen et al., 2018; Friese et al., 2019) as they may allow better modeling of pathologies with complex interactions of several cell types in specific cellular niches (Qian et al., 2016; Mariani et al., 2015; Ogawa et al., 2015; Verissimo et al., 2016; Vlachogiannis et al., 2018; Czerniecki et al., 2018).

3D culture in the form of spheroids has long been established, especially in the field of cancer biology (Sutherland et al., 1971), and used in various HTS applications (Kelm et al., 2003; Senkowski et al., 2015; Wenzel et al., 2014; Kenny et al., 2015). While these model systems are already more complex and potentially more physiologically relevant than 2D culture (Pickl and Ries, 2009), they display a much simpler, less organ-like 3D cell organization (Fang and Eglen, 2017) and do not mimic functional features of the organ as broadly and as closely as organoid tissues. Moreover, many of the 3D-based screens performed so far depend on whole-aggregate-based readouts such as size, morphology, and cell viability (Vlachogiannis et al., 2018; Ivanov et al., 2014; Friedrich et al., 2009; Ivanov et al., 2015; Hou et al., 2018; Kang et al., 2015), which make it challenging to gain mechanistic insights into cells or sub-populations of cells in the context of their niches.

In contrast, complex organoids have emerged as a promising research tool due to their unique resemblance to human tissues, defined by an organ-like architecture composed of different tissue-specific cell types and the capability to mimic organ functions (Lancaster and Knoblich, 2014). One structure of particular interest in the context of disease modeling and drug development is the midbrain due to its role in the highly prevalent Parkinson’s disease (affecting 2–3% of the population aged 65 and above Poewe et al., 2017) and many other developmental disorders (Barkovich, 2012; Doherty et al., 2013). While the current state of the art allows the generation of different types of midbrain organoids (Qian et al., 2016; Jo et al., 2016; Monzel et al., 2017), the rigorous standardized organoid production and quantification methods needed for high-throughput screening have been elusive. The established protocols tend not to focus on scalable, homogeneous organoids with quantitatively predictable morphology, cellular composition, and local cell organization. Obligatory extensive manual handling often including cumbersome matrix embedding steps render them challenging for scale-up (Tong et al., 2018). Furthermore, common analysis methods (e.g. sectioning and immunostaining, RNA sequencing) do not scale well for HTS applications.

Here, we present a fully automated workflow in a standard 96-well format that combines generation, maintenance, whole mount immunostaining, tissue clearing, and high-content imaging of automated midbrain organoids (AMOs) (see Figure 1a). The resulting AMOs are similar to published midbrain organoids with regard to their expression of midbrain-specific markers and cell populations, yet maintain a reproducible homogeneous phenotype. They mimic relevant organ function in the form of spontaneous, highly synchronized neural activity indicating functional cellular coupling across the entire AMO. Their high homogeneity, reproducibility, culture format, and fast development of approximately one month render them ideal for high-throughput screening applications. Moreover, our combined whole mount immunostaining and clearing workflow abolishes the need for labor-intensive tissue sections and allows for quantitative whole mount high-content analysis of entire organoids with single-cell resolution. Our automation of the entire workflow from seeding to analysis in standard plates allows for easy scale-up and implementation into existing screening facilities.

Figure 1 with 1 supplement see all
Download asset Open asset
Automation enables high-throughput-compatible production and analysis of homogenous midbrain organoids.

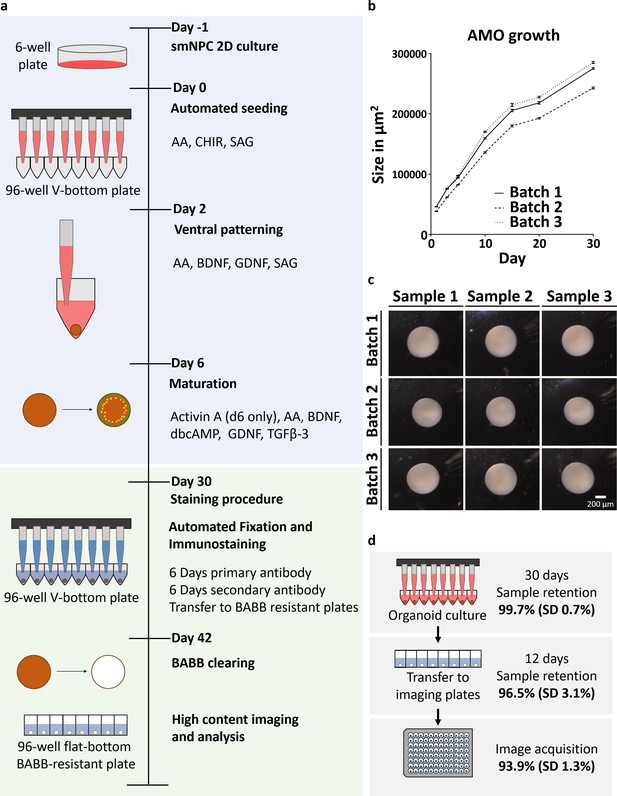

(a) Schematic overview of the automated HTS workflow including organoid generation and optical analysis. (b) Measurement of AMO size (area of the largest cross section) reveals low variation and parallel growth kinetics for three batches of AMOs from independently thawed and cultured cells. Error bars represent standard error of the mean (SEM), n ≥ 20 organoids per data point. (c) Light microscopy images illustrating the morphological homogeneity of AMOs at day 30 of differentiation. Scale bar: 200 μm (d) Overview of sample retention at each step of processing. The automated workflow is highly efficient with 99.7% (standard deviation 0.7%) of wells retaining organoids after 30 days of culture. After whole mount staining, 96.5% (standard deviation 3.1%) of samples are successfully transferred to flat bottom imaging plates by the automated liquid handling system. This step can also be repeated without any harm to the samples to further increase efficiency. Finally, 93.9% (standard deviation 1.3%) of samples acquired by the high-content confocal microscope pass image analysis quality control and can be used for downstream analysis. SD = Standard deviation, nCulture = 30, nTransfer = 6, and nImaging = 3 96-well plates, for a list of the complete source data used to calculate the sample retention efficiency see Supplementary file 1. Also see Figure 1—figure supplement 1.

Results

Automation enables high-throughput-compatible production of homogenous midbrain organoids

Screening applications require biological systems that operate within predictable physiological parameters. In order to limit cellular heterogeneity during differentiation, we produced human AMOs starting from small molecule neural precursor cells (smNPCs) (Reinhardt et al., 2013a), which in turn originate from pluripotent stem cells (PSCs). The neural-restricted developmental potential of smNPCs still allows the self-organization required for the formation of a 3D architecture (Monzel et al., 2017; Di Lullo and Kriegstein, 2017) during differentiation toward a midbrain fate. To further reduce batch-to-batch variability, we also omitted matrigel embedding and standardized mechanical stresses by using an automated liquid handling system (ALHS). Starting from seeding the organoids, all following steps including maintenance, fixation, whole mount staining, and clearing are performed in a fully scalable automated fashion using a 96-channel-pipetting head in a robotic ALHS (see Figure 1a). The resulting AMOs show little intra- and inter-batch variability in size distribution (see Figure 1b, average coefficient of variation (CV) within one batch 3.56%; min 2.2%, max 5.6%), morphology (see Figure 1c), and cellular composition and organization (see Figure 2), making them ideal for HTS-approaches. Furthermore, our workflow generates one aggregate per well, maintained independently from others, thus minimizing batch effects due to paracrine signaling observed in bioreactor-based strategies (Quadrato et al., 2017). If paracrine signaling is desired, our workflow can easily accommodate several aggregates per well. The fully automated workflow operates with very high efficiency, retaining 99.7% (standard deviation 0.7%) of samples for automated seeding, aggregation, and maturation steps over 30 days and 96.5% (standard deviation 3.1%) of samples for fixation, whole mount staining, clearing, and transfer to flat bottom imaging plates over 12 days. Lastly, 6.1% (standard deviation 1.3%) of these samples are rejected during high-content imaging for presence of dust, damage, or fibers (see Figure 1d and Supplementary file 1 for source data).

Figure 2 with 3 supplements see all
Download asset Open asset

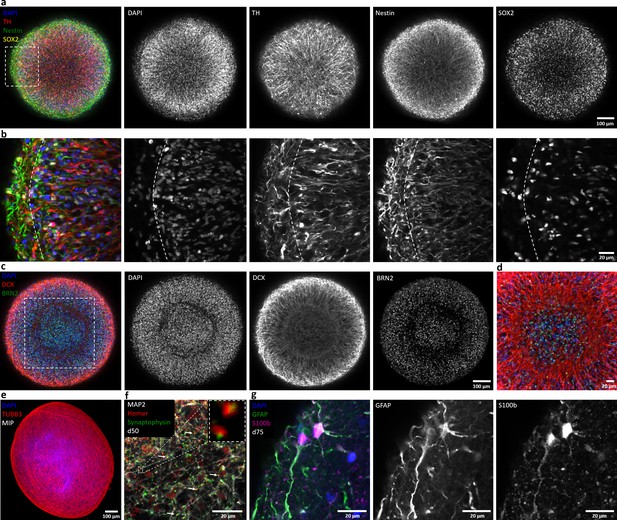

Automated midbrain organoids express typical neural and midbrain markers and show signs of structural organization.

(a) Expression of the dopaminergic midbrain marker TH as well as the precursor markers nestin and Sox2 is evenly distributed throughout the entire aggregate at day 25, as shown by single confocal microscopy slices of tissue-cleared samples. The dotted box indicates the area shown in (b). Here, higher magnification of the peripheral aggregate region reveals two different zones with few nuclei but dense, circumferentially oriented neurites distally from the core and radial organization of TH-positive neurons more proximally. (c) The expression patterns of DCX and Brn2 further illustrate the organization of neurons (DCX) and neural precursors (Brn2) in the core of AMOs into zones. (d) Enlargement (of the dotted box in c) highlighting the circumferential organization of neurons (DCX) surrounding the core. (e) Maximum intensity projection (MIP) of fluorescent confocal images showing a dense cellular network expressing the neural marker β-tubulin III (TUBB33) within the AMOs at d25. (f/g) Continuing maturation of AMOs is indicated by the presence of synapses marked by the colocalization of the presynaptic synaptophysin and postsynaptic homer on Map2-positive neurites at day 50 (f, top right corner showing enlargement of two synapses without the Map2 channel) and S100b/GFAP double-positive astrocytes at day 75 (g). Scale bars: 100 μm (a, c, e), 20 μm (b, d, f, g). Also see Figure 2—figure supplements 1–3.

Automated midbrain organoids express typical neural and midbrain markers and show structural organization

In order to characterize protein localization in our AMOs (>600 μm diameter) and assess the efficiency of their neural/midbrain differentiation at a cellular resolution and in a HTS-compatible manner, we adapted an extended 3D-staining protocol (Lee et al., 2016) and combined it with benzyl alcohol and benzyl benzoate (BABB)-based tissue clearing (Dent et al., 1989). BABB-based clearing proved to be both the fastest and most efficient method in a comparison of different clearing protocols (see Figure 1—figure supplement 1). The combination of whole mount staining and clearing allows the 3D reconstruction of entire AMOs via confocal imaging and enables further detailed 3D quantification and analysis, for example tracing of neurites throughout the whole aggregate, which cannot be performed using typical tissue sectioning procedures (see Video 1).

Video 1
Download asset
The combination of whole mount staining and clearing allows confocal imaging of 3D cellular architecture at single-cell resolution.

3D rendering of a confocal stack showing the 3D organization of neural precursors (Sox2, green) and mature neurons (Map2, red) within AMOs. The video shows a cube-shaped volume with edge length of 150 µm. Nuclei were counter-stained with DAPI (blue). AMO at day 25 of differentiation.

The immunostaining results are depicted as either single confocal optical slices (see Figure 2a–d,f/g) or maximum intensity projections (MIP, see Figure 2e). Already at day 25, the AMOs contained large numbers of neurons as indicated by the expression of Map2 (Shafit-Zagardo and Kalcheva, 1998) (also see Video 1), β-tubulin III (TUBB3) (Leandro-García et al., 2010) (see Figure 2e), and doublecortin (Gleeson et al., 1999) (DCX, see Figure 2c/d). Presence of high levels of tyrosine hydroxylase (TH, Figure 2a/b, also see Figure 2—figure supplements 1 and 2), the rate-limiting enzyme in dopamine synthesis (Nagatsu, 1995), as well as the expression of the transcription factors Foxa2, Lmx1a, Nurr1, and Pitx3 (Hegarty et al., 2013) (see Figure 2—figure supplements 1 and 2), are consistent with differentiation toward a dopaminergic midbrain fate. While other neuronal subtypes, specifically GABAergic (vGAT) and glutamatergic (vGLUT1) neurons, are present in AMOs (see Figure 2—figure supplement 1), their abundance is low compared to dopaminergic neurons. As commonly seen in all 3D neural cultures, AMOs retain a population of neural precursors identified by the expression of Sox2 (Ellis et al., 2004) (see Video 1, Figure 2a/b, and Figure 2—figure supplement 2), Brn2 (Dominguez et al., 2013; Figure 2c/d and Figure 2—figure supplement 2), and the more general neural marker nestin (Hendrickson et al., 2011) (see Figure 2a/b and Figure 2—figure supplement 2).

Over time, AMOs matured further. Expression of synapsin (Thiel, 1993) (see Figure 2—figure supplements 1 and 2) as well as the presynaptic marker synaptophysin and postsynaptic marker homer (Tadokoro et al., 1999) frequently colocalized with each other on Map2-positive neurites (see Figure 2f) and indicated the presence of synapses. Since gliogenesis follows neurogenesis in vivo (Miller and Gauthier, 2007), we expected the emergence of astrocytes after the initial formation of neurons. Consistently, AMOs contained GFAP and S100b double-positive astrocytes (Götz et al., 2015) at later stages (see Figure 2g).

In the cortex, neurons form cortical layers with distinct markers. Cortical 3D models recapitulate this layer organization to a degree (Lancaster et al., 2013; Paşca et al., 2015; Qian et al., 2016; Mariani et al., 2015; Bhaduri et al., 2020). In contrast, the midbrain does not possess the typical layer organization of the cortex, hence published midbrain organoids are devoid of cortex-like layers (Qian et al., 2016; Monzel et al., 2017). Due to their self-organizing nature, typical published midbrain organoids initially form random local subdomains of organized tissue within the bulk of the organoid, often in the form of rosettes (Jo et al., 2016), a hallmark of the very early stages of neural development (Perrier et al., 2004; Elkabetz et al., 2008). This makes their morphology harder to predict within batches and leads to heterogeneity rendering screening strategies more challenging. We have optimized our AMOs to not form distinct random local subdomains; rather, the different cell types within the AMOs (i.e. neurons, astrocytes, and neural progenitors) self-organize into different concentric zones with distinct cellular orientations spanning the entire organoid (see Figure 2a–c). The outermost layer of the AMOs contains few nuclei with a dense, circumferentially oriented layer of TH+/nestin+/DCX+ cell processes. Cellular orientation changes in the underlying zone closer to the core, with TH+ dopaminergic and DCX+ neurons showing a clear radial alignment (see Figure 2b/c). The next zone, separating this region of radially organized neurons and the core, contains circumferentially oriented DCX+ neurons and few Brn2+ neural precursors (see Figure 2b/c). The core itself includes mostly neural precursors and few neurons. Within each zone, the different cell types are homogeneously distributed. In the context of HTS-compatibility, this homogeneity is advantageous, as this trait allows us to extrapolate data even from single medial confocal slices, drastically shortening acquisition times (see Figure 8—figure supplement 1). This inter-sample similarity can provide a uniform baseline for compound testing and render self-organized 3D human neural cell niches amenable to HTS strategies.

Ultrastructural analysis of AMOs (see Figure 2—figure supplement 3) supported the immunofluorescence data, revealing a dense 3D cell architecture consistent with neuronal cell bodies surrounded by nerve fibers. Analyzing the nerve fibers at a higher magnification revealed regular-spaced neurofilaments and microtubules. Moreover, vesicles with the characteristic size and localization of synaptic vesicles are frequently found within these nerve fibers.

Further quantitative real-time PCR (qPCR) analysis demonstrated increasing expression levels of various neural (DCX, Map2, NEFL, NeuN, TBR2, TUBB3, Syt1), midbrain (TH, NURR1, NKX6-1, EN1, GIRK2, AADC), and glia-specific (GLAST, MBP, S100b) markers at different developmental stages with concomitant decreases in neural precursor markers (Brn2, nestin, Pax6, Sox1, Sox2), confirming neural maturation toward a midbrain identity over time (Figure 3). Finally, we replicated these immunostaining and gene expression results with a second independent cell line (‘AMO line 2’, see Figure 2—figure supplement 2 and Figure 3—figure supplement 1), demonstrating the applicability of our workflow to cells with different genetic backgrounds and origin.

Figure 3 with 1 supplement see all
Download asset Open asset

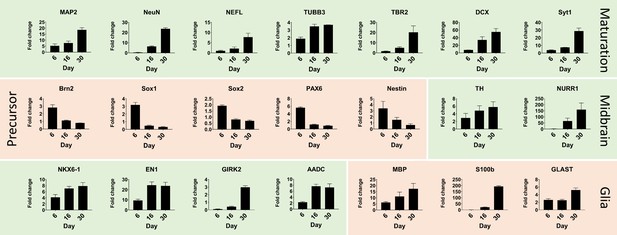

Quantitative real-time PCR shows maturation of automated midbrain organoids over time.

Changes in gene expression during the development of AMOs shown by qPCR. AMO's continuing maturation is indicated by the increase of neural maturation (MAP2, NeuN, NEFL, TUBB3, TBR2, DCX, Syt1), midbrain (TH, NURR1, NKX6-1, EN1, GIRK2, AADC), and glia (MBP, S100b, GLAST) as well as the decrease of neural precursor (Brn2, Sox1, Sox2, Pax6, nestin) markers over time. (n = 3, error bars = SEM). Also see Figure 3—figure supplement 1.

Calcium imaging and electrophysiological analysis reveal spontaneous and synchronized activity throughout entire organoids

To assess functional coupling of individual cells within the AMOs we first performed Fluo-4 acetoxymethyl ester (AM)-based calcium imaging, which can be used as a readout for spiking activity of neurons (Grienberger and Konnerth, 2012). In addition to frequent spontaneous activity of individual cells, we observed aggregate-wide synchronous and periodic calcium spikes (see Video 2) in all analyzed AMOs. To characterize this behavior further, we defined different regions of interest (ROIs) and assessed the change in fluorescence intensity over time in each region (see Figure 4). Measuring the entire AMO reveals two consecutive spikes in Fluo-4 brightness, with a period of approximately 30 s (see Figure 4a). When we subdivided the measured area into four quadrants, we observed synchronized spiking activity in all four resulting ROIs (see Figure 4b). This parallel activity pattern could be found at many structural levels of the AMO, even for single cells (see Figure 4c/e). Changing the time scale revealed additional levels of synchronicity between selected single cells, in addition to aggregate-wide spikes (see Figure 4d/e). Considering the calcium-imaging analyses along with the existence of synaptic vesicles on the ultrastructural level (see Figure 2—figure supplement 3), the verification of synapses via immunostaining (see Figure 2f and Figure 2—figure supplements 1 and 2) as well as synaptotagmin 1 (Syt1) via qPCR (see Figure 3 and Figure 3—figure supplement 1), our results support the presence of functionally coupled and spontaneously active neurons within the AMOs. The synchronous spiking patterns suggest that not only a small number of neurons but, in fact, the entire aggregate may be functionally connected. Large-scale synchronous bursting behavior can also be observed in several developing brain regions in vivo (Ben-Ari, 2001) and in brain slices in vitro (Silva et al., 1991).

Figure 4 with 1 supplement see all
Download asset Open asset

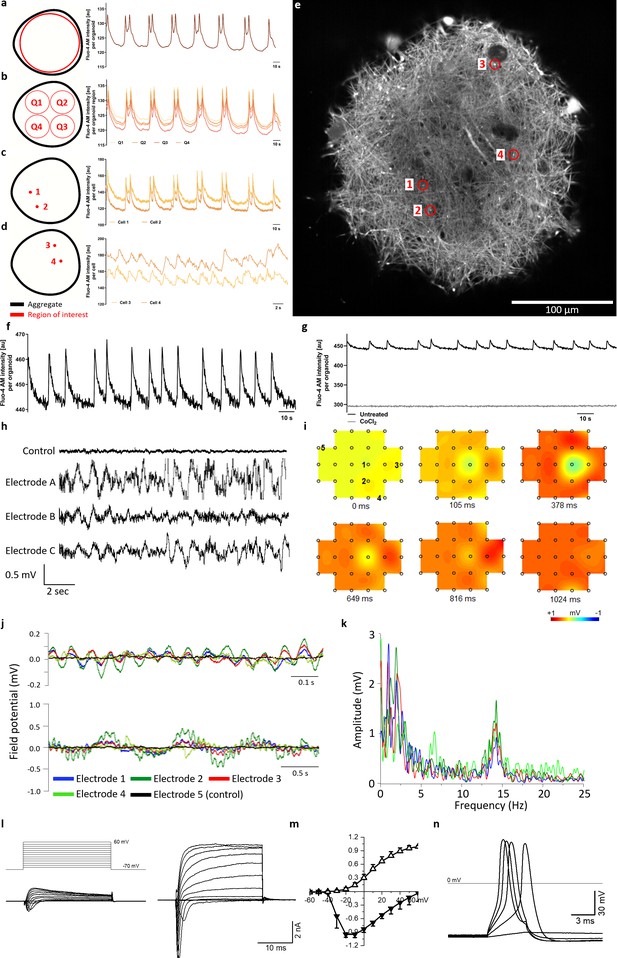

Calcium imaging reveals spontaneous and synchronized activity throughout entire organoids.

(a) AMOs show spontaneous, aggregate-wide spikes of calcium activity. (b) Division of the optical cross-section into quadrants shows that this calcium activity is occurring synchronously throughout the entire aggregate. (c) This synchronous activity pattern can be found down to the level of single spots. (d) Even distant active regions show additional levels of synchronized activity faster than the aggregate-wide spikes. (e) Single tangential fluorescent confocal slice indicating the position of spots measured in (c and d), also illustrating the dense network of active cells within the AMOs (day 93). For calcium dynamics, please refer to Video 2. Scale bar = 100 μm. (f/g) Calcium dynamics with similar activity patterns could also be detected in younger (day 35) AMOs using only a standard plate reader. Treatment with cobalt(II) chloride (CoCl2) completely abolished these spikes. (h) Spontaneous electrical activity of an AMO recorded via MEA at three electrodes (a–c) in the vicinity of the aggregate compared to background activity at a distant electrode (control). All MEA recordings were done with AMOs differentiated for 35 days and n = 3. (i) Field potential map of an AMOshowing the active area and location of electrodes. The distance between electrodes is 300 μm. (j) The field potentials recorded at electrodes 1–4 (j) form synchronous electrical waves at 14 Hz (upper panel) and 1 Hz (lower panel). (k) Fast Fourier Transformation (FFT) based on the data shown in j. (l) Representative recordings of transmembrane currents from two different cells elicited by stepping the membrane potential from −70 to +60 mV in 10 mV increments (schematic of stimulation in the left panel above). The scale bar is common for both recordings, AMOs at day 198. (m) Normalized current-voltage relationship of inward (at peak) and outward (at the end of voltage step) components of transmembrane currents averaged for all neuron-like cells (n = 29). (n) Representative recording of evoked AP’s in response to current injections from the cell shown in (l) on the right. Also see Figure 4—figure supplement 1 and Figure 2—figure supplement 2.

Video 2
Download asset
Automated midbrain organoids display spontaneous and aggregate-wide synchronized calcium activity.

Single plane spinning disc confocal time lapse series showing fluctuations in Fluo-4 AM fluorescence of a near-surface tangential optical slice. Images were acquired at 10 Hz for a total of 4 min. Changes are quantified in Figure 4. Representative video of n = 5 organoids with similar synchronized activity patterns.

Given the high reproducibility of synchronized calcium activity across all tested samples, we decided to evaluate the feasibility of using it as a functional readout in screening settings. Thus, we performed Fluo-4 AM-based calcium imaging on younger (day 35) AMOs and measured the resulting fluorescence signals on a standard plate reader. While they showed a shorter periodicity than the older samples, all tested AMOs displayed distinct peaks in fluorescence intensity resembling the synchronous activity patterns seen during spinning disk microscopy analysis (see Figure 4f), also in a second independent AMO line (see Figure 2—figure supplement 2). Treatment with the known calcium channel blocker cobalt(II) chloride completely abolished these peaks (see Figure 4g). Since the synchronous calcium activity of the AMOs and its modulation by inhibitors can be measured easily via HTS-friendly standard plate readers or specialized FLIPR Ca imagers (Sirenko et al., 2019), AMOs may be a promising 3D model of human neural activity that allows directly assessing midbrain related organ functions in HTS.

Multielectrode array (MEA) measurements revealed spontaneous electrical activity in 35-day-old AMOs (see Figure 4h/i). The field potentials of several electrodes in proximity to a 35-day-old AMO (see Figure 4i) oscillated in synchrony over time with two concurrent main frequencies at 1 Hz and 14 Hz (see Figure 4j, upper and lower panels). Figure 4k shows a Fast Fourier Transformation (FFT) based on the data shown in Figure 4j. Uncoordinated single-cell activity can hardly account for such robust and spatially long-ranging electric field oscillations. Rather, the concurrent and covariant signals at disparate electrodes support a widespread, synchronized electrical activity encompassing the entire AMO. Taken together, this data further supports the functional coupling of entire AMOs indicated by the calcium imaging experiments.

Finally, we characterized the electrophysiological properties of single cells from the AMOs using voltage patch-clamping. A stepwise increase of the membrane holding potential from −70 to +60 mV with 10 mV increments elicited transmembrane currents that consisted of a fast-activating, fast-inactivating inward current followed by a slower activating, slowly deactivating outward current ranging from a few hundred pA to several nA (see Figure 4l). The I–V curves of both currents are typical for sodium inward and potassium outward currents through voltage-gated channels (see Figure 4m; Reinhardt et al., 2013a; Simard et al., 1993; Cummins et al., 1994; Reinhardt et al., 2013b). Furthermore, the current-clamp recordings demonstrated that these cells generated action potentials (APs) in response to current injections (see Figure 4n). The average membrane potential of the recorded cells was −41.9 ± 15.2 mV (n = 29). These typical excitable, neuron-like electrophysiological properties could be detected as early as day 25 (see Figure 4—figure supplement 1) and in 29 of the 62 recorded cells. The rest of the cells possessed only outward currents of a few hundred pA by stepping to +60 mV (see Figure 4—figure supplement 1) and were unable to generate APs in response to current injections. These may represent other cell types present in AMOs like astrocytes and neural precursors.

RNA sequencing supports differentiation toward a human midbrain-like fate and homogeneous, predictable gene expression of automated midbrain organoids

To characterize AMOs on the level of global gene expression, we performed RNA sequencing of single organoids from three independent batches of AMOs (i.e. cells were separately thawed, seeded, and cultured) and compared the results with published RNA sequencing data sets of primary human tissues (Roost et al., 2015) and established midbrain organoids (Jo et al., 2016). Consistent with successful neural differentiation, AMOs were most similar to the brain and spinal cord in a panel with data from 21 human fetal tissues (see Figure 5a). Moreover, AMOs also correlated well with published data sets from different midbrain(-like) samples including primary human tissue (see Figure 5b). On a global gene expression level, AMOs more closely resembled the primary human midbrain samples than published midbrain organoids (AMOs = correlation 0.78, published midbrain organoids = 0.72, see Figure 5b). We also included publicly available RNAseq data from three prenatal human cortex samples (Jaffe et al., 2015) in the comparison as non-midbrain controls. As expected, the cortical samples showed high correlation with each other but less with the midbrain samples (see Figure 5b; for further comparisons between AMOs and cerebral organoids via the protocol by Lancaster et al., 2013. see Figure 5—figure supplement 1). Taken together, AMOs resemble published midbrain organoids as well as primary human midbrain tissue at the level of global gene expression.

Figure 5 with 1 supplement see all
Download asset Open asset

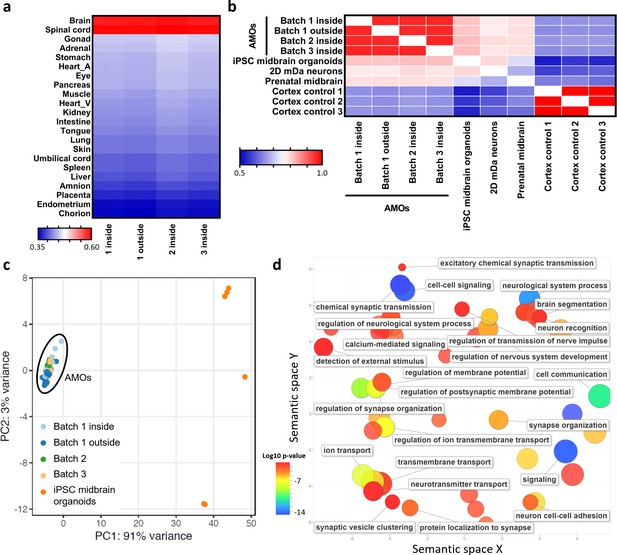

RNA sequencing supports differentiation toward a human midbrain-like fate and homogeneous, predictable gene expression of automated midbrain organoids.

(a/b) The global gene expression of AMOs correlates with that of fetal human brain and spinal cord tissue (a) as well as published midbrain organoids, 2D dopaminergic (DA) neurons, and prenatal midbrain (b). Shown are heatmaps of the correlation between RNA sequencing data from three independent batches of AMOs and published data sets from either 21 fetal tissues (Roost et al., 2015) (a) or of midbrain(-like) origin (Jo et al., 2016) (b). (c) AMOs from three independent batches cluster more closely together than published iPSC-derived midbrain organoids (Jo et al., 2016) in a PCA plot based on RNA sequencing data. There is no apparent difference between AMOs from the outside or inside of the plate. n = 8, except n1 outside = 18, n1 inside = 30, and niPSC midbrain organoids = 6. (d). GO term analysis reveals that most genes upregulated in the AMOs (compared to the published midbrain organoids from (b) and (c), with log2 fold change > 2) are related to neuronal and synaptic activity. Visualization via REVIGO (Supek et al., 2011), grouping GO terms based on semantic similarity. Each GO term is represented by a circle where the circle size indicates the number of genes included in the term and colors show the significance of enrichment of the term. Also see Figure 5—figure supplement 1.

Since homogeneity and reproducibility are crucial for screening applications, we next examined the variance of AMOs on the gene expression level and compared it to that of published midbrain organoids (Jo et al., 2016). This revealed that AMOs were consistently more reproducible within and between different batches than current midbrain protocols, as illustrated by the principal component analysis (PCA) plotted in Figure 5c. The AMOs from three independently thawed and cultured batches (n = 64 separately processed single organoids in total) clustered much more closely together than the published midbrain organoids (n = 6). This further underlines the utility of AMOs as a 3D cellular platform for HTS strategies. In screening settings, the wells at the edges of plates often display different readouts than those located toward the center of the plate (‘edge-effects’) (Malo et al., 2006). Therefore, we sequenced half of a 96-well plate for one AMO batch and tested for differences resulting from well location within the plate (group ‘one inside’ = center of the plate vs. ‘one outside’ = edge in Figure 5a–c). Importantly, in the PCA plot the AMOs clustered independently of their position on the plate (Figure 5c) and the groups also showed no apparent differences in any of the other analyses (Figure 5a/b), indicating that AMOs exhibit no measurable edge effects at the global gene expression level and further substantiating the high reproducibility of our protocol.

To further investigate the differences between AMOs and established midbrain organoid protocols, we performed gene ontology (GO) (Ashburner et al., 2000; Supek et al., 2011) analysis of the genes significantly upregulated (padj. < 0.05) in AMOs compared to the previously used published midbrain organoids (Jo et al., 2016). This analysis yielded almost exclusively GO terms connected to neuronal and synaptic activity (Figure 5d; for a complete list of GO terms see Supplementary file 2). Consistent with the previously described synchronous activity patterns (see Figure 4), this further illustrates the physiological relevance and efficient neural differentiation of AMOs.

Automated whole mount immunostaining is highly quantitative and reveals homogeneity of automated midbrain organoids

While immunofluorescence-based screening-compatible techniques of whole 3D aggregates have been reported, they can only detect cells in the outer layers of large organoids (Vergara et al., 2017), or they use small aggregates of approximately 100 μm diameter (Verissimo et al., 2016) or cystic organoids (Czerniecki et al., 2018), both of which can be penetrated by antibodies and fluorescence illumination more easily. In contrast, our workflow is custom-tailored for automation and allows the quantification of entire dense, large-scale aggregates (>800 μm diameter) with single-cell resolution and high sensitivity, as highlighted by a dose-response assay for 3D cellular detection (see Figure 6a). We mixed cells labeled with CellTracker deep red dye with unlabeled cells at known proportions, aggregated them to sizes similar or exceeding that of AMOs (750 μm and 950 μm, see Figure 6a), cleared them, and then analyzed them on a confocal high-content imaging system. The resulting relationship between the amount of tracked cells and measured brightness was highly linear (R2 >0.99), illustrating the quantitative nature of our optical HTS 3D whole mount analysis workflow.

Figure 6 with 1 supplement see all
Download asset Open asset

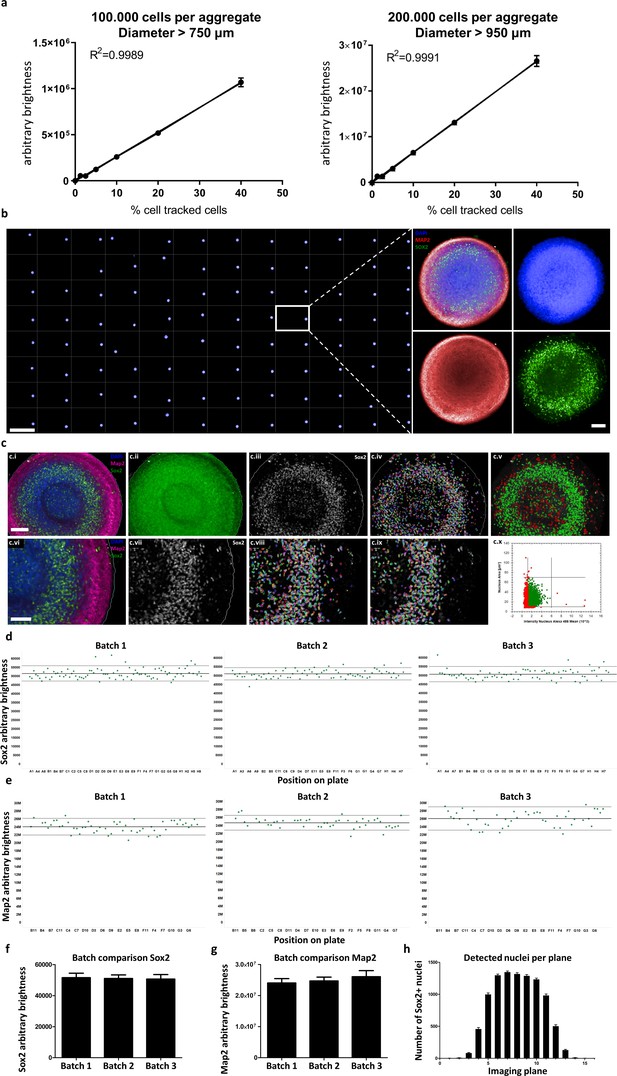

Automated whole mount immunostaining is quantitative and reveals high homogeneity of automated midbrain organoids.

(a) The optical analysis workflow allows quantification of cell numbers in 3D aggregates. The correlation between the number of fluorescent cells in an aggregate and its brightness measured with our workflow is highly linear (R2 > 0.99) for large-scale 3D aggregates of different sizes (100,000 or 200,000 cells per aggregate, diameter > 750 μm and 950 μm, respectively). n = 3, error bars = SEM. (b) Overview of an entire 96-well plate processed with our HTS-compatible optical analysis workflow (left) and an example single plane confocal image of a single AMO illustrating the high cellular resolution achieved with high-content imaging (right). Scale bars: 5 mm left/overview; 100 μm right/enlargement. (c) Visualization of the automated image analysis sequence for the example of Sox2. Images show a single automatically acquired confocal image plane through the center of an AMO. Top row: Overview, with bottom row providing enlarged view. (c.i/vi) Starting image. (c.ii) All three channels summed for aggregate detection. Detected aggregate area overlaid in green. (c.iii/vii) Sox2 channel after sliding parabola treatment to remove background. (c.iv/viii) Sox2 channel with detected nuclei. (c.v) Nuclei selected as Sox2+ according to size and brightness (green) and rejected nuclei (red). (c.ix) Selected nuclei from (h) marked, rejected nuclei unmarked. (c.x) Scatter plot showing nuclear size and brightness distribution and selection thresholds. Scale bars: 100 μm (c.i), top row; 70 μm (c.vi), bottom row. (d–g) AMOs are homogenous with regard to the amount of Sox2 (d/f) and Map2 (e/g) positive cells they contain. In (d and e) each dot represents a single AMO, each graph originating from an independent batch (i.e. cells were separately thawed, cultured and processed). The continuous line represents the mean of all data points on the graph (i.e. Map2/Sox2 content) and the dotted lines correspond to 1.5 confidence intervals. (f and g) Summarize the data of the dot plots as a bar graph. (Error bars = standard deviation, SD). (h) The number of Sox+ nuclei detected in each imaged confocal plane correlates with AMO morphology. The high-content image analysis workflow detects many nuclei where the aggregate diameter is largest (plane 6–10) and fewer nuclei in the first/last planes where it is smaller. (Error bars = SEM). Also see Figure 6—figure supplement 1.

Next, we demonstrated the homogeneity of AMOs at the protein level. A fully automated 96-well based whole mount optical analysis (see Figure 6b left) illustrated the ability to detect both abundant filamentous structures (neural marker Map2) and nuclear markers (Sox2) in a HTS-compatible manner (see Figure 6b right, single slice from one aggregate). Using nuclear markers like Sox2, our technique allowed quantification at single-cell resolution by identifying, counting, and summing the brightness of Sox2+ nuclei for each imaged confocal plane (see Figure 6c/d/f/h). Filamentous, abundant signals like Map2 could be quantified throughout 3D aggregates by summing the overall mean brightness for each confocal plane (see Figure 6e/g). The comparison of three 96-well plates from independent batches revealed the uniform cellular composition of AMOs within and between independently thawed and cultured batches (see Figure 6d–g) (Average CVSox2 = 5%, CVMap2 = 9%).

Positional analysis detected effects of plate position (edge effects) for Map2 levels but not Sox2 levels with about 10% reduced Map2 brightness of samples in the center of the plate (Figure 6—figure supplement 1) compared with the wells at the edge. Considered together with the absence of edge effects in the RNA sequencing results, this may indicate that only a specific subset of proteins is altered by edge conditions, while the vast majority of cellular processes is uniform throughout the plate.

smNPC-derived AMOs are morphologically, structurally, and functionally more homogeneous than automated hiPSC-derived organoids

Since differentiation outcomes and kinetics are known to vary considerably between cell lines, we decided to benchmark our AMOs against a protocol that can be implemented using the same starting cell line as our AMOs and that is adaptable to the same automation and analysis workflow that we established for our midbrain model. In this comparison, smNPC-derived AMOs (line 2) and the hiPSC organoids share the same cell line of origin. We compared our smNPC-derived cultures to hiPSC-derived 3D neural organoids based on a core protocol by Paşca et al., 2015 (also described in more detail by Sloan et al., 2018) with modifications, as they share a number of key traits with our AMOs (for an overview of our automated protocol and the differences to the published original, see Figure 7—figure supplement 1). They are self-aggregated and self-organized, and they do not require the addition of an external matrix for proper development. Furthermore, to eliminate any potential bias due to manual handling, we adapted the cortical protocol to our automation pipeline. As a result, any remaining variability did not originate from handling but from stochastic biological processes. For detailed characterization, hiPSC cortical organoids underwent our established automated whole mount staining and clearing procedure (see Figure 7—figure supplement 2) as well as qPCR (see Figure 3—figure supplement 1), confirming differentiation toward their correct cortical fate in our workflow. Out of twelve full 96-well plates we were, with our workflow, able to generate and maintain cortical organoids in all but one well, where the organoid got lost during the 30 days of automated culture. This further underlines the adaptability and efficiency of our midbrain protocol for other organoid types.

Compared to smNPC-derived AMOs, morphology and zonal arrangement of neural subpopulations in hiPSC organoids varied to a larger degree (see Figure 7a–d). Three independently cultured batches of automated hiPSC organoids showed up to a 5-fold higher coefficient of variation in cellular viability and up to a 10-fold higher coefficient of variation for organoid size than AMOs (see Figure 7g/h, for individual organoid size and viability data see Figure 7e/f).

Figure 7 with 2 supplements see all
Download asset Open asset

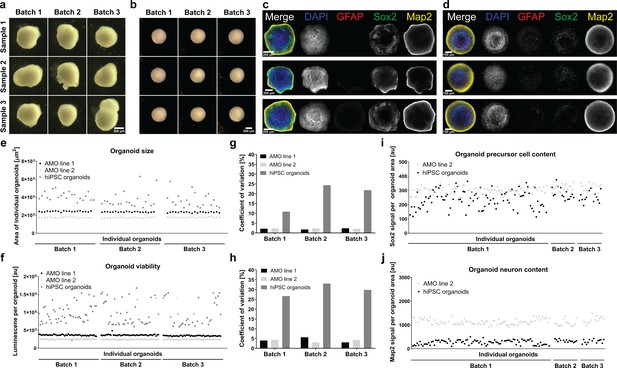

smNPC-derived AMOs are morphologically, structurally, and functionally more homogeneous than automated hiPSC-derived organoids.

(a/b) Light microscopy images of hiPSC-derived organoids (a) and AMOs (b) generated from the same cell line demonstrating the higher morphological homogeneity of AMOs at day 30 of differentiation.(c/d) Single optical confocal slices of either hiPSC-derived organoids (c) or AMOs (d) at day 30 stained for DAPI, the astrocyte marker GFAP, the neural precursor marker Sox2, and the neuronal marker Map2. The direct comparison illustrates the higher level of structural homogeneity as well as accelerated maturation, especially the earlier emergence of GFAP+ astrocytes in AMOs. Rows depict three samples from one batch. (e/f) Size (area of the largest cross section) and cell viability measurements of individual organoids from three independent batches (per cell line/differentiation protocol) illustrating the high homogeneity of AMOs compared to standard hiPSC organoids. (g/h) Coefficients of variation calculated based on the data shown in (e) and (f). (i/j) Quantitative whole mount staining (see also Figure 6) for Sox2 (i), and Map2 (j) showing the higher variability of hiPSC organoids compared to AMOs from the same iPSC line even after normalization to the organoid area. All data gathered from organoids at day 30 of differentiation. Scale bars: 300 μm (a), 200 μm (b/c), 100 μm (d). Also see Figure 7—figure supplements 1 and 2.

We performed high-content analyses at the protein level analogous to the data in Figure 6 and found that the variation of Sox2 and Map2 content of the automated hiPSC-organoids was larger than for AMOs, even when we normalized for strongly variable sizes (see Figure 7i/j). The acquisition of high-content data at the same hardware settings for both types of organoids (from the same cell line of origin) also allowed for a direct comparison of cell-type-specific signals. hiPSC-organoids contained a distinctly lower amount of Map2 per area, indicating less efficient/delayed neuronal maturation.

In conclusion, AMOs are more homogeneous with regard to their morphology, cellular structure, size, viability, and protein expression than the automated hiPSC organoids generated from the same cell line and under strictly standardized conditions.

Automated midbrain organoids possess functional characteristics of midbrain tissue and allow assessment of neural subpopulations for high-throughput screening

A clinically relevant midbrain model requires dopaminergic activity. To further confirm midbrain-specific function of AMOs, we generated electrophysiological data from multielectrode arrays together with specific molecular agonists and antagonists for dopaminergic, GABAergic, and glutamatergic pathways. Functional responses were consistent with a midbrain identity of AMOs (see Figure 8e/f/g/k). Electric field oscillations of AMOs responded strongly to the addition of modulators of the dopamine pathway, but yielded more limited responses when targeting the GABA pathway (see Figure 8e/f/k). This correlates well with the lower abundance of GABAergic neurons in AMOs as detected by immunostaining (see Figure 2—figure supplement 1 for a vGAT staining). The electrical activity increases following the stimulation with glutamate agonists and subsequently decreases after addition of the antagonist (Figure 8g/k), despite the low abundance of glutamatergic cells (see vGLUT1 staining in Figure 2—figure supplement 1). However, this is consistent with previous studies reporting an increase in firing rate and burst-firing for dopaminergic neurons treated with glutamate agonists which can be counteracted by NMDA receptor antagonists (Meltzer et al., 1997; Wang and French, 1993). Automated hiPSC-derived cortical organoids served as negative controls to validate midbrain-specific MEA data. As expected following cortical differentiation, control hiPSC organoids had a weak response to dopaminergic modulation and reacted most strongly to glutamatergic modulation (see Figure 8h–j,k). The overall higher electric field amplitude in AMOs compared to automated hiPSC-organoids further illustrated the accelerated differentiation and faster maturation achieved by our workflow over hiPSC-based organoid protocols of the same age.

Figure 8 with 1 supplement see all
Download asset Open asset

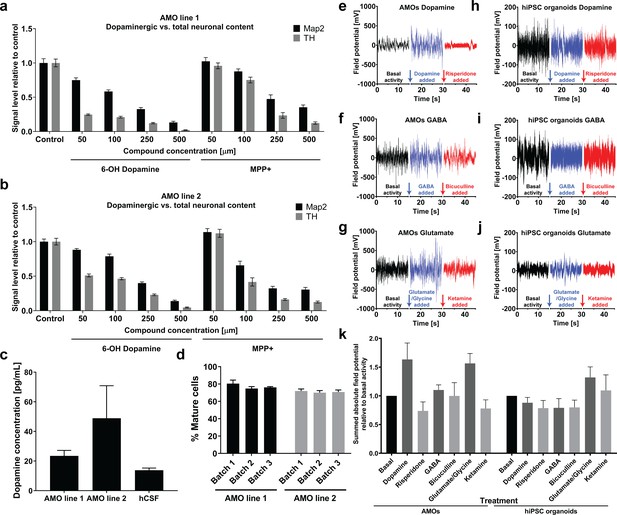

Automated midbrain organoids possess functional characteristics of midbrain tissue and allow assessment of neural subpopulations for high-throughput screening.

(a/b) The combination of AMOs and our automated whole mount staining and clearing workflow allows the quantification of dopaminergic neuron-specific toxicity in 3D. 6-Hydroxy dopamine and MPP+ specifically ablate TH-positive dopaminergic neurons from the AMOs in a dose-dependent manner and with little variation between replicates and cell lines. n ≥ 6 organoids per data point, Error bars: SEM. Organoids at day 56 of differentiation. (c) 35 days old AMOs secrete dopamine into their cell culture medium under standard culture conditions and without further stimulation, as confirmed by ELISA. The concentration is in the same range as the dopamine levels measured in the cerebrospinal fluid (CSF) of healthy, adult humans as reported by Goldstein et al., 2012. nLine 1 = 4, nLine 2 = 3, nhCSF = 38, Error bars: SEM. (d) 70–80% percent of cells within the AMOs are negative for the precursor marker Sox2 after 30 days of differentiation. AMO line 1: nBatch1 = 90, nBatch2 = 16, nBatch3 = 15; AMO line 2: nBatch1 = 89, nBatch2 = 16, nBatch3 = 14; Error bars: SD. (e–j) AMOs respond most strongly to dopaminergic modulation and, to a lesser extent, also to glutamatergic modulation while the automated cortical hiPSC organoids are mostly affected by compounds targeting glutamatergic neurons. MEA measurements of individual AMOs (e–g) or cortical hiPSC organoids (h–j) were performed in three stages on the same sample: first, under basal conditions (black line), second, after treatment with an agonist (blue line), and third, after addition of an antagonist (red line). The pharmacological modulators targeted dopaminergic (e/h), GABAergic (f/i), or glutamatergic (g/j) neurons. The gaps in the X-axis represent the addition of the different compounds and the time we allowed for the solution to equilibrate. Shown is the raw signal of one representative example of n = 4. AMOs were at 33 days and hiPSCs at 35 days of differentiation. (k) Quantification of the effects of pharmacological modulation on AMOs and automated hIPSC organoids as measured by MEA. The bar graph shows the sum of the absolute electric field potential oscillations over 15 s of time relative to basal conditions for each modulator. Each bar represents the mean +/- SEM for n = 4 replicates, one representative raw measurement per condition is shown in (e-j). n = 4, except nhiPSC organoids Glutamate = 3; Also see Figure 8—figure supplement 1.

To further evaluate cellular maturity as one key factor in physiologically relevant screens, we determined the percentage of Sox2-negative mature cell types within a large number of AMOs via high-content imaging. Testing AMOs from two separate lines with three independently cultured batches each, we detected between 70% and 80% mature cell types after only 30 days of differentiation with very little variation within and between batches and cell lines (see Figure 8d).

The maturity and dopaminergic midbrain identity of AMOs was further confirmed by the spontaneous and unstimulated secretion of dopamine into the culture medium at a similar level as found in adult human cerebrospinal fluid (CSF, see Figure 8c; Goldstein et al., 2012). Sequestered dopamine may constitute an additional readout that is functionally relevant in models of the human midbrain.

To further assess the physiological relevance of our workflow as well as its ability to quantify drug effects in 3D cell cultures, we treated AMOs from two different cell lines with increasing concentrations of toxins specific for dopaminergic neurons, namely 6-Hydroxy Dopamine (6OHD) and 1-Methyl-4-phenylpyridinium (MPP+) (Reinhardt et al., 2013b; Blum et al., 2001; Simola et al., 2007; Meredith and Rademacher, 2011). High-content imaging allowed us to discern distinct effects of these nigral toxins on TH-positive neurons compared to general MAP2-positive neurons in AMOs. While both compounds reduced the number of all neurons in a dose-dependent manner, levels of TH-positive dopaminergic neurons decreased more strongly and at lower concentrations (see Figure 8a/b), with 6OHD having the more specific effect. Overall, our HTS workflow detected subpopulation-specific effects within dense, whole-mount-stained organoids with very little variation between replicates and between AMOs from separate cell lines.

We next evaluated the use of cleaved caspase 3 (cCasp3) as a general marker for cell death in AMOs for HTS toxicity studies (see Figure 8—figure supplement 1). If used judiciously, cCasp3 staining can yield quantitative dose-response curves, for example for the addition of known cell toxicants such as G418 (see Figure 8—figure supplement 1a, b, d). When used in co-staining scenarios, this makes cCasp3 potentially attractive to quantify the viability of a wide range of cellular subpopulations, such as Sox2+ precursor cells (see Figure 8—figure supplement 1c, e).

However, cCasp3 only labels cells that are currently undergoing apoptosis, and this signal disappears when dead cells are cleared from the tissue. Consequently, we observed that the cCasp3 signal dropped at high concentrations of toxicants (see Figure 8—figure supplement 1g), necessitating a careful optimization of assay timing and assay windows. This makes cCasp3 challenging to use for primary screens, where compounds with a wide range of toxicities and kinetics may need to be evaluated in parallel. Other viability assays, such as the ubiquitous CellTiter-Glo 3D assay, provide a much broader dynamic range and are less sensitive to timing, as they quantify living cells instead of a transient signal of dying cells (see Figure 8—figure supplement 1i). Unfortunately, CellTiter-Glo cannot distinguish survival of cellular subpopulations, since it relies on a non-discriminatory lysis protocol. Thus, CellTiter-Glo may be most suitable for primary screens and cCasp3 staining as a follow up to probe effects on specific cellular subpopulations. Another common readout in 3D cell culture screens is aggregate size (Yao et al., 2020; Mittler et al., 2017; Kim et al., 2020). Interestingly, the largest cross-sectional area of organoids did not correlate with G418 doses or CellTiter-Glo survival data in the conditions and time scales tested here, but remained largely constant despite escalating toxin levels (see Figure 8—figure supplement 1h). Our automated workflow is compatible with all three types of assay and the results demonstrate that AMOs show lower variance in cell death/survival in toxicity studies than iPSC-organoids derived from the same cell line (see Figure 8—figure supplement 1g, i).

Overall, this data highlights the suitability of AMOs as an ideal tool for midbrain-specific drug and toxicity screening with various high-throughput-compatible and functional readouts that can be directly applied to large-scale screening campaigns as well as more detailed secondary analyses to gain mechanistic insight into the behaviors of distinct cellular subpopulations in the context of their niche.

Discussion

In this report, we present a fully scalable, automated workflow for the generation, maintenance, fixation, immunostaining, clearing, and optical high-content analysis of human midbrain organoids. In designing our workflow, we used a standard 96-well format along with optimized protocols providing full compatibility with standard liquid handlers in most screening facilities. By omitting cumbersome matrix embedding steps, we eradicate variation originating from positional differences of cells within extracellular matrix (ECM) droplets during embedding. Importantly, our workflow is also compatible with manual pipetting, and thus can benefit labs without access to liquid handlers. By starting with neural precursor cells rather than PSCs, we can accelerate and streamline the neural differentiation process resulting in highly reproducible, homogeneous, functionally coupled, and electrophysiologically active human 3D microtissues. In contrast to the highly organized layers of the cortex, which can be partially recapitulated in cerebral/cortical organoids (Lancaster et al., 2013; Qian et al., 2016; Mariani et al., 2015; Bhaduri et al., 2020), different tissues of the midbrain have a much less distinctive morphological organization at the cellular scale. While our AMOs do not represent the complexity of the actual human midbrain, we demonstrate the presence of key cell populations with a degree of structure and organization similar to that of other published midbrain organoids (Qian et al., 2016; Jo et al., 2016; Monzel et al., 2017). AMOs’ uniformity in key parameters such as size, cellular organization, gene expression, and protein levels enables large-scale 3D-based HTS strategies. Moreover, the presence of aggregate-wide, reproducible, synchronous calcium and electrical activity in human neural 3D structures may enable neural activity to be used as a HTS-compatible, simple readout for phenotypic screens including toxicology studies and drug screening for disorders with altered brain activity.

While other groups have previously reported the use of human neural precursor cell (hNPC)-derived neurospheres for toxicity testing (Moors et al., 2009), as well as a hiPSC-derived high-throughput-compatible spheroid model including the use of calcium oscillations as a readout to evaluate neurotoxicity (Sirenko et al., 2019), these aggregates do not display structural tissue self-organization to the same extent as our organoids. Importantly, none of the available high-throughput-compatible protocols generates midbrain-specific organoids, but rather they focus on a cortical fate (Sirenko et al., 2019). Our model of the human midbrain opens up the potential to perform 3D organoid-based HTS of midbrain-specific disorders including the highly prevalent Parkinson’s disease. One of the most widely used models for Parkinson’s disease is the ablation of dopaminergic neurons with toxins such as 6-hydroxy dopamine or MPP+ (Reinhardt et al., 2013b; Blum et al., 2001; Simola et al., 2007; Meredith and Rademacher, 2011). Using these compounds as a dose-response model, our workflow demonstrates the unbiased, quantitative, cell-type-specific assessment of dopaminergic neurons in a physiologically relevant and complex human 3D model system with full scalability and high-throughput compatibility.

Our automated whole mount optical analysis can also be directly applied to other established 3D protocols and may help uncover phenotypes that manifest themselves primarily in 3D or in distinct subpopulations of cells. The neural precursor-based proof-of-principle demonstrated here may be suitable, for example, in screens for diseases affecting primarily neural precursors including Zika virus infection. While this condition has been intensively studied using organoids, platform technologies for 3D high-throughput screens are still lacking and in high demand (Qian et al., 2017).

Furthermore, other non-midbrain organoid protocols may benefit from our workflow; for example, we have adapted cortical organoids by Paşca et al., 2015/Sloan et al., 2018 to be scaled-up and analyzed in our system as automated hiPSC-based control organoids for our midbrain model. Automation of this existing manual protocol necessitated some modifications (summarized in Figure 7—figure supplement 1). For example, in order to create a workflow that is as scalable and as repeatable as possible, we decided to use accutase-digested single cell suspensions originating from feeder-free iPSC-cultures rather than dispase-treated colonies lifted off partially or whole from feeder-based iPSC-cultures. The use of colonies as a starting point makes colony/aggregate sizes difficult to control, especially in an automated setting, resulting in a variable starting point for each organoid generated in this fashion. We also aggregated and maintained the resulting organoids in SBS-compatible U-bottom plates that facilitate automated handling of all organoids as separate biological replicates, each in its own well, rather than in 100 mm dishes as in the original publication. These modifications to the original protocol may have changed the outcome compared to the published original; however, we demonstrate proper forebrain differentiation at the RNA and protein levels, and provide detailed single organoid-based high-content data from three independent batches for select parameters. We also believe that these modifications provide the most rigorous comparison between iPSC- and precursor-based organoid approaches by starting both protocols with well-defined and easily controllable cell numbers as single cell suspensions. By utilizing colonies as starting point, we would have biased reproducibility against the automated iPSC-protocol, thus weakening our comparison.

Despite our efforts to standardize iPSC-based organoids in a modified automated workflow, AMOs displayed a distinctly lower variance in a broad set of parameters, including size, cellular subpopulations, and survival in toxicity studies. This may indicate that mechanical standardization alone cannot compensate for the innate variability of PSCs during their self-organization.

Although the use of precursors cells as a starting population provides benefits, the comparison to hiPSC-based organoids also highlights certain limitations of this approach. Our choice of generating AMOs by seeding more committed neural precursor cells instead of hiPSCs improves the predictability of the differentiation outcome while maintaining the ability to form self-organized tissues. However, it also sacrifices some of the hiPSCs’ broader cell fate potential and complexity resulting in simpler structures compared to hiPSC-based organoids. In addition, smNPCs can only give rise to cells of the ectoderm, which excludes, for example, the formation of microglia. Although smNPCs are capable of efficiently generating oligodendrocytes (Reinhardt et al., 2013a; Ehrlich et al., 2017), they generally arise very late in neural development (Goldman and Kuypers, 2015), and other organoid protocols also demonstrate the presence of oligodendrocytes after 100 days of differentiation or more (Marton et al., 2019). These long time scales are not very attractive for the design of high-throughput screening strategies. Instead, we favor approaches that ectopically add a known number of oligodendrocytes or microglia to our AMOs and thus reach a screenable state much earlier. Similar strategies have recently been described for the introduction of microglia into hiPSC-based neural organoids (Lin et al., 2018; Abud et al., 2017; Muffat et al., 2018), albeit without the ability to perform HTS. AMOs fill the gap between heterogeneous PSC-derived organoids and established but less physiological spheroid- and 2D-based screening formats.

The emerging science of 3D cell culture promises to probe the effects of drugs on single cell types (here: dopaminergic neurons) in an intact niche as part of a complex 3D in vitro culture. Understanding the effects in context will be an essential factor to better understand biology at the tissue level. Currently, 3D cell culture science is in a phase of transition, where traditional manual low throughput protocols need to be adapted to unbiased higher throughput workflows. This is a prerequisite to mine the information necessary to merge organoid science with the promises of big data and machine learning to better tackle the complexities of understanding 3D biology. Therefore, we see our workflow as a contribution to help others translate successful strategies such as cell painting (Bray et al., 2016) and other big-data-generating high-content strategies (Friese et al., 2019; Scheeder et al., 2018) into biologically relevant 3D models. If successful, this will help to open up single-cell-based phenotypic discovery to the third dimension by taking 3D-based HTS approaches beyond bulk techniques such as cell survival or gross morphology. Taken together, we hope that our automation approach can contribute to establishing a next generation of cellular 3D in vitro disease models that allow unbiased, quantitative, high-throughput access to human tissue-surrogates in a dish.

Materials and methods

Key resources table
Reagent type
(species) or
resource		DesignationSource or
reference		IdentifiersAdditional
information
Cell line (Homo sapiens)AMO line 1Reinhardt et al., 2013bPMID:23533608smNPCs used for the derivation of AMOs designated ‘AMO line 1’
Cell line (Homo sapiens)AMO line 2Reinhardt et al., 2013aPMID:23533608smNPCs used for
the derivation of AMOs designated ‘AMO line 2’
Cell line (Homo sapiens)hIPSCsReinhardt et al., 2013aPMID:23472874; PMID:23533608hIPSCs giving rise to hIPSC organoids in this paper; cell line of origin to generate smNPCs for AMO line 2
AntibodyAnti-Brn2 (Rabbit monoclonal)Cell SignalingCat#:12137(1:2000)
AntibodyAnti-Cleaved Caspase-3 (Rabbit monoclonal)Cell SignalingCat#:9664(1:100)
AntibodyAnti-Ctip2 (Rat monoclonal)AbcamCat#:ab18465(1:750)
AntibodyAnti-DCX (Goat polyclonal)Santa CruzCat#:sc-8066(1:500)
AntibodyAnti-FoxA2 (Mouse monoclonal)Santa CruzCat#:sc-101060(1:100)
AntibodyAnti-FoxG1 (Rabbit polyclonal)AbcamCat#:ab18259(1:500)
AntibodyAnti-GFAP (Chicken polyclonal)Merck MilliporeCat#:AB5541(1:500)
AntibodyAnti-Lmx1a (Rabbit polyclonal)AbcamCat#:ab139726(1:100)
AntibodyAnti-Homer (Mouse monoclonal)Synaptic SystemsCat#:160 011(1:250)
AntibodyAnti-Map2 (Chicken polyclonal)AbcamCat#:ab5392(1:500)
AntibodyAnti-Map2 (Mouse monoclonal)Merck MilliporeCat#:MAB3418(1:1000)
AntibodyAnti-Map2 (Rabbit polyclonal)AbcamCat#:ab32454(1:500)
AntibodyAnti-Nestin (Mouse monoclonal)Life TechnologiesCat#:MA1-110(1:250)
AntibodyAnti-Nurr1 (Mouse monoclonal)Santa CruzCat#:sc-376984(1:100)
AntibodyAnti-Pax6 (Rabbit polyclonal)BioLegendCat#:901301(1:500)
AntibodyAnti-Pitx3 (Rabbit polyclonal)Merck MilliporeCat#:AB5722(1:100)
AntibodyAnti-S100b (Rabbit polyclonal)DakoCat#:Z031129-2(1:500)
AntibodyAnti-Satb2 (Mouse monoclonal)AbcamCat#:ab51502(1:500)
AntibodyAnti-Sox2 (Goat polyclonal)R and D SystemsCat#:AF2018(1:200)
AntibodyAnti-Synapsin1 (Mouse monoclonal)Synaptic SystemsCat#:106 001(1:1000)
AtibodyAnti-Synaptophysin1 (Rabbit polyclonal)Synaptic SystemsCat#:101 002(1:200)
AntibodyAnti-Tbr1 (Rabbit polyclonal)AbcamCat#:ab31940(1:500)
AntibodyAnti-Tbr2 (Chicken polyclonal)Merck MilliporeCat#:AB15894(1:500)
AntibodyAnti-TUBB3 (Mouse monoclonal)BioLegendCat#:801202(1:500)
AntibodyAnti-TH (Chicken polyclonal)AbcamCat#:ab76442(1:1000)
AntibodyAnti-TH (Rabbit polyclonal)AbcamCat#:ab112(1:500)
AntibodyAnti-vGAT (Mouse monoclonal)Synaptic SystemsCat#:131 011(1:100)
AntibodyAnti-vGLUT1 (Rabbit polyclonal)Synaptic SystemsCat#:135 303(1:100)
Sequence-based reagentAADC_FThis paperPCR primersTGCGAGCAGAGAGGGAGTAG
Sequence-based reagentAADC_RThis paperPCR primersTGAGTTCCATGAAGGCAGGATG
Sequence-based reagentBrn2_FThis paperPCR primersCGGCGGATCAAACTGGGATTT
Sequence-based reagentBrn2_RThis paperPCR primersTTGCGCTGCGATCTTGTCTAT
Sequence-based reagentDCX_FThis paperPCR primersAGGGCTTTCTTGGGTCAGAGG
Sequence-based reagentDCX_RThis paperPCR primersGCTGCGAATCTTCAGCACTCA
Sequence-based reagentEN1_FThis paperPCR primersCCCTGGTTTCTCTGGGACTT
Sequence-based reagentEN1_RThis paperPCR primersGCAGTCTGTGGGGTCGTATT
Sequence-based reagentGAPDH_FThis paperPCR primersCTGGTAAAGTGGATATTGTTGCCAT
Sequence-based reagentGAPDH_RThis paperPCR primersTGGAATCATATTGGAACATGTAAACC
Commercial assay or kitBiomark 48.48integrated fluidic circuit Delta Gene assayFluidigmCat#:101–0348Complete bundle for 10 assays
Commercial assay or kitCellTiter-Glo 3D Cell Viability AssayPromegaCat#:G9682
Commercial assay or kitDopamine ELISA KitAbnovaCat#:KA3838
Commercial assay or kitCellTracker deep red dyeLife TechnologiesCat#:C34565
Commercial assay or kitFluo-4 AMThermo FisherCat#:F14201
Chemical compound, drugCobalt(II) chlorideSigma-AldrichCat#:232696
Chemical compound, drugG418Sigma-AldrichCat#:G8168
Chemical compound, drug6-Hydroxydopamine
hydrochloride (6OHD)		Sigma-AldrichCat#:H4381
Chemical compound, drug1-Methyl-4-phenylpyridinium iodide (MPP+)Sigma-AldrichCat#:D048
Chemical compound, drugDopamine hydrochlorideSigma-AldrichCat#:H8502
Chemical compound, drugRisperidoneSigma-AldrichCat#:R3030
Chemical compound, drugGABASigma-AldrichCat#:A2129
Chemical compound, drugBicucullineSigma-AldrichCat#:14340
Chemical compound, drugGlutamateSigma-AldrichCat#:49621
Chemical compound, drugGlycineSigma-AldrichCat#:50046
Chemical compound, drugKetamineSigma-AldrichCat#:K2753
Software, algorithmFijiSchindelin et al., 2012PMID:22743772
Software, algorithmGraphPad PrismGraphpad Software IncRRID:SCR_002798
Software, algorithmHarmonyPerkin ElmerVersion:‘4.1, Revision 128972’
Software, algorithmColumbusPerkin ElmerVersion:2.6.0.127073

smNPC culture

View detailed protocol

All cell lines used in this study tested negative for mycoplasma contamination in PCR- and sequencing-based analyses. Unless otherwise noted, all cells and 3D aggregates were maintained at 37°C and 5% CO2. The human small molecule precursor cells (smNPCs) were generated and characterized during a previous study (Reinhardt et al., 2013a) and cultured as described there, with minor modifications. We grew smNPCs in 1% (v/v) Matrigel (BD)-coated 6-well plates (Sarstedt) in N2B27 medium supplemented with the small molecules smoothened agonist (SAG) (0.5 μM, Cayman Chemical) and CHIR 99021 (3 μM, Axon MedChem). N2B27 consisted of DMEM-F12 (Thermo Fisher) and Neurobasal Medium (Thermo Fisher) at a 1:1 ratio, enriched with 1:400 diluted N2 supplement (Thermo Fisher), and 1:200 diluted B27 supplement without vitamin A (Thermo Fisher), 1% penicillin/streptomycin/glutamine (Thermo Fisher), and 200 μM ascorbic acid (Sigma-Aldrich). Typically, we exchanged medium every other day. The cells were split every 5–7 days at a splitting ratio of 1:10 to 1:20 via accutase (Sigma-Aldrich) treatment for approximately 15 min at 37°C, yielding a single-cell solution. To stop the digestion, the cells were diluted in DMEM-F12 with 0.1% bovine serum albumin (BSA) (Thermo Fisher) and centrifuged at 220 g for 2 min. The cell pellet was resuspended in fresh smNPC medium (N2B27 with 0.5 μM SAG and3 μM CHIR) and plated on Matrigel-coated 6-well plates.

Definition of batch

Request a detailed protocol

Each batch consisted of independently frozen and thawed cells of the same passage and cell line, passaged separately and seeded, maintained, fixed, stained, and cleared separately from the other batches.

AMO generation

View detailed protocol

All liquid handling steps (seeding, maintenance, and fixation of organoids) were performed by a Beckman Coulter Biomek FXP liquid handling station equipped with a 96-channel-pipetting head and an attached Cytomat incubator (Thermo Fisher). After digestion by accutase, we seeded 9000 smNPCs in each well of a conical 96-well plate (Thermo Fisher) in smNPC medium and allowed them to aggregate for 2 days. To increase inter-cell adhesion, we added 0.4% (w/v) polyvinyl alcohol (PVA, Sigma-Aldrich). Starting at day 2, cells undergo ventral patterning over 4 days in two feedings by removal of CHIR99021 in the continued presence of 1 μM SAG and the addition of 1 ng/mL brain derived neurotrophic factor (BDNF, PeproTech) and 1 ng/mL glial cell line-derived neurotrophic factor (GDNF, PeproTech). After ventralization, we removed SAG on day 6, further supported midbrain differentiation and maturation by the addition of 1 ng/mL transforming growth factor beta 3 (TGFβ−3, PeproTech), and 100 μM dibutyryl cyclic adenosine monophosphate (dbcAMP, Sigma-Aldrich). To boost maturation and cell survival during the rest of the neural maturation, we increased the concentration of BDNF and GDNF to 2 ng/mL each starting at day 6. A single dose of 5 ng/mL Activin A (eBioscience) was added on day 6 only. Depending on the desired degree of maturity, the duration of the maturation phase can be prolonged to 100 days and longer. Organoids were fed every other day for the entire duration of culture.

Size measurement of organoids

Request a detailed protocol

For size measurements, we took brightfield images of randomly selected AMOs or hiPSC organoids using a stereo microscope (Leica MZ10 F, camera: Leica DFC425 C). Images were processed with ImageJ/Fiji (Schindelin et al., 2012) using a custom-tailored standardized workflow. The auto threshold function was used to discriminate samples from the background followed by a measurement of their area with the analyze particles function. The measured area corresponds to the largest cross-section of the organoid. Data were outputted to Microsoft Excel and GraphPad Prism v8.4.2 (Graphpad Software, Inc) for further analysis. Coefficients of variation (CVs) were calculated via CV = standard deviation/mean.

Whole mount staining and clearing

View detailed protocol

In order to analyze protein expression in 3D in a HTS-compatible manner, we adapted a whole mount staining protocol based on Lee et al., 2016. for large-scale 3D aggregates and optimized it for use in an automated liquid handling system (Beckman Coulter Biomek FXP, 96-channel-pipetting head). After fixation with 4% PFA (VWR) for 10–15 min, we stained the aggregates with primary and secondary antibodies (Alexa Fluor secondary antibodies, Thermo Fisher) for 6 days each. A list of all primary antibodies and concentrations can be found in Supplementary file 3. We diluted the antibodies in a blocking and permeabilization solution (6% BSA, 0.5% Triton-X 100 (Roth), 0.1% (w/v) sodium azide (Sigma-Aldrich) in PBS (Sigma-Aldrich)) and renewed it every 2 days. Between primary and secondary antibody incubation as well as after the staining procedure we washed the samples 5 times for 1 hr with 0.1% Triton X-100 in PBS. This extremely long staining procedure allows the antibodies to fully penetrate the aggregates despite their large size and high density. To enable full penetration by microscope illumination, the whole mount staining procedure is followed by BABB-based tissue clearing (Dent et al., 1989). First, the samples were dehydrated stepwise through a methanol (Roth) series (25%, 50%, 70%, 90%, 100%, 15 min each). Next, they were transferred to an organic solvent-resistant cyclo-olefin 96-well plate (‘Screenstar’, Greiner Bio-One). The samples were incubated for 30 min in 1:1 methanol/BABB (benzyl benzoate (Sigma-Aldrich) and benzyl alcohol (Sigma-Aldrich) 1:1) and subsequently kept in BABB for imaging. We used Imaris v9.1.2 (Bitplane, Oxford Instruments) for 3D rendering of confocal slices to produce Video 1.

Quantitative real-time PCR

Request a detailed protocol

We performed RNA isolation for quantitative real-time PCR (qPCR) analysis using the NucleoSpin RNA XS kit (Macherey-Nagel) according to the manufacturer’s instructions. Depending on the age and protocol used, we pooled organoids from one batch in order to yield enough RNA for downstream analysis; AMOs: 32 (d6), 24 (d16), or 18 (d22 and d30), hiPSC organoids: 32 (d6), 14 (d22), or 10 (d30). We determined RNA concentration and purity using a NanoDrop 8000 spectrophotometer (Thermo Fisher) and performed reverse transcription according to standard protocols using 1000 ng RNA per reaction. qPCR was done in triplicates on a Quantstudio 5 Real-Time PCR System (Applied Biosystems) with iTaq Universal SYBR Green Supermix (Bio-Rad) and 3.2 ng RNA equivalents per 10 μL reaction. Cycling conditions were 2 min at 95°C followed by 40 cycles of 15 s at 95°C and 60 s at 60°C. We calculated the relative expression using the ΔΔct method and normalized to undifferentiated smNPCs (AMO line 1) collected before aggregation as well as using GAPDH as a housekeeping gene. Alternatively, gene expression was quantified with the Biomark 48.48 integrated fluidic circuit (IFC) Delta Gene assay (Fluidigm) according to the manufacturer’s instructions. Briefly, following 14 cycles of preamplification, the samples were subjected to an exonuclease I (New England Biolabs) treatment (37°C for 30 min and 80°C for 15 min) and diluted twentyfold with DNA Suspension buffer (TEKnova). The samples (in duplicates) and assay mixtures were loaded onto a 48.48 microfluidic IFC chip and run on the BioMark real-time PCR reader (Fluidigm) where they were amplified and measured according to manufacturer’s instructions. Here, data analysis was performed using the BioMark real-time PCR analysis software 4.3.1 (Fluidigm) with standard settings. Again, undifferentiated smNPCs (AMO line 1) were used as a reference and GAPDH served as housekeeping gene. All data was transferred to Microsoft Excel for further processing and GraphPad Prism v8.4.2 for plotting. A list of all used primers can be found in Supplementary file 4.

Calcium imaging

Request a detailed protocol

For calcium imaging, we added 10 μM cell-permeant Fluo-4 AM (Thermo Fisher) diluted in AMO medium to the aggregates and incubated for 60 min at 37°C. For inhibitor studies cobalt(II) chloride (Sigma-Aldrich) was added to the medium at a concentration of 2 mM together with the Fluo-4 AM. Imaging was performed using a Dragonfly spinning disc confocal microscope (Andor, Oxford Instruments) at a frequency of 10 Hz for 4 min. Data analysis was performed using ImageJ/Fiji (Schindelin et al., 2012). First, different ROIs were defined as depicted in Figure 4. Then, the mean fluorescence intensity in those ROIs was measured over time and plotted using GraphPad Prism v8.0.2. The video was assembled via ImageJ/Fiji (Schindelin et al., 2012) and the frame rate accelerated to compress 4 min real time at 10 Hz into 20 s running time. Alternatively, we measured fluorescence intensity on a Synergy Mx plate reader (BioTek), acquired data with the Gen5 software (BioTek) and outputted it to Microsoft Excel and GraphPad Prism v8.0.2 for further analysis and plotting.

Electrophysiological analysis of AMOs by microelectrode array

Request a detailed protocol

Electrophysiological measurements on microelectrode arrays (USB-MEA256system, Multichannel Systems) were performed on electrode areas of 9-well MEAs as previously described (Piccini et al., 2017). The MEAs were plasma-cleaned and coated with 1:75 diluted Matrigel (Corning) in KO-DMEM (Invitrogen) overnight and additionally for 2 hr before seeding with a 0.1% gelatin (Sigma-Aldrich) in PBS solution at room temperature. The MEAs were pre-warmed to 37°C, organoids were transferred to the electrode area of the MEAs, and allowed to attach for approximately 28 hr. Subsequently, MEA chambers with attached samples were used for electrophysiological recordings at 37°C. To study the effects of different pharmacological modulators, organoids were first measured under basal conditions (i.e. no addition of compounds) to record a reference signal. We then added specific pathway activators to each sample chamber of a MEA and recorded the electric field potential after a brief period of equilibration. After recording the signal for the activators, we next added the inhibitors for the respective pathways to the same well and repeated the measurement procedure as before. This guaranteed that we measured the change of electric field potential of each sample and the basal activity of each sample could serve as an internal control. The compounds used were dopamine hydrochloride (10 μm, Sigma-Aldrich), risperidone (10 nM, Sigma-Aldrich), GABA (10 μm, Sigma-Aldrich), bicuculline (1 μm, Sigma-Aldrich), glutamate/glycine (100 μm each, Sigma-Aldrich), and ketamine (10 μm, Sigma-Aldrich). It is possible to culture organoids on MEAs for longer and to achieve a more widespread contact with MEA electrodes. However, organoids flatten and change morphology and possibly cellular composition upon prolonged attachment, and we sought to measure the organoids’ electrical activity as close to their usual spherical state as possible. 28 hr allowed sufficient time for attachment of the aggregates to record electric fields from still spherical samples while providing enough mechanical cell-substrate connection to transport MEA substrates from the incubator to the recording rig. After the recordings, it was possible to gently remove the organoids without causing observable damage. Although not optimized (as we only performed measurements at one time point per organoid), this opens up the possibility to transfer the organoids back to standard culture conditions after MEA measurements and thus perform multiple measurements over time. Datasets were recorded with Cardio2D software (Multichannel Systems). Analyses were performed using the software Cadio2D+ (Multichannel Systems) and Origin v9.0 (OriginLab) on exported data. Discrete fast Fourier analyses in Origin (Blackman window) was used to assess frequencies of autonomous activity of the organoids. To compare neural sample activity via electric field oscillations (Figure 8k), we pre-processed the raw MEA data with a Savitzky-Golay filter (curves were smoothed with a window size of 50 to preserve peak data while removing noise) in Origin v9.0 and formed the total sum of the absolute values of each oscillation over 15 s. The results were outputted to Microsoft Excel, reformatted and then transferred to GraphPad Prism v8.4.2 for plotting.

Electrophysiological analysis of single cells by patch-clamping

Request a detailed protocol

Due to the morphology of AMOs (high optical density and the fact that most cell bodies are located in a depth of at least 10–20 µm), it was technically impossible to perform the patch-clamp measurements on intact aggregates. Therefore, the organoids were treated with 1 mg/ml trypsin and then mechanically dispersed to obtain single cells. These were seeded on PDL-coated coverslips and cultured for 1–3 days in AMO medium (we stated the age of AMOs at the time of dissociation). The transmembrane currents were recorded from isolated cells using the whole-cell configuration of the patch-clamp technique (Hamill et al., 1981). The patch pipettes were fabricated from borosilicate glass on a Sutter P1000 (Sutter Instrument company) pipette puller. When filled with pipette solution, they had a tip resistance of 4–6 MΩ. Recordings were done using an EPC-10 amplifier (HEKA Elektronik) and Patchmaster acquisition software (HEKA Elektronik). Series resistance, liquid junction potential, pipette and whole-cell capacitance were cancelled electronically. Bath solution contained (mM): NaCl 140, KCl 2.4, MgCl2 1.2, CaCl2 2.5, HEPES 10, D-glucose 10, pH 7.4 and the pipette solution contained (mM): K-aspartate 125, NaCl 10, EGTA 1, MgATP 4, HEPES 10, D-glucose 10, pH 7.4 (KOH). We performed all experiments at room temperature. Recordings of current-voltage relationship (I-V curves) were done in voltage-clamp mode at a holding potential of −70 mV. Recordings of evoked action potentials were performed in current-clamp mode. Data were analyzed using Patcher’s Power Tool routine for IgorPro (WaveMetrics), SciDAVis (http://scidavis.sourceforge.net/) and Origin Pro 2019 (Origin Lab). To reveal the shape of I-V curves, single traces were normalized to the peak amplitude and then averaged.

RNA sequencing

Request a detailed protocol

To isolate RNA of single AMOs and organoids we used the Direct-zol-96 RNA kit (Zymo Research) according to the manufacturer’s instructions. We assessed RNA concentration and purity using a NanoDrop 8000 spectrophotometer and RNA integrity with a Bioanalyzer (Agilent Technologies) per standard protocols. Next, mRNA was enriched using the NEBNext Poly(A) Magnetic Isolation Module (NEB) followed by strand-specific cDNA NGS library preparation (NEBNext Ultra II Directional RNA Library Prep Kit for Illumina, NEB). The size of the resulting library was controlled by use of a D1000 ScreenTape (Agilent 2200 TapeStation) und quantified using the NEBNext Library Quant Kit for Illumina (NEB). Equimolar pooled libraries were sequenced in a single read mode (75 cycles) on the NextSeq 500 System (Illumina) using v2 chemistry yielding in an average QScore distribution of 95% >= Q30 score and subsequent demultiplexed and converted to FASTQ files by means of bcl2fastq v2.20 Conversion software (Illumina).

RNA sequencing analysis

Request a detailed protocol

We aligned the RNA sequencing reads to the human genome hg19 with TopHat2 aligner (v2.1.1) (Kim et al., 2013), using default input parameters. Gene annotation from Ensembl (version GRCh37.87) were used in the mapping process. The number of reads that were mapped to each gene was counted using the Python package HTSeq (v0.7.2) (Anders et al., 2015) with ‘htseq-count – mode union – stranded no’. For the correlation analysis, sequencing data of 21 different human fetal organs and midbrain(-like) samples were obtained from GSE66302 and E-MTAB-4868, respectively. Human prenatal cortex (at 24 weeks post-conception) RNA-seq datasets were obtained from www.nature.com/neuro/journal/v18/n1/extref/nn.3898-S9.zip. Reads were mapped to the human genome as described above. RPKM values (Reads Per Kilobase of transcript per Million mapped reads) for each gene were computed by Cufflinks (v2.2.1). We selected genes with high expression (log RPKM > 1) for further analysis. Based on the expression of the selected genes, Pearson correlations were calculated. We averaged the correlation coefficients for biological replicates. PCA and differential expression analysis were performed with raw counts using the R package DESeq2 (v1.18.1). Genes were considered as deregulated if |log2FC| > 2 and FDR < 0.05 using Benjamini-Hochberge multiple test adjustment (Benjamini and Hochberg, 1995). Gene Ontology (GO) term enrichment was analyzed with the bioinformatics web server Gorilla (Eden et al., 2009) and visualized with REViGO (Supek et al., 2011).

For the comparison with cerebral organoids (Figure 5—figure supplement 1), the dispersion within groups (Figure 5—figure supplement 1b) was calculated using the average distance between data points and centroids on the PCA plot (Figure 5—figure supplement 1a).

All RNA sequencing data generated by us was deposited to the NCBI GEO database (GSE119060) and can be accessed at https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE119060.

Quantification of whole mount staining and clearing

View detailed protocol

To assess how quantitative our imaging workflow is, we performed a dilution experiment. We mixed unlabeled smNPCs with different percentages (1.25%, 2.5%, 5%, 10%, 20%, 40%) of CellTracker deep red dye (Life Technologies)-labeled cells (labeling according to standard protocols, dye concentration 1:20,000) and aggregated them in smNPC maintenance medium with 0.4% PVA. To explore the effects of overall aggregate size on quantitation, we generated aggregates with 100,000 as well as 200,000 cells in total. After 1 day of aggregation, the aggregates were fixed with 4% PFA, subjected to BABB-based tissue clearing, imaged, and analyzed as described below.

General workflow for high-content imaging and analysis

After staining and clearing, we achieved uniform aggregate positioning within the wells by tilting the plates off the horizontal plane at 60 degrees for 1 min. Image acquisition was carried out in an Operetta high content imager (Perkin Elmer) and images were analyzed in Harmony 4.1 software and/or Columbus version 2.6.0.

Each high-content imaging experiment requires a customized set of parameters adjusted for the size of the aggregates, marker-wavelengths, their morphology and distribution within the sample, marker combinations, and signal and background intensities. As the details of each workflow are particular to our hardware and software setup, we first provide a general description of our workflow that focuses on explaining the principal steps in a manner that allows platform-independent reproduction. We then provide the detailed analysis pipeline for the data shown in Figure 6 (quantification of Sox2 and Map2 in AMO line 1) with all its unique parameters and steps in the Materials and methods section titled ‘Detailed high-content imaging analysis example for the data shown in Figure 6'.

Acquisition

View detailed protocol

As our version of high content imager did not include automatic sample-finding capability, we started by acquiring well overview images at 2x magnification. Although uniform, locations of aggregates were not identical from well to well, necessitating acquisition of tiled 3D stacks of adjacent fields of view (FOV) with 10x magnification covering all possible locations of aggregates within a small area of given wells. The 2x overview images guided the choice of location for the 10x FOVs. This resulted in tiled non-overlapping stacks of images, some of which contained aggregates, and some of which did not. These 10x images entered further image analysis.

Analysis

In general, after hardware-based background correction, image analysis was performed separately for each FOV and confocal plane, and results were either reported as mean or sum for all FOVs and planes per well as indicated in the figures and figure legends. Further analysis consisted of three principal stages: (1) sample identification, (2) background correction, (3) segmentation, and (4) data reporting.

  1. To identify aggregates and distinguish them from occasional contaminations, we summed all acquired channels (or in case of high background noise in particular channels used a single one with homogeneous signal) and smoothed the resulting image with either a gaussian or a median kernel to remove local outlier pixels. Simple thresholding identified organoids as regions of interest (ROI), which were further refined via morphology (e.g. area and roundness) and intensity to exclude incorrectly identified objects such as dust or fibers.

  2. As large spherical aggregates possessed a non-uniform background signal, we performed local background correction before image segmentation. Subtracting a blurred version of the image from the raw image removed most of the non-uniform haze in each plane. To boost fine structures, sliding-parabola algorithms provided additional local contrast when needed.

  3. Structures of interest within each bona fide aggregate identified in (1), e.g. nuclei or cells, were segmented by either simple thresholds or by dedicated proprietary algorithms (often called ‘find nuclei’ or ‘find cells’) and further refined by morphology and intensity if needed.

  4. Finally, the parameters of interest (often intensity, area, number of objects) were measured from the raw image channel based on the previously defined and selected ROIs. If object segmentation was not possible (e.g. due to insufficient resolving power at 10x for highly filamentous markers or low signal to noise ratios), raw/total integrated signal intensity within the defined sample region was reported. In order to generate results for the entire 3D aggregate, which may span several FOVs, datasets for all planes and fields were combined. Often, it is also necessary to normalize the data to the aggregate area to account for sample variations across planes and wells.

Detailed high-content imaging analysis example for the data shown in Figure 6

Request a detailed protocol

After staining and clearing, we achieved uniform aggregate positioning within the wells by tilting the plates off the horizontal plane at 60° for 1 min. Image acquisition was carried out in an Operetta high content imager (Perkin Elmer) and images were analyzed in Harmony 4.1 software. We acquired a total of 16 confocal planes in three channels (DAPI, Sox2 488 nm, and MAP2 647 nm) with an inter-plane spacing of 36.6 μm for a total stack of 549 μm, covering the entire aggregate height (clearing and dehydration steps tend to shrink and flatten aggregates slightly). To define the aggregate region on each image plane, all three channels were summed, filtered with a median filter to remove small localized features, and bright areas were identified via the 'find image region' function. After cleaning the edge of the aggregate region by dilation and erosion steps of 10 and 3 pixels, respectively, we identified bona fide AMOs by selecting for regions with a minimum of 300 arbitrary brightness units (abu) and 4000 μm2 size. In order to better isolate Sox2+ nuclei from the general background, we ran a sliding parabola algorithm with a curvature setting of 2 across each image plane in the 488 nm channel. Nuclei were then identified within each aggregate region via the ‘find nuclei’ function, algorithm 'M' and further selected to be Sox2+ if they were larger than 10 µm2 and brighter than 1200 abu. We excluded image artifacts, small dust particles, and overlapping nuclei by omitting nuclei brighter than 6000 abu and larger than 70 μm2 from further quantification. For final output, the number and total brightness of nuclei in 488 nm and of aggregate regions in 647 nm were summed for all planes and all fields of view in each well and transferred to Microsoft Excel and TIBCO Spotfire for further annotation, analysis, and plotting. We omitted data from wells that contained dust particles within the same FOV as organoids, incompletely imaged aggregates due to improper positioning, or AMOs that have been damaged or lost during culture or downstream processing. Plate 1, 2, and 3 represent independent batches of separately thawed and cultured cells of the same frozen batch.

Human-induced pluripotent stem cell culture

Request a detailed protocol

For cortical organoid generation (see method section below), human induced Pluripotent Stem Cells (hiPSCs) (parental line of AMO line 2 smNPCs) were generated and characterized during a previous study (Reinhardt et al., 2013b). Cells were cultured in Vitronectin (Thermo Fisher)-coated 6-well plates in mTeSR Plus medium (Stemcell technologies) supplemented with 1% penicillin/streptomycin. The medium was changed every other day and cells were passaged at a ratio of 1:10 to 1:15, using accutase when they reached 80–90% confluency. After splitting, the medium was supplemented with the ROCK inhibitor Y-27632 (10 μM, tebu-bio) until the first media exchange.

For the generation of iPSC-based cerebral organoids (see method section below and Figure 5—figure supplement 1) hiPSC culture was performed feeder-free using modified FTDA medium (Frank et al., 2012) in 1% (v/v) Matrigel-coated 6-well plates with iPSCs from the same line as AMO line 2. FTDA medium consisted of DMEM-F12 supplemented with 1% human serum albumin (Biological Industries), 1% Chemically Defined Lipid Concentrate (Life Technologies), 0.1% Insulin-Transferrin-Selenium (BD), 1% penicillin/streptomycin/glutamine. We fed the iPSCs daily and added 10 ng/mL FGF2 (PeproTech GmbH), 0.2 ng/mL TGFβ3 (PeproTech GmbH), 50 nM Dorsomorphin (Enzo Life Sciences), 5 ng/mL Activin A (eBioscience), 20 nM C59 (Tocris) before each media exchange. We split the iPSCs as single cells every 3–5 days using accutase for approximately 10 min at 37°C. We transferred 600,000 cells per well of a 6-well plate to be seeded to DMEM-F12 with 0.1% BSA and centrifuged at 220 g for 2 min. We resuspended the cell pellet in fresh FTDA medium supplemented with 1:2000 ROCK inhibitor Y-27632 (tebu-bio) and plated the iPSCs on Matrigel-coated 6-well plates.

Generation of automated cortical organoids

Request a detailed protocol

As a control for our AMOs, we generated cortical hiPSC organoids from the same hiPSC line used to derive smNPCs for AMO line 2 (Reinhardt et al., 2013b). After manual 2D culture of hiPCs, all steps were fully automated using our liquid handling system (Beckman Coulter) with attached incubator (Thermo Fisher). Generally, we followed the protocol previously published by Paşca et al., 2015. (and also described in more detail by Sloan et al., 2018), with adaptations for our automation pipeline (see Figure 7—figure supplement 1). Starting with 90–100% confluent cultures, we detached hiPSCs with accutase and seeded 10,000 cells per well in ultra-low attachment U-bottom plates (Corning). Cortical organoid medium consisted of DMEM F-12, 20% Knock-out Serum replacement (GIBCO), 1% penicillin/streptomycin/glutamine, 1% Non-essential amino acids (Sigma-Aldrich), and 0.2% 2-Mercaptoethanol (Thermo Fisher). For the first 6 days, we supplemented the cortical organoid medium with 5 μM dorsomorphin (Enzo Life Sciences) and 10 μM SB-431542 (Biomol). During seeding only, we also added 10 μM ROCK inhibitor Y-27632. Aggregates were fed every 3 days using an automated liquid handling system. From day 6 to 24, culture medium supplements were exchanged to EGF and FGF2 (both 20 ng/ml, PeproTech) and afterwards BDNF and NT3 (metabion) (both 20 ng/ml).

Organoid viability assay

View detailed protocol

To measure the viability of individual organoids we used the CellTiter-Glo 3D Cell Viability Assay (Promega) according to the manufacturer’s instructions. The entire procedure was performed using an automated liquid handling system (Beckman Coulter) and is thus fully scalable and HTS-compatible. In short, the reagent and the AMOs were brought to room temperature in their 96-well culture plates for 30 min and the media volume of each 96-well was adjusted to 55 µl. We added an equal volume (55 µl) of the CellTiter Glo 3D reagent and let it shake on a Thermomixer (Eppendorf) at 900 rpm for 5 min before incubating the samples protected from light at room temperature for 25 min. To prevent cross-talk between wells when measuring the luminescence, we next transferred the contents from the clear 96-well culture plates to opaque white 384-well Lumitrac plates (Greiner) with two technical replicates per sample. Luminescence was recorded immediately after transfer with a Synergy Mx plate reader (BioTek). The results were outputted to Microsoft Excel, reformatted and then transferred to GraphPad Prism v8.4.2 for plotting. Coefficients of variation (CVs) were calculated via CV = standard deviation/mean.

Dopaminergic neuron-specific toxicity testing and quantification

Request a detailed protocol

On day 47 of differentiation, AMOs received Tox medium (TM) overnight to remove antioxidants present in the B27 media supplement. TM consisted of DMEM-F12 supplemented with 1% N2 and 1% penicillin/streptomycin/glutamine. The next day, AMOs were treated with different concentrations (0, 50, 100, 250, 500 μm) of either 6-Hydroxydopamine hydrochloride (Sigma-Aldrich) or 1-Methyl-4-phenylpyridinium iodide (MPP+, Sigma-Aldrich) in TM. To refresh compounds, AMOs received TM including toxins at the same concentrations as before 24 hr after the first application. After a total incubation of 48 hr, the medium was changed back to standard AMO medium, and the samples were cultured for 6 more days to allow cell death to occur and the dead cells to be cleared from the organoids. After 6 days, the samples were fixed with 4% PFA, whole mount stained for Map2 and TH, BABB-cleared, and subjected to high-content confocal imaging as described above. We performed image analysis following the steps as outlined in the high-content analysis section with slight modifications to accommodate the individual brightness, morphology, and background characteristics of the staining. Briefly, after identifying AMOs, we ran a Gaussian smoothing algorithm across the TH 647 nm (10 px width) and Map2 488 nm (five px width) channels and subtracted the smoothed images from the raw images to better isolate TH+ and Map2+ cells from the background. In the TH 647 nm channel, cells were then identified with the ‘find cells’ function, algorithm ‘C’ and further selected to be TH+ if they were brighter than 200 abu and larger than 25 μm2. For Map2, an additional sliding parabola algorithm with a curvature of 10 was run across the subtracted image to further reduce background noise. Map2+ cells were then also identified using the ‘find cells’ function algorithm ‘C’. As final output, the total intensity of the identified TH+ cells in the raw 647 nm channel and the Map2+ cells in the raw 488 nm channel were summed for all fields of view and confocal planes per well. The data was then transferred to Microsoft Excel for further analysis, including normalization to the organoid area, and plotted using GraphPad Prism v8.4.2.

Dopamine secretion

Request a detailed protocol

We collected the cell culture supernatant from 35 days old organoids 40 hr after feeding and measured its dopamine content using a Dopamine ELISA Kit (Abnova) according to the manufacturer’s instructions. Measurements were performed in duplicates and the sample concentrations were calculated based on a standard curve.

Determining the proportion of mature cells

Request a detailed protocol

Since there is no single marker that identifies all different mature cell populations within the AMOs, but all immature smNPCs express the precursor marker Sox2, which is downregulated upon maturation, we defined Sox2-negative cells as mature for the purpose of this analysis. Using confocal high-content imaging analysis as described above, we quantified the number of Sox2-positive cells as well as the total cell number (based on DAPI-stained nuclei) within the entire organoids. We then calculated the ratio of Sox2-negative cells as 1 - (number of Sox2-positive cells) / (total cell number). Calculations were performed in Microsoft Excel and data was transferred to GraphPad Prism v8.4.2 for plotting.

ScaleSQ clearing

Request a detailed protocol

ScalesSQ tissue clearing was performed as previously described by Hama et al., 2015. Briefly, we incubated organoids in ScaleSQ (22.5% (w/v)) D-sorbitol (Sigma) and 9.1 M urea (Sigma) for 2 hr at 37°C. Next, we exchanged the solution to ScaleS4 (40% (w/v)) D-sorbitol, 10% (w/v) glycerine (Roth), and 15–25% (v/v) DMSO (Sigma) also at 37°C. ScalseS4 was renewed after 2 hr and the organoids were maintained at 37°C until analysis. This is critical, as the clearing effect decreases visibly after 1 hr at room temperature.

X-Clarity clearing

Request a detailed protocol

We performed X-Clarity tissue clearing using an X-CLARITY Polymerization System (Logos biosystems) per manufacturer’s instructions. First, organoids were fixed with 4% PFA overnight at 4°C. The next day, the organoids were embedded in a hydrogel monomer solution and incubated 12–24 hr, followed by a 3-hr polymerization step at −90 bar and 37°C in the X-CLARITY Polymerization System. The embedded organoids were transferred to a tissue container and cleared in the electrophoretic tissue chamber for 2 hr at 1.2 A and 37°C.

ClearT clearing

Request a detailed protocol

For ClearT tissue clearing we followed a protocol by Kuwajima et al., 2013. In short, fixed organoids were incubated for 30 min at room temperature in increasing formamide (AppliChem) concentrations: 20%, 40%, 80%, and 95% (AppliChem). Samples were directly used for further applications or stored at 4°C.

CUBIC clearing

Request a detailed protocol

CUBIC tissue clearing was modified after Susaki et al., 2015. Briefly, we incubated the organoids for 6 hr at room temperature in CUBIC-1 ½ (one part water and one part CUBIC-1: 25% (w/w) quadrol (Sigma), 25% (w/w) urea, and 15% (w/w) triton X-100 in water). Afterwards, samples were incubated for 24 hr in CUBIC-1 at 4°C and 24 hr in CUBIC-2 (25% (w/w) urea, 50% (w/w) sucrose, and 10% (w/w) triethanolamine (Sigma)).

DAPI detection depth for evaluation of clearing efficiency

Request a detailed protocol

We stained the organoids with 0.5 μg/mL DAPI (Sigma) in PBS for 24 hr and subsequently subjected them to the different tissue clearing protocols. Afterwards, a LSM 700 scanning confocal microscope (Zeiss) was used to acquire z-stacks of the stained and cleared organoids. Three XZ and three YZ cross-sections per aggregate (n = 10 aggregates per clearing method) were used to quantify the maximum depth at which the DAPI signal could still be detected at a given brightness threshold. The depth of each cross section was measured manually at n = 5 different positions for each slice and n = 10 organoids per clearing protocol using ImageJ/Fiji. The data was exported to Microsoft Excel for further processing and GraphPad Prism v7.0 for plotting and statistical analysis.

Light transmission analysis for evaluation of clearing efficiency

Request a detailed protocol

Following clearing, we took brightfield images of the organoids (n = 10 per protocol, n = 6 for X-Clarity) using an upright stereomicroscope (Leica MZ10 F, camera: Leica DFC425 C) under standardized brightfield transmission conditions. The mean brightness of the organoid area, measured by ImageJ/Fiji, served as measure for the amount of light transmitted through the aggregate. The data was exported to Microsoft Excel for further processing and GraphPad Prism v7.0 for plotting and statistical analysis.

Statistical analysis for clearing quantification

Request a detailed protocol

For statistical analysis of the clearing protocol comparisons, we used GraphPad Prism v7.0 and performed unpaired, two-tailed t-tests with α = 0.05 as normal distribution and equal variances can be assumed for the analyzed data.

Electron microscopy

Request a detailed protocol

For electron microscopy analysis, we used n = 3 AMOs from one batch at day 32. Samples were initially fixed for 3 hr with 2% glutaraldehyde, 2% paraformaldehyde in 0.2 M cacodylate buffer, pH 7.2. Afterwards, the specimen was dissected into smaller pieces and post-fixed with 1% osmium tetroxide containing 1.5% potassium hexacyanoferrate. Samples were dehydrated stepwise, including an over-night uranyl-block staining step in 70% ethanol. The specimen was orientated and flat embedded in epon. In total, three samples sectioned under different angles were analyzed at the electron microscope to visualize different aspects of the AMOs.

Generation of iPSC-based cerebral organoids

Request a detailed protocol

For iPSC-derived cerebral organoid generation, we followed the protocol by Lancaster et al., 2013. with minor modifications. Briefly, we dissociated iPSCs to single cells by accutase treatment and plated 9000 cells per well in a conical 96-well plate in low FGF stem cell medium (DMEM-F12 with knockout serum replacement (KOSR, Thermo Fisher) 1:5, fetal bovine serum (Biochrom) 1:33.3, 1% penicillin/streptomycin/glutamine, 1% non-essential amino acids (NEAA, Sigma-Aldrich), 2-mercaptoethanol (Thermo Fisher) 1:143, 4 ng/μL FGF2, 50 μm ROCK inhibitor Y-27632, and 0.4% PVA on seeding day only to facilitate aggregation). We exchanged the medium every other day, FGF2 and Y-27632 were withdrawn on day 6. Neural induction was started on day 8 (neural induction medium: DMEM-F12 with KOSR 1:5, 1%penicillin/streptomycin/glutamine, 1% non-essential amino acids, N2 supplement 1:100, and Heparin (Sigma-Aldrich) 1 μg/mL) and continued for 6 days with media changes every other day. On day 13, we embedded the aggregates into 30 μL matrigel droplets and transferred them to 6 cm2 suspension tissue culture dishes (Sarstedt) in cerebral organoid differentiation medium (DMEM-F12 and Neurobasal 1:1 with 1% penicillin/streptomycin/glutamine, 1% NEAA, N2 upplement 1:200, B27 supplement without vitamin A 1:100, Insulin (Sigma-Aldrich) 1:4000, and 2-mercaptoethanol 1:285714). We placed the culture dishes on a shaker at 37°C and 5% CO2 and fed the organoids every other day. On day 20 the B27 supplement was replaced by B27 with Vitamin A (Thermo Fisher) and organoids were cultured until day 30 or 45.

Initial cleaved caspase 3-based detection of G418 toxicity (Figure 8—figure supplement 1a–f)

Request a detailed protocol

At day 50, we treated AMOs with increasing concentrations (0, 5, 50, 100, 250, 500, 1000 μg/mL) of G418 (Sigma-Aldrich) added directly to the culture medium. After 2 days, we renewed the medium (including identical toxin concentrations) and fixed the aggregates after a total of 4 days of treatment. Fixation, whole mount immunostaining for cCasp3 and Sox2 as well as BABB-based clearing was performed as outlined above. Image analysis followed the steps as outlined in the high-content analysis section with slight modifications to accommodate the individual brightness, morphology, and background characteristics of the cCasp3 staining. Briefly, after identifying AMOs and Sox2+ cells as described previously, the cCasp3 channel was background corrected by running a sliding parabola algorithm with a curvature setting of 10 across each confocal slice of the AMO. We identified apoptotic cells via the ‘find nuclei’ function in the 647 nm channel, algorithm 'M' and further selected them to be cCasp3+ if they were larger than 11 μm2, smaller than 100 μm2, and brighter than 2700 abu. We considered cells to be Sox2/cCasp3 double-positive if they fulfilled the criteria for both filters at the same time. The results were outputted to Microsoft Excel, reformatted and then transferred to GraphPad Prism v8.0.2 for plotting, data analysis, and curve fitting.

Additional G418 toxicity testing with a broader range of concentrations (Figure 8—figure supplement 1g–i)

Request a detailed protocol

On day 30 of differentiation, AMOs received Tox medium (TM) overnight to remove antioxidants present in the B27 media supplement. TM consisted of DMEM-F12 supplemented with 1% N2 and 1% penicillin/streptomycin/glutamine. On day 31, we added different concentrations of G418 (ranging from 0 to 10,000 μg/mL) dissolved in TM and renewed the medium (including the different compound concentrations) once two days later. After a total treatment time of 96 hr, the samples were analyzed by their size, the CellTiter-Glo 3D Cell Viability Assay, and cCasp3 staining as described before. In the case of cCasp3 staining, the image analysis parameters were used with minor modifications to account for the individual characteristics of the staining, for example signal intensity, aggregate size, background. The calculation of the organoid size/area plotted in Figure 8—figure supplement 1h was performed on the same fluorescence images as the cCasp3 quantification in subfigure g) according to the methods outlined in the description of the high content analysis. Data was transferred to Microsoft Excel for further analysis and GraphPad Prism v8.4.2 for plotting and curve fitting.

Data availability

All RNA sequencing data generated by us was deposited to the NCBI GEO database (GSE119060).

The following data sets were generated
    1. Renner H
    2. Grabos M
    3. Otto M
    4. Wu J
    5. Zeuschner D
    6. Leidel SA
    7. Schöler HR
    8. Bruder JM
    (2018) NCBI Gene Expression Omnibus
    ID GSE119060. A fully automated high throughput-workflow for human neural organoids.
    https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE119060
The following previously published data sets were used
    1. Cukuroglu E
    2. Junghyun Jo
    (2015) ArrayExpress
    ID E-MTAB-4868. Transcriptome profiling of DA neurons, human midbrain-like organoids and prenatal midbrain.
    https://www.ebi.ac.uk/arrayexpress/experiments/E-MTAB-4868/

References

    1. Dent JA
    2. Polson AG
    3. Klymkowsky MW
    (1989)
    A whole-mount immunocytochemical analysis of the expression of the intermediate filament protein vimentin in xenopus
    Development 105:61–74.
    1. Nagatsu T
    (1995)
    Tyrosine hydroxylase: human isoforms, structure and regulation in physiology and pathology
    Essays in Biochemistry 30:15–35.

Decision letter

  1. Didier YR Stainier
    Senior Editor; Max Planck Institute for Heart and Lung Research, Germany
  2. Benjamin S Freedman
    Reviewing Editor; Institute for Stem Cell & Regenerative Medicine, University of Washington, Seattle, United States
  3. Jessica Young
    Reviewer; Institute for Stem Cell and Regenerative Medicine (ISCRM, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Adapting organoid cultures, which are highly complex, for high throughput screening applications is an important goal for the field. This Tools and Resources article establishes a protocol for generating and processing midbrain organoids in 96 well plates in an automated fashion, with a high degree of homogeneity between the structures. The resultant organoids express critical structural and transcriptomic features of midbrain, and respond functionally to chemical treatments, opening the door to myriad possibilities for chemical screening in this important tissue lineage.

Decision letter after peer review:

Thank you for submitting your article "A fully automated high throughput workflow for 3D-based drug screening in human midbrain organoids" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Didier Stainier as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Jessica Young (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The manuscript by Renner et al. describes the development of an HTS compatible workflow for the generation of human midbrain organoids starting from partially differentiated iPSC. By using neural precursor cells (smNPC) generated using protocols previously described by some of the authors as starting point, the authors reduce the cellular and organ-like complexity compared to iPSC-derived organoids, but gain in reproducibility in well-to-well sphere production, as measured by size and expression of neuronal markers. The claim is made that the new protocol is superior to other protocols in this field because it produces more homogenous organoids. In general, this is a valuable effort to establish automation friendly protocols to generate reproducible neural organoids for HTS, and this article could be appropriate for a Tools and Resources article. However, all of the reviewers agree that new experiments are required to increase the rigor of the work, support the conclusions of the authors, and clearly demonstrate the advance that the technique produces over current methodologies, in addition to a more detailed evaluation of the new method's limitations.

Essential revisions:

1) In accordance with the general requirements for a Tools and Resources article, as this is not a totally novel technology but rather an improvement of neural organoid HTS, the new method should be properly compared and benchmarked against existing methods used in the field. The reviewers felt that the current manuscript lacks direct comparisons (meaning different protocols compared side by side in the same lab/batch). This is a weakness, especially given the strong emphasis in the paper on how this method is superior to others. Thus, a direct comparison of this protocol to a published neural spheroid/organoid protocol is required. This may include an iPS-to-neuron protocol, or alternatively plain neuronal protocol (e.g. Sirenko et al., 2019). The latter may be most appropriate as the question is how these new organoids are better than existing neuronal spheroids, e.g. for toxicity studies. The comparisons between protocols should ideally include both functional as well as gene expression data measurements taken side by side (not downloaded from the literature datasets, as there can be substantial variability from library to library and lab to lab), and quantified in an HTS-appropriate manner.

2) Because drug screening is the stated purpose of developing such automated organoid-based assay platform, it would have been more informative if the authors would have included data to demonstrate % of mature cell populations and more mechanism-based functional validation with specific pharmacological tools (e.g. dopamine receptor antagonists), in different HTS friendly readouts, in addition to calcium fluorescence signal and MEA, such as dopamine secretion (since these are midbrain organoids with dopaminergic neurons) and cell viability (e.g. CellTiterGlo3D). There is very good characterization of neural progenitor/precursor cells, neurons, and astrocytes in the AMOs, what about oligodendrocytes? Can steps be taken to ensure a representative mix of CNS cell types in the AMOs?

3) Deeper assessment of line to line and batch to batch variability, with more detailed QC analysis and assessment of cells at higher magnification and better quantification, would be valuable in demonstrating the homogeneity and quality of the structures. The authors should comment on % of wells produce organoids that pass QC and then % of automated transfer of AMOs from production plate to clearing/imaging plate, and what % of the wells in an imaging plate do not pass QC because of high fluorescence signal. The authors should better characterize the reproducibility between AMOs from independent cell lines. In Figure 2—figure supplement 2 they describe the protocol on an independent line but simply characterize via morphology. As it is well known that different pluripotent stem cell lines, especially hiPSCs, have inherently different differentiation abilities, quantification of neural and neuronal cell markers should also be provided to show that organoids from independent lines can be directly compared in terms of cellular responses. A qPCR analysis, similar to what is presented in Figure 3 should be done on an AMOs from an independent line.

4) There needs to be a detailed explanation and acknowledgement of the limitations of the new protocol in the text. The use of neural progenitor cells has been reported by others to produce neural spheroids with cortical neurons and astrocytes, spontaneous synchronous calcium waves and action potentials, and with good reproducibility to enable HTS. Therefore, the strategy described here to use NPCs to obtain more reproducible neural aggregates is not entirely novel, although by using the smNPCs and the differentiation protocol outlined, the authors obtain aggregates that include mature neurons (e.g dopamine, others?), neural progenitors, and astrocytes (as measured by IHC and qPCR), with organized cell distribution in different concentric zones and with cellular orientations, including radial arrangements, which therefore classify them as organoids, although not as complex as those previously described starting with iPSC. The authors call this aggregates Automated Midbrain Organoids (AMOs). The authors should acknowledge the sacrifice of complexity that would normally be achieved in iPSC-derived neuronal organoids, resulting from dissociation, and absence of microglia. Starting from smNPCs suggests that the AMOs are nearly entirely derived from neural ectoderm. This precludes some important neural cell types like microglia, which come from mesoderm/hematopoietic lineages. Can the authors comment on whether this is a drawback to their protocol if not all CNS cell types are represented? Or comment on whether a modified automated protocol beginning with pluripotent stem cells and including a step to drive hematopoietic progenitor cells could be included?

5) Spontaneous synchronized calcium waves were detected in the AMOs showing neuronal functional coupling. Functional network activity is also shown in the AMOs using MEA measurements. At least a couple of publications have shown spontaneous synchronized calcium wave and MEA signal from neural spheroids and organoids. (e.g. Cleber et al., 2019, and Sirenko et al., 2019), so we don't believe this is the first-time oscillatory waves have been observed in neural aggregates, as the authors state. In general, the authors should retract priority claims ('first time this has been done').

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "A fully automated high throughput workflow for 3D-based drug screening in human midbrain organoids" for further consideration by eLife. Your revised article has been evaluated by Didier Stainier (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

The consensus of the reviewers is that the authors have addressed most of the issues raised by the reviewers by the including relevant new data, as was requested. The authors have greatly strengthened this paper. They provide adequate discussion of the limitations (lack of other neural cell types, i.e. microglia and oligodendrocytes) and provide a more detailed analysis of midbrain-relevant cell types and measurements of toxicity. We also appreciate the more detailed description of the MEA recordings as this will be useful for other groups attempting similar experiments. For a Tools and Resources article, this is a protocol that will be useful in screening applications.

The reviewers have also identified a number of areas that require revision. In particular it is critical that the authors tone down some of the language described in their estimation of the protocol, relative to other protocols and approaches in the field. The reviewers are not wholly convinced that the Pasca lab organoid differentiation protocol was successfully adopted and scaled up, and the comparisons may be affected by this. There are also numerous minor errors within the manuscript that require attention.

A short list of important revisions is described below. Addressing these will greatly improve the manuscript and make it more suitable for consideration as a published manuscript.

1) Figure 4A-D, F-G need to include units in the y-axis.

2) Figure 8E-J, as displayed, it is not possible to distinguish any effects by the treatments in any of the panels; perhaps the Fourier transform should be displayed to better illustrate the effects of the treatments and the currently shown traces should be moved to a supplemental figure.

3) Figure 8K, it should indicate what MEA measurement was used as "summed absolute signal", and be good to include errors bars and indication of statistical significance between the conditions.

4) Figure 2—figure supplement 2 needs to include concentration units in the dose response plots: log(concentration) in ug/ml?

5) Nice to have but not required. In Figure 2—figure supplement 2: For HTS for toxic effects, it is important to establish readouts that are robust, fast and amenable to screening; CellTiterGlo is one of them and it would also be interesting to see whether G418 induced a reduction in spheroid size, as measure by brightfield microscopy?

6) The analysis and comparison between other, commonly used brain organoid protocols is clearer than before. However, the Sloan et al. protocol part raises some major questions. How efficient was that protocol? It is said to have been performed with modifications. Did the authors attempt the original, unmodified protocol as a positive control? To my limited understanding some of the differences include;

a) Growing cells feeder free to begin with instead of on MEFs (is this the case?).

b) Harvesting with accutase instead of dispase which ends up dissociating the iPS cells instead of forming embryoid body like structures (this is a big difference!).

c) Not using the neural induction media described in that paper.

As the Sloan et al. protocol's performance is presented as evidence of the authors' claim that their protocol is an improvement over other protocols, this really needs to be carefully stated. The best course of action would be to clearly delineate the modifications made, compared to the original protocol, for instance in a supplemental figure. The authors should also tone down their conclusions and make the point that the modifications may have affected the other protocol. One difference is at the detachment step for the cultures – in the Sloan et al. protocol, this is at the iPS cell stage, whereas in the current manuscript the detachment/dissociation step is at the neural progenitor stage. This is likely to benefit the uniformity of the structures/cultures, but may also result in simpler structures than doing the whole protocol from start to finish with the same plate of iPS cells. Making this point in the paper and acknowledging the limitation of starting with a homogenized neural progenitor culture would be worthwhile. In general, this will not detract from the authors' data but will make their conclusions more accurate.

7) The clarification of batches and comparison with an independent cell line is helpful in the conclusion that this is a highly reproducible protocol. But we have concerns about reporting the efficiencies as % without any errors. The authors do not explain where these numbers come from and what they mean, and how they were calculated. If there is a set of reproducible data to back these up, it should be provided, otherwise the numbers should be clearly described as one representative sample experiment rather than a general assessment.

8) The figures and panels should be referenced in order within the text (e.g. the first reference in the Results section is currently to Figure 7 which is an odd way to start). Please ensure that this is adhered to throughout the paper, as there is a lot of data here and it can be confusing otherwise.

9) "The addition of ectopic matrices, including Matrigel, is known to introduce a large amount of variability." The authors suggest that Matrigel introduces variability, but don't show any data to support this. Nor has Matrigel been completely eliminated, as the iPS cells must start out on matrix. As Matrigel is a commonly used ingredient, claims regarding its effects need to be carefully controlled for, rather than relying on citations from the literature. The authors should tone down claims of Matrigel-induced variability for this paper, and simply say that they drew a comparison to another protocol that does not use Matrigel, similar to the one they have developed.

10) In the legend for Figure 4K:

"k) Fast Fourier Transformation (FFT) based on the data shown in k." I believe it is based on the data shown in j, not k.

https://doi.org/10.7554/eLife.52904.sa1

Author response

Essential revisions:

1) In accordance with the general requirements for a Tools and Resources article, as this is not a totally novel technology but rather an improvement of neural organoid HTS, the new method should be properly compared and benchmarked against existing methods used in the field. The reviewers felt that the current manuscript lacks direct comparisons (meaning different protocols compared side by side in the same lab/batch). This is a weakness, especially given the strong emphasis in the paper on how this method is superior to others. Thus, a direct comparison of this protocol to a published neural spheroid/organoid protocol is required. This may include an iPS-to-neuron protocol, or alternatively plain neuronal protocol (e.g. Sirenko et al., 2019). The latter may be most appropriate as the question is how these new organoids are better than existing neuronal spheroids, e.g. for toxicity studies. The comparisons between protocols should ideally include both functional as well as gene expression data measurements taken side by side (not downloaded from the literature datasets, as there can be substantial variability from library to library and lab to lab), and quantified in an HTS-appropriate manner.

We appreciate the reviewers’ demand for additional rigorous comparison and have conducted extensive additional experiments with over 10,000 organoids total. In order to have a stringent and fair comparison, we stipulated a number of requirements:

1) We wanted to compare protocols using the same starting cell lines, since differentiation outcomes may vary widely between different cell lines, as the reviewers have mentioned themselves.

2) To accommodate for the concerns raised by the reviewers regarding lab to lab variability, we wanted to automate the comparison protocol on our platform in house, so that differences in variability are inherent to the protocol and do not stem from other factors including manual handling, thawing, passaging, etc.

3) Ideally, the comparison protocol does not use matrigel, as it is known to induce high variability (Hughes et al., 2010, Proteomics; Jabaji et al., 2014, PLoS One; Tong et al., 2018). We felt that it would be more straightforward to compare other ECM-free protocols to ours for the most conservative comparison possible.

These requirements exclude the use of cortical spheroids as used by Sirenko et al., as they used commercially available spheroids which can only be bought in an already aggregated state/as a ready-to-use product. The company selling these spheroids does not make their protocols publicly available, preventing us from replicating their work in house and using the same starting cell lines for a fair comparison. On a technical level, the spheroids from Sirenko et al. do not possess any discernable self-organization, but are merely 2D-differentiated, re-aggregated neural cultures. Our AMOs are considerably more complex than this, showing distinct self-organized architectures which bring them up to par with organoid rather than spheroid protocols.

Thus, we chose to compare our AMOs to another widely used and accepted organoid protocol from the Pasca lab (Sloan et al., 2018), which has several advantages:

1) We can use the same starting cell line that gave rise to our AMOs.

2) Pasca organoids do not require the addition of matrigel to properly mature.

3) We managed to fully automate the entire generation and analysis of the Pasca organoids in house, using the exact same platform as our organoids.

According to the reviewers’ requests, we then compared this established protocol to our protocol side-by-side in terms of:

- gene expression (Figure 3—figure supplement 1)

- functionality/variability:

> overall morphology and size (Figure 7A,B,E and G)

> viability of single organoids (“CellTiterGlo3D”, Figure 7F and H)

> cellular architecture/structure and quantitative marker expression by high content imaging analysis (Figure 7C,D,I and J, and Figure 7—figure supplement 1)

> electrical activity (Figure 8H,I and J)

- suitability for toxicity testing (Figure 8—figure supplement 1).

We can quantitatively demonstrate that the widely accepted hPSC-based organoid protocol by Sloan et al. has a significantly larger degree of variability than our AMO protocol even when fully standardized and automated.

We would like to point out that the adaptation of the protocol by Sloan et al. into a freely scalable workflow is a significant achievement in itself, and has not been reported in the literature to our knowledge.

2) Because drug screening is the stated purpose of developing such automated organoid-based assay platform, it would have been more informative if the authors would have included data to demonstrate % of mature cell populations and more mechanism-based functional validation with specific pharmacological tools (e.g. dopamine receptor antagonists), in different HTS friendly readouts, in addition to calcium fluorescence signal and MEA, such as dopamine secretion (since these are midbrain organoids with dopaminergic neurons) and cell viability (e.g. CellTiterGlo3D). There is very good characterization of neural progenitor/precursor cells, neurons, and astrocytes in the AMOs, what about oligodendrocytes? Can steps be taken to ensure a representative mix of CNS cell types in the AMOs?

We agree with the reviewers that our manuscript benefits from additional functional characterization of our AMOs. We have carried out a number of additional analyses to bolster this aspect of our manuscript.

- We have quantified the number of mature cells in our organoids for two separate cell lines and 3 independently thawed and cultured batches each (Figure 8D).

- We have demonstrated functional characteristics of midbrain identity using pharmacological agonists and antagonists for different neuronal subpopulations (Figure 8E-K).

- We demonstrate dopamine release into the supernatant via ELISA with levels that match or exceed those found in cerebrospinal fluid in vivo (Figure 8C).

- We have quantified cell viability via CellTiterGlo3D, demonstrating superior homogeneity when compared to hIPSC-derived organoids (Figure 7F).

- We have separately quantified the survival of dopaminergic neurons and other neural populations after specific pharmacological ablation of dopaminergic cells. This clearly underlines the relevance and suitability of our model system for setting up screens for Parkinson’s disease, for example (see Figure 8A and B).

Oligodendrocytes arise very late in neural development, and other protocols demonstrate presence of oligodendrocytes after 100 days of differentiation or more (for example, see Marton et al., 2019). These long time scales are not very attractive for the design of screening strategies. While our smNPCs are capable of efficiently generating oligodendrocytes, as has been published by colleagues of ours (Reinhardt et al., 2013; Ehrlich at al., 2017), this will not occur within the 30-50 day maturation period suggested for screening from our side. Instead, we favor strategies that ectopically add a known number of oligodendrocytes to our AMOs and thus reach a screenable state much earlier (see our Discussion section) in a system with syngeneic but ectopically added oligodendrocytes.

3) Deeper assessment of line to line and batch to batch variability, with more detailed QC analysis and assessment of cells at higher magnification and better quantification, would be valuable in demonstrating the homogeneity and quality of the structures. The authors should comment on % of wells produce organoids that pass QC and then % of automated transfer of AMOs from production plate to clearing/imaging plate, and what % of the wells in an imaging plate do not pass QC because of high fluorescence signal. The authors should better characterize the reproducibility between AMOs from independent cell lines. In Figure 2—figure supplement 2 they describe the protocol on an independent line but simply characterize via morphology. As it is well known that different pluripotent stem cell lines, especially hiPSCs, have inherently different differentiation abilities, quantification of neural and neuronal cell markers should also be provided to show that organoids from independent lines can be directly compared in terms of cellular responses. A qPCR analysis, similar to what is presented in Figure 3 should be done on an AMOs from an independent line.

We thank the reviewers and have added the requested information:

- QC data with details about the efficiency of the different steps of the workflow can now be found in Figure 1D. Our workflow has undergone many iterations of optimization, and overall, we achieve a sample retention rate of 90% from beginning (organoid seeding) to end (data output from high content imaging). We were quite rigorous in reporting inefficiencies, as the 4.2% of samples lost in the transfer of organoids from culture to imaging plates can be virtually eliminated by simply repeating the automated transfer protocol to catch the small number of remaining “stragglers”.

- We have added quantitative high content analyses for a second, independent cell line and a different hiPSC-derived protocol and compared them side by side in Figure 7. The data confirm our claim of higher homogeneity and reproducibility, even across cell lines.

- We have also quantitatively compared different cell lines and protocols via qPCR and present the data side by side (see Figure 3—figure supplement 1).

We are not sure what the request “assessment of cells at higher magnification” means. We demonstrate single cell resolution in high content settings (Figure 6B and C), and generally provide fluorescence data that provide both overview images of whole organoids (rarely done in the organoid literature due to high variance of structures), and we provide enlargements that facilitate understanding cellular identities and detailed single-cell level morphologies where possible (Figure 2B,D,F,G; Figure 2—figure supplement 1; Figure 2—figure supplement 2B-G; Figure 2—figure supplement 3E-I; Figure 7—figure supplement 1B,F and I; and Figure 8—figure supplement 1A, Video 1). If we can provide further high-resolution images, please specify, and we will provide them.

4) There needs to be a detailed explanation and acknowledgement of the limitations of the new protocol in the text. The use of neural progenitor cells has been reported by others to produce neural spheroids with cortical neurons and astrocytes, spontaneous synchronous calcium waves and action potentials, and with good reproducibility to enable HTS. Therefore, the strategy described here to use NPCs to obtain more reproducible neural aggregates is not entirely novel, although by using the smNPCs and the differentiation protocol outlined, the authors obtain aggregates that include mature neurons (e.g. dopamine, others?), neural progenitors, and astrocytes (as measured by IHC and qPCR), with organized cell distribution in different concentric zones and with cellular orientations, including radial arrangements, which therefore classify them as organoids, although not as complex as those previously described starting with iPSC. The authors call this aggregates Automated Midbrain Organoids (AMOs). The authors should acknowledge the sacrifice of complexity that would normally be achieved in iPSC-derived neuronal organoids, resulting from dissociation, and absence of microglia. Starting from smNPCs suggests that the AMOs are nearly entirely derived from neural ectoderm. This precludes some important neural cell types like microglia, which come from mesoderm/hematopoietic lineages. Can the authors comment on whether this is a drawback to their protocol if not all CNS cell types are represented? Or comment on whether a modified automated protocol beginning with pluripotent stem cells and including a step to drive hematopoietic progenitor cells could be included?

According to the reviewers’ request, we have amended the text in several places including the discussion to acknowledge previously published NPC-based protocols as well as the relative sacrifice of complexity compared to published iPSC organoids. We added a whole section describing the impact of reproducibility for phenotypic screening in the field of 3D culture, and we point out the lack of oligodendrocytes and microglia in our protocol.

While other organoid protocols do, in theory, allow for the formation of microglia “in situ” (Ormel et al., 2018), they are, in practice, not common (Marton et al., 2019; Velasco et al., 2019). Because spontaneous generation of microglia in organoids is so rare, variable, and inefficient, other labs have resorted to ectopically adding them to their organoids (Abud et al., 2017; Lin et al., 2018; Muffat et al., 2019). This approach is absolutely feasible for us but an exploration of ectopic addition of other cell types may be outside the scope of this manuscript. We have added a short discussion on the use of our reproducible platform as a cellular scaffold to systematically add other cell types of interest, including microglia and oligodendrocytes.

We are not sure what is meant by “… resulting from dissociation”. Our protocol does not include any dissociation steps other than generating single cell suspensions for initial organoid aggregation, which are common to all organoid protocols.

5) Spontaneous synchronized calcium waves were detected in the AMOs showing neuronal functional coupling. Functional network activity is also shown in the AMOs using MEA measurements. At least a couple of publications have shown spontaneous synchronized calcium wave and MEA signal from neural spheroids and organoids. (e.g. Cleber et al., 2019, and Sirenko et al., 2019), so we don't believe this is the first-time oscillatory waves have been observed in neural aggregates, as the authors state. In general, the authors should retract priority claims ('first time this has been done').

We thank the reviewers for pointing is out. The claim has been removed.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The reviewers have also identified a number of areas that require revision. In particular it is critical that the authors tone down some of the language described in their estimation of the protocol, relative to other protocols and approaches in the field.

We have toned down the language of a number of passages in the text, removing claims of higher estimation of our protocol compared to other protocols.

The reviewers are not wholly convinced that the Pasca lab organoid differentiation protocol was successfully adopted and scaled up, and the comparisons may be affected by this.

Please see detailed discussion below.

There are also numerous minor errors within the manuscript that require attention.

A short list of important revisions is described below. Addressing these will greatly improve the manuscript and make it more suitable for consideration as a published manuscript.

1) Figure 4A-D, F-G need to include units in the y-axis.

Thank you – we have added the missing labels.

2) Figure 8E-J, as displayed, it is not possible to distinguish any effects by the treatments in any of the panels; perhaps the Fourier transform should be displayed to better illustrate the effects of the treatments and the currently shown traces should be moved to a supplemental figure.

We agree with the reviewers that the changes in MEA traces were hard to discern. We have followed the reviewers’ recommendation and changed the plots to FFTs, which unfortunately also resulted in figures that suffered from a similar lack of clarity. We have thus decided to present the MEA data in a way that visually better separates the different agonist/antagonist treatments and at the same time better represents the temporal relationship between different parts of the experimental procedure. After recording electric field baseline activity for a given organoid, we first added an agonist, and, after recording the signal under the influence of the agonist, an inhibitor to the same sample in the same dish. During this time, we continued recording electric field strength and compared the resulting changes after brief equilibration. By presenting these plots in the same coordinate axis in a temporal sequence from left to right, we hope to make it clear that these measurements stem from one and the same sample and are temporally related, while decluttering the prior overlapping graphs. Our purpose with the traces in Figure 8E-J is to convey a direct impression of the raw electric field activity of the organoids as a representative plot; for quantitative comparison of the MEA traces, we have included all available replicate MEA measurements and plotted absolute changes electric field strength in Figure 8K.

Of note, electric field strength varies dependent on the distance to the recording electrode. The organoids are essentially loosely and randomly attached spheres on the underlying array of fixed 2D electrodes, and their random positioning introduces strong sample-to sample variation of the electric field signal just by the nature of their placement. Hence, to achieve quantitative and comparable measurements, we had to normalize any potential changes of activity to an initial basal recording of the very same sample in the very same location of the MEA dish, taking utmost care not to dislodge the organoid while introducing liquids.

We also measured these organoids after only a brief period of attachment, so that they retain their spherical geometry. This course of experiments is our best approximation to reach this goal. We hope that our new Figure 8E-J now better reflect this.

3) Figure 8K should indicate what MEA measurement was used as "summed absolute signal", and be good to include errors bars and indication of statistical significance between the conditions.

Thank you for pointing this out. The exact nature of quantification for Figure 8K was indeed not clear. The figure shows the sum of the absolute electric field potential oscillations over 15 seconds of time. The rationale behind this is that this would detect both changes in frequency and amplitude of the oscillating signal. This way, even small changes should appear clearly when the signal is summed. The original Figure 8K only graphed the one representative dataset depicted in 8E-J; however, the new version now includes all n’s for all conditions including error bars. We edited the text and figure legend to this end.

We have also amended the corresponding Materials and methods section in order help clear up the details of the MEA experiments and their analysis.

4) Figure 2—figure supplement 2 needs to include concentration units in the dose response plots: log(concentration) in ug/ml?

Thank you for pointing this out. We have added the corresponding labels.

5) Nice to have but not required. In Figure 2—figure supplement 2: For HTS for toxic effects, it is important to establish readouts that are robust, fast and amenable to screening; CellTiterGlo is one of them and it would also be interesting to see whether G418 induced a reduction in spheroid size, as measure by brightfield microscopy?

Size measurements are certainly an interesting, simple, and solid option for readout in HTS settings. We have added organoid size measurements for the dose response experiments to Figure 8—figure supplement 1 as suggested. The clearing procedure renders the organoids almost fully transparent, so that they can no longer be detected in brightfield imaging. However, we routinely measure organoid size via fluorescence microscopy as part of our standard optical analysis pipeline for later signal normalization. Here, we retrieved this data.

In this particular experimental setup, with our biological system and in the time frames and concentrations tested, we did not see any appreciable changes in organoid size.

6) The analysis and comparison between other, commonly used brain organoid protocols is clearer than before. However, the Sloan et al. protocol part raises some major questions. How efficient was that protocol?

The automated generation of iPSC-based organoids was highly efficient; we lost one organoid out of a grand total of 12x 96 well plates over 30 days of culture (also see Results section).

Out of 126 iPSC-derived cortical organoids subjected to high content immunostaining, 120 correctly differentiated towards a neural fate confirmed by MAP2 expression (see Figure 7J). One organoid was lost during processing and 5 did not pass imaging quality control, and MAP2 staining could not be confirmed.

At the RNA level, we confirmed expression of a number of relevant early and late neural and glial markers over time, encompassing a total of 168 organoids arranged in different time points and batches (for details, see Figure 3—figure supplement 1). Of note, these organoids did not undergo any selection before analysis and represent an unbiased sampling.

More detailed analyses of protein expression confirmed expected cortical markers including

FoxG1, Ctip2, TBR1 and TBR2, Satb2 at day 30, 40, and 50 post aggregation (Figure 7—figure supplement 2). This figure shows one representative sample chosen from n=3 immunostained samples, all of which were randomly drawn from 96 well plates. All of the samples showed expression of the markers as shown in Figure 7—figure supplement 2.

We show very early time points for iPSC-based cortical organoids. When we compare our structures (here day 40) with some of the earliest images available from the original publication by Pasca et al., 2015, our morphologies resemble the ones shown there at day 52 (see Figure 7—figure supplement 2B).

It is said to have been performed with modifications. Did the authors attempt the original, unmodified protocol as a positive control? To my limited understanding some of the differences include;

a) Growing cells feeder free to begin with instead of on MEFs (is this the case?)

b) Harvesting with accutase instead of dispase which ends up dissociating the iPS cells instead of forming embryoid body like structures (this is a big difference!).

c) Not using the neural induction media described in that paper

As the Sloan et al., protocol's performance is presented as evidence of the authors' claim that their protocol is an improvement over other protocols, this really needs to be carefully stated. The best course of action would be to clearly delineate the modifications made, compared to the original protocol, for instance in a supplemental figure. The authors should also tone down their conclusions and make the point that the modifications may have affected the other protocol.

All of these are very important points to make, and we thank the reviewers for suggesting a more careful and differentiated approach to our comparisons.

We have followed the reviewers’ recommendations and include a new supplementary figure (Figure 7—figure supplement 1) that details the alterations to the original publications by the Pasca lab. We have amended the text to detail these alterations and their potential impact on the resulting organoids. We have toned down the language pertaining to direct comparisons and clearly state that the modifications may affect the biological outcome (see changes in Results section and Discussion section).

We would have preferred to compare our automated protocol with the original; however, it was not possible to automate the original protocol without amendments. For example, as the reviewers correctly pointed out, we used single cell solutions from feeder-free culture instead of lifted colonies from feeder cell cultures. We acknowledge that starting with a single cell suspension as opposed to colonies alters the biology of the starting conditions and may affect the outcome. However, for automated systems, digested colonies are challenging to handle, as they tend to settle quickly via gravity and it is not possible to deposit a single colony per well with a high degree of confidence. With single cell solutions, we could easily homogenize the starting conditions for each well. We thought it crucial to produce both kinds of organoids in an unbiased, automated, and mechanically standardized fashion to clearly attribute all differences to the biological differences instead of manual handling. We made these changes not to favor our protocol, but to test it in the most rigorous manner available to us and in a format that allows high throughput applications, the central tenet of this manuscript.

One difference is at the detachment step for the cultures – in the Sloan et al. protocol, this is at the iPS cell stage, whereas in the current manuscript the detachment/dissociation step is at the neural progenitor stage. This is likely to benefit the uniformity of the structures/cultures, but may also result in simpler structures than doing the whole protocol from start to finish with the same plate of iPS cells. Making this point in the paper and acknowledging the limitation of starting with a homogenized neural progenitor culture would be worthwhile. In general, this will not detract from the authors' data but will make their conclusions more accurate.

Thank you for the feedback, we have implemented that point in the Discussion section.

7) The clarification of batches and comparison with an independent cell line is helpful in the conclusion that this is a highly reproducible protocol. But we have concerns about reporting the efficiencies as % without any errors. The authors do not explain where these numbers come from and what they mean, and how they were calculated. If there is a set of reproducible data to back these up, it should be provided, otherwise the numbers should be clearly described as one representative sample experiment rather than a general assessment.

We apologize for not including this information earlier. It is now part of both the main text and Figure 1. In the interest of data transparency, we also list the full raw data numbers leading to these conclusions as new Supplementary file 1.

A few comments on the on the number of n’s in this data table:

a) We check culture efficiency (sample retention during seeding, media changes, and fixation) regularly, so we have a lot of data/n’s on this step.

b) The efficiency of the transfer step from v-bottom culture plate to flat-bottom imaging plate is usually not critical for us, as we just run the transfer protocol twice to get 100% transfer efficiency and catch any stragglers. Here, we ran a few plates through the transfer step once for the explicit purpose of generating the “single shot” transfer numbers, hence we have fewer n’s here. We have since run additional transfers and have updated the relevant numbers in the manuscript.

We have the lowest n’s for imaging, as the bulk of our samples are used for a variety of other analyses, e.g. cell titer glo, RNA, calcium, or MEA analyses.

8) The figures and panels should be referenced in order within the text (e.g. the first reference in the Results section is currently to Figure 7 which is an odd way to start). Please ensure that this is adhered to throughout the paper, as there is a lot of data here and it can be confusing otherwise.

We have changed the text as requested.

9) "The addition of ectopic matrices, including Matrigel, is known to introduce a large amount of variability." The authors suggest that Matrigel introduces variability, but don't show any data to support this. Nor has Matrigel been completely eliminated, as the iPS cells must start out on matrix. As Matrigel is a commonly used ingredient, claims regarding its effects need to be carefully controlled for, rather than relying on citations from the literature. The authors should tone down claims of Matrigel-induced variability for this paper, and simply say that they drew a comparison to another protocol that does not use Matrigel, similar to the one they have developed.

We have amended the text as requested.

10) In the legend for Figure 4K:

"k) Fast Fourier Transformation (FFT) based on the data shown in k." I believe it is based on the data shown in j, not k.

Thank you for your careful review – we have changed the text accordingly.
