Wings and halteres act as coupled dual oscillators in flies
Abstract
The mechanics of Dipteran thorax is dictated by a network of exoskeletal linkages that, when deformed by the flight muscles, generate coordinated wing movements. In Diptera, the forewings power flight, whereas the hindwings have evolved into specialized structures called halteres, which provide rapid mechanosensory feedback for flight stabilization. Although actuated by independent muscles, wing and haltere motion is precisely phase-coordinated at high frequencies. Because wingbeat frequency is a product of wing-thorax resonance, any wear-and-tear of wings or thorax should impair flight ability. How robust is the Dipteran flight system against such perturbations? Here, we show that wings and halteres are independently driven, coupled oscillators. We systematically reduced the wing length in flies and observed how wing-haltere synchronization was affected. The wing-wing system is a strongly coupled oscillator, whereas the wing-haltere system is weakly coupled through mechanical linkages that synchronize phase and frequency. Wing-haltere link acts in a unidirectional manner; altering wingbeat frequency affects haltere frequency, but not vice versa. Exoskeletal linkages are thus key morphological features of the Dipteran thorax that ensure wing-haltere synchrony, despite severe wing damage.
Editor's evaluation
This manuscript examines how the mechanical linkages in the thorax of flies help these animals maintain symmetric wing motion in the face of uni- or bilateral wing damage. In previous work, the authors showed that these same linkages play an important role in maintaining the proper relative phase relationship between the wing and the haltere, a multifunctional sensory unique to flies. Through delicate manipulations of the thorax, wing, and haltere, the authors' experimental results support a mechanical model of the thorax they previously proposed known as the coupled dual-oscillator hypothesis, where mechanical linkages in the thorax both enable symmetric wing motion as well as coordinate haltere oscillation relative to the wing.
https://doi.org/10.7554/eLife.53824.sa0Introduction
Flies are among the best exemplars of aerial agility. The Dipteran order encompasses a vast repertoire of flight types ranging from the exquisite hovering and maneuvering ability of hoverflies, to the stable trajectories of mosquitoes and rapid territorial chases in houseflies (Land and Collett, 1974). Such complex maneuvers require precise and rapid control, guided by sensory feedback from multiple modalities (Bender and Dickinson, 2006; Heide and Götz, 1996; Hengstenberg, 1993; Pringle, 1997; Sherman and Dickinson, 2003; Trimarchi and Schneiderman, 1995). Of particular importance for flight stability is the mechanosensory feedback from halteres – the modified hindwings of flies – which sense gyroscopic forces during aerial maneuvers (Nalbach, 1994; Nalbach, 1993; Nalbach and Hengstenberg, 1994; Pringle, 1997). During flight, the halteres oscillate in a constant plane at frequencies that are identical to their flapping wings, and with a constant phase difference relative to the wings. During an aerial turn, an externally imposed change in the plane of haltere oscillation is resisted due to rotational inertia, causing Coriolis torques to act on the haltere base. Mechanical strain in the haltere shaft due to Coriolis torques is sensed by multiple fields of campaniform sensillae distributed around its base. These encode the stroke-by-stroke status of aerial rotations and provide mechanosensory feedback to the wing muscles (Fayyazuddin and Dickinson, 1996; Yarger and Fox, 2018). In addition to detecting body rotations, haltere plays an additional role in mediating visually driven maneuvers; visual feedback drives haltere-steering muscles and alters the haltere mechanosensory feedback (Chan and Dickinson, 1996; Dickerson et al., 2019). Importantly, the relative phase difference between the feedback from wing and haltere mechanosensors determines the activity patterns in wing-steering muscles (Fayyazuddin and Dickinson, 1999; Fox et al., 2010). During flight, the two wings of flies move exactly in-phase relative to each other, whereas halteres move at a constant phase offset relative to wings. This precise phase coordination is maintained at wingbeat frequencies that far exceed 100 Hz (Deora et al., 2015; Hall et al., 2015). Because even slight asymmetries in the bilateral wing motions can result in significantly large torques on the body during flight (Fry et al., 2003), the phase and frequency synchronization of the wing-haltere kinematics is a core feature of Dipteran flight, any deviation from which may signal either a self-generated aerial turn or an unwanted perturbation.
Previous research has shed much light on the architecture of the Dipteran thorax (Boettiger and Furshpan, 1952; Deora et al., 2017; Ennos, 1987; Miyan and Ewing, 1997; Pringle, 1949; Walker et al., 2014). The wing-haltere system acts as a complex resonant box. In flies, wings are actuated by two sets of antagonistic indirect flight muscles aligned dorso-longitudinally and dorso-ventrally within the thorax (Deora et al., 2017; Dickinson and Tu, 1997; Pringle, 1949). These muscles do not directly articulate at the wing base, but instead attach to the thorax, thereby indirectly powering the wing motions. Their activation is myogenic; hence, contraction in one set of muscles triggers delayed contraction of the other and vice versa, setting up resonant cycles of oscillations of the entire thorax (e.g., Deora et al., 2017). A complex wing hinge transforms oscillatory deformations of the thorax into large-amplitude wing strokes. The indirect flight muscles require neural stimulation to remain in an active state, but the frequency of stimulation is typically an order of magnitude lower than resonant thoracic oscillations. The attitude of the wing is finely adjusted on a stroke-to-stroke basis by a set of steering muscles that are under direct neuronal control (Lindsay et al., 2017). Thus, the frequency characteristics of Dipteran wing movements are set by the resonance frequency, which in turn is determined primarily by the wing-thoracic morphology. Thus, any alteration in the wing length causes corresponding changes in their inertial and aerodynamic loads, and hence in the frequency of the wingbeat. Unlike wings, the motion of each haltere is powered by a single asynchronous muscle whose contractions activate its upstroke, whereas the downstroke is thought to be entirely passive (Chan et al., 1998; Pringle, 1949).
Although wingbeat frequency depends on the wing-thorax morphology, the precise coordination of wings and halteres is mediated by mechanical linkages within the thorax that ensure tight coupling of phase and frequency (Figure 1B, Deora et al., 2015). This suggests the hypothesis that wings and halteres act as independent forced oscillators, whose kinematics are both coupled and constrained by two separate mechanical linkages within the thorax (the coupled dual-oscillator hypothesis, Figure 1B). One linkage, the scutellar link (alternatively, wing-wing link, in orange in Figure 1B), is embedded within the scutellum and ensures that both wings are synchronized. A second linkage, the sub-epimeral ridge (alternatively, wing-haltere link, highlighted by green arrows in Figure 1B), ensures precise coordination of wings and halteres. This linkage ensures only weak coupling of the wing-haltere synchrony, but breaks down when wingbeat frequency exceeds a threshold value (Deora et al., 2015).

The experimental setup.

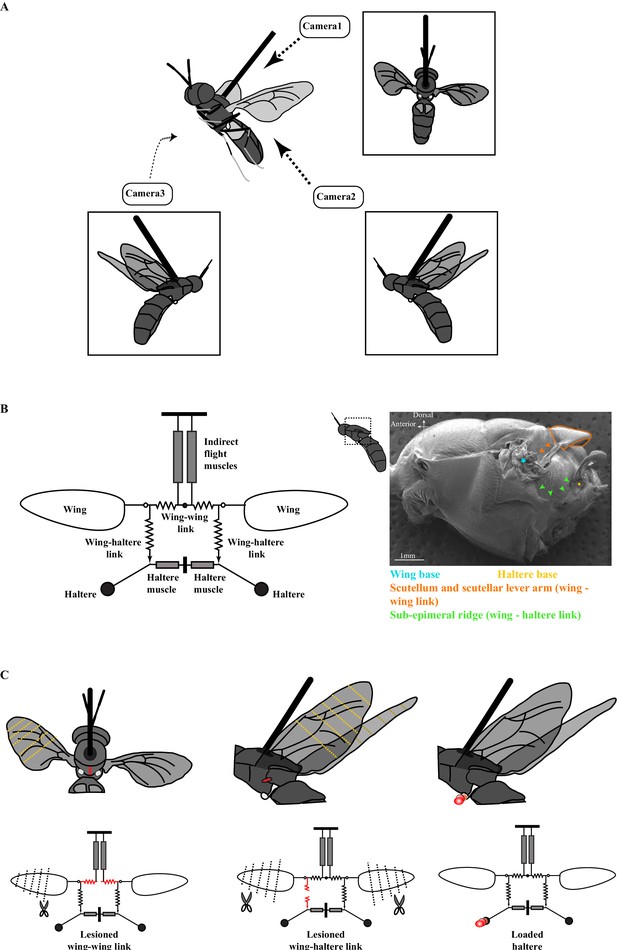

(A) Schematic of a tethered fly showing the position of the three high-speed cameras. Insets show the three different camera views. (B) Mechanical model of the Dipteran thorax modified from an earlier work (left, Deora et al., 2015). This model excludes the clutch and gearbox from the previous figure (represented here by an open circle at the wing joint), focusing instead on the wing-wing and wing-haltere linkages that are the focus of the experiments described here. (Right) SEM image of the solder fly thorax in the lateral view highlighting the various linkages. (C) A schematic (top) and model (bottom) illustrating the experimental treatments. The treatments (red) included lesioning the scutellum or wing-wing link (left panel), lesioning sub-epimeral ridge or wing-haltere link (middle panel) and haltere loading (right panel). The clipped wings are also indicated with dotted lines. The same treatments are also shown in the model schematic and used as insets in later figures. Figure 1B has been adapted from Figure 4G from Deora et al., 2015.
The resonant properties of such a system rely on the mechanical integrity of the wing-thorax system. However, wings of insects often undergo significant natural wear-and-tear during the lifetime of an adult insect (Hayes and Wall, 2002). Wing damage alters both frequency and aerodynamic force generation of the flapping wings (Hedenström et al., 2001; Kihlström et al., 2021; Muijres et al., 2017), thus posing a challenge to the overall coordination of wing motion. Such damage is typically asymmetric and can affect maneuverability. Not surprisingly, in insects such as bumblebees and dragonflies, wing damage leads to decreased success in hunting and also greater mortality (Cartar, 1992; Combes et al., 2010; Haas and Cartar, 2008).
Here, we address two related questions. First, how do flies maintain symmetric wing movement under conditions of wing damage? Second, in light of the coupled dual-oscillator hypothesis, how robust are the wing and haltere kinematics in the face of wing or thoracic damage? To address these questions, we conducted a series of experiments on the soldier fly, Hermetia illucens, in which we made specific lesions of scutellar linkages, and sub-epimeral ridge to impair the mechanical integrity of the thorax. In addition, we clipped the wings or loaded the halteres to alter their oscillation frequencies. These experiments enabled us to systematically test the predictions of the coupled dual-oscillator hypothesis (Figure 1B) and outline the key mechanical properties of the Dipteran thorax that ensure robust wing-haltere coordination.
Results
Asymmetric wing damage influences kinematics but does not alter wing coordination
The left and right wings are coupled in phase by a mechanical linkage running through the scutellum within the thorax such that the two wings always flap at constant phase relative to each other (Figure 1B; Deora et al., 2015). However, mechanical coupling of the two wings also implies that their flapping frequencies are identical. Clipping both wings symmetrically results in identical but elevated wingbeat frequencies (Deora et al., 2015). However, if the wings are mechanically coupled, altering the frequency of one wing should correspondingly alter the frequency of the contralateral wing. Thus, clipping the length of just one wing should result in intermediate increase in frequency – a combination of both the intact and shortened wing. Because the wing-wing link is intact, the two wings should flap at identical frequencies. To test these predictions, we filmed the wing motion of tethered soldier flies in which the length of only one wing was sequentially reduced while leaving the other intact. Wingbeat frequency of one-wing clipped fly was determined by sampling 20 arbitrarily chosen wingbeats. Even after drastic reduction in the length of one wing by >50% of the original length, the frequencies of the clipped and intact wings were always identical and did not drastically reduce from their intact values (Figure 2A; for additional data, see Figure 2—figure supplement 1, p=0.623; number of flies, n = 6, one-sided, Wilcoxon signed-rank test on the maximum wing difference). Thus, the overall wingbeat frequency is determined by the frequency of the intact wing.

The frequency of the two wings is synchronized by the scutellum.

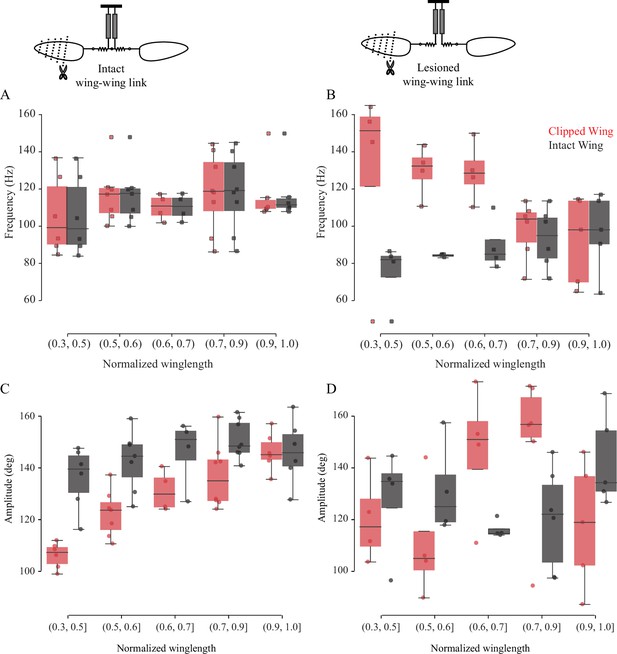

Wingbeat frequency (A, B) and amplitude (C, D) of intact (gray boxes) and clipped (red boxes) wing as a function of clipped wing length for intact thorax (A, C) and slit scutellum (B, D). Insets show schematic for treatments. Each dot represents an individual fly. (A) Flies with intact thorax flap their wings at identical frequencies, whereas (B) the scutellum-lesioned flies flap at different frequencies. (C) In intact, tethered flies, the clipped wing moves through a smaller amplitude compared with the intact wing. (D) In scutellum-lesioned flies, both wings move erratically, with no consistent trend in wingbeat amplitude.
Scutellar integrity is essential for wing coordination
According to the coupled dual-oscillator hypothesis, lesioning the scutellum should decouple the frequencies of left and right wings. Hence, we severed the scutellar linkage and filmed the flies while again sequentially clipping one wing to reduce its aerodynamic resistance, thereby increasing its frequency. This resulted in irregular wingbeats in these flies, with frequent mid-stroke pauses and an overall reduction in stroke amplitude. Fourier analysis of the time series of wing motion shows that both wings oscillated at very different frequencies. Thus, unlike the intact scutellum case in which frequency synchronization was robust despite wing damage (Figure 2A), the wings of a scutellum-lesioned fly were decoupled from each other (Figure 2B, additional data in Figure 2—figure supplement 2, p=0.022; n = 5, one-sided Wilcoxon signed-rank test on the maximum wing difference). For example, in the typical case of a scutellum-lesioned fly (Figure 2—figure supplement 2A), the clipped wing flapped at 130 Hz when cut to 50% of its original length as compared with 85 Hz in the intact wing. Our previous work shows that lesioning the scutellum disrupts and reattaching completely restores the phase coordination between both wings (Deora et al., 2015); thus, scutellar integrity is essential to ensure precise coupling of both phase and frequency of the two wings, and imparts robust synchronization even if one or both wings are slightly damaged or torn. Together, these data show that the two wings are strongly coupled by the scutellar link.
Amplitude control in response to wing damage
Wing damage not only alters the resonant frequency of the wing-thorax system but also reduces the aerodynamic force generation by the wings. Freely flying insects typically offset the effects of wing damage by altering their wing kinematics, particularly their wing amplitude (Fernández et al., 2012; Kihlström et al., 2021; Muijres et al., 2017; Vance and Roberts, 2014). To test the role of passive mechanics in altering wing kinematics, we quantified the amplitudes of the clipped and intact wings. In tethered flies with an intact thorax, the amplitude of clipped wing reduced as the wing was shorterened, but there was no significant change in intact wing’s amplitude(p=2.1e-4 for clipped, 0.218 for intact wings, Kruskal–Wallis H-test, Figure 2C). In contrast, neither the clipped nor the intact wings of tethered flies with a lesioned scutellum showed a significant difference in wing amplitude with reduction in wing length (p=0.067 and 0.184 for clipped and intact wings, respectively, Kruskal–Wallis H-test, Figure 2D).
Sub-epimeral ridge weakly couples the frequency of each haltere to its ipsilateral wing
The wing and haltere motion on each side is coupled by a separate thoracic element called the sub-epimeral ridge (right panel, Figure 1B; Deora et al., 2015). Slight symmetrical clipping of both wings resulted in a small increase in wingbeat frequency and concomitant increase in haltere frequency. However, with further symmetrical reduction of wing length, wingbeat frequencies exceeded ~150% of the initial values, but the halteres failed to keep pace with the wings. In such conditions, haltere frequency dropped closer to their natural frequency, suggesting that their coupling was weak (Figure 3, control haltere [in blue]; Deora et al., 2015).

Sub-epimeral ridge couples the frequency of wings and halteres.

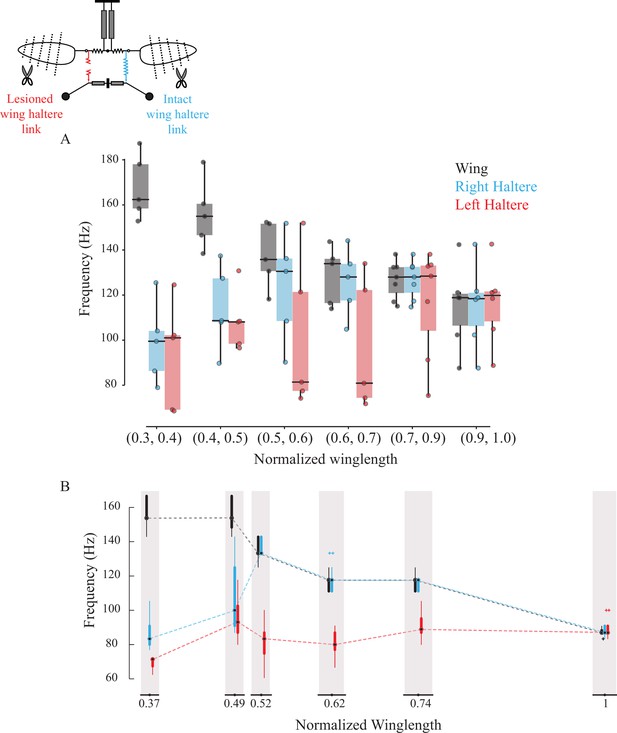

Frequency of wing (gray), control haltere (blue), and haltere with the sub-epimeral ridge lesioned (red) as a function of wing length across all flies (A) and one representative fly (B). Inset shows the schematic for treatments. Each dot in (A) is an individual fly. Additional data for individual flies can be found in Figure 3—figure supplement 1.
We next lesioned the sub-epimeral ridge on the left side while keeping the right side intact as internal control. If the sub-epimeral ridge is the main coupling link, then lesioning it should cause the haltere frequency on the lesioned (left) side to be decoupled from the increase in wingbeat frequency due to symmetrical wing shortening. Our data were consistent with this hypothesis; the control (right) haltere frequency matched the wing frequency more robustly than the lesioned left haltere-wing pair (Figure 3A, p=0.039 for wing-treatment haltere pair and p=0.657 for wing-control haltere pair, one-sided Wilcoxon signed-rank test at wing length bin = [0.6, 0.7], n = 6). Not surprisingly, these data were more variable. In four out of the six experiments, data were consistent with our hypothesis; the frequency of the haltere on the lesioned (left) side either did not increase at all (representative fly in Figure 3B, Figure 3—figure supplement 1A and B) or was decoupled from the wing even with slight changes in wing length, thus displaying no robustness in the wing-haltere synchrony (Figure 3—figure supplement 1C). In two flies, however, wingbeat frequency remained relatively unchanged despite clipping the wings incrementally, and haltere frequency on the lesioned side matched halteres on the control side (Figure 3—figure supplement 1D and E). Together, these results suggest that the sub-epimeral ridge weakly couples wing and haltere oscillation. Haltere motion can accommodate small to moderate changes in wingbeat frequency but fails if these changes are large.
Integrity of the sub-epimeral ridge is essential for resonant oscillation of the thorax
In insects with an intact thorax, clipping the wings increases wingbeat frequency by as much as 90 Hz. In flies with unilaterally lesioned sub-epimeral ridge, the overall changes in wingbeat frequency (frequency of intact wing compared to the frequency at the shortest wing length) were relatively moderate (~60 Hz) even after shortening the wing to the smallest wing length (Figure 4, data for intact flies from Deora et al., 2015, p<0.05, Kruskal–Wallis ANOVA followed by the post hoc Tukey–Kramer multi-comparison test, n; eight intact flies, six flies for the other three treatments).

Sub-epimeral ridge lesions alter the resonant properties of the thorax.

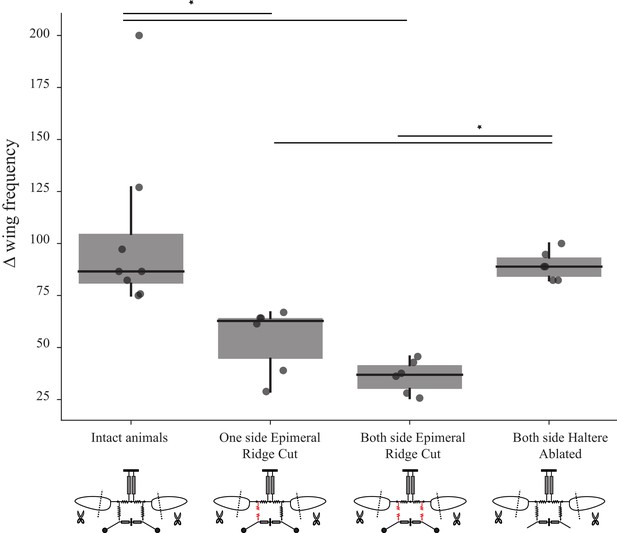

Individual box plots show the difference in wingbeat frequency between intact wing and at the shortest wing lengthin different treatment groups. Clipping wings of flies in which one or both sub-epimeral ridges are lesioned results in a smaller increase in wingbeat frequency as compared to flies with intact sub-epimeral ridges. In contrast, reducing wing length in flies in which both halteres are ablated increases wingbeat frequency significantly more than in flies with lesioned sub-epimeral ridges (p-value<0.05, non-parametric Kruskal–Wallis ANOVA followed by a Tukey–Kramer post hoc multi-comparison test, n; eight intact flies, six flies for the other three treatments). Insets under each group show the schematic for the four treatments: flies with an intact thorax, flies with one lesioned sub-epimeral ridge, flies with both sub-epimeral ridge lesioned and flies with both halteres ablated.
How does lesioning the sub-epimeral ridge alter wingbeat frequency, in addition to decoupling the wings and halteres? One possibility is that a lesioned ridge disrupts the anti-phase motion of wings and halteres, leading to aberrant haltere feedback to wing-steering muscles, thereby affecting wingbeat frequency. Alternatively, a lesioned ridge could mechanically disrupt frequencies by acting as a free end that dissipates energy, thereby disrupting the overall resonant mechanics of the thorax.
To test for these possibilities, we first lesioned the ridges on both sides. In these flies, the increase in wingbeat frequency was even further restricted (<40 Hz). In another set of flies, we kept both the sub-epimeral ridges intact but ablated both halteres. Ablating halteres alters their feedback but does not mechanically disrupt the thoracic linkage network. Clipping wings of the haltere-ablated flies resulted in significantly elevated wingbeat frequency (by ~90 Hz, Figure 4) as compared with flies with both sub-epimeral ridges lesioned (p<0.05) but similar to flies with an intact sub-epimeral ridge. This suggests that mechanical integrity of these linkages most likely determines wingbeat frequency. Hence, the mechanical integrity of the entire thoracic linkage system, including both the scutellum and sub-epimeral ridge, is essential to maintain the resonant properties of the thorax.
The effect of sub-epimeral ridge is unidirectional
If the sub-epimeral ridge is bidirectional, then wing frequency should change when haltere frequency is experimentally altered, and vice versa. Halteres, like wings, are powered by myogenic musculature, and thus changing the haltere mass affects its frequency. To test the hypothesis that sub-epimeral linkage is bidirectional, we loaded halteres with small weights, thereby altering their frequency, and measured the effect on wingbeat frequency. Unlike the wing clipping, we could not reduce the haltere mass in discrete steps as it is mostly concentrated at the end knob. Instead, we sequentially loaded each haltere knob with small amounts of glue, thus reducing its frequency in discrete steps (Section 1,2; Figure 5—figure supplement 1A–C). Small loads did not affect haltere frequency, but as the load increased beyond a threshold, haltere frequency decreased in discrete steps. However, wingbeat frequency remained constant in these experiments (Figure 5; for individual fly data, see Figure 5—figure supplement 2A–F, p=0.014; one-sided Wilcoxon signed-rank test for left loaded haltere and wing pair at load2 and load3, n = 6 flies). Thus, the effect of sub-epimeral ridge is a unidirectional, which couples haltere motion to wing motion but not vice versa. To rule out the possibility that loading the haltere irreversibly damaged haltere muscles or the sub-epimeral ridge, we detached the load and confirmed that haltere frequency recovered and again matched wingbeat frequency (Figure 5, Figure 5—figure supplement 2).

Wing-haltere linkage is unidirectional because changing haltere frequency does not alter wingbeat frequency.

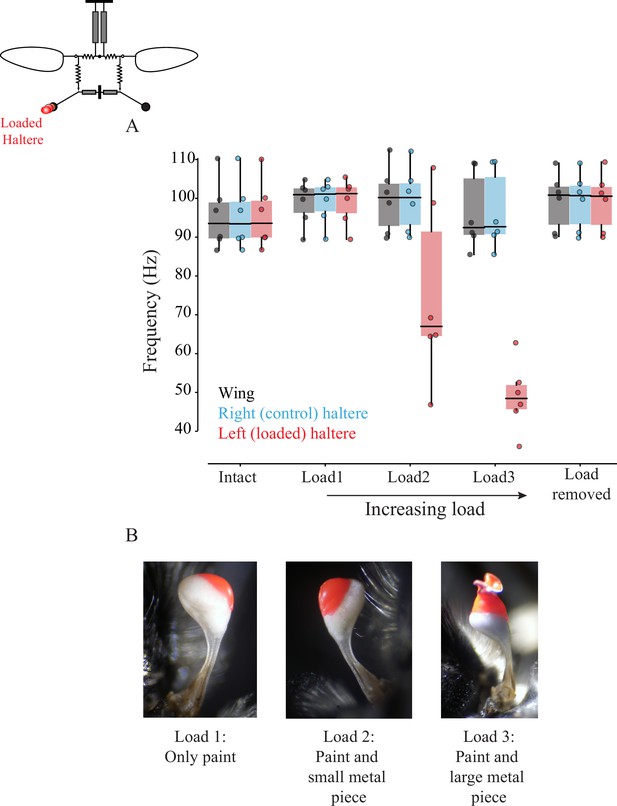

(A) Frequency of wing (gray), control haltere (blue), and loaded haltere (red) across all flies. Each dot represents a single individual fly. The haltere frequency drops as the haltere is loaded but the wingbeat frequency remains unaltered, showing that wing-haltere coupling is unidirectional. Inset shows the schematic for the treatment. Data for individual flies can be found in Figure 5—figure supplement 2. (B) Representative images of the haltere loaded with different amounts of load (also see Figure 4).
In addition to disrupting the coordination between wing and halteres, a perturbation to the haltere motion would also alter the haltere feedback to the wing. To test for the effect of aberrant haltere feedback on wing kinematics, we quantified the wing amplitude for two of our treatments – flies with left-side sub-epimeral ridge lesioned as well as flies with loaded halteres. In the former case, the lesioned link disrupts the phase coordination, thereby altering the feedback at all wing lengths. In flies with loaded halteres, the added load on the haltere may alter its feedback even at values for which the wing-haltere are perfectly coordinated in phase and frequency. In both cases, we observed that the wing amplitude of the lesioned/loaded side was slightly reduced as compared with the intact side, although this effect is not consistent across the treatments (Figure 5—figure supplement 4A and B). For the left, sub-epimeral-lesioned flies, both the left and right wings reduce their amplitude as we clip the wings symmetrically (p=0.008 and 0.024 for left and right, respectively, Kruskal–Wallis H-test, Figure 5—figure supplement 4A) consistent with our previous finding on the effect of wing clipping on amplitude. However, the wing on the left lesioned side shows a greater reduction as compared with the right wing (p<0.05 for left-right wing pairs at all wing lengths, two-sided Wilcoxon signed-rank test, n = 5). Additionally, for the treatment with loaded halteres, despite a slight decrease in wing amplitude on the loaded side with increase in the haltere load, this effect is not significant when we compare the left wing across increasing loads (p>0.05, Kruskal–Wallis H-test, Figure 5—figure supplement 4B, n = 6) or the left-right pairs at each load (p>0.05, two-sided Wilcoxon signed-rank sum test, n = 6). Also, the wing amplitude on the loaded side is smaller than the intact side even when the load is removed.
Discussion
For stable flight, bilateral wing motion must be precisely coordinated, and the halteres must maintain a precise phase difference relative to wings to ensure correct feedback to wing-steering muscles (Deora et al., 2015; Fayyazuddin and Dickinson, 1999; Fry et al., 2003). Here, we show that the phase and frequency of wings and haltere motion are mechanically coupled by thoracic linkages, thereby imparting robustness of wing-wing and wing-haltere coordination against damage or wear-and-tear.
Mechanical linkages enable robust frequency-phase output despite asymmetric wing damage
Physical damage to the wings of adult insects is irreversible and potentially deleterious for their fitness. Wings of certain insects have flexible costal break or specific venation patterns that prevent wing damage (Mountcastle and Combes, 2014). However, despite such adaptations, insects incur wing damage in the wild due to factors such as predation and age (Cartar, 1992; Hayes and Wall, 2002). When one or both wings are damaged, the overall aerodynamic load reduces, thereby increasing the frequency of thoracic and wing oscillations (Deora et al., 2015). The linkages described here ensure that the phase and frequency matching between wings and halteres is robust despite significant changes in wingbeat frequency, and hence they may be viewed as evolutionary adaptations that impart robustness to wing motion in case of damage or wear-and-tear.
Natural wing damage is typically asymmetric. Although shortening both wings symmetrically results in elevated wingbeat frequencies (Deora et al., 2015), shortening only one wing by as much as 50% did not significantly alter the resonant frequency of thorax. This suggests that the resonant frequency is dictated primarily by the wing with greater aerodynamic load. Importantly, in flies with an intact scutellar linkage, asymmetric changes in wing length did not alter the overall synchrony; wings remained bilaterally coordinated, regardless of their length (Figure 2).
Freely flying flies and bees with damaged wings increase their wingbeat frequency to compensate for the reduced lift (Hedenström et al., 2001; Muijres et al., 2017; Vance and Roberts, 2014). Moreover, flies and bees with asymmetric wing damage balance the roll torque by flapping the damaged wing at greater amplitudes (Muijres et al., 2017; Vance and Roberts, 2014). In our experiments with tethered flies, however, asymmetric wing damage in flies with intact thorax did not increase wingbeat frequency. Instead, in these flies, the clipped wing flapped at reduced wing amplitudes. These results suggest that the increase in wingbeat frequency and the amplitude modulation that is observed in freely flying insects with damaged wings may be an active response that enables compensation for the loss of the lift due to wing damage. Lesioning the scutellum completely decoupled the frequencies of the two wings of different lengths; shortened wings oscillated at frequencies up to twice that of the intact wing and cause irregular wing motion. These results underscore the importance of the scutellar linkage in ensuring precise coordination between the two wings.
Control of bilateral kinematics by indirect flight muscles
In the experiments in which the scutellar link was lesioned, the shortened wing flapped at higher frequency than the intact wing. This shows that the indirect flight muscles on the two sides are, in principle, capable of operating at different frequencies, but are constrained to flap synchronously by the scutellar link. These results are consistent with the idea that indirect flight muscles aid the direct flight muscles in power modulation and kinematic control of wings (Gordon and Dickinson, 2006; Lehmann et al., 2013). In intact flies, power modulation occurs under constraints of equal bilateral wingbeat frequency and phase, which leaves open the possibility that amplitude or stroke plane can be modulated by power muscles. For instance, during turns, the two sets of dorsolongitudinal muscles can be differentially activated by their motor neurons (Gordon and Dickinson, 2006; Lehmann et al., 2013; Sponberg and Daniel, 2012), potentially leading to differential power output. Moreover, asymmetric wing damage results in net torque on the body in hawkmoths (Fernández et al., 2012; also see, Kihlström et al., 2021). Asymmetric wing damage in hawkmoths causes activation delay in the dorsoventral power muscle, resulting in a voluntary yaw-like maneuver towards the undamaged side, perhaps to compensate for the reduced lift on the damaged side. It is important to note that although hawkmoths have indirect flight muscles, they are synchronous and hence under direct neural control. Our results suggest that, like hawkmoths, the indirect, asynchronous flight muscles of flies could also modulate power output of the ipsilateral wing, independent of the contralateral power muscles.
Role of sub-epimeral ridge in wing-haltere coordination
The sub-epimeral ridge synchronizes the frequency and phase difference between wings and halteres on each side (Figure 3, Deora et al., 2015). How would the structural diversity of the thorax and linkages in diverse Diptera influence wing-haltere motion? For example, as compared with the rounded thorax with an almost circular sub-epimeral ridge in blowflies, the thorax of mosquitoes is thinner with an oblong sub-epimeral ridge. Presumably, there is also variation in the material properties and strain transfer across the cuticle. Across flies, there are also differences in their haltere kinematics. For example, blowfly halteres flap exactly antiphase to the wings, whereas, for mosquitoes, this phase difference is closer to 0.
It is not clear how the precise phase difference is set in these flies, but these parameters are likely the outcome of the variation in the thoracic and linkage anatomy across Diptera and the physics of coupled, driven oscillator systems. Indeed, when wing and haltere frequencies are decoupled by loading the haltere (Figure 5), the haltere oscillates at an altered phase relative to the wing, even when sub-epimeral ridge is intact (Figure 3—figure supplement 2, Figure 5—figure supplement 3). Their frequency, on the other hand, is thought to be determined primarily by the stretch-activation properties of their main driving muscles – the indirect flight muscles for wings, and haltere muscles (or Pringle’s muscle) for halteres. Because the sub-epimeral ridge couples haltere frequency to wingbeat frequency, their vibration frequency is fine-tuned by this linkage and the overall thoracic geometry.
Weak coupling properties of the sub-epimeral ridge
The sub-epimeral ridge weakly couples wings and halteres. Its stiffness is limited by its material strength and geometry, and it can ensure coordination of wing-haltere frequency close to original frequency. At wingbeat frequencies greater than about 150% of the original frequency, the haltere frequency reverts to a value that is closer to or equal to its natural frequency. This behavior is typical of independently driven oscillators, coupled by a mechanical element of finite coupling strength (Strogatz, 2018). Moreover, the sub-epimeral ridge acts in a unidirectional manner (Figure 5); moderate changes in wingbeat frequency alter the haltere frequency, but not vice versa. This may be the outcome of the large difference between the wing and haltere loads (and therefore inertia), and their respective muscles. Our experiments show that the aerodynamic load on the wings determines flapping frequency, and the halteres merely follow the wings.
Role of haltere feedback in modulating wing amplitude
Aberrant haltere feedback due to a lesioned sub-epimeral ridge causes a reduction in the amplitude of the ipsilateral wings as compared to the contralateral (intact) side. For the flies with loaded halteres, we observe a similar although not significant trend of reduced wing amplitude on the ipsilateral-treated side (Figure 5—figure supplement 4B). Prima facie, this suggests that haltere feedback helps maintain or increase wing amplitude. However, these results must be interpreted with caution for several reasons. First, in all our experiments, flies are in an open-loop tether and do not need to offset their body weight by adjusting the lift forces generated by flapping wings. Hence, wing amplitude may be subject to greater variability. Second, under open-loop conditions, it is not clear how sensory feedback, via their role in steering muscle activation, influences wing amplitude. Third, although we lesion the sub-epimeral ridge or load halteres on one side, contralaterally projecting haltere interneurons (cHINs) continue to provide feedback (Strausfeld and Seyan, 1985). In addition, the large variation of wing amplitude in the haltere-loaded treatments – with and without load – can also be partially explained by the fact that flies with loaded halteres tend to groom their halteres more frequently and may often block the wing motion by holding it at its the base (black arrows in Figure 5—figure supplement 4B). Future work is required to better understand the implications of thoracic biomechanics on haltere feedback and wing kinematics.
General implications for other insects with asynchronous muscles
Although our study was focused on Dipteran insects, several implications of this study extend beyond Diptera. Indeed, all insects that possess asynchronous flight muscles must rely on linkages for wing-wing coordination. These include insects of the orders Hymenoptera (e.g., wasps, honeybees, etc.) and Coleoptera (e.g., beetles), which are hyper-diverse. In these insects, as in Diptera (which are also hyper-diverse), the bilateral coordination of wings is unlikely to be achieved through direct neural control as they flap at very high wingbeat frequencies. We therefore predict that similar linkages also exist in these insect taxa. In such insects, it is also likely that relative coordination between the front and the hindwings is mediated by passive linkages analogous to the sub-epimeral ridge in Diptera. Thoracic linkages may also play a very important role in miniature insects, in which there are fewer muscle groups for higher-level control. Extreme miniaturization in insects of the order Diptera, Hymenoptera, and Coleoptera (Polilov, 2015) poses severe physiological and biomechanical constraints on the organism (Polilov, 2012; Sane, 2016). Because smaller wings generate reduced aerodynamic lift, miniature insects must flap at increased frequencies to generate enough lift to stay aloft. In such insects, thoracic linkages are likely to play a key role in mediating synchronization of the wings, while also constraining their degrees of freedom. Small body sizes are also associated with rapid wingbeat frequencies, often at rates much greater than possible through direct neural control (Dudley, 2000). The key results in this paper show that the thoracic morphology of the fly plays an important role in providing robust wing coordination despite wing damage. How thoracic morphology and material characteristics are adapted for such rapid, coordinated wing movements remains a fascinating question for future studies.
Materials and methods
1.1 Soldier fly rearing procedure
Request a detailed protocolWild-caught black soldier flies, H. illucens, were enclosed in vials filled with a medium of corn flour and agar mixed with yeast powder. In most cases, we caught wild gravid females that laid eggs immediately upon capture. The larvae were reared on the artificial medium. Adult soldier flies were maintained in mesh cages on a 12:12 hr day-night cycle. Some flies were reared on compost in which wild females laid eggs and the larvae fed and pupated. Pupae were collected in a separate box. Adults were maintained in natural day-night cycle. Animals reared in this manner were typically bigger and more active than lab-reared animals but showed no difference in behavior.
1.2 Surgical treatments and tethering procedure
Request a detailed protocol1–4-day-old soldier flies were cold anesthetized by placing them in an ice box for 5 min. We performed surgical treatments (see Figure 1C) before their recovery from cold anesthesia. (a) In control flies, no surgeries were performed, but these insects were handled similar to experimental flies. (b) In scutellum-lesioned flies, we made a small cut only in the scutellum using a scalpel blade (#11, Fine Science Tools Inc, Foster City, CA) while leaving the rest of the thorax intact (left panel, Figure 1C). (c) In unilateral sub-epimeral ridge-lesioned flies, we lesioned the sub-epimeral ridge at a position anterior to the spiracle on the left side of the thorax (middle panel, Figure 1C). The right ridge was kept intact and served as internal control. To examine how sub-epimeral ridge influences wingbeat frequency, we compared data from unilateral sub-epimeral-lesioned group with previously published data on control flies (Deora et al., 2015). In both cases, procedures for rearing, handling, and tethering were identical. (d) In bilateral sub-epimeral ridge-lesioned flies, we lesioned sub-epimeral ridges on both sides. (e) In bilateral haltere-ablated flies, we cut out the knob of halteres on both sides.
Post surgery, we tethered the insects with cyanoacrylate adhesive to the tip of a needle bent to ~90° while they were kept on a pre-chilled metal block. The bent tip provided the necessary surface area to glue a fly to the tether. The tether was lowered using a three-way micro-manipulator (Narishige Scientific Instrument Laboratory, Tokyo, Japan) and attached dorsally on the fly scutum (anterior region of dorsal thorax). Flies were given at least an hour for recovery before recording their flight.
1.3 Wing-haltere perturbations and filming procedure
We positioned flies at about 60° to the horizontal (approximately its position during free flight) and elicited flight by lightly touching their abdomen with a brush. We used three high-speed cameras (v7.3 Phantom camera, Vision Research Inc, Wayne, NJ) to film the insects in flight at a resolution of 800 × 600 pixels at 2000 frames per second (~15–20 times the wingbeat frequency) and 100 μs exposure. Three cameras (one top view and two side views) captured the 3D motion of both pairs of wings and halteres (Figure 1A). The three camera views were calibrated for each filming bout using a custom-made calibration object.
Flies with reduced wing length
Request a detailed protocolWe first filmed the flight of flies with intact wings, and then switched off the lights to inhibit their flight. Under a dissection microscope attached with a light source and a red-filter to cut off wavelengths below 610 nm, we clipped their wings with a pair of scissors (Fine Science Tools Inc) to an appropriate length using wing vein patterns as landmarks. To test the coupled dual-oscillator model (Figure 1B), we clipped one wing (either left or right) while keeping the other intact (Figure 1C). In all other experiments, both wings were symmetrically reduced. After each round of wing clipping, we filmed the experimental fly in flight. Each series of experiments yielded 4–6 data points, including 1 intact and 3–5 reduced wing lengths.
Flies with loaded halteres
Request a detailed protocolWe initially filmed flies with intact wings and halteres, which served as control. Next, we loaded the left haltere with varying amounts of glue and metal shavings under a dissection microscope in red light. Because of the small size of halteres, the amount of load could not be accurately quantified, but we systematically decreased the haltere frequency by incrementing an arbitrary amount of glue and load mixture (right panel, Figure 1C). First, we loaded the haltere with glue (Fevicol; polyvinyl acetate, Pidilite Industries) mixed with red poster paint using a metal insect pin. We next added increasing amounts of aluminum shavings mixed with glue and paint to the already loaded haltere. Following each load increment, we filmed the tethered fly. After three rounds of loading, we carefully removed the film of glue, paint, and metal shaving with a pair of forceps under the microscope and again filmed the flight recovery. In a few cases, flies removed the load while self-grooming. This experimental procedure yielded five data points for each fly – one intact, three increasing amounts of load, and one with the load removed.
1.4 Analysis of videos
Request a detailed protocolTo compute the time period and frequency of a single wing and haltere stroke, we counted the number of frames per wingstroke from the videos. We analyzed 20 strokes per flight bout at each wing length value. In the scutellum-lesioned group, the amplitude and frequency of flies often varied, making it difficult to ascertain the precise time duration of each wing stroke. We digitized videos of these animals using the DLTdv3 code (Hedrick, 2008) in MATLAB (MathWorks Inc, Natick, MA) and analyzed the data using custom MATLAB codes. For each wing, we calculated the azimuthal (theta) angle, plotted the theta position of both wings as a function of time, and obtained the average wingbeat frequency using Fourier analysis. We calculated the change in wingbeat frequency after clipping wing length (∆F) as
where Fs is the wingbeat frequency at the shortest wing length and Fi is the wingbeat frequency at the intact wing length. Increment in wingbeat frequency due to reduced wing length (ΔF) for all four groups was compared using non-parametric Kruskal–Wallis ANOVA followed by the Tukey–Kramer post hoc multi-comparison analysis.
Using DLTdv8 code in MATLAB (Hedrick, 2008, MathWorks), we digitized three calibrated camera views to track the position of tips and bases of both wings and halteres and the head-thorax joint. We used the deep learning module of the above software to digitize the wing tips. All other body parts were digitized either manually or with a cross-correlation tracker. The neural network was trained for 525 iterations in 20 epochs until the weights converged. Errors in automated tracking were manually corrected across all videos. To estimate digitizing errors, we computed the average variation in wing and haltere length. Across all videos, there was an average variation of 1.95 and 6.97% in wing and haltere length, respectively. For amplitude analysis, we first transformed all the digitized points to a fly coordinate frame of reference, and then computed the wing (and haltere) amplitude using the angle made by the projection of the wing (and haltere) vector onto the average stroke plane and the pitch axis for each wingbeat. We analyzed ~20 wing/haltere stroke and computed the mean amplitude for each video. All data were compared using either Wilcoxon signed-rank test for comparison across pairs or Kruskal–Wallis H-test for comparing more than two groups. Codes used for all analysis can be found on GitHub, (copy archived at swh:1:rev:b63ccbcf8571d78e1317796c9a4c3fc80b466905, Deora, 2021).
Appendix 1
Testing significance and estimating sample sizes
To estimate a minimum sample size to detect a difference between two groups, we used the estimated mean and SD of these two groups (measured from data) and simulated datasets of different sample sizes. For each simulated dataset, we calculated the p-value using the relevant test (Wilcoxon signed-rank test for all paired data and Kruskal–Wallis for groups). We used a bootstrapping method; repeating this about 10,000 times for each sample size and estimated the power, that is, probability of detecting a difference between these two groups at significance level of 0.05. Below we report the tested groups and power analysis for each experiment.

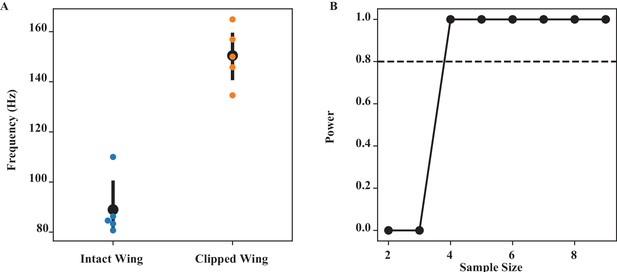

Wing coordination by scutellum (Figure 2).
(A) The frequency of intact and clipped wing (at the wing length that has the largest difference) is significantly different (Wilcoxon signed-rank test, p=0.0215). (B) Power analysis for different sample sizes. Our sample size of 5 is greater than the minimum sample size (= 4) needed to have 80% confidence level (dashed line).

Wing-haltere coordination by sub-epimeral ridge (Figure 3).
(A) The frequency of wing and epimeral ridge cut haltere at wing length bin of (06–0.7), which has the largest difference, is significantly different (Wilcoxon signed-rank test, p=0.039). (B) Power analysis for different sample sizes. At our current sample size of 5 at that wing length, we have a power of 0.693, that is, we have a 69.3% chance of picking up a significant difference.

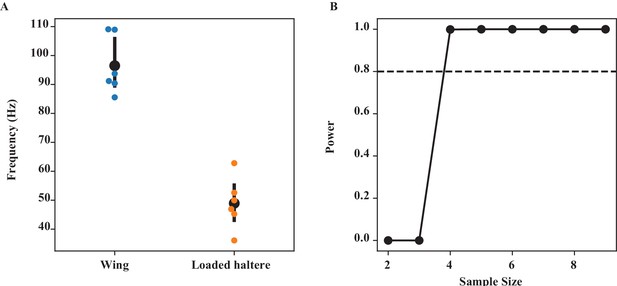

Loading haltere (Figure 5).
(A) The frequency of wing and loaded haltere at maximum loading (‘load3’) is significantly different (Wilcoxon signed-rank test, p=0.014). (B) Power analysis for different sample sizes. Our sample size of 6 is greater than the minimum sample size (= 4) needed to have 80% confidence level (dashed line).

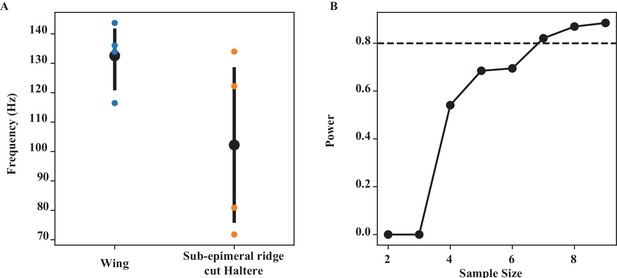

Integrity of sub-epimeral ridge is essential for thoracic resonance (Figure 4).

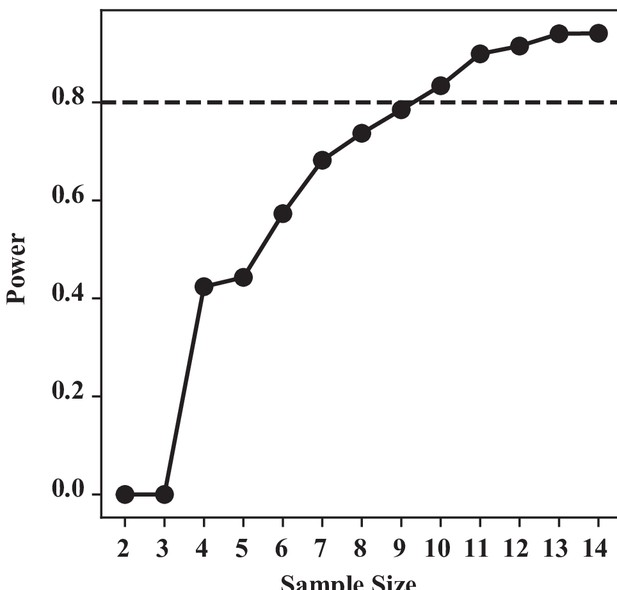

For one-way Kruskal–Wallis test, our sample size n = 8 for control and 6 for the three treatments groups each. We used a similar bootstrapping method, simulating our data based on our group mean and SD, and calculating the power at difference sample sizes. To detect a significant difference at 80% chance, we require a minimum of nine samples. With our current sample size (n = 6), we have a substantial type II error: that is, a 42% chance of not detecting a difference if they were indeed different.
Data availability
All data can be accessed on Dryad.
-
Dryad Digital RepositoryWings and halteres act as coupled dual-oscillators in flies.https://doi.org/10.5061/dryad.hqbzkh1cc
References
-
A comparison of visual and haltere-mediated feedback in the control of body saccades in Drosophila melanogasterThe Journal of Experimental Biology 209:4597–4606.https://doi.org/10.1242/jeb.02583
-
The mechanics of flight movements in dipteraThe Biological Bulletin 102:200–211.https://doi.org/10.2307/1538368
-
Morphological Senescence and Longevity: An Experiment Relating Wing Wear and Life Span in Foraging Wild Bumble BeesThe Journal of Animal Ecology 61:225.https://doi.org/10.2307/5525
-
Position-specific central projections of mechanosensory neurons on the haltere of the blow fly, Calliphora vicinaThe Journal of Comparative Neurology 369:405–418.https://doi.org/10.1002/(SICI)1096-9861(19960603)369:3<405::AID-CNE6>3.0.CO;2-9
-
Mechanics of the thorax in fliesThe Journal of Experimental Biology 220:1382–1395.https://doi.org/10.1242/jeb.128363
-
SoftwareCoupleddualoscillators_DeoraSane&Sane, version swh:1:rev:b63ccbcf8571d78e1317796c9a4c3fc80b466905Software Heritage.
-
The Function of Dipteran Flight MuscleComparative Biochemistry and Physiology Part A 116:223–238.https://doi.org/10.1016/S0300-9629(96)00162-4
-
BookThe Biomechanics of Insect FlightNew Jersey: Princeton University Press.https://doi.org/10.1515/9780691186344
-
A Comparative Study of the Flight Mechanism of DipteraJournal of Experimental Biology 127:355–372.https://doi.org/10.1242/jeb.127.1.355
-
Haltere afferents provide direct, electrotonic input to a steering motor neuron in the blowfly, CalliphoraThe Journal of Neuroscience 16:5225–5232.
-
Convergent mechanosensory input structures the firing phase of a steering motor neuron in the blowfly, CalliphoraJournal of Neurophysiology 82:1916–1926.https://doi.org/10.1152/jn.1999.82.4.1916
-
Neuromuscular and biomechanical compensation for wing asymmetry in insect hovering flightThe Journal of Experimental Biology 215:3631–3638.https://doi.org/10.1242/jeb.073627
-
Robust flight performance of bumble bees with artificially induced wing wearCanadian Journal of Zoology 86:668–675.https://doi.org/10.1139/Z08-034
-
Kinematic diversity suggests expanded roles for fly halteresBiology Letters 11:20150845.https://doi.org/10.1098/rsbl.2015.0845
-
Age‐grading adult insects: a review of techniquesPhysiological Entomology 24:1–10.https://doi.org/10.1046/j.1365-3032.1999.00104.x
-
Optomotor control of course and altitude in Drosophila melanogaster is correlated with distinct activities of at least three pairs of flight steering musclesThe Journal of Experimental Biology 199:1711–1726.https://doi.org/10.1242/jeb.199.8.1711
-
Multisensory control in insect oculomotor systemsReviews of Oculomotor Research 5:285–298.
-
Wing damage affects flight kinematics but not flower tracking performance in hummingbird hawkmothsJournal of Experimental Biology 224:jeb236240.https://doi.org/10.1242/jeb.236240
-
Chasing behaviour of houseflies (Fannia canicularis)Journal of Comparative Physiology 89:331–357.https://doi.org/10.1007/BF00695351
-
Calcium signalling indicates bilateral power balancing in the Drosophila flight muscle during manoeuvring flightJournal of the Royal Society, Interface 10:20121050.https://doi.org/10.1098/rsif.2012.1050
-
How Diptera move their wings: a re-examination of the wing base articulation and muscle systems concerned with flightPhilosophical Transactions of the Royal Society of London. B, Biological Sciences 311:271–302.https://doi.org/10.1098/rstb.1985.0154
-
Biomechanical strategies for mitigating collision damage in insect wings: structural design versus embedded elastic materialsThe Journal of Experimental Biology 217:1108–1115.https://doi.org/10.1242/jeb.092916
-
The Halteres of the Blowfly Calliphora.1. Kinematics and DynamicsJ Comp Physiol A-Sensory Neural Behav Physiol 173:293–300.https://doi.org/10.1007/bf00212693
-
The halteres of the blowfly Calliphora II. Three-dimensional organization of compensatory reactions to real and simulated rotationsJournal of Comparative Physiology 175:695–708.
-
The smallest insects evolve anucleate neuronsArthropod Structure & Development 41:29–34.https://doi.org/10.1016/j.asd.2011.09.001
-
Small is beautiful: features of the smallest insects and limits to miniaturizationAnnual Review of Entomology 60:103–121.https://doi.org/10.1146/annurev-ento-010814-020924
-
The excitation and contraction of the flight muscles of insectsThe Journal of Physiology 108:226–232.https://doi.org/10.1113/jphysiol.1949.sp004326
-
The gyroscopic mechanism of the halteres of DipteraPhilosophical Transactions of the Royal Society of London. Series B, Biological Sciences 233:347–384.https://doi.org/10.1098/rstb.1948.0007
-
Neurobiology and biomechanics of flight in miniature insectsCurrent Opinion in Neurobiology 41:158–166.https://doi.org/10.1016/j.conb.2016.09.008
-
A comparison of visual and haltere-mediated equilibrium reflexes in the fruit fly Drosophila melanogasterThe Journal of Experimental Biology 206:295–302.https://doi.org/10.1242/jeb.00075
-
Abdicating power for control: a precision timing strategy to modulate function of flight power musclesProceedings. Biological Sciences 279:3958–3966.https://doi.org/10.1098/rspb.2012.1085
-
Convergence of visual, haltere, and prosternai inputs at neck motor neurons of Calliphora erythrocephalaCell and Tissue Research 240:601–615.https://doi.org/10.1007/BF00216350
-
Non-Linear Dynamics and Chaos with Applications to Physics Biology Chemistry and Engineering276–281, Coupled Oscillators and Quasiperiodicity, Non-Linear Dynamics and Chaos with Applications to Physics Biology Chemistry and Engineering, New York, CRC Press.
-
Different neural pathways coordinate Drosophila flight initiations evoked by visual and olfactory stimuliThe Journal of Experimental Biology 198:1099–1104.https://doi.org/10.1242/jeb.198.5.1099
-
The effects of artificial wing wear on the flight capacity of the honey bee Apis melliferaJournal of Insect Physiology 65:27–36.https://doi.org/10.1016/j.jinsphys.2014.04.003
-
Single mechanosensory neurons encode lateral displacements using precise spike timing and thresholdsProceedings. Biological Sciences 285:20181759.https://doi.org/10.1098/rspb.2018.1759

Decision letter
-
Gordon J BermanReviewing Editor; Emory University, United States
-
Aleksandra M WalczakSenior Editor; École Normale Supérieure, France
-
Nick GravishReviewer
In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.
Decision letter after peer review:
Thank you for submitting your article "The coupled dual-oscillator model of wing and haltere motion in flies" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Aleksandra Walczak as the Senior Editor.
The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.
We would like to draw your attention to changes in our policy on revisions we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.
Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.
Summary:
The manuscript studies the mechanical wing-wing and wing-haltere links in diptera. The reported experiments, which have been performed on soldier flies, include lesions of specific thoracic components, clipping the wings and loading the halteres with extra mass. Wing and haltere frequencies have been measured using fast imaging. The main results show that the scutellum is central in wing-wing coupling and that the sub-epimeral ridge is important in the wing-haltere coupling.
Essential revisions:
1. The coupled dual-oscillator hypothesis was proposed in a previous paper from the authors five years ago. As a result, the findings in this paper come across as elaborations on the main points of that paper, rather than new, deeper insights. This could be helped by more fully detailing the model and its predictions in the introduction of the paper. For example, why is it that the only kinematic variable examined throughout the paper is wing/haltere beat frequency? Stroke amplitude/deviation of both the wing and haltere could be altered in some way by the experimental treatments. Given the experimental setup and supplementary figures 6 and 7, it seems that these data should exist somewhere. Additionally, there are several references to the idea that changing the resonant frequency of one wing will affect its contralateral partner. Although we can see that adding or removing mass will alter the resonant frequency of the whole system, it is unclear to me how removing wing mass will increase the resonant frequency of the intact wing to match the damaged wing. Again, I think more fully explaining the original model in the introduction will set up the results in a way that is easier to follow.
2. The initial framing of the paper was a bit confused. It starts with detailing how flies can accomplish amazing aerial manoeuvres that rely on "precise and rapid control" (ln 50) and emphasizes the role of mechanosensory feedback from the halteres. From there, it moves on to emphasize the importance of coordinating wing and haltere motion, and then thoracic functional morphology. One major issue with this section is that the idea of the haltere serving solely as a gyroscopic sensor is out of date. Dickerson et al. recently showed that the motion of these organs is under visual control, making them multifunctional sensory organs. More importantly, this initial framing that highlights the role of mechanosensory feedback gives the reader an impression that this paper will unite the study of the thorax's functional morphology with the biomechanics of haltere sensing. There is one place where these issues meet: examining how a lesioned sub-epimeral ridge impacts wing-haltere coupling. The authors put forth the hypothesis that such a lesion would lead disrupt haltere feedback to the wing steering system and alter wingbeat frequency. Whereas we are convinced that lesioning the ridge disrupts the resonant mechanics of the thorax, what is happening to the wing steering system is still a loose end. The proper experiment would be to lesion the sub-epimeral ridge and record from the wing steering muscle B1 and monitor its phase before and after the ridge is lesioned. If B1 fires earlier or later in the stroke cycle, that would demonstrate that these mechanical linkages play an important role in the neuromechanics of the steering system. Failing that, previous work (Tu and Dickinson, 1996; Heide and Götz, 1996) showed that B1 phase advances are associated with increases in wingstroke amplitude. Given the 3D data the authors already have, comparing wingstroke amplitude among flies where the sub-epimeral ridge is ablated would at least be a step toward testing both hypotheses. It would also link the biomechanics to muscle physiology and behavior.
3. One of the first outcomes of the results, on line 188, states that "the overall wingbeat frequency is determined by the frequency of the intact wing." However, there is no discussion of any changes in wing amplitude with clipping. Average load balancing between the left and right wings could still be achieved with a higher amplitude on the cut-wing side. Was there any change in amplitude?
4. Additionally considering the claim on line 188: There is no discussion of the role of the wing "gear box" in potential load balancing between the clipped and unclipped wings. As the wing is oscillated through a mechanical transmission then the gear ratio of this transmission will have a large role in the reflected inertia and drag force that the flight muscle must overcome. Does wing cutting result in changes in gear ratio? We are not asking for more experiments but rather we think this should be part of the discussion of potential phenomena for left-right load balancing (and thus unchanged wingbeat frequency).
5. Regarding the sentences beginning at line 296: I think the comparison between asymmetric clipping in bees, and the tethered experiments reported here need some further contextualization. The difference between tethered behavior and free flight behavior might be very different because of the need to generate aerodynamic load support in free flight. Further I am not sure how the claim "indicating that insects actively maintain their wingbeat frequencies" emerges from this comparison. There are other examples of wingbeat frequency modulation during tracking behaviors, such as Lehmann and Dickinson, 2001, that suggest (albeit) small changes in wingbeat frequency during vertical stripe tracking.
6. Line 291, the claim that "shortening the wing by as much as 50% did not significantly alter resonant frequency of the thorax" needs further support. Decreasing the wing length by half will have a large reduction on aerodynamic torque and inertial torque on the wing hinge. This is evident when the scutellum is cut and the clipped wing increases in frequency. When the scutellum is intact the frequency change is small. Can you provide some estimate for how much the combined wing loading will change when asymmetric clipping occurs?
7. The manuscript refers to differences in amplitude and phase of the wings and halteres (e.g lines 194, 203-204, 277, 287 and 294-295), yet the data provided contains almost exclusively frequency data. Reporting an oscillatory phenomenon by discussing only the frequency might be incomplete. The authors' previous paper (2015) on the same experimental system included phase measurements and several movies from which amplitude and phase coordination impairment following scutellum lesion was very clear. Here, because the amplitude and phase data (and movies) are not provided (excluding data samples in figures S6, S7), it is impossible to assess their true importance in this particular case. If these data are relevant (as the text might suggest), it would be advisable that the authors include relevant phase and amplitude data for the experimental treatments studied in the current manuscript. The lack of phase *data* is evident also in the discussion: line 277 "Here, we show that the *phase* and frequency of wings and haltere motion is mechanically coupled by thoracic linkages", as well as line 287.
8. The manuscript will gain a lot if supplementary movies are added (as in the authors' PNAS paper from 2015).
9. Results page 9, lines 233-254. Figure 4 shows the change in wingbeat frequency when both wings have been clipped under various lesions of the sub-epimeral ridge. Could the authors please elaborate on the wing clipping treatment? Specifically, from the schematics in figure 4 it implies that several wing lengths have been tested. As mentioned in the manuscript, the smaller the wing is, the higher its frequency (in the symmetric clipping), which makes one expect a wide distribution of frequencies when looking on the full range of wing clippings. However, figure 4 shows quite a narrow distribution of wingbeat frequencies in each column.
10. Results page 9, lines 233-254. The inference in this section relies on the notion that "ablating (the) halteres alters their feedback but does not mechanically disrupt the thoracic linkage network". Although it is obvious that ablated halteres cannot measure body rotations because their readout relies on the inertial Coriolis effect, it is not so obvious (to me) that their feedback is so much different in a tethered preparation, when there are no body rotations. If the haltere feedback (e.g. in terms of measuring body rotations) is irrelevant in a tethered prep, then it should not be surprising that the leftmost and rightmost columns of figure 4 show the same effect. Could the authors please refer to this point?
11. Results page 9, lines 256-271. The authors increase the mass of the haltere and measure a decrease in its beating frequency. The fact that in these experiments wingbeat frequency did not change is attributed to the claim that the sub-epimeral ridge is a mechanically unidirectional link. In the discussion the authors go back to this point saying that this "unidirectionality… may be the outcome of the large difference in the wing and haltere masses". I mostly agree with the latter point: the haltere mass is significantly smaller than the mass of the wing, hence, one should not expect that a change in the haltere frequency would have a significant mechanical effect on the wing beat frequency. Therefore, if the measurement is only due to an effect of very different masses, calling this a 'unidirectional link' might be an overstatement.
https://doi.org/10.7554/eLife.53824.sa1Author response
Essential revisions:
1. The coupled dual-oscillator hypothesis was proposed in a previous paper from the authors five years ago. As a result, the findings in this paper come across as elaborations on the main points of that paper, rather than new, deeper insights. This could be helped by more fully detailing the model and its predictions in the introduction of the paper. For example, why is it that the only kinematic variable examined throughout the paper is wing/haltere beat frequency? Stroke amplitude/deviation of both the wing and haltere could be altered in some way by the experimental treatments. Given the experimental setup and supplementary figures 6 and 7, it seems that these data should exist somewhere. Additionally, there are several references to the idea that changing the resonant frequency of one wing will affect its contralateral partner. Although we can see that adding or removing mass will alter the resonant frequency of the whole system, it is unclear to me how removing wing mass will increase the resonant frequency of the intact wing to match the damaged wing. Again, I think more fully explaining the original model in the introduction will set up the results in a way that is easier to follow.
Thank you for your feedback. As the reviewers point out, this paper builds upon our earlier hypothesis of dual oscillator (Deora, Singh and Sane, 2015). The data in that paper suggested the hypothesis of the dual oscillator model, but this model is rigorously validated with the series of experiments that are reported here. We have now elaborated the predictions of coupled dual oscillator hypothesis (Results, subsection “Asymmetric wing damage influences kinematics but does not alter wing coordination”, first paragraph). In addition to providing the evidence for the coupled dual oscillator hypothesis, this paper provides several new insights especially in the context of how this system is adapted to withstand wing damage. Because we were focused on testing the model, the first version of our manuscript included only frequency data, which is determined by the resonance properties of the thorax. On the other hand, as explained in our general remarks, the amplitude data are difficult to interpret in the tethered scenario, in which both visual and haltere feedback (which mediate amplitude responses) do not provide an accurate representation of the flight status. Following the reviewer’s comments, we have now included amplitude analysis for various treatments.
Our main conclusions from the amplitude analysis are as follows:
a. Wing-wing coupling: When the wings of tethered flies with an intact thorax are clipped, they flap at a reduced amplitude as compared to flies with intact wings. This is contrary to expectations from freely-flying insects in which flies increase the amplitude of clipped wings to compensate for the loss in lift. Thus, the increased amplitude in clipped wings in freely flying insects is not the passive outcome of the resonant properties of the thorax; instead, it is actively controlled through feedback from various modalities. When sensory feedback is absent or aberrant (as in the case of the tethered flies in open loop), wing amplitude does not passively increase when their length is reduced.
When the wing-wing coupling element (scutellum) is lesioned, the wingbeat amplitudes are highly variable and show no consistent trend with reduced wing length. This is consistent with the role of scutellar lever arm in wing actuation. Lesioning the scutellum not only decouples the two wings but presumably also disrupts wing actuation, and hence amplitude control.
We have added these results to Figure 2C and D, in the Results, subsection “Amplitude control in response to wing damage” and Discussion, last paragraph of the subsection “Mechanical linkages enable robust frequency-phase output despite asymmetric wing damage”.
b. Role of haltere feedback in wing amplitude control: We examined the role of haltere feedback across two experiments. First, we lesioned the wing-haltere link (subepimeral ridge), which disrupted the relative phase and frequency coordination and caused aberrant mechanosensory feedback from haltere fields. Second, we loaded the haltere thereby disrupting the relative frequency coordination between wings and halteres, thereby again causing aberrant haltere feedback. Disruption in haltere feedback decreases amplitude on the ipsilateral side in tethered flight. It is however tricky to interpret these results (Figure 5 —figure supplement 4) any further because these insects are in an open-loop tether, and their wingbeat amplitude is not set by the dictates of steady flight. More importantly, haltere afferents provide feedback to both ipsi- and contra-lateral wings, albeit at different timescales.
2. The initial framing of the paper was a bit confused. It starts with detailing how flies can accomplish amazing aerial manoeuvres that rely on "precise and rapid control" (ln 50) and emphasizes the role of mechanosensory feedback from the halteres. From there, it moves on to emphasize the importance of coordinating wing and haltere motion, and then thoracic functional morphology. One major issue with this section is that the idea of the haltere serving solely as a gyroscopic sensor is out of date. Dickerson et al. recently showed that the motion of these organs is under visual control, making them multifunctional sensory organs. More importantly, this initial framing that highlights the role of mechanosensory feedback gives the reader an impression that this paper will unite the study of the thorax's functional morphology with the biomechanics of haltere sensing. There is one place where these issues meet: examining how a lesioned sub-epimeral ridge impacts wing-haltere coupling. The authors put forth the hypothesis that such a lesion would lead disrupt haltere feedback to the wing steering system and alter wingbeat frequency. Whereas we are convinced that lesioning the ridge disrupts the resonant mechanics of the thorax, what is happening to the wing steering system is still a loose end.
This is a valid point, and we have now cited Dickerson et al. in the Introduction, first paragraph. The focus of the paper is not as much on haltere sensory function, as it is on the oscillatory mechanics of the wing-thorax-haltere system. However, as the referees correctly point out, sensory function does factor into some of our results, such as in the experiments involving ablation of the sub-epimeral ridge. In general, any mention of halteres is incomplete without sufficient emphasis on its key sensory function as a balancing organ.
The proper experiment would be to lesion the sub-epimeral ridge and record from the wing steering muscle B1 and monitor its phase before and after the ridge is lesioned. If B1 fires earlier or later in the stroke cycle, that would demonstrate that these mechanical linkages play an important role in the neuromechanics of the steering system. Failing that, previous work (Tu and Dickinson, 1996; Heide and Götz, 1996) showed that B1 phase advances are associated with increases in wingstroke amplitude. Given the 3D data the authors already have, comparing wingstroke amplitude among flies where the sub-epimeral ridge is ablated would at least be a step toward testing both hypotheses. It would also link the biomechanics to muscle physiology and behavior.
As mentioned above, we have now added the data on wing stroke amplitude in flies with ablated sub-epimeral ridge. Lesioning the sub-epimeral ridge disrupts the relative phase of the haltere relative to the ipsilateral wing, suggesting that the wing ‘stumbles’ in its stroke cycle. Whether this is due to B1 misfiring, or some other steering muscle remains to be seen, but the most likely possibility is that this is due to aberrant haltere feedback. Although these data are useful to include, the additional insight is perhaps marginal.
3. One of the first outcomes of the results, on line 188, states that "the overall wingbeat frequency is determined by the frequency of the intact wing." However, there is no discussion of any changes in wing amplitude with clipping. Average load balancing between the left and right wings could still be achieved with a higher amplitude on the cut-wing side. Was there any change in amplitude?
We have now included the wingbeat amplitude data in Figure 2C and D, Results, subsection “Amplitude control in response to wing damage” and Discussion, last paragraph subsection “Mechanical linkages enable robust frequency-phase output despite asymmetric wing damage”. As also mentioned in the earlier comment, in flies with an intact thorax and asymmetric wing clipped, the wing beat amplitude of the clipped wing is lower than the intact wing. Previous work in various freely-flying insects report exactly the opposite: freely flying flies increase the amplitude of clipped wings to compensate for the loss in lift. Thus, our data suggest that wing amplitude is an actively controlled parameter (no surprises there) and when sensory feedback is in open loop, clipped wings do not passively increase amplitude when clipped.
4. Additionally considering the claim on line 188: There is no discussion of the role of the wing "gear box" in potential load balancing between the clipped and unclipped wings. As the wing is oscillated through a mechanical transmission then the gear ratio of this transmission will have a large role in the reflected inertia and drag force that the flight muscle must overcome. Does wing cutting result in changes in gear ratio? We are not asking for more experiments but rather we think this should be part of the discussion of potential phenomena for left-right load balancing (and thus unchanged wingbeat frequency).
We did not discuss the gear box in the context of the current paper, because we felt that it fell outside its scope. Also, we are beginning to question the gearbox hypothesis. We offer here a glimpse of our findings, which are being written up as a separate paper:
The “gear box” hypothesis was proposed by G Nalbach in her paper in 1984, and we – like others in the field – gathered (observational) evidence that seemed consistent with this hypothesis. More recently however, we (Sane lab) decided to directly test this hypothesis and investigate the role of the “gear box” in flight control by experimentally manipulating components of the gear box. In summary: our evidence is not consistent with this hypothesis. We offer the following lines of evidence: First, when we imaged the wing hinge of multiple species of flies, we found that not all of them possess the grooved structure of the pleural wing process (PWP) that is observed in some muscoids. Yet, they can all perform smooth turns and modulate their wing amplitude. Second, and most importantly, when we ablate the PWP in houseflies, they are capable of pitch and yaw maneuvers, both of which require wing modulation. These two lines of evidence suggest that the PWP- radial stop system may not function as a gear box quite in the way that we had previously thought. Instead of modulating wing kinematics by changing gear ratio of the mechanical transmission of forces, our results suggest that the gear box perhaps acts as a frictional surface that helps to limit the wing amplitude via contact with the radial stop (at the base of wing vein) helping the wing steering muscles that act as brake during the down stroke of the wing. These results again imply that wingbeat amplitude may be determined primarily by the wing steering muscles.
5. Regarding the sentences beginning at line 296: I think the comparison between asymmetric clipping in bees, and the tethered experiments reported here need some further contextualization. The difference between tethered behavior and free flight behavior might be very different because of the need to generate aerodynamic load support in free flight. Further I am not sure how the claim "indicating that insects actively maintain their wingbeat frequencies" emerges from this comparison. There are other examples of wingbeat frequency modulation during tracking behaviors, such as Lehmann and Dickinson, 2001, that suggest (albeit) small changes in wingbeat frequency during vertical stripe tracking.
We have now added some text (Discussion, last paragraph of subsection “Mechanical linkages enable robust frequency-phase output despite asymmetric wing damage” to elaborate on the comparison between bees and flies under both free flying and tethered conditions). The logic for active increase is also elaborated – it is quite simple: if the increase in amplitude is not the result of passive thoracic mechanics (as our results in Figure 2 show), then it must be driven actively.
6. Line 291, the claim that "shortening the wing by as much as 50% did not significantly alter resonant frequency of the thorax" needs further support. Decreasing the wing length by half will have a large reduction on aerodynamic torque and inertial torque on the wing hinge. This is evident when the scutellum is cut and the clipped wing increases in frequency. When the scutellum is intact the frequency change is small. Can you provide some estimate for how much the combined wing loading will change when asymmetric clipping occurs?
As all of our experiments were performed on tethered flies, wing loading (body weight / total area of the wings) is not a relevant parameter, as they do not offset their body weight. For this reason, we represented wing damage only as changes in wing length.
7. The manuscript refers to differences in amplitude and phase of the wings and halteres (e.g lines 194, 203-204, 277, 287 and 294-295), yet the data provided contains almost exclusively frequency data. Reporting an oscillatory phenomenon by discussing only the frequency might be incomplete. The authors' previous paper (2015) on the same experimental system included phase measurements and several movies from which amplitude and phase coordination impairment following scutellum lesion was very clear. Here, because the amplitude and phase data (and movies) are not provided (excluding data samples in figures S6, S7), it is impossible to assess their true importance in this particular case. If these data are relevant (as the text might suggest), it would be advisable that the authors include relevant phase and amplitude data for the experimental treatments studied in the current manuscript. The lack of phase *data* is evident also in the discussion: line 277 "Here, we show that the *phase* and frequency of wings and haltere motion is mechanically coupled by thoracic linkages", as well as line 287.
As described in our prefatory remarks, this comment took us the longest time to address because the amplitude data were not readily available and required us to digitize all the videos. We finally managed to do that and have now added amplitude and phase data across our treatment as described above.
8. The manuscript will gain a lot if supplementary movies are added (as in the authors' PNAS paper from 2015).
We have now included Supplementary movies for all our treatments.
9. Results page 9, lines 233-254. Figure 4 shows the change in wingbeat frequency when both wings have been clipped under various lesions of the sub-epimeral ridge. Could the authors please elaborate on the wing clipping treatment? Specifically, from the schematics in figure 4 it implies that several wing lengths have been tested. As mentioned in the manuscript, the smaller the wing is, the higher its frequency (in the symmetric clipping), which makes one expect a wide distribution of frequencies when looking on the full range of wing clippings. However, figure 4 shows quite a narrow distribution of wingbeat frequencies in each column.
Thank you for pointing this out. For figure 4 and section, we compare the change of frequency for the smallest wing length (= maximum wing damage) for all treatments. We have clarified this in the text on which now reads:
“In flies with unilaterally-lesioned sub-epimeral ridge, changes in wingbeat frequency were relatively moderate (~60 Hz) even after shortening the wing to the smallest wing length” We also specify this in the figure legend.
10. Results page 9, lines 233-254. The inference in this section relies on the notion that "ablating (the) halteres alters their feedback but does not mechanically disrupt the thoracic linkage network". Although it is obvious that ablated halteres cannot measure body rotations because their readout relies on the inertial Coriolis effect, it is not so obvious (to me) that their feedback is so much different in a tethered preparation, when there are no body rotations. If the haltere feedback (e.g. in terms of measuring body rotations) is irrelevant in a tethered prep, then it should not be surprising that the leftmost and rightmost columns of figure 4 show the same effect. Could the authors please refer to this point?
Our data show that when the wings are clipped, the resultant change in wingbeat frequency in insects with intact halteres is the same as change in wingbeat frequency with both halteres ablated. However, in insects with lesioned sub-epimeral ridges, the change in wingbeat frequency is less. Lesioning the epimeral ridge causes phase disruption between wing and halteres even at intact wing length (see Deora et al., 2015). Because haltere mechanosensors entrain to the phase of haltere beating, we suspect that the phase of firing relative to the wing is essential for haltere feedback. Lesioning the epimeral ridge would alter the phase, even in absence of body rotation, and hence affect wing kinematics.
This hypothesis is laid out in Results, second paragraph of the subsection “Integrity of the subepimeral right is essential for resonant oscillations of the thorax”.
11. Results page 9, lines 256-271. The authors increase the mass of the haltere and measure a decrease in its beating frequency. The fact that in these experiments wingbeat frequency did not change is attributed to the claim that the sub-epimeral ridge is a mechanically unidirectional link. In the discussion the authors go back to this point saying that this "unidirectionality… may be the outcome of the large difference in the wing and haltere masses". I mostly agree with the latter point: the haltere mass is significantly smaller than the mass of the wing, hence, one should not expect that a change in the haltere frequency would have a significant mechanical effect on the wing beat frequency. Therefore, if the measurement is only due to an effect of very different masses, calling this a 'unidirectional link' might be an overstatement.
We agree with this point. Nothing about link itself makes it unidirectional, but rather the effect is only due to the different masses.
We have changed the title of the subsection to “The effect of sub-epimeral ridge is unidirectional”. We also specify this in the Discussion, subsection “Weak coupling properties of the sub-epimeral ridge”.
