The dynamic transmission of positional information in stau- mutants during Drosophila embryogenesis

  1. Zhe Yang
  2. Hongcun Zhu
  3. Kakit Kong
  4. Xiaoxuan Wu
  5. Jiayi Chen
  6. Peiyao Li
  7. Jialong Jiang
  8. Jinchao Zhao
  9. Bofei Cui
  10. Feng Liu  Is a corresponding author
  1. State Key Laboratory of Nuclear Physics and Technology & Center for Quantitative Biology, Peking University, China
  2. China National Center for Biotechnology Development, China
Research Article
  • Cited 0
  • Views 636
  • Annotations
Cite this article as: eLife 2020;9:e54276 doi: 10.7554/eLife.54276

Abstract

It has been suggested that Staufen (Stau) is key in controlling the variability of the posterior boundary of the Hb anterior domain (xHb). However, the mechanism that underlies this control is elusive. Here, we quantified the dynamic 3D expression of segmentation genes in Drosophila embryos. With improved control of measurement errors, we show that the xHb of stau mutants reproducibly moves posteriorly by 10% of the embryo length (EL) to the wild type (WT) position in the nuclear cycle (nc) 14, and that its variability over short time windows is comparable to that of the WT. Moreover, for stau mutants, the upstream Bicoid (Bcd) gradients show equivalent relative intensity noise to that of the WT in nc12–nc14, and the downstream Even-skipped (Eve) and cephalic furrow (CF) show the same positional errors as these factors in WT. Our results indicate that threshold-dependent activation and self-organized filtering are not mutually exclusive and could both be implemented in early Drosophila embryogenesis.

eLife digest

Broadly speaking, all individuals of any animal species share a highly consistent shape and structure. Despite this, the activity of the genes that control these body patterns can vary significantly. There are currently two models that have been proposed for how noisy systems of genes, and the proteins they code, can produce consistent body patterns. The first, suggests the noise is essentially self-compensating so stably produces the same result, while the second invokes localized self-organizing systems that help to refine the structural details.

In the early stages of development for the fruit fly, Drosophila melanogaster, one of the proteins that controls body patterns is called Hunchback (often just Hb for short). The Hb proteins are largely found at the front-end of the fly embryo, with a sharp drop near the middle. Normally the position of the drop in Hb varies between flies by around 1% of the total length of the fly embryo. Previous work has linked a gene called staufan (or stau for short) to the distribution of Hb in flies but the mechanism involved is unknown.

Yang, Zhu, Kong et al. have now used a technique called light sheet microscopy to accurately measure the location of Hb proteins in fruit fly embryos. Without the stau gene, the average position of the drop in Hb proteins underwent a larger shift towards the rear at a key stage in development. Despite this altered behavior, the extent of variation between flies did not change. Similarly, the variation of other genes that control Hb location and that are controlled by Hb remained unchanged. As such, it seems stau affects Hb positioning but has no impact on variation between individuals.

These findings suggest that both models for controlling variation in fly development could still be relevant and may operate together. This study also provides a new method for the more precise measurement of systems like these that may offer insights into the mechanisms involved in early embryonic development.

Introduction

During the development of multicellular systems, the expression of patterning genes dynamically evolves and stochastically fluctuates (Dubuis et al., 2013; Gregor et al., 2007a; Gregor et al., 2007b; Jaeger et al., 2004; Kanodia et al., 2009; Liu et al., 2013; Yang et al., 2018).The high degree of accuracy (Dubuis et al., 2013; Gregor et al., 2007a) and robustness (Houchmandzadeh et al., 2002; Inomata et al., 2013; Liu et al., 2013; Lucchetta et al., 2005) that developmental patterning achieves is intriguing. Two hypotheses have been proposed to explain these traits: one is the threshold-dependent positional information model, that is the French flag model, which assumes that the positional information is faithfully transferred from precise upstream patterning (He et al., 2008; Wolpert, 2011; Gregor et al., 2007a); the other is the self-organized filtering model, which assumes that noisy upstream patterning needs to be refined to form downstream patterning with sufficient positional information (Dubuis et al., 2013; Houchmandzadeh et al., 2002; Jaeger et al., 2004; Kanodia et al., 2009; Manu et al., 2009). The two models have often been thought to be mutually exclusive, and which one is implemented in a particular developmental system has been extensively debated. Recently, the two models have also been suggested to collaborate in some developmental patterning systems, but this is still a hypothesis and more molecular-based concrete examples remain to be illustrated (Green and Sharpe, 2015).

The Drosophila embryo is an excellent model system in which to address this question. The blueprint of the adult Drosophila body plan is established during the first 3 hr of patterning before gastrulation in embryos. In particular, the adult body segments can be mapped with the expression pattern of the segmentation genes along the anterior and posterior (AP) axis. The hierarchic segmentation gene network consists of four layers of patterning genes (Gregor et al., 2007a; Jaeger, 2011): maternal morphogen such as bicoid (bcd) (Liu et al., 2013; Porcher and Dostatni, 2010; Struhl et al., 1989), zygotic gap genes such as hunchback (hb) (Struhl et al., 1992), pair rule genes such as even-skipped (eve) (Goto et al., 1989), and segmentation polarity genes (Swantek and Gergen, 2004). They form increasingly refined developmental patterns along the AP axis until the positional information carried by the patterning genes reaches the single-cell level, that is 1% of embryo length (EL), in the variability of the expression pattern (Dubuis et al., 2013).

The question of which hypothesis is valid in the dynamic transmission of positional information during Drosophila embryogenesis has been controversial, and the Hb boundary has been an important subject in these investigations (Gregor et al., 2007a; Houchmandzadeh et al., 2002; Huang et al., 2017; Lucas et al., 2018; Staller et al., 2015; Tran et al., 2018). Lying directly downstream of maternal gradients, zygotic Hb forms a steep posterior boundary in the anterior domain (xHb) on the dorsal side at approximately the middle of the embryo, with a variability of 1% EL. The variability of xHb has long been thought to depend on the gene staufan (stau) (Houchmandzadeh et al., 2002). As shown in previous work, stau was the only gene that dramatically increased the variability of xHb from 1% EL to more than 6% EL for protein profiles (Houchmandzadeh et al., 2002) and 4% EL for mRNA profiles (Crauk and Dostatni, 2005). By contrast, the variability of xHb remains almost the same as that of the wild type (WT) with knockout of nearly all the genes that potentially interact with Hb, including nos, Kr, and kni, or even deletion of the whole or half of the chromosome (Houchmandzadeh et al., 2002). Hence, stau could be the key to understanding the potential noise-filtering mechanism.

However, the mechanism that underlies of the role of stau has been elusive. It is well known that Stau is an RNA-binding protein and it does not interact with Hb directly. But Stau is unique among the maternal factors affecting anteroposterior patterning, as it is necessary for not only the localization of the bcd mRNA at the anterior pole (Ferrandon et al., 1994; Struhl et al., 1992) but also the spatially constrained translation of nos mRNA at the posterior pole (St Johnston et al., 1991). Hence, Stau is important for establishing the Bcd gradient that activates the transcription of Hb (Struhl et al., 1989) and the Nos gradient that represses the translation of maternal Hb (Wang and Lehmann, 1991).

The role of Bcd in regulating the variability of the Hb boundary remains controversial. On the one hand, Houchmandzadeh et al., 2002 suggested that the variability of xHb was independent of upstream Bcd gradients, as the average Bcd gradients of two groups of embryos overlapped, although their Hb moved anteriorly or posteriorly compared with the average Hb profile, and the variability of xHb was much smaller than the positional error derived from the Bcd gradient noise. On the other hand, He et al., 2008 showed that the shift of xHb correlated with the average Bcd gradient showing different concentrations at xHb, that the variability of xHb was equivalent to the positional error derived from the Bcd gradient noise, and that this variability increased when the Bcd gradient profile was altered to show increased flatness toward the mid-embryo (He et al., 2010). In addition, the variability of xHb seemed to be significantly less in He’s measurement (He et al., 2008) than in Houchmandzadeh’s measurement (Houchmandzadeh et al., 2002).

Some of these controversial points might be clarified if we could further reduce the spatial and temporal measurement errors in determining developmental patterning. It has been estimated that the orientation-related error could be as high as 20–50% of the total measurement error for Bcd gradients (Gregor et al., 2007a) and gap genes (Dubuis et al., 2013). This is because the dynamic developmental profiles vary spatially in the asymmetric 3D embryos, yet traditionally they are measured in a selected plane of the manually oriented embryo (Gregor et al., 2007a; Houchmandzadeh et al., 2002).

Here, we developed measurement methods to quantify the dynamic 3D expression of patterning genes in Drosophila embryos and applied these methods to measure the positional errors of the segmentation genes at different levels. We focused on one stau allele, stauHL54, which is reported to induce the largest variability in xHb location (Houchmandzadeh et al., 2002). Surprisingly, we discovered that in stau mutants, xHb moves posteriorly by more than 10% EL to the WT position in nc14, and that the variability of xHb location is comparable with that in the WT. Moreover, the upstream Bcd gradients show gradient intensity noise equivalent to those in the WT from nc12 to nc14, and the downstream Even-skipped (Eve) and cephalic furrow (CF) show the same positional errors as those in the WT. We also constructed a minimal model and revealed that the extremely large shift of the Hb boundary in stau mutants originates from both the flattened maternal Hb profiels and the altered Bcd gradients, with a ~ 65% decrease in amplitude and a 17% increase in length constant in stau mutants compared with the WT. Our results suggest that the threshold-dependent model could be valid at early nc14, but that the gene network then adjusts, and the filtering mechanism is implemented at least from the maternal Bcd gradient to Hb. Some factors other than stau, which remain to be discovered, could play important roles in filtering dynamic positional information.

Results

A reproducible large dynamic shift in the Hb boundary of stau mutants

We observed a large dynamic shift of xHb in stau mutants using quantitative imaging with carefully controlled measurement errors. To control the measurement errors, we quantified the Hb expression pattern using 3D imaging with light-sheet microscopy (for more details, see 'Materials and methods', Figure 1—figure supplement 1, and Figure 1—videos 1 and 2) on fixed and immunostained embryos and staged each embryo with ~1 min temporal precision using the depth of the furrow canal (FC) (Figure 1—figure supplement 2). The average temporal Hb expression profiles of the WT (Figure 1—figure supplement 3) and of stau mutants (Figure 1A) are shown on heat maps projected from 3D embryo images. From the heat map, we extracted the average of the normalized dorsal profile of Hb with a time-step of 5 min in nc14 (Figure 1B and C) and measured xHb. Consistent with previous results (Dubuis et al., 2013), xHb of the WT remains nearly constant 20 min into nc14. Notably, in the first 20 min of nc14, it moves posteriorly by 3% EL (Figure 1D). By contrast, at the dorsal side of the embryo, xHb of stau mutants starts at 37.6 ± 1.9% EL at 2.5 min into nc14, then dynamically moves posteriorly by 10.3% EL within 60 min, and finally stabilizes at 47.9 ± 0.9% EL, close to the WT boundary position 47.8 ± 0.9% EL at 42.5 min into nc14 (Figure 1D and Figure 1—figure supplement 4C and E). Besides stauHL54, another stau allele, stauD3, also shows a large shift of xHb: 42.8 ± 1.5% EL to 47.9 ± 1.8% EL from 12.5 min to 52.5 min into nc14 on the dorsal side (Figure 1—figure supplement 5). It is well known that stauD3 is a strong allele with a fully penetrant abdominal segmentation phenotype (Lehmann and Nüsslein-Volhard, 1991), hence the observed large shift of xHb in stau mutants is not an allelic specific feature for stauHL54, which could be hypomorphic, that is with partial function loss.

Figure 1 with 8 supplements see all

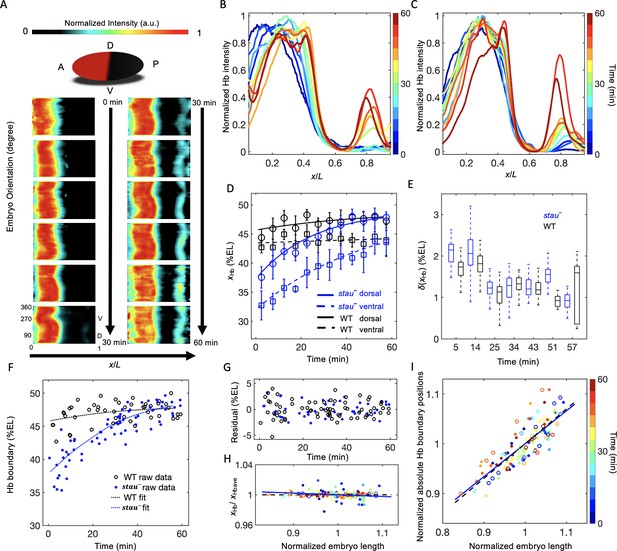

The Hb boundary reproducibly moves posteriorly in a much larger range in stau mutants than in the WT based on 3D imaging.

(A) Heat map of the normalized Hb intensity in stau mutants with a time-step of 5 min in nc14 based on projection at different angles along the AP axis from the 3D imaging on embryos. (B, C) Dynamics of the average dorsal Hb profiles extracted from 3D imaging of the embryos of stau mutants (B) and the WT (C) in nc14. (D) The average Hb boundary position (xHb) in each 5 min bin of stau mutants (blue) and the WT (black) as a function of the developmental time in nc14. Each circle (square) represents the average of the dorsal (ventral) boundary positions of Hb in the bin, and error bars denote the standard deviation of the bin. Lines are eye guides. (E) The variability of the Hb boundary in each bin with equal sample numbers of stau mutants (blue, n = 10 in each bin except the last one) and the WT (black, n = 7 in each bin except the last one) as a function of the developmental time in nc14. Error bars are calculated from bootstrapping. (F, G) De-trend analysis of the Hb boundary. When we used smooth splines to fit the Hb boundary of all the measured embryos as a function of the embryo development time into nc14 (F), the fitting residuals (G) for the stau mutants (blue) and the WT (black) are comparable with each other. The standard deviations of the residual are 1.67% EL (n = 69) and 1.45% EL (n = 47) for stau mutants and the WT, respectively. Two-sample F-test for equal variances cannot be rejected (p=0.31). (H, I) Scaling analysis of the Hb boundary. The plots show normalized relative Hb boundary position (H) or normalized absolute Hb boundary positions with respect to the anterior pole (I) versus normalized embryo length for stau mutants (solid circles, solid line) and the WT (open circles, dashed line). The slopes of the linear regression lines fitting to all the data points for the WT and stau mutants are 0.0004 (R2 = 0.0003, n = 47) and −0.02 (R2 = 0.028, n = 69), respectively (H), or 0.70 (R2 = 0.69, n = 47) and 0.66 (R2 = 0.66, n = 69), respectively (I). Each embryo length is normalized by the average embryo length of all embryos. The Hb boundary position is normalized by the corresponding fitting value in the de-trend analysis (F).

Moreover, xHb differs significantly in different orientations, for example, the ventral boundary moves from 32.7 ± 2.4% EL by 10.9% EL to 43.6 ± 1.2% EL, with an anterior shift of approximately 6% EL compared with the dorsal boundary (Figure 1D and Figure 1—figure supplement 4A,D and F). By contrast, the difference of xHb between the dorsal and ventral sides in the WT is only 3% EL (Figure 1D). These results suggest that it is crucial to control spatial and temporal measurement errors in order to assess the variability of the Hb boundaries. Interestingly, the spatial measurement error of xHb seems to be the smallest on the dorsal profiles (Figure 1—figure supplement 6A and B).

Although xHb dynamically moves posteriorly by more than 10% EL in stau mutants, this shift is reproducible from embryo to embryo. Within a short time window, the variability of xHb in stau mutants is comparable with that of the WT (Figure 1E). Furthermore, even for all of the data from the whole nc14, after de-trending the dynamic shift, the standard deviations of xHb for stau mutants is 1.67 ± 0.16% EL (errors are estimated with bootstrap), similar to 1.45 ± 0.14% EL for the WT. Moreover, the variance difference between the two fly lines is not statistically significant (p=0.31 in a two-sample F-test for equal variances) (Figure 1F–G). These results seem to contradict previous measurements, which suggest that the variability of xHb in stau mutants is significantly higher than that of the WT (Houchmandzadeh et al., 2002; He et al., 2008). We suspect that the apparent difference in variability of xHb might result from the different control of the measurement errors (Figure 1—figure supplement 6C and D). For instance, the temporal control in He’s measurements (He et al., 2008) could be better than Houchmandzadeh’s measurements (Houchmandzadeh et al., 2002), and the spatial control could be better in our measurements than in He’s measurements (He et al., 2008). In stau mutants, xHb significantly varies as the development time or embryo orientation changes, so the measured variability of xHb is very sensitive to spatial or temporal measurement errors. For example, the dynamic shift of xHb has a strong effect on the calculation of the variability of xHb. If we pool all of the measured xHb on the dorsal side, the standard deviation of xHb is 3.5 ± 0.3% EL for stau mutants, much greater than the WT (1.7 ± 0.2% EL). Moreover, the large shift of xHb from the dorsal to the ventral side also strongly affects the measured variability of xHb. If we pool all of the measured xHb values on both the dorsal and ventral side, the standard deviation of xHb for stau mutants can even increase to 4.5 ± 0.3% EL (Figure 1—figure supplement 6C).

The variability of xHb also depends on whether it is scaling with the embryo length (Houchmandzadeh et al., 2002; He et al., 2008). Consistent with the comparable variability, stau mutants and the WT are also similar in the scaling of the Hb boundary. On the one hand, the normalized relative Hb boundary positions are nearly constant for both stau mutants and the WT (Figure 1H). On the other hand, the normalized absolute Hb boundary positions with respect to the anterior pole are proportional to the embryo length (R2 = 0.69 and 0.66 for the WT and stau mutants, respectively, Figure 1I). Notably, the scaling of xHb of stau mutants is significant only if we de-trend the dynamic shift, that is normalize the absolute Hb boundary position of each embryo by the average position in the corresponding developmental time. Without this normalization, the scaling of the absolute Hb boundary position of stau mutants (R2 = 0.26) is inferior compared with the WT (R2 = 0.71), consistent with previous results (He et al., 2008).

Bcd gradient noise of stau mutants is nearly the same as that of the WT

To understand the origin of the variability of the Hb boundary, we measured its upstream Bcd gradients. Using live imaging with a two-photon microscope (TPM), we found that the average Bcd-GFP gradient of stau mutants at 16 min into nc14 shows reduced amplitude but an increased length constant (Figure 2A). Compared with the WT, in stau mutants the amplitude of the Bcd-GFP gradient is only 48 ± 7%, but the length constant is increased by approximately 13% from 18.6% EL to 21.1% EL (Figure 2A). If we take the GFP maturation effect into consideration (Little et al., 2011; Liu et al., 2013), the difference of the length constants can be even greater, increasing by 17% from 15.5% EL of the WT to 18.2% EL in stau mutants (Figure 3—figure supplement 1D). This apparent increase of the measured length constant could result from more extensively distributed bcd mRNA in the embryos of stau mutants (Ferrandon et al., 1994; Petkova et al., 2014), consistent with the simulation based on the synthesis-diffusion-degradation (SDD) model (Grimm et al., 2010Figure 3—figure supplement 1A–B). Interestingly, the Bcd gradient noise of stau mutants is comparable with that of the WT (Figure 2B). The relative noise of the Bcd-GFP gradient in the range of 0.1~0.6 EL is 18.0 ± 2.0%, which is very close to 17.9 ± 1.8% of the WT. Hence, it seems to be consistent with the comparable variability of the Hb boundary. However, these results are different from previous measurements (He et al., 2008; Houchmandzadeh et al., 2002), which might result from different measurement errors.

Figure 2 with 1 supplement see all

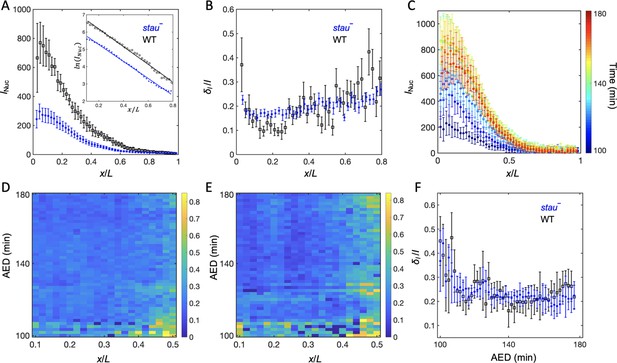

The Bcd gradient noise of stau mutants is comparable with that of the WT.

(A) The average intensity of the nuclear Bcd-GFP gradient of stau mutants (blue) and the WT (black) as a function of the fractional embryo length at 16 min into nc14. Each circle and error bar represents the average and standard deviation, respectively, of the Bcd-GFP fluorescence intensity of the nuclei in the bin with a bin size of 2% EL. The inset shows the logarithm of the intensity as a function of the fractional embryo length and the linear fit in the range of 0.1–0.8 EL. (B) The relative Bcd-GFP gradient noise of stau mutants (blue) and the WT (black). Each circle represents the standard deviation divided by the mean of the Bcd-GFP fluorescence intensity of the nuclei in the bin with a bin size of 2% EL. The error bar represents the standard deviation of the mean relative gradient noise calculated with bootstrap. (C) Variation in the average profiles of the Bcd gradient in stau mutants from nc12 to 50 min into nc14. (D, E) The heat map of the Bcd gradient noise of the WT (D) and stau mutants (E) from nc12 to 50 min into nc14. (F) The average Bcd gradient noise of stau mutants from x = 0 to x = 0.55 EL versus developmental time is comparable with that of the WT.

Another concern is that Bcd-dependent hb transcription turns off less than 10 min into nc14 (Liu and Ma, 2013; Liu et al., 2016), and that the time window for Bcd interpretation could be earlier than nc14 (Huang et al., 2017; Bergmann et al., 2007); hence Hb expression could be largely produced by translating the previously produced mRNA. It is therefore necessary to measure the dynamic Bcd gradient noise in developmental time earlier than the conventional measurement time, that is 16 min into nc14. By improving the imaging technique and image analysis method (Figure 2—figure supplement 1), we assessed the Bcd-GFP gradient noise in both stau mutants and the WT. The average nuclear Bcd-GFP gradient rises to a maximum in nc14 and then slightly falls off (Figure 2C). This is consistent with the results of another live imaging experiment (Gregor et al., 2007b) but is significantly different from the measurement of the fixed embryos (Little et al., 2011) because of the GFP maturation effect (Little et al., 2011; Liu et al., 2013). Importantly, the gradient intensity noise of stau mutants and the WT remains comparable from nc12 to 60 min into nc14 (Figure 2D–F). It is also interesting to discover that the Bcd-GFP gradient noise in both fly lines remains at nearly the same level from nc13 to nc14 (Figure 2F). Notably, the measured gradient noise at 16 min into nc14 is slightly higher than that measured with TPM (Figure 2B), as the measurement error increases in the dynamic Bcd gradient measurements (e.g., a lower signal to noise ratio is due to the fast imaging speed and higher background). The measurement error, however, should change at a similar level for both stau mutants and the WT, and hence their gradient noise is still comparable.

The threshold-dependent activation model

As in stau mutants, the amplitude of the Bcd-GFP gradient in the fly line with only half of the Bcd dosage (Bcd1.0) decreased by half compared with the WT (Liu et al., 2013). According to a previous study, for the fly line Bcd1.0, the Hb boundary position might be determined according to the threshold-dependent activation model in early nc14. Then, it dynamically moves posteriorly toward the Hb position of the WT but stops midway in later nc14 (Liu et al., 2013). By contrast, the Hb position in stau mutants moves all the way to the WT position. It is interesting to investigate whether the threshold-dependent activation model is also valid in early nc14 in stau– mutants.

To test this speculation, we first needed to correct the GFP maturation effect to obtain the total Bcd-GFP gradient from the observed Bcd-GFP gradient measured with live imaging, as it takes tens of minutes for the newly synthesized Bcd-GFP to fluoresce. On the basis of the SDD model incorporating maturation correction and the spatial distribution of bcd mRNA (Little et al., 2011; Petkova et al., 2014), we calculated the maturation correction curves for the Bcd-GFP gradient in both stau mutants and the WT (Figure 3—figure supplement 1A). Interestingly, the Bcd-GFP concentrations at the respective Hb boundary position are almost the same at 16 min into nc14 (Figure 3), suggesting that the threshold-dependent model might still apply in early nc14. However, as the xhb of stau mutants moves posteriorly in a much greater range than that of the WT, and as the Bcd gradient changes only slightly in both fly lines, the exact time window in which this model applies remains to be determined.

Figure 3 with 1 supplement see all

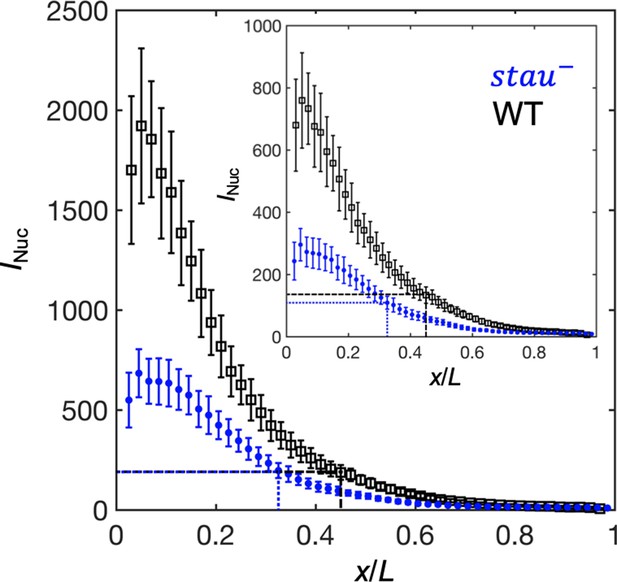

The activation of Hb by Bcd is consistent with the threshold-dependent model in stau mutants at early nc14.

Comparison of the Bcd concentration (horizontal lines) at xHb (vertical lines) at 16 min into nc14 between stau mutants (blue) and the WT (black) before (inset) and after maturation correction on the Bcd gradient. Each circle and error bar represent the average and standard deviation, respectively, of the Bcd-GFP fluorescence intensity of the nuclei in the bin with a bin size of 2% EL.

Positional information transmission

In addition to examining the threshold-dependent model, it was also interesting to test whether the noise-filtering model plays a role in early Drosophila embryogenesis. We measured the positional information transmission of the other patterning genes interacting with Hb in stau mutants. As another gap protein, Kr, forms a strip adjacent to the Hb boundary, and the two genes suppress each other (Jaeger, 2011). In stau mutants, the Kr strip shows a width of 29% EL, wider than that in the WT (17% EL) at the beginning of embryogenesis, then it narrows to 20% EL (Figure 4—figure supplement 1A). It then moves posteriorly together with the Hb boundary in early nc14 but ends its movement late in nc14 (Figure 4A), suggesting that the late shift in the Hb boundary is independent of Kr. As one of the downstream pair rule proteins, Eve forms only four instead of seven strips in stau- mutants (Figure 4—figure supplement 1B). The dynamic shift in the four strips is also shown in Figure 4B. At 56 min into nc14, the cephalic furrow (CF) position in the stau- mutants is 28.2 ± 1.1% EL, while the CF of the WT is 34.3 ± 1.4% EL.

Figure 4 with 3 supplements see all

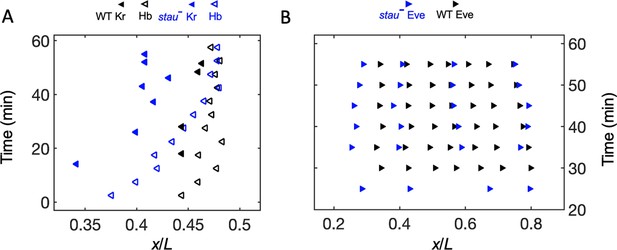

The dynamic shift range of the position of Kr and Eve is smaller than that of Hb in stau mutants.

(A) The positions of the anterior boundary (inflection point) of Kr (solid triangle) and xHb (hollow triangle) with the stau mutants (blue) and the WT (black). (B) The peak of Eve in stau mutants (blue) as a function of the developmental time in nc14 in comparison with that in the WT (black).

To understand the dynamic transmission of positional information, we compared the positional noise of all the measured AP patterning markers from Bcd to CF during the time course of nc14 (Figure 5). Consistent with previous results, the positional error of the Hb boundary of the WT decreases by approximately two-fold to a minimum at approximately 45 min into nc14 and then slightly increases (Dubuis et al., 2013). The stau mutants show a trend that is similar to that in the WT. The positional error of xHb in early nc14 is slightly less than that of the Bcd gradient for stau mutants and the WT. The minimal positional noise of the Kr front boundary, the first peak of Eve, and CF are comparable with the minimal positional error of the Hb, that is, approximately 1% EL. Notably, the stau mutants and the WT are comparable in their minimal positional errors in these different levels of AP patterning genes (Figure 5). These results suggest that positional noise is filtered from Bcd to Hb and is then relayed between different levels of the patterning genes.

Figure 5 with 1 supplement see all

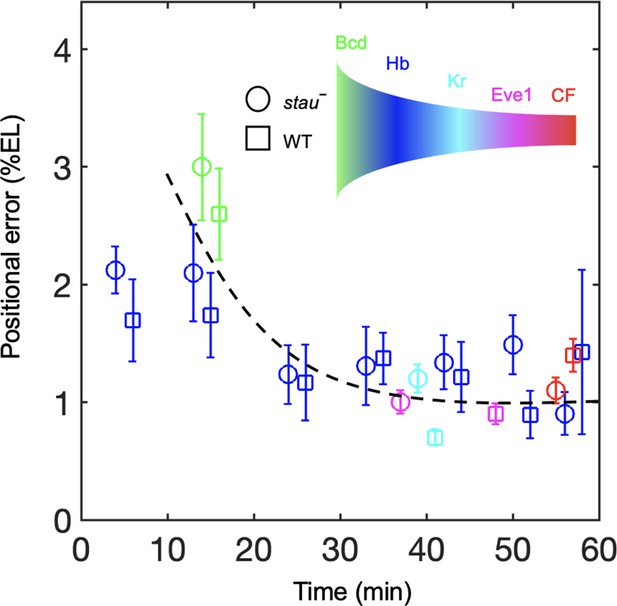

Positional noise is filtered from Bcd to CF.

Positional errors in Bcd (green), Hb (blue), Kr (cyan), Eve (magenta) and CF (red) of stau mutants (circle) and the WT (square) as a function of developmental time in nc14. Positional errors are calculated from the Bcd gradients (Figure 2A) after subtracting the imaging noise and image mask noise from the gradient noise (Figure 2B). The standard deviation of the average positional noise is calculated on the basis of bootstrapping. For presentation purposes, data for Bcd, Kr and CF measured at the same time point are shown with 1 min offset on the x axis. The black line connects the data points to guide the eye.

In addition to the noise-filtering phenomenon, it is interesting to note that the shifts in the patterning markers differ. The Hb boundary moves posteriorly by more than 10% EL to nearly the WT position. For the other gap genes that interact with Hb, the front boundary of Kr moves posteriorly by only 5% EL and stops 3% EL away from the WT position. For the downstream genes, the first peak of Eve moves very little, and its final position (corresponding to the CF position) is 6% EL away from the WT position. These results indicate that the large dynamic shift of Hb seems to be dampened instead of faithfully relayed in the other patterning genes. By contrast, the shift accumulates in the fly lines that have altered Bcd dosages (Liu et al., 2013). For example, in the fly line Bcd1.0, which has almost the same Bcd dosage as stau mutants, the Hb boundary position moves posteriorly by approximately 2.5% EL in nc14 and stops at 7% EL away from the WT position. The first peak of Eve moves posteriorly further by 0.8% EL, so the CF position is closer to the WT position. It has been suggested that this additive shift results from the dynamic integration of maternal positional information (Liu et al., 2013). It remains to be investigated whether a new mechanism may account for the dynamic positional transmission in stau mutants.

Discussion

Improving quantitative measurement methods to reveal the true biological noise of developmental patterning

Maternal mutants become more accessible with the CRISPR-Cas9 technique (Bassett and Liu, 2014). The balancer stabilizes the maternal mutant fly line but prevents the random mutation from being rescued by homologous recombination. Hence, the accumulated mutations often deteriorate the maternal mutant fly line in the fly stock. In this work, instead of running rescue genetics experiments, we generated a fresh stau mutant fly line from the WT by using the CRISPR-Cas9 technique. The newly generated stauHL54 mutant fly line shows the correct expression patterns of Bcd, Hb, Kr, and Eve compared with the original stau mutant fly line (Figure 4—figure supplement 2), and the cuticle patterns of stauHL54 and stauD3 are consistent with the published record (Lehmann and Nüsslein-Volhard, 1991Figure 4—figure supplement 3).

To reveal the true biological noise, 3D imaging is very helpful in controlling spatial measurement errors. Compared with the two-photon microscopy used in previous studies for 3D imaging of embryos (Fowlkes et al., 2008), the light-sheet microscope should provide better-quality 3D reconstruction by combining images taken from two opposite directions with higher imaging speed (Krzic et al., 2012). However, if strong scattering or absorbing objects exist in samples, caution is needed to alleviate or properly correct the potential striper shadow artifacts (Mayer et al., 2018). The conventional 2D expression profiles can be extracted with the 3D imaging analysis tools developed by us and the others (Fowlkes et al., 2008; Heemskerk and Streichan, 2015). Using the heat map projected from 3D imaging data, we can conveniently evaluate the measurement errors in embryo orientations. Interestingly, most of the time, the measurement errors on the dorsal side are smaller than those on the ventral side and the symmetric two sides on the coronal plane (Figure 1—figure supplement 6A and B). This is because the Hb boundary moves in a smaller range around the dorsal side (Figure 1A and Figure 1—figure supplement 3). Nevertheless, even with 10° uncertainty in the orientation, the measurement errors on the dorsal side could still be as high as 0.2% EL, at least 20% of the positional error of the Hb boundary, which is 1% EL.

For dynamically evolved patterning, it is also important to determine the embryo age precisely. Both the depth of the FC and nuclear shape/size are good measures of the embryo age in nc14. The former has better time resolution in the late developmental stage. Notably, the dynamic shift in FC could vary in different fly lines, as the shifting curve measured with w1118 is different from that described by previously published results measured with Oregon-R (Figure 1—figure supplement 2ADubuis et al., 2013).

When compared with the imaging of fixed embryos, live imaging has advantages in potentially higher temporal resolution determined by the imaging speed. Only in nc14, the densely packed nuclei on the embryo surface can be imaged in one plane. Hence, for convenience in controlling the measured error, the Bcd gradient noise is often measured only in a selected plane at a timepoint of 16 min into nc14. However, before this measurement time, the Bcd-dependent regulation of Hb has already been shut off (Liu and Ma, 2013). Moreover, considering the dynamics of downstream patterning genes, it is important to measure the dynamics of the Bcd gradient noise. We found that the maximum projection from a five-layer and 1-μm-spaced z-stack image could significantly alleviate the measurement errors. To accumulate sufficient samples to measure the gradient noise, it is also very important to stabilize the imaging condition and to correct the potential intensity drift between different experimental sessions (Figure 2—figure supplement 1C and D). With this imaging improvement as well as automatic image analysis, we successfully showed that the Bcd-GFP gradient noise is almost constant in the interphase from nc13 to nc14 (Figure 2F). As the fluorescence intensity observed in live imaging increases during this period, this result may suggest that the Bcd gradient noise is not dominated by the Poissonian noise.

Underlying mechanism for the dynamic shift of the Hb boundary

On the basis of the quantitative spatial-temporal gene expression data, it has long been known that the gap gene profiles, for example, the central Kr domain and the posterior Kni and Gt domains, show substantial anterior shifts during nc14 (Jaeger et al., 2004). These dynamic shifts are proposed to originate from the asymmetric cross-regulation between gap genes, that is, posterior gap genes repress their adjacent anterior gap genes but not vice versa (Huang et al., 2017; Jaeger et al., 2004). The shift amount is less than 5%, much less than the shift of the Hb boundary in stau mutants.

The Hb boundary and the other patterning features, such as the Kr central strip and Eve peaks, also move dynamically with differing Bcd dosages (Liu et al., 2013). For example, for the fly line with only half of the Bcd dosage in the WT, the shift in the CF is only approximately 40% of the predicted value based on the threshold-dependent model. The Hb boundary moves posteriorly toward the WT position by approximately 4% EL from an initial position close to the one predicted by the threshold-dependent model. The posterior shift of the Hb boundary has also been observed in nos mutants (Petkova et al., 2019).

Among all the reported shifts of the patterning markers in fly embryos, the shift in the Hb boundary in stau mutants is the largest at more than 10% EL. The shift significantly slows down in late nc14, as the majority of the shift,~7% EL, finishes in the first 30 mins of nc14. By contrast, most of the shifts observed in the other cases occur in the later 30 mins of nc14 and have been proposed to originate from the cross-regulation between gap genes (Jaeger et al., 2004; Liu et al., 2013). Hence, a mechanism other than the cross-regulation between gap genes could contribute to the large shift of the Hb boundary in stau mutants. Moreover, the slope of the Hb boundary in stau mutants is less than that of the WT in the first 30 mins in nc14 and later increases to nearly the same as that of the WT (Figure 5—figure supplement 1). This might be related to the modification of the maternal gradients from both poles (Figure 6A and B).

Figure 6 with 1 supplement see all

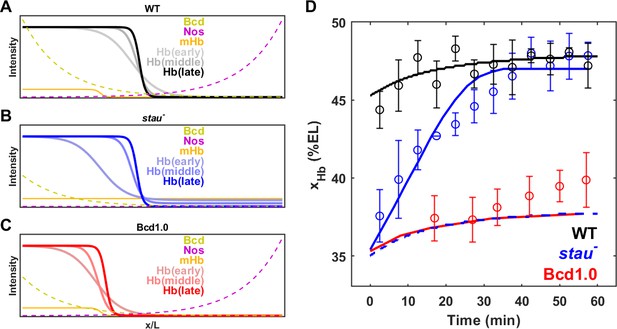

Origin of the large shift in xHb in stau mutants.

(A–C) Schematic of maternal gradients and Hb dynamic expression in the WT (A), stau mutants (B), and Bcd1.0 (C). In stau mutants, the Bcd gradient (yellow) decreases in amplitude and increases in length constant. The depletion of the Nos gradient (purple) flattens the maternal Hb gradient (orange). In Bcd1.0, the Bcd gradient decreases in amplitude by half. xHb moves posteriorly from early, to middle and late nc14. It mainly moves in the first 30 mins in nc14 in stau mutants and the shift amount is much greater than in the WT. By contrast, xHb mainly moves in the later 30 mins of nc14 in Bcd1.0. (D) The mathematical model fitting (lines) agrees well with the measured shift of xHb in the WT (black circles) and stau mutants (blue circles), but not Bcd1.0 (red circles). The simulation result without the distortion effect on the Nos gradient in stau mutants (blue dashed line) fails to replicate the measured results. Error bars represent the standard deviation of xHb in each time window.

To test this idea, we constructed a mathematical model to calculate the dynamic shift in xHb in both stau mutants and the WT. To illustrate the Stau effect, we neglected the cross-regulation between different gap genes and only considered the activation from Bcd to Hb and the self-activation of Hb. We assume that stau mutants and the WT share the same gene regulation function for Hb, and that the only difference comes from the distorted expression profiles of Bcd and maternal Hb in stau mutants (for more details, see 'Materials and methods', Figure 6A–C, and Figure 6—figure supplement 1A). On the one hand, the amplitude of the Bcd gradient is reduced by 65%, and the length constant is increased by 17%. On the other hand, the maternal Hb profile is flattened as the Nos gradient is removed. This model fits well with the measured dynamic shift of xHb in both stau mutants and the WT (Figure 6D), indicating that the synergy effect resulting from the altered Bcd gradients and maternal Hb in stau mutants can account for the much larger shift of xHb compared with that in the WT.

The depletion of the Nos gradient by the stau mutant is necessary for the observed larger shift of xHb in stau mutants. If only the amplitude of Bcd gradients is altered, this model predicts that the shift of xHb is much smaller. If we rescue the Nos gradient, that is keep the maternal Hb in stau mutants the same as that in the WT, the simulation based on the fitted model shows that xHb starts at 35% EL, but only moves posteriorly by ~1% EL (Figure 6D). A very similar result is also observed in the simulated dynamics of xHb in the fly line Bcd1.0, of which the Bcd dosage is only half of that in the WT. The shift amount of xHb in Bcd1.0 is only 1%EL, smaller than the experimental value of 4% EL (Figure 6D). Although the initial position of xHb might agree with the experiment, the simulated shift slows down significantly in later nc14, inconsistent with the unchanged shifting speed in the experiment. We speculate that the shift in late nc14 could be attributed to the cross-regulation between gap genes, as suggested in previous studies (Liu et al., 2013).

Moreover, this model predicts that the initial position of xHb varies as the Bcd gradient is tuned. Our measurement shows that Bcd gradients on the ventral side decrease in the amplitude and increase in the length constant compared with those on the dorsal side (Figure 6—figure supplement 1B), consistent with previous results (Gregor et al., 2007a). This difference could be attributed to the observed anterior shift of xHb on the ventral side, which is approximately 6% EL for stau mutants but 3% EL for the WT (Figure 6—figure supplement 1C). This model also suggests that the dynamic change of Bcd gradients (Little et al., 2011) influences the dynamic shift of xHb, as it predicts that xHb could continue to move posteriorly (Figure 6—figure supplement 1D and E) if a static Bcd gradient is applied. This prediction is inconsistent with the experimental observation that stau mutants and the WT show reduced shift speeds and stabilized xHb at the end of nc14.

Hence, the current model suggests that the ultra-large shift of xHb in stau mutants can be attributed to the distorted Bcd and Nos gradients due to the loss of Stau function, if self-activated Hb is activated by Bcd according to the threshold-dependent model at early nc14. However, this simplified model without cross-regulation of the gap genes fails to predict the small shift of xHb in nos mutants (Houchmandzadeh et al., 2002; Petkova et al., 2019). Thus, a comprehensive model incorporating both the maternal factors and the gap genes is still needed to dissect the sophisticated role of Stau in regulating Hb patterning.

Dynamic transmission of positional information

The large dynamic shift in the Hb boundary raises the question of how the positional information is transferred in the patterning system. The term ‘positional information’ was first coined by Wolpert, 1969. On the basis of this concept, developmental patterning is instructed by the concentration of a single static morphogen gradient, and the interpretation of the morphogen gradient follows the threshold-dependent model. Each cell ‘acquires’ its position inside the embryo by ‘reading’ the morphogen concentration and accordingly activates downstream genes to form the cell-fate map (Jaeger and Reinitz, 2006; Wolpert, 2011; Wolpert, 2016). This model provides a simple molecular-based mechanism for developmental pattern formation. It has prevailed in developmental biology, especially after the identification of a series of morphogens starting with Bcd (Rogers and Schier, 2011; Struhl et al., 1989).

However, this model has long been challenged because gradient noise could disrupt patterning precision (Houchmandzadeh et al., 2002; Jaeger et al., 2007). Without precise morphogen gradients as inputs, the developmental pattern could also form via a noise-filtering mechanism resulting from cross-regulation between genes (Manu et al., 2009). This idea is rooted in Turing’s seminal idea: periodic patterns can spontaneously form in a self-organizing reaction-diffusion system, for example, a slow diffusive activator and a fast diffusive inhibitor (Corson and Siggia, 2012; Turing, 1952). Recently, an increasing number of developmental patterning systems have been found to implement a Turing-like mechanism (Economou et al., 2012; Goryachev and Pokhilko, 2008; Raspopovic et al., 2014).

Usually, these two classic mechanisms have been thought to be mutually exclusive. Hence, great effort has been made to distinguish which mechanism is implemented in a particular developmental system. However, whether early fly embryogenesis follows the threshold-dependent model (Gregor et al., 2007a; He et al., 2008) or the noise-filtering model (Houchmandzadeh et al., 2002; Manu et al., 2009) has been controversial because it has not been easy to run quantitative tests. First, it is well known that the gap protein profiles dynamically change in nc14 (Dubuis et al., 2013; Jaeger et al., 2004). Hence, the developmental system is not in a steady state, and the concentration of these transcription factors could continue to change with a time scale not much longer than the degradation time of the downstream gene. As a result, the developmental pattern cannot be regarded as the instant readout of simultaneous transcription factors but instead should be seen as an accumulation of the product generated in an early time window. Second, the gap gene integrates multiple maternal factors (Jaeger, 2011; Liu et al., 2013). Hence, we need to measure the combined positional information of all the upstream genes and the dynamic positional information of the downstream genes. On the one hand, however, the conventional measurement method without sufficient control of spatial and temporal measurement error is rather limited in its ability to measure expression dynamics. On the other hand, the combined positional information is difficult to calculate because the regulatory function is still unknown, although it might be estimated on the basis of the optimal decoding hypothesis (Petkova et al., 2019).

By developing 3D measurements with reduced measurement errors, we observe that the positional errors decrease from approximately 2.0% EL at early nc14 to approximately 1.0% EL in the middle of nc14 in stau mutants. A slight decrease in the positional errors was also observed in the WT (Figure 5). Interestingly, even for stau mutants with an ultra-large dynamic shift in the Hb boundary, the threshold for Bcd in activating Hb still appears to be the same as that of the WT at 16 min into nc14. These results suggest that the threshold-dependent positional information model probably acts upstream of the self-organized filtering mechanism during Drosophila embryogenesis. This scenario is actually one of the most basic ‘building blocks’ of the interaction between the two mechanisms (Green and Sharpe, 2015). We expect that studying the combination of the two mechanisms could be the key to revealing the mechanism of precise and robust pattern formation via dynamic transmission of positional information. Our newly developed measurement methods, together with recent developed dynamic measurement (Bothma et al., 2018; Dubuis et al., 2013; Durrieu et al., 2018; Garcia et al., 2013; Huang et al., 2017; Lucas et al., 2013) and modeling (Verd et al., 2017) tools, will facilitate the characterization of the dynamic transmission of positional information.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Strain, strain background (D. melanogaster)w1118Yi Rao LabBDSC3605
Strain, strain background (D. melanogaster)stauHL54This paperSee 'Materials and methods'
Strain, strain background (D. melanogaster)stauD3This paperSee 'Materials and methods'
Strain, strain background (D. melanogaster)bcd-egfp;+;bcdE1Thoms Gregor Lab
Strain, strain background (D. melanogaster)bcd-egfp;stauHL54;bcdE1Thoms Gregor Lab
AntibodyAnti-Hb (mouse monoclonal)Abcamab197787IF (1:1000)
AntibodyAnti-Kr (guinea pig polyclonal)John Reinitz LabIF (1:1000)
AntibodyAnti-Eve (rat polyclonal)John Reinitz LabIF (1:1000)
AntibodyAnti-guinea pig (goat monoclonal)John Reinitz LabIF (1:1000)
AntibodyAnti-rat (goat monoclonal)InvitrogenA11006IF (1:1000)
AntibodyAnti-mouse (goat monoclonal)InvitrogenA21240IF (1:1000)
Chemical compound, drugAgarose gelsInvitrogenE-Gel EX1~1.5%
Software, algorithm3D image processingThis paperSource code filesSee 'Materials and methods'
Software, algorithmMATLABMATLAB, 2018MATLAB 2018a v9.4.0.813654
OtherDAPI stainInvitrogenD1306(1 µg/mL)
OtherCapillaryBrand701904

Fly strains

Request a detailed protocol

Bcd-GFP intensity was measured in the fly strains bcd-egfp;+;bcdE1and bcd-egfp;stauHL54;bcdE1 using live imaging. The expression profiles of Hb, Kr, and Eve in immunostained embryos were measured with w1118, stauHL54 (w;stauHL54) and stauD3 (w;stauD3) mutants. The two stau mutants were generated from w1118 directly by corresponding gene editing of the RNA-binding domain of stau using CRISPR/Cas9 (Bassett and Liu, 2014): a point mutation (replacing the base T in the intron of the fifth exon with base A) for stauHL54, and a replacement of the second to fifth exon regions with a knock-in rfp marker for stauD3.

Immunostaining

Request a detailed protocol

All embryos were collected at 25°C, dechorionated, and then heat-fixed in 1x TSS (NaCl, Triton X-100). After at least 5 min, the embryos were transferred from the scintillation vial to Eppendorf tubes and vortexed in 1:1 heptane and methanol for 1 min to remove the vitelline membrane. They were then rinsed and stored in methanol at −20°C. The embryos were then stained with primary antibodies, including mouse anti-Hb (Abcam, ab197787), guinea pig anti-Kr, and rat anti-Eve (gifts from John Reinitz). Secondary antibodies were conjugated with Alexa-647 (Invitrogen, A21240), Alexa-488 (Invitrogen, A11006), and Alexa-555 (gift from John Reinitz). To prevent cross-binding between the rat and mouse primary antibodies, the embryos were incubated in first guinea pig and then rat primary antibodies, followed by their respective secondary antibodies. Subsequently, the embryos were treated in blocking buffer before the mouse primary and secondary antibodies were applied. Finally, the embryos were stained with DAPI (Invitrogen, D1306).

3D imaging and analysis

Request a detailed protocol

Embryos that were stained and washed together in the same tube were mounted in agarose (Invitrogen E-Gel EX Agarose gels, 1~1.5%) in a capillary tube with an inner diameter of 1 mm (Brand, 701904). Samples were imaged on a Zeiss Z1 light-sheet microscope. Images were taken with a W Plan Apo 20X/1.0 water immersion objective and with sequential excitation wavelengths of 638, 561, 488 and 405 nm. The thickness of the light sheet was 4.6 or 4.35 μm. Before the fluorescence imaging, each embryo was adjusted to the maximal sagittal plane via bright-field imaging. For each embryo, two z-stacks of images (1920 × 1920 pixels, with 16 bits and a pixel size of 286 nm at 0.8 magnified zoom) with 1 μm spacing were taken from two opposite sides by rotating the embryos 180° (Figure 1—figure supplement 1A). Several factors are key to improving image quality. i) Light sheet illumination setting: chose the ‘Dual Side when Experiment’ and the ‘Online Dual Side Fusion’, then adjusted the left and right beam path to get the optimal images. ii) Pivot scan setting: the ‘Pivot scan’ was activated to reduce the shadows that might otherwise be cast by optically dense structures within the embryos. iii) Laser power and exposure time: adjust laser power and exposure time to maintain an adequate signal to noise ratio and to avoid severe photo-bleaching.

Image analysis routines were implemented in customized MATLAB codes (MATLAB, 2018) with five steps. i) Image-registration and fusion. Two z-stacks of raw images of each embryo were acquired from opposite directions by rotating 180o. The two stacks were registered with the autocorrelation algorithm (Figure 1—figure supplement 1B), which is based on the correlation coefficient reflecting the similarity between two images. Next, the fused images were obtained by averaging the two raw images at the same position and opposite direction (Figure 1—figure supplement 1B). This fusion process compensates the dependence of the intensity on the imaging depth (Figure 1—figure supplement 1E). ii) 3-D reconstruction. The 3D embryos were reconstructed with these fused z-stack images by the 3D interpolation algorithm (Figure 1—figure supplement 1C). iii) Segmentation at different angles. A plane across the AP axis with the largest area was identified. Then, starting from this plane, 36 sides of 2D images were extracted from the 3D embryos by rotating slices with 5° intervals at different orientations along the AP axis (Figure 1—figure supplement 1C). iv) Profile extraction. The gene expression profiles were extracted from these slices by morphology image processing to generate the embryo mask, extract the intensity of nuclei surrounding the boundary of embryos mask, and obtain the profile at different embryo orientations. v) Heat map construction. The 36 Hb intensity profiles of one embryo were normalized from 0 to 1, then placed in a heat map, in which the dorsal side was located in the bottom quarter and the ventral side was located in the upper quarter (Figure 1—figure supplement 1D).

Live imaging and analysis

Request a detailed protocol

Embryos were collected at 25°C for 1 hr, dechorionated in 100% bleach (4% NaClO) for 3 min, glued on a glass slide and covered with halocarbon oil (Halocarbon 700). The Bcd gradient in the mid-coronal plane at 16 min into nc14 was measured as reported previously. In brief, embryos were imaged at 22°C on a TPM that was built in house. The excitation laser was 25 mW in average power and 970 nm in wavelength. The objective was a Zeiss 25X (NA = 0.8 in air) oil/water immersion objective. Emission fluorescence was collected with a gallium-arsenide-phosphide (GaAsP) with a quantum yield of more than 40% and dark counts of less than 4000/s at 25°C. For each embryo, three images (512*512 pixels with a pixel size of 460 nm, bit depth of 12 bits, and scan speed of 4 ms/line) were taken sequentially along the A-P axis and stitched together. In each session, embryos from the fly strains bcd-egfp;+;bcdE1and bcd-egfp;stauHL54;bcdE1 were mounted on the same slides and measured side by side.

For the dynamic Bcd gradient measurements, the embryos were glued on the cover glass of a Petri dish of 30 mm in diameter (NEST, 801002) and covered with halocarbon oil. They were imaged in the mid-sagittal plane at 25°C on a Nikon A1RSi+ confocal microscope with a Nikon Plan Apo λ 20X/0.75 air objective. The fluorescence was excited at a wavelength of 488 nm and collected with a GaAsP detector. A maximum-intensity-projected z-stack of five images (1024 × 1024 pixels with a pixel size of 620 nm, bit depth of 12 bit, and spacing of 1 μm) around the largest plane was acquired at each time point. Each of the images was averaged on two sequential acquisitions. In each session, at most three embryos were picked for imaging to guarantee the time resolution (80 s, scan speed of 2.3 s/frame). The background was the average of the background fluorescence measured with ten w1118 embryos under the same conditions. To correct for the potential imaging differences in different sessions, the control samples were prepared with the hand-peeling protocol to preserve the fluorescence of the Bcd-GFP of the collected embryos. Embryos at the interphase of nc13–nc14 were selected and imaged in advance of each imaging session. Imaging analysis was processed with customized MATLAB codes (MATLAB, 2018 2018a).

Model

Request a detailed protocol

Hb patterning is treated as a one-dimensional reaction-diffusion system with no-flux boundary condition:

(1) h(x,t)t=f(I(x,t),h(x,t))βh(x,t)+D2h(x,t)x2

where β and D denote the degradation rate and diffusion constant of Hb, respectively, h(x, t) denotes the concentration of Hb at time t and the AP axis coordinate x, and f(I,h) is the gene regulatory function (GRF) that determines the synthesis rate of Hb.

I(x,t) represents the net regulation effect of the maternal factors, which are generally spatial-dependent and time-variant. The maternal factor Nos represses the translation of maternal hb (Wang and Lehmann, 1991), so we assume that Nos only affects the initial distribution of Hb, hx,0=hmS(kx(x-x0)), where Sξ=1/1+expξ. Another maternal factor Bcd constantly activates the expression of Hb during early embryogenesis. Hence, we assume Ix,t=b(x,t), where b(x,t) denotes the nuclear Bcd gradient. The nuclear Bcd gradient is dynamic and its amplitude decays after nc12 (Little et al., 2011). As an approximation, we assume bx,t=bme-x/λTt;ω0,t0, where T(t;ω0,t0)={1,tt0exp(ω0(tt0)),t>t0, denoting that the Bcd profile decays with the linear decay rate ω0 in an isotropic manner after t0 (time offset from the onset of nc14). Besides the activation from Bcd, Hb is also activated by itself (Lopes et al., 2008). Considering that the P2 enhancer of hb has at least six binding sites for Bcd (Driever et al., 1989) and three for Hb (Treisman and Desplan, 1989), and given the high binding cooperativity of Bcd or Hb, we assume that the GRF in Eq.1 takes the all-or-nothing strategy by following a coupled Hill function:

(2) f(b,h)=αb(bb0)nb+αh(hh0)nh1+(bb0)nb+(hh0)nh

where b0 and h0 are the activation thresholds for Bcd and Hb, respectively, nb and nh are the Hill coefficients for Bcd and Hb, respectively, and αb and αh denote the scaling factor for the production of Hb from the activation of Bcd and the self-activation of Hb, respectively.

The experiment showed that stau mutants are different from the WT in Bcd gradients and maternal Hb gradients: the amplitude of Bcd gradients of stau mutants (bmstau-)) is ~35% of that of the WT (bmwt)); the length constant of Bcd gradients of stau mutants (λstau-)) is ~17% larger than that of the WT (λwt)); and the initial distribution of Hb of stau mutants is uniform across the embryo due to the lack of repression from the Nos gradient. Hence, we set all the parameters of stau mutants to be the same as those for the WT except for bmstau-=0.35bmwt, λstau-=1.17λwt, and (c) x0stau-+.

This model has a total 16 parameters, nine of them are fixed on the basis of the experimental values from references or our measurements, and the others need to be optimized from data fitting (Figure 6—source data 1). To obtain seven free parameters, we fit the simulated xhb as a function of t to the experimental dynamics of xhb for both stau mutants and the WT. The error function weighted during the early rising phase of the WT, the final position difference between stau mutants and the WT, and the final changing rate of xhb helps to capture the key dynamic characteristics and to avoid potential over fittings.

Using optimized parameters, we simulated the dynamics of xhb for Bcd1.0 by setting bm1x=0.5bmwt. We also simulated xhb on the ventral side by setting bmventral=0.62bmdorsal and λventral=1.1λdorsal  to obtain the best fitting to the experimental results, that is, 6% EL and 3% EL for stau mutants and the WT, respectively (Figure 6—figure supplement 1B). To test the effect of the dynamics of Bcd gradients on the formation of the Hb boundary, we set ω00 and ran the simulation using the same optimized parameters or ran the parameter optimization again to obtain the best fit.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
    The gap gene network
    1. J Jaeger
    (2011)
    Cellular and Molecular Life Sciences 68:243–274.
    https://doi.org/10.1007/s00018-010-0536-y
  28. 28
  29. 29
  30. 30
  31. 31
    The maternal gene Nanos has a central role in posterior pattern formation of theDrosophilaembryo
    1. R Lehmann
    2. C Nüsslein-Volhard
    (1991)
    Development 112:679–691.
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
    MATLAB 2018a, version 9.4.0.813654
    1. MATLAB
    (2018)
    The MathWorks Inc, Natick, Massachusetts.
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
    The chemical basis of morphogenesis
    1. AM Turing
    (1952)
    Philosophical Transactions of the Royal Society B Biological Sciences 237:37–72.
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61

Decision letter

  1. Sandeep Krishna
    Reviewing Editor; National Centre for Biological Sciences‐Tata Institute of Fundamental Research, India
  2. Aleksandra M Walczak
    Senior Editor; École Normale Supérieure, France

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The paper describes a new observation in early Drosophila development, namely that the expression boundaries of certain gap genes temporarily shift position in a mutant which lacks the important protein Staufen. From this the authors infer that initial stages of boundary positioning are consistent with a threshold-like model, but later stages exhibit self-organized patterning. This result opens up new questions about the role of Staufen, and we hope will trigger future work to unravel the precise mechanism of action of Staufen in Drosophila development.

Decision letter after peer review:

Thank you for sending your article entitled "The dynamic transmission of positional information in stau mutants during Drosophila embryogenesis" for peer review at eLife. Your article is being evaluated by two peer reviewers, and the evaluation is being overseen by a Reviewing Editor and Aleksandra Walczak as the Senior Editor.

As you can see from the reviews below, the reviewers found that your observations of the shift in gap gene expression boundaries in stau mutants are potentially interesting and could change our understanding of the role of Staufen. However, they both felt that much more analysis and additional experiments are required to properly understand the difference between the mutant and the wild-type.

Reviewer #1:

Early Drosophila development is remarkably robust. Gene expression boundaries are defined with single cell accuracy along the embryo. Understanding how such precision is achieved remains a major challenge. Staufen is a key gene in this process, with previous work highlighting that stau mutants have significant effects on Hunchback boundary precision.

In this manuscript, Yang et al. develop 3D quantitative approaches to probe boundary position in stau mutants. They demonstrate that the gap gene expression boundaries are still precise, in the sense that at the same developmental time there is little variation between embryos. Yet, in stau mutants the boundaries of Hunchback and other gap genes shift significantly in time. Initial positions are quite distinct from wild-type embryos, but by gastrulation the boundary positioning is similar.

They use these results to directly test two competing hypotheses in embryonic patterning: threshold dependent positional information vs. self-organization. They draw the conclusion that initial stages of boundary positioning are consistent with a threshold-like model, but later stages display hallmarks of self-organized patterning.

The question tackled and the approaches used are both interesting, and certainly suitable for eLife in principle. However, I do have some concerns that I outline below.

1) One of my main concerns with the manuscript is the details of the projection. The authors present data that looks excellent, but only as a heat map. Details of the projection procedure are poor and not convincing. Why not use establish protocols that robustly segment a curved object, such as Heemskerk and Streichan, 2015?

2) Relatedly, in the Materials and methods the authors do a single 180º rotation of the embryo. Therefore, even using a light-sheet, I do not see how they image the lateral sides of the embryo well – they pick up the ventral and dorsal. There is significant decrease in image quality on a light-sheet with deeper penetration, particularly on a Zeiss Z1. The authors do not show clear images of the raw data. Related to point 1, I don't see how such smooth projections can be achieved with the microscopy protocol outlined in the Materials and methods. The authors need to (i) show raw data; (ii) "raw" data after image combining; (iii) clearer method of how the projected image is converted into the heat maps shown in the figures.

3) Again, related to the imaging, but light-sheet data is notoriously noisy. For example, there is striping and artefacts leave clear marks etc. Yet, the data looks very clean. If anything, this noise would increase the measured errors (so not really going against the authors’ central claims). But, more detail is needed in how the analyzed data was curated and imaging artefacts corrected for.

4) The description of the behavior of the Hunchback boundary in stau needs to be clearer. There are two competing issues. First, at a specific time point, the embryo-to-embryo variability is small and comparable to wildtype. Second, the boundary itself shifts in time in a reproducible manner during n.c. 14. At the moment, in both the Abstract and Introduction paragraph six, the attempt to combine both of these ideas in a single sentence is extremely confusing (reading the text, I didn't understand what was meant – only the figures clarified for me what the authors were trying to communicate). The authors need to find a wording that brings out the key ideas more clearly.

5) Given that the final Hb boundaries aren't that perturbed in the stau mutants, I'm confused why there are only four Eve stripes. Can the authors use their model to, at least, hypothesize why three Eve boundaries are lost in stau mutants?

6) I agree it's good to generate clean mutants. However, validation of the CRISPR mutant should be shown along with evidence that there are no off-target effects. It is not sufficient to say "data not shown" in the Materials and methods.

7) When measuring precision, a large n is needed to be confident of measured errors. However, some of the presented data represents only 5 embryos (I believe). A power-analysis should be performed to find the number of embryos required to make a statistically robust conclusion. I would be very surprised if 5 were sufficient. Also, in general, in every figure legend, the number of embryos used in each panel should be clearly stated.

8) In the normalization of the Hb, why not normalize to the posterior peak? This is independent of Bicoid and provides a less biased readout for normalization. In this case, how are the results altered?

9) All the data presented is assuming scaling of the system. Are there scaling defects in stau mutants? The authors should present, at least in a figure supplement, scaled and unscaled data so a comparison can be made.

Reviewer #2:

The paper has a single interesting observation but would need much more extensive analyses for publication in eLife.

The major new result is that the HB boundary in Staufen mutants shifts position to the posterior during cycle 14 (from 36 to 47% EL). Although wild type embryos also show a posterior shift, it is much smaller, from 45 to 48 EL. Since the boundary position in mutant and wildtype are ultimately very similar, the major defect in the mutants seems to be an HB expression that is initially positioned too far anterior but then corrects later during cellularization.

The result is interesting in that earlier studies had observed an increase variability in the position of the Hb boundary in Staufen mutant, but had attributed it to a role for wild type Staufen product in error correction and precision. Since those earlier studies defined Hb boundaries in collections of embryos that were not as carefully timed nor as carefully oriented as the present study, the new observations in suggests that the fundamental defect in Staufen mutants is not an increased error or variability, but an altered dynamic behavior, a behavior that when summed mimics increased error.

This re-definition of the Staufen phenotype is an important observation, and might provide an interesting entry point for an exciting analysis connecting Staufen function to the initiation of Hb expression. In my view, such further analyses are essential for publication in eLife. The authors need to explain how this new better-defined phenotype arises and how it relates to the wildtype role of Staufen in patterning.

Although the remaining portion of the Results section presents data about other features of the phenotype (e. g., the reproducibility and slope of the Bcd gradient), in most of this data Staufen and wildtype behave similarly and thus don't provide insights into what is fundamentally different in the mutants. The Discussion presents a model that reproduces some features of the Staufen phenotype, but no new data is presented specifically in support of that model.

Regardless of whether and where the experiments are ultimately published, two is issues need to be clarified:

1) In their characterization of Staufen mutants, the authors describe a second feature of the HB boundary not mentioned in in the earlier studies, namely in Staufen mutants its position on the ventral side is approximately 6% farther anterior on the ventral side at all stages than it is on the dorsal side (30 to 37 at early stages and 41 to 47 at later stage). There does not seem to be a dynamic component in this DV difference, the boundary shifts posteriorly by 11% but maintains the same DV slant. It is presumably an inadvertent omission, but the authors do not present data on whether a comparable slant is observed in wild type. If it is a Staufen specific feature, then the DV difference is a new and potentially informative phenotype that needs to be incorporated into models for Staufen function.

2) The authors go to considerable lengths to generate a new version of Staufen HL54 for these studies using CRISPR-Cas9, although this is only mentioned in the Discussion. This is the allelic variant used in all the earlier studies and it is interesting that the new and old versions of the allele behave similarly, although the authors’ new data suggests an alternate interpretation for the measured variability. In fly base, the HL54 allele is described as "hypomorphic" with partial loss of function. Is it possible that the earlier describe "variability" and the abnormal early expression described in the current manuscript is an allelic specific feature of the partial loss of function? The authors need to show whether true loss of function alleles show the same phenotype. Such alleles exist (e. g., stauD3) and have actually been used more frequently in analyses of Staufen's role in various developmental processes.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "The dynamic transmission of positional information in stau mutants during Drosophila embryogenesis" for further consideration by eLife. Your revised article has been evaluated by Aleksandra Walczak (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

Please address the major issue raised by reviewer 1. From reviewer 2's comments, please address the issue raised about parameter values and distributions by clearly mentioning which parameter values (or ranges) are drawn from experimental data, with references, and which are unknown. It seems the most significant aspect of the new description of the Staufen phenotype is the self-correcting shift. The fact that the explanation for this phenomenon provided does not apply to, say Hb, suggests that Staufen is somehow different, or that things don't work the way the authors' model suggests. This needs to be made very explicit in the text.

Reviewer #1:

Overall, the paper has been substantially improved. The experiments are presented in a more rigorous manner, with care taken to explain the uncertainties. The discussion of the stau mutants is also stronger.

The main argument regarding the effect of stau on Hb precision is very interesting and of potential broad impact. Though the current paper does not conclusively demonstrate the specific pathway of action, I feel that the evidence presented, combined with the model, is sufficient for publishing. Hopefully, the authors and others will build on this work to really dissect the mode of action of Stau in the early embryo.

I have one major issue. The authors claim that the increased Bicoid decay length is "reasonable because the bcd mRNA is more extensively distributed in the embryos of stau". However, in the SDD model of Bicoid gradient formation, changing the source distribution would not alter the actual decay length. The experimentally measured decay length is an amalgamation of the diffusion and degradation terms (which define the "real" decay length) and the distributed source of bcd mRNA. Therefore, the current wording is not precise. Further, it is straightforward to test the authors hypothesis; take the SDD model for different source terms and see how changing the source distribution alters the "measured" decay length.

Reviewer #2:

The revised manuscript addresses and clarifies many of the quantitative issues raised by the reviewers, but still fails to address what I believe to be the fundamental challenge. In the original manuscript, the authors provided a new description of the Staufen phenotype, arguing against a previously suggested role governing the variability of Hunchback expression. Instead, mutant embryos show an initial precise anteriorly shifted HB expression pattern that then self-corrects to a more normal expression pattern during cycle 14.

I believe that for publication in eLife, the authors need use this new phenotype to better understand the role of Staufen. Staufen's well described and previously published role in Bcd RNA localization provides a simple explanation of the initial anterior position of the boundary. The challenge is to explain its subsequent posterior shift and the other new features of the phenotype described by the authors. Here the manuscript fails. Thus while a better description of the Staufen phenotype is a useful contribution to the field, the manuscript does not meet the high standards expected for eLife papers.

There is very little new data or experiments in the revised manuscript. The authors generate a second mutant allele that mimics a previously describe null mutation in Staufen (stauD3) and use it to confirm that the new phenotypes are not allele specific variants. The remaining revisions supply more detailed or rigorous analyses of the data, and use mathematical models to test for internal consistency. The models requires knowledge of distributions and parameters that are not always available, and even when they provide outcomes consistent with the observations (e. g., the DV slant of the boundary), they don't really link those effects mechanistically to the known molecular function of Staufen.

A central question remains – why the expression boundary of HB in Staufen mutants shifts to an almost normal position by late cycle 14, when similar corrective shifts is not observed following other genetic manipulations of Bcd that alter the HB boundary. The authors attribute the shift in Staufen to the self-activation of Hb and the cross-regulation from the other gap genes but do not explain those processes do not occur in the other cases. Staufen differs from the other Bicoid manipulations in that it also affects the distribution of Nanos and thus maternal Hb. How this additional role would affect the shifting process is not clear, especially given that in classic papers, the osk/nanos pathway is not thought to affect HB boundary position very much at all (see for example the original analyses of Driever and Nüsslein-Volhard). The authors' suggestion might point to the existence of previously undetected interactions between the two systems, but in the absence of new data and more detailed measurements, the suggestion itself does not merit publication in eLife.

Overall the manuscript provides an interesting entry point into a fascinating problem, but needs more serious development and data for it to have the impact it deserves.

https://doi.org/10.7554/eLife.54276.sa1

Author response

Reviewer #1:

[…]

1) One of my main concerns with the manuscript is the details of the projection. The authors present data that looks excellent, but only as a heat map. Details of the projection procedure are poor and not convincing. Why not use establish protocols that robustly segment a curved object, such as Heemskerk and Streichan, 2015?

2) Relatedly, in the Materials and methods the authors do a single 180º rotation of the embryo. Therefore, even using a light-sheet, I do not see how they image the lateral sides of the embryo well – they pick up the ventral and dorsal. There is significant decrease in image quality on a light-sheet with deeper penetration, particularly on a Zeiss Z1. The authors do not show clear images of the raw data. Related to point 1, I don't see how such smooth projections can be achieved with the microscopy protocol outlined in the Materials and methods. The authors need to (i) show raw data; (ii) "raw" data after image combining; (iii) clearer method of how the projected image is converted into the heat maps shown in the figures.

3) Again, related to the imaging, but light-sheet data is notoriously noisy. For example, there is striping and artefacts leave clear marks etc. Yet, the data looks very clean. If anything, this noise would increase the measured errors (so not really going against the authors central claims). But, more detail is needed in how the analyzed data was curated and imaging artefacts corrected for.

Thank you very much for your great suggestions. We describe our method of 3D reconstruction and projection in more detail in the Materials and methods and will deposit the image analysis code online upon publication. We compare our projection method with one of the well-established protocols by Berkeley Drosophila Transcription Network Project (Fowlkers, et al., 2008) and confirm that the final heat maps from the reconstructed 3D embryos are the same. We also test the Heemskerk and Streichan’s method with our data and find that their heat map can show higher resolution along y-axis than ours, which is limited by the angle step of the projection. But for the task of extracting the expression profile, the two methods are still comparable with each other (Figure 1—figure supplement 1G-I).

We add the typical raw images taken with the light-sheet microscope, after imaging combination, and after projection at different angles in the supplementary figures. We plan to deposit a set of raw data online upon publication. Based on the raw images, the fluorescence intensity is decaying as the penetration depth increases. But the fixed embryo shrinks and its imaging depth is less than 160 μm. Hence the intensity decrease is not very severe. Moreover, we rotate the embryos by 180o and take the image stacks from both directions, which complement the intensity for each other. We then fuse the two stacks after image registration and confirm that the intensity is much more uniform along with the penetration depth (Figure 1—figure supplement 1F). So the image quality of the projected plane is comparable along the AP axis from different embryo orientations including dorsal, ventral and lateral view.

Although it is well known that for the large, semi-opaque biological samples contain strong scattering or absorbing features, stripping-like artifacts may be observed, we have not observed severe distortion caused by this problem. We find that the key to improve image quality includes: (i) Light sheet illumination setting: chose the “Dual Side when Experiment” and the “Online Dual Side Fusion”, then adjusted the left and right beam path to get the optimal images; (ii) Pivot scan setting: the “Pivot scan” was activated to reduce the shadows which might otherwise be cast by optically dense structures within the embryos.

To clarify these issues, we revised the “3D imaging and analysis” section in the Materials and methods, updated Figure 1—figure supplement 1, and added several sentences in:

“However, if strong scattering or absorbing objects exist in samples, one needs to take caution to alleviate or properly correct the potential striper shadow artifacts (Mayer et al., 2018). The conventional 2D expression profiles can be extracted with 3D imaging analysis tools developed by us and the others (Fowlkes et al., 2008; Heemskerk and Streichan, 2015).”

4) The description of the behavior of the Hunchback boundary in stau needs to be clearer. There are two competing issues. First, at a specific time point, the embryo-to-embryo variability is small and comparable to wildtype. Second, the boundary itself shifts in time in a reproducible manner during n.c. 14. At the moment, in both the Abstract and Introduction paragraph six, the attempt to combine both of these ideas in a single sentence is extremely confusing (reading the text, I didn't understand what was meant – only the figures clarified for me what the authors were trying to communicate). The authors need to find a wording that brings out the key ideas more clearly.

We changed the description in the Abstract to be:

“With improved control of measurement errors, we show xHbof staumutants reproducibly shifts posteriorly by 10% of the embryo length (EL) to the wild type (WT) position in the nuclear cycle (nc) 14, and its variability at short time windows is comparable as that of the WT.”

Furthermore, we revised the Results as follows:

“Although xHbdynamically shifts posteriorly by more than 10% EL in staumutants, this shift is reproducible from embryo to embryo. Within a short time window, the variability of xHbin staumutants is comparable with that of the WT (Figure 1E). Furthermore, even for all the data in the whole nc14, after de-trending the dynamic shift, the standard deviations of xHbfor staumutants is 1.67 ± 0.16% EL (errors are estimated with bootstrap), similar to 1.45 ± 0.14% EL for the WT. Moreover, the variance difference between the two fly lines is not statistically significant (p = 0.31 in a two-sample F-test for equal variances) (Figure 1F-G).”

5) Given that the final Hb boundaries aren't that perturbed in the stau mutants, I'm confused why there are only four Eve stripes. Can the authors use their model to, at least, hypothesize why three Eve boundaries are lost in stau mutants?

The loss of three Eve peaks is a known phenotype of staumutants, just like nosmutants (Lehmann and Nusslein-Volhard, 1991). This is reasonable, as the Nos gradient is also abolished in both mutants. A recent paper from Thomas Gregor lab proposed a framework to decode the pair-rule gene profiles from four gap gene profiles and give an excellent prediction on the Eve profiles of nosmutants (Petkova, et al., 2019). Hence our manuscript only focuses on modelling the origin of the large shift of the Hb boundary. In the future work, we plan to investigate how the large dynamic shift affects the expression of the other gap genes and downstream pair rule genes with modeling.

6) I agree it's good to generate clean mutants. However, validation of the CRISPR mutant should be shown along with evidence that there are no off-target effects. It is not sufficient to say "data not shown" in the Materials and methods.

We showed the images of the cuticle samples of the CRISPR mutant as Figure 4—figure supplement 3. And we confirm that they are very similar to the published staumutants.

7) When measuring precision, a large n is needed to be confident of measured errors. However, some of the presented data represents only 5 embryos (I believe). A power-analysis should be performed to find the number of embryos required to make a statistically robust conclusion. I would be very surprised if 5 were sufficient. Also, in general, in every figure legend, the number of embryos used in each panel should be clearly stated.

We agree with you that the sample size is indeed an important consideration. The sample size choices for our study were informed by the following: (i) previous gap gene precision measurements, (ii) cost and time availability of sample acquisition, and (iii) power calculations. First, in previous measurements on gap gene boundary/peak precision in fly embryos in nc14, the total sample size is usually less than 100 and the sample size of each bin in short time windows is less than 10 (Thomas, et al., Cell, 2007; Heng, et al., Development Cell, 2008; Aitana, et al., Molecular Systems Biology, 2010; Julien, et al., Molecular Systems Biology, 2013; Feng, et al., PNAS, 2013; Honggang, et al., Nature Communications, 2015). All of these measurements used the conventional method with difficulty in controlling the embryo orientations. Second, the new method with 3D imaging could reduce the measurement error related to embryo orientations, but even with the fast imaging light sheet microscope, it takes much longer time per embryo. So it is time-consuming and costly to obtain a large sample size. Third, our choice of sample sizes was also guided by the power analysis based on previous studies. For the WT, the variability of xhbis approximately 1 ± 0.5% EL (the error represents the standard deviation from boots-trapping, Julien, et al., Molecular Systems Biology, 2013). As for staumutants, the variability of xhbis 6% EL (Houchmandzadeh, et al., 2002) or 2.78% EL (Heng, et al., Development Cell, 2008), hence we estimate its variability as 4 ± 2% EL. Specificity, we evaluate the power of detecting the difference of the variability of xhbbetween the WT and staumutants. Our computation, under alpha level. 05 and power (1-β) = . 8, indicated a sample size of 5 embryos is adequate.

In the original manuscript, we measured total 40 staumutant embryos and 34 WT embryos. These samples were divided into 6 bins and the sample size in each bin is as least 5. Moreover, to pool all the measured data without binning, we apply the de-trend analysis to remove the effect of the average dynamic shift on the variability of xhb. We find that the standard deviations of the residual from a smooth spline fit is 1.85% EL (n=40) and 1.41% EL (n=34) for staumutants and the WT, respectively. Two-sample Ftest for equal variances cannot be rejected (p = 0.1). This is consistent with our binning results shown in Figure 1E.

Nevertheless, in order to improve the temporal resolution in precision measurements, we further increase the sample size of WT to n=47, and staumutants to n=69. We update all the related figures and corresponding statistics. We add the de-trend analysis result as Figure 1F-G, and mark the sample number in each figure caption in the revision.

8) In the normalization of the Hb, why not normalize to the posterior peak? This is independent of Bicoid and provides a less biased readout for normalization. In this case, how are the results altered?

Although the posterior peak is independent of Bicoid, it only shows up late in nc14. Hence it is very noisy to use it as the normalization reference in early nc14. Nevertheless, for the Hb profiles in late nc14, we compare this new normalization method with the conventional one, i.e., normalize the Hb profile to the maximum intensity of the whole profile. And we confirm that the difference of xhbis within the measurement errors.

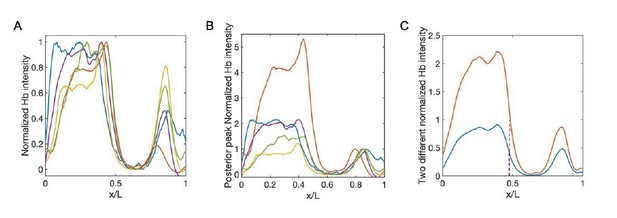

Author response image 1
Comparison between conventional normalized method and the normalization using the posterior peak as the reference.

(A–B) Normalized profiles of Hb intensity of stau mutants in one developmental time window (45-50 min into nc14, sample number: n = 5) using the conventional method (A) and posterior peak normalization method (B). Different colors represent different samples. (C) The average profile of Hb intensity with the conventional method (A, blue) and posterior-peak-normalization method (B, red). The boundary positions are 47.4% EL (blue) and 47.8% EL (red), respectively.

9) All the data presented is assuming scaling of the system. Are there scaling defects in stau mutants? The authors should present, at least in a figure supplement, scaled and unscaled data so a comparison can be made.

Thank you for your insightful suggestion. The Hb boundaries of staumutants are still scaling with the embryo length. And both the slope and R2 in the fitting of staumutants are very similar to those of the WT. Since xhbdynamically shifts in a great range for staumutants, this scaling effect of staumutants is significant only if we normalize the absolute Hb boundary position of each embryo by the average position in the corresponding developmental time. To clarify this issue, we added Figure 1H-I and a paragraph in the text:

“The variability of xHbalso depends on whether it is scaling with the embryo length (Houchmandzadeh et al., 2002; He et al., 2008). […] Without this normalization, the scaling of the absolute Hb boundary position of staumutants (R2 = 0.26) is inferior compared with the WT (R2 = 0.71), consistent with previous results (He et al., 2008).”

Reviewer #2:

The paper has a single interesting observation but would need much more extensive analyses for publication in eLife.

The major new result is that the Hb boundary in Staufen mutants shifts position to the posterior during cycle 14 (from 36 to 47% EL). Although wild type embryos also show a posterior shift, it is much smaller, from 45 to 48 EL. Since the boundary position in mutant and wildtype are ultimately very similar, the major defect in the mutants seems to be an Hb expression that is initially positioned too far anterior but then corrects later during cellularization.

The result is interesting in that earlier studies had observed an increase variability in the position of the Hb boundary in Staufen mutant, but had attributed it to a role for wild type Staufen product in error correction and precision. Since those earlier studies defined Hb boundaries in collections of embryos that were not as carefully timed nor as carefully oriented as the present study, the new observations in suggests that the fundamental defect in Staufen mutants is not an increased error or variability, but an altered dynamic behavior, a behavior that when summed mimics increased error.

This re-definition of the Staufen phenotype is an important observation, and might provide an interesting entry point for an exciting analysis connecting Staufen function to the initiation of Hb expression. In my view, such further analyses are essential for publication in eLife. The authors need to explain how this new better-defined phenotype arises and how it relates to the wildtype role of Staufen in patterning.

Although the remaining portion of the Results section presents data about other features of the phenotype (e. g., the reproducibility and slope of the Bcd gradient), in most of this data Staufen and wildtype behave similarly and thus don't provide insights into what is fundamentally different in the mutants. The Discussion presents a model that reproduces some features of the Staufen phenotype, but no new data is presented specifically in support of that model.

We agree with you that it is very important to connect the re-defined stauphenotype with the stau function in the initiation of Hb expression. Based on our experimental results, the activation of Hb at an early developmental time is consistent with the conventional threshold dependent positional information model. Without Stau, the localization of the bcd mRNA at the anterior pole cannot be sustained, hence the amplitude of the Bcd gradient decreases by 65% and the length constant increases by 17% in staumutants. As a result, the initial Hb position shifts by ~10% EL from the WT position. But as embryo development progresses, the self-activation of Hb and the cross-regulation from the other gap genes shift the Hb boundary position towards the WT position. To clarify this issue, we extend the model to explain the origin of the large shift of the Hb boundary in staumutants, e.g., considering the dynamics of the Bcd gradient, and rewrote the Discussion part on the modeling to illustrate more clearly the connection between the Stau function and the regulation of Hb expression:

“To test this idea, we constructed a mathematical model to calculate the dynamic shift in xHbin both staumutants and the WT. […] This model fits well with the measured dynamic shift of xHbin both staumutants and the WT (Figure 6D), indicating that the synergy effect resulting from the altered Bcd gradients and maternal Hb in staumutants can account for the much larger shift of xHbcompared with the WT.”

Regardless of whether and where the experiments are ultimately published, two is issues needed to be clarified

1) In their characterization of Staufen mutants, the authors describe a second feature of the Hb boundary not mentioned in in the earlier studies, namely in Staufen mutants its position on the ventral side is approximately 6% farther anterior on the ventral side at all stages than it is on the dorsal side (30 to 37 at early stages and 41 to 47 at later stage). There does not seem to be a dynamic component in this DV difference, the boundary shifts posteriorly by 11% but maintains the same DV slant. It is presumably an inadvertent omission, but the authors do not present data on whether a comparable slant is observed in wild type. If it is a Staufen specific feature, then the DV difference is a new and potentially informative phenotype that needs to be incorporated into models for Staufen function.

Thank you very much for your insightful comments. This is indeed a very interesting and important phenotype of staumutants. In the WT, our data shows that the difference of xhb in the dorsal side and ventral side remains approximately 3% EL, smaller than that of staumutants. We added a sentence in the text:

“Moreover, xHbdiffers significantly in different orientations, e.g., the ventral boundary moves from 32.7 ± 2.4% EL by 10.9% EL to 43.6 ± 1.2% EL, shifting anteriorly by approximately 6% EL compared with the dorsal boundary (Figure 1D and Figure 1—figure supplement 4A, D, and F). In contrast, the difference of xHbbetween the dorsal and ventral sides in the WT is only 3% EL (Figure 1D).”

To find the origin of this DV difference on xhb, we analyze the difference of the Bcd gradient on the dorsal side and the ventral side. Based on our live imaging experiment, the ventral Bcd gradient shows decreased amplitude by 24% but increased length constant by 10% compared with the dorsal Bcd gradient. Moreover, if we apply this difference, our updated model can replicate the DV difference of xhbin both staumutants and the WT when the amplitude adjustment is changed to 38%. We speculate that this discrepancy might result from the DV difference in the maturation correction curve of Bcd-GFP. To clarify this issue, we added Figure 6—figure supplement 1B-C and the following sentences:

“Moreover, this model predicts that the initial position of xHbvaries as the Bcd gradient is tuned. Our measurement shows that Bcd gradients on the ventral side decrease in the amplitude and increase in the length constant compared with those on the dorsal side (Figure 6—figure supplement 1B), consistent with previous results (Gregor et al., 2007a). This difference could attribute to the observed anterior shift of xHbon the ventral side, and the shift amount is approximately 6% EL for staumutants but 3% EL for the WT (Figure 6—figure supplement 1C).”

2) The authors go to considerable generate a new version of Staufen HL54 for these studies using CRISPR-Cas9, although this is only mentioned in the Discussion. This is the allelic variant used in all the earlier studies and It is interesting that the new and old versions of the allele behave similarly, although the authors new data suggests an alternate interpretation for the measured variability. In fly base, the HL54 allele is described as "hypomorphic" with partial loss of function. Is it possible that the earlier describe "variability" and the abnormal early expression described in the current manuscript is an allelic specific feature of the partial loss of function? The authors need to show whether true loss of function alleles show the same phenotype. Such alleles exist (e.g., stauD3) and have actually been used more frequently in analyses of Staufen's role in various developmental processes.

Thank you very much for your insightful comments. We prepared the fly line stauD3 with CRISPR technique, confirmed that it shows the correct phenotype in the cuticle patterns (Figure 2). We measured the Hb profiles and confirmed that stauD3also shows a large posterior shift like stauHL54. We added these results in Figure 1—figure supplement 5, and added some comments in a paragraph in the text:

“Besides stauHL54, another staumutant, stauD3, also shows a large shift of xHb: 42.8 ± 1.5% to 47.9 ± 1.8% from 12.5 min to 52.5 min into nc14 on the dorsal side (Figure 1—figure supplement 5). It is well known that stauD3is a strong allele with fully penetrant abdominal segmentation phenotype (Lehmann and Nüsslein-Volhard, 1991), hence the observed large shift of xHbin staumutants is not an allelic specific feature for stauHL54, which could be hypomorphic, i.e., partial function loss.”

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Reviewer #1:

Overall, the paper has been substantially improved. The experiments are presented in a more rigorous manner, with care taken to explain the uncertainties. The discussion of the stau mutants is also stronger.

The main argument regarding the effect of stau on Hb precision is very interesting and of potential broad impact. Though the current paper does not conclusively demonstrate the specific pathway of action, I feel that the evidence presented, combined with the model, is sufficient for publishing. Hopefully, the authors and others will build on this work to really dissect the mode of action of Stau in the early embryo.

I have one major issue. The authors claim that the increased Bicoid decay length is "reasonable because the bcd mRNA is more extensively distributed in the embryos of stau". However, in the SDD model of Bicoid gradient formation, changing the source distribution would not alter the actual decay length. The experimentally measured decay length is an amalgamation of the diffusion and degradation terms (which define the "real" decay length) and the distributed source of bcd mRNA. Therefore, the current wording is not precise. Further, it is straightforward to test the authors hypothesis; take the SDD model for different source terms and see how changing the source distribution alters the "measured" decay length.

Thank you very much for your great suggestion. We tested the SDD model for broad source terms and confirmed that the length constant of stau mutant increases compared with the WT. We added two new figures as Figure 3—figure supplement 1A-B and revised the related sentences as the following

“This apparent increase of the measured length constant could result from more extensively distributed bcd mRNA in the embryos of staumutants (Ferrandon et al., 1994; Petkova et al., 2014), consistent with the simulation based on the synthesis-diffusion-degradation (SDD) model (Grimm et al., 2010) (Figure 3—figure supplement 1 A-B).”

Reviewer #2:

The revised manuscript addresses and clarifies many of the quantitative issues raised by the reviewers, but still fails to address what I believe to be the fundamental challenge. In the original manuscript, the authors provided a new description of the Staufen phenotype, arguing against a previously suggested role governing the variability of Hunchback expression. Instead, mutant embryos show an initial precise anteriorly shifted HB expression pattern that then self-corrects to a more normal expression pattern during cycle 14.

I believe that for publication in eLife, the authors need use this new phenotype to better understand the role of Staufen. Staufen's well described and previously published role in Bcd RNA localization provides a simple explanation of the initial anterior position of the boundary. The challenge is to explain its subsequent posterior shift and the other new features of the phenotype described by the authors. Here the manuscript fails. Thus while a better description of the Staufen phenotype is a useful contribution to the field, the manuscript does not meet the high standards expected for eLife papers.

There is very little new data or experiments in the revised manuscript. The authors generate a second mutant allele that mimics a previously describe null mutation in Staufen (stauD3) and use it to confirm that the new phenotypes are not allele specific variants. The remaining revisions supply more detailed or rigorous analyses of the data, and use mathematical models to test for internal consistency. The models requires knowledge of distributions and parameters that are not always available, and even when they provide outcomes consistent with the observations (e. g., the DV slant of the boundary), they don't really link those effects mechanistically to the known molecular function of Staufen.

A central question remains – why the expression boundary of HB in Staufen mutants shifts to an almost normal position by late cycle 14, when similar corrective shifts is not observed following other genetic manipulations of Bcd that alter the HB boundary. The authors attribute the shift in Staufen to the self-activation of Hb and the cross-regulation from the other gap genes but do not explain those processes do not occur in the other cases. Staufen differs from the other Bicoid manipulations in that it also affects the distribution of Nanos and thus maternal Hb. How this additional role would affect the shifting process is not clear, especially given that in classic papers, the osk/nanos pathway is not thought to affect HB boundary position very much at all (see for example the original analyses of Driever and Nüsslein-Volhard). The authors' suggestion might point to the existence of previously undetected interactions between the two systems, but in the absence of new data and more detailed measurements, the suggestion itself does not merit publication in eLife.

Overall the manuscript provides an interesting entry point into a fascinating problem, but needs more serious development and data for it to have the impact it deserves.

We agree with you that the central question here is the link between the new phenotype of “self-correction” of the Hb boundary in staumutants and the function of Stau. And staumutants are special as both the Bcd gradient and the Nos gradient are distorted. Our current model actually shows that the synergy of the distorted Bcd and Nos gradient is sufficient to account for the large shift of the Hb boundary in staumutants if we assume self-activated Hb is activated by Bcd according to the threshold dependent model at early nc14, without introducing any unknown interactions. And our model shows that the depletion of the Nos gradient by the staumutant is necessary for the observed larger shift of xHb in stau mutants. As it predicts a very small shift in Bcd1.0 when only the Bcd amplitude is decreased. It also predicts that the shift dynamics is similar to Bcd1.0 if the Nos gradient is rescued in staumutants.

But since the current model only considers the activation of the Bcd and self-activation of Hb, it could not explain the total shift in Bcd1.0, and the small shift of nosmutants as shown in the classic papers mentioned above. We speculate the different phenotype of nosmutants compared with staumutants could be attributed to the cross-regulation of the other gap genes acted strongly in the posterior half (likely the repression from Kr), or some unknown repressors (Hongtao Chen, et al., Cell, 2012). Notably, the initial position of the Hb boundary in nosmutants is much closer to the WT position than the staumutant. It is also possible that previously undetected interactions between the Bcd and Nos systems could attribute to the large shift. To clarify the complete picture, we could establish a comprehensive model incorporating both the maternal factors and the gap genes to dissect the sophisticated role of Stau in regulating Hb patterning. This is, however, a very challenging task, probably beyond the scope of the current manuscript. Based on our test, nearly all the published gap gene network models (Jaeger, et al., 2004; Verd, et al., 2017; Dmitri Papatsenko and Michael Levin, PLoS ONE; Jinxiang Shen, et al., bioRxiv, 2018) fail to replicate the “self-correction” phenotype discovered here.

To clarify this issue, we added simulation results of the Nos rescued stau mutant in Figure 6D, and revised the related paragraph as:

“The depletion of the Nos gradient by the staumutant is necessary for the observed larger shift of xHbin staumutants. […] The shift amount of of xHbin Bcd1.0 is only 1% EL, smaller than the experimental value of 4% EL (Figure 6D).”

And added a new paragraph discussing the limits of the current model:

“Hence, the current model suggests that the ultra-large shift of xHbin stau mutants can be attributed to the distorted Bcd and Nos gradient due to the loss of the function of Stau, if self-activated Hb is activated by Bcd according to the threshold dependent model at early nc14. However, this simplified model without cross-regulation of the gap genes fails to predict the small shift of xHbin nosmutants (Houchmandzadeh et al., 2002; Petkova et al., 2019). Thus a comprehensive model incorporating both the maternal factors and the gap genes is still needed to dissect the sophisticated role of Stau in regulating Hb patterning.”

https://doi.org/10.7554/eLife.54276.sa2

Article and author information

Author details

  1. Zhe Yang

    1. State Key Laboratory of Nuclear Physics and Technology & Center for Quantitative Biology, Peking University, Beijing, China
    2. China National Center for Biotechnology Development, Beijing, China
    Contribution
    Data curation, Investigation, Visualization, Methodology
    Contributed equally with
    Hongcun Zhu and Kakit Kong
    Competing interests
    No competing interests declared
  2. Hongcun Zhu

    State Key Laboratory of Nuclear Physics and Technology & Center for Quantitative Biology, Peking University, Beijing, China
    Contribution
    Data curation, Investigation, Visualization, Methodology
    Contributed equally with
    Zhe Yang and Kakit Kong
    Competing interests
    No competing interests declared
  3. Kakit Kong

    State Key Laboratory of Nuclear Physics and Technology & Center for Quantitative Biology, Peking University, Beijing, China
    Contribution
    Software, Formal analysis, Investigation, Visualization, Modeling
    Contributed equally with
    Zhe Yang and Hongcun Zhu
    Competing interests
    No competing interests declared
  4. Xiaoxuan Wu

    State Key Laboratory of Nuclear Physics and Technology & Center for Quantitative Biology, Peking University, Beijing, China
    Contribution
    Data curation, Investigation
    Competing interests
    No competing interests declared
  5. Jiayi Chen

    State Key Laboratory of Nuclear Physics and Technology & Center for Quantitative Biology, Peking University, Beijing, China
    Contribution
    Data curation, Investigation
    Competing interests
    No competing interests declared
  6. Peiyao Li

    State Key Laboratory of Nuclear Physics and Technology & Center for Quantitative Biology, Peking University, Beijing, China
    Contribution
    Data curation, Investigation
    Competing interests
    No competing interests declared
  7. Jialong Jiang

    State Key Laboratory of Nuclear Physics and Technology & Center for Quantitative Biology, Peking University, Beijing, China
    Contribution
    Software, Investigation, Modeling
    Competing interests
    No competing interests declared
  8. Jinchao Zhao

    State Key Laboratory of Nuclear Physics and Technology & Center for Quantitative Biology, Peking University, Beijing, China
    Contribution
    Software, Investigation, Modeling
    Competing interests
    No competing interests declared
  9. Bofei Cui

    State Key Laboratory of Nuclear Physics and Technology & Center for Quantitative Biology, Peking University, Beijing, China
    Contribution
    Data curation, Software, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared
  10. Feng Liu

    State Key Laboratory of Nuclear Physics and Technology & Center for Quantitative Biology, Peking University, Beijing, China
    Contribution
    Conceptualization, Resources, Data curation, Software, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    liufeng-phy@pku.edu.cn
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9724-6127

Funding

National Natural Science Foundation of China (The General Program 31670852)

  • Feng Liu

Peking University (100-talent plan)

  • Feng Liu

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank John Reinitz for antibodies, Thomas Gregor and Yi Rao for fly lines, and Lu Wang for assistance with the Drosophila experiment. This project is supported by the National Natural Science Foundation of China 31670852 and the 100-talent plan of Peking University. The Drosophila lab used in this project is supported by Peking-Tsinghua Center for Life Sciences. The modeling optimization was performed on the High Performance Computing Platform of the Center for Life Sciences, Peking University.

Senior Editor

  1. Aleksandra M Walczak, École Normale Supérieure, France

Reviewing Editor

  1. Sandeep Krishna, National Centre for Biological Sciences‐Tata Institute of Fundamental Research, India

Publication history

  1. Received: December 9, 2019
  2. Accepted: June 6, 2020
  3. Accepted Manuscript published: June 8, 2020 (version 1)
  4. Version of Record published: July 2, 2020 (version 2)

Copyright

© 2020, Yang et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 636
    Page views
  • 92
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Computational and Systems Biology
    2. Human Biology and Medicine
    Michael R Garvin et al.
    Short Report Updated

    Neither the disease mechanism nor treatments for COVID-19 are currently known. Here, we present a novel molecular mechanism for COVID-19 that provides therapeutic intervention points that can be addressed with existing FDA-approved pharmaceuticals. The entry point for the virus is ACE2, which is a component of the counteracting hypotensive axis of RAS. Bradykinin is a potent part of the vasopressor system that induces hypotension and vasodilation and is degraded by ACE and enhanced by the angiotensin1-9 produced by ACE2. Here, we perform a new analysis on gene expression data from cells in bronchoalveolar lavage fluid (BALF) from COVID-19 patients that were used to sequence the virus. Comparison with BALF from controls identifies a critical imbalance in RAS represented by decreased expression of ACE in combination with increases in ACE2, renin, angiotensin, key RAS receptors, kinogen and many kallikrein enzymes that activate it, and both bradykinin receptors. This very atypical pattern of the RAS is predicted to elevate bradykinin levels in multiple tissues and systems that will likely cause increases in vascular dilation, vascular permeability and hypotension. These bradykinin-driven outcomes explain many of the symptoms being observed in COVID-19.

    1. Computational and Systems Biology
    2. Neuroscience
    Omer Mazar, Yossi Yovel
    Research Article Updated

    For decades, researchers have speculated how echolocating bats deal with masking by conspecific calls when flying in aggregations. To date, only a few attempts have been made to mathematically quantify the probability of jamming, or its effects. We developed a comprehensive sensorimotor predator-prey simulation, modeling numerous bats foraging in proximity. We used this model to examine the effectiveness of a spectral Jamming Avoidance Response (JAR) as a solution for the masking problem. We found that foraging performance deteriorates when bats forage near conspecifics, however, applying a JAR does not improve insect sensing or capture. Because bats constantly adjust their echolocation to the performed task (even when flying alone), further shifting the signals' frequencies does not mitigate jamming. Our simulations explain how bats can hunt successfully in a group despite competition and despite potential masking. This research demonstrates the advantages of a modeling approach when examining a complex biological system.
