Building the vertebrate codex using the gene breaking protein trap library

  1. Noriko Ichino
  2. MaKayla R Serres
  3. Rhianna M Urban
  4. Mark D Urban
  5. Anthony J Treichel
  6. Kyle J Schaefbauer
  7. Lauren E Greif
  8. Gaurav K Varshney
  9. Kimberly J Skuster
  10. Melissa S McNulty
  11. Camden L Daby
  12. Ying Wang
  13. Hsin-kai Liao
  14. Suzan El-Rass
  15. Yonghe Ding
  16. Weibin Liu
  17. Jennifer L Anderson
  18. Mark D Wishman
  19. Ankit Sabharwal
  20. Lisa A Schimmenti
  21. Sridhar Sivasubbu
  22. Darius Balciunas
  23. Matthias Hammerschmidt
  24. Steven Arthur Farber
  25. Xiao-Yan Wen
  26. Xiaolei Xu
  27. Maura McGrail
  28. Jeffrey J Essner
  29. Shawn M Burgess
  30. Karl J Clark  Is a corresponding author
  31. Stephen C Ekker  Is a corresponding author
  1. Department of Biochemistry and Molecular Biology, Mayo Clinic, United States
  2. Translational and Functional Genomics Branch, National Human Genome Research Institute, National Institutes of Health, United States
  3. Functional & Chemical Genomics Program, Oklahoma Medical Research Foundation, United States
  4. Department of Genetics, Development and Cell Biology, Iowa State University, United States
  5. Zebrafish Centre for Advanced Drug Discovery & Keenan Research Centre for Biomedical Science, Li Ka Shing Knowledge Institute, St. Michael's Hospital, Unity Health Toronto & University of Toronto, Canada
  6. Department of Cardiovascular Medicine, Mayo Clinic, United States
  7. Department of Embryology, Carnegie Institution for Science, United States
  8. Department of Clinical Genomics, Mayo Clinic, United States
  9. Department of Otorhinolaryngology, Mayo Clinic, United States
  10. Genomics and Molecular Medicine Unit, CSIR–Institute of Genomics and Integrative Biology, India
  11. Department of Biology, Temple University, United States
  12. Institute of Zoology, Developmental Biology Unit, University of Cologne, Germany
Tools and Resources
  • Cited 0
  • Views 1,602
  • Annotations
Cite this article as: eLife 2020;9:e54572 doi: 10.7554/eLife.54572

Abstract

One key bottleneck in understanding the human genome is the relative under-characterization of 90% of protein coding regions. We report a collection of 1200 transgenic zebrafish strains made with the gene-break transposon (GBT) protein trap to simultaneously report and reversibly knockdown the tagged genes. Protein trap-associated mRFP expression shows previously undocumented expression of 35% and 90% of cloned genes at 2 and 4 days post-fertilization, respectively. Further, investigated alleles regularly show 99% gene-specific mRNA knockdown. Homozygous GBT animals in ryr1b, fras1, tnnt2a, edar and hmcn1 phenocopied established mutants. 204 cloned lines trapped diverse proteins, including 64 orthologs of human disease-associated genes with 40 as potential new disease models. Severely reduced skeletal muscle Ca2+ transients in GBT ryr1b homozygous animals validated the ability to explore molecular mechanisms of genetic diseases. This GBT system facilitates novel functional genome annotation towards understanding cellular and molecular underpinnings of vertebrate biology and human disease.

eLife digest

The human genome counts over 20,000 genes, which can be turned on and off to create the proteins required for most of life processes. Once produced, proteins need move to specific locations in the cell, where they are able to perform their jobs. Despite striking scientific advances, 90% of human genes are still under-studied; where the proteins they code for go, and what they do remains unknown.

Zebrafish share many genes with humans, but they are much easier to manipulate genetically. Here, Ichino et al. used various methods in zebrafish to create a detailed ‘catalogue’ of previously poorly understood genes, focusing on where the proteins they coded for ended up and the biological processes they were involved with.

First, a genetic tool called gene-breaking transposons (GBTs) was used to create over 1,200 strains of genetically altered fish in which a specific protein was both tagged with a luminescent marker and unable to perform its role. Further analysis of 204 of these strains revealed new insight into the role of each protein, with many having unexpected roles and localisations. For example, in one zebrafish strain, the affected gene was similar to a human gene which, when inactivated, causes severe muscle weakness. These fish swam abnormally slowly and also had muscle problems, suggesting that the GBT fish strains could ‘model’ the human disease.

This work sheds new light on the role of many previously poorly understood genes. In the future, similar collections of GBT fish strains could help researchers to study both normal human biology and disease. They could especially be useful in cases where the genes responsible for certain conditions are still difficult to identify.

Introduction

Analyses of genomic sequences from over 100 vertebrate species (Meadows and Lindblad-Toh, 2017) have revealed that we need more than nucleic acid sequence alone to comprehend the vertebrate genome. A more complete understanding of any genetic locus requires knowledge of its expression pattern and its function(s) in subcellular, cellular, and organismal contexts—the compendium of information that can be described as a gene ‘codex’. Despite their importance, the expression patterns and functions of most protein coding genes remain surprisingly uncharacterized. The number of these genes linked to human disease without functional insights into their gene-disease relationships highlights the significance of this knowledge gap (Kettleborough et al., 2013). In recent estimates, 80% of rare, undiagnosed diseases are thought to have genetic underpinnings (Robe, 2005; Varga et al., 2018; Wangler et al., 2017). Tools are therefore needed to identify and annotate the expression and function(s) of these poorly characterized gene products in both biological and pathological processes.

Zebrafish (Danio rerio) has emerged as an outstanding model to bridge the gap between sequence and function in the vertebrate genome. Investigations of gene function in zebrafish, from organismal to subcellular, are amenable to both forward and reverse genetic approaches (Stoeger et al., 2018). Additionally, the natural transparency of developing zebrafish enables live, non-invasive collection of gene expression data at a subcellular resolution on an organismal scale. Therefore, the zebrafish facilitates parallel discovery of gene expression and function towards a comprehensive codex of the vertebrate genome. To begin constructing this vertebrate codex, we previously developed a unique, revertible mutagenesis tool called the gene-break transposon (GBT) with elements that cooperate to report gene sequence, expression pattern, and function (Clark et al., 2011a). Specifically, when integrated in the sense orientation of a transcriptional unit, the GBT protein trap overrides endogenous splicing and creates a fusion between upstream exons and its start-codon deficient monomeric RFP (mRFP) reporter. Then, the strong internal polyadenylation site and putative border element following the mRFP truncate the gene product. Finally, the GBT construct is flanked by loxP sites on either side to enable excision and subsequent rescue with Cre-recombinase (Clark et al., 2011a).

Visualization of the start-codon deficient mRFP reporter requires an in-frame integration. In the original GBT protein trap construct, RP2.1 (Figure 1A), this in-frame requirement restricts mRFP expression to a single reading frame and leaves the potential to truncate genes without reporting their expression with mRFP (Clark et al., 2011a). We therefore developed a new series of GBT protein trap constructs, including versions to trap expression in each of the three potential reading frames (Figure 1A). Alongside the original, we employed these new vectors in zebrafish to generate and catalog over 800 additional GBT protein trap lines with visible mRFP expression at 2 days post-fertilization (dpf) (end of embryogenesis) or four dpf (larval stage). 147 of these additional GBT lines were cloned, and candidate genes were identified for another 144 GBT lines. mRFP expression in cloned GBT lines showcased novel expression patterns for a population of genes encoding diverse proteins in function and localization, including 64 implicated in human disease. Further, animals homozygous for the GBT allele in ryr1b displayed severely dampened skeletal muscle Ca2+ transients, demonstrating the ability to elucidate molecular mechanisms of genetic disorders. Since detailed investigations of mutant phenotypes are vital to functional annotation of the vertebrate genome, the mutagenic reporters in our GBT system provide the basis for this functional annotation to better understand normal biology and human disease.

Figure 1 with 1 supplement see all
Schematic of the RP2 and RP8 gene-break transposon (GBT) system with all three reading frames of AUG-less mRFP reporter.

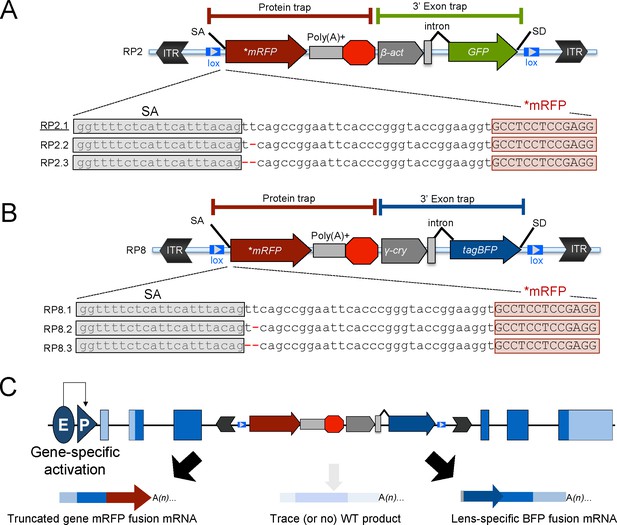

(A–C) Schematic of the GBT system, RP2 and RP8 incorporate a protein-trap cassette fused with three reading frames of AUG-less mRFP reporter and a 3’ exon trap cassette with GFP or tagBFP reporters, respectively. (A) RP2 series (RP2.1, RP2.2 and RP2.3). Underline: Previously published vector construct (B–C) RP8 series (RP8.1, RP8.2 and RP8.3) with a schematic RP8 insertion event showing expected transcription off of a locus below (C). ITR: inverted terminal repeat, SA: splice acceptor, lox: Cre recombinase recognition sequence, *mRFP: AUG-less mRFP sequence, poly (A)+: polyadenylation signal, red octagon: extra transcriptional terminator and putative border element, β-act: carp beta-actin enhancer, γ-cry: gamma crystalline promoter, SD: splice donor, E: enhancer, P: promoter, and WT: wild-type.

Results

GBT vector series RP2 and RP8 illuminate all three vertebrate proteomic reading frames

We previously reported the intron-based gene-break transposon (GBT) as an effective and revertible loss-of-function tool for zebrafish (Clark et al., 2011a). The original GBT construct called RP2/RP2.1 contains the following key features (Figure 1A): 1) flanking miniTol2 sequences for transposase-mediated random integration (Balciunas et al., 2006; Kawakami et al., 2004; Urasaki et al., 2006), 2) a 5’ protein trap containing a strong splice-acceptor (SA) and a start codon-free mRFP reporter to detect 5’ sequence and visualize in vivo expression of the trapped locus with the endogenous promoter (Clark et al., 2011a; Ding et al., 2013; Ding et al., 2017; Liao et al., 2012; Petzold et al., 2009; Westcot et al., 2015; Xu et al., 2012), 3) a mutagenic transcriptional terminator containing both a polyadenylation signal (pA) and a putative border element to truncate the trapped locus in conjunction with the protein trap (Sivasubbu et al., 2006), 4) a 3’ exon trap with a β-actin promoter driving expression of GFP to report 3’ sequence and detect lines with weak (or absent) mRFP expression or with the integration in other frames of the mRFP reporter. (Clark et al., 2011a; Petzold et al., 2009; Sivasubbu et al., 2006), 5) a second mini-intron within the GFP expression cassette that can further contribute to loss of wild-type transcripts, and 6) flanking loxP sites for Cre-mediated excision and restoration of trapped locus function using both germline (Petzold et al., 2009) and somatic approaches (Clark et al., 2011a; Ding et al., 2013; Westcot et al., 2015).

Initial experiments with the RP2.1 construct, however, revealed some limitations. First, effective transcript trapping does not always generate mRFP reporter expression because the RP2.1 plasmid is designed for a single reading frame. Molecular cloning of GFP+/mRFP- lines demonstrated the requirement to capture an appropriate reading frame to visualize the mRFP reporter. Even though RP2.1 is designed to use one main reading frame, some lines with mRFP expression used an alternate ‘CAG’ five nucleotides downstream of the main splice acceptor which offered a second chance at creating a functional mRFP reporter (Clark et al., 2011a). Therefore, to maximize genome coverage of our mutagenesis vectors in this study, we created a series of RP2 constructs to encode functional mRFP in each of the three reading frames (Figure 1A). Second, the 3’ exon trap in the RP2 series uses the nearly ubiquitous β-actin promoter to drive expression of GFP (detectable around the seven- to eight-somite-stage similar to ubiquitous GFP expression driven under the EF1α enhancer/promoter [Davidson et al., 2003]) which could interfere with another GFP-based reporter system in future studies (Clark et al., 2011a). To overcome this limitation, we engineered a novel, next-generation GBT series called RP8. RP8 constructs possess a new 3’ exon trap cassette that uses the γ-crystalline promoter to drive expression of lens-specific tagBFP instead of the ubiquitous expression GFP with RP2 series vectors. (Figure 1B–C). Additionally, all RP8 series for three reading frames reporting mRFP constructs are built on a smaller vector backbone and include new restriction enzyme sites that render these vectors modular for subsequent genetic engineering. Using all five of these new GBT constructs in zebrafish, we conducted an initial screen for expression of protein trap mRFP and observed that all RP2 and RP8 series constructs readily produced mRFP fusion proteins expressed from their endogenous promoters (Figure 1—figure supplement 1).

Creation of a GBT-line collection enables illumination of the vertebrate genome

We then deployed all of these GBT vectors to generate over 800 additional zebrafish GBT lines. A key feature of the protein trap in these lines is the ability to non-invasively image the spatial and temporal expression patterns of the trapped loci. Our initial mRFP+ lines demonstrated that, using standard methods, this imaging was going to be a major bottleneck (Figure 2A). Consequently, we utilized both SCORE imaging—a capillary tube placed in a refractive index-matched medium for efficient sample rotation—on an ApoTome (Petzold et al., 2010, and see Materials and methods) or a Zeiss Lightsheet Z.1 SPIM microscope (see Materials and methods) to enable high throughput fluorescence imaging. To date, we have now cataloged over 1,200 GBT lines with robust mRFP expression in heterozygous F2 animals at two dpf and/or four dpf according to our screening pipeline and made all imaging data freely accessible on zfishbook (www.zfishbook.org) (Clark et al., 2012Figure 2A). We have cryopreserved these 1,200 GBT lines and have retained them at the Mayo Clinic Zebrafish Facility (MCZF) with a copy also sent to the Zebrafish International Resource Center (ZIRC) (Figure 2A).

GBT screening pipeline.

(A) Overview of GBT screening pipeline. Wild-type embryos at 1 cell were co-injected with RP plasmid and Tol2 transposase mRNA to create F0 founders. These F0 larvae were screened for non-mosaic RP expression, raised, and outcrossed for two generations. Then, mRFP+ F2 heterozygous larvae were 3-dimensionally imaged at 2 and 4 dpf and this imaging data were uploaded to zfishbook (http://www.zfishbook.org/). Sperm from four F2 males in over 1200 robust mRFP expressing lines were cryopreserved using the Zebrafish International Resource Center (ZIRC) standard protocol and stored at both ZIRC and Mayo Clinic Zebrafish Core Facility (MCZF). DNA and RNA isolated from these four F2 males with cryopreserved sperm was utilized to perform next-generation sequencing and to confirm RFP linkage of candidate lines by manual PCRs (iPCR, TAIL-PCR, 5’ RACE and 3’ RACE). Venn diagram illustrates current library of over 1,200 GBT lines with 204 GBT-confirmed lines out of 348 molecularly analyzed GBT-candidate lines. (B) Next generation sequencing based validation for GBT integration loci. Fin biopsies from four F2 males were utilized as DNA source for the validation process to identify GBT integration loci. Extracted genomic DNA was fragmented, pooled in 96-wells plate, and ligated with barcode linker to identify each single male with cryopreserved sperm. Linker-mediated (LM) PCR with the primers, R-ITR P1 and LP1 and nested PCR with the primers, R-ITR P2 and LP2 were conducted to perform Illumina sequencing the final PCR products. The integration events of individual sperm-cryopreserved male were mapped on zebrafish reference genome sequence with bioinformatics analysis. This figure was created with BioRender.com. The area proportional Venn diagram was produced using BioVenn (http://www.biovenn.nl/).

Molecular cloning of a subset of GBT lines highlights the genetic diversity of this protein trap collection

Traditional molecular methods, such as inverse PCR (iPCR) and thermal asymmetric interlaced (TAIL) PCR and 5’ and 3’ rapid amplification of cDNA ends (RACE), are labor-intensive and represent a functional bottleneck in identifying randomly integrated loci in GBT lines. To overcome this, we employed a rapid cloning process based on methods used to isolate retroviral integrations that leverage the massive parallel sequencing technology of the Illumina MiSeq and a custom bioinformatics pipeline that involves both mapping and annotation (Figure 2BVarshney et al., 2013a; Varshney et al., 2013b). First, fin-clips from four male animals per GBT line were obtained during sperm cryopreservation and used as a source of DNA for cloning the integrated locus. Next, high-throughput sequencing amplified reads with barcodes linked to the source of DNA from the sperm-cryopreserved males. Mapping reads to the genome indicated potential GBT integration loci in each individual. A shared integration locus in multiple individuals from a single GBT line was considered a candidate integrated locus, and we termed a GBT line with at least one candidate integrated locus a ‘GBT-candidate line’. After a candidate was determined using the sequencing pipeline or other manual molecular approaches, such as 5’ RACE, 3’ RACE, iPCR, or TAIL PCR, we used standard PCR to test if the candidate integration locus segregates with mRFP expression.

At the end of this pipeline, 204 GBT-candidate lines met the highest stringency of confirmed expression linkage and were classified as ‘GBT-confirmed lines’ (Figure 2A). While 57 of these GBT-confirmed lines have been previously published (Clark et al., 2011a; Ding et al., 2013; Ding et al., 2017; El-Rass et al., 2017; Ma et al., 2020; Westcot et al., 2015), 147 of these GBT-confirmed lines are newly characterized in this manuscript and were selected for confirmation based upon their expression pattern and/or homozygous phenotype (Supplementary file 1). A small subset of these GBT-confirmed lines mapped to areas in the genome without annotated transcripts. Publicly available RNA-sequencing data (White et al., 2017) revealed reads flanking a majority of these mapped integrations. Some of these reads contained evidence of splicing in the sense orientation of the mRFP reporter (Supplementary file 1). Finally, another 144 GBT-candidate lines from this pipeline have yet to be confirmed (Figure 2A). Integration locus annotation of both GBT-candidate and GBT-confirmed lines is available on zfishbook (www.zfishbook.org) (Clark et al., 2012).

RP2.1 induces high knockdown efficiency of endogenous transcripts in GBT-confirmed lines

We wanted to determine the knockdown efficacy of the GBT system as a quantitative assessment of mutagenicity. We therefore compiled qRT-PCR data to compare wild-type and truncated, mRFP-fused transcript levels for all 26 RP2.1-derived GBT-confirmed lines that we and others have tested (Clark et al., 2011a; Ding et al., 2013; Ding et al., 2017, GBT0235—this manuscript). This compilation determined at minimum 97% knockdown in animals homozygous for the RP2.1 alleles. We next directly compared the transcriptional effects of RP2.1 with those of other published transposon-based protein trap systems (Figure 3). The FlipTrap system produced a range of 70–96% knockdown in six tested fish alleles (Trinh et al., 2011), similar to our initial R-series protein trap vectors (R14-R15) that contained a single splice acceptor and a simple transcriptional terminator (Liao et al., 2012; Petzold et al., 2009). The pFT1, which contains a single splice acceptor, but a tandem array of five simple polyadenylation sites, appears to be an improvement over these systems with 89–94% knockdown from four tested fish alleles (Ni et al., 2012). The 97% minimum knockdown observed with RP2.1 is quantitatively higher than these other systems and could be deployed with other insertional genome engineering approaches. We expect the RP8 series vectors to have similar transcriptional knockdown to RP2.1, but to date we have not quantified the effect to measure their mutagenicity.

Knockdown efficiency of RP2.1 compared with previous gene-trap systems.

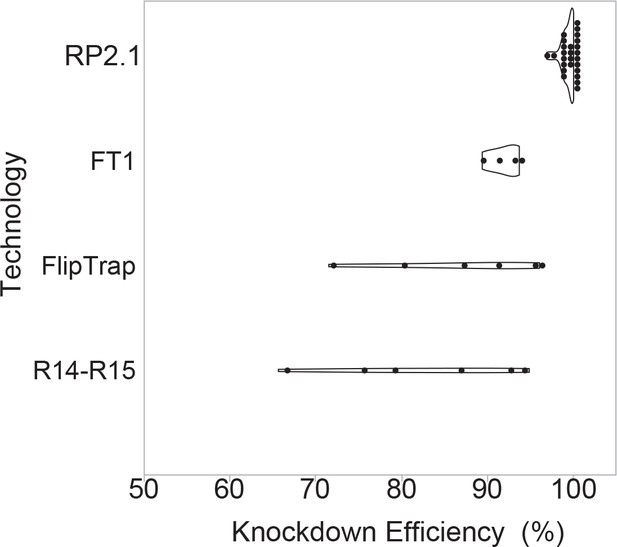

Violin plots comparing percent knockdown efficiency in the analyzed individual lines generated by four protein trap systems. All plots show median. The data of previous protein trap systems were converted from the data in the original articles, R14-R15, our initial R-series protein trap vectors (n = 6), (Clark et al., 2011a; FlipTrap, FlipTrap vectors (n = 6), Trinh et al., 2011; FT1, FT1 vector (n = 4), Ni et al., 2012; RP2.1, RP2.1 vector (n = 26), Clark et al., 2011a; Ding et al., 2013; Ding et al., 2017; El-Rass et al., 2017; Westcot et al., 2015 and unpublished data) (Figure 3—source data 1). The graph was made in JMP14 (SAS, Cary, NC).

Phenotype appearance rate in GBT lines is comparable to other mutagenic technologies for forward genetic screening

In parallel to knockdown efficacy, we wanted to know the GBT construct effectiveness at mutagenizing its integrated locus. To assess this mutagenic efficiency, we conducted an initial phenotypic screen on F2 embryos and early larvae. In 179 mRFP+ GBT lines, we identified 12 recessive phenotypes visible during the first five days of development that, among others, included lethal, cardiac, muscular, and integumentary defects as reported in previous studies (Supplementary file 2).

Molecular analyses revealed that a subset of these phenotypes stem from GBT integrations in genes with established loss of function mutant phenotypes including ryr1b, tnnt2a, fras1, hmcn1, and edar (Clark et al., 2011a; Westcot et al., 2015; Hatzold J et al., unpublished). In accord with their mRNA knockdown potency, these five GBT-confirmed lines (ryr1b, tnnt2a, fras1, hmcn1, and edar) phenocopied their respective homozygous mutants generated with other strategies and thereby validated the mutagenicity of the GBT constructs. To date, 17 of our GBT-confirmed lines have been published with homozygous phenotypes ranging from embryonic lethal, to reduced adult viability, to differences in pharmacological susceptibility (Supplementary file 2). Additional GBT-confirmed lines with homozygous phenotypes will continue to be identified and characterized in future studies.

ryr1b confirmed line is a pioneer model of human disease that validates GBT ability to functionally annotate a genetic locus

We next sought to validate the ability of GBT constructs to functionally annotate genes. During the initial GBT library creation, we identified a GBT line with skeletal muscle-specific mRFP expression and a slow swimming phenotype (Clark et al., 2011a). We confirmed that this line possesses an RP2.1 integration between exon 81 and exon 82 of ryr1b and designated it ryr1bmn0348Gt. Animals homozygous for this ryr1bmn0348Gt allele show 97% knockdown of wild-type ryr1b mRNA levels (Clark et al., 2011a). Due to the well-characterized nature of ryr1b from the relatively relaxed mutant (Hirata et al., 2007), this line was ideal for a proof of concept experiment in this study to validate functional genome annotation with GBT constructs. ryr1b orthologs are known across species to encode calcium-activated calcium channels that release sarcoplasmic reticulum Ca2+ stores to facilitate excitation-contraction coupling in skeletal muscles (Hernández-Ochoa et al., 2015; Hirata et al., 2007). Therefore, we set out to test whether loss of ryr1b in ryr1bmn0348Gt/mn0348Gt animals dampens skeletal muscle Ca2+ transients and may explain their previously reported slow swimming phenotype (Clark et al., 2011a).

To address this, we injected the skeletal muscle-targeted construct p-mylpfa:GCaMP3 (Baxendale et al., 2012) into both ryr1b+/+ and ryr1bmn0348Gt/mn0348Gt animals, treated these animals at 2 dpf with 20 mM pentylenetetrazole (PTZ) to maximize the probability of recording muscle activity, and assayed individual skeletal muscle Ca2+ transients associated with PTZ-induced convulsions (Figure 4A). p-mylpfa:GCaMP3 injection at the single-cell stage resulted in mosaic-labeled, GCaMP3+ myocytes in both ryr1b+/+ and ryr1bmn0348Gt/mn0348Gt animals (Figure 4B,F). Likewise, PTZ-treated ryr1b+/+ and ryr1bmn0348Gt/mn0348Gt animals showed spontaneous, convulsion-associated Ca2+ transients in their myocytes at two dpf (Figures 4C–E,G–I). However, PTZ-induced Ca2+ transients in myocytes of ryr1b+/+ animals had higher peak amplitude when averaged within fish (Figure 4J–K) or within myocytes (Figure 4—figure supplement 1A) and shorter rise time (Figure 4J,M) than those in ryr1bmn0348Gt/mn0348Gt animals. PTZ-induced Ca2+ transient peak-width (Figure 4J,L) and decay time (Figure 4J,N) were not significantly different between ryr1b+/+ and ryr1bmn0348Gt/mn0348Gt animals. In contrast, myocytes in ryr1b+/+ animals had more Ca2+ transients during the imaging period than myocytes in ryr1bRP2.1/RP2.1 animals (Figure 4—figure supplement 1B). We were thus able to use a GBT-confirmed line to demonstrate that a smaller peak amplitude (consistent with relatively relaxed [Hirata et al., 2007]), slower upstroke, and lower frequency of Ca2+ transients in skeletal muscle likely provide the basis for the slow swimming phenotype in ryr1bmn0348Gt/mn0348Gt animals. The consistency of our findings in ryr1bmn0348Gt/mn0348Gt with those in relatively relaxed mutants (Hirata et al., 2007) validates the functional genome annotation available with the GBT mutagenic system.

Figure 4 with 1 supplement see all
GBT demonstrates that neural disinhibition mediated Ca2+ transients in mylpfa+ myocytes require the ryanodine receptor ryr1b in vivo.

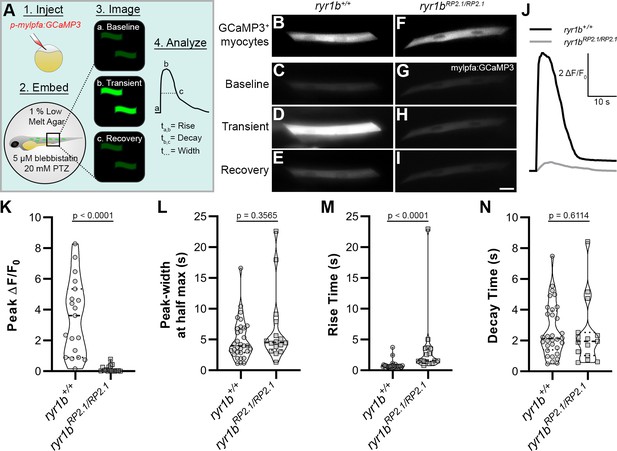

(A) Cartoon showing approach to assay Ca2+ transients in zebrafish myocytes through (1) injection of p-mylpfa:GCaMP3 (Baxendale et al., 2012) at the single cell stage, (2) embedding in 1% low melt agar/20 mM pentylenetetrazole (PTZ)/5 µM (S)-(-)-blebbistatin, (3) imaging for 3 min to record transient-associated changes in myocyte GCaMP3 fluorescence at 2 days post-fertilization, and (4) Ca2+ transient analysis. (B–I) Static images of GCaMP3 expressing myocytes (B, F) and representative GCaMP3 time-series images showing baseline (C, G), transient peak (D, H), and recovery (E, I) in ryr1b+/+ (C–E) and ryr1bmn0348Gt/mn0348Gt (G–I) animals, respectively. Scale bar = 20 µm. (J) Representative ∆F/F0 traces of Ca2+ transients from ryr1b+/+ (black) and ryr1bmn0348Gt/mn0348Gt (gray) myocytes. (K–N) Violin plots comparing transient peak ∆F/F0 (averaged within fish) (K), Ca2+ transient peak-width (L), Ca2+ transient rise (M) and decay (N) time between ryr1b+/+ and ryr1bmn0348Gt/mn0348Gt animals. All plots show median with interquartile range. For (K) nryr1b+/+ = 19 animals, nryr1bmn0348Gt/mn0348Gt = 16 animals. For (L–M) nryr1b+/+ = 32 cells, nryr1bmn0348Gt/mn0348Gt = 16 cells. For (N) nryr1b+/+ = 32 cells, nryr1bmn0348Gt/mn0348Gt = 15 cells. Data are compiled from four independent experiments containing at least two animals in each group. p-values determined using the Mann-Whitney U test. Effect size (Cohen’s d)=1.829 (K) and 0.866 (M). Source data can be found in Figure 4—source data 1 (K, L, M, N) and Figure 4—source data 2 (J).

GBT protein trapping generates a variety of potential models of human disease

This functional genome annotation available with the GBT system in zebrafish is powerful for understanding the genetic causes of human disease. For instance, mutations in RYR1, the human ortholog of ryr1b, are well-associated with a rare genetic neuromuscular disorder called central core disease. Central core disease commonly presents with mild to severe muscle weakness (Jungbluth et al., 2018) which is analogous to the slow swimming phenotype we saw in our ryr1bmn0348Gt/mn0348Gt animals (Clark et al., 2011a) and likely arises from similar disruptions to skeletal muscle Ca2+ transients (Figure 4). A subset of this GBT collection consequently represents a potential library of human disease models. Intriguingly, 82% of OMIM listed human disease-associated genes (2601 genes) can be related to at least one zebrafish ortholog (Howe et al., 2013).

We therefore took a new angle and investigated whether any GBT-confirmed lines represent potential human disease models. Within the set of GBT-confirmed lines that match a human ortholog (n = 177), 64 (36%) are integrated in genes associated with human diseases, including those of the nervous, circulatory, endocrine, metabolic, digestive, musculoskeletal, immune, and integumentary systems (select genes listed in Figure 5A, all 64 genes with disease-associated human orthologs listed in Supplementary file 3). 40 of these human disease-associated GBT-confirmed lines represent potential novel genetic disease models as we failed to find a description for any established disease models in mice or zebrafish for orthologs of these genes (Figure 5B and Supplementary file 3).

Disease-associated human orthologs of the GBT trapped genes are implicated in human genetic disorders of multiple organ systems.

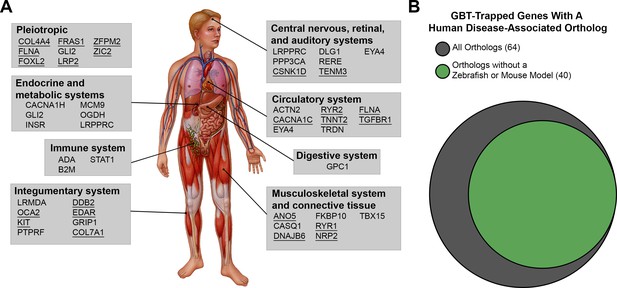

(A) Representative human orthologs of the GBT-tagged genes are associated with genetic disorders in multi-organ systems. Image provided by Mayo Clinic Media Services. Underline: Disease causative genes with documentations of established disease model in mouse or zebrafish (B) Area proportional Venn diagram of 64 human orthologs tagged that are associated with human genetic disorders. 40 human orthologs of GBT-tagged genes are associated with human genetic disorders without an established disease model in zebrafish or mouse. Area proportional Venn diagram was produced using BioVenn (http://www.biovenn.nl/).

GBT protein trapping creates loss of function products for a diverse population of proteins

Functional genome annotation with GBT constructs is equally powerful in detecting roles for genes in basic cellular processes. We and others have previously used imaging to investigate effective protein trapping in GBT-confirmed lines. This imaging has revealed diverse cellular and subcellular protein expression patterns (Clark et al., 2011a; Ding et al., 2013; Ding et al., 2017; El-Rass et al., 2017; Liao et al., 2012; Petzold et al., 2009; Westcot et al., 2015; Xu et al., 2012). In this study, we imaged GBT lines using a Lightsheet microscope for the first time. Multi-area tiling with a 20 × objective enabled rapid acquisition of 3-dimensional mRFP fusion protein localization across the entire organism (Figure 6A). Confocal imaging in areas of interest revealed even more detail with subcellular resolution (Figure 6A–B). Further confocal imaging demonstrated diverse subcellular localizations in GBT-confirmed lines, (Figure 6B–C) GBT-candidate lines, and GBT lines (Figure 6—figure supplement 1). This subcellular protein localization data from GBT lines can provide crucial information in piecing together gene function.

Figure 6 with 1 supplement see all
GBT-confirmed lines illuminate and disrupt genes encoding proteins with diverse functions and subcellular localizations.

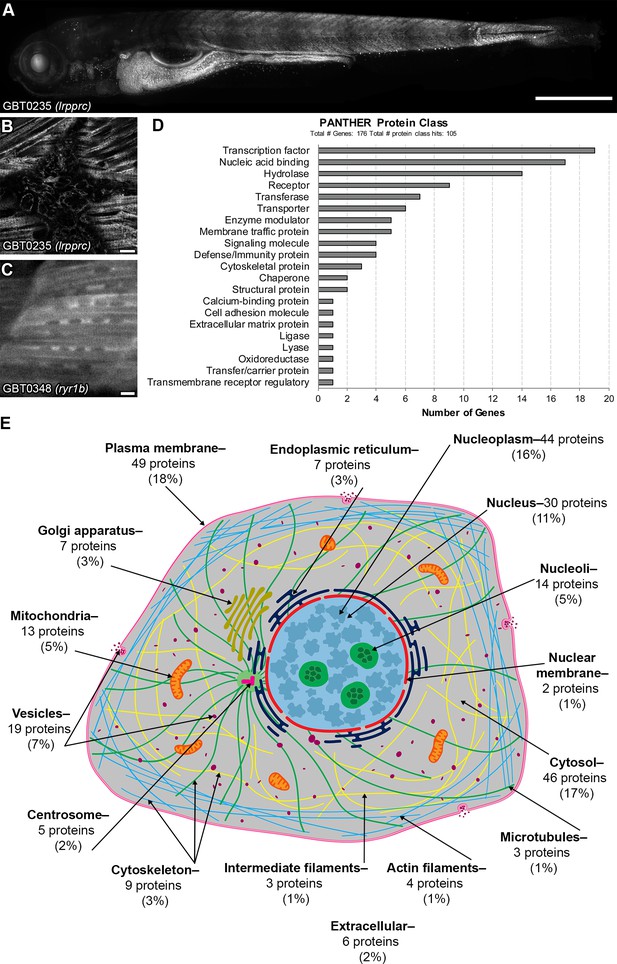

We therefore wanted to assess the subcellular diversity of all gene products trapped in our current collection of GBT-confirmed lines. As an approach to complement our imaging assessments, we focused on computational approaches to explore subcellular protein diversity in current GBT-confirmed lines. 177 of the GBT-trapped genes were annotated to their human orthologs in at least one public database (ZFIN, Ensembl, Homologene, and InParanoid version 8) (Supplementary file 1). Several of these genes were provisionally annotated using BLASTP or a synteny analysis tool, SynFind in Comparative Genomics (CoGe) database (https://genomevolution.org/CoGe/SynFind.pl) (Lyons and Freeling, 2008). We assessed the functional diversityhuman orthologs of human orthologs of these 177 GBT-confirmed loci with data from the PANTHER version 14.1 database on protein class ontology (http://www.pantherdb.org/) (Mi et al., 2019), the Human Protein Atlas on genome-wide experimental proteomics (www.proteinatlas.org. August 27, 2019) (Uhlén et al., 2015), and the UniProtKB on knowledge-based proteomics (UniProtKB, https://www.uniprot.org/, UniProt Consortium, 2018). PANTHER protein classification revealed that 105 human orthologs (60%, n = 176: see Materials and methods) are classified to at least one of 21 protein classes, and 19 human orthologs (11%) belong to transcription factors (Figure 6D and Figure 6—source data 1). Human Protein Atlas and UniProtKB subcellular localization data likewise showed diverse classifications of expression with a large group of nuclear localized human orthologs of these 177 GBT-confirmed loci (Figure 6E and Supplementary file 4).

We then asked whether this if our computational analysis corresponded to the patterns seen in our imaging data. We found that LRPPRC (human ortholog of lrpprc (GBT0235)—Figure 6A–B) was not annotated to a protein class in PANTHER but mapped to mitochondria in Human Protein Atlas, consistent with its puncta expression pattern (Figure 6A–B). RYR1 (human ortholog of ryr1b (GBT0348)—Figure 6C) was annotated as a transporter in PANTHER and was mapped to the cytosol, Golgi apparatus, and vesicles in Human Protein Atlas, consistent with its more uniform expression pattern (Figure 6C). Overall, protein class ontology and known subcellular localizations of cloned GBT genes suggest that the GBT system traps and enables functional annotation for a rich diversity of proteins. Additionally, the GBT-confirmed lines in orthologs of human genes without a known subcellular localization potentiate the discovery of their subcellular expression pattern in the context of a living animal.

mRFP expression profiling in GBT-confirmed lines reveals substantial new expression data at both 2 dpf and 4 dpf

We next asked if the mRFP expression patterns in our GBT-confirmed lines unveiled novel cellular expression data. To address this, we focused on the GBT-confirmed lines that were non-redundant and mapped to a known protein coding gene. Importantly, these GBT-confirmed lines exhibited expression patterns that are tissue specific and include assorted brain regions, heart, skin, muscle, vasculature, and blood (Figure 7A–R). We analyzed publicly available expression data of these 193 tagged genes in wild-type fish (downloaded from ZFIN on August 28th, 2019). Our GBT-confirmed lines revealed expression patterns (available on www.zfishbook.org) for 67 genes at 2 dpf and 174 genes at four dpf without publicly available expression data in ZFIN (Figure 7S–T).

GBT protein trap elucidates novel gene expression patterns in embryonic and larval zebrafish.

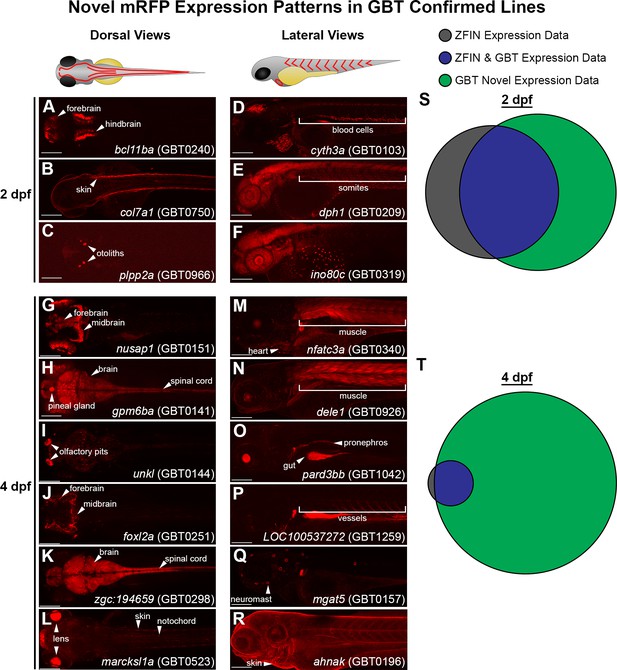

(A–C) Dorsal views of 2 days post-fertilization (dpf) embryos with GBT protein trap mRFP expression patterns ranging from bcl11ba in the forebrain and hindbrain (A), to col7a1 in the skin (B), and plpp2a in the otoliths (C). (D-F) Lateral views of 2 dpf embryos with GBT protein trap mRFP expression patterns ranging from cyth3a in blood cells (D), to dph1 in somites (E), and ino80c around the yolk (F). (G–L) Dorsal views of GBT protein trap mRFP expression patterns in 4 dpf larvae including nusap1 in the forebrain and midbrain (G), gpm6ba in the brain, spinal cord, and pineal gland (H), unkl in the olfactory pits (I), foxl2a in the forebrain and midbrain (J), zgc:194659 in the brain and spinal cord (K), and marcksl1a in the lens, skin, and notochord (L). (M–R) Lateral views of GBT protein trap mRFP expression patterns in 4 dpf larvae including nfatc3a in heart and muscle (M), dele1 in muscle (N), pard3bb in the gut and pronephros (O), LOC100537272 in vessels (P), mgat5 in neuromasts (Q), and ahnak in skin (R). Scale bars = 200 µm. (S–T) Area proportional Venn diagrams of 193 genes trapped in GBT-confirmed lines comparing the ZFIN-assembled database with mRFP expression in GBT lines available through zfishbook at two dpf (S) and four dpf (T). 67 (35%) and 174 (90%) of 193 genes trapped in GBT-confirmed lines have no description about wild-type expression at 2 dpf and 4 dpf, respectively.

Discussion

Gene-break transposon system as a next generation mutagenesis system

GBT technology represents the first method for revertible allele generation in vertebrates outside of the mouse model (Clark et al., 2011a). In this manuscript we broadened GBT genomic coverage through the development of an RP2 construct series to encode functional mRFP in each of the potential reading frames (Figure 1A). While each individual construct still only integrates in-frame in a subset of introns, the RP2 series potentiates in-frame mRFP for any intron with Tol2-mediated integration. We also desired to increase GBT utility for subsequent genomic engineering applications. As RP2 series constructs were not modularly designed, we iteratively developed a next generation RP8 GBT series. All RP8 constructs include new restriction enzyme sites that render them modular for custom engineering. Additionally, RP8 series constructs use a smaller backbone designed to enhance transgenic efficiency. RP8 vectors most notably possess a new 3’ exon trap cassette that uses the γ-crystalline promoter to drive expression of lens-specific tagBFP instead of the ubiquitous expression of GFP delivered from RP2 vectors (Figure 1B). We found this lens-specific tagBFP to be equally useful in screening founders with GBT integrations. While we did not explicitly validate that the RP8 series provides transcriptional effects equivalent to the RP2 series, the major functional change in RP8 lies in its 3’ exon trap. We therefore expect the knockdown to be similar between RP8 and RP2.

Two additional zebrafish transposon-based protein trap vectors have been established. Dr. Fraser’s group developed the FlipTrap system (Trinh et al., 2011) that is mutagenic in the presence of Cre-recombinase. However, this FlipTrap system is primarily focused on imaging fusion proteins in vivo and addressing cellular dynamics. The Chen lab developed a complementary flipping system called the FT1 system that uses either Cre or Flp recombinase to regulate its alleles depending on the original insertion orientation (Ni et al., 2012). Our GBT system is highly complementary and non-redundant with these alternative transposon-based protein trap methods. The 5’ protein trap in the GBT system is terminated through an enhanced polyadenylation signal in conjunction with a putative border element and a second splice acceptor in the 3’ exon trap helps eliminate any pass-through. Together these elements achieve higher gene-specific mRNA knockdown than the single splice acceptor and the basic polyadenylation signal in FlipTrap and FT1 (Figure 3). In addition to a 5’ protein trap, our GBT system also possesses a 3’ exon trap that serves as a means for screening integrations, reports 3’ sequence, and possesses the ability to trap (without mRFP expression) non-coding RNAs that undergo splicing (Figure 1).

Consistent with its mRNA knockdown abilities, the mutagenic efficacy of the GBT system is functionally similar to other genome-wide forward genetic approaches at identifying critical early developmental loci. The GBT system achieved 7% recovery of visible early (through five dpf) developmental phenotypes during an initial forward genetic screen. This recovery is comparable to the 5% recovered visible phenotypes from the Sanger TILLING consortium analysis of truncated zebrafish genes (Kettleborough et al., 2013). Our 7% phenotype recovery is also comparable to prior retroviral (Amsterdam and Hopkins, 2004) and ENU (Haffter et al., 1996) zebrafish mutagenesis works that estimated between 1400 and 2400 genes (~5–9% of the genome) would result in a visible embryonic phenotype when mutated.

Gene-break transposon system enables functional genome annotation and generates novel potential human disease models

The connections between gene, expression pattern, function, and phenotype (or human disease) can be elucidated using our GBT system. During the initial GBT library creation, we identified a GBT-confirmed line with an RP2 integration between exon 81 and exon 82 of ryr1b (ENSDART00000036015.9, Ensembl Release 100 on April 2020), a zebrafish ortholog of human RYR1. Mutations in RYR1 are well-linked to a rare genetic neuromuscular disorder known as central core disease that presents with mild to severe muscle weakness (Jungbluth et al., 2018). Indeed, homozygous animals in this ryr1b GBT-confirmed line possess skeletal muscle-specific mRFP expression and a slow swimming phenotype (Clark et al., 2011a). Previously, a spontaneous mutant called relatively relaxed (ryr1bmi340/mi340) was shown to have a slow swimming phenotype, truncated ryr1b protein with a pre-mature stop involved in an insertional mutagen, and defective skeletal muscle Ca2+ transients (Hirata et al., 2007). Our ryr1b GBT-confirmed line was therefore ideal to validate the functional genome annotation abilities of GBT constructs.

Similar to the relatively relaxed mutants which carry an insertion that introduces a premature stop codon between exons 48 and 49 of ryr1b (Hirata et al., 2007), we noted severely dampened skeletal muscle Ca2+ transients in animals homozygous for the ryr1b GBT allele (Figure 4). In addition to previously reported decreases in peak amplitude (Hirata et al., 2007) we found that ryr1bmn0348Gt/mn0348Gt animals also displayed a slower upstroke and lower frequency of skeletal muscle Ca2+ transients than wildtypes, functionally annotating these roles for the C-terminal region of ryr1b gene in vivo. Including this ryr1b line, we generated GBT-confirmed lines with integrations in 64 zebrafish orthologs of human disease-associated genes (Figure 5, Supplementary file 1, Supplementary file 3) in this study. GBT-confirmed lines with integrations in 40 zebrafish orthologs of human disease-associated genes may represent novel potential disease models, as we failed to find any description of existing zebrafish or mouse models for these genes or diseases. Our GBT system importantly possesses a built-in cure due to its revertible nature. Therefore, these GBT potential disease models will allow direct comparison of tissue-specific gene restoration with any therapeutic approach.

GBT protein trapping provides the basis for annotation of functionally diverse proteins and novel transcripts mapped on poorly assembled genomic regions

To achieve genomic representation, unbiased protein trapping is an important consideration. Tol2 transposase-mediated systems are known to facilitate near-random integration, but we wanted to explore this in the context of the GBT protein trapping constructs. We utilized PANTHER, Human Protein Atlas, and UniProtKB to explore the protein class and subcellular localization of the human orthologs of the genes trapped in GBT-confirmed lines (Figure 6). While nuclear localized proteins, such as transcription factors, represented the largest class of GBT-trapped genes, we identified a diverse set of proteins in our GBT-confirmed lines that localize all the way from the nucleoli to the extracellular space. The reason for the enrichment of nuclear genes is unknown. The rich diversity of proteins observed in our GBT-confirmed lines still supports that the entire collection has high diversity and is consistent with the random nature of Tol2-mediated genome integration events (Clark et al., 2011a). Completion of the zebrafish reference genomes also has enabled many new discoveries to be made with regards to the position of hundreds of genes that affect embryogenesis, behavior, and physiology. However, poorly assembled regions remain in both the zebrafish and the human genome (Howe et al., 2013). We indeed found that 10 GBT integrations in the confirmed lines (with mRFP expression) failed to map to any predicted genes. However, RNA sequencing reads in public datasets identified potential unannotated coding sequences aligned with these GBT integration loci (Supplementary file 1). While 5’ and 3’ RACE are necessary to confirm the mRNA fusion products, these unannotated coding sequences represent the possibility to annotate novel, protein-coding transcripts in these GBT lines. Therefore, GBT protein trapping can find, illuminate expression, and elucidate in vivo functions of novel genes and/or gene variants in poorly annotated regions of reference genomes.

GBT protein trapping annotates novel endogenous gene expression

GBT-based mRFP fusion proteins represent a notable advance over traditional techniques for probing endogenous gene expression (e.g., immunohistochemistry, in situ hybridization) that have yielded very little gene expression data at later developmental stages. The truncated mRFP fusion proteins in both RP2 and RP8 series constructs exhibited distinct cellular localizations in our GBT lines throughout development, including two dpf and beyond. Approximately 90% of GBT-confirmed lines showcased novel expression patterns of their annotated genes at four dpf (Figure 7).

These GBT-based mRFP fusion proteins allow investigation of subcellular localization of these tagged-gene products (Figure 6, Figure 6—figure supplement 1), with the exception of cases where the protein localization signal is contained in the C-terminal domain (Clark et al., 2011a; Trinh and Fraser, 2013). We indeed observed mRFP accumulation in the kidney tubules, white blood cells or developing bones in some GBT lines, likely based upon the remaining signal sequences at the N-terminus of the endogenous protein. Still, visualizing protein expression dynamics of GBT-trapped proteins in most lines should facilitate important initial annotations regarding subcellular localization of uncharacterized proteins to investigate molecular functions in vivo. With ever-improving fluorescence-based imaging tools (Liu et al., 2018), our GBT lines have the potential to annotate both cellular and subcellular gene expression at diverse stages on an organismal scale.

Gene-break protein trap library is a rich resource for the community

Taken together, GBT-based mRFP-reporters demonstrate how much we still have left to understand about the expression patterns of the overall proteome and, ultimately, the complex codex that is our genome. Even at the relatively well-studied 2-dpf stage, nearly 40% of GBT-confirmed lines elucidated novel gene expression data (Figure 7). Cataloging these expression patterns enables investigators to make collections of lines with expression in their cell/tissue of interest and/or a phenotype. The remaining 144 GBT-candidate lines and over 800 GBT lines represent a rich resource for genomic discoveries. For any GBT-candidate or GBT lines of interest, a similar cloning pipeline (Figure 2) can be employed to identify the GBT integration locus. In addition, the refinement of the zebrafish genome will enhance our ability to complete the annotation from GBT-line to GBT-confirmed line for any given line with a desired expression profile and/or phenotype. Together, this 1,200+ GBT-line collection is a new contribution for using zebrafish to annotate the vertebrate genome.

Future genomic insights using the GBT system

Although our GBT lines were made with random integration, new targeted integration tools, such as GeneWeld (Wierson et al., 2020), that employ gene editing techniques will empower labs to build custom GBT lines for their gene of interest (El Khoury et al., 2018). The three reading frames and modularity of the RP8 series are especially well suited to targeted integration approaches. Further, a combination of targeted and random integration may best facilitate discovery. For instance, a targeted approach could integrate a GBT cassette into a well-characterized, process-associated gene. Then, random integration could be used to probe for genes that potentiate or abrogate the disruption in the original process-associated gene. With this approach, GBTs are a powerful tool to investigate multigenic processes, including human disease.

GBT system offers advantages over frame-shift mutations

Finally, targeted mutagenic technology, such as CRISPR and TALEN systems, has become the gold standard reverse genetic approach. However, engineered mutant animals using approaches generate targeted indel mutation frequently fail to display overt phenotypes, often explained by genetic compensation (Balciunas, 2018; El-Brolosy and Stainier, 2017). One mechanism includes cellular increases in transcripts of genes in the same family that can functionally substitute when activated in a mutant background (Balciunas, 2018). Recently, a number of studies using reverse genetics tools have revealed phenotype differences between knockouts (indel mutants), and knockdowns (antisense-treated animals) in multiple model systems including Arabidopsis, Drosophila, zebrafish, mouse, and human cell lines. This discrepancy is attributed to transcriptomic changes in mutant but not in knockdown animals (Reviewed from El-Brolosy and Stainier, 2017). For example, knockdown of egfl7, an endothelial extracellular matrix (ECM) gene, induces severe vascular defects, whereas most egfl7 mutants exhibit no obvious defect, resulting from upregulation of other ECM proteins, especially emilins in egfl7 mutants, but not in egfl7 morphants (Ronzitti, 2019). As another mechanism of genetic compensation, mRNA processing—including nonsense-associated exon skipping and the use of alternative start or splice sites to escape nonsense-mediated decay—has been recently demonstrated to hinder loss-of-function approaches in zebrafish (Anderson et al., 2017; Prykhozhij et al., 2017), in human cell lines (Lalonde et al., 2017; Winter et al., 2019) and in the human population (Jagannathan and Bradley, 2016). In contrast, the molecular mechanism of GBT mutagenesis can normally avoid this genetic compensation effect seen with small indel mutations because the strong poly (A)-trapping element in the 5’ exon trap domain of RP cassettes can reduce mRNA to below 1% of the complete wild-type transcript level. This reduction eliminates many sources of transcriptional adaptations triggered by a loss of function mutation, such as alternative transcriptional start sites, splicing, or alternative translation initiation. The GBT can therefore act as a useful validation tool when targeted mutations with other technologies fail to display any phenotype.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Recombinant DNA reagentpGBT-RP2.1Clark et al., 2011aRRID:Addgene_31828, Genbank: HQ335170Figure 1A
Recombinant DNA reagentpGBT-RP2.2This paperGenbank: MT815588Figure 1A
Recombinant DNA reagentpGBT-RP2.3This paperGenbank: MT815589Figure 1A
Recombinant DNA reagentpGBT-RP8.1This paperGenbank: MT815590Figure 1B
Recombinant DNA reagentpGBT-RP8.2This paperGenbank: MT815591Figure 1B
Recombinant DNA reagentpGBT-RP8.3This paperGenbank: MT815592Figure 1B
Recombinant DNA reagentpGBT-RP7.1This paperAn intermediate construct to create pGBT-RP8.1
Recombinant DNA reagentpGBT-RP6.1This paperAn intermediate construct to create pGBT-RP8.1
Recombinant DNA reagentpGBT-RP5.1This paperAn intermediate construct of pGBT-RP8.1
Recombinant DNA reagentpre(−1)GBT-RP5.1This paperAn intermediate construct of pGBT-RP5.1
Recombinant DNA reagentpre(−2)GBT-RP5.1This paperAn intermediate construct of pGBT-RP5.1
Recombinant DNA reagentpre(−3)GBT-RP5.1This paperAn intermediate construct of pGBT-RP5.1
Recombinant DNA reagentpKTol2-SEClark et al., 2011b
Recombinant DNA reagentpUC57-I-SceI_LoxP_SpliceThis paperDNA source to create pre(−3)GBT-RP5.1
Recombinant DNA reagentpUC57GenscriptSD1176
Recombinant DNA reagentpKTol2gC-nlsTagBFPThis paperDNA source to create pre(−2)GBT-RP5.1
Recombinant DNA reagentpGBT-R15Clark et al., 2011aRRID:Addgene_31826, Genbank ID: HQ335168
Recombinant DNA reagentpGBT-PXSivasubbu et al., 2006RRID:Addgene_31824, Genbank ID: HQ335166
Recombinant DNA reagentpCR4-bactmIntronThis paperDNA source to create pGBT-RP8.1
Recombinant DNA reagentpCR4-bact_I1This paperDNA source of the carp beta-actin intron amplified from pGBT-RP2.1
Recombinant DNA reagentpCR4-TOPOInvitrogen450030
Recombinant DNA reagentpEXPR-mylpfa:GCaMP3Baxendale et al., 2012
Chemical compound, drugphenylthiocarbamideSigma-AldrichP7629
Chemical compound, drugtricaineSigma-AldrichA5040
Chemical compound, druglow melt agaroseFisher ScientificBP1360
Chemical compound, drugpentylenetetrazoleSigma-AldrichP6500
Chemical compound, drug(S)-(-)-blebbistatinTocris1852
Chemical compound, drugβ-mercaptoethanolSigma-AldrichM6250
Chemical compound, drugproteinase KRoche3115879001
Commercial assay or kitT4 DNA ligaseNew England BiolabsM0202S
Commercial assay or kitRNeasy Micro KitQIAGEN74004
Commercial assay or kitStainless steel beadsNext AdvanceSSB05
Commercial assay or kitMaXtract High Density tubesQIAGEN129056
Commercial assay or kitSuperScript II Reverse TranscriptaseThermo Fisher Scientific18064014
Commercial assay or kitSensiFAST SYBR Lo-ROX kitBiolineBIO-94005
Commercial assay or kitQIAquick Gel Extraction KitQIAGEN28704
Software, algorithmGraphPad Prism 8GrapgPadRRID:SCR_002798
Software, algorithmRwww.R-project.orgRRID:SCR_001905
Software, algorithmR-Studiowww.rstudio.com/
Software, algorithmpwr packagehttps://CRAN.R-project.org/package=pwr
Software, algorithmwilcox.test functionwww.R-project.org
Software, algorithmcoin packageHothorn et al., 2006, Hothorn et al., 2008
Software, algorithmoutliers packagehttps://CRAN.R-project.org/package=outliers
Software, algorithmeffsize packagehttps://CRAN.R-project.org/package=effsize
Software, algorithmJMP version 14http://www.jmp.com/en_us/software/jmp.htmlRRID:SCR_014242
Software, algorithmSynFindhttps://genomevolution.org/CoGe/SynFind.pl
Software, algorithmBLASTPhttp://blast.ncbi.nlm.nih.gov/Blast.cgi?PROGRAM=blastp&PAGE_TYPE=BlastSearch&LINK_LOC=blasthomeRRID:SCR_001010
Software, algorithmBioMart, Ensembl toolhttp://useast.ensembl.org/biomart/martview/RRID:SCR_002344
Software, algorithmPANTHER version 14.1http://www.pantherdb.org/RRID:SCR_004869
Software, algorithmFIJIhttps://fiji.sc/RRID:SCR_002285
Software, algorithmMetaMorph Microscopy Automation and Image Analysis SoftwareMolecular DevicesRRID:SCR_002368
Software, algorithmDigidata 1440AMolecular Devices
Software, algorithmClampex 10.3Molecular Devices
Software, algorithmIntegrative Genomics Viewer (version 2.4.19)Thorvaldsdóttir et al., 2013RRID:SCR_011793
Software, algorithmGalaxyhttps://usegalaxy.org/RRID:SCR_006281
Software, algorithmBAMtoolsBarnett et al., 2011RRID:SCR_015987
Software, algorithmTopHatKim et al., 2013RRID:SCR_013035
Software, algorithmZebrafish Information Network (ZFIN)https://zfin.org/RRID:SCR_002560
Software, algorithmEnsemblhttps://useast.ensembl.org/index.htmlRRID:SCR_002344
Software, algorithmInParanoid version 8http://inparanoid.sbc.su.se/cgi-bin/index.cgiRRID:SCR_006801
Software, algorithmThe Human Protein Atlaswww.proteinatlas.orgRRID:SCR_006710
Software, algorithmUniProtKBhttps://www.uniprot.org/RRID:SCR_004426
Software, algorithmOnline Mendelian Inheritance in Man (OMIM)https://omim.org/RRID:SCR_006437
Software, algorithmMouse Genome Informatics (MGI)http://www.informatics.jax.orgRRID:SCR_006460
Software, algorithmzfishbookhttps://zfishbook.org/RRID:SCR_006896
OtherRNA-seq datasetWhite et al., 2017GRCz10.WTSI.36hpf.1.bamftp://ftp.ensembl.org/pub/data_files/danio_rerio/GRCz10/rnaseq/
OtherRNA-seq datasetWhite et al., 2017GRCz10.WTSI.48hpf.1.bamftp://ftp.ensembl.org/pub/data_files/danio_rerio/GRCz10/rnaseq/
OtherRNA-seq datasetWhite et al., 2017GRCz10.WTSI.4dpf.1.bamftp://ftp.ensembl.org/pub/data_files/danio_rerio/GRCz10/rnaseq/

Zebrafish husbandry

Request a detailed protocol

All zebrafish (Danio rerio) were maintained according to the procedures described previously (Leveque et al., 2016).

Generating GBT constructs, RP2 and RP8 series

Request a detailed protocol

pGBT-RP8.2 and -RP8.3 were made by combining three restriction endonuclease fragments of pGBT-RP8.1, a 2.2 kb AflII to AgeI, a 0.7 kb EcoRI to SpeI, and a 3.0 kb SpeI to AflII, with a short adapter to close the space between AgeI and EcoRI that effectively removed one or two thymine nucleotides just following the splice acceptor prior to the AUG-less mRFP cassette. For pGBT-RP8.2, Adapter-GBT(+2) was made by annealing oligos adapter-GBT(+2)-a [CCGGTTTTCTCATTCATTTACAGTCAGCCGG] and adapter-GBT (+2)-b [AATTCCGGCTGACTGTAAATGAATGAGAAAA]. For pGBT-RP8.3, Adapter-GBT(+3) was made by annealing oligos adapter-GBT (+3)-a [CCGGTTTTCTCATTCATTTACAGCAGCCGG] and adapter-GBT(+3)-b [AATTCCGGCTGCTGTAAATGAATGAGAAAA].

pGBT-RP2.2 and -RP2.3 were made by combining three restriction endonuclease fragments of pGBT-RP2.1 (Clark et al., 2011a), a 3.6 kb BlpI to AgeI, a 1.9 kb EcoRI to AvrII, and a 3.55 kb AvrII to BlpI, with a short adapter to close the space between AgeI and EcoRI that effectively removed one or two thymine nucleotides just following the splice acceptor prior to the AUG-less mRFP cassette. For pGBT-RP2.2, Adapter-GBT(+2) was made by annealing oligos adapter-GBT(+2)-a and adapter-GBT(+2)-b. For pGBT-RP2.3, Adapter-GBT(+3) was made by annealing oligos adapter-GBT(+3)-a and adapter-GBT(+3)-b. pGBT-RP8.1 was made by cloning a mini-intron derived from carp beta actin intron one into pGBT-RP7.1. The 234 bp SalI to XhoI mini-intron fragment was isolated from pCR4-bactmIntron following digestion. The pGBT-RP7.1 plasmid was digested with XhoI so that the SalI to XhoI fragment was cloned between the gamma-crystallin promoter and nls tagBFP.

pCR4-bactmIntron was made by removing a 1.1 kb internal portion of the carp beta actin intron one by digestion of pCR4-bact_I1 with BstBI and BssHII, followed by filling in 5’ overhangs and ligating remaining vector fragment.

pCR4-bact_I1 was cloning a PCR product containing the carp beta-actin intron into pCR4-TOPO (450030, Invitrogen, Thermo Fisher Scientific, Waltham, MA). The intron was amplified from pGBT-RP2.1 (Clark et al., 2011a) using MISC-bact_exon-F1 [CAGCTAGTGCGGAATATCATCTGCC] and MISC-bact_intron-R1 [CTTCTCGAGGTGAATTCCGGCTGAACTGTA] primers.

pGBT-RP7.1 was made by replacing a 501 bp PstI to PstI fragment of pGBT-RP6.1 with a 480 bp PstI to PstI fragment of pRP2.1. This changed the nucleotide sequence between the carp beta-actin splice acceptor to replicate the sequences in pGBT-RP2.1. pGBT-RP7.1 was never directly tested in zebrafish.

pGBT-RP6.1 was made by flipping the internal trap cassette relative the Tol2 inverted terminal repeats in pGBT-RP5.1. To do this, pGBT-RP5.1 was cut with EcoRV and SmaI. The 2.27 kb EcoRV to SmaI vector backbone fragment, which included the ITRs, was ligated to the 3.51 kb EcoRV to SmaI trap fragment. pGBT-RP6.1 was then selected based on the right ITR of Tol2 being in front of the RFP trap, which is the same orientation of pGBT-RP2.1.

pGBT-RP5.1 was made by cloning a PCR product with the AUG-less mRFP into pre(−1)GBT-RP5.1. The 698 bp mRFP* PCR product was obtained by amplification of pGBT-R15 (Clark et al., 2011a) with CDS-mRFP*-F1 [AAGAATTCGAAGGTGCCTCCTCCGAGGATGTCATCAAGG] and CDS-mRFP-R1 [AAACTAGTCTTAGGCTCCGGTGGAGTGGCGG]. Prior to cloning the PCR mRFP* product was digested with EcoRI and SpeI to prepare the ends for subcloning into pre(−1)GBT-RP5.1 that was opened between the carp beta actin splice acceptor and the ocean pout terminator.

pre(−1)GBT-RP5.1 was made by cloning 1.2 kb SpeI to AvrII fragment from pGBT-PX (Sivasubbu et al., 2006) that contained the ocean pout terminator into the SpeI site of pre(−2)GBT-RP5.1. The resulting products were screened for the proper orientation of the ocean pout terminator relative to the carp beta actin splice acceptor.

pre(−2)GBT-RP5.1 was made by inserting an expression cassette to make a 3’ poly(A) trap that makes blue lenses. A 1.15 kb SpeI to BglII fragment from pKTol2gC-nlsTagBFP was cloned into pre(−3)GBT-RP5.1 that had been cut with AvrII and BglII. This moved the Xenopus gamma crystallin promoter driving a nuclear-localized TagBFP in front of the carp beta actin splice donor within pre(−3)GBT-RP5.1 to create a localized BFP poly(A) trap signal replacing the ubiquitous GFP signal that was in pGBT-RP2.1.

pre(−3)GBT-RP5.1 was made by cloning a 492 bp XmaI to NheI scaffold fragment from pUC57-I-SceI_loxP_splice into pKTol2-SE (Clark et al., 2011b) opened with XmaI and NheI.

pUC57-I-SceI_LoxP_Splice contains a synthetic sequence (see below) cloned into pUC57 (SD1176, Genscript, Piscataway, NJ). The scaffold contains an I-SceI site; loxP site; carp beta actin splice acceptor; cloning sites for mRFP, ocean pout terminator, and BFP lens cassettes; carp beta actin splice donor; loxP site; and an I-SceI site.

The synthetic sequence described above is: cccgggatagggataacagggtaatataacttcgtatagcatacattatacgaagttat cgttaccacccactagcggtcagactgcagattgcagcacgaaacaggaagctgac tccacatggtcacatgctcactgaagtgttgacttccctgacagctgtgcactttctaaa ccggttttctcattcatttacagttcagcctgttacctgcactcaccgacaagctgttacc ctggaattcgtttaaacactagtcaccggcgttcctaggttataagatctacctaaggtg agttgatctttaagctttttacattttcagctcgcatatatcaattcgaacgtttaattagaat gtttaaataaagctagattaaatgattaggctcagttaccggtcttttttttctcatttacact gagctcaagacgtctgataacttcgtatagcatacattatacgaagttattaccctgttatccctatggctagc.

Generating GBT collection

Request a detailed protocol

Generation of the GBT collection was based on the prior described protocols (Clark et al., 2011a; Ni et al., 2016). RP2 constructs were injected and sorted by low mosaicism of GFP expression. RP8 constructs were sorted on the basis of strong tagBFP expression in the eyes. Overall ~30% of injected fish met these criteria. ~ 25% of these F0 fish gave RFP offspring.

Fluorescent microscopy of mRFP reporter protein expression

Request a detailed protocol

Larvae were treated with 0.2 mM phenylthiocarbamide (P7629, Sigma-Aldrich, St. Louis, MO) at one dpf to inhibit pigment formation. The anesthetized fish were mounted in 1.5% low-melt agarose (BP1360, Fisher Scientific, Hampton, NH) prepared with 0.017 mg/ml tricaine (Ethyl 3-aminobenzoate methanesulfonate salt, A5040, Sigma-Aldrich) solution in an agarose column in the imaging chamber. The protocol of ApoTome microscopy was described in previous publication. (Clark et al., 2011a) For Lightsheet microscopy, larval zebrafish were anesthetized with 0.017 g/ml tricaine in 1.5% low-melt agarose (BP1360, Fisher Scientific) and mounted in glass capillaries. To capture RFP expression patterns of 2 dpf and four dpf larval zebrafish, LP 560 nm filter as excitation and LP 585 nm as emission was used for Lightsheet microscopy. The sagittal-, dorsal-, and ventral- oriented z-stacks of the mRFP expression were captured at either 50x magnification using an ApoTome microscope (Zeiss, Oberkochen, Germany) with a 5x/0.25 NA dry objective (Zeiss) or 50x magnification using a Lightsheet Z.1 microscope (Zeiss) 5x/0.16 NA dry objective. Each set of images were obtained from the same larva and the images shown are composites of the maximum image projections of the z-stacks obtained from each direction.

For confocal microscopy, larval zebrafish were anesthetized with 0.017 g/ml tricaine (Ethyl 3-aminobenzoate methanesulfonate salt, A5040, Sigma-Aldrich) in 1.0% low-melt agarose (BP1360, Fisher Scientific) and mounted 35 mm glass-bottom dishes (P35G-1.5–14 C, MatTek Life Sciences, Ashland, MA). Imaging was performed on an LSM-780 (Zeiss, Oberkochen, Germany) using either a C-Apochromat 63x/1.2 NA or a C-Apochromat 40x/1.2 NA water immersion objective. RFP was excited at 561 nm and emissions 570–750 nm were collected.

Sperm cryopreservation

Request a detailed protocol

Sperm collection and cryopreservation was initially based on the protocol described in Draper and Moens, 2009 and moved to the Zebrafish International Resource Center (ZIRC) protocol described in Matthews et al., 2018.

Genomic DNA isolation

Request a detailed protocol

Genomic DNA was isolated from F2 fish tail biopsies to conduct next generation sequencing and from both wild-type and heterozygous larva to manually perform PCR-based analysis for the identification of GBT-insertion site. 60 µl of lysis buffer containing with 10 mM Tris (pH 8.0), 100 mM NaCl, 10 mM EDTA, 0.4% SDS and 5 µg/ml proteinase K (03115879001, Roche) was loaded into each well of a 96-wells plate and clipped adult fins/larvae were individually placed into each well and incubated at 50°C for 3 hr. The solution with lysed tissue were suspended with a multichannel micropipette to dissolve the tissue, mixed with 60 µl of isopropanol and centrifuged at ~3,000 rpm/ 15,000 × g for 20 min at 4°C. After removing the supernatant, 100 µl of 70% ethanol were added, centrifuged for 20 min at 4°C. After discarding ethanol, the pellets were dried and re-suspended in 50 µl of water/TE. As the alternative protocol to quickly extract genomic DNA from zebrafish larvae, the specimens were individually placed to 0.2 ml PCR tubes and lysed with 30–50 µl of 50 mM NaOH and incubated at 95 Co for 20 min. The solutions with lysed specimens were vortexed and neutralized with 1 of 10 vol 1M Tris-HCl.

Identification of GBT insertion loci

Request a detailed protocol

In addition to the broad next gen sequencing approach used to identify GBT integration sites, we used a combination of several a la carte methods including 5' and 3' rapid amplification of cDNA ends (RACE) (Clark et al., 2011a), inverse PCR (Clark et al., 2011a), and Thermal Asymmetric Interlaced PCR (TAIL-PCR). The protocol used for TAIL-PCR was designed to amplify and clone junction fragments from Tol2-based gene-break transposons was based on a protocol from Parinov et al., 2004 with some modifications. The following primer mixtures (containing 0.4 μM GBT specific primer and 2 µM degenerate primers (DP)) were prepared: for primary PCR: 5R-mRFP-P1/DP1, 5R-mRFP-P1/DP2, 5R-mRFP-P1/DP3, 5R-mRFP-P1/DP4, 3 R-GM2-P1/DP1, 3 R-GM2-P1/DP2, 3 R-GM2-P1/DP3, 3 R-GM2-P1/DP4, 3R-tagBFP-P1/DP1, 3R-tagBFP-P1/DP2, 3R-tagBFP-P1/DP3, 3R-tagBFP-P1/DP4; for secondary PCR: 5R-mRFP-P2/DP1, 5R-mRFP-P2/DP2, 5R-mRFP-P2/DP3, 5R-mRFP-P2/DP4, 3 R-GM2-P2/DP1, 3 R-GM2-P2/DP2, 3 R-GM2-P2/DP3, 3 R-GM2-P2/DP4, 3R-tagBFP-P2/DP1, 3R-tagBFP-P2/DP2, 3R-tagBFP-P2/DP3, 3R-tagBFP-P2/DP4; for tertiary PCR: TAIL-bA-SA/DP1, TAIL-bA-SA/DP2, TAIL-bA-SA/DP3, TAIL-bA-SA/DP4, Tol2-ITR(L)-O1/DP1, Tol2-ITR(L)-O1/DP2, Tol2-ITR(L)-O1/DP3, Tol2-ITR(L)-O1/DP4, Tol2-ITR(L)-O3/DP1, Tol2-ITR(L)-O3/DP2, Tol2-ITR(L)-O3/DP3, Tol2-ITR(L)-O3/DP4. A total of 1 μl of primer mixtures were added to PCR reaction (total volume 25 µl). Cycle settings were as follows. Primary: (1) 95°C, 3 min; (2) 95°C, 20 s; (3) 61°C, 30 s; (4) 70°C, 3 min; (5) go to ‘cycle 2’ five times; (6) 95°C, 20 s; (7) 25°C, 3 min; (8) ramping 0.3°/sec to 70°C; (9) 70°C, 3 min; (10) 95°C, 20 s; (11) 61°C, 30 s; (12) 70°C, 3 min; (13) 95°C, 20 s; (14) 61°C, 30 s; (15) 70°C, 3 min; (16) 95°C, 20 s; (17) 44°C, 1 min; (18) 70°C, 3 min; (19) go to ‘cycle 10’ 15 times; (20) 70°C, 5 min; Soak at 12°C. A total of 5 μl of the primary reaction was diluted with 95 µl of 10 mM Tris-Cl or TE buffers and 1 μl of the mixture was added to the secondary reaction. Secondary: (1) 95°C, 2 min (2) 95°C, 20 s; (3)61°C, 30 s; (4) 70°C, 3 min; (5) 95°C, 20 s; (6) 61°C, 30 s; (7) 70°C, 3 min; (8) 95°C, 20 s; (9) 44°C, 1 min; (10) ramping 1.5°/sec to 70°C; (11) 70°C, 3 min; (12) go to ‘cycle 2’ 15 times; (13) 70°C, 5 min; Soak at 12°C. A total of 5 μl of the primary reaction was diluted with 95 µl of 10 mM Tris-Cl or TE buffers and 1 μl of the mixture was added to the tertiary reaction. Tertiary: (1) 95°C, 2 min; (2) 95°C, 20 s; (3) 44°C, 1 min; (3) ramping 1.5°/sec to 70°C; (4) 70°C, 3 min; (5) go to ‘cycle 2’ 32 times; (6) 70°C, 5 min; Soak at 12°C. Products of the secondary and tertiary reactions were separated by using 1–1.5% agarose gel. The individual bands from the ‘band shift’ pairs were cut from the gel and purified by using QIAquick Gel Extraction Kit (28704, QIAGEN, Hilden, Germany), and sequenced by the sequencing service in the Medical Genome Facility at Mayo Clinic.

Alternatively, 5' RACE, 3' RACE, or inverse PCR were used to identify the interrupted gene as previously described (Clark et al., 2011a).

Bioinformatic analysis of public RNA sequencing data at the integrated loci

Request a detailed protocol

Public datasets of zebrafish wildtype at 36 hpf, 48 hpf and four dpf were downloaded from Ensembl database (Downloaded datasets: GRCz10.WTSI.36hpf.1.bam, GRCz10.WTSI.48hpf.1.bam and GRCz10.WTSI.4dpf.1.bam, URL: ftp://ftp.ensembl.org/pub/data_files/danio_rerio/GRCz10/rnaseq/) (White et al., 2017) to browse mapping RNA sequence (RNA-seq) reads around the integration loci. With Galaxy (https://usegalaxy.org/) as a web-based platform for next generation sequencing data analysis (Afgan et al., 2018), these downloaded BAM files of these datasets were converted FASTQ file format using BAMtools (Barnett et al., 2011). TopHat created a new BAM file and re-aligned RNA-seq reads in the FASTQ file to identify splice junctions between exons in each dataset (Kim et al., 2013). These re-mapped BAM files were used to predict candidate transcripts integrated with RP2/RP8 constructs with Integrative Genomics Viewer (version 2.4.19) (Thorvaldsdóttir et al., 2013).

Calcium imaging

Request a detailed protocol

Our calcium imaging protocols were modified from Baxendale et al., 2012. Calcium data are compiled from two similar methods with independent experimenters and equipment. L.E.G. performed two independent runs of ‘Method 1’, and A.J.T. performed two independent runs of ‘Method 2’. Zebrafish embryos at the single cell (single-cell to 4 cell in Method 1) stage were injected with 80–100 pg (Method 1) or 2 nL of pEXPR-mylpfa:GCaMP3 plasmid (a gift from Dr. Cunliffe) diluted in water (Method 1) or to 50 ng/µL in 200 mM KCl/0.05% phenol red (Method 2). On day 2, GCaMP3+ embryos were de-chorionated and allowed to rest for 30 min.

For Method 1, embryos were singly incubated in E2 medium containing 20 mM pentylenetetrazole (PTZ) (P6500, Sigma-Aldrich) for approximately 5 min and mounted with a 3% methylcellulose solution containing 20 mM PTZ in a PPT tube and viewed laterally (similar to SCORE imaging [Petzold et al., 2010]). After mounting, Ca2+ transients in muscles were assessed using an Axio Scope.A1 (Zeiss) equipped with a D3 DSLR camera (Nikon, Minato, Tokyo, Japan) and a HXP 120 fluorescent lamp (Zeiss) using a 10x, 0.45 NA objective. Images were acquired at a rate of 2 Hz over 30 s.

For Method 2, four embryos at a time were transferred into E2 medium containing 5 µM (S)-(-)-blebbistatin (1852, Tocris, Bristol, United Kingdom) and incubated for at least 30 min until paralyzed. Once paralyzed, we embedded pairs of embryos into glass bottom dishes (MatTeK Corporation, Ashland, MA) with 1% low melting agarose (BP1360, Fisher Scientific) in E2 embryo medium with 5 µM (S)-(-)-blebbistatin and 20 mM PTZ. After an incubation period of 10–20 min, Ca2+ transients in muscles were assessed using an inverted IX70 microscope (Olympus, Shinjuku, Tokyo, Japan) equipped with an OrcaFlash4.0 V2 sCMOS camera (Hamamatsu, Hamamatsu City, Shizuoka, Japan) and a pE-300ultra LED light source (CoolLED, Andover, United Kingdom) using a 20x, 0.75 NA objective. Images were acquired for 3 min at 5 Hz as a stream using Metamorph software (Molecular Devices, San Jose, CA), while the camera and LED were triggered through TTL output through a Digidata 1440A (Molecular Devices) with Clampex 10.3 software (Molecular Devices).

During the acquisition process, experimenters were blind to the genotype and mRFP expression pattern of the GCaMP3+ animals in both Method one and Method 2. After acquisition, images were de-identified using a random number generator to blind the analysis. For Method 1, images were stitched together as TIFF series in NIH ImageJ/FIJI (https://fiji.sc/). Due to the lack of paralysis in Method 1, some contractions resulted in axial motion that temporarily removed the cells from the focal plane. These frames with cells outside of the focal plane were manually removed from the image series. For Method 2, image series were filtered to 2.5 Hz and exported from Metamorph in TIFF format. The Template Matching plugin (https://sites.google.com/site/qingzongtseng/template-matching-ij-plugin#description) for NIH ImageJ/FIJI was used to adjust for lateral motion during contractions and drift.

After alignment, regions of interest (ROIs) were drawn around each cell using the magic wand tool and the background (an area in each animal devoid of GCaMP3+ cells) using the rectangle tool in NIH ImageJ/FIJI. The average gray values of these ROIs were measured over the time series using the multi measure tool in NIH ImageJ/FIJI. Raw data were exported to Excel (Microsoft, Redmond, WA) and fluorescence time series were converted using background subtraction to ΔF/F0 (ΔF/F0 = (F − F0)/F0), where F0 was the baseline fluorescence for each trial. Kinetic measurements for individual peaks (rise time (10%–90%), decay time (90%–50%), and peak-width at half max) were made on the data acquired with Method two using Clampfit 10.7 (Molecular Devices).

Due to the mosaic nature of injections, each field contained 1–8 (median = 2, 25% quartile = 2, 75% quartile = 5) GCaMP3+ myocytes. Further, individual cells exhibited 0–9 (median = 1, 25% quartile = 0, 75% quartile = 2.75) calcium transients within the imaging window. For ΔF/F0 quantitation, a unique F0 was determined for each Ca2+ transient event. In the case where a cell exhibited multiple Ca2+ transient events, these events were treated as technical replicates and were averaged to give a single peak ΔF/F0 for each cell. In the case where a field contained multiple cells, the peak ΔF/F0 values for each cell were treated as technical replicates and averaged to give an average response for that animal. Cells or animals were considered biological replicates for analyses of peak ΔF/F0 and number of responses. For kinetic measurements, only the first peak in from each cell was analyzed and each peak was considered a biological replicate. For cells with only ‘-ΔF/F0’ (photo-bleaching) recorded over the course of the trial, ‘0’ was denoted as the peak ΔF/F0. Otherwise, the maximum numerical value of ΔF/F0 for each transient was assigned as peak ΔF/F0. For analysis of transient numbers, any transient with ΔF/F0 ≥0.05 was counted as a response.

PCR genotyping was used to determine ryr1b alleles and assign data to its respective group. Only ryr1b+/+ and ryr1bmn0348Gt/mn0348Gt animals were included in analyses due to the variable mRNA expression seen in ryr1b+/mn0348Gt animals (Clark et al., 2011a).

Forward genetic screening with next-generation sequencing

Request a detailed protocol

Isolated genomic DNA (300–500 ng) was digested with MseI, and BfaI in parallel for 3 hr at 37°C and heat inactivated for 10 min at 80°C. The digested samples from each enzyme were pooled with pre-aliquoted barcoded linker in individual wells. The T4 DNA ligase (M0202S, New England Biolabs, Inc, Ipswich, MA) was added, and the reaction mix was incubated for 2 hr at 16°C. The linker-mediated PCR was performed in two steps. In the first step, PCR was done with one primer specific to the 3’- ITR (R-ITR P1, 5’- AATTTTCCCTAAGTACTTGTACTTTCACTTGAGTAA-3’) and the other primer specific to linker sequences (LP1, 5’- GTAATACGACTCACTATAGGGCACGCGTG- 3’) using the following conditions: 2 min at 95°C, 25 cycles of 15 s at 95°C, 30 s at 55°C and 30 s at 72°C. The PCR products were diluted to 1:50 in dH2O, and a second round of PCR was performed using ITR (R-ITR P2, 5’-TCACTTGAGTAAAATTTTTGAGTACTTTTTACACCTC-3’) and linker specific (LP2, 5’ - GCGTGGTCGACTGCGCAT-3’) nested primers to increase sensitivity and avoid non- specific amplification using the following conditions: 2 min at 95°C, 20 cycles of 15 s at 95°C, 30 s at 58°C and 30 s at 72°C. The nested PCR products from each 96-well plate are pooled and processed for Illumina library preparation as per manufacturer’s instructions.

Quantitative reverse transcription–PCR

Request a detailed protocol

To quantify knockdown efficiencies for a GBT-confirmed lines, GBT0235 carrying the RP2.1 insertion into the lrpprc gene locus, quantitative reverse transcription-PCR (qRT-PCR) was performed by using the following protocol. Embryo collections were obtained from in-crossed lrpprc+/mn0235Gt adults. The larvae (six dpf) were sorted by mRFP expression to separate them based upon GBT allele and visible dark liver phenotype which has been characterized as a specific abnormality in lrpprc mn0235Gt/mn0235Gt previously. Larvae with both RFP expression and dark liver phenotype were used as the experimental group (lrpprc mn0235Gt/mn0235Gt) against larvae without either the RFP expression or the liver phenotype as a control (lrpprc +/+). After the initial sorting, individual zebrafish larvae were placed into a 1.7 ml tube with 350 µl RLT buffer within RNeasy Micro Kit (74004, QIAGEN) with β-mercaptoethanol (M6250, Sigma-Aldrich). Embryos were homogenized at max frequency (30 shakes/s) for 5 min using ~30 of 0.5 mm stainless steel beads, RNase free (SSB05, Next Advance, Troy, NY) and Tissue Lyser II (QIAGEN). Homogenized samples were replaced to MaXtract High Density tubes (129056, QIAGEN) to separate between the organic solvent (phenol/chloroform) and the nucleic acid-containing aqueous. Total RNA was purified from the nucleic acid-containing aqueous using the RNeasy Micro Kit (QIAGEN). 250 ng of total RNA from the individual larva was used for cDNA synthesis with the SuperScript II Reverse Transcriptase (18064014, Thermo Fisher Scientific) using random hexamer primers. The 16-folds diluted cDNA with deionized water were used as templates and no reverse transcriptase (RT) controls were run parallel to test for genomic DNA contamination. To analyze transcript levels, quantitative PCR was performed using SensiFAST SYBR Lo-ROX kit (BIO-94005, Bioline) and the CFX96 Touch Real-Time PCR Detection System (Bio-Rad, Hercules, CA). eef1a1l1 levels were used as reference. Three technical replicates were run for each sample and three biological replicates for each group and two no RT controls were also run. Data were analyzed through calculation of Delta Ct values. Quantitative reverse transcription-PCR was repeated for four individual clutches from the pair of lrpprc+/mn0235Gt adults. Primer sequences are the following information; lrpprc FP: 5’-TGATAATGCTGAGGAAGCTCTCAAACTG-3’, lrpprc RP: 5’-CCTTCATCTCCTTCAGTATGTCTAACGC-3’, eef1a1l1 FP: 5’-CCGTCTGCCAACTTCAGGATGTGT-3’, eef1a1l1 RP: 5’-TTGAGGACACCAGTCTCCAACACGA-3’. Source data can be found in Figure 3—source data 1.

Annotating human orthologues of GBT-tagged genes and disease-causing genes

Request a detailed protocol

The human orthologues of 177 cloned zebrafish genes were mainly collected from Zebrafish Information Network (ZFIN, University of Oregon, Eugene, OR 97403–5274; URL: http://zfin.org/) In some cases, the candidates of human orthologues unlisted in ZFIN database were manually searched by using both Ensembl released 98 (https://useast.ensembl.org/index.html, (Zerbino et al., 2018) and InParanoid8 (http://inparanoid.sbc.su.se/cgi-bin/index.cgi, (Sonnhammer and Östlund, 2015) databases. In parallel, the candidates were manually identified by the result of Protein BLAST (https://blast.ncbi.nlm.nih.gov/Blast.cgi?PAGE=Proteins) assembled with human proteins and by the result of an online synteny analysis tool, SynFind in Comparative Genomics (CoGe) database (https://genomevolution.org/CoGe/SynFind.pl) (Lyons and Freeling, 2008). If the candidate multiply hit in those manual assessments, it was annotated as a human orthologue. The human phenotype data caused by mutations of 64 human orthologues were collected by using another data mining tool, BioMart provided by Ensembl (http://useast.ensembl.org/biomart/martview/) (Kinsella et al., 2011; Smedley et al., 2015).

Protein classification of the trapped human orthologs

Request a detailed protocol

The 177 human orthologs of cloned GBT-tagged genes were analyzed using PANTHER14.1 (http://www.pantherdb.org/) (Mi et al., 2019). With those gene symbols, 176 gene were identified in the PANTHER system (the exception was NRXN Entrez Gene ID: 9378), and 105 genes were classified at least one PANTHER protein class (details are listed in Figure 6—source data 1). 8282/20996 human genes have been annotated with 214 protein classes in PANTHER14.1 (April, 2018, http://www.pantherdb.org/panther/summaryStats.jsp).

Subcellular localization of the trapped human orthologs

Request a detailed protocol

Experimentally validated subcellular localization data of 177 human orthologous genes tagged by GBT were manually collected from the Human Protein Atlas Subcellular Localization data downloaded on August 27th, 2019 (Courtesy of Human Protein Atlas, www.proteinatlas.org) (Uhlén et al., 2015) and knowledge-based subcellular localization data for the 49 genes un-validated in the Human Protein Atlas was acquired from UniProtKB on Oct 2nd, 2019 (https://www.uniprot.org/) (UniProt Consortium, 2018). This data (Supplementary file 4) contains 271 entries because some human orthologous genes were annotated to multiple subcellular localizations.

Finding disease models in vertebrates

Request a detailed protocol

Mouse models were found by using descriptions of animal models in both Online Mendelian Inheritance in Man (OMIM. Johns Hopkins University, Baltimore, MD: October 28th, 2019. URL: https://omim.org/) (Amberger et al., 2019) and in Mouse Genome Database (MGD) at the Mouse Genome Informatics (MGI) website, The Jackson Laboratory, Bar Harbor, Maine: October 28th, 2019 (URL: http://www.informatics.jax.org)(Bult et al., 2019). MGI provided the details of mouse models of human disease, such as the number of models that have been established. Zebrafish model were also found by using OMIM and ZFIN; August 28, 2019. ZFIN provided all data of fish strains listed in this database (Ruzicka et al., 2019). The area proportional Venn diagram were created using BioVenn (Hulsen et al., 2008) to visualize the number of human orthologs of the cloned genes associated with human genetic disorders which have at least one established disease model in zebrafish or mouse (Figure 5B).

Gene expression profiling of the cloned zebrafish genes

Request a detailed protocol

The cloned genes with published expression data were isolated by using the wild-type expression data retrieved from ZFIN; August 28, 2019 (Ruzicka et al., 2019). In parallel, some published expression data were also manually searched from ZFIN. The mRFP reporter expression patterns of the cloned genes 2 and 4 dpf were manually searched using zfishbook database (Clark et al., 2012). The comparison with the number of genes with description about expression in both ZFIN and zfishbook (https://zfishbook.org/) was presented using BioVenn (Hulsen et al., 2008) to create the area proportional Venn diagrams in Figure 7S and Figure 7T.

Statistical analysis

Request a detailed protocol

Knockdown efficiency and calcium imaging graphs were made in JMP 14 (SAS, Cary, NC) and in GraphPad Prism 8 (GraphPad Software, San Diego, CA), respectively. All other statistical analyses were performed with R (www.R-project.org) using R-Studio (www.rstudio.com/). Code used for analysis in R can be found in Supplementary file 6. Sample sizes for calcium imaging studies were estimated using peak ΔF/F0 data from Method one and the ‘pwr’ package (https://CRAN.R-project.org/package=pwr). Statistical analyses for calcium imaging data were performed using the ‘wilcox.test’ function or the ‘coin’ package (Hothorn et al., 2006; Hothorn et al., 2008) due to the non-normality visualized in the data. Outliers (determined by Grubb’s test for one outlier in the ‘outliers’ package (https://CRAN.R-project.org/package=outliers) were included in overall analysis, although each statistical analysis was also performed without them as a proxy for the sensitivity of our conclusions to the outliers. All statistical tests supported the same conclusion with and without the outliers. Therefore, plots and p-values in the figures include all data points. p-values calculated excluding outliers can be found in Supplementary file 6. Effect size was measured by Cohen’s d using the ‘effsize’ package (https://CRAN.R-project.org/package=effsize). For ease of reporting, all p-values less than 0.0001 were reported in figures as ‘p<0.0001’, but exact p-values are reported in Supplementary file 6.

Availability of the materials and resources

Request a detailed protocol

All reagents are available upon request and all protein trap vectors in each reading frame will be deposited to Addgene (http://www.addgene.org). Zebrafish lines are available either from Zebrafish International Resource Center (ZIRC, http://zebrafish.org/) or the Mayo Clinic Zebrafish Facility, respectively.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
    The identification of genes with unique and essential functions in the development of the zebrafish, Danio rerio
    1. P Haffter
    2. M Granato
    3. M Brand
    4. MC Mullins
    5. M Hammerschmidt
    6. DA Kane
    7. J Odenthal
    8. FJ van Eeden
    9. YJ Jiang
    10. CP Heisenberg
    11. RN Kelsh
    12. M Furutani-Seiki
    13. E Vogelsang
    14. D Beuchle
    15. U Schach
    16. C Fabian
    17. C Nüsslein-Volhard
    (1996)
    Development 123:1–36.
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
    The zebrafish reference genome sequence and its relationship to the human genome
    1. K Howe
    2. MD Clark
    3. CF Torroja
    4. J Torrance
    5. C Berthelot
    6. M Muffato
    7. JE Collins
    8. S Humphray
    9. K McLaren
    10. L Matthews
    11. S McLaren
    12. I Sealy
    13. M Caccamo
    14. C Churcher
    15. C Scott
    16. JC Barrett
    17. R Koch
    18. GJ Rauch
    19. S White
    20. W Chow
    21. B Kilian
    22. LT Quintais
    23. JA Guerra-Assunção
    24. Y Zhou
    25. Y Gu
    26. J Yen
    27. JH Vogel
    28. T Eyre
    29. S Redmond
    30. R Banerjee
    31. J Chi
    32. B Fu
    33. E Langley
    34. SF Maguire
    35. GK Laird
    36. D Lloyd
    37. E Kenyon
    38. S Donaldson
    39. H Sehra
    40. J Almeida-King
    41. J Loveland
    42. S Trevanion
    43. M Jones
    44. M Quail
    45. D Willey
    46. A Hunt
    47. J Burton
    48. S Sims
    49. K McLay
    50. B Plumb
    51. J Davis
    52. C Clee
    53. K Oliver
    54. R Clark
    55. C Riddle
    56. D Elliot
    57. D Eliott
    58. G Threadgold
    59. G Harden
    60. D Ware
    61. S Begum
    62. B Mortimore
    63. B Mortimer
    64. G Kerry
    65. P Heath
    66. B Phillimore
    67. A Tracey
    68. N Corby
    69. M Dunn
    70. C Johnson
    71. J Wood
    72. S Clark
    73. S Pelan
    74. G Griffiths
    75. M Smith
    76. R Glithero
    77. P Howden
    78. N Barker
    79. C Lloyd
    80. C Stevens
    81. J Harley
    82. K Holt
    83. G Panagiotidis
    84. J Lovell
    85. H Beasley
    86. C Henderson
    87. D Gordon
    88. K Auger
    89. D Wright
    90. J Collins
    91. C Raisen
    92. L Dyer
    93. K Leung
    94. L Robertson
    95. K Ambridge
    96. D Leongamornlert
    97. S McGuire
    98. R Gilderthorp
    99. C Griffiths
    100. D Manthravadi
    101. S Nichol
    102. G Barker
    103. S Whitehead
    104. M Kay
    105. J Brown
    106. C Murnane
    107. E Gray
    108. M Humphries
    109. N Sycamore
    110. D Barker
    111. D Saunders
    112. J Wallis
    113. A Babbage
    114. S Hammond
    115. M Mashreghi-Mohammadi
    116. L Barr
    117. S Martin
    118. P Wray
    119. A Ellington
    120. N Matthews
    121. M Ellwood
    122. R Woodmansey
    123. G Clark
    124. J Cooper
    125. J Cooper
    126. A Tromans
    127. D Grafham
    128. C Skuce
    129. R Pandian
    130. R Andrews
    131. E Harrison
    132. A Kimberley
    133. J Garnett
    134. N Fosker
    135. R Hall
    136. P Garner
    137. D Kelly
    138. C Bird
    139. S Palmer
    140. I Gehring
    141. A Berger
    142. CM Dooley
    143. Z Ersan-Ürün
    144. C Eser
    145. H Geiger
    146. M Geisler
    147. L Karotki
    148. A Kirn
    149. J Konantz
    150. M Konantz
    151. M Oberländer
    152. S Rudolph-Geiger
    153. M Teucke
    154. C Lanz
    155. G Raddatz
    156. K Osoegawa
    157. B Zhu
    158. A Rapp
    159. S Widaa
    160. C Langford
    161. F Yang
    162. SC Schuster
    163. NP Carter
    164. J Harrow
    165. Z Ning
    166. J Herrero
    167. SM Searle
    168. A Enright
    169. R Geisler
    170. RH Plasterk
    171. C Lee
    172. M Westerfield
    173. PJ de Jong
    174. LI Zon
    175. JH Postlethwait
    176. C Nüsslein-Volhard
    177. TJ Hubbard
    178. H Roest Crollius
    179. J Rogers
    180. DL Stemple
    (2013)
    Nature 496:498–503.
    https://doi.org/10.1038/nature12111
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
    Rare Diseases: Understanding This Public Health Priority
    1. J Robe
    (2005)
    EURORDIS.
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70

Decision letter

  1. Wenbiao Chen
    Reviewing Editor; Vanderbilt University, United States
  2. Didier YR Stainier
    Senior Editor; Max Planck Institute for Heart and Lung Research, Germany
  3. Wenbiao Chen
    Reviewer; Vanderbilt University, United States
  4. Keith Cheng
    Reviewer; Penn State College of Medicine, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for sending your article entitled "Building the vertebrate codex using the gene breaking protein trap library" for peer review at eLife and very sorry for the delay in getting back to you. Your article is being evaluated by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation is being overseen by a Reviewing Editor and Didier Stainier as the Senior Editor.

Given the list of essential revisions, including new experiments, the editors and reviewers invite you to respond with an action plan and timetable for the completion of the additional work. We plan to share your responses with the reviewers and then advise further with a formal decision. We fully understand that due to the current situation, it is difficult to predict how long the revisions will actually take, but we would still like to get an estimate of how much time you would need if the circumstances were normal.

Essential revisions:

1) No direct evidence for protein trapping is provided. The authors provided analysis of the subcellular localization of the protein product of GBT affected genes based on the PANTHER classification system. One of the promised powers of the GBT is the ability to show the subcellular localization of at least some of the affected proteins. Representative images of subcellular localization of mRFP that matches that of the endogenous proteins or PANTHER annotation will further demonstrate the utility of the resources.

2) The mutagenicity data are based on RP2 work that was published several years ago. The authors emphasize the development of RP8 in the manuscript, yet there are no data supporting that RP8 is as mutagenic as RP2. Although it is likely that they have similar mutagenicity, it is possible that the additional DNA may alter the mutagenicity.

3) The authors identified a GBT allele in each of 12 previously unannotated protein coding genes. While novel, the authors did not provide support for these claims with evidence such as expression in WT, expression patterns, gene structure, and integration sites. Only referencing the online materials is insufficient.

4) The manuscript reports 12 embryonic lethal mutations, yet only mentioned the gene name of 6 published mutants. Phenotypic description of the 6 other embryonic lethal mutations will make them a better resource for the community.

5) The manuscript reports 1200 GBT lines, but only 213 of them have insertion site mapped. Since unmapped lines are less interesting, the authors need to propose a way forward. Are the unmapped lines unmappable, or is there a way forward? If there is a way forward, why was this not already done?

6) In the Results section, it is difficult for the readers to distinguish published results from unpublished results. The authors need to make them clear.

Reviewer #1:

The manuscript reports a resource of more than 1,200 zebrafish mutant lines generated by a gene-trap approach. Some of the collection was generated by improved gene breaking transposons (GBT) that differ from previous published GBT from the group in two ways: 3 vectors that covers all 3 reading frames by the 5' trap and a lens-specific promoter-driven BFP for the 3' trap. One feature of these mutant lines is that each allele carries a mRFP tag allowing live imaging of the expression pattern of the affected gene. The authors have acquired dorsal, ventral, and sagittal images of mRFP signal at 2 and 4 dpf for each allele and uncovered many previous undescribed expression patterns. The images can be accessed on a previously described website. The authors have also cryopreserved each line and deposited one copy of the library at the Zebrafish International Resource Center for distribution. Another feature of these alleles is that they are potentially revertible by Cre. Despite the ease of generating mutations in zebrafish nowadays, these features may still make the collection a useful resource for zebrafish investigators. In addition, these alleles cause >97% reduction of the mRNA and recapitulate published phenotypes in mutant generated using other approaches. Many of the alleles affect genes whose human orthologs have been implicated in diseases. The mutant collection therefore may be a useful resource for human disease modeling and mechanism studies. As an example, the authors characterized muscle Ca2+ transients in the ryr1b homozygous mutant and demonstrated substantial decrease of the amplitude and increase of rising time of spike, consistent with its known function in regulating sarcoplasmic reticulum Ca2+ release. In addition, the authors identified a number of novel expressed loci. Overall, the manuscript describes an unique resource important for the zebrafish field and have the potential to accelerate discovery and disease modeling. However, there are still a number of issues that needs to be addressed for making the resources more attractive to other investigators.

Essential revisions:

1) One of the claimed advantages of insertional mutagenesis approach is the ease of identification of the affected loci. Knowing the affected gene in a line will tremendously increase its usage. Of the 1200 lines, however, only 213 have the integration site and affected gene determined. These include previously published 40 lines. Yet the authors touted the advantage of their NGS-based cloning pipeline. The reason for the gap is not clearly stated, although the authors mentioned poor genome annotation.

2) In the Results section, the distinction between published results and new results is not clearly. For example, it seems that the mutagenic efficiency of GBT section is almost entirely based on published data except for irpprc and eef1al1. The same seems to be true for the phenotype appearance rate. The authors should make state clearly what results are new in the manuscript.

3) The authors claim that mRFP expression enabled them to identify new expression patterns of the trapped gene. At least for expression at 2 dpf, it is not clear if the new expression patterns are due to ectopic expression of mRFP, or incomplete annotation of previous results. They author should provide additional supporting evidence, such as in situ hybridization results, to validate that mRFP recapitulates endogenous mRNA expression patterns.

4) The authors claimed that they identified 13 novel genes but did not provide additional supporting evidence other than the detection of fusion transcripts. More information, such as additional expression evidence of these genes and the existence of their orthologs in human or other species would provide more confidence.

Reviewer #2:

Nine out of every 10 human genes has yet to be functionally characterized. To address this issue, Ichino et al. designed and tested several generations of gene trap constructs for probing expression pattern and gene function in the powerful vertebrate model system, the zebrafish. The work presented explains the design of an extremely clever three reading frame, fluorescently tagged and experimentally revertible splice acceptor-based gene trap vector, which they call the gene-break transposon protein trap ("GBT system"). The injection of vector and transposase into zebrafish eggs yielded some 1200 insertion lines in a powerful model system, the zebrafish. Heterozygous insertions yield normal expression pattern through larval development (and potentially beyond); homozygosing these mutagenizing insertions yields mutant fish whose phenotypes yield functional insights. This work lays a powerful foundation for potentially studying the expression patterns and functions of every gene in the vertebrate genome. The results include the discovery of previously unknown expression patterns for 91% of their trapped genes, based on imaging at 4 days post-fertilization. Mutant lines were shown to phenocopy existing mutants, and include models of human genetic disease. Overall, they authors present a compelling basis for consideration of the "vertebrate codex" – a term I find compelling.

Introduction: The Abstract was well-written, but the last sentence of the Introduction is overstated. Since phenotyping is dependent upon assays that may or may not have been used, it would seem more accurate to say something like, "…this GBT system lays a foundation for functional annotation of the vertebrate genome…" It would also add clarity to community thinking to explicitly note that mutant phenotyping is a key to functional annotation of genes.

Subsection “GBT protein trapping generates a variety of potential models of human disease”: The consideration of RYR1 in discussion would better be placed in one, not two, sections. The degree of repetition should be reduced.

Subsection “Gene-break transposon system as a next generation mutagenesis system”: The limitations of the old gene trap lines were already explained in the Results section. Emphasis in the Discussion section should focus on benefits of the new system.

Subsection “Gene-break transposon system as a next generation mutagenesis system”: The second paragraph seems to repeat what is in the Results section.

Figure 4: There is a striking degree of overlap in the beeswarm plots. It would be helpful to make the utility of these results more clear or to perhaps detail only the key aspects of the model, enough to be convincing of the focus of the paper – the novelty and utility of the gene-break transposon approach.

Reviewer #3:

The authors published a paper describing a protein trap screen in 2011 in which they collected 350 patterns and characterized 40 lines extensively (Table 1 in the 2011 paper). The current manuscript is the expansion of the previous work. In this manuscript, (1) they constructed new protein trap vectors, (2) they collected 1200 lines (patterns) and performed molecular characterization of 213 lines (GBT-confirmed lines), (3) based on the trapped gene information, they grouped the trap lines from views of human diseases, ontology, and subcellular localization, (4) calcium imaging using the ryr1b mutant. This should have been a lot of work and the resources will be useful to the community. However, the advances made since work published in 2011 are unclear.

1) They constructed RP2 series vectors that contained RFP gene in three frames. Also, the RP8 series vectors have RFP in three frames and the crystalline promoter. I admit this is an interesting idea. However when one of them was used for injection, introns which cannot be targeted by the other vectors may be targeted, but at the same time it cannot target introns which can be targeted by the other vectors. Thus, a set of new vectors may increase coverage of the genome, but I do not think the modifications affect effectiveness of the mutagenesis screen. Also, the number of insertions created by using each vector is too small to evaluate the vectors and their idea. They need to mention such limitations.

2) In Supplementary file 1, most (nearly all) of the lines were created by using RP2.1. Since the authors reported the other new vectors, they need to evaluate those vectors with actual data (trapping events and efficiencies, etc). They need to show the power of these vectors.

3) Their indication of "97% knockdown efficiency" was already described in the 2011 paper. In this manuscript, since they constructed new RP8 series, they should measure the efficiencies of these vectors and discuss in comparison with the RP2 series.

4) In this manuscript, they described the nature of the traps mainly by based on the gene information (in relation to human disease genes, gene ontology (PANTHER), and subcellular localization). The power of this system is visualization of subcellular localization of the trapped protein. The expression patterns can be visualized without the protein trap mechanism. They need to show the data for subcellular localization of a certain number of the trapped proteins (at least more than 10?). They should show co-localization of the fusion protein and endogenous protein if the antibody is available.

5) ryr1b gene and mutants had been extensively reported by Hirata et al., (2007) and by themselves (Clark et al., 2011). What is new here is calcium imaging of muscle activities in the ryr1b mutant. However, the same result was obtained and described in Hirata et al., (2007) by electrophysiology. Thus, the novelty is poor. They should describe analysis of another gene which was not described previously.

6) They identified 12 homozygous lethal mutants, but I do not see any data for this. The authors should show the data. 5 mutants they mentioned in the text were already described in the previous manuscript.

7) In Table 3, they say they identified 12 new previously-unannotated genes. What are those genes? and how they were trapped by the vector? More data should be shown.

https://doi.org/10.7554/eLife.54572.sa1

Author response

Essential revisions:

1) No direct evidence for protein trapping is provided. The authors provided analysis of the subcellular localization of the protein product of GBT affected genes based on the PANTHER classification system. One of the promised powers of the GBT is the ability to show the subcellular localization of at least some of the affected proteins. Representative images of subcellular localization of mRFP that matches that of the endogenous proteins or PANTHER annotation will further demonstrate the utility of the resources.

We certainly appreciate the concern about subcellular localization data gained through GBT protein trapping. In our previous work, the subcellular localizations have, in most cases, been consistent with what is expected. These observations lead us to perform the new analyses based upon PANTHER and Human Protein Atlas instead using a high resolution imaging approach. We realize that we did not explicitly state this or cite these previous publications in this section. In the revision, we have added citations to our previous work and our rational for these analyses.

Similarly, we agree that showing some new protein trapping expression data, especially some that we can relate to our PANTHER and/or Human Protein Atlas analyses, is useful for readers. We have therefore included confocal images of the GBT-confirmed lines GBT0235 (lrpprc) and GBT0348 (ryr1b) to highlight distinctive subcellular localization patterns at the top of the revised Figure 6. The human ortholog of lrpprc maps to mitochondria in Human Protein Atlas, but fails to map to a PANTHER class. The human ortholog of ryr1b maps to the cytosol, Golgi, and vesicles in Human Protein Atlas and is classified as a transporter in PANTHER analysis. We have also added additional confocal images that show distinct subcellular localizations in GBT-candidate lines and GBT lines to further demonstrate protein trapping in these lines in Figure 6—figure supplement 1.

2) The mutagenicity data are based on RP2 work that was published several years ago. The authors emphasize the development of RP8 in the manuscript, yet there are no data supporting that RP8 is as mutagenic as RP2. Although it is likely that they have similar mutagenicity, it is possible that the additional DNA may alter the mutagenicity.

We acknowledge that the RP2 mutagenicity data is an aggregate of prior work plus GBT0235 (lrpprc). However, given the regular questions we have received on this innovative mutagen, we took the opportunity to conduct and present this novel analysis compiling our mutagenicity data and the comparison to other protein trapping methods. We also describe here the first description of the two additional RP2-based vectors with only a single nucleotide difference from RP2.1 to enable the capture in any protein reading frame.

The RP8 variants were built for two reasons – to avoid the use of GFP as a reporter and to be a modular molecular cassette for others to use (i.e. with non-transposon genetic engineering methods such as GeneWeld targeted integration, (Wierson et al., 2018)). We report that the protein trap component is functioning as expected (and 18 of the GBT-confirmed lines we present contain RP8 integrations). We also included the same 1.6kb poly(A)/presumptive scaffold attachment transcriptional termination cassette we showed to be effective mutagens with the PX and RP2 vectors. Given that the major functional change to RP8 lies in its 3’ exon trap, we expect its mutagenicity to be similar to RP2, but we don’t have the data to confirm that it is the same at this time. We therefore have explicitly acknowledged in the revisions (subsection “Gene-break transposon system as a next generation mutagenesis system”) that we have not performed the analyses of RP8 mutagenicity and kept the RP8 vector description with this caveat.

3) The authors identified a GBT allele in each of 12 previously unannotated protein coding genes. While novel, the authors did not provide support for these claims with evidence such as expression in WT, expression patterns, gene structure, and integration sites. Only referencing the online materials is insufficient.

We appreciate the interest in the previously unannotated transcripts. We have spent additional time analyzing these loci using additional publicly available resources, our own in-house RNA-Seq datasets and GRCz10. We focused on WT embryos at 4 different developmental stages, 36 hpf, 48 hpf, and 4 dpf (Data source: ftp://ftp.ensembl.org/pub/data_files/danio_rerio/ across). The detail of this analysis is described in the revised method section. At the end of this additional work, we were able to resolved 7 lines (GBT0148, GBT0264, GBT0724, GBT1024, GBT1100 and GBT1168) into new cloned loci with likely transcripts (in the revised Supplementary file 1). In total, we resolved 7 out of these 10 unannotated GBT lines (in the revision) and moved this into our main catalog. Since we have informed genomic location of all 204 integration loci in the revised Supplementary file 1, we removed the previous Table 3 with the redundancy. We have also removed the individual section discussing Table 3. Instead, we have added the following text:

In subsection “Molecular cloning of a subset of GBT lines highlights the genetic diversity of this protein trap collection”, “A small subset of these GBT-confirmed lines mapped to areas in the genome without annotated transcripts. Publicly available RNA-sequencing data revealed reads flanking a majority of these mapped integrations. Some of these reads contained evidence of splicing in the sense orientation of the mRFP reporter (Supplementary file 1)”.

In subsection “GBT protein trapping provides the basis for annotation of functionally diverse proteins and novel transcripts mapped on poorly assembled genomic regions” it now reads, “We indeed found that 10 population of GBT integrations in the confirmed lines (with mRFP expression) failed to map to any predicted gene. However, RNA sequencing reads in public datasets identified potential unannotated coding sequences aligned with these GBT integration loci (Supplementary file 1). While 5' and 3' RACE are necessary to confirm the mRNA fusion products, these unannotated coding sequences represent the possibility to annotate novel, protein-coding transcripts in these GBT lines. Therefore, GBT protein trapping can find, illuminate expression, and elucidate in vivo functions of novel genes and/or gene variants in poorly annotated regions of reference genomes”.

4) The manuscript reports 12 embryonic lethal mutations, yet only mentioned the gene name of 6 published mutants. Phenotypic description of the 6 other embryonic lethal mutations will make them a better resource for the community.

Phenotypic descriptions definitely make a line particularly valuable for the community. A number of these lines with embryonic phenotypes have been cloned and published following this initial forward genetic screening assessment. Further, additional non-embryonic phenotypes have been discovered in some GBT-confirmed lines. Overall, 17 of our GBT-confirmed lines have been published or characterized to have a phenotype, ranging from embryonic lethal to reduced adult viability to differences in drug susceptibility. We have therefore created a new table (Supplementary file 2 in the revision) that contains the GBT-confirmed line number, zebrafish gene symbol, a description of the phenotype observed, and a reference to the publication where that has been described to make this information readily available to the readers. We added the following text in the Phenotype appearance in GBT lines is comparable to other mutagenic technologies for forward genetic screening section of the results: “To date, 17 of our GBT-confirmed lines have been published with homozygous phenotypes ranging from embryonic lethal, to reduced adult viability, to differences in pharmacological susceptibility (Supplementary file 2). Additional GBT-confirmed lines with homozygous phenotypes will continue to be identified and characterized”.

5) The manuscript reports 1200 GBT lines, but only 213 of them have insertion site mapped.

Mapping confirmation is a technical throughput bottleneck in our work due to its multi-step and the artisanal nature of this process: (1) Initial isolation of a candidate genomic sequence (this was conducted in a parallel molecular screening process). (2) Manual design of primers to this genomic sequence and linkage confirmation to mRFP against cDNA generated from mRFP-positive embryos/larvae.

We understand that ~200 out of 1200 lines may have been portrayed as a small contribution, but every single of the 147 new lines reported here were all manually confirmed using this time-intensive process. We take this comment as an opportunity to elaborate on the number of new GBT-confirmed lines that this manuscript offers the community. We thus added text to emphasize the following points. (1) Before this manuscript, we and our collaborators had published 57 total GBT-confirmed lines across five studies. (2) The present study alone provides an additional 147 unique GBT-confirmed lines, including 15 GBT lines that had been used in previous studies without their trapped genes being mapped. Many of these new GBT-confirmed lines stemmed from successful confirmation of GBT-candidate lines mapped with our next-generation sequencing pipeline.

Since unmapped lines are less interesting, the authors need to propose a way forward. Are the unmapped lines unmappable, or is there a way forward? If there is a way forward, why was this not already done?

The next-generation sequencing pipeline revealed candidate genes for an additional 144 GBT lines in the revision. These lines have simply not undergone the comprehensive manual confirmation/cloning process but have a full way forward to molecular isolation (as do all of the other hundreds of lines with only a described expression pattern). Indeed, between methods like inverse/splinkerette PCR and 5’ and 3’ RACE, we are confident nearly all protein trap lines can be readily mapped and confirmed. We have added an explicit section with the following description, “Gene-break protein trap library is a rich resource for the community” in the discussion on the road forward for (1) 144 candidate lines and (2) over 800 GBT lines with a novel expression pattern for any member of the zebrafish community. “Taken together, GBT-based mRFP-reporters demonstrate how much we still have left to understand about the expression patterns of the overall proteome and, ultimately, the complex codex that is our genome. Even at the relatively well-studied 2-dpf stage, nearly 40% of GBT-confirmed lines elucidated novel gene expression data (Figure 7). Cataloging these expression patterns enables investigators to make collections of lines with expression in their cell/tissue of interest and/or a phenotype. The remaining 144 GBT-candidate lines and over 800 GBT lines represent a rich resource for genomic discoveries. For any GBT-candidate or GBT lines of interest, a similar cloning pipeline (Figure 2) can be employed to identify the GBT integration locus. In addition, the refinement of the zebrafish genome will enhance our ability to complete the annotation from GBT-line to GBT-confirmed line for any given line with a desired expression profile and/or phenotype. Together, this 1,200+ GBT-line collection is a new contribution for using zebrafish to annotate the vertebrate genome.”

6) In the Results section, it is difficult for the readers to distinguish published results from unpublished results. The authors need to make them clear.

We thank the editor/reviewers for this comment! We realize in our compendium mindset and the nature of how we wrote this paper as an overview that we made it very difficult to distinguish published data from novel results. We appreciate the opportunity to focus on highlighting the new data that we present. We have therefore prioritized clear separation of published and unpublished results. We have taken the following actions in a revised manuscript to better assist readers in finding new data in this manuscript:

1) At the beginning of the third paragraph of the Introduction, we changed the wording from “with a single GBT protein trap construct” to “In the original GBT protein trap construct” to signal to previous work that we have published. We also denoted RP2.1 as the “original” GBT protein trap construct in the remainder of the paper.

2) In the middle of the third paragraph of the Introduction, we modified the sentence to include the word “new” when referring to the constructs generated in this paper. In the same sentence, we changed from stating “over 1200” to “over 800 additional” to acknowledge the cumulative nature of the project while highlighting the new numbers in this paper as follows: “Alongside the original, we employed these new vectors in zebrafish to generate and catalog over 800 additional GBT protein trap lines with visible mRFP expression at 2 dpf (end of embryogenesis) or 4 dpf (larval stage)”. We also employ “over 800 additional” instead of “over 1200” when first describing the creation of the collection of the GBT lines in this manuscript.

3) In the last half of the third paragraph of the Introduction, we only highlight new analyses and data presented in this manuscript and remove any reference to data that has been previously published to give readers and overview to focus on the novel work in this paper.

4) We added a key citation to (Clark et al., 2011) in the middle of the second paragraph of subsection “GBT vector series RP2 and RP8 illuminate all three vertebrate proteomic reading frames” that provides the motivation to develop GBT constructs that trap expression in all three reading frames and to develop RP8 with a new 3’ exon trap.

5) We revised the end of the second paragraph of subsection “GBT vector series RP2 and RP8 to illuminate all three vertebrate proteomic reading frames” to be consistent with Figure 1—figure supplement 1 and only demonstrate the new expression off of RP2.2, RP2.3 and the RP8 series as follows: “Using all five of these new GBT constructs in zebrafish, we conducted an initial screen for expression of protein trap mRFP and observed that all RP2 and RP8 series constructs readily produced mRFP fusion proteins expressed from their endogenous promoters (Figure 1—figure supplement 1)”.

6) We specified how many of the GBT-confirmed lines in the 200+ collection are newly published as confirmed lines in this manuscript at the beginning of the subsection “Molecular cloning of a subset of GBT lines highlights the genetic diversity of this protein trap collection” as follows: “147 of these GBT-confirmed lines are newly characterized in this manuscript and were selected for confirmation based upon their expression pattern and/or homozygous phenotype (Supplementary file 1)”.

7) Under subsection “RP2.1 induces high knockdown efficiency of endogenous transcripts in GBT-confirmed lines” , we clarified that this section is the result of data compilation from previous publications with one additional dataset in the RP2.1 group as follows: “We wanted to know the knockdown efficacy of the GBT system as a quantitative assessment of mutagenicity. We therefore compiled qRT-PCR data to compare wild-type and truncated, mRFP-fused transcript levels for all 26 RP2.1-derived GBT-confirmed lines that we and others have tested (Clark et al., 2011; Ding et al., 2013; Ding et al., 2016), GBT0235 (RP2.1)—this manuscript). This compilation determined at minimum 97% knockdown in animals homozygous for the RP2.1 alleles”.

8) We now point out data that has been published before that is being reported in the Results section using words such as “published”, “compiled”, “initial”, “original”, “previously”, “reported”, and “previous study”.

9) Where unpublished data is juxtaposed with published data, we explicitly point out the unpublished data using words such as “new”, “additional”, “novel”, “in this study”, and “novel approach”.

10) While Figure 5 and Figure 6 do include some previously published GBT-confirmed lines, the analysis of human disease-associated genes, PANTHER classification, and subcellular localization via Human Protein Atlas are all new for this manuscript.

11) Figure 7 also represents a compilation of the entire GBT-confirmed line collection. However, all images in this figure are newly described and the comparison between zfishbook and ZFIN is entirely novel.

Reviewer #1:

The manuscript reports a resource of more than 1,200 zebrafish mutant lines generated by a gene-trap approach. Some of the collection was generated by improved gene breaking transposons (GBT) that differ from previous published GBT from the group in two ways: 3 vectors that covers all 3 reading frames by the 5' trap and a lens-specific promoter-driven BFP for the 3' trap. One feature of these mutant lines is that each allele carries a mRFP tag allowing live imaging of the expression pattern of the affected gene. The authors have acquired dorsal, ventral, and sagittal images of mRFP signal at 2 and 4 dpf for each allele and uncovered many previous undescribed expression patterns. The images can be accessed on a previously described website. The authors have also cryopreserved each line and deposited one copy of the library at the Zebrafish International Resource Center for distribution. Another feature of these alleles is that they are potentially revertible by Cre. Despite the ease of generating mutations in zebrafish nowadays, these features may still make the collection a useful resource for zebrafish investigators. In addition, these alleles cause >97% reduction of the mRNA and recapitulate published phenotypes in mutant generated using other approaches. Many of the alleles affect genes whose human orthologs have been implicated in diseases. The mutant collection therefore may be a useful resource for human disease modeling and mechanism studies. As an example, the authors characterized muscle Ca2+ transients in the ryr1b homozygous mutant and demonstrated substantial decrease of the amplitude and increase of rising time of spike, consistent with its known function in regulating sarcoplasmic reticulum Ca2+ release. In addition, the authors identified a number of novel expressed loci. Overall, the manuscript describes an unique resource important for the zebrafish field and have the potential to accelerate discovery and disease modeling. However, there are still a number of issues that needs to be addressed for making the resources more attractive to other investigators.

Essential revisions:

1) One of the claimed advantages of insertional mutagenesis approach is the ease of identification of the affected loci. Knowing the affected gene in a line will tremendously increase its usage. Of the 1200 lines, however, only 213 have the integration site and affected gene determined. These include previously published 40 lines. Yet the authors touted the advantage of their NGS-based cloning pipeline. The reason for the gap is not clearly stated, although the authors mentioned poor genome annotation.

We have added context for these 200plus lines and a discussion on the way forward for the unmapped lines.

Mapping confirmation is a technical throughput bottleneck in our work due to its multi-step and the artisanal nature of this process: (1) Initial isolation of a candidate genomic sequence (this was conducted in a parallel molecular screening process). (2) Manual design of primers to this genomic sequence and linkage confirmation to mRFP against cDNA generated from mRFP-positive embryos/larvae.

We understand that ~200 out of 1200 lines may have been portrayed as a small contribution, but every single of the 147 new lines reported here were all manually confirmed using this time-intensive process. We take this comment as an opportunity to elaborate on the number of new GBT-confirmed lines that this manuscript offers the community. We thus added text to emphasize the following points. (1) Before this manuscript, we and our collaborators had published 57 total GBT-confirmed lines across five studies. (2) The present study alone provides an additional 147 unique GBT-confirmed lines, including 15 GBT lines that had been used in previous studies without their trapped genes being mapped. Many of these new GBT-confirmed lines stemmed from successful confirmation of GBT-candidate lines mapped with our next-generation sequencing pipeline.

2) In the Results section, the distinction between published results and new results is not clearly. For example, it seems that the mutagenic efficiency of GBT section is almost entirely based on published data except for irpprc and eef1al1. The same seems to be true for the phenotype appearance rate. The authors should make state clearly what results are new in the manuscript.

We acknowledge that the mutagenicity data, with the exception of lrpprc, was compiled from previous publications. We have added signal words to state which results represent new data and which rely on previously published information. Please see “Essential revision 2 and Essential revision 6”. In addition, we quantified the expression levels of eef1al1 as a reference gene to normalize the expression level of lrpprc in both WT and lrpprc mutant animals. (Please see the Materials and methods section.)

3) The authors claim that mRFP expression enabled them to identify new expression patterns of the trapped gene. At least for expression at 2 dpf, it is not clear if the new expression patterns are due to ectopic expression of mRFP, or incomplete annotation of previous results. They author should provide additional supporting evidence, such as in situ hybridization results, to validate that mRFP recapitulates endogenous mRNA expression patterns.

We acknowledge that this point is ambiguous due to the nature of the word “description” in this section of the results that could mean additional (possibly ectopic) expression, incomplete annotation of previous images, or novel expression for genes without any known expression patterns. This analysis was performed to highlight genes that our GBT-confirmed lines provided the first publicly available expression patterns. We have therefore modified wording to explicitly say, “Our GBT-confirmed lines revealed expression patterns (available on www.zfishbook.org) for 67 genes at 2 dpf and 173 genes at 4 dpf without publicly available expression data in ZFIN”.

4) The authors claimed that they identified 13 novel genes but did not provide additional supporting evidence other than the detection of fusion transcripts. More information, such as additional expression evidence of these genes and the existence of their orthologs in human or other species would provide more confidence.

We appreciate the interest in the previously unannotated transcripts. We have spent additional time analyzing these loci using additional publicly available resources, our own in-house RNA-Seq datasets and GRCz10. We focused on WT embryos at 4 different developmental stages, 36 hpf, 48 hpf and 4 dpf (Data source: ftp://ftp.ensembl.org/pub/data_files/danio_rerio/ across). The detail of this analysis is described in the revised method section. At the end of this additional work, we were able to resolved 7 lines (GBT0148, GBT0264, GBT0724, GBT1024, GBT1100 and GBT1168) into new cloned loci with likely transcripts (in the revised Supplementary file 1). In total, we resolved 7 out of these 10 unannotated GBT lines (in the revision) and moved this into our main catalog. Since we have informed genomic location of all 204 integration loci in the revised Supplementary file 1, we removed the previous Table 3 with the redundancy. We have also removed the individual section discussing Table 3. Instead, we have added the following text:

In subsection “Molecular cloning of a subset of GBT lines highlights the genetic diversity of this protein trap collection”, “A small subset of these GBT-confirmed lines mapped to areas in the genome without annotated transcripts. Publicly available RNA-sequencing data revealed reads flanking a majority of these mapped integrations. Some of these reads contained evidence of splicing in the sense orientation of the mRFP reporter (Supplementary file 1)”.

In subsection “GBT protein trapping provides the basis for annotation of functionally diverse proteins and novel transcripts mapped on poorly assembled genomic regions” it now reads, “We indeed found that 10 population of GBT integrations in the confirmed lines (with mRFP expression) failed to map to any predicted gene. However, RNA sequencing reads in public datasets identified potential unannotated coding sequences aligned with these GBT integration loci (Supplementary file 1). While 5' and 3' RACE are necessary to confirm the mRNA fusion products, these unannotated coding sequences represent the possibility to annotate novel, protein-coding transcripts in these GBT lines. Therefore, GBT protein trapping can find, illuminate expression, and elucidate in vivo functions of novel genes and/or gene variants in poorly annotated regions of reference genomes”.

Reviewer #2:

Nine out of every 10 human genes has yet to be functionally characterized. To address this issue, Ichino et al. designed and tested several generations of gene trap constructs for probing expression pattern and gene function in the powerful vertebrate model system, the zebrafish. The work presented explains the design of an extremely clever three reading frame, fluorescently tagged and experimentally revertible splice acceptor-based gene trap vector, which they call the gene-break transposon protein trap ("GBT system"). The injection of vector and transposase into zebrafish eggs yielded some 1200 insertion lines in a powerful model system, the zebrafish. Heterozygous insertions yield normal expression pattern through larval development (and potentially beyond); homozygosing these mutagenizing insertions yields mutant fish whose phenotypes yield functional insights. This work lays a powerful foundation for potentially studying the expression patterns and functions of every gene in the vertebrate genome. The results include the discovery of previously unknown expression patterns for 91% of their trapped genes, based on imaging at 4 days post-fertilization. Mutant lines were shown to phenocopy existing mutants, and include models of human genetic disease. Overall, they authors present a compelling basis for consideration of the "vertebrate codex" – a term I find compelling.

Introduction: The Abstract was well-written, but the last sentence of the Introduction is overstated. Since phenotyping is dependent upon assays that may or may not have been used, it would seem more accurate to say something like, "…this GBT system lays a foundation for functional annotation of the vertebrate genome…" It would also add clarity to community thinking to explicitly note that mutant phenotyping is a key to functional annotation of genes.

We have modified the last sentence of the Introduction to state, “Since detailed investigations of mutant phenotypes are vital to functional annotation of the vertebrate genome, the mutagenic reporters in our GBT system provide the basis for this functional annotation to better understand normal biology and human disease”.

Subsection “GBT protein trapping generates a variety of potential models of human disease”: The consideration of RYR1 in the Discussion section would better be placed in one, not two, sections. The degree of repetition should be reduced.

We have condensed these two sections into one to link the consideration of our ryr1b results with RYR1 mutations in humans and the implications this has for future disease modeling with GBT-confirmed lines.

Subsection “Gene-break transposon system as a next generation mutagenesis system”: The limitations of the old gene trap lines were already explained in the Results section. Emphasis in the Discussion section should focus on benefits of the new system.

We have modified subsection “Gene-break transposon system as a next generation mutagenesis system” to highlight the benefits of the new system and its applications toward future genome engineering approaches using the RP8 series.

Subsection “Gene-break transposon system as a next generation mutagenesis system”: The second paragraph seems to repeat what is in the Results section.

We have modified subsection “Gene-break transposon system as a next generation mutagenesis system” to be less repetitive with what is in the Results section.

Figure 4: There is a striking degree of overlap in the beeswarm plots. It would be helpful to make the utility of these results more clear or to perhaps detail only the key aspects of the model, enough to be convincing of the focus of the paper – the novelty and utility of the gene-break transposon approach.

We have further explained our basis for including the violin plots of both amplitude, peak-width at half-max, rise time, and decay time. We have also modified this section to focus on validating the GBT system as a way to functionally annotate the genome with a comparison of our GBT ryr1b allele to the previously published relatively relaxed allele.

Reviewer #3:

The authors published a paper describing a protein trap screen in 2011 in which they collected 350 patterns and characterized 40 lines extensively (Table 1 in the 2011 paper). The current manuscript is the expansion of the previous work. In this manuscript, (1) they constructed new protein trap vectors, (2) they collected 1200 lines (patterns) and performed molecular characterization of 213 lines (GBT-confirmed lines), (3) based on the trapped gene information, they grouped the trap lines from views of human diseases, ontology, and subcellular localization, (4) calcium imaging using the ryr1b mutant. This should have been a lot of work and the resources will be useful to the community. However, the advances made since work published in 2011 are unclear.

1) They constructed RP2 series vectors that contained RFP gene in three frames. Also, the RP8 series vectors have RFP in three frames and the crystalline promoter. I admit this is an interesting idea. However when one of them was used for injection, introns which cannot be targeted by the other vectors may be targeted, but at the same time it cannot target introns which can be targeted by the other vectors. Thus, a set of new vectors may increase coverage of the genome, but I do not think the modifications affect effectiveness of the mutagenesis screen. Also, the number of insertions created by using each vector is too small to evaluate the vectors and their idea. They need to mention such limitations.

We acknowledge that a single vector cannot be a one size fits all solution for all introns. We have added a sentence in the Discussion section to explicitly point out that each vector can only target a subset of introns as follows, “While each individual construct still only integrates in-frame in a subset of introns, the RP2 series potentiates in-frame mRFP for any intron with Tol2-mediated integration”. We also explicitly highlight that having all three reading frames available offers the highest utility for future targeted integration approaches using RP8 as follows, “The three reading frames and modularity of the RP8 series are especially well suited to targeted integration approaches”.

2) In Supplementary file 1, most (nearly all) of the lines were created by using RP2.1. Since the authors reported the other new vectors, they need to evaluate those vectors with actual data (trapping events and efficiencies, etc). They need to show the power of these vectors.

We acknowledge that nearly all lines were made using RP2.1 and all of the mutagenicity data conducted using RP2.1. We also describe here the first description of the two additional RP2-based vectors with only a single nucleotide difference from RP2.1 to enable the capture in any protein reading frame. We show effective protein trapping with all RP2 series and RP8 series vectors.

3) Their indication of "97% knockdown efficiency" was already described in the 2011 paper. In this manuscript, since they constructed new RP8 series, they should measure the efficiencies of these vectors and discuss in comparison with the RP2 series.

The RP8 variants were built for two reasons – to avoid the use of GFP as a reporter and to be a modular molecular cassette for others to use (i.e. with non-transposon genetic engineering methods such as GeneWeld targeted integration, (Wierson et al., 2018)). We report that the protein trap component is functioning as expected (and 18 of the GBT-confirmed lines we present contain RP8 integrations). We also included the same 1.6kb poly(A)/presumptive scaffold attachment transcriptional termination cassette we showed to be effective mutagens with the PX and RP2 vectors. Given that the major functional change to RP8 lies in its 3’ exon trap, we expect its mutagenicity to be similar to RP2, but we don’t have the data to confirm that it is the same at this time. We therefore have explicitly acknowledged in subsection “Gene-break transposon system as a next generation mutagenesis system” that we have not performed the analyses of RP8 mutagenicity and kept the RP8 vector description with this caveat.

4) In this manuscript, they described the nature of the traps mainly by based on the gene information (in relation to human disease genes, gene ontology (PANTHER), and subcellular localization). The power of this system is visualization of subcellular localization of the trapped protein. The expression patterns can be visualized without the protein trap mechanism. They need to show the data for subcellular localization of a certain number of the trapped proteins (at least more than 10?). They should show co-localization of the fusion protein and endogenous protein if the antibody is available.

We certainly appreciate the concern about subcellular localization data gained through GBT protein trapping. In our previous work, the subcellular localizations have, in most cases, been consistent with what is expected. These observations lead us to perform the new analyses based upon PANTHER and Human Protein Atlas instead using a high resolution imaging approach. We realize that we did not explicitly state this or cite these previous publications in this section. In the revision, we have added citations to our previous work and our rational for these analyses.

Similarly, we agree that showing some new protein trapping expression data, especially some that we can relate to our PANTHER and/or Human Protein Atlas analyses, is useful for readers. We have therefore included confocal images of the GBT-confirmed lines GBT0235 (lrpprc) and GBT0348 (ryr1b) to highlight distinctive subcellular localization patterns at the top of the revised Figure 6. The human ortholog of lrpprc maps to mitochondria in Human Protein Atlas, but fails to map to a PANTHER class. The human ortholog of ryr1b maps to the cytosol, Golgi, and vesicles in Human Protein Atlas and is classified as a transporter in PANTHER analysis. We have also added additional confocal images that show distinct subcellular localizations in GBT-candidate lines and GBT lines to further demonstrate protein trapping in these lines in Figure 6—figure supplement 1.

5) ryr1b gene and mutants had been extensively reported by Hirata et al., (2007) and by themselves (Clark et al., 2011). What is new here is calcium imaging of muscle activities in the ryr1b mutant. However, the same result was obtained and described in Hirata et al., (2007) by electrophysiology. Thus, the novelty is poor. They should describe analysis of another gene which was not described previously.

The inadvertent omission to the prior and excellent Hirata paper has been corrected. Hirata et al., 2007 did a calcium imaging approach to assess the muscle specific phenotype but only quantified peak amplitude.(Hirata et al., 2007) We additionally quantified kinetic parameters in our calcium imaging data. Further, we have re-emphasized these experiments primarily serving as validation study rather than bringing substantial novel data to the table.

6) They identified 12 homozygous lethal mutants, but I do not see any data for this. The authors should show the data. 5 mutants they mentioned in the text were already described in the previous manuscript.

We have developed a table (Supplementary file 2 in the revision) characterizing all published mutants generated with the GBT system to date.

7) In Table 3, they say they identified 12 new previously-unannotated genes. What are those genes? and how they were trapped by the vector? More data should be shown.

We appreciate the interest in the previously unannotated transcripts. We have spent additional time analyzing these loci using additional publicly available resources, our own in-house RNA-Seq datasets and GRCz10. We focused on WT embryos at 4 different developmental stages, 36 hpf, 48 hpf and 4 dpf (Data source: ftp://ftp.ensembl.org/pub/data_files/danio_rerio/ across). The detail of this analysis is described in the revised method section. At the end of this additional work, we were able to resolved 7 lines (GBT0148, GBT0264, GBT0724, GBT1024, GBT1100 and GBT1168) into new cloned loci with likely transcripts (in the revised Supplementary file 1). In total, we resolved 7 out of these 10 unannotated GBT lines (in the revision) and moved this into our main catalog. Since we have informed genomic location of all 204 integration loci in the revised Supplementary file 1, we removed the previous Table 3 with the redundancy. We have also removed the individual section discussing the previous Table 3. Instead, we have added the following text:

Subsection “Molecular cloning of a subset of GBT lines highlights the genetic diversity of this protein trap collection”, “A small subset of these GBT-confirmed lines mapped to areas in the genome without annotated transcripts. Publicly available RNA-sequencing data revealed reads flanking a majority of these mapped integrations. Some of these reads contained evidence of splicing in the sense orientation of the mRFP reporter (Supplementary file 1)”.

Subsection “GBT protein trapping provides the basis for annotation of functionally diverse proteins and novel transcripts mapped on poorly assembled genomic regions” now reads, “We indeed found that 10 population of GBT integrations in the confirmed lines (with mRFP expression) failed to map to any predicted gene. However, RNA sequencing reads in public datasets identified potential unannotated coding sequences aligned with these GBT integration loci (Supplementary file 1). While 5' and 3' RACE are necessary to confirm the mRNA fusion products, these unannotated coding sequences represent the possibility to annotate novel, protein-coding transcripts in these GBT lines. Therefore, GBT protein trapping can find, illuminate expression, and elucidate in vivo functions of novel genes and/or gene variants in poorly annotated regions of reference genomes”.
