Multi-state recognition pathway of the intrinsically disordered protein kinase inhibitor by protein kinase A

  1. Cristina Olivieri
  2. Yingjie Wang
  3. Geoffrey C Li
  4. Manu V S
  5. Jonggul Kim
  6. Benjamin R Stultz
  7. Matthew Neibergall
  8. Fernando Porcelli
  9. Joseph M Muretta
  10. David DT Thomas
  11. Jiali Gao
  12. Donald K Blumenthal
  13. Susan S Taylor
  14. Gianluigi Veglia  Is a corresponding author
  1. Department of Biochemistry, Molecular Biology, and Biophysics, University of Minnesota, United States
  2. Department of Chemistry and Supercomputing Institute, University of Minnesota, United States
  3. Shenzhen Bay Laboratory, China
  4. Department of Chemistry, Bethel University, United States
  5. DIBAF, University of Tuscia, Largo dell' Università, Italy
  6. Laboratory of Computational Chemistry and Drug Design, Peking University Shenzhen Graduate School, China
  7. Department of Pharmacology and Toxicology, University of Utah, United States
  8. Department of Chemistry and Biochemistry and Pharmacology, University of California, San Diego, United States
Research Article
  • Cited 0
  • Views 869
  • Annotations
Cite this article as: eLife 2020;9:e55607 doi: 10.7554/eLife.55607

Abstract

In the nucleus, the spatiotemporal regulation of the catalytic subunit of cAMP-dependent protein kinase A (PKA-C) is orchestrated by an intrinsically disordered protein kinase inhibitor, PKI, which recruits the CRM1/RanGTP nuclear exporting complex. How the PKA-C/PKI complex assembles and recognizes CRM1/RanGTP is not well understood. Using NMR, SAXS, fluorescence, metadynamics, and Markov model analysis, we determined the multi-state recognition pathway for PKI. After a fast binding step in which PKA-C selects PKI’s most competent conformations, PKI folds upon binding through a slow conformational rearrangement within the enzyme’s binding pocket. The high-affinity and pseudo-substrate regions of PKI become more structured and the transient interactions with the kinase augment the helical content of the nuclear export sequence, which is then poised to recruit the CRM1/RanGTP complex for nuclear translocation. The multistate binding mechanism featured by PKA-C/PKI complex represents a paradigm on how disordered, ancillary proteins (or protein domains) are able to operate multiple functions such as inhibiting the kinase while recruiting other regulatory proteins for nuclear export.

Introduction

The cAMP-dependent protein kinase A (PKA) is a ubiquitous phosphoryl transferase that regulates numerous cellular signaling pathways (Taylor et al., 2012). As for other eukaryotic protein kinases, PKA regulatome comprises globular domains as well as extensive disordered regions, which are essential for protein-protein interactions and signaling (Akimoto et al., 2013; Gógl et al., 2019; Pellicena and Kuriyan, 2006). In fact, the activity and localization of PKA-C within different cellular compartments are finely regulated by ancillary proteins such as the regulatory subunits (R), A-kinase-anchoring proteins (AKAPs) (Bauman and Scott, 2002; Johnson and Lewis, 2001), and the heat-stable protein kinase A inhibitor (PKI) (Dalton and Dewey, 2006). While R-subunits are primarily responsible for the regulation and localization of PKA-C in the cytoplasm through interaction with AKAPs (Taylor et al., 2012), PKI plays a key role in transcriptional regulation and the export of the enzyme from the nucleus to the cytoplasm (Fantozzi et al., 1992; Wiley et al., 1999).

PKI is expressed in different isoforms of 70–75 amino acids in length, which were first identified in skeletal muscle extracts (Dalton and Dewey, 2006). PKI isoforms contain several functional motifs: a high affinity region (HAR, residues 1–14), a pseudo-substrate recognition sequence (PSS, residues 15–22), a nuclear export signal (NES, residues 37–46), and a disordered C-terminal tail (residues 47–75) (Figure 1AJohnson et al., 2001). The HAR is an accessory domain that increases the affinity of PKI for the enzyme, the PSS mimics the consensus sequence for the enzyme; while the NES motif mediates the recruitment by the CRM1/RanGTP complex for PKA-C translocation from the nucleus to the cytoplasm (Figure 1DWen et al., 1995). PKI binds PKA-C with nanomolar affinity (Whitehouse and Walsh, 1982), which is matched only by that of the R-subunits with whom it shares the same recognition/inhibitory sequence (Figure 1CHofmann, 1980). Unlike the R-subunits, PKI lacks any cAMP binding sites and its regulation of PKA-C is independent of the cyclic nucleotide-mediated signaling (Dalton and Dewey, 2006).

PKIα primary sequence, homology, and complex with PKA-C.

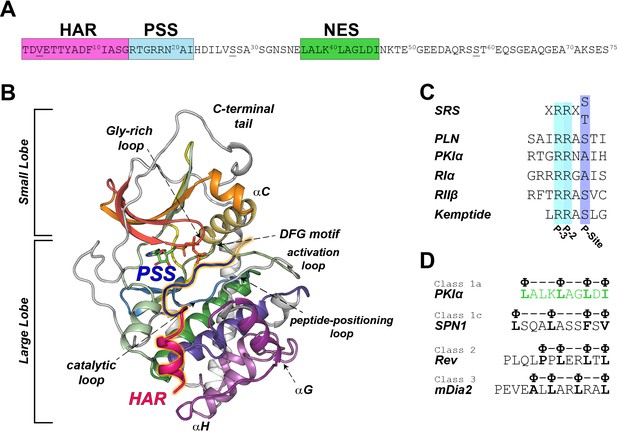

(A) Primary sequence of PKIα, featuring the high affinity region (HAR), the pseudo-substrate region (PSS), and the nuclear export signal (NES). (B) X-ray structure of the PKA-C/ATP/PKI5-24 ternary complex featuring only part of the HAR sequence and the PSS motif (PDB ID: 1ATP; Knighton et al., 1991a). PKA-C secondary structure elements are color-coded using Hanks and Hunter definition (Hanks et al., 1988). (C) Comparison of the substrate recognition sequences (SRS) for different PKA-C substrates, including PKIα, Kemptide, phospholamban (PLN), and the regulatory subunit RIα and RIIβ. D. NES sequences from different proteins (Fung et al., 2015; Fung et al., 2017).

In humans, three different genes encode the corresponding PKI isoforms, PKIα, PKIβ, PKIγ (Dalton and Dewey, 2006). Among those, the alpha isoform (PKIα) has the highest level of expression in various tissues and the highest inhibitory potency [Ki ~0.22 nM, (Collins and Uhler, 1997; Gamm and Uhler, 1995). The initial crystal structures of PKA-C were obtained with truncated variants of PKIα, encompassing either residues 5–22 or 5–24 with part of the HAR and PSS sequences, lacking the NES as well as the C-terminal regions. (Figure 1BKnighton et al., 1991a; Knighton et al., 1991b). More importantly, there are no reports on how PKI is recognized by the kinase and its binding mechanism.

Using a combination of NMR spectroscopy, small angle X-ray scattering (SAXS), stopped-flow fluorescence, replica-averaged metadynamics (RAM), and Markov model analysis, here we provide a comprehensive view of the molecular mechanism for recognition of PKIα by PKA-C. We found that free PKIα is intrinsically disordered, with incipient α-helical segments spanning the HAR and NES regions. PKA-C recognizes and binds extended PKIα conformations, rigidifying the PSS region and increasing the helicity of the HAR and NES motifs. Transient binding kinetics show that the recognition occurs via a multi-state pathway, with an initial fast binding step followed by a slow phase in which PKIα undergoes a conformational rearrangement within the binding site. Although the C-terminal tail of PKIα interacts transiently with the kinase’s C-lobe, it remains essentially disordered facilitating the recruitment by the CRM1/RanGTP complex for nuclear export. We propose that the multistate pathway for PKIα recognition by PKA-C is preparatory for the recruitment by CRM1/RanGTP for nuclear export and regulation of gene expression.

Results

PKIα is an intrinsically disordered protein with transient secondary and short-lived tertiary interactions

In agreement with Hauer et al. (Hauer et al., 1999a; Thomas et al., 1991), we found that the dichroic profile, the NMR fingerprint, and the dynamic NMR parameters display the typical signature of mixed α-helix and random-coil structure for PKIα (Figure 2, Figure 2—figure supplement 1A). Addition of urea to PKIα only slightly changes the chemical shift of the amides, confirming the disordered nature of the protein and suggesting the presence of only transient secondary structures (Figure 2—figure supplement 1BFelitsky et al., 2008; Marsh et al., 2007). We also probed the presence of long-range contacts using 1HN paramagnetic relaxation enhancement (1HN PRE-Γ2) experiments (Clore and Iwahara, 2009Figure 2E–G). For these experiments, we conjugated a nitroxide spin label (MTSL) on engineered cysteine residues at three different positions: PKIαV3C, PKIαS28C, and PKIαS59C in analogy to earlier fluorescence studies (Hauer et al., 1999b). We then measured the peak intensities in the presence of paramagnetic (Ipara) and diamagnetic (Idia) labels to estimate the Γ2 relaxation rates (Clore and Iwahara, 2009). When the spin label was engineered at the N-terminus (PKIαV3C), we observed a reduction of the resonance intensities near the N-terminal region and gradual effects that culminate in the middle of the linker between the PSS and NES motifs and decrease toward the C-terminus (PRE values less than two standard deviations, 2σ). The C-terminal residues remained essentially unperturbed (Figure 2E). On the other hand, when the spin label was positioned between the PSS and NES motifs (PKIαS28C), we detected strong PREs near the spin label position (PRE greater than 3σ), at the N-terminus, and within the NES motif (Figure 2F). Finally, for the spin label at position 59, we found that approximately 75% of the residues display a reduced signal intensity, with marked effects in the PSS, linker region, NES, and C-terminus. In this case, we observed only marginal effects for the N-terminal residues (Figure 2G). Altogether, the CD and NMR data reveal that in absence of a binding partner PKIα samples transient secondary structures encompassing the HAR and NES motifs with short-lived tertiary conformations.

Figure 2 with 1 supplement see all
PKIα is an intrinsically disordered protein with transient tertiary contacts.

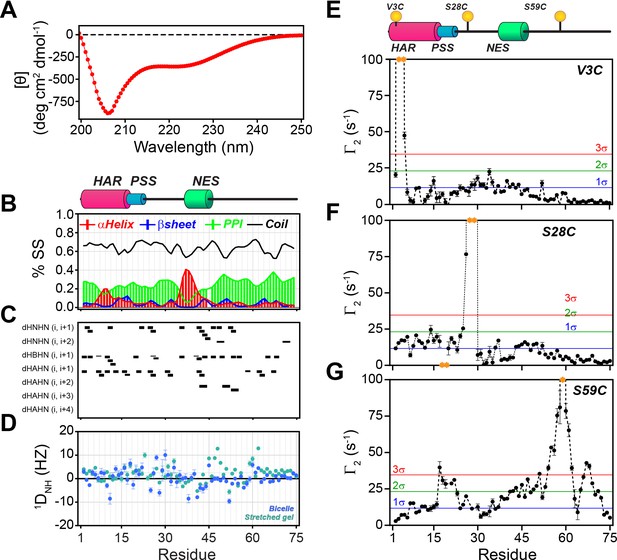

(A) Far-UV circular dichroism (CD) spectrum of PKIα acquired at 25°C in native condition showing the typical CD profile for IDPs, with a minimum around 208 nm (Wicky et al., 2017; Chemes et al., 2012; Silvers et al., 2012). (B) Secondary structure content for free PKIα as determined from NMR chemical shifts using δ2D program (Camilloni et al., 2012). Note that the program neglects to calculate values for the first and last residues. (C) Plots of the [1H,1H] NOEs derived from the analysis of [1H,15N] NOESY-HSQC experiment. (E) Residual dipolar couplings (RDCs) for PKIα aligned in stretched polyacrylamide gels and 5% bicelles (q = 3.5). The oscillations around zero of the 1DNH values confirm the absence of a defined structure. (E-F) Intra-molecular 1H- Γ2-PRE measurements of the three cysteine mutants of PKIα (Iwahara et al., 2007). For these experiments, a delay of 10 ms was used to calculate the intra-molecular 1H- Γ2-PRE effects. The yellow spheres on the schematic of PKIα (B panel) indicate the location of the cysteine mutations. The yellow dots in each graph indicate those residues broadened beyond detection. The horizontal lines indicate one (blue), two (green), and three (red) standard deviations (σ) from the mean PRE.

PKA-C binding rigidifies the PSS motif and stabilizes HAR and NES helices of PKIα

To map the fingerprints of both PKA-C and PKIα in the PKA-C/ATPγN/PKIα complex, we used our previously developed method in which we combine asymmetric isotopic labeling for each binding partner with a spin-echo filter for 13C-linked amide protons in the heteronuclear single quantum coherence experiment (HSQC), [1H,15N]-carbonyl carbon label selective-HSQC or [1H, 15N]-CCLS-HSQC (Tonelli et al., 2007; Larsen et al., 2018Figure 3—figure supplement 1). This method makes it possible to monitor the fingerprints of two interacting proteins simultaneously using only one sample preparation. Upon binding to PKA-C, most of the PKIα resonances in the [1H,15N]-HQSC spectrum show only minimal changes (Figure 3—figure supplement 1C).

However, the HAR and PSS resonances display significant chemical shift changes (Figure 3A,B,E), suggesting that these regions of PKI undergo drastic structural rearrangements upon binding the kinase. This finding is also supported by the δD2 analysis (Camilloni et al., 2012) of the Cα and Cβ chemical shifts showing an increase in helical content of the HAR and rigidification of the PSS motif; while the rest of the peptide remain unaffected by the interaction with PKA-C (Figure 3B, Figure 3—figure supplement 2A). The analysis of the chemical shift difference between the ATPγN-bound form and the ternary complex mapped on PKA-C are reported in Figure 3 (panel C-D). As previously reported (Masterson et al., 2010; Masterson et al., 2008), the amide fingerprint of the kinase changes significantly upon nucleotide binding (Figure 3C). Additional changes are observed upon binding PKIα, especially for αC, αF, αG helices as well as β6 loop. The map of the chemical shift changes on the PKA-C/ATPγN/PKIα complex for the two proteins is reported in Figure 3E. Interestingly, smaller changes are present for the NES region of PKIα, which are mirrored by higher values of heteronuclear nuclear Overhauser effects (NOE), indicating reduced motions of the backbone amides in the pico-to-nanosecond time scale (Figure 4A, Figure 3—figure supplement 2BDyson and Wright, 2004; Bah et al., 2015). The formation of the PKA-C/ATPγN/PKIα (ternary) complex is also reflected by the differences of longitudinal and transverse relaxation rates (ΔR1 and ΔR2) for both the HAR and PSS motifs upon forming the complex, which define a local rigidification of the PKIα backbone upon binding PKA-C, with the C-terminal portion (residues 47–75) remaining essentially unstructured (Figure 4B,C).

Figure 3 with 2 supplements see all

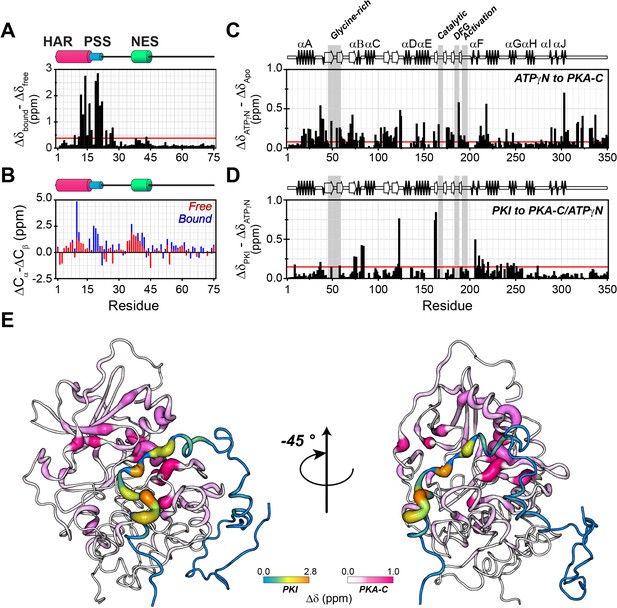

PKIα adopts partial secondary structure upon interaction with PKA-C.

(A) Chemical shift perturbation (CSP) of the amide fingerprint of PKIα upon binding PKA-C/ATPγN binary complex calculated using equation 1 (Williamson, 2013). The residues of PKIα that undergo significant CSPs are localized in the HAR and PSS, which are involved in strong electrostatic interaction within the binding site of PKA-C. (B) Chemical shift index (CSI) for Cα and Cβ of free (red) and bound (blue) PKIα. The PSS motif becomes more rigid upon interaction with PKA-C. The HAR and the NES adopt a transient α-helical conformation, which is enhanced upon binding the kinase. (C) CSP of PKA-C amide fingerprint upon binding ATPγN. (D) CSP of the PKA-C/ATPγN binary complex upon binding PKIα. The red lines in the histograms indicate one standard deviation from the average CSP: 0.38 ppm, 0.11 ppm, and 0.10 ppm for (A), (C and D), respectively. (E) CSPs for PKA-C and PKIα amide resonances mapped onto a selected conformer from the ensemble of the PKA-C/ATP/PKIα structures calculated from MD simulations (see Materials and methods).

Changes in the NMR dynamic parameters of PKIα upon formation of the ternary complex with PKA-C and ATPγN.

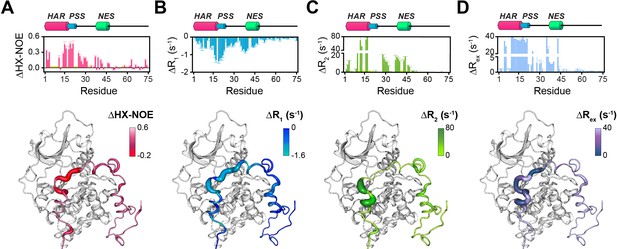

(A) Histogram of the changes in heteronuclear NOE (ΔHX-NOE) values of PKIα free and bound and map of the ΔHX-NOE values onto a selected conformer from the ensemble of the PKA-C/ATP/PKIα structures calculated from MD simulations (see Materials and methods). (B-D) Corresponding ΔR1, ΔR2, and ΔRex plots for PKIα free and bound forms. The sample concentration for free form of 2H/15N PKIα was 0.2 mM; while for PKIα bound to PKA-C/ATPγN was 0.3 mM. All the experiments were recorded at 27°C.

The T1/T2 ratios can be used as an estimate of the global correlation time for the PKA-C/PKI complex (Kay et al., 1989; Cavanagh et al., 2007a; Cavanagh et al., 2007b; Gaspari and Perczel, 2010). The PSS and HAR regions of PKIα, which show the most prominent chemical shift changes, adopt the overall correlation time of the kinase in agreement with previous fluorescence anisotropy measurements (Figure 3—figure supplement 2CHauer et al., 1999b). Interestingly, the ΔRex values obtained from the Carr-Purcell-Meiboom-Gill (CPMG) relaxation dispersion experiments show the presence of μs-ms motions for residues in the HAR and PSS motifs, which gradually decrease toward the NES motif, suggesting the presence of conformational interconversion of these regions upon binding (Figure 4D, Figure 3—figure supplement 2D). Next, we analyzed the large amplitude motions of the kinase-bound PKIα by conjugating MTSL to cysteine 59 in the C-terminal region (PKIαS59C) and used the [1H,15N]-CCLS pulse sequence to simultaneously measure the PREs on both PKIα and PKA-C (Olivieri et al., 2018Figure 5A,B). The most significant PREs for PKIα were detected for resonances of residues proximal to the MTSL label, with a gradual reduction moving away from residue 59. Interestingly, we detected some long-range effects for specific residues located in the HAR and PSS motifs and the intervening linker. This implies that the C-terminal domain of PKIα undergoes large amplitude motions and transiently interacts with the N-terminus, N-lobe (β12 loop), C- lobe (G-, and H- helices) as well as the peptide-positioning loop of PKA-C. Taken together, the relaxation data show that PKA-C binding to PKIα causes differential effects on the various regions of the inhibitor. While disorder-to-order transitions occur for the HAR, PSS, and NES motifs, the C-terminal tail of the PKIα remains disordered. (Figure 5C).

The C-terminal tail of PKIα interacts transiently with PKA-C.

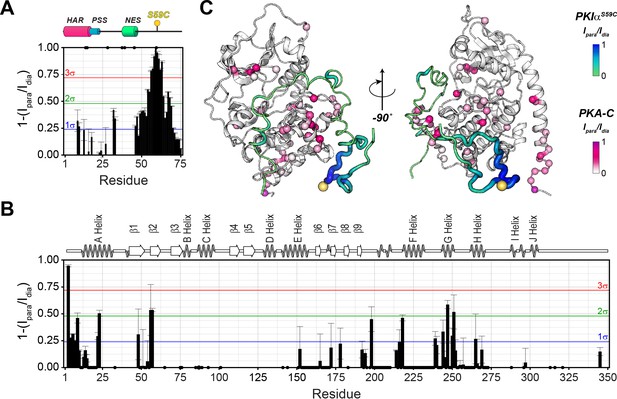

(A) Intermolecular 1HN PRE measurements between U-2H/13C/15N PKIαS59C and U-2H/15N PKA-C/ATPγN. (B) Intermolecular PRE effects detected on PKA-C. (C) Intra- and inter-molecular PRE effects mapped onto the a selected conformer from the ensemble of the PKA-C/ATP/PKIα structures calculated from MD simulations. The yellow sphere illustrates where the spin label is attached. The black dots on both panel A and B indicate those resonances that broaden out beyond detection mainly in the sample with the spin-label active (paramagnetic sample). The horizontal lines indicate one (blue), two (green), and three (red) standard deviations from the mean (σ) of the observed PRE values. We refer as strong PRE effects values greater than 3σ, medium between 1 and 2σ, and weak less than 1σ.

The PKA-C/PKIα complex relaxes through two structurally and kinetically distinct states to form the complex

To determine the mechanism of binding PKA-C and PKIα, we utilized stopped-flow rapid mixing fluorescence resonance energy transfer (FRET) and analyzed transient and total changes in donor fluorescence during the binding reaction. This procedure enables the interpretation of the kinetic mechanism and structural changes occurring during a binding reaction (Muretta et al., 2015; Nesmelov et al., 2011). To determine the kinetics of binding, we engineered a double mutant of PKA-C (PKA-CC199A,S325C) and labeled the single reactive S325C with Alexa Fluor 488 (PKA-CDONOR). We also expressed and purified three different mutants of PKIα (PKIV3C, PKIS28C, and PKIS59C) and labeled each cysteine with tetramethylrhodamine-5-maleimide (PKIACCEPTOR-3, PKIACCEPTOR-28, and PKIACCEPTOR-59). For the first set of experiments, we mixed PKA-CDONOR with increasing concentrations of each acceptor (PKIACCEPTOR-3, PKIACCEPTOR-28, PKIACCEPTOR-59, (Figure 6A–D). As expected for the formation of the PKA-C/PKIα complex, we observed a gradual decrease in the total fluorescence of the donor probe. In a second set of experiments, we tested the time-dependence of long-range rearrangements of PKIα as suggested by PRE measurements (Figure 6A, Figure 6—figure supplement 1A). To this extent, we utilized the PKA-CC199A,S325C mutant without fluorescent label and engineered a double mutant of PKIα with two cysteines at residue 3 and 59 (PKIV3C,S59C). the PKIV3C,S59C mutant was then labeled with both Alexa-488 (donor) and TMR (acceptor) at positions 3 and 59, respectively (PKIDONOR-ACCEPTOR). When a fixed concentration of PKIDONOR-ACCEPTOR was titrated with increasing concentrations of unlabeled PKA-CC199A,S325C, we detected an increase of the total fluorescence (Figure 6E, Figure 6—figure supplement 1B), indicating that the distance between the two probes of PKIα increases upon formation of the complex, that is the conformational ensemble of PKIα becomes on average more extended during the binding reaction in agreement with the PRE data. From an initial analysis of the binding curve, we found that the total fluorescence of the Alexa-488 donor emission from the PKA-CDONOR/PKIACCEPTOR changed bi-exponentially through the course of the binding reactions (Figure 6A–D). The bi-exponential behavior suggests the presence of an initial fast binding step followed by a slow structural rearrangement (Table 1Gianni et al., 2014).

Table 1
Rate constants obtained from the fluorescence decay of PKIACCEPTOR-3, PKIACCEPTOR-28, and PKIACCEPTOR-59upon mixing with Alexa-labeled PKA-CC199A,S325C or the fluorescence buildup of PKIDONOR-ACCEPTOR upon mixing with unlabeled PKA-CC199A,S325C at 25°C.
PKIACCEPTOR3PKIACCEPTOR28PKIACCEPTOR59PKIDONOR-ACCEPTOR
Fast phase
kon (M−1 s−1)1.88 ± 0.03×1071.40 ± 0.02×1071.62 ± 0.11×1070.85 ± 0.04×107
koff (s−1)13 ± 35 ± 12 ± 106 ± 7
 Kdapp (nM)700 ± 170390 ± 110150 ± 620700 ± 800
Slow phase
kslow (s−1)24 ± 2NDND37 ± 2
 K0.5 (µM)2.4 ± 0.43.0 ± 0.43.8 ± 0.517 ± 3
  1. ND: Non determined.

Figure 6 with 1 supplement see all

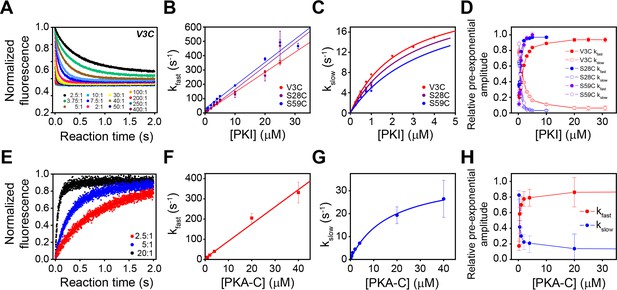

Multi-pathway mechanism of PKIα binding to PKA-C revealed by stopped-flow FRET experiments.

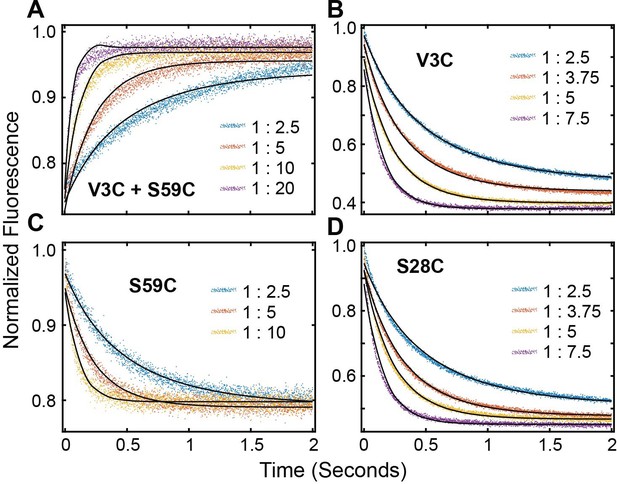

(A) Total fluorescence of Alexa-488 labeled PKA-CC199A,S325C (100 nM) monitored at 520 ± 10 nm, mixed with varied concentrations of TMR labeled PKIαV3C, ranging from 0 to 400 times the concentration of the enzyme. (B-C) Dependence of the fast and slow rate constants on the concentration of PKIα. (D) Relative pre-exponential amplitude obtained by fitting each transient to a bi-exponential function A1*Exp(-t*kobs1) + A2*Exp(-t*kobs2). (E) Total fluorescence of double-labeled PKIαV3C, S59C (Alexa-488, TMR) (100 nM) monitored at 520 ± 10 nm mixed at different concentrations of non-labeled PKA-CC199A, S325C. (F-G) Dependence of the fast and slow rate constants on PKA-C concentration. (H) Relative pre-exponential amplitude obtained by fitting each transient to a bi-exponential function. Representative data from N = 3 experiments for each condition were repeated three times per experiment.

These two phases can be identified for all the PKI labeled species, irrespective of the fluorescence acceptor position. The rate constants for the fast phase increases linearly with PKIα concentration, with an average second-order rate constant of 1.63 × 107 M−1 s−1 and an extrapolated average dissociation rate constant of 7.0 s−1. Comparatively, the observed rate constant for the slow phase increased hyperbolically with an average K0.5 of 3.1 µM and a maximum value (kslow) of 24 ± 1.8 s−1.

We also observed two distinct binding phases for the second set of experiments with unlabeled PKA-CC199A,S325C and PKIDONOR-ACCEPTOR. Indeed, the kinetic constants obtained for these experiments are very similar to those found in the first set of the experiments, underscoring the same binding mechanisms. The pre-exponential amplitudes for the fast phases increased hyperbolically, while the slow phase decreased hyperbolically (Figure 6D–H). Taken together, the behavior of the rate constants and the pre-exponential amplitudes for the fast and slow phases are consistent with a multi-pathway mechanism in which there is a fast binding phase of PKIα ensembles competent for binding and a subsequent structural rearrangement of these conformers upon binding (Dogan et al., 2014; Gianni et al., 2014).

Conformational landscape and kinetics of conformational transitions of PKIα

Using chemical shift (CS) and residual dipolar couplings (RDC) (Figure 2D) as structural restraints, we performed replica-averaged metadynamics (RAM) to define the energy landscapes of free and kinase-bound PKIα. During the simulations, the HAR and NES motifs of free PKIα undergo multiple coil-to-helix transitions (Figure 8). We identified two major basins, featuring a compact ensemble (Rg <1.5 nm), with three relative minima with helical structures for the HAR and NES motifs; and a more extended ensemble (Rg >3.0 nm), where the protein is essentially disordered. The HAR motif populates mostly a random coil conformation, with a sparsely populated helical conformation, whereas the NES motif populates both helical and coil conformations (Figure 7A,B). To validate the RAM-generated ensembles, we carried out small angle X-ray scattering (SAXS) experiments and back-calculated the SAXS profiles from the conformers sampled in the RAM trajectories. Figure 7C shows the scattering intensity plots (log I(q) vs q) and the corresponding Kratky plot for free PKIα. These profiles show the typical signatures of intrinsically disordered proteins, with the Kratky plot featuring a plateau at high q values as well as the absence of a bell-shaped curve (Figure 7C, bottom panel). In addition, the P(r) curve shows that PKIα adopts a highly extended conformational ensemble, with an abnormally large Dmax (~110 Å) and Rg (~30 Å) values for a protein of its size, both parameters are indicative of an extended, intrinsically disordered protein (Kikhney and Svergun, 2015Figure 8D). In fact, the back-calculated SAXS profiles from the RAM-generated ensembles are in excellent agreement with the experimental SAXS scattering profiles (χ = 0.86 for q < 0.2) (Figure 7C). In the bound state, the HAR motif of PKIα is more ordered and adopts a more stable helical conformation; whereas the NES motif is considerably more dynamic and adopts a transient helical conformation (Figure 7E).

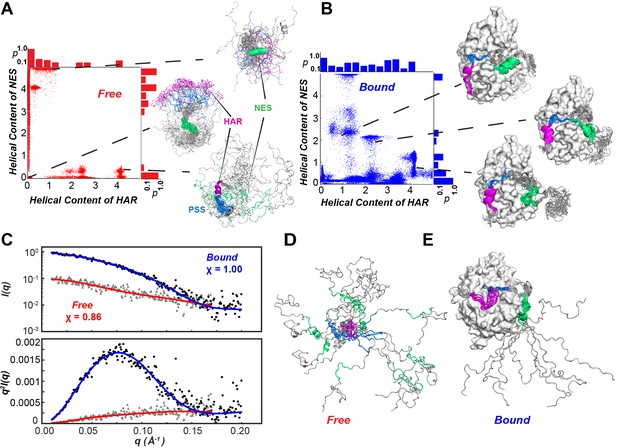

Conformational ensembles free and bound of PKIα by SAXS and metadynamics.

(A-B) Distribution of helical populations for the HAR and NES regions in the free (A) and bound (B) PKIα ensembles. (C) SAXS data obtained with PKIα free and the PKA-C/PKIα complex in the presence of ATPγN. The top panel shows the scattering intensity, I(q), as a function of q and the bottom panel the Kratky plot. The blue (complex) and red (free PKIα) traces are the best-fit curves obtained by fitting predicted scattering data from the conformation ensembles from RAM simulations. (D) Conformational ensemble of free PKIα that best fits the SAXS profile. E. PKIα ensemble bound to PKA-C that best fits the SAXS profile.

Figure 8 with 1 supplement see all
Multi-state binding kinetics of PKI α to PKA-C from Markov model.

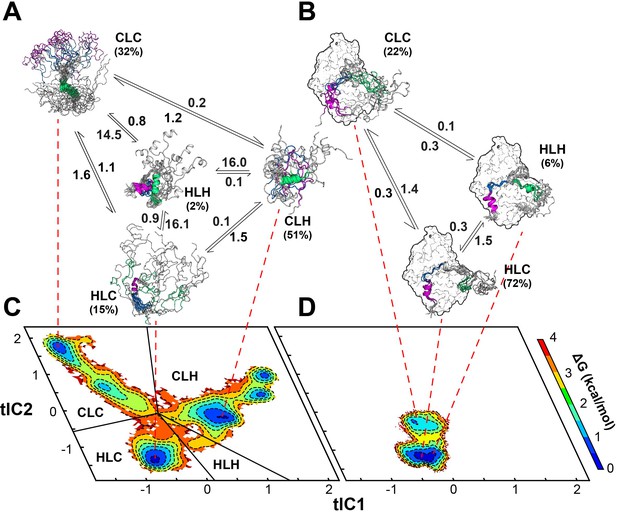

(A) Schematic illustration of the transition kinetics between different conformational ensembles of PKIα in the free form. (B) Corresponding scheme for the bound ensembles. The population of each state is indicated as percentage. The kinetic constants expressed in microseconds are indicated on the arrows. (C) 2D free energy landscape for PKIα in the free form projected along the first two tICs (D) Corresponding free energy landscape for PKIα in the bound forms. The major conformational ensembles of free PKIα in the free form can be categorized into four states, featuring different combination of helix/coil/loop for the HAR, PSS and NES motifs.

In this case, the SAXS data are less informative as the Kratky plot for the PKA-C/ATPγN/PKIα complex is dominated by the bell-shaped curve of the globular enzyme, with a well-defined maximum in the low q region (~0.08 Å−1) that decays to near zero at high q values. To determine the rates of conformational exchange and the populations of PKIα free and bound, we performed unbiased molecular dynamics (MD) simulations and analyzed the conformational transitions building a Markov model. To simplify and visualize the conformational space of PKIα, we reduced the high-dimensionality space of the residue-residue contacts into a 6-dimensional space using time-lagged independent component analysis (tICA). We then projected the free energy landscape along the main components, tlC1 and tlC2. In this reference frame, free PKIα occupies six local minima (ΔΔG < 1 kcal/mol) and a higher energy state (ΔΔG ~ 2.5 kcal/mol) (Figure 8). We then clustered the conformers into four major ensembles based on the secondary structure content of the HAR, PSS, and NES motifs: HLH (helix-loop-helix), CLC (coil-loop-coil), HLC (helix-loop-coil), and CLH (coil-loop-helix) (Figure 8—figure supplement 1). For free PKIα, the CLH ensemble is dominant, with a mean population of 51%, followed by CLC (32%), HLC (15%), and HLH (~2%) (Figure 8A). The kinetics of the conformational transitions were calculated using the mean-first-passage-time (MFPT) among these states. We found that all the conformational transitions take place on a μs time scale, with the slowest transitions from the HLC, CLH, and CLC ensembles to the HLH ensemble; while the transitions from CLC, HLH, and HLC to the CLH ensemble are more rapid (Figure 8, Figure 8—figure supplement 1). For PKIα bound to PKA-C, the conformational space spanned becomes more restricted (Figure 8D). Specifically, the HLC, CLC, and HLH minima become more populated, with 72, 22, and 6% (Figure 8B). In addition, the transition kinetics from CLC and HLC to the HLH ensemble is estimated to occur approximately 10 times faster (Figure 8, Figure 8—figure supplement 1).

Proposed mechanistic model

Based on NMR, SAXS, fluorescence, RAM simulations as well as Markov model analysis, we propose that PKIα binding to PKA-C occurs via a multistate recognition pathway. We envision that free PKIα spans a broad conformational space with incipient helical elements for the HAR and NES motifs. These conformations are in fast exchange in the NMR time scale. We propose that the initial step (fast) of recognition by PKA-C is driven by electrostatic interactions between the conformations of PKIα featuring an exposed PSS motif (CLC and HLC) and PKA-C (Tsigelny et al., 1996). These encounter complexes undergo slower conformational rearrangements in which a) the HAR motif folds upon binding in a helical conformation, b) the PSS motif binds within the active cleft in an extended conformation, and c) the transient helix of the NES motif adopts a more defined conformation. To validate our hypothesized mechanism, we fitted the fluorescence curves using a set of equations detailed in the supporting information (Scheme 1 and Scheme 2). Under these constraints, we obtained a kinetic constant of 1.5 × 107 M−1s−1 for the formation of the PKA-C*/PKI* encounter complex and a slow relaxation of the complex with a constant of 2400 s−1. These kinetics parameters are in the same order of magnitude of the association rates measured for binding of other intrinsically disordered proteins (Mollica et al., 2016).

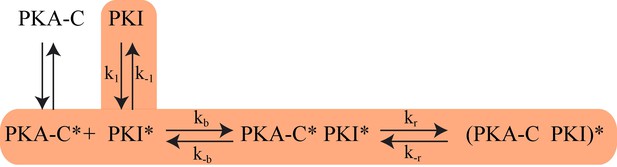

The proposed Kinetic Model of PKA-C/PKIα binding.

Highlighted pathway is used in the numerical fitting of Stopped Flow rapid mixing FRET data using MATLAB.

FRET Profiles of (A) double labeled PKI, (B) PKIACCEPTOR-3, (C) PKIACCEPTOR-59 and (D) PKIACCEPTOR-28 fitted with kinetic model in Scheme 1.

Discussion

When unleashed from the R-subunit, the C-subunit of PKA is in a constitutively active state, where binding of nucleotide engages the N- and C-lobes priming the kinase for substrate recognition and catalysis. R-subunits and PKI share small linear motifs (SLiMs) that bind the substrate binding site with high affinity and trap PKA-C in an inactive state. SLiMs are intrinsically disordered regions that are part of the allosteric machinery of kinases and control the cross-talk between different kinase signaling pathways (Akimoto et al., 2014; Akimoto et al., 2013; Delaforge et al., 2018; Gógl et al., 2019; Kragelj et al., 2015; Wang et al., 2011; Wright and Dyson, 2015; Guiley et al., 2019). PKI can be portrayed as a prototypical SLiM that is able to bind and inhibit the kinase and recruit the CRM1/RanGTP complex to export the enzyme out of the nucleus, thereby regulating cell proliferation. Previous structural studies focused on the 5–24 region of PKIα that encompasses both the HAR and PSS motifs, which has been instrumental in trapping the ternary complex of the kinase and obtain the first crystal structure of a kinase (Knighton et al., 1991a). Subsequent spectroscopic studies provided evidence for the dynamic nature of the PKIα peptide, suggesting the presence of minimal secondary structural elements such as the HAR and NES regions, with a C-terminal tail completely disordered (Padilla et al., 1997; Hauer et al., 1999a). The HAR is extremely important for binding/anchoring to the catalytic subunit as well as positioning the PSS within the catalytic cleft of the enzyme (Walsh et al., 1971; Cheng et al., 1986). However, most PKA target substrates do not possess this motif and the only substrate recognition requirement is the highly positively charged consensus sequence in the linear PSS motif. In fact, in most cases this recognition motif is located in highly dynamic or intrinsically disordered regions as it molds into the binding groove of the kinase situated at the interface between the small and large lobes. Our studies bring new insights into the dynamic nature of the PKIα recognition mechanism. After the initial binding of ATP in the pocket between the two lobes that primes the substrate binding site (Chu et al., 2017; Hyeon et al., 2009; Masterson et al., 2010), this highly disordered polypeptide, with incipient helices at both the HAR and NES motifs, is driven toward the kinase via positively charged Arg residues in the PSS sequence. Deletion of one of the Arg residues in the PSS provokes a dramatic reduction of the phosphorylation kinetics and has been linked to the progression of dilated cardiomyopathy (Kim et al., 2015; Haghighi et al., 2006). On the other hand, mutations in the active site of the kinase that change electrostatic interactions such as L205R dramatically influence the thermodynamics and kinetics of substrate binding, leading to the development of adrenocortical adenomas and the resultant Cushing’s syndrome (Calebiro et al., 2014; Cheung et al., 2015; Walker et al., 2019). More importantly, our studies reveal a significant ordering of the PKIα structure upon interaction with the kinase, particularly for the HAR, PSS, and NES motifs. This ordering occurs in the second, slower binding step as revealed by FRET measurements, while the C-terminal tail of PKIα remains essentially disordered, undergoing large amplitude motions with transient interactions with the C-lobe of the kinase. Interestingly, when PKIα is bound to PKA-C, the NES region undergoes a structural rearrangement, showing a higher degree of helicity as supported by NMR and MD simulations. The NES motif comprises Leu 37, Leu 41, and Leu 44 that are essential for high binding affinity to the nuclear export machinery CRM1/RanGTP (Güttler et al., 2010; Fu et al., 2018). The CRM1 binding pocket is a relatively rigid cavity and NES sequences must possess significant plasticity to mold into the binding pocket (Güttler et al., 2010; Fu et al., 2018). This observation could explain why the NES assumes a defined conformation only upon interaction with CRM1. Based on our data, it is possible to speculate that the interactions of PKIα with PKA-C preambles the formation of the complex and that the helix-coil equilibrium of the NES domain is critical for recruiting the CRM1/RanGTP nuclear export complex (Fu et al., 2018; Fung et al., 2017; Güttler et al., 2010). This complex binding mechanism shows how SLiMs can orchestrate multiple functions and regulate kinases through disordered ancillary proteins or protein domains.

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
Gene (Oryctolagus cuniculus )PKIA or PKIαUniprot ID
P61926
Gene (Mus musculus)PKA-CA or PKA-CUniprot ID:
Q9DBC7
Strain, strain background (Escherichia coli)BL21(DE3)New England Biotech (NEB)C2527IChemically competent cells
Recombinant DNA reagentpT7-7 PKIαDr. Herberg (Universität Kassel, Germany)DOI: 10.1042/BJ20071665
Recombinant DNA reagentPKIαV3CThis studySingle Cys mutant of PKIα
Recombinant DNA reagentPKIαS28CThis studySingle Cys mutant of PKIα
Recombinant DNA reagentPKIαS59CThis studySingle Cys mutant of PKIα
Recombinant DNA reagentPKIαV3C, S59CThis studyDouble Cys mutant of PKIα
Recombinant DNA reagentPKA-CαProf. Taylor S.S.
(USCD, CA, USA)
(Hemmer et al., 1997)
DOI: 10.1006/abio.1996.9952
Recombinant DNA reagent(His6X)-PKA-RIIαR213KProf. Taylor S.S.
(USCD, CA, USA)
(Hemmer et al., 1997)
DOI: 10.1006/abio.1996.9952
Sequence-based reagentPKIαV3CThis studyPCR primer(Forward): aaggagatatacatatgggaactgattgcgaaactacttatgccgatttta
Sequence-based reagentPKIαS28CThis studyPCR primer (Forward): ccatccacgatatcctggtctgcagtgcttccgg
Sequence-based reagentPKIαS59CThis studyPCR primer (Forward): aggaagatgctcaaagatcttgcactgaacaatccggagaag
Sequence-based reagentPKIαV3C, S59CThis studyPCR primer (Forward):
1)aaggagatatacatatgggaactgattgcgaaactacttatgccgatttta
2)aggaagatgctcaaagatcttgcactgaacaatccggagaag
Chemical compound, drugMTSLToronto Research ChemicalO875000Spin label
Chemical compound, drugdMTSLToronto Research ChemicalA188600Spin label
Chemical compound, drugAlexa Fluor 488 C5 MeleimideThermo Fisher ScientificA10254FRET acceptor
Chemical compound, drugTetramethylrhodamine-5-maleimide (TMR)Life TechnologiesT6027FRET donor
Chemical compound, drugAMP-PNP or ATPγNRoche Applied Science10102547001ATP analogous
Commercial assay or kitQuikChange Lightning Multi Mutagenesis KitAgilent genomics210519Commercial mutagenesis kit
Commercial assay or kitPepTag Assay, Non-Radioactive Detection of PKAPromegaV5340Commercial assay kit
Software, algorithmTopSpin 3.0Bruker Inchttps://www.bruker.com/
Software, algorithmNMRFAM-SparkyNMRFamhttps://nmrfam.wisc.edu/nmrfam-sparky-distribution/
Software, algorithmNMRPipeDelaglio F, NIH (Delaglio et al., 1995)https://www.ibbr.umd.edu/nmrpipe/install.html
Software, algorithmPyMolSchrödinger, LLChttps://pymol.org
Software, algorithmMatLab2019bMathWorkshttps://www.mathworks.com/products/matlab.html
Software, algorithmGraphPad Prism 8GraphPad Software Inchttps://www.graphpad.com/
Software, algorithmOrigin 8OriginLabhttps://www.originlab.com/
Software, algorithmSAXSQuant software suitAnton PaarN/A
Software, algorithmPrimusATSAS 2.8.3 softwarehttps://www.embl-hamburg.de/biosaxs/download.html
Software, algorithmMultiFoXS server(Schneidman-Duhovny et al., 2013).https://modbase.compbio.ucsf.edu/multifoxs/
DOI: 10.1016/j.bpj.2013.07.020
Software, algorithmGROMACS 4.6(Hess et al., 2008)http://www.gromacs.org/
Software, algorithmPLUMED 2.1(Bonomi et al., 2009)https://www.plumed.org/doc-v2.5/user-doc/html/_c_h_a_n_g_e_s-2-1.html
Software, algorithmALMOST 2.1(Fu et al., 2014)https://sourceforge.net/projects/almost/
Software, algorithmMSMBuilder 3.5(Harrigan et al., 2017)http://msmbuilder.org/3.5.0/index.html
Software, algorithmδ2D(Camilloni et al., 2012)http://www-mvsoftware.ch.cam.ac.uk/index.php/d2D

Expression and purification of Full-length PKIα

Request a detailed protocol

Gene coding for full-length PKIα (Oryctolagus cuniculus, PKIA PRKACN1) subcloned into pT7-7 vector was a gift to us by Dr. Friedrich Herberg (Universität Kassel, Germany). For the fluorescence and PRE-experiments, three different single-site (PKIαV3C, PKIαS28C and PKIαS59C) and a double-site (PKIαV3C, S59C) mutants were generated by QuikChange Lightning mutagenesis kit (Agilent genomics) using PKIα as template. The choice of the sites of mutation was based on previous work (Hauer et al., 1999b). Recombinant full-length PKIα was expressed in E. coli BL21 (DE3) cells at 30°C and the purification was performed as previously reported (Hauer et al., 1999a). Briefly, transformed cells were grown in Luria-Bertani (LB) medium for fluorescence while uniformly labeled 15N, 13C/15N, and 2H/13C/15N PKIα was expressed in minimal medium (M9) for NMR experiments. Protein expression was induced by the addition of 0.4 mM of IPTG to a culture with optical density of ~1.3–1.4 at 30°C and was performed for 5 hr. The cell pellet was resuspended in 20 mM MOPS (pH 7.5) and lysed through sonication. The lysate was then centrifuged at 20,000 rpm for 30 min. The supernatant was then heated in a boiling water bath at 95°C for 5 min to precipitate out most of the undesired proteins. The protein suspension was centrifuged a second time at 20,000 rpm for 30 min. The resulting supernatant was dialyzed against 20 mM TRIS-HCl (pH 7.0) buffer overnight. A second purification step with anion exchange chromatography was carried out using HiTrap Q HP column (GE Healthcare Biosciences Corp) in 20 mM TRIS at pH 7.0 where a NaCl gradient was used to elute the protein. A reversed phase HPLC purification step was also performed to obtain a higher grade of purity using C18 column (HiCHROM, UK) using water as buffer A and isopropanol as buffer B with 0.1% trifluoroacetic acid in both buffers. The purified peptide was concentrated, lyophilized, and stored at −20°C. The final product was accessed using SDS-PAGE with a final purity of >97%. The molecular weight and the quantity of the peptide were verified by amino acid analysis (Protein chemistry laboratory at Texas A and M University, TX, USA). All the cysteine mutants of PKIα were purified following the same protocol used for the wild-type protein with additional supplement of reducing agent (5 mM β-mercaptoethanol) in all the dialysis buffers.

Expression and purification of PKA-C

Request a detailed protocol

Recombinant catalytic subunit of PKA-C (Mus musculus gene) was expressed in E. coli BL21 (DE3) cells at 24°C in M9 minimal medium. The purification was performed using the His6-RIIa(R213K) subunit as described previously (Hemmer et al., 1997). A subsequent second purification step was performed using a HiTrap SP HP cation exchange column (GE Healthcare Biosciences Corp) to separate out the three isoforms of PKA-C that differ in their phosphorylation profiles (Yonemoto et al., 1993). The purified protein was then stored in phosphate buffer supplied of 10 mM DTT, 10 mM MgCl2, and 1.0 mM NaN3, at 4°C. For isotopically 2H-labeled protein, the cells were growth 80% D2O M9 minimal medium in a bench fermenter (2.0 L). The most abundant isoform of PKA-C, corresponding to phosphorylation at S338, T197, and S10 residues (isoform II) (Walsh and Ashby, 1973), was used for all experiments. The purity was assessed using SDS-PAGE electrophoresis and the final purity was >97%. The kinase activity was tested with a gel-shift assay from Promega (Fitchburg, Wisconsin) and quantified using A280 = 52,060 M−1 cm−1.

The C199A S325C mutant of the catalytic subunit of PKA (PKA-CC199A, S325C) was recombinantly expressed by growing transformed E. coli BL21(DE3) cells in LB medium and induced by addition of IPTG at 24°C as described previously. The mutant PKA-C was purified using the previously described protocol (Masterson et al., 2009). Briefly, cells were resuspended in lysis buffer (30 mM MES, 1 mM EDTA, 50 mM KCl, 5 mM β-mercaptoethanol, 0.15 mg/mL lysozyme, 1 mM PMSF, pH 6.5), and lysed using French press at 1000 psi. The supernatant after pelleting the cell debris was batch-bound with P11 phosphocellulose resin in lysis buffer at pH 6.5. PKA-C was purified by eluting over a gradient of 0–500 mM KH2PO4. The different isoforms of PKA-C were further separated by cation exchange chromatography with a HiTrap SP column using a KCl gradient in 20 mM KH2PO4 at pH 6.5. Upon purification, wild-type or mutant proteins were supplied with 10 mM MgCl2, 10 mM DTT and 1 mM NaN3 and stored at 4°C.

Spin labeling of proteins

Request a detailed protocol

Lyophilized single site 15N PKIα mutants were first dissolved in 1 mL of buffer containing 20 mM KH2PO4, pH 7.0, and incubated for about an hour in the presence of 1 mM TCEP. The sample was concentrated to 0.6 mM. The protein solution was then buffer exchanged into 20 mM KH2PO4, 90 mM KCl, 10 mM MgCl2, 1 mM NaN3 pH 7.0. The sample was concentrated and divided into two equal aliquots to perform two separate spin labeling reactions in parallel: one using the paramagnetic spin label MTSL (1-oxyl-2,2,5,5-tetramethyl- δ−3-pyrroline-3-methyl)methanethiosulfonate, Toronto Research Chemicals, Inc), and the second using the diamagnetic form, dMTSL (1-acetyl-2,2,5,5-tetramethyl-δ−3-pyrroline-3-methyl)methanethiosulfonate, Toronto Research Chemicals, Inc). The reactions were carried out at 4°C overnight with ten-fold excess of labeling compounds that was then removed by passing the reaction solution through a 5 mL HiTrap Desalting column (GE Healthcare Biosciences Corp.) equilibrated with 20 mM KH2PO4, 90 mM KCl, 10 mM MgCl2, 1 mM NaN3, pH 6.5. The extent of labeling was assessed by ESI TOF mass spectrometry (Mass Spectrometry Laboratory, Department of Chemistry, University of Minnesota), and was found to be >99%.

NMR sample preparation

Request a detailed protocol

The NMR samples used to study the free form of PKIα were composed primarily by 15N and 13C/15N labeled protein expressed in M9 media. The final concentration of samples ranged from 0.5 mM to 0.8 mM in 20 mM KH2PO4, 90 mM KCl, 10 mM DTT, 10 mM MgCl2, 1 mM NaN3 at pH 6.5. Samples for the assignment of the PKIα in complex with PKA-C were performed using uniformly 2H/13C/15N and 2H/15N labeled PKIα and uniformly 2H/15N PKA-C. The ternary complex between PKIα and PKA-C and ATP-analogues (AMP-PNP) were reconstituted in 20 mM KH2PO4, 90 mM KCl, 12 mM of ATPγN, 10 mM DTT, 10 mM MgCl2, 1 mM NaN3 at pH 6.5. A molar ratio of 1:1.2 (PKIα:PKA-C) to saturate the complex with a concentration of 0.150 mM of PKIα. All experiments were performed at 27°C. The denaturation experiments were carried out on 0.3 mM sample of uniformly 15N PKIα resuspended in 20 mM KH2PO4, 90 mM KCl, 10 mM DTT, 10 mM MgCl2, 1 mM NaN3, 8 M Urea at pH 6.5. The 1HN-Γ2 relaxation experiments were performed on 0.25 mM 15N labeled single mutants of PKIα for the free form and uniformly 2H/13C/15N protein for the bound form. In both preparations the buffer used for the analysis was 20 mM KH2PO4, 90 mM KCl, 10 mM MgCl2, 1 mM NaN3 at pH 6.5. For all the NMR experiment carried out on the PKA-C/ATPγ/PKIα complex, a low protein concentration sample was prepared to due to the high tendency to aggregate.

Preparation of fluorescent labeled proteins

Request a detailed protocol

Lyophilized single-site PKIα mutants were first dissolved in 1 mL of buffer containing 20 mM KH2PO4, pH 7.0, and incubated for about an hour in the presence of 1 mM TCEP. About four-fold excess of fluorescent dye (tetramethylrhodamine-5-maleimide, TMR) was added to the sample and incubated for about an hour at room temperature with stirring and protected from light. The reaction mixture was then passed through two 5 mL HiTrap Desalting columns (GE Healthcare Biosciences Corp.) equilibrated with 20 mM KH2PO4, 90 mM KCl, 10 mM MgCl2, 1 mM NaN3 pH 6.5 to remove the unreacted dye. The extent of labeling was also verified using mass spectrometry. For the double-mutant PKIα, the procedure described above was used. In this case, Alexa-488 was added to the solution in 1:1 stoichiometric ratio with PKIα and the reaction was allowed to proceed for one hour at room temperature with stirring and protected from light. Since Alexa Fluor 488 carries a charge, the single-labeled PKIα was separated using anion exchange chromatography with HiTrap Q HP column using an NaCl gradient in 20 mM TRIS pH 7.0. The fraction containing the single Alexa-labeled PKIα was buffer exchanged using a PD-10 MidiTrap column equilibrated with 20 mM KH2PO4, 90 mM KCl, 10 mM MgCl2, 1 mM NaN3, pH 7.0. Five-fold excess of tetramethylrhodamine-5-maleimide (TMR) was added and the reaction mixture was incubated for about an hour with stirring and protected from light. The asymmetrically double-labeled PKIα was separated from the unreacted dye by passing the reaction through two 5 mL HiTrap Desalting columns (GE Healthcare Biosciences Corp.) equilibrated with 20 mM KH2PO4, 90 mM KCl, 10 mM MgCl2, 1 mM NaN3 pH 6.5. The extent of labeling in each step was determined using mass spectrometry. For the labeling of PKA-CC199A, S325C mutant, the protein was buffer-exchanged by passing through a PD-10 MidiTrap column (GE Healthcare Bio-Sciences Corp.) equilibrated with 20 mM KH2PO4, 90 mM KCl, 10 mM MgCl2, 1 mM NaN3, pH 7.0 at room temperature. The fractions containing PKA-C were pooled and the concentration was adjusted to ~5–6 μM. ATP at a final concentration of 8 mM was added to protect the C343 site from being labeled as shown previously (Nelson and Taylor, 1981). The reaction was initiated by adding a five-fold molar excess of Alexa Fluor 488 and allowed to proceed for about one hour at room temperature with stirring and protected from light. The sample was then buffer-exchanged with the same buffer composition as before, but with 10 mM DTT and pH 6.5. The extent of labeling was assessed using mass spectrometry. The protein sample was then concentrated to ~20 μM.

NMR experiments

Backbone resonance assignment of PKIα bound to PKA-C was achieved using standard triple-resonance 3D NMR experiments (Ikura et al., 1990; Kay et al., 2011). For the assignment of the free form, all the NMR experiments were acquired on a Varian Inova 600 MHz spectrometer equipped with an HCN Cold Probe and on a Bruker 700-MHz Avance spectrometer equipped with a 5 mm triple resonance cryoprobe. The 1H-15N HSQC (Bodenhausen and Ruben, 1980) experiments were acquired with 16 scans, 2048 (1H) and 100 (15N) complex points, before and after each triple-resonance experiment. The HNCACB and CBCA(CO)NH (Grzesiek and Bax, 1992) experiments were collected with 64 scans, 1643 (1H), 108 (15N), and 128 (13C) complex points. The HNCO (Kay et al., 2011; Yang and Kay, 1999) experiments were acquired with 32 scans, 1024 (1H), 40 (15N), and 54 (13C) complex points. Standard 15N-edited TOCSY-HSQC and NOESY-HSQC (Marion et al., 1989) experiments were acquired with 64 scans, 1024 (1H) and 120 (15N) complex points. The CC(CO)NH-TOCSY (Cavanagh et al., 2011) experiment was recorded with 1024 (1H), 30 (15N), and 70 (13C) complex points, with 32 scans on a Bruker 700 MHz Advance III spectrometer equipped with a 1.7 mm TCI MicroCryoProbe. All data was processed using NMRPipe (Delaglio et al., 1995) and visualized using NMRFAM-Sparky (Goddard and Kneller, 2004; Lee et al., 2015).

All experiments for the backbone assignment of the PKA-C/ATPγN/PKIα ternary complex were performed on a Bruker Avance III 850 MHz spectrometer with a TCI cryoprobe. TROSY-based (Salzmann et al., 1998; Salzmann et al., 1999) HNCA and HN(CO)CA (Kay et al., 2011) experiments were collected with a minimum of 32 scans, 1024 (1H), 32 (15N), and 64 (13C) complex points. The TROSY-based HNCACB experiment was collected with 32 scans, 1024 (1H), 35 (15N) and 50 (13C) complex points were performed to measure the 13Cα and 13Cβ correlations. The HNCO experiments were acquired with a minimum of 16 scans, 1024 (1H), 30 (15N), and 40 (13C) complex points. Before and after each triple resonance experiments a 1H-15N CLEAN-TROSY-HSQC (Schulte-Herbrüggen and Sorensen, 2000) spectrum was acquired with 1024 (1H) and a minimum of 64 (15N) complex points. All data were processed using NMRPipe (Delaglio et al., 1995) and visualized using Sparky (Lee et al., 2015; Goddard and Kneller, 2004). The CSI for Cα, Cβ, C’ and Hα were derived with respect to the reference calculated by Schwarzinger et al. (Schwarzinger et al., 2000; Schwarzinger et al., 2001) and plotted using the GraphPad Prism six software package (GraphPad Software, Inc). The CSP plot (Williamson, 2013) was calculated using the amide chemical shifts according to the following equation:

(1) Δδ= ΔδHN2+(0.154ΔδN)2

Where Δδ is the compounded chemical shift perturbation, Δδ HN is the chemical shift perturbation of the amide proton, Δδ N is the chemical shift perturbation of nitrogen, and 0.154 is the scaling factor for nitrogen (Mulder et al., 1999).

NMR relaxation experiments

Request a detailed protocol

The heteronuclear [1H,15N]-NOE spectra were acquired using standard pulse sequences (Farrow et al., 1994a) on a Bruker 850 MHz and 900 MHz Advance spectrometer III equipped with TCI cryoprobes at 27°C. The heteronuclear [1H,15N]-NOE values were calculated from the ratio of the peak intensities with and without proton saturation. The errors were estimated by evaluating the standard deviation of the NOE values (σNOE):

(2) σNOENOEσIsatIsat2+σIunsatIunsat2

where σIsat and σIunsat are the root-mean-square noise of the spectra and Isat and Iunsat are the intensities of the resonance with and without proton saturation (Farrow et al., 1994b).

The 15N spin relaxation rates (T1 and T2) for PKIα free and bound to PKA-C/ATPγN complex were measured as reported by Barbato et al. (1992) by acquiring a series of 2D [1H,15N]-HQCS spectra at different relaxation delays. The relaxation rates for each resided were obtained by fitting the intensities of each peaks with an exponential decay function. 16 scans, 1024 (1H), 60 (15N) complex points were used to record T1-relaxation experiment. The T2 measurements were recorded using 32 scans, 1024 (1H), 64 (15N) complex points for both PKIα free and bound. For T1, the relaxation delays were: (20), 100, 200, 300, 400, 600, 800, and 1000 ms. For T2, the relaxation delays were (16.6), 83.1, 166, 249, (332), 498, 664, 830 ms. The numbers in parenthesis indicate the experiments that were repeated for error estimation. All the experiments were recorded using a Bruker 900 MHz Advance spectrometer III equipped with TCI cryoprobes at 27°C. All experiments on the free form of PKIα was performed using a 0.2 mM sample of uniformly 2H/15N labeled protein. To measure PKIα relaxation in the ternary complex, the final sample concentration was 0.180 mM 2H/15N labeled PKIα and 0.220 mM of U-2H labeled PKA-C. All samples were prepared in aqueous buffer consisting of 20 mM KH2PO4, 90 mM KCl, 60 mM MgCl2, 10 mM DTT, and 1 mM NaN3 at pH 6.5.

The μs-ms timescale conformational dynamics of backbone amides in PKIα free form and the PKA-C/ATPγN/PKIα complex were measured using the relaxation-compensated version of the Carr-Purcell-Meiboom Gill (CPMG) relaxation dispersion experiments (Baldwin and Kay, 2009; Long et al., 2008; Palmer et al., 2001). The experiments were performed in an interleaved mode with a νCPMG values of 0, 12.5 and 1000 Hz. Effective transverse relaxation rate constant, R2, eff, were determined at each νCPMG value using the peak intensities with and without relaxation period according to the equation (Mulder et al., 2001):

(3) R2, eff= lnI0IT

where I0 and I are the peak intensities of the resonances in the 2D spectra acquired in the absence and presence of a relaxation period, respectively, and T is the total CPMG time (Mulder et al., 2001) which was 40 ms. All the experiments were acquired on Bruker 900 MHz spectrometer using 16 scans with 1024 (1H) and 64 (15N) complex points with a recycle delay of 4.5 seconds.

All the spectra were processed using NMRPipe (Delaglio et al., 1995) and visualized using NMRFAM-Sparky (Goddard and Kneller, 2004; Lee et al., 2015). (T.D. Goddard and D.G. Kneller, UCSF).

Paramagnetic relaxation measurements

Request a detailed protocol

The intra-molecular 1H PRE-Γ2 relaxation measurements on the free form of PKIα mutants were carried out using the pulse sequence by Iwahara et al. (2007) on a Bruker Advance 700 MHz spectrometer at 27°C. All experiments were performed using 160 scans with 2048 (1H) and 128 (15N) complex points. A two-time point measurement was performed using a relaxation time of 4 and 14 ms in an interleaved fashion. The 1H PRE-Γ2 values were calculated using the equation (Iwahara et al., 2007):

(4) Γ2=1Tb-TalnIdiaTbIparaTaIdiaTaIparaTb

where Γ2 is the PRE-relaxation rate, the time points are Ta and Tb, Ipara is the corresponding intensity with a spin label and Idia is the corresponding intensity with a reduced spin label:

(5) σΓ2=1Tb-TaσdiaTaIdiaTa2+σdiaTbIdiaTb2+σparaTaIparaTa2+σparaTbIparaTb2

Where σdia and σpara are the roots mean square noise of the respective spectra. For the simultaneous detection of inter- and intra-molecular PREs of PKIα bound to PKA-C/ATPγN, we used a TROSY-based CCLS variation of the standard PRE pulse sequence (Olivieri et al., 2018). For both paramagnetic and diamagnetic experiment, the complex sample was prepared with a total protein concentration of 140 μM using a 1:1 PKA-C/PKIα molar ratio.

Residual dipolar coupling measurements

Request a detailed protocol

Backbone amide 1DNH RDCs of 15N PKIα were measured at 27°C by taking the difference in 1JNH scalar coupling in aligned and isotropic media (Tjandra and Bax, 1997). The aligned medium was constituted by DMPC/D7PC bicelles (q = 3.5) and 1JNH couplings were measured using the in-phase anti-phase [1H-15N] HSQC sequence (Ottiger et al., 1998). To get an orthogonal set of 1DNH RDCs values, we used stretched polyacrylamide gel (Ishii et al., 2001). All the experiments were carried out on a Bruker 850 MHz Avance III spectrometer equipped with a 5 mm triple resonance cryoprobe, using 320 scans with 1024 (1H dimension) and 60 (15N dimension) complex points.

Circular dichroism (CD) spectra acquisition and data analysis

Request a detailed protocol

The CD spectra in the far-UV of free PKIα in native conditions were recorded using a JASCO J-815 spectropolarimeter (Chemes et al., 2012). The spectra were acquired at 25°C scanning from 180 to 260 nm and recording at 20 nm/min scan speed with a bandwidth of 5 nm and a pitch of 0.1 nm. 100 μM PKΙα was solubilized in 20 mM PIPES buffer (pH 7.0) with 150 mM NaCl. To record the baseline, a blank sample with buffer alone was used. The data were analyzed using the BeSTSel web server (http://bestsel.elte.hu/; Micsonai et al., 2018).

Small angle X-ray scattering (SAXS) experiment and data analysis

Request a detailed protocol

SAXS data were collected at the University of Utah using an Anton Paar SAXess instrument with line collimation and solid-state detector. In both PKIα free and the PKA-C/PKIα complex, the proteins were equilibrated by dialysis in buffer containing 20 mM MOPS, 90 mM KCl, 60 mM MgCl2, 10 mM DTT, 1 mM NaN3 (pH 6.5), and 12 mM of ATPγN. For measurements of the PKIα free form, a protein concentration of 1 mM was used, and for the PKA-C/PKIα complex sample, a final protein concentration 0.2 mM protein with PKA-C/PKIα in 1:1 molar ratio. SAXS data were reduced and desmeared using the SAXSQuant (Anton Paar) software suite and further analyzed using PRIMUS in the ATSAS 2.8.3 software suite (Franke et al., 2017). The fitting of the MD structural ensembles to the experimental scattering data was performed using the MultiFoXS server (Schneidman-Duhovny et al., 2013). 100 random snapshots from MD simulations with different radius of gyration (Rg) were chosen as the conformational ensembles, and the fitting was done for the q range (0.01 to approximately 0.18 Å−1). The top 10 structures with the lowest χ values were selected as the final structure ensembles.

Modeling of PKIα ensembles using replica-averaged metadynamics (RAM) simulations

Request a detailed protocol

For the free form, we used the extended conformation of the full-length PKIα as a template. The protein was solvated in a rhombic dodecahedron solvent box with TIP3P water molecule layer extended approximately 10 Å away from the protein’s surface. Counter ions (K+ and Cl-) were added to ensure electrostatic neutrality corresponding to an ionic concentration of ~150 mM. All protein covalent bonds were constrained with the LINCS (Hess et al., 1997) algorithm and long-range electrostatic interactions were calculated using the particle-mesh Ewald method with a real-space cutoff of 10 Å (Best et al., 2012; Darden et al., 1993). Parallel simulations of 130 ns were performed simultaneously using GROMACS 4.6 (Hess et al., 2008) with CHARMM36a1 force field (Best et al., 2012). As a starting configuration for the bound form, we used the ternary complex of PKA-C/ATP/PKI5-24 (PDB: 1ATP) and built the reminder amino acids of PKIα using PyMOL (pymol.com). The remaining parameters were set using the same protocol for the free form.

The subsequent RAM simulations were started from the random snapshots of the production trajectory (the last 100 ns). As for previous RAM simulations (Roux and Weare, 2013), we chose 10 replicas: five replicas initiated from partially folded conformers, and the others from extended conformers. We set two protocols imposing different restraints: a) RAM with CS restraints (RAM_CS) for both free and bound forms in which the predicted backbone chemical shifts were back-calculated by Camshift method implemented in ALMOST 2.1 (Fu et al., 2014); and b) RAM with CS and RDC restraints (RAM_CSRDC) for the free form only in which the predicted RDCs were back-calculated using the tensor-free method (Camilloni and Vendruscolo, 2015) implemented in PLUMED 2.1 (Bonomi et al., 2009). Four collective variables (CVs) were chosen to monitor the conformational plasticity and secondary structure of PKIα: a) psi angles for all residues (backbone and dihedral); b) radius of gyration for all backbone Cα atoms (radius of gyration); c) helical content of residues 4–22 (helical content of the N-terminus); and d) helical content of residue 32–50 (helical content of the NES motif). Gaussian deposition rate was performed with an initial rate of 0.125 kJ/mol/ps, where the σ values were set to 0.5, 0.02 nm, 0.1, and 0.1 for the four CVs. Of the 10 replicas, each of the four CVs were imposed on two replicas, and the remaining two replicas were left neutral. The RAM simulations were carried out using GROMACS 4.6 in conjunction with PLUMED 2.1 (Bonomi et al., 2009) and ALMOST 2.1 (Fu et al., 2014), and continued for ~250 ns for each replica with exchange trails every 0.5 ps. The free energy along the four CVs converged after 150 ns, with the standard deviation below one kcal/mol. The last 100 ns of each replica constituted the production trajectory for a total simulation time of 1.0 μs and used for analysis.

Adaptive sampling of pkiα in free and bound forms and Markov model analysis

For the free form, the adaptive sampling was started from randomly chosen 320 snapshots of PKIα from the RAM simulations. The initial velocities were randomly generated to satisfy the Maxwell distribution at 300K. A ~ 200 ns simulation was initiated from each starting configuration. Therefore, a total of 60 µs trajectories and 240,000 snapshots (250 ps per frame) were collected for subsequent analysis. For the bound form, the adaptive sampling was started from 50 snapshots of the RAM simulations, and ~20 µs trajectories have been collected. More samplings are undertaken.

Markov model and time-lagged independent component analyses (tICA)

Request a detailed protocol

The Markov model analysis was carried out using MSMBuilder 3.5 (Harrigan et al., 2017). The contact distances between residue pairs that are separated by at least four residues, were chosen as the metrics to characterize the conformational transition of PKIα. The representation in this metric space was further reduced to 6-dimension vectors using time-lagged independent component analysis (tICA) at a lag time of 15 ns. The 240000 snapshots were clustered into 50 microstates with mini-batch K-Mean clustering and Markov model was built upon the transition counts between these microstates. The same tICA analysis was applied to both free and bound forms.

Statistical analysis of equilibrium population and MFPT

Request a detailed protocol

To obtain the statistical distribution and errors on the equilibrium population and MFPT along the given tICA projections, 150 rounds of bootstrapping with replacement were performed. Specifically, for each round, new clustering and Markov model is built, and the microstates are categorized into four major states based on the tICA projections. The equilibrium population and MFPT are subsequently computed. The same MFPT analysis was applied to both free and bound forms.

Stopped-flow TR-FRET experiments and kinetic binding model

Request a detailed protocol

The kinetics of binding between PKA-C and PKIα were measured using home-built stopped-flow spectrofluorometer (Muretta et al., 2015). Equal volumes of each component were mixed, the samples were then excited at 475 nm, and fluorescence emission was measured using a 520 nm filter. For Alexa-labeled PKA-CC199A, S325C and TMR-labeled PKIα, the final concentration of the kinase was fixed at 100 nM, while the concentration of PKIα was varied from 0 to 250 times the concentration of PKA-C. For the doubly-labeled PKIαV3C, S59C and unlabeled PKA-C, the concentration of the peptide was fixed at 100 nM final concentration while the concentration of the kinase was varied from 0 to 800 times the concentration of PKIαV3C, S59C. The buffer used in both setups contains 20 mM KH2PO4, 90 mM KCl, 10 mM MgCl2, 16 mM ATP, 10 mM DTT, 1 mM NaN3, pH 6.5 at 25°C. The total fluorescence was fit into equations describing either single, double or triple exponential decays. Data analyses were done using Origin (OriginLab) software.

Since we saturated PKA-C with an excess of nucleotide, we neglected the equilibrium between open (apo PKA-C) and intermediate (ATP-bound, PKA-C*) state in the fitting procedure. In the model, PKI* represents the ensemble of conformations that is recognized by PKA-C*. The proposed model of binding is reported in Scheme 1.

The differential equations describing the kinetic model of Scheme 1 are:

(6) d[P*]dt=+k-bP*I*-kbP*I*
(7) d[I]dt=k-1I*-k1I
(8) dI*dt=k1I-k-1I*+k-bP*I*-kbP*I*
(9) dP*I*dt=+kbP*I*-k-bP*I*-krP*I*+k-r(PI)*
(10) d[(PI)*]dt=+krP*I*-k-r(PI)*

For simplicity, PKA-C is denoted as P and PKI as I. The instantaneous fluorescence intensity FI was calculated using the formula,

(11) FI=c[PKA C* PKI*]+c*[ (PKA C PKI)*]c[PKA C* PKI*]eq+c*[ (PKA C PKI)*]eq×SC+Baseline

Where c[PKA C* PKI*]+c*[ (PKA C PKI)*]c[PKA C* PKI*]eq+c*[ (PKA C PKI)*]eq is the normalized intensity, ‘SC’ is a scaling factor, ‘Baseline’ is the basal fluorescence, c and c* are the FRET efficiency parameters. The differential equations 1-5 were solved numerically using MATLAB ode solver ‘ode23s’, which was incorporated in an optimization protocol to evaluate the kinetic parameters. The optimization protocol included an initial minimization using MATLAB’s nonlinear programming solver (fminsearch), which was ran for 104 steps and followed by Genetic Algorithm optimization with a population size of 50 and 104 generations. All the six rate constants (k1, k-1, kb, k-b, kr, k-r) were collectively fit for all data points. The FRET efficiency parameters (c and c*) were fit for each specific labelling scheme. The parameters ‘SC’ and ‘Baseline’ were fit for each FRET experiment to correct for the experimental errors.

The fitting resulted in an on rate binding constant (kb) of 1.5 × 107 M−1s−1 and a dissociation rate constant (k-b) of 0.5 s−1. For the slow phase, we found a forward rate of 2400 s−1 and reverse rate of 720 s−1. The ‘on’ and ‘off’ conformational exchange rates (k1 and k-1) of free PKIα were 1.9 × 104 s−1 and 1.5 × 104 s−1.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
    Protein NMR Spectroscopy
    1. J Cavanagh
    2. WJ Fairbrother
    3. AG Palmer
    4. M Rance
    5. NJ Skelton
    (2007)
    333–404, Relaxation and dynamic processes, Protein NMR Spectroscopy, Burlington, Academic Press, 10.1016/B978-012164491-8/50007-5.
  14. 14
    Protein NMR Spectroscopy
    1. J Cavanagh
    2. WJ Fairbrother
    3. AG Palmer
    4. M Rance
    5. NJ Skelton
    (2007)
    679–724, Experimental nmr relaxation methods, Protein NMR Spectroscopy, Burlington, Academic Press, 10.1016/B978-012164491-8/50010-5.
  15. 15
  16. 16
  17. 17
    A potent synthetic peptide inhibitor of the cAMP-dependent protein kinase
    1. HC Cheng
    2. BE Kemp
    3. RB Pearson
    4. AJ Smith
    5. L Misconi
    6. SM Van Patten
    7. DA Walsh
    (1986)
    The Journal of Biological Chemistry 261:989–992.
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
    Effect of the thermostable protein kinase inhibitor on intracellular localization of the catalytic subunit of cAMP-dependent protein kinase
    1. DA Fantozzi
    2. SS Taylor
    3. PW Howard
    4. RA Maurer
    5. JR Feramisco
    6. JL Meinkoth
    (1992)
    The Journal of Biological Chemistry 267:16824–16828.
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
    Annual Reports on NMR Spectroscopy
    1. Z Gaspari
    2. A Perczel
    (2010)
    35–75, Protein Dynamics as Reported by NMR, Annual Reports on NMR Spectroscopy, 71, Academic Press, 10.1016/B978-0-08-089054-8.00002-2.
  39. 39
  40. 40
    Sparky 3
    1. TD Goddard
    2. DG Kneller
    (2004)
    San Francisco: University of California.
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
    Apparent constants for the interaction of regulatory and catalytic subunit of cAMP-dependent protein kinase I and II
    1. F Hofmann
    (1980)
    The Journal of Biological Chemistry 255:1559–1564.
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
    Differential labeling and identification of the cysteine-containing tryptic peptides of catalytic subunit from porcine heart cAMP-dependent protein kinase
    1. NC Nelson
    2. SS Taylor
    (1981)
    The Journal of Biological Chemistry 256:3743–3750.
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
  93. 93
  94. 94
  95. 95
  96. 96
  97. 97
    Expression in Escherichia coli and characterization of the heat-stable inhibitor of the cAMP-dependent protein kinase
    1. J Thomas
    2. PSM Van
    3. P Howard
    4. KH Day
    5. RD Mitchell
    6. T Sosnick
    7. J Trewhella
    8. DA Walsh
    9. RA Maurer
    (1991)
    The Journal of Biological Chemistry 266:10906–10911.
  98. 98
  99. 99
  100. 100
  101. 101
  102. 102
    Krebs EG: purification and characterization of a protein inhibitor of adenosine 3',5'-monophosphate-dependent protein kinases
    1. DA Walsh
    2. CD Ashby
    3. C Gonzalez
    4. D Calkins
    5. EH Fischer
    (1971)
    The Journal of Biological Chemistry 246:1977–1985.
  103. 103
  104. 104
  105. 105
  106. 106
    Purification of a physiological form of the inhibitor protein of the cAMP-dependent protein kinase
    1. S Whitehouse
    2. DA Walsh
    (1982)
    The Journal of Biological Chemistry 257:6028–6032.
  107. 107
  108. 108
  109. 109
  110. 110
  111. 111
  112. 112
    Identification of phosphorylation sites in the recombinant catalytic subunit of cAMP-dependent protein kinase
    1. W Yonemoto
    2. SM Garrod
    3. SM Bell
    4. SS Taylor
    (1993)
    The Journal of Biological Chemistry 268:18626–18632.

Decision letter

  1. Lewis E Kay
    Reviewing Editor; University of Toronto, Canada
  2. José D Faraldo-Gómez
    Senior Editor; National Heart, Lung and Blood Institute, National Institutes of Health, United States
  3. Kevin H Gardner
    Reviewer; CUNY Advanced Science Research Center, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Thank you for submitting your article "Multi-state recognition pathway of the intrinsically disordered protein kinase inhibitor by protein kinase A" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and José Faraldo-Gómez as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Thank you for submitting this excellent work for consideration at eLife. The reviewers were effusive in their praise of the work with some of the comments indicated below:

– "The article by Olivieri et al. reports an exceptional analysis of the mechanism of binding and biological activation of a key complex by the cAMP-dependent protein and its inhibitor PKI to recruit CRM1/RanGTP…"

– "The work analyzes at high resolution the structural, kinetic and mechanistic properties of the interaction between the kinase and its inhibitor to achieve a conclusive biochemical model…"

– "This is extremely well performed research that spans a large set of biophysical experiments and computations to obtain a cutting-edge characterisation of an important biological mechanism. The work is also very well written."

– "Overall, I find this manuscript suitable for publication here given the benefit of extending long-standing PKA/PKI complex information to include additional portions required for function."

As you can see both reviewers feel that this paper will be suitable for publication, but they also agree that the work would benefit from additional details concerning the methods. It is also suggested that you try to underscore the functional importance more clearly at the outset of the manuscript – aspects of it seemed better described elsewhere, but the motivation for the work (and in turn, the gaps in knowledge that it addresses) would be better emphasized early on. Importantly, no further experiments are required.

Essential revisions:

1) NMR analysis of the complex

The study of the complex PKA-C/ATPgN/PKIα employed a large set of NMR experiments, performed with the highest standards and using a careful choice of the experimental conditions and analyses. The data from 15N relaxation (T1, T2, and hetNOE), CPMG, CSP and PREs show conclusively that PKI has a structural rearrangement upon binding, with the HAR and PSS motifs experiencing a disorder-to-order transition. Additional conformational transitions were also found in various regions of PKA upon binding.

The presentation of the results is very detailed, however, the readability for a non NMR-expert audience can be improved. For example, in subsection “PKA-C binding rigidifies the PSS motif and stabilizes HAR and NES helices of PKIα”:

– "Also, using the [1H,15N]-CCLS-HSQC experiment…we were able to map…"; please explain how the CCLS enables to map the fingerprints of PKA-C and PKI in the complex simultaneously.

– "where both the HAR and PSS motifs show an increase in longitudinal relaxation and a concomitant decrease in the transverse relaxation rates"; please explain for a non-expert audience what is the structural and molecular interpretation of these spectral properties.

– The rigidification of the PSS motif and the increase in helical content of the HAR are clear from the CS analysis, however, the wider audience (non-NMR-experts) may not fully appreciate this from the plots reported in Figures 2A and 2B. One possibility may be to present the results in a different manner, e.g. using RCI (Wishart) to provide a more direct representation of the dynamic content of the protein via an elaboration of the CS data, or delta2D (Vendruscolo) to directly show the content of secondary structure from CS. This reviewer, however, appreciate the approach of the authors in showing raw data rather than fitted data from the NMR observables.

– "suggesting that the peptide does not experience". Is this a typo with the correct sentence "suggesting that the peptide does experience"?

2) MD restraints

Replica averaged metadynamics simulations were run on the free and kinase bound PKIα. These simulations are not standard, although have now become quite used in the community, and therefore require a very detailed level of description in the Materials and methods section.

For example, the ALMOST 2.1 algorithm is cited for CS and RDC restraints, however, the associated reference (Kohlhoff et al., 2009) refers to an evolution of ALMOST, namely camshift, which is a method to predict chemical shifts from interatomic distances that can be used as a restrain in MD simulations. Moreover, the Kohlhoff et al. reference does not cover the RDCs, which were also used in the present restrained simulations. It is important to describe the way by which RDCs are modelled (e.g. SVD vs ab initio prediction of the alignment tensor) as this can make a significant difference in the effect of RDC restraints in the resulting concerted motions of proteins (see JCTC 2011 7:4189-419).

Additional elements of description:

– the methods report that "CS restraints were imposed as averaged over the 10 replicas" but do not say how were RDC restrained?

– Can the authors justify the choice of 10 replicas? Number of replicas is an essential choice in ensemble averaged NMR restraints to avoid over-fitting or over-restraining.

3) Convergence of the simulations

The quality of RAM simulations (as essentially in all biomolecular simulations) is crucially dependent on the convergence, however, this aspect doesn't seem to be described in the manuscript. Could the authors add a description of the convergence criteria employed?

Introduction, third paragraph: "More importantly, the mechanism of PKI recognition and binding is essentially unknown." Seemingly at odds with existence of many structures and corresponding biochemistry, please be more specific.

Subsection “PKIα is an intrinsically disordered protein with transient secondary and short-lived tertiary interactions”/Figure S2B-D: it is unclear how residues were determined to have a "strong" or "marked" PRE, please comment further. Also clarify the meaning of yellow dots in Figure S2B-D, which presumably indicate residues with no signal detected.

Figure 2C-E: what do colored horizontal lines represent in Figure 2C, D? Presumably something with respect to significance, as in Figure 2A, but not stated. Also, not entirely clear where the complex structure shown in Figure 2E (and again, in several figures afterwards) comes from – although a comment in Figure 4 legend suggests that this is a model starting from Knighton et al., 1991a. Please cite, and comment explicitly about the fact that a single conformation is shown for the C-term of PKI (which is later shown to be quite flexible).

Figure 4C and commentary in text ("PKIα undergoes large amplitude motions, featuring an equilibrium between elongated and more folded conformations that transiently interact…") is not really well linked to presented data, please clarify. Assuming that this implies that PKIα elongated in apo- form – moderately well shown by PRE, but is this rigorous enough to rule out partially-collapsed state? – and kinase-bound in different conformation. Seems better justified after FRET data shown subsequently. Also please explicitly mark PKI position 59 in Figure 4C to highlight MTSL labeling location.

Figure 6—figure supplement 1: list concentration range depicted by different colored lines, please.

https://doi.org/10.7554/eLife.55607.sa1

Author response

Essential revisions:

1) NMR analysis of the complex

The study of the complex PKA-C/ATPgN/PKIα employed a large set of NMR experiments, performed with the highest standards and using a careful choice of the experimental conditions and analyses. The data from 15N relaxation (T1, T2, and hetNOE), CPMG, CSP and PREs show conclusively that PKI has a structural rearrangement upon binding, with the HAR and PSS motifs experiencing a disorder-to-order transition. Additional conformational transitions were also found in various regions of PKA upon binding.

The presentation of the results is very detailed, however, the readability for a non NMR-expert audience can be improved. For example, in subsection “PKA-C binding rigidifies the PSS motif and stabilizes HAR and NES helices of PKIα”:

– "Also, using the [1H,15N]-CCLS-HSQC experiment…we were able to map…"; please explain how the CCLS enables to map the fingerprints of PKA-C and PKI in the complex simultaneously.

We thank this reviewer for the suggestion. We addressed this point in the revised version and we have also changed the manuscript, making it more accessible to non-NMR experts.

– "where both the HAR and PSS motifs show an increase in longitudinal relaxation and a concomitant decrease in the transverse relaxation rates"; please explain for a non-expert audience what is the structural and molecular interpretation of these spectral properties.

Thank you for pointing this out. Again, we revised the text and eliminated unnecessary jargon, making it more accessible to non-NMR experts.

– The rigidification of the PSS motif and the increase in helical content of the HAR are clear from the CS analysis, however, the wider audience (non-NMR-experts) may not fully appreciate this from the plots reported in Figures 2A and 2B. One possibility may be to present the results in a different manner, e.g. using RCI (Wishart) to provide a more direct representation of the dynamic content of the protein via an elaboration of the CS data, or delta2D (Vendruscolo) to directly show the content of secondary structure from CS. This reviewer, however, appreciate the approach of the authors in showing raw data rather than fitted data from the NMR observables.

As per this reviewer’s request, we included two new figures with the requested plots (see Figure 2B and Figure 3—figure supplement 3A). We also included the references for the above cited authors.

– "suggesting that the peptide does not experience". Is this a typo with the correct sentence "suggesting that the peptide does experience"?

Yes, this was typo and we corrected in the revised version.

2) MD restraints

Replica averaged metadynamics simulations were run on the free and kinase bound PKIα. These simulations are not standard, although have now become quite used in the community, and therefore require a very detailed level of description in the Materials and methods section.

For example, the ALMOST 2.1 algorithm is cited for CS and RDC restraints, however, the associated reference (Kohlhoff et al., 2009) refers to an evolution of ALMOST, namely camshift, which is a method to predict chemical shifts from interatomic distances that can be used as a restrain in MD simulations. Moreover, the Kohlhoff et al. reference does not cover the RDCs, which were also used in the present restrained simulations. It is important to describe the way by which RDCs are modelled (e.g. SVD vs ab initio prediction of the alignment tensor) as this can make a significant difference in the effect of RDC restraints in the resulting concerted motions of proteins (see JCTC 2011 7:4189-419).

Additional elements of description:

– the methods report that "CS restraints were imposed as averaged over the 10 replicas" but do not say how were RDC restrained?

We agree. We did not report these details in our initial submission. Indeed, the RDC restraints were imposed using the tensor-free method implemented in the PLUMED algorithm (Camilloni and Vendruscolo, 2015), which utilized the direct dependence of RDC on the angle between the internuclear vectors and the external magnetic field. More specifically, we chose 70 experimental RDC values measured using stretched gels as an aligning medium and implemented the restraints to minimize the deviation between calculated and experimental angles (θ). We now provide a more detailed protocol in the Materials and method section and cite the above papers.

– Can the authors justify the choice of 10 replicas? Number of replicas is an essential choice in ensemble averaged NMR restraints to avoid over-fitting or over-restraining.

We thank the reviewer for pointing this out. Replica exchange molecular dynamics simulations is statistically equivalent to the maximum entropy principle (Pitera and Chodera, 2012; Cavalli, Camilloni et al., 2013; Roux and Weare, 2013). To this extent, several authors demonstrated that the probability distribution obtained from 10 replicas is essentially similar to that of 100 replicas as they both converge to a similar distribution of conformers (Pitera and Chodera, 2012; Roux and Weare, 2013). For our calculations, we tested ensembles with both 4 and 10 replicas. We found that the 10 replicas gave an excellent agreement with experimental data, which is why we stopped the calculations. We now clarify this in the revised version.

3) Convergence of the simulations

The quality of RAM simulations (as essentially in all biomolecular simulations) is crucially dependent on the convergence, however, this aspect doesn't seem to be described in the manuscript. Could the authors add a description of the convergence criteria employed?

To determine the convergence of our simulations, we followed the common protocol described for metadynamics simulations by Vendruscolo et al. Specifically, we carefully monitored the change of free energy along the chosen CV. For our system, the free energy converged with the standard deviation less than 1 kcal/mol after 150 ns of simulation. Then, we continued the simulations for another 100 ns for the production run. We have added these details in the Materials and method section.

Introduction, third paragraph: "More importantly, the mechanism of PKI recognition and binding is essentially unknown." Seemingly at odds with existence of many structures and corresponding biochemistry, please be more specific.

This is an important point. There are several crystal structures of PKA-C/PKI complex with short peptides corresponding to the recognition sequence as well as many inhibition and binding assays to determine the thermodynamic constants of binding. To the best of our knowledge, there are no studies devoted to the mechanism of assembly of the PKA-C/PKI complex neither for truncated peptides or full-length PKI. We further clarify this point in the revised text.

Subsection “PKIα is an intrinsically disordered protein with transient secondary and short-lived tertiary interactions”/Figure S2B-D: unclear how residues were determined to have a "strong" or "marked" PRE, please comment further.

We agree. We now indicate the different categories of PRE effects (weak, medium, and strong) based on the deviation from the average effects among the different samples (see also Figure 2E-G (formerly Figure S2B-D) and Figure 5A,B).

Also clarify the meaning of yellow dots in Figure S2B-D, which presumably indicate residues with no signal detected.

We thank this reviewer for pointing this out. Indeed, the yellow dots indicate the resonances that are broaden out beyond detection for the paramagnetic protein. We changed the figure legends to clarify this.

Figure 2C-E: what do colored horizontal lines represent in Figure 2C,D? Presumably something with respect to significance, as in Figure 2A, but not stated.

We uniformed the colors of the horizontal lines, which indicate one standard deviation of the average chemical shift perturbations (CSP). We clarify this in the figure legends.

Also, not entirely clear where the complex structure shown in Figure 2E (and again, in several figures afterwards) comes from – although a comment in Figure 4 legend suggests that this is a model starting from Knighton et al., 1991a. Please cite, and comment explicitly about the fact that a single conformation is shown for the C-term of PKI (which is later shown to be quite flexible).

We agree with the reviewer. The structure of the complex is a selected conformer from the structural ensemble generated with MD simulations. We clarify this point in the Figure 3E legend.

Figure 4C and commentary in text ("PKIα undergoes large amplitude motions, featuring an equilibrium between elongated and more folded conformations that transiently interact…") not really well linked to presented data, please clarify. Assuming that this implies that PKIα elongated in apo- form – moderately well shown by PRE, but is this rigorous enough to rule out partially-collapsed state? – and kinase-bound in different conformation. Seems better justified after FRET data shown subsequently.

We agree with this comment. We removed the sentence. We did not include in the FRET analysis since we already expressed the same concept in subsection “The PKA-C/PKIα complex relaxes through two structurally and kinetically distinct states to form the complex”.

Also please explicitly mark PKI position 59 in Figure 4C to highlight MTSL labeling location.

We modified Figure 5C by adding a yellow sphere in the location of the spin label. We also changed the figure legend accordingly.

Figure 6—figure supplement 1: list concentration range depicted by different colored lines, please.

The color legends as well as the protein concentrations are now included in Figure 6 and Figure 6—figure supplement 1.

https://doi.org/10.7554/eLife.55607.sa2

Article and author information

Author details

  1. Cristina Olivieri

    Department of Biochemistry, Molecular Biology, and Biophysics, University of Minnesota, Minneapolis, United States
    Contribution
    Data curation, Formal analysis, Methodology, Writing - review and editing
    Contributed equally with
    Yingjie Wang and Geoffrey C Li
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6957-6743
  2. Yingjie Wang

    1. Department of Chemistry and Supercomputing Institute, University of Minnesota, Minneapolis, United States
    2. Shenzhen Bay Laboratory, Shenzhen, China
    Contribution
    Formal analysis, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Cristina Olivieri and Geoffrey C Li
    Competing interests
    No competing interests declared
  3. Geoffrey C Li

    Department of Chemistry and Supercomputing Institute, University of Minnesota, Minneapolis, United States
    Present address
    Department of Biochemistry, Vanderbilt University School of Medicine, Nashville, United States
    Contribution
    Formal analysis, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Cristina Olivieri and Yingjie Wang
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5035-5916
  4. Manu V S

    Department of Biochemistry, Molecular Biology, and Biophysics, University of Minnesota, Minneapolis, United States
    Contribution
    Data curation, Software, Formal analysis, Visualization, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Jonggul Kim

    Department of Chemistry and Supercomputing Institute, University of Minnesota, Minneapolis, United States
    Present address
    Department of Biophysics, Howard Hughes Medical Institute, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Formal analysis, Visualization, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4624-7848
  6. Benjamin R Stultz

    Department of Chemistry, Bethel University, Saint Paul, United States
    Contribution
    Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  7. Matthew Neibergall

    Department of Chemistry, Bethel University, Saint Paul, United States
    Contribution
    Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  8. Fernando Porcelli

    DIBAF, University of Tuscia, Largo dell' Università, Viterbo, Italy
    Contribution
    Formal analysis, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3209-0074
  9. Joseph M Muretta

    Department of Biochemistry, Molecular Biology, and Biophysics, University of Minnesota, Minneapolis, United States
    Contribution
    Data curation, Formal analysis, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  10. David DT Thomas

    Department of Biochemistry, Molecular Biology, and Biophysics, University of Minnesota, Minneapolis, United States
    Contribution
    Conceptualization, Supervision, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8822-2040
  11. Jiali Gao

    1. Department of Chemistry and Supercomputing Institute, University of Minnesota, Minneapolis, United States
    2. Laboratory of Computational Chemistry and Drug Design, Peking University Shenzhen Graduate School, Shenzhen, China
    Contribution
    Conceptualization, Supervision, Validation, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  12. Donald K Blumenthal

    Department of Pharmacology and Toxicology, University of Utah, Salt Lake City, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  13. Susan S Taylor

    Department of Chemistry and Biochemistry and Pharmacology, University of California, San Diego, La Jolla, United States
    Contribution
    Conceptualization, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7702-6108
  14. Gianluigi Veglia

    1. Department of Biochemistry, Molecular Biology, and Biophysics, University of Minnesota, Minneapolis, United States
    2. Department of Chemistry and Supercomputing Institute, University of Minnesota, Minneapolis, United States
    Contribution
    Conceptualization, Data curation, Supervision, Funding acquisition, Validation, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    vegli001@umn.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2795-6964

Funding

National Institute of General Medical Sciences (GM 100310)

  • Gianluigi Veglia

National Institute of General Medical Sciences (GM 46736)

  • Jiali Gao

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by the National Institute of Health GM 100310 to GV and GM46736 to JG. The authors would like to acknowledge Dr. FW Herberg for sharing the plasmid of PKIα as well as the Minnesota Supercomputing Institute for MD calculations. The SAXS instrument at the University of Utah was funded by the Department of Energy (Dr. J Trewhella).

Senior Editor

  1. José D Faraldo-Gómez, National Heart, Lung and Blood Institute, National Institutes of Health, United States

Reviewing Editor

  1. Lewis E Kay, University of Toronto, Canada

Reviewer

  1. Kevin H Gardner, CUNY Advanced Science Research Center, United States

Publication history

  1. Received: January 30, 2020
  2. Accepted: April 27, 2020
  3. Accepted Manuscript published: April 27, 2020 (version 1)
  4. Version of Record published: May 18, 2020 (version 2)
  5. Version of Record updated: May 26, 2020 (version 3)

Copyright

© 2020, Olivieri et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 869
    Page views
  • 167
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Structural Biology and Molecular Biophysics
    Lin Mei et al.
    Research Article

    The actin cytoskeleton mediates mechanical coupling between cells and their tissue microenvironments. The architecture and composition of actin networks are modulated by force, but it is unclear how interactions between actin filaments (F-actin) and associated proteins are mechanically regulated. Here, we employ both optical trapping and biochemical reconstitution with myosin motor proteins to show single piconewton forces applied solely to F-actin enhance binding by the human version of the essential cell-cell adhesion protein αE-catenin, but not its homolog vinculin. Cryo-electron microscopy structures of both proteins bound to F-actin reveal unique rearrangements that facilitate their flexible C-termini refolding to engage distinct interfaces. Truncating α-catenin's C-terminus eliminates force-activated F-actin binding, and addition of this motif to vinculin confers force-activated binding, demonstrating that α-catenin's C-terminus is a modular detector of F-actin tension. Our studies establish that piconewton force on F-actin can enhance partner binding, which we propose mechanically regulates cellular adhesion through a-catenin.

    1. Microbiology and Infectious Disease
    2. Structural Biology and Molecular Biophysics
    Clarissa L Durie et al.
    Research Article Updated

    Legionella pneumophila is an opportunistic pathogen that causes the potentially fatal pneumonia Legionnaires’ Disease. This infection and subsequent pathology require the Dot/Icm Type IV Secretion System (T4SS) to deliver effector proteins into host cells. Compared to prototypical T4SSs, the Dot/Icm assembly is much larger, containing ~27 different components including a core complex reported to be composed of five proteins: DotC, DotD, DotF, DotG, and DotH. Using single particle cryo-electron microscopy (cryo-EM), we report reconstructions of the core complex of the Dot/Icm T4SS that includes a symmetry mismatch between distinct structural features of the outer membrane cap (OMC) and periplasmic ring (PR). We present models of known core complex proteins, DotC, DotD, and DotH, and two structurally similar proteins within the core complex, DotK and Lpg0657. This analysis reveals the stoichiometry and contact interfaces between the key proteins of the Dot/Icm T4SS core complex and provides a framework for understanding a complex molecular machine.
