Regulation of photosynthetic electron flow on dark to light transition by ferredoxin:NADP(H) oxidoreductase interactions
Abstract
During photosynthesis, electron transport is necessary for carbon assimilation and must be regulated to minimize free radical damage. There is a longstanding controversy over the role of a critical enzyme in this process (ferredoxin:NADP(H) oxidoreductase, or FNR), and in particular its location within chloroplasts. Here we use immunogold labelling to prove that FNR previously assigned as soluble is in fact membrane associated. We combined this technique with a genetic approach in the model plant Arabidopsis to show that the distribution of this enzyme between different membrane regions depends on its interaction with specific tether proteins. We further demonstrate a correlation between the interaction of FNR with different proteins and the activity of alternative photosynthetic electron transport pathways. This supports a role for FNR location in regulating photosynthetic electron flow during the transition from dark to light.
Introduction
Photosynthetic carbon assimilation in chloroplasts requires NADPH. This is generated by the enzyme ferredoxin:NADP(H) oxidoreductase (FNR) using electrons from ferredoxin (Fd), which is reduced on excitation of photosystem I (PSI) (Shin et al., 1963). The pathway is referred to as ‘linear electron flow’ (LEF) because the electrons originate from water splitting at photosystem II (PSII) and are transferred in a linear progression to PSI via plastoquinone/plastoquinol (PQ/PQH2) and the cytochrome b6f complex (Cyt b6f), pumping protons across the thylakoid membrane (Hill and Bendall, 1960; Mitchell, 1975). Plastocyanin (PC) takes these electrons and re-reduces the oxidised PSI. This proton motive force drives synthesis of ATP, which is also required for carbon fixation among a host of other reactions. FNR shows an extremely high control co-efficient for photosynthetic rate (meaning that changing FNR concentrations strongly influences flux through the pathway) in tobacco (Nicotiana tabacum): 0.7 in limiting light and 0.94 in saturating light (Hajirezaei et al., 2002).
Chloroplasts are bounded by an envelope membrane and contain a soluble matrix (the stroma) and an internal membrane (the thylakoid) composed of two distinct domains: stacks of appressed discs known as grana, connected by sheets of membrane called lamellae (Paolillo, 1970; Mustárdy et al., 2008). Apart from the electron shuttling proteins PC and Fd, all components of LEF are unambiguously localised to the thylakoid membrane except FNR, whose location remains controversial.
Although it has been found associated with PSI (Andersen et al., 1992), it is suggested that membrane association is unnecessary for FNR function (Benz et al., 2010). This is because mutation of two, higher plant specific, FNR tethering proteins (Tic62 and TROL) caused all FNR to be soluble but had little impact on LEF (Lintala et al., 2014). Current dogma therefore states that NADP+ photoreduction is conducted by soluble FNR, free in the stroma (Benz et al., 2010), and indeed a large proportion of FNR is recovered as a soluble protein after cell fractionation of algae (Mosebach et al., 2017) and higher plants (Hanke et al., 2005; Okutani et al., 2005; Böhme, 1978). Contrary to this theory, FNR enzyme activity increases when the protein is associated with the membrane (Carrillo and Vallejos, 1982; Forti and Bracale, 1984).
PSI can be re-reduced by returning electrons from Fd to PQ, thus pumping protons without generating NADPH. This cyclic electron flow (CEF) protects the photosynthetic machinery when there is an imbalance between the production of excited electrons and their consumption (Huang et al., 2018; Yamori et al., 2016), and regulates the ratio between ATP and NADPH produced (Suorsa et al., 2012; Walker et al., 2014; Munekage et al., 2010; Joliot and Johnson, 2011; Kramer and Evans, 2011). Two CEF pathways have been defined: one is catalysed by a homologue of respiratory complex I called NDH (Burrows et al., 1998; Shikanai et al., 1998; Kofer et al., 1998); the other is defined by its sensitivity to antimycin A, and depends on the Pgr5 (Munekage et al., 2002) and PgrL1 proteins (DalCorso et al., 2008). There are some differences in CEF pathways between angiosperms, which retain the NDH complex, and algae such as Chlamydomonas reinhardtii which replace it with an NDH2 type, monomeric complex (Peltier et al., 2016). Curiously, FNR is implicated in the antimycin A sensitive pathway, being found in complex with PgrL1 in the green alga Chlamydomonas (Iwai et al., 2010) and identified as a PgrL1 interaction partner in higher plants (DalCorso et al., 2008). Moreover, pgr5 knockout in Chlamydomonas increases FNR solubilisation (Mosebach et al., 2017). There is also some evidence supporting a function for FNR in higher plant CEF from inhibitor studies (Ravenel et al., 1994; Shahak et al., 1981; Bendall and Manasse, 1995; Mills et al., 1979; Cleland and Bendall, 1992; Ye and Wang, 1997; Hosler and Yocum, 1985), but a definitive mutant study is hampered by the severe phenotype when NADP+ reduction is disrupted (Bendall and Manasse, 1995; Lintala et al., 2012).
Higher plant chloroplasts switch rapidly between LEF and CEF in response to environmental conditions (Joliot and Joliot, 2005; Asada et al., 1993) and dynamic transfer of FNR between membrane complexes has been proposed as part of this mechanism (Joliot and Johnson, 2011; Breyton et al., 2006). FNR iso-proteins with variable capacity for membrane association could help to test this hypothesis and have been identified so far in wheat, Arabidopsis, and maize (Hanke et al., 2005; Okutani et al., 2005; Gummadova et al., 2007). Arabidopsis has two FNR iso-proteins (AtFNR1 and AtFNR2), and knock-out of the AtFNR1 gene results in complete solublisation of AtFNR2, indicating cooperativity in membrane association of the two FNR iso-proteins (Hanke et al., 2008; Lintala et al., 2007). Maize has 3 FNR iso-proteins, which are differentially localised between cell types engaging predominantly in CEF or LEF (Twachtmann et al., 2012). Remarkably, when we expressed maize FNRs heterologously in Arabidopsis, they showed specific association with either TROL (ZmFNR1), Tic62 (ZmFNR2), or were soluble (ZmFNR3). For clarity, the properties of the different Arabidopsis and maize FNRs are summarised in Supplementary file 1.
The grana and lamellae domains of the thylakoid vary in protein composition (Andersson and Anderson, 1980), with PSII and its antennae in the appressed grana, and PSI, NDH, and the ATPase restricted to stroma facing regions (Daum et al., 2010). Cyt b6f is evenly distributed (Allred and Staehelin, 1986). As LEF requires PSI and PSII, it is thought to predominantly occur at border regions, where appressed and stroma facing membranes coincide, bringing the necessary components into proximity (Anderson et al., 2012). By contrast, the CEF components PSI, PgrL1/Pgr5 (Hertle et al., 2013), NDH (Lennon et al., 2003), and Cyt b6f are all present on the lamellae (Anderson, 1992; Chow et al., 2005). In order to understand whether FNR can act as part of a regulatory switch between LEF and CEF, it is therefore critical to understand (1) where it is located within the chloroplast, (2) how this relates to its interaction with different tether proteins, and (3) how these factors impact on the different electron transport pathways. Fluorescence microscopy with FNR is hampered by difficulties in labelling the protein – the N-terminal is critical for interaction with the membrane (Twachtmann et al., 2012), while the carboxy-group of the C-terminal Tyr is part of the catalytic mechanism (Tejero et al., 2005). In this study we therefore undertook a rigorous immunogold-label (IGL) study on FNR location in Arabidopsis chloroplasts. The data indicate that the enzyme is almost exclusively membrane bound, even in genotypes where it was previously thought to be totally soluble. Moreover, to dissect the connection between interaction, location, and function, we have introduced genes for the different ZmFNR proteins into the fnr1 mutants, creating Arabidopsis plants with approximately wild-type levels of FNR but enriched in specific interactions: either Tic62-bound, TROL-bound, or soluble. The data show that FNR:protein tether interactions change FNR sub-chloroplast distribution and impact on the dominant CEF pathway that occurs during the transition from dark to light.
Results
In order to establish a rigorous protocol for FNR localisation by IGL, we first confirmed our antibodies are highly specific (Figure 1—figure supplement 1). Then we performed transmission electron microscopy (TEM) IGL on multiple chloroplasts from one individual. We defined sub-compartments in the chloroplast and calculated the FNR staining density within them as particles per µm2 (Figure 1—figure supplement 2). The minimum number of chloroplasts necessary for a statistically sound interpretation was identified using a power analysis of this data in a mixed model test (chosen as a statistical test because the FNR density in different sub-compartments of each chloroplast is related). This was defined as three chloroplasts per individual, but we have analysed 15 to generate additional statistical power (Supplementary file 2a). The distance between a label and its target is influenced by the size of antibodies – meaning a label can potentially be up to 30 nm away from a protein (Hermann et al., 1996). To ensure a conservative estimate of membrane localisation, we therefore defined an area approximately 10 nm either side of the membrane as ‘membrane bound’, and divided chloroplasts into three sub-compartments: stroma, grana core, and combined stromal exposed membranes (lamellae + margins). FNR staining density is five times higher at the lamellae/margin region than in the stroma or the grana core (Figure 1—figure supplement 2), which the mixed model describes as highly significant (Supplementary file 2a). Although FNR-staining in both grana core and stroma is higher than in the cytosol, we consider this density likely originates from FNR at the lamellae/margin region, labelled by antibody oriented such that it extends beyond the defined 10 nm area either side of the TEM visualised membrane. This interpretation is based on the following reasons: (1) FNR cannot enter the grana core, due to spatial restriction, and so grana assignments must originate from antibodies tethered to FNR at the grana margins. (2) There is no statistical difference between staining density in the grana and stroma, meaning that even the low level detected in the stroma is also likely due to the orientation of label attached to membrane associated FNR. (3) Cyt f is also detected at significantly higher density in the stroma than the cytosol by IGL-TEM (Figure 1—figure supplement 2, Supplementary file 2b). Cyt f is part of the Cyt b6f, an integral membrane protein that is never found in the stroma. Nevertheless, we retained the original 10 nm area to define membrane association, as this appears to detect the great majority of membrane bound proteins. We consider that a small amount of false negative assignments to grana core and stroma are preferable to the risk of false positives associated with extending the membrane assignment zone from 10 to 30 nm. As expected, there is no significant difference in Cyt f staining between different thylakoid domains. Based on this analysis, we conclude that chloroplasts contain very little soluble, stromal FNR.
It has been reported that during some fixation procedures for immunolabelling whole mammalian cells, soluble cytosolic proteins may be disproportionately washed out of samples in comparison to membrane bound proteins (Huebinger et al., 2018). To confirm that this is not the reason for the absence of soluble-localised FNR in our sections, we therefore repeated the experiment to compare several individuals of Wt and fnr1, a genotype in which the remaining FNR (AtFNR2) is 100% soluble following mechanical disruption to extract proteins from leaves (Hanke et al., 2008; Lintala et al., 2007). Again, our analysis shows significantly higher label density of the margins/lamellae than the stroma in both genotypes (Figure 1, Table 1). There is no significant difference between labelling density of stroma and grana core, indicating that there is negligible FNR in the stroma. This result, combined with previous observations that organellar proteins are much less prone to loss during fixation than cytosolic proteins (Schnell et al., 2012), strongly suggests that the FNR distribution we have measured reflects the situation in the native chloroplast. The studies that previously determined completely soluble distribution of FNR in the fnr1 mutant were based on mechanical separation followed by centrifugation. By contrast, our IGL data indicate that in situ almost all FNR is thylakoid associated. The FNR previously assigned as soluble must therefore be associated with the membrane through weak associations that are disrupted during mechanical extraction.

FNR is not detected in the chloroplast stroma of higher plants.
(A) Representative micrograph showing immunogold labelling of FNR in sections of chloroplasts from Wt Arabidopsis detected by IGL-TEM. White arrows indicate example gold particles. (B) Immunogold labelling density of FNR in different sub-chloroplast compartments, n = 15–22 chloroplasts each from three Wt individuals (grey) and 3 fnr1 (white) individuals. Outliers shown. See Figure 1—figure supplement 1 for quality control of antibodies and Figure 1—figure supplement 2 for optimisation of IG-TEM technique. See Table 1 for statistical significance in a mixed effects model analysis of variance between genotypes and between sub-compartments within each genotype.
Mixed effects model investigating changes in FNR density between total chloroplast sub-compartments of three individuals each of WT and fnr1 Arabidopsis.
Analysis of data presented in Figure 1. Fixed effects taking either label density in the stroma as the intercept or label density in the margins/lamellae as the intercept. Linear mixed model fit by REML. Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘’ 1.
Deletion test carried out using Satterthwaite’s method with the R package lmerTest (Kuznetsova, Brockhoff & Christensen 2017). The model is a mixed effects model with random intercepts. The square root of response is the response variable, tissue is the fixed effect, and individual the random effect. | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Fixed effect deleted | Sum sq | Mean sq | Num DF | Den DF | F value | Pr (>F) | ||||||||||||||
Sub-compartment | 14.231 | 7.1153 | 2 | 295.58 | 7.4565 | 0.000693 | *** | |||||||||||||
Model summary: | ||||||||||||||||||||
Random effects: | ||||||||||||||||||||
Groups | Name | Variance | Std. Dev. | |||||||||||||||||
individual | (Intercept) | 0.1896 | 0.4354 | |||||||||||||||||
Residual | 0.9542 | 0.9769 | ||||||||||||||||||
Number of obs: 306, groups: individual, 6 | ||||||||||||||||||||
Fixed effects when fnr1 stroma is set as the intercept | ||||||||||||||||||||
Estimate | Std. Error | DF | t value | Pr (>|t|) | ||||||||||||||||
(Intercept) | 0.9165 | 0.2791 | 4.2686 | 3.283 | 0.0276 | * | ||||||||||||||
Grana | −0.3607 | 0.1714 | 295.5794 | −2.105 | 0.0361 | * | ||||||||||||||
Margin/lamellae | 2.2884 | 0.1714 | 295.5794 | 13.355 | <2−16 | *** | ||||||||||||||
Genotype comparison WT:fnr1 | 0.1230 | 0.4128 | 5.0375 | 0.298 | 0.7776 | |||||||||||||||
WT grana: fnr1 grana | 0.6286 | 0.2845 | 295.5794 | 2.210 | 0.0279 | * | ||||||||||||||
WT margin/lamellae: fnr1 margin/lamellae | −0.4661 | 0.2845 | 295.5794 | −1.638 | 0.1025 | |||||||||||||||
Fixed effects when fnr1 margin/lamellae is set as the intercept | ||||||||||||||||||||
Estimate | Std. Error | DF | t value | Pr (>|t|) | ||||||||||||||||
(Intercept) | 0.9165 | 0.2791 | 4.2686 | 11.482 | 0.000228 | *** | ||||||||||||||
Grana | −2.6491 | 0.1714 | 295.5794 | −15.460 | <2−16 | *** | ||||||||||||||
Stroma | −2.2884 | 0.1714 | 295.5794 | −13.355 | <2−16 | *** | ||||||||||||||
Genotype comparison WT:fnr1 | −0.3430 | 0.4128 | 5.0375 | −0.831 | 0.443524 | |||||||||||||||
WT grana: fnr1 grana | 1.0947 | 0.2845 | 295.5794 | 3.848 | 0.000146 | *** | ||||||||||||||
WT stroma: fnr1 stroma | −0.4661 | 0.2845 | 295.5794 | 1.638 | 0.102459 | |||||||||||||||
Fixed effects when Wt stroma is set as the intercept | ||||||||||||||||||||
Estimate | Std. Error | DF | t value | Pr (>|t|) | ||||||||||||||||
(Intercept) | 1.0395 | 0.3041 | 5.8576 | 3.418 | 0.0147 | * | ||||||||||||||
Grana | 0.2679 | 0.2271 | 295.5794 | 1.180 | 0.2391 | |||||||||||||||
Margin/lamellae | 1.8223 | 0.2271 | 295.5794 | 8.024 | 2.43−14 | *** | ||||||||||||||
Genotype comparison WT:fnr1 | −0.1230 | 0.4128 | 5.0375 | −0.298 | 0.7776 | |||||||||||||||
Wt grana: fnr1 grana | −0.6286 | 0.2845 | 295.5794 | −2.210 | 0.0279 | * | ||||||||||||||
Wt margin/lamellae: fnr1 margin/lamellae | 0.4661 | 0.2845 | 295.5794 | 1.638 | 0.1025 | |||||||||||||||
Fixed effects when Wt margin/lamellae is set as the intercept | ||||||||||||||||||||
Estimate | Std. Error | DF | t value | Pr (>|t|) | ||||||||||||||||
(Intercept) | 2.8618 | 0.3041 | 5.8576 | 9.411 | 9.41−05 | *** | ||||||||||||||
Grana | −1.5544 | 0.2271 | 295.5794 | −6.844 | 4.44−11 | *** | ||||||||||||||
Stroma | −1.8223 | 0.2271 | 295.5794 | −8.024 | 2.43−14 | *** | ||||||||||||||
Genotype comparison WT:fnr1 | 0.343 | 0.4128 | 5.0375 | 0.831 | 0.443524 | |||||||||||||||
Wt grana: fnr1 grana | −1.0947 | 0.2845 | 295.5794 | −3.848 | 0.000146 | *** | ||||||||||||||
Wt stroma: fnr1 stroma | −0.4661 | 0.2845 | 295.5794 | −1.638 | 0.102459 |
To try to understand more about the location of tightly bound and weakly associated FNR at the thylakoid, we analysed plants where FNR is localised to different membrane complexes. We exploited genes for three maize FNR proteins (ZmFNR1, ZmFNR2, and ZmFNR3) with variable affinity to the TROL and Tic62 membrane tethers (Twachtmann et al., 2012). These were expressed in the Arabidopsis fnr1 mutant, under control of the Arabidopsis FNR1 promoter – resulting in approximately wild-type FNR protein contents. Western blots to show FNR proteins in these lines are presented in Figure 2. SDS-gels (Figure 2A) separate proteins according to mass, while native gels (Figure 2B) separate proteins according to native charge and retain some strong protein:protein interactions. As previously reported, mechanical separation of supernatant and pellet fractions from fnr1 leaves caused recovery of all FNR in the soluble fraction. We have now termed this ‘weakly bound’ FNR, based on the results in Figure 1. In the fnr1-ZmFNR1 genotype, ZmFNR is recovered in both the weakly bound and the pellet (now termed ‘tightly bound’) fractions. The tightly bound ZmFNR1 is mostly in high molecular weight complexes (Figure 2B) associated with TROL (Figure 2C). Interestingly, when we confirmed the specificity of our TROL antibody, we noted that total TROL abundance partly correlates with the intensity of the BNP band that reacts with both FNR and TROL antisera (Figure 2C), being increased in the fnr1-ZmFNR1 line and decreased in the fnr1, fnr1-ZmFNR2, and fnr1-ZmFNR3 lines (Figure 1—figure supplement 1). Heterologously expressed ZmFNR2 is also found in both weakly associated and strongly bound fractions, and its expression results in the rescue of native AtFNR2 recruitment to the tightly bound membrane fraction in the fnr1 genotype (Figure 2A lower band). This lends support to the hypothesis that co-operative interactions with other FNR iso-proteins are necessary to recruit AtFNR2 to Tic62 and TROL tethers (Hanke et al., 2008; Lintala et al., 2009; Lintala et al., 2007). FNR is enriched at Tic62 in this line (Figure 2C). In the fnr1-ZmFNR3 line, nearly all FNR remains weakly associated (Figure 2A).

Arabidopsis plants with variable FNR:membrane tether interactions.

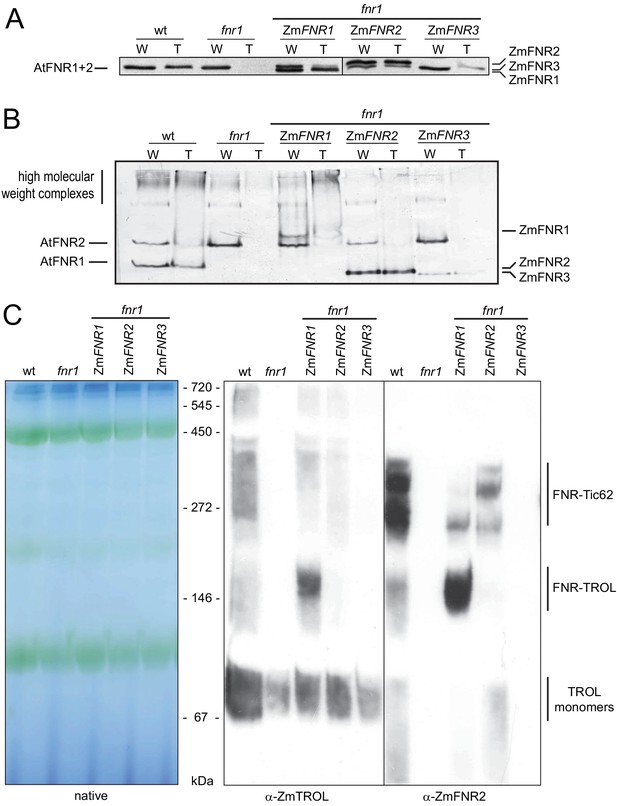

Leaf extracts of Arabidopsis wt, fnr1, and fnr1 mutants transformed to express genes for the maize FNR proteins ZmFNR1, ZmFNR2, and ZmFNR3 in the fnr1 background were separated into soluble and insoluble fractions. These were designated loose (L) and tight (T) membrane bound FNR fractions, based on the analysis in Figure 1. Samples were subjected to (A) SDS-PAGE (25 µg protein prior to separation of L and T fractions) or (B) native PAGE (20 µg protein prior to separation of L and T fractions) before immunoblotting, challenge with antisera against FNR, then detection with alkaline phosphatase. Migration positions of Arabidopsis (At) FNRs and maize (Zm) FNRs are indicated to the left and right, respectively. (C) Recruitment of maize FNR proteins into specific Arabidopsis thylakoid membrane complexes. Chloroplasts were isolated from the same genotypes used in (A) and (B). Thylakoid membranes were solubilised with DDM and subjected to blue native-PAGE (BNP). Samples were loaded on an equal chlorophyll basis, with 3.2 μg per lane, western blotted and challenged with antisera raised against FNR (rabbit) and TROL (guinea pig) before visualisation using secondary antisera conjugated to horseradish peroxidase (chemiluminescence) and alkaline phosphatase respectively. Positions of molecular mass markers are indicated between the gels and the blots in kDa.
The plants expressing genes for the maize FNR1, FNR2, and FNR3 iso-proteins in an Arabidopsis fnr1 mutant background (fnr1-ZmFNR1, fnr1-ZmFNR2, and fnr1-ZmFNR3) were then analysed by IGL-TEM (Figure 3). In this case we further divided the staining density of lamellae/margin into separate margin (any stromal facing membrane adjacent to an appressed membrane) and lamellae (all thylakoid membrane not adjacent to appressed membrane) areas. See Figure 1—figure supplement 2 for an example of domain area labelling. We consider this a primarily functional, rather than structural, distinction, as many regions we have classed as margin will not be curved, but should have PSI and PSII in relatively close proximity. We examined the possibility that differences in chloroplast ultrastructure between genotypes might influence our findings, by comparing the relative size of our defined areas between the genotypes (Figure 3—figure supplement 1). We found that the fnr1 mutant shows a small increase in relative stromal area and corresponding decrease in relative margin area. The relative areas of chloroplast sub-compartments did not differ from the Wt in any of the other genotypes. Analysis of FNR staining density in chloroplasts of all genotypes is shown in Figure 3 (statistics in Table 2). Absolute staining density might be influenced by variation in FNR-isoform antigenicity, so we have compared only between sub-chloroplast domains of each genotype. The greatest variation in distribution between genotypes is seen in the density of FNR staining associated with the lamellae (blue boxes in Figure 3). While FNR density in the lamellae region is similar to that at the margin for Wt chloroplasts, the fnr1 mutant shows a significant decrease in label density at the lamellae relative to the margins (Table 2). Introduction of ZmFNR1 (TROL binding) to the fnr1 background restored equal FNR density between the margins and lamellae regions. By contrast, introduction of ZmFNR2 (Tic62 binding) to the fnr1 background results in much higher label density at the stromal lamellae relative to the margins. This tendency is also seen on introduction of ZmFNR3 (weak binding), but with lower statistical significance. We interpret the dramatic change in FNR localisation on ZmFNR2 expression in the fnr1 background as being related to the restoration of native AtFNR2 recruitment into strong interactions at the thylakoid membrane in this genotype (Figure 2A).

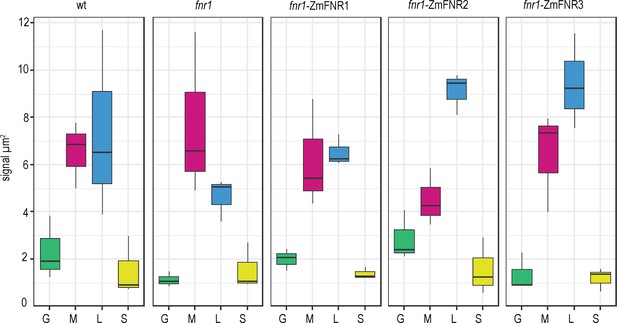

Tether interactions determine FNR sub-chloroplast location.
Density of immunogold labelled FNR in different sub-chloroplast compartments of the indicated genotypes. Values are averages of three biological replicates, with combined label and area for the sub-compartments of 15–20 chloroplasts for each individual. Areas shown are: grana core (green), margins (magenta), stromal lamellae (blue), and stroma (yellow). See Figure 3—figure supplement 1 for confirmation that sub-chloroplast areas do not vary between genotypes. Statistical significance between sub-compartment signal density within genotypes was calculated with a mixed effects model analysis of variance (Table 2).
Mixed effects model investigating changes in FNR density between total chloroplast sub-compartments of three individuals each from Arabidopsis genotypes WT, fnr1 mutant and expressing ZmFNR1; ZmFNR2 and ZmFNR3 in the fnr1 background.
Analysis of data presented in Figure 3. Fixed effects taking either label density in the stroma as the intercept or label density in the margins/lamellae as the intercept. Linear mixed model fit by REML. Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘’ 1.
Wt Deletion test carried out using Satterthwaite’s method with the R package lmerTest (Kuznetsova, Brockhoff & Christensen 2017). The model is a mixed effects model with random intercepts. The square root of response is the response variable, tissue is the fixed effect, and individual the random effect. | |||||||
Fixed effect deleted | Sum Sq | Mean Sq | Num DF | Den DF | F value | Pr (>F) | |
Sub-compartment | 4.991 | 1.6637 | 3 | 6 | 36.152 | 0.0003089 | *** |
Model summary: | |||||||
Random effects: | |||||||
Groups | Name | Variance | Std. Dev. | ||||
Individual | (Intercept) | 0.21097 | 0.4593 | ||||
Residual | 0.04602 | 0.2145 | |||||
Number of obs: 12, groups: individual, 3 | |||||||
Fixed effects when stroma is set as the intercept: | |||||||
Estimate | Std. Error | DF | t value | Pr (>|t|) | |||
(Intercept) | 1.1743 | 0.2927 | 2.6475 | 4.012 | 0.034961 | * | |
Grana | 0.3104 | 0.1752 | 6 | 1.772 | 0.126711 | ||
Lamellae | 1.4748 | 0.1752 | 6 | 8.42 | 0.000153 | *** | |
Margin | 1.3736 | 0.1752 | 6 | 7.842 | 0.000227 | *** | |
Fixed effects when lamellae is set as the intercept: | |||||||
Estimate | Std. Error | DF | t value | Pr (>|t|) | |||
(Intercept) | 2.6491 | 0.2927 | 2.6475 | 9.051 | 0.004601 | ** | |
Grana | −1.1644 | 0.1752 | 6 | −6.648 | 0.00056 | *** | |
Margin | −0.1012 | 0.1752 | 6 | −0.578 | 0.584522 | ||
Stroma | −1.4748 | 0.1752 | 6 | −8.42 | 0.000153 | *** | |
fnr1 Deletion test carried out using Satterthwaite’s method with the R package lmerTest (Kuznetsova, Brockhoff & Christensen 2017). The model is a mixed effects model with random intercepts. The square root of response is the response variable, tissue is the fixed effect, and individual the random effect. | |||||||
Fixed effect deleted | Sum Sq | Mean Sq | Num DF | Den DF | F value | Pr (>F) | |
Sub-compartment | 5.6516 | 1.8839 | 3 | 6 | 26.204 | 0.000759 | *** |
Model summary: | |||||||
Random effects: | |||||||
Groups | Name | Variance | Std. Dev. | ||||
Individual | (Intercept) | 0.07521 | 0.2742 | ||||
Residual | 0.07189 | 0.2681 | |||||
Number of obs: 12, groups: individual, 3 | |||||||
Fixed effects when stroma is set as the intercept: | |||||||
Estimate | Std. Error | DF | t value | Pr (>|t|) | |||
(Intercept) | 1.2117 | 0.2214 | 4.4836 | 5.472 | 0.003875 | ** | |
Grana | −0.1584 | 0.2189 | 6 | −0.724 | 0.496563 | ||
Lamellae | 0.9353 | 0.2189 | 6 | 4.272 | 0.005251 | ** | |
Margin | 1.5161 | 0.2189 | 6 | 6.925 | 0.000449 | *** | |
Fixed effects when lamellae is set as the intercept: | |||||||
Estimate | Std. Error | DF | t value | Pr (>|t|) | |||
(Intercept) | 2.1469 | 0.2214 | 4.4836 | 9.695 | 0.000356 | *** | |
Grana | −1.0937 | 0.2189 | 6 | −4.996 | 0.002463 | ** | |
Margin | 0.5808 | 0.2189 | 6 | 2.653 | 0.037882 | * | |
Stroma | −0.9353 | 0.2189 | 6 | −4.272 | 0.005251 | ** | |
fnr1:ZmFNR1 Deletion test carried out using Satterthwaite’s method with the R package lmerTest (Kuznetsova, Brockhoff & Christensen 2017). The model is a mixed effects model with random intercepts. The square root of response is the response variable, tissue is the fixed effect, and individual the random effect. | |||||||
Fixed effect deleted | Sum Sq | Mean Sq | Num DF | Den DF | F value | Pr (>F) | |
Sub-compartment | 4.5242 | 1.5081 | 3 | 6.01 | 23.558 | 0.001009 | ** |
Model summary: | |||||||
Random effects: | |||||||
Groups | Name | Variance | Std. Dev. | ||||
Individual | (Intercept) | 0.0005984 | 0.02446 | ||||
Residual | 0.064017 | 0.25302 | |||||
Number of obs: 12, groups: individual, 3 | |||||||
Fixed effects when stroma is set as the intercept: | |||||||
Estimate | Std. Error | DF | t value | Pr (>|t|) | |||
(Intercept) | 1.1754 | 0.1468 | 7.9979 | 8.009 | 4.34−05 | *** | |
Relevel grana | 0.2318 | 0.2066 | 6.01 | 1.122 | 0.304712 | ||
Relevel lamellae | 1.3774 | 0.2066 | 6.01 | 6.668 | 0.000547 | *** | |
Relevel margin | 1.2849 | 0.2066 | 6.01 | 6.22 | 0.000793 | *** | |
Fixed effects when lamellae is set as the intercept: | |||||||
Estimate | Std. Error | DF | t value | Pr (>|t|) | |||
(Intercept) | 2.55285 | 0.14676 | 7.9979 | 17.395 | 1.22−07 | *** | |
Relevel grana | −1.14567 | 0.20659 | 6.01002 | −5.546 | 0.001444 | ** | |
Relevel margin | −0.09252 | 0.20659 | 6.01002 | −0.448 | 0.669949 | ||
Relevel stroma | −1.37744 | 0.20659 | 6.01002 | −6.668 | 0.000547 | *** | |
fnr1:ZmFNR2 | |||||||
Deletion test carried out using Satterthwaite’s method with the R package lmerTest (Kuznetsova, Brockhoff & Christensen 2017). The model is a mixed effects model with random intercepts. The square root of response is the response variable, tissue is the fixed effect, and individual the random effect. | |||||||
Fixed effect deleted | Sum Sq | Mean Sq | Num DF | Den DF | F value | Pr (>F) | |
Sub-compartment | 5.4414 | 1.8138 | 3 | 6 | 22.849 | 0.001106 | ** |
Model summary: | |||||||
Random effects: | |||||||
Groups | Name | Variance | Std. Dev. | ||||
Individual | (Intercept) | 0.02741 | 0.1656 | ||||
Residual | 0.07938 | 0.2817 | |||||
Number of obs: 12, groups: individual, 3 | |||||||
Fixed effects when stroma is set as the intercept: | |||||||
Estimate | Std. Error | DF | t value | Pr (>|t|) | |||
(Intercept) | 1.1886 | 0.1887 | 6.6796 | 6.3 | 0.000488 | *** | |
Grana | 0.4864 | 0.23 | 6 | 2.114 | 0.078885 | . | |
Lamellae | 1.8298 | 0.23 | 6 | 7.954 | 0.00021 | *** | |
Margin | 0.9239 | 0.23 | 6 | 4.016 | 0.006989 | ** | |
Fixed effects when lamellae is set as the intercept: | |||||||
Estimate | Std. Error | DF | t value | Pr (>|t|) | |||
(Intercept) | 3.0184 | 0.1887 | 6.6796 | 15.998 | 1.42−06 | *** | |
Grana | −1.3434 | 0.23 | 6 | −5.84 | 0.00111 | ** | |
Margin | −0.9059 | 0.23 | 6 | −3.938 | 0.00764 | ** | |
Stroma | −1.8298 | 0.23 | 6 | −7.954 | 0.00021 | *** | |
fnr1:ZmFNR3 | |||||||
Deletion test carried out using Satterthwaite’s method with the R package lmerTest (Kuznetsova, Brockhoff & Christensen 2017). The model is a mixed effects model with random intercepts. The square root of response is the response variable, tissue is the fixed effect, and individual the random effect. | |||||||
Fixed effect deleted | Sum Sq | Mean Sq | Num DF | Den DF | F value | Pr (>F) | |
Sub-compartment | 9.0046 | 3.0015 | 3 | 8 | 25.416 | 0.0001923 | *** |
Model summary: | |||||||
Random effects: | |||||||
Groups | Name | Variance | Std. Dev. | ||||
Individual | (Intercept) | 0 | 0 | ||||
Residual | 0.1181 | 0.3436 | |||||
Number of obs: 12, groups: individual, 3 | |||||||
Fixed effects when stroma is set as the intercept: | |||||||
Estimate | Std. Error | DF | t value | Pr (>|t|) | |||
(Intercept) | 1.06794 | 0.19841 | 8 | 5.383 | 0.00066 | *** | |
Grana | 0.06284 | 0.28059 | 8 | 0.224 | 0.828395 | ||
Lamellae | 1.99447 | 0.28059 | 8 | 7.108 | 0.000101 | *** | |
Margin | 1.44343 | 0.28059 | 8 | 5.144 | 0.00088 | *** | |
Fixed effects when lamellae is set as the intercept: | |||||||
Estimate | Std. Error | DF | t value | Pr (>|t|) | |||
(Intercept) | 3.0624 | 0.1984 | 8 | 15.435 | 3.09−07 | *** | |
Grana | −1.9316 | 0.2806 | 8 | −6.884 | 0.000127 | *** | |
Margin | −0.551 | 0.2806 | 8 | −1.964 | 0.085144 | . | |
Stroma | −1.9945 | 0.2806 | 8 | −7.108 | 0.000101 | *** |
It has been suggested that the location of FNR at different thylakoid complexes might regulate electron transport (Breyton et al., 2006; Joliot and Johnson, 2011; Twachtmann et al., 2012), and we therefore measured whether sub-chloroplast FNR distribution had an impact on enzyme activity in NADP+ reduction. NADP+ reduction and NADPH oxidation kinetics were followed in chloroplasts isolated from the different genotypes over a short illumination period followed by a dark period (Figure 4). Although amplitudes of fluorescence are quite consistent between genotypes (Figure 4), comparisons of absolute NADPH concentrations between chloroplast preparations are problematic, as the proportion of broken chloroplasts may vary. However, these data do allow us to accurately compare the kinetics of reduction and oxidation.

Light-dependent NADP(H) reduction and oxidation kinetics are influenced by FNR location and binding partners.

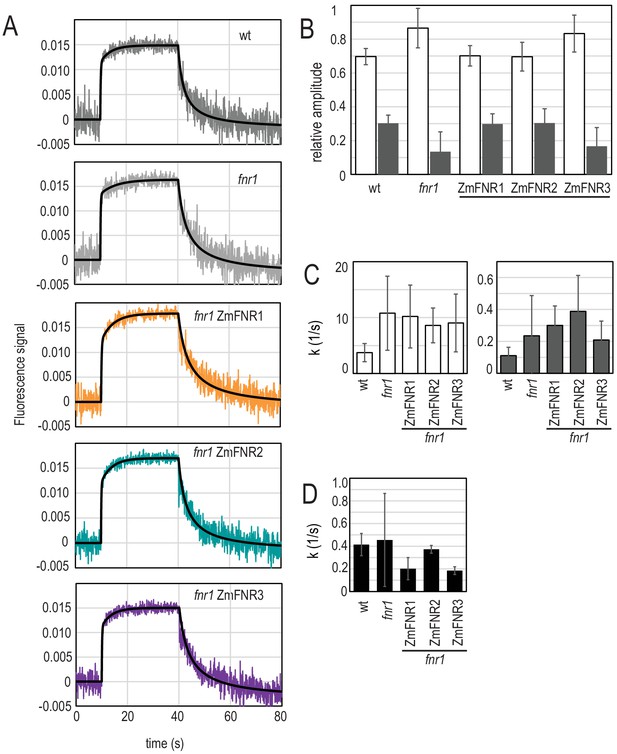

(A) Traces show NADPH fluorescence of dark adapted Arabidopsis chloroplasts measured over a short light exposure from 10 to 40 s. Traces are averages of three to five independent chloroplast preparations, each of which was composed of an average of 15 separate measurements. Genotypes from which chloroplasts were isolated are indicated on each graph. Black traces overlaying signals are fits (two components for reduction, one component for oxidation), calculated as described in Materials and methods. (B) Relative amplitude of fast (white bars) and slow (grey bars) components fitted to the NADP+ reduction traces shown in (A). (C) Rate of fluorescence induction for the fast (white bars, left) and slow (grey bars, right) components fitted to the NADP+ reduction traces shown in (A). (D) Rate of NADPH fluorescence decay following switching off the light, fitted to the traces shown in A. B–D are averages of values calculated from three to five separate chloroplast preparations (parameters in Supplementary file 2c and e). All values given ± standard error (fitting errors with absolute, 95% confidence). See Figure 4—figure supplement 1 for comparison between genotypes of proteins involved in NADP(H) metabolism. Appendix 1 describes further characterisation of the two phases of NADP+ reduction and Appendix 1—figure 1 shows further data on this topic.

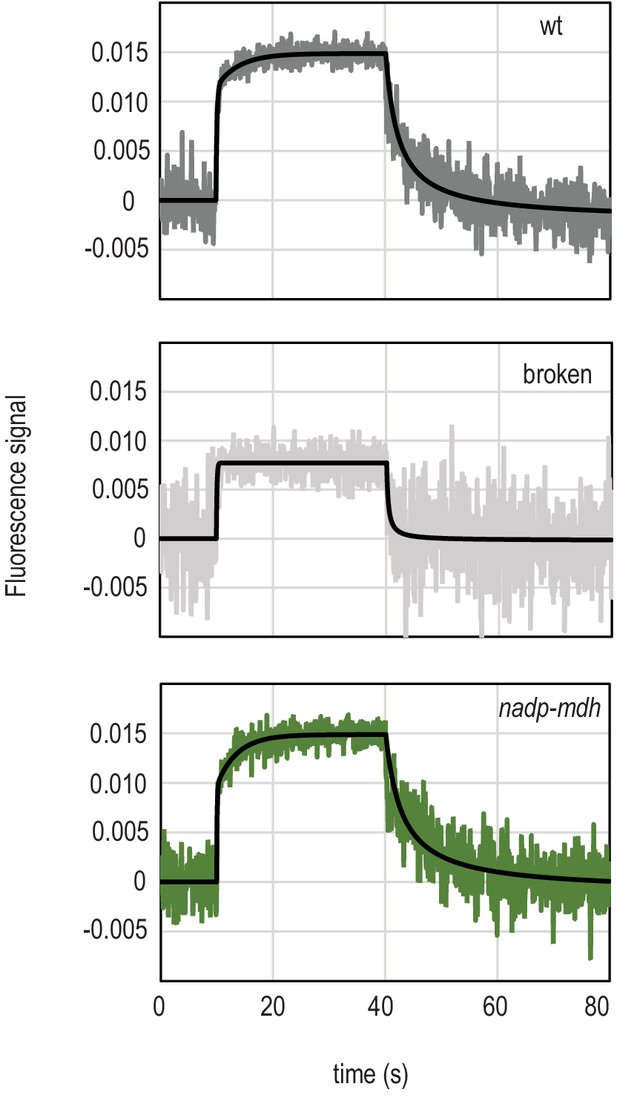

As described previously for pea chloroplasts (Schreiber and Klughammer, 2009; Latouche et al., 2000) and Arabidopsis (Hanke et al., 2008), isolated chloroplasts show distinct components of NADP+ reduction. In the measurements shown in Figure 4, only two components are clearly observed: a fast one of less than 1 s, and a slow one that lasts ~20 s. Further characterisation of these components is described in Appendix 1. The two observed components of NADP+ reduction can be fitted (Supplementary file 2c) and vary significantly in relative size between genotypes (Supplementary file 2d), depending on the abundance and location of FNR. The fnr1 mutant and the genotype expressing weakly bound maize FNR in the mutant background (fnr1-ZmFNR3) show a relatively small contribution of the slow component when compared to Wt, fnr1-ZmFNR1, and fnr1-ZmFNR3. NADPH oxidation in the dark was well fit to a single component using a Hill coefficient and no difference between genotypes was detected (Supplementary file 2e).
We then determined that these differences in NADP(H) kinetics are not due to pleiotropic effects altering the abundance of other proteins that could impact photosynthetic electron transport or NADP(H) poise (Figure 4—figure supplement 1). We found no differences in protein abundance that correlate with those in NADP(H) reduction and oxidation kinetics. Although this does not discount the possibility that variable FNR:FNR tether interactions could influence regulation of these proteins (see later discussion), it does allow us to discount pleiotropic changes in their total capacity.
It is reported that FNR interactions with Tic62 and TROL are weakened by exposure to light (Alte et al., 2010; Benz et al., 2009). This means that during the illumination period of our NADP(H) measurement, these interactions will be weakened. Because interaction with Tic62 and TROL is not detected in the fnr1 and fnr1-ZmFNR3 genotypes (Figure 2C), which also have a diminished slow phase of NADP+ reduction (Figure 4), we propose that the release of FNR from tightly bound tether locations could contribute to an increase in the activity of the enzyme. The kinetics in Figure 4 suggest that either (1) strongly bound FNR (prevalent after dark adaptation) has less efficient NADP+ reduction activity, and that dissociation of FNR from Tic62 and TROL therefore represents a mechanism for upregulation, or (2) there is a difference between the genotypes in the speed with which they upregulate downstream NADPH consumption processes.
We then assessed the impact of FNR location on photosynthetic electron transport. Because of the longstanding debate about the role of FNR in CEF (Bendall and Manasse, 1995; Bojko et al., 2003; Buchert et al., 2018; Hanke et al., 2008; Hertle et al., 2013; Hosler and Yocum, 1985; Iwai et al., 2010; Mosebach et al., 2017; Shahak et al., 1981; Ye and Wang, 1997; Zhang et al., 2001), and the suggestion that relocation of FNR might be a mechanism to switch between LEF and CEF (Breyton et al., 2006; Joliot and Johnson, 2011), we paid particular attention to CEF related parameters. It is reported that rates of CEF are highest in the first 20 s of illumination following dark adaptation (Joliot and Joliot, 2005), and this corresponds to the time scale over which the slow kinetic phase of NADP+ reduction kinetics develops (Figure 4). We therefore compared the electrochromic band shift (ECS), here used to quantify electron flow rates, following either 20 s or 5 min acclimation to actinic light (Figure 5A). To differentiate LEF from CEF, we applied either a pulse of actinic light illumination (stimulation of both PSI and PSII, and therefore CEF + LEF), or a pulse of far red light illumination (PSI excitation only, and therefore CEF only).

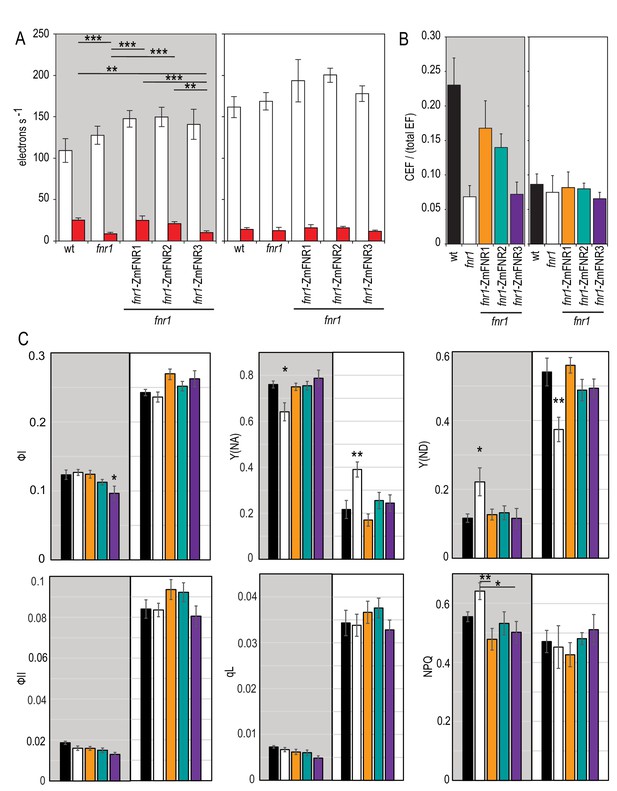

Impact of FNR location on photosynthetic electron transport in Arabidopsis following dark adaptation or light acclimation.
(A) ECS measurements after a 20 s high light pulse on dark adapted leaves (grey background) and light acclimated leaves (5 min 150 µE m−2 s−1, actinic light). The relaxation kinetics of ECS were measured at 520–546 nm after a 20 s pulse of actinic light at 1100 µmol photons m−2 s−1 (LEF + CEF stimulating, white boxes) or far red light (CEF stimulating, red boxes). Averages are shown for between five and seven independent measurements ± s.d. (B) Relative amount of CEF as a function of total electron flow calculated from the data in (A). Figure 5—figure supplement 1 shows a comparable experiment preformed with DCMU rather than far red light to drive PSI activity. (C) The response to high light in dark adapted leaves (grey background) and light acclimated leaves (5 min 150 µE m−2 s−1, actinic light, white background) was measured by detecting chlorophyll fluorescence and P700 oxidation with saturating pulses following 20 s of actinic light at 1100 µmol photons m−2 s−1. Measurements are averages ± s.e. of 6–12 replicates of the following genotypes: black, wt; white, fnr1; orange, fnr1-ZmFNR1; cyan, fnr1-ZmFNR2; purple, fnr1-ZmFNR3. Photosystem I parameters (quantum efficiency, ФI; donor limitation, Y(ND); acceptor limitation, Y(NA)) and photosystem II parameters (quantum efficiency, ФII; non-photochemical quenching, NPQ; photochemical quenching, qL). p-value significance in Tukey post hoc analysis of ANOVA is indicated as 0 ‘***’, 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’. Unless indicated by bars, stars indicate variation from all other genotypes. Representative P700 and ECS traces are shown in Figure 5—figure supplement 2.
As an alternative method, we also performed the experiment following infiltration with DCMU during dark adaptation. This is a specific PSII inhibitor, which showed the same trend, but with much greater variation (Figure 5—figure supplement 1). When the data are normalised to a single turnover flash, it is possible to calculate rates of CEF/total EF (Figure 5B, see Materials and methods for a detailed explanation on the calculation procedure). As expected, for WT, there is significantly more CEF following a short (20 s) light exposure in dark adapted leaves than after light acclimation. This trend is not seen in the fnr1 mutant, suggesting it lacks the capacity to upregulate CEF in dark adapted leaves. Heterologous expression of either tether bound FNR, ZmFNR1, or ZmFNR2 rescues this capacity, but the more weakly interacting ZmFNR3 does not. All genotypes show similar CEF/total EF values after light acclimation, indicating that the impact of FNR location is related to the tether interactions that occur following dark adaptation. Western blotting confirms that there is little difference in abundance of major PET components between the genotypes (Figure 4—figure supplement 1). In several replicated experiments the only consistent differences seen are decreased PsbA in the fnr1 line and increased PC in the fnr1-ZmFNR3 line. Critically, there is no difference in abundance of PgrL1 or subunit 1 of the NDH complex, indicating that CEF components are equivalent and the variation seen in our measurements of CEF is related to FNR location rather than secondary effects.
We also compared activity of PSI (P700 oxidation) and PSII (chlorophyll fluorescence) in the same genotypes under identical conditions to the ECS experiment, in order to understand how these parameters relate to the ECS. Figure 5C shows selected parameters, measured after a 20 s high light treatment of either dark adapted or light acclimated plants. PSI activity (ФI) during high light treatment is higher after light acclimation and similar between all genotypes except for a small decrease in fnr1-ZmFNR3 in dark adapted plants. As expected under high light treatment, acceptor limitation at PSI (Y(NA)) is high, and this is ameliorated somewhat by light adaptation. Unexpectedly, after dark adaptation the fnr1 mutant, which theoretically has lower Fd oxidation capacity, shows lower acceptor limitation than the other genotypes. Correspondingly, measurements of (Y(ND)) show significantly higher limitation in donors to PSI for the fnr1 mutant than all other genotypes.
These data are consistent with the deficiency in CEF seen in dark adapted fnr1 (Figure 5A), with fewer electrons being cycled back to the donor side of PSI. The opposite trend is seen following light acclimation, with fnr1 showing higher acceptor limitation and lower donor limitation. This is consistent with decreased Fd oxidation capacity at PSI resulting in decreasing acceptor availability. The fnr1-ZmFNR3 plants, which also appear deficient in CEF (Figure 5A), do not show a corresponding donor side limitation at PSI following dark adaptation. This discrepancy could be related to the elevated levels of PC protein in the fnr1-ZmFNR3 plants (Figure 4—figure supplement 1), as PC is the electron donor to PSI. As expected, light incubation leads to much greater LEF flux, with an increase in PSII acceptor availability as seen in ФII and qL for all genotypes. Taken together, our data support a model where FNR location regulates electron transport through both LET and CET pathways.
To test this further, we repeated our IGL-TEM experiment to examine sub-chloroplast FNR localisation following light adaptation. These data are plotted in Figure 6 in a comparison with those generated in the original dark adapted experiment from Figure 3. Unlike the dark adapted leaves, where staining density is equivalent between margins and lamellae, light adaptation gives higher FNR density at the margins than in the lamella. FNR density is significantly higher in the margins of light acclimated than dark adapted plants (Table 3), a region proposed to be highly active in LEF (Anderson, 1992; Chow et al., 2005).

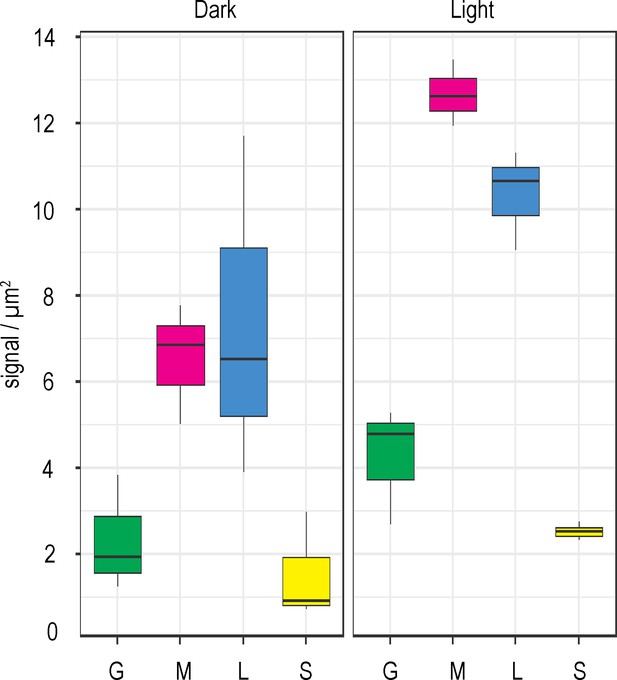

FNR sub-chloroplast distribution changes in response to light.
Density of immunogold labelled FNR in different sub-chloroplast compartments of Wt Arabidopsis either dark incubated (left panel, same data as in Figure 3) or light incubated (right panel), prior to and during fixation. Densities given are grana core, green; margins, magenta; lamellae, blue; and stroma, yellow. Values are averages of three biological replicates, with combined label and area for the sub-compartments of 15–20 chloroplasts for each individual. Statistical significance within and between treatments was calculated with a mixed effects model analysis of variance (Table 3).
Mixed effects model investigating changes in FNR density between different the chloroplast sub-compartments of WT Arabidopsis following dark adaptation or light adaptation of leaves.
Analysis performed using the data in Figure 6. Fixed effects taking either label density in the stroma as the intercept or label density in the margins/lamellae as the intercept. Linear mixed model fit by REML. Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘’ 1.
Deletion test carried out using Satterthwaite’s method with the R package lmerTest (Kuznetsova, Brockhoff & Christensen 2017). The model is a mixed effects model with random intercepts. The square root of response is the response variable, tissue is the fixed effect, and individual the random effect. | |||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Fixed effect deleted | Sum Sq | Mean Sq | Num DF | Den DF | F value | Pr (>F) | |||||||||||||||
Sub-compartment | 0.30184 | 0.10061 | 3 | 12 | 2.3613 | 0.1227 | |||||||||||||||
Model summary: | |||||||||||||||||||||
Random effects: | |||||||||||||||||||||
Groups | Name | Variance | Std. Dev. | ||||||||||||||||||
Individual | (Intercept) | 0.1073 | 0.3276 | ||||||||||||||||||
Residual | 0.04261 | 0.2064 | |||||||||||||||||||
Number of obs: 24, groups: individual, 6 | |||||||||||||||||||||
Fixed effects when dark adapted stroma is set as the intercept:: | |||||||||||||||||||||
Estimate | Std. Error | DF | t value | Pr (>|t|) | |||||||||||||||||
(Intercept) | 1.1743 | 0.2235 | 6.3067 | 5.253 | 0.00164 | ** | |||||||||||||||
Grana | 0.3104 | 0.1685 | 12 | 1.842 | 0.09033 | . | |||||||||||||||
Lamellae | 1.4748 | 0.1685 | 12 | 8.75 | 1.48−06 | *** | |||||||||||||||
Margins | 1.3736 | 0.1685 | 12 | 8.15 | 3.11−06 | *** | |||||||||||||||
Light:dark comparison | 0.4157 | 0.3161 | 6.3067 | 1.315 | 0.23427 | ||||||||||||||||
Light:dark grana | 0.1421 | 0.2384 | 12 | 0.596 | 0.5622 | ||||||||||||||||
Light:dark lamellae | 0.1482 | 0.2384 | 12 | 0.622 | 0.54562 | ||||||||||||||||
Light:dark margins | 0.5963 | 0.2384 | 12 | 2.502 | 0.02782 | * | |||||||||||||||
Fixed effects when dark adapted lamellae is set as the intercept:: | |||||||||||||||||||||
Estimate | Std. Error | DF | t value | Pr (>|t|) | |||||||||||||||||
(Intercept) | 2.64913 | 0.223542 | 6.306738 | 11.851 | 1.52−05 | *** | |||||||||||||||
Grana | −1.16437 | 0.168543 | 12.000001 | −6.908 | 1.63−05 | *** | |||||||||||||||
Margins | −0.101175 | 0.168543 | 12.000001 | −0.6 | 0.5595 | ||||||||||||||||
Stroma | −1.474807 | 0.168543 | 12.000001 | −8.75 | 1.48−06 | *** | |||||||||||||||
Light:dark comparison | 0.563988 | 0.316136 | 6.306738 | 1.784 | 0.1223 | ||||||||||||||||
Light:dark grana | −0.006164 | 0.238356 | 12.000001 | −0.026 | 0.9798 | ||||||||||||||||
Light:dark margins | 0.44808 | 0.238356 | 12.000001 | 1.88 | 0.0846 | . | |||||||||||||||
Light:dark stroma | −0.148241 | 0.238356 | 12.000001 | −0.622 | 0.5456 | ||||||||||||||||
Fixed effects when light acclimated stroma is set as the intercept: | |||||||||||||||||||||
Estimate | Std. Error | DF | t value | Pr (>|t|) | |||||||||||||||||
(Intercept) | 1.5901 | 0.2235 | 6.3067 | 7.113 | 0.00031 | *** | |||||||||||||||
Grana | 0.4525 | 0.1685 | 12 | 2.685 | 0.01986 | * | |||||||||||||||
Lamellae | 1.623 | 0.1685 | 12 | 9.63 | 5.37−07 | *** | |||||||||||||||
Margins | 1.97 | 0.1685 | 12 | 11.688 | 6.48−08 | *** | |||||||||||||||
Dark:light comparison | −0.4157 | 0.3161 | 6.3067 | −1.315 | 0.23427 | ||||||||||||||||
Dark:light grana | −0.1421 | 0.2384 | 12 | −0.596 | 0.5622 | ||||||||||||||||
Dark:light lamellae | −0.1482 | 0.2384 | 12 | −0.622 | 0.54562 | ||||||||||||||||
Dark:light margins | −0.5963 | 0.2384 | 12 | −2.502 | 0.02782 | * | |||||||||||||||
Fixed effects when light acclimated lamellae is set as the intercept: | |||||||||||||||||||||
Estimate | Std. Error | DF | t value | Pr (>|t|) | |||||||||||||||||
(Intercept) | 3.213118 | 0.223542 | 6.306738 | 14.374 | 4.68−06 | *** | |||||||||||||||
Grana | −1.170535 | 0.168543 | 12.000001 | −6.945 | 1.55−05 | *** | |||||||||||||||
Margins | 0.346905 | 0.168543 | 12.000001 | 2.058 | 0.062 | . | |||||||||||||||
Stroma | −1.623048 | 0.168543 | 12.000001 | −9.63 | 5.37−07 | *** | |||||||||||||||
Dark:light comparison | −0.563988 | 0.316136 | 6.306738 | −1.784 | 0.1223 | ||||||||||||||||
Dark:light grana | 0.006164 | 0.238356 | 12.000001 | 0.026 | 0.9798 | ||||||||||||||||
Dark:light margins | −0.44808 | 0.238356 | 12.000001 | −1.88 | 0.0846 | . | |||||||||||||||
Dark:light stroma | 0.148241 | 0.238356 | 12.000001 | 0.622 | 0.5456 |
Discussion
FNR is not free in the stroma as a soluble protein
Until now it has been the general consensus that in higher plant chloroplasts a significant proportion of FNR is soluble (Carrillo and Vallejos, 1982; Lintala et al., 2007; Okutani et al., 2005; Shin et al., 1963; Matthijs et al., 1986; Gummadova et al., 2007). Here we present strong evidence that this is not the case (Figure 1—figure supplement 2, Figure 1, Figure 3, Figure 6, Tables 1–3, Supplementary files 2a, 2b) with only membrane bound FNR detected, even in genotypes where FNR was previously considered totally soluble (Hanke et al., 2008; Lintala et al., 2007). The most likely explanation for this is that the aggressive cell disruption procedures, or osmotic shock followed by solubilisation for BNP, disrupt weak associations of FNR with other membrane complexes (Andersen et al., 1992; Zhang et al., 2001), or possibly even the membrane itself (Grzyb et al., 2018; Grzyb et al., 2008). We have therefore redefined soluble FNR as weakly associated FNR. These results are in good agreement with an IGL study showing FNR is only found associated with the algal thylakoid in Chlamydomonas (Suss et al., 1995), though they contradict an earlier study on higher plants (Negi et al., 2008), where the authors report co-localisation of FNR and GAPDH. In the chloroplast example shown by Negi et al., 2008 some of the labelled FNR appears to be in the stroma, but no details of primary or secondary antibody specificity, sample number or leaf treatment prior to sample preparation are given, which would be necessary for a valid comparison with our work. It has previously been reported that FNR is a component of the inner envelope translocon (Stengel et al., 2008), but we detected little evidence for this in analysis of over 300 mature chloroplasts from 18 individuals (over 4500 gold particles counted). However, we cannot discount the possibility that such interactions are more prevalent earlier in chloroplast development, when protein import is more active.
Benz et al., 2010 propose that FNR tethering by Tic62 is not involved in NADP+ reduction. While these authors suggest that Tic62-binding prevents proteolytic degradation of FNR in the dark, the data in Figure 5 reveal another function, critical for transient CEF on dark to light transition. This is consistent with earlier results in antisense tobacco plants, where transient CEF was negatively impacted by decreased FNR (Joliot and Johnson, 2011), although this effect has not previously been reported in Arabidopsis. Arabidopsis has two genes for FNR, and P700 re-reduction data from plants knocked-out or knocked-down for either gene have been interpreted as showing an increase in CEF after high light or temperature stress (Hanke et al., 2008; Lintala et al., 2009). FNR:Tic62 and FNR:TROL interactions are disrupted at higher light intensities (Alte et al., 2010; Benz et al., 2009), meaning that specific interaction to these tethers is unlikely to withstand illumination during stress treatments. Indeed, our ECS measurements after light acclimation show no difference in CEF between genotypes (Figure 5A), and P700 parameters indicate less donor limitation for fnr1 than other genotypes (Figure 5C). The reported differences in P700 re-reduction (Hanke et al., 2008; Lintala et al., 2009) therefore likely have another cause in the fnr1 mutants and fnr2 knock-downs or reflect a different CEF pathway from the dark to light transition CEF measured in our work.
The function of FNR bound to Tic62 and TROL
The study of CEF in full FNR knock-outs is hampered by the essential role FNR plays in generating NADPH in LEF (Bendall and Manasse, 1995; Lintala et al., 2012), and previous investigation of a role for FNR-location in CEF has been complicated by the decrease in total FNR content when the Tic62 or TROL proteins are knocked out (Benz et al., 2009; Jurić et al., 2009). Here we have generated plants with approximately wild type levels of FNR, but variable location (Figure 2), allowing us to establish that tight binding to Tic62 or TROL is necessary for the transient CEF associated with the dark light transition (Figure 5A). In fact, the literature investigating a role for FNR activity in CEF is extensive, with multiple inhibitor based studies supporting this hypothesis (Ravenel et al., 1994; Shahak et al., 1981; Bendall and Manasse, 1995; Mills et al., 1979; Cleland and Bendall, 1992; Ye and Wang, 1997; Hosler and Yocum, 1985). The actual function for FNR in higher plant CEF, however, remains speculative: it has been proposed as a direct Fd:quinone reductase (Bojko et al., 2003), or as a binding site for Fd to allow reduction of quinones via PgrL1 (Hertle et al., 2013) or the Cyt b6f in both algae and higher plants (Buchert et al., 2018; Zhang et al., 2001; Buchert et al., 2020). Although it is reported that interaction with Tic62 or TROL has no impact on FNR activity (Alte et al., 2010), another possibility is that by binding to Tic62 or TROL, FNR becomes less efficient at oxidising Fd. By default, reduced Fd would then donate electrons to other pathways, including CEF. This would be consistent with the recent finding that the NDH complex uses Fd as the direct electron donor (Yamamoto and Shikanai, 2013; Schuller et al., 2019). It has recently been reported that both the NDH and antimycin A CEF pathways are regulated by the ATP:ADP ratio (Fisher et al., 2019). In both cases ATP was found to act as a competitive inhibitor of reduced Fd association. It follows that an increase in the rate of Fd oxidation by FNR would result in greater ATP inhibition of CEF. Indeed, the fnr1 and fnr1-ZmFNR3 genotypes both show a greater fast-component of NADP+ reduction (Figure 4), implying faster Fd oxidation at the onset of light, and both genotypes also lack upregulated CEF following dark adaptation (Figure 5).
The fact that transient CEF does not occur when total FNR content is decreased in the fnr1 mutant (Figure 5A) and is decreased in FNR antisense tobacco (Joliot and Johnson, 2011) seems to support an active role for FNR, as any default Fd oxidation pathway would be expected to increase in these circumstances. Because several CEF pathways are regulated by redox signals (Breyton et al., 2006; Takahashi et al., 2013; Strand et al., 2015; Strand et al., 2016), it also remains possible that the impact of decreased FNR activity on CEF is indirect, through a failure to effectively poise the NADP(H) pool.
FNR as a dynamic switch between LEF and CEF
Because the fnr1 and fnr1-ZmFNR3 genotypes, which lack Tic62 and TROL interaction (Figure 2C), retain FNR bound to the thylakoid (Figure 3), the enzyme must occupy alternative, weaker binding sites on the membrane following release from Tic62 and TROL. This is further supported by the IGL-staining on illuminated leaves (Figure 6), in which Tic62/TROL interactions with FNR should be disrupted (Alte et al., 2010; Benz et al., 2009), but FNR remains membrane bound. We have no direct evidence for the identity of these weak sites of FNR-interaction, but it seems likely they include proteins that have previously been reported as FNR interaction partners, such as PSI (Andersen et al., 1992) or the Cytb6f (Zhang et al., 2001; Clark et al., 1984). Indeed, specific interaction between FNR and PSI has recently been demonstrated in vitro (Marco et al., 2019), and the authors suggest a binding site comprising PsaE and the light harvesting complexes. Proximity to PSI would result in more efficient flux of electrons from PSI to NADP+, consistent with the dominant fast component of NADP+ reduction in the fnr1 mutant and fnr1-ZmFNR3 genotypes (Figure 4), where all FNR is weakly associated (Lintala et al., 2007; Hanke et al., 2008; Figure 2). The fnr1 mutant is also the only genotype with higher FNR density at the margin than on the lamellae (Figure 3), consistent with the theory that LEF occurs predominantly on these regions of the thylakoid (Anderson, 1992; Chow et al., 2005). As the contribution of the slow component in NADP+ reduction (Figure 4) matches the timescale of transient CEF on light to dark transition (Joliot and Joliot, 2005), and FNR interaction with Tic62 and TROL tethers is weakened in the light (Alte et al., 2010; Benz et al., 2009) we tentatively propose the following model to explain our data: in the dark, a large amount of FNR is sequestered at Tic62 and TROL on the lamellae in a location sub-optimal for Fd oxidation, limiting NADPH production before carbon fixation is upregulated. In this location FNR promotes CEF by an as yet uncharacterised mechanism, possibly related to Pgr5 and/or PgrL1. Over light induction, these interactions are disrupted, and the enzyme relocates to associate with PSI, resulting in increased efficiency of NADP+ reduction. This speculative model is presented in Figure 6—figure supplement 1. Our measurements of NADP+ reduction kinetics could be fitted by two components (Figure 4A, Supplementary file 2c), while this model would imply three possible changes in kinetics corresponding to dissociation, diffusion, and re-association. If the model in Figure 6—figure supplement 1A is correct, at least one component must be too fast to be detected. This could either be diffusion, due to close proximity of the Tic62/TROL membrane tethers to PSI, or association with PSI following a slow diffusion phase.
Although we propose that the slow phase of NADP+ reduction kinetics (Figure 4) results from changes in FNR activity, we cannot exclude the possibility that it is caused by regulation of the rate of NADP+ consumption. In this way, variable slow phase contributions could reflect differential regulation (originating in the redox state of the Fd and NADP(H) pools) of fast, NADPH consuming enzymatic processes downstream. The dominant NADPH consuming reaction in the chloroplast is catalysed by glyceraldehyde 3 P dehydrogenase (GAPDH) in the Calvin Benson Basham (CBB) cycle of CO2 fixation, which is regulated by thioredoxin (Trx)-mediated thiol reduction and oxidised glutathione (Wolosiuk and Buchanan, 1978). Indeed, we previously measured differences in both steady state Trx regulation and glutathione redox poise associated with FNR abundance and membrane localisation (Kozuleva et al., 2016). Because thiol reduction of GAPDH acts to increase allosteric upregulation by 1,3 bisphosphoglycerate (Baalmann et al., 1995), and levels of CBB intermediates in isolated chloroplasts are very low, leading to a lag phase in starting the cycle (Baldry et al., 1966) it is unlikely that GAPDH activity will change significantly in dark adapted chloroplasts during the 30 s time-frame of our experiment. Nevertheless, it may be that even small changes in activity of such an abundant enzyme could contribute to the kinetics shown here. We also previously found that FNR abundance and location correlated with the thiol-mediated activation state of NADPH malate dehydrogenase (NADP-MDH) (Kozuleva et al., 2016), another powerful sink, which is upregulated much faster than GAPDH in isolated chloroplasts, as the allosteric regulator involved is NADPH itself (Scheibe, 2004). We therefore repeated the NADPH kinetic measurements with an nadp-mdh knock-out (Appendix 1—figure 1), but found no change in the amplitude of the slow phase of NADP+ reduction relative to wild type. We cannot rule out an impact on other NADPH-dependent processes in the chloroplast being influenced by FNR location, especially those regulated by thiol regulation cascades originating in the redox state of Fd or NADP(H) (Yoshida and Hisabori, 2016; Naranjo et al., 2016; Nikkanen et al., 2016; Hashida et al., 2018).
Based on the data shown in Figure 5, another intriguing possibility is an impact of CEF on NADP(H) turnover. For example, the slow phase of NADP+ reduction might reflect activity of the proposed NADPH consuming CEF pathway utilising the reverse catalytic reaction of FNR when the enzyme is bound to the Cytb6f (Zhang et al., 2001). Alternatively, upregulation of the NDH complex by NADPH poise (Nikkanen et al., 2018) or redox regulation (Strand et al., 2015) could be influenced by FNR location, resulting in differential competition for reduced Fd (Schuller et al., 2019) and variable substrate availability for FNR.
It is also possible that during the light FNR remains associated with the membrane tether proteins, but is activated through a change from strong to weak binding. We have interrogated this hypothesis by repeating the IGL experiment on Wt plants after light acclimation (Figure 6). We find that, in contrast to dark adapted plants, there is higher FNR density at the margins than on the lamellae (Table 3), supporting a model of some FNR diffusion to sites of high LEF. It therefore seems likely that, in higher plants, FNR does indeed change interaction partners and consequently sub-chloroplast location, as part of a mechanism to decrease CEF and increase LEF during light adaptation.
Materials and methods
Reagent type (species) or resource | Designation | Source or reference | Identifiers | Additional information |
---|---|---|---|---|
Gene (Arabidopsis thaliana) | FNR1; FNR2 | GenBank | AT5G66190; AT1G20020 | |
Gene (Zea mays) | FNR1; FNR2; FNR3; TROL | GenBank | BAA88236; BAA88237; ACF85815; ACF79627.1 | |
Strain, strain background (Escherichia coli) | BL21(DE3) | Thermo Fisher | EC0114 | Competent cells |
Genetic reagent (A. thaliana) | Columbia; Columbia fnr1; Columbia ZmFNR1; Columbia ZmFNR3 | Arabidopsis Biological Resource Center (ABRC) See Twachtmann et al., 2012 for over-expression line generation | wt; AT1G20020 T-DNA insertion mutant; Line expressing BAA88236 under control of the AT1G20020 promoter; Line expressing ACF85815 under control of the AT1G20020 promoter | See Hanke et al., 2008 for mutant isolation; |
Antibody | Anti-maize FNR2 (Rabbit polyclonal) | This paper (Okutani et al., 2005) | BAA88237 | IG-TEM (1:200), WB (1:50,000). Raised in rabbit using recombinant mature purified maize FNR2 protein |
Antibody | Anti-maize Cyt f (Rabbit polyclonal) | This paper (Okutani et al., 2005) | IG-TEM (1:200), WB (1:5000) Raised in rabbit using Cyt f protein purified from maize leaves | |
Antibody | Anti-maize TROL (guinea pig polyclonal) | This paper | WB (1:10,000) Raised in guinea pig using TROL protein purified as described in the Materials and methods | |
Recombinant DNA reagent | pCold His-TROL (plasmid) | Takara-Bio; This paper | ACF79627.1 | Cloned as described in the Materials and methods |
Recombinant DNA reagent | pSAt-FNR1pro-Zm-FNR2 (plasmid) | From Twachtmann et al., 2012 | AT1G20020;BAA88237 | Plasmid for expressing maize FNR2 under control of the Arabidopsis FNR1 promoter |
Sequence-based reagent | TROL -F | Eurofins genomics (Ebersberg, Germany) | PCR primers | GTCGACGAGGATCGACAAAA |
Sequence-based reagent | TROL -R | Eurofins genomics (Ebersberg, Germany) | PCR primers | GAATTCCTAGACCCGGTTTCTT |
Peptide, recombinant protein | Maize TROL | Eurofins genomics (Ebersberg, Germany) | ACF79627.1 | Cloned and purified as described in the Materials and methods |
Plant material and sample preparation
Request a detailed protocolArabidopsis thaliana plants were all Columbia ecotype. All transformed plants were screened at the level of western blotting (see later for Materials and methods) to confirm expression of heterologous FNR proteins prior to analysis. Plants were grown under a light/dark cycle of 12 h/12 hr with moderate light of 150 µmol photons m−2 s−1 at 22°C/18°C on soil. Samples were extracted from mature Arabidopsis leaves in the presence of 50 mM Tris-HCl, pH 7.5, 100 mM NaCl, 2 mM EDTA, 20 µg/ml, and 0.1 mg/ml polyvinyl-polypyrrolidone. Supernatant and pellet fractions were made from these extracts by centrifugation at 11,000 g 4°C for 5 min, and the membrane pellet was resuspended with an equal volume of buffer containing 0.1% Triton X-100 to solubilise proteins prior to analysis.
Transmission electron microscopy
Request a detailed protocolThe transmission electron microscopy was performed on a Jeol JEM-1230 microscope (Jeol, Peabody, MA) equipped with a Morada CCD camera and iTEM Olympus software at 80.00 kV.
Immunogold labelling of leaf sections was carried out as follows. The first fully unfolded leaves of Arabidopsis Wt, fnr1, and plants expressing ZmFNR genes in the fnr1 background were sampled for immunogold labelling to ensure consistency in developmental stage, and kept in the dark until the end of the fixation step. The leaves were harvested at the end of the dark period and cut into 1 mm strips with a sharp razor. The strips were transferred to a 3% paraformaldehyde/0.125 M phosphate buffered saline (PBS) in a syringe, creating an underpressure with the plunger to ensure full penetration of the tissue and removing any air from the parenchyma which would interfere with thin-sectioning later on. The fixation step lasted 5 min. For light adaptation, leaves were sampled 2 hr into a light period from under growth lights and maintained at 150 µE until fixation, which was also performed under light.
Leaves were embedded into LR White resin (Agar Scientific, Stansted) by sequential incubation in 70% EtOH 30 min, 90% EtOH 30 min, 100% EtOH 30 min, 100% EtOH 30 min, 50% EtOH/50% LR White 60 min, 100% LR White 60 min, and 100% LR White overnight. Embedded strips were transferred to gelatine capsules, filled to the top with LR White resin, and covered with a piece of wax. Hardening of the resin took place in an oven at 60°C for 2.5 hr. The capsule was removed and the resin block cleaned from the wax and subsequently used for thin-sectioning.
After cutting the blocks on a Reichert-Jung ultramicrotome (Leica, Nussloch, Germany) into 70 nm thin-sections, these were transferred onto EM nickel grids. These were then immunogold labelled by the following sequential incubations in a covered wet chamber: 50 μl 1.25 M PBS 2 min, 20 μl 5% H2O2 5 min, 50 μl PBS/50 mM glycine 3 × 3 min, 5% BSA in PBS 10 min, 1:200 anti ZmFNR2 or anti Cyt f in 1% BSA in PBS 30 min, 50 μl 1% BSA in PBS 3 × 6 min, 10 μl 1:200 gold particle conjugated anti rabbit IgG in 1% BSA in PBS 30 min, 100 μl PBS 8 × 2 min, 50 μl 1% glutaraldehyde 5 min, 100 μl H2O 8 × 2 min, 20 μl 4% uranyl acetate 4 min, 100 ml H2O 3 × 20 min. Following this the grids were air dried in a dust free container and ready to use in TEM.
The areas of interest on the electron micrographs were defined by printing at high resolution and manually colouring in magenta (margins), blue (lamellae), and green (grana core). See text for full explanation of chloroplast sub-compartment definitions in this work. Areas of chloroplasts with poor membrane resolution were not included in analysis. To account for antibody size, an area of 10 nm on either side of both margins and lamellae were included in the area (see Figure 1—figure supplement 2). These images were then scanned and analysed in ImageJ using the Versatile Wand Tool. By subtraction of the sum of grana, lamellae, and margin area from the total chloroplast area analysed, a value for the stroma was calculated. Then, the gold particles were manually counted on each micrograph (in the region of 10–50 per chloroplast) and the labelling density of each sub-compartment was calculated as particles/μm2.
Statistical analysis
Request a detailed protocolBecause of the presence of multiple measurements from the same individual, FNR densities were analysed using random-intercepts mixed effects models fitted using the lme4 (Bates et al., 2015) and lmerTest (Kuznetsova et al., 2017) packages in R version 1.1.456 (R Development Core Team, 2019). Sub-compartment (divided into Stroma, Grana, Cytosol and Margin/Lamellae, or Stroma, Grana, Margin, and Lamellae) was the fixed effect and individual the random effect. Following initial data exploration and model fitting the response variable was square root transformed for all models in order to reduce skew in the residuals. Models were fitted with both Stroma and Margin/lamellae or Lamellae set as the intercept in order to allow all important effects to be represented in the contrasts. For PAM and ECS analysis, the statistical analysis of variance (ANOVA) and post hoc analysis Tukey's tests were also performed in R.
Generation of transgenic plants
Request a detailed protocolHomozygous fnr1 knock out Arabidopsis plants were transformed with a construct containing the maize FNR coding sequence as described previously (Twachtmann et al., 2012). The individual transformations only yielded positive results for the ZmFNR2 construct and seeds of the second generation after transformation were used in this study. For generation of plants containing the maize coding sequence for FNR1 and FNR3, the fnr1 mutant plant was crossed with Arabidopsis plants expressing ZmFNR1 or ZmFNR3, respectively. The offspring seeds were selected for the expression of maize FNR genes on agar plates with the corresponding herbicide. For this study the third generation after transformation was used.
Cloning and purification of maize TROL
Request a detailed protocolRNA from sweetcorn-type ‘Golden X Bantam’ (Bingenheimer Saatgut AG, Echzell-Bingenheim, Germany) was isolated using TRI Reagent RT (Molecular Research Center Inc, Cincinnati, USA) according to the manufacturer’s manual before reverse transcription into cDNA using the ‘RevertAid H Minus First Strand cDNA Synthesis’ kit (Thermo Fisher Scientific Inc, Waltham, USA). Coding sequence of maize TROL was amplified from this cDNA using primers 5’-GTCGACGAGGATCGACAAAA-3’ and 5’-GAATTCCTAGACCCGGTTTCTT-3’ containing restriction sites for Sal I and EcoRI, respectively. This product was ligated into pJET1.2/blunt (Thermo Fisher Scientific Inc, Waltham, USA) before subcloning with Sal I and XbaI into pCold-I (Takara Bio Inc, Shiga, Japan). Competent Escherichia coli BL21(DE3) cells were transformed with expression vector and positive transformants were selected on 100 µg/ml ampicillin. A single colony was used for inoculation of YT broth containing 50 µg/ml ampicillin and subsequent gene expression was performed according to the pCold-I manual. Harvested cells were resuspended in binding buffer containing 20 mM Tris-HCl pH 7.9, 500 mM NaCl, and 5 mM imidazole before addition of 1 mM Pefabloc SC (Carl Roth GmbH and Co. KG, Karlsruhe, Germany), 100 µg/ml lysozyme, and 0.1% Triton X-100. Cell suspension was lysed by sonication. Clarified lysate containing maize TROL-His(6x) was applied to a column containing chelating fast flow sepharose (GE Healthcare, Little Chalfont, England) previously charged with 50 mM NiSO4 and equilibrated with binding buffer using the ‘ÄKTAprime plus’ FPLC system (GE Healthcare, Little Chalfont, England). The column was washed with the same buffer containing 52 mM imidazole before elution of bound protein with binding buffer containing a total of 300 mM imidazole. Collected fractions were pooled and used for ammonium sulphate precipitation by adding ground powder up to 20% saturating solution. The solution was centrifuged for 10 min and 10,000 g at 4°C before resuspension of the obtained pellet in buffer containing 100 mM NaHCO3 and 20 mM NaCl. The solution was dialysed against the same buffer overnight. In addition, the purified protein was dialysed with buffer containing 50 mM Tris-HCl pH 7.5 and 100 mM NaCl prior of generating primary antisera in guinea pig (Pineda Antikörper-Service, Berlin, Germany).
Native and SDS-PAGE
Request a detailed protocolSDS-PAGE samples have been treated with 0.5% SDS and 2.5% 2-mercaptoethanol and heated at 95°C for 5 min. Native-PAGE samples have been treated with 10% glycerol and 0.1% bromophenol blue before loading. Samples were separated by native-PAGE (Kimata and Hase, 1989) or SDS-PAGE (Laemmli, 1970) on a 12% gel before immunoblotting (Towbin et al., 1979) on polyvinylidene defluoride (PVDF) membrane (Bio-Rad Laboratories Inc, Hercules, USA). Antibodies used in immunoblotting detection were raised against PC (1:5000), LHCII (1:8000), LHCI (1:8000), PgrL1 (1:3000), cytochrome b6 (1:50,000), NDHS (1:10,000), PsbA (1:10,000), PsaD (1:5000), spinach LHC (1:40,000) (all purchased from Agrisera, Vännäs, Sweden), maize (Zea mays) FNR2 (1:60,000), spinach (Spinacea oleracea) Cyt f (1:5000), and maize TROL (1:10,000).
Blue native-PAGE
Request a detailed protocolAll steps were performed at 4°C. Chloroplasts have been isolated basically as described by Hanke et al., 2008. Samples have been prepared as described previously (Twachtmann et al., 2012) and been analysed by blue native-PAGE as described (Reisinger and Eichacker, 2007) using a 6% to 12% polyacrylamide gradient gel before immunoblotting on PVDF membrane (Bio-Rad Laboratories Inc, Hercules, USA) and detection of FNR and TROL by ECL with horseradish peroxidase. Antibodies used in immunoblotting detection were raised against maize FNR2 (1:50,000) and maize TROL (1:10,000).
ΔNADPH fluorescence measurements
Request a detailed protocolChloroplasts were prepared essentially as described previously (Hanke et al., 2008), with the following modifications. All steps were performed in the dark at 4°C. Leaves of four to six developing plants per genotype (4–5 weeks old) were homogenised in a waring blender in 80 ml 25 mM Hepes-NaOH pH 8.0, 0.33 M sorbitol, 60 mM KCl, 10 mM EDTA, 1 mM MgCl2, 0.4 mM ascorbate, 40 mg bovine serum albumin (BSA) before filtering through muslin and centrifugation for 2 min at 1150 g for 2 min. The pellet was resuspended in 2 ml of the same buffer before centrifuging at 736 g for 2 min. This time the pellet was resuspended in 1 ml of the same buffer before overlaying on a step gradient of 40% above 80% PB-Percoll (5% PEG 4000, 1% BSA in Percoll) in 0.33 M sorbitol, 5 mM Hepes-NaOH pH 7.5, 2 mM EDTA. After centrifuging at 3050 g for 1 min followed by no brake deceleration, intact chloroplasts were extracted from the boundary layer. Chloroplasts were washed twice in extraction buffer without ascorbate or BSA followed by centrifugation at 1700 g and resuspension of the pellet in 200–500 µl extraction buffer without ascorbate or BSA. Between 10 and 20 µg chlorophyll were used in each assay of ΔNADPH fluorescence.
ΔNADPH fluorescence in chloroplast suspensions was performed basically as described for cyanobacteria in Kauny and Sétif, 2014 with the following adaptations. Fluorescence was measured in a volume of 3 ml extraction buffer at 25°C using the NADPH/99-A module of a Dual-PAM. Chloroplasts were dark adapted throughout preparation (about 40 min) and not stirred during the measurement. Gain was set low and damping was set high, while in the dark the measuring frequency was set to 100 Hz, changing to 5000 Hz on illumination. The measuring light intensity was set at 4 (corresponding to 9 µmol photons m−2 s−1). Actinic illumination was with red light from the Dual-PAM at maximum intensity, corresponding to approximately 750 µmol photons m−2 s−1 in the cuvette. Data were collected using the clock cycle function to trigger a run of 10 s dark, 30 s actinic light, 40 s dark recovery. Data shown are averages of 7–15 traces, which were manually checked for anomalies and to ensure that the first and last spectra collected did not differ significantly. Spectra presented are corrected for the constant drift that occurred during illumination. Further information on characterisation of this technique is given in Appendix 1.
Fitting of ΔNADPH kinetics
Request a detailed protocolThe increase in fluorescence (NADP+ reduction) under illumination is clearly bi-phasic and we fit these kinetics to a model which assumes a first order fluorescence increase kinetics with a fast and slow component,
where is the asymptotic level of fluorescence in the long time limit. The relative amplitudes and are not independent but related by,
meaning the fit parameters are the rate constants and , and . No improvement to the fit was obtained by adding further components.
The fluorescence decrease (NADPH oxidation) appears to follow simple second-order kinetics. Initially, for generality, Hill type kinetics were assumed,
where is the time at which the actinic illumination ceased, is the fluorescence level at that time, is the asymptotic level of fluorescence and . Fixing (non-cooperative or true second order kinetics) did not alter the fit but significantly reduced the errors on the remaining fit parameters ( and ).
Cyclic electron flow measurements
Request a detailed protocolPlants were grown under long day conditions and dark incubated for 30 min before transfer into actinic light with 150 µE m−2 s−1 PAR for light acclimation. After 20 s or 5 min of illumination, LEF and CEF were measured by following the relaxation kinetics of the carotenoid electrochromic bandshift at 520 nm (corrected for the signal at 546 nm) using a JTS-10 spectrophotometer (Biologic, France). The ECS spectral change is a shift in the pigment absorption bands that is linearly correlated with the light-induced generation of a membrane potential across the thylakoid membranes (Bailleul et al., 2010). Under steady state continuous illumination, the ECS signal stems from transmembrane potential generation by PSII, the cytochrome b6f complex, and PSI and from transmembrane potential dissipation by the ATP synthase CF0-F1. When light is switched off, reaction centre's activity stops immediately, while ATPase and the cytochrome b6f complex activities remain (transiently) unchanged. Therefore, the initial rate of ECS decay is proportional to the rate of PSI and PSII photochemistry (i.e. to the rate of 'total’ electron flow). This can be calculated dividing this rate (expressed as -ΔI/I per unit of time) by the amplitude of the ECS signal (again expressed as −ΔI/I) induced by the transfer of one charge across the membrane (e.g. one PSI turnover). The rate of CEF can be evaluated using the same approach under conditions where PSII activity is inhibited. Typically, this is done by preventing PSII activity with DCMU. In our experiments, we found that leaf infiltration with DCMU did not result in homogeneous inhibition of PSII, as tested by measuring fluorescence transients in the leaves using an imaging setup (Speedzen, JbeamBio, France), causing high variability and high estimations of CEF (Figure 5—figure supplement 1). Therefore, another approach was employed to evaluate CEF, i.e. exposure to saturating far red light (λ >720 nm), to fully excite PSI with a minimum excitation of PSII. Results were expressed as electrons−1 s−1 and estimated from the amplitude of the electrochromic shift signal upon excitation with a saturating single turnover flash (five ns laser pulse). Total electron flow was measured following a pulse of actinic light (λ = 640 ± 20 nm FWHM) at 1100 μmol photons m−2 s−1 while CEF was measured with a pulse of far red light at the maximum setting (estimated as 1400 μmol photons m−2 s−1 by the manufacturer).
Chlorophyll fluorescence and P700 absorption
Request a detailed protocolChlorophyll fluorescence and P700 absorption were simultaneously analysed using the DUAL-PAM-100 system (Heinz Walz GmbH, Effeltrich, Germany), and parameters calculated as described in the DUAL-PAM handbook (Klughammer and Schreiber, 2008). Plants were first dark incubated for 30 min before determination of F0 as dark fluorescence yield. Change in P700 signal was monitored as the difference in transmittance at 875 nm and 830 nm. The maximum change in P700 signal indicated as Pm was measured by application of far red light for 30 s followed by application of a saturating pulse. We confirmed that Pm was not significantly underestimated in mutants with decreased acceptor limitation at PSI (Supplementary file 2f). In addition the maximum fluorescence yield Fm of dark adapted leaves was determined before illumination. For the dark adapted measurement, plants were directly subjected to high light (1100 µE m−2 s−1 PAR) with saturation pulses applied after 5 s and 20 s. Light acclimated plants were instead illuminated in the DUAL-PAM leaf clip at 150 µE m−2 s−1 PAR for 5 min before application of the 1100 µE m−2 s−1 high light and saturating pulses after 5 s and 20 s. Typical fluorescence and P700 oxidation traces are shown in Figure 5—figure supplement 2. Only data from the pulses applied after 20 s of high light were used to generate the data presented. The maximal fluorescence yield Fm’ or maximum change in P700 signal Pm’ were determined on each saturating pulse, while the current fluorescence yield F was measured before each pulse.
Accession numbers
Request a detailed protocolArabidopsis Genome Initiative locus identifiers for the genes mentioned in this article are as follows: maize FNR1, BAA88236; maize FNR2, BAA88237; maize FNR3, ACF85815; Arabidopsis FNR1, AT5G66190; Arabidopsis FNR2, AT1G20020; maize Tic62, ACG28394.1; Arabidopsis Tic62, AT3G18890; maize TROL, ACF79627.1; Arabidopsis TROL, AT4G01050.1.
Appendix 1
Characterisation and interpretation of the 2 phases fit to NADP(H) reduction and oxidation kinetics in intact plastids
Several phases of light-dependent fluorescence in chloroplasts (most much faster than those described here) at equivalent wavelengths have previously been described and extensive characterisation indicates that they are due to light-dependent reduction of NADP+, with little or no contribution from protein content (Latouche et al., 2000). Nevertheless, as the relative amplitude of these two NADP+ reduction phases (Figure 4) is dependent on tight binding of FNR to the thylakoid (Figure 2), we sought to further characterise our system.
We initially assumed that only intact chloroplasts were likely to contribute to the signal. This is because Latouche et al., 2000 estimated that as little as 2.5–3% of all NADP(H) is free in the stroma (amounting to approximately 1–3 µM), meaning soluble NADP(H) from ruptured chloroplasts would be subject to a huge dilution factor at the concentrations in our assay (chlorophyll concentrations of 3–6 µg /ml). However, controls with deliberately ruptured chloroplasts give some light-dependent kinetics (Appendix 1—figure 1), albeit at lower amplitude and with higher noise than intact chloroplasts. One explanation for this could be that a significant proportion of chloroplast NADP(H) remains bound strongly to the FNR enzyme. It is estimated that as much as 44% of chloroplast NADPH is bound to FNR (Latouche et al., 2000). If NADP+ remains bound to FNR in a solution of ruptured chloroplasts, then a cascade of PSI > Fd > FNR could support its reduction. When data from ruptured chloroplast traces are fitted, they do not reveal distinct phases, but rather a rapid reduction and oxidation. This demonstrates that ruptured chloroplasts are not the source of the slow phase of NADP+ reduction.
Although NADH levels are reported to be undetectably low in isolated chloroplasts (Heineke et al., 1991) light-dependent NAD+ reduction in leaf chloroplasts was recently reported using fluorescent markers (Lim et al., 2020) and might contribute specifically to one of the phases detected in our measurements. FNR affinity for NAD+ is extremely low (Piubelli et al., 2000) but indirect flux through other enzymes is possible, the most likely route being an internal malate valve comprising both NADP(H)- and NAD(H)-dependent malate dehydrogenase (MDH) enzymes (Selinski and Scheibe, 2019). To test this possibility, the experiment was repeated with a nadp-mdh mutant, which shows identical kinetics to the wt (Appendix 1—figure 1), indicating that light-dependent NAD+ reduction probably makes an undetectable contribution to the signal we measure.
These results and the work of Latouche et al., 2000 indicate that the kinetics detected in Figure 4 and Appendix 1—figure 1 result from light-dependent changes in the turnover of NADP(H) in intact chloroplasts. As the measurements were performed on dark adapted chloroplasts, the slow phase likely reflects the relatively slow (10–20 s) light-dependent regulation of either a fast NADP(H) reduction or oxidation process. Because the amplitude of the slow phase correlates with FNR:FNR-tether protein interaction (Figure 2), and its time frame corresponds to the generation of ΔpH (shown by Alte et al., 2010 to drive dissociation of FNR from tether proteins), we hypothesise that this could correspond to upregulation of NADP+ reduction, on release of FNR from the tether proteins. However, it is also possible that the slow phase originates in light-dependent changes to downstream NADPH consumption processes, and it may be that secondary effects of FNR-FNR tether protein interactions also have an impact here. For example, this might particularly be the case for processes subject to thiol-regulation by cascades originating in the redox state of NADP(H) (Yoshida and Hisabori, 2016; Naranjo et al., 2016; Nikkanen et al., 2016; Hashida et al., 2018). Another possibility might be slow saturation of an NADPH-dependent electron sink, the most likely candidate being glutathione reductase (Foyer and Halliwell, 1976). However, we have found that, compared to the Wt, glutathione is in a more oxidised state in fnr1 plants (Kozuleva et al., 2016), which would not be consistent with the smaller contribution of the slow phase to NADP+ reduction kinetics in this genotype.

Examination of the two phases detected in fluorescent measurement of light-dependent NADP+ reduction.
Traces show NADPH fluorescence of dark adapted Arabidopsis chloroplasts measured over a short light exposure from 10 to 40 s. Traces are averages of five separate chloroplast preparations (wt), or representative of two separate experiments (broken chloroplasts and the nadp-mdh mutant, each of which is composed of an average of 15 separate measurements). Genotypes and treatment of chloroplasts are indicated on each graph. Chloroplasts were ruptured either by freeze thawing, or osmotic lysis with the same result. Black traces overlaying signals are fits (two components for reduction, one component for oxidation), calculated as described in Materials and methods.
Data availability
All data generated or analysed during this study are included in the manuscript and supporting files, except individual electron micrographs. Micrographs of chloroplasts that were analysed have been deposited at Dryad (https://doi.org/10.5061/dryad.7d7wm37rs) for full transparency. These are marked, to indicate the areas of the chloroplast analysed.
-
Dryad Digital RepositoryImmunogold labelling of chloroplasts.https://doi.org/10.5061/dryad.7d7wm37rs
References
-
Spatial organization of the cytochrome b6-f complex within chloroplast thylakoid membranesBiochimica Et Biophysica Acta (BBA) - Bioenergetics 849:94–103.https://doi.org/10.1016/0005-2728(86)90100-3
-
Cytochrome b 6 f complex: dynamic molecular organization, function and acclimationPhotosynthesis Research 34:341–357.https://doi.org/10.1007/BF00029810
-
Towards elucidation of dynamic structural changes of plant thylakoid architecturePhilosophical Transactions of the Royal Society B: Biological Sciences 367:3515–3524.https://doi.org/10.1098/rstb.2012.0373
-
Lateral heterogeneity in the distribution of chlorophyll-protein complexes of the thylakoid membranes of spinach chloroplastsBiochimica Et Biophysica Acta (BBA) - Bioenergetics 593:427–440.https://doi.org/10.1016/0005-2728(80)90078-X
-
Reductive modification and nonreductive activation of purified spinach chloroplast NADP-dependent glyceraldehyde-3-phosphate dehydrogenaseArchives of Biochemistry and Biophysics 324:201–208.https://doi.org/10.1006/abbi.1995.0031
-
Electrochromism: a useful probe to study algal photosynthesisPhotosynthesis Research 106:179–189.https://doi.org/10.1007/s11120-010-9579-z
-
Fitting linear Mixed-Effects models using lme4Journal of Statistical Software 67:1–48.https://doi.org/10.18637/jss.v067.i01
-
Cyclic photophosphorylation and electron transportBiochimica Et Biophysica Acta (BBA) - Bioenergetics 1229:23–38.https://doi.org/10.1016/0005-2728(94)00195-B
-
A new concept for ferredoxin-NADP(H) oxidoreductase binding to plant thylakoidsTrends in Plant Science 15:608–613.https://doi.org/10.1016/j.tplants.2010.08.008
-
Quantitative determination of ferredoxin, ferredoxin-NADP+ reductase and plastocyanin in spinach chloroplastsEuropean Journal of Biochemistry 83:137–141.https://doi.org/10.1111/j.1432-1033.1978.tb12077.x
-
Redox modulation of cyclic electron flow around photosystem I in C3 plantsBiochemistry 45:13465–13475.https://doi.org/10.1021/bi061439s
-
The labile interactions of cyclic electron flow effector proteinsJournal of Biological Chemistry 293:17559–17573.https://doi.org/10.1074/jbc.RA118.004475
-
PGR5 is required for efficient Q cycle in the cytochrome b6f complex during cyclic electron flowBiochemical Journal 477:1631–1650.https://doi.org/10.1042/BCJ20190914
-
Interaction of Ferredoxin-NADP oxidoreductase with the thylakoid membranePlant Physiology 69:210–213.https://doi.org/10.1104/pp.69.1.210
-
Granal stacking of thylakoid membranes in higher plant chloroplasts: the physicochemical forces at work and the functional consequences that ensuePhotochemical & Photobiological Sciences 4:1081–1090.https://doi.org/10.1039/b507310n
-
Photosystem I cyclic electron transport: measurement of ferredoxin-plastoquinone reductase activityPhotosynthesis Research 34:409–418.https://doi.org/10.1007/BF00029815
-
Regulation of photosynthetic cyclic electron flow pathways by adenylate status in higher plant chloroplastsBiochimica Et Biophysica Acta (BBA) - Bioenergetics 1860:148081.https://doi.org/10.1016/j.bbabio.2019.148081
-
Interaction of ferredoxin:nadp+ oxidoreductase with model membranesBiochimica Et Biophysica Acta (BBA) - Biomembranes 1778:133–142.https://doi.org/10.1016/j.bbamem.2007.09.028
-
Detailed characterization of Synechocystis PCC 6803 ferredoxin:nadp+ oxidoreductase interaction with model membranesBiochimica Et Biophysica Acta (BBA) - Biomembranes 1860:281–291.https://doi.org/10.1016/j.bbamem.2017.10.012
-
Expression of multiple forms of ferredoxin NADP+ oxidoreductase in wheat leavesJournal of Experimental Botany 58:3971–3985.https://doi.org/10.1093/jxb/erm252
-
Redox transfer across the inner chloroplast envelope membranePlant Physiology 95:1131–1137.https://doi.org/10.1104/pp.95.4.1131
-
Immunogold labeling in scanning electron microscopyHistochemistry and Cell Biology 106:31–39.https://doi.org/10.1007/BF02473200
-
Evidence for two cyclic photophosphorylation reactions concurrent with ferredoxin-catalyzed non-cyclic electron transportBiochimica Et Biophysica Acta (BBA) - Bioenergetics 808:21–31.https://doi.org/10.1016/0005-2728(85)90023-4
-
Tethering of ferredoxin:nadp+ oxidoreductase to thylakoid membranes is mediated by novel chloroplast protein TROLThe Plant Journal : For Cell and Molecular Biology 60:783–794.https://doi.org/10.1111/j.1365-313X.2009.03999.x
-
NADPH fluorescence in the Cyanobacterium synechocystis sp. PCC 6803: a versatile probe for in vivo measurements of rates, yields and poolsBiochimica Et Biophysica Acta (BBA) - Bioenergetics 1837:792–801.https://doi.org/10.1016/j.bbabio.2014.01.009
-
Saturation pulse method for assessment of energy conversion in PS IPAM Application Notes 1:11–14.
-
lmerTest Package: Tests in Linear Mixed Effects ModelsJournal of Statistical Software 82:1–26.https://doi.org/10.18637/jss.v082.i13
-
Light-induced changes of NADPH fluorescence in isolated chloroplasts: a spectral and fluorescence lifetime studyBiochimica Et Biophysica Acta 1460:311–329.https://doi.org/10.1016/s0005-2728(00)00198-5
-
Comparative analysis of leaf-type ferredoxin-NADP oxidoreductase isoforms in Arabidopsis thalianaThe Plant Journal : For Cell and Molecular Biology 57:1103–1115.https://doi.org/10.1111/j.1365-313X.2008.03753.x
-
Binding of ferredoxin NADP+ oxidoreductase (FNR) to plant photosystem IBiochimica Et Biophysica Acta (BBA) - Bioenergetics 1860:689–698.https://doi.org/10.1016/j.bbabio.2019.07.007
-
Removal of ferredoxin: NADP+ oxidoreductase from thylakoid membranes, rebinding to depleted membranes, and identification of the binding siteJournal of Biological Chemistry 261:12154–12158.https://doi.org/10.1016/S0021-9258(18)67216-3
-
Electron transport pathways in spinach chloroplasts. reduction of the primary acceptor of photosystem II by reduced nicotinamide adenine dinucleotide phosphate in the darkBiochimica Et Biophysica Acta (BBA) - Bioenergetics 547:127–137.https://doi.org/10.1016/0005-2728(79)90101-4
-
The protonmotive Q cycle: a general formulationFEBS Letters 59:137–139.https://doi.org/10.1016/0014-5793(75)80359-0
-
Elevated expression of PGR5 and NDH-H in bundle sheath chloroplasts in C4 Flaveria speciesPlant and Cell Physiology 51:664–668.https://doi.org/10.1093/pcp/pcq030
-
Co-localization of glyceraldehyde-3-phosphate dehydrogenase with ferredoxin-NADP reductase in pea leaf chloroplastsJournal of Structural Biology 161:18–30.https://doi.org/10.1016/j.jsb.2007.08.016
-
Crosstalk between chloroplast thioredoxin systems in regulation of photosynthesisPlant, Cell & Environment 39:1691–1705.https://doi.org/10.1111/pce.12718
-
The three-dimensional arrangement of intergranal lamellae in chloroplastsJournal of Cell Science 6:243–255.
-
NDH-1 and NDH-2 plastoquinone reductases in oxygenic photosynthesisAnnual Review of Plant Biology 67:55–80.https://doi.org/10.1146/annurev-arplant-043014-114752
-
SoftwareR: A language and environment for statistical computingR Foundation for Statistical Computing, Vienna, Austria.
-
How to analyze protein complexes by 2D blue native SDS-PAGEProteomics 7 Suppl 1:6–16.https://doi.org/10.1002/pmic.200700205
-
Malate valves to balance cellular energy supplyPhysiologia Plantarum 120:21–26.https://doi.org/10.1111/j.0031-9317.2004.0222.x
-
Immunolabeling artifacts and the need for live-cell imagingNature Methods 9:152–158.https://doi.org/10.1038/nmeth.1855
-
New NADPH/9-AA module for the DUAL-PAM-100: description, operation and examples of applicationPAM Application Notes 2:1–13.
-
Malate valves: old shuttles with new perspectivesPlant Biology 21 Suppl 1:21–30.https://doi.org/10.1111/plb.12869
-
The involvement of ferredoxin-NADP+ reductase in cyclic electron transport in chloroplastsBiochimica Et Biophysica Acta (BBA) - Bioenergetics 636:234–243.https://doi.org/10.1016/0005-2728(81)90097-9
-
Crystallization of Ferredoxin-Tpn reductase and its role in the photosynthetic apparatus of chloroplastsBiochemische Zeitschrift 338:84–96.
-
TIC62 redox-regulated translocon composition and dynamicsJournal of Biological Chemistry 283:6656–6667.https://doi.org/10.1074/jbc.M706719200
-
Redox regulation of the antimycin A sensitive pathway of cyclic electron flow around photosystem I in higher plant thylakoidsBiochimica Et Biophysica Acta (BBA) - Bioenergetics 1857:1–6.https://doi.org/10.1016/j.bbabio.2015.07.012
-
In situ association of calvin cycle enzymes, Ribulose-1,5-Bisphosphate carboxylase/Oxygenase activase, Ferredoxin-NADP+ reductase, and nitrite reductase with thylakoid and pyrenoid membranes of Chlamydomonas reinhardtii chloroplasts as revealed by immunoelectron microscopyPlant Physiology 107:1387–1397.https://doi.org/10.1104/pp.107.4.1387
-
Cyclic electron flow is redox-controlled but independent of state transitionNature Communications 4:1954.https://doi.org/10.1038/ncomms2954
-
In planta mutagenesis of src homology 3 domain-like fold of NdhS, a ferredoxin-binding subunit of the chloroplast NADH dehydrogenase-like complex in Arabidopsis: a conserved Arg-193 plays a critical role in ferredoxin bindingThe Journal of Biological Chemistry 288:36328–36337.https://doi.org/10.1074/jbc.M113.511584
-
The involvement of Ferredoxin-NADP reductase in the photosynthetic cyclic electron transportSheng Wu Hua Xue Yu Sheng Wu Wu Li Xue Bao Acta Biochimica Et Biophysica Sinica 29:40–45.
-
Ferredoxin:nadp+ oxidoreductase is a subunit of the chloroplast cytochrome b6f complexJournal of Biological Chemistry 276:38159–38165.https://doi.org/10.1074/jbc.M105454200
Decision letter
-
David M KramerReviewing Editor; Michigan State University, United States
-
Jürgen Kleine-VehnSenior Editor; University of Freiburg, Germany
-
Robert BurnapReviewer; Oklahoma State University, United States
In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.
Acceptance summary:
The work makes significant contribution to our understanding of photosynthesis, specifically in the reactions following transfer of electrons from photosystem I, and on how they are partitioned among downstream sinks (metabolic processes) and cyclic electron flow, an important process that has received relatively little experimental attention. The reviewers thought that the revised version has been substantially improved by more robust analyses and consideration of alternative interpretations of the results, setting up the field to directly test and validate the mechanisms.
Decision letter after peer review:
Thank you for submitting your article "Electron flow during photosynthesis is regulated by location of Ferredoxin:NADP(H) Oxidoreductase" for consideration by eLife. Your article has been reviewed by two peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Christian Hardtke as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Robert Burnap (Reviewer #2).
The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.
As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is 'in revision at eLife'. Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)
Summary:
This work describes significant, new results that help answer long-standing question about the roles of FNR in regulating the partitioning of electrons from photosystem I (PSI) into linear electron flow (LEF) and cyclic electron flow (CEF). Both reviewers felt that the work makes a strong contribution to a long-standing and perplexing area of photosynthesis research. One strength of the work is that it critically tests some of the past assumptions about how, or even if, this re-localization occurs, and comes to the provocative conclusion that much of the previous work needs to be re-evaluated, with important consequences for a number of models proposed in the literature. Specifically, the previously proposed soluble forms of FNR are shown to remain membrane-associated, but that the localization within different thylakoid domains is variable. They then perform a number of genetics and spectroscopic measurements that are interpreted to support a role for the changes in localization of FNR to regulating electron flow. However, both reviewers also concluded that there were substantial issues, in experimental interpretation and statistical analysis.
Essential revisions:
Both reviewers also concluded that there were substantial issues that must be addressed. Some of these issues may require some additional experimental work, but it is also possible that they can be dealt with by more rigorous analysis and interpretation of the results the group already has on hand. For example, it may be possible to deal with the reviewer #1's criticism of the interpretation of photosystem I absorbance signals, by reanalyzing the raw data.
However, other issues, e.g. the statistical analysis in Figure 4 brought up by both reviewers, appear to require additional experimental results, and this may delay resubmission.
Both reviewers recommended specific approached to most easily address these issues.
The discussion should be modified along the lines of the reviewers' comments to better reflect the strengths and weaknesses of the data sets and the current state of the field.
While it is understandable that one would as high impact a title as possible, it should not make declarations that are not supported by the paper itself.
Reviewer #1:
This manuscript revisits a long-standing, and quite mysterious, set of observations in which FNR1 and FNR2 appear can be differentially localized near the thylakoid membrane or in the stroma, possibly regulating the partitioning of electrons from photosystem I (PSI) into linear electron flow (LEF) and cyclic electron flow (CEF). What I like about the work is that it critically reviews some of the past assumptions about how, or even if, this re-localization occurs, and comes to the provocative conclusion that much of the previous work needs to be re-evaluated, with important consequences for a number of models proposed in the literature. Specifically, the previously proposed soluble forms of FNR are shown to remain membrane-associated, but that the localization within different thylakoid domains is variable. They then perform a number of genetics and spectroscopic measurements that are interpreted to support a role for the changes in localization of FNR to regulating electron flow.
While some of the work seems to be solid, there are serious experimental issues with three areas of photosynthetic measurements and their interpretation.
Critical science issues:
The interpretation of the data in Figure 4 is likely to be over simplistic, or at the very least, there are multiple interpretations that lead to different conclusions.
The test interprets the fast and slow rise phases as reflecting more rapidly or more slowly interacting FNR/NADPH pools, as in the following: "We therefore propose that the slow component reflects relocation of FNR from tightly bound tether locations to weak associations elsewhere on the thylakoid."
However, this seems unlikely considering the slow time scale of the slow phases. More likely explanations include the following:
1) It is also possible that the system is heterogeneous, so that different subpopulations of chloroplasts or pools within chloroplasts behave differently. For instance, the presence of a fraction of broken or damaged chloroplasts could give rise to a slow NADP+ reduction phase;
2) Reduction of other electron carriers, including NADH which would also contribute to blue fluorescence, or bound NAD(P)H which has been reported to have a higher fluorescence yield than their free forms;
3) The slow rise represents is controlled by downstream re-oxidation of previously reduced NADPH. The immediate rise in fluorescence is, indeed, consistent with a model in which a local pool of NADPH goes rapidly reduced when the light is switched on. In this case, The slow rise may reflect NADPH further net reduction of NADPH, but not because of low accessibility of FNR/NADP+ but rather changes in the reoxidation of reduced NADPH. In this case, in initial extent of NADPH reduction is set by competition between reduction and re-oxidation, and the slow rise is caused by either increased in reduction or decreases in re-oxidation. For example, there may be a pool of oxidant for NADPH that is slowly reduced during the slow phase. Or, a local pool of O2 could be depleted during the slow rise time.
The complex, multiphasic decay kinetics in the dark seem to be consistent with this type of model. For example, there are clearly fast phases of decay in fnr1 and fnr1 ZmFNR2 that are not fit to the "simple second order kinetics" model used in the manuscript. (Indeed, there is no strong rationale for using simple second-order kinetics, which assumes that the system is homogeneous but with limiting concentrations of two substrates.) This simple second order model cannot account for the rapid decay phases (see above). For instance, it is possible that a very rapid re-oxidation process would introduce a quite rapid decay phase that, even if small in amplitude, would constitute a large fraction of the flux. Indeed, the kinetics are quite complex and thus simple second order behavior is likely to be an oversimplification. This may also explain the improved fits when modulating the ad hoc Hill cooperativity term.
“We then determined that these differences in NADP(H) kinetics are not due to secondary impact on other PET chain components, by examining abundance of proteins that could impact photosynthetic electron transport or NADP(H) poise (Figure 4—figure supplement 1). We found no differences that correlate to those in NADP(H) reduction and oxidation kinetics.”
This is not a very strong argument. Even with equal content there could be different activities or locations of other enzymes, as is inferred from the other arguments in the manuscript.
"In both cases this yields a linear relationship. It is reported that FNR interactions with Tic62 and TROL are weakened by exposure to light (Alte et al., 2010, Benz et al., 2009)."
The lack of statistical treatment in this data set is troubling. In Figure 4, the error bars shown in bar graphs are apparently not related to biological or even technical replicates, but to "fitting errors", presumably from a single trace. This issue extends into Figure 5, so it is not possible to conclude that there is a linear relationship or not. The apparent linearity is mostly due to a single point, fnr1, and removing this point would suggest that the relationship is quite different, perhaps an exponential rise or no statistically significant relationship at all.
As described previously for pea 235 chloroplasts (Schreiber and Klughammer, 2009) and Arabidopsis (Hanke et al., 2008), 9 isolated chloroplasts show distinct components of NADP+ 236 reduction.
"We then assessed the impact of FNR location on photosynthetic electron transport…"
This part of the text makes a rather big leap in inferences from a hypothetical interpretation of blue fluorescence kinetics to the location of the FNR…
“In order to differentiate LEF from CEF, we compared white light illumination (stimulation of both PSI and PSII, and therefore CEF + LEF), with far red light illumination (PSI excitation only, and therefore CEF only).”
This is clearly incorrect. While far red light preferentially excites PSI, it does not exclusively do so, and thus it is not possible to attribute all electron transport or associated signals to CEF under far red light. Also, the previous observation of high CEF during the first 20 s of illumination with light hitting both PSI and PSII were attributed to metabolic or physiological effects of the induction of downstream metabolic processes. It is not at all clear if the same would be true with far red light, nor that it would be comparable in the mutant lines.
"Unexpectedly, after dark adaptation the fnr1 mutant, which theoretically has lower Fd oxidation capacity, shows lower acceptor limitation than the other genotypes."
There are several potential issues with these results.
No references are given to the methods.
The predominant method for making these types of measurements will likely not work in these types of mutants and conditions. Neither the text nor the Materials and methods supply sufficient information to determine important aspects of the experiment, nor are representative traces given, so it is not possible to determine if this is the case.
It is important to show the kinetics of the P700 signals because with strong PSI acceptor limitations a strong pulse of actinic light can result in rapid accumulation of electrons on PSI acceptors, preventing one from determining the real amplitude of Pm or Pm'. In many cases, application of far red light minimized this issue, but in the case of fnr1, in which the capacity for oxidation of Fd is constitutively low, it is quite likely that this will not help. Underestimating Pm should artifactually decrease Y(NA).
The best way to determine if these issues impact the results is to show the raw traces and look for the transient behavior of the P700+ signal.
"The non-photochemical quenching parameters for PSI were calculated with Y(ND) = 1-P700 red. and Y(NA) = (Pm-Pm') / Pm. The effective PSI quantum yield was calculated with Y(I) = 1-Y(ND)-Y(NA). NPQ was calculated by the DUAL-PAM-100 software."
These are not "non-photochemical quenching" parameters, but relative changes in redox states.
"Chloroplasts switch rapidly between LEF and CEF..". One of the best demonstration of the rapid rates of switching between LEF and CEF is Luker et al., who showed it was rapid indeed, on the order of tens of seconds. How can changing the localization of FNR and its interactions with the thylakoid membrane respond this quickly?
Reviewer #2:
This is a strong contribution that analyzes the correlation between the distribution of FNR alone sections of the chloroplast and the characteristics of cyclic electron flow. The topic addresses important controversial question about how cyclic electron transport is transiently upregulated and them down regulated during the dark light transition ---- a brief period when excess light energy cannot yet be adequately utilized because the time it takes to activate the carbon fixation reactions of the Calvin-Benson-Bassham cycle. Significance also relates to The fact that similar regulatory features are probably necessary for the protection stabilization of the photosynthetic mechanism in fluctuating environmental conditions. Therefore, I rate the overall significance this manuscript as high.
Technically, this appears to be a well-executed set of wisely chosen experiments. There are some grammatical issues, but overall the manuscript is clearly written with interesting discussions. Apart from some clarifications on the interpretation of the kinetics, I find no serious glitches in this article and offer only a few minor additional suggestions:
It would be a good idea to briefly define what control coefficient means since this aspect of metabolic theory is not so widely studied, despite its importance.
Results paragraph seven (this paragraph and next):
This discussion would benefit from some re-working to clarify. After finishing the Discussion I can see what they were after, but the initial description of the kinetic features needs clarification. Later on a graphical model would also help.
Figure 4 is fit with two components, yet the discussion would seem to imply a third sequential component that needs to be accounted for in the fit. If the strongly bound form is not simply "less efficient", but essentially inactive, then slow component refers to the time of diffusion and (or release assuming very fast diffusion). In that case, the third component could be essentially invisible, if the proposed diffusional excursion ends with much faster process. Intermediate situations would be a more complex situation and I think it would probably appear as a more sigmoidal characteristic of the slow phase as those mobilized convert to faster activity. Don't know if this makes sense, but definitely the authors need to better express their ideas in the context of a model.
I think this is not a change in efficiency but the existence of two parallel reactions with different efficiencies (see above).
The authors should consider the recent finding that the NADH-1 complex appears not to use NADPH, but Fd which would be in line with their interpretation.
[Editors' note: further revisions were suggested prior to acceptance, as described below.]
Thank you for resubmitting your work entitled "Regulation of photosynthetic electron flow on dark to light transition by Ferredoxin:NADP(H) Oxidoreductase interactions" for further consideration by eLife. Your revised article has been evaluated by Christian Hardtke (Senior Editor) and a Reviewing Editor.
The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:
Essential revisions:
The reviewers judged that the current revisions corrected most of the issues, mainly by eliminating some areas of over-interpretation and narrowing the focus of the discuss. However, some important problems remain, especially regarding the interpretation of the NADPH florescence kinetics. As brought up by reviewer #1 in the first review, and further expanded on be reviewer #2 in the second review, the biphasic characteristics of the fluorescence rise can have multiple interpretations, and this issue has not been addressed in the revised text, which still sticks to an over-simplistic interpretation and the text needs to introduce other possible interpretations especially because the data presented thus far cannot exclude them. The reviewer and editor feel that an acknowledgement and full discussion of these possibilities is not only essential for the science, it will strengthen the paper substantially.
The paper may be acceptable for publication if this, and the smaller issues brought up by Reviewer #2, can be addressed. In particular, the revision must address the inaccurate interpretation of the Kauny/Setif reference and discuss possible alternative interpretations of the fast and slow phases of the NADPH kinetics.
Reviewer #2
Although the regulation of cyclic electron flow (CEF) in plant chloroplasts has been clearly demonstrated, its mechanism has yet to be established. The present work investigates the hypothesis that regulation of CEF is exerted via the re-positioning of ferredoxin-NADP reductase (FNR) to different places on the thlyakoid. The work begins with an immunogold electron microscopic analysis of the distribution of FNR in chloroplast of several Arabidopsis mutants that have previously shown to have different associations with the thylakoids, though interestingly, all forms appear to be associated with the thylakoid and none free in the stroma. Correlations between the distribution of FNR and the characteristics of CEF was then anlayzed using multiple approaches, and although some assays were not necessarily unambiguous, overall the data presents a reasonably compelling argument that FNR re-positioning underlies the observed switching in the intensity of CEF, at least during the dark-light transition.
By and large the questions have been mostly addressed, however some problems remain regarding the NADPH florescence kinetics, specifically their biphasic characteristics of their rise. The authors still have not excluded other downstream processes as being responsible for the slow phase. These can be slowly changing fast rates of redox sinks. In other words, these can be relatively fast NADPH consumption process (very fast relative to the times scales of the experiment), but their rates can be slowly changing. The argument post about the lack of biphasicity cyanobacteria (Kauny/Setif reference) is not accurate: although clearly different kinetics, with different shapes are involved in cyanobacteria, the slower phases are clearly visible and actually correlate to things like state transitions and the activation of the Calvin cycle. Accordingly, processes downstream of PSET (but interacting due to back-propagation effects) seem to be responsible for these multi second kinetic features. Since thee are intact chloroplasts, it is clearly possible such effects are present in the current experiments. Thus the argument based on measuring the abundance of electron transport chain components is not sufficient to strongly argue against the dominance of downstream processes in governing the slower phase. This needs to be clearly articulated in the main results text as well as in discussion. That said, the hypothesis that relocation accounts for these phases is not excluded either and altogether the interpretations seem to hold together. Nevertheless, the cited weakness needs to temper the strength of the arguments.
https://doi.org/10.7554/eLife.56088.sa1Author response
Essential revisions:
Both reviewers also concluded that there were substantial issues that must be addressed. Some of these issues may require some additional experimental work, but it is also possible that they can be dealt with by more rigorous analysis and interpretation of the results the group already has on hand. For example, it may be possible to deal with the reviewer #1's criticism of the interpretation of photosystem I absorbance signals, by reanalyzing the raw data.
However, other issues, e.g. the statistical analysis in Figure 4 brought up by both reviewers, appear to require additional experimental results, and this may delay resubmission.
We have now completed this experimental work, which is presented in a new Figure 4 and Appendix 1—figure 1.
Both reviewers recommended specific approached to most easily address these issues.
The discussion should be modified along the lines of the reviewers' comments to better reflect the strengths and weaknesses of the data sets and the current state of the field.
The discussion has been modified according to the reviewers recommendations.
While it is understandable that one would as high impact a title as possible, it should not make declarations that are not supported by the paper itself.
The title has been modified to more specifically reflect the findings in the paper.
Reviewer #1:
This manuscript revisits a long-standing, and quite mysterious, set of observations in which FNR1 and FNR2 appear can be differentially localized near the thylakoid membrane or in the stroma, possibly regulating the partitioning of electrons from photosystem I (PSI) into linear electron flow (LEF) and cyclic electron flow (CEF). What I like about the work is that it critically reviews some of the past assumptions about how, or even if, this re-localization occurs, and comes to the provocative conclusion that much of the previous work needs to be re-evaluated, with important consequences for a number of models proposed in the literature. Specifically, the previously proposed soluble forms of FNR are shown to remain membrane-associated, but that the localization within different thylakoid domains is variable. They then perform a number of genetics and spectroscopic measurements that are interpreted to support a role for the changes in localization of FNR to regulating electron flow.
While some of the work seems to be solid, there are serious experimental issues with three areas of photosynthetic measurements and their interpretation.
Critical science issues:
The interpretation of the data in Figure 4 is likely to be over simplistic, or at the very least, there are multiple interpretations that lead to different conclusions.
We thank the reviewer for pushing us toward a more rigorous analysis. Chloroplast preparations can be highly variable depending on growth conditions, etc. We repeated the experiment several times, even in different laboratories prior to our first submission, always finding the same basic trends (principally the absence or small contribution of the slow phase in the fnr1 mutant). Because of the variation between experiments performed on different days and in different labs, we selected a representative dataset (with the clearest signal) for fitting. We have now repeated the experiment a further 3-6 times for each genotype with plants grown in identical conditions to obtain robust averages, and performed statistical analysis, showing that differences between genotypes are not random. We present these data as a new Figure 4. Several of the phenomena we described in the previous submission are not visible in the individual replicates and are therefore not statistically significant when averaged. These are therefore no longer discussed, and the text has been amended accordingly.
The test interprets the fast and slow rise phases as reflecting more rapidly or more slowly interacting FNR/NADPH pools, as in the following: "We therefore propose that the slow component reflects relocation of FNR from tightly bound tether locations to weak associations elsewhere on the thylakoid."
However, this seems unlikely considering the slow time scale of the slow phases. More likely explanations include the following:
We agree that all the suggestions raised by the reviewer are possible, and that it is important to consider them. However, with respect to reviewer 1 we still believe that our suggestion is (at present) more likely for the reasons stated in the answers to individual points below. We have included a new section (Appendix 1). detailing further characterisation of the NADP+ reduction kinetics to test the hypotheses presented by the reviewer to explain the presence of these two phases.
1) It is also possible that the system is heterogeneous, so that different subpopulations of chloroplasts or pools within chloroplasts behave differently. For instance, the presence of a fraction of broken or damaged chloroplasts could give rise to a slow NADP+ reduction phase;
All chloroplast preparations are by their nature heterogeneous, and we mention in the text that this is a reason for not comparing total amplitudes. We have performed the experiment with deliberately ruptured chloroplasts (Appendix 1—figure 1) which show a considerably lower light dependent signal, greater noise and the absence of the slow kinetic phase. As we now write in the text (Appendix 1), we think that the reason for the residual light dependent activity is that a considerable proportion of chloroplast NADP(H) is thought to be bound to the FNR enzyme (Latouche et al., 2000), and therefore can be reduced effectively even in a ruptured chloroplast system. This experiment does establish that the slow phase of kinetics is dependent on intact chloroplasts.
On the other hand we certainly agree with the reviewer that different pools of NADP(H) within chloroplasts may behave differently.
2) Reduction of other electron carriers, including NADH which would also contribute to blue fluorescence, or bound NAD(P)H which has been reported to have a higher fluorescence yield than their free forms;
Indeed, protein bound NADPH has a higher fluorescence than NADPH free in solution (L.N.M Duysens, G.H.M Kronenberg (1957) BBA, 26: 437-438; T.G Scott, R.D Spencer, N.L Leonard, G Weber (1970) JACS, 92:687-695), and so we initially thought that the slow phase we measure might be due to slow association of NADPH with enzymes. FNR binds a considerable proportion of free NADP+ (Latouche et al., 2000) and it could therefore be that the decreased FNR abundance in the fnr1 mutant might be related to the decreased amplitude of the slow phase. However, heterologous expression of ZmFNR3 in the fnr1 mutant yields Wt levels of FNR, but still fails to rescue the amplitude of this slow phase, suggesting that FNR location, rather than abundance is responsible. This is in line with the findings of Latouche et al. (2000), who conclude that neither protein binding, nor flavins within enzymes (an important consideration when using plants with variable FNR content) contribute to light dependent NADPH fluorescence in isolated chloroplasts after extensive characterisation of the technique, as we now discuss in Appendix 1.
On conducting these experiments we assumed negligible contribution of NADH to the fluorescence, based on the undetectably low NADH levels reported in illuminated, isolated chloroplasts by (Heineke et al., 1991, Plant Physiology 95, 1131). However, since our intial submission, there has been a report that, based on expression of NADPH and NADH responsive fluorescent proteins in cytosol and stroma, NADH levels do indeed rise in the stroma at the onset of light (Lim et al., Nat Comm 11, 3238). FNR affinity for NAD(H) is extremely low (Piubelli et al., 2000) and no enzyme capable of light dependent reduction of NAD+ has yet been identified. NADPH dependent reduction of NAD+ is possible, as suggested by Lim et al. (2020) and we have tested this in the following way. The dominant pathway for NADPH/NADH interconversion is an internal chloroplast OAA/malate shuttle, comprising NADP(H) malate dehydrogenase and NAD(H) malate dehydrogenase (both present in the chloroplast, see Selinsky and Scheibe 2018). Thiol upregulation of NADP-MDH over a similar time scale as the development of the slow phase makes this a good candidate. We therefore repeated our NADP(H) kinetics experiment with a T-DNA knock out of this enzyme (nadp-mdh), of which an example trace is shown in Appendix 1—figure 1. If light dependent NAD+ reduction is contributing to the fluorescence seen in our measurement, then this mutant should show significant perturbation in the kinetics, but instead it shows a nearly identical kinetic pattern to the Wt. This is now discussed in Appendix 1. In our opinion, this means a contribution of NADH to the light dependent kinetics in our chloroplast preparations is unlikely.
3) The slow rise represents is controlled by downstream re-oxidation of previously reduced NADPH. The immediate rise in fluorescence is, indeed, consistent with a model in which a local pool of NADPH goes rapidly reduced when the light is switched on. In this case, The slow rise may reflect NADPH further net reduction of NADPH, but not because of low accessibility of FNR/NADP+ but rather changes in the reoxidation of reduced NADPH. In this case, in initial extent of NADPH reduction is set by competition between reduction and re-oxidation, and the slow rise is caused by either increased in reduction or decreases in re-oxidation. For example, there may be a pool of oxidant for NADPH that is slowly reduced during the slow phase. Or, a local pool of O2 could be depleted during the slow rise time.
If we interpret this comment correctly, the reviewer suggests that the slow phase in Figure 4 could be due to an increase in the rate of NADP+ reduction, or a decrease in the rate NADPH oxidation over the “slow phase”. In the first case – this is consistent with what we are suggesting in the paper. We now provide 2 models (Figure 6—figure supplement 1) showing possible ways that NADP+ reduction activity and CEF might change according to FNR location over the dark to light transition. We base these models on the fact that the slow phase amplitude correlates with genotypes that have strong FNR: membrane interaction, and that in Wt these interactions are reported to be disrupted in the light (Benz et al., 2009) and at pH values expected in the stroma during the light (Alte et al., 2010).
In the second case, it is possible that, as the reviewer suggests, there could be a decrease in the rate of NADPH consumption. We now mention this in Appendix 1. The reviewer suggests as an example the oxidation of a localised pool of O2. Although it is hard to understand how this would correlate with tight binding of FNR to Tic62/TROL tethers, we have considered that it could be due to slow saturation of glutathione reduction (by NADPH dependent glutathione reductase), which would be indirectly connected to O2 reduction. However, in previous work we found that under illumination the glutathione pool of the fnr1 mutant is actually more oxidised than that of the Wt (Kozuleva et al., 2016), which would be at odds with the smaller contribution of the slow phase seen in this mutant in Figure 4. As the data we present in Figure 4 are averages of repetitive measurements on isolated chloroplasts, it is unlikely that it represents exhaustion of a metabolite resulting in a decrease in NADPH oxidation.
Finally, the slow phase seen in our (and other) chloroplast preparations is absent from NADPH fluorescence measurements on cyanobacteria (Kauny and Setif, 2014). In cyanobacteria, FNR is permanently bound to the thylakoid by a phycobilisome linker peptide (Korn et al. 2009, JBC 284, 31789), so movement between complexes / locations is not likely. This indicates that the slow phase of NADP+ reduction is either related to a specific property of higher plant FNR (such as interaction with the Tic62/TROL membrane tethers and various other complexes) or chloroplast specific metabolism. This is now also discussed in Appendix 1. We accept that our explanation that the slow phase may be due to FNR dissociating from one complex and re-associating with another (as previously suggested by Johnson and Joliot, among others) could prove to be wrong, but based on current evidence it seems the most likely explanation in our opinion.
The complex, multiphasic decay kinetics in the dark seem to be consistent with this type of model. For example, there are clearly fast phases of decay in fnr1 and fnr1 ZmFNR2 that are not fit to the "simple second order kinetics" model used in the manuscript. (Indeed, there is no strong rationale for using simple second-order kinetics, which assumes that the system is homogeneous but with limiting concentrations of two substrates.) This simple second order model cannot account for the rapid decay phases (see above). For instance, it is possible that a very rapid re-oxidation process would introduce a quite rapid decay phase that, even if small in amplitude, would constitute a large fraction of the flux. Indeed, the kinetics are quite complex and thus simple second order behavior is likely to be an oversimplification. This may also explain the improved fits when modulating the ad hoc Hill cooperativity term.
The differences in NADPH oxidation could not be clearly discerned in all the individual chloroplast preparations, and so we have removed this analysis and any discussion of it from the text. Regarding the Hill coefficient, we acknowledge that the fitting is purely phenomenological and we make no attempt to fit a physical model to the data – it is simply used to obtain some useful characterization of the kinetics. The parameters probably have little physical meaning in and of themselves but in a relative sense they are informative. We chose a Hill type function because neither mono- nor bi-exponential functions provided a reasonable fit. Adding further exponentials would probably improve the fit of the data, but also run the danger of over-fitting.
“We then determined that these differences in NADP(H) kinetics are not due to secondary impact on other PET chain components, by examining abundance of proteins that could impact photosynthetic electron transport or NADP(H) poise (Figure 4—figure supplement 1). We found no differences that correlate to those in NADP(H) reduction and oxidation kinetics.”
This is not a very strong argument. Even with equal content there could be different activities or locations of other enzymes, as is inferred from the other arguments in the manuscript.
The reviewer is right, there could be variation in PET regulation between the genotypes, but establishing that the transgenic approach used has not resulted in changes to the abundance of relevant proteins is a first step to eliminating pleiotropic effects as a factor. If there are regulatory differences, it is more likely that they are at least a response to different FNR activity / location (such as the redox state of Fd or NADP(H)), which we do mention in the text, as pointed out by the reviewer. Nevertheless, we have now changed the text to clarify that protein content does not always equate to activity.
"In both cases this yields a linear relationship. It is reported that FNR interactions with Tic62 and TROL are weakened by exposure to light (Alte et al., 2010, 262 Benz et al., 2009)."
The lack of statistical treatment in this data set is troubling. In Figure 4, the error bars shown in bar graphs are apparently not related to biological or even technical replicates, but to "fitting errors", presumably from a single trace. This issue extends into Figure 5, so it is not possible to conclude that there is a linear relationship or not. The apparent linearity is mostly due to a single point, fnr1, and removing this point would suggest that the relationship is quite different, perhaps an exponential rise or no statistically significant relationship at all. Overall, even though we
Data from our multiple chloroplast preps was not consistent enough for us to draw these conclusions, and so we have removed the former Figure 5, and discussion of it.
As described previously for pea 235 chloroplasts (Schreiber and Klughammer, 2009) and Arabidopsis (Hanke et al., 2008), 9 isolated chloroplasts show distinct components of NADP+ 236 reduction.
"We then assessed the impact of FNR location on photosynthetic electron transport…"
This part of the text makes a rather big leap in inferences from a hypothetical interpretation of blue fluorescence kinetics to the location of the FNR…
If the reviewers is suggesting that the hypothesis that FNR is relocated within the chloroplast is too big a leap, it has previously been proposed in published, peer reviewed work (Joliot and Johnson, 2011). Given the topic of our studies this published hypothesis cannot be easily ignored. This is even more the case given the correlation between NADP(H) fluorescence and FNR location seen when analysing the plants used in this work. The hypothesis is then tested in the experiment shown in Figure 6 later in the manuscript.
“In order to differentiate LEF from CEF, we compared white light illumination (stimulation of both PSI and PSII, and therefore CEF + LEF), with far red light illumination (PSI excitation only, and therefore CEF only).”
This is clearly incorrect. While far red light preferentially excites PSI, it does not exclusively do so, and thus it is not possible to attribute all electron transport or associated signals to CEF under far red light. Also, the previous observation of high CEF during the first 20 s of illumination with light hitting both PSI and PSII were attributed to metabolic or physiological effects of the induction of downstream metabolic processes. It is not at all clear if the same would be true with far red light, nor that it would be comparable in the mutant lines.
We draw the reviewers attention to Figure 5—figure supplement 1, showing the same trend (although with high variation) when using DCMU rather than far red light to differentially stimulate PSII. In addition, as stated in the text (Materials and methods and legend of Figure 5) the illumination period was not under far red light, but actinic light, ensuring that the two treatments are equivalent. The only time far red light is used is for a 20 second period before the ECS measurement. We have modified the text to clarify this further. We do not suggest that any downstream effects are induced during the 20 s illumination, the function of which is to stimulate maximum activity of either both photosystems (actinic light) or preferentially stimulate PSI (far red light). It has previously been published that CEF can be equally assessed from ECS with far red light (as in our work), or Post Illumination Fluorescence Transients (PIFT) (Suorsa et al. (2016). Molecular plant, 9, 271-288).
"Unexpectedly, after dark adaptation the fnr1 mutant, which theoretically has lower Fd oxidation capacity, shows lower acceptor limitation than the other genotypes."
There are several potential issues with these results.
No references are given to the methods.
We have expanded the text in the Materials and methods to explain the methods in more detail, and referenced the Dual-PAM handbook, from where all calculations are taken, rather than setting out the calculations themselves.
The predominant method for making these types of measurements will likely not work in these types of mutants and conditions. Neither the text nor the Materials and methods supply sufficient information to determine important aspects of the experiment, nor are representative traces given, so it is not possible to determine if this is the case.
We have now cited the source of the calculations, and provided more information about the treatment conditions. We draw the reviewers attention to the representative P700 traces given in Figure 5—figure supplement 2. This was previously mentioned only in the figure legends, but we have now also mentioned it in the Materials and methods to make this clearer.
It is important to show the kinetics of the P700 signals because with strong PSI acceptor limitations a strong pulse of actinic light can result in rapid accumulation of electrons on PSI acceptors, preventing one from determining the real amplitude of Pm or Pm'. In many cases, application of far red light minimized this issue, but in the case of fnr1, in which the capacity for oxidation of Fd is constitutively low, it is quite likely that this will not help. Underestimating Pm should artifactually decrease Y(NA).
We did indeed check that our data were not due to underestimation of Pm, but did not include this data in the original manuscript. These are now supplied as a table in Supplementary file 2f, and show a small (but not significant) decrease in the original Pm measurement for the fnr1 mutant, indicating that this is not a significant problem in our measurement. This is now mentioned in the text. In addition, it should be pointed out that following light adaptation, the Y(NA) value of the fnr1 mutant becomes significantly higher (about 200%) than that of other genotypes (Figure 5), implying that the lower value seen after dark adaptation is not an underestimation.
The best way to determine if these issues impact the results is to show the raw traces and look for the transient behavior of the P700+ signal.
See earlier comment above about Figure 5—figure supplement 2.
"The non-photochemical quenching parameters for PSI were calculated with Y(ND) = 1-P700 red. and Y(NA) = (Pm-Pm') / Pm. The effective PSI quantum yield was calculated with Y(I) = 1-Y(ND)-Y(NA). NPQ was calculated by the DUAL-PAM-100 software."
These are not "non-photochemical quenching" parameters, but relative changes in redox states.
This typo has been removed, along with this section of text, which has been replaced by a reference. Many thanks for drawing our attention to it.
"Chloroplasts switch rapidly between LEF and CEF..". One of the best demonstration of the rapid rates of switching between LEF and CEF is Luker et al., who showed it was rapid indeed, on the order of tens of seconds. How can changing the localization of FNR and its interactions with the thylakoid membrane respond this quickly?
We think that FNR relocation is definitely not the only mechanism of regulating CEF/LEF pathways, and probably not the dominant one – especially in high light. It is therefore hard to speculate about which CEF pathway is being measured in the work by Luker et al. based on our findings. However, we can elaborate on the suggestion we make in the discussion: FNR interactions with TROL and Tic62 tethers are subject to pH regulation (Alte et al., 2010), weakening as pH rises in the stroma. The change in Δ pH at the onset of light happens on the timescale of seconds or tens of seconds, providing a possible prompt for FNR release. In terms of association with (presumably) PSI and antennae (as shown by Marco et al., 2019), nothing is known about regulation, but given the failure to detect it in blue native gels it must be weaker than with TROL or Tic62. In the absence of other evidence to date, our assumption is that this interaction takes place by default on release from Tic62/TROL on a timescale of tens of seconds. We hope to examine this in future work.
Reviewer #2:
This is a strong contribution that analyzes the correlation between the distribution of FNR alone sections of the chloroplast and the characteristics of cyclic electron flow. The topic addresses important controversial question about how cyclic electron transport is transiently upregulated and them down regulated during the dark light transition ---- a brief period when excess light energy cannot yet be adequately utilized because the time it takes to activate the carbon fixation reactions of the Calvin-Benson-Bassham cycle. Significance also relates to The fact that similar regulatory features are probably necessary for the protection stabilization of the photosynthetic mechanism in fluctuating environmental conditions. Therefore, I rate the overall significance this manuscript as high.
Technically, this appears to be a well-executed set of wisely chosen experiments. There are some grammatical issues, but overall the manuscript is clearly written with interesting discussions. Apart from some clarifications on the interpretation of the kinetics, I find no serious glitches in this article and offer only a few minor additional suggestions:
It would be a good idea to briefly define what control coefficient means since this aspect of metabolic theory is not so widely studied, despite its importance.
We have included a definition in the text.
Results paragraph seven (this paragraph and next):
This discussion would benefit from some re-working to clarify. After finishing the Discussion I can see what they were after, but the initial description of the kinetic features needs clarification. Later on a graphical model would also help.
The paragraph, and a section of the discussion have been re-written to try and improve clarity. We are reluctant to include a model as a main figure, as we believe this is still quite speculative, but we now present two possible alternative graphical models as an additional Figure in Figure 6—figure supplement 1.
Figure 4 is fit with two components, yet the discussion would seem to imply a third sequential component that needs to be accounted for in the fit. If the strongly bound form is not simply "less efficient", but essentially inactive, then slow component refers to the time of diffusion and (or release assuming very fast diffusion). In that case, the third component could be essentially invisible, if the proposed diffusional excursion ends with much faster process. Intermediate situations would be a more complex situation and I think it would probably appear as a more sigmoidal characteristic of the slow phase as those mobilized convert to faster activity. Don't know if this makes sense, but definitely the authors need to better express their ideas in the context of a model.
This is an excellent point, and we thank the reviewer for the insightful comment. We have amended the text about dissociation, and removed the speculation about weak associations from the Results section, and now integrate it into the Discussion, amended to try and better express that i) dissociation, diffusion and association could be expected to contribute 3 distinct components, ii) that one of these components is either silent (possibly because of inactivation on binding), or too fast to be detected.
I think this is not a change in efficiency but the existence of two parallel reactions with different efficiencies (see above).
We agree with the reviewer that this is highly likely, and we have amended the text to simply state that the slowly increasing phase of NADP+ reduction kinetics (rather than any change in enzymatic efficiency) is on the same time scale. In addition, this possibility is presented in Figure 6—figure supplement 1.
The authors should consider the recent finding that the NADH-1 complex appears not to use NADPH, but Fd which would be in line with their interpretation.
We have now incorporated this information.
[Editors' note: further revisions were suggested prior to acceptance, as described below.]
Essential revisions:
The reviewers judged that the current revisions corrected most of the issues, mainly by eliminating some areas of over-interpretation and narrowing the focus of the discuss. However, some important problems remain, especially regarding the interpretation of the NADPH florescence kinetics. As brought up by reviewer #1 in the first review, and further expanded on be reviewer #2 in the second review, the biphasic characteristics of the fluorescence rise can have multiple interpretations, and this issue has not been addressed in the revised text, which still sticks to an over-simplistic interpretation and the text needs to introduce other possible interpretations especially because the data presented thus far cannot exclude them. The reviewer and editor feel that an acknowledgement and full discussion of these possibilities is not only essential for the science, it will strengthen the paper substantially.
The paper may be acceptable for publication if this, and the smaller issues brought up by reviewer #2, can be addressed. In particular, the revision must address the inaccurate interpretation of the Kauny/Setif reference and discuss possible alternative interpretations of the fast and slow phases of the NADPH kinetics.
This comparison with cyanobacteria is no longer made. We have included new paragraphs discussing other interpretations of the slow phase of NADPH kinetics in the results, discussion and Appendix. Moreover, we have removed the final paragraph of the Discussion to temper the argument.
Reviewer #2
By and large the questions have been mostly addressed, however some problems remain regarding the NADPH florescence kinetics, specifically their biphasic characteristics of their rise. The authors still have not excluded other downstream processes as being responsible for the slow phase. These can be slowly changing fast rates of redox sinks. In other words, these can be relatively fast NADPH consumption process (very fast relative to the times scales of the experiment), but their rates can be slowly changing. The argument post about the lack of biphasicity cyanobacteria (Kauny/Setif reference) is not accurate: although clearly different kinetics, with different shapes are involved in cyanobacteria, the slower phases are clearly visible and actually correlate to things like state transitions and the activation of the Calvin cycle. Accordingly, processes downstream of PSET (but interacting due to back-propagation effects) seem to be responsible for these multi second kinetic features.
The discussion of cyanobacterial NADP(H) kinetics has been removed from the Appendix text.
Since there are intact chloroplasts, it is clearly possible such effects are present in the current experiments. Thus the argument based on measuring the abundance of electron transport chain components is not sufficient to strongly argue against the dominance of downstream processes in governing the slower phase. This needs to be clearly articulated in the main results text as well as in discussion. That said, the hypothesis that relocation accounts for these phases is not excluded either and altogether the interpretations seem to hold together. Nevertheless, the cited weakness needs to temper the strength of the arguments.
We agree, and on reflection this should have been spelled out more clearly in the text. We have now introduced this possibility in the Results section, and expanded on it in more detail in the discussion and Appendix 1.
https://doi.org/10.7554/eLife.56088.sa2Article and author information
Author details
Funding
Deutsche Forschungsgemeinschaft (SFB944 project 2)
- Manuela Kramer
- Guy Thomas Hanke
Biotechnology and Biological Sciences Research Council (BB/R004838/1)
- Guy Thomas Hanke
University Grenoble Alps (ANR-10-LABX-49-01)
- Giovanni Finazzi
H2020 European Research Council (833184)
- Giovanni Finazzi
LabEx Saclay Plant Sciences-SPS (ANR-10-LABX-0040-SPS)
- Anja Krieger-Liszkay
French Infrastructure for Integrated Structural Biology (ANR-10-INSB-05)
- Anja Krieger-Liszkay
Bayer CropScience (F-2016-BS-0555)
- Manuela Kramer
University Grenoble Alps (CBH-EUR-GS (ANR-17-EURE-0003))
- Giovanni Finazzi
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
Acknowledgements
This work was supported by funding from the Deutsche Forschungsgemeinschaft through (Project 2 in the Collaborative Research Center (SFB) 944) and BBSRC (BB/R004838/1) to G.T.H. M.K. was partly supported by a Geoff Schell fellowship from the Bayer Science and Education foundation (F-2016-BS-0555). G.F. acknowledges funds from the INRA, and the HFSP and the support of the GRAL LabEX GRAL, ANR-10-LABX-49–01 financed within the University Grenoble Alpes graduate school (Ecoles Universitaires de Recherche) CBH-EUR-GS (ANR-17-EURE-0003). Support from the European Research Council: ERC Chloro-mito (grant no. 833184) is also acknowledged. A.K.L. benefits from the support of the LabEx Saclay Plant Sciences-SPS (ANR-10-LABX-0040-SPS) and the French Infrastructure for Integrated Structural Biology (FRISBI) ANR-10-INSB-05. We thank Giulia Mastroianni and Kirsten Jäger for excellent technical support and Pierre Setif, Renate Scheibe, Michael Hippler and Toshiharu Hase for helpful discussions. Finally, we acknowledge the initial advice and encouragement regarding statistical analysis of IGL from Steve LeComber (QMUL), who sadly passed away during preparation of the manuscript. The authors wish to dedicate this paper to the memory of Professor Giorgio Forti, who was a pioneer in the study of FNR in vascular plants.
Senior Editor
- Jürgen Kleine-Vehn, University of Freiburg, Germany
Reviewing Editor
- David M Kramer, Michigan State University, United States
Reviewer
- Robert Burnap, Oklahoma State University, United States
Version history
- Received: February 17, 2020
- Accepted: February 25, 2021
- Accepted Manuscript published: March 9, 2021 (version 1)
- Version of Record published: March 22, 2021 (version 2)
Copyright
© 2021, Kramer et al.
This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
Metrics
-
- 3,009
- Page views
-
- 446
- Downloads
-
- 15
- Citations
Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.
Download links
Downloads (link to download the article as PDF)
Open citations (links to open the citations from this article in various online reference manager services)
Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)
Further reading
-
- Microbiology and Infectious Disease
- Plant Biology
Purinergic signaling activated by extracellular nucleotides and their derivative nucleosides trigger sophisticated signaling networks. The outcome of these pathways determine the capacity of the organism to survive under challenging conditions. Both extracellular ATP (eATP) and Adenosine (eAdo) act as primary messengers in mammals, essential for immunosuppressive responses. Despite the clear role of eATP as a plant damage-associated molecular pattern, the function of its nucleoside, eAdo, and of the eAdo/eATP balance in plant stress response remain to be fully elucidated. This is particularly relevant in the context of plant-microbe interaction, where the intruder manipulates the extracellular matrix. Here, we identify Ado as a main molecule secreted by the vascular fungus Fusarium oxysporum. We show that eAdo modulates the plant's susceptibility to fungal colonization by altering the eATP-mediated apoplastic pH homeostasis, an essential physiological player during the infection of this pathogen. Our work indicates that plant pathogens actively imbalance the apoplastic eAdo/eATP levels as a virulence mechanism.
-
- Plant Biology
- Structural Biology and Molecular Biophysics
To fire action-potential-like electrical signals, the vacuole membrane requires the two-pore channel TPC1, formerly called SV channel. The TPC1/SV channel functions as a depolarization-stimulated, non-selective cation channel that is inhibited by luminal Ca2+. In our search for species-dependent functional TPC1 channel variants with different luminal Ca2+ sensitivity, we found in total three acidic residues present in Ca2+ sensor sites 2 and 3 of the Ca2+-sensitive AtTPC1 channel from Arabidopsis thaliana that were neutral in its Vicia faba ortholog and also in those of many other Fabaceae. When expressed in the Arabidopsis AtTPC1-loss-of-function background, wild-type VfTPC1 was hypersensitive to vacuole depolarization and only weakly sensitive to blocking luminal Ca2+. When AtTPC1 was mutated for these VfTPC1-homologous polymorphic residues, two neutral substitutions in Ca2+ sensor site 3 alone were already sufficient for the Arabidopsis At-VfTPC1 channel mutant to gain VfTPC1-like voltage and luminal Ca2+ sensitivity that together rendered vacuoles hyperexcitable. Thus, natural TPC1 channel variants exist in plant families which may fine-tune vacuole excitability and adapt it to environmental settings of the particular ecological niche.
