Cytotoxic T cells swarm by homotypic chemokine signalling

  1. Jorge Luis Galeano Niño
  2. Sophie V Pageon
  3. Szun S Tay
  4. Feyza Colakoglu
  5. Daryan Kempe
  6. Jack Hywood
  7. Jessica K Mazalo
  8. James Cremasco
  9. Matt A Govendir
  10. Laura F Dagley
  11. Kenneth Hsu
  12. Simone Rizzetto
  13. Jerzy Zieba
  14. Gregory Rice
  15. Victoria Prior
  16. Geraldine M O'Neill
  17. Richard J Williams
  18. David R Nisbet
  19. Belinda Kramer
  20. Andrew I Webb
  21. Fabio Luciani
  22. Mark N Read
  23. Maté Biro  Is a corresponding author
  1. EMBL Australia, Single Molecule Science node, University of New South Wales, Australia
  2. School of Medical Sciences, Faculty of Medicine, University of New South Wales, Australia
  3. Sydney Medical School, The University of Sydney, Australia
  4. The Walter and Eliza Hall Institute of Medical Research, Australia
  5. Department of Medical Biology, University of Melbourne, Australia
  6. Children's Cancer Research Unit, The Children's Hospital at Westmead, Australia
  7. The Kirby Institute for Infection and Immunity in Society, UNSW, Australia
  8. Neuroscience Research Australia (NeuRA), Australia
  9. Department of Statistics and Actuarial Science, University of Waterloo, Canada
  10. Discipline of Child and Adolescent Health, University of Sydney, Australia
  11. Biofab3D, St. Vincent’s Hospital, Australia
  12. Institute for Innovation in Mental and Physical Health and Clinical Translation (iMPACT), School of Medicine, Deakin University, Australia
  13. Advanced Biomaterials Lab, Research School of Engineering, ANU, Australia
  14. School of Computer Science, Westmead Initiative, and Charles Perkins Centre, University of Sydney, Australia
Research Article
  • Cited 0
  • Views 1,778
  • Annotations
Cite this article as: eLife 2020;9:e56554 doi: 10.7554/eLife.56554

Abstract

Cytotoxic T lymphocytes (CTLs) are thought to arrive at target sites either via random search or following signals by other leukocytes. Here, we reveal independent emergent behaviour in CTL populations attacking tumour masses. Primary murine CTLs coordinate their migration in a process reminiscent of the swarming observed in neutrophils. CTLs engaging cognate targets accelerate the recruitment of distant T cells through long-range homotypic signalling, in part mediated via the diffusion of chemokines CCL3 and CCL4. Newly arriving CTLs augment the chemotactic signal, further accelerating mass recruitment in a positive feedback loop. Activated effector human T cells and chimeric antigen receptor (CAR) T cells similarly employ intra-population signalling to drive rapid convergence. Thus, CTLs recognising a cognate target can induce a localised mass response by amplifying the direct recruitment of additional T cells independently of other leukocytes.

eLife digest

Immune cells known as cytotoxic T lymphocytes, or CTLs for short, move around the body searching for infected or damaged cells that may cause harm. Once these specialised killer cells identify a target, they launch an attack, removing the harmful cell from the body. CTLs can also recognise and eliminate cancer cells, and can be infused into cancer patients as a form of treatment called adoptive cell transfer immunotherapy. Unfortunately, this kind of treatment does not yet work well on solid tumours because the immune cells often do not infiltrate them sufficiently.

It is thought that CTLs arrive at their targets either by randomly searching or by following chemicals secreted by other immune cells. However, the methods used to map the movement of these killer cells have made it difficult to determine how populations of CTLs coordinate their behaviour independently of other cells in the immune system. To overcome this barrier, Galeano Niño, Pageon, Tay et al. employed a three-dimensional model known as a tumouroid embedded in a matrix of proteins, which mimics the tissue environment of a real tumour in the laboratory. These models were used to track the movement of CTLs extracted from mice and humans, as well as human T cells engineered to recognise cancer cells.

The experiments showed that when a CTL identifies a tumour cell, it releases chemical signals known as chemokines, which attract other CTLs and recruit them to the target site. Further experiments and computer simulations revealed that as the number of CTLs arriving at the target site increases, this amplifies the chemokine signal being secreted, resulting in more and more CTLs being attracted to the tumour. Other human T cells that had been engineered to recognize cancer cells were also found to employ this method of mass recruitment, and collectively ‘swarm’ towards targeted tumours.

These findings shed new light on how CTLs work together to attack a target. It is possible that exploiting the mechanism used by CTLs could help improve the efficiency of tumour-targeting immunotherapies. However, further studies are needed to determine whether these findings can be applied to solid tumours in cancer patients.

Introduction

Cytotoxic T lymphocytes (CTLs) constitutively migrate as single cells in search of infected or malignant cells (Weninger et al., 2014). CTLs are key effectors of adoptive cell transfer immunotherapies (Guedan et al., 2019), but their efficacy remains limited with solid tumours (van der Woude et al., 2017), which they infiltrate in insufficient numbers (Galon et al., 2006). Thus far, CTLs have been thought to arrive at target sites either via random search (Krummel et al., 2016) or following signals by other cell types (Feig et al., 2013; Harlin et al., 2009).

Intravital imaging studies have been instrumental in uncovering some of the complex migration patterns of CTLs at various stages of an immune response. They have revealed, for instance, that CTLs employ highly evolved cell-intrinsic search strategies that are more efficient than Brownian motion (Harris et al., 2012). During priming in lymph nodes, CD8+ T cells can follow local chemoattractant gradients to migrate directionally towards sites of antigen presentation (Castellino et al., 2006; Hickman et al., 2011; Hugues et al., 2007). In the tumour microenvironment (TME), the movements of CTLs and their interplay with various cells have been unveiled (Boissonnas et al., 2007; Deguine et al., 2010). Recent studies indicate that lymphocytes can recruit each other indirectly into tumours; natural killer (NK) lymphocytes produce chemokines that attract dendritic cells (Böttcher et al., 2018), which in turn can recruit CTLs (Spranger et al., 2017). Although intravital microscopy enables imaging of cellular interactions in the TME in situ, it is typically restricted to relatively short imaging periods and sub-millimetre fields of view (Gabriel et al., 2018). Furthermore, the inherent complexities of the TME, its constituent cell populations and its biochemical landscape have limited our ability to uncover the contribution of an individual immune subset or signalling mechanism to progressive, large-scale phenomena.

Here, we developed a 3D tumouroid model and in silico simulations to reveal independent collective behaviour in CTL populations attacking tumour masses. We show that CTLs coordinate their migration in a process reminiscent of the swarming observed in insects (Avitabile et al., 1975) and neutrophils (Lämmermann et al., 2013). CTLs engaging tumour targets induce rapid chemotaxis in distant T cells through homotypic chemokine signalling. Newly arriving CTLs augment the chemotactic signal, further accelerating mass recruitment in a positive feedback loop. Furthermore, we show that local chemokine delivery triggers directed CTL movement through dense tumour tissue in vivo, and sustained secretion of CCL3 and CCL4 from tumours promotes CTL recruitment. Human effector and chimeric antigen receptor (CAR) T cells similarly employ intra-population signalling to drive rapid convergence. Our findings provide insights into how CTL populations amplify directed recruitment to an effector site independently of other leukocytes.

Results

CTLs swarm towards cognate tumouroids

We sought to investigate the population-wide movements and signals mediating interactions between CTLs during tumour clearance. To this end, we developed an ex vivo model enabling us to study the large-scale movements of primary CTLs around solid tumouroids embedded in three-dimensional (3D) collagen matrices (Figure 1A). We used primary murine CTLs isolated from OT1 (Hogquist et al., 1994) and gBT1 (Coles et al., 2003) T cell receptor transgenic mice that recognise ovalbumin (SIINFEKL) or herpes simplex virus glycoprotein B (SSIEFARL) residues, respectively, both in the context of the H-2Kb class I major histocompatibility complex. CTLs engaging a cognate tumouroid were rapidly recruited to its edge, where they accumulated over time (Figure 1B and Video 1). The marked accumulation of CTLs at the edge of the tumouroid is reminiscent of swarming, the coordinated collective convergence of large numbers of self-propelled individuals, which has been observed in as varied biological systems (Okubo, 1986) as mammals, birds, fish, insects, and, at the cellular level, neutrophils (Lämmermann et al., 2013). This behaviour was not observed with control tumouroids lacking cognate antigen (Figure 1B and Video 2).

Figure 1 with 1 supplement see all

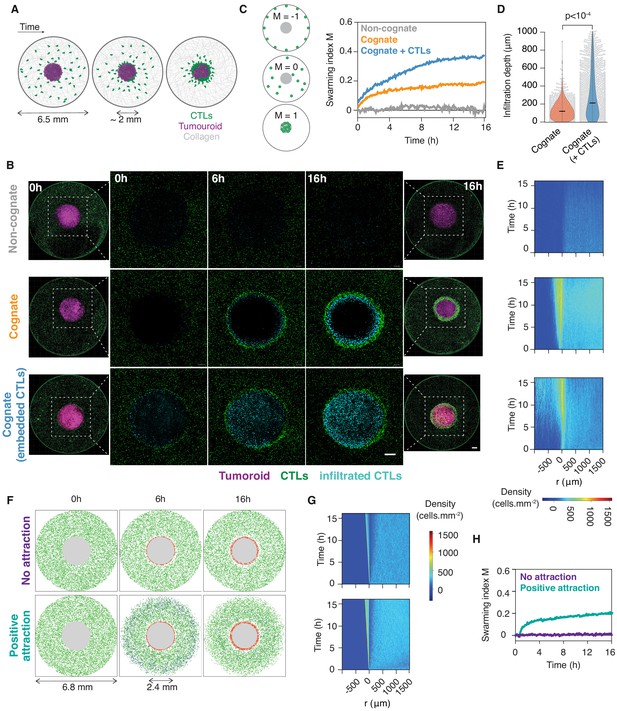

CTLs swarm as they attack tumour masses.

(A) Schematic of ex vivo tumouroid model: a high-density mass of tumour cells and collagen (tumouroid, magenta) is surrounded by a 3D collagen matrix containing dispersed CTLs (green) in a closed well with a 6.5 mm diameter and is imaged live over time. (B) Representative confocal images from three independent experiments showing CTLs responding to a non-cognate EL4 tumouroid (top), a cognate antigen-presenting tumouroid comprising EL4 pulsed with SIINFEKL (middle) or a cognate tumouroid pre-embedded with tumour-reactive CTLs (bottom). Insets show the proportion of CTL infiltrates for each condition as indicated. Scale bars: 500 μm. (C) Left: Schematic showing the swarming index ‘M’ that quantifies the evolution of CTL spatial distribution around the tumouroid over time. A value of −1 denotes perfect anti-swarming, that is all cells evenly distributed on the well perimeter; a value of 0 corresponds to a uniform distribution of CTLs outside the tumouroid; and all CTLs having infiltrated the tumouroid yields a value of 1. Right: Quantification of CTL convergence at the tumour masses shown in (B) via the swarming index. (D) Infiltration depth of CTLs into tumouroid (measured as shortest distance from tumouroid edge) for cognate tumouroids with and without pre-embedded tumour-reactive CTLs. Violin plots show the distribution of pooled data from three independent experiments, black bars represent medians, grey dots are individual data points. p-values from Mann Whitney U test. (E) Density kymographs depicting cell density over space and time for data shown in (B). r: distance from tumouroid edge. (F) In silico simulations of T cells surrounding a tumour mass (grey) as agent-based processes. No attraction: agents (green) reach the tumouroid by random non-directed movement only and remain within following contact (red). ‘Positive attraction’: agents arriving at the tumouroid (red) secrete chemoattractant that induces directional motility towards the tumouroid in surrounding agents within range (blue), which can revert to non-directed motility in excess chemoattractant concentration. (G, H) Swarming index and density kymographs for in silico simulations.

Video 1
CTLs swarm around a cognate tumouroid.

(Total view) Long-term time-lapse imaging (40 hr) of OT1GFP CTLs (dark) embedded in 3D collagen matrix around cognate EL4 tumouroid (light grey disc). (Inset view) Brightfield (BF) and fluorescence (FL, OT1GFP) imaging of OT1 CTLs amassing at tumouroid edge. Scale bars, 100 µm. Time in h:min.

Video 2
CTLs infiltrate deep into cognate tumour masses embedded with tumour-reactive CTLs.

Long-term (16 hr) time-lapse imaging of OT1 CTLs (green) embedded in collagen matrix around EL4 tumouroid (magenta). (Left) Non-cognate tumouroid; no significant accumulation of CTLs at tumouroid. (Centre) Cognate tumouroid; rapid recruitment and swarming of CTLs around tumouroid edge. (Right) Cognate tumouroid embedded with tumour-reactive CTLs (red); swarming and deep infiltration of tumouroid by CTLs. Scale bar, 500 µm. Time in h:min:s.

Cell movements were quantified using a novel swarming index ‘M’ (see Materials and methods; Figure 1C). When an additional CTL population was embedded in the cognate tumouroid where it actively eliminated tumour target cells (Video 3), the surrounding CTLs amassed at the tumouroid (Figure 1B) and infiltrated it to a greater extent (Figure 1D,E and Video 2). This enhanced infiltration was also observed into masses constituted of cognate antigen-coated beads, which, in contrast to tumour cells, do not progressively give way to additional physical space due to lysis by CTLs (Figure 1—figure supplement 1A–E).

Video 3
Tumour-reactive CTLs actively eliminate cognate tumour cells within the tumouroid.

3D time-lapse (3 hr) imaging of OT1 CTLs (green) embedded in a tumouroid composed of cognate tumour cells (purple) and dense collagen matrix. Propidium iodide was added to the medium to detect lysed cells in real time (red). Scale bar, 50 µm. Time in h:min:s.

In order to assess whether the observed accumulation of CTLs around tumour masses involves emergent behaviour or is merely a cumulative result of randomly scanning CTLs arresting upon cognate antigen recognition, we modelled and simulated our experiments as agent-based processes in silico. Simulated cell motility characteristics were sampled from experimental data by bootstrapping (Materials and methods; Figure 1—figure supplement 1F,G). We simulated the spatiotemporal scales of our experiments, with a diffusive chemoattractive signal progressively amplified by agents arriving at the tumouroid and inducing a directional bias in distant agent movements. The introduction of a desensitisation threshold in chemokine concentration, above which agents revert to unbiased motion, was necessary to recapitulate our experimental observations (Figure 1F–G, Figure 1—figure supplement 1H and Video 4).

Video 4
In silico simulations of CTL movements around cognate tumouroid as agent-based processes.

Motility models bootstrapped from experimental data. Gray: tumouroid; green: agents migrating without influence of chemoattractive signal; blue: agents encountering chemoattractant concentrations above threshold migrate directionally; red: agents infiltrating tumouroid. (Left) Agents arrive at tumouroid by random (non-directed) movement only. (Right) Agents arriving at tumouroid secrete diffusing chemoattractant that induces spatial bias in the movement of other agents towards tumouroid. Time in h:min.

CTLs migrate rapidly and highly directionally towards sites of cognate tumour cell engagement

To further characterise how CTLs are recruited to the tumour mass, we next used an assay enabling tracking of individual CTL movements at higher spatiotemporal resolution (Video 5) relative to a tumouroid exposing a straight interface in a constant direction from adjacent CTLs (Figure 2A). Using this approach, we found that surrounding CTLs migrate rapidly and highly directionally towards the edge of a cognate tumour mass (Figure 2B), containing pre-embedded CTLs at 1:1 or 1:5 ratios with tumour cells, or in the complete absence of pre-embedded CTLs (Figure 2B). By contrast, CTLs adjacent to control tumouroids exhibited no chemotaxis, albeit, interestingly, some chemokinesis (enhanced speed) (Figure 2B).

Figure 2 with 1 supplement see all

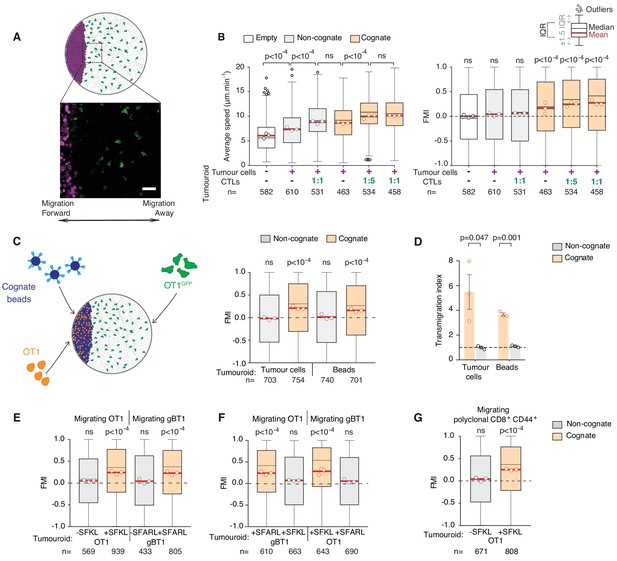

CTLs migrate rapidly and directionally towards sites of cognate target engagement due to a diffusing homotypic signal.

(A) Schematic of assay enabling 3D tracking of CTL movements relative to a tumouroid exposing a straight interface (scale bar: 50 µm). (B) Average speed and forward migration index (FMI) of CTLs adjacent to tumouroids containing cognate (SIINFEKL-pulsed) EL4 tumour cells or non-cognate (unpulsed) EL4, and without (-) or with pre-embedded tumour-reactive CTLs at indicated CTL:tumour cell ratios. (C) Left: Schematic showing H-2Kb/SIINFEKL cognate antigen-coated beads co-embedded with CTLs (OT1) in a dense mass, with the migration of adjacent fluorescent CTLs (OT1GFP) tracked in 3D over time. Right: FMI of CTLs migrating towards tumouroids containing OT1 CTLs and non-cognate or cognate tumour cells or beads. (D) Transmigration of CTLs towards supernatant obtained from CTLs conjugated with non-cognate or cognate cells and beads. Bars: mean from three independent experiments (data points). Error bars: SEM. p-values for comparisons of cognate and non-cognate conditions by t tests. (E) FMI of OT1 or gBT1 CTLs migrating towards tumouroids pre-embedded at a 1:1 ratio with OT1 or gBT1 CTLs respectively, showing ‘self-recruitment’ of CTLs. (F) FMI of OT1 or gBT1 CTLs migrating towards cognate tumoroids (EL4 pulsed with SIINFEKL or SSIEFARL as indicated) pre-embedded at a 1:1 ratio with gBT1 or OT1 CTLs, showing ‘cross-recruitment’ of CTLs of different antigen specificity towards tumour-reactive CTLs. Tumouroid densities are kept constant, and when pre-embedded with CTLs contain only half the number of tumour cells compared to masses in 2B constituted exclusively of tumour cells. (G) FMI of polyclonal CD8+CD44+ T cells migrating towards tumouroids containing OT1 CTLs with cognate or non-cognate tumour cells. Box-whiskers indicate medians and the interquartile range (IQR) with outliers outside whiskers. Red bars: mean of pooled data from three independent experiments. Data points: mean of each individual experiment. n: number of tracks. ns: p>0.05, where FMI in (B) to (G) were compared to a theoretical median of 0 using the two-tailed Wilcoxon signed rank test and average speeds in (B) were compared using the Kruskal-Wallis test followed by Dunn’s multiple comparisons tests.

Video 5
Tracking individual CTL movements in 3D at high temporal resolution.

3D timelapse (1 hr) imaging of OT1 CTLs (green) embedded in collagen matrix near cognate tumouroid exposing straight interface (out of view to the left) with embedded tumour-reactive CTLs. Track colour, time; scale bar, 50 µm.

CTLs engage in homotypic recruitment via a diffusive signal

The above results indicate that a factor diffusing from the site of engagement leads to distal recruitment. Indeed, cell-free supernatant from the co-incubation of CTLs with cognate tumour cells (cognate supernatant) attracts other CTLs in a transmigration assay (Figure 2—figure supplement 1A) and thus contains the soluble chemoattractants mediating the recruitment (Figure 2—figure supplement 1B,C). Interestingly, 10-fold dilutions of cognate supernatants also induced CTL transmigration (Figure 2—figure supplement 1B), indicating that the CTL response to the soluble chemotactic factors is highly sensitive.

To distinguish whether the factors originate from CTLs or lysed tumour cells, we replaced tumour cells with polystyrene beads coated with cognate antigen (Figure 2C) and found that recruitment of CTLs was preserved (Figure 2C,D). CTLs engaging cognate targets therefore produce factors that induce distal recruitment via homotypic signalling. Combined, our experimental and simulation data reveal emergence in CTL mass recruitment, which is progressively amplified by the arrival of further CTLs that contribute to a diffusive homotypic signal.

We next tested whether the homotypic signal extends to T cells of different antigen specificities. Tumouroids containing monospecific CTLs and their cognate tumour targets (Figure 2—figure supplement 1D) are equally proficient at recruiting T cells of the same (Figure 2E), different (Figure 2F) and polyclonal (Figure 2G) specificity. No recruitment is observed towards tumouroids containing CTLs engaging non-cognate target cells. Therefore, whilst production of the homotypic signal requires recognition of specific cognate antigen, the signal recruits CTLs irrespective of the T cell receptor (TCR) they express. CTLs of unrelated specificity would however not be able to contribute to the amplification of the signal upon arrival at the tumour mass.

Long-range diffusing gradients emanate from CTLs engaging cognate tumouroids

Next, we studied the movements of CTLs up to 1.6 mm from tumouroids (Figure 3—figure supplement 1A). At the onset of the experiment (0 hr), CTLs were distributed uniformly adjacent to both cognate and non-cognate tumouroids (Figure 3A,B and Figure 3—figure supplement 1B,C). After 2 hr, the distribution of CTLs was biased towards the cognate tumouroid (Figure 3A,B), whereas the CTL distribution adjacent to a control tumouroid remained unchanged (Figure 3—figure supplement 1B,C). Cell tracking analysis revealed that even the most distant CTLs show directional movement towards the cognate tumouroid (Figure 3C,D and Video 6) and reveals a moving wave of chemoattraction over time (Figure 3E). Cells close to the tumouroid start moving towards it at early timepoints but lose some of their directionality over time (Figure 3E). It has previously been shown that chemotactic responses can be lost under excess local concentrations of ligand (Lim et al., 2018), which could account for the behaviour observed here. For cells furthest from the tumouroid, directional migration commences at later timepoints (Figure 3E). No such pattern is observed with a control tumouroid, where cells at all distances exhibit undirected migration (Figure 3C–E and Video 6). These results indicate that a gradient of diffusing factors is established following cognate interactions between CTLs and tumour cells to induce the long-range chemoattraction of other T cells.

Figure 3 with 1 supplement see all
Engagement of cognate tumouroid gives rise to a diffusing wave of chemoattraction.

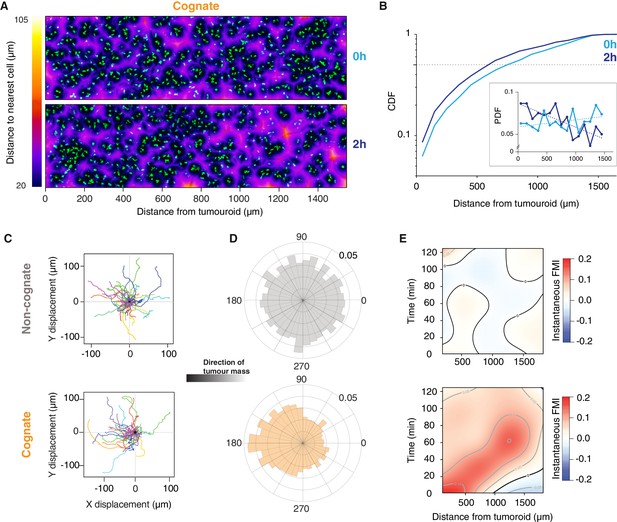

(A) Confocal images showing the distribution of CTLs (green) in relation to a SIINFEKL-pulsed EL4 cognate tumouroid at 0 and 2 hr. Pseudocolour: distance to nearest cell in µm. (B) Cumulative distribution function (CDF) of nearest distances of CTLs to a cognate tumouroid at 0 hr and 2 hr. Insert shows the corresponding probability density function (PDF), where dashed lines are linear fits. (C) Randomly selected representative tracks of CTLs migrating towards a non-cognate (top) or cognate (bottom) tumouroid with pre-embedded tumour-reactive CTLs (located towards -X); outset of all tracks centred on origin. (D) Angular histograms of CTL track displacements. 0°: away from tumour, 180°: towards tumour. Data pooled from three independent experiments (n = 4947 for non-cognate; top, n = 3926 tracks for cognate; bottom). (E) Kymographs of instantaneous FMI (based on displacement vector at each timeframe) for data shown in (D).

Video 6
Tracking individual CTL movements up to 2 mm from tumouroid.

3D time-lapse (2 hr) imaging of OT1 CTLs (green) embedded in collagen matrix adjacent to a tumouroid (magenta). (Top) Non-cognate tumouroid. (Bottom) Cognate tumouroid with embedded tumour-reactive CTLs. Scale bars, 200 µm. Time in h:min:s.

CTL recruitment is driven by secretion of CCL3 and CCL4

To identify the molecular mediators of the chemoattraction, we first tested CTL migration in the presence of pertussis toxin (PTX), an inhibitor of Gαi-protein-coupled receptors (GPCRs). PTX inhibits the enhanced average speed and directional migration of CTLs towards cognate tumouroids (Figure 4A), indicating that GPCR ligands mediate the chemoattractive signal. This result is consistent with previous work where the formation of small CTL clusters around malaria-infected hepatocytes required GPCR signalling (Cockburn et al., 2013). Unlike neutrophils that employ lipid signalling via leukotriene B4 to swarm (Lämmermann et al., 2013), this result suggests that chemokines, which are sensed by GPCRs, underpin homotypic signalling in CTLs. We then compared the transcriptomes of CTLs engaging cognate and non-cognate targets (dataset available in Supplementary file 1). Differentially expressed genes were filtered for secreted factors, among which the following GPCR ligands were identified: Chemokine (C-C motif) ligand 1 (CCL1), CCL3, CCL4, CCL9, and X-C motif chemokine ligand 1 (XCL1) (Figure 4B); their upregulation was further validated by quantitative reverse transcription PCR (Figure 4—figure supplement 1A,B). Mass-spectrometry-based proteomics analysis of cognate versus non-cognate secretomes reveals that CCL1, CCL3, CCL4, and XCL1 are more abundant in cognate supernatant (Figure 4C and Supplementary file 2), confirmed by quantitative detection assays (Figure 4—figure supplement 1C). The recombinant chemokines CCL3, CCL4, CCL5, and CXCL12 could attract CTLs in transwell migration assays (Figure 4—figure supplement 1D), in each case effectively inhibited by the corresponding neutralising antibody (Figure 4—figure supplement 1E). However, only CCL3 inhibition consistently disrupted CTL transmigration in transwell chambers towards cognate supernatants (Figure 4—figure supplement 1F). Directional migration towards a cognate tumouroid in more physiological 3D matrices was abolished only when both CCL3 and CCL4 were blocked using neutralising antibodies (Figure 4—figure supplement 1G), indicating that these two chemokines act redundantly in the homotypic attraction. Therefore, CCL3 and CCL4 constitute the diffusive homotypic signal that attracts distant CTLs during target engagement. Secreted CCL3 forms a gradient from the site of antigen-specific target engagement, visualised by in situ capture and staining (Figure 4—figure supplement 2A–C). Strikingly, CTLs sustain their ability to secrete CCL3 and CCL4 (Figure 4—figure supplement 1H), and to recruit distant T cells (Figure 4—figure supplement 1I), even after disengagement from cognate targets.

Figure 4 with 4 supplements see all

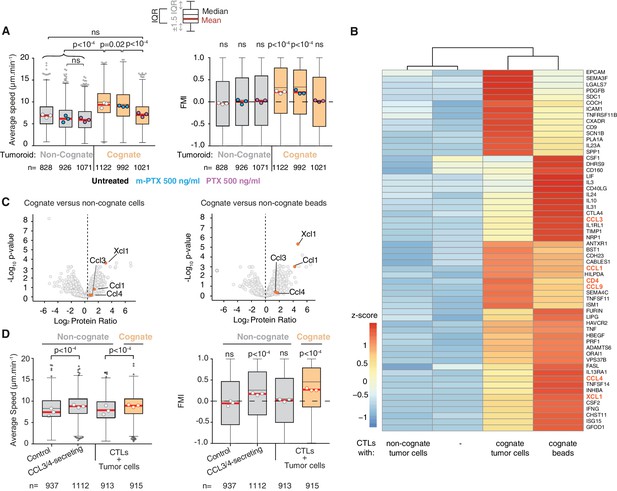

CCL3 and CCL4 secretion drives T cell swarming.

(A) Average speed (Left) and FMI (Right) of OT1 CTLs adjacent to non-cognate EL4 or cognate SIINFEKL-pulsed EL4 tumouroids with pre-embedded tumour-reactive CTLs not treated with pertussis toxin (PTX) or its inactive variant m-PTX. Adjacent CTLs were either untreated, or treated with 500 ng/ml of PTX or m-PTX for 1 hr prior to the migration experiment. (B) Hierarchically clustered heat map of differentially expressed genes encoding secreted proteins in resting CTLs (-) or CTLs exposed to non-cognate, cognate tumour cells or cognate beads. GPCR ligands are highlighted. (C) Volcano plots of proteins secreted during CTL interactions with tumour cells (left) or beads (right) identified by quantitative mass spectrometry analysis. GPCR ligands identified in (B) are highlighted. (D) Average speed (Left) and FMI (Right) of CTLs adjacent to tumouroids containing control or CCL3/CCL4-secreting EL4 tumour cells compared with non-cognate and SIINFEKL-pulsed cognate tumouroids pre-embedded with tumour-reactive CTLs. For A and D, box-whiskers indicate medians and the interquartile range (IQR) with outliers outside whiskers. Red bars: mean of pooled data from three independent experiments. Data points: mean of each individual experiment. n: number of tracks. ns: p>0.05, p-values from two-tailed Wilcoxon signed rank test compared to a theoretical median of 0 for FMI. Average speeds were compared using the Kruskal-Wallis test followed by Dunn’s multiple comparisons test.

To confirm that CCL3 and CCL4 secretion are sufficient to induce chemoattraction in distant CTLs, we engineered tumour cells that constitutively secrete both chemokines (Figure 4—figure supplement 3A,B), or CCL3 or CCL4 alone. Secreting tumouroids induced enhanced rapid directional motility in CTLs (Figure 4D), swarming and infiltration (Figure 4—figure supplement 3C–H). CTLs infiltrate CCL3/CCL4-secreting cognate tumouroids as efficiently as tumouroids within which CTLs are actively engaging cognate targets (Figure 1D). In the absence of cognate antigen, CTLs do not stop at the edge of secreting tumouroids and thus infiltrate them deeper (Figure 4—figure supplement 3E and H). We next established an in vivo model to investigate if CCL3/CCL4-secretion influences endogenous leukocyte recruitment to tumours engrafted in mice (Figure 4—figure supplement 4), and showed that CCL3/CCL4-secreting tumours consistently recruit more endogenous NK cells than contralateral control tumours (Figure 4—figure supplement 4B).

CTL swarming is orchestrated via chemokine receptor CCR5

We next sought to identify the receptor mediating the chemoattractive signal. To this end, we tested the chemokine receptors CCR1, CCR2, CCR3, and CCR5 that have been associated with CCL3 or CCL4 sensing, and which are all expressed by CTLs (Figure 5—figure supplement 1A). Pharmacological inhibition of CCR1, CCR2, or CCR3 (Figure 5—figure supplement 1B,C) did not have any effect, whereas targeting CCR5 with Maraviroc or the CCR2/CCR5 dual antagonist Cenicriviroc abrogated the homotypic recruitment of CTLs (Figure 5—figure supplement 1B,C). Furthermore, polyclonal T cells isolated from Ccr5 knockout mice (Ccr5-/-; Figure 5—figure supplement 1D) were not efficiently recruited towards cognate tumouroids (Figure 5A) or cognate supernatant (Figure 5—figure supplement 1E). When wild type (WT) and Ccr5-/- CTLs were co-embedded around a cognate tumouroid, the Ccr5-/- population exhibited severely impaired swarming (Figure 5B,C), and infiltration depth (Figure 5D). Moreover, Ccr5-/- CTLs exhibited a reduced capacity to eliminate cognate tumour masses (Figure 5—figure supplement 1F,G), despite fully functional antigen-specific cytotoxicity (Figure 5—figure supplement 1H) and chemokine secretion (Figure 5—figure supplement 1I). These findings demonstrate that CCR5 mediates the chemokine signal underpinning the homotypic recruitment of T cells.

Figure 5 with 3 supplements see all

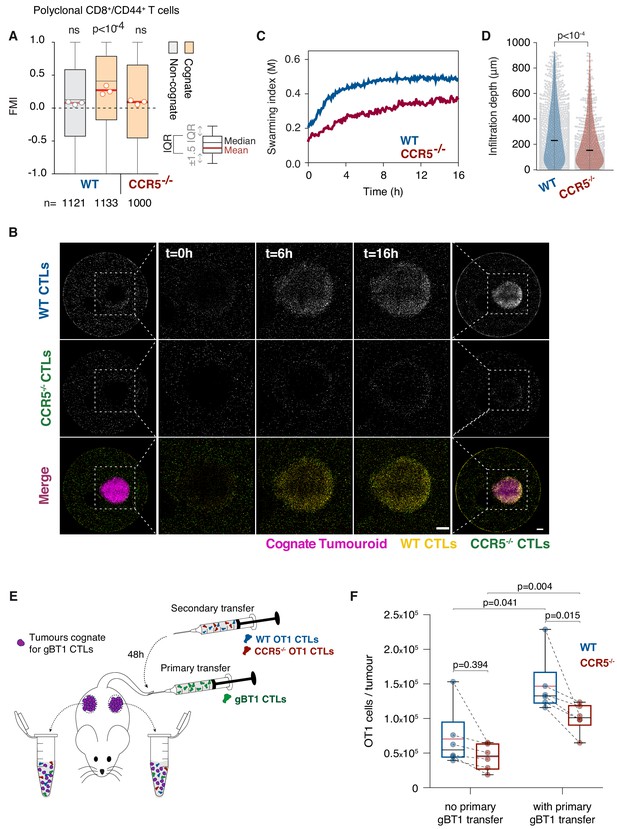

T cell swarming is CCR5-dependent.

(A) FMI of polyclonal WT or Ccr5-/- T cells adjacent to non-cognate EL4 or cognate SIINFEKL-pulsed EL4 tumouroids pre-embedded with tumour-reactive CTLs. Box-whiskers indicate medians and the interquartile range (IQR) with outliers outside whiskers. Red bars: mean of pooled data from three independent experiments. Data points: mean of each individual experiment. n: number of tracks for each experimental condition. ns: p>0.05, p-values from Kruskal-Wallis test followed by Dunn’s multiple comparison test. (B) WT and Ccr5-/- OT1 CTLs responding to a cognate tumouroid containing tumour-reactive CTLs. Insets highlight WT or Ccr5-/- CTLs infiltrating the cognate tumouroid. Scale bars: 500 μm. (C) Swarming index over time for WT and Ccr5-/- OT1 CTLs from data shown in (B). (D) Infiltration depth of WT and Ccr5-/- OT1 cells into tumouroid from data shown in (B). Violin plots show the distribution of probability densities, black bars represent medians, grey dots are individual data points. (E) Rag-/- mice were engrafted subcutaneously with SSIEFARL-expressing EL4 tumours. On day nine post-engraftment, 5 × 106 gBT1 CTLs were transferred intravenously where indicated. 48 hr after gBT1 transfer, WT and Ccr5-/- OT1 (5 × 106 each) were co-transferred intravenously. Tumour infiltrates were enumerated by flow cytometry a further 48 hr later. (F) Number of tumour-infiltrating WT and Ccr5-/- OT1 CTLs, with and without prior gBT1 CTL transfer. Box: medians and quartiles; whiskers: range; red bar: mean. Data points from one tumour each, n = 3 mice per group. p-values from Mann-Whitney U tests.

In vivo, Ccr5-/- CTLs that were co-transferred with WT CTLs showed impaired homing into CCL3/CCL4-secreting tumours (Figure 5—figure supplement 2A,B) and, in contrast to WT CTLs, did not bind fluorescent CCL3 (Figure 5—figure supplement 2C,D). We also observed impaired CCR5-dependent recruitment through dense tumour tissue in response to the acute injection of a molecular hydrogel enabling shear-reversible containment of recombinant CCL3 (Nisbet et al., 2018Figure 5—figure supplement 3, Video 7). To determine if tumour-reactive CTLs can enhance the recruitment of additional CTLs into tumours, we engrafted Rag-/- mice with SSIEFARL-expressing tumours and delivered a primary transfer of tumour-reactive gBT1 CTLs (cognate). 48 hr later, a secondary cohort of WT and Ccr5-/- OT1 CTLs were co-transferred (both non-cognate for the tumours) (Figure 5E). The presence of tumour-reactive CTLs (Figure 5—figure supplement 2E,F) markedly increased the overall recruitment of all non-cognate CTLs into the tumours (Figure 5F). Furthermore, recruitment of Ccr5-/- OT1 CTLs into tumours containing activated gBT1 CTLs was compromised compared to WT CTLs. However, Ccr5-/- CTLs cleared tumours with comparable efficacy to WT CTLs (Figure 5—figure supplement 2G). Together, these results indicate that sustained release of CCL3 and CCL4 is sufficient to promote CCR5-dependent homing into tumours in vivo, and that the presence of tumour-reactive CTLs in a tumour promotes the recruitment of distant CCR5+ CTLs. Homotypic CTL recruitment via CCR5 is, however, likely not the only or primary signalling circuit that results in CTL tumour infiltration or clearance. It remains to be explored whether adoptive transfers using lower CTL numbers or earlier following tumour engraftment (Sharma et al., 2013; Chheda et al., 2016) would result in a more dominant role for CCL3 and CCL4-mediated homotypic signalling in recruitment into solid tumours.

Video 7
Intravital imaging reveals CTL recruitment to site of intratumoural CCL3 injection.

(Injection Process) 2D time-lapse imaging of intratumoural injection of shear-thinning hydrogel containing recombinant CCL3 and Dextran-AF647 (white). (Injection Site) 2D fluorescence confocal image showing tumour tissue with adoptively transferred WT CTLs (green) and CCR5-/- CTLs (magenta) immediately following injection. (Post Injection) 3D long-term (5.6 hr) intravital imaging around intratumoural injection site. Scale bars, 200 μm.

Primary human T cells converge via homotypic recruitment

We next investigated whether swarming also occurs in primary human T cell populations. Human effector T cells activated by anti-CD3/CD28 antibody-coated beads were found to upregulate CCL3 and CCL4 expression (Figure 6—figure supplement 1A) as previously reported (Cristillo et al., 2003) and produced supernatant that attracts additional effector T cells (Figure 6A). When co-embedded with activating beads in place of a tumouroid, human T cells recruit distant T cells, which exhibit increased directionality (Figure 6B,C) and swarming (Figure 6D–F and Video 8). This directional recruitment is abolished by Cenicriviroc (Figure 6C).

Figure 6 with 1 supplement see all

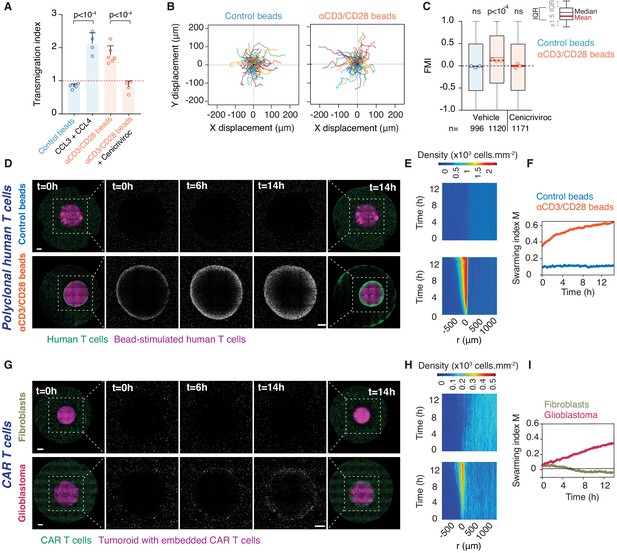

Homotypic recruitment of human polyclonal and CAR T cells.

(A) Transmigration of human T cells towards supernatant from T cells conjugated with IgG-coated beads (control beads), recombinant human CCL3 and CCL4, or supernatant from T cells conjugated with αCD3/CD28-coated beads in the absence or presence of CCR2/CCR5 dual antagonist (Cenicriviroc), relative to transmigration towards basal medium. Bars: mean from four independent experiments (data points). Error bars: SEM. p-values from ANOVA and Tukey’s multiple comparison test. (B) Cell trajectories of primary polyclonal human T cells adjacent to a tumouroid containing human T cells stimulated with control or αCD3/CD28 beads. Random representative tracks from dataset of three independent experiments, quantified in (C). (C) FMI of polyclonal human T cells as per (B), also assessed in the presence of Cenicriviroc. Box-whiskers indicate medians and the interquartile range (IQR). Red bars: mean of pooled data from three independent experiments. Data points: mean of each individual experiment. n: number of tracks for each experimental condition. ns: p>0.05, p-value from two-tailed Wilcoxon signed rank test compared to hypothetical median of 0. (D) Human polyclonal T cells (green) responding to a tumouroid containing T cells (magenta) stimulated with control (top) or αCD3/CD28 beads (bottom). Insets highlight CTLs infiltrating the tumouroid. Scale bars: 500 μm. (E, F) Swarming index and density kymographs quantify human T cell movements with respect to tumouroids in (D). r: distance from tumouroid edge. (G) Human CAR T cells (green) responding to tumouroids containing additional CAR T cells (magenta) and control fibroblast cells (top) or target glioblastoma cells (bottom). Insets highlight CTLs infiltrating the tumouroid. Scale bars: 500 µm. (H, I) Swarming index and density kymographs quantify CAR T cell movements with respect to tumouroids in (G). r: distance from tumouroid edge.

Video 8
Activated primary human T cells engage in homotypic recruitment.

Long-term (14 hr) time-lapse imaging of primary human T cells (green) embedded in collagen around bead-stimulated human T cells (magenta). (Left) Control (IgG-coated) beads. (Right) Activating (anti-CD3/CD28-coated) beads. Scale bar, 500 µm. Time in h:min:s.

Finally, we evaluated whether the homotypic recruitment mechanism is inducible via chimeric antigen receptor (CAR) engagement of T cells in an immunotherapeutic context. To this end, we engineered CAR T cells targeting Ephrin type-A receptor 2 (EphA2) that is abundantly overexpressed in glioblastoma (Liu et al., 2006). A truncated CD19 domain co-transferred with the CAR construct allows enrichment of genetically-modified CAR-expressing human primary T cells by magnetic sorting (Figure 6—figure supplement 1B). Human CD19+ EphA2-specific CAR T cells efficiently killed glioblastoma cells (Figure 6—figure supplement 1C). When EphA2-specific CAR T cells were embedded in a tumouroid with glioblastoma cells, surrounding CAR T cells swarmed towards the tumouroid, whereas no recruitment was observed when CAR T cells were co-embedded with EphA2-negative fibroblasts in the tumouroid (Figure 6G–I and Video 9). Collectively, these results demonstrate that upon activation either via the TCR or an engineered CAR, human CTLs engage in homotypic chemokine signalling, thereby amplifying the recruitment of additional T cells to an effector site.

Video 9
CAR T cells engaging antigen-expressing glioblastoma tumouroids induce swarming.

Long-term (14 hr) time-lapse imaging of human CAR T cells (green) embedded in collagen matrix around tumouroids (magenta). (Left) Tumouroid contains EphA2-specific CAR T cells and EPhA2-negative cells (NIH/3T3). (Right) Tumouroid contains EphA2-specific CAR T cells and glioblastoma cells (WK1). Scale bar, 500 µm. Time in h:min:s.

Discussion

Swarming is a common collective behaviour in the natural world (Okubo, 1986). At the immune cell level, swarming has been described for neutrophils, during parasite infection in the lymph node (Chtanova et al., 2008) and in response to tissue injury (Lämmermann et al., 2013). Here, our data reveal that CTLs engaging targets employ homotypic signalling via secretion of the chemokines CCL3 and CCL4 to accelerate the direct recruitment of distant T cells. As additional antigen-specific CTLs are recruited and engage cognate targets, they contribute to the chemoattractive signal, thus further amplifying CTL recruitment in a positive feedback loop, which leads to swarming behaviour. Interestingly, it appears as though CTLs closest to the source of the chemotactic signal become desensitised over time and lose directional bias, which could be due to exposure to excess ligand concentrations (Lim et al., 2018) or rapid internalisation of the CCR5 receptor (Escola et al., 2010).

Pioneering work had uncovered that in lymph nodes, naïve CD8+ T cells follow CCR5 ligands, including CCL3 and CCL4, to migrate towards dendritic cells interacting with CD4+ and CD8+ T cells (Castellino et al., 2006; Hickman et al., 2011; Hugues et al., 2007), to optimise the efficiency of T cell priming. Maximal priming and generation of CTLs in infected or draining lymph nodes during antiviral and antitumour responses also depend on CCR5 expression on T cells (González-Martín et al., 2011; Hickman et al., 2011).

Rather than the behaviour of naïve T cells within secondary lymphoid organs, our study focused on interactions between effector CTLs, T cells that are active in peripheral tissues following priming and emigration from lymph nodes. Our findings reveal that CTLs can independently induce mass recruitment around an antigen-specific target. Our data also reveal that lymphocytes can promote the recruitment of distant lymphocytes into peripheral tissues, thus far thought to only occur indirectly through the action of professional antigen-presenting cell (APC) intermediaries (Spranger et al., 2017; Böttcher et al., 2018). Although the concept of bacterial quorum sensing has been applied to coordinated population responses by T cells, the amplification of local T cell densities was shown to occur via differentiation or proliferation (Antonioli et al., 2019), relatively long-term effects compared to the rapid directional recruitment of distal CTLs discussed here.

CTLs engaging tumour targets that do not present cognate antigen induce chemokinesis in distant CTLs, which could be mediated via the induced secretion of netrins, autotaxin, or semaphorins (Boneschansker et al., 2016; Katakai et al., 2014; Takegahara et al., 2005). Importantly, only CTLs that have directly engaged a cognate antigen-presenting target secrete the homotypic recruitment signal that induces chemotaxis in distant T cells. Unconjugated CTLs exposed to cognate supernatant (containing abundant CCL3, CCL4, and pro-inflammatory cytokines such as interferon gamma and tumour necrosis factor) did not themselves upregulate CCL3 or CCL4 expression (Supplementary file 1 and 2). This therefore excludes the possibility of a signal relay, whereby CTLs that sense the recruitment signal away from the target start secreting the homotypic signal themselves, which could presumably lead to aberrant local CTL clustering.

We thus propose that the individuals of a CTL population exist in three distinct states: a ‘searcher’ state whilst scanning for cognate antigen unaffected by the homotypic signal; a ‘responder’ state when they sense the homotypic signal and move rapidly towards the effector locus; and an ‘engager/recruiter’ state upon target cell recognition when they concurrently deliver their effector function and secrete CCL3 and CCL4 (Figure 7). The first CTLs to recognise a cognate target directly transition from search into engagement and recruitment, whereas subsequent cells arrive in a responder state. It is interesting to note that CTLs can also remain in an exclusive recruiter state for nearly 24 hr following target elimination in the absence of active engagement (Figure 4—figure supplement 1H,I).

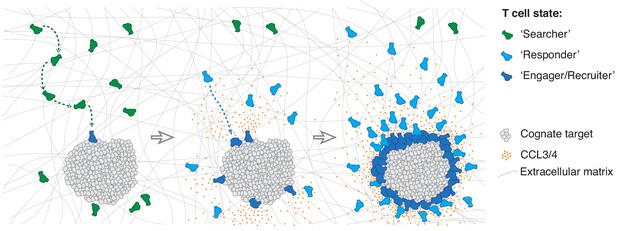

Model of multistate mass recruitment of CTLs to a target site.

‘Searcher’ CTLs migrate randomly in search of target cells. When they recognise targets, they become ‘engager/recruiter’ CTLs that secrete CCL3 and CCL4. CCR5-expressing CTLs within range migrate rapidly and directionally towards the effector site in a ‘responder’ state. Newly arriving CTLs engage and convert to recruiters: they contribute to the chemoattractive signal, thus further amplifying recruitment of other ‘responder’ CTLs from distal regions, resulting in sustained accumulation of large numbers of CTLs at the target site (swarming).

This multistate recruitment model explains prior observations of non-specific T cells only deeply infiltrating tumour tissues in the presence of tumour-reactive CTLs (Boissonnas et al., 2007). Although antigen recognition is specific, the chemoattractive signal that is raised to amplify recruitment is generic and thus able to recruit a repertoire of CTLs regardless of their TCR specificity. Indeed, there have been prior observations of bystander recruitment of effector T cells to sites of inflammation or tumours initiated by unrelated antigen (Boissonnas et al., 2004; Topham et al., 2001; Ariotti et al., 2015; Hickman et al., 2015). During an immune response resulting in the clonal expansion of antigen-specific CTLs, which increases their frequency up to 104-fold (Murali-Krishna et al., 1998), such a generic recruitment mechanism is likely efficient in their local amplification in sufficient numbers for an effective response.

Interestingly, studies that compared tumours infiltrated by leukocytes (‘hot’) to those that excluded immune cell infiltration (‘cold’) identified more abundant CCL3, CCL4, and CCL5 in hot tumours (Chakravarthy et al., 2018; Spranger et al., 2015), including via single-cell transcriptomics that ascribed their expression to CD8+ T cells (Jerby-Arnon et al., 2018; Roider et al., 2020). Whilst we have identified CCL3 and CCL4 as the key mediators of homotypic signalling in CTLs isolated from mice, CCL5 may also have a central role in homotypic recruitment of human CTLs.

We demonstrated that CTLs exhibit chemotaxis towards CCR5 ligands within dense tumour tissue by intravital imaging, and revealed that the presence of antigen-specific CTLs within a tumour promotes the recruitment of distant CTLs into the tumour in a manner partially dependent on CCR5. The activation of intratumoural CTLs were found by others to promote the recruitment of not only CTLs, but also natural killer cells and myeloid cells (Rosato et al., 2019). Alternate chemokine signalling circuits centred on CXCR3 and BLT1 have been implicated in CTL tumour trafficking and infiltration (Chheda et al., 2016; Chow et al., 2019; Mikucki et al., 2015; Sharma et al., 2013). Furthermore, IFNγ, produced by activated CTLs and abundant in inflamed tumours, can induce CXCL9 and CXCL10 secretion in various intermediary cells, including tumour-infiltrating myeloid cells (Dobrzanski et al., 2001; Gordon-Alonso et al., 2017; Hickman et al., 2015), which may enhance the role of CXCR3 in homing.

CCR5-expressing CTLs have been associated with severe autoimmune diseases (Mackay, 2014), and CCR5 ligands are abundant in the upper respiratory tract during acute hyperinflammation associated with viral infection (Chua et al., 2020); silencing homotypic recruitment may well prove beneficial in such contexts. Ultimately, the homotypic recruitment mechanism could be exploited to enhance control over positioning and tissue infiltration of T cells in adoptive cell transfer immunotherapies, not least given our findings that engineered CAR T cells, following antigen recognition via the CAR, are able to induce homotypic recruitment of distal T cell populations.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Strain, strain background (M. musculus)Rag-deficient B6.129S7-Rag < tm1mom > JAusb
(RAG1)
Australian BioResourcesUsed for in vivo experiments
Strain, strain background (M. musculus)B6.SJL-PtprcaPepcb/BoyJAusb
(PTPRCA)
Australian BioResourcesUsed for in vivo experiments
Strain, strain background (M. musculus)B6.129p2-ccr5 tm1Kuz/J
(CCR5-/-)
Australian BioResources7–12 week mice used to isolate CCR5KO CTLs
Strain, strain background (M. musculus)B6-Tg-OTI
(OT1)
Australian BioResources7–12 week mice used to isolate OT1 CTLs
Strain, strain background (M. musculus)B6-Tg(CAG-Lifeact/EGFP)-OTI
(OT1GFP)
Galeano Niño et al., 20207–12 week mice used to isolate LifeactGFP OT1 CTLs
Strain, strain background (M. musculus)B6.gBT-I/uGFP
(gBT1-GFP)
Gift from W. R. Heath7–12 week mice used to isolate GFP gBT1 CTLs
Strain, strain background (M. musculus)B6.gBT-I/dsRED
(gBT1-dsRED)
Gift from W. R. Heath7–12 week mice used to isolate dsRED gBT1 CTLs
Cell line (M. musculus)EL-4 lymphomaATCCCat. #: TIB-39
Cell line (M. musculus)NIH/3T3 fibroblastATCCCat. #: CRL-1658
Cell line (Homo-sapiens)WK1 glioblastoma cellsDay et al., 2013Cultured as described in Stringer et al., 2019
Cell line (Homo-sapiens)GP2-293 embryonic kidney cellsClonetechCat. #: 631458
Cell line (M. musculus)mCCL3-mScarletI secreting EL4 cellsThis paperEL4 cells transduced with CCL3-mScarletI construct. Sequence available in Materials and methods.
Cell line (M. musculus)mCCL4-miRFP670 secreting EL4 cellsThis paperEL4 cells transduced with CCL4-miRFP670 construct. Sequence available in Materials and methods.
Cell line (M. musculus)‘CCL3/4-secreting EL4’ i.e. mCCL3-mScarletI and mCCL4-miRFP670 secreting EL4 cellsThis paperEL4 cells transduced with CCL3-mScarletI and CCL4-miRFP670 construct. Sequences available in Materials and methods.
Cell line (M. musculus)EL4.HSVThis paperEL4 cells transduced with bicistronic SSIEFARL epitope and mTagBFP2. Sequence available in Materials and methods.
Cell line (M. musculus)EL4.OVAThis paperEL4 cells transduced with bicistronic SIINFEKL epitope and mTagBFP2. Sequence available in Materials and methods.
Cell line (Homo-sapiens)CAR T cellsThis paperPrimary human T cells transduced with EphA2-specific CAR construct. Produced by Kramer lab at Children's Cancer Research Unit, The Children's Hospital at Westmead. Information on CAR constructs available in Materials and methods.
Transfected construct (M. musculus)MSCV-based retrovial expression vector (LENC)Fellmann et al., 2013
Gift from J. Zuber
http://doi.org/10.1016/j.celrep.2013.11.020

Retrovirus construct to express cDNA
Transfected construct (M. musculus)pMD2.GGift from Didier TronoAddgene plasmid # 12259; RRID:Addgene_12259Construct for VSVG pseudotyping retrovirus
Transfected construct (M. musculus)mCCL3-mScarletI gBlocksIntegrated DNA TechnologiesgBlocks cloned into LENC
Transfected construct (M. musculus)mCCL4-miRFP670 gBlocksIntegrated DNA TechnologiesgBlocks cloned into LENC
Transfected construct (M. musculus)SSIEFARL-mTagBFP2 gBlocksIntegrated DNA TechnologiesgBlocks cloned into LENC
Transfected construct (M. musculus)SIINFEKL-mTagBFP2 gBlocksIntegrated DNA TechnologiesgBlocks cloned into LENC
Transfected construct (Homo- sapiens)EphA2-specific CAR constructChow et al., 2013 and Yi et al., 2018Construct for lentiviral transduction of human T cells
Biological sample (Homo-sapiens)Peripheral blood mononuclear cells (PBMCs)Sydney Children’s Hospitals NetworkUsed to isolate human T cells
AntibodyAnti-XCL1 (polyclonal goat IgG)R & D SystemsCat. #: AF486
RRID:AB_2216915
(5 µg/ml)
AntibodyAnti-CCL1 (monoclonal rat IgG2a)R & D SystemsCat. #: MAB845
RRID:AB_2070618
(5 µg/ml)
AntibodyAnti-CXCR2 (monoclonal rat IgG2a)R & D SystemsCat. #: MAB2164-100
RRID:AB_358062
(10 µg/ml)
AntibodyAnti-CCL3 (polyclonal goat IgG)R & D SystemsCat. #: AF-450-NA
RRID:AB_354492
(5 µg/ml)
AntibodyAnti-CCL4 (monoclonal rat IgG2a)R & D SystemsCat. #: MAB451-100
RRID:AB_2259676
(5 µg/ml)
AntibodyAnti-CXCR4 (monoclonal rat IgG2b)R & D SystemsCat. #: MAB21651-100
RRID:AB_2801441
(10 µg/ml)
AntibodyAnti-CCL5 (polyclonal goat IgG)R & D SystemsCat. #: AF478
RRID:AB_10080077
(1 µg/ml)
AntibodyAnti-CCL9/10 (monoclonal rat IgG1)R & D SystemsCat. #: MAB463
RRID:AB_2259783
(5 µg/ml)
AntibodyAnti-CXCL10 (monoclonal rat IgG2a)R & D SystemsCat. #: MAB466
RRID:AB_2292486
(1 µg/ml)
AntibodyAnti-CXC12 (monoclonal mouse IgG1)R & D SystemsCat. #: MAB310
RRID:AB_2276927
(1 µg/ml)
AntibodyAnti-CD3ε (monoclonal Armenian Hamster)BioLegendCat. #: 100302
RRID:AB_312667
(1 µg/ml)
AntibodyAnti-CD28 (monoclonal Syrian Hamster)BioLegendCat. #: 102101
RRID:AB_312866
(1 µg/ml)
AntibodyRat IgG1, κ Isotype control (Rat monoclonal)BioLegendCat. #: 400402
RRID:AB_326508
(1 µg/ml)
AntibodyMouse IgG1, κ Isotype control (Mouse monoclonal)BioLegendCat. #: 401401
RRID:AB_2801452
(1 µg/ml)
AntibodyAPC anti-CD44 (monoclonal rat IgG2b)BD BiosciencesCat. #: 553991
RRID:AB_10050405
(1 µg/ml)
AntibodyPacific Blue anti-CD8a (monoclonal rat IgG2a)BD BiosciencesCat. #: 558106
RRID:AB_397029
(1 µg/ml)
AntibodyBiotin anti-CD3ε (monoclonal Armenian Hamster)Thermo Fisher ScientificCat. #: 13-0031-82
RRID:AB_466319
(1 µg/ml)
AntibodyBiotin anti-CD28 (monoclonal Syrian Hamster)Thermo Fisher ScientificCat. #: 13-0281-82
RRID:AB_466411
(1 µg/ml)
AntibodyBiotin anti-CD3 (monoclonal mouse IgG2a)Thermo Fisher ScientificCat. #: 13-0037-82
RRID:AB_1234955
(1 µg/ml)
AntibodyBiotin anti-CD28 (monoclonal mouse IgG1)Thermo Fisher ScientificCat. #: 13-0289-82
RRID:AB_466415
(1 µg/ml)
AntibodyBiotin rat IgG2a κ Isotype Control (Rat polyclonal)eBioscienceCat. #: 13-4321-82
RRID:AB_470084
(1 µg/ml)
AntibodyBiotin IgG Isotype Control (Armenian hamster)eBioscienceCat. #: 14-4888-81
RRID:AB_470128
(1 µg/ml)
AntibodyBrilliant Violet 711 anti-CD11b (monoclonal rat IgG2b)BioLegendCat. #: 101241
RRID:AB_11218791
(2 µg/ml)
AntibodyAlexa Fluor 488 anti-NK1.1 (monoclonal mouse IgG2a)BioLegendCat. #: 108717
RRID:AB_493184
(2 µg/ml)
AntibodyFITC anti-Ly-6C (monoclonal rat IgG2c)BioLegendCat. #: 128005
RRID:AB_1186134
(2 µg/ml)
AntibodyBrilliant Violet 510 anti-CD90.2 (monoclonal rat IgG2b)BioLegendCat. #: 105335
RRID:AB_2566587
(2 µg/ml)
AntibodyBrilliant Violet 421 anti-CD64 (monoclonal mouse IgG1)BioLegendCat. #: 139309
RRID:AB_AB_2562694
(2 µg/ml)
AntibodyAPC/Fire 750 anti-CD45 (monoclonal rat IgG2b)BioLegendCat. #: 103153
RRID:AB_2572115
(2 µg/ml)
AntibodyAPC/Fire 750 anti-CD45.1 (monoclonal mouse IgG2a)BioLegendCat. #: 110751
RRID:AB_2629805
(2 µg/ml)
AntibodyFITC anti-CD11c (monoclonal Armenian Hamster)BioLegendCat. #: 117305
RRID:AB_313774
(2 µg/ml)
AntibodyPacific blue anti-MHC class II (monoclonal rat IgG2b)BioLegendCat. #: 107619
RRID:AB_493528
(2 µg/ml)
AntibodyAPC anti-CD8a (monoclonal rat IgG2a)BioLegendCat. #: 100711
RRID:AB_312750
(2 µg/ml)
AntibodyBiotin anti-CCL3 (polyclonal Rabbit sera)PeproTechCat. #: 500-P121BT(1 µg/ml)
Peptide, recombinant proteinOVA257-264 peptide, SIINFEKLAusPepCat. #: 2711(1, 0.2, 0.1, 0.02, 0.001 µg/ml)
Peptide, recombinant proteingB498-505 peptide, SSIEFARLAuspepCat. #: gb498-505(1 µg/ml)
Peptide, recombinant proteinRecombinant mouse IL-2BioLegendCat. #: 575408(100 ng/ml)
Peptide, recombinant proteinRecombinant human IL-7Miltenyi Biotech AustraliaCat. #: 130-095-362(10 ng/ml)
Peptide, recombinant proteinRecombinant human IL-15Miltenyi Biotech AustraliaCat. #: 130-095-764(5 ng/ml)
Peptide, recombinant proteinCorning Collagen I Rat Tail NaturalIn Vitro TechnologiesCat. #: FAL354236(~1.5 mg/ml)
Peptide, recombinant proteinMonobiotinylated H-2Kb/SIINFEKLTetramer Synthesis ServiceJohn Curtin School of Medical Research(1 µg/ml)
Peptide, recombinant proteinRecombinant human (cross reactive with murine) CCL1PeprotechCat. #: 300–37(1, 10 and 100 ng/ml)
Peptide, recombinant proteinRecombinant Mouse XCL1R & D systemsCat. #: 486-LT-025(1, 10 and 100 ng/ml)
Peptide, recombinant proteinRecombinant Murine CCL3PeprotechCat. #: 250–09(1, 10 and 100 ng/ml)
Peptide, recombinant proteinRecombinant Murine CCL4PeprotechCat. #: 250–32(1, 10 and 100 ng/ml)
Peptide, recombinant proteinRecombinant Murine CCL5PeprotechCat. #: 250–07(1, 10 and 100 ng/ml)
Peptide, recombinant proteinRecombinant murine CCL9/10PeprotechCat. #: 250–12(1, 10 and 100 ng/ml)
Peptide, recombinant proteinRecombinant murine CXCL10PeprotechCat. #: 250–16(1, 10 and 100 ng/ml)
Peptide, recombinant proteinRecombinant Human CXCL12PeprotechCat. #: 300-28A(1, 10 and 100 ng/ml)
Peptide, recombinant proteinLysyl Endopeptidase, Mass Spectrometry Grade (Lys-C)FUJIFILM Wako Pure Chemical CorpCat. #: 121–05063(1 µg)
Sequence-based reagentTruSeq Stranded mRNAIlluminaCat. #: 20020594
Chemical compound, drugCellTracker Orange 5-(and-6)-(((4-chloromethyl) benzoyl) amino) tetramethylrhodamine
(CMTMR)
InvitrogenCat. #: C2927(5 µM)
Chemical compound, drugCellTracker Deep RedInvitrogenCat. #: C34565(1 µM)
Chemical compound, drugCellTracker Green 5-chloromethylfluorescein diacetate (CMFDA)InvitrogenCat. #: C7025(5 µM)
Chemical compound, drugKetamineProvet Pty LtdCat. #: KETAM I(100 mg/kg)
Chemical compound, drugXylazineProvet Pty LtdCat. #: XYLA Z2(15 mg/kg)
Chemical compound, drugPertussis toxin from Bordetella pertussis (PTX)Sigma AldrichCat. #: P7208(100 ng/ml)
Chemical compound, drugInactive mutated version of Pertussis toxin from Bordetella pertussis (m-PTX)Sigma AldrichCat. #: PT-16.0003(100 ng/ml)
Chemical compound, drugMaraviroc (CCR5 antagonist)Sigma AldrichCat. #: PZ0002-5mg(10 µg/ml)
Chemical compound, drugCenicriviroc (CCR2 + CCR5 dual inhibitor)AdooQ BioscienceCat. #: A13632-10 (000–22038)(1 µM)
Chemical compound, drugCCR2 antagonistSanta Cruz Biotechnology IncCat. #: sc-202525(1 µM)
Chemical compound, drugUCB35625 (CCR1 + CCR3 dual inhibitor)R & D SystemsCat. #: 2757/1(50 µM)
Chemical compound, drugIodoacetamide (IAM)Sigma AldrichCat. #: I6125-5G(1 M)
Chemical compound, drugDithiothreitol (DTT)Sigma AldrichCat. #: 43816–10 ML(50 mM)
Commercial assay or kitEasySep Direct Human T Cell Isolation KitStem Cell TechnologiesCat. #: 19661
Commercial assay or kitT Cell TransAct, humanMiltenyi Biotech AustraliaCat. #: 130-111-160
Commercial assay or kitEasySep Human CD19 Positive Selection Kit IIStem Cell TechnologiesCat. #: 17854
Commercial assay or kitRNeasy Mini KitQiagenCat. #: 74104
Commercial assay or kitHigh-Capacity cDNA Reverse Transcription KitThermoFisher ScientificCat. #: 4368814
Commercial assay or kitSandwich ELISA kits (CCL1)OriGene TechnologiesCat. #: EA100390
Commercial assay or kitSandwich ELISA kits (CCL9)OriGene TechnologiesCat. #: EA100725
Commercial assay or kitCytometric Bead Array: Multi-Analyte Flow Assay Kit (CCL3, CCL4, CCL5, CXCL10, TNF-α and IFN-γ)LEGENDplexCustom mouse panel
Commercial assay or kitBD Cytometry Beads array Mouse MIP-1b Flex Set (Bead C9)BD BiosciencesCat. #: 558343
Commercial assay or kitBD Cytometry Beads array Mouse MIP-1a Flex Set (Bead C7)BD BiosciencesCat. #: 558449
Commercial assay or kitCellTrace CFSE Proliferation KitThermoFisher
Scientific
Cat. #: C34554
Commercial assay or kitCellTrace Violet Proliferation KitThermoFisher
Scientific
Cat. #: C34571
Commercial assay or kitCytofix/Cytoperm Plus Kit (with BD GolgiStop)BD BioscienceCat. #: 554715
Software, algorithmFlowJo software version 10.2Tree Star Incflowjo.com
Software, algorithmPrism GraphPad Software version 8GraphPadImaris.oxinst.com
Software, algorithmLeica Application Suite (LAS) X software version 3.3.0.16794Leica MicrosystemsLeica-microsystems.com
Software, algorithmFLUOstaromega software version 5.10 R2BMG Labtech GmbHBmglabtech.com
Software, algorithmCFX Manager SoftwareBio-RadBio-rad.com
Software, algorithmBioStation IM softwareNikonnikon.com
Software, algorithmImageJ/FIJIUS National Institutes of HealthImagej.net
Software, algorithmMatlabMathworksMathworks.com
Software, algorithmRR Core Teamr-project.org
Software, algorithmPlot2 for Mac 2.6.1Mike Wesemannapps.micw.org
Software, algorithmmotilisimRead et al., 2016https://github.com/marknormanread/TcellSwarming
Software, algorithmFastQC (version 0.11.5)Babraham Institutebioinformatics.babraham.ac.uk
Software, algorithmTrimmomatic (version 0.36)Bolger, A. M., Lohse, M., and Usadel, B.usadellab.org
Software, algorithmFeatureCounts (version 1.5.1)Bioconductorbioconductor.org
Software, algorithmSTRING DBELIXIRstring-db.org
Software, algorithmMaxQuant (version 1.5.8.3)Max Plank Insitute of Biochemistrymaxquant.org
Software, algorithmLFQ AnalystMonash Universitybioinformatics.erc.monash.edu/apps/LFQ-Analyst
Software, algorithmLimmaBioconductorbioconductor.org
Software, algorithmMotility_analysis packagePython Software Foundationhttps://github.com/marknormanread/TcellSwarming
OtherStreptavidin-coated polystyrene particlesSpherotech IncCat. #: SVP-60–56.0–8.06 µm diameter
OtherSPHERO AccuCount blank particlesSpherotech IncCat. #: QACBP-70–10
OtherSera-Mag Speed beadsThermoFisher ScientificCat. #: 65152105050250
OtherSera-Mag Speed beadsThermoFisher ScientificCat. #: 45152105050250
OtherTrypsin-goldPromegaCat. #: V5280
OtherDimethyl sulfoxide (DMSO)Sigma-AldrichCat. #: D2650-100ml
OtherCollagenase IVSigma-AldrichCat. #: C5138-1G
Other4’, 6-Diamidino-2-phenylindole (DAPI)ThermoFisher ScientificCat. #: D3571(0.5 µg/ml)
Other10 kDA Dextran labelled with AlexaFluor647 (Dextran-AF647)ThermoFisher ScientificCat. #: D22914(10 µg/ml)
OtherFmoc-Asp-Wand resinGL BiochemCat. #: 40501
Other1-hydroxybenzotriazole (HOBt)GL BiochemCat. #: 2592-95-2
Other2-(1H-Benzotriazole-1-yl)−1,1,3,3-Tetramethyluronium hexafluorophosphate (HBTU)GL BiochemCat. #: 94790-37-1

Mice, primary T cell isolation and cell culture

Request a detailed protocol

All mice were maintained at Australian BioResources (Moss Vale, NSW, Australia) and in the animal facility of the Lowy Cancer Research Centre, University of New South Wales. All animal breeding and experimentation were conducted in accordance with New South Wales state and Australian federal laws and animal ethics protocols overseen and approved by the University of New South Wales Animal Care and Ethics Committee (16/83B and 19/133B).

T cells were obtained from spleens of 7- to 12-week-old mice, either OT1 (specific for the OVA257-264 peptide SIINFEKL in a H-2Kb major histocompatibility complex class I context), hereafter referred to as OT1 CTLs, or OT1 ×Lifeact EGFP Galeano Niño et al., 2020 referred to as OT1GFP CTLs. Mice were euthanised by cervical dislocation. Splenocytes were stimulated ex vivo with OVA257-264 (SIINFEKL) peptide (AusPep, Melbourne, VIC, Australia) for 4 hr in T cell medium (TCM) consisting of Roswell Park Memorial Institute (RPMI) 1640, 10% foetal calf serum, 1 mM sodium pyruvate, 10 mM HEPES, 100 U/ml penicillin, 100 μg/ml streptomycin, 2 mM L-glutamine and 50 μM β2-mercaptoethanol (all from Gibco, ThermoFisher Scientific, Waltham, MA, USA). 100 ng/ml recombinant mouse IL-2 (R & D Systems, Minneapolis, MN, USA) were added on the following day and subsequently every 2 days. T cells were cryopreserved at day 3 after isolation according to established methods (Galeano Niño et al., 2016). Cryopreserved T cells were recovered by quick thawing in a 37°C water bath, the thawed cryopreservation solution was diluted in 10 ml TCM and the cells were then pelleted by centrifugation and resuspended in TCM supplemented with 100 ng/ml recombinant mouse IL-2, renewed every 2 days until use. All experiments were performed using T cells cultured to days 6 or 7 post-isolation.

gBT1 TCR transgenic mice (Coles et al., 2003) that had been crossed to UBI-GFP mice (expressing GFP under control of the human Ubiquitin C promoter) (gBT1-GFP) were a kind gift from W. R. Heath. The gBT1 TCR is specific for HSV glycoprotein B498-505 peptide SSIEFARL in a H-2Kb context. SSIEFARL peptide was purchased from AusPep. gBT1 CTLs were generated following the same procedure as OT1 CTLs.

To generate polyclonal CD8+ CD44+ effector T cells (from wild-type (WT) or Ccr5-/- C57BL/6 mice, the latter kindly provided by G. Clarke), single splenocyte suspensions were stimulated ex vivo for 24 hr with 1 µg/ml anti-CD3 (clone 145–2 C11; BioLegend, San Diego, CA, USA), 1 µg/ml anti-CD28 (clone 37.51; BioLegend) and 100 ng/ml IL-2 in 10 ml of TCM. Cells were then washed and sorted on the FACS-Aria III flow sorter (BD Biosciences; Franklin Lakes, NJ, USA) based on CD8 and CD44 surface expression detected by antibody staining with 1 µg/ml anti-CD8a-Pacific Blue (clone 53–6.7; BD Biosciences) and anti-CD44-APC (clone IM7; BD Biosciences). After sorting, cells were expanded in TCM and IL-2 until day 6. In some experiments, cells were frozen on day 3 and thawed for expansion until day 6 or 7 before experimental use. Ccr5-/- C57BL/6 mice were crossed with OT1 transgenic mice to obtain Ccr5-/- OT1 CTLs.

The murine EL4 lymphoma cell line, originally obtained from the American Type Culture Collection (ATCC; TIB-39), was obtained at early passage (P3) from the Alexander lab. EL4 were cultured in TCM, with routine passaging three times per week, maintained at cell densities under 1 × 106/ml. For preparation of cognate cells for OT1 or gBT1 CTLs, EL4 cells were pulsed for 16 hr with 1 μg/ml SIINFEKL (SFKL) or SSIEFARL (SFARL) peptide, respectively (referred to as ‘cognate tumour cells’). The cell line was further authenticated by engrafting into C57BL/6 immunocompetent mice, as well as verifying sensitivity to H-2Kb-specific cytotoxicity. Cells were free of mycoplasma contamination based on the MycoAlert Mycoplasma Detection Kit (Lonza, Basel, Switzerland) detected on a FLUOstar Omega microplate reader (BMG Labtech GmbH, Ortenberg, Germany).

The patient-derived glioblastoma cell line WK1 (Day et al., 2013) was cultured as previously described (Stringer et al., 2019). NIH/3T3 mouse fibroblast cells were cultured in Dulbecco’s Modified Eagle’s Medium (DMEM) supplemented with 10% feotal calf serum.

For in vivo experiments, we used either C57BL/6 mice, Rag-deficient B6.129S7-Rag < tm1mom > JAusb mice (‘RAG1’, Australian BioResources, NSW, Australia), hereafter referred to as Rag-/-, or B6.SJL-PtprcaPepcb/BoyJAusb mice, referred to as PTPRCA mice.

Isolation of primary human T cells

Request a detailed protocol

Human peripheral blood mononuclear cells (PBMCs) were obtained from healthy donors after informed consent and were used in experiments under a Human Research Ethics Committee (HREC) approved protocol (Sydney Children’s Hospitals Network, LNR/13/SCHN/241). We isolated PBMCs by separation over Lymphoprep, and then enriched for T cell populations using a human T cell isolation kit according to the manufacturer’s instructions (Stem Cell technologies, Tullamarine, Australia). T cells were activated with T Cell TransAct (Miltenyi Biotec Australia, Sydney, Australia) in CTS OpTmizer T cell expansion medium supplemented with CTS Immune cell SR (2.5%, ThermoFisher Scientific Australia) and recombinant human IL-7 and IL-15 (10 ng/mL and 5 ng/mL respectively, Miltenyi Biotech Australia). Human T cells were subsequently expanded in the above medium supplemented with IL-7 and IL-15 every 48 hr for ~12 days prior to use in experiments.

Generating chimeric antigen receptor (CAR) T cells

Request a detailed protocol

Human T cells were isolated and activated as indicated above and transduced with a pRRL lentivirus (Dull et al., 1998) encoding an EphA2-specific CAR consisting of the EphA2-specific 4H5 scFv (Chow et al., 2013) and a 41BB.CD3ζ endodomain, linked by a 2A sequence with a truncated form of CD19 (Yi et al., 2018). The transduced T cells were assessed for CD19 expression at day 4 post-transduction and further expanded for another 6 days. CAR-expressing T cells were enriched using an EasySep release human CD19 positive selection kit (StemCell Technologies, Vancouver, Canada). Purity of the enriched CAR T cell population was validated by flow cytometry (see Figure 6—figure supplement 1B).

3D cell migration assays

Request a detailed protocol

CTLs at day 6 or 7 post-isolation were labelled with 5 μM CellTracker Orange 5-(and-6)-(((4-chloromethyl) benzoyl) amino) tetramethylrhodamine (CMTMR) (Invitrogen, California, USA) and EL4 tumour cells were labelled with CellTracker Deep Red dye (ThermoFisher Scientific) either pulsed with cognate peptide (cognate) or unpulsed (non-cognate). A total of 4–6 × 106 cells (either tumour cells alone or mixed 1:1 with labelled CTLs) suspended in phenol red-free TCM (20 μl) were added to ice cold liquid-phase rat-tail collagen I (25 μl at ~3 mg/ml; Corning, New York, NY, USA) containing 1 N NaOH (0.77 μl) and 10 × PBS (5 μl) for a total volume of 50 μl on ice. Where bead-containing side tumoroids were constructed, 20 µl of a collagen preparation containing 2–3 × 106 each of cognate particles and CTLs were deposited on one side of a 14 mm microwell. A volume of 20 μl of the solution was rapidly transferred to one side of a 35 mm Petri dish containing a 14-mm microwell with a precision glass coverslip (MatTek, Ashland, MA, USA) and incubated at 37°C and 5% CO2 for 10 min to allow the gel to polymerise into a 3D matrix with a high density of tumour cells (with or without co-embedded CTLs) that mimics a solid tumour mass. A second collagen gel was prepared containing 3 × 105 CTLs that was deposited on the total surface of the microwell and allowed to polymerise at 37°C and 5% CO2 for 10 min to create a 3D collagen matrix with dispersed cells (see Figure 2A). Finally, 1.5 ml cold phenol red-free TCM were gently added to the dish and incubated at 37°C and 5% CO2 for 10 min, then four-dimensional confocal microscopy was performed as described below.

For experiments with a central tumouroid, 2 μl of a collagen preparation containing 3.5 × 105 EL4 tumour cells (prepared as above) or 1.75 × 105 cells each of CTLs and EL4 tumour cells were deposited in the centre of a well in a Greiner Sensoplate glass bottom 96-well optical plate (Sigma Aldrich). As above, a second collagen matrix (50 μl total volume) containing dispersed CTLs was polymerised on top of the first gel (see Figure 1—figure supplement 1A). The whole well was imaged in x, y over 14–16 hr by confocal microscopy as described below.

For experiments where WT OT1 and Ccr5-/- OT1 CTLs were co-embedded around a cognate tumouroid (containing WT OT1 and cognate tumour cells), the two CTL populations and the cognate tumour cells were labelled with CMTMR, CellTracker Green 5-chloromethylfluorescein diacetate (CMFDA) (Invitrogen, California, USA) or Deep Red dye (different combinations were used for different experiments).

For experiments with primary human T cells, cells that were embedded in the tumouroid were labelled with Deep Red dye and pre-stimulated with control or activating beads for 3 hr, whereas migrating cells were labelled with CMTMR. For experiments with CAR T cells, tumouroids were prepared with embedded CAR T cells and tumour cells (WK1 glioblastoma cells or NIH/3T3 control fibroblasts, the former EphA2-expressing, the latter EphA2-negative) labelled with Deep Red dye and migrating CAR T cells were labelled with CMFDA.

Confocal fluorescence microscopy

Request a detailed protocol

Four-dimensional imaging data were collected through a 20 × water immersion objective, numerical aperture (NA) of 1.37 (Leica Microsystems, Wetzlar, Germany), on a Leica TCS SP5 confocal microscope equipped with a resonant scanner and an incubator that maintains 37°C and 5% CO2 throughout imaging. LifeactGFP and CMFDA were excited at 488 nm, CMTMR at 561 nm and Deep Red at 633 nm wavelengths using a tunable white light laser (Leica Microsystems). Images were obtained from the x, y and z planes, with a total z thickness of 65 μm (with the lower 5 μm immediately above the glass rejected in order to avoid the inclusion of two-dimensional movements on the glass surface) and step size of 1.6 μm every 20 s for 1 hr, with three fields of view imaged sequentially at every timepoint. Imaging of whole wells with a central tumouroid was performed through a 10×/0.30 NA dry objective on the same instrument with an image taken every 5–6 min over 14–16 hr and the Leica LAS AF software was used to automate x, y tiling and facilitate image stitching (9 × 9 tiles).

Long-term imaging of T cell migration on Nikon BioStation

Request a detailed protocol

For tumouroid samples that were imaged for 40 hr (Video 1), sample preparation was performed as described above, but in the centre of a 35 mm MatTek dish, using cognate tumour cells stained with CMTMR for the tumouroid and OT1GFP CTLs embedded in the surrounding collagen matrix. Time-lapse imaging data were collected through a 20×/0.8 NA air objective on a Nikon BioStation live-cell imaging platform (Nikon, Tokyo, Japan). Images were taken every 20 min and the BioStation IM software was used to automate x, y tiling and facilitate image stitching (9 × 11 tiles). Image processing for visualisation was performed in Fiji/ImageJ (US National Institutes of Health, Bethesda, MA, USA).

Preparation of H-2Kb/SIINFEKL coated (cognate) beads or antibody-coated beads

Request a detailed protocol

Streptavidin-coated polystyrene particles (6.0–8.0 μm diameter; Spherotech Inc, Illinois, USA) were incubated with monobiotinylated H-2Kb/SIINFEKL (Tetramer Synthesis Service, John Curtin School of Medical Research, Australia National University, ACT, Australia) in BSA solution (phosphate-buffered saline with 20 mM HEPES, 150 mM NaCl and 2% bovine serum albumin) at 37°C for 45 min. The beads were then washed three times in BSA solution before use in subsequent experiments. For experiments with human T cells, beads were coated with 1 μg/ml IgG isotype control antibody or with 1 μg/ml anti-human CD3ε and anti-CD28 antibodies (ThermoFisher Scientific).

3D T cell migration assays using H-2Kb/SIINFEKL-coated (cognate) or non-cognate beads

Request a detailed protocol

For experiments where central tumoroids were constructed using Streptavidin-coated polystyrene particles, 2.5 µl of a collagen preparation containing 3.5 × 105 cognate (prepared as above) or non-cognate particles, or 1.75 × 105 each of cognate particles and CTLs were deposited in the centre of a well in a glass bottom 96-well optical plate. As above, a second collagen matrix (50 µl total volume) containing GFP expressing CTLs was polymerised on top of the first gel. The whole well was imaged in x, y over 16 hr by confocal microscopy as described above.

For experiments where CTLs were embedded around a cognate tumoroid containing H-2Kb/SIINFEKL coated polystyrene particles and Ccr5-/- OT1 CTLs, the embedded Ccr5-/- OT1 CTLs were labelled with Deep Red dye.

Preparation of cognate and non-cognate supernatant

Request a detailed protocol

2 × 106 cells each of OT1 CTLs and EL4 tumour cells (cognate or non-cognate) or polystyrene beads (coated with H-2Kb/SFKL or uncoated) were resuspended in 1.5 ml RPMI 1640 medium containing 0.5% bovine serum albumin (BSA) in 24-well plates. The plates were centrifuged for 5 min at 300 × g followed by incubation at 37°C. After 3 hr, the samples were centrifuged and the supernatants collected and filtered through 0.22 μm pore polyethylsulfonate filters (Millipore, Burlington, MA, USA).

Preparation of cognate supernatant for CBA time course following isolation of CTLs

Request a detailed protocol

EL4 cells were pulsed with 1 µg/ml SIINFEKL peptide overnight for 16 hr. 4 × 106 OT1 Ccr5-/- CTLs were labelled with CMFDA (Invitrogen, California, USA) and resuspended with 4 × 106 cognate EL4 cells in 5 ml TCM in a 6-well plate. The plate was centrifuged for 5 min at 300x g followed by incubation at 37°C. After 4 hr, the cells were pelleted, and the supernatant collected and filtered through a 0.22 µM pore polyethylsulfonate filter (Millipore, Burlington, MA, USA). The cells were collected, and 1.25 × 106 OT1 Ccr5-/- CTLs were sorted on the FACS-Melody flow sorter (BD Biosciences, Franklin Lakes, NJ, USA) based on CMFDA labelling. After sorting, the cells were split across seven wells in a 24-well plate, containing 620 µl of TCM each, and incubated at 37°C until supernatant collection. Supernatant from each well was collected at either 2, 4, 8, 16, 24, 48, or 72 hr post-sorting and filtered through a 0.22 µM pore polyethylsulfonate filter (Millipore, Burlington, MA, USA) for analysis by cytometric bead array (CBA).

Transwell chemotaxis assay

Request a detailed protocol

Chemotaxis was assayed using a Transwell Chamber (Corning) with a 5 μm-pore size polycarbonate filter. Briefly, 600 μl of control medium (serum-free RPMI 1640 medium containing 0.5% BSA) or medium containing recombinant chemokines at 1, 10 or 100 ng/ml (Peprotech, Rocky Hill, NJ, USA) or filtered supernatant were placed in the lower chambers. 1 × 106 CTLs were placed in the upper chamber in 100 μl RPMI + 0.5% BSA and incubated at 37°C and 5% CO2 for 3 hr (Figure 2—figure supplement 1A). For experiments with collagen gels, cells were embedded in liquid-phase collagen on ice (as per migration assay above). After 3 hr, cells were harvested from the lower compartment and analysed by flow cytometry using a BD LSR Fortessa X20 flow cytometer (BD Biosciences). Cell numbers were enumerated using SPHERO AccuCount blank particles (Spherotech Inc, Chicago, IL, USA). Results were analysed using FlowJo software (FlowJo 10.2, Tree Star Inc, Ashland, OR, USA). The transmigration index is represented as bars ± SEM and was calculated as follows:

Transmigration index=number of cells transmigrated in samplenumber of cells transmigrated in control medium

Cytotoxicity assay

Request a detailed protocol

Cytotoxicity assays were performed using flow cytometry based on the ratio between live target and non-target cells. Effector CTLs (GFP+), cognate tumour cells and non-cognate tumour cells (either CMTMR+ or CMTMR- in different combinations) were mixed at a 1:1:1 ratio and the distribution of the three cell populations was measured by flow cytometry at 0 hr and 2 hr. Samples were run in duplicate in each experiment. The cytotoxicity index was calculated as:

Cytotoxicityindex(%)=[1 (cognate cells (2h)noncognate cells (2h))(cognate cells (0h)noncognate cells (0h))] × 100

Inhibitors and neutralising antibodies

Request a detailed protocol

In some experiments, the following inhibitors were used: 500 ng/ml Pertussis toxin from Bordetella pertussis (PTX) or inactive mutated version (m-PTX) (Sigma Aldrich, St Louis, MO, USA); 10 μg/ml Maraviroc (CCR5 antagonist) (Sigma Aldrich); 1 μM Cenicriviroc (CCR2 + CCR5 dual inhibitor) (AdooQ Bioscience, Irvine, CA, USA); 1 μM CCR2 antagonist (CAS 445479-97-0, Santa Cruz Biotechnology Inc, Dallas, TX, USA); 50 μM UCB35625 (CCR1 + CCR3 dual inhibitor) (R & D Systems); or DMSO (vehicle).

In some experiments, the following neutralising antibodies were used: anti-CCL1, anti-CCL3, anti-CCL4, anti-CCL5, anti-CCL9, and anti-XCL1 with corresponding isotype control antibodies (all from R & D Systems).

Real-time quantitative PCR (qRT-PCR) of gene expression

Request a detailed protocol

To prepare cells for RNA extraction, 2 × 106 CTLs were incubated in 1.5 ml TCM in 24-well plates with equal numbers of either cognate or non-cognate EL4 tumour cells for 3 hr. Cells were then collected and centrifuged (300 × g, 5 min) and washed 2 × with PBS before being re-suspended in 2 ml cold TCM. A total of 1 × 106 GFP-expressing CTLs were sorted on the FACS Aria III flow sorter (BD Biosciences). Cells were then centrifuged (300 × g, 5 min) before RNA isolation using the RNeasy Mini Kit (Qiagen), according to manufacturer’s instructions. 1.5 µg of RNA were reverse transcribed to cDNA using the High Capacity cDNA Reverse Transcription Kit (Applied Biosystems, ThermoFisher Scientific) according to manufacturer’s instructions. Real-time quantitative PCR was carried out using chemokine and chemokine receptor primers predesigned and synthetised by Sigma-Aldrich (KiCqStart SYBR Green Primers). 20 ng cDNA were added to each well of a 96-well PCR plate with 1 µM forward and reverse primer for each gene. 40 cycles were performed, with denaturing temperature at 95°C for 15 s, annealing at 55°C for 30 s, and extension at 72°C for 30 s. The amount of amplicon was measured using SYBR Green and detected in a BIO-RAD CFX96 Real time system (Bio-Rad Laboratories, Hercules, CA, USA). The expression of each gene was normalised to the expression of the housekeeping genes β2-microglobulin (β2M) and ribosomal protein L13A (RPL13A).

The primer sequences used for qRT-PCR analysis of chemokine and chemokine receptor expression are found in the table below.

ChemokineForward primerReverse primer
CCL1ATGCTTACGGTCTCCAATAGTCTTCAGGTGATTTTGAACC
CCL3TTCTCTGTACCATGACACTCCTCTTAGTCAGGAAAATGACAC
CCL4GGTATTCCTGACCAAAAGAGTCCAAGTCACTCATGTACTC
CCL5AGGAGTATTTCTACACCAGCCAGGGTCAGAATCAAGAAAC
CCL6CTTTCAAGACACTTCTTCAGACCTGCTGATAAAGATGATGCC
CCL7CTCTCTCACTCTCTTTCTCCTCTGTAGCTCTTGAGATTCC
CCL8CTTCAACATGAAGATCTACGCCTGGATATTGTTGATTCTCTCG
CCL9/10AATGTTTCACATGGGCTTTCCAATGCATCTCTGAACTCTC
CCL12TGTGATCTTCAGGACCATACCATGAAGGTTCAAGGATGAAG
CCL17CATTCCTATCAGGAAGTTGGCAGTCAGAAACACGATGG
CCL19TTCTTAATGAAGATGGCTGCCTTTGTTCTTGGCAGAAGAC
CCL22CACATAACATCATGGCTACCCAGAAGAACTCCTTCACTAAAC
CXCL4TAGCCACCCTGAAGAATGGACATTTAGGCAGCTGATAC
CXCL9GAGGAACCCTAGTGATAAGGGTTTGATCTCCGTTCTTCAG
CXCL10AAAAAGGTCTAAAAGGGCTCAATTAGGACTAGCCATCCAC
CXCL11CGACAAAGTTGAAGTGATTGGCACAGAGTTCTTATTGGAG
CXCL12GAAAGCTTTAAACAAGAGGCGTGAAAGTACAGCAAAACTG
CXCL16CCATTCTTTATCAGGTTCCAGCTTGAGGCAAATGTTTTTGG
Chemokine receptorForward primerReverse primer
CCR1ATACTCTGGAAACACAGACTCGTCAAATTCTGTAGTTGTGGG
CCR2ACCACATGTGCTAAGAATTGCTGGTTTTATGACAAGGCTC
CCR3TCACCAGAGACAAGTAGAATGACTCATATTCATAGGGTGTGG
CCR5AGACCTAAATCCTACCACACTGGCTTCAAACTATGGAAAC
Housekeeping geneForward primerReverse primer
β2-microglobulinGTATGCTATCCAGAAAACCCCTGAAGGACATATCTGACATC
RPL13ACCTATGACAAGAAAAAGCGGCAGGTAAGCAAACTTTCTGG

Mass spectrometry-based secretomics

Request a detailed protocol

T cell secretomes from interactions with cognate beads, cognate tumour cells, non-cognate-beads, non-cognate tumour cells, and secretomes from EL4 (tumour cells only) and OT1 (T cells only) (n = 3 per group) were prepared for mass spectrometry analysis as previously described (40, 41) with the following modifications. For all our experiments with magnetic beads, we used a 1:1 combination mix of the two types of commercially available carboxylate beads (Sera-Mag Speed beads, #65152105050250, #45152105050250, ThermoFisher Scientific). Beads were prepared freshly each time by rinsing with water three times prior to use and stored at 4°C at a stock concentration of 20 μg/μl. Samples were transferred to a 2 ml LoBind deep well plate (Eppendorf, Hamburg, Germany) and reduced with 2 M Dithiothreitol (DTT, 50 mM final conc.) for 1 hr at 37°C. Samples were then alkylated with 1M Iodoacetamide (IAM) (100 mM final conc.) for 30 min in the dark at room temperature (RT). Samples were quenched with 2M DTT (250 mM final conc.) and 5 μl of the concentrated bead stock carboxylate beads (20 μg/μl) were then added to each sample followed by the addition of acetonitrile (ACN) to a final concentration of 70% (v/v). Mixtures were left to incubate upright at RT for 20 min to allow proteins to precipitate onto the beads. The beads were placed on a magnetic rack and washed twice with 70% ethanol and once with ACN (500 μl washes). ACN was completely evaporated from the plate using a CentriVap (Labconco, Kansas City, MO, USA) prior to the addition of 40 μl digestion buffer (10% 2-2-2-Trifluorethanol (TFE)/100 mM NH4HCO3) containing 1 μg Trypsin-gold (Promega, V5280) and 1 μg Lys-C (Wako). The plate was briefly sonicated in a water bath to disperse the beads, and the plate transferred to a ThermoMixer instrument (Eppendorf) for enzymatic digestion at 37°C for 1 hr (1200 rpm). The supernatant comprising of peptides was then collected from the beads using a magnetic rack (Ambion, Thermo Fisher Scientific) and an additional elution (40 μl 2% Dimethyl sulfoxide, DMSO, Sigma) was performed on the beads. The eluates were pooled together and transferred to pre-equilibrated C18 stage tips for sample clean-up. Briefly, two plugs of C18 resin (3M Empore, 66883 U) were prepared in 200 μl unfiltered tips, pre-wetted with 100 μl methanol followed by sequential washes with 100 μl 80% ACN/5% formic acid (FA), 50% ACN/5% FA and 5% FA. The pooled peptides were then added to the spin tip and the eluate collected into a fresh lo-bind Eppendorf tube. Bound peptides were washed twice with 5% FA. Elutions (50 μl) were performed sequentially with 50% ACN/5% FA followed by 80% ACN/5% FA and collected into fresh Eppendorf tubes. All spins were performed on a benchtop centrifuge at 500 × g (1000–2000 rpm) speeds. The eluates were lyophilized to dryness in MS vials using a CentriVap (Labconco) prior to reconstituting in 20 μl Buffer A (0.1% FA/2% ACN) ready for MS analysis.

Detection of secreted chemokines in supernatant by ELISA and CBA

Request a detailed protocol

The absolute concentration of chemokines present in supernatants was assessed by ELISA for CCL1 and CCL9 (Sandwich ELISA kits, OriGene Technologies, Rockville, MD, USA) and Cytometric Bead Array (CBA) for CCL3, CCL4, CCL5, and CXCL10 (LEGENDplexTM Multi-Analyte Flow Assay Kit, BioLegend, San Diego, CA, USA) as per manufacturers’ instructions. All samples were run in triplicate. Chemokine levels in the supernatants were interpolated from standard curves generated using recombinant proteins provided in the kits. IFN-γ and TNF-α were used as positive controls for CTL activation.

For ELISA, 100 µl of diluted supernatant and 100 µl of assay diluent were incubated in a 96-well antibody-coated plate for 2 hr. After 3–5 washes, the samples were incubated with 100 µl of detection antibody for 1 hr followed by the addition of 100 µl of streptavidin-HRP secondary antibody for 30 min. Finally, the HRP substrate tetramethyl benzidine was added and plates were analysed on a FLUOstar Omega microplate reader (BMG Labtech GmbH, Ortenberg, Germany) by reading the absorbance at 450 nm.

For CBA, 25 µl of each supernatant were mixed with 25 µl of captured beads against the desired chemokine for 2 hr in a V-bottom plate. After two washes, the samples were incubated with 25 µl of detection antibody for 1 hr followed by the addition of 25 µl of PE-conjugated secondary antibody. Data were acquired on a Fortessa X20 flow cytometer and analysed by FlowJo software.

Preparation and staining of 3D CCL3 gradient

Request a detailed protocol

As described previously, a high density tumouroid of 1:1 cognate EL4s and OT1 CTLs in a 3D collagen matrix was prepared on one side of a 35-mm Petri dish containing a 14 mm microwell with a precision glass coverslip (MatTek, Ashland, MA, USA). 1 ml of CBA beads from the LEGENDplex Multi-Analyte Flow Kit (BioLegend, San Diego, CA, USA) were pelleted at 250 x g for five mins and supernatant was removed. The beads were resuspended in a second collagen gel mixture that was deposited adjacent to the tumouroid, and allowed to polymerise at 37°C and 5% CO2 for 10 min to create a 3D collagen matrix with dispersed CBA beads. 2 ml of warm TCM was added to the dish, which was then returned to 37°C for either 2 or 3 hr to allow formation of a CCL3 gradient from the tumouroid. The TCM was then removed and 1 ml of 10% Neutral Buffered Formalin (NBF, Sigma Aldrich) was added to the dish to fix the gel, which was placed on a plate rocker to incubate for 1 hr at room temperature. The 10% NBF was then removed, and the dish washed 3x with 2 ml FACS wash for 30 min per wash, on the plate rocker at room temperature. The FACS wash was then removed, and the gel resuspended in 2 ml of 1 µg/ml anti-murine CCL3 biotinylated rabbit antibody in FACS wash (PeproTech, Rocky Hill, NJ, USA) and incubated for 3 hr at room temperature, rocking. The gel was then washed twice with FACS wash as described previously, and then a third time with an overnight incubation at room temperature. The wash buffer was then removed and replaced with Streptavidin-PE (also from the LEGENDplexTM Multi-Analyte Flow Kit) and incubated for 45 min at room temperature, rocking. The gel was then washed twice with FACS wash for 30 min per wash, rocking and then a third time overnight before imaging.

Generation of mCCL3-mScarletI, mCCL4-miRFP670, SSIEFARL(HSV)-mTagBFP2, and SIINFEKL(OVA)-mTagBFP2 fusion proteins

The coding sequences for all fusion proteins were synthesized as gBlocks by Integrated DNA Technologies, Inc (Skokie, IL, USA) and cloned into the MSCV-based retroviral expression vector ‘LENC’ (kind gift from Johannes Zuber) that we modified to contain multiple cloning sites. The design of these sequences was based on published sequences of murine CCL3 (GenBank accession # NM_011337.2), murine CCL4 (#NM_013652.2), mScarletI (# KY021424.1) and miRFP670 (KX421097.1). Sequences encoding the mCCL3-mScarletI and mCCL4-miRFP670 fusion proteins were separated by the 16-residue SGGGGSGGGGSGGGGS linker and cloned into the AgeI/HpaI sites. Sequence encoding bicistronic expression of mTagBFP2 fluorescent protein (Subach et al., 2011) with the SSIEFARL or SIINFEKL epitopes were linked by the viral F2A sequence VKQTLNFDLLKLAGDVESNPGP and cloned into the BglII/HpaI sites. The following coding sequences were synthesized as oligos for integration into retroviral expression vector ‘LENC’.

mCCL3-mScarletI

Request a detailed protocol

ctaccctcgtaaaggatccttcgaagatctacgtatgcatacgcgtataccggtgccaccatgaaggtctccaccactgcccttgctgttcttctctgtaccatgacactctgcaaccaagtcttctcagcgccatatggagctgacaccccgactgcctgctgcttctcctacagccggaagattccacgccaattcatcgttgactattttgaaaccagcagcctttgctcccagccaggtgtcattttcctgactaagagaaaccggcagatctgcgctgactccaaagagacctgggtccaagaatacatcactgacctggaactgaatgcctccggaggaggaggatccggaggaggaggatccggaggaggaggatccgtgagcaagggcgaggcagtgatcaaggagttcatgcggttcaaggtgcacatggagggctccatgaacggccacgagttcgagatcgagggcgagggcgagggccgcccctacgagggcacccagaccgccaagctgaaggtgaccaagggtggccccctgcccttctcctgggacatcctgtcccctcagttcatgtacggctccagggccttcatcaagcaccccgccgacatccccgactactataagcagtccttccccgagggcttcaagtgggagcgcgtgatgaacttcgaggacggcggcgccgtgaccgtgacccaggacacctccctggaggacggcaccctgatctacaaggtgaagctccgcggcaccaacttccctcctgacggccccgtaatgcagaagaagacaatgggctgggaagcgtccaccgagcggttgtaccccgaggacggcgtgctgaagggcgacattaagatggccctgcgcctgaaggacggcggccgctacctggcggacttcaagaccacctacaaggccaagaagcccgtgcagatgcccggcgcctacaacgtcgaccgcaagttggacatcacctcccacaacgaggactacaccgtggtggaacagtacgaacgctccgagggccgccactccaccggcggcatggacgagctgtacaagtgaccgcggttaactgcagcgctagcatatgtcgacagtttgtttg.

mCCL4-miRFP670

Request a detailed protocol

ctaccctcgtaaaggatccttcgaagatctacgtatgcatacgcgtataccggtgccaccatgaagctctgcgtgtctgccctctctctcctcttgctcgtggctgccttctgtgctccagggttctcagcaccaatgggctctgaccctcccacttcctgctgtttctcttacacctcccggcagcttcacagaagctttgtgatggattctatgagaccagcagtctttgctccaagccagctgtggtattcctgaccaaaagaggcagacagatctgtgctaaccccagtgagccctgggtcactgagtacatgagtgacttggagttgaactccggaggaggaggatccggaggaggaggatccggaggaggaggatccgtagcaggtcatgcctctggcagccccgcattcgggaccgcctctcattcgaattgcgaacatgaagagatccaacctcgccggctcgatccagccgcatggcgcgcttctggtcgtcagcgaacatgatcatcgcgtcatccaggccagcgccaacgccgcggaatttctgaatctcggaagcgtactcggcgttccgctcgccgagatcgacggcgatctgttgatcaagatcctgccgcatctcgatcccaccgccgaaggcatgccggtcgcggtgcgctgccggatcggcaatccctctacggagtactgcggtctgatgcatcggcctccggaaggcgggctgatcatcgaactcgaacgtgccggcccgtcgatcgatctgtcaggcacgctggcgccggcgctggagcggatccgcacggcgggttcactgcgcgcgctgtgcgatgacaccgtgctgctgtttcagcagtgcaccggctacgaccgggtgatggtgtatcgtttcgatgagcaaggccacggcctggtattctccgagtgccatgtgcctgggctcgaatcctatttcggcaaccgctatccgtcgtcgactgtcccgcagatggcgcggcagctgtacgtgcggcagcgcgtccgcgtgctggtcgacgtcacctatcagccggtgccgctggagccgcggctgtcgccgctgaccgggcgcgatctcgacatgtcgggctgcttcctgcgctcgatgtcgccgtgccatctgcagttcctgaaggacatgggcgtgcgcgccaccctggcggtgtcgctggtggtcggcggcaagctgtggggcctggttgtctgtcaccattatctgccgcgcttcatccgtttcgagctgcgggcgatctgcaaacggctcgccgaaaggatcgcgacgcggatcaccgcgcttgagagctgaccgcgg ttaactgcagcgctagcatatgtcgacagtttgtttg.

mTagBFP2_F2A_SIINFEKL(OVA)

Request a detailed protocol

ctaccctcgtaaaggatccttcgaagatctacgtatgcatacgcgtataccggtgccaccatgagcgaactgatcaaagagaacatgcacatgaagctgtacatggaaggcaccgttgacaaccaccactttaagtgcacgtctgagggtgagggtaagccgtacgaaggcacccaaaccatgcgtatcaaagttgtggagggcggtccactgccgttcgcttttgacattctggcgaccagcttcctgtacggttccaaaacgttcattaaccatactcagggcattccggatttcttcaaacagagctttccggaaggtttcacctgggagcgtgtcaccacgtatgaagatggtggtgtgttgaccgccacccaagatacctccctgcaagatggctgtctgatctataacgtgaaaattcgtggcgtcaactttacgagcaatggtccggtgatgcagaagaaaaccctgggttgggaggcgtttacggaaaccctgtatccggccgatggtggcctggagggccgtaacgacatggcactgaagctggttggtggcagccatttgatcgcaaatgccaagacgacgtaccgcagcaagaaaccggcgaaaaatctgaagatgccgggtgtttactatgtcgactaccgtctggaacgcattaaagaagcgaataatgagacttacgtggagcagcacgaggttgcagtcgcgcgctattgcgacttgcctagcaagctgggtcataaactgaatctcgagggaggctccggagtgaaacagactttgaattttgaccttctcaagttggcgggagacgtggagtccaacccagggcccaccggtatgggttgctgcttctccaagaccggctccggatatccatatgatgtgccggattatgctagtgggagtgggacaatgagcatgttggtgctgttgcctgatgaagtctcaggccttgagcagcttgagagtataatcaactttgaaaaactgactgaatggaccagttctaatgttatggaagagaggaagatcaaagtgtacttacctcgcatgaagatggaggaaaaatacaacctcacatctgtcttaatggctatgggcattactgacgtgtttagctcttcagccaatctgtctggcatctcctcagcagagagcctgaagatatctcaagctgtccatgcagcacatgcagaaatcaatgaagcaggcagagaggtggtagggtcatcacaattggacccggcatgggagcgcaacgaccctacgcagcagatccccaagctggtcgcaaacaacacccggctatgggtttattgcgggaacggcaccccgaacgagttgggcggtgccaacatacccgccgagttcttggagaacttcgttcgtagcagcaacctgaagttccaggatgcgtacaacgccgcgggcgggcacaacgccgtgttcaacttcccgcccaacggcacgcacagctgggagtactggggcgctcagctcaacgccatgaagggtgacctgcagagttcgttaggcgccggccatatgcaattgacgcgttaaagcttatcgatccgcggttaactgcagcgctagcatatgtcgacagtttgtttg.

mTagBFP2-F2A-SSIEFARL(HSV)

Request a detailed protocol

ctaccctcgtaaaggatccttcgaagatctacgtatgcatacgcgtataccggtgccaccatgagcgaactgatcaaagagaacatgcacatgaagctgtacatggaaggcaccgttgacaaccaccactttaagtgcacgtctgagggtgagggtaagccgtacgaaggcacccaaaccatgcgtatcaaagttgtggagggcggtccactgccgttcgcttttgacattctggcgaccagcttcctgtacggttccaaaacgttcattaaccatactcagggcattccggatttcttcaaacagagctttccggaaggtttcacctgggagcgtgtcaccacgtatgaagatggtggtgtgttgaccgccacccaagatacctccctgcaagatggctgtctgatctataacgtgaaaattcgtggcgtcaactttacgagcaatggtccggtgatgcagaagaaaaccctgggttgggaggcgtttacggaaaccctgtatccggccgatggtggcctggagggccgtaacgacatggcactgaagctggttggtggcagccatttgatcgcaaatgccaagacgacgtaccgcagcaagaaaccggcgaaaaatctgaagatgccgggtgtttactatgtcgactaccgtctggaacgcattaaagaagcgaataatgagacttacgtggagcagcacgaggttgcagtcgcgcgctattgcgacttgcctagcaagctgggtcataaactgaatctcgagggaggctccggagtgaaacagactttgaattttgaccttctcaagttggcgggagacgtggagtccaacccagggcccaccggtatgggttgctgcttctccaagaccggctccggatatccatatgatgtgccggattatgctagtgggagtgggacaatgagcatgttggtgctgttgcctgatgaagtctcaggccttgagcagcttgagagtagtatagagtttgccaggctgactgaatggaccagttctaatgttatggaagagaggaagatcaaagtgtacttacctcgcatgaagatggaggaaaaatacaacctcacatctgtcttaatggctatgggcattactgacgtgtttagctcttcagccaatctgtctggcatctcctcagcagagagcctgaagatatctcaagctgtccatgcagcacatgcagaaatcaatgaagcaggcagagaggtggtagggtcatcacaattggacccggcatgggagcgcaacgaccctacgcagcagatccccaagctggtcgcaaacaacacccggctatgggtttattgcgggaacggcaccccgaacgagttgggcggtgccaacatacccgccgagttcttggagaacttcgttcgtagcagcaacctgaagttccaggatgcgtacaacgccgcgggcgggcacaacgccgtgttcaacttcccgcccaacggcacgcacagctgggagtactggggcgctcagctcaacgccatgaagggtgacctgcagagttcgttaggcgccggccatatgcaattgacgcgttaaagcttatcgatccgcggttaactgcagcgctagcatatgtcgacagtttgtttg.

Retroviral transduction of EL4 cells for generation of CCL3/CCL4-secreting tumour cells

Request a detailed protocol

To transduce EL4 cells, retrovirus pseudotyped with the vesicular stomatitis virus (VSV-G) envelope was produced by polyethylenimine (PEI, molecular weight 4000, PolySciences Catalogue No 24885–2, Warrington, PA, USA) transfection of GP2-293 cells (Clontech, Palo Alto, CA, USA). NaOH-neutralised PEI (1 mg/ml) was complexed with 6.8 µg of rMSCV-mCCL3-mScarletI and rMSCDV-mCCL4-miRFP670 and 3.2 µg of pMD2.G plasmid (VSVG coding sequence expressed from the CMV promoter, kind gift of Didier Trono) for 30 min at room temperature before addition to 7 × 106 GP2-293 cells. At 72 hr after transfection, viral supernatant was used to transduce EL4 cells and fluorescent EL4 cells were sorted (BD FACS Aria III) 72 hr after transduction. GP2-293 cells were maintained in DMEM (Gibco) containing 4.5 g/L glucose, 4 mM L-glutamine and 1 mM sodium pyruvate supplemented with 10% heat-inactivated FBS. Sorted CCL3/CCL4-secreting or mTagBFP2-expressing EL4 tumour cells were cultured in TCM with routine passaging three times per week, maintained at cell densities under 1 × 106/ml.

Measurement of in vivo leukocyte infiltration into tumours by flow cytometry

Request a detailed protocol

A total of 1 × 106 EL4 cells transduced to express CCL3-mScarletI and CCL4-miRFP670 or WT EL4 cells were injected subcutaneously into contralateral flanks of 8-week-old Rag-/- or PTPRCA mice. The tumours were allowed to grow for 7–10 days before day 6 or 7 effector CTLs were adoptively transferred via tail vein injection in 200 μl PBS. 24 to 72 hr post T cell transfer, mice were euthanised by CO2 asphyxiation. The spleens and both tumours were collected and dissociated with 1 mg/ml collagenase IV (Sigma-Aldrich) for 30 min at 37°C (shaking at 800 rpm). The samples were filtered through 70 µm cell strainers to obtain single-cell suspensions. Tumours or spleens were resuspended in final volumes of 2 ml or 5 ml FACS wash buffer (2% HI-FCS, 2 mM EDTA and 0.02% sodium azide in 1 × PBS), respectively. 100 µl of cells from these suspensions were mixed with 100 µl of buffer containing 2 × 104 AccuCount Blank Particles to determine the absolute number of infiltrating cells. Remaining cells were stained with fluorescent conjugated antibodies against CD11b (Brilliant Violet 711; clone M1/70), NK1.1 (Alexa Fluor 488; PK136), Ly-6C Antibody (FITC; HK1.4), CD90.2 (Brilliant Violet 510; 30-H12), CD64 (Brilliant Violet 421; X54-5/7.1) and CD45 (APC/Fire 750; 30-F11), CD11c (FITC; N418), I-A/I-E or MHC II (Pacific Blue, M5/114.15.2), or CD45.1 (APC/Fire 750; A20) for 30 min on ice in FACS wash buffer containing 10% normal mouse serum. Final cell suspensions were prepared in 200 µl cold FACS wash buffer containing 0.5 µg/ml 4’, 6-diamidino-2-phenylindole (DAPI) and acquired on the BD Fortessa X20 flow cytometer. Flow cytometry data were analysed with FlowJo software.

To quantify recruitment of WT and Ccr5-/- CTLs to non-cognate or CCL3/CCL4-secreting tumours, Rag-/- mice were inoculated subcutaneously with 1 × 106 WT EL4 or CCL3/CCL4-secreting EL4 tumour cells on contralateral flanks. On day 10, equal numbers of WT and Ccr5-/- effector OT1 CTLs (12.5 × 106 each), distinguished by CellTracker Deep Red, CellTracker Green, or CellTracker Orange CMTMR labelling, were co-injected intravenously. OT1 CTLs in single-cell suspensions prepared from both tumours and the spleen were enumerated by flow cytometry 22 hr later. Ratios of Ccr5-/-:WT CTLs in tumours were normalised to the ratio of Ccr5-/-:WT in spleens for each mouse. Data in Figure 5F–H are from four independent experiments.

Measurement of tumour clearance in vivo

Request a detailed protocol

68-week-old Rag-/- mice were engrafted by subcutaneous injection of 1 × 106 EL4.OVA tumour cells on both flanks. Tumour growth was monitored by daily caliper measurements in two orthogonal dimensions, where tumour volume in mm3 is calculated as = 0.5 x length (mm) x width (mm)2. On day 9 post-engraftment, 5 × 106 OT1 or 5 × 106 Ccr5-/- OT1 CTLs were adoptively transferred into the mice by tail-vein injection. Each tumour volume was normalised to volumes on the day of T cell transfer.

Preparation of shear-thinning hydrogel

Request a detailed protocol

A trifluoroacetic acid (TFA)-free, self-assembling peptide derivative, Fmoc-DDIKVAV, was synthesized using standard Fmoc chemistry procedure on a 1.5 mmol scale. Fmoc-Asp-Wang resin, Fmoc protected amino acids, 1-hydroxybenzotriazole (HOBt), N,N-diisopropylethylamine (DIPEA), and 2-(1H-Benzotriazole-1-yl)−1,1,3,3-Tetramethyluronium hexafluorophosphate (HBTU) were purchased from GL Biochem (Shanghai, China), with other reagents sourced from Sigma-Aldrich (Australia). Solution-phase anion exchange with excess aqueous hydrochloric acid (HCl) was used to remove the TFA counterion, followed by lyophilization. Reverse phase high performance liquid chromatography (RP-HPLC) confirmed 95% purity. Gelation was initiated using a well-established pH switch (Rodriguez et al., 2013). Briefly, one wt% hydrogels were prepared from amorphous Fmoc-DDIKVAV powder. This was suspended in deionized water, before the pH was subsequently raised with a minimal amount of 0.5 M NaOH to ensure solubilization. Gelation occurred spontaneously when the pH was lowered to 7.4 using dropwise 1 M HCl, and water used to ensure a concentration of 20 mg/ml. Fourier transform infrared (FTIR), circular dichroism (CD) spectroscopy, and transmission electron microscopy were performed to verify synthesis and structure of the desired nanofibrillar structure (data not shown). CCL3 was loaded within the molecular hydrogel via our recent shear-containment methodology (Nisbet D. R.; Nisbet et al., 2018). Briefly, the peptide hydrogels were disrupted via the application of shear force until a gel-solution transition was observed and then 10 µg/ml of recombinant CCL3 and 20 µg/ml of 10 kDa Dextran labelled with AlexaFluor647 (Dextran-AF647) were added prior to syringe administration and spontaneous re-assembly.

Intravital microscopy

Request a detailed protocol

-week-old Rag-/- mice were engrafted by subcutaneous injection of 1 × 106 EL4 tumour cells into contralateral flanks. On day five post-engraftment (48 hr before imaging), a total of 40 × 106 OT1 and Ccr5-/- OT1 CTLs (prepared 1:1) were adoptively transferred into the mice by tail-vein injection. The two CTL populations were labelled with CFSE and Cell Trace Violet (Invitrogen) at 100 mM final concentration (dye selections were inverted for different experiments).

Mice (17–18 g) were anaesthetized by intraperitoneal injection of 100 mg/kg body weight ketamine and 15 mg/kg body weight xylazine. Tumours were surgically exposed and prepared for intravital microscopy by skin flap surgery. The tumour was stabilized on a coverslip on a microscope stage with intact vasculature and innervation. Intravital imaging was performed on a Nikon A1R inverted laser scanning confocal microscope fitted with a CFI APO LWD Lambda series 20×/0.95 NA water immersion objective, an Okolab humidified temperature-controlled microscope enclosure, objective heater and a custom-made stage insert. Heating was adjusted to maintain the temperature at 34°C within the chamber. Cell Trace Violet was excited with a 405 nm laser, CFSE with a 488 nm laser and Dextran-AF647 with a 640 nm laser. Images were taken using NIS Elements software (Nikon).

During imaging, tumours were injected with sub-µl volumes of hydrogel containing recombinant CCL3 chemokine and Dextran-AF647 by using a customized stereotaxic injection unit (Kopf, Model 5000 microinjection unit, Tujunga, CA, USA) equipped with a syringe and 29-gauge needle with 45° bevel angle (Hamilton Company Inc, Reno, NV, USA).

Intravital imaging data were analysed with Imaris 9.2.1 software (Bitplane AG, Zurich, Switzerland) by use of the Spots function to determine the number of cells in the Ccr5-/- and WT channels at each time point. Data were then graphed in Plot2 for Mac 2.6.1 (apps.micw.org). In Figure 5—figure supplement 3B, densities were linearly interpolated at regular 10 min intervals in Matlab (MathWorks) to obtain the mean curve (due to differences in sampling frequencies between the independent experiments).

T cell migration imaging analysis

Request a detailed protocol

Image analysis for the tracking of CTL movement in 3D was performed with Imaris 9.2.1 software (Bitplane AG, Zurich, Switzerland). Cells were segmented by creating surfaces with a filter below 100 µm3 to discard cell debris. Cells were tracked using autoregressive motion, applying a threshold of 10 min to filter out tracks of insufficient duration. Intensity, morphological and tracking data were then exported, yielding multiple motility parameters used to quantify population-wide migration behaviours.

Track displacement is the net distance between first and last position:

D=Dx(tL,tF)2 + Dy(tL,tF)2+ Dz(tL,tF)2

where D is net displacement, Di is the net displacement in the i-axis between tL, the position of the cell at the last timeframe of the track, and tF, the position of a cell at the first timeframe of the track.

The mean speed was calculated by dividing the total length a cell travels by the duration of the track.

The Forward Migration Index (FMI) is a measure of the directionality of the cell trajectory along the x axis (i.e. towards the tumour). The FMI is defined as the displacement in x (Dx) divided by the net displacement (D), therefore equivalent to the cosine of the angle between the displacement vector and the vector pointing towards the tumouroid.

FMI=Dx D

T cell migration analysis in experiments with central tumouroids

Request a detailed protocol

Image analysis for the population-wide behaviour of CTLs in whole wells was performed with Imaris 9.2.1 software. Tumouroids and CTLs were segmented using the Imaris ‘surface’ and ‘spots’ functions, respectively. The shortest distance between each CTL and the tumouroid surface was then calculated for each timepoint using the ‘Distance transform’ ImarisXT module employing MATLAB (MathWorks Inc, Natick, MA, USA), for CTLs located either outside or inside the tumouroid surface. MATLAB was then used to calculate the fraction of total CTLs infiltrated into the tumouroid as well as the mean infiltration depth into the tumouroid (measured as the shortest distance from the tumouroid edge for infiltrated CTLs). For visualisation and preparation of movies and figures, Fiji/ImageJ was employed in conjunction with Imaris. For the visualisation of experiments with human T cells, Fiji/ImageJ bleach correction (histogram matching) was applied to eliminate fluctuations in laser power that occurred over the 14 hr of imaging.

Kymographs were generated to quantify the density of cells with respect to the tumouroid interface over time. Briefly, the cumulative sum of cells residing within radial distance r of the tumouroid interface was calculated for all r, for each imaging frame. These data were then normalised for cell counts over area of r, and smoothed over r using the ‘fda’ (version 2.4.8) functional regression package in R. The smoothed functions are differentiated with respect to r to yield the density of cells with respect to distance from tumouroid.

Quantification of T cell swarming with ‘M’ metric

Request a detailed protocol

We quantify the spatial organisation of cells with respect to the tumouroid through a swarming index (the 'M' metric) (code available). Briefly, this index ranges between −1 and 1, with −1 indicating an even distribution of all cells along the well perimeter, and one indicating all cells as residing within the tumouroid. A value of 0 represents a uniform distribution of cells within the well, but outside of the tumouroid (Figure 1C). The swarming index is independently quantified for each imaging frame, and the subsequent timeseries denotes the spatial evolution of cells with respect to the tumouroid over time. Custom code and notes for generating ‘M’ are available at https://github.com/marknormanread/TcellSwarming (Niño et al., 2020; copy archived at swh:1:rev:74c6678c55317a0aac98a70939e0c92fb29e58ad).

Mathematical modelling of T cell attraction

Request a detailed protocol

Simulations of T cell motility and attraction were conducted through an adaptation of the agent-based simulation, ‘motilisim’ (Read et al., 2016). Code is available at https://github.com/marknormanread/TcellSwarming. T cells are modelled as non-overlapping spheres of 12 µm diameter in a spatially explicit 3D environment. We modelled a whole well environment of 6.8 mm diameter containing a concentric tumouroid environment of 2.4 mm diameter, both with height 60 µm; these boundaries are impermeable. In all cases, a total of 35,000 cells are simulated within this environment.

T cell motility patterns are sampled from the tracks of OT1 CTLs observed through 3D ex vivo imaging of space immediately adjacent to a tumouroid (Figure 2A,B). The sampling methodology is performed via ‘bootstrapping’: each modelled T cell samples (with replacement) and then re-enacts 10 min blocks of observed ex vivo CTL motility (Figure 1—figure supplement 1B, C). The pool of blocks to be sampled comprises all unique consecutive 10 min durations of track data, across all imaged CTLs in the source data. Each block describes a given CTL’s sequence of displacements, and their relative orientations, within the 10 min window.

Modelled agents conducting ‘undirected’ motion sample their motilities from experiments involving random migration of CTLs in the absence of a tumouroid. Conversely, ‘chemotactic’ agents sample the motilities of CTLs imaged in the presence of a tumouroid containing cognate tumour cells and embedded CTLs (Figure 1—figure supplement 1A). In this case, each block captures CTL motility with respect to the tumouroid, and the modelled agent reinterprets this with respect to the chemokine gradient (Figure 1—figure supplement 1B); ‘up’ (0x, 0y, 1z) is maintained during these rotational translations. Agents entering the tumouroid environment cease bootstrapped motility reconstruction and instead move towards the tumouroid centre through the xy plane, holding a stable z-location, at 0.15 µm/min. Upon entering the tumouroid, agents in the ‘positive attraction’ simulation scenario (Figure 1F) secrete a soluble chemotactic factor. No such secretion takes place in the simulated ‘no attraction’ scenario.

Chemokine-secreting agents do so at 1000 molecules/min. The chemokines have a diffusion coefficient of 250 µm2/s (2.5 × 10−6 cm2/sec), given CCL3 and CCL4 molecular weights of 10 kDa approximately. The chemokine concentration at a given point in space and time is resolved through applying the heat kernel to all prior secretion events, having recorded their location, time and quantity. The heat kernel is a numerical solution for the modelling of diffusion. Agents determine the chemokine concentration at six points around their spherical extremity (where the sphere intersects the ±xy and±z axes, relative to the agent), and from this determine the chemokine gradient direction. Agents are ‘chemotactic’ only whilst the maximum perceived chemokine concentration lies above a ‘chemotaxis actuation’ threshold, and below another ‘desensitisation’ threshold. Both thresholds are agent-specific, with each agent sampling a threshold from a log-normal distribution; agents hence differ in their sensitivity to chemokines.

Whilst agents are permitted to move freely within this three-dimensional space during simulation, only the locations of agents intersecting an xy plane at depth 30 µm are recorded for downstream analysis; this is reflective of the restricted z-depth of the whole well imaging experiments, facilitating comparison of results. Agent location changes are updated in 20 s increments of simulated time, but recorded at 5 min intervals, in line with experimental whole well imaging. Agent diameters are enlarged to 48 µm to facilitate visualisation in simulations.

RNA sequencing (RNAseq) and bioinformatics analysis

Request a detailed protocol

Non-cognate or cognate EL4 tumour cells were labelled with 10 μM CMTMR for 20 min in serum-free RPMI 1640 medium and washed twice. Labelled cells were returned to TCM to recover for 2 hr at 37°C and 5% CO2 before use. Effector OT1 CTLs were stimulated with non-cognate or cognate tumour cells at a 1:1 ratio for a final cell concentration of 6 × 106/ml in 250 μl of TCM per well in 96-well U-bottomed plates. The plates were centrifuged at 300 × g for 3 min before incubation for 2.5 hr at 37°C and 5% CO2. OT1 and CMTMR+ tumour cells were then sorted (two-way sort) on the FACS-Aria III flow sorter (BD Biosciences). To prepare OT1 stimulated by cognate beads, OT1 CTLs were incubated with beads (prepared as described above) for 3 hr. Non-cognate (OT1 CTLs conjugated with EL-4) or cognate (OT1 CTLs conjugated with EL-4 pulsed with SIINFEKL as described above) supernatants were prepared and filtered as described above and were then used to incubate 3 × 106/ml in 250 μl OT1 CTLs for 3 hr prior to RNA extraction. Total RNA was prepared from up to 106 cells using the RNeasy Mini RNA Isolation Kit (Qiagen, Hilden, Germany) as per manufacturer’s instructions. The library was prepared using the TruSeq Stranded mRNA and sequenced on the Illumina NextSeq500 (Illumina, San Diego, CA, USA) generating paired-end 75 bp read lengths (Ramaciotti Centre for Genomics, University of New South Wales, Sydney, NSW, Australia).

For data analysis of RNAseq data, quality check of the raw reads was performed with FastQC (version 0.11.5). Trimmomatic (version 0.36) was used to trim low quality reads with low-quality scores using the following parameters: leading = 3; trailing = 3; window_len = 4; window_qual = 15; minlen = 50; avgqual = 20. Low-quality reads that did not pass this step were removed from downstream analysis. The reads were aligned against the GRCm38 reference mouse genome with Tophat2 using default parameters. Read counts were quantified by FeatureCounts (version 1.5.1) (results provided in Supplementary file 1). The distribution of read counts revealed a uniform distribution across samples; therefore, no further normalisation was necessary.

Differential expression analysis was performed from the total read counts by first calculating the fold change between pairs of samples. For the pairwise differential expression analyses, only genes with at least 100 reads in at least one of the two analysed samples were considered. The detection of differentially expressed genes was based on the fold-change between two conditions.

The heatmap in Figure 3B was obtained by filtering for genes that encode secreted proteins (based on UniProtKB database; available at www.uniprot.org) from the total RNAseq data (Supplementary file 1). Fold changes were used to identify genes differentially expressed between pairs of samples. Read counts corresponding to these genes were then utilised to cluster the samples using the package pheatmap in R with the option of ‘scale = row’. Statistical tests and heatmaps were performed with the pheatmap R package.

The heatmap shows the differential expression of genes via z-scores (also called standard scores), obtained by pairwise comparisons between all conditions for each gene. For each gene, the z-scores are calculated by subtracting the mean of the pairwise comparisons from the read count of each condition and then dividing the difference by the standard deviation for the gene.

Zi,jread count(gene i, condition j)mean(gene i)standard deviation(gene i)

where zi,j is the z-score for gene i in condition j.

To identify genes that interact with GPCRs, an up-to-date list of GPCRs was obtained from UniProtKB (all entries indicated as olfactory, odorant, taste or vomeronasal receptors were removed) and fed into STRING DB (https://string-db.org) as multiple protein entries under Mus musculus along with gene entries from the heatmap in Figure 4B. Genes of secreted proteins with >0.9 combined STRING score for interactions with GPCRs are highlighted in red in Figure 4B.

Mass spectrometry analysis

Request a detailed protocol

Peptides (5 μl) were separated by reverse-phase chromatography on a C18 fused silica column (I.D. 75 μm, O.D. 360 μm × 25 cm length) packed into an emitter tip (IonOpticks, Melbourne, VIC, Australia), using a nano-flow HPLC (M-class, Waters, UK). The HPLC was coupled to an Impact II UHR-QqTOF mass spectrometer (Bruker, Bremen, Germany) using a CaptiveSpray source and nanoBooster at 0.20 Bar using acetonitrile. Peptides were loaded directly onto the column at a constant flow rate of 400 nl/min with buffer A (99.9% Milli-Q water, 0.1% FA) and eluted with a 90 min linear gradient from 2% to 34% buffer B (99.9% acetonitrile, 0.1% FA). MS spectra were acquired in a data-dependent manner including an automatic switch between MS and MS/MS scans using a 1.5 s duty cycle and 4 Hz MS1 spectra rate followed by MS/MS scans at 8–20 Hz dependent on precursor intensity for the remainder of the cycle. MS spectra were acquired between a mass range of 200–2000 m/z. Peptide fragmentation was performed using collision-induced dissociation (CID).

For data analysis, raw files consisting of high-resolution MS/MS spectra were processed with MaxQuant (version 1.5.8.3) for feature detection and protein identification using the Andromeda search engine. Extracted peak lists were searched against the Mus musculus database (UniProt, October 2016), as well as a separate reverse decoy database to empirically assess the false discovery rate (FDR) using strict trypsin specificity allowing up to two missed cleavages. The minimum required peptide length was set to seven amino acids. In the main search, precursor mass tolerance was 0.006 Da and fragment mass tolerance was 40 ppm. The search included variable modifications of oxidation (methionine), amino-terminal acetylation, the addition of pyroglutamate (at N-termini of glutamate and glutamine) and a fixed modification of carbamidomethyl (cysteine). The ‘match between runs’ option in MaxQuant was used to transfer identifications made between runs on the basis of matching precursors with high mass accuracy. Peptide-spectrum match (PSM) scores and protein identifications were filtered using a target-decoy approach at a false discovery rate (FDR) of 1%.

Only unique and razor peptides were considered for quantification with intensity values present in at least two out of three replicates per group. Statistical analyses were performed using LFQAnalyst (https://bioinformatics.erc.monash.edu/apps/LFQ-Analyst/), whereby the LFQ intensity values were used for protein quantification. Missing values were replaced by values drawn from a normal distribution of 1.8 standard deviations and a width of 0.3 for each sample (Perseus-type). Protein-wise linear models combined with empirical Bayes statistics were used for differential expression analysis using Bioconductor package Limma whereby the adjusted p-value cutoff was set at 0.05 and log2 fold change cutoff set at 1. The Benjamini-Hochberg method of FDR correction was used.

Statistical analysis

Request a detailed protocol

Statistical analyses were performed using Prism 8.0 (GraphPad Software, La Jolla, CA, USA) or R (The R Project for Statistical Computing). D'Agostino and Pearson normality tests or Kolmogorov-Smirnov test were used to determine whether or not the data follow a Gaussian distribution. For data with a non-Gaussian distribution, Mann-Whitney U tests were used to compare medians between two groups and Kruskal-Wallis tests to compare medians between more than two groups followed by Dunn’s multiple comparison tests. For transwell experiments, statistical significance between means of two groups was determined by performing two-tailed, unpaired Student’s t tests, and multiple means were compared with one-way ANOVA and Tukey’s multiple comparisons test.

For the FMI, we used a two-tailed Wilcoxon signed rank test to compare medians with a hypothetical median value of 0. n = 3 independent experiments for each condition, 3 fields of view per condition per experiment. Box-plots (as depicted in Figure 2B): the box represents the 25th to 75th percentiles of the data points. The interquartile range (IQR) is the difference between the 25th and 75th percentiles. The upper whisker indicates the 75th percentile plus 1.5 times the IQR and the lower whisker indicates the 25th percentile minus 1.5 times the IQR. The data points above or below the whiskers are outliers. Mean is indicated by thick red line; median by thin black line. Coloured circles represent the means of individual experiments. For each condition, cell numbers are indicated underneath the plot. Coloured ‘violin’ plots for infiltration depth into tumouroid depict the distribution probability density; black bar represents the median, grey dots are data points. Mann Whitney tests were performed to compared medians of violin plots. In statistical analysis, p>0.05 is indicated as not significant (ns), whereas statistically significant values are reported in the figures.

Instantaneous FMI are calculated from cellular FMI values at each timeframe. Surfaces fitted and plotted through generalised additive models (such as in Figure 3E) were generated through custom code. Instantaneous FMI values were extracted from spatiotemporal positional data exported from Imaris using the ‘motility_analysis’ python package, available at https://github.com/marknormanread/TcellSwarming. Generalised additive models were then fitted using the ‘mgcv’ package; code also available at the aforementioned repository.

For statistical and biological robustness, each experiment was performed at least three times with cells from different mice, except when stated otherwise.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
    'Semaphorins: a new class of immunoregulatory molecules'
    1. N Takegahara
    2. A Kumanogoh
    3. H Kikutani
    (2005)
    Philosophical Transactions of the Royal Society of London. Series B, Biological Sciences 360:1673–1680.
    https://doi.org/10.1098/rstb.2005.1696
  60. 60
  61. 61
  62. 62
  63. 63

Decision letter

  1. Satyajit Rath
    Senior and Reviewing Editor; Indian Institute of Science Education and Research (IISER), India

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Thank you for submitting your article "Cytotoxic T cells swarm by homotypic chemokine signalling" for consideration by eLife. Your article has been reviewed by Satyajit Rath as the Senior Editor, a Reviewing Editor, and two reviewers. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

In this manuscript, the authors employ an elegant mouse tumor organoid model to study the migration dynamics of cytotoxic T lymphocytes (CTLs) in controllable 3D environments. The authors provide strong data that upon engaging cognate antigen on tumour cells or artificial APCs, CTLs produce CCL3/4, which promote directed recruitment of distant CTLs via CCR5 in a positive feedback loop. These core findings are reproduced using human T cells and engineered tumour cells and also with a CAR-T cell model. The in vivo data show observations consistent with these interpretations. Based on these findings, the authors suggest that homotypic, long-range signalling could lead to a CTL swarming response and enhance tumour killing in vivo.

While the manuscript is of great interest, there are concerns that require to be addressed as detailed below.

Essential revisions:

1) Issues related to the in vitro work:

1A) A major argument of this manuscript is that early "searcher" CTLs that arrive at the tumour sites are responsible for the sustained, feed-forward amplification of further recruitment of the later "responder" CTLs in a multi-step process (Figure 7). This hypothesis is not adequately supported by the tumour organoid experiment in which the authors have pre-embedded CTLs with the tumour cells in a 1:1 ratio and showed that CTLs were positively attracted to the tumour site when pre-embedded antigen-specific CTLs are present (Figure 2). At 2x10^6 CTLs and tumour cells each, the starting experiment condition implies that a fairly large number of CTLs have already been recruited into the tumour site. This is ~7-fold more CTLs than the 'dispersed' CTLs (3x10^5) that were seeded outside of the tumour site for their migration to be tracked. To demonstrate that early arriving CTLs can induce and drive a cascade of CTL self-recruitment, the authors should titrate the pre-embedded CTLs to much lower numbers and examine if biased directionality in adjacent CTLs can still be observed in this case.

1B) The authors observe enhanced infiltration of CTLs when a separate CTL population is pre-embedded in the tumour organoid carrying cognate antigen. They use this observation as evidence of enhanced directed recruitment of distant CTLs. However, pre-embedding CTLs should also enhance killing of the tumour cells and alleviate physical space constraints within the tumouroid itself (based on the increased number of "black" holes in the tumoroid observed in Video 2). How do the authors distinguish between increased CTL infiltration due to enhanced directed recruitment versus more physical space available in the tumouroid due to killing? This "physical constraint" issue could be addressed by comparing infiltration of a non-embedded tumouroid vs. CTL-embedded cognate tumouroid by CCR5- effector T cells of a different specificity. This would be a simple extension of the study shown in Figure 2 using two different specificities of CD8+ T cells, but with infiltration in a central tumouroid now examined rather than the FMI alone in an asymmetric model.

1C) The data suggest that CCL3 and/or CCL4 gradients form; do the authors have experimental evidence for this?

1D) 6- Are both CCL3 and CCL4 needed? Or are individual chemokines enough?

1E) In Figure 2B, cell speed also increases when tumours are preloaded with CTLs in the presence of non-cognate antigens. The likely explanations need to be explained.

1F) Why are the transcriptomic profiles of CTLs embedded with antigen-loaded tumor cells or antigen-loaded beads different (Figure 4B)?

1G) 7- If CTLs and neutrophils use different mechanisms to be recruited to swarm, why are their recruitments mutually exclusive (Figure 4 and Figure 4—figure supplement 2)?

1H) Methodological clarifications: the authors should clearly describe (a) what 'cognate' and 'non-cognate' antigens are (in addition to Materials and methods), and (b) how beads are co-embedded with CTLs (Figure 2C legend).

1I) The results need to be discussed in light of Hugues et al., (2007), where the authors have shown that in lymph nodes, the antigen-specific CD8 T cells that interact with DCs attract CD8 T cells of other antigen specificities in a CCR5-dependent manner. This important paper is not cited or discussed and clearly provides the initial report of a CD8 T cell capacity to induce recruitment of other CD8 T cells. The present manuscript expands on this core observation and goes further to provide data on the capacity of peripheral effector T cells to drive such a circuit.

2) Issues related to the in vivo work:

2A) Unfortunately, the authors do not provide direct and specific data on the role of this mechanism in tumour rejection in vivo and they understate the existing evidence that homotypic signalling occurs among CD8+ T cells. There is prior evidence, from dynamic imaging work, of T cell production of chemokines that leads to attraction of other T cells to facilitate immunity. The new aspect proposed here is the operation of such circuits in the peripheral tumour microenvironment rather than in secondary lymphoid organs. The organoid data are somewhat limited with respect to tumour relevance, as made clear by the ability of the authors to get the same in vitro data using antigen-bearing beads. The in vivo experiments do not completely address the point of the manuscript with respect to the plausible role of a homotypic CCL3/4-CCR5 signalling pathway in CD8+ T cell mediated tumor infiltration and killing. This is because the experiments in vivo are all with tumor cells engineered to express CCL3/4, not with non-engineered tumor cells and T cells with an inability to make the relevant chemokines, to express the relevant receptor, or where these interactions are inhibited by some of the drugs used in vitro in the paper. Transfer studies done in mice lacking their own cognate CD8+ T cells response to a tumor expressing the antigen relevant to the transferred CD8+ T cells (e.g., in RAG KO) would be the easiest approach to addressing this question, as the transferred cells can be made to lack CCR5 or CCL3/4 expression or the animals treated with inhibitors of this pathway as done in vitro. Without such experiments, the authors provide no functional data to demonstrate that CTL engagement of a tumour cell expressing cognate antigen drives recruitment of distant CTLs in vivo that in turn contributes to tumor growth inhibition or destruction.

Similarly, the authors have engrafted EL4 or CCL3/4-secreting EL4 on Rag KO mice to show that CTL recruitment was enhanced in CCL3/4-secreting tumours and have argued that these "sustained production of CCL3 and CCL4 by activated CTLs is sufficient to induce swarming and tumor infiltration." However, the experimental result here does not support the claim that CTL tumor infiltration is mediated by direct, long-range CCL3/4 chemotactic sensing by CD8 T cells nor that this increased recruitment is caused by CTL-secreted CCL3/4, as other cell types, including myeloid cells (such as pDCs, NK cells, some of which the authors also show in Figure 4—figure supplement 2J) can also respond to CCL3/4 signals and drive further inflammation and chemotactic factors that amplify CTL recruitment indirectly. The critical control of CCR5- null CD8bT cells is not included in this set of experiments, only in subsequent studies.

Further, in Figure 5E-F, the authors performed a dual flank experiment where CCL3/4-secreting and non-secreting EL4 tumor cells were engrafted on contralateral flanks and transferred WT and CCR5 KO CTLs and argue that CCR5 is required for CTL recruitment. However, it is possible to interpret these data, of an almost equal ratio of WT:CCR5 KO CTLs in the non-secreting tumor, to suggest that CCR5-mediated recruitment is not the primary mechanism that results in CTL tumor infiltration.

A major claim of the paper, and a new advance if it were to be properly demonstrated, is that this circuit plays a relevant and important role in tumors AFTER the action of such circuits in secondary lymphoid organs. However, additional data, as pointed out above, are needed to make this point. This is especially important as several recent papers have shown a key role for the other chemokine-chemokine receptors circuits such as CXCL9/10 – CXCR3 in mediating effective CD8 T cells immunity in tumors (for example, Chow et al., 2019 andCD8+ Chheda et al., 2016), so whether different sets of CK and CR contribute in non-reductant ways to anti-tumor immunity is unknown. Given that these other data cited involve in vivo tumor experiments, one needs comparable in vivo studies to place the present findings with CCL3/4 in context.

2B) Given the observation of peripheral rimming of T cells in the in vitro studies in the absence of CCL3/4 and invasion with these mediators operative, transcriptomic datasets from human samples that are classified as cold (excluded) and hot (infiltrated) would be useful to probe to see if there is a difference in CCL3/4 mRNA expression in the two cases, and would be even better if this involved single cell work that ascribed production to the CD8 T cells themselves. This would be in silico work to see if the right data sets exist and if mined, show the expected outcome, although it is possible, of course, that no such differences may be identifiable in CCL3/4 expression between hot and cold tumors, which would neither invalidate nor support a potential role played by these chemokines in CD8 T cell swarming in tumours.

2C) In the absence of data from additional work as in 2A above, and/or if efforts in 2B above do not show any informative correlation, it is recommended that the paper be re-written to focus on effector CD8 T cells driving concerted recruitment to sites of antigen recognition, with the underlying mechanism carefully documented, and with only the discussion suggesting that this might be a mechanism active in the in vivo tumor setting, making clear that future experiments will show whether this mechanism is indeed prominent in primary tumors in vivo.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "Cytotoxic T Cells Swarm by Homotypic Chemokine Signalling" for consideration by eLife. Your article has been reviewed by Satyajit Rath as the Senior Editor, a Reviewing Editor, and two reviewers. The following individuals involved in review of your submission have agreed to reveal their identity: Ana-Maria Lennon-Duménil (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they likely do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out the additional experiments advisable and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

Summary:

The revised manuscript addresses most concerns of the reviewers and is thus of great interest. There remain some concerns to be addressed as detailed below.

Essential revisions:

1) The authors need to clarify the results in Figure 2B (right panel) and Figure 2F. In Figure 2B, the exogenously added CTLs exhibit swarming (increased FMI) towards the cognate tumour even in the absence of pre-embedded antigen-specific CTLs. However, in Figure 2F, exogenously added CTLs do not exhibit swarming unless there are pre-embedded antigen-specific CTLs. What is the cause of this discrepancy?

2) Subsection “CTL recruitment is driven by secretion of CCL3 and CCL4” – Clarification is required. The authors state "only CCL3 and CCL4 inhibition disrupted CTL transmigration towards cognate supernatants." However, in Figure 4—figure supplement 1F, CCL4 blocking Abs alone have no effect on transmigration, despite that fact that both CCL3 and CCL4 blocking antibodies are required to block directional migration in Figure 4G. Can the authors provide an explanation for this discrepancy in the text?

3) Figure 5F – OT1 WT and OT1 CCR5-/- both exhibit a large increase in recruitment to the tumour when gBT1 cells are pre-transferred. This observation suggests that CCL3 and CCL4 actually play a very minor role in T cell "swarming" in this in vivo system. The authors should alter the wording of the abstract since it currently states that "CTLs engaging cognate targets accelerate the recruitment of distant T cells through long-range homotypic signalling via the diffusion of secreted chemokines CCL3 and CCL4". This statement suggests that CCL3/CCL4 play a major role in T cell swarming, but this claim isn't fully supported by the in vivo data.

4) Figure 5 and accompanying supplements – The small differences observed between WT and CCR5-/- CTLs in vivo, both in terms of recruitment and tumour killing, could be due to the fact that the authors co-transferred 5x106 of each CTL into recipient mice. This high transfer number may diminish the role of CCR5/CCL3/CCL4 mediated recruitment of CTLs into the tumour in vivo. At the very least, the authors should comment on this issue in the text.

5) Figure 5—figure supplement 2 – This figure would be even more convincing if the authors showed the distribution of the WT and CCR5-/- CTLs in a cognate tumour without an exogenous source of CCL3.

6) Subsection “CTL recruitment is driven by secretion of CCL3 and CCL4” – Figure 4—figure supplement 4A-C. Overexpression of CCL3/4 in the tumors seems to have no effect (at least statistically) on the recruitment of OT1 CTLs or endogenous CTLS into the tumor in vivo. These observations seem to contradict the main point of the paper. The authors should provide a convincing explanation.

Reviewer #2:

The authors have properly addressed all my concerns and provide an important number of new experiments. To my opinion, this manuscript is now acceptable for publication in eLife.

Reviewer #4:

The authors have addressed most of the in vitro concerns (although there a few points that still require clarification) and performed a series of new in vivo experiments. However, the results from these new in vivo experiments are difficult to interpret and, in some instances, seem to diminish the in vitro conclusions. Further clarification is required – this may be possible with text changes, but it does appear that there are issues with the in vivo experiments that could require more bench work.

- The authors need to clarify the results in Figure 2B (right panel) and Figure 2F. In Figure 2B, the exogenously added CTLs exhibit swarming (increased FMI) towards the cognate tumour even in the absence of pre-embedded antigen-specific CTLs. However, in Figure 2F, exogenously added CTLs do not exhibit swarming unless there are pre-embedded antigen-specific CTLs. What is the cause of this discrepancy?

- Subsection “CTL recruitment is driven by secretion of CCL3 and CCL4” – Clarification is required. The authors state "only CCL3 and CCL4 inhibition disrupted CTL transmigration towards cognate supernatants." However, in Figure 4—figure supplement 1F, CCL4 blocking Abs alone have no effect on transmigration, despite that fact that both CCL3 and CCL4 blocking antibodies are required to block directional migration in Figure 4G. Can the authors provide an explanation for this discrepancy in the text?

- Figure 5F – OT1 WT and OT1 CCR5-/- both exhibit a large increase in recruitment to the tumour when gBT1 cells are pre-transferred. This observation suggests that CCL3 and CCL4 actually play a very minor role in T cell "swarming" in this in vivo system. The authors should alter the wording of the abstract since it currently states that "CTLs engaging cognate targets accelerate the recruitment of distant T cells through long-range homotypic signalling via the diffusion of secreted chemokines CCL3 and CCL4". This statement suggests that CCL3/CCL4 play a major role in T cell swarming, but this claim isn't fully supported by the in vivo data.

- Figure 5 and accompanying supplements – The small differences observed between WT and CCR5-/- CTLs in vivo, both in terms of recruitment and tumour killing, could be due to the fact that the authors co-transferred 5x106 of each CTL into recipient mice. This high transfer number may diminish the role of CCR5/CCL3/CCL4 mediated recruitment of CTLs into the tumour in vivo. At the very least, the authors should comment on this issue in the text.

- Figure 5—figure supplement 2 – This figure would be even more convincing if the authors showed the distribution of the WT and CCR5-/- CTLs in a cognate tumour without an exogenous source of CCL3

- Subsection “CTL recruitment is driven by secretion of CCL3 and CCL4” – Figure 4—figure supplement 4A-C. Overexpression of CCL3/4 in the tumors seems to have no effect (at least statistically) on the recruitment of OT1 CTLs or endogenous CTLS into the tumor in vivo. These observations seem to contradict the main point of the paper. The authors should provide an explanation in the text.

https://doi.org/10.7554/eLife.56554.sa1

Author response

Essential revisions:

1) Issues related to the in vitro work:

1A) A major argument of this manuscript is that early "searcher" CTLs that arrive at the tumour sites are responsible for the sustained, feed-forward amplification of further recruitment of the later "responder" CTLs in a multi-step process (Figure 7). This hypothesis is not adequately supported by the tumour organoid experiment in which the authors have pre-embedded CTLs with the tumour cells in a 1:1 ratio and showed that CTLs were positively attracted to the tumour site when pre-embedded antigen-specific CTLs are present (Figure 2). At 2x10^6 CTLs and tumour cells each, the starting experiment condition implies that a fairly large number of CTLs have already been recruited into the tumour site. This is ~7-fold more CTLs than the 'dispersed' CTLs (3x10^5) that were seeded outside of the tumour site for their migration to be tracked. To demonstrate that early arriving CTLs can induce and drive a cascade of CTL self-recruitment, the authors should titrate the pre-embedded CTLs to much lower numbers and examine if biased directionality in adjacent CTLs can still be observed in this case.

We thank the reviewers for raising this critical point, which indeed is central to our model. First, a point of clarification: in the experiments of Figure 2, the CTLs embedded within the tumouroid and those that are dispersed adjacent to the tumouroid are differentially labelled, and thus only the latter are tracked in terms of speed and directionality towards the tumouroid. Any CTLs pre-embedded in the tumouroids therefore do not contribute to the CTL migration data shown in the figure.

We have followed the reviewers’ suggestion and now include a titration of the number of CTLs embedded in the cognate tumouroids, whilst keeping the tracked CTL population adjacent to the tumouroid constant. New Figure 2B shows motility data for cases where CTLs are pre-embedded in the cognate tumouroid at a 1:1 ratio with tumour cells, at a 1:5 ratio and in the complete absence of pre-embedded CTLs.

In all 3 cases, even in the absence of CTLs pre-embedded in the cognate tumouroid, the dispersed CTLs display enhanced directionality towards the tumouroid (FMI > 0). In the context of non-cognate tumouroids, whether CTLs were pre-embedded or not, the surrounding CTLs do not display directional motion. These results demonstrate that CTLs randomly arriving at a cognate target in the absence of a chemotactic signal (‘searcher’ CTLs), engage the target in an antigen-specific manner (turning into ‘engager/recruiters’) and induce directional motility in distant CTL populations (which become ‘responders’) as illustrated in Figure 7.

1B) The authors observe enhanced infiltration of CTLs when a separate CTL population is pre-embedded in the tumour organoid carrying cognate antigen. They use this observation as evidence of enhanced directed recruitment of distant CTLs. However, pre-embedding CTLs should also enhance killing of the tumour cells and alleviate physical space constraints within the tumouroid itself (based on the increased number of "black" holes in the tumoroid observed in Video 2). How do the authors distinguish between increased CTL infiltration due to enhanced directed recruitment versus more physical space available in the tumouroid due to killing? This "physical constraint" issue could be addressed by comparing infiltration of a non-embedded tumouroid vs. CTL-embedded cognate tumouroid by CCR5- effector T cells of a different specificity. This would be a simple extension of the study shown in Figure 2 using two different specificities of CD8+ T cells, but with infiltration in a central tumouroid now examined rather than the FMI alone in an asymmetric model.

We thank the reviewers for the excellent suggestion to extend our central tumouroid data to control for infiltration not merely arising due to additional space created by the elimination of tumour cells by pre-embedded CTLs. We have implemented the suggested experiments by replacing tumour cells with antigen-coated beads that cannot be lysed (as previously done in the asymmetric model depicted in Figure 2C) and therefore cannot progressively give way to more physical space for infiltrating CTLs. As suggested, we tested the following conditions:

- Cognate beads: a central bead mass coated with cognate antigen (SIINFEKL), without pre-embedded CTLs and surrounded by OT1 CTLs.

- Cognate beads + CTLs: a central bead mass coated with cognate antigen (SIINFEKL), pre-embedded with CCR5-/- OT1 CTLs and surrounded by gBT1 CTLs (non-cognate for the SIINFEKL antigen).

and the following control:

- Non-cognate beads: a central mass with uncoated beads, surrounded by OT1 CTLs.

The cognate bead scenarios are illustrated in Figure 1—figure supplement 1A.

Similarly to tumouroids composed of real tumour cells and pre-embedded tumour-reactive CTLs, in the condition where the bead mass contains pre-embedded cognate CTLs, the surrounding CTLs infiltrate the mass more than when the cognate bead mass does not contain pre-embedded CTLs (Figure 1—figure supplement 1B-E). Thus, this increased infiltration occurs independently of any alleviation of space constraints. Interestingly, in cognate contexts the infiltration depth is greater in the case of the pre-embedded bead-mass than real cell tumouroid (compare to Figure 1D); this is due to the lack of antigen specificity of the surrounding gBT1 CTLs, which therefore do not arrest to engage the beads coated with antigen specific for the pre-embedded OT1 CTLs. The absence of this antigen-specific arrest is most evident in the lack of accumulation at the edge of the pre-embedded bead mass (see confocal images and density kymographs of Figure 1—figure supplement 1D and E). Together, these results demonstrate that antigen-specific activation of CTLs deep within a solid mass induces enhanced directed recruitment of distal CTLs (that do not need to be cognate for the target), which then also infiltrate the target mass to a greater extent.

1C) The data suggest that CCL3 and/or CCL4 gradients form; do the authors have experimental evidence for this?

This helpful question prompted us to devise an experiment in which the chemokine gradient formed by CTLs engaging cognate targets can be visualised and quantified. CCL3 and CCL4 chemokines are small molecules (~10kDa) that rapidly diffuse in aqueous mediums and cannot be readily visualised in solution. We therefore employed cytometric bead array (CBA) particles (beads), which are normally used in solution and subjected to flow cytometry to measure soluble chemokine and cytokine concentrations in supernatants (see for example Figure 4—figure supplement 1C). Here, we embedded CBA beads in a 3D collagen matrix surrounding a cognate tumouroid to immobilise CCL3 diffusing from the tumouroid. Following fixation, the addition of an anti-CCL3 antibody allowed for the imaging of the extent of diffusion of CCL3 away from the tumouroid, as shown in Figure 4—figure supplement 2D and 2E. We obtained such samples at 2 and 3 hours following embedding of the tumour-reactive CTLs in the tumouroid. Simple image analysis, consisting of a maximum intensity z-projection followed by quantification of mean intensities along the x-axis (which defines the distance from the tumouroid), revealed that the CBA beads were uniformly distributed in the matrix surrounding the tumouroid. By contrast, the anti-CCL3 signals displayed a clear gradient with higher concentrations near the tumouroid than at distant positions, and a steeper gradient and increased overall signal at 3hours compared to 2hours, consistent with the continual secretion and diffusion of CCL3 from CTLs in the tumouroid (Figure 4—figure supplement 2F). These results provide direct evidence for the establishment of chemokine gradients from the site of antigen-specific target engagement by CTLs, which in turn leads to the progressive recruitment of distant CTLs.

1D) 6- Are both CCL3 and CCL4 needed? Or are individual chemokines enough?

This question was partly addressed in the original submission but prompted us to expand our data. In Figure 4—figure supplement 1G we had used neutralising antibodies to selectively block CCL3 and CCL4 signalling, and in combination, in 3D collagen matrices containing a side (asymmetric) tumouroid. Those data showed that CCL3 and CCL4 act redundantly. Inhibition of CCL3 or CCL4 alone was insufficient to abolish the directional recruitment of distant CTLs, whereas concurrent inhibition of both CCL3 and CCL4 fully abolished the directional recruitment. Thus, both CCL3 and CCL4 are not needed simultaneously to underpin homotypic recruitment of CTLs. In order to conclusively address the second part of the question as to whether the diffusion of individual CCL3 or CCL4 chemokines are sufficient to generate swarming, we expanded our data to include tumouroids that exclusively secrete CCL4 (new Figure 4—figure supplement 2I-K), in addition to the double CCL3/4-secreting and CCL3-secreting contexts shown previously in Figure 4—figure supplement 2C-H. Untransduced EL4 tumour cells do not secrete any factors that induce directional recruitment of CTLs (see Figure 2B). EL4 tumouroids engineered to exclusively secrete CCL3 or CCL4 both give rise to CTL swarming. These experiments show that the diffusion of either CCL3 or CCL4 alone is sufficient to generate CTL swarming around a source. Importantly, swarming is observed in the case where the tumour cells are non-cognate, and thus in these experiments arriving CTLs cannot contribute to a chemotactic signal, which is exclusively composed of tumour-secreted CCL3 or CCL4.

1E) In Figure 2B, cell speed also increases when tumours are preloaded with CTLs in the presence of non-cognate antigens. The likely explanations need to be explained.

This is an interesting question that centres on the concept of chemokinesis, increased motility without a directional component, as opposed to chemotaxis, which involves directional motion towards a source of a gradient (Weninger, Biro and Jain, 2014); the former as well as the latter are often observed in response to cytokine or chemokine signalling (Worbs et al., 2007). It is highly interesting that CTLs do recognise non-cognate tumour cells and in response upregulate various genes, including some that are exclusively upregulated in the case of non-cognate contacts and not during cognate contacts (for full transcriptomic data see Supplementary file 1).

Amongst genes that are exclusively up in non-cognate contacts are netrin-1, semaphorin 5A, and autotaxin. Netrins are well-characterised proteins that provide axonal guidance cues in neurons, and promote general cell migration. Netrin-1 has indeed been shown to induce chemokinesis in CD4+ T cells in vitro and enhance in vivo inflammation (Boneschansker et al., 2016). The netrin-1 receptors neogenin, uncoordinated-5 (UNC5)A, and UNC5B that are upregulated by CD4+ T cells upon activation (Boneschansker, 2015) are also expressed by OT1 CTLs.

Similar to netrins, the action of semaphorins in axon growth and guidance extend beyond the brain to regulate migration in diverse cell types, including leukocytes (Takegahara, Kumanogoh and Kikutani, 2005). Sema5a drives angiogenesis, and is a potent activator of T cells and NK cells (Gras et al., 2014). Its receptor plexin3b is expressed by OT1 CTLs but it is not known whether Sema5A triggers chemokinesis in CTLs.

A third candidate that could drive chemokinesis is the ectoenzyme, ectonucleotide pyrophosphatase-phosphodiesterase 2 (ENPP2). Widely known as “autotaxin” (Ninou, Magkrioti and Aidinis, 2018), ENPP2 is a secreted lysophospholipase D largely responsible for extracellular lysophosphatidic acid (LPA) production. LPA is a bioactive phospholipid that has been shown to induce LFA-1– independent chemokinesis in T cells in vitro (Katakai et al., 2014). LPA signals through at least six type I rhodopsin-like receptors (LPARs) (Yung, Stoddard and Chun, 2014), three of which (LPAR 2,5 and 6) are expressed by OT1 CTLs. It will be interesting in future studies to identify the specific triggers of non-cognate contact-induced chemokinesis. Here, we simply discuss the interesting observation in the Discussion section.

1F) Why are the transcriptomic profiles of CTLs embedded with antigen-loaded tumor cells or antigen-loaded beads different (Figure 4B)?

This is an interesting question that principally addresses the molecular mechanisms, and structure and function of antigen-specific activation via T cell receptors, the dependence on co-receptors and the sufficiency of peptide-MHC in the absence of other surface signals to invoke complete T cell activation; as such it is beyond the scope of the present study.

It should however be noted that the beads are only coated with peptide-MHC and completely lack integrin ligands such as ICAM-1. Expression of the integrin LFA-1 by CTLs and its binding to ICAM1 on targets plays an important role in the arrest of CTLs upon target recognition, synapse formation and ultimately in target killing (Evans et al., 2011; Hogg, Patzak and Willenbrock, 2011). Furthermore, mounting evidence suggests that the mechanical landscape of target cells plays an important role in the degree of activation and efficiency of effector function delivery of T cells (Basu et al., 2016). Beads are evidently considerably stiffer than our target tumour cells.

Whether the transcriptomic differences we observe are due to co-receptor engagement, paracrine signalling through factors secreted by real tumour cells, by integrin or other surface receptor activations, or biophysical effects such adhesion strengths or mechanical properties of the targets, remains to be explored in future studies.

Whilst the question as to why there are differences in gene expression between bead- and tumour cell-conjugated CTLs is interesting per se, it should be noted that the transcriptomic profiles of these two samples are far more similar to one another than to resting CTLs or those engaging non-cognate tumour cells (as shown by the hierarchical clustering tree at the top of Figure 4B). Observed differences are mostly in the extent of expression, as most genes, with the exception of only a few, are either similarly up- or down-regulated in both the cognate bead and cognate tumour cell samples. Indeed, genes that code for proteins that are important in this study are well correlated in expression between the cognate bead and cognate tumour cell samples. We used beads here in conjunction with tumour cells precisely to identify effects that arise due to antigen-mediated activation of the CTLs and are therefore consistent between the two samples, and not to investigate the underlying molecular and structural mechanisms that govern TCR-activation.

1G) 7- If CTLs and neutrophils use different mechanisms to be recruited to swarm, why are their recruitments mutually exclusive (Figure 4 and Figure 4—figure supplement 2)?

We thank the reviewers for this question, which prompted us to further evaluate the concept of mutual exclusion between neutrophils and CTLs. It should be noted that we did not claim to have demonstrated that such a mutually exclusive recruitment mechanism is in force. We had found that upon increased CTL infiltration into tumours there was an associated decrease in infiltrating neutrophils as a percentage of CD45+ leukocytes, and simply reflected that this is “consistent with a recently suggested mutually exclusive recruitment mechanism between CTLs and neutrophils to the TME” et al.(Stoll et al., 2018). A more recent report also indicates an inverse correlation between CD4+ or CD8+ T cell tumour infiltration on the one hand, and neutrophils on the other (Jackstadt et al., 2019). However, in response to minor point 1 below where it was requested that we plot absolute counts of tumour-infiltrating cells rather than as percentages, we found there to no longer be a significant difference in neutrophil infiltration.

In any event, the reviewers are correct in that neutrophils and T cells use dissimilar mechanisms to achieve similar swarming phenomena. Swarming by immune cells was first described in neutrophils (Chtanova et al., 2008; Lammermann et al., 2013; Ng et al., 2011), which instead of chemokine signalling utilise lipid signalling via Leukotriene B4 (LTB4) and its corresponding receptor LTB4R1 to achieve homotypic signalling and swarming around targets. CCR5 is only minimally expressed by circulating neutrophils (Rudd et al., 2019) and it is therefore highly unlikely that T cell-secreted CCL3 and CCL4 can constitute a direct cross-signal that would influence neutrophils. Interestingly however, CTLs do express LTBR1 (transcriptomics data available in Supplementary file 1), which raises the possibility that neutrophils may attract T cells via LTB4. Such an asymmetric attraction would on its own invalidate the concept of mutual exclusion. We cannot exclude that activated tissue-infiltrating CTLs may still generate a signal that somehow directly influence neutrophils via factors other than CCL3 and CCL4. However, the reviewers’ question led us to realise that for the avoidance of confusion for the readers, it would be prudent not to suggest that such a mechanism may be at play here. We have therefore removed the comment and associated reference from the main text.

1H) Methodological clarifications: the authors should clearly describe (a) what 'cognate' and 'non-cognate' antigens are (in addition to Materials and methods), and (b) how beads are co-embedded with CTLs (Figure 2C legend).

a) Murine CTLs were generated from the OT1 and gBT1 T cell receptor transgenic mice that recognise ovalbumin (SIINFEKL) or herpes simplex virus glycoprotein B (SSIEFARL) residues respectively, both in the context of the H-2Kb class I major histocompatibility complex. For preparation of target cells to present cognate antigens for OT1 or gBT1 CTLs, EL4 tumour cells were pulsed for 16 hours with 1 µg/ml SIINFEKL or SSIEFARL peptide, respectively. Non-cognate controls were un-pulsed EL4, or EL4 cells pulsed with the irrelevant peptide. In the in vivo tumour homing and rejection experiments performed during revision, cognate antigen was presented by EL4 cells transduced to express SIINFEKL- or SSIEFARL-expressing proteins fused to mTagBFP2. Non-cognate controls included untransduced EL4, EL4 expressing mCherry, or EL4 expressing the irrelevant peptide epitope.

b) For stimulating OT1 CTLs with “cognate beads”, streptavidin-coated polystyrene particles (6-8 µm diameter) were bound to monobiotinylated H-2Kb/SIINFEKL for 45min and washed before mixing with OT1 CTLs in liquid phase collagen at 4ºC, before the matrix was allowed to polymerise for at least 10 min at 37ºC. Non-cognate beads were uncoated. Where side (asymmetric) tumouroids were constructed, 20 µl of the cold collagen preparation containing 3 x 106 each of cognate beads and CTLs were deposited on one side of a 14-mm microwell within a 35-mm glass-bottom dish. Where central tumoroids were constructed, 2.5 µl of the cold collagen preparation containing 3.5 x 105 cognate or non-cognate particles, or 1.75 x 105 each of cognate particles and CTLs were deposited in the centre of a well in a glass-bottom 96-well optical plate.

We have now provided these details in the main text and figure legends, as well as in Materials and methods section.

1I) The results need to be discussed in light of Hugues et al., (2007), where the authors have shown that in lymph nodes, the antigen-specific CD8 T cells that interact with DCs attract CD8 T cells of other antigen specificities in a CCR5-dependent manner. This important paper is not cited or discussed and clearly provides the initial report of a CD8 T cell capacity to induce recruitment of other CD8 T cells. The present manuscript expands on this core observation and goes further to provide data on the capacity of peripheral effector T cells to drive such a circuit.

We thank the reviewer for highlighting the relevant publication by Hugues et al., 2007et al. that shows that naive CD8+ T cells engaging cognate antigen presented by dendritic cells within lymph nodes provide “help” to recruit polyclonal CD8+ T cells of other antigen specificities. We had only cited the publication by Castellino et al., 2006 that shows CD4+ T cells guide CD8+ T cells to sites of CD4+ T cell-dendritic cell interactions. In the Discussion section, we have now referenced the Hugues et al., study, together with additional studies that implicate CCR5 and its ligands in the directional migration of T cells within tumour-draining lymph nodes (Gonzalez-Martin et al., 2011) and infected lymph nodes (Hickman et al., 2011). In these studies, naïve CD8+ T cell recruitment within lymph nodes to sites of antigen presentation was CCR5-dependent, but such an effect had not been shown in peripheral effector CTLs. In addition, the sources of the CCR5 ligands were not unambiguously ascribed to the T cells, but merely to interactions between DCs and T cells.

2) Issues related to the in vivo work:

2A) Unfortunately, the authors do not provide direct and specific data on the role of this mechanism in tumour rejection in vivo and they understate the existing evidence that homotypic signalling occurs among CD8+ T cells. […] Given that these other data cited involve in vivo tumor experiments, one needs comparable in vivo studies to place the present findings with CCL3/4 in context.

We agree with the reviewers that there have been prior reports of homotypic signalling leading to attraction of distant naïve CD8+ T cells in lymph nodes, to sites of interactions between dendritic cells and CD4+ T cells (Castellino et al., 2006) or naïve CD8+ T cells (Hugues et al., 2007), and have discussed these references in our manuscript as per point 1I above. We also agree that investigating CTL homing towards non-secreting tumours containing activated CTLs would more directly address if homotypic signalling drives recruitment of distant CTLs in vivo. As suggested by the reviewers, we performed adoptive transfer experiments in Rag1-deficient (Rag-/-RAG-/-) mice (that lack endogenous T- and B cells) bearing non-secreting EL4 tumours.

Rag-/-RAG-/- mice engrafted with SSIEFARL-expressing tumours received a primary transfer of tumour-reactive gBT1 CTLs (cognate). 48 h later a secondary cohort of WT and CCR5-/- OT1 CTLs (both non-cognate) were co-transferred (Figure 5E). The presence of tumour-reactive CTLs (Figure 5—figure supplement 3 E,F) markedly increased the overall recruitment of subsequent non-cognate CTLs into the tumours (Figure 5F). Furthermore, subsequent to a primary transfer of cognate CTLs, significantly more non-cognate WT CTLs infiltrated the tumours than the co-transferred CCR5-/- CTLs (p=0.015). In the absence of a primary transfer of cognate CTLs, there was no significant difference in the ability of WT and CCR5-/- CTLs to infiltrate the tumours (p=0.394), in line with what we had previously found in the control tumours engrafted on the contralateral flanks of CCL3/4-secreting tumours (previously Figure 5E,F; now Figure 5—figure supplement 3A,B).

It should be noted that CCR5-/- CTLs also home in greater numbers to tumours containing previously transferred tumour-reactive CTLs. Therefore, circuits other than the homotypic CCL3/4-CCR5 signalling axis we identify here must also be at play. Whether these are indirect circuits arising in inflamed tumours, mediated for instance via NK and dendritic cells, or more direct circuits driven by alternate chemokine receptor-ligand interactions or pro-inflammatory cytokines remains to be established (see also below for response regarding the CXCR3 circuit). For instance, CCL3 or CCL4-producing tumours recruit NK cells, where they directly contribute to IFNγ, CCL5 and XCL1 production (Allen et al., 2018; Bottcher and Reis e Sousa, 2018), and recruit DC intermediaries that amplify CXCL9, CXCL10 and CCL5 production (Allen et al., 2018; Bottcher et al., 2018; Spranger, Bao and Gajewski, 2015; Wong et al., 2013), in turn facilitating the accumulation of effector T cells. Nevertheless, our results show that CTLs engaging a cognate tumour can drive the recruitment of distant CTLs into the tumour, and that this recruitment is partly dependent on CCR5.

In light of the reviewers’ comments on the relevance of the in vivo experiments with CCL3/4-secreting tumours, we have moved the corresponding data previously shown in Figure 5E-H to Figure 5—figure supplement 3A-D, and instead include the above new findings in Figure 5E, F.

As suggested by the reviewers, we also investigated tumour clearance in Rag-/-RAG-/- mice. We found that SIINFEKL-expressing tumour clearance by adoptively transferred cognate CCR5-/- OT1 CTLs was not impaired compared to WT OT1 CTLs (in separate hosts) (Figure 5—figure supplement 3G). Therefore, whilst CTL engagement of tumours expressing cognate antigen may increase recruitment of distant CTLs, CCR5 expression on transferred CTLs was not critical for tumour clearance. This finding may not be completely unexpected given that (i) CCR5-deficient CTLs also home relatively effectively into tumours with active antigen-specific engagement (as per above, Figure 5E,F), (ii) our results and reports by others implicating circuits other than the CCR5-dependent one in antitumour immunity (see further response below), and (iii) CCR5-/- CTLs are fully effective at eliminating cognate antigen-presenting target cells (Figure 5—figure supplement 1H).

We are confident that the CCR5-dependent homotypic signalling circuit is operational and influences CTL recruitment into tumours in vivo, but it is only one such circuit among a complex array of chemotactic, pro-inflammatory and retention signals, and abrogation of this circuit alone does therefore not result in the impairment of tumour rejection over many days by adoptively transferred CTLs. The long time-scales and concerted immunological interactions involved in tumour rejections may over time mask the role of the homotypic CTL signalling circuit. Acute, local chemotactic effects occurring over a shorter time period may in fact be operational but are not reflected in macroscopic tumour volume data. In order to test whether CTLs can indeed effectively swarm towards a CCL3 source within the dense and complex landscape of real tumour tissue, we used intravital microscopy to interrogate the positioning of WT and CCR5-/- OT1 CTLs up to 6h around an acute release of CCL3, locally delivered by stereotactic injection of a shear-reversible hydrogel containing the chemokine (Figure 5—figure supplement 2). Indeed, we found a CCR5-dependent accumulation of CTLs in the tumour tissue around the delivered CCL3.

We also agree with the reviewers that without performing experiments with CCL3/CCL4-deficient CTLs, which we do not have timely access to, we cannot rule out that increased recruitment into tumours containing cognate CTLs is also caused by other CCR5 ligand-secreting cell types. Therefore, we have followed the reviewer’s advice to amend the text and remove the unsupported claim that “sustained production of CCL3 and CCL4 by activated CTLs is sufficient to induce swarming and tumour infiltration”, also in line with point 2C below. We now state that “sustained release of CCL3 and CCL4 is sufficient to promote CCR5-dependent homing into tumours in vivo, and that the presence of tumour-reactive CTLs in a tumour promotes the recruitment of distant CCR5+ CTLs. Homotypic CTL recruitment via CCR5 is however likely not the only or primary signalling circuit that results in CTL tumour infiltration or clearance.”

In a first experiment in Rag-/-RAG-/- mice, before we had conclusively identified CCR5 as the receptor mediating the homotypic signal, we had interrogated the ability of OT1 CTLs to home to CCL3/4-secreting tumours compared to non-secreting tumours engrafted on the contralateral flanks (previously Figure 4—figure supplement 2I, now Figure 4—figure supplement 4A). In parallel, we also performed an experiment to evaluate endogenous leukocyte recruitment to the CCL3/4-secreting tumours in PTPRCA host mice via CD45.1 staining (previously Figure 4—figure supplement 2J, now Figure 4—figure supplement 4B), in the absence of CTL transfer. The difference between these experiments was indicated in the legends but was not clear in the main text, for which we apologise. We have now amended the text to better distinguish the different in vivo experiments. We have also followed the reviewers’ suggestion and reported absolute cell counts per tumour, and included a new experiment evaluating endogenous dendritic cell recruitment into CCL3/4-secreting tumours. In Figure 4—figure supplement 4, this new analysis indicates a significant (p=0.035) increase in NK cells within CCL3/4-secreting tumours, but not other cell types, including dendritic cells.

Subsequently, to investigate the role of CCR5 in tumour recruitment, we co-transferred WT OT1 CTLs and CCR5-/- OT1 CTLs (the “CCR5- null CD8b T cells” requested by the reviewers)(previously Figure 5F, now Figure 5—figure supplement 3B) in mice bearing CCL3/4-secreting tumours on one flank, and non-secreting tumours on the contralateral flank. These experiments showed impaired recruitment of CCR5-/- CTLs into CCL3/4-secreting tumours. With these experiments, we aimed to study how T cells and leukocytes in general respond to the CCR5-dependent homotypic signalling axis, and not the CCR5-dependence to elicit such a signal.

We acknowledge the prior studies that reported potentially homotypic chemokine signalling in secondary lymphoid organs. Here, we demonstrated the action of the CCR5-CCL3/4 signalling circuit in the recruitment of CTLs to tumours, in particular with the 2-step adoptive transfer experiment where a secondary population of non-cognate CTLs homes in a partially CCR5-dependent manner towards tumours containing previously transferred cognate CTLs (new Figure 5E,F). We thank the reviewers for pointing out the papers that highlight the role of the alternate chemokine signalling circuit centred on CXCR3 in T cell antitumour immunity. In the mentioned studies, chemokine receptor-mediated tumour trafficking and infiltration were shown to be dependent on CXCR3 and BLT1/Ltbr4 using a variety of experiments involving adoptive transfer of receptor-deficient CTLs into immune competent or Rag-/-RAG-/- mice, tumour engraftment of receptor- or chemokine-deficient hosts, and chemokine blockades (Chheda et al., 2016; Chow et al., 2019). In fact, two other publications report similar findings using adoptive transfer models most similar to our experimental design (Mikucki et al., 2015; Sharma et al., 2013). Sharma et al., 2013 and Mikucki et al., 2015 showed impaired homing of CXCR3- or BLT1-deficient tumour-experienced CD8+ T cells that were adoptively transferred into tumour-bearing Rag-/-RAG-/- hosts compared to WT CD8+ T cells, resulting in impaired tumour clearance. All of these studies used B16 melanoma tumour models. We had carefully selected the EL4 tumour model as these cells do not themselves secrete chemokines that elicit a directional response in CTLs (see Figure 2, Figure 3C-E, Figure 3—figure supplement 1 B,C, and Figure 4—figure supplement 1 C). In fact, we had considered using the B16 model but when we tested chemokine expression via qPCR, we found that our B16 cancer cells secrete significant levels of chemokines CCL2, CCL3, CCL4, CCL7, CXCL9 and CXCL10, and therefore judged that tumour model to be unsuitable to study homotypic recruitment between T cells.

Author response image 1
mRNA expression levels of various chemokines in B16 tumour cells relative to EL4 tumour cells as measured by qPCR.

The redundant role of CCR5 in tumour clearance in our model may be due to a switch to alternative receptor-ligand pairs. OT1 CTLs also express CCR1, CCR2, CXCR3, XCR1 and BLT1 (Figure 5—figure supplement 1D and Supplementary file 1), and their ligands may be generated by various stromal or tumour infiltrating cells. Tumour cell lysis may also contribute to the attraction of neutrophils that self-amplify production of LTB4, the BLT1 ligand (Lammermann et al., 2013).

Furthermore, IFNγ, abundant in inflamed tumours, can induce CXCL9 and CXCL10 secretion in various intermediary cells, including tumour-infiltrating myeloid cells (Dobrzanski, Reome and Dutton, 2001; Gordon-Alonso et al., 2017; Hickman et al., 2015), which may enhance the role of CXCR3 in homing. These points are briefly discussed in the discussion section.

2B) Given the observation of peripheral rimming of T cells in the in vitro studies in the absence of CCL3/4 and invasion with these mediators operative, transcriptomic datasets from human samples that are classified as cold (excluded) and hot (infiltrated) would be useful to probe to see if there is a difference in CCL3/4 mRNA expression in the two cases, and would be even better if this involved single cell work that ascribed production to the CD8 T cells themselves. This would be in silico work to see if the right data sets exist and if mined, show the expected outcome, although it is possible, of course, that no such differences may be identifiable in CCL3/4 expression between hot and cold tumors, which would neither invalidate nor support a potential role played by these chemokines in CD8 T cell swarming in tumours.

We thank the reviewers for suggesting this idea, which led us to a number of studies where transcriptomic data from ‘hot’ tumours show significant CCR5 ligand expression, including CCL3 and CCL4, by tumour-infiltrating T cells.

In a 2015 study, metastatic melanomas from 197 cancer patients were grouped according to low (cold) vs high (hot) expression of T cell signature genes. Gene expression profiling indicated that activation of the β-catenin signalling pathway in cold tumours was associated with CCL3 and CCL4 down-regulation and reduced T cell infiltration (Spranger, Bao and Gajewski, 2015).

More recently, Jerby-Arnon and colleagues studied 33 human melanoma tumours and obtained 7,186 single cell transcriptomic (scRNA-seq) profiles of both malignant and non-malignant cells within the tumours (Jerby-Arnon et al., 2018).

The main finding of the study is that malignant cells of ‘cold’ tumours express a resistance program that excludes T cells from the tumours. In ‘hot’ tumours, infiltrated by T cells, CCL3 and CCL4 expression was strongly associated with CD8+ T cells (Author response image 2). At the single cell level, CCL3 and CCL4 were found to be significantly expressed by tumour-infiltrating CD8+ T cells, as well as by NK cells and macrophages (Jerby-Arnon et al., 2018).

In an even more recent study of patients with B cell non-Hodgkin lymphomas, in malignant lymph nodes, intratumoural CTLs were specifically found to express CCL4 and CCL5 (both CCR5 ligands) by scRNA-seq (Roider et al., 2020).

Finally, a report on head and neck squamous cell carcinoma patients found that hot tumours display significantly higher CTL activity and increased CTL:Treg ratios, as well as upregulation of several chemokines and chemokine receptors, including CCL5 and CCR5 (Chakravarthy et al., 2018).

Taken together, these reports support a role in CD8+ T cell tumour infiltration for CCR5 ligands, produced by both malignant cells and tumour-infiltrating T cells, and which in addition to CCL3 and CCL4 may also include CCL5 in humans. We now cite and discuss the above-mentioned studies in the Discussion section.

2C) In the absence of data from additional work as in 2A above, and/or if efforts in 2B above do not show any informative correlation, it is recommended that the paper be re-written to focus on effector CD8 T cells driving concerted recruitment to sites of antigen recognition, with the underlying mechanism carefully documented, and with only the discussion suggesting that this might be a mechanism active in the in vivo tumor setting, making clear that future experiments will show whether this mechanism is indeed prominent in primary tumors in vivo.

We thank the reviewers for prompting us to revise the text regarding the role of homotypic CTL recruitment towards sites of antigen recognition versus tumour infiltration. In light of the reviewers’ suggestion, and our new data on tumour infiltration and rejection from above, we have elected to err on the side of caution and carefully restrict our language on the homotypic recruitment mechanism to act towards antigen specific targets in general, rather than playing a major role in tumour infiltration in vivo. We specify explicitly what role CCR5-mediated recruitment has in our intravital imaging and in vivo tumour homing experiments, without ascribing the effects to homotypic signalling directly, instead discussing the potential for a contribution of such a direct signalling circuit amongst others. We have already indicated some of these changes above in the context of responses to specific comments on the in vivo work. We have for instance amended the language as follows:

- In the Abstract, we changed “Thus, CTLs recognising a tumour target can induce a localised mass response by amplifying the direct recruitment of additional T cells independently of other leukocytes” to “Thus, CTLs recognising a cognate target can induce a localised mass response by amplifying the direct recruitment of additional T cells independently of other leukocytes.”

- In the Introduction, we changed “Furthermore, we show that sustained secretion of CCL3 and CCL4 mediates the swarming behaviour and can promote deep tumour infiltration of primary mouse CTLs” to “Furthermore, we show that local chemokine delivery triggers directed CTL movement through dense tumour tissue in vivo, and sustained secretion of CCL3 and CCL4 from tumours promotes CTL recruitment”.

- In our multistep recruitment model (Figure 7), we now depict and refer more generally to “cognate targets” or simply “targets” rather than “cognate tumour cells”.

- In the Discussion section, we state that “it is also evident that CCR5-mediated homotypic recruitment is not the exclusive signalling circuit underpinning tumour infiltration in vivo, and in fact CCR5-/- CTLs were not impaired in their ability to clear tumours in mice”.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Essential revisions:

1) The authors need to clarify the results in Figure 2B (right panel) and Figure 2F. In Figure 2B, the exogenously added CTLs exhibit swarming (increased FMI) towards the cognate tumour even in the absence of pre-embedded antigen-specific CTLs. However, in Figure 2F, exogenously added CTLs do not exhibit swarming unless there are pre-embedded antigen-specific CTLs. What is the cause of this discrepancy?

We thank the reviewer for their perceptiveness and for raising the lack of clarity in the difference between the two above-mentioned experiments. In order to keep the volume and density of tumouroids constant, they are always constituted by similar total number of cells, whether they contain tumour cells alone, or a combination of CTLs and tumour cells. In Figure 2F, all tumouroids contain pre-embedded CTLs at a 1:1 ratio with the tumour cells. Hence, these tumouroids contain only half the number of tumour cells compared to the samples of Figure 2B where the tumouroids contain no pre-embedded CTLs. In the short timespans of these experiments (1hour), the probability of surrounding CTLs arriving at the tumouroid via random search, engaging cognate tumour cells and inducing long-range attraction in distant CTLs is evidently diminished when the tumour cells are interspersed with non-tumour reactive CTLs (Figure 2F), compared to scenarios where the tumouroid is entirely made up of cognate tumour cells (fourth from left, Figure 2B). We have now clarified the discrepancy in the figure legend. It should be noted that the experiments of Figure 2F where designed to evaluate whether a pre-embedded CTL population engaging a cognate target can induce the directional recruitment of distant CTLs of different specificities, and not to evaluate whether first arriving randomly searching CTLs can induce directional movement in other CTLs of the same population, an effect appreciable in Figure 2B but best conveyed in the longer time-course experiments with central tumouroids in Figure 1 and Figure 1—figure supplement 1.

2) Subsection “CTL recruitment is driven by secretion of CCL3 and CCL4” – Clarification is required. The authors state "only CCL3 and CCL4 inhibition disrupted CTL transmigration towards cognate supernatants." However, in Figure 4—figure supplement 1F, CCL4 blocking Abs alone have no effect on transmigration, despite that fact that both CCL3 and CCL4 blocking antibodies are required to block directional migration in Figure 4G. Can the authors provide an explanation for this discrepancy in the text?

We thank the reviewer for highlighting this lack of clarity in the text. Migration across transwells (Boyden chambers) towards cognate supernatant was abrogated by CCL3 inhibition but not by CCL4 inhibition (now clarified in the text), whereas migration within 3D collagen gels towards cognate tumoroids was inhibited only when both CCL3 and CCL4 were blocked. The redundant activities of CCL3 and CCL4 is apparent only in the 3D collagen system, which is a more physiological assay than migration across transwells, mainly employed as a screening tool to identify chemokines of interest. CTLs produce about ~2.5 fold more CCL3 than CCL4 during cognate interactions (Figure 4—figure supplement 1C). In addition, at similar concentrations, CCL3 appears to be more potent than CCL4 in inducing CTL transmigration in transwells (Figure 4—figure supplement 1D), which may further account for observed differences between the two systems.

3) Figure 5F – OT1 WT and OT1 CCR5-/- both exhibit a large increase in recruitment to the tumour when gBT1 cells are pre-transferred. This observation suggests that CCL3 and CCL4 actually play a very minor role in T cell "swarming" in this in vivo system. The authors should alter the wording of the abstract since it currently states that "CTLs engaging cognate targets accelerate the recruitment of distant T cells through long-range homotypic signalling via the diffusion of secreted chemokines CCL3 and CCL4". This statement suggests that CCL3/CCL4 play a major role in T cell swarming, but this claim isn't fully supported by the in vivo data.

We have now amended the abstract to state that recruitment through homotypic signalling is only partly mediated by CCL3 and CCL4, to more accurately represent both the in vitro and in vivo data. The sentence now reads: “CTLs engaging cognate targets accelerate the recruitment of distant T cells through long-range homotypic signalling, in part mediated via the diffusion of chemokines CCL3 and CCL4”. In light of our in vivo findings, we had already stated in the Results section that “Homotypic CTL recruitment via CCR5 is however likely not the only or primary signalling circuit that results in CTL tumour infiltration or clearance”, and in the Discussion section that “the presence of antigen-specific CTLs within a tumour promotes the recruitment of distant CTLs into the tumour in a manner partially dependent on CCR5”.

4) Figure 5 and accompanying supplements – The small differences observed between WT and CCR5-/- CTLs in vivo, both in terms of recruitment and tumour killing, could be due to the fact that the authors co-transferred 5x106 of each CTL into recipient mice. This high transfer number may diminish the role of CCR5/CCL3/CCL4 mediated recruitment of CTLs into the tumour in vivo. At the very least, the authors should comment on this issue in the text.

We thank the reviewer for highlighting this point, which we now comment on in the discussion with relevant references. It is indeed likely that different parameters across tumour models (e.g. numbers of T cells transferred, when they are transferred with respect to tumour engraftment, their state of activation, tumour growth, antigenicity and tumour composition) influence the kinetics of T cell infiltration and tumour clearance, as well as chemokine receptor dependence. We now state in the Results section that “It remains to be explored whether adoptive transfers using lower CTL numbers or earlier following tumour engraftment (Sharma et al., 2013, Chheda et al., 2016) would result in a more dominant role for CCL3 and CCL4-mediated homotypic signalling in recruitment into solid tumours.”

5) Figure 5—figure supplement 2 – This figure would be even more convincing if the authors showed the distribution of the WT and CCR5-/- CTLs in a cognate tumour without an exogenous source of CCL3.

The aim of this experiment was to use intravital real-time microscopy to investigate whether long-range, CCR5-dependent CTL recruitment can occur within the dense and complex tissue of real tumours. The acute injection of exogenous CCL3 into the non-cognate tumours allowed us to exert temporal control over the initiation of such a recruitment, and to subsequently compare the dynamics of WT and CCR5-/- CTLs. This would not have been feasible in cognate tumour tissue within the time constraints imposed by imaging live animals, because CTLs arrest upon engagement of cognate target cells and demonstrate severely reduced motility, especially during the earlier phases of tumour rejection that we studied (Boissonas et al., 2007).

6) Subsection “CTL recruitment is driven by secretion of CCL3 and CCL4” – Figure 4—figure supplement 4A-C. Overexpression of CCL3/4 in the tumors seems to have no effect (at least statistically) on the recruitment of OT1 CTLs or endogenous CTLS into the tumor in vivo. These observations seem to contradict the main point of the paper. The authors should provide a convincing explanation.

We thank the reviewer for highlighting this point, which we in fact tried to address since the last submission. In Figure 4—figure supplement 4A a couple of the adoptive transfers had in essence failed, with only very scarce cells found in both contralateral tumours, but we nevertheless included those results for the sake of transparency and completeness. We had since repeated the experiment with 4 additional mice, and have now added these additional data to the figure and performed associated statistical tests, which show that CCL3/4-secreting tumours indeed do recruit more OT1 CTLs than contralateral non-secreting tumours (p=0.0408 for all data, n=10 mice). As to Figure 4—figure supplement 4C, that experiment was performed with only 3 mice in response to a reviewer request to analyse dendritic cell infiltration of the tumours, and given additional capacity in our flow antibody panel, we had also counted endogenous CD8+ T cells. As is evident from the figure, in 2 out of the 3 mice, the CCL3/4-secreting tumours recruited more endogenous CD8+ T cells. We have not performed additional repeats of this particular experiment as we believe that the figure is clear even in the absence of the statistics that would accompany a larger cohort study, and combined with the above-mentioned new figure, the data conclusively show that more T cells infiltrate the CCL3/4-secreting tumours.

https://doi.org/10.7554/eLife.56554.sa2

Article and author information

Author details

  1. Jorge Luis Galeano Niño

    1. EMBL Australia, Single Molecule Science node, University of New South Wales, Sydney, Australia
    2. School of Medical Sciences, Faculty of Medicine, University of New South Wales, Sydney, Australia
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology
    Contributed equally with
    Sophie V Pageon and Szun S Tay
    Competing interests
    No competing interests declared
  2. Sophie V Pageon

    1. EMBL Australia, Single Molecule Science node, University of New South Wales, Sydney, Australia
    2. School of Medical Sciences, Faculty of Medicine, University of New South Wales, Sydney, Australia
    Contribution
    Formal analysis, Investigation, Writing - original draft
    Contributed equally with
    Jorge Luis Galeano Niño and Szun S Tay
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1701-5551
  3. Szun S Tay

    1. EMBL Australia, Single Molecule Science node, University of New South Wales, Sydney, Australia
    2. School of Medical Sciences, Faculty of Medicine, University of New South Wales, Sydney, Australia
    Contribution
    Formal analysis, Investigation, Methodology, Writing - review and editing
    Contributed equally with
    Jorge Luis Galeano Niño and Sophie V Pageon
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0186-8154
  4. Feyza Colakoglu

    1. EMBL Australia, Single Molecule Science node, University of New South Wales, Sydney, Australia
    2. School of Medical Sciences, Faculty of Medicine, University of New South Wales, Sydney, Australia
    Contribution
    Validation, Investigation
    Competing interests
    No competing interests declared
  5. Daryan Kempe

    1. EMBL Australia, Single Molecule Science node, University of New South Wales, Sydney, Australia
    2. School of Medical Sciences, Faculty of Medicine, University of New South Wales, Sydney, Australia
    Contribution
    Formal analysis, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  6. Jack Hywood

    Sydney Medical School, The University of Sydney, Sydney, Australia
    Contribution
    Software, Formal analysis
    Competing interests
    No competing interests declared
  7. Jessica K Mazalo

    1. EMBL Australia, Single Molecule Science node, University of New South Wales, Sydney, Australia
    2. School of Medical Sciences, Faculty of Medicine, University of New South Wales, Sydney, Australia
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  8. James Cremasco

    1. EMBL Australia, Single Molecule Science node, University of New South Wales, Sydney, Australia
    2. School of Medical Sciences, Faculty of Medicine, University of New South Wales, Sydney, Australia
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  9. Matt A Govendir

    1. EMBL Australia, Single Molecule Science node, University of New South Wales, Sydney, Australia
    2. School of Medical Sciences, Faculty of Medicine, University of New South Wales, Sydney, Australia
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  10. Laura F Dagley

    1. The Walter and Eliza Hall Institute of Medical Research, Melbourne, Australia
    2. Department of Medical Biology, University of Melbourne, Melbourne, Australia
    Contribution
    Data curation, Formal analysis
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4171-3712
  11. Kenneth Hsu

    Children's Cancer Research Unit, The Children's Hospital at Westmead, Sydney, Australia
    Contribution
    Resources, Methodology
    Competing interests
    No competing interests declared
  12. Simone Rizzetto

    1. School of Medical Sciences, Faculty of Medicine, University of New South Wales, Sydney, Australia
    2. The Kirby Institute for Infection and Immunity in Society, UNSW, Sydney, Australia
    Contribution
    Formal analysis
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3881-8759
  13. Jerzy Zieba

    1. School of Medical Sciences, Faculty of Medicine, University of New South Wales, Sydney, Australia
    2. Neuroscience Research Australia (NeuRA), Randwick, Australia
    Contribution
    Formal analysis
    Competing interests
    No competing interests declared
  14. Gregory Rice

    Department of Statistics and Actuarial Science, University of Waterloo, Waterloo, Canada
    Contribution
    Formal analysis, Methodology
    Competing interests
    No competing interests declared
  15. Victoria Prior

    1. Children's Cancer Research Unit, The Children's Hospital at Westmead, Sydney, Australia
    2. Discipline of Child and Adolescent Health, University of Sydney, Sydney, Australia
    Contribution
    Resources
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2285-5398
  16. Geraldine M O'Neill

    1. Children's Cancer Research Unit, The Children's Hospital at Westmead, Sydney, Australia
    2. Discipline of Child and Adolescent Health, University of Sydney, Sydney, Australia
    Contribution
    Resources
    Competing interests
    No competing interests declared
  17. Richard J Williams

    1. Biofab3D, St. Vincent’s Hospital, Melbourne, Australia
    2. Institute for Innovation in Mental and Physical Health and Clinical Translation (iMPACT), School of Medicine, Deakin University, Victoria, Australia
    Contribution
    Resources
    Competing interests
    No competing interests declared
  18. David R Nisbet

    1. Biofab3D, St. Vincent’s Hospital, Melbourne, Australia
    2. Advanced Biomaterials Lab, Research School of Engineering, ANU, Canberra, Australia
    Contribution
    Resources, Supervision
    Competing interests
    No competing interests declared
  19. Belinda Kramer

    Children's Cancer Research Unit, The Children's Hospital at Westmead, Sydney, Australia
    Contribution
    Resources, Supervision
    Competing interests
    No competing interests declared
  20. Andrew I Webb

    1. The Walter and Eliza Hall Institute of Medical Research, Melbourne, Australia
    2. Department of Medical Biology, University of Melbourne, Melbourne, Australia
    Contribution
    Formal analysis, Supervision
    Competing interests
    No competing interests declared
  21. Fabio Luciani

    1. School of Medical Sciences, Faculty of Medicine, University of New South Wales, Sydney, Australia
    2. The Kirby Institute for Infection and Immunity in Society, UNSW, Sydney, Australia
    Contribution
    Formal analysis, Supervision
    Competing interests
    No competing interests declared
  22. Mark N Read

    School of Computer Science, Westmead Initiative, and Charles Perkins Centre, University of Sydney, Sydney, Australia
    Contribution
    Software, Formal analysis, Supervision, Investigation, Visualization
    Competing interests
    No competing interests declared
  23. Maté Biro

    1. EMBL Australia, Single Molecule Science node, University of New South Wales, Sydney, Australia
    2. School of Medical Sciences, Faculty of Medicine, University of New South Wales, Sydney, Australia
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Investigation, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    m.biro@unsw.edu.au
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5852-3726

Funding

NSERC (RGPIN 50503-10477)

  • Gregory Rice

National Health and Medical Research Council (GNT1135687)

  • David R Nisbet

University of Sydney (Centre for Advanced Food Enginomics)

  • Mark N Read

EMBL Australia

  • Maté Biro

NSERC (50503-10476)

  • Gregory Rice

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank PL Newman, A Masedunskas, J Chou, Y Wang, the BioMedical Imaging Facility and Biological Resources Imaging Laboratory of UNSW for technical assistance, and R Germain, N Plachta, M Coelho, J Rossy, A Yap and J Howard for helpful discussions. MB acknowledges Bitplane AG for an Imaris Developer license. This work was supported by NSERC grants RGPIN 50503–10477 and 50503–10476 to GR, NHMRC Fellowship GNT1135687 to DRN, the University of Sydney Centre for Advanced Food Enginomics to MNR and EMBL Australia to MB.

Ethics

Human subjects: Human peripheral blood mononuclear cells (PBMCs) were obtained from healthy donors after informed consent and were used in experiments under a Human Research Ethics Committee (HREC) approved protocol (Sydney Children's Hospitals Network, LNR/13/SCHN/241).

Animal experimentation: All animal breeding and experimentation were conducted in accordance with New South Wales state and Australian federal laws and animal ethics protocols overseen and approved by the University of New South Wales Animal Care and Ethics Committee (ACEC) under protocols 16/83B and 19/133B.

Senior and Reviewing Editor

  1. Satyajit Rath, Indian Institute of Science Education and Research (IISER), India

Publication history

  1. Received: March 2, 2020
  2. Accepted: September 27, 2020
  3. Accepted Manuscript published: October 13, 2020 (version 1)
  4. Accepted Manuscript updated: October 16, 2020 (version 2)
  5. Version of Record published: November 16, 2020 (version 3)

Copyright

© 2020, Galeano Niño et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,778
    Page views
  • 341
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Computational and Systems Biology
    Xiaochuan Zhao et al.
    Research Article Updated

    The DNA-binding protein H-NS is a pleiotropic gene regulator in gram-negative bacteria. Through its capacity to sense temperature and other environmental factors, H-NS allows pathogens like Salmonella to adapt their gene expression to their presence inside or outside warm-blooded hosts. To investigate how this sensing mechanism may have evolved to fit different bacterial lifestyles, we compared H-NS orthologs from bacteria that infect humans, plants, and insects, and from bacteria that live on a deep-sea hypothermal vent. The combination of biophysical characterization, high-resolution proton-less nuclear magnetic resonance spectroscopy, and molecular simulations revealed, at an atomistic level, how the same general mechanism was adapted to specific habitats and lifestyles. In particular, we demonstrate how environment-sensing characteristics arise from specifically positioned intra- or intermolecular electrostatic interactions. Our integrative approach clarified the exact modus operandi for H-NS-mediated environmental sensing and suggested that this sensing mechanism resulted from the exaptation of an ancestral protein feature.

    1. Computational and Systems Biology
    2. Genetics and Genomics
    Reza K Hammond et al.
    Research Article Updated

    To uncover novel significant association signals (p<5×10−8), genome-wide association studies (GWAS) requires increasingly larger sample sizes to overcome statistical correction for multiple testing. As an alternative, we aimed to identify associations among suggestive signals (5 × 10−8≤p<5×10−4) in increasingly powered GWAS efforts using chromatin accessibility and direct contact with gene promoters as biological constraints. We conducted retrospective analyses of three GIANT BMI GWAS efforts using ATAC-seq and promoter-focused Capture C data from human adipocytes and embryonic stem cell (ESC)-derived hypothalamic-like neurons. This approach, with its extremely low false-positive rate, identified 15 loci at p<5×10−5 in the 2010 GWAS, of which 13 achieved genome-wide significance by 2018, including at NAV1, MTIF3, and ADCY3. Eighty percent of constrained 2015 loci achieved genome-wide significance in 2018. We observed similar results in waist-to-hip ratio analyses. In conclusion, biological constraints on sub-significant GWAS signals can reveal potentially true-positive loci for further investigation in existing data sets without increasing sample size.
