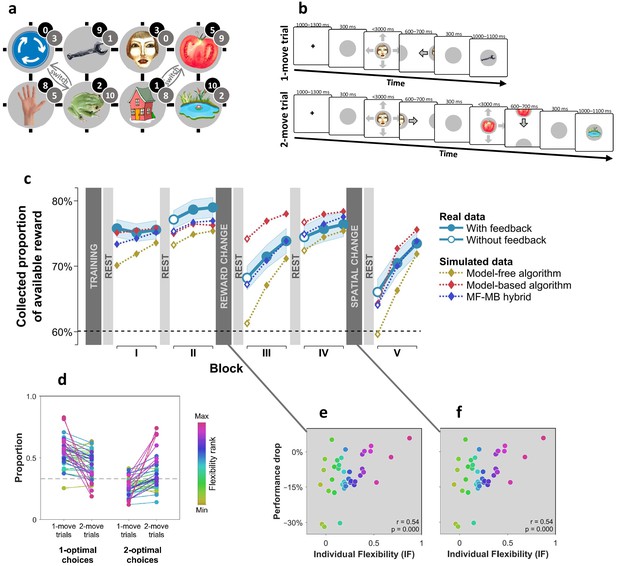

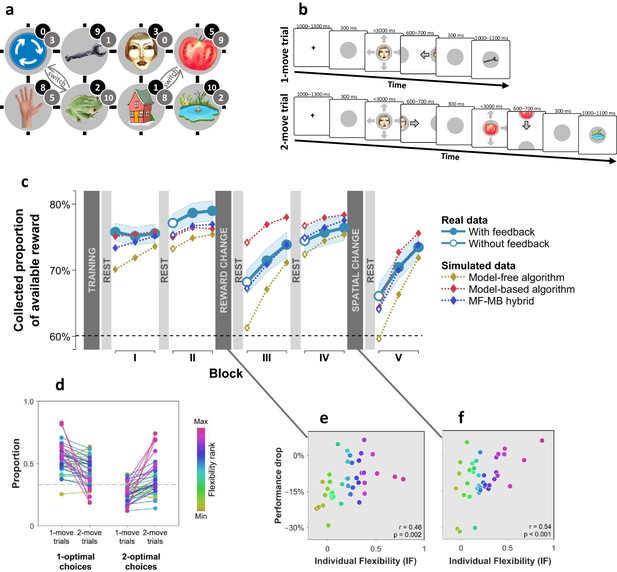

We used distinct visual images to represent eight unique states, where occupancy of each state provided a different amount of reward (Figure 1a). Subjects started each trial at a random state and had to choose a movement direction in order to collect reward from subsequent states (Figure 1b). Subjects learnt beforehand how much reward was associated with each state (Figure 1—figure supplement 1), but they did not know initially where states were in relation to one another. The latter aspect of task structure had to be acquired through trial and error learning in order for subjects to be able to implement subsequent moves that delivered the maximal amount of reward. We assessed subjects’ flexibility in three ways. First, after the initial two blocks of trials, we changed the reward associated with each state (Figure 1a; grey numbers) such that persisting with previously optimal moves would result in below-chance performance. Second, after two additional blocks of trials, we informed subjects that two specified pairs of states had switched positions (Figure 1a; ‘switch’), again rendering the previously optimal policy now suboptimal. A flexible model-based planner would be capable of re-planning their moves perfectly following each of these instructed changes, since such a planner has acquired knowledge as to how each state can be reached. Conversely, a pure model-free planner would need to learn a new policy from scratch via trial and error each time there is a change, since such an agent only possesses a now outdated policy that specifies where to move from each state.

Figure 1 with 4 supplements see all

Download asset Open asset

Examining how subjects’ overall performance altered immediately following these changes revealed a decrement in average performance (Figure 1c). However, there were substantial individual differences in this regard, with some subjects seamlessly adapting to reward and position changes, and others showing drops in performance to chance levels. Subjects whose performance showed a strong decline following a reward change tended to cope poorly also with the position change ($\rho =0.50$, partial correlation controlling for performance levels before the changes; $p=0.001$, Permutation test).

As a third, more continuous, test of a different aspect of decision flexibility, we interleaved sets of six trials in which only a single move was allowed (‘1-move trials’) with trials which allowed two consecutive moves (‘2-move trials’; Figure 1b). In 2-move trials, subjects were rewarded for both states they visited, and thus, an optimal course of action often required subjects to move first to an initial low-reward state in order to gain access to a high-reward state with their second move. Thus, we defined an individual index (IF) of decision flexibility as the difference between the proportion of moves that were optimal given the actual number of allotted moves and the proportion of moves that would have been optimal given a different number of allotted moves (i.e., had 1-move trials instead involved two moves and 2-move trials involved one move). An IF value of zero implies no net adjustment, while positive IF values imply advantageous flexibility.

The results indicate subjects adjusted their choices advantageously to the number of allotted moves (+0.21, SEM 0.05, p < 0.001, Bootstrap test), though there was evidence again of substantial individual differences (Figure 1d). Importantly, IF correlated with how well a subject coped with the reward-contingency (Figure 1e) and position (Figure 1f) changes as well with how accurately they could sketch maps of the state space at the end of the experiment ($r=0.51$, ${\displaystyle p<0.001}$, Permutation test; Figure 1—figure supplement 2), indicating these subjects acquired and utilised a model of the state space.

Having a cognitive model that specifies how states are spatially organised makes it possible to plan several steps into the future. To test whether subjects were able to do that, we challenged subjects with 12 ‘without-feedback’ trials at the beginning of each of the last four blocks, during which outcome images were not shown. This meant that in 2-move trials subjects had to choose their second move ‘blindly’, without having seen the image to which their previous move had led (e.g., the tomato in Figure 1b). We found that subjects performed above chance on these blind second moves (proportion of optimal choices: 0.56, SEM 0.03; chance = 0.45; p<0.001, Bootstrap test), and this was the case even immediately following position and reward changes, when subjects could not have relied on previously tested 2-move sequences (0.52, SEM 0.03; p=0.01, Bootstrap test). Most importantly, such blind-move success was correlated with IF (Figure 1—figure supplement 3a).

This result indicates that more flexible subjects were better able to plan two steps into the future when required. Examining response times suggested flexibility was associated with advance planning also when it was not required. Thus, we found that IF correlated with quicker execution of second moves in general (Spearman correlation with median reaction time: $r=-0.61$, ${\displaystyle p<0.001}$, Permutation test). To determine whether advance planning was indeed generally associated with flexibility, we examined at what point during a trial their choices became decodeable from MEG signals. For this purpose, we trained a decoder to decode chosen moves from MEG signals recorded outside of the main task (see Materials and methods for details). Validating the decoder on MEG data from the main task showed that chosen moves became gradually more evident over the course of the trial, their decodability peaking 140 ms before a choice was made (Figure 1—figure supplement 3b).

Thus, we used the move decoder to test whether second-move choices began to materialise in the MEG signal even before subjects observed the outcomes of their first moves. We found that chosen second moves were indeed decodeable already during first-move choices (decodability: $M=$ 0.006, 95% Credible Interval = 0.004 to 0.008, Bayesian Gaussian Process analysis; Figure 1—figure supplement 3c) and prior to the appearance of the first outcome (decodability: $M=0.004$, 95% Credible Interval = 0.002 to 0.006; Figure 1—figure supplement 3d). Importantly, this early decodability was correlated with IF ($\beta$: $M=0.29$, 95% Credible Interval = 0.24 to 0.34). By contrast, later decodability, following the onset of the second image, did not correlate with IF ($\beta$: $M=0.02$, 95% Credible Interval = −0.02 to 0.05). Thus, neural and behavioural evidence concur with the notion that flexibility was associated with planning second moves prospectively.

These convergent results suggest that IF reflected deployment of a model-based planning strategy. To test this formally, we compared how well different model-free (MF) and model-based (MB) decision algorithms, as well as a combination of both, explained subjects’ choices. Importantly, we enhanced these algorithms to maximise their ability to mimic one another (see Materials and methods for details). Thus, for instance, the MF algorithm included separate 1-move and 2-move policies, which allow it to achieve optimal adjustment to trial type given sufficient experience.

We found that a hybrid of MF and MB algorithms outperformed substantially either of them alone (Bayesian Information Criterion [Bishop, 2006]: MF = 40821, MB = 43249, MF-MB hybrid = 39908), suggesting that subjects employed a mix of model-free and model-based planning strategies. Simulating task performance using the hybrid algorithm showed it captured adequately behavioural differences evident between subjects (correlation between real and simulated IF: $r=0.92$, ${\displaystyle p<0.001}$, Permutation test; Figure 1—figure supplement 4a). When we examined each subject’s best-fitting parameter values, to determine which of these covaried with IF, we found 84% of inter-individual variance in IF was explained by three parameters that control a balance between model-based and model-free planning (Figure 1—figure supplement 4b). Importantly, less flexible subjects had comparable learning rates and a higher model-free inverse temperature parameter (in 2-move trials), indicating that lower flexibility did not reflect a non-specific impairment, but rather, it was associated with enhanced deployment of a model-free algorithm. Thus, our index of flexibility specifically reflected the influence of model-based, as compared to model-free, planning.

In rodents, reinstatement of past states, potentially in the service of planning, is evident both prior to choices (Pfeiffer and Foster, 2013) and following observation of outcomes (Pezzulo et al., 2014). Thus, we determined firstly at what point states were neurally reinstated during our task. For this purpose, we trained MEG decoders to identify the images subjects were processing (Figure 2a). Such decoders robustly reveal stimulus representations that are reinstated from memory and contribute to decision processes (Eldar et al., 2018; Kurth-Nelson et al., 2015; Bishop, 2006; Pfeiffer and Foster, 2013). Crucially, image decoders were trained on MEG data collected prior to subjects having any knowledge about the task, ensuring that the decoding was free of confounds related to other task variables (Figure 2—figure supplement 1). Applying these decoders to MEG signals from the main task, we found no evidence of prospective representation of outcome states (images) to which subjects will transition at choice (Figure 2—figure supplement 2a). Instead, we found strong evidence that following outcomes (corresponding to new states to which subjects had transitioned), subjects represented the states from which they had just moved ($\stackrel{-}{t}=3.4$, $p=0.001$, Permutation test; Figure 2—figure supplement 2b). Consequently, we examined in detail the MEG data recorded following each outcome for evidence of replay of state sequences that subjects had just traversed.

Figure 2 with 2 supplements see all

Download asset Open asset

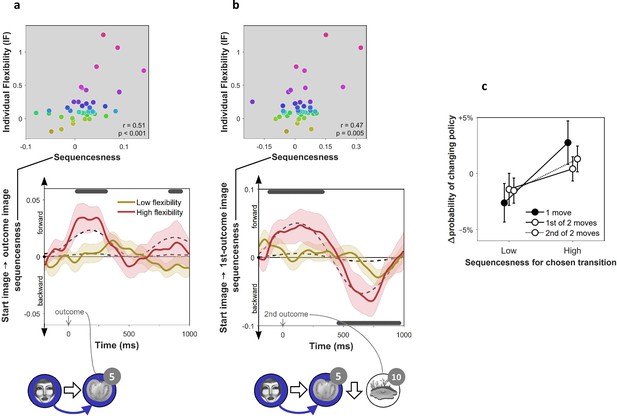

To test for evidence of replay, we applied a measure of ‘sequenceness’ to the decoded MEG time series, a metric we previously showed is sensitive in detecting replay of experienced and decision-related sequences of states (Eldar et al., 2018; Kurth-Nelson et al., 2016; Liu et al., 2019; Figure 2b). Importantly, sequenceness is not sensitive to simultaneous covariation, and thus, it is only found if stimulus representations follow one another in time (Eldar et al., 2018; as in previous work, we allowed for inter-stimulus lags of up to 200 ms). Thus, following each outcome, we computed sequenceness between the decoded representations of the preceding and the outcome state (Figure 3a). Additionally, MEG signals recorded following the second outcome in 2-move trials were also tested for sequenceness reflecting the trial’s first transition (i.e., between the starting state and first outcome; Figure 3b).

Figure 3

Download asset Open asset

Using an hierarchical Bayesian Gaussian Process approach (see Materials and methods for details) we tested for timepoints at which sequenceness was evident and correlated with individual flexibility. This method directly corrects for comparison across multiple timepoints by accounting for the dependency between them (Kruschke, 2014). Since replay is thought to be induced by surprising observations (Mattar and Daw, 2018; Momennejad et al., 2018; Moore and Atkeson, 1993; Peng, 1993), we also included surprise about the outcome (i.e. the state prediction error inferred by the hybrid algorithm) as a predictor of sequenceness. We found significant sequenceness encoding the last experienced state transition (from 50 to 330 ms and from 820 to 950 ms following outcome onset; Figure 3a; note that the median split is for display purposes alone; actual analyses depended on the continuous flexibility index) and, at the conclusion of 2-move trials, also the penultimate transition (from 130 ms before to 350 ms following outcome onset; Figure 3b). These sequences were accelerated in time, with an estimated lag of 130 ms between the images, and were encoded in a ‘forward’ direction corresponding to the order actually visited. Moreover, later in the post-outcome epoch, the penultimate transition was also replayed backwards (from 440 to 940 ms following outcome onset). As would be expected, the finding of sequenceness was associated with enhanced decoding of previously visited states during the post-outcome epoch (Figure 2—figure supplement 2c).

More importantly, we found this evidence of replay, across all timepoints, was correlated with IF (mean $\beta =0.17$, 95% Credible Interval = 0.13 to 0.20), with surprise about the outcome (mean $\beta =0.06$, CI = 0.03 to 0.10), and with the interaction of these two factors (mean $\beta =0.19$, CI = 0.15 to 0.22). Thus, sequenceness was predominantly evident following surprising outcomes in subjects with high index of flexibility. This result is consistent with online replay contributing to post-outcome model-based planning.

Recent theorising regarding the role of replay in planning argues that replay is preferentially induced when there is benefit to updating one’s policy (Mattar and Daw, 2018). Although policy updates can either reinforce or inhibit a chosen move, in our experiment, subsequently avoided choices in our experiment were more likely followed by a policy update than subsequently repeated choices, since a substantial proportion of the latter already reflected a well-informed policy (as evidenced by subjects’ above chance performance in Figure 1c). Thus, a role for replay in planning predicts that subjects should be more disposed to replay trajectories that they might not want to choose again, rather than trajectories whose choice reflects a firm policy. To determine whether decodable on-task replay was associated with behavioural change, we tested the relationship between sequenceness corresponding to each move that subjects chose, and the probability of making a different choice when occupying the same state later on. We found that moves after which high forward sequenceness was evident corresponded to moves that were less likely to be re-chosen subsequently (Figure 3c). These policy changes increased the proportion of obtained reward ($M=+11.1\%$, $SEM=1.5\%$, $p=0.001$). Thus, we found evidence of online replay for a chosen trajectory was coupled with advantageous re-evaluation of one’s choice.

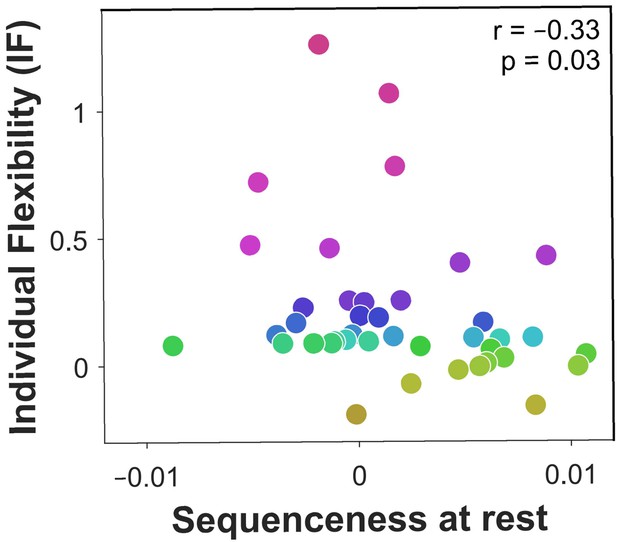

We next studied off-task replay, examining MEG data recorded during the 2-minute rest period that preceded each experimental block. Since each block included five frequently repeating starting states, we computed sequenceness for the five most frequent image-to-image transitions subjects chose before and after each rest period (mean choice frequency = 8.4 repetitions per block). As a control analysis, we also examined sequenceness for the five least frequently chosen transitions from the same starting states (mean choice frequency = 1.0 repetitions per block). We found significant evidence for sequenceness throughout the rest periods for frequent transitions ($M$ = 0.002, $SEM$ = 0.001, $p=0.01$, Bootstrap test). By contrast, we found no evidence of sequenceness for the infrequent transitions ($M$ < 0.001, $SEM$ = 0.001, $p=0.47$, Bootstrap test). Frequent transitions were replayed in a forward direction, with an estimated time lag of 180 ms between images, and prioritised trajectories that induced more reward prediction errors in the previous block (correlation of sequenceness with sum of absolute model-free reward prediction errors inferred by the hybrid algorithm: $M=$ 0.04, $SEM=0.018$, $p=0.03$, Bootstrap test). Most importantly, off-task sequenceness correlated negatively with IF (Figure 4). This association of sequenceness during rest with low flexibility is consistent with a proposed role for offline replay in establishing model-free policies (Gershman et al., 2014; Mattar and Daw, 2018; Momennejad et al., 2018; Sutton, 1991).

Figure 4

Download asset Open asset

If offline replay is involved in planning, then its content should predict subjects’ subsequent choices. To test this, we dissociated the replay of experienced trajectories from that of planned trajectories, by focusing on the third rest period after which the optimal image-to-image transitions changed entirely (due to a change in state-reward associations; see Figure 1). As subjects had been taught about the reward change before this rest period, the rest afforded subjects an opportunity to re-plan their choices accordingly.

We first examined the behavioural effect of the state-reward change in more detail. The most frequently chosen transitions in the block that followed the third rest period differed from the transitions most frequently chosen in the preceding block (overlap: $M=14\%$, $SEM=3\%$), and this policy change was substantially greater than for the other rest periods (overlap: $M=53\%$, $SEM=2\%$). As expected, the newly chosen transitions from the following block were advantageous given the new state-reward associations (reward collected: $M=71\%$, $SEM=2\%$; chance = 60%) and disadvantageous given the state-reward associations that had so far applied ($M=52\%$, $SEM=2\%$).

Given the behavioural change, we focused our examination of the MEG data on evidence for sequenceness during this crucial third rest period. We found that subjects indeed replayed the transitions they subsequently chose ($M=0.004$, $SEM=0.002$, $p=0.02$, Bootstrap test). This replay of subsequently chosen moves indicates subjects utilised a model of the task to re-plan their moves offline (Momennejad et al., 2018; Gershman et al., 2014; Mattar and Daw, 2018). Our reasoning here is that re-planning in light of the new reward associations, before subjects experienced them in practice, requires a model that specifies how to navigate from one state to another. Indeed, multiple regression analysis showed that low IF was only associated with sequenceness encoding previously chosen transitions ($\beta =-0.35$, $t_{37}=2.25$, $p=0.03$), whereas the replay of subsequently chosen transitions did not correlate with IF (${\displaystyle \beta =-0.004}$, $t_{37}=0.03$, $p=0.97$). On the other hand, the lack of a flexibility enhancement associated with prospective offline replay might indicate that, as might be expected, offline planning is ill-suited for enhancing trial-to-trial flexibility.

40 human subjects, aged 18–33 years, 25 female, were recruited from a subject pool at University College London. Exclusion criteria included age (younger than 18 or older than 35), neurological or psychiatric illness, and current psychoactive drug use. To allow sufficient statistical power for comparisons between subjects, we set the sample size to roughly double that used in recent magnetoencephalography (MEG) studies on dynamics of neural representations (Hunt et al., 2012; Kurth-Nelson et al., 2015), and in line with our previous study of individual differences using similar measurements (including ‘sequenceness’; Eldar et al., 2018). Subjects received monetary compensation for their time (£20) in addition to a bonus (between £10 and £20) reflecting how many reward points subjects earned in the experiment task. The experimental protocol was approved by the University of College London local research ethics committee, and informed consent was obtained from all subjects.

To study flexibility in decision making, we designed a 2 × 4 state space where each location was identified by a unique image. Each image was associated with a known number of reward points, ranging between 0 and 10. Subjects’ goal was to collect as much reward as possible by moving to images associated with a high numbers of points. Subjects were never shown the whole structure of the state space, and thus, had to learn by trial and error which moves lead to higher reward.

Subjects were first told explicitly how many reward points were associated with each of the eight images. Subjects were then trained on these image-reward associations until they reliably chose the more rewarding image of any presented pair (see Image-reward training).

Next, the rules of the state-space task were explained (see State-space task), and multiple-choice questions were used to ensure that subjects understood these instructions. To facilitate learning, subjects were then gradually introduced to the state space, and were allowed one move at a time from a limited set of starting locations (see State-space training). Following this initial exposure, the rules governing two-move trials were explained and subjects completed a series of exercises testing their understanding of a distinction between one-move and two-move trials (see State-space exercise). Once these exercises were successfully completed, subjects played two full blocks of trials in the state pace, that included both one-move and two-move trials.

We next tested how subjects adapted to a change in the rewards associated with images. For this purpose, we instructed and trained subjects on new image-reward associations (see State-space design). Subjects then played two additional state-space blocks with these modified rewards.

Finally, we tested how subjects adapted to changes in the spatial structure of the state space. For this purpose, we told subjects that two pairs of images would switch locations, informing them precisely which images these were (see State-space design). Multiple-choice questions were used to ensure that subjects understood these instructions. Subjects then played a final state-space block with this modified spatial map.

At the end of the experiment, we also tested subjects’ explicit knowledge, asking them to sketch maps of the state spaces and indicate how many points each image was associated with before, and after, the reward contingency changed.

To ensure robust decoding from MEG, we used eight images that differed in colour, shape, texture and semantic category (Hunt et al., 2012; Carlson et al., 2013; Cichy et al., 2014). These included: a frog, a face, a traffic sign, a tomato, a hand, a house, a pond, and a wrench.

Subjects started each trial in a pseudorandom state, identified only by its associated image. Subjects then chose whether to move right, left, up, or down, and the chosen move was implemented on the screen, revealing the new state (i.e., as its associated image) to which the move led. In ‘one-move’ trials, this marked the end of the trial, and was followed by a short inter-trial interval. The next trial then started from another pseudorandom location. In ‘two-move’ trials, subjects made an additional move from the location where their first move had led. This second move disallowed backtracking the first move (e.g., moving right and then left). Subjects were informed they would be awarded points associated with any image to which they move. Thus, subjects won points associated with a single image on one-move trials, and the combined value of the two images on two-move trials. The numbers of points awarded were never displayed during the main task. Every six trials, short text messages informed subjects what proportion of obtainable reward they had collected in the last six trials (message duration 2500 ms).

Each state-space block consisted of 54 trials, 18 one-move and 36 two-move trials respectively. The first six trials were one-move, the next 12 were two-move trials, then the next six were again one-move trials, the next 12 two-move, and so on. Every six trials, short text messages informed subjects whether the next six trials were going to be one-move or two-move trials (message duration 2000 ms). Every six consecutive trials featured six different starting locations. The one exception to this were the first of the 24 two-move trials of the experiment, where in order to facilitate learning, each starting location repeated for two consecutive trials (a similar measure was also implemented for one-move trials during training; see State-space training). Subjects’ performance improved substantially in the second of such pairs of trials (Δproportion of optimal first choices = +0.15, 95% CI = +0.11 to +0.18, p<0.001, Bootstrap test).

At the beginning of every block (except the first one), we tested how well subjects could do the task without additional information, based solely on the identity of the starting locations. For this purpose, images to which subjects’ moves led were not shown for the first 12 trials. In two-move trials, this meant subjects implemented a second move from an unrevealed image (i.e., state).

The mapping of individual images to locations and rewards was randomly determined for each subject, but rewards were spatially organised in a similar manner for all subjects. To test whether subjects could flexibly adjust their choices, the state space was constructed such that there were five locations from which the optimal initial move was different depending on whether one or two moves were allowed. We tested subjects predominantly on these starting locations, using all five of them in every six consecutive trials. Following two blocks, the rewards associated with each image were changed, such that the optimal first moves in both 1-move and 2-move trials, given the new reward associations, were different from the optimal moves under the initial reward associations. The initial and modified reward associations were weakly anti-correlated across images ($r=-0.37$). Finally, before the last block, we switched the locations of two pairs of images, such that the optimal first move changed for 15 out of 16 trial types (1- and 2-move trials x 8 starting locations).

Subjects played six short training blocks, each block consisted of 12 one-move trials starting in one of two possible locations. If a subject failed to collect 70% of the points available in one of these short blocks, the block was repeated. The majority of subjects (35 out of 40) had to repeat the first block, whereas only 12% of the remaining blocks were repeated (mean 0.6 blocks per subject, range 0 to 2). Very rarely, a block had to be repeated twice (a total of 5 out of 240 blocks for the whole group). Lastly, subjects played a final training block consisting 48 one-move trials starting at any of the eight possible locations. To facilitate learning, during the first half of the block, each starting location was repeated for two consecutive trials. In the second half of the block, starting locations were fully interleaved.

Following the state-space training, which only included one-move trials, we ensured subjects understood how choices should differ in one- and two-move trials by asking them to choose the optimal moves in a series of random, fully visible state spaces. Subjects were given a bird’s eye view of each state space, with each location showing the number of reward points with which it was associated. The starting location was indicated in addition to whether one, or two, moves were available from which to collect reward. In all exercises, the optimal initial move was different depending on whether one or two moves were allowed. Every 10 consecutive exercises consisted of 5 one-move trials and five two-move trials. To illustrate the continuity of the state space, the exercise included one-move and two-move trials, wherein the optimal move required the subject to move off the map and arrive at the other end (e.g., moving left from a leftmost location to arrive at the rightmost location). In another two-move trial, the optimal moves involved moving twice up or twice down, thereby returning to the starting location. Subjects continued to do the exercises until fulfilling a performance criterion of 9 correct answers in 10 consecutive exercises. This criterion was relaxed to eight correct answers if at least 60 exercises had been completed. Only one subject required 60 exercises to reach criterion (mean required exercises = 24.5 exercises, SD 9.3).

To ensure subjects remembered how many points each image awarded, we required subjects to select the more rewarding image out of any pair of presented images. First, subjects were asked to memorise the number of points each image would awards. Then, each round of training consisted of 28 trials, testing subjects on all 28 possible pairs of images (Figure 1—figure supplement 1). Each trial started with the presentation of one image, depicted on an arrow pointing either right, left, up or down. 800 ms later, another image appeared on an arrow pointing in a different direction. Subjects had then to press the button corresponding to the direction of the more rewarding image. Here, as throughout the experiment, subjects were instructed to press the ‘left’ and ‘up’ buttons with their left hand, and the ‘right’ and ‘down’ buttons with their right hand. During training, images were mapped to directions such that each of the four directions was equally associated with low- and high-reward images. Once subjects made their choice, the number of points associated with each of the two images appeared on the screen, and if the choice was correct the chosen move was implemented on the screen. Subjects repeated this training until they satisfied a performance criterion, based on how many points they missed consequent upon choosing less rewarding images. The initial performance criterion allowed four missed points, or less, in a whole training round (out of a maximum of 130 points). This criterion was gradually relaxed, to eight missed points in the second training round, to 12 missed points in the third training round, and to 16 missed points thereafter. Once subjects satisfied the performance criterion without time limit, they repeated the training with only 1500 ms allowed to make each choice, until satisfying the same re-set gradually relaxing criterion. Overall, subjects required an average of 3.4 training rounds (SD 1.0) to learn the initial image-reward associations (1.3 rounds without, and then 2.1 rounds with, a 1500 ms time limit), and 4.3 rounds (SD 1.3) to learn the second set image-reward associations (2.0 rounds without, and 2.3 rounds with, a time limit). Questioning at the end of the experiment validated that subjects had explicit recall for both sets of image-reward associations (mean error 0.36 pts, SEM = 0.07 pts; chance = 4.05 pts).

To test what decision algorithm subjects employed, and in particular, whether they chose moves that had previously been most rewarding from the same starting location (model-free planning), or whether they learned how the state space is structured and used this information to plan ahead (model-based planning), we compared between model-free and model-based algorithms in terms of how well they fitted subjects’ actual choices. These models were informed by previous work (Daw et al., 2005; Sutton and Barto, 1998), adjusted to the present task, and validated using model and parameter recovery tests on simulated data.

Free parameters: ${\eta }^{\mathrm{M}\mathrm{F}1}$,${\eta }^{\mathrm{M}\mathrm{F}2}$, ${\tau }^{\mathrm{M}\mathrm{F}}$, ${\tau }^{\text{'}MF}$, $\theta$, ${\beta }_{\mathrm{1,2}}^{MF1}$,${\beta }_2^{MF2}$, ${\gamma }_{\mathrm{u}\mathrm{p},\mathrm{d}\mathrm{o}\mathrm{w}\mathrm{n},\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{t},\mathrm{}\mathrm{r}\mathrm{i}\mathrm{g}\mathrm{h}\mathrm{t}}$. This algorithm learns the expected value of performing a given move upon encountering a given image. To do this, the algorithm updates its expectation $Q^{\mathrm{M}\mathrm{F}}$ from move $m$ given image $s$ whenever this move is taken and its outcome is observed:

where $s_{t,1}$ is trial $t$’s starting image, ${\delta }_t^{\mathrm{M}\mathrm{F}}$ is the reward prediction error, and ${\eta }^{\mathrm{M}\mathrm{F}1}$ is a fixed learning rate between 0 and 1. Reward prediction errors are computed as the difference between actual and expected outcomes:

where the actual outcome consists of the points associated with the new image to which the move led, $R_g\left(s_{t,2}\right)$. $g=1$ refers to the initial image-rewards associations, and $g=2$ refers to the second set of image-rewards associations about which subjects were instructed in the middle of the experiment.

On 2-move trials, the algorithm also learns the expected reward for each pair of moves given each starting image. Thus, another set of Q values is maintained ($Q^{\mathrm{M}\mathrm{F}2}$), one for each possible pair of moves for each starting image, and these are updated every time a pair of moves is completed based on the total reward obtained by the two moves. This learning proceeds as described by Equations 1 and 2, but with a different learning rate (${\eta }^{\mathrm{M}\mathrm{F}2}$).

All expected values are initialised to $\theta$, and decay back to this initial value before every update:

where ${\tau }^{\mathrm{M}\mathrm{F}}$ determines the degree of value retention. This allows learned expectations to be gradually forgotten.

Following instructed changes to the number of points associated with each image, or to the spatial arrangement of the images, previously learned Q values are of little use. Thus, we allow the Q values to then return back to $\theta$, as in Equation 3, but only for a single timestep and with a different, potentially lower, memory parameter ${\tau }^{\mathrm{\text{'}}\mathrm{M}\mathrm{F}}$.

Finally, the algorithm chooses moves based on a combination of its learned expected values. On 1-move trials, only single-move Q values are considered:

where ${\gamma }_m$ is a fixed bias in favor of move $m$ (${\sum }_m{\gamma }_m=0$), and ${\beta }_1^{\mathrm{M}\mathrm{F}1}$ is an inverse temperature parameter that weighs the impact of expected values on choice. On 2-move trials, both types of Q values are considered. Thus, the first move is chosen based on a weighted sum of the single-move Q values and the move-pair Q values:

wherein the latter are integrated over possible second moves each weighted by its probability:

Then, in choosing the second move the algorithm takes into account the state to which the first move led:

However, when the newly reached image $s_{t,2}$ is not known (i.e., in trials without feedback, or when estimating $\mathrm{p}\left(m_{t,2}=m^{*}|s_{t,1},m_{t,1}\right)$ in Equation 6 before $s_{t,2}$ is reached), $Q^{MF1}$ values are averaged over all settings of $s_{t,2}$.

Free parameters: ${\eta }^{\mathrm{M}\mathrm{B}}$, ${\tau }^{\mathrm{M}\mathrm{B}}$, ${\tau }^{\mathrm{\text{'}}\mathrm{M}\mathrm{B}}$, $\rho$, $\omega$, ${\beta }^{\mathrm{M}\mathrm{B}}$, $\kappa$, ${\gamma }_{\mathrm{u}\mathrm{p},\mathrm{d}\mathrm{o}\mathrm{w}\mathrm{n},\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{t},\mathrm{}\mathrm{r}\mathrm{i}\mathrm{g}\mathrm{h}\mathrm{t}}$. This algorithm learns the probability of transitioning from one image to another following each move. To do this, the algorithm updates its probability estimates, $\mathit{T}$, whenever a move is made and a transition is observed:

where ${\delta }_t^{\mathrm{M}\mathrm{B}}$ is the image-transition prediction error, and ${\eta }^{\mathrm{M}\mathrm{F}}$ is a fixed learning rate between 0 and 1. Image-transition prediction errors reflect the difference between actual and expected transitions:

To ensure that transition probabilities sum to 1, the transition matrix is renormalised following every update:

Learning may also take place with respect to the opposite transition. For instance, if moving right from image $s_{t,1}$ leads to image $s_{t,2}$, the agent can infer that moving left from image $s_{t,2}$ would lead to image $s_{t,1}$. Such inference is modulated in the algorithm by free parameter $\rho$:

where ${\tilde{m}}_t$ is the opposite of $m_t$, and ${\delta }^{\text{'}}$ is the opposite transition prediction error:

Self-transitions are impossible and thus their probability is initialised to 0. All other transitions are initialised with uniform probabilities, and these probabilities decay back to their initial values before every update:

where ${\tau }^{\mathrm{M}\mathrm{B}}$ is the model-based memory parameter. A low ${\tau }^{\mathrm{M}\mathrm{B}}$ results in faster decay of expected transition probabilities towards uniform distributions, decreasing the impact of MB knowledge on choice.

When instructed about changes to the image locations, the agent rearranges its transition probabilities based on the instructed changes with limited success, as indexed by free parameter $\omega$:

Since some subjects may simply reset their transition matrix following instructed changes, the algorithm also ‘forgets’ after such instruction, as in Equation 13, but only for a single time point and with a different memory parameter, ${{\tau }^{\text{'}}}^{\mathrm{M}\mathrm{B}}$.

Finally, the probability the algorithm will choose a given move when encountering a given image depends on its model-based estimate of the move’s expected outcome:

The algorithm estimates expected outcomes by multiplying the number of points associated with an image with the probability of transitioning to that image, integrating over all potential future images:

When two moves are allowed, the calculation also accounts for the number of points obtainable with the second move, $m_{t,2}$:

where $\kappa$ is a fractional parameter that determines the degree to which reward obtained by the second move is taken into account.

Following the first move, Equation 15 is used to choose a second move based on the observed new location ($s_{t,2}$). However, if the next location is not shown (i.e., in trials without feedback), the agent chooses its second move by integrating Equation 15 over the expected $s_{t,2}$, as determined by $T_t\left(s_{t,1},m_{t,1},s_{t,2}\right)$.

This algorithm employs both model-free (MF) and model-based (MB) planning, choosing moves based on a combination of the expected values estimated by the two learning processes. In 1-move trials this is implemented as:

In 2-move trials, the algorithm makes a choice based on a combination of the model-based Q values and both the single-move and two-move model-free Q values. For the first move, the combination is:

with $Q^{\mathrm{M}\mathrm{B}}\left(s_{t,1},m\right)$ computed according to Equation 17. For the second move, the choice is made according to:

When the image is not shown following the first move (i.e., in a no-feedback trial), the agent averages the model-free values over all images.

To fit the free parameters of the different algorithms to subjects’ choices, we used an iterative hierarchical expectation-maximisation procedure (Bishop, 2006). We first sampled 10000 random settings of the parameters from predefined group-level prior distributions. Then, we computed the likelihood of observing subjects’ choices given each setting, and used the computed likelihoods as importance weights to re-fit the parameters of the group-level prior distributions. These steps were repeated iteratively until model evidence ceased to increase (see Model Comparison below for how model evidence was estimated). This procedure was then repeated with 31623 samples per iteration, and finally with 100000 samples per iteration. To derive the best-fitting parameters for each individual subject, we computed a weighted mean of the final batch of parameter settings, in which each setting was weighted by the likelihood it assigned to the subject’s choices. Fractional parameters (${\eta }^{\mathrm{M}\mathrm{F}}$, ${\tau }^{\mathrm{M}\mathrm{F}}$, ${\tau }^{\text{'}MF}$,${\eta }^{\mathrm{M}\mathrm{B}}$, ${\tau }^{\mathrm{M}\mathrm{B}}$, ${\tau }^{\mathrm{\text{'}}\mathrm{M}\mathrm{B}}$, $\rho$, $\omega$, $\alpha$) were modelled with Beta distributions (initialised with shape parameters $a$ = 1 and $b$ = 1) and their values were log-transformed for the purpose of subsequent analysis. Initial Q values ($\theta$) and bias parameters (${\gamma }_{\mathrm{u}\mathrm{p}}$, ${\gamma }_{\mathrm{d}\mathrm{o}\mathrm{w}\mathrm{n}}$, ${\gamma }_{\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{t}}$, ${\gamma }_{\mathrm{r}\mathrm{i}\mathrm{g}\mathrm{h}\mathrm{t}}$) were modelled with normal distributions (initialised with µ = 0 and $\sigma$ = 1) to allow for both positive and negative effects, and all other parameters were modeled with Gamma distributions (initialised with shape = 1, scale = 1).

We compared between pairs of algorithms, in terms of how well each accounted for subjects’ choices, by means of the integrated Bayesian Information Criterion (iBIC; Eldar et al., 2016; Huys et al., 2012). To do this, we estimated the evidence in favour of each model ($\mathcal{ℒ}$) as the mean likelihood of the model given 100000 random parameter settings drawn from the fitted group-level priors. We then computed the iBIC by penalising the model evidence to account for algorithm complexity as follows: $\mathrm{i}\mathrm{B}\mathrm{I}\mathrm{C}=-2\ln \mathcal{ℒ}+k\ln n$, where $k$ is the number of fitted parameters and $n$ is the number of subject choices used to compute the likelihood. Lower iBIC values indicate a more parsimonious fit.

We tested whether our dataset was sufficiently informative to distinguish between the MF, MB and hybrid algorithms and recover the correct parameter values. For this purpose, we generated 10 simulated datasets using each algorithm and applied our fitting and comparison procedures to each dataset. To reduce processing time, only 10000 parameter settings were sampled. To maximise the chances of confusion between algorithms, we implemented all algorithms with the parameter values that best fitted subjects’ choices. Algorithm comparison implicated the correct algorithm in each of the 30 simulated datasets, and the parameters values that best fitted the simulated data consistently correlated with the actual parameter values used to generate these data (Pearson’s $r$: $M=0.57$, $SEM=0.05$). This correlation was stronger for parameters whose values were used for multiple trials when computing the fit to data (e.g., learning rates and inverse temperature parameters; $M=0.67$, $SEM=0.04$).

To test whether the algorithms described above were suitable for describing subjects’ behaviour, we compared them to several additional algorithms, all of which failed to fit subjects’ choices as well as the above counterparts, and so we do not describe them in detail. These alternative algorithms included a MF algorithm that only learns single-move Q values, but employs temporal difference learning (O'Doherty et al., 2003) to backpropagate second outcomes in 2-move trials back to the Q values of the starting location (BIC = 41559); a MB algorithm that employs Bayesian inference with a uniform Dirichlet prior (Bishop, 2006) (whose concentration parameter was set to 1) to learn the multinomial distributions that compose the state transition matrix (BIC = 43301); a MF-MB hybrid algorithm where state-transition expectations are only used to account for prospective second-move Q values when choosing the first move in 2-move trials (BIC = 40920); and an algorithm that combines two MF algorithms with different parameters (BIC = 40715).

MEG was recorded continuously at 600 samples/second using a whole-head 275-channel axial gradiometer system (CTF Omega, VSM MedTech, Canada), while subjects sat upright inside the scanner. A projector displayed the task on a screen ∼80 cm in front of the subject. Subjects made responses by pressing a button box, using their left hand for ‘left’ and ‘up’ choices and their right hand for ‘right’ and ‘down’ choices. Pupil size and eye gaze were recorded at 250 Hz using a desktop-mounted EyeLink II eyetracker (SR Research).

Preprocessing was performed using the Fieldtrip toolbox (Oostenveld et al., 2011 in MATLAB (MathWorks). Data from two sensors were not recorded due to a high level of noise detected in routine testing. Data were first manually inspected for jump artefacts. Then, independent component analysis was used to remove components that corresponded to eye blinks, eye movement and heart beats. Based on previous experience (Eldar et al., 2018), we expected stimuli to be represented in low frequency fluctuations of the MEG signal. Therefore, to remove fast muscle artefacts and slow movement artefacts, we low-pass filtered the data with a 20 Hz cutoff frequency using a sixth-order Butterworth IIR filter, and we baseline-corrected each trial’s data by subtracting the mean signal recorded during the 400 ms preceding trial onset. Trials in which the average standard deviation of the signal across channels was at least 3 times greater than median were excluded from analysis (0.4% of trials, SEM 0.2%). Finally, the data were resampled from 600 Hz to 100 Hz to conserve processing time and improve signal to noise ratio. Therefore, data samples used for analysis were length 273 vectors spaced every 10 ms.

To allow decoding of images from MEG we instructed subjects to identify each of the images in turn (Figure 2—figure supplement 1a). On each trial, the target image was indicated textually (e.g., ‘FACE’) and then an image appeared on the screen. Subjects’ task was to report whether the image matched (LEFT button) or did not match (RIGHT button) the preceding text. 20% of presented images did not match the text. The task continued until subjects correctly identified each of the images at least 25 times. Subjects were highly accurate on both match (M = 97.2%, SEM = 0.4%) and no-match (M = 90.2%, SEM = 0.6%) trials. To ensure robust decoding from MEG, we chose eight images that differed in colour, shape, texture and semantic category (Isik et al., 2014; Carlson et al., 2013; Figure 1a). Importantly, at this point subjects had no knowledge as to what the main task would involve, nor that the images would be associated with state-space locations and rewards. This ensured that no task information could be represented in the MEG data at this stage.

We used support vector machines (SVMs) to decode images and moves from MEG. All decoders were trained on MEG data recorded outside of the main state-space task and validated within the task. As in previous work (Eldar et al., 2018), we trained a separate decoder for each time bin between 150 and 600 ms following the relevant event, either image onset or move choice, resulting in 46 decoders whose output was averaged. Averaging over decoders trained at different time points reduces peak decodability following stimulus onset, but can increase decodability of stimuli that are being processed when not on the screen (Eldar et al., 2018). To avoid over-fitting, training and testing were performed on separate sets of trials following a 5-fold cross validation scheme. These analyses were performed using LIBSVM’s implementation of the C-SVC algorithm with radial basis functions (Chang and Lin, 2011). Decoder training and testing were performed with each of 16 combinations of the algorithms’ cost parameter (10^-1, 10⁰, 10¹, 10²) and basis-function concentration parameter (${10}^{-2}/n$, ${10}^{-1}/n$, ${10}^0/n$, ${10}^1/n$), where $n$ is the number of MEG features (273 channels). Where classes differed in number of instances, weighting was used to ensure classes were equally weighted.

To decode the probability of each of eight possible images being presented (8-way classification), we used MEG data recorded during pre-task stimulus exposure. Decoding was evaluated based on the mean probability the decoders assigned to the presented image. To decode the probability of each of the four possible moves (LEFT, RIGHT, UP, DOWN) being chosen (4-way classification), we used MEG data recorded during the image-reward training. For both types of decoder, the parameter combination of cost = 10² and concentration = ${10}^{-2}/n$ yielded the best cross-validated decoding performance and was thus used for all ensuing analyses, wherein decoders trained on pre-task stimulus exposure data were applied to main task data.

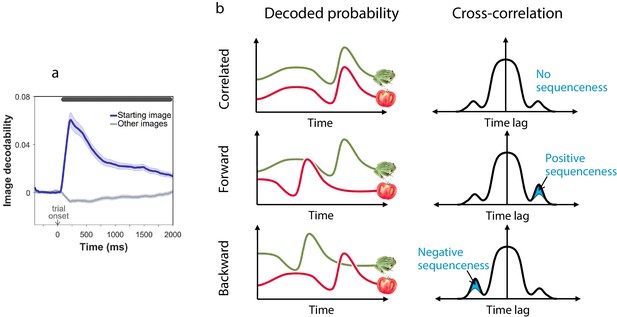

To investigate how representations of different images related to one another in time, we used a measure recently developed for detecting sequences of representations in MEG; (Kurth-Nelson et al., 2016). ‘Sequenceness’ is computed as the difference between the cross-correlation of two images’ decodability time-series with positive and negative time lags. By relying on asymmetries in the cross-correlation function, this measure detects sequential relationships even between closely correlated (or anti-correlated) time series, as we have previously demonstrated on simulated time series (Eldar et al., 2018). Positive values indicate that changes in the first time series are followed by similar changes in the second time series (‘forward sequenceness’), negative values indicate the reverse sequence (‘backward sequenceness’), and zero indicates no sequential relationship. As in previous work, cross correlations were computed between the z-scored time series over 400 ms sliding windows with time lags of up to 200 ms. This timescale is sufficient for capturing the relationship between successive alpha cycles, which is important given the possibility that such oscillations may reflect temporal quanta of information processing (Busch and VanRullen, 2014).

To determine whether sequenceness time-series recorded following outcomes provided robust evidence of replay that correlated with individual index of behavioural flexibility, we modelled mean sequenceness time-series as Gaussian Processes with squared exponential kernels. Such Gaussian Processes explicitly account for dependencies between timepoints within a time series, as a function of the lengths of time between those points. A group-level Gaussian Process captures the time series’ systematic deviations from zeros, either on average or as a function of two predictors: subject IF and surprise about the outcome. The deviations of each individual time series from the predictions made by this group-level process can themselves exhibit dependencies between timepoints as a function of distance. Therefore, we accounted for these deviations by means of another set of Gaussian Processes, one for each modelled time series, which were added to the predictions of the group-level process.

In theory, this model can be fit using MCMC sampling to all trial-by-trial sequenceness time series. However, fitting the model to such an amount of data proved infeasible within a reasonable timeframe. Thus, we reduced the data to four mean sequenceness time series per subject: sequenceness encoding the last (as in Figure 3a) or penultimate (as in Figure 3b) transition following highly or weakly surprising outcomes. High and low surprise were determined based on the state prediction error generated by the hybrid algorithm, whose parameters were fitted to the individual subject’s choices (i.e., high – above-mean prediction error, low – below-mean prediction error). Since we assumed last and penultimate transitions could be replayed at different timepoints, these two types of time series each had their own group-level Gaussian Process. To account for the factors of IF and surprise, for each time series, the group-level process was multiplied by a weighted linear combination of the two factors, their interaction, and an intercept (thus involving four parameters: $\beta ,{\beta }^{\mathrm{s}\mathrm{u}\mathrm{b}\mathrm{j}\mathrm{e}\mathrm{c}\mathrm{t}},{\beta }^{\mathrm{s}\mathrm{u}\mathrm{r}\mathrm{p}\mathrm{r}\mathrm{i}\mathrm{s}\mathrm{e}},{\beta }^{\mathrm{i}\mathrm{n}\mathrm{t}\mathrm{e}\mathrm{r}\mathrm{a}\mathrm{c}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}}$). The group- and individual-level Gaussian Processes were parameterised by different length-scales (${\rho }^{\mathrm{g}\mathrm{r}\mathrm{o}\mathrm{u}\mathrm{p}}$, ${\rho }^{\mathrm{i}\mathrm{n}\mathrm{i}\mathrm{d}\mathrm{i}\mathrm{v}\mathrm{d}\mathrm{u}\mathrm{a}\mathrm{l}}$) and marginal standard deviations (${\alpha }^{\mathrm{g}\mathrm{r}\mathrm{o}\mathrm{u}\mathrm{p}}$, ${\alpha }^{\mathrm{i}\mathrm{n}\mathrm{d}\mathrm{i}\mathrm{v}\mathrm{i}\mathrm{d}\mathrm{u}\mathrm{a}\mathrm{l}}$), and a standard deviation parameter ($\sigma$) accounted for additional normally distributed noise across all observations.

Bayesian estimation was performed in R (R Development Core Team, 2018) using the STAN (Carpenter et al., 2017) package for Markov Chain Monte Carlo (MCMC) sampling. All predictor variables were standardised. All prior distributions were set so as to be weakly informative and have broad range on the scale of the variables; (Kruschke, 2014). This included the following: $\beta$ coefficients were drawn from normal distributions with a mean of zero and a standard deviation of 10; Standard deviations parameters ($\alpha$, $\sigma$) were drawn from a normal distribution truncated to positive values, with a mean of zero and a standard deviation that matches the standard deviation of the predicted variable; Length-scales ($\rho$) were drawn from log-normal distributions whose mean is the geometric mean of two extremes: the distance in time between two successive timepoints, and the distance in time between the first and last timepoints; Half of the difference between these two values was used as the standard deviation of the priors. For the sake of identifiability, ${\beta }^{\mathrm{i}\mathrm{n}\mathrm{t}\mathrm{e}\mathrm{r}\mathrm{a}\mathrm{c}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}}$ was limited to positive values. Note this does not limit the model to positive interactions, since all coefficient are multiplied by the group-level Gaussian Processes, which might be negative.

We ran six MCMC chains each for 1400 iterations, with the initial 400 samples used for warmup. STAN’s default settings were used for all other settings. Examining the results showed there were no divergent transitions, and all parameters were estimated with effective sample sizes larger than 1000 and shrink factors smaller than 1.1. Posterior predictive checks showed good correspondence between the real and generated data (Figure 1c; Figure 1—figure supplement 4).

Decodability was tested for difference from zero and covariance with individual flexibility using the Bayesian Gaussian Process approach outlined above with the exclusion of the surprise predictor, which is inapplicable to timepoints that precede outcome onset.

Significance tests were conducted using nonparameteric methods that do not assume specific distributions. Differences from zero were tested using 10000 samples of bias-corrected and accelerated Bootstrap with default MATLAB settings. Correlations and differences between groups were tested by comparison to null distributions generated by 10000 permutations of the pairing between the two variables of interest. All tests are two-tailed.

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

We thank Zeb Kurth-Nelson and Yunzhe Liu for helpful comments on a previous version of the manuscript. EE holds an Alon Fellowship from the Israeli Council for Higher Education. PD is funded by the the Max Planck Society and the Humboldt Foundation. RJD holds a Wellcome Trust Investigator award (098362/Z/12/Z). The Max Planck UCL Centre for Computational Psychiatry and Ageing Research is a joint initiative supported by the Max Planck Society and University College London. The Wellcome Centre for Human Neuroimaging is supported by core funding from the Wellcome Trust (091593/Z/10/Z).

Human subjects: The experimental protocol was approved by the UCL Research Ethics Committee, under Project ID Number 9929/002, and informed consent was obtained from all subjects.
