Structural insights into human acid-sensing ion channel 1a inhibition by snake toxin mambalgin1

  1. Demeng Sun
  2. Sanling Liu
  3. Siyu Li
  4. Mengge Zhang
  5. Fan Yang
  6. Ming Wen
  7. Pan Shi
  8. Tao Wang
  9. Man Pan
  10. Shenghai Chang
  11. Xing Zhang
  12. Longhua Zhang  Is a corresponding author
  13. Changlin Tian  Is a corresponding author
  14. Lei Liu  Is a corresponding author
  1. Hefei National Laboratory of Physical Sciences at Microscale, Anhui Laboratory of Advanced Photonic Science and Technology and School of Life Sciences, University of Science and Technology of China, China
  2. Tsinghua-Peking Joint Center for Life Sciences, Ministry of Education Key Laboratory of Bioorganic Phosphorus Chemistry and Chemical Biology, Department of Chemistry, Tsinghua University, China
  3. High Magnetic Field Laboratory, Chinese Academy of Sciences, China
  4. School of Medicine, Zhejiang University, China
https://doi.org/10.7554/eLife.57096
Share this article
Cite this article
  1. Demeng Sun
  2. Sanling Liu
  3. Siyu Li
  4. Mengge Zhang
  5. Fan Yang
  6. Ming Wen
  7. Pan Shi
  8. Tao Wang
  9. Man Pan
  10. Shenghai Chang
  11. Xing Zhang
  12. Longhua Zhang
  13. Changlin Tian
  14. Lei Liu
(2020)
Structural insights into human acid-sensing ion channel 1a inhibition by snake toxin mambalgin1
eLife 9:e57096.
https://doi.org/10.7554/eLife.57096
  2. Download BibTeX
  3. Download .RIS

Abstract

Acid-sensing ion channels (ASICs) are proton-gated cation channels that are involved in diverse neuronal processes including pain sensing. The peptide toxin Mambalgin1 (Mamba1) from black mamba snake venom can reversibly inhibit the conductance of ASICs, causing an analgesic effect. However, the detailed mechanism by which Mamba1 inhibits ASIC1s, especially how Mamba1 binding to the extracellular domain affects the conformational changes of the transmembrane domain of ASICs remains elusive. Here, we present single-particle cryo-EM structures of human ASIC1a (hASIC1a) and the hASIC1a-Mamba1 complex at resolutions of 3.56 and 3.90 Å, respectively. The structures revealed the inhibited conformation of hASIC1a upon Mamba1 binding. The combination of the structural and physiological data indicates that Mamba1 preferentially binds hASIC1a in a closed state and reduces the proton sensitivity of the channel, representing a closed-state trapping mechanism.

Introduction

Acid-sensing ion channels (ASICs) are a group of voltage-independent proton-gated cation channels belonging to the degenerin/epithelial sodium channel (DEG/ENaC) superfamily (Kellenberger and Schild, 2002; Krishtal and Pidoplichko, 1981; Waldmann et al., 1997). These channels are involved in diverse physiological processes, including learning and memory (Kreple et al., 2014; Wemmie et al., 2002; Yu et al., 2018), neurodegeneration after ischemic stroke (Gao et al., 2005; Lee and Chen, 2018; Qiang et al., 2018; Xiong et al., 2004), and pain sensation (Callejo et al., 2015; Deval et al., 2010; Deval et al., 2011; Wemmie et al., 2013). Therefore, ASICs have emerged as potential therapeutic targets in the management of psychiatric disorders, neurodegenerative diseases and pain (Baron and Lingueglia, 2015; Rash, 2017; Wemmie et al., 2006; Wemmie et al., 2013).

Peptide toxins from venom are the most potent and subtype-selective ASIC modulators and thus have been very powerful tools for studying the gating and modulation mechanisms of ASICs (Baron et al., 2013; Kalia et al., 2015). In the past decade, structures of chicken ASIC1 (cASIC1) in different states have been reported. These include structures of the apo-form cASIC1 in the inactive (Jasti et al., 2007), desensitized (Gonzales et al., 2009) and resting (Yoder and Gouaux, 2020; Yoder et al., 2018) states and of venom-bound states: the MitTx-bound open state (Baconguis et al., 2014), and the PcTx1-bound ion-selective, nonselective (Baconguis and Gouaux, 2012), and inactive states (Dawson et al., 2012). Structural studies of cASIC1-toxin complexes, combined with the structure of cASIC1 alone, have revealed a comprehensive molecular mechanism for proton-dependent gating in ASICs. In the resting state, the position of the thumb domain lies farther away from the threefold molecular axis, thereby expanding the ‘acidic pocket’ (Yoder et al., 2018). In the open and desensitized states, the ‘closure’ of the thumb domain into the acidic pocket expands the lower palm domain (Baconguis et al., 2014; Gonzales et al., 2009), leading to an iris-like opening of the channel gate.

Mambalgin1 (Mamba1), a 57-residue three-finger toxin isolated from the venom of the black mamba snake (Dendroaspis polylepis polylepis), has been proven to be a potent, rapid and reversible inhibitor of ASIC1a- or ASIC1b-containing channels in both central and peripheral neurons (Diochot et al., 2012). Mamba1 has an analgesic effect that is as strong as that of morphine but does not involve opioid receptors, highlighting its potential utility for the management of pain. A detailed investigation of the binding of Mamba1 to human ASICs and its resulting modulatory effect could provide insights into the mechanism of interaction between toxins and ASICs and could offer crucial clues for the development of new drugs targeting ASICs.

It should be pointed out that, to date, all ASIC structures solved and gating mechanism reported have been of chicken ASIC1, which can be pharmacologically quite different when compared to human ASIC1a despite ~89% sequence identity. Functional studies have shown that human ASIC1a (hASIC1a) and cASIC1 exhibit different responses to the channel activity modulation toxins Mamba1 (Sun et al., 2018). In our own experiments, synthetic Mamba1 was observed to inhibit the channel currents of both recombinant hASIC1a and cASIC1 in CHO cells (Figure 1a). The inhibitory effects of Mamba1 on both full-length hASIC1a and cASIC1 are concentration dependent, with IC50 values of 197.3 ± 37.4 and 123.6 ± 28.5 nM, respectively (Figure 1b). Interestingly, in the presence of 500 nM Mamba1, hASIC1a and cASIC1 showed decreases of 60.4 ± 12.9% and 19.6 ± 6.1% respectively, in the measured sodium currents (Figure 1a). At saturation (10 μM Mamba1), hASIC1a and cASIC1 showed decreases in the measured sodium currents of 78.9 ± 6.2% and 31.9 ± 4.7% (Figure 1b). These data indicated that Mamba1 acts as an inhibitor targeting both hASIC1a and cASIC1, with comparable affinities but different efficacies. These observations suggested that functional and pharmacological differences exist between chicken ASIC1 and human ASIC1a, thus leading to the question of whether the structures of cASIC1 can fully recapitulate the functional states of hASIC1a. Therefore, structural studies on human ASICs are necessary to define functional states and provide comprehensive insights into the gating and toxin peptide modulation mechanisms of human ASICs.

Figure 1 with 1 supplement see all
Download asset Open asset

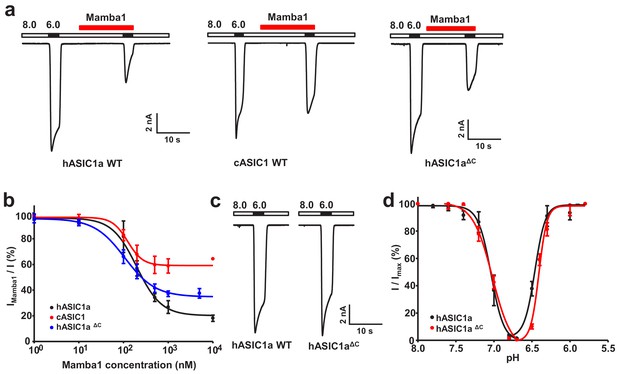

Functional analysis of hASIC1a and hASIC1aΔC.

(a) Typical current traces representing the inhibition of recombinant hASIC1a (left), cASIC1 (middle) and hASIC1aΔC (right) by Mamba1 toxin in CHO cells. (b) Concentration-response curve showing the inhibition of hASIC1a, hASIC1aΔC and cASIC1 expressed in CHO cells by Mamba1. Imamba1 and I represent the currents elicited by the pH 6.0 solution in the presence and absence of Mamba1 toxin respectively. (c) Representative whole-cell patch-clamp recordings from wild-type hASIC1a and hASIC1aΔC activated by pH 6.0 solution. (d) pH-dependent activation and inactivation curves of hASIC1a (solid lines) and hASIC1aΔC (dash lines). Data were collected from CHO cells transfected with hASIC1a or hASIC1aΔC DNA. Data are presented as the mean ± SD.

Figure 1—source data 1

Source data for Figure 1b and d.

https://cdn.elifesciences.org/articles/57096/elife-57096-fig1-data1-v2.xlsx

In this study, we resolved the cryo-EM structures of hASIC1a in the apo-form and in complex with the Mamba1 toxin at 3.56 Å and 3.90 Å resolution representing the first structure of human ASICs, respectively. The structure of apo-hASIC1a was shown to be highly similar to that of cASIC1 in the resting state. Comparison of the structures of hASIC1a in the apo-form and the Mamba1-bound state revealed minor structural deviations. Electrophysiological studies revealed that Mamba1 prefers to bind hASIC1a in a closed state. Direct interactions between residues in Mamba1 and acid-sensing residues in the ‘acidic pocket’ of hASIC1a were observed to reduce the apparent proton sensitivity of the hASIC1a channel, leading to channel inhibition. These data indicate that the mechanism by which Mamba1 inhibits hASIC1a channel is closed-state trapping.

Results

Functional characterization and structure determinations

To facilitate the expression and purification of hASIC1a, a series of truncations of full-length hASIC1a was performed. Finally, truncated hASIC1a with the 60 carboxyl terminal residues removed (named hASIC1aΔC) was determined to be functional by whole-cell patch-clamp electrophysiology. The hASIC1aΔC channel exhibits electrophysiological properties very similar to those of the full-length channel (Figure 1c–d). Mamba1 inhibits hASIC1aΔC channels with an IC50 of 106.6 ± 23.6 nM, which is comparable to the reported IC50 of full-length hASIC1a in CHO cells (148.6 ± 33.2 nM) (Figure 1b). To better understand the structure and toxin modulation of human ASICs, we set out to purify hASIC1aΔC, construct the hASIC1aΔC-Mamba1 complex in vitro and subject the protein and protein complex to single-particle cryo-EM studies.

The hASIC1aΔC protein was overexpressed and purified from sf9 insect cells. Mamba1 was obtained through total chemical synthesis (Fang et al., 2011; Fang et al., 2012; Pan et al., 2014; Schroeder et al., 2014). The details of protein purification, complex construction, cryo-sample preparation, image acquisition, data processing, model building, and structure refinement can be found in the Materials and methods section. Briefly, recombinant hASIC1aΔC protein was purified from sf9 cells in the presence of 0.05% (w/v) n-dodecyl-β-D-maltoside (DDM) and subjected to cryo-EM studies (Figure 1—figure supplement 1). Micrographs were collected on a Titan Krios electron microscope equipped with a Gatan K2 Summit detector. A 3D EM map of apo-form hASIC1aΔC was reconstructed to an overall resolution of 3.56 Å (Figure 2—figure supplements 1–2). Following a similar protocol, the EM map of hASIC1aΔC in complex with Mamba1 was obtained at 3.90 Å (Figure 3—figure supplements 1–2).

Cryo-EM structure of apo-hASIC1aΔC

The trimeric hASIC1aΔC shows a canonical chalice-like architecture (Figure 2a–b). Each subunit of hASIC1aΔC harbors a cysteine-rich extracellular domain (ECD). The ECD resembles a hand-like architecture with the palm, knuckle, finger and thumb domains clenching a ‘ball’ of β strands (Figure 2—figure supplement 2b). In the transmembrane domain (TMD) of hASIC1aΔC, two transmembrane helices, TM1 and TM2, are observed to connect to the β1 and β12 strands of the palm domain at a juncture called the ‘wrist’ (Figure 2—figure supplement 2b). The density map of TM2 provides convincing evidence that the helix is not a continuous α-helix but rather has a break in the helical structure (Figure 2—figure supplement 2a). The helical structure of TM2 ends at Ile443 and resumes at Ile447. Residues Gly444, Ala445, and Ser446 adopt a nonhelical conformation, dividing TM2 into segments TM2a and TM2b. The TM2b helical element interacts with the cytoplasmic portion of TM1 of the adjacent subunit (Figure 2c), resulting in a swap of the TM2 helices. Overall, the three copies of TM1, TM2a and TM2b define a cavernous, threefold symmetric pore of the hASIC1a channel, in which TM2 resides on the periphery of the pore (Figure 2d). Electrostatic mapping of the solvent-accessible surface reveals that the ion channel pore of hASIC1aΔC harbors a modest negative potential conferred by the presence of Asp434 and Gln438, by the carbonyl oxygen atoms of Gly437, Gly440, and Gly444 (Figure 2e). The pore profile of hASIC1aΔC also shows a closed gate along the threefold axis as a result of primary constrictions at Asp434 and Gly437 (Figure 2e–f).

Figure 2 with 2 supplements see all
Download asset Open asset

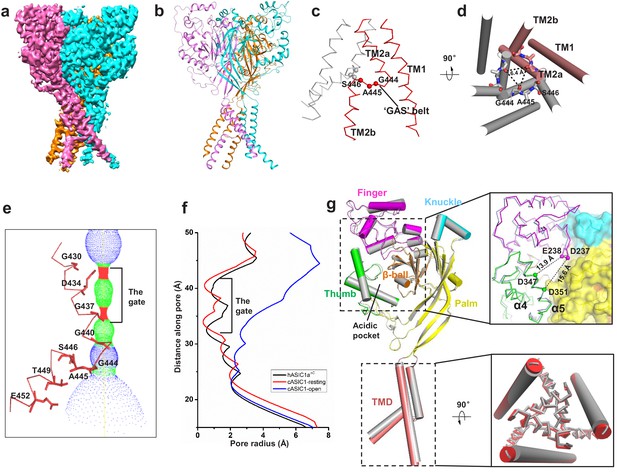

Cryo-EM structure of apo-hASIC1aΔC.

(a) Cryo-EM density map of apo-hASIC1aΔC. The three hASIC1aΔC subunits are colored orange, cyan and pink. (b) Overall structure of trimeric hASIC1aΔC, with different colors representing each subunit. (c) Ribbon representation of the hASIC1aΔC TMD. Two subunits are colored red and grey, respectively. The Cα atoms of the ‘GAS belt’ (G444-A445-S446) are shown as spheres. (d) View of the TMD from the intracellular side. Residues in the GAS belt are shown in stick representations. Distances between the Gly444 carbonyl oxygen atoms are indicated. (e) Close-up view of the pore domain. Map of solvent-accessible pathway is shown (red <1.4 Å<green < 2.3 Å<blue). Residues in TM2 lining the pore are shown as sticks. (f) Plot of radius as a function of longitudinal distance along the pore for hASIC1aΔC (black), cASIC1 in a resting state (red, PDB 6AVE) and cASIC1 in an open state (blue, PDB 4NTW). (g) Single subunit superposition of the apo-hASIC1aΔC and apo-cASIC1 channels in the resting state (PDB 6AVE) indicates the high similarity of the two structures. The hASIC1aΔC is represented with each domain in different colors, and cASIC1 is colored gray. The inserts show the close-up view of the acidic pocket (upper panel) and the TMD (lower panel) from the superposed hASIC1aΔC and cASIC1. For clarity, the TM1 of the TMD is shown in cartoon representation, and the TM2 is in ribbon.

The resting-state conformation of hASIC1aΔC at pH 8.0

The apo-hASIC1aΔC structure at pH 8.0 is observed to have high similarity with the resting-state structure of cASIC1 at pH 8.0 (Yoder et al., 2018). The two structures can be well superimposed with a root-mean-square deviation (RMSD) of 0.88 Å over 1124 aligned Cα atoms (Figure 2g). Especially, the structure of the acidic pockets of hASIC1aΔC and cASIC1 is almost identical, giving an RMSD of 0.41 Å. In the acidic pocket, the distances between the Cα atoms of Asp347-Glu238 and Asp351-Asp237 in hASIC1aΔC are measured to be 13.9 and 15.6 Å, respectively, which are comparable to the distances measured in the cASIC1 channel (13.0 Å for Asp346-Glu239 and 15.0 Å for Asp350-Asp238) (Figure 2g). Moreover, the structures of the TMDs of hASIC1aΔC and cASIC1 are superimposed well, with an RMSD value of 0.34 Å. The pore profiles of hASIC1aΔC and cASIC1 are almost the same (Figure 2f). Our structure shows that hASIC1aΔC has all the hallmarks of resting-state cASIC1, including the expanded acidic pocket, the extended GAS belt and a closed gate. Combining this information with the electrophysiology data, we conclude that the structure of hASIC1aΔC reported here represents the resting state of hASIC1a.

Interaction between Mamba1 and hASIC1a

The overall architecture of the hASIC1aΔC-Mamba1 complex shows a triskelion-like shape viewed down the threefold symmetry axis, with one Mamba1 molecule radiating from each hASIC1aΔC subunit (Figure 3a). Each of the three Mamba1 molecules binds to the ECD of a subunit of hASIC1aΔC, interacting with the outside of the ECD of hASIC1aΔC (Figure 3b). Different with the PcTx1 and MitTx toxins, Mambal1 was observed to interact with the thumb domain of hASIC1a channel. Although the interaction between PcTx1 and cASIC1 involves the thumb, palm and β-ball domains (Figure 3—figure supplement 3a). The interaction between MitTx and cASIC1 involves the palm domain besides the thumb domain (Figure 3—figure supplement 3b).

Figure 3 with 5 supplements see all
Download asset Open asset

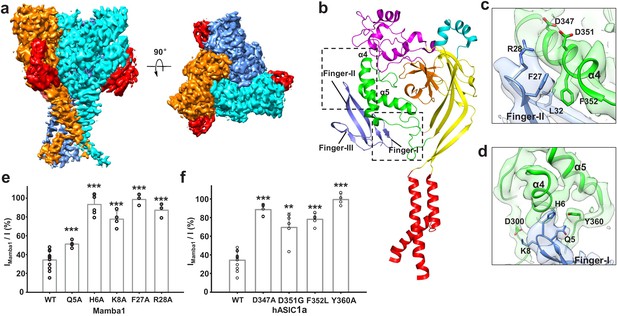

Structural basis of Mamba1 binding to hASIC1aΔC.

(a) Cryo-EM density map of the hASIC1aΔC-Mamba1 complex. The three hASIC1aΔC subunits are colored orange, cyan and slate. Mamba1 is colored red. (b) Overall structure of the hASIC1aΔC-Mamba1 complex. A single subunit of hASIC1aΔC is shown in cartoon representation, with each domain in a different color. Mamba1 is shown as a slate-colored ribbon. (c, d) Close-up views of the interactions of the Finger-I (c) and Finger-II (d) regions of Mamba1 with the thumb domain of hASIC1aΔC. (e, f) Bar graph representing the inhibition of wild-type hASIC1a currents by Mamba1 mutants (e) and hASIC1a mutants by wild-type Mamba1 (f). Imamba1 and I represent the currents elicited by the pH 6.0 solution in the presence and absence of Mamba1 toxin, respectively. Data are presented as the means ± SD. Comparison wild-type Mamba1 (e) or hASIC1a (f) unless specified, ***p<0.001; **p<0.01; *p<0.05 (t-test).

Figure 3—source data 1

Source data for Figure 3e and f.

https://cdn.elifesciences.org/articles/57096/elife-57096-fig3-data1-v2.xlsx

Previously, we determined the cryo-EM structure of the cASIC1-Mamba1 complex, which revealed the binding locations of the toxin to the ECD of cASIC1 (Sun et al., 2018). However, the relatively low resolution (5.7 Å) could not show a reliable binding interface analysis between Mamba1 and cASIC1. Herein, the cryo-EM structure of the hASIC1aΔC-Mamba1 complex at 3.9 Å resolution illuminates a more detailed binding interface between Mamba1 and hASIC1aΔC. The binding of Mamba1 to hASIC1aΔC induces a conformational change in Finger-II of Mamba1. The tip region of Finger-II flips to the thumb domain of hASIC1aΔC to facilitate the interaction between the toxin and the channel (Figure 3—figure supplement 2c). In the tip region of Finger-II, Arg28 is oriented toward the α5 helix of the thumb domain, thus becoming closer to Asp347 and Asp351. The measured distances between the Cα atoms of Arg28-Asp347 and Arg28-Asp351 are 10.5 and 10.2 Å, respectively. Although the side chains of Arg28, Asp347 and Asp351 cannot be clearly assigned, it seems there could be salt bridges between Arg28 and Asp347 or Asp351 (Figure 3c). Phe352, a residue that is conserved in ASIC1 orthologues, is nestled within a hydrophobic cluster composed of Met25, Phe27, Leu32 and Leu33 in Finger-II of Mamba1, mediating a hydrophobic interaction between Mamba1 and hASIC1aΔC (Figure 3c). Moreover, Mamba1 could form multiple polar contacts with hASIC1aΔC through its Finger-I region. Mamba1-Gln5 and His6 could form hydrogen bonds with the side chain of Tyr360 of hASIC1aΔC. Mamba1-Lys8 could form salt bridges with Asp300 (Figure 3d). Notably, Finger-III of Mamba1 is located farther from the thumb domain of hASIC1aΔC, pointing in the opposite direction from the threefold axis of the channel core. Finger-III thus has no contact with hASIC1aΔC (Figure 3b). The upper scaffold region of Mamba1 likewise does not contact hASIC1aΔC.

To verify the toxin-channel interactions, individual mutations were introduced into Mamba1 and the possible counterpart interaction regions on hASIC1a. The inhibition of hASIC1a activity by Mamba1 is greatly reduced when residue Mamba1-Gln5, His6, Lys8, Phe27 or Arg28 is mutated to Ala (Figure 3e). Mamba1 is significantly less effective in inhibiting the hASIC1a mutants Asp347Ala, Asp351Gly, Phe352Leu and Tyr360Ala (Figure 3f and Figure 3—figure supplement 4). These data are consistent with previous electrophysiological studies on chicken or rat ASIC1 channels (Mourier et al., 2016; Salinas et al., 2014; Sun et al., 2018).

Furthermore, the interaction of hASIC1aΔC and Mamba1 was validated using 19F-labeled Mamba1 and 19F-NMR spectroscopy in the solution state at ambient temperature. 19F labeling was introduced into Mamba1 by replacing the residue sites Phe18, Phe27, Leu30 or Leu32 in Mamba1 with 19F-labeled L-4-trifluoromethyl-phenylalanine (19F-tfmF) through chemical synthesis. One-dimensional 19F-NMR spectra indicate a significant change in chemical shift for residues Mamba1-Phe27 (within Finger-II) upon hASIC1aΔC protein titration, and slight changes for Leu30 and Leu32, whereas no change is observed for residue Phe18 (as a negative control) (Figure 3—figure supplement 5). These data represent that Phe27 in Mamba1 has a significant conformational change when binds to hASIC1a channel, while the conformation of Leu30, Leu32 and Phe18 are not altered. These data indicate that Phe27 plays a key role in Mamba1 binding to hASIC1a channel.

Collectively, both mutation-based patch-clamp electrophysiology analysis and 19F-NMR measurements support the interaction between Mamba1 and hASIC1a mediated by the Finger-I/II regions of Mamba1 and the thumb domain of hASIC1a.

The inhibited conformation of hASIC1a upon Mamba1 binding

The structure of apo-hASIC1aΔC and hASIC1aΔC-Mamba1 made it possible to illustrate the detailed conformation changes in both the ECD and TMD of hASIC1aΔC upon Mamba1 binding. Structure alignment of the hASIC1aΔC-Mamba1 complex and apo-hASIC1aΔC gives an RMSD of 0.44 Å2, indicating the globally high similarity of the two structures (Figure 4a and Figure 4—figure supplement 1a–b). However, minor structural differences between the two structures can still be observed.

Figure 4 with 1 supplement see all
Download asset Open asset

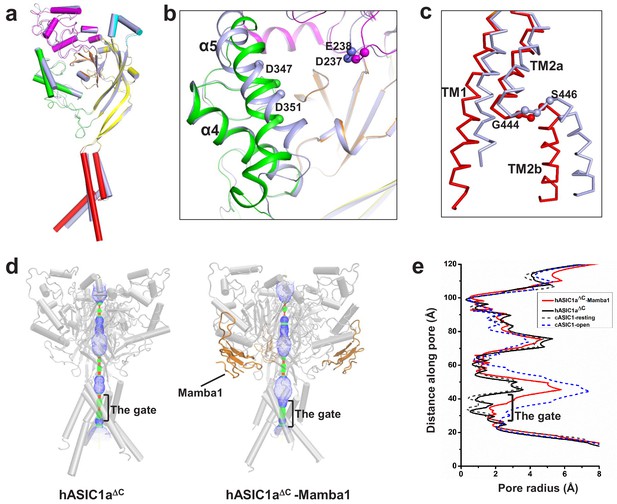

The structure of hASIC1aΔC inhibited by Mamba1.

(a) Single-subunit superposition of apo form and Mamba1-bound hASIC1aΔC shows global conformational changes. The domains of apo-hASIC1aΔC are shown in different colors, and Mamba1-bound hASIC1aΔC is colored grey. (b, c) Conformational changes in the acidic pocket and TMD of hASIC1aΔC upon Mamba1 binding. (b) View of the acidic pocket from superposed apo- and Mamba1-bound hASIC1aΔC. hASIC1aΔC is shown in cartoon representation and colored as in (a). Cα atoms of Glu238 and Asp347, Asp239 and Asp351 are shown as spheres. (c) View of the TMD from superposed apo- and Mamba1-bound hASIC1aΔC. The TMDs of hASIC1aΔC and the hASIC1aΔC-Mamba1 complex are shown as ribbons in red and grey, respectively. (d) Pore profiles of hASIC1aΔC (left) and the hASIC1aΔC-Mamba1 complex (right) calculated with HOLE software (red <1.4 Å<green < 2.3 Å<blue). (e) Plot of pore radius for the apo-form hASIC1aΔC (black, solid line), hASIC1aΔC-Mamba1 complex (red, solid line), cASIC1 in resting state (grey, dash line, PDB 6AVE), and cASIC1 in open state (blue, dash line, PDB 4NTW) along the threefold molecular axis.

The snake toxin peptide Mamba1 contacts Asp347, Asp351, and Phe352 located in the α5 helix of the thumb domain, causing these residues to flip outward from the acidic pocket. The α5 helix thus deviates by ~5° around the central axis, whereas the α4 helix and the finger domain adopt the same conformation as in the apo-hASIC1aΔC structure (Figure 4b). In the hASIC1aΔC-Mamba1 complex structure, the distances between the Cα atoms of Asp347-Glu238 and Asp351-Asp237 (13.3 and 12.0 Å, respectively) (Figure 4b) are slightly closer than those in the apo-hASIC1aΔC structure (13.9 and 15.6 Å, respectively).

In the TMD, TM1 undergoes a lateral pivot of ~6° around its carboxyl terminus upon Mamba1 binding. Meanwhile, TM2a have a shift of approximately 2.5 Å away from the channel pore, and TM2b shifts approximately 4 Å at its amino terminus and 8 Å at its carboxyl terminus away from the pore (Figure 4c). Comparison of the ion channel pore architectures of apo-hASIC1aΔC and the hASIC1aΔC-Mamba1 complex shows that the extracellular vestibule undergoes a slight expansion upon Mamba1 binding (Figure 4d and Figure 4—figure supplement 1c). However, the overall pore profile of the hASIC1aΔC-Mamba1 complex is similar to that of apo-hASIC1aΔC. The transmembrane pore of the hASIC1aΔC-Mamba1 complex has a diameter less than 2.0 Å in the gate, indicating a closed channel. (Figure 4e). The slight shifts of the thumb domain and transmembrane helices of hASIC1a in complex with Mamba1 cause it to adopt a less compact conformation than that of apo-form hASIC1a in the resting state, but the expanded conformation of the acid pocket and the closed pore are not altered.

Mamba1 reduces the proton sensitivity of hASIC1a

Interestingly, we found that the inhibition of hASIC1a by Mamba1 depended on the pH of the toxin perfusion. When 500 nM Mamba1 was applied at conditioning pH 8.0, before the pH dropped to 6.0 (Figure 5a), the hASIC1a current showed decreases of 50.2 ± 8.8% at the peak (Figure 5b). In contrast, the coapplication of 500 nM Mamba1 as the pH dropped to 6.0 from pH 8.0 did not produce as much suppression as preapplication did (peak current showed decreases of 10.6 ± 7.2%) (Figure 5a and b). We also measured the current amplitudes at the end of such applications. As shown in Figure 5b, the currents showed decreases of 49.9 ± 19.4% when Mamba1 application was administered in the absence of the stimulating pH 6.0 application, while showed decreases of 9.3 ± 8.6% in the presence of the stimulating pH 6.0 application. These data suggest that Mamba1 binding favors a resting closed state of hASIC1a at neutral pH rather than an open or desensitized state at acidic pH.

Figure 5
Download asset Open asset

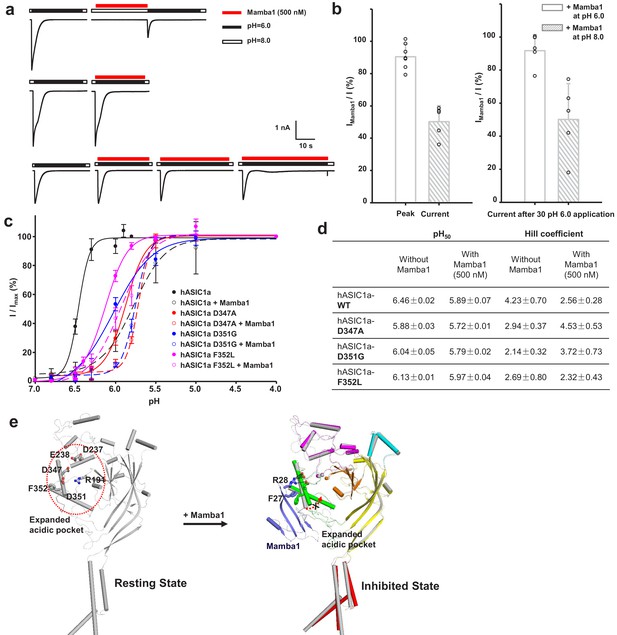

The ‘closed-state trapping’ model for Mamba1 inhibition of hASIC1a activity.

(a) Typical traces of hASIC1a currents recorded in CHO cells with administrations of Mamba1 (500 nM). The Mamba1 toxin applications were administered either in the absence (upper panel) or presence (middle and lower panels) of the stimulating pH 6.0 application. (b) Bar graph representing the inhibition of the peak currents of hASIC1a statistics with administrations of Mamba1 at pH 6.0 and pH 8.0 (left panel). The inhibition of current amplitudes at the end of such applications are also measured and statistically compared (right panel). (c) pH-dependent activation curves of wild-type hASIC1a (WT) and hASIC1aΔmutants obtained in the absence or presence of Mamba1. (d) The measured pH50 and Hill coefficient values of wild-type hASIC1a (hASIC1a-WT) and hASIC1a mutants in the conditions with or without Mamba1. Data are presented as the mean ± SEM. (e) The closed-state trapping inhibition mechanism of hASIC1a by Mamba1. Mamba1 binding leads to deformation of the proton-sensitive site, then stabilizes the expanded conformation of the acidic pocket and traps the channel in a closed state. The structure of a single subunit of hASIC1aΔC is shown as a cartoon in gray, representing the resting state of the channel (left). The structure of hASIC1aΔC-Mamba1 is shown as a cartoon, with each domain colored differently. Mamba1 is colored blue (right).

Figure 5—source data 1

Source date for Figure 5b, c and d.

https://cdn.elifesciences.org/articles/57096/elife-57096-fig5-data1-v2.xlsx

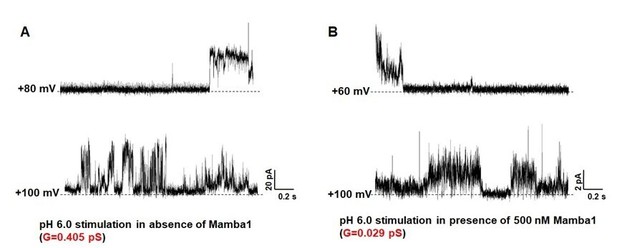

Moreover, similar to a previous report (Diochot et al., 2012), in the absence of Mamba1, hASIC1a showed half-maximal activation at a pH (pH50) of 6.46 ± 0.02. In contrast, in the presence of Mamba1 (500 nM), the pH50 of activation was 5.89 ± 0.07 (Figure 5c–d). Mamba1 drastically shifts the activation curve of hASIC1a by 0.57 pH units to a more acidic pH, demonstrating that Mamba1 decreases the apparent H+ affinity of hASIC1a, thus inhibiting channel activation at pH 6.0. These observations indicate that Mamba1 acts as an inhibitor targeting ASIC by modifying the proton sensitivity of the channel, consistent with previous conclusions (Diochot et al., 2016; Salinas et al., 2014).

In fact, multiple acidic residues located around the acidic pocket have been found to contribute to modulation of the proton sensitivity of ASICs, including Asp237, Glu238, Asp347 and Asp351 (Jasti et al., 2007). It has been reported previously that the neutralization of Asp346 and Asp350 in cASIC1 (corresponding to Asp347 and Asp351 in hASIC1a) has profound effects on either pH50 or the apparent Hill coefficient, or both (Jasti et al., 2007). The Asp346Asn mutation shifts the pH dependence of cASIC1 activation to more acidic values (6.35 ± 0.04 to 5.58 ± 0.02) and reduces the Hill coefficient from approximately 9 to 5, and the Asp350Asn mutation diminishes the Hill coefficient to approximately three and has little effect on pH50 (Jasti et al., 2007). Our data show that hASIC1a-Asp347Ala and hASIC1a-Asp351Gly both shift the pH-dependent activation curves to more acidic pHs (Figure 5c–d). The Asp347Ala and Asp351Gly mutations shift the activation curve of hASIC1a by 0.59 and 0.42 pH units, respectively, with pH50 values of 5.88 ± 0.03 and 6.04 ± 0.05. The mutations reduce the Hill coefficient from approximately 4 to 2. Meanwhile, Mamba1 is able to shift the activation curves of the hASIC1a-Asp347Ala and hASIC1a-Asp351Gly mutants further, with pH50 values of 5.72 ± 0.01 and 5.79 ± 0.02, respectively (Figure 5c–d). We suggest that probable interactions between Asp347 and/or Asp351 of hASIC1a and Mamba1 shield the protonation of the two residues, thus reducing the proton sensitivity of hASIC1a. On the other hand, the interaction between Asp351 and Mamba1 could hinder the interaction between Asp351 and Arg190 (located at the β-ball), which is critical for the collapse of the acidic pocket in active or desensitized channels. Therefore, we suspect that Mamba1 inhibits the hASIC1a channel by hindering proton-induced transitions from the resting closed states to the active and/or desensitized states in a model of closed-state trapping (Figure 5e).

Notably, Asp347 and Asp351 are not the only proton-sensing residues in hASIC1a (Vullo et al., 2017). Glu79, Glu219, Glu409 and Glu418, which are located in the palm domain, which have no direct contact with Mamba1, were also found to participate either in proton binding or in subsequent conformational changes (Jasti et al., 2007; Krauson et al., 2013; Ramaswamy et al., 2013). This observation may explain why Mamba1 can inhibit only approximately 80% of the hASIC1a current and loses its inhibitory effect on hASIC1a at a lower pH, such as pH 4.0.

The intradomain interaction affects the Mamba1 inhibition of ASIC

As shown in Figure 1, although Mamba1 has similar affinity to hASIC1a and cASIC1 (IC50 = 197.3 ± 37.4 and 123.6 ± 28.5 nM, respectively), the toxin shows a stronger inhibitory effect on hASIC1a than on cASIC1 channels. In fact, the amino acid sequences of hASIC1a and cASIC1 are highly similar (89% identity), and the sequences of the thumb domain of the two orthologues are identical (Figure 6—figure supplement 1). This similarity may explain the similar affinity of Mamba1 in targeting hASIC1a and cASIC1. Comparison of the apo-form structure of hASIC1a with the resting-state structure of the cASIC1 channel, together with the structure of the hASIC1a-Mamba1 complex, showed comparable expansion of the acid pocket between chicken and human ASIC1a channels (Figures 2g and 4b). The key residues (such as Asp346 and Phe351) on the α5 helix in the thumb domain of chicken ASIC1 channels that participate in Mamba1 binding are also critical in human ASIC1a channels. These observations suggest that the different inhibitory efficacies of Mamba1 on cASIC1 and hASIC1a channels could not be due to the toxin-channel interaction.

Through sequence alignment analysis and structure comparison, several key residues that do not contribute to Mamba1 binding were found to contribute to the different inhibitory effects of Mamba1 on hASIC1a and cASIC1. These residues include Gln102, Arg155 (both located in the finger domain of hASIC1a) and Asp167 (located in the palm domain), which are mapped to Arg103, Leu156 and Glu168 of cASIC1, respectively (Figure 6a and b). In cASIC1, Leu156 is observed to interact with the hydrophobic pocket composed of Phe189, Val327 and Tyr334 in the thumb domain (Figure 6c, Figure 6—figure supplement 2). The hydrophobic contact could participate in the interaction between the finger and thumb domains. Meanwhile, Arg103 and Glu168 could form electrostatic interaction pairs with each other (the distance between the Cα atom of the two residues was measured to be 13.3 Å), mediating the contact between the finger and palm domains (Figure 6d, Figure 6—figure supplement 2). It was reported that the movement of the finger domain plays a critical role in the activation of ASICs (Bonifacio et al., 2014; Gwiazda et al., 2015; Krauson and Carattino, 2016; Ramaswamy et al., 2013; Vullo et al., 2017). The replacement of Leu156 by Arg155 and of Arg103-Glu168 by Gln102-Asp167 in hASIC1a result in disruption of intradomain interactions, thus leading to enhanced inhibition of the channel by Mamba1.

Figure 6 with 2 supplements see all
Download asset Open asset

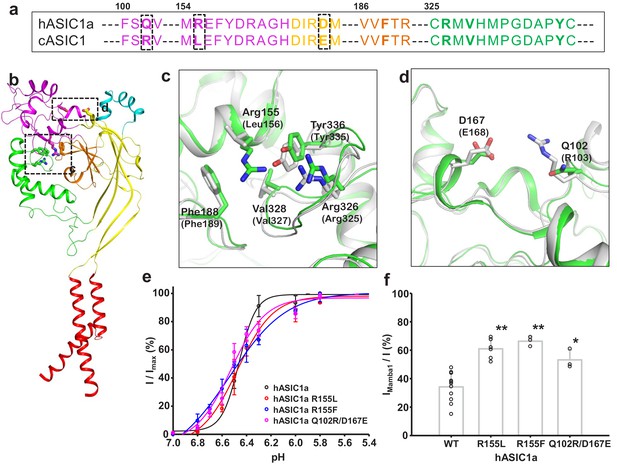

Structural basis for the differing activities of hASIC1a versus cASIC1.

(a) Sequence alignment of hASIC1a and cASIC1 indicates key residues that may contribute to the inhibitory effect of Mamba1 on ASIC. (b) An individual subunit of resting-state hASIC1aΔC. (c, d) Local alignments of hASIC1aΔC (green) with resting-state cASIC1 (grey, PDB 5WKV) demonstrate the possible interactions of residues in two handles. (e) pH-dependence curves of hASIC1a and its mutants. (f) Bar graph representing the inhibitory effect of wild-type Mamba1 (500 nM) on hASIC1a mutants. Data are presented as means ± SD. Comparison with wild-type hASIC1a, **p<0.01; *p<0.05 (t-test).

Figure 6—source data 1

Source data for Figure 6e and f.

https://cdn.elifesciences.org/articles/57096/elife-57096-fig6-data1-v2.xlsx

To elucidate the contributions of these residues to the inhibition of ASIC1 activity by Mamba1, mutations were introduced at these sites in hASIC1a channels, and whole-cell patch-clamp electrophysiology analysis were performed. As expected, replacing Arg155 of hASIC1a with Leu or Phe decreased the inhibition of the channel activity by Mamba1 but did not affect the proton sensitivity of the channel. The same was true for the Arg and Glu substitutions at hASIC1a-Gln102 and Asp167, respectively (Figure 6e–f). These observations support the hypothesis that intrasubunit interactions play critical roles in the activity modulation of ASICs from different species by toxins.

Discussion

To date, many electrophysiological studies of ASIC1 channels have been based on mice, rats and chickens. Crystal or cryo-EM structures of chicken ASIC1 in different states were reported as illustrating the gating mechanism of the channel (Baconguis et al., 2014; Baconguis and Gouaux, 2012; Gonzales et al., 2009; Jasti et al., 2007; Sun et al., 2018; Yoder and Gouaux, 2020; Yoder et al., 2018). Here, we report the first structure of the human ASIC1a channel determined using single-particle cryo-EM with a resolution of 3.56 Å.

The structure of hASIC1a in the apo-form at pH 8.0 reflects the resting state of the channel. hASIC1a in the resting state has an identical structure to that of the cASIC1 channel, especially the expanded acidic pocket and the extended ‘GAS’ motif. In fact, the human ASIC1a channel and chicken ASIC1 channel have high-sequence homology (89% identity). These indicate that hASIC1a and cASIC1 channels may share a similar gating mechanism. That is, the resting-state hASIC1a channel has an expanded acidic pocket, with the thumb domain far away from the central β-ball and the finger and palm domains. Activation and desensitization of the channel both involve the collapse of the acidic pocket, which allows the thumb and finger domains to approach and interact with each other (Gonzales et al., 2009; Baconguis et al., 2014; Yoder et al., 2018). However, the structures of human ASIC in the active or desensitized state remain unknown. Resolving the structures of the active or desensitized hASIC1a will help to address this supposition.

In recent decades, venom toxin peptides have been observed to bind ASICs with high affinity and specificity, providing an excellent resource for the definition of different functional states of the channel (Bohlen et al., 2011; Diochot et al., 2004; Diochot et al., 2012; Escoubas et al., 2000; Reimers et al., 2017). We also report here the structure of the human ASIC1a channel in complex with the snake peptide toxin Mamba1 with resolution 3.90 Å, reflecting the toxin-inhibited state of the channel. A first important conclusion is that, the structure of the hASIC1a-Mamba1 complex confirms that the Mamba1 binding site is located in the thumb domain of the hASIC1a channel. Compared with the previously reported structures of the cASIC1 channel in complex with toxins PcTx1, MitTx or Mamba1, these toxins interact with the ASIC channel through overlapping, but not identical surfaces. The thumb domain is a hot spot that mediates toxin-channel interactions. However, the Mamba1-binding site is totally located in the thumb domain of the hASIC1a channel, and does not involve other sub-domains. In contrast, the toxin-binding surfaces for MitTx and PcTx1 involve the β-ball and the palm domain in addition to the thumb domain. These observations could explain the fact that MitTx and PcTx1 have much higher affinity than Mamba1 targeting ASIC channels.

Moreover, structure comparison of hASIC1a in the apo-form and in complex with Mamba1 reveals that Mamba1 binding does not alter the closed structure of hASIC1a in a resting state. Therefore, we conclude that Mamba1 inhibits hASIC1a through a closed-state trapping mechanism, precluding the previously proposed allosteric-based channel modulation mode. Furthermore, the binding of Mamba1 to hASIC1a is state-dependent. The toxin preferentially binds to the closed state but not the active or desensitized state of ASICs. Mamba1 inhibits ASICs by shifting the pH-dependence of activation to a more acidic pH, decreasing their apparent affinity for protons. In fact, the state-dependent trapping mechanism has been found in the modulation of voltage-gated ion channel activity by peptide toxins. It is proposed that voltage sensor trapping is the fundamental mechanism of action of polypeptide toxins that alter the voltage-dependent gating of sodium, calcium, and potassium channels (Cestèle et al., 1998). For the ASIC channel, the two Asp residues in the α5 helix of the thumb domain contribute to proton sensing during channel activation (Jasti et al., 2007). Therefore, the thumb domain could act as the ‘proton sensor’ of the channel. Accordingly, we conclude that Mamba1 toxin inhibits ASIC channel activity through a closed-state dependent ‘proton sensor trapping’ mechanism, sharing a common mechanism of polypeptide toxins modulating ion channel activity.

Mamba1 showed a stronger effect on hASIC1a than on cASIC1. Previous reported key residues (such as Asp346 and Phe351) on the α5 helix in the thumb domain of the chicken ASIC1 channel that participated in Mamba1 binding were also critical in the human ASIC1a channel. The structural analysis and mutation experiments suggested that the different inhibitory effects of Mamba1 targeting cASIC1 and hASIC1a channels might be due to the mechanism of channel activation rather than the difference in toxin-channel interactions. Several key amino acid differences between hASIC1a and cASIC1, including Arg155 and the Glu102-Asp165 pair in hASIC1a (corresponding to Leu156 and Arg103-Glu168 in cASIC1, respectively), are found to contribute to the different responses of hASIC1a and cASIC1 to Mamba1. Due to the relatively low resolution, our structures reported here could not provide detailed structural evidence sufficient to support this finding. It is important to address how the coupling among the extracellular subdomains of ASIC, including the thumb, finger, palm and β-ball, affects channel activity and toxin action on the channel.

ASIC channels are of fundamental importance and are also considered potential drug targets in therapeutic interventions against pain and ischemic stroke. There is no doubt that analysis of interactions between venom toxin and hASIC1a or peptide toxin-based drug development should follow structure and function studies on human source target proteins, as data on homologous target proteins from other species might not precisely reflect the modulatory effects of the peptide or of other ligands on the target proteins, which will strongly influence the process of drug development for human target proteins. Our studies on the human ASIC1a channel could obviously be very valuable for drug development targeting ASIC.

Materials and methods

Key resources table
Reagent type
(species) or
resource		DesignationSource or
reference		IdentifiersAdditional
information
Gene (Homo sapiens)hASIC1aGeneBankNCBI Reference Sequence: NP_001086.2All hASIC1a mutants transfected in the paper were obtained starting from this wild-type cDNA
Strain, strain background (Escherichia coli)Top10Thermo Fisher ScientificCat# 18258012
Strain, strain background (Escherichia coli)DH10BacThermo Fisher ScientificCat# 10361012
Cell line (Spodoptera frugiperda)Sf9Thermo Fisher ScientificCat# 11496015; RRID:CVCL_0549
Cell line (Homo sapiens)HEK-293TATCCCat#: CRL-3216; RRID:CVCL_0063
Cell line (Cricetulus griseus)CHO-K1ATCCCat# 03480/p693_CHO-K1; RRID:CVCL_0214
Recombinant DNA reagentpFastBac1Invitrogen
Recombinant DNA reagentpcDNA3.1Invitrogen
Chemical compound, drugn-Dodecyl-β-D-Maltoside (DDM)AnatraceCat#: D310
Chemical compound, drugCholesterol Hemisuccinate tris Salt (CHS)Sigma-AldrichCat#: C6013
Peptide, recombinant proteinMamba1This paperUniProtKB: P0DKR6Mamab1 and mutants were obtained by chemical synthesis
Software, algorithmGctfZhang, 2016https://www2.mrc-lmb.cam.ac.uk/research/locally-developed-software/zhang-software/#gctf
Software, algorithmRELION 3.1Zivanov et al., 2018http://www2.mrclmb.cam.ac.uk/relion; RRID:SCR_016274
Software, algorithmSerialEMMastronarde, 2005RRID:SCR_017293
Software, algorithmPHENIXLiebschner et al., 2019https://www.phenixonline.org; RRID:SCR_014224
Software, algorithmCootEmsley et al., 2010https://www2.mrc-lmb.cam.ac.uk/personal/pemsley/coot; RRID:SCR_014222
Software, algorithmUCSF ChimeraPettersen et al., 2004https://www.cgl.ucsf.edu/chimera; RRID:SCR_004097
Software, algorithmPyMolSchrödingerhttps://pymol.org/2; RRID:SCR_000305
Software, algorithmGraphPad Prism 7GraphPad Softwarehttps://www.graphpad.com/scientific-software/prism
Software, algorithmHOLESmart et al., 1996http://www.holeprogram.org
OthersQUANTIFOIL R1.2/1.3 holey carbon gridsQuantifoil
OthersCellfectinInvitrogenCat# 10362100
OthersSuperose 200 Increase 10/300 GLGE HealthcareCat# 28990944

Cell lines

Request a detailed protocol

All cell lines used were obtained from commercial sources (see the Key Resources Table). Sf9 cells were cultured at 27°C in serum-free SIM SF medium (Sino Biological Inc). HEK293T cells were cultured as adherent cells in DMEM (with L-glutamine, glucose and sodium pyruvate), supplemented with 10% FBS and 1% Gibco antibiotic-antimycotic; at 37°C in 5% CO2. CHO-K1 cells were cultured in DMEM/F12 medium (Gibco) supplemented with 10% fetal bovine serum (FBS), 100 U/mL penicillin, and 100 U/mL streptomycin at 37°C in a 5% CO2 incubator. No additional authentication was performed by the authors of this study. Cell line was negative for mycoplasma. No commonly misidentified lines were used in this study. All cell lines were kept at low passages in order to maintain their health and identity.

Protein expression, purification and complex construction

Request a detailed protocol

The mambalgin1 (Mamba1) toxin was obtained using a hydrazide-based chemical synthesis method as previously reported (Pan et al., 2014). The polypeptide chain of Mamba1 (57 amino acids) was divided into three segments at two ligation sites (Cys19 and Cys41). All the segments (Mamba1[1-18]-NHNH2, Mamba1[19–40]–NHNH2 and Mamba1[41–57]) were synthesized using a standard solid-phase peptide synthesis method. The three segments were then ligated through the standard hydrazide-based native chemical ligation (NCL) to synthesize the full-length Mamba1. This synthesis of Mamba1 is convenient and produced high yields following the final HPLC purification (35% isolated yield, multi-milligram scale and good homogeneity). For the synthesis of Mamba1 mutants, the Alanine or 19F-labeled L-4-trifluoromethyl-phenylalanine (19F-tfmF) were incorporated directly during the peptide segments synthesis.

The optimized coding DNAs for human hASIC1a (Uniprot: P78348) was synthesized by GeneScript. The truncated hASIC1a (with the carboxyl terminal 60 residues removed, named as hASIC1aΔC) was cloned into the pFastBac1 vector (Invitrogen) with 8-His tag at the amino terminus. Baculovirus-infected sf9 cells (Thermo Fisher) were used for overexpression and were grown at 27°C in serum-free SIM SF medium (Sino Biological Inc). Cells were harvested 2 days after infection by centrifugation at 1000 g and resuspended in lysis buffer containing 20 mM Tris (pH 8.0), 200 mM NaCl for each batch of protein purification. The suspension was supplemented with 1% (w/v) n-dodecyl-β-D-maltopyranoside (DDM, Anatrace), 0.2% (w/v) cholesteryl hemisuccinate Tris salt (CHS, Anatrace) and protease inhibitor cocktail (Sigma). After incubation at 4°C for 2 hr, the solution was ultracentrifuged at 200,000 g for 45 min, and the supernatant was applied to Ni-NTA (GE HealthCare) by gravity at 4°C. The resin was rinsed four times with the buffer containing 20 mM Tris (pH 8.0), 200 mM NaCl, 40 mM imidazole, 0.1% DDM, 0.02% CHS and the protease inhibitor cocktail. The target proteins were eluted with buffer containing 20 mM Tris (pH 8.0), 200 mM NaCl, 250 mM imidazole, 0.1% DDM, 0.02% CHS. The eluted protein was further purified by size-exclusion chromatography in 20 mM Tris (pH 8.0), 200 mM NaCl, 0.05% DDM, 0.01% CHS using a Superdex200 10/300 GL column (GE HealthCare). The presence of hASIC1aΔC in the peak fractions of size exclusion chromatography purification was confirmed by SDS-PAGE and mass spectrometry (MS).

To construct the hASIC1aΔC-Mamba1 complex, hASIC1aΔC was purified as described above in pH 8.0 buffer and concentrated to about 5 mg/ml based on A280 measurement, using a 100 kDa cutoff Centricon (Millipore). The chemical synthesized, lyophilized Mamba1 was dissolved in buffer containing 20 mM Tris (pH 8.0), 200 mM NaCl, 0.05% DDM, 0.01% CHS at a final concentration of 10 mg/ml based on A280 measurement, and added in a 6:1 molar ratio of toxin to channel with incubation for 1 hr at 4°C.

Single-particle cryo-EM data acquisition

Request a detailed protocol

Purified hASIC1aΔC (3 μl) at a concentration of 2.7 mg/ml was added to the freshly plasma-cleaned holey carbon grid (Quantifol, R1.2/1.3, 300 mesh, Cu), blotted for 5 s at 100% humidity with a Vitrobot Mark IV (ThermoFisher Scientific) and plunge frozen into liquid ethane cooled by liquid nitrogen. Cryo-EM sample of hASIC1aΔC-Mamba1 complex was prepared similarly with the concentration of 3.1 mg/ml. Grids were transferred to a Titan Krios electron microscope (FEI) operated at 300 kV equipped with a Gatan K2 Summit direct detection camera. Images of hASIC1aΔC and hASIC1aΔC-toxin complexes were collected using the automated image acquisition software SerialEM in counting mode with 29,000 × magnification yielding a pixel size of 1.014 Å. The total dose of 50 e-/Å2 was fractionated to 40 frames with 0.2 s per frame. Nominal defocus values ranged from −1.8 to −2.5 μm. The datasets of hASIC1aΔC and hASIC1aΔC-Mamba1 complex included 3235 and 3364 micrographs, respectively.

Image processing

Request a detailed protocol

Dose-fractionated image stacks were subjected to beam-induced motion correction and dose-weighting using UCSF MotionCor2 (Zheng et al., 2017). Contrast transfer function parameters were estimated with Gctf (Zhang, 2016). For particle picking, 2000 particles were picked manually to generate references for autopicking. The atuopicked particles were extracted by four-times downscaling resulting in the pixel size of 4.056 Å and then subjected to reference-free 2D classification in Relion-2 (Kimanius et al., 2016). For the dataset of hASIC1aΔC, 213,605 particles from well-defined 2D averages were selected for 3D classification with a pixel size of 2.028 Å. A 3D initial model de novo from the 2D average particles was generated using stochastic gradient descent (SGD) algorithm in Relion-2. The 50 Å low-pass filtered initial model was used as a template for 3D classification into four classes. A selected subset of 122,890 particles were used to obtain the final map with a pixel size of 1.014 Å and C3 symmetry imposed in the last round of 3D refinement in Relion-2. The global resolution of this map was estimated to be 3.56 Å based on the gold-standard Fourier shell correlation (FSC) using the 0.143 criterion. The dataset of hASIC1aΔC-Mamba1 complex was similarly processed in Relion, with a subset of 119,901 particles producing a final map with global resolution of 3.90 Å. Local resolution was determined using ResMap (Kucukelbir et al., 2014) with unfiltered half-reconstructions as input maps.

Model building

Request a detailed protocol

The coordinate of chicken ASIC1 (PDB code 6AVE) (Yoder et al., 2018) was fitted into the 3D EM maps of hASIC1aΔC using UCSF Chimera (Pettersen et al., 2004). The sequence of cASIC1 were mutated with corresponding residues in human ASIC1a in Coot (Emsley et al., 2010). Every residue was manually examined. The chemical properties of amino acids were considered during model building. The N-terminal residues 1–39 and C-terminal residues 466–468 were not built due to the lack of corresponding densities. Structure refinement and model validation were performed using phenix.real_space_refine module in PHENIX (Adams et al., 2010; Afonine et al., 2018). The refined model of hASIC1aΔC and the coordinate of Mamba1 (PDB code 5DU1) (Mourier et al., 2016) were fitted into the 3D map of hASIC1aΔC-Mamba1 complex in Chimera. All the residues were manually adjusted in Coot. The final model was subjected to refinement and validation in PHENIX.

Plasmid construction, cell culture and transient transfection of CHO cells

Request a detailed protocol

The coding sequence for wild-type hASIC1a was sub-cloned into the pcDNA3.1/Zeo(+) vector. All site-directed mutations were generated with overlap PCR and inserted into pcDNA3.1/Zeo(+). The mutants were sequenced to verify that no unwanted mutations had been introduced. Chinese hamster ovary (CHO) cells were cultured in DMEM/F12 medium (Gibco) supplemented with 10% fetal bovine serum (FBS), 100 U/mL penicillin, and 100 U/mL streptomycin at 37°C in a 5% CO2 incubator. The CHO cells were transferred to 24-well plates for transfection. When the CHO cells reached 90% confluence, they were transfected with 0.6 μg of plasmid encoding EGFP and 0.8 μg of plasmid encoding wild-type or mutant hASIC1a using Lipofectamine 2000 (Invitrogen, USA). After incubation for 5 hr, the cells were transferred to poly-L-lysine (Sigma)-coated slides for culture for another 24–48 hr in fresh medium. They were then used for the electrophysiological analysis.

Electrophysiological analysis of CHO cells

Request a detailed protocol

For the whole-cell recordings, the bath solution contained 150 mM NaCl, 4 mM KCl, 2 mM CaCl2, 1 mM MgCl2, and 10 mM HEPES (pH 8.0,~308 mOsm). The electrodes were pulled from thick-walled borosilicate glass capillaries with filaments (1.5 mm diameter; Sutter Instruments) on a four-stage puller (P-1000; Sutter, USA) and had resistances of 2–5 MΩ when filled with intracellular solution containing 140 mM KCl, 10 mM NaCl, 5 mM EGTA, 10 mM HEPES, (pH 8.0,~297 mOsm). All chemicals were obtained from Sigma. The experiments were performed at room temperature with an EPC-10 amplifier (HEKA Electronic) with the data acquisition software PatchMaster. Membrane potential was held at −70 mV in all experiments. Acid-induced currents were recorded by rapidly exchanging local solution from pH 8.0 to acidic pH through a Y-tube perfusion system. Toxins were applied 30 s before the pH decreased and persisted during low pH application. Channels were activated by acid perfusion at least every 2 min to allow for a complete recovery of the channels from desensitization. Recordings in which access resistance or capacitance changed by 10% during the experiment were excluded from data analysis. Mamba1 was added when the currents were stable.

Patch-clamp electrophysiological data analysis

Request a detailed protocol

The data were analyzed with Clampfit and SigmaPlot. The dose–response curves used to determine the IC50 values were fitted using the Hill equation: y = 1 + (Imax – 1)/(1 + (IC50/x)h), where x is the toxin concentration, h is the Hill coefficient, and IC50 is the half-maximal effect. The results are presented as the means ± standard errors (SE), and n is the number of experiments.

19F NMR spectra measurements

Request a detailed protocol

All one-dimensional 19F NMR spectra measurements were performed at 298 K on a Bruker 600MHz spectrometer equipped with a triple inverse TCI cryo-probehead, H and F-C/N-D-05-Z probe and the observation channel was tuned to 19F (564.7 MHz), with 10240 free induction decay (FID) accumulations in every 1 s recycling delay, 4096 scans per experiment. One-dimensional 19F spectra were acquired with one pulse program with 90° pulse width of 11 μs and power at 7.09 w. The 19F chemical shifts were calibrated using the internal standard TFA. The data were processed and plotted with an exponential window function (line broadening = 20 Hz) using TopSpin 4.0.5. The concentration of tfmF site-specific-labeled Mambalgin-1 was 0.1 mM containing 10% D2O. Finally, 0.1 mM 19F-labeled Mambalgin-1 was added into 0.1 mM hASIC1a containing 10% D2O in 400 μl.

Data availability

The EM maps for hASIC1a and hASIC1a-Mamba1 complex have been deposited in EMDB (www.ebi.ac.uk/pdbe/emdb/) with accession codes EMD-30346 and EMD-30347. The atomic coordinates for hASIC1a and hASIC1a-Mamba1 complex have been deposited in the Protein Data Bank (www.rcsb.org) with accession codes 7CFS and 7CFT respectively.

The following data sets were generated
    1. Sun DM
    2. Liu SL
    3. Li SY
    4. Yang F
    5. Tian CL
    (2020) RCSB Protein Data Bank
    ID 7CFS. Cryo-EM strucutre of human acid-sensing ion channel 1a at pH 8.0.
    https://www.rcsb.org/structure/7CFS
    1. Sun DM
    2. Liu SL
    3. Li SY
    4. Yang F
    5. Tian CL
    (2020) RCSB Protein Data Bank
    ID 7CFT. Cryo-EM strucutre of human acid-sensing ion channel 1a in complex with snake toxin Mambalgin1 at pH 8.0.
    https://www.rcsb.org/structure/7CFT
The following previously published data sets were used
    1. Hoagland EN
    2. Sherwood TW
    3. Lee KG
    4. Walker CJ
    5. Askwith CC
    (2010) NCBI GenBank
    ID HM991481.1. Identification of a calcium permeable human acid-sensing ion channel 1 transcript variant.
    https://www.ncbi.nlm.nih.gov/nuccore/HM991481
    1. Yoder N
    2. Yoshioka C
    3. Gouaux E
    (2018) PDB
    ID 6AVE. Gating mechanisms of acid-sensing ion channels.
    https://pubmed.ncbi.nlm.nih.gov/29513651/
    1. Baconguis I
    2. Bohlen CJ
    3. Goehring A
    4. Julius D
    5. Gouaux E
    (2014) PDB
    ID 4NTW. X-ray structure of acid-sensing ion channel 1-snake toxin complex reveals open state of a Na(+)-selective channel.
    https://pubmed.ncbi.nlm.nih.gov/24507937/

References

    1. Emsley P
    2. Lohkamp B
    3. Scott WG
    4. Cowtan K
    (2010) Features and development of coot
    Acta Crystallographica. Section D, Biological Crystallography 66:486–501.
    https://doi.org/10.1107/S0907444910007493

Decision letter

  1. Leon D Islas
    Reviewing Editor; Universidad Nacional Autónoma de México, Mexico
  2. Richard W Aldrich
    Senior Editor; The University of Texas at Austin, United States
  3. Leon D Islas
    Reviewer; Universidad Nacional Autónoma de México, Mexico

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

ASIC channels are important proteins gated as a result of extracellular increases in proton concentration. These channels are involved in pain pathways and are considered important pharmacological targets. A toxin derived from the African mamba snake targets ASICs and are useful as tools for structure-function studies.

In this manuscript, Sun et al., present the first structure of the human ASIC1a channel in complex with the toxin Mambalgin 1 (Mamba1) as well as an apo structure. The data show that inhibition of Mamba1 on hASIC is likely a negative allosteric effect on pH-induced conformational changes that normally lead to channel opening. Interestingly, the several residues have been identified that may be responsible for differences in the mode of action of Mamba1 on the human vs. the chicken channel orthologs.

The data is of high quality and after revision, the authors have responded to reviewer's comments and produced a clearly improved manuscript. The structures and accompanying data represent an important contribution to the field, given that these are the first structures of a human ASIC channel.

Decision letter after peer review:

Thank you for submitting your article "Structural Insights into Human Acid-sensing Ion Channel 1a Inhibition by Snake Toxin Mambalgin1" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Richard Aldrich as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Leon D Islas (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

ASIC channels are important proteins that sense and gate as a result of extracellular increases in proton concentration. These channels participate in pain pathways and are considered important pharmacological targets. A toxin derived from the African mamba snake targets ASICs and these toxins have been used as tools for structure function studies.

In this manuscript, Sun et al. present the structure of the human ASIC1a channel in complex with the toxin Mambalgin 1 (Mamba1) as well as an apo structure. The authors show that the mechanism of inhibition of Mamba1 on hASIC is likely a negative allosteric effect on pH-induced conformational changes that normally lead to channel opening. Interestingly, the several residues have been identified that may be responsible for differences in the mode of action of Mamba1 on the human vs. the chicken channel orthologs.

The data is of high quality and the authors have produced a clear manuscript. The structures and accompanying data represent a nice contribution to the field since these are the first structures of a human ASIC channel. The main new finding is the reporting on the first human ASIC1 structure and the authors should emphasize this, especially in the Discussion section.

Essential revisions:

1) Figure 3E and F shows summary data from current inhibition experiments in several ASIC1a-deltaC mutants. It is important to show that the resulting mutations do not alter too much the function of the channel. The inhibition observed could be caused not only by the proposed reduced interaction of Mamba1 with the channel. At least show as complimentary figure a comparison of the mutant's expression level with WT and if available, the extent of activation induced by pH changes.

2) Figure 4E shows a small but significant change in the pore diameters at about a distance of 90, the pore being wider in the presence of Mamba1 toxin. Are there differences in the single channel conductance of the currents activated in the absence and presence of these toxins? Also, please define the reference for the distance that is defined in Figure 4E. Is it distance from the inner leaflet of the membrane?

3) The paper presents the first structure of human ASIC, bound to mambalgin1. As already shown in earlier work from the same group(s), the study reiterates that the thumb domain is the interaction site for mambalgin1 and proposes a possible mechanism of action for the toxin. The manuscript contains insightful electrophysiology data, but novelty and impact are low because the authors (and/or others) have shown similar experiments in the past. Also, the structural basis used to propose the mechanism is questionable, as the local resolution at the mambalgin1 binding site and in the TMs is not sufficient for detailed conclusions.

4) Both key aspects of functional and structural data have been shown previously in Sun et al., 2018 and Diochet et al., 2012. The only key advance of this work is the presentation of a structure of a truncated human ASIC1a construct, which looks extremely similar to the chicken ASIC1 structure. The authors should give special weigh to the fact that this is the first structure of a human ASIC1 channel.

5) The overall resolution of the structures shown here are low, especially in regions critical for mambalgin1 binding and in the lower TM2, where the authors claim to see the largest differences between apo and toxin-bound structures. The authors should make clear what are the limitations on the interpretation of their data imposed by this low resolution.

6) The Discussion section is much more of a summary than a discussion. The authors miss the opportunity to discuss the possible mechanism in the broader context of ion channel modulation, and that of ASICs in particular. This should be improved.

7) The presentation of structural data in almost all figures needs substantial revision to make it more accessible and improve readability.

8) Subsection “Mamba1 Reduces the Proton Sensitivity of hASIC1a”. In the experiment illustrated in Figure 5A, at the end of the co-application, the current is visibly reduced to ~40% of the initial control value. After that, there is additional and longer (!) application of the toxin that leads to additional current reduction. This experiment does not allow comparison of the rates of toxin binding in the presence and absence of activating protons. It does show an additive effect of toxin applications (the rate of current recovery and correspondingly dissociation of the toxin is extremely slow according to the same experiment) but does not support author's conclusion about toxin favoring the resting state. This experiment should be redone in the form where the same duration toxin applications will be administered either in the presence (one experiment) or absence (second experiment) of the stimulating pH 6.0 application. The authors should then measure the current amplitude at the end of such applications and statistically compare them. Based on such comparison, the authors may then make conclusions whether the toxin favors a certain state or not. As of now, the data presented in Figure 5A rather argue that toxin binds hASIC1a indiscriminately of the activation state.

https://doi.org/10.7554/eLife.57096.sa1

Author response

Summary:

ASIC channels are important proteins that sense and gate as a result of extracellular increases in proton concentration. These channels participate in pain pathways and are considered important pharmacological targets. A toxin derived from the African mamba snake targets ASICs and these toxins have been used as tools for structure function studies.

In this manuscript, Sun et al. present the structure of the human ASIC1a channel in complex with the toxin Mambalgin 1 (Mamba1) as well as an apo structure. The authors show that the mechanism of inhibition of Mamba1 on hASIC is likely a negative allosteric effect on pH-induced conformational changes that normally lead to channel opening. Interestingly, the several residues have been identified that may be responsible for differences in the mode of action of Mamba1 on the human vs. the chicken channel orthologs.

The data is of high quality and the authors have produced a clear manuscript. The structures and accompanying data represent a nice contribution to the field since these are the first structures of a human ASIC channel. The main new finding is the reporting on the first human ASIC1 structure and the authors should emphasize this, especially in the Discussion section.

Essential revisions:

1) Figure 3E and F shows summary data from current inhibition experiments in several ASIC1a-deltaC mutants. It is important to show that the resulting mutations do not alter too much the function of the channel. The inhibition observed could be caused not only by the proposed reduced interaction of Mamba1 with the channel. At least show as complimentary figure a comparison of the mutant's expression level with WT and if available, the extent of activation induced by pH changes.

We thank the reviewer for pointing this out.

Following the reviewer’s suggestion, we have conducted surface expression level analysis of hASIC1a and hASIC1a mutants in CHO cells, using the flow cytometry method.

As the data shown in Author response image 1, the expression levels of wild-type hASIC1a and hASIC1a mutants are comparable, indicating that the altered inhibitions of hASIC1a mutants by Mamba1 are not caused by the expression levels of the mutants. Meanwhile, we would like to point out that, the expression level of hASIC1a or hASIC1a mutants could not affect the inhibition of the channel by Mamba1 toxin represented in this article. As we have stated in the manuscript, the channel currents were recorded using the single cell patch clamp method. The inhibition effect of Mamba1 on the channel was represented using the ratio of current amplitudes in the presence and absence of the toxin recorded from the same cell membrane fraction. Therefore, the difference in channel expression level between single cells does not affect the measured inhibitory effect of the toxin on the channel.

Author response image 1
Download asset Open asset

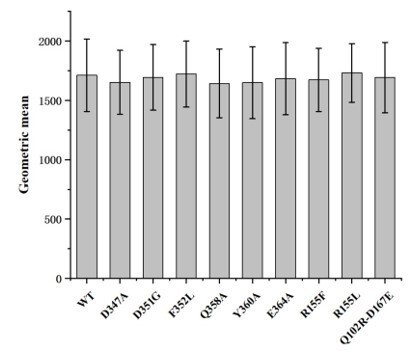

Cell surface expression levels of wild-type hASIC1a and hASIC1a mutants.

Cell surface expression level of the protein were determined by flow cytometry. The data represent mean ± S.D. from 3 independent experiments. Data were analyzed using one-way analysis of variance and t-test in which each mutant was compared to the wild-type channel (WT). The P values are among 0.8-0.9, indicating that the cell surface expression of each hASIC1a mutant is not significantly different from the wild-type hASIC1a.

We have also analyzed the pH dose-response for the activation of wild type hASIC1a and hASIC1a mutants. The pH-dependence curves of mutants E364A, Q358A and Y360A do not shift compared to the wild-type hASIC1a (Figure 3—figure supplement 4), indicating that the mutations do not alter too much the extent of activation induced by pH changes. While the mutants D347A, D351G and F352L have their pH-dependence curves shift toward more acidic pH (Figure 3—figure supplement 4). Moreover, we found that the presence of Mamba1 toxin do not alter the pH-dependence curves of these mutants, but can shift the curve of wild-type hASIC1a (Figure 5C and 5D). These data could support that the inhibition of hASIC1a mutants by Mamba1 observed are caused by the proposed reduced interaction of Mamba1 with the channel, rather than the alteration of the channel function.

2) Figure 4E shows a small but significant change in the pore diameters at about a distance of 90, the pore being wider in the presence of Mamba1 toxin. Are there differences in the single channel conductance of the currents activated in the absence and presence of these toxins? Also, please define the reference for the distance that is defined in Figure 4E. Is it distance from the inner leaflet of the membrane?

Following the reviewer’s suggestion, especially to verify the pore diameter changes of the channel, we have recorded the single channel currents of hASIC1a activated in the absence and presence of Mamba1 toxin. The data shows that the conductance of the current in the absence of Mamba1 (0.405 pS; Author response image 2) is much larger than that in the presence of Mamba1 (0.029 pS; Author response image 2). This observation is in line with our expectations.

Author response image 2
Download asset Open asset
Single-channel currents of hASIC1a.

hASIC1a channel was reconstituted in POPC/POPG (3:1) lipid vesicles. The single channel currents of hASIC1a were recorded at pH 6.0 in the absence (A) and presence (B) of Mamba1 toxin respectively. The membrane potentials were set at 60 mV and 100 mV.

Moreover, to investigate the essence of the observed significant changes in pore diameter of apo-hASIC1a∆C versus hASIC1a∆C-Mamba1 complex, we have carefully analyzed the maps and structures of apo hASIC1a∆C and hASIC1a∆C-Mamba1 complex.

The map of apo hASIC1a showed an extra electron density located above the base of the extracellular vestibule (Author response image 3). Recalling that 2 mM Ca2+ was presence in the buffer during purification of hASIC1a∆C, a Ca2+ ion was manually fit to this density, which was coordinated by six carboxyl oxygen atoms from symmetry-related Asp434 residues (Author response image 3). Nevertheless, we do not have Ca2+ present in the buffer during purification hASIC1a∆C-Mamba1 complex. Accordingly, no extra density was observed in the extracellular vestibule of the pore in the map of hASIC1a∆C-Mamba1 complex. Therefore, we hypothesized that Ca2+ could bring close contacts of the three TM2 helices, resulting in a decreased pore diameter.

Author response image 3
Download asset Open asset
The putative Ca2+ located in the vestibule of the pore of hASIC1a∆C.

About definition of the reference for the distance in Figure 4E, the Y-axis represents the longitudinal distance along the pore, from the inner leaflet of the membrane to the top of extracellular side of the channel.

3) The paper presents the first structure of human ASIC, bound to mambalgin1. As already shown in earlier work from the same group(s), the study reiterates that the thumb domain is the interaction site for mambalgin1 and proposes a possible mechanism of action for the toxin. The manuscript contains insightful electrophysiology data, but novelty and impact are low because the authors (and/or others) have shown similar experiments in the past. Also, the structural basis used to propose the mechanism is questionable, as the local resolution at the mambalgin1 binding site and in the TMs is not sufficient for detailed conclusions.

We appreciate the reviewer’s criticizing comments.

In our previous work (Sun et al., (2018)), we reported the cryo-EM structure of chicken ASIC1 (cASIC1) in complex with Mamba1, and preformed electrophysiology analysis for cASIC1 mutants and Mamba1 mutants based on the structure. The overall resolution of the human ASIC1a channels reported in this article (3.56 Å for hASIC1a∆C, 3.90 Å for hASIC1a∆C-Mamba1 complex) are higher than that of cASIC1 (5.7 Å). Especially the transmembrane domains can be clearly observed in hASIC1a structure in this manuscript, while not observed in cryo-EM structure of cASIC1 in our previous work.

Although the electrophysiology data in this manuscript are similar with those in our previous paper, the experimental results in this manuscript are essential for verifying the interaction between Mamba1 toxin and human ASIC1a. The data in this manuscript provide direct evidences supporting the structural mechanism underlying the interaction between human ASIC1a channel and Mamba1 toxin.

We agree that the reported resolution of the hASIC1a cryo-EM structures are not high enough to illustrate more detail interactions between toxin-peptide and hASCI1a. However, we do have tried our best to obtain high resolution structures of hASIC1a and hASIC1a-Mamba1 complex through optimizing the sample conditions (detergents, lipodisc, …) and grid lyophilization parameters.

In the process of cryo-EM structure determination, we noticed that the relatively small transmembrane domain (containing only 6 transmembrane helices), and the non-continuous TM2 (bent at GAS motif) are the major obstacles for resolution improvements of the transmembrane domain. Moreover, the thumb domain of hASIC1a in resting or inhibition state was observed to shift away from the core of the trimeric channel, which lead to the unstable conformation of thumb domain and consequent low local resolution at the toxin-channel binding site. Combinations of these limitations might be the major obstacles preventing us to structures reach high resolution of hASIC1a-Mamba1 complex.

Nevertheless, relatively high resolution (reached to 3 Å) was observed at the extracellular core domain of hASIC1a in this manuscript, including the finger, the β-ball and the palm domains. The binding interface between Mamba1 and the thumb domain of hASIC1a, the extended conformation of the acidic pocket of hASIC1a-Mamba1 complex, are supported well by the cryo-EM map. More importantly, the key residues of Mamba1 that mediate toxin-channel interaction could be well assigned. These could provide solid, although not sufficient, evidence for the proposed mechanism of action for the toxin onto the hASIC1a channel. While the detailed contacts between residues and the conformational change in the TMD are waiting for further verification and investigation.

Parallel with the cryo-EM structure determination of hASIC1a and hASIC1a-Mmaba1, we have worked hard to resolve the structures using X-ray crystallography. We do have obtained the crystals of hASIC1a∆C and hASIC1a∆C-Mamba1 complex. Unfortunately, the diffraction data of the crystals were quite poor (4.5 Å for the best), preventing us to resolve the structures.

In this manuscript, it is the first time for us to understand the detail inhibition mode of Mamba1 to hASIC1a channel, and this mechanism might be a good reference to decipher interactions of other toxin-peptides to hASIC1a channel. The proposed channel inhibition mechanism of Mamba1 onto hASIC1a is based on the structural data. To make the Discussion section and conclusion more rigorous, we have revised the statements about the proposed mechanism for the toxin inhibiting hASIC1a channel.

4) Both key aspects of functional and structural data have been shown previously in Sun et al., 2018 and Diochet et al., 2012. The only key advance of this work is the presentation of a structure of a truncated human ASIC1a construct, which looks extremely similar to the chicken ASIC1 structure. The authors should give special weigh to the fact that this is the first structure of a human ASIC1 channel.

Thanks for the reviewer’s suggestion.

We agree that the extracellular domain structures of the cASIC1 was reported in our previous manuscript (Sun et al., (2018) ), but the structure of hASIC1a with both of the extracellular and transmembrane domains were only reported in this manuscript.

In a series of high influence structure papers (Jasti et al., 2007; Gonzales et al., 2009; Baconguis and Gouaux, 2012; Baconguis et al., 2014; Yoder et al., 2018), the full-length structure of cASIC1 (including the extracellular and transmembrane domains) were reported in different functional state, but the inhibition mechanism of Mamba1 onto the hASIC1a (rather than cASIC1) was first time reported in this manuscript. Especially, the Mamba1 was considered to have high pharmaceutical potential to relief pains. In Diochet et al., 2012 paper, the interactions between Mamba1 and ASIC channel was well studied using mutations and functional assays, which was complementarily explored in this manuscript through analyzing the cryo-EM structures of hASIC1a and hASIC1a-Mamba complex.

Some special weighs were emphasized in the Discussion section:

Introduction, subsection “The Intradomain Interaction Affects the Mamba1 Inhibition of ASIC”: We emphasized that the structures reported in this article representing the first human ASIC1 structure.

Discussion section: we have compared the channel modulation modes by different toxin peptides, e.g. PcTx1, MitTx or Mamba1.

Discussion section: we have stated a new inhibition hypothesis of “closed-state trapping mechanism” for the mambalgin-1 onto hASIC1a.

Discussion section: we have analyzed and stated that “Mamba1 showed stronger efficiency on hASIC1a than on cASIC1.”. This clearly demonstrated the significance of the structure of hASIC1a and hASIC1a-Mamba1, simply because the pharmaceutical potential on human ASIC1a channel (a drug to human being disease), not the chicken channel. Especially, this is the first report of the cryo-EM structure of human ASIC1a channel, not chicken ASIC1 channel.

5) The overall resolution of the structures shown here are low, especially in regions critical for mambalgin1 binding and in the lower TM2, where the authors claim to see the largest differences between apo and toxin-bound structures. The authors should make clear what are the limitations on the interpretation of their data imposed by this low resolution.

We fully understand the reviewer’s concern on the relative low resolution of the hASIC1a and hASIC1a-Mamba1 structures. We agree that the reported resolution of the hASIC1a cryo-EM structures are not high enough (3.56 Å for hASIC1a∆C, 3.90 Å for hASIC1a∆C-Mamba1 complex) to illustrate more detail interactions between toxin-peptide and hASCI1a. However, we do have tried our best to obtain high resolution structures of hASIC1a and hASIC1a-Mamba1 complex through optimizing the sample conditions (detergents, lipodisc, …) and grid lyophilization parameters.

In the process of cryo-EM structure determination, we noticed that the relatively small transmembrane domain (containing only 6 transmembrane helices), and the non-continuous TM2 (bent at GAS belt) are the major obstacles for resolution improvements of the transmembrane domain. Moreover, the thumb domain of hASIC1a in resting or inhibition state was observed to shift away from the core of the trimeric channel, which lead to the unstable conformation of thumb domain and consequent low local resolution at the toxin-channel binding site. Combinations of these limitations might be the major obstacles preventing us to structures reach high resolution of hASIC1a-Mamba1 complex.

Nevertheless, relatively high resolution (reached to 3 Å) was observed at the extracellular core domain of hASIC1a in this manuscript, including the finger, the β-ball and the palm domains. The binding interface between Mamba1 and the thumb domain of hASIC1a, the extended conformation of the acidic pocket of hASIC1a-Mamba1 complex, are supported well by the cryo-EM map. More importantly, the key residues of Mamba1 that mediate toxin-channel interaction could be well assigned. These could provide solid, although not sufficient, evidence for the proposed mechanism of action for the toxin onto the hASIC1a channel. While the detailed contacts between residues and the conformational change in the TMD are waiting for further verification and investigation.

To make the Discussion section and conclusion more rigorous, we have made a statement about the limitations on the interpretation of our data imposed by this low-resolution structure in the revised manuscript.

6) The Discussion section is much more of a summary than a discussion. The authors miss the opportunity to discuss the possible mechanism in the broader context of ion channel modulation, and that of ASICs in particular. This should be improved.

We thank the reviewer for pointing out this and the suggestion. We have now discussed this extensively in the revised manuscript.

Discussion section: we have compared the channel modulation modes by different toxin peptides, e.g. PcTx1, MitTx or Mamba1.

Discussion section: we have stated a new inhibition hypothesis of “closed-state trapping mechanism” for the mambalgin-1 onto hASIC1a.

Discussion section: we have clearly analyzed and stated that “Mamba1 showed stronger efficiency on hASIC1a than on cASIC1.”. This clearly demonstrated the significance of the structure of hASIC1a and hASIC1a-Mamba1, simply because the pharmaceutical potential on human ASIC1a channel (a drug to human being disease), not the chicken channel. Especially, this is the first report of the cryoEM structure of human ASIC1a channel, not chicken ASIC1 channel.

7) The presentation of structural data in almost all figures needs substantial revision to make it more accessible and improve readability.

We have redone the structure presentations in all the main figures and supplementary figures in the manuscript revision. Hopefully, these figures improvements could make these figures more accessible and readable.

8) Subsection “Mamba1 Reduces the Proton Sensitivity of hASIC1a”. In the experiment illustrated in Figure 5A, at the end of the co-application, the current is visibly reduced to ~40% of the initial control value. After that, there is additional and longer (!) application of the toxin that leads to additional current reduction. This experiment does not allow comparison of the rates of toxin binding in the presence and absence of activating protons. It does show an additive effect of toxin applications (the rate of current recovery and correspondingly dissociation of the toxin is extremely slow according to the same experiment) but does not support author's conclusion about toxin favoring the resting state. This experiment should be redone in the form where the same duration toxin applications will be administered either in the presence (one experiment) or absence (second experiment) of the stimulating pH 6.0 application. The authors should then measure the current amplitude at the end of such applications and statistically compare them. Based on such comparison, the authors may then make conclusions whether the toxin favors a certain state or not. As of now, the data presented in Figure 5A rather argue that toxin binds hASIC1a indiscriminately of the activation state.

We thank the reviewer for the insightful comments and the kind suggestions.

Following reviewer’s comments, we have redone the experiments, as illustrated in Figure 5.

As shown in the revised Figure 5A, the durations (500 nM Mamba1) of toxin application were administered either in the absence (upper panel) or presence (middle and lower panels) of the stimulating pH 6.0 application. The data illustrate that application of Mamba1 at pH 8.0 (hASIC1a channel in a resting state) could decrease the channel current simulated by pH 6.0 application. Whereas co-application of 500 nM Mamba1 in the presence of the pH 6.0 stimulation could not decrease the channel current, even though prolong the co-application of the toxin and pH 6.0 stimulation.

The current amplitude at the end of such applications were measured and compared statistically, as shown in Figure 5B.

We believe these data could provide more evidences to support our hypothesis that “Mamba1 toxin favoring the resting state of hASIC1a channel”.

https://doi.org/10.7554/eLife.57096.sa2

Article and author information

Author details

  1. Demeng Sun

    1. Hefei National Laboratory of Physical Sciences at Microscale, Anhui Laboratory of Advanced Photonic Science and Technology and School of Life Sciences, University of Science and Technology of China, Hefei, China
    2. Tsinghua-Peking Joint Center for Life Sciences, Ministry of Education Key Laboratory of Bioorganic Phosphorus Chemistry and Chemical Biology, Department of Chemistry, Tsinghua University, Beijing, China
    Contribution
    Data curation, Formal analysis, Funding acquisition, Validation, Methodology, Writing - original draft
    Contributed equally with
    Sanling Liu, Siyu Li and Mengge Zhang
    Competing interests
    No competing interests declared

  2. Sanling Liu

    Hefei National Laboratory of Physical Sciences at Microscale, Anhui Laboratory of Advanced Photonic Science and Technology and School of Life Sciences, University of Science and Technology of China, Hefei, China
    Contribution
    Data curation, Validation, Methodology
    Contributed equally with
    Demeng Sun, Siyu Li and Mengge Zhang
    Competing interests
    No competing interests declared

  3. Siyu Li

    Hefei National Laboratory of Physical Sciences at Microscale, Anhui Laboratory of Advanced Photonic Science and Technology and School of Life Sciences, University of Science and Technology of China, Hefei, China
    Contribution
    Data curation, Validation, Methodology
    Contributed equally with
    Demeng Sun, Sanling Liu and Mengge Zhang
    Competing interests
    No competing interests declared

  4. Mengge Zhang

    Hefei National Laboratory of Physical Sciences at Microscale, Anhui Laboratory of Advanced Photonic Science and Technology and School of Life Sciences, University of Science and Technology of China, Hefei, China
    Contribution
    Data curation, Methodology
    Contributed equally with
    Demeng Sun, Sanling Liu and Siyu Li
    Competing interests
    No competing interests declared

  5. Fan Yang

    Hefei National Laboratory of Physical Sciences at Microscale, Anhui Laboratory of Advanced Photonic Science and Technology and School of Life Sciences, University of Science and Technology of China, Hefei, China
    Contribution
    Data curation, Methodology
    Competing interests
    No competing interests declared

  6. Ming Wen

    Hefei National Laboratory of Physical Sciences at Microscale, Anhui Laboratory of Advanced Photonic Science and Technology and School of Life Sciences, University of Science and Technology of China, Hefei, China
    Contribution
    Data curation, Methodology
    Competing interests
    No competing interests declared

  7. Pan Shi

    Hefei National Laboratory of Physical Sciences at Microscale, Anhui Laboratory of Advanced Photonic Science and Technology and School of Life Sciences, University of Science and Technology of China, Hefei, China
    Contribution
    Data curation, Methodology
    Competing interests
    No competing interests declared

  8. Tao Wang

    High Magnetic Field Laboratory, Chinese Academy of Sciences, Hefei, China
    Contribution
    Methodology
    Competing interests
    No competing interests declared

  9. Man Pan

    Tsinghua-Peking Joint Center for Life Sciences, Ministry of Education Key Laboratory of Bioorganic Phosphorus Chemistry and Chemical Biology, Department of Chemistry, Tsinghua University, Beijing, China
    Contribution
    Conceptualization, Data curation, Methodology
    Competing interests
    No competing interests declared

  10. Shenghai Chang

    School of Medicine, Zhejiang University, Hangzhou, China
    Contribution
    Resources, Data curation, Methodology
    Competing interests
    No competing interests declared

  11. Xing Zhang

    School of Medicine, Zhejiang University, Hangzhou, China
    Contribution
    Conceptualization, Resources, Data curation
    Competing interests
    No competing interests declared

  12. Longhua Zhang

    Hefei National Laboratory of Physical Sciences at Microscale, Anhui Laboratory of Advanced Photonic Science and Technology and School of Life Sciences, University of Science and Technology of China, Hefei, China
    Contribution
    Conceptualization, Data curation, Supervision, Investigation, Writing - review and editing
    For correspondence
    zlhustc@ustc.edu.cn
    Competing interests
    No competing interests declared

  13. Changlin Tian

    1. Hefei National Laboratory of Physical Sciences at Microscale, Anhui Laboratory of Advanced Photonic Science and Technology and School of Life Sciences, University of Science and Technology of China, Hefei, China
    2. High Magnetic Field Laboratory, Chinese Academy of Sciences, Hefei, China
    Contribution
    Supervision, Funding acquisition, Investigation, Project administration, Writing - review and editing
    For correspondence
    cltian@ustc.edu.cn
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9315-900X

  14. Lei Liu

    Tsinghua-Peking Joint Center for Life Sciences, Ministry of Education Key Laboratory of Bioorganic Phosphorus Chemistry and Chemical Biology, Department of Chemistry, Tsinghua University, Beijing, China
    Contribution
    Conceptualization, Supervision, Funding acquisition, Project administration, Writing - review and editing
    For correspondence
    lliu@mail.tsinghua.edu.cn
    Competing interests
    No competing interests declared

Funding

National Key Research and Development (2017YFA0505201)

  • Lei Liu

National Natural Science Foundation of China (31600601)

  • Changlin Tian

National Natural Science Foundation of China (91753205)

  • Lei Liu

National Key Research and Development (2016YFA0400903)

  • Demeng Sun

National Key Research and Development (2017YFA0505403)

  • Lei Liu

National Natural Science Foundation of China (21778051)

  • Changlin Tian

Chinese Academy of Sciences (GJHZ201946)

  • Changlin Tian

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Dr. Linfeng Sun (University of Science and Technology of China) for technical support during data processing. We thank the Center for Integrative Imaging of Hefei National Laboratory for Physical Sciences at the Microscale of University of Science and Technology of China (Hefei), and the Center of Cryo-Electron Microscopy of Zhejiang University (Hangzhou) for providing the cryo-EM facility support. Funding: This work was funded by the National Key Research and Development Project (2016YFA0400903, 2017YFA0505201 and 2017YFA0505403), National Natural Science Foundation of China (31600601, 21778051 and 91753205), Queensland-Chinese Academy of Sciences (Q-CAS) Collaborative Science Fund for Changlin Tian and Glenn King (GJHZ201946).

Senior Editor

  1. Richard W Aldrich, The University of Texas at Austin, United States

Reviewing Editor

  1. Leon D Islas, Universidad Nacional Autónoma de México, Mexico

Reviewer

  1. Leon D Islas, Universidad Nacional Autónoma de México, Mexico

Version history

  1. Received: March 20, 2020
  2. Accepted: September 10, 2020
  3. Accepted Manuscript published: September 11, 2020 (version 1)
  4. Version of Record published: October 13, 2020 (version 2)

Copyright

© 2020, Sun et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,189
    Page views
  • 594
    Downloads
  • 21
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Demeng Sun
  2. Sanling Liu
  3. Siyu Li
  4. Mengge Zhang
  5. Fan Yang
  6. Ming Wen
  7. Pan Shi
  8. Tao Wang
  9. Man Pan
  10. Shenghai Chang
  11. Xing Zhang
  12. Longhua Zhang
  13. Changlin Tian
  14. Lei Liu
(2020)
Structural insights into human acid-sensing ion channel 1a inhibition by snake toxin mambalgin1
eLife 9:e57096.
https://doi.org/10.7554/eLife.57096

Categories and tags

Research organism

Further reading

    1. Microbiology and Infectious Disease
    2. Structural Biology and Molecular Biophysics

    A pH-sensitive switch activates virulence in Salmonella

    Dasvit Shetty, Linda J Kenney
    Research Article Updated

    The transcriptional regulator SsrB acts as a switch between virulent and biofilm lifestyles of non-typhoidal Salmonella enterica serovar Typhimurium. During infection, phosphorylated SsrB activates genes on Salmonella Pathogenicity Island-2 (SPI-2) essential for survival and replication within the macrophage. Low pH inside the vacuole is a key inducer of expression and SsrB activation. Previous studies demonstrated an increase in SsrB protein levels and DNA-binding affinity at low pH; the molecular basis was unknown (Liew et al., 2019). This study elucidates its underlying mechanism and in vivo significance. Employing single-molecule and transcriptional assays, we report that the SsrB DNA-binding domain alone (SsrBc) is insufficient to induce acid pH-sensitivity. Instead, His12, a conserved residue in the receiver domain confers pH sensitivity to SsrB allosterically. Acid-dependent DNA binding was highly cooperative, suggesting a new configuration of SsrB oligomers at SPI-2-dependent promoters. His12 also plays a role in SsrB phosphorylation; substituting His12 reduced phosphorylation at neutral pH and abolished pH-dependent differences. Failure to flip the switch in SsrB renders Salmonella avirulent and represents a potential means of controlling virulence.

    1. Plant Biology
    2. Structural Biology and Molecular Biophysics

    Carotenoid assembly regulates quinone diffusion and the Roseiflexus castenholzii reaction center-light harvesting complex architecture

    Jiyu Xin, Yang Shi ... Xiaoling Xu
    Research Article

    Carotenoid (Car) pigments perform central roles in photosynthesis-related light harvesting (LH), photoprotection, and assembly of functional pigment-protein complexes. However, the relationships between Car depletion in the LH, assembly of the prokaryotic reaction center (RC)-LH complex, and quinone exchange are not fully understood. Here, we analyzed native RC-LH (nRC-LH) and Car-depleted RC-LH (dRC-LH) complexes in Roseiflexus castenholzii, a chlorosome-less filamentous anoxygenic phototroph that forms the deepest branch of photosynthetic bacteria. Newly identified exterior Cars functioned with the bacteriochlorophyll B800 to block the proposed quinone channel between LHαβ subunits in the nRC-LH, forming a sealed LH ring that was disrupted by transmembrane helices from cytochrome c and subunit X to allow quinone shuttling. dRC-LH lacked subunit X, leading to an exposed LH ring with a larger opening, which together accelerated the quinone exchange rate. We also assigned amino acid sequences of subunit X and two hypothetical proteins Y and Z that functioned in forming the quinone channel and stabilizing the RC-LH interactions. This study reveals the structural basis by which Cars assembly regulates the architecture and quinone exchange of bacterial RC-LH complexes. These findings mark an important step forward in understanding the evolution and diversity of prokaryotic photosynthetic apparatus.

    1. Neuroscience
    2. Structural Biology and Molecular Biophysics

    Molecular basis of interactions between CaMKII and α-actinin-2 that underlie dendritic spine enlargement

    Ashton J Curtis, Jian Zhu ... Matthew G Gold
    Research Article Updated

    Ca2+/calmodulin-dependent protein kinase II (CaMKII) is essential for long-term potentiation (LTP) of excitatory synapses that is linked to learning and memory. In this study, we focused on understanding how interactions between CaMKIIα and the actin-crosslinking protein α-actinin-2 underlie long-lasting changes in dendritic spine architecture. We found that association of the two proteins was unexpectedly elevated within 2 minutes of NMDA receptor stimulation that triggers structural LTP in primary hippocampal neurons. Furthermore, disruption of interactions between the two proteins prevented the accumulation of enlarged mushroom-type dendritic spines following NMDA receptor activation. α-Actinin-2 binds to the regulatory segment of CaMKII. Calorimetry experiments, and a crystal structure of α-actinin-2 EF hands 3 and 4 in complex with the CaMKII regulatory segment, indicate that the regulatory segment of autoinhibited CaMKII is not fully accessible to α-actinin-2. Pull-down experiments show that occupation of the CaMKII substrate-binding groove by GluN2B markedly increases α-actinin-2 access to the CaMKII regulatory segment. Furthermore, in situ labelling experiments are consistent with the notion that recruitment of CaMKII to NMDA receptors contributes to elevated interactions between the kinase and α-actinin-2 during structural LTP. Overall, our study provides new mechanistic insight into the molecular basis of structural LTP and reveals an added layer of sophistication to the function of CaMKII.
