Ca2+-dependent release of synaptotagmin-1 from the SNARE complex on phosphatidylinositol 4,5-bisphosphate-containing membranes

  1. Rashmi Voleti
  2. Klaudia Jaczynska
  3. Josep Rizo  Is a corresponding author
  1. Department of Biophysics, University of Texas Southwestern Medical Center, United States
  2. Department of Biochemistry, University of Texas Southwestern Medical Center, United States
  3. Department of Pharmacology, University of Texas Southwestern Medical Center, United States
Research Article
  • Cited 0
  • Views 896
  • Annotations
Cite this article as: eLife 2020;9:e57154 doi: 10.7554/eLife.57154

Abstract

The Ca2+ sensor synaptotagmin-1 and the SNARE complex cooperate to trigger neurotransmitter release. Structural studies elucidated three distinct synaptotagmin-1-SNARE complex binding modes involving ‘polybasic’, ‘primary’ and ‘tripartite’ interfaces of synaptotagmin-1. We investigated these interactions using NMR and fluorescence spectroscopy. Synaptotagmin-1 binds to the SNARE complex through the polybasic and primary interfaces in solution. Ca2+-free synaptotagmin-1 binds to SNARE complexes anchored on PIP2-containing nanodiscs. R398Q/R399Q and E295A/Y338W mutations at the primary interface, which strongly impair neurotransmitter release, disrupt and enhance synaptotagmin-1-SNARE complex binding, respectively. Ca2+ induces tight binding of synaptotagmin-1 to PIP2-containing nanodiscs, disrupting synaptotagmin-1-SNARE interactions. Specific effects of mutations in the polybasic region on Ca2+-dependent synaptotagmin-1-PIP2-membrane interactions correlate with their effects on release. Our data suggest that synaptotagmin-1 binds to the SNARE complex through the primary interface and that Ca2+ releases this interaction, inducing PIP2/membrane binding and allowing cooperation between synaptotagmin-1 and the SNAREs in membrane fusion to trigger release.

eLife digest

Inside the brain, cells called neurons relay messages from one place to another in the form of electrical signals. When an electrical signal reaches a junction between two neurons (known as a synapse) it triggers small particles called calcium ions to enter one of the cells. This influx of calcium causes vesicles to fuse with the membrane surrounding the neuron and release molecules called neurotransmitters into the small gap between the two neurons. These molecules travel across the gap to activate an electrical signal in the second neuron which then carries the message onwards.

A protein known as synaptotagmin-1 senses calcium ions at synapses and works together with a group of proteins known as the SNARE complex to help vesicles fuse with the cell membrane. Previous studies have reported three different structures of synaptotagmin-1 bound to the SNARE complex in a different way. But it was unclear which of these binding states actually result in the release of neurotransmitters. To address this question, Voleti, Jaczynska and Rizo studied how and when synptotagmin-1 and the SNARE complex bind together using two approaches known as NMR spectroscopy and fluorescence spectroscopy.

The experiments suggest that before calcium enters the synapse, synaptotagmin-1 is already bound to a surface on the SNARE complex. This binding inhibits the release of neurotransmitters and has been reported in previous studies. Adding calcium ions causes synaptotagmin-1 to be released from the SNARE complex. This allows synaptotagmin-1 to interact with the membrane and cooperate with the SNARE complex to trigger vesicle fusion.

Finding out how neurons release neurotransmitters at synapses may help us to understand how the brain works. This could provide new insights into how defects in the synapse lead to neurological disorders, such as schizophrenia, and potentially aid the development of new treatments for such conditions.

Introduction

The release of neurotransmitters by Ca2+-evoked synaptic vesicle exocytosis is an exquisitely regulated process that is critical for communication between neurons. Release involves tethering of synaptic vesicles to presynaptic active zones, priming of the vesicles to a release-ready state, and Ca2+-triggered fusion of the vesicle and plasma membranes (Südhof, 2013). Extensive research has allowed reconstitution of basic features of synaptic vesicle fusion with the central components of the neurotransmitter release machinery (Liu et al., 2016; Ma et al., 2013) and led to defined models for their functions (Brunger et al., 2018; Rizo, 2018). The SNAP receptors (SNAREs) syntaxin-1, SNAP-25 and synaptobrevin form a tight four-helix bundle called the SNARE complex that brings the vesicle and plasma membranes together and is key for membrane fusion (Hanson et al., 1997; Poirier et al., 1998; Söllner et al., 1993; Sutton et al., 1998). This complex is disassembled by N-ethylmaleimide sensitive factor (NSF) and soluble NSF adaptors proteins (SNAPs) (Söllner et al., 1993), whereas SNARE complex assembly is organized in an NSF-SNAP-resistant manner by Munc18-1 and Munc13s (Ma et al., 2013; Prinslow et al., 2019). Release is triggered very fast (<1 ms) after Ca2+ influx by the Ca2+ sensor Synaptotagmin-1 (Syt1) (Fernández-Chacón et al., 2001).

Syt1 is a synaptic vesicle protein with two C2 domains (named C2A and C2B) that form most of its cytoplasmic region and adopt β-sandwich structures that bind multiple Ca2+ ions through loops at the top of the β-sandwich (Fernandez et al., 2001; Sutton et al., 1995; Ubach et al., 1998). These loops also mediate Ca2+-dependent binding to phospholipids (Chapman and Davis, 1998; Frazier et al., 2003; Zhang et al., 1998), which is crucial for neurotransmitter release (Fernández-Chacón et al., 2001; Rhee et al., 2005). A polybasic region on the side of the C2B domain β-sandwich also contributes to membrane binding, in part via interactions with phosphatidylinositol 4,5-bisphosphate (PIP2) (Bai et al., 2004; Li et al., 2006). In addition, the Syt1 C2B domain can bind simultaneously to two membranes in a Ca2+ dependent manner through its Ca2+-binding loops and two arginines at the bottom of the β-sandwich (R398,R399) that are crucial for Syt1 function (Xue et al., 2008), suggesting that Syt1 cooperates with the SNAREs in bringing the vesicle and plasma membranes together to mediate membrane fusion (Araç et al., 2006; Seven et al., 2013). Induction of membrane curvature by insertion of the C2 domain Ca2+-binding loops into the bilayer was also proposed to stimulate membrane fusion (Martens et al., 2007). While these ideas are attractive, the mechanism of action of Syt1 remains enigmatic, in part because dozens of papers have described Syt1-SNARE interactions but it is unclear which of these interactions is physiologically relevant and which ones arise merely from the high promiscuity of these proteins (Jahn and Scheller, 2006; Rizo et al., 2006). Moreover, Syt1 is believed to function in a tight interplay with complexins whereby complexins play both inhibitory and stimulatory functions and Ca2+ binding to Syt1 releases the inhibition (Giraudo et al., 2006; Schaub et al., 2006; Tang et al., 2006), but the underlying mechanism is unknown.

Potentially critical insights were provided by three structures of Syt1-SNARE complexes (Brewer et al., 2015; Zhou et al., 2015; Zhou et al., 2017), but the observed binding modes were drastically different (Figure 1A–G). Analysis in solution by NMR spectroscopy revealed a dynamic interaction involving the polybasic region of the Syt1 C2B domain, while R398,R399 at the bottom of C2B remain available for membrane binding (Brewer et al., 2015Figure 1A). The functional relevance of this binding mode was supported by the finding that release was disrupted by mutations of basic residues that contact the SNAREs (including R322E,K325E), but not by nearby basic residues that do not point toward the SNAREs (K324E,K326E) (Figure 1D), while both mutations disrupted PIP2 binding similarly (Brewer et al., 2015). The second structure, determined by X-ray crystallography, revealed a so-called primary interface involving two regions of the C2B domain, one formed largely by E295 and Y338 (region I) and another including R398,R399 (region II) (Figure 1B,E,FZhou et al., 2015). In this structure, the polybasic region is available for PIP2 binding, an arrangement that was supported by a low-resolution cryo-electron microscopy (cryo-EM) structure of Syt1-SNARE complexes coating lipid tubes (Grushin et al., 2019). The physiological relevance of the primary interface was supported by the strong impairments of release caused by mutations in both region I and II (E295A/Y338W and R398Q/R399Q). However, Syt1-SNARE co-immunoprecipitation (co-IP) was not significantly altered by the R398Q/R399Q mutation and only moderately disrupted by the E295A/Y338W mutation (Zhou et al., 2015).

Figure 1 with 3 supplements see all
The Syt1 C2B domain binds to CpxSC through the polybasic region and the primary interface in solution.

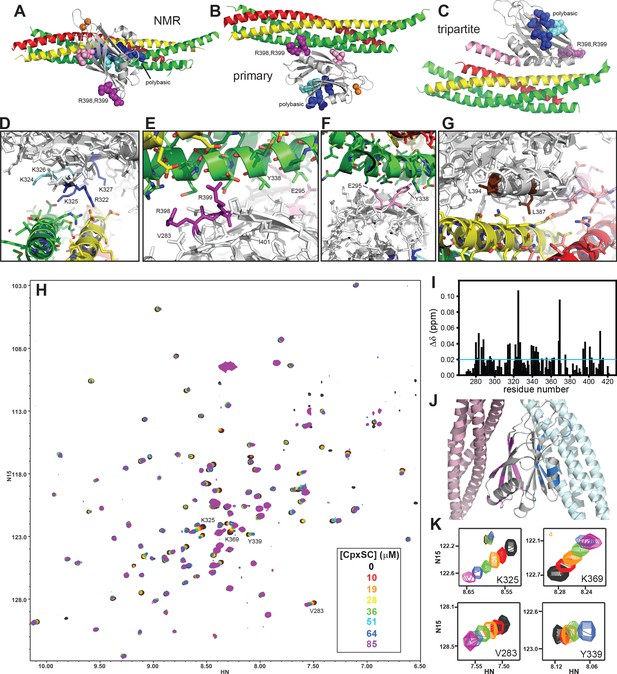

(A–C) Ribbon diagrams illustrating the structures of the Syt1-SNARE complex solved by NMR spectroscopy (A) or X-ray crystallography without (B) or with a bound complexin-1 fragment (C), which revealed the binding modes mediated by the polybasic region, the primary interface and the tripartite interface, respectively. The PDB accession codes for the structures are 2N1T, 5KJ7 and 5W5C, respectively. Syntaxin-1 is in yellow, synaptobrevin in red, SNAP-25 in green, complexin-1 in pink and the Syt1 C2B domain in gray, with bound Ca2+ ions shown as orange spheres. The side chains of several residues from the polybasic region are shown as dark blue (K313, K321, R322, K325 and K327) or cyan spheres (K324 and K326), those of R398,R399 in primary region II as purple spheres and those of E295 and Y338 in primary region I as pink spheres. (D–G) Close-up views of the polybasic (D), primary region II (E), primary region I (F) and tripartite (G) interfaces. All side chains are shown as stick models, with the same color used in (A–C) for the C2B domain. For the SNARE complex, nitrogen atoms are in blue, oxygen atoms in red and carbon atoms in green (SNAP-25), yellow (syntaxin-1) and pink (complexin-1 and synaptobrevin). The L387 and L394 residues are colored in brown in panel G. Selected side chains are labeled. Note that the structure determined by NMR spectroscopy was highly dynamic and panels (A,D) show just one member of this dynamic ensemble that illustrates the common key feature of the ensemble, namely the involvement of the residues colored in dark blue in binding to a polyacidic patch of the SNARE complex. (H) Superposition of 1H-15N TROSY-HSQC spectra of 2H,15N-IM-13CH3-C2B domain in the absence of Ca2+ and the presence of different concentrations of CpxSC as indicated by the color code (C2B concentrations gradually decreased from 32 to 12 μM). Cross-peaks broadened gradually with increasing CpxSC concentrations and contour levels were adjusted to allow observation of most cross-peaks in each spectrum. Some cross-peaks broadened beyond detection at high CpxSC concentrations. (I) Chemical shift changes induced by 51 μM CpxSc on the 1H-15N TROSY-HSQC cross-peaks of the C2B domain. Composite Δδ values were calculated as [(Δδ1H)2+(0.17*Δδ15N)2]1/2, where Δδ1H is the chemical shift change in the 1H dimension and Δδ15N is the chemical shift change in the 15N dimension. (J) Summary of the largest chemical shift changes caused by 51 μM CpxSc on the 1H-15N TROSY-HSQC cross-peaks of the C2B domain. A ribbon diagram of the C2B domain (gray) with a SNARE complex bound to the primary interface on the left (light pink) and SNARE complex bound to the polybasic region on the right (light blue) is shown. C2B domain residues corresponding to cross-peaks with Δδ > 0.02 ppm (blue line in panel I) are highlighted in blue (polybasic region) or pink (primary interface). (K) Expansions showing the changes observed at increasing CpxSC concentrations in the cross-peaks corresponding to K325 and K369 at the polybasic region, and V283 and Y339 at the primary interface. Only spectra at selected concentrations of CpxSC are shown. The color code is the same as in panel H.

X-ray crystallography of a tripartite Syt1-complexin-1-SNARE complex yielded a third structure (Zhou et al., 2017) where complexin-1 forms an α-helix that binds to a groove between synaptobrevin and syntaxin-1, as observed for a binary complexin-1-SNARE complex (Chen et al., 2002), and an α-helix of the C2B domain binds to the same groove, continuing the complexin-1 helix (Figure 1C,G). Isothermal titration calorimetry (ITC) supported the existence of this interaction in solution and suggested that Syt1 cooperates with complexin-1 for binding to the SNARE complex, providing an explanation for the finding that the dominant negative effect on release caused by mutation of the Syt1 C2B domain Ca2+ binding sites (Mackler et al., 2002; Wu et al., 2017) requires complexin-1 (Zhou et al., 2017). The functional importance of the tripartite interface was supported by the observation that a L387Q/L394Q mutation disrupted binding and impaired neurotransmitter release. However, as pointed out in Zhou et al., 2017, the primary interface was also observed in these crystals, which had a 1:1:1 Syt1-SNARE complex-complexin-1 stoichiometry. Hence, one of the two interfaces might constitute a crystal contact. Moreover, a screen for mutations that abrogate the dominant negative effect of mutations in the Syt1 C2B domain Ca2+-binding sites in Drosophila yielded a large number of mutations in the primary interface but none in the tripartite interface (Guan et al., 2017), indicating that the dominant negative effect may require Syt1-SNARE complex binding through the primary rather than the tripartite interface.

The role of Ca2+ in Syt1-SNARE interactions has also been enigmatic. Many studies reported that Ca2+ strongly stimulates binding of Syt1 to SNAREs and SNARE complexes both in solution and on membranes [e.g. (Chapman et al., 1995; Dai et al., 2007; Davis et al., 1999; Gerona et al., 2000; Huang and Cafiso, 2008; Li et al., 1995; Lynch et al., 2007; Zhou et al., 2013)]. Paradoxically, the Syt1 Ca2+-binding loops are not involved in SNARE complex binding in the structures described above, although Ca2+ is believed to stimulate binding by increasing the positive electrostatic potential of the C2B domain, as the SNARE complex is negatively charged. Note also that Ca2+ disrupted Syt1-SNARE complexes assembled on lipid tubes (Grushin et al., 2019), but another study reported binding of Syt1 to membrane-anchored SNARE complex in the absence and presence of Ca2+ (Wang et al., 2016). Conversely, ATP was reported to abolish Syt1-SNARE complex at physiological ionic strength, with or without Ca2+ (Park et al., 2015).

To shed light into this strikingly confusing picture and decipher how the functions of Syt1 and the SNAREs are coupled, we performed a systematic analysis of Syt1-SNARE complex interactions in solution and on membranes. NMR data show that a soluble complexin-1-SNARE complex binds to the polybasic region and the primary interface of the Syt1 C2B domain with similar affinities, but binding to the tripartite interface could not be detected. Analyses of binding of a Syt1 fragment spanning the two C2 domains (C2AB) to nanodiscs or nanodiscs containing anchored SNARE complexes using FRET show that C2AB binds to membrane-anchored SNARE complexes under a variety of conditions, and that complexin-1 does not affect the affinity. Binding of the SNARE complex to the primary interface is impaired by the R398Q/R399Q mutation but is enhanced by the E295A/Y338W mutation, both in solution and on nanodiscs, showing that the primary interface is involved in binding to the nanodisc-anchored SNARE complex. Importantly, Ca2+-dependent binding of C2AB to SNARE complexes anchored on PIP2-nanodiscs is almost abolished in the presence of ATP, but Ca2+-independent binding remains. We also observed that the R322E/K325E mutation disrupts Ca2+-dependent binding of C2AB to PIP2-containing nanodiscs much more strongly than the K324E/K326E mutation, in correlation with the effects of these mutations on release (Brewer et al., 2015). Together with previous data, these results suggest a model whereby Syt1 binds to the SNARE complex through the primary interface and to PIP2 through the polybasic region before Ca2+ influx; Ca2+ binding to the C2B domain induces a specific, PIP2-dependent interaction with the plasma membrane, disrupting the interaction with the SNARE complex and allowing cooperation between the SNAREs and Syt1 in inducing membrane fusion.

Results

The SNARE complex binds to the C2B domain polybasic region and to the primary interface with similar affinity in solution

The tendency of the Syt1 C2 domains to precipitate with the SNARE complex formed by the SNARE motifs of synaptobrevin, syntaxin-1 and SNAP-25, particularly in the presence of Ca2+, hindered analysis of their interactions in solution by NMR spectroscopy (Dai et al., 2007; Zhou et al., 2013). Inclusion of 125 mM KSCN allowed NMR analyses in the presence of Ca2+ (Brewer et al., 2015), but KSCN might have favored binding of the SNARE complex to the C2B domain polybasic region over binding to the primary interface. In attempts to solve the solubility problem without addition of KSCN, we found that including the complexin-1 fragment that we used for crystallization with the SNARE complex [residues 26–83; Cpx1(26-83)] (Chen et al., 2002) dramatically improved the solubility of mixtures containing the Ca2+-bound C2B domain and the SNARE complex (Figure 1—figure supplement 1). Taking advantage of this observation, we analyzed the binding sites of the SNARE complex on the Syt1 C2B domain in the presence of Cpx1(26-83) using NMR spectroscopy. Note that the Syt1 C2 domains do not bind to complexin-1 under the conditions that we used for the NMR experiments and that Cpx1(26-83) binds to the SNARE complex with high affinity (KD ca. 25 nM) (Xu et al., 2013). Hence, the assembly formed by Cpx1(26-83) and the SNARE motifs of synaptobrevin, syntaxin-1 and SNAP-25 can be considered as a single complex that we refer to as CpxSC. For improved sensitivity, we prepared samples of the C2B domain that were 2H,15N-labeled and specifically 13CH3-labeled at the Ile δ1 and Met methyl groups (2H,15N-IM-13CH3-C2B). First we analyzed the perturbations caused by addition of increasing amounts of CpxSC on transverse relaxation optimized spectroscopy (TROSY)-enhanced 1H-15N heteronuclear single quantum coherence (HSQC) spectra of 2H,15N-IM-13CH3-C2B. Titrations of 2H,15N-IM-13CH3-C2B with CpxSC were performed in the presence of Ca2+ at physiological ionic strength and in the absence of Ca2+ at lower salt concentration (100 mM KCl) to enhance binding, as Syt1-SNARE complex binding is weaker in the absence than in the presence of Ca2+ (Zhou et al., 2013). Similar cross-peak shifts were observed in both sets of experiments (Figure 1H, Figure 1—figure supplement 2), indicating that Ca2+ does not affect the binding mode(s).

To analyze the data, we obtained assignments of the 1H-15N TROSY-HSQC spectrum of Ca2+-free 2H,15N-IM-13CH3-C2B (Figure 1—figure supplement 3) based on the assignments obtained previously in a different buffer (Fernandez et al., 2001) and a titration where the buffer composition was gradually changed from one buffer to the other. Mapping of the residues corresponding to the cross-peaks that exhibited the largest shifts induced by CpxSC (Figure 1I) onto the structure of the C2B domain clearly showed that the residues are clustered on two sides of the β-sandwich, one containing the polybasic region and another corresponding to the primary interface (Figure 1J). There were no significant shifts in cross-peaks from residues in the tripartite interface, which is largely formed by the α-helix spanning residues 384–395, except for residues at the very C-terminus of this helix that are near the primary interface. We could not obtain accurate KDs for the interactions of CpxSC with the polybasic region and the primary interface from these data because we did not achieved saturation at the highest concentration of CpxSC that we reached (85 μM) and, at these concentrations, some cross-peaks broadened beyond detection or exhibited odd behavior that did not correlate with the previous titration points (illustrated in Figure 1K by the cross-peaks from two residues corresponding to the polybasic region, K325 and K369, and two residues from the primary interface, V283 and Y339). However, it was clear that the affinities of both binding sites are comparable, and the KDs are larger than 20 μM.

Mutation of R322,K325 at the polybasic region and R398,R399 at the primary interface abolishes C2B-SNARE complex binding in solution

We next examined the effects of mutations in the two binding sites of the C2B domain for the SNARE complex, using 2H,15N-IM-13CH3-labeled samples of C2B domain mutants. Since the C2B domain Ca2+-binding region is not involved in binding and Ca2+ did not affect the binding modes, these experiments were performed in the absence of Ca2+. We first analyzed the effects of the R322E/K325E mutation that we designed previously to disrupt SNARE complex binding to the polybasic region and strongly impaired neurotransmitter release (Brewer et al., 2015). A titration with CpxSC revealed substantial shifts for selected cross-peaks of the C2B mutant HSQC spectrum, but the patterns were somewhat distinct from those observed for the WT C2B domain (compare Figure 2A with 1H). The cross-peaks from the β-strand containing the mutated residues shifted and their positions could not be ascertained. However, we could identify the diagnostic cross-peak from K369, which is in the same face of the C2B domain as the polybasic region. The position of this cross-peak was unaffected even at 85 μM CpxSC (Figure 2C), confirming that binding to the polybasic region was abolished by the R322E/K325E mutation. We also observed that the diagnostic cross-peaks from the primary interface corresponding to V283 and Y339 shifted faster in the titration of the R322E/K325E mutant than observed for the WT C2B domain (Figure 2C), which is a natural consequence of the lack of competition with the polybasic region for binding to CpxSC. Interestingly, multiple cross-peaks from the primary interface exhibited much more substantial CpxSC-induced shifts for the mutant than for the WT C2B domain, including cross-peaks from R398 and I401 (Figure 2A,D), residues that are near V283 (Figure 1E). These results suggest that binding of CpxSC to the primary interface is more extensive for the R322E/K325E mutant C2B and that the polybasic region not only competes with the primary interface for binding to CpxSC but also hinders full C2B-SNARE engagement at the primary interface.

Figure 2 with 2 supplements see all
Mutations in the polybasic region and the primary interface of the C2B domain abrogate binding to CpxSC.

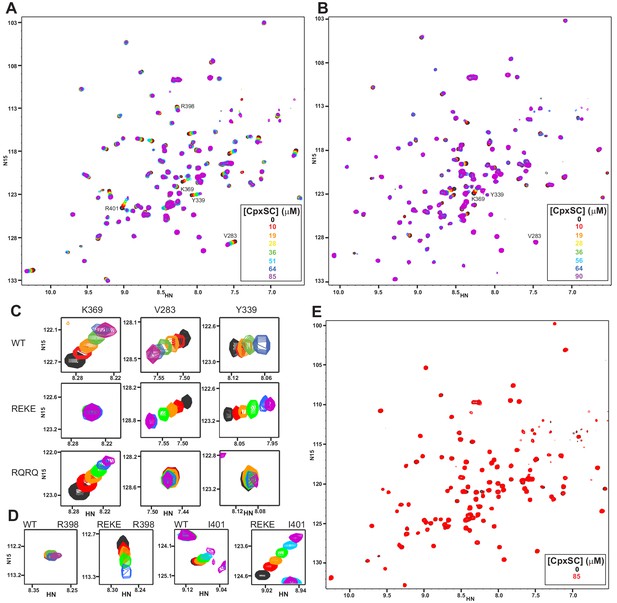

(A–B) Superposition of 1H-15N TROSY-HSQC spectra of R322E/K325E (A) or R398Q/R399Q (B) 2H,15N-IM-13CH3-C2B domain in the absence of Ca2+ and the presence of different concentrations of CpxSC as indicated by the color code (C2B concentrations gradually decreased from 32 to 12 μM). Cross-peaks broadened gradually with increasing CpxSC concentrations and contour levels were adjusted to allow observation of most cross-peaks in each spectrum. Some cross-peaks broadened beyond detection at high CpxSC concentrations. (C–D) Expansions showing the changes observed at increasing CpxSC concentrations in selected cross-peaks from WT, R322E/K325E (REKE) or R398Q/R399Q (RQRQ) C2B domain as indicated by the labels. Only spectra at selected concentrations of CpxSC are shown. The color code is the same as in panels A,B. (E) Superposition of 1H-15N TROSY-HSQC spectra of R322E/K325E/R398Q/R399Q 2H,15N-IM-13CH3-C2B domain in the absence of Ca2+, without (black contours) or with (red contours) 85 μM CpxSC (C2B concentrations 32 to 12 μM, respectively). Note that a few cross-peaks are missing in the 1H-15N TROSY-HSQC spectra of panels A,E (e.g. those of I276 and S279 at the left side of the spectrum) because the deuterated amide groups inside the domain did not exchange to hydrogen in aqueous buffer, likely because the mutations increased the stability of this highly basic domain.

R398 and R399 at the bottom of the C2B domain are in the primary interface (Figure 1E), but the R398Q/R399Q mutation that almost abolishes neurotransmitter release (Xue et al., 2008) did not significantly impair Syt1-SNARE co-IP (Zhou et al., 2015). To investigate the contribution of these tandem arginines to Syt1-SNARE complex binding at the primary interface, we analyzed binding of CpxSC to the R398Q/R399Q mutant C2B domain. We observed that the CpxSC-induced shifts of the cross-peaks from the primary interface were almost abolished (Figure 2B and expansions for the V283 and Y339 cross-peaks in Figure 2C), showing that the mutation strongly impairs binding of CpxSC to this interface. As expected, CpxSC still bound to the polybasic region of R398Q/R399Q C2B (e.g. K369 cross-peak, Figure 2C). Since individual R398Q and R399Q mutations also impair release considerably (Xue et al., 2008), we also tested binding of CpxSC to R398Q C2B and R399Q C2B mutants. Both single mutations impaired CpxSC binding substantially (Figure 2—figure supplement 1), although to a smaller extent than the double R398Q/R399Q mutation. These results show that both R398 and R399 play important roles in binding of Syt1 to CpxSC through the primary interface.

We also prepared a mutant C2B domain bearing both the R322E/K325E mutation in the polybasic region and the R398Q/R399Q mutation in the primary interface. Titration with CpxSC did not induce significant shifts in the 1H-15N TROSY-HSQC spectrum of the R322E/K325E/R398Q/R399Q C2B mutant even when CpxSC was added at 85 μM concentration (Figure 2E). Binding of an unlabeled protein or complex to a 15N-labeled protein is expected to cause not only cross-peak shifts but also decreased cross-peak intensities due to the larger size of the resulting complex compared to the isolated 15N-labeled protein (Rizo et al., 2012), as illustrated in Figure 2—figure supplement 2A–C by the gradual decreases in intensities of selected cross-peaks of WT C2B caused by increasing CpxSC concentrations. In contrast, the cross-peak intensities of R322E/K325E/R398Q/R399Q C2B did not decrease appreciably as increasing concentrations of CpxSC were added. Thus, the ratios of the intensities in the presence of 85 μM CpxSC versus the intensities in the absence of CpxSC for the same selected cross-peaks of R322E/K325E/R398Q/R399Q C2B were close to 1 (Figure 2—figure supplement 2A–C). Analysis of these ratios for all cross-peaks showed a relatively homogeneous distribution, with an average ratio of 0.947 and some natural variability due to the noise in the data, particularly for the weakest cross-peaks (Figure 2—figure supplement 2D). The average ratio for five cross-peaks that are in well-resolved regions of the spectrum and correspond to residues in the α-helix involved in the tripartite interface (T383, G384, L387, R388 and S391) is 0.945. These data show that the quadruple R322E/K325E/R398Q/R399Q mutation abolishes binding of the Syt1 C2B domain to CpxSC and the mutant does not bind through the tripartite interface under these conditions.

To corroborate this conclusion, we also analyzed samples where Cpx1(26-83) was 2H,15N-labeled and formed 2H,15N-CpxSC to analyze perturbations on Cpx1(26-83) upon C2B domain binding. Addition of WT Syt1 C2B domain caused substantial broadening in the 1H-15N TROSY-HSQC spectrum of CpxSC, as manifested by decreased intensities in the cross-peaks corresponding to structured parts of Cpx1(26-83) in the complex upon binding to C2B (Figure 3A). Importantly, C2B did not induce significant shifts in any of the cross-peaks from residues at or near the tripartite interface (residues 66–75; see Figure 3A). We note that K73, K74 and K75 are flexible in the complex but their cross-peaks are in unique positions that are very sensitive to changes in their environment (Chen et al., 2002; Pabst et al., 2000; Trimbuch et al., 2014). Hence, the absence of shifts in these cross-peaks and those of residues 66–75 in general show that the C2B domain does not bind to CpxSC through the tripartite interface under these conditions. Moreover, R322E/K325E/R398Q/R399Q C2B did not cause shifts or intensity decreases in the 1H-15N TROSY-HSQC spectrum of 2H,15N-CpxSC (Figure 3B), showing again that the quadruple mutation abrogates binding of the Syt1 C2B domain to CpxSC. Hence, we do not find any evidence for binding of the C2B domain to CpxSC through the tripartite interface even after abolishing the interactions involving the polybasic region and the primary interface. These results contrast with ITC data suggesting the existence of a Syt1-complexin-1-SNARE complex interaction involving the tripartite interface in experiments performed with Syt1 C2B bearing seven mutations designed to disrupt binding via the polybasic region and the primary interface (KA-Q mutant), and a complexin-1-SNARE complex bearing five mutations to further disrupt such binding (Zhou et al., 2017). We are collaborating with the laboratory of Axel Brunger to determine the reasons underlying these conflicting results, and the results of these efforts will be published elsewhere.

Figure 3 with 1 supplement see all
The Syt1 C2B domain does not bind at the tripartite interface of CpxSC at concentrations of tens of micromolar.

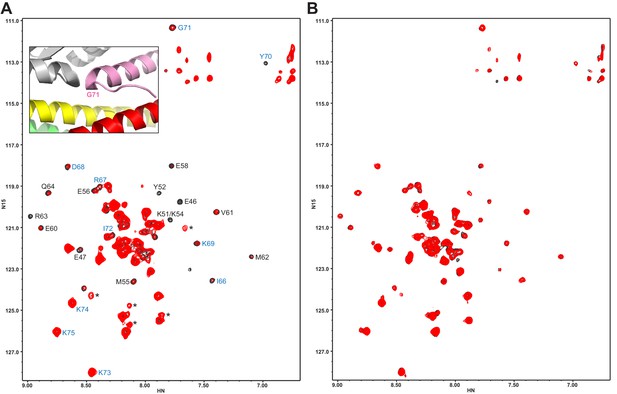

(A,B) 1H-15N TROSY HSQC spectra of 40 μM 2H,15N-Cpx1(26-83) in the absence (black contours) and presence (red contours) of 40 μM WT (A) or R322E/K325E/R398Q/R399Q mutant (B) C2B domain. In panel A, Assignments of the cross-peaks that are most broadened upon binding to WT C2B domain are labeled. They correspond to the central α-helix that binds to the SNARE complex and nearby residues. Cross-peaks from other residues do not exhibit as much broadening because they remain flexible. The assignments of residues of Cpx1(26-83) around the corner that contacts the Syt1 C2B domain in the structure of the tripartite complex are colored in blue. The inset shows a close up of the region where complexin-1 (pink), the C2B domain (gray) and the SNARE complex (syntaxin-1 yellow, SNAP-25 green, synaptobrevin red) form the tripartite interface. The location of Gly71 is labeled.

Since the L387Q/L394Q mutation in the α-helix of the C2B domain that forms the tripartite interface was reported to disrupt binding through this interfaces based on ITC data (Zhou et al., 2017), we tried to analyze whether this mutation perturbs binding of C2B to CpxSC. The 1H-15N TROSY-HSQC spectrum of 2H,15N-IM-13CH3-labeled L387Q/L394Q C2B exhibited well-dispersed cross-peaks characteristic of a folded protein domain, but also contained broad cross-peaks in the center of the spectrum that are commonly observed in unstable proteins that unfold and/or aggregate (Rizo et al., 2012Figure 3—figure supplement 1). Addition of 20 μM CpxSC led to strong decreases in cross-peak intensities that arose at least in part from sample precipitation. Hence it was not possible to continue the titration. These results show that the L387Q/L394Q causes a considerable destabilization of the Syt1 C2B domain, which is consistent with the finding that this mutation decreases the thermal denaturation temperature of the C2B domain by about 10°C (Zhou et al., 2017). Such destabilization may arise because this mutation involves the replacement of a hydrophobic side chain that packs inside the C2B domain and barely contacts the SNAREs (L394; Figure 1G) with a polar residue. Hence, it is plausible that the disruption of neurotransmitter release caused by the L387Q/L394Q mutation (Zhou et al., 2017) arose from a general loss of function caused by protein instability.

In summary, our data show that binding of the Syt1 C2B domain to the Cpx1(26-83)-SNARE complex in solution involves the polybasic region and the primary interface, while binding via the tripartite interface is undetectable under the conditions of our NMR experiments even when CpxSC is added at 85 μM concentration and binding through the polybasic region and the tripartite interface is abolished. These results indicate that the tripartite interface observed in the complexin-1-Syt1-SNARE complex crystals might have arisen from crystal packing, but further research will be required to clarify this issue.

The E295A/Y338W mutation in the primary interface enhances C2B-CpxSC binding in solution

The primary interface involves two regions of the C2B domain, one containing R398 and R399 (region II), and the other E295 and Y338 (region I). The functional importance of region I was demonstrated by the strong disruption of neurotransmitter release caused by the E295A/Y338W mutation in this region (Zhou et al., 2015). To examine the effects of this mutation on Syt1-SNARE binding, we performed titrations of 2H,15N-IM-13CH3-E295A/Y338W C2B with CpxSC. Interestingly, we found that CpxSC caused more extensive changes in the 1H-15N TROSY-HSQC spectrum of this mutant (Figure 4A) than those observed for WT C2B domain (Figure 1H). Analysis of these changes showed that cross-peaks from residues in or near the polybasic region shifted less extensively and more slowly than observed for WT C2B, particularly in the initial points of the titration (Figure 4B,C). Conversely, cross-peaks from the primary interface moved faster and more extensively for E295A/Y338W C2B than for WT C2B; indeed, some cross-peaks that did not shift or barely shifted in WT C2B exhibited considerable shifts for E295A/Y338W C2B domain, including the R398 cross-peak (Figure 4B,D). These effects in cross-peaks from the primary interface are reminiscent of those observed for the R322E/K325E mutant C2B domain (Figure 2A,C,D), but the shifts observed for the primary interface of the E295A/Y338W C2B mutant are even larger. These results show that the E295A/Y338W mutation actually increases the affinity of the Syt1 C2B domain for CpxSC rather than impairs binding, and also appears to make the interaction at the primary interface more extensive, as observed for the R322E/K325E mutation. The basis for this behavior is unclear, but the increased affinity caused by the E295A/Y338W mutation may arise from replacing a tyrosine with a tryptophan, which increases the hydrophobic surface area of this residue. This change may be readily accommodated because the packing in this region of the interface with the SNARE complex is not optimal. We note that the movement of some cross-peaks with increasing CpxSC concentration was curved in some cases (e.g. those of K325 and R398, Figure 4C,D). This finding suggests that there is an interplay between binding of CpxSC to the primary interface and to the polybasic region. CpxSC appears to bind exclusively to one or the other site at low concentrations, likely because of steric hindrance disfavors simultaneous binding of two CpxSC complexes to one C2B domain. However, simultaneous binding to both sites might be allowed at higher CpxSC concentrations by slight alterations in both binding modes, leading to the curved cross-peak movement.

Figure 4 with 1 supplement see all
The E295A/Y338W mutation enhances the affinity of the Syt1 C2B domain primary interface for CpxSC.

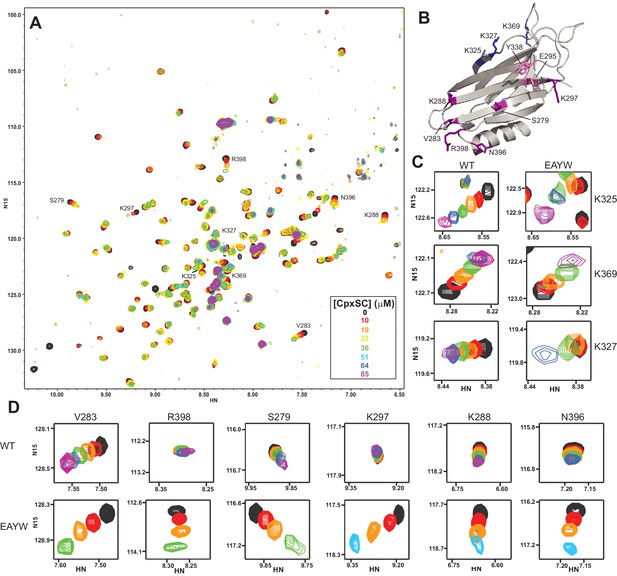

(A) Superposition of 1H-15N TROSY-HSQC spectra of E295A/Y338W 2H,15N-IM-13CH3-C2B domain in the absence of Ca2+ and the presence of different concentrations of CpxSC as indicated by the color code (C2B concentrations gradually decreased from 32 to 12 μM). Cross-peaks broadened gradually with increasing CpxSC concentrations and contour levels were adjusted to allow observation of most cross-peaks in each spectrum. Some cross-peaks broadened beyond detection at high CpxSC concentrations. (B) Ribbon diagram of the Syt1 C2B domain (PDB accession code 1UOV) showing the location of the residues corresponding to the cross-peaks highlighted in the other panels to illustrate that the enhanced binding caused by the E295A/Y338W mutations occurs at the primary interface. (C–D) Expansions showing the changes observed at increasing CpxSC concentrations in selected cross-peaks from WT and E295A/Y338W mutant C2B domain as indicated by the labels. Only spectra at selected concentrations of CpxSC are shown. The color code is the same as in panel A.

Because the WT and mutant C2B domains used for all the titrations with CpxSC were specifically 13CH3-labeled at the Met and Ile δ1 methyl groups, we also acquired 1H-13C heteronuclear multiple quantum coherence (HMQC) spectra of each sample, as these spectra offers very high sensitivity (Ruschak and Kay, 2010). The HMQC spectra contained only a small number of probes (Figure 4—figure supplement 1A) and hence provided more limited information than the 1H-15N TROSY-HSQC spectra, but corroborated the conclusions obtained from the latter regarding binding to the primary interface. Thus, CpxSC caused shifts in the cross-peak from the I401 δ1 methyl group at the primary interface that were more marked for the R322E/K325E mutant, were even larger for the E295A/Y338W mutant, and were abolished for the R398Q/R399Q and R322E/K325E/R398Q/R399Q mutants (Figure 4—figure supplement 1B). The cross-peak from the δ1 methyl of I293, another residue at the primary interface, was shifted by CpxSC only for the E295A/Y338W mutant.

Syt1 C2AB binds simultaneously to membranes and the SNARE complex

Our NMR data show that there are two major binding modes between the Syt1 C2B domain and the SNARE complex in solution, one involving the polybasic region of C2B and the other involving the primary interface, which includes the tandem arginines R398,R399. Since the polybasic region and the tandem arginines have been implicated also in membrane binding [e.g. (Araç et al., 2006; Bai et al., 2004; Li et al., 2006; Xue et al., 2008)], it is critical to analyze interactions between Syt1 and membrane-anchored SNARE complexes to assess whether either of these two binding modes still remain in the presence of membranes, or a different type of interaction might occur. For this purpose, we designed a strategy based on anchoring SNARE complexes on nanodiscs. For these studies we used the Syt1 C2AB fragment that spans both C2 domains because the C2A domain contributes to binding of Syt1 to membranes and could contribute to binding to the SNARE complex directly or indirectly, for example through cooperativity between SNARE and lipid interactions of Syt1. As a scaffold for the nanodiscs, we chose MSP1E3D1 because it yields stable nanodiscs with a diameter of ca. 13 nm (Nath et al., 2007) that can accommodate the SNARE complex and allow potential simultaneous interactions of Syt1 C2AB with the SNARE complex and the lipids. We prepared SNARE complexes with full-length syntaxin-1 and the SNARE motifs of SNAP-25 and synaptobrevin, anchoring the complexes on the nanodiscs through the syntaxin-1 transmembrane (TM) region to mimic the configuration expected to occur on the plasma membrane. The stoichiometry of MSP1D3 to syntaxin-1 was adjusted to form nanodiscs that on average contained one SNARE complex. We refer to these macromolecular assemblies as cisSC-NDs, while control nanodiscs prepared without the SNAREs are abbreviated as NDs (Figure 5A). Compared to experiments using liposomes, this modular design facilitates analysis of individual SNARE complex-Syt1-membrane assemblies without complications that might arise from liposome clustering induced by C2AB (Araç et al., 2006).

Figure 5 with 2 supplements see all
Analysis of interactions between Syt1 C2AB* and SNARE complexes anchored on nanodiscs using FRET.

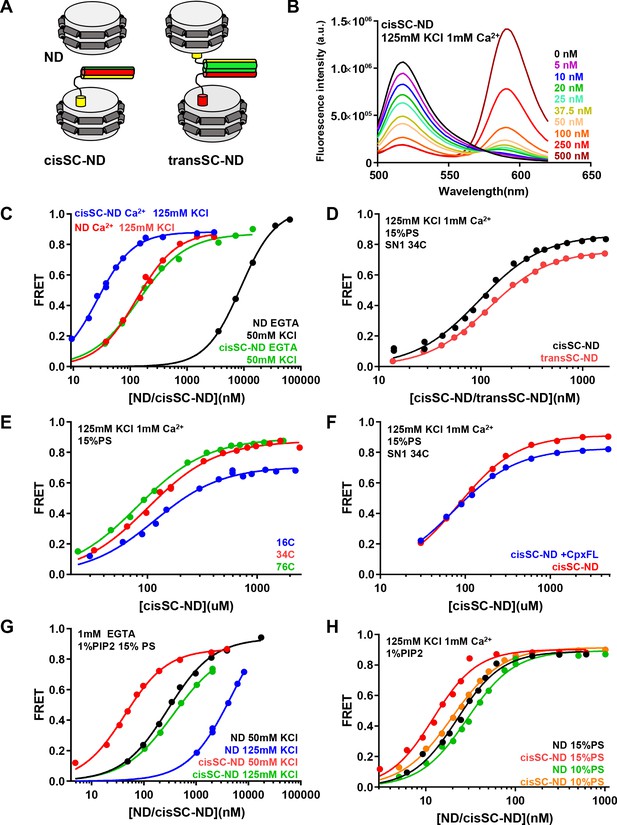

(A) Diagrams illustrating NDs, cisSC-NDs and transSC-NDs. Syntaxin-1 is in yellow, SNAP-25 in green and synaptobrevin in red. Although we used full-length syntaxin-1 to make the nanodisc-anchored SNARE complexes, the N-terminal region preceding the SNARE motif of syntaxin-1 is not shown for simplicity. (B) Fluorescence emission spectra of C2AB* (labeled with Alexa488 at residue 346) in the presence of increasing concentrations of cisSC-NDs (15% PS, 5% Rho-PE), in 125 mM KCl and 1 mM Ca2+. (C) FRET efficiencies observed in titrations of C2AB* with NDs or cisSC-NDs (15% PS, 5% Rho-PE) in the presence of 50 mM KCl and 1 mM EGTA, or 125 mM KCl and 1 mM Ca2+. (D) FRET efficiencies observed in titrations of C2AB* with cisSC-NDs or transSC-NDs (15% PS, 5% Rho-PE) in the presence of 125 mM KCl and 1 mM Ca2+. (E) FRET efficiencies observed in titrations of C2AB* with cisSC-NDs (15% PS) labeled with Rho at position 16, 34 or 76 of SNAP-25 in the presence of 125 mM KCl and 1 mM Ca2+. (F) FRET efficiencies observed in titrations of C2AB* with cisSC-NDs (15% PS) labeled at residue 34 of SNAP-25 in the presence of 125 mM KCl and 1 mM Ca2+, with or without complexin-1. (G) FRET efficiencies observed in titrations of C2AB* with NDs or cisSC-NDs (15% PS, 5% Rho-PE, 1% PIP2) in the presence of 1 mM EGTA and 50 or 125 mM KCl. (H) FRET efficiencies observed in titrations of C2AB* with NDs or cisSC-NDs (15% PS, 5% Rho-PE, 1% PIP2; or 10% PS, 5% Rho-PE, 1% PIP2) in the presence of 125 mM KCl and 1 mM Ca2+. All data were fit with a Hill equation (see Materials and methods).

To monitor binding of C2AB to NDs or cisSC-NDs by FRET, we generated a single-cysteine C2AB mutant with the cysteine replacing E346, and labeled it with an Alex488 donor fluorescent probe (C2AB*). This position was chosen because residue 346 is not located on any of the interfaces that have been implicated in SNARE complex binding (Figure 5—figure supplement 1A) and placing the fluorescent probe on this residue is not expected to disrupt these interfaces. Unless otherwise indicated, NDs contained 5% rhodamine-labeled phosphatidylethanolamine (Rho-PE), which constitutes a suitable acceptor probe for highly efficient FRET with Alexa488. Indeed, titration of C2AB* with cisSC-NDs formed with a 80:15:5 mixture of phosphatildylcholine (PC), phosphatidylserine (PS) and Rho-PE in the presence of 125 mM KCl and 1 mM Ca2+ led to progressively more efficient FRET that maximized at a FRET efficiency of ca. 0.88 (Figure 5B and C, blue curve). Control experiments with analogous NDs lacking SNARE complex showed that saturation required higher ND concentrations (Figure 5C, red curve), yielding a substantially higher apparent KD (129.5 nM compared to 26.6 nM for the cisSC-NDs). A summary of the KDs obtained under these and other conditions described below is presented in Supplementary file 1. Supplementary file 2 lists cooperativity factors calculated from KD NDs/KD cisSC-NDs, which yield an idea of the synergy between interactions of C2AB* with the SNAREs and the lipids, for each condition. Supplementary file 1 also lists repeat experiments performed under selected conditions with different nanodisc preparations that show the reproducibility of the data (see statistics in Materials and methods). We observed a natural variability in the apparent KDs that may arise in part from different incorporation of SNARE complexes into the nanodiscs. Note also that some of the KDs are in the low nM range and may not be accurate because the concentration of C2AB* used for all experiments was 50 nM and the corresponding titration curves thus approach saturating binding conditions. Hence, these KDs and corresponding cooperativity factors must be interpreted with caution. For all these reasons, the conclusions described below were obtained by comparing experiments performed on the same day or over period of two days with the same preparations, and were confirmed by additional comparisons made with other preparations on different days. Importantly, the key conclusions are supported by the overall consistency of the data obtained under different conditions.

The higher affinity of C2AB* for cisSC-NDs than for NDs (Figure 5C, blue and red curves, respectively) shows that C2AB* binds simultaneously to the SNARE complex and the lipids under these conditions. Since Syt1 C2AB is able to bind simultaneously to two membranes in the presence of Ca2+ (Araç et al., 2006), which could cooperate with binding to the SNARE complex (Brewer et al., 2015), we also investigated binding of C2AB to trans-SNARE complexes formed between two nanodiscs (transSC-NDs). Because we wanted to compare binding to cis and trans SNARE complexes, in these experiments we placed a tetramethylrhodamine (TMR) acceptor fluorescent probe on the SNARE complex rather than on the nanodiscs to allow direct quantification of the SNARE complex concentrations from the UV-vis absorption of the probe. We chose residue 34 of SNAP-25 to place the acceptor probe because it is predicted to be sufficiently close to the donor probe at residue 346 of C2AB in any of the three structures of Syt1-SNARE complexes that have been elucidated (Figure 5—figure supplement 1B), such that binding would be detected regardless of which binding mode occurs. Titrations of C2AB* with transSC-NDs and cisSC-NDs yielded similar results (Figure 5D) and comparable apparent KDs (118 nM and 96 nM, respectively). The lower KD obtained with cisSC-NDs labeled with 5% Rho-PE can be attributed to the negative charge added by the labeled lipids, which should increase their membrane affinity for C2AB (Zhang et al., 1998). These results suggest that the affinity of C2AB* for cisSC-NDs and transSC-NDs is similar and ensuing experiments were performed with cisSC-NDs for simplicity.

We also analyzed binding of C2AB* to cisSC-NDs that were labeled at the N- or C-terminus of the SNARE complex (residue 16 or 76 of SNAP-25; Figure 5—figure supplement 1B). We obtained similar binding curves and comparable KDs to those obtained with the label at residue 34 (Figure 5E; Supplementary file 1). The FRET efficiencies observed at saturating concentrations were similar for the labels at residues 34 and 76 of SNAP-25, and somewhat lower for the label at residue 16. The FRET efficiencies are consistent with the binding modes involving the polybasic region and the primary interface, which predict that the probe on C2AB* is located at comparable, short distances from residues 34 and 76, and farther from residues 16, but are not consistent with the tripartite complex, where residue 346 of C2AB* is expected to be much closer to residue 16 than to residue 76 (Figure 5—figure supplement 1B). However, these results are not conclusive, as other binding modes could also be consistent with the observed FRET efficiencies. We also analyzed the effect of including complexin-1 on binding of C2AB* to cisSC-NDs labeled at residue 34 of SNAP-25 and observed similar binding curves and apparent KDs (Figure 5F; Supplementary file 1), suggesting that complexin-1 does not substantially alter the interaction of C2AB* with the nanodisc-anchored SNARE complex. This observation is also consistent with binding of C2AB to the SNARE complex through the primary and polybasic interfaces, which is not expected to be affected by complexin-1.

In subsequent experiments we focused on comparing binding of C2AB* to NDs and cisSC-NDs labeled with Rho-PE to analyze the increases in affinity caused by the presence of the SNARE complex, and analyzed how the conditions of the experiments affect the underlying affinities. In experiments performed in 125 mM KCl and 1 mM EGTA to analyze Ca2+-independent interactions, binding to NDs was very weak. We lowered the KCl concentration to 50 mM to facilitate binding and were able to observe efficient binding at relatively high ND concentrations (Figure 5C, black curve), with an apparent KD of 8.7 μM. Importantly, we observed a much higher affinity for cisSC-NDs (Figure 5C, green curve), with an apparent KD of 141 nM. These results suggest that there is a strong synergy between binding of Ca2+-free C2AB* to the SNARE complex and the nanodisc phospholipids. Since PIP2 enhances binding of the C2B domain to membranes due to interactions with the polybasic region (Bai et al., 2004; Li et al., 2006), we performed titrations with NDs and cisSC NDs containing 1% PIP2 and indeed observed much higher affinities at 50 mM KCl (Figure 5G, black and red curves; apparent KDs 286 nM and 43 nM, respectively). Binding was weaker in 125 mM KCl (Figure 5G, blue and green curves) but there was still a large difference in the KDs observed for NDs and cisSC-NDs (apparent KDs 4.9 μM and 366 nM, respectively). We also analyzed binding of C2AB* to NDs and cisSC-NDs containing 1% PIP2 in the presence of 1 mM Ca2+ and again observed increased affinity for the latter (Figure 5H, black and red curves; apparent KDs 22 nM and 12 nM, respectively). Since the high affinity for cisSC-NDs containing PIP2 implied that we were close to saturation binding conditions, which hindered analysis of the SNARE-induced enhancement on binding, we also performed experiments with NDs and cisSC-NDs containing 10% instead of 15% PS (i.e. composed of PC:PS:Rho-PE:PIP2 84:10:5:1) and indeed observed somewhat weaker binding (Figure 5H, green and orange curves; apparent KDs 29 nM and 20 nM, respectively). Overall, the increases in affinity caused by simultaneous binding of C2AB* to the nanodiscs and the SNARE complex were considerably lower in the presence than in the absence of Ca2+, particularly when the nanodiscs contained PIP2 (Supplementary file 1, 2).

Mutations in the polybasic region and R398,R399 disrupt Ca2+-independent binding of C2AB* to nanodisc-anchored SNARE complex

To dissect the contributions of the polybasic region and R398,R399 at the primary interface to binding of C2AB* to NDs and cisSC-NDs, we performed titrations under various conditions using WT and mutant versions of C2AB* that were labeled with a donor probe at residue 346 and bore the R322E/K325E, R398Q/R399Q or R322E/K325E/R398Q/R399Q mutations (Figure 6; Figure 6—figure supplements 16). Since the much stronger effects of the R322E/K325E mutation than the K324E/K326E mutation on SNARE complex binding and on neurotransmitter release supported the physiological relevance of Syt1-SNARE complex binding through the polybasic region (Brewer et al., 2015), we also included C2AB* with the K324E/K326E mutation in these analyses. All NDs and cisSC-NDs included 5% Rho-PE. Ca2+-independent binding of C2AB* to NDs was markedly impaired by all mutations, but mutations in the polybasic region impaired binding to NDs containing PIP2 much more strongly than the R398Q/R399Q mutation (Figure 6A,C). Hence, binding to these nanodiscs is mediated largely by the polybasic region, as expected, but the tandem arginines also participate in binding to some extent. Binding to cisSC-NDs in EGTA was also impaired strongly by mutations in the polybasic region, but in this case the impairment caused by the R398Q/R399Q mutation was almost as strong (Figure 6B,D). All mutations strongly decreased the cooperativity factors calculated from KD NDs/KD cisSC-NDs, which provide an idea of the contribution of C2AB*-SNARE complex interactions to cisSC-ND binding and ranged from 6.64 to 62.1 for WT C2AB* in the three conditions including EGTA (Supplementary file 2). Thus, both the tandem arginines (R398,R399) and the polybasic region are important for Ca2+-independent, simultaneous binding of C2AB* to the SNARE complex and the lipids. These findings suggest that the underlying interactions are dynamic and involve at least two binding modes whereby either the primary interface containing R398,R399 or the polybasic region interacts with the SNAREs and the other basic sequence (the polybasic region or R398,R399) binds to the lipids (Figure 5—figure supplement 2A,B).

Figure 6 with 6 supplements see all
Effects of mutations in the Syt1 C2B domain on Ca2+-independent and Ca2+-dependent binding of C2AB* to NDs and cisSC-NDs.

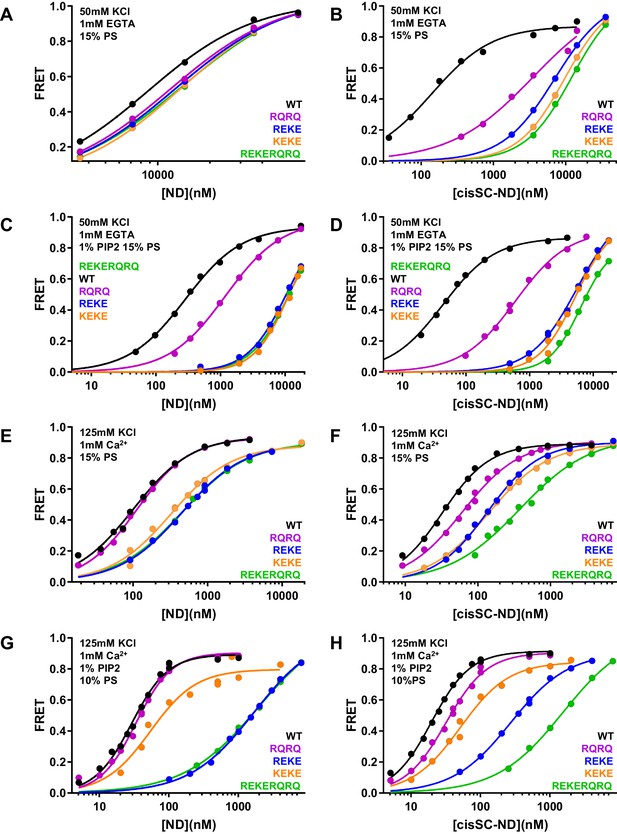

(A–H) FRET efficiencies observed in titrations of WT, R398Q/R399Q (RQRQ), R322E/K325E (REKE), K324E/K326E (KEKE) or R322E/K325E/R398Q/R399Q (REKERQRQ) C2AB* with NDs (A,C,E,G) or cisSC-NDs (B,D,F,H) containing 15% PS and 5% Rho-PE (A,B,E,F), 15% PS, 5% Rho-PE and 1% PIP2 (C,D), or 10% PS, 5% Rho-PE and 1% PIP2 (G,H) in the presence of 1 mM EGTA and 50 mM KCl (A–D), or 1 mM Ca2+ and 125 mM KCl (E–H). All data were fit with a Hill equation (see Materials and methods).

Ca2+- and PIP2-dependent binding of the C2B domain to membranes hinders SNARE complex binding

An interestingly different picture emerged in experiments performed in the presence of Ca2+. Importantly, the R322E/K325E mutation impaired Ca2+-dependent binding to PIP2-containing NDs much more dramatically than the K324E/K326E mutation (Figure 6G, Figure 6—figure supplement 6A; apparent KDs 49–62 nM for the K324E/K326E mutant and 1.5–2.9 μM for R322E/K325E). This striking difference correlates with the effects of these mutations on neurotransmitter release (Brewer et al., 2015) and was not observed for Ca2+-dependent binding of C2AB* to NDs lacking PIP2 (Figure 6E), or Ca2+-independent binding to PIP2-containing NDs (Figure 6A,C) or liposomes (Brewer et al., 2015), all of which were similarly disrupted by the R322E/K325E and K324E/K326E mutations. These findings show that there is a specific Ca2+-dependent binding mode of Syt1 to PIP2-containing membranes that involves R322,K325 but not K324,K326, and suggest that the specific, strong disruption of neurotransmitter release induced by the R322E/K325E mutation but not the K324E/K326E mutation arises from impairment of Ca2+-dependent binding of Syt1 to the (PIP2-containing) plasma membrane rather than to the SNARE complex.

The cooperativity factors calculated from KD NDs/KD cisSC-NDs in the presence of Ca2+ under various conditions (Figure 6E–H, Figure 6—figure supplements 46) ranged from 1.39 to 3.11 and hence were considerably smaller than those observed in EGTA (Supplementary file 2), indicating that interactions of WT C2AB* with the SNARE complex contributed much less to binding to cisSC-NDs in the presence of Ca2+ than in its absence. Interestingly, the cooperativity factors observed for WT C2AB* in the presence of PIP2 were particularly small, suggesting that Ca2+-dependent interactions of C2AB* with PIP2 on the nanodiscs preclude interactions with the SNARE complex. The diminished cooperativity factors in the presence of PIP2 were decreased further by the R398Q/R399Q, K324E/K326E and R322E/K325E/R398Q/R399Q mutations, but where substantially increased by the R322E/K325E mutation, presumably because the specific interactions of C2AB* with PIP2 mediated by R322E,K325E were disrupted, allowing binding to the SNARE complex. These findings can be readily rationalized by modeling how the C2B domain binds to a PIP2-containing membrane in a Ca2+-dependent manner. Because Ca2+ induces binding of the C2B domain in an approximately perpendicular orientation to the membrane that favors insertion of both Ca2+-binding loops into the bilayer (Araç et al., 2006; Bai et al., 2004; Rufener et al., 2005), this orientation allows binding of R322 and K325 to PIP2, but K324 and K326 point away from the membrane because they are on the opposite side of the same β-strand (Figure 5—figure supplement 2C; see also Figure 10B). In this configuration, interaction of the SNARE complex with the primary interface of the C2B domain is impossible because it would place the syntaxin-1 C-terminus far from the membrane where it is anchored (Figure 5—figure supplement 2C). Simultaneous Ca2+-dependent binding of the C2B domain to the membrane through its Ca2+-binding loops and to the SNARE complex through its polybasic region is in principle compatible with anchoring of syntaxin-1 to the membrane (Figure 5—figure supplement 2D), but this binding mode is expected to be prevented by PIP2 because PIP2 binds to K322,R325, the same residues of the polybasic region that are key for SNARE complex binding (Brewer et al., 2015).

In summary, Ca2+-dependent binding of C2AB* to PIP2-containing membranes is incompatible with the two major Syt1-SNARE complex binding modes, which involve the primary and polybasic interfaces. However, upon Ca2+- and PIP2-dependent membrane binding, R398 and R399 can still be involved in non-specific interactions with negative residues of the SNARE complex, and such interactions are also possible if the C2B domain binds in a more slanted orientation to membranes lacking PIP2 (Figure 5—figure supplement 2E,F). Such non-specific interactions might underlie the modest decreases in Ca2+-dependent binding of C2AB* to cisSC-NDs caused by the R398Q/R399Q mutation (Figure 6F,H) and, similarly, the impairments in such binding caused by the K324E/K326E mutation might arise from other non-specific binding modes.

The E295A/Y338W mutation in the primary interface enhances Ca2+-independent binding of C2AB* to cisSNARE complex-nanodiscs

We also analyzed the effects of the E295A/Y338W mutation in region I of the primary interface on binding to NDs and cisSC-NDs. Interestingly, this mutation did not alter binding to NDs under various conditions (Figure 7) but caused a considerable increase in affinity for cisSC-NDs containing 15% PS and 1% PIP2 in the absence of Ca2+, compared to WT C2AB* (Figure 7A; apparent KDs 366 nM for WT C2AB* and 80 nM for the E295A/Y338W mutant). In contrast, we observed only very slight increases in Ca2+-dependent binding of E295A/Y338W C2AB* to cisSC-NDs containing 15% PS with or without 1% PIP2, or 10% PS and 1% PIP2, compared to WT C2AB* (Figure 7B–D). The results obtained in the absence of Ca2+ correlate with the increased affinity of the Syt1 C2B domain for CpxSC observed in our NMR experiments (Figure 4) and show that this mutations enhances Ca2+-independent binding of C2AB* to the SNARE complex within cisSC-NDs via the primary interface. However, the lack of an overt effect of the E295A/Y338W mutation on binding to cisSC-NDs in the presence of Ca2+ strongly supports the notion that the primary interface is not involved in Ca2+-dependent binding.

The E295A/Y338W mutation in the C2B domain primary interface enhances binding of C2AB* to cisSC-NDs.

(A–D) FRET efficiencies observed in titrations of WT or E295A/Y338W (EAYW) C2AB* with NDs or cisSC-NDs containing 15% PS, 5% Rho-PE and 1% PIP2 (A,C), 15% PS and 5% Rho-PE (B), or 10% PS, 5% Rho-PE and 1% PIP2 (D) in the presence of 1 mM EGTA and 50 mM KCl (A), or 1 mM Ca2+ and 125 mM KCl (B–D). All data were fit with a Hill equation (see Materials and methods).

Effects of phospholipids on C2AB* binding to the SNARE complex

To gain insights in how the phospholipids in the nanodiscs influence Syt1-SNARE complex interactions, we performed experiments where we monitored direct binding of C2AB* to the SNARE complex in cisSC-NDs by placing the FRET acceptor on residue 76 of SNAP-25 (Figure 8; Supplementary file 1). In these experiments we focused on WT C2AB* and C2AB* bearing the R398Q/R399Q, R322E/K325E or E295A/Y338W mutations that strongly impair neurotransmitter release. Comparisons of the results obtained with cisSC-NDS and those of parallel experiments performed with soluble SNARE complexes formed with the cytoplasmic region of syntaxin-1 (residues 2–253) (referred to as solubleSC) provided information on how interactions of C2AB* with the lipids enhance SNARE complex binding. To examine how negatively charged phospholipid head groups contribute to such enhancement, we performed experiments with cisSC-NDs that contained only PC (cisSC-PC-NDs) or 15% PS,1% PIP2 and 84% PC (cisSC-PC/PS/PIP2-NDs). We also performed experiments with a soluble SNARE complex formed with the syntaxin-1 SNARE motif (residues 191–253) instead of its cytoplasmic region (Figure 8—figure supplement 1) to mimic the SNARE complex used in the NMR experiments (referred to as mcc). The results were similar to those obtained with solubleSC but revealed somewhat weaker affinities for C2AB* that are consistent with the NMR data obtained with the C2B domain and CpxSC (Figure 1) and suggest that the N-terminal region of syntaxin-1 contributes to Syt1-SNARE interactions, as proposed previously (Fernandez et al., 1998).

Figure 8 with 1 supplement see all
Effects of phospholipids on C2AB* binding to the SNARE complex.

(A–B) FRET efficiencies observed in titrations of WT C2AB* with solubleSC, cisSC-PC-NDs (containing only PC) or cisSC-PC/PS/PIP2-NDs (containing 15% PS,1% PIP2, 84% PC) labeled with TMR at residue 76 of SNAP-25 in the presence of 1 mM EGTA (A) or 1 mM Ca2+ (B). (C–H) FRET efficiencies in analogous titrations of WT, R398Q/R399Q (RQRQ), R322E/K325E (REKE) or E295A/Y338W (EAYW) C2AB* with solubleSC (C–D), cisSC-PC-NDs (E–F) or cisSC-PC/PS/PIP2-NDs (G–H) in the presence of 1 mM EGTA (C, E, G) or 1 mM Ca2+ (D, F, H). All data were fit with a Hill equation (see Materials and methods).

In the absence of Ca2+, C2AB* bound more strongly to cisSC-PC-NDs than to solubleSC (KD 0.93 and 5.5 μM, respectively), and binding to cisSC-PC/PS/PIP2-NDs was even tighter (KD0.49 μM) (Figure 8A). Binding of C2AB* to these complexes was strongly impaired by the R322E/K325E mutation and to a lesser extent by the R398Q/R399Q mutation, and was strengthened by the E295A/Y338W mutation (Figure 8C,E,G). The cooperativity factors calculated from KD solubleSC/KD cisSC-PC-NDs and KD solubleSC/KD cisSC-PC/PS/PIP2-NDs were 5.91 and 11.09 for WT C2AB*, were dramatically decreased by the R322E/K325E and R398Q/R399Q mutations, and slightly increased by the E295A/Y338W mutation (Supplementary file 2). These findings are fully consistent with the conclusion that interactions of both the polybasic region and R398,R399 with the lipids contribute to Ca2+-independent binding of C2AB* to cisSC-NDs, and hence that such binding involves at least two types of interactions where either the primary interface binds to the SNAREs and the polybasic region to the lipids, or the polybasic region binds to the SNAREs and R398,R339 to the lipids (Figure 5—figure supplement 2A,B). As observed in the previous experiments, the E295A/Y338W mutation increased the former of these two binding modes. As expected, the PC/PS/PIP2-NDs enhanced binding to the SNARE complex more than the PC-NDs, but it is noteworthy that even interactions of C2AB* basic residues with neutral phospholipids such as PC can enhance binding to the SNARE complex.

As expected, Ca2+ increased the affinity of C2AB* for solubleSC, cisSC-PC-NDs and cisSC-PC/PS/PIP2-NDs, and binding was tightest for the latter (Figure 8A,B; Supplementary file 1). The effects of the R398Q/R399Q, R322E/K325E and E295A/Y338W mutations on Ca2+-dependent binding of C2AB* to solubleSC and cis-SC-PC-NDs (Figure 8D,F) were similar to those observed in the absence of Ca2+, and highly efficient FRET was also observed at saturating concentrations, as expected for binding of C2AB* to the SNARE complex through the primary or polybasic interfaces with the acceptor probe on residue 76 of SNAP-25 (Figure 5—figure supplement 1B). However, the highest FRET efficiency observed upon binding of WT C2AB* to cisSC-PC/PS/PIP2-NDs was 0.4 (Figure 5B). The highest FRET efficiency was increased to some extent by the E295A/Y338W mutation and even more by the R322E/K325E mutation, but was decreased by the R398Q/R399Q mutation, which consistently led to a bimodal binding curve with a maximum at about 20 nM cisSC-PC/PS/PIP2-NDs in four independent experiments (Figure 8D,F,H). These results are consistent with the notion that Ca2+-dependent binding of C2AB* to PIP2-containing membranes is incompatible with SNARE complex binding through the primary and polybasic interfaces. In the absence of interactions with the SNARE complex, C2AB* may bind with similar probabilities to both sides of the nanodiscs, perhaps with some preference for the side lacking SNAREs where there are no steric clashes with the SNARE complex. Non-specific interactions of R398,R399 of WT C2AB* with acidic residues from the SNAREs may facilitate binding to the SNARE-containing side (Figure 5—figure supplement 2E), leading to some FRET, but mutation of these arginines may lead to preferential binding of the R398Q/R399Q mutant to the other side, particularly at high nanodisc concentrations when membrane availability is not limiting. The highest FRET efficiency was likely increased by the E295A/Y338W mutation because it enhances SNARE binding. High FRET efficiencies were reached for binding of the R322E/K325E mutant to cisSC-PC/PS/PIP2-NDs or for binding of WT C2AB* and the three mutants to solubleSC or cisSC-PC-NDs (Figure 8D,F,H) because the specific Ca2+-dependent interaction of C2AB* with PIP2 that competes with SNARE binding is precluded.

ATP strongly impairs Ca2+-dependent binding of C2AB* to nanodisc-anchored SNARE complex but Ca2+-independent binding persists

Physiological conditions including ATP and PIP2-containing membranes were reported to disrupt Syt1-SNARE complex binding, leading to the conclusion that such binding is not biologically relevant (Park et al., 2015). However, a fluorescent probe attached to residue 342 of the C2B domain to monitor binding to the SNARE complex in this study may have disrupted binding through the primary interface because residue 342 is very close to this interface (Figure 5—figure supplement 1A), and another study concluded that Syt1-SNARE complex binding persists in the presence of ATP (Wang et al., 2016). To clarify this controversy and examine how ATP affects Syt1-SNARE complex interactions, we first analyzed the effects of adding 2.5 mM Mg2+ with or without 2 mM ATP on the FRET observed between C2AB* and NDs or cisSC-NDs containing 5% Rho-PE, 15% PS and 1% PIP2. Mg2+ and Mg-ATP decreased the FRET with both NDs and cisSC-NDs to some extent in the absence of Ca2+, but the FRET with cisSC-NDs was still much stronger that the FRET with NDs (Figure 9—figure supplement 1). However, the difference in FRET with cisSC-NDs and NDs was much smaller in the presence of Ca2+ when Mg2+ and ATP were added (Figure 9—figure supplement 2). These results suggested that Ca2+-independent binding of C2AB* to the SNARE complex persists in the presence of Mg-ATP, but Ca2+-dependent binding is strongly impaired. These conclusions were supported by titrations of C2AB* with NDs and cisSC-NDs, which revealed a considerable difference in affinity in the absence of Ca2+ but a much smaller difference in Ca2+-dependent binding (Figure 9A,B).

Figure 9 with 4 supplements see all
ATP almost abolishes Ca2+-dependent binding but not Ca2+-independent binding of C2AB* to SNARE complexes in cisSC-NDs.

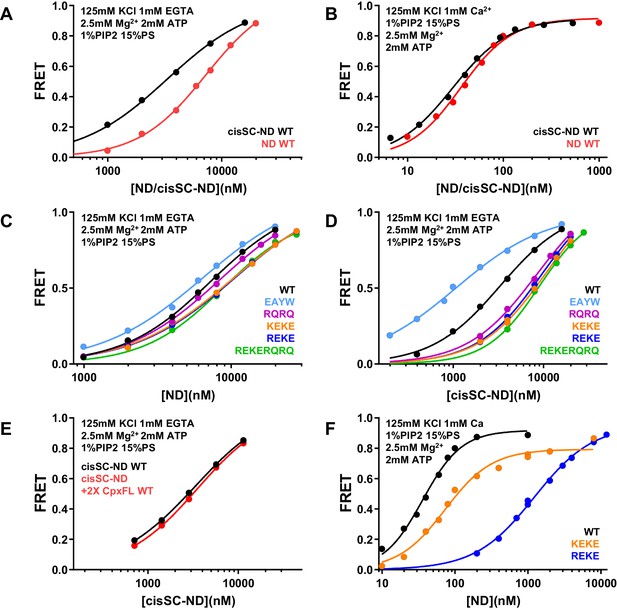

(A–B) FRET efficiencies observed in titrations of WT C2AB* with NDs or cisSC-NDs containing 15% PS, 5% Rho-PE and 1% PIP2 in the presence of 2.5 mM Mg2+ and 2 mM ATP, and 1 mM EGTA plus 50 mM KCl (A), or 1 mM Ca2+ plus 125 mM KCl (B). (C–D) FRET efficiencies observed in titrations of WT, E295A/Y338W (EAYW), R398Q/R399Q (RQRQ), R322E/K325E (REKE), K324E/K326E (KEKE) or R322E/K325E/R398Q/R399Q (REKERQRQ) C2AB* with NDs (C) or cisSC-NDs (D) containing 15% PS, 5% Rho-PE and 1% PIP2 in the presence of 2.5 mM Mg2+, 2 mM ATP, 1 mM EGTA and 50 mM KCl. (E) FRET efficiencies observed in titrations of C2AB* with cisSC-NDs containing 15% PS, 5% Rho-PE and 1% PIP2 in the presence of 2.5 mM Mg2+, 2 mM ATP, 1 mM EGTA and 50 mM KCl, with or without complexin-1. (F) FRET efficiencies observed in titrations of WT, R322E/K325E (REKE) or K324E/K326E (KEKE) C2AB* with NDs containing 15% PS, 5% Rho-PE and 1% PIP2 in the presence of 2.5 mM Mg2+, 2 mM ATP, 1 mM Ca2+ and 125 mM KCl.

To investigate the nature of the Ca2+-independent interaction of C2AB* with cisSC-NDs in the presence of Mg-ATP, we analyzed the effects of mutations on Ca2+-independent binding to NDs and cisSC-NDs. Binding to cisSC-NDs was enhanced by the E295A/Y338W mutation and markedly impaired by the R398Q/R399Q, R322E/K325E, K324E/K326E and R322E/K325E, R398Q/R399Q mutations, whereas all the mutations had small effects on ND binding (Figure 9C–D). The E295A/Y338W mutant bound much tighter to cisSC-NDs than to NDs but all other mutants exhibited similar affinity for NDs and cisSC-NDs (Figure 9—figure supplement 3). These results suggest that, in the presence of Mg-ATP, Ca2+-independent binding of WT C2AB* to the SNARE complex on nanodiscs also involves at least two binding modes mediated by either the primary or the polybasic interface, and the former is stabilized by the E295A/Y338W mutation. We also analyzed whether complexin-1 altered the affinity of WT C2AB* for cisSC-NDs, but did not observe any significant effects (Figure 9E). We also verified that the R322E/K325E mutation disrupts Ca2+-dependent binding to PIP2-containing NDs much more strongly than the K324E/K326E mutation in the presence of Mg-ATP (Figure 9F), confirming the specificity of such impairment under these conditions.

Discussion

Because of the well-established functions of the SNAREs as the engines of membrane fusion and of Syt1 as the Ca2+ sensor that triggers synchronous neurotransmitter release, elucidating the role(s) of Syt1-SNARE interactions is crucial to understand how Ca2+ sensing is coupled to membrane fusion during release. The recent determination of three structures of Syt1-SNARE complexes led to intriguing models of Ca2+-triggered release (Brewer et al., 2015; Zhou et al., 2015; Zhou et al., 2017), but yielded a confusing picture because of the striking differences among the structures. Paradoxically, Ca2+ was generally believed to enhance Syt1-SNARE binding, but the C2 domain Ca2+-binding loops were not involved in SNARE binding in any of the structures. Together with available data, the study presented here suggests that Syt1 binds to the SNARE complex before Ca2+ influx, most likely through the primary interface, and that Ca2+ actually releases this interaction, inducing tight membrane binding that involves specific interactions of the C2B polybasic region with PIP2. We propose that the Syt1-SNARE complex keeps the release machinery in a state that hinders membrane fusion but at the same time is ready for fast release when Ca2+ induces binding of the Syt1 Ca2+-binding loops to the membrane, releasing the Syt1-SNARE interaction and enabling cooperation between Syt1 and the SNAREs in membrane fusion (Figure 10).

Working model for the function of Syt1 in neurotransmitter release.

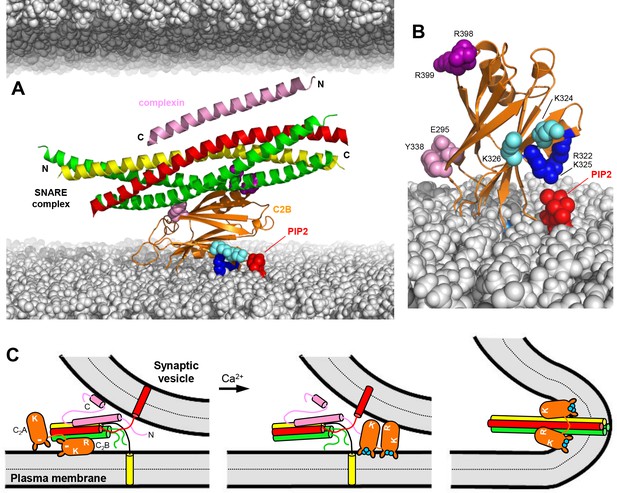

(A) Model of how the Syt1 C2B domain (orange) can bind to the SNARE complex (syntaxin-1 yellow, SNAP-25 green, synaptobrevin red) through the primary interface and at the same time to the plasma membrane through the polybasic region. Complexin-1 (26–83) bound to the other side of the SNARE complex is also shown (pink). The N- and C-termini of the SNARE for-helix bundle and complexin-1 (26–83) are indicated. The plasma membrane is shown below and the vesicle membrane above (both in gray). The model shows how, in this orientation, K324 and K326 (cyan spheres) on one side of a β-strand are readily accessible for binding to PIP2 (red) on the plasma membrane, similar to R322 and K325 (dark blue spheres) on the other side of the same β-strand. R398 and R399 are shown as purple spheres, and E295 and Y338 as pink spheres. The model also shows how this binding mode hinders C-terminal zippering of the SNARE complex because the C-terminus of the syntaxin-1 SNARE motif would be far from the plasma membrane. Complexin-1 also hinders zippering because its accessory helix bumps with the vesicle membrane. The model was constructed by superimposing the structures of the complexes formed by the SNARE complex with the C2B domain and complexin-1 (26–83) (PDB accession codes 5kj7 and 1KIL). (B) Model showing how Ca2+-induced insertion of the Syt1 C2B domain Ca2+-binding loops into the plasma membrane is expected to yield an approximately perpendicular orientation that allows binding of R322 and K325 to PIP2, whereas K324 and K326 cannot reach PIP2 because they point in the opposite direction. (C) Proposed model of neurotransmitter release whereby the Syt1 C2B domain is bound to the SNARE complex and the plasma membrane before Ca2+ influx, while complexin-1 is bound on the other side (as shown in more detail in panel A). The N- and C-terminal sequences of complexin-1 are shown as pink curves that represent unfolded structure, except for a helix at the C-terminus that is believed to bind to the vesicle membrane (Snead et al., 2014). The location of the Syt1 C2A domain is arbitrary. The polybasic region of C2B is indicated by K, while R398,R399 at the bottom of C2B is indicated by an R. A basic sequence at the bottom of C2A is indicated by K. The model proposes that the inhibition of membrane fusion in this state is rapidly relieved by Ca2+- and PIP2-dependent binding of both Syt1 C2 domains to the plasma membrane, releasing the interaction with the SNAREs and bridging the two membranes (middle panel) to facilitate C-terminal SNARE zippering (Ca2+ ions shown as blue circles). Induction of positive curvature by insertion of the C2 domain Ca2+-binding loops into the membranes may cooperate with SNARE zippering in catalyzing membrane fusion (right panel). Note that the curvature of the membrane fusion diagram in the plane perpendicular to the paper is positive.

To rationalize the immense amount of data available on Syt1-SNARE interactions, it is crucial to decipher which data reflect physiologically relevant interactions and which arise from the promiscuity of these proteins, the lack of key components in a reduced system and/or the choice of experimental conditions. This task is hindered by the fact that relevant interactions may be necessarily weak because of the very nature of this dynamic system, which is expected to undergo quick, drastic rearrangements during the events that lead to fast membrane fusion upon Ca2+ influx. Weak interactions can be dramatically enhanced by co-localization within the confines of a primed synaptic vesicle, but they must be distinguished from other, perhaps stronger but irrelevant interactions that are detectable in vitro (Magdziarek et al., 2020). Another complicating aspect is that basic sequences such as the polybasic region and R398,R399 can bind to SNAREs and to membranes, both of which are acidic, and binding to a wrong molecule can occur in the absence of the bona fide target. Perhaps the most confusing factor was the observation by multiple labs that Ca2+ strongly enhanced binding of Syt1 to SNAREs or SNARE complexes in solution (see introduction), leading to the widespread belief that elucidating how Ca2+-bound Syt1 binds to the SNARE complex was a ‘Holy Grail’ to understand neurotransmitter release. However, it now seems clear that Ca2+ releases Syt1 from SNARE complexes anchored on PIP2-containing membranes such as the plasma membrane and that the Ca2+-induced increase in Syt1-SNARE binding in solution arose merely because Ca2+ increases the positive electrostatic potential of the Syt1 C2 domains (Fernandez et al., 2001; Shao et al., 1997). This enhanced Syt1-SNARE affinity is offset by the specific, Ca2+ -dependent interaction of Syt1 with PIP2-containing membranes, which is incompatible with SNARE complex binding and is much stronger. This key conclusion arises from several lines of evidence.

First, our titrations with NDs and cisSC-NDs show that physiological conditions including Mg-ATP almost abolish Ca2+-dependent binding of C2AB* to the SNARE complex anchored on PIP2-containing membranes (Figure 9B), consistent with previous results (Park et al., 2015). A previous study reported that Syt1-SNARE complex interactions persist in the presence of ATP (Wang et al., 2016), but this conclusion was tested only in the absence of Ca2+ and is thus consistent with our results (Figure 9A).

Second, and particularly important is the observation of the high specificity of Ca2+-dependent binding of C2AB* to PIP2-containing NDs, which is disrupted much more strongly by the R322E/K325E mutation than by the K324E/K326E mutation (Figures 6G and 9F), in correlation with the effects of these mutations on neurotransmitter release (Brewer et al., 2015). Note that, remarkably, the striking difference in the effects of the two mutations on Ca2+-dependent binding of C2AB* to PIP2-containing NDs was not observed in Ca2+-dependent binding to NDs lacking PIP2 (Figure 6E) or Ca2+-independent binding to NDs with or without PIP2, and with or without SNARE complex (Figure 6A–D). As explained above, modeling readily explains these observations, as R322 and K325 (but not K324 and K326) are expected to be well positioned to interact with PIP2 upon Ca2+-induced binding of the C2B domain to the membrane (Figure 10B). In the absence of Ca2+, insertion of the Ca2+-binding loops into the membrane is hindered by the negative charge of the loops (Fernandez et al., 2001) and, consequently, more parallel orientations of the C2B domain with respect to the membrane that allow simultaneous binding of the primary interface to the SNARE complex (Figure 10A) are favored. These parallel orientations bring K324 and K326 near the membrane and hence PIP2 can readily interact with these residues as well as with R322 and K325.

Third, binding of the C2B domain to the membrane in the perpendicular orientation induced by Ca2+ and PIP2 is incompatible with the binding modes observed in the three structures of Syt1-SNARE complexes that have been determined. The elongated SNARE complex could not remain membrane-anchored or would have strong steric clashes if it remained bound to the C2B domain through the primary or tripartite interfaces, and binding of the SNARE complex to the polybasic region is hindered because this region interacts with PIP2. These conclusions are supported by the observation that highly efficient FRET between C2AB* and the SNARE complex labeled at residue 76 of SNAP-25 was observed under a variety of conditions except for those that allowed Ca2+-dependent binding of C2AB* to PIP2-containing SNARE complex nanodiscs (Figure 8). Note also that the physiological relevance of our NMR structure was supported by the differential disruption of C2B-SNARE complex binding and neurotransmitter release caused by the R322E/K325E and K324E/K326E mutations (Brewer et al., 2015). However, the physiological data can now be explained by the differential effects of these mutations on Ca2+-dependent binding of C2AB* to PIP2-containing membranes (Figures 6G and 9F), which occurs with high affinity (in the low nM range) and is much tighter than SNARE complex binding (Figure 8D).

Syt1 does bind to membrane-anchored SNARE complexes in the absence of Ca2+, even in the presence of ATP (Figure 9AWang et al., 2016). Our NMR studies show that there are two main Ca2+-independent binding modes between the C2B domain and CpxSC in solution (Figure 1) that are mediated by the primary and polybasic interfaces. The strong disruption of CpxSC binding to the primary interface caused by the R398Q/R399Q mutation (Figure 2B,C) shows that R398,R399 contribute substantially to the energy of binding at this interface. E295 and Y338 likely contribute also to the binding energy, but additional mutations will be necessary to assess this contribution, as the E295A/Y338W mutation actually enhances binding (Figure 4). These observations contrast with the finding that co-IP of Syt1 with the SNAREs was not substantially affected by the R398Q/R399Q mutation and was moderately disrupted by the E295A/Y338W mutation (Zhou et al., 2015). This discrepancy might arise because co-IP likely detects SNARE binding to the polybasic region upon membrane solubilization, and depends not only on affinities but also on off rates. The effects of the R398Q/R399Q and E295A/Y338W mutations observed by NMR correlate with those observed on Ca2+-independent binding of C2AB* to cisSC-NDs (Figures 6B,D, 7A, 8 and 9D), showing that binding to the SNARE complex on the nanodiscs is mediated in part by the primary interface. However, the R322E/K325E and K324E/K326E mutations also decreased the differences in the affinities of C2AB* for NDs and cisSC-NDs (Figure 6—figure supplements 13; Figure 9—figure supplement 3), indicating that there are additional binding modes where the C2B polybasic region interacts with the SNAREs. These other binding modes are unlikely to be biologically relevant, as the K324E/K326E mutation does not impair neurotransmitter release substantially (Brewer et al., 2015).

The functional importance of binding of Syt1 to the SNARE complex through the primary interface is overwhelmingly supported by physiological data (Guan et al., 2017; Zhou et al., 2015). Hence, it is most likely that binding of C2AB* to the SNARE complex in cisSC-NDs through the polybasic region arises from limitations of our in vitro experiments and that Syt1 is bound to the SNARE complex through the primary interface before Ca2+ influx. Although this interaction is rather weak, it is likely to be dramatically stabilized by co-localization at the site of fusion and may be favored over other binding modes by other factors. For instance, our experiments used 1% PIP2, which corresponds to the average PIP2 content of the plasma membrane, but clusters containing 6% PIP2 have been detected (James et al., 2008; van den Bogaart et al., 2011). High PIP2 concentration should favor simultaneous binding of the C2B domain polybasic region to this lipid and of the primary interface to the SNARE complex (Figure 10A,C). Such a state has been observed by cryo-EM on lipid nanotubes, albeit at limited resolution (Grushin et al., 2019). The structure revealed a slanted orientation of the SNARE complex that should hinder full zippering at the C-terminus and was disrupted by Ca2+. It is unclear whether the orientation was dictated by helical packing on the nanotubes and whether Ca2+ disrupted such packing, but these results are consistent with the notion that Ca2+ releases the interaction between Syt1 and membrane-anchored SNARE complexes. Even if the SNARE complex is less slanted in the primed state, a more parallel orientation of the SNARE complex with respect to the membrane (e.g. Figure 10A) would still hinder C-terminal zippering, which could explain the increase in spontaneous release observed in Syt1 KO mice (Xu et al., 2009). The proposed state is also consistent with the observation that complexin-1 does not alter the affinity of C2AB* for cisSC-NDs (Figure 9E), as complexin-1 and Syt1 bind to opposite sides of the SNARE complex (Figure 10A). In this state, the helix formed by complexin-1 would point toward the vesicle membrane (Figure 10A,C), also hindering SNARE complex zippering (Trimbuch et al., 2014). This model provides a basis for the findings that complexin-1 is required for the dominant negative effect of Syt1 bearing mutations in the C2B domain Ca2+-binding sites (Zhou et al., 2017) and that Syt1 is necessary for the inhibition of spontaneous release by complexin in Drosophila (Jorquera et al., 2012).

Our finding that the R398Q/R399Q mutation strongly disrupts binding of the C2B domain to the SNARE complex through the primary interface (Figure 2B,C) suggests that such disruption underlies the dramatic impairment of Ca2+-evoked neurotransmitter release caused by this mutation, as well as the abrogation of clamping of spontaneous release by Syt1 (Xue et al., 2008; Zhou et al., 2015). The E295A/Y338W mutation in the primary interface also disrupted neurotransmitter release but still allowed clamping of spontaneous release, which resembles the phenotype observed for the R322E/K325E mutation in the polybasic region (Zhou et al., 2015). These findings are readily explained by our model and our biochemical data, as the E295A/Y338W enhances (rather than weakens) Ca2+-independent binding of Syt1 to the SNARE complex (Figures 4, 7A, 8 and 9D) and hence hinders release of the inhibitory Syt1-SNARE interaction. Similarly, the R322E/K325E mutation impairs Ca2+- and PIP2-dependent membrane binding, which is critical to release this inhibitory interaction.

Altogether, the available data support the notion that, before Ca2+ influx, the trans-SNARE complex, complexin-1 and Syt1 form a macromolecular assembly between the vesicle and plasma membranes that inhibits release but is ready to trigger fast membrane fusion upon Ca2+ influx because it brings Syt1 close to the SNAREs (Figure 10C left panel). In this model, Ca2+ triggers tight, specific binding of the C2B domain to PIP2 and other lipids in the plasma membrane while binding of C2B to the SNARE complex is released. The mechanisms underlying the last events leading to membrane fusion are still unclear, but we speculate that the Syt1 C2 domains bridge the vesicle and plasma membranes (Araç et al., 2006Figure 10C, middle panel). This action could cooperate with the SNAREs in bringing the membranes together, and insertion of the C2 domain Ca2+-binding loops into the membrane can induce membrane curvature (Martens et al., 2007) to facilitate membrane fusion (Figure 10C, right panel). Note that R398,R399 are critical for the membrane-membrane bridging activity of Syt1 and therefore the strong disruption of neurotransmitter release caused by mutating these arginines might arise from impairment of this activity (Araç et al., 2006; Xue et al., 2008) in addition to abrogating SNARE binding.

Clearly, the proposed model needs further testing and multiple aspects need to be unraveled to understand the mechanism of neurotransmitter release. Thus, syntaxin-1 is known to form clusters on the plasma membrane (Khuong et al., 2013), and formation of Syt1 oligomers has been proposed to underlie the primed state and to exert an inhibitory activity that is released by Ca2+ (Wang et al., 2017). Such clusters and oligomers could not be present in our nanodisc experiments. However, the Syt1 oligomers are compatible with the state proposed in Figure 10A (Tagliatti et al., 2020) and hence can be readily incorporated into the model of Figure 10C. Note also that, while our NMR studies could not detect binding of the Syt1 C2B domain to CpxSC through the tripartite interface (Figures 2E and 3), it is premature to completely rule out the relevance of the tripartite structure given the potential functional importance of very weak interactions (Magdziarek et al., 2020). Nevertheless, it is also premature to accept this structure as physiologically relevant, and further evidence for such relevance needs to be obtained, ideally using mutations that exclusively replace residues in the interface rather than interior residues that are important for protein stability. The model of Figure 10 provides a strong foundation to address these issues and incorporate additional proteins that may play key roles in the last steps of neurotransmitter release.

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
Recombinant DNA reagentpGEX-KG-GST-Syt1_C2BBrewer et al., 2015Protein expression plasmid for E. coli (rat synaptotagmin-1 C2AB domain, residues 271–421)
Recombinant DNA reagentpGEX-KG-GST-Syt1_C2ABAraç et al., 2006Protein expression plasmid for E. coli (rat synaptotagmin-1 C2AB domain, residues 140–421)
Recombinant DNA reagentpMSP1E3D1Addgene20066Protein expression plasmid for E. coli (MSP1E3D1)
Chemical compound, drugDEUTERIUM OXIDE (D, 99.8%)Cambridge Isotope Laboratories, IncDLM-4–99.8
Chemical compound, drugAMMONIUM CHLORIDE (15N, 99%)Cambridge Isotope Laboratories, IncNLM-467
Chemical compound, drugD-GLUCOSE (1,2,3,4,5,6,6-D7,97–98%)Cambridge Isotope Laboratories, IncDLM-2062
Chemical compound, drugL-Methionine-(methyl-13C)Sigma-aldrich299146
Chemical compound, drug2-Ketobutyric acid-4–13C,3,3-d2 sodium salt hydrateSigma-aldrich589276
Chemical compound, drugPCAvanti polar lipid8504571-palmitoyl-2-oleoyl-glycero-3-phosphocholine
Chemical compound, drugPSAvanti polar lipid8400351,2-dioleoyl-sn-glycero-3-phospho-L-serine (sodium salt)
Chemical compound, drugPIP2Avanti polar lipid840046L-α-phosphatidylinositol-4,5-bisphosphate (Brain, Porcine) (ammonium salt)
Chemical compound, drugRhoPEAvanti polar lipid8101581,2-dipalmitoyl-sn-glycero-3-phosphoethanolamine-N-(lissamine rhodamine B sulfonyl) (ammonium salt)
Chemical compound, drugTetramethylrhodamine-5-MaleimideInvitrogenT-6027
Chemical compound, drugAlexa Fluor488 C5 MaleimideThermo Fisher ScientificA10254
Chemical compound, drugβ-OG (octyl-beta-glucoside)Gold biotechnologyO-110–50
Chemical compound, drugDetergent Removal ResinThermo Fisher Scientific87780

Protein expression and purification

Request a detailed protocol

Constructs to express the following proteins or protein fragments were described previously: rat synaptobrevin-2 SNARE motif (residues 29–93), rat synaptobrevin-2 (residues 49–93), human SNAP-25A fragments encoding its SNARE motifs (residues 11–82 and 141–203), full-length rat synaptobrevin, full-length rat syntaxin-1A, rat syntaxin-1A (residues 191–253), rat syntaxin-1A (residues 2–253), human SNAP-25A (residues 11–82 and 141–203), rat synaptotagmin-1 C2B domain with a C277A mutation (residues 271–421; referred to as WT C2B domain), the same rat synaptotagmin-1 fragment with a R398Q/R399Q mutation, rat synaptotagmin-1 C2AB fragment with a C277A mutation (residues 140–421), full-length rat complexin-1, rat complexin-1 (residues 26–83) and MSP1E3D1 (pMSP1E3D1 was a kind gift from Stephen Sligar; Addgene plasmid # 20066; http://n2t.net/addgene:20066; RRID:Addgene_20066) (Araç et al., 2006; Brewer et al., 2015; Chen et al., 2006; Chen et al., 2008; Chen et al., 2002; Denisov et al., 2007; Ma et al., 2013; Xu et al., 2013; Zhou et al., 2013). All these proteins were expressed in E. coli BL21 (DE3) cells and purified as previously described in these references, with the following exceptions.

The synaptobrevin-2(29–93), syntaxin-1A (191–253), SNAP-25A(11–82), SNAP-25A(141–203) and complexin-1(26–83) fragments were expressed E. coli BL21 (DE3) cells with the pET-duet vector. Both SNAP-25 fragments included tryptophan at the N-terminus to facilitate detection by UV spectroscopy. Cells were harvested and re-suspended in PBS pH 7.4 with 10 mM imidazole and supplemented with Sigma protease inhibitors (P2714-1BTL). Cleared lysates were applied to Ni-NTA resin (Thermo Fisher), washed with PBS pH 7.4 with 10 mM imidazole, PBS pH 7.4 with 10 mM imidazole and 10% Triton, PBS pH 7.4 with 10 mM imidazole and 1 M NaCl, and eluted in PBS pH 7.4, 500 mM imidazole. The affinity tag was cleaved with TEV protease overnight at 4°C in PBS pH 7.4. After affinity tag cleavage, all proteins were further purified using size exclusion chromatography on a Superdex 75 column (GE 16/60) equilibrated with 20 mM Tris pH 7.4 125 mM NaCl. MSP1E3D1 was expressed in E. coli BL21 (DE3) cells grown in Terrific broth media to OD600 = 2.0, then induced with 1 mM Isopropylβ-D-1-thiogalactopyranoside (IPTG) for 4 hr at 37°C. Cells were re-suspended in 40 mM Tris pH 8.0 300 mM NaCl 1% TritonX-100 5 mM Imidazole containing Sigma protease inhibitors (P2714-1BTL) and lysed using an Avestin EmulsiFlex-C5 homogenizer. The soluble fraction of the cell lysate was collected after centrifugation at 48,000 x g for 45 min and incubated with Ni-NTA resin (Thermo Fisher) for 2 hr at 4°C. The resin was washed with the following buffers sequentially: 40 mM Tris pH 8.0 300 mM NaCl 1% Triton, 40 mM Tris pH 8.0 300 mM NaCl 50 mM Sodium Cholate 20 mM Imidazole and 40 mM Tris pH 8.0 300 mM NaCl 50 mM Imidazole followed by elution using 40 mM Tris pH 8.0 300 mM NaCl 500 mM imidazole. This was followed by size exclusion chromatography on a Superdex 200 column (GE 16/60) in 20 mM Tris pH 7.4 100 mM NaCl 0.5 mM EDTA.

Expression vectors for mutant proteins were generated using a combination of the QuickChange site-directed mutagenesis kit (Strategene) and standard PCR-based techniques with custom designed primers. These mutants included: Syt1 C2B (residues 271–421) E295A/Y338W, L387Q/L394Q, R398Q, R399Q, R322E/K325E, and R322E/K325E/R399Q/R398Q; Syt1 C2AB (residues 140–421) C277A/E346C (referred to as WT C2AB*), C277A/E346C/R398Q/R399Q, C277A/E346C/R322E/K325E, C277A,E346C,R322E/K325E/R398Q/R399Q, C277A/E346C/E295A/Y338W and C277A/E346C/K324E/K326E; and SNAP-25 (residues 11–82) R16C, Q34C and K76C. All mutant proteins were purified as the WT proteins, including 0.5 mM TCEP in the final purification step for cysteine containing proteins. Isotopically labeled and perdeuterated Syt1 C2B domain and Cpx-1 (26–83) fragments were expressed using M9 expression media in 99.9% D2O with D-glucose (1,2,3,4,5,6,6-D7, 97–98%) as the sole carbon source (3 g/L) and 15NH4Cl as the sole nitrogen source (1 g/L). Specific 13CH3-labeling at the Met and Ile δ1 methyl groups of Syt1 C2B domain fragments was achieved by adding [3,3–2H] 13C-methyl α-ketobutyric acid (80 mg/L) and 13C-methyl methionine (250 mg/L) (Cambridge Isotope Laboratories) to the cell cultures 30 min prior to IPTG induction.

Assembly of soluble SNARE complex for NMR experiments

Request a detailed protocol

The SNARE motifs were mixed in the equimolar ratio in following order: synaptobrevin-2 (29–93), SNAP-25A(141–203), SNAP-25A(11–82) and syntaxin-1A (191–253), in the presence of 1 M NaCl. The mixture contained the following protease inhibitors (protease inhibitor cocktail A): Antipain Dihydrochloride 0.016 mg/ml (Thermo Fischer Scientific: 50488492); Leupeptin 0.33 mg/ml (Gold Bio: L01025); Aprotinin 0.08 mg/ml (Gold Bio: A655100). The assembly reaction was incubated in room temperature overnight while rotating. The SNARE motifs that did not incorporate into complex were removed by concentration-dilution at room temperature using 30 kDa molecular weight cutoff (MWCO) Amicon centrifugation filters.

Syt1 C2B domain/SNARE complex solubility tests

Request a detailed protocol

Samples containing 80 µM WT Syt1 C2B domain were mixed with 30 µM SNARE complex +/- Complexin-1 (26–83) in 20 mM HEPES, 125 mM KCl, 1 mM CaCl2, pH 7.4. The total reaction volume was 30 µl. After mixing, the UV spectra of both samples were acquired using Nanodrop (Thermofisher). Next, the samples were centrifuged at 13,000 rpm for 5 min spin in a benchtop centrifuge (Eppendorf). The UV spectra of both samples were acquired again after centrifugation.

NMR spectroscopy

Request a detailed protocol

All NMR spectra were acquired at 25°C on Agilent DD2 spectrometers operating at 600 or 800 MHz and equipped with cold probes. 1H-15N TROSY HSQC and 1H-13 HMQC spectra were acquired on samples with 10% D2O as the solvent. For titrations of WT and mutant Syt1 C2B domains with SNARE-Complexin-1 (26–83) complex, assembled soluble SNARE complex was concentrated at room temperature to a concentration above 250 μM using 30 kDa (Amicon) centrifugation filters and buffer exchanged into 20 mM HEPES containing 1 mM TCEP and 100 or 125 mM KCl 10% D2O buffer using Zeba Spin Desalting Columns, 7K MWCO, 10 mL (Thermofisher). Complexin-1 (26–83) was also concentrated above 250 μM using 3 kDa (Amicon) centrifugation filters and buffer exchanged to matching buffer. SNARE-Complexin-1 (26–83) complex was preassembled before mixing with C2B Syt-1 fragment with 20% excess Complexin-1 (26–83), and 1 mM EDTA or 1 mM CaCl2 were included in the mix depending on the final sample buffer. After cation exchange, the corresponding 2H,15N-IM-13CH3-C2B domain fragment was buffer exchanged using a PD-10 Desalting Column (GE Healthcare) to matching buffer. Final samples containing 32 μM C2B domain were prepared by adding 1 mM EDTA or 1 mM CaCl2 and protease inhibitor cocktail A. 1H-15N TROSY-HSQC and 1H-13C HMQC spectra were acquired first for the isolated C2B domain and then with the same sample after adding increasing concentrations of complexin-1 (26–83)/SNARE complex. The concentrations for each titration step for each mutant are indicated in the figure legends. For titrations of 2H,15N-CpxSC with WT and R322E/K325E/R398Q/R399Q mutant Syt1 C2B domains, the proteins were prepared by the same procedures described above. 2H,15N-CpxSC was formed with 2H,15N-Cpx1(26-83) and 12.5% excess assembled soluble SNARE complex. 1H,15N TROSY-HSQC spectra were acquired for 2H,15N-CpxSC alone and for 40 μM 2H,15N-CpxSC in the presence of 40 μM WT or R322E/K325E/R398Q/R399Q mutant Syt1 C2B domain in 20 mM HEPES 100 mM KCl 1 mM EDTA 1 mM TCEP. All NMR samples included protease inhibitor cocktail A. Total acquisition times ranged from 3.5 to 87.5 hr, depending on the sensitivity of the spectra. NMR data were processed with NMRPipe (Delaglio et al., 1995) and analyzed with NMRView (Johnson and Blevins, 1994).

Labeling proteins with Alexa fluor 488 and tetramethylrhodamine (TMR)

Request a detailed protocol

Single cysteine mutants of Synaptotagmin-1 C2AB (140-421) were labeled with Alexa488 using maleimide reactions with Alexa Fluor488 C5 Maleimide reagent from Thermo Fisher Scientific (A10254). Synaptotagmin-1 C2AB single cysteine mutants were first buffer exchanged into 20 mM HEPES pH 7.4 125 mM KCl 0.5 mM TCEP using concentration and dilution. Buffer exchanged proteins at a concentration of 100–150 μM were incubated with 10-fold excess dye for 4 hr at room temperature or overnight at 4°C. The reaction was quenched by addition of 10 mM DTT. Unreacted dye was separated from labeled protein through cation exchange chromatography on a HiTrap SP column (GE) in 50 mM Sodium Acetate pH 6.2 (Buffer A) using a linear gradient from 0 to 1000 mM NaCl. Prior to elution, the column with the bound protein was washed with 100 mL of buffer A. Single cysteine mutants of SNAP-25A(11-82) were labeled with TMR using maleimide reactions with TMR-5-Maleimide reagent from Thermo Fisher Scientific (T6027). Proteins were first buffer exchanged into 20 mM HEPES pH 7.4 125 mM KCl 0.5 mM TCEP using concentration dilution. Buffer exchanged proteins at a concentration of 100–150 μM were incubated with 10-fold excess dye for 4 hr at room temperature or overnight at 4°C. The reaction was quenched by addition of 10 mM DTT. Unreacted dye was separated from the labeled protein by using two runs on PD Miditrap G25 column followed by size exclusion chromatography on Superdex 75 column (GE 10/300 or 16/60). The concentration and the labeling efficiency of the tagged proteins were determined by using UV-vis absorbance and a Bradford assay.

Preparation of nanodiscs, cisSC-nanodiscs and transSC-nanodiscs

Request a detailed protocol

Appropriate lipid mixtures (specific to each experiment as indicated in the figures and Supplementary file 1) were prepared by mixing chloroform stocks in glass test tubes. These mixtures were dried under a stream of nitrogen and stored overnight in a vacuum desiccator. The lipids were solubilized in a 20 mM HEPES pH 7.4 125 mM KCl 1% β-OG (octyl-beta-glucoside) buffer by vortexing for 5 min. To form nanodiscs, MSP1E3D1 was incubated with solubilized lipids at a ratio of 1:110 in the presence of 1% β-OG (final concentration) at 4°C for 30 min. The mixture was passed over a 4 cm-high Thermo Scientific Pierce Detergent Removal Resin (87780) column (approximately 3 mL of the slurry; the final volume of the mixture was always between 3–4 mL). The nanodiscs were further purified by size exclusion chromatography using a Superdex 200 column (GE 16/60). Appropriate fractions were pooled and concentrated to a desired concentration using a 30 kDa MWCO Amicon centrigufation filter.

To prepare cisSC-NDs, detergent solubilized cisSNARE-complex was formed by incubating 10 μM full-length rat syntaxin-1A with 15 μM of synaptobrevin-2 (29–93), SNAP-25A(11-82) and SNAP-25A(141-203) in the presence of 1% β−OG, 0.5 M NaCl and protease inhibitor cocktail A overnight at 4°C. To obtain transSC-NDs, we first prepared detergent solubilized activated t-SNARE complex [see Prinslow et al., 2019 by incubating 10 μM full-length syntaxin-1A with 15 μM synaptobrevin-2 (49–93), SNAP-25A(11-82) and SNAP-25A(141-203) in the presence of 1% β-OG, 0.5 M NaCl and protease inhibitor cocktail A overnight at 4°C. For incorporation into nanodiscs, cisSNARE-complex, activated t-SNARE-complex or full-length synaptobrevin-2 were mixed with MSP1E3D1 and solubilized lipids at a ratio of 1:3:300 and incubated at 4°C for 30 min. The detergent was removed using Thermo Scientific Pierce Detergent Removal Resin, as described for the isolated nanodiscs, and size exclusion chromatography using a Superdex 200 column (GE 16/60). Fractions from size exclusion chromatography were assessed by SDS-PAGE and fractions that contained approximately one cisSNARE-complex, activated t-SNARE-complex or full-length synaptobrevin-2 per 2 MSP1E3D1 molecules were pooled together, mixed with protease inhibitor cocktail A and concentrated. TransSNARE-complex was formed by incubating nanodiscs containing activated t-SNARE complex with 2-fold excess of synaptobrevin nanodiscs overnight at 4°C. This method leads to quantitative formation of trans-SNARE complexes between nanodiscs based on the complete release of the synaptobrevin-2 (49–93) peptide, which was assessed by labeling the peptide with 15N and acquiring 1H-15N HSQC spectra, or labeling the peptide with Cy5 at residue 79 and monitoring the fluorescence anisotropy of the dye. For experiments comparing binding of C2AB* to cisSC-NDs and transSC-NDs, the cisSC-NDs were formed by incubating nanodiscs containing activated t-SNARE complex with 2-fold excess of synaptobrevin-2 (29–93) overnight at 4°C.

To estimate the concentration of the resulting ND, cisSC-ND or transSC-ND samples, a stock solution of solubilized lipids containing 5% RhoPE was prepared as previously described in the Materials and methods section. Dilutions of this stock solution were made and the absorbance at 570 nm was measured to make a standard curve. Samples were solubilized in 1% b-OG and their absorbance at 570 nm was measured. This measurement and the standard curve were used to estimate the total lipids in nanodisc samples. The total lipid concentration was divided by 200 to get the approximate concentration of the nanodiscs.

To estimate the concentration of SNARE complex samples formed using SNAP-25(11–82) R16C, Q34C or K76C labeled with tetramethylrhodamine, the dye absorbance at 555 nm was used. For this purpose, the extinction coefficient of tetramethylrhodamine at 555 nm in 20 mM HEPES pH 7.4 125 mM KCl buffer was first determined from a standard curve obtained from the absorbance at 555 nm of several samples made after serial dilution of a stock solution of Tetramethylrhodamine-5-Maleimide.

Assembly of soluble SNARE complex samples for FRET experiments

Request a detailed protocol

The SNARE motifs were mixed in an equimolar ratio in the following order: synaptobrevin-2 (29–93), SNAP-25A(141–203), SNAP-25A(11–82) K76C labeled with tetramethylrhodamine and syntaxin-1A (191–253) (for mcc) or syntaxin-1A (2–253) (for solubleSC), in the presence of 1 M NaCl. The assembly reaction was incubated in the presence of protease inhibitor cocktail A at room temperature overnight while rotating. The SNARE motifs that did not incorporate into the complex were removed by concentration-dilution at room temperature using 30 kDa Amicon centrifugation filters (Chen et al., 2002). The concentration of the SNARE complex was estimated by using UV-vis absorbance.

FRET assay to monitor binding of Syt1 C2AB* to NDs, cisSC-NDs, transSC-NDs, solubleSC and mcc

Request a detailed protocol

A stock solution of 0.5 µM Alexa 488-tagged C2AB (C2AB*), containing 5 µM BSA (Sigma Aldrich: A3059) to prevent binding of C2AB* to the cuvette, was prepared in the appropriate buffer (20 mM HEPES pH 7.4 and varying amounts of KCl and other components) on the day of the experiment. The ND, cisSC-ND, transSC-ND, solubleSC or mcc stock solutions were buffer exchanged into the proper buffer by using concentration-dilution or during the size exclusion chromatography step. Other components such as 1 mM CaCl2, 1 mM EGTA, 2.5 mM MgCl2, 2 mM ATP or a combination of these reagents were added after the concentration step. All the stock solutions were kept on ice and the buffers were kept at room temperature. The ND samples can be kept on ice and used for experiments during a period of three days in the presence of protease inhibitor cocktail A.

C2AB* fragments at 50 nM concentration were mixed with varying amount of NDs, cisSC-NDs or transSC-NDs in buffer containing 20 mM HEPES pH 7.4 and the concentrations of EGTA, Ca2+, Mg2+, ATP and KCl indicated in the figure legends. Each sample of a titration was prepared freshly by adding 20 µL of the stock C2AB* solution to an appropriate amount of ND, cisSC-ND or transSC-ND in a 1.5 mL Eppendorf tube. Dilutions of the ND stock solutions were used if less than 5 µL of the original stock had to be pipetted to minimize errors caused by pipetting small volumes. The volume was made up to 200 µL by adding buffer. The tube was vortexed for 2-3 s and 180 µL of the solution was pipetted into an SOG cuvette (Fischer Scientific: NC9040289). Emission scan of the sample was immediately collected on a PTI Quantamaster 400 spectrofluorometer (T-format) at room temperature. All slits were set to 1.2 mm. The samples were excited at 480 nm and emission spectra from 500 to 620 nm were acquired. After the scan was collected, the sample was discarded, and the cuvette was washed with water followed by ethanol and dried using a stream of air. Multiple cuvettes were used during the experiment. This did not change the emission scans. Collecting the spectra after 5 min incubation at room temperature also did not change the emission scan. FRET efficiency was calculated using the formula: FRET = (I0 –I)/ I0, where I0 is the fluorescence intensity of 50 nM Syt1 C2AB* at 518 nm and I is the fluorescence intensity of the sample at 518 nm. The binding data were fitted to a Hill function (FRET=Bmax(Ch)/((Kdh)+(Ch)), where C is the concentration of NDs, cisSC-NDs, transSC-NDs or solubleSCs, using GraphPad PRISM7.

Statistics

The titrations of WT and mutant C2AB* with NDs and cisSC-NDs under a variety of conditions and with different lipid compositions were performed over a long period of time as the project developed and the results suggested new experiments to be performed. The data shown in Figures 59 and associated figure supplements, and summarized in Supplementary file 1, correspond to the last sets of experiments performed for presentation in this paper, all of which were consistent with the previous data. Each titration involving a given set of reagents and conditions was repeated at least twice and in most cases three or more times over the course of this work, but a comprehensive statistical analysis for groups of data corresponding to each figure panel is hindered by the fact that the groups of experiments performed previously as the project developed varied (e.g. with regard to which mutants were included). The reproducibility of the data that we obtained in this type of experiments is illustrated in Figure 9—figure supplement 4 by the statistical analysis of the results of independent repeat experiments performed under the conditions of Figure 6G,H with the same set of mutants and three different preparations of NDs and cisSC-NDs. This analysis and, more importantly, the overall consistency of the data obtained in the large number of experiments that we performed strongly support the key conclusions drawn from the titrations.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
    Fluorescence energy transfer studies of purified erythrocyte Ca2+-ATPase Ca2+-regulated activation by oligomerization
    1. D Kosk-Kosicka
    2. T Bzdega
    3. A Wawrzynow
    (1989)
    The Journal of Biological Chemistry 264:19495–19499.
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71

Decision letter

  1. Nils Brose
    Reviewing Editor; Max Planck Institute of Experimental Medicine, Germany
  2. Olga Boudker
    Senior Editor; Weill Cornell Medicine, United States
  3. Angel Perez Lara
    Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The manuscript represents a strong addition to the understanding of the functional interplay between SNAREs, membranes, synaptotagmin and, to a somewhat lesser extent perhaps, complexin in regulated secretion. The authors performed extensive NMR and fluorescence-based binding experiments with wild-type and informative mutant proteins, both in soluble form and (for the SNAREs) embedded in nanodiscs of various compositions. This manuscript will likely be seen as a landmark contribution to the ever-improving understanding of the remarkably complex system of regulated membrane fusion.

Decision letter after peer review:

Thank you for submitting your article "Dissection of Synaptotagmin-1-SNARE complex interactions in solution and on membranes" for consideration by eLife. Your article has been reviewed by Olga Boudker as the Senior Editor, a Reviewing Editor, and three reviewers. The following individuals involved in review of your submission have agreed to reveal their identity: Angel Perez Lara (Reviewer #2).

The reviewers and I have discussed the reviews with one another and I as Reviewing Editor have drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is 'in revision at eLife'. Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

All three reviewers and I agree that your paper is a very good eLife candidate. Our consensus is that your work represents a strong addition to our understanding of the synaptic vesicle fusion process by describing important aspects of the functional interplay between SNAREs, membranes, synaptotagmin, and complexin.

At the same time, the reviewers commented on a series of issues that we think need to be dealt with before your work can be published in eLife. The corresponding comments concern a set of more conceptual, interpretational, and methodological aspects, which can mostly be dealt with by careful revision of the manuscript text (A below), and include suggestions for a set of additional experiments and data analyses that we think are needed to support some of the key conclusions (B below).

Essential Revisions:

A) Conceptual, Interpretational, and Methodological Aspects:

i) While Zhou et al., (2017) used Cpx1-1-83 (crystallography) and Cpx1-48-73 (ITC), the present study employed Cpx1-26-83. This issue needs to be discussed as it may be problematic to compare characteristics of complexes formed with these different Cpx1 constructs. In essence it is possible that the type of Cpx1 fragment contributes to the relative stability and dynamics of the tripartite versus primary interface. Unless comparative experiments with exactly the same constructs are done, it is difficult to resolve discrepancies between the present and previous studies.

ii) Related to the point above (i), the 'assault' on the tripartite complex published by Zhou et al., (2017) appears overdone in some places and not always fully supported by the data. Zhou et al., (2017) really only observed the impact of the tripartite perturbations (LLQQ mainly) when they mutated away the primary interface using the quintuple C2B and quintuple SNAP25. In the present study the equivalent experiment was not done, and different protein fragments were used, so it is not clear if similar observations would have been made with NMR if exactly the same conditions/fragments would have been used. This issue should be taken into account when discussing the study by Zhou et al., (2017).

iii) The present study claims that LLQQ destabilizes Syt1, which then explains the published impact of this variant on synaptic transmission. This should be documented in the evidence as it is a crucial and impactful finding.

iv) Solution-state NMR is closer to physiologically significant conditions than crystallography. However, there are still major unresolved discrepancies between the present data and the ITC data of Zhou et al., (2017), where the experimental conditions are more comparable. In view of this and some other aspects, the 'physiological accuracy' of the experimental conditions in the present study appears oversold.

v) The discussion of the nanodisc-based data should consider the fact that clusters of SNAREs or Syt1 cannot form under these conditions even though these clusters do/may exist under physiological conditions and thus impose specific constraints on the prefusion complex and its relative stability. In essence, there is a possibility that physiologically important complexes are missed in the nanodisc scenario.

vi) In the study by Zhou et al., (2015), the destruction of the primary interface eliminated Syt1 function for both Ca2+-triggered fusion and inhibition of spontaneous release (clamping function), while the REKE and EAYW both strongly impaired Ca2+-triggered fusion without disrupting clamping. These perturbations occur on opposite sides of the β sandwich pointing in opposite directions and yet they cause very similar phenotypes at the synapse. Do both perturbations stabilize the primary interface at the expense of some other competitive interaction required for breaking the clamp upon Ca2+ binding? Or is there another interface not utilized during clamping but important for fusion that both these regions could contribute to? None of the three model interfaces (polybasic, primary, tripartite) simultaneously incorporate the RK and EY residue pairs at a shared interface. The authors of the present study should elaborate on the effects of REKE and EAYW in this context, perhaps by clarifying their own thinking on the issue.

B) Additional Data Analyses and Experiments:

i) The interpretation of NMR results is based on crystal structures. ITC experiments indicate a SNARE:C2B ratio of 2:1 – thus some of the results could be explained by cooperativity effects instead of competition between different binding sites. This should be analysed/discussed.

ii) In order to properly compare the Syt1 RQRQ, REKE, KEKE, and REKERQRQ variants, cooperativity factors need to be determined in order to assess the contribution of SNARE binding vs. membrane binding. Corresponding analyses of the WT, REKE, and RQRQ variants would suffice.

iii) To distinguish effects of variants on SNARE vs. membrane binding, additional experiments in the absence of anionic phospholipids are important. For instance, SNAP-25 could be used to monitor Syt11 C2AB binding (RQRQ, REKE, KEKE and REKERQRQ) to SNAREs using nanodisc with or without PS and PIP2, and with and without calcium. This would provide insight into the relative contribution of SNARE binding vs. membrane binding. Corresponding analyses of the WT, REKE, and RQRQ variants would suffice.

iv) Cooperativity factors (KD cisSC-ND/KD ND, KD cisSC-ND/KD cisSC-ND, KD ND/KD ND ratios) in the presence and absence of ATP/magnesium need to be determined, compared, and discussed.

[Editors' note: further revisions were suggested, as described below.]

Reviewer #1:

I continue to be enthusiastic about this manuscript, which I think is substantially above the bar for publishing in eLife. For reference, I am including below my original, positive review (slightly edited).

This manuscript represents a strong addition to our understanding of the functional interplay between SNAREs, membranes, synaptotagmin and, to a somewhat lesser extent perhaps, complexin. The authors have performed extensive NMR and fluorescence-based binding experiments with wild-type and informative mutant proteins, both in soluble form and (for the SNAREs) embedded in nanodiscs of various compositions. Although at first I found the sheer length of the manuscript daunting, I became convinced as I read it that the length is justified by the wealth of data and the need to carefully integrate the results with the extensive existing literature. I think the authors have succeeded to an impressive degree, and that this manuscript will be seen as a landmark contribution to our ever-improving understanding of this remarkably complex system.

There are many, many interesting results, but I would point single out three as deserving of special mention:

1. The striking differences, in vivo and in vitro, between two different double mutants (R322E/K325E versus K324E/K326E) in the same portion of synaptotagmin's polybasic region. The former has a much stronger effect that the latter on both PIP2-dependent membrane binding (this work) and neurotransmitter release (Brewer 2015). This can be beautifully reconciled by a detailed consideration of how the calcium-binding loops and the polybasic region cooperate in membrane binding of Ca2+-bound synaptotagmin (see Fig. 10B) and thereby promote fusion.

2. The remarkable finding that the E295A/Y338W mutation in the primary interface, previously claimed to abrogate synaptotagmin-SNARE binding (Zhou 2015), actually strengthens it. Given that this mutation compromises neurotransmitter release, the results highlight that overly avid binding can be as deleterious as compromised binding in vivo. I'm not sure why the Brunger lab reached the opposite conclusion about the impact of this double mutation on in vitro binding (Zhou 2015), but I found the results presented here to be convincing.

3. The strong implication that the tripartite SNARE:synaptotagmin:complexin interface, which was the main point of the Brunger lab's Nature paper and supported by ITC analysis of wild-type and mutant proteins (Zhou 2017), is a nonetheless a crystallization artifact, possibly induced by the artificial tether used in that work to link synaptotagmin to the SNARE bundle. Further work is underway, in collaboration with the Brunger lab, to resolve the contradiction, but my hunch is that the tripartite interface may not actually be physiologically important.

This manuscript represents an enormous amount of careful work, complemented by a highly intelligent and generally quite balanced synthesis of previous data from the author's and other labs. As such, I believe that it will be viewed as essential reading for anyone interested in the question of how, at a molecular mechanistic level, synaptic vesicles fuse in response to calcium.

Reviewer #2:

The authors have addressed my main concerns. They have carried out the requested experiments in order to clarify and support their conclusions. They have re-analyzed the results and re-written the manuscript regarding to the new data analysis and results. However, I still have one major concern:

I agree with authors that the stoichiometry for the binding of the SNARE complex to the C2B domain has not been reported but, as we can see in figure 3 b and d from Zhou Q et al., ITC results suggest a number of binding site (N) around 0.5 , what means 2 SNARE complex: 1 C2B domain stoichiometry. Additionally, this binding mode was suggested in the Extended Data Figure 9 of the same paper. Furthermore, ITC results argue against 1 C2B domain per SNARE complex, taking into account that the plateau starts around 1 molar ratio.

The authors claim "... that there is an interplay between binding of CpxSC to the primary interface and to the polybasic region. CpxSC appears to bind exclusively to one or the other site at low concentrations, likely because of steric hindrance disfavors simultaneous binding of two CpxSC complexes to one C2B domain. However, simultaneous binding to both sites might be allowed at higher CpxSC concentrations by slight alterations in both binding modes, leading to the curved cross-peak movement.'

I have some concerns about this issue. Taking into account the design of the ITC experiment (see above), at the very beginning we would get 2:1 stoichiometry for binding of the SNARE complex to the C2B domain because of there is a high concentration of complex against the low concentration of C2 domain. However, as we are injecting C2 domain, in a competition scenario, the experiment should present a number of binding site of 1 instead around 0.5, because of the increase of the C2 domain concentration will decrease the CpxSC:C2 domain ratio and , as consequence, several C2 domains will be accessible for competition per CpxSC complex. In addition, we can observe a chemical shift at low concentrations in the polybasic region (K327, K369 and K325) in the EAYW mutant (Fig. 4 C of the manuscript). Could it be possible a scenario in which two CpxSC complexes bind to 1 C2 domain ( even at low concentration of CpxSC complex) and the different mutations tune the interplay of the polybasic region and primary interface ( maybe even promoting different binding modes), giving the observed NMR results? We have to take into account that the binding is dynamic (as reported previously Brewer et al., 2015).

Despite of the above comments, I am aware of the effort carried out by the authors and in my opinion they addressed my main concerns and I suggest and support the publication of the manuscript in eLife.

Reviewer #3:

The authors have dealt with my major scientific concerns (comparisons of identical CPX constructs with Brunger lab results) and clarified their conclusions/interpretations of the EAYW vs REKE mutations. They have also convincingly demonstrated that the tripartite binding mode does not contribute to SNARE interactions under their experimental conditions while also toning down their conclusion that the tripartite mode is entirely a crystal artifact. I agree with the authors that the specific Brunger lab comparisons should be published separately and in coordination with that lab rather than included here. The edits made the manuscript a bit easier to read and I appreciate the authors trying to limit the amount of new data included to avoid expanding the text/figures even more. The discussion section is still quite hefty, and I would recommend some more editing for clarity, but this is a minor issue. Overall, this is an impressive amount of data and the conclusions contain some important new insights. I support going forward with publication.

https://doi.org/10.7554/eLife.57154.sa1

Author response

Essential Revisions:

A) Conceptual, Interpretational, and Methodological Aspects:

i) While Zhou et al., (2017) used Cpx1-1-83 (crystallography) and Cpx1-48-73 (ITC), the present study employed Cpx1-26-83. This issue needs to be discussed as it may be problematic to compare characteristics of complexes formed with these different Cpx1 constructs. In essence it is possible that the type of Cpx1 fragment contributes to the relative stability and dynamics of the tripartite versus primary interface. Unless comparative experiments with exactly the same constructs are done, it is difficult to resolve discrepancies between the present and previous studies.

This is a valid point, but it is important to note that the difference between Cpx1-26-83 used in our study and Cpx1-1-83 used for crystallography is at the Cpx1 N-terminus, which is very far from the tripartite interface and hence is not expected to affect binding. Note also that Cpx1-48-73 used for ITC is truncated near the putative binding interface and hence binding results obtained with longer fragments such as Cpx1-26-83, which do not lack residues near the interface, are expected to be more reliable. In fact, Cpx126-83 binds with substantially higher affinity to the SNARE complex than Cpxl1-48-73 (Xu et al., 2013; Zhou et al., 2017).

ii) Related to the point above (i), the 'assault' on the tripartite complex published by Zhou et al., (2017) appears overdone in some places and not always fully supported by the data. Zhou et al., (2017) really only observed the impact of the tripartite perturbations (LLQQ mainly) when they mutated away the primary interface using the quintuple C2B and quintuple SNAP25. In the present study the equivalent experiment was not done and different protein fragments were used, so it is not clear if similar observations would have been made with NMR if exactly the same conditions/fragments would have been used. This issue should be taken into account when discussing the study by Zhou et al., (2017).

We agree that we should tone down the ‘assault’ on the tripartite complex, even though we believe that the data shown in the paper already provide very strong evidence that the tripartite interface is not substantially populated at the concentrations used in the NMR experiments. Thus, we have shortened the paragraph describing the conflict between our NMR data and the ITC data, and have softened the tone. The paragraph now reads (subsection “Mutation of R322,K325 at the polybasic region and R398,R399 at the primary interface abolishes C2B SNARE complex binding in solution”):

“These results contrast with ITC data suggesting the existence of a Syt1-complexin-1SNARE complex interaction involving the tripartite interface in experiments performed with Syt1 C2B bearing seven mutations designed to disrupt binding via the polybasic region and the primary interface (KA-Q mutant), and a complexin-1-SNARE complex bearing five mutations to further disrupt such binding (Zhou et al., 2017). We are collaborating with the laboratory of Axel Brunger to determine the reasons underlying these conflicting results, and the results of these efforts will be published elsewhere.”

We have also shorted and softened the summary paragraph where in the original manuscript we were strongly suggesting that the tripartite complex arises from crystal contacts, which now reads (subsection “Mutation of R322,K325 at the polybasic region and R398,R399 at the primary interface abolishes C2B SNARE complex binding in solution”):

“In summary, our data show that binding of the Syt1 C2B domain to the Cpx1(26-83)SNARE complex in solution involves the polybasic region and the primary interface, while binding via the tripartite interface is undetectable under the conditions of our NMR experiments even when CpxSC is added at 85 μM concentration and binding through the polybasic region and the tripartite interface is abolished. These results indicate that the tripartite interface observed in the complexin-1-Syt1-SNARE complex crystals might have arisen from crystal packing, but further research will be required to clarify this issue.”

We also note that, in the last paragraph of the Discussion section of the original manuscript, we left open the possibility that the tripartite complex might be physiologically relevant, although reminded the reader that ‘the instability caused by the L387Q/L394Q mutation might underlie the phenotypes caused by this mutation, rather than disruption of the tertiary interface’. We have removed this reminder and the relevant part of this paragraph now reads:

“Note also that, while our NMR studies could not detect binding of the Syt1 C2B domain to CpxSC through the tripartite interface (Figure 2E, Figure 3), it is premature to completely rule out the relevance of the tripartite structure given the potential functional importance of very weak interactions (Magdziarek et al., 2020). Nevertheless, it is also premature to accept this structure as physiologically relevant, and further evidence for such relevance needs to be obtained, ideally using mutations that exclusively replace residues in the interface rather than interior residues that are important for protein stability.”

iii) The present study claims that LLQQ destabilizes Syt1, which then explains the published impact of this variant on synaptic transmission. This should be documented in the evidence as it is a crucial and impactful finding.

We made this claim based on the NMR data shown in Figure 4 of the original manuscript, on the observation that this mutant has much higher tendency to precipitate with CpxSC and, most of all, on the thermal denaturation data described by Zhou et al., 2017 (Extended data Figure 3). To make the latter point more clear, we now describe the Zhou et al., 2017 data in a little more detail in the sentence (subsection “Mutation of R322,K325 at the polybasic region and R398,R399 at the primary interface abolishes C2B SNARE complex binding in solution”):

“These results show that the L387Q/L394Q causes a considerable destabilization of the Syt1 C2B domain, which is consistent with the finding that this mutation decreases the thermal denaturation temperature of the C2B domain by about 10 oC (Zhou et al., 2017).”

In the spirit of tempering the ‘assault’ on the tripartite complex (point ii above), in the revised manuscript we have moved the NMR data of the old Figure 4 to a supplementary figure (Figure 3—figure supplement 1), and we have moved the sentence suggesting that the phenotypes caused by the L387Q/L394Q mutation arise from protein destabilization from the summary paragraph (subsection “Mutation of R322,K325 at the polybasic region and R398,R399 at the primary interface abolishes C2B SNARE complex binding in solution”).

iv) Solution-state NMR is closer to physiologically significant conditions than crystallography. However, there are still major unresolved discrepancies between the present data and the ITC data of Zhou et al. (2017), where the experimental conditions are more comparable. In view of this and some other aspects, the 'physiological accuracy' of the experimental conditions in the present study appears oversold.

We are not sure which parts of the original manuscript led to this concern, as we had pointed out explicitly the limitations of our own data in multiple places of the manuscript (e.g. lack of membranes in our NMR experiments and the potential contributions of non-specific interactions to the results obtained with nanodiscs). In any case, we imagine that the paragraphs that we have modified to address concerns ii-iii above contributed to concern iv. We hope that we have properly addressed this concern with the modifications introduced in those paragraphs.

v) The discussion of the nanodisc-based data should consider the fact that clusters of SNAREs or Syt1 cannot form under these conditions even though these clusters do/may exist under physiological conditions and thus impose specific constraints on the prefusion complex and its relative stability. In essence, there is a possibility that physiologically important complexes are missed in the nanodisc scenario.

We had mentioned the oligomers at the end of the Discussion section of the original manuscript and we now include the possibility of cluster formation in the same paragraph of the revised manuscript:

“Thus, syntaxin-1 is known to form clusters on the plasma membrane (Khuong et al., 2013), and formation of Syt1 oligomers has been proposed to underlie the primed state and to exert an inhibitory activity that is released by Ca2+ (Wang et al., 2017). Such clusters and oligomers could not be present in our nanodisc experiments. However, it is worth noting that the Syt1 oligomers are compatible with the state proposed in Figure 10A (Tagliatti et al., 2020) and hence can be readily incorporated into the model of Figure 10C.”

vi) In the study by Zhou et al., (2015), the destruction of the primary interface eliminated Syt1 function for both Ca2+-triggered fusion and inhibition of spontaneous release (clamping function), while the REKE and EAYW both strongly impaired Ca2+-triggered fusion without disrupting clamping. These perturbations occur on opposite sides of the β sandwich pointing in opposite directions and yet they cause very similar phenotypes at the synapse. Do both perturbations stabilize the primary interface at the expense of some other competitive interaction required for breaking the clamp upon Ca2+ binding? Or is there another interface not utilized during clamping but important for fusion that both these regions could contribute to? None of the three model interfaces (polybasic, primary, tripartite) simultaneously incorporate the RK and EY residue pairs at a shared interface. The authors of the present study should elaborate on the effects of REKE and EAYW in this context, perhaps by clarifying their own thinking on the issue.

This is a very good point. Our data suggest that the EAYW and REKE mutations give similar phenotypes because they both hinder release of the Syt1-SNARE complex interactions, the former by strengthening the interaction, the latter by hindering the specific Ca2+- and PIP2-dependent interaction of the C2B domain with the membrane that releases Syt1-SNARE complex binding. Release of this binding is likely to be necessary not only for evoked release but also for spontaneous release. Basically, we believe that the two mutations represent ‘two sides of the same coin’ much as the mutated residues are on two sides of the β-sandwich. In the revised manuscript we have added the following paragraph (Discussion section):

“The E295A/Y338W mutation in the primary interface also disrupted neurotransmitter release but still allowed clamping of spontaneous release, which resembles the phenotype observed for the R322E/K325E mutation in the polybasic region (Zhou et al., 2015). […] Similarly, the R322E/K325E mutation impairs Ca2+- and PIP2dependent membrane binding, which is critical to release this inhibitory interaction.”

B) Additional Data Analyses and Experiments:

i) The interpretation of NMR results is based on crystal structures. ITC experiments indicate a SNARE:C2B ratio of 2:1 – thus some of the results could be explained by cooperativity effects instead of competition between different binding sites. This should be analysed/discussed.

We are not aware of any published ITC data that definitively demonstrate a 2:1 stoichiometry for binding of the SNARE complex to the C2B domain, even if the data might suggest this stoichiometry. In any case, our NMR results are compatible with such stoichiometry, but argue against cooperativity. The NMR results are interpreted based in part on the three structures available (one elucidated by NMR spectroscopy and two by X-ray crystallography), but also on the observation of the behaviors of the 1H-15N HSQC cross-peaks observed in the titrations. As discussed in the paper (subsection “Mutation of R322,K325 at the polybasic region and R398,R399 at the primary interface abolishes C2B SNARE complex binding in solution” and subsection “The E295A/Y338W mutation in the primary interface enhances C2B-CpxSC binding in solution”), comparison of the titrations performed with the WT C2B domain and the R322E/K325E and E295A/Y338W mutants show clear evidence of competition between binding of CpxSc to the polybasic and primary interfaces of the WT C2B domain at low CpxSC concentrations. However, the curved behavior of some cross-peaks at high CpxSc concentrations suggest that simultaneous binding to both interfaces might occur with slight alterations of the binding modes due to steric hindrance between the two bound CpxSCs. We have tried to explain better this conclusion rephrasing a few sentences (subsection “The E295A/Y338W mutation in the primary interface enhances C2B-CpxSC binding in solution”):

“This finding suggests that there is an interplay between binding of CpxSC to the primary interface and to the polybasic region. CpxSC appears to bind exclusively to one or the other site at low concentrations, likely because of steric hindrance disfavors simultaneous binding of two CpxSC complexes to one C2B domain. However, simultaneous binding to both sites might be allowed at higher CpxSC concentrations by slight alterations in both binding modes, leading to the curved cross-peak movement.”

ii) In order to properly compare the Syt1 RQRQ, REKE, KEKE, and REKERQRQ variants, cooperativity factors need to be determined in order to assess the contribution of SNARE binding vs. membrane binding. Corresponding analyses of the WT, REKE, and RQRQ variants would suffice.

Supplementary file 2 now describes cooperativity factors obtained by dividing the KDs observed with NDs by the KDs observed with cisSC-NDs.

iii) To distinguish effects of variants on SNARE vs. membrane binding, additional experiments in the absence of anionic phospholipids are important. For instance, SNAP-25 could be used to monitor Syt11 C2AB binding (RQRQ, REKE, KEKE and REKERQRQ) to SNAREs using nanodisc with or without PS and PIP2, and with and without calcium. This would provide insight into the relative contribution of SNARE binding vs. membrane binding. Corresponding analyses of the WT, REKE, and RQRQ variants would suffice.

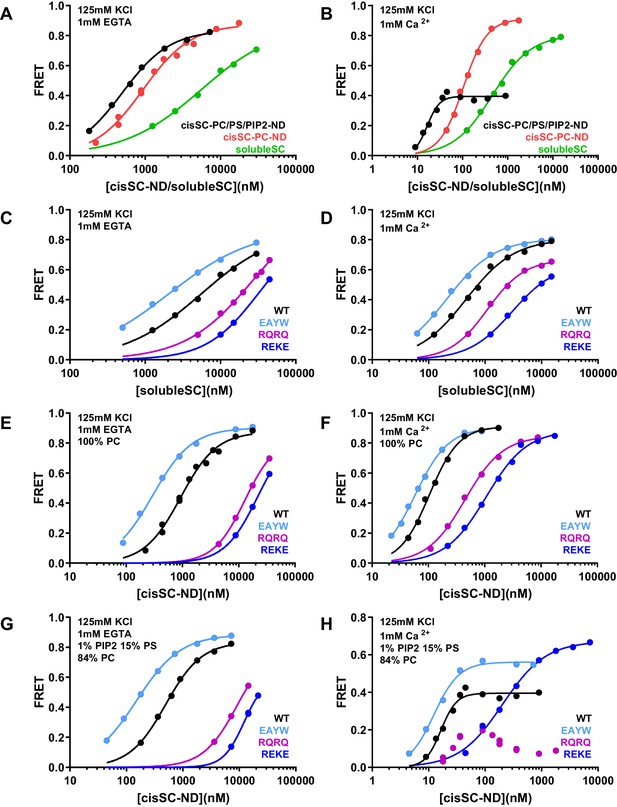

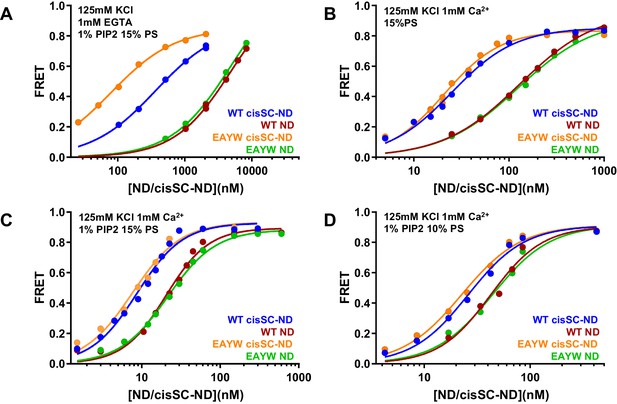

We have performed new titrations of C2AB* with cisSC-NDs that contained only PC or 84% PC, 15% PS and 1% PIP2, and that were labeled with an acceptor TMR probe on residue 76 of SNAP-25. This design is expected to yield high FRET efficiency for binding of C2AB* to the SNARE complex via the primary or polybasic interfaces. We included WT, REKE and RQRQ C2AB* in these experiments, as suggested by the reviewers, and also the EAYW C2AB* mutant that enhances SNARE binding. We compared the results with parallel titrations performed with soluble SNARE complex formed with the cytoplasmic region of syntaxin-1 (for comparison with the cisSC-ND data) or with only the syntaxin-1 SNARE motif (for comparison with the NMR data and to assess the potential contribution of the syntaxin-1 N-terminal region to binding). The results are presented in the new Figure 8 and Figure 8—figure supplement 1.

The results generally confirmed the conclusions obtained with our previous FRET experiments and, importantly, yielded a striking result: while most of the experiments revealed high FRET efficiency at high SNARE complex concentrations, the maximum FRET efficiency was about 0.4 for titrations of WT C2AB* with cisSC-PC/PS/PIP2-NDs, even though the affinity was higher than under all other conditions. This result and the effects of the mutations on the affinity and maximum FRET efficiency (Figure 8H) strongly support the conclusion that Ca2+-dependent binding of C2AB* to PIP2-containing membranes competes with the Syt1-SNARE complex interaction, as explained in more detailed in the new section describing these data (subsection “The E295A/Y338W mutation in the primary interface enhances Ca2+-independent binding of C2AB* to cisSNARE complex-nanodiscs”). Models of how the Syt1 C2B domain can interact with the SNARE complex and the nanodiscs are now shown in Figure 5—figure supplement 2 to help rationalizing these data and, more generally, the results of the FRET assays shown in Figure 5, Figure 6, Figure 7, Figure 8, Figure 9. In addition, in Supplementary file 2 we describe cooperativity factors calculated by dividing the KDs measured with soluble SNARE complexes by the KDs measured with cisSC-NDs.

iv) Cooperativity factors (KD cisSC-ND/KD ND, KD cisSC-ND/KD cisSC-ND, KD ND/KD ND ratios) in the presence and absence of ATP/magnesium need to be determined, compared, and discussed.

In Supplementary file 2 we now describe cooperativity factors calculated by dividing KDs measured in the presence of Mg-ATP by KDs measured in the absence of Mg-ATP. However, to avoid lengthening of the manuscript, we limit the discussion of cooperativity factors to places where these factors are particularly informative (e.g. subsection “Mutations in the polybasic region and R398,R399 disrupt Ca2+-independent binding of C2AB* to nanodisc-anchored SNARE complex”, subsection “Ca2+- and PIP2-dependent binding of the C2B domain to membranes hinders SNARE complex binding” and subsection “Effects of phospholipids on C2AB* binding to the SNARE complex”).

[Editors' note: further revisions were suggested, as described below.]

Reviewer #1:

I continue to be enthusiastic about this manuscript, which I think is substantially above the bar for publishing in eLife. For reference, I am including below my original, positive review (slightly edited).

This manuscript represents a strong addition to our understanding of the functional interplay between SNAREs, membranes, synaptotagmin and, to a somewhat lesser extent perhaps, complexin. The authors have performed extensive NMR and fluorescence-based binding experiments with wild-type and informative mutant proteins, both in soluble form and (for the SNAREs) embedded in nanodiscs of various compositions. Although at first I found the sheer length of the manuscript daunting, I became convinced as I read it that the length is justified by the wealth of data and the need to carefully integrate the results with the extensive existing literature. I think the authors have succeeded to an impressive degree, and that this manuscript will be seen as a landmark contribution to our ever-improving understanding of this remarkably complex system.

There are many, many interesting results, but I would point single out three as deserving of special mention:

1. The striking differences, in vivo and in vitro, between two different double mutants (R322E/K325E versus K324E/K326E) in the same portion of synaptotagmin's polybasic region. The former has a much stronger effect that the latter on both PIP2-dependent membrane binding (this work) and neurotransmitter release (Brewer 2015). This can be beautifully reconciled by a detailed consideration of how the calcium-binding loops and the polybasic region cooperate in membrane binding of Ca2+-bound synaptotagmin (see Fig. 10B) and thereby promote fusion.

2. The remarkable finding that the E295A/Y338W mutation in the primary interface, previously claimed to abrogate synaptotagmin-SNARE binding (Zhou 2015), actually strengthens it. Given that this mutation compromises neurotransmitter release, the results highlight that overly avid binding can be as deleterious as compromised binding in vivo. I'm not sure why the Brunger lab reached the opposite conclusion about the impact of this double mutation on in vitro binding (Zhou 2015), but I found the results presented here to be convincing.

3. The strong implication that the tripartite SNARE:synaptotagmin:complexin interface, which was the main point of the Brunger lab's Nature paper and supported by ITC analysis of wild-type and mutant proteins (Zhou 2017), is a nonetheless a crystallization artifact, possibly induced by the artificial tether used in that work to link synaptotagmin to the SNARE bundle. Further work is underway, in collaboration with the Brunger lab, to resolve the contradiction, but my hunch is that the tripartite interface may not actually be physiologically important.

This manuscript represents an enormous amount of careful work, complemented by a highly intelligent and generally quite balanced synthesis of previous data from the author's and other labs. As such, I believe that it will be viewed as essential reading for anyone interested in the question of how, at a molecular mechanistic level, synaptic vesicles fuse in response to calcium.

We are very thankful for the kind comments and for the nice distillation of the most important among our results. We could not agree more.

Reviewer #2:

The authors have addressed my main concerns. They have carried out the requested experiments in order to clarify and support their conclusions. They have re-analyzed the results and re-written the manuscript regarding to the new data analysis and results. However, I still have one major concern:

I agree with authors that the stoichiometry for the binding of the SNARE complex to the C2B domain has not been reported but, as we can see in figure 3 b and d from Zhou Q et al., ITC results suggest a number of binding site (N) around 0.5 , what means 2 SNARE complex: 1 C2B domain stoichiometry. Additionally, this binding mode was suggested in the Extended Data Figure 9 of the same paper. Furthermore, ITC results argue against 1 C2B domain per SNARE complex, taking into account that the plateau starts around 1 molar ratio.

The authors claim "... that there is an interplay between binding of CpxSC to the primary interface and to the polybasic region. CpxSC appears to bind exclusively to one or the other site at low concentrations, likely because of steric hindrance disfavors simultaneous binding of two CpxSC complexes to one C2B domain. However, simultaneous binding to both sites might be allowed at higher CpxSC concentrations by slight alterations in both binding modes, leading to the curved cross-peak movement.'

I have some concerns about this issue. Taking into account the design of the ITC experiment (see above), at the very beginning we would get 2:1 stoichiometry for binding of the SNARE complex to the C2B domain because of there is a high concentration of complex against the low concentration of C2 domain. However, as we are injecting C2 domain, in a competition scenario, the experiment should present a number of binding site of 1 instead around 0.5, because of the increase of the C2 domain concentration will decrease the CpxSC:C2 domain ratio and , as consequence, several C2 domains will be accessible for competition per CpxSC complex. In addition, we can observe a chemical shift at low concentrations in the polybasic region (K327, K369 and K325) in the EAYW mutant (Fig. 4 C of the manuscript).Could it be possible a scenario in which two CpxSC complexes bind to 1 C2 domain ( even at low concentration of CpxSC complex) and the different mutations tune the interplay of the polybasic region and primary interface ( maybe even promoting different binding modes), giving the observed NMR results? We have to take into account that the binding is dynamic (as reported previously Brewer et al., 2015).

We respectfully believe that the reviewer over-interprets the ITC data of Zhou et al. 2017. ITC is a powerful technique to quantify the affinity of binding interactions when strong heats and nicely sigmoidal curves are observed, but is much less informative when heats are smaller and the curves are not clearly sigmoidal. Moreover, analysis of this kind of data is further complicated when there is more than one binding mode. Hence, while it is true that the black curve in Fig. 3b of Zhou et al. could be explained by a 2:1 stoichiometry of binding (N = 0.5), this conclusion is far from definitive. For instance, the data could also arise if an endothermic binding mode dominates at the beginning of the titration and the endothermic signal is progressively cancelled by the signal from a weaker exothermic interaction at higher C2B concentrations. There may also be factors that contribute to weak ITC signals and are difficult to account for. For instance, the data of Fig. 3d mentioned by the reviewer is also compatible with N = 0.5, but these data were acquired with the mutant proteins where presumably binding through the polybasic and primary interfaces was abolished; thus, it is highly unclear how a 2:1 complex could be formed.

With respect to the NMR data mentioned by the reviewer, the scenario is certainly possible, but the proposed 2:1 complex does not appear to be the dominant species, as the cross-peak shifts observed for the residues of the polybasic region occur more slowly than for the WT C2B domain.

Despite of the above comments, I am aware of the effort carried out by the authors and in my opinion they addressed my main concerns and I suggest and support the publication of the manuscript in eLife.

We very much appreciate the kind comments and the multiple constructive comments from the reviewer, which have helped us to substantially improve the quality of the manuscript.

Reviewer #3:

The authors have dealt with my major scientific concerns (comparisons of identical CPX constructs with Brunger lab results) and clarified their conclusions/interpretations of the EAYW vs REKE mutations. They have also convincingly demonstrated that the tripartite binding mode does not contribute to SNARE interactions under their experimental conditions while also toning down their conclusion that the tripartite mode is entirely a crystal artifact. I agree with the authors that the specific Brunger lab comparisons should be published separately and in coordination with that lab rather than included here. The edits made the manuscript a bit easier to read and I appreciate the authors trying to limit the amount of new data included to avoid expanding the text/figures even more. The discussion section is still quite hefty, and I would recommend some more editing for clarity, but this is a minor issue. Overall, this is an impressive amount of data and the conclusions contain some important new insights. I support going forward with publication.

We also thank the reviewer for the kind comments and for the constructive criticisms. We have revised some parts of the discussion to improve clarity and have shortened the discussion a little while making every effort to avoid sacrificing clarity. As a result, the discussion is now almost one page shorter.

https://doi.org/10.7554/eLife.57154.sa2

Article and author information

Author details

  1. Rashmi Voleti

    1. Department of Biophysics, University of Texas Southwestern Medical Center, Dallas, United States
    2. Department of Biochemistry, University of Texas Southwestern Medical Center, Dallas, United States
    3. Department of Pharmacology, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Writing - review and editing
    Contributed equally with
    Klaudia Jaczynska
    Competing interests
    No competing interests declared
  2. Klaudia Jaczynska

    1. Department of Biophysics, University of Texas Southwestern Medical Center, Dallas, United States
    2. Department of Biochemistry, University of Texas Southwestern Medical Center, Dallas, United States
    3. Department of Pharmacology, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Writing - review and editing
    Contributed equally with
    Rashmi Voleti
    Competing interests
    No competing interests declared
  3. Josep Rizo

    1. Department of Biophysics, University of Texas Southwestern Medical Center, Dallas, United States
    2. Department of Biochemistry, University of Texas Southwestern Medical Center, Dallas, United States
    3. Department of Pharmacology, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Investigation, Methodology, Writing - original draft
    For correspondence
    Jose.Rizo-Rey@UTSouthwestern.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1773-8311

Funding

National Institute of Neurological Disorders and Stroke (R35 NS097333)

  • Josep Rizo

Welch Foundation (I-1304)

  • Josep Rizo

Howard Hughes Medical Institute

  • Rashmi Voleti

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Diana Tomchick, Axel Brunger and Thomas Südhof for fruitful discussions and helpful comments on the manuscript. The Agilent DD2 console of the 800 MHz spectrometer used for the research presented here was purchased with a shared instrumentation grant from the NIH (S10OD018027 to JR). Rashmi Voleti was supported by a fellowship from the Howard Hughes Medical Institute. This work was supported by grant I-1304 from the Welch Foundation (to JR) and by NIH Research Project Award R35 NS097333 (to JR).

Senior Editor

  1. Olga Boudker, Weill Cornell Medicine, United States

Reviewing Editor

  1. Nils Brose, Max Planck Institute of Experimental Medicine, Germany

Reviewer

  1. Angel Perez Lara

Publication history

  1. Received: March 23, 2020
  2. Accepted: August 12, 2020
  3. Accepted Manuscript published: August 18, 2020 (version 1)
  4. Version of Record published: September 17, 2020 (version 2)
  5. Version of Record updated: September 18, 2020 (version 3)

Copyright

© 2020, Voleti et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 896
    Page views
  • 176
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    2. Neuroscience
    Athene Knüfer et al.
    Research Article Updated

    In the vertebrate central nervous system, groups of functionally related neurons, including cranial motor neurons of the brainstem, are frequently organised as nuclei. The molecular mechanisms governing the emergence of nuclear topography and circuit function are poorly understood. Here we investigate the role of cadherin-mediated adhesion in the development of zebrafish ocular motor (sub)nuclei. We find that developing ocular motor (sub)nuclei differentially express classical cadherins. Perturbing cadherin function in these neurons results in distinct defects in neuronal positioning, including scattering of dorsal cells and defective contralateral migration of ventral subnuclei. In addition, we show that cadherin-mediated interactions between adjacent subnuclei are critical for subnucleus position. We also find that disrupting cadherin adhesivity in dorsal oculomotor neurons impairs the larval optokinetic reflex, suggesting that neuronal clustering is important for co-ordinating circuit function. Our findings reveal that cadherins regulate distinct aspects of cranial motor neuron positioning and establish subnuclear topography and motor function.

    1. Neuroscience
    Anthony JE Berndt et al.
    Research Article

    Retrograde BMP signaling and canonical pMad/Medea-mediated transcription regulates diverse target genes across subsets of Drosophila efferent neurons, to differentiate neuropeptidergic neurons and promote motor neuron terminal maturation. How a common BMP signal regulates diverse target genes across neuronal subsets remains largely unresolved, although available evidence implicates subset-specific transcription factor codes rather than differences in BMP signaling. Here, we examine the cis-regulatory mechanisms restricting BMP-induced FMRFa neuropeptide expression to Tv4 neurons. We find that pMad/Medea bind at an atypical, low affinity motif in the FMRFa enhancer. Converting this motif to high affinity caused ectopic enhancer activity and eliminated Tv4 neuron expression. In silico searches identified additional motif instances functional in other efferent neurons, implicating broader functions for this motif in BMP-dependent enhancer activity. Thus, differential interpretation of a common BMP signal, conferred by low affinity pMad/Medea binding motifs, can contribute to the specification of BMP target genes in efferent neuron subsets.
