Abstract

In the cerebellar cortex, molecular layer interneurons use chemical and electrical synapses to form subnetworks that fine-tune the spiking output of the cerebellum. Although electrical synapses can entrain activity within neuronal assemblies, their role in feed-forward circuits is less well explored. By combining whole-cell patch-clamp and 2-photon laser scanning microscopy of basket cells (BCs), we found that classical excitatory postsynaptic currents (EPSCs) are followed by GABAA receptor-independent outward currents, reflecting the hyperpolarization component of spikelets (a synapse-evoked action potential passively propagating from electrically coupled neighbors). FF recruitment of the spikelet-mediated inhibition curtails the integration time window of concomitant excitatory postsynaptic potentials (EPSPs) and dampens their temporal integration. In contrast with GABAergic-mediated feed-forward inhibition, the depolarizing component of spikelets transiently increases the peak amplitude of EPSPs, and thus postsynaptic spiking probability. Therefore, spikelet transmission can propagate within the BC network to generate synchronous inhibition of Purkinje cells, which can entrain cerebellar output for driving temporally precise behaviors.

Introduction

GABAergic interneurons play important but diverse roles in gating, routing and modulating excitatory information flow within neural circuits through inhibitory chemical synapses. These different computational functions are classified according to canonical wiring motifs (Feldmeyer et al., 2018; Isaacson and Scanziani, 2011): feed-back inhibition supports rate-based modulation of excitation through gain modulation and increased dynamic range of the levels of excitatory input that can be encoded within a circuit, while feed-forward (FF) inhibition permits precise regulation of postsynaptic spike-timing by sharpening excitatory postsynaptic potential (EPSP)-spike coupling (Blot et al., 2016; Mittmann et al., 2005; Pouille and Scanziani, 2001). FF motifs can also expand the dynamic range of inputs which can be represented by principal cells (Pouille et al., 2009). However, how FF inhibitory motifs can be used to regulate interneuron firing is less well studied.

Interneurons communicate with each other through both chemical and electrical synapses. While chemical synapses can regulate interneuron firing in the same way as for principal neurons (Mittmann et al., 2005), the presence of gap junctions that couple neurons directly as resistive elements are thought to generate emergent properties such as oscillations and synchronized firing within neuronal assemblies (Beierlein et al., 2000; Bennett and Zukin, 2004; Draguhn et al., 1998; Gutierrez et al., 2013; Maex and De Schutter, 2007; Ostojic et al., 2009; van Welie et al., 2016). Electrical synapses between molecular layer interneurons (MLIs) within the cerebellum have been shown to mediate synchronized firing (Gaffield and Christie, 2017; Mann-Metzer and Yarom, 1999) and sequence detection (Alcami, 2018), while those between Golgi cells have been shown to either synchronize or desynchronize cerebellar cortical network activity (Dugué et al., 2009; van Welie et al., 2016; Vervaeke et al., 2010). Finally, the presence of electrical synapses has been shown to modulate passive properties in interneurons (Alcami, 2018; Amsalem et al., 2016; Hjorth et al., 2009). However, despite theoretical studies showing the influence of electrical synapses in information processing within FF circuits (Pham and Haas, 2019), experimental evidence that electrical synapses modify temporally coded information within FF neural circuits has not been demonstrated.

Owing to the low-pass filtering properties of the cell membrane, presynaptic APs are heavily filtered and consequently detected as ‘spikelets’ in electrically coupled postsynaptic cells. The relative contribution of the depolarizing component (Hu and Agmon, 2015; Mann-Metzer and Yarom, 1999) or the after-hyperpolarization component (Dugué et al., 2009; Vervaeke et al., 2010) of the presynaptic AP to the spikelet waveform can vary across cell types and determines if electrical synapses mediate net excitation or inhibition. Alterations in the spikelet waveform can arise from alterations in presynaptic AP shape, which can be modulated by variations in the membrane potential of unperturbed neurons when they are not spiking (resting membrane potential) (Otsuka and Kawaguchi, 2013; Russo et al., 2013). Theoretical studies show that net depolarizing spikelets will drive synchronization within neuronal networks, while hyperpolarizing spikelets will generate bistable networks which either oscillate synchronously or remain in asynchronous states (Ostojic et al., 2009). Thus, the contribution of electrical synapses to network computations depends on the precise polarity of the spikelet.

In the cerebellar cortex, MLIs are known to mediate feed-forward inhibition (FFI) onto each other and Purkinje cells (PCs) by the means of GABAergic synapses. Coherent firing of MLIs is required for encoding precise movement kinematics (Gaffield and Christie, 2017). Specifically, basket cells (BCs) have been shown to precisely control the timing of PC activity with millisecond precision (Arlt and Häusser, 2020; Blot et al., 2016). MLIs in young animals have also been shown to be electrically coupled via the gap junction protein Cx36, likely located in the dendrites (Alcami and Marty, 2013). It has been shown that there is an increasing spatial gradient of occurrence and strength of electrical connectivity between MLIs from increasing depths in molecular layer (Rieubland et al., 2014). Since MLIs located in the deepest (inner) third of the molecular layer are likely to be BCs (Sultan and Bower, 1998), we investigated if electrical transmission could be recruited in a feed-forward (FF) manner in the BC population, and how it modulates EPSP-spike coupling.

We found that electrical stimulation of parallel fiber (PF) excitatory inputs reliably elicited excitatory postsynaptic currents (EPSCs), followed rapidly by an outward current that was sensitive to gap junction antagonists and Cx36 knockdown, consistent with suprathreshold, PF-mediated recruitment of an electrically coupled neuron delivering a spikelet to its neighbor. Paired whole-cell recordings from electrically coupled BCs showed that the spikelets were predominantly inhibitory due to the depolarized presynaptic resting potential. Consequently, the synaptic recruitment of an electrically coupled MLI neighbor displays some of the characteristic features of FFI: temporal shortening of single EPSPs and dampening of temporal summation. Unlike chemical FFI, however, we demonstrate that EPSP-evoked spikelets can amplify synchronous compound synaptic responses, and consequently increase the probability of AP firing over a brief time window. Thus, synapse-evoked spikelet recruitment in a FF motif can act as a mechanism for temporal contrast enhancement of information flow within neural circuits.

Results

PF-triggered outward currents are mediated by electrical synapses in cerebellar BCs

MLIs found in the inner third of the molecular layer of the cerebellar cortex are more likely to be BCs, defined by their basket-like axonal projections targeting PC somata and axon initial segment (Sultan and Bower, 1998). Because MLIs from the inner-third of the molecular layer have been shown to more frequently form electrical synapses (Rieubland et al., 2014), we examined whether electrical synapses could be recruited in a FF manner between electrically coupled BCs. Two-photon laser scanning microscopy (2PLSM) of whole-cell patch-clamped inner MLIs revealed that more than 95% of cells with basket-like axon collaterals also presented a dendritic tree that traversed nearly the entire molecular layer (174 ± 4.9 µm, n = 30 cells - see Figure 1A for a representative example). All subsequent recordings were made from inner MLIs with dendritic or axonal morphologies characteristic of BCs (Sultan and Bower, 1998).

Figure 1 with 1 supplement see all
Download asset Open asset
PF-basket cell (BC) synapse-evoked outward currents that are insensititive to GABAergic receptor antagonists are sensitive to gap junction antagonists.

(A) 2-photon laser scanning microscopy image (2PLSM - maximal intensity projection) of a cerebellar BC patch-loaded with 20 µM Alexa-594. Color arrows indicate the positions of the stimulating pipette along the somato-dendritic axis. (B) Schematic diagram showing the stimulation pipette (black triangle) and granule cell axons or parallel fibers (PFs - red lines) projecting perpendicularly to, and synapsing onto, the dendritic tree of the patch-clamped BC (purple) in a parasagittal cerebellar slice configuration. (C) Averaged excitatory postsynaptic currents (EPSCs) were recorded from the cell in A and in the presence of 10 µM gabazine, following a single brief (50 µs) extracellular voltage stimulation of a PF beam using a monopolar glass electrode placed at different locations in the dendritic tree (same color code as in A). (D) Average peak amplitude of the outward current versus distance between synaptic current entry and somatic compartment. Linear regression analysis reveals a non-significant relationship between the two parameters (p=0.17, n = 52 stimulation sites over 13 cells; n = 40 stimulation sites with significant outward currents). (E) Representative experiment showing 10 µM NBQX block of both inward and outward currents. Right, summary results from 5 cells. Error bars are standard deviation. (F) Representative traces of PF-mediated synaptic responses recorded in four different pharmacological conditions. Two traces recorded when the stimulus electrode was placed at a site with (color) or without synapse-evoked outward currents (black). (G) EPSC amplitude following PF stimulation is not significantly different between the four groups (Kruskal-Wallis test, p-value=0.12 K+-IS: n = 96 stimulation sites over 26 cells; Cs+-IS: n = 37 sites over 10 cells; Mefloquine: n = 64 sites over 16 cells; DMSO only: n = 36 sites over 11 cells). (H) The frequency of observing an outward current is significantly smaller only in the mefloquine-treated group (Brown-Forsythe, F = 57.13, p-value<0.0001; followed by Dunnett's multiple comparisons tests; K+-IS: n = 104 stimulation sites; Cs+-IS: n = 37 sites; Mefloquine: n = 67 sites; DMSO only: n = 36 sites). Error bars are SEM and calculated assuming binomial statistics (see Materials and methods). (I) Outward current peak amplitude (in cases where it can be detected) is significantly smaller only in the mefloquine-treated group (Kruskal-Wallis test followed by Dunn's multiple comparison tests, p<0.0001; K+-IS: n = 58 stimulation sites over 20 cells; Cs+-IS: n = 24 sites over 10 cells; Mefloquine: n = 10 sites over 8 cells; DMSO only: n = 22 sites over 10 cells). See also Figure 1—source data 1.

Figure 1—source data 1

PF-basket cell (BC) synapse-evoked outward currents that are insensititive to GABAergic receptor antagonists are sensitive to gap junction antagonists.

https://cdn.elifesciences.org/articles/57344/elife-57344-fig1-data1-v1.xlsx

Simultaneous Dodt contrast imaging and 2PLSM were used to target extracellular stimulation of PFs at different locations along the dendritic tree (Figure 1A–C). Stimulation intensity was adjusted to obtain stable EPSCs and 50 Hz PPR (generally 10–15 V above threshold; Abrahamsson et al., 2012) in the presence of saturating concentrations of the GABAA receptor blocker, gabazine (10 µM [Ueno et al., 1997]). Despite blocking inhibition, we often observed a fast EPSC component and a gabazine-insensitive outward component when stimulating PF axons contacting BC dendrites (Figure 1). This outward current was detected in approximately 60% of stimulation locations (Figure 1H, red bar) across 26 cells, twenty-one of which displayed significant outward currents in at least one stimulation site (see Materials and methods). Outward currents were also detected all along the dendritic tree, with an amplitude independent of the distance from stimulation site to the soma (Figure 1D). Bath application of 10 µM of the AMPA receptor (AMPAR) antagonist, NBQX, eliminated both the EPSC and the subsequent outward current to below detectable levels (Figure 1E, n = 5/5 experiments). In the absence of NBQX, increasing the stimulation voltage increased the amplitude of both the inward and outward currents, but single-sweep analysis within each stimulus condition did not reveal any correlation between their peak amplitudes (Figure 1—figure supplement 1), despite quantal variability in the peak EPSC. This finding is not consistent with voltage-dependent potassium conductance recruitment by unclamped synaptic currents in dendrites for larger synaptic currents (Tran-Van-Minh et al., 2016). To test this more directly, we replaced potassium by cesium in the patch pipette solution to block potassium conductances. We observed no difference in the frequency or amplitude of outward currents (Figure 1F–I). We next reasoned that PF stimulation could trigger an AP in electrically-connected neurons, generating a spikelet with a predominant hyperpolarizing (outward) current component following the initial EPSC. Consistent with this hypothesis, 20 µM of mefloquine, a potent blocker of gap junctions (~70% block at 20 µM [Cruikshank et al., 2004]) reduced the frequency of observing an outward current to 14.9 ± 4.4%, with those detected currents being 3-fold smaller (8.7 ± 0.5 vs. 2.9 ± 0.3 pA; Figure 1I). In conditions where only 0.1% DMSO was added to the artificial cerebrospinal fluid (ACSF), neither the frequency nor the amplitude of the outward current differed from control (Figure 1H and I, pink group).

We also examined the frequency of observing PF-mediated outward currents in the absence of Cx36 expression (n = 4 mice; Figure 2). In brain slices prepared from mature Cx36 KO mice, we observed a 45% reduction in the frequency of outward currents, and the amplitude of the remaining events was 3-fold smaller than age-matched recordings (4.2 ± 0.8 vs. 12.7 ± 1.8 pA). The remaining electrical coupling could be due to a late-onset (3–5 months) partial compensatory mechanism, in contrast to previous reports that showed complete block at P10-13 (Alcami and Marty, 2013). We also assessed electrical coupling in BC-BC paired whole-cell recordings in Cx36 KO mice, and found that one out of five recordings exhibited bidirectional spikelets and a coupling coefficient (CC) greater than 2% (see below for criteria). This is less than the nearly 60% of BC-BC pairs showing detectable electrical coupling (see below, Figure 6). These alterations in electrical coupling, either using acute block of gap junctions or via Cx36 knockdown, point to gap junctions as the mechanism for generating synapse-evoked outward currents.

Figure 2
Download asset Open asset

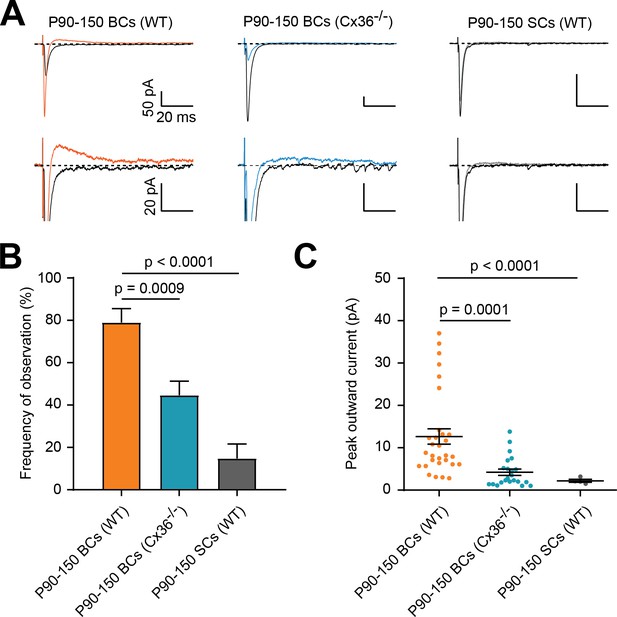

Outward currents are reduced in Cx36KO mice and stellate cells (SCs).

(A) Representative traces of PF-mediated synaptic responses recorded in three different conditions (WT P90-150 BCs, P90-150 BCs in Cx36KO mice, and WT P90-150 SCs). Black and colored trace for each group are averages of 20–30 sweeps at a location without and with a detectable outward current, respectively. Bottom row is an expanded amplitude scale to better visualize outward current. (B) The frequency of observing the outward current is significantly smaller in P90-P150 SCs (WT) and BCs (Cx-36 KO), as compared to P90-P150 BCs (WT) (Brown-Forsythe with Dunnetts multiple comparisons test, F = 17.09, p<0.0001; P90-P150 BCs (WT): n = 38 stimulation sites over 11 cells, P90-P150 BCs (Cx36-/-): n = 56 sites over 14 cells, P90-P150 SCs (WT): n = 27 sites over 8 cells). (C) Outward current peak amplitude is significantly smaller in P90-P150 SCs (WT) and BCs (Cx-36 KO), as compared to P90-P150 BCs (WT) (Kruskal-Wallis test with Dunn’s multiple comparisons test, p<0.0001; P90-P150 BCs (WT): n = 30 sites over 10 cells, P90-P150 BCs (Cx36-/-): n = 22 sites over 8 cells, P90-P150 SCs (WT): n = 4 sites over 2 cells). See also Figure 2—source data 1.

Figure 2—source data 1

Outward currents are reduced in Cx36KO mice andstellate cells(SCs).

https://cdn.elifesciences.org/articles/57344/elife-57344-fig2-data1-v1.xlsx

We also found that SCs from older WT animals (P90-150) are 4-fold less likely to exhibit such outward currents (15 vs. 79%, n = 27 and 38 stimulation sites, respectively) and exhibit 5-fold smaller outward currents (2.2 ± 0.4 vs. 12.7 ± 1.8 pA), consistent with the lower electrical coupling probabilities and amplitudes observed previously in P18-23 rats (Rieubland et al., 2014). Together, these observations in adult BCs are consistent with the proposal that PF synapse-evoked outward currents in BCs are mediated by electrical synapses formed by gap junctions, and well-poised to mediate a GABAergic-independent FFI (Mittmann et al., 2005; Pouille and Scanziani, 2001). All subsequent experiments were therefore performed on BCs.

PF-evoked and direct recruitment of MLI spikelets

Spikelet transmission through electrical synapses has been shown to exhibit a long-lasting inhibitory current (Alcami and Marty, 2013; Mann-Metzer and Yarom, 1999; Rieubland et al., 2014). We, therefore, hypothesized that the outward current reflects the after-hyperpolarization of spikelets, (i.e., filtered presynaptic APs) arising from electrically coupled neighbors, which are generated by suprathreshold PF-evoked EPSPs. If true, then extracellular stimulation of a PF beam outside the dendritic tree of the recorded BC, in the presence of gabazine, would depolarize a coupled neighbor to threshold (Figure 3A and B; off-beam stimulation), thereby generating a spikelet-only waveform without the direct EPSC, as described above. Indeed, rapid and small inward currents were invariably observed prior to large relative outward currents (see example cell in Figure 3A–E; n = 11/11 stimulation locations from 9 cells). Both current components increased with increasing extracellular stimulus intensity (from 20 to 50 V), consistent with recruitment of at least one electrically coupled MLI (Figure 3E). We also note that this manipulation sometimes allowed the isolation of putative subthreshold EPSCs propagating from the presynaptic electrical neighbor at intermediate stimulus intensities (in 2/11 stimulation locations; see example in Figure 3—figure supplement 1), indicating that spikelet-like responses recorded in this configuration could be a mixture of pure spikelets and EPSCs filtered across electrical synapses.

Figure 3 with 1 supplement see all
Download asset Open asset

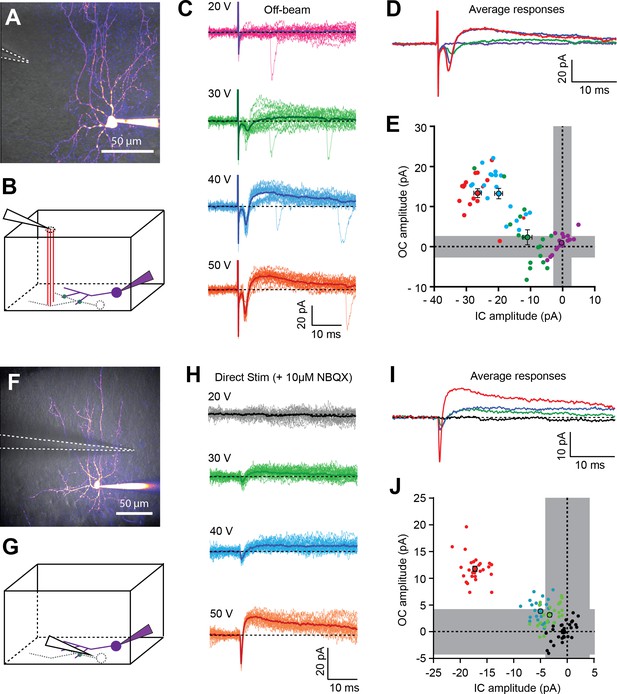

In the absence of direct excitatory transmission from PFs, GABAergic-independent outward currents are preceded by a short-lasting inward current.

(A) 2PLSM image (maximal intensity projection) of a BC loaded with 20 µM Alexa-594. Dashed white lines indicate the position of the extracellular stimulation electrode on the surface of the slice (off-beam stimulation). (B) Schematic diagram of a parasagittal slice indicating off-beam stimulation of parallel fibers (PFs - red lines) synapsing onto the dendritic tree of an unpatched neighboring MLI (dashed gray lines), which forms putative electrical synapse(s) (green dots) with the patched cell (purple). (C) Postsynaptic current responses recorded in the patched cell in response to a single 50 µs voltage pulse at different stimulation intensities (20–50V). Dark lines represent averages of 15–30 single trials. (D) Superimposition of average responses from C, shown for visual comparison of the differences in mean peak amplitude of inward and outward currents. (E) Summary plot of peak amplitudes of inward and outward currents from individual trials shown in C, with corresponding averages +/- SEM represented by larger dots. gray regions represent 2*SD of baseline values (averaged over all traces). (F-J) Similar as in A-E, but spikelets were elicited by direct extracellular stimulation of a neighboring putative BC in the presence of 10 µM NBQX in the bathing solution to block AMPAR-mediated EPSCs. See also Figure 3—source data 1.

Figure 3—source data 1

In the absence of direct excitatory transmission from PFs, GABAergic-independent outward currents are preceded by a short-lasting inward current.

https://cdn.elifesciences.org/articles/57344/elife-57344-fig3-data1-v1.xlsx

In order to ensure that spikelet responses were not mixed with putative subthreshold EPSCs, we also performed direct stimulation of neighboring MLIs, in the presence of 10 µM NBQX, to block AMPAR-mediated EPSCs (Figure 3F and G). Figure 3H shows a representative experiment in which we examined evoked currents at different extracellular stimulus intensities. For a 20 V stimulus, no postsynaptic response was observed, but at 30 and 40 V, significant inward and outward currents were observed in single sweeps (>2 x SD of background, gray region). However, this was only in a fraction of trials. For 50 V stimuli, single-sweep analysis revealed that all responses were comprised of detectable inward and outward currents (p-value<0.05 for two-by-two comparisons of inward and outward currents; Figure 3H and J). When looking at the mean of all responses for each stimulation intensity, we found that each time an outward current was detected, it was preceded by a detectable inward current (n = 17/17 stimulation sites from 13 cells). The increasing size of both the inward and outward synapse-evoked components were presumably due to the recruitment of additional electrically coupled cells. Taken together, these experiments strongly suggest that detected outward currents were systematically preceded by an inward current, which is the electrophysiological signature of spikelet signaling in MLIs, and provide further evidence that the inhibitory currents described in Figures 1 and 2 arise from the after-hyperpolarization associated with FF recruitment of spikelet transmission.

Correlation between spikelet amplitude and electrical coupling coefficient

In order to confirm that extracellular stimulation indeed evoked a presynaptic AP which could then propagate across electrical synapses formed by gap junctions to produce a spikelet in the postsynaptic cell, we performed paired BC-BC recordings. Hyperpolarizing current pulses were used to confirm the presence and the strength of coupling coefficients (CCs; see Materials and methods). Spikelet transmission was isolated by blocking GABAergic transmission with gabazine, which did not affect CCs (Figure 4B and C). Evoking an action potential in one BC (transmitting) and recording currents in a receiving BC revealed a spikelet with an inward and outward component at nearly the same moment, with larger inward and outward currents for larger CCs (Figure 4D). Indeed, the amplitudes of the inward and outward currents (or their corresponding synaptic potentials) correlated with the bidirectional CCs for each cell pair (Figure 4D and E). Given the number of trials (n = 30 sweeps), spikelets could generally be detected if the CCs were greater than 2% (see also Figure 4—figure supplement 1A). However, for small CCs between 2% and 5% we did not always observe a spikelet (Figure 4—figure supplement 1B), which could be explained by an electrical connection via an intermediate third MLI (Kim et al., 2014). These results argue strongly that spikelet transmission is mediated by the same gap junctions that generate electrical coupling.

Figure 4 with 1 supplement see all
Download asset Open asset

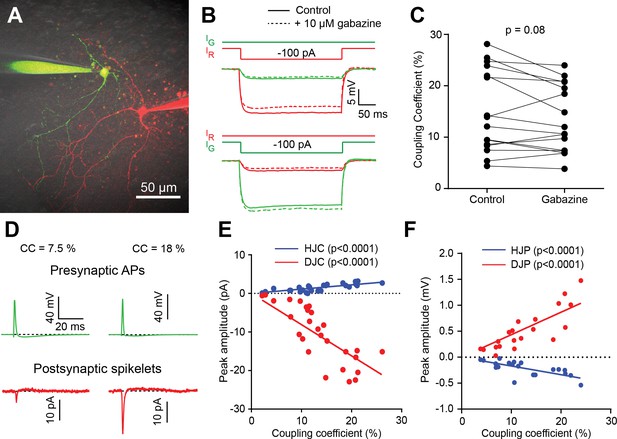

Electrical coupling strength between BCs correlates with spikelet amplitude.

(A) 2PLSM image (maximal intensity projection) of two BCs loaded with 20 µM Alexa 594 (red), or 20 µm Alexa 488 (green) using dual whole-cell patch clamp. (B) Membrane potential of both cells (same color code as in A), when the red cell is injected with a hyperpolarizing current pulse (upper panel), or when the green cell is injected with the same current pulse (lower panel). Solid lines indicate responses in control conditions, while dashed lines correspond to responses recorded in 10 µM gabazine. Traces are averages of 50 sweeps. (C) Summary plot of unidirectional coupling coefficients (CCs), showing that they are not significantly altered by gabazine addition (n = 16 cells from 8 BC pairs, Wilcoxon matched-pairs signed rank test, p=0.08). (D) Two representative paired BC recordings, one with an average (left) and one with a high bidirectional CC (right), and their corresponding spikelet currents (red traces, holding membrane potential of −70 mV) resulting from an AP elicited in the presynaptic cells (green traces, RMP of −70 mV). (E) Summary plot of paired recordings showing the relationship between spikelet inward currents (depolarizing junction current, DJC, red), fAHP-mediated outward current (hyperpolarizing junction current, HJC, blue) and CC (n = 20 spikelet recordings). Note that in these recordings, presynaptic (transmitting) cells were maintained at approximately −70 mV, and 10 µM gabazine was present to block GABAergic inputs. Lines are linear regressions (n = 27 cells from 14 pairs; HJC: p<0.0001, DJC: p<0.0001) (F) Similar to B, but for spikelets recorded in current clamp (n = 27) DJP: depolarizing junction potential; HJP: hyperpolarizing junction potential. Lines are linear regressions (n = 20 cells from 10 pairs; HJP: p<0.0001, DJP: p<0.0001). Holding potentials were ~−70 mV. See also Figure 4—source data 1.

Figure 4—source data 1

Electrical coupling strength between BCs correlates with spikelet amplitude.

https://cdn.elifesciences.org/articles/57344/elife-57344-fig4-data1-v1.xlsx

Modulation of spikelet polarity by presynaptic membrane potential

Spikelets recorded from different cell types throughout the brain have been shown to differ in their waveforms, and notably in the balance between excitation and inhibition (Dugué et al., 2009; Galarreta and Hestrin, 2002; Hu and Agmon, 2015). In immature BCs, a predominant depolarizing component was reported (Alcami, 2018; Alcami and Marty, 2013). Because of the prominent outward current, we more closely investigated the net polarity of spikelets and the influence of membrane potential using paired BC recordings. APs were triggered when varying the holding membrane potential of either the receiving BC (Figure 5A) or the transmitting BC (Figure 5C). The peak amplitude of the inward and outward currents, as well as the charge transfer of the spikelet response, were unaffected by altering the holding potential of the receiving neuron (Figure 5B, n = 12 cells from six pairs). In contrast, when adjusting the holding current to alter the membrane potential of the presynaptic neuron between approximately −80, –70 or −60 mV, the inward current component of the spikelet reduced in amplitude and the outward current component increased (Figure 5D; n = 12 cells from six pairs). Because of the slower outward component, the compound effect of inward and outward current changes led to an inversion of charge transfer from net excitation to net inhibition as the presynaptic neuron was depolarized. These results reveal the critical importance of presynaptic membrane potential on the net polarity of spikelets, and suggest that the ratio of inward/outward current peak amplitudes can be used to estimate the resting membrane potential of electrically coupled cells without the need for direct whole-cell recording.

Figure 5
Download asset Open asset

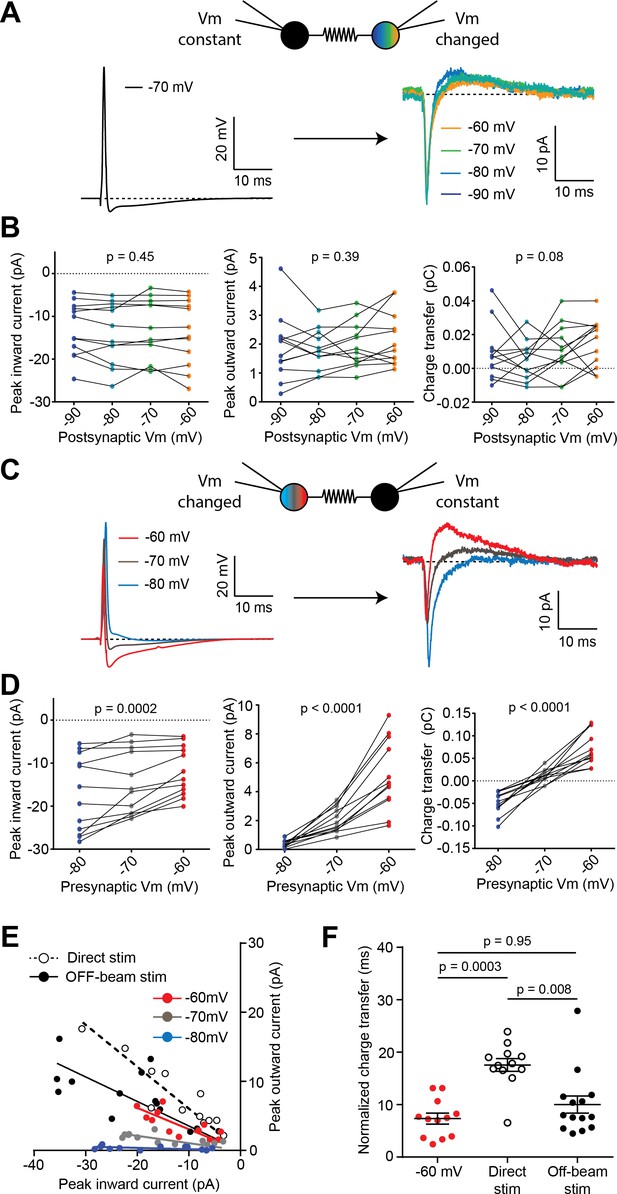

Presynaptic resting potential influences polarity of spikelets.

(A) Action potential from one cell of a paired BC recording (left; holding potential = −70 mV) and corresponding spikelets current recorded in a voltage-clamped postsynaptic cell at different holding membrane potentials (Vm, right). (B) Inward current peak amplitude (left panel), outward current peak amplitude (middle panel) and charge transfer (right panel) are not significantly altered by changing postsynaptic Vm (n = 12 spikelets from 6 BC pairs, three independent Friedman tests, p-values from left to right: p=0.45, p=0.39, p=0.08). (C) Action potential waveforms from the same cell recorded at three different resting Vm (left), with corresponding spikelets recorded in the postsynaptic cell, held at −70 mV in voltage-clamp (right). (D) Inward current peak amplitude (left panel), outward current peak amplitude (middle panel) and charge transfer (right panel) are all significantly altered by changing the resting membrane potential of the presynaptic cell (n = 12 spikelets from six pairs, three independent Friedman tests). (E) Plot of outward versus inward current peak amplitudes of spikelets recorded under five conditions: either from pairs of connected BCs (Presynaptic Vm = −60,–70, −80 mV), from extracellular direct stimulation (dotted) or off-beam stimulation (black). Regression lines were performed on the individual groups. Slopes were significantly different between the −60, –70, and −80 mV groups (F-test, p-value=0.0003), significantly different between the direct stimulation and the −60 mV groups (p-value=0.013), but not different between the off-beam stimulation and −60 mV groups (p-value=0.93). (F) Summary plot of peak-normalized inward charge transfer of spikelets recorded in voltage clamp and elicited from a transmitting BC pair whose holding potential (Vm) was −60 mV, or from extracellular direct and off-beam stimulation (Kruskal-Wallis test with Dunn’s multiple comparisons; −60 mV (Pair): n = 12 cells from six pairs, Direct stim.: n = 12 stimulation sites over 10 cells, off-beam stim.: n = 14 sites over 11 cells). See also Figure 5—source data 1.

Figure 5—source data 1

Presynaptic resting potential influences polarity of spikelets.

https://cdn.elifesciences.org/articles/57344/elife-57344-fig5-data1-v1.xlsx

In order to estimate the resting membrane potential of unperturbed electrical partners (i.e., without whole-cell dialysis), we compared the peak inward and outward current amplitudes of spikelets from paired recordings when altering presynaptic membrane potential to those evoked by off-beam stimulation and direct stimulation (from Figure 3). A linear regression analysis allowed determination of the differences of inward-outward ratios for each condition (Figure 5E). In paired recordings, the slopes of the regression lines from the three presynaptic membrane potential groups (−60,–70 and −80 mV) were significantly different (F-test, p-value=0.0003), indicating that the ratio of inward and outward currents is a reliable indicator of presynaptic resting membrane potential. The regression line of the off-beam stimulation group was comparable to the −60 mV group from paired recordings (p-value=0.93), but the linear relationship was significantly different from the direct stimulation group and the −60 mV group (p-value=0.01). Provided that the voltage-dependence of the shape of the presynaptic AP is similar between patch-dialyzed and unperturbed cells, these data indicate that MLIs in brain slices have a depolarized resting membrane potential, greater than −60 mV (i.e. more depolarized). Figure 5D shows that spikelet responses from −60 mV holding potentials carry a net inhibition, as the total charge integral was positive. Because we were not certain to have only single neuron spikelet responses to off-beam and direct stimulation, we next normalized spikelets to the peak amplitude of the inward current before integration (over 50 ms) and then compared the net relative charge to that from spikelets from paired recordings when holding the presynaptic neuron at −60 mV (Figure 5F). Consistent with a net inhibitory effect, the relative time integrals for directly stimulated and off-beam recruited spikelets were positive. The net relative charge of off-beam-evoked spikelets was similar to paired recordings where the presynaptic neuron was held at −60 mV, but directly recruited spikelets displayed an even larger normalized inhibitory charge transfer. The difference between the off-beam-elicited and directly evoked spikelets could be due to the passage of subthreshold EPSCs transmitted from presynaptic neurons in the off-beam synaptic stimulation case, which contributes an additional inward current (See Figure 3—figure supplement 1) and an underestimation of the relative outward current.

Altogether, these results indicate that the resting membrane potential of MLIs forming electrical synapses onto BCs is a critical determinant influencing the net excitatory/inhibitory impact of spikelet transmission. Moreover, we used the relative inward and outward ratio of spikelet currents to suggest that in mature mice, MLIs have a depolarized resting membrane potential (more than −60 mV), in agreement with previous estimates (Chavas and Marty, 2003; Kim et al., 2014). This depolarized membrane potential amplifies the AHP in the presynaptic neuron and ensures that spikelets deliver a net inhibition, which provides another mechanism of FFI within the MLI network, in addition to chemical transmission.

Electrical synapses between BCs are more frequent than GABAergic synapses

In the inner-third MLI population of young rats, connections by electrical synapses were found to be more common than chemical ones (Rieubland et al., 2014). We re-examined the relative impact of electrical synapse-mediated FFI and classical chemical FFI in mature mice, as developmental changes have been described in other brain regions (Hormuzdi et al., 2001; Peinado et al., 1993). Previous studies used multi-electrode whole-cell recordings to establish the fraction of synapses that were chemical and electrical, albeit by using long current step injections and a criteria of >1% CC to identify electrically coupled cells (Rieubland et al., 2014). Here, electrical coupling was examined using both long hyperpolarizing current injections (see Figure 4B) and brief current injections to elicit APs in the presynaptic neuron while monitoring the postsynaptic voltage and current responses (Figure 6B). To probe chemical connectivity, we compared the postsynaptic responses to presynaptic AP generation, either before and after application of gabazine or at different holding membrane potentials of the postsynaptic cells (held at −70 mV or −60 mV, Figure 6B) in order to increase the driving force for GABAergic currents. As shown above, this manipulation does not influence the waveform of potential superimposed spikelets (Figure 5A and B). Figure 6B shows how each type of connection could be unambiguously identified: (1) unidirectional chemical connections did not display inward currents but displayed a voltage- and/or gabazine-sensitive outward current, (2) unidirectional spikelet transmission displayed inward currents along with voltage- and gabazine-insensitive outward currents, (3) dual connections displayed significant inward currents along with voltage- and gabazine-sensitive outward currents, and finally, (4) absence of synaptic connections was inferred when no postsynaptic response was observed (see a summary of conditions in Figure 6—figure supplement 1).

Figure 6 with 1 supplement see all
Download asset Open asset

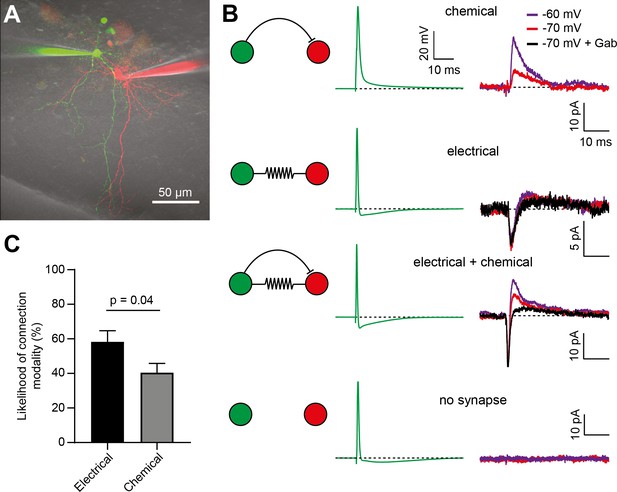

Electrical synapses are more frequent than chemical inhibitory synapses between BCs.

(A) 2P-LSM image (maximal intensity projection) of two BCs loaded with 20 µM Alexa 594 (red) or 20 µm Alexa 488 (green). (B) Representative examples of each of the 3 types of unidirectional connections. Presynaptic AP waveforms are shown in green, with the corresponding responses observed in the postsynaptic cells shown on their right (black, purple or red). Chemical synapses were identified by the presence of a postsynaptic Vm-sensitive or gabazine-sensitive outward current (Gab). Electrical synapses were identified by the presence of a spikelet-mediated inward current. The fourth condition includes those paired recordings with no evidence of electrical or chemical synapses (no synapse). (C) Bar graph showing that electrical synapses are significantly more frequent than chemical synapses in the BC network. 35 out of 60 pairs showed bidirectional spikelets (electrical synapses), whereas 35 out of 85 unidirectional connections showed evidence of chemical synapses (unpaired t-test assuming binomial distributions, p=0.04). See also Figure 6—source data 1.

Figure 6—source data 1

Electrical synapses are more frequent than chemical inhibitory synapses between BCs.

https://cdn.elifesciences.org/articles/57344/elife-57344-fig6-data1-v1.xlsx

In order to compare the frequency of chemical and electrical synapses, we considered only electrical connections that showed spikelet transmission, since weak CCs may reflect indirect coupling between BCs (<2.3%; see Figure 4—figure supplement 1A,B). Since spikelet transmission across gap junctions is symmetrical (bidirectional), we counted maximally one electrical connection per paired BC recording. For a chemical connection, however, there could be zero, one, or two connections per paired recording, and thus we estimated the number of chemical synapses per connections tested. We found that bidirectional spikelet transmission was significantly more likely to be observed than unidirectional GABAergic connections, (58 ± 6%, n = 35/60 paired recordings, and 41 ± 5%, n = 35/85 connections, respectively; p=0.04, unpaired t-test). If we analyzed the gabazine experiments only, we found that in 15 of 28 unidirectional connections from BC-BC pairs, the GABAAR antagonist did not alter the outward current amplitude, consistent with a larger fraction of electrical than chemical connections. In the remaining connections the fractional block by 10 μM gabazine was ~50% on average (Figure 6—figure supplement 1B), suggesting that, when both chemical and electrical synapses were present, the outward current under our recording conditions was similar. We cannot rule out the possibility that GABAergic transmission is more sensitive to rundown and might bias the estimate of the relative contribution of electrical and chemical synapses. Nevertheless, our data suggest that, in adult animals, electrical synapses between BCs are more likely to mediate FFI than their chemical counterparts.

FF recruitment of spikelets narrows single EPSP width and dampens temporal summation

Having observed that electrical synapses are a prominent source of inhibition between BCs, we investigated whether the FF recruitment of spikelets could influence EPSP kinetics and their temporal summation, as for chemical FFI. Because mefloquine is known to alter input resistance by blocking electrical synapses (Vervaeke et al., 2012) and has been shown to alter membrane capacitance (Szoboszlay et al., 2016), we designed a specific experiment to examine the influence of spikelets on EPSPs without the need for gap junction antagonists. Taking advantage of the fact that some stimulation locations along the dendrite did not recruit a spikelet when stimulating 5–10 V above threshold to elicit an EPSC (low stimulation, LS; see Figure 1), we examined EPSP shape under low and high extracellular stimulation intensities (+15 V; HS), which in some cases recruited AP firing of a neighboring interneuron and thus a spikelet in the recorded BC. Recordings were pooled into two different groups: (1) one in which no electrical neighbor was recruited in either stimulation regime (Figure 7A), and (2) another in which increasing stimulation intensity was sufficient to recruit an electrical neighbor (Figure 7C). For those cases where an outward current was not recruited, current-clamp recordings of the same cells showed no differences in the half-width of the EPSPs (n = 15, p=0.19; Figure 7B), despite an increase in the peak EPSC amplitude. For the cases where additional stimulation intensity elicited a detectable outward current, the half-width in current-clamp conditions was decreased by 21 ± 4% (n = 9, p=0.004; Figure 7D). The variability in the EPSC decay across stimulation locations in response to low-intensity stimulation could be due to the variability in cable filtering when eliciting synapse stimulation in different locations within the dendrite, or the variability in the number of electrically coupled cells, which have been shown to decrease input resistance (Alcami and Marty, 2013). But we cannot rule out that a small spikelet may accelerate some EPSPs without eliciting a detectable outward current. Nevertheless, recruiting an additional spikelet, on average, accelerated EPSP decays. These results support the notion that FF recruitment of spikelets sharpens the temporal precision of EPSPs, as is the case for classical, chemical FFI.

Figure 7 with 1 supplement see all
Download asset Open asset

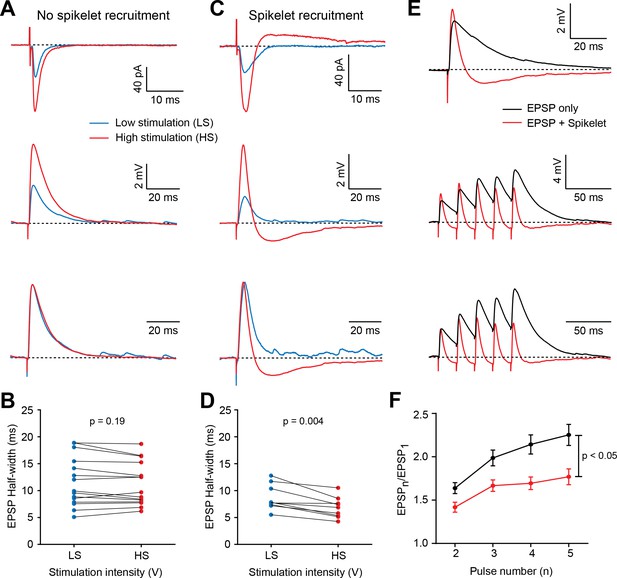

Feed-forward (FF) recruitment of spikelets narrows excitatory postsynaptic potential (EPSP) width and dampens temporal summation.

(A) Top, voltage-clamp recordings of PF-mediated synaptic responses in a representative BC in response to low stimulation intensity (LS – blue traces) and high stimulation intensity (HS – red traces). Increasing stimulation intensity leads to increased peak amplitude of excitatory postsynaptic currents (EPSCs), with no additional recruitment of spikelets. Middle, current-clamp recording of the same cell, showing that increasing stimulation intensity increased the amplitude but not the half-width of the normalized EPSPs (bottom). Traces are averages of 20 to 30 trials. (B) Summary plot showing no increase in half-width of EPSPs if no outward current was observed in voltage clamp (p=0.19, Wilcoxon matched-pairs signed rank test, n = 15 stimulation sites over 12 cells). (C) Example cell in which increasing the stimulation intensity recruits an additional spikelet, observed in voltage clamp (top) and current clamp (middle). The half-width of normalized EPSPs was shortened. (D) Summary plot showing a decrease in half-width of EPSPs if outward currents were observed in voltage clamp (p=0.004, Wilcoxon matched-pairs signed rank test, n = 9 sites from 8 cells). (E) Top, superimposed averaged postsynaptic responses (n = 30 trials) from two different cells: one recorded in response to LS, and another in which the direct EPSP is followed by a spikelet-induced hyperpolarization (red) and the other is not (black). Middle, EPSPs evoked by a 50 Hz stimulus train in the same cells as above. Note the decreased temporal summation in the group where spikelets are present. (F) Summary plot showing relative EPSP amplitudes in response to all five stimuli for stimulation sites that did (red) or did not (black) evoke spikelets (Two-way repeated measures ANOVA, column factor (with versus without spikelet): p=0.004; interaction factor (difference in curve shape with stimulus number): p=0.001; EPSP only: n = 27 stimulation sites over 16 cells, EPSP with spikelet: n = 22 sites over 17 cells). See also Figure 7—source data 1.

Figure 7—source data 1

Feed-forward(FF)recruitment of spikelets narrowsexcitatory postsynaptic potential (EPSP)width and dampens temporal summation.

https://cdn.elifesciences.org/articles/57344/elife-57344-fig7-data1-v1.xlsx

To examine the influence of FF spikelet recruitment on the temporal summation of EPSPs, we applied high-frequency train stimuli at dendritic locations with or without detectable outward currents. EPSPs with spikelets produced faster compound EPSPs followed by a hyperpolarizing component, as compared to those without spikelets (Figure 7E). Temporal summation of EPSPs in response to five stimuli at 50 Hz was significantly reduced at stimulus locations that recruited spikelets (Figure 7F; n = 27 stimulation sites in the ‘no spikelet’ group versus n = 22 stimulation sites in the ‘spikelet’ group; p=0.004, Two-way repeated measures ANOVA). This difference could neither be attributed to differences in peak amplitude of the first EPSP, nor to uneven sampling of PF-mediated responses along the dendritic trees (Figure 7—figure supplement 1). Together, these data indicate that spikelets can act like chemical FFI by reducing the half-width and dampening the temporal summation of EPSPs.

Spikelet signaling enables temporal contrast enhancement of transient excitation

Because spikelets are also comprised of a brief depolarizing component, we considered the possibility that they could contribute to enhanced firing rates over a brief window, in contrast to classical chemical FFI that reduces firing rates. The challenge was to generate EPSPs and spikelets independently, and without altering the EPSP amplitude (as in Figure 7), in order to examine the influence of spikelets on synaptic integration and EPSP-spike coupling. We, therefore, recorded EPSPs in single BCs following stimulation of two independent PF pathways: one electrode was positioned above the BC dendritic tree (on-beam) to recruit only direct EPSPs; and another was positioned adjacent to the projected plane of the dendritic tree to stimulate off-beam, so as to only recruit spikelets in the recorded cell (as in Figure 3; Figure 8A–C). Stimulation intensity was adjusted independently for each location to achieve on- and off-beam stimulation. Stimulation pipette positions were always displaced by at least 100 µm, to ensure the recruitment of two different PF beams. BCs were initially held between −75 and −70 mV in order to examine the amplitude of the compound subthreshold synaptic response with respect to the time delay between the two stimuli (Figure 8D). Coincident stimulation of spikelets and EPSPs indeed increased the EPSP peak amplitude (averaged over a 4–6 ms window) by 21.3 ± 2.4% (n = 12, p<0.0001, Wilcoxon matched-pairs signed rank test - Figure 8E). However, if spikelet recruitment preceded the EPSP (by 5 to 75 ms), the peak amplitude of the EPSP was significantly reduced, with a maximal reduction of 20 ± 2.9% at Δt = 20 ms (n = 12, p<0.0001, Wilcoxon matched-pairs; Figure 8E). We also confirmed that spikelets concomitant with EPSPs reduced their half-width by 16.7 ± 1.8%, consistent with results described above in Figure 7D.

Figure 8
Download asset Open asset
Spikelet transmission enables temporal contrast enhancement of basket cell (BC) excitation.

(A) 2PLSM image (maximal intensity projection) of a BC loaded with 20 µM Alexa 594. Dashed lines indicate the position of the stimulating pipettes on top of the slice (off-beam stimulation in red, on-beam stimulation in blue). (B) Parasagittal block diagram showing on- (blue) and off-beam (red) extracellular electrode stimulation. (C) Superimposed voltage-clamp recordings (upper panel) and corresponding current-clamp recordings (lower panel) of postsynaptic responses to on-beam stimulation (light blue), or off-beam stimulation to elicit a spikelet (orange). Dark blue and red traces represent the averages of 30 trials for on and off-beam stimulation, respectively. (D) Superimposed compound excitatory postsynaptic potentials (EPSPs) recorded in current clamp and for different time delays between on- and off- beam stimulation (each trace is an average of 25 to 30 trials). Time delays (Δt) are relative to on-beam stimulation times. Positive time delays (i.e., off-beam stimulation before on-beam stimulation) are shown in blue shades, coincident stimulations are shown in black, and negative time delays are shown in red shades. Inset is an expanded time scale. (E) Peak amplitude of the compound synaptic responses (normalized to the mean amplitude of the single EPSPs alone) versus the time delay between EPSP and spikelet recruitment (n = 12 cells). Inset is an expanded timescale around the peak and in units of milliseconds. (F) Single trial AP responses to different delays between on- and off-beam stimulation. Shown here are three representative cases: spikelet (red arrows) recruited 20 ms after EPSPs (blue arrows) (top panel), coincidentally with EPSPs (middle panel), or 10 ms before the EPSP (lower panel). In each instance, 30 sweeps are shown. (G) Summary plot of the probability of eliciting an AP by on-beam stimulation (normalized to the mean probability of AP firing by on-beam stimulation alone) versus the time delay between EPSP (on-beam stimulation) and spikelet recruitment (off-beam stimulation; n = 11 cells). Inset is an expanded timescale around the peak and in units of milliseconds. See also Figure 8—source data 1.

Figure 8—source data 1

Spikelet signaling transmission enables temporal contrast enhancement of basket cell (BC) excitation.

https://cdn.elifesciences.org/articles/57344/elife-57344-fig8-data1-v1.xlsx

Finally, we examined if these changes in peak amplitude of compound synaptic responses could translate into differences in spike probability. We injected current to maintain the holding membrane potential at −65 and −60 mV, resulting in EPSP-induced AP firing in approximately 50% of the trials (Figure 8F). We then examined AP firing probability versus time delay between on- and off-beam stimulation. We found that the relative spike probability was increased by 49.3 ± 8% for coincidental arrival of both inputs, and decreased by 40.5 ± 6.1% if EPSPs were triggered 20 ms after the spikelets (p-values<0.001; n = 11 cells for both; Wilcoxon matched-pairs; Figure 8G). Thus, a unique property of spikelet-mediated FF modulation is the ability to enhance spike probability during brief time windows and decrease it for longer ones, a form of temporal contrast enhancement of information conveyed by spatially clustered axonal beams (Wilms and Häusser, 2015). Moreover, for independent PF beams, the MLI network can detect coincident excitation that will in turn generate a global and precise inhibition of downstream PCs.

Discussion

MLIs within the cerebellar cortex have been shown to provide FFI onto PCs in vitro (Dizon and Khodakhah, 2011; Mittmann et al., 2005; Valera et al., 2016) and in vivo (Arlt and Häusser, 2020; Blot et al., 2016). MLIs of the cerebellar cortex are known to communicate through both chemical and electrical synapses (Kondo and Marty, 1998; Mann-Metzer and Yarom, 1999; Rieubland et al., 2014). GABAergic chemical synapses provide self-inhibition between MLIs (Mittmann et al., 2005), and have been suggested to mediate disinhibition of PCs (Blot et al., 2016). Whether or not electrical connectivity could be recruited in a similar manner and influence EPSP-spike coupling, however, had not yet been examined. Here, we identify and describe the functional implication of FF recruitment of spikelet signaling in cerebellar BCs, an MLI subtype that exhibits a high probability of electrical synaptic connections (Alcami and Marty, 2013; Rieubland et al., 2014). Our results indicate that extracellular electrical stimulation of small PF beams leads to the recruitment of APs in electrically coupled MLIs that generate spikelets in the postsynaptic BCs (Figures 1–3), but more rarely and less prominently in SCs (Figure 2). Because of the low frequency (13%) of BC-SC electrical coupling (Rieubland et al., 2014), we propose that eFFI is mostly provided by other BCs. We show that the polarity of spikelet responses is net inhibitory and can be influenced by the presynaptic neuron’s resting membrane potential (Figure 5). This type of connection is more frequent than those of chemical inhibition (58% vs. 41%; Figure 6). Moreover, the brief depolarizing component of the spikelet provides a distinct advantage over cFFI because the postsynaptic output firing can be briefly enhanced, providing a temporal contrast enhancement (Figure 8). Such a mechanism generates strong synchronized inhibition from BCs that could temporally entrain PCs that in turn drive deep cerebellar nuclei (Brown and Raman, 2018; Özcan et al., 2020; Person and Raman, 2012).

Cellular mechanism of spikelet transmission

Extracellular stimulation of PFs in parasagittal slices in the presence of gabazine produced outward currents on average of 10 pA in BCs and less than 3 pA in SCs (Figures 1 and 2). We performed several experiments whose results were consistent with spikelet transmission through gap junctions as the origin of GABAergic-independent outward currents: (1) subsaturating concentrations (20 µM) of the gap junction blocker mefloquine blocked the outward current by 70%, as expected for a current entirely mediated by gap junctions (Cruikshank et al., 2004). (2) We observed a 3-fold reduction in peak amplitude of the outward current in Cx36 KO mice (Figure 2). The incomplete knockdown could be due to genetic compensation by Cx45, which is known to also be expressed in MLIs (Van Der Giessen et al., 2006). Nevertheless, we only observed 20% of BC-BC pairs in Cx36 KO mice that showed bidirectional spikelets and a CC greater than 2% (the average CC correlated with the observation of a spikelet, Figure 4—figure supplement 1A), as opposed to the nearly 60% of BC-BC pairs in WT (Figure 6C). (3) To confirm that the outward currents were mediated by spikelets, we showed that stimulation of PFs outside the dendritic field of the recorded cell and direct stimulation of MLIs in NBQX both evoked currents with a rapid inward component and an outward component similar to that following EPSCs. (4) Moreover, these extracellular stimulation-evoked spikelets were very similar to those evoked by single APs propagating between electrically coupled BC pairs. And finally, (5) the strength of electrical coupling between two BCs, estimated from 400 ms step depolarizations, was positively correlated with spikelet amplitude (Figure 4), suggesting that spikelets were mediated by gap junctions.

Electrical coupling between neurons has also been demonstrated in the absence of gap junctions or chemical synapses and is referred to as ephaptic coupling. We cannot directly rule out that the remaining spikelet currents in mefloquine or Cx36 KOs could result from transmission of an AP between closely juxtaposed dendrites or axons. BC-PC ephaptic transmission is thought to occur between the axon terminal of BCs (pinceau) and the axon initial segment of PCs. Both the capacitive and K-currents generate a local field that sufficiently hyperpolarizes the AIS membrane potential and reduces the probability of PC spiking (Blot and Barbour, 2014). In that study, simulations suggest that the ephaptic-mediated hyperpolarization is ~1 µV at the somata, and thus unlikely to account for the large mV changes we observe between two BCs. In contrast, ephaptic currents in PC-PC pairs are 10's of pA, due to a regenerative activation of local AIS sodium conductances in postjunctional PCs that is eliminated by postjunctional PC hyperpolarization to −70 mV (Han et al., 2018). We showed that the synapse-evoked outward current was insensitive to 1 mM of the sodium channel blocker QX-314 (Figure 1, see Materials and methods); and, in BC-BC paired recordings, the amplitude of the spikelet is insensitive to postsynaptic manipulation of membrane potential (Figure 5). These findings are inconsistent with a sodium-dependent ephaptic mechanism.

Electrical synapse-mediated spikelets dynamically modulate BC EPSP-spike coupling

Spikelet waveforms have been shown to depend on a variety of physiological parameters across different cell types, including resting membrane potential (Mann-Metzer and Yarom, 1999; Otsuka and Kawaguchi, 2013) and active conductances in the presynaptic (Curti and Pereda, 2004; Pereda et al., 2013; Russo et al., 2013) or the postsynaptic cell (Dugué et al., 2009; Mann-Metzer and Yarom, 1999). By systematically varying the pre- and postsynaptic holding membrane potentials, we found that the latter had no detectable influence on the spikelet waveform (Figure 5). However, the presynaptic membrane potential is critical in shaping the triggered AP, and therefore the shape of the corresponding spikelet. A hyperpolarized resting potential leads to a net excitatory spikelet, while a depolarized resting potential reveals a prominent AHP, causing the corresponding spikelets to transmit net inhibition. Comparison of spikelets evoked in an unperturbed, electrically coupled neighbor to those evoked in paired recordings with presynaptic membrane potential manipulations is consistent with a depolarized BC resting membrane potential (> −60 mV; assuming voltage-dependence of AP shape is equal between unperturbed and dialyzed recordings). We postulate that previous recordings showing mostly depolarizing spikelets in cerebellar MLIs were due to either hyperpolarized holding potentials (Alcami, 2018) or an intrinsic difference in the amplitude of the AHP recorded from brain slices prepared from P11-13 rats.

Consistent with a net inhibitory action, we showed that FF recruitment of spikelets narrows the half-width of concomitant EPSPs and dampens their temporal summation. However, because the spikelets comprised a significant depolarizing component, perhaps due to the strong average CC (9.5 ± 1%; n = 41 pairs with CC >2.3%), we also examined their ability to enhance EPSP depolarization. When stimulating PFs within the dendritic tree of BCs, inward current components of spikelets were not reliably detectable. Nevertheless, we found that the transient excitatory drive of spikelets significantly increased the peak amplitude of the compound synaptic potential when both signals were coincident (within a 4–6 ms window). Thus, unlike cFFI, electrical feed-forward modulation (eFFM) shortens the temporal window for EPSP-spike coupling, thus improving spike precision, while simultaneously enhancing spike probability (Figure 8). The degree of such temporal contrast enhancement could be enhanced by cFFI or regulated by factors that adjust presynaptic spike shape, in particular the relative size of the AHP, and thus regulate the temporal balance of excitation and inhibition. We observed that despite the net inhibitory drive of BC spikelets, they also show a prominent brief inward (depolarizing) current component. This depolarizing component of the spikelet effectively provides FF excitation and is thus capable of synchronizing electrically coupled interneurons (Alcami, 2018; Mann-Metzer and Yarom, 1999), whereas the hyperpolarization component could generate low-frequency resonance in a resting state of the network (Dugué et al., 2009) and/or desynchronize network activity upon synaptic stimulation (Vervaeke et al., 2010).

Here we did not examine the combined contribution of cFFI and eFFI, as its true contribution requires an accurate estimate of the GABAR reversal potential, which has not been performed in mature MLIs. Moreover, differential recruitment of cFFI and eFFI in MLIs under physiological spatio-temporal PF activation will require future experiments in awake animals. Nevertheless, we found that BCs are more likely to transmit spikelets than chemical inhibition to their neighbors (58 versus 41%, Figure 6), which could account for the narrowed excitatory responses of BCs versus SCs in vivo (Chu et al., 2012). Recent in vivo findings show that BC spikes have a stronger influence on PC spiking than SCs (Arlt and Häusser, 2020), implying that the specific timing of BCs will strongly influence PC output.

Electrical connectivity in the cerebellar cortex is tuned for precise and synchronous output firing

We observed that 60% of PF stimulus pipette locations within the BC dendritic tree at P30-60 (nearly 80% of locations in P90-150 animals – Figure 2) produced sufficient excitatory drive in electrically coupled BC neighbors to reach threshold for APs, and thus generate a spikelet in the postsynaptic cell. This robust recruitment can be accounted for by three factors: (1) overlap of MLI dendritic trees in order to more likely receive common synaptic input (see Figure 6A), (2) a resting membrane potential close to threshold (Figure 5E; Kim et al., 2014), and (3) a strong enough CC, sufficient to transmit detectable spikelets (>2.3%; Figure 5 and Figure 4—figure supplement 1). The mean CC was 9.5%, similar to the 12% found in Golgi cells (Szoboszlay et al., 2016).

This high degree of electrical connectivity can provide a global network mechanism spanning >100 µm in the sagittal plane (Rieubland et al., 2014) for generating a FF modulation of PC spiking patterns through synchronous inhibition (i.e., excitation of MLIs) followed by a rapid disinhibition (i.e., MLI self-inhibition). In support of the sagittal propagation of spikelets, we find no correlation in CC over intersomatic distances up to 60 µm (Figure 4—figure supplement 1C). Moreover, in vitro experiments revealed that electrical connectivity in the MLI population increases convergence from MLIs to PCs (Kim et al., 2014). Finally, the lateral spread of PF EPSPs through electrical synapses (Figure 3—figure supplement 1), as previously observed in Golgi cells (Vervaeke et al., 2012), along with spikelet transmission, would also contribute to increasing the effective convergence between MLI and PC.

In one of the few studies examining the activity of BCs and PCs in vivo (Blot et al., 2016), a biphasic correlogram suggested an initial excitation of PCs followed by a brief (8 ms) inhibition of PC firing. Recent double-patch recordings in vivo show that even a single deep MLI (likely BC) can drive detectable inhibition of PC firing (Arlt and Häusser, 2020). This very narrow and powerful inhibition could indeed be the result of precisely synchronized BC activity followed by self-inhibition, both mediated by eFFM. Such a network-wide synchronization would be less efficient via chemical inhibition, which has no depolarizing component and would be more variable from trial to trial due to the quantal properties of chemical transmission. Interestingly, voltage-clamp recordings in vivo showed that BC EPSCs are much faster than either SC or PC EPSCs in response to air puffs to the whisker pad (Chu et al., 2012), consistent with the presence of electrical synapses, and perhaps explaining the predominant inhibition of PC firing in response to sensory stimuli (Bosman et al., 2010; Chen et al., 2016). Thus, eFFM could ensure an enhanced and brief BC network recruitment necessary for precise refinement of PC firing patterns.

Implications of eFFM in fine-tuning cerebellar-dependent motor behaviors

Whisker movement kinematics can be both encoded (Chen et al., 2016) and driven by precise PC firing patterns (Bosman et al., 2010; Heiney et al., 2014). This has been hypothesized to be due to millisecond synchrony of PC firing, which could be sculpted by inhibition from synchronously active BCs. Indeed, coherent MLI spiking is necessary to generate well-timed licking behaviors in mice (Gaffield and Christie, 2017). Synchronized PC activity can then precisely gate deep cerebellar nuclear neurons (Özcan et al., 2020; Person and Raman, 2012) to drive movement (Brown and Raman, 2018). Electrical synapses between BCs could provide a network-amplified, highly synchronous inhibition onto PCs along the parasagittal plane, despite complex spatio-temporal activation patterns of PFs. In turn, millisecond inhibition of PC firing by sensory stimuli can disinhibit cerebellar nuclei, which in turn drive motor responses (Brown and Raman, 2018). Finally, in vivo evidence that BCs are involved in refining PC firing on the millisecond scale supports their important role in timing cerebellar cortical output (Arlt and Häusser, 2020; Blot et al., 2016). We therefore propose that eFFM could be an important mechanism to achieve robust, globally synchronous and precisely timed control of PC firing that in turn can efficiently drive cerebellar output from the deep nuclei.

Materials and methods

Key resources table
Reagent type
(species) or resource		DesignationSource or referenceIdentifiersAdditional information
Strain, strain background (Mus musculus – male and female)CB6F1Mouse Genome InformaticsRRID:MGI:5649749
Strain, strain background (Mus musculus – male and female)CX36 KO,
129 brown mice (129S1/SvImJ)		David Paul, Harvard UniversityDeans et al. Neuron 2001.The Cx36 coding sequence is replaced by a LacZ-IRES-PLAP reporter cassette
Chemical compound, drugD-AP5AbcamCat#:ab120003
Chemical compound, drugGabazine (SR-95531)AbcamCat#:ab120042
Chemical compound, drugQX-314AbcamCat#:ab120118
Chemical compound, drugNBQXTocrisCat#:1044
Chemical compound, drugAlexa Fluor 488ThermoFisher ScientificCat#:A10436
Chemical compound, drugAlexa Fluor 594ThermoFisher ScientificCat#:A10438
Chemical compound, drugMefloquine hydrochlorideSigma-AldrichCat#:M2319
Chemical compound, drugDMSOSigma-AldrichCat#:D2650
Software, algorithmIgor ProWavemetricsRRID:SCR_000325
Software, algorithmNeuromaticRothman and Silver, 2018; DOI:10.3389RRID:SCR_004186
Software, algorithmImageJNational Institutes of HealthRRID:SCR_003070
Software, algorithmGraphPad Prism 6GraphPad SoftwareRRID:SCR_002798

Slice preparation

Request a detailed protocol

Animal experiments were performed in accordance with the guidelines of Institut Pasteur, France, and all protocols were approved by the Ethics Committee #89 of Institut Pasteur (CETEA; approval # DHA180006). Experiments were performed on acute brain slices prepared from postnatal day 30–60 (~44 days on average) WT CB6F1 mice, which were bred in house from a cross between female BALB/cByJ and male C57BL/6J obtained from Charles River Laboratories. Experiments in Figure 2 were performed on P90-150 Cx36 KO mice (129S1/SvImJ genetic background in which the Cx36 coding sequence was replaced by a LacZ-IRES-PLAP reporter cassette), generated by Dr. David L. Paul (Harvard University), and age-matched WT CB6F1 mice. All experiments were performed on both female and male mice without bias.

Acute parasagittal slices (200 μm) of cerebellar vermis were prepared as follows: Mice were rapidly killed by decapitation, after which the brains were removed and placed in an ice-cold solution containing (in mM): 2.5 KCl, 0.5 CaCl2, 4 MgCl2, 1.25 NaH2PO4, 24 NaHCO3, 25 glucose, 230 sucrose, and 0.5 ascorbic acid. The solution was bubbled with 95% O2 and 5% CO2. Slices were cut from the dissected cerebellar vermis using a vibratome (Leica VT1200S), and incubated at 32°C for 30 min in a solution containing (in mM): 85 NaCl, 2.5 KCl, 0.5 CaCl2, 4 MgCl2, 1.25 NaH2PO4, 24 NaHCO3, 25 glucose, 75 sucrose and 0.5 ascorbic acid. Slices were then transferred to an external recording solution containing (in mM): 125 NaCl, 2.5 KCl, 1.5 CaCl2, 1.5 MgCl2, 1.25 NaH2PO4, 24 NaHCO3, 25 glucose and 0.5 ascorbic acid, and maintained at room temperature for up to 6 hr.

Electrophysiology

Request a detailed protocol

Whole-cell patch-clamp recordings were performed from BCs, located in the inner third of the molecular layer of acute parasagittal slices (200 µm thick) of cerebellar vermis. Unless otherwise stated (Figures 3 and 4), 10 µM of SR-95531 was added to the ACSF to block GABAA receptors. Whole-cell patch recordings were performed using a Multiclamp 700B amplifier (Molecular Devices) at elevated temperatures (~32°C). We used fire-polished thick-walled glass patch electrodes (tip resistances of 4–6 MΩ). Patch pipettes were backfilled with the following internal solution (in mM): 115 KMeSO3, 40 HEPES, 1 EGTA, 6 NaOH, 4.5MgCl2, 0.49 CaCl2, 0.3 NaGTP, 4 NaATP, 1 K2-phospocreatine and 0.02 Alexa-594 or 0.04 Alexa-488 (adjusted to 300–305 mOsm, pH = 7.3, referred to as K+-based internal solution); 115 CsMeSO3, 40 HEPES, 1 EGTA, 6 NaOH, 4.5MgCl2, 0.49 CaCl2, 0.3 NaGTP, 4 NaATP, 1 Tris-phospocreatine and 0.02 Alexa-594 (adjusted to 300–305 mOsm, pH = 7.3, referred to as Cs+-based internal solution). Series resistance was 14.0 ± 5.8 (mean ± SD, estimated from n = 160 cells) and always under 30 MΩ. All values of membrane potential were corrected for liquid junction potential, estimated to be −8 mV for K+-based internal solution and −11 mV for Cs+-based internal solutions (Figure 1; Abrahamsson et al., 2012). Holding potentials in voltage clamp were −70 mV, unless otherwise indicated. For current-clamp recordings, a bias current was injected to maintain the membrane potential (holding potential) at −70 mV, unless otherwise indicated. Series resistance was compensated by balancing the bridge and compensating pipette capacitance. In experiments described in Figures 1 and 5, internal solutions were further complemented with 1 mM QX-314 to prevent AP generation after entry of PF-mediated EPSCs.

Pharmacological compounds

Request a detailed protocol

D-AP5 (D-(-)−2-Amino-5-phosphopentanoic acid), SR 95531 (2–3-Carboxyprobyl)−3-amino-6(4-methoxyphenyl pyridazinium bromide), and QX-314 chloride were purchased from Abcam, Cambridge, UK. NBQX (2,3-Dioxo-6nitro-1,2,3,4-tetrahydrobenzo[f]quinoxaline-7-sulfonamide) was purchased from Tocris Bioscience, Bristol, UK. Alexa Fluor 488 and 594 were purchased from Life Technologies, Carlsbad, California, USA. Mefloquine hydrochloride and DMSO (Dimethyl sulfoxide) were bought from Sigma-Aldrich, St Louis, Missouri, USA.

Data analysis and statistics

Request a detailed protocol

Electrophysiological signals were low-pass filtered at 10 kHz, digitized at 100 kHz using an analog-to-digital converter (NI USB 6259, National Instruments), then acquired and analyzed using the Neuromatic analysis package (Rothman and Silver, 2018; www.neuromatic.thinkrandom.com) written within the Igor Pro environment (Wavemetrics, Portland, Oregon, USA). Peak amplitudes of synaptic responses recorded in voltage clamp or current clamp were measured as the difference between a baseline amplitude, estimated from 10 ms immediately preceding the stimulation artifact, and the mean amplitude over a 200 µs time window centered around the peak of the mean response. Due to the long-lasting nature of the after-hyperpolarization component of spikelets, the baseline subtracted peak amplitude of the inhibitory component was averaged over a time window of 3 ms, centered around the peak amplitude of the mean response. For the experiments in which we performed direct stimulation of neighboring MLIs, the lack of a synaptic delay required subtraction of the stimulus artifact, which we performed using a function in Neuromatic. In brief, the decaying inward component of the artifact was subtracted by first fitting an extrapolated double exponential function between the time of the peak of the averaged inward component of the artifact to just before the spikelet. The fitted function was then subtracted from all the traces. The remaining mean artifact, comprising the outward component and rising inward component of the mean artifact, were subtracted directly from all traces.

All traces displayed are averages of 20 to 30 sweeps unless otherwise noted. They were filtered off-line using a binomial smoothing equivalent to a 4 kHz Bessel filter. For estimation of CCs we averaged 50 sweeps. Cells with high frequency (>5 Hz) spontaneous EPSCs or spikelet activity were not analyzed.

Measurement of distances between extracellular stimulation pipette locations and somata (Figure 1) or between the somata of two neighboring cells (Figure 4—figure supplement 1) was performed on 2PLSM maximal intensity projections and Dodt images in ImageJ with a freehand line tool, compensated for differences in z-offsets.

Data are expressed as averages ± SEM unless otherwise indicated. Statistical tests were performed using a non-parametric Mann-Whitney two-sample rank test routine for unpaired comparisons, or Wilcoxon matched-pairs signed rank test for paired comparisons unless otherwise stated. Kruskal-Wallis tests, followed by Dunn's multiple comparison tests, were employed to compare multiple groups within a single experiment. Linear correlations were determined by Pearson correlation coefficient. Statistical significance was defined as p<0.05. All statistical tests were two-tailed, and performed in GraphPad Prism 6.

Parallel fiber-mediated synaptic responses

Request a detailed protocol

Extracellular stimulation via patch electrodes filled with ACSF was performed using 50 µs voltage pulses using a constant voltage stimulator (Digitimer Ltd, Letchworth Garden City, UK). In the experiments shown in Figure 1, the external ACSF contained 2 mM CaCl2, 1 mM MgCl2, 10 µM gabazine (SR-95531) and 50 µM D-AP5 to block GABAAR and NMDAR, respectively. In our attempt to block the PF-mediated outward current (Figure 1), we also added in the ACSF either 20 µM mefloquine + 0.1% DMSO, or simply 0.1% DMSO. In all other experiments, we used 1.5 mM CaCl2 and 1.5 mM MgCl2, which are closer to physiological values (Silver and Erecińska, 1990; Bouvier et al., 2018).

Stable EPSC responses from parallel fibers (on-beam stimulation) were obtained by positioning a monopolar glass electrode (similar to patch electrodes, but filled with ACSF, and visualized by Dodt contrast) on top of the slices, above the dendrites of the patched MLIs (visualized by 2PLSM fluorescence of Alexa 594, introduced through the patch pipette). Stimulus intensities were set to 5–10 V above threshold for detecting an EPSC (Abrahamsson et al., 2012), referred to as low stimulation. To trigger spikelet responses (off-beam stimulation and direct stimulation), the stimulation pipette was positioned intentionally outside of the dendritic tree, and the relationship between electrical stimulation intensity and spikelet recruitment was systematically examined (Figure 3). The stimulation intensity was adjusted to between 20 and 80V in order to obtain detectable spikelet responses in at least 25–30 trials (see Figures 3F–3J and 8). Outward currents were considered detectable if the amplitude distribution of peak outward currents for each trial was statistically larger than a prestimulus amplitude distribution within a reflected 3 ms time window around the baseline (same Δt from baseline as baseline region to the time of inward current peak). The distributions were compared with a Wilcoxon matched-pairs signed rank test.

Transmitted light and fluorescence imaging

Request a detailed protocol

BC somata in the inner third of the molecular layer were identified and whole-cell patch clamped using infrared Dodt contrast (Luigs and Neumann, Ratingen, Germany) and a QIClick digital CCD camera (QImaging, Surrey, BC, Canada) mounted on an Ultima multiphoton microscopy system (Prairie Technologies, Middleton, Wisconsin, USA) based on an Olympus BX61W1 microscope, equipped with a water-immersion objective (60X, 1.1 NA, Olympus Optical, Tokyo, Japan). Two-photon excitation of Alexa-488 and Alexa-594 was performed at 780 nm for pairs of BCs. When Alexa-594 alone was used (single-cell patch-clamp), it was excited at 840 nm. A transmitted light PMT was mounted after the Dodt tube in order to acquire a pulsed IR laser-illuminated contrast image simultaneously with the 2P-LSM image. When the whole morphology of one cell could not be captured within a single stack of images in which the focal plane was varied (Z-image stacks; e.g., Figure 1A), multiple Z-image stacks were recorded and pairwise stitched in ImageJ (Preibisch et al., 2009).

Detecting electrical and/or chemical synapses in paired recordings

Request a detailed protocol

The presence of an electrical synapse was assessed by analyzing CCs or spikelet transmission. Unidirectional CCs were calculated by dividing the average hyperpolarization in the non-injected cell (100 ms average) by the hyperpolarization value (100 ms average) recorded in the injected cell. Bidirectional CCs for a given BC-BC pair were calculated from the average of the two unidirectional CCs. Spikelet transmission was assessed by detecting postsynaptic inward currents in response to presynaptic AP firing since outward currents could arise from either spikelets and/or GABAergic currents. Inward current amplitudes were estimated from each sweep, following the baseline procedure described above, by averaging data points over a 200 µs window and occurring within a 2 ms window starting just after the time of the peak of the presynaptic AP. Inward current amplitudes were considered detectable if the amplitude distribution of peak inward currents was larger than a prestimulus amplitude distribution (Wilcoxon matched-pairs signed rank test, p<0.05), measured from a reflected time window identical to that used for peak amplitudes. If inward currents were not detected, then outward currents in the postsynaptic responses were used to infer the presence of a GABAergic synapse. However, when an electrical synapse was detected, the outward current in postsynaptic responses could be caused by a mix of electrical and chemical inputs. In that case, peak amplitudes of postsynaptic outward currents were compared at different holding membrane potentials of the postsynaptic cell (to change the electromotive force for GABAergic inputs), and/or before and after application of gabazine. The presence of a GABAergic synapse was inferred when the peak amplitude distributions of outward currents in these different conditions were significantly different from each other. When an electrical connection was present, bias current in the presynaptic cell was manually adjusted, to compensate for passive flow of different holding currents from the postsynaptic cell.

To calculate the error in our estimate of the frequency of observing electrical and chemical synapses in paired recordings, we first computed the observed frequencies from our data set (electrical: fe = ne/npairs and for chemical: fc = nc/nunidirectional; where ne and nc are the number of bidirectional electrical and unidirectional chemical synapses, respectively). We assumed the frequency distributions could be described by binomial statistics, and therefore calculated a standard deviation (SD = f*(1-f)) and a standard error (SEM = SD/√n). We performed similar error calculations for all observation frequencies (e.g. Figure 1).

Data availability

All analyzed data used for this study are included in the manuscript and supporting files.

References

Decision letter

  1. Gary L Westbrook
    Senior and Reviewing Editor; Oregon Health and Science University, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The authors describe a mechanism in the cerebellar cortex by which electrical coupling of inhibitory interneurons produces a specialized feedforward motif that enhances temporal summation at very short time intervals while shortening the window of integration by inhibiting temporal summation outside this brief window. The important conclusion of this work is that the well-known rapid feedforward inhibition of Purkinje cells driven by parallel fiber activation has both a chemical component, and, via the BC network, an electrical component.

Decision letter after peer review:

Thank you for submitting your article "Feed-forward recruitment of electrical synapses enhances synchronous spiking in the mouse cerebellar cortex" for consideration by eLife. Your article has been reviewed by Gary Westbrook as the Senior Editor, a Reviewing Editor, and three reviewers. The reviewers have opted to remain anonymous. The reviewers have discussed the reviews with one another and the Senior Editor has drafted this decision to help you prepare a revised submission.

Please note the changes in our revision policy in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, we are asking editors to accept without delay manuscripts, like yours, that they judge can stand as eLife papers without additional data, even if they feel that some additional experiments would make the manuscript stronger. Thus the revisions requested below primarily address clarity and presentation.

Summary:

The reviewers were interested in the topic and the proposed mechanism. However, we noted several issues in our discussion that need to be more carefully addressed in the text because the data in our opinion was not definitive. As noted above, eLife policy at this time is not to ask for additional experiments if the manuscript can be revised to state only those conclusions that are well supported by the existing data. We focused our discussion on the 5 issues below that we intend as a guide to your revision. Please also address other points of discussion or clarification raised in the original reviews that are included below.

Essential revisions:

1) Weak effects of KO/mefloquine. These effects were rather modest given that they are central to the proposed mechanism. The authors should discuss the possibility that ephaptic coupling could account for some component of the phenomenon, and the KO data need to be better integrated into the main text.

2) Comparison of GJs vs GABA in inhibiting the network. The reviewers were not convinced regarding the relative contribution of these components, which require a more balanced discussion.

3) Conclusions regarding resting membrane potential. Here again the reviewers were not convinced by the data presented. The authors should only make conclusions that are well supported by the data.

4) To better clarify the impact of your work, please point out similarities and differences to previous studies in the Discussion section.

5) The computation of connection probabilities needs to be better clarified.

We think these revisions can be made without increasing the length of the manuscript by eliminating redundancies in the text.

Reviewer #1:

In the manuscript "Feed-forward recruitment of electrical synapses enhances synchronous spiking in the mouse cerebellar cortex" Hohne and colleagues describe a mechanism in the cerebellar cortex by which electrical coupling of inhibitory interneurons produces a specialized feedforward motif that enhances temporal summation at very short time intervals while shortening the window of integration by inhibiting temporal summation outside this brief window. Together, these combined mechanisms are proposed to support a globalize and temporally precise inhibition of Purkinje neurons that could enhance synchrony thought to be important for information transmission downstream. The manuscript presents a progression of experiments describing the phenomenology and mechanism of the electrical coupling of basket cells, including evidence that outward currents observed in BCs are mediated in part by gap junctions; the spatial relationship of stimulation and the observation of electrical spikelet mediated outward currents; analog effects on electrical transmission; relative prevalence of electrical and chemical inhibition; and finally, the effect of electrical coupling on temporal summation of EPSPs. The data are thought provoking and of high quality and contribute to an active literature on MLI organization and physiology.

That said, the study has some shortcomings, which should be addressable with mainly text clarifications or additional analyses. I recognize the impossibility of collecting new data in the short term, thus where new data suggested below are not obtainable, interpretations should be tempered and narrowed.

1) The primary takeaway is that for independent PF beams, BC networks can detect coincident excitation that will generate a global precise inhibition of downstream Purkinje neurons. For this to be true, the temporal windowing contrast enhancement effect shown in Figure 6 needs to be robust to the presence of chemical inhibition. To my read, gabazine was present, leaving this uncertainty unresolved. Superimposed chemical and electrical inhibition could have predictable or unpredictable effects on the network level phenomenon reported here, raising the importance of empirical data in this light. For instance, Figure 3 shows that membrane potential of the presynaptic partner in an electrical pair affects electrical transmission. If effective GABAergic inhibition caused hyperpolarization of the presynaptic partner the magnitude of electrical inhibition would be expected to be reduced. Of course, this prediction may not pan out, but the main point is that it is difficult to predict how robust the phenomena reported here are to a full suite of intact circuit mechanisms.

2) The identification of gap junctions as mediating the outward currents measured is surprisingly weak. In Figure 1 they show that the outward current is unlikely mediated by unclamped K currents from direct stimulation, since it is robust to Cs internal and moreover the gap junctional antagonist mefloquine reduces the magnitude and frequency of observing these currents. However, a very important dataset is relegated to a supplementary figure that is in turn poorly integrated into the findings, specifically, experiments performed in Cx-36 knockouts shown in Figure 2. Although the title of the figure (S3) is 'Outward currents are smaller in SCs than BCs' the main text refers to the figure in the context of testing for the presence of outward currents in Cx-36 knockouts. The data are a bit of a mess with different age ranges used, precluding a clean interpretation. The data show that the amplitude of the outward currents recorded in Cx-36KO mice at P90-150 are about the amplitude as those recorded in wildtypes at P30-60 (the range used in the rest of the paper). There is a clear decrement in the amplitude of the putative electrical inhibition between wildtype and knockouts at a given age range, however, supporting the conclusion that this is gap-junction mediated. Given the extensive literature on ephaptic signaling in this part of the molecular layer, some caution is warranted in interpreting these as a purely jap-junctional mediated mechanism. Together, the mixing of experimental conditions and the persistence of the outward current in the knockouts seems to undermine one of the main takeaways of the study, sowing confusion and doubt. The authors should make some effort at better explaining and integrating this dataset into the main part of the study.

3) I have no reason to doubt the authors on the description of the inward and outward currents shown in Figure 1, or their sensitivity and insensitivity to blockade by receptor blockers, but the results as presented are very qualitative. Please report analyses in the text. For example, "Bath application of 10 μm .… NBQX eliminated both the EPSC and subsequent outward current (n = 6/6 experiments) should provide amplitude info +/- drug, as should the gabazine experiment before that.

4) Figure 3 data presents an interesting experiment testing how RMP of one or the other MLI in a coupled pair influences the spikelet polarity. They identify CC with paired recordings and see that the membrane potential of the presynaptic cell has a strong effect on the spikelet waveform but not vice versa. Some confusion in the exposition: The example in B shows bidirectional coupling but they then focus in unidirectional coupling. It is unclear if the cells used in D-F are unidirectionally or bidirectionally coupled or whether the holding potential manipulations of the 'pre and post' synaptic cells are filtered into the other. This overall raises the question of whether the correlations they show in H are based solely on the membrane potential of the presynaptic cell or on the differential membrane potentials between the two coupled cells. This could be clarified with edits.

5) For data shown in Figure 4, please report the number of cases where chemical inhibition was distinguished with pharmacology vs driving force. Also, I am missing how the probability distributions of chemical and electrical connections are compared and quantified. The results report that the probability of bidirectional transmission of spikelets was 0.52 +/- 0.06 (31/60 pairs). What does the error here represent? Similar with the GABAergic synapse: 0.40 +/- 0.05% (34/86 pairs). Finally, these probability distributions are compared with an unpaired t-test and shown to be not significantly different, but I am having difficulty following the mechanics of this analysis.

Reviewer #2:

In this study from the DiGrigorio lab, electrical synapses within the basket cell (BC) network were examined for their capacity to drive precisely timed activity, and thus inhibition of Purkinje cells. The most interesting conclusions are contained in Figure 5, which shows that narrow band synaptic activation of BCs can drive excitation of neighboring BCs with a temporal precision exceeding that of conventional EPSPs. The basis for this precision is that the excitation comes by way of spikelets and each spikelet is curtailed by the potent electrotonic spread of spike afterhyperpolarizations. An important conclusion then is that the well-known rapid feedforward inhibition of Purkinje cells driven by parallel fiber activation has both a chemical component, and, via the BC network, an electrical component. Thus, the authors coin the acronym eFFM, electrical feedforward modulation. This is good quality electrophysiology from a top lab, so I no major technical concerns. I do feel that apart from the above, the majority of the work is demonstrating rather incremental or expected things. For example, the generation of postsynaptic inhibition through the spikelet waveform is well described elsewhere. Also, I am not so convinced by the RMP estimate.

The use of the ratio of inward to outward current to guesstimate prejunctional resting membrane potential seems not very strong. This ratio is affected by other things besides RMP, for example: during the whole cell recording there can be washout of currents that underlie AHPs, there may be alterations in junctional conductance (which will filter the fast inward current more than the slow outward current). Indeed for the direct stim experiments, the slope of the graph in 5H is nearly twice that of the -60 mV graph. Do you really think the RMP is nearly -50 mV? If the prejunctional cell population is firing chronically, how would that impact this estimate?

Reviewer #3:

In this report, Hoehne et al., examine a novel type of feedforward inhibition mediated by an electrically coupled interneuron network in the cerebellum. They find that basket cells, a type of molecular layer interneuron, show curtailed synaptic excitation due to the offsetting effect of an after-hyperpolarization of a shared spikelet, generated in a neighboring electrically coupled basket cell. Interestingly, the depolarizing phase of the spikelet can cause increased firing in the postsynaptic cell. The combination of these opposing effects producing a type of contrast enhancement. Overall, this is an elegant, well-executed study. It is important for two reasons. First, the uniqueness of the underlying mechanism of electrical feedforward inhibition (FFI) whose influence differs from that mediated by chemical connections. Second, molecular layer inhibition is an important feature for organizing the output of the cerebellum, thus, contrast enhancement as described in this report could have a substantial effect on information coding in the cerebellum's circuits. The authors should consider revising their manuscript in several places to improve clarity and increase the impact of their work. These criticisms do not take away from overall enthusiasm.

1) The authors argue that electrical coupling is mediated by gap junctions but the effects of Cx36 knockout are very limited (e.g., 25% reduction in the frequency of observing the after-hyperpolarization of the coupled spikelet). The Marty group showed that MLI electrical coupling was absent in Cx36 KO mice so this is a very important caveat to the interpretation of their results. Did the authors consider the effects of Cx36 KO on temporal summation or on contrast enhancement? The authors should elaborate on the possibility of developmental compensation or alternative mechanisms that could explain this phenomenon in the Discussion section (ephaptic coupling?). Lastly, the presentation of the Cx36 data seems out of place in the Results section. Perhaps this was due to the lack of explanation in their methodology (e.g., 'coupled pairs' aren't well explained at first; only later in the manuscript was this described as recording from two basket cells at once).

2) The authors attempt to compare the prevalence of electrical vs chemical FFI is confusing. Why not simply state the rate of identifying electrically and chemically connected pairs? Then report the rate of spikelet coupling (which seems to be higher than the rate identified by long, hyperpolarizing pulses). Again, could spikelet coupling reflect a different mechanism? Last, is the prevalence of electrical vs chemical FFI best described by the rate of electrically and chemically connected pairs of basket cells?

3) Can the authors always be sure the presynaptic coupled neuron is a basket cell? It looks like the stimulating pipette is place throughout the molecular layer where stellate cells (and their neurites) also reside.

4) Could temperature-dependent effects on spike width and after-hyperpolarization duration contribute to differences with results from the Marty group (i.e., the prominent depolarization noted in their report)? This may also be true for the resting membrane potential in the presynaptic cell which the authors clearly show affects the polarity of influence.

5) EPSP half-widths in 5B and 5D seem to be different (responses appear much more prolonged in 5B). Does this mean that many responses in 5D in the LS condition have coupled spikelets (perhaps too small to resolve as outward currents but still large enough to effect EPSP duration)? How does this affect the interpretation of their results?

https://doi.org/10.7554/eLife.57344.sa1

Author response

Essential revisions:

1) Weak effects of KO/mefloquine. These effects were rather modest given that they are central to the proposed mechanism. The authors should discuss the possibility that ephaptic coupling could account for some component of the phenomenon, and the KO data need to be better integrated into the main text.

We recognize that vague wording and presentation of critical control experiments supporting the mechanism of GABAergic-independent feed-forward inhibition may have obfuscated reader. To correct this and other major concerns, we have added new main figures, performed additional analysis, clarified the description of results, and considered alternative hypotheses for our findings in the Discussion section.

1) We now emphasize that the 70% block by mefloquine is consistent with a gap-junction mediated mechanism, as we used a sub-saturating concentration in order to prevent significant off-target effects.

2) We now show that the coupling coefficient, a proxy of gap junction coupling, is positively correlated with the size of spikelets (i.e. peak amplitude of inward and outward spikelet currents), suggesting that spikelets are mediated by gap junctions.

3) Regarding the less than complete knock down of electrical coupling in the Cx36 KO mice, we now: a) highlight that there is still a 3-fold reduction in the outward current when compared to age-matched controls, b) discuss literature supporting the possibility that expression of Cx45 might compensate for Cx36 knock down, and c) discuss differences between our study and those of previous publications. In particular, we discuss the possibility that the use of older animals (>P90) vs. the 3 weeks old animals used in previous studies could allow for compensatory mechanisms to be expressed.

4) We now included a thorough discussion of the potential for spikelet transmission by ephaptic coupling. In brief, the large amplitude of BC spikelet currents is not compatible with the direct ephaptic currents generated between BC terminals and PC axon initial segments (Blot et al., 2016). Nor are they compatible with the sodium channel current evoked by ephaptic coupling between PC axons, since our spikelets are insensitive to internal QX314 and alterations in postsynaptic membrane potentials (Han and Regehr, 2018).

2) Comparison of GJs vs GABA in inhibiting the network. The reviewers were not convinced regarding the relative contribution of these components, which require a more balanced discussion.

Indeed, it is difficult to assess the relative contribution of chemical and electrical synapses to inhibitory transmission given the current data set. We have now added a paragraph in the Discussion section to highlight the limitations of our ability to assign a specific physiological role. Nevertheless, the observed higher frequency of electrical synapses implies a prominent and important mechanism. In the first submission there was an error in our spreadsheet, and upon correction, the higher frequency of electrical synapses is actually statistically significant. Moreover, we also now show that saturating concentrations of GABAAR antagonists did not statistically alter AP-evoked outward currents in paired BC recordings in 13 out of 21 cases. When Gabazine did have an effect, it blocked by only 50%.

We feel it is also important to highlight that spikelet-mediated inhibition, unlike chemical inhibition, is also coupled to a rapid initial depolarizing component that we show increases spike probability in addition to narrowing the time window for spiking, and they can propagate across multiple cells, ensuring entrainment of the network not otherwise possible with chemical inhibition.

Finally, we now mention in the Discussion section that future in vivo experiments are necessary to assess the physiological contribution of feed-forward spikelet transmission.

3) Conclusions regarding resting membrane potential. Here again the reviewers were not convinced by the data presented. The authors should only make conclusions that are well supported by the data.

We have carefully rewritten the Results sections so as not to overstate our conclusions. But the well-known voltage dependence of the relative hyperpolarization component, we feel, is a good indicator that MLIs have a depolarized resting potential. This is also consistent with the high propensity to evoke spikes in neighboring cells. But, independent of the resting membrane potential, the prominent biphasic spikelet is a recording of an unperturbed cell and likely to represent physiologically relevant characteristics.

4) To better clarify the impact of your work, please point out similarities and differences to previous studies in the Discussion section.

In the Discussion section, we now specifically comment on differences between our conclusions and those described previously. In brief, beyond the novel demonstration that spikelets are recruited in a feed-forward manner, we also show that the biphasic spikelet transmission is likely more physiologically relevant. We hypothesize that previous work in the same cell type did not observe the hyperpolarization component due to their hyperpolarized holding membrane potentials.

5) The computation of connection probabilities needs to be better clarified.

We have re-written the text and provided a new table to clarify the frequency of different criteria used to estimate connection probabilities of chemical and electrical connections between BCs.

We think these revisions can be made without increasing the length of the manuscript by eliminating redundancies in the text.

We have also made an effort to reduce redundancies to a minimum. However, to address all the comments of the reviewers, the Discussion section is indeed longer.

In summary, we are thankful for the reviewers’ comments as they have led to a greatly improved manuscript by encouraging us to revise analyses, calculations and presentation of the results. We have increased the number of main figures from 6 to 8, and hope that together with our additional changes we have made a more convincing argument that feed-forward recruitment of spikelet transmission if mediated by gap junctions and provides a powerful mechanism for synchronizing neural activity in ways not possible by chemical inhibition. We hope that the current manuscript is now suitable for publication in eLife.

Reviewer #1:

In the manuscript "Feed-forward recruitment of electrical synapses enhances synchronous spiking in the mouse cerebellar cortex" Hohne and colleagues describe a mechanism in the cerebellar cortex by which electrical coupling of inhibitory interneurons produces a specialized feedforward motif that enhances temporal summation at very short time intervals while shortening the window of integration by inhibiting temporal summation outside this brief window. […] The data are thought provoking and of high quality and contribute to an active literature on MLI organization and physiology.

That said, the study has some shortcomings, which should be addressable with mainly text clarifications or additional analyses. I recognize the impossibility of collecting new data in the short term, thus where new data suggested below are not obtainable, interpretations should be tempered and narrowed.

We thank the reviewer for the encouraging words and describe below how we have addressed the concerns.

1) The primary takeaway is that for independent PF beams, BC networks can detect coincident excitation that will generate a global precise inhibition of downstream Purkinje neurons. For this to be true, the temporal windowing contrast enhancement effect shown in Figure 6 needs to be robust to the presence of chemical inhibition. To my read, gabazine was present, leaving this uncertainty unresolved. Superimposed chemical and electrical inhibition could have predictable or unpredictable effects on the network level phenomenon reported here, raising the importance of empirical data in this light. For instance, Figure 3 shows that membrane potential of the presynaptic partner in an electrical pair affects electrical transmission. If effective GABAergic inhibition caused hyperpolarization of the presynaptic partner the magnitude of electrical inhibition would be expected to be reduced. Of course, this prediction may not pan out, but the main point is that it is difficult to predict how robust the phenomena reported here are to a full suite of intact circuit mechanisms.

The reviewer is correct in that the data presented do not differentially address the effect of chemical and electrical inhibition on feed-forward modulation of BC spiking. Indeed, a proper exploration of this would require experiments to be performed in a fully intact circuit (in vivo), where physiological GC activity might differentially recruit electrical FFI or chemical FFI. We have now pointed out these shortcomings of our study and indicate that future experiments would be required to dissect the true relative contribution. Even in vitro, the precise dissection is challenging due to the uncertainty in reversal potential for GABAARs.

In subsection “Electrical synapse-mediated spikelets dynamically modulate BC EPSP-spike coupling”, we added the following text:

“Here we did not examine the combined contribution of cFFI and eFFI, as its true contribution requires an accurate estimate of the GABAR reversal potential, which has not been performed in mature MLIs. Moreover, differential recruitment of cFFI and eFFI in MLIs under physiological spatial temporal PF activation will require future experiments in awake animals. Nevertheless, we found that BCs are more likely to transmit spikelets than chemical inhibition to their neighbors (58 versus 40 %, Figure 6), which could account for the narrowed excitatory responses of BCs versus SCs in vivo (Chu et al., 2012). Recent in vivo findings show that BC spikes have a stronger influence on PC spiking than SCs (Arlt and Häusser, 2020), implying that the specific timing of BCs will strongly influence PC output.”

We also highlighted the important difference between chemical inhibition and electrical synapses: namely the depolarizing – synchronizing component, and the electrical propagation within the BC network, which are likely to entrain a greater fraction of BCs than chemical inhibition alone.

In subsection “Electrical synapse-mediated spikelets dynamically modulate BC EPSP-spike coupling”, we added the following text:

“Nevertheless, we found that the transient excitatory drive of spikelets significantly increased the peak amplitude of the compound synaptic potential when both signals were coincident (within a 4-6 ms window). Thus, unlike cFFI, electrical feed-forward modulation (eFFM) can shorten the temporal window for EPSP-spike coupling, thus improving spike precision, while simultaneously enhancing spike probability (Figure 8).”

In subsection “Electrical connectivity in the cerebellar cortex is tuned for rapid output synchrony”, we added the following text:

“This high degree of electrical connectivity can provide a global network mechanism spanning > 100 µm in the sagittal plane (Rieubland et al., 2014) for generating a FF modulation of PC spiking patterns through synchronous inhibition (i.e., excitation of MLIs) followed by a rapid disinhibition (i.e., MLI self-inhibition). It should be noted that chemical inhibition alone does not propagate within the network, but spikelet-mediated inhibition does.”

We also would like to point out to the reviewer that it seems likely that the concurrence of both chemical inhibition and action potentials within the presynaptic cell would simply amplify the presynaptic hyperpolarization, which in turn is transmitted as inhibition to the electrically coupled receiving cell. Alternatively, if chemical inhibition is transmitted to both the pre and postsynaptic cell, then indeed the hyperpolarizing component of the transmitted spikelet would be occluded, but the receiving cell would still experience inhibition. Nevertheless, the most important difference of electrical (spikelet) and chemical inhibition, is that the spikelet inhibition will be coupled to a depolarizing component, which will be increased under hyperpolarized conditions of the presynaptic cell (new Figure 5), and will be very rapidly transmitted, indeed faster than the synaptic delay for inhibition. Thus, in all cases, the depolarizing component will be transmitted to the postsynaptic cell. In this light, the temporal contrast enhancement figure provides important and physiologically relevant intuition as to how brief BC synchrony can be generated, with or without additional chemical inhibition.

2) The identification of gap junctions as mediating the outward currents measured is surprisingly weak. In Figure 1 they show that the outward current is unlikely mediated by unclamped K currents from direct stimulation, since it is robust to Cs internal and moreover the gap junctional antagonist mefloquine reduces the magnitude and frequency of observing these currents. However, a very important dataset is relegated to a supplementary figure that is in turn poorly integrated into the findings, specifically, experiments performed in Cx-36 knockouts shown in Figure 2. Although the title of the figure is 'Outward currents are smaller in SCs than BCs' the main text refers to the figure in the context of testing for the presence of outward currents in Cx-36 knockouts.

We have now moved the results regarding the KO to the main Figure 2 and corrected the title.

The data are a bit of a mess with different age ranges used, precluding a clean interpretation. The data show that the amplitude of the outward currents recorded in Cx-36KO mice at P90-150 are about the amplitude as those recorded in wildtypes at P30-60 (the range used in the rest of the paper).

We thank the reviewer for pointing out the shortcomings in the presentation of our results, which perhaps contributed to an apparent underwhelming conclusion. Nevertheless, we are confident that gap junctions are the likely mechanism for the following reasons, which we now emphasized in the Results section and Discussion section.

1) Regarding the incomplete block of the outward currents by mefloquine: in order to minimize off-target effects, we used 20 mM mefloquine, which is expected to block gap junctions by 70% (Cruikshank et al., 2004). The outward current was reduced to 33%, consistent with an entirely gap junction-mediated mechanism.

We added the following text to subsection “PF-triggered outward current mediated by electrical synapses in cerebellar basket cells”: “In brain slices prepared from Cx36 KO mice, we found a 45 % reduction in the frequency of observing outward currents, and the amplitude of the remaining events was 3-fold smaller than age-matched recordings (4.2 ± 0.8 vs. 12.7 ± 1.8 pA).”

2) We apologize for the confusion resulting from showing Cx36 data in a Supplementary figure. To correct this, we moved the Cx36 KO data from a supplementary figure to a main figure (now Figure 2), and now only show age-matched comparisons, which highlight the 3-fold reduction in outward current in Cx36 mice. We previously misstated the Cx36 reduction as only two-fold, rather than three-fold.

3) We also now describe the strong correlation between coupling coefficient and spikelet amplitude in a main figure (new Figure 4). This result shows that the larger the coupling coefficient, the larger the spikelets. They also further support a gap junction origin of the spikelet transmission between BCs.

There is a clear decrement in the amplitude of the putative electrical inhibition between wildtype and knockouts at a given age range, however, supporting the conclusion that this is gap-junction mediated. Given the extensive literature on ephaptic signaling in this part of the molecular layer, some caution is warranted in interpreting these as a purely jap-junctional mediated mechanism.

Indeed, it is possible that the remaining inward and outward current in mefloquine or in Cx36 KOs could result from transmission of an action potential between closely juxtaposed dendrites or axons. Ephaptic transmission has been shown to involve different mechanisms.

In Blot et al., 2014, BC-PC ephaptic transmission is thought to occur between the axon terminal structures, pinceau, and the axon initial segment of PCs. Both the capacitive and K-currents generate a local field that sufficiently hyperpolarizes the AIS membrane potential and reduces the probability of PC spiking. Their simulations suggest that the ephaptic-mediated hyperpolarization is likely around ~ 1 µV at the somata, and thus undetectable. Thus, the large mV changes we observe between two BCs seem incompatible with such a coupling, as it would likely have to be between two axon terminals or crossings between BC dendrites.

In contrast, Han et al., 2018 measure ephaptic currents in PC-PC pairs that are 10's of pA, but are due to regenerative activation of local AIS sodium conductances in the post-PC, as they are blocked by intracellular perfusion of QX314 (sodium channel antagonist), and eliminated by postPC hyperpolarization to -70 mV (Figure 4). In the new Figure 5 we show that the amplitude of the spikelet is insensitive to postsynaptic manipulation in paired recordings of BC-BC pairs. Moreover, all the outward current experiments in Figure 1 were performed in the presence of QX-314. Kim et al. also nicely showed that the extracellular field was only generated within 20 µm of the high conductance density region of the AIS (Figure 5G), and not the soma or axon. Thus, the spikelets that we report, or even the 30% remaining unblocked current (in the presence of mefloquine or Cx36 KO), are unlikely mediated by this sodium current-dependent ephaptic mechanism.

Together, the mixing of experimental conditions and the persistence of the outward current in the knockouts seems to undermine one of the main takeaways of the study, sowing confusion and doubt. The authors should make some effort at better explaining and integrating this dataset into the main part of the study.

Again, we apologize if some of the explanation or logical flow of our arguments was not clear, but we believe that we have performed multiple experiments to support gap-junction mediated FFM. In addition to changes in the Results section and figures (see above), we also modified the discussion to clearly state the reasons for our conclusion, and the possibility of other interpretations (ephaptic). See Discussion section:

“Extracellular stimulation of PFs in parasagittal slices in the presence of gabazine produced outward currents of 10 pA in BCs and less than 3 pA in SCs (Figure 1 and Figure 2). We performed several experiments whose results were consistent with spikelet transmission through gap junctions as the origin of GABAergic-independent outward currents: (1) sub-saturating concentrations (20 µM) of the gap junction blocker mefloquine blocked the outward current by 70 %, as expected for a current entirely mediated by gap junctions (Cruikshank et al., 2004). (2) We observed a 3-fold reduction in peak amplitude of the outward current in Cx36 KO mice (Figure 2). The incomplete knockdown could be due to genetic compensation by Cx45, which is known to also be expressed in MLIs (Van Der Giessen et al., 2006). Nevertheless, we only observed one of five BC-BC pairs in Cx36 KO mice that showed bidirectional spikelets and a CC greater than 2 % (the average CC correlated with the observation of a spikelet, Figure 2A), as opposed to the nearly 60 % BC-BC pairs (Figure 6C). (3) To confirm that the outward currents were mediated by spikelets, we showed that stimulation of PFs outside the dendritic field of the recorded cell and direct stimulation of MLIs in NBQX both evoked currents with a rapid inward component and an outward component similar to that following EPSCs. (4) These extracellularly-evoked spikelets were very similar to those evoked by single APs propagating between electrically coupled BC pairs. And finally, (5) the strength of electrical coupling between two BCs, estimated from 400 ms step depolarizations, was positively correlated with spikelet amplitude (Figure 4), confirming that spikelets were mediated by gap junctions.

Electrical coupling between neurons has also been shown to be mediated without a gap junction or chemical synapse, and is referred to as ephaptic coupling. We cannot directly rule out that the remaining spikelet currents in mefloquine or in Cx36 KOs could result from transmission of an AP between closely juxtaposed dendrites or axons. BC-PC ephaptic transmission is thought to occur between the axon terminal of BCs (pinceau) and the axon initial segment of PCs. Both the capacitive and K-currents generate a local field that sufficiently hyperpolarizes the AIS membrane potential and reduces the probability of PC spiking (Blot and Barbour, 2014). In this study, simulations suggest that the ephaptic-mediated hyperpolarization is likely around ~ 1 µV at the somata, and thus unlikely to account for the large mV changes we observe between two BCs. In contrast, ephaptic currents in PC-PC pairs are 10's of pA, but are due to regenerative activation of local AIS sodium conductances in the post-PC, which is eliminated by post-PC hyperpolarization to -70 mV (Han et al., 2018). We showed that the synapse-evoked outward current was insensitive to 1 mM of the sodium channel blocker QX-314 (Figure 1, see Materials and methods section); and, in BC-BC paired recordings, the amplitude of the spikelet is insensitive to postsynaptic manipulation of membrane potential (Figure 5). Both results are inconsistent with a sodium dependent ephaptic mechanism.”

3) I have no reason to doubt the authors on the description of the inward and outward currents shown in Figure 1, or their sensitivity and insensitivity to blockade by receptor blockers, but the results as presented are very qualitative. Please report analyses in the text. For example, "Bath application of 10 μm .… NBQX eliminated both the EPSC and subsequent outward current (n = 6/6 experiments) should provide amplitude info +/- drug, as should the gabazine experiment before that.

We have added a summary panel (Figure 1E) describing the NBQX blockade of the outward current. See added text in subsection “PF-triggered outward current mediated by electrical synapses in cerebellar basket cells”: “Bath application of 10 µM of the AMPA receptor (AMPAR) antagonist, NBQX, eliminated both the EPSC and the subsequent outward current to below detectable levels (Figure 1E, n = 5/5 experiments).”

Unfortunately, we did not characterize PF-evoked outward currents with and without gabazine, however, we did examine in some BC-BC pairs the effect of gabazine on the outward currents (see new Figure 4—figure supplement 1). We found that, in 13 out of 21 unidirectional connections from BC-BC pairs, the GABAAR antagonist did not alter detectably the outward current amplitude, and, in the remaining connections, the fractional block by 10 µM gabazine was ~50% on average (new Figure 4—figure supplement 1B). The following text was added to the Results section:

“If we analyzed the gabazine only experiments, we found that in 13 out of 21 unidirectional connections, the GABAAR antagonist did not alter the outward current amplitude. In the remaining connections the fractional block by 10 µM gabazine was ~50 % on average (Figure 4—figure supplement 1B).”

4) Figure 3 data presents an interesting experiment testing how RMP of one or the other MLI in a coupled pair influences the spikelet polarity. They identify CC with paired recordings and see that the membrane potential of the presynaptic cell has a strong effect on the spikelet waveform but not vice versa. Some confusion in the exposition: The example in B shows bidirectional coupling but they then focus in unidirectional coupling. It is unclear if the cells used in D-F are unidirectionally or bidirectionally coupled or whether the holding potential manipulations of the 'pre and post' synaptic cells are filtered into the other. This overall raises the question of whether the correlations they show in H are based solely on the membrane potential of the presynaptic cell or on the differential membrane potentials between the two coupled cells. This could be clarified with edits.

We have clarified in the text and in the methods that bidirectional coupling coefficients (CCs) are values that represent the average of the two unidirectional CCs. Unidirectional CCs are calculated from the ratio of the membrane potential in the receiving cell over the hyperpolarization amplitude of the cell in which the current injection was delivered.

Because current injections were made to maintain resting potentials in current clamp, and the voltage clamp circuit ensured a constant membrane potential, the resting membrane potentials were essentially decoupled, allowing for an accurate determination of the membrane potential dependence on the spikelet shape, without influencing the membrane potential of the electrically connected cell. In Figure 5E and F the receiving cell is held at -70mV, which might certainly influence the resting membrane potential of electrically-coupled neighbors.

5) For data shown in Figure 4, please report the number of cases where chemical inhibition was distinguished with pharmacology vs driving force.

This is a good suggestion. We have now added a supplementary table indicating the number of unidirectional connections tested for each method (Figure 4—figure supplement 1B).

Also, I am missing how the probability distributions of chemical and electrical connections are compared and quantified. The results report that the probability of bidirectional transmission of spikelets was 0.52 +/- 0.06 (31/60 pairs). What does the error here represent? Similar with the GABAergic synapse: 0.40 +/- 0.05% (34/86 pairs). Finally, these probability distributions are compared with an unpaired t-test and shown to be not significantly different, but I am having difficulty following the mechanics of this analysis.

Perhaps this was not well explained. The standard error we show is calculated from the standard deviation of a binomial distribution centered on the observed frequency of each connection type. Once having the SEM, we could perform a simple unpaired two-tailed t-test. This was originally briefly described in the figure legend, but now also described in the Materials and methods section: “To calculate the error in our estimate of the frequency of observing electrical and chemical synapses in paired recordings, we first computed the observed frequencies from our data set (electrical: fe = ne/npairs and for chemical: fc = nc/nunidirectional connections). We assumed the frequency distributions could be described by binomial statistics, and therefore calculated a standard deviation (SD = f*(1-f)) and a standard error (SEM = SD/n). We performed similar error calculations for all observation frequencies (e.g. Figure 1).”

Reviewer #2:

[…] The use of the ratio of inward to outward current to guesstimate prejunctional resting membrane potential seems not very strong. This ratio is affected by other things besides RMP, for example: during the whole cell recording there can be washout of currents that underlie AHPs, there may be alterations in junctional conductance (which will filter the fast inward current more than the slow outward current).

Indeed, it is possible that washout might alter the voltage-dependence of the AHP, and thus shift our calibration. The most likely candidate would be washout of calcium buffers that affect calciumdependent potassium conductances. However, we have included 1 mM EGTA in the pipette which approximates the concentration of the slow on-rate calcium binding protein parvalbumin. Nevertheless, the spikelets initiated from unperturbed cells have a large outward component consistent with a large presynaptic AHP, which is associated with APs initiated from resting membrane potentials much more depolarized than potassium current reversal potentials. Moreover, the fact that we reliably stimulate synapse-evoked spikes also suggests a depolarized resting membrane potential.

We now refer to the caveats of our membrane potential estimation in the discussion, and emphasize the bipolarity of the spikelets rather than the absolute value membrane potential, subsection “Electrical synapse-mediated spikelets dynamically modulate BC EPSP-spike coupling”:

“Comparison of spikelets evoked in an unperturbed, electrically coupled neighbor to those evoked in paired recordings with presynaptic membrane potential manipulations is consistent with a depolarized BC resting membrane potential (> -60 mV; assuming voltage-dependence of AP shape is equal between unperturbed and dialyzed recordings).”

Indeed for the direct stim experiments, the slope of the graph in 5H is nearly twice that of the -60 mV graph. Do you really think the RMP is nearly -50 mV?

We also find this result to be striking. We now state that our data are consistent with a resting membrane potential more depolarized than -60 mV, provided that the voltage dependence of the spikelet shape is similar for whole-cell dialyzed and unperturbed cells, although previous studies also estimated resting membrane potentials to be more depolarized than -60 mV (Chavas and Marty, 2003).

We have added the following sentence to the Results section:

“Provided that the voltage-dependence of the shape of the presynaptic AP is similar in patchdialyzed and unperturbed cells, these data indicate that unpatched MLIs have a depolarized resting membrane potential of at least -60 mV (i.e. BCs could be more depolarized).”

If the prejunctional cell population is firing chronically, how would that impact this estimate?

Because we could perform stimulus aligned averages, the background spikelet activity did not generally affect our experiments. Indeed, there were one or two cells out of the over 100 recorded cells that were not analyzed due to high background spikelet activity. We have added this criterion to the Materials and methods section.

Reviewer #3:

1) The authors argue that electrical coupling is mediated by gap junctions but the effects of Cx36 knockout are very limited (e.g., 25% reduction in the frequency of observing the after-hyperpolarization of the coupled spikelet). The Marty group showed that MLI electrical coupling was absent in Cx36 KO mice so this is a very important caveat to the interpretation of their results.

Indeed, we were disappointed that the Cx36 KO mice did not completely eliminate spikelet transmission, although we did observe a 3-fold reduction of currents in age-matched controls. This was incorrectly described in the first manuscript as 2-fold. We also made several changes to figures and text to justify our conclusion despite the remaining currents. Please see response to comment number #2 of reviewer 1. In short, it is possible that because our animals are 3-4 months old, perhaps the remaining currents are mediated by another gap junction protein Cx45, also shown to be expressed in SCs.

Did the authors consider the effects of Cx36 KO on temporal summation or on contrast enhancement?

We agree that this would be an ideal experiment. But because Cx36 did not eliminate electrical coupling, instead we compared temporal summation at sites with and without eFFM. We felt that under the circumstances this would be a cleaner approach. Moreover, we could select dendritic locations in which PF stimulation evoked EPSPs that did not evoke a spikelet, thus allowing us to precisely probe the effect of spikelets evoked at different times within the EPSP, which itself does

The authors should elaborate on the possibility of developmental compensation or alternative mechanisms that could explain this phenomenon in the Discussion (ephaptic coupling?).

Indeed, Cx45 is expressed in MLIs and might underlie residual or compensatory spikelet transmission. Please see response to comment 2, reviewer 1 for full description of how we address this issue now in the manuscript, including the possibility of ephaptic coupling.

Lastly, the presentation of the Cx36 data seems out of place in the Results. Perhaps this was due to the lack of explanation in their methodology (e.g., 'coupled pairs' aren't well explained at first; only later in the manuscript was this described as recording from two basket cells at once).

This is a good suggestion, we now show the Cx36 data in the main Figure 2 and more clearly introduce BC-BC paired recordings in the Results section:

“In order to confirm that extracellular stimulation indeed evoked a presynaptic AP which could then propagate across electrical synapses formed by gap junctions to produce a spikelet in the postsynaptic cell, we performed paired BC-BC recordings. Hyperpolarizing current pulses were used to confirm the presence and the strength of coupling coefficients (CCs; see Materials and methods section).”

We also changed “coupled pairs” to “electrically coupled cells.”

2) The authors attempt to compare the prevalence of electrical vs chemical FFI is confusing. Why not simply state the rate of identifying electrically and chemically connected pairs?

We felt the use of “prevalence” was accurate, since it is often used to refer to the percentage of a population that is affected by a disease, and inherently also a frequency. But instead we replaced it with the words “more often” or “frequency” to avoid any confusion.

Then report the rate of spikelet coupling (which seems to be higher than the rate identified by long, hyperpolarizing pulses).

Perhaps our text was confusing, but the frequency of observing spikelets in BC-BC pairs is less than the detection of electrical coupling. We think this is for two reasons: (1) transient spikelet propagation through gap junctions are filtered more than the steady-state current components of long step depolarizations, and (2) some BC-BC pairs may not be directly connected, but connected through a third MLI. Nevertheless, we have added new panels to the new Figure 4 (D-F), which show a positive correlation between spikelet amplitude and coupling strength, as would be expected from being mediated by gap junctions.

Again, could spikelet coupling reflect a different mechanism?

Please see our responses to reviewer 1 for a thorough discussion of this issue.

Last, is the prevalence of electrical vs chemical FFI best described by the rate of electrically and chemically connected pairs of basket cells?

We no longer use the word “prevalence,” but either use “more often” or “frequency.”

3) Can the authors always be sure the presynaptic coupled neuron is a basket cell? It looks like the stimulating pipette is place throughout the molecular layer where stellate cells (and their neurites) also reside.

Indeed, the presynaptic cell could be a SC or a BC, but Rieubland show that electrical coupling of putative BC-SC paired recordings occurs at a much lower frequency (13% versus 61% putative BC-BC pairs) and have lower CC. We therefore refer to extracellularly evoked spikelets as coming from MLIs more generally rather than BCs. However, we do mention that more often than not, the spikelets are mediated by neighboring basket cells, based on the prominent electrical coupling and low probability of coupling between BCs and SCs (Rieubland et al., 2015).

In the Discussion section we updated the text:

“Our results indicate that low stimulation intensity of small PF beams leads to the recruitment of APs in electrically coupled MLIs that generate spikelets in the postsynaptic BCs (Figure 1, Figure 2, Figure 3), but more rarely and less prominently in SCs (Figure 2). Because of the low frequency (13 %) of BC-SC electrical coupling (Rieubland et al., 2014), we propose that eFFI is mostly provided by other BCs.”

4) Could temperature-dependent effects on spike width and after-hyperpolarization duration contribute to differences with results from the Marty group (i.e., the prominent depolarization noted in their report)? This may also be true for the resting membrane potential in the presynaptic cell which the authors clearly show affects the polarity of influence.

Alcami, 2018 show that there were no differences in spikelet shape if experiments are performed at 21 or 34 °C, so a temperature-dependence seems unlikely to account for the difference. However, as suggested by the reviewer, the most likely difference is due to the hyperpolarized holding potential (-70 mV in some cases), which we predict should have a small AHP. Interestingly, when they recorded a spikelet, the prominent outward current was reminiscent of our recordings (Alcami et al. 2013). Finally, we cannot rule out the possibility that in P11-13 rats, the AHP is less prominent. We have added the following text to the Discussion section.

“Comparison of spikelets evoked in an unperturbed, electrically coupled neighbor to those evoked in paired recordings with presynaptic membrane potential manipulations is consistent with a depolarized BC resting membrane potential (> -60 mV; assuming voltage-dependence of AP shape is equal between unperturbed and dialyzed recordings). We postulate that previous recordings showing mostly depolarizing spikelets in cerebellar MLIs were due to either hyperpolarized holding potentials (Alcami, 2018) or an intrinsic difference in the amplitude of the AHP recorded from brain

5) EPSP half-widths in 5B and 5D seem to be different (responses appear much more prolonged in 5B). Does this mean that many responses in 5D in the LS condition have coupled spikelets (perhaps too small to resolve as outward currents but still large enough to effect EPSP duration)? How does this affect the interpretation of their results?

The large distribution in EPSP decays is perhaps due to cable filtering when performing synaptic stimulation in different parts of the dendrite, similar to what we previously showed for stellate cells (Abrahamson et al., 2012.) However, it is also possible that BCs have different numbers of electrically coupled neighbors, which could decrease their input resistance (Alcami et al., 2013) and thus accelerate the decay of the EPSPs.

It seems unlikely that EPSCs without outward currents could have significantly altered half-widths, but we cannot strictly rule it out.

We have added the following text to the Results section:

“The variability in the EPSC decay in response to low stimulation could be due to the variability in cable filtering when eliciting synapse stimulation in different locations within the dendrite, or the variability in the number of electrically coupled cells, which have been shown to decrease input resistance (Alcami and Marty, 2013). But we cannot rule out that a small spikelet may accelerate some EPSPs without showing an outward current. Nevertheless, recruiting an additional spikelet, on average, accelerated EPSP decays”

https://doi.org/10.7554/eLife.57344.sa2

Article and author information

Author details

  1. Andreas Hoehne

    1. Laboratory of Synapse and Circuit Dynamics, Institut Pasteur, Paris Cedex, France
    2. Sorbonne University, ED3C, Paris, France
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Validation, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared

  2. Maureen H McFadden

    Laboratory of Synapse and Circuit Dynamics, Institut Pasteur, Paris Cedex, France
    Contribution
    Data curation, Formal analysis, Writing - review and editing, MM performed wild-type recordings in animals more than 3-months old
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9770-7069

  3. David A DiGregorio

    Laboratory of Synapse and Circuit Dynamics, Institut Pasteur, Paris Cedex, France
    Contribution
    Conceptualization, Data curation, Supervision, Funding acquisition, Validation, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    david.digregorio@pasteur.fr
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6417-4566

Funding

Centre National de la Recherche Scientifique

  • David DiGregorio

Fondation pour la Recherche Médicale

  • Andreas Hoehne
  • Maureen H McFadden
  • David DiGregorio

Agence Nationale de la Recherche (ANR-2010-BLANC-1411)

  • David DiGregorio

Agence Nationale de la Recherche (ANR-13-BSV4-0016)

  • David DiGregorio

Agence Nationale de la Recherche (ANR-17-CE16-0019)

  • David DiGregorio

Agence Nationale de la Recherche (ANR-17-CE16-0026)

  • David DiGregorio

Agence Nationale de la Recherche (ANR-18-CE16-0018)

  • David DiGregorio

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work is supported by the Centre National de la Recherche Scientifique, Fondation pour la Recherche Médicale and the Agence Nationale de la Recherche (ANR-2010-BLANC-1411, ANR-13-BSV4-0016, ANR-17-CE16-0019, ANR-17-CE16-0026 and ANR-18-CE16-0018), which were awarded to DAD. DAD's laboratory is a member of the BioPsy Laboratory of Excellence. We would like to thank Jeff Diamond for providing Cx36 KO animals. We also thank Jeff Diamond, Nelson Rebola, Angus Silver, Andreas Frick and Alexandra Cayco Gagic for useful comments on the manuscript. AH's PhD fellowship was funded by Sorbonne Université - Collège Doctoral ED3C and Fondation pour la Recherche Médicale (FDT-201805005603).

Ethics

Animal experimentation: All experiments were approved by the Ethics Committee #89 of Institut Pasteur (CETEA; protocol approval #DHA180006).

Senior and Reviewing Editor

  1. Gary L Westbrook, Oregon Health and Science University, United States

Version history

  1. Received: March 28, 2020
  2. Accepted: September 9, 2020
  3. Version of Record published: September 29, 2020 (version 1)

Copyright

© 2020, Hoehne et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,303
    Page views
  • 218
    Downloads
  • 10
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Crossref, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Andreas Hoehne
  2. Maureen H McFadden
  3. David A DiGregorio
(2020)
Feed-forward recruitment of electrical synapses enhances synchronous spiking in the mouse cerebellar cortex
eLife 9:e57344.
https://doi.org/10.7554/eLife.57344

Categories and tags

Research organism

Further reading

    1. Computational and Systems Biology
    2. Neuroscience

    Dynamic organization of cerebellar climbing fiber response and synchrony in multiple functional components reduces dimensions for reinforcement learning

    Huu Hoang, Shinichiro Tsutsumi ... Keisuke Toyama
    Research Article Updated

    Cerebellar climbing fibers convey diverse signals, but how they are organized in the compartmental structure of the cerebellar cortex during learning remains largely unclear. We analyzed a large amount of coordinate-localized two-photon imaging data from cerebellar Crus II in mice undergoing ‘Go/No-go’ reinforcement learning. Tensor component analysis revealed that a majority of climbing fiber inputs to Purkinje cells were reduced to only four functional components, corresponding to accurate timing control of motor initiation related to a Go cue, cognitive error-based learning, reward processing, and inhibition of erroneous behaviors after a No-go cue. Changes in neural activities during learning of the first two components were correlated with corresponding changes in timing control and error learning across animals, indirectly suggesting causal relationships. Spatial distribution of these components coincided well with boundaries of Aldolase-C/zebrin II expression in Purkinje cells, whereas several components are mixed in single neurons. Synchronization within individual components was bidirectionally regulated according to specific task contexts and learning stages. These findings suggest that, in close collaborations with other brain regions including the inferior olive nucleus, the cerebellum, based on anatomical compartments, reduces dimensions of the learning space by dynamically organizing multiple functional components, a feature that may inspire new-generation AI designs.

    1. Neuroscience

    Rodent ultrasonic vocal interaction resolved with millimeter precision using hybrid beamforming

    Max L Sterling, Ruben Teunisse, Bernhard Englitz
    Tools and Resources Updated

    Ultrasonic vocalizations (USVs) fulfill an important role in communication and navigation in many species. Because of their social and affective significance, rodent USVs are increasingly used as a behavioral measure in neurodevelopmental and neurolinguistic research. Reliably attributing USVs to their emitter during close interactions has emerged as a difficult, key challenge. If addressed, all subsequent analyses gain substantial confidence. We present a hybrid ultrasonic tracking system, Hybrid Vocalization Localizer (HyVL), that synergistically integrates a high-resolution acoustic camera with high-quality ultrasonic microphones. HyVL is the first to achieve millimeter precision (~3.4–4.8 mm, 91% assigned) in localizing USVs, ~3× better than other systems, approaching the physical limits (mouse snout ~10 mm). We analyze mouse courtship interactions and demonstrate that males and females vocalize in starkly different relative spatial positions, and that the fraction of female vocalizations has likely been overestimated previously due to imprecise localization. Further, we find that when two male mice interact with one female, one of the males takes a dominant role in the interaction both in terms of the vocalization rate and the location relative to the female. HyVL substantially improves the precision with which social communication between rodents can be studied. It is also affordable, open-source, easy to set up, can be integrated with existing setups, and reduces the required number of experiments and animals.

    1. Neuroscience

    Different rules for binocular combination of luminance flicker in cortical and subcortical pathways

    Federico G Segala, Aurelio Bruno ... Daniel H Baker
    Research Article

    How does the human brain combine information across the eyes? It has been known for many years that cortical normalization mechanisms implement ‘ocularity invariance’: equalizing neural responses to spatial patterns presented either monocularly or binocularly. Here, we used a novel combination of electrophysiology, psychophysics, pupillometry, and computational modeling to ask whether this invariance also holds for flickering luminance stimuli with no spatial contrast. We find dramatic violations of ocularity invariance for these stimuli, both in the cortex and also in the subcortical pathways that govern pupil diameter. Specifically, we find substantial binocular facilitation in both pathways with the effect being strongest in the cortex. Near-linear binocular additivity (instead of ocularity invariance) was also found using a perceptual luminance matching task. Ocularity invariance is, therefore, not a ubiquitous feature of visual processing, and the brain appears to repurpose a generic normalization algorithm for different visual functions by adjusting the amount of interocular suppression.
