Transcriptional profiling of mouse peripheral nerves to the single-cell level to build a sciatic nerve ATlas (SNAT)
- Department of Biology, Institute of Molecular Health Sciences, Swiss Federal Institute of Technology, ETH Zurich, Switzerland
- Functional Genomics Center Zurich, ETH Zurich/University of Zurich, Switzerland
Abstract
Peripheral nerves are organ-like structures containing diverse cell types to optimize function. This interactive assembly includes mostly axon-associated Schwann cells, but also endothelial cells of supporting blood vessels, immune system-associated cells, barrier-forming cells of the perineurium surrounding and protecting nerve fascicles, and connective tissue-resident cells within the intra-fascicular endoneurium and inter-fascicular epineurium. We have established transcriptional profiles of mouse sciatic nerve-inhabitant cells to foster the fundamental understanding of peripheral nerves. To achieve this goal, we have combined bulk RNA sequencing of developing sciatic nerves up to the adult with focused bulk and single-cell RNA sequencing of Schwann cells throughout postnatal development, extended by single-cell transcriptome analysis of the full sciatic nerve both perinatally and in the adult. The results were merged in the transcriptome resource Sciatic Nerve ATlas (SNAT: https://www.snat.ethz.ch). We anticipate that insights gained from our multi-layered analysis will serve as valuable interactive reference point to guide future studies.
Introduction
Peripheral nerves are specialized in the transport of information between the central nervous system and peripheral body parts, including muscles and sensory cells (Stassart et al., 2018). This function is mainly fulfilled by axons/neurons in symbiosis with interacting Schwann cells (SCs). In addition, other cell types contribute crucially to ensure optimized nerve structure, function, and support. This group includes cells expressing Pdgfra (encoding Platelet Derived Growth Factor Receptor Alpha) such as endoneurial, perineurial, and epineural cells (also designated as fibroblast-like or mesenchymal cells [Carr et al., 2019; Joseph et al., 2004; Ma et al., 2018]), vascular cells (such as endothelial cells, pericytes, and vascular smooth muscle cells) (Carr et al., 2019; Stierli et al., 2018; Tserentsoodol et al., 1999), cells of the immune system (Carr et al., 2019; Hidmark et al., 2017; Stierli et al., 2018), and epineurial adipocytes (Montani et al., 2018; Nadra et al., 2012).
Each of the nerve-resident cell types is expected to express a distinct portfolio of genes at particular levels, depending on the differentiation state during development, degeneration and regeneration after injury, and in aging. However, our knowledge in this context is fragmentary and often limited in cellular resolution. For example, several transcriptome analyses in mice and rats have been carried out that reflect peripheral nerves as an organ (Arthur-Farraj et al., 2017; D'Antonio et al., 2006; Figlia et al., 2017; Fledrich et al., 2018; Fröb et al., 2019; Gerber et al., 2019; Gökbuget et al., 2018; Kim et al., 2018; Le et al., 2005; Nagarajan et al., 2002; Patzig et al., 2011; Quintes et al., 2016; Ryu et al., 2008; Verheijen et al., 2003), complemented by some proteomics studies (Patzig et al., 2011; Siems et al., 2020). Albeit valuable, these studies cannot distinguish between particularities of the different cell populations of the different tissues involved. They are also prone to some misinterpretations due to the limitations of bulk analysis of cellularly heterogenous organs and tissues. Nevertheless, since SCs are the most numerous cell type present in nerves (Stierli et al., 2018), such datasets can be and have been interpreted, at first approximation, as a surrogate for the analysis of SC gene expression. Even among SCs, however, this approach cannot resolve the differences between myelinating and non-myelinating (also known as Remak) SCs, which are expected to express different subsets of transcripts (Gomez-Sanchez et al., 2017; Harty and Monk, 2017; Jessen et al., 2015; Monk et al., 2015; Salzer, 2015). Studies aimed at analyzing SCs more specifically (Clements et al., 2017), and also the transcriptomes of other cell types in the nerve with single-cell RNA sequencing (Carr et al., 2019), have been largely restricted to either early embryonic development (Buchstaller et al., 2004; Furlan et al., 2017) or adult stages mainly in the context of tissue regeneration after injury (Carr et al., 2019; Clements et al., 2017).
Taken together, the rather fragmentary time points employed, together with some technical constrains, limit the universal use of the currently available data in a satisfactory manner. Thus, motivated by the demands of current research on peripheral nerve biology in health and disease, together with appreciating the highly informative nature of analogous work in the CNS (Marques et al., 2018; Marques et al., 2016; Zhang et al., 2014), we reasoned that a focused, easily accessible, and integrated transcriptome analysis for developing peripheral nerves and their constituent cell types would be valuable. Exemplary potential benefits include: (1) Straight-forward determination of transcript expression and changes during development and in the adult nerve, in bulk and down to the cellular level; (2) Potential use of gene expression in individual cells, or in group of cells, to expand and refine the current set of available markers that can be employed to define cells with particular structures and functions in the nerve tissue under different conditions in health and disease; (3) Identification of particularly regulated genes that may provide the basis for developing improved tools for cell-type specific labeling and genetic alteration studies; and (4) Refinement of the interpretation and integration of previous research results that were obtained with lower spatial and/or temporal cellular resolution, or with different experimental emphasis.
Thus, we performed a transcriptomic evaluation of mouse peripheral nerves using a layered approach. First, we analyzed the transcriptome of mouse peripheral nerves by bulk RNA sequencing, with a particular focus on the endoneurium compartment, covering a time-line that represents successive stages of nerve development. Second, we developed a strategy that allowed the distinction of two fractions of SCs from postnatal day 5 (P5) sciatic nerves by FACS, one enriched in myelinating SCs and the another enriched in not-myelinating SCs. Both fractions were subjected to bulk RNA sequencing. Third, we carried out single-cell RNA sequencing analysis of SCs specifically, collected by FACS at various stages of postnatal differentiation, following the Smart-Seq2 protocol. This approach enabled the recapitulation of the myelinating and non-myelinating differentiation trajectories from early development to adult stages at the molecular level. Finally, we used 10x Genomics to extend the single-cell RNA sequencing analysis to the different cell types residing in sciatic nerves, both in perinatal development and in the adult. To simplify comparative analyses, interpretations, and data mining, we merged our datasets in an openly accessible web-based resource called Sciatic Nerve ATlas (SNAT) at https://www.snat.ethz.ch/.
Results and discussion
Dynamic transcriptional changes during maturation of sciatic nerves as determined by bulk RNA sequencing
We started by resolving the transcriptomes of peripheral nerves at various time points of nerve maturation and SC differentiation using bulk RNA sequencing technology. Our analysis was largely focused on the sciatic nerve due to its wide use in studies of peripheral nerves and in SC biology in health, disease, and regeneration (Beirowski et al., 2011; Fazal et al., 2017; Figlia et al., 2017; Florio et al., 2018; Gerber et al., 2019; Ghidinelli et al., 2017; Grove et al., 2007; Novak et al., 2011; Petersen et al., 2015; Quintes et al., 2016). To account for biological diversity, we extracted nerves from different animals resulting in two independent samples derived from male mice and two independent samples from female mice per each time point. The stages analyzed included (a) embryonic day (E) 13.5, when nerves are mainly populated by SC precursors; (b) E17.5, P1 and P5, when immature SCs gradually sort out individual large caliber axons from axonal bundles and transiently generate pro-myelinating SCs (i.e. 1:1 relationship of large caliber axons with SCs; not myelinating), followed by the onset of myelination; (c) P14 and P24, when radial sorting is completed and the key events ongoing relate to myelin growth and maturation of non-myelinating (Remak) SCs; and (d) P60, a young adult stage in which developmental myelination is complete, and non-myelinating SCs together with small caliber axons have formed mature Remak bundles (Figure 1A; Feltri et al., 2016; Harty and Monk, 2017; Jessen et al., 2015). Note that the temporal synchronization of these morphologically recognizable characteristics during peripheral nerve development is only partial, resulting in overlapping features, particularly in early postnatal development. On a relevant technical remark, we removed mechanically the epineurium and perineurium layers as much and as careful as possible on samples from E17.5 onwards to extract RNA enriched for the endoneurium compartment (Jessen et al., 2015; Stierli et al., 2019).

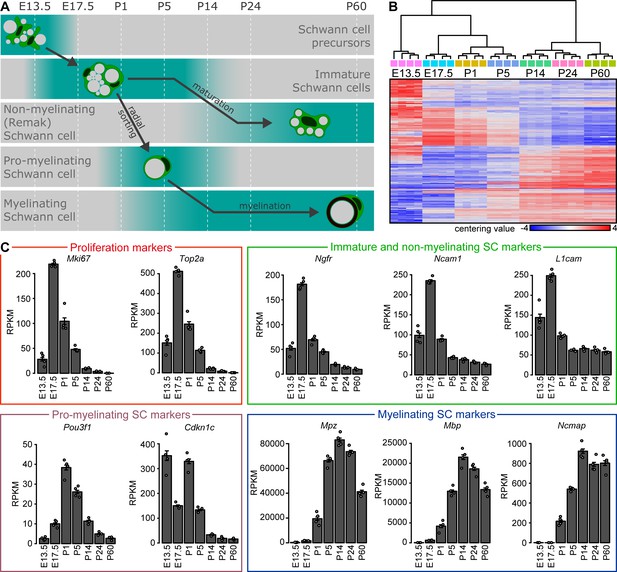

Figure 1 with 1 supplement see all
Bulk RNA profiling of peripheral nerves at various stages of embryonic and postnatal development.
(A) Schematic representation of developmental stages used for analysis with key differentiation events of the Schwann cell (SC) lineage aligned to those stages. At embryonic day (E) 13.5, SC precursors can be found in peripheral nerves. At E17.5, sciatic nerves contain immature SCs which proliferate and perform radial sorting of axons. Radial sorting continues at P1 and P5. Sorted axons are engaged in a 1:1 relation by a pro-myelinating SC. These structures are frequent in sciatic nerves at P1 and P5, and to a much lesser extent at P14. Pro-myelinating SCs undergo transcriptional changes to promote the onset of myelination, followed by radial and axial growth of the myelin sheath which keeps pace with body growth at P14 and P24. Small-caliber axons not sorted for myelination remain engaged by SCs that are undergoing maturation toward a non-myelinating SC (also known as a Remak cell) at both P14 and P24. By P60, the developmental myelination program is largely completed, and sciatic nerves are widely populated by mature myelinating SCs and by mature non-myelinating (Remak) SCs. (B, C) Four independent samples were used for bulk RNA sequencing at every time point, two derived from male and two from female mice. Each independent sample was derived from one or two mice pooled together. At E13.5, various peripheral nerves distal to the DRG were taken from each embryo, and the nerves from two separate embryos of the same sex were pooled per sample. At E17.5, sciatic nerves were pooled from two embryos of the same sex per sample. At all postnatal time points (P1, P5, P14, P24, and P60), sciatic nerves from one mouse were used for each independent sample. (B) Heat map of centering values (normalized count row value of each sample subtracted by the mean of the row) and hierarchical cluster analysis of 2000 most variable genes during postnatal nerve development. The four independent samples sequenced at each time point cluster closer to each other than the samples of adjacent time points. Clustering of the samples reconstruct the correct chronology of nerve maturation and SC differentiation. The heat map color gradient also shows a high degree of consistency between the individual independent samples sequenced at each time point. (C) Plotting the transcript levels (RPKM) of genes related to proliferation and Schwann cell maturation throughout the timeline of analysis reveals the expected pattern of relative abundance according to the chronology of nerve maturation. The proliferation-related transcripts Mki67 and Top2a are highest at E17.5 and P1. The transcripts for Ngfr, Ncam1, and L1cam are enriched in immature Schwann cells and peak at E17.5. These transcripts are also expressed by non-myelinating (Remak) cells, and are therefore also detected (albeit at lower levels) later in development. Pou3f1 transcripts are enriched in pro-myelinating Schwann cells, and peak at P1 and P5. Except for E13.5, Cdkn1c shows a similar transcription abundance dynamic as Pou3f1, consistent with expression by pro-myelinating Schwann cells. Transcripts for the myelin proteins Mpz, Mbp, and Ncmap are accumulated from P5 onwards, around the onset of myelination, and highlight the presence of myelinating Schwann cells. See also Figure 1—figure supplement 1.
Standard RNA sequencing was then performed using a commercial oligo-dT-based protocol (read counts per sample are shown in Figure 1—figure supplement 1A). Subsequent hierarchical clustering of the samples, based on the 2000 most variable genes, revealed that the four samples per time point cluster closely together and align to recapitulate the chronological sequence of nerve differentiation (Figure 1B). Heat map illustrations indicated a gradual transition in the abundance of numerous mRNAs during nerve development, with high consistency between samples, also apparent in the multidimensional scaling (MDS) plot (Figure 1—figure supplement 1B). RPKM values for each gene are listed in Supplementary file 1. Given that the majority of nerve-resident cells are SCs, we decided to test the general robustness of our data sets by comparing the obtained expression levels with exemplary known expression patterns of markers that are commonly used in SC lineage analyses, in alignment to our timeline (Figure 1C).
First, we found as expected that the proliferation markers Mki67 (encoding KI-67) and Top2a (encoding DNA Topoisomerase II Alpha) (Carr et al., 2019; Xie et al., 2018) are highly expressed from E17.5 to P5. During this time window, radial sorting of axons by SCs destined to myelinate is ongoing and SC proliferation is intense (Jessen et al., 2015). As maturation of the nerves proceeds, the expression of these proliferation markers decreases (Stierli et al., 2018). Second, we assessed the expression of markers typical of immature SCs such as Ngfr (encoding the Low-Affinity Neurotrophin Receptor P75NTR) (Jessen et al., 1990), Ncam1 (encoding the Neural Cell Adhesion Molecule 1) and L1cam (encoding the L1 Neural Cell Adhesion Molecule). Peak expression was found at E17.5, consistent with the high number of immature SCs present in developing nerves at this stage (Jessen et al., 2015). Expression decreases thereafter, but remains substantial in agreement with the known expression of these markers also by non-myelinating SCs at later stages (Faissner et al., 1984; Jessen et al., 2015; Martini and Schachner, 1986; Martini and Schachner, 1988; Nieke and Schachner, 1985). Third, we detected highest expression of the pro-myelinating SC marker Pou3f1 (encoding the Octamer-Binding Transcription Factor 6 (Oct6), also known as SCIP) (Ghazvini et al., 2002; Jessen and Mirsky, 2005; Monuki et al., 1989) at P1 followed by decreasing expression over time, a pattern consistent with comparative morphological analyses (Arroyo et al., 1998). Expression of Cdkn1c (encoding Cyclin-Dependent Kinase Inhibitor 1C (P57, Kip2)) (Heinen et al., 2008) shows a similar peak at P1, in addition to high expression at E13.5. Fourth, the levels of transcripts of the myelin protein genes Mpz (encoding Myelin Protein Zero), Mbp (encoding Myelin Basic Protein), and Ncmap (encoding Non-Compact Myelin-Associated Protein) (Jessen and Mirsky, 2019; Martini et al., 1988; Patzig et al., 2011; Ryu et al., 2008) increase strongly after birth, reflecting the onset of myelination.
We conclude that this dataset, obtained with bulk RNA sequencing of endoneurium-enriched nerves, provides an accurate transcriptome timeline on postnatal development of the endoneurium compartment of the mouse sciatic nerve and is suitable for appropriate data mining (see SNAT). Of technical note, it is an advantage of this approach that the SCs, as the major cell population in the nerve, together with the other parts of the endoneurium remain in their native context until immediately before RNA extraction. This feature minimizes potentially disturbing impacts of experimental procedures and optimizes that the obtained cellular RNA-seq signatures closely track genuine in vivo transcriptomes.
Schwann cells isolated from sciatic nerves of P5 mice can be gated by FACS to enrich for myelinating and not-myelinating cells, allowing targeted RNA sequencing
Next, we aimed at establishing the transcriptome of developing SCs specifically, without potentially confounding contributions by other nerve-inhabiting cell types (Carr et al., 2019). To achieve this goal, Fluorescence-Activated Cell Sorting (FACS) was exploited to obtain purified SCs, followed by bulk RNA sequencing. In particular, we made use of transgenic mice in which SCs were labeled with the eYFP reporter protein (Srinivas et al., 2001) in a P0Cre-dependent manner (Feltri et al., 1999). For consistency with further experiments, the mice expressed also the dsRed reporter protein under the ubiquitously active chicken beta actin promoter (Vintersten et al., 2004). Within the nerves of these animals, SCs express both dsRed and eYFP, while other nerve-resident cells express dsRed only (Figure 2A). Debris and ruptured cells had low signal levels of eYFP and dsRed and were discarded during the FACS procedure (Figure 2A). Sciatic nerves were extracted from P5 mice and a cell suspension was generated by enzymatic digestion. Analysis by FACS revealed two semi-distinct scatter clouds of eYFP-positive SCs which can be distinguished by different degrees of granularity (SSC-A) values (Figure 2B). We hypothesized that these two populations may represent myelinating and not-myelinating SCs, speculating that the more granular population might relate to myelinating SCs in the nerve, and the less granular population might be enriched in SCs that were not-myelinating at the time of extraction. To evaluate this reasoning, we sorted the cells with a three-gate strategy. The first gate included all eYFP-positive SCs (marked allSC), while the second gate selected for assumed not-myelinating SCs (low SSC-A; marked nmSC), and the third gate selected for assumed myelinating SCs (high SSC-A; marked mSC) (Figure 2A,B). Once collected, RNA was purified from each of the three sets of cells and bulk RNA-seq analysis was performed using the Smart-Seq2 protocol. Reads per sample are shown in Figure 2—figure supplement 1A. The resulting RPKM values for each gene are shown in Supplementary file 1. To account for biological variability, we included four independent samples per gating strategy, two samples derived from female mice and two from male mice. MDS plot is shown in Figure 2—figure supplement 1B. Heat map and hierarchical clustering analysis revealed high consistency among the differentially regulated transcripts between samples and close clustering of individual replicates within each gating strategy (Figure 2—figure supplement 1C). Next, we aligned the expression levels of the exemplary genes already employed in Figure 1, which represent key stages of SC progression in development. The proliferation markers Mki67 and Top2a are strongly elevated in the nmSC gate cells compared to the mSC gate population (Figure 2C), consistent with increased abundance of proliferating immature SCs in the nmSC gate population. Expression analysis of the immature SC markers Ngfr, Ncam1, and L1cam confirms the strong enrichment of immature SCs in the nmSC gate relative to the mSC gate (Figure 2C). Since the pro-myelinating SC stage represents a transient point in the SC lineage, it is difficult to predict in which gate these cells might be enriched. In this context, we found expression of Pou3f1 to be elevated in cells of the nmSC gate, but still also to be rather substantial in cells of the mSC gate. Transcripts of Cdkn1c appear quite selectively enriched in cells of the nmSC gate (Figure 2C). Finally, plotting mRNA levels of the myelin genes Mpz, Mbp, and Ncmap revealed the expected enrichment in cells of the mSC gate compared to the nmSC gate (Figure 2C).

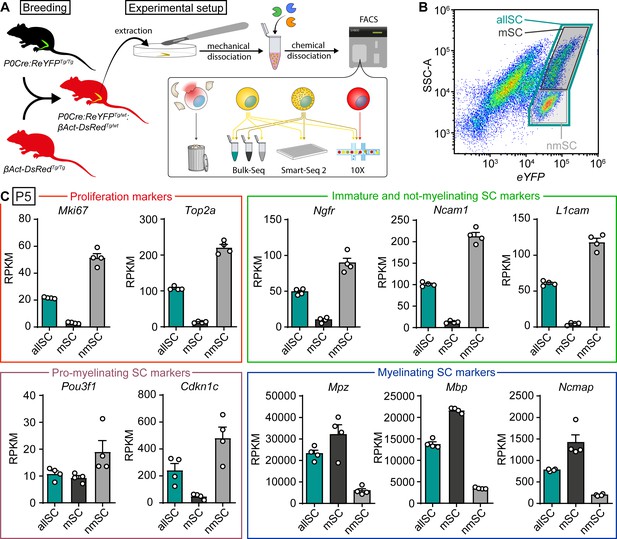

Figure 2 with 1 supplement see all
Bulk RNA profiling of sorted Schwann cells as a whole population or selectively enriched in myelinating and not-myelinating fractions.
(A) Schematic representation of the general experimental setup used in the study, including the animal models expressing fluorescent reporter proteins. P0Cre:ReYFPTg (schematically represented as green) labels Schwann cells (SCs) specifically with YFP, whereas the βAct-DsRedTg (schematically represented as red) labels all cells with dsRed. In experimental mice, SCs in sciatic nerves express both dsRed and YFP (schematically colored in yellow), whereas other nerve cells express only dsRed (schematically colored in red). Sciatic nerves were extracted at various ages, and cell suspensions were prepared through mechanical and enzymatic dissociation. This suspension was loaded into a FACS machine, which sorted SCs based on fluorescence and granularity, depending on the experiment. Debris and ruptured cells had low levels of dsRed signal, and were therefore discarded. In the schematic, not-myelinating Schwann cells are represented in yellow, whereas myelinating Schwann cells are represented in yellow with granules. Granularity differences allowed enrichment of SC populations with lower or higher SSC-A values (see panel B). The bulk RNA sequencing shown in panels (B) and (C) used this strategy to obtain fractions enriched in myelinated (mSC) and not-myelinated (nmSC) SCs, plus a third condition of all SCs (allSC) mixed from P5 sciatic nerves. The single-cell RNA sequencing experiments shown in Figures 3–6, with respective supplements, carried out using Smart-Seq2 or 10x Genomics, included a mixture of myelinating and not-myelinating SCs. Non-Schwann cells in the nerve, labeled with only dsRed, were sequenced in experiments using 10x Genomics (Figures 5 and 6, with respective supplements). (B) Scatter plot from FACS experiments depicting YFP fluorescence levels in the x-axis, and side/back scatter (SSC-A) in the y-axis. SCs are located in the plot region related to higher YFP levels. In this region, SCs extracted from P5 nerves form two semi-distinct clouds of dots. A system of three gates were used to collect SCs. (1) a gate for SCs with higher SSC-A levels, enriched in myelinating SCs (mSC, color-coded in black frame), (2) a gate for SCs with the lower SSC-A levels, enriched in not-myelinating SCs (nmSC, color-coded in gray frame), and (3) a gate including both clouds (allSC, color-coded in green frame). The color-code of these gates is recapitulated in the bulk-RNA-seq schematic shown in (panel A), and in the bar graphs in (C). (C) Plotting marker transcript levels (RPKM) of genes related to proliferation and SC maturation (same markers as depicted in Figure 1) in SCs collected with each of the three gating strategies. In each gate, four independent replicate samples were collected, two from female mice and two from male mice. Each independent replicate consists of at least 10,000 SCs. Transcripts from the proliferation-related genes Mki-67 and Top2a are strongly enriched in the nmSC gate compared to the mSC gate. Transcripts of Ngfr, Ncam1, and L1cam, characteristic of immature Schwann cells, are also strongly elevated within the nmSC gate relative to the mSC gate. The transcript of Pou3f1, expressed by pro-myelinating SCs, appears slightly enriched in the nmSC gate, even though the levels between the mSC and allSC populations are similar. Furthermore, the levels of Cdkn1c are also consistently higher in the nmSC compared to the mSC gate. As the pro-myelinating stage represents a transition between not-myelinating and myelinating SCs, the fine expression pattern of this gene is likely to revolve around major morphological changes in SCs, which makes it difficult to enrich for pro-myelinating SCs in this experimental setting. Transcript levels of Mpz, Mbp, and Ncmap, typical markers of myelinating SCs, are enriched in the mSC gate compared to the nmSC gate. As expected, the levels of most transcripts on the allSC gate were intermediate between the levels detected in the mSCs and the nmSCs gates. See also Figure 2—figure supplement 1.
Taken together, these data show that our FACS strategy allows the purification of SCs from early postnatal nerves and further enables the collection of two populations enriched in myelinating and not-myelinating cells. The possibility of such a separation and obtaining the associated RNA-seq signatures are relevant due to the major transcriptional differences between these two populations of SCs, one that has already activated the myelination program versus the other which contains SCs that are still performing radial sorting of axons (Feltri et al., 2016; Jessen and Mirsky, 2005; Jessen and Mirsky, 2008; Quintes et al., 2016). Without such a splitting, the RNA-seq data reflect an average signal between the two populations as seen in the allSC gating strategy that includes all eYFP-positive SCs (Figure 2B,C), yielding a convoluted picture of SC transcription dynamics around the onset of myelination. We anticipate that the described experimental strategy will be particularly valuable in the evaluation of the molecular phenotypes of mouse mutants that affect axonal radial sorting by SCs and the onset of myelination (Figlia et al., 2017; Gerber et al., 2019; Grove and Brophy, 2014; Nodari et al., 2007; Ommer et al., 2019; Porrello et al., 2014). Furthermore, our RNA-seq data of the different FACS-selected SC populations expand significantly the transcriptome resource SNAT for SC-targeted data mining.
Single-cell RNA sequencing of Schwann cells reconstructs transcriptional fingerprints of the myelinating and non-myelinating developmental trajectories
To complement the bulk RNA sequencing data, we used single-cell RNA sequencing to determine the transcriptome of SCs across specific stages of SC differentiation, both in myelinating and non-myelinating fates, and at various time points from early development to young adults (P1, P5, P14, P60). To this end, we generated cell suspensions from mouse sciatic nerves and used the ‘allSC’ FACS gate strategy depicted in Figure 2B. Single eYFP-positive SCs were sorted into 384-well plates, followed by single-cell RNA sequencing with the Smart-Seq2 protocol (Figure 2A). Biological and technical variability was accounted for by preparing two plates per age. Each plate contained sorted cells derived from different animals. The single-cell RNA sequencing data were projected as tSNE plots. Analysis of color-coded individual cells per plate of origin (designated plate 1 and plate 2, per time point) indicated homogeneous distribution of cells derived from both plates at P1, P5, and P14 (Figure 3—figure supplement 1B). At P60, a shift in cell distributions according to the origin of the plate was apparent (Figure 3—figure supplement 1C). Thus, we applied batch correction to this dataset to minimize the bias (Figure 3—figure supplement 1B, Figure 3G). Further analysis revealed three cell clusters at P1, and four clusters at P5, P14, and P60, which are individually color-coded on tSNE projections per time point in (Figure 3A,C,E,G). We detected a proliferating SC cluster (marked prol. SC) at P1, P5 and P14, containing cells that express Mki67 and Top2a (Figure 3B,D,F). Some SCs expressing these markers were also found in the non-myelinating (Remak) cell clusters (marked nm(R)SC) at P60, consistent with previous findings (Stierli et al., 2018; Figure 3G,H). Immature SCs (marked iSC) also formed a cluster at P1 and P5, characterized by expression of Ngfr, Ncam1, and L1cam (Figure 3B,D). The same markers are also enriched in Remak SCs undergoing maturation at P14 (Figure 3F), designated as transition SCs (marked tSC), and as mature Remak SCs (marked nm(R)SC) at P60 (Figure 3H) (Note that the designation ‘tSC’ is not intended to present SCs at P14 as a discrete cell type. In our interpretation, tSC refers rather to Remak SCs which are likely undergoing maturation). A cluster of pro-myelinating SCs (marked pmSCs) could be detected at P1, P5, and P14, with enriched expression of Pou3f1 and Cdkn1c (Figure 3B,D,F). At P1, this cluster also contains SCs expressing Mpz, Mbp, and Ncmap (Figure 3B), while cells expressing these transcripts at later time points (P5, P14, and P60) are strongly enriched in myelinating SC clusters (marked mSC) (Figure 3D,F,H). At P60, data processing suggested two clusters labeled by myelinating SC markers and two clusters labeled by non-myelinating (Remak) SC markers (Figure 3G,H). We grouped each of these cluster pairs together as myelinating SCs (marked mSC) and non-myelinating (Remak) SCs (marked nm(R)SC), respectively. Gene expression detection depth per cell is given in Figure 3—figure supplement 1A. The default output of cluster formation in the datasets is provided in Figure 3—figure supplement 2.

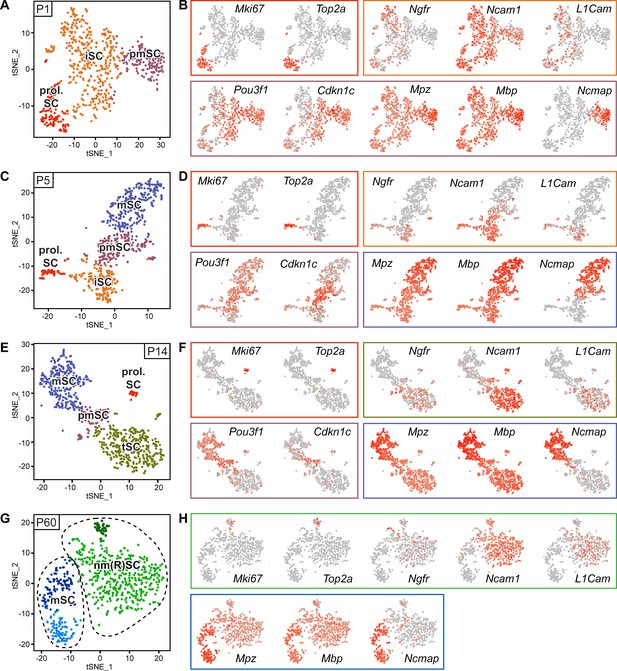

Figure 3 with 2 supplements see all
RNA single-cell profiling of Schwann cells handled with Smart-Seq2 protocol over various stages of postnatal development.
(A–H) Cells extracted from sciatic nerves were sorted based on expression of YFP (selection for Schwann cells (SCs)). Single YFP-positive SCs were individually sorted into single wells of a 384-well plate, containing lysis reagents for Smart-Seq2 library preparation (see schematic in Figure 2A). Four postnatal time points were selected, P1, P5, P14, and P60, covering various stages of SC differentiation. Two 384-well plates, each plate containing cells derived from different animals, were sorted and subjected to sequencing at each time point. Cells from each plate derived from a cell-suspension extracted from male and female mice in a 1:1 ratio. One male and one female mouse were pooled per plate at P1, P5, and P14, while two male and two female mice were pooled per plate at P60. (A) tSNE plot of SCs extracted from sciatic nerves of P1 mice. Data analysis indicates three distinct clusters, one relating to proliferating Schwann cells (prol. SC), another to immature Schwann cells (iSC), and a third cluster to pro-myelinating Schwann cells (pmSC). (B, D, F, H) tSNE plots with color overlays indicating transcript levels per cell. A gradient of red tones indicates relative abundance of each transcript per cell, in which dark red indicates higher levels, and gray indicates not detected. The color of the surrounding frame relates to the color-code of each cluster. Markers expressions described are enriched in (although not exclusive to) the cluster indicated. (B) The proliferation transcripts Mki67 and Top2a label the prol. SC cluster. Ngfr, Ncam1, and L1cam are enriched in the iSC clusters. Pou3f1 and Cdkn1c are slightly enriched in the pmSC cluster. The myelin protein transcripts Mpz, Mbp, and Ncmap are particularly enriched in the pmSC cluster. (C) tSNE plot of SCs extracted from P5 mice. Data analysis indicates four distinct clusters, one relating to prol. SC, another to iSC, a third cluster to pmSC, and a fourth cluster relates to myelinating SCs (mSC). (D) Mki67 and Top2a localize to the prol. SC cluster; Ngfr, Ncam1 and L1cam are enriched in the iSC cluster; and Pou3f1 and Cdkn1c are enriched in the pmSC cluster. The myelin protein transcripts Mpz, Mbp, and Ncmap are accumulated in the mSC cluster. (E) tSNE plot of SCs extracted from P14 mice. Data analysis indicates four distinct clusters, one relating to prol. SC, another to non-myelinating cells undergoing maturation and marked here as transition SCs (tSC), a third cluster to pmSC, and a fourth cluster depicts mSC. (F) As expected, Mki67 and Top2a localize to the prol. SC cluster; Ngfr, Ncam1, and L1cam are enriched in the tSC cluster; and Pou3f1 and Cdkn1c are enriched in the pmSC cluster. The myelin protein transcripts Mpz and Mbp and Ncmap are enriched in the mSC cluster. (G) Batch-corrected tSNE plot of SCs extracted from P60 mice. Data analysis indicates four distinct clusters, with two clusters relating to mature non-myelinating (Remak) SCs (nm(R)SC), and two clusters related to myelinating SCs. (H) Mki67 and Top2a are proliferation-related genes labeling some cells in the nm(R)SC clusters; Ngfr, Ncam1 and L1cam mainly localize to the nm(R)SC clusters. The myelin protein transcripts Mpz, Mbp, and Ncmap are enriched in the mSC clusters. Dashed lines indicate a merge of clusters produced in the default output of the analysis (Figure 3—figure supplement 2). See also Figure 3—figure supplement 1.
Individual evaluations of the datasets per time point depict the clusters for the main expected differentiation stages of SCs, but in a fragmentary manner. To obtain a more integrated perspective of transcriptomic dynamics over postnatal SC differentiation, we combined all data obtained by single-cell SC sequencing in an integrated analysis. This strategy resulted in one tSNE plot of cells from all time points (Figure 4A). Mapping the cellular transcript expression of selected differentiation marker genes within the combined-data plot revealed a close association of clusters with known key stages of SC differentiation (Figure 4B). Proliferating SCs (marked prol. SC) form a cluster marked by expression of Mki67 and Top2a. The iSC cluster is marked by expression of Ngfr, Ncam1, and L1cam. The same markers also label tSC and nm(R)SC. As a group, these clusters and markers describe the known differentiation and maturation path of non-myelinating (Remak) SCs (Figure 4B). A second group involves also proliferating SCs and the iSC cluster (which are common to both groups), the pmSC cluster enriched in Pou3f1 and Cdkn1c expression, and the SC clusters with strong enrichments in transcripts of Mpz, Mbp, and Ncmap (marked mSC) (Figure 4B, Figure 4—figure supplement 1). Together, these clusters and markers describe the known differentiation and maturation path of myelinating SCs. Color-coding individual cells according to the age of origin generated a chronological gradient over the tSNE plot that agrees with the pattern of overlapped marker transcripts and the two differentiation paths (Figure 4C) (compare also to the description of individual time points in Figure 3). SCs derived from nerves of younger animals correspond to earlier stages of cell differentiation than those obtained from older mice (Figure 4C). On a discussion note, the putative non-myelinating SC maturation path includes two informatic clusters, one enriched in P14 SCs (marked tSC) and the other in P60 SCs (marked nm(R)SC). These findings may reflect temporal snapshots of the maturation fate of non-myelinating (Remak) SCs. Likewise, the informatically predicted mSC clusters are differentially enriched in mSCs of progressing mouse ages, potentially reflecting the particular requirements of early and young adult phases of the myelination program. To aid visualizing the development of transcript levels along the two SC differentiation and maturation trajectories as suggested by the combined-data tSNE plot, we applied a supervised Slingshot trajectory and pseudotime inference approach (Street et al., 2018). Proliferating SCs were defined as the starting cluster, and trajectories crossed the center of each cluster. As expected, the results of this approach indicated a bifurcated projection that splits in two major branches after the iSC cluster, one leading toward the myelinating fate and the other toward non-myelinating (Remak) SC specification (Figure 4D) (Note that the analysis was not aimed at identifying novel cell differentiation states nor trajectories, but is limited to the visualization of results obtained by a supervised bioinformatic approach in conjunction with current knowledge in the research field). The pseudotime analysis allowed the (re-)creation of a virtual timeline by associating each cell with a temporal variable along each path of the transcriptional changes (Figure 4E). For example as expected, transcripts of Ncam1 get strongly reduced with differentiation on the myelinating trajectory, but remain high along the non-myelinating trajectory. The transcripts Pou3f1 and Cdkn1c are prominently enriched along the myelinating trajectory in a transient manner (Figure 4E). Furthermore, transcripts for Mpz are accumulated along the myelinating trajectory, albeit also detected at lower levels in all other SC clusters. In comparison, transcripts for Ncmap are more restricted to late stages of the myelinating trajectory (Figure 4E). In addition to the already presented selected markers related to specific stages of SC differentiation, further information is provided by the enriched transcripts in each cluster of the tSNE plot in Supplementary file 3. Additional technical information regarding the sequencing data for individual cells of the tSNE projection, including the total number of detected genes, is provided in Figure 4—figure supplement 2A, together with the number of reads mapped to the transcriptome per cell (nCount) in Figure 4—figure supplement 2B, and the fraction of mitochondrial content per cell in Figure 4—figure supplement 2C.

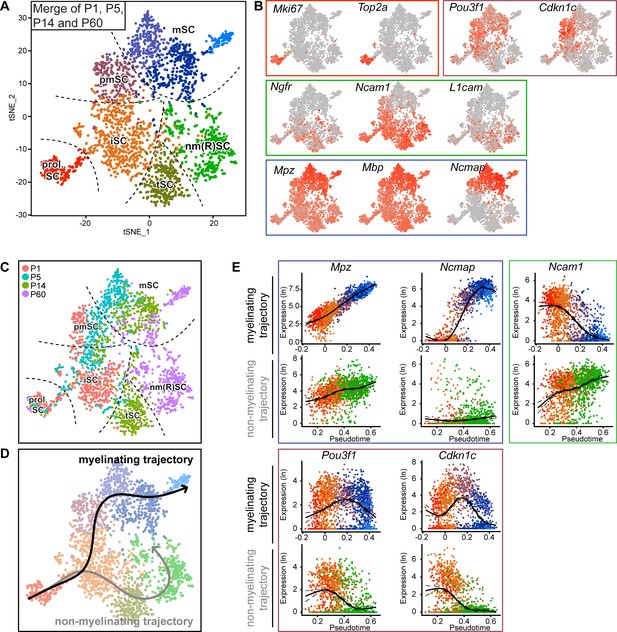

Figure 4 with 2 supplements see all
Integrated RNA profiling with single-cell resolution covering various stages of Schwann cell development.
(A) tSNE plot derived from single-cell RNA sequencing of Schwann cells (SCs) handled with the Smart-Seq2 protocol. All data presented in Figure 3 were condensed into a single plot. Data analysis resulted in eight clusters, marked with the same nomenclature as in Figure 3. These clusters include proliferating SCs (prol. SC), immature SCs (iSC), transition SCs (tSC), mature non-myelinating (Remak) SCs (nm(R)SC), pro-myelinating SCs (pmSC), and myelinating SCs (mSC). (B) tSNE plot with color overlay indicating detected transcript levels per cell. A gradient of red tones indicates relative abundance of each transcript per cell, in which dark red indicates higher levels, and gray indicates not detected. The color of the surrounding frame relates to the color code of each cluster. The markers expressions described here are enriched in (although not exclusive to) the cluster indicated. Expression of Mki67 and Top2a was enriched in the prol. SC cluster. The levels of Ngfr, Ncam1, and L1cam were enriched in the iSC, tSC and nm(R)SC clusters. Pou3f1 and Cdkn1c were enriched in the pmSC cluster. Transcripts for the myelin proteins Mpz, Mbp, and Ncmap are high in the myelinating SC clusters (mSC). (C) tSNE plot including all Schwann cells (SCs) from all ages handled with the Smart-Seq2 protocol, with cells color-coded to their age of analysis (P1, P5, P14, and P60). The distribution of the cells with increasing age relates to the differentiation trajectories predicted in (D) and is congruent with known morphological features observed in the nerve at the different ages. Dashed lines outline the approximate region of each cluster. (D) Smooth curves reconstructed by supervised application of the Slingshot package depict two branching trajectories, with the prol. SC set as starting cluster. One of the branches depicts the myelinating trajectory (black arrow, top), and the other branch depicts the non-myelinating trajectory of SC maturation (gray arrow, bottom). (E) Temporally changing gene expression based on the two trajectories produced by Slingshot shown in (D). In each frame, the top row depicts gene expression change along the myelinating trajectory, whereas the bottom row shows gene expression change along the non-myelinating trajectory. Within the blue frame, transcripts of Mpz and Ncmap strongly accumulate over pseudotime in the myelinating trajectory but not in the non-myelinating trajectory. Within the green frame, transcripts of Ncam1 are reduced over pseudotime along the myelinating trajectory, and increased over pseudotime along the non-myelinating trajectory. Within the purple frame, transcript levels of Pou3f1 and Cdkn1c peak at the pro-myelinating stage and are lower before and after in pseudotime along the myelinating trajectory, while both are decreasing along pseudotime in the non-myelinating trajectory. See also Figure 4—figure supplement 1 and Figure 4—figure supplement 2.
Taken together, our Smart-Seq2 single-cell RNA sequencing dataset provides a connected collection of clusters along key stages of SC postnatal differentiation. Furthermore, the dataset enables a direct comparison, with single-cell resolution, of the differential transcriptome changes throughout SC maturation during postnatal development. The dataset as such, together with the application of the analytical tools presented, provides the fundamental groundwork to allow detailed comparative mapping of the expression of genes by SCs within the myelinating and non-myelinating trajectory throughout development, a prerequisite for the functional understanding of a given gene in SC differentiation and maturation. We anticipate that such applications will be fostered and facilitated particularly by the use of the accompanying database SNAT.
Single-cell RNA sequencing analysis reveals molecular hallmarks of the major cell populations that contribute to sciatic nerve function
Various other cell types besides SCs and neurons/axons contribute together to the optimal function of peripheral nerves. However, our understanding of the individual roles of these different cell types in nerve development and homeostasis are limited. Comparatively more is known about the essential roles of some of those non-neural cells in nerve regeneration. This knowledge includes a crucial interplay between macrophages, endoneurial fibroblast-like cells, and SCs in fostering axonal regeneration between proximal and distal nerve stumps after nerve transection (Cattin et al., 2015; Cattin and Lloyd, 2016). Furthermore, nerve-resident Pdgfra-expressing cells (which include cells of the endoneurium, perineurium, and epineurium) have been shown to serve as a cellular reservoir during regeneration after toe tip amputation of adult mice (Carr et al., 2019). The same study reported also on data obtained by single-cell RNA sequencing of nerve cells from adult injured tissue and included the analysis of Pdgfra-expressing cells of adult uninjured nerves. We reasoned that extended and easy searchable datasets describing transcriptomic dynamics in the various resident cell types of the developing and adult sciatic nerve would provide a valuable resource, in particular if put in a consistent context with our other described sets of RNA-seq data in an integrated database. Thus, we decided to expand our single-cell RNA sequencing experiments to other sciatic nerve-inhabitant cells. To this end, we generated cell suspensions from all-inclusive sciatic nerves with the same protocol that we had used to extract SCs in the single-cell sequencing approach before. The presence of dsRed allowed the use of FACS to separate viable nerve cells, which were strongly positive for this cytoplasmic reporter, from debris and ruptured cells (Figure 2A). Our study includes the analysis of cells at early postnatal development, extracted from mice at P1, and cells at a young adult stage, extracted from mice at P60. The additional presence of the eYFP reporter, expressed in a P0Cre-dependent manner, allowed convenient monitoring of the SC fraction during FACS sorting. Thus, we could select negatively for SCs at P1 (reducing the SC number down to ~30% of the total cells analyzed at this age) to restrict the quantitative dominance of SCs that would have potentially hindered the analysis of other cell types in sufficient numbers for informatic cluster formation. We chose to use the 10x Genomics technology rather than Smart-seq2 for this part of our study, since higher cell throughput is required to characterize adequately the heterogeneous cell types expected in the sciatic nerve. Approximately 4000 sorted nerve cells were loaded into the Chromium controller for separation of single cells into droplets during each individual run, with cDNA and libraries prepared according to 10x Genomics recommendations (Figure 2A). To account for biological variability and to control for technical bias, we included three independent samples for each time point, processed as three independent 10x Genomics runs (designated as Run 1, 2, and 3). Each sample consisted of a nerve cell suspension extracted from male and female mice in a 1:1 ratio. Color-coding of the cells in the tSNE plot (Supplementary file 2) according to different runs revealed no major bias, as cells from all three runs are contributing to the formation of each cluster (Figure 5—figure supplement 1A, Figure 6—figure supplement 1A). To identify the clusters represented in the tSNE plots, we pinpointed cells expressing transcripts from genes that specifically label the various cell types expected in the nerve. Since the available literature validating these markers is mainly derived from adult animals, we prioritized the identifications of each cluster in P60 samples. Analysis of the P60 single-cell RNA-seq data revealed nine clusters (Figure 5A).

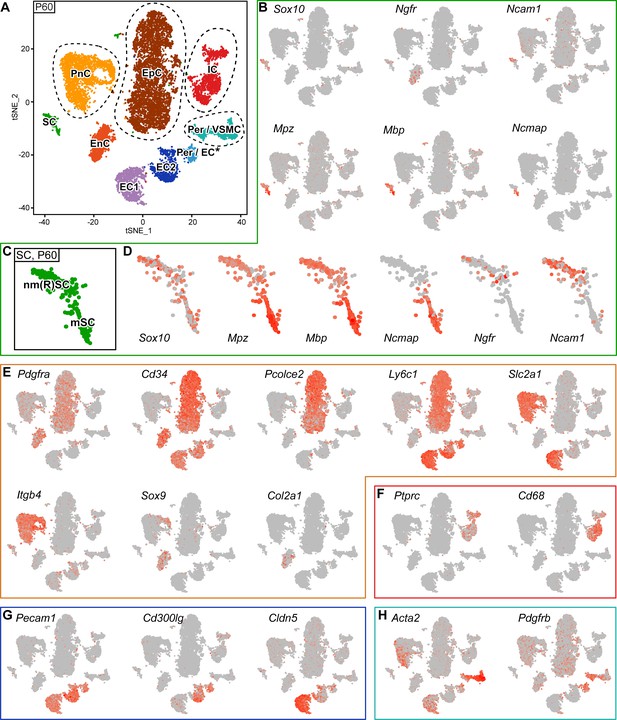

Figure 5 with 3 supplements see all
RNA single-cell profiling of sciatic nerve cells handled with 10x Genomics at P60.
(A) tSNE plot depicting the major clusters of nerve-resident cells based on RNA sequencing of single cells extracted from sciatic nerves at P60 and handled with 10x Genomics. These plots include single clusters of Schwann cells (SC), perineurial cells (PnC), endoneurial cells (EnC), epineurial cells (EpC), and immune cells (IC). Pericytes and vascular smooth muscle cells (Per/VSMC) are represented as one cluster. A second cluster marked as pericytes/endothelial cells (Per/EC*) includes defining markers of both pericytes and endothelial cells within the same cell. The tentative nature of this cluster is indicated by an asterisk (see text). Markers typical of endothelial cells form two separate clusters, marked as endothelial cells 1 and 2 (EC1, EC2). Dashed lines indicate a merge of clusters produced from the default output of the analysis (see Figure 5—figure supplement 3). (B, D–H) tSNE plots overlaid with the detected relative transcript levels. A gradient of red tones indicates relative abundance of each transcript per cell, in which dark red indicates higher levels, and gray indicates not detected. The markers described label the cluster indicated, although not always exclusively. (B–D) tSNE overview in (B), and focused on Schwann cell cluster (SC) in (D), overlaid with key markers for all SCs (Sox10), myelinating SCs (Mpz, Mbp, and Ncmap), and non-myelinating SCs (Ngfr and Ncam1). The distribution pattern of these transcripts across the cluster indicates regions enriched in nm(R)SC and in mSC (C). (E) tSNE plots overlaid with the detected relative transcript levels for EnC, PnC, and EpC clusters. All three clusters are labeled by Pdgfra, whereas Cd34 labels PnC at lower levels than EnC and EpC. The EpC cluster is labeled by Pcolce2 and Ly6c1, the PnC cluster is labeled by Slc2a1 and Itgb4, and the EnC cluster is labeled by Sox9 and Col2a1. (F) The IC cluster is labeled by Ptprc and Cd68. (G) The two clusters representing endothelial cells (EC1 and EC2) are both labeled by Pecam1, as is the Per/EC cluster. The EC2 cluster is predominantly labeled by expression of the marker Cd300lg, whereas the EC1 cluster is labeled by the tight junction marker Cldn5. (H) The Per/VSMC cluster is labeled by Acta2 and Pdgfrb. See also Figure 5—figure supplement 1, Figure 5—figure supplement 2 and Figure 5—figure supplement 3.
SCs accounted for 414 out of 12428 cells (3.3%; note that this number is affected by the experimental extraction efficiency and does not reflect the proportion of SCs present in adult sciatic nerves [Stierli et al., 2018]), formed a single cluster (marked SC) in the tSNE, and were characterized by Sox10 (encoding the transcription factor SOX10) expression (Finzsch et al., 2010; Jessen et al., 2015; Figure 5A,B). However, closer inspection revealed a remarkable regional distribution of myelinating SCs (marked mSC) on one side of the cluster and non-myelinating (Remak) SCs on the opposite side (marked nm(R)SC) (Figure 5C,D). Expression of the myelin genes Mpz, Mbp, and Ncmap is enriched in the mSC region of the cluster, whereas Ngfr and Ncam1 expression are enriched in the nm(R)SC area of the cluster (Figure 5C,D).
As previously shown (Carr et al., 2019), enriched Pdgfra expression labeled clusters of epineurial (marked EpC), perineurial (marked PnC), and endoneurial fibroblast-like (marked EnC) nerve cells, whereas expression of Cd34 (encoding Hematopoietic Progenitor Cell Antigen CD34) labels all of the above (albeit the perineurial cell cluster only weakly), and additionally also endothelial cell clusters (Carr et al., 2019; Richard et al., 2012; Richard et al., 2014; Figure 5A,E). To identify each cluster more specifically, we overlaid additional marker genes on the tSNE plots. Enriched expression of Pcolce2 (encoding Procollagen C-Endopeptidase Enhancer 2) and Ly6c1 (encoding lymphocyte antigen 6 complex, locus C1) label the epineurial cell cluster (Figure 5E; Carr et al., 2019). The perineurial cell cluster is labeled by expression of Itgb4 (encoding Integrin Subunit Beta 4) and Slc2a1 (encoding Solute Carrier Family 2 Member 1, also commonly known as Glucose Transporter Type 1(Glut1)) (Figure 5E; Carr et al., 2019; Niessen et al., 1994; Takebe et al., 2008; Tserentsoodol et al., 1999). Finally, the endoneurial fibroblast-like cell cluster is characterized by enriched expression of Col2a1 (encoding Collagen Type II Alpha 1 Chain) and Sox9 (encoding the transcription factor SOX9) (Figure 5E; Carr et al., 2019).
The immune cell cluster (marked IC) can be recognized by Ptprc (encoding Protein Tyrosine Phosphatase Receptor Type C, also commonly known as CD45) expression and particularly high abundance of the macrophage marker Cd68 (encoding Scavenger Receptor Class D, Member 1) (Figure 5F; Carr et al., 2019; Cattin et al., 2015; Hidmark et al., 2017).
Cells associated with the remaining clusters are related to blood vessels. Two clusters are characterized by ample expression of Pecam1 (Platelet And Endothelial Cell Adhesion Molecule 1, also commonly known as CD31) (Figure 5G; Carr et al., 2019; Cattin et al., 2015; Stierli et al., 2018), but not of Pdgfrb (encoding Platelet Derived Growth Factor Receptor Beta) (Figure 5H). We classified these groups as bona fide endothelial cell clusters. From these two clusters, one was more enriched in Cldn5 (encoding the tight junction component Claudin 5) (Pummi et al., 2004; Figure 5G) and Slc2a1 (Takebe et al., 2008; Tserentsoodol et al., 1999; Figure 5E) expression (marked EC1). The other endothelial cluster had lower expression of Cldn5 and Slc2a1 (Figure 5E,G), together with higher abundance of the endothelial marker Cd300lg (encoding CD300 Molecule Like Family Member G) (Figure 5G; Zhao et al., 2018) (marked EC2). Peripheral nerves contain a complex set of blood vessels, including larger vessels located mainly in the epineurium, and microvessels within the endoneurium (Reinhold and Rittner, 2020; Ubogu, 2020). One might speculate that the two observed endothelial clusters may relate to different sets of endothelial cells, with different functional properties associated with vessels with different physical and physiological features. Next, a cluster labeled by expression of Acta2 (encoding Actin Alpha 2, Smooth Muscle) and Pdgfrb was identified as pericytes and vascular smooth muscle cells (marked Per/VSMC) (Figure 5H; Carr et al., 2019; Stierli et al., 2018). Finally, the remaining discernible cluster of this blood vessel-associated group contains cells that are simultaneously positive for Pecam1 and Pdgfrb (Figure 5G,H), canonical markers for endothelial cells and pericytes, respectively (marked Per/EC*). One interpretation of this finding is that sciatic nerves may contain pericytes that also express Pecam1, or endothelial cells that also express Pdgfrb. Since we cannot exclude this possibility at this time, we did not remove the cluster from the dataset. However, we consider it more likely that this cluster derives from ‘cell doublets’ between endothelial cells and pericytes, and thus is a technical artefact potentially fostered by the close physical interactions between pericytes and endothelial cells on vessels, a connection that may not have been broken sufficiently by our nerve dissociation procedure.
The markers discussed above and plotted in Figure 5 are a targeted selection based on previous knowledge. Exemplary citations associated with these markers, together with an illustrating diagram of the distribution of the major cell types within the nerve compartments in relation to the RNA sequencing, are shown in Figure 5—figure supplement 2. Row z-scores of the ten genes with the most enriched transcripts per cluster within the dataset are included as a heat map projection (Figure 5—figure supplement 1B), and a more comprehensive list is also included (Supplementary file 3). Additional technical information regarding the sequencing data is shown on individual cells of the tSNE projection and includes the number of detected genes (Figure 5—figure supplement 1C), the fraction of mitochondrial content detected (Figure 5—figure supplement 1D), and the number of unique molecular identifiers (Figure 5—figure supplement 1E).
Our complementary analysis of developing nerves at P1 resulted in a tSNE projection containing 11 clusters (Figure 6A). Notably, even after the previously described negative selection by FACS, the P1 SC cluster still included a larger number and fraction of SCs than obtained at P60 (3175 or 28% (P1), vs. 414 or 3.3% (P60)), likely reflecting a more efficient extraction of intact SCs from P1 nerves. Three SC clusters were identified by Sox10 expression (Figure 6B). As a group, they are also highly enriched in Mpz, Mbp, and Ncmap transcripts. Ncmap expression is most prominent in a SC cluster that reflects most likely pro-myelinating SCs (marked pmSC) at this age (Figure 6B), although a few SCs might also be included here that have already started to produce myelin. An overlapping neighboring group, labeled by Ncam1 and Ngfr expression, includes immature SCs (marked by iSC) (Figure 6B), some of which also expressing the proliferation markers Mki67 and Top2a (marked prol. SC) (Figure 6C). The expression of these proliferation markers labels also other proliferating cells in P1 nerves, which we tentatively designated as a cluster of proliferating fibroblast-like cells (marked prol. Fb) due to the expression of Pdgfra (Figure 6C,D). To relate other clusters to the identity of the major cell types expected in the nerve, we employed the markers used at P60 before and plotted them in the tSNE plot of P1 nerves, with the limitation of assuming that the same markers are useful identifiers of the same cell type clusters analogously to P60 also at P1. As mentioned before, a cluster of proliferating fibroblasts was labeled by Pdgfra expression, as were four additional clusters in the tSNE plot also labeled by this marker. We reasoned that these clusters are likely to relate to endoneurial fibroblast-like cells (marked EnC), perineurial cells (marked PnC), epineurial cells (marked EpC), leaving one other cluster which we called tentatively fibroblast-related cells (marked FbRel*). Assignments of these clusters were done as follows: Pronounced expression of Sox9 and Col2a1 identified the putative EnC cluster (Figure 6D). Next, expression of Ly6c1 and Pcolce2 allowed the localization of the putative EpC cluster (Figure 6D). Afterwards, we hypothesized that one of the remaining Pdgfra-expressing clusters should comprise perineurial cells. Thus, we assigned a putative PnC cluster based on a modest enrichment of Slc2a1 expression (Figure 6D). In this context, we note again that these detailed assignments have to be considered tentative at this time, since the marker genes used for the assignments at P1 are likely expressed at different levels than at P60 due to the different cell differentiation states. The fibroblast-related cluster (FbRel*) includes cells in which, besides Pdgfra, a peculiar set of transcripts are quite prominent, including some cells expressing markers more enriched in other clusters, and even some cells expressing genes typical of the SC lineage, including Mbp, Mpz, and Sox10 (Figure 6B,D). Determination of the origins and validation of this cluster requires further investigations.

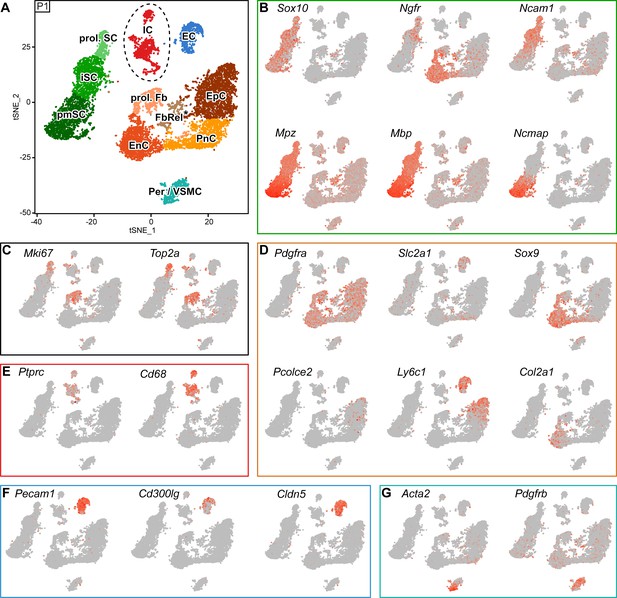

Figure 6 with 2 supplements see all
RNA single-cell profiling of sciatic nerve cells handled with 10x Genomics at postnatal day 1.
(A) tSNE plot depicting the major clusters of nerve resident cells at P1 and handled with 10x Genomics. These include single clusters of pericytes and vascular smooth muscle cells (Per/VSMC), endothelial cells (EC), immune cells (IC), perineurial cells (PnC), endoneurial cells (EnC), and epineurial cells (EpC). Schwann cells (SCs) are represented as three clusters, including proliferating Schwann cells (prol. SC), immature Schwann cells (iSC) and pro-myelinating Schwann cells (pmSCs). In addition, another cluster expressing markers typical of proliferating cells was marked as proliferating fibroblast-like cells (prol. Fb), and a cluster located between EnC, PnC and EpC was marked as fibroblast-related cluster (FbRel*). The tentative nature of this cluster is indicated by an asterisk (see text). Dashed lines indicate a merge of clusters produced from the default output of the analysis (see Figure 6—figure supplement 2). (B–G) tSNE plots overlaid with the detected relative transcript levels. A gradient of red tones indicates relative abundance of each transcript per cell, in which dark red indicates higher levels, and gray indicates not detected. The markers described here label the indicated cluster also at P60 (see Figure 5), although not always exclusively. (B) All SC clusters are labeled by expression of Sox10. The iSC and prol. SC clusters are labeled by Ncam1 and Ngfr, whereas the pmSC cluster is labeled by Ncmap and is enriched in Mpz and Mbp. (C) The proliferating cell clusters (prol. SC and prol. Fb) are labeled by Mki67 and Top2a. (D) tSNE plots overlaid with the detected relative transcript levels for EnC, PnC, and EpC clusters. All three clusters are labeled by Pdgfra. The PnC cluster is moderately labeled by Slc2a1, the EnC cluster is labeled by Sox9 and Col2a1, and the EpC cluster is labeled by Ly6c1 and Pcolce2. (E) The IC cluster is labeled by Ptprc and Cd68. (F) The EC cluster is labeled by Pecam1, Cldn5, and in part Cd300lg. (G) The Per/VSMC cluster is labeled by Acta2 and Pdgfrb. See also Figure 6—figure supplement 1 and Figure 6—figure supplement 2.
Clusters of immune cells (marked IC) were assigned by Ptprc expression, with a preponderance of Cd68-expressing macrophages similar to the findings at P60 (Figures 6E and 5F). Putative endothelial cells formed a single cluster labeled by Pecam1 and not Pdgfrb expression (marked EC; Figure 6F and G). This cluster contains some cells expressing Cldn5 and some with Cd300lg expression. However, there is no evident fractionation of the cluster apparent at this early developmental stage (Figure 6F). Finally, a pericyte and vascular smooth muscle cell cluster could be identified by expression of Acta2 and Pdgfrb (marked Per/VSMC; Figure 6G). Row z-scores of the ten genes with the most enriched transcripts per cluster within the dataset are included as a heat map projection (Figure 6—figure supplement 1B), and a more comprehensive list is also provided (Supplementary file 3). Further technical details concerning the sequencing data, overlaid with individual cells of the tSNE projection, include the number of detected genes (Figure 6—figure supplement 1C), the fraction of mitochondrial content (Figure 6—figure supplement 1D), and the number of unique molecular identifiers (Figure 6—figure supplement 1E).
In summary, single-cell RNA sequencing of all-included sciatic nerves with 10x genomics provided transcriptome profiles on most of the major cell types that are expected to reside in mouse sciatic nerves, both in early postnatal development and in young adults. One notable exception are epineurial adipocytes (Montani et al., 2018), which we did not detect as a separate cluster. A few cells expressing adipocyte markers, including Car3 (encoding Carbonic Anhydrase 3), Cdo1 (encoding Cysteine Dioxygenase Type 1), Adipoq (encoding Adiponectin), and Plin1 (encoding Perilipin 1) (Burl et al., 2018; Deng et al., 2015), can be found within the P60 epineurial cells cluster (see SNAT), but it remains unclear at this time whether they represent bona fide epineurial adipocytes. Another peculiar example are cells that line potentially lymphatic vessels. A small group of cells with expression of markers of lymphatic endothelial cells including Prox1 (encoding the transcription factor Prox-1), Flt4 (encoding VEGF Receptor-3), and Lyve1 (encoding Lymphatic Vessel Endothelial Hyaluronan Receptor 1) (Wigle et al., 2002) can be found within one of the P60 endothelial cell cluster (endothelial cell cluster marked EC2; see SNAT), but they have not been allocated as separate cluster potentially due to their scarcity.
We note that the approach of using dissociation of cells from nerves followed by FACS has the limitation of some potential subsampling of a subset of cells (Figure 2). In particular, SCs isolated from extensively myelinated nerves might not reveal the full diversity spectrum. The observed low relative extraction efficiency in this context may reflect different sensitivities of distinct SC populations to the experimental procedures, associated with the potential of subsampling.
On an outlook note, our data can now be used for detailed comparative mapping of expression of particular genes, at the cellular nerve level, as the fundamental basis to understand peripheral nerve biology in health and disease. As some applied examples, we recommend to search SNAT for your favorite individual gene, or gene family, or genes that encode components of the various functional structures established by the different nerve-resident cell types, or ‘orphan’ genes with incompletely understood functions.
Taken together, the validated datasets presented in this study are intended to serve as a reference point of gene expression in peripheral nerves, obtained by various complementary forms of RNA sequencing techniques. Our multilayered approach allowed both the coverage and emphasis on SCs and other major populations of resident cells in sciatic nerves, mainly focused on postnatal development. We have integrated our data in a freely accessible and searchable web interface (https://www.snat.ethz.ch) with the intention to make a contribution to the filling of a gap in current peripheral nerve research. Using this resource as baseline, together with recently published complementary extensions mainly focusing on immune cells in peripheral nerves (Kalinski et al., 2020; Wang et al., 2020; Ydens et al., 2020) and adult nerves (Wolbert et al., 2020), we anticipate that there will be expanding efforts to cover various aspects of peripheral nerve biology such as in cellular-, injury-, aging-, and disease models (Toma et al., 2020) as well as covering other related glia cells (Avraham et al., 2020; Stierli et al., 2019), hopefully yielding insightful and valuable data as the fundamental basis of building and testing hypothesis in functional follow-up studies.
Materials and methods
Key resources table
| Reagent type (species) or resource | Designation | Source or reference | Identifiers | Additional information |
|---|---|---|---|---|
| Genetic reagent (M. musculus) | GtROSA26Sor < tm1(EYFP)Cos> | Jackson Laboratory | RRID:IMSR_JAX:006148 | PMID:11299042 |
| Genetic reagent (M. musculus) | B6.Cg-Tg(CAG-DsRed*MST)1Nagy/J | Jackson Laboratory | RRID:IMSR_JAX:006051 | PMID:15593332 |
| Genetic reagent (M. musculus) | Tg(MPZ-cre)26Mes/J | Jackson Laboratory | RRID:IMSR_JAX:017927 | PMID:10586237 |
| sequence-based reagent | Genotyping primer: DsRed forward | Jackson Laboratory Protocol 22460 Standard PCR Assay - Tg(DsRed), version 1.3 | 5’-CCCCGTAATGCAGAAGAAGA-3’ | |
| Sequence-based reagent | Genotyping primer: DsRed reverse | Jackson Laboratory Protocol 22460 Standard PCR Assay - Tg(DsRed), version 1.3 | 5’-GGTGATGTCCAGCTTGGAGT-3’ | |
| Sequence-based reagent | Genotyping primer: Cre forward | PMID:30648534 | 5’-ATCGCCAGGCGTTTTCTGAGCATAC-3’ | |
| Sequence-based reagent | Genotyping primer: Cre reverse | PMID:30648534 | 5’-GCCAGATTACGTATATCCTGGCAGC-3’ | |
| Sequence-based reagent | Genotyping primer: Rosa26-loxPstoploxP-YFP forward | PMID:15905512 | 5’-AAAGTCGCTCTGAGTTGTTAT-3’ | |
| Sequence-based reagent | Genotyping primer: Rosa26-loxPstoploxP-YFP wildtype reverse | PMID:15905512 | 5’-GGAGCGGGAGAAATGGATATG-3’ | |
| Sequence-based reagent | Genotyping primer: Rosa26-loxPstoploxP-YFP transgenic reverse | PMID:15905512 | 5’-GCGAAGAGTTTGTCCTCAACC-3’ | |
| Sequence-based reagent | Oligo-dT30VN | PMID:24385147 | 5'-Biot–AAGCAGTGGTATCAACGCAGAGTACT30VN-3' | |
| Sequence-based reagent | Template-switch oligo (TSO) | PMID:24385147 | 5'-Biot-AAGCAGTGGTATCAACGCAGAGTACATrGrG+G-3'(rG = riboguanosine;+G = LNA-modified guanosine) | |
| Sequence-based reagent | ISPCR | PMID:24385147 | 5'-Biot-AAGCAGTGGTATCAACGCAGAGT-3' | |
| Sequence-based reagent | Nextera XT 384 UDIs primer set | Integrated DNA Technologies | ||
| Commercial assay or kit | TruSeq Stranded mRNA Sample Prep Kit | Illumina, San Diego, CA, USA | 20020595 | |
| Commercial assay or kit | SuperScript II Reverse Transcriptase | Thermo Fischer | 18064014 | |
| Commercial assay or kit | KAPA HiFi HotStart ReadyMix | Roche | KK2601 | |
| Commercial assay or kit | Illumina Nextera XT Index Kit | Illumina, San Diego, CA, USA | FC-131–1096 | |
| Commercial assay or kit | Chromium Single Cell 3’ Library and Gel Bead Kit v2 | 10X Genomics | PN-120237 | |
| Commercial assay or kit | Chromium Single Cell A Chip Kit | 10X Genomics | PN-120236 | |
| Commercial assay or kit | Chromium i7 Multiplex Kit | 10X Genomics | PN-120262 | |
| Commercial assay or kit | Trypsin | Sigma Aldrich, St. Louis, MO, USA | Cat#T9201 | |
| Commercial assay or kit | Collagenase type 2 | Worthington Biochemical Corporation, NJ, USA | Cat#LS004174 | |
| Commercial assay or kit | Hyaluronidase | Worthington Biochemical Corporation, NJ, USA | Cat#LS005474 | |
| Software, algorithm | Illustrator version CC | Adobe | ||
| Software, algorithm | STAR Aligner (v2.5.4b; v2.6.1.c) | PMID:23104886 | RRID:SCR_015899 | |
| Software, algorithm | Rsubread (v1.32.4) | PMID:23558742 | RRID:SCR_016945 | |
| Software, algorithm | R package Seurat (V2.3.1) | PMID:29608179; PMID:25867923 | RRID:SCR_016341 | |
| Software, algorithm | Slingshot (v1.0.0) | PMID:29914354 | RRID:SCR_017012 | |
| Software, algorithm | CellRanger (v2.0.2) | 10x Genomics | RRID:SCR_017344 | |
| Software, algorithm | fastICA package (1.2–2) | PMID:10946390 | RRID:SCR_013110 |
Experimental animals
Request a detailed protocolThe peripheral nerves used for the timeline shown in Figure 1 and respective supplement were extracted from C57bl6/J wild-type animals at multiple ages, as indicated in the text and figure legends. Experiments which required sorting of cells by FACS (Figures 2–6, including respective supplements) were performed with cells acutely extracted from mice expressing MPZCre (Tg(Mpz-cre)26Mes/J; RRID:IMSR_JAX:017927) (designated in this manuscript as P0Cre) (Feltri et al., 1999), which promotes the recombination of the reporter gene Rosa26-loxPstoploxP-YFP mouse line (GtROSA26Sor < tm1(EYFP)Cos>; RRID:IMSR_JAX:006148) (Srinivas et al., 2001) (designated in this manuscript as ReYFPTg) to specifically label SCs with expression of enhanced yellow fluorescent protein (YFP). Furthermore, these mice also expressed DsRed.MST reporter protein under the control of the chicken beta actin promoter coupled with the cytomegalovirus (CMV) immediate early enhancer (B6.Cg-Tg(CAG-DsRed*MST)1Nagy/J; RRID:IMSR_JAX:006051) (Vintersten et al., 2004) (designated in this manuscript as βAct-DsRedTg). The combination of these reporter proteins was used to select SCs and other nerve-resident cells as described in the figure legends and text. Note that all mice used in this study were not perfused prior to tissue extraction to minimize handling time and tissue alterations.
Mice of both sexes were used in the study, as indicated in the respective figure legends. All mice used are on the C57bl/6J background. Mice were allocated to experiments based on their age and genotype, but otherwise in a random manner. Mice were housed in a maximum of 5 animals/cage, kept in a 12 hr dark-light cycle, and provided ad libitum access to standard chow and water. No computation methods were used to estimate sample size, and these were selected according to sample sizes generally employed in the research field. Genotypes were determined by genomic PCR using the following primer sets: Cre forward 5’-ATCGCCAGGCGTTTTCTGAGCATAC-3’, reverse 5’-GCCAGATTACGTATATCCTGGCAGC-3’; Rosa26-loxPstoploxP-YFP forward 5’-AAAGTCGCTCTGAGTTGTTAT-3’, transgenic reverse 5’-GCGAAGAGTTTGTCCTCAACC-3’, wildtype reverse 5’-GGAGCGGGAGAAATGGATATG-3’; DsRed forward 5’-CCCCGTAATGCAGAAGAAGA-3’, reverse 5’-GGTGATGTCCAGCTTGGAGT-3’. All animal experiments were performed with the approval and in accordance to the guidelines of the Zurich Cantonal Veterinary Office under permit ZH090/2017.
Preparation of cell suspension and FACS
Request a detailed protocolSciatic nerves were extracted from P0Cre-/+: ReYFPTg/+: βAct-DsRedTg/+ mice and collected in ice-cold PBS. The protocol to extract cells from these nerves was adapted from Byrne, 2016. Nerves were transferred onto a 6 cm cell-culture dish and minced using a scalpel. Minced nerves were transferred to a 15 ml centrifugation tube and were enzymatically dissociated on a thermoshaker (Eppendorf ThermoMixer C) at 37°C for 20 min with a solution containing 0.15% Trypsin (Sigma, #T9201), 0.3% collagenase Type 2 (Bioconcept, #LS004174), 0.04% hyaluronidase (Bioconcept, #LS005474) in HBSS. Ten minutes after the start of enzymatic digestion, the tissue was mechanically dissociated by pipetting using a 1 ml precision pipette. At the end of the 20 min digestion, the tissue was completely mechanically dissociated by pipetting 20 times with a 200 μl precision pipette, and the enzymatic reaction was stopped by adding 10% FCS in PBS. The cell suspension was centrifuged (Eppendorf Centrifuge 5810 R) at 300 g for 5 min at 4°C, and the resulting pellet was resuspended in FACS buffer (0.5% BSA, 5 mM EGTA, in PBS). Before cell sorting, the mix was filtered through a 50 μm filter.
Cells were sorted using a SH800S Sony cell sorter. For P5 bulk RNA sequencing, SCs were sorted using eYFP intensity and SSC-A into 1.5 ml Eppendorf tubes (Figure 2A). For single-cell sequencing of Schwann cells, eYFP-positive cells were sorted onto 384-well plates followed by the Smart-seq2 protocol. For single-cell sequencing of whole sciatic nerve lysates, DsRed-positive cells were sorted into 1.5 ml Eppendorf followed by the 10x genomics protocol. At P1, a negative selection of DsRed-eYFP-double-positive cells additionally was applied to restrict the SC abundance to approximately 30% of the sorted cells processed with the 10x genomics protocol.
Bulk RNA sequencing of sciatic nerve lysates
Request a detailed protocolImmediately after dissection, sciatic nerves were placed in ice-cold PBS, stripped from epineurium and perineurium, snap-frozen in liquid nitrogen and stored at −80°C. On the day of RNA extraction, the nerves were grinded while frozen into a fine frozen powder. Subsequently, total RNA was extracted using Qiazol (Qiagen) as per manufacturer’s instructions. Using RNA extracted from peripheral nerves, the libraries were prepared following the Illumina TruSeq stranded mRNA protocol. The quality of the RNA and final libraries was determined using an Agilent 4200 TapeStation System. The libraries were pooled equimolecularly and sequenced in an Illumina HiSeq4000 sequencer (single-end 125 bp) with a theoretical depth of approximately 20 Mio reads per sample.
Bulk RNA sequencing of Schwann cells
Request a detailed protocolUsing RNA from sorted SCs, the libraries were prepared following the Smart-seq2 protocol (Picelli et al., 2013; Picelli et al., 2014). The quality of the RNA, cDNA and final libraries was determined using an Agilent 4200 TapeStation System. 0.5 ng of cDNA from each sample were tagmented and amplified using Illumina Nextera XT kit. The resulting libraries were double-sided size selected (0.5x followed by 0.8x ratio using Beckman Ampure XP beads), quantified and pooled equimolecularly. The pool of libraries was sequenced in an Illumina HiSeq4000 sequencer (single-end 125 bp) with a depth of approximately 20 Mio reads per sample.
Single-cell RNA sequencing of Schwann cells
Request a detailed protocolThe transcriptome of the single SCs was analyzed using a miniaturized version of the Smart-seq2 protocol with the help of a SPT Labtech Mosquito HV pipetting robot (Jaeger et al., 2020). Briefly, single cells were directly sorted into 384-well plates containing 0.8 µl of lysis buffer (0.1% vol/vol Triton X-100, 2.5 mM dNTPs, 2.5 µM oligo-dT, 1 U/µl Promega RNasin Plus RNase inhibitor). Reverse transcription was performed in a final volume of 2 µl followed by cDNA amplification in a final volume of 5 µl. The quality of the cDNAs was evaluated using an Agilent 2100 Bioanalyzer. 0,1 ng of cDNA from each cell on the plate was individually tagmented using Illumina Nextera XT kit in a final volume of 5 ul, followed by barcoding and library amplification in a final volume of 10 ul. The resulting 384 libraries were pooled, double-sided size selected (0.5x followed by 0.8x ratio using Beckman Ampure XP beads) and quantified using an Agilent 4200 TapeStation System. The pool of libraries was sequenced in an Illumina HiSeq4000 with a depth of approximately 500,000 reads per cell (around 200 Mio reads per plate).
Single-cell RNA sequencing of sciatic nerve cells
Request a detailed protocolWhole nerve cells suspensions were sorted and the quality and concentration of the single-cell preparations were evaluated using an haemocytometer in a Leica DM IL LED microscope and adjusted to 1000 cells/µl. A total of 4000 cells per sample were loaded into the 10x Genomics Chromium controller and library preparation was performed according to the manufacturer’s indications (single cell 3’ using v2 chemistry). The resulting libraries were sequenced in an Illumina HiSeq2500 sequencer according to 10x Genomics recommendations (paired-end reads, R1 = 28, i7 = 8, R2 = 91) to a depth of approximately 50,000 reads per cell.
Data analysis of sciatic nerve bulk RNA sequencing and Schwann cell bulk RNA sequencing
Request a detailed protocolAdapters and low-quality tails were trimmed from reads before mapping to transcriptome. STAR aligner (v2.6.1.c) (Dobin et al., 2013) was used to align the RNA-seq data to Ensembl release 91 reference genome build GRCh38.p10. Gene expression values were quantified by featureCounts from the Bioconductor package Rsubread (v1.32.4) (Liao et al., 2013).
Single-cell RNA sequencing data analysis and integration of Schwann cells handled with Smart-Seq2 protocol
Request a detailed protocolAll reads from Smart-Seq2 plates were mapped to Ensemble release 91 reference genome build GRCh38.p10 with STAR aligner (v2.5.4b) (Dobin et al., 2013) and counted by featureCounts() from Rsubread package (v1.32.4) (Liao et al., 2019). The downstream analysis was performed with R package Seurat (v2.3.1) (Butler et al., 2018; Satija et al., 2015) for each dataset in different parameters. Cells with fewer than 1500 detected genes were discarded. Library-size normalization was done for each cell by scaling by the total number of transcripts and multiplying by 100,000. The data was then natural-log transformed for all downstream analyses. The detection of highly variable genes was based on the average expression and dispersion for each gene using the default parameters (x.low.cutoff = 0.1, x.high.cutoff = 8, y.cutoff = 1) of the function FindVariableGenes() in Seurat. The dimensionality of the data set was reduced using principal component analysis (PCA), with 7 and 20 principal components selected for each time point and integrated dataset, respectively. Unsupervised clustering of the cells was performed with the shared nearest neighbor (SNN) clustering algorithm implemented in the FindClusters() function in Seurat with a resolution of 0.4 for P1 and P5, 0.3 for P14 and P60, 0.6 for the integrated dataset. tSNE plots were generated using the same PCs that were input to the clustering analysis and setting the perplexity parameter to 30. The two plates from P60 were batch corrected and integrated by Seurat’s Canonical Correlation Analysis implementation with 12 canonical vectors. A resolution of 0.5 was used in the clustering step. Differentially expressed genes (cluster markers) for each of the cell populations were determined using Wilcoxon rank sum test. We used the program Slingshot (v1.0.0) (Street et al., 2018) to infer cell lineages. As an input to Slingshot, we used a matrix representing the cells in a reduced-dimensional space and a vector of cluster labels, as inferred by the above analyses with Seurat. The starting cluster was set to ‘proliferating Schwann cells’. Slingshot identified two branching trajectories, one corresponding to myelinating Schwann cells, another corresponding to non-myelinating (Remak) Schwann cells. Then, pseudotimes on each lineage were estimated with the implementation of fastICA() in package fastICA (Hyvärinen and Oja, 2000) from single-cell gene expression data. To visualize the gene expression change over pseudotime, we fitted a generalized additive model (GAM) on the pseudotime with smoothing spline.
Single-cell RNA sequencing data analysis of nerve cells handled with 10x Genomics
Request a detailed protocolCellRanger (v2.0.2) from 10x Genomics was used to demultiplex, align the reads to Ensembl reference build GRCh38.p10 and collapse UMIs. Starting from the filtered gene-cell count matrix by CellRanger’s default cell calling algorithm, we applied the Seurat workflow, as described in Smart-Seq2 data analysis section. Cells from the three independent runs were pooled together. To exclude low-quality cells or possible doublets, we filtered out cells for which fewer than 500 genes or more than 5000 genes were detected, leaving 11339 cells at P1 and 12428 cells at P60 for further analyses. FindVariableGenes() function from Seurat identifies 2145 and 2240 highly variable genes at P1 and P60 respectively, with parameters (x.low.cutoff = 0.0125, x.high.cutoff = 3, y.cutoff = 0.5, dispersion.function = LogVMR). In the dimensionality reduction step, 10 principal components were selected. A resolution of 0.5 was chosen in the unsupervised clustering algorithm at P1, while 0.4 was used at P60.
The clusters identified with 10x Genomics at both P1 and P60 were refined by merge and division of some adjacent clusters, based on the overarching cell type they represent. In Figure 5—figure supplement 3 and Figure 6—figure supplement 2 we included the tSNE plots overlaid with the default clusters derived from the clustering analysis at both time points. At P60 (Figure 5—figure supplement 3), clusters 4 and 10 were merged in a single cluster labeled (IC) because both clusters represent typical markers of immune cells. Furthermore, we merged clusters 2 and 9, since both represent markers typical of perineurial cells (PnC). Clusters 1, 0, and 12 were also merged, since these cells are enriched in markers characteristic of epineurial cells (EpC). Cluster 7 was originally composed of two islands which were separated. The reasoning is explained in the results and discussion section. Since the lower island of cluster seven expresses both Pdgfrb and Pecam1, we cannot confidently state these are bona fide pericytes. This island was therefore re-labeled as cluster (Per/EC*). The remaining island in cluster 7 is more enriched in Pdgfrb and likely represents pericytes, and cluster 8 is enriched in Acta2 and likely represents vascular smooth muscle cells. The merged cluster adopts the name of both cell types, as pericyte and vascular smooth muscle cell cluster (Per/VSMC). At P1 (Figure 6—figure supplement 2), we merged the cluster 5 and 11 into one cluster labeled (IC), since both original clusters represent typical markers of immune cells.
Preparation of figure panels
Request a detailed protocolFigure panels were assembled with Adobe Illustrator (version CC).
Data and code availability
Request a detailed protocolRNA-sequencing data have been deposited in the GEO database under accession number GSE137870. The SNAT website can be reached at https://www.snat.ethz.ch. The Seurat objects used to produce the main figures in this publication are available at https://www.snat.ethz.ch/seurat-objects.html. The code to process, analyze and visualize all the sequencing data is available at https://github.com/suterlab/SNAT-code-used-for-primary-data-analysis copy archived at [swh:1:rev:3a94c4740a9c40ece69ce7a620c15757e61d0628]; Gerber, 2021.
Data availability
RNA-sequencing data have been deposited in the GEO database under accession number GSE137870. The SNAT website can be reached at https://www.snat.ethz.ch. The Seurat objects used to produce the main figures in this publication are available at https://www.snat.ethz.ch/seurat-objects.html. The code to process, analyze and visualize all the sequencing data is available at https://github.com/suterlab/SNAT-code-used-for-primary-data-analysis copy archived at https://archive.softwareheritage.org/swh:1:rev:3a94c4740a9c40ece69ce7a620c15757e61d0628. All other data generated or analysed during this study are included in the manuscript and supporting files.
-
NCBI Gene Expression OmnibusID GSE137870. The transcriptome of sciatic nerves with single cell resolution.
References
-
Promyelinating schwann cells express Tst-1/SCIP/Oct-6The Journal of Neuroscience 18:7891–7902.https://doi.org/10.1523/JNEUROSCI.18-19-07891.1998
-
Satellite glial cells promote regenerative growth in sensory neuronsNature Communications 11:4891.https://doi.org/10.1038/s41467-020-18642-y
-
The multicellular complexity of peripheral nerve regenerationCurrent Opinion in Neurobiology 39:38–46.https://doi.org/10.1016/j.conb.2016.04.005
-
Cysteine dioxygenase type 1 promotes adipogenesis via interaction with peroxisome proliferator-activated receptor gammaBiochemical and Biophysical Research Communications 458:123–127.https://doi.org/10.1016/j.bbrc.2015.01.080
-
STAR: ultrafast universal RNA-seq alignerBioinformatics 29:15–21.https://doi.org/10.1093/bioinformatics/bts635
-
P0-Cre transgenic mice for inactivation of adhesion molecules in schwann cellsAnnals of the New York Academy of Sciences 123:tb08574.https://doi.org/10.1111/j.1749-6632.1999.tb08574.x
-
How schwann cells sort axons: new conceptsThe Neuroscientist : A Review Journal Bringing Neurobiology, Neurology and Psychiatry 22:252–265.https://doi.org/10.1177/1073858415572361
-
Sox10 is required for schwann cell identity and progression beyond the immature schwann cell stageJournal of Cell Biology 189:701–712.https://doi.org/10.1083/jcb.200912142
-
FAK is required for axonal sorting by schwann cellsJournal of Cell Biology 176:277–282.https://doi.org/10.1083/jcb.200609021
-
Unwrapping the unappreciated: recent progress in remak schwann cell biologyCurrent Opinion in Neurobiology 47:131–137.https://doi.org/10.1016/j.conb.2017.10.003
-
Analysis of immune cells in single sciatic nerves and dorsal root ganglion from a single mouse using flow cytometryJournal of Visualized Experiments 130:56538.https://doi.org/10.3791/56538
-
Independent component analysis: algorithms and applicationsNeural Networks 13:411–430.https://doi.org/10.1016/S0893-6080(00)00026-5
-
Three markers of adult non-myelin-forming schwann cells, 217c(Ran-1), A5E3 and GFAP: development and regulation by neuron-Schwann cell interactionsDevelopment 109:91–103.
-
Schwann cells: development and role in nerve repairCold Spring Harbor Perspectives in Biology 7:a020487.https://doi.org/10.1101/cshperspect.a020487
-
The origin and development of glial cells in peripheral nervesNature Reviews Neuroscience 6:671–682.https://doi.org/10.1038/nrn1746
-
Schwann cell precursors; Multipotent glial cells in embryonic nervesFrontiers in Molecular Neuroscience 12:69.https://doi.org/10.3389/fnmol.2019.00069
-
The subread aligner: fast, accurate and scalable read mapping by seed-and-voteNucleic Acids Research 41:e108.https://doi.org/10.1093/nar/gkt214
-
De novo fatty acid synthesis by schwann cells is essential for peripheral nervous system myelinationJournal of Cell Biology 217:1353–1368.https://doi.org/10.1083/jcb.201706010
-
Epineurial adipocytes are dispensable for schwann cell myelinationJournal of Neurochemistry 123:662–667.https://doi.org/10.1111/j.1471-4159.2012.07896.x
-
Expression of the integrin alpha 6 beta 4 in peripheral nerves: localization in schwann and perineural cells and different variants of the beta 4 subunitJournal of Cell Science 107:543–552.
-
N-WASP is required for membrane wrapping and myelination by schwann cellsJournal of Cell Biology 192:243–250.https://doi.org/10.1083/jcb.201010013
-
Ral GTPases in schwann cells promote radial axonal sorting in the peripheral nervous systemJournal of Cell Biology 218:2350–2369.https://doi.org/10.1083/jcb.201811150
-
Full-length RNA-seq from single cells using Smart-seq2Nature Protocols 9:171–181.https://doi.org/10.1038/nprot.2014.006
-
Jab1 regulates schwann cell proliferation and axonal sorting through p27Journal of Experimental Medicine 211:29–43.https://doi.org/10.1084/jem.20130720
-
Tight junction proteins ZO-1, Occludin, and claudins in developing and adult human perineuriumJournal of Histochemistry & Cytochemistry 52:1037–1046.https://doi.org/10.1369/jhc.3A6217.2004
-
Zeb2 is essential for schwann cell differentiation, myelination and nerve repairNature Neuroscience 19:1050–1059.https://doi.org/10.1038/nn.4321
-
Endoneurial fibroblast-like cellsJournal of Neuropathology & Experimental Neurology 71:938–947.https://doi.org/10.1097/NEN.0b013e318270a941
-
Characterization of endoneurial Fibroblast-like cells from human and rat peripheral nervesJournal of Histochemistry & Cytochemistry 62:424–435.https://doi.org/10.1369/0022155414530994
-
Analysis of peripheral nerve expression profiles identifies a novel myelin glycoprotein, MP11Journal of Neuroscience 28:7563–7573.https://doi.org/10.1523/JNEUROSCI.1659-08.2008
-
Schwann cell myelinationCold Spring Harbor Perspectives in Biology 7:a020529.https://doi.org/10.1101/cshperspect.a020529
-
Spatial reconstruction of single-cell gene expression dataNature Biotechnology 33:495–502.https://doi.org/10.1038/nbt.3192
-
The Axon-Myelin unit in development and degenerative diseaseFrontiers in Neuroscience 12:467.https://doi.org/10.3389/fnins.2018.00467
-
Immunolocalization of tight junction proteins, occludin and ZO-1, and glucose transporter GLUT1 in the cells of the blood-nerve barrierArchives of Histology and Cytology 62:459–469.https://doi.org/10.1679/aohc.62.459
-
Biology of the human blood-nerve barrier in health and diseaseExperimental Neurology 328:113272.https://doi.org/10.1016/j.expneurol.2020.113272
-
Local regulation of fat metabolism in peripheral nervesGenes & Development 17:2450–2464.https://doi.org/10.1101/gad.1116203
Decision letter
-
Dwight E BerglesReviewing Editor; Johns Hopkins University School of Medicine, United States
-
Marianne E BronnerSenior Editor; California Institute of Technology, United States
-
Loyal A GoffReviewer; Johns Hopkins University, United States
-
Ahmet HokeReviewer; John Hopkins, United States
In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.
Acceptance summary:
Gerber et al. provide a rich data resource of mouse sciatic nerve transcriptional profiles across a range of ages and cellular resolutions. The authors performed both bulk and single cell RNA sequencing, documenting gene expression changes among the diverse cell types found in this peripheral nerve, and include specific controls to ensure the quality of the resource. Importantly, they also developed a web-based interface to provide the community ready access to these data. This resource will be of significant value to the peripheral nerve community, as a platform to understand the molecular basis of sciatic nerve development and function.
Decision letter after peer review:
Thank you for submitting your article "Transcriptional Profiling of Mouse Peripheral Nerves to the Single-Cell Level to Build a Sciatic Nerve ATlas (SNAT)" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Marianne Bronner as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Loyal A Goff (Reviewer #2); Ahmet Hoke (Reviewer #3).
The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.
As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)
Summary:
This study provides a rich resource of transcriptional profiles for the mouse sciatic nerve across a range of temporal dynamics and cellular resolutions. The authors begin with a well-designed bulk RNA-Seq study of the dissected mouse sciatic nerve across developmental and postnatal time points. This is followed by a bulk RNA-Seq study of sorted schwann cells (SC) in a select subset of time points to identify the transcriptional signatures of the enriched SC component(s) of the sciatic nerve, isolating both myelinating and unmyelinating subtypes. In total, this effort provides a more focused transcriptional survey of SC cell subtypes/states. Further analysis is done on the FACS sorted SC cells at single cell resolution and finally, the authors perform a comprehensive single cell analysis of the entire sciatic nerve, including non-SC cells. The authors do a commendable job at presenting the raw data and describing the specific quality controls required to assure the quality of the resource. However, there are a few analysis choices and mis-interpretations of differential gene expression that raise significant concern for acceptance of the paper in its current form. There is little to no novel biology uncovered or described in this resource paper, albeit that the intent behind this manuscript is to present the data, not necessarily 'discover' anything from it. Where the authors do attempt to describe potentially novel findings, these are not directly supported by the data alone and it should be noted that these conclusions are speculative requiring validation. Furthermore, while the comprehensiveness of this manuscript in terms of the data generated is impressive, the lack of integrative analysis across datasets, and the relative 'light-touch' analysis for each component of this dataset, is a significant shortfall, particularly as several similar datasets have recently been published.
Essential revisions:
1. The authors describe a publicly available searchable web interface (www.snat.ethz.ch). However, access to this resource is currently password-protected. This website needs to be made available to the reviewers in order to evaluate the utility and stability of this public resource.
2. Many of the axes are unlabeled (e.g. Figures 3 -6…). Please add labels to the figures directly.
3. The clusters presented in Figure 3 Panel G (P60) are learned on a reduced dimensional embedding that the authors understand to be biased with respect to batch. Indeed, this is a particular focus of Figure 3—figure supplement 1 panel D. It is commendable that the authors note this and correct with batch correction in the supplement, however the clusters used to annotate mSC2 and mSC3 are derived from the original, biased embedding. These clusters disproportionately contain cells from each batch and therefore the differential genes between mSC2 and mSC3 in Figure 3—figure supplement 1 panel A (P60) primarily represent genes that differ between batches. This should be addressed prior to acceptance.
Given the concerns about batch:cluster confounding above, the designation of mSC2 and mSC3 in the joint embedding remains concerning as well. Potentially confounding the interpretation of pseudotime in Figure 4 and Figure 4—figure supplement 1. Many of the genes identified along pseudotime for mSC3 overlap with the mSC3-specific genes from Figure 3—figure supplement 1 panel A (P60).
4. Figure 4: All axes are unlabelled, including the 'pseudotime values' along X and the gene expression levels along Y for Panel D. It is unclear that the slingshot pseudotime trajectories are resolving the best-fit paths through the data instead of potentially being biased by arbitrary cluster assignments. For example, the designation of the tSC cluster as a discrete and/or transient state is not clear from the embedding. However, the designation of this as a cluster will force slingshot to produce a trajectory through the tSC cluster when this may not be borne out directly from the data. If the authors wish to support these trajectories as appropriate paths towards specification, it is highly recommended that they further perform an RNAVelocity analysis on the joint, embedded single cell analysis in Figure 4. This will provide an 'annotation-agnostic' representation of the change in predicted state over the chosen embedding. The hope is that the velocity field mirrors the paths identified by slingshot. This will provide compelling evidence that the trajectories presented are correct and not 'winding' unnecessarily.
There are some important details missing from the slingshot methods and analysis. The authors use a GAM model to identify genes with significant differential expression WRT pseudotime, but the details of the model are not presented, and the choice of significance thresholds is not described. Further, the authors do not present a list of genes identified by the GAM model, instead relying on Z-scores for previous cluster assignment specificity, (Figure 4—figure supplement 1 panel B) instead of the significance values from the pseudotime fitting. This does not use the pseudotime analysis appropriately but rather still relies on the 'aggregate' expression of genes across clusters.
In general, the application of pseudotime is not complete, and the authors do not use this analysis approach to appropriately resolve trajectories and gene expression differences along these trajectories. The analysis presented is still restricted to 'cluster-level' aggregate differences.
The authors interpret the "appearance of multiple mSC clusters as a peculiar feature in the tSNE plots". This is true and due, in part, to both the nature of tSNE (which does not by default preserve global structure in embeddings) and the previously noted concerns about batch (in P60) that are not addressed in the joint embedding. The authors however, choose to interpret the different mSC clusters as biologically motivated. (lines 361-368). This statement should be re-evaluated and our couched.
A semantic point, the authors claim three 'biological' replicates for the 10x phase of their study per time point. Since each replicate consists of two nerves (one from male and one from female) these are not technically biological replicates but rather technical replicates.
5. Figure 5: It is concerning that for the 10x study, SCs account for only 3.3% of the identified cell types, and yet in the bulk analysis presented in the beginning, only the SC marker genes and how they change across time points are presented. Are the SC gene signatures truly dominating in the bulk samples presented, and as suggested by the authors for the motivation for this study? This is further evidenced by the diagram provided in Figure 5—figure supplement which suggests that the vast majority of cells in this dataset should be Schwann cells. It would be very useful to know, or at least retrospectively estimate, what proportion of the gene expression signatures in the bulk study is derived from SC cells or cells of other cell types. Learning this information from the single cell data and applying this type of analysis to their bulk data would further strengthen the application and utility of this resource and demonstrate a clear need to re-evaluate the use of bulk studies in the PNS.
6. Figure 6: The authors 'identify clusters of proliferating fibroblasts labelled by Pdgfra expression' and reason that these clusters represent biologically interesting/unique clusters of endoneurial fibroblast-lik cells, perineuial cells, or epineurial cells, and represent a 'mysterious cluster' It is highly probable that the expression of Pdgfra in these clusters is not biological, but rather a consequence of either A) incomplete dissociation from true Pdgfra-expressing cells, or B) background signal detected in otherwise low-quality cells, (both appropriately indicated by the authors). The former is supported by the higher-than average number of genes detected in these populations (consistent with potential doublets), despite the authors use of a 'doublet detection' algorithm. The latter is supported by the higher mitochondrial read ratios observed for these clusters as well. Without supporting in situ hybridizations to support the identification and co-expression of Pdgfra in these populations, this finding should be removed or addressed in significantly greater detail. The authors claim(s) that "we cannot exclude that some cells in this cluster might also be in a hypothetical transitory stage of neural crest-derived cells, potentially expressing markers of multiple lineages on their route to differentiation" is a purely artificial explanation that is not supported by the evidence provided. Suggestion of this as an alternative explanation does not satisfy an Occom's razor explanation and must be substantiated with further experimentation.
The authors state that " Clusters representing the different cell types were overall in much closer proximity to each other on the tSNE plots at P1 and P60" and use this to suggest that this may represent "potential cell lineage transitions or cell plasticity at early stages…". This is not an appropriate or valid conclusion to be drawn from tSNE plots. The meaningful proximity of clusters in a tSNE embedding cannot be directly inferred and is a common mis-interpretation of the method used. Please see discussion here for cautions and guidelines for interpretation of tSNE embeddings (https://mlexplained.com/2018/09/14/paper-dissected-visualizing-data-using-t-sne-explained).
7. Given the potential utility of this dataset as a resource for the PNS community, it is strongly recommended that the authors make their analysis (scripts/code/etc) publicly available for review.
[Editors' note: further revisions were suggested prior to acceptance, as described below.]
Thank you for submitting your article "Transcriptional Profiling of Mouse Peripheral Nerves to the Single-Cell Level to Build a Sciatic Nerve ATlas (SNAT)" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Marianne Bronner as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Roman J Giger (Reviewer #1); Loyal A Goff (Reviewer #2); Ahmet Hoke (Reviewer #3).
The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.
Essential revisions:
1. Please address concerns about the validity of conclusions related to the pseudotime analysis raised by Reviewer #2. If additional analysis is possible, please include, otherwise modify the text to temper conclusions that can be made using this approach.
2. Please add additional discussion of potential bias that may arise from subsampling a subset of Schwann cells that could be isolated from the nerve.
3. Please provide additional validation of the pdgfra+ fibroblasts or edit the text to note the need for further validation of this cluster.
Reviewer #2:
The authors have done a commendable job of addressing most of the original reviewer requests. The manuscript is certainly improved and many of the incorrect or misleading statements have been addressed as requested. The figures, labels, and legends are significantly improved in clarity.
* The requested RNA Velocity analysis is not included in the revision. The authors claim to have performed it but it did not match expectations (ie "The resulting projections do not generate evident trajectories along the dataset"). This reviewer would have preferred to examine how RNA Velocity field estimates match the existing slingshot trajectories or at least compare the presented trajectories to those created from another tool to provide confirmatory support. The expectation that the RNAVelocity findings might disagree with the presented trajectories was the motivation behind requesting this analysis. It's lack of inclusion in the final manuscript somewhat reinforces my concern regarding the accuracy/validity of the original pseudotime trajectories.
* The authors have indeed couched their statements regarding the Pdgfra-expressing fibroblast cells relative to their original statements. I am aware that their arguments are in a 'Results and Discussion' section, however, I am still less than comfortable with their speculation w/o any validation of the Pdgfra+ fibroblast population. The details of why the doublet detection algorithm (and their source of confidence in these results) is less than compelling, and the suggestion that 'damaged and/or dying cells is a contributing factor to the formation of this cluster' is supported only by circumstantial evidence of 'low quality' cells (mito read ratio and total count can by proxies for low quality cell capture, but are not generally considered proxies for cell death), not necessarily 'dying' cells. I feel that this speculation is not warranted in a Resource paper and should either be experimentally validated or removed. The manuscript would remain just as strong by merely pointing out the existence of this cluster and suggesting that it's origins require follow up analyses. But the speculation is simply not warranted w/o further supporting validation.
Reviewer #3:
In this paper, Gerber and colleagues conduct bulk and single cell RNA-Seq of mouse sciatic nerves and sorted Schwann cells to generate a developmental transcriptomic profile of Schwann cells. Overall, it is a very nicely done study and will likely serve as a good resource for the scientific community. Strengths of their approach include i) detailed developmental time course and use of 4 biological replicates for each time point, ii) combination approach of bulk sequencing from intact sciatic nerves and comparison to FAC sorted Schwann cells and addition of sc-RNA-Seq of sorted Schwann cells through the postnatal time points. The only weakness is related to the technical difficulty of obtaining higher number of Schwann cells for the scRNA-Seq component. In an intact nerve, Schwann cells account for over 70% all cells, but in the single cell sorted RNA-Seq, only 3.3% of cells were Schwann cells. This low number likely biased the results of gene expression and interpretation of the results because a "hardy" sub-population may survive the cell isolation process and not be a true representative of the whole Schwann cell population.
Authors have addressed all of my concerns. No further comments.
https://doi.org/10.7554/eLife.58591.sa1Author response
Essential revisions:
1. The authors describe a publicly available searchable web interface (www.snat.ethz.ch). However, access to this resource is currently password-protected. This website needs to be made available to the reviewers in order to evaluate the utility and stability of this public resource.
The username and password were included in the original Cover Letter and in the originally Submitted Manuscript (line 777 in the originally submitted pdf file). We have now removed this information from the text of the manuscript since we plan to eliminate the password requirement upon publication of the manuscript.
2. Many of the axes are unlabeled (e.g. Figures 3 -6…). Please add labels to the figures directly.
We apologize for these omissions. The labels have now been added.
3. The clusters presented in Figure 3 Panel G (P60) are learned on a reduced dimensional embedding that the authors understand to be biased with respect to batch. Indeed, this is a particular focus of Figure 3—figure supplement 1 panel D. It is commendable that the authors note this and correct with batch correction in the supplement, however the clusters used to annotate mSC2 and mSC3 are derived from the original, biased embedding. These clusters disproportionately contain cells from each batch and therefore the differential genes between mSC2 and mSC3 in Figure 3—figure supplement 1 panel A (P60) primarily represent genes that differ between batches. This should be addressed prior to acceptance.
Given the concerns about batch:cluster confounding above, the designation of mSC2 and mSC3 in the joint embedding remains concerning as well. Potentially confounding the interpretation of pseudotime in Figure 4 and Figure 4—figure supplement 1. Many of the genes identified along pseudotime for mSC3 overlap with the mSC3-specific genes from Figure 3—figure supplement 1 panel A (P60).
We show now the batch-corrected dataset at P60 in the main Figure (Figure 3, panels G, H), and in the revised Figure 3—figure supplement 1 (panels A, B). The P60 dataset without batch correction has been included in the revised Figure 3—figure supplement 1C.
We thank the reviewers for the remarks regarding the mSC clusters (see also answer to point 4). Our manuscript includes a common section for Results and Discussion. In this context, some of the discussion remarks were perceived by the reviewers rather as conclusions during the consideration of our manuscript (this notion relates similarly to point 6, see answers below). To avoid such interpretations, we have made suitable ameliorations to exert caution, also regarding informatic clusters representing myelinating Schwann cells. We now refer to these clusters commonly as myelinating Schwann cells (mSC). Accordingly, we have adjusted the cluster labels shown on tSNE projections of Figure 4, and we have included new figures that depict the original output of the clustering analysis (Figure 3—figure supplement 2 and Figure 4—figure supplement 1) to complete the information. In this revised setting, potential batch influences on the delineation of mSC1, mSC2 or mSC3 are no longer relevant (and these designations have been removed from the manuscript), since all these cluster are considered as mSC.
4. Figure 4: All axes are unlabelled, including the 'pseudotime values' along X and the gene expression levels along Y for Panel D. It is unclear that the slingshot pseudotime trajectories are resolving the best-fit paths through the data instead of potentially being biased by arbitrary cluster assignments. For example, the designation of the tSC cluster as a discrete and/or transient state is not clear from the embedding. However, the designation of this as a cluster will force slingshot to produce a trajectory through the tSC cluster when this may not be borne out directly from the data. If the authors wish to support these trajectories as appropriate paths towards specification, it is highly recommended that they further perform an RNAVelocity analysis on the joint, embedded single cell analysis in Figure 4. This will provide an 'annotation-agnostic' representation of the change in predicted state over the chosen embedding. The hope is that the velocity field mirrors the paths identified by slingshot. This will provide compelling evidence that the trajectories presented are correct and not 'winding' unnecessarily.
There are some important details missing from the slingshot methods and analysis. The authors use a GAM model to identify genes with significant differential expression WRT pseudotime, but the details of the model are not presented, and the choice of significance thresholds is not described. Further, the authors do not present a list of genes identified by the GAM model, instead relying on Z-scores for previous cluster assignment specificity, (Figure 4—figure supplement 1 panel B) instead of the significance values from the pseudotime fitting. This does not use the pseudotime analysis appropriately but rather still relies on the 'aggregate' expression of genes across clusters.
In general, the application of pseudotime is not complete, and the authors do not use this analysis approach to appropriately resolve trajectories and gene expression differences along these trajectories. The analysis presented is still restricted to 'cluster-level' aggregate differences.
The authors interpret the "appearance of multiple mSC clusters as a peculiar feature in the tSNE plots". This is true and due, in part, to both the nature of tSNE (which does not by default preserve global structure in embeddings) and the previously noted concerns about batch (in P60) that are not addressed in the joint embedding. The authors however, choose to interpret the different mSC clusters as biologically motivated. (lines 361-368). This statement should be re-evaluated and our couched.
A semantic point, the authors claim three 'biological' replicates for the 10x phase of their study per time point. Since each replicate consists of two nerves (one from male and one from female) these are not technically biological replicates but rather technical replicates.
We apologize for the omission of the labels. They have been added as requested. We have also performed RNA velocity analysis as requested. The resulting projections do not generate evident trajectories along the dataset. One potential explanation for these findings is that RNA velocity predicts the future state of cells on a timescale of hours to days, based on the dynamics of mRNAs, and the time points in the dataset in Figure 4 might be too long apart to allow a robust analysis with this bioinformatic tool. In any case, our understanding of the tSC cluster was steered by previous knowledge of Schwann cell differentiation (Figure 1A). Chronologically, iSC progressively sort large-caliber axons from bundles and become pmSC. The ensuing activation of the myelination program leads to the formation of mSC along the myelinating Schwann cell fate. Small caliber axons do not become myelinated. Instead, they are engaged by Schwann cells of the non-myelinating lineage. Using morphological knowledge as a reference, non-myelinating Schwann cells at P60 (designated nm(R)SC in the revised version of this manuscript) encircle each small caliber axon within a Remak bundle with cytoplasm. At P14, this process is ongoing but not yet complete. Based on this knowledge, we tentatively labelled the non-myelinating Schwann cells at P14 as tSC. Considering the expression patterns of established marker genes of the nm(R)SC lineage (Ncam1, N1cam and Ngfr), we interpret the tSC to be cells along the non-myelinating fate at P14, which temporally precede the cells of the same fate at P60 (see also revised Figure 4C). We do not intend to state that this cluster represents a novel cell type, but it may rather represent a temporal snapshot along the non-myelinating differentiation trajectory. Therefore, the pseudotime plot depicts the clusters enriched based on prior knowledge. We have ameliorated the manuscript to reflect these issues better. The text changes include also adjustments to acknowledge the remark by the reviewers that our application of pseudotime is not exhaustive. The intention with a supervised application of pseudotime was not to resolve potentially novel trajectories. We use it to help readers visualizing the transcript abundance dynamics along the expected myelinating and non-myelinating Schwann cell lineages, crossing the center of each cluster (which show a progressive enrichment in cells of increasing mouse ages) along each respective trajectory.
The statements regarding mSC clusters have been couched as requested by the reviewers (see also answer to point 3).
We have removed the terminology of biological or technical replicates. The origin of each of the sequenced independent sample is explained in the text instead.
5. Figure 5: It is concerning that for the 10x study, SCs account for only 3.3% of the identified cell types, and yet in the bulk analysis presented in the beginning, only the SC marker genes and how they change across time points are presented. Are the SC gene signatures truly dominating in the bulk samples presented, and as suggested by the authors for the motivation for this study? This is further evidenced by the diagram provided in Figure 5—figure supplement which suggests that the vast majority of cells in this dataset should be Schwann cells. It would be very useful to know, or at least retrospectively estimate, what proportion of the gene expression signatures in the bulk study is derived from SC cells or cells of other cell types. Learning this information from the single cell data and applying this type of analysis to their bulk data would further strengthen the application and utility of this resource and demonstrate a clear need to re-evaluate the use of bulk studies in the PNS.
The proportion of Schwann cells among all cells populating the adult sciatic nerve endoneurium has been reported to be 72% of all cells (Stierli et al. 2018), in line with our own unpublished observations. The low percentage of Schwann cells in the 10x study at P60 is likely mainly due to a low extraction efficiency of viable single Schwann cells from the enzymatic and mechanic dissociation of sciatic nerves and cannot be compared to their abundance in intact sciatic nerves (this notion is now included in the revised manuscript). In bulk sequencing of sciatic nerves, however, we mechanically removed the epineurium and perineurium layers (from E17.5 onwards) and sequenced the enriched endoneurium. In this experimental setting, RNA was extracted from the tissue directly and thus, the dominant cell type that contributed to the sequenced RNA are Schwann cells. Nonetheless, other cell types in the endoneurium also contribute to the RNA levels detected in the tissue, and on its own, this experimental set cannot resolve which cell types express a given gene.
6. Figure 6: The authors 'identify clusters of proliferating fibroblasts labelled by Pdgfra expression' and reason that these clusters represent biologically interesting/unique clusters of endoneurial fibroblast-lik cells, perineuial cells, or epineurial cells, and represent a 'mysterious cluster' It is highly probable that the expression of Pdgfra in these clusters is not biological, but rather a consequence of either A) incomplete dissociation from true Pdgfra-expressing cells, or B) background signal detected in otherwise low-quality cells, (both appropriately indicated by the authors). The former is supported by the higher-than average number of genes detected in these populations (consistent with potential doublets), despite the authors use of a 'doublet detection' algorithm. The latter is supported by the higher mitochondrial read ratios observed for these clusters as well. Without supporting in situ hybridizations to support the identification and co-expression of Pdgfra in these populations, this finding should be removed or addressed in significantly greater detail. The authors claim(s) that "we cannot exclude that some cells in this cluster might also be in a hypothetical transitory stage of neural crest-derived cells, potentially expressing markers of multiple lineages on their route to differentiation" is a purely artificial explanation that is not supported by the evidence provided. Suggestion of this as an alternative explanation does not satisfy an Occom's razor explanation and must be substantiated with further experimentation.
The authors state that " Clusters representing the different cell types were overall in much closer proximity to each other on the tSNE plots at P1 and P60" and use this to suggest that this may represent "potential cell lineage transitions or cell plasticity at early stages…". This is not an appropriate or valid conclusion to be drawn from tSNE plots. The meaningful proximity of clusters in a tSNE embedding cannot be directly inferred and is a common mis-interpretation of the method used. Please see discussion here for cautions and guidelines for interpretation of tSNE embeddings (https://mlexplained.com/2018/09/14/paper-dissected-visualizing-data-using-t-sne-explained).
As requested by the reviewer, we have ameliorated the text about Pdgfra-expressing cell clusters and have removed speculative discussion statements about the biology.
We agree that our original statement of “Clusters representing the different cell types were overall in much closer proximity to each other on the tSNE plots at P1 than at P60” could be interpreted as that we were inferring that the proximity between isolated clusters in tSNE projections has a meaning (which we were aware of that it does not; we were referring to clusters containing cells in direct contact with neighboring clusters). Since our statement could be misconceived, however, we have removed it from the text.
7. Given the potential utility of this dataset as a resource for the PNS community, it is strongly recommended that the authors make their analysis (scripts/code/etc) publicly available for review.
The code is available on https://github.com/suterlab/SNAT-code-used-for-primary-data-analysis. We provide also the Seurat object for each dataset, available on https://snat.ethz.ch/seurat-objects.html (Username / Password: As above). Note that with this information in place, we have removed the heatmaps previously shown in Figure 3—figure supplement 1A and Figure 4—figure supplement 1B since they can now be generated conveniently from the Seurat objects by interested researchers. Links to these resources and to the primary data in GEO have now been included in the website that accompanies this manuscript. There is also a link to the final version of the manuscript that will be activated upon publication.
[Editors' note: further revisions were suggested prior to acceptance, as described below.]
Essential revisions:
1. Please address concerns about the validity of conclusions related to the pseudotime analysis raised by Reviewer #2. If additional analysis is possible, please include, otherwise modify the text to temper conclusions that can be made using this approach.
We have added the following two statements to the manuscript to indicate the limitations of our analysis and to temper the conclusions:
Related to the pseudotime analysis: “Note that the analysis was not aimed at identifying novel cell differentiation states nor trajectories, but is limited to the visualization of results obtained by a supervised bioinformatic approach in conjunction with current knowledge in the research field”.
Related to a particular point: “Note that the designation “tSC” is not intended to present SCs at P14 as a discrete cell type. In our interpretation, tSC refers rather to Remak SCs which are likely undergoing maturation”.
2. Please add additional discussion of potential bias that may arise from subsampling a subset of Schwann cells that could be isolated from the nerve.
We have added the following statement to the manuscript to discuss this issue: “We note that the approach of using dissociation of cells from nerves followed by FACS has the limitation of some potential subsampling of a subset of cells (Figure 2). In particular, SCs isolated from extensively myelinated nerves might not reveal the full diversity spectrum. The observed low relative extraction efficiency in this context may reflect different sensitivities of distinct SC populations to the experimental procedures, associated with the potential of subsampling”.
3. Please provide additional validation of the pdgfra+ fibroblasts or edit the text to note the need for further validation of this cluster.
We have followed the advices and have replaced the section in question accordingly with the statement: “Determination of the origins and validation of this cluster requires further investigations”.
Reviewer #2:
The authors have done a commendable job of addressing most of the original reviewer requests. The manuscript is certainly improved and many of the incorrect or misleading statements have been addressed as requested. The figures, labels, and legends are significantly improved in clarity.
* The requested RNA Velocity analysis is not included in the revision. The authors claim to have performed it but it did not match expectations (ie "The resulting projections do not generate evident trajectories along the dataset"). This reviewer would have preferred to examine how RNA Velocity field estimates match the existing slingshot trajectories or at least compare the presented trajectories to those created from another tool to provide confirmatory support. The expectation that the RNAVelocity findings might disagree with the presented trajectories was the motivation behind requesting this analysis. It's lack of inclusion in the final manuscript somewhat reinforces my concern regarding the accuracy/validity of the original pseudotime trajectories.
We had uploaded the code for the RNA velocity analysis on which our statement was based on Github and we have now complemented this information further, including output data. See (https://github.com/suterlab/SNAT-code-used-for-primary-data-analysis).
* The authors have indeed couched their statements regarding the Pdgfra-expressing fibroblast cells relative to their original statements. I am aware that their arguments are in a 'Results and Discussion' section, however, I am still less than comfortable with their speculation w/o any validation of the Pdgfra+ fibroblast population. The details of why the doublet detection algorithm (and their source of confidence in these results) is less than compelling, and the suggestion that 'damaged and/or dying cells is a contributing factor to the formation of this cluster' is supported only by circumstantial evidence of 'low quality' cells (mito read ratio and total count can by proxies for low quality cell capture, but are not generally considered proxies for cell death), not necessarily 'dying' cells. I feel that this speculation is not warranted in a Resource paper and should either be experimentally validated or removed. The manuscript would remain just as strong by merely pointing out the existence of this cluster and suggesting that it's origins require follow up analyses. But the speculation is simply not warranted w/o further supporting validation.
See point 3 of Essential revisions.
https://doi.org/10.7554/eLife.58591.sa2Article and author information
Author details
Funding
Eidgenössische Technische Hochschule Zürich
- Ueli Suter
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
Acknowledgements
We thank all members of the Suter lab for discussions, the Functional Genomics Center Zürich for excellent technical support, Drs. Maria Laura Feltri and Lawrence Wrabetz for transgenic mice, and Drs. Igor Adameyko and Maria Eleni Kastriti for valuable support.
Ethics
Animal experimentation: All animal experiments were performed with the approval and in accordance to the guidelines of the Zurich Cantonal Veterinary Office under permit ZH090/2017.
Senior Editor
- Marianne E Bronner, California Institute of Technology, United States
Reviewing Editor
- Dwight E Bergles, Johns Hopkins University School of Medicine, United States
Reviewers
- Loyal A Goff, Johns Hopkins University, United States
- Ahmet Hoke, John Hopkins, United States
Version history
- Received: May 5, 2020
- Accepted: April 13, 2021
- Version of Record published: April 23, 2021 (version 1)
Copyright
© 2021, Gerber et al.
This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
Metrics
-
- 6,237
- Page views
-
- 581
- Downloads
-
- 55
- Citations
Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.
Download links
A two-part list of links to download the article, or parts of the article, in various formats.
Downloads (link to download the article as PDF)
Open citations (links to open the citations from this article in various online reference manager services)
Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)
Transcriptional profiling of mouse peripheral nerves to the single-cell level to build a sciatic nerve ATlas (SNAT)
eLife 10:e58591.
https://doi.org/10.7554/eLife.58591
Further reading
-
- Computational and Systems Biology
- Developmental Biology
In order to understand morphogenesis, it is necessary to know the material properties or forces shaping the living tissue. In spite of this need, very few in vivo measurements are currently available. Here, using the early Drosophila embryo as a model, we describe a novel cantilever-based technique which allows for the simultaneous quantification of applied force and tissue displacement in a living embryo. By analyzing data from a series of experiments in which embryonic epithelium is subjected to developmentally relevant perturbations, we conclude that the response to applied force is adiabatic and is dominated by elastic forces and geometric constraints, or system size effects. Crucially, computational modeling of the experimental data indicated that the apical surface of the epithelium must be softer than the basal surface, a result which we confirmed experimentally. Further, we used the combination of experimental data and comprehensive computational model to estimate the elastic modulus of the apical surface and set a lower bound on the elastic modulus of the basal surface. More generally, our investigations revealed important general features that we believe should be more widely addressed when quantitatively modeling tissue mechanics in any system. Specifically, different compartments of the same cell can have very different mechanical properties; when they do, they can contribute differently to different mechanical stimuli and cannot be merely averaged together. Additionally, tissue geometry can play a substantial role in mechanical response, and cannot be neglected.
-
- Developmental Biology
- Evolutionary Biology
The study of color patterns in the animal integument is a fundamental question in biology, with many lepidopteran species being exemplary models in this endeavor due to their relative simplicity and elegance. While significant advances have been made in unraveling the cellular and molecular basis of lepidopteran pigmentary coloration, the morphogenesis of wing scale nanostructures involved in structural color production is not well understood. Contemporary research on this topic largely focuses on a few nymphalid model taxa (e.g., Bicyclus, Heliconius), despite an overwhelming diversity in the hierarchical nanostructural organization of lepidopteran wing scales. Here, we present a time-resolved, comparative developmental study of hierarchical scale nanostructures in Parides eurimedes and five other papilionid species. Our results uphold the putative conserved role of F-actin bundles in acting as spacers between developing ridges, as previously documented in several nymphalid species. Interestingly, while ridges are developing in P. eurimedes, plasma membrane manifests irregular mesh-like crossribs characteristic of Papilionidae, which delineate the accretion of cuticle into rows of planar disks in between ridges. Once the ridges have grown, disintegrating F-actin bundles appear to reorganize into a network that supports the invagination of plasma membrane underlying the disks, subsequently forming an extruded honeycomb lattice. Our results uncover a previously undocumented role for F-actin in the morphogenesis of complex wing scale nanostructures, likely specific to Papilionidae.
