Structural ordering of the Plasmodium berghei circumsporozoite protein repeats by inhibitory antibody 3D11

  1. Iga Kucharska
  2. Elaine Thai
  3. Ananya Srivastava
  4. John L Rubinstein
  5. Régis Pomès
  6. Jean-Philippe Julien  Is a corresponding author
  1. Program in Molecular Medicine, The Hospital for Sick Children Research Institute, Canada
  2. Department of Biochemistry, University of Toronto, Canada
  3. Department of Medical Biophysics, University of Toronto, Canada
  4. Department of Immunology, University of Toronto, Canada
Research Article
  • Cited 1
  • Views 665
  • Annotations
Cite this article as: eLife 2020;9:e59018 doi: 10.7554/eLife.59018

Abstract

Plasmodium sporozoites express circumsporozoite protein (CSP) on their surface, an essential protein that contains central repeating motifs. Antibodies targeting this region can neutralize infection, and the partial efficacy of RTS,S/AS01 – the leading malaria vaccine against P. falciparum (Pf) – has been associated with the humoral response against the repeats. Although structural details of antibody recognition of PfCSP have recently emerged, the molecular basis of antibody-mediated inhibition of other Plasmodium species via CSP binding remains unclear. Here, we analyze the structure and molecular interactions of potent monoclonal antibody (mAb) 3D11 binding to P. berghei CSP (PbCSP) using molecular dynamics simulations, X-ray crystallography, and cryoEM. We reveal that mAb 3D11 can accommodate all subtle variances of the PbCSP repeating motifs, and, upon binding, induces structural ordering of PbCSP through homotypic interactions. Together, our findings uncover common mechanisms of antibody evolution in mammals against the CSP repeats of Plasmodium sporozoites.

eLife digest

Malaria is a significant health concern, killing about 400,000 people each year. While antimalarial drugs and insecticides have successfully reduced deaths over the last 20 years, the parasite that causes malaria is starting to gain resistance to these treatments. Vaccines offer an alternative route to preventing the disease. However, the most advanced vaccine currently available provides less than 50% protection.

Vaccines work by encouraging the body to develop proteins called antibodies, which can recognize the parasite and trigger an immune response that blocks the infection. These antibodies target a molecule on the parasite’s surface called circumsporozoite protein, or CSP for short. Therefore, having a better understanding of how antibodies interact with CSP could help researchers design more effective treatments.

A lot of what is known about malaria has come from studying this disease in mice. However, it remained unclear whether antibodies produced in rodents combat the malaria-causing parasite in a similar manner to human antibodies. To answer this question, Kucharska, Thai et al. studied a mouse antibody called 3D11, which targets CSP on the surface of a parasite that causes malaria in rodents. The interaction between CSP and 3D11 was studied using three different techniques in order to better understand how the structure of CSP changes when bound by antibodies.

The experiments showed that although CSP has a highly flexible structure, it forms a more stable, spiral-like architecture when bound to multiple copies of 3D11. A similar type of assembly was previously observed in studies investigating how CSP interacts with human antibodies. Further investigation revealed that the molecular connections between 3D11 and CSP share a lot of similarities with how human antibodies recognize CSP.

These findings reveal how mammals evolved similar mechanisms for detecting and inhibiting malaria-causing parasites. This highlights the robust features antibodies need to launch an immune response against malaria, which could help develop a more effective vaccine.

Introduction

Despite extensive biomedical and public health measures, malaria persists as a major global health concern, with an estimated 405,000 deaths and 228 million cases annually (WHO, 2019). Moreover, resistant strains have been detected against all currently available antimalarial drugs, including sulfadoxine/pyrimethamine, mefloquine, halofantrine, quinine, and artemisinin (Cui et al., 2015; Ross and Fidock, 2019). Although ~94% of deaths are caused by Plasmodium falciparum (Pf) (WHO, 2019), other Plasmodium species that infect humans (P. vivax, P. malariae, P. knowlesi and P. ovale) also cause debilitating disease and have been associated with fatal outcomes (Lover et al., 2018). All Plasmodium species have a complex life cycle divided between a vertebrate host and an Anopheles mosquito vector (Hall and Fauci, 2009). During a blood meal, sporozoites are deposited into the skin of a host organism from the salivary glands of a mosquito, and subsequently migrate through the bloodstream to infect host hepatocytes (de Koning-Ward et al., 2015). Due to the small number of parasites transmitted and the expression of protein antigens that possess conserved functional regions (Rosenberg et al., 1990; Smith et al., 2014), the pre-erythrocytic sporozoite stage of the Plasmodium life cycle has long been considered a promising target for the development of an anti-malarial vaccine (Nussenzweig and Nussenzweig, 1984).

Circumsporozoite protein (CSP) is the most abundant protein on the surface of Plasmodium sporozoites, and is necessary for parasite development in mosquitoes and establishment of infection in host liver cells (Cerami et al., 1992; Frevert et al., 1993; Ménard et al., 1997). Flanked by N- and C-terminal domains, CSP contains an unusual central region consisting of multiple, short (4 to 8) amino acid (aa) repeats (Eichinger et al., 1986; Dame et al., 1984; Plassmeyer et al., 2009; Zavala et al., 1983). The sequence of the repeating motif depends on the Plasmodium species and field isolate (Chenet et al., 2012; Rich et al., 2000; Tahar et al., 1998). Importantly, the central region of CSP is highly immunodominant and antibodies targeting the repeats can inhibit sporozoite infectivity by preventing parasite migration (Mishra et al., 2012) and attachment to hepatocytes (Potocnjak et al., 1980; Yoshida et al., 1980). PfCSP is a major component of the leading malaria vaccine RTS,S/AS01, which is currently undergoing pilot implementation in Africa (Adepoju, 2019; Draper et al., 2018). Anti-PfCSP repeat antibodies have been suggested to form the predominant humoral immune response elicited by RTS,S/AS01, and correlate with vaccine efficacy (Dobaño et al., 2019; McCall et al., 2018; Olotu et al., 2016). However, RTS,S/AS01 offers only modest and short-lived protection (RTS,S Clinical Trials Partnership, 2015; RTS,S Clinical Trials Partnership et al., 2012; RTS,S Clinical Trials Partnership et al., 2011); thus, it is critical to develop a better molecular understanding of the antibody response against this Plasmodium antigen, particularly the repeat region (Davies et al., 2015; Doolan, 2011; Illingworth et al., 2019), to obtain valuable information needed for improved vaccine design.

Our understanding of Plasmodium biology and key host-parasite interactions has been enhanced by studies using rodent parasites, including P. berghei (Pb), P. chabaudi and P. yoelii (De Niz and Heussler, 2018). In vivo studies evaluating the inhibitory potential of mAbs are often derived from these rodent parasite models, or transgenic rodent sporozoites harboring PfCSP, as Pf fails to infect rodents. For example, mAb 3D11 was isolated from mice exposed to the bites of mosquitoes that had been infected with γ-irradiated Pb parasites (Yoshida et al., 1980). mAb 3D11 recognition of the PbCSP central repeat region on the surface of live sporozoites resulted in abolished Pb infectivity in vitro and in vivo (Cochrane et al., 1976). Electron micrographs of Pb sporozoites pre-treated with mAb 3D11 revealed the presence of amorphous, precipitated material on the parasite surface characteristic of the circumsporozoite precipitation reaction (Yoshida et al., 1980). This antibody continues to be widely used in model systems of sporozoite infection. For example, a recent study used mAb 3D11 in combination with transmission-blocking mAb 4B7 to show that antibody targeting of both the pre-erythrocytic and sexual stages of a Pfs25-transgenic Pb parasite led to a synergistic reduction of parasite transmission in mice (Sherrard-Smith et al., 2018). However, it remains unclear whether murine mAb 3D11 recognizes the central domain of PbCSP with the same molecular principles as the most potent human anti-PfCSP repeat antibodies, for which molecular details have recently emerged (Imkeller et al., 2018; Julien and Wardemann, 2019; Kisalu et al., 2018; Murugan et al., 2020; Oyen et al., 2018; Oyen et al., 2017; Tan et al., 2018; Triller et al., 2017).

Here, we characterized the structure of the PbCSP repeats unliganded and as recognized by mAb 3D11. Our molecular studies reveal that mAb 3D11 binds across all PbCSP repeat motifs and induces structural ordering of PbCSP in a spiral-like conformation using homotypic interactions.

Results

Repeat motifs of PfCSP and PbCSP have similar structural propensities

The central repeats of PfCSP and PbCSP consist of recurring 4-aa motifs rich in asparagine and proline residues (Figure 1A). PfCSP is composed of repeating NANP motifs interspersed with intermittent NVDP repeats, and a singular NPDP motif in the junction immediately following the N-terminal domain. While the major repeat motif of PfCSP is often referred to as NANP, numerous reports have identified NPNA as the structurally relevant unit of the central region (Kisalu et al., 2018; Oyen et al., 2017; Dyson et al., 1990; Ghasparian et al., 2006). Similarly, the central domain of PbCSP contains an array of PPPP and PAPP motifs interspersed with NPND or NAND motifs (Figure 1A). Notably, both orthologs contain the conserved pentamer, KLKQP, known as Region I, at the C-terminal end of the N-terminal domain.

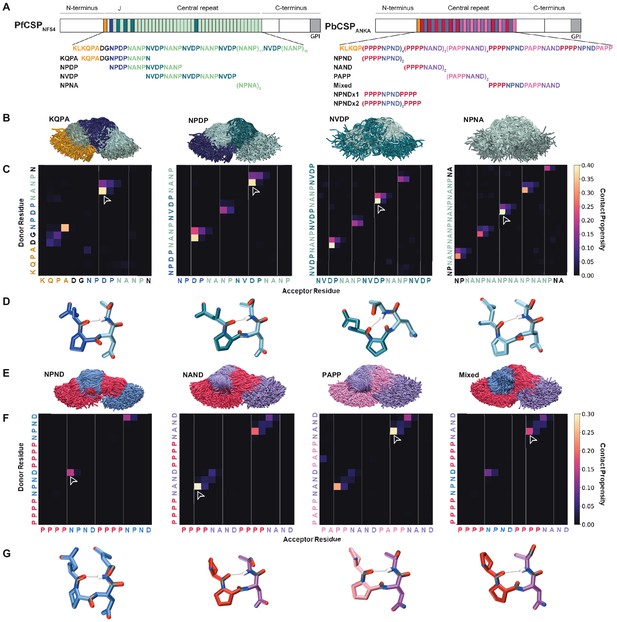

Figure 1 with 2 supplements see all
Comparison of PfCSP and PbCSP repeat sequences and structures.

(A) Schematic representations of PfCSP strain NF54 and PbCSP strain ANKA, each comprising an N-terminal domain, central repeat region, and C-terminal domain. The junctional region (J) immediately following the N-terminal domain of PfCSP is indicated. Colored bars represent each repeat motif. The sequences of each CSP central repeat region and corresponding peptides used in the study are shown below their respective schematics. (B-G) Conformational ensembles of CSP peptides in solution from molecular dynamics simulations. (B) Superposition of the conformations of the four PfCSP-derived peptides at each nanosecond. The peptides are aligned to the conformational median structure and only the backbone is shown for clarity. (C) Ensemble-averaged backbone-backbone hydrogen-bonding maps for each PfCSP peptide sequence. The propensity for hydrogen bonds between the NH groups (y-axis) and CO groups (x-axis) is indicated by the color scale on the right. (D) Sample molecular dynamics snapshots of the highest-propensity turn for each PfCSP peptide are shown as sticks with hydrogen bonds shown as gray lines. The highest-propensity turn for each peptide is indicated by the arrowhead on the corresponding hydrogen-bonding map. (E) Superposition of the conformations of the four PbCSP-derived peptides at each nanosecond. The peptides are aligned to the conformational median structure and only the backbone is shown for clarity. (F) Ensemble-averaged backbone-backbone hydrogen-bonding maps for each PbCSP peptide sequence. The propensity for hydrogen bonds between the NH groups (y-axis) and CO groups (x-axis) is indicated by the color scale on the right. (G) Sample molecular dynamics snapshots of the highest-propensity turn for each PbCSP peptide are shown as sticks with hydrogen bonds shown as gray lines. The highest-propensity turn for each peptide is indicated by the arrowhead on the corresponding hydrogen-bonding map.

To examine and compare the structural properties of the various Pf and Pb repeat motifs in solution, we performed molecular dynamics (MD) simulations using eight different peptides ranging in length from 15 to 20 aa, with four peptides derived from Pf [KQPADGNPDPNANPN (‘KQPA’); NPDPNANPNVDPNANP (‘NPDP’); (NVDPNANP)2NVDP (‘NVDP’); and (NPNA)5 (‘NPNA’)], and four peptides from Pb [(PPPPNPND)2 (‘NPND’); (PPPPNAND)2 (‘NAND’); (PAPPNAND)2 (‘PAPP’); and PPPPNPNDPAPPNANAD (‘Mixed’); Figure 1B–G]. Each simulation was conducted in water for a total production time of 18 μs. All eight peptides were highly disordered and adopted a large ensemble of conformations with low to moderate secondary structure propensities (Figure 1B and E), which are best described in statistical terms. The only secondary structure observed was local, and consisted of sparse, transient hydrogen-bonded turns (Figure 1C and F, Figure 1—figure supplement 1 and Figure 1—figure supplement 2, and Supplementary file 1). In particular, these interactions consisted of forward α-, β-, and γ-turns, with the β-turns being the most populated (up to 40%; Figure 1C and F), consistent with previous NMR studies focused on the NANP repeats (Dyson et al., 1990). Across all peptides, the average β-turn lifetime ranged from 2.7 ± 0.2 ns for the Pb PPNA turn to 4.4 ± 0.4 ns for DPNA turns found within PfCSP (Supplementary file 1).

In line with reports identifying NPNA as the main structural repeating unit of PfCSP (Kisalu et al., 2018; Oyen et al., 2017; Dyson et al., 1990; Ghasparian et al., 2006), turns were predominantly observed within these motifs, as well as DPNA, NPNV, and ADGN sequences amongst the PfCSP peptides. NPND and PPNA exhibited the greatest propensity to form β-turns of the PbCSP repeats. Importantly, each individual motif consistently exhibited the same structural tendencies, independent of their position and the overall peptide sequence in which they were contained (Figure 1C and F, and Supplementary file 1). Furthermore, using the probability rule stating that two events are independent if the equation P(A∩B)=P(A)·P(B) holds true, we show that the presence of an intramolecular hydrogen bond in one motif does not alter the hydrogen-bonding propensities of adjacent motifs (Figure 1—figure supplement 2B and C). Therefore, in both PfCSP and PbCSP we conclude that there is no discernable cooperativity between the structures of different repeat motifs, and as such, in the absence of extended or nonlocal secondary structure, each of these motifs behaves as an independent unit with its own intrinsic secondary structure propensities.

To examine the influence of Asn, Asp, and Gln sidechains on the conformational ensemble of the peptides, we computed contact maps for backbone-sidechain hydrogen bonds (Figure 1—figure supplement 1 and Supplementary file 1). We found that the majority of contacts are in the form of pseudo α-turns and β-turns, with backbone NH groups donating to sidechain O atoms. Notably, we discovered that these transient sidechain contacts do not have a stabilizing effect on backbone-backbone hydrogen bonds and consequently, are not correlated with the presence of these bonds (numerical example in Figure 1—figure supplement 2B and C).

In summary, the four Pf and four Pb peptides corresponding to CSP central repeats were all found to be highly disordered, resulting in an ensemble of conformations. The only secondary structure elements present were sparse and local hydrogen-bonded turns within each motif. Each structural motif acted independently from adjacent sequences and behaved similarly in various peptides.

Multiple copies of mAb 3D11 bind PbCSP with high affinity

Next, we investigated the binding of mAb 3D11 to the PbCSP repeat of low structural propensity. Our biolayer interferometry (BLI) studies indicated that 3D11 Fab binds PbCSP with complex kinetics, but overall high affinity (Figure 2A). Isothermal titration calorimetry (ITC) also indicated a high affinity interaction, with a KD value of 159 ± 47 nM (Figure 2B). In addition, ITC revealed a very high binding stoichiometry (N = 10 ± 1), suggesting that approximately ten copies of 3D11 Fab bound one molecule of PbCSP simultaneously. Size-exclusion chromatography coupled with multi-angle light scattering (SEC-MALS) characterization of the 3D11 Fab-PbCSP complex confirmed the high binding stoichiometry with a molecular weight of 587 ± 7 kDa for the complex (Figure 2C–D). This size is consistent with approximately eleven 3D11 Fabs bound to one molecule of PbCSP, and thus, is in agreement with the results from the ITC studies within experimental error. Therefore, through a number of biophysical studies, we show that up to eleven copies of 3D11 Fab can bind simultaneously to PbCSP with high affinity.

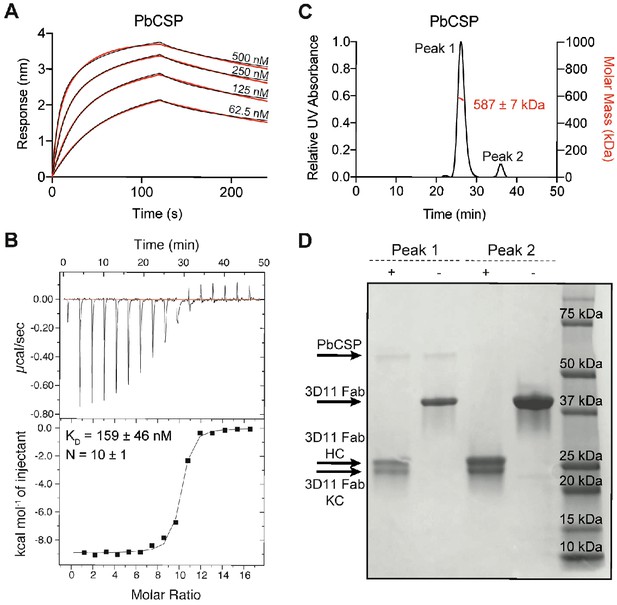

Biophysical characterization of 3D11 Fab-PbCSP binding.

(A) Binding kinetics of twofold dilutions of 3D11 Fab to PbCSP. Representative sensorgrams are shown in black and 2:1 model best fits in red. Data are representative of three independent measurements. (B) Isothermal titration calorimetry (ITC) analysis of 3D11 Fab binding to PfCSP at 37°C. Above, raw data of PbCSP (0.005 mM) in the sample cell titrated with 3D11 Fab (0.4 mM). Below, plot and trendline of heat of injectant corresponding to the raw data. KD and N values resulting from three independent experiments are indicated. Standard error values are reported as standard error of the mean (SEM). (C) Results from size-exclusion chromatography coupled with multi-angle light scattering (SEC-MALS) for the 3D11 Fab-PbCSP complex. A representative measurement of the molar mass of the 3D11 Fab-PbCSP complex is shown as the red line. Mean molar mass and standard deviation are as indicated. (D) SDS-PAGE analysis of resulting Peaks 1 and 2 from SEC-MALS. Each peak was sampled in reducing and non-reducing conditions as indicated by + and -, respectively.

mAb 3D11 is cross-reactive with subtly different PbCSP motifs in the central repeat

We next sought to define the exact mAb 3D11 epitope. We first conducted BLI studies to confirm that mAb 3D11 does not bind the PbCSP C-terminal domain (residues 202–318; Figure 3—figure supplement 1A). Next, we performed ITC studies to evaluate 3D11 Fab binding to each of the four peptides derived from the PbCSP central repeat region that were used in our MD simulations (Figure 3A). Our experiments revealed that mAb 3D11 preferentially binds the NPND and Mixed peptides with high affinity (KD = 45 ± 15 nM and 44 ± 4 nM, respectively), but also binds the NAND and PAPP peptides, albeit with lower affinity (KD = 207 ± 1 nM and 611 ± 139 nM, respectively).

Figure 3 with 2 supplements see all

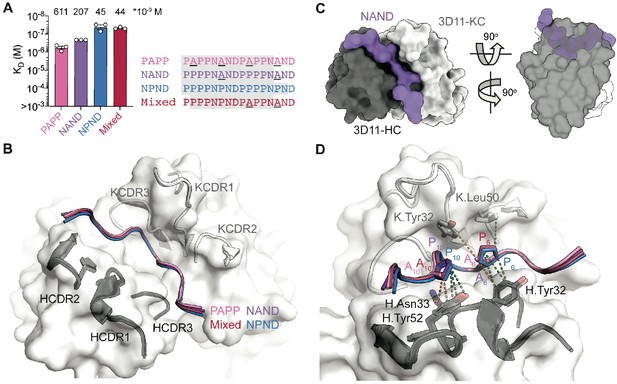

3D11 Fab binding to PbCSP repeat peptides.

(A) Affinities of 3D11 Fab for PAPP, NAND, NPND, and Mixed peptides as measured by ITC. Symbols represent independent measurements. Mean KD values are shown above the corresponding bar. Error bars represent SEM. Peptide sequences are as indicated to the right of the plot, with variable residues underlined and shaded residues indicating those resolved in the corresponding X-ray crystal structures. (B) The 3D11 Fab binds the PAPP (pink), NAND (purple), NPND (blue) and Mixed (red) peptides in nearly identical conformations. mAb 3D11 CDRs are indicated. (C) Overview and side view of the NAND peptide (purple) in the binding groove of the 3D11 Fab shown as surface representation (H-chain shown in black and K-chain shown in gray). (D) Van der Waals interactions formed by side chain atoms of both Ala and Pro residues are indicated by orange dashed lines, and those unique to Pro6 and Pro10 are indicated by green dashed lines.

To gain insight into the molecular basis of this preference, we solved the X-ray crystal structures of 3D11 Fab in complex with each peptide. The structure of the 3D11 Fab-NPND complex was determined at 2.30 Å resolution, while the structures of 3D11 Fab in complex with each of the other three peptides were all solved at ~1.60 Å resolution (Table 1). Interestingly, all four peptides adopted almost identical conformations when bound by 3D11 Fab (Figure 3B and Figure 3—figure supplement 1), fitting deep into the binding groove and forming a curved, U-shaped structure (Figure 3C). Amongst all four peptides, the mAb 3D11 core epitope consisted of eight residues [PN(A/P)NDP(A/P)P] with an all-atom RMSD <0.5 Å. Importantly, this shared recognition mode ideally positions aromatic side chains in the mAb 3D11 complementarity determining regions (CDRs) to form favorable pi-stacking and hydrophobic cage interactions around each PbCSP peptide (Figure 3—figure supplement 2). Indeed, the majority of these contacts are made with residues that are conserved between all four PbCSP repeat peptides, and thus, contribute to the cross-reactive binding profile of mAb 3D11.

Table 1
X-ray crystallography data collection and refinement statistics.

Despite binding in nearly identical conformations, differences exist in the molecular details of 3D11 Fab binding to each peptide that provide key insights into mAb 3D11 recognition of PbCSP. Our crystal structures revealed that more van der Waals contacts were formed by a Pro residue in the PPPP and NPND motifs compared to an Ala at the same position in the PAPP and NAND motifs (Figure 3D). Consequently, the epitopes of the NAND, NPND and Mixed peptides had a slightly greater buried surface area (BSA; 753, 762, and 765 Å2, respectively) than the PAPP peptide (743 Å2), which only consists of Ala-containing motifs (Supplementary file 2). In particular, Pro10 of the PPPP motif found in the NAND and NPND peptides forms more van der Waals interactions with antibody residues H.Asn33 and H.Tyr52 compared to Ala10 of the PAPP motif present in PAPP and Mixed peptides. Similarly, Pro6 of the NPND motif in the NPND and Mixed peptides makes additional interactions with antibody residue K.Leu50 that are not present for Ala6 of the NAND motif within the PAPP and NAND peptides (Supplementary file 2). These differences in interactions observed at the atomic level directly relate to the binding affinities measured by ITC, where the PbCSP peptides that bury more surface area in the 3D11 paratope have the highest binding affinities (Figure 3A).

3D11-PAPP3D11-NAND3D11-NPND3D11-Mixed
BeamlineAPS-23-ID-DAPS-23-ID-DNSLS-II-17-ID-1APS-23-ID-B
Wavelength (Å)1.0331701.0332000.9793291.033167
Space groupP3221P3221P3221P3221
Cell dimensions
a,b,c (Å)59.3, 59.3, 233.559.7, 59.7, 234.959.9, 59.9, 235.060.3, 60.3, 233.7
α, β, γ (°)90, 90, 12090, 90, 12090, 90, 12090, 90, 120
Resolution (Å)*40.0–1.60 (1.70–1.60)40.0–1.55 (1.65–1.55)40.0–2.27 (2.37–2.27)40.0–1.55 (1.65–1.55)
No. molecules in ASU1111
No. observations1,210,903 (196,555)684,564 (117,091)450,057 (47,142)1,423,235 (247,601)
No. unique observations64,371 (10,497)70,664 (11,753)23,398 (2,556)72,981 (12,222)
Multiplicity18.8 (18.7)9.5 (9.7)19.1 (17.4)19.5 (20.3)
Rmerge (%)10.3 (84.7)8.4 (80.1)13.8 (57.1)8.3 (78.0)
Rpim (%)2.4 (20.1)2.9 (26.5)3.2 (13.5)1.9 (17.6)
<I/σ I>16.3 (1.5)13.8 (1.5)19.0 (4.1)19.6 (1.7)
CC½99.9 (68.0)99.9 (56.7)99.9 (93.5)99.9 (84.3)
Completeness (%)99.9 (100.0)98.3 (97.2)99.3 (94.4)100.0 (100.0)
Refinement Statistics
Reflections used in refinement64,27570,66023,32772,843
Reflections used for R-free1999198611732000
Non-hydrogen atoms3823391536653858
Macromolecule3411342333823439
Water384380259359
Heteroatom281122460
Rwork§/Rfree15.9/18.816.4/18.416.6/22.216.6/18.1
Rms deviations from ideality
Bond lengths (Å)0.0160.0100.0060.011
Bond angle (°)1.431.150.871.22
Ramachandran plot
Favored regions (%)98.998.097.798.2
Allowed regions (%)1.12.02.31.8
B-factors (Å2)
Wilson B-value27.124.032.026.3
Average B-factors35.031.435.231.2
Average macromolecule33.629.434.829.7
Average heteroatom54.454.854.457.6
Average water molecule46.341.938.341.2
  1. * Values in parentheses refer to the highest resolution bin.

    † Rmerge = Σhkl Σi | Ihkl, i - < Ihkl > | / Σhkl < Ihkl > .

  2. ‡ Rpim = Σhkl [1/(N – 1)]1/2 Σi | Ihkl, i - < Ihkl > | / Σhkl < Ihkl > .

    § Rwork = (Σ | |Fo | − |Fc | |) / (Σ | |Fo |) - for all data except as indicated in footnote ¶.

  3. ¶ 5% of data were used for the Rfree calculation.

Despite binding in nearly identical conformations, differences exist in the molecular details of 3D11 Fab binding to each peptide that provide key insights into mAb 3D11 recognition of PbCSP. Our crystal structures revealed that more van der Waals contacts were formed by a Pro residue in the PPPP and NPND motifs compared to an Ala at the same position in the PAPP and NAND motifs (Figure 3D). Consequently, the epitopes of the NAND, NPND and Mixed peptides had a slightly greater buried surface area (BSA; 753, 762, and 765 Å2, respectively) than the PAPP peptide (743 Å2), which only consists of Ala-containing motifs (Supplementary file 2). In particular, Pro10 of the PPPP motif found in the NAND and NPND peptides forms more van der Waals interactions with antibody residues H.Asn33 and H.Tyr52 compared to Ala10 of the PAPP motif present in PAPP and Mixed peptides. Similarly, Pro6 of the NPND motif in the NPND and Mixed peptides makes additional interactions with antibody residue K.Leu50 that are not present for Ala6 of the NAND motif within the PAPP and NAND peptides (Supplementary file 2). These differences in interactions observed at the atomic level directly relate to the binding affinities measured by ITC, where the PbCSP peptides that bury more surface area in the 3D11 paratope have the highest binding affinities (Figure 3A).

3D11 binding stabilizes the central PbCSP repeat in a spiral-like conformation

To understand how mAb 3D11 recognizes full-length PbCSP, we performed cryoEM analysis on the SEC-purified 3D11 Fab-PbCSP complex (Figure 2D). A dataset of 165,747 3D11 Fab-PbCSP particle images was refined with no symmetry imposed, resulting in a 3.2 Å resolution reconstruction of 3D11 Fabs peripherally arranged around PbCSP with their variable domains clustered around a central density (Figure 4, Table 2 , and Figure 4—figure supplement 1 and Figure 4—figure supplement 2). Although the low-pass filtered (20 Å) cryoEM map of the 3D11 Fab-PbCSP complex contains visible density for >10 3D11 Fabs (Figure 4—figure supplement 2F), only the density for the seven central Fabs was strong enough to warrant building a molecular model. Indeed, 3D Variability Analysis (Punjani and Fleet, 2020) in cryoSPARC v2 (Punjani et al., 2017) revealed continuous flexibility at the N- and C-termini of the 3D11 Fab-PbCSP complex (Figure 4—video 1). The PbCSP repeat forms the core of the complex and is arranged into a triangular spiral of 51 Å pitch and 16 Å diameter (Figure 4B–C), which fits 61 of the 108 residues in the PbCSP central region. We assigned the density to the high-affinity PPPPNPND repeats.

Figure 4 with 4 supplements see all

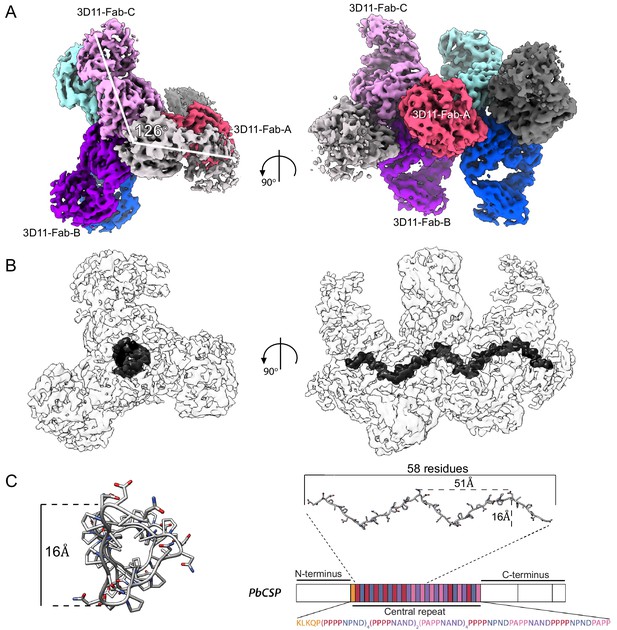

Spiral organization of the PbCSP repeat upon 3D11 Fab binding.

(A) The cryoEM map of the 3D11 Fab-PbCSP complex reveals high-resolution information for seven predominant 3D11 Fabs. Regions corresponding to Fabs are colored from pink to gray. (B) CryoEM map of the 3D11 Fab-PbCSP complex is shown as a transparent light gray surface with the PbCSP region highlighted in black. (C) The PbCSP model built into the cryoEM map is shown in dark gray as sticks and aligned to the schematic representation of the PbCSP protein sequence.

Table 2
CryoEM data collection and refinement statistics.
Data collection
Electron microscopeTitan Krios G3
CameraFalcon 3EC
Voltage (kV)300
Nominal magnification75,000
Calibrated physical pixel size (Å)1.06
Total exposure (e- /Å2)42.7
Number of frames30
Image processing
Motion correction softwarecryoSPARCv2
CTF estimation softwarecryoSPARCv2
Particle selection softwarecryoSPARCv2
3D map classification and refinement softwarecryoSPARCv2
Micrographs used2080
Particles selected669,223
Global resolution (Å)3.2
Particles contributing to final map165,747
Model building
Modeling softwareCoot, phenix.real_space_refine
Number of residues built3085
RMS (bonds)0.002
RMS (angles)0.56
Ramachandran favored (%)95.8
Rotamer outliers (%)0.5
Clashscore6.27
MolProbity score1.63
EMRinger score2.54

The angle between two Fab variable domains is ~126o, such that approximately three Fabs are required to complete one full turn of the spiral (Figure 4A). The cryoEM structure of the 3D11 Fab-PbCSP complex and the crystal structures of the 3D11 Fab-peptide complexes are in remarkable agreement for both the Fab (backbone RMSD = 0.69 Å) and the PbCSP repeat region (backbone RMSD = 0.66 Å; Figure 4—figure supplement 3). Minor differences exist in the N- and C-termini of the peptides, presumably because the termini are largely unrestricted in the crystal structures compared to the cryoEM structure.

Contacts between 3D11 Fabs stabilize the PbCSP spiral structure

To access their repeating and densely-packed epitopes, 3D11 Fabs are closely arranged against one another in the 3D11 Fab-PbCSP complex. Indeed, the epitope for a single Fab can be defined by 14 residues (PPPPNPNDPPPPNP, Supplementary file 3), with the six C-terminal residues constituting the beginning of the epitope for the adjacent Fab. When considering two adjacent Fabs as a single binding unit, the BSA of the Fabs is 1313 Å2, and 1636 Å2 for PbCSP. Interestingly, we observe multiple Fab-Fab contacts in the cryoEM structure (Figure 5 and Figure 5—figure supplement 1). Comparison of the mAb 3D11 sequence to its inferred germline precursor (IGHV1-12 and IGKV1-135) reveals that some of the residues involved in these homotypic contacts have been somatically hypermutated (H.Tyr50 and H.Val56 in HCDR2, H.Asn58 and H.Thr73 in heavy chain (HC) framework region (FR) 3, and K.Tyr27D in KCDR1; Figure 5C). While H.Tyr50, H.Val56 and K.Tyr27D mediate Fab-Fab contacts in addition to directly interacting with PbCSP, H.Asn58 and H.Thr73 are only involved in Fab-Fab interactions.

Figure 5 with 3 supplements see all

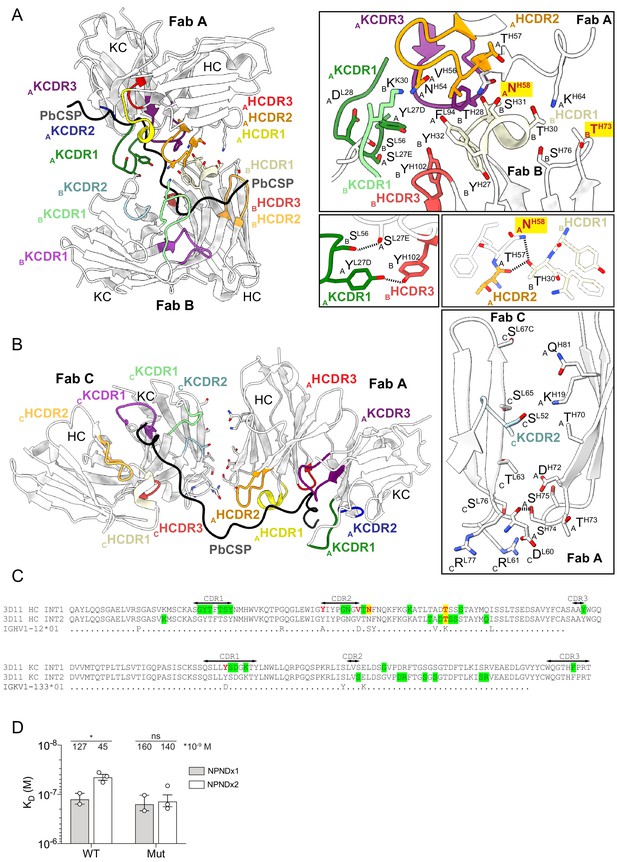

Homotypic interactions between 3D11 Fabs stabilize the 3D11 Fab-PbCSP complex.

(A and B) Close-up views of adjacent 3D11 Fabs from the cryoEM structure in complex with PbCSP (black). 3D11 Fabs bound to PbCSP form homotypic contacts with each adjacent Fab through two interfaces; one consisting of CDRs from the heavy and light chains of Fabs A and B (interface 1, A), and the second mediated by residues in FR3 of Fab A HC and FR3 of Fab C LC (interface 2, B). Variable domains of Fabs are shown in white. HCDR1, −2,–3, and KCDR1, −2 and −3 are colored yellow, orange, red, green, blue and purple, respectively. Residues forming Fab-Fab contacts are labeled with the position of the Fab in the cryoEM model (A, B or C) indicated in subscript. mAb 3D11 affinity-matured residues that engage in Fab-Fab contacts, but do not directly interact with PbCSP are highlighted in yellow with red font. Black dashed lines denote H-bonds. (C) Sequence alignment of mAb 3D11 with its inferred germline precursor. INT1 and INT2 refer to the two interfaces shown in (A) and (B). Green highlight: germline-encoded residues involved in homotypic interactions; Red: affinity-matured residues involved in homotypic interactions; Yellow highlight: affinity-matured residues involved in homotypic interactions that do not directly interact with PbCSP. (D) Binding affinity of WT 3D11 and H-58/73 germline-reverted mutant (Mut) Fabs to NPNDx1 (gray bars) and NPNDx2 (white bars) peptides as measured by ITC. Symbols represent independent measurements. Mean KD values resulting from at least two independent experiments are shown. Error bars represent standard error of the mean. An unpaired one-tailed t-test was performed using GraphPad Prism 8 to evaluate statistical significance: *p<0.05.

To investigate the role of affinity maturation in enhancing Fab-Fab contacts, somatically mutated HC residues H.Asn58 and H.Thr73 were reverted to their inferred germline precursors (N58S and T73K: subsequently named H-58/73; Figure 5C). We performed ITC studies to evaluate binding of wild-type (WT) and H-58/73 germline-reverted mutant 3D11 Fabs to two peptides derived from PbCSP, designed based on our X-ray and cryoEM structures to constitute the minimal binding site for one 3D11 Fab (PPPPNPNDPPPP, denoted ‘NPNDx1’) or two 3D11 Fabs in a ‘head-to-head’ conformation (PPPPNPNDPPPPNPNDPPPPNPND, denoted ‘NPNDx2’). Although both WT and H-58/73 germline-reverted mutant Fabs bound NPNDx1 with comparable affinity, WT 3D11 Fab demonstrated significantly greater affinity for NPNDx2 compared to NPNDx1 (KD values of 45 ± 6 nM and 127 ± 32 nM, respectively; Figure 5D). On the other hand, the H-58/73 germline-reverted mutant bound each peptide with similar affinities (KD values of 140 ± 38 nM for NPNDx2 and 160 ± 56 nM for NPNDx1; Figure 5D). The improved binding affinity of WT 3D11 Fab for NPNDx2 compared to NPNDx1, which is not observed for the H-58/73 germline-reverted mutant 3D11 Fab, suggests an important role for residues H.Asn58 and H.Thr73 in mediating homotypic interactions between neighboring 3D11 Fabs bound to PbCSP. Together, these data provide evidence for the affinity maturation of homotypic contacts that indirectly strengthen mAb 3D11 affinity to PbCSP.

To examine whether 3D11 IgG can induce a similar type of spiral conformation of PbCSP as 3D11 Fab, we prepared complexes of 3D11 IgG-PbCSP for negative-stain (ns) EM analysis. Incubation of PbCSP with excess 3D11 IgG resulted in significant precipitation of the sample, presumably due to IgG-induced crosslinking of PbCSP molecules (Figure 5—figure supplement 2A–B). Nonetheless, a minor soluble fraction of the complex could be purified. Comparison of nsEM 2D class averages of this 3D11 IgG-PbCSP fraction to 2D class averages of the 3D11 Fab-PbCSP complex indicated that binding of either the 3D11 Fab or IgG can induce structural ordering of PbCSP into similar spiral conformations (Figure 5—figure supplement 2C). Our findings are in agreement with a similar analysis previously performed with human 311 Fab and IgG in complex with PfCSP (Oyen et al., 2018), which also observed the ability of both IgG and Fab to induce a spiral-like conformation in CSP.

Discussion

The CSP repeat is of broad interest for malaria vaccine design because it is targeted by inhibitory antibodies capable of preventing sporozoite infection as the parasite transits from Anopheles mosquitoes to mammalian hosts. Biophysical studies of the PfCSP central NANP repeat have shown that this region possesses low secondary structure propensities (Dyson et al., 1990), and AFM studies on live Pf sporozoites suggest a range of conformations for PfCSP (Patra et al., 2017; Herrera et al., 2015). Importantly, recent studies have uncovered that some of the most potent antibodies against the PfCSP repeat region are cross-reactive with the PfCSP N-terminal junction, which harbors KQPA, NPDP and NVDP motifs interspersed with NANP motifs (Kisalu et al., 2018; Murugan et al., 2020; Tan et al., 2018). Our MD simulations of different sub-regions of the PfCSP central repeat, including the N-junction, provided detailed descriptions of their conformational ensemble and revealed that each sequence motif possesses a similarly low structural propensity.

Our MD simulations for PbCSP also indicated that the low structural propensity of central repeat motifs with subtle sequence variance extends to other Plasmodium species. These findings are in agreement with studies linking repetitive, low-complexity peptide sequences to structural disorder (Rauscher and Pomès, 2012; Rauscher and Pomès, 2017; Romero et al., 2001). The role of the numerous repetitive sequences observed in parasitic genomes (Tan et al., 2010; Mendes et al., 2013; Davies et al., 2017) remains to be fully understood, but is postulated to include maximizing parasite interactions with the target host cell (Mendes et al., 2013), allowing the parasite to adapt under selective pressure by varying its number of repeats (Davies et al., 2017), and impairing the host immune response (Ly and Hansen, 2019; Portugal et al., 2015; Sullivan et al., 2015).

Binding of the PfCSP repeat by inhibitory antibodies has been shown to induce various conformations in this intrinsically disordered region (Imkeller et al., 2018; Kisalu et al., 2018; Murugan et al., 2020; Oyen et al., 2017; Tan et al., 2018; Triller et al., 2017; Scally and Julien, 2018; Pholcharee et al., 2020). Here, we show that the PbCSP repeat adopts an extended and bent conformation when recognized by inhibitory mAb 3D11. Antibody recognition of the PfCSP repeat is often mediated by aromatic cages formed by the paratope, which surround prolines, backbone atoms, and aliphatic portions of side chains in the epitope (Murugan et al., 2020; Pholcharee et al., 2020). Antibody paratope residues partaking in aromatic cages often include germline-encoded residues, such as H.Trp52 from VH3-33 signature genes that are strongly recruited in the humoral response against PfCSP (Julien and Wardemann, 2019; Pholcharee et al., 2020; Murugan et al., 2018). Similarly, murine mAb 3D11 uses eight aromatic residues to recognize the PbCSP repeat. Germline-encoded K.Tyr32 appears to play a central role in mAb 3D11 PbCSP recognition by contacting consecutive Asn-Asp-Pro residues (PN(A/P)NDP(A/P)P) in the middle of the core epitope, contributing 58 Å2 of BSA on the Fab. These findings indicate a central role for germline-encoded aromatic residues in antibody binding of Plasmodium CSP repeats across species.

Our structural and biophysical data demonstrated that mAb 3D11 is cross-reactive and binds the different repeat motifs of PbCSP in nearly identical conformations. Such cross-reactivity for the repeat motifs of subtle differences in PfCSP is also exhibited by inhibitory human antibodies encoded by a variety of Ig-gene combinations (Kisalu et al., 2018; Murugan et al., 2020; Tan et al., 2018; Triller et al., 2017; Scally et al., 2018). Notably, the inferred germline precursor genes of mAb 3D11 (IGHV1-12/IGKV1-135) share the most sequence similarity with the human IGHV1-3/IGKV2-30 genes (68% and 82% sequence identity, respectively); IGHV1-3 is the inferred germline precursor of the potent, cross-reactive human mAb CIS43 (Kisalu et al., 2018). Moreover, it was previously reported that human anti-PfCSP antibody affinity is often directly associated with epitope cross-reactivity (Murugan et al., 2020). While mAb 3D11 provides one such example in mice, further investigation is needed to determine whether favorable selection of cross-reactive clones during B cell maturation has evolved as a common mechanism of the immune response in mammals against Plasmodium CSP.

Most residues that mediate mAb 3D11 contacts with the PbCSP repeat are germline-encoded; indeed, of nine affinity-matured residues in the HC and three in the KC, only three are involved in direct contacts with the antigen (H.Trp50, H.Val56 and K.Tyr27D). Due to the repetitive nature of the central repeat motifs, multiple antibodies bind simultaneously to one CSP protein and neighboring Fabs engage in homotypic interactions (Imkeller et al., 2018; Oyen et al., 2018). Our data suggest that somatic mutations of residues that partake in Fab-Fab contacts enhance homotypic interactions and indirectly improve the binding affinity of the mAb to CSP. In this respect, mAb 3D11 recognition of PbCSP resembles binding of some neutralizing human mAbs to PfCSP (Imkeller et al., 2018; Murugan et al., 2020; Oyen et al., 2018). In human mAbs 311 (Oyen et al., 2018) and 1210 (Imkeller et al., 2018), CDR3 regions of both heavy and light chains appear to play a considerable role in forming Fab-Fab contacts. Interestingly, in the case of mAb 3D11, homotypic interactions are mainly mediated by residues localized in HCDR1 and −2, KCDR1, and FR3 regions of both the HC and KC, with little contribution from residues in the CDR3 regions (with the exception of H.Tyr97 in HCDR3 and K.Phe94 in KCDR3). Taken together, these findings indicate that homotypic interactions are a feature by which the mammalian immune system can robustly engage repetitive Plasmodium antigens with high affinity in various ways. Interestingly, recent studies have reported that Fab-Fab interactions occur in other antibody-antigen complexes, providing evidence that homotypic contacts can drive diverse biology: for example, homotypic interactions were found between two nanobodies bound to a pentameric antigen (Bernedo-Navarro et al., 2018), and between two Rituximab antibodies bound to B cell membrane protein CD20 (Rougé et al., 2020).

Our cryoEM analysis also revealed how the PbCSP repeat, like that of PfCSP, can adopt a highly organized spiral structure upon mAb binding. Such spiral assembly of CSP was previously observed upon human mAb 311 Fab and IgG binding, which induced a PfCSP spiral with a greater diameter (27 Å) and smaller pitch (49 Å) compared to the 3D11-PbCSP complex (16 Å diameter and 51 Å pitch) (Oyen et al., 2018Figure 5—figure supplement 3). Differences in the architecture between these two complexes can be attributed to the fact that mAbs 3D11 and 311 recognize their respective antigens in distinct conformations. Because different anti-CSP inhibitory antibodies can bind the repeat region in a variety of conformations (Imkeller et al., 2018; Kisalu et al., 2018; Tan et al., 2018; Triller et al., 2017; Scally and Julien, 2018), it is likely that many types of CSP-antibody assemblies exist. Further studies are needed to investigate whether the formation of such highly organized complexes is possible on the surface of live sporozoites and how antibody-CSP interactions occur in the context of polyclonal serum. These insights will be important for our structure-function understanding of the mechanisms employed by these repeat-targeting antibodies to inhibit sporozoite development, migration and infection of hepatocytes.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
 Recombinant DNA reagentpcDNA3.4-3D11 Fab HC (plasmid)This paperN/A3D11 Fab heavy chain gene in pcDNA3.4 TOPO vector
 Recombinant DNA reagentpcDNA3.4-3D11 Fab 58/73 HC (plasmid)This paperN/A3D11 Fab germline-reverted mutant heavy chain gene in pcDNA3.4 TOPO vector
 Recombinant DNA reagentpcDNA3.4-3D11 Fab KC (plasmid)This paperN/A3D11 Fab light chain gene in pcDNA3.4 TOPO vector
 Recombinant DNA reagentpcDNA3.4-PbCSP-6xHis (plasmid)This paperN/APbCSP gene with His tag in pcDNA3.4 TOPO vector
 Recombinant DNA reagentpcDNA3.4-PbC-CSP-6xHis (plasmid)This paperN/APbC-CSP gene with His tag in pcDNA3.4 TOPO vector
 Recombinant DNA reagentpcDNA3.4-PbCSP-αTSR-6xHis (plasmid)This paperN/APbCSP αTSR gene with His tag in pcDNA3.4 TOPO vector
 Cell line (Homo sapiens)FreeStyle 293 F cellsThermo Fisher ScientificCat# R79007
 Cell line (Mus musculus)3D11 hybridoma cell lineYoshida et al., 1980BEI Resources #MRA-100; RRID:AB_2650479
 Chemical compoundGIBCO FreeStyle 293 Expression MediumThermo Fisher ScientificCat# 12338026
 Chemical compoundGIBCO Hybridoma-SFMThermo Fisher ScientificCat# 12045076
 Chemical compoundFectoPRO DNA Transfection ReagentVWRCat# 10118–444
 Chemical compoundFetal bovine serumThermo Fisher ScientificCat# 12483–020
 Antibody3D11 IgG (mouse monoclonal)Yoshida et al., 1980N/APurified from 3D11 hybridoma cell line; See Materials and methods
 Recombinant protein3D11 FabThis paperN/ASee Materials and methods for concentrations and masses used, and buffer conditions
 Recombinant protein3D11 Fab H-58/73This paperN/ASee Materials and methods for concentrations and masses used, and buffer conditions
 Recombinant proteinPbCSPThis paperN/ASee Materials and methods for concentrations and masses used, and buffer conditions
 PeptidePAPP (PAPPNANDPAPPNAND)This paperN/ADerived from PbCSP repeat region
 PeptideNAND (PPPPNANDPPPPNAND)This paperN/ADerived from PbCSP repeat region
 PeptideNPND (PPPPNPNDPPPPNPND)This paperN/ADerived from PbCSP repeat region
 PeptideMixed (PPPPNPNDPAPPNAND)This paperN/ADerived from PbCSP repeat region
 PeptideNPNDx1 (PPPPNPNDPPPP)This paperN/ADerived from PbCSP repeat region
 PeptideNPNDx2 (PPPPNPNDPPPPNPNDPPPPNPND)This paperN/ADerived from PbCSP repeat region
 Software, algorithmGROMACS 5.1.4Abraham et al., 2015; Berendsen et al., 1995http://manual.gromacs.org/documentation/5.1.4/; RRID:SCR_014565
 Software, algorithmLINCSHess et al., 1997; Hess, 2008N/A
 Software, algorithmParticle-Mesh Ewald algorithmDarden et al., 1993; Essmann et al., 1995N/A
 Software, algorithmNosé-Hoover thermostatNosé, 1984; Hoover, 1985N/A
 Software, algorithmParrinello-Rahman algorithmParrinello and Rahman, 1981N/A
 Software, algorithmVMDHumphrey et al., 1996https://www.ks.uiuc.edu/Research/vmd/; RRID:SCR_001820
 Software, algorithmMatplotlibHunter, 2007https://matplotlib.org/; RRID:SCR_008624
 Software, algorithmOctet Data Analysis Software 9.0.0.6ForteBiohttps://www.fortebio.com/products/octet-systems-software
 Software, algorithmMicroCal ITC Origin 7.0 Analysis SoftwareMalvernhttps://www.malvernpanalytical.com/
 Software, algorithmASTRAWyatthttps://www.wyatt.com/products/software/astra.html; RRID:SCR_016255
 Software, algorithmGraphPad Prism 8GraphPad Softwarehttps://www.graphpad.com/; RRID:SCR_002798
 Software, algorithmEPUThermoFisher Scientifichttps://www.fei.com/software/
 Software, algorithmSBGridSBGrid Consortiumhttps://sbgrid.org/; RRID:SCR_003511
 Software, algorithmcryoSPARC v2Punjani et al., 2017https://cryosparc.com/
 Software, algorithmPhenix (phenix.refine; phenix.real_space_refine)Adams et al., 2010https://www.phenix-online.org/; RRID:SCR_014224
 Software, algorithmUCSF ChimeraPettersen et al., 2004https://www.cgl.ucsf.edu/chimera/; RRID:SCR_004097
 Software, algorithmUCSF ChimeraXGoddard et al., 2018https://www.cgl.ucsf.edu/chimerax/; RRID:SCR_015872
 Software, algorithmCootEmsley et al., 2010https://www2.mrc-lmb.cam.ac.uk/personal/pemsley/coot/; RRID:SCR_014222
 Software, algorithmPyMOLThe PyMOL Molecular Graphics System, Version 1.8 Schrödinger, LLC.https://pymol.org/2/#products; RRID:SCR_000305
 Software, algorithmPDBePISAKrissinel and Henrick, 2007https://www.ebi.ac.uk/pdbe/pisa/; RRID:SCR_015749
 OtherHomemade holey gold gridsMarr et al., 2014N/A
 OtherHomemade carbon gridsBooth et al., 2011N/A

Molecular dynamics simulations

Request a detailed protocol

We performed all-atom molecular dynamics simulations of the following peptides: (NPNA)5, KQPADGNPDPNANPN, NPDPNANPNVDPNANP, (NVDPNANP)2NVDP, (PPPPNPND)2, (PPPPNAND)2, (PAPPNAND)2, and PPPPNPNDPAPPNAND as blocked monomers in water with 0.15 M NaCl. Each simulation system consisted of the respective peptide with an acetylated N-terminus and amidated C-terminus solvated in a dodecahedral box with side lengths of 4.9 nm.

The systems were simulated using the program GROMACS 5.1.4 (67, 68) with the CHARMM22* (Piana et al., 2011; Best and Hummer, 2009; Lindorff-Larsen et al., 2012; Best and Mittal, 2010; MacKerell et al., 1998) force field for the protein and the TIP3P (Jorgensen et al., 1983) water model. All simulations were performed with periodic boundary conditions at a constant pressure and temperature of 1 bar and 300 K, respectively. The LINCS algorithm was used to constrain all bond lengths (Hess et al., 1997; Hess, 2008). A cut-off of 1.4 nm was used for Lennard-Jones interactions. The Particle-Mesh Ewald algorithm (Darden et al., 1993; Essmann et al., 1995) was used to calculate long-range electrostatics interactions with a Fourier spacing of 0.12 and an interpolation order of 4. The Nosé-Hoover thermostat (Nosé, 1984; Hoover, 1985) was used for temperature coupling with the peptide and solvent coupled to two temperature baths and a time constant of 0.1 ps. The Parrinello-Rahman algorithm (Parrinello and Rahman, 1981) was used for pressure coupling with a time constant of 2 ps. The integration step size was two fs and the system coordinates were stored every 10 ps.

The simulations were performed for 300 ns for 20 independent replicas of (NPNA)5 and 10 independent replicas of all other sequences. The initial structures of the peptides were selected from 10 ns simulations in which extended conformations of the peptides were collapsed in vacuo. The first 100 ns of each trajectory were omitted as the time required for system relaxation based on the convergence analysis of the radius of gyration (Rg) shown in Figure 1—figure supplement 2. This protocol resulted in a total of 4 μs of production time for the (NPNA)5 dataset and a total of 2 μs of production time for the other systems, which was used to compute equilibrium ensemble properties. The peptide snapshots were generated with VMD (Humphrey et al., 1996) and the plots were created with Matplotlib (Hunter, 2007).

3D11 Fab production and purification

Request a detailed protocol

The mAb 3D11 hybridoma cell line variable light and heavy chain antibody genes were sequenced (Applied Biological Materials Inc). mAb 3D11 VK and VH regions were cloned individually into custom pcDNA3.4 expression vectors immediately upstream of human Igκ and Igγ1-CH1 domains, respectively. The resulting pcDNA3.4-3D11 Fab KC and −3D11 Fab HC or −3D11 Fab 58/73 HC plasmids were co-transfected into FreeStyle 293 F cells for transient expression using FectoPRO DNA Transfection Reagent, cultured in GIBCO FreeStyle 293 Expression Medium, and purified via KappaSelect affinity chromatography (GE Healthcare), cation exchange chromatography (MonoS, GE Healthcare), and size-exclusion chromatography (Superdex 200 Increase 10/300 GL, GE Healthcare).

3D11 IgG production and purification

Request a detailed protocol

The mAb 3D11 hybridoma cell line (BEI Resources MRA-100) was cultured in GIBCO Hybridoma-SFM (Thermo Fisher Scientific Cat#12045076) with 2.5–10% fetal bovine serum (Thermo Fisher Scientific Cat#12483–020). Cells were harvested and the supernatant containing 3D11 IgG was purified via Protein G affinity chromatography (GE Healthcare) and size-exclusion chromatography (Superose 6 Increase 10/300 GL, GE Healthcare).

Recombinant PbCSP production and purification

Request a detailed protocol

Constructs of full-length PbCSP (residues 24–318), the PbCSP C-terminal domain (residues 202–318; PbC-CSP) and the PbCSP αTSR domain (residues 263–318; PbCSP αTSR) from strain ANKA (NCBI reference sequence XP_022712148.1) were designed with potential N-linked glycosylation sites mutated to glutamine and cloned into pcDNA3.4 expression vectors with a His tag. The resulting pcDNA3.4-PbCSP-6xHis, -PbC-CSP-6xHis and -PbCSP-αTSR-6xHis plasmids were transiently transfected in FreeStyle 293 F cells using FectoPRO DNA Transfection Reagent, cultured in GIBCO FreeStyle 293 Expression Medium, and purified by HisTrap FF affinity chromatography (GE Healthcare) and size-exclusion chromatography (Superdex 200 Increase 10/300 GL, GE Healthcare).

Cell lines

Request a detailed protocol

FreeStyle 293 F cells (Thermo Fisher Scientific 12338026) and 3D11 hybridoma cell line (BEI Resources MRA-100) were authenticated and validated to be mycoplasma-free by their respective commercial entities.

Binding kinetics by biolayer interferometry

Request a detailed protocol

BLI (Octet RED96, FortéBio) experiments were conducted to determine the binding kinetics of the 3D11 Fab to recombinant PbCSP. PbCSP, PbC-CSP or PbCSP αTSR was diluted to 10 µg/ml in kinetics buffer (PBS, pH 7.4, 0.01% [w/v] BSA, 0.002% [v/v] Tween-20) and immobilized onto Ni-NTA (NTA) biosensors (FortéBio). After a steady baseline was established, biosensors were dipped into wells containing twofold dilutions of 3D11 Fab in kinetics buffer. Tips were then immersed back into kinetics buffer for measurement of the dissociation rate. Kinetics data were analyzed using the FortéBio’s Octet Data Analysis software 9.0.0.6, and curves were fitted to a 2:1 binding model.

Binding thermodynamics by isothermal titration calorimetry

Request a detailed protocol

Calorimetric titration experiments were performed with an Auto-iTC200 instrument (Malvern) at 37°C. Full-length PbCSP and PbCSP-derived peptides (PAPP, NAND, NPND, Mixed, NPNDx1, NPNDx2; GenScript) were diluted in Tris-buffered saline (TBS; 20 mM Tris pH 8.0, and 150 mM NaCl) and added to the calorimetric cell. Titrations were performed with 3D11 Fab in the syringe, diluted in TBS, in 15 successive injections of 2.5 μl. Full-length PbCSP was diluted to 5 μM and titrated with 3D11 Fab at 400 μM. All PbCSP-derived peptides were diluted to 20 μM and titrated with 3D11 Fab at 200–300 μM; with the exception of the NPNDx2 peptide, which was diluted to 9–10 μM and titrated with 180–200 μM 3D11 Fab. Experiments were performed at least two times, and the mean and standard error of the mean are reported. The experimental data were analyzed using the MicroCal ITC Origin 7.0 Analysis Software according to a 1:1 binding model.

Size-exclusion chromatography-multi-angle light scattering (SEC-MALS)

Request a detailed protocol

Full-length PbCSP was complexed with a molar excess of 3D11 Fab and loaded on a Superose 6 Increase 10/300 GL (GE Healthcare) using an Agilent Technologies 1260 Infinity II HPLC coupled in-line with the following calibrated detectors: (i) MiniDawn Treos MALS detector (Wyatt); (ii) Quasielastic light scattering (QELS) detector (Wyatt); and (iii) Optilab T-reX refractive index (RI) detector (Wyatt). Data processing was performed using the ASTRA software (Wyatt).

Crystallization and structure determination

Request a detailed protocol

Purified 3D11 Fab was concentrated and diluted to 5 mg/mL with each of the PAPP, NAND and Mixed peptides in a 1:5 molar ratio; and diluted to 2.1 mg/mL with the NPND peptide in a 1:5 molar ratio. The 3D11 Fab/PAPP complex was mixed in a 1:1 ratio with 20% (w/v) PEG 3350, 0.15 M malic acid pH 7. Crystals appeared after ~1 d and were cryoprotected in 15% (v/v) ethylene glycol before being flash-frozen in liquid nitrogen. The 3D11 Fab/NAND complex was mixed in a 1:1 ratio with 20% (w/v) PEG 3350, 0.2 M di-sodium tartrate. Crystals appeared after ~3 d and were cryoprotected in 15% (v/v) ethylene glycol before being flash-frozen in liquid nitrogen. The 3D11 Fab/NPND complex was mixed in a 1:1 ratio with 25% (w/v) PEG 3350, 0.2 M lithium sulfate, 0.1 M Tris pH 8.5. Crystals appeared after ~12 d and were cryoprotected in 20% (v/v) ethylene glycol before being flash-frozen in liquid nitrogen. The 3D11 Fab/Mixed complex was mixed in a 1:1 ratio with 25.5% (w/v) PEG 4000, 15% (v/v) glycerol, 0.17 M ammonium acetate, 0.085 M sodium citrate pH 5.6. Crystals appeared after ~1 d and were cryoprotected in 20% (v/v) glycerol before being flash-frozen in liquid nitrogen.

Data were collected at the 23-ID-D or 23-ID-B beamline at the Argonne National Laboratory Advanced Photon Source, or at the 17-ID-1 beamline at the National Synchrotron Light Source II. All datasets were processed and scaled using XDS (Kabsch, 2010). The structures were determined by molecular replacement using Phaser (McCoy et al., 2007). Refinement of the structures was performed using phenix.refine (Adams et al., 2010) and iterations of refinement using Coot (Emsley et al., 2010). Access to all software was supported through SBGrid (Morin et al., 2013).

CryoEM data collection and image processing

Request a detailed protocol

The PbCSP/3D11 complex was concentrated to 3 mg/mL and incubated briefly with 0.01% (w/v) n-Dodecyl β-D-maltopyranoside. 3 µl of the sample was deposited on homemade holey gold grids (Marr et al., 2014), which were glow-discharged in air for 15 s before use. Sample was blotted for 12.5 s, and subsequently plunge-frozen in a mixture of liquid ethane and propane (Tivol et al., 2008) using a modified FEI Vitrobot (maintained at 4°C and 100% humidity). Data collection was performed on a Thermo Fisher Scientific Titan Krios G3 operated at 300 kV with a Falcon 3EC camera automated with the EPU software. A nominal magnification of 75,000× (calibrated pixel size of 1.06 Å) and defocus range between 1.6 and 2.2 μm were used for data collection. Exposures were fractionated as movies of 30 frames with a total exposure of 42.7 electrons/Å2. A total of 2080 raw movies were obtained.

Image processing was carried out in cryoSPARC v2 (Punjani et al., 2017). Initial specimen movement correction, exposure weighting, and CTF parameters estimation were done using patch-based algorithms. Manual particle selection was performed on 30 micrographs to create templates for template-based picking. 669,223 particle images were selected by template picking and individual particle images were corrected for beam-induced motion with the local motion algorithm (Rubinstein and Brubaker, 2015). Ab-initio structure determination revealed that most particles present in the dataset correspond to the 3D11 Fab-PbCSP complex, with a minor population of particles corresponding to unbound 3D11 Fab. After several rounds of heterogeneous refinement, 165,747 particle images were selected for non-uniform refinement with no symmetry applied, which resulted in a 3.2 Å resolution map of the 3D11 Fab-PbCSP complex estimated from the gold-standard Fourier shell correlation (FSC) criterion.

CryoEM model building

Request a detailed protocol

To create a starting model of the 3D11 Fab-PbCSP complex, seven copies of 3D11 Fab/PbCSP-peptide crystal structures were manually docked into the 3D11 Fab-PbCSP cryoEM map using UCSF Chimera (Pettersen et al., 2004), followed by manual building using Coot (Emsley et al., 2010). All models were refined using phenix.real_space_refine (Adams et al., 2010) with secondary structure and geometry restraints. The final models were evaluated by MolProbity (Chen et al., 2010). The figures were prepared with UCSF Chimera (Pettersen et al., 2004) and UCSF ChimeraX (Goddard et al., 2018). Contacts in the 3D11 Fab-PbCSP complex were identified by PDBePISA (Krissinel and Henrick, 2007).

Negative-stain EM of 3D11 IgG-PbCSP complex

Request a detailed protocol

To obtain soluble complexes of 3D11-IgG-PbCSP for NS analysis, 8.4 µg of PbCSP was incubated overnight with 20x molar excess of 3D11 IgG. After removal of aggregates via centrifugation, 3D11 IgG-PbCSP complexes were purified on a Superose 6 Increase 10/300 GL column (GE Healthcare). Fractions containing complexes of 3D11 IgG-PbCSP were pooled and concentrated, and subsequently deposited at approximately 50 µg/mL onto homemade carbon grids and stained with 2% uranyl formate. Data were collected with a FEI Tecnai T20 electron microscope operating at 200 kV, and acquired with an Orius charge-coupled device (CCD) camera (Gatan Inc) at a calibrated 34,483X magnification, resulting in a pixel size of 2.71 Å. Particle picking, extraction and three rounds of 2D classification with 50 classes allowed were performed with cryoSPARC v2 (Punjani et al., 2017).

Data availability

X-ray crystallography and cryoEM data and structures have been deposited to the Protein Data Bank and the Electron Microscopy Data Bank.

The following data sets were generated
    1. Thai E
    2. Julien JP
    (2020) RCSB Protein Data Bank
    ID 6X8Q. Crystal structure of 3D11 Fab in complex with Plasmodium berghei circumsporozoite protein PAPP peptide.
    1. Thai E
    2. Julien JP
    (2020) RCSB Protein Data Bank
    ID 6X8S. Crystal structure of 3D11 Fab in complex with Plasmodium berghei circumsporozoite protein NAND peptide.
    1. Thai E
    2. Julien JP
    (2020) RCSB Protein Data Bank
    ID 6X8P. Crystal structure of 3D11 Fab in complex with Plasmodium berghei circumsporozoite protein NPND peptide.
    1. Thai E
    2. Julien JP
    (2020) RCSB Protein Data Bank
    ID 6X8U. Crystal structure of 3D11 Fab in complex with Plasmodium berghei circumsporozoite protein Mixed peptide.
    1. Kucharska I
    2. Thai E
    3. Rubinstein J
    4. Julien JP
    (2020) RCSB Protein Data Bank
    ID 6X87. CryoEM structure of the Plasmodium berghei circumsporozoite protein in complex with inhibitory mouse antibody 3D11.
    1. Kucharska I
    2. Thai E
    3. Rubinstein J
    4. Julien JP
    (2020) Electron Microscopy Data Bank
    ID 22089. CryoEM structure of the Plasmodium berghei circumsporozoite protein in complex with inhibitory mouse antibody 3D11.

References

    1. Cochrane AH
    2. Aikawa M
    3. Jeng M
    4. Nussenzweig RS
    (1976)
    Antibody-induced ultrastructural changes of malarial sporozoites
    Journal of Immunology 116:859–867.
    1. Doolan DL
    (2011) Plasmodium immunomics
    International Journal for Parasitology 41:3–20.
    https://doi.org/10.1016/j.ijpara.2010.08.002
    1. Emsley P
    2. Lohkamp B
    3. Scott WG
    4. Cowtan K
    (2010) Features and development of coot
    Acta Crystallographica. Section D, Biological Crystallography 66:486–501.
    https://doi.org/10.1107/S0907444910007493
    1. Kabsch W
    (2010) XDS
    Acta Crystallographica. Section D, Biological Crystallography 66:125–132.
    https://doi.org/10.1107/S0907444909047337
    1. Nussenzweig RS
    2. Nussenzweig V
    (1984) Development of sporozoite vaccines
    Philosophical Transactions of the Royal Society of London. Series B, Biological Sciences 307:117–128.
    https://doi.org/10.1098/rstb.1984.0113
    1. RTS,S Clinical Trials Partnership
    2. Agnandji ST
    3. Lell B
    4. Soulanoudjingar SS
    5. Fernandes JF
    6. Abossolo BP
    7. Conzelmann C
    8. Methogo BG
    9. Doucka Y
    10. Flamen A
    11. Mordmüller B
    12. Issifou S
    13. Kremsner PG
    14. Sacarlal J
    15. Aide P
    16. Lanaspa M
    17. Aponte JJ
    18. Nhamuave A
    19. Quelhas D
    20. Bassat Q
    21. Mandjate S
    22. Macete E
    23. Alonso P
    24. Abdulla S
    25. Salim N
    26. Juma O
    27. Shomari M
    28. Shubis K
    29. Machera F
    30. Hamad AS
    31. Minja R
    32. Mtoro A
    33. Sykes A
    34. Ahmed S
    35. Urassa AM
    36. Ali AM
    37. Mwangoka G
    38. Tanner M
    39. Tinto H
    40. D'Alessandro U
    41. Sorgho H
    42. Valea I
    43. Tahita MC
    44. Kaboré W
    45. Ouédraogo S
    46. Sandrine Y
    47. Guiguemdé RT
    48. Ouédraogo JB
    49. Hamel MJ
    50. Kariuki S
    51. Odero C
    52. Oneko M
    53. Otieno K
    54. Awino N
    55. Omoto J
    56. Williamson J
    57. Muturi-Kioi V
    58. Laserson KF
    59. Slutsker L
    60. Otieno W
    61. Otieno L
    62. Nekoye O
    63. Gondi S
    64. Otieno A
    65. Ogutu B
    66. Wasuna R
    67. Owira V
    68. Jones D
    69. Onyango AA
    70. Njuguna P
    71. Chilengi R
    72. Akoo P
    73. Kerubo C
    74. Gitaka J
    75. Maingi C
    76. Lang T
    77. Olotu A
    78. Tsofa B
    79. Bejon P
    80. Peshu N
    81. Marsh K
    82. Owusu-Agyei S
    83. Asante KP
    84. Osei-Kwakye K
    85. Boahen O
    86. Ayamba S
    87. Kayan K
    88. Owusu-Ofori R
    89. Dosoo D
    90. Asante I
    91. Adjei G
    92. Adjei G
    93. Chandramohan D
    94. Greenwood B
    95. Lusingu J
    96. Gesase S
    97. Malabeja A
    98. Abdul O
    99. Kilavo H
    100. Mahende C
    101. Liheluka E
    102. Lemnge M
    103. Theander T
    104. Drakeley C
    105. Ansong D
    106. Agbenyega T
    107. Adjei S
    108. Boateng HO
    109. Rettig T
    110. Bawa J
    111. Sylverken J
    112. Sambian D
    113. Agyekum A
    114. Owusu L
    115. Martinson F
    116. Hoffman I
    117. Mvalo T
    118. Kamthunzi P
    119. Nkomo R
    120. Msika A
    121. Jumbe A
    122. Chome N
    123. Nyakuipa D
    124. Chintedza J
    125. Ballou WR
    126. Bruls M
    127. Cohen J
    128. Guerra Y
    129. Jongert E
    130. Lapierre D
    131. Leach A
    132. Lievens M
    133. Ofori-Anyinam O
    134. Vekemans J
    135. Carter T
    136. Leboulleux D
    137. Loucq C
    138. Radford A
    139. Savarese B
    140. Schellenberg D
    141. Sillman M
    142. Vansadia P
    (2011) First results of phase 3 trial of RTS,S/AS01 malaria vaccine in african children
    The New England Journal of Medicine 365:1863–1875.
    https://doi.org/10.1056/NEJMoa1102287
  1. Software
    1. Schrodinger LLC
    (2015)
    The PyMOL Molecular Graphics System
    The PyMOL Molecular Graphics System.
  2. Software
    1. WHO
    (2019)
    World Malaria Report 2018
    World Malaria Report 2018.

Decision letter

  1. José D Faraldo-Gómez
    Senior and Reviewing Editor; National Heart, Lung and Blood Institute, National Institutes of Health, United States
  2. Wai-Hong Tham
    Reviewer; University of Melbourne, Australia
  3. Andrew B Ward
    Reviewer; The Scripps Research Institute, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Reviewers and the Editor were most impressed by this integrative structural biology analysis of the interaction between a monoclonal antibody and a Plasmodium protein target. This thoughtfully designed and well executed study expands our understanding of structural correlates of antibody protection against malaria. It also illustrates how the synergy of X-ray crystallography, single-particle cryo-EM and computer simulations can be uniquely revealing in the study of complex processes in molecular biophysics.

Decision letter after peer review:

Thank you for submitting your article "Structural ordering of the Plasmodium berghei circumsporozoite protein repeats by inhibitory antibody 3D11" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by José Faraldo-Gómez as the Senior and Reviewing Editor. Reviewers #1 (Wai-Hong Tham) and #3 (Andrew B Ward) have agreed to reveal their identity.

The reviewers have discussed their reviews with one another. Based on this discussion, and on the individual reviews, we are glad to be able to invite you to submit a revised version of the manuscript that addresses the questions raised by the reviewers and their requests for clarification.

Reviewer #1:

The manuscript by Kucharska and Thai et al. describes the mechanism of binding of mouse monoclonal 3D11 to its target antigen P. berghei circumsporozoite protein (CSP). CSP is the component of the leading malaria vaccine and previous work had used rodent models to understand the inhibitory nature of antibodies. 3D11 was originally isolated from mice exposed to irradiated P. berghei infected mosquitoes. While it has been used widely in many studies, the structural mechanism of binding has not been elucidated, which is the focus of this manuscript. While several studies have now shown how human antibodies bind to PfCSP, it is still important to understand how 3D11 inhibits and how it binds as a comparative study and key piece of knowledge in the development of CSP as a vaccine.

There is very little to fault in this manuscript. It employs molecular dynamics, X-ray crystallography and cryo-EM – all three complementary techniques to fully visualise how 3D11 binds a single repeat, mixed repeats and on full length PbCSP. If the paper had feature only one or two of these techniques, the mechanism of binding would have been incomplete. The employment of these structural techniques is particularly important for PbCSP, as most inhibitory antibodies bind to the central regions which contain several NANNP, PPPP, PAPP, NPND or NAND motifs so understanding the binding, in particular by cryo-EM is critical.

My only query is how does the binding change with the use of intact monoclonal antibodies? I do not need to see experimental data for this as I understand it would complicate the structural approaches. Nevertheless, either by vaccination or by antibody-based delivery, intact antibodies are binding. It would be good to hear about how this constrains the binding of repeats and if changes in the IgG backbone can be part of antibody design.

1) For example, do you observe the same number of 3D11 molecules bound to PbCSP complex to be the same if Fab or intact antibody is used using SEC-MALS?

2) Would you expect to see differences in cryo-EM if the intact mAb was used?

Reviewer #2:

In the present study, Kucharska and colleagues use an integrative structural biology approach to characterize the binding of a monoclonal antibody 3D11 to the Plasmodium circumsporozoite protein (CSP). This thoughtfully designed and executed study is straightforward in its analyses building incrementally on previous data and expands our understanding of structural correlates of antibody protection against malaria. The structural data are particularly impressive and highlight the power of combining X-ray crystallography with single particle cryoEM – the high-resolution X-ray crystal structures with CSP peptides and the 3D11 Fab provide atomic-level details of molecular interactions while the cryoEM structure informs on the overall "structural ordering" of CSP upon antibody binding.

Reviewer #3:

Kucharska and Thai et al. use x-ray crystallography and single particle cryoEM examine the molecular principles by which a protective and well-characterized mouse mAb 3D11 engages PbCSP. This work is significant because, to my knowledge, there are no structural studies of antibodies in complex with repeats from Plasmodium species other than P. falciparum. Further, the discovery of evolved inter-Fab contacts against PbCSP is highly compelling and suggests this is a phenomenon of CSP independent of specific repeat sequence and mammalian host. Overall, the structural data are convincing and the analysis is well-done. This paper warrants publication in eLife as it stands, with minor adjustments outlined below.

1) From the way it is presented, it is hard to fully appreciate the details of the cryo-EM structure of the 3d11-PbCSP complex, particularly with regards to the inter-Fab contacts. It would be helpful to describe the general locations of these residues within the Fab structure (CDRH/L 1,2,3; FR). This could be compared to the published 311-rsCSP structure in order to understand the structural properties of spiral-inducing antibodies in general. Also see comments on Figure 5 below.

2) From the binding studies, the authors conclude that 10 or 11 Fabs can bind one molecule of PbCSP. The 2D classes in Figure 4—figure supplement 2B also show what appear to be more than 7 Fabs in a complex. Did the authors use 3D classification to sort out these extended complexes, or are the "trailing" Fabs simply blurred out in the high resolution reconstruction? Did the authors see any reconstructions with a fully occupied CSP? In the Materials and methods, and/or in a supplementary figure, it would be useful to have a few more details of the data processing workflow in Cryosparc, which would inform of if and how the low affinity PPAP/NAND repeats can be occupied simultaneously with the PPPP/NPND repeats.

3) Figure 5C. It is quite difficult to understand the structural details presented here. This figure would benefit greatly from making at least two panels which present two different views of the interface which focus on different details of the inter-fab contacts. Also, importantly, there is very little structural context outside of the side-chains shown, and the CDR loops to which these residues belong to are unlabeled. As mentioned above, it would be useful to know what general structural features of these antibodies can be utilized to drive high-avidity complex formation on CSP and by consequence stabilize long-range helices.

4) Figure 4—figure supplement 3 is a little bit confusing. The authors state that the x-ray and cryoEM structures are remarkably similar, which it expected. However, as colored, there are some local changes that are 1.5-2.5 Å RMSD, which is actually fairly large. Presumably this is due to the calculation based on all atom, not backbone. I would expect the larger distances to be localized to side chains rather than backbone, which is colored. It may therefore be better to represent the structure as a cartoon and sticks and color the RMSD based on all the atoms, which would be a more accurate representation. Also, related to point #3 above it would be interesting to know if the sidechains that participate in inter-Fab contacts differ between the EM and x-ray structures.

https://doi.org/10.7554/eLife.59018.sa1

Author response

Reviewer #1:

[…] My only query is how does the binding change with the use of intact monoclonal antibodies? I do not need to see experimental data for this as I understand it would complicate the structural approaches. Nevertheless, either by vaccination or by antibody-based delivery, intact antibodies are binding. It would be good to hear about how this constrains the binding of repeats and if changes in the IgG backbone can be part of antibody design.

1) For example, do you observe the same number of 3D11 molecules bound to PbCSP complex to be the same if Fab or intact antibody is used using SEC-MALS?

2) Would you expect to see differences in cryo-EM if the intact mAb was used?

We thank the reviewer for her positive comments. We agree that the binding of intact monoclonal antibodies to CSP is an interesting and biologically relevant topic of research. However, binding of 3D11 IgG to PbCSP results in the formation of large aggregates due to antibody-mediated crosslinking. This process has previously been observed in the context of the parasite surface and is known as the circumsporozoite precipitation reaction (Yoshida et al., 1980; Potocnjak et al., 1980). Nevertheless, we attempted to biochemically characterize the 3D11 IgG-PbCSP complex using negative-stain electron microscopy and we have now included this data in (Figure 5—figure supplement 2). Based on the 2D analysis, we conclude that 3D11 IgG-PbCSP complexes have a similar architecture to 3D11 Fab-PbCSP complexes; however, the heterogeneity of the 3D11 IgG-PbCSP complexes precluded us from obtaining 3D reconstruction. To describe these results, we have added the following sentences: “To examine whether 3D11 IgG can induce a similar type of spiral conformation of PbCSP as 3D11 Fab, we prepared complexes of 3D11 IgG-PbCSP for negative-stain (ns) EM analysis. […] Our findings are in agreement with a similar analysis previously performed with human 311 Fab and IgG in complex with PfCSP, which also observed the ability of both IgG and Fab to induce a spiral-like conformation in CSP.”

Reviewer #3:

[…]

1) From the way it is presented, it is hard to fully appreciate the details of the cryo-EM structure of the 3d11-PbCSP complex, particularly with regards to the inter-Fab contacts. It would be helpful to describe the general locations of these residues within the Fab structure (CDRH/L 1,2,3; FR). This could be compared to the published 311-rsCSP structure in order to understand the structural properties of spiral-inducing antibodies in general. Also see comments on Figure 5 below.

We thank the reviewer for his suggestions. We have introduced additional panels and labels in Figure 5 to provide a more in-depth description of the residues engaging in inter-Fab contacts, and revised the subsection “Contacts between 3D11 Fabs stabilize the PbCSP spiral structure” to describe the positions of these residues of interest relative to the overall Fab structure. We also added the following sentences to the Discussion section: “In human mAbs 311 and 1210, CDR3 regions of both heavy and light chains appear to play a considerable role in forming Fab-Fab contacts. Interestingly, in the case of mAb 3D11, homotypic interactions are mainly mediated by residues localized in HCDR1 and -2, KCDR1, and FR3 regions of both the HC and KC, with little contribution from residues in the CDR3 regions (with the exception of H.Tyr97 in HCDR3 and K.Phe94 in KCDR3).”

2) From the binding studies, the authors conclude that 10 or 11 Fabs can bind one molecule of PbCSP. The 2D classes in Figure 4—figure supplement 2B also show what appear to be more than 7 Fabs in a complex. Did the authors use 3D classification to sort out these extended complexes, or are the "trailing" Fabs simply blurred out in the high resolution reconstruction? Did the authors see any reconstructions with a fully occupied CSP? In the Materials and methods, and/or in a supplementary figure, it would be useful to have a few more details of the data processing workflow in Cryosparc, which would inform of if and how the low affinity PPAP/NAND repeats can be occupied simultaneously with the PPPP/NPND repeats.

We have provided an additional supplementary figure (Figure 4—figure supplement 1) showing the cryoEM data processing workflow in cryoSPARC. Despite extensive 3D classification in cryoSPARC v2 we were unable to obtain 3D classes with varied number of Fabs bound. The final low-pass filtered (20 Å) cryoEM structure indicates ~15 Fabs bound to the PbCSP (Figure 4—figure supplement 2F), although the density of the N- and C-terminal Fabs is very weak. The results of 3D variability analysis in cryoSPARC suggest that the blurring of the distal Fabs is a result of the internal flexibility of the complex (see Figure 4—video 1).We have added the following sentences to describe these observations: “Although the low-pass filtered (20 Å) cryoEM map of the 3D11 Fab-PbCSP complex contains visible density for >10 3D11 Fabs (Figure 4—figure supplement 2F), only the density for the seven central Fabs was strong enough to warrant building a molecular model. Indeed, 3D Variability Analysin in cryoSPARC v2 revealed continuous flexibility at the N- and C-termini of the 3D11 Fab-PbCSP complex (Figure 4—video 1).”

3) Figure 5C. It is quite difficult to understand the structural details presented here. This figure would benefit greatly from making at least two panels which present two different views of the interface which focus on different details of the inter-fab contacts. Also, importantly, there is very little structural context outside of the side-chains shown, and the CDR loops to which these residues belong to are unlabeled. As mentioned above, it would be useful to know what general structural features of these antibodies can be utilized to drive high-avidity complex formation on CSP and by consequence stabilize long-range helices.

We thank the reviewer for his suggestions. We have introduced additional panels and labels to provide a more detailed representation of the complex.

4) Figure 4—figure supplement 3 is a little bit confusing. The authors state that the x-ray and cryoEM structures are remarkably similar, which it expected. However, as colored, there are some local changes that are 1.5-2.5 Å RMSD, which is actually fairly large. Presumably this is due to the calculation based on all atom, not backbone. I would expect the larger distances to be localized to side chains rather than backbone, which is colored. It may therefore be better to represent the structure as a cartoon and sticks and color the RMSD based on all the atoms, which would be a more accurate representation. Also, related to point #3 above it would be interesting to know if the sidechains that participate in inter-Fab contacts differ between the EM and x-ray structures.

We appreciate the concern raised by the reviewer. We have re-calculated the RMSD based on the backbone alone and revised the figure to show this ribbon representation. We have also included additional panels to highlight the all-atom RMSD of residues participating in inter-Fab contacts.
