1. Structural Biology and Molecular Biophysics
Download icon

Cryo-EM structure of the lysosomal chloride-proton exchanger CLC-7 in complex with OSTM1

  1. Marina Schrecker
  2. Julia Korobenko
  3. Richard K Hite  Is a corresponding author
  1. Structural Biology Program, Memorial Sloan Kettering Cancer Center, United States
Research Article
  • Cited 0
  • Views 1,708
  • Annotations
Cite this article as: eLife 2020;9:e59555 doi: 10.7554/eLife.59555

Abstract

The chloride-proton exchanger CLC-7 plays critical roles in lysosomal homeostasis and bone regeneration and its mutation can lead to osteopetrosis, lysosomal storage disease and neurological disorders. In lysosomes and the ruffled border of osteoclasts, CLC-7 requires a β-subunit, OSTM1, for stability and activity. Here, we present electron cryomicroscopy structures of CLC-7 in occluded states by itself and in complex with OSTM1, determined at resolutions up to 2.8 Å. In the complex, the luminal surface of CLC-7 is entirely covered by a dimer of the heavily glycosylated and disulfide-bonded OSTM1, which serves to protect CLC-7 from the degradative environment of the lysosomal lumen. OSTM1 binding does not induce large-scale rearrangements of CLC-7, but does have minor effects on the conformation of the ion-conduction pathway, potentially contributing to its regulatory role. These studies provide insights into the role of OSTM1 and serve as a foundation for understanding the mechanisms of CLC-7 regulation.

eLife digest

Inside the cells of mammals, acidic compartments called lysosomes are responsible for breaking down large molecules and worn-out cells parts so their components can be used again. Similar to lysosomes, specialized cells called osteoclasts require an acidic environment to degrade tissues in the bone. Both osteoclasts and lysosomes rely on a two-component protein complex to help them digest molecules. Mutations in the genes for both proteins are directly linked to human diseases including neurodegeneration and osteopetrosis – a disease characterized by dense and brittle bones.

For the main protein in this complex, called CLC-7, to remain stable and perform its roles, it requires an accessory subunit known as OSTM1. CLC-7 is a transporter that funnels electrically charged particles into and out of the lysosome, which helps to maintain the environment inside the lysosome compartment. However, due to the tight partnership between CLC-7 and OTSM1, how they influence each other is poorly understood.

To determine the roles of CLC-7 and OSTM1, Schrecker et al. looked at the structure of the complex using a technique called single particle electron microscopy, which allows proteins to be visualized almost down to the individual atom. The analysis revealed that OSTM1 covers almost the entire inside surface of CLC-7, protecting it from the acidic environment inside the lysosome and contributing to its stability. When the two subunits are bound together, OSTM1 also slightly changes the structure of the pore formed by CLC-7, suggesting that OSTM1 may regulate CLC-7 activity.

Schrecker et al. have laid the foundation for understanding more about the activity and regulation of CLC-7 and OSTM1 in lysosomes and osteoclasts. The structures described also help explain previous findings, including why OSTM1 is important for the stability of CLC-7.

Introduction

CLC-7 is a member of the CLC family of chloride (Cl-) channels and chloride (Cl-)/proton (H+) transporters and is expressed in the lysosome and the resorption lacuna of osteoclasts (Graves et al., 2008; Ishida et al., 2013; Kornak et al., 2001; Weinert et al., 2010). In the membranes of these acidic compartments, CLC-7 uses the large pH gradient to catalyze the uptake of two Cl- ions for each H+ released (Graves et al., 2008; Leisle et al., 2011; Ludwig et al., 2013). Dysfunction of CLC-7 is associated with dysregulation of ion and pH homoeostasis of the lysosome and the resorption lacuna (Graves et al., 2008; Ishida et al., 2013; Kasper et al., 2005; Kornak et al., 2001; Lange et al., 2006; Undiagnosed Diseases Network et al., 2019; Steinberg et al., 2010; Weinert et al., 2010). As both of these compartments rely on high proton concentrations to perform their physiological roles, disruption of CLC-7 function is associated with human diseases driven by impaired lysosomal and/or osteoclast function (Kasper et al., 2005; Kornak et al., 2001; Lange et al., 2006; Undiagnosed Diseases Network et al., 2019; Pressey et al., 2010). In particular, osteopetrosis, a disease characterized by dense and brittle bones, is the most common disease associated with CLC-7 mutation, with more than 50 distinct pathogenic mutations identified to date (Chalhoub et al., 2003; Cleiren et al., 2001; Kasper et al., 2005; Kornak et al., 2001; Lange et al., 2006; Sartelet et al., 2014; Schulz et al., 2010; Weinert et al., 2010).

Extensive structural and functional characterization of prokaryotic and eukaryotic CLC channels and transporters have established a framework for Cl-/H+ exchange and identified several key residues that participate in the transport cycle (Accardi et al., 2004; Accardi and Miller, 2004; Accardi et al., 2005; Basilio et al., 2014; Chavan et al., 2020; Dutzler et al., 2002; Dutzler et al., 2003; Feng et al., 2010; Feng et al., 2012; Jayaram et al., 2008; Park et al., 2017; Park and MacKinnon, 2018; Picollo et al., 2012; Wang et al., 2019; Zdebik et al., 2008). Within the Cl--conduction pathway, the gating glutamate (Glugate) that is conserved in CLC transporters is proposed to oscillate between at least four different conformations (Chavan et al., 2020; Dutzler et al., 2002; Dutzler et al., 2003; Feng et al., 2010). The movement and changes in the protonation state of Glugate are coupled to the binding and release of Cl- ions in the highly conserved external and central binding sites (Picollo et al., 2012). Near the center of the transporter, the anion and H+-conduction pathways diverge with the anion pathway passing through the internal binding site before reaching the cytosol, while the H+-conduction pathway passes through a hydrophobic gap before reaching a conserved internal glutamate (Gluin) (Accardi and Miller, 2004; Accardi et al., 2005; Chavan et al., 2020; Leisle et al., 2020; Lim and Miller, 2009; Zdebik et al., 2008). This conserved Gluin is dispensable for coupled transport and water molecules has been proposed to mediate H+ transport through the hydrophobic gap (Feng et al., 2010; Han et al., 2014; Wang and Voth, 2009). Despite these extensive efforts, the precise mechanisms by which Cl- and H+ transport are coupled remains poorly understood as are the mechanisms that underlie the gating of CLC transporters.

Unique among mammalian CLC transporters, CLC-7 requires a β-subunit, osteopetrosis-associated transmembrane protein 1 (OSTM1), for transport activity (Lange et al., 2006; Leisle et al., 2011). CLC-7 and OSTM1 co-localize in lysosomes and the ruffled border of osteoclasts (Lange et al., 2006; Leisle et al., 2011; Schulz et al., 2010). There, CLC-7 and OSTM1 stabilize the expression of one another and are both required for Cl-/H+ exchange (Lange et al., 2006; Leisle et al., 2011). OSTM1 is predicted to be a glycosylated, single-pass transmembrane protein and mutations in OSTM1, like mutations in CLC-7, can lead to osteopetrosis and neurodegeneration in humans and mice (Chalhoub et al., 2003; Kasper et al., 2005; Kornak et al., 2001; Lange et al., 2006; Majumdar et al., 2011; Pressey et al., 2010). However, the mechanisms by which OSTM1 and CLC-7 cooperate to enable proper ion transport remains an open question. To begin to understand the mechanisms of CLC-7 function and its unique requirement for OSTM1, we have determined electron cryomicroscopy (cryo-EM) structures of CLC-7 and of a CLC-7/OSTM1 complex.

Results

Structure of CLC-7

Following an evaluation of multiple CLC-7 orthologues, we decided to focus our structural studies on the chicken and human CLC-7 proteins based on their expression levels and their biochemical stabilities. Full-length chicken CLC-7 (ggCLC-7) and human CLC-7, which are 86.4% identical, were expressed in HEK293S GnTI- cells as mEGFP-fusions, purified to homogeneity in the detergent lauryl maltose neopentyl glycol (LMNG), cholesterol hemisuccinate (CHS), 150 mM KCl and 50 mM Tris-HCl pH 8.0, and analyzed by cryo-EM. Vitrified human CLC-7 transporters displayed a strongly preferred orientation that was confirmed by two-dimensional classification (Figure 1—figure supplement 1). Because of the very limited views of the transporter, we were not able to reconstruct a three-dimensional density map of human CLC-7. In contrast, two-dimensional classification of ggCLC-7 revealed a wide range of views and was suitable for three-dimensional structure determination (Figure 1—figure supplement 2). Three-dimensional classification of the imaged ggCLC-7 transporters identified a single class that displayed both well-ordered transmembrane and cytosolic domains. Reconstruction of these particle images with twofold symmetry imposed yielded a structure of dimeric ggCLC-7 at a resolution of 2.9 Å that enabled model building (Figure 1A, Figure 1—figure supplement 2, Figure 1—figure supplement 3 and Table 1). The final refined model, which lacks the disordered N- and C-termini, fits well into the density with good geometry (Figure 1B and Figure 1—figure supplement 2, Figure 1—figure supplement 3 and Table 1). Each protomer of dimeric ggCLC-7 contains a transmembrane domain composed of 18-transmembrane helices and a cytoplasmic domain composed of an N-terminal domain and two C-terminal cystathionine β-synthase (CBS) domains (Figure 1C). Both the transmembrane and cytosolic domains contribute to the large (~3700 Å2) ggCLC-7 dimer interface (Figure 1D).

Figure 1 with 3 supplements see all

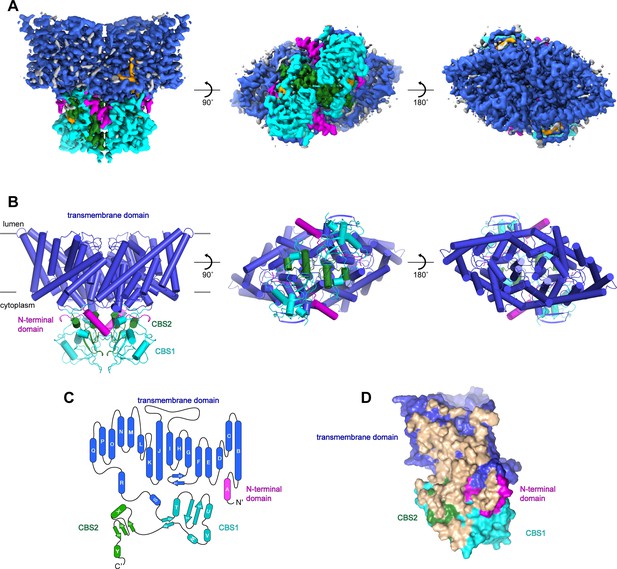

Structure of chicken CLC-7.

(A–B) Cryo-EM density map (A) and structure (B) of ggCLC-7 viewed from within the membrane (left), the cytoplasm (middle) and the lysosomal lumen (right) colored by domain with N-terminal domain in magenta, transmembrane domain in blue, CBS1 in cyan and CBS2 in green. Modeled non-protein densities are colored orange and unmodeled non-protein densities are colored grey in A. (C) Domain topology of ggCLC-7 colored by domain as in A. (D) Dimer interface with interacting residues colored in wheat.

Table 1
Cryo-EM data acquisition, reconstruction and model refinement statistics.
ggCLC-7hsCLC-7/OSTM1
ConsensusConsensusTMD FocusLD FocusCD Focus
Cryo-EM acquisition and processing
EMDB accession #2238622389
Magnification22,500x22,500x22,500x22,500x22,500x
Voltage (kV)300300300300300
Total electron6144444444
Exposure (e-2)
Exposure time (s)84444
Defocus range (µM)-1.0 to -2.5-1.0 to -2.5-1.0 to -2.5-1.0 to -2.5-1.0 to -2.5
Pixel size (Å)1.07231.0641.0641.0641.064
Symmetry imposedC2C2C1C1C1
Initial particles4,020,22515,288,37915,288,37915,288,37915,288,379
Final particles87,707327,619655,238655,238655,238
Resolution (masked, Å)2.932.822.852.793.04
Density modified CC (0.5, Å)2.922.812.802.703.30
Model refinement
PDB ID7JM67JM7
Model resolution (Å)2.98/2.402.92/2.56
FSC threshold0.50/0.1430.50/0.143
Model refinement resolution300-2.9300-2.8
RMS deviations
Bond length (Å)0.0050.005
Bond angle (°)0.8060.769
Ramachandran plot
Favored (%)97.7397.87
Allowed (%)2.272.13
Disallowed (%)00
Rotamer Outliers (%)0.001.17
Validation
MolProbity score1.371.37
Clashscore5.685.38

Chloride and proton conduction pathways

The transmembrane domain of ggCLC-7 adopts the canonical CLC architecture with each protomer possessing discrete ion permeation pathways that extend from the cytosol to the lysosomal lumen (Figure 2A). Structural and functional analysis of CLC transporters and channels have defined the Cl--conduction pathway and its three conserved Cl--binding sites (Accardi et al., 2004; Accardi and Miller, 2004; Accardi et al., 2005; Basilio et al., 2014; Chavan et al., 2020; Dutzler et al., 2002; Dutzler et al., 2003; Feng et al., 2010; Feng et al., 2012; Park et al., 2017; Park and MacKinnon, 2018; Picollo et al., 2012; Wang et al., 2019; Zdebik et al., 2008), and this architecture is well-preserved in ggCLC-7. In the present conformation of ggCLC-7, constrictions too narrow to accommodate Cl- ions exist on both ends of the Cl--conduction pathway (Figure 2B,C). On the cytosolic side of the pathway between the central and internal Cl--binding sites, the side chains of Ser200, Tyr501 and Tyr598 form a constriction with a minimum radius of 0.6 Å (Figure 2B). The luminal side of the Cl--conduction pathway contains two additional constrictions (Figure 2C). The first constriction, which has a minimum radius of 0.7 Å is immediately adjacent to the external Cl--binding site and is formed by the side chains of Glu243, Ile511 and the backbone of Lys242 and Glu243. The second constriction (1.1 Å minimum radius) is at the luminal entrance and is formed by the side chains of Lys242, Glu467 and the backbone of Gly241. Together the three constrictions yield an occluded state for the transporter, sealing off the external and central Cl--binding sites from the cytosol and the lysosomal lumen.

Figure 2 with 1 supplement see all

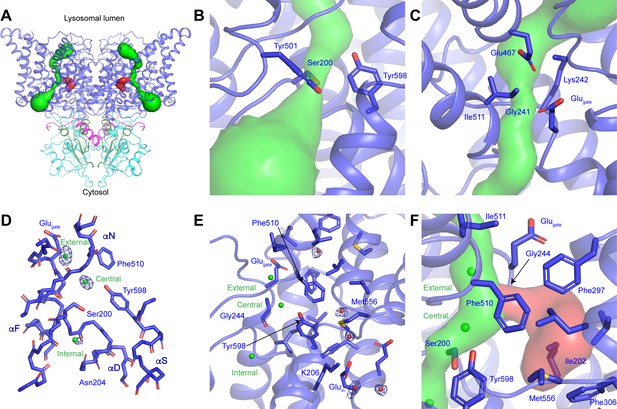

CLC-7 ion-conduction pathways.

(A) Each protomer of ggCLC-7 contains a Cl--conduction pathway, displayed as a green surface, and a putative H+-conduction pathway, displayed as a red surface. The N-terminal domain is colored in magenta, transmembrane domain in blue, CBS1 in cyan and CBS2 in green. (B) The cytosolic constriction of the Cl--conduction pathway formed by Ser200, Tyr501 and Tyr598 narrows the pathway to a minimum radius of 0.6 Å. (C) Two constrictions exist near the luminal entrance to the pathway formed by Glugate (Glu243), Lys242 and Ile511 and by Gly241, Lys242, Glu467. (D) Cl--binding sites (shown as green spheres) in the ggCLC-7 ion conduction pathway. Experimental cryo-EM density is shown as blue mesh countered at 10 σ threshold. Conserved residues are shown in sticks. (E) Ordered water molecules (shown as red spheres) are resolved in the hydrophobic gap between Glugate and Gluin and in the solvent-filled cavity in which Gluin resides. Experimental cryo-EM density is shown as blue mesh contoured at 7 σ threshold. (F) A potential H+-conduction pathway, shown as red surface, extends from near the central Cl--binding site through into the hydrophobic gap. The access from the Cl- pathway is lined by Gly244, Phe297 and Phe510. The pathway is separated from the cytosol by a constriction formed by Ile202, Phe306 and Met556.

The most dynamic residue in the ion transport pathways of CLC transporters is Glugate, whose conformation changes during the transport cycle. In previous structures of CLC transporters, the side chain carboxylic moiety of Glugate has occupied four different positions: ‘middle’ where it occupies the central Cl--binding site, ‘up’ where it moves toward the extracellular vestibule, ‘down’ where it occupies the central Cl- binding site and most recently ‘out’ where it reaches away from the Cl--conduction pathway toward the H+-conduction pathway (Chavan et al., 2020; Dutzler et al., 2002; Dutzler et al., 2003; Feng et al., 2010; Last et al., 2018Figure 2—figure supplement 1). In ggCLC-7, the Glugate (Glu243) adopts the ‘up’ conformation, where it participates in establishing one of the luminal constrictions (Figure 2D and Figure 2—figure supplement 1). A non-protein density was resolved between Glugate and Glu467 that we assigned as a water molecule. This water may help to stabilize the conformations of Glugate and Glu467, which may both be protonated at pH 8.0.

Within the Cl--conduction pathway, non-protein densities that we attributed to Cl- ions were resolved at the external, central and internal Cl--binding sites (Figure 2D). The external Cl- site is formed by the backbone nitrogens of Glu243 and Gly244 on helix αF and Phe510 and Ile511 on helix αO. The intensity of the external Cl--binding site (~14 σ) is the strongest of the three Cl--binding sites and is nearly equivalent to that of backbone atoms of nearby residues, suggesting a high Cl- occupancy. The density for the central Cl- site has a slightly lower intensity (~12 σ) and is formed by the side chains of the highly conserved Ser200 from helix αD and Tyr598 on helix αS and the backbone nitrogens of Val509 and Phe510 of helix αN. The internal Cl--binding site, which is located in a solvent-exposed vestibule on the cytoplasmic side of the transporter, has the lowest intermediate intensity (~8 σ) and is formed by the backbone nitrogens of Ser200 and Gly201 and the side chain of Gln204, all on helix αD. The relative intensities of the three Cl--binding sites are consistent with structural and biochemical studies performed with E. coli CLC1 (ecCLC) that showed that the central and external binding sites have much higher affinity for Cl- ions than the internal site (Lobet and Dutzler, 2006; Picollo et al., 2009).

Near the center of the transporter, the H+-conduction pathway of CLC transporters diverges from the Cl--conduction pathway as they approach the cytosolic side of the transporter (Accardi et al., 2005; Chavan et al., 2020; Han et al., 2014; Leisle et al., 2020; Park and MacKinnon, 2018; Wang and Voth, 2009; Zdebik et al., 2008). This bifurcation occurs near the central Cl--binding site and is proposed to extend through a hydrophobic gap to the conserved Gluin (Chavan et al., 2020). In the ggCLC-7 structure, Gluin (Glu310) on helix αG is located more than 15 Å away from Glugate, where it extends into a solvent filled cavity between the transmembrane and cytosolic domains that is continuous with the cytosol (Figure 2E,F). Within the loosely packed hydrophobic gap between Glugate and Gluin, several non-protein densities were resolved that we have tentatively modeled as water molecules (Figure 2F). Water molecules have previously been detected within the hydrophobic gap in structures and in molecular dynamics simulations of CLC transporters and have been proposed to serve as a proton-conducting water-wire (Chavan et al., 2020; Han et al., 2014; Leisle et al., 2020; Wang and Voth, 2009). In ggCLC-7, the water molecules in the hydrophobic gap can access the Cl--conduction pathway through an opening with a minimum radius of ~1.4 Å between Gly244, Phe297 and Phe510 (Figure 2F). However, the pathway is not continuous with the cytosol as the hydrophobic gap is sealed near Gluin by a 1.0 Å constriction formed Ile202, Phe306 and Met558. In a recent structure of a mutant of ecCLC, the constrictions between Glugate and Gluin were both expanded, creating a continuous pathway that would facilitate H+ conduction (Chavan et al., 2020). It is possible that a similar conformational change may occur during the transport cycle of ggCLC-7 to open the constrictions and allow protons to pass through the hydrophobic gap.

Organization of the CLC-7 cytoplasmic domain

The cytoplasmic domain of CLC-7 is composed of the N-terminal domain and the two C-terminal CBS domains (Figure 3A). The N-terminal domain, which has not been resolved in previous CLC structures, is comprised of a 14-amino acid extended segment and helix αA that are well-defined in the ggCLC-7 density map (Figure 3B and Figure 1—figure supplement 3). The extended segment is positioned at the center of the three-way interface between the transmembrane domain, CBS1 and CBS2. Because of its central position, the N-terminal domain is a major contributor to the tertiary and quaternary structure of ggCLC-7. Indeed, the N-terminal domain forms a larger interface with the transmembrane domain than either of the CBS domains.

Figure 3 with 1 supplement see all

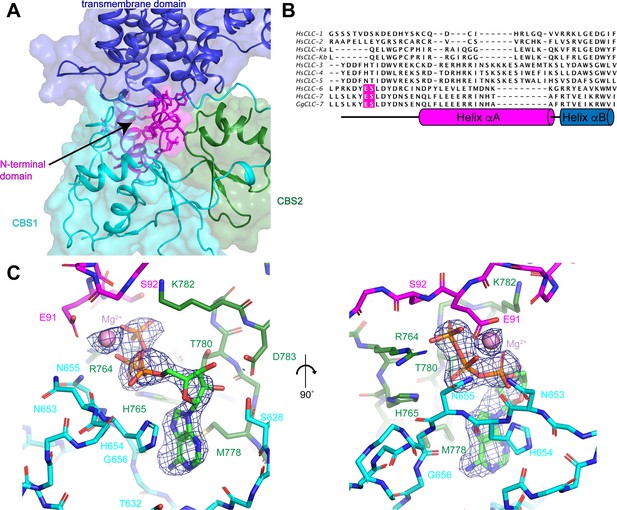

N-terminal domain and the ATP-binding site.

(A) The N-terminal domain resides at the interface between the transmembrane domain, CBS1 and CBS2. N-terminal domain is colored in magenta, transmembrane domain in blue, CBS1 in cyan and CBS2 in green. (B) Sequence alignment of N-terminal domain of ggCLC-7 with human CLC-1, CLC-2, CLC-Ka, CLC-Kb, CLC-3, CLC-4, CLC-5, CLC-6, CLC-7. Positions of ATP coordinating Glu91 and Ser92 in ggCLC-7 are highlighted in magenta. (C) Two views of the ATP binding site in the cytoplasmic domain of ggCLC-7. Side chains that interact with ATP are shown as sticks. Experimental cryo-EM density is shown as blue mesh contoured at 12 σ threshold. Mg2+ ion shown as a pink sphere.

Immediately adjacent to the N-terminal domain in a groove between the two CBS domains is a large density that cannot be attributed to the protein (Figure 3C). We modeled this non-protein density as a Mg2+-bound ATP based on its shape and a comparison with the ATP-bound structure of the isolated CBS domains of CLC-5 (Meyer et al., 2007Figure 3—figure supplement 1). Notably, no nucleotides were added during the 30-hour purification of ggCLC-7 so any ATP present must have been co-purified with the transporter. In the ggCLC-7 structure, the transporter forms multiple interactions with all three components of the ATP molecule (Figure 3C). The adenine base of the ATP is sandwiched between the side chains of His654 on CBS1, with which it forms π-stacking interactions, and Met778 on CBS2. The adenine base also forms polar interactions with the side-chain oxygen and backbone nitrogen of Thr632 and the backbone nitrogen of Gly656 that contribute to the specificity for adenine nucleotides (Meyer et al., 2007). The ribose sugar forms polar interactions with side chains of Ser628 and Asp783. The triphosphate group is coordinated by residues from both CBS domains as well as the N-terminal domain. The α-phosphate interacts with the side chain of His654 and the backbone oxygen of Asn653 of CBS1, the side chain of Lys782 of CBS2. Coordinating the α- and β-phosphate is a Mg2+ that is partially coordinated by Glu91 of the N-terminal domain. Additionally, the β-phosphate also interacts with the side chain of Asn655 and the backbone oxygen of His654 of CBS1 and the side chain of His765 of CBS2. The γ-phosphate interacts with the side chain and backbone nitrogen of Ser92 of the N-terminal domain and the side chain of Arg764 of CBS2. Together, the numerous interactions between ATP and ggCLC-7 and the slow-off rate of ATP during the purification are consistent with ATP binding to ggCLC-7 with high affinity.

The ATP-binding site in ggCLC-7 shares many features with the ATP-binding site resolved in the structure of the isolated CBS domains of CLC-5, including the coordination of the adenine base and the ribose sugar (Figure 3—figure supplement 1Meyer et al., 2007). The major differences between the ATP interactions of human CLC-5 and ggCLC-7 are the additional interactions with the triphosphate group of ATP in ggCLC-7. In particular, both ATP and Mg2+ directly interact with the N-terminal domain of CLC-7 (Figure 3C and Figure 3—figure supplement 1). As the N-terminal domain was not present in the CLC-5 CBS domain crystallization construct (Meyer et al., 2007), such interactions were not previously identified. Binding studies performed with the CLC-5 CBS domains found that ATP binds with an affinity of ~100 μM, similar to affinities measured for ADP and AMP (Meyer et al., 2007). In contrast, the densities corresponding to the α-phosphate and γ-phosphate are nearly equivalent in the ggCLC-7 density map, indicating that ATP was predominant species co-purified with transporter (Figure 3C).

Sequence alignment of ggCLC-7 with the nine human CLC proteins reveals the N-terminal domain resolved in the ggCLC-7 structure (residues 87–114) is conserved in human CLC-7 as well as the closely-related human CLC-6 transporter (45% identity). The conservation is less clear in the more distantly related CLC-3, CLC-4 and CLC-5 transporters and no conservation is apparent in the CLC-1, CLC-2, CLC-Ka and CLC-Kb channels (Figure 3B). Furthermore, Glu91 and Ser92, the residues that interact with the triphosphate group of ATP in ggCLC-7, are only conserved in CLC-6 and CLC-7, indicating that ATP binding may vary among CLC proteins. We therefore speculate that ATP is the preferred ligand for CLC-7 and that further studies resolving the N-terminal domain of other CLC transporters will reveal to what extent CLC transporters bind specific adenine nucleotides.

Phosphatidylinositol binding site

Non-protein densities that likely correspond to either ordered lipids or detergents were resolved around the periphery of the transmembrane domain of ggCLC-7 (Figures 1A and 4A,B). Because it is difficult to distinguish lipids from detergents based on cryo-EM density maps alone, we were able to assign only one of the densities. The well-resolved head group allowed us to model the density as a phosphoinositol-3-phosphate (PI3P), which is a low-abundance constituent of lysosomal membranes (Figure 4A). Similar to ATP, PI3P was co-purified with the transporter from the HEK293S GnTI- cell membranes. The PI3P molecule is located at the interface between the transmembrane domain and the cytosolic domain and interacts with residues from both domains. An amphipathic β-hairpin between helices αF and αG containing multiple positively charged residues surrounds the inositol phosphate head group and glycerol backbone, separating them from the rest of the membrane (Figure 4A–C). The head group also interacts with Lys213, Arg219 and Arg714, which coordinate the phosphate group at the 3 position of inositol ring, and with Val218, Leu220, Val252, Ala255, Ser262, Thr263 and Lys281. Two 8-carbon acyl chains were modeled into PI3P density in a groove on the surface of the transporter formed by helices αB, αE and αF.

Figure 4 with 1 supplement see all

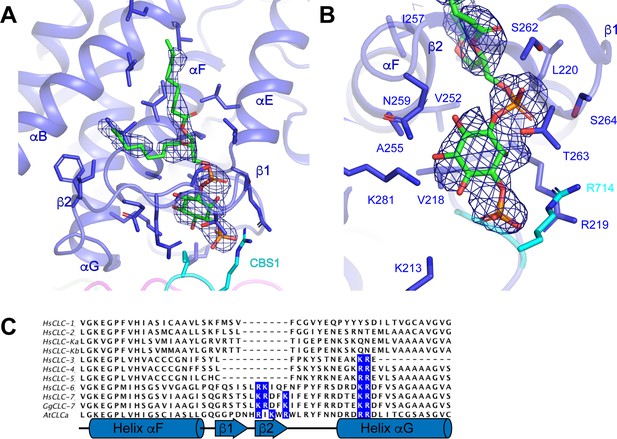

Phosphatidylinositol 3-phosphate binding site.

(A) PI3P molecule shown as sticks. ggCLC-7 N-terminal domain is colored in magenta, transmembrane domain in blue, CBS1 in cyan and CBS2 in green with residues that interact with PI3P shown as sticks. Experimental cryo-EM density for PI3P is shown as blue mesh contoured at 10 σ threshold. (B) Coordination of the PI3P by ggCLC-7. Residues that interact with PI3P head group are shown as sticks. Experimental cryo-EM density for PI3P is shown as blue mesh contoured at 10 σ threshold. (C) Sequence alignment of helices αF and αG in ggCLC-7 with human CLC-1, CLC-2, CLC-Ka, CLC-Kb, CLC-3, CLC-4, CLC-5, CLC-6, CLC-7 and A. thaliana CLC-a. Positions of lipid coordinating Lys266, Arg267, Lys270, Lys281 and Arg282 in ggCLC-7 are highlighted in blue.

In ggCLC-7, PI3P is largely coordinated by helices αF and αG and the intervening β-hairpin (Figure 4). Among human CLCs, the elaborated loop between helices αF and αG present in ggCLC-7 is conserved in CLC-7 as well as CLC-6. The loop is also present in the vacuolar nitrate/H+ antiporter CLC-a from Arabidopsis thaliana (atCLC-a) (De Angeli et al., 2006Figure 4C). Based on the structure of ggCLC-7 and alignment of the sequences, three positively charged residues were identified within the β-hairpin of the transporters that may facilitate access of the negatively-charged lipid into the binding pocket (Figure 4C). In addition, several other residues that participate in the coordination of the PI3P head group, including Lys281 and Arg714 from ggCLC-7, are also conserved among hsCLC-6, hsCLC-7 and atCLC-a. Together, these data suggest that the PI-binding site may be a conserved feature among a subset of CLC transporters.

Structure of the human CLC-7/OSTM1 complex

Unlike the other mammalian CLC transporters expressed in endosomes and lysosomes, CLC-7 is not active by itself. CLC-7 activity is dependent on the presence of its β-subunit, OSTM1 (Lange et al., 2006; Leisle et al., 2011). To better understand the role of OSTM1 in CLC-7-mediated Cl-/H+ exchange, we next co-expressed human CLC-7 and human OSTM1 in HEK293S GnTI- cells, purified the complex to homogeneity and analyzed its structure by cryo-EM. Similar to vitrified human CLC-7 by itself, human CLC-7/OSTM1 particles also adopted a preferred orientation in the ice. However, the effect was less severe for the CLC-7/OSTM1 particles and by collecting a large data set, we were able to resolve additional views. Two-dimensional and three-dimensional classification revealed the presence of intact CLC-7/OSTM1 complexes in the data set as well as a minor population of free CLC-7 dimers (Figure 5—figure supplement 1). Due to a low abundance and a preferred orientation of free CLC-7 particles, structural reconstitution of the CLC-7 homodimer was not possible. By employing a hierarchical classification approach, we were able to identify a population of intact CLC-7/OSTM1 complexes in which the cytoplasmic, transmembrane and luminal domains were all clearly resolved. Reconstruction of these particle images with two-fold symmetry imposed yielded a structure of CLC-7 in complex with OSTM1 at a resolution of 2.8 Å (Figure 5A, Figure 5—figure supplement 1 and Table 1). 3D variability analysis of the selected particles revealed that the luminal domain of OSTM1 is flexibly attached to the transmembrane domain and adopts a range of different orientations. We observed up to a 6 Å displacement of the peripheral regions of the luminal domain of OSTM1 when the different states were aligned by their transmembrane domains (Figure 5—figure supplement 2). We therefore applied masks and performed local refinements, which yielded separate density maps at resolutions between 2.8 and 3.1 Å with improved interpretability for the transmembrane and cytosolic domains of CLC-7 and OSTM1 and the luminal domain of OSTM1 (Figure 5—figure supplement 1 and Table 1). Despite the preferred orientation of the raw data set, the focus refined reconstructions determined with the selected particles display only minimal anisotropy and, following merging into a single composite map, were suitable for model building and coordinate refinement (Figure 5B, Figure 5—figure supplement 1, Figure 5—figure supplement 3 and Table 1). The final refined structure contains two symmetrical copies of both CLC-7 and OSTM1 that fit well into the density with good geometry. When viewed from the side, the two copies of OSTM1 wrap around three sides of the CLC-7 dimer (Figure 5). The luminal domains of OSTM1 form a dimeric cap-like structure that covers the luminal surface of CLC-7 while the transmembrane helices pack against the periphery of the CLC-7 transmembrane domain. The C-terminal cytoplasmic domain of OSTM1 is disordered and no cytoplasmic interactions with CLC-7 were resolved.

Figure 5 with 4 supplements see all

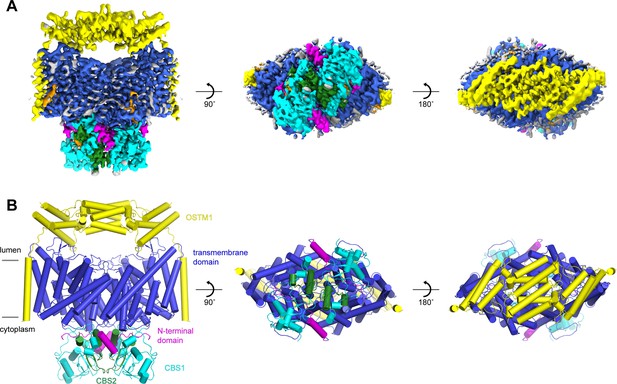

Structure of the human CLC-7/OSTM1 complex.

(A–B) Cryo-EM density map (A) and structure (B) of CLC-7/OSTM1 complex viewed from within the membrane (left), the cytosol (middle) and the lysosomal lumen (right). CLC-7 is colored by domain with N-terminal domain in magenta, transmembrane domain in blue, CBS1 in cyan and CBS2 in green. OSTM1 is colored yellow. Modeled non-protein densities are colored orange and unmodeled non-protein densities are colored grey in A.

The luminal domain of OSTM1 is composed of two three-helix bundles (Figure 6A). Connecting both within and between the helical bundles are five disulfide bonds that constrain the organization of the luminal domain. In the first bundle, a disulfide bond connects helix 1 to the short helix 3. In the second bundle, disulfide bonds connect helix 6 to helix 5 and to the linker between helix 7 and transmembrane helix 8. Between the two bundles, disulfide bonds connect the linker between helices 4 and 5 to helix 2 of the first bundle and to helix 7 of the second bundle (Figure 6A,B). The two helical bundles create a large dimer interface that buries ~4600 Å2 of shared surface area (Figure 6C). The core of the dimer interface is formed by an antiparallel packing of helices 1 and 4 with helices 3 and 7 and several of the inter-helical linkers also making substantial contributions. While most of the interactions that stabilize the OSTM1 dimer interface are hydrophobic including the entirety of the helix 1-helix 1 and helix 3-helix 3 interactions, several polar interactions are also present including an ionic interaction between Arg107 and Asp150 (Figure 6D).

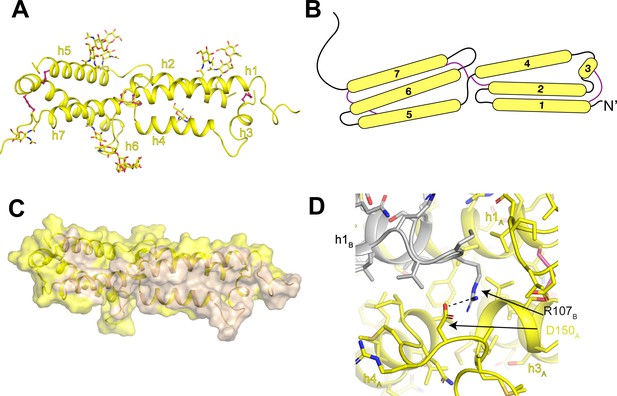

Architecture of the human OSTM1 luminal domain.

(A) Monomeric structure of the hsOSTM1 luminal domain. Disulfide bonds are shown as pink sticks and glycosylated asparagine residues are shown as sticks. (B) Domain topology of hsOSTM1 with disulfides depicted as pink lines. (C) hsOSTM1 dimer interface. Residues that mediate inter-protomer interactions are colored in wheat. (D) Inter-protomer interaction between D150 of protomer A and R107 of protomer B. Protomer A is colored yellow and protomer B is colored grey.

At the periphery of the luminal domain, non-protein densities were resolved extending from seven exposed asparagine residues (93, 128, 163, 184, 194, 263 and 274) on OSTM1 (Figure 6A). As previous computational analysis had identified these residues as consensus sites for N-linked glycosylation (Lange et al., 2006), we modeled these non-protein densities as carbohydrate moieties. The quality and interpretability of the carbohydrate densities varied between the seven sites, allowing us to model chains of different length. For example, density for a single N-linked N-acetyl-glucosamine group was resolved for Asn93 and Asn163, while a branched five-sugar carbohydrate moiety was resolved for Asn263 (Figure 5—figure supplement 3). While only minimal carbohydrate moieties can be added to N-linked glycosylation sites in the HEK293S GnTI- cell line used for protein expression due to a mutation in N-acetyl-glucosaminyltransferase I, in non-glycoslyation-defective mammalian cells these glycosylation sites would be elaborately decorated and likely encase the entire surface of the luminal domain. Because CLC-7 lacks any N-linked glycosylation sites, the glycosylation shell surrounding the rigid, disulfide-linked core of OSTM1 likely protects the luminal domain of CLC-7 from the harsh degradative environment of the lysosomal lumen.

Effects of OSTM1 binding to CLC-7

We next compared the structure of ggCLC-7 with the structure of the human CLC-7/OSTM1 complex to determine how OSTM1 binding influences the conformation of CLC-7. Overall, the CLC-7 dimers show good alignment (RMSD 0.4 Å) in the presence and absence of OSTM1 (Figure 7A). The cytosolic domains and most of the transmembrane domains are essentially identical. Moreover, densities corresponding to ATP and PI3P molecules were resolved in their respective binding sites and the ligands interact with CLC-7 in a similar fashion regardless of the presence or absence of OSTM1 (Figure 5A, Figure 5—figure supplement 3 and Figure 5—figure supplement 4). The only detectable rearrangements in CLC-7 occur near interfaces where CLC-7 directly contacts OSTM1 (Figure 7A). The largest CLC-7/OSTM1 interface is formed between helix 8 of OSTM1 and the transmembrane domain of CLC-7 (Figure 7B). Binding of OSTM1 is accompanied by a bend in helix αB of CLC-7 at Gly149 that results in 9 Å shift of the luminal end of helix αB (measured at Cα of Glu168) toward helix αK (Figure 7—figure supplement 1). Small (<2 Å) movements are resolved in the luminal ends of the nearby helices αC and αK toward OSTM1 helix 8. The rearrangements in helices αB, αC and αK of CLC-7 allow helix 8 of OSTM1, which is slightly kinked near Pro296, to pack against the surface of CLC-7 (Figure 7B). The interaction between transmembrane domains is largely mediated by the packing of hydrophobic residues, but polar interactions are formed between Tyr300 of OSTM1 and Glu416 and Trp503 of CLC-7 that may contribute to the specificity of the CLC-7/OSTM1 interaction (Figure 7C). OSTM1 also contacts and stabilizes the linker between helices αK and αL, which was too poorly ordered to be modeled in absence of OSTM1 in the ggCLC-7 density map (Figure 7A,D). In the CLC-7/OSTM1 complex, the 25-residue linker between helices αK and αL forms two interactions with the luminal domain of OSTM1. Asp456 of CLC-7 forms a polar interaction with Tyr228 of helix 6. Gly443 and Gly444 of CLC-7 form a small interface with a portion of the loop between helices 6 and 7 that includes Pro250, Gly251 and His253. In addition to the direct protein-protein interactions, a non-protein density that may correspond to a cholesterol based on its size and shape was resolved at the interface between the transmembrane domains of CLC-7 and OSTM1 (Figure 5—figure supplement 3). Notably, no density was present at this site in the ggCLC-7 map, suggesting that CLC-7 and OSTM1 together may form an additional lipid-binding site.

Figure 7 with 4 supplements see all

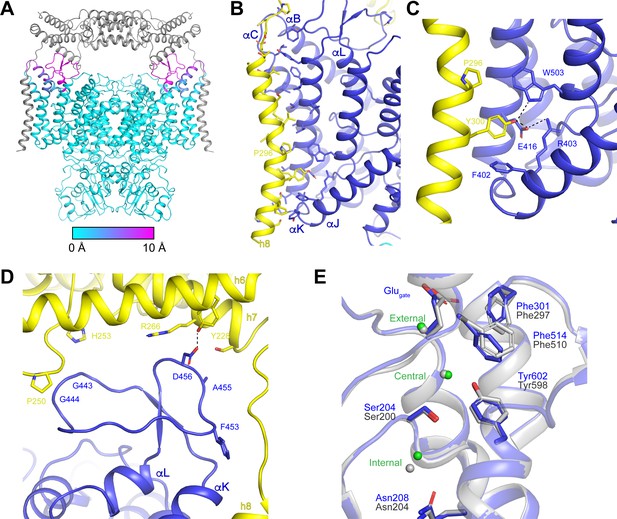

OSTM1-induced conformational changes.

(A) Structure of hsCLC-7/OSTM1 with CLC-7 colored by Cα displacement compared to ggCLC-7 and OSTM1 colored in grey. (B) hsCLC-7/OSTM1 transmembrane domain interface. Residues that participate in the interaction are shown as sticks. CLC-7 is colored in blue and OSTM1 is colored yellow. (C) Polar interaction network in the transmembrane domain interface between CLC-7 and OSTM1. (D) Loop between αK and αL is stabilized by interactions with OSTM1 luminal domain. (E) Cl--conduction pathways of human CLC-7/OSTM1 (colored by domain) and ggCLC-7 (grey). Interacting side chains are shown as sticks and Cl- ions are shown as spheres. Blue residue numbers correspond to human CLC-7 and grey numbers correspond to ggCLC-7.

To examine the influence of OSTM1 on Cl- and H+ transport, we compared the ion conduction pathways in the CLC-7/OSTM1 and ggCLC-7 structures (Figure 2, Figure 7E, Figure 7—figure supplement 2 and Figure 7—figure supplement 4). In both structures, the Cl--conduction pathways adopt similar occluded states with narrow constrictions present at either end and ions occupying the three binding sites. Superpositioning reveals that most of the pore-lining residues are positioned similarly in the presence and absence of OSTM1. The only residues that adopt differing conformations are Phe301 (Phe297 in ggCLC-7) and Phe514 (Phe510 in ggCLC-7), both of which are highly conserved among CLC family members and whose mutation in human CLC-7 leads to defects in Cl-/H+ exchange coupling, voltage-dependence and activation (Leisle et al., 2020). Inspection of the CLC-7/OSTM1 density map reveals that the side-chain density for Phe514 is distorted in a manner consistent with the side chain adopting both the modeled conformation (conformation 1) as well as a conformation similar to that resolved for Phe510 in ggCLC-7 (conformation 2) (Figure 7—figure supplement 3). Inspection of the ggCLC-7 density map revealed no density consistent with the alternative rotamer, indicating that conformation two is the predominant state for Phe510. While the existence of the two conformations for Phe514 in CLC-7/OSTM1 is clearer in a map sharpened to emphasize the high-resolution features, due to the limited resolution and the anisotropy present in the data, it is difficult to estimate occupancy of the different rotamers. Thus, while we modeled Phe514 as the predominant conformation 1, the data also supports the existence of conformation 2. Because Phe514 is located at the interface between the hydrophobic gap and the central Cl- binding site, changes in its conformation can modify the H+-conduction pathway. In CLC-7/OSTM1, the side chain of Phe514 (conformation 1) narrows the constriction of this pathway to a minimum radius of 0.8 Å, which is too narrow to allow water molecules to enter the hydrophobic gap (Figure 7—figure supplement 4). In contrast, the alternative conformation adopted by Phe510 in the ggCLC-7 structure widens the pathway sufficiently to allow water molecules to cross (1.4 Å minimum radius) (Figure 2F).

We next compared the relative intensities of the ion binding sites to assess the effect on OSTM1 binding on Cl- binding in the permeation pathway. In ggCLC-7, the external and central sites exhibit strong densities that are only slightly weaker than nearby protein atoms, indicating a high occupancy for Cl- ions at these sites, while the density at the internal Cl-binding site is significantly weaker (Figure 2D). The relative order of intensities differs in the CLC-7/OSTM1 structure (Figure 7—figure supplement 2). In CLC-7/OSTM1, the density at the external site is the strongest and has a similar intensity as nearby protein atoms (~14 σ). However, unlike in ggCLC-7, the central site in CLC-7/OSTM1 is the weakest and is only slightly above the background (~4 σ). While we must be cautious in interpreting the densities occupying the Cl--binding sites of CLC-7/OSTM1 because of its anisotropic nature, the differences in relative intensities of the Cl--binding site peaks between ggCLC-7 and CLC-7/OSTM1 suggest that there may be a change in Cl- occupancy of the central site when CLC-7 is bound to OSTM1. A change in occupancy of the central Cl- site may be associated with the different conformation of Phe510/Phe514, which is located ~4 Å from the central Cl- site in both structures. Such as association would be consistent with molecular dynamics simulations performed using ecCLC that identified a coupling between Cl- occupancy at the central site and the conformation of Phe297, which is equivalent to Phe514 in human CLC-7 (Leisle et al., 2020).

Together, these data indicate that OSTM1 binding does not greatly perturb the conformation of the ion conduction pathways in CLC-7 and that its influence on CLC-7 transport activity does not occur through large-scale rearrangements. Rather, these data suggest that OSTM1 binding can potentially induce subtle conformational changes in key residues and provide critical structural support for CLC-7. Moreover, by virtue of its heavy glycosylation, OSTM1 can protect the un-glycosylated CLC-7 from degradation in the acidic lysosomal lumen.

Discussion

In this study, we present structures of the lysosomal Cl-/H+ exchanger CLC-7 alone and in complex with its obligatory β-subunit OSTM1. The structure of the CLC-7/OSTM1 complex reveals that OSTM1 forms a heavily-glycosylated cap that covers the luminal surface of CLC-7 (Figures 5 and 6). OSTM1 associates with CLC-7 largely through interactions mediated by the transmembrane domains, consistent with analyses that demonstrated that deletion of the transmembrane domain of OSTM1 phenocopies the Ostm1 null in mice (Pata and Vacher, 2018). When complexed with CLC-7, OSTM1 does not adopt the structure of a RING finger domain as had previously been suggested (Fischer et al., 2003). Instead, the luminal domain of OSTM1 forms a tightly packed core composed of helical bundles linked together by numerous disulfide bonds (Figure 6). This stable core, together with the glycosylated periphery make the luminal domain of OSTM1 well-suited to survive the harsh degradative environment of the lysosomal lumen. In contrast, CLC-7 alone among the human CLC transporters lacks any N-glycosylation sites of its own and is consequently unstable in the lysosome when expressed in the absence of OSTM1 (Lange et al., 2006). The structure of CLC-7/OSTM1 is thus consistent with OSTM1 serving a protective role to shield CLC-7 from proteolysis and degradation.

Comparison of the CLC-7 structures in the presence and absence of OSTM1 reveals that OSTM1 binding induces subtle changes to the conformations of the ion permeation pathways. Among the changes are the conformations of residues essential for proper transport activity and the occupancies of the Cl--binding sites. Notably, these conformational changes appear to occur only in a subset of the CLC-7/OSTM1 complexes. It is therefore possible that OSTM1 binding alters the equilibrium between different CLC-7 conformations. However, the current data do not enable accurate modeling of alternative rotamers, and thus it is not possible to compare the fraction of CLC-7 transporters adopting each possible state in the presence and absence of OSTM1. Moreover, we do not know precisely to which functional state these conformations correspond. In the CLC-7/OSTM1 and ggCLC-7 structures, the Cl--conduction pathways resemble those of the ecCLC E148Q mutant where the three Cl--binding sites are occupied and the Glugate adopts the ‘up’ conformation where it can potentially exchange protons with the lumen (Dutzler et al., 2003). Because the ‘up’ conformation is a coordinate along the proposed transport cycle (Feng et al., 2012), and because CLC-7 functionality has been previously detected in the absence of OSTM1 using solid-supported membranes and in plant vacuoles (Costa et al., 2012; Schulz et al., 2010), it is possible that CLC-7 structures both in the presence and absence of OSTM1 represent states that are competent for Cl-/H+ transport activity. Notably, even in conditions where CLC-7 activity could be detected without OSTM1, current levels were significantly increased by its co-expression, consistent with OSTM1 potentiating transport activity (Schulz et al., 2010). Future investigations will thus be necessary to precisely determine how OSTM1 stimulates CLC-7 activity - whether by inducing conformational changes in the ion conduction pathways or merely stabilizing lysosomal expression of CLC-7.

Initial characterizations of CLC-7/OSTM1 demonstrated that its activity is dependent on membrane potential and luminal pH (Leisle et al., 2011; Ludwig et al., 2013). Our structures reveal the presence of ATP and phosphatidylinositol-binding sites, suggesting that additional signals may also regulate CLC-7 activity. Indeed, ATP has been demonstrated to influence the activity of multiple CLCs, but the precise effect of ATP on transporter activity has been controversial with evidence supporting both stimulatory and inhibitory roles. For example, addition of ATP increased transporter activity of CLC-4 by two-fold but inhibited activity of CLC-2 channels (Stölting et al., 2013; Vanoye and George, 2002). Moreover, the particular adenine nucleotide species that can influence CLC activity has been unclear. Binding studies conducted with the CBS domains of CLC-5 detected affinities of ~100 µM for ATP, ADP and AMP (Meyer et al., 2007). Recent studies revealed that CLC-3, CLC-4 and CLC-5 are able to distinguish between different nucleotide moieties, and showed that Mg2+ ions modify the effect of ADP binding (Grieschat et al., 2020). In the structures of ggCLC-7 and CLC-7/OSTM1, we observe direct coordination of all three phosphates not only through interactions with the CBS domains but also with the N-terminal domain (Figure 3 and Figure 3—figure supplement 1). Based on our data, we suggest that the actual binding affinity of CLC-7 to ATP is much higher than that detected for the CBS domains alone. As ATP levels are in excess of 1 mM under physiological conditions, it is likely that ATP is constitutively bound to CLC-7 and may therefore serve a structural role rather than a regulatory role. While ATP is a regulatory factor for numerous proteins, a structural role for nucleotides has been previously described for AMP-activated protein kinase (AMPK), inositol 1,4,5-trisphosphate (IP3) receptors and some prokaryotic regulator of potassium conductance (RCK)-gated channels (Bezprozvanny and Ehrlich, 1993; Cao et al., 2013; Hardie and Hawley, 2001; Kong et al., 2012; Kröning et al., 2007; Teixeira-Duarte et al., 2019). Among the CLC family, the residues in the N-terminal domain of CLC-7 that interact with ATP and Mg2+ are not broadly conserved, suggesting that the structural divergence of the ATP-binding site may contribute to varied effects that been reported among CLC family members.

Dysregulated ATP binding to CLC-7 may play a role in human disease. While CLC-7 remains fully functional in the absence of ATP (Leisle et al., 2011), mapping disease mutations onto CLC-7/OSTM1 reveals a hotspot of mutations on CBS2 near the ATP-binding site (Figure 8). Several distinct mutations of Arg767, which directly participates in the ATP γ-phosphate coordination, as well as mutations of neighboring Gly765 and Leu766 have been identified as leading to osteopetrosis (Cleiren et al., 2001; Leisle et al., 2011; Sartelet et al., 2014). Previous work characterizing the function of the Arg767 mutants revealed distinct phenotypes, with the R767P and R767W mutants displaying no activity while the R767Q mutants displayed increased activation kinetics (Leisle et al., 2011). Together, these results indicate that while ATP may be constitutively bound and serve a structural role, disruption of the binding site has functional consequences for CLC-7.

CLC-7 mutations associated with osteopetrosis and lipid storage disease.

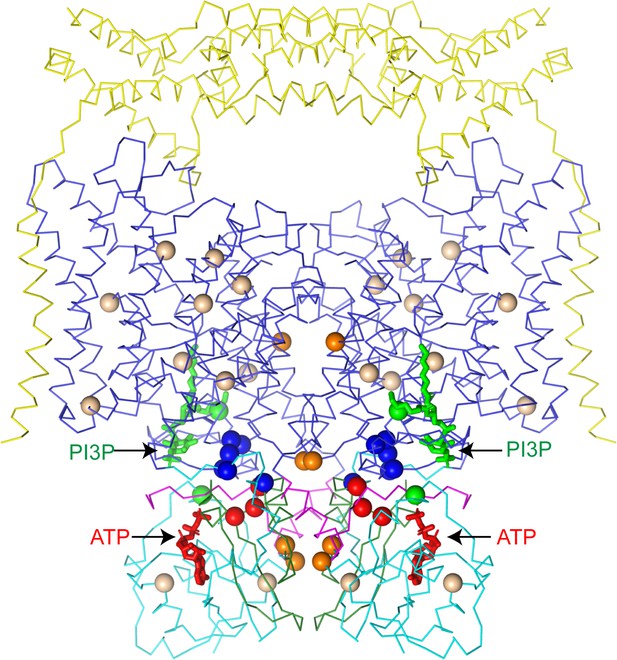

Structure of hsCLC-7/OSTM1 colored by domain with PI3P and ATP shown as green and red sticks, respectively. Spheres represent residues with disease-causing mutations. Wheat spheres represent residues with buried side chains, orange spheres represent residues at inter-domain interfaces, green spheres represent residues near the PI3P binding site, blue spheres represent residues at transmembrane-CBS-domain interfaces and red spheres represent residues near the ATP-binding site.

The second ligand co-purified with ggCLC-7 and CLC-7/OSTM1 is PI3P, a phosphatidylinositol (PI) lipid species enriched in endolysosomal membranes that constitutes between 0.1% and 0.5% of the total PI content in cells (Falasca and Maffucci, 2006). While PI3P has not been previously characterized as a regulator of ion transport protein activity, the related phosphatidylinositol 3,5-bisphosphate (PI(3,5)P2) is potent modulator of ion transport proteins whose abundance is tightly regulated (Fine et al., 2018; Hasegawa et al., 2017; She et al., 2018; She et al., 2019). Under basal conditions, PI(3,5)P2 concentrations are very low (<0.1% of cellular PI content), but in yeast can rise more than 20-fold upon hyperosmotic shock (Duex et al., 2006). In endosomes and lysosomes, PI(3,5)P2 binding activates the Ca2+ channel TRPML1 (Dong et al., 2010) and the Na+ channel TPC1 (Wang et al., 2012). In plant vacuoles, which share many features with lysosomes, PI(3,5)P2 potently regulates atCLC-a, inhibiting its activity with an IC50 of ~10 nM (Carpaneto et al., 2017). Because the PI3P-binding site appears to be conserved between atCLC-a and CLC-7, we modeled in a PI(3,5)P2 lipid into the binding site in the CLC-7/OSTM1 structure to gain insights into its effect (Figure 4—figure supplement 1). In the model, a phosphate at 5-position of inositol ring could not be accommodated due to steric clashes with Lys281 on helix αG. We therefore speculate that binding of the regulatory PI(3,5)P2 may induce conformational changes to CLC-7 that may alter its activity, analogous to the inhibitory effect of PI(3,5)P2 on atCLC-a. Consistent with the PI lipids influencing transporter activity, a mutation of Tyr715, which is located near the PI3P-binding site, to cysteine was recently identified in the gene encoding human CLC-7 that causes a novel lipid storage disease without osteopetrosis (Undiagnosed Diseases Network et al., 2019). Functional analysis of this mutant revealed that it displays increased current levels when expressed in oocytes compared to wild-type CLC-7 and leads to a hyper-acidification phenotype in lysosomes (Figure 8Undiagnosed Diseases Network et al., 2019).

For decades CLC-7 was perhaps the most enigmatic CLC family member (Brandt and Jentsch, 1995). Functional and structural characterization was limited by its lysosomal expression and its absolute requirement for a β-subunit, OSTM1. OSTM1 has been shown to have dual functions, both stabilizing CLC-7 in the lysosome and serving as an essential activator of the transporter (Lange et al., 2006; Leisle et al., 2011; Stauber and Jentsch, 2010). Our studies reveal how OSTM1 interacts with CLC-7 protecting the transporter from the acidic environment of the lysosomal lumen and lay the groundwork for future studies to elucidate how it, as well as ATP and the lipids identified in the structures, regulate CLC-7 transport activity and contribute to pH homeostasis in the lysosome and osteoclasts.

Materials and methods

Key resources table
Reagent type

(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Gene (Gallus gallus)ggCLC-7Synbio technologies
Gene (Homo sapiens)hsCLCN7Synbio technologies
Gene (Homo sapiens)hsOSTM1Synbio technologies
Cell line (Homo sapiens)HEK-293TATCCCRL-3216
RRID:CVCL_0063
Cell line (Homo sapiens)HEK-293S GnTi-ATCCCRL-3022
Chemical compound, drugPolyethylenimine, Linear, MW 25000, Transfection Grade (PEI 25K)Polysciences, Inc23966–1
Chemical compound, drugSodium ButyrateSigma8451440100
Chemical compound, drugValproic acidSigmaP4543
Chemical compound, drugLauryl maltose neopentyl glycolAnatraceNG310
Software, algorithmMotionCor2Zheng et al., 2017RRID:SCR_016499
Software, algorithmCtfFind 4.1.10Rohou and Grigorieff, 2015RRID:SCR_016731
Software, algorithmRELION 3.1Scheres, 2016http://www2.mrc-lmb.cam.ac.uk/relion
RRID:SCR_016274
Software, algorithmSerialEMMastronarde, 2005RRID:SCR_017293
Software, algorithmcryoSPARC v2Structura Biotechnologyhttps://cryosparc.com/
RRID:SCR_016501
Software, algorithmPHENIXLiebschner et al., 2019https://www.phenix-online.org/
RRID:SCR_014224
Software, algorithmCOOTEmsley et al., 2010https://www2.mrc-lmb.cam.ac.uk/personal/pemsley/coot/
RRID:SCR_014222
Software, algorithmPyMOLSchrödinger LLC, 2020https://pymol.org/2/
RRID:SCR_000305
Software, algorithmMOLEPravda et al., 2018https://mole.upol.cz
RRID:SCR_018314
Software, algorithmUCSF ChimeraPettersen et al., 2004https://www.cgl.ucsf.edu/chimera
RRID:SCR_004097
Software, algorithmBlocres/BsoftHeymann
Software algorithmJalviewWaterhouse et al., 2009https://www.jalview.org
RRID:SCR_006459
OthersQUANTIFOIL R1.2/1.3 holey carbon gridsQuantifoil
OthersFEI Vitrobot Mark IVFEI Thermo Fisher

Protein expression and purification

Request a detailed protocol

The gene encoding CLCN7 from Gallus gallus was synthesized (SynBio) and subcloned into a BacMam expression vector with a C-terminal mEGFP-tag fused via a short linker containing a PreScission protease site (Goehring et al., 2014). The plasmid was mixed with PEI 25K (Polysciences, Inc) at a 1 : 3 ratio for 30 min and then used to transfect HEK293S GnTi cells (ATCC: CRL-3022). For a 1 L cell culture 1 mg plasmid and 3 mg PEI 25K were used. After 24 hr incubation at 37 °C, sodium butyrate (Sigma) was added to a final concentration of 10 mM, and cells were allowed to grow at 37 °C for an additional 72 hr before harvesting. Cell pellets were washed in phosphate-buffered saline solution and flash frozen in liquid nitrogen. Membrane proteins were solubilized in 2% lauryl maltose neopentyl glycol (LMNG, Anatrace), 0.2% cholesteryl hemisuccinate tris salt (CHS, Anatrace), 20 mM HEPES pH 7.5, 150 mM KCl supplemented with protease-inhibitor cocktail (1 mM PMSF, 2.5 μg/mL aprotinin, 2.5 μg/mL leupeptin, 1 μg/mL pepstatin A) and spatula of DNaseI for 1 hr. Solubilized proteins were separated by centrifugation 75,000 g for 40 mins, followed by binding to 2.5 ml anti-GFP nanobody resin for 1 hr, which was equilibrated with washing buffer containing 0.1% LMNG, 50 mM Tris-HCl pH 8, 150 mM KCl, 2 mM DTT (BufferA). Anti-GFP nanobody affinity chromatography was performed by 20 column volumes of washing with BufferA, followed by overnight PreScission digestion, and elution with wash buffer. Protein sample was concentrated to a volume of 500 µl using CORNING SPIN-X concentrators (100 kDa cutoff), followed by centrifugation 10,000 g for 10 mins. Concentrated proteins were further purified by size exclusion chromatography on a Superose 6 Increase 10/300 GL (GE healthcare) in BufferA. Peak fractions were pooled and concentrated to ~2 mg/mL using CORNING SPIN-X concentrators (100 kDa cutoff).

Genes encoding human CLCN7 and OSTM1 were synthesized (SynBio) and subcloned into BacMam expression vectors with C-terminal mCerulean- and mVenus- tags, respectively, fused via a short linker containing a PreScission protease site (Goehring et al., 2014). Transient transfection was carried out as described above for chicken CLCN7, with a single modification; for gene expression, valproic acid (VPA, Sigma) was added to induce expression at a final concentration of 2.2 mM. Equal amounts of plasmids encoding CLCN7 and OSTM1 were added to the reaction mix. Cell pellets were washed in phosphate-buffered saline solution and flash frozen in liquid nitrogen. Membrane proteins were solubilized in 2% lauryl maltose neopentyl glycol (LMNG, Anatrace), 0.2% cholesteryl hemisuccinate tris salt (CHS, Anatrace), 20 mM HEPES pH 7.5, 150 mM KCl supplemented with protease-inhibitor cocktail (1 mM PMSF, 2.5 μg/mL aprotinin, 2.5 μg/mL leupeptin, 1 μg/mL pepstatin A) and spatula of DNaseI for 1 hr. Solubilized proteins were separated by centrifugation 75,000 g for 40 min, followed by binding to 2.5 ml anti-GFP nanobody resin for 1 hr, which was equilibrated with washing buffer containing 0.01% LMNG, 50 mM Tris-HCl pH 8, 150 mM KCl, 2 mM DTT (BufferB). Anti-GFP nanobody affinity chromatography was performed by 20 column volumes of washing with BufferB, followed by overnight PreScission digestion, and elution with wash buffer. Protein sample was concentrated to a volume of 500 µl using CORNING SPIN-X concentrators (100 kDa cutoff), followed by centrifugation 10,000 g for 10 min. Concentrated proteins were further purified by size exclusion chromatography on a Superose 6 Increase 10/300 GL (GE healthcare) in BufferB. Peak fractions were pooled and concentrated to ~2.5 mg/mL using CORNING SPIN-X concentrators (100 kDa cutoff).

Electron microscopy sample preparation and data acquisition

Request a detailed protocol

For CLC-7 from Gallus gallus (ggCLC-7), 3 μl of purified protein at a concentration of 2 mg/ml was applied to glow-discharged Au 400 mesh QUANTIFOIL R1.2/1.3 holey carbon grids (Quantifoil), and then plunged into liquid nitrogen-cooled liquid ethane with a FEI Vitrobot Mark IV (FEI Thermo Fisher). Grids were transferred to a 300 keV FEI Titan Krios microscopy equipped with a K2 summit direct electron detector (Gatan). Images were recorded with Leginon (Suloway et al., 2005) in super-resolution mode at 22,5000x, corresponding to pixel size of 0.536 Å. Dose rate was eight electrons/pixel/s, and defocus range was −1.2 to −2.5 µm. Images were recorded for 8 s with 0.2 s subframes (total 40 subframes), corresponding to a total dose of 61 electrons/Å2.

For the CLC-7/OSTM1 complex from Homo sapiens (hsCLC-7/OSTM1), 3 μl of purified protein at a concentration of 2 mg/ml was supplemented with 1 mM ATP and 0.1% LMNG and was applied to glow-discharged Au 400 mesh QUANTIFOIL R1.2/1.3 holey carbon grids (Quantifoil), and then plunged into liquid nitrogen-cooled liquid ethane with a FEI Vitrobot Mark IV (FEI Thermo Fisher). Grids were transferred to a 300 keV FEI Titan Krios microscopy equipped with a K3 summit direct electron detector (Gatan). Images were recorded with SerialEM (Mastronarde, 2005) in super-resolution mode at 22,5000x, corresponding to pixel size of 0.532 Å. Dose rate was 13 electrons/pixel/s, and defocus range was −1.2 to −2.7 µm. Images were recorded for 4 s with 100 ms subframes (total 40 subframes), corresponding to a total dose of 44 electrons/Å2.

Electron microscopy data processing

Request a detailed protocol

40-frame super-resolution movies (0.536 Å/pixel) of ggCLC-7 were gain corrected, Fourier cropped by two and aligned using whole-frame and local motion correction algorithms by MotionCor2 (Zheng et al., 2017) (1.0723 Å/pixel). Whole-frame CTF parameters were determined using CTFfind 4.1.10 (Rohou and Grigorieff, 2015). Approximately 500 particles were manually selected to generate initial templates for autopicking that were improved by several rounds of two-dimensional classification in Relion 3.0 (Scheres, 2016), resulting in 6,542,536 particles. False-positive selections and contaminants were excluded from the data using multiple rounds of heterogeneous classification in cryoSPARC v2 (Punjani et al., 2017) using models generated from the ab initio algorithm in cryoSPARC v2, resulting in a stack of 343,094 particles. Heterogeneous classification in cryoSPARC v2 was then used to identify 137,234 particles displaying both the transmembrane and cytosolic domains. After particle polishing in Relion and local CTF estimation and higher order aberration correction in cryoSPARC v2, a reconstruction was determined at resolution of 2.9 Å by non-uniform refinement in cryoSPARC v2 (Punjani et al., 2019). The final reconstruction was further improved by employing density modification on the two unfiltered half-maps with a soft mask in Phenix (Terwilliger et al., 2019).

40-frame super-resolution movies (0.532 Å/pixel) of hsCLC-7/OSTM1 complex were gain corrected, Fourier cropped by two and aligned using whole-frame and local motion correction algorithms by MotionCor2 (1.064 Å/pixel). Approximately 500 particles were manually selected to generate initial templates for autopicking that were improved by several rounds of two-dimensional classification in Relion and autopicking using Relion, resulting in 15,288,379 particles. False-positive selections and contaminants were excluded through iterative rounds of heterogeneous classification in cryoSPARC v2 using models generated from the ab initio algorithm in cryoSPARC v2, resulting in a stack of 932,232 particles. Heterogeneous classification in cryoSPARC v2 was then used to identify 327,619 particles displaying the luminal, transmembrane and cytosolic domains. After particle polishing in Relion and local CTF estimation and higher order aberration correction in cryoSPARC v2, a reconstruction was determined to 2.8 Å. 3D variability analysis in cryoSPARC v2 was then employed to characterize conformational heterogeneity (Punjani and Fleet, 2020). To interpret the results of the 3D variability analysis, CLC-7 and the luminal domain of OSTM1 were rigid-body docked into the two extreme states and the midpoint. Masks were generated for the luminal domain and the transmembrane and cytosolic domains that were used for local refinement. Local refinements yielded a reconstruction for the luminal domain at an estimated resolution of 3.0 Å, a reconstruction for the transmembrane domain at an estimated resolution of 2.9 Å and the cytosolic domain at an estimated resolution of 2.8 Å. The final reconstructions were then further improved by employing density modification on the two unfiltered half-maps with a soft mask in Phenix (Terwilliger et al., 2019). A composite map was generated from the local refinement maps in Phenix that was used for model building and refinement (Terwilliger et al., 2019).

Model building and coordinate refinement

Request a detailed protocol

The structure of CLC from Cyanidioschyzon merolae (cmCLC) (Feng et al., 2010) was manually docked into the ggCLC-7 density map using chimera (Pettersen et al., 2004). The model was then manually rebuilt according to the density using coot (Emsley et al., 2010). Atomic coordinates were refined against the density modified map using phenix.real_space_refinement with geometric and Ramachandran restraints maintained throughout (Adams et al., 2010).

The refined ggCLC-7 structure was manually docked into the CLC-7/OSTM1 density map using Chimera (Pettersen et al., 2004). The human CLC-7 model was manually rebuilt using COOT to fit the density. OSTM1 was manually built into the density by first placing poly-alanine helices and then using large side chains and glycosylation sites to register the helices. N-linked glycosylation trees were built and refined using the ‘carbohydrate’ module in COOT (Emsley and Crispin, 2018). Notably, the density for the carbohydrate residues was of poorer quality than the nearby protein and due to the difficulty in modeling carbohydrates in cryo-EM density maps (Emsley and Crispin, 2018) they are less precisely modeled than the protein. Atomic coordinates were refined against the density modified map using phenix.real_space_refinement with geometric and Ramachandran restraints maintained throughout (Adams et al., 2010).

Figures

Request a detailed protocol

Figures were prepared with UCSF Chimera (Pettersen et al., 2004), UCSF ChimeraX (Goddard et al., 2018), MOLE (Pravda et al., 2018), PyMol (Schrödinger LLC, 2020) and Jalview (Waterhouse et al., 2009).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
    Features and development of coot
    1. P Emsley
    2. B Lohkamp
    3. WG Scott
    4. K Cowtan
    (2010)
    Acta Crystallographica. Section D, Biological Crystallography 66:486–501.
    https://doi.org/10.1107/S0907444910007493
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
    The PyMOL Molecular Graphics System, version 1.2r3pre
    1. Schrödinger LLC
    (2020)
    Schrödinger, LLC.
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83

Decision letter

  1. Merritt Maduke
    Reviewing Editor; Stanford University School of Medicine, United States
  2. Richard W Aldrich
    Senior Editor; The University of Texas at Austin, United States
  3. Raimund Dutzler
    Reviewer; University of Zürich, Switzerland

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The structures presented in this manuscript provide interesting new insights into this fascinating family of membrane transporters and channels. They show binding sites for ATP, which is known to regulate some CLCs, and for phosphatidyl inositol, which is not known to regulate CLCs but is of interest given the conserved binding site. In addition, the structures demonstrate how OSTM1 likely stabilizes CLC-7 in lysosomes and osteoclasts, where CLC-7 is expressed physiologically.

Decision letter after peer review:

Thank you for submitting your article "Cryo-EM structure of the lysosomal chloride-proton exchanger CLC-7 in complex with OSTM1" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Richard Aldrich as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Raimund Dutzler (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, we are asking editors to accept without delay manuscripts, like yours, that they judge can stand as eLife papers without additional data, even if they feel that they would make the manuscript stronger. Thus the revisions requested below only address clarity and presentation.

Summary:

Schrecker et al. present cryo-EM structures of the CLC-7 chloride/proton antiporter. Chicken CLC-7 is solved without the accessory subunit OSTM1, and human CLC-7 is solved in complex with OSTM1. These are the first structures of a mammalian CLC transporter homolog and the first of any CLC with an accessory subunit. The data are of high quality. The structures reveal a mechanism by which OSTM1 stabilizes CLC-7 in lysosomes and osteoclasts (where CLC-7 is expressed physiologically, playing key roles in lysosomal pH regulation and osteoclast bone resorption). The cytoplasmic domain of ClC-7 carries a nonprotein density that the authors suggest, with strong support, represents a bound Mg-ATP. A highly interesting aspect of the new structure is another bound ligand, modeled as the phophoinositide PI3P. Although identification of PI3P in the sample by chemical methods or mass-spectrometry would further confirm its presence in the sample, the proposed binding model is reasonable given the shape of the residual density and the abundance of basic amino acids in the pocket; thus, additional support of this model is not essential at this time. The identification of this putative site for phosphatidyl inositol, which is not known to regulate CLCs, is of high interest given the conserved nature of the binding site. Altogether, these structures offer important new insights into CLC-7 molecular properties and provide a template for future structure-based functional investigations.

Essential revisions:

1) The moderate effects of OSTM1 binding to the human CLC-7 structure, as judged from the comparison with the chicken CLC-7 structure, is remarkable. The proposal that the OSTM interaction might alter the conformational properties of two Phe residues in vicinity of the ion binding path is interesting but it could also be a consequence of local differences between the two different orthologs. Moreover, the claim that this conformational difference might be connected to increased transport activity of the complex is noteworthy but speculative.

2) The authors point out the heterogeneity in orientation of the lumenal domain of OstM1, yet we see only one orientation in the final structure. It would be interesting for the reader to know something about the scale of this heterogeneity--is it tilting by a few angstroms or rocking strongly back and forth? Would it be possible to provide some kind of analysis to reveal something like the envelope of possible orientations? How might all this impact ion access to the transporter? Could there be electrostatic effects of OstM1?

3) The assignment of residual density in the data to bound chloride ions is justified in light of previously characterized ion binding sites of other CLC proteins. It is very interesting to see all three binding sites identified in the CLC from E. coli occupied in the structure of chicken CLC-7. It is also interesting to see that the density of the central Cl- gets weaker in the structure of the human CLC-OSTM1 complex but it is unclear whether this reflects a lower occupancy or higher mobility of the ion or whether it is a consequence of the slightly lower quality of the data.

4) The interaction of ATP with the cytoplasmic domain of CLC-7 is exciting and it provides further evidence on the role of nucleotide binding to the cytoplasmic domains of certain CLC transporters. The interaction of the nucleotide with the N-terminus of the protein, which coordinates phosphate groups and Mg2+ is convincing and provides novel insight into the interaction, which was not revealed in the structure of the isolated domain of CLC-5. The assumption that ATP would bind with higher affinity to full-length CLC-7 than to the isolated cytoplasmic domain of CLC-5, is supported by the fact that the nucleotide is copurified with the sample. In light of the high intracellular ATP concentration, the proposal that ATP might form an integral part of the structure that remains bound instead of a regulatory ligand which dissociates from the protein is reasonable but would ultimately have to be characterized in functional experiments. In that respect it might be interesting to know whether a similar role of ATP as structural component has been found in other proteins.

5) The PI3P in the chicken structure is very interesting and novel, yet the authors say nothing about whether they did or did not observe a similar lipid in the human structure. Especially given their argument about the conservation of the lipid binding site, it is worth noting explicitly what they see here. In the same vein, and considering their argument about PI(3,5)P2, could there be differences between homologs in this site?

6) The non-protein density modeled as CHS is less convincing than the modeling of the PI3P site, and its model displayed in Figure 5—figure supplement 2 appears distorted.

https://doi.org/10.7554/eLife.59555.sa1

Author response

Essential revisions:

1) The moderate effects of OSTM1 binding to the human CLC-7 structure, as judged from the comparison with the chicken CLC-7 structure, is remarkable. The proposal that the OSTM interaction might alter the conformational properties of two Phe residues in vicinity of the ion binding path is interesting but it could also be a consequence of local differences between the two different orthologs. Moreover, the claim that this conformational difference might be connected to increased transport activity of the complex is noteworthy but speculative.

We thank the reviewer for the acknowledgement of their positive assessment of our work. We agree with the reviewers that it is possible that the subtle differences in the resolved conformations of the phenylanine side chains may be due to local differences between the human and chicken orthologs. We also agree with the reviewers that the connection between the conformation of the phenylanine residues and increased transport activity is highly speculative, and we have modified the manuscript in the subsection “Effects of OSTM1 binding to CLC-7” to note these points.

2) The authors point out the heterogeneity in orientation of the lumenal domain of OstM1, yet we see only one orientation in the final structure. It would be interesting for the reader to know something about the scale of this heterogeneity--is it tilting by a few angstroms or rocking strongly back and forth? Would it be possible to provide some kind of analysis to reveal something like the envelope of possible orientations? How might all this impact ion access to the transporter? Could there be electrostatic effects of OstM1?

We agree with the reviewer that it would be beneficial for the reader to include more details on the nature of OSTM1 movement. For a deeper understanding of the heterogeneity of the CLC-7/OSTM1 complex, we performed 3D variability analysis using CryoSPARC without imposing symmetry. One of the primary components of heterogeneity identified was a rotation of the luminal domain of OSTM1 with respect to CLC-7. We have added a new figure, Figure 5—figure supplement 2, which compares the two extremes states with the midpoint. To quantify the displacement of OSTM1 in the three states, we docked in and rigid-body fit the luminal domain of OSTM1 separately from CLC-7. When aligned by the transmembrane domains, the periphery of luminal domain is displaced by up to 6 Å when the two extreme states are compared. The displacement is sufficient to blur the high-resolution features of the density map, but is unlikely to obstruct access of ions to the conduction pathway and thus it is unclear if the flexibility has any functional consequences.

3) The assignment of residual density in the data to bound chloride ions is justified in light of previously characterized ion binding sites of other CLC proteins. It is very interesting to see all three binding sites identified in the CLC from E. coli occupied in the structure of chicken CLC-7. It is also interesting to see that the density of the central Cl- gets weaker in the structure of the human CLC-OSTM1 complex but it is unclear whether this reflects a lower occupancy or higher mobility of the ion or whether it is a consequence of the slightly lower quality of the data.

We agree with the reviewer that our ability to interpret the densities that we attribute to the Cl- ions CLC-7/OSTM1 density map is hindered by its anisotropy and the resulting lower quality. Thus, we can only speculate that the lower density of the central Cl- ion is a result of lower occupancy or higher mobility. We have revised the text to “However, unlike in ggCLC-7, the central site in CLC-7/OSTM1 is the weakest and is only slightly above the background (~4 σ). While we must be cautious in interpreting the densities occupying the Cl- binding sites of CLC-7/OSTM1 because of the anisotropy present in the data set, the differences in relative intensities of the Cl- binding site peaks between ggCLC-7 and CLC-7/OSTM1 suggest that there may be a change in Cl- occupancy of the central site when CLC-7 is bound to OSTM1. A change in occupancy of the central Cl- site may be associated…”

4) The interaction of ATP with the cytoplasmic domain of CLC-7 is exciting and it provides further evidence on the role of nucleotide binding to the cytoplasmic domains of certain CLC transporters. The interaction of the nucleotide with the N-terminus of the protein, which coordinates phosphate groups and Mg2+ is convincing and provides novel insight into the interaction, which was not revealed in the structure of the isolated domain of CLC-5. The assumption that ATP would bind with higher affinity to full-length CLC-7 than to the isolated cytoplasmic domain of CLC-5, is supported by the fact that the nucleotide is copurified with the sample. In light of the high intracellular ATP concentration, the proposal that ATP might form an integral part of the structure that remains bound instead of a regulatory ligand which dissociates from the protein is reasonable but would ultimately have to be characterized in functional experiments. In that respect it might be interesting to know whether a similar role of ATP as structural component has been found in other proteins.

We appreciate the acknowledgement of the interest regarding the ATP-Mg2+-coordination of CLC-7. We absolutely agree that further studies are required for the ultimate characterization of CLC-7 regulation by ATP/Mg2+. Whole-cell recordings by Leisle et al., 2011 showed that CLC-7/OSTM1 remains fully active in the absence of ATP, however due to the predicted slow off-rate, endogenous ATP likely remained bound in their recordings.

We have included in the Discussion several examples of proteins that are proposed to bind nucleotides as structural components including AMPK, IP3 receptors and some of the prokaryotic RCK domain containing channels.

5) The PI3P in the chicken structure is very interesting and novel, yet the authors say nothing about whether they did or did not observe a similar lipid in the human structure. Especially given their argument about the conservation of the lipid binding site, it is worth noting explicitly what they see here. In the same vein, and considering their argument about PI(3,5)P2, could there be differences between homologs in this site?

We thank the reviewers for pointing out that we were unclear in our presentation of the ligands in the CLC-7/OSTM1 complex. To more clearly discuss the PI3P binding site within the CLC-7/OSTM1 complex. We have introduced a new figure (Figure 5—figure supplement 4) depicting an overlay of the ATP and lipid binding pockets of CLC-7 and CLC-7/OSTM1. We also show the density for the lipids in Figure 5—figure supplement 3. In the text we now state “Moreover, densities corresponding to ATP and PI3P molecules were resolved in their respective binding sites and the ligands interact with CLC-7 in a similar fashion regardless of the presence or absence of OSTM1 (Figure 5—figure supplements 3 and 4)” to emphasize that the ligand binding sites are conserved.

6) The non-protein density modeled as CHS is less convincing than the modeling of the PI3P site, and its model displayed in Figure 5—figure supplement 2 appears distorted.

We agree with the reviewer that modeling of CHS into the density is speculative. To avoid introducing potential errors into the model, we have removed the CHS molecule and have revised the text to “In addition to the direct protein-protein interactions, a non-protein density that may correspond to a cholesterol based on its size and shape was resolved at the interface between transmembrane domains of CLC-7 and OSTM1 (Figure 7B). Notably, no density was present at this site in the ggCLC-7 map, suggesting that CLC-7 and OSTM1 together may form an additional lipid binding site.”. We have depicted the position of the density in the complex in a new figure (Figure 5—figure supplement 3C).

https://doi.org/10.7554/eLife.59555.sa2

Article and author information

Author details

  1. Marina Schrecker

    Structural Biology Program, Memorial Sloan Kettering Cancer Center, New York, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8542-6657
  2. Julia Korobenko

    Structural Biology Program, Memorial Sloan Kettering Cancer Center, New York, United States
    Contribution
    Data curation, Formal analysis, Investigation
    Competing interests
    No competing interests declared
  3. Richard K Hite

    Structural Biology Program, Memorial Sloan Kettering Cancer Center, New York, United States
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Visualization, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    hiter@mskcc.org
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0496-0669

Funding

Searle Scholars Program

  • Richard K Hite

Josie Robertson Investigators Program

  • Richard K Hite

National Cancer Institute (accessory subunit)

  • Richard K Hite

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank M de la Cruz at the MSKCC Richard Rifkind Center and the Simons Electron Microscopy Center staff for cryo-EM for assistance with data collection, the MSKCC HPC group for assistance with data processing, members of the Hite lab for assistance with image acquisition and processing and A Accardi for comments on the manuscript. Some of this work was performed at the Simons Electron Microscopy Center and National Resource for Automated Molecular Microscopy located at the New York Structural Biology Center, supported by grants from the Simons Foundation (SF349247), NYSTAR, and the NIH National Institute of General Medical Sciences (GM103310) with additional support from the Agouron Institute (F00316) and NIH (OD019994). This work was supported in part by NIH-NCI Cancer Center Support Grant (P30 CA008748), the Josie Robertson Investigators Program (to RKH) and the Searle Scholars Program (to RKH).

Senior Editor

  1. Richard W Aldrich, The University of Texas at Austin, United States

Reviewing Editor

  1. Merritt Maduke, Stanford University School of Medicine, United States

Reviewer

  1. Raimund Dutzler, University of Zürich, Switzerland

Publication history

  1. Received: June 1, 2020
  2. Accepted: July 29, 2020
  3. Accepted Manuscript published: August 4, 2020 (version 1)
  4. Version of Record published: August 20, 2020 (version 2)

Copyright

© 2020, Schrecker et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,708
    Page views
  • 437
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Structural Biology and Molecular Biophysics
    Lin Mei et al.
    Research Article

    The actin cytoskeleton mediates mechanical coupling between cells and their tissue microenvironments. The architecture and composition of actin networks are modulated by force, but it is unclear how interactions between actin filaments (F-actin) and associated proteins are mechanically regulated. Here, we employ both optical trapping and biochemical reconstitution with myosin motor proteins to show single piconewton forces applied solely to F-actin enhance binding by the human version of the essential cell-cell adhesion protein αE-catenin, but not its homolog vinculin. Cryo-electron microscopy structures of both proteins bound to F-actin reveal unique rearrangements that facilitate their flexible C-termini refolding to engage distinct interfaces. Truncating α-catenin's C-terminus eliminates force-activated F-actin binding, and addition of this motif to vinculin confers force-activated binding, demonstrating that α-catenin's C-terminus is a modular detector of F-actin tension. Our studies establish that piconewton force on F-actin can enhance partner binding, which we propose mechanically regulates cellular adhesion through a-catenin.

    1. Microbiology and Infectious Disease
    2. Structural Biology and Molecular Biophysics
    Clarissa L Durie et al.
    Research Article Updated

    Legionella pneumophila is an opportunistic pathogen that causes the potentially fatal pneumonia Legionnaires’ Disease. This infection and subsequent pathology require the Dot/Icm Type IV Secretion System (T4SS) to deliver effector proteins into host cells. Compared to prototypical T4SSs, the Dot/Icm assembly is much larger, containing ~27 different components including a core complex reported to be composed of five proteins: DotC, DotD, DotF, DotG, and DotH. Using single particle cryo-electron microscopy (cryo-EM), we report reconstructions of the core complex of the Dot/Icm T4SS that includes a symmetry mismatch between distinct structural features of the outer membrane cap (OMC) and periplasmic ring (PR). We present models of known core complex proteins, DotC, DotD, and DotH, and two structurally similar proteins within the core complex, DotK and Lpg0657. This analysis reveals the stoichiometry and contact interfaces between the key proteins of the Dot/Icm T4SS core complex and provides a framework for understanding a complex molecular machine.
