Cell-density independent increased lymphocyte production and loss rates post-autologous HSCT

  1. Mariona Baliu-Piqué
  2. Vera van Hoeven
  3. Julia Drylewicz
  4. Lotte E van der Wagen
  5. Anke Janssen
  6. Sigrid A Otto
  7. Menno C van Zelm
  8. Rob J de Boer
  9. Jürgen Kuball
  10. Jose AM Borghans  Is a corresponding author
  11. Kiki Tesselaar  Is a corresponding author
  1. Center for Translational Immunology, University Medical Center Utrecht, Netherlands
  2. Department of Experimental Immunology, Amsterdam UMC, University of Amsterdam, Netherlands
  3. Department of Hematology, University Medical Center Utrecht, Netherlands
  4. Department of Immunology and Pathology, Monash University and Alfred Hospital, Australia
  5. Theoretical Biology, Utrecht University, Netherlands

Abstract

Lymphocyte numbers need to be quite tightly regulated. It is generally assumed that lymphocyte production and lifespan increase homeostatically when lymphocyte numbers are low and, vice versa, return to normal once cell numbers have normalized. This widely accepted concept is largely based on experiments in mice, but is hardly investigated in vivo in humans. Here we quantified lymphocyte production and loss rates in vivo in patients 0.5–1 year after their autologous hematopoietic stem cell transplantation (autoHSCT). We indeed found that the production rates of most T- and B-cell subsets in autoHSCT-patients were two to eight times higher than in healthy controls, but went hand in hand with a threefold to ninefold increase in cell loss rates. Both rates also did not normalize when cell numbers did. This shows that increased lymphocyte production and loss rates occur even long after autoHSCT and can persist in the face of apparently normal cell numbers.

Introduction

Under healthy conditions, the peripheral T- and B-cell populations are maintained at relatively constant numbers throughout life (Lin et al., 2016; Wertheimer et al., 2014). Homeostatic mechanisms are thought to regulate lymphocyte production and survival rates in a density-dependent manner. Indeed, studies in rodents have shown that lymphocyte division and lifespan increase in response to severe lymphopenic conditions (Freitas and Rocha, 2000). Robust peripheral proliferation of T-cells occurs both upon adoptive cell transfer into severely lymphocyte-depleted mice and in partially immune-depleted hosts in the absence of adoptive cell transfer, a phenomenon termed lymphopenia-induced proliferation (LIP) (Freitas and Rocha, 2000; Miller and Stutman, 1984; Bell et al., 1987; Neujahr et al., 2006). Similarly, rapid proliferation and extended survival of B-cells occur after adoptive cell transfer into B-cell deficient hosts and correlate with peripheral B-cell numbers (Gaudin et al., 2004).

By analogy, it is generally assumed that lymphopenic conditions induce alterations in lymphocyte dynamics in humans. However, in humans full recovery of the T-cell compartment following an autologous hematopoietic stem cell transplantation (autoHSCT) is notoriously slow, often taking several years (Heining et al., 2007; Ringhoffer et al., 2013; Bosch et al., 2012; Williams et al., 2007). On the basis of elevated frequencies of Ki-67+ cells, severe lymphopenia arising after HSCT and lymphocyte-depleting treatments has been associated with increased proliferation of naive and memory T-cells (Jones et al., 2013; Bouvy et al., 2013; Hazenberg et al., 2002; Alho et al., 2016). However, elevated frequencies of Ki-67+ cells were shown to decline within 3–6 months after cell depletion, despite the fact that patients were still deeply lymphopenic (Bouvy et al., 2013; Hazenberg et al., 2002; Alho et al., 2016). Furthermore, increased T-cell proliferation rates after allogeneic HSCT have been shown to correlate with the occurrence of graft-versus-host disease (GVHD) and infectious-disease-related complications (Hazenberg et al., 2002). Together, these observations question whether homeostatic mechanisms are induced to compensate for low lymphocyte numbers in humans undergoing HSCT. It remains unclear to what extent increased T-cell proliferation post-HSCT reflects a T-cell density-dependent response to lymphopenia, or an immune response triggered by therapy-related tissue damage, infectious complications or immune activation.

To elucidate whether lymphocyte production and death rates in humans are regulated in a density-dependent manner, we used in vivo deuterium labeling to quantify the production and loss rates of different T- and B-cell subsets in patients who received an autologous HSCT (autoHSCT), and had no signs of clinically manifested infections or GVHD. Twelve months after autoHSCT, absolute numbers of CD4+ T-cells and memory and natural effector B-cells in these patients were still lower than in healthy individuals, while CD8+ T-cell and naive B-cell numbers had already recovered to healthy control (HC) values. Deuterium labeling revealed that the production rates of most lymphocyte subsets, even those that had already reconstituted, were significantly higher in patients post-autoHSCT than in healthy individuals. These increased rates of T- and B-cell production could only be reconciled with the observed stable cell numbers over the study time if lymphocyte loss rates were also significantly increased. Our data therefore show that increased lymphocyte production and loss rates occur long after autoHSCT, and can even persist when a lymphocyte subset has already normalized.

Results

Heterogeneous T-cell reconstitution kinetics post-autoHSCT

To investigate whether lymphocyte production and loss depend on cell numbers during lymphopenia in humans, we quantified the production and loss rates of T- and B-cells in six patients who received an autoHSCT for the treatment of hematological malignancies. Patients were included in the study between 196 days and 420 days post-autoHSCT, received deuterated water (2H2O) for 6 weeks, and were followed for approximately 1 year after start of the labeling period (Figure 1).

Figure 1 with 1 supplement see all

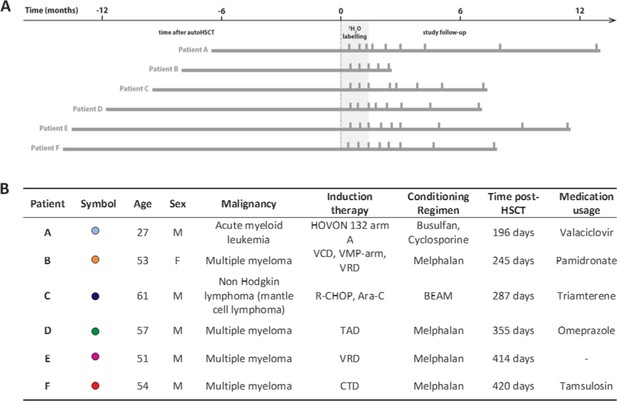

Study protocol timeline and patient characteristics.

(A) Summary figure depicting the study time line of every patient. Patients are centered by start of 2H2O labeling. The left bar indicates the time between the autologous hematopoietic stem cell transplantation (autoHSCT) and the start of the labeling period, the gray area indicates the 6 weeks 2H2O labeling period, the right bar provides the follow-up period, and the vertical bars indicate the blood sampling time points. (B) Patient characteristics. Age=age at start 2H2O labeling; M=male; F=female; Time post-HSCT=reconstitution period at start 2H2O labeling; Medication usage=medication during the study; HOVON 132 arm A (Idarubicin, Ara-C (Cytarabine), Daunorubicin); VCD (Bortezomib, Cyclophosphamide, Dexamethason); VMP (Bortezomib, Melphalan, Prednisone); VRD (Bortezomib, lenalidomide, dexamethasone); R-CHOP (Rituximab, Cyclophosphamide, Adriamycin, Vincristin, Prednisone); Ara-C (Cytarabine), TAD (Thalidomide, Adriamycin, Dexamethasone); CTD (Carfilzomib, Thalidomide, Dexamethasone); BEAM (Carmustine, Etoposide, Ara-C [Cytarabine], Melphalan). Figure 1—figure supplement 1 shows the absolute leukocytes, neutrophils, lymphocytes, and monocytes numbers over time after autoHSCT.

Patient B withdrew from the study 10 weeks after the start of 2H2O labeling due to infectious complications unrelated to participation in the study. All other patients had no complications that needed treatment during the study follow-up, which was supported by C-reactive protein (CRP) levels in the normal range (Figure 2).

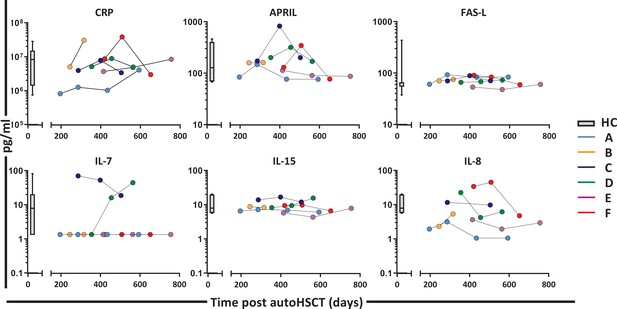

Plasma levels of CRP, APRIL, FAS-L, IL-7, IL-15, and IL-8 post-autologous hematopoietic stem cell transplantation (autoHSCT).

Plasma concentration (picogram per milliliter) of CRP (C-reactive protein), APRIL (A proliferation-inducing ligand), FAS-L (FAS ligand), IL-7 (Interleukin 7), IL-15 (Interleukin 15), and IL-8 (Interleukin 8) in patients A–F at different time points after autoHSCT. Box plots represent the distribution of values for healthy controls (n = 29, box = 25th to 75th percentile, black line=median, whiskers=min and max values). IL-7 levels which were below the level of detection (1.3 pg/ml) were set at 1. Figure 2—source data 1 shows the individual values of the different plasma markers.

Figure 2—source data 1

Luminex data for different plasma markers, time points and patients.

https://cdn.elifesciences.org/articles/59775/elife-59775-fig2-data1-v2.xls

The sub-optimal T-cell recovery observed in the peripheral blood of patients post-autoHSCT (Figure 3A) was largely due to the slow reconstitution of CD4+ T-cells (Figure 3B). At the start of 2H2O labeling, CD8+ T-cell numbers had reached normal levels in most patients, whereas CD4+ T-cell numbers remained below normal levels even 1.5 years post-autoHSCT. This resulted in an inverse CD4:CD8 ratio in all patients except for patient C (Figure 3C), who experienced extremely slow CD8+ T-cell reconstitution (Figure 3D). Naive (CD45RO-CD27+) CD4+ T-cell numbers remained below normal levels throughout the 2-year follow-up period, whereas memory (CD45RO+) CD4+ T-cells reached the lower range of normal levels around 400 days post-autoHSCT (Figure 3B). Naive and memory CD8+ T-cell numbers were at normal or supra-normal levels at the start of the study in all patients except for patient C (Figure 3D). In line with cell numbers, for most patients the fractions of naive cells, central memory (CM, CD45RO+CD27+), effector memory (EM, CD45RO+CD27-), and effector (CD45RO-CD27-) T-cells differed from those in HCs and varied slightly over time (Figure 3E and Figure 3—figure supplement 1).

Figure 3 with 3 supplements see all

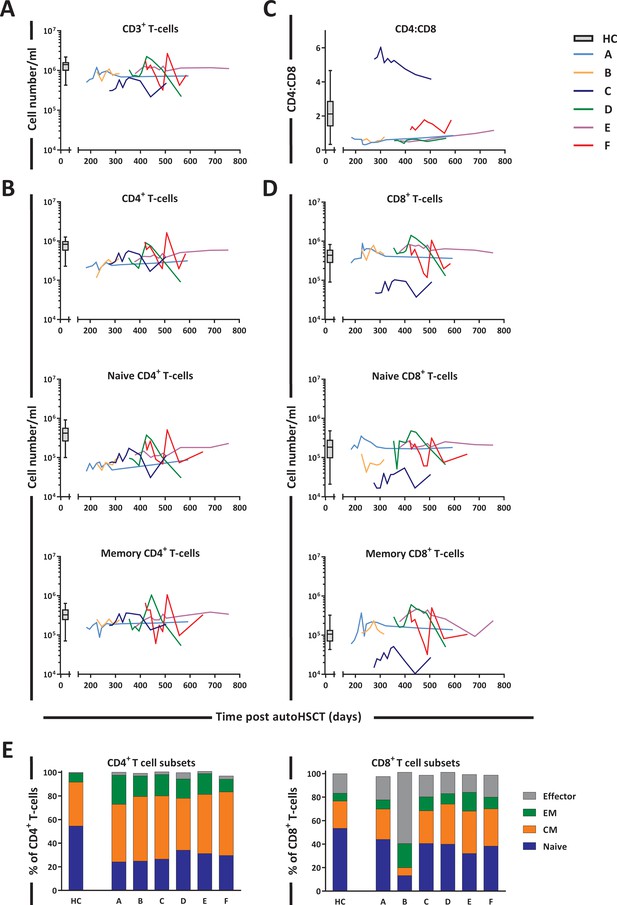

T-cell reconstitution following autologous hematopoietic stem cell transplantation (autoHSCT).

Absolute numbers (cells per milliliter) of (A) total CD3+ T-cells, (B) total, naive (CD27+CD45RO-) and memory (CD45RO+) CD3+CD4+ T-cells, (D) total, naive (CD27+CD45RO-) and memory (CD45RO+) CD3+CD8+ T-cells, and (C) the CD4:CD8 ratio over time for the duration of the study are depicted. Box plots represent the distribution of values for healthy controls (HCs) (N = 17 for CD3+, CD4+, CD8+, and CD4:CD8 ratio, other N = 27, box = 25th to 75th percentile, black line=median, whiskers=min and max values). Absolute numbers shown in the graph are not normalized. (E) Bar graphs show the median percentage of naive (CD27+CD45RO-), central memory (CM, CD27-CD45RO+), effector memory (EM, CD27+CD45RO+), and effector (CD27-CD45RO-) CD4+ and CD8+ T-cells of autoHSCT patients (A–F) and HCs (n = 6) in the indicated colors. For the T-cell subset distribution per patient over time, see Figure 3—figure supplement 1 and Figure 3—source data 1. For the gating strategy, see Figure 3—figure supplement 2.

Figure 3—source data 1

T-cell numbers and percentages in blood of patients and healthy controls.

https://cdn.elifesciences.org/articles/59775/elife-59775-fig3-data1-v2.xls

Because it is generally assumed that during lymphopenia the availability of growth and survival factors increases, which has in particular been shown for IL-7 plasma levels (van Gent et al., 2011; Sauce et al., 2012; Fry et al., 2001; Napolitano et al., 2001; Bolotin et al., 1999), we also determined plasma levels of IL-7 and IL-15 between 12 and 24 months post-autoHSCT. Despite the CD4+ T-cell lymphopenia observed in these patients, their plasma concentrations of IL-7 and IL-15 and several other cytokines were in the range of those of HCs (Figure 2).

Increased CD4+ and CD8+ T-cell production rates post-autoHSCT

To investigate whether low CD4+ T-cell numbers were associated with increased T-cell production rates, we compared the level of deuterium enrichment in the DNA of the different T-cell subsets between patients and controls. Deuterium enrichment analysis showed a relatively high level of label incorporation in patients, despite the fact that the labeling period was 3 weeks shorter for patients than for controls (Figure 4A). Using mathematical modeling (see Materials and methods section) we estimated the production rates of the different T-cell subsets (i.e. the number of new cells produced per day, coming from a source or peripheral cell division, divided by the number of resident cells in the population). We found that the production rates of naive and memory CD4+ T-cells were, respectively, six times and three times higher in patients than in controls. For naive and memory CD8+ T-cells, the estimated production rates were approximately eight and four times higher in patients compared to controls (Figure 4B and Figure 4—source data 2), despite the fact that absolute CD8+ T-cell numbers had already recovered to healthy levels 12 months post-transplantation.

Figure 4 with 2 supplements see all

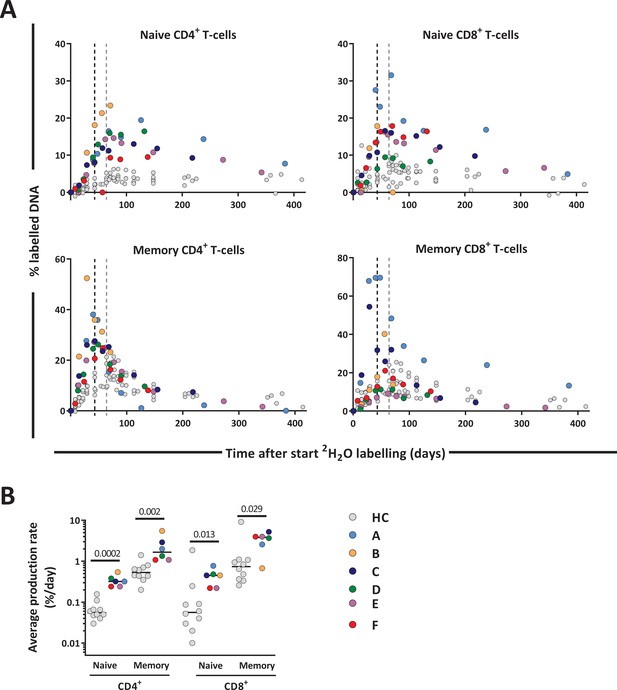

T-cell dynamics after autologous hematopoietic stem cell transplantation (autoHSCT).

(A) Deuterium enrichment in the DNA of naive and memory CD4+ and CD8+ T-cells in autoHSCT patients (A–F, color symbols) and healthy controls (HCs, gray symbols) (Westera et al., 2015). Dotted lines correspond to the end of the labeling period (black for autoHSCT patients and gray for HCs). Label enrichment was scaled between 0% and 100% by normalizing for the maximum enrichment in granulocytes (see Figure 4—figure supplement 1 and Figure 4—source data 1). (B) Estimates of the per cell production rate of naive and memory CD4+ and CD8+ T-cells in autoHSCT patients and HCs (Westera et al., 2015) (for individual fits and parameters estimates, see Figure 4—figure supplement 2 and Figure 4—source data 2). Different symbols indicate different individuals, autoHSCT patients (A–F) in color, and HCs in gray. Horizontal lines represent median values. p-values between groups are shown (Mann–Whitney test). For information on modeling in R, see Figure 4—source data 1.

Figure 4—source code 1

Modeling in R and raw data.

https://cdn.elifesciences.org/articles/59775/elife-59775-fig4-code1-v2.zip
Figure 4—source data 1

Estimates of urine and granulocyte parameters and their corresponding 95% confidence limits for deuterium enrichment.

https://cdn.elifesciences.org/articles/59775/elife-59775-fig4-data1-v2.xlsx
Figure 4—source data 2

Estimates of average daily production rates for T-cell subsets of autoHSCT patients.

https://cdn.elifesciences.org/articles/59775/elife-59775-fig4-data2-v2.xlsx

Increased proliferation of naive but not memory CD4+ and CD8+ T-cells

T-cell production rates as measured by deuterium labeling may reflect proliferation (i.e. either occasional self-renewal or a continuous burst of cell division) of the subset of interest or an influx of cells from a source (e.g. by thymic output) or from another subset (e.g. through lymphocyte differentiation). To distinguish between these options, we first measured Ki-67 expression, a snapshot marker of recent proliferative activity which, in contrast to deuterium labeling, allows to distinguish between cell division and influx. The fraction of Ki-67+ cells within the naive CD4+ and CD8+ T-cell pools was significantly higher in patients compared to controls (Figure 5A). For the memory T-cell subsets, in contrast, the fraction of Ki-67+ cells of patients did not differ significantly from those of controls (Figure 5A). This suggests that the increased production rates of memory CD4+ and CD8+ T-cells may occur due to an increased influx from naive T-cells into the memory compartment, rather than increased T-cell division within the memory T-cell pools.

Figure 5 with 2 supplements see all

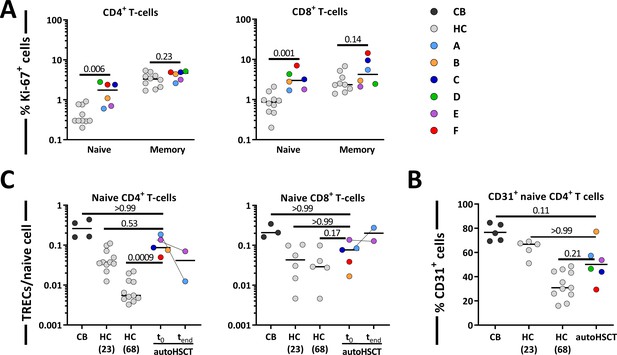

Contribution of peripheral proliferation and thymic output to T-cell production after autologous hematopoietic stem cell transplantation (autoHSCT).

(A) Ki-67 expression was measured within naive and memory CD4+ (left panel) and CD8+ (right panel) T-cell in autoHSCT patients and healthy controls (HCs) (Westera et al., 2015) (for gating strategy, see Figure 5—figure supplement 1). (B) Average number of T-cell receptor excision circles (TRECs) per naive CD4+ (left panel) and CD8+ (right panel) T-cell in autoHSCT patients, cord blood (CB), and HCs (Westera et al., 2015). For Patient A and Patient E, TREC content was measured the first day of the study (t0) as well as the last study visit (tend). For Patient D, TREC content was not successfully measured due to limited material. (C) CD31 expression was measured within naive CD4+ T-cells in autoHSCT patients, CB, and HCs (Westera et al., 2015). For changes in CD31 expression and absolute numbers of CD31+ cells over time, see Figure 5—figure supplement 2. Different symbols indicate different individuals, autoHSCT patients (A–F) in color, CB in dark gray, and young (median age of 23 years) and old (median age of 68 years) HCs in light gray. Horizontal lines represent median values. p-values of differences between groups are shown (Mann–Whitney test [A] and Kruskal–Wallis with Dunn’s correction [B], comparison with CB, HC [23], and HC [68]).

Besides increased cell division in the naive T-cell pool, increased naive T-cell production rates post-autoHSCT could in theory also be due to increased thymic output. T-cell receptor excision circles (TRECs) are commonly measured to estimate thymopoiesis. Because the average TREC content per T-cell declines with age (Douek et al., 1998; Hazenberg et al., 2000; Hazenberg et al., 2001), we measured TREC contents of naive T-cells from patients, cord blood (CB), and young (on average 23 years of age) and aged (on average 68 years of age) healthy individuals (Westera et al., 2015). The average TREC content of naive CD4+ T-cells in patients was approximately 10-fold higher than in aged controls, and not significantly different from that of young individuals and CB (Figure 5B), even though all but one of the patients were more than 50 years of age. For naive CD8+ T-cells, the average TREC content in patients was in the range of young and aged controls (Figure 5B). We also measured CD31 expression on naive CD4+ T-cells, as CD31+CD4+ T-cells are known to be enriched in recent thymic emigrants (RTEs) (Kohler and Thiel, 2009; van den Broek et al., 2018). The fraction of CD31+ cells within the naive CD4+ T-cell population was slightly higher in patients than in aged controls and slightly lower than in young controls and CB (Figure 5C and Figure 5—figure supplement 2). For naive T-cells, the combined Ki-67, TREC, and CD31 data suggest that the increased T-cell production rate post-HSCT is at least partially due to increased T-cell division. Since the increased average TREC contents and percentages of CD31+ cells may be a direct consequence of normal thymic output entering a smaller T-cell pool (Hazenberg et al., 2003), the contribution of thymic output to the increased T-cell production rate in these patients remains unclear.

Heterogeneous B-cell reconstitution kinetics post-autoHSCT

Next, we studied the changes in B-cell dynamics following autoHSCT. Although total CD19+ B-cell numbers and naive (IgM+CD27-) B-cell numbers had already reached normal or even supra-normal levels by day 200 post-autoHSCT, Ig class-switched (IgM-CD27+) and IgM+ (IgM+CD27+) memory B-cell numbers in most patients were still below, or in the lower range of, those of HCs throughout the study period (Figure 6A and B and Figure 6—figure supplement 1).

Figure 6 with 1 supplement see all

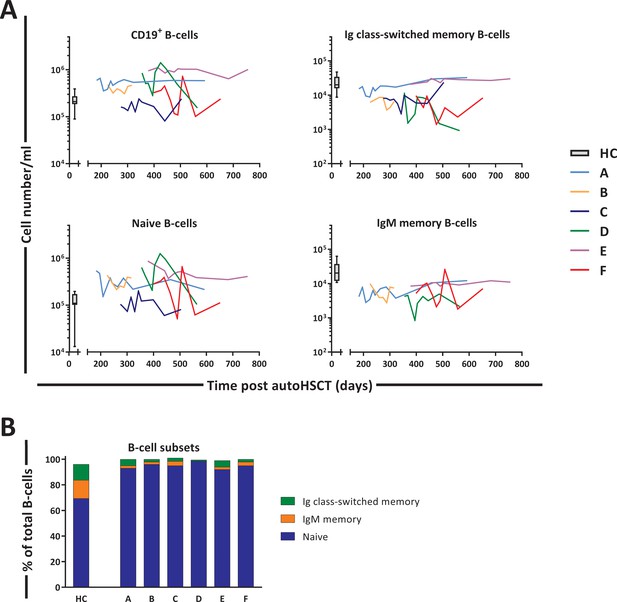

B-cell reconstitution following autologous hematopoietic stem cell transplantation (autoHSCT).

(A) Absolute numbers (cells per milliliter) of total CD19+ B-cells, naive (CD19+IgM+CD27-), Ig class-switched memory (CD19+IgM-CD27+), and IgM+ memory (CD19+IgM+CD27+) B-cells in peripheral blood over time. Graphs show the absolute cell counts per milliliter in autoHSCT patients (patients A–F) over the duration of the study. Box plots represent the distribution of values for healthy controls (HCs) (N = 10, box = 25th to 75th percentile, black line=median, whiskers=min and max values). Absolute numbers shown in the graph are not normalized. (B) Bar graphs show the median percentage of naive, Ig class-switched memory, and IgM+ memory B-cells within total CD19+ B-cells of autoHSCT patients (patients A–F) and HCs (N = 10). For the B-cell subset distribution per patient over time, see Figure 6—figure supplement 1 and Figure 6—source data 1. Note the different y-axes in panel A.

Figure 6—source data 1

B-cell numbers and percentage in blood of patients and healthy controls.

https://cdn.elifesciences.org/articles/59775/elife-59775-fig6-data1-v2.xls

Increased production rates of B-cells post-autoHSCT

We analyzed the deuterium enrichment of the different B-cell subsets to study whether B-cell production rates were increased for subsets which were still low in cell numbers (Figure 7A). The production rates of Ig switched-memory B-cells and IgM+ memory B-cells were 3.5 times and 5 times higher than in controls, respectively (Figure 7B and Figure 7—source data 1). Also the production rate of naive B-cells, a population that had already reconstituted to supra-normal levels, remained significantly higher than in HCs (Figure 7B, Figure 7—source data 1).

Figure 7 with 1 supplement see all

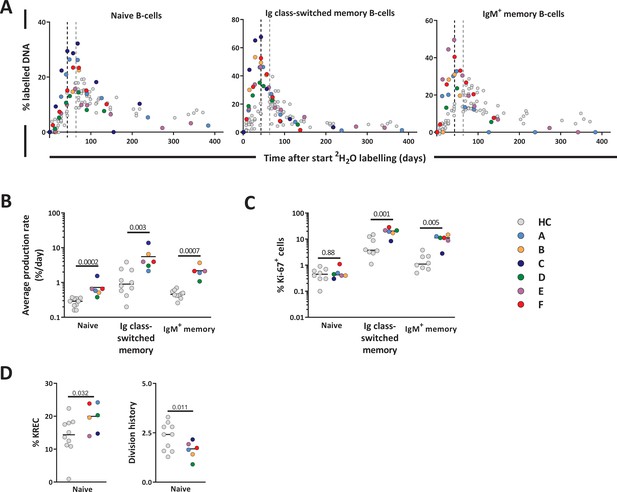

B-cell dynamics after autologous hematopoietic stem cell transplantation (autoHSCT).

(A) Deuterium enrichment in the DNA of B-cell subsets in autoHSCT patients (A–F, color symbols) and healthy controls (HCs) (gray symbols) (Westera et al., 2015). Dotted lines correspond to the end of the labeling period (black for autoHSCT patients and gray for HCs). Label enrichment was scaled between 0% and 100% by normalizing for the maximum enrichment in granulocytes (Figure 4—source data 1). (B) Estimates of the per cell production rates of naive, Ig class-switched memory, and IgM+ memory B-cells in autoHSCT patients and HCs (Westera et al., 2015). For individual fits and estimates, see Figure 7—figure supplement 1 and Figure 7—source data 1. (C) Ki-67 expression was measured within naive, Ig class-switched memory, and IgM+ memory B-cells in autoHSCT patients and HCs (Westera et al., 2015) (for gating strategy, see Figure 5—figure supplement 1). (D) Percentage of naive B-cells containing a KREC and naive B-cell division history for autoHSCT patients and HCs (Westera et al., 2015). Different symbols indicate different individuals, autoHSCT patients (A–F) in color and HCs in gray. Horizontal lines represent median values. p-values of differences between groups are shown (Mann–Whitney test). For information on modeling in R, see Figure 4—source code 1.

Figure 7—source data 1

Estimates of average daily production rates for B cell subsets of autoHSCT patients.

https://cdn.elifesciences.org/articles/59775/elife-59775-fig7-data1-v2.xlsx

Because B-cell production may depend on peripheral B-cell division and on de novo bone marrow output, we measured Ki-67 expression and kappa-deleting recombination excision circles (KRECs), in an attempt to estimate bone marrow output. The percentages of dividing, that is, Ki-67+, cells within IgM+ and Ig class-switched memory B-cells were significantly higher in patients than in healthy individuals (Figure 7C). In contrast, the fraction of Ki-67+ cells within the naive B-cell subset was similar between patients and controls (Figure 7C). Although naive B-cell peripheral division rates were not increased post-autoHSCT, their production rates were two times higher than in controls. The division history (measured as number of cell divisions) of the naive B-cell subsets in patients tended to be lower than in controls (although not significantly), suggesting that the output of naive B-cells from the bone marrow rather than their peripheral proliferation rate was increased after autoHSCT (Figure 7D).

Increased lymphocyte production rates are counteracted by increased lymphocyte loss rates

The increased lymphocyte production rates that we observed in patients after autoHSCT may at first sight suggest that, also in humans, lymphocyte production is regulated in a density-dependent manner. The observation that lymphocyte production rates were also elevated for subsets for which cell numbers had already normalized, however, challenges this interpretation. Another observation challenging this interpretation is that for most subsets, lymphocyte numbers increased very little over time, despite the significant increase in lymphocyte production. This suggests that lymphocyte loss rates were also significantly increased after autoHSCT.

To estimate the average loss rates of all lymphocyte subsets (i.e. the number of cells lost per day, by cell death, migration, or differentiation, divided by the number of resident cells in the population), we used the average lymphocyte production rates estimated from the deuterium labeling experiments and an exponential function to describe the changes in cell numbers of each lymphocyte subset over time. For most T- and B-cell subsets, the average loss rate was approximately three to five times higher post-autoHSCT than in healthy individuals (Figure 8 and Figure 8—source data 1). For naive CD8+ T-cells the average loss rate was even 9.5 times higher in patients than in healthy individuals (Figure 8 and Figure 8—source data 1). Thus, despite the fact that production rates are clearly increased in patients post-autoHSCT, this increased production goes hand in hand with increased lymphocyte loss rates, thereby challenging the view that it reflects a homeostatic response to low lymphocyte numbers.

Figure 8 with 2 supplements see all

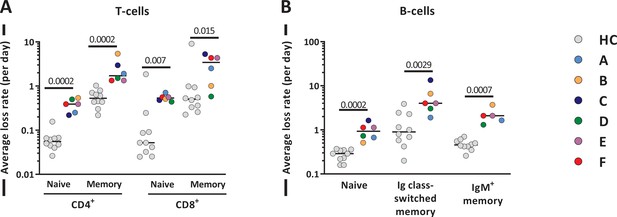

Average T- and B-cell loss rates following autologous hematopoietic stem cell transplantation (autoHSCT).

(A) Estimates of the average loss rates of naive and memory CD4+ and CD8+ T-cells and of (B) naive, Ig class-switched memory and IgM+ memory B-cells in autoHSCT patients (A–F, color symbols) and healthy controls (HCs; gray symbols) (Westera et al., 2015). Average loss rates were calculated (see Figure 8—source data 1) using the estimated average production rates and the corrected cell numbers (Figure 8—figure supplements 1 and 2) as described in Materials and methods. Horizontal lines represent median values. p-values of differences between groups are shown (Mann–Whitney test).

Figure 8—source data 1

Estimates of average daily loss rates for T- and B-cell subsets autoHSCT patients.

https://cdn.elifesciences.org/articles/59775/elife-59775-fig8-data1-v2.xlsx

Discussion

From a homeostatic viewpoint, a response to low lymphocyte numbers could take the form of increased lymphocyte production or decreased lymphocyte loss. Based on the observation that severe lymphopenia in mice is associated with increased peripheral proliferation (Freitas and Rocha, 2000; Miller and Stutman, 1984; Bell et al., 1987; Fry et al., 2001), it is widely believed that lymphocyte production rates are increased when cell numbers are low, and normalize when cell numbers do. We have previously shown that naive T-cell production rates do not increase to compensate for the at least 10-fold declined thymic output in elderly individuals (Westera et al., 2015). This could be due to the relatively small degree of naive T-cell loss observed during healthy aging. Under more severe conditions of lymphopenia in humans, high frequencies of proliferating lymphocytes have been observed, but these have been linked to immune activation and clinical events, for example, GVHD and opportunistic infections (Hazenberg et al., 2002). Thus, there is little evidence that lymphocyte numbers regulate cell production and loss rates in humans.

Our deuterium labeling study shows that in patients receiving an autoHSCT, in the absence of GVHD, clinically manifested infections, and transplantation-related complications, the production rates of most T- and B-cell subsets were significantly increased 12 months after transplantation. Increased lymphocyte production rates during lymphopenia have generally been interpreted as evidence for a density-dependent response to low lymphocyte numbers (Jones et al., 2013; Bouvy et al., 2013; Alho et al., 2016; Havenith et al., 2012; Bouvy et al., 2016). We did two additional observations, however, that suggested that these increased lymphocyte production rates post-autoHSCT were not simply reflecting a homeostatic response to low cell numbers. First, T- and B-cell production rates did not normalize when cell numbers did. Second, not only lymphocyte production but also lymphocyte loss rates were significantly increased post-autoHSCT. Alternatively, the observed increased lymphocyte production rates post-autoHSCT could reflect an overrepresentation of young lymphocytes within the lymphocyte pool, in analogy with lymphocytes in the developing immune system of children, where especially in the first year T-cells have relatively high proliferation rates (van Gent et al., 2009). Likewise, in mice it has been shown that newly generated naive and memory T-cells have higher production and loss rates than their established counterparts (Gossel et al., 2017; Rane et al., 2018; Reynaldi et al., 2019). Finally, despite the fact that the patients in our study were included up to 12 months post-transplantation and were selected on the basis of being in good health, we cannot exclude the possibility that the increased proliferation and loss rates observed post-autoHSCT may reflect HSCT-related complications, such as the impact of initial chemotherapy and conditioning-therapy or subclinical infections and inflammation, which may have gone unnoticed. In fact, the increased lymphocyte production rates may even have been a response to increased lymphocyte loss rates, which themselves may have been induced by the transplantation. Lymphocyte production would then be modulated in an effort to normalize lymphocyte numbers. Whatever the underlying explanation, the ongoing dysregulation of lymphocyte dynamics in itself is an important observation. It shows that normalized cell numbers cannot be taken as an indication that homeostasis has been restored.

The observation that lymphocyte loss rates were increased post-autoHSCT is quite remarkable in light of the widely held view that homeostatic mechanisms could take the form of increased lymphocyte survival. This concept is supported by the observation that the availability of pro-survival and anti-apoptotic factors, such as IL-7 (Ponchel et al., 2011; Barata et al., 2019; Lundström et al., 2012), typically increases during lymphopenia. In our cohort, we found no evidence for increased lL-7 plasma levels, consistent with the observation that lymphocyte loss rates in these patients were not decreased. It remains unclear why IL-7 plasma levels were not increased in our cohort. A possible explanation could be that IL-7 production was hampered by transplantation-related damage to, for example, stromal cells or intestinal epithelial cells, which are an important source of IL-7 (Barata et al., 2019; Lundström et al., 2012; Kim et al., 2011). We found that lymphocyte loss rates were up to 10-fold increased after autoHSCT. Although in the current study we did not take into account markers of cell death, the estimated increased cell loss rates are in line with previous human studies on T-cell survival after allogenic HSCT, which consistently reported that the fraction of pro-apoptotic cells increases following transplantation (Alho et al., 2016; Brugnoni et al., 1999; Lin et al., 2000; Poulin et al., 2003). Although this suggests that intervention with lymphocyte survival after HSCT may aid lymphocyte reconstitution, other factors apart from increased cell death may have contributed to the loss of cells from the peripheral blood. Excessive lymphocyte differentiation and/or increased migration to the tissues would also increase cell loss rates. Further studies should address whether lymphocyte reconstitution occurs at similar rates in blood and tissues in order to clarify whether lymphocyte recruitment to the tissues may be a key factor influencing the loss of lymphocytes from the blood following autoHSCT.

Consistent with previous reports (Bosch et al., 2012; Alho et al., 2016; Storek et al., 2008), we found that 12 months post-autoHSCT, CD4+ T-cell numbers were below the normal range while CD8+ T-cells recovered more rapidly. Deuterium labeling in patients revealed that the average production rates of most T-cell subsets were significantly increased following autoHSCT. This increase was especially evident for naive T-cells. The high percentage of Ki-67+ naive T-cells post-autoHSCT suggests that increased naive T-cell production is to a large extent explained by increased peripheral T-cell proliferation. Memory T-cell production rates based on deuterium enrichment were also higher in patients compared to controls, while Ki-67 expression suggested that memory CD4+ and CD8+ T-cell proliferation rates were not significantly increased 0.5–1 year after autoHSCT in line with previous reports (Malphettes et al., 2003). This seeming contradiction may be explained by the fact that Ki-67, a snapshot marker, may be less sensitive to detect differences in T-cell proliferation than long-term in vivo deuterium labeling. Alternatively, the increased production rate of memory T-cells post-autoHSCT may be due to increased transition of naive T-cells into the memory T-cell population. In line with this, in mice it has been demonstrated that naive T-cells adoptively transferred into immunodeficient animals can acquire a memory phenotype after antigen independent stimulation and division (Cho et al., 2000; Goldrath et al., 2000).

If a significant part of cell production in a certain lymphocyte subset (e.g. the memory subset) is indeed due to an influx from another lymphocyte subset (e.g. the naive subset), the increased production rates that we observed may reflect either a true increase in cell production or a normal influx of cells entering a smaller lymphocyte population. To distinguish between these options, for each lymphocyte subset and each individual, we also calculated the total number of cells produced per day (i.e. coming from a source and/or from peripheral cell division), by multiplying the average production rate of each lymphocyte subset with the median cell number of that subset, and compared these values to those in HCs (Westera et al., 2015Figure 3—source data 1 and Figure 4—source data 2). We found that total daily lymphocyte production was as high as in HCs for naive CD4+ T-cells and higher than in HCs for all other lymphocyte subsets, suggesting that the increased lymphocyte production rates post-autoHSCT truly reflected increased T-cell proliferation and/or an increased influx from another lymphocyte compartment.

Measuring thymopoiesis and the contribution of RTEs to the naive T-cell pool after HSCT is not straightforward. Although increased TREC contents at first sight seem suggestive for increased thymic output, T-cells bearing TRECs may in fact be overrepresented in the peripheral T-cell pool post-transplantation when cell numbers are low (Hazenberg et al., 2003). Hence, for naive CD4+ T-cells, whose numbers had not yet normalized, increased average TREC contents may incorrectly be interpreted as evidence for increased thymic output. The finding that the average TREC content of naive CD4+ T-cells following autoHSCT was higher than in age-matched controls provides no evidence that thymic output following transplantation was higher than in HCs, but does imply that the thymus had become functional again within 12 months after intense conditioning for autoHSCT. The fact that the average TREC content of naive CD4+ T -cells, but not that of naive CD8+ T-cells, was higher in patients than in healthy individuals may reflect differences in the degree of depletion of naive CD4+ and CD8+ T -cells. Alternatively, it might reflect differences in the way CD4+ and CD8+ T-cells are generated. In support of the latter explanation, repertoire analyses in patients receiving an autoHSCT for the treatment of autoimmune diseases have suggested that CD4+ T-cells largely arise de novo, since most CD4+ T-cell clones post-autoHSCT were not present at baseline, while CD8+ T-cells mainly expand from cells that were already circulating pre-transplantation (Muraro et al., 2005; Muraro et al., 2014; Dubinsky et al., 2010).

To study in a population other than T-cells whether lymphocyte production and loss rates in humans are regulated in a density-dependent manner, we quantified the production and loss rates of different B-cell subsets. In line with previous reports (Burns et al., 2003; Avanzini et al., 2005; Bemark et al., 2012), we found that 12 months after transplantation, naive B-cell numbers had reconstituted to healthy (or even higher than healthy) control values, while Ig class-switched and IgM+ memory B-cells had not yet fully recovered. The delayed reconstitution of Ig class-switched and IgM+ memory B-cells has typically been attributed to treatment-related damage to secondary lymphoid organs, which may hamper the formation of germinal centers essential for somatic hypermutation and isotype switching (Avanzini et al., 2005). Also for naive, Ig class-switched, and IgM+ memory B-cells, we found that not only production rates but also cell loss rates were increased 12 months post-autoHSCT, further supporting our conclusion that increased lymphocyte production rates do not simply reflect a homeostatic response to low lymphocyte numbers.

In brief, our findings show that despite the slow reconstitution of lymphocytes in autoHSCT patients, lymphocyte production rates are increased. Since this increased production goes hand in hand with increased cell loss and does not normalize when cell numbers do, it is not simply due to a homeostatic response to low cell numbers. Future studies should address whether the dynamics of lymphocytes after autoHSCT normalize in the long run, what drives the increase in lymphocyte production and loss rates during immune reconstitution, and to what extent immune reconstitution in the tissues occurs.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
AntibodyAnti-human CD45-PerCP (Mouse IgG1, κ) RRID:AB_2566358BioLegendCat# 368506
Clone: 2D1
‘(1:20)’
AntibodyAnti- human CD3-FITC (Mouse IgG1, κ) RRID:AB_2562046BioLegendCat# 399430
Clone: UCHT1
‘(1:25)’
AntibodyAnti-human CD4-APC-eF780 (Mouse IgG1, κ) RRID:AB_1272044eBioscienceCat# 47-0049-42
Clone: RPA-T4
‘(1:50)’
AntibodyAnti-human CD8-V500 (Mouse IgG1, κ) RRID:AB_2870326BD BiosciencesCat# 561617
Clone: SK1
‘(1:60)’
AntibodyAnti-human CD19-eFluor450 (Mouse IgG1, κ) RRID:AB_1272053eBioscienceCat# 48-0199-42
Clone: HIB19
‘(1:25)’
AntibodyAnti-human CD45RO-PE-Cy7 (Mouse IgG2A, κ) RRID:AB_647426BD BiosciencesCat# 337168
Clone: UCHL1
‘(1:60)’
AntibodyAnti-human CD27-APC (Mouse IgG1, κ) RRID:AB_469371eBioscienceCat# 17-0279-42
Clone: O343
‘(1:25)’
AntibodyAnti-human CD31-PE
(Mouse IgG1, κ) RRID:AB_400016
BD BiosciencesCat# 340297
Clone: L133.1
‘(1:12.5)’
AntibodyAnti-human CD3-eFluor450 (Mouse IgG2A, κ) RRID:AB_1272055eBioscienceCat# 48-0037-42
Clone: OKT3
‘(1:50)’
AntibodyAnti-human CD95-PE
(Mouse IgG1, κ) RRID:AB_396027
BD BiosciencesCat# 555674
Clone: DX2
‘(1:50)’
AntibodyAnti-human CD19-PerCP (Mouse IgG1, κ) RRID:AB_2868816BD BiosciencesCat# 363014
Clone:SJ25C1
‘(1:50)’
AntibodyAnti-human IgM-PE (Goat IgG)
RRID:AB_2795614
Southern BiotechCat# 2022–09
Polyclonal
‘(1:100)’
AntibodyAnti-human Ki-67-FITC (Mouse IgG1, κ) RRID:AB_578716DAKOCat# F7268
Clone:MIB-1
‘(1:10)’
Commercial assay or kitCytofix/CytopermBD BiosciencesCat#554714
Commercial assay or kitFACS Lysing SolutionBD BiosciencesCat#349202
Commercial assay or kitReliaprep Blood gDNA Miniprep SystemPromegaCat#A5081
Commercial assay or kitData acquisitionLuminexxPONENT software version 4.2
Commercial assay or kitData acquisitionBiorad LaboratoriesBiorad FlexMAP3D
Chemical compound2H2O, 99.8% enrichedCambridge Isotope LaboratoriesCat#DLM-2259–1
Software, algorithmData analysisBiorad laboratoriesBiorad Bio-Plex Manager software, version 6.1.1
Software, algorithmData analysisBiorad laboratoriesBiorad FlexMAP3D
Software, algorithmData analysisWestera et al., 2013
DOI: 10.1182/blood-2013-03-488411
Multiexponential model
Software, algorithmData analysisGraphPad PRISMGraphPad Software

Patient characteristics

Request a detailed protocol

Six patients who received an autoHSCT for the treatment of a hematologic malignancy were enrolled in the study after having provided written informed consent. Following repeated subcutaneous injections with granulocyte-colony stimulating factor (G-CSF), stem cells were obtained by leukapheresis of peripheral blood. Patients received a non T-cell depleted graft; the average number of CD34+ cells transplanted was 5.03 × 106 cells/kg (median, 4.12; range, 1.82–12.38). Patients were included in the study between 196 and 420 days after autoHSCT, and had no signs of transplantation-related complications, severe infections (HIV, HBV, and HCV), other liver diseases, active uncontrolled infections (such as infectious mononucleosis), inadequate liver or kidney function, or cardiovascular disease before and during the study. Additional inclusion criteria were: fully transfusion independent at start of the study, hemoglobin level ≥6 mmol/l, and platelet count ≥50 × 109/L. Any use of medication during the study was unrelated to the malignancy and the HSCT (Figure 1). In order to compare the phenotypes of the B- and T-cell compartments of patients to those of age-matched healthy individuals, we used data from healthy individuals from a previous study (Westera et al., 2015), additional blood samples were collected from healthy volunteers not following the labeling protocol after having provided informed consent. This study was approved by the medical ethical committee of the University Medical Center Utrecht and conducted in accordance with the Helsinki Declaration.

In vivo deuterium labeling

Request a detailed protocol

In vivo deuterium labeling was performed as previously described with small adaptations (Westera et al., 2015). Briefly, patients received an oral ramp-up dose of 7.5 ml of heavy water (2H2O, 99.8% enriched, Cambridge Isotope Laboratories) per kilogram body water on the first day of the study, and drank a daily maintenance dose of 1.25 ml 2H2O per kilogram body water for 6 weeks. To reduce the study burden, the labeling period of autoHSCT patients was 3 weeks shorter than the labeling period we used in our previous study in HCs (Westera et al., 2015). Thanks to the use of the multi-exponential model, these different labeling periods for autoHSCT patients and HCs should not affect the estimated dynamic parameters (Westera et al., 2013). Blood was withdrawn four times during the labeling period and six times during the de-labeling period, with the last withdrawal approximately 1 year after the start of 2H2O administration. Urine samples were collected during the first 13 weeks of the study and stored at −20°C until analysis. For deuterium labeling, data from HCs from a previous study (Westera et al., 2015) were used. The age of the autoHSCT patients included in the current study (median age of 54 years, see Figure 1B) was not completely matched with that of the HCs studied before (median age of 22 years for young and 68 years for aged controls). Since lymphocyte dynamics hardly change with age (Westera et al., 2015), the comparisons in our study should not be affected by the relatively small age differences between patients and HCs.

Cell isolation, flow cytometry, and cell sorting

Request a detailed protocol

Peripheral blood mononuclear cells were obtained by Ficoll-Paque (GE Healthcare, Little Chalfont, UK) density gradient centrifugation from heparinized blood. Granulocytes were obtained by two cycles of erythrocyte lysis (155 mM NH4Cl, 10 mM KHCO3, 0.1 mM Na2-EDTA, pH = 7.0) of the granulocyte/erythrocyte layer. To determine the baseline deuterium enrichment, total peripheral blood mononuclear cells were frozen on the first day of the study, prior to 2H2O intake.

Absolute cell numbers were determined using TruCount tubes (BD Biosciences, San Jose, CA, USA), in which whole blood was stained using CD45-PerCP (BioLegend), CD3-FITC (BioLegend), CD4-APC-eF780 (eBioscience), CD8-V500 (BD Biosciences), CD19-eFluor450 (eBioscience), CD45RO-PE-Cy7 (BD Biosciences), CD27-APC (eBioscience), and CD31-PE (BD Biosciences) antibodies. After erythrocyte lysis with FACS Lysing Solution (BD Biosciences), samples were immediately analyzed.

For cell cycle analysis, we analyzed the expression of the nuclear protein Ki-67. Cells were first extracellularly stained with CD3-eFluor450 (eBioscience), CD4 APC-eFluor780 (eBioscience), CD8-V500 (BD Biosciences), CD45RO-PE-Cy7 (BD), CD27-APC (eBioscience), and CD95-PE (BD Biosciences) or with CD19-PerCP (Biolegend), CD27-APC (eBioscience), and IgM-PE (Southern Biotech) monoclonal antibodies. Subsequently, cells were fixed and permeabilized (Cytofix/Cytoperm, BD Biosciences) and stained intracellularly with Ki-67-FITC (DAKO, Glostrup). Washing steps were carried out using Perm/Wash buffer (BD Biosciences). Samples were analyzed on an LSR-II or LSR-Fortessa flow cytometer using FACS Diva software (BD Biosciences).

For sorting of B- and T-cell subsets, cells were incubated with CD3-eFluor450 (eBioscience), CD4 APC-eFluor780 (eBioscience), CD8-PE (Biolegend), CD19-PerCP (Biolegend), CD45RO-PE-Cy7 (BD), CD27-APC (eBioscience), and IgM-FITC (Southern Biotech). CD19+ naive (IgM+CD27-), Ig class-switched (IgM-CD27+), and IgM+ (IgM+CD27+) memory B-cells and CD3+CD4+ and CD3+CD8+ naive (CD27+CD45RO-) and memory (CD45RO+) T-cells were sorted on a FACSAria II or FACSAria III cell sorter using FACS Diva software (BD Biosciences). Flow cytometric analyses and cell sorting were always performed on freshly isolated material. Representative density dot plots and the gating strategy for TruCount and cell sorting are shown in Figure 3—figure supplement 1.

DNA isolation

Request a detailed protocol

Genomic DNA was isolated from sorted B- and T-cell subsets, total peripheral blood mononuclear cells, and granulocytes using the Reliaprep Blood gDNA Miniprep System (Promega, Madison, WI, USA) and stored at −20°C before processing for TREC analysis or gas chromatography/mass spectrometry (GC/MS).

TREC analysis

Request a detailed protocol

In sorted naive CD4+ and CD8+ T-cell samples, signal joint TREC numbers and DNA input were quantified with a ViiA 7 Real-Time PCR System (Applied Biosystems) as previously described (Hazenberg et al., 2000; Goldrath et al., 2000). Values are the mean of two qPCR measurements of a given DNA sample.

KREC analysis

Request a detailed protocol

For quantification of B-cell replication history, the KREC assay in sorted naive B-cells was performed as described previously (Muraro et al., 2005). In short, genomic DNA was used as template for TaqMan-based real-time quantitative PCR of the albumin control gene, intronRSS–Kde coding joints from rearranged IGK loci, and intronRSS–Kde signal joints on KRECs. The difference in Ct values between the intronRSS–Kde coding joints and signal joints from the same sample was used to calculate B-cell replication history with technical correction Ct values obtained with the U698-DB01 control cell line (Muraro et al., 2005) as follows (Muraro et al., 2014):

(CtsignaljointCtcodingjoint)sample(CtsignaljointCtcodingjoint)U698DB01

The frequencies of cells containing an intronRSS–Kde coding joint were calculated as follows (Muraro et al., 2014):

2[(CtalbuminCtcodingjoint)sample(CtalbuminCtcoding joint)U698DB01]×100%

Multiplex immunoassay

Request a detailed protocol

Plasma samples were obtained from heparinized blood at different time points and stored at −80°C. Plasma levels of CRP (C-reactive protein), APRIL (A proliferation-inducing ligand or TNFSF13), FAS-L (FAS ligand or CD95L), IL-7 (Interleukin 7), IL-15 (Interleukin 15), and IL-8 (Interleukin eight or CXCL8) were measured by a multiplex immunoassay using Luminex xMAP technology (xMAP, Luminex, Austin, TX, USA). The assay was performed as previously described (Dubinsky et al., 2010). Biorad FlexMAP3D (Biorad laboratories, Hercules, USA) and xPONENT software version 4.2 (Luminex) were used for acquisition and data was analyzed by five-parametric curve fitting using Bio-Plex Manager software, version 6.1.1 (Biorad). Samples were measured without any previous freeze-thaw cycle. Samples of HCs were acquired at the same days as patient samples to take into account the effect of storage on the different plasma markers.

Measurement of deuterium enrichment in DNA and body water

Request a detailed protocol

Deuterium enrichment in DNA from granulocytes, sorted cells, and total peripheral blood mononuclear cells (t=0) was measured according to the method described by Burns et al., 2003. with minor modifications (Westera et al., 2015). Briefly, DNA was enzymatically hydrolyzed into deoxyribonucleotides and derivatized to penta-fluoro-triacetate (PFTA) before injection (DB-17MS column, Agilent Technologies) into the gas chromatograph (7890A GC System, Agilent Technologies). PFTA was analyzed by negative chemical ionization mass spectrometry (5975C inert XL EI/CI MSD with Triple-Axis Detector, Agilent Technologies) measuring ions m/z 435 and m/z 436. For quantification of 2H enrichment, standard solutions with known enrichment (Tracer‐to‐Tracee ratios ([M + 1]/[M + 0]) 0, 0.0016, 0.0032, 0.0065, 0.0131, 0.0265, 0.0543, and 0.1140) were made by mixing 1‐13C‐deoxyadenosine (Cambridge Isotopes Inc; generates an ‘M + 1′ ion) with unlabeled deoxyadenosine (Sigma, St. Louis, MO, USA). To correct for abundance sensitivity of isotope ratios, we followed the approach proposed by Patterson et al (Avanzini et al., 2005) on log 10‐transformed enrichment data. Deuterium enrichment in urine was analyzed on the same GC/MS system (using a PoraPLOT Q 25 × 0.32 column, Varian) by electron impact ionization as previously described (Bemark et al., 2012). Values are the mean of two GCMS measurements of a given derivative sample.

Quantification of lymphocyte dynamics by mathematical modeling of urine and DNA enrichment data and cell numbers

Request a detailed protocol

Mathematical models were fitted to the urine and DNA enrichment data as previously described (van Gent et al., 2011). The estimated maximum level of 2H enrichment in the granulocyte population of each patient was considered to be the maximum level of label incorporation that cells could possibly attain and was used to scale the enrichment data of the other cell subsets. As cell numbers may not be constant over time during the lymphocyte reconstitution phase, we adapted the commonly used mathematical model for deuterium labeling in T- and B-cells by releasing the steady-state assumption. For naive T- and B-cells (N), we allow cells to be produced by the thymus for T-cells and the bone marrow for B-cells at rate σ, proliferate at a rate pN, and are lost at a rate dN. For the other lymphocyte subsets (X), we write that they proliferate at a rate pX and are lost at a rate dX.

(1) dNdt=σ+pNNdNN
(2) dXdt=pXX-dXX

The total amount of labeled DNA (L) can be modeled by the following differential equations:

(3) dLNdt=σ cUt+pN cUt N-dNLN
(4) dLXdt=pX cUt X-dXLX

where U(t) is the fraction of deuterium in body water at time t (in days), and c is an amplification factor as previously described (van Gent et al., 2011; Westera et al., 2013). We can derive the equations for the fraction of labeled DNA (defined by l=L/X) using the quotient rule of differentiation:

(5) dlNdt=σN +pN (cUt-lN)
(6) dlXdt=pX (cUt-lX)

Because of parameter identifiability issues, we were not able to estimate both σ and pN in Equation 5. We therefore made the simplifying assumption that the per cell production rate (i.e. the number of new cells produced per day, coming from the source or peripheral cell division, divided by the number of resident cells in the population) σN +pN was not time-dependent, such that Equation 6 could also be used for naive T- and B-cells. To account for potential kinetic heterogeneity in each subpopulation (Westera et al., 2013), we used a multi-exponential model in which each subpopulation i contains a fraction αi of cells with production rate pi per day, and made the simplifying assumption that these fractions αi are not time-dependent. The average per cell production rate p of each subpopulation was subsequently calculated as pX=iαi pi (Vrisekoop et al., 2008; Ganusov et al., 2010). All subsets, except naive CD4+ and CD8+ T-cells, were significantly better described by two subpopulations. For naive CD4+ and CD8+ T-cells, only one was needed.

Equation 6 shows that deuterium enrichment data will give information only on the per cell proliferation rates pX. To estimate the loss rates of the different lymphocyte subsets (i.e. the number of cells lost per day, by cell death, migration or differentiation, divided by the number of resident cells in the population) (dX) we made use of cell number data. As leukocyte counts in blood are known to vary, for example, due to diurnal rhythms, we first used a linear regression model to describe the total leukocyte numbers for each individual. To obtain cell numbers, the number of leukocytes according to this regression line was multiplied by the fraction of cells in each subset. We then fitted an exponential function to these 'normalized' cell numbers for each subset and individual:

(7) Xt=X0e(pX-dX)t

where X0 is the cell number at the time of inclusion in the study and pX was fixed to the estimated values from the deuterium analyses.

Best fits of deuterium enrichment in body water and granulocytes are shown in Figure 4—figure supplement 1 and the corresponding parameter estimates are given in Figure 4—source data 1. Individual enrichment data and best fits are shown in Figure 4—figure supplement 2 for T-cells and Figure 7—figure supplement 1 for B-cells and the corresponding parameter estimates are given in Figure 4—source data 2 (T-cell subsets) and Figure 7—source data 1 (B-cell subsets). Normalized cell numbers and best fits are shown in Figure 8—figure supplement 1 for T-cells and Figure 8—figure supplement 2 for B-cells and the corresponding parameter estimates are given in Figure 8—source data 1.

Statistical analyses

Request a detailed protocol

For each individual urine and granulocyte enrichment levels were simultaneously used to estimate their respective parameters and for each lymphocyte subset deuterium enrichment data and normalized cell numbers were simultaneously used to estimate their production and loss rates. Deuterium enrichment data were arcsin-sqrt transformed and normalized cell numbers were log10-transformed before parameter estimation. 95% confidence limits were determined by bootstrap analysis on the residuals. Parameter estimation was performed using a maximum likelihood approach using R (Sauce et al., 2012). Estimated medians of enrichment data, median values of longitudinal data, or values of single measurements were compared between two groups using Mann–Whitney tests (GraphPad Software, Inc) or multiple groups using Kruskal–Wallis with Dunn’s correction. Differences with a p-value <0.05 were considered significant.

Data availability

All data analysed during this study are included in the manuscript. Source data is added as separate files for Figure 2, 3, 4, 6,7 and 8.

References

    1. Bell EB
    2. Sparshott SM
    3. Drayson MT
    4. Ford WL
    (1987)
    The stable and permanent expansion of functional T lymphocytes in athymic nude rats after a single injection of mature T cells
    The Journal of Immunology 139:1379–1384.
    1. Miller RA
    2. Stutman O
    (1984)
    T cell repopulation from functionally restricted splenic progenitors: 10,000-fold expansion documented by using limiting dilution analyses
    Journal of Immunology 133:2925–2932.

Decision letter

  1. Frederik Graw
    Reviewing Editor; Heidelberg University, Germany
  2. Aleksandra M Walczak
    Senior Editor; École Normale Supérieure, France
  3. Andrew J Yates
    Reviewer; Columbia University, United States
  4. Ken Duffy
    Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This paper will be of interest to a broad range of immunologists and is also highly relevant to clinicians. It is a rigorous and thorough study of both T and B lymphocyte dynamics in humans, and challenges the current understanding of lymphocyte homeostasis. The key conclusions of the manuscript are well supported by the data and the performed analyses.

Decision letter after peer review:

Thank you for submitting your article "Cell-density independent increased lymphocyte production and loss rates post-autologous HSCT" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Aleksandra Walczak as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Andrew J Yates (Reviewer #2); Ken Duffy (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional work is required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

In this paper, the authors have carried out a comprehensive analysis of lymphocyte dynamics in humans after autologous hematopoietic stem cell transplant (HSCT). Using data from six week long deuterium labeling, their main finding is that rates of production and loss of all T and B subsets analyzed are elevated in auto-HCT patients, even after their numbers appear to have (almost) equilibrated. This leads to the conclusion that the current dogma of density-dependent lymphocyte increase and return to normal (homeostatic) rates of renewal following depletion needs to be questioned.

Overall, this is an interesting study that addresses an important question of lymphocyte regeneration and turnover. The study robustly demonstrates that considerable dysregulation of lymphocyte production and loss rates can persist in the face of apparently normal (or near-normal) cell numbers. They present an interesting data set and use appropriate methods to analyze these data. The study is well written and the work is clearly presented. However, a more detailed and careful discussion with regard to the main conclusion, i.e., challenging the concept of homeostatic regulation, is suggested as this might not be directly inferred from the analysis.

In particular, the reviewers identified the following main aspects that should be addressed:

a) A more detailed discussion on the explanation and interpretation of the increased cell loss rates and the actual patient data is needed (especially addressing IL-7 levels)

b) The analysis of kinetically heterogeneous cell populations by accounting for Ki67 measurements in comparison to previous studies (Gossel et al., 2017, Hogan et al. eLife 2019) could be considered/discussed.

c) The general interpretation of challenging the concept of homeostatic regulation should be (re-)discussed in the light of possible caveats of the analysis.

These aspects will be subject to re-review to determine if these issues have been satisfactorily addressed. We would also like to point you to the specific points raised below that contain more detailed comments and summarize the individual reviews.

Essential revisions:

1) Interpretation:

a) The logical steps that lead from the observed increase in lymphocyte production/loss rates to the conclusion that these changes do not reflect a homeostatic response seem to be not that clear. It could be considered, that the data presented is in fact consistent with a "homeostatic response," in that lymphocyte production/loss rates are being modulated in an effort to normalise cell numbers. That these rates are both elevated compared to healthy controls likely indicates ongoing dysregulation of the homeostatic response in their patient cohort. One scenario that would be consistent with the data is an increase in cell loss rates (for example, damage to secondary lymphoid organs may affect delivery of cell survival/differentiation signals, as is discussed in the Discussion for B cells), resulting in a consequent increase of cell production rates as a homeostatic response to maintain cell numbers. The ongoing dysregulation of cell production/loss rates in these patients is in itself an important observation, given that cell numbers in many of the populations analysed have returned to normal or near-normal levels by the end of the study, which one might take at face value as an indication that homeostasis has been restored.

b) The assertion in the Discussion that there is a lack of evidence for homeostatic regulation of lymphocyte production and loss in humans is not justified. To give just one example to the contrary, there is a wealth of evidence that the classical homeostatic cytokine IL-7 regulates T cell numbers in human health and disease (see reviews by Barata, Durum and Seddon, 2019 and Lundstrom, Fewkes and Mackall, 2012).

2) IL-7 Measurements:

Despite citing an expected increase in plasma IL-7 levels in their patients, almost all measurements of IL-7 in patients are at the extreme low end of the normal range (Figure 2 and Figure 2—source data 1). The IQR seems to suspiciously start at 1, which is where the vast majority of the measurements are. Was the data not log base 10 transformed, but first one added and the log base 10 transformed? If so, the as the vast majority of patient samples seem to have no measurable IL-7 and, indeed, the suggestion seems to be that >25% of HC also have no measurable IL-7 either. What is the limit of detection in this assay? Could these patients possibly be deficient in IL-7? If so, this would have considerable implications on cell survival and proliferation rates. For the rest of the measurements in Figure 2, is the last sentence of the subsection “Heterogeneous T-cell reconstitution kinetics post-autoHSCT” not hard to justify? It's a challenge to statistically assess significance, but it would seem that the variance the patient samples is higher than that presented for the HCs, with several lying well outside IQRs. Perhaps they're within in 95% CIs?

3) Labelling:

a) The deuterium labelling regime used for the patients in this study was 3 weeks less than for the healthy controls. The reasons behind this choice are clearly stated in the Materials and methods section, and the impact of different median ages in each cohort is also addressed. However the possible implications of the reduced labelling period on the expected modelling results and how this might affect data interpretation are not discussed.

b) The authors make the important point that increased TREC frequencies in naive T cells should not be taken as evidence for increased thymic output, as recent thymic emigrants may be overrepresented in the reduced peripheral naive pool. Could this phenomenon also affect interpretation of their deuterium labelling studies? Developing thymocytes undergo many rounds of cell division, therefore could the DNA of recent thymic emigrants be enriched for deuterium (i.e., cells that underwent thymic development during the labelling phase and were subsequently exported to the periphery)?

c) The deuterium analysis establishes that cells are continuing to divide at a higher than base-line rate even when cell numbers have stabilized. Assuming differentiation is not the explanation, it's evident that increased levels of cell death, as inferred here through the modelling, is the only viable alternative. While no experimental mechanism that I know of exists to measure death rates, would it have been possible to, e.g., use DAPI staining to experimentally qualitatively substantiate the finding of increased death over controls? Perhaps there was insufficient material to do so, or this may be considered in a future study.

4) Cell heterogeneity/mathematical analysis/interpretation:

a) The multi-exponential model of kinetically distinct subsets is almost phenomenological as it may also represent temporal heterogeneity and all parameters are not identifiable. But if you assume there are two kinetically distinct subpopulations, then with the inclusion of Ki67 measurements was it not possible to constrain these parameters (subset sizes and division rates) more? Perhaps you still have the uncertainty of the partitioning between influx and cell division? One has to make assumptions about the Ki67 expression in immigrant cells.

b) Related to this – you quote the average production and loss rates. When fitting the bi-exponential model I think you find that the division rate and size of each memory subpopulation are highly correlated – but are there not invariant measures? Such as the proportion of per-cell production that derives from each (presumed) subset? (i.e. the product αi pi) ?

c) It would be good to comment on the source of heterogeneity in memory. Might these two subsets broadly correspond to cells generated post-transplant (influx plus division) and residual old cells (division)? We have argued that newly generated memory T cells in mice have higher production and loss rates relative to more established populations (Hogan eLife 2019), and so maybe something similar is happening here – in the patients you are essentially seeing a mixture of memory dynamics seen in children (new memory) and adults (residual memory).

d) Similarly – naive T cells may also exhibit loss rates that decrease with cell age in mice (Rane et al., 2018 and Reynaldi et al., 2019) and in humans (Reu Plos Biol 2019) and the average Ki67 expression among naive T cells declines during the first 3 months of life. How do the elevated rates of production of naive T cells in these patients compare to those in children? Are you just seeing the natural behaviour of a naive T cell pool with a left-skewed age-distribution?

e) It has been observed that memory CD8 T cells do not appear to have a carrying capacity, at least in SPF mice – so perhaps there is a precedent here? In particular, maybe the CD4 memory deficiency is not too surprising? It has been shown that stable-ish memory CD4 numbers in adult SPF mice depend on early antigen exposure (Hogan eLife 2019), arguing against a carrying capacity/set point.

f) Are density effects only manifest when cell numbers are lower? Do you have Ki67 data from patients soon after transplant when numbers are increasing? Maybe in the Abstract you could emphasise that your results apply to quite a long time after transplant and so are perhaps especially surprising. Also – in the Discussion, you say memory production rates are not increased a few months after transplant. But they are probably increased soon after transplant?

5) Statistical methods:

a) As is noted in the Materials and methods, total leukocyte measurements are typically noisy. However, for pretty much every patient measurement, the point estimate (i.e. the measured number) is provided with what looks like no estimate of uncertainty or confidence. Just taking some individual samples, it would appear to be possibly significant. For example, consider Figure 6, patient F. In all panels, the seesaw numbers are consistent across the different compartments (day 500 low, day 520 high, day 550 low, etc.) suggestive of a systemic bias. Is no estimate of that uncertainty possible through, e.g., a control measurement of repeated measurements of samples from the same HC sample.

Comment: Not for this study as I presume it was not done, but perhaps something to think of for future studies: if you had measured HC samples as time-courses each time you measured a patient sample, you could manage the measurement uncertainty by treating each time-course (patient or healthy) as a single experimental observation and used one-sided permutation tests to establish statistical significance between the two groups.

b) In general, I would think it preferable to have a box plot rather than an IQR on each of the figures (IQR is not mentioned in Figure 3 legend, but I presume that's the case). It would take up no more space than you have, but give a better representation of the HC data, and provide a clearer communication of the inherent variability in the HC data.

https://doi.org/10.7554/eLife.59775.sa1

Author response

Essential revisions:

1) Interpretation:

a) The logical steps that lead from the observed increase in lymphocyte production/loss rates to the conclusion that these changes do not reflect a homeostatic response seem to be not that clear. It could be considered, that the data presented is in fact consistent with a "homeostatic response," in that lymphocyte production/loss rates are being modulated in an effort to normalise cell numbers. That these rates are both elevated compared to healthy controls likely indicates ongoing dysregulation of the homeostatic response in their patient cohort. One scenario that would be consistent with the data is an increase in cell loss rates (for example, damage to secondary lymphoid organs may affect delivery of cell survival/differentiation signals, as is discussed in the Discussion for B cells), resulting in a consequent increase of cell production rates as a homeostatic response to maintain cell numbers. The ongoing dysregulation of cell production/loss rates in these patients is in itself an important observation, given that cell numbers in many of the populations analysed have returned to normal or near-normal levels by the end of the study, which one might take at face value as an indication that homeostasis has been restored.

We think our data at least counter the dogma that production rates go up when cell numbers are low, and normalize when cell numbers do. There are different possibilities that could explain the high levels of cell production and loss observed in our study. Loss rates may be increased due to increased cell death (e.g. as a result of damage to secondary lymphoid organs), or it may reflect increased homing to the tissues rather than cell death. We agree with the reviewers that we cannot rule out the possibility that increased production may be a homeostatic response to increased cell loss. Calling it “ongoing dysregulation” is indeed a good way of summarizing our findings, and therefore we have adopted the wording in the manuscript. We have also given more room for the different explanations in the text to get a more balanced discussion.

b) The assertion in the Discussion that there is a lack of evidence for homeostatic regulation of lymphocyte production and loss in humans is not justified. To give just one example to the contrary, there is a wealth of evidence that the classical homeostatic cytokine IL-7 regulates T cell numbers in human health and disease (see reviews by Barata, Durum and Seddon, 2019 and Lundstrom, Fewkes and Mackall, 2012).

In mice there is ample evidence for an in vivo role of IL-7, cytokines and other (membrane) proteins in (homeostatic control of) T cell proliferation and survival. For humans, the literature is more limited. We agree that IL-7 is one on the best-known cytokines implicated in homeostatic control of T cell numbers in humans. Based on this literature we also chose to include the measurements of IL-7 plasma levels in our study. In the revised version of the manuscript, we have added reference to this literature on IL-7 (see Discussion paragraph). However, studies testing the direct relationship between cell numbers and lymphocyte turnover in humans are much more limited and prone to interfering factors, such as infections and GvHD. The setting of autologous HSCT in a group of patients without clinical complications gave us the unique setting to investigate the direct link between cell numbers and lymphocyte production and loss rates. Based on the reviewers’ comments we now emphasize the finding that lymphocyte dynamics are still dysregulated when most subsets have normalized, and discuss possible explanations for this dysregulation more extensively.

2) IL-7 Measurements:

Despite citing an expected increase in plasma IL-7 levels in their patients, almost all measurements of IL-7 in patients are at the extreme low end of the normal range (Figure 2 and Figure 2—source data 1). The IQR seems to suspiciously start at 1, which is where the vast majority of the measurements are. Was the data not log base 10 transformed, but first one added and the log base 10 transformed? If so, the as the vast majority of patient samples seem to have no measurable IL-7 and, indeed, the suggestion seems to be that >25% of HC also have no measurable IL-7 either. What is the limit of detection in this assay? Could these patients possibly be deficient in IL-7? If so, this would have considerable implications on cell survival and proliferation rates. For the rest of the measurements in Figure 2, is the last sentence of the subsection “Heterogeneous T-cell reconstitution kinetics post-autoHSCT” not hard to justify? It's a challenge to statistically assess significance, but it would seem that the variance the patient samples is higher than that presented for the HCs, with several lying well outside IQRs. Perhaps they're within in 95% CIs?

The limit of detection for IL-7 of the luminex assay performed in our study is 1.3pg/ml. We acknowledge that the variation in our assay is big and that the number of measurements is relatively small. To better represent the range of the healthy controls, we have included box plots showing the min to max range for the different plasma measurements in the revised version of the manuscript. As before, all samples with IL-7 levels below the detection level were set at 1 (this is now also mentioned in the legend of Figure 2).

Although we agree that there seems to be a tendency that IL-7 levels in patients were lower than in HC, there is no statistical support for this conclusion. This may be due to the relatively small sample size and the relatively large number of samples that fell below the limit of detection. Since the patients presented with CD4+ T-cell lymphopenia and significantly increased lymphocyte production rates, if anything we would have expected that they would have had increased levels of IL-7. Our data did not provide any evidence in this direction, however. Indeed, at the time of analysis (i.e. 200 days post-autoHSCT), patients did not have significantly higher levels of plasma IL-7 than healthy controls. We agree that these observations deserve more discussion in the manuscript, and have therefore included a paragraph in the Discussion to address this issue.

Author response table 1
PatientsIL-7 (pg/ml)ControlsIL-7 (pg/ml)
C-162.56CTRL120.37
C-247.27CTRL2OOR <
C-317.08CTRL381.35
F-1OOR <CTRL47.91
F-2OOR <CTRL5113.81
F-3OOR <CTRL7OOR <
A-1OOR <CTRL81.37
A-2OOR <CTRL913.21
A-3OOR <CTRL10113.22
A-4OOR <
D-1OOR <
D-214.71
D-439.94
E-1OOR <
E-2OOR <
E-3OOR <
B-1OOR <
B-2OOR <

3) Labelling:

a) The deuterium labelling regime used for the patients in this study was 3 weeks less than for the healthy controls. The reasons behind this choice are clearly stated in the Materials and methods section, and the impact of different median ages in each cohort is also addressed. However the possible implications of the reduced labelling period on the expected modelling results and how this might affect data interpretation are not discussed.

This has been addressed in the Materials and methods section of the revised version of the manuscript.

b) The authors make the important point that increased TREC frequencies in naive T cells should not be taken as evidence for increased thymic output, as recent thymic emigrants may be overrepresented in the reduced peripheral naive pool. Could this phenomenon also affect interpretation of their deuterium labelling studies? Developing thymocytes undergo many rounds of cell division, therefore could the DNA of recent thymic emigrants be enriched for deuterium (i.e., cells that underwent thymic development during the labelling phase and were subsequently exported to the periphery)?

The interpretation of the deuterium labelling results is not affected by this as the model already assumes that a fraction cS(t) of the DNA of cells that come from the thymus is labelled, i.e. we already assume that the DNA of RTE is enriched for deuterium.

c) The deuterium analysis establishes that cells are continuing to divide at a higher than base-line rate even when cell numbers have stabalized. Assuming differentiation is not the explanation, it's evident that increased levels of cell death, as inferred here through the modelling, is the only viable alternative. While no experimental mechanism that I know of exists to measure death rates, would it have been possible to, e.g., use DAPI staining to experimentally qualitatively substantiate the finding of increased death over controls? Perhaps there was insufficient material to do so, or this may be considered in a future study.

We agree that it would have been extremely valuable to have incorporated cell death markers, such as DAPI or Annexin V, in our assay. However, at the time of study design we did not take into account that cell death would play such an important role in our study. Several published studies have analysed T-cell survival following allogeneic HSCT and found that the fraction of pro-apoptotic cells increases following transplantation. We have added this information to the Discussion of the revised manuscript. In future studies we will certainly take death markers along.

4) Cell heterogeneity/mathematical analysis/interpretation:

a) The multi-exponential model of kinetically distinct subsets is almost phenomenological as it may also represent temporal heterogeneity and all parameters are not identifiable. But if you assume there are two kinetically distinct subpopulations, then with the inclusion of Ki67 measurements was it not possible to constrain these parameters (subset sizes and division rates) more? Perhaps you still have the uncertainty of the partitioning between influx and cell division? One has to make assumptions about the Ki67 expression in immigrant cells.

The multi-exponential model was used because it yields lymphocyte turnover rates that are independent of the length of the labelling period, as demonstrated before by Westera et al., 2013. A draw-back of the multi-exponential model is indeed that not all parameters may be identifiable. We therefore only interpret the average turnover rates, which tend to have much smaller confidence intervals than the individual parameters. Unfortunately, we have no clue which sub-populations constitute the kinetically heterogeneous lymphocyte populations, and we do not see how Ki67 data could help to constrain these parameters. Since Ki67 is a snapshot marker, even cells from a subpopulation with rapid turnover may be Ki67-negative at the moment of our measurement. Even Ki67 measurements will therefore only provide information about the average proliferation rate in a cell population, and not about the proliferation rates of the underlying subsets. Although it is a very interesting thought, we think that using the Ki67 data to constrain parameter estimates based on deuterium labelling would only work if the subpopulations that together constitute a heterogeneous lymphocyte population i) have extremely different kinetics, e.g. one subpopulation without turnover and one subpopulation with considerable turnover, and ii) happen to be identifiable based on the relatively low number of markers that were taken along in our FACS analyses. As mentioned by the reviewer, the fact that deuterium labelling can be due to both influx and cell division complicates this even further.

b) Related to this – you quote the average production and loss rates. When fitting the bi-exponential model I think you find that the division rate and size of each memory subpopulation are highly correlated – but are there not invariant measures? Such as the proportion of per-cell production that derives from each (presumed) subset? (i.e. the product αi pi) ?

We very much like this idea, and have tested it on the different lymphocyte populations that we have analysed. Surprisingly, we typically find that even the confidence intervals on the product αipi can be large, and considerably larger than the confidence interval on the average production rate. See for an example Author response image 1 in which we plotted the spread (represented by the quartiles) on the different parameters of the memory CD4 T-cell population of one individual. The values of the best fit were scaled to 1, so that the spread on the different parameters and parameter combinations can be compared. Since the confidence intervals on αipi (in contrast to those on the average production rates) were not consistently smaller than those on the individual parameters αi and pi. we have decided not to include this in our revised manuscript, for the same reasons as why we do not report the individual parameters αi and pi.

Author response image 1

c) It would be good to comment on the source of heterogeneity in memory. Might these two subsets broadly correspond to cells generated post-transplant (influx plus division) and residual old cells (division)? We have argued that newly generated memory T cells in mice have higher production and loss rates relative to more established populations (Hogan eLife 2019), and so maybe something similar is happening here – in the patients you are essentially seeing a mixture of memory dynamics seen in children (new memory) and adults (residual memory).

We agree that an altered contribution of young and old cells with different production and loss rates would be one of the possible explanations of our findings. We have included this in the Discussion of the revised manuscript.

d) Similarly – naive T cells may also exhibit loss rates that decrease with cell age in mice (Rane et al., 2018 and Reynaldi et al., 2019) and in humans (Reu Plos Biol 2019) and the average Ki67 expression among naive T cells declines during the first 3 months of life. How do the elevated rates of production of naive T cells in these patients compare to those in children? Are you just seeing the natural behaviour of a naive T cell pool with a left-skewed age-distribution?

We agree that also for naive T cells the increased production and loss rates that we observed in HSCT patients may reflect the relatively large contribution of relatively young cells. Increased lymphocyte production rates after HSCT may thus be a reflection of a “younger” immune system. We have added this interpretation, as well as a reference to the literature on this to the Discussion of the revised manuscript.

Unfortunately, there are no estimates of lymphocyte turnover in children based on deuterium labelling to compare to. Strictly speaking, we therefore do not know whether the observed differences in deuterium labelling between HSCT patients and healthy controls are fully explained by a left-skewed age-distribution of lymphocytes in HSCT patients. When comparing Ki-67 expression levels of naive and memory T cells between HSCT patients and young healthy children (van Gent et al., 2009), we found very similar levels. This suggests that in HSCT patients we may thus indeed see the natural dynamics of a T-cell pool with a left-skewed age-distribution. Our TREC data would also be in line with this interpretation. We have therefore added this as a possible explanation for our findings in the Discussion of the revised manuscript. Unfortunately, the study of Reu et al. only has data from the age of 20 years onwards. We have therefore not included this paper in this part of the Discussion.

e) It has been observed that memory CD8 T cells do not appear to have a carrying capacity, at least in SPF mice – so perhaps there is a precedent here? In particular, maybe the CD4 memory deficiency is not too surprising? It has been shown that stable-ish memory CD4 numbers in adult SPF mice depend on early antigen exposure (Hogan eLife 2019), arguing against a carrying capacity/set point.

Although we very much like this point raised by the reviewer, we feel that we would complicate the paper enormously if we start discussing this in the absence of any data in humans to support this interpretation. It would be great if in the future we could find a condition in which to test this hypothesis in humans.

f) Are density effects only manifest when cell numbers are lower? Do you have Ki67 data from patients soon after transplant when numbers are increasing? Maybe in the Abstract you could emphasise that your results apply to quite a long time after transplant and so are perhaps especially surprising. Also – in the Discussion, you say memory production rates are not increased a few months after transplant. But they are probably increased soon after transplant?

Unfortunately, we had no blood samples from the participants of our study earlier after transplant. Malphettes, 2003 studied adults with multiple myeloma who received an autologous transplantation and reported the following:

“At month 1, 19% of the CD4+ and 24% of the CD8+ T cells (CD45RO+) exhibit the Ki67 antigen. These percentages decreased as soon as the third month after grafting and remained at values slightly above normal range (2%-5%) until month 15 without any difference between the CD4+ and CD8+”.

The Ki-67 values observed in the study by Malphettes et al. >3months after transplantation seem to be in line with the observations from our study. Therefore, we think that it is likely that shortly after transplant (<3 months) Ki-67 expression by memory T cells may well have been increased. We have followed your suggestion in the Abstract and briefly refer to Malphettes’ findings in the Discussion of the revised manuscript.

5) Statistical methods:

a) As is noted in the Materials and methods, total leukocyte measurements are typically noisy. However, for pretty much every patient measurement, the point estimate (i.e. the measured number) is provided with what looks like no estimate of uncertainty or confidence. Just taking some individual samples, it would appear to be possibly significant. For example, consider Figure 6, patient F. In all panels, the seesaw numbers are consistent across the different compartments (day 500 low, day 520 high, day 550 low, etc.) suggestive of a systemic bias. Is no estimate of that uncertainty possible through, e.g., a control measurement of repeated measurements of samples from the same HC sample.

Comment: Not for this study as I presume it was not done, but perhaps something to think of for future studies: if you had measured HC samples as time-courses each time you measured a patient sample, you could manage the measurement uncertainty by treating each time-course (patient or healthy) as a single experimental observation and used one-sided permutation tests to establish statistical significance between the two groups.

Leukocyte numbers in blood are typically highly variable. Such variability may to a small extent come from measurement error, but is mainly thought to be due to real differences in leukocyte numbers in the blood at different time points. Many variables, e.g. exercise or moment of the day, may influence the measurement. Repeated measurements of samples from healthy controls would therefore not help to reduce this variation. It is exactly for this reason that we chose to describe total leukocyte numbers using linear regression, to then calculate cell numbers in each subset using the percentages of cells in the different gates. We have clarified this in the revised manuscript (see Materials and methods). Moreover we have indicated in the figure legends when this correction was done for the data shown in the figure.

b) In general, I would think it preferable to have a box plot rather than an IQR on each of the figures (IQR is not mentioned in Figure 3 legend, but I presume that's the case). It would take up no more space than you have, but give a better representation of the HC data, and provide a clearer communication of the inherent variability in the HC data.

We agree that showing the data as a box plot may help clarify the min-max range of healthy control values. We have changed Figures 2, 3, 6, and Figure 5—figure supplement 1 and their corresponding figure legends accordingly.

https://doi.org/10.7554/eLife.59775.sa2

Article and author information

Author details

  1. Mariona Baliu-Piqué

    Center for Translational Immunology, University Medical Center Utrecht, Utrecht, Netherlands
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Vera van Hoeven and Julia Drylewicz
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9276-8839
  2. Vera van Hoeven

    Department of Experimental Immunology, Amsterdam UMC, University of Amsterdam, Amsterdam, Netherlands
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Mariona Baliu-Piqué and Julia Drylewicz
    Competing interests
    No competing interests declared
  3. Julia Drylewicz

    Center for Translational Immunology, University Medical Center Utrecht, Utrecht, Netherlands
    Contribution
    Conceptualization, Formal analysis, Investigation, Writing - original draft, Writing - review and editing
    Contributed equally with
    Mariona Baliu-Piqué and Vera van Hoeven
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9434-8459
  4. Lotte E van der Wagen

    Department of Hematology, University Medical Center Utrecht, Utrecht, Netherlands
    Contribution
    Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Anke Janssen

    Center for Translational Immunology, University Medical Center Utrecht, Utrecht, Netherlands
    Contribution
    Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Sigrid A Otto

    Center for Translational Immunology, University Medical Center Utrecht, Utrecht, Netherlands
    Contribution
    Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  7. Menno C van Zelm

    Department of Immunology and Pathology, Monash University and Alfred Hospital, Melbourne, Australia
    Contribution
    Formal analysis, Supervision, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  8. Rob J de Boer

    Theoretical Biology, Utrecht University, Utrecht, Netherlands
    Contribution
    Conceptualization, Formal analysis, Supervision, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2130-691X
  9. Jürgen Kuball

    1. Center for Translational Immunology, University Medical Center Utrecht, Utrecht, Netherlands
    2. Department of Hematology, University Medical Center Utrecht, Utrecht, Netherlands
    Contribution
    Conceptualization, Supervision, Writing - review and editing
    Competing interests
    reports grants from Novartis, Miltenyi Biotech, and Gadeta. Is inventor on multiple patents dealing with γδ T-cell research, ligands, and isolation techniques, and is scientific co-founder and shareholder of Gadeta. (Patent number: 9546998, 9891211, 10324083, 10578609. Publication number: 20200368278, 20200363397, 20190271688, 2019020961, 201901692603, 20180188234, 20170319674, 20170174741, 20150050670).
  10. Jose AM Borghans

    Center for Translational Immunology, University Medical Center Utrecht, Utrecht, Netherlands
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Investigation, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    J.Borghans@umcutrecht.nl
    Competing interests
    No competing interests declared
  11. Kiki Tesselaar

    Center for Translational Immunology, University Medical Center Utrecht, Utrecht, Netherlands
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Investigation, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    K.Tesselaar@umcutrecht.nl
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9847-0814

Funding

European Union Seventh Framework Programme (FP7-PEOPLE-2012-ITN 317040-QuanTI)

  • Mariona Baliu-Piqué

Landsteiner Foundation for Blood Transfusion Research (LSBR grant 0812)

  • Vera van Hoeven

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank the patients for their participation in this study, Jeroen F van Velzen, Pien AJ van der Burght, and Gerrit Spierenburg for assistance with cell sorting, Laura Ackermans for theoretical input, Lyanne Derksen for critically reading the manuscript, Mr Benjamin Bartol and Ms Pei Mun Aui for technical support, and the nurses from the Julius Center Trial Unit for taking care of the study participants.

Ethics

Human subjects: This study was approved by the medical ethical committee of the University Medical Center Utrecht and conducted in accordance with the Helsinki Declaration. Six patients who received an autoHSCT for the treatment of a hematologic malignancy were enrolled in the study after having provided written informed consent.

Senior Editor

  1. Aleksandra M Walczak, École Normale Supérieure, France

Reviewing Editor

  1. Frederik Graw, Heidelberg University, Germany

Reviewers

  1. Andrew J Yates, Columbia University, United States
  2. Ken Duffy

Version history

  1. Received: June 8, 2020
  2. Accepted: February 3, 2021
  3. Accepted Manuscript published: February 4, 2021 (version 1)
  4. Version of Record published: February 16, 2021 (version 2)

Copyright

© 2021, Baliu-Piqué et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 675
    Page views
  • 71
    Downloads
  • 8
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Mariona Baliu-Piqué
  2. Vera van Hoeven
  3. Julia Drylewicz
  4. Lotte E van der Wagen
  5. Anke Janssen
  6. Sigrid A Otto
  7. Menno C van Zelm
  8. Rob J de Boer
  9. Jürgen Kuball
  10. Jose AM Borghans
  11. Kiki Tesselaar
(2021)
Cell-density independent increased lymphocyte production and loss rates post-autologous HSCT
eLife 10:e59775.
https://doi.org/10.7554/eLife.59775

Further reading

    1. Immunology and Inflammation
    Atomu Yamaguchi, Noriaki Maeshige ... Hidemi Fujino
    Research Article

    The regulation of inflammatory responses is an important intervention in biological function and macrophages play an essential role during inflammation. Skeletal muscle is the largest organ in the human body and releases various factors which mediate anti-inflammatory/immune modulatory effects. Recently, the roles of extracellular vesicles (EVs) from a large variety of cells are reported. In particular, EVs released from skeletal muscle are attracting attention due to their therapeutic effects on dysfunctional organs and tissues. Also, ultrasound (US) promotes release of EVs from skeletal muscle. In this study, we investigated the output parameters and mechanisms of US-induced EV release enhancement and the potential of US-treated skeletal muscle-derived EVs in the regulation of inflammatory responses in macrophages. High-intensity US (3.0 W/cm2) irradiation increased EV secretion from C2C12 murine muscle cells via elevating intracellular Ca2+ level without negative effects. Moreover, US-induced EVs suppressed expression levels of pro-inflammatory factors in macrophages. miRNA sequencing analysis revealed that miR-206-3p and miR-378a-3p were especially abundant in skeletal myotube-derived EVs. In this study we demonstrated that high-intensity US promotes the release of anti-inflammatory EVs from skeletal myotubes and exert anti-inflammatory effects on macrophages.

    1. Genetics and Genomics
    2. Immunology and Inflammation
    Huiyun Lyu, Guohua Yuan ... Yan Shi
    Research Article

    Thymus-originated tTregs and in vitro induced iTregs are subsets of regulatory T cells. While they share the capacity of immune suppression, their stabilities are different, with iTregs losing their phenotype upon stimulation or under inflammatory milieu. Epigenetic differences, particularly methylation state of Foxp3 CNS2 region, provide an explanation for this shift. Whether additional regulations, including cellular signaling, could directly lead phenotypical instability requires further analysis. Here, we show that upon TCR (T cell receptor) triggering, SOCE (store-operated calcium entry) and NFAT (nuclear factor of activated T cells) nuclear translocation are blunted in tTregs, yet fully operational in iTregs, similar to Tconvs. On the other hand, tTregs show minimal changes in their chromatin accessibility upon activation, in contrast to iTregs that demonstrate an activated chromatin state with highly accessible T cell activation and inflammation related genes. Assisted by several cofactors, NFAT driven by strong SOCE signaling in iTregs preferentially binds to primed-opened T helper (TH) genes, resulting in their activation normally observed only in Tconv activation, ultimately leads to instability. Conversely, suppression of SOCE in iTregs can partially rescue their phenotype. Thus, our study adds two new layers, cellular signaling and chromatin accessibility, of understanding in Treg stability, and may provide a path for better clinical applications of Treg cell therapy.
