Peripheral natural killer cells in chronic hepatitis B patients display multiple molecular features of T cell exhaustion

  1. Marie Marotel
  2. Marine Villard
  3. Annabelle Drouillard
  4. Issam Tout
  5. Laurie Besson
  6. Omran Allatif
  7. Marine Pujol
  8. Yamila Rocca
  9. Michelle Ainouze
  10. Guillaume Roblot
  11. Sébastien Viel
  12. Melissa Gomez
  13. Veronique Loustaud
  14. Sophie Alain
  15. David Durantel
  16. Thierry Walzer  Is a corresponding author
  17. Uzma Hasan  Is a corresponding author
  18. Antoine Marçais  Is a corresponding author
  1. CIRI, Centre International de Recherche en Infectiologie, Team Innate Immunity in Infectious and Autoimmune Diseases, Univ Lyon, Inserm, Université Claude Bernard Lyon 1, CNRS, France
  2. Service d’Immunologie biologique, Hôpital Lyon Sud, Hospices Civils de Lyon, France
  3. CHU Limoges, Service d’Hépatogastroentérologie, U1248 INSERM, Université Limoges, France
  4. Département de Microbiologie, CHU de Limoges, Faculté de médecine-Université de Limoges, France
  5. Centre de Recherche en Cancérologie de Lyon (CRCL), INSERM, U1052, CNRS, Université de Lyon, France
Research Article
  • Cited 0
  • Views 521
  • Annotations
Cite this article as: eLife 2021;10:e60095 doi: 10.7554/eLife.60095

Abstract

Antiviral effectors such as natural killer (NK) cells have impaired functions in chronic hepatitis B (CHB) patients. The molecular mechanism responsible for this dysfunction remains poorly characterised. We show that decreased cytokine production capacity of peripheral NK cells from CHB patients was associated with reduced expression of NKp30 and CD16, and defective mTOR pathway activity. Transcriptome analysis of patients NK cells revealed an enrichment for transcripts expressed in exhausted T cells suggesting that NK cell dysfunction and T cell exhaustion employ common mechanisms. In particular, the transcription factor TOX and several of its targets were over-expressed in NK cells of CHB patients. This signature was predicted to be dependent on the calcium-associated transcription factor NFAT. Stimulation of the calcium-dependent pathway recapitulated features of NK cells from CHB patients. Thus, deregulated calcium signalling could be a central event in both T cell exhaustion and NK cell dysfunction occurring during chronic infections.

Introduction

Hepatitis B virus (HBV) infection results in immune-mediated viral clearance in 90–95% of adults. The remaining 5–10% fail to control viral infection due to failure in type one cellular immunity, thus leading to chronic hepatitis B (CHB) (Lai et al., 2003). As a result, more than 250 million individuals worldwide are chronic HBV carriers (Plummer et al., 2016). Natural killer (NK) cells are endowed with antiviral properties such as IFN-γ and TNF-α secretion as well as cytotoxicity that could contribute to HBV clearance (Fisicaro et al., 2019). In patients, NK cells are activated during acute HBV infection before the onset of adaptive immunity (Dunn et al., 2009; Fisicaro et al., 2009; Zhao et al., 2012; Lunemann et al., 2014; Yu et al., 2018). However, in the chronic phase of the disease, NK cells present impaired functions, which could contribute to viral persistence. Indeed, NK cells from CHB patients are characterised by a decreased capacity to produce cytokines such as IFN-γ and TNF-α despite maintaining or even increasing their cytotoxic capacity (Oliviero et al., 2009; Peppa et al., 2010; Sun et al., 2012; Tjwa et al., 2011). This phenomenon has been termed ‘functional dichotomy’ (Oliviero et al., 2009). NK cell functions are controlled by the relative strength of positive and negative signals triggered by the ligation of activating or inhibitory receptors (Lanier, 2005). In HBV-infected patients, this balance might be skewed as a decrease in the expression of several activating receptors was previously observed in patient’s NK cells (Lunemann et al., 2014; Sun et al., 2012; Tjwa et al., 2011; Heiberg et al., 2015). Furthermore, NK cells from CHB patients with high viral loads or liver damage display increased expression of certain inhibitory receptors including immune-checkpoint (ICP) markers such as NKG2A or T cell immunoglobulin and mucin domain containing 3 (TIM3) (Ju et al., 2010; Li et al., 2013). Moreover, cytokines also participate positively or negatively in the control of NK cell functions (Marçais et al., 2013; Marçais et al., 2014; Viel et al., 2016; Marçais et al., 2017). Molecularly, we and others have shown that the mechanistic target of rapamycin (mTOR) pathway integrates positive and negative signals derived from cytokines such as IL-15, IL-12, or TGF-β, respectively, to control NK cell metabolism and functions (Marçais et al., 2014; Viel et al., 2016; Marçais et al., 2017; Donnelly et al., 2014). In the context of CHB, reports also involved immuno-modulatory cytokines such as IL-10 and TGF-β in the emergence/maintenance of the dysfunctional phenotype (Peppa et al., 2010; Sun et al., 2012; Li et al., 2018). However, despite these pieces of evidence, a molecular framework to explain NK cell dysfunction is still missing. This is in contrast with the situation that prevails in the T cell field where dysfunction is also observed in contexts of persistent stimulation encountered during chronic infection or cancer: a phenomenon termed exhaustion. Indeed, T cell exhaustion has been defined as a stepwise differentiation process arising in situations of chronic stimulation and combining (1) a gradual loss of effector functions and proliferative capacities, (2) an altered metabolism, (3) the expression of defined ICP functioning as inhibitory receptors, and (4) a specific transcriptional and epigenetic program (McLane et al., 2019). The transcription factors responsible for the appearance of the exhausted phenotype in T cells have recently been identified and include NFAT, TOX, and NR4A family members (Martinez et al., 2015; Khan et al., 2019; Seo et al., 2019; Alfei et al., 2019; Scott et al., 2019; Yao et al., 2019; Liu et al., 2019). Mechanistically, it was proposed that NFAT activation resulted from unbalanced signalling due to defective co-stimulation leading to preferential activation of the signalling branch dependent on Ca2+ flux (Martinez et al., 2015). NFAT would then behave as an initiating transcription factor by further driving the expression of TOX and NR4As (Seo et al., 2019; Chen et al., 2019). By contrast, the mechanisms that deteriorate NK cell functions during chronic infections and how they relate to the phenomenon of exhaustion as defined in the T cell field remain weakly defined.

To shed light on these issues, we established a cohort of CHB patients and healthy donors (HD) and validated the dysfunctional state and altered phenotype of circulating NK cells. Using flow cytometry, we showed that basal and IL-15-mediated activation of the AKT/mTOR pathway were blunted in NK cells of CHB patients. However, this inadequacy did not translate into obvious metabolic defects. To identify the molecular mechanisms leading to dysfunction in an unbiased manner, we performed a transcriptome analysis of circulating NK cells of HD and CHB patients. We found that NK cells of CHB patients presented some of the key molecular hallmarks of exhausted T cells, that is over-expression of transcription factors such as TOX or NR4A-family and their ICP targets. Furthermore, we uncovered a transcriptional signature implicating the activation of a partnerless NFAT, another characteristic of exhausted T cells. Mechanistically, this suggested that NK cells were submitted to unbalanced signalling biased towards Ca2+-dependent signalling in CHB patients. In order to test whether such unbalance could induce dysfunction, we induced Ca2+ flux in isolation in control NK cells. This treatment altered several phenotypic and functional parameters in a manner similar to CHB infection, thus providing molecular insight into the regulation of the dysfunctional state. Altogether, these data distinctly show that circulating NK cells in CHB patients exhibit key molecular features reminiscent of T cell exhaustion, a knowledge that could inform future immunotherapy strategies.

Results

NK cell functionality is impaired in CHB patients

We constituted a cohort of CHB patients and HD controls. Clinical parameters and statistics are presented in Table 1. The 32 patients constituting our cohort are in the immune inactive phase characterised by persistent HBV infection of the liver, absence of significant necroinflammatory disease (data not shown), low serum HBV DNA levels, and normal serum aminotransferases. HD controls were sex and age matched to CHB patients. Similar to previously described cohorts, a higher proportion of CHB patients than HD were seropositive for Human Cytomegalovirus (HCMV) (Table 1, Figure 1—figure supplement 1A), a characteristic that led to higher representation of the adaptive NKG2C+ subset in the NK cell population (Figure 1—figure supplement 1B). Peripheral blood mononuclear cells (PBMCs) were isolated and NK cells identified as CD56+CD7+/CD3/19/14/4 by flow cytometry (Figure 1—figure supplement 2). NK cell effector capacities were then analysed. Four different effector functions were measured: cytotoxicity and the production of three cytokines (IFN-γ, MIP1-β, and TNF-α). We measured these readouts in response to cell lines activating different receptors: K562 and Granta coated with Rituximab. As shown in Figure 1A, NK cells of CHB patients exhibited normal degranulation in response to K562 stimulation. Yet, basal levels of CD107a were increased in NK cells from CHB patients suggestive of recent stimulation. As CD107a exposure is only a surrogate marker of cytotoxicity, we directly measured cytotoxic capacity against K562 cells. For this purpose, we used a K562 sub-clone expressing the NanoLuc enzyme, which, upon cell lysis, is released in the culture medium allowing accurate quantification of cell death (Hayek et al., 2019). As shown in Figure 1B, the cytotoxic capacity of NK cells was not affected by HBV infection. In contrast, a significantly decreased capacity to produce IFN-γ and MIP1-β upon K562 stimulation was observed (Figure 1C). TNF-α secretion capacity was also decreased and tightly correlated with the decrease in IFN-γ secretion capacity (Figure 1—figure supplement 3A); however, this decrease did not reach statistical significance. We then stimulated NK cells with Granta cells coated with Rituximab. To our knowledge, this stimulus has not been previously tested in CHB patients. Degranulation was normal in CHB patients as measured by CD107a surface exposure (Figure 1—figure supplement 3B), while IFN-γ production was decreased (Figure 1D). The production of MIP1-β and TNF-α was comparatively less affected. In parallel, cytokine production was also measured in response to IL-12/18 stimulation (Figure 1E). No significant difference in IFN-γ, MIP1-β, or TNF-α production was observed between CHB patients and HD. Overall, our results demonstrate a defect in cytokine secretion by NK cells from CHB patients when stimulated with MHC-I-deficient or antibody-coated targets, but not with IL-12/18.

Figure 1 with 3 supplements see all
NK cell functionality is impaired in CHB patients.

(A) PBMCs from HD (n = 30) or CHB patients (n = 32) were co-cultured with K562 during 4 hr, and the proportion of NK cells expressing CD107a was determined by immunostaining. Representative flow-cytometry plots as well as proportion of CD107a+ NK cells are shown for each individual. (B) PBMCs from HD (n = 17) or CHB patients (n = 15) were co-cultured with K562 NanoLuc at the indicated effectors:targets ratios during 4 hr. Supernatants were then collected to measure bioluminescence. Shown in the figure is the average bioluminescence ± SD in an experiment with five HD and five CHB representative of four independent experiments. PBMCs from HD or CHB patients were co-cultured with K562 (C), Rituximab-coated Granta (D), or with IL-12 and IL-18 (10 ng/mL each) during 4 hr. Intracellular stainings for the indicated cytokines were performed. Representative flow-cytometry plots as well as proportion of NK cells expressing the indicated molecule is shown for each individual (C, n = 30 HD and n = 32 CHB, D and E, n = 17 HD and n = 15 CHB). Statistical analysis was performed by logistic regression as described in the Materials and methods section, and adjusted p-values are indicated on the graph. NS: non-stimulated.

Table 1
Characteristics of patients and HD enrolled in the study.
ParameterCHB Patients
1st cohort
Healthy Donors
1st cohort
CHB Patients
2nd cohort
Healthy Donors
2nd cohort
Number32301210
Age (y)
Mean
Median (range)

39 ± 13
38 (19–77)

38 ± 13
36.5 (20–65)

33 ± 13
30.5 (20–57)

37 ± 8
38 (26–50)
Sex, n (%)
Male
Female

20 (62.5)
12 (37.5)

22 (73)
8 (27)

8 (66.6)
4 (33.3)

5 (50)
5 (50)
HBV load (IU/mL)
Median

2844 (10–62,225)

/

1919 (18–32,785)

/
HBsAg (IU/mL)
Median

5770 (0.05–34,971)

/

17,306(4,189–29,890)

/
ALT (IU/mL)
Median

20 (6–56)

NA

21 (12–35)

NA
AST (IU/mL)
Median

21 (11–34)

NA

NA

NA
HCMV seropositive, %8638NANA
  1. ALT, serum alanine aminotransferase levels; AST, aspartate transaminase levels; NA, not available.

NK cells from CHB patients display an altered phenotype

Next, we measured the percentage of total NK cells as well as the representation of subsets defined by CD56 expression levels following the gating strategy depicted in Figure 2—figure supplement 1. We observed that the overall percentage of NK cells was decreased in CHB patients, but this did not impact the relative representation of CD56bright vs CD56dim subsets (Figure 2A). In order to determine whether the poor functionality could be explained by altered expression of certain activating or inhibitory receptors, we characterised the phenotype of circulating NK cells in CHB patients compared to HD. The expression of activating receptors CD16 and NKp30 was significantly decreased, while that of NKG2D was increased in CHB patients (Figure 2B); the expression of NKp46 and DNAM activating receptors was not statistically different between HD and patients (Figure 2B). We also observed an overall reduction in the expression of the inhibitory receptors CD160, KLRG1, and NKG2A (Figure 2C). However, this variation was statistically significant only for CD160. Of note, the changes we observed for NKp30, CD16, NKG2D, and CD160 were restricted to the CD56Dim subset (Figure 2—figure supplement 1A,B). During NK cell education, the expression of self-engaged inhibitory receptors impacts the content of cytotoxic granules (Goodridge et al., 2019). We thus measured the level of the cytolytic proteins Perforin and Granzyme B in NK cells of CHB patients and HD. We did not detect any difference in the expression of these molecules nor in total NK cells neither in the CD56Dim/Bright subsets in accordance with the fact that cytotoxic capacities are preserved (Figure 2D, Figure 2—figure supplement 1C). Collectively, our results show that dysfunctional NK cells in CHB patients have an altered expression of both activating and inhibitory NK cell receptors but a normal expression of cytotoxic molecules.

Figure 2 with 1 supplement see all

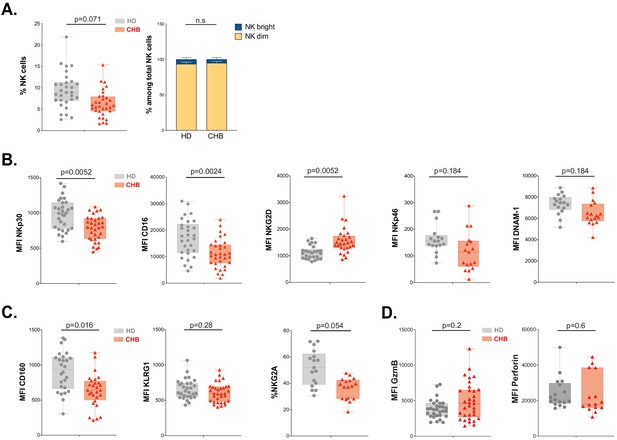

NK cell from CHB patients display an altered phenotype.

(A) PBMCs from 30 HD and 32 CHB samples were stained with live/dead, CD4, CD14, CD19, CD3, CD7, and CD56 antibodies. The percentage of NK cells in each sample (± SD), and the proportion of CD56bright versus CD56dim NK cells ± SD), determined by flow cytometry, are shown. (B,C) Mean fluorescence intensity (MFI) of indicated NK activating (B) and inhibitory (C) receptors was determined by flow cytometry on total NK cells among PBMCs from HD or CHB patients. The median expression (± SD) as well as values for each individual are represented, n = 30 HD and 32 CHB samples for NKp30, CD16, NKG2D, KLRG1, and CD160, n = 17 HD and 15 CHB samples for NKp46, DNAM-1, and NKG2A. (D) MFI of Granzyme B and Perforin were determined by flow cytometry on total NK cells among PBMCs from HD or CHB patients. The median expression (± SD) as well as values for each individual are represented, n = 30 HD and 32 CHB samples for Granzyme B, n = 17 HD and 15 CHB samples for Perforin. Adjusted p-values are indicated on the graph. n.s: non-significant.

mTOR activation is impaired in NK cells from patients

We have previously shown that NK cell responsiveness is commensurate to the activity of the kinase mTOR (Marçais et al., 2017). In addition, the activity of the AKT/mTOR pathway is frequently blunted in exhausted T cells (McLane et al., 2019). We thus measured mTOR activation at basal state and in response to IL-15 stimulation in NK cells from CHB patients and HD. mTOR takes part in two distinct complexes: mTORC1 and mTORC2. In order to measure the activity of both complexes, we quantified the phosphorylation level of the ribosomal protein S6 (pS6) as well as the phosphorylation level of the kinase AKT on Ser473 (pAKT) downstream mTORC1 and mTORC2, respectively. In addition, we measured the phosphorylation of STAT5 (pSTAT5) as a control as it is induced by IL-15 stimulation while being independent of mTOR activation (Marçais et al., 2014). The gating strategy is presented in Figure 3—figure supplement 1A. As depicted in Figure 3A, Figure 3—figure supplement 1B,C, basal levels of pS6 and pAKT were decreased in total and CD56Dim, but not CD56Bright NK cells of CHB patients compared to HD, while pSTAT5 levels were not affected. This demonstrated a negative impact of chronic HBV infection on basal mTOR activity. Of note, when focusing on CHB patients, we found that basal or IL-15-induced levels of pS6 were correlated to IFN-γ production, so that patients with low pS6 also showed low IFN-γ production (Figure 3—figure supplement 1D and data not shown). We next tested whether mTOR activity induced by IL-15 stimulation was also impacted. Upon IL-15 stimulation, mTOR activation was lower in total NK cells from CHB patients than in NK cells from HD as shown by the decreased phosphorylation of both S6 and AKT (p-values of 0.11 and 0.038, respectively). Importantly, NK cell responsiveness to IL-15 is developmentally regulated, CD56bright NK cells being the most responsive subset (Wagner et al., 2017 and our own unpublished data). We thus analysed the impact of chronic HBV infection on mTOR activation in this subset. As shown in Figure 3—figure supplement 1B, both phosphorylations were reduced in CHB patients upon IL-15 stimulation. This demonstrated that HBV also negatively impacts mTOR activation induced by IL-15. This defective induction was specific to the mTOR pathway as IL-15 triggering of pSTAT5 was not affected (Figure 3A, Figure 3—figure supplement 1B,C). We reported that TGF-β is a potent negative regulator of the mTOR pathway in NK cells (Viel et al., 2016) and reports indicate higher seric concentration of TGF-β in CHB patient (Peppa et al., 2010; Sun et al., 2012). We thus measured active TGF-β1 concentration in the serum of HD and CHB patients. Circulating TGF-β1 levels were indeed significantly higher in CHB patients (Figure 3B). However, no correlation was observed between TGF-β1 concentration and pS6 level neither at basal nor after IL-15 stimulation in the CHB patient group (data not shown). Higher TGF-β1 levels could thus participate in the reduction of mTOR activity in CHB patients, but it is likely that other parameters take part in this phenomenon. As mTOR is a key regulator of metabolic networks, we investigated possible metabolic defects in NK cells of CHB patients. For this purpose, we first quantified cellular size and granularity, correlates of metabolic activity. As shown in Figure 3C, NK cell size was not affected in CHB patients (forward scatter [FSC] parameter), while they presented decreased granularity (side scatter [SSC] parameter). Furthermore, two nutrient transporters regulated by mTOR (Marçais et al., 2014), the heavy chain of system L amino-acid transporter (CD98) and the transferrin transporter (CD71), were also expressed at equivalent levels at basal state and their induction by IL-15 was normal (Figure 3D,E). Normal functionality of the system L amino-acid transporter was confirmed in both HD and CHB patients as measured by the uptake of kynurenine (Sinclair et al., 2018), a fluorescent derivative of tryptophan carried by the system L transporter (Figure 3F). Previous reports have shown that alterations in mitochondrial activity were linked to lymphocyte exhaustion (Fisicaro et al., 2017; Zheng et al., 2019). Hence, we quantified the global mitochondrial mass using the Mitotracker dye, and mitochondrial production of reactive oxygen species (ROS) using the MitoSOX dye, yet we did not observe any change between the two groups nor at basal state neither after IL-15 stimulation (Figure 3G). Of note, the same results were obtained when focusing on the most IL-15-responsive subset (CD56Bright) (Figure 3—figure supplement 1E–H). Overall, these results demonstrate that circulating NK cells from CHB patients have a reduced basal mTOR activity and blunted capacity to activate this pathway upon IL-15 stimulation, a feature more evident in CD56Bright NK cells. This could potentially affect signalling through activating receptors. However, deregulation of mTOR did not translate into measurable basal metabolic changes with the assay we used.

Figure 3 with 1 supplement see all

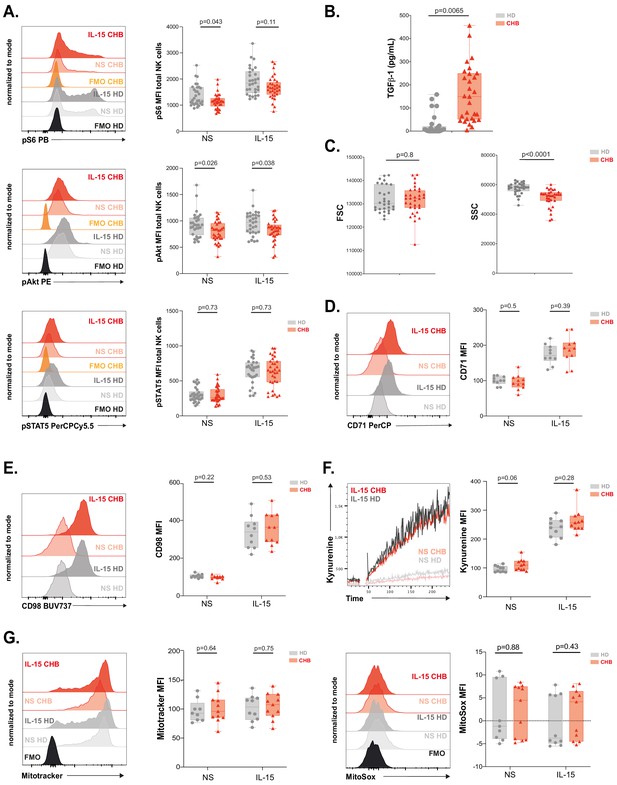

mTOR activation is impaired in NK cells from patients.

(A) PBMCs from HD or CHB patients were stimulated or not with IL-15 at 100 ng/mL for 30 min prior to phospho-epitope staining (pS6 Ser235/236, pAKT S473, and pSTAT5 Y694). Overlays of representative histograms are shown (left panels). The median expression (± SD) as well as MFI values for each individual are represented, n = 30 HD and 32 CHB (right panels). (B) Active TGF-β1 levels were measured in serum samples from 30 HD and 32 CHB patients, and the median (± SD) as well as values for each individual are represented. (C) FSC-A and SSC-A parameters on NK cells were measured by flow cytometry in 30 HD and 32 CHB samples. The median of the MFI (± SD) as well as MFI values for each individual are represented. MFI of (D) CD71 and (E) CD98 was determined by flow cytometry on total NK cells from HD or CHB patients with or without prior stimulation with 100 ng/mL IL-15 O/N. Overlays of representative histograms are shown (left panels). The median expression (± SD) as well as values for each individual are represented, n = 10 HD and 11 CHB samples (right panels). (F) PBMCs from 10 HD and 11 CHB patients were stimulated or not O/N with 100 ng/mL IL-15 and their kynurenine uptake capacity was evaluated. A representative kinetic analysis is shown (left panel). MFI was determined in a 30 s time slice centred on 2 min after the beginning of the kynurenine treatment. The mean of the MFI (± SD) as well as MFI values for each individual are represented (right panel). (G) PBMCs from 10 HD and 11 CHB patients were stained with Mitotracker Green and MitoSOX Red with or without prior stimulation with 100 ng/mL IL-15 O/N. Overlays of representative histograms are shown (left panels). Median (± SD) as well as MFI values for each individual for the analysed marker are represented (right panels). p-values are indicated on each graph.

RNAseq analysis identifies an exhaustion-like signature in patient NK cells

We next took a non-hypothesis-driven approach in order to seize the molecular mechanisms responsible for NK cell deregulation in CHB patients. For this purpose, we performed RNAseq on NK cells sorted from four CHB patients and five HD using the previously described gating strategy (Figure 1—figure supplement 2). As shown in Figure 4A, principal component analysis (PCA) of the results showed a clear separation between HD and CHB patients both on PC1 and 2, with 38% and 24% variance, respectively, thus motivating further analysis of the results. Consistent with the fact that patients in this cohort are co-infected with HCMV, we found characteristics of adaptive NK cell populations in the differentially expressed genes (DEG) such as decreased FCER1G, ZBTB16 (PLZF), or cytokine receptors mRNAs and increased GZMH, KLRC4, or CRTAM (Schlums et al., 2015). In order to work with DEG that really reflected CHB impact, we filtered out genes that were significantly regulated in adaptive NK cells, as defined in a previous study (Schlums et al., 2015). This process identified 253 up-regulated and 163 down-regulated genes specific of HBV infection in CHB patients (Fold Change > 2 and adjusted p-value<0.05) (Figure 4B). We then analysed both gene lists using the online gene annotation tool Metascape (Zhou et al., 2019). No significant enrichment was found in the list of down-regulated genes. In contrast, analysis of the up-regulated genes retrieved Gene annotation terms that were consistent with ongoing viral infection such as ‘Viral life cycle’ or ‘Hepatitis B’ (Figure 4C, a complete version of the analysis is given in Figure 4—figure supplement 1). Interestingly, some of the enriched terms referred to immune processes that are negatively impacted in NK cells of CHB patients such as ‘cytokine production’, ‘cytokine-mediated signalling’, ‘phosphorylation’, and ‘Protein kinase B (AKT) signalling’. We also noted that ‘T cell activation’ was one of the enriched terms suggesting commonalities in the transcriptional regulation of NK and T cell responses. Moreover, we found that dysfunctional NK cells up-regulated several canonical genes of the T cell exhaustion program, notably immune checkpoints or their ligands, such as LAG3 and CD274 (PD-L1), or transcription factors, such as EGR2 and 3, NR4A2, and TOX (Khan et al., 2019; Seo et al., 2019; Alfei et al., 2019; Scott et al., 2019; Yao et al., 2019; Barber et al., 2006; Williams et al., 2017; Chen et al., 2019; Figure 4D). This observation prompted us to rigorously test whether the exhaustion transcriptional program was indeed undertaken by NK cells. To this aim, we performed gene set enrichment analysis (GSEA) using two independent datasets defined in exhausted CD8 T cells in a context of chronic viral infection (West et al., 2011; Bengsch et al., 2018). As depicted in Figure 4E, transcripts of these datasets were indeed strongly enriched in NK cells of CHB patients. This included TOX that we already identified among the genes significantly over-expressed in CHB patient NK cells (Figure 4D). This transcriptional regulator has recently been described as a key inducer of the exhausted gene signature allowing phenotypic changes and persistence of exhausted T cells (Khan et al., 2019; Seo et al., 2019; Alfei et al., 2019; Scott et al., 2019; Yao et al., 2019). We thus tested whether the TOX-induced gene signature was differentially expressed in HD vs CHB patients. We detected a significant enrichment of this signature in genes up-regulated in HBV patients (Figure 4F). In summary, NK cells of CHB patients display a transcriptional signature resembling that of exhausted T cells induced by chronic viral infections. Furthermore, our data point to the involvement of the transcription factor TOX in driving NK cell dysfunction.

Figure 4 with 1 supplement see all

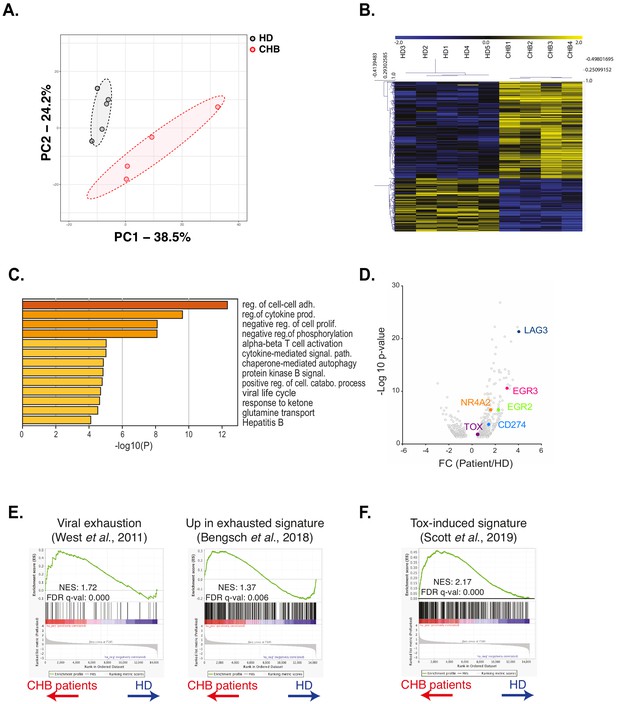

RNAseq analysis identifies an exhaustion-like signature in patient NK cells.

(A) Principal component analysis of the RNAseq data is shown. (B) Heatmap of the DEG genes between HD and CHB. (C) Gene Ontology analysis of DEG up-regulated in CHB patients using Metascape. Selected terms are shown among the most significant ones. (D) Volcano plots of the DEG highlighting genes belonging to the T cell exhaustion pathway. (E,F) GSEA plots comparing HD and CHB patients are shown for the indicated gene sets. The normalised enrichment scores (NES) and FDR q-values are indicated.

Validation of the exhausted phenotype at the protein level

In order to validate the exhausted signature at the protein level, we recruited a second cohort constituted of 12 CHB patients and 10 HD independent from the first cohort (Table 1). On this validation cohort, we first measured the intracellular expression of TOX in NK cells. Expression of transcription factors of the TOX family has previously been associated to early stages of NK cell development (Yun et al., 2011; Aliahmad and Kaye, 2009; Aliahmad et al., 2010; Vong et al., 2014); however, whether it is associated to the acquisition of a dysfunctional phenotype in NK cells is unknown. As shown in Figure 5A, NK cells from CHB patients presented higher expression of TOX validating the RNAseq data. Increased TOX expression was seen mainly in the CD56dim subset in CHB patients (Figure 5—figure supplement 1). In murine CD8 T cells, Tox invalidation abrogates the exhaustion program and in particular the expression of ICP such as LAG3, TIGIT, TIM3, 2B4, PD1, and CD39 (Khan et al., 2019; Alfei et al., 2019; Scott et al., 2019). We observed that LAG3 was the most up-regulated gene in NK cells from CHB patients (Figure 4D). At the protein level, we also detected a slight increase in the surface expression of LAG3 in NK cells from CHB patients compared to HD (Figure 5B). Of note, LAG3 and TOX protein levels were highly correlated in CHB patients specifically, further highlighting their functional link (Figure 5C, R2 = 0.80). Despite the fact that other ICP transcripts targeted by TOX were not significantly deregulated in our RNAseq analysis, we measured their protein expression. As shown in Figure 5D, TIGIT was up-regulated, while TIM3 was down-regulated, and 2B4 expression was unchanged in NK cells from CHB patients compared to controls. Some CHB patients presented limited but detectable PD1 expression above the average of HD. CD39 was not expressed (data not shown). In murine CD8 T cells, the transcription factor T-BET limits the expression of PD1 (Kao et al., 2011). In addition, viral induced CD8 T cell exhaustion has been linked to a decrease in T-BET and an increase in the expression of the closely related T-box family transcription factor EOMES (Paley et al., 2012), a point also validated in human during HIV-1 infection (Buggert et al., 2014). It is also reported that T-BET and EOMES are both required for NK cell differentiation and acquisition of effector functions (Zhang et al., 2018). We observed in CHB patients that T-BET was indeed significantly down-regulated, while EOMES was unchanged (Figure 5E). Our data confirm the results obtained by RNAseq, demonstrating that NK cells from CHB patients display an exhaustion-associated signature at the protein level.

Figure 5 with 1 supplement see all

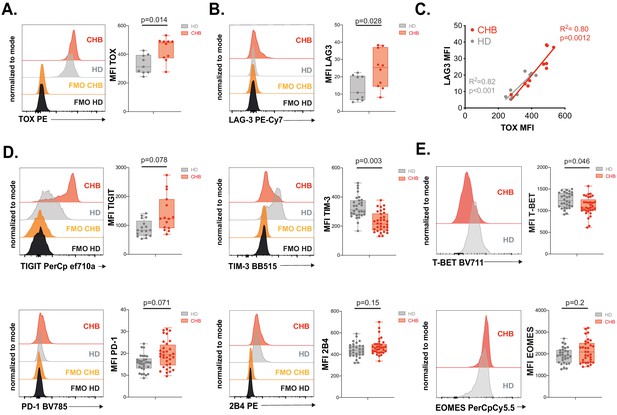

Validation of the exhausted phenotype at the protein level.

(A) Intracellular staining for TOX was performed on PBMCs from 9 HD and 10 CHB samples and the MFI measured. A representative FACS histogram overlay (left panel) as well as the median MFI and individual values for each sample (right panel) are represented. (B) LAG3 expression was measured by flow cytometry on PBMCs from 9 HD and 10 CHB samples. A representative FACS histogram overlay (left panel) as well as the median MFI and individual values for each sample (right panel) are represented. (C) Linear regression plots showing the correlation between TOX MFI and LAG3 MFI using 9 HD and 10 CHB samples. The R (Plummer et al., 2016) and p-value calculated by linear regression are indicated. (D) ICP expression was measured by flow cytometry on NK cells from PBMCs of 17 HD and 15 CHB samples (TIGIT) or 30 HD and 32 CHB patients (TIM-3, PD-1, and 2B4). A representative FACS histogram overlay for each molecule (left panels) as well as the median MFI and individual values for each sample (right panels) are represented. (E) T-BET and EOMES expression were measured by intracellular staining on total NK cells of 30 HD and 32 CHB samples. A representative FACS histogram overlay (left panel) as well as the median MFI and individual values for each sample (right panel) are represented. Adjusted p-values are indicated on the graphs.

RNAseq and in vitro modelling indicate that NK cell dysfunction is due to unbalanced Ca2+ signalling

TOX controls the expression of phenotypic characteristics in exhausted and memory T cells (Khan et al., 2019; Seo et al., 2019; Alfei et al., 2019; Scott et al., 2019; Sekine et al., 2020). In exhausted T cells, it is however the effector of a more global transcriptional program. The transcription factors initiating this program appear to be NFAT-family members (Martinez et al., 2015; Kallies et al., 2020). Canonical TCR activation induces the coincident activation of Ca2+ as well as diacylglycerol-dependent pathways, leading to activation of NFAT and AP-1 family transcription factors, respectively. It has been proposed that chronic TCR activation leads to unbalanced signal transduction predominantly activating Ca2+-dependent signal including calcineurin activation and consequently nuclear translocation of an excess of NFAT relative to its AP-1 partners. This partnerless NFAT binds to and transactivates a specific subset of genes, distinct from the canonical subset regulated by NFAT:AP1 heterodimers and substantially overlapping the transcriptional program of exhausted cells (Martinez et al., 2015). In particular, transcription factors such as TOX or the NR4A family are validated targets of partnerless NFAT (Seo et al., 2019). Based on this knowledge, we performed GSEA using a gene set previously defined by Martinez et al., to be regulated by partnerless NFAT in context of altered signalling biased towards the Ca2+ branch (Martinez et al., 2015). We found that this gene set was enriched in NK cells of CHB patients (Figure 6A). This suggested that, in CHB patients, NK cells are subjected to an unbalanced Ca2+ signalling. To functionally test whether a signalling bias towards Ca2+ would endow control NK cells with characteristics of CHB patient NK cells, we investigated the impact of ionomycin treatment on PBMCs from HD at different time points. As expected, ionomycin, a Ca2+ ionophore, induced NFAT1 nuclear translocation as soon as 1 hr after stimulation (Figure 6B). This was followed by an increase in TOX expression at 4 hr (Figure 6C). Moreover, LAG3 was induced by ionomycin, in a way correlated to the expression of TOX (Figure 6D), thus recapitulating phenotypic features of CHB patients’ NK cells. In order to measure the functional impact of Ca2+ signalling on NK cells, we pre-treated PBMCs from HD for 16 hr with different concentrations of ionomycin. We then measured NK cell effector functions: degranulation and cytokine expression in response to a K562 challenge. As previously published on NK cell lines (Romera-Cárdenas et al., 2016), ionomycin treatment impaired NK cell effector functions (Figure 6E). Interestingly, at a dose of ionomycin of 100 nM, IFN-γ production was completely inhibited, while degranulation was still partially conserved, a behaviour reminiscent of the functional dichotomy observed in CHB patients. The production of MIP1-β and TNF-α showed intermediate behaviours in accordance with CHB patients’ phenotype. This was achieved without negative impact on viability (data not shown). Overall, these results show that stimulation of Ca2+ flux in isolation can reproduce key phenotypic and functional features of NK cells observed in a context of CHB infection. These data, in association with transcriptional enrichment of partnerless NFAT-dependent transcripts, strongly suggest that NK cell dysfunction observed in CHB patients is the result of unbalanced Ca2+ signalling. This further indicates that common molecular mechanisms govern T cell exhaustion and NK cell dysfunction in contexts of chronic stimulation.

RNAseq and in vitro modelling suggest that NK cell dysfunction is due to unbalanced Ca2+ signalling.

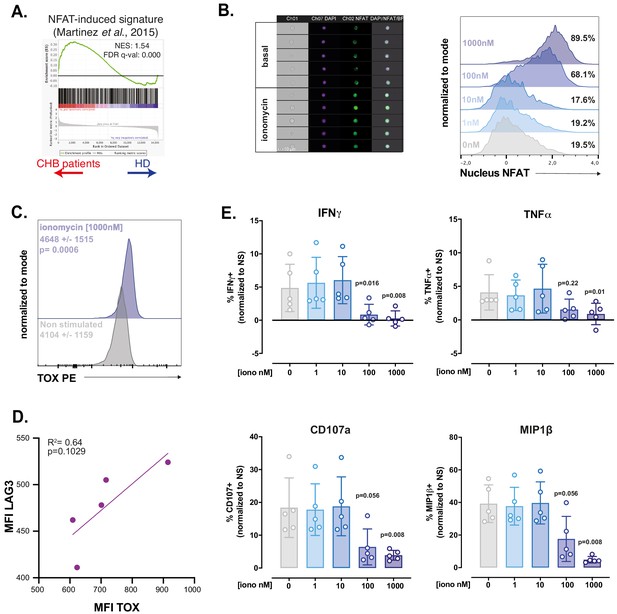

(A) A GSEA plot comparing HD and CHB patients is shown for the gene set regulated by partnerless NFAT. The normalised enrichment score (NES) and FDR q-values are indicated. (B) PBMCs from HD were exposed to ionomycin at the indicated concentration for 1 hr. NFAT1 localisation was then analysed by image cytometry. Representative images of the transmission, nuclear (DAPI), and NFAT1 staining in NK cells at basal state or after 1 hr ionomycin treatment are shown (left panel). Histogram overlays of the parameter quantifying NFAT1 translocation are shown on the right. The experiment was performed twice. (C) PBMCs from HD were exposed to ionomycin for 4 hr and stained for TOX expression. A representative histogram overlay as well as the average expression ± SD is shown (n = 10). (D) Linear regression plots showing the correlation between TOX MFI and LAG3 MFI after O/N ionomycin treatment (1 µM) is shown. The R (Plummer et al., 2016) and p-value calculated by linear regression are indicated. (E) PBMCs from five HD were incubated with ionomycin at the indicated concentration for 16 hr. NK cell capacity to degranulate or produce the indicated cytokines upon K562 stimulation was then measured by flow cytometry. The average (± SD) and individual values of the proportion of positive NK cells normalised to the non-stimulated condition is shown. The experiment has been performed twice. Exact p-values are indicated on the graphs.

Discussion

In the present study, we explored the impact of CHB on peripheral NK cell function and phenotype and uncovered a convergence in the transcriptional mechanisms governing T cell exhaustion and NK cell dysfunction.

We first confirmed previous reports showing that NK cell production of cytokines, chief among them IFN-γ, is blunted in response to target cell stimulation, while cytotoxic functions are not affected in the same settings (Oliviero et al., 2009; Peppa et al., 2010; Sun et al., 2012; Tjwa et al., 2011). This functional dichotomy could be particularly relevant since an early study of acute HBV infection in chimpanzee suggested that viral clearance was mediated by non-cytopathic antiviral effects (Guidotti et al., 1999). We can thus hypothesise that loss of cytokine-mediated control contributes to HBV escape and establishment of chronicity.

NK cells of CHB patients constituting our cohort respond normally to IL-12/18 challenge in accordance with previous findings (Sun et al., 2012). This is however in contrast with other reports (Peppa et al., 2010; Tjwa et al., 2011). This discrepancy could stem from differences in the abundance of HCMV-induced adaptive NK cells in the respective cohorts. Indeed, these cells present impaired responses to IL-12/18 (Schlums et al., 2015) and, CHB patients being frequently co-infected with HCMV (Bayram et al., 2009), NKG2C+-adaptive NK cells are significantly more represented in CHB patients (Béziat et al., 2012; Schuch et al., 2019). In our cohort, we observed that patients presenting the highest NKG2C+ frequency were less responsive to IL-12/18 (data not shown). Interestingly, the overall functionality of HCMV-induced adaptive NK cell is not affected by HBV (Schuch et al., 2019). It thus seems that both viruses engage non-overlapping NK cell subsets.

We report here that the functional impairment imposed by CHB significantly imprints the NK cell transcriptome. A recent study was performed on HBV-infected patients from all four phases of infection (Boeijen et al., 2019). Very few transcripts were significantly deregulated in the inactive carriers compared to HD controls. In particular, no IFN-I-stimulated genes were up-regulated, a finding we confirm with our dataset. Further mining our data, we found that the transcriptome of NK cells in CHB patients contained gene signatures defined in exhausted CD8 T cells arising in chronic viral infection models. This strongly indicates that a mechanism akin to exhaustion is at play to explain the dysfunctional phenotype of NK cells in CHB patients. In particular, we found that the gene signatures defined by transcripts regulated by the transcription factor TOX were enriched in CHB patients. This transcription factor has recently been involved in the establishment of the exhausted phenotype in CD8 T cells, its expression being driven by chronic TCR stimulation (Khan et al., 2019; Seo et al., 2019; Alfei et al., 2019; Scott et al., 2019; Yao et al., 2019). Of note, its association with functional impairment has recently been called into question. Indeed, TOX is highly expressed in recently or chronically stimulated but fully functional human CD8 T cells in a series of viral infections (Sekine et al., 2020). In this setting, TOX is still associated with the expression of phenotypic markers such as ICPs. Similarly, in our cohort, TOX expression positively correlated with LAG3 expression, but not with the decrease in functional capacity (data not shown). It thus seems that TOX plays a role in instructing the phenotype of NK cells rather than their functional capacities in CHB patient. These results further underscore the ontogenic and functional proximity of NK cells and CD8 T cells. Monitoring reversal of NK cell dysfunction in therapeutic settings aimed at reversing T cell exhaustion in chronic diseases should thus be considered. Mechanistically, it further suggests that direct chronic stimulation, perhaps through NK activating receptors, is responsible for the dysfunction. Reinforcing this hypothesis is the fact that we and others observed decreased NKp30 and CD16 expression on CHB patient NK cells suggesting chronic engagement (Peppa et al., 2010; Tjwa et al., 2011). The nature of the exact stimulus and receptor involved remains to be deciphered. Since we studied peripheral blood NK cells, a population largely distinct from liver resident NK cells (Marotel et al., 2016), it is unlikely that dysfunction results from direct stimulation by infected cells. Circulating HB antigen is however present in complex with neutralising antibodies (Madalinski et al., 1991). These immune complexes could chronically stimulate NK cells through CD16 cross-linking. In this respect, it has recently been reported that influenza vaccination increases NK cell function inducing memory-like differentiation (Goodier et al., 2016a). This property is based on the sensing of immune complexes by CD16 (Goodier et al., 2016b). Based on the CD8 T cell system where a given stimulus can give rise to functional memory cells in acute settings and to exhausted cells if it becomes chronic (Wherry and Ahmed, 2004; Wherry et al., 2007), we can hypothesise that chronic stimulation of NK cells through CD16 progressively drives the exhausted signature seen in our RNAseq.

Given the molecular proximity we describe, we could expect exhausted NK cells to display other characteristics of exhaustion observed in T cells. A key feature when T cells progress to exhaustion is a defective metabolism and blunted activation of the mTOR pathway, a major coordinator of anabolic and catabolic pathways. In CHB patients at basal state and in response to IL-15, we indeed observed a decrease in the activation of the mTOR pathway, quantified by lower mTORC1 and 2 activities. Importantly, this defect selectively affected the mTOR pathway since phosphorylation of STAT5, another signalling event downstream IL-15 Receptor (IL-15R), was normal. Such a depression in mTOR activity due to chronic activation is reminiscent of the situation that prevails in so called ‘non-educated’ or ‘disarmed’ hyporesponsive NK cells (Marçais et al., 2017). Of note, this similarity also points towards excessive stimulation of activating receptors, the mechanism envisaged to explain NK cell disarming (Goodridge et al., 2019; Wu and Raulet, 1997; Johansson et al., 1997). How chronic stimulation leads to decreased mTOR activity remains to be investigated. Weaker mTORC1 activity could lead to impaired cell metabolism. However, we did not detect any significant metabolic defect in CHB patients using several readouts, in contrast to what has been reported for CD8 T cells in CHB patients (Fisicaro et al., 2017). This finding, associated with the fact that the cytotoxic capacity is spared and that expression of ICPs is low in most patients, suggests either that exhaustion is at an early stage or that, unlike T cells, NK cells have a limited capacity to engage a full exhaustion program, perhaps as a result of a more limited half-life.

At the molecular level, our results point to a major role of Ca2+ and downstream NFAT signalling in the induction of NK cell dysfunction. Indeed, we detected a transcriptional signature indicative of improper activation of NFAT transcription factors in dysfunctional NK cells from CHB patients. In line with our findings, we devised an in vitro model based on unbalanced NK cell activation by activation of the Ca2+ pathway alone using ionomycin. We found that ionomycin increased TOX expression and induced LAG3. Keeping in mind that dysfunction is only partial in CHB patients, we titrated ionomycin and found that a dose of ionomycin inducing suboptimal NFAT1 activation in NK cells resulted in a complete loss of their capacity to produce IFN-γ, while degranulation was partially conserved. This in vitro model thus presents several points of convergence with the phenotypic and functional characteristics of NK cells in our CHB cohort. Of note, ionomycin treatment also induced hypo-responsiveness in T cells and NK cell lines reinforcing the parallel between both cell types (Romera-Cárdenas et al., 2016; Macián et al., 2002; Dubois et al., 1998). Interestingly, the effect of ionomycin treatment can be adjusted, so that higher concentration leads to more pronounced defects.

How an imbalance in Ca2+ responses is triggered in CHB context remains an open question. In the T cell field, such an imbalance is proposed to be the result of defective co-stimulation (Martinez et al., 2015). However, in NK cells, the conceptual framework of stimulatory vs costimulatory receptors is not as clearly established. We hypothesise that a mechanism similar to a recently proposed model of disarming could be at play (Goodridge et al., 2019). In this model, continuous leakage of cytotoxic granules in response to chronic activating receptor triggering is involved. Since cytotoxic granules are part of the acidic Ca2+ stores, we can hypothesise that low-grade degranulation would lead to increased concentration of intracellular free Ca2+ and sequential activation of calcineurin and NFAT. However, in contrast to CHB, disarming does not imprint the transcriptome of circulating NK cells (Goodridge et al., 2019; Guia et al., 2011). It is thus likely that a combination of signals such as stimulation of activating receptors and increased levels of anti-inflammatory cytokines (TGF-β and IL-10) (this study and others Peppa et al., 2010; Sun et al., 2012) shapes the NK cell phenotype in CHB patients.

In addition to their interest at the basic level, the findings we present here could aid to rationally design successful NK cell reinvigoration strategies that could contribute to viral elimination. Based on our findings, we would hypothesize that targeting the Ca2+ pathway or mechanistically linked molecules to re-establish a correct signalling balance could have a positive impact on effector functions. In this respect, a recent screen identified ingenol mebutate, an activator of PKCs, for its ability to revert T cell exhaustion (Marro et al., 2019). Mechanistically, this compound was able to complement ionomycin signal for efficient reinvigoration of virus-specific T cells. Indeed, PKCs are activated by a signalling branch parallel to Ca2+ signalling and participate in the activation of the transcription factor AP1, the missing partner of NFAT in exhausted cells (Baier-Bitterlich et al., 1996). PKC activation could thus compensate the observed signalling defect and constitute a useful target to restore dysfunctional NK cells activity. More studies will be required to address this point.

In summary, we provide evidence that dysfunctional NK cells of CHB patients present a molecular signature similar to the one of exhausted T cells at the transcriptional and protein level. This signature is indicative of a signalling imbalance involving calcium. This could open the way towards original therapeutic targets.

Materials and methods

Patients and healthy donors

Request a detailed protocol

Peripheral blood samples from healthy subjects were obtained from the French blood agency (Etablissement Français du sang, Lyon and Limoges, France). PBMCs from CHB patients and clinical assessments were obtained during routine hepatitis consultations. All participants provided written informed consent in accordance with the procedure approved by the local ethics committee (Comité de Protection des Personnes, Centre Hospitalier Universitaire de Limoges, Limoges, France) and the Interventional research protocol involving human samples (Code promotor LiNKeB project: 87RI18-0021). Patients and healthy donor characteristics are detailed in Table 1. All patients were diagnosed as inactive carriers according to the American Association for the Study of Liver Diseases (AASLD) guidelines for treatment of CHB (European Association for the Study of the Liver. Electronic address: easloffice@easloffice.eu and European Association for the Study of the Liver, 2017). HCMV seropositivity status of patients and healthy donors was determined by ELISA (Hôpital de la Croix-Rousse, Lyon, France).

PBMC isolation

Request a detailed protocol

Human PBMCs were separated from peripheral blood by Ficoll gradient centrifugation (Eurobio Laboratoires et AbCys) at room temperature (RT). Cells were then resuspended in heat-inactivated FCS with 20% DMSO, progressively cooled down to −80°C, and stored in cryotubes in liquid nitrogen.

Cell culture and treatments

Request a detailed protocol

Cells (ATCC) were cultured in RPMI 1640 medium (Invitrogen Life Technologies) supplemented with 10% of FCS, 2 mM l-glutamine, 10 mM of penicillin/ streptomycin (HCL Technologies), 1 mM sodium pyruvate (PAA Laboratories), and 20 mM HEPES (Gibco). Cells were regularly tested for mycoplasma and were negative. For phosphorylated protein analysis, cells were stimulated with IL-15 (Peprotech, 100 ng/mL) during 30 min at 37°C. In some experiments, PBMCs were treated with increasing doses of ionomycin (Sigma) during 16 hr.

Flow cytometry analysis

Request a detailed protocol

PBMCs were rapidly thawed in medium heated to 37°C and kept overnight at 4°C. Cells were then immunostained during 30 min at 4°C with the appropriate monoclonal antibodies detailed in Supplementary file 1. Intracellular staining of transcription factors and cytotoxic molecules was performed with Foxp3 Fixation/Permeabilisation concentrate and diluent (eBioscience). Intracellular staining of cytokines and chemokines was performed with Cytofix/Cytoperm (BD Biosciences). Intracellular staining of phosphorylated proteins was performed with Lyse/Fix and Perm III buffers (BD Biosciences). Phosphorylated proteins were then stained during 40 min at RT. Kynurenine uptake was measured as previously described (Sinclair et al., 2018). Briefly, PBMCs were stained for surface markers for NK cell identification and resuspended in phosphate-buffered saline (PBS). Baseline fluorescence in the BV421 channel was recorded for 30 s, and kynurenine (200 µM final concentration) was added before a further 4 min acquisition. The assay was run at 37°C. Flow cytometric analysis was performed on LSR Fortessa 5L (Becton-Dickinson). Fluorescence Minus One controls were used to set the gates, and data were analysed with FlowJo 10.5.0 software (Tree Star). Gating strategy is presented is Figure 1—figure supplement 2.

Image stream analysis

Request a detailed protocol

PBMCs from HD were stimulated for 1 hr with ionomycin at the indicated concentration. They were then stained with a fixable viability dye (ThermoFisher Scientific) and stained for surface markers allowing NK cell identification (CD3, CD19, CD14, and CD56). The samples were then fixed and permeabilised using the Foxp3 Fixation/Permeabilisation concentrate and diluent (eBioscience) and stained with an anti-NFAT1 (Cell Signaling Technology). Sample acquisition was made on an ImageStream X Mark II (Amnis-EMD Millipore, Darmstadt, Germany) with ×40 magnification and analyzed with IDEAS software (v6.0).

NK cell stimulation

Request a detailed protocol

Human PBMCs were stimulated with recombinant human IL-12 (Peprotech) and IL-18 (R and D Systems) at 10 ng/mL each or co-cultured for 4 hr with K562 cells or with Granta cells coated with Rituximab at a 1.1 ratio in the presence of Golgi Stop (BD Biosciences). The percentage of NK cells positive for CD107a, MIP1-β, IFN-γ, and TNF-α was then determined by flow cytometry.

Cytotoxic assay

Request a detailed protocol

Human PBMCs were rapidly thawed in medium heated to 37°C and kept overnight at 4°C. Cells were then co-cultured for 4 hr at different Effectors:Targets ratios with K562 NanoLuc+32. Supernatant was collected, and bioluminescence was measured using a TECAN Instrument luminometer after addition of Furimazin, the NanoLuc substrate (Promega). Furimazin was generated from Hikarazin as previously described (Coutant et al., 2019; Coutant et al., 2020).

Mitochondria analysis

Request a detailed protocol

Human PBMCs were incubated with MitoSOX Red (5 μM) and Mitotracker Green (1 μM) (both from Molecular Probes, Life Technologies) in PBS during 10 min at 37°C before flow cytometry extra-cellular staining.

Serum TGF-β1 quantification

Request a detailed protocol

Active TGF-β1 serum levels in patients and healthy donors were measured using LEGEND MAX Free Active TGF-β1 ELISA Kit with pre-coated plates (Biolegend). The assay was run according to the manufacturer’s recommendations.

RNA sequencing

Request a detailed protocol

NK cells from five HD and four CHB patients were sorted as live/dead/CD4/14/19/CD3/CD56+ cells by flow cytometry. Samples from HD were sorted in a BSL2 cytometry platform (Anira cytométrie, SFR Biosciences, Lyon, France), whereas samples from CHB were sorted in a BSL3 cytometry platform (Toulouse, France). NK cells were then lysed in Direct-Zol (Ozyme). The RNA libraries were prepared according to the protocol of Picelli et al., 2014. Total RNA was purified using the Direct-Zol RNA Microprep Kit (Ozyme) according to the recommendations provided and was quantified using the QuantiFluor RNA system (Promega). One microlitre of 10 μM of oligo-dT primer and 1 μl of 10 μM of dNTPs were added to 0.3 ng of total RNA in a final volume of 2.3 μl. The Oligo-dTs were hybridized for 3 min at 72°C, and a reverse transcription reaction was carried out as described in the Nature protocols. The complementary DNAs (cDNAs) were purified on AmpureXP beads (Beckman Coulter), and the quality was checked on a D5000 screening strip and analysed on a 4200 strip station (Agilent). Three nanograms of cDNA was labelled using the Nextera XT DNA sample preparation kit (Illumina). The labelled fragments were then amplified following PCR cycles and purified on AmpureXP beads (Beckman Coulter). The quality of the bank was checked on a D1000 screen tape and analysed on a 4200 tape station (Agilent). The sequencing of the banks was carried out by the GenomEast platform, member of the ‘France Génomique’ consortium (ANR-10-INBS-0009).

In silico analyses

Request a detailed protocol

PCA was performed using the R software (version 3.6.1) after data normalisation and graphed with the ggplot2 package. We then obtained a first DEG list using an adjusted p-value<0.05 as a cutoff (750 genes). In order to keep DEG deregulated only by HBV infection in our subsequent analysis, we removed the ones known to be affected by HCMV infection. To identify genes expressed by NK cells and affected by HCMV infection, we used a previously published microarray dataset comparing conventional and adaptive NK cells (Schlums et al., 2015). In this HCMV dataset, DEG were identified as genes presenting a p-value below 0.005 (1357 genes in total). Elements common to the two DEG lists and that did not satisfy the relation abs(logFC(HBV))>2*abs(logFC(HCMV)) were subtracted from the list of DEG obtained in our RNAseq study. We further identified genes showing a FC(HBV)>2 to obtain the final list of DEG genes. This DEG list was used for heatmap and Metascape analysis. The heatmap was constructed using Multiple Experiment Viewer with Row Median centring of the data (Saeed et al., 2003). Functional annotations of DEG were performed with Metascape (Zhou et al., 2019) using default parameters. Regarding GSEA, indicated gene sets of publicly available expression data were obtained. To statistically test whether these gene sets were enriched in specific conditions, we performed pairwise comparisons between HD and CHB patients’ conditions using the GSEA method (http://www.broad.mit.edu/gsea).

Statistical analysis

Request a detailed protocol

Clinical data were processed with the R statistical environment. After cleaning empirical data from outliers, we transformed to log scale the parameters that were showing log-normal distribution and kept others unchanged. Then we used a generalised linear model with binomial family (logistic regression model) in simple way, that is one regressor at time, to quantify for each biological parameter independently the probability to be linked to our outcome variable ( = to be HD or CHB). The results for all parameters were taken together to correct for the multiple testing using the Benjamini–Hochberg method. Graphical representations were done using Prism 5 (Graph-Pad Software) unless otherwise stated.

References

    1. Aliahmad P
    2. Kaye J
    (2009)
    Nuclear factor TOX is required for lymph node organogenesis and NK cell development (138.29)
    The Journal of Immunology  182:138.29.
    1. Dubois PM
    2. Pihlgren M
    3. Tomkowiak M
    4. Van Mechelen M
    5. Marvel J
    (1998)
    Tolerant CD8 T cells induced by multiple injections of peptide antigen show impaired TCR signaling and altered proliferative responses in vitro and in vivo
    J. Immunol. Baltim. Md 1950:5260–5267.
    1. Madalinski K
    2. Burczynska B
    3. Heermann KH
    4. Uy A
    5. Gerlich WH
    (1991)
    Analysis of viral proteins in circulating immune complexes from chronic carriers of hepatitis B virus
    Clinical and Experimental Immunology 84:493–500.
    1. Wu MF
    2. Raulet DH
    (1997)
    Class I-deficient hemopoietic cells and nonhemopoietic cells dominantly induce unresponsiveness of natural killer cells to class I-deficient bone marrow cell grafts
    J. Immunol. Baltim. Md 1950:1628–1633.

Decision letter

  1. Stipan Jonjic
    Reviewing Editor; University of Rijeka, Croatia
  2. Satyajit Rath
    Senior Editor; Indian Institute of Science Education and Research (IISER), India
  3. Subramaniam Malarkannan
    Reviewer; Versiti Blood Research Institute, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

It is well established that NK cells have impaired functions in chronic hepatitis B (CHB) patients, but the molecular mechanism behind this dysfunction remains poorly characterized. The present study demonstrated that peripheral NK cells in CHB patients display several characteristics of exhausted T cells and defective mTOR pathway activity. Analysis of NK cell transcriptome in CHB patients revealed enrichment for transcripts expressed in exhausted T cells suggesting that NK cell dysfunction and T cell exhaustion share some common mechanisms. In particular, the transcription factor TOX and its targets were over-expressed in NK cells of CHB patients. Stimulation of the calcium-dependent pathway recapitulated features of NK cells from CHB patients, indicating that deregulated calcium signaling could be a central event in NK cell dysfunction occurring during chronic infections, similar to induction of T cell exhaustion. Collectively, the results of this study demonstrate that circulating NK cells in CHB patients exhibit key molecular features reminiscent of T cell exhaustion.

Decision letter after peer review:

Thank you for sending your article entitled "Peripheral Natural Killer cells from chronic hepatitis B patients display molecular hallmarks of T cell exhaustion" for peer review at eLife. Your article is being evaluated by Satyajit Rath as the Senior Editor, a Reviewing Editor, and three reviewers.

Essential revisions:

1) Figure 3 – the authors focus on CD56bright NK cells when measuring mTOR activation, as CD56bright NK cells are more responsive to IL-15. They show that in HBV patients CD56bright NK cells have impaired response to mTOR activation. They correlate this finding with several metabolic parameters in total NK cells. Since CD56bright NK cells represent only a small fraction of NK cells it is not clear why the metabolic parameters were not analyzed only on the CD56bright population as well, or vice versa, why the total NK cells were not compared in both cases (mTOR activation and metabolic characteristics). At the current state, no conclusion can be reached by comparing these two sets of data. Also, it is not clear if cells that have reduced ability to activate mTOR upon IL-15 stimulation contribute to other observations presented, e.g. if this finding would explain reduced NK cell ability to produce IFNγ, changes in NK phenotype or transcriptome.

2) Several metabolic parameters are studied, however, it is not clear how they were selected as there are many other metabolic processes involved in NK cell response which could be important and deregulated in CHB. Besides, the only basal metabolic state was analyzed, but it remains unclear if CHB NK cells show the same metabolic characteristics upon activation.

3) Figure 5 – isotype controls are missing in all histograms. The authors state in the text “Increased TOX expression was seen mainly in the CD56dim subset in CHB patients.”, however, they do not provide data for this statement. As mentioned previously, the effects of CHB on NK mTOR signaling are the highest in the CD56bright population, so it is not clear how these data do relate one to each other.

4) The authors provide evidence that expression of transcription factor TOX is increased and T-bet expression is reduced to support the transcriptome data on the similarity of CHB NK cells and exhausted CD8+ T cells. However, they do not provide the evidence on the co-expression of these transcription factors, and if their changed expression directly correlates with reduced functional properties of NK cells, e.g. if NK cells having high TOX and low T-bet will produce less IFNγ.

5) To address their hypothesis on NFAT involvement in NK cell exhaustion and TOX expression the authors stimulate NK cells in vitro with ionomycin and show that pre-treatment with ionomycin renders NK cells hyporesponsive. They titrate the effect of ionomycin and find an ionomycin concentration which is inducing a reduction of IFNγ response without affecting degranulation. While the reduction of IFNγ response in this experiment is observed as in chronic HBV infection, this model should be validated before making any claims. It is not clear how treating with a higher concentration of ionomycin can mimic NK cell exhaustion that occurs over months or years. Theoretically, it cannot be a transient over-flux of calcium that initiates the expression of TOX and leading to NK cell exhaustion. NFAT/Calcineurin could play a role in the formation of NK cell exhaustion. However, the over-activation of NK cells from healthy control does not prove that this mechanism is the cause of the pathological outcome. Also, cells from patients might be investigated. Also, besides the ionomycin treatment performed, calcium flux experiment in sorted cells based on the phenotypes described would have been elegant.

6) Given significant differences between the published characteristics of T cell exhaustion and findings described in the current work, it is not appropriate to conclude that the results are similar. This applies to both phenotypic and functional changes. For example, in multiple viral infection models, the decrease in IFN-γ production occurs in a step-wise manner during the progress of T cell exhaustion. In the current work, the authors show a significant and complete reduction of IFN-γ production in all the patients analyzed. Importantly, the number of T cells that produce multiple cytokines such as IFN-γ and TNF-α are reduced. However, it does not appear that these two cytokines are concurrently reduced in Hep-B patients. Another difference is that the NK cells from Hep-B patients are able to mediate normal cytotoxicity against K562 cells while the exhausted T cells are impaired in mediating this effector function. While it may be true that the NK cells in the Hep-B patients undergoing exhaustion, it may not be appropriate to equate this phenomenon with that seen in T cells.

7) The link that the authors are providing between mTOR-S6-NK cell exhaustion is not clear. The reduction in the phosphorylation of AKT is significant; but, moderate. Does this physiologically relevant? Does the alternate pathway mediated by PIM kinases is the one primarily affected in the NK cells from the Heo-B patients?

8) Apart from NFAT, T-bet, BATF, EOMES, FOXO1, BLIMP1, and IRF4 have been implicated in playing a significant role in causing T cell exhaustion. What are the reasons that the gene signatures representing these transcription factors did not come through from the RNA sequencing analyses? In addition, a large part of the manuscript relates to TOX and its involvement in exhaustion. However, a recent article (Sekine et al., 2020) demonstrated that TOX is expressed by most circulating effector memory CD8+ T cell subsets and not exclusively linked to exhaustion. This is an important piece of work where such data might be integrated and invite to reinterpret results and conclusions.

9) Figure 2 – as it seems, results display total NK cells which makes sometimes differences difficult to interpret, if possible, please provide in the supplement at least phenotype of Bright vs DIM NKG2A+ vs DIM NKG2A-.

10) Phosflow as well as mitochondrial analysis are always difficult to perform due to technical specificities, efficient detection of epitopes, atypical fluorescence leakages, or analysis of small shift differences. For both techniques, in order to highlight the quality of the datasets, please provide representative histograms as well as positive and negative controls, and gating strategy to further convince the readers.

https://doi.org/10.7554/eLife.60095.sa1

Author response

Essential revisions:

1) Figure 3 – the authors focus on CD56bright NK cells when measuring mTOR activation, as CD56bright NK cells are more responsive to IL-15. They show that in HBV patients CD56bright NK cells have impaired response to mTOR activation. They correlate this finding with several metabolic parameters in total NK cells. Since CD56bright NK cells represent only a small fraction of NK cells it is not clear why the metabolic parameters were not analyzed only on the CD56bright population as well, or vice versa, why the total NK cells were not compared in both cases (mTOR activation and metabolic characteristics). At the current state, no conclusion can be reached by comparing these two sets of data.

We thank the reviewer for this comment and agree with the fact that comparing different NK cell populations is misleading. To address this issue, we now provide a detailed analysis of all phospho-epitopes and metabolic parameters in total NK cells (Figure 3) and in CD56Dim or CD56Bright subsets (Figure 3—figure supplement 1).

Also, it is not clear if cells that have reduced ability to activate mTOR upon IL-15 stimulation contribute to other observations presented, e.g. if this finding would explain reduced NK cell ability to produce IFNγ, changes in NK phenotype or transcriptome.

We thank the reviewer for allowing us to clarify this point. We previously showed in murine models that mTOR activity and NK cell functionality were tightly correlated, mTOR activity behaving as a molecular rheostat of ITAM signaling (Marçais et al., 2017). In the present study, there is a correlation between pS6 level at basal state and after IL-15 stimulation and the proportion of IFN-γ+ NK cells following K562 stimulation on a patient-per-patient basis in our cohort (See Figure 3—figure supplement 1D in the revised version of the manuscript and Author response image 1). We now show this piece of data in the revised version of the manuscript (Figure 3—figure supplement 1D).

Author response image 1
Correlation between percentages of IFN-γ+ following K562 stimulation and pS6 level following IL-15 stimulation.

PBMCs from HD (n=30) or CHB patients (n=32) were co-cultured with K562 during 4 hours and the proportion of NK cells expressing IFN-γ was determined by immunostaining. The same samples were stimulated with IL-15 100ng/ml for 30 minutes and pS6 level was measured after phospho-epitope staining. The result of both readouts were correlated on a patient by patient basis.

Regarding phenotypic parameters, pS6 level was positively correlated to CD160 (adjusted pvalue=0.02, correlation coefficient 0.37). None of the other correlations were significant.

2) Several metabolic parameters are studied, however, it is not clear how they were selected as there are many other metabolic processes involved in NK cell response which could be important and deregulated in CHB. Besides, the only basal metabolic state was analyzed, but it remains unclear if CHB NK cells show the same metabolic characteristics upon activation.

Due to the limited number of NK cells that can be isolated from patient samples and the fact that analysis of live cells from CHB patients requires A3 safety level according to French regulation, we were limited to assays that can be analyzed by flow-cytometry. In the first version of the manuscript, we limited ourselves to the most common ones (morphology, transporters levels) and some that have been consistently shown to be affected in processes related to exhaustion (mitochondria parameters). We performed these assays at basal state to stay as close as possible to the physiological state. We now repeated these assays following overnight IL-15 stimulation, to shed light on the metabolic behavior of CHB NK cells upon activation. In addition, we now added kynurenine uptake as a more direct way to assess AA uptake capacity (Sinclair et al., 2018). The new data are now presented in the Results section (Figure 3C-G and Figure 3—figure supplement 1E-H).

3) Figure 5 – isotype controls are missing in all histograms.

According to a recently published set of guidelines for flow-cytometry (Cossarizza et al., 2019), isotype controls are of limited use due to unspecific binding and characteristics such as difference in antibody concentration or ratio of coupling to the fluorochromes. Therefore, we routinely perform Fluorescence Minus One (FMO). These have now been added in the different histograms shown in Figure 5. For the reviewer, we also performed isotype controls, the results are depicted below (Author response image 2) and can replace the current version of the data if the reviewers deem appropriate.

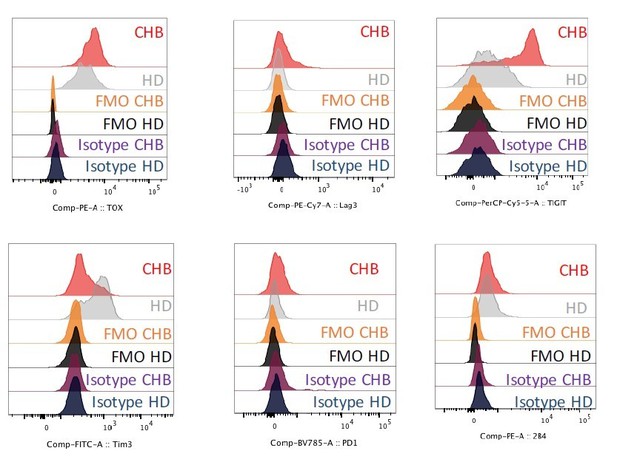

Author response image 2
Representative histogram plots showing the expression level of the indicated markers as well as FMO and isotype control stainings on NK cells of HD or CHB patients.

The authors state in the text “Increased TOX expression was seen mainly in the CD56dim subset in CHB patients.”, however, they do not provide data for this statement.

These data are now shown in the revised version of the manuscript (Figure 5—figure supplement 1).

As mentioned previously, the effects of CHB on NK mTOR signaling are the highest in the CD56bright population, so it is not clear how these data do relate one to each other.

We thank the reviewer for the opportunity to clarify the following point: the effect of CHB on mTOR signaling are easier to detect on the CD56Bright population upon IL-15 stimulation as this is the most sensitive one to IL-15. Therefore, the amplitude of the phosphostaining between non- stimulated and stimulated is the highest in CD56Bright, thus maximizing the chances of detecting a difference (See Author response image 3). However, at basal state, mTOR signaling is also affected in the total NK cell population (Figure 3A) and in the CD56Dim population (Figure 3—figure supplement 1C) in CHB patients. This has been clarified in the revised version of the manuscript.

Author response image 3
Correlation between pS6 level in CD56Dim and CD56Bright NK cells following IL-15 stimulation.

PBMCs from HD (n=30) or CHB patients (n=32) were stimulated with IL-15 at 100 ng/mL for 30 min, prior to phospho-epitope staining (pS6 Ser235/236). MFI values for each individual are represented.

4) The authors provide evidence that expression of transcription factor TOX is increased and T-bet expression is reduced to support the transcriptome data on the similarity of CHB NK cells and exhausted CD8+ T cells. However, they do not provide the evidence on the co-expression of these transcription factors, and if their changed expression directly correlates with reduced functional properties of NK cells, e.g. if NK cells having high TOX and low T-bet will produce less IFNγ.

These questions are indeed very interesting, and we thank the reviewer for giving us the opportunity to investigate them. We costained for T-BET and TOX that are indeed co-expressed and expressed in a unimodal manner (See Author response image 4). We could not detect functional differences upon gating on TOXhigh/T-BETlow vs TOXlow/T-BEThigh cells. We thus hypothesize that TOX expression is connected to phenotypic characteristics of dysfunctional NK cells rather than effector capacities. This is in accordance with the recent study from et al. Sekine et al., 2020 mentioned by the third reviewer.

Author response image 4
Representative FACS-plot showing TOX and T-BET coexpression in total NK cells of a CHB patient.

5) To address their hypothesis on NFAT involvement in NK cell exhaustion and TOX expression the authors stimulate NK cells in vitro with ionomycin and show that pre-treatment with ionomycin renders NK cells hyporesponsive. They titrate the effect of ionomycin and find an ionomycin concentration which is inducing a reduction of IFNγ response without affecting degranulation. While the reduction of IFNγ response in this experiment is observed as in chronic HBV infection, this model should be validated before making any claims.

Following the reviewer’s recommendations, we carefully characterized this model. We first verified that ionomycin indeed induced NFAT1 nuclear translocation in NK cells after a 1hour treatment (Figure 6B). This resulted in increased TOX levels as soon as 4hours after the beginning of the treatment (Figure 6C). TOX and LAG3 levels correlated after an overnight treatment with ionomycin further underlying the convergence of this model with the physiological situation in CHB patient (Figure 6D). Regarding the functional parameters, we confirmed in a separate experiment on 5 HD that the ionomycin treatment indeed renders NK cells dysfunctional (Figure 6E). The dichotomy between IFN-γ and degranulation capacity is however less striking than in our pilot experiments. However, we still observed that IFN-γ is lost after treating the cells with 100nM ionomycin while degranulation is partially conserved.

It is not clear how treating with a higher concentration of ionomycin can mimic NK cell exhaustion that occurs over months or years. Theoretically, it cannot be a transient over-flux of calcium that initiates the expression of TOX and leading to NK cell exhaustion.

We agree with the reviewer that ionomycin treatment is a coarse model of the process leading to NK cell dysfunction in CHB patients. However, if we agree with the reviewer that our model does not take the “time factor” into account, we would respectfully disagree on the time-scale involved to induce dysfunction in vivo. It is true that patients have been infected for years with HBV, however, it is unlikely that the majority of the circulating NK cell population has such an extended half-life. Our hypothesis is that NK cells are constantly rendered dysfunctional on a time scale of days to weeks. Mechanistically, the fact that a transcriptional signature of “partnerless-NFAT” is detected shows that this factor is chronically activated. Whether this chronic activation involves chronic calcium flux or another unknown pathway is currently unclear. Understanding the molecular mechanism at play in vivo leading to an unbalanced activation of the NFAT pathway is still a matter of debate in the T cell field and probably involves defective co-stimulation. In the NK cell field we are limited to hypothesis as stated in the Discussion.

NFAT/Calcineurin could play a role in the formation of NK cell exhaustion.

Indeed, our working hypothesis is that calcium flux activates the Calcineurin/NFAT axis which in turn promotes dysfunction via various effectors. We made this hypothesis clearer in the revised version of the manuscript.

However, the over-activation of NK cells from healthy control does not prove that this mechanism is the cause of the pathological outcome.

We agree with the reviewer that the in vitro treatment with ionomycin can not on its own prove that chronic activation of this pathway is the cause of the dysfunctional phenotype. However, this result has to be linked with the fact that our RNAseq analysis detected a transcriptional signature consistent with chronic activation of “partnerless” NFAT. This obviously is not a proof but still a strong indication that this pathway participates in the dysfunctional phenotype.

Also, cells from patients might be investigated. Also, besides the ionomycin treatment performed, calcium flux experiment in sorted cells based on the phenotypes described would have been elegant.

We agree that investigating patient cells to directly demonstrate chronic NFAT activation would be ideal. In this respect, we quantified intra-nuclear NFAT1 in NK cells of CHB patients compared to HD using imaging cytometry. However, we did not detect any difference at basal state, nor after stimulation (data not shown). This might be due to the fact that cues of activation of the calcium-calcineurin-NFAT axis in patients in vivo are too elusive to be consistently detected ex vivo on frozen cells. In addition, NFAT activity might be necessary at the onset of the dysfunctional state but dispensable thereafter. Regarding calcium flux experiments, we were unable to perform them on sorted cells in preliminary experiments. Since these experiments promised to be technically very challenging on patient samples that require A3 safety level for their manipulation (French regulation) and given the fact that it was unclear how the results we would obtain would relate to chronic activation of the NFAT pathway, we did not perform them.

6) Given significant differences between the published characteristics of T cell exhaustion and findings described in the current work, it is not appropriate to conclude that the results are similar. This applies to both phenotypic and functional changes. For example, in multiple viral infection models, the decrease in IFN-γ production occurs in a step-wise manner during the progress of T cell exhaustion. In the current work, the authors show a significant and complete reduction of IFN-γ production in all the patients analyzed. Importantly, the number of T cells that produce multiple cytokines such as IFN-γ and TNF-α are reduced. However, it does not appear that these two cytokines are concurrently reduced in Hep-B patients. Another difference is that the NK cells from Hep-B patients are able to mediate normal cytotoxicity against K562 cells while the exhausted T cells are impaired in mediating this effector function. While it may be true that the NK cells in the Hep-B patients undergoing exhaustion, it may not be appropriate to equate this phenomenon with that seen in T cells.

We agree with the reviewer that both phenomena: T cell exhaustion and NK cell dysfunction in CHB patients cannot be completely equated at the functional level. This is the reason why we kept the term “dysfunctional” to describe the NK cell state in CHB patients. We also made several changes in the manuscript (including the Title) to clarify that both phenomena were not identical but rather shared some important features. However, we would like to argue that the data presented here indicate that T cell exhaustion and NK cell dysfunction are mechanistically comparable and rely on similar transcriptional mechanisms: unbalanced signal transduction downstream ITAM-receptors leading to preferential calcium pathway activation and chronic “partnerless NFAT” activity. The functional differences are secondary and probably related to ontogenetic differences between both cell types. In particular, the sensitivity of the different effector functions follows a different order in both cell type. Indeed, CD8 T cells lose first their capacity to secrete IL-2, a function NK cells do not possess, followed by IFN-γ/TNF-α secretion and cytotoxicity. In this respect, we would like to attract reviewers’ attention on the fact that high doses of ionomycin result in progressive loss of all effector functions including degranulation. This suggests that a step-wise process can also take place in NK cells and result in complete loss of effector functions. Whether this takes place in CHB patients upon stronger stimulation remains to be tested.

Finally, regarding TNF-α, we respectfully disagree with the reviewer. Indeed, we observed that decreased IFN-γ production correlated with decreased TNF-α production (See Figure 1—figure supplement 3A). Suggesting that both functions are affected by CHB, a situation very similar to the one observed in exhausted T cells.

7) The link that the authors are providing between mTOR-S6-NK cell exhaustion is not clear. The reduction in the phosphorylation of AKT is significant; but, moderate. Does this physiologically relevant? Does the alternate pathway mediated by PIM kinases is the one primarily affected in the NK cells from the Heo-B patients?

Our data in mouse models (Marçais et al., 2017) and in human (this study, Figure 3—figure supplement 1D) show that mTORC1 activity measured by pS6 is tightly linked to NK cell responsiveness. We thus think that the decrease in pS6 level is the most physiologically relevant one with respect to effector functions. The role of AKT is unclear at the moment. Despite the fact that we consistently find its activity decreased in hyporesponsive NK cells in mouse models (Marçais et al., 2017), basal pAKT levels did not correlate with functional parameters in the patient cohort studied in this manuscript. Regarding the alternate pathway involving PIM kinases we currently lack tools to reliably assess their role in CHB patients NK cells. We feel developing these tools is beyond the scope of this study.

8) Apart from NFAT, T-bet, BATF, EOMES, FOXO1, BLIMP1, and IRF4 have been implicated in playing a significant role in causing T cell exhaustion. What are the reasons that the gene signatures representing these transcription factors did not come through from the RNA sequencing analyses?

We agree with the reviewer that the transcriptional regulation of T cell exhaustion is indeed very complex and obviously not limited to NFAT, despite its proposed initiating role. Testing the role of other transcription factors (TF) in the induction of dysfunction in NK cells of CHB patients is indeed a relevant topic. However, transcriptional signatures are only defined for a few TF, in particular in a context of exhaustion. This is the primary technical reason that prevented us from detecting these signatures and still prevents us from looking specifically for them. Regarding T-BET, we co-stained for this transcription factor and TOX in an attempt to decipher their relationship. However, we could not detect any correlation (positive or negative) between these transcription factors.

In addition, a large part of the manuscript relates to TOX and its involvement in exhaustion. However, a recent article (Sekine et al., 2020) demonstrated that TOX is expressed by most circulating effector memory CD8+ T cell subsets and not exclusively linked to exhaustion. This is an important piece of work where such data might be integrated and invite to reinterpret results and conclusions.

We thank the reviewer for attracting our attention on this recently published article. Here again, it is clear that the importance of a TF has to be thought of in a particular context and that the same TF can be expressed in a variety of different situations. We now discuss the results of this study in our manuscript.

9) Figure 2 – as it seems, results display total NK cells which makes sometimes differences difficult to interpret, if possible, please provide in the supplement at least phenotype of Bright vs DIM NKG2A+ vs DIM NKG2A-.

Indeed, the results presented display total NK cells, unless otherwise stated. We agree with the reviewer that differentiation bias could impact the results. The fact that the Bright/Dim ratio is not affected in CHB patients argues against such a bias. To definitely settle this issue, we now provide as supplement the phenotypic data distinguishing Bright and Dim NK cells (Figure 2—figure supplement 1). It appears that most of the changes are more pronounced in the Dim subset at basal state. This is in accordance with the fact that TOX expression is principally affected in Dim cells as mentioned earlier. Regarding NKG2A status, as this staining was not systematically included in our panels, we can only provide the data for the following parameters: Perforin, TIGIT, NKp46 and DNAM-1 (See Author response image 5).

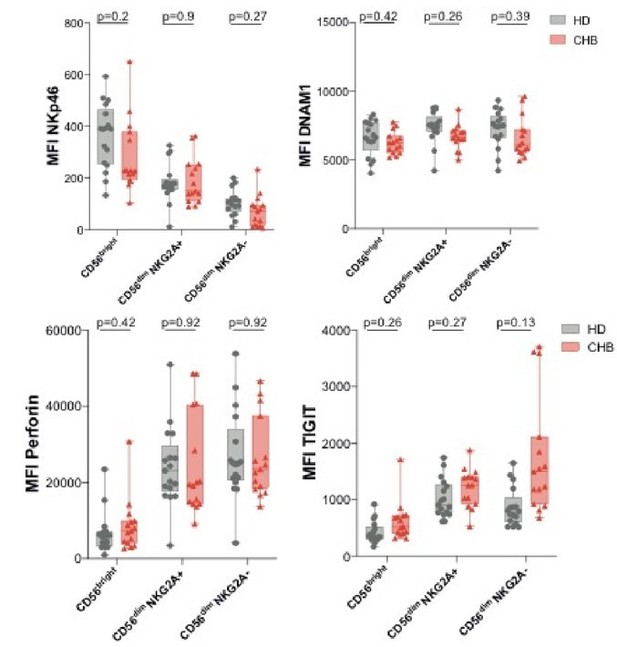

Author response image 5
Mean fluorescence intensity (MFI) of the indicated markers was determined by flow cytometry on CD56Bright, CD56Dim NKG2A+ and CD56Dim NKG2A- NK cells among PBMCs from HD or CHB patients.

Box-plots as well as values for each individual are represented.

10) Phosflow as well as mitochondrial analysis are always difficult to perform due to technical specificities, efficient detection of epitopes, atypical fluorescence leakages, or analysis of small shift differences. For both techniques, in order to highlight the quality of the datasets, please provide representative histograms as well as positive and negative controls, and gating strategy to further convince the readers.

We agree with the reviewer that these readouts are technically challenging. As requested, we provided representative data in the form of FACS plots (histograms and kinetic traces) and a gating strategy in the revised version of the manuscript. Regarding positive and negative controls, we felt that presenting them would complexify the result section. However, we performed the following controls, depicted in Author response image 6:

Author response image 6
(A) Histogram overlays showing the level of the indicated phosphoepitope following 1h IL-15 stimulation in the presence or absence of the mTOR inhibitors Rapamycine (left) or Torin2 (right).

(B) Kinetic of Kynurenine uptake with or without excess Leucine or Lysine, inhibitors of Slc7a6 or Slc7a5 respectively. (C) Histogram overlays showing the level of mitochondrial ROS with or without Antimycine A (complex III inhibitor) or Rotenone (complex I inhibitor).

- In NK cells, IL-15 stimulation is the best positive control for pS6, pAKT and pSTAT5 induction. Phosphorylation of S6 is inhibited by Rapamycin or Torin2 treatment while phosphorylation of AKT on Ser473 is inhibited by Torin2 only and phosphorylation of STAT5 is not affected by these inhibitors.

- Leucine excess inhibits kynurenine uptake via Slc7a5 while Lysine does not impact the uptake (Sinclair et al., 2018).

- For mitochondrial ROS detection, inhibition of the electron transport chain complex III with Antimycin A increases their production while inhibition of complex I with Rotenone decreases it.

https://doi.org/10.7554/eLife.60095.sa2

Article and author information

Author details

  1. Marie Marotel

    CIRI, Centre International de Recherche en Infectiologie, Team Innate Immunity in Infectious and Autoimmune Diseases, Univ Lyon, Inserm, Université Claude Bernard Lyon 1, CNRS, Lyon, France
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1618-7602
  2. Marine Villard

    1. CIRI, Centre International de Recherche en Infectiologie, Team Innate Immunity in Infectious and Autoimmune Diseases, Univ Lyon, Inserm, Université Claude Bernard Lyon 1, CNRS, Lyon, France
    2. Service d’Immunologie biologique, Hôpital Lyon Sud, Hospices Civils de Lyon, Lyon, France
    Contribution
    Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Annabelle Drouillard

    CIRI, Centre International de Recherche en Infectiologie, Team Innate Immunity in Infectious and Autoimmune Diseases, Univ Lyon, Inserm, Université Claude Bernard Lyon 1, CNRS, Lyon, France
    Contribution
    Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Issam Tout

    CIRI, Centre International de Recherche en Infectiologie, Team Innate Immunity in Infectious and Autoimmune Diseases, Univ Lyon, Inserm, Université Claude Bernard Lyon 1, CNRS, Lyon, France
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  5. Laurie Besson

    1. CIRI, Centre International de Recherche en Infectiologie, Team Innate Immunity in Infectious and Autoimmune Diseases, Univ Lyon, Inserm, Université Claude Bernard Lyon 1, CNRS, Lyon, France
    2. Service d’Immunologie biologique, Hôpital Lyon Sud, Hospices Civils de Lyon, Lyon, France
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Omran Allatif

    CIRI, Centre International de Recherche en Infectiologie, Team Innate Immunity in Infectious and Autoimmune Diseases, Univ Lyon, Inserm, Université Claude Bernard Lyon 1, CNRS, Lyon, France
    Contribution
    Formal analysis
    Competing interests
    No competing interests declared
  7. Marine Pujol

    CIRI, Centre International de Recherche en Infectiologie, Team Innate Immunity in Infectious and Autoimmune Diseases, Univ Lyon, Inserm, Université Claude Bernard Lyon 1, CNRS, Lyon, France
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  8. Yamila Rocca

    CIRI, Centre International de Recherche en Infectiologie, Team Innate Immunity in Infectious and Autoimmune Diseases, Univ Lyon, Inserm, Université Claude Bernard Lyon 1, CNRS, Lyon, France
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  9. Michelle Ainouze

    CIRI, Centre International de Recherche en Infectiologie, Team Innate Immunity in Infectious and Autoimmune Diseases, Univ Lyon, Inserm, Université Claude Bernard Lyon 1, CNRS, Lyon, France
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  10. Guillaume Roblot

    CIRI, Centre International de Recherche en Infectiologie, Team Innate Immunity in Infectious and Autoimmune Diseases, Univ Lyon, Inserm, Université Claude Bernard Lyon 1, CNRS, Lyon, France
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  11. Sébastien Viel

    1. CIRI, Centre International de Recherche en Infectiologie, Team Innate Immunity in Infectious and Autoimmune Diseases, Univ Lyon, Inserm, Université Claude Bernard Lyon 1, CNRS, Lyon, France
    2. Service d’Immunologie biologique, Hôpital Lyon Sud, Hospices Civils de Lyon, Lyon, France
    Contribution
    Supervision, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5085-443X
  12. Melissa Gomez

    CHU Limoges, Service d’Hépatogastroentérologie, U1248 INSERM, Université Limoges, Limoges, France
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  13. Veronique Loustaud

    CHU Limoges, Service d’Hépatogastroentérologie, U1248 INSERM, Université Limoges, Limoges, France
    Contribution
    Resources, Writing - review and editing
    Competing interests
    No competing interests declared
  14. Sophie Alain

    Département de Microbiologie, CHU de Limoges, Faculté de médecine-Université de Limoges, Limoges, France
    Contribution
    Resources
    Competing interests
    No competing interests declared
  15. David Durantel

    Centre de Recherche en Cancérologie de Lyon (CRCL), INSERM, U1052, CNRS, Université de Lyon, Lyon, France
    Contribution
    Resources
    Competing interests
    No competing interests declared
  16. Thierry Walzer

    CIRI, Centre International de Recherche en Infectiologie, Team Innate Immunity in Infectious and Autoimmune Diseases, Univ Lyon, Inserm, Université Claude Bernard Lyon 1, CNRS, Lyon, France
    Contribution
    Conceptualization, Supervision, Funding acquisition, Project administration, Writing - review and editing
    For correspondence
    thierry.walzer@inserm.fr
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0857-8179
  17. Uzma Hasan

    CIRI, Centre International de Recherche en Infectiologie, Team Innate Immunity in Infectious and Autoimmune Diseases, Univ Lyon, Inserm, Université Claude Bernard Lyon 1, CNRS, Lyon, France
    Contribution
    Conceptualization, Funding acquisition, Project administration, Writing - review and editing
    For correspondence
    uzma.hasan@inserm.fr
    Competing interests
    No competing interests declared
  18. Antoine Marçais

    CIRI, Centre International de Recherche en Infectiologie, Team Innate Immunity in Infectious and Autoimmune Diseases, Univ Lyon, Inserm, Université Claude Bernard Lyon 1, CNRS, Lyon, France
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    antoine.marcais@inserm.fr
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3591-6268

Funding

Agence Nationale de Recherches sur le Sida et les Hépatites Virales (ECTZ22398)

  • Uzma Hasan

Agence Nationale de Recherches sur le Sida et les Hépatites Virales (ECTZ11169)

  • Uzma Hasan

Agence Nationale de Recherches sur le Sida et les Hépatites Virales (ECTZ19856)

  • Uzma Hasan

Agence Nationale de la Recherche (BaNK)

  • Antoine Marçais

Agence Nationale de la Recherche (SPHINKS)

  • Thierry Walzer

Association de Recherche sur le Cancer (Equipe labellisée)

  • Thierry Walzer

H2020 European Research Council (ERC-Stg 281025)

  • Thierry Walzer

Ligue Contre le Cancer (Graduate student fellowship)

  • Marie Marotel

La Ligue du Rhone (LNCC)

  • Uzma Hasan

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank the SFR Biosciences (UMS3444/CNRS, ENSL, UCBL, US8/INSERM) facilities, in particular the Plateau de Biologie Expérimentale de la Souris, and the flow cytometry facility. We would like to thank Dr PO Vidalain who provided the K562 NanoLuc, Dr Y Janin who provided the NanoLuc substrate, and Dr. Christophe Ramière for the determination of HCMV status in Hôpital Croix-Rousse. We also acknowledge the contribution of the GenomEast platform from Strasbourg, France. TW lab is supported by the Agence Nationale de la Recherche (ANR JC SPHINKS to TW and ANR JC BaNK to AM), the ARC foundation (équipe labellisée), the European Research council (ERC-Stg 281025), and receives institutional grants from the Institut National de la Santé et de la Recherche Médicale (INSERM), Centre National de la Recherche Scientifique (CNRS), Université Claude Bernard Lyon1 and ENS de Lyon. MM is the recipient of a fellowship from La Ligue Nationale contre le Cancer. This work was supported by l’Agence Nationale de Recherche sur les SIDA et les Hépatites virales (ANRS projects, ECTZ22398, ECTZ11169 and ECTZ19856 to UH) and Comité du Rhône LNCC (to UH).

Ethics

Human subjects: All participants provided written informed consent in accordance with the procedure approved by the local ethics committee (Comité de Protection des Personnes, Centre Hospitalier Universitaire de Limoges, Limoges, France) and the Interventional research protocol involving human samples (Code promotor LiNKeB project: 87RI18-0021).

Senior Editor

  1. Satyajit Rath, Indian Institute of Science Education and Research (IISER), India

Reviewing Editor

  1. Stipan Jonjic, University of Rijeka, Croatia

Reviewer

  1. Subramaniam Malarkannan, Versiti Blood Research Institute, United States

Publication history

  1. Received: June 16, 2020
  2. Accepted: January 28, 2021
  3. Accepted Manuscript published: January 28, 2021 (version 1)
  4. Version of Record published: February 8, 2021 (version 2)

Copyright

© 2021, Marotel et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 521
    Page views
  • 101
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
