Antagonistic roles for Ataxin-2 structured and disordered domains in RNP condensation

  1. Amanjot Singh
  2. Joern Hulsmeier
  3. Arvind Reddy Kandi
  4. Sai Shruti Pothapragada
  5. Jens Hillebrand
  6. Arnas Petrauskas
  7. Khushboo Agrawal
  8. Krishnan RT
  9. Devasena Thiagarajan
  10. Deepa Jayaprakashappa
  11. K VijayRaghavan
  12. Mani Ramaswami  Is a corresponding author
  13. Baskar Bakthavachalu  Is a corresponding author
  1. National Centre for Biological Sciences, India
  2. Trinity College Institute of Neuroscience, School of Genetics and Microbiology, Smurfit Institute of Genetics and School of Natural Sciences, Trinity College Dublin, Ireland
  3. Tata Institute for Genetics and Society Centre at inStem, Bellary Road, India
  4. School of Biotechnology, Amrita Vishwa Vidyapeetham University, India
  5. School of Basic Sciences, Indian Institute of Technology, India
https://doi.org/10.7554/eLife.60326
Share this article
Cite this article
  1. Amanjot Singh
  2. Joern Hulsmeier
  3. Arvind Reddy Kandi
  4. Sai Shruti Pothapragada
  5. Jens Hillebrand
  6. Arnas Petrauskas
  7. Khushboo Agrawal
  8. Krishnan RT
  9. Devasena Thiagarajan
  10. Deepa Jayaprakashappa
  11. K VijayRaghavan
  12. Mani Ramaswami
  13. Baskar Bakthavachalu
(2021)
Antagonistic roles for Ataxin-2 structured and disordered domains in RNP condensation
eLife 10:e60326.
https://doi.org/10.7554/eLife.60326
  2. Download BibTeX
  3. Download .RIS

Abstract

Ataxin-2 (Atx2) is a translational control molecule mutated in spinocerebellar ataxia type II and amyotrophic lateral sclerosis. While intrinsically disordered domains (IDRs) of Atx2 facilitate mRNP condensation into granules, how IDRs work with structured domains to enable positive and negative regulation of target mRNAs remains unclear. Using the Targets of RNA-Binding Proteins Identified by Editing technology, we identified an extensive data set of Atx2-target mRNAs in the Drosophila brain and S2 cells. Atx2 interactions with AU-rich elements in 3′UTRs appear to modulate stability/turnover of a large fraction of these target mRNAs. Further genomic and cell biological analyses of Atx2 domain deletions demonstrate that Atx2 (1) interacts closely with target mRNAs within mRNP granules, (2) contains distinct protein domains that drive or oppose RNP-granule assembly, and (3) has additional essential roles outside of mRNP granules. These findings increase the understanding of neuronal translational control mechanisms and inform strategies for Atx2-based interventions under development for neurodegenerative disease.

Introduction

Ataxin-2’s involvement in human disease, its relevance for therapeutics development, and its established roles in ribonucleoprotein (RNP)-phase transitions, cell physiology, metabolic control, and animal behavior have led to considerable interest in understanding molecular mechanisms by which the protein functions. At a molecular level, Ataxin-2 positively or negatively regulates the translation of specific mRNAs (Lee et al., 2017; Lim and Allada, 2013; McCann et al., 2011; Zhang et al., 2013). At the same time, the protein mediates the assembly of mRNPs into cytoplasmic mRNP granules visible in resting neurons or in RNA stress granules (SGs) that occur in most cells in response to stress (Bakthavachalu et al., 2018; Bentmann et al., 2013). At a cellular level, Ataxin-2 contributes to cell viability and differentiation as well as cellular responses to viral, ER, heat-, and oxidative stress (Bonenfant et al., 2019; Del Castillo et al., 2019; Ralser et al., 2005; van de Loo et al., 2009). Finally, at an organismal level, the protein regulates metabolism, circadian rhythm, and the consolidation of long-term memory (Bakthavachalu et al., 2018; Lim and Allada, 2013; Meierhofer et al., 2016; Pfeffer et al., 2017; Zhang et al., 2013). Parallel clinical genetic studies have shown that genetic mutations in human Ataxin-2 (Atxn2) can cause the hereditary neurodegenerative diseases spinocerebellar ataxia type II or amyotrophic lateral sclerosis (ALS) (Daoud et al., 2011; Elden et al., 2010; Lastres-Becker et al., 2008; Lee et al., 2011; Scoles and Pulst, 2018; Wadia, 1977; Wadia and Swami, 1971), and subsequent work showing that genetic reduction of Ataxin-2 activity slows neurodegeneration in animal models of ALS has inspired the design and development of therapeutics targeting human Ataxin-2 (Becker et al., 2017; Becker and Gitler, 2018; Elden et al., 2010; Scoles et al., 2017).

The above biological and clinical studies of Ataxin-2 are connected by the insight that intrinsically disordered domains (IDRs) present on RNA-binding proteins contribute to macromolecular condensation or liquid–liquid phase separation reactions, wherein monomeric units form dynamic assemblies held together by weak multivalent interactions (Jain and Vale, 2017; Kato and McKnight, 2018; Murray et al., 2017; Saha and Hyman, 2017; Van Treeck et al., 2018; Van Treeck and Parker, 2018). Significantly, IDRs not only support assembly of mRNP granules but also are prone to assemble into amyloid-like fibers. Disease-causing mutations often increase the efficiency of amyloid formation, particularly within mRNP granules where the RNA-binding proteins are concentrated (Courchaine et al., 2016; Kato et al., 2012; Lim and Allada, 2013; Nedelsky and Taylor, 2019; Patel et al., 2015; Ramaswami et al., 2013; Xiang et al., 2015; Yang et al., 2019). The broad proposal that SGs serve as ‘crucibles’ for the initiation of neurodegenerative disease (Li et al., 2013; Ramaswami et al., 2013; Wolozin and Ivanov, 2019) explains why SG proteins are often mutated in familial ALS or frontotemporal dementia (FTD) and why these proteins are observed in intracellular inclusions typical of ALS/FTD (Arai et al., 1992; Brettschneider et al., 2015; Lee et al., 1991).

The domain structure of Ataxin-2 is highly conserved across species, with N-terminal Like-Sm (Lsm) and Lsm-associated (LsmAD) domains, a more carboxy-terminal polyA binding protein interaction motif 2 (PAM2) domain, as well as strongly disordered regions (respectively mIDR and cIDR) in the middle and C-terminal regions of the protein (Albrecht et al., 2004, Satterfield and Pallanck, 2006; Nonhoff et al., 2007; Bakthavachalu et al., 2018). Genetic studies in Drosophila, which has a single gene for Ataxin-2 as against two atxn2 and atxn2-like in mammals, indicate that different Atx2 domains encode distinct, biological functions. Specifically, while each structured domain is essential for normal viability, the IDR domains are not. However, the cIDR is required for normal mRNP assembly and long-term memory as well as for facilitating cytotoxicity in Drosophila Fus and C9orf72 models for ALS/FTD (Bakthavachalu et al., 2018). These observations, while instructive in terms of functions of the Atx2-IDR and mRNP granules, provide no direct insight into other functions and mechanisms mediated by structured domains of Atx2 or their roles in biology.

To better understand the broad roles and mechanisms of Atx2, we used the Targets of RNA-Binding Proteins Identified by Editing (TRIBE) technology (Biswas et al., 2020; McMahon et al., 2016) to globally identify Atx2-interacting mRNAs from Drosophila adult brain and study how these in vivo interactions were influenced by different domains of the protein. In addition to identifying biologically important targets of Atx2, the results described here offer unexpected information into the mechanisms of Atx2 protein function. Atx2 associates with mRNAs predominantly within mRNP granules, where it binds preferentially near AU-rich elements (AREs) in the 3′UTRs to stabilize the majority of the targets. While the cIDR enables mRNA interactions and granule assembly, the Lsm domain reduces both mRNP assembly and Atx2-target interactions. Taken together, our data (1) provide a rich data set of Atx2-target mRNAs, (2) point to a novel essential function of Atx2 outside of mRNP granules, and (3) indicate competing disassembly and pro-assembly activities within Atx2 encoded by the Lsm and IDR domains, respectively. In addition to being of specific biological interest, these conclusions are relevant to current therapeutic strategies based on targeting human Atxn2.

Results

Using TRIBE to identify Atx2-target mRNAs in Drosophila brain

Atx2 is abundantly expressed in brain tissue. To identify in vivo targets of Atx2 in Drosophila melanogaster brain, we used TRIBE, a technology previously shown to reproducibly identify RNA binding protein (RBP) target mRNAs in vivo (McMahon et al., 2016). We generated transgenic flies that express Atx2 linked to the catalytic domain of Drosophila RNA-modifying enzyme adenosine deaminase (ADARcd) at the carboxy terminal along with a V5 epitope tag under the control of the Gal4-responsive UAS promoter (Figure 1—figure supplement 1). In tissue expressing the Atx2-ADARcd transgene, mRNAs should undergo adenosine-to-inosine editing specifically at positions proximal to Atx2 binding sites (Figure 1A). In an elav-Gal4 background, where the Gal4 transcription factor is expressed in postmitotic neurons, Atx2-ADARcd is expressed specifically in the nervous system. We further temporally restricted neural expression to adult flies with the use of the temperature-sensitive Gal4 inhibitor, GAL80ts, that is active at temperatures below 18°C. Thus, in elav-Gal4; TubGal80ts, UAS-Atx2-ADARcd adult flies shifted from 18°C to 29°C for 5 days shortly after eclosion, and neural mRNAs expressed in adult flies would be susceptible to editing at adenosine residues proximal to Atx2 binding sites.

Figure 1 with 4 supplements see all
Download asset Open asset

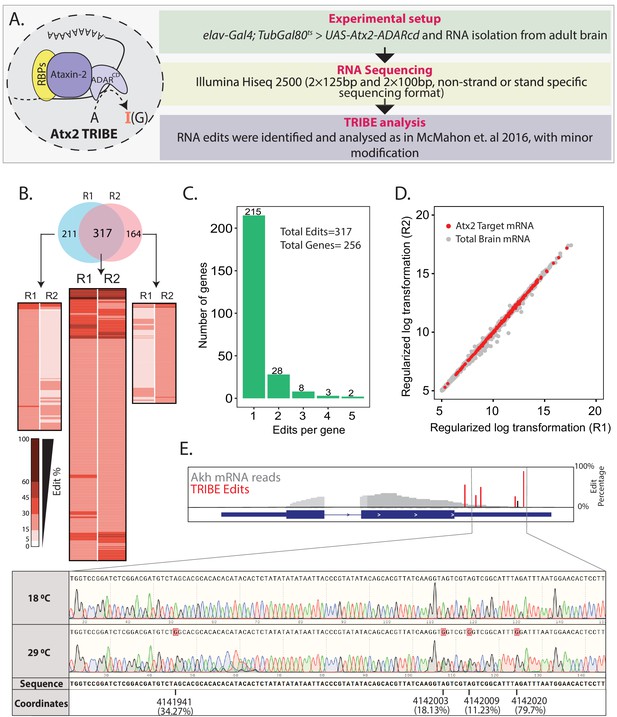

Using Targets of RNA-Binding Proteins Identified by Editing (TRIBE) to identify Atx2-interacting mRNAs in the adult fly brain.

(A) Schematic and flow chart for TRIBE analysis: the Atx2-ADARcd fusion protein is expressed in the adult fly brain, total brain mRNA isolated, sequenced, and analyzed using a published TRIBE pipeline. (B) Heatmaps show edit percentages of individual transcript coordinates. Replicate experiments R1 and R2 identify largely overlapping edit sites and edited mRNAs. The common targets (intersect between R1 and R2) show almost reproducible edit levels. The inset (heatmaps on either sides of the common intersected list) indicates that several mRNAs are identified as ‘non-replicates’ between R1 or R2 because they do not cross quality control thresholds (edit percentages or read counts) and not because of robust differences between replicates. (C) Bar plot showing the number of edits with a significant number of genes edited at a single site. (D) The mRNA edits are independent of expression levels. A scatter plot shows expression differences of all the mRNAs expressed in fly brain. Red dots represent the edited mRNAs while gray dots represent the mRNAs of the brain transcriptome that are not edited. (E) Sanger sequencing confirms editing site identified by TRIBE analysis. Data shown for one target mRNA (Akh). Red bars show the edit percentages at the different modified nucleotides with respect to the total Akh mRNA shown in gray. The black bar indicates identified edits that are below 15% threshold (see also Figure 1—figure supplement 4).

Figure 1—source data 1

Data related to Figure 1B.

Percentage edits for Atx2-target mRNAs in RNAseq replicates.

https://cdn.elifesciences.org/articles/60326/elife-60326-fig1-data1-v1.xlsx
Figure 1—source data 2

Data related to Figure 1C.

Atx2-target mRNAs along with the number of edits.

https://cdn.elifesciences.org/articles/60326/elife-60326-fig1-data2-v1.xlsx

To identify neural mRNA targets of Atx2, we isolated polyA-selected RNAs from Atx2-ADARcd expressing Drosophila brain and sequenced these using Illumina Hiseq 2500 and reads were subsequently analyzed according to McMahon et al., 2016 (with slight modifications, see Materials and methods) to identify sites and efficiency of Atx2-ADARcd-mediated mRNA editing (Figure 1A). Adult brain expression for Atx2-ADARcd was verified using antibody staining for V5 epitope (Figure 1—figure supplement 2). Experiments were carried out in duplicates. The reads obtained were between 20 and 25 million per sample, were of high quality, and more than 80% of these mapped to specific Drosophila mRNAs (Figure 1—figure supplement 3).

Transcripts corresponding to 8% of expressed genes showed adenosine edits. Of the 528 and 481 edit sites represented in independent replicates, at least 317 were common to both samples, demonstrating the reproducibility of the experiments (Figure 1B). These 317 common edits could be assigned to 256 unique genes, with the majority of genes only being edited at a single site (215 genes, 67.8% of edits) (Figure 1C). The Atx2-target mRNAs were distributed across the brain transcriptome irrespective of the abundance of an mRNA indicating that edits were not random events, but rather reflect sequence- and structure-specific association of these mRNAs with Atx2-ADARcd (Figure 1D). We further validated the TRIBE analysis/Illumina Hiseq pipeline using Sanger sequencing for a few identified target mRNAs. For instance, Sanger sequencing confirmed that edits in Adipokinetic hormone (Akh) and 14-3-3 epsilon mRNAs occur at identified sites, with efficiencies indicated by TRIBE analysis (Figure 1E, Figure 1—figure supplement 4). Taken together, the data indicates that Atx2 associates with specific RNA motifs present on targets identified by TRIBE analyses from fly brain.

A Gene Ontology analysis of Atx2 targets (Table 1) indicated particular enrichment of mRNAs encoding neuropeptides and hormones, as well as mRNAs encoding monoamine transporters, ion channels, and vesicle transport proteins. This is broadly consistent with and suggests the mechanisms by which Atx2 functions in translational control of physiological and neural circuit plasticity.

Table 1
Gene Ontology (GO) analysis of Atx2 brain targets.

GO analysis using PANTHER shows a large enrichment of neuronal mRNAs coding for neuropeptides and proteins involved in neuronal signaling pathways. FDR: false discovery rate.

Molecular functionFold enrichmentProbability (FDR)Targets (%)Genome (%)GO term
Signaling receptor binding7.754.47E-1114.461.87GO:0005102
Neuropeptide hormone activity27.672.52E-096.630.24GO:0005184
Hormone activity18.645.74E-086.630.36GO:0005179
Neuropeptide receptor binding38.742.08E-064.220.11GO:0071855
G protein-coupled receptor binding13.843.79E-066.030.44GO:0001664
Receptor regulator activity9.584.55E-067.230.76GO:0030545
Receptor ligand activity9.411.96E-056.630.71GO:0048018
Signaling receptor activator activity9.042.58E-056.630.74GO:0030546
Organic hydroxy compound transmembrane transporter activity83.023.38E-042.410.03GO:1901618
Monoamine transmembrane transporter activity66.415.52E-042.410.04GO:0008504
Phosphoric ester hydrolase activity4.936.43E-047.841.59GO:0042578
Anion:sodium symporter activity55.356.44E-042.410.05GO:0015373
Sodium:chloride symporter activity55.356.84E-042.410.05GO:0015378
Phosphoprotein phosphatase activity7.957.06E-045.430.69GO:0004721
Anion:cation symporter activity36.91.81E-032.410.07GO:0015296
Cation:chloride symporter activity36.91.91E-032.410.07GO:0015377
Phosphatase activity5.052.53E-036.631.32GO:0016791
Serotonin:sodium symporter activity83.024.17E-031.810.03GO:0005335
Neurotransmitter:sodium symporter activity14.825.04E-033.020.21GO:0005328
Protein tyrosine/serine/threonine phosphatase activity23.726.17E-032.410.11GO:0008138
Solute:sodium symporter activity11.531.26E-023.020.27GO:0015370
mRNA 3'UTR binding11.221.36E-023.020.27GO:0003730
Protein tyrosine phosphatase activity10.641.59E-023.020.29GO:0004725
Neurotransmitter transmembrane transporter activity10.641.65E-023.020.29GO:0005326
Adrenergic receptor activity24.913.98E-021.810.08GO:0004935
Table 1—source data 1

Gene Ontology (GO) terms for Atx2 brain targets.

https://cdn.elifesciences.org/articles/60326/elife-60326-table1-data1-v1.xlsx

Atx2 associates preferentially with 3′UTRs of target mRNAs

The RNA edit sites identified by TRIBE reflect the positions to which ADARcd is targeted via direct or indirect Atx2–mRNA interactions. It is therefore possible to use this information to determine the relative positions and preferred sequences for Atx2 binding on respective mRNAs. By converting the TRIBE edits into metagene coordinates, we found that Atx2 interactions occurred predominantly within 3′UTRs of target mRNAs (69.5%), while the coding region (CDS) and 5′UTR accounted for 26.7% and 4% of edits, respectively (Figure 2A). All the identified edits occurred almost exclusively in exons (Figure 2—figure supplement 1), which might be due to polyA selection causing experimental bias or that Atx2 binds to only mature mRNA in the cytoplasm. Edits within CDS were often accompanied by edits in the 3′UTR of the same mRNA, further indicating a key role for Atx2–3′UTR interactions (Figure 2—figure supplement 2). Also pointing to a role in 3′UTR regulation, Atx2 edit sites were particularly prevalent in brain transcripts with longer 3′UTRs that are more often subject to translational control (Inagaki et al., 2020; Miura et al., 2013; Wang and Yi, 2014; Figure 1—figure supplement 3). These observations are consistent with prior work showing that Atx2 can mediate activation or repression of specific mRNA translation via elements in their 3′UTRs (Lee et al., 2017; Lim and Allada, 2013; McCann et al., 2011; Sudhakaran et al., 2014; Zhang et al., 2013).

Figure 2 with 4 supplements see all
Download asset Open asset

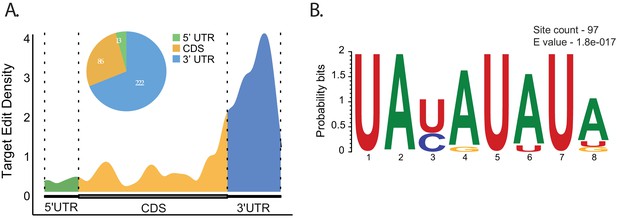

Atx2 preferentially edits AU-rich sequences in the 3′UTRs of the target mRNAs.

(A) Metaplot analysis showing Atx2 preferentially associates with 3′UTRs of the target mRNA. (B) Motif analyses involving ±100 bases around the edit site using MEME identifies AU-rich element sequences in the 3′UTRs of the target mRNAs.

Further analyses using the MEME suite of tools for motif-based sequence analysis identified an AU-rich element (ARE) ‘UAUAUAUA’ as highly enriched in mRNA target sequences within 100 bases of identified edit sites (Figure 2B). These AREs, previously implicated in the regulation of mRNA stability, are most abundant near 3′UTR edits sites of the target mRNAs, while a secondary motif with GC-rich sequence was found predominantly for the CDS edits (Figure 2—figure supplement 4). A multiple-sequence alignment for two of the genes (Vmat and Akh) shows the motifs in the 3′UTR are conserved between closely related Drosophila species (Figure 3—figure supplement 5). This suggests a model in which Atx2 preferentially associates with ARE-containing 3′UTRs of target mRNAs to regulate their stability in vivo either by directly binding the target mRNA or indirectly via another ARE-binding protein.

Atx2 stabilizes the majority of its mRNA targets

AREs are major cis-regulatory motifs in the 3′UTR of mRNAs that regulate their stability (Otsuka et al., 2019; Vasudevan and Peltz, 2001). For this reason, several RBPs modulate mRNA stability by binding to AREs and regulating their accessibility to RNA degradative machinery (Mayya and Duchaine, 2019). For example, Pumilio binding to ARE increases degradation, while HuR binding stabilizes the mRNAs (López de Silanes et al., 2004; Weidmann et al., 2014). To ask how Atx2 binding alters target mRNA stability, we expressed a previously validated Atx2-targeting RNAi construct in fly brains to reduce endogenous Atx2 expression and used RNAseq to determine how this affected the steady-state levels of Atx2-target and non-target mRNAs (McCann et al., 2011; Sudhakaran et al., 2014).

Experimental elav-Gal4, UAS-Atx2-RNAi; Tub-Gal80ts flies were reared to adulthood at 18°C. They were then transferred to 29°C to inactivate Gal80ts and enable neural Atx2-RNAi expression for 5 days before isolating total RNA from brain (Figure 3A). RNAseq data confirmed partial knockdown of Atx2 mRNA in experimental flies expressing Atx2-RNAi (Figure 3B). Immunoblots might not reflect this at the protein level likely because the expression of RNAi is restricted to elav neurons, which are difficult to isolate and analyze, hence we verified Atx2 RNAi efficiency in the wing disc using ptc-Gal4. Atx2 levels were down only in the Gal4-expressing cells compared to the neighboring control cells (Figure 3—figure supplement 1).

Figure 3 with 6 supplements see all
Download asset Open asset

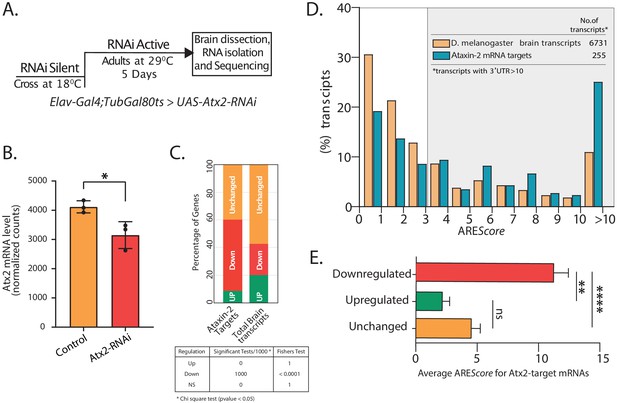

Atx2–ARE interactions modulate mRNA stability.

(A) Schematic of strategy to induce RNAi expression specifically in adult fly brain. Total RNA extracted from brain post 5 days at 29°C was sequenced using Illumina 2500 and differential expression analyzed using DESeq2. (B) Normalized mRNA read counts showing Atx2 mRNA levels to be significantly reduced following RNAi expression compared to Gal4 control with a p-value of <0.0298 using Student’s t-test. (C) Effect on Atx2-target mRNAs following Atx2 knockdown: the majority are reduced in level, indicating a role for Atx2 is target stabilization. Bootstraping was performed 1000 times with replacement. Statistics was performed using chi-square test with cutoff (p-value <0.05). Fisher’s test was used to combine the p-values. (D) AREScore analysis showing AU-rich elements (AREs) to be enriched in Atx2-target mRNAs compared to the brain transcriptome. (E) Among Atx2-target mRNAs, higher ARE scores are seen in mRNAs whose levels are reduced following Atx2 knockdown.

Figure 3—source data 1

Data related to Figure 3C.

Fold changes in Atx2-target mRNAs upon Atx2 RNAi.

https://cdn.elifesciences.org/articles/60326/elife-60326-fig3-data1-v1.xlsx
Figure 3—source data 2

Data related to Figure 3E.

Correlation of AREScore and target mRNA levels.

https://cdn.elifesciences.org/articles/60326/elife-60326-fig3-data2-v1.xlsx

Atx2 knockdown caused a significant reduction in levels of over 53.2% of the Atx2-target mRNAs, indicating a broad role for Atx2 in target-mRNA stabilization (Figure 3C). This was, however, not universal, and we observed that the levels of ~8.8% of the target mRNAs were increased with Atx2 knockdown. Non-target mRNA levels were substantially less affected: ~22.5% of all mRNAs from the global brain transcriptome were reduced by Atx2 knockdown, with ~57.2% showing no detectable change in expression levels (Figure 3C). In contrast, the analysis of nascent transcripts using intron reads showed that predominant Atx2 targets (~85%) remain unchanged (Figure 3—figure supplement 3), suggesting that the downregulation of target mRNAs in Atx2 RNAi is posttranscriptional.

To further validate the above results, TRIBE analysis was performed in Drosophila S2 cells. Atx2-ADARcd edited ~179 mRNA targets preferentially in the 3′UTR in S2 cells (Figure 3—figure supplement 4A, B). The targets identified from S2 cell TRIBE only marginally overlapped with the targets identified in the Drosophila brain (Figure 3—figure supplement 4A). This minimal overlap could be due to the RNA expression differences between the brain and S2 cells and/or target specificity of Atx2 in different cell types. It has been previously noticed that RNA-binding proteins can bind different RNA targets even within different neuronal populations (McMahon et al., 2016).

Like in brain, Atx2 silencing in S2 cells caused reduction in the levels of significant percentage of targets (~49%) compared to ~14% of total S2 transcripts (Figure 3—figure supplement 5A, B). In contrast, ~74% of targets that showed reduced expression in Atx2 RNAi were upregulated in Atx2 overexpression (Figure 3—figure supplement 5B).

Together, the RNAseq data (1) provide additional evidence in support of in vivo interactions between Atx2 and target mRNAs identified by TRIBE analysis and (2) are consistent with Atx2 binding to the ARE motif acting predominantly to stabilize target mRNAs.

AREScore is a numerical assessment of ARE strength with high scores correlating to reduced RNA stability in reporter assays (Spasic et al., 2012). In support of a broad role for Atx2 in the regulation of ARE function in neurons, UTRs with high AREScore are clearly enriched in the Atx2-target mRNAs compared to the general neural transcriptome (Figure 3D). Further, within the group of Atx2-target RNAs identified by TRIBE, higher AREScore strongly predict mRNAs whose steady-state levels are reduced by Atx2 knockdown in brain and S2 cells (Figure 3E, Figure 3—figure supplement 6). These results indicate that Atx2 stabilizes a subset of its target mRNAs by binding to AREs.

The data also point to alternative and/or context-specific mechanisms for mRNA regulation by Atx2. For instance, some Atx2-target mRNAs lack AREs and a significant subset of ARE containing target mRNAs are not destabilized by Atx2 knockdown (Figure 3—figure supplement 2). These could be explained by alternative pathways by which Atx2 is recruited to mRNAs, for example, via microRNA pathway components (McCann et al., 2011; Sudhakaran et al., 2014) or by further layers of regulation conferred by additional RBPs recruited onto target mRNAs.

To further understand the mechanisms by which Atx2 interacts with its target mRNAs, we asked which domains of Atx2 might be required for this function. In particular, we asked whether the unstructured IDR or structured Lsm/LsmAD domains contributed to the specificity of Atx2–mRNA target interactions.

The cIDR domain enables and the Lsm domain opposes Atx2 interactions with target mRNA

Atx2 has three structured domains (Lsm, LsmAD, and PAM2) embedded within extended, poorly structured regions of the protein (Bakthavachalu et al., 2018). Although interactions mediated by structured domains in vivo are necessary for normal organismal viability in Drosophila, the mechanism by which structure domains function is only clear for PAM2, which, by binding to polyA binding protein PABP, likely allows interactions with polyA tails of mRNAs (Satterfield and Pallanck, 2006). In contrast, the most prominent disordered regions in Atx2 (mIDR and cIDR) contribute little to animal viability but are selectively required for the assembly of mRNPs in neurons or cultured cells (Bakthavachalu et al., 2018). To test how Lsm, LsmAD, and cIDR domains of Atx2 contribute to the specificity of mRNA target interactions, we performed TRIBE analyses with specific domain-deleted forms of Atx2 (Figure 4B). Because purified Lsm domain alone as well as Lsm+LsmAD domains has been reported to bind the AU-rich sequences in vitro, we generated transgenes expressing a construct with Lsm+LsmAD domains of Atx2 fused to the catalytic domain of ADAR (Yokoshi et al., 2014). In addition, we created transgenic lines expressing Atx2 deleted for either Lsm, LsmAD, mIDR, or cIDR domains based on the UAS-Atx2-ADARcd construct scaffold (Figure 4A). Using the same approach as earlier, we analyzed how each of the domain deletions affected the Atx2-target binding in adult neurons.

Figure 4 with 3 supplements see all
Download asset Open asset

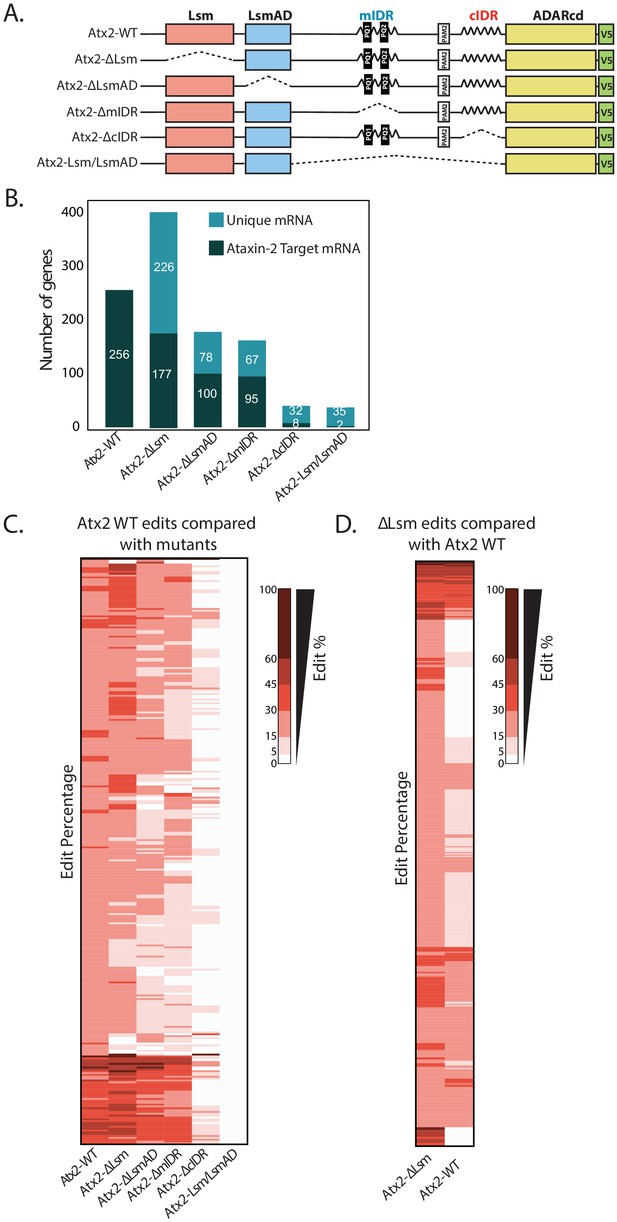

Atx2 requires its cIDR domain for interaction with its target mRNA.

(A) An illustration of domains of Atx2. The structured (Like-Sm [Lsm] and Lsm-associated [LsmAD]) and disordered domains (mIDR and cIDR) of Atx2 protein were deleted one at a time to understand the domains necessary for its interaction with target RNA. The wild-type Atx2 and the deletions contained a c-terminal ADARcd and V5 tag. The deletions are shown by the dotted lines. (B) Deletion of LsmAD or mIDR domain reduced the ability of Atx2 to interact with its targets, while cIDR deletion almost entirely prevented Atx2 mRNA interactions. The Lsm-domain deletion showed an overall increase in mRNA edits. (C) More detailed heatmap view of individual target mRNAs showing target edit percentages in flies expressing control or domain-deleted forms Atx2 fused to ADARcd. (D) Most of the apparently new targets identified in Atx2∆Lsm Targets of RNA-Binding Proteins Identified by Editing analyses are also edited, albeit at a lower efficiency, in flies expressing full-length Atx2-ADAR fusions. This suggests that deletion of the Lsm domain increases the interaction of Atx2 with its native target mRNAs. (For C and D, 15% threshold edits identified for samples in column 1 [Atx2 WT in C and Atx2∆Lsm in D] was used to compare with all the edits of the rest of the columns to generate a heatmap.)

Figure 4—source data 1

Data related to Figure 4B.

mRNA targets identified for different Atx2 domain deletions.

https://cdn.elifesciences.org/articles/60326/elife-60326-fig4-data1-v1.xlsx
Figure 4—source data 2

Data related to Figure 4C, D.

Edit percentages for Atx2-target mRNAs identified using different domain deletions.

https://cdn.elifesciences.org/articles/60326/elife-60326-fig4-data2-v1.xlsx

Initial observations indicated that Lsm+LsmAD domains on their own could not efficiently target ADAR to mRNA: transcripts sequenced from Lsm+LsmAD-ADARcd-expressing brains contained negligible edits, which did not overlap significantly with Atx2 targets (Figure 4B). Therefore, the Lsm and LsmAD domains are insufficient to drive Atx2–mRNA interactions in vivo. Further, deletions of either Lsm or LsmAD did not block the ability of Atx2 to interact with most TRIBE targets: thus, they appear neither necessary nor sufficient for Atx2 targeting to these mRNAs (Figure 4B, C). These surprising observations led us to examine the role of disordered domains in driving Atx2–mRNA interactions in vivo.

In contrast to the effects of deleting the Lsm domain, deletion of cIDR abolished Atx2 binding to most target mRNAs (Figure 4B, C). As the cIDR plays a major role in mRNP assembly (Bakthavachalu et al., 2018), this unexpected observation suggests that Atx2 moves into proximity of target mRNAs only after cIDR-mediated granule formation. Deletion of the mIDR resulted only in a relatively minor reduction in target binding, but this is consistent with prior work indicating only a minor role in mRNP assembly (Bakthavachalu et al., 2018). In addition, the deletion of Lsm, LsmAD, or mIDR domains did not alter AU-rich motif preference for Atx2, suggesting that these domains do not provide mRNA binding specificity (Figure 4—figure supplement 1). Deeper analyses provided additional support for a model in which Atx2 associates to RNA-binding proteins in individual mRNPs, but is brought into closer contact with mRNAs through remodeling events associated with the formation of higher order mRNP assemblies.

A key observation is that while Lsm-domain deletions did not reduce RNA edits, they also curiously resulted in a significantly larger number of edited target mRNAs compared to the full-length, wild-type Atx2 (Figure 4C). A more detailed analysis showed that several of the apparently novel targets of Atx2∆Lsm were also bound by the wild-type Atx2 but with reduced affinity and were therefore below the threshold of our analysis (Figure 4D, Figure 4—figure supplement 2). Because sequencing depth, read quality, and ADAR mRNA and protein levels were similar across control and domain-deletion experiments (Figure 4—figure supplement 3A–C), these observations argue that the Lsm domain acts to broadly antagonize physiologically relevant mRNA interactions driven by the cIDR. Thus, while the cIDR domain of Atx2 is essential for its mRNA target interactions, the Lsm domain is inhibitory: in its absence, Atx2 shows an enhanced association with its native, target mRNAs.

The Atx2 Lsm domain inhibits cIDR-mediated mRNP granule assembly

The most parsimonious explanation for the observed opposing effects of Lsm and cIDR domain deletions on mRNA editing (Figure 4) is that the Lsm domain functions to oppose cIDR-mediated mRNP granule assembly (Bakthavachalu et al., 2018). To directly test this hypothesis, we first asked whether deletion of the Lsm domain enhanced Atx2 RNP assembly. Expression of wild-type C-terminally SNAP tagged Atx2 (Atx2-SNAP) in S2 cells led to the formation of SG-like RNP-granule foci through a mechanism dependent on cIDR as described previously (Figure 5ii, v; Bakthavachalu et al., 2018). Strikingly consistent with our predictions, expression of Atx2∆Lsm-SNAP constructs lacking the Lsm domain induced significantly larger RNP granules compared to wild-type Atx2-SNAP (Figure 5i). Similar to wild-type Atx2-SNAP granules, these large Atx2∆Lsm-SNAP-induced granules also contained the SG protein, G3BP/Rasputin (Rin) (Figure 5—figure supplement 1), and their formation required the presence the cIDR (Figure 5iv). Thus, Lsm domain appears to act antagonistically to cIDR to prevent RNP granule assembly.

Figure 5 with 1 supplement see all
Download asset Open asset

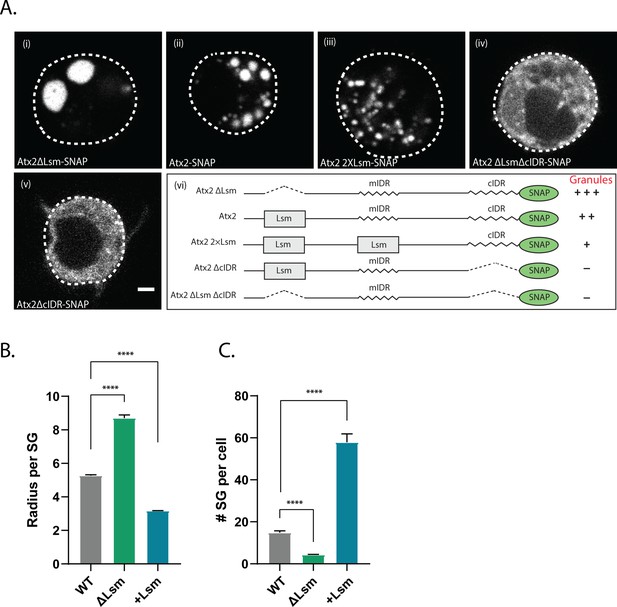

Atx2 Like-Sm (Lsm) domain alters granule dynamics.

(A) Drosophila S2 cells expressing Atx2 protein with a C-terminal SNAP tag. Atx2∆Lsm form large cytoplasmic granules (i) that are much larger than WT Atx2 granules (ii). Atx2 with an additional Lsm domain in place of mIDR to create 2XLsm forms smaller granules compared to WT Atx2 in S2 cells (iii). Deletion of cIDR domain blocks Atx2 granule formation (iv). In the absence of cIDR, Lsm deletion does not rescue Atx2 granules (v). Domain map along with the granule phenotype is shown in (vi). The scale bar corresponds to 2 µm. (B) Radius of the stress granule (size) and (C) number of stress granules per cell were quantified and plotted. More than 80 cells per genotype were used for granule quantification.

To further confirm this, we tested if the inclusion of additional Lsm domains would reduce the ability of Atx2 to form RNP granules. As the deletion of the Atx2 mIDR does not alter mRNP granule assembly in S2 cells (Bakthavachalu et al., 2018), we replaced mIDR with an additional Lsm domain to create an Atx2 protein with two Lsm domains. Remarkably, Atx2 with two Lsm showed much smaller foci in S2 cells (Figure 5Aiii). Quantification of granules in these cells reiterated that while ∆Lsm formed fewer but larger granules, increasing the valency of Lsm domains led to the formation of several smaller granules (Figure 5B). The summary of these results is shown in Figure 5Avi. Taken together, the observations that deletion of the Lsm enhances and addition of an extra Lsm domain inhibits RNP assembly provide strong support for two opposing activities encoded by the Lsm and cIDR domains of Atx2.

Discussion

Previous work has shown that Drosophila Atx2 functions in neurons as a translational activator of the period mRNA that controls circadian rhythms and as a translational repressor of the calcium-calmodulin-dependent kinase CaMKII involved in synaptic plasticity and memory (Lim and Allada, 2013; Sudhakaran et al., 2014; Zhang et al., 2013). Atx2 is also required for the assembly of neuronal mRNPs believed to provide pools of synaptically localized mRNAs whose translation contributes the consolidation of long-term memory (McCann et al., 2011). These studies indicate the specific positive and negative translational functions of Atx2, which are mediated by structured–domain interactions with Lsm12 or Me31B/DDX6, respectively (Lee et al., 2017), and that mRNP-assembly functions are mediated by its cIDR (Bakthavachalu et al., 2018). However, the generality of these mechanisms, the range of neuronal mRNAs and neuronal functions under Atx2 regulation, as well as how structured and disordered domain interactions are coordinated remain largely unknown. Here, by deploying and building on TRIBE analysis to identify a suite of Atx2-target mRNAs, we address these questions and provide insights of relevance for biology, technology, and medicine.

Neural functions of Ataxin-2

TRIBE allows in vivo RNA targets of RBPs to be identified from small tissue samples, eliminating several technical challenges and artifacts associated with immunoprecipitation-based methods (Jin et al., 2020; McMahon et al., 2016; Xu et al., 2018). This method led to the identification of 256 Drosophila brain mRNAs that associate with Atx2 with the proximity and stability required for Atx2-linked enzymatic editing of the mRNA. These mRNAs are reproducibly identified in replicate experiments and do not show any over-representation of highly expressed mRNAs. Moreover, the observation that a substantial fraction of these mRNAs either have AREs in their 3′UTRs and/or show altered steady-state levels following Atx2 knockdown argues that the majority represent real Atx2 targets and not non-specific proximity-based editing events that can sometimes occur within RNP complexes (Biswas et al., 2020). Thus, the resulting robust data set of Atx2 targets may provide valuable hypotheses for biological functions and genetic pathways regulated by Atx2. For instance, a striking enhancement of mRNAs encoding specific neuropeptides and neuronal hormones suggests that altered intercellular communication mediated by their translational regulation may contribute to the behavioral plasticity associated with circadian time or long-term memory. Similarly, a large subset of target mRNAs encoding proteins regulating neural excitability through multiple different mechanisms is unexpected and points to the possibility that activity-regulated translation may act via local changes in membrane properties to achieve localized plasticity required for encoding specific memories. It is important to note that this analysis may miss mRNAs that are strong targets in a small subset of neurons but not in others, for instance, the other cells may express RBPs that prevent Atx2 interactions. Thus, more targets may be found by new approaches using TRIBE for single-cell analyses (McMahon et al., 2016).

But not all Atx2-regulated mRNAs have been identified. It is notable that two of the best-established Atx2 targets, CaMKII and per, were not identified by TRIBE. While the per–Atx2 interactions, being time- and cell-type restricted (Lim and Allada, 2013; Zhang et al., 2013), could potentially be missed for statistical reasons, this is unlikely the case for CaMKII, a highly expressed mRNA that co-immunoprecipitates with Atx2 (Sudhakaran et al., 2014). We suggest instead that these represent Atx2 targets missed by TRIBE because they are regulated through relatively indirect mechanisms that do not require close contact between Atx2 and the mRNA. For instance, in case of per, its 3′UTR is recognized by the sequence-specific RBP Twentyfour (TYF), which recruits Atx2 that in turns recruits a Lsm12-containing complex to the per 3′UTR, thus allowing translational activation (Lee et al., 2017). Similarly, for CaMKII, Atx2 may be recruited by miRNA pathway components and act via co-regulators such as Me31B/DDX6, through mechanisms that do not rely on close proximity between Atx2 and target mRNAs. The above may also help explain why previously proposed target mRNAs in metabolic pathways for instance are not represented in this data set (Yokoshi et al., 2014). Indeed, Atx2 likely binds to several additional neuronal mRNAs not identified by TRIBE, which requires Atx2 proximity to the mRNA. Such targets may be better identified by CLIP-based methods. However, considerable new understanding can be provided by the detailed analysis of the 256 robust targets identified here by TRIBE.

One important insight is the discovery of a broad function for Atx2 in neuronal mRNA stabilization. Atx2 associates preferentially to 3′UTRs of the target-mRNAs, and particularly to AU-rich sequences (AREs) in these UTRs (Figure 2). AREs are common cis-regulatory features regulating mRNA stability, a posttranscriptional gene regulation strategy adopted by all eukaryotic cells (García-Mauriño et al., 2017). The observation that knockdown of Atx2 in Drosophila brain and S2 cells causes levels of a large fraction of the Atx2-target mRNAs to be significantly reduced (Figure 3B, C, Figure 3—figure supplement 5B) and that the most downregulated targets have strong AREScore (Spasic et al., 2012) suggests that Atx2 directly or indirectly associates with AREs to protect mRNAs from degradation (Figure 3E). This could be achieved by blocking ARE-dependent recruitment of RNA degradation complexes through a mechanism similar to that described previously for HuR (Peng et al., 1998). These conclusions may also be relevant for mammalian Atxn2 as physical interactions between mammalian Atxn2 and AREs have been described previously using PAR-CLIP analyses from cultured HEK293 cells (Yokoshi et al., 2014). Moreover, Atxn2-CAG100-KnockIn mouse engineered to express polyQ expanded forms of Atxn2 that should enhance granule formation show a predominant upregulation of mRNAs, consistent with a role for Atx2-mediated mRNP assembly in stabilizing target mRNAs (Sen et al., 2019).

It is important to note that some mRNAs with high ARE scores do not appear to be stabilized by Atx2, and conversely, some that do not contain AREs appear to be affected by Atx2 knockdown (Figure 3E). Both of these observations are consistent with additional layers and mechanisms of regulation conferred by co-regulating RBPs: either by providing an alternative pathway for ARE regulation via, for instance, miRNA binding (Sun et al., 2010; van Kouwenhove et al., 2011) or an alternative mechanism for recruitment of Atx2 to the 3′UTR of mRNAs.

Mechanisms of Ataxin-2 function in RNP granule assembly

Our work provides two insights into the mechanisms of mRNP formation. First, it indicates that individual mRNPs may be substantially remodeled as they assemble into higher order mRNP assemblies. In support of this, we show that Atx2 lacking its cIDR, which cannot form granules, is also not associated closely enough with mRNAs to allow their editing by a linked ADAR catalytic domain. One possibility is that mRNP remodeling is driven by major conformational changes in RBPs, which not only increase their propensity to drive mRNP condensation but also result in altered RBP–RBP and RBP–RNA interactions. In this context, recent work on G3BP/Rin has shown that the protein exists in two dramatically different conformational states: a closed form, in which its IDRs are inaccessible for condensation reactions, and a dephosphorylation-induced open form, capable of mediating SG association (Guillén-Boixet et al., 2020; Laver et al., 2020; Sanders et al., 2020). In such a framework, it is easy to see how Atx2 interactions with RBPs and mRNAs could be altered under conditions that support granule assembly. While these changes in Atx2 interactions could occur due to structural changes in other components of Atx2-containing mRNPs, our second insight is that alterations in the Atx2 protein itself probably occur and contribute to driving granule assembly.

Ataxin-2 is a modular protein capable of association with multiple translational control components (Dansithong et al., 2015; Lastres-Becker et al., 2016; Lee et al., 2017; Satterfield and Pallanck, 2006; Swisher and Parker, 2010). Although Atx2 lacks RNA recognition domains like RRMs, KH, or other previously characterized RNA-binding domains, homology-based modeling studies and indirect experimental observations have suggested that the Lsm domain of Atx2 may mediate RNA interaction (Calabretta and Richard, 2015; Hentze et al., 2018; Yokoshi et al., 2014). However, direct experimental tests of this hypothesis show that close Atx2 interactions with mRNA, as assessed by TRIBE, are actively prevented by the Lsm domain, which also opposes mRNP assembly (Figure 4 and Figure 5). In contrast, the cIDR that drives mRNP assembly is necessary for Atx2-coupled editing of target mRNA. An untested prediction of this model is that the TRIBE analysis of Atx2 forms carrying Lsm domain repeats would yield results similar to those seen after cIDR deletion.

The simplest explanation for these findings is that Atx2 association with individual, potentially translationally active mRNPs in the soluble phases is mediated by Lsm domain–RBP interactions that also occlude or prevent cIDR-mediated mRNP assembly (Ciosk et al., 2004; Lee et al., 2017; Satterfield and Pallanck, 2006). Conditions that promote mRNP assembly disrupt Lsm-domain-mediated interactions and enable cIDR-driven granule formation (Figure 6). We note that recent work on G3BP has beautifully elaborated phosphorylation-regulated intramolecular interactions that similarly allow the molecule to switch between soluble and assembly-competent conformations (Guillén-Boixet et al., 2020; Laver et al., 2020; Sanders et al., 2020). Though our experiments do not yet define molecular and biophysical details by which Atx2 transitions from assembly-inhibited to assembly-competent states, our observations (1) clearly demonstrate crucial opposing, physiological roles of the Lsm and cIDR domains in this process and (2) suggest that regulation of intermolecular interactions mediated by the Lsm domain will be involved in control of Atx2-mediated granule assembly.

Figure 6
Download asset Open asset

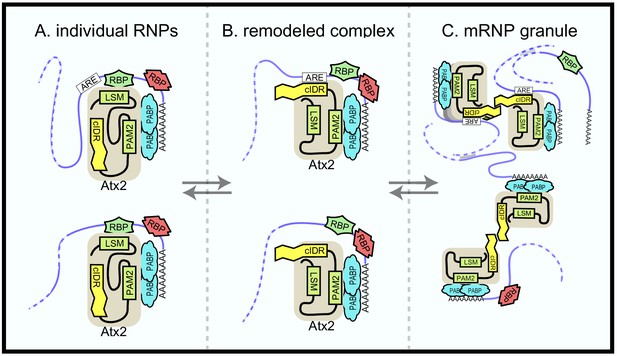

Ataxin-2 domains in mRNA target regulation.

A model to explain the current and previous observations on Ataxin-2 as well as its function in mRNA regulation. (A) Ataxin-2 does not make direct contact with mRNAs in soluble mRNPs. Instead, it is recruited to RNA by other RBPs that bind to structured Like-Sm (Lsm) (or Lsm-associated [LsmAD]) domains. In these soluble mRNPs, the cIDR is buried and inaccessible. One class of mRNP (above) contains AU-rich elements (AREs); the second class below (e.g., per in Drosophila) does not. (B) Under specific signaling conditions (e.g., stress), RBP–Atx2 interactions are prevented. In these ‘remodeled’ mRNPs, the Atx2-cIDR is exposed. We speculate that a segment of this intrinsically disordered domain (IDR) directly binds to nearby AREs (or to ARE-binding proteins), while other segments of the IDR mediate multivalent interactions that contribute to mRNP condensation. (C) Ataxin-2 cIDR interactions enable mRNP assembly into granules, facilitated by RNA–RNA crosslinks and interactions mediated by other RBPs (e.g., G3BP/Rin). These RNP granules may include both ARE-containing mRNAs (edited) and mRNAs that do not. Note that additional RBPs (red) could determine not only Atx2 proximity to specific mRNAs (leading to editing) but also the effect of Atx2 on mRNA translation and/or stability. These and alternative models remain to be tested.

It is important to note that Ataxin-2 has additional essential functions beyond those described here. In particular, given that the Atx2 structured domains not required for TRIBE-target binding are essential for survival, unlike the IDR, which is required for editing of TRIBE targets but not for animal survival, it appears likely that a class of Atx2-target mRNAs is regulated outside of mRNP granules through largely structured-domain interactions (Figure 6). Additional approaches and experiments are required to identify such mRNAs as well as mechanisms by which they are regulated.

Insight for disease and therapeutics

Ataxin-2 has attracted considerable clinical interest for three main reasons. First, assembly-promoting mutations in the Ataxin-2 gene or associated RNA binding and SG proteins such as TDP-43 can cause neurodegenerative disease. Second, SG proteins such as TDP-43 are usually present in cytoplasmic protein inclusions associated with familial and heritable forms of ALS and FTD. Third, reduction of Ataxin-2 can slow neurodegeneration in animal models of ALS, indicating that the normal function of Ataxin-2 is required for initiation or progression of disease (Becker et al., 2017; Scoles et al., 2017). These findings, interpreted in a framework wherein SGs are thought to facilitate the nucleation of pathogenic amyloid filaments, have led to the development of therapeutics based on reducing levels of Ataxin-2, for example, using antisense oligonucleotides by major companies such as Ionis and Biogen Inc. In this context, the discovery that the Lsm domain inhibits mRNP assembly suggests, first, that mutations inactivating this domain could have effects similar to polyQ expansions and promote disease and, second, that compounds targeting specific domains and activities of Ataxin-2 may prove more effective as therapeutics than those that knock down protein levels.

The case for our understanding of the function of each Atx2 domain and developing specific modulators is particularly strong since Ataxin-2 protein itself has several important roles not only in mRNA stabilization, as shown here, but also in protein translation, cell signaling, metabolism, and embryonic development (Halbach et al., 2017; Inagaki et al., 2020; Kato et al., 2019; Lim and Allada, 2013; Meierhofer et al., 2016; Yang et al., 2019; Yokoshi et al., 2014; Zhang et al., 2013), as shown by various biological studies of native Ataxin-2 function.

Materials and methods

Key resources table
Reagent type
(species) or
resource		DesignationSource or
reference		IdentifiersAdditional
information
Genetic reagent (Drosophila melanogaster)UAS-Atx2-WT-ADARcdThis paperN/ARelated to Figures 1, 2 and 4
Genetic reagent (Drosophila melanogaster)UAS-Atx2-ΔLsm-ADARcdThis paperN/ARelated to Figure 4
Genetic reagent (Drosophila melanogaster)UAS-Atx2- ΔLsm-AD-ADARcdThis paperN/ARelated to Figure 4
Genetic reagent (Drosophila melanogaster)(UAS-Atx2- ΔmIDR-ADARcd)This paperN/ARelated to Figure 4
Genetic reagent (Drosophila melanogaster)UAS-Atx2- ΔcIDR-ADARcdThis paperN/ARelated to Figure 4
Genetic reagent (Drosophila melanogaster)UAS-Atx2-only Lsm/Lsm-AD -ADARcdThis paperN/ARelated to Figure 4
Genetic reagent (Drosophila melanogaster)Elav-Gal4; Tub-Gal80tsBloomington Drosophila Stock centerRelated to Figure 3
Genetic reagent (Drosophila melanogaster)UAS-Atx2 RNAiVienna Drosophila RNAi Center stock collection34955Related to Figure 3
Cell line
(Drosophila melanogaster)		S2R+ cellsDGRCRRID:CVCL_Z831
Recombinant DNA reagentpJFRC7-20XUAS-IVS-8_Atx2-ADARcd
(plasmid)		This paperN/AConstruct to express WT Atx2-ADAR fusion protein
Recombinant DNA reagentpJFRC7-20XUAS-
IVS-8_Atx2ΔmIDR -ADARcd
(plasmid)		This paperN/AConstruct to express Atx2∆mIDR-ADAR fusion protein
Recombinant DNA reagentpJFRC7-20XUAS-IVS-8_Atx2ΔcIDR -ADARcd
(plasmid)		This paperN/AConstruct to express Atx2∆cIDR-ADAR fusion protein
Recombinant DNA reagentpJFRC7-20XUAS-IVS-8_Atx2ΔLsm -ADARcd
(plasmid)		This paperN/AConstruct to express Atx2∆Lsm-ADAR fusion protein
Recombinant DNA reagentpJFRC7-20XUAS-IVS-8_Atx2ΔLsmAD-ADARcd
(plasmid)		This paperN/AConstruct to express Atx2∆LsmAD-ADAR fusion protein
Recombinant DNA reagentpJFRC7-20XUAS-IVS-8_Atx2only-Lsm-LsmAD-ADARcd
(plasmid)		This paperN/AConstruct to express only Lsm-LsmAD-ADAR fusion protein
AntibodyAnti-Atx2 (chicken polyclonal)Bakthavachalu et al., 2018IF (1:500)
WB (1:1000)
AntibodyAnti-Rasputin (rabbit polyclonal)Aguilera-Gomez et al., 2017IF (1:500)
AntibodyAnti-GFP (rabbit polyclonal)Molecular probesCat# A11122IF (1:500)
AntibodyAnti-GFP (chicken polyclonal)AbcamCat# mAb 13970IF (1:500)
AntibodyAnti-V5 (rabbit polyclonal)Santa Cruz BiotechnologyCat# sc83849-RIF (1:500)
WB (1:1000)
AntibodyAnti-nc82 (mouse monoclonal)Kittel, 2006IF (1:500)
AntibodyAnti-tubulin (mouse monoclonal)DSHBCat# E7CWB (1:2000)
AntibodyAlexa Fluor 555 (polyclonal goat anti-chicken IgG)InvitrogenCat# A21437IF (1:1000)
AntibodyAlexa Fluor 488 (polyclonal goat anti-chicken IgG)InvitrogenCat# A11039IF (1:1000)
AntibodyAlexa Fluor 647 (polyclonal goat anti-chicken IgG)InvitrogenCat# A21449IF (1:1000)
AntibodyAlexa Fluor 555 (polyclonal goat anti-rabbit IgG)InvitrogenCat# A21428IF (1:1000)
AntibodyAlexa Fluor 488 (polyclonal goat anti-rabbit IgG)InvitrogenCat# A11078IF (1:1000)
AntibodyAlexa Fluor 647 (polyclonal goat anti-rabbit IgG)InvitrogenCat# A21244IF (1:1000)
AntibodyAlexa Fluor 555 (polyclonal goat anti-mouse IgG)InvitrogenCat# A21422IF (1:1000)
AntibodyAlexa Fluor 488
(polyclonal goat anti-mouse IgG)		InvitrogenCat# A21121IF (1:1000)
AntibodyAlexa Fluor 647 (polyclonal goat anti-mouse IgG)InvitrogenCat# A21235IF (1:1000)
Chemical compoundVectashield Mounting MediumVector LaboratoriesCat# H-1000
Chemical compoundSNAP-Surface 549New England BiolabsCat# S9112SIF (1:500)
Software, algorithmTRIBEMcMahon et al., 2016https://github.com/rosbashlab/TRIBE
Software, algorithmSTAR v2.5.3Dobin et al., 2013https://github.com/alexdobin/STAR
Software, algorithmHTSeq v0.11.2Anders et al., 2015https://github.com/htseq/htseq
Software, algorithmDESeq2Love et al., 2014https://bioconductor.org/packages/release/bioc/html/DESeq2.html
Software, algorithmAREScoreSpasic et al., 2012http://arescore.dkfz.de/arescore.pl
Software, algorithmGuitarCui et al., 2016https://bioconductor.org/packages/release/bioc/html/Guitar.html
Software, algorithmBedtoolsQuinlan and Hall, 2010https://github.com/arq5x/bedtools2
Software, algorithmtwoBitToFa-https://genome.ucsc.edu/goldenPath/help/twoBit.html
Software, algorithmMEME suiteBailey et al., 2009http://meme-suite.org/tools/meme
Software, algorithmCellprofilerMcQuin et al., 2018https://cellprofiler.org
Software, algorithmImageJSchneider et al., 2012https://imagej.nih.gov/ij/
Software, algorithmGgplot2Wilkinson, 2011https://github.com/tidyverse/ggplot2
Software, algorithmPheatmaphttps://cran.r-project.org/web/packages/pheatmap/index.html
Software, algorithmSnapDragonhttps://www.flyrnai.org/snapdragon

Generation and rearing of Drosophila stocks

Request a detailed protocol

Drosophila stocks were maintained at 25°C in corn meal agar, and experimental fly crosses were done as specified in the respective experimental methods. The list of Drosophila stocks used and transgenic flies generated for this study are given in Key resources table.

S2 cell culture

Request a detailed protocol

Drosophila S2R+ cells were obtained from DGRC and cultured in Schneider’s medium with 10% FBS, penicillin, and streptomycin at 25°C.

Creation of transgenic animals

Request a detailed protocol

Drosophila Atx2 full-length cDNA was cloned into pJFRC7-20XUAS-IVS-8_ADARcd plasmid (a gift from Rosbash Lab) to create pJFRC7-20XUAS-IVS-8_Atx2wt-ADARcd plasmid. Domain deletions were created using overlapping PCR and Gibson assembly or non-overlapping PCR and ligation using pJFRC7-20XUAS-IVS-8_Atx2wt-ADARcd as template. Sequence-confirmed plasmids were used to generate transgenic Drosophila using PhiC31 integrase-dependent site-specific insertion of the transgene on the second chromosome. Details of plasmids used for transgenesis are listed in Key resources table. Embryo injections were performed at NCBS transgenic fly facility. Primers used for domain deletions are listed in Key resources table. The sequences of primers used for generating Atx2 domain deletions are provided in Supplementary file 1.

Experimental fly crosses

Request a detailed protocol

Strains homozygous for the elav-Gal4 and tub-Gal80ts transgenes were crossed with homozygous UAS-transgenic flies at 18°C till the adult fly emerged. One-day-old adult flies from the crosses were maintained at 29°C for 5 days before processing for RNA extraction.

S2 cell transfections for immunofluorescence

Request a detailed protocol

Half a million cells were transfected with 500 ng plasmid using Mirus TransIT-X2 Dynamic Delivery System (MIR6000) as per the manufacturer’s instructions. The cells were harvested 24 hr after transfection and processed for immunofluorescence.

Double-stranded (ds) RNA generation and S2 cell transfection

Request a detailed protocol

Mock and Atx2 RNAi was performed using dsRNA produced by in vitro transcription (IVT). For mock, we used a GFP sequence from open reading frame. Atx2 RNAi target sites were chosen using SnapDragon tool (https://fgr.hms.harvard.edu/snapdragon). PCR-generated DNA template containing the T7 promoter sequence at both the ends was used as IVT template for dsRNA synthesis using Megascript T7 High Yield Transcription kit (AM1334; Invitrogen). Half a million cells were transfected with 5 µg of mock or Atx2 dsRNA using Effectene Transfection reagent (Qiagen 301425) as per the manufacturer’s instructions. After 48 hr of the first round of transfections, cells were again transfected with 5 µg of respective dsRNAs. The sequences of primers used for generating dsRNAs are provided in Supplementary file 1.

RNA extraction from brain and NGS

Request a detailed protocol

Total RNA was isolated from adult brain (10–12 brains per replicate) dissected in RNA Later using TRIzol reagent (Invitrogen) as per the manufacturer’s protocol. Illumina libraries were prepared from Poly(A)-enriched mRNA using NEBNext Ultra II Directional RNA Library Prep kit (E7765L) or TruSeq RNA Library Preparation Kit V2 (RS-122-2001) and sequenced with Illumina HiSeq 2500 system. Atx2-wt TRIBE samples were sequenced using HiSeq SBS Kit v4 (FC-401-4003) producing 2 × 125 paired-end non-strand-specific reads. TRIBE for all the Atx2 domain mutants were sequenced using HiSeq PE Rapid Cluster Kit v2 (PE-402-4002) to generate 2 × 100 paired-end strand-specific data.

Western blotting

Request a detailed protocol

Total protein extracts were prepared from S2 cells as described earlier (Sudhakaran et al., 2014). Also, 100 µg protein was loaded for detecting Atx2 and 5 µg for tubulin on 6% and 12% SDS-PAGE gels, respectively, and proteins were transferred to PVDF membrane. The blots were probed using chicken anti-Atx2 (1:1000) and mouse anti-tubulin (1:2000). Corresponding HRP-conjugated secondary antibodies were used at 1:10,000 dilution and developed using SuperSignal West Pico Chemiluminescent Substrate as per the manufacturer’s instructions. For detecting V5-tagged ADAR proteins, lysates from fly heads were used as described previously (Emery, 2007). Briefly, 10 heads were crushed using plastic pestles in 40 µl extraction buffer (20 mM HEPES pH7.5, 100 mM KCl, 5% glycerol, 10 mM EDTA, 0.1% Triton, 1 mM DTT, 0.5 mM PMSF, 20 mg/ml aprotinin, 5 mg/ml leupeptin, 5 mg/ml pepstatin A). The lysates were cleared by centrifugation at 12,000 g, and equal amounts of protein lysates were loaded on a 6% SDS-PAGE gel. Western blots were probed using rabbit anti-V5 (sc83849-R) antibody (1:1000) or mouse anti-tubulin (1:2000) overnight at 4°C. Blots were developed as described above.

TRIBE data analysis

Request a detailed protocol

All sequencing reads obtained post adaptor removal had a mean quality score (Q-Score) >= 37, and so no trimming was required. TRIBE edit details are listed for each experiment in Supplementary file 2. The TRIBE data analysis was performed as described previously (Rahman et al., 2018) with few modifications. The tools used for analysis are listed in Suppl. Table 6. Briefly, sequencing reads obtained were mapped to dm6 D. melanogaster genome using TopHat2 (Trapnell et al., 2009) with the parameters ‘--library-type fr-firststrand -m 1 N 3 --read-edit-dist 3 p 5 g 2 -I 50000 --microexon-search --no-coverage-search -G dm6_genes.gtf’. Non-strand-specific sequencing reads were aligned using tophat2 with the parameters ‘-m 1 N 3 --read-edit-dist 3 p 5 g 2 -I 50000 --microexon-search --no-coverage-search -G dm6_genes.gtf’. The uniquely mapped SAM output file was loaded in the form of MySQL table with genomic coordinates. Edits for the brain samples were identified by comparing the nucleotide at each position of the genomic coordinates between experiment and control samples, and output was printed as bedgraph file. A threshold file was created by ensuring only edits with coverage of at least 20 reads and 15% edits were retained. This threshold file was used for all further analysis unless specified in the figure legends. All the TRIBE experiments were performed in duplicates, and only the edits identified in both the replicates above the edit threshold are reported.

S2 cell TRIBE analysis

Request a detailed protocol

S2 cells were transfected with 500 ng of Act-Gal4 and UAS-Atx2-ADAR plasmids (1:1). Cells were harvested 24 hr post transfection, and total RNA was extracted using TRIzol reagent (Invitrogen) as per the manufacturer’s protocol for NGS. Illumina libraries preparation and sequencing and TRIBE analysis were performed as described for fly brain samples. S2 cell genomic DNA sequence previously published by McMahon et al., 2016 was used as control to remove the background edits. S2 cell TRIBE was performed in triplicates, and the edits identified in all the replicates above the edit threshold are reported.

Differential expression data analysis

Request a detailed protocol

RNA sequencing reads were mapped to dm6 D. melanogaster genome using STAR v2.5.3a with default parameters, and read counts were obtained using HTseq with ‘-s reverse’ parameter. DeSeq2 was used for differential expression analysis as described previously (Love et al., 2014).

Intron analysis

Request a detailed protocol

Nascent transcript analysis was performed by counting reads that emerged from intron sequences as described (Lee et al., 2020). Briefly, FASTQ files were mapped to dm6 D. melanogaster genome using subjunc with default parameters in the Rsubread software package. Intron annotation SAF file was generated using the scripts found in https://github.com/charitylaw/Intron-reads; (Lee et al., 2020). Featurecounts was used to count mapped reads to intron features. Read counts were normalized using DESeq2’s median of ratios.

ARE analysis

Request a detailed protocol

AREScore tool (http://arescore.dkfz.de/arescore.pl) was used to perform ARE analysis. Only transcripts with 3′UTR >10 nt in length were considered for analysis. mRNA with highest AREScore was used when multiple transcript variants mapped to the same gene (isoforms of a gene).

Motif analysis

Request a detailed protocol

The edit coordinates from the bed file were extended by 100 bp on either side using Bedtools slop. Intron-less sequences within this ± 100 bp were extracted using twoBitToFa. MEME suite was used to perform motif analysis on the generated FASTA sequences.

Immunohistochemistry of adult Drosophila brains and S2 cells

Request a detailed protocol

Six-day-old adult fly brain was dissected in phosphate buffered saline (PBS) and fixed in PBS containing 4% paraformaldehyde (PFA) for 15 min at room temperature. The brains were then processed for immunostaining according to Sudhakaran et al., 2014. Atx2 ADARcd was stained using rabbit anti-V5 antibody at 1:200 over one night at 4°C along with neuropil staining using mouse anti-Nc82 (1:100) (Kittel, 2006). Secondary antibodies (1:1000) staining was done using anti-rabbit Alexa 488 and anti-mouse Alexa 555 (Molecular Probes) at room temperature for 2 hr. Stained brains were mounted in Vectashield Mounting Medium (Vector Laboratories) and imaged on a Zeiss LSM880 confocal microscope. S2 cells were prepared as described earlier (Bakthavachalu et al., 2018). In brief, cells were fixed with 4% paraformaldehyde for 10 min at room temperature, followed by permeabilization with 0.05% Triton-X-100 for 10 min. This was followed by blocking with 1% bovine serum albumin (BSA) for 30 min. The cells were then stained with primary antibodies against Atx2 (1:500) or Rasputin (1:500), followed by probing with corresponding secondary antibodies conjugated with fluorophores. Confocal imaging was done using 60x/1.42 oil objective of Olympus FV3000 microscope. When proteins were SNAP-tagged, SNAP-Surface Alexa Fluor 546 was added after permeabilizing the cells. Confocal images were processed using CellProfiler (https://cellprofiler.org/) to measure granules. At least 80 cells were included in each condition.

Quantification and statistical analysis

Request a detailed protocol

The sample sizes are specified in the figures and figure legends of each experiments. The errors are represented as ± SEM with p-values (*p<0.05, ****p<0.0001) calculated by two-tailed Student’s t-test and Mann–Whitney test. Statistical analysis was performed in GraphPad Prism. Differential expression analysis by DEseq2 is reported for targets with p-value <0.05.

Contact for reagent and resource sharing

Request a detailed protocol

Further information and requests for resources and reagents should be directed to and will be fulfilled by the lead contacts Mani Ramaswami (mani.ramaswami@tcd.ie) and Baskar Bakthavachalu (bbaskar@instem.res.in).

Data availability

The RNA Sequencing data has been deposited to GEO under the accession code GSE153985.

The following data sets were generated
    1. Kandi AR
    2. Ramaswami M
    3. Bakthavachalu B
    (2021) NCBI Gene Expression Omnibus
    ID GSE153985. Antagonistic roles for Ataxin-2 structured and disordered domains in RNP condensatation.
    https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE153985
The following previously published data sets were used
    1. Rosbash M
    2. McMahon A
    (2016) NCBI Gene Expression Omnibus
    ID GSM2065948. TRIBE: Hijacking an RNA-editing enzyme to identify cell-specific targets of RNA-binding proteins.
    https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSM2065948

References

    1. Wadia NH
    (1977)
    Heredo familial spinocerebellar degeneration with slow eye movements; another variety of olivopontocerebellar degeneration
    Neurology India 25:147–160.

Article and author information

Author details

  1. Amanjot Singh

    National Centre for Biological Sciences, Bangalore, India
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Joern Hulsmeier
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9793-0404

  2. Joern Hulsmeier

    Trinity College Institute of Neuroscience, School of Genetics and Microbiology, Smurfit Institute of Genetics and School of Natural Sciences, Trinity College Dublin, Dublin, Ireland
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Amanjot Singh
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9209-5251

  3. Arvind Reddy Kandi

    1. National Centre for Biological Sciences, Bangalore, India
    2. Tata Institute for Genetics and Society Centre at inStem, Bellary Road, Bangalore, India
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared

  4. Sai Shruti Pothapragada

    National Centre for Biological Sciences, Bangalore, India
    Contribution
    Validation, Investigation, Visualization, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared

  5. Jens Hillebrand

    Trinity College Institute of Neuroscience, School of Genetics and Microbiology, Smurfit Institute of Genetics and School of Natural Sciences, Trinity College Dublin, Dublin, Ireland
    Contribution
    Validation, Investigation, Visualization, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared

  6. Arnas Petrauskas

    Trinity College Institute of Neuroscience, School of Genetics and Microbiology, Smurfit Institute of Genetics and School of Natural Sciences, Trinity College Dublin, Dublin, Ireland
    Contribution
    Validation, Investigation, Visualization, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9048-582X

  7. Khushboo Agrawal

    1. Tata Institute for Genetics and Society Centre at inStem, Bellary Road, Bangalore, India
    2. School of Biotechnology, Amrita Vishwa Vidyapeetham University, Kollam, India
    Contribution
    Data curation, Formal analysis, Validation, Visualization, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9159-8615

  8. Krishnan RT

    National Centre for Biological Sciences, Bangalore, India
    Contribution
    Formal analysis, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared

  9. Devasena Thiagarajan

    National Centre for Biological Sciences, Bangalore, India
    Contribution
    Data curation, Investigation, Methodology
    Competing interests
    No competing interests declared

  10. Deepa Jayaprakashappa

    National Centre for Biological Sciences, Bangalore, India
    Contribution
    Data curation, Investigation, Methodology
    Competing interests
    No competing interests declared

  11. K VijayRaghavan

    National Centre for Biological Sciences, Bangalore, India
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    Senior editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4705-5629

  12. Mani Ramaswami

    1. National Centre for Biological Sciences, Bangalore, India
    2. Trinity College Institute of Neuroscience, School of Genetics and Microbiology, Smurfit Institute of Genetics and School of Natural Sciences, Trinity College Dublin, Dublin, Ireland
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Methodology, Writing - original draft, Writing - review and editing
    For correspondence
    ramaswam@tcd.ie
    Competing interests
    Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7631-0468

  13. Baskar Bakthavachalu

    1. National Centre for Biological Sciences, Bangalore, India
    2. Tata Institute for Genetics and Society Centre at inStem, Bellary Road, Bangalore, India
    3. School of Basic Sciences, Indian Institute of Technology, Mandi, India
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    baskarb1@gmail.com
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5114-3429

Funding

Science Foundation Ireland

  • Mani Ramaswami

National Centre for Biological Sciences (NCBS-TIFR Core funding)

  • K VijayRaghavan

Science and Engineering Research Board (SB/YS/LS-194/2014)

  • Baskar Bakthavachalu

Indian National Science Academy (INSA/SP/YSP/143/2017)

  • Amanjot Singh

Science and Engineering Research Board (Vajra award)

  • Mani Ramaswami

Department of Science and Technology, Ministry of Science and Technology (INSPIRE Fellowship)

  • Khushboo Agrawal

Wellcome Trust/DBT India Alliance (IA/1/19/1/504286)

  • Baskar Bakthavachalu

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Roy Parker and members of the Ramaswami, VijayRaghavan, and Bakthavachalu labs for useful discussions and/or comments on the manuscript. Thanks to Michael Rosbash for Drosophila TRIBE plasmid and to colleagues acknowledged in the Key resources table for generously sharing essential reagents and informal advice. The fly facility at Bangalore Life Science Cluster (BLiSC) provided support with fly stock supply as well as generation of transgenic; CIFF at BLiSC provided essential confocal microscopy support; and Awadhesh Pandit and next-generation genomics facility at BLiSC provided NGS service. We acknowledge Drosophila Genomics Resource Centre (supported by NIH grant 2P40OC010949) for Drosophila S2 cells.

Copyright

© 2021, Singh et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,516
    views
  • 320
    downloads
  • 18
    citations

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Amanjot Singh
  2. Joern Hulsmeier
  3. Arvind Reddy Kandi
  4. Sai Shruti Pothapragada
  5. Jens Hillebrand
  6. Arnas Petrauskas
  7. Khushboo Agrawal
  8. Krishnan RT
  9. Devasena Thiagarajan
  10. Deepa Jayaprakashappa
  11. K VijayRaghavan
  12. Mani Ramaswami
  13. Baskar Bakthavachalu
(2021)
Antagonistic roles for Ataxin-2 structured and disordered domains in RNP condensation
eLife 10:e60326.
https://doi.org/10.7554/eLife.60326

Share this article

https://doi.org/10.7554/eLife.60326

Categories and tags

Research organism

Further reading

    1. Cell Biology

    Identification of ERAD-dependent degrons for the endoplasmic reticulum lumen

    Rachel Sharninghausen, Jiwon Hwang ... Ryan D Baldridge
    Research Article

    Degrons are minimal protein features that are sufficient to target proteins for degradation. In most cases, degrons allow recognition by components of the cytosolic ubiquitin proteasome system. Currently, all of the identified degrons only function within the cytosol. Using Saccharomyces cerevisiae, we identified the first short linear sequences that function as degrons from the endoplasmic reticulum (ER) lumen. We show that when these degrons are transferred to proteins, they facilitate proteasomal degradation through the endoplasmic reticulum associated degradation (ERAD) system. These degrons enable degradation of both luminal and integral membrane ER proteins, expanding the types of proteins that can be targeted for degradation in budding yeast and mammalian tissue culture. This discovery provides a framework to target proteins for degradation from the previously unreachable ER lumen and builds toward therapeutic approaches that exploit the highly conserved ERAD system.

    1. Cell Biology

    Bilateral regulation of EGFR activity and local PI(4,5)P2 dynamics in mammalian cells observed with superresolution microscopy

    Mitsuhiro Abe, Masataka Yanagawa ... Yasushi Sako
    Research Article

    Anionic lipid molecules, including phosphatidylinositol-4,5-bisphosphate (PI(4,5)P2), are implicated in the regulation of epidermal growth factor receptor (EGFR). However, the role of the spatiotemporal dynamics of PI(4,5)P2 in the regulation of EGFR activity in living cells is not fully understood, as it is difficult to visualize the local lipid domains around EGFR. Here, we visualized both EGFR and PI(4,5)P2 nanodomains in the plasma membrane of HeLa cells using super-resolution single-molecule microscopy. The EGFR and PI(4,5)P2 nanodomains aggregated before stimulation with epidermal growth factor (EGF) through transient visits of EGFR to the PI(4,5)P2 nanodomains. The degree of coaggregation decreased after EGF stimulation and depended on phospholipase Cγ, the EGFR effector hydrolyzing PI(4,5)P2. Artificial reduction in the PI(4,5)P2 content of the plasma membrane reduced both the dimerization and autophosphorylation of EGFR after stimulation with EGF. Inhibition of PI(4,5)P2 hydrolysis after EGF stimulation decreased phosphorylation of EGFR-Thr654. Thus, EGFR kinase activity and the density of PI(4,5)P2 around EGFR molecules were found to be mutually regulated.

    1. Cell Biology

    Visualization of endogenous G proteins on endosomes and other organelles

    Wonjo Jang, Kanishka Senarath ... Nevin A Lambert
    Tools and Resources

    Classical G-protein-coupled receptor (GPCR) signaling takes place in response to extracellular stimuli and involves receptors and heterotrimeric G proteins located at the plasma membrane. It has recently been established that GPCR signaling can also take place from intracellular membrane compartments, including endosomes that contain internalized receptors and ligands. While the mechanisms of GPCR endocytosis are well understood, it is not clear how well internalized receptors are supplied with G proteins. To address this gap, we use gene editing, confocal microscopy, and bioluminescence resonance energy transfer to study the distribution and trafficking of endogenous G proteins. We show here that constitutive endocytosis is sufficient to supply newly internalized endocytic vesicles with 20–30% of the G protein density found at the plasma membrane. We find that G proteins are present on early, late, and recycling endosomes, are abundant on lysosomes, but are virtually undetectable on the endoplasmic reticulum, mitochondria, and the medial-trans Golgi apparatus. Receptor activation does not change heterotrimer abundance on endosomes. Our findings provide a subcellular map of endogenous G protein distribution, suggest that G proteins may be partially excluded from nascent endocytic vesicles, and are likely to have implications for GPCR signaling from endosomes and other intracellular compartments.
