Abstract

Each hair cell (HC) precursor of zebrafish neuromasts divides to form two daughter HCs of opposite hair bundle orientations. Previously, we showed that transcription factor Emx2, expressed in only one of the daughter HCs, generates this bidirectional HC pattern (Jiang et al., 2017). Here, we asked whether Emx2 mediates this effect by changing location of hair bundle establishment or positions of HCs since daughter HCs are known to switch positions with each other. We showed this HC rearrangement, redefined as two processes named Rock and Roll, is required for positional acquisition of HCs. Apical protrusion formation of nascent HCs and planar polarity signaling are both important for the Rock and Roll. Emx2 facilitates Rock and Roll by delaying apical protrusion of its nascent HCs but it does not determine HCs’ ultimate positions, indicating that Emx2 mediates bidirectional HC pattern by changing the location where hair bundle is established in HCs.

Introduction

All animal organs have a defined shape and pattern that are tailored to their functions. The specific pattern for each organ is generated by individual cells or cell types acquiring a defined position before differentiating, which requires a cascade of signaling and fate determination events. However, the molecular mechanisms that link the sequential developmental events from regional patterning to subsequent differentiation are often illusive because of tissue complexity and the long time-span involved in organ formation (Edlund and Jessell, 1999; Dasen and Jessell, 2009; Sanes and Yamagata, 2009; Delgado and Lim, 2017). The neuromast of the lateral line system in zebrafish offers an advantage in this regard since it is a simple organ that develops quickly, yet its function is entirely dependent on the cellular organization of its hair cells (HCs), thus making this organ conducive for deciphering how a rudimentary tissue transitions to a functional unit molecularly (Figure 1A; Chitnis et al., 2012; Ghysen and Dambly-Chaudière, 2004; Ghysen and Dambly-Chaudière, 2007).

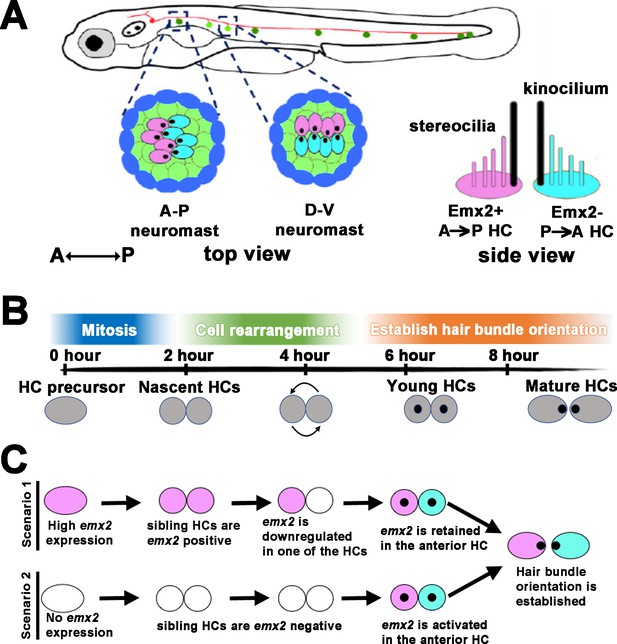

Schematic of bidirectional hair cell (HC) establishment in the zebrafish neuromast.

(A) The lateral line system in zebrafish showing the top view of an anterior-posterior (A-P) and dorsal-ventral (D-V) neuromast, based on their hair bundle orientation. Side view of two hair bundles, each comprises a kinocilium (black) and a stereociliary staircase (pink or blue), arranged in opposite orientation atop of an Emx2-positive (pink) and Emx2-negative (blue) HC. (B) An approximate developmental time-line of HC formation in zebrafish neuromast. A HC precursor (gray) divides to form two daughter HCs, which roll to exchange positions with each other 50% of the time before differentiating into mature HCs with opposite hair bundle orientation. The entire process takes approximately 8 hr from detectable Gfp signal driven by the myosin6b promoter to HCs with polarized hair bundles based on our live-imaging analyses. (C) Emx2, which is important for establishing the bidirectional HC pattern, can be expressed early in the HC precursors, which could affect the HC rearrangement (scenario 1) or later during hair bundle establishment after HCs are formed (scenario 2). A combination of both scenarios is also possible (not shown). Black dots represent the position of the kinocilium.

Each neuromast detects water flow in two directions. This property is dependent on the orientation of the stereociliary bundle (also known as the hair bundle) erected on the apical surface of its HC (Figure 1A). The hair bundle consists of a number of stereocilia arranged in a staircase pattern that are tethered to the kinocilium (Kindt et al., 2012). Deflection of the hair bundle toward its kinocilium opens the mechanotransduction channels on the tips of the stereocilia and results in activation of the HC, whereas deflection of the hair bundle away from its kinocilium results in HC inactivation. Thus, hair bundles in neuromasts are bidirectionally oriented, aligned along either the anterior-posterior (A-P) or dorsal-ventral (D-V) axis of the body (Figure 1A; Flock and Wersäll, 1962; López-Schier et al., 2004).

The mechanism for generating the bidirectional orientation pattern of HCs in the neuromast is not clear but it is attributed to a HC rearrangement process that involves lateral inhibition mediated by Notch signaling (Jacobo et al., 2019; Kozak et al., 2020). As a HC precursor divides to form two daughter HCs in the neuromast, they undergo rearrangement and switch positions with each other approximately 50% of the time (Wibowo et al., 2011; Mirkovic et al., 2012), prior to differentiation and hair bundle establishment (Figure 1B). Despite the fact that not all HC pairs undergo rearrangement, daughter HCs with hair bundle pointing toward the posterior (A→P) are always located in the anterior position of an A-P neuromast (López-Schier et al., 2004). Likewise, HCs with hair bundles that point ventrally (D→V) are located dorsally in a D-V neuromast (Figure 1A). The hypothesis that HC rearrangement is required for HCs to acquire their positions within a neuromast, though attractive, has not been tested experimentally.

Previously, we showed that the bidirectionally oriented HCs within a neuromast is dependent on the transcription factor Emx2. Emx2 is expressed in only one of the siblings within a HC pair (A→P or D→V HCs), in which the hair bundle is oriented at approximately 180° opposite from the Emx2-negative HCs. As a result, the two sibling HCs show opposite hair bundle orientation (Figure 1A; Jiang et al., 2017; Ji et al., 2018). Emx2 loss of function (LOF) results in neuromasts with unidirectional hair bundles, P→A and V→D in A-P and D-V neuromasts, respectively. In contrast, emx2 gain of function (GOF) neuromasts show only hair bundles in A→P or D→V direction. These results indicate that Emx2 is necessary and sufficient to change hair bundle orientation pattern. However, the timing and mechanism of Emx2’s requirement in this process are not clear. For example, Emx2 could be activated early in the HC precursor stage prior to HC formation (Kozak et al., 2020) and be involved in HCs’ positional acquisition (Figure 1C, scenario 1). Alternatively, it could be activated only in one of the sibling HCs (Jacobo et al., 2019) and generates the opposite hair bundle orientation after HCs acquired their positions (scenario 2). Either scenario could generate two sibling HCs with opposite bundle orientation pattern (Figure 1C). The implication of the role and regulation of Emx2 under each scenario, however, is different. In the former case, Emx2 needs to be downregulated in one of the sibling HCs, whereas in the latter, Emx2 is preferentially activated in one of the sibling HCs to mediate the opposite hair bundle orientation (Figure 1C). These two scenarios are not mutually exclusive and a combination of the two scenarios is possible as well.

To distinguish between the two scenarios illustrated in Figure 1C, we identified the onset of Emx2 expression using single-cell RNA seq (scRNA-seq) and investigated HC rearrangement in emx2 GOF and LOF mutants. We found that the HC rearrangement process could be divided into two phases, a Rock phase, when two sibling HCs rock against each other, and a Roll phase, when HCs switch positions with each other. We also tracked the Emx2-positive HCs during the Rock and Roll process using an emx2 reporter fish, in which Gfp is knocked into the emx2 locus. Our results show that emx2 transcripts are detectable as HC precursors transition to nascent HCs and Emx2 functions in the Rock and Roll process prior to hair bundle establishment. Emx2 facilitates the Rock and Roll process by regulating apical protrusion formation of the nascent HCs without impairing the final position of HCs within the neuromast. Thus, we concluded that Emx2’s key function is to change hair bundle orientation within HCs. Blocking apical protrusion with microtubule inhibitor, nocodazole, or the lack of a core planar cell polarity (cPCP) protein, Van gogh like 2 (Vangl2), affected the Rock and Roll process and positional acquisition of HCs. These results indicate that both apical protrusion formation of nascent HCs and the cPCP pathway are essential for HCs to acquire their proper locations to generate the bidirectional orientation.

Results

emx2 transcription initiates during precursor to daughter HCs transition

To address the role of Emx2 in neuromast HCs, we first investigated the onset of Emx2 expression in the developing neuromast. Emx2 immunoreactivity was first detected in immature HCs before hair bundles are polarized (Figure 2, #3) and not in HC precursors or nascent HCs (Figure 2, #1 and #2), similar to a previous report (Jacobo et al., 2019). However, immunostaining may not be sensitive enough to detect onset of emx2 transcription. Indeed, a recent study demonstrated enriched Emx2 transcripts and immunoreactivity in HC precursors using immunostaining, in situ hybridization, and scRNA-seq (Kozak et al., 2020). These results imply that the downregulation of Emx2 in one of the nascent HCs generated the asymmetry within a pair of HCs (Figure 1C). To validate these results, we investigated emx2 transcription within the neuromast HC lineage by analyzing our existing scRNA-seq data (not published previously) generated from fluorescence-activated cell sorting (FACS) of neuromast HCs using myo6:ribotag-Gfp larvae (Matern et al., 2018) at four dpf (days post fertilization).

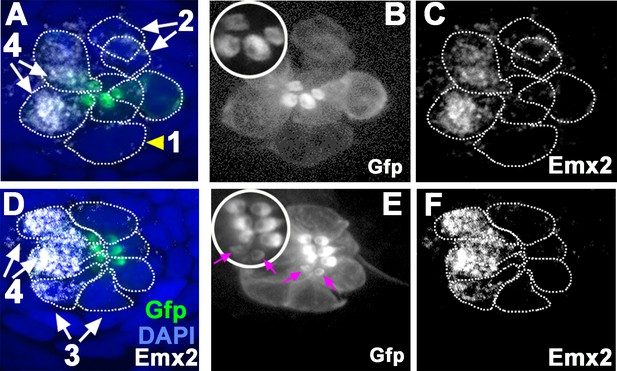

Emx2 immunostaining in wild-type (WT) (myo6b:actb1-Gfp) neuromasts.

(A and D) Merged image of DAPI, (B and E) β-actin-GFP, and (C and F) anti-Emx2 staining of neuromasts. Emx2 immunoreactivity is not detected in dividing hair cell (HC) precursor (#1, arrowhead) or daughter HCs during Rock and Roll (#2). However, it is detectable in immature daughter HCs after Rock and Roll, in which the oriented hair bundle is not yet evident (#3, E, magenta arrows), as well as in mature HCs (#4). Both immature (#3) and mature HCs (#4, A→P) that are located in the anterior side of the neuromast are Emx2-positive. Insets in B and E are higher magnifications showing the hair bundle orientation pattern at the apex of HCs.

Standard quality control procedures were applied to isolate only viable cells, and 2882 of selected cells were used for unbiased clustering. Six major clusters were obtained (Figure 3—figure supplement 1A). Based on expression of the transgene (tg_rpl10_3x_HA_short) and selected cell marker genes (Figure 3—figure supplement 1B and C) modeled after similar studies (Lush et al., 2019; Kozak et al., 2020), 2188 cells within the HC lineage from clusters #0, 1, 3 and 4 were selected for reclustering, excluding a supporting cell cluster (Cluster #5) and a cluster with low levels of the transgene (Cluster #2). Reclustering of HC lineage cells resulted in five clusters (Figure 3A, Figure 3—figure supplement 1D and E). The top 30 marker genes in each cluster were used to assign identities based on expression of known transcripts such as atoh1a (enriched in HC precursors and nascent HCs) (Sarrazin et al., 2006; Kidwell et al., 2018), myo6b (expressed in entire HC lineage population but low levels in stressed HCs) (Kappler et al., 2004; Seiler et al., 2004), and pvalb8, tmc2b, and tekt3 (enriched in mature HC) (Hsiao et al., 2002; Maeda et al., 2014; Erickson and Nicolson, 2015; Figure 3B). Supporting cell markers sox2, klf17, sost, stm, and si:dkey205h13.2 were expressed in low levels in these clusters (Figure 3B; Hernández et al., 2007; Aman and Piotrowski, 2008; Thomas and Raible, 2019; Söllner et al., 2003; Lush et al., 2019). High ribosomal gene expression was found in HC precursors and nascent HCs, but it was severely downregulated in mature HCs as reported (Lush et al., 2019).

Figure 3 with 1 supplement see all

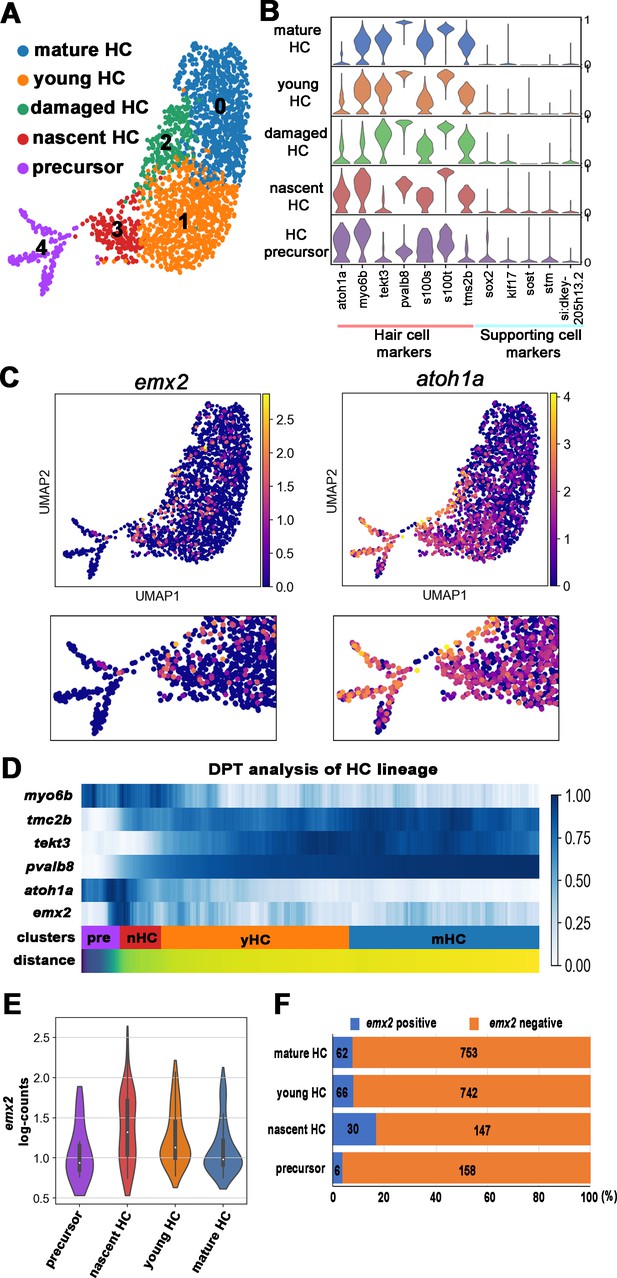

scRNA-seq analysis of the hair cell (HC) lineage in neuromasts.

(A) Uniform manifold approximation and projection (UMAP) plot colored by Louvain clustering annotated with cell types in the HC lineage. (B) Violin plots of selected HC (red bar) and supporting cell (blue bar) marker genes in each cluster. (C) Distribution of cells expressing emx2 and atoh1a on UMAP. Clusters of precursors (#4) and nascent HCs (#3) are enlarged in bottom panels. (D) Heat map representation of selected gene expression dynamics in pseudotime. (E) A violin plot showing significantly higher read counts of emx2 in the nascent HC cluster than other clusters (p=0.0069, two tail Student's t-test, source data 1). (F) A bar graph showing a significantly higher number of emx2-positive cells in the nascent HC cluster than others (X2 = 22.44, df = 3, p<0.0001, source data 2). A post-hoc 2 × 2 chi-squared test was also performed for multiple comparisons: precursor HC cluster vs nascent HC cluster, X2 (df = 1)=15.92, p<0.0001; nascent HC cluster vs young HC cluster, X2 (df = 1)=12.73, p=0.0004; nascent HC cluster vs mature HC, X2 (df = 1)=15.08, p<0.0001. The following figure supplements are available for Figure 3—figure supplement 1. Identification and annotation of cell types from Louvain clustering.

Figure 3—source data 1

Comparison of the emx2 log-counts in nascent hair cell (HC) cluster versus other clusters.

https://cdn.elifesciences.org/articles/60432/elife-60432-fig3-data1-v2.xlsx
Figure 3—source data 2

Comparison of emx2-positive and -negative cells among four hair cell (HC) clusters.

https://cdn.elifesciences.org/articles/60432/elife-60432-fig3-data2-v2.xlsx

Plotting emx2-positive cells on UMAP (uniform manifold approximation and projection) showed that they were enriched in the nascent HC population (Figure 3A and C, cluster #3) but were only found in a subpopulation of the precursor population (Cluster #4). In contrast, atoh1-positive cells were being highest in the precursor population. To investigate the spatial-temporal dynamics of emx2 expression within the HC lineage, we performed diffusion pseudotime (DPT) analysis. DPT analysis of HC differentiation with heat map representation showed that expression of emx2 was found during the transition period from HC precursors to nascent HCs, which lagged behind the onset of atoh1a and myo6b (Figure 3D). Consistent with the DPT analysis, the nascent HC cluster showed significantly higher number of emx2 read-counts (Figure 3E) and percentages of emx2-positive cells (Figure 3F) than other clusters. Taken together, our scRNA-seq results showed that, similar to previous results (Kozak et al., 2020), emx2 transcripts were found within the HC lineage except we found that the transcripts initiate as HCs transitioned from precursors to nascent HCs rather than peaking early in the precursor cell population as described previously (Kozak et al., 2020). The difference between these results is not clear and may be attributed to the difference in the age of the larvae and the number of HCs analyzed.

The HC rearrangement process is regulated by Emx2

The detection of emx2 transcripts as HC precursors transition to nascent HCs coincides with the reported timing of HC rearrangement (Wibowo et al., 2011; Mirkovic et al., 2012). To address whether Emx2 affects HC rearrangement, we first live-imaged this process in neuromast HCs, in which β-actin-GFP expression is driven by myo6 promoter (wild-type, WT; Kindt et al., 2012). In WT neuromasts, Gfp is first evident in the HC precursor and this expression becomes more prominent as the two daughter HCs undergo the previously described cell rearrangement (Figure 4A; Wibowo et al., 2011; Mirkovic et al., 2012). We found that this cell rearrangement process could be divided into a Rock and a Roll phase (Figure 4A,A’, see Materials and methods). Soon after the HC precursor divided into two daughter cells, they started a repetitive rocking motion with each other (Figure 4A,A’, Figure 4—video 1, Rock phase). This was defined as the Rock phase with a duration of 90 min on average (Figure 4E). Then, 57% of HC pairs underwent a Roll phase with an average duration of 75 min, to exchange positions with each other (Figure 4A, A’, D, and F, Roll phase, Figure 4—video 1), whereas 40% of HC pairs only rocked but did not roll to exchange positions (Figure 4D, No Roll, Figure 4—video 2). A minority of HC pairs (3%), though underwent both Rock and Roll, the two daughter HCs rolled back to their original positions at the end of the Roll phase (Figure 4D, Roll back).

Figure 4 with 5 supplements see all

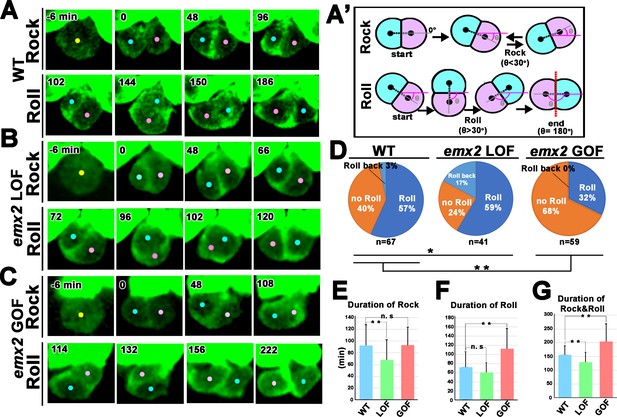

Quantification of frequency and duration of Rock and Roll among hair cells (HCs) in wild-type (WT) and emx2 mutants.

(A) In WT, a HC precursor (yellow dot) divides to form two daughter HCs (pink and blue dots), which first rock (Rock phase) and then frequently roll to exchange positions with each other (Roll phase). (A’) Definition of the Rock and Roll phase (see Materials and methods). (B and C) Compared to WT, emx2 loss of function (LOF) (B) and gain of function (GOF) (C) HC pairs took a shorter time in Rock and Roll and a longer time in the Roll phase, respectively. (D) Frequencies of Roll, No Roll, and Roll back of nascent HC pairs in WT (n = 67 from seven larvae), Emx2 LOF (n = 41 from six larvae), and GOF (n = 59 from seven larvae). Significance was assessed by using chi-squared test with 3 × 3 contingency table (X2 (df = 4)=30.00, p<0.0001, source data 1). A post-hoc 2 × 3 chi-squared test was performed for multiple comparisons. WT vs. LOF; (X2 (df = 2)=7.95, p=0.018), WT vs. GOF; (X2 (df = 2)=10.39, p=0.0055). Post-hoc chi-squared tests were performed for pairwise comparisons with FDR correction. (E–G) Duration of Rock (E), Roll (F), and Rock and Roll (G) of sibling HCs that underwent Rock and Roll in WT (n = 42), emx2 LOF (n = 35), and GOF (n = 19) larvae. Significance was assessed by using MANOVA (Rock, F(df1 = 2, df2 = 93)=5.349, p=0.0063, Wilks’ λ = 0.897; Roll, F(df1 = 2, df2 = 93)=15.638, p<0.0001, Wilks’ λ = 0.748; Rock and Roll, F(df1 = 2, df2 = 93)=20.10, p<0.0001, Wilks’ λ = 0.698), with post-hoc Tukey’s test for pairwise comparisons. *p<0.05, **p<0.01, n.s., not significant.

Figure 4—source data 1

Multiple comparisons of Roll frequencies among wild-type (WT), emx2 loss of function (LOF), and emx2 gain of function (GOF) hair cells (HCs).

https://cdn.elifesciences.org/articles/60432/elife-60432-fig4-data1-v2.xlsx
Figure 4—source data 2

Quantification of Rock and Roll movements in wild-type (WT), emx2 loss of function (LOF), and emx2 gain of function (GOF) hair cells (HCs).

https://cdn.elifesciences.org/articles/60432/elife-60432-fig4-data2-v2.xlsx

Compared to WT, the Rock phase of nascent HC pairs in emx2-/- (emx2 LOF) mutants (Jiang et al., 2017), which do not express Emx2 (Figure 4—figure supplement 1), was significantly shorter for an average of 67 min (Figure 4B and E, Figure 4—video 3) whereas the duration of the Roll phase was not significantly different (Figure 4B and F, Figure 4—video 3). The frequency of HC pairs that underwent the Roll phase was also higher (Figure 4D, 76% [(59% + 17%)] in emx2 LOF versus 60% [(57% + 3%)] in WT). However, among HC cell pairs that rolled, there was a significant increase in the frequency of pairs that underwent Roll back (Figure 4D, Roll back, 17% of emx2 LOF versus 3% of WT). Therefore, the total percentages of HC pairs that switched positions at the end of the Roll phase was similar between emx2 LOF and WT HCs (Figure 4D, 59% vs 57%).

In myo6b:emx2-p2a-nls-mCherry (emx2 GOF) neuromasts (Jiang et al., 2017), in which both nascent HCs are Emx2 positive based on mCherry expression (Figure 4—figure supplement 1), sibling HCs spent a significantly longer time in the Roll but not the Rock phase, compared to WT (Figure 4E and F). Only 32% of emx2 GOF HC pairs underwent the Roll phase and none rolled back (Figure 4C and D, Emx2 GOF, Figure 4—video 4), compared to the 57% that switched positions in WT. In short, these results indicate that emx2 LOF HC pairs spent a shorter time in Rock and Roll but showed an increase in Roll frequency, even though some rolled back (Figure 4G). In contrast, emx2 GOF HCs showed the opposite results of a longer duration of Rock and Roll and a decrease in Roll frequencies. Cumulatively, this genetic analysis indicates that Emx2 regulates the cell rearrangement process. This regulation is unlikely to be dependent on a differential level of Emx2 between two siblings since neither HC in emx2 LOF pairs expresses Emx2 (Figure 4—figure supplement 1).

Position of the Emx2-positive HC correlates with whether HC pairs undergo Roll or No Roll

The Rock and Roll results suggest that Emx2 may play a role in HCs prior to hair bundle establishment. Thus, we generated an emx2:Gfp reporter fish and used Gfp to track emx2 promoter activity during live-imaging of Rock and Roll. To generate this reporter, we knocked in Gfp to the endogenous emx2 locus using CRISPR (Hoshijima et al., 2016a; Hoshijima et al., 2016b). We found that Gfp expression in our emx2:Gfp reporter fish was present in the brain, pharyngeal arches, and otic vesicles, tissues that normally express emx2 (Figure 5—figure supplement 1). Gfp expression in mature HCs was also consistent with normal Emx2 expression (Jiang et al., 2017), only present in A→P HCs of A-P neuromasts and in D→V HCs of D-V neuromasts (Figure 5A). Although not all Emx2-positive cells are necessarily Gfp-positive in the emx2:Gfp larvae, we did not observe any HCs with Gfp expression in the P→A, Emx2-negative HCs, further validating that Gfp reports emx2 activity in our reporter.

Figure 5 with 1 supplement see all

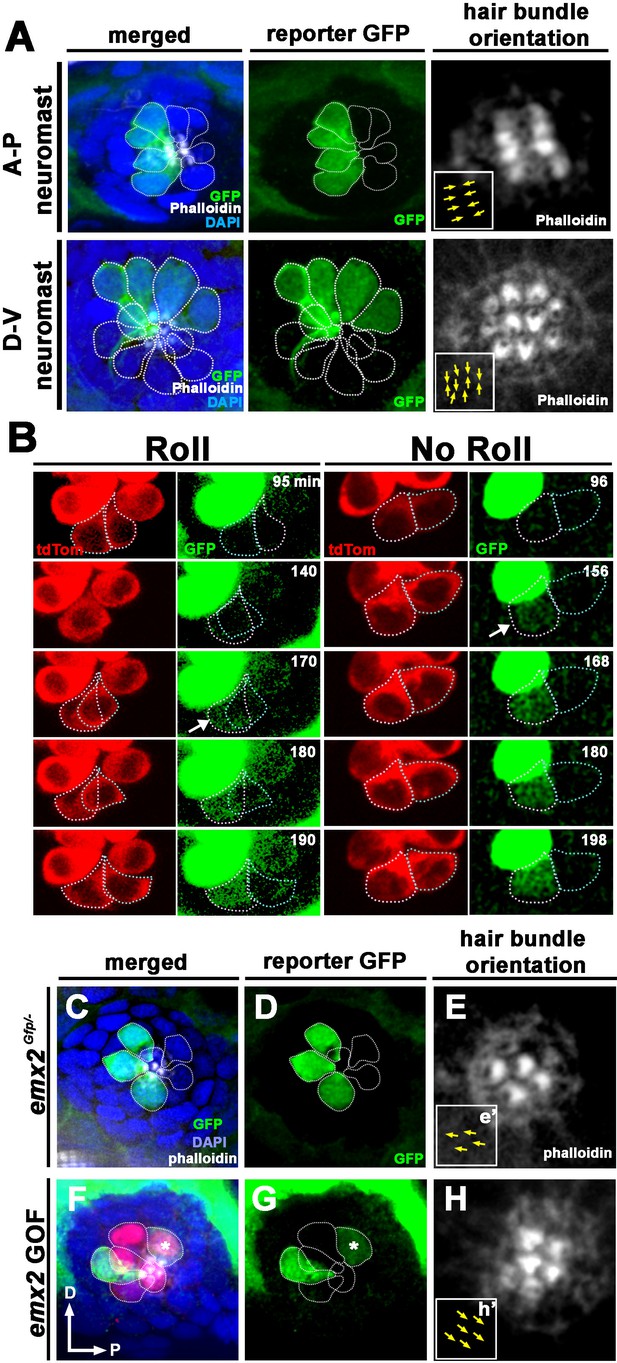

Spatiotemporal reporter activity of emx2 in wild-type (WT) and emx2 mutants.

(A) In an emx2:Gfp zebrafish, Gfp-positive hair cells (HCs) are located in the anterior region of an A-P neuromast (top) and in the dorsal region of a D-V (bottom) neuromast. Phalloidin staining shows the hair bundle orientation (yellow arrows). (B) Time-lapse imaging of nascent HC pairs undergoing Roll or No Roll movement in emx2:Gfp; myo6b:dtTomato neuromasts. Left panel (Roll): A tdTomato-positive, nascent HC pair undergoing roll movement shows detectable Gfp expression in the posterior HC as it rolls into the anterior position (white arrow, 170 min into the Rock and Roll process). Right panel (No Roll): A HC pair that did not roll and Gfp appears in the anterior HC by 156 min into the Rock phase (white arrow). (C–E) The distribution of Gfp-positive HCs in an emx2gfp/- (loss of function [LOF]) neuromast, showing a merged image (C) of DAPI, GFP (D) and phalloidin staining (E). Outline of HCs are dotted. Gfp-positive HCs are located in the anterior region but hair bundles are pointing in P→A direction (yellow arrows in e’). (F–H) The distribution of Gfp-positive HCs in an emx2 gain of function (GOF);emx2Gfp/+ neuromast, showing a merged image (F) of DAPI, GFP (G), mCherry, and phalloidin staining (H). Among the total six pairs of GOF HCs analyzed, only two are Gfp-positive (G), one anterior- and one posterior (asterisk)-located. All hair bundles are in A→P direction (yellow arrows in h’).

Live-imaging of the emx2:Gfp larvae revealed that Gfp signal was first detectable after precursor division and in only one HC within a nascent HC pair (Figure 5B). With regard to the onset of Gfp expression, two expression patterns were observed during Rock and Roll in A-P neuromasts. In HC pairs that rolled, the posterior-positioned HC became Gfp-positive as it rolled into the anterior position (Figure 5B, Roll, 170 min, arrow, n = 4). In HC pairs that only rocked but did not undergo Roll, Gfp invariably turned on in the anterior HC (Figure 5B, No Roll, 156 min, arrow, n = 6). These results suggest that emx2 is asymmetrically activated in one of the daughter HCs before the Roll phase is completed. The localization of Gfp in nascent HCs also supports our genetic results that Emx2 regulates the Rock and Roll (Figure 4).

Emx2 is not required for positional acquisition of sibling HCs

Only 50% of HC pairs undergo HC rearrangement and Emx2 immunoreactivity was reported to be present in either the anterior or posterior nascent HCs initially (Kozak et al., 2020). These results suggest that identities of nascent HCs may be stochastically generated and that HCs utilize the rearrangement process to acquire their proper position (Jacobo et al., 2019; Erzberger et al., 2020). Our live-imaging results showed that posterior-positioned HCs turned on the emx2 reporter as they rolled into the anterior position. Furthermore, anterior HCs that did not roll invariably turn on the reporter. These results are consistent with the hypothesis that HCs acquire their positions via the Rock and Roll process. Since Rock and Roll was affected in emx2 mutants, we asked whether emx2 is required for positional acquisition of HCs by assessing Gfp expression in emx2 LOF (emx2Gfp/-) neuromasts. We analyzed larvae at two dpf, in which the neuromasts exhibit only three to four pairs of HCs that are longitudinally aligned and HC pairs, hair bundle orientations, and positions can be easily identified (López-Schier and Hudspeth, 2006). Among the 160 WT HCs analyzed, reporter Gfp expression was only found in anterior-positioned HCs and no expression was found in the posterior-positioned HCs of A-P neuromasts (Figure 5A, Table 1). Surprisingly, among the 70 HCs we examined in emx2 LOF neuromasts, all but one of 32 Gfp-positive HCs (half of the total number of HCs analyzed) were normally located in the anterior location of the neuromast (Figure 5C–E, LOF, Table 1). These results indicate that Emx2 is not required for HCs to acquire their normal position in the neuromast.

Table 1
Quantification of emx2:Gfp positive cells in wild-type (WT) and emx2 mutant neuromasts.
GenotypeFishNeuromastTotal hair cells (HCs)Gfp+ cellsAnterior
Gfp+ HCs
Posterior
Gfp+ HCs
Mislocated Gfp+ HCs
WT72016078
(49%)
78/78*
(100%)
0/78
(0%)
0/78
(0%)
emx2Gfp/-(loss of function [LOF])3107033
(47%)
32/33
(97%)
1/33
(3%)
1/33
(3%)
emx2GOF(F1); emx2Gfp/+101812330
(24%)
22/30*
(73%)
8/30
(27%)
8/30
(27%)
emx2GOF(F3); emx2Gfp/+2929246100
(41%)
98/100*
(98%)
2/100
(2%)
2/100
(2%)
  1. *All Gfp+ cells are also positive for Emx2 immunostaining.

We also assessed Gfp expression in emx2 GOF neuromasts in emx2Gfp/+ background (emx2 GOF;emx2Gfp/+). In the first generation (F1) of emx2 GOF; emx2Gfp/+ neuromasts, only 24% of the total number of HCs analyzed were Gfp positive rather than the normal 49% in WT. This result suggests that the ectopic Emx2 expression in emx2 GOF;emx2Gfp/+ neuromasts may suppress the endogenous emx2 promoter activity driving the reporter. However, Gfp-positive HCs were always correlated with Emx2 immunoreactivity. Among the Gfp-positive HCs, 27% (8/30) were found to be mislocated in the posterior (Figure 5F–H, GOF, asterisk, Table 1). These results suggest that ectopic expression of Emx2, and likely in Emx2-negative HCs, affected the two sibling HCs’ ability to acquire their proper locations within the neuromast. The reduction in the number of Gfp-positive cells and their mis-localization in the posterior region of the neuromast were no longer evident in larvae from F3 generation. This is most likely due to the reduced ectopic Emx2 expression (based on reporter mCherry expression) in the F3 generation, resulting from reduction in copies of the transgene from chromosomal segregation during cell divisions (Table 1). Nevertheless, the unidirectional hair bundle orientation phenotype remains largely similar between emx2 GOF F1 and F3 larvae (data not shown).

Emx2 affects HC morphology during Rock and Roll

Tracking emx2 reporter activity in emx2 LOF neuromasts indicates that positional acquisition of nascent HCs does not require Emx2 (Figure 5C–E). Rock and Roll, which is implicated in HCs’ positional acquisition, was nevertheless affected in both emx2 LOF and GOF nascent HCs (Figure 4). Then, what is the function of Emx2 and how does it regulate the Rock and Roll process? Previously, it was described that HCs form a ‘bottle’ shape prior to cell rearrangement (Mirkovic et al., 2012). It is possible that Emx2 is involved in regulating HC morphology, which then indirectly affects the Rock and Roll. To investigate this possibility, we used myo6b:Yfp-tubulin transgenic line to better visualize morphological changes in sibling HCs during Rock and Roll. Live-imaging revealed that after a HC precursor divided to form two daughter HCs, they were both initially spherical in shape (Figure 6Bb, 6 min). During the Rock phase, HCs started to extend a protrusion toward the apex next to the apical surface of mature HCs (Figure 6Cc and Dd, 18–33 min, arrow, Figure 6—video 1). It took approximately 30–40 min for the two nascent HCs to acquire the bottle-shape morphology after cell division, which was within the Rock phase. When the two nascent HCs rolled to exchange positions, the tip of the protrusion appeared to pivot at the apical surface of the neuromast (Figure 6A–D, Ee–Hh, Figure 6—video 1). These results suggest that apical protrusions may be important for efficient Roll movement.

Figure 6 with 2 supplements see all

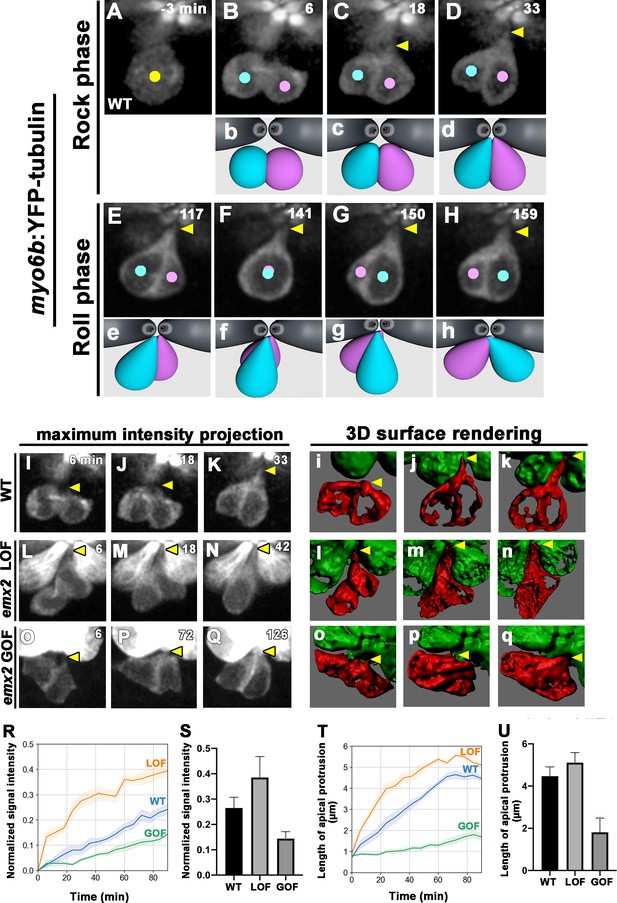

Emx2 affects apical protrusion formation in nascent hair cells (HCs).

(A–H) Time-lapse images of myo6b:YFP-tubulin (wild-type [WT]) transgenic line showing nascent HCs undergoing Rock and Roll. After precursor cell divides (A), sibling HCs form an apical protrusion within 30 min of the Rock phase (B–D, yellow arrowhead, n = 6). When they exchange positions at the Roll phase, they appear to be pivoted at the apex (E–H, yellow arrowheads). Animation of images is shown in respective panels (Rock phase: b–d, Roll phase: e–h). (I–Q) Maximum intensity projection images generated by selected slices along z-axis in WT (I–K, same sample of A–H, n = 3), emx2 loss of function [LOF] (L–N, n = 3) and emx2 gain of function (GOF) (O–Q, n = 3). (i–q) Three-dimensional surface rendering of selected time points of live-imaging of HC pairs (red) in WT (i–k, n = 3), emx2 LOF (l–n, n = 3), and emx2 GOF (o–q, n = 3) neuromasts. Mature HCs are labeled in green. (R) Increases of YFP-tubulin signal intensity at the apical region of nascent HCs of WT (n = 5), emx2 LOF (n = 5), and emx2 GOF (n = 6) during the Rock phase (90 min). The shaded area represents the standard error of the mean (SEM). (S) YFP-tubulin signal intensities of the apical protrusion at the end of Rock phase were significantly different among WT (n = 5), emx2 LOF (n = 5), and emx2 GOF HCs (n = 6, one-way ANOVA, F = 26.97, p<0.0001); post-hoc Dunnett’s multiple comparisons test for WT vs. LOF, p=0.0073, WT vs. GOF, p=0.0052. (T) Increases over time in the length of apical protrusion in WT (n = 5), emx2 LOF (n = 5), and emx2 GOF (n = 5) during the Rock phase (90 min). The shaded area represents the SEM. (U) The length of apical protrusion at the end of the Rock phase in WT (n = 5), emx2 LOF (n = 5), and emx2 GOF (n = 5) were compared. Significance was assessed by using one-way ANOVA, F = 52.15, p<0.0001. Post-hoc Dunnett’s multiple comparisons test for WT vs. LOF is not significant (p=0.148) but significant for WT vs. GOF (p<0.0001). The following figure supplement, source data, videos are available for Figure 6—figure supplement 1. Measurements of signal intensity and length of the apical protrusion using Image J Fiji.

Figure 6—source data 1

Quantification of changes in signal intensity of apical protrusion of hair cells (HCs) during the Rock Phase.

https://cdn.elifesciences.org/articles/60432/elife-60432-fig6-data1-v2.xlsx
Figure 6—source data 2

Quantification of signal intensity of apical protrusion at the end of Rock phase among wild-type (WT), emx2 loss of function (LOF), and emx2 gain of function (GOF) hair cells (HCs).

https://cdn.elifesciences.org/articles/60432/elife-60432-fig6-data2-v2.xlsx
Figure 6—source data 3

Quantification of changes in the length of apical protrusion during the Rock Phase.

https://cdn.elifesciences.org/articles/60432/elife-60432-fig6-data3-v2.xlsx
Figure 6—source data 4

Quantification of the length of apical protrusion at the end of Rock phase among wild-type (WT), emx2 loss of function (LOF), and emx2 gain of function (GOF) hair cells (HCs).

https://cdn.elifesciences.org/articles/60432/elife-60432-fig6-data4-v2.xlsx

Although maximum intensity projection (MIP) of WT live-images showed only moderate extension from the apex of nascent HCs in approximately 33 min (Figure 6I–K, arrowhead), three-dimensional (3-D) surface rendering of these MIP images revealed clearly that the protrusion was prominent and reached the apical surface of the neuromast within this time (Figure 6i–k, arrow). By contrast, emx2 LOF images and 3-D rendering showed that nascent HCs took on a bottle-shape morphology by 6 min after cell division and the protrusion was wider and more pronounced than in WT (Figure 6 Ll–Nn, arrowhead). Quantification of the tubulin-Yfp signals in the apical protrusion of WT and emx2 LOF HCs using ImageJ Fiji plugin (Figure 6—source data 1) showed a stronger signal intensity in emx2 LOF HCs during and by the end of the Rock phase than WT HCs (Figure 6R and S, Figure 6—source data 2). The extension of the apical protrusion in emx2 LOF HCs also formed faster even though its length was similar to the WT HCs by the end of the Rock phase (Figure 6T and U). In contrast, in emx2 GOF neuromasts, the two daughter HCs were initially spherical in shape similar to WT, but they took a much longer time to form the bottle shape and they only formed a small apical protrusion relative to the WT by 126 min (Figure 6Oo–Qq, arrowhead). Quantification of the tubulin-Yfp intensity in the apical protrusion of emx2 GOF HCs also showed a slower rise in the Yfp signal and the length of protrusion, compared to the WT (Figure 6R–U, Figure 6—source datas 1 and 2).

Unfortunately, the live-images and 3-D rendering were unable to provide sufficient clarity to discern whether the apical protrusion originated in just one or both HCs in WT. Nevertheless, the pronounced apical protrusions in the LOF mutants and the stunted protrusions in the GOF mutants suggest that the Emx2-positive HC lacks apical protrusion during Rock and Roll and the protrusion in WT is primarily contributed by the Emx2-negative HC. Furthermore, the enhanced and reduced apical protrusions in the respective LOF and GOF mutants most likely affected the Rock and Roll process.

Apical protrusion in nascent HCs is important for Rock and Roll

The apical protrusion of nascent HCs showed a high concentration of tubulin. We tested the importance of apical protrusion formation for the Rock and Roll by treating two dpf zebrafish larvae with nocodazole, which disrupts microtubule polymerization (Hoebeke et al., 1976). First, we investigated the effect of transient nocodazole treatments on the positioning of the two sibling HCs using emx2:Gfp. Under live-imaging, HC precursor divisions in neuromasts of myo6b:Yfp-tubulin; emx2:Gfp larvae were monitored and nocodazole was added immediately after a precursor cell divided to form two sibling HCs and treated for 90 min, which encompassed the duration of a normal Rock phase. During this treatment, sibling HCs often aligned along the D-V axis with each other (Figure 7A, 78–90 min, Figure 7—video 1), which were not observed in controls (Figure 6). After nocodazole removal, the sibling HCs resumed the Roll phase (Figure 7A, 96–174 min) and acquired their normal positions based on the Gfp-positive HC location in the anterior position by the end of 282 min (Figure 7A, arrowhead, n = 5, three Roll and two No Roll samples, Figure 7—video 1).

Figure 7 with 2 supplements see all

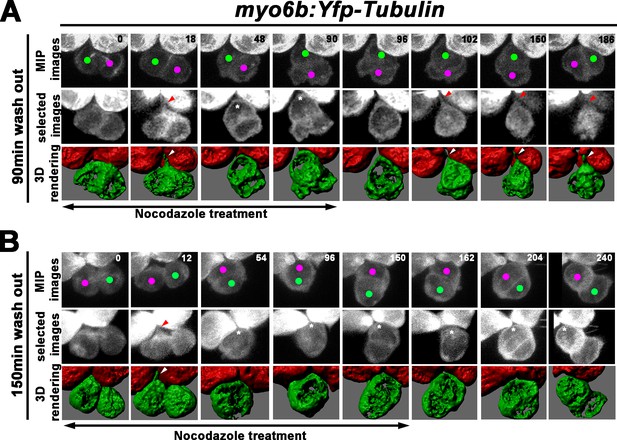

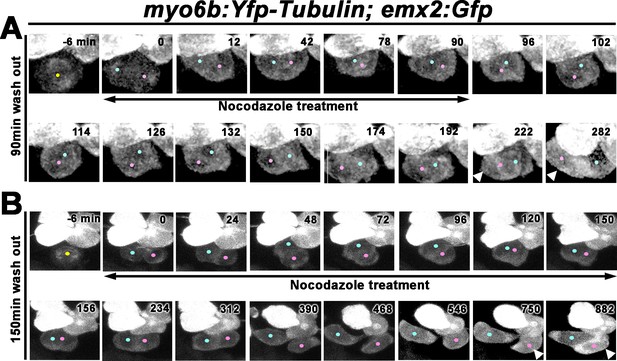

Nocodazole disrupts Rock and Roll and positional acquisition of hair cells (HCs).

(A) Nascent sibling HCs in myo6b:Yfp-tubulin; emx2:Gfp larvae were treated with nocodazole for 90 min immediately after the HC precursor was observed to divide under live-imaging (0 min). After nocodazole removal, the nascent HC pair started to roll and they exchanged positions (96–174 min). The HC located at the anterior (pink dot) showed stronger Gfp signal due to the presence of emx2:Gfp and Yfp-tubulin alleles (222–282 min, arrowheads) than the emx2:Gfp-negative HC at the posterior (blue dot), which only expresses Yfp-tubulin. (B) Nascent HCs were treated with nocodazole for 150 min after HC precursor divided (0–150 min). After nocodazole removal, HCs failed to exchange their positions (156–312 min), which resulted in the mislocation of the emx2:Gfp-positive HC to the posterior (arrowheads, 618–882 min, pink dots).

In contrast, extended treatments with nocodazole up to 150 min (Figure 7B, Figure 7—video 2) which encompassed the entire Rock and Roll duration normally did not result in positional exchange between sibling HCs after drug removal (Figure 7B, 156–882 min). Consequently, sibling HCs were often mispositioned with the emx2:Gfp HC located in the posterior (Figures 7B, 882 min, arrowhead, n = 4 mislocated emx2:Gfp HCs out of six samples analyzed).

Next, we investigated whether the recovery of the Roll phase was correlated with apical protrusion formation using the similar 3-D rendering approach as described for WT (Figure 6I–q). The 3-D rendering analyses were conducted using only myo6b:Yfp-tubulin larvae since the presence of the emx2:Gfp allele generated some background, which hindered reliable analyses. Using myo6b:Yfp-tubulin larvae, we observed that despite the nocodazole treatment starting immediately after cell division (Figures 8A, 0 min), apical protrusion was evident between 12 and 18 min into the treatment (Figures 8A, 18 min, red and white arrowheads, Figure 8—video 1), similar to untreated controls (Figure 6J,j). This protrusion disappeared by 30–36 min later (Figures 8A, 48 min, asterisk) but reappeared by 12 min after nocodazole was removed at 90 min (Figures 8A, 102 min, red and white arrowheads, n = 3, 2 Roll and one No Roll samples). Then, the two sibling HCs started to roll and exchange their positions by approximately 80 min after the apical protrusion was evident (Figures 8A, 150–186 min). In samples that were treated with nocodazole for 150 min, the apical protrusion was also apparent by 12–18 min of treatment (Figures 8B, 12 min, red and white arrowheads), which disappeared after 30–36 min (Figures 8B, 54 min), similar to HCs treated for 90 min (Figure 8A). However, no apical protrusion was observed after nocodazole removal at the end of 150 min, and sibling HCs failed to roll after 90 min (Figures 8B, 240 min, n = 5). These results are consistent with the hypothesis that proper apical protrusion of nascent HCs is important for the Rock and Roll process and positional acquisition of HCs.

Figure 8 with 2 supplements see all
Formation of the apical protrusion is correlated with the Roll movement and hair cell (HC) positioning.

(A) Maximum intensity projection and 3-D rendering of selected images of nascent sibling HCs in myo6b:Yfp-tubulin larvae (magenta and green dots) that was treated with nocodazole for 90 min immediately after the precursor divided. The apical protrusion that normally forms within 18 min was still evident initially (18 min; red and white arrowheads) but disappeared quickly between 30 and 36 min (asterisks, 48 min). After nocodazole removal, the apical protrusion reappeared after 12 min (102 min, red and white arrowheads) and the two nascent HCs rolled to their respective positions after 84 min (186 min). (B) A nascent HC pair (red and green dots) that was treated with nocodazole for 150 min immediately after the precursor divided. Similar to 90 min treatments, the apical protrusion was evident between 12 and 18 min (12 min, red and white arrowheads) after HC precursor divided (0 min) but disappeared shortly within 30–36 min (54 min, asterisk). However, after nocodazole removal at 150 min, sibling HCs did not form an apical protrusion and exchange positions (162–240 min, asterisks).

cPCP pathway is important for Rock and Roll

Our nocodazole results suggest that the apical protrusion in nascent HCs is important for Rock and Roll. We further investigated the relationship between apical protrusion formation and the Rock and Roll process in mutants that are known to show abnormal hair bundle orientation in the neuromast such as the trilobite, in which the cPCP gene van gogh like 2 (vangl2) is mutated. cPCP pathway is a conserved intercellular mechanism to organize cells across the plane of a tissue (Goodrich and Strutt, 2011; Wallingford, 2012). Hair bundles in neuromasts of trilobite are misaligned and the Rock and Roll process is abnormal (Mirkovic et al., 2012). However, it is not known whether the abnormal Rock and Roll directly causes mispositioning of Emx2-positive and -negative HCs within the neuromast. We addressed this question by conducting time-lapse recording of the trilobite, vangl2m209, in a myo6b:β-actin-Gfp; emx2gfp/+ background. Expression of Emx2 is not affected in vangl2m209 mutants and Emx2 and cPCP pathway are independently regulated (Ji et al., 2018). Thus, the GFP signal driven under the emx2 promoter can be used to determine nascent HC positioning. Our results support previous findings that the frequency of Rock and Roll was decreased in the vangl2m209; myo6b:β-actin-Gfp; emx2gfp/+ mutants, compared to controls (Figure 9A; Mirkovic et al., 2012). In HC pairs that underwent Rock and Roll, the duration of the Roll phase was prolonged (Figure 9C and D), even though the Rock phase was largely unaffected (Figure 9B). Figure 9E illustrates an example of a HC pair in vangl2m209 neuromast that underwent a prolonged roll phase and the Emx2-positive HC, as indicated by the additional Gfp signals driven by the emx2 promoter, was mislocated to the posterior at the end of Roll phase (Figure 9—video 1). This mislocation of the Emx2-positive HCs was observed for HC pairs that did not undergo roll as well (Table 2). Furthermore, although the genetic background of myo6b:β-actin-Gfp is not ideal for visualizing the apical protrusion, we did not observe an obvious difference in the timing and formation of the apical protrusion in nascent HCs of vangl2m209, compared to controls (Figure 9—figure supplement 1). Together, these results provided additional evidence that abnormal HC rearrangement is correlated with mispositioned HCs in the neuromast and that both intercellular signaling and apical protrusion formation are important for nascent HCs to undergo normal Rock and Roll.

Figure 9 with 2 supplements see all

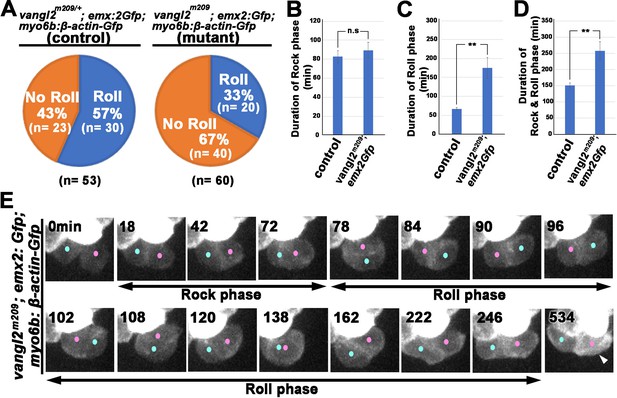

Rock and Roll is affected in the core planar cell polarity (cPCP) mutant, trilobite.

(A) Frequencies of Roll and No Roll of nascent hair cell (HC) pairs in control (vangl2m209/+; emx2gfp/+) and mutant (vangl2m209/m209; emx2gfp/+) larvae. Significance was assessed by using chi-squared test with a 2 × 2 contingency table (X2[(df = 1)]=6.1774, p<0.013, source data 1). (B–D) Duration of Rock (B), Roll (C), and Rock and Roll (D) of sibling HCs that underwent Rock and Roll in control (n = 28 from seven larvae) and vangl2m209/m209; emx2gfp/+ (n = 19 from seven larvae) larvae. Significance was assessed by using Student's t-test (*p<0.05, **p<0.001, source data 2). The error bars represent SEM. (E) Time-lapse images of a HC pair in trilobite (vangl2m209/m209); emx2gfp/+ mutant, which undergoes a prolong Roll phase from 78 to 246 min with several rolls (first roll: 78–96 min, second roll: 102–120 min, third partial roll: 138–162 min) and resulted in the emx2:Gfp-positive HC located to the posterior. The following figure supplement, source data, and video are available for Figure 9—figure supplement 1. Formation of apical protrusion in nascent HCs of trilobite.

Figure 9—source data 1

Frequencies of Roll and No Roll movements in vangl2 mutants.

https://cdn.elifesciences.org/articles/60432/elife-60432-fig9-data1-v2.xlsx
Figure 9—source data 2

Comparison of duration of Rock, Roll, and R and R between controls and vangl2 mutants.

https://cdn.elifesciences.org/articles/60432/elife-60432-fig9-data2-v2.xlsx
Table 2
Summary of emx2:Gfp-positive hair cell (HC) positions in neuromasts after Rock and Roll.

Positions of emx2:Gfp HCs
RollNo Roll
AnteriorPosteriorDorsalVentralAnteriorPosteriorDorsalVentral
Control*
(%)
30/30
(100%)
0/30
(0%)
0/30
(0%)
0/30
(0%)
19/19
(100%)
0/19
(0%)
0/19
(0%)
0/19
(0%)
vangl2m209
;emx2:Gfp; myo6:βactin-Gfp**
(%)
5/17
(29.4%)
6/17
(35.3%)
4/17
(23.5%)
2/17
(11.7%)
13/39
(33.3%)
13/39
(33.3%)
7/39
(17.9%)
6/39
(15.4%)
  1. *Four HC pairs with No Roll in Figure 9A did not express emx2:Gfp and were excluded from this table.

    **Three HC pairs with Roll and one HC pair with No Roll in Figure 9A did not express emx2:Gfp and were excluded.

Discussion

In this study, we set out to determine whether Emx2 mediates the bidirectional HC pattern in the zebrafish neuromast (Jiang et al., 2017) by changing the location of its HCs within the neuromast via cell rearrangement or by changing the position of where hair bundle is established within its HCs, or both. First, based on our scRNA-seq analysis and live-imaging of emx2:Gfp reporter activity in control fish, we pinned emx2 expression to the nascent HC stage well ahead of hair bundle establishment. These expression results support the notion that Emx2 is involved in positional acquisition of HCs. Additionally, the HC rearrangement process, Rock and Roll, was affected in both emx2 loss- and gain-of-function mutants, thus providing the phenotypic evidence that supports the early onset of emx2 expression (Figure 1C). However, our live-imaging results of emx2:Gfp HCs in emx2Gfp/- neuromasts unequivocally demonstrated that the lack of Emx2 did not affect HCs’ ability to acquire their respective positions (Figure 5). Since Emx2 does not confer positional information to HCs in the neuromast, we inferred that Emx2 mediates the bidirectional hair bundle pattern by changing the position where the hair bundle should be established within the HC. This effect of Emx2 on hair bundle establishment in neuromast HCs is most likely similar to utricular HCs in the mouse inner ear, which requires the heterotrimeric G proteins (Jiang et al., 2017).

The fact that Emx2 is not required for positional acquisition of HCs raised the question of how Emx2 regulates Rock and Roll. Our results showed that Emx2 regulates Rock and Roll by changing the shape of its nascent HCs, namely by reducing or delaying the apical protrusion formation of its nascent HCs. This delay in protrusion formation was only transient since all mature HCs ultimately formed apical protrusions at the vertex of the neuromast. In emx2 LOF neuromasts, in which the apical protrusion was robust, HCs appeared to acquire their designated locations quicker (Figure 4E, shorter Rock and Roll duration). In contrast, in emx2 GOF neuromasts, HCs lacked a clear protrusion and the duration of the Roll phase was longer than controls (Figure 4F) and sometimes HCs were mispositioned (Table 1). Extrapolating from the Rock and Roll and the 3-D rendering results, we postulate that the lack of apical protrusion from nascent HCs affected a stable attachment at the apical surface of the neuromast resulting in a longer duration of roll and occasional mispositioning of HCs. We further propose that in a normal neuromast, the apical protrusion of the Emx2-negative HC within a HC pair allows it to anchor at the vertex of the neuromast, whereas the non-anchored Emx2-positive HC is guided by the protruded HC for the positional exchange. Thus, the Emx2-negative HC is more important for the normal HC rearrangement process. We concluded that Emx2 functions to delay the apical protrusion of its HC, which contributes to the asymmetry between the two sibling HCs and facilitates the Rock and Roll process. Furthermore, Emx2’s role in regulation of the Rock and Roll is independent of its role in hair bundle establishment since in F3 generation of emx2 GOF neuromasts, HC positions are mostly normal but the bidirectional hair bundle-pattern is perturbed with most bundles pointing in the A→P orientation.

Our live-imaging results of emx2:Gfp/+ reporter fish showing that the phenomenon of Roll or No Roll being consistent with the need or lack thereof to reposition the nascent Emx2-positive cell provided the direct evidence that HCs acquire their proper locations within the neuromast via the cell rearrangement process (Figure 10). Additionally, the hypothesis that apical protrusion formation in nascent HCs is important for Rock and Roll was further supported by the nocodazole results. The recovery of apical protrusion formation after nocodazole removal was correlated with the positional exchange of sibling HCs and correct positional acquisition, whereas failure to form an apical protrusion after drug removal resulted in the absence of roll movements and subsequent mispositioning of HCs (Figures 7 and 8).

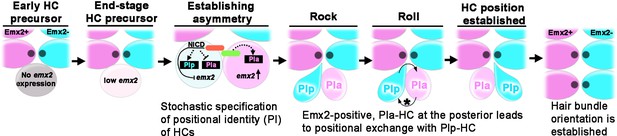

Model of positional acquisition of nascent hair cells (HCs) in the neuromast.

Unlike scenarios 1 and 2 illustrated in Figure 1C, our results show a model in which an end-stage HC precursor before division expresses low levels of emx2 (light pink). After the precursor divided, Notch signaling mediated through the Notch ligand (green color) and Notch1a receptor (red color) generates asymmetry between the two sibling HCs. This asymmetry results in stochastic specification of anterior (PIa) and posterior (PIp) positional identity (PI) to sibling HCs, which includes regulation of emx2 expression. Thus, an emx2-positive, Pla-HC formed at the posterior position undergoes positional exchange with its sibling Plp HC, whereaswhen an emx2-positive, Pla-HC formed in the anterior position, the two sibling HCs do not exchange positions. In addition to the delay in apical protrusion mediated by Emx2, the Rock and Roll is also regulated by the intercellular core planar cell polarity (cPCP) pathway (asterisk).

What is the underlying mechanism for nascent HCs to acquire their positions within the neuromast since Emx2 is not involved? Accumulating evidence suggests that lateral inhibition via Notch signaling is important. In notch1a-/- mutants, all HCs are Emx2 positive with A→P hair bundle orientation (Jacobo et al., 2019; Kozak et al., 2020). Consistently, constitutive expression of the Notch intracellular domain results in neuromasts with more P→A HCs that are Emx2 negative (Jacobo et al., 2019; Kozak et al., 2020). More importantly, nascent HC pairs fail to undergo rearrangement in notch1a-/- mutants (Erzberger et al., 2020). Together, these results suggest that Notch signaling confers asymmetry and positional identity (PI) of sibling HCs, which mediates the Rock and Roll (Figure 10). This asymmetry includes differential regulation of emx2, upregulating emx2 in the HC with anterior identity (Pla) and inhibiting/blocking emx2 expression in the HC with posterior identity (Plp), which also contributes to the Rock and Roll.

Taking together the Notch results and our detection of high emx2 expression at the nascent HC stage (Figure 3) suggest that the Notch signaling is functioning intercellularly between two sibling HCs. However, if Emx2 is indeed enriched in HC precursors as described (Kozak et al., 2020), then the mechanism of Notch signaling on regulating Emx2 would be different and will require the downregulation of emx2 in one of the sibling HCs (Figure 1C). Since expression of Emx2 in both daughter HCs was not observed with immunostaining (Kozak et al., 2020) or with emx2:gfp reporter, such downregulation may be quick and may involve asymmetric segregation of Notch determinants during precursor cell division (Coumailleau et al., 2009; Kressmann et al., 2015).

In addition to the Notch signaling, our results indicate that the cPCP pathway is also required for the Rock and Roll process. Emx2 and cPCP are independently regulated and vangl2 is epistatic to emx2 in hair bundle establishment (Ji et al., 2018). However, the cPCP pathway appears to function on multiple levels to generate the bidirectional HC pattern during neuromast development. For example, the cPCP pathway is important for HC precursor division since the axis of precursor division is affected in vangl2m209 mutants (Mirkovic et al., 2012). Second, HC pairs that did not undergo roll movements in vangl2m209 neuromast do show similar percentages of HCs that were mispositioned as HCs that rolled (Table 2). It is not clear if the mispositioned HCs in the No Roll pairs were caused by the failure of HCs to undergo the Roll phase or the cPCP’s effects in the axis of precursor division or other functions indirectly affected both the Roll and No Roll HC pairs equally. Despite the possibility that the cPCP could function on multiple levels, the analyses of vangl2m209 mutants in emx2:Gfp/+ reporter background indicates that abnormal Rock and Roll results in HC mispositioning.

What is the source of cPCP signaling for the HCs? Vangl2 appears to be expressed predominantly in HCs and not supporting cells (Mirkovic et al., 2012; Jacobo et al., 2019). Since the alignment of supporting cells is not affected in vangl2m209 neuromast (Navajas Acedo et al., 2019), it is likely that the intercellular signaling is occurring among sibling or neighboring HCs.

In summary, the sequential molecular events that give rise to a functional neuromast unit with bidirectional sensitivity to water flow is emerging. First, the Notch signaling imparts asymmetry between two nascent HCs, which brings the respective Emx2-positive and -negative HCs into position via the Rock and Roll process. While notch-mediated Emx2 is only one of the factors that facilitate this rearrangement process by creating asymmetry between the shape of the two sibling HCs, Emx2’s major function is later, in establishing hair bundle orientation and neuronal selectivity (Jiang et al., 2017; Ji et al., 2018). Furthermore, cPCP proteins provide the intercellular signaling cues to maintain hair bundle alignment of HCs within the neuromast.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Genetic reagent (Danio rerio)Tg(myo6b:actb1-GFP)PMC3426295RRID:ZFIN_ZDB-GENO-120926-20Kindt group (NIDCD, NIH)
Genetic reagent (Danio rerio)Tg(myo6b:emx2-p2a-nls-mCherry)PMC5388538RRID:ZFIN_ZDB-GENO-170619-3Wu group (NIDCD, NIH)
Genetic reagent (Danio rerio)Tg(myo6b:YFP-Tubulin)N.AN.A.Kindt group (NIDCD, NIH)
Genetic reagent (Danio rerio)Tg(myo6b: tdTomato)N.ARRID:ZFIN_ZDB-TGCONSTRCT-160316-7Kindt group (NIDCD, NIH)
Genetic reagent (Danio rerio)emx2 koPMC5388538RRID:ZFIN_ZDB-ALT-170606-5Kindt group (NIDCD, NIH)
Genetic reagent (Danio rerio)Emx2:GFPthis paperN.A.Wu group (NIDCD, NIH)
Genetic reagent (Danio rerio)Tg(myo6b: RiboTag)PMC5939014PRID:ZFIN_ZDB-ALT-180129–10Kindt group (NIDCD, NIH)
Genetic reagent (Danio rerio)Tg(myo6b:actb1-GFP)PMC3426295RRID:ZFIN_ZDB-GENO-120926-20Kindt group (NIDCD, NIH)
Sequence-based reagenttracrRNAIDTCat# 107253325 μM
Sequence-based reagentemx2_guide RNA 5’- atggaaagctgccgcgtcccagg-3’IDTthis paper50 μM
Sequence-based reagenttracrRNAIDTCat# 107253325 μM
Recombinant DNApT3TS-nls-zCas9-nlsAddgeneCat# 46757
Recombinant DNApKHR4PMC4806538
Recombinant DNApKHR4-LHA-emx2-RHAthis paperthis paperWu group (NIDCD, NIH)
AntibodiesRabbit anti-Emx2Trans Genic (fukuoka, japan)KO609
AntibodiesMouse anti-GFPThermo Fisher ScientificA11120
AntibodiesRabbit anti-GFPAbcamAb6556
AntibodiesAlexa Fluor 647 phalloidinThemo Fisher ScientificA22287
Chemical compound, drugNocodazoleSigma-AldrichM140410 μg/ml
Recombinant proteinsI-SceINEBR0694S
Software and algorithmsImageJNIHhttps://imagej.net/Fiji/Downloads
Software and algorithmsImageJ FijiNIHhttps://imagej.net/Fiji/Downloads
Software and algorithmsPoorMan3Dreghttp://sybil.ece.ucsb.edu/pages/software.html
Software and algorithmsMTrack JMeijering et al., 2012https://imagescience.org/meijering/software/mtrackj/
Software and algorithmsFluorender 2.16University of Utah, SCIhttp://www.sci.utah.edu/software/fluorender.html

Zebrafish lines and genotyping

Request a detailed protocol

Adult zebrafish (Danio rerio) were maintained under a 14 hr light, 10 hr dark cycle. Zebrafish eggs and larvae were kept under the standard conditions at 28.5°C in the E3 medium until desired developmental stages. Previously described transgenic zebrafish strains used in this study include the following: Tg(myo6b:actb1-Gfp)vo8Tg (RRID:ZFIN_ZDB-GENO-120926-20), Tg(myo6b:emx2-p2a-nls-mCherry)idc4Tg (RRID:ZFIN_ZDB-GENO-170619-3), emx2idc5(emx2 ko) (RRID:ZFIN_ZDB-ALT-170606-5), Tg(myo6b: tdTomato) (RRID:ZFIN_ZDB-TGCONSTRCT-160316-7) (Kindt et al., 2012; Jiang et al., 2017), Tg(myo6b: RiboTag) (RRID:ZFIN_ZDB-ALT-180129-10) (Matern et al., 2018), Tg(myo6b:YFP-Tubulin) (gift from Katie Kindt), and vangl2m209 (RRID:ZFIN_ZDB-GENO-100615-1) (Jessen et al., 2002).

Emx2 LOF zebrafish were genotyped by PCR using the primers emx2-fPCR-Fwd (TCACTTAAACTGGGGAATCTTGA) and emx2-fPCR-Rev (GGAGGAGGTACTGAATGGACTG). The PCR product was digested with restriction enzyme Faul, which cleaved the mutant PCR product into 200 bp and 100 bp and distinguished them from the WT product of 300 bp. Prior to live-imaging experiments, genotype of emx2 LOF larvae was verified based on the position of the kinocilium that was illuminated by β-actin-GFP or Yfp-Tubulin signals under a fluorescent microscope. For emx2 GOF larvae, the genotype was verified with mCherry expression in HCs as well as Gfp expression driven by cardiac myosin light chain (cmlc) promoter in the heart of the transgenic fish. The position of the kinocilium was verified based on β-actin-GFP or YFP-tubulin signal. The vangl2m209 allele was genotyped by PCR using the primers vangl2-PCR-Fwd (TAGGCCTGCATCTAACCAAAC) and vangl2-PCR-Rev (CCAGAAATGCCTGACCACAGATTC) as described (Jessen et al., 2002). The PCR product was digested with restriction enzyme AlwnI, which cleaves the mutant PCR product into 150 bp and 100 bp and distinguishes them from the WT product of 250 bp.

Generation of Tg(emx2:Gfp) fish emx2:Gfp transgenic fish (ZFIN ID: ZDB-GENE-990415–54) were generated using CRISPR and homologous recombination as described (Hoshijima et al., 2016a; Hoshijima et al., 2016b). Guide RNA (gRNA) target sites (5’-cctgggacgcggcagctttccat-3’) were identified using the web program CHOPCHOP (http://chopchop.cbu.uib.no/index.php). The gRNA (emx2-gRNA: 5’- atggaaagctgccgcgtcccagg-3’) identified by CHOPCHOP was used to design crRNA using IDT custom gRNA design website (https://www.idtdna.com/site/order/designtool/index/CRISPR_CUSTOM). Each custom designed crRNA (CRISPR RNA) and tracrRNA (trans-activating crRNA) was dissolved in duplex buffer (IDT) to a 50 μM stock solution and stored in −80°C. To prepare the crRNA:tracrRNA complex, equal volumes of 50 μM Alt-R crRNA and 50 μM Alt-R tracrRNA stock solutions were mixed together and annealed by heating at 70°C for 5 min followed by gradual cooling at room temperature. The 25 μM crRNA:tracrRNA duplex stock solution was stored at −20°C. For Cas9 mRNA, the zebrafish codon optimized cas9 plasmid pT3TS-nls-zCas9-nls was used as template (Jao et al., 2013). The template DNA was linearized by XbaI and purified using a QIAprep purification column (Qiagen) and 500–1000 ng linearized template was used to synthesize capped RNA using the mMESSAGE mMACHINE T3 kit (Life Technologies) and precipitated using 5 M LiCl and diluted to 500 ng/µl.

The donor plasmid for targeted reporter gene integration was constructed by assembling donor sequences into pKHR4 vectors (provided by Dr. Hoshijima). eGFP was flanked with left and right homologous arms of approximately 1.0 kb of emx2 genomic sequences upstream and downstream of the integration site, respectively (Figure 3—figure supplement 1A). Column-purified donor plasmid DNA was further purified to remove all traces of RNase activity by phenol/chloroform extraction, chloroform extraction, and ethanol precipitation with sodium acetate. Plasmid DNA was dissolved in nuclease-free water, quantified, diluted to 500 ng/μl, and stored at −20°C. Prior to injection into one-cell stage zebrafish embryos, 500 ng of donor plasmid DNA was digested with I-SceI enzyme. After enzyme digestion, a mixture of 5 μl of donor DNA solution (100 ng/μl) with 2.5 μl of Cas9 mRNA (500 ng/μl) and 1.5 μl of 25 μM crRNA:tracrRNA plus 1.0 μl of phenol red was kept on ice and 1 nl of the mixture was injected into the cytoplasm of zebrafish eggs at one-cell stage.

Larvae dissociation and FACS

Request a detailed protocol

Zebrafish larvae Tg(myo6b: RiboTag) at four dpf were dissected to remove the head, which included the otic vesicles. Approximately 400 dissected bodies in batches of 50 were dissociated by adding 0.5 ml of 0.5% trypsin (Gibco, cat# 15400054) and triturated with 1 ml pipette tip for 30 s at 30°C. The dissociated cells were filtered with 40 μm strainer (Pluriselect, cat# 43-50040-50) and washed with PBS twice before adding DMEM containing 10% FBS and spun down by centrifugation at 700 × g for 5 min at 4°C. Cells were resuspended and kept in DMEM before processing for FACS, and cells were gated based on size and Gfp signal during FACS.

10× Genomics scRNA-seq library construction

Request a detailed protocol

scRNA-seq was carried out with 10× Genomics single cell platform (10× Genomics, Pleasanton, CA. USA). Approximately 5000 live cells after FACS in a maximum volume of 34 μl were loaded on a 10× Genomics Chromium Controller (10× Genomics). Chromium Single Cell 3' Library and Gel Bead Kit v2 (10× Genomics) was used for libraries preparation according to manufacturer’s instructions. Quality of the libraries was evaluated on a Fragment Analyzer instrument (Agilent) and sequenced on a NextSeq 500 sequencer Illumina with the following paired read lengths: 26 bp Read 1, 8 bp I7 Index, and 98 bp Read 2.

Single-cell RNA-seq read alignment and quantification

Request a detailed protocol

Raw reads were demultiplexed and aligned to version 10 of the zebrafish genome (GRCz10) using the Cell Ranger pipeline from 10× Genomics (version 3.0.1). A total of 4824 valid cell barcodes were obtained in ZM4 data set. The resulting barcodes (henceforth referred to as cells) were used to generate a UMI count matrix for further analyses. Data deposition: the BAM files and count matrices produced by Cell Ranger has been deposited to the Gene Expression Omnibus (GEO) database, http://www.ncbi.nlm.nih.gov/geo (accession no. GSE152859).

Quality control, dimensional reduction, and cell clustering

Request a detailed protocol

Quality control, dimensional reduction, and cell clustering were performed using Scanpy (version 1.4.4) (Wolf et al., 2018). Standard quality control steps were used to filter noisy and unreliable cells. Notably, cells with the following descriptions were excluded from the pool: (1) less than 400 unique genes, (2) more than 2500 unique genes, (3) more than 10,000 UMI, and (4) more than 5% mitochondrial genes (indicator of cellular stress). Genes found in at least three cells were included in the analysis. After processing for quality control, 2882 cells were used for subsequent analyses. We followed the basic library size normalization to counts per million and the gene expression matrix was log-transformed before processing for principal component analysis (PCA). Following dimensional reduction, Louvain clustering was applied testing a range of vaules (0.2–2.0 in 0.2 increments) for the resolution. Resolutions of 0.4 and 0.5 were used for the results shown for the clustering and reclustering, respectively.

Pseudotime analysis

Request a detailed protocol

Cells after reclustering were subjected to DPT analysis using Scanpy (version 1.4.4) (Wolf et al., 2018). Cluster #4 annotated as ‘HC precursors’ was selected as a root cluster to generate pseudotime trajectory of HC differentiation. Expression levels of selected marker genes were represented by a heat map and normalized each gene to the value between 0–1.

Live-imaging

Request a detailed protocol

Zebrafish larvae at 2.5–3.0 dpf were anesthetized with 0.03% ethyl 3-aminobenzoate methanesulfonate (Sigma, #MS-222, St Louis, MO) and mounted in a glass bottom dish (MatTek, P35G-0–14 C) with 1.0% low melting point agarose containing 0.01% tricaine. Approximately one to six neuromasts per animal were sequentially imaged with an automatic stage positioner. Neuromasts containing one to three pairs of mature HCs only were selected for time-lapse recording and samples were imaged using a 63X/NA1.4 oil-immersion objective lens on a spinning-disk confocal system (Ultraview, Perkin-Elmer, Waltham, MA) or a Zeiss LSM780 confocal microscope. Z-stacks were collected at intervals of 3–6 min. All images were processed with ImageJ Fiji (National Institutes of Health, Bethesda, MD, https://imagej.net/Fiji/Downloads).

Analyses of nascent HCs during Rock and Roll

Request a detailed protocol

Analysis of nascent HCs during Rock and Roll was performed in ImageJ Fiji (Schindelin et al., 2012). After acquisition of z-stack images of the Rock and Roll process over time, rolling ball algorithm and Gaussian blur filter were applied to subtract the background signal from the images. PoorMan3Dreg (http://sybil.ece.ucsb.edu/pages/software.html) was used to correct artifacts for sample drift during the course of the recording. After sample drift correction, the center region for nascent HCs from the z-axis of optical sections was selected using the Substack Maker plugin, and the region of interest (ROI) was cropped using rectangular selection tool.

HC precursors and nascent HCs were tracked overtime of the HC rearrangement with ImageJ Fiji plugin MTrack J (https://imagescience.org/meijering/software/mtrackj/) (Meijering et al., 2012). Based on the cell tracking data of nascent HCs undergoing the rearrangement, we determined the duration of the Rock and Roll phases using the following criteria (Figure 4A’). The initiation of Rock phase was defined as the time immediately after the HC precursor divided. The line drawn between the center of the two HCs at the end of precursor cell division was considered as the horizontal axis, regardless of the position of the precursor within the neuromast. The angle of displacement of the two nascent HCs was within 30° in either direction of this horizontal axis during the Rock phase. When the angle displacement between the two HCs was greater than 30° and continued to increase, it was considered as the beginning of the Roll phase and the end of the Rock phase. When the two HCs rotated 180° to switch positions and the cell–cell contact between the two HCs intersected with the horizontal axis, it was considered as the end of the Roll phase.

Immunofluorescence and phalloidin staining

Request a detailed protocol

For immunostaining, 2.5–5.0 dpf zebrafish larvae were fixed with 4% paraformaldehyde in PBS for 3.5 hr at 4°C. Post-fixed larvae were washed with 0.05% Tween-20 PBS (PBT) and treated with pre-chilled acetone at −20°C for 2 min. Then, larvae were incubated with a blocking solution (2% goat serum, 1% BSA in PBT) for 2 hr at room temperature, followed by incubation with primary antibodies diluted in blocking solution for either 2 hr at room temperature or overnight at 4°C. After incubation, larvae were washed four times with PBT for 5 min each before incubating with secondary antibodies at 1:1000 dilution in blocking solution for 2 hr at room temperature. Then, larvae were washed and mounted with Anti-fade and imaged on a Zeiss LSM780 confocal microscope using a 63X/NA1.4 oil-immersion objective lens. The following primary antibodies were used for immunostaining: rabbit anti-Emx2 (1:250; KO609, Trans Genic, Fukuoka, Japan), mouse anti-GFP (1:1000; A11120, Thermo Fisher Scientific, Carlsbad, CA), and Rabbit anti-GFP (1:1000; ab6556, Abcam). F-actin was detected with fluorescein or Alexa Fluor 647 phalloidin (1:50; Thermo Fisher Scientific, Carlsbad, CA).

In situ hybridization

Request a detailed protocol

Whole mount in situ hybridization of zebrafish larvae was performed as described previously (Thisse and Thisse, 2008). In situ probes for emx2 (IMAGE 7403786) were prepared as described (Jiang et al., 2017).

3-D surface rendering of nascent HCs

Request a detailed protocol

To acquire 3-D image data of apical protrusion formation in nascent HCs over time, 2.5 dpf zebrafish larvae of Tg(myo6b:YFP-Tubulin) were mounted in 1.0% low-melting point agarose containing 0.01% tricaine in a glass-bottom dish. Time-lapse imaging of apical protrusion formation was performed using 1 μm step-scan captured with 3 min interval for 2–3 hr or overnight. For 3-D surface rendering, specific time points were chosen from the acquired 4-D data sets and processed for background subtraction and noise reduction using ImageJ Fiji before performing threshold-based segmentation to distinguish nascent HCs from mature HCs using Fluorender 2.16 (University of Utah, SCI, http://www.sci.utah.edu/software/fluorender.html). Imaris 9.15 (Bitplane) was used to surface render three dimensionally the segmented images of nascent and mature HCs using the level of 0.15 in surface area detail.

Quantification of Yfp-tubulin signal in the apical protrusion

Request a detailed protocol

MIP images from selected slices during the Rock phase were converted into 8-bit gray scale images using ImageJ Fiji (Figure 6—figure supplement 1A). Each image was converted into Rainbow RGB color mode from Lookup table of ImageJ Fiji for better visualization of the apical protrusion (Figure 6—figure supplement 1B). Based on the Yfp intensity threshold, both the ROI within the apical protrusion was automatically selected using the wand section tool and its mean intensity signal was obtained using the plug-in of ImageJ Fiji (Figure 6—figure supplement 1C). To measure the length of the protrusion, the selected region within the apical protrusion was converted into a mask image, in which a horizontal line was drawn across the top of the two HC nuclei (Figure 6—figure supplement 1D, blue line) and the length of the apical protrusion was measure by drawing a line from the tip of the protrusion perpendicular to the horizontal line (Figure 6—figure supplement 1D, pink line).

Nocodazole treatments

Request a detailed protocol

A stock solution of nocodazole (Sigma, M1401-10MG) was prepared by dissolving 10 mg of nocodazole in 1.0 ml of DMSO, which was diluted to a working solution of 10 μg/ml in E3 medium. Tg(myo6b:Yfp-tubulin, myo6b:Yfp-Tubulin;emx2:Gfp) zebrafish larvae at 2.0 dpf were mounted in 1.0% low melting point agarose in a glass bottom dish and the neuromasts were live-imaged under a Zeiss 780 confocal microscope. Under time-lapse recording, when a HC precursor was observed to divide, 2 ml of nocodazole working solution was added to the dish immediately. Under continuous recording, nocodazole was removed after either 90 min or 150 min of incubation with three washes of E3 medium and recording was terminated after the Rock and Roll process was completed or emx2 reporter GFP expression was evident in one of the HCs within a HC pair.

Quantification and statistical analysis

Request a detailed protocol

Statistical analyses of our quantification were performed using Prism 8, Microsoft excel, and R version 3.6.3. MANOVA with post-hoc Tukey’s Honestly Significant Difference was used for multiple comparisons of duration of Rock and Roll in WT and emx2 mutants. For frequency of Roll or No Roll of WT and emx2 mutants, chi-square with 3 × 3 contingency table was applied and post-hoc chi-squared tests were performed for pairwise comparisons with FDR correction. Errors bars represent standard deviation (SD) in all graphs unless indicated otherwise.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45

Decision letter

  1. Marianne E Bronner
    Senior and Reviewing Editor; California Institute of Technology, United States
  2. David W Raible
    Reviewer; University of Washington, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The work explores the role of Emx2 transcription factor in neuromast development. Through functional experiments and life imaging of Emx2 expression during the cell rearrangement process, this study shows that Emx2 is not required for cell positioning but rather for hair cell bundle orientation. The work nicely uses a new reporter line of Emx2 for life imaging. In addition, the study contributes to understanding of how cell shape is coupled to the cell arrangement process and expands the knowledge of Emx2 function by showing that Notch and the PCP pathway regulate cell rearrangement independent of Emx2.

Decision letter after peer review:

Thank you for submitting your article "Emx2 regulates hair cell rearrangement but not positional identity within neuromasts" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Marianne Bronner as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: David W Raible (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

This manuscript by Ohta and colleagues describes the development of lateral line hair cells and the cellular rearrangements that organize hair cells that will eventually extend oppositely oriented stereociliary bundles so that they are aptly positioned on the anterior or the posterior side of the neuromast. Since the transcription factor Emx2 regulates the orientation of the polarized stereociliary bundle it is hypothesized that Emx2 may similarly regulate hair cell rearrangement. The authors find that Emx2 regulates the development of aspects of hair cell morphology that influence rearrangements but does not appear to regulate the process directly. While all three reviewers found the topic of interest, they all agreed that more work was necessary to convincingly make the points. The necessary revisions are nicely described in the individual reviews, which we hope will be helpful in revising the paper.

Reviewer #1:

The manuscript by Ohta and colleagues deals with the role of the transcription factor Emx2 in organizing the bidirectional polarity of hair cells of the zebrafish neuromasts. Previous reports by the authors have identified Emx2 as responsible of the establishment of stereociliary bundle orientation in the vertebrate (mouse, chick, zebrafish) inner ear and zebrafish neuromasts. A recent report from Lopez-Schier lab suggests that the cell rearrangement process of nascent hair cell sibling cells to position them in the neuromast might be coupled with differential Emx2 expression to ensure their correct position within the neuromast. In this manuscript, the authors try to follow this question of whether Emx2 is required for sibling cell rearrangement and thus cell positioning or, alternatively, regulates bundle orientation as it does in the inner ear. For this, the authors generate a zebrafish reporter line of Emx2 to follow the expression of Emx2 during the rotation process and they also analyse cell rotation in Emx2 Lof and Gof embryos through life imaging. The authors conclude that while the rotation process is modified in Lof and Gof embryos (duration, phases), Emx2 does not impair the rotation process and thus not determine the position of sibling cells. Live imaging also allowed the authors to see differences in apical protrusions of Emx2-positive and Emx2-negative cells.

The manuscript is well performed and digs into an interesting question but fails short in their analysis of Emx2 function and whether the rotation of siblings has any meaningful role.

In general, the manuscript could improve the Introduction and Discussion text to discuss the different scenarios for emx2 role, role of the rotation, apical protrusion, downstream players of emx2 for bundle orientation.

1) By live imaging, the authors describe the % of cells performing cell rearrangement ( 57%) and the percentage that do not (43%) and separate this process into a rock phase and a roll phase (inversion). The authors find that when Emx2 is not expressed (in -/-) or overexpressed, there are differences in the time spent in each phase but cell rearrangement still happens. One would assume that if emx2 differential expression makes cell´s to rearrange in order to segregate in space the ones positive Emx2 and the ones negative for Emx2 (as observed using the reporter line), no rearrangement would happen if the siblings are equal.

The authors find that in Lof and Gof embryos, cell rearrangement takes place. As a control it is necessary to show that in these conditions all cells are either positive or negative for Emx2. If still minor differences of Emx2 expression between siblings exist, cell rearrangement might not be blocked for this reason. Is Emx2 overexpression clearly affecting all cells, and Lof? It would be good to have a picture showing Emx2 immunoreactivity or ISH in emx2-/- neuromasts and in Gof embryos.

In their previous published work (Jiang et al., 2017) they show Emx2 expression in Lof and Gof but at 4 dpf. In this case, I understand that the embryos are younger, at 2-3 dpf. Could the myo6 promoter driving Emx2 for Gof be milder at these stages?

Most probably the conclusion that Emx2 does not directly regulate cell rearrangement is correct but this additional control would improve the manuscript.

Another recent paper (Erzberger et al., 2020) has shown that cell rearrangement is impaired when siblings do not have differential activity of Notch pathway. Thus, being Emx2 downstream of Notch, the present results suggest that cell rearrangement mediated but Notch is driven by other downstream factors. The fact that probably Emx2 is not required for cell rearrangement but another factor is interesting.

2) The analysis with the reporter indicates that GFP appears when cells perform cell rearrangement and is always correlated with the final position cells adopts, if emx2 positive are in posterior perform cell rearrangement, if are anterior located do not. In Gof, GFP cells can be found mislocated. This is a very nice result.

3) How the authors envisage that Emx2 regulates apical protrusions and cell shape changes? Can the authors affect apical protrusion formation to see if cell rotation is impaired?

4) Previously, the authors indicated that in zebrafish utricule and cristae, emx2 is also involved in hair bundle polarity. I wonder if there a cell rearrangement between siblings also takes place as in the neuromasts. Live imaging in zebrafish inner ear could help to assess whether emx2 role in the rock and roll process and cell shape is specific of neuromasts organization or has a wider role. Several manuscripts have been published in relation to the cell rearrangement process in the neuromasts and the mechanisms behind it, however, its biological implications if is very particular of this system, might be of low relevance. I think it is more relevant to explore deeply how emx2 changes bundle orientation.

5) The authors perform scRNA-seq to trace the emx2 expressing cells and establish the early expression of this transcription factor. Their analysis does not differ from the scRNAseq analysis and trajectory plot recently published in Kozak et al. and thus as it is presently, it does not add new information. I suggest eliminating this part or, if kept, use it to expand the analysis and perform functional experiments with putative downstream factors present in emx2 expressing cells that could regulate sterociliary bundle orientation. A deeper study of the implications of emx2 activity in bundle reorientation would make this manuscript more solid.

Reviewer #2:

Here, the authors find that Emx2 regulates the development of aspects of hair cell morphology that influence rearrangements but does not appear to regulate the process directly. The work is largely descriptive and does not reveal a mechanistic or transcriptional link between Emx2 and hair cell morphology nor does it consider the contribution of other signaling pathways such as PCP signaling which also controls stereociliary bundle orientation in the neuromast. For these reasons it seems an minor advance and is currently not comparable to other articles published in this journal.

1) It is not clear when hair cell rearrangements occur relative to the formation and polarization of the stereociliary bundle. Are these concurrent or sequential events?

2) PCP signaling regulates a potentially analogous cellular rotation during ommatidia development in the Drosophila eye. PCP signaling is also essential in the neuromast to align the hair cell stereociliary bundles along a common axis. Thus it seems worthwhile to evaluate how (or if) the Rock and Roll dynamics are altered in PCP mutants.

3) The authors consistently use verbs such as “reverses” and “changes” to describe Emx2's function in establishing stereociliary bundle orientation in Emx2-positive hair cells. As written this suggests that the stereociliary bundles are actively rotating to assume an new orientation in this population of cells. However there is no evidence in the literature documenting rotation of the nascent bundle. Instead the bundle forms adjacent to the kinocilium and bundle orientation is established by translocation of the kinocilium to the opposite side of Emx2-positive cells that it does in Emx2-negative cells. This point may appear semantic but is actually quite important to keep clear in this context since the process described in the text is also a rotational event.

4) Sentence starting "Therefore we investigated our existing sc-RNAseq data…" contains a reference to Matern et al. As structured this sentence suggest that “our existing sc-RNAseq data” is that data previously published by Matern et al. yet there is no author overlap. I suspect that the reference is for the fish line and not the RNAseq data and this should be clarified.

Reviewer #3:

Ohta et al. describe roles for emx2 in the development of hair cell polarity. They analyze the cell movements linked to the development of polar orientation in pairs of differentiating hair cells under both gain of function and loss of function conditions. They also describe an emx2 GFP knock-in that they use to monitor onset of expression in the context of precursor division and cell rearrangement. In the absence of emx2 function GFP+ cells still end up in the usual anterior position. The findings largely support analysis of Kozak et al., 2020, who observed that emx2 transcripts are found in half of the hair cells in emx2 mutants. The main difference in the models is that Kozak posits that emx2 expression is initiated in the precursor and then downregulated in one daughter after division. The key finding in the current work is that emx2-driven GFP arises in only one daughter of the hair cell precursor: it is detectable in the posterior cell of the pair before the onset of repositioning (roll) movements or in the anterior cell when roll movements do not occur. It is therefore the initiation not the downregulation of emx2 that results in asymmetry. To test whether the cell movements that promote asymmetry are altered, Ohta et al. examine changes in rearrangements in emx2 GOF and LOF conditions. They find some differences in the frequency and duration of movements, but since cell positions are largely resolved conclude that emx2 plays some role in regulating movements but is not necessary to do so. Rather it regulates bundle polarity in cells independently of cell movement.

1) The authors state that emx2 does not determine the ultimate positions of hair cells. Indeed the loss of function data support these conclusions, that is GFP+ cells are all anterior in these mutants. However in GOF transgenics some GFP+ cells are now posterior, suggesting that emx2 overexpression can indeed alter cell positioning. Is this correct and if so, it should be discussed.

2) The analysis of apical processes is unconvincing. The authors do not have the resolution to accurately measure individual apical processes. It therefore becomes difficult to know what the difference are with gain and loss of emx2 expression. It is not clear that there are differences in morphology or in timing of protrusion. These conclusions would require additional measurements.

3) The conclusion based on scRNAseq data differs somewhat from that of Kozak et al. in terms of the relative timing of atoh1a and emx2 expression. Pseudotime analysis is sensitive to a number of parameters that can give different results. A more nuanced analysis than a pseudotime heatmap is needed to resolve this issue, for example a differential expression test and associated statistics. Alternatively an analysis of expression in situ might address this question.

https://doi.org/10.7554/eLife.60432.sa1

Author response

Reviewer #1:

The manuscript by Ohta and colleagues deals with the role of the transcription factor Emx2 in organizing the bidirectional polarity of hair cells of the zebrafish neuromasts. Previous reports by the authors have identified Emx2 as responsible of the establishment of stereociliary bundle orientation in the vertebrate (mouse, chick, zebrafish) inner ear and zebrafish neuromasts. A recent report from Lopez-Schier lab suggests that the cell rearrangement process of nascent hair cell sibling cells to position them in the neuromast might be coupled with differential Emx2 expression to ensure their correct position within the neuromast. In this manuscript, the authors try to follow this question of whether Emx2 is required for sibling cell rearrangement and thus cell positioning or, alternatively, regulates bundle orientation as it does in the inner ear. For this, the authors generate a zebrafish reporter line of Emx2 to follow the expression of Emx2 during the rotation process and they also analyse cell rotation in Emx2 Lof and Gof embryos through life imaging. The authors conclude that while the rotation process is modified in Lof and Gof embryos (duration, phases), Emx2 does not impair the rotation process and thus not determine the position of sibling cells. Live imaging also allowed the authors to see differences in apical protrusions of Emx2-positive and Emx2-negative cells.

The manuscript is well performed and digs into an interesting question but fails short in their analysis of Emx2 function and whether the rotation of siblings has any meaningful role.

Our additional results of nocodazole experiments and analyses of the vangl2 mutants showed that sibling rotation is important for putting the Emx2-positive HC to the anterior position. Although the experiments for identifying downstream targets of Emx2 in HCs are ongoing, we feel it is equally important to be able to exclude Emx2’s role in positional acquisition of HCs.

In general, the manuscript could improve the Introduction and Discussion text to discuss the different scenarios for emx2 role, role of the rotation, apical protrusion, downstream players of emx2 for bundle orientation.

Per reviewer’s suggestion and the fact that we have rearranged our figures, we have re-written the Introduction and part of the Discussion to tailor towards the additional results.

1) By live imaging, the authors describe the % of cells performing cell rearrangement ( 57%) and the percentage that do not (43%) and separate this process into a rock phase and a roll phase (inversion). The authors find that when Emx2 is not expressed (in -/-) or overexpressed, there are differences in the time spent in each phase but cell rearrangement still happens. One would assume that if emx2 differential expression makes cell´s to rearrange in order to segregate in space the ones positive Emx2 and the ones negative for Emx2 (as observed using the reporter line), no rearrangement would happen if the siblings are equal.

The authors find that in Lof and Gof embryos, cell rearrangement takes place. As a control it is necessary to show that in these conditions all cells are either positive or negative for Emx2. If still minor differences of Emx2 expression between siblings exist, cell rearrangement might not be blocked for this reason. Is Emx2 overexpression clearly affecting all cells, and Lof? It would be good to have a picture showing Emx2 immunoreactivity or ISH in emx2 -/- neuromasts and in Gof embryos.

In their previous published work (Jiang et al., 2017) they show Emx2 expression in Lof and Gof but at 4 dpf. In this case, I understand that the embryos are younger, at 2-3 dpf. Could the myo6 promoter driving Emx2 for Gof be milder at these stages?

Most probably the conclusion that Emx2 does not directly regulate cell rearrangement is correct but this additional control would improve the manuscript.

We agree with the reviewer that asymmetry between the two sibling HCs, imparted by Notch signaling, is the underlying mechanism propelling the cell rearrangement. Even though Emx2 is one of the factors regulated by the Notch signaling pathway, our results showed that Emx2 itself, though facilitates the rearrangement process, is not the main determinant of this process.

Nevertheless, we agreed that including the immunostaining results for Emx2 KO and GOF at 2 dpf is a good control (see Figure 4—figure supplement 1 and subsection “The HC rearrangement process is regulated by Emx2”). The hair bundle orientation phenotype in Emx2 KO and F1 generation of the GOF neuromasts at 2 dpf are fully penetrant. The levels of Emx2 among GOF HCs are indeed different, as indicated by all or none endogenous Emx2 immunoreactivity between sibling HCs (anti-Emx2 staining) even though their ectopic Emx2 expression is ubiquitous (based on mCherry expression). Although we cannot preclude the possibility that the Rock and Roll in the Emx2 GOF neuromast can be caused by the differential levels of Emx2 between two sibling HCs, it is very clear that Emx2 is not detected in the KO mutants at 2 dpf and HC rearrangement still occurs. Therefore, we think the differences in the levels of Emx2 between two sibling HCs is unlikely to drive the Rock and Roll process.

Another recent paper (Erzberger et al., 2020) has shown that cell rearrangement is impaired when siblings do not have differential activity of Notch pathway. Thus, being Emx2 downstream of Notch, the present results suggest that cell rearrangement mediated but Notch is driven by other downstream factors. The fact that probably Emx2 is not required for cell rearrangement but another factor is interesting.

We agree with the reviewer too. While Notch regulates Emx2 expression, which confers hair bundle orientation, other downstream factor(s) of Notch is mediating the HC rearrangement. Furthermore, our added trilobite mutant analyses indicate that the rearrangement is also dependent on intercellular signaling via the core PCP proteins (see results of Figure 9).

2) The analysis with the reporter indicates that GFP appears when cells perform cell rearrangement and is always correlated with the final position cells adopts, if emx2 positive are in posterior perform cell rearrangement, if are anterior located do not. In Gof, GFP cells can be found mislocated. This is a very nice result.

Thank you! The Emx2 reporter fish that we generated allowed us to distinguish which HC within a pair is destined to be in the anterior position. Using this tool, we have further demonstrated that both disruption of microtubules and loss of cPCP signaling affect positional acquisition of nascent HCs (see Figures 7-9).

3) How the authors envisage that Emx2 regulates apical protrusions and cell shape changes? Can the authors affect apical protrusion formation to see if cell rotation is impaired?

The reviewer raised a good question. We addressed this question by blocking protrusion formation with transient nocodazole treatment, which blocks microtubule polymerization. Our results showed that introducing nocodazole immediately after the precursor cell divided caused the loss of the apical protrusion. Removal of nocodazole after 90 min of treatment, resulted in the recovery of protrusion after 12 min and this protrusion was followed by HC rearrangement. In contrast, HCs treated with prolong nocodazole for 150 min did not recover protrusion formation and consequently no protrusion was evident and some HCs were mispositioned. These results are consistent with the hypothesis that apical protrusion is important for the cell rearrangement process to occur (see Results section).

We don’t know how Emx2 regulates the apical protrusion. Based on existing evidence that Emx2 regulates symmetric and asymmetric cell divisions in the brain, basal body positioning in the HCs as well as delaying apical protrusion in nascent zebrafish HCs, we speculate that effectors of Emx2 may involve either centrioles/basal body or microtubules or both, since they seem to be the commonality among the effects of Emx2.

4) Previously, the authors indicated that in zebrafish utricule and cristae, emx2 is also involved in hair bundle polarity. I wonder if there a cell rearrangement between siblings also takes place as in the neuromasts. Live imaging in zebrafish inner ear could help to assess whether emx2 role in the rock and roll process and cell shape is specific of neuromasts organization or has a wider role.

The reviewer raised an interesting point. We now know that HC rearrangement observed in zebrafish neuromasts is important for HCs to acquire its proper location and to generate the bidirectional hair bundle pattern within the neuromast. Assuming the role of Emx2 in the utricle is conserved among fish, chicken and mice, our existing results in the mouse utricle indicates that HCs across the line of polarity reversal in the inner ear are born on different days during development (Jiang et al., 2017). Therefore, it is highly unlikely that HCs will rearrange across this border. Additionally, we also showed that Emx2 is activated in the mouse utricle at least three days ahead of HC formation (Tona and Wu, eLife 2020). Therefore, if Emx2 has a similar role in establishing its domain via cell rearrangement in the utricle as in the neuromast, it is likely to occur earlier during patterning of the sensory epithelium rather than the HCs per se. To address this question, it will require a different set of tools and imaging techniques, which are beyond the scope of our current study.

Several manuscripts have been published in relation to the cell rearrangement process in the neuromasts and the mechanisms behind it, however, its biological implications if is very particular of this system, might be of low relevance. I think it is more relevant to explore deeply how emx2 changes bundle orientation.

Yes, HC rearrangement in neuromast has been described by two different labs 8 years ago, but the hypothesis that this process is directly involved in the positional acquisition of HCs has never been demonstrated. Here, using emx2-reporter line, we provided the proof that the HC rearrangement process is required for HCs to establish their positions. While our experiments in exploring the downstream effectors of Emx2 in mediating hair bundle orientation are ongoing, we felt it was equally important, if not more, to determine whether emx2 mediates HC positions, since positional acquisition precedes hair bundle establishment and specific HC positions alone could generate the bidirectional hair bundle pattern.

Furthermore, we respectfully disagree that if HC rearrangement is unique to the neuromast, it thus undermines the biological significance of the phenomenon. We feel any mechanism deployed in positional acquisition should be of importance in developmental biology since positional identity is fundamental to the organization and differentiation of most tissues. The zebrafish neuromast has a lot to offer as a model system in this regard since this organ is simple and easily accessible. It develops quickly and its functionally-relevant structure, the bidirectional HC orientation, is easily scorable.

5) The authors perform scRNA-seq to trace the emx2 expressing cells and establish the early expression of this transcription factor. Their analysis does not differ from the scRNAseq analysis and trajectory plot recently published in Kozak et al. and thus as it is presently, it does not add new information. I suggest eliminating this part or, if kept, use it to expand the analysis and perform functional experiments with putative downstream factors present in emx2 expressing cells that could regulate sterociliary bundle orientation. A deeper study of the implications of emx2 activity in bundle reorientation would make this manuscript more solid.

We apologize for not making the impetus and the implication of the seemingly subtle differences between our scRNAseq results and previously published results. We have now modified our Introduction and Discussion for clarification.

I think the reviewer would agree with us that pinpointing the onset of Emx2 expression within the neuromast is an important piece of information for pursuing the role of Emx2 in establishing bidirectional HC pattern. Pinpointing the onset of Emx2 expression better than the immunostaining results was the reason for generating the emx2:Gfp reporter fish. Based on the emx2-Gfp reporter results, emx2 is activated in one of the nascent HCs shortly after precursor cell division (Figure 3) and these results are consistent with the Rock and Roll phenotypes observed in the emx2 mutants (Figure 4). Nevertheless, the recent paper by Kozak et al. (2020) earlier this year showed robust Emx2 immunostaining in the HC precursors. The onset of Emx2 expression in the precursor cells, if true, could totally change how Emx2 might be regulated in the HCs (see Discussion section) and also raise the question whether the emx2:Gfp reporter is sensitive enough.

Although neither we nor the Hudspeth’s lab (Jacobo et al., 2019) have observed Emx2 immunoreactivities in HC precursors using the same commercial source of antibody and the identity of the Emx2-positive precursor was not validated, Kozak et al. also showed the presence of emx2 transcripts in the precursor cells using a sensitive in situ hybridization technique and scRNA seq approach. In the pursue of downstream effectors of Emx2, we had generated similar scRNA-seq results using 10x Genomics. While the hunt for downstream effectors of Emx2 is ongoing, results of Kozak et al. prompted us to analyze our scRNAseq results for onset of Emx2 expression by following closely the analysis conducted by Kozak et al. using SCANPY and the criteria they applied to their dataset. Our analyses showed that results of the two datasets are very similar except our results showed that the onset of emx2 corresponds to the time when precursors transition to nascent HCs rather than being highly expressed in the precursor cells. This nascent HC population, however, is absent in the Kozak dataset. It is not clear whether the absence of nascent HC population in their dataset is due to age of the fish collected (7dpf in their study versus 4 dpf in ours) and/or the total numbers of HCs (1240 HCs in their study versus 4000 in ours), which will require further investigation. Nevertheless, our results of scRNA-seq, emx2:Gfp reporter activity and Emx2 mutant phenotypes are all consistent with each other supporting a role of Emx2 functioning at the nascent HC stage.

Reviewer #2:

Here, the authors find that Emx2 regulates the development of aspects of hair cell morphology that influence rearrangements but does not appear to regulate the process directly. The work is largely descriptive and does not reveal a mechanistic or transcriptional link between Emx2 and hair cell morphology nor does it consider the contribution of other signaling pathways such as PCP signaling which also controls stereociliary bundle orientation in the neuromast. For these reasons it seems an minor advance and is currently not comparable to other articles published in this journal.

The research advance of this manuscript over the initial observation that emx2 is necessary and sufficient to establish the bidirectional pattern in zebrafish neuromast (Tao et al., eLife 2017) is to address how Emx2 generates the bidirectional orientation pattern in the neuromast. Since sibling HCs in the neuromast can undergo rearrangement before differentiating into HCs of opposite bundle orientation, it is highly possible that Emx2 may not be mediating hair bundle orientation in HCs but their positions within the neuromast. While searching for downstream effectors of Emx2 is ongoing, we felt this is an equally important question to tackle.

Furthermore, per reviewer’s request, we have now added additional results in this revision pertaining to the role of the core PCP pathway in HC rearrangement (see detail responses below).

1) It is not clear when hair cell rearrangements occur relative to the formation and polarization of the stereociliary bundle. Are these concurrent or sequential events?

Yes, these are sequential events. Nascent HCs undergo rearrangement shortly after the HC precursor divided but hair bundle formation is not apparent until HCs start to differentiate. We have revised our Introduction as well as Figure 1 to clarify this important point.

2) PCP signaling regulates a potentially analogous cellular rotation during ommatidia development in the Drosophila eye. PCP signaling is also essential in the neuromast to align the hair cell stereociliary bundles along a common axis. Thus it seems worthwhile to evaluate how (or if) the Rock and Roll dynamics are altered in PCP mutants.

The Rock and Roll dynamics in the vangl mutants, trilobite, has been described by the Hudspeth group (Mirkovic et al., 2012). Hair bundles are misoriented in trilobite neuromasts and the HC rearrangement process was described to stall or undergo multiple rolls, which extends the duration of the rearrangement. However, it was not clear whether the abnormal Rock and Roll described in these mutants directly caused HC mispositioning. Using Emx2-Gfp reporter fish, we showed that the positions of HCs after Rock and Roll were abnormal in trilobite (Figure 9), supporting the hypothesis that cell rearrangement is important for HCs to acquire their proper positions.

3) The authors consistently use verbs such as “reverses” and “changes” to describe Emx2's function in establishing stereociliary bundle orientation in Emx2-positive hair cells. As written this suggests that the stereociliary bundles are actively rotating to assume an new orientation in this population of cells. However there is no evidence in the literature documenting rotation of the nascent bundle. Instead the bundle forms adjacent to the kinocilium and bundle orientation is established by translocation of the kinocilium to the opposite side of Emx2-positive cells that it does in Emx2-negative cells. This point may appear semantic but is actually quite important to keep clear in this context since the process described in the text is also a rotational event.

We thank the reviewer for pointing out this oversight. The wording has been corrected in the revised manuscript.

4) Sentence starting "Therefore we investigated our existing sc-RNAseq data…" contains a reference to Matern et al. As structured this sentence suggest that “our existing sc-RNAseq data” is that data previously published by Matern et al. yet there is no author overlap. I suspect that the reference is for the fish line and not the RNAseq data and this should be clarified.

This sentence has been clarified.

Reviewer #3:

Ohta et al. describe roles for emx2 in the development of hair cell polarity. They analyze the cell movements linked to the development of polar orientation in pairs of differentiating hair cells under both gain of function and loss of function conditions. They also describe an emx2 GFP knock-in that they use to monitor onset of expression in the context of precursor division and cell rearrangement. In the absence of emx2 function GFP+ cells still end up in the usual anterior position. The findings largely support analysis of Kozak et al., 2020, who observed that emx2 transcripts are found in half of the hair cells in emx2 mutants. The main difference in the models is that Kozak posits that emx2 expression is initiated in the precursor and then downregulated in one daughter after division. The key finding in the current work is that emx2-driven GFP arises in only one daughter of the hair cell precursor: it is detectable in the posterior cell of the pair before the onset of repositioning (roll) movements or in the anterior cell when roll movements do not occur. It is therefore the initiation not the downregulation of emx2 that results in asymmetry. To test whether the cell movements that promote asymmetry are altered, Ohta et al. examine changes in rearrangements in emx2 GOF and LOF conditions. They find some differences in the frequency and duration of movements, but since cell positions are largely resolved conclude that emx2 plays some role in regulating movements but is not necessary to do so. Rather it regulates bundle polarity in cells independently of cell movement.

We thank the reviewer for the concise summary of our results. Notably, the distinction between initiation versus downregulation of emx2, which we did not clarify well in the previous submission and is now better illustrated in the revised manuscript (see Figure 1C).

1) The authors state that emx2 does not determine the ultimate positions of hair cells. Indeed the loss of function data support these conclusions, that is GFP+ cells are all anterior in these mutants. However in GOF transgenics some GFP+ cells are now posterior, suggesting that emx2 overexpression can indeed alter cell positioning. Is this correct and if so, it should be discussed.

This point has been elaborated in the Discussion.

2) The analysis of apical processes is unconvincing. The authors do not have the resolution to accurately measure individual apical processes. It therefore becomes difficult to know what the difference are with gain and loss of emx2 expression. It is not clear that there are differences in morphology or in timing of protrusion. These conclusions would require additional measurements.

We have refined our 3-D rendering by increasing the number of the polygons generated for rendering. The results are improved (see Figure 6). Additionally, we have quantified the intensity of the GFP signals in individual apical protrusions using ImageJ Fiji plug in. This quantification and detailed description of the analysis are now included in Figure 6—figure supplement 1 and the Materials and method section.

3) The conclusion based on scRNAseq data differs somewhat from that of Kozak et al. in terms of the relative timing of atoh1a and emx2 expression. Pseudotime analysis is sensitive to a number of parameters that can give different results. A more nuanced analysis than a pseudotime heatmap is needed to resolve this issue, for example a differential expression test and associated statistics. Alternatively an analysis of expression in situ might address this question.

We agree with the reviewer that pseudotime analysis is sensitive to the parameters being applied, even though we have tried to adhere as closely to the clustering parameters described by Kozak et al. as possible. To strengthen our results, we compared the number of emx2 read counts and percentages of Emx2-positive cells among the clusters. Our results showed that the nascent HC cluster showed significantly higher numbers for both parameters than other clusters, supporting our hypothesis that emx2 transcripts are highest in the nascent HCs and not precursor cells.

https://doi.org/10.7554/eLife.60432.sa2

Article and author information

Author details

  1. Sho Ohta

    National Institute on Deafness and Other Communication Disorders, National Institutes of Health, Bethesda, United States
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Validation, Investigation, Visualization, Writing - original draft, Writing - review and editing
    Contributed equally with
    Young Rae Ji
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2421-8093
  2. Young Rae Ji

    National Institute on Deafness and Other Communication Disorders, National Institutes of Health, Bethesda, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Visualization, Writing - original draft, Writing - review and editing
    Contributed equally with
    Sho Ohta
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8825-9783
  3. Daniel Martin

    Genomics and Computational Biology Core, National Institute on Deafness and Other Communication Disorders, National Institutes of Health, Bethesda, United States
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Visualization, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8880-9087
  4. Doris K Wu

    National Institute on Deafness and Other Communication Disorders, National Institutes of Health, Bethesda, United States
    Contribution
    Conceptualization, Resources, Supervision, Methodology, Writing - review and editing
    For correspondence
    wud@nidcd.nih.gov
    Competing interests
    Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1400-3558

Funding

National Institutes of Health (1ZIADC000021)

  • Doris K Wu

National Institutes of Health (ZICDC000086)

  • Daniel Martin

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Dr. Katie Kindt (NIDCD, NIH) for the gift of Tg(myo6b: tdTomato), Tg(myo6b: RiboTag), and Tg(myo6b:YFP-Tubulin) fish, Dr. Hoshijima for the pKHR4 plasmid, consultation for the generation of the emx2: GFP reporter zebrafish, Ms. Martha Kirby at NHGRI/DIR Flow Cytometry Core for conducting the FACS, Dr. Hui Cheng at NIDCD for statistics consultation, Genomics and Computational Biology Core (GCBC, NIDCD) for conducting 10× Genomics experiments and sequencing. This work utilized the computational resources of the NIH HPC Biowulf cluster (http://hpc.nih.gov). We also thank Drs. Matthew Kelley, Katie Kindt, Robert Morell, as well as members of the Wu lab for their critical reading of the manuscript. This research was supported by the Intramural Program at NIDCD, NIH (Grants# 1ZIADC000021 to DKW and ZICDC000086 to GCBC).

Ethics

Animal experimentation: All zebrafish experiments were conducted according to NIH approved animal protocol (#1362-13) and NIH animal user guidelines.

Senior and Reviewing Editor

  1. Marianne E Bronner, California Institute of Technology, United States

Reviewer

  1. David W Raible, University of Washington, United States

Publication history

  1. Received: July 1, 2020
  2. Accepted: December 29, 2020
  3. Accepted Manuscript published: December 30, 2020 (version 1)
  4. Version of Record published: January 13, 2021 (version 2)

Copyright

This is an open-access article, free of all copyright, and may be freely reproduced, distributed, transmitted, modified, built upon, or otherwise used by anyone for any lawful purpose. The work is made available under the Creative Commons CC0 public domain dedication.

Metrics

  • 245
    Page views
  • 54
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    2. Genetics and Genomics
    Jason W Millington et al.
    Research Article

    Nutrient-dependent body size plasticity differs between the sexes in most species, including mammals. Previous work in Drosophila showed that body size plasticity was higher in females, yet the mechanisms underlying increased female body size plasticity remain unclear. Here, we discover that a protein-rich diet augments body size in females and not males because of a female-biased increase in activity of the conserved insulin/insulin-like growth factor signaling pathway (IIS). This sex-biased upregulation of IIS activity was triggered by a diet-induced increase in stunted mRNA in females, and required Drosophila insulin-like peptide 2, illuminating new sex-specific roles for these genes. Importantly, we show that sex determination gene transformer promotes the diet-induced increase in stunted mRNA via transcriptional coactivator Spargel to regulate the male-female difference in body size plasticity. Together, these findings provide vital insight into conserved mechanisms underlying the sex difference in nutrient-dependent body size plasticity.

    1. Developmental Biology
    Shiri Kult et al.
    Research Article

    The mechanical challenge of attaching elastic tendons to stiff bones is solved by the formation of a unique transitional tissue. Here, we show that murine tendon-to-bone attachment cells are bi-fated, activating a mixture of chondrocyte and tenocyte transcriptomes, under regulation of shared regulatory elements and Krüppel-like factors (KLFs) transcription factors. High-throughput bulk and single-cell RNA sequencing of humeral attachment cells revealed expression of hundreds of chondrogenic and tenogenic genes, which was validated by in situ hybridization and single-molecule ISH. ATAC sequencing showed that attachment cells share accessible intergenic chromatin areas with either tenocytes or chondrocytes. Epigenomic analysis revealed enhancer signatures for most of these regions. Transgenic mouse enhancer reporter assays verified the shared activity of some of these enhancers. Finally, integrative chromatin and motif analyses and transcriptomic data implicated KLFs as regulators of attachment cells. Indeed, blocking expression of both Klf2 and Klf4 in developing limb mesenchyme impaired their differentiation.
