Spreading of a mycobacterial cell-surface lipid into host epithelial membranes promotes infectivity

  1. CJ Cambier
  2. Steven M Banik
  3. Joseph A Buonomo
  4. Carolyn R Bertozzi  Is a corresponding author
  1. Department of Chemistry, Stanford University, United States
  2. Howard Hughes Medical Institute, Stanford University, United States
Research Article
  • Cited 1
  • Views 2,223
  • Annotations
Cite this article as: eLife 2020;9:e60648 doi: 10.7554/eLife.60648

Abstract

Several virulence lipids populate the outer cell wall of pathogenic mycobacteria. Phthiocerol dimycocerosate (PDIM), one of the most abundant outer membrane lipids, plays important roles in both defending against host antimicrobial programs and in evading these programs altogether. Immediately following infection, mycobacteria rely on PDIM to evade Myd88-dependent recruitment of microbicidal monocytes which can clear infection. To circumvent the limitations in using genetics to understand virulence lipids, we developed a chemical approach to track PDIM during Mycobacterium marinum infection of zebrafish. We found that PDIM's methyl-branched lipid tails enabled it to spread into host epithelial membranes to prevent immune activation. Additionally, PDIM’s affinity for cholesterol promoted this phenotype; treatment of zebrafish with statins, cholesterol synthesis inhibitors, decreased spreading and provided protection from infection. This work establishes that interactions between host and pathogen lipids influence mycobacterial infectivity and suggests the use of statins as tuberculosis preventive therapy by inhibiting PDIM spread.

Introduction

Mycobacterium tuberculosis, the causative pathogen of the pulmonary disease tuberculosis (TB), is estimated to have evolved within the confines of the human lung for millennia (Comas et al., 2013). A result of this co-evolution is a choreographed response of innate and adaptive immune cells culminating in the formation of granulomas, specialized structures that permit bacterial replication and ultimately promote transmission (Ramakrishnan, 2012). A key strategy used by mycobacteria throughout infection is to avoid and manipulate host immune pathways so as to afford the pathogen safe harbor in otherwise bactericidal myeloid cells (Cambier et al., 2014a; Urdahl, 2014).

To better understand these host–pathogen interactions, we have taken advantage of the optically transparent zebrafish larva, a natural host of the pathogen M. marinum (Ramakrishnan, 2020; Takaki et al., 2013). Infection of the hindbrain ventricle (HBV), an epithelium-lined cavity, allows for the visualization and characterization of the cellular immune response (Davis and Ramakrishnan, 2009), a response that is comparable to that seen in the mouse lung following infection with M. tuberculosis (Srivastava et al., 2014). In both models, mycobacteria are initially phagocytosed by tissue-resident macrophages and are eventually transferred to monocytes which go on to form granulomas (Cambier et al., 2017; Cohen et al., 2018).

In order to reach growth-permissive cells, mycobacteria must first evade prototypical anti-bacterial monocytes. In response to mucosal commensal pathogens, bactericidal monocytes are recruited downstream of toll-like receptor (TLR) signaling (Medzhitov, 2007). Screening of M. marinum genetic mutants found that the cell-surface lipid phthiocerol dimycocerosate (PDIM) is required to evade this antibacterial response (Cambier et al., 2014b). PDIM also promotes pathogenesis in other ways, such as being required for the relative impermeability of the mycobacterial cell wall (Camacho et al., 2001) and in promoting escape from phagolysosomes (Augenstreich et al., 2017; Barczak et al., 2017; Lerner et al., 2017; Quigley et al., 2017). However, the molecular details underlying PDIM’s myriad pathogenic functions remain unknown.

To accomplish mechanistic studies of virulence lipids, we and others developed metabolic labeling strategies where unnatural metabolic precursors are fed to growing bacteria (Siegrist et al., 2015). The unnatural metabolite contains a bioorthogonal functional group that facilitates visualization of macromolecules in living bacteria (Sletten and Bertozzi, 2009). An example is the labeling of trehalose containing lipids with azide-functionalized trehalose (Swarts et al., 2012).

Here, we have developed comparable chemical tools to monitor PDIM’s distribution during infection. We found that the first step in PDIM-mediated pathogenesis is to spread into epithelial cells in order to prevent the recruitment of microbicidal monocytes. Structure function analysis revealed that PDIM’s methyl-branched fatty acids increased lipid mobility and promoted spread. Spreading was also dependent on the lipid content of host membranes. Administration of the cholesterol lowering drug, atorvastatin (Lipitor), led to a decrease in PDIM spreading, and subsequent resistance to mycobacterial infection. Our findings provide a mechanistic explanation for the association of statin use with a decrease in TB incidence (Lai et al., 2016) and support their use as a TB preventative therapy.

Results

Lipid removal and recoating of M. marinum

PDIM lacks unique biosynthetic precursors to facilitate metabolic labeling (Onwueme et al., 2005). However, PDIM is removed following petroleum ether extraction (Moliva et al., 2019), a technique used to remove and add back mycomembrane lipids (Silva et al., 1985). Using this approach, we hypothesized that we could chemically install a biorthogonal handle onto extracted PDIM and use this modified lipid to elucidate the fundamental mechanisms underlying PDIM’s contribution to virulence. Similar to reports on M. tuberculosis and M. bovis, we validated that petroleum ether extraction did not affect the growth of M. marinum in culture (Figure 1—figure supplement 1A) and extracted lipids did not repopulate the mycomembrane following the first few days in culture (Figure 1—figure supplement 1B; Indrigo et al., 2003). Thus, this approach is well suited for loss of function studies of outer mycomembrane lipids in zebrafish. Extracted lipids could also be mixed with bacteria in petroleum ether followed by drying to recoat the bacterial surface (Figure 1A and Figure 1—figure supplement 1C). Evaluation by thin-layer chromatography and NMR demonstrated that the lipid composition of recoated bacteria was comparable to untreated bacteria (Figure 1—figure supplement 1D and Materials and methods). No protein was detected in the extracts (Figure 1—figure supplement 1E) suggesting minimal disruption of cell wall proteins. Following infection of zebrafish (Figure 1B) delipidated bacteria were attenuated for growth and this phenotype was rescued upon recoating (Figure 1C and D).

Figure 1 with 1 supplement see all

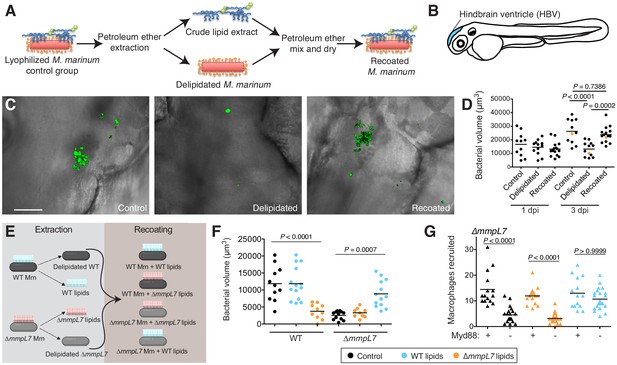

Lipid removal and recoating reveals that pre-infection PDIM reservoirs are required for M.marinum infection of zebrafish.

(A) Model of lipid removal and recoating of M. marinum. (B) Model of zebrafish larva showing the hindbrain ventricle (HBV) injection site. (C) Representative images of the experiment in D (orange dots), wasabi (green) fluorescent protein expressing M. marinum in the HBV at 3 dpi are shown, scale bar = 50 μm. (D) Mean bacterial volume after HBV infection of wildtype fish with ~100 control, delipidated, or recoated M. marinum. (E) Model of lipid-swap experiment. (F) Mean bacterial volume at 3 dpi after HBV infection of wildtype fish with ~100 WT or ∆mmpL7 M. marinum treated as follows: non-extracted control (black), extracted and recoated with WT lipids (blue), or extracted and recoated with ∆mmpL7 lipids (orange). (G) Mean macrophage recruitment at 3 hpi of the HBV of wildtype or Myd88-depleted fish with ~100 ∆mmpL7 M. marinum as treated in F. (D), (F), and (G) representative of at least three separate experiments. Ordinary one-way ANOVA with (D) Sidak's multiple comparisons test for the comparison’s shown and (F) Tukey’s multiple comparisons test with selected adjusted P values shown. (G) Kruskal-Wallis ANOVA for unequal variances with Dunn’s multiple comparisons test with selected adjusted P values shown.

Pre-infection PDIM reservoirs are required for virulence

M. marinum mutants in PDIM synthesis (∆mas) and localization to the mycomembrane (∆mmpL7) trigger TLR/Myd88-dependent immune responses (Cambier et al., 2014b). Myd88 signaling leads to the recruitment of activated monocytes that can clear bacteria in an inducible nitric oxide synthase-dependent fashion. PDIM-sufficient wildtype bacteria do not elicit this response and instead recruit a comparable number of permissive monocytes downstream of the chemokine CCL2 (Cambier et al., 2014b). However, since ∆mas and ∆mmpL7 M. marinum lack proteins required for PDIM’s synthesis or export, the associated phenotypes could be attributed to the missing proteins rather than to a lack of PDIM. While both of these mutants also lack the closely related phenolic glycolipid (Onwueme et al., 2005), results evaluating strains lacking only phenolic glycolipid ruled out this lipids role in mediating evasion of TLRs (Cambier et al., 2014b).

To test if the lipid content on the bacterial surface is responsible for these phenotypes, we performed a lipid-swap experiment. Wildtype and ∆mmpL7 M. marinum were either untreated (control) or extracted and recoated with their native lipids or the lipids from the other strain (Figure 1E). Petroleum ether extraction of wildtype bacteria removed both dimycocerosic acid (DIM) containing lipids, PDIM, and its metabolic precursor phthiodiolone dimycocerosate (PNDIM, Figure 1—figure supplement 1F) both of which were absent in ∆mmpL7 extracts (Figure 1—figure supplement 1G). Following infection, wildtype control and wildtype bacteria recoated with wildtype lipids grew normally whereas wildtype bacteria recoated with ∆mmpL7 lipids were attenuated for growth (Figure 1F). Conversely, ∆mmpL7 bacteria were attenuated for growth, as expected, unless they were recoated with wildtype lipids, in which case they grew at wildtype bacterial rates (Figure 1F). Using an antisense morpholino to knockdown Myd88 (Bates et al., 2007), we also found that the dependence on Myd88 to recruit monocytes to ∆mmpL7 bacteria was abolished with wildtype lipids (Figure 1G). Taken together these experiments highlight the strengths of this chemical approach. Not only does it recapitulate known phenotypes of PDIM genetic mutants, but it directly links the mutant phenotypes to the mycomembrane composition. Furthermore, our data suggest that the PDIM present on the surface of the bacterium from the onset of infection is required and sufficient to promote virulence, as mutants unable to replenish PDIM on their surfaces become infectious when they are recoated with wildtype lipids.

Synthesis of a clickable, biologically active PDIM

Given the pathogenic importance of the pre-infection mycomembrane lipid content, we hypothesized that labeling this pool of PDIM would shed light on its virulence mechanisms. Both PDIM and its biosynthetic precursor PNDIM are present in the mycomembrane. The only difference between these lipids is their diol backbones; PDIM has a methyl ether, while PNDIM has a ketone (Siméone et al., 2007). Either lipid can promote infection in mice (Siméone et al., 2007), suggesting chemical flexibility at this site with regards to virulence. Therefore, we converted the methyl ether of PDIM to an alkyl halide with trimethylsilyl iodide (Jung and Lyster, 1977). Subsequent addition of sodium azide provided azido-DIM (Figure 2A). Recoating of delipidated bacteria with lipids containing azido-DIM, followed by a copper-free click reaction with the cyclooctyne fluorophore DIBO-488 (Figure 2B) resulted in a ~100-fold increase in fluorescence (Figure 2C). Confocal microscopy revealed the fluorescence to be membrane-associated (Figure 2D and E), suggesting incorporation into the mycomembrane. Importantly, we found that adding back native DIMs or azido-DIM to DIM-depleted lipids prior to recoating and labeling (Figure 2—figure supplement 1) rescued DIM-depleted bacteria’s growth attenuation (Figure 2F). Thus, with this approach we can generate bacteria with chemically functionalized PDIM that retain their pathogenicity.

Figure 2 with 1 supplement see all

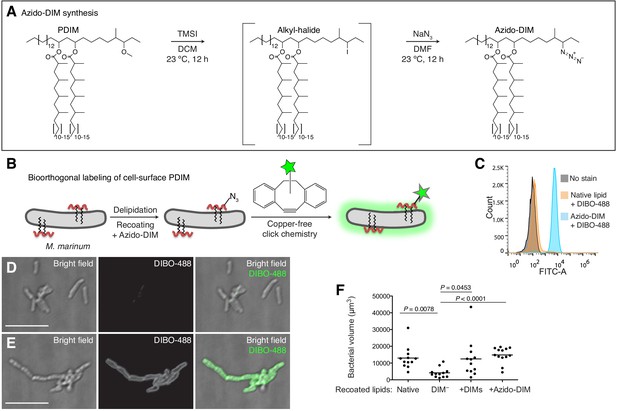

Synthesis and application of a chemically tractable, biologically active PDIM variant, azido-DIM.

(A) Synthesis of azido-DIM. (B) Model of delipidation and recoating of bacteria with or without azido-DIM followed by treatment with an azide-reactive cyclooctyne, DIBO-488. (C) Flow cytometry analysis of M. marinum recoated with or without azido-DIM treated with DIBO-488. Image of (D) native lipid control or (E) azido-DIM recoated bacteria treated with DIBO-488, scale bar = 8 μm. (F) Mean bacterial volume 3 days following HBV infection of wildtype fish with ~100 delipidated M. marinum recoated with Native, DIM-depleted (DIM), DIM plus native DIMs (+DIMs), or DIM plus azido-DIM (+Azido-DIM) lipids. Kruskal-Wallis ANOVA for unequal variances with Dunn’s multiple comparisons test with selected adjusted P values shown. (C), (F) representative of three separate experiments.

PDIM spreads into macrophage membranes

To visualize PDIM’s distribution, we infected zebrafish with blue-fluorescent M. marinum that were recoated with azido-DIM followed by labeling with DIBO-488 (DIM-488). DIM-488 spread away from bacteria into infected macrophage membranes (Figure 3—figure supplement 1A). Real-time imaging revealed that the spreading was dynamic in nature, with DIM-488 moving relative to host cells (Video 1). To better visualize spreading of PDIM into macrophage membranes, we used the transgenic zebrafish line Tg(mfap4:tdTomato) whose macrophages express the fluorescent protein tdTomato (Walton et al., 2015). As early as 3 hr post-infection (hpi), DIM-488 had spread into infected macrophage membranes, directly adjacent to infecting bacteria (Figure 3A, arrows) and at more distal membrane sites (Figure 3A, arrow heads). These data suggest that lateral diffusion as well as propagation into discrete membrane compartments by PDIM is taking place. Spreading increased across macrophage membranes by 3 days post-infection (dpi) (Figure 3B). Similar spreading was seen when azido-DIM was conjugated to DIBO-647 (Figure 3—figure supplement 1B and C), suggesting that the lipid, not the fluorescent probe, was responsible for this phenotype. To quantify the extent of PDIM spreading, we imaged the entire HBV infection site and calculated the proportion of fluorophore labeled azido-DIM that no longer localized with bacteria (Figure 3—figure supplement 1D). Using this number as a proxy for lipid spread, we saw an increase in spreading as infection progressed (Figure 3C). Spreading also occurred following infection of THP-1 macrophages in culture (Figure 3—figure supplement 1E). Finally, PDIM spreading was not a result of homeostatic lipid turnover. DIM-488 labeled bacteria were fluorescent following 3 days in culture (Figure 3D), and signal remained localized to the cell wall (Figure 3E). Thus, PDIM spreading away from bacteria only occurs following interactions with host cells.

Figure 3 with 1 supplement see all

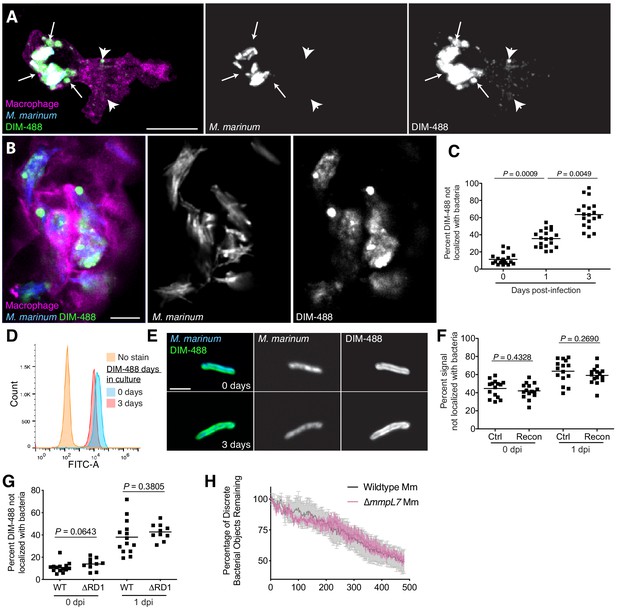

PDIM spreads into macrophage membranes.

Images of M. marinum expressing a cytosolic blue-fluorescent protein recoated with DIBO-488 labeled azido-DIM (DIM-488) at (A) 3 hpi and (B) 3 dpi of ~100 M. marinum in the HBV of transgenic fish whose macrophages express a fluorescent protein. Scale bar = 10 μm. Arrows, DIM-488 spread in vicinity of infecting bacteria, arrowheads, DIM-488 spread throughout macrophage. (C) Mean percent DIM-488 not localized with bacteria following HBV infection of wildtype fish with ~100 M. marinum. Kruskal-Wallis ANOVA for unequal variances with Dunn’s multiple comparisons test with selected adjusted P values shown. (D) Flow cytometry analysis of M. marinum expressing a cytosolic blue-fluorescent protein recoated with DIM-488 following 0 or 3 days in culture. Representative of two separate experiments. (E) Representative images of bacteria from D, scale bar = 3 μm. (F) Mean percent fluorescent signal not localized with bacteria following HBV infection of wildtype fish with ~100 control or recoated M. marinum labeled with periodate-hydroxylamine chemistry. Two-tailed, unpaired t test. (G) Mean percent DIM-488 not localized with bacteria following HBV infection of wildtype fish with ~100 wildtype or ∆RD1 M. marinum. Two-tailed Mann Whitney test for 0 dpi and two-tailed, unpaired t test for one dpi (H) Mean (+/- SEM) percentage of discrete bacterial objects remaining following HBV infection of wildtype fish with ~100 wildtype or ∆mmpL7 M. marinum. Representative of two separate experiments. (C), (F) and (G) representative of three separate experiments.

Video 1
PDIM dynamics.

Real-time video of M. marinum expressing blue-fluorescent protein recoated with DIBO-488 labeled azido-DIM at 3 hpi of the HBV with ~100 M. marinum.

These results were consistent with a recent report that M. tuberculosis PDIM occupies cultured macrophage membranes (Augenstreich et al., 2019). Nevertheless, we wanted to rule out spreading as an artifact of our recoating method. We used an established pan-glycolipid labeling method previously used to track mycobacterial glycolipids through macrophage membranes (Beatty et al., 2000). Control and recoated M. marinum were treated with periodate and then reacted with a fluorescent hydroxylamine prior to infection (Beatty et al., 2000). We found equal spreading of the total pool of fluorophore-labeled glycolipids (Figure 3F and Figure 3—figure supplement 1F). Thus, recoating does not appreciably influence the spreading dynamics of mycomembrane lipids. These data demonstrate that the introduction of a chemically functionalized PDIM into the mycomembrane provides relevant information regarding PDIM’s host distribution during infection.

We next wanted to understand how PDIM spreading might be promoting virulence. PDIM has been suggested to interact with the protein substrates of the type VII secretion system ESX-1, including EsxA (Barczak et al., 2017). PDIM and EsxA are both required for cytosolic escape from phagolysosomes (Osman et al., 2020; Quigley et al., 2017; van der Wel et al., 2007), where PDIM is suggested to enhance the pore-forming activity of EsxA through its ability to infiltrate macrophage membranes (Augenstreich et al., 2017). Thus, we hypothesized that PDIM’s localization may be dependent on EsxA’s pore forming ability. Region of difference-1 M. marinum mutants (∆RD1) which lack EsxA (Volkman et al., 2010), were recoated with DIM-488 prior to zebrafish infection. There was no difference in DIM-488 spreading kinetics between wildtype and ∆RD1 M. marinum (Figure 3G), suggesting that EsxA does not influence PDIM spreading. Besides playing a role in cytosolic escape, PDIM has also been shown to promote phagocytosis of extracellular bacteria (Astarie-Dequeker et al., 2009; Augenstreich et al., 2019). To determine the phagocytosis rate of wildtype or ∆mmpL7 M. marinum in vivo, we measured the number of discrete bacterial objects over time. As bacteria are phagocytosed by macrophages, individual bacteria can no longer be discerned by confocal microscopy and the number of objects decreases. There was no measurable difference in the rate of phagocytosis of wildtype or ∆mmpL7 bacteria (Figure 3H).

PDIM spreads into epithelial membranes

Given the discrepancy regarding PDIM’s role in promoting phagocytosis between the cultured macrophage and zebrafish models, we wondered if the activation state of responding immune cells in zebrafish larvae was influencing their phagocytic capacities. One clue to the timing of PDIM’s role in virulence was the kinetics of the myeloid response. Wildtype bacteria needed to reside within resident macrophages in order to recruit permissive monocytes. In contrast, PDIM-deficient bacteria recruited microbicidal monocytes independent of and concurrent to resident macrophages (Cambier et al., 2017). Therefore, we wondered if PDIM plays a critical role in evading immune detection prior to any of its documented roles in modulating macrophages. Upon closer examination, we observed DIM-488 deposits on zebrafish epithelium at 24 hpi (Figure 4—figure supplement 1). Imaging at 3 hpi we captured extracellular bacteria having spread DIM-488 in the vicinity of an infected macrophage (Figure 4A). To better visualize spreading on these cells, we injected bacteria intravenously into the transgenic zebrafish line Tg(flk1:mcherry), which has a red-fluorescent vascular endothelium (Wang et al., 2010). We found that the DIM-488 from bacteria contacting endothelium had spread away from the bacteria onto the surrounding tissue (Figure 4B, arrows). To confirm PDIM spreading into epithelial membranes, we infected human A549 epithelial cells whose plasma membranes were labeled with Alexa-fluor 594 wheat germ agglutinin. We observed DIM-488 spreading into labeled epithelial plasma membranes (Figure 4C, arrows).

Figure 4 with 1 supplement see all

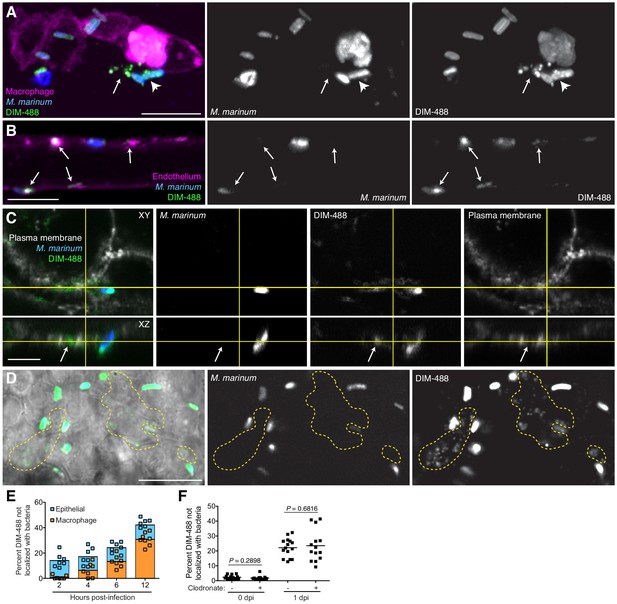

PDIM spreads into epithelial membranes.

(A) Image of M. marinum expressing a cytosolic blue-fluorescent protein recoated with DIBO-488 labeled azido-DIM (DIM-488) highlighting DIM-488 spread from bacteria (arrowhead) to epithelial cells (arrows) at 3 hpi of ~100 M. marinum in the HBV, scale bar = 10 μm. (B) Image of DIM-488 labeled M. marinum at 1 day post-intravenous infection of transgenic fish whose endothelium express a red-fluorescent protein. Arrows, DIM-488 spread onto endothelium, scale bar = 5 μm. (C) Image of A549 epithelial cells whose plasma membranes are labeled with Alexa-fluor 594 wheat germ agglutinin at one day post infection with DIM-488 labeled M. marinum at an MOI of 5. Arrows, DIM-488 spread into plasma membrane, scale bar = 5 μm. (D) Image highlighting DIM-488 spread onto epithelial surfaces (yellow-dashed outline) at 2 hpi of ~100 M. marinum in the HBV, scale bar = 10 μm. (E) Mean percent DIM-488 in macrophage or epithelial cells not localized with bacteria following HBV infection with ~100 M. marinum. Representative of two separate experiments. (F) Mean percent DIM-488 not localized with bacteria following HBV infection of lipo-PBS or lipo-clodronate treated fish with ~100 M. marinum. Two-tailed Mann Whitney test for 0 dpi and two-tailed, unpaired t test for one dpi. Representative of three separate experiments.

To address the timing of PDIM spread into epithelial and macrophage membranes we imaged infected zebrafish at 2 hpi of the HBV, prior to macrophage phagocytosis, and at 4, 6, and 12 hpi by which time the majority of bacteria reside within macrophages. Preceding any appreciable spreading onto macrophages, DIM-488 had already spread onto epithelial cells by 2 hpi (Figure 4D yellow outlines, and Figure 4E). At later timepoints, where bacteria are found increasingly within macrophages (Figure 3H), additional spreading is seen occurring on macrophage membranes. These data suggest that mycobacteria spread PDIM onto epithelial cells prior to interactions with macrophages, and that this spread PDIM remains within these epithelial cells even after bacteria are phagocytosed by macrophages. By depleting macrophages from zebrafish larva using clodronate-loaded liposomes (Bernut et al., 2014), we confirmed that DIM-488 spreading still occurs in the absence of macrophages (Figure 4F). These data demonstrate that PDIM spreads onto epithelial cells independent of and prior to macrophage phagocytosis.

PDIM’s mobility promotes spread into epithelial cell membranes

We sought to understand PDIM’s properties that facilitated its ability to spread into host membranes. It is well established that increased membrane fluidity, a feature influenced by the mobility of individual membrane lipids, promotes membrane mixing (Howell et al., 1972). Previous studies from our lab found that the mycomembrane of Mycobacterium smegmatis is relatively immobile by using fluorescence recovery after photobleaching (FRAP) of metabolically labeled trehalose monomycolate (TMM) (Rodriguez-Rivera et al., 2017). We confirmed this for M. marinum TMM. Using the metabolic label 6-azido-trehalose (Swarts et al., 2012) followed by reaction with DIBO-488 to track TMM (TMM-488), we found very little recovery following photobleaching of TMM-488, with only around 40% of the labeled lipids being mobile (Figure 5A–C, and Figure 5—figure supplement 1A). When we assessed PDIM, we found DIM-488 recovery to be very efficient, with a half-life of 3 s and around 95% of the signal being mobile (Figure 5A–C, and Figure 5—figure supplement 1B). Thus, PDIM lipids are more mobile than TMM lipids.

Figure 5 with 2 supplements see all

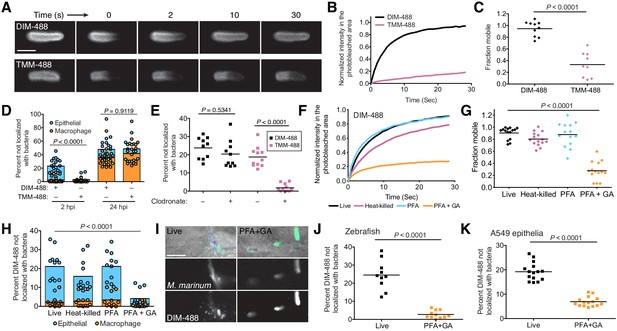

PDIM’s mobility promotes spread into epithelial cell membranes.

(A) Representative FRAP images of DIM-488 and TMM-488 labeled M. marinum, scale bar = 2 μm. (B) Fluorescent recovery curves after photobleaching of DIM-488 or TMM-488 labeled M. marinum, lines represent the average signal from n = 10 cells. (C) Mean fraction mobile which is the plateau following fitting of data generated in B to a non-linear regression with a one-phase association. (D) Mean percent DIM-488 or TMM-488 in macrophage or epithelial cells not localized with bacteria following HBV infection with ~100 M. marinum. (E) Mean percent DIM-488 or TMM-488 not localized with bacteria 24 hr following HBV infection of lipo-PBS or lipo-clodronate treated fish with ~100 M. marinum. (F) Fluorescent recovery curves after photobleaching of live, heat-killed, 4% paraformaldehyde (PFA) fixed, or 4% paraformaldehyde plus 1% glutaraldehyde (PFA+GA) fixed DIM-488 labeled M. marinum, lines represent the average signal from n = 14–15 cells. (G) Mean fraction mobile which is the plateau following fitting of data generated in F to a non-linear regression with a one-phase association. (H) Mean percent DIM-488 in macrophage or epithelial cells not localized with bacteria 2 hr following HBV infection with ~100 M. marinum treated as in F. (I) Images of live or PFA+GA treated DIM-488 labeled M. marinum at 2 hpi of the HBV with ~100 bacteria, scale bar = 5 μm. Mean percent DIM-488 not localized with bacteria 24 hr following (J) infection of lipo-clodronate treated fish or (K) A549 epithelial cells with live or PFA+GA fixed DIM-488 labeled M. marinum. (C), (J), and (K) two-tailed, unpaired t test. (E), (G), and (H) ordinary one-way ANOVA with Tukey’s multiple comparisons test with selected adjusted P values shown. (B)-(H) and (J)-(K) representative of three separate experiments.

If increased membrane fluidity and lipid mobility promote membrane mixing, then TMM should not be able to spread into host cells as efficiently as PDIM does. Indeed, we found that TMM-488 failed to spread onto epithelial cells at 2 hpi (Figure 5D). Only when bacteria are within macrophages at 24 hpi was TMM spreading detected (Figure 5D and Figure 5—figure supplement 1C). Even in the absence of macrophages, where bacteria have a prolonged contact time with epithelial cells, TMM-488 spreading was negligible (Figure 5E). Thus, lipid mobility correlates with the ability to spread into host epithelial membranes.

To determine if there is a causal relationship between mobility and spreading, we used FRAP to identify conditions that decreased PDIM’s recovery after photobleaching. Neither heat-killing nor mild chemical fixation (4% paraformaldehyde (PFA)) significantly reduced DIM-488’s recovery (Figure 5F,G and Figure 5—figure supplement 2). However, fixation with 4% PFA + 1% glutaraldehyde (GA), a more effective fixative for membrane-associated proteins (Huebinger et al., 2018), resulted in an almost 80% reduction in the mobile fraction of DIM-488 (Figure 5F,G and Figure 5—figure supplement 2). PFA+GA treatment decreased DIM-488 spread onto epithelial cells at 2 hpi (Figure 5H and I). Likewise, fixed DIM-488 did not spread into epithelial membranes following a 24 hr infection of macrophage-depleted zebrafish (Figure 5J). Nor did it spread onto A549 epithelial cells after 24 hr (Figure 5K). Together these results suggest that PDIM’s mobility promotes spreading into epithelial membranes.

PDIM’s methyl-branched mycocerosic acids promote mobility and spreading

To further test if PDIM’s mobility promotes its spreading, we sought to take advantage of our ability to alter PDIM’s structure. Lipid structure is known to modulate lipid mobility and membrane fluidity (Los and Murata, 2004). Saturated lipids form closely packed assemblies giving rise to more rigid bilayers, while unsaturated lipids do not pack as tightly and produce more fluid bilayers. Methyl branches on otherwise saturated lipids have also been shown to increase membrane fluidity (Budin et al., 2018; Poger et al., 2014). Therefore, we hypothesized that PDIM’s methyl-branched mycocerosic acids enhance its mobility. To test this, we hydrolyzed PDIM with tetrabutylammonium hydroxide to isolate phthiocerol. We then esterified phthiocerol with the saturated fatty acid lignoceric acid that resulted in straight chain lipids of comparable length to mycocerosic acid. This phthiocerol di-fatty acid (PDIF) was then treated similarly to PDIM (Figure 2A) to yield the azide-labeled PDIF, azido-DIF (Figure 6A). FRAP studies confirmed that DIBO-488 labeled azido-DIF (DIF-488) was not as mobile as DIM-488, with only ~50% in the mobile fraction (Figure 6B,C and Figure 6—figure supplement 1A–C). Upon zebrafish infection, DIF-488 failed to spread onto epithelial cells at two hpi (Figure 6D–F). However, similar to other mycobacterial lipids (Beatty et al., 2000) including TMM (Figure 5A), DIF-488 was capable of spreading into macrophage membranes at later timepoints (Figure 6F and Figure 6—figure supplement 1D and E). Thus, PDIM’s mobility, mediated by its methyl-branched lipid tails, promotes its ability to spread into epithelial membranes.

Figure 6 with 1 supplement see all

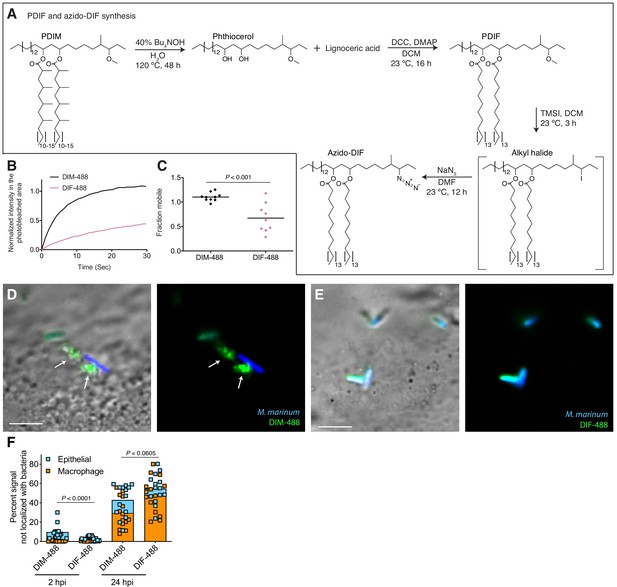

PDIM’s methyl-branched mycocerosic acids promote mobility and spreading.

(A) Phthiocerol di-fatty acid (PDIF) and azido-DIF synthesis. (B) Fluorescent recovery curves after photobleaching of DIM-488 or DIF-488 labeled M. marinum, lines represent the average signal from n = 9–10 cells. (C) Mean fraction mobile which is the plateau following fitting of data generated in B to a non-linear regression with a one-phase association. Two-tailed, unpaired t test. Images of M. marinum expressing a blue-fluorescent protein recoated with (D) DIM-488 or (E) DIF-488 at 2 hpi into the HBV of wildtype fish, arrows indicate spread signal, scale bar = 5 μm. (F) Mean percent DIM-488 or DIF-488 in macrophage or epithelial cells no longer localized with bacteria following HBV infection with ~100 M. marinum. Two-tailed Mann Whitney test for 2 hpi and two-tailed, unpaired t test for 24 hpi. (B), (C), and (F) representative of three separate experiments.

PDIM spreading into epithelial membranes is required to evade microbicidal monocytes

Is PDIM spreading into epithelial membranes required to inhibit Myd88 signaling? We first evaluated monocyte recruitment toward infecting mycobacteria to address this question. Wildtype M. marinum must be alive in order to stimulate resident macrophages to express CCL2 to recruit permissive monocytes (Cambier et al., 2017). In contrast, PDIM-deficient M. marinum do not depend on resident macrophages to recruit bactericidal monocytes and do so in a manner independent of bacterial viability (Cambier et al., 2017). We now wondered if, in order for mycobacteria to gain access to resident macrophages, PDIM must first spread into epithelial membranes to prevent recruitment of microbicidal monocytes. We confirmed that heat-killed mycobacteria do not recruit monocytes (Figure 7A). Likewise, PFA-treated bacteria which can also spread PDIM did not recruit monocytes (Figure 7A). However, monocyte recruitment toward PFA+GA treated bacteria, which do not spread PDIM, phenocopied heat-killed ∆mmpL7 M. marinum; even though they are not viable, they recruited monocytes to a similar extent as live bacteria (Figure 7A). Moreover, this monocyte recruitment was now downstream of Myd88 signaling (Figure 7B). Taken together these data demonstrate that PDIM spreading into epithelial membranes is required to prevent Myd88-dependent recruitment of monocytes.

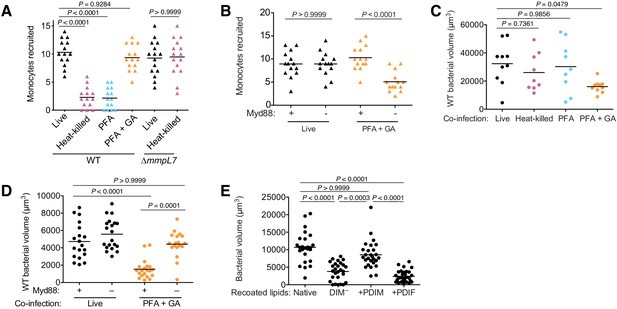

PDIM spreading into epithelial membranes is required to evade microbicidal monocytes.

(A) Mean monocyte recruitment at 3 hpi of the HBV with ~100 live, heat-killed, PFA treated, or PFA+GA treated wildtype (WT) or ~100 live or heat-killed ∆mmpL7 M. marinum. (B) Mean monocyte recruitment at 3 hpi of the HBV of wildtype or Myd88-depleted fish with ~100 live or PFA+GA treated wildtype M. marinum. Mean volume of wildtype M. marinum following co-infection with (C) wildtype M. marinum treated as in A or (D) live or PFA+GA treated wildtype M. marinum in wildtype or Myd88-depleted fish. (E) Mean bacterial volume 3 days following HBV infection of wildtype fish with ~100 M. marinum recoated with Native, DIM-depleted (DIM), DIM plus PDIM (+PDIM), or DIM plus PDIF (+PDIF) lipids. (A)-(C) ordinary one-way ANOVA with Tukey’s multiple comparisons test with selected adjusted P values shown. (D) and (E) Kruskal-Wallis ANOVA for unequal variances with Dunn’s multiple comparisons test with selected adjusted P values shown. (A)-(E) representative of three separate experiments.

Not only are PDIM-deficient bacteria killed by Myd88-recruited monocytes but co-infected PDIM-expressing bacteria are as well (Cambier et al., 2014b). This latter finding allowed us to directly examine the link between PDIM spreading and bacterial killing by resultant Myd88-signaled monocytes. We infected larvae with live red-fluorescent wildtype M. marinum along with green-fluorescent wildtype M. marinum that were live (untreated), heat-killed, PFA treated, or PFA+GA treated and then determined the burdens of the red-fluorescent wildtype M. marinum at 3 dpi. Only co-infection with PFA+GA treated bacteria caused attenuation of wildtype bacteria (Figure 7C). Moreover, this attenuation was dependent on Myd88 (Figure 7D). Lastly, we asked if PDIF, which is unable to spread into epithelial cells (Figure 6F), could rescue DIM-deficient bacterial growth similarly to PDIM (Figure 2F). Consistent with the requirement for PDIM to spread into epithelial cells to promote virulence, we found that recoating with PDIF does not rescue bacterial growth (Figure 7E). Together these findings implicate PDIM spreading into epithelial membranes in inhibiting TLR/Myd88 signaling and the resultant recruitment of microbicidal monocytes that can kill infecting mycobacteria.

Host cholesterol promotes PDIM spread and mycobacterial infectivity

We next asked if host lipids also influence PDIM spreading. Cholesterol has been reported to modulate macrophage interactions with mycobacteria (Gatfield and Pieters, 2000). However, three lines of evidence suggest a macrophage-independent relationship between mycobacteria and cholesterol: (1) 36% of the lipid extracted from Mycobacterium bovis harvested from necrotic mouse lung (where macrophages are sparse) was found to be host cholesterol Kondo and Kanai, 1976; (2) mycobacterial-associated cholesterol was isolated as a mixture with PDIM Kondo and Kanai, 1976; (3) M. tuberculosis grown in culture can sequester cholesterol to its outer mycomembrane, a process dependent on mycomembrane lipids (Brzostek et al., 2009). To test if host cholesterol interacted with PDIM to facilitate spreading, we first grew wildtype and ∆mmpL7 M. marinum in the presence of alkyne-cholesterol (Figure 8—figure supplement 1A) for 48 hr, followed by treatment with azide-conjugated alexafluor-647. We found that only wildtype M. marinum could sequester cholesterol to their mycomembrane (Figure 8A and B). Considering PDIM represents a substantial fraction of the mycomembrane, we wondered if the inability of ∆mmpL7 M. marinum to sequester cholesterol was due to a decrease in overall hydrophobicity. We grew mycobacteria in the similarly hydrophobic but structurally distinct azide-labeled phosphoethanolamine (Azido-PE, Figure 8—figure supplement 1B). Following reaction with DIBO-647, we found that both wildtype and ∆mmpL7 M. marinum could equally sequester azido-PE (Figure 8—figure supplement 1C and D). To determine if this PDIM-cholesterol association was also operant in mammalian membranes, we labeled A549 epithelial cells with the cholesterol surrogate BODIPY-cholesterol. Following infection with DIM-647 labeled M. marinum we found spread DIM-647 in areas of intense BODIPY-cholesterol signal (Figure 8C, arrow).

Figure 8 with 1 supplement see all

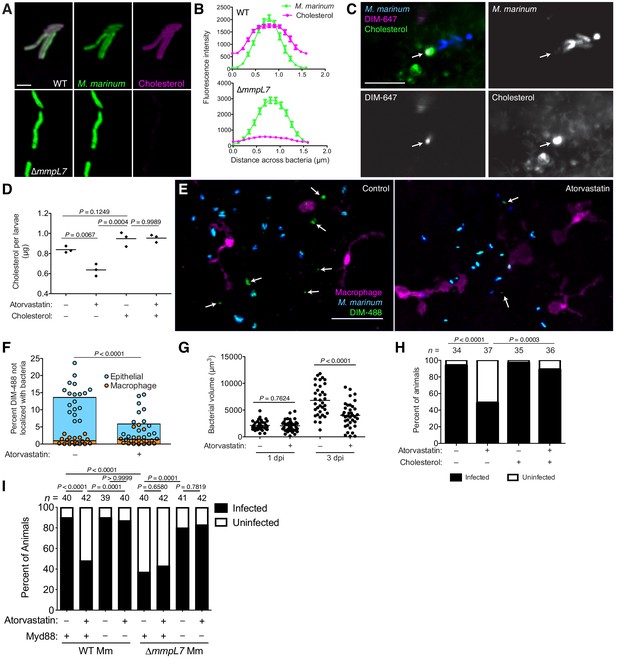

Host cholesterol promotes PDIM spread and mycobacterial infectivity.

(A) Images of wildtype (WT) and ∆mmpL7 M. marinum expressing a green-fluorescent protein following 48 hr incubation with alkyne-cholesterol reacted with AlexaFlour647 Azide, scale bar = 3 μm. (B) Mean (± SEM) fluorescent intensity of line profiles drawn perpendicular to poles of WT and ∆mmpL7 M. marinum labeled as in A. (C) Image of A549 epithelial cells labeled with BODIPY-cholesterol at 1 dpi with DIM-647 labeled M. marinum at an MOI of 5. Arrows, spread DIM-647 co-localizing with BODIPY-cholesterol, scale bar = 10 μm. (D) Mean cholesterol content of 3 dpf zebrafish following a 24 hr treatment with atorvastatin, water-soluble cholesterol, or both. Ordinary one-way ANOVA with Tukey’s multiple comparisons test with selected adjusted P values shown. (E) Images of control or atorvastatin treated transgenic fish whose macrophages express tdTomato at 2 hpi with ~100 M. marinum expressing a cytosolic blue-fluorescent protein recoated with DIBO-488 labeled azido-DIM (DIM-488), scale bar = 40 μm. Arrows, DIM-488 spread onto epithelial cells. (F) Mean percent DIM-488 in macrophage or epithelial cells not localized with bacteria at 2 h following HBV infection with ~100 M. marinum in control or atorvastatin treated fish. Two-tailed, unpaired t test. (G) Mean bacterial volume following HBV infection of control or atorvastatin treated fish with ~100 M. marinum. Two-tailed Mann Whitney test for 2 hpi and two-tailed, unpaired t test for 24 hpi. (H) Percentage of infected or uninfected fish at 3 dpi into the HBV with 1–3 wildtype M. marinum with or without atorvastatin and water-soluble cholesterol. (I) Percentage of infected or uninfected wildtype or Myd88-depleted fish at 3 dpi into the HBV with 1–3 wildtype or ∆mmpL7 M. marinum with or without atorvastatin. (H) and (I) Fisher’s exact test with Bonferroni’s correction for multiple comparisons. (B)-(D) and (F)-(I) representative of three separate experiments.

We next tested whether this cholesterol-PDIM association was promoting PDIM’s ability to spread into host membranes. We depleted cholesterol from A549 epithelial cells with methyl β−cyclodextrin (MßCD) which resulted in an eight-fold decrease in cholesterol (Figure 8—figure supplement 1E). This was associated with decreased DIM-488 spreading (Figure 8—figure supplement 1F). Importantly, in MßCD treated cells we could restore cholesterol to untreated levels with water-soluble cholesterol, and this restored DIM-488 spreading (Figure 8—figure supplement 1E and F). To test if host cholesterol facilitates PDIM spreading in vivo, we treated zebrafish with statins, drugs that inhibit HMG-CoA reductase, the rate-limiting step of cholesterol biosynthesis. Specifically, we used atorvastatin which was shown to lower cholesterol in zebrafish (Maerz et al., 2019). Following 24 hr of treatment, atorvastatin decreased cholesterol levels in the larvae by 25%, and co-treatment with water-soluble cholesterol restored cholesterol levels (Figure 8D). Atorvastatin treatment also decreased DIM-488 spreading onto epithelial cells (Figure 8E and F), suggesting that PDIM’s interaction with cholesterol promotes spreading into epithelial membranes in vivo.

Hypercholesteremia has been shown to exacerbate mycobacterial infection in mice and humans (Martens et al., 2008; Soh et al., 2016), and studies suggest the utility of statins both in TB treatment and prevention. When used in mice, statins decreased the duration of TB therapy by one month (Dutta et al., 2016), and studies of health care databases found that statin use is associated with decreased incidence of TB (Kim et al., 2019; Lai et al., 2016). Accordingly, we sought to evaluate the role of statins in the reduction of bacterial burdens and in preventing infection. First, we showed that statin treatment reduced bacterial burdens in the zebrafish (Figure 8G). Next, to evaluate if statins prevented infection, we infected zebrafish with 1–3 bacteria, similar to the infectious dose in humans (Bates et al., 1965; Wells et al., 1948), and evaluated their ability to establish infection. This infectivity assay previously found that PDIM-deficient M. marinum established infection at a reduced frequency (Cambier et al., 2017). We treated zebrafish with atorvastatin for 24 hr prior to infection with 1–3 bacteria and continued daily atorvastatin treatment for the 3 day assay period. At 3 dpi, atorvastatin treatment decreased M. marinum’s infectivity by 50% (Figure 8H). Moreover, restoring cholesterol levels by co-treating with water-soluble cholesterol restored M. marinum’s infectivity (Figure 8H). This result confirmed atorvastatin reduces infectivity by lowering cholesterol rather than to off target effects. However, this protective low-cholesterol state could be due to antimicrobial effects independent of PDIM spread. Altered cholesterol flux can have pleiotropic effects on immunity (Tall and Yvan-Charvet, 2015), and mycobacteria have been shown to use cholesterol as a carbon source (Pandey and Sassetti, 2008).

To test the alternative hypothesis that atorvastatin’s protection is not through disrupting PDIM spread, we evaluated the infectivity of PDIM-deficient ∆mmpL7 M. marinum. Consistent with previous reports (Cambier et al., 2017), ∆mmpL7 M. marinum exhibited decreased infectivity compared to wildtype bacteria (Figure 8I). In agreement with our model that atorvastatin acts through modulating PDIM spread, we found that atorvastatin treatment did not further decrease ∆mmpL7’s infectivity (Figure 8I). However, PDIM-deficient bacteria exhibit such a severe virulence defect, any further attenuation due to other low-cholesterol-dependent antimicrobial mechanisms may not be possible. To address this concern, we took advantage of the fact that ∆mmpL7’s virulence defect is reversed in the absence of host Myd88 signaling (Figure 8I, Cambier et al., 2014b). In this condition where PDIM-deficient bacteria are fully virulent, they should become attenuated by any non-PDIM-associated antimicrobial mechanisms caused by atorvastatin. However, atorvastatin still did not decrease ∆mmpL7’s infectivity in Myd88-depleted hosts (Figure 8I). Finally, we showed that atorvastatin decreased the infectivity of wildtype M. marinum in a Myd88-dependent fashion (Figure 8I). These data strongly support the idea that atorvastatin acts to disrupt the PDIM-Myd88 axis. Only in conditions where PDIM is present on bacterial surfaces and when host Myd88 signaling is intact will lowering cholesterol provide a protective effect. Collectively, these data demonstrate that statins reduce mycobacterial infectivity by reducing host cholesterol, and thereby PDIM’s infiltration of epithelial membranes.

Discussion

Molecular Koch’s postulates are a guiding set of principles used to characterize bacterial virulence factors (Falkow, 1988; Falkow, 2004; Ramakrishnan, 2020). Genetic analyses are the mainstay of assigning pathogenic functions to specific virulence factors, including those not directly encoded by the genome. Virulence lipids are often assigned their pathogenic roles from studies of bacterial mutants lacking proteins involved in the lipid’s biosynthesis or transport. Thus, these functions can be directly attributed only to the biosynthetic protein, and not the lipid per se. Here, by combining bioorthogonal chemistry with the zebrafish model of TB, we more rigorously satisfy molecular Koch’s postulates to describe PDIM’s role in virulence. PDIM’s mobility and the abundance of cholesterol in epithelial membranes influenced PDIM’s ability to infiltrate the host lipid environment. This occupation of epithelial membranes by PDIM mediated subversion of TLR/Myd88 signaling at the site of infection, thus enabling mycobacteria to gain access to non-activated immune cells (Figure 9).

Model of PDIM spreading to promote virulence in the zebrafish hindbrain ventricle.

Cholesterol-dependent PDIM spread into epithelial membranes prevents TLR/Myd88 detection at the site of infection. Bacteria then drive resident macrophages to produce CCL2 to recruit CCR2-positive permissive monocytes which go on to form early granulomas. PDIM continues to spread into host membranes throughout this process. In low cholesterol settings (statin treatment) PDIM does not spread as readily into epithelial membranes. TLR/Myd88-dependent recruitment of microbicidal monocytes occurs, which can then clear infecting mycobacteria. Figure created with BioRender.com.

All of our insights into PDIM biology were made using our chemical extraction and recoating approach. While we do not know if the mycomembrane organization of the recoated bacteria mimics that of untouched bacteria, our data do demonstrate that these bacteria are indistinguishable with regards to their virulence. Additionally, our work is in agreement with results evaluating native PDIM from M. tuberculosis, where PDIM was found to occupy macrophage membranes (Augenstreich et al., 2019) and disrupt membrane protein signaling (Augenstreich et al., 2020). Thus, we believe the data generated by our approach represents native PDIM biology. In addition to being able to monitor PDIM’s distribution during in vivo infection, our approach allowed us to observe and correlate lipid mobility and membrane fluidity on the bacterial surface to the ability of lipids to spread into host membranes. While both TMM and PDIM spread into macrophage membranes, only PDIM was able to occupy epithelial membranes following infection. PDIM’s increased mobility in comparison to TMM could be promoting an active spread through host membranes or, alternatively, could be promoting membrane mixing between bacteria and host.

Previous models suggest PDIM facilitates a passive evasion of TLRs by masking underlying TLR ligands (Cambier et al., 2014b; Cambier et al., 2017). This model was based on findings that PDIM-expressing mycobacteria were rendered growth-attenuated if co-infected with TLR-stimulating bacteria (Cambier et al., 2014b). While our current model suggests a more active role for PDIM, we still find that TLR-stimulating bacteria cause attenuation of wildtype bacteria. Specifically, bacteria unable to spread PDIM caused attenuation of bacteria that can spread PDIM (Figure 7C and D). These findings argue that PDIM’s influence over innate immune signaling is spatially restricted. PDIM appears to only inhibit TLR/Myd88 signaling at membrane sites where it has spread, emphasizing the need for PDIM localization on the bacterial surface prior to spreading into epithelial membranes.

Cholesterol plays a multifaceted role in mycobacterial pathogenesis. Here we describe its role in promoting mycobacterial infectivity through promoting PDIM spread into epithelial membranes. This mechanism of pathogenesis is particularly interesting as mycobacteria can utilize cholesterol as a carbon source to bolster PDIM production (Wilburn et al., 2018). Systemic cholesterol metabolism in humans influences the abundance of cholesterol in lung epithelial membranes (Fessler, 2017). Therefore, cholesterol-promoted PDIM spreading may also influence M. tuberculosis transmission. While a clinical trial is currently underway evaluating the use of statins alongside standard TB therapy (Karakousis et al., 2019), our data instead argue for the use of statins as a TB preventative therapy.

Materials and methods

Resources table

Request a detailed protocol
Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Strain, strain
background
(Mycobacterium marinum M strain)
wildtype M. marinumTakaki et al., 2013.derivatives of ATCC
#BAA-535
Fluorescent strains:
pMS12:tdTomato,
pMS12:EBFP2, or
pMS12:wasabi
Strain, strain
background
(M. marinum M strain)
mmpL7 M. marinumCambier et al., 2014b.NAFluorescent strains:
pMS12:tdTomato,
pMS12:wasabi
Strain, strain
background
(Escherichia coli)
Top10Urbanek et al., 2014.NATransformed with
pBAD:tret from
Thermoproteus tenax
Genetic reagent
(Zebrafish, Danio rerio)
Wildtype ABStanford UniversityZFIN ID: ZDB-GENO
-960809–7
Genetic reagent
(Zebrafish, Danio rerio)
Tg(mfap4:tdTomato)Walton et al., 2015.ZFIN ID: ZDB-TGCONSTRCT
-160122–3
Genetic reagent
(Zebrafish, Danio rerio)
Tg(flk1:mcherry)Wang et al., 2010.ZFIN ID: ZDB-TGCONSTRCT
-110127–23
Chemical
compound, drug
IodotrimethylsilaneACROSCat#10530964
CAS:16029-98-4
Chemical
compound, drug
Sodium azideSigma-AldrichCat#S8032
CAS: 26628-22-8
Chemical
compound, drug
Tetrabutylammonium
hydroxide solution
Sigma-AldrichCat#178780
CAS: 2052-49-5
Chemical
compound, drug
Lignoceric acidSigma-AldrichCat# L6641
CAS: 557-59-5
Chemical
compound, drug
Click-IT Alexa Fluor
488 DIBO Alkyne
Thermo-FisherCat# C10405
Discontinued*
Chemical
compound, drug
Click-IT Alexa Fluor
647 DIBO Alkyne
Thermo-FisherCat# C10408
Discontinued*
Chemical
compound, drug
Alexa Fluor 647 AzideThermo-FisherCat# A10277
Chemical
compound, drug
Alkyne-CholesterolClick Chemistry ToolsCat# 1409
Chemical
compound, drug
6-azido-6-deoxy-glucoseSigma-AldrichCat# 712760
CAS: 20847-05-6
Chemical
compound, drug
UDP-glucoseSigma-AldrichCat# U4625
CAS: 28053-08-9
Chemical
compound, drug
Alexa-647
hydroxylamine
Thermo-FisherCat# A30632Chemical
Compound, drugMethyl-ß-cyclodextrinSigma-AldrichCat# C4555
CAS: 128446-36-6
Chemical
compound, drug
Cholesterol-water
soluble
Sigma-AldrichCat# C4951
Chemical
compound, drug
AtorvastatinSigma-AldrichCat# PHR1422
Chemical
compound, drug
Methylene blueSigma-AldrichCat# M9140
CAS: 122965-43-9
Chemical
compound, drug
Tango Buffer (10x)Thermo-FisherCat#BY5
Chemical
compound, drug
Phenol Red
Sodium Salt
Sigma-AldrichCat#P4758
CAS: 34487-61-1
Chemical
compound, drug
PMA
(Phorbol 12-myristate 13-acetate)
Sigma-AldrichCat#P1585
CAS:16561-29-8
Chemical
compound, drug
Hygromycin BThermo-FisherCat#10687010
Chemical
compound, drug
Glutaraldehyde solution
(70% in water)
Sigma-AldrichCat#G7776
CAS: 111-30-8
Chemical
compound, drug
16% paraformaldehyde
solution
Thermo-FisherCat#28908Chemical
Compound, drugBTTPClick Chemistry ToolsCat#1414
CAS: 1334179-85-9
Chemical
compound, drug
16:0 azidocaproyl
phosphoethanolamine
(Azido-PE)
Avanti Polar LipidsCat#870126
CAS: 2252461-34-8
Chemical
compound, drug
BODIPY-CholesterolCayman ChemicalCat#24618
CAS: 878557-19-8
Chemical
compound, drug
Alexa-Fluor 594 Wheat
Germ Agglutinin
FisherCat#W11262
Cell line
(Homo sapiens)
A549 human alveolar
epithelial cells
ATCCCCL-185
Cell line
(Homo sapiens)
THP-1 human
monocytic cell line
ATCCTIB-202
Sequence-based
reagent
myD88 morpholino sequence:
GTTAAACACTGACCCTGTGGATCAT
Bates et al., 2007.ZFIN ID: ZDB-MRPHLNO
-080325–4
Commercial
assay or kit
Total Cholesterol and
Cholesterol Ester
Colorimetric/Fluorometric
Assay Kit
Bio-VisionCat# K603
Software, algorithmNIS-ElementsNikon
Software, algorithmImarisBitplane
Software, algorithmPrismGraphPad

*Since preparing this manuscript we have found that AFDye 488 DBCO (Click Chemistry Tools, Cat# 1278) and AFDye 647 DBCO (Click Chemistry Tools, Cat# 1302) are suitable alternatives to the DIBO fluorophores. The DBCO dyes can be used with the same concentrations and labeling protocols presented in this manuscript for the DIBO dyes (Unpublished data).

Procedures and materials for synthetic chemistry

Request a detailed protocol

All reactions were performed in dry standard glassware fitted with rubber septa under an inert atmosphere of nitrogen unless otherwise stated. Preparative thin-layer chromatography (TLC) was performed with Millipore’s 1 mm and 0.2 mm silica gel 60 pre-coated glass plates. Analytical TLC was used for reaction monitoring and product detection using pre-coated glass plates covered with 0.20 mm silica gel with fluorescent indicator; visualized by UV light and 10% CuSO4 in 1.3M phosphoric acid in water. Reagents were purchased in reagent grade from commercial suppliers and used as received, unless otherwise described. Anhydrous dichloromethane (DCM) was prepared by passing the solvent through an activated alumina column.

Chemical analysis instrumentation

Request a detailed protocol

Proton (1H NMR) and proton-decoupled carbon-13 (13C {1H} NMR) nuclear magnetic resonance spectra (Supplementary file 2) were recorded on an Inova-500 spectrometer at 25°C, are reported in parts per million downfield from tetramethylsilane, and are referenced to the residual protium (CDCl3: 7.26 [CHCl3]) and carbon (CDCl3: 77.16) resonances of the NMR solvent. Data are represented as follows: chemical shift, multiplicity (br = broad, s = singlet, d = doublet, t = triplet, q = quartet, quin = quintet, sept = septet, m = multiplet), coupling constants in Hertz (Hz), integration. Mass spectra were obtained on a Bruker Microflex MALDI-TOF by mixing 0.5 µl of 1 mg/ml sample in chloroform with 0.5 µl of 10 mg/ml 2,5-dihydroxybenzoic acid before spotting onto a 96-well MALDI plate.

Isolation of PDIM

Request a detailed protocol
Chemical structure 1
PDIM.

Wildtype M. marinum was grown in GAS medium without Tween-80 to an OD600 of 1.2. Bacteria were pelleted, frozen and lyophilized on a Labconoco FreezeZone 4.5 plus. Bacterial lipids were then extracted by stirring lyophilized pellet in petroleum ether for 1 hr at 23°C. Bacteria were allowed to settle, and solvent was collected. Remaining bacteria were re-extracted 3–5 times. The solvent extract was then passed through a 0.2 µm PTFE filter, and crude lipids were concentrated under reduced pressure. Crude lipid extracts were separated by preparative TLC in the solvent system 98:2 petroleum ether:ethyl acetate. The band correlating to PDIM at an Rf = 0.4 was isolated. Preparative TLC was repeated twice more to further purify PDIM. Average PDIM isolated from M. marinum was 60 mg per 10 liters of culture. 1H NMR (500 MHz, CDCl3) δ 4.93–4.87 (m, 2H), 3.32 (s, 3H), 2.87–2.83 (m, 1H), 2.57–2.51 (m, 2H), 1.90–0.81 (m, 166H). 13C NMR (126 MHz, CDCl3) δ 176.69, 176.63, 86.78, 86.73, 77.41, 77.37, 77.16, 76.90, 70.72, 70.67, 57.51, 45.56, 45.51, 41.41, 41.33, 38.56, 37.85, 37.73, 37.09, 36.77, 34.91, 34.18, 34.07, 32.83, 32.08, 30.24, 29.96, 29.87, 29.82, 29.75, 29.62, 29.53, 28.34, 27.64, 27.36, 27.25, 27.16, 27.12, 25.74, 25.35, 22.85, 22.74, 22.43, 20.81, 20.57, 20.52, 20.37, 20.27, 18.67, 18.58, 18.53, 14.80, 14.75, 14.28, 14.22, 10.26, 1.16. MALDI-TOF for: C82H162O5 Calc’d [M+Na+]=1250.23; found 1250.41. C84H166O5 Calc’d [M+Na+]=1278.26, found 1278.40. C86H170O5 Calc’d [M+Na+]=1306.29, found 1306.55.

Synthesis of azido-DIM

Request a detailed protocol
Chemical structure 2
Azido-DIM synthesis.

To PDIM (75.6 mg, 60.2µmol, 1.0 equiv.) was added 0.3 ml of DCM, the mixture was stirred and iodotrimethylsilane (TMSI, 258 µl, 1.8 mmol, 30.0 equiv.) was added and allowed to react for 12 hr at 23°C. The reaction was concentrated under reduced pressure. NaN3 (39.1 mg, 602µmol, 10.0 equiv.) was added followed by 0.3 ml of anhydrous dimethylformamide (DMF) and stirred for 12 hr at 23°C. The solvent was removed under reduced pressure and the product was purified using preparative TLC in 98:2 petroleum ether:ethyl acetate Rf = 0.5 as a white wax (37.7 mg, 29.8µmol, 50%). 1H NMR (500 MHz, CDCl3) δ 5.06–4.86 (m, 2H), 3.30–3.21 (m, 1H), 2.58–2.50 (m, 2H) 2.1–0.81 (m, 163H). 13C NMR (126 MHz, CDCl3) δ 176.73, 176.63, 77.41, 77.36, 77.16, 76.91, 71.08, 70.74, 59.86, 45.56, 41.96, 41.45, 41.35, 39.27, 37.84, 37.73, 37.24, 37.08, 37.01, 35.28, 34.82, 34.18, 32.08, 30.32, 30.24, 30.22, 30.04, 29.96, 29.87, 29.82, 29.75, 29.72, 29.67, 29.62, 29.52, 29.39, 28.40, 28.34, 27.72, 27.36, 27.25, 27.18, 27.16, 26.20, 25.35, 25.27, 25.23, 22.85, 21.28, 21.13, 20.35, 20.32, 20.27, 18.73, 18.66, 18.58, 18.53, 14.56, 14.29, 13.87. MALDI-TOF for: C81H159N3O4 Calc’d [M+Na+]=1261.22; found 1260.92. C83H163N3O4 Calc’d [M+Na+]=1289.25, found 1289.02. C85H167N3O4 Calc’d [M+NH4+]=1312.33, found 1312.37.

Hydrolysis of PDIM and isolation of phthiocerol

Request a detailed protocol
Chemical structure 3
PDIM hydrolysis.

To dried PDIM (66.7 mg, 53.1µmol) was added 0.5 ml of 40% tetrabutylammonium hydroxide in water, the mixture was sealed, aggressively stirred, and allowed to react for 48 hr at 120°C. Reaction was cooled to 23°C and 4M HCL was added dropwise until pH was <3. The reaction was extracted with DCM and washed once with water. The solvent was removed under reduced pressure and phthiocerol was purified using preparative TLC in 80:20 petroleum ether:ethyl acetate Rf = 0.4. (18.8mg, 42.5µmol, 80%).1H NMR (500 MHz, CDCl3) and 13C NMR (126 MHz, CDCl3) matched previously reported spectra. ESI HRMS for: C28H58O3 Calc’d [M+H+]=443.4464; found 443.4449. C29H60O3 Calc’d [M+H+]=457.4621; found 457.4616. C30H62O3 Calc’d [M+H+]=471.4777, found 471.4762.

Synthesis of PDIF

Request a detailed protocol
Chemical structure 4
PDIF synthesis.

To phthiocerol (18.8 mg, 42.5 µmol, one equiv.) was added lignoceric acid (47 mg, 127.5 µmol, 3.0 equiv.), N,N’-dicyclohexylcarbodiimide (DCC, 35 mg, 170µmol, 4.0 equiv.), 4-Dimethylaminopyridine (DMAP, 20.77 mg, 170 µmol, 4.0 equiv.), and 2.3 ml of DCM. The reaction was stirred and allowed to react for 16 hr at 23°C. The solvent was removed under reduced pressure and the product was purified using preparative TLC in 98:2 petroleum ether:ethyl acetate Rf = 0.4. (12.8 mg, 11.5 µmol, 27%). 1H NMR (500 MHz, CDCl3) δ 4.94–4.87 (quin, 2H), 3.33 (s, 3H), 2.88–2.83 (m, 1H), 2.30–2.25 (t, 4H), 1.75–0.79 (m, 141H). 13C NMR (126 MHz, CDCl3) δ 173.42, 86.66, 77.27, 77.02, 76.76, 70.97, 57.40, 38.45, 34.84, 34.67, 34.13, 34.09, 32.62, 31.94, 29.73, 29.68, 29.55, 29.47, 29.38, 29.34, 29.23, 27.44, 25.57, 25.17, 25.10, 22.70, 22.37, 14.76, 14.12, 10.10. MALDI-TOF for: C76H150O5 Calc’d [M+Na+]=1166.14, found 1166.14. C77H152O5 Calc’d [M+Na+]=1180.15, found 1180.24. C78H154O5 Calc’d [M+Na+]=1194.17; found 1194.25.

Synthesis of azido-DIF

Request a detailed protocol
Chemical structure 5
Azido-DIF synthesis.

To PDIF (12.8 mg, 11.5 µmol, one equiv.) was added 0.3 ml of DCM, the mixture was stirred and TMSI (49 µl, 345µmol, 30.0 equiv.) was added and allowed to react for 3 hr at 23°C. The reaction was concentrated under reduced pressure. NaN3 (7.5 mg, 115µmol, 10.0 equiv.) was added followed by 0.3 ml of anhydrous dimethylformamide (DMF) and stirred for 12 hr at 23°C. The solvent was removed under reduced pressure and the product was purified using preparative TLC in 98:2 petroleum ether:ethyl acetate Rf = 0.5. (6.9mg, 6µmol, 52%). 1H NMR (500 MHz, CDCl3) δ 5.08–5.00 (m, 2H), 3.32–3.20 (m, 2H), 3.12–3.04 (m, 1H), 2.33–2.25 (t, 4H), 1.80–0.73 (m, 138H). 13C NMR (126 MHz, CDCl3) δ 173.41, 77.27, 77.02, 76.76, 71.16, 70.05, 59.72, 39.09, 36.92, 35.12, 34.70, 34.64, 32.34, 31.94, 29.72, 29.67, 29.58, 29.53, 29.42, 29.38, 29.33, 29.23, 26.05, 25.15, 24.02, 22.70, 21.15, 16.10, 14.13, 11.06, 1.03. ESI C75H148NO4 calc’d [M+K, -N2]=1166.10, found 1166.05.

Zebrafish husbandry and infections

Request a detailed protocol

Wildtype AB (Zebrafish International Resource Center), and Tg(mfap4:tdTomato) (Walton et al., 2015) lines were maintained in buffered reverse osmotic water systems. Fish were fed twice daily a combination of dry feed and brine shrimp and were exposed to a 14 hr light, 10 hr dark cycle to maintain proper circadian conditions. Zebrafish embryos were maintained at 28.5°C in embryo media which consisted of the following dissolved in Milli-Q water (%weight/volume): 0. 0875% sodium chloride, 0.00375% potassium chloride, 0.011% calcium chloride, 0.00205% monopotassium phosphate, 0.00089% disodium phosphate, and 0.0493% magnesium sulfate. Embryo media was then buffered to pH 7.2 with sodium bicarbonate. Embryos were maintained in 0.25 mg/ml methylene blue (Sigma) from collection to 1 day post-fertilization (dpf). 0.003% PTU (1-phenyl-2-thiourea, Sigma) was added from 24 hr post-fertilization (hpf) on to prevent pigmentation. Larvae (of undetermined sex given the early developmental stages used) were infected at 48 hpf via the hindbrain ventricle (HBV) using single-cell mycobacterial suspensions of known titer. Number of animals to be used for each experiment was guided by pilot experiments or by past results with other bacterial mutants and/or zebrafish. On average 15 to 40 larvae per experimental condition were required to reach statistical significance and each experiment was repeated at least three times. Larvae were randomly allotted to the different experimental conditions. The zebrafish husbandry briefly described above and all experiments performed on them were in compliance with the U.S. National Institutes of Health guidelines and approved by the Stanford Institutional Animal Care and Use Committee.

Bacterial strains and methods

Request a detailed protocol

M. marinum strain M (ATCC BAA-535) and ∆mmpL7 mutants (Cambier et al., 2014b) expressing either TdTomato, Wasabi, or EBFP2 under the control of the msp12 promoter were grown under hygromycin (Thermo-Fisher) selection in 7H9 Middlebrook’s medium (Difco) supplemented with 10% OADC (Fisher), 0.2% glycerol, and 0.05% Tween-80 (Sigma). Where noted bacteria were also grown in glycerol-alanine-salts (GAS) medium, recipe (%weight/volume) in 18 mM sodium hydroxide in Milli-Q water pH 6.6 +/- 0.05% Tween-80: 0.03% BactoCasitone (BD Science), 0.005% ferric ammonium citrate (Sigma), 0.4% potassium phosphate dibasic anhydrous (VWR), 0.2% citric acid, anhydrous (VWR), 0.1% L-alanine (Sigma), 0.12% magnesium chloride, heptahydrate (VWR), 0.06% potassium sulfate (VWR), 0.2% ammonium chloride (VWR), and 1% glycerol. To prepare heat-killed M. marinum, bacteria were incubated at 80°C for 20 min. To prepare fixed bacteria, bacteria were incubated in described concentrations of glutaraldehyde (Sigma) and/or paraformaldehyde (Thermo-Fisher) for 1 hr at 23°C, followed by three washes with PBS prior to experimental use.

Cell lines and infections

Request a detailed protocol

All cell lines were from ATCC and were used at passages < 10. Cell lines were authenticated by the supplier and were verified to be mycoplasma negative by Lonza MycoAlert Mycoplasma Detection Assay. Cells were grown in T75 flasks (Thermo-Fisher) and maintained at 37°C and 5% CO2. THP-1 were grown in RPMI supplemented with 10% fetal bovine serum (FBS). A549 were grown in DMEM supplemented with 10% FBS. Two days prior to infection, THP-1s were plated on 8-well Nunc Lab-Tek II chamber slides (Thermo-Fisher) at a density of 150,000 cells per well with 100 nM PMA (phorbol 12-myristate 13-acetate, Sigma) in growth media and incubated at 37°C and 5% CO2 for 24 hr. One day prior to infection, the media on THP-1s was replaced with fresh growth media and the cells were incubated at 33°C and 5% CO2 for 24 hr, cells were then infected with M. marinum at a multiplicity of infection (MOI) of 2 in growth media. Infection was allowed to progress for 6 hr prior to washing twice with PBS and replacing with growth media. THP-1s were then incubated for 24 hr at 33°C and 5% CO2 prior to experimental end point. One day prior to infection, A549s were plated on 8-well chamber Nunc Lab-Tek II chamber slides (Thermo-Fisher) at a density of 50,000 cells per well in growth media and incubated at 37°C and 5% CO2. For cholesterol labeling, BODIPY-cholesterol (Cayman Chemical) was added at 3 µg/ml one day prior to infection and cells were incubated overnight at 37°C and 5% CO2. Cells were then washed three times with PBS prior to infection. Day of infection cells were moved to 33°C and 5% CO2 for 3 hr, and then were infected with M. marinum at a MOI of 5 and incubated at 33°C and 5% CO2 for 24 hr. Infected THP-1s and A549s were then imaged as described below.

Extraction and recoating of M. marinum

Extraction

Request a detailed protocol

1 liter of M. marinum were grown in GAS medium plus Tween-80 to an OD600 of 1.2. Bacteria were pelleted in a glass 50 ml conical tubes (Fisher) of known weight, frozen and lyophilized. The dry bacteria in 50 ml conical tubes were then weighed and the dry bacterial weight was calculated. 25 ml of petroleum ether were then added to the bacteria, and the conical tube was capped with a PTFE lined lid (Sigma) and the suspension was vortexed for 3 min. An additional 25 ml of petroleum ether was added and the sample was centrifuged for 3 min at 1000xg at 4°C. The extract was then saved or discarded depending on the downstream experimental applications and the bacteria were extracted once more as above. For total lipid extractions (not used for recoating), bacteria were treated with 1:1 chloroform:methanol for 12 hr at 60°C. Extracts were filtered, back extracted with water to remove water-soluble contaminants, dried under reduced pressure and used for downstream experiments.

Recoating

Request a detailed protocol

Prior to extractions the following calculation was used to determine the amount of lipids to add back to each pellet.

(23 mg lipid/gram dry bacteria)*(weight in grams of dry bacteria)/(0.75 recoating efficiency).

Where 23 mg of lipid per gram of dry bacteria is the experimentally determined average amount of lipid removed during petroleum ether extraction of bacteria grown in these conditions. (Figure 1—figure supplement 1B, initial extraction) and the 0.75 recoating efficiency was also experimentally determined (Figure 1—figure supplement 1C). If recoating with DIM variants, 30% of the above weight consists of DIMs and the remainder will consist of DIM-depleted petroleum ether lipid extracts. Following two rounds of petroleum ether extraction as detailed above, bacteria were immediately mixed with pre-determined lipid mixtures (or no lipid at all for delipidated bacteria) in petroleum ether (2–3 ml) followed by extended drying under reduced pressure. Dried bacteria were then rescued into 7H9 media supplemented with 10% OADC, and 0.2% glycerol (prep media) and subjected to single cell preparation protocol.

M. marinum single cell preparation

Request a detailed protocol

For more thorough details, as well as rationale and explanation of the following protocol see Takaki et al., 2013. Bacteria were washed once with 15 ml of prep media followed by resuspension in 500 µl of prep media. Bacteria were then passed through a 27-gauge needle 10 times, followed by the addition of 1 ml of prep media and centrifugation at 100xg for 3 min. 1 ml of supernatants were saved. This process was repeated 3–5 times. Collected supernatants were then passed through a 5.0 µm acrodisc versapor membrane syringe filter (VWR). The filtrate was then pelleted at 16,000xg for 2 min, pellets were resuspended in prep media to a concentration of around 1 × 10^8–9 bacteria per ml, aliquoted and stored at −20C for future use, or immediately subjected to copper-free click chemistry reactions.

Metabolic labeling of M. marinum with 6-TreAz

Expression and purification of TreT

Request a detailed protocol

TreT was expressed and purified utilizing a similar method as previously reported (Urbanek et al., 2014). Top10 E. coli expressing the tret gene from Thermoproteus tenax (pBAD plasmid, AraC control) were streaked onto a Lysogeny broth (LB) agar plate supplemented with 100 µg/ml ampicillin and incubated at 37°C for 24 hr. A single colony was picked and used to inoculate 5 ml of LB liquid medium containing 100 µg/ml ampicillin. The starter culture was placed in a shaking incubator (175 rpm) at 37°C for 16 hr. The starter culture was then transferred to a 1 L solution of sterilized Terrific broth (TB) supplemented with 100 µg/ml ampicillin in a sterilized 2 L Fernbach culture flask. The flask was shaken (175 rpm) at 37°C. When the absorbance at 600 nm reached between 0.6 and 0.9 (typically 4–5 hr post inoculation), TreT expression was induced by adding 1 ml of 1 M arabinose solution in sterile water (1 mM final concentration). The flask was again shaken (175 rpm) at 37°C for another 20 hr. The culture was then transferred to a polypropylene bottle and pelleted for 15 min at 4000 x g at 4°C. The supernatant was discarded, and the pellet was suspended in 45 ml of lysis buffer (50 mM NaH2PO4, 500 mM NaCl, 20 mM imidazole, pH 7.4) and run through a homogenizer five times utilizing ice to keep the solution cool. Once homogenized, the lysate was clarified by centrifugation pelleting for 20 min at 21,000 x g at 4°C and filtering through a 0.45 µm Teflon syringe filter. To the clarified lysate (generally about 50 mg/ml protein content as measured with absorbance at 280 nm) was then added 5 ml of pre-washed (lysis buffer) Ni-NTA resin slurry (Qiagen). The suspension was mixed on an orbital shaker for 60–90 min at 4°C and then transferred to a glass column (BIO-RAD EconoColumn). Non-His-Tagged proteins were eluted with lysis buffer until the absorbance at 280 nm matched background levels utilizing 50–100 ml of lysis buffer. His-tagged TreT was eluted with elution buffer (50 mM NaH2PO4, 500 mM NaCl, 250 mM imidazole, pH 7.4) in multiple 2.5 ml increments, until protein elution was determined complete by absorbance at 280 nm. Buffer exchange to a storage/reaction buffer (50 mM Tris, 300 mM NaCl, pH 8.0) was performed with a desalting column (PD-10, GE Healthcare) and the protein was transferred to a conical tube and diluted to 1 mg/ml as determined by absorbance at 280 nm for long-term storage. Storage of the enzyme at 4°C and at this concentration yields active protein that does not have significant losses in activity even after 12 months of storage under these conditions.

Synthesis and purification of 6-Azido-6-deoxy-trehalose (6-TreAz)

Request a detailed protocol

To a 1.5 ml Eppendorf tube was added 200 µl of a 100 mM solution of 6-azido-6-deoxy-glucose (final concertation 20 mM), 100 µl of a freshly-prepared 400 mM solution of UDP-glucose (final concentration 40 mM), 100 µl of a 200 mM solution of MgCl2 (final concentration 20 mM), and 300 ml of reaction buffer (50 mM Tris, 300 mM NaCl, pH 7.4). Then, 300 µl of TreT solution in storage/reaction buffer was added (final concentration 300 µg/ml) and the reaction vessel was closed and mixed gently by inverting the tube. The reaction was heated to 70°C for 60–90 min with shaking at 400 rpm and then cooled on ice before further manipulation. The reaction contents were transferred to a pre-washed Amicon centrifugal filter with a nominal molecular weight limit (NWML) of 10 kDa. The filter was washed with DI water (2 × 1 ml) to facilitate maximal recovery. The upper chamber was discarded and 1 g of prewashed mixed-bed ion-exchange resin (DOWEX) was added to the filtrate and the slurry was equilibrated for 60–90 min. The suspension was filtered, and the resin was rinsed with 3–5 ml of DI water. Analysis by TLC (5:3:2 n-butanol: ethanol: DI water) and/or LC-MS equipped with a Supelco aminopropyl column [4.6 × 250 mm, 5 µm] (isocratic 80% ACN in DI water, 0.5 mll/min flowrate) indicated full and complete conversion of 6-azido-6-deoxy-glucose to 6-azido-6-deoxy-trehalose with high purity as determined by nuclear magnetic resonance (NMR), which matched previously reported spectra.

Synthesis and direct utilization of 6-TreAz for labeling M. marinum

Request a detailed protocol

To facilitate easier production and labeling of M. marinum with 6-TreAz, the reaction was performed as above but 6-TreAz was not isolated prior to labeling. Upon reaction completion, the reaction was cooled on ice to bring the vessel back to ambient temperature. The 10 mM stock of 6-TreAz was then added to cultures of M. marinum to a final concentration of 50 µM.

Periodate-hydroxylamine staining of mycobacterial surfaces

Request a detailed protocol

Surface-exposed terminal oxidizable carbohydrates were labeled with hydroxylamine following periodate oxidation (Beatty et al., 2000). Lyophilized control or recoated M. marinum were washed twice with PBS and resuspended in 0.1 M sodium acetate (Sigma), pH 5.5 containing 1 mM sodium periodate (Sigma). Following a 20 min incubation at 4°C with gentle rotation, 0.1 mM glycerol was added to stop the reaction. Cultures were washed three times with PBS and then subjected to single cell preparation. Following single cell preparation, pellets were transferred to a 96-well plate and then incubated with PBS containing 1 mM Alexa-647 hydroxylamine (Thermo-Fisher). Following a 2 hr incubation at 23°C, the cultures were washed five times with PBS and twice with prep media.

Copper-free click chemistry of M. marinum

Request a detailed protocol

Following recoating or metabolic labeling, bacteria were treated for single cell preparation. Bacteria were then transferred to 96-well v-bottom dishes and were washed twice with PBS using centrifugation at 3000xg for 3 min between washing. Bacteria were then stained with either 5 µM DIBO-488 (Thermo-Fisher), or 30 µM DIBO-647 (Thermo-Fisher) in 200 µl PBS for 90 min at 23°C protected from light. Bacteria were then washed five times in PBS followed by two washes in prep media. Bacteria were then aliquoted and stored at −20°C for future use. Staining efficiency was evaluated by flow cytometry on a BD-Accuri C6 Plus and analysis was performed using the FlowJo software package. Staining was also evaluated by microscopy with a 60x oil-immersion Plan Apo 1.4 NA objective on the Nikon A1R confocal microscope.

Myd88 morpholino and liposome injections

Request a detailed protocol

To generate Myd88 knockdown zebrafish larvae, the Myd88 morpholino 5’GTTAAACACTGACCCTGTGGATCAT3’ (Bates et al., 2007) was diluted to 2 mM in 0.5 x tango buffer (Thermo Scientific), containing 2% phenol red sodium salt solution (Sigma). 1 nl of the morpholino mixture was injected into the 1–4 cell stage of the developing embryo. Lipo-PBS and lipo-clodronate (http://clodronateliposomes.org) were diluted 1:10 in PBS and injected into 2-dpf-old larvae in ~10 nl via the caudal vein.

Confocal microscopy and image-based quantification of infection

Request a detailed protocol

Larvae were embedded in 1.5% low melting point agarose (Thermo-Fisher) and a series of z stack images with a 2 µm step size was generated through the infected HBV. For infected THP-1 and A549 cells, a series of z stack images with a 1 µm step size was generated. Images were captured using the galvo scanner (laser scanner) of the Nikon A1R confocal microscope with a 20x Plan Apo 0.75 NA objective. Higher resolution images were generated using a 40x water-immersion Apo 1.15 NA objective. Bacterial burdens were determined by using the 3D surface-rendering feature of Imaris (Bitplane Scientific Software). Spread lipid images were generated by subtracting the bacterial surface from the lipid channel. 3D surface-rendering was then done in Imaris on both the total lipid and spread lipid images to generate a percent spread value (Cambier et al., 2014b).

Macrophage and monocyte hindbrain recruitment assay

Request a detailed protocol

For the macrophage recruitment (Figure 1G): two dpf zebrafish were infected in the HBV with M. marinum at the dose reported in the figure legends. At 3 hr post infection, the number of total myeloid cells in the HBV was quantified using differential interference contrast microscopy using a 20x Plan Fluor 0.75 NA objective on Nikon’s Ti eclipse inverted microscope. For quantification of monocytes (Figure 5A and B): two dpf zebrafish were injected in the caudal vein with 200 µg/ml of the nuclear stain Hoechst 33342 (Thermo-Fisher) 2 hr prior to HBV infection. Hoechst is unable to cross the blood-brain barrier and therefore will label circulating monocytes but will not label brain resident macrophages (Cambier et al., 2017). At 3hpi blue-fluorescent cells in the hindbrain was quantified similar to above macrophage recruitment assay.

Co-infection experiments

Request a detailed protocol

Around 40–50 tdTomato expressing wildtype M. mairnum were co-infected with an equal number of wasabi expressing M. marinum into the HBV. At three dpi the bacterial volume of the wildtype tdTomato expressing M. marinum was quantified as described above (Confocal microscopy and image-based quantification of infection) (Cambier et al., 2014b).

Infectivity assay

Request a detailed protocol

3 days post-fertilization larvae were infected via the hindbrain ventricle with an average of 0.8 bacteria per injection. Fish harboring 1–3 bacteria were identified at 5 hr post infection by confocal microscopy. These infected fish were then evaluated at three dpi and were scored as infected or uninfected, based on the presence or absence of fluorescent bacteria (Cambier et al., 2014b).

SDS-PAGE of lipid extracts

Request a detailed protocol

Petroleum ether extracts were dissolved by adding 30 µl of DMSO to 1 mg of lipids. 10 µl of 4x loading buffer (Licor) was then added to each sample and samples were heated at 95°C for 5 min. Samples were then separated on a 4–12% XT Bis-Tris Protein Gel (BioRad), in XT MES running buffer (BioRad) at 200 volts for 40 min. The gel was then stained with Colloidal Coomassie Brilliant Blue for 20 hr at room temperature with shaking. The gel was rinsed with water and then imaged.

Fluorescence recovery after photobleaching (FRAP) experiments

Request a detailed protocol

FRAP experiments were performed using the galvo scanner (laser scanner) of the Nikon A1R confocal microscope with a 60x oil-immersion Plan Apo 1.4 NA objective. Photobleaching was performed with the 405 nm laser for 200 ms on a region of interest (ROI) encompassing ~1 μm from one pole of a single bacteria. A series of images was taken every second over the course of 31 s, one prior to bleaching. Labeled cells were mounted on a slide and coverslip in 0.75% low melting agarose. NIS Elements software (Nikon) was used to analyze the FRAP data to extract the fluorescence recovery kinetics. Briefly, the first image before photobleaching was used to generate an ROI for the entire cell and a second ROI was generated in the photobleached area. Total fluorescence intensities in both the whole cell area and the bleached area were extracted and normalized to correct for photobleaching of the dyes due to acquisition. The normalized fluorescence intensities of the bleached area were then fitted to a non-linear regression with a one-phase association, with the plateau values from each sample plotted to represent the mobile fraction (Rodriguez-Rivera et al., 2017).

Exogenous lipid labeling of M. marinum

Request a detailed protocol

Wildtype or ∆mmpL7 M. marinum expressing wasabi fluorescent protein were grown in 7H9 medium supplemented with 10% OADC, 0.2% glycerol with or without 0.005% alkyne-cholesterol or azido-PE for 48 hr. Bacteria were then washed 3x with PBS prior to detection with fluorescent probes. For azido-PE, we followed the Copper-free click chemistry of M. marinum protocol above using DIBO-647. For alkyne-cholesterol we performed a copper-click reaction with AlexaFluor-647 Azide. For copper click: 400 µM BTTP (Click Chemistry Tools) and 200 µM copper sulfate (Sigma) were dissolved in PBS and allowed to complex for 20 min. 30 µM AlexaFluor-647 Azide (Thermo-Fisher) and 1.2 mM sodium ascorbate (Sigma) were then added to the solution. Bacterial pellets in 96-well v-bottom plates were resuspended in 50 µl of the solution and were incubated at 23°C protected from light for 45 min. Bacteria were then washed 5x in PBS prior to imaging on a Nikon A1R confocal microscope with a 60x oil-immersion Plan Apo 1.4 NA objective. Nikon elements software was used to determine fluorescent intensities of wasabi and cholesterol signals calculated from line profiles drawn perpendicular to bacterial membranes at least 0.5 µm from either pole.

Cholesterol depletion and infection of A549 epithelial cells

Request a detailed protocol

A549 cells were seeded at 50,000 cells per 8-well Nunc Lab-Tek II chambered coverglass or at 100,000 cells per well in a 24 well plate. Cells were incubated at 37°C for 48 hr. Cells were washed 1x in PBS followed by treatment with 10 mM methyl-ß cyclodextrin (Sigma), 1 mM water-soluble cholesterol (Sigma), or a combination of 10 mM methyl-ß cyclodextrin and 1 mM water-soluble cholesterol in serum free DMEM media. Cells were treated for 1 hr at 33°C followed by three washes with PBS. Cells plated on chambered coverglass were infected with azido-DIM labeled M. marinum at an MOI of 5 for 24 hr at 33°C followed by imaging on a Nikon A1R confocal microscope with a 20x Plan Apo 0.75 NA objective. 2 µm z-stacks were generated through the infected cells. Azido-DIM spreading was calculated similar to above (Section: Confocal microscopy and image-based quantification of infection). Cells plated on 24-well plates were rescued in DMEM + 10% FBS for 3 hr at 33°C. Cells were then harvested for quantification of cholesterol levels.

Atorvastatin treatment of zebrafish larvae

Request a detailed protocol

At 48 hr post-fertilization, 0.5 µM atorvastatin (Sigma), or 10 µM water-soluble cholesterol (Sigma), or both were added to zebrafish water containing 1% DMSO. Control fish were incubated in water with 1% DMSO only. Zebrafish were incubated for 24 hr prior to infection or to cholesterol quantification. Drugs were replenished every 24 hr until experiment endpoint.

Quantification of cholesterol in zebrafish and A549 epithelial cells

Request a detailed protocol

Cholesterol was quantified using the Total Cholesterol and Cholesterol Ester Colorimetric/Fluorometric Assay Kit (BioVision). For zebrafish, eight larvae were euthanized, transferred to a 1.5 ml Eppendorf tube and excess water was removed. A solution of chloroform:isopropanol:NP-40 (7:11:0.1) was added and the sample was sonicated in a water bath for 1 hr. Samples were then centrifuged at 16,000xg for 10 min and supernatants were transferred to a fresh tube and were allowed to dry in a 60°C water in a chemical fume hood. For A549 epithelial cells, chloroform:isopropanol:NP-40 (7:11:0.1) was added directly to cells in a 24 well plate. Cells were scrapped and solution was transferred to a 1.5 ml Eppendorf tube and was centrifuged at 16,000xg for 10 min and supernatants were transferred to a fresh tube and were allowed to dry in a 60°C water in a chemical fume hood. Dried lipids were then subjected to manufacturer’s protocol and total cholesterol concentrations were determined by fluorescence on a SpectraMax i3x plate reader (Molecular Devices).

Statistics

Statistical analyses were performed using Prism 8.4.3 (GraphPad): When appropriate D'Agostino-Pearson normality test was done to determine if all of the groups in a particular data set were of a gaussian distribution which then guided the subsequent statistical test performed (Supplementary file 1). Where the n value is given and not represented graphically in the figure, n represents the number of zebrafish used for each experimental group (Figure 8H and I).

Data availability

All data generated or analyzed during this study are included in the manuscript and supporting files.

References

    1. Silva CL
    2. Ekizlerian SM
    3. Fazioli RA
    (1985)
    Role of cord factor in the modulation of infection caused by mycobacteria
    The American Journal of Pathology 118:238–247.

Decision letter

  1. Christina L Stallings
    Reviewing Editor; Washington University School of Medicine, United States
  2. Dominique Soldati-Favre
    Senior Editor; University of Geneva, Switzerland
  3. Stefan H Oehlers
    Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This manuscript builds on earlier work by this group investigating the role of phthiocerol dimycocerosate (PDIM) in the pathogenesis of M. marinum in the zebrafish. Herein, the authors describe an innovative chemical approach to track PDIM in vitro and in vivo. The authors find that bacterial PDIM spreads into host epithelial cell membranes to prevent immune activation. The authors show that host cholesterol promotes the spreading of PDIM in the membrane. This work establishes that interactions between host and pathogen lipids influence mycobacterial pathogenesis.

Decision letter after peer review:

Thank you for submitting your article "Spreading of a mycobacterial cell surface lipid into host epithelial membranes promotes infectivity" for consideration by eLife. Your article has been reviewed by Dominique Soldati-Favre as the Senior Editor, a Reviewing Editor, and three reviewers. The following individual involved in review of your submission has agreed to reveal their identity: Stefan H Oehlers (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

This manuscript builds on earlier work by this group investigating the role of phthiocerol dimycocerosate (PDIM) in the pathogenesis of M. marinum in the zebrafish. The authors reported that PDIM spreads into epithelial cells in order to inhibit TLR signaling and promote infectivity. The study describes an innovative chemical approach to track PDIM in vitro and in vivo, and presents several interesting results supporting their previous work and data from other groups. Major strengths are the authors' unique expertise and resources, especially in chemical modification of bacterial lipids and the zebrafish model of M. marinum infection. However, some of the data require additional controls and further experiments to conclusively support the authors' conclusion. In particular, (1) the conclusions regarding the PDIM/TLR axis require further dissection and consideration of alternative interpretations of the data presented, (2) the conclusions related to the spreading of PDIM into epithelial membranes require more controls to be convincing, and (3) the authors should compare their current results more extensively to previous findings to better illustrate the broader context of the topics addressed.

Essential revisions:

1) The evidence presented here suggests that TLRs might be inhibited by PDIM spreading in the membrane, however, the evidence provided here do not directly show this. It is possible that the cytokine response to δ mmpL7 mutants are distinct from WT marinum and this is the reason for the altered cellular recruitment that the authors observe. The authors suggest PDIM might disrupt TLR rafting into cholesterol rich domains and sensitivity of THP-1 cells to PDIM spreading. Could they combine their fluorescent PDIM tool with traditional TLR pathway analysis tools in THP-1 cells (where these tools presumably work better than intact zebrafish)? It seems likely that TLR dimerization or association with adaptors like MYD88 are likely mechanisms and should be straightforward to test. PDIM + vs – epithelial cells could also be isolated for proteomic or transcriptional analysis to provide some insight into the mechanism of PDIM inhibition of TLR sensitivity. Notably, the authors previous work suggested that PDIM masked TLR-ligands, do they observe the same masking effect with azido-DIM?

2) The microscopy is difficult to interpret in a convincing manner. While it is clear that there are DIM-488 foci that are not colocalized with the bacteria, it is not clear that this is in the host cell membrane. Colocalization with a host cell membrane dye would be a more convincing demonstration of this finding. Since it is not clear that the PDIM signal are in host membranes from the data provided, it raises the possibility that the spots are cytosolic lipid droplets. Could these foreign inclusions could be disrupting host cell biology? The proposal that PDIM interaction with cholesterol promotes spreading into epithelial membranes could be supported by labeling membrane cholesterol and examining how azido-DIM is distributed relative to cholesterol.

In addition, the effects of lipid reconstitution on the lipid and proteomic composition of the mycomembrane should be addressed and considered. How did chemical extraction and reconstitution help control the composition of the mycomembrane (subsection “Controlling Mycomembrane Composition by Chemical Extraction and Reconstitution”, Figure 1A-D)? Is the organization of added lipid similar to that of the lipids transported from the cytoplasm? Characterization of the envelope of mycobacteria reconstituted with azido-DIM relative to intact bacteria is important for interpreting the data on the spread of azido-DIM into the epithelial cell. Since some experiments last up to 3 days, what is the stability of the fluorescence signal of azido-DIM during bacterial growth and the time required for M. marinum to restore native PDIM in the envelope?

In Figure 1, the authors perform lipid-swap experiments with wild-type M. marinum and mmpL7 mutant, and MmpL7 transports PDIM and PGL in M. marinum, differences in PGL could also be contributing to the phenotypes.

In Figure 4, the authors propose that PDIM accumulated in "mycomembrane domains", but this term is poorly defined and images of the microdomains are not provided. The authors also state that mycomembrane domains containing PDIM have a uniquely high fluidity that would promote membrane mixing and contribute to PDIM spreading. Another possibility is that the membrane mixing may help PDIM to be transferred to the host membrane, where they could spread according to their diffusion properties. To test this, the authors could take advantage of A549 cells and compare the spread of DIM-499 in cells treated with DIM-499 or put in contact with DIM-499-labeled bacteria. Cell membranes are highly heterogeneous structures with distinct fluidity from one cell type to another. If PDIM can also diffuse in cell membranes, this could explain the difference in the kinetic of azido-DIM spreading between epithelial cells and macrophages.

For Figure 7, the rationale for the cholesterol study is interesting given that cholesterol is coupled to biosynthesis of methyl-branched lipids such as PDIM (for rev. Wilburn et al., 2018) and the role of DIM in macrophage invasion required cholesterol (Astarie-Dequeker et al., 2009). Figure 7A-D: Can the distinct hydrophobicity between M. marinum WT and mmpL7 mutant influence their capacity to sequester cholesterol. The authors could consider testing another hydrophobic lipid to further underscore this point.

3) Crucial data is also unnecessarily buried in supplementary figures. Supplemental Figure 3 is important to the interpretation of the results and needs to be more visible as part of a main figure. As there is no display item limit, so consider integrating the "validation" data into Figure 3 or splitting up Figure 3. Finally, the authors should compare their current results more extensively to previous findings to better illustrate the broader context of the topics addressed.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Spreading of a mycobacterial cell surface lipid into host epithelial membranes promotes infectivity" for further consideration by eLife. Your revised article has been evaluated by Dominique Soldati-Favre (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

The reviewers appreciate the careful attention of the authors to address most of the original comments, which has provided stronger support of their interpretations and conclusion. However, there are a few points that still need attention as detailed here. These comments should be able to be addressed by changes in the text.

1) Claims of TLR inhibition (starting in the abstract and throughout the manuscript) need to softened or removed as this is not directly addressed in the manuscript. The authors show effects on monocyte recruitment and that MyD88 deletion affects monocyte recruitment, but the experiments do not directly show PDIM is inhibiting TLRs and really just show that MyD88 is required for monocyte recruitment.

2) The authors should comment on the membrane effects of PDIM in the context of the literature (Augenstreich et al., 2019 and 2020). These recent data obtained with PDIM of M. tuberculosis would provide strong support for their findings.

3) Introduction: Could the authors clarify what fluidity means for a lipid? Membrane fluidity and lipid mobility may be more appropriate.

4) Subsection “Chemical Extraction and Reconstitution of the Mycomembrane of M. marinum”: The authors clearly showed that by mixing of extracted lipids with bacteria, the lipids coat M. marinum, but the authors do not demonstrate that the mycomembrane is reconstituted. For instance, what is the localization and orientation of lipids once coated on the bacteria in comparison to native lipids? This can be addressed by more specifically writing "coating of bacteria with extracted lipid" instead of "reconstitution of the mycomembrane".

5) subsection “Pre-infection PDIM Reservoirs are Required for Virulence”: The authors should mention and discuss that deletion of mas or mmpL7 also results in defects in PGL synthesis and localization.

6) Subsection “PDIM Spreads into 148 Host Macrophage Cell Membranes” and thereafter: The authors should define more clearly the notion of spreading. Did Azido-DIM spread within the same membrane, suggesting a lateral diffusion, and/or propagate to distinct membrane compartments?

7) subsection “PDIM’s Fluidity Promotes Spread into Epithelial Cell Membranes”: The authors claimed that PDIM's fluidity correlates with the lipid's ability to spread into host membrane. Another possibility could be that PDIM's ability to diffuse into the bacterial membrane increases the membrane fluidity, which facilitates membrane mixing. The consequence would be the transfer of PDIM to the host membrane, in which the lipids inserted and can diffuse laterally, as previously reported (Augenstreich et al., 2019, 2020). The effect of PDIM on bacterial membrane fluidity could therefore be an explanation for the transfer of the lipid rather than for its spreading. In contrast, TMMs are less capable of diffusing and getting transferred. TMM are amphiphilic molecules in comparison to the highly hydrophobic PDIM. This strongly suggests a relationship between lipid structure and capacity to get transferred to host membranes. Please discuss this point in the Discussion section.

8) The authors should be clear in their conclusions and the Discussion that the data have been obtained with bacteria coated with extracted lipids.

9) The additional images provided by the authors are encouraging but there is not sufficient detail about the quantification to understand if this is representative or not. Furthermore, while the authors are showing overlapping signals with the plasma membrane, these images do not prove that PDIM is in the membrane. To show that PDIM is in the membrane, a z stack is required but not provided.

https://doi.org/10.7554/eLife.60648.sa1

Author response

Essential revisions:

1) The evidence presented here suggests that TLRs might be inhibited by PDIM spreading in the membrane, however, the evidence provided here do not directly show this. It is possible that the cytokine response to δ mmpL7 mutants are distinct from WT marinum and this is the reason for the altered cellular recruitment that the authors observe.

We absolutely agree with the reviewers that different cytokine responses are most likely underlying the different cell recruitment phenotypes seen toward wildtype and ∆mmpL7 M. marinum. From prior work (Cambier et al., 2013), we know that wildtype bacteria induce the chemokine CCL2 and that expression of the receptor CCR2 on monocytes is required for their ability to be recruited to the hindbrain ventricle. In this setting, TLR-signaling is not required for monocyte recruitment. Alternatively, when bacteria lack PDIM, we know that CCR2 signaling is no longer required to recruit monocytes but now TLR signaling is required. What we didn’t know at the time was when bacteria lack PDIM, where is detection by TLRs occurring. In this study our data suggests that TLR signaling is happening immediately following infection at epithelial cells at the site of infection. Presumably this then leads to the induction of cytokines/chemokines that are distinct from what occurs during wildtype bacterial infection. Identification of which cytokines are functionally responsible for this phenotype is ongoing.

The authors suggest PDIM might disrupt TLR rafting into cholesterol rich domains and sensitivity of THP-1 cells to PDIM spreading. Could they combine their fluorescent PDIM tool with traditional TLR pathway analysis tools in THP-1 cells (where these tools presumably work better than intact zebrafish)? It seems likely that TLR dimerization or association with adaptors like MYD88 are likely mechanisms and should be straightforward to test. PDIM + vs – epithelial cells could also be isolated for proteomic or transcriptional analysis to provide some insight into the mechanism of PDIM inhibition of TLR sensitivity. Notably, the authors previous work suggested that PDIM masked TLR-ligands, do they observe the same masking effect with azido-DIM?

We are currently searching for the most appropriate in-vitro model system to address this hypothesis. Our data in this manuscript demonstrates that PDIM is required to spread into epithelial cells to prevent recruitment of microbicidal monocytes. Because of this, we don’t anticipate data generated in monocyte cell lines to be relevant. Furthermore, previous literature suggests that TLR signaling may not be fully functional in A549 epithelial cells (DOI: 10.1371/journal.pone.0021827). Nevertheless, we evaluated the ability of A549 epithelial cells to respond to TNFa, LPS (TLR4 agonist), and PAM3CSK4 (TLR2 agonist) using an NFkB luciferase reporter A549 cell line (BPS Bioscience, Cat# 60625). Following an overnight incubation, the cells clearly respond to TNFa stimulation but do not respond to TLR agonists (See data in Author response image 1). In light of these data we are pursuing more relevant in vitro epithelial model systems where TLR signaling is intact to evaluate how PDIM disrupts this response. With regards to masking TLR ligands, our current data cannot rule out this mechanism, however it suggests that PDIM plays a more active role through the occupation of host membranes to silence TLR responses (See Discussion).

Author response image 1

2) The microscopy is difficult to interpret in a convincing manner. While it is clear that there are DIM-488 foci that are not colocalized with the bacteria, it is not clear that this is in the host cell membrane. Colocalization with a host cell membrane dye would be a more convincing demonstration of this finding. Since it is not clear that the PDIM signal are in host membranes from the data provided, it raises the possibility that the spots are cytosolic lipid droplets. Could these foreign inclusions could be disrupting host cell biology? The proposal that PDIM interaction with cholesterol promotes spreading into epithelial membranes could be supported by labeling membrane cholesterol and examining how azido-DIM is distributed relative to cholesterol.

We appreciate the reviewers’ scrutiny with regards to our microscopy data. We have included additional experiments that support our claims that PDIM is spreading into non-macrophage cell membranes. First, we took advantage of the transgenic zebrafish line Tg(flk1:mcherry), whose vascular endothelial cells express the fluorescent protein mcherry. Following intravenous infection with DIM-488 labeled mycobacteria we captured bacteria in contact with endothelial cells with spread DIM-488 co-localizing with the endothelial marker (Figure 4B, subsection “PDIM’s Fluidity Promotes Spread into Epithelial Cell Membranes”). Additionally, we used the plasma membrane label Alexa-fluor 594 wheat germ agglutinin to label A549 epithelial cells. We then captured DIM-488 having spread and co-localizing with the plasma membrane label following infection (Figure 4C, subsection “Pdim’s Fluidity Promotes Spread into Epithelial Cell Membranes”). Finally, we labeled A549 epithelial cells with BODIPY-cholesterol and imaged PDIM spreading onto these cells and found PDIM to strongly co-localize with BODIPY-cholesterol (Figure 8C, Discussion section).

In addition, the effects of lipid reconstitution on the lipid and proteomic composition of the mycomembrane should be addressed and considered. How did chemical extraction and reconstitution help control the composition of the mycomembrane (subsection “Controlling Mycomembrane Composition by Chemical Extraction and Reconstitution”, Figure 1A-D)? Is the organization of added lipid similar to that of the lipids transported from the cytoplasm? Characterization of the envelope of mycobacteria reconstituted with azido-DIM relative to intact bacteria is important for interpreting the data on the spread of azido-DIM into the epithelial cell. Since some experiments last up to 3 days, what is the stability of the fluorescence signal of azido-DIM during bacterial growth and the time required for M. marinum to restore native PDIM in the envelope?

The chemical extraction and reconstitution method allows us to control the lipid content of the outer mycomembrane, as is evidenced by later sections in the paper. As such we have renamed this subsection “Chemical Extraction and Reconstitution of the Mycomembrane of M. marinum”. To address concerns over the lipid content of the mycomembrane pre and post reconstitution we extracted lipids from untreated or reconstituted bacteria and compared them by TLC. No apparent differences were noticed (Figure 1—figure supplement 1D, subsection “Chemical Extraction and Reconstitution of the Mycomembrane of M. marinum”). We additionally ran proton NMRs of the two crude extracts from control or reconstituted bacteria, the spectra were near identical (Materials and method subsection “NMR spectra”). To evaluate how extraction may alter proteins on the mycomembrane we first asked if any proteins were removed during petroleum ether extraction. We resuspended 1 mg of lipid extract in 30µl of DMSO and separated the sample by SDS-PAGE followed by staining overnight with Colloidal Coomassie Brilliant Blue. Similar to previous findings (Moliva et al., 2019) we found no evidence of protein in the petroleum ether extracts (Figure 1—figure supplement 1E, subsection “Chemical Extraction and Reconstitution of the Mycomembrane of M. marinum”), thus we do not anticipate any changes to the mycomembrane protein composition arising following reconstitution. Furthermore, the ability of reconstituted bacteria to survive as well as untreated bacteria following infection further supports this idea. Additionally, we evaluated how long it takes for delipidated bacteria to repopulate their mycomembrane lipids. Immediately following extraction, delipidated bacteria were rescued into complete growth medium. Every 24hrs these bacteria were harvested and re-extracted and the amount of lipids removed was measured. Even after 5 days in culture, bacteria did not fully restore their mycomembrane lipids (Figure 1—figure supplement 1B, subsection “Chemical Extraction and Reconstitution of the Mycomembrane of M. marinum”). Finally, we grew DIM-488 labeled bacteria for several days following reconstitution and found that the intensity of DIM-488 decreased but was still present on bacteria even after 3 days in culture (Figure 3D and E, subsection “Pdim Spreads into Host Macrophage Cell Membranes in vivo”), suggesting that PDIM is not appreciably shed during mycobacterial growth in aqueous medium and that PDIM spreading is a result of interactions with the host.

In Figure 1, the authors perform lipid-swap experiments with wild-type M. marinum and mmpL7 mutant, and MmpL7 transports PDIM and PGL in M. marinum, differences in PGL could also be contributing to the phenotypes.

The reviewers are correct that phenolic glycolipid (PGL) also depends on MmpL7 for its localization to the mycomembrane. Using mutants defective for PGL synthesis, that retain PDIM on their surface, previous studies found that these phenotypes (decreased growth following hindbrain infection with ~100 bacteria and TLR-dependent monocyte recruitment following hindbrain infection with ~100 bacteria) were not influenced by the absence of PGL (Cambier et al., 2013). Therefore, we decided to leave this detail of mycobacterial cell wall biology out of the manuscript so as not to overwhelm the readers.

In Figure 4, the authors propose that PDIM accumulated in "mycomembrane domains", but this term is poorly defined and images of the microdomains are not provided. The authors also state that mycomembrane domains containing PDIM have a uniquely high fluidity that would promote membrane mixing and contribute to PDIM spreading. Another possibility is that the membrane mixing may help PDIM to be transferred to the host membrane, where they could spread according to their diffusion properties. To test this, the authors could take advantage of A549 cells and compare the spread of DIM-499 in cells treated with DIM-499 or put in contact with DIM-499-labeled bacteria. Cell membranes are highly heterogeneous structures with distinct fluidity from one cell type to another. If PDIM can also diffuse in cell membranes, this could explain the difference in the kinetic of azido-DIM spreading between epithelial cells and macrophages.

We agree with the reviewers that our interpretation that PDIM resides in distinct membrane domains is not accurate. We have changed our description to better reflect our data. We also appreciate your inquiry into the mechanism behind PDIM spreading. Your suggestion that membrane mixing may help PDIM transfer to host epithelial membranes is interesting. We agree that membrane mixing is most likely an important step for PDIM transfer, however, if mixing were the deterministic mechanism driving lipid transfer then we would expect trehalose monomycolate to also be able to spread into epithelial cells, which it does not. Additionally, our data demonstrating that methyl-branched mycocerosic acids promote PDIM fluidity and are required for spreading into epithelial membranes supports the hypothesis that the biophysical properties of PDIM on the bacterial surface promote its ability to spread into host membranes.

Regarding the different kinetics of spreading between epithelial cells and macrophages, we do not believe our data suggest that the rate of spreading is different between the two. In fact, our data cannot speak to the rate of lipid spread into host membranes. Our data shows that PDIM spreads into epithelial membranes before it spreads into macrophage membranes. We believe this is a result of the physiology of infection. In our infection model, mycobacteria remain in an extracellular space for around 3-5 hours following infection after which they are phagocytosed by macrophages. While in this extracellular space they can make contact with epithelial cells. Thus, PDIM spreads into epithelial membranes prior to macrophage membranes because bacteria make contact with epithelial cells prior to interacting with/being phagocytosed by macrophages. A better explanation of these kinetics are now in subsection “Pdim’s Fluidity Promotes Spread into Epithelial Cell Membranes”.

For Figure 7, the rationale for the cholesterol study is interesting given that cholesterol is coupled to biosynthesis of methyl-branched lipids such as PDIM (for rev. Wilburn et al., 2018) and the role of DIM in macrophage invasion required cholesterol (Astarie-Dequeker et al., 2009).

We thank the reviewers for highlighting these important studies. We agree that the Wilburn review highlights an important link between cholesterol metabolism and PDIM bio-synthesis. We have included this in our Discussion. For the introduction to Figure 7 we were motivated by studies that suggested a physical association between PDIM and cholesterol outside of macrophages, as this suggested to us that cholesterol may be promoting the spreading into epithelial cells that we were observing.

The work from Astarie-Dequeker et al., does more directly demonstrate an interaction between PDIM and cholesterol. Indeed, insubsection “Pdim Spreads into Epithelial Membranes” we discuss these results. However, in contrast to Astarie-Dequeker et al., we found no difference in the rate of phagocytosis of wildtype or PDIM-deficient M. marinum following infection of zebrafish larvae (Figure 3H). Therefore, we decided not to further describe the mechanism from Astarie-Dequeker et al., where they show cholesterol being required for PDIM-promoted phagocytosis as we felt it may not explain the results in our model.

Figure 7A-D: Can the distinct hydrophobicity between M. marinum WT and mmpL7 mutant influence their capacity to sequester cholesterol. The authors could consider testing another hydrophobic lipid to further underscore this point.

The reviewers raise an excellent point. The ability of mycobacteria to sequester cholesterol could be due to their hydrophobic outer cell membrane and not due to interactions with PDIM directly. To test this idea we chose a compound that was just as hydrophobic as cholesterol but structurally very distinct. We tested whether wildtype or ∆mmpL7 M. marinum could sequester 16:0 azidocaproyl phosphoethanolamine (azido-PE, Figure 8—figure supplement 1B). We found that either strain were capable of sequestering this hydrophobic compound (Figure 8—figure supplement 1C and D, Discussion), suggesting that there is not dramatic differences in the hydrophobicity of wildtype and ∆mmpL7 M. marinum.

3) Crucial data is also unnecessarily buried in supplementary figures. Supplemental Figure 3 is important to the interpretation of the results and needs to be more visible as part of a main figure. As there is no display item limit, so consider integrating the "validation" data into Figure 3 or splitting up Figure 3. Finally, the authors should compare their current results more extensively to previous findings to better illustrate the broader context of the topics addressed.

We appreciate that the reviewers consider our supplemental data important to the understanding of our manuscript. As such we have taken their advice and have added these panels to the main figures and have split figure three into two figures.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

The reviewers appreciate the careful attention of the authors to address most of the original comments, which has provided stronger support of their interpretations and conclusion. However, there are a few points that still need attention as detailed here. These comments should be able to be addressed by changes in the text.

1) Claims of TLR inhibition (starting in the abstract and throughout the manuscript) need to softened or removed as this is not directly addressed in the manuscript. The authors show effects on monocyte recruitment and that MyD88 deletion affects monocyte recruitment, but the experiments do not directly show PDIM is inhibiting TLRs and really just show that MyD88 is required for monocyte recruitment.

The claims of TLR inhibition have been softened and instead are more focused on Myd88 signaling and the resulting recruitment of microbicidal monocytes. These changes were made throughout the manuscript.

2) The authors should comment on the membrane effects of PDIM in the context of the literature (Augenstreich et al., 2019 and 2020). These recent data obtained with PDIM of M. tuberculosis would provide strong support for their findings.

We have discussed these works in the Discussion.

3) Introduction: Could the authors clarify what fluidity means for a lipid? Membrane fluidity and lipid mobility may be more appropriate.

You are correct and this language has been corrected throughout the manuscript.

4) Subsection “Chemical Extraction and Reconstitution of the Mycomembrane of M. marinumof the Mycomembrane of M. marinum”: The authors clearly showed that by mixing of extracted lipids with bacteria, the lipids coat M. marinum, but the authors do not demonstrate that the mycomembrane is reconstituted. For instance, what is the localization and orientation of lipids once coated on the bacteria in comparison to native lipids? This can be addressed by more specifically writing "coating of bacteria with extracted lipid" instead of "reconstitution of the mycomembrane".

Reconstitution has been replaced with recoating throughout the manuscript.

5) subsection “Pre-infection PDIM Reservoirs are Required for Virulence”: The authors should mention and discuss that deletion of mas or mmpL7 also results in defects in PGL synthesis and localization.

We have brought this to the reader’s attention (subsection “PDIM Spreads into Macrophage Membranes”).

6) Subsection “PDIM Spreads into 148 Host Macrophage Cell Membranes” and thereafter: The authors should define more clearly the notion of spreading. Did Azido-DIM spread within the same membrane, suggesting a lateral diffusion, and/or propagate to distinct membrane compartments?

Our data suggests both to be taking place. We see spreading appearing next to where bacteria make contact with host membranes as well as intracellular punctate forming. We have made clearer these observations (subsection “PDIM’s Mobility Promotes Spread into Epithelial Cell Membranes”).

7) subsection “PDIM’s Fluidity Promotes Spread into Epithelial Cell Membranes”: The authors claimed that PDIM's fluidity correlates with the lipid's ability to spread into host membrane. Another possibility could be that PDIM's ability to diffuse into the bacterial membrane increases the membrane fluidity, which facilitates membrane mixing. The consequence would be the transfer of PDIM to the host membrane, in which the lipids inserted and can diffuse laterally, as previously reported (Augenstreich et al., 2019, 2020). The effect of PDIM on bacterial membrane fluidity could therefore be an explanation for the transfer of the lipid rather than for its spreading. In contrast, TMMs are less capable of diffusing and getting transferred. TMM are amphiphilic molecules in comparison to the highly hydrophobic PDIM. This strongly suggests a relationship between lipid structure and capacity to get transferred to host membranes. Please discuss this point in the Discussion section.

We have expanded on how our data speaks to these more basic principles of lipid dynamics (Discussion).

8) The authors should be clear in their conclusions and the Discussion that the data have been obtained with bacteria coated with extracted lipids.

We make have made this clear in the Discussion.

9) The additional images provided by the authors are encouraging but there is not sufficient detail about the quantification to understand if this is representative or not. Furthermore, while the authors are showing overlapping signals with the plasma membrane, these images do not prove that PDIM is in the membrane. To show that PDIM is in the membrane, a z stack is required but not provided.

We have included a z projection of DIM-488 spreading into the plasma membrane of A549 cells. (Figure 4C).

https://doi.org/10.7554/eLife.60648.sa2

Article and author information

Author details

  1. CJ Cambier

    Department of Chemistry, Stanford University, Stanford, United States
    Contribution
    Conceptualization, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0300-7377
  2. Steven M Banik

    Department of Chemistry, Stanford University, Stanford, United States
    Contribution
    Conceptualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7070-3404
  3. Joseph A Buonomo

    Department of Chemistry, Stanford University, Stanford, United States
    Contribution
    Investigation, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Carolyn R Bertozzi

    1. Department of Chemistry, Stanford University, Stanford, United States
    2. Howard Hughes Medical Institute, Stanford University, Stanford, United States
    Contribution
    Conceptualization, Funding acquisition, Writing - original draft, Writing - review and editing
    For correspondence
    bertozzi@stanford.edu
    Competing interests
    is a co-founder of OliLux Bio, Palleon Pharmaceuticals, InverVenn Bio, Enable Biosciences, and Lycia Therapeutics, and member of the Board of Directors of Eli Lilly.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4482-2754

Funding

National Institutes of Health (AI51622)

  • Carolyn R Bertozzi

Damon Runyon Cancer Research Foundation (Postdoctoral Fellowship)

  • CJ Cambier

National Institutes of Health (F32)

  • Steven M Banik
  • Joseph A Buonomo

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Lalita Ramakrishnan for help interpreting data and manuscript writing, Karen Dobos for help purifying PDIM, Benjamin M Swarts for providing TreT-expressing E. coli, and David Tobin for zebrafish lines. This work was supported by a National Institutes of Health grant (AI51622) to CRB. CJC was supported by a Damon Runyon Postdoctoral Fellowship. SMB and JAB were supported by NIGMS F32 Postdoctoral Fellowships.

Ethics

Animal experimentation: All experiments performed on zebrafish were in compliance with the U.S. National Institutes of Health guidelines. All animals were handled according to approved Stanford Institutional Animal Care and Use Committee protocol APLAC-30262.

Senior Editor

  1. Dominique Soldati-Favre, University of Geneva, Switzerland

Reviewing Editor

  1. Christina L Stallings, Washington University School of Medicine, United States

Reviewer

  1. Stefan H Oehlers

Publication history

  1. Received: July 2, 2020
  2. Accepted: November 23, 2020
  3. Accepted Manuscript published: November 23, 2020 (version 1)
  4. Version of Record published: December 14, 2020 (version 2)

Copyright

© 2020, Cambier et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,223
    Page views
  • 303
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics
    Juan Carlos Rengifo-Gonzalez et al.
    Research Article Updated

    TDP-43 is a nuclear RNA-binding protein that forms neuronal cytoplasmic inclusions in two major neurodegenerative diseases, ALS and FTLD. While the self-assembly of TDP-43 by its structured N-terminal and intrinsically disordered C-terminal domains has been widely studied, the mechanism by which mRNA preserves TDP-43 solubility in the nucleus has not been addressed. Here, we demonstrate that tandem RNA recognition motifs of TDP-43 bind to long GU-repeats in a cooperative manner through intermolecular interactions. Moreover, using mutants whose cooperativity is impaired, we found that the cooperative binding of TDP-43 to mRNA may be critical to maintain the solubility of TDP-43 in the nucleus and the miscibility of TDP-43 in cytoplasmic stress granules. We anticipate that the knowledge of a higher order assembly of TDP-43 on mRNA may clarify its role in intron processing and provide a means of interfering with the cytoplasmic aggregation of TDP-43.

    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Vinay V Eapen et al.
    Research Article Updated

    Removal of damaged organelles via the process of selective autophagy constitutes a major form of cellular quality control. Damaged organelles are recognized by a dedicated surveillance machinery, leading to the assembly of an autophagosome around the damaged organelle, prior to fusion with the degradative lysosomal compartment. Lysosomes themselves are also prone to damage and are degraded through the process of lysophagy. While early steps involve recognition of ruptured lysosomal membranes by glycan-binding galectins and ubiquitylation of transmembrane lysosomal proteins, many steps in the process, and their interrelationships, remain poorly understood, including the role and identity of cargo receptors required for completion of lysophagy. Here, we employ quantitative organelle capture and proximity biotinylation proteomics of autophagy adaptors, cargo receptors, and galectins in response to acute lysosomal damage, thereby revealing the landscape of lysosome-associated proteome remodeling during lysophagy. Among the proteins dynamically recruited to damaged lysosomes were ubiquitin-binding autophagic cargo receptors. Using newly developed lysophagic flux reporters including Lyso-Keima, we demonstrate that TAX1BP1, together with its associated kinase TBK1, are both necessary and sufficient to promote lysophagic flux in both HeLa cells and induced neurons (iNeurons). While the related receptor Optineurin (OPTN) can drive damage-dependent lysophagy when overexpressed, cells lacking either OPTN or CALCOCO2 still maintain significant lysophagic flux in HeLa cells. Mechanistically, TAX1BP1-driven lysophagy requires its N-terminal SKICH domain, which binds both TBK1 and the autophagy regulatory factor RB1CC1, and requires upstream ubiquitylation events for efficient recruitment and lysophagic flux. These results identify TAX1BP1 as a central component in the lysophagy pathway and provide a proteomic resource for future studies of the lysophagy process.
