Crash landing of Vibrio cholerae by MSHA pili-assisted braking and anchoring in a viscoelastic environment

  1. Wenchao Zhang
  2. Mei Luo
  3. Chunying Feng
  4. Huaqing Liu
  5. Hong Zhang
  6. Rachel R Bennett  Is a corresponding author
  7. Andrew S Utada  Is a corresponding author
  8. Zhi Liu  Is a corresponding author
  9. Kun Zhao  Is a corresponding author
  1. Frontier Science Center for Synthetic Biology and Key Laboratory of Systems Bioengineering (Ministry of Education), School of Chemical Engineering and Technology, Tianjin University, China
  2. Department of Biotechnology, College of Life Science and Technology, Huazhong University of Science and Technology, China
  3. School of Mathematics, University of Bristol, United Kingdom
  4. Faculty of Life and Environmental Sciences, University of Tsukuba, Japan
  5. The Microbiology Research Center for Sustainability, University of Tsukuba, Japan
Research Article
  • Cited 0
  • Views 303
  • Annotations
Cite this article as: eLife 2021;10:e60655 doi: 10.7554/eLife.60655

Abstract

Mannose-sensitive hemagglutinin (MSHA) pili and flagellum are critical for the surface attachment of Vibrio cholerae, the first step of V. cholerae colonization on host surfaces. However, the cell landing mechanism remains largely unknown, particularly in viscoelastic environments such as the mucus layers of intestines. Here, combining the cysteine-substitution-based labeling method with single-cell tracking techniques, we quantitatively characterized the landing of V. cholerae by directly observing both pili and flagellum of cells in a viscoelastic non-Newtonian solution consisting of 2% Luria-Bertani and 1% methylcellulose (LB+MC). The results show that MSHA pili are evenly distributed along the cell length and can stick to surfaces at any point along the filament. With such properties, MSHA pili are observed to act as a brake and anchor during cell landing which includes three phases: running, lingering, and attaching. Importantly, loss of MSHA pili results in a more dramatic increase in mean path length in LB+MC than in 2% LB only or in 20% Ficoll solutions, indicating that the role of MSHA pili during cell landing is more apparent in viscoelastic non-Newtonian fluids than viscous Newtonian ones. Our work provides a detailed picture of the landing dynamics of V. cholerae under viscoelastic conditions, which can provide insights into ways to better control V. cholerae infections in a real mucus-like environment.

Introduction

Vibrio cholerae, a human pathogen that causes the debilitating disease cholera, is a natural inhabitant of aquatic ecosystems (Almagro-Moreno et al., 2015; Kaper et al., 1995). They can form biofilms on both biotic and abiotic surfaces, which increase their infectivity and environmental survival (Donlan and Costerton, 2002; Silva and Benitez, 2016; Teschler et al., 2015; Yildiz and Visick, 2009).

Bacterial appendages have been shown to play important roles in regulating bacterial activities, especially biofilm formation during microbe-host interactions. The flagellum is required for biofilm formation in a variety of bacteria species, such as Escherichia coli (Pratt and Kolter, 1998), Pseudomonas aeruginosa (O'Toole and Kolter, 1998), and V. cholerae (Guttenplan and Kearns, 2013; Watnick and Kolter, 1999). Mutants lacking flagella in both E. coli and Vibrio vulnificus have been observed to be defective for attachment (Friedlander et al., 2013; Lee et al., 2004). Type IV pili (TFP) are another type of filamentous appendages commonly found on many bacteria and archaea, which have diverse functions such as cellular twitching motility, biofilm formation, horizontal gene transfer, and host colonization (Piepenbrink and Sundberg, 2016). P. aeruginosa displays two types of TFP-driven twitching motility (Gibiansky et al., 2010). Neisseria gonorrhoeae has shown a TFP-dependent attachment, leading to the formation of microcolonies on host cell surfaces (Higashi et al., 2007). In contrast, although V. cholerae biosynthesizes three types of TFP that are expressed under different scenarios, they have not been observed to twitch on surfaces. These three pili are chitin-regulated competence pili (ChiRP; formerly termed PilA), toxin co-regulated pili (TCP), and mannose-sensitive hemagglutinin (MSHA) TFP (Meibom et al., 2004; Reguera and Kolter, 2005; Yildiz and Visick, 2009). ChiRP were observed to be able to grasp extracellular DNA and transport it back to the cell surface via pili retraction (Ellison et al., 2018). TCP are important for host colonization and pathogenesis (Kirn et al., 2000; Thelin and Taylor, 1996). In contrast to these two types, MSHA pili are known to be important for surface attachment of V. cholerae (Utada et al., 2014; Watnick and Kolter, 1999).

Motility has been shown to be a crucial element for V. cholerae colonization of the epithelium, leading to successful infection of the human host (Krukonis and DiRita, 2003; Tsou et al., 2008). Two types of near-surface motility, roaming and orbiting, were observed in V. cholera and were further suggested that V. cholerae synergistically employs the use of their flagella and MSHA pili to enable a hybrid surface motility that facilitates surface selection and attachment in aqueous environments (Utada et al., 2014). However, there is a lack of direct observational evidence of the appendages in question. Moreover, in addition to the aqueous environments that V. cholerae typically inhabits, it also encounters viscoelastic environments in the intestinal mucus of hosts (Almagro-Moreno et al., 2015). The mucus layer of animal intestines is estimated to have a wide range of viscosities, varying anywhere from the viscosity of water (~1 cP) to 1000-fold higher (1000 cP) (Lai et al., 2009). How cells land on surfaces in such viscoelastic environments is still not clear. To answer these questions, direct live-cell visualization of the pili and flagellum in real-time in viscoelastic conditions is needed.

Recently, there have been significant advances in techniques for directly observing cell appendages (Blair et al., 2008; Ellison et al., 2019; Ellison et al., 2018; Ellison et al., 2017; Nakane and Nishizaka, 2017; Renault et al., 2017; Skerker and Berg, 2001; Talà et al., 2019). Among them, the cysteine substitution-based labeling method is specific and has been successfully applied to visualize tight adherence (TAD) pili of Caulobacter crescentus and TFP of V. cholera (Ellison et al., 2019).

In this paper, by combining a cysteine substitution-based labeling method with single-cell tracking, we directly observed individual pili and the flagellum of landing cells in viscoelastic media and revealed the dynamic landing sequence of V. cholerae as it makes initial surface attachment. The role of MSHA pili during cell landing in a viscoelastic environment is also demonstrated. Our work provides a detailed picture of the landing dynamics of V. cholerae under viscoelastic conditions, during which, the synergistic functions of MSHA pili and flagellum are elucidated.

Results

MSHA pili are evenly distributed along cell length with a constant length density

To visualize the MSHA pili, we constructed a mutant (MshAT70C) by cysteine substitution, which can subsequently be labeled with highly specific maleimide dyes (Figure 1a and Figure 1—figure supplement 1), following the protocol in Ellison et al., 2019; Ellison et al., 2017. To observe the distribution of MSHA pili on the cell surface, we simultaneously stained the plasma membrane with FM4-64 in Figure 1a.

Figure 1 with 4 supplements see all

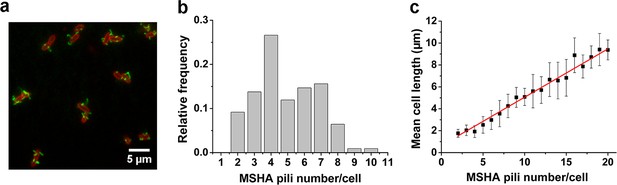

MSHA pili are evenly distributed along cell length with a constant length density.

(a) Examples of labeled MSHA pili observed on cell bodies. Green fluorescence showing the AF488-mal labeled MSHA pili, red fluorescence showing the FM4-64 labeled plasma membrane. (b) Distribution of pili number per cell cultivated in LB medium. Ncell=110. (c) The MSHA pili number per cell is linearly correlated with the cell length. Cells with longer length were obtained by 30–50 min treatment using 10 μg/mL cephalexin. Ncell=368. LB, Luria-Bertani; MSHA, mannose-sensitive hemagglutinin.

We visualized the positions of the different pili as the cell body rotates by recording high-speed videos during surface landing (see one example of a three-dimensional model of a single cell reconstructed from the videos in Figure 1—figure supplement 2). The results show evenly distributed MSHA pili along the cell length, indicating the absence of preferred pili localization on the cell body. Quantitatively, we find that the majority of cells have approximately 3–7 MSHA pili, with 4 MSHA pili per cell being observed most frequently, as shown in Figure 1b. These results are in agreement with recent reports (Floyd et al., 2020). Under our conditions, we observed MSHA pili growth (Figure 1—figure supplement 3a and b) but no retraction.

The number of MSHA pili appears to be positively correlated with cell length since it increases as the cell grows (Figure 1—figure supplement 3c). Statistically, the number of MSHA pili shows a linear relationship with cell length (Figure 1c), indicating that the length density of MSHA pili is roughly constant for V. cholerae.

MSHA pili mediate V. cholerae landing by acting as a brake and anchor

The MSHA pili, which are uniformly distributed across the cell surface, play a crucial role in the surface attachment of V. cholerae through pili-surface interactions (Utada et al., 2014). To elucidate the role of MSHA pili in the landing dynamics under viscoelastic conditions, we directly visualize the fluorescently labeled MSHA pili on V. cholerae swimming in a viscoelastic medium consisting of 2% Luria-Bertani (LB) and 1% methylcellulose (MC) (LB+MC).

Consistent with previous reports in normal aqueous solutions (Utada et al., 2014), the WT strain in LB+MC also exhibits orbiting behavior, characterized by multi-pass circular trajectories, and roaming behavior, characterized by highly exploratory, diffusive, trajectories. Typical roaming and orbiting trajectories in LB+MC are shown in Figure 2 (see more examples in Figure 2—figure supplement 1). The roaming cell traces out a path that is linear over short distances, with a radius of gyration Rg=19.5 μm, and an average speed of 1.7 μm/s (see Figure 2a,b, Video 1). In contrast, the orbiting cell trajectory is much more circular with an average Rg=1.6 μm and an average speed of 1.1 μm/s (see Figure 2c,d, Video 2). A 3D plot of speed plotted along the trajectory in both examples show that both phenotypes make momentary pauses, where their speed slows down; this can be seen clearly in Figure 2b, where the cell motion near a surface displays a characteristic alternation between moving and stopping (Figure 2b and d).

Figure 2 with 2 supplements see all

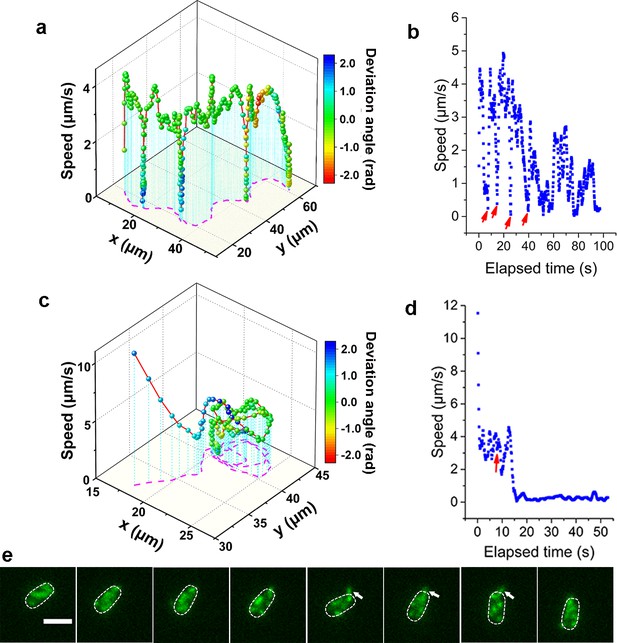

Analysis of roaming and orbiting, using cells of MSHA labeled MshAT70C.

The 3D plot and speed changes over time of representative (a, b) roaming and (c, d) orbiting cells, respectively. The magenta dashed lines in panels (a) and (c) are the trajectories of cells and the color maps indicate the deviation angle. The arrows in panel (b) represent temporary attachment between MSHA pili and surface, where the speeds are close to 0. (e) Time-lapse images of the orbiting cell in panels (c, d) at 130 ms intervals (see Video 2 for more details). The arrowheads show the stretched pilus, which corresponds to the red arrow in panel (d), indicating temporary attachment and stretching of pilus on the surface. Dashed lines indicate the estimated envelope of the cell body. Scale bar, 2 μm. MSHA, mannose-sensitive hemagglutinin.

Video 1
Time-lapse fluorescence imaging showing a typical roaming cell (indicated by the arrowhead) with labeled MSHA pili in 2% LB+1% MC viscoelastic medium.

This video was recorded every 390 ms for 98 s and displayed at 20 frames per second (fps).

Video 2
Time-lapse fluorescence imaging showing a typical orbiting cell with labeled MSHA pili in 2% LB+1% MC medium.

This video was recorded every 130 ms for 15 s and displayed at 10 fps.

Such pauses are suggested to be caused by MSHA pili-surface interactions (Utada et al., 2014). However, by recording fluorescence video sequences, we directly visualized the process, thereby providing direct evidence that the pauses are due to transient contact between MSHA pili and the surface. We show a transient pili-surface contact during orbiting in Figure 2e. In a time-lapse sequence, we show the stretching of a transiently attached pilus due to cell moving away from the point of attachment. Subsequently, this pilus detaches from the surface as the cell continues to move, as indicated with the white arrowheads in Figure 2e (for more details, see Video 2). These results indicate that the MSHA pili can work as a brake to abruptly slow cell motion by transiently attaching to the surface. This is further confirmed by the observation that during the course of surface motion, different MSHA pili attach and detach, switching dynamically as the cell uses these as transient attachment points (Figure 2—figure supplement 2 and Video 3). Such a switching of the specific MSHA pili that are engaging the surface is caused by the rotation of the cell body, which is required to balance the torque for flagellar rotation when cells swim. Thus, as the cell body rotates due to the rotation of the flagellar motor, different MSHA pili distributed on the cell body take turns approaching and receding from the surface. The switching of attached MSHA pili not only continues to slow down cell motion but also changes the direction of motion. Taken together, this indicates that the pili distribution on the cell body may also affect cell-surface interaction.

Video 3
Time-lapse fluorescence imaging showing switch of pili.

When transient pauses happened, the attached pilus could be switched from one to another or more. See also Figure 2—figure supplement 2. This video was recorded every 70 ms for 10 s and displayed at 5 fps.

When the adhesion between MSHA pili and the surface is sufficiently strong, the attachment point can act as an anchor point. We demonstrate this by showing the deflection of the trajectory of a swimming cell by the attachment of a single anchoring MSHA pilus; here, linear motion is bent into a circular motion that is centered around the attachment point (see Video 4). We estimate the upper bound for the force exerted on the pilus during this motion by calculating the propulsive force of the flagellum using a resistive force theory model developed by Lauga et al., 2006. The force on the pilus will be less than this upper bound, partly due to the difference in direction between the pilus force and the propulsion force, which helps the cell rotate around the anchor point. Cell body rotations are an order of magnitude slower in the LB+MC solution used here than in water, so we estimate the flagellar rotation rate to be in the range of 10–100 rad/s. The viscosity of LB+MC is ~0.2 Pa⋅s and this gives us an upper bound for the force on the pilus of ~50 pN. In water, we estimate an upper bound of ~3 pN. These estimates are smaller than the 100 pN forces that pili can sustain (Maier et al., 2002). The anchoring of MSHA pilus eventually leads to the irreversible attachment of the cell.

Video 4
Time-lapse fluorescence imaging showing linear motion bent into a circular motion that is centered around the attachment point between MSHA pili and the surface, which can act as an anchor point.

This video was recorded every 130 ms for 8 s and displayed at 10 fps.

The landing sequence of V. cholerae includes three phases

To further clarify the landing process, we labeled both flagellum and pili simultaneously using MshAT70CFlaAA106CS107C mutant. An example of the complete landing process of an orbiting cell is shown in Figure 3. Based on the pattern of motion displayed by the cell (Figure 3a and Video 5), we divide the landing process into three phases: running, lingering, and attaching. In the running phase (0–3.77 s), cells will swim and can perform roaming or orbiting. We note that misalignments between the flagellum and cell body axis tend to change the motion direction of the cell (Figure 3a,b). In the lingering phase (3.77–4.68 s), the cells demonstrate one of two states: a paused state or a tethered state, where the cell can move under the constraint of tethering pilus (see Figure 3a for the tethered state). At 3.77 s, one pilus attaches to the surface and acts as an anchor point to prevent the cell from moving away. Finally, in the attaching phase (≥ 4.68 s), cells remain on the surface motionless during the observation period most likely since they have effected irreversible attachment. Upon irreversible cell attachment, some of the free MSHA pili become attached to the surface firmly while others demonstrate fluctuations punctuated with intermittent attachment to the surface (Video 6).

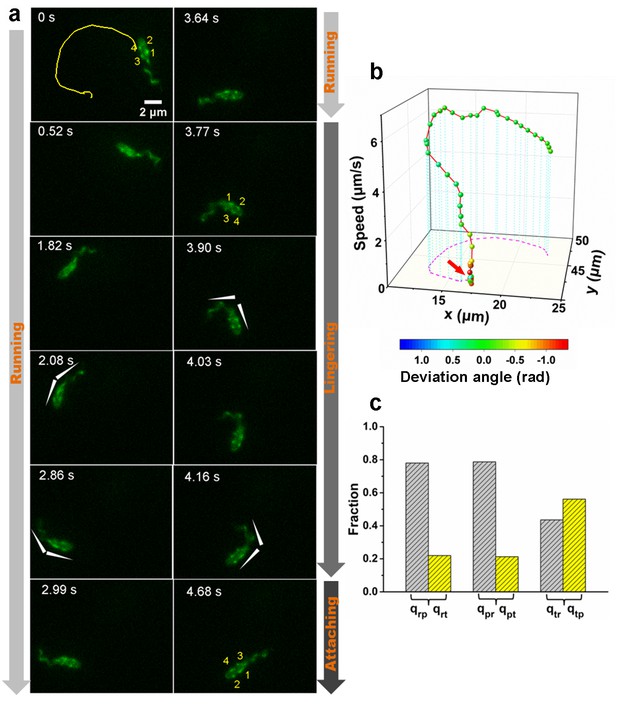

An example of a typical landing sequence of a Vibriocholerae cell with MSHA pili and flagella both labeled (MshAT70CFlaAA106CS107C).

(a) Representative image sequences showing the behavior of MSHA pili and flagellum. For easy identification, four pili of the example cell in (a) are numbered from 1 to 4, which revolve around the major axis of the cell periodically as the cell swims. The white arrowheads indicate the orientation of the cell body and flagellum. (b) A 3D plot of speed and deviation angle of the representative cell in panel (a) over its trajectory. The red arrow in panel (b) represents the position, where the pili touch surface, causing a deflection. (c) The conditional probabilities qij that the bacterium transitions from state i to j. The number of transition events used for estimating these conditional probabilities is 666. r: running state, t: tethered state, p: paused state. MSHA, mannose-sensitive hemagglutinin.

Video 5
Time-lapse fluorescence imaging showing dynamic movement of a MshAT70CFlaAA106CS107C cell with the labeled flagellum and MSHA pili in 2% LB+1% MC medium.

This video was recorded every 130 ms for 13 s and displayed at 10 fps.

Video 6
Time-lapse fluorescence imaging showing five MSHA pili of a WT cell stuck to the surface and kept still or fluctuated frequently.

This video was recorded every 460 ms for 25 s and displayed at 10 fps.

During cell landing, transitions between the running and lingering phases, as well as between the two states of the lingering phase are observed, respectively. The measured conditional probabilities qij that cell transitions from state i to j show that the running phase has a relatively lower qrt to the tethered state (~22%) but a higher qrp to the paused state (~78%). Similarly, the paused state has a higher qpr than qpt. In contrast, the tethered state shows similar qtr and qtp, which are 45% and 55%, respectively (Figure 3c).

The single-cell dynamics in each specific phase/state is also characterized quantitatively. In the running phase of V. cholerae, we found that the period for body rotation is generally distributed between 0.25 and 2 s and is centered at ~0.7 s (the rotation rate was ~1.5 Hz) in LB+MC (Figure 4a). We measured the swimming speed, v, and the cell-body rotation rate, ωc, for each cell, and plotted v as a function of ωc (see Figure 4b). By fitting the data, we found that v linearly increases with ωc with a slope of |vc|=2.48±0.04 μm/radian.

Figure 4 with 1 supplement see all

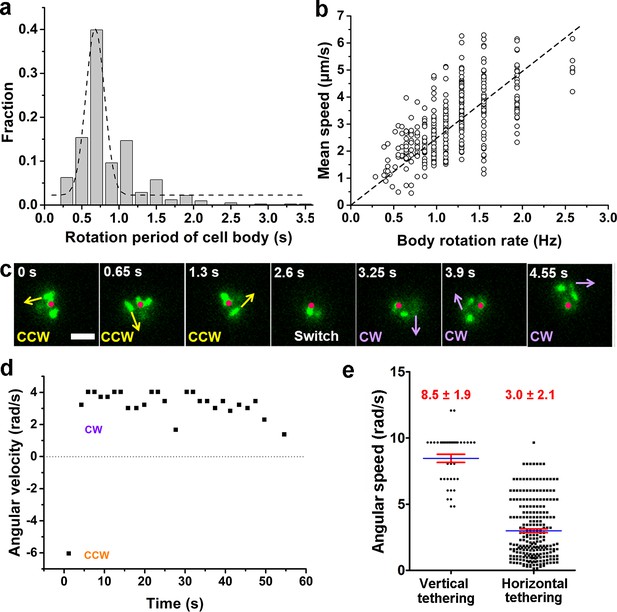

Characterization of running and tethered cells.

(a) Distribution of the rotation period of the cell body. The dashed line represents Gaussian fitting. A total of 416 rotation events from 54 cells were used for statistical analysis. (b) Measured relation between the rotation rate of the cell body and the mean swimming speed of the cell. The dotted line represents linear fitting result. Ncell=47. (c) An example of a typical tethered motion, showing a cell performing a circular motion around a center point (the red dot) with the direction of motion (noted by arrows) switched from CCW to CW. Scale bar, 2 μm. (d) The angular velocity of the tethered cell in panel (c) over a short duration showing a pair of CW (positive angular velocity) and CCW (negative angular velocity) intervals; (e) Distribution of angular speed of circular motion for horizontal (241 intervals from 25 cells) and vertical (38 intervals from 5 cells) tethered cells. CCW, counterclockwise; CW, clockwise.

By contrast, a cell in the tethered state typically performs a circular motion around the attachment point (red dots in Figure 4c). The direction of the circular motion is also dynamic and can switch from counterclockwise (CCW) to clockwise (CW) presumably due to a switch in the rotation direction of the flagellar motor (see 2.6 s, Figure 4c). Angular velocity is roughly constant during each circular-motion interval (i.e., in each CCW or CW period) and quickly changes sign after CCW-CW switching (Figure 4d and Video 7). Due to the distribution of pili across the cell body, tethering can occur at a pole or under the body, which leads to cells standing vertically or lying down horizontally to the surface, respectively. We find that standing tethered cells perform a faster circular motion (mean angular speed=8.5±1.9 rad/s) than lying ones (mean angular speed=3.0±2.1 rad/s) (Figure 4e). For the horizontal cells, different MSHA pili may be used to further anchor the cell to the surface. For example, two horizontally tethered cells demonstrate different tethered-motion trajectories depending on the location of the anchoring MSHA pilus (Figure 4—figure supplement 1). In addition to the fact that unattached pili may increase the likelihood that the cell will make the irreversible attachment, we observe that MSHA pili appear to be able to attach to the surface along their entire length, and not just the tip (Video 8).

Video 7
Time-lapse fluorescence imaging showing a typical tethered cell performing a circular motion around a fixed point with the direction of motion switched from CCW to CW.

See also Figure 4c. This video was recorded every 130 ms for 6 s and displayed at 5 fps.

Video 8
Time-lapse fluorescence imaging showing different adhesion points of a pilus.

When the tip of the pilus was free (~3.5 s), the upper part of the pilus was still capable of keeping the cell adhered. This video was recorded every 130 ms for 13 s and displayed at 10 fps.

Interestingly, we find that the flagellum of attached cells frequently continues to rotate (Video 5, after 4.68 s), indicating that even after cell attachment, the flagellar motor is still active for some period. The flagellum will eventually stop rotating after a cell stays long enough on the surface (Video 9).

Video 9
Time-lapse fluorescence imaging showing the motion evolution of the flagellum from rotating to stopping eventually.

This video was recorded every 130 ms for 10 s and displayed at 10 fps.

Role of MSHA pili in cell landing is more apparent in viscoelastic (non-Newtonian) fluids than in viscous Newtonian fluids

To further investigate the dependence of MSHA pili function and hence cell landing on viscoelasticity, we compared cell motion behavior (Figure 5 and Figure 5—figure supplement 1) obtained in 2% LB, which is a Newtonian fluid with a viscosity ~1 cP at 30℃ (Utada et al., 2014) and in 2% LB+1% MC, which is a non-Newtonian fluid and has a shear-dependent viscosity (Figure 6), for both WT and △mshA cells.

Figure 5 with 1 supplement see all

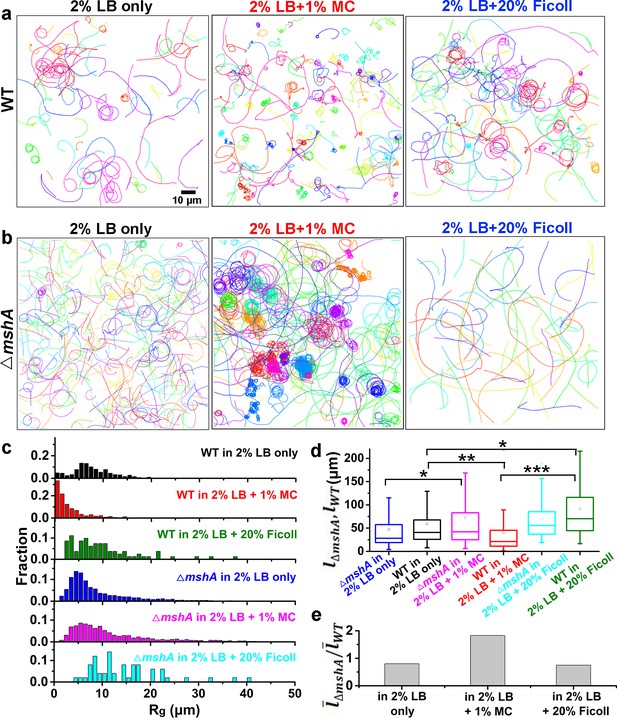

Role of MSHA pili in cell landing is more apparent in viscoelastic non-Newtonian solutions than viscous Newtonian fluids.

(a) Examples of WT cell trajectories showing both roaming and orbiting motilities in 2% LB only, 2% LB with 1% MC, and 2% LB with 20% Ficoll; (b) Examples of cell trajectories of △mshA; (c) Histograms of Rg of WT and △mshA in different solutions; (d) A box plot summary of path lengths of WT and △mshA. Statistical significance was determined with one-way ANOVA followed by Tukey’s multiple comparison test comparing the different groups (*p<0.05; **p<0.01; ***p<0.001). The data were analyzed using the Prism 5.0 software program (GraphPad Software, La Jolla, CA, USA). (e) The ratio of mean path length between △mshA and WT, l¯ΔmshA/l¯WT. LB, Luria-Bertani; MC, methylcellulose; MSHA, mannose-sensitive hemagglutinin.

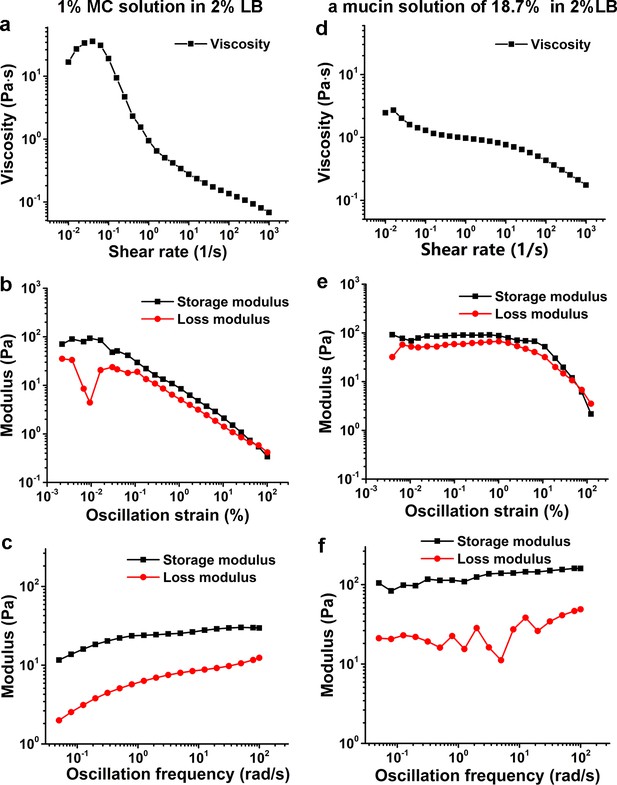

Characterization of viscoelasticity of the 1% MC solution in 2% LB (a–c) and a mucin solution of 18.7% (w/w) in 2% LB (d–f) at 26°C.

(a) and (d) show viscosity as a function of shear rate. (b) and (e) display modulus as a function of the oscillation strain, using cone-plate geometry. (c) and (f) show modulus as a function of the oscillation frequency under an oscillation strain of 0.1%, using cone-plate geometry. LB, Luria-Bertani; MC, methylcellulose.

We observed WT cells to demonstrate roaming and orbiting motilities in both solutions (Figure 5a). The histograms of deviation angle of each type of motility obtained in the two solutions are also similar (Figure 5—figure supplement 1a and b). These results indicate that the roaming and orbiting motilities of cells are robust against the tested viscoelastic environment. Although the general motility pattern is similar in both solutions, the motion of cells, as expected, is slowed significantly in LB+MC. The average speed of WT cells for near-surface motion is reduced by ~22 times from 86.7±32.9 μm/s (mean ± standard deviation) in 2% LB to 3.8±2.6 μm/s in LB+MC. Similarly, the average speed of △mshA cells is also decreased by ~12 times from 80.0±15.0 μm/s in 2% LB to 6.5±1.4 μm/s in LB+MC. The slowing of the motion can also be seen clearly from their mean square displacement curves (Figure 5—figure supplement 1c,d), which have similar shapes but very different time scales.

However, WT and △mshA cells also show differences in their motility behavior in these two solutions (Figure 5). In LB+MC, WT cells tend to land on the surface soon after approaching it (less than one round in orbiting motility) and more tethered motion is observed, which leads to more irregular and tortuous trajectories and smaller Rg for WT cells compared with the case of 2% LB (Figure 5c). By contrast, △mshA cells show very similar Rg distributions in the two types of solutions (Figure 5c). More interestingly, compared with WT, in LB+MC, a large proportion of △mshA cells show orbiting for a substantial number of cycles, as shown in Figure 5b. Quantitatively, this can be seen in the calculated mean path length, l¯, which is 39.7±51.2 μm for WT and 72.5±99.1 μm for △mshA in LB+MC, whereas the corresponding value in 2% LB is 58.7±63.1 μm for WT and 47.2±50.8 μm for △mshA. To see how the role of MSHA pili varies with viscoelasticity, we calculated the ratio of the respective mean path lengths of △mshA and WT, l¯ΔmshA/l¯WT, for each type of solution; this gives ~1.8 in LB+MC and ~0.8 in 2% LB, respectively (Figure 5d and e). This shows that the loss of MSHA pili results in a significant increase in mean path length in LB+MC relative to 2% LB. Moreover, such prolonged orbiting motions of △mshA were not observed in a 20% Ficoll solution (Figure 5), which has a high viscosity but still belongs to the class of Newtonian fluids (Winet, 1976). As shown in Figure 5, the cell motility behaviors in 20% Ficoll are similar to those in 2% LB only except that the average cell speed for near-surface motion is dramatically lower in 20% Ficoll, which is 9.3±4.3 μm/s for WT and 10.0±3.5 μm/s for △mshA. The cell trajectories in 20% Ficoll are similar to those in 2% LB only and consequently, the ratio of l¯ΔmshA/l¯WT is ~0.75 in 20% Ficoll, very close to ~0.8 in 2% LB only. Taken together, these results indicate that the elastic properties of viscoelastic solutions can also affect cell motility behavior and the role of MSHA pili as a braking and anchoring machine in cell landing is more apparent in viscoelastic (non-Newtonian) fluids than in viscous Newtonian fluids.

Discussion

The first step in V. cholerae biofilm formation is the transition from planktonic swimmers to the stationary surface-attached cells; this process is mediated by the landing process (Teschler et al., 2015). In this study, the combination of cell appendage labeling and high-resolution spatio-temporal imaging allows us to quantitatively deconstruct the landing process into three stages: running, lingering, and attaching, as summarized in Figure 7. During the running phase, cell motion is powered by flagellar rotation, which simultaneously induces a counter-rotation of the cell body. When swimming cells come to within a distance that is comparable to the length of a typical pilus from a surface, dangling pili may brush against the surface, thereby deflecting the trajectory. Typical MSHA pili are ~0.4–1.2 μm in length. During near-surface swimming, cell body rotation actively brings MSHA pili into close proximity with the underlying surface where friction between pili and the surface can slow the cells, or, transient adhesions can be made, which may even arrest cell motion. Here, we make an analogy to the slow down and stop affected by the brake system of a car. During near-surface swimming, it has been suggested that hydrodynamic forces cause the cell bodies of swimming rod-like bacteria to take on a tilted, non-parallel, orientation to the surface (Vigeant et al., 2002). In the case of P. aeruginosa, whose TFP are distributed with a strong bias toward a particular pole (Skerker and Berg, 2001), pili-surface contact will depend on which pole is closer to the surface. In contrast, the homogeneous distribution of MSHA pili on V. cholerae (see Figure 1c) may be more efficient at slowing such tilted cell bodies by increasing the probability that pili encounter the surface relative to bacteria with biased pili distributions.

Diagrammatic sketch for the landing process of Vibrio. cholera cells on a substrate.

If the contact-induced adhesion between MSHA pili and the surface is sufficiently strong to arrest forward motion, the cell will either pause or commence tethered motion centered about the point-of-adhesion. Cells rotating at an angle closer to the surface have a slower angular velocity (Figure 4e), to which hydrodynamic effects presumably have an important contribution (Bennett et al., 2016). This suggests that for cells demonstrating tethered motion, a progressive twisting of the surface-attached pilus fiber during the circular motion of cells may gradually cause the circular motion to stop by pulling the cell body ever closer to the surface. Although twitching has not to be observed in V. cholerae, this is one mechanism by which retraction-like dynamics may be achieved (Charles et al., 2019), possibly in tandem with actual retraction of MSHA pili, which has been shown recently in a different strain of V. cholera (Floyd et al., 2020). Under our conditions, we have not observed MSHA pili retraction events nor have we seen bacterial cells that gradually acquire fluorescence when only maleimide dyes were used. These results are consistent since in bacteria where pilus retraction does occur, such as in the TAD pili of C. crescentus (Ellison et al., 2017), ChiRP of V. cholera (Ellison et al., 2018), and TFP of P. aeruginosa (Skerker and Berg, 2001), the cell body gradually becomes fluorescent due to internalization of labeled pilin by retraction. Such phenotypical differences may be due to the different experimental conditions used in each study and require more work to fully elucidate.

In addition to possible hydrodynamical effects, our observation that MSHA pili are able to adhere to surfaces along their entire length implies that cells can enhance their chances of attachment through the possibility of increased adhesion between the surface and the whole pilus filament. The ability to adhere not only at the distal tip, contrasts with the TFP of P. aeruginosa (Skerker and Berg, 2001) and ChiRP of V. cholerae (Ellison et al., 2018), which show that the pilus-subject interactions are mainly mediated by the pilus tip. Thus, for V. cholerae, the strength of adhesion between a cell and a surface that is mediated by an individual MSHA pilus appears to be more complicated to model than with a single point of attachment. Rather, cells can enhance the adhesion strength by increasing both the segment length and the number of MSHA pili adhered to the surface. These two effects will facilitate irreversible attachment in V. cholerae.

Similar running and lingering phases in near-surface motion have also been reported in enterohaemorrhagic E. coli (EHEC) cells (Perez Ipiña et al., 2019), where the results suggest that by choosing the optimal transition rates, EHEC bacterial diffusivity is maximized and surface exploration efficiency is greatly improved. In future work, it will be interesting to apply a similar analysis in V. cholerae.

In this study, the data collection of V. cholerae cells was performed mainly in a 2% LB medium supplemented with 1% MC. Rheological measurements show that its viscosity is shear dependent and has a higher storage modulus than loss modulus in the tested oscillation frequency range; thus, it is a non-Newtonian fluid (Figure 6a–c). On the other hand, the rheological measurements of an 18.7% (w/w) mucin solution in 2% LB, which was obtained by measuring the concentration of mixtures scraped from the fresh mouse intestine surfaces, show similar viscoelastic behavior with a higher storage modulus than loss modulus in the same tested oscillation frequency range (Figure 6d–f). Therefore, compared with Ficoll solutions, which are Newtonian fluids, LB+MC better simulates the viscoelastic environment that V. cholerae cells encounter in the mucus layer of animal intestines. In such viscoelastic environments, Millet et al., 2014 observed considerable differences of bacterial localization in different parts of the small intestine and found that V. cholerae motility exhibits a regiospecific influence on colonization, indicating that viscoelastic intestinal mucin is a key factor limiting colonization. However, it is technically challenging to directly observe cell motion in mucus solutions made from lyophilized mucus powders or fresh mucus-containing solutions scraped from the surfaces of mouse intestines due to the complicated inhomogeneous environment with too many impurities (data not shown). In this work, by direct visualization of pili and flagellum of cells during their landing process in LB+MC that rheologically mimics actual mucus solutions, we find that V. cholerae cells are able to move well in this viscoelastic solution under the conditions tested. Moreover, we show that the effect of MSHA pili as a braking and anchoring machine on cell landing is more apparent in LB+MC than in either 2% LB or 20% Ficoll solutions, suggesting that MSHA pili may play an even more important role for surface attachment in viscoelastic, non-Newtonian, environments such as in the mucus layer of small intestines.

To summarize, in this work, using fluorescence imaging with labeled pili and flagellum, we show a comprehensive picture of the landing dynamics of V. cholerae cells in viscoelastic environments and provide direct observational evidence of the role of MSHA pili during cell landing. Our work provides fundamental insight into the mechanism of V. cholerae surface attachment and we hope that it may lead to methods that prevent and control V. cholerae infection.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Parent strain (Vibrio cholerae)C6706Joelsson et al., 2006
Plasmids (DH5α λpir)pWM91Metcalf et al., 1996Suicide vector
Chemical compound, drugAlexa Fluor 488 C5 MaleimideThermo Fisher ScientificCat. #: A10254
Chemical compound, drugAlexa Fluor 546 C5 MaleimideThermo Fisher ScientificCat. #: A10258
Chemical compound, drugMethyl cellulose (MC)SolarbioCat. #: M8070
Chemical compound, drugFicoll 400Yuanye Bio-TechnologyCat. #: 26873-85-8MW=400 kDa
SoftwareGraphPad Prism softwareRRID:SCR_002798
SoftwareMatlabRRID:SCR_001622matlab R2015a
SoftwareLeica LAS-XRRID:SCR_013673

Bacterial strains

Request a detailed protocol

Bacterial strains, plasmids, and primers used in this study are listed in Table 1 and Supplementary file 1, Table S1. V. cholerae El Tor C6706 (Joelsson et al., 2006) was used as a parental strain in this study. C6706 and mutants were grown at 30°C or 37°C in LB supplemented with 100 µg/mL streptomycin, 50 µg/mL kanamycin, 1 µg/mL chloromycetin where appropriate. E. coli strains harboring plasmids were grown at 37°C in LB supplemented with 100 µg/mL ampicillin. The optical densities of bacterial cultures were measured at 600 nm (OD600) using a UV-vis spectrophotometer.

Table 1
Strains used in this study.
StrainDescriptionSource or reference
Parent strain (Vibrio cholerae)C6706 SmRJoelsson et al., 2006
mshAC6706 SmR, VC1807::CmR, mshA knockoutThis study
flaAC6706 SmR, VC1807::CmR, flaA knockoutThis study
MshAT70CC6706 SmR, VC1807::KmR, MshAT70CEllison et al., 2017
FlaAA106CC6706 SmR, VC1807::CmR, FlaAA106CThis study
FlaAS107CC6706 SmR, VC1807::CmR, FlaAS107CThis study
FlaAA106CS107CC6706 SmR, VC1807::CmR, FlaAA106CS107CThis study
FlaAE332CC6706 SmR, VC1807::CmR, FlaAE332CThis study
FlaAG23CC6706 SmR, VC1807::CmR, FlaAG23CThis study
FlaAN26CC6706 SmR, VC1807::CmR, FlaAN26CThis study
FlaAN83CC6706 SmR, VC1807::CmR, FlaAN83CThis study
FlaAS325CC6706 SmR, VC1807::CmR, FlaAS325CThis study
FlaAS87CC6706 SmR, VC1807::CmR, FlaAS87CThis study
FlaAS376CC6706 SmR, VC1807::CmR, FlaAS376CThis study
FlaAV117CC6706 SmR, VC1807::CmR, FlaAV117CThis study
MshAT70C, ∆flaAC6706 SmR, VC1807::KmR, flaA knockoutThis study
MshAT70C, FlaAA106CC6706 SmR, VC1807::KmR, FlaAA106CThis study
MshAT70C, FlaAS107CC6706 SmR, VC1807::KmR, FlaAS107CThis study
MshAT70C, FlaAA106CS107CC6706 SmR, VC1807::KmR, FlaAA106CS107CThis study

Flagellin and pilin mutagenesis

Request a detailed protocol

Following the protocol in Ellison et al., 2019; Ellison et al., 2017, we first predicted 10 amino acid residues in V. cholerae flagellin FlaA for cysteine replacement. Then, the flaA knockout and FlaA sequences containing the FlaAA106C, FlaAS107C, FlaAA106CS107C, FlaAE332C, FlaAG23C, FlaAN26C, FlaAN83C, FlaAS325C, FlaAS87C, FlaAS376C, and FlaAV117C knock-in were constructed using the MuGENT method (Dalia et al., 2014). The FlaAA106C, FlaAS107C, and FlaAA106CS107C knock-in were constructed by cloning the fragment into the suicide vector pWM91 containing a sacB counter-selectable marker (Metcalf et al., 1996). The plasmids were introduced into V. cholerae by conjugation and mutations were selected for double homologous recombination events. The MshAT70C mutation that can be successfully labeled with thiol-reactive maleimide dyes has been described previously (Ellison et al., 2017), and MshAT70C was constructed using the MuGENT method to light MSHA pilus. All mutants were confirmed by DNA sequencing.

Hemagglutination assays

Request a detailed protocol

MSHA by V. cholerae was measured as described previously (Gardel and Mekalanos, 1996). Briefly, bacteria were grown to the mid-logarithmic phase in the LB medium. Initial concentrations of approximately 1010 CFU/mL were twofold diluted with Krebbs-Ringer-Tris (KRT) buffer in U-bottomed wells of 96-sample microtiter dishes. Sheep erythrocytes were washed in phosphate-buffered saline (PBS) and resuspended in KRT buffer for a final concentration of 10% (v/v). Equivoluminal erythrocyte was added into serially diluted bacterial suspensions and the plates were gently agitated at room temperature (RT) for 1 min. Samples were checked for hemagglutination after 2 hr at RT.

The results of the hemagglutination assay test show that MshAT70C displays similar behavior to WT, which indicates that the point mutation in MSHA does not affect MSHA pilus function (Figure 1—figure supplement 4).

Preparation of viscous solutions

Request a detailed protocol

To change the solution viscosity, MC (M20, 4000 cp, Solarbio, China) solutions were prepared by dissolving 0% and 1% (w/v) MC in 2% LB motility medium (containing 171 mM NaCl). 20% (w/v) Ficoll 400 (MW=400 kDa, Yuanye Bio-Technology Co., Ltd, China) dissolved in 2% LB medium was also prepared for a control experiment.

Preparation of the small intestinal mucus samples from ICR female mice

Request a detailed protocol

Six-week-old female ICR mice were provided with drinking water with 10 g/L streptomycin and 0.2 g/L aspartame for 2 days. To clean the small intestine content, food was removed 24 hr prior to the start of the experiments. The mice were killed and the small intestine was cut open with sterile scissors and the mucus layer was gently extracted with a cell scraper. Samples were weighed to obtain the wet weight first and then frozen overnight at −80℃. After that, they were freeze dried using a freeze dryer (Labconco, USA) in −40°C low-temperature vacuum. Next, these dried samples were weighed again to obtain the dry weight. The average value of the dry/wet ratio from three repeats is 18.7%.

Cell imaging

Request a detailed protocol

For the V. cholerae motility observation in 2% LB without MC, overnight cultures in LB were resuspended and diluted with 2% LB to an OD600 ranging from 0.01 to 0.03. Then, the bacterial suspension was injected into a flow cell, which contained the same media. Imaging was performed using a Phantom V2512 high-speed camera (Vision Research, USA) collecting ~200,000 bright-field images at 5 ms resolution with a 100× oil objective on a Leica DMi8 inverted microscope (Leica, Germany) at a set temperature value of 30°C.

For the V. cholerae motility observation in 2% LB with 1% MC (henceforth, this medium is referred to LB+MC), overnight cultures in LB were resuspended and diluted with LB+MC to a final OD600 of 0.01–0.03. Then, the bacteria were incubated at 37°C for 20 min to allow them to adapt to the new environment and were then used immediately. Bacteria samples were pipetted onto standard microscope slides with an 8 mm diameter spot and then were sealed with a coverslip using a 1 mm thick secure spacer. Imaging was performed using an EMCCD camera (Andor iXon Ultra 888) collecting ~10,000 bright-field images with a time resolution of 90 ms at a set temperature value of 30°C. Similar protocols were carried out for observations in 20% Ficoll solutions and in the small intestinal mucus samples of mice.

Cell-tracking algorithms and analysis

Request a detailed protocol

The images were preprocessed using a combination of software and algorithms adapted from the methods described (Lee et al., 2016; Utada et al., 2014; Zhao et al., 2013) and written in MATLAB R2015a (Mathworks) by subtracting the background, scaling, smoothing, and thresholding. After image processing in this way, the bacteria appear as bright regions. The bacteria shape was fit with a spherocylinder. Then, the geometric information of the cell, such as the location of the centroid and two poles, and the length and width of the bacterium were collected. Trajectory reconstruction was also achieved for further analysis.

The motility parameters (Utada et al., 2014), such as instantaneous speed, deviation angle, radius of gyration (Rg), MSD, and mean path length l¯ were calculated to further characterize the near-surface motility of V. cholerae. The instantaneous speed was calculated via |ri+1ri|/△t, where ri is the cell position vector in frame i and △t is the time interval between two consecutive frames. The deviation angle of cell motion is defined as the angle between its cell body axis and the direction of motion. The radius of gyration, Rg, is a statistical measure of the spatial extent of the domain of motion given by an ensemble of points that define a trajectory (Rubenstein, 2003). The square of this quantity is defined as Rg2=1Ni=1N(RiRcm)2, where N is the number of points in the tracked trajectory, Ri is the position vector corresponding to the ith point on the trajectory, Rcm is the position vector of the center-of-mass. The MSD of cells was calculated via Δr2(τ)=[r(t+τ)r(t)]2, where r(t) is the position vector of a cell at time t, and τ represents the time lag. The MSD provides information on the average displacement between points in the motility trajectory separated by a fixed time lag. Mean path length l¯ was calculated as the average of the total travelling distance of each tracked cell in the field of view.

MSHA pilus labeling, imaging, and quantification

Request a detailed protocol

Pilin labeling was achieved using Alexa Fluor 488 C5 Maleimide (AF488-mal; Thermo Fisher Scientific, cat. no. A10254) or Alexa Fluor 546 C5 Maleimide (AF546-mal; Thermo Fisher Scientific, cat. no. A10258), which was dissolved in DMSO, aliquoted, and stored at −20°C while being protected from light.

V. cholerae cultures were grown to mid-log phase (OD600=0.8–1.5) before labeling. ~100 µL of culture was mixed with dye at a final concentration of 25 µg/mL (Ellison et al., 2017) and incubated at RT for 5 min in the dark. Labeled cultures were harvested by centrifugation (900×g, 5 min) and washed twice with PBS, resuspended in 200 µL PBS and imaged immediately. Images were collected using an EMCCD camera on a Leica DMi8 inverted microscope equipped with an Adaptive Focus Control system. The fluorescence of cells labeled with AF488-mal and AF546-mal was detected with FITC and Rhod filter, respectively. The cell bodies were imaged using phase-contrast microscopy.

To quantify the number of MSHA pili per cell and cell length, imaging was done under 0.2% PBS gellan gum pads. The cell lengths were measured using ImageJ.

We used AF546-mal and AF488-mal, in turn, for the two-color labeling to observe the growth of pili. We first, labeled log-phase cells with AF546-mal for the primary staining by incubating for 20 min, followed by two successive washes in PBS by centrifugation. The cells were then resuspended in LB and incubated for an additional 40 min at 30°C. For the secondary staining, we incubated the cells in AF488-mal for 5 min, washed twice with PBS, and then imaged the cells immediately using phase contrast, FITC, and RhoD channels.

Fluorescence video acquisition of MSHA pilus-labeled cells motility in LB+MC

Request a detailed protocol

The labeled cells were centrifugated, resuspended in ~20 µL PBS, and then diluted in 500 µL of the viscoelastic solution of LB+MC. The solution was then immediately pipetted onto standard microscope slides. Fluorescence images were acquired at 130 ms intervals for a total of about 2–5 min. After a few minutes of fluorescence imaging, most cells in the field of view have attached to the surface, while the fluorescence was bleached due to the continuous exposure. We recorded images from different locations to capture new instances of bacterial movement and adhesion events.

Rheological measurements

Request a detailed protocol

Rheological measurements of 1% MC+2% LB solution and 18.7% (w/w) mucin (Sigma, USA) in 2% LB solution were carried out on a rheometer (DHR-2, TA Instruments, Waters LLC) using a cone-plate geometry with a diameter of 40 mm and a cone angle of 5° at 26℃. Here, because when they were observed on a microscope, the real temperature of samples at the observation window site is lower than the set value of 30℃ due to the relatively low thermal conductivity of glass, which is estimated to be 26–28℃, the rheological measurements were performed at 26℃. The viscosity curves were determined at shear rates of 0.01–1000/s. The storage and loss moduli were measured as functions of the testing oscillation strain and oscillation frequency. For each tested solution, we left it standing for 15 min prior to each measurement to allow it to reach equilibrium, and then it was covered with a thin layer of silicone oil to prevent loss of moisture during measurement.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for Figures 1–6.

References

    1. Kaper JB
    2. Morris JG
    3. Levine MM
    (1995) Cholera
    Clinical Microbiology Reviews 8:48–86.
    https://doi.org/10.1128/CMR.8.1.48
  1. Book
    1. Rubenstein MC
    (2003)
    Polymer Physics
    Oxford University Press.

Decision letter

  1. Raymond E Goldstein
    Reviewing Editor; University of Cambridge, United Kingdom
  2. Aleksandra M Walczak
    Senior Editor; École Normale Supérieure, France

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The manuscript is an observational study of how MSHA pili interact with a surface to cause free swimming V. cholerae cells to attach and adhere, which is the initial step in biofilm formation. The present paper presents developments in labelling and characterisation of the dynamics of attachment, along with the effect of viscosity. Detailed data are presented on the location of pili, their interaction with the surface, and the associated effect on cell movement, and process is characterised through various stages from initial pili contact to final tethering.

Decision letter after peer review:

Thank you for sending your article entitled "Crash landing of Vibrio cholerae by MSHA pili-assisted braking and anchoring in a viscous environment" for peer review at eLife. Your article has been evaluated by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Aleksandra Walczak as the Senior Editor.

As you can see from the individual reviews below, the reviewers are supportive of the experimental aspects of the work, but are concerned that there is a lack of clear message to the paper. Most significantly, there is very little detailed mechanical understanding presented of the processes at hand. The entirety of the theoretical analysis is relegated to the Methods Section and no intuitive or heuristic explanation or stringent test of the data is given. A good example of this is provided by the discussion around the persistence length of the pili. Given the emphasis on mechanical aspects of the surface interactions, we would have expected those measurements to translate into the bending stiffness of the pili and therefore some idea of the forces involved when the adhere to the surface. We are also concerned about statements such as those on lines 254+ concerning "apparent viscosities in the normal and tangential directions".

This is not a concept within standard Resistive Force Theory – there are drag coefficients in those two directions, but not differing viscosities, unless somehow one is speaking of complex fluids with internal structure.

If that is the case, then we would expect more in the way of rheological measurements than simply quoting a viscosity (i.e. one would need the shear rate dependence). Likewise, the apparent lack of consideration of near-surface hydrodynamic effects is a serious omission that requires justification before the results of RFT for these kinds of problems can be accepted.

In light of the above, we believe that the paper needs major revisions to clarify the message, to present, analyze, and discuss the data on trajectories in much greater depth, and to explain for the audience of eLife the theoretical analysis with much greater attention to detail.

Reviewer #1:

The manuscript is an observational study of how MSHA pili interact with a surface to cause free swimming V. cholerae cells to attach and adhere, which is the initial step in biofilm formation. The authors have previously presented data showing 'roaming' and 'orbiting' due to the synergistic effect of pili and flagellum; the present paper presents developments in labelling and characterisation of the dynamics of attachment, along with the effect of viscosity. Detailed data are presented on the location of pili, their interaction with the surface, and the associated effect on cell movement, and process is characterised through various stages from initial pili contact to final tethering. The system is examined at low and high viscosity, and it is shown that pili have a stronger effect on mean path length in high compared with low viscosity fluid. Existing mathematical fluid dynamics models are employed to interpret some of the results, for example explaining why standing cells have higher angular velocity.

1) Can any further mechanistic explanation be given for why tethering dynamics are different at high viscosity? Is it because the cells are moving more slowly?

2) A parameter estimate is given for mμT* on page 15, line 260, which is presumably a fitted value. A confidence interval should be provided for this estimate. Would the 'textbook' behaviour of mμN/mμT slightly less than 2 also explain the data?

3) An RFT model of motility rather simplifies the hydrodynamics of surface-swimmer interaction, in particular the reorientation of the cells produced by the hydrodynamic 'images' in the wall. In view of this, how reliable are the model trajectory predictions shown in figure 4f?

Reviewer #2:

The swimming trajectories of bacteria is strongly perturbed as they approach surfaces. Vibrio cholerae "orbit" or "roam" when swimming near a surface in a manner that depends on its MSHA pili (described in Utada et al. 2014). Here, Zhang et al. further probe the function of MSHA pili in the near surface swimming and attachment behavior of Vibrio cholerae. On the technical aspect, the authors rely on the implementation of flagellum and pili visualizations during cell landing, particularly in the context of a "viscous" environments. The paper is thus focused on improving our understanding of surface approach strategies of V. cholerae. The main strength of the paper is the ability to visualize MSHA pili during these events. While these visualizations are impressive and interesting, the paper lacks a clear conclusion, and in my opinion remains too descriptive. Therefore I don't think this manuscript warrant publication in eLife.

1. The manuscript is articulated into three parts: pili visualization, modelling using resistive theory and finally characterization of viscosity effects on trajectories. These parts are quite disjointed so that their association lacks cohesion.

2. The figures are not sufficiently meaningful to support the conclusions of the paper. Figure 1 is a quantification of pili number which feels anecdotal. Figure 2 is vague and mostly consists in showing trajectories which have been already described in previous studies. Figure 2e is interesting but barely visible, etc… To me the lack of focus of the figures is a sign that the paper lacks a clear message.

3. The RFT model fails to come up with insights in the mechanism of near surface motion.

4. As it is written, the concept viscosity is central to the paper. I assume that increased viscosity is helpful when performing pili visualizations. However, it is unclear to me whether increasing fluid viscosity truly replicates environments such as the mucus layer, which is a complex viscoelastic hydrogel and thus rheologically differs from a methylcellulose solution. Also, I want to point out that talking about changes in swimming behaviors as a function of viscosity is delicate without mention of the Reynolds number. In summary, I think the manuscript lacks a physically-oriented discussion on viscosity.

https://doi.org/10.7554/eLife.60655.sa1

Author response

[…] In light of the above, we believe that the paper needs major revisions to clarify the message, to present, analyze, and discuss the data on trajectories in much greater depth, and to explain for the audience of eLife the theoretical analysis with much greater attention to detail.

Reviewer #1:

The manuscript is an observational study of how MSHA pili interact with a surface to cause free swimming V. cholerae cells to attach and adhere, which is the initial step in biofilm formation. The authors have previously presented data showing 'roaming' and 'orbiting' due to the synergistic effect of pili and flagellum; the present paper presents developments in labelling and characterisation of the dynamics of attachment, along with the effect of viscosity. Detailed data are presented on the location of pili, their interaction with the surface, and the associated effect on cell movement, and process is characterised through various stages from initial pili contact to final tethering. The system is examined at low and high viscosity, and it is shown that pili have a stronger effect on mean path length in high compared with low viscosity fluid. Existing mathematical fluid dynamics models are employed to interpret some of the results, for example explaining why standing cells have higher angular velocity.

1) Can any further mechanistic explanation be given for why tethering dynamics are different at high viscosity? Is it because the cells are moving more slowly?

We had planned to get a better understanding on tethering dynamics through a model. Unfortunately, to develop a suitable hydrodynamic model that incorporates the effect of viscoelastic properties of fluid together with the mechanic properties of pili is beyond our current capabilities.

On the other hand, by testing cell motility behavior in another solution, 20% Ficoll solution which shows a high viscosity but still belongs to a Newtonian fluid (H. Winet, J. exp. Biol. 64, 283-302 (1976)), the results show that prolonged orbiting motions of △mshA were observed in LB+MC solutions (non-Newtonian fluid) but not in the 20% Ficoll solution (See Figure 5 in the revised manuscript). These results suggest that elastic properties of the complex fluid also play a role in affecting cell motility behavior. But to what extent that the elastic properties of the complex fluid can affect and what the role of viscosity is in the process needs further studies.

2) A parameter estimate is given for mμT* on page 15, line 260, which is presumably a fitted value. A confidence interval should be provided for this estimate. Would the 'textbook' behaviour of mμN/mμT slightly less than 2 also explain the data?

3) An RFT model of motility rather simplifies the hydrodynamics of surface-swimmer interaction, in particular the reorientation of the cells produced by the hydrodynamic 'images' in the wall. In view of this, how reliable are the model trajectory predictions shown in figure 4f?

Since we cannot develop a suitable model for this work due to the recently measured viscoelastic properties, we have retracted all the modelling part in the revised manuscript.

Reviewer #2:

The swimming trajectories of bacteria is strongly perturbed as they approach surfaces. Vibrio cholerae "orbit" or "roam" when swimming near a surface in a manner that depends on its MSHA pili (described in Utada et al. 2014). Here, Zhang et al. further probe the function of MSHA pili in the near surface swimming and attachment behavior of Vibrio cholerae. On the technical aspect, the authors rely on the implementation of flagellum and pili visualizations during cell landing, particularly in the context of a "viscous" environments. The paper is thus focused on improving our understanding of surface approach strategies of V. cholerae. The main strength of the paper is the ability to visualize MSHA pili during these events. While these visualizations are impressive and interesting, the paper lacks a clear conclusion, and in my opinion remains too descriptive. Therefore I don't think this manuscript warrant publication in eLife.

1. The manuscript is articulated into three parts: pili visualization, modelling using resistive theory and finally characterization of viscosity effects on trajectories. These parts are quite disjointed so that their association lacks cohesion.

The focus of our work is on the pili function during cell landing. Our results show that MSHA pili act as a brake and anchor during cell landing, and this role is more apparent in viscoelastic non-Newtonian solutions than viscous Newtonian ones (Figure 5). To make this message clearer, we have added a cartoon illustration to summarize the landing process of V. cholerae cells and possible mechanisms associated with it ( Figure 7 in the revised manuscript), as well as modified associated discussions.

2. The figures are not sufficiently meaningful to support the conclusions of the paper. Figure 1 is a quantification of pili number which feels anecdotal. Figure 2 is vague and mostly consists in showing trajectories which have been already described in previous studies. Figure 2e is interesting but barely visible, etc… To me the lack of focus of the figures is a sign that the paper lacks a clear message.

In the revised manuscript, we have modified both Figure 1 and Figure 2. In Figure 1, we have moved one panel (panel b in the original version of Figure 1) to a supplementary figure (Figure 1—figure supplement 2). We would like to keep other panels in Figure 1 because for one thing, they are the validation of our visualization method and for another thing, the observation of evenly distributed pili along cell length with a constant length density is closely related to the later discussion on the role of pili during cell landing. In Figure 2, we have added dashed lines to indicate the envelop of cell body.

3. The RFT model fails to come up with insights in the mechanism of near surface motion.

Since we cannot develop a suitable model for this work due to viscoelastic properties, we have retracted all the modelling part in the revised manuscript.

4. As it is written, the concept viscosity is central to the paper. I assume that increased viscosity is helpful when performing pili visualizations. However, it is unclear to me whether increasing fluid viscosity truly replicates environments such as the mucus layer, which is a complex viscoelastic hydrogel and thus rheologically differs from a methylcellulose solution. Also, I want to point out that talking about changes in swimming behaviors as a function of viscosity is delicate without mention of the Reynolds number. In summary, I think the manuscript lacks a physically-oriented discussion on viscosity.

We have measured the rheological properties of MC + LB solution, and the results show that it has weak viscoelastic properties with a higher storage modulus than loss modulus, i.e., it is a non-Newtonian fluid. We have also tried to measure the rheological properties of mucin solutions with a similar concentration (18.7% w/w) which is obtained from real fresh mucus samples scraped from mouse intestine surfaces. As the Reviewer pointed, the measurement results show that these mucin solutions are also non-Newtonian fluids with a higher storage modulus than loss modulus in the same tested oscillation frequency range as for MC+LB.

To further test how the viscoelastic property of the solution affect cell behavior, we also tested 20% (w/v) Ficoll solutions, which have an increased viscosity but still behave as a Newtonian fluid (H. Winet, J. exp. Biol. 64, 283-302 (1976)). The results show that △mshA cells in 20% Ficoll solutions do not show the prolonged orbiting behavior as they do in 1% methylcellulose, indicating that elastic properties of the complex fluid also play a role in affecting cell motility behavior. Thus, compared with Ficoll solutions, non-Newtonian methylcellulose solutions is better to simulate the real mucus layer of intestines, as mucin solutions at a concentration comparable to the real mucus layer of intestines are also viscoelastic.

We had tried to measure the cell behavior directly either in real fresh mucus samples from mouse intestines or in mucin solutions with a similar concentration (18.7% w/w), but didn’t get meaningful cell motility data due to either poor image quality and/or sample impurities and inhomogeneity.

https://doi.org/10.7554/eLife.60655.sa2

Article and author information

Author details

  1. Wenchao Zhang

    Frontier Science Center for Synthetic Biology and Key Laboratory of Systems Bioengineering (Ministry of Education), School of Chemical Engineering and Technology, Tianjin University, Tianjin, China
    Contribution
    Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Mei Luo
    Competing interests
    No competing interests declared
  2. Mei Luo

    Department of Biotechnology, College of Life Science and Technology, Huazhong University of Science and Technology, Wuhan, China
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Wenchao Zhang
    Competing interests
    No competing interests declared
  3. Chunying Feng

    Frontier Science Center for Synthetic Biology and Key Laboratory of Systems Bioengineering (Ministry of Education), School of Chemical Engineering and Technology, Tianjin University, Tianjin, China
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  4. Huaqing Liu

    Frontier Science Center for Synthetic Biology and Key Laboratory of Systems Bioengineering (Ministry of Education), School of Chemical Engineering and Technology, Tianjin University, Tianjin, China
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  5. Hong Zhang

    Frontier Science Center for Synthetic Biology and Key Laboratory of Systems Bioengineering (Ministry of Education), School of Chemical Engineering and Technology, Tianjin University, Tianjin, China
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  6. Rachel R Bennett

    School of Mathematics, University of Bristol, Bristol, United Kingdom
    Contribution
    Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition, Investigation, Methodology, Writing - original draft, Writing - review and editing
    For correspondence
    rachel.bennett@bristol.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6409-6967
  7. Andrew S Utada

    1. Faculty of Life and Environmental Sciences, University of Tsukuba, Ibaraki, Japan
    2. The Microbiology Research Center for Sustainability, University of Tsukuba, Ibaraki, Japan
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Methodology, Project administration, Writing - review and editing
    For correspondence
    utada.andrew.gm@u.tsukuba.ac.jp
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4542-6315
  8. Zhi Liu

    Department of Biotechnology, College of Life Science and Technology, Huazhong University of Science and Technology, Wuhan, China
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Investigation, Methodology, Project administration, Writing - review and editing
    For correspondence
    zhiliu@hust.edu.cn
    Competing interests
    No competing interests declared
  9. Kun Zhao

    Frontier Science Center for Synthetic Biology and Key Laboratory of Systems Bioengineering (Ministry of Education), School of Chemical Engineering and Technology, Tianjin University, Tianjin, China
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Investigation, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    kunzhao@tju.edu.cn
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3928-1981

Funding

National Key Research and Development Program of China (2018YFA0902102)

  • Kun Zhao

National Natural Science Foundation of China (31770132)

  • Zhi Liu

National Natural Science Foundation of China (81572050)

  • Zhi Liu

National Natural Science Foundation of China (21621004)

  • Kun Zhao

University of Bristol (Vice-Chancellor's Fellowship)

  • Rachel R Bennett

Japan Society for the Promotion of Science KAKENHI (21H01720)

  • Andrew S Utada

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank Zhanglin Hou and Thomas G Mason for their help with scientific discussions.

Ethics

Animal experimentation: All mice received the humane care and the experimental protocols were carried out in accordance with the Guide for the Care and Use of Laboratory Animals, Huazhong University of Science and Technology, as approved by the Animal Care Committee of Hubei Province.

Senior Editor

  1. Aleksandra M Walczak, École Normale Supérieure, France

Reviewing Editor

  1. Raymond E Goldstein, University of Cambridge, United Kingdom

Publication history

  1. Received: July 2, 2020
  2. Accepted: July 1, 2021
  3. Accepted Manuscript published: July 2, 2021 (version 1)
  4. Version of Record published: July 15, 2021 (version 2)

Copyright

© 2021, Zhang et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 303
    Page views
  • 59
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Microbiology and Infectious Disease
    Giulia Bandini et al.
    Research Article Updated

    Fucose is a common component of eukaryotic cell-surface glycoconjugates, generally added by Golgi-resident fucosyltransferases. Whereas fucosylated glycoconjugates are rare in kinetoplastids, the biosynthesis of the nucleotide sugar GDP-Fuc has been shown to be essential in Trypanosoma brucei. Here we show that the single identifiable T. brucei fucosyltransferase (TbFUT1) is a GDP-Fuc: β-D-galactose α-1,2-fucosyltransferase with an apparent preference for a Galβ1,3GlcNAcβ1-O-R acceptor motif. Conditional null mutants of TbFUT1 demonstrated that it is essential for both the mammalian-infective bloodstream form and the insect vector-dwelling procyclic form. Unexpectedly, TbFUT1 was localized in the mitochondrion of T. brucei and found to be required for mitochondrial function in bloodstream form trypanosomes. Finally, the TbFUT1 gene was able to complement a Leishmania major mutant lacking the homologous fucosyltransferase gene (Guo et al., 2021). Together these results suggest that kinetoplastids possess an unusual, conserved and essential mitochondrial fucosyltransferase activity that may have therapeutic potential across trypanosomatids.

    1. Microbiology and Infectious Disease
    Michael J Sheedlo et al.
    Research Article

    Legionella pneumophila is an opportunistic pathogen that causes the potentially fatal pneumonia known as Legionnaires' Disease. The pathology associated with infection depends on bacterial delivery of effector proteins into the host via the membrane spanning Dot/Icm type IV secretion system (T4SS). We have determined sub-3.0 Å resolution maps of the Dot/Icm T4SS core complex by single particle cryo-EM. The high-resolution structural analysis has allowed us to identify proteins encoded outside the Dot/Icm genetic locus that contribute to the core T4SS structure. We can also now define two distinct areas of symmetry mismatch, one that connects the C18 periplasmic ring (PR) and the C13 outer membrane cap (OMC) and one that connects the C13 OMC with a 16-fold symmetric dome. Unexpectedly the connection between the PR and OMC is DotH, with five copies sandwiched between the OMC and PR to accommodate the symmetry mismatch. Finally, we observe multiple conformations in the reconstructions that indicate flexibility within the structure.
