Identification of protein-protected mRNA fragments and structured excised intron RNAs in human plasma by TGIRT-seq peak calling

  1. Jun Yao
  2. Douglas C Wu
  3. Ryan M Nottingham
  4. Alan M Lambowitz  Is a corresponding author
  1. Institute for Cellular and Molecular Biology and Departments of Molecular Biosciences and Oncology, University of Texas, United States
Research Article
  • Cited 3
  • Views 1,543
  • Annotations
Cite this article as: eLife 2020;9:e60743 doi: 10.7554/eLife.60743

Abstract

Human plasma contains > 40,000 different coding and non-coding RNAs that are potential biomarkers for human diseases. Here, we used thermostable group II intron reverse transcriptase sequencing (TGIRT-seq) combined with peak calling to simultaneously profile all RNA biotypes in apheresis-prepared human plasma pooled from healthy individuals. Extending previous TGIRT-seq analysis, we found that human plasma contains largely fragmented mRNAs from > 19,000 protein-coding genes, abundant full-length, mature tRNAs and other structured small non-coding RNAs, and less abundant tRNA fragments and mature and pre-miRNAs. Many of the mRNA fragments identified by peak calling correspond to annotated protein-binding sites and/or have stable predicted secondary structures that could afford protection from plasma nucleases. Peak calling also identified novel repeat RNAs, miRNA-sized RNAs, and putatively structured intron RNAs of potential biological, evolutionary, and biomarker significance, including a family of full-length excised intron RNAs, subsets of which correspond to mirtron pre-miRNAs or agotrons.

Introduction

Extracellular RNAs in human plasma have been avidly pursued as potential biomarkers for cancer and other human diseases (Schwarzenbach et al., 2011; Akat et al., 2014; Rapisuwon et al., 2016; Tsang et al., 2017; Cheung et al., 2019; Pardini et al., 2019; Sole et al., 2019). In healthy individuals, plasma RNAs arise largely by cell death or secretion from cells in blood, bone marrow, lymph nodes, and liver, while in cancer and other diseases, plasma RNAs may arise by necrosis or secretion from tumors or other damaged tissues, potentially providing diagnostic information (Lo et al., 1999; Turchinovich et al., 2011; Koh et al., 2014; Kishikawa et al., 2015; Kishikawa et al., 2016; Akat et al., 2019; Giraldez et al., 2019). As plasma contains active RNases (Kamm and Smith, 1972; Tsui et al., 2002), the extracellular RNAs that persist there are thought to be protected from degradation by bound proteins, RNA structure, or encapsulation in extracellular vesicles (EVs). Although high-throughput RNA-sequencing (RNA-seq) has identified virtually all known RNA biotypes in human plasma, studies aimed at identifying disease biomarkers have focused mostly on plasma mRNAs or miRNAs. mRNAs in plasma and blood have been profiled by RNA-seq methods that enrich for or selectively reverse transcribe poly(A)-containing RNAs (Koh et al., 2014; Englert et al., 2019) or by sequencing mRNA fragments with (Freedman et al., 2016; Yeri et al., 2017; Akat et al., 2019; Giraldez et al., 2019) or without (Qin et al., 2016; Tsang et al., 2017) size selection, and it remains unclear which methods might be optimal for biomarker identification. miRNAs in plasma are analyzed by methods that enrich for small RNAs and neglect pre-miRNAs or longer transcripts (Mitchell et al., 2008; Turchinovich et al., 2011; Blondal et al., 2013; Williams et al., 2013; Yeri et al., 2017). Additionally, almost all RNA-seq studies of plasma RNAs have used retroviral reverse transcriptases (RTs) to convert RNAs into cDNAs for sequencing on high-throughput DNA sequencing platforms. Retroviral RTs have inherently low fidelity and processivity and even those that are highly engineered have difficulty reverse transcribing through stable RNA secondary structures or post-transcriptional modifications, resulting in under-representation of 5'-RNA sequences and aborted reads that can be mistaken for RNA fragments (Nottingham et al., 2016). Thus, we still have an incomplete understanding of the biology of plasma RNAs and how to optimize their identification as biomarkers for human diseases.

As a substitute for retroviral RTs, we have been developing RNA-seq methods using thermostable group II intron reverse transcriptases (TGIRTs) (Mohr et al., 2013; Nottingham et al., 2016; Qin et al., 2016). In addition to high fidelity, processivity, and strand-displacement activity, group II intron RTs have a proficient template-switching activity that enables efficient, seamless attachment of RNA-seq adapter sequences to target RNAs without RNA tailing or ligation (Mohr et al., 2013; Lentzsch et al., 2019). Further, unlike retroviral RTs, which tend to dissociate from RNAs at post-transcriptional modifications that affect base pairing, TGIRT enzymes pause at such modifications but eventually read through by characteristic patterns of mis-incorporation that can be used to identify the modification (Katibah et al., 2014; Nottingham et al., 2016; Qin et al., 2016; Li et al., 2017; Safra et al., 2017; Shurtleff et al., 2017; Zubradt et al., 2017). This combination of activities enables TGIRT enzymes to give relatively uniform 5'- and 3'-sequence coverage of mRNAs when initiating conventionally from an annealed oligo(dT) primer (Mohr et al., 2013) and to give full-length, end-to-end reads of tRNAs and other structured small ncRNAs, when initiating by template switching to the 3' end of the RNA (Mohr et al., 2013; Katibah et al., 2014; Nottingham et al., 2016; Qin et al., 2016). In size selected RNA preparations, TGIRT-seq profiles human miRNAs with bias equal to or less than alternative methods (Mohr et al., 2013; Xu et al., 2019).

The comprehensive TGIRT-seq method used in this work to analyze human plasma RNAs employs TGIRT-template-switching for 3'-RNA-seq adapter addition followed by a single-stranded DNA ligation for 5' RNA-seq adapter addition (Figure 1A). In a validation study using rRNA-depleted, chemically fragmented human reference RNAs with External RNA Control Consortium spike-ins, TGIRT-seq gave better quantitation of mRNAs and spike ins, more uniform 5’ to 3’ coverage of mRNA sequences, detected more splice junctions, particularly near the 5' ends of mRNAs, and had higher strand specificity when compared to benchmark TruSeq-v3 datasets (Nottingham et al., 2016). This study also showed that TGIRT-seq enables the simultaneous sequencing of chemically fragmented mRNAs together with tRNAs and other structured sncRNAs, which were poorly represented in the TruSeq datasets, even after chemical fragmentation (Nottingham et al., 2016). A subsequent study of chemically fragmented human cellular RNAs with customized spike-ins confirmed these findings and showed that TGIRT-seq enables simultaneous quantitative profiling of mRNA fragments and sncRNAs of > 60 nt, but under-represents smaller RNAs due in part to differential loss during library clean-up to remove adapter dimers (Boivin et al., 2018). Recent TGIRT-seq profiling of structured RNAs in unfragmented cellular RNA preparations from human cells revealed previously unannotated sncRNAs, including novel snoRNAs, tRNA-like RNAs, and tRNA fragments (tRFs) (Boivin et al., 2020).

Figure 1 with 6 supplements see all

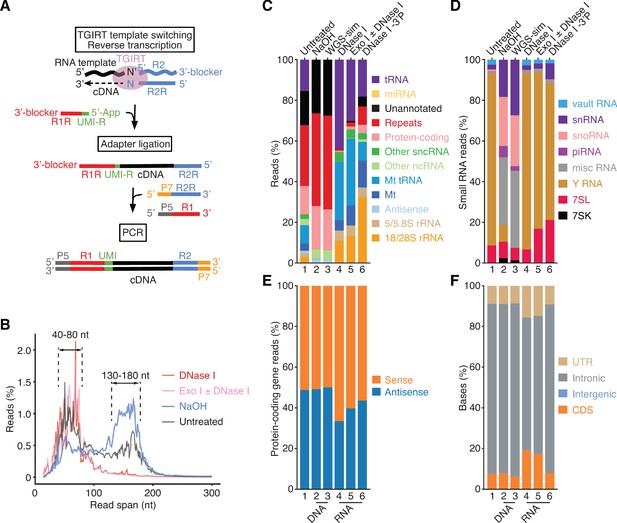

TGIRT-seq of nucleic acids in human plasma.

(A) TGIRT-seq workflow. The TGIRT enzyme initiates reverse transcription by template switching from a synthetic RNA template/DNA primer substrate consisting of a 35-nt RNA oligonucleotide containing an Illumina read 2 (R2) sequence annealed to a 36-nt DNA primer. The latter leaves a single nucleotide 3’ overhang (N, an equimolar mix of A, C, G, and T) that directs template switching by base pairing to the 3’ nucleotide (N’) of an RNA or DNA template, which is then reverse transcribed resulting in a DNA copy of the nucleic acid with the reverse complement of an Illumina read two sequence (R2R) seamlessly linked to its 5’ end (Qin et al., 2016; Wu and Lambowitz, 2017). After clean-up, a second adapter (R1R DNA), which contains the reverse complement of an Illumina read one sequence and introduces a 6-nt UMI (denoted UMI-R for the reverse orientation), is ligated to the 3’ end of the cDNA using thermostable 5’ App DNA/RNA ligase, followed by PCR with primers that add capture sites and indices for Illumina sequencing. (B) Read-span distributions in combined datasets for plasma nucleic acids before (n = 3) and after treatment with NaOH to digest RNA (n = 4) or with DNase I (n = 12) or Exonuclease I (Exo I) ± DNase I (n = 3) to digest DNA. The plot shows the percentage of read spans as a function of length calculated from the starting positions of each deduplicated 2 × 75 nt paired-end read. (C) and (D) Stacked bar graphs showing the percentage of deduplicated read pairs in the indicated combined datasets that mapped to different categories of annotated genomic features or unannotated regions of the hg19 human genome reference sequence compared to a simulated dataset of 2 × 75 nt paired-end reads (WGS-sim) generated computationally from the hg19 sequence. Genomic features follow Ensembl annotations. Mt indicates mitochondrial transcripts, and Repeats indicates Repbase-annotated repeats. Other ncRNA includes pseudogenes and Ensembl-annotated long non-coding RNAs (lncRNAs). Other sncRNA indicates the small non-coding RNAs classified by Ensembl and broken out separately in panel (D). (E) Stacked bar graphs showing the percentages of reads that mapped to the sense or antisense strand of protein-coding genes. Strand specificity was calculated after filtering out read pairs that aligned to embedded sncRNAs, such as snoRNAs, but included read pairs that aligned to repeats within protein-coding genes. (F) Stacked bar graphs showing the percentage of bases that mapped to different regions of the sense strand of protein-coding genes. UTR, 5’- or 3’-untranslated region; CDS, coding sequences; intergenic, regions upstream or downstream of transcription start and stop sites annotated in RefSeq. In panels (C)-(F), features are color-coded as indicated in the Figure, and numbers at the bottom indicate the same samples with different categorizations.

The ability of TGIRT-seq to simultaneously profile mRNAs and non-coding RNAs from small amounts of starting material without size selection is advantageous for the analysis of extracellular RNAs, which are present in low concentrations in human plasma or EVs secreted by cultured human cells. In a previous study, TGIRT-seq showed that human plasma from a healthy male individual contained predominantly full-length tRNAs and other structured small ncRNAs, which could not be seen in RNA-seq studies using retroviral RTs, together with RNA fragments derived from large numbers of protein-coding genes and lncRNAs, with higher proportions of intron and antisense RNAs than in cellular RNA datasets (Qin et al., 2016). Similarly, TGIRT-seq showed that highly purified EVs and exosomes secreted by cultured human cells also contained predominantly full-length tRNAs, Y RNAs, and Vault RNAs, together with low concentrations of mRNAs, including 5' terminal oligopyrimidine (5' TOP) mRNAs (Shurtleff et al., 2017). The same TGIRT-seq workflow using template switching for facile 3'-RNA-seq adapter enabled single-stranded (ss) DNA-seq profiling of human plasma DNA, including analyses of nucleosome positioning and DNA methylation sites that inform tissue-of-origin (Wu and Lambowitz, 2017), as shown previously for other ssDNA-seq methods (Chandrananda et al., 2015; Snyder et al., 2016).

Since these earlier studies, TGIRT-seq methods have undergone improvements including: (i) the use of modified RNA-seq adapters that substantially decrease adapter-dimer formation; (ii) computational and biochemical methods for remediating residual end biases, enabling profiling of miRNAs with accuracy equivalent to the least biased current methods; and (iii) modified reaction conditions that increase the efficiency of RNA-seq adapter addition by TGIRT template switching, enabling the more efficient capture of target RNAs (Lentzsch et al., 2019; Xu et al., 2019).

Here, we used an updated TGIRT-seq method incorporating these improvements together with RNA-seq adapters that add a unique molecular identifier (UMI) to deconvolute duplicate reads to comprehensively profile RNAs present in commercial human plasma from healthy individuals prepared by apheresis, a method used to obtain large volumes of plasma for clinical purposes, including convalescent plasma from recovered COVID-19 patients (Duan et al., 2020). Additionally, we compared the fragmented mRNAs detected in plasma by TGIRT-seq with the polyadenylated mRNAs detected in the same plasma by ultra-low input SMART-Seq v4 and introduced the use of a peak-calling algorithm for analyzing TGIRT-seq datasets. We thus identified numerous mRNA fragments corresponding to annotated binding sites for ~100 different RNA-binding proteins. We also identified a wide variety of discrete structured RNAs and RNA fragments, including abundant repeat and transposable element RNAs, unannotated miRNA-sized RNAs, and intron RNAs. The latter included a family of putatively structured full-length, excised intron RNAs, some corresponding to mirtron pre-miRNAs and/or agotrons, and putatively structured intron RNA fragments, including a family corresponding to conserved structured segments of retrotransposed mRNAs that inserted within long introns.

Results

TGIRT-seq of human plasma nucleic acids

The TGIRT-seq datasets in this study were obtained from commercial human plasma pooled from multiple healthy individuals and prepared by apheresis with EDTA as the anticoagulant (IPLA-N-K2E; Innovative Research). For each dataset, nucleic acids were extracted from 4 mL of plasma by using a QIAamp ccfDNA/RNA kit (Qiagen) and treated with NaOH to obtain RNA-free plasma DNA (n = 4) or with DNase I (n = 12), exonuclease I (Exo I; n = 1) or Exo I + DNase I (n = 2) to obtain plasma RNA with minimal residual DNA (referred to collectively as DNase-treated plasma RNA; n = 15). Each preparation gave ~10 ng of nucleic acid, which yielded ~8 ng DNA or ~2 ng RNA, as judged by Bioanalyzer analysis (Figure 1—figure supplement 1). Although the QIAamp ccfDNA/RNA kit gave a lower yield of plasma RNA than other kits, it provided a uniform method for obtaining both RNA and DNA from the same plasma preparations.

To prepare TGIRT-seq libraries, we used the workflow outlined in Figure 1A, which is based on the previously described TGIRT total RNA-seq method (Nottingham et al., 2016; Qin et al., 2016) with the following improvements. First, the initial TGIRT-template switching reaction was done at a lower salt concentration (200 instead of 450 mM), which increases the efficiency of 3'-RNA-seq adapter addition (Wu and Lambowitz, 2017; Lentzsch et al., 2019). Second, we used a modified R2R adapter that substantially decreases adapter-dimer formation (Xu et al., 2019), thereby improving the representation of very small RNAs, such as miRNAs and short tRNA fragments (tRFs). Finally, we used a modified R1R adapter with a 6-nt UMI to deconvolute duplicate reads (Wu and Lambowitz, 2017). The libraries were sequenced on an Illumina NextSeq 500 instrument to obtain 10 to 27 million 75-nt paired-end reads, which were mapped to the hg19 human genome reference sequence. Mapping rates for the DNase-treated plasma RNA datasets (n = 15) ranged from 82–96% (Supplementary file 1), with pairwise Pearson correlation coefficients r = 0.67–1.00 (Figure 1—figure supplement 2). Although, we were concerned that the lower salt concentration used for template switching might increase the frequency of multiple sequential template switches, the percentages of soft-clipped and fusion/discordant read pairs, which include reads from multiple template switches, were relatively low (1.5–2.5% and 0.5–4.1%, respectively; Supplementary file 1).

The read-span distributions for the untreated and NaOH-treated plasma DNA samples showed two broad peaks, one at 130–180 nt, corresponding to plasma DNA protected in chromatosomes (nucleosomes plus linker histone) or trimmed mononucleosomes, and the other at 50–100 nt corresponding to nicked DNA strands that are protected by transcription factors or other bound proteins (Figure 1B), in agreement with previous studies (Chandrananda et al., 2015; Snyder et al., 2016; Wu and Lambowitz, 2017). Bioanalyzer traces using a High Sensitivity DNA kit showed that all of the dsDNA in the untreated plasma nucleic acid sample was sensitive to DNase I (Figure 1—figure supplement 1A). The read-span distributions for plasma RNA samples obtained after treatment with DNase I (n = 12) or Exo I ± DNase I (n = 3) showed a broad peak of 40–80 nt (Figure 1B), which corresponded to a similarly sized peak that was detected and confirmed to be NaOH-sensitive in Bioanalyzer traces obtained by using an RNA 6000 Pico Kit (Figure 1—figure supplement 1B).

Overview of RNA biotypes detected in human plasma

Figure 1C–F show stacked bar graphs comparing the proportion of read pairs mapping to different genomic features in combined datasets obtained from plasma nucleic acids before and after different treatments. For NaOH-treated plasma DNA samples (n = 4), the overall distribution of read pairs was similar to that simulated for random sampling of human genomic DNA (WGS-sim; simulated by ART). Most of these plasma DNA read pairs mapped to genomic repeats (46%; Repbase), unannotated sequences (26%), or protein-coding genes (21%; Figure 1C), with the read pairs mapping to protein-coding genes equally distributed between the sense and antisense strands (Figure 1E) and most of the bases in these read pairs located within introns (Figure 1F).

The plasma RNA samples after treatment with DNase I (n = 12), Exo I ± DNase I (n = 3), or DNase I + T4 polynucleotide kinase to remove 3' phosphates (n = 3) gave read pairs mapping to 26,000–43,000 different genes (Figure 1C, Figure 1—figure supplement 2 and Supplementary file 1). For the DNase I-treated plasma RNA, high proportions of the read pairs mapped to cellular or mitochondrial (Mt) tRNAs (44% and 29%, respectively) followed by cellular and Mt rRNAs (16% and 5%, respectively), other sncRNAs (4.6%), repeats (Repbase; 0.8%), protein-coding gene transcripts (0.6%), other ncRNAs (0.1%), and miRNAs (0.006%; Figure 1C). Most of the rRNA reads corresponded to 18S and 28S rRNA (69%), with the remainder to 5S and 5.8S rRNAs (31%; Figure 1C). Treatment of plasma nucleic acids with T4 polynucleotide kinase to remove 3' phosphates increased the proportions of total reads mapping to 18S and 28S rRNAs (to 33%), repeats (to 9%), and protein-coding genes (to 4.1%; Figure 1C; lane 6). In agreement with previous findings (Qin et al., 2016), the proportions of protein-coding gene reads mapping to the antisense strand (17–36%; Figure 1E) and bases within introns (63–73%; Figure 1F) were higher than those in TGIRT-seq datasets of cellular RNAs (10% and 24%, respectively [Nottingham et al., 2016]), suggesting that intron and antisense RNAs may be selectively exported or stable in plasma.

The most abundant sncRNAs in the DNase I-treated plasma RNA samples were tRNAs (36,766 counts per million (CPM) for Val-CAC, the most abundant isodecoder species) followed by Y RNAs (15,247 CPM for RNY4, the most abundant species), and 7SL RNA (158–1,504 CPM for the three 7SL RNA genes; Figure 1D and Supplementary file 1). As found previously (Qin et al., 2016), TGIRT-seq showed that most of the cellular and Mt tRNAs detected in plasma were full-length mature tRNAs, which cannot be fully reverse transcribed by retroviral RTs (Figure 1—figure supplements 3 and 4, respectively). The plasma preparations also contained lower concentrations of specific cellular 5'-tRNA halves (0.02–68 CPM), 3'-tRNA halves (0.02–9,036 CPM), and shorter tRNA fragments (5'-tRFs, 0.02–39 CPM; 3'-tRFs, 3–640 CPM; and internal 2-tRFs, 0.02–7 CPM), with the proportion of reads corresponding to some 5'-tRNA halves and 5'-tRFs increasing after 3'-phosphate removal (e.g., 5' half Gly-CCC, 2.9-fold increase; 5'-tRF Cys-GCA, 2-fold increase; see Supplementary file 1). Notably, TGIRT-seq identified 5' ends of 3'-tRFs that extend beyond the m1A modification site in the TψC loop, which is a strong stop for retroviral RTs and can be mistaken for the 5' end of 3'-tRFs (Figure 1—figure supplement 3; Kumar et al., 2014; Reinsborough et al., 2019). Other structured sncRNAs in plasma, including Vault RNAs, snoRNAs, snRNAs, 7SK RNA, 7SL RNA, 5S rRNA and 5.8S rRNA, were also present largely as full-length mature transcripts (Figure 1—figure supplement 5), in agreement with previous findings (Qin et al., 2016).

The improved TGIRT-seq method detected 263 miRNAs annotated as high confidence miRNAs in miRbase v20 in the DNase I-treated plasma RNAs datasets (n = 12; Supplementary file 1). As found previously using TGIRT-seq (Qin et al., 2016), these were a mixture of pre- and mature miRNA, passenger strands, and longer transcripts, whose proportions varied for different miRNA species (Figure 1—figure supplement 6). The most abundant miRNA detected by TGIRT-seq, miR-223, was present at only 2.89 CPM (Figure 1—figure supplement 6), considerably lower than the most abundant similarly sized 3'-tRFs (Glu-TTC, 640 CPM; Glu-CTC, 510 CPM; Lys-CTT, 121 CPM; Supplementary file 1). Only a very low proportion of reads (< 0.001%) mapped to piRNA loci (Figure 1D; lanes 4–6), and none corresponded to a mature piRNA, even though under the lower salt conditions used for library construction TGIRT-III can template switch to and reverse transcribe RNAs with 2’-O-methylated 3’ ends characteristic of piRNAs (Lentzsch et al., 2019).

Identification of bacterial and viral RNA and DNA reads in plasma prepared by apheresis

To identify bacterial and viral RNAs in the commercial plasma preparations, we used the taxonomic classification program Kraken2 to analyze non-human reads in combined DNase-treated plasma RNA datasets (n = 15; 3.3 million deduplicated reads including reads mapping to E. coli, which were filtered from the datasets and reintroduced for this analysis; see Materials and methods). Kraken2 assigns reads to bacterial, viral, and archaeal genomes based on matches to unique k-mer sequences in a database of non-redundant bacterial, viral, and archaeal sequences compiled from RefSeq. We thus identified 2.83 million RNA reads assigned to bacteria, with the most abundant phyla being Proteobacteria, Actinobacteria, and Firmicutes and the most abundant genera being Pseudomonas, Salmonella, Acinetobacter, Halomonas, and Bacillus, consistent with other studies (Potgieter et al., 2015; Pan et al., 2017). A much smaller number of non-human RNA reads (~52,000) were assigned to viruses, the most abundant being Parvoviridae and Mason-Pfizer monkey virus, a retrovirus (Figure 2A). The combined NaOH-treated plasma DNA datasets (n = 4; 46 million deduplicated reads) contained only 12,000 non-human reads, much lower than 1% reported in another study using plasma prepared by a different method (Kowarsky et al., 2017). Most (93.3%) of the non-human DNA reads were assigned by Kraken2 to bacteria, mainly Pseudomonas spp., with only 64 reads assigned to viruses, mostly human β herpesvirus 6B (Figure 2B and Supplementary file 1). The commercial plasma preparations had been screened by the supplier for hepatitis B virus, hepatitis C virus, HIV-1, HIV-2, and syphilis, and we found no reads mapping to any of these pathogens. A separate search for Epstein-Barr virus (EBV) found 28 deduplicated RNA reads and no DNA reads. Although EBV can reside in latent form in B lymphocytes, it was detected by qPCR in only 30% of plasma samples from individuals without active EBV disease (Gulley and Tang, 2008). More generally, the low levels of viral nucleic acids found here could also reflect that apheresis-prepared plasma has very low levels of leukocyte and platelet contamination, the presence of which correlates with increased risk of viral and prion disease transmission in plasma used for clinical purposes (Valbonesi et al., 2001).

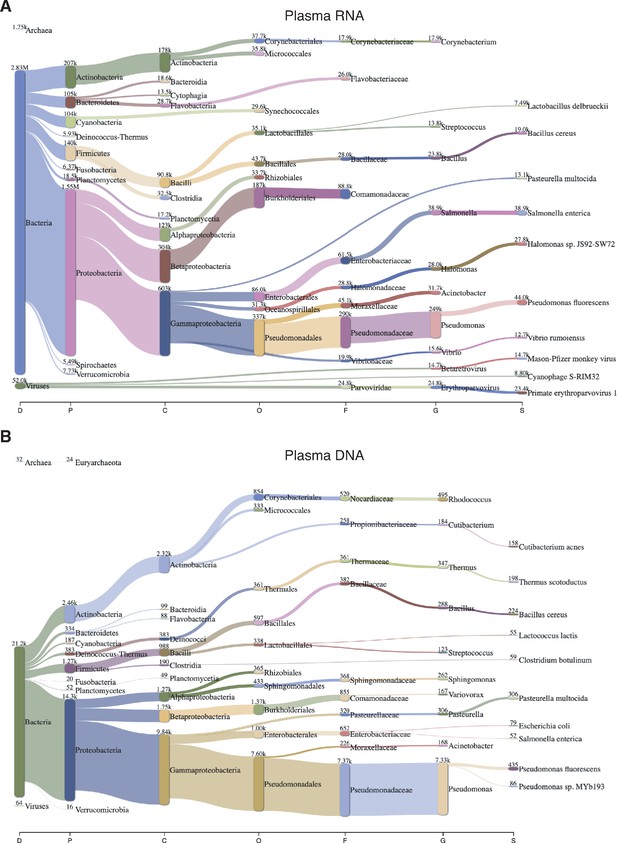

Sankey diagram of reads assigned to bacteria, archaea, and viruses from combined datasets of (A) DNase-treated plasma RNA (n = 15) and (B) NaOH-treated plasma DNA (n = 4).

The diagram shows the flow of mapped reads from the most general (left) to most specific (right) taxonomic classification (abbreviations: D, Domain; P, Phylum; C, Class; O, Order; F, Family; G, Genus; S, Species). The width of the flow is proportional to the number of reads, which is indicated at the top of each node.

TGIRT-seq versus ultra low input SMART-Seq v4

Our previous TGIRT-seq analysis of plasma from a healthy male individual, which was prepared from freshly drawn blood by sedimentation into a Ficoll-cushion to minimize cell breakage, revealed that the mRNAs in plasma are largely fragmented, consistent with other studies of plasma RNAs using different RNA-seq methods with or without size selection (Freedman et al., 2016; Tsang et al., 2017; Yeri et al., 2017; Akat et al., 2019; Giraldez et al., 2019). In the plasma prepared by apheresis from multiple healthy individuals, the proportion of the TGIRT-seq reads mapping to protein-coding genes was relatively low (0.6–4.1%; Figure 1C, lanes 4–6), but nevertheless sufficient to identify mRNAs originating from 15,000 to 19,000 different protein-coding genes, with the highest number of different mRNAs detected after 3'-phosphate removal with T4 polynucleotide kinase (Figure 3A and B). The identities and relative abundances of different protein-coding gene transcripts in the apheresis-prepared plasma were broadly similar to those in the previous TGIRT analysis of plasma prepared by Ficoll-cushion sedimentation of blood from a healthy male individual (Qin et al., 2016) (r = 0.62–0.80; Figure 3C) and between high quality plasma samples similarly prepared from five healthy females in a collaborative study with Dr. Naoto Ueno, M.D. Anderson ( = 0.53–0.67; manuscript in preparation).

Figure 3 with 2 supplements see all

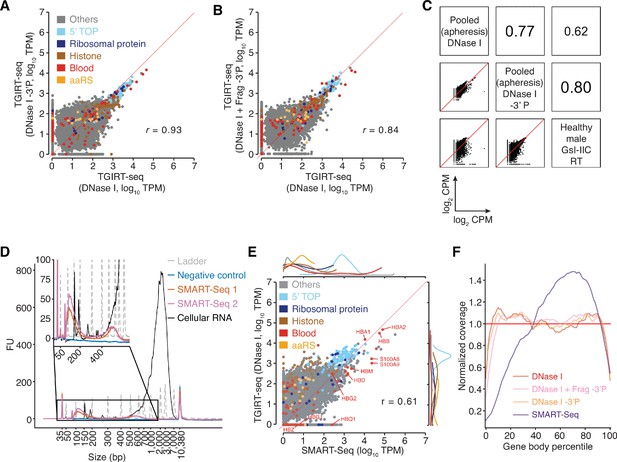

TGIRT-seq analysis of protein-coding gene transcripts in human plasma and comparison with SMART-Seq.

(A, B) Scatter plots comparing protein-coding gene transcripts detected by TGIRT-seq in combined datasets for DNase I-treated plasma RNA without (n = 12) or with (n = 3) 3'-phosphate removal or chemical fragmentation followed by 3'-phosphate removal (n = 5). Reads aligned to protein-coding genes were extracted and quantified by Kallisto to obtain transcript-per-million (TPM) values, and average TPM values for each gene were plotted for each pairwise comparison. Each point represents one gene and is color-coded by type of encoded protein as indicated in the Figure. 5’ TOP includes those ribosomal proteins whose mRNAs have a 5' TOP sequence. The red line indicates identical TPM values for both methods. Pearson correlation coefficients are shown at the lower right. (C) Scatter plots comparing the relative abundances of protein-coding gene transcripts detected in DNase I-treated plasma RNA using the improved TGIRT-seq method in this work without (n = 12) or with (n = 3) 3'-phosphate removal with those detected previously by TGIRT-seq in DNase I-treated plasma RNA from a healthy male individual (n = 3; SRP064378, datasets 12–14) (Qin et al., 2016). CPMs for each gene were normalized to the total number of mapped reads in the dataset and log2 transformed for the comparisons. Spearman correlation coefficients are shown in sectors at the upper right. (D) Bioanalyzer traces of PCR-amplified cDNAs generated by SMART-Seq according to manufacturer’s protocol. Samples were analyzed using an Agilent 2100 Bioanalyzer with a High Sensitivity DNA kit. Traces are color-coded by sample type as shown in the Figure, with ‘Ladder’ (dashed gray lines) indicating the DNA ladder supplied with the High Sensitivity DNA kit. The negative control was a SMART-Seq library prepared with water as input, and the cellular RNA control was the positive control RNA supplied with the SMART-Seq kit. SMART-Seq 1 and 2 indicate double-stranded DNAs generated by using the SMART-Seq kit from different samples of DNase I-treated plasma RNA. FU, fluorescence units. (E) Scatter plot comparing protein-coding gene transcripts detected in plasma by TGIRT-seq and SMART-Seq. Reads assigned to protein-coding genes transcripts (0.28 million reads for TGIRT-seq and 2.6 million reads for SMART-Seq) were extracted from combined datasets obtained from DNase I-treated plasma RNA (n = 12 for TGIRT-seq and n = 4 for SMART-Seq) and quantified by Kallisto. The scatter plots compare average TPM values for protein-coding gene transcripts with each point representing one gene, color-coded by the type of encoded protein (see above). The marginal distributions of different color-coded mRNA species in the scatter plot are shown above for SMART-Seq and to the right for TGIRT-seq. The red line indicates identical TPM values for both methods. The Pearson correlation coefficient (r) is indicated at the bottom right. (F) Normalized 5’- to 3’-gene body coverage for protein-coding gene transcripts detected in plasma by TGIRT-seq and SMART-Seq. Gene body coverage was computed by Picard tools (Broad Institute) using the genomic alignment files generated by Kallisto. The plots show normalized gene coverage versus normalized gene length for all protein-coding transcripts in the indicated datasets color-coded as indicated in the Figure. The red horizontal line at y = 1 indicates perfectly uniform 5' to 3' coverage.

To investigate the relationship between the mRNAs detected in plasma by TGIRT-seq and the polyadenylated mRNAs detected by other methods (e.g., Koh et al., 2014; Englert et al., 2019), we compared the protein-coding gene transcripts identified in the TGIRT-seq datasets for DNase I-treated plasma RNAs (n = 12) with those identified in identically prepared RNA from the same plasma preparations by ultra low input SMART-Seq v4 (Takara Bio; n = 4; Figure 3D–E and Figure 3—figure supplements 1 and 2). The latter is a highly sensitive method for profiling polyadenylated mRNAs in which an engineered retroviral RT (SMARTScribe) initiates cDNA synthesis from an anchored oligo(dT) primer with an appended PCR primer-binding site and then template switches from the 5’ end of that mRNA to an acceptor oligonucleotide containing a second primer-binding site, enabling PCR amplification of the resulting cDNAs. In our experiments, the resulting dsDNAs were fragmented by Covaris sonication and used to prepare DNA-seq libraries by using an NEBNext Ultra II DNA Library Prep (New England Biolabs). The SMART-Seq libraries (n = 4) were then sequenced on an Illumina NextSeq 500 to obtain a total of 2.6 million 2 × 75 nt reads that mapped to > 16,000 protein-coding genes with a transcript per million value (TPM) > 0.1. The larger number of mRNA reads compared to TGIRT-seq (0.28 million) largely reflects that SMART-Seq selectively profiles polyadenylated mRNAs, while TGIRT-seq profiles mRNAs together with other more abundant RNA biotypes. In addition, ultra low input SMART-Seq is not strand-specific, resulting in redundant sense and antisense strand reads (Figure 3—figure supplement 1). Bioanalyzer traces showed that the amplified dsDNAs obtained by SMART-Seq prior to Covaris sonication were substantially shorter than those from the cellular RNA control provided with the kit (peaks at 100–200 and 400–700 bp for plasma RNA compared to 700–7,000 bp for the cellular control RNA; Figure 3D), indicating that the poly(A)-containing mRNAs detected in plasma by SMART-Seq are enriched in 3' fragments.

A scatter plot comparing the relative abundance of transcripts originating from different genes showed that most of the polyadenylated mRNAs detected in DNase I-treated plasma RNA by ultra low input SMART-Seq were also detected by TGIRT-seq at similar TPM values when normalized for protein-coding gene reads (r = 0.61), but with some, mostly lower abundance mRNAs undetected either by TGIRT-seq or SMART-Seq, and with SMART-Seq unable to detect non-polyadenylated histone mRNAs, which are relatively abundant in plasma (Figure 3E and Figure 3—figure supplement 1). Similar correspondences were found for TGIRT-seq of plasma RNAs after 3'-phosphate removal (n = 3; r = 0.58) or after additional chemical fragmentation followed by 3'-phosphate removal (n = 4; r = 0.68; Figure 3—figure supplement 2A and B). Heat maps comparing protein-coding gene transcripts detected by TGIRT-seq and SMART-Seq to primary tissue and platelet transcriptome data (Schubert et al., 2014; Uhlén et al., 2015; Campbell et al., 2018) indicated that the detected mRNA originated largely from hematopoietic tissues, including bone marrow, lymph nodes, and spleen, with contributions from erythrocytes, white blood cells, and platelets (Figure 3—figure supplement 2C and D), in agreement with other studies (Koh et al., 2014; Giraldez et al., 2019). The highly represented mRNAs detected by both TGIRT-seq and SMART-Seq included hemoglobins and other blood cell mRNAs (e.g., pro-platelet basic protein (PPBP) and S100 calcium-binding proteins S100A8 and S100A9), which are involved in regulating immune responses (Ryckman et al., 2003; Figure 3E and heat maps Figure 3—figure supplement 2D). Other prominent mRNA families detected by both methods included 5’ TOP mRNAs, which encode ribosomal proteins and other components of the translational apparatus and are translationally repressed by recruitment to RNP granules under stress conditions (Damgaard and Lykke-Andersen, 2011) and aminoacyl-tRNA synthetase (aaRS) mRNAs, which have potential intercellular signaling associated with different protein isoforms generated by alternative splicing (Wang et al., 2013; Figure 3 and Figure 3—figure supplement 2). Both 5' TOP and aaRS mRNAs have also been found in EVs secreted by cultured human cells (Wang et al., 2013; Shurtleff et al., 2017), a potential vehicle by which these mRNAs might enter plasma.

Plots of normalized coverage over all detected mRNAs showed that SMART-Seq under-represented 5’-RNA sequences and over-represented 3'-RNA sequences, as expected for 3'-mRNA fragments, while TGIRT-seq coverage, with or without 3'-phosphate removal or with chemical fragmentation followed by 3' phosphate removal, was relatively uniform across most of the length of the detected mRNAs (Figure 3F). Integrated Genomics Viewer (IGV) alignments for representative protein-coding genes confirmed the relatively uniform coverage of both polyadenylated and non-polyadenylated mRNAs by TGIRT-seq and showed that TGIRT-seq simultaneously detected an intron-encoded snoRNA in a ribosomal protein gene that was invisible to SMART-Seq (RPL10; upper right in Figure 3—figure supplement 1).

Notably, although 3'-phosphate removal increased both the proportion of reads mapping to protein-coding genes and the number of mRNAs detected by TGIRT-seq (see above), neither the 5’- to 3’-coverage nor the abundance of most protein-coding transcripts detected in plasma by TGIRT-seq was strongly affected (Figure 3A,B and F; r = 0.93 and 0.84, respectively). This reflects that many of the additional protein-coding gene transcripts detected after 3'-phosphate removal had relatively low read counts and that the abundance of only a small proportion of protein-coding gene transcripts increased significantly after this treatment (0.41% by differential expression analysis using DESeq2; adjusted p-value < 0.01). Because 3’ phosphates inhibit RNA-seq adapter addition by TGIRT template switching (Mohr et al., 2013), these findings are consistent with the suggestion from the previous TGIRT-seq analysis (Qin et al., 2016) that many mRNA fragments in plasma have 3’ OH termini, as expected for RNA fragments generated by cellular ribonucleases that function in mRNA processing or turnover (Houseley and Tollervey, 2009; Schoenberg and Maquat, 2012).

Use of peak-calling for analysis of plasma RNAs

As DNA fragments that persist in plasma were found to be packaged in nucleosomes or associated with transcription factors or other DNA binding proteins that afford protection from plasma nucleases (Chandrananda et al., 2015; Snyder et al., 2016; Wu and Lambowitz, 2017), we wondered whether many of the mRNA fragments in plasma might be similarly protected by bound proteins and whether such protein-protected RNA fragments could be detected by peak calling, as done for ChIP-seq (Zhang et al., 2008). To test this idea, we combined the TGIRT-seq datasets for all DNase-treated plasma samples (n = 15) and removed reads from human blacklist regions, which are known to produce artifactual peaks (Amemiya et al., 2019), as well as reads corresponding to rRNAs, Mt RNAs, and annotated sncRNAs, which were analyzed above. We were left with ~1.6 million deduplicated read pairs that mapped to the hg19 human genome reference sequence to use as input for the ChIP-seq narrow peak caller, MACS2 (Zhang et al., 2008). As a base line control, we used the ~38 million deduplicated read pairs that mapped to human genome from the NaOH-treated plasma DNA samples (n = 4).

Peak calling using a read coverage cutoff of ≥ 5, a false discovery rate cutoff of 0.05 (q-value assigned by MACS2), and a requirement that the peak was detected in at least 5 of the 15 samples to avoid batch effects yielded 1,036 peaks that were enriched in the DNase-treated plasma RNA over the base line control. After further filtering to remove read alignments with MAPQ < 30 (a cutoff that eliminates reads mapping equally well at more than one locus) or ≥ 5 mismatches from the mapped locus, we were left with 950 high confidence peaks ranging in size from 59 to 1,207 nt with ≥ 5 high quality read alignments at the peak maximum (Supplementary file 1). The percentage and number of peaks mapping to different annotated features are shown by pie charts in Figure 4A and B. Among the detected peaks, 922 had one or more annotations for a gene (Ensemble), RBP-binding site (ENCODE K-562 and HepG2 cells eCLIP datasets [Van Nostrand et al., 2016]), or repeat sequence (Repbase) on the sense strand; 25 had one or more such annotations on the antisense strand; and three had no overlap with any of these annotations.

Figure 4 with 3 supplements see all

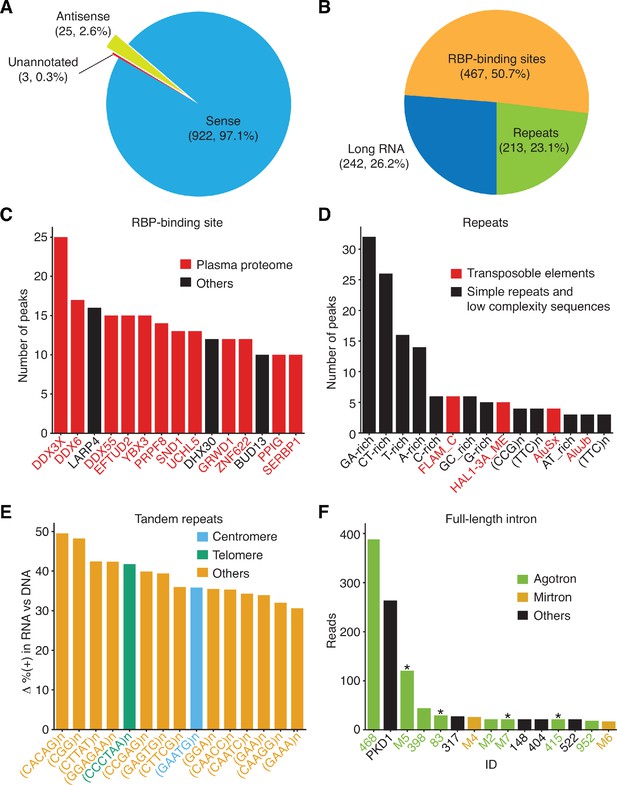

Peak-calling analysis of plasma RNA.

The MACS2 algorithm was used to call peaks in combined TGIRT-seq datasets for DNase-treated plasma RNA (n = 15) after removal of the reads for rRNAs, Mt RNAs, and annotated sncRNAs (tRNAs, Y RNAs, 7SK and 7SL RNAs, vault RNAs, snoRNAs, snRNAs, high confidence miRNAs, and miscellaneous RNAs). The combined datasets for NaOH-treated plasma DNA (n = 4) were used as the base-line control. Only peaks with q-value < 0.05 assigned by MACS2 and supported by alignments from at least five separate libraries at the peak summit were used for the analysis. Peaks were intersected sequentially with (i) binding sites for 109 RNA-binding protein (RBPs) from ENCODE K-562 and HepG2 cell eCLIP datasets; (ii) RefSeq and GENCODE gene annotations; and (iii) repeat annotations from Repbase, and a best feature annotation for each peak was selected by the highest overlap score, as described in Materials and methods. (A) and (B) Pie charts showing the proportion of peaks with annotations on the sense strand, antisense strand, or no annotations (A) and the proportion of peaks mapping to different categories of genomic features with sense-strand annotations (B). The number of peaks in each sector and their percentage of the total are indicated in parentheses. (C–F) Bar graphs showing the (C) top 15 RBP-binding sites ranked by peak count, with RBPs found to be part of the plasma proteome (Nanjappa et al., 2014) shown in red; (D) top 15 Repbase annotated repeats ranked by peak count, with simple repeats and low complexity sequences in black and transposable element RNAs in red; (E) top 15 short tandem repeat RNAs with highest difference (Δ) in the percentage of (+) orientation reads between the DNase-treated plasma RNA and NaOH-treated plasma DNA datasets color coded as indicated in the Figure; (F) top 15 peaks corresponding to full-length excised intron RNAs ranked by the number of deduplicated reads. The peak IDs are indicated on the x-axis and are color-coded by annotated intron RNA type: agotron (green); mirtron (gold); annotated as both agotron and mirtron (green with asterisk). Others, not annotated in the previous categories (black). The read count for PKD1 is the combined count from the peak in PKD1 gene and the peaks for the same intron in six PKD1 pseudogenes (Figure 9D below and peak IDs #335–340).

To understand the origins of these peaks, we first extracted those with sense-strand annotations and plotted the proportions corresponding to different annotated genomic features (Figure 4B). About half of the peaks (467 peaks; 50.7%) contained or overlapped an ENCODE eCLIP annotated RBP-binding site in a long RNA (i.e., a mRNA, lncRNA, or pseudogene RNA). A smaller proportion (242 peaks; 26.2%) mapped to long RNAs but did not contain an ENCODE eCLIP-annotated RBP-binding site, and the remainder (213 peaks; 23.1%) were genomic repeats, including simple sequence repeats and transposable element RNAs. The distributions of lengths and read depths for different categories of peaks are shown in (Figure 4—figure supplement 1).

RNA fragments containing RBP-binding sites are prevalent in plasma

The 467 peaks with an ENCODE eCLIP annotated RBP-binding site contained or overlapped the binding sites for 90 of the 109 RBPs searched initially in the eCLIP datasets, including 75 that had been shown previously to be part of the plasma proteome (Nanjappa et al., 2014Supplementary file 1). These 467 peaks comprised 0.8% of the long RNA reads (1.4% of the long RNA reads with MAPQ ≥ 30; Figure 4—figure supplement 2A); ranged in size from 64 to 823 nt (Figure 4—figure supplement 1A); and had 11 to 282 nt overlaps with the identified RBP-binding sites (Figure 4—figure supplement 2B). Simulations using 1,000 sets of 950 peaks with the same size distribution as the 950 called peaks randomly generated from the sequences of the genes encoding long RNAs detected in plasma indicated that the enrichment of RBP-binding site sequences in the 467 identified peaks was statistically significant (p < 0.001; Figure 4—figure supplement 2C).

To determine which RBP-binding sites might be prevalent in plasma, we counted the number of peaks containing or overlapping a called binding site for the same RBP (Supplementary file 1). Because some peaks contained annotated binding sites for more than one RBP, for purposes of this count, we assigned the peak to the best matched RBP (or RBPs in case of ties) scored by the number of overlapping bases. The top 15 RBP-binding sites based on the number of assigned peaks are shown in Figure 4C, and IGV coverage plots and alignments for representative peaks are shown in Figure 5. The six RBPs with the most prevalent binding sites in plasma RNAs based on the number of assigned peaks included: three DEAD-box RNA helicases, DDX3X (Figure 5A), DDX6, and DDX55; YBX3, a homologue of the low specificity RBP YBX1, which is not included in the ENCODE eCLIP datasets but of interest because it binds 5' TOP mRNAs and functions in sorting sncRNAs into exosomes (Figure 5B; Evdokimova et al., 2001; Shurtleff et al., 2017; (iii) LARP4, a protein that regulates translation Figure 5C); (iv) and EFTUD2, an RNA splicing factor (Figure 5D). Farther down the list are PRPF8, a spliceosomal protein that provides a structural scaffold for the assembly of snRNAs at splice sites (Figure 5E); SND1, a transcriptional co-activator; and UCHL5, an RBP that modulates mRNA expression (Figure 5F). Also prevalent in plasma were RNA fragments containing binding sites for DHX30, a DExH-box RNA helicase; GRWD1, a histone-binding protein that may also play a role in ribosome assembly; ZNF622, a zinc-finger protein; BUD13, a spliceosome component; PPIG, a protein involved in protein-folding; and SERBP1, a mRNA-binding-protein. Notably, seven of these top 15 proteins (DDX3X, DDX6, DHX30, LARP4, SERBP1, SND1, and YBX3) are components of stress granules (Markmiller et al., 2018; Nunes et al., 2019).

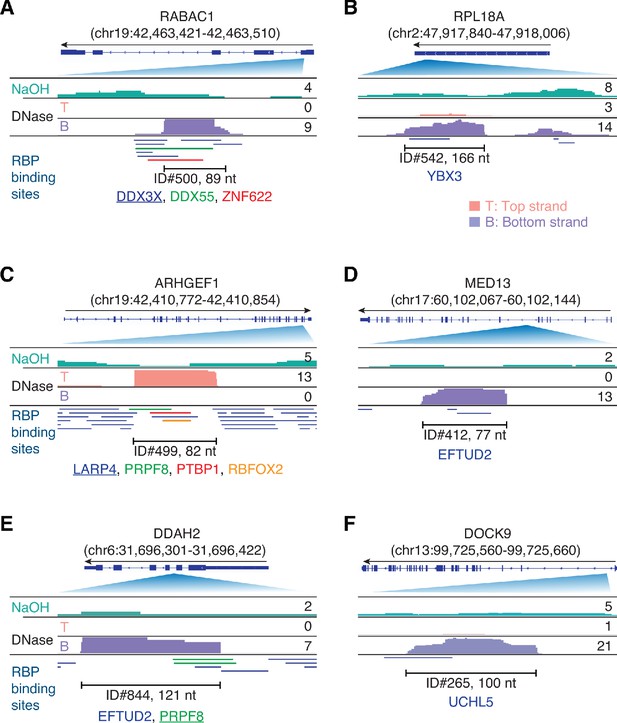

Integrative Genomics Viewer (IGV) screenshots showing examples of plasma RNA peaks corresponding to annotated RBP-binding sites detected in plasma by TGIRT-seq peak calling.

(A–F) Gene names are indicated at the top with the hg19 coordinates of the called peak in parentheses and an arrow below indicating the 5’ to 3’ orientation of the encoded RNA. The top track shows the gene map (exons, thick bars; intron, thin lines), with the relevant part of the gene map expanded below. The tracks below the gene map show coverage plots for the peak region in combined datasets for NaOH-treated plasma DNA (n = 4; combined top and bottom strands, turquoise) or DNase-treated plasma RNA (n = 15; Top strand (T), pink and Bottom strand (B), purple) based on the number of deduplicated reads indicated to the right. The peak called by MACS2 is delineated by the bracketed line, with the peak ID and length indicated below. Annotated protein-binding sites are shown as color-coded lines below the coverage plots. For cases in which the peak overlaps multiple RBP-binding sites, the one whose annotated binding site had the largest number of bases overlapping the peak is underlined.

While most of the potential RBP-binding sites identified by peak calling against the human genome reference sequence corresponded to fragments of mRNA exons (409 binding sites), pseudogenes transcripts (10 binding sites), or annotated antisense RNAs (two binding sites), 46 mapped to introns, and surprisingly, 29 corresponded to short, putatively structured, full-length excised intron RNAs (Supplementary file 1). These full-length excised intron RNAs corresponded to annotated binding sites for 13 different RNA-binding proteins, including five spliceosomal proteins (7 PRPF8, 5 EFTUD2, 3 XRN2, 3 XPO5, 2 SF3A3, 2 SF3B4, and one each for DDX24, HNRNPM, LARP4, LIN28B, RBM22, RPS5, and TROVE2; spliceosomal proteins in bold). The remaining 17 intron RNA peaks mapped within longer introns and corresponded to annotated binding sites for a largely different set of 13 RBPs (3 YBX3, 2 ILF3 and TRA2A, and one each EFTUD2, GPKOW, METAP2, SAFB2, SF3B1, SLTM, SUB1, TIA1, UCHL5, and ZNF622), with a single occurrence of a spliceosomal protein EFTUD2 binding site among the intron fragments being the only RBP common to both sets of peaks (Supplementary file 1). The characteristics of the intron RNAs in these peaks are described below along with those of additional intron peaks that were not annotated as an RBP-binding site.

Peak calling against the human genome reference sequence might miss RBP-binding sites that are close to or overlap exon junctions, as such reads were treated by MACS2 as long reads that span the intervening intron. To address this possibility, we mapped the reads in the combined DNase-treated datasets (n = 15) to a human transcriptome reference sequence (Ensemble human cDNA references) and obtained ~0.26 million deduplicated read pairs that were used as input for MACS2 without a control dataset (Zhang et al., 2008). Using the same peak-calling and filtering parameters as above, we identified 806 high confidence peaks (denoted by peak IDs beginning with T), the large majority of which (638 peaks, 79%) were identical or overlapped the 467 RBP-binding site peaks identified by mapping to the human genome reference sequence. Of the 168 newly identified peaks, 135 (80 in mRNAs, 15 in pseudogenes, 11 in antisense RNAs, eight in lincRNAs, and 21 in other lncRNAs) overlapped annotated binding sites for 57 RBPs, only five of which were not identified by peak calling against the genome sequence (AKAP8L, FXR1, RBFOX2, SMNDC1, and TARDBP; Supplementary file 1). Forty-seven of these newly identified RBP-binding sites peaks overlapped two or more exons (45 in mRNAs, one in a pseudogene, and one in a lncRNA), with binding sites for AKAP8L (A-Kinase Anchoring Protein 8 Like, which functions in mRNA export) and TARDBP (TAR DNA Binding Protein, which regulates alternative splicing) found exclusively in such peaks (Supplementary file 1).

As expected for different populations of mRNAs in plasma and cells, scatter plots showed that the relative abundances of the different RBP-binding sites in plasma RNAs differed markedly from those in the ENCODE eCLIP cellular RNA datasets (without or with the inclusion of peaks mapping to the human transcriptome and both for the original annotation for 109 different RBPs and annotation with irreproducible discovery rate (IDR) analysis from the ENCODE website for 150 different RBPs; Figure 6 and Figure 6—figure supplement 1). The scatter plots identified a number of RBPs whose binding sites were more highly represented in plasma than cellular RNAs or vice versa. Notably, stress granule proteins (bold letters) comprised a high proportion of the RBPs whose binding sites were enriched in plasma RNAs, consistent with a previously suggested link between RNP granules, EV packaging, and RNA export (Shurtleff et al., 2017; Temoche-Diaz et al., 2019) (see Discussion). Although these findings do not prove that the identified RBP was associated with the RNA peak identified in plasma, collectively they suggest that many of the mRNA fragments that persist in plasma are protected from plasma nucleases by bound RBPs. In addition to providing clues to the origin of plasma RNAs and a guide for further analysis, the called peaks identify mRNA regions that are relatively stable in plasma and may be more readily detected than other more labile regions in targeted liquid biopsies.

Figure 6 with 1 supplement see all

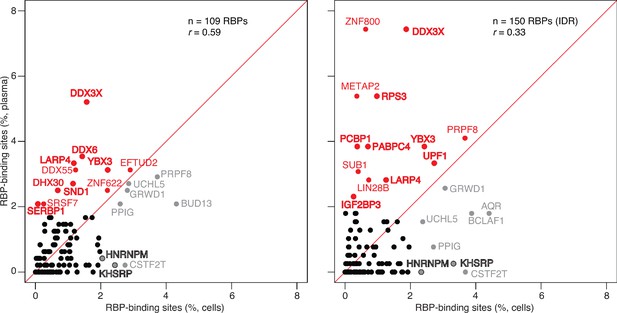

Scatter plot comparing the relative abundances of RBP-binding sites in plasma RNA peaks called against the human genome reference sequence with those of RBP-binding sites in ENCODE eCLIP cellular RNA datasets (ENCODE 109 RBP eCLIP dataset on the left and 150 RBP eCLIP dataset with irreproducible discovery rate (IDR) analysis on the right; the RBPs whose binding sites were searched are listed in the Supplementary file 1).

Abundant RBP-binding sites enriched in plasma or cellular RNAs are indicated in red and gray, respectively. Stress granule proteins are indicated in bold. r is the Pearson correlation coefficient.

Peaks mapping to mRNA exons and pseudogenes

Two hundred and thirteen peaks that mapped to exons or pseudogenes in the human genome reference sequence did not correspond to ENCODE eCLIP-annotated RBP-binding sites or genomic repeats, and an additional 33 such peaks were identified by mapping to the human transcriptome (Figure 7, Figure 7—figure supplements 13, and Supplementary file 1). These peaks ranged in size from 52 to 1,207 nt and could correspond to RBP-binding sites that were not included in the searched datasets, unannotated structured sncRNAs, structured regions of mRNAs, or may simply reflect uneven sequence coverage across mRNA sequences.

Figure 7 with 3 supplements see all
IGV screenshots showing examples of peaks mapping to exons or pseudogenes that contain regions classified by Infernal/Rfam (Kalvari et al., 2018) as belonging to known classes of structured RNAs.

(A) A segment of peak near the 3’ end of HIST1H2AJ mRNA that contains a histone 3’-UTR stem-loop structure. (B) A segment of a peak in the 5’ UTR of FTL (ferritin light chain) mRNA that contains an iron response element I (IRE I). (C) A segment of a peak near the 3’ end of GPX1 mRNA that contains a selenocysteine insertion sequence 1 (SECIS 1). (D) Segments of peaks near the 3’ ends of FTL and a pseudogene that are predicted to fold into a pre-miRNA-like stem-loop structure for a miRNA with sequence similarity to mouse miR-692 (sequence alignments shown below). Gene names are indicated at the top with the hg19 coordinates of the called peak in parentheses and an arrow below indicating the 5’ to 3’ orientation of the encoded RNA. The top track shows the gene map (exons, thick bars; intron, thin lines), with the relevant part of the gene map expanded below if needed to visualize discussed features. The tracks below the gene map show coverage plots and read alignments for the peak region in combined datasets for NaOH-treated plasma DNA (n = 4; combined top and bottom strands, turquoise) or DNase-treated plasma RNA (n = 15; Top strand (T), pink and Bottom strand (B), purple) based on the number of deduplicated reads indicated at the right in the coverage tracks. Colors other than pink or purple in the read alignments indicate bases that do not match the reference sequence (red, green, blue, and brown indicate thymidine, adenosine, cytidine, and guanosine, respectively). The peak called by MACS2 is delineated by a bracketed line with the peak ID, length, and phastCons score for 46 vertebrates including humans indicated below (see phylogenetic tree in Figure 10 below). The bracketed red line indicates the portion of the peak corresponding to the identified feature, whose predicted secondary structure and MFE (ΔG) computed by RNAfold are shown below.

Twenty five of these 246 peaks were classified by Infernal/Rfam analysis (Kalvari et al., 2018) into four types of known RNA structures: 21 histone 3’-UTR stem-loops required for 3'-end processing of histone mRNAs; an iron response element (IRE I) in a ferritin light chain (FTL) exon; a selenocysteine insertion sequence 1, which directs the translation of UGA as SelCys; and two potential pre-miRNA stem-loop structures, with the closest match for both being mouse miR-692, which has no annotated human homolog (Figure 7 and Supplementary file 1).

We inspected IGV plots for all of the remaining 221 exon and pseudogene peaks and found that most were comprised of RNA fragments mapping to protein-coding gene exons or pseudogenes (Figure 7—figure supplements 13). To evaluate whether these peaks contained RNAs that could potentially fold into stable secondary structures, we used RNAfold, a tool that is widely used for this purpose with the understanding that the predicted structures remain to be validated and could differ under physiological conditions or due to interactions with proteins. Of the 221 exon and pseudogene peaks, 213 could be folded by RNAfold into stable RNA secondary structures with a calculated minimum free energy (MFE; ΔG) ≤ −12 kcal/mol (Supplementary file 1). These included 13 peaks that were comprised of or contained reads with discrete 5' and 3' termini (defined as > 50% of reads with the same 5' and 3' termini), a characteristic expected for unannotated sncRNAs (Figure 7—figure supplement 3A–D, including four corresponding to unannotated short (14–25 nt) RNAs; Figure 7—figure supplement 3C and D and T3803, and T34313, Supplementary file 1). Three of the peaks that could not be folded by RNAfold into stable secondary structures were also comprised of or contained reads with discrete 5' and 3' ends (Figure 7—figure supplement 3E–G), including one containing a relatively abundant unannotated 18-nt RNA (Figure 7—figure supplement 3E). Subject to the caveats above regarding conclusions drawn from RNAfold, simulations using peaks randomly generated from long RNA gene sequences indicated that enrichment of RNAs with more stable secondary structures (lower MFEs) in the called RNA peaks was statistically significant (p ≤ 0.019; Figure 4—figure supplement 2D).

Identification of tandem repeats and transposable element RNAs

Although Repbase-annotated sequence repeats constituted only 0.8–2.1% of the reads in the DNase-treated plasma RNA datasets (Figure 1C), they comprised almost a quarter of the RNA peaks identified by peak calling (213 peaks; 23.1%), including 154 comprised of or containing short tandem repeats (also referred to as simple repeats or microsatellite sequences) and 59 corresponding to transposable element RNAs (Figure 4B and Supplementary file 1). TGIRT enzymes are advantageous for the analysis of tandem repeat RNAs because of their ability to reverse transcribe through stable higher-order RNA structures formed by interactions between the repeat units, enabling them to more completely reverse transcribe and better quantitate these RNAs than can retroviral RTs (Carrell et al., 2018). The peaks for the short tandem repeat RNAs in human plasma had a surprisingly narrow length distribution (sharp peak ~80 nt) with > 50% having complete or nearly complete read coverage across the annotated repeat region (Figure 8A and B). Of the top 15 Repbase-annotated repeat types with the highest peak count, 11 were low complexity sequences, such as polypurine or polypyrimidine tracts or simple repeat RNAs (e.g., (CCG)n and (TTC)n), and four were transposable element RNAs (AluSx, AluJb, FLAM_C and LINE-1 element HAL1-3A_ME) (Figure 4D and Supplementary file 1). IGV alignments for representative repeat RNAs are shown in Figure 8—figure supplement 1.

Figure 8 with 1 supplement see all

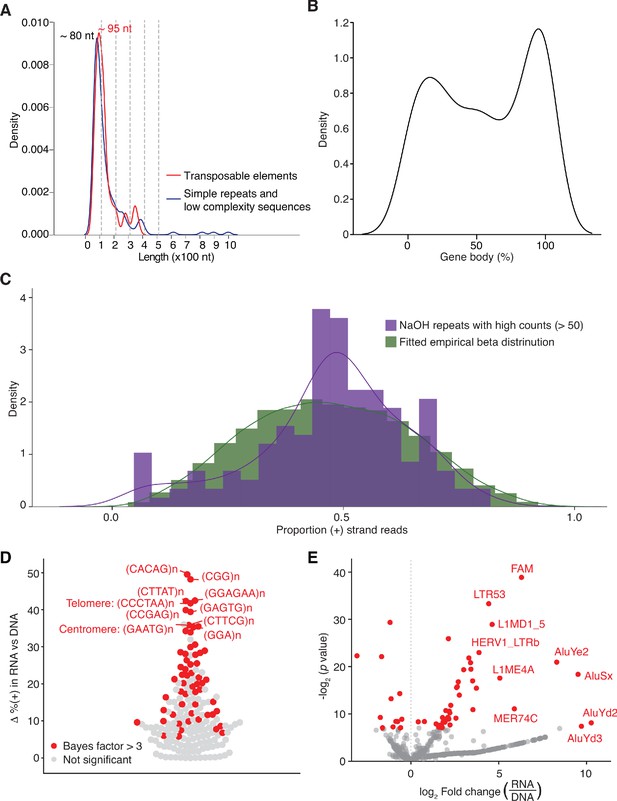

Identification and characterization of repeat RNAs in human plasma.

(A) Density plot showing the range of peak lengths for different types of repeat sequences in the combined datasets for DNase-treated plasma RNA (n = 15). (B) Density plot showing the percentage of gene body covered by TGIRT-seq reads for all detected repeat RNAs. The normalized coverage of each repeat sequence in the combined plasma RNA datasets is plotted against the normalized size of the gene (100 bins). (C) Fitted beta distribution for the numbers of repeat sequences with different proportions of (+) orientation reads in combined datasets for NaOH-treated plasma DNA datasets (n = 4). The fitted beta distribution was used in an Empirical Bayes method to identify RNA repeats with significant differences in the percentage of (+) orientation reads in the combined plasma RNA datasets compared to the combined plasma DNA datasets, as described in Materials and methods. (D) Swarm plot showing the difference (Δ) between the percentage of (+) orientation reads in the combined plasma RNA datasets versus the combined plasma DNA datasets for different short tandem repeat element RNAs. The top ten tandem repeats with the highest (+) orientation enrichments in plasma RNA compared to plasma DNA datasets are named in the plot. (E) Volcano plot of fold difference in the normalized read count of transposable elements in DNase-treated plasma RNA (n = 15) compared to NaOH-treated plasma DNA (n = 4). The reads corresponding to repeat sequences in the initial mapping were remapped by SalmonTE to Repbase transposable elements, quantified, and compared to assess differences in the normalized read counts in the combined DNase-treated plasma RNA datasets versus the combined NaOH-treated plasma DNA datasets. Each point represents an annotated transposable element, with those in red having a fold-change with an adjusted p-value < 0.05. The top ten transposable elements with the highest fold changes and p-values < 0.05 are named in the plot.

We noticed that some of the peaks for Repbase simple repeat sequences (e.g., (CATTC)n and (TTAGGG)n) were called by MACS2 at some loci with roughly equal numbers of reads on both strands, possibly reflecting mismapping of DNA or RNA reads. To address this issue, we used an Empirical Bayes method (Materials and methods and Figure 8C) to identify the top 15 repeat sequences with the largest differences in the percentage of sense (+) orientation reads between DNase-treated plasma RNA and NaOH-treated plasma DNA and found that all corresponded to tandem repeats of short (3–6 nt) sequences, including centromeric and telomeric repeats (Figure 4E, Figure 8D, and Figure 8—figure supplement 1C and D). We also detected potential HSATII RNAs, which had been identified previously as a repeat RNA present in plasma (Kishikawa et al., 2016), but with similar numbers of (+) and (-) orientation reads (2,327 and 2,414, respectively) and not called as peaks by MACS2. Differential expression analysis for transposable element RNAs found that those with highest enrichments in plasma RNA compared to plasma DNA included endogenous retroviral, LINE-1, and Alu RNAs (Figure 8E). In many but not all cases, the transposable element peaks corresponded to RNA fragments with peak lengths in the same narrow range found for simple repeats (Figure 8A, Figure 8—figure supplement 1G–J). The detection of short tandem repeat and transposable element RNAs as relatively discrete peaks in plasma could reflect RNA structural features or bound proteins that protect from plasma nucleases.

Peak calling identifies a family of putatively structured, full-length excised intron RNAs

Twenty-nine peaks identified as containing RBP-binding sites were full-length excised intron RNAs. An additional 14 such peaks were found among those mapping to long RNAs but not containing an annotated RBP-binding site, and another seven (denoted by IDs beginning with M) were not called as peaks but were identified as containing annotated miRNAs sequences. As discussed further below, seven of these 50 intron peaks corresponded to the same intron found in the PKD1 gene and six of its pseudogenes. Counting these seven peaks as a single intron, we identified 44 different introns for which full-length excised intron RNAs were detected in plasma. The top 15 of these intron RNA peaks ranked by read count are shown in Figure 4F, and the complete list is in the Supplementary file 1.

All of the full-length excised intron RNAs detected in plasma corresponded to short introns with lengths 73–210 nt (Supplementary file 1). All were identified by at least five deduplicated TGIRT-seq reads containing the complete intron sequence beginning with a 5’ GU and ending with a 3’ AG and could be folded by RNAfold into a stem-loop structures with a minimum free energy (MFE; ΔG ≤ −18.7 kcal/mol) (examples shown in Figure 9A–F). These intron RNAs are likely linear molecules, as the TGIRT-seq reads begin precisely at the 5' GU and end precisely at the 3' AG with no indication of mismatches or impediments that might be indicative of read through of a branch point in a lariat RNA. In several cases, the reads corresponding to full-length excised intron RNAs had one or two non-templated U or A residues at their 3' end, reminiscent of non-templated 3' A-tails found for yeast linear introns that accumulate in stationary phase cells (Morgan et al., 2019).

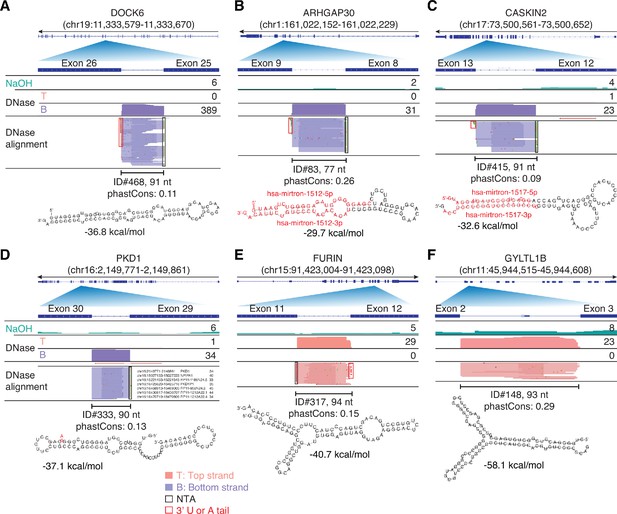

IGV screenshots showing examples of peaks corresponding to putatively structured, full-length excised intron RNAs detected in plasma by TGIRT-seq peak calling.

(A–C) Full-length excised intron RNAs that correspond to annotated agotrons or mirtrons. (D–F) Full-length excised intron RNAs that do not correspond to annotated agotrons or mirtrons. Gene names are indicated at the top with the hg19 coordinates of the called peak in parentheses and an arrow below indicating the 5’ to 3’ orientation of the encoded RNA. The top track shows the gene map (exons, thick bars; intron, thin lines), with the relevant part of the gene map expanded below. The tracks below the gene map show coverage plots and read alignments for the peak region in combined datasets for NaOH-treated plasma DNA (n = 4; combined top and bottom strands, turquoise) or DNase-treated plasma RNA (n = 15; Top strand (T), pink and Bottom strand (B), purple) based on the number of deduplicated reads indicated at the right in the coverage tracks. Colors other than pink or purple in the read alignments indicate bases that do not match the reference sequence (red, green, blue, and brown indicate thymidine, adenosine, cytidine, and guanosine, respectively). The peak called by MACS2 is delineated by a bracketed line with the peak ID, length, and phastCons score for 46 vertebrates including humans indicated below (see phylogenetic tree in Figure 10). The most stable predicted secondary structure and its MFE (ΔG) computed by RNAfold are shown below the peak ID. The annotated mature miRNA and passenger strands of mirtrons are highlighted in red within the predicted secondary structure. Red boxes, short (1–2 nt) non-templated 3' U or A tails; NTA/black boxes are non-templated nucleotides added by TGIRT-III to the 3' end of cDNAs (5' end of the RNA sequence) during TGIRT-seq library preparation.

Thirteen of the full-length excised intron RNAs that we detected in plasma, including the most abundant, DOCK6 intron 25 (ID#468, 389 deduplicated reads, 7 CPM), corresponded to annotated agotrons, intron RNAs that were identified as binding to Argonaute-2 protein (AGO2) in HITS-CLIP-seq datasets and shown to repress mRNA translation in reporter assays (Hansen et al., 2016; Hansen, 2018; Figure 4F, Figure 9A and Supplementary file 1). Six other possible agotrons (peak ID#s 2, 404, 416, 522, 844, and 846) were identified by intersecting the full-length excised intron RNAs with AGO1-4 PAR CLIP datasets (Hafner et al., 2010). Agotrons had been hypothesized to be full-length linear intron RNAs based on Northern hybridization experiments and CLIP-seq 5'-end sequences (Hansen et al., 2016), but to our knowledge, this has not been confirmed previously by RNA-seq, possibly because the retroviral RTs used in other RNA-seq methods are unable to fully reverse transcribe these structured RNAs.

Ten of the excised intron RNAs that we detected in plasma corresponded to annotated mirtrons, miRNAs that are processed by DICER from debranched structured intron RNAs (examples shown in Figure 9B and C; Berezikov et al., 2007; Okamura et al., 2007; Ruby et al., 2007). Seven of these ten mirtron pre-miRNAs were also annotated as agotrons (including four of the top 15; green with asterisk in Figure 4F and Supplementary file 1). All of the mirtron RNA peaks detected in plasma corresponded to the full-length excised intron RNAs (i.e., the putative pre-miRNA), to our knowledge the first time such intron-derived pre-miRNAs have been sequenced, and none corresponded to the annotated mature miRNA.

Significantly, the remaining 21 putatively structured full-length excised intron RNAs, 48% of the total that we detected in plasma, including the second most abundant, PKD1 intron 29 (ID#333; denoted PKD1 in Figure 4F), did not correspond to an identified agotron or mirtron (Supplementary File; additional examples in Figure 9E and F). In initial mapping, the reads mapping to PKD1 intron 29 were distributed between the PKD1 gene and the same intron in six PKD1 pseudogenes (PKD1P1-P6), which are located on a distant duplicated segment of the same chromosome (chromosome 16). Notably, the introns in the parent and all six pseudogenes differed by only a single nucleotide at a known SNP position and were more conserved than the flanking PKD1 exons (6–8 mismatches in the 211 bp 5’ exon and 1–3 mismatches in the 127 bp 3’ exon), possibly reflecting that this intron has a critical sequence-dependent function. Nevertheless, only one of the full-length excised introns, PKD1 intron 45 (ID# M1; encoding miR-1225), was conserved in sequence across vertebrates and only six were conserved in sequence across primates (phastCons scores ≥ 0.5; Figure 10).

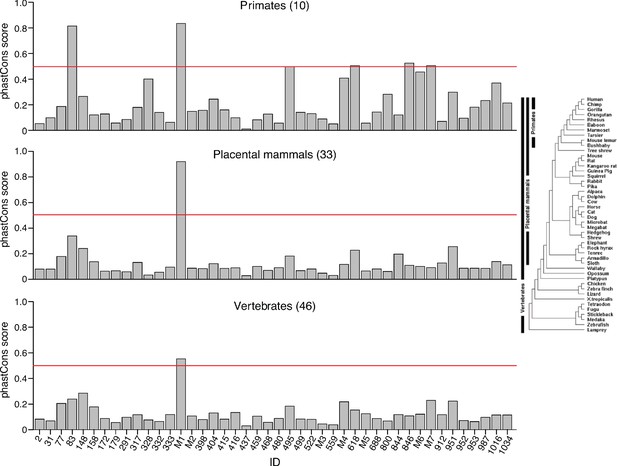

Bar graphs showing phastCons scores for 44 full-length excised introns detected in human plasma.

PhastCons scores were calculated for 10 primates, 33 placental mammals, and 46 vertebrates shown in the phylogenetic tree on the right. PhastCons calculates the probability that a nucleotide belongs to a conserved sequence with the score for the peak calculated by averaging the score for each nucleotide within the peak. Scores can range from 0 to 1, with 1 being the most conserved, and 0 being the least conserved. The red line indicates a phastCons score of 0.5. M1-7 are full-length excised intron RNAs that encode non-high confidence miRNA: M1, mir-1225; M2, mir-4721; M3, mir-7108; M4, AC068946.1; M5, mir-6821; M6, mir-6891; M7, mir-1236.

Peaks mapping within introns

Sixteen peaks identified as corresponding to annotated RBP-binding sites mapped within introns (see above), and an another 15 such peaks were found among those mapping to long RNAs but lacking an annotated RBP-binding site. Paralleling findings for mRNA fragments in plasma, most of these intron peaks (25 peaks, 81%) could be folded by RNAfold into a secondary structure with ΔG ≤ −14.6 kcal/mol (examples shown in Figure 11A–E and the remainder in Figure 11—figure supplement 1A–D). Several of these peaks had noteworthy features. In three cases (Figure 11B and C and Figure 11—figure supplement 1A), part of the predicted stem-loop structure for the called peak corresponded to a separate 19-nt RNA (red), which comprised a major component of the peak. In one of these peaks, the 19-nt RNA (red) was accompanied by a complementary 22-nt antisense RNA (blue; Figure 11B), and in the other two, the 19-nt RNA (red) was part of a longer 48-nt tandem repeat unit (green) within the predicted stem-loop structure (Figure 11C and Figure 11—figure supplement 1A). Two other peaks, one corresponding to an annotated binding site for the dsRNA-binding protein ILF3 (peak ID#677), contained complementary segments of long (46 and 65 bp) inverted repeats (Figure 11D and E). Another of the putatively structured intron RNA fragment peaks (ID#731) was identified by snoGPS (Schattner et al., 2004) as being able to form secondary structures resembling an H/ACA-box snoRNA, but these did not correspond to the most stable secondary structure predicted by RNAfold for this peak (Figure 11—figure supplement 1C).

Figure 11 with 1 supplement see all
IGV screenshots showing examples of peaks mapping within introns.

Gene names are indicated at the top with the hg19 coordinates of the called peak in parentheses and an arrow below indicating the 5’ to 3’ orientation of the encoded RNA. IGV screenshots are labeled as in Figure 9. (A–E) Peaks corresponding to intron RNA fragments that can be folded into stable stem-loop structures. The predicted stem-loop structure for the peak in panel B includes a 19-nt segment (red), which corresponds to a separate 19-nt RNA that is a major component of the called peak and was accompanied by a separate 22-nt antisense RNA (blue) that is complementary to the 19-nt RNA. The predicted stem-loop structure in panel C is comprised of imperfect tandem repeats of a 48-nt sequence (green), part of which (red) corresponds to a separate 19-nt RNA that maps with fewest mismatches to the two terminal repeat units. The peaks in panels D and E are comprised of two complementary segments of long inverted repeats (46 bp with no mismatches and 65 bp with one mismatch, respectively), with the peak in panel E corresponding to an annotated binding site for double-stranded RNA-binding protein ILF3. (F, G) Peaks corresponding to intron RNA fragments that are not predicted by RNAfold to fold into stable secondary structures. (H, I). Peaks corresponding to short, putatively structured segments of mRNAs that had retrotransposed into long introns. The top track shows the gene map with the long intron to which the peaks mapped expanded below. The small blue line delineates the retrotransposed mRNA sequences with a short poly(A) tail and proximate LINE-1 elements expanded below. The small black bar delineates the region containing the called peak that is expanded in the IGV plots below. The most stable predicted secondary structure and its MFE (ΔG) computed by RNAfold are shown below the peak ID. When necessary, reads shown in alignment tracks were down sampled to a maximum of 100 for display. NTA/black boxes are non-templated nucleotides added during TGIRT-seq library construction.

The six intron peaks that could not be folded into stable secondary structures had other features that might contribute to nuclease resistance in plasma. Three of these peaks consisted of AG-rich sequences or tandem repeats (Figure 11F and G, and ID#737), including one with tandem AGAA repeats identified as an annotated binding site for TRA2A, a protein that helps regulate alternative splicing (Figure 11G; Best et al., 2014). Two others contained one arm of a long inverted repeat sequence, whose complementary arm lies outside of the called peak (ID#s 756 and 761), and the remaining peak was a highly AU-rich RNA (74% AU; ID# 964; Supplementary file 1).

Finally, we found that the remaining nine peaks (71–295 nt) mapping to internal segments of intron RNAs were part of retrotransposed mRNAs sequences (432–1,745 nt) that had integrated into seven different long introns (8 to 138 kb; Figure 11H and I, Figure 12, Figure 12—figure supplement 1). These retrotransposed mRNA sequences were identified by a BLAT search for > 95% identity to the called peak in the human genome reference sequence and originated from six different highly expressed mRNAs (ribosomal protein mRNAs RPS3, RPL18A, and RPL41; translation elongation factor mRNAs EEF1A1 and EEF1G; and β-actin (ACTB) mRNA). All of these retrotransposed mRNA sequences had a short poly(A) tail (9–22 nt) and were flanked by short direct repeat target site duplications (TSDs; Figure 12, Figure 12—figure supplement 1), hallmarks of LINE-1 RT-mediated retrotransposition (Richardson et al., 2015). In all cases, the RNA peak identified in plasma corresponded to a smaller segment of the retrotransposed mRNA sequence that could be folded by RNAfold into a stable RNA secondary structure (ΔG ≤ −16.4 kcal/mole; Figure 11H and I, Figure 11—figure supplement 1D).

Figure 12 with 1 supplement see all

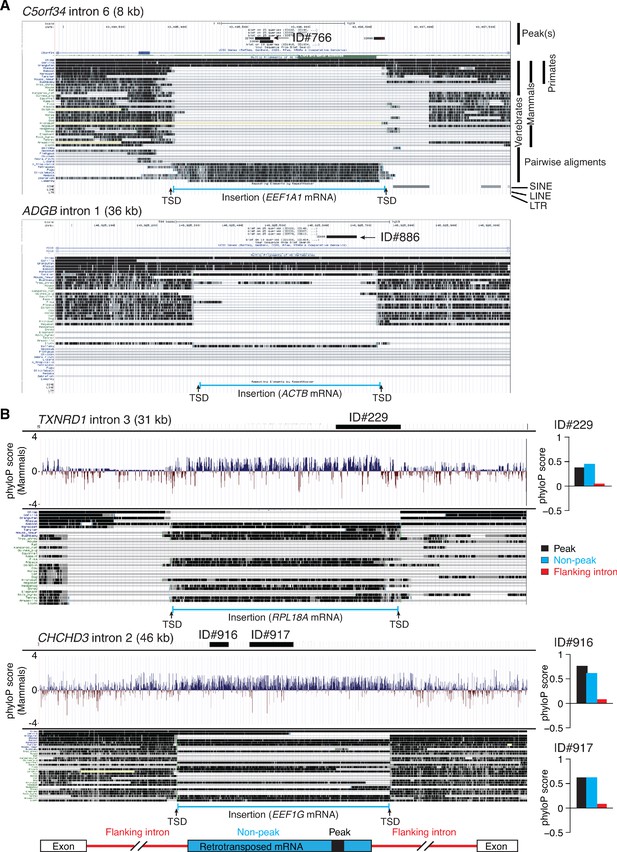

Genome browser (UCSC) screenshots showing examples of long introns containing retrotransposed mRNAs sequences that are called as peaks and sequence conservation across such introns.

(A) Two examples of long introns containing retrotransposed mRNA sequences that are called as peaks. The host gene, intron number, and intron length are indicated at the top, with the called peak or peaks (thick black line(s)) and peak ID indicated in the top track. The tracks below show alignments of genomic sequences of different organisms. Taxonomic ranks are shown at the top right, and the complete phylogenetic tree for the aligned sequences is shown in (Figure 12—figure supplement 1). The locations of nearby SINE, LINE, and LTR-containing retroelements in the human genome are shown below the alignments. The inserted retrotransposed mRNA sequence (bracketed blue line at the bottom) is identified by gap in genomic sequence for organisms that do not contain the insertion and by target site duplications (TSDs; 5–20 nt direct repeats) flanking the inserted sequence. Additional examples of long introns containing retrotransposed mRNA sequences that are called as peaks are shown in Figure 12—figure supplement 1. (B) Sequence conservation as measured by phyloP scores across long introns containing retrotransposed mRNAs sequences that are called as peaks. The gene name, intron number, and length of the intron are indicated at the top, with the position of the called peak delineated by a thick black line. The track below shows phyloP scores for placental mammals based on the pairwise alignment of genomic sequences from the different organisms in the genome browser alignments below. The inserted retrotransposed mRNA sequence (bracketed blue line at bottom) is identified by a gap in the genomic sequence for organisms that do not contain the insertion and by target site duplications (TSDs, 5–20 nt direct repeats) flanking the inserted sequence. The bar graphs to the right of the phyloP tracks show average phyloP scores for the called peak, flanking regions of the retrotransposed mRNA sequence, and 5'- and 3'-flanking regions of the host intron (see schematic at bottom). PhyloP scores are -log10 (p values) for the difference between the measured evolutionary conservation at a position in an alignment relative to that expected for a null hypothesis of neutral evolution. The score for each region was calculated by averaging the scores for each position in that region. Positive and negative scores indicate slower and faster evolution rates than expected from a neutral evolution model calculated from the phylogenetic tree (Ramani et al., 2018).

Comparison of genomic sequences showed the retrotransposition events that inserted the mRNA sequences within the introns were relatively recent, with six occurring in primates and two in placental mammals (Figure 12A and Figure 12—figure supplement 1). In all of these cases (and three additional cases of retrotransposed mRNA sequences described below), the RNA peak identified in plasma corresponded to a segment of the retrotransposed mRNA whose genomic sequence was identical to that in the gene encoding the functional mRNA (verified by searching the peak sequence against the hg19 human reference genome using BLAT and manually checking the sequences in the human genome browser and IGV), making it impossible to determine the origin of the RNA detected in plasma. Analysis of two introns with the largest number of homologous genomic sequences across primates and placental mammals showed that both the retrotransposed mRNA sequence and called peak region were more conserved than the flanking intron sequences, consistent with functional importance (Figure 12B).

Peaks corresponding to unannotated genomic loci

Only three of the peaks identified by peak calling mapped to unannotated genomic loci (Figure 4A). One corresponded to a different putatively structured 3' segment of a retrotransposed ACTB mRNA, with a short poly(A) tail flanked by two different Alu elements with a third Alu element inserted within the retrotransposed mRNA sequence (Figure 4—figure supplement 3A). The second was a 72-nt peak that included multiple copies of a 17-nt RNA with discrete 5'- and 3'-ends (Figure 4—figure supplement 3B), and the third was a 158-nt peak consisting of TCCAT(C)4-6GTG repeats (Figure 4—figure supplement 3C).

Peaks corresponding to antisense RNAs

Finally, 25 peaks were identified as antisense transcripts of annotated genomic features (Figure 4A). Eight of these peaks mapped to introns and the remaining 17 peaks mapped to mRNA exons or pseudogenes. Among the eight antisense peaks mapping to introns, four corresponded to or contained multiple reads for four different discrete short RNAs (< 20 nt) complementary to a sequence within the intron (Figure 13A–D and Supplementary file 1), with one corresponding to a 13-nt segment of miR-4497, a non-high-confidence predicted miRNA encoded at another locus (Figure 13A), and another corresponding to a 17-nt segment of a 36-nt tandem repeat (Figure 13C). Two other antisense peaks mapping to introns were putatively structured segments (ΔG ≤ −22 kcal/mol) of retrotransposed TMSB4X and FTH1 mRNAs that had been inserted within introns in the antisense orientation relative to the host gene (Figure 13—figure supplement 1A and B), and the remaining two peaks (ID#973 and 539) contained RNA fragments with heterogenous 5' or 3' ends, with one (ID#539) having the potential to fold into a stable secondary structure (ΔG = −26.7 kcal/mol; Figure 13—figure supplement 1C and D).

Figure 13 with 2 supplements see all

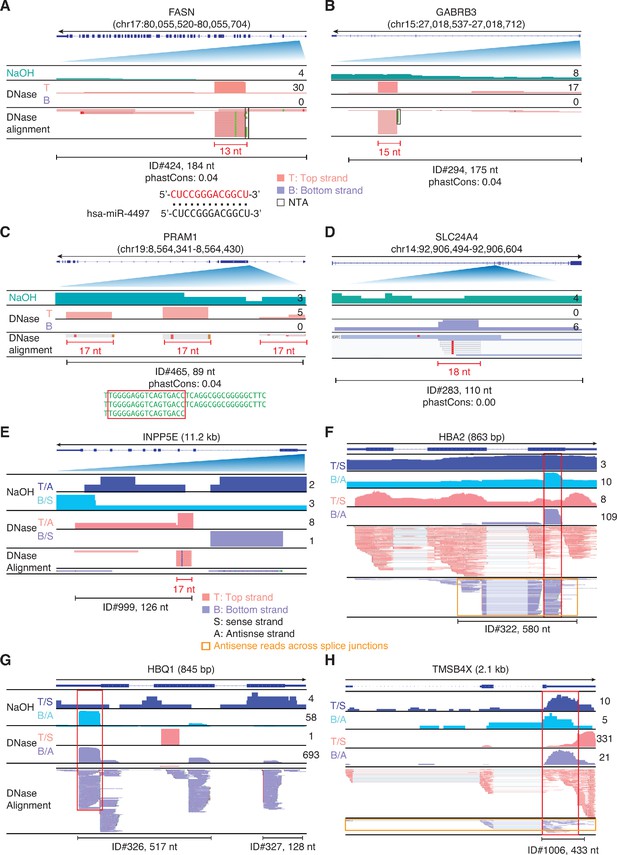

IGV screenshots showing examples of peaks corresponding to antisense RNAs detected in plasma by TGIRT-seq peak calling.

Gene names are indicated at the top with the hg19 coordinates of the called peak indicated in parentheses and an arrow below indicating the 5’ to 3’ orientation of the encoded mRNA. (A–D) Antisense peaks that map within introns and correspond to or contain short RNAs with discrete 5' and/or 3' ends (red). The IGV screenshots in these panels are labeled as in Figure 9. The 13-nt RNA in panel A corresponds to part of miR-4497 (alignment shown below). (E–H) Antisense peaks mapping to genes that are highly represented in plasma. In these panels, separate coverage plots are shown for the top (T) and bottom (B) strands for the NaOH-treated plasma DNA samples, and top and bottom strands are additionally labeled as sense (S) or antisense (A) depending upon the 5' to 3' orientation of the mRNA encoded by the gene displayed in IGV. The red boxes extending vertically across the read alignments and coverage plots delineate RNA peaks that are mirrored by DNA peaks in NaOH-treated plasma DNA, and the horizontal orange boxes delineate antisense reads that extend across multiple spliced exons. When necessary, reads shown in alignment tracks were down sampled to maximum of 100 for display.

Among the 17 other antisense peaks mapping to mRNAs or pseudogenes, 12 mapped to hemoglobin genes (HBA2, HBA1, HBQ1, HBB, etc.), four to other highly represented genes (RPS29, TMSB4X, INPP5E, and FTL), and one to a pseudogene (Figure 13E–H and Figure 13—figure supplement 2). The peak mapping to INPP5E included a discrete 17-nt RNA (Figure 13E). While many of these peaks may correspond to bona fide antisense transcripts, some included antisense reads that extended across two or more spliced exons (horizontal orange boxes) and/or were mirrored by a partially overlapping antisense DNA peak (red boxes extending vertically across the coverage tracks and read alignments; Figure 13F–H and Figure 13—figure supplement 1), the latter suggesting that they contain DNA fragments that are partially protected from DNase I-digestion in an RNA/DNA duplex. Such RNA/DNA duplexes could be remnants of R-loops formed during transcription (Sanz et al., 2016) or cDNAs generated by reverse transcription of a spliced mRNA by an endogenous cellular RT. None of the Reads 1 of these possible antisense DNAs began with an R2 adapter sequence as would be expected for recopying of an initial cDNA by TGIRT-III.

Discussion

Here, we used TGIRT-seq combined with peak calling to comprehensively profile RNAs present in apheresis-prepared human plasma pooled from multiple healthy individuals. Previous TGIRT-seq analysis of plasma RNAs from a healthy male individual showed that human plasma contains largely fragmented mRNAs originating from > 19,000 different protein-coding genes, together with abundant full-length mature tRNAs and other structured sncRNAs (Qin et al., 2016). Here, by using an improved TGIRT-seq method with a UMI to deconvolute duplicate reads, we obtained a more quantitative view of the relationship between different classes of plasma RNAs, extended analysis to the plasma microbiome, compared mRNA sequences detected in the same plasma by TGIRT-seq and SMART-Seq, and introduced the use of a peak-calling algorithm for the analysis of TGIRT-seq datasets. The latter revealed that many of the discrete mRNA and intron RNA peaks that persist in plasma correspond to annotated RBP-binding sites and/or are predicted to have stable RNA secondary structures that may provide protection from plasma nucleases. Peak calling also provided new insights into repeat RNAs and showed that they are over-represented in called peaks consisting of uniformly sized RNA fragments. Additionally, we identified a number of unannotated miRNA-sized RNAs, some apparently processed from stem-loop structures, potential RNA/DNA hybrids apparently containing residual DNA that escapes extensive DNase digestion, and novel families of structured intron RNAs and intron RNA fragments that had not been seen previously using other RNA-seq methods. These include a family of short putatively structured full-length excised introns RNAs, subsets of which correspond to agotrons and/or mirtrons, as well as putatively structured intron RNA fragments, including a family mapping to conserved structured segments of retrotransposed mRNAs that had inserted within long introns. Although not originally a focus of our study, we also found that commercial plasma obtained by apheresis from healthy individuals had no detectable reads for pre-screened pathogens (hepatitis B virus, hepatitis C virus, HIV-1, HIV-2, and syphilis), but did contain low levels of reads for bacterial RNAs and other RNA and DNA viruses (Figure 2), with possible implications for plasma used for clinical purposes (Duan et al., 2020).

TGIRT-seq with RNA-seq adapters containing a UMI to deconvolute duplicate reads confirmed that full-length mature tRNAs are the most abundant class of sncRNAs in human plasma, followed by Y RNAs and 7SL RNA, with tRNA halves, short tRFs, and mature and pre-miRNAs and passenger strands present in lower concentrations. The full-length, mature tRNAs and other sncRNAs present in plasma may be protected from plasma nucleases by stable RNA secondary or tertiary structure, bound proteins, or encapsulation in EVs, the latter suggested by TGIRT-seq analysis of RNAs present in highly purified EVs and exosomes secreted by cultured human cells, which likewise identified full-length mature tRNAs and Y RNAs as the most abundant RNA species (Shurtleff et al., 2017). Although the updated TGIRT-seq methods used in this work improved the detection of miRNAs and 5'- and 3'-tRFs, further analysis of these RNAs by RT-qPCR and FirePlex assays indicated that some miRNAs remained substantially underrepresented relative to RNAs >60 nt (manuscript in preparation). Thus, while comprehensive TGIRT-seq of heterogeneously sized RNA preparations can accurately determine the relative abundance of RNAs > 60 nt (Nottingham et al., 2016; Boivin et al., 2018), determining the quantitative relationship between very short RNAs and RNAs > 60 nt requires orthogonal methods. Surprisingly, despite the size bias against very short RNAs, we identified 15 novel discrete short RNAs (13–25 nt; Figure 11, Figure 13, Figure 4—figure supplement 3, Figure 7—figure supplement 3, Figure 11—figure supplement 1, and Supplementary file 1). Only one of these short RNAs (non-high-confidence miR-4497; Figure 13A) could be found in miRBase, piRNAdb, tRFdb or cross-linked regions in AGO1-4 PAR-CLIP datasets (Hafner et al., 2010), raising possibility that they represent other classes of short regulatory RNAs, whose protein-partners and functions, if any, remain to be determined.

The proportion of reads corresponding to mRNAs in plasma prepared by apheresis was relatively low (< 5% of mapped reads), but nevertheless sufficient to identify mRNA fragments originating from > 19,000 different protein-coding genes, with relatively uniform coverage across mRNA exons for highly represented genes (Figure 3). The number of different mRNAs detected in plasma by TGIRT-seq was comparable to that detected in parallel assays of the same plasma by ultra low input SMART-Seq v4, which uses oligo(dT) priming, and higher than that in other studies using different methods that sequence mRNA fragments with or without size selection (Pan et al., 2017; Tsang et al., 2017; Akat et al., 2019; Giraldez et al., 2019). Notably, the size distribution of cDNAs generated by ultra low input SMART-Seq suggested that a substantial proportion of the mRNA fragments present in plasma have a length > 200 nt (36%; Figure 3D), which would be lost by incorporating a size-selection step. As TGIRT-seq is a comprehensive RNA-seq method, the presence of other more abundant RNA biotypes is an inherent limitation for mRNA detection. However, the proportion of TGIRT-seq reads corresponding to plasma mRNAs could be increased by depleting rRNAs, by using a maximally efficient RNA extraction kit, and possibly by using plasma prepared from freshly drawn blood to minimize degradation of more labile mRNA fragments, as was done in the previous TGIRT-seq analysis of human plasma RNAs, which gave substantially higher proportions of mRNA reads (Qin et al., 2016).

The mRNA fragments present in plasma are likely a mixture of transient RNA degradation intermediates and more persistent RNA fragments that are protected from plasma nucleases by bound proteins, RNA structure, encapsulation in EVs, or some combination of these factors. Both the present and previous TGIRT-seq analyses indicated that many of the mRNA present in plasma have 3' OHs, which are required for efficient 3' RNA-seq adapter addition by TGIRT-template-switching, particularly under the high-salt reaction conditions used in the previous study (Qin et al., 2016). As most cellular enzymes that function in RNA processing or turnover leave 3' OH groups while extracellular RNases, such as RNase 1, leave 3' phosphates (Houseley and Tollervey, 2009; Sorrentino, 2010; Schoenberg and Maquat, 2012), these findings suggest that a high proportion of the mRNA fragments detected in plasma were generated by intracellular RNases that function in mRNA turnover rather than degradation of intact mRNAs that were released into plasma.

To identify those mRNA fragments in plasma that might be associated with bound proteins, we used a peak-calling algorithm and intersected the called RNA peaks with ENCODE eCLIP annotated RBP-binding site sequences. We thus identified numerous discrete mRNA and lncRNA fragments that are annotated binding sites for ~100 different RBPs, most of which were previously identified as part of the plasma proteome. Notably, we found plasma RNAs are particularly enriched in binding sites for stress granule proteins (including DDX3X, DDX6, DHX30, LARP4, IGF2BP3, PABPC4, PCBP1, RPS3, SERBP1, SND1, and YBX3; Figure 6 and Figure 6—figure supplement 1), consistent with a previously suggested link between RNP granules and RNA loading into secreted extracellular vesicles, a vehicle by which some mRNA fragments may enter plasma (Shurtleff et al., 2017; Temoche-Diaz et al., 2019). Such a link could also explain the prevalence of 5' TOP mRNAs, which are translationally repressed by recruitment to RNP granules under stress conditions, in both plasma and EVs secreted by cultured human cells (Damgaard and Lykke-Andersen, 2011; Shurtleff et al., 2017). Although our findings do not directly demonstrate the association of the annotated RBP with the protected RNA fragment, collectively they suggest that many of the mRNA fragments present in plasma are protected from plasma nucleases by bound proteins, similar to the inferred protection of plasma DNA fragments by nucleosomes packaging or by the binding of transcription factors or other proteins (Chandrananda et al., 2015; Snyder et al., 2016; Wu and Lambowitz, 2017). The number of protein-protected mRNA fragments that we identified in plasma is likely underestimated as our search was restricted to ENCODE eCLIP annotated RBP-binding sites and used plasma prepared with the anti-coagulant EDTA, which destabilizes some RNPs (Dhahbi et al., 2013).

In addition to bound proteins, many of the mRNA fragments that we detected in plasma with or without annotated RBP-binding site sequences were predicted by RNAfold to form stable RNA secondary structures that might contribute to their protection from plasma nucleases. The predicted RNA secondary structures of some mRNA fragments could be classified by Infernal/Rfam as corresponding to known structural elements (e.g., histone 3' stem-loop structures, iron response elements, selenocysteine insertion sequence, and pre-miRNA stem-loop structure; Figure 7), but in most cases, the predicted secondary structure could not be classified by Infernal/Rfam, and its functional significance, if any, remains to be evaluated. Some peaks corresponding to structured mRNA fragments had discrete 5' and 3' ends and could be unannotated sncRNAs (Figure 7—figure supplement 3A–D), while others consisted of or included discrete miRNA-sized RNA, possibly unannotated short regulatory RNAs (Figure 7—figure supplement 3E–G).

A surprisingly high proportion of the discrete RNAs identified by peak calling (23.1%) corresponded to Repbase-annotated short tandem repeat and transposable element RNAs (Figure 4B). TGIRT enzymes have been found to more completely reverse transcribe and better quantitate short tandem repeat RNAs than do retroviral RTs and can also give full-length reads of Alu and other structured SINE element RNAs (Katibah et al., 2014; Carrell et al., 2018). In all, TGIRT-seq detected discrete RNAs containing 37 different types of short tandem repeats, including telomeric and centromeric repeats. The short tandem repeat RNAs had a narrow size distribution (peak at ~80 nt) with most encompassing a high proportion of the genomic repeat unit (Figure 8), possibly reflecting protection of the repeat RNA from plasma nucleases by bound proteins or RNA structural features. Many but not all of the transposable element and endogenous retroviral RNAs were RNA fragments of a size similar to that of the simple repeat RNAs. The ability of TGIRT-seq to profile repeat RNAs in plasma may be useful for liquid biopsy of RNA repeat expansion diseases, such as myotonic dystrophy and some forms of amyotrophic lateral sclerosis.

TGIRT-seq peak calling also identified novel intron RNAs, including a family of short, full-length excised intron RNAs that had not been seen previously using other RNA-seq methods. These full-length excised introns ranged in length from 73 to 130 nt, are likely linear RNAs, had RNAfold-predicted secondary structures with ΔGs ≤ −18.7 kcal/mole, and in many cases, corresponded to annotated binding sites of spliceosomal proteins and/or AGO1-4. Twenty three of the 44 full-length excised intron RNAs that we detected in plasma corresponded either to annotated or potential mirtrons, intron pre-miRNAs that are processed by DICER to produce mature miRNAs (Berezikov et al., 2007; Okamura et al., 2007; Ruby et al., 2007) and/or to annotated or potential agotrons, structured excised intron RNAs that bind AGO proteins and function directly to repress mRNA translation (Hansen et al., 2016; Hansen, 2018). Seven of the full-length excised intron RNAs that we detected in plasma were annotated as both an agotron and mirtron, blurring the distinction between these two classes of RNAs. Notably, although we detected mirtron pre-miRNAs in plasma, we did not detect the corresponding mature miRNAs, raising the possibility that mirtron pre-miRNAs are selectively exported or have higher stability in plasma. While extracellular miRNAs have been suggested to function in intercellular communication (Valadi et al., 2007; Lin et al., 2020), mirtron pre-miRNAs and agotrons may be as well or better suited for this role, with the mirtron pre-miRNAs entering cells as precursor RNAs that could be processed by DICER into mature miRNAs, and agotrons bound to AGO proteins entering cells as an RNP that could function directly in regulating gene expression in a miRNA-like manner.

Surprisingly, almost half (21 of 44) of the structured full-length excised introns that we detected in plasma did not correspond to identified agotrons or mirtrons. These introns could be mirtrons or agotrons that have yet to be annotated, or they could have some other function that remains to be determined. One of the most abundant full-length excised intron RNAs that we detected in plasma, PKD1 intron 29 (ID#333; Figure 9), was highly conserved in both the parent gene and six distant pseudogenes (one mismatch at a known SNP position), possibly reflecting selection for a sequence-dependent function of this intron. Nevertheless, only one of the full-length excised intron RNAs that we detected in plasma, a putative mirtron encoding miR-1225, was conserved in sequence across vertebrates and mammals, and only six (not including PKD1 intron 29) were conserved in sequence across primates (phastCons score ≥ 0.5; Figure 10), suggesting that any sequence-dependent function of these intron RNAs would have been recently acquired.

In addition to full-length excised introns, peak calling identified a variety of intron RNA fragments, with more than half (16 of 31) corresponding to annotated RBP-binding sites and most having stable predicted RNA secondary structures or other structural features (tandem repeats, inverted repeats, or highly AG- or AU-rich sequences) that may afford protection from plasma nucleases. The RBPs potentially associated with these intron RNA fragments were a largely different set than those associated with the full-length excised intron RNAs and in some cases were related to a specific RNA splicing function or structural feature of the intron. Thus, an intron RNA peak containing complementary segments of a long-inverted repeat corresponded to an annotated binding for the dsRNA-binding protein ILF3, and an intron RNA peak containing tandem AGAA repeats corresponded to annotated binding site for the alternative splicing factor TRA2A, which recognizes this motif (Figure 11). Some of the intron RNA peaks that could be folded into stem-loop structures also contained unannotated discrete miRNA-sized RNAs (13–25 nt), which may have been processed out of the stem-loop structure. The latter finding raises the possibility that whatever their origin or original function, if any, structured excised intron RNAs in human cells may be accessible to DICER or other RNase III-like enzymes that cleave double-strand RNAs into discrete small fragments to generate a repository of non-coding short RNAs that could evolve to have miRNA-like functions.

By analyzing RNA peaks that mapped to both introns and mRNAs, we also identified multiple human introns containing retrotransposed segments of highly expressed mRNAs, conserved, structured portions of which persist in plasma (Figure 11, Figure 11—figure supplement 1D, Figure 12, Figure 12—figure supplement 1). In all cases, the retrotransposition event that inserted the mRNA sequence within the intron appears to have been mediated by a LINE 1 RT and was relatively recent, with most occurring in primates and a few occurring earlier in placental mammals. In all cases, the RNA peak detected in plasma matched a putatively structured portion of the mRNA sequence that was highly conserved within the intron, raising the possibility of functional importance (Figure 12B). Additionally, for several highly expressed mRNAs, including three that were progenitors of processed pseudogenes in the human genome (TMSBX4, RPS29, and FTL), we detected antisense reads that could be cDNAs generated by an endogenous RT, possibly precursors of continuing retrotransposition events in human cells (Figure 13 and Figure 13—figure supplement 1).

The ability of TGIRT-seq to simultaneously profile a wide variety of RNA biotypes in human plasma, including structured RNAs that are intractable to retroviral RTs, may be advantageous for identifying optimal combinations of coding and non-coding RNA biomarkers that could then be incorporated in target RNA panels for diagnosis and routine monitoring of disease progression and response to treatment. The finding that some mRNAs fragments persist in discrete called peaks suggests a strategy for identifying relatively stable mRNA regions that may be more reliably detected than other more labile regions in targeted liquid biopsies. Finally, we note that in addition to their biological and evolutionary interest, short full-length excised intron RNAs and intron RNA fragments, such as those identified here, may be uniquely well suited to serve as stable RNA biomarkers, whose expression is linked to that of numerous protein-coding genes.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Biological sample (Homo sapiens)PlasmaInnovative ResearchIPLA-N-K2EHuman plasma pooled from healthy individuals
Commercial assay or kitQIAamp ccfDNA/RNA kitQiagenQiagen 55184
Commercial assay or kitSMART-Seq v4 Ultra Low Input RNA kitTakara BioR400752
Commercial assay or kitTGIRT-III reverse transcriptaseInGex, LLCTGIRT

Preparation of RNA and DNA from human plasma

Request a detailed protocol

Human plasma pooled from healthy individuals (IPLA-N-K2E) was purchased from Innovative Research. The plasma was prepared by apheresis into K2-EDTA tubes and was certified by the provider as testing negative for HBV, HCV, HIV-1, HIV-2, and syphilis using FDA-approved methods.

Nucleic acids were isolated from 4 mL of plasma by using a QIAamp ccfDNA/RNA kit (Qiagen 55184) following the manufacturer’s protocol, with the nucleic acids eluted in a final volume of 20 µL. To obtain plasma DNA, RNA was degraded by adding 1 µL of 5 N NaOH and incubating at 95°C for 3 min. The solution was then neutralized by adding 1 µL of 5 N HCl, and the products were cleaned up with an Oligo Clean and Concentrator kit (Zymo Research), with the DNA eluted in a final volume 10 µL.

To obtain plasma RNA, DNA in the initial 20 µL nucleic acids solution was digested by adding 16 µL DNase I (1 U/µL) plus 4 µL 10X DNase I buffer (DNase I set; Zymo Research), incubating for 15 min at room temperature, and cleaning up with a Zymo RNA Clean and Concentrator kit, with the RNA eluted in a volume of 10 µL. For one sample (ExoI_1), the DNase I-treated plasma RNA (~2 ng in 10 µL of eluant) was denatured by heating to 95°C for 3 min and immediately placed on ice, then digested with exonuclease I by adding 1 µL of enzyme (20 U/µL) plus 1.5 µL 10X Reaction Buffer (Lucigen) and incubating 1 hr at 37°C. The products were then cleaned up with a Zymo RNA Clean and Concentrator kit eluted in a final volume of 10 µL. In two other samples, the initial 20 µL nucleic acids sample was split into 10 µL aliquots and digested with Exonuclease I as above. One aliquot was cleaned up with a Zymo RNA Clean and Concentrator kit (ExoI_3), and other was treated with DNase I as above prior to clean up (ExoI_2; Supplementary file 1).

To remove 3’ phosphates and 2’, 3’ cyclic monophosphates, 2.5 µL of T4 polynucleotide kinase (5 U/µL) plus 2.5 µL 10X Reaction Buffer (Lucigen) were added to the initial 20 µL nucleic acids solution, and the samples were incubated for 30 min at 37°C, followed by incubation for 5 min at 70°C to denature the enzyme and clean up with a Zymo RNA Clean and Concentrator eluted in a volume of 20 µL. The samples were then incubated with DNase I prior to final cleaned up as above.

Fragmentation of plasma RNA was done by using an NEBNext Magnesium RNA Fragmentation Module (New England Biolabs) following the manufacturer’s protocol. 2 µL of 10X Fragmentation Buffer was added to 20 µL of nucleic acids and incubated for 2 min at 94°C. The fragmented RNA was then cleaned up with a Zymo RNA Clean and Concentrator kit, treated with T4 polynucleotide kinase to remove 3’ phosphates and 2’, 3’ cyclic phosphates, cleaned up again with an RNA Clean and Concentrator kit, and treated with DNase I prior to final clean up as above.

TGIRT-seq library construction

View detailed protocol

TGIRT-seq library construction was done as described (Xu et al., 2019), with modified RNA-seq adapters that decrease adapter-dimer formation and add a 6-nt unique molecular identified (UMI; six randomized nucleotides) in reaction medium containing 200 mM NaCl, which increases the efficiency of 3'-RNA-seq adapter addition by TGIRT template-switching (Lentzsch et al., 2019). For the initial template-switching and reverse transcription reactions, 10 µL of plasma RNA or DNA was pre-incubated for 30 min at room temperature with 1 μM TGIRT-III (InGex, LLC) and 100 nM of synthetic RNA template/DNA primer substrate in reaction medium containing 200 mM NaCl, 5 mM MgCl2, 20 mM Tris-HCl, pH 7.5, and 5 mM dithiothreitol. The synthetic RNA template/DNA primer substrate consisted of a 35-nt RNA oligonucleotide that contains an Illumina read 2 (R2) sequence with a 3'-blocking group (C3 spacer, 3SpC3; IDT) annealed to a complementary 36-nt DNA primer that leaves a single nucleotide 3'-DNA overhang (an equimolar mixture of A, C, G, and T residues), which directs TGIRT-template switching by base pairing to the 3' nucleotide of a target RNA. Reactions were initiated by adding 1 mM dNTPs (an equimolar mix of 1 mM each dATP, dCTP, dGTP, and dTTP), incubated for 15 min at 60°C, and terminated by adding 0.25 M NaOH and incubating at 95°C for 3 min, followed by neutralization with 0.25 M HCl, with the resulting cDNAs cleaned up by using a MinElute Reaction Cleanup Kit (Qiagen). The second adapter, a 5′-adenylated/3′-blocked (C3 spacer, 3SpC3; IDT) DNA containing the reverse complement of an Illumina read one sequence (R1R) and the 6-nt UMI at its 5' end was then ligated to the 3’ end of the cDNAs by using Thermostable 5′ AppDNA/RNA Ligase (New England Biolabs), as described (Wu and Lambowitz, 2017). After clean up with a MinElute Reaction Cleanup Kit (Qiagen), ligation products were amplified by PCR using a KAPA Library Amplification Kit (KAPA Biosystems KK2610) with 500 nM of Illumina multiplex primer (a 5′ primer that adds a P5 capture site) and 500 nM of index primer (a 3′ primer that adds an index and a P7 capture site). PCR was done with initial denaturation at 98°C for 30 s followed by 12 cycles of 98°C for 45 s, 60°C for 15 s, and 72°C for 30 s, and a final incubation at 72°C for 5 min. The PCR products were purified by using 1.3X Agencourt AMPure XP beads (2 or 3 cycles; Beckman Coulter) and evaluated by using an Agilent High Sensitivity DNA Kit on an Agilent 2100 Bioanalyzer (Agilent). TGIRT-seq libraries were sequenced on an Illumina NextSeq 500 instrument (75-nt paired-end reads) at the Genome Sequencing and Analysis Facility (GSAF) at the University of Texas at Austin.

SMART-Seq library preparation

Request a detailed protocol

20 µL of nucleic acid sample from 4 mL of plasma was treated with DNase I as described above, and the resulting DNase I-treated RNA (~2 ng) was processed for sequencing by using a SMART-Seq v4 Ultra Low Input RNA kit (Takara Bio) according to the manufacturer’s protocol with 12 cycles of PCR followed by two rounds of clean up with 1.3X Agencourt AMPure XP beads (Beckman Coulter). The resulting double-stranded DNAs were fragmented with a Covaris sonicator (S220, Woburn, MA) using a 10% duty cycle, intensity at 5, and 200 cycles per burst, and Illumina-sequencer-compatible libraries were constructed by using an NEBNext Ultra II DNA Library Prep Kit (New England Biolabs).

Sequence data processing

Request a detailed protocol

FASTQ files were processed by using the TGIRT-map pipeline (Wu et al., 2018) with modifications for preserving UMI information and more stringent read trimming and filtering, including trimming of partial adapters and trimming each adapter sequence twice for each read. 6-nt UMIs were clipped and appended to the read ID, and only read pairs with an average UMI PHRED quality score ≥ 20 were retained. Adapters, sequencing artifacts (e.g., long homopolymers), and TGIRT-seq byproducts (e.g., primer dimers) were removed with Atropos (Didion et al., 2017) using options: trim -U 1 --minimum-length=15 --threads=24 --no-cache-adapters --overlap 3 --nextseq-trim=25 --times=2 --max-n=3 --error-rate=0.2 –front AAGATCGGAAGAGCACACGTCTGAACTCCAGTCACNNNNNNATCTCGTATGCCGTCTTCTGCTTG --anywhere=GCTCTTCCGATCTT -b GCACACGTCTGAACTCCAGTCAC -b GTGACTGGAGTTCAGACGTGTGCTCTTCCGATCTT -a A{100} -a T{100} -G GTGACTGGAGTTCAGACGTGTGCTCTTCCGATCTT -B AAGATCGGAAGAGC -B GTGACTGGAGTTCAGACGTGTGC -b AAGATCGGAAGAGCACACGTCTGAACTCCAGTCACNNNNNNATCTCGTATGCCGTCTTCTGCTTG -A T{100} -A A{100} --adapter AAGATCGGAAGAGCACACGTCTGAACTCCAGTCACNNNNNNATCTCGTATGCCGTCTTCTGCTTG -A GATCGTCGGACTGTAGAACTCTGAACGTGTAGA --interleaved-input - --interleaved-output - --quiet --report-file /dev/stderr -f fastq.

The trimmed reads were first aligned against the UniVec database (https://www.ncbi.nlm.nih.gov/tools/vecscreen/uvcurrent/#Replist) by BOWTIE2 (Langmead and Salzberg, 2012) to filter out common DNA contaminants, including sequencing adapters and commercial cloning vectors (Pass 1). The remaining reads were then aligned by BOWTIE2 to a customized reference containing rRNA (GenBank accession numbers: X12811.1 and U13369.1) and mitochondrial genome sequences (chrM from hg19) (Pass 2), followed by BOWTIE2 alignment to a small non-coding RNA reference containing sequences of tRNAs (GtRNAdb, http://gtrnadb.ucsc.edu), 7SK RNA, 7SL RNA, Y-RNAs, vault RNAs (Ensembl, https://useast.ensembl.org/index.html) and high confidence miRNAs (http://www.mirbase.org) (Pass 3). The remaining unaligned reads were then aligned against the human genome reference sequence (hg19) sequentially with HISAT2 (Kim et al., 2019) and BOWTIE2 (Pass 4). For transcriptome mapping, reads from Pass three that did not correspond to sncRNA, tRNA, rRNA, or repeat sequences were mapped to human cDNA sequences (Ensemble hg19 cDNA references) using BOWTIE2.

Deduplication of mapped reads was done by UMI, CIGAR string, and genome coordinates (Quinlan, 2014). To accommodate base-calling and PCR errors and non-templated nucleotides that may have been added to the 3' ends of cDNAs during TGIRT-seq library preparation, one mismatch in the UMI was allowed during deduplication, and fragments with the same CIGAR string, genomic coordinates (chromosome start and end positions), and UMI or UMIs that differed by one nucleotide were collapsed into a single fragment. The counts for each read were readjusted to overcome potential UMI saturation for highly-expressed genes by implementing the algorithm described in Fu et al., 2011, using sequencing tools (https://github.com/wckdouglas/sequencing_tools).

Whole-genome sequencing simulation

Request a detailed protocol

A paired-end 75-nt simulated NextSeq library was generated by ART (Huang et al., 2012) (https://www.niehs.nih.gov/research/resources/software/biostatistics/art/index.cfm) with a mean fragment length of 160 nt using parameters: -ss NS50 -sam -p -l 75 f 5 m 160 s 10.

Analysis of protein-coding gene reads

Request a detailed protocol

Reads that mapped to protein-coding genes were extracted and quantified by Kallisto (Bray et al., 2016) using a transcript reference generated by gffread (Pertea and Pertea, 2020) from the hg19 human genome reference sequence and GENCODE transcript annotations release 28. Gene expression profiles for human tissues were downloaded from the Human Protein Atlas (Uhlén et al., 2015). Six platelet RNA-seq datasets from healthy individuals were obtained from NCBI Sequence Read Archive (SRR5907423-SRR5907428) (Campbell et al., 2018) and TPM values were quantified by Kallisto using the hg19 reference sequence. The percentage of bases that mapped to different regions of protein-coding genes was computed by CollectRnaSeqMetrics from Picard (Broad Institute) using a genome BAM file generated by Kallisto. Gene body coverage was computed using RSeQC (Wang et al., 2012).

Metagenomic analysis

Request a detailed protocol

Unmapped reads from datasets for DNase-treated plasma RNA (n = 15) or NaOH-treated plasma DNA (n = 4) were combined with reads that mapped to the E. coli genome from read-mapping Pass 1 (see above) and analyzed by Kraken2 (Wood et al., 2019) using the miniKraken2 V2 database with default settings. The classification results were visualized by Pavian (Breitwieser and Salzberg, 2020). Mapping of the reads used for Kraken2 analysis to diatom reference sequences (Akat et al., 2019) showed low levels of diatom contamination (0.19%, 21,000 reads in DNase-treated plasma RNA (n = 15) and < 0.002% (22 reads) in NaOH-treated plasma DNA (n = 4)).

Peak calling

Request a detailed protocol

For each sample, a BAM file with read pairs that mapped to the human-genome was processed as described above to remove vector sequences (UniVec, Pass 1), rRNAs and Mt RNAs (Pass 2), and annotated sncRNAs (a customized small non-coding RNA reference containing sequences of tRNAs [GtRNAdb, http://gtrnadb.ucsc.edu], 7SK RNA, 7SL RNA, Y-RNAs, vault RNAs [Ensembl, https://useast.ensembl.org/index.html], high confidence and non-high confidence miRNAs [http://www.mirbase.org], snoRNAs, snRNAs, and miscellaneous RNAs [Ensembl; https://useast.ensembl.org/index.html]). The alignment coordinates were extracted as a BED file and deduplicated as described above for sequence data processing. BED files from libraries with the same treatments were combined, and reads mapping to human genome blacklist regions (Amemiya et al., 2019) or Mt DNA were removed, the latter to eliminate mis-mapping of Mt RNAs to nuclear Mt DNA segments (NUMTs). The BED file for the combined DNase-treated datasets (n = 15) was then split into separate BED files containing only forward strand or reverse strand fragments. BED files from each strand were used as input the for MACS2 callpeak algorithm (Zhang et al., 2008) using the combined BED file for both strands from NaOH-treated plasma DNA datasets (n = 4) as the base-line control, via: macs2 callpeak --treatment {input_bed_strand_bed} --control {alkaline_hydrolysis_bed} --outdir {outdir} --name {sample_strand} –nomodel --format BEDPE --keep-dup all --gsize hs –broad. Peak calling against the human transcriptome (GENCODE release 28) was done by using the following parameters: macs2 callpeak --treatment {input_bed_strand_bed} --outdir {outdir} --name {sample_strand} –nomodel --format BEDPE --keep-dup all --gsize hs –broad. The called peaks were filtered to obtain candidate peaks with read coverage (pileup) ≥ 5 at the peak maximum, a false discovery rate ≤ 0.05 (q-value assigned by MACS2), and a requirement that the peak be detected in at least 5 of the 15 samples to avoid batch effects. The candidate peaks were then further filtered to remove reads with MAPQ < 30 (to exclude reads that mapped equally well by BOWTIE2 to more than one locus) or had ≥ 5 mismatches from the mapped locus to obtain high confidence peaks with ≥ 5 high quality read alignments at the peak maximum. The remainder were classified as low confidence peaks (Supplementary file 1).

The annotation of peaks was done by BEDTools (Quinlan, 2014) intersect command against genomic features from RefSeq genes (https://www.ncbi.nlm.nih.gov/refseq/), Ensembl genes (https://useast.ensembl.org/index.html), Repbase repeat regions (Bao et al., 2015), RBP-binding site annotations from ENCODE eCLIP datasets (https://www.encodeproject.org/eclip/), and piRNA annotations from piRNAdb (https://www.pirnadb.org). An overlap score defined as the product of Number of overlapping basePeak width and Number of overlapping basesGenomic feature size was computed for each overlapping record between a peak and a genomic feature. An overlap score of 1 (highest possible overlap score) indicates the peak can be explained by the full-length genomic feature. A best feature annotation for each peak was selected by the highest overlap score. In cases of identical overlap scores, a feature was selected with the priority RBP-binding sites, repeat regions (Repbase), and lastly long RNAs. In cases of peaks overlapping with two or more RBP binding sites with same overlap score, all RBPs were reported. A histogram showing the number of overlapping bases between peaks and annotated eCLIP-identified RBP-binding sites is shown in Figure 4—figure supplement 2B.

RNA homology search and RNA secondary structure prediction

Request a detailed protocol

RNA homology searches and secondary structure predictions were done using the hg19 genomic coordinates of the peak called by MACS2 (narrow peak). For long RNA, antisense, and unannotated peaks, we performed an RNA homology search against the covariance model from Rfam (Kalvari et al., 2018) using Infernal (Nawrocki and Eddy, 2013), via: cmscan -o {out_file} –tblout {out_table} –cpu 24 Rfam.cm peak.fa. Infernal/Rfam analysis for known structured RNA motifs was conducted by submitting the peak sequences to Rfam website (http://rfam.xfam.org). RNA secondary structures were predicted and MFEs calculated by RNAfold with default parameters using the ViennaRNA package (Lorenz et al., 2011).

Empirical Bayes analysis of strand specificity of repeat regions

Request a detailed protocol

We noticed that peaks for some simple repeat sequences (e.g., (CATTC)n and (TTAGGG)n) were called by MACS2 on both strands, but in different ratios in the datasets for DNase-treated plasma RNA and NaOH-treated plasma DNA. To identify repeat sequences with a significantly higher counts in one orientation over the other and eliminate ambiguous read mappings, we aggregated the strand-specific fragment counts for all unique simple repeat sequences and their reverse-complements (e.g., (ATCCC)n and (GGGTA)n) in the combined DNase-treated plasma RNA (n = 15) and NaOH-treated plasma DNA (n = 4) datasets. To compensate for repeat sequences with low read counts, which could give misleading strand-specificity, we employed an Empirical Bayes method by using repeat sequences with high total counts (> 50 deduplicated reads) regardless of strand from the combined plasma DNA datasets to construct a prior beta distribution of strand specificities for all repeat sequences (Figure 8C). This fitted beta distribution represents the probability distribution of detecting 0–100% (+) orientation reads for each repeat sequence in a pure DNA sample. Using the fitted beta distribution hyperparameters and the count data from either the plasma DNA or plasma RNA datasets, we then computed a posterior beta-binomial distributions of the percentages of (+) orientation reads for each repeat sequences, which represents how likely and to what degree the strand specificities were biased towards the (+) or (-) strand orientation. We then compared the posterior distributions for each unique repeat sequences between plasma RNA and DNA to obtain a distribution of differences in the percentage of (+) strand reads in plasma RNA versus plasma DNA (Δ %(+) in RNA vs DNA). Summary statistics were then extracted from this final distribution, and repeat sequences with Bayes factor > 3 for at least 10% more (+) strand fragments in the plasma RNA compared to the plasma DNA samples were identified as significantly enriched in (+)-strand fragments in plasma RNA. The Bayesian statistical testing framework was implemented using pymc3 (Salvatier et al., 2016).

Code availability

Request a detailed protocol

All scripts used for data processing are deposited in GitHub: https://github.com/wckdouglas/cfNA. (Wu and Yao, 2020; copy archived at https://github.com/elifesciences-publications/cfNA).

Date deposition

Request a detailed protocol

The TGIRT-seq datasets in this manuscript are listed in the Supplementary File and have been deposited in the National Center for Biotechnology Information Sequence Read Archive (accession number: PRJNA640428).

Data availability

Code availability: All scripts used for data processing are deposited in GitHub: https://github.com/wckdouglas/cfNA (copy archived at https://github.com/elifesciences-publications/cfNA) Date deposition: The TGIRT-seq datasets in this manuscript are listed in the Supplementary File and have been deposited in the National Center for Biotechnology Information Sequence Read Archive (accession number: PRJNA640428).

The following data sets were generated
    1. Yao J
    2. Wu D
    3. Nottingham R
    4. Lambowitz AM
    (2020) NCBI Sequence Read Archive
    ID PRJNA640428. Identification of protein-protected mRNA fragments and structured excised intron RNAs in human plasma by TGIRT-seq peak calling.
The following previously published data sets were used
    1. Campbell RA
    2. Franks Z
    3. Bhatnagar A
    4. Rowley JW
    5. Manne BK
    6. Supiano MA
    7. Schwertz H
    8. Weyrich AS
    9. Rondina MT
    (2017) NCBI BioProject
    ID PRJNA397446. Granzyme A in Human Platelets Regulates Pro-Inflammatory Gene Synthesis by Monocytes in Aging.

References

    1. Lin Q
    2. Zhou CR
    3. Bai MJ
    4. Zhu D
    5. Chen JW
    6. Wang HF
    7. Li MA
    8. Wu C
    9. Li ZR
    10. Huang MS
    (2020)
    Exosome-mediated miRNA delivery promotes liver Cancer EMT and metastasis
    American Journal of Translational Research 12:1080–1095.

Decision letter

  1. Timothy W Nilsen
    Reviewing Editor; Case Western Reserve University, United States
  2. James L Manley
    Senior Editor; Columbia University, United States
  3. Mariano A Garcia-Blanco
    Reviewer; University of Texas Medical Branch, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

In this paper the authors use a thermostable reverse transcriptase encoded by a so-called group II intron to sequence RNAs present in blood. This reverse transcriptase differs from retroviral reverse transcriptases in that it can read through structured regions of RNA. Results presented indicate that the population of RNAs in blood is more complex than previously thought.

Decision letter after peer review:

Thank you for submitting your article "Identification of protein-protected mRNA fragments and structured intron RNAs in human plasma by TGIRT-seq peak calling" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Timothy Nilsen as Reviewing Editor and James Manley as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Mariano A Garcia-Blanco (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

The reviewers agreed that the work was, in principle, suitable for eLife. Nevertheless, each raised significant concerns that need to be addressed via revision. Specifically, the reviewers felt that the bioinformatic analysis needs to be strengthened. They also requested that you provide some practical application of the work. Please address all of the points raised by the reviewers as thoroughly as possible.

Reviewer #1:

The Lambowitz group has developed thermostable group II intron reverse transcriptases (TGIRTs) that strand switch and also have trans-lesion activity to provide a much wider view of RNA species analyzed by massively parallel RNA sequencing. In this manuscript they use several improvements to their methodology to identify RNA biotypes in human plasma pooled from several healthy individuals. Additionally, they implicate binding by proteins (RBPs) and nuclease-resistant structures to explain a fraction of the RNAs observed in plasma. Generally, I find the study fascinating and argue that the collection of plasma RNAs described is an important tool for those interested in extracellular RNAs. I think the possibility that RNPs are protecting RNA fragments in circulation is exciting and fits with elegant studies of insects and plants where RNAs are protected by this mechanism and are transmitted between species.

I have one major comment for the authors to consider. In my view the use of pooled plasma samples prevented the important opportunity to provide a glimpse on human variation in plasma RNA biotypes. This significantly limits the use of this information to begin addressing RNA biotypes as biomarkers. While I realize that data from multiple individuals represents a significant undertaking and may be beyond the scope of this manuscript, I urge the authors to do two things: (1) downplay the significance of the current study on the development of biomarkers in the current manuscript (e.g., in the Abstract and Discussion – e.g., "The ability of TGIRT-seq to simultaneously profile a wide variety of RNA biotypes in human plasma, including structured RNAs that are intractable to retroviral RTs, may be advantageous for identifying optimal combinations of coding and non-coding RNA biomarkers for human diseases."). (2) Carry out an analysis in multiple individuals – including racially diverse individuals – very important information will come of this – similar to C. Burge's important study in Nature 2008 where it was clear that there is important individual variation in alternative splicing decisions – very likely genetically determined. This second suggestion could be added here or constitute a future manuscript.

Reviewer #2:

Yao et al. used thermostable group II intron reverse transcriptase sequencing (TGIRT-seq) to study apheresis plasma samples. The first interesting discovery is that they had identified a number of mRNA reads with putative binding sites of RNA-binding proteins. A second interesting discovery from this work is the detection of full-length excised intron RNAs.

I have the following comments.

1) One doubt that I have is how representative is apheresis plasma when compared with plasma that one obtains through routine centrifugation of blood. The authors have reported the comparison of apheresis plasma versus a single male plasma in a previous publication. I think that to address this important question, a much-increased number of samples would be necessary.

2) For the important conclusion of the presence of binding sites of RNA-binding proteins in a proportion of apheresis plasma mRNA molecules, the authors need to explore whether there is any systemic difference in terms of mapping quality (i.e. mapping quality scores in alignment results) between RBP binding sites and non-RBP binding sites, so that any artifacts of peaks caused by the alignment issues occurring in RNA-seq analysis could be revealed and solved subsequently. Furthermore, it would be prudent to perform immunoprecipitation experiments to confirm this conclusion in at least a proportion of the mRNA.

3) In Figure 2D, one can observe that there are clearly more RNA reads in TGIRT-seq located in the 1st exon of ACTB, compared with SMART-seq. Is there any explanation? Will this signal be called as a peak (a potential RBP binding site) in the peak calling analysis (MACS2)? Is ACTB supposed to be bound by a certain RBP?

4) For Figure 2A, it would be informative for the comparison of RNA yield and RNA size profile among different protocols if the author also added the results of TGIRT-seq.

5) As shown in Figure 4C (the track of RBP binding sites), it seems quite pervasive in some gene regions. How many RBP binding sites from public eCLIP-seq results are used for overlapping peaks present in TGIRT-seq of plasma RNA? What percentage of plasma RNA reads are fallen within RBP binding sites? Are those peaks present in TGRIT-seq significantly enriched in RBPs binding regions?

6) Since there is a considerable portion of TGIRT-seq reads related to simple repeat, one possible reason is likely the high abundance of endogenous repeat-related RNA species in plasma. Nonetheless, have authors studied whether the ligation steps in TGIRT-seq have any biases (e.g. GC content) when analyzing human reference RNAs and spike ins (Introduction paragraph three)?

7) As described in Figure 2 legend, there are 0.25 million deduplicated reads for TGIRT-seq reads assigned to protein-coding genes transcripts which are far less than 2.18 million reads for SMART-seq. The authors need to discuss whether the current protocol of TGIRT-seq would cause potential dropouts in mRNA analysis, compared with SMART-seq?

8) While scientific thought-provoking, the practical implication of the current work is still unclear. The authors have suggested that their work might have applications for biomarker development. Is it possible to provide one experimental example in the manuscript?

Reviewer #3:

In this work, Yao and colleagues described transcriptome profiling of human plasma from healthy individuals by TGIRT-seq. TGIRT is a thermostable group II intron reverse transcriptase that offers improved fidelity, processivity and strand-displacement activity, as compared to standard retroviral RT, so that it can read through highly structured regions. Similar analysis was performed previously (Qin et al., 2016), but this study incorporated several improvements in library preparation including optimization of template switching condition and modified adapters to reduce primer dimer and introduce UMI. In their analysis, the authors detected a variety of structural RNA biotypes, as well as reads from protein-coding mRNAs, although the latter is in low abundance. Compared to SMART-Seq, TGIRT-seq also achieved more uniform read coverage across gene bodies. One novel aspect of this study is the peak analysis of TGIRT-seq reads, which revealed ~900 peaks over background. The authors found that these peaks frequently overlap with RBP binding sites, while others tend to have stable predicted secondary structures, which explains why these regions are protected from degradation in plasma. Overall, this study provided a robust dataset and expanded picture of RNA biotypes one can detect in human plasma. This is valuable because the findings may have implications in biomarker identification in disease contexts. On the other hand, the manuscript, in the current form, is relatively descriptive, and can be improved with a clearer message of specific knowledge that can be extracted from the data.

Specific points:

1) Several aspects of bioinformatics analysis can be clarified in more detail. For example, it is unclear how sequencing errors in UMI affect their de-duplication procedure. This is important for their peak analysis, so it should be explained clearly. Also, it is not described how exon junction reads (when mapped to the genome) are handled in peak calling, although the authors did perform complementary analysis by mapping reads to the reference transcriptome.

2) Overall, the authors provided convincing data that TGIRT-seq has advantages in detecting a wide range of RNA biotypes, especially structured RNAs, compared to other protocols, but these data are more confirmatory, rather than completely new findings (e.g., compared to Qin et al., 2016).

3) The peak analysis is more novel. The authors observed that 50% of peaks in long RNAs overlap with eCLIP peaks. However, there is no statistical analysis to show whether this overlap is significant or simply due to the pervasive distribution of eCLIP peaks. In fact, it was reported by the original authors that eCLIP peaks cover 20% of the transcriptome. Similarly, the authors found that a high proportion of remaining peaks can fold into stable secondary structures, but this claim is not backed up by statistics either.

4) Ranking of RBPs depends on the total number of RBP binding sites detected by eCLIP, which is determined by CLIP library complexity and sequencing depth. This issue should be at least discussed.

5) Enrichment of RBP binding sites and structured RNA in TGIRT-seq data is certainly consistent with one's expectation. However, the paper can be greatly improved if the authors can make a clearer case what is new that can be learned, as compared to eCLIP data or other related techniques that purify and sequence RNA fragments crosslinked to proteins. What is the additional, independent evidence to show the predicted secondary structures are real?

6) The authors should probably discuss how alignment errors can potentially affect detection of repetitive regions.

7) Many figures are IGV screenshots, which can be difficult to follow. Some of them can probably be summarized to deliver the message better.

https://doi.org/10.7554/eLife.60743.sa1

Author response

Reviewer #1:

[…]

I have one major comment for the authors to consider. In my view the use of pooled plasma samples prevented the important opportunity to provide a glimpse on human variation in plasma RNA biotypes. This significantly limits the use of this information to begin addressing RNA biotypes as biomarkers. While I realize that data from multiple individuals represents a significant undertaking and may be beyond the scope of this manuscript, I urge the authors to do two things: (1) downplay the significance of the current study on the development of biomarkers in the current manuscript (e.g., in the Abstract and Discussion – e.g., "The ability of TGIRT-seq to simultaneously profile a wide variety of RNA biotypes in human plasma, including structured RNAs that are intractable to retroviral RTs, may be advantageous for identifying optimal combinations of coding and non-coding RNA biomarkers for human diseases."). (2) Carry out an analysis in multiple individuals – including racially diverse individuals – very important information will come of this – similar to C. Burge's important study in Nature 2008 where it was clear that there is important individual variation in alternative splicing decisions – very likely genetically determined. This second suggestion could be added here or constitute a future manuscript.

The identification of biomarkers in human plasma is an important application of this study, as was noted by reviewer 3: "Overall, this study provided a robust dataset and expanded picture of RNA biotypes one can detect in human plasma. This is valuable because the findings may have implications in biomarker identification in disease contexts." The present manuscript lays the foundation for such applications, which we have been carrying out in parallel. In one such study in collaboration with Dr. Naoto Ueno (MD Anderson), we used TGIRT-seq to identify combinations of mRNA and non-coding RNA biomarkers in FFPE-tumor slices, PBMCs and plasma from inflammatory breast cancer patients compared to non-IBC breast cancer patients and healthy controls (manuscript in preparation; data presented publicly in seminars), and in another, we explored the potential of using full-length excised intron (FLEXI) RNAs as biomarkers. In the latter study, we identified > 8,000 FLEXI RNAs in different human cell lines and tissues and found that they are expressed in a cell-type specific manner, including hundreds of differences between matched tumor and healthy tissues from breast cancer patients and cell lines. A manuscript describing these findings has been posted on bioRxiv (Yao et al., 2020, https://doi.org/10.1101/2020.09.07.285114). This new manuscript follows directly from the last sentence of the present manuscript and fully references the bioRxiv preprint currently under review for eLife.

Reviewer #2:

[…]

1) One doubt that I have is how representative is apheresis plasma when compared with plasma that one obtains through routine centrifugation of blood. The authors have reported the comparison of apheresis plasma versus a single male plasma in a previous publication. I think that to address this important question, a much-increased number of samples would be necessary.

Detailed comparison of plasma prepared by apheresis to that prepared by centrifugation would require a separate large-scale study, preferably by multiple laboratories using different methods to prepare plasma. However, our impression both from our findings and from the literature (Valbonesi et al., 2001, cited in the manuscript) is that apheresis-prepared plasma has very low levels of cellular contamination (required to meet clinical standards) compared to plasma prepared by centrifugation, even with protocols designed to minimize contamination from intact or broken cell (e.g., preparing plasma from freshly drawn blood, centrifugation into a Ficoll cushion to minimize cell breakage, and carefully avoiding contamination from sedimented cells).

We do have additional information about the degree of variation in protein-coding gene transcripts detected by TGIRT-seq in plasma samples prepared by centrifugation from five healthy females controls in our collaborative study with Dr. Naoto Ueno (M.D. Anderson; see above), and we have added it to the manuscript citing a manuscript in preparation with permission from Dr. Ueno as follows:

“The identities and relative abundances of different protein-coding gene transcripts in the apheresis-prepared plasma were broadly similar to those in the previous TGIRT analysis of plasma prepared by Ficoll-cushion sedimentation of blood from a healthy male individual (Qin et al., 2016) (r = 0.62-0.80; Figure 3C) and between high quality plasma samples similarly prepared from five healthy females in a collaborative study with Dr. Naoto Ueno, M.D. Anderson (r = 0.53-0.67; manuscript in preparation).” See Author response image 1.

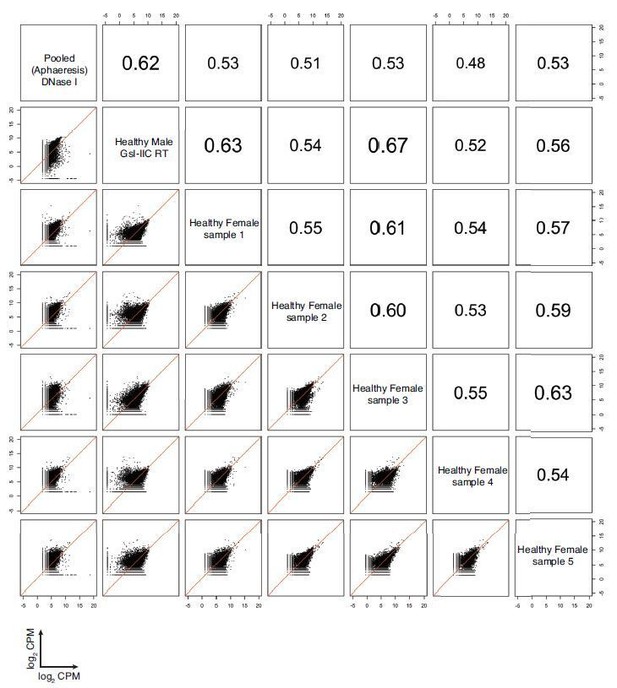

Author response image 1
Correlation matrix of protein coding genes detected in DNase I-treated pooled plasma RNA using the improved TGIRT-seq method in this work (n=12), previously by TGIRT-seq in DNase I-treated plasma RNA from a healthy male individual (n=3; SRP064378, datasets 12-14) (Qin et al., 2016), and healthy plasmas samples similarly prepared from five healthy females in a collaborative study with Dr. Naoto Ueno, M.D. Anderson.

For comparisons, CPMs for each gene in a dataset were normalized to the total number of mapped reads in that dataset, log2 transformed, and plotted. Spearman correlation coefficients are shown on the upper triangle. Numbers on the x and y axes of scatter plots are log2 transformed CPMs.

2) For the important conclusion of the presence of binding sites of RNA-binding proteins in a proportion of apheresis plasma mRNA molecules, the authors need to explore whether there is any systemic difference in terms of mapping quality (i.e. mapping quality scores in alignment results) between RBP binding sites and non-RBP binding sites, so that any artifacts of peaks caused by the alignment issues occurring in RNA-seq analysis could be revealed and solved subsequently. Furthermore, it would be prudent to perform immunoprecipitation experiments to confirm this conclusion in at least a proportion of the mRNA.

We have added a figure panel comparing MAPQ scores for reads from peaks containing RBP-binding sites to those of other long RNA reads (Figure 4—figure supplement 2A) and have added further details about the methods used to obtain peaks with high quality reads, including the following:

“After further filtering to remove read alignments with MAPQ < 30 (a cutoff that eliminates reads mapping equally well at more than one locus) or ≥ 5 mismatches from the mapped locus, we were left with 950 high confidence peaks ranging in size from 59 to 1,207 nt with ≥ 5 high quality read alignments at the peak maximum (Supplementary file 1).”

3) In Figure 2D, one can observe that there are clearly more RNA reads in TGIRT-seq located in the 1st exon of ACTB, compared with SMART-seq. Is there any explanation? Will this signal be called as a peak (a potential RBP binding site) in the peak calling analysis (MACS2)? Is ACTB supposed to be bound by a certain RBP?

The higher coverage of the ACTB 5'-exon in the TGIRT-seq datasets reflects in part the more uniform 5' to 3' coverage of mRNA sequences by TGIRT-seq compared to SMART-seq, which is biased for 3'-mRNA sequences that have poly(A) tails (current Figure 3F). The signal in the first exon of ACTB was in fact called as a peak by MACS2 (peak ID#893, Supplementary file 1), which overlapped an annotated binding site for SERBP1 (see Supplementary file 1).

4) For Figure 2A, it would be informative for the comparison of RNA yield and RNA size profile among different protocols if the author also added the results of TGIRT-seq.

Figure 3D (previously Figure 2A) shows a bioanalyzer trace of PCR amplified cDNAs obtained by SMART-Seq. These cDNAs correspond to 3' mRNA sequences that have poly(A) tails and are not comparable to the bioanalyzer profiles of plasma RNA (Figure 1—figure supplement 1) or read span distributions in the TGIRT-seq datasets (Figure 1B), which are dominated by sncRNAs. The normalized 5' to 3' gene body coverage plots for protein-coding gene transcripts show that TGIRT-seq captures mRNA fragments that collectively span the entire mRNA sequence, whereas SMART-Seq is biased for 3' sequences linked to poly(A) (Figure 3F). We also note that the normalized gene body coverage plots and mRNAs detected by TGIRT-seq remain similar, even if the plasma RNA is chemically fragmented prior to TGIRT-seq library construction (Figure 3F and Figure 3—figure supplement 2).

5) As shown in Figure 4C (the track of RBP binding sites), it seems quite pervasive in some gene regions. How many RBP binding sites from public eCLIP-seq results are used for overlapping peaks present in TGIRT-seq of plasma RNA? What percentage of plasma RNA reads are fallen within RBP binding sites? Are those peaks present in TGRIT-seq significantly enriched in RBPs binding regions?

We noted that 109 RBP-binding sites were searched in the initial analysis, and we have now added further analyses for 150 RBPs currently available in ENCODE eCLIP datasets with irreproducible discovery rate (IDR) analysis (Figure 6 and Figure 6—figure supplement 1). We have also added a tab to the Supplementary file 1 identifying the 109 and 150 RBPs whose binding sites were searched. The requested statistical analysis has been added in Figure 4—figure supplement 2C. The analysis shows that enrichment of RBP-binding site sequences in the 467 identified RBP-binding site peaks was statistically significant (p < 0.001) (subsection “RNA fragments containing RBP-binding sites are prevalent in plasma”).

6) Since there is a considerable portion of TGIRT-seq reads related to simple repeat, one possible reason is likely the high abundance of endogenous repeat-related RNA species in plasma. Nonetheless, have authors studied whether the ligation steps in TGIRT-seq have any biases (e.g. GC content) when analyzing human reference RNAs and spike ins (Introduction paragraph three)?

We have added a note to the manuscript indicating that although repeat RNAs constitute a high proportion of the called peaks, they do not constitute a similarly high proportion of the total RNA reads (Figure 1C; subsection “Identification of tandem repeats and transposable element RNAs”, first sentence). The TGIRT-seq analysis of human reference RNAs and spike-ins showed that TGIRT-seq recapitulates the relative abundance of human transcripts and spike-in comparably to non-strand-specific TruSeq-v2 and better than strand-specific TruSeq-v3 (Nottingham et al., 2016). Additionally, we used miRNA reference sets for detailed analysis of TGIRT-seq biases, including developing a computer algorithm for bias correction based on a random forest regression model that provides insight into different factors that contribute to these biases (Xu et al., 2019). Overall GC content does not make a significant contribution to TGIRT-seq biases (Figure 9 of Xu et al., 2019). Instead, biases in TGIRT-seq are largely confined to the first three nucleotides at the 5'-end (due to bias of the thermostable 5' App DNA ligase used for 5' RNA-seq adapter addition) and the 3' nucleotide (due to TGIRT-template switching). These end biases are not expected to significantly impact the quantitation of repeat RNAs.

7) As described in Figure 2 legend, there are 0.25 million deduplicated reads for TGIRT-seq reads assigned to protein-coding genes transcripts which are far less than 2.18 million reads for SMART-seq. The authors need to discuss whether the current protocol of TGIRT-seq would cause potential dropouts in mRNA analysis, compared with SMART-seq?

We have added the following to the manuscript:

“The larger number of mRNA reads compared to TGIRT-seq (0.28 million) largely reflects that SMART-seq selectively profiles polyadenylated mRNAs, while TGIRT-seq profiles mRNAs together with other more abundant RNA biotypes. In addition, ultra-low input SMART-Seq is not strand-specific, resulting in redundant sense and antisense strand reads (Figure 3—figure supplement 1).”

The manuscript contains the following statement regarding potential dropouts:

“A scatter plot comparing the relative abundance of transcripts originating from different genes showed that most of the polyadenylated mRNAs detected in DNase I-treated plasma RNA by ultra-low input SMART-Seq were also detected by TGIRT-seq at similar TPM values when normalized for protein-coding gene reads (r = 0.61), but with some, mostly lower abundance mRNAs undetected either by TGIRT-seq or SMART-Seq, and with SMART-Seq unable to detect non-polyadenylated histone mRNAs, which are relatively abundant in plasma (Figure 3E and Figure 3—figure supplement 1).”

8) While scientific thought-provoking, the practical implication of the current work is still unclear. The authors have suggested that their work might have applications for biomarker development. Is it possible to provide one experimental example in the manuscript?

We addressed the relevance of the manuscript to biomarker identification and noted parallel studies that supports this application in the response to reviewer 1, comment 1. We have also modified the final paragraph of the Discussion:

“The ability of TGIRT-seq to simultaneously profile a wide variety of RNA biotypes in human plasma, including structured RNAs that are intractable to retroviral RTs, may be advantageous for identifying optimal combinations of coding and non-coding RNA biomarkers that could then be incorporated in target RNA panels for diagnosis and routine monitoring of disease progression and response to treatment. […] Finally, we note that in addition to their biological and evolutionary interest, short full-length excised intron RNAs and intron RNA fragments, such as those identified here, may be uniquely well suited to serve as stable RNA biomarkers, whose expression is linked to that of numerous protein-coding genes."

Reviewer #3:

[…]

1) Several aspects of bioinformatics analysis can be clarified in more detail. For example, it is unclear how sequencing errors in UMI affect their de-duplication procedure. This is important for their peak analysis, so it should be explained clearly.

We have added details of the procedure used for de-duplication to the following paragraph in Materials and methods:

“Deduplication of mapped reads was done by UMI, CIGAR string, and genome coordinates (Quinlan, 2014). […] The counts for each read were readjusted to overcome potential UMI saturation for highly-expressed genes by implementing the algorithm described in (Fu et al., 2011), using sequencing tools (https://github.com/wckdouglas/sequencing_tools).”

Also, it is not described how exon junction reads (when mapped to the genome) are handled in peak calling, although the authors did perform complementary analysis by mapping reads to the reference transcriptome.

We have added this to first sentence of the paragraph describing peak calling against the transcriptome reference, which now reads as follows:

"Peak calling against the human genome reference sequence might miss RBP-binding sites that are close to or overlap exon junctions, as such reads were treated by MACS2 as long reads that span the intervening intron."

2) Overall, the authors provided convincing data that TGIRT-seq has advantages in detecting a wide range of RNA biotypes, especially structured RNAs, compared to other protocols, but these data are more confirmatory, rather than completely new findings (e.g., compared to Qin et al., 2016).

We modified the first paragraph of the Discussion to explicitly describe what is added by the present manuscript compared to Qin et al., 2016. Additionally, further analysis in response to the reviewers' comments resulted in the interesting finding that stress granule proteins comprised a high proportion of the RBPs whose binding sites were enriched in plasma RNAs (to our knowledge a completely new finding), consistent with a previously suggested link between RNP granules, EV packaging, and RNA export (paragraph five subsection “RNA fragments containing RBP-binding sites are prevalent in plasma”; data shown in Figure 6 and Figure 6—figure supplement 1). Also highlighted in the Discussion paragraph five.

3) The peak analysis is more novel. The authors observed that 50% of peaks in long RNAs overlap with eCLIP peaks. However, there is no statistical analysis to show whether this overlap is significant or simply due to the pervasive distribution of eCLIP peaks. In fact, it was reported by the original authors that eCLIP peaks cover 20% of the transcriptome.

We have added statistical analysis, which shows that the enrichment of RBP-binding sites in the 467 called peaks is statistically significant at p < 0.001 (paragraph one subsection “RNA fragments containing RBP-binding sites are prevalent in plasma”; Figure 4—figure supplement 2C), as well as scatter plots identifying proteins whose binding sites were more highly represented in plasma than cellular RNAs or vice versa (paragraph five subsection “RNA fragments containing RBP-binding sites are prevalent in plasma”; Figure 6 and Figure 6—figure supplement 1).

Similarly, the authors found that a high proportion of remaining peaks can fold into stable secondary structures, but this claim is not backed up by statistics either.

First, near the beginning of the paragraph describing these findings, we added the following to provide a guide as to what can and can't be concluded by RNAfold:

"To evaluate whether these peaks contained RNAs that could potentially fold into stable secondary structures, we used RNAfold, a tool that is widely used for this purpose with the understanding that the predicted structures remain to be validated and could differ under physiological conditions or due to interactions with proteins."

Second, at the end of the same paragraph, we have added the requested statistics:

"Subject to the caveats above regarding conclusions drawn from RNAfold, simulations using peaks randomly generated from long RNA gene sequences indicated that enrichment of RNAs with more stable secondary structures (lower MFEs) in the called RNA peaks was statistically significant (p≤0.019; Figure 4—figure supplement 2D)."

4) Ranking of RBPs depends on the total number of RBP binding sites detected by eCLIP, which is determined by CLIP library complexity and sequencing depth. This issue should be at least discussed.

We have added scatter plots in Figure 6 and Figure 6—figure supplement 1, which show that the relative abundance of different RBP-binding sites detected in plasma differs markedly from that for cellular RNAs in the eCLIP datasets (both for the 109 RBPs searched initially and for 150 RBPs withirreproducible discovery rate (IDR) analysis from the ENCODE web site). As mentioned in comments above, this analysis identified a number of RBP-binding sites that were substantially enriched in plasma RNAs compared to cellular RNAs or vice versa and led to what we think is the important new finding that plasma RNAs are enriched binding sites for a number of stress granule proteins (Figure 6 and Figure 6—figures supplement 1). We thank the reviewers for this and related comments that led to this additional analysis.

5) Enrichment of RBP binding sites and structured RNA in TGIRT-seq data is certainly consistent with one's expectation. However, the paper can be greatly improved if the authors can make a clearer case what is new that can be learned, as compared to eCLIP data or other related techniques that purify and sequence RNA fragments crosslinked to proteins. What is the additional, independent evidence to show the predicted secondary structures are real?

Compared to CLIP and related methods, peak calling enables more facile identification of candidate RBPs and putatively structured RNAs for further analysis and may be particularly useful for the vanishingly small amounts of RNA present in plasma and other bodily fluids. New findings resulting from peak calling in the present manuscript include that plasma RNAs are enriched in binding sites for stress granule proteins (see above) and the discovery of a variety of novel RNAs, including the full-length excised intron RNAs first identified here and subsequently studied in cellular RNAs in Yao et al. (https://doi.org/10.1101/2020.09.07.285114). We also note that peak calling enables the identification of protein-protected and structured mRNA regions that are relatively stable in plasma and may be more reliably detected in targeted liquid biopsy assays than are more labile mRNA regions.

6) The authors should probably discuss how alignment errors can potentially affect detection of repetitive regions.

In the Empirical Bayes method that we used for the analysis of repeats, repeat sequences were quantified by aggregate counts irrespective of the genomic locus to which they mapped (Materials and methods, subsection “Empirical Bayes analysis of strand specificity of repeat regions”), which should not be affected by alignment errors.

7) Many figures are IGV screenshots, which can be difficult to follow. Some of them can probably be summarized to deliver the message better.

Some IGV-based figures are crucial for showing key features of the RNAs that are called as peaks (e.g., the predicted secondary structures of the full-length excised intron RNAs and intron RNA fragments). However, in the process of reformatting, we have switched in and added non-IGV main text figures including Figure 2 (microbiome analysis), Figure 3 (TGIRT-seq versus SMART-Seq), Figure 4 (repeats), and Figure 6 (new figure comparing relative abundance of RBP-binding sites in plasma versus cells).

https://doi.org/10.7554/eLife.60743.sa2

Article and author information

Author details

  1. Jun Yao

    Institute for Cellular and Molecular Biology and Departments of Molecular Biosciences and Oncology, University of Texas, Austin, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Douglas C Wu
    Competing interests
    is an inventor on a patent application filed by the University of Texas at Austin for the use of full-length excised intron RNAs and intron RNA fragments as biomarkers. US patent application 63/014,429
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1232-1587
  2. Douglas C Wu

    Institute for Cellular and Molecular Biology and Departments of Molecular Biosciences and Oncology, University of Texas, Austin, United States
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Jun Yao
    Competing interests
    is an inventor on a patent application filed by the University of Texas at Austin for the use of full-length excised intron RNAs and intron RNA fragments as biomarkers. US patent application 63/014,429; is currently an employee of QIAGEN.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6179-3110
  3. Ryan M Nottingham

    Institute for Cellular and Molecular Biology and Departments of Molecular Biosciences and Oncology, University of Texas, Austin, United States
    Contribution
    Data curation, Investigation, Visualization, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6937-5394
  4. Alan M Lambowitz

    Institute for Cellular and Molecular Biology and Departments of Molecular Biosciences and Oncology, University of Texas, Austin, United States
    Contribution
    Conceptualization, Resources, Data curation, Funding acquisition, Visualization, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    lambowitz@austin.utexas.edu
    Competing interests
    Thermostable group II intron reverse transcriptase (TGIRT) enzymes and methods for their use are the subject of patents and patent applications that have been licensed by the University of Texas and East Tennessee State University to InGex, LLC. Is a minority equity holder in InGex, LLC and receives royalty payments from the sale of TGIRT-enzymes and kits and from the sublicensing of intellectual property by InGex to other companies. Is an inventor on a patent application filed by the University of Texas at Austin for the use of full-length excised intron RNAs and intron RNA fragments as biomarkers. US patent application 63/014,429
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6036-2423

Funding

National Institute of General Medical Sciences (R01 GM37949)

  • Alan M Lambowitz

National Institute of General Medical Sciences (R35 GM136216)

  • Alan M Lambowitz

Welch Foundation (F-1607)

  • Alan M Lambowitz

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by NIH grants R01 GM37949 and R35 GM136216 and Welch Foundation grant F-1607. We thank Manny Ares (University of California, Santa Cruz), Sean Eddy (Harvard), and Eckhard Jankowsky (Case Western Reserve University) for helpful discussions. We also thank our colleagues Elizabeth Kiddie and Hengyi Xu for comments on the manuscript and Hengyi Xu for exonuclease I treatment of plasma nucleic acid samples. The Texas Advanced Computing Center (TACC) and the Center for Biomedical Research Support (CBRS) at the University of Texas at Austin provided high-performance computing resources. High-throughput sequencing was done by the Genomic Sequencing and Analysis Facility at the University of Texas at Austin.

Senior Editor

  1. James L Manley, Columbia University, United States

Reviewing Editor

  1. Timothy W Nilsen, Case Western Reserve University, United States

Reviewer

  1. Mariano A Garcia-Blanco, University of Texas Medical Branch, United States

Publication history

  1. Received: July 6, 2020
  2. Accepted: September 1, 2020
  3. Accepted Manuscript published: September 2, 2020 (version 1)
  4. Accepted Manuscript updated: September 3, 2020 (version 2)
  5. Version of Record published: September 25, 2020 (version 3)

Copyright

© 2020, Yao et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,543
    Page views
  • 190
    Downloads
  • 3
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Chromosomes and Gene Expression
    2. Genetics and Genomics
    Asli Azizoglu et al.
    Tools and Resources

    Conditional expression of genes and observation of phenotype remain central to biological discovery. Current methods enable either on/off or imprecisely controlled graded gene expression. We developed a 'well-tempered' controller, WTC846, for precisely adjustable, graded, growth condition independent expression of genes in Saccharomyces cerevisiae. Controlled genes are expressed from a strong semisynthetic promoter repressed by the prokaryotic TetR, which also represses its own synthesis; with basal expression abolished by a second, 'zeroing' repressor. The autorepression loop lowers cell-to-cell variation while enabling precise adjustment of protein expression by a chemical inducer. WTC846 allelic strains in which the controller replaced the native promoters recapitulated known null phenotypes (CDC42, TPI1), exhibited novel overexpression phenotypes (IPL1), showed protein dosage-dependent growth rates and morphological phenotypes (CDC28, TOR2, PMA1 and the hitherto uncharacterized PBR1), and enabled cell cycle synchronization (CDC20). WTC846 defines an 'expression clamp' allowing protein dosage to be adjusted by the experimenter across the range of cellular protein abundances, with limited variation around the setpoint.

    1. Biochemistry and Chemical Biology
    2. Chromosomes and Gene Expression
    Fiona Haward et al.
    Research Article

    Shuttling RNA-binding proteins coordinate nuclear and cytoplasmic steps of gene expression. The SR family proteins regulate RNA splicing in the nucleus and a subset of them, including SRSF1, shuttles between the nucleus and cytoplasm affecting post-splicing processes. However, the physiological significance of this remains unclear. Here, we used genome editing to knock-in a nuclear retention signal (NRS) in Srsf1 to create a mouse model harboring an SRSF1 protein that is retained exclusively in the nucleus. Srsf1NRS/NRS mutants displayed small body size, hydrocephalus and immotile sperm, all traits associated with ciliary defects. We observed reduced translation of a subset of mRNAs and decreased abundance of proteins involved in multiciliogenesis, with disruption of ciliary ultrastructure and motility in cells and tissues derived from this mouse model. These results demonstrate that SRSF1 shuttling is used to reprogram gene expression networks in the context of high cellular demands, as observed here, during motile ciliogenesis.
