Subthalamic beta-targeted neurofeedback speeds up movement initiation but increases tremor in Parkinsonian patients

  1. Shenghong He
  2. Abteen Mostofi
  3. Emilie Syed
  4. Flavie Torrecillos
  5. Gerd Tinkhauser
  6. Petra Fischer
  7. Alek Pogosyan
  8. Harutomo Hasegawa
  9. Yuanqing Li
  10. Keyoumars Ashkan
  11. Erlick Pereira
  12. Peter Brown  Is a corresponding author
  13. Huiling Tan  Is a corresponding author
  1. MRC Brain Network Dynamics Unit at the University of Oxford, United Kingdom
  2. Nuffield Department of Clinical Neurosciences, University of Oxford, United Kingdom
  3. Neurosciences Research Centre, Molecular and Clinical Sciences Research Institute, St George’s University of London, United Kingdom
  4. Department of Neurology, Bern University Hospital and University of Bern, Switzerland
  5. Department of Neurosurgery, King's College Hospital NHS Foundation Trust, King's Health Partners, United Kingdom
  6. School of Automation Science and Engineering, South China University of Technology, China
Research Article
  • Cited 1
  • Views 1,031
  • Annotations
Cite this article as: eLife 2020;9:e60979 doi: 10.7554/eLife.60979

Abstract

Previous studies have explored neurofeedback training for Parkinsonian patients to suppress beta oscillations in the subthalamic nucleus (STN). However, its impacts on movements and Parkinsonian tremor are unclear. We developed a neurofeedback paradigm targeting STN beta bursts and investigated whether neurofeedback training could improve motor initiation in Parkinson’s disease compared to passive observation. Our task additionally allowed us to test which endogenous changes in oscillatory STN activities are associated with trial-to-trial motor performance. Neurofeedback training reduced beta synchrony and increased gamma activity within the STN, and reduced beta band coupling between the STN and motor cortex. These changes were accompanied by reduced reaction times in subsequently cued movements. However, in Parkinsonian patients with pre-existing symptoms of tremor, successful volitional beta suppression was associated with an amplification of tremor which correlated with theta band activity in STN local field potentials, suggesting an additional cross-frequency interaction between STN beta and theta activities.

Introduction

Enhanced synchronization of neural activity in the beta band (13–30 Hz) has been consistently observed in the subthalamic nucleus (STN) in patients with Parkinson’s disease (Kühn et al., 2009; Neumann et al., 2016). Synchrony in this frequency band takes the form of short-lived bursts of different durations and amplitudes (Tinkhauser et al., 2017a; Tinkhauser et al., 2017b). The occurrence rate of longer beta bursts with large amplitude positively correlates with motor impairment (Tinkhauser et al., 2017a; Tinkhauser et al., 2020; Torrecillos et al., 2018). Closed-loop deep brain stimulation (DBS), which selectively truncates long duration beta bursts, can achieve clinical improvement that is at least as good as that with conventional continuous DBS in acute trials (Little et al., 2013; Little et al., 2016). These studies highlight the importance of modulating the temporal dynamics of beta activity in the STN for the treatment of Parkinson’s disease.

A better understanding of the electrophysiological biomarkers underlying symptoms of bradykinesia and rigidity in Parkinson’s disease has motivated the use of neurofeedback as a therapeutic technique for the disease (Esmail and Linden, 2014; Fukuma et al., 2018; Carney, 2019). In neurofeedback training, neural activities were recorded and quantified in real-time and provided to the participant for the purpose of self-regulation (Sitaram et al., 2017). Parkinsonian patients have been shown to be capable of voluntarily regulating STN beta-band power measured from electrodes implanted for DBS (Carney, 2019; He et al., 2019). However, it is still not clear whether modulating beta oscillations in STN through neurofeedback training can lead to changes in motor performance in patients with Parkinson’s disease (Subramanian et al., 2011; Erickson-Davis et al., 2012). Additionally, previous studies have not specifically targeted bursts of prolonged beta activity, nor considered any additional effects of beta-targeted neurofeedback training on tremor.

Tremor is another cardinal symptom of Parkinson’s disease. Its pathophysiology remains poorly understood, but some recent studies indicate that the pattern of neural activities related to Parkinsonian tremor can be very different from those related to bradykinesia and rigidity. For example, reduced activities in the beta band and increases in power in the tremor frequency band, corresponding to the theta band (3–7 Hz), in the STN, as well as reduced basal ganglia-cortical coherence in the beta frequency band have been observed during the presence of resting tremor in Parkinson’s disease (Hirschmann et al., 2013; Qasim et al., 2016; Asch et al., 2020). Moreover, one in five patients shows resurgence of tremor if DBS is only switched on when STN beta activity is high (Little and Brown, 2020). These observations raise the possibility that neurofeedback training that suppresses beta oscillations in the STN may not improve, even worsen, resting tremor in Parkinsonian patients.

In this study, we adopted a sequential neurofeedback-behavior task to test whether modulating beta oscillations in the STN through neurofeedback training can lead to changes in motor initiation and whether the endogenous suppression of STN beta band activities increases resting tremor in Parkinson’s disease. Similar experimental designs have helped to shed light on the relationship between neural activity and behavior (McFarland et al., 2015; Khanna and Carmena, 2017). In a recent study, we showed that healthy young participants can indeed suppress cortical beta measured using electroencephalogram (EEG) with veritable neurofeedback better than sham feedback (He et al., 2020). In the paradigm of the current study, a cued finger pinch movement followed a neurofeedback phase during which the position of a visual cue was controlled by suppressing high amplitude beta bursts in activities measured by DBS electrodes implanted in the STN. The endogenous changes in subthalamic activities induced by neurofeedback training also allow us to investigate the relationship between subthalamic activities and motor performance, as well as the severity of tremor on a trial-to-trial basis in patients with Parkinson’s disease.

Results

Neurofeedback control was achieved within 1 day of training

Twelve Parkinsonian patients, who underwent bilateral implantation of DBS electrodes targeting the motor area of the STN, participated in this study during the time when the DBS leads were temporarily externalized. The position of a basketball displayed on a monitor was used as the visual feedback about the incidence of beta bursts detected in STN local field potentials (LFPs) (Figure 1A). The bipolar LFP channel and the peak frequency bands (5 Hz width) with the largest movement-related changes between 13 and 30 Hz were selected to drive the visual feedback for each hemisphere (Figure 2). Specifically, the average power in the selected beta frequency band over each 500 ms time window was used as a neurofeedback signal to control the vertical position of the basketball. In real-time, we assumed that a beta burst was detected when the average beta power within the past 500 ms time window exceeded a predefined threshold, which would result in a drop of the basketball. The patient details and patient-specific beta frequency bands are presented in Table 1. Each patient completed at least four sessions of the task with 10 trials in the ‘Training’ condition and 10 trials in the ‘No Training’ condition in each session with two hands separately (Figure 1B). The participants were asked to keep the position of the basketball high (corresponding to reduced beta bursts) during the neurofeedback phase in the ‘Training’ condition. In the ‘No Training’ control condition, they were asked to pay attention to the position of the basketball without trying to control it, though the ball was also moving toward the right as in the ‘Training’ condition, and the vertical position was controlled by the natural ongoing variations in beta activity. The average final basketball position in the vertical axis, which reflected the performance of neurofeedback control, was calculated for each tested hemisphere in each experimental condition. Paired t-test showed that the final basketball position was higher in the ‘Training’ condition compared to the ‘No Training’ condition (t20 = 4.6054, p = 0.0002, Figure 3A), and this was not consequent on physical movement that was monitored by EMGs attached to both forearms of the participants (Figure 3B).

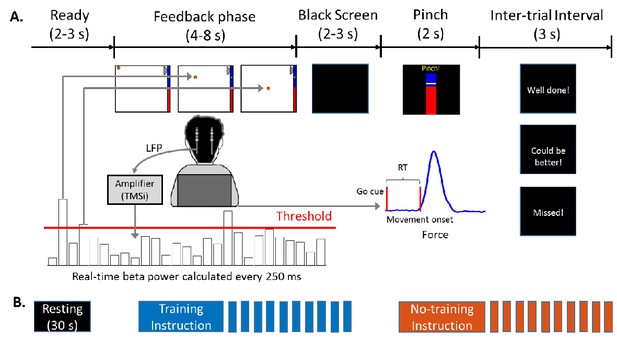

Experimental protocol.

(A) Timeline of one individual trial. Each trial consisted of a neurofeedback phase followed by a cued pinch movement. After the finger pinch motor task, a message was displayed (‘Well done!’ or ‘Could be better!’) depending on whether the reaction time of the previous movement was shorter or longer than 800 ms. If movement onset was not detected within 2 s after the Go cue, the message ‘Missed!’ was displayed. (B) Timeline of one experimental session which consisted of 30 s of resting, and one block of 10 trials in the ‘Training’ condition (when participants were instructed to keep the basketball floating) and one block of 10 trials in the ‘No Training’ condition (when the participants were instructed to just pay attention to the movement of the basketball). The order of the ‘Training’ and ‘No raining’ blocks was randomized across sessions. At the beginning of each session the threshold was recalculated based on recordings made at rest.

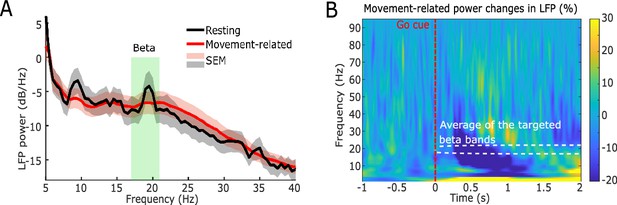

Power spectra of the neurofeedback-targeted subthalamic nucleus (STN) local field potential (LFP) signals averaged across 21 hemispheres.

(A) Resting (black) and movement-related (red) power spectral density in STN LFP recorded during the calibration procedure. The green shaded area indicates the average of the targeted beta frequency bands. (B) Group average time-frequency power spectra locked to the Go cue (red dashed line) which prompted a finger pinch movement. The white dashed rectangle indicates the average targeted beta band. The blue color displays a decrease in power relative to the pre-cue baseline (expressed as percentage change).

Table 1
Patients' details.
PatientGAge (yr)DD (yr)U offU onDBS leadSelected contact (L/R)Beta peak (L/R Hz)Predominant symptom(s) before surgery
1M48177137BostL03/R0315/15Tremor
2aM66155734MedtL23/R0120/20Mixed
3aF70205419MedtL01/R2320/20Akinetic-rigid, tremor
4M69173718.5MedtL23/R2321/20Akinetic-rigid, tremor
5F66105330BostL01/R0115/15Akinetic-rigid
6bM6553416MedtL01/R2315/25Akinetic-rigid
7a,bM6193312BostL01/R2320/22Tremor
8cM4984534BostL0115Tremor
9cF5764819BostL2319Mixed
10bM51122713BostL23/R2322/21Akinetic-rigid
11a,bM676N/AN/ABostL23/R2319/19Tremor
12a,cF7573619MedtR1218Tremor, bradykinesia, freezing
Mean-62114522.9--18.9-
SEM-8.85.113.19.1--0.6-
  1. Patients 2, 3, 7, and 11 (a) had tremor during the experiment. Patients 6, 7, 10, and 11 (b) performed the test on two consecutive days. Patient 8, 9, and 12 (c) were only recorded on one side. G = gender; yr = year; U Off/On = UPDRS Off/On; DBS = deep brain stimulation; L/R = left/right; SEM = standard error of the mean; N/A = unknown; Bost = Vercise Cartesia Directional Lead, Boston Scientific; Medt = Quadripolar Macroelectrode, Model 3389, Medtronic.

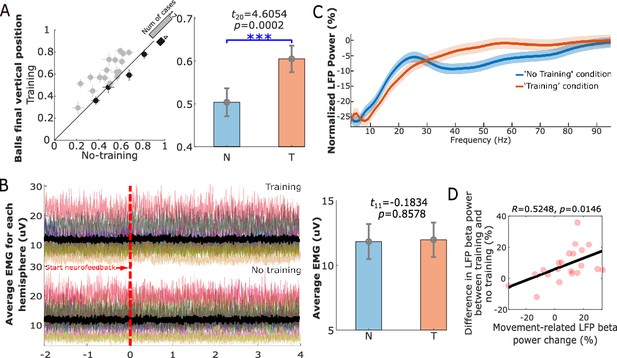

Neurofeedback training performance.

(A) The final vertical position of the basketball for each individual hemisphere (left) and group-averaged balls’ final vertical positions (mean ± SEM) in the ‘Training’ (T) and ‘No Training’ (N) conditions (right). The dots with crosses indicate the means and cross-trial SEMs for each tested hemisphere. The gray and dark-shaded dots indicate higher measurement in the ‘Training’ and ‘No Training’ conditions, respectively. The bar on the diagonal refers to the number of cases with higher measurement in each condition. The error bar plots on the right show the mean and SEM across all tested hemispheres in different conditions. (B) There was no significant difference between the rectified EMG amplitude during the neurofeedback phase in the ‘Training’ and ‘No Training’ conditions. Different colors on the left indicate the average EMGs for different hands contralateral to the tested hemispheres. The black line indicates the averaged EMG traces across hands in different conditions. The error bar plots on the right show the mean and SEM during the neurofeedback phase across hands in different conditions. (C) Group-averaged power spectra of the targeted STN LFP signals (normalized against the pre-cue resting period) in the ‘Training’ (orange) and ‘No Training’ (blue) conditions for different frequencies. Solid lines and the shaded areas show the average and SEM across all tested hemispheres. (D) The reduced beta power by neurofeedback training positively correlated with the movement-related power changes. Each pink dot indicates a hemisphere. ***p < 0.001.

Neurofeedback training reduced beta oscillations in STN LFPs and reduced beta band synchrony between the conditioned STN and ipsilateral motor cortex compared to a passive observation task

Compared to the ‘ready’ period, activity in STN was reduced over a broad frequency band (7–30 Hz) during the neurofeedback phase in the ‘Training’ condition (shown in Figure 3C), similar to the actual movement related modulation shown in Figure 2B. A paired t-test confirmed a significant effect of neurofeedback in facilitating beta suppression in terms of the average normalized power in the selected beta bands (t20 = −3.6975, p = 0.0014, Figure 4A). The difference in the normalized beta power between the ‘Training’ and ‘No Training’ conditions correlated positively with the percentage change in the beta power during real movement (r = 0.5896, p = 0.0057, Pearson’s correlation, Figure 3D). The neurofeedback training also led to reduced accumulated beta burst duration in the STN LFPs determined as percentage of time with beta amplitude being over the predefined threshold (t20 = −4.7415, p = 0.0001, 17.40 ± 1.44% compared to 22.43 ± 1.85%, mean ± SEM, Figure 4B), a reduced average burst duration (t20 = −3.9428, p = 0.0008, 319.6 ± 19.3 ms compared to 377.2 ± 21.5 ms, Figure 4C), and a reduced number of bursts per second (t20 = −4.8536, p = 0.0001, 0.446 ± 0.030 compared to 0.531 ± 0.033, Figure 4D). The bursts with durations longer than 400 ms were reduced more consistently compared with the shorter bursts (Figure 4—figure supplement 1). In addition, we observed an increase in the broad gamma frequency band (55–95 Hz) in the STN LFPs (t20 = 3.4899, p = 0.0023, Figure 5A).

Figure 4 with 1 supplement see all

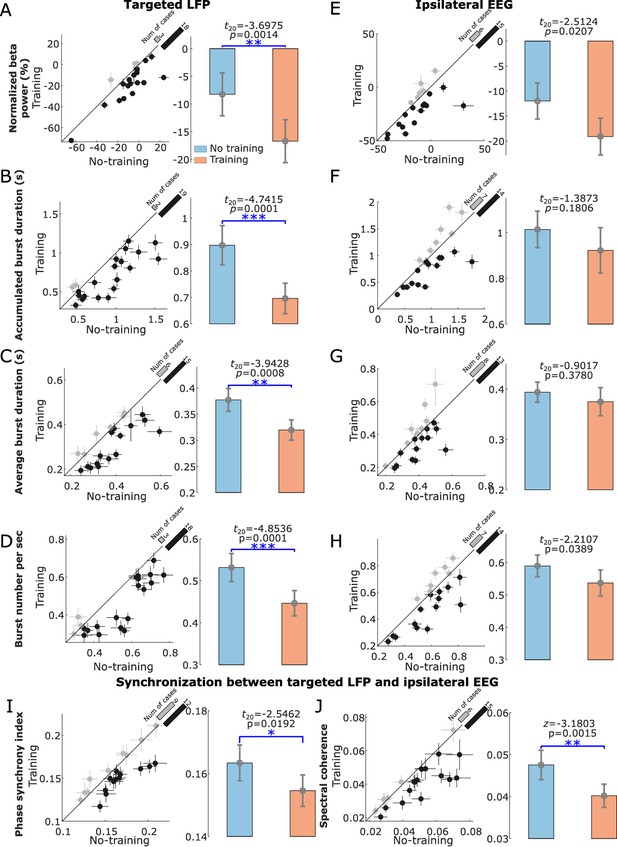

Normalized beta power and burst characteristics in the targeted subthalamic nucleus (STN) local field potential (LFP) and electroencephalogram (EEG) from ipsilateral motor cortex.

(A–D) Normalized beta power (A), total burst duration (B), average burst duration (C), and number of beta bursts per second (D) in the STN LFP were all significantly reduced in the ‘Training’ condition compared to the ‘No Training’ condition. (E–H) The same for EEG from ipsilateral motor cortex. (I and J) The phase synchrony index (I) and spectral coherence (J) between STN and ipsilateral motor cortex were significantly reduced in ‘Training’ condition compared with ‘No Training’ condition. The dots with crosses indicate the means and cross-trial SEMs for each tested hemisphere. The gray and dark-shaded dots indicate higher measurement in the ‘Training’ and ‘No Training’ conditions, respectively. The bar on the diagonal refers to the number of cases with higher measurement in each condition. The error bar plots on the right show the mean and SEM across all tested hemispheres in different conditions; *p < 0.05, **p < 0.01/4 in (A) and (C), **p < 0.01 in (J), ***p < 0.001/4; Beta indicates hemisphere-specific beta band.

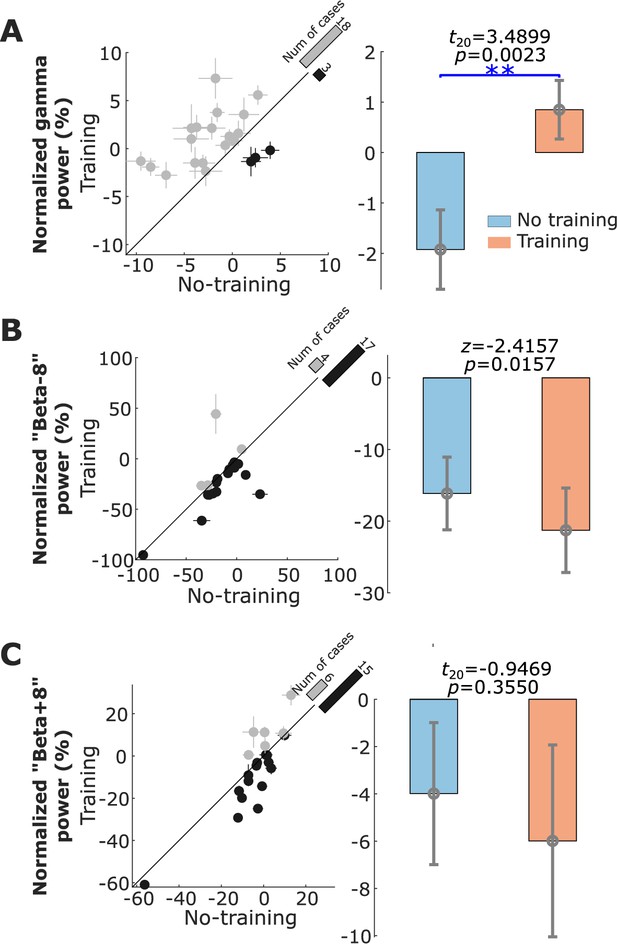

Normalized power in the gamma, ‘Beta−8’, and ‘Beta+8’ frequency bands associated with neurofeedback training in the targeted subthalamic nucleus (STN) local field potential (LFP).

(A) The average normalized gamma (55–95 Hz) power in the STN LFP was significantly increased in the ‘Training’ condition compared with the ‘No Training’ condition. (B and C) There was no significant change in the power percentage change in the ‘Beta−8’ frequency band and the ‘Beta+8’ frequency band between the ‘Training’ and ‘No Training’ conditions. The dots with crosses indicate the means and cross-trial SEMs for each tested hemisphere. The gray and dark-shaded dots indicate higher measurement in the ‘Training’ and ‘No Training’ conditions, respectively. The bar on the diagonal refers to the number of cases with higher measurement in each condition. The error bar plots on the right show the mean and SEM across all tested hemispheres in different conditions; **p < 0.01; Beta indicates hemisphere-specific beta band.

There was no significant change in the ‘Beta−8Hz’ (centered between 9.4 and 13.4 Hz, Figure 5B) or higher frequency band (‘Beta+8’ [centered between 25.4 and 29.4 Hz], Figure 5C).

Although there was a trend of reduction in the average normalized beta power and beta burst characteristics in the EEG recorded over the ipsilateral motor cortex, the changes were not significant or did not survive multiple comparison correction (Figure 4D–H). There was no significant change in the gamma activities in the EEG measured over the motor cortex (z = 0.7821, p = 0.4342).

The phase synchrony index (t20 = −2.5462, p = 0.0192, Figure 4I) and spectral coherence (z = −3.1803, p = 0.0015, Figure 4J) between the conditioned STN and ipsilateral motor cortex were significantly reduced in the beta band in the ‘Training’ condition compared with the ‘No Training’ condition, and this change did not happen in other frequency bands (‘Beta−8’ or ‘Beta+8’).

Carry-over effect of neurofeedback training

There was a sustained carry-over effect of neurofeedback training over the short time window (~2 s) after the neurofeedback phase when a black screen was presented before the Go cue. The average normalized beta power (k = 0.6050 ± 0.0241, p < 0.0001), accumulated beta burst duration (k = 0.0892 ± 0.0144, p < 0.0001), and normalized gamma power (k = 0.9617 ± 0.0073, p < 0.0001) during the 2 s pre-Go cue were positively correlated with the average normalized beta power, beta burst duration, and normalized gamma power during the 4 s feedback phase, respectively, as identified by the generalized linear mixed effects (GLME) modeling using the measurements during the 2 s pre-Cue and 4 s feedback phase as the dependent variables and predictors, respectively. If we replaced the predictor by the experimental condition (‘Training’ or ‘No Training’) in the models, the results revealed that the average beta power (k = −0.2523 ± 0.0769, p = 0.0011) and accumulated beta burst duration (k = −0.0601 ± 0.0172, p = 0.0005) during the 2 s pre-Go cue were significantly reduced in the ‘Training’ condition compared to the ‘No Training’ condition. In contrast, the average gamma power during the 2 s pre-Go cue were significantly increased (k = 0.0781 ± 0.0296, p = 0.0083) in the ‘Training’ condition compared to the ‘No Training’ condition.

Neurofeedback training improved reaction time in subsequently cued movements

The reaction time in response to the Go cue was significantly reduced in the ‘Training’ condition compared with the ‘No Training’ condition (487.4 ± 29.7 ms compared to 510.9 ± 32.3 ms, t20 = −2.7518, p = 0.0123, paired t-test, Figure 6A). Figure 6B shows an example of the recorded left-hand pinch force in the ‘Training’ and ‘No Training’ conditions from Patient 12.

Figure 6 with 2 supplements see all

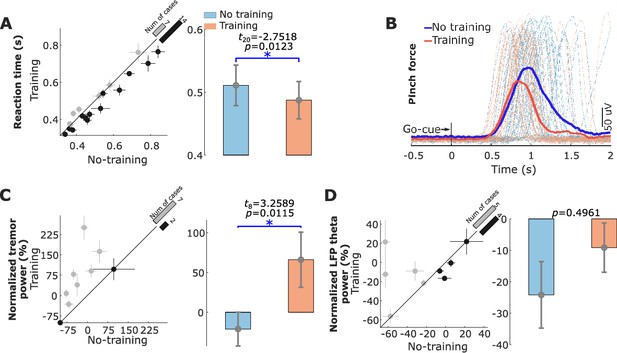

Behavioral changes (reaction time and tremor) associated with neurofeedback training.

(A) The reaction time for each individual hemisphere (left) and group-averaged reaction time in the ‘Training’ and ‘No Training’ conditions (right). (B) Recorded left-hand pinch force in the ‘Training’ (red) and ‘No Training’ (blue) conditions for each individual trial (dashed line) and the trial-averaged curves (solid lines) from Patient 12. (C) Normalized tremor power quantified based on measurements from the accelerometer in the ‘Training’ and ‘No Training’ conditions for the nine hemispheres that displayed contralateral tremor during the experiment. (D) Normalized power in the tremor frequency band in the subthalamic nucleus local field potential for the nine hemispheres that displayed contralateral tremor during the experiment. * indicates significance after correction for multiple comparison p < 0.0167.

GLME modeling was used to investigate the relationship between the reaction time and the STN LFP activities in the beta (β) and gamma (γ) frequency bands considering all valid trials for both the ‘Training’ and ‘No Training’ conditions across all tested hemispheres. We focused on the neural activities during the 2 s window before the Go-cue when the visual neurofeedback was no longer presented. When STN average beta power or beta burst characteristics (average burst duration, accumulated burst duration) during the 2s before the Go-cue were used as the only predictor in separate models, all of them significantly contributed to the prediction of reaction time (Models 1–5, Table 2). We then used the model of RT  k1×TorN+k2×β +k3×γ+ k4×α+1|SubID (Model 6) to evaluate if activities in broad band gamma (γ) and alpha (α) frequency bands also contributed to the prediction of reaction time. In the latter model, only average beta power (β) was used so as to keep the unit of beta similar to that of the other frequency bands used. This model confirmed the significant effect of beta-targeted neurofeedback training (i.e., whether patients were in the ‘Training’ or ‘No Training’ condition) in reducing reaction time (TorN: k1 = −0.0154 ± 0. 0071, p = 0.0297), and of a significant positive effect of the beta band power (β: k2 = 0.0061 ± 0.0020, p = 0.0017) and negative effect of gamma band power (γ:k3 = −0.0085 ± 0.0026, p = 0.0014) in the STN LFPs over the 2 s before the Go-cue. There was no significant effect of alpha band activity on reaction time (α:k4 = 0.0029 ± 0.0022, p = 0.1948). Overall, around 20% of the variance in the reaction time was being explained by the model (Model 6, R2 = 0.2072, Table 2). The significant negative k1 showed that there was an effect of ‘Training’ in reducing the reaction time, which cannot be explained by changes in the beta or gamma band power. The positive sign of k2 and negative sign of k3 indicate that reduced STN beta band power and increased gamma band power over the 2 s before the Go-cue predicted faster reaction time. In addition, we selected a subgroup (75%) of trials from the ‘Training’ and ‘No Training’ conditions that have similar normalized beta power (Figure 6—figure supplement 1A), and tested the differences in reaction time and normalized gamma power. The results showed no significant difference in the RT (t20 = −0.4374, p = 0.6665, Figure 6—figure supplement 1B) nor in the normalized gamma power (z = −0.8168, p = 0.4140, Figure 6—figure supplement 1C) between the selected trials from the ‘Training’ and ‘No Training’ conditions but with matched normalized beta power. Overall these analyses suggest that beta modulation during neurofeedback training does contribute to the changes in RT, even though other condition factors (e.g., cognitive requirement) may also contribute to the observed difference in the RT between the ‘Training’ and ‘No Training’ conditions.

Table 2
Generalized linear mixed effects modeling details.
IDModelAkaike's information criterion (AIC)k-Valuep-ValueR2
1RT1+k×TorN+1|SubID−1201.4k=-0.0158±0.0072p=0.02780.1893
2RT1+k×βLFP+1|SubID−1194.6k=0.0061±0.0019p=0.00110.1912
3RT1+k×Dur1LFP+1|SubID−1189.5k=0.0284±0.0092p=0.00210.1897
4RT1+k×Dur2LFP+1|SubID−1182.4k=0.0274±0.0136p=0.04360.1869
5RT1+k×NumLFP+1|SubID−1190k=0.0231±0.0086p=0.00740.1888
6RT1+k1×TorN+k2×βLFP+k3×γLFP+k4×αLFP+1|SubID−1236.5k1=-0.0152±0.0071
k2=0.0069±0.0020
k3=-0.0010±0.0024
k4=0.0003±0.0013
p1=0.0316
p2=0.0008
p3=0.00003
p4=0.8365
0.2072
7RT1+k×βEEG+1|SubID−1195.7k=0.0074±0.0019p=0.00010.1924
8RT1+k1×TorN+k2×βEEG+k3×αEEG+1|SubID−1218.1k1=-0.0158±0.0071
k2=0.0067±0.0024
k3=0.0007±0.0016
p1=0.0276
p2=0.0058
p3=0.6469
0.1965
9RT1+k1×TorN+k2×βLFP+k3×γLFP+k4×βEEG+1|SubID−1236.6k1=-0.0154±0.0071
k2=0.0061±0.0020
k3=-0.0085±0.0026
k4=0.0029±0.0022
p1=0.0297
p2=0.0017
p3=0.0014
p4=0.1948
0.2076
  1. Response distribution: Inverse Gaussian.

    Link function: identity.

  2. or N: ‘Training’ (valued 1) or ‘No Training’ (valued 0) conditions.

    βLFP: Average LFP beta power during the 2 s before the Go-cue.

  3. Dur1LFP: Accumulated LFP beta burst duration during the 2 s before the Go-cue.

    Dur2LFP: Average LFP beta burst duration during the 2 s before the Go-cue.

  4. NumLFP: LFP beta burst number during the 2 s before the Go-cue.

    γLFP: Average LFP gamma (55–95 Hz) power during the 2 s before the Go-cue.

  5. αLFP: Average LFP alpha (8–12 Hz) power during the 2 s before the Go-cue.

    βEEG: Average EEG beta power during the 2 s before the Go-cue.

  6. αEEG: Average EEG alpha (8–12 Hz) power during the 2 s before the Go-cue.

When the EEG beta band and alpha band activities, and the experimental condition were considered as the only predictors in the model, the EEG beta band activity also contributed to the prediction of reaction time (k = 0.0067 ± 0.0024, p = 0.0058, Model 8, Table 2), consistent with previous findings in young healthy participants (He et al., 2020). However, when EEG beta, STN beta, and STN gamma were considered together in one model, only STN beta and STN gamma significantly contributed to the prediction of reaction time (Model 9, Table 2).

Neurofeedback training targeting STN beta activity increased tremor

Five out of the twelve participants (nine STN hemispheres) in the study displayed resting tremor during the recording, which enabled us to investigate how volitional suppression of STN beta oscillations affected tremor in Parkinson’s disease. The tremor severity, quantified based on the measurements from the tri-axial accelerometer attached to the contralateral hand, increased during the ‘Training’ condition compared to the ‘No Training’ condition contralateral to seven out of the tested nine hemispheres (Figure 6C, t8 = 3.2589, p = 0.0115). GLME modeling (Tremor  k1×TorN+k2×β+k3×θ+1|SubID) confirmed the significant effect of neurofeedback training (TorN: k1 = 3.9415 ± 0.4925, p < 0.0001) on increasing tremor. It also indicated that increased tremor band activity (θ: k3 = 0.6341 ± 0.0499, p < 0.0001) and reduced beta band activity (β: k2 = −0.5971 ± 0.1990, p = 0.0028) in the STN LFPs predicted increased tremor. Overall, the model explained 58.39% of the variance in the tremor power (R2 = 0.5839). When the theta power in the EEG was included in the model, the prediction was not improved (k = −0.1526, p = 0.1103). In addition, a significantly positive correlation was observed between the tremor power and the theta band power in the STN LFP across hemispheres (R = 0.5003, p = 0.034, Pearson’s, Figure 6—figure supplement 2). There was no significant difference in the tremor severity between ‘Training’ and ‘No Training’ conditions when 75% of trials with matched normalized beta power from the two conditions were considered (t8 = −1.1152, p = 0.2971, Figure 6—figure supplement 1D). These results suggested that the difference in the experimental condition by itself did not lead to significant difference in the tremor severity between the ‘Training’ and ‘No Training’ conditions if the beta power was the same.

Overnight learning effect of the neurofeedback training

In most EEG-based neurofeedback studies, training sessions are repeated over several separate days (Engelbregt et al., 2016; Schabus et al., 2017). In this study, four participants (eight hemispheres) repeated the task on two separate, consecutive days. Comparing against Day 1, six out of the eight tested hemispheres showed increased neurofeedback control (indicated by the increased difference in the ‘Training’ and ‘No Training’ conditions) on Day 2 (Figure 7A). The other two tested hemispheres that had already achieved good neurofeedback control on Day 1 did not further improve on Day 2 (H7 and H8 in Figure 7A).

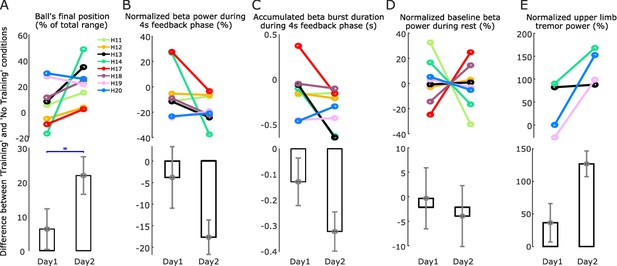

Comparison between two training days.

(A) The difference in the basketball’s final vertical position between the ‘Training’ and ‘No Training’ conditions, an indication of the neurofeedback control performance, was significantly increased on Day 2 compared to Day 1. (B) The reduction in the average normalized beta power in the ‘Training’ condition compared to the ‘No Training’ condition was further enhanced on Day 2 compared to Day 1. (C) The reduction in the total beta burst duration in the ‘Training’ condition compared to the ‘No Training’ condition was further enhanced on Day 2 compared to Day 1. (D) There was no significant change in the baseline beta power during rest between Day 1 and Day 2. The baseline beta power was quantified during all the time periods when the participants were at rest throughout the whole experiment session and then normalized by dividing the mean value across 2 days to achieve the percentage change value. (E) The increase in the normalized tremor power in the ‘Training’ condition compared to the ‘No Training’ condition was also enhanced during Day 2 compared to Day 1. Individual hemispheres and group-averaged data are shown in the upper and lower panels, respectively. Values are presented as mean ± SEM; *p < 0.05 (Wilcoxon signed rank test).

GLME modeling using the difference in the basketball's final position, average beta power, or accumulated beta burst duration between ‘Training’ and ‘No Training’ conditions as dependent variable, experimental day (Day 1 or Day 2) as fixed predictor, and a random intercept for each hemisphere confirmed a significant interaction between experimental condition and recording days on the basketball's final position (k = 0.1497 ± 0.0372, p = 0.0001), average beta power (k = −12.56 ± 3.8987, p = 0.0017), and accumulated beta burst duration (k = −0.1803 ± 0.0632, p = 0.0051), suggesting the neurofeedback training on Day 2 was associated with better neurofeedback control and more reduction in the average beta power and accumulated beta burst duration compared to Day 1 (Figure 7A–C). There was no significant change in the baseline beta power during rest between Day 1 and Day 2 (Figure 7D).

To investigate whether the baseline beta power changes overnight, GLME modeling using the average beta power as dependent variable, experimental condition (‘Training’ or ‘No Training’) and experimental day (Day 1 or Day 2) as fixed predictor, and a random intercept for each hemisphere was applied. Apart from the significant interaction between experimental condition and the average beta power (k = −0.5835, p < 0.0001), the results also confirmed a significant interaction between experimental day and average beta power (k = −0.1949, p = 0.0108), which could not be explained by the different experimental conditions, suggesting a baseline reduction of the beta power over the two consecutive training days. There was no significant baseline change if we replaced average beta power by accumulated beta burst duration in the model (k = 0.0041, p = 0.8996).

For the two patients (four hemispheres) who had tremor and repeated the task over two consecutive days, tremor during the ‘Training’ condition was increased more on Day 2 than Day 1 in all four hemispheres (Figure 7E). Considering all the individual trials across the two recording days for these hemispheres, GLME modeling using the average tremor power as dependent variable, experimental condition (or N: ‘Training’ or ‘No Training’), experimental day (Day: 1 or 2), average beta power (β), and theta power (θ) in the STN LFP as fixed predictors, and a random intercept for each hemisphere confirmed significant effects for all predictors (or N: k = 4.1901 ± 0.5696, p < 0.0001; Day: k = 3.2611 ± 0.5477, p < 0.0001; β: k = −0.6253 ± 0.2073, p = 0.0027; θ: k = 0.7016 ± 0.0487, p < 0.0001), suggesting the reduced beta and increased theta power in the STN during neurofeedback training on Day 2 associated with the increased tremor.

Discussion

This is the first study to show that volitional suppression of beta bursts in the STN LFP facilitated by neurofeedback training is able to speed up movement initiation in subsequent cued movement in Parkinsonian patients. This is consistent with previous studies that demonstrate a positive correlation between purposely induced beta-power and reaction time (Khanna and Carmena, 2017; Peles et al., 2020). We also showed that the suppression of beta was accompanied by an increase in the broad gamma band activity in the STN. Both the reduced beta and increased gamma in the STN LFP before the Go-cue predicted faster reaction time.

Neurofeedback training for Parkinson’s disease

Neurofeedback training aiming to train subjects to self-regulate their neural activity has been proposed to be a promising technique to tune pathological brain activities underlying different diseases (Ros et al., 2014).

In the current study, online visual feedback reflected the activity that has been previously related to motor impairment in Parkinson’s disease (Kühn et al., 2006) – the beta band oscillations in the STN LFPs recorded from the electrode implanted for DBS. We selected a patient-specific beta frequency band that was modulated by voluntary movements and was also enhanced relative to other frequency bands during rest. Our paradigm took into account the temporal dynamics of the signal of interest and reduced the variance and noise in the visual feedback that are not behaviorally relevant, thus allowing Parkinsonian patients to learn to suppress beta bursts within 30 min of training even when off medication. This was accompanied by reduced reaction time in cued movements, which strengthens the link between STN beta, particularly beta bursts, and motor impairment and also suggests that neurofeedback training may help patients develop a strategy to speed up movement initiation.

It should be acknowledged that proper sham control would be required to determine whether observed behavioral and electrophysiological alterations were due to veritable neurofeedback or mediated by other mental strategies (Thibault et al., 2015; Thibault et al., 2016). Our recent study (He et al., 2020) with double-blinded sham control in a similar paradigm targeting the EEG sensorimotor beta activity in young healthy participants showed that veritable neurofeedback had extra effect compared to mental strategies. Thus, considering that externalized patients provide a rare opportunity to understand the response of STN activity to interventions, we did not include a sham condition but only used veritable neurofeedback. Here we argue that veritable neurofeedback may help patients to develop an efficient mental strategy to modulate targeted pathological activities in a short period of time. Our recent study (He et al., 2020) suggested that suppression of sensorimotor cortex beta bursts facilitated by neurofeedback training could help improve movement initiation in healthy subjects. The current study suggests that suppression of STN beta bursts facilitated by neurofeedback training also led to a trend of reduced beta over the motor cortex, and reduced beta band coherence between the STN and ipsilateral motor cortex. In addition, it helped improve movement initiation in Parkinson’s disease. Even though STN beta is shown to be a more consistent biomarker for bradykinesia in Parkinson’s disease, cortical beta oscillation can be measured noninvasively and using cortical beta as neurofeedback signal may make the method more feasible in patients. However, it remains to be tested whether EEG-based neurofeedback training could be used to suppress STN beta bursts and improve movement initiation in Parkinson’s disease.

Broad band gamma activities in STN LFP for Parkinson’s disease

In this study, we observed significant increase in the broad band gamma activity accompanied with reduced beta in the STN LFPs during the neurofeedback phase and during the short period of time after the neurofeedback disappeared. In addition, both the reduced beta and increased gamma in the STN LFPs before the Go-cue contributed to the prediction of shorter reaction times. The increase of gamma and reduction of beta band activity in STN have been reported during voluntary movements (Androulidakis et al., 2007; Kempf et al., 2009; Brücke et al., 2012; Brücke et al., 2013). The level of gamma increase and beta reduction during the onset of voluntary gripping movements also helps predict gripping force and movement speed (Tan et al., 2016; Lofredi et al., 2018). In the dopamine-depleted state, movement-related subcortical gamma power significantly decreased (Kempf et al., 2009; Litvak et al., 2012), particularly during the trials when peak velocity was slower than ON medication (Lofredi et al., 2018). These studies suggest that in addition to increased synchrony in the beta band, reduced subcortical gamma signaling in the dopamine-depleted state may also contribute to bradykinesia. The present study shows that Parkinsonian patients were able to purposely increase subcortical gamma band activities. The observed effect in the gamma frequency band may have been mediated by the mental strategy or arousal, since a previous study has shown that STN gamma activity increased during motor imagery and scaled with imagined gripping force (Fischer et al., 2017). We also showed that increases in gamma oscillations before the Go-cue predict faster reaction time, over and above the prediction afforded by reduced beta band activities. These results suggest that gamma oscillations may be another important treatment target for Parkinson’s disease. Treatments increasing subcortical gamma oscillations, such as medication with levodopa (Androulidakis et al., 2007), may also help improve motor initiation.

Different pathophysiology underlying akinesia-rigidity and tremor in Parkinson’s disease

Another important observation in this study is that neurofeedback training targeting beta oscillations may increase tremor, as well as tremor band activities in the STN LFP in tremulous patients. This was not just due to increased cognitive load during the neurofeedback phase since the tremor got worse on Day 2 even though neurofeedback control was improved. Our results are consistent with previous studies showing that, in the presence of tremor, neuronal oscillations at tremor frequency (3–7 Hz) tend to increase in the cortical-basal ganglia-thalamic circuit (Hirschmann et al., 2013), whereas beta power (13–30 Hz) and beta band coupling in the motor network are reduced (Qasim et al., 2016). Therefore, neurofeedback training targeting beta activity might not help patients with tremor. Such patients might be better served by neurofeedback training focusing on tremor-related oscillations.

Over-night training sessions

We showed that the patients’ ability to modulate their STN beta activity during the neurofeedback phase increased in Day 2 compared to Day 1, even though the baseline beta activities during rest were similar during Day 1 and Day 2. In particular, those patients who did not achieve good neurofeedback control carried on learning and showed significant improvement on Day 2 compared with Day 1. These results suggest that spaced training may facilitate further learning. However, it also remains to be tested if spaced training across multiple sessions would attenuate the connections in the targeted neural network that give rise to synchronization through Hebbian plasticity (Legenstein et al., 2008; Ros et al., 2014) and whether spaced training can lead to reduced beta synchrony even during rest outside of the neurofeedback task. It would also be interesting to test the effect of neurofeedback training spread out over longer periods as chronic sensing with bidirectional devices becomes more widely available (Herron et al., 2017; Khanna et al., 2017; Haddock et al., 2018; Houston et al., 2019).

Limitations

A within-participant design comparing the ‘Training’ against the ‘No Training’ conditions was used in this study to evaluate the effect of neurofeedback training. In a separate study with young healthy participants, we showed that ‘veritable feedback’ is better than ‘sham feedback’ in training participants to modulate neural activities even when using similar self-reported mental strategies (He et al., 2020). We did not use ‘sham feedback’ in the current study because intermixing ‘sham feedback’ and ‘veritable feedback’ might have had a negative impact on motivation and might have interfered with learning given the time constraints we had in the patients with externalized electrodes. Therefore, with the current study, we cannot disambiguate whether the observed effects are due to the neurofeedback training or mediated by mental strategy (motor imagery). However, the main results remain valid: Parkinsonian patients can purposely modulate pathological subcortical brain activities, and this modulation led to improved movement initialization. In addition, the more beta band reduction and increase in gamma band activities before the Go-cue predicted faster reaction time.

In summary, we designed a neurofeedback paradigm targeting the neural signal that has previously been shown to be related to bradykinesia and rigidity in Parkinson’s disease – beta bursts in the STN. By tailoring the paradigm to the patient-specific beta frequency band and taking into account the temporal dynamics of the signal of interest, the paradigm allowed patients to purposely suppress pathological beta oscillations in the STN within a short training session. The training also led to reduced coupling between the STN and EEG over the motor cortex in the targeted frequency band, as well as to an increase in broad band gamma activity in the STN LFP. Importantly, these changes were accompanied by a reduction in cued reaction time. The results strengthen the link between STN beta oscillations, beta bursts in particular, and motor impairment. Although gamma activity also changed with neurofeedback, multilevel modeling showed that gamma and beta effects independently help predict reaction times. Thus, the results also identify STN gamma activities as an important target for treating motor impairment in Parkinson’s disease. The effects of neurofeedback on motor initiation were encouraging, and there was also some indication that the behavioral effects of neurofeedback training might increase over consecutive days. It remains to be seen whether this can translate into a prolonged effect on voluntary motor control, and whether this correlates with clinically meaningful symptom amelioration. It should also be noted that when proposing neurofeedback as a potential therapy, symptom-specific biomarker should be used, and its temporal dynamics need to be taken into account.

Materials and methods

Subjects

Twelve Parkinsonian patients (four females), who underwent bilateral implantation of DBS electrodes targeting the motor area of the STN, participated in this study. The DBS leads were temporarily externalized (3–6 days) prior to a second surgery to connect the leads to a pulse generator. The placements of the leads were confirmed by fusion of preoperative MRI and postoperative CT scans. All patients had normal or corrected-to-normal vision and an average age of 62 ± 8.8 (range 48–75) years and disease duration of 11 ± 5.1 (range 5–20) years. Patients showed good response to dopaminergic medication with mean scores of the Unified Parkinson’s Disease Rating Scale (UPDRS) of 45 ± 13.1 and 22.9 ± 9.1 for medication OFF and ON, respectively. All experiments were conducted with the patients off their dopaminergic medication overnight. The study was approved by the local ethics committees and all patients provided their informed written consent according to the Declaration of Helsinki before the experiments. The clinical details of the patients are summarized in Table 1.

Experimental protocol

Request a detailed protocol

The neurofeedback training protocol comprised multiple short trials, similar to what was used in a previous study with healthy young participants (He et al., 2020). Each trial consisted of a 2–3 s period during which the patients were instructed to get ready, and a neurofeedback phase lasting 4–8 s followed by a cued motor task 2–3 s after the neurofeedback phase (see Figure A). During the neurofeedback phase, an image of a basketball was presented on a monitor with the vertical position of the basketball indicating the incidence of high amplitude beta bursts quantified in real-time based on the STN LFP measurements. The vertical movement of the basketball was sensitive to the STN beta power calculated within 500 ms long moving windows in real-time. For each update, which occurred every 250 ms (so that windows overlapped), if the calculated beta power was larger than a predefined threshold T, the basketball dropped downwards by a fixed distance. The distance of each drop of the basketball was set so that if the patient was in a resting state, the basketball would drop down to the bottom of the screen within 4–8 s due to spontaneous variations in the power of beta oscillations. If the threshold was not crossed, the ball only moved horizontally on the screen. Thus, the position of the basketball was independent from other variations in beta power that were lower than the threshold used to define beta bursts. This design reduced noise in the visual feedback, and thereby helped participants to gain a sense of agency within a short time period. In the ‘Training’ condition trials, participants were instructed to try to keep the ball floating at the top of the monitor screen during the neurofeedback phase. The patients were explicitly told that imagining moving their contralateral hand may help to improve the performance but were also encouraged to try different strategies without any real movements. In order to control for effects caused by attending to the moving visual stimulus, participants also performed the task in a ‘No Training’ condition, in which they were instructed to pay attention to the ball movement and get ready for the Go-cue without having to voluntarily control the position of the ball, though the ball was also moving toward the right as in the ‘Training’ condition, and the vertical position was controlled by the natural ongoing variations in beta activity.

A Go-cue appeared 2–3 s after the neurofeedback phase to prompt the participants to perform a finger pinch movement. All participants were reminded to avoid any voluntary movements until the Go-cue was presented, and then to pinch a small force meter as fast as possible using their thumbs in response to the Go-cue. The force meter was held on a table by the participant throughout the whole experiment.

Each experimental session consisted of 30 s of rest, a block of 10 trials in the ‘Training’ condition, and a block of 10 trials in the ‘No Training’ condition (Figure 1B). The instruction for each block was presented for 10 s before the block started. The order of training and no training blocks was randomized in each session. During the 30 s rest period, the power of the selected beta frequency was calculated every 250 ms, and the 75th percentile of the beta power calculated during this 30 s period was then used as the threshold T for triggering the vertical movement of the basketball in the following session.

Nine out of the twelve participants completed four sessions of the task separately with both hemispheres and contralateral arms, and the other three participants only completed the task with the dominant hand for the motor task and the contralateral STN. All trials were visually inspected and those with obvious movement artifact during the neurofeedback phase were excluded. Short breaks were provided between sessions, and the recording for each STN lasted for around 30 min. Four patients repeated the same task over two consecutive days with both hemispheres, which allowed us to investigate overnight learning effects.

Data recording

Request a detailed protocol

All recordings in this study were undertaken 3–6 days after the first surgery for bilateral DBS electrodes (Quadripolar Macroelectrode, Model 3389, Medtronic or Vercise Cartesia Directional Lead, Boston Scientific) implantation and prior to the second surgery for connecting the electrodes to the subcutaneous pulse generator. For directional DBS leads, the segmented contacts of levels 2 and 3 were ganged together to make one monopolar channel for the recording. Eight monopolar channels of bilateral STN LFPs and eight monopolar channels of EEG signals covering ‘Fz’, ‘FCz’, ‘Cz’, ‘Oz’, ‘C3’, ‘C4’, ‘CP3’, and ‘CP4’ according to the standard 10–20 system were recorded using a TMSi Porti amplifier (TMS International, The Netherlands) at a sampling rate of 2048 Hz. A common average reference was applied automatically to all recorded monopolar signals by the amplifier. The ground electrode was placed on the left forearm. Electromyography (EMG) was simultaneously recorded using the same amplifier from Flexor Carpi Radialis of both arms and the masseter muscle. One tri-axial accelerometer was taped to the back of each hand in order to monitor kinematic movements and any tremor. Generated force in the cued pinch movements was recorded using a pinch meter (P200, Biometrics Ltd). In addition, the real-time positions (X, Y) of the basketball in each trial, which allowed evaluation of the performance of neurofeedback training during the online experiment, and the trigger signals of the paradigm were recorded through an open-source toolkit named Lab Streaming Layer (LSL) (Kothe, 2014). The synchronization between different data streams was achieved through LSL and another open-source toolkit named Openvibe (Renard et al., 2010). The paradigm used in this study was developed in C++ (Visual Studio 2017, Microsoft) and the online/offline data processing was achieved in Matlab (R2018a, MathWorks, US).

Selecting the STN LFP channel and the target frequency band

Request a detailed protocol

Prior to each experiment, monopolar STN LFPs and EEG data were first recorded during 60 s at rest and during 15 trials of cued finger pinch movements with each hand (Tan et al., 2015). The recorded monopolar STN LFPs were re-montaged to bipolar LFPs (through subtraction of adjacent annular or pseudo-annular contacts) prior to analysis. The movement-related power reduction for each bipolar LFP channel contralateral to the performing hand in the beta frequency band (13–30 Hz) was calculated and the bipolar LFP channel with the maximal reduction during movement was selected as the target LFP channel. A 5 Hz frequency band around the frequency showing maximal movement-related modulation ([f-2, f+2]) was determined as the individual-specific beta frequency band. The selected bipolar STN LFP channels and the selected frequency band for each STN are listed in Table 1. The frequency showing maximal movement-related modulation ranged from 17.4 Hz to 21.4 Hz across all tested STNs and coincided with the peak in the average power spectral density of the selected bipolar channel during rest (Figure 2A).

Estimating beta power in real-time to determine the position of visual feedback online

Request a detailed protocol

During the online experiment, the beta power of the selected frequency band was calculated in real-time every 250 ms using a segment of 500 ms data (with 50% overlapping) recorded from the selected bipolar LFP channel. For each segment of 500 ms data, we first applied a mean subtraction followed by a 5–85 Hz band pass filter on the raw data. Next, FFT was applied to calculate the power spectrum of the filtered data and the average power of the selected frequency band was quantified as the beta band power of the current update. At the beginning of each session, data were recorded with the participant resting for 30 s, during which time the beta band power was also updated every 250 ms (119 times). From these values, we selected the 75th percentile as the threshold T for that recording session, which means that when the patient was at rest, their beta power would exceed the threshold 25% of the time (Tinkhauser et al., 2017a; Tinkhauser et al., 2017b). The threshold was recalculated at the beginning of each session in order to correct for any drift in the average beta power with time spent in the task.

In this paradigm, the position of the basketball was updated every 250 ms, which corresponded to 16–32 updates during the 4–8 s of neurofeedback in each trial. For each update, the displacement of the basketball on the horizontal axis was constant, so the basketball moved from left to right at constant speed. The displacement of the basketball on the vertical axis was related to the beta band power calculated in real-time. When the updated beta power was larger than the threshold T, the basketball displayed on the screen dropped downwards by one step. The distance of each step was calibrated, so that the basketball would drop to the bottom of the screen if beta was over the threshold for 25% of the update time points during the feedback phase (4–8 s). Thus, the final vertical position of the basketball in each trial was directly associated with the number of incidences when beta power exceeded the threshold within that time window.

Offline data analysis

Visual feedback

Request a detailed protocol

The trajectory of the basketball and the final vertical position of the basketball in each individual trial were recorded. The difference between the final vertical positions of the basketball between the ‘Training’ and ‘No Training’ conditions indicated the effect of the neurofeedback training. The variations across training days in the differences in the ball’s final vertical positions between these two conditions indicated the learning effect induced by neurofeedback training.

Motor performance

Request a detailed protocol

We quantified the reaction time in response to the Go-cue for each trial based on the recorded pinch force. Specifically, the measured force was first low-pass filtered with a 20 Hz cut-off frequency using a fourth order zero-phase digital filter and segmented into 4 s epochs extending between 1 s prior to and 3 s after the Go-cue. We then calculated a threshold to define pinch onset by taking the mean plus three times the standard deviation (SD) of a segment of 500 ms force data before the cue of the pinch task. The time delay between the Go-cue and the time point when the force crossed the determined threshold and sustained for at least 100 ms was taken as the RT of that trial. Force measurements from individual trials were visually inspected; those trials with obvious artifacts failed to pinch within 2 s after the Go-cue, or with a reaction time smaller than 0.2 s were excluded. Thus, for each of the 21 STN hemispheres we analyzed 44.38 ± 3.88 (mean ± SEM) and 44.57 ± 3.84 trials in the ‘Training’ and ‘No Training’ conditions, respectively, resulting in 1868 trials in total across all tested hemispheres.

Hand tremor was monitored by a tri-axial accelerometer attached to the back of each hand. The power in the tremor frequency band (3–7 Hz) was quantified for each axis separately and then averaged across all axes.

Offline analysis of STN LFP and EEG

Request a detailed protocol

The LFPs from the selected STN bipolar channel and EEGs recorded over motor cortex (C3 or C4) were further analyzed off-line with Matlab (v2018a, MathWorks, US). The signals were first band-pass filtered between 0.5 and 100 Hz and notch filtered at 50 Hz using a fourth order zero-phase digital filter. Time-frequency decomposition was obtained by continuous complex Morlet wavelet transformation with a linear frequency scale ranging from 1 to 95 Hz with 1 Hz resolution, and a linearly spaced number (4–8) of cycles across all calculated frequencies. The calculated power of each time point and each frequency was first normalized against the average value quantified across all the time periods when the participants were at rest throughout the whole experiment for that frequency, in order to derive the percentage change. The time courses of beta power percentage changes were separately averaged across trials in the ‘Training’ and ‘No Training’ conditions. The average normalized power in the frequency band and time window of interest were calculated for each individual trial for further analysis. In the offline analysis, different beta burst characteristics (accumulated duration, average duration, and number of bursts) during the first 4 s of the neurofeedback phase were recalculated as in Tinkhauser et al., 2017a. In order to investigate whether there would be a similar impact of neurofeedback training on the power and bursts in other non-targeted frequency bands, for each hemisphere, we repeated the power and burst characteristics calculation and analyses in two other frequency bands which were not overlapping with the selected 5 Hz beta band by shifting the center frequency band by 8 Hz down and up, to give ‘Beta−8 Hz’ and ‘Beta+8 Hz’ frequency bands.

The connectivity between the STN LFP and ipsilateral motor cortex EEG was evaluated using the phase synchrony index (PSI, Equation 1; Lachaux et al., 2000) and spectral coherence (Coh, Equation 2; Lachaux et al., 1999) calculated based on the time-frequency decomposition results after complex Morlet transformation, and compared between experimental conditions (‘Training’ or ‘No Training’).

(1) PSI= |n1t=1nei(φlfptφeegt)|
(2) Coh= |n1t=1n|mlfpt||meegt|ei(φlfptφeegt)|2(n1t=1n|mlfpt|2)(n1t=1n|meegt|2)

where n indicates the total time points in each trial (4 s), φlfpt and φeegt indicate the phase values of the selected LFP and EEG signals at time point t, and mlfpt and meegt indicate the amplitude values of the selected LFP and EEG signals at time point t, respectively.

Generalized linear mixed effects modeling

Request a detailed protocol

GLME modeling (Matlab function fitglme) was used to assess the trial-to-trial within-subject relationship between different measurements, and how they were changed by neurofeedback training. Apart from transforming the dependent variable to eliminate the deviation from normality distribution, GLME also allows researchers to select a theoretical distribution that matches the properties of the dependent variable (Lo and Andrews, 2015). For example, the measured RT is skewed and closer to an Inverse Gaussian distribution instead of a normal Gaussian distribution, thus an Inverse Gaussian distribution was selected in the models using RT as dependent variable. When applying GLME modeling, data from all valid individual trials from all tested hemispheres were considered, and the average power (10log10 transferred to dB) was used when applicable. The slope(s) between the predictor(s) and the dependent variable were set to be fixed across all hemispheres; a random intercept was set to vary by hemisphere. The details of the models were described together with the results.

Statistical analysis

Request a detailed protocol

Paired t-tests (Matlab function t-test) or nonparametric Wilcoxon signed-rank test (Matlab function signrank), depending on whether the normal distribution assumption was satisfied, was used to evaluate the effect of the experimental condition (‘Training’ and ‘No Training’) on neurofeedback task performance, the motor task reaction time, tremor severity, and neural activities measured in STN LFPs and EEGs. The normal distribution assumption was tested using Anderson–Darling test (Matlab function adtest) (Anderson and Darling, 1952). Multiple comparisons applied to different measurements were corrected using Bonferroni correction.

When GLME modeling was used, the estimated fixed effect coefficient (k), which indicates the potential positive or negative correlation between the predictor and the dependent variable, the corresponding t-statistic p-value, and R2 were reported.

Data availability

Source data and codes for generating Figures 2-7, all supplement figures, and Table 2 have been provided.

References

Decision letter

  1. Preeya Khanna
    Reviewing Editor; University of California, Berkeley, United States
  2. Richard B Ivry
    Senior Editor; University of California, Berkeley, United States
  3. Tomas Ros
    Reviewer; University of Geneva, Switzerland
  4. Preeya Khanna
    Reviewer; University of California, Berkeley, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This is an innovative study where patients with Parkinson's disease and deep brain stimulation devices use real-time feedback in order to reduce their subthalamic nucleus (STN) beta band power. The training condition (where beta band power is lowered) precedes faster reaction times in a pinching task. This study extends the use of sequential neurofeedback-motor tasks that have been used in animal models and healthy participants to a patient population, and demonstrates a link between lowering STN beta, a biomarker thought to reflect the bradykinesia and rigidity state, and improved movement initiation. Further, the study shows that patients improve their ability to lower STN beta with a 2nd day of practice, and that lowering STN beta increases tremor, a novel finding and important consideration for the use of neurofeedback paradigms to improve motor symptoms in parkinsonian patients.

Decision letter after peer review:

Thank you for submitting your article "Subthalamic beta targeted neurofeedback training speeds up movement initiation but increases tremor in Parkinsonian" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Preeya Khanna as the Guest Reviewing Editor and Richard Ivry as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Tomas Ros (Reviewer #2); Preeya Khanna (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

Summary:

Overall, the authors present a study in patients with Parkinson's disease and recent DBS implants of using subthalamic nucleus (STN) beta neurofeedback in a sequential neurofeedback-behavior task setup. They show that when participants are training with neurofeedback, they are able to reduce STN beta power, burst duration, and number of burst and increase STN gamma power. The "training" condition with NF precedes faster reaction times, and in a subset of cases, higher tremor. Finally, the authors show that patients can improve their NF performance on a 2nd consecutive day of training. Overall the reviewers agreed that this was an interesting and innovative study.

Revisions for this paper:

1) The common major concern was the lack of controls performed in order to identify whether the reduced reaction times (and increased tremor in some patients) were due to patients engaging in a more cognitively demanding task that required higher alertness ("training") compared to a less cognitively demanding task ("no training") or whether the lower reaction time (and increased tremor) was due to reductions in beta power in STN. Supporting this concern is the finding that when including a training vs. non-training variable into the regression used to predict RT, that the variable remained significant even in the presence of the beta power variable. This shows that beta modulation does not fully account for the effect of RT, and subjects may be doing something else to improve their RT in the training blocks. The authors are very forthcoming with their lack of control, and that's appreciated! Since we appreciate the difficulties in acquiring patient data in the current pandemic environment, we are wondering if the authors can leverage their current data to demonstrate that there are not significant differences in RT distribution if they select trials from the training and no-training conditions that have similar beta power distributions.

2) Even if the suggested above analysis is able to be completed, the reviewers would like to see many claims (including the title) in the study re-phrased to reflect the ambiguity of whether the neurofeedback task alone or the reduction in beta power resulted in RT/tremor changes. Examples of these phrases and edits to the claims include:

i) "Subthalamic beta targeted neurofeedback training speeds up movement initiation but increases tremor in Parkinsonian" to "Performance of a NF beta suppression task predicts faster movement initiation and increases in tremor in Parkinson's Disease compared to a passive observation task"

ii) "We developed a neurofeedback paradigm targeting beta bursts to investigate whether volitional suppression of STN beta can improve motor performance in Parkinson's disease." to "We developed a neurofeedback paradigm targeting beta bursts and investigated whether performance of the NF task could improve motor initiation in PD"

iii) "Successful volitional beta suppression was associated with an amplification of Parkinsonian tremor, suggesting a role of STN beta in tremor." to “Successful NF task performance was associated with STN beta suppression and amplification of PD tremor.”

iv) "Neurofeedback training reduced beta oscillations in STN LFPs and reduced beta band synchrony between the conditioned STN and ipsilateral motor cortex", same claim but add "compared to a passive observation task" to the end of the sentence.

3) Presentation of more raw data is needed as almost all plots include only pre-processed data. For example, for Figure 3B, it would be helpful to see raw EMG traces, not just bar plots. It is hard to know what 20uV means, and since we are only told there is no sig. difference between the training and no-training it could mean there's some ongoing EMG in both conditions. Either way, would be helpful to see some example trials. Similarly, it would be helpful to present raw trials and subject average time-traces of the pinch force sensor. Right now, we only know that RT changes, but would be nice to see the traces to see if other statistics about the movement onset change (max force, slope of force onset, etc.).

4) Please report R2 (explained variance) values in Table 2. Significance is fine, but nice to also know how much RT variance is being explained by each of the models.

5) The authors refer interchangeably to beta bursts and beta power. They are obviously related, but please clarify that the average beta power was used as a neurofeedback signal (not burst counts).

6) Did neurofeedback reduce mostly long (“pathological”) bursts or also short (“physiologic”) bursts?

7) One major omission in this manuscript is some additional figures (LFP and EEG) of the theta frequency (4-7 Hz) which the authors repeatedly relate to underlie tremor. Please add this for completeness, including a plot of the regression with the accelerometer tremor data.

8) Please discuss the relationship of the current study to the EEG study of (He et al., 2020) and given your observations, the translational potential of using noninvasive EEG neurofeedback as a therapy for Parkinson's in lieu of DBS electrodes.

9) It strikes me as peculiar that the top left inset in Figure 4A Average Power (dB) has a large t-value of t = -4.769 but that visually there is an almost complete overlap in the error bars (compared to the other plots). How may this large effect size be explained given the large errors ? I realize this is a paired t-test but I would recommend to re-verify your analyses as a cautious double check.

10) Given the overnight learning effect of the neurofeedback training, it might be interesting to also discuss the potential neuroplastic mechanisms behind this effect, e.g. Hebbian plasticity (see Ros et al., 2014).

Revisions expected in follow-up work:

When data collection becomes more feasible, we would like to see the authors perform an appropriate control study in either the same or separate cohort of patients. This control could involve NF modulation to increase STN beta (and show an increase in RT) or could involve NF modulation of a difference frequency band (and show no change in RT). These experiments could be summarized in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

https://doi.org/10.7554/eLife.60979.sa1

Author response

Revisions for this paper:

1) The common major concern was the lack of controls performed in order to identify whether the reduced reaction times (and increased tremor in some patients) were due to patients engaging in a more cognitively demanding task that required higher alertness ("training") compared to a less cognitively demanding task ("no training") or whether the lower reaction time (and increased tremor) was due to reductions in beta power in STN. Supporting this concern is the finding that when including a training vs. non-training variable into the regression used to predict RT, that the variable remained significant even in the presence of the beta power variable. This shows that beta modulation does not fully account for the effect of RT, and subjects may be doing something else to improve their RT in the training blocks. The authors are very forthcoming with their lack of control, and that's appreciated! Since we appreciate the difficulties in acquiring patient data in the current pandemic environment, we are wondering if the authors can leverage their current data to demonstrate that there are not significant differences in RT distribution if they select trials from the training and no-training conditions that have similar beta power distributions.

We thank the reviewers for the thoughtful comment. According to the reviewers’ suggestion, we have now selected 75% of trials from the “Training” and “No Training” conditions for each hemisphere, respectively, that have similar beta power distributions. We then compared the reaction time, gamma power, and tremor severity of these trials. As shown in Figure 6—figure supplement 1, there were no significant differences in the RT, gamma power, and tremor severity between “Training” and “No Training” conditions between these trails from different experimental conditions but with matched beta power. These results suggest that the difference in the experimental condition by itself may not lead to a difference in the RT, gamma power, and tremor severity. Thus, beta modulation during neurofeedback training does contribute to the changes in RT, even though some other factors (e.g., cognitive requirement) may also contribute to the observed difference in the RT between the “Training” and “No Training” conditions, as the reviewers pointed out and as the GLME modeling applied to all trials from both conditions revealed. Please see the new Figure 6—figure supplement 1 and revised text:

Results subsection “Neurofeedback training improved reaction time in subsequently cued movements”

“The significant negative k1 showed that there was an effect of “Training” in reducing the reaction time which cannot be explained by changes in the beta or gamma band power. The positive sign of k2 and negative sign of k3 indicate that reduced STN beta band power and increased gamma band power over the 2 s before the Go cue predicted faster reaction time. In addition, we selected a subgroup (75%) of trials from the “Training” and “No Training” conditions that have similar normalized beta power (Figure 6—figure supplement 1A), and tested the differences in reaction time and normalized gamma power. The results showed no significant difference in the RT (t20 = -0.4374, p = 0.6665, Figure 6figure supplement 1B) nor in the normalized gamma power (z = -0.8168, p = 0.4140, Figure 6—figure supplement 1C) between the selected trials from the “Training” and “No Training” conditions but with matched normalized beta power. Overall these analyses suggest that beta modulation during neurofeedback training does contribute to the changes in RT, even though other condition factors (e.g., cognitive requirement) may also contribute to the observed difference in the RT between the “Training” and “No Training” conditions.”

Subsection “Neurofeedback training targeting STN beta activity increased tremor”

“There was no significant difference in the tremor severity between “Training” and “No Training” conditions when 75% of trials with matched normalized beta power from the two conditions were considered (t8 = -1.1152, p = 0.2971, Figure 6figure supplement 1D). These results suggested that the difference in the experimental condition by itself did not lead to significant difference in the tremor severity between the “Training” and “No Training” conditions if the beta power was the same.”

2) Even if the suggested above analysis is able to be completed, the reviewers would like to see many claims (including the title) in the study re-phrased to reflect the ambiguity of whether the neurofeedback task alone or the reduction in beta power resulted in RT/tremor changes. Examples of these phrases and edits to the claims include:

i) "Subthalamic beta targeted neurofeedback training speeds up movement initiation but increases tremor in Parkinsonian" to "Performance of a NF beta suppression task predicts faster movement initiation and increases in tremor in Parkinson's Disease compared to a passive observation task"

ii) "We developed a neurofeedback paradigm targeting beta bursts to investigate whether volitional suppression of STN beta can improve motor performance in Parkinson's disease." to "We developed a neurofeedback paradigm targeting beta bursts and investigated whether performance of the NF task could improve motor initiation in PD"

iii) "Successful volitional beta suppression was associated with an amplification of Parkinsonian tremor, suggesting a role of STN beta in tremor." to “Successful NF task performance was associated with STN beta suppression and amplification of PD tremor.”

iv) "Neurofeedback training reduced beta oscillations in STN LFPs and reduced beta band synchrony between the conditioned STN and ipsilateral motor cortex", same claim but add "compared to a passive observation task" to the end of the sentence.

We thank the reviewers’ rigorous suggestions. These claims now have been re-phrased accordingly. Please see the revised sentences:

Title

i) We have a limit in the number of characters (120) in the title, therefore we kept the original title “Subthalamic beta targeted neurofeedback speeds up movement initiation but increases tremor in Parkinsonian patients” but has added “compared to passive observation” in the Abstract.

Abstract

ii) “We developed a neurofeedback paradigm targeting STN beta bursts and investigated whether neurofeedback training could improve motor initiation in Parkinson’s disease compared to passive observation.”

iii) “However, in Parkinsonian patients with pre-existing symptoms of tremor, successful volitional beta suppression was associated with an amplification of tremor which correlated with theta band activity in STN LFPs, suggesting an additional cross-frequency interaction between STN beta and theta activities.”

Results

iv) “Neurofeedback training reduced beta oscillations in STN LFPs and reduced beta band synchrony between the conditioned STN and ipsilateral motor cortex compared to a passive observation task”

3) Presentation of more raw data is needed as almost all plots include only pre-processed data. For example, for Figure 3B, it would be helpful to see raw EMG traces, not just bar plots. It is hard to know what 20uV means, and since we are only told there is no sig. difference between the training and no-training it could mean there's some ongoing EMG in both conditions. Either way, would be helpful to see some example trials. Similarly, it would be helpful to present raw trials and subject average time-traces of the pinch force sensor. Right now, we only know that RT changes, but would be nice to see the traces to see if other statistics about the movement onset change (max force, slope of force onset, etc.).

We have now added the averaged EMG trace during the 2 s pre-feedback and 4 s feedback phase for each hemisphere in each condition in the revised Figure 3B, and have added an example of the recorded left-hand pinch force from P12 in Figure 6B. Please see the revised and new added Figures 3B and 6B and the corresponding text:

Results subsection “Neurofeedback training improved reaction time in subsequently cued movements”

“The reaction time in response to the Go cue was significantly reduced in the “Training” condition compared with the “No Training” condition (487.4 ± 29.7 ms compared to 510.9 ± 32.3 ms, t20 = -2.7518, p = 0.0123, paired t test, Figure 6A). Figure 6B shows an example of the recorded left-hand pinch force in the “Training” and “No Training” conditions from Patient 12.”

4) Please report R2 (explained variance) values in Table 2. Significance is fine, but nice to also know how much RT variance is being explained by each of the models.

We followed this suggestion and have now added the R2 for each tested model in the revised Table 2. Overall, around 20% of the variance in the reaction time was being explained by the models. When the “Training” and “No Training” conditions were considered separately in the model, around 24% and 19% of the variance in the reaction time were being explained by the models in the “Training” and “No Training” conditions, respectively. Please see the revised Table 2 and the revised text:

Results subsection “Neurofeedback training improved reaction time in subsequently cued movements”

“Overall, around 20% of the variance in the reaction time was being explained by the model (Model 6, R2 = 0.2072, Table 2). The significant negative k1 showed that there was an effect of “Training” in reducing the reaction time which cannot be explained by changes in the beta or gamma band power. The positive sign of k2 and negative sign of k3 indicate that reduced STN beta band power and increased gamma band power over the 2 s before the Go cue predicted faster reaction time.”

5) The authors refer interchangeably to beta bursts and beta power. They are obviously related, but please clarify that the average beta power was used as a neurofeedback signal (not burst counts).

We apologize for the unclear statements regarding this issue. Indeed, the average beta power over each 500 ms was used as a neurofeedback signal to control the basketball movement. We have now clarified this as:

Results subsection “Neurofeedback control was achieved within one day of training”

“The bipolar LFP channel and the peak frequency bands (5 Hz width) with the largest movement-related changes between 13-30Hz were selected to drive the visual feedback for each hemisphere (Figure 2). Specifically, the average power in the selected beta frequency band over each 500 ms time window was used as a neurofeedback signal to control the vertical position of the basketball. In real time, we assumed that a beta burst was detected when the average beta power within the past 500 ms time window exceeded a pre-defined threshold, which would result in a drop of the basketball.”

Materials and methods subsection “Offline analysis of STN-LFP and EEG”

“In the offline analysis, different beta burst characteristics (accumulated duration, average duration, and number of bursts) during the first four seconds of the neurofeedback phase were re-calculated as in Tinkhauser et al., 2017a.”

6) Did neurofeedback reduce mostly long (“pathological”) bursts or also short (“physiologic”) bursts?

According to the reviewers’ comment, we have now compared the distribution profiles of the beta bursts with different durations during the 4s feedback phase between “Training” and “No Training” conditions. As shown in Figure 4—figure supplement 1, the neurofeedback training was associated with an overall reduction of beta bursts of different durations, which was consistent with the results in Figure 4B-D showing a significant reduction of accumulated burst duration, average burst duration, and burst number in “Training” condition compared with “No Training” condition. The difference was more pronounced for bursts with durations longer than 400 ms. Please see the new added Figure 4—figure supplement 1 and the corresponding text:

Results subsection “Neurofeedback training reduced beta oscillations in STN LFPs and reduced beta band synchrony between the conditioned STN and ipsilateral motor cortex compared to a passive observation task”

“The neurofeedback training also led to reduced accumulated beta burst duration in the STN LFPs determined as percentage of time with beta amplitude being over the predefined threshold (t20 = -4.7415, p = 0.0001, 17.40 ± 1.44 % compared to 22.43 ± 1.85%, mean ± SEM, Figure 4B), a reduced average burst duration (t20 = -3.9428, p=0.0008, 319.6 ± 19.3 ms compared to 377.2 ± 21.5 ms, Figure 4C), and a reduced number of bursts per second (t20 = -4.8536, p = 0.0001, 0.446 ± 0.030 compared to 0.531 ± 0.033, Figure 4D). The bursts with durations longer than 400 ms were reduced more consistently compared with the shorter bursts (Figure 4—figure supplement 1).”

7) One major omission in this manuscript is some additional figures (LFP and EEG) of the theta frequency (4-7 Hz) which the authors repeatedly relate to underlie tremor. Please add this for completeness, including a plot of the regression with the accelerometer tremor data.

Thank you for the comment. According to your suggestion, we have now added a plot showing the correlation between the tremor power quantified from accelerometer measurements and the theta power in the STN LFP during the 4s feedback phase for those 9 hemispheres, which displayed contralateral tremor during the experiment. As shown in Figure 6—figure supplement 2, the STN LFP theta power was positively correlated with the accelerometer tremor band power across hemispheres (R = 0.5003, p = 0.0344, Pearson’s). There was no correlation between the theta power in the EEG and the accelerometer tremor power (R = -0.1596, p = 0.5269, Pearson’s). Please see the new added Figure 6—figure supplement 2 and text:

Results subsection “Neurofeedback training targeting STN beta activity increased tremor”

“GLME modeling (Tremork1*TorN+k2*β+k3*θ+1|SubID) confirmed the significant effect of neurofeedback training (TorN:k1= 3.9415 ± 0.4925, p < 0.0001) on increasing tremor. It also indicated that increased tremor band activity (θ:k3= 0.6341 ± 0.0499, p < 0.0001) and reduced beta band activity (β:k2= -0.5971 ± 0.1990, p = 0.0028) in the STN LFPs predicted increased tremor. Overall, the model explained 58.39 % of the variance in the tremor power (R2 = 0.5839). When the theta power in the EEG was included in the model, the prediction was not improved (k = -0.1526, p = 0.1103). In addition, a significantly positive correlation was observed between the tremor power and the theta band power in the STN LFP across hemispheres (R = 0.5003, p = 0.034, Pearson’s, Figure 6—figure supplement 2).”

8) Please discuss the relationship of the current study to the EEG study of (He et al., 2020) and given your observations, the translational potential of using noninvasive EEG neurofeedback as a therapy for Parkinson's in lieu of DBS electrodes.

We followed this suggestion and have now added the following sentences in the Discussion.

Discussion subsection “Neurofeedback training for Parkinson’s disease”

“Our recent study (He et al., 2020) suggested that suppression of sensorimotor cortex beta bursts facilitated by neurofeedback training could help improve movement initiation in healthy subjects. The current study suggests that suppression of STN beta bursts facilitated by neurofeedback training also led to a trend of reduced beta over the motor cortex, and reduced beta band coherence between the STN and ipsilateral motor cortex. In addition, it also helped improve movement initiation in Parkinson’s disease. Even though STN beta is shown to be a more consistent biomarker for bradykinesia in Parkinson’s disease, cortical beta oscillation can be measured non-invasively and using cortical beta as neurofeedback signal may make the method more feasible in patients. However, it remains to be tested whether EEG-based neurofeedback training could be used to suppress STN beta bursts and improve movement initiation in Parkinson’s disease.”

9) It strikes me as peculiar that the top left inset in Figure 4A Average Power (dB) has a large t-value of t = -4.769 but that visually there is an almost complete overlap in the error bars (compared to the other plots). How may this large effect size be explained given the large errors ? I realize this is a paired t-test but I would recommend to re-verify your analyses as a cautious double check.

We thank the reviewers for the comment. Please note that the power in the previous Figure 4 were raw power in log scale (dB). With paired t-test, a large t-value was achieved because for most hemispheres, the values in “Training” condition were consistently smaller than “No Training” condition. The almost overlapped error bars were caused by the large variance in the power amplitude in the recorded signal across hemispheres. We realised that plotting the log transformed power was misleading, therefore, we have now changed the log transformed power into percentage change by dividing the average power of different frequency band during the neurofeedback phase by the average of each frequency band across all resting periods throughout the whole experiment session. All the t-tests are now applied on the normalised percentage change. Most results are similar to when log transformed power were used as in the previous version. The only change is the effect of “Training” on the beta band modulation in the ipsilateral motor cortex measured using EEG was no longer significant after multiple comparison correction. Please see the revised figure and text:

Results subsection “Neurofeedback training reduced beta oscillations in STN LFPs and reduced beta band synchrony between the conditioned STN and ipsilateral motor cortex compared to a passive observation task”

“A paired t test confirmed a significant effect of neurofeedback in facilitating beta suppression in terms of the average normalized power in the selected beta bands (t20 = -3.6975, p = 0.0014) (Figure 4A). The difference in the normalized beta power between the “Training” and “No Training” conditions correlated positively with the percentage change in the beta power during real movement (r = 0.5896, p = 0.0057, Pearson’s correlation, Figure 3D).”

“Although there was a trend of reduction in the average normalized beta power and beta burst characteristics in the EEG recorded over the ipsilateral motor cortex, the changes were not significant or did not survive multiple comparison correction (Figure 4D-H).”

Materials and methods subsection “Offline data analysis”

“The calculated power of each time point and each frequency was first normalised against the average value quantified across all the time periods when the participants were at rest throughout the whole experiment for that frequency, in order to derive the percentage change. The time courses of beta power percentage changes were separately averaged across trials in the “Training” and “No Training” conditions. The average normalized power in the frequency band and time window of interest were calculated for each individual trial for further analysis.”

10) Given the overnight learning effect of the neurofeedback training, it might be interesting to also discuss the potential neuroplastic mechanisms behind this effect, e.g. Hebbian plasticity (see Ros et al., 2014).

We thank the reviewers for the thoughtful comment. Our results show that the base line beta activities during rest were similar during Day 1 and Day 2, but the ability to modulate this activity during the neurofeedback phase increased in Day 2. Hebbian plasticity has now been mentioned and discussed:

Discussion subsection “Over-night training sessions”

“We showed that the patients’ ability to modulate their STN beta activity during the neurofeedback phase increased in Day 2 compared to Day 1, even though the baseline beta activities during rest were similar during Day 1 and Day 2. In particular, those patients who did not achieve good neurofeedback control carried on learning and showed significant improvement on Day 2 compared with Day 1. These results suggest that spaced training may facilitate further learning. However, it also remains to be tested if spaced training across multiple sessions would attenuate the connections in the targeted neural network that give rise to synchronization through Hebbian plasticity (Legenstein et al., 2008; Ros et al., 2014) and whether spaced training can lead to reduced beta synchrony even during rest outside of the neurofeedback task.”

Revisions expected in follow-up work:

When data collection becomes more feasible, we would like to see the authors perform an appropriate control study in either the same or separate cohort of patients. This control could involve NF modulation to increase STN beta (and show an increase in RT) or could involve NF modulation of a difference frequency band (and show no change in RT). These experiments could be summarized in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

We agree with the reviewers that it would be interesting to see if an appropriate control study could support the findings in the current study. The authors are glad to do this once data collection becomes more feasible.

https://doi.org/10.7554/eLife.60979.sa2

Article and author information

Author details

  1. Shenghong He

    1. MRC Brain Network Dynamics Unit at the University of Oxford, Oxford, United Kingdom
    2. Nuffield Department of Clinical Neurosciences, University of Oxford, Oxford, United Kingdom
    Contribution
    Data curation, Software, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5269-1902
  2. Abteen Mostofi

    Neurosciences Research Centre, Molecular and Clinical Sciences Research Institute, St George’s University of London, London, United Kingdom
    Contribution
    Resources, Data curation, Validation, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Emilie Syed

    MRC Brain Network Dynamics Unit at the University of Oxford, Oxford, United Kingdom
    Contribution
    Conceptualization, Validation, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Flavie Torrecillos

    1. MRC Brain Network Dynamics Unit at the University of Oxford, Oxford, United Kingdom
    2. Nuffield Department of Clinical Neurosciences, University of Oxford, Oxford, United Kingdom
    Contribution
    Data curation, Validation, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Gerd Tinkhauser

    1. MRC Brain Network Dynamics Unit at the University of Oxford, Oxford, United Kingdom
    2. Department of Neurology, Bern University Hospital and University of Bern, Bern, Switzerland
    Contribution
    Data curation, Validation, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Petra Fischer

    1. MRC Brain Network Dynamics Unit at the University of Oxford, Oxford, United Kingdom
    2. Nuffield Department of Clinical Neurosciences, University of Oxford, Oxford, United Kingdom
    Contribution
    Data curation, Validation, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5585-8977
  7. Alek Pogosyan

    1. MRC Brain Network Dynamics Unit at the University of Oxford, Oxford, United Kingdom
    2. Nuffield Department of Clinical Neurosciences, University of Oxford, Oxford, United Kingdom
    Contribution
    Software, Validation
    Competing interests
    No competing interests declared
  8. Harutomo Hasegawa

    Department of Neurosurgery, King's College Hospital NHS Foundation Trust, King's Health Partners, London, United Kingdom
    Contribution
    Resources, Data curation, Validation
    Competing interests
    No competing interests declared
  9. Yuanqing Li

    School of Automation Science and Engineering, South China University of Technology, Guangzhou, China
    Contribution
    Resources, Validation, Writing - review and editing
    Competing interests
    No competing interests declared
  10. Keyoumars Ashkan

    Department of Neurosurgery, King's College Hospital NHS Foundation Trust, King's Health Partners, London, United Kingdom
    Contribution
    Resources, Validation, Writing - review and editing
    Competing interests
    has received educational grants from Medtronic and Abbott
  11. Erlick Pereira

    Neurosciences Research Centre, Molecular and Clinical Sciences Research Institute, St George’s University of London, London, United Kingdom
    Contribution
    Conceptualization, Resources, Validation, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  12. Peter Brown

    1. MRC Brain Network Dynamics Unit at the University of Oxford, Oxford, United Kingdom
    2. Nuffield Department of Clinical Neurosciences, University of Oxford, Oxford, United Kingdom
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Validation, Investigation, Project administration, Writing - review and editing
    For correspondence
    peter.brown@ndcn.ox.ac.uk
    Competing interests
    is a consultant for Medtronic.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5201-3044
  13. Huiling Tan

    1. MRC Brain Network Dynamics Unit at the University of Oxford, Oxford, United Kingdom
    2. Nuffield Department of Clinical Neurosciences, University of Oxford, Oxford, United Kingdom
    Contribution
    Conceptualization, Resources, Data curation, Supervision, Funding acquisition, Validation, Investigation, Methodology, Project administration, Writing - review and editing
    For correspondence
    huiling.tan@ndcn.ox.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8038-3029

Funding

Medical Research Council (MR/P012272/1)

  • Shenghong He
  • Huiling Tan

Medical Research Council (MC_UU_12024/1)

  • Flavie Torrecillos
  • Gerd Tinkhauser
  • Petra Fischer
  • Alek Pogosyan
  • Peter Brown

National Institute for Health Research (Oxford Biomedical Research Centre)

  • Shenghong He
  • Abteen Mostofi
  • Emilie Syed
  • Flavie Torrecillos
  • Gerd Tinkhauser
  • Petra Fischer
  • Alek Pogosyan
  • Peter Brown
  • Huiling Tan

Rosetrees Trust

  • Shenghong He
  • Huiling Tan

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank the patients who participated for making this study possible.

Ethics

Human subjects: Informed consent and consent to publish was obtained from patients before they took part in the study, which was approved by Oxfordshire Research Ethics Committee, reference number 18/SC/0006.

Senior Editor

  1. Richard B Ivry, University of California, Berkeley, United States

Reviewing Editor

  1. Preeya Khanna, University of California, Berkeley, United States

Reviewers

  1. Tomas Ros, University of Geneva, Switzerland
  2. Preeya Khanna, University of California, Berkeley, United States

Publication history

  1. Received: July 12, 2020
  2. Accepted: November 16, 2020
  3. Accepted Manuscript published: November 18, 2020 (version 1)
  4. Version of Record published: November 27, 2020 (version 2)

Copyright

© 2020, He et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,031
    Page views
  • 176
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    Sahana Sitaraman et al.
    Research Article

    Gap junctions between neurons serve as electrical synapses, in addition to conducting metabolites and signaling molecules. During development, early-appearing gap junctions are thought to prefigure chemical synapses, which appear much later. We present evidence for this idea at a central, glutamatergic synapse and provide some mechanistic insights. Loss or reduction in the levels of the gap junction protein Gjd2b decreased the frequency of glutamatergic miniature excitatory postsynaptic currents (mEPSCs) in cerebellar Purkinje neurons (PNs) in larval zebrafish. Ultrastructural analysis in the molecular layer showed decreased synapse density. Further, mEPSCs had faster kinetics and larger amplitudes in mutant PNs, consistent with their stunted dendritic arbors. Time-lapse microscopy in wild type and mutant PNs reveals that Gjd2b puncta promote the elongation of branches and that CaMKII may be a critical mediator of this process. These results demonstrate that Gjd2b-mediated gap junctions regulate glutamatergic synapse formation and dendritic elaboration in PNs.

    1. Neuroscience
    Amicia D Elliott et al.
    Research Article Updated

    Identifying neural substrates of behavior requires defining actions in terms that map onto brain activity. Brain and muscle activity naturally correlate via the output of motor neurons, but apart from simple movements it has been difficult to define behavior in terms of muscle contractions. By mapping the musculature of the pupal fruit fly and comprehensively imaging muscle activation at single-cell resolution, we here describe a multiphasic behavioral sequence in Drosophila. Our characterization identifies a previously undescribed behavioral phase and permits extraction of major movements by a convolutional neural network. We deconstruct movements into a syllabary of co-active muscles and identify specific syllables that are sensitive to neuromodulatory manipulations. We find that muscle activity shows considerable variability, with sequential increases in stereotypy dependent upon neuromodulation. Our work provides a platform for studying whole-animal behavior, quantifying its variability across multiple spatiotemporal scales, and analyzing its neuromodulatory regulation at cellular resolution.
