Pregnancy success in mice requires appropriate cannabinoid receptor signaling for primary decidua formation

  1. Yingju Li
  2. Amanda Dewar
  3. Yeon Sun Kim
  4. Sudhansu K Dey  Is a corresponding author
  5. Xiaofei Sun  Is a corresponding author
  1. Division of Reproductive Sciences, Cincinnati Children’s Hospital Medical Center, United States
  2. Department of Pediatrics, University of Cincinnati College of Medicine, United States
Research Article
  • Cited 0
  • Views 253
  • Annotations
Cite this article as: eLife 2020;9:e61762 doi: 10.7554/eLife.61762

Abstract

With implantation, mouse stromal cells begin to transform into epithelial-like cells surrounding the implantation chamber forming an avascular zone called the primary decidual zone (PDZ). In the mouse, the PDZ forms a transient, size-dependent permeable barrier to protect the embryo from maternal circulating harmful agents. The process of decidualization is critical for pregnancy maintenance in mice and humans. Mice deficient in cannabinoid receptors, CB1 and CB2, show compromised PDZ with dysregulated angiogenic factors, resulting in the retention of blood vessels and macrophages. This phenotype is replicated in Cnr1-/- but not in Cnr2-/-mice. In vitro decidualization models suggest that Cnr1 levels substantially increase in mouse and human decidualizing stromal cells, and that neutralization of CB1 signaling suppresses decidualization and misregulates angiogenic factors. Taken together, we propose that implantation quality depends on appropriate angiogenic events driven by the integration of CB2 in endothelial cells and CB1 in decidual cells.

Introduction

Decidualization is a critical pregnancy event that follows embryo implantation. During the initial stages of decidualization in mice, stromal cells transform into epithelioid cells (epithelial-like) surrounding the implanting embryo and form an avascular zone. This region is called the primary decidual zone (PDZ) and is critical to embryo development and successful pregnancy outcomes in mice (Cha et al., 2012). The PDZ encircles the implantation chamber (crypt) on day 5 of pregnancy and is fully established by day 6. Because the PDZ is avascular, this zone is normally devoid of maternal immune cells, and protects embryos from circulating maternal insults (Tung et al., 1986). Recently we have shown that Scribble (Scrib), a scaffold protein and a component of the planar cell polarity (PCP), plays a key role in PDZ formation (Yuan et al., 2019). However, molecular regulation in the formation of the PDZ is still far from clear.

Natural cannabinoids (tetrahydrocannabinol, the most potent psychoactive component) and endocannabinoids (anandamide and 2-arachidonoilglycerol) signal through two membrane receptors, CB1 (encoded by Cnr1) and CB2 (encoded by Cnr2). Both CB1 and CB2 are G-protein coupled receptors in the Gi/o and Gq families (Pertwee et al., 2010). CB1 is mainly expressed in the central nervous system (CNS), but also appears in peripheral tissues including the uterus, heart, testis, liver, and small intestine. By contrast, CB2 is mostly expressed in immune cells (Berdyshev, 2000). We have recently shown that CB2 is also expressed in uterine endothelial cells (Li et al., 2019). Deletion of Cnr2 increases uterine edema before implantation and causes suboptimal implantation (Li et al., 2019).

Our work has previously shown that elevated cannabinoid signaling is detrimental to early pregnancy events in mice (Sun and Dey, 2012). Furthermore, we have shown that Cnr1-/-Cnr2-/- mice have compromised implantation (Li et al., 2019), suggesting that silencing of endocannabinoid signaling is also detrimental to early pregnancy events. In the study, we showed that the litter sizes of double mutant mice, but not single mutant mice, are substantially smaller than wild-type (WT) mice. We also found that endothelial cells with Cnr2 deletion play an important role in embryo implantation (Li et al., 2019). Interestingly, resorption rate is lower in Cnr2-/- females than in Cnr1-/-Cnr2-/- females during the midgestational stage, indicating a critical role of CB1 in early pregnancy. Since CB1 abundance is quite low in the uterus, its role in early pregnancy remains obscure.

In this study, we investigated the roles of endocannabinoid signaling in decidualization using mouse models with suppressed CB1 and CB2 and a primary culture of Cnr1-/- stromal cells. The results show that double mutant mice have compromised PDZ formation, resulting in suboptimal pregnancy outcomes. Further investigation revealed that Cnr1 is expressed in decidual cells. These results, combined with our previous knowledge of CB2 expression in endothelial cells, show for the first time that angiogenic actions incited by CB2 are integrated by CB1 in decidual cells to form the avascular PDZ, which is critical for pregnancy success.

Results

Cnr1-/-Cnr2-/- females have suboptimal decidualization

Previously we showed that Cnr1-/-Cnr2-/- uteri have defective decidualization and consequent increases in midgestational resorption rates. However, the mechanism by which the absence of CB1 and CB2 signaling compromises uterine decidualization remains unclear. To explore this further, WT and Cnr1-/-Cnr2-/- females were mated with WT males. Induction of Ptgs2, a rate-limiting enzyme for prostaglandin formation, at the crypt (implantation chamber) epithelium and underlying stroma has been shown to be critical to initiate decidualization (Lim et al., 1997). Thus, we examined the expression of Ptgs2 on day 5 of pregnancy to capture the influence of Ptgs2. The expression pattern and signal intensity of Ptgs2 is comparable in WT and Cnr1-/-Cnr2-/- females (Figure 1a), indicating stimulation from embryo implantation is well received by Cnr1-/-Cnr2-/- uteri. However, the in situ hybridization of Bmp2, a morphogen expressed by cells undergoing decidualization at the site of embryo implantation (Lee et al., 2007Paria et al., 2001), reveals that stromal cell decidualization is defective in Cnr1-/-Cnr2-/- females on day 5 of pregnancy (Figure 1b). Expression of Hoxa10, also critical for decidualization (Benson et al., 1996), shows a similar reduction in Cnr1-/-Cnr2-/- implantation sites (Figure 1—figure supplement 1). Decidual defects in Cnr1-/-Cnr2-/- uteri continue on day 6 of pregnancy. The tridimensional (3D) structure of implantation sites reveals that, on day 6 of pregnancy, decidual responses in WT mice promote the uterine lumen to form an arch shape, whereas in Cnr1-/-Cnr2-/- implantation sites, the lumen remains flat (Figure 2a). The domain of Bmp2 positive signals is reduced in Cnr1-/-Cnr2-/- implantation sites (Figure 2b). In contrast, stromal cells after decidual transformation downregulate the expression of Bmp2. More decidualized cells around the implantation chamber negative for Bmp2 signals are observed on day 6 of pregnancy in WT mice as compared to Cnr1-/-Cnr2-/- implantation sites (Figure 2b). With decidualization in progress, Ptgs2 expression transitions from the antimesometrial side of the crypt to the mesometrial side in the WT crypt on day 6 of pregnancy. In Cnr1-/-Cnr2-/- implantation sites, cells on the lateral side of the implantation chamber show Ptgs2 signals, suggesting impeded progress of decidualization (Figure 2c).

Figure 1 with 1 supplement see all
Cnr1-/-Cnr2-/- females show normal responses to embryonic stimulation during implantation, but decidual process is compromised.

(a) In situ hybridization of Ptgs2 in uteri on day 5 of pregnancy. The expression patterns of Ptgs2 critical for implantation show no significant difference in WT and Cnr1-/-Cnr2-/- females. CK8 staining outlines uterine epithelial cells. (b) In situ hybridization of Bmp2 in uteri on day 5 of pregnancy. Decidual responses in Cnr1-/-Cnr2-/- females are much weaker than those in WT females. le, luminal epithelium; s, stroma; ge, glandular epithelium; Asterisks, positions of embryos; Scale bars, 500 μm. All images are representative of three independent experiments.

Cnr1-/-Cnr2-/- females have suboptimal decidualization.

(a) 3D visualization of day 6 implantation sites in WT and Cnr1-/-Cnr2-/- females. Images of E-cadherin immunostaining, segmented, and 3D rendered images of day 6 implantation sites in each genotype show compromised decidual responses in Cnr1-/-Cnr2-/- females. Scale bars, 300 μm. (b and c) In situ hybridization of Bmp2 and Ptgs2 in uteri on day 6 of pregnancy. M, mesometrial; AM, anti-mesometrial; Asterisks, positions of embryos; Scale bars, 500 μm. All images are representative of three independent experiments.

Macrophages are retained around the implantation chambers of compromised deciduae in Cnr1-/-Cnr2-/- females

Hematopoietic cells, including macrophages, are distributed throughout mouse uteri before implantation, though these cells are not present in the decidual zone after implantation (Erlebacher, 2013; Nancy et al., 2012). We observed that the distribution of hematopoietic cells, as revealed by a pan hematopoietic marker CD45, is comparable in Cnr1-/-Cnr2-/- and WT uteri on day 4 of pregnancy (Figure 3a). This observation is further confirmed by the distribution of macrophages, which are demarcated by a macrophage marker F4/80 staining (Austyn and Gordon, 1981; Figure 3b). These results suggest that hematopoietic cells normally enter the uterus of Cnr1-/-Cnr2-/- mice before implantation. On day 6 of pregnancy, most hematopoietic cells migrate away from the implantation chamber in WT females, whereas some hematopoietic cells fail to do so in Cnr1-/-Cnr2-/- females (Figure 3—figure supplement 1). Similarly, most macrophages are absent from the WT implantation chamber, but some macrophages remain around the Cnr1-/-Cnr2-/- embryos, albeit at reduced number (Figure 3c). The significant lingering of macrophages in the Cnr1-/-Cnr2-/- endometrium (Figure 3d) suggests that impeded decidual responses in Cnr1-/-Cnr2-/- females fail to dispel macrophages efficiently. Collectively, the result suggests that the normally developed decidua protects the developing blastocyst from inflammatory insult from macrophages and that this safe-guard mechanism is compromised in double-mutant mice.

Figure 3 with 1 supplement see all
Macrophages are retained around implantation chambers of compromised deciduae in Cnr1-/-Cnr2-/- females.

(a) Uterine leukocytes in pre-implantation are highlighted by CD45, which is expressed on all leukocytes. (b) Immunofluorescent staining of F4/80 on day 4 of pregnancy to mark macrophages. (c) Immunofluorescent staining of F4/80 on day 6 of pregnancy. (d) The numbers of macrophages within the endometrial domains are quantified using three sections obtained from three different animals in each genotype. le, luminal epithelium; s, stroma; myo, myometrium; Asterisks, positions of embryos; Scale bars, 500 μm; *p<0.05, Student’s t-tests. All images are representative of three independent experiments.

The formation of the primary decidual zone is compromised in Cnr1-/-Cnr2-/- implantation sites

On day 6 of pregnancy, the first stratum of the decidual zone, called the primary decidual zone (PDZ), is fully established. As previously stated, the PDZ is an avascular zone comprised of stromal cells undergoing epithelial-like transformation and is impermeable to maternal immune cells; as such, this zone is indispensable to protect and support further embryo development (Tung et al., 1986). The finding that macrophages remain close to Cnr1-/-Cnr2-/- implantation chambers prompted us to examine the formation of the PDZ on day 6 of pregnancy. PDZ formation requires Scrib signaling (Yuan et al., 2019), yet the Scrib positive domain is much reduced in Cnr1-/-Cnr2-/- females (Figure 4a). This result is also supported by the presence of blood vessels, revealed by immunostaining of FLK1, a reliable marker of blood vessels, in the Cnr1-/-Cnr2-/- PDZ on day 6 of pregnancy (Figure 4b). The presence of blood vessels in Cnr1-/-Cnr2-/- PDZ is significantly abundant than that in WT PDZ (Figure 4—figure supplement 1). Vegfa, which promotes angiogenesis by targeting its receptor FLK1 (Millauer et al., 1993), shows a dynamic spatiotemporal expression pattern in periimplantation uteri (Halder et al., 2000). Vegfa expression is downregulated in WT PDZ on day 6 of pregnancy, whereas positive Vegfa signals are observed in the PDZ of Cnr1-/-Cnr2-/- mice (Figure 4b), similar to FLK1 positive cells in the same area. These results indicate that normal disappearance of blood vessels is hindered in Cnr1-/-Cnr2-/- PDZ, accompanied by lingering macrophages around the embryo.

Figure 4 with 1 supplement see all
The formation of the primary decidual zone is compromised in Cnr1-/-Cnr2-/- implantation sites.

(a) The primary decidual zone is highlighted by Scribble on day 6 of pregnancy. (b) Immunofluorescence staining of FLK1 and in situ hybridization of Vegfa in day 6 pregnant uteri. Blood vessels and higher Vegfa signals are observed in the PDZ area (indicated by green or white lines) of Cnr1-/-Cnr2-/- implantation sites. CK8 staining outlines epithelial cells. Asterisks, positions of embryos; Scale bars, 500 μm. All images are representative of three independent experiments.

Retention of blood vessels in Cnr1-/-Cnr2-/- PDZ is associated with multiple angiogenic factors

Proangiogenic angiopoietin-1 (ANGPT1), targeting TIE2 receptors on endothelia, is critical to assemble newly formed vasculature and stabilize the vascular network and integrity (Davis et al., 1996; Suri et al., 1996). By contrast, angiopoietin-2 (ANGPT2), an ANGPT1 antagonist (Maisonpierre et al., 1997), promotes endothelial cell apoptosis and vascular regression. Angpt1 is expressed in most stromal/decidual cells but is absent in the PDZ region of day 6 implantation sites in WT mice (Figure 5a). However, Angpt1 expression remains in the PDZ of Cnr1-/-Cnr2-/- mice, which facilitates the stability of vessels in the region (Figure 5a). The signal intensity of Angpt1 is quantified in Figure 5—figure supplement 1. In contrast to Angpt1, Angpt2 is expressed in decidualized stromal cells surrounding the implantation chamber at the mesometrial side in WT females (Figure 5b). The domain expressing Angpt2 and the signal intensity are much reduced in Cnr1-/-Cnr2-/- implantation sites (Figure 5b and Figure 5—figure supplement 1). These results indicate that opposing functions between ANGPT1 and ANGPT2 at implantation sites maintain a vascular network that supports normal implantation; in Cnr1-/-Cnr2-/- implantation sites, these opposing functions are dysregulated. To further determine the roles of CB1 and CB2 in the regulation of ANGPTs, RNA levels of Angpts were examined in Cnr1-/- and Cnr2-/- mice. Intriguingly, the expression pattern of Angpt1 and Angpt2 in Cnr1-/- implantation sites recapitulate their patterns in Cnr1-/-Cnr2-/- counterparts (Figure 5a and b), suggesting that defects in ANGPT regulation are due to CB1 deficiency.

Figure 5 with 1 supplement see all
Angiogenic factors are misregulated in Cnr1-/-Cnr2-/- and Cnr1-/- PDZ.

(a–d) In situ hybridization of Angpt1, Angpt2, Hif1a and Hif2a on day 6 of pregnancy. CK8 staining outlines uterine epithelial cells. (e and f) Immunostaining of HIF1A and HIF2A on day 6 of pregnancy. Dotted lines outline the PDZs. Asterisks, positions of embryos; Scale bars, 500 μm. All images are representative of three independent experiments.

Hypoxia-inducible factors (HIFs) are transcriptional regulators of angiopoietins and vascular endothelial growth factors (VEGFs; Ortiz-Barahona et al., 2010; Benita et al., 2009). Interestingly, we found the expression pattern of Hif1a is similar to that of Angpt1, showing broad expression in stromal cells but lacking expression in WT PDZs on day 6 of pregnancy (Figure 5c). On the other hand, the pattern of Hif2a expression is similar to that of Angpt2 with positive signals in stromal cells close to implantation sites (Figure 5d). PDZs in Cnr1-/- and Cnr1-/-Cnr2-/- mice show increased Hif1a expression, as well as decreased Hif2a expression compared with WT females on day 6 of pregnancy (Figure 5c and d, Figure 5—figure supplement 1). The mRNA expression patterns of Hif1a and Hif2a were further confirmed by immunostaining using antibodies specific to Hif1a and Hif2a (Figure 5e and f). These results suggest that increased Angpt1 expression with decreased Angpt2 expression in the PDZs of Cnr1-/-Cnr2-/- stabilizes blood vessels in this region. The differential expression patterns of Hif1a and Hif2a indicate that Angpt1 and Angpt2 are perhaps differentially regulated by Hif1a and HIF2A, respectively. The similar patterns of angiogenic factors in Cnr1-/- and Cnr1-/-Cnr2-/- mice suggest that CB1 plays a key role in PDZ formation.

Cnr1 is induced in mouse and human decidual cells

CB2 is primarily expressed in immune cells. Using a Cnr2 reporter mouse line (López et al., 2018), we have recently shown that uterine endothelial cells express CB2 (Li et al., 2019). Studies show that the deletion of Cnr1 in the mouse uterus compromises pregnancy outcomes (Wang et al., 2006), even though Cnr1 levels are quite low in non-pregnant uterine cells. We observed that Cnr1 levels increase in implantation sites from day 4 to day 8 (the peak of decidual response; Figure 6a). Since most uterine epithelial cells are removed in implantation sites on day 8, we attribute the increase to changes in stromal/decidual cells. We isolated and purified uterine stromal cells on day 4 of pregnancy and induced them to decidualize in vitro by hormone treatments according to our established protocol (Sun et al., 2016). Levels of Cnr1 increased about threefold in WT and Cnr2-/- decidualizing cells as compared to non-decidualized stromal cells in each genotype (Figure 6b). We did not include levels of Cnr1 from Cnr1-/- mice because Cnr1 levels are undetectable in Cnr1-/- mice.

CB1 expression in mouse uterine stromal cells increases during decidualization.

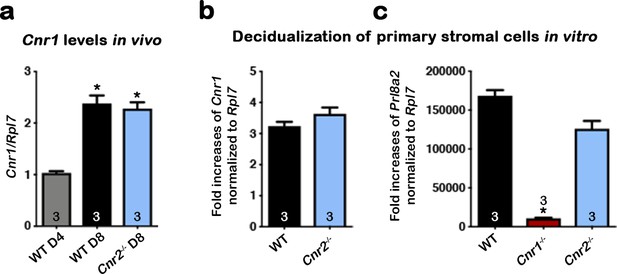

(a) Levels of Cnr1 are higher at the peak of decidual response on day 8 of pregnancy as compared to day 4 of pregnancy. Samples were from three different females in each genotyping group. (b) Cnr1 is induced in primary culture of WT and Cnr2-/- stromal cells undergoing decidualization in vitro. (c) Decidualization is severely reduced in primary Cnr1-/- stromal cells after decidual stimulation in vitro. Prl8a2 expression served as an indicator of decidual responses. Primary cells were collected from three different females in each genotyping groups. Values are mean ± SEM; Numbers on bars represent sample sizes; *p<0.05, Unpaired t-tests with Welch’s correction.

To study the roles of Cnr1 during decidualization, stromal cells collected from both Cnr1-/- and WT uteri were induced to a decidual reaction in vitro. Prl8a2, a marker gene expressed in mouse decidual cells, was significantly lower in Cnr1-/-, but not Cnr2-/-, decidual cells (Figure 6c), suggesting deletion of Cnr1 in stromal cells compromises decidualization. Interestingly, the induction of CNR1 is even more robust in human uterine fibroblast (Huf) cells when decidualized in vitro. A steady increase of CNR1 was observed during the cell transformation, and eventually CNR1 increased by more than hundredfold compared with cells before decidualization (Figure 7a). The decidual responses in Huf cells in the 6 d after induction were confirmed by a rise in two decidual markers, PROLACTIN (PRL) and IGFBP1 (Figure 7b and c). The morphology of Huf cells changed from a spindle shape to more of a round shape (Figure 7d and Figure 7—figure supplement 1), which was also reflected by increases in nuclear circularity during decidualization (Figure 7e and f). Cell circularity is calculated as a ratio of the minor axis versus the major axis (Figure 7e). The nuclear circularity in decidualized Huf cells is significantly higher than in cells before decidualization (Figure 7f). Although CNR1 levels were hundredfold higher in decidualized cells compared to control cells (Figure 7a), CNR2 levels show no significant changes (Figure 7—figure supplement 2), suggesting CB1 plays a more important role in human decidualization.

Figure 7 with 2 supplements see all

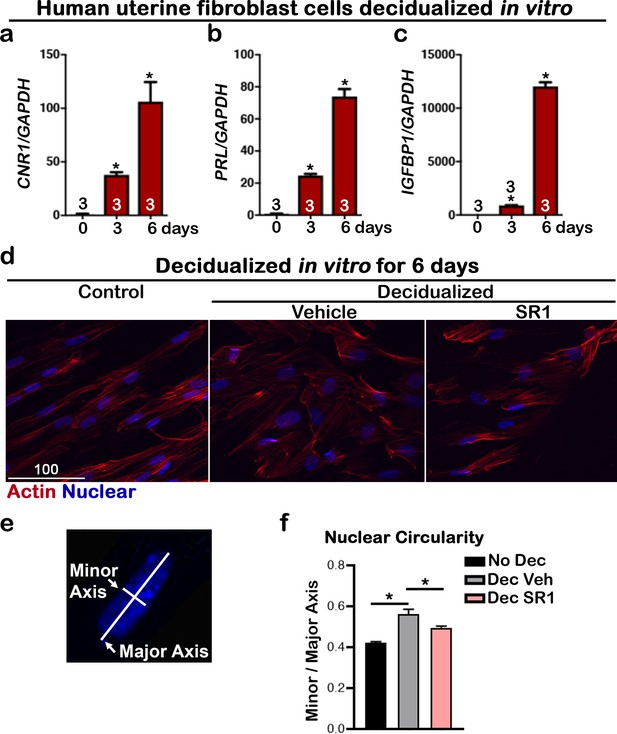

CNR1 levels are upregulated in human uterine fibroblasts during in vitro decidualization.

(a) Levels of CNR1 gradually increase in Huf cells undergoing decidualization. (b and c) Decidual responses are marked by significant increases in PROLACTIN and IGFBP1 levels in Huf cells. Sample sizes on bars are the number of culture wells. (d) Morphology of Huf cells changes from spindle shapes to more round shape; SR1 treatment compromises the morphological change in Huf cells. Cells are outlined with actin staining. Scale bar, 100 μm. All images are representative of three culture wells. (e) A scheme depicts the measurement of minor and major axes for calculating nuclear circularity. (f) The nuclear circularity of Huf cells before and after decidualization. SR1 treatment compromises the decidual process. Three fields were randomly chosen in three different culture wells. Values are mean ± SEM; Numbers on bars are sample sizes; *p<0.05, Unpaired t-tests with Welch’s correction.

To further study the biological significance of the induction of CNR1, Huf cells were treated with a specific CB1 antagonist, SR141716 (SR1, 2 µM), during decidualization. The decidual process in SR1-treated Huf cells was significantly compromised, as revealed by changes in PRL and IGFBP1 levels (Figure 8a and b), two established decidual markers. The levels of VEGFA, ANGPT1, ANGPT2, and HIF2A were significantly downregulated by SR1 treatment during decidualization (Figure 8), suggesting the induction of CNR1 during decidualization is critical to this process. Taken together, the upregulation of Cnr1 in decidual cells in both mice and humans plays a key role during decidual cell transformation as supported by both in vivo and in vitro studies.

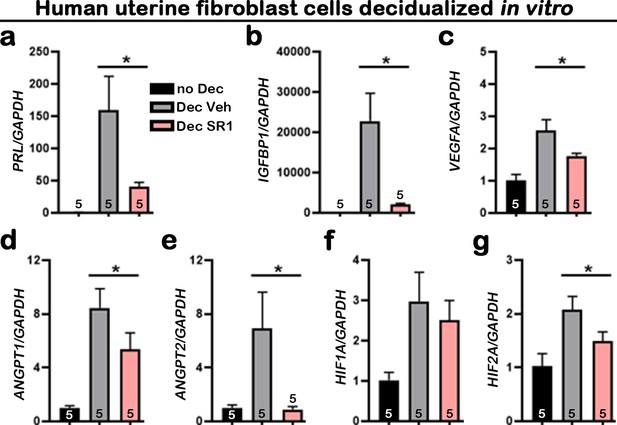

Suppression of CB1 impairs normal Huf cell decidualization and expression of angiogenic factors.

(a–g) qPCR of PRL, IGFBP1, VEGFA, ANGPT1, ANGPT2, HIF1A, and HIF2A using RNA collected 3 d after decidualization. Values are mean ± SEM; Numbers on bars are numbers of culture wells; *p<0.05, Unpaired t-tests with Welch’s correction.

Discussion

In this study, we show that a complex interplay is orchestrated by cannabinoid signaling in decidualization by forming the PDZ along with changes in angiogenic features in the decidual bed. In Cnr1-/-Cnr2-/- females, this organization is compromised due to defective PDZ formation and dysregulated angiogenic homeostasis. PDZ is avascular in WT implantation sites, whereas blood vessels are present in Cnr1-/-Cnr2-/- PDZ, accompanied by an increased presence of macrophages.

Angiogenesis and vascular remodeling are hallmarks of implantation, decidualization, and placentation (Halder et al., 2000; Matsumoto et al., 2018; Chakraborty et al., 1995). Retention of blood vessels in Cnr1-/-Cnr2-/- PDZ is associated with misregulated angiogenic factors: Angpt1, which stabilizes vasculature, is abnormally expressed in Cnr1-/-Cnr2-/- implantation sites. Angpt2, which destabilizes preexisting vasculature for Angpt1 sprouting (Maisonpierre et al., 1997), is downregulated in Cnr1-/-Cnr2-/- implantation sites. Our results also show that Hif1a has a similar expression pattern to Angpt1 in WT PDZ on day 6 of pregnancy, while the Hif2a expression pattern overlaps with that of Angpt2. This suggests that the deletion of both Cnr1 and Cnr2 impacts PDZ formation and establishment of decidualization through regulation of angiogenic and transcriptional factors. The levels of Cnr1, which are usually low in stromal cells of non-pregnant females, increase during the decidual process in both humans and mice. Using an in vitro decidualization model, we further showed that decidualization is compromised using Cnr1-/- stromal cells. Consequently, defective PDZ formation results in more resorption later in pregnancy in Cnr1-/-Cnr2-/- females.

Most previous work examining the roles of endocannabinoids in decidualization applied cannabinoids to stromal cells. Although some pharmacological studies using CB1 antagonists suggest CB1 mediates the effects of endocannabinoids on stromal cells, there is no genetic evidence to support this conclusion. Using stromal cells isolated from pregnant rats, a previous report showed that endocannabinoid anandamide (AEA) interferes with stromal differentiation (Fonseca et al., 2015). In vivo application of AEA in pseudopregnant rats impaired decidualization with reduced levels of Cox1 and VEGF (Fonseca et al., 2015). There was evidence for a similar observation in humans. In this respect, AEA impairs cell proliferation and differentiation in the human endometrial stromal cell line and primary cultures of decidual fibroblasts from term pregnancy (Almada et al., 2016). There is further evidence that oxidative metabolites of AEA by Cox2 may compromise the normal decidual process (Almada et al., 2017; Almada et al., 2015).

In contrast to the ectopic application of endocannabinoids, our study used mouse models with suppressed cannabinoid signaling. The studies cited above seem to contradict our current findings that cannabinoid signaling is detrimental to decidualization in rats and humans. However, we have shown previously that either amplified or silenced cannabinoid signaling can interfere with early pregnancy (Sun and Dey, 2012). These results suggest that optimal endocannabinoid signaling contributes to pregnancy success, reinforcing our conclusion that normal decidualization requires appropriate cannabinoid signaling.

The function of ANGPT2 in angiogenesis largely depends on the presence of VEGF (Holash et al., 1999a; Holash et al., 1999b) in that VEGF, ANGPT1 and ANGPT2 function cooperatively to promote angiogenesis (Asahara et al., 1998; Visconti et al., 2002). ANGPT2 destabilizes the preexisting vasculature, which consequently responds to angiogenic stimuli. The activated vasculature is extended and stabilized by ANGPT1 (Holash et al., 1999b). In the absence of VEGF, ANGPT2 destabilizes vasculature, which undergoes vascular regression. In implantation sites, VEGF and ANGPT1 have similar expression patterns on day 6 of pregnancy (Halder et al., 2000), but neither is present in the PDZ; only ANGPT2 is expressed in this zone. The consequent avascular zone in the PDZ is considered conducive to the implanting embryo. In the current study, Angpt1 expression is retained in Cnr1-/-Cnr2-/- PDZ with reduced expression of Angpt2, so that vasculature and macrophages are still observed in Cnr1-/-Cnr2-/- PDZs.

Hypoxia-inducible factors (HIFs) are key modulators of the transcriptional responses to hypoxic stress. HIFs are heterodimers of an α-subunit and a stable β-subunit (ARNT). Of the three isoforms, HIF1A and HIF2A are the most studied and structurally similar. HIF1A is considered to have a broader expression pattern in most cells, whereas HIF2A is selectively induced in certain cell types, including endothelial cells and renal interstitial cells (Keith et al., 2012). In our study, Hif1a is expressed mostly in stromal cells except for the PDZ cells of day 6 implantation sites, while Hif2a is induced in PDZ. The transcriptional regulation of HIFs on angiopoietins is specific to tissue and cell-type. For example, in primary human endothelial cells, HIF1A increases mRNA levels of ANGPT2 and ANGPT4 but not ANGPT1 (Yamakawa et al., 2003). In the current study, the overlapping expression of Hif1a and Angpt1, in tandem with the similar expression pattern of Hif2a and Angpt2, suggests that HIF1A increases Angpt1 expression in stromal cells and HIF2A induces Angpt2 transcription in decidualized cells in the PDZ. Taken together, our study illuminates a major responsibility for endocannabinoid signaling in modulating vascular remodeling and integrity. This finding was exemplified in increased vascular leakage at Cnr1-/-Cnr2-/- implantation sites (Li et al., 2019). In conclusion, this investigation reveals that CB1 actions in decidual cells, combined with angiogenic activities driven by CB2, facilitate the formation of the avascular PDZ, which is critical for pregnancy success. Whether other signaling pathways join in this orchestration remains to be seen.

Decidualization is a complex process. Although there are unique differences, some common features of this process are evident in mice and humans. As such, decidualization in mice begins with implantation, whereas decidualization in humans occurs in each menstrual cycle, but becomes more intense like in mice, after implantation (Cha et al., 2012). Our results suggest that the induction of CB1 is a common feature shared by mouse and human decidual cells, and blockage of CB1 compromises in vitro decidual responses in mice and humans. Whether the PDZ is formed in human implantation or other subhuman primates is not known. However, the epithelial plaque formed during early pregnancy in macaque may have a similar function (Enders, 2007).

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
AntibodyAnti-E-cadherin (Rabbit monoclonal)Cell Signaling TechnologyCat# 3195S,
RRID:AB_2291471
Whole mount IF(1:100)
AntibodyAlexa Fluor 594 AffiniPure Donkey Anti-Rabbit IgG (H+L)Jackson Immuno ResearchCat# 711-585-152, RRID:AB_2340621Whole mount IF(1:300)
AntibodyAnti-Cytokeratin 8, TROMA-1 (Rat monoclonal)Developmental Studies Hybridoma BankCat# TROMA-I, RRID:AB_531826IF (1:100)
AntibodyAnti-CD45, (Rat monoclonal)BiolegendCat# 103101, RRID:AB_312966IF (1:200)
AntibodyAnti-HIF1A (Rabbit monoclonal)Cell Signaling TechnologyCat# 36169T, RRID:AB_2799095IF (1:200)
AntibodyAnti-HIF2A (Rabbit polyclonal)NovusCat# NB100-122SS, RRID:AB_10002593IF (1:500)
AntibodyAnti-F4/80
(Rat monoclonal)
BiolegendCat# MCA497R, RRID:AB_323279IF (1:200)
AntibodyAnti-Scrib (Rabbit polyclonal)Santa CruzCat# sc-28737, RRID:AB_2184807IF (1:500)
AntibodyAlexa Fluor 594 AffiniPure Donkey Anti-Rat IgG (H+L)Jackson Immuno ResearchCat#712-585-150, RRID:AB_2340688IF (1:400)
AntibodyAlexa Fluor 488 AffiniPure Donkey Anti-Rabbit IgG (H+L)Jackson Immuno ResearchCat# 711-545-152, RRID:AB_2313584IF (1:400)
AntibodyCy2 AffiniPure Donkey Anti-Rat IgG (H+L)Jackson Immuno ResearchCat# 712-225-153, RRID:AB_2340674IF (1:400)
Biological sample (M. musculus)Primary WT,Cnr1-/- and Cnr2-/- mouse uterine stromal cellsThe current laboratoryPrimary mouse uterine stromal cells freshly isolated from mouse uteri
Biological sample (Homo-sapiens)Human uterine fibroblastsCincinnati Children’s HospitalA gift from Handwerger laboratory. Aliquots maintained as frozen cells
Sequence-based reagentMouse Prl8a2_FThis paperPCR primersACGTGATGAGGAGGTTCT
Sequence-based reagentMouse Prl8a2_RThis paperPCR primersAATCTTGCCCAGTTATGC
Sequence-based reagentMouse Cnr1_FThis paperPCR primersCATTGGGACTATCTTTGCGG
Sequence-based reagentMouse Cnr1_RThis paperPCR primersGGTTCTGGAGAACCTGCTGG
Sequence-based reagentMouse Rpl7_FThis paperPCR primersGCAGATGTACCGCACTGAGATTC
Sequence-based reagentMouse
Rpl7_R
This paperPCR primersACCTTTGGGCTTACTCCATTGATA
Sequence-based reagentHuman CNR1_FThis paperPCR primersgctgcctaaatccactctgc
Sequence-based reagentHuman
CNR1_R
This paperPCR primerstggacatgaaatggcagaaa
Sequence-based reagentHuman CNR2_FThis paperPCR primersGATTGGCAGCGTGACTATGA
Sequence-based reagentHuman
CNR2_R
This paperPCR primersGATTCCGGAAAAGAGGAAGG
Sequence-based reagentHuman IGFBP1_FThis paperPCR primersccaaactgcaacaagaatg
Sequence-based reagentHuman
IGFBP1_R
This paperPCR primersgtagacgcaccagcagag
Sequence-based reagentHuman PRL_FThis paperPCR primersaagctgtagagattgaggagcaaa
Sequence-based reagentHuman
PRL_R
This paperPCR primerstcaggatgaacctggctgacta
Sequence-based reagentHuman VEGFA_FThis paperPCR primersaaggaggagggcagaatcat
Sequence-based reagentHuman
VEGFA_R
This paperPCR primerscacacaggatggcttgaaga
Sequence-based reagentHuman ANGPT1_FThis paperPCR primersggacagcaggaaaacagagc
Sequence-based reagentHuman
ANGPT1_R
This paperPCR primerscacaagcatcaaaccaccat
Sequence-based reagentHuman ANGPT2_FThis paperPCR primersataagcagcatcagccaacc
Sequence-based reagentHuman
ANGPT2_R
This paperPCR primersaagttggaaggaccacatgc
Sequence-based reagentHuman HIF1A_FThis paperPCR primerstcatccaagaagccctaacg
Sequence-based reagentHuman
HIF1A_R
This paperPCR primerscgctttctctgagcattctg
Sequence-based reagentHuman HIF2A_FThis paperPCR primersgaacagcaagagcaggttcc
Sequence-based reagentHuman
HIF2A_R
This paperPCR primersggcagcaggtaggactcaaa
Sequence-based reagentHuman GAPDH_FThis paperPCR primersgaaggtgaaggtcggagt
Sequence-based reagentHuman
GAPDH_R
This paperPCR primersgatggcaacaatatccactt
Chemical compound, drugSR141716Cayman ChemicalCat# 90004842 µM in culture
OtherRPMI 1640 MediumCorningCat# 15040-cv
OtherFetal bovine serumFisherCat# FB12999102

Animals and treatments

Request a detailed protocol

Cnr1-/- and Cnr2-/- mice were generated as described (Zimmer et al., 1999; Járai et al., 1999) and Cnr1-/-Cnr2-/- females were generated by crossing Cnr1-/- and Cnr2-/- mice. All genetically modified mice and WT controls were maintained on a C57BL6 mixed background and housed in the animal care facility at the Cincinnati Children’s Hospital Medical Center according to NIH and institutional guidelines for laboratory animals. All protocols of the present study were approved by the Cincinnati Children’s Hospital Research Foundation Institutional Animal Care and Use Committee. All mice were housed in wall-mount negative airflow polycarbonate cages with corn cob bedding. They were provided ad libitum with double distilled autoclaved water and rodent diet (LabDiet 5010).

Female mice were mated with WT fertile males to induce pregnancy (vaginal plug = day 1 of pregnancy). Implantation sites were visualized by an intravenous injection of 0.1 mL of 1% Chicago blue dye solution in saline 4 min before killing, and the number of implantation sites, demarcated by distinct blue bands, was recorded. Mice were euthanized by cervical dislocation right before tissue collection under deep anesthesia. Mice were killed on different days of pregnancy in accordance with the experimental design,that is, day 4, day 6, and day 8 of pregnancy.

Fluorescence in situ hybridization

Request a detailed protocol

In situ hybridization was performed as previously described (Yuan et al., 2019). In brief, implantation sites from three individual animals in each experimental group were collected. Frozen sections (12 μm) from three implantation sites from different females in each group were mounted onto poly-L-lysine-coated slides and fixed in 4% paraformaldehyde in PBS. Following acetylation and permeabilization, slides were hybridized with the DIG-labeled Bmp2, Ptgs2, Hoxa10, Hif1a, Hif2a, Angpt1, Angpt2, and Vegfa probes at 55°C overnight. After hybridization, slides were then washed, quenched in H2O2 (3%), and blocked in blocking buffer (1%). Anti-Dig-peroxidase was applied onto hybridized slides and color was developed by Tyramide signal amplification (TSA) Fluorescein according to the manufacturer’s instructions (PerkinElmer). Images presented are representative of three independent experiments.

Immunofluorescence

Request a detailed protocol

Implantation sites from three individual animals in each experimental group were snap-frozen. Frozen sections (12 μm) of three implantation sites from different females in each group were mounted onto poly-L-lysine-coated slides and fixed in 4% paraformaldehyde in PBS. Sections were blocked in 5% BSA in PBS and incubated with primary antibody at 4°C overnight, followed by incubation in secondary antibodies at room temperature for 1 hr in PBS. Nuclear staining was performed using Hoechst 33342 (H1399, Molecular Probes, 2 µg/mL). Immunofluorescence was visualized under a confocal microscope (Nikon Eclipse TE2000). Images presented are representative of three independent experiments. Antibodies for Cytokeratin 8 (Iowa hybridoma bank, 1:100 dilution), CD45 (Biolegend, 1:200 dilution), HIF1A (Cell signaling, 1:200 dilution), HIF2A (Novus, 1:500 dilution), F4/80 (Biorad, 1:200 dilution), and Scrib (Santa Cruz, 1:500 dilution) were used for immunofluorescence staining. All fluorophore-conjugated secondary antibodies (used in 1:400 dilution) were from Jackson Immunoresearch.

Whole-mount immunostaining for 3D imaging

Request a detailed protocol

One side of uterine horns from three WT and Cnr1-/-Cnr2-/- females on day 6 of pregnancy were fixed in Dent’s Fixative (Methanol: DMSO, 4:1) overnight at −20°C. After fixation, tissues were then washed in 100% Methanol three times for 1 hr each and bleached with 3% H2O2 in methanol overnight at 4°C to eliminate pigmentation. The samples were washed in PBS-T containing 0.1% Tween20 three times for 1 hr each at room temperature and then blocked in 5% BSA in PBS-T overnight at 4°C. The samples were then incubated with an anti-E-cadherin antibody (1:100, 3195 s, Cell Signaling Technology) on a rotor for 7 d at 4°C. After incubation, the samples were then washed six times in PBS-T for 1 hr each at room temperature and then incubated with Alexa Fluor 594 AffiniPure Donkey Anti-Rabbit IgG (H + L) (1:300, Jackson ImmunoResearch) on a rotor for 4 d in a light-proof tube at 4°C. The samples were stored in the dark until tissue clearing.

Tissue clearing for 3D imaging

Request a detailed protocol

The stained samples were held straight with forceps in 100% methanol for 1 min to align the mesometrial–antimesometrial (M–AM) axis and then dehydrated in 100% methanol for 30 min. Dehydration was followed by tissue clearing by BABB (Benzyl alcohol: Benzyl benzoate (1:2); each reagent from Sigma-Aldrich) for 1 hr at room temperature. The samples were then stored in the dark until 3D imaging acquisition (Yuan et al., 2018).

3D imaging and processing

Request a detailed protocol

3D pictures of the implantation site in each processed uterine horn were acquired by a Nikon multiphoton upright confocal microscope (Nikon A1R) with a 10× objective. To obtain the 3D structure of the tissue, the surface tool Imaris (version 9.2.0, Bitplane) was used (Yuan et al., 2018). One representative picture of mouse implantation sites in each genotype is presented.

In vitro decidualization of mouse stromal cells

Request a detailed protocol

Stromal cells were collected by enzymatic digestion of mouse uteri on day 4 of pregnancy as described previously (Sun et al., 2016). The cells were cultured in phenol-red free DMEM/F12 medium supplemented with charcoal-stripped 1% FBS (w/v) overnight before the initiation of decidualization by treatment of estradiol (10 nM) and medroxyprogesterone acetate (1 μM) for 6 d.

In vitro decidualization of HuF cells

Request a detailed protocol

The HuF cells were generated by Stuart Handwerger’s laboratory at the Cincinnati Children’s Hospital Medical Center under appropriate approval by the Institutional Review Board (Grinius et al., 2006). In brief, maternal decidual tissues were dissected from the chorionic layer of human term placentae and enzymatically dispersed (Richards et al., 1995). The HuF cells were isolated by differential plating to >95% purity as previously described (Sherafat-Kazemzadeh et al., 2011). The purity of isolated cells was confirmed by the expression of Vimentin, a mesenchymal cell marker, and the absence of markers of bone marrow-derived cells and epithelial cells (Richards et al., 1995). Handwerger’s laboratory generously shared the HuF cells with us for our research on human decidualization. These cells maintained in our laboratory are tested negative for mycoplasma contamination. After reaching 90% confluence, the cells were decidualized by the addition of medroxyprogesterone acetate (1 μm), estradiol (E2; 10 nm), and prostaglandin E2 (PGE2; 1 μm) in an RPMI medium that contained 2% fetal bovine serum and antibiotics. The medium in each well was changed at 3 d intervals unless indicated otherwise.

Quantitative RT-PCR

Request a detailed protocol

RNA was collected from WT and Cnr2-/- uterine samples; WT, Cnr1-/-, and Cnr2-/- primary stromal cells; and human uterine fibroblast cells. RNA was analyzed as described previously (Sun et al., 2014; Das et al., 1995). In brief, total RNA was extracted with Trizol (Invitrogen, USA) according to the manufacturer’s protocol. After DNase treatment (Ambion, USA), 1 µg of total RNA was reverse transcribed with Superscript II (Invitrogen). Real time PCR was performed using primers 5’-ACGTGATGAGGAGGTTCT-3’ (sense) and 5’- AATCTTGCCCAGTTATGC-3’ (anti-sense) for mouse Prl8a2; 5’- CATTGGGACTATCTTTGCGG-3’ (sense) and 5’-GGTTCTGGAGAACCTGCTGG-3’ (anti-sense) for mouse Cnr1; 5’- GCAGATGTACCGCACTGAGATTC-3’ (sense) and 5’-ACCTTTGGGCTTACTCCATTGATA-3’ (anti-sense) for mouse Rpl7; 5’- gctgcctaaatccactctgc-3’ (sense) and 5’- tggacatgaaatggcagaaa-3’ (anti-sense) for human CNR1; 5’- GATTGGCAGCGTGACTATGA-3’ (sense) and 5’-GATTCCGGAAAAGAGGAAGG-3’ (anti-sense) for human CNR2; 5’-ccaaactgcaacaagaatg-3’ (sense) and 5’-gtagacgcaccagcagag-3’ (anti-sense) for human IGFBP1; 5’- aagctgtagagattgaggagcaaa-3’ (sense) and 5’-tcaggatgaacctggctgacta-3’ (anti-sense) for human PRL; 5’- aaggaggagggcagaatcat-3’ (sense) and 5’- cacacaggatggcttgaaga-3’ (anti-sense) for human VEGFA. 5’- ggacagcaggaaaacagagc-3’ (sense) and 5’- cacaagcatcaaaccaccat-3’ (anti-sense) for human ANGPT1. 5’- ataagcagcatcagccaacc-3’ (sense) and 5’- aagttggaaggaccacatgc-3’ (anti-sense) for human ANGPT2. 5’- tcatccaagaagccctaacg-3’ (sense) and 5’- cgctttctctgagcattctg-3’ (anti-sense) for human HIF1A. 5’- gaacagcaagagcaggttcc-3’ (sense) and 5’- ggcagcaggtaggactcaaa-3’ (anti-sense) for human HIF2A. 5’- gaaggtgaaggtcggagt-3’ (sense) and 5’- gatggcaacaatatccactt-3’ (anti-sense) for human GAPDH. To examine in vivo Cnr1 levels, RNA was collected from three WT day 4 uterine samples and three different implantation sites from WT and Cnr2-/- females,respectively, on day 8 of pregnancy. RNAs were collected from mouse primary cell culture in triplicate. In experiments with Huf cells, three samples in each time point were collected to examine CNR1, PRL, and IGFBP1 levels. To study the effects of SR1 on decidualization in Huf cells, five samples were collected from each treatment group. Sample sizes are indicated in the figures.

Statistical analysis

Request a detailed protocol

The number of macrophages are counted using three sections from three different animals. F4/80 positive cells within endometrial domains are quantified using three sections from three WT and three Cnr1-/-Cnr2-/- females on day 6 of pregnancy. Data were analyzed using t-tests as indicated in figure legends. Data are shown as mean ± SEM. All P values are depicted in the figure legends.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
    Mechanisms of reduced fertility in Hoxa-10 mutant mice: uterine homeosis and loss of maternal Hoxa-10 expression
    1. GV Benson
    2. H Lim
    3. BC Paria
    4. I Satokata
    5. SK Dey
    6. RL Maas
    (1996)
    Development 122:2687–2696.
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45

Decision letter

  1. Susan Fisher
    Reviewing Editor; UCSF, United States
  2. Didier YR Stainier
    Senior Editor; Max Planck Institute for Heart and Lung Research, Germany

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

With the rapid expansion of cannabis use, understanding the effects of this drug on pregnancy is becoming increasingly vital. In this regard, the results of work such as yours could be used by regulatory agencies, for example, in deciding about information to include on warning labels. Thus, the data in your paper has important scientific and practical value.

Decision letter after peer review:

[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]

Thank you for submitting your work entitled "Pregnancy success in mice requires appropriate cannabinoid receptor signaling for primary decidua formation" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by a Senior Editor. The reviewers have opted to remain anonymous.

Our decision has been reached after consultation among the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife.

All the reviewers found the work submitted for publication to be important and interesting. However, the suggested experiments would take significant time to perform.

Reviewer #1:

Previously the investigators showed that Cnr1-/-/Cnr2-/- mice exhibit defective decidualization and are subfertile. Here they go on to explore the mechanism behind aberrant decidualization. They use a series of marker genes to show that the defect emerges during the postimplantation period in vivo and is attributable to malformation of the primary decidual zone. They also show that Cnr1 is up regulated during and required for decidualization of mouse uterine stromal cells in vitro. Similarly, decidualization of human uterine stromal cells is accompanied by very substantial increases in CNR1 expression. A major strength of this work is the importance of understanding the role of these receptors in reproduction given the widespread use of marijuana. Weaknesses include the fact that many of the results are based on correlatives rather than direct functional relationships.

1) The number of animals that were employed for each experiment should be clearly stated.

2) Whenever possible more quantitative analyses would be desirable, for example, immunoblots to confirm altered expression of the proteins encoded by the marker genes. Added proof for abnormal vascularization of the primary decidual zone in the form of counting the vessels would be desirable. Similarly, quantifying macrophage retention would also be helpful. Also, the degree of contraction or expansion of marker expression could be measured.

3) The functional relationships that are drawn among Vegf, the Hifs and the Ang1/2 in situ hybridization patterns should be softened as Hif activity is regulated at the protein level.

4) The in vitro analyses are somewhat superficial. In addition to assaying the expression of molecules that correlate with decidualization, pictures of the cells that document the expected morphological changes would also be desirable.

5) The authors show a very impressive rise in CNR1 expression with decidualization of human uterine fibroblasts. However, they fail to show the importance of this receptor in the process by demonstrating the effects of its elimination.

6) The starting material for both the mouse and human in vitro experiments appeared to be decidua. Were the cells de-differentiated and how many different donors were employed?

Reviewer #2:

The manuscript by Li and coworkers investigates the role of cannabinoid receptor signaling in pregnancy. The tow cannabinoid receptors CB1 and CB2 are expressed in uterine stroma cells and endothelial cells, respectively. They show that the double knockout of CB1 and CB2 result in impaired primary decidual zone development, increase invasion of immune cells and increased vascularization. They also show that CB1 is increased in human uterine fibroblasts that decidualize in vitro. They imply that the two receptor must coordinate the uterine fibroblast differentiation and endothelial cells act together for normal embryo implantation. This is an exciting finding and will generate general interest. However there are two issues that would strengthen this manuscript.

The manuscript should clearly define the phenotype of the single knockouts of CB1 and CB2 to show which parts of the double phenotype are present in the single and double and which phenotypes are novel with respect to the double knockout. This is with respect the expression of the marker genes observed. This would show that they separately regulate the vascularization and stroma cell decidualization and together these process are required or is there synergy between these two compartments. This should be discussed.

The authors imply a role of CB1 in human endometrial stroma fibroblast decidualization. They should employ knockdown of CB1 in these cells and show the impact on decidualization. This would increase the relevance of this manuscript.

Reviewer #3:

The manuscript entitled "Pregnancy success in mice requires appropriate cannabinoid receptor signaling for primary decidua formation" by Li Y et al. evaluates the influence of cannabinoid signaling through Cnr1 and Cnr2 by forming primary decidual zone (PDZ) along with changes in angiogenic features in the decidual bed during pregnancy. The deficiency of these genes in mice, results in compromised primary decidualization, since it presents abnormal blood vessels formation and presence of macrophages into the implantation chambers.

The hypothesis that cannabinoid/endocannabinoid signalling, through Cnr1 and Cnr2, compromises decidualization and embryo implantation success is straightforward and the double mutant model Cnr1-/- Cnr2-/- used is appropriate. However, the experimental design used in each experiment is confuse and not consistent. The results explanations and the figures are a quite difficult to understand. There is a lack of detail about the experimental planing and the sample size used. The relevance and interpretation for the inclusion of in vitro decidualization of human uterine fibroblast experiment is not explained properly.

This reviewer has the following major comments and suggestions:

– For consistency, this work uses three different mice models Cnr1-/-, Cnr2-/- and double mutant Cnr1-/-Cnr2-/-. However, it is very confusing to follow which model is used in each experimental part and the reason to do it. The authors should detail the mouse model used for each experiment and to justify their use.

– The experimental design is missing and should be included along the manuscript in the Results, Materials and methods, and figure legends. To understand this work the readers need to know mouse model or human samples used, sample size and replicates in each experiment. Those experiments performed using mice models should be included: days of female sacrifice (day 4, 5, 6 and 8), sample size for each sacrifice day, tissue collected, number of implantation sites analyzed, number of sections evaluated in each experiment of immunofluorescence and in situ hybridization. These details should be included along the manuscript to understand the results presented.

– The authors indicate along the manuscript that their finding about primary decidual zone formation is disrupted in Cnr1-/-Cnr2-/- females compromising their pregnancy outcomes. However, no data or result about pregnancy outcome is included. Introduction: "In this study, we show that endothelial cells deleted of Cnr2 have important roles in embryo implantation"; "Cnr1's critical role in early pregnancy", "The results show that double mutant mice have compromised PDZ formation, resulting in suboptimal pregnancy outcome". However, no data or result about pregnancy outcome is included.

– Decidualization is the core process of the study. The authors should explain the biology of this process and its role in pregnancy in the Introduction section. In addition, the Introduction did not mention that the in vitro approach with human uterine fibroblast; however it is mentioned in the Abstract. Please include these experiments in the Introduction and its connection with the rest of the results.

– The experimental techniques are based on the use of fluorescence in situ hybridization and immunofluorescence. These experiments let us to observe the expression pattern and signal intensity between groups (wild type and Cnr1-/-Cnr2-/- mice). However, all the findings showed are descriptive. The author should include a quantitative method to quantify these parameters and to apply a statistical analysis to corroborate if the differences observed are significant. It is crucial to strengthen the results.

– Materials and methods shows a description about RT-PCR but no experiment was included along the manuscript. It seems that these experiments were performed but are missing in the figures. Please, include this data that are very useful to corroborate the fluorescence in situ hybridization results, using a quantitative method as RT-PCR.

– The IF and in situ hybridization experiments should be performed using the same markers for the different days selected. For example, in the Figure 3A the staining CD45 and F4/F80 was performed in day 4 of pregnancy and Figure 3B F4/F80 and PECAM in day 6 of pregnancy. Please, show the same markers for the different days analysed.

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Pregnancy success in mice requires appropriate cannabinoid receptor signaling for primary decidua formation" for further consideration by eLife. Your revised article has been evaluated by Didier Stainier (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below in the individual reviews:

Reviewer #1:

The authors did a good job of responding to my comments.

Reviewer #2:

The manuscript entitled "Pregnancy success in mice requires appropriate cannabinoid receptor signaling for primary decidua formation" by Li Y et al. evaluates the influence of cannabinoid signaling through Cnr1 and Cnr2 by forming primary decidual zone (PDZ) along with changes in angiogenic features in the decidual bed during pregnancy. The deficiency of these genes in mice, results in compromised primary decidualization, since it presents abnormal blood vessels formation and presence of macrophages into the implantation chambers.

The authors have followed most of my recommendations and the paper has improved remarkably. Still some points need to be addressed:

– The authors use the sentence "samples sizes are indicated in each figure" in material and methods sections. But the author should include these important data in Materials and methods section.

– The introductory sentence in each figure legend is confused "All images are representative of three independent experiments". How many animals? Human samples? And how many replicates of each experiment, number of tissue sections/cells… analyzed from same animal/patient? There is a lack of detail about experimental design used. Supplementary figure with a scheme would be interesting to understand better this part.

– "In each experiment, three to four animals were used to validate the results". The author should indicate the exact number of mice used from each animal: wild type, Cnr1-/-, Cnr2-/- and Cnr1-/-Cnr2-/- mice.

– The Figure 3 is similar to the last version, just PECAM results was excluded. The authors should include CD45 staining for day 6.

– The authors explain that The Cnr1-/- null model is now included in the text but the information is missing.

– "Mice were killed on different days of pregnancy in accordance to experimental design. i.e day 4, day 6, and day 8 of pregnancy. In each experiment, three to four animals were used to validate the results." Please define exactly the numbers.

– Subsection “Immunofluorescence.”: tissue sections size?

– Sections were blocked in 5% BSA in PBS and incubated with primary antibody at 4{degree sign}C overnight, followed by incubation in secondary antibody for 1 hour in PBS. There is missing data, Temperature? What dilution media of primary and secondary antibody was used? Please, specify.

In conclusion, the manuscript has improved remarkably, but still more details about experimental design, Materials and methods experiments, numbers of mice and human samples used, number of tissue sections, cells analyzed in each experiment and strategies used to evaluate decidualization status.

Reviewer #3:

This manuscript investigates the role of the cannabinoid receptors Cnr1 and Cnr2 in mouse uterine function and human uterine fibroblast decidualization. This manuscript clearly demonstrates that ablation of both receptors impairs pregnancy by altering uterine stroma cell decidualization, vascularization and invasion of macrophages. Using in vitro decidualization of uterine stroma cells from Cnr1 mull mice and inhibition of cannabinoid signaling in human uterine fibroblasts this manuscript shows that alteration of Cnr1 signaling impairs mouse and human stroma cell decidualization. This manuscript is a comprehensive evaluation of the role of these receptors in uterine function. The authors have addressed all the concerns of the initial review and teh data presented will advance the field.

https://doi.org/10.7554/eLife.61762.sa1

Author response

[Editors’ note: the authors resubmitted a revised version of the paper for consideration. What follows is the authors’ response to the first round of review.]

Reviewer #1:

[…] A major strength of this work is the importance of understanding the role of these receptors in reproduction given the widespread use of marijuana. Weaknesses include the fact that many of the results are based on correlatives rather than direct functional relationships.

1) The number of animals that were employed for each experiment should be clearly stated.

The numbers of animals/samples in immunostaining and in situ hybridization experiments are now included in the revised figure legends (Figures 1-5). Sample sizes in quantitative PCR experiments are labeled in the bar diagrams (Figures 6-8).

2) Whenever possible more quantitative analyses would be desirable, for example, immunoblots to confirm altered expression of the proteins encoded by the marker genes. Added proof for abnormal vascularization of the primary decidual zone in the form of counting the vessels would be desirable. Similarly, quantifying macrophage retention would also be helpful. Also, the degree of contraction or expansion of marker expression could be measured.

As suggested, we have performed quantitative analyses of several parameters. Counting blood vessels in uterine sections may not provide more meaningful information, because of changes in the limited domain of the primary decidual zone (PDZ) and due to different dimensions and sizes of uteri under different experimental conditions. Therefore, we have quantified blood vessels in the (PDZ) (Figure 4—figure supplement 1). We have also quantified macrophage numbers in the endometrial domain (Figure 3D), as well as the suppression of Ang1 and Hif1a and induction of Ang2 and Hif2a signals in the PDZ (Figure 5—figure supplement 1). To address the reviewer’s concern regarding decidualization of Huf cells, morphological changes and decidual markers have been quantified (Figure 7 and Figure 7—figure supplement 1). To study the biological significance of CB1 induction of decidualization in Huf cells, we also added quantitative data of changes in angiogenic factors in human uterine fibroblasts before and after decidualization (Figure 8).

3) The functional relationships that are drawn among Vegf, the Hifs and the Ang1/2 in situ hybridization patterns should be softened as Hif activity is regulated at the protein level.

We now provide the expression status of Hif proteins by immunofluorescence staining (Figures 5E and 5F), which corroborates the results of in situ hybridization. We have softened the functional relationship statement in the text of the revised manuscript (end of subsection “Retention of blood vessels in Cnr1-/-Cnr2-/- PDZ is associated with multiple angiogenic factors”).

4) The in vitro analyses are somewhat superficial. In addition to assaying the expression of molecules that correlate with decidualization, pictures of the cells that document the expected morphological changes would also be desirable.

We have added morphological images of Huf cells before and after decidualization (Figure 7D-F and Figure 7—figure supplement 1). To strengthen the results of in vitro analysis and address the function of CB1 in decidualization, the latter was suppressed by a CB1 receptor specific antagonist (SR141716A, SR1) during decidualization, and the changes in decidual responses, as well as angiogenic factors were examined (Figure 8). More details regarding this question are included in the next question.

5) The authors show a very impressive rise in CNR1 expression with decidualization of human uterine fibroblasts. However, they fail to show the importance of this receptor in the process by demonstrating the effects of its elimination.

This is a legitimate question raised by the reviewer. To show the function of CB1 in decidualization, we used pharmacological inhibition through a specific CB1 receptor antagonist SR1. We found that neutralizing CB1 greatly reduces decidual response with respect to its marker genes and other angiogenic factors (Figure 8).

6) The starting material for both the mouse and human in vitro experiments appeared to be decidua. Were the cells de-differentiated and how many different donors were employed?

For mice, we used day 4 pregnant uteri to isolate purified stromal cells. For human experiments, we used uterine fibroblast cells purified from endometrial tissues obtained from women with typical menstrual cycle; predecidualization stromal cells were undifferentiated, but with decidualization cells are differentiated into decidual cells as indicated by decidual markers. Three donor mice were used in each group (Figure 6). Human uterine fibroblast cell line was generated by Dr. Stuart Handwerger and generously donated to us for future studies (PMID 7506205).

Reviewer #2:

The manuscript should clearly define the phenotype of the single knockouts of CB1 and CB2 to show which parts of the double phenotype are present in the single and double and which phenotypes are novel with respect to the double knockout. This is with respect the expression of the marker genes observed. This would show that they separately regulate the vascularization and stroma cell decidualization and together these process are required or is there synergy between these two compartments. This should be discussed.

As suggested by the reviewer, the phenotypic differences between single and double knockout (Cnr1-/-Cnr2-/-) mice are now shown in Figure 5. Decidual defects observed in Cnr1-/-Cnr2-/- mice are observed in Cnr1-/- mice as well, but not in Cnr2-/- mice, suggesting that normal decidualization requires CB1.

The authors imply a role of CB1 in human endometrial stroma fibroblast decidualization. They should employ knockdown of CB1 in these cells and show the impact on decidualization. This would increase the relevance of this manuscript.

Thank you for the constructive suggestion. We have responded to this question using a specific CB1 receptor antagonist SR1 (see our response to reviewer 1’s question 5.)

Reviewer #3:

This reviewer has the following major comments and suggestions:

– For consistency, this work uses three different mice models Cnr1-/-, Cnr2-/- and double mutant Cnr1-/-Cnr2-/-. However, it is very confusing to follow which model is used in each experimental part and the reason to do it. The authors should detail the mouse model used for each experiment and to justify their use.

The mouse models and the justification for use are now described in the Results section. To mechanistically address the role of CB1 and CB2 in vascular permeability and stromal decidualization, we have added data of angiogenic factors in Cnr1-/- and Cnr2-/- mice (Figure 5). Decidual defects observed in Cnr1-/-Cnr2-/- mice are observed in Cnr1-/- mice as well, but not in Cnr2-/- mice, which suggests that normal stromal decidualization depends on CB1.

– The experimental design is missing and should be included along the manuscript in the Results, Materials and methods, and figure legends. To understand this work the readers need to know mouse model or human samples used, sample size and replicates in each experiment. Those experiments performed using mice models should be included: days of female sacrifice (day 4, 5, 6 and 8), sample size for each sacrifice day, tissue collected, number of implantation sites analyzed, number of sections evaluated in each experiment of immunofluorescence and in situ hybridization. These details should be included along the manuscript to understand the results presented.

A part of the question is similar to questions 1 and 6 of reviewer 1, please refer to our responses under each of the questions. We have added a full description of the experimental design encompassing the work done in this study.

– The authors indicate along the manuscript that their finding about primary decidual zone formation is disrupted in Cnr1-/-Cnr2-/- females compromising their pregnancy outcomes. However, no data or result about pregnancy outcome is included. Introduction: "In this study, we show that endothelial cells deleted of Cnr2 have important roles in embryo implantation"; "Cnr1's critical role in early pregnancy", "The results show that double mutant mice have compromised PDZ formation, resulting in suboptimal pregnancy outcome". However, no data or result about pregnancy outcome is included.

The original data for pregnancy outcomes of each mouse model used in the current study were presented in Figure 1A-1C in the previous report (PMID: 30776303). As suggested by the reviewer, the pregnancy outcomes are now summarized in the manuscript (Introduction section).

– Decidualization is the core process of the study. The authors should explain the biology of this process and its role in pregnancy in the Introduction section. In addition, the Introduction did not mention that the in vitro approach with human uterine fibroblast; however it is mentioned in the Abstract. Please include these experiments in the Introduction and its connection with the rest of the results.

This is a legitimate question and the information is now provided in the Introduction section. The approaches to differentiate human uterine fibroblasts are now included in the Materials and method section.

– The experimental techniques are based on the use of fluorescence in situ hybridization and immunofluorescence. These experiments let us to observe the expression pattern and signal intensity between groups (wild type and Cnr1-/-Cnr2-/- mice). However, all the findings showed are descriptive. The author should include a quantitative method to quantify these parameters and to apply a statistical analysis to corroborate if the differences observed are significant. It is crucial to strengthen the results.

We have used semi-quantitative methods to bolster our results and observations with statistical analyses (Figure 5—figure supplement 1) and subsequent interpretation. In addition, we have added more quantitative data using qPCR experiments to examine the role of CB1 during decidualization (Figure 8).

– Materials and methods shows a description about RT-PCR but no experiment was included along the manuscript. It seems that these experiments were performed but are missing in the figures. Please, include this data that are very useful to corroborate the fluorescence in situ hybridization results, using a quantitative method as RT-PCR.

The data in Figures 6 and original Figure 7 were generated using qPCR. As suggested, to confirm the in situ hybridization results, we performed protein immunofluorescence staining (Figure 5E and F) and qPCR of angiogenic factors in HuF cells before and after decidualization (Figure 8).

– The IF and in situ hybridization experiments should be performed using the same markers for the different days selected. For example, in the Figure 3A the staining CD45 and F4/F80 was performed in day 4 of pregnancy and Figure 3B F4/F80 and PECAM in day 6 of pregnancy. Please, show the same markers for the different days analysed.

As suggested, we have included additional data of these markers on different days of pregnancy, except PECAM which is now excluded from the manuscript.

[Editors’ note: what follows is the authors’ response to the second round of review.]

Reviewer #2:

The authors have followed most of my recommendations and the paper has improved remarkably. Still some points need to be addressed:

– The authors use the sentence "samples sizes are indicated in each figure" in material and methods sections. But the author should include these important data in Materials and methods section.

The number of animals and sample sizes for each experiment are specified in individual method sections, including “Whole-mount immunostaining”, “3D imaging and processing”, “Quantitative RT-PCR”, “Fluorescence in situ hybridization” and “Immunofluorescence”.

– The introductory sentence in each figure legend is confused "All images are representative of three independent experiments". How many animals? Human samples? And how many replicates of each experiment, number of tissue sections/cells… analyzed from same animal/patient? There is a lack of detail about experimental design used. Supplementary figure with a scheme would be interesting to understand better this part.

Detailed responses are listed under the first question of review 2.

– "In each experiment, three to four animals were used to validate the results". The author should indicate the exact number of mice used from each animal: wild type, Cnr1-/-, Cnr2-/- and Cnr1-/-Cnr2-/- mice.

The number of animal and sections used in each experiment are now specified in each method section. Detailed responses are listed under the first question of reviewer 2.

– The Figure 3 is similar to the last version, just PECAM results was excluded. The authors should include CD45 staining for day 6.

We now include data of CD45 of day 6 implantation sites in Figure 3—figure supplement 1.

– The authors explain that The Cnr1-/- null model is now included in the text but the information is missing.

The original concern was about Figure 6C regarding in vitro decidualization using primary stromal cells retrieved from WT, Cnr1-/- and Cnr2-/- mice. Therefore, in the first sentence in the method section under “Quantitative RT-PCR”, we now state that “RNA was collected from….. WT, Cnr1-/- and Cnr2-/- primary stromal cells”.

– "Mice were killed on different days of pregnancy in accordance to experimental design. i.e day 4, day 6, and day 8 of pregnancy. In each experiment, three to four animals were used to validate the results." Please define exactly the numbers.

The number of animals and sections used in each experiment are specified in each method section.

– Subsection “Immunofluorescence.”: tissue sections size?

Frozen sections were cut with 12 μm in thickness. The information is now inserted.

– Sections were blocked in 5% BSA in PBS and incubated with primary antibody at 4{degree sign}C overnight, followed by incubation in secondary antibody for 1 hour in PBS. There is missing data, Temperature? What dilution media of primary and secondary antibody was used? Please, specify.

Incubation of secondary antibodies was conducted at room temperature. The information is now added. Dilution factors for each antibody are specified at the end of method section “Immunofluorescence”.

https://doi.org/10.7554/eLife.61762.sa2

Article and author information

Author details

  1. Yingju Li

    1. Division of Reproductive Sciences, Cincinnati Children’s Hospital Medical Center, Cincinnati, United States
    2. Department of Pediatrics, University of Cincinnati College of Medicine, Cincinnati, United States
    Contribution
    Data curation, Formal analysis, Investigation
    Contributed equally with
    Amanda Dewar
    Competing interests
    No competing interests declared
  2. Amanda Dewar

    1. Division of Reproductive Sciences, Cincinnati Children’s Hospital Medical Center, Cincinnati, United States
    2. Department of Pediatrics, University of Cincinnati College of Medicine, Cincinnati, United States
    Contribution
    Data curation, Formal analysis, Investigation
    Contributed equally with
    Yingju Li
    Competing interests
    No competing interests declared
  3. Yeon Sun Kim

    1. Division of Reproductive Sciences, Cincinnati Children’s Hospital Medical Center, Cincinnati, United States
    2. Department of Pediatrics, University of Cincinnati College of Medicine, Cincinnati, United States
    Contribution
    Data curation, Formal analysis, Investigation
    Competing interests
    No competing interests declared
  4. Sudhansu K Dey

    1. Division of Reproductive Sciences, Cincinnati Children’s Hospital Medical Center, Cincinnati, United States
    2. Department of Pediatrics, University of Cincinnati College of Medicine, Cincinnati, United States
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Investigation, Methodology, Writing - review and editing
    For correspondence
    sk.dey@cchmc.org
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9159-186X
  5. Xiaofei Sun

    1. Division of Reproductive Sciences, Cincinnati Children’s Hospital Medical Center, Cincinnati, United States
    2. Department of Pediatrics, University of Cincinnati College of Medicine, Cincinnati, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Investigation, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    xiaofei.sun@cchmc.org
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9601-5423

Funding

National Institute on Drug Abuse (DA006668)

  • Sudhansu K Dey

Eunice Kennedy Shriver National Institute of Child Health and Human Development (HD068524)

  • Sudhansu K Dey

Eunice Kennedy Shriver National Institute of Child Health and Human Development (HD103475)

  • Sudhansu K Dey

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Katie Gerhardt for her efficient editing of the manuscript. This work was supported in parts by NIH grants (HD103475 and HD068524 to SKD).

Senior Editor

  1. Didier YR Stainier, Max Planck Institute for Heart and Lung Research, Germany

Reviewing Editor

  1. Susan Fisher, UCSF, United States

Publication history

  1. Received: August 4, 2020
  2. Accepted: September 29, 2020
  3. Accepted Manuscript published: September 29, 2020 (version 1)
  4. Version of Record published: October 12, 2020 (version 2)

Copyright

© 2020, Li et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 253
    Page views
  • 54
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    2. Evolutionary Biology
    Meng Xie et al.
    Research Article Updated

    Growth plate and articular cartilage constitute a single anatomical entity early in development but later separate into two distinct structures by the secondary ossification center (SOC). The reason for such separation remains unknown. We found that evolutionarily SOC appears in animals conquering the land - amniotes. Analysis of the ossification pattern in mammals with specialized extremities (whales, bats, jerboa) revealed that SOC development correlates with the extent of mechanical loads. Mathematical modeling revealed that SOC reduces mechanical stress within the growth plate. Functional experiments revealed the high vulnerability of hypertrophic chondrocytes to mechanical stress and showed that SOC protects these cells from apoptosis caused by extensive loading. Atomic force microscopy showed that hypertrophic chondrocytes are the least mechanically stiff cells within the growth plate. Altogether, these findings suggest that SOC has evolved to protect the hypertrophic chondrocytes from the high mechanical stress encountered in the terrestrial environment.

    1. Chromosomes and Gene Expression
    2. Developmental Biology
    Rozenn Riou et al.
    Research Article

    Erythropoietin (EPO) is a key regulator of erythropoiesis. The embryonic liver is the main site of erythropoietin synthesis, after which the kidney takes over. The adult liver retains the ability to express EPO, and we discovered here new players of this transcription, distinct from the classical hypoxia-inducible factor pathway. In mice genetically-invalidated in hepatocytes for the chromatin remodeler Arid1a, and for Apc, the major silencer of Wnt pathway, chromatin was more accessible and histone marks turned into active ones at the Epo downstream enhancer. Activating β-catenin signaling increased binding of Tcf4/β-catenin complex and upregulated its enhancer function. The loss of Arid1a together with β-catenin signaling, resulted in cell-autonomous EPO transcription in mouse and human hepatocytes. In mice with Apc-Arid1a gene invalidations in single hepatocytes, Epo de novo synthesis led to its secretion, to splenic erythropoiesis and to dramatic erythrocytosis. Thus, we identified new hepatic EPO regulation mechanism stimulating erythropoiesis.
