IL-2/JES6-1 mAb complexes dramatically increase sensitivity to LPS through IFN-γ production by CD25+Foxp3- T cells

  1. Jakub Tomala
  2. Petra Weberova
  3. Barbora Tomalova
  4. Zuzana Jiraskova Zakostelska
  5. Ladislav Sivak
  6. Jirina Kovarova
  7. Marek Kovar  Is a corresponding author
  1. Laboratory of Tumor Immunology, Institute of Microbiology, Czech Academy of Sciences, Czech Republic
  2. Laboratory of Cellular and Molecular Immunology, Institute of Microbiology, Czech Academy of Sciences, Czech Republic

Abstract

Complexes of IL-2 and JES6-1 mAb (IL-2/JES6) provide strong sustained IL-2 signal selective for CD25+ cells and thus they potently expand Treg cells. IL-2/JES6 are effective in the treatment of autoimmune diseases and in protecting against rejection of pancreatic islet allografts. However, we found that IL-2/JES6 also dramatically increase sensitivity to LPS-mediated shock in C57BL/6 mice. We demonstrate here that this phenomenon is dependent on endogenous IFN-γ and T cells, as it is not manifested in IFN-γ deficient and nude mice, respectively. Administration of IL-2/JES6 leads to the emergence of CD25+Foxp3-CD4+ and CD25+Foxp3-CD8+ T cells producing IFN-γ in various organs, particularly in the liver. IL-2/JES6 also increase counts of CD11b+CD14+ cells in the blood and the spleen with higher sensitivity to LPS in terms of TNF-α production and induce expression of CD25 in these cells. These findings indicate safety issue for potential use of IL-2/JES6 or similar IL-2-like immunotherapeutics.

Editor's evaluation

Tomala et al., describes the ability of IL-2/JES6-1 mAb complexes to increase mouse sensitivity to LPS challenge. The authors present data to suggest this is due to IFN-γ production by CD25+Foxp3- T cells. The manuscript has identified an interesting phenomenon as a result of IL-2/JES6-1 complex administration. These data may provide novel avenues for future therapeutic intervention in autoimmune disease.

https://doi.org/10.7554/eLife.62432.sa0

Introduction

IL-2 is a crucial cytokine for activation, expansion, and expression of effector functions of T and NK cells as well as for homeostasis of regulatory T (Treg) cells (Boyman and Sprent, 2012; Liao et al., 2013; Malek and Castro, 2010). IL-2 exerts its biological activities through binding to either a dimeric receptor composed of IL-2Rβ (CD122) and common cytokine receptor gamma chain (γc, CD132) or to a trimeric receptor composed of a dimeric one with the addition of IL-2Rα (CD25) (Minami et al., 1993; Waldmann, 1989). CD25 is not involved in signal transduction, but increases the affinity of the trimeric receptor for IL-2 by about 100-fold (Minami et al., 1993; Waldmann, 1989). The dimeric receptor (Kd ~1 nM) is mostly found on memory CD8+ T and NK cells, whilst the trimeric receptor (Kd ~10 pM) is typically expressed at high levels by Treg cells, recently activated T cells and ILC2s (Boyman and Sprent, 2012; Roediger et al., 2013; Sakaguchi et al., 1995).

IL-2 was the first immunotherapy approved for the treatment of metastatic renal cell carcinoma and malignant melanoma in the early 1990s (Atkins et al., 1999; Klapper et al., 2008), having induced an overall response in 15–17% of patients with these cancers including 5–10% durable complete remissions (Atkins et al., 1999; Klapper et al., 2008). However, an extremely short half-life (Donohue and Rosenberg, 1983) and serious side toxicities associated with high-dose IL-2 treatment are the major drawbacks. Moreover, IL-2 treatment leads to expansion of Treg cells which can dampen effector T cell activity against tumors (Berendt and North, 1980). Indeed, it has been shown that long-term, low-dose IL-2 therapy preferentially stimulates Treg cells due to their constitutive high expression of trimeric IL-2R and can be used for treatment of autoimmune diseases and delaying allograft rejection (Klatzmann and Abbas, 2015; Yu et al., 2009). However, due to significant limitations of IL-2, strong attempts have been made to improve IL-2-based therapy. One of the most promising approaches is to employ complexes of IL-2 and certain anti-IL-2 mAbs. It has been demonstrated that these complexes not only markedly prolong the half-life of parenterally administered IL-2 (from minutes to hours) but they also exert selective stimulatory activity for different immune cell populations depending on the mAb used (Boyman et al., 2006; Tomala et al., 2009). Complexes of murine IL-2 and S4B6 mAb (IL-2/S4B6 henceforth) were shown to potently stimulate memory CD8+ T and NK cells, whilst complexes of murine IL-2 and JES6-1 mAb (IL-2/JES6 henceforth) highly selectively expand Treg cells (Boyman et al., 2006; Spangler et al., 2015; Tomala et al., 2009). Selectivity of IL-2/JES6 for cells expressing the high-affinity IL-2R is governed by the fact that the binding site for JES6-1 mAb and CD122/CD132 in the IL-2 molecule, almost completely overlap. IL-2/JES6 is thus not able to bind to IL-2R and induce signaling per se. However, CD25 can engage IL-2 bound to JES6-1 mAb, particularly when expressed at high levels, and progressively ‘peel off’ the cytokine from the antibody in a zipper-like mechanism, ultimately leading to dissociation of JES6-1 mAb. Once JES6-1 mAb dissociates, the CD25-bound IL-2 is liberated to recruit CD122/CD132 to form the functional signaling complex (Spangler et al., 2015). Selectivity of IL-2/JES6 for CD25+ cells results in their high efficacy to expand Treg cells in vivo and makes them an attractive immunotherapeutic. It has been shown that IL-2/JES6 could be used for treatment of various autoimmune diseases (Izquierdo et al., 2018; Liu et al., 2011; Webster et al., 2009; Wilson et al., 2008) and to facilitate long-term acceptance of allografts without the need for immunosuppression (Webster et al., 2009). A single-chain format of IL-2/JES6 was produced with a mutated JES6-1 mAb-binding site, termed JY3, which affected the affinity for IL-2. This proved to be effective in selective expansion of Treg cells and in the model of autoimmune colitis (Spangler et al., 2018). Furthermore, there is a report describing the development of fully human mAb binding human IL-2 with the capacity to selectively expand Treg cells in vivo when complexed with human IL-2 (Trotta et al., 2018).

It has been shown that Treg cells expanded by IL-2/JES6 produce IL-10 and TGF-β (Webster et al., 2009). We therefore decided to explore the possibility that IL-2/JES6 are able to protect against LPS-induced toxicity. Interestingly, we found that short-term pre-treatment (three daily doses) with IL-2/JES6 dramatically increases sensitivity of C56BL/6 mice to LPS-induced shock and mortality. Thus, we decided to further investigate this phenomenon and to uncover the mechanism responsible for IL-2 signal-mediated LPS hyperreactivity.

Results

IL-2/JES6, but Not IL-2/S4B6, dramatically increase sensitivity to LPS

We asked whether selective expansion of Treg cells via treatment with IL-2/JES6 could lead to protection from the toxic effect of LPS. To answer this we injected C56BL/6 mice with three daily doses of IL-2/JES6 (1.5 µg IL-2/dose) and challenged these mice with LPS 48 h after the last dose of IL-2/JES6 (Figure 1A). We titrated LPS dosing in previous experiments in order to determine the maximum non-lethal dose (MNLD), that is, the highest dose that causes significant toxic effect but no mortality. Since we found that toxicity of LPS varies from batch to batch even if ordered as identical product from the same commercial supplier, we isolated a large batch of LPS from S. typhymurium LT2, S-strain (see Materials and methods) and used it throughout the whole study. We determined that the MNLD of our LPS was ~200 µg/mice in C56BL/6 mice. Control C56BL/6 mice developed hypothermia starting about 4–6 h after LPS challenge (100% of MNLD) and peaking after approximately 24 h. However, all mice recovered over the next 2 d. Mice injected with a low dose of LPS (10% of MNLD) developed only negligible hypothermia 8 h after LPS injection and fully recovered within 24 h. Contrary to that, the same low dose of LPS induced extremely rapid onset of progressively worsening hypothermia when mice were pretreated with IL-2/JES6 and the mice usually died within 8–24 h (Figure 1B). Next, we decided to determine the kinetics of sensitization to LPS by IL-2/JES6. Mice pretreated with IL-2/JES6 as in Figure 1A were challenged at different time points after IL-2/JES6 treatment with low dose of LPS (10% of MNLD). Figure 1C shows that LPS caused 100% mortality when injected up to 2 d post IL-2/JES6 treatment and 40% mortality when injected 3 d after that. Significant hypothermia, but no mortality was seen when LPS was injected 4 d post IL-2/JES6. No sensitization to LPS was found when LPS was injected 6 d post IL-2/JES6. These data shows that IL-2/JES6 dramatically increase sensitivity to LPS in C56BL/6 mice and that this increased sensitivity lasts about 4 d post IL-2/JES6 treatment.

Figure 1 with 2 supplements see all

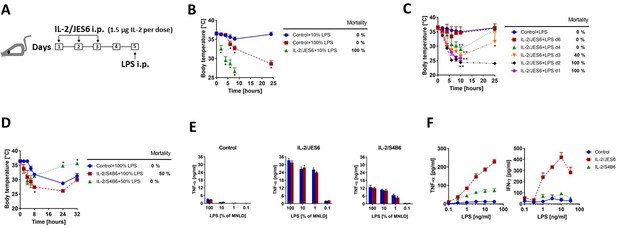

IL-2/JES6 dramatically increase sensitivity to LPS-induced shock and mortality.

(A) Schedule of sensitization of mice to LPS through administration of IL-2/JES6 used throughout the study, unless stated otherwise. (B) C56BL/6 mice were treated with IL-2/JES6 as shown in A. Control mice were treated with sterile PBS. The dose of injected LPS is shown in % of maximum non-lethal dose, henceforth (MNLD; 100% ~ 200 µg LPS/mice). (C) C56BL/6 mice were treated with IL-2/JES6 and LPS (10% of MNLD) was injected 1–6 d after the last dose of IL-2/JES6. (D) C56BL/6 mice were treated with complexes of IL-2 and S4B6 mAb (IL-2/S4B6) followed by LPS challenge (100 or 50% of MNLD) using the same schedule as in A. (E) C56BL/6 mice were treated as in A with PBS (Control), IL-2/JES6 or IL-2/S4B6 complexes. Mice were euthanized 90 min post administration of titrated doses of LPS and their individual sera were collected. Concentration of TNF-α in the serum was determined by ELISA. Each bar represents one individual mouse± SD (n = 3 technical replicates). (F) C56BL/6 mice were treated as in A with PBS (Control), IL-2/JES6 or IL-2/S4B6 complexes, but not challenged with LPS. Mice were euthanized 2 d after the last dose of complexes and their spleen cells were cultivated in titrated concentrations of LPS for 16 h in vitro. Concentrations of TNF-α and IFN-γ in the supernatant were determined by ELISA. Each point represents pool of three individual mouse ± SD (n = 3 technical replicates). All experiments were done at least twice with similar results; n = 4–7 technical replicates (B–D). Data were analysed using an unpaired two-tailed Student’s t-test. Significant differences to control are shown (* p ≤ 0.05; ** p ≤ 0.01).

We also wanted to know whether IL-2/S4B6 sensitize C56BL/6 mice to LPS. Mice pretreated with IL-2/S4B6 using the same schedule as in Figure 1A, showed only decent sensitization to LPS as challenge with relatively high dose of LPS (50% of MNLD) induced hypothermia but no mortality (Figure 1D). Thus, IL-2 complexes with selective stimulatory activity for CD25high cells, but not those which stimulate predominantly CD122high cell populations, dramatically increase sensitivity to LPS. Accordingly, TNF-α levels in sera of mice pretreated with IL-2/JES6 were significantly higher in comparison to sera from mice pretreated with IL-2/S4B6 after LPS challenge (Figure 1E). Furthermore, splenocytes from IL-2/JES6 pretreated mice produced much higher amounts of TNF-α and IFN-γ than those from IL-2/S4B6 pretreated mice when cultivated in the presence of LPS in vitro (Figure 1F).

Both durability of IL-2 signal and its selectivity for CD25high cells are necessary to induce high sensitivity to LPS

Next, we asked whether IL-2 alone is also able to measurably increase the sensitivity of C56BL/6 mice to LPS. We pretreated mice with high IL-2 dosage (35 µg/dose, i.e., more than 20-times higher compared to IL-2/JES6) and challenged them with LPS using the same schedule as in Figure 1A. We found that mice pretreated with IL-2 developed more profound hypothermia than controls, however, no mortality was recorded (Figure 2A). Thus, IL-2 alone can produce a slight increase in sensitivity to LPS when a high dosage is used. We decided to test whether IL-2 bound to a biocompatible polymeric carrier based on poly(N-(2-propyl)methacrylamide) would be more effective in sensitization to LPS. The rationale here is that IL-2 bound to this polymeric carrier has a significantly prolonged half-life in circulation (3–4 h, i.e., similar to IL-2 complexes) thus providing a more sustained IL-2 signal but with no selectivity for CD25high cells (Votavova et al., 2015). Indeed, IL-2 bound to a polymeric carrier sensitized C56BL/6 mice to LPS substantially more effectively than IL-2. The LPS challenge with 50% of MNLD caused more severe hypothermia and 50% mortality (Figure 2B). These data demonstrate that durability of the IL-2 signal plays a remarkable role in sensitization to LPS via IL-2. However, sensitivity to LPS induced by IL-2 bound to the polymeric carrier is still much weaker in comparison to IL-2/JES6, showing that selectivity for CD25high cells is also important. We injected LPS 48 h after the last dose of IL-2 complexes in our sensitization experiments. Therefore, it is highly unlikely that there was still a biologically active concentration of these complexes at the time of LPS administration since the half-life of IL-2 complexes was determined to be several hours. However, to exclude the possibility that increased sensitivity to LPS is caused by the presence of IL-2 complexes at the time of LPS injection, that is, that LPS and IL-2 complexes acts together at the same time, we injected C56BL/6 mice with either IL-2/JES6 or IL-2/S4B6 and simultaneously challenged them with LPS (10% or 35% of MNLD, respectively). Simultaneous co-administration of IL-2 complexes and LPS did not increase toxicity of LPS, as seen in Figure 2C. These data show that it is important the IL-2/JES6 to be present before LPS administration rather than at the time of administration in order to induce LPS hyperreactivity. Thus, IL-2/JES6 either act on cells that are able to directly respond to LPS making them hyperresponsive, or they activate some immune cell subset(s), which in turn mediates LPS hyperreactivity, for example, via production of some effector molecule(s).

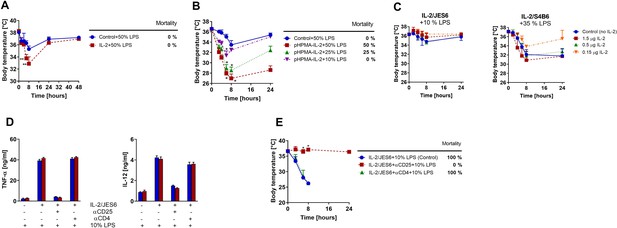

Strong sustained IL-2 signal and not solely IL-2/JES6, increases sensitivity to LPS; IL-2/JES6-mediated sensitivity to LPS could be completely blocked by αCD25 mAb.

(A) C56BL/6 mice were treated with rmIL-2 (35 µg/dose) according to the schedule shown in Figure 1A and challenged with LPS (50% of MNLD). (B) C56BL/6 mice were treated with IL-2 covalently bound to the polymeric carrier based on poly(HPMA) using the same schedule as in Figure 1A and subsequently challenged with titrated doses of LPS. (C) C56BL/6 mice were injected simultaneously with LPS and either IL-2/JES6 or IL-2/S4B6 complexes (1.5 or 0.5 or 0.15 µg IL-2/dose) in one i.p. injection. Dosage of LPS is shown in % of MNLD above each graph. Control mice were injected with the same dose of LPS only. (D) C56BL/6 mice were injected with IL-2/JES6 and then challenged with LPS (10% of MNLD) as shown in Figure 1A. Some mice were also injected with either αCD25 or αCD4 mAb (250 µg/mouse i.p.) 4 h prior to the first injection of IL-2/JES6 as shown below in the graphs. Mice were euthanized 4 h after the LPS challenge and concentrations of TNF-α and IL-12 were determined by ELISA. Each bar represents one individual mouse± SD (n = 3 technical replicates). (E) C56BL/6 mice were treated with IL-2/JES6 and subsequently challenged with LPS as shown in Figure 1A. Some mice were also injected with either αCD25 or αCD4 mAb (250 µg per mouse i.p.) 4 h prior to the first injection of IL-2/JES6. All experiments were done at least twice with similar results; n = 4–6 technical replicates. Data were analysed using an unpaired two-tailed Student’s t-test. Significant differences to control are shown (* p ≤ 0.05; ** p ≤ 0.01).

Since high expression of CD25 is a prerequisite for the ability to utilize IL-2/JES6, we decided to test whether blocking of CD25 abrogates sensitization to LPS by IL-2/JES6. Indeed, administration of anti-CD25 mAb completely diminished sensitization to LPS by IL-2/JES6 measured by both TNF-α or IL-12 serum levels (Figure 2D) and hypothermia plus mortality (Figure 2E). Notably, administration of anti-CD4 mAb had no effect, although CD25high cells are mostly Treg cells in naïve unprimed mice (Figure 2D and E). This show that CD4+ T cells, including Treg cells, do not play an irreplaceable role in the studied phenomenon.

IL-2/JES6 increase counts of CD11b+CD14+ cells and their responsiveness to LPS

Our next set of experiments aimed to deduce how IL-2/JES6 affect LPS-responding myeloid cells, particularly CD11b+CD14+ cells. We found that treatment of C56BL/6 mice with IL-2/JES6 (as in Figure 1A) increased relative counts of CD11b+CD14+ cells in the spleen and blood (Figure 3A and B) as well as absolute counts of these cells in the spleen (Figure 3C). We also found that treatment with IL-2/JES6 expands myeloid cells in general. IL-2/JES6 expanded significantly granulocytes, eosinophils and DCs and elevated, though not significantly, relative counts of monocytes and macrophages (Figure 3—figure supplement 1). Of note, treatment with IL-2/JES6 increased MHC II expression on monocytes and macrophages (Figure 3—figure supplement 2). The proliferation of myeloid cells driven by IL-2/JES6 was further confirmed by BrdU incorporation (Figure 3—figure supplement 3). IL-2/JES6 also remarkably increased responsiveness of CD11b+CD14+ cells from the spleen (Figure 3D and E) and blood (Figure 3F and G) to LPS in term of TNF-α production. Moreover, we found that IL-2/JES6 increased expression of CD25 in CD11b+CD14+ cells from the spleen and liver (Figure 3H, I) thus enabling these cells to effectively utilize IL-2/JES6. These data collectively show that treatment with IL-2/JES6 increases both the counts of LPS-responsive myeloid cells in various body compartments and their responsiveness to LPS. We asked a question whether this increased responsiveness of myeloid cells to LPS was due to the increased expression of TLR4. Thus, we analyzed Tlr4 expression in spleen cells via quantitative RT-PCR and in various myeloid cell subsets via flow cytometry. Treatment with IL-2/JES6 did not affect the Tlr4 expression in splenocytes on mRNA level (Figure 3—figure supplement 4). No statistically significant difference in TLR4 level upon IL-2/JES6 treatment in comparison to control was found in CD11b+Ly6G-Ly6Chigh cells. Surprisingly, IL-2/JES6 treatment decently but statistically significantly decreased TLR4 levels in CD11b+Ly6G+ cells and CD11b+Ly6G-Ly6Clowcells (Figure 3—figure supplement 5). IL-2/JES6 thus did not increased the sensitivity to LPS via increased expression of TLR4.

Figure 3 with 7 supplements see all

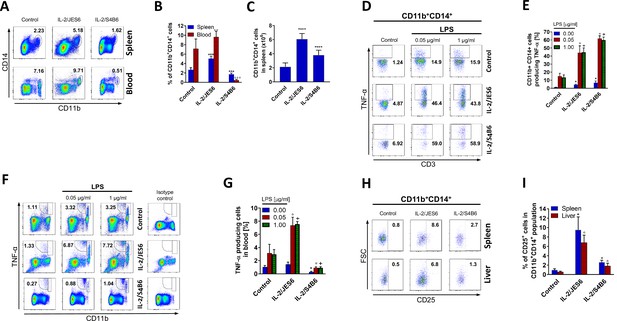

IL-2/JES6 increases counts of CD11b+CD14+ cells and their responsiveness to LPS in terms of TNF-α production.

C56BL/6 mice were treated with IL-2/JES6 or IL-2/S4B6 as shown in Figure 1A. The relative number of CD11b+CD14+ cells was determined by flow cytometry in blood and spleen 2 d after the last dose of IL-2 complexes. Dot plots showing one representative mouse (A) and a bar graph showing the mean ± SD in the experimental groups (B) are shown. (C) Absolute numbers of CD11b+CD14+ cells in the spleen of mice from the same experiment as shown in A and B. C56BL/6 mice were treated with IL-2/JES6 or IL-2/S4B6 as shown in Figure 1A. Spleen cells were cultivated ex vivo with LPS for 2 h and TNF-α production in CD11b+CD14+ cells was determined by flow cytometry. Dot plots showing one representative mouse (D) and a bar graph showing the mean ± SD in experimental groups (E) are shown. A similar experiment to the one shown in D and E was done using the blood of C56BL/6 mice treated with IL-2/JES6 or IL-2/S4B6. TNF-α production in CD11b+ cells is shown in one representative mouse (F) and in a bar graph showing the mean ± SD in experimental groups (G). (H) C56BL/6 mice were treated with IL-2/JES6 or IL-2/S4B6 as shown in Figure 1A. Flow cytometry analysis of spleen and liver cells was used to evaluate CD25 expression in CD11b+CD14+ cells. Dot plots showing one representative mouse (H) and a bar graph showing mean ± SD in experimental groups (I) are presented. All experiments were done at least twice with similar results; n = 3–10 technical replicates. Data were analysed using an unpaired two-tailed Student’s t-test. Significant differences to control are shown (*,°,+ p ≤ 0.05; °° p ≤ 0.01; ***, °°° p ≤ 0.001).

T cells and IFN-γ are essential for sensitization to LPS by IL-2/JES6

IFN-γ is known to activate myeloid cells, particularly monocytes and macrophages, to more vigorously respond to TLR ligands including LPS. Thus, we decided to compare sensitization to LPS by IL-2/JES in C56BL/6 mice and BALB/c mice. C56BL/6 mice are described as a strand with sufficient IFN-γ production while BALB/c mice are poor producers. We determined levels of various cytokines in sera of C56BL/6 and BALB/c mice pretreated with IL-2/JES6 at different time points after LPS challenge. Levels of TNF-α, IFN-γ, IL-1β, IL-12, and IL-6 were much higher in sera of C56BL/6 mice pretreated with IL-2/JES6 in comparison with controls, despite the fact that control mice were challenged with 10-times higher doses of LPS. Contrary to this, levels of the above mentioned cytokines were comparable in sera of control and IL-2/JES6 pretreated BALB/c mice (Figure 4A). Furthermore, BALB/c mice pretreated with IL-2/JES6 showed much milder sensitization to LPS in term of hypothermia and mortality than C56BL/6 mice (Figure 4B). These data show that the endogenous production of IFN-γ upon IL-2/JES6 administration probably plays a crucial role in sensitization to LPS. To confirm a key role of IFN-γ directly, we injected C56BL/6 mice with anti-IFN-γ mAb prior to IL-2/JES6 pretreatment and LPS challenge. Indeed, anti-IFN-γ mAb markedly diminished sensitization to LPS by IL-2/JES6 (Figure 4C). Hence, we conclude that endogenous production of IFN-γ is a prerequisite for strong sensitization to LPS via IL-2/JES6.

Figure 4 with 2 supplements see all

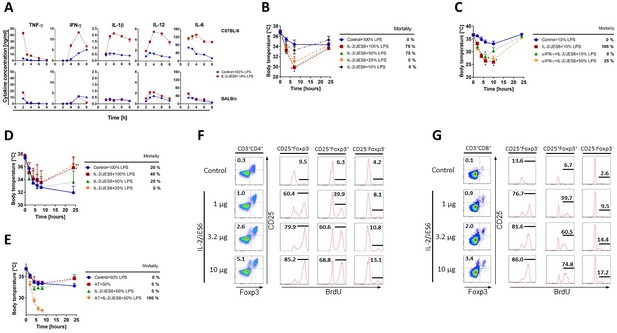

Sensitization to LPS via IL-2/JES6 requires endogenous IFN-γ production and is T cell-dependent.

(A) C56BL/6 and BALB/c mice were treated with IL-2/JES6 and challenged with LPS (10% of MNLD) as shown in Figure 1A. Control mice were treated with PBS and challenged with LPS (100% of MNLD). Mice were euthanized at selected time points and their individual sera were collected. Concentrations of cytokines in the serum were determined by ELISA. Each experimental point represents the mean of two mice ± SD (n = 2 technical replicates). (B) BALB/c mice were treated with IL-2/JES6 and challenged with titrated doses of LPS as shown in Figure 1A. (C) C56BL/6 mice were treated with IL-2/JES6 and challenged with LPS (10 or 50% of MNLD) as shown in Figure 1A. Some mice were also injected with anti-IFN-γ mAb (αIFN-γ; 250 µg/mice i.p.) 4 h prior to the first injection of IL-2/JES6. (D) Nu/Nu mice were treated with IL-2/JES6 and challenged with titrated doses of LPS as shown in Figure 1A. (E) Two groups of Nu/Nu mice were adoptively transferred (AT) with 2 × 106 CD4+CD25+ T cells from C56BL/6 mice pretreated with IL-2/JES6 as shown in Figure 1A. One group of AT mice and one group of normal Nu/Nu mice were treated with IL-2/JES6 as shown in Figure 1A. All groups including Nu/Nu mice without AT and IL-2/JES6 treatment (Control) were challenged with LPS (50% of MNLD). C56BL/6 mice were injected with one titrated dose of IL-2/JES6 or with PBS (Control). Mice were injected i.p. with BrdU 4 h after injection of IL-2/JES6 and put on drinking water with BrdU. Mice were euthanized 48 h after the injection of IL-2/JES6 and their CD4+ and CD8+ T cells (F and G, respectively) from the spleen were analysed by flow cytometry. One representative mouse out of two for each condition is shown. All experiments were done at least twice with similar results; n = 2–5 technical replicates (B–G). Data were analysed using an unpaired two-tailed Student’s t-test. Significant differences to control are shown (* p ≤ 0.05; ** p ≤ 0.01).

Next, we asked which cells are key IFN-γ producers upon IL-2/JES6 administration. Since T cells are the most prominent IFN-γ producers, we decided to test sensitization to LPS by IL-2/JES6 in athymic Nu/Nu mice lacking T cells. We found that IL-2/JES6 almost do not sensitize Nu/Nu mice to LPS (Figure 4D). On the other hand, Nu/Nu mice with adoptively transferred CD4+CD25+ T cells from C56BL/6 mice injected with IL-2/JES6 showed very high sensitization to LPS upon IL-2/JES6 treatment (Figure 4E). These data show that IL-2/JES6 is able to induce IFN-γ production in T cells even in the absence of TCR signal except that provided by self-MHC molecules. TLR4 expression on T cells seems to be irrelevant for their ability to sensitize the mice to LPS since Rag1-/- mice with adoptively transferred T cells from Myd88-/- mice, that is with severely impaired TLR4 downstream signaling, showed profound LPS sensitivity upon treatment with IL-2/JES6 (Figure 4—figure supplement 1). The key question is therefore, which T cell subset(s) produces IFN-γ upon IL-2/JES6 treatment? The ability to utilize IL-2/JES6 strictly requires CD25 expression and the only T cells expressing CD25 in naïve unprimed mice are Treg cells. However, Treg cells are considered as a T cell subset with no ability to produce IFN-γ under normal conditions. Nevertheless, we found that administration of IL-2/JES6 potently expanded CD25+Foxp3- T cells in both CD4+ and CD8+ subsets and that these cells proliferate more vigorously in response to IL-2/JES6 than Treg cells (Figure 4F and G).

IL-2/JES6 drive expansion of CD25+Foxp3- T cells producing IFN-γ in lymphoid as well as non-lymphoid tissues

We focused on CD25+Foxp3-CD4+ and CD8+ T cells robustly expanded in the spleen of mice treated with IL-2/JES6. Since these cells resemble by their phenotype activated T cells, we presumed that these cells could be a key producers of IFN-γ in IL-2/JES6 treated mice causing the increased sensitivity to LPS. Thus, we decided to investigate whether these cells were expanded also in other organs except of spleen and whether they produced IFN-γ. Interestingly, we found that treatment of C56BL/6 mice with IL-2/JES6 led to the induction of these cells in both lymphoid tissues (spleen) as well as in non-lymphoid tissues (liver and lungs; Figure 5A and B). Relative counts of CD25+Foxp3-CD4+ and CD8+ T cells were particularly high in the liver where they typically represented about 6% and 10% of CD4+ and CD8+ T cells, respectively. We asked whether these CD25+Foxp3-CD4+ and CD8+ T cells are able to produce IFN-γ upon IL-2/JES6 administration in vivo. To answer this, C56BL/6 mice were treated with IL-2/JES6 as in Figure 1A and brefeldin A was injected 2 h after the last dose of IL-2/JES6 to enable the detection of IFN-γ production in various T cell subsets intracellularly. We proved that CD25+Foxp3-CD4+ and CD8+ T cells in spleen, liver, and lungs produced IFN-γ (Figure 5C and D). Again, relative counts of these cells producing IFN-γ were especially high in the liver and generally higher in the CD8+ subset in comparison to the CD4+ subset. Notably, Treg cells in the liver of C56BL/6 mice treated with IL-2/JES6 also produced IFN-γ showing that Treg cells may surprisingly participate in sensitization to LPS. IL-2/S4B6 almost did not induce CD25+Foxp3-CD4+ and CD8+ T cells in any tissue studied. This agrees with the previous finding that IL-2/S4B6 sensitize to LPS only very decently.

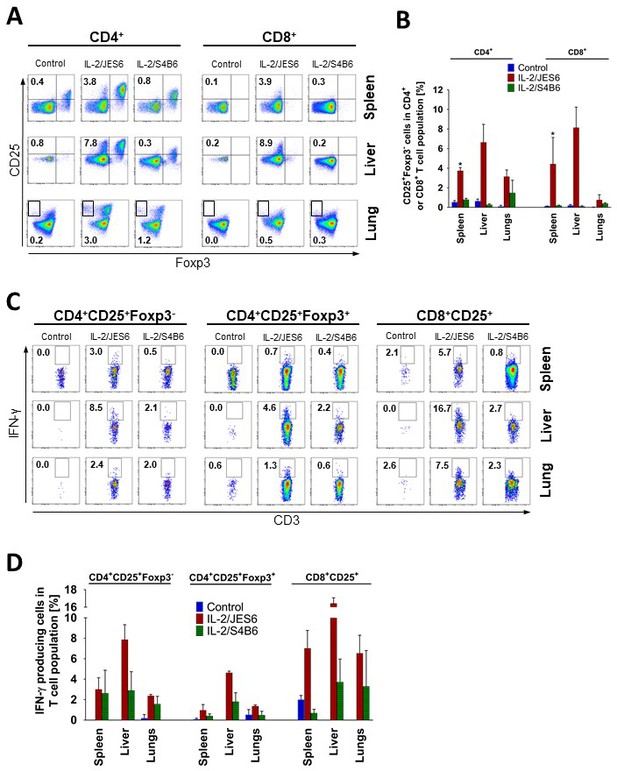

IL-2/JES6 expands CD25+Foxp3-T cells in both CD4+ and CD8+ subsets which produces IFN-γ in various tissues.

(A) C56BL/6 mice were treated with IL-2/JES6 or IL-2/S4B6 as shown in Figure 1A. Mice were i.p. injected with 150 µg/mouse of brefeldin A 2 h after the last dose of IL-2/JES6 and euthanized 12 h after the injection of brefeldin A. CD4+ and CD8+ T cells from spleen, liver, and lung were analysed by flow cytometry for CD25 and Foxp3 expression. Dot plots showing one representative mouse (A) and a bar graph showing mean ± SD in experimental groups (B) are presented. Intracellular production of IFN-γ in different subpopulations of T cells as shown in A, was determined. Dot plots showing one representative mouse (C) and a bar graph showing mean ± SD in experimental groups (D) are presented. Analysis of T cells from spleen and liver was carried out in the same experiment, but analysis of T cells from the lungs was done in a separate experiment. All experiments were done at least twice with similar results; n = 3 technical replicates. Data were analysed using an unpaired two-tailed Student’s t-test. Significant differences to control are shown (* p ≤ 0.05).

Production of IFN-γ by antigen-activated or IL-2/JES6-stimulated T cells drives LPS hyperreactivity

Previous experiments showed that IL-2/JES6 give rise to CD25+Foxp3- T cells producing IFN-γ in various tissues which in turn leads to LPS hyperreactivity. We asked whether antigen-activated T cells, when present in sufficient numbers, were also able to induce LPS hyperreactivity since they also produce IFN-γ. Thus, we adoptively transferred CD8+ OT-I and CD4+ OT-II T cells into C56BL/6 mice and activated them with respective ovalbumin-derived peptides plus polyI:C. CD8+ OT-I and CD4+ OT-II T cells significantly expanded and altogether made up 12–13% of all T cells in the spleen on day 3 post priming (Figure 6A and B). C56BL/6 mice with primed adoptively transferred T cells showed significant sensitivity to LPS in comparison to C56BL/6 mice with unprimed adoptively transferred T cells (Figure 6C). Importantly, injection of anti-IFN-γ mAb abrogated sensitization to LPS in C56BL/6 mice with primed adoptively transferred T cells. C56BL/6 mice without adoptively transferred CD8+ OT-I and CD4+ OT-II T cells and immunized with OVA plus polyI:C showed no increased sensitivity to LPS (Figure 6—figure supplement 1).

Figure 6 with 1 supplement see all

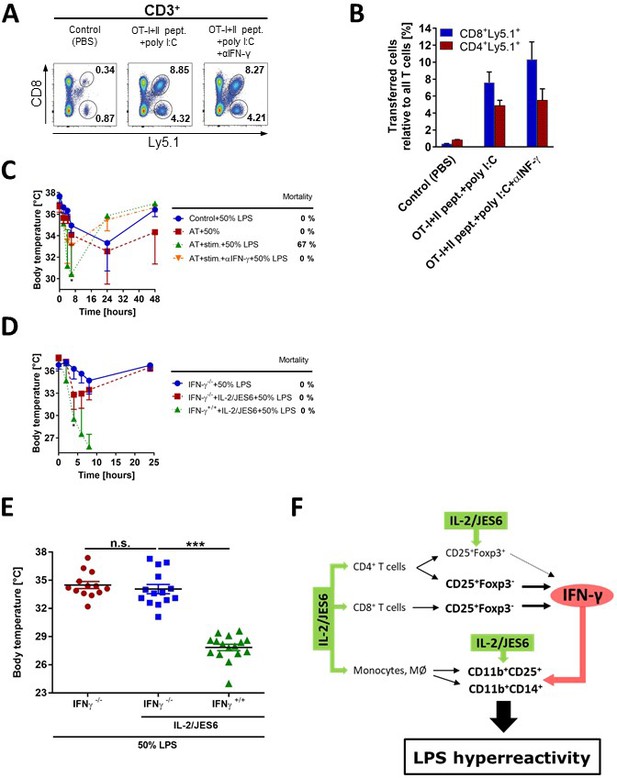

IFN-γ produced by activated antigen-specific T cells or by T cells stimulated with IL-2/JES6, is a crucial mediator of LPS hyperreactivity.

Purified CD8+ and CD4+ T cells from OT-I/Ly5.1 and OT-II/Ly5.1 mice (2 and 4 × 106 /mouse respectively), were adoptively transferred (AT) to C56BL/6 mice. One day later, mice were i.p. injected with PBS (Control), with both OT-I and OT-II specific peptides plus polyI:C (75 µg/mice) or with the latter plus αIFN-γ mAb (250 µg). Expansion of AT T cells was determined 3 d post stimulation by flow cytometry. Dot plots showing one representative mouse (A) out of two mice analysed by flow cytometry and a bar graph showing mean ± SD (B) are presented. (C) Three groups of C56BL/6 mice described above and one control group (no AT) were challenged with LPS (50% of MNLD). (D) IFN-γ-/- and normal C56BL/6 mice (IFN-γ+/+) were treated with IL-2/JES6 and challenged with LPS (50% of MNLD) as shown in Figure 1A. IFN-γ-/- C56BL/6 mice challenged with the same dose of LPS were used as the control. (E) Data pooled from three independent experiments (n = 13–16 technical replicates) described in D showing body temperature of mice 8 h after LPS challenge. (F) Scheme showing the proposed mechanism of how IL-2/JES6 induces LPS hyperreactivity. Experiments A-D were done at least twice with similar results; n = 2–6 technical replicates. Data were analysed using unpaired two-tailed Student’s t-test. Significant differences to control are shown (* p ≤ 0.05; *** p ≤ 0.001).

Finally, we used IFN-γ deficient mice (IFN-γ-/-) to prove that IFN-γ is the key factor mediating LPS hyperreactivity upon IL-2/JES6 administration. IFN-γ-/- mice pretreated with IL-2/JES6 showed sensitivity to LPS comparable to that of those not pretreated. IFN-γ sufficient C56BL/6 mice pretreated with IL-2/JES6 showed dramatically increased sensitivity to LPS (Figure 6D and E). Altogether, we conclude that IL-2/JES6 give rise to CD25+Foxp3-CD4+ and CD8+ T cells producing IFN-γ in various tissues, particularly in liver. IL-2/JES6 also expand LPS responsive CD11b+CD14+ myeloid cells and increase expression of CD25 in these cells. IFN-γ later acts on these myeloid cells and increases their responsiveness to LPS (Figure 6F).

Discussion

It has previously been shown that IL-2/JES6 immunocomplexes potently expand Treg cells in vivo and that they can be used for treatment of various autoimmune diseases (Liu et al., 2011; Webster et al., 2009; Wilson et al., 2008). However, our results clearly demonstrate that these immunocomplexes also dramatically increase sensitivity to LPS. The key mechanism is the production of IFN-γ since administration of anti-IFN-γ mAb as well as the use of IFN-γ-/- mice abrogates the sensitization. This resembles the so-called Schwartzman-like shock reaction, an experimental model of lethal systemic inflammatory reaction induced by LPS injection. It is induced by two consecutive, rather low doses of LPS (preparatory and provocative ones) and occurrence of the reaction requires very exact dosage and careful timing (Heremans et al., 1990). The first LPS injection is given into the footpad, followed after 24 h by an i.v. dose. Administration of anti-IFN-γ mAb was found to completely prevent the reaction. Thus, a preparatory dose of LPS induces production of IFN-γ which consequently sensitizes immune cells to be hyperresponsive to a provocative dose of LPS. Contrary to the Schwartzman-like shock reaction, IL-2/JES6 is responsible for inducing the production of IFN-γ and for sensitization to LPS in our experimental system. Administration of anti-IFN-γ mAb before IL-2/JES6 treatment could, however, have two effects: it could prevent sensitization of immune cells to LPS or it could protect against the toxic effect of a massive production of IFN-γ upon LPS injection since IgG has a relatively long half-life (Vieira and Rajewsky, 1988). Thus, we compared the effect of anti-IFN-γ mAb administered either before pretreatment with IL-2/JES6 or after it, that is, shortly before LPS challenge (4 h). Anti-IFN-γ mAb had higher protective effect when injected before IL-2/JES6 pretreatment (Figure 4—figure supplement 2) further confirming the key role of IL-2/JES6-induced IFN-γ production for sensitization to LPS.

The key question was: which cells produce IFN-γ upon treatment with IL-2/JES6? IFN-γ is normally produced by effector T cells after their activation and expansion. It requires a TCR signal and is significantly augmented by the presence of IL-12 and IL-18 (Berg et al., 2002; Li et al., 2005; Nakanishi, 2018). However, IL-2 was shown to be also able to promote IFN-γ production, but usually in activated T cells, that is, upon TCR signaling (Boyman and Sprent, 2012; Cousens et al., 1995). Here, we show that a strong sustained IL-2 signal provided by IL-2/JES6 is able to induce production of IFN-γ in T cells in vivo even in the absence of a TCR signal, except that provided by self-MHC molecules. Contact with self-MHC class I and II molecules (low affinity interaction) is known to play an important role in homeostasis of naïve CD8+ and CD4+ T cells, respectively (Kieper et al., 2004; Sprent and Surh, 2011), but should not endow these cells with the capacity to express effector functions like IFN-γ production (Kieper et al., 2004). We saw the highest relative counts of IFN-γ-producing T cells in CD25+Foxp-CD4+ and CD8+ populations. Nevertheless, CD4+CD25+Foxp+ Treg cells also produced IFN-γ in IL-2/JES6-treated mice, particularly in liver (Figure 5C and D). One simple explanation could be that the strong sustained IL-2 signal provided by IL-2/JES6 also induces production of IFN-γ in Treg cells. However, we speculate that the IFN-γ produced by CD25+Foxp-CD4+ and CD8+ cells may be a trigger for IFN-γ production in Treg cells since it was shown previously that Treg cells can be converted into IFN-γ-producing cells, especially in a strongly pro-inflammatory milieu (Koenecke et al., 2012) and/or in the presence of IFN-γ (Wood and Sawitzki, 2006). On the other hand, Treg cells seems to be dispensable for sensitization to LPS via IL-2/JES6 as administration of anti-CD4 mAb had no effect (Figure 2D). This shows that CD8+ T cells can substitute CD4+ T cells in the process of sensitization, however, complete absence of T cells abolishes it (Figure 4D).

It has been shown that treatment with nitrite (NO2¯), an important biological NO reservoir in vasculature and tissues, significantly attenuates hypothermia, tissue infarction and mortality in a mouse shock model induced by a lethal TNF-α or LPS challenge (Cauwels et al., 2009). We therefore asked whether nitrite could protect, at least to some extent, IL-2/JES6 pretreated mice challenged with LPS, since we observed very high serum levels of TNF-α in these mice (Figure 1E). Indeed, nitrite was considerably effective in lowering hypothermia and mortality (Figure 1—figure supplement 1) showing that a massive production of TNF-α is a dominant pathogenic factor responsible for rapid onset of hypothermia in IL-2/JES6 sensitized mice challenged with LPS. Pathogenic effects that occur later on are mediated by other cytokines, particularly by IFN-γ. This is supported by the fact that serum levels of TNF-α peak very early (1–2 h) post LPS challenge while serum levels of IFN-γ peak around 6 h (Figure 4A).

Treatment with IL-2/JES6 not only affected T cell populations but to our surprise also affected some myeloid cell populations, particularly CD11b+CD14+ cells (monocytes/macrophages). Although IL-2 is a pleiotropic cytokine, it has stimulatory activity mostly for cells of lymphoid origin, especially for Treg, recently activated T, memory CD8+ T, and NK cells (Boyman et al., 2010; Malek, 2008; Sharma and Das, 2018; Yu et al., 2000). Increased counts of CD11b+CD14+ cells in response to IL-2/JES6 are thus intriguing. We tested the hypothesis that T cells upon stimulation with IL-2/JES6 do not produce GM-CSF but no production of this cytokine was found. However, there is a report showing that clonogenic common lymphoid progenitor (CLP), a bone marrow-resident cell that gives rise exclusively to lymphocytes, can be redirected to the myeloid lineage by stimulation through an exogenously expressed IL-2 receptor (Kondo et al., 2000). Authors suggest that CLPs and pro-T cells may have a latent granulocyte/monocyte lineage differentiation program that can be initiated by signaling through the reconstituted IL-2 receptor. We hypothesize that a strong IL-2 signal provided by IL-2/JES6 may lead to a similar effect. Nevertheless, this hypothesis requires that at least a fraction of CLPs express complete trimeric IL-2R at some stage of their development. Even low expression levels should be sufficient since it has been previously shown that IL-2/JES6 feeds back onto CD25 expression (Spangler et al., 2015).

An interesting feature of IL-2/JES6 treatment is the increased counts of CD45+ cells (i.e. any haematopoietic cells, except erythrocytes) in the liver (Figure 3—figure supplement 6). This increase was found both in the T cell population (see later) as well as in CD11b+CD14+ cells (Figure 3—figure supplement 6B and C). A decent increase in counts of CD11b+CD14+ cells was also found in the lungs (Figure 3—figure supplement 7). We believe that accumulation of these cells in liver and lungs might significantly contribute to the pathological effects seen after LPS challenge in IL-2/JES6 pretreated mice, since these cells are likely to be sensitized to LPS via IFN-γ produced by CD25+ T cells. This is not the case with IL-2/S4B6 pretreatment as there are much fewer IFN-γ-producing CD25+ T cells (Figure 5). Further, treatment with IL-2/JES6 per se induces more severe lung oedema in comparison to treatment with IL-2/S4B6, which could contribute to the morbidity and mortality after LPS challenge to some extent (Figure 1—figure supplement 2).

We injected both IL-2/JES6 and LPS into mice via i.p. injections. There is a population of macrophages in the peritoneal cavity (Cassado et al., 2015) and therefore we asked whether these cells might contribute to the LPS sensitivity. However, adoptive transfer of peritoneal exudate cells from mice i.p. injected with IL-2/JES6 did not increase sensitivity to LPS in adoptively transferred mice. Moreover, i.v. administration of IL-2/JES6 leads to the same level of LPS sensitivity in comparison to i.p. administration. Therefore, we can rule out the idea that peritoneal macrophages play an important role.

We found significantly increased counts of T cells in the liver of mice treated with IL-2/JES6 or IL-2/S4B6 (Figure 5A). We do not know the mechanism of T cell accumulation in the liver upon treatment with either IL-2 complexes, however, we can speculate that IL-2 complexes (Mw ~190 kDa) are easily accessible in the liver interstitium due to the massive fenestration of capillaries in this organ (DeLeve, 2015). It seems that the liver and secondary lymphoid organs are the sites where increased numbers of CD11b+CD14+ and IFN-γ-producing T cells colocalize upon IL-2/JES6 treatment, and this feature governs LPS hyperresponsiveness.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
AntibodyAnti-mouse CD3-eFluor 450 (clone: 17A2; rat monoclonal)eBioscienceCat#: 48-0032-82; RRID:AB_1272193Flow Cytometry: (dilution 1:30)
AntibodyAnti-mouse CD8a-PerCP-Cyanine5.5 (clone: 53–6.7; rat monoclonal)eBioscienceCat#: 45-0081-82; RRID:AB_1107004Flow Cytometry: (dilution 1:100)
AntibodyAnti-mouse CD11b-Alexa Fluor 700 (clone: M1/70; rat monoclonal)eBioscienceCat#: 56-0112-82; RRID:AB_1107004Flow Cytometry: (dilution 1:300)
AntibodyAnti-mouse CD11b-eFluor450 (clone: M1/70; rat monoclonal)eBioscienceCat#: 48-0112-82; RRID:AB_1582236Flow Cytometry: (dilution 1:500)
AntibodyAnti-mouse CD14-FITC (clone: Sa2-8; rat monoclonal)eBioscienceCat#: 11-0141-85; RRID:AB_464950Flow Cytometry: (dilution 1:20)
AntibodyAnti-mouse CD25-APC (clone: PC61.5; rat monoclonal)eBioscienceCat#: 17-0251-82; RRID:AB_469366Flow Cytometry: (dilution 1:500)
AntibodyAnti-mouse CD25-eFluor 450 (clone: PC61.5; rat monoclonal)eBioscienceCat#: 48-0251-82; RRID:AB_10671550Flow Cytometry: (dilution 1:400)
AntibodyAnti-mouse CD45.1-APC (clone: A20; mouse monoclonal)eBioscienceCat#: 17-0453-82; RRID:AB_469398Flow Cytometry: (dilution 1:200)
AntibodyAnti-mouse Ly-6C-APC-eFluor 780 (clone: HK1.4; rat monoclonal)eBioscienceCat#: 47-5932-82; RRID:AB_2573992Flow Cytometry: (dilution 1:200)
AntibodyAnti-mouse MHC Class II (I-A/I-E)-FITC (clone: M5/114.15.2; rat monoclonal)eBioscienceCat#: 11-5321-82; RRID:AB_465232Flow Cytometry: (dilution 1:300)
AntibodyAnti-mouse CD45.1-eFluor 450 (clone: A20; mouse monoclonal)eBioscienceCat#: 48-0453-82; RRID:AB_1272189Flow Cytometry: (dilution 1:200)
AntibodyAnti-mouse CD45/B220-Horizont V500 (clone: RA3-6B2; rat monoclonal)BD BiosciencesCat#: 561226; RRID:AB_10563910Flow Cytometry: (dilution 1:100)
AntibodyAnti-mouse CD3e-Horizont V500 (clone: 500A2; Syrian hamster monoclonal)BD BiosciencesCat#: 560771; RRID:AB_1937314Flow Cytometry: (dilution 1:30)
AntibodyAnti-mouse CD4-Horizont V500 (clone: RM4.5; rat monoclonal)BD BiosciencesCat#: 560782; RRID:AB_1937327Flow Cytometry: (dilution 1:400)
AntibodyAnti-mouse CD4-PerCP (clone: RM4-5; rat monoclonal)BD BiosciencesCat#: 553052; RRID:AB_394587Flow Cytometry: (dilution 1:200)
AntibodyAnti-mouse CD8a-V500 (clone: 53–6.7; rat monoclonal)BD BiosciencesCat#: 560776; RRID:AB_1937317Flow Cytometry: (dilution 1:80)
AntibodyAnti-mouse Ly-6G-Alexa Fluor 700 (clone: 1A8; rat monoclonal)BD BiosciencesCat#: 561236; RRID:AB_10611860Flow Cytometry: (dilution 1:80)
AntibodyAnti-mouse Siglec-F-PE (clone: E50-2440; rat monoclonal)BD BiosciencesCat#: 562068; RRID:AB_394341Flow Cytometry: (dilution 1:100)
AntibodyAnti-mouse TLR4-APC (clone: SA15-21; rat monoclonal)BioLegendCat#: 145406; RRID:AB_2562503Flow Cytometry: (dilution 1:300)
AntibodyAnti-mouse TNF alpha-PE (clone: MP6-XT22; rat monoclonal)eBioscienceCat#: 12-7321-82; RRID:AB_466199Flow Cytometry: (dilution 0.35 µL/test)
AntibodyAnti-FOXP3-PE (clone: FJK/16 s; rat monoclonal)eBioscienceCat#: 12-5773-82; RRID:AB_465936Flow Cytometry: (dilution 1 µL/test)
AntibodyAnti-mouse IFN gamma-PE (clone: XMG1.2; rat monoclonal)eBioscienceCat#: 12-7311-82; RRID:AB_466193Flow Cytometry: (dilution 0.35 µL/test)
AntibodyAnti-mouse CD16/32 (clone: 03; rat monoclonal)eBioscienceCat#: 14-0161-86; RRID:AB_467135Flow Cytometry: (dilution 0.5 µg/test)
AntibodyAnti-mouse IFN gamma (clone: XMG1.2; rat monoclonal)BioXCellCat#: BE0055; RRID:AB_1107694In vivo IFN gamma neutralization (dose: 250 µg/mouse)
AntibodyAnti-mouse IL-2 (clone: JES6-1A12; rat monoclonal)BioXCellCat#: BE0043; RRID:AB_1107702In vivo IL-2 receptor stimulation as a complex with IL-2 (dose: 1.5 µg /mouse)
AntibodyAnti-mouse IL-2 (clone: S4B6-1; rat monoclonal)BioXCellCat#: BE0043-1; RRID:AB_1107705In vivo IL-2 receptor stimulation as a complex with IL-2 (dose: 1.5 µg /mouse)
AntibodyAnti-mouse CD4 (clone: GK1.5; rat monoclonal)BioXCellCat#: BE0003-1; RRID:AB_1107636In vivo CD4+ T cell depletion (dose: 50 µg /mouse)
AntibodyAnti-mouse CD25 (clone: PC61.5; rat monoclonal)BioXCellCat#: BE0012; RRID:AB_1107619In vivo regulatory T cell depletion (dose: 50 µg /mouse)
Sequence-based ReagentCasc3forSigma-Aldrich5´-TTCGAGGTGTGCCTAACCA-3´
Sequence-based ReagentCasc3revSigma-Aldrich5´-GCTTAGCTCGACCACTCTGG-3´
Sequence-based ReagentH6pdforSigma-Aldrich5´-GGATTGTGTTTAAGAATCGGG-3´
Sequence-based ReagentH6pdrevSigma-Aldrich5´-AGTAGGCGTCTTGCTC-3´
Sequence-based ReagentTlr4forSigma-Aldrich5´-GATCATGGCACTGTTCTTCTC-3´
Sequence-based ReagentTlr4revSigma-Aldrich5´-CACACCTGGATAAATCCAGC-3´
Strain, Strain Background (Salmonella Typhymurium)LT2 (S-strain)Gift from Dr. H. Nikaido (University of California, Berkeley)LPS isolation
Strain, Strain Background (Mus musculus; Female)BALB/c (H-2d)Institute of Microbiology and Institute of Physiology of the Czech Academy of Sciences
Strain, Strain Background (Mus musculus; Male)C57BL/6 (H-2b)Institute of Microbiology and Institute of Physiology of the Czech Academy of Sciences
Strain, Strain Background (Mus musculus; Female)CD1 nude mice (Nu/Nu)Animal facility of Masaryk University, Czech Republic
Strain, Strain Background (Mus musculus, C57BL/6 J)Transgenic OVA-specific T cells (OT-I) miceInstitute of Microbiology of the Czech Academy of Sciences
Strain, Strain Background (Mus musculus, C57BL/6 J)Transgenic OVA-specific T cells (OT-II) miceInstitute of Microbiology of the Czech Academy of Sciences
Strain, Strain Background (Mus musculus; C57BL/6 J)IFN gamma deficient (Ifng-/-)Institute of Microbiology of the Czech Academy of Sciences
Strain, Strain Background (Mus musculus; C57BL/6 J)MyD88 deficient (Myd88-/-)Institute of Molecular Genetics of the Czech Academy of Sciences
Strain, Strain Background (Mus musculus; C57BL/6 J)Rag1 deficient (Rag1-/-)Institute of Molecular Genetics of the Czech Academy of Sciences
Strain, Strain Background (Mus musculus, C57BL/6 J)B6.SJL (Ly5.1)Institute of Microbiology of the Czech Academy of Sciences
Peptide, Recombinant ProteinRecombinant Murine IL-2PeproTechCat#: 212–12Purified from E. coli
Commercial Assay or KitMouse TNF-alpha DuoSet ELISAR&D SystemsCat#: DY410
Commercial Assay or KitMouse IFN-gamma DuoSet ELISAR&D SystemsCat#: DY485
Commercial Assay or KitMouse IL-1 beta/IL-1F2 DuoSet ELISAR&D SystemsCat#: DY401
Commercial Assay or KitMouse IL-12 p70 DuoSet ELISAR&D SystemsCat#: DY419
Commercial Assay or KitMouse IL-6 DuoSet ELISAR&D SystemsCat#: DY406
Chemical Compound, DrugBrefeldin ASigma-AldrichCat#: B7651150 µg/mouse
Software, AlgorithmFlowJo Tree StarRRID: SCR_008520
Software, AlgorithmGraphPad Prism GraphPad SoftwareRRID: SCR_002798
OtherACK Lysing BufferThermo Fisher ScientificCat#: A1049201Red blood cell lysis
OtherCollagenase DSigma-Aldrich (Roche)Cat#: 110888580011 mg/mL
OtherFoxp3/ Transcription Factor Fixation/Permeabilization Concentrate and DiluenteBioscienceCat#: 00-5521-00
OtherPolyinosinic-polycytidylic acid potassium salt (Poly I:C)Sigma-AldrichCat#: P958275 µg/mouse
Other5-Bromo-2′-deoxyuridine (BrdU)Sigma-Aldrich (Roche)Cat#: 102808790010.5 µg/mouse i.p., 0.8 mg/mL p.o.
OtherTRIzol ReagentThermo Fisher Scientific (Invitrogen)Cat#: 15596026
OtherTURBO DNaseThermo Fisher ScientificCat#: AM2238
OtherSuperScript IV Reverse TranscriptaseThermo Fisher ScientificCat#: 18090010

Mice

BALB/c (H-2d) and C57BL/6 (H-2b) mice were obtained from a breeding colony at the Institute of Microbiology or Institute of Physiology of the Czech Academy of Sciences (Prague, Czech Republic). Athymic CD1 nude mice (Nu/Nu) were acquired from the animal facility of Masaryk University (Brno, Czech Republic). Transgenic OT-I and OT-II mice, Ifng-/-, Myd88-/- and Rag1-/- mice and B6.SJL (Ly5.1) mice were bred and kept at mouse facilities at the Institute of Molecular Genetics or the Institute of Microbiology of the Czech Academy of Sciences (Prague, Czech Republic). Mice were used at 9–15 weeks of age.

Monoclonal antibodies (MAbs)

Request a detailed protocol

The following anti-mouse mAbs were used for surface staining during flow cytometry: CD3-eFluor 450, CD8-PerCP-Cy5.5, CD11b-AlexaFluor 700, CD11b-eFluor 450, CD14-FITC, CD25-APC, CD25-eFluor 450, CD45.1-APC, Ly6C-APC-eFluor 780, I-A/E-FITC (eBioscience, San Diego, CA, USA), CD45.1-eFluor 450, CD45R-Horizont V500, CD3-Horizont V500, CD4-Horizont V500, CD4-PerCP, CD8-Horizont V500, Ly6G-AlexaFluor 700, Siglec F-PE (BD Biosciences, San Jose, California, USA) and TLR4-APC (BioLegend, San Diego, Ca, USA). For intracellular staining, the following anti-mouse mAbs were used: TNFα-PE, Foxp3- and IFNγ-PE (eBioscience; San Diego, California, USA). Fc-block (anti-CD16/CD32 mAbs; eBioscience, San Diego, California, USA) was used both in surface and intracellular staining. For ELISA, matched anti-mouse capture mAb and biotinylated detection mAb against TNF-α, IFN-γ, IL-1β, IL-12 and IL-6 were used (R&D System, Minneapolis, Minnesota, USA). Blocking anti-mouse CD25 (PC61.5), CD4 (GK1.5) and anti-IFN-γ (XMG1.2) mAbs, as well as anti-mIL-2 mAbs for preparing IL-2 complexes (S4B6, JES6-1A12), were obtained from BioXcell (Lebanon, New Hampshire, USA).

IL-2/JES6-1 and IL-2/S4B6 complexes

Request a detailed protocol

Complexes were prepared by mixing recombinant mouse IL-2 (Peprotech, Cranbury, New Jersey, USA) with anti-IL-2 mAb S4B6 or JES6-1A12 (both reagents were in PBS) at molar ratio 2:1. After 15 min (min) incubation at room temperature, the complexes were diluted with PBS to the desired concentration before application.

Isolation of LPS

Request a detailed protocol

Bacterial culture (S. typhymurium LT2, S-strain; a kind gift from Dr. H. Nikaido, University of California, Berkeley, USA) was first cultivated on agar (Nutrient agar nr.2, HiMedia Laboratories, Mumbai, India) in a petri dish and then transferred to an Erlenmayer flask with liquid media (150 ml, MRS Broth, Oxoid, Hampshire, UK). The bacterial culture was cultivated at 37 °C for up to 24 h (h) in order to reach the exponential growth phase according to measured OD ( ~ 5 × 108/ml bacteria). Next, it was transferred to the solid substrate (12 g Nutrient agar nr.2, 3.5 g agar, 15 g glucose, 300 ml water) in 2 l glass cultivation bottles by Roux (4 ml inoculum/bottle). Bottles were cultured for 24 h at 37 °C. Bottles were washed with PBS and bacteria were removed from the surface of the substrate with a glass rod. The acquired suspension was filtered through the gauze, and bacteria were killed with 2% phenol (Sigma-Aldrich, St. Louis, Missouri, USA) in ethanol (96%; Lachner, Neratovice, Czech Republic) and deionized water at room temperature. Viability of the bacteria was tested by plating on a new agar petri dish (Nutrient agar nr.2, HiMedia Laboratories, Mumbai, India). Bacteria were sequentially centrifuged at 4600 and 16,000 rpm (room temperature, 20 min). They were washed once with PBS followed by a triple wash with deionized water to remove salts and phenol before they underwent lyophilization in order to get dry matter. Crude LPS was acquired from dry matter by fractionation. This was achieved by the addition of preheated phenol and deionized water at 68 °C (water bath) for 15 min while stirring constantly (20 g of dry matter + 350 ml deionized water and 350 ml 90% phenol). After incubation, the sample was cooled down to 4 °C and sequentially centrifuged at 4600 rpm and 16,000 rpm (4 °C, 20 min). The water phase (top part) was removed and stored whilst the pellet was subjected to a second round of fractionation. Water phases from both separations were pooled, shaken with diethylether (600 ml; Lachner, Neratovice, Czech Republic) and left overnight at 4 °C, followed by repeated dialysis of the water phase for 3–5 days (d) in a huge excess of deionized water. The whole process of crude LPS isolation was finalized by lyophilization. To achieve this, 0.76 g of crude LPS was dissolved in 50 ml of deionized water and cooled down to 4 °C. Next, 150 ml of ice-cold methanol (Lachner, Neratovice, Czech Republic) and 1.5 ml 20% MgCl2 (Sigma-Aldrich, St. Louis, Missouri, USA) were added and it was left stirring overnight. The following day, the solution was centrifuged at 5000 rpm (4 °C, 20 min) and the pellet was resuspended again in 50 ml of deionized water and cooled down to 4 °C. After this, 150 ml of ice-cold methanol was added and it was left stirring overnight. On the following day, the same procedure was repeated and the pellet was resuspended in 20 ml of deionized water. Pure LPS was finally lyophilized.

LPS challenge in vivo

Request a detailed protocol

Mice were treated i.p. with IL-2/JES6-1 or IL-2/S4B6 complexes daily for 3 d (1.5 µg IL-2/mouse in 250 µl) as shown in Figure 1A, unless stated otherwise. After 48 h, mice were i.p. injected with LPS. Control mice were injected with the same volume of sterile PBS (250 µl). The dose of injected LPS is shown in % of maximum non-lethal dose (MNLD; 100% MNLD ~ 200, 35 and 35 µg LPS in C57BL/6, BALB/c and Nu/Nu mice, respectively), that is the highest possible dose which causes significant toxic effect, but no mortality. Body temperature (measured by stylus in the throat) and survival of mice were recorded.

Preparation of single-cell suspension for flow cytometry

Request a detailed protocol

For spleen cells, animals were sacrificed by cervical dislocation and spleens were harvested and homogenized by GentleMACS Dissociator (Miltenyi Biotec, Bergisch Gladbach, North Rhine-Westphalia, Germany). After red blood cell lysis (ACK lysing buffer, Gibco, Gaithersburg, Maryland, USA), cells were strained twice to remove clumps (70 µm BD Falcon strainer, Corning, New York, New York, USA, followed by 30 µm CellTrics strainer, Sysmex, Norderstedt, Germany) and resuspended in FACS buffer (PBS, 2% FCS, 2 mmol EDTA). For peripheral blood cells, mice were exsanguinated via carotid excision into the heparinized Eppendorf tubes. Whole blood was lysed twice with ACK Lysing buffer, strained once (30 µm, Sysmex Norderstedt, Germany) and resuspended in FACS buffer. Lungs and livers were injected with Colagenase D solution (1 mg/ml, Roche, Basel, Switzerland), incubated for 30 min at 37 °C, homogenized by GentleMACS Dissociator and further processed like the spleen cells.

Staining for surface markers

Request a detailed protocol

Cells were blocked by 10% mouse serum and/or Fc block for 30 min on ice and stained with fluorochrome-labelled mAbs recognizing selected surface markers for 30 min on ice in the dark. After each step, cells were washed twice in FACS buffer and fixed with Foxp3 Fixation/Permeabilization buffer (eBiosciences, San Diego, California, USA) for 30 min on ice in the dark before analysis. Flow cytometric analysis was performed on LSRII (BD Biosciences, San Jose, California, USA) and data were analysed using FlowJo X software (Tree Star, Inc, Ashland, Oregon, USA).

Staining for intracellular markers

Request a detailed protocol

After staining of surface antigens, fluorochrome-labelled mAbs recognizing intracellular markers were added and cells were incubated for 30 min on ice in the dark. Washing was performed twice with Fixation/Permeabilization buffer (eBiosciences, San Diego, California, USA). Cells were resuspended in FACS buffer before analysis. Analysis was performed as described above.

RT-qPCR analysis

Request a detailed protocol

RNA from splenocytes was isolated using TRIzol reagent (Invitrogen, USA) regarding to the manufacturer’s protocol. One µg RNA treated with DNAse I (Turbo DNAse; Thermo Fisher Scientific, USA) was reverse-transcribed using the Oligo(dT)12–18 primer and Superscript IV Reverse Transcriptase (Life Technologies, Carlsbad, CA, USA). To select suitable housekeeping genes, the gene expression stability was assessed using RefFinder (https://www.heartcure.com.au/reffinder/). Evaluation of amplification efficiency was performed by dilution series of cDNA. qPCR (CFX96 TouchTM, Bio-Rad) was performed to determine the changes in the mRNA levels of TLR4. The cycling parameters were as follows: 4 min at 94 °C, 35 cycles of 10 s at 94 °C, 25 s at 58 °C, and a final extension for 7 min at 72 °C. Gene expression changes were calculated according to the 2−ΔΔCT (Livak) method. Two reference genes (Casc3, H6pd) were selected as the most stable internal controls for the normalization of the Tlr4 gene expression. The fold change in the mRNA level was related to the change in the settled controls. All parameters were determined in duplicates. Primers used:

NameSequence (5´- 3´)Target
Casc3forTTCGAGGTGTGCCTAACCACasc3
Casc3revGCTTAGCTCGACCACTCTGG
H6pdforGGATTGTGTTTAAGAATCGGGH6pd
H6pdrevAGTAGGCGTCTTGCTC
Tlr4forGATCATGGCACTGTTCTTCTCTlr4
Tlr4revCACACCTGGATAAATCCAGC

Casc3: cancer susceptibility candidate gene 3; H6pd: Hexose-6-phosphate dehydrogenase; Tlr4: Toll-like receptor 4.

Adoptive transfer of OT-I CD8+ T cells, OT-II CD4+ T cells, CD4+CD25+ T cells and CD3+ T cells

Request a detailed protocol

MACS-separated (negative selection, AutoMACS, Miltenyi Biotec, Bergisch Gladbach, North Rhine-Westphalia, Germany) OT-I CD8+ T and OT-II CD4+ cells (both Ly5.1+) were injected i.v. into C57BL/6 (Ly5.2+) mice via tail vein. C57BL/6 mice were injected i.p. with PBS, OT-I plus OT-II peptides (10 and 50 µg/mouse, respectively; MBL International, Woburn, Massachusetts, USA; or Genscript, Piscataway, New Jersey, USA, respectively) plus polyI:C (75 µg/mouse; Sigma-Aldrich, St. Louis, Missouri, USA) or with the latter plus αIFN-γ mAb (250 µg/mouse; XMG1.2; BioXcell, Lebanon, New Hampshire, USA). Mice were either sacrificed 3 days post priming and spleen cells were analyzed by flow cytometry for expansion of adoptively transferred cells or challenged with LPS. CD4+CD25+ T cells were purified by MACS (negative selection for CD4+ T cells and positive selection for CD25+ cells) from C56BL/6 mice treated with IL-2/JES6 as shown in Figure 1A (2 days after the last dose of IL-2/JES6). CD4+CD25+ T cells were injected i.v. into Nu/Nu mice via tail vein. Next, Nu/Nu mice were treated with IL-2/JES6 and challenged with LPS as in Figure 1A. CD3+ T cells were purified by MACS (negative selection) from MyD88-/- mice treated with IL-2/JES6 as shown in Figure 1A (2 days after the last dose of IL-2/JES6). CD3+ T cells were injected i.v. into Rag1-/- mice via tail vein. Next, Rag1-/- mice were treated with IL-2/JES6 and challenged with LPS as in Figure 1A.

Immunization with ovalbumin

Request a detailed protocol

C57BL/6 mice were i.p. injected with ovalbumin (OVA, 0.5 mg/mouse, Warthington, New Jersey, USA) plus polyI:C (75 µg/mouse) on day 0. Mice were i.p. challenged with LPS on day 4.

BrdU incorporation assay in vivo

Request a detailed protocol

C57BL/6 mice were i.p. injected with titrated doses of IL-2/JES6 or with PBS. After 4 h, mice were injected i.p. with 0.5 µg of BrdU (Sigma-Aldrich, St. Louis, Missouri, USA) in 50 µl PBS. At the same time, mice were given 0.8 mg/ml BrdU in their drinking water. BrdU solution was prepared in sterile water, protected from light exposure and changed daily. Mice were sacrificed 48 h later and spleens were harvested. Single cell suspensions were prepared as described above. BrdU staining was performed in similar fashion to staining of intracellular antigens with two additional steps following fixation with Fixation/Permeabilization buffer (eBiosciences, San Diego, California, USA). First, cells were treated with BD Cytofix/Cytoperm Plus buffer (BD Biosciences, San Jose, California, USA) for 10 min on ice. Second, cells were treated with DNAse (BD Biosciences, San Jose, California, USA) for 1 h at 37 °C. Fluorochrome-labelled mAbs were added together with anti-BrdU mAb (BD Biosciences, San Jose, California, USA) and cells were incubated for 30 min on ice in the dark. Washing, resuspending of cells and subsequent analysis was performed as described above.

Detection of IFN-γ production in vivo

Request a detailed protocol

C57BL/6 mice were i.p. injected with IL-2/JES6-1, IL-2/S4B6 or PBS (Control) as in Figure 1A. Each mouse was i.p. injected with 150 µg of brefeldin A (Sigma-Aldrich, St. Louis, Missouri, USA) 2 h after the last dose. Mice were sacrificed 12 h after injection of brefeldin A. Spleens, livers, and lungs were harvested for subsequent flow cytometry analysis performed as described above.

Detection of cytokines in serum

Request a detailed protocol

C57BL/6 and BALB/c mice were treated with IL-2/JES6 and challenged with LPS (10% of MNLD) as shown in Figure 1A. Control mice were treated with sterile PBS and challenged with LPS (100% of MNLD). Mice were euthanized by exsanguination via carotid excision at 2, 3, 4, 6, and 8 h after the LPS challenge and their sera were collected. Levels of TNF-α, IL-1β, IL-12, and IL-6 (R&D System, Minneapolis, Minnesota, USA) following manufacturer’s protocol.

Determination of vascular leak syndrome (VLS) in the lungs

Request a detailed protocol

C57BL/6 mice were treated with IL-2/JES6, IL-2/S4B6 or PBS (Control) as shown in the Figure 1A. Mice were euthanized 1 day after the last dose and their lungs were harvested. Pulmonary wet weight was determined by weighting lungs before and after lyophilization overnight at 58 °C under vacuum.

Statistical analysis

Request a detailed protocol

All experiments were done at least twice with similar results; n = 2–16 technical replicates. Statistical analysis was performed using GraphPad Prism (GraphPad Software, San Diego, California, USA). The difference between groups was analysed by unpaired two-tailed Student’s t-test. The confidence level was 95%. Differences with *,°,+ p ≤ 0.05; **, °° p ≤ 0.01; ***, °°° p ≤ 0.001 were considered as statistically significant.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for Figures 1-6 and all figure supplements (12 in total).

References

    1. Cousens LP
    2. Orange JS
    3. Biron CA
    (1995)
    Endogenous IL-2 contributes to T cell expansion and IFN-gamma production during lymphocytic choriomeningitis virus infection
    Journal of Immunology 155:5690–5699.
    1. Donohue JH
    2. Rosenberg SA
    (1983)
    The fate of interleukin-2 after in vivo administration
    Journal of Immunology 130:2203–2208.
    1. Li Q
    2. Carr AL
    3. Donald EJ
    4. Skitzki JJ
    5. Okuyama R
    6. Stoolman LM
    7. Chang AE
    (2005)
    Synergistic effects of IL-12 and IL-18 in skewing tumor-reactive T-cell responses towards a type 1 pattern
    Cancer Research 65:1063–1070.
    1. Sakaguchi S
    2. Sakaguchi N
    3. Asano M
    4. Itoh M
    5. Toda M
    (1995)
    Immunologic self-tolerance maintained by activated T cells expressing IL-2 receptor alpha-chains (CD25). Breakdown of a single mechanism of self-tolerance causes various autoimmune diseases
    Journal of Immunology 155:1151–1164.

Decision letter

  1. Simon Yona
    Reviewing Editor; The Hebrew University of Jerusalem, Israel
  2. Jos W Van der Meer
    Senior Editor; Radboud University Medical Centre, Netherlands
  3. Thomas S Griffith
    Reviewer; University of Minnesota, United States
  4. Angel Porgador
    Reviewer; Ben-Gurion University of the Negev, Israel

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for submitting your article "IL-2/JES6-1 mAb complexes dramatically increase sensitivity to LPS through IFN-γ production by CD25+Foxp3- T cells" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Jos van der Meer as the Senior Editor. The following individuals involved in the review of your submission have agreed to reveal their identity: Thomas S Griffith (Reviewer #1); Angel Porgador (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Tomala et al., describe the capability of IL-2/JES6-1 mAb complexes to increase mouse sensitivity to LPS challenge. These data suggest this is due to IFN-g production by CD25+Foxp3- T cells. The manuscript has identified an interesting phenomenon as a result of IL-2/JES6-1 complex administration, but the attempt to mechanistically explain why LPS sensitization occurs has fallen short of a complete and convincing story. The authors will need to address a number of concerns to progress, please see below.

Essential revisions:

1. In the introduction an explanation as to how IL2/JES6 recruits the IL-2R is discused. This explanation is obviously preparing the reader to assume that IL2/JES6 would not sensitize LPS reaction. However, the paper demonstrates, this is not the case. The authors also show the necessity of CD25 and compared the response to native IL-2, attributing the difference due to the short life-span of IL-2 (which is speculative) and needs to be addressed. Assuming the explanation in the introduction is true, it is hard to understand how a complex which primarily binds CD25, and only recruits IL-2Rb and IL-2Rg rarely, is so efficient for the induction of CD25+FoxP3- cells, which are more dependent on IL-2Rb and IL-2Rg chain activation.

2. The transient nature of the IL-2/JES6-1 complex-induced sensitization to LPS (Figure 1C) is an interesting observation that was not followed up on and why does this occur?

3. The examination of TLR4 expression on different immune cell population following IL-2/JES6-1 complex administration would be telling, for example, Is the increased sensitivity to LPS due to increased number of cells (such as myeloid cells) responsive to LPS or increased TLR4 expression or both?

4. A more detailed examination of the myeloid cells in Figure 3 is required, to define if these cells are monocytes, macrophages, neutrophils, or another cell type?

5. Figure 4 F-G demonstrates the effect of IL-2/JES6-1 complex on the T cell compartment, however, this only assesses the proliferative response of these cells. The focus on the CD25+Foxp3- CD4 and CD8 T cells in Figure 5 is not well justified. What happens to the number of CD25+Foxp3+ CD4 T cells?

6. In Figure 6 IL-2/JES6-1 complexes were overlooked in the mice that received the activated OT-I and OT-II T cells? The authors transferred 2 and 4 million OT-I and OT-II T cells, respectively, prior to in vivo peptide stimulation. This number is exceeding higher than the number of endogenous OVA-specific CD8 and CD4 T cells. What happens to naïve mice immunized with OVA that do not receive any OT-I or OT-II cells? There are a lot of steps bypassed between IL-2/JES6-1 administration and IFNγ production by T cells after LPS administration. Are the T cells being directly stimulated by the LPS? The authors should transfer TLR4-/- T cells to see what happens.

7. IL-2 treatment had a toxic side effect, especially as an inducer of vascular leak syndrome (VLS). Vascular leakage is also attributed to LPS and IFNγ inflammatory response. Did the authors consider showing a manifestation of VLS in the lungs of mice treated with IL2/JES6 compared to other treatments? Showing, or describing previous work, the outcome of this well-documented phenomena following the injection of IL2/JES6 will give a clinical significance to the findings presented.

https://doi.org/10.7554/eLife.62432.sa1

Author response

Essential Revisions:

1. In the introduction an explanation as to how IL2/JES6 recruits the IL-2R is discused. This explanation is obviously preparing the reader to assume that IL2/JES6 would not sensitize LPS reaction. However, the paper demonstrates, this is not the case. The authors also show the necessity of CD25 and compared the response to native IL-2, attributing the difference due to the short life-span of IL-2 (which is speculative) and needs to be addressed. Assuming the explanation in the introduction is true, it is hard to understand how a complex which primarily binds CD25, and only recruits IL-2Rb and IL-2Rg rarely, is so efficient for the induction of CD25+FoxP3- cells, which are more dependent on IL-2Rb and IL-2Rg chain activation.

We thank the reviewer for interesting question. We believe that the explanation why sensitization to LPS by IL-2 alone (free/native IL-2) is much weaker in comparison to IL-2/JES6, i.e. considerable extension of half-life and selectivity for CD25+ cells (two separate features), is true and based on data shown within the manuscript. The fact that IL-2 has very short half-life (5 to 7 min in humans) is mentioned elsewhere and we decided to introduce a new reference into revised manuscript to support this statement (page 3, line 52). We employed IL-2 bound to synthetic water-soluble and fully biocompatible polymer carrier based on poly(N-(2-propyl)methacrylamide) (IL-2-pHPMA) in our study to dissect half-life extension feature and CD25+ cell selectivity feature of IL-2/JES6. IL-2-pHPMA possesses much higher half-life in comparison to IL-2 and very similar to that of IL-2/JES6 (3-4 h; mentioned on page 7, line 140 including the reference to our publication where half-life of IL-2-pHPMA was determined, line 154) but lacks CD25+ cell selectivity. IL-2-pHPMA showed more profound sensitization to LPS in comparison to IL-2 (Figure 2A and B) even when IL-2 was administered at much higher dosage (35 versus 1.5 µg/dose). This shows that prolongation of the half-life plays an important role. Nevertheless, sensitization to LPS via IL-2-pHPMA was not as robust as with IL-2/JES6 showing that selectivity for CD25+ cells is also important. This was proved by the use of anti-CD25 mAb, which totally abolished sensitization to LPS via IL-2/JES6 (Figure 2E) and by comparison of sensitization to LPS via IL-2/JES6 and IL-2/S4B6 (CD25 independent IL-2 complex, i.e. the same half-life but different selectivity; Figure 1 B and D). Thus, we believe that this explanation supports our conclusion that both the extension of the half-life as well as selective stimulatory activity for CD25+ cells are key features of IL-2/JES6 governing the sensitization to LPS.

IL-2/JES6 requires CD25 to be expressed on the cell surface in order to enable cells to utilize IL-2 from IL-2/JES6 complex. However, it is not completely true that IL-2/JES6 recruits IL-2Rβ and IL-2Rγ “rarely”. CD25 enables the dissociation of IL-2/JES6 complex via “peeling off” the IL-2 molecule from the JES6 antibody and binding the IL-2 (Spangler et al., Immunity, 42: 815-825, 2015; cited in the manuscript, page 4, line 75). Next, CD25-bound IL-2 engages IL-2Rβγ dimer to induce signaling. CD25 contains only short cytoplasmic tail with no motive to bind any signaling molecules (e.g. JAK kinases). Thus, IL-2/JES6 complex always utilizes IL-2Rβγ dimer to provide IL-2 signal to CD25+ IL-2 responsive cells, however, after dissociation of the cytokine/antibody complex and transfer of the IL-2 to CD25 molecule. IL-2/JES6 complex is “invisible” for CD25 negative cells expressing only IL-2Rβ and IL-2Rγ since JES6 mAb binds to epitope in IL-2 molecule which almost completely overlaps with binding sites for IL-2Rβ and IL-2Rγ. This explains why IL-2/JES6 is so efficient in the stimulation of CD25+Foxp3- T cell proliferation: only CD25+ cells are able to compete for IL-2 in the form of IL-2/JES6. Moreover, CD25+Foxp3- T cells are very keen to proliferate upon IL-2 signaling as shown by BrdU incorporation (Figure 4F and G). We do not presume that IL-2/JES6 induces CD25+Foxp3- T cells de novo (from CD25 negative T cells) but it rather potently expands already existing very tiny population of these cells (~ 0.1 %, Figure 4F and G). To make it clear, we decided to rephrase the sentence:

“Nevertheless, we found that administration of IL-2/JES6 gave rise to CD25+Foxp3- T cells in both CD4+ and CD8+ subsets …….”

to the following one:

“Nevertheless, we found that administration of IL-2/JES6 potently expanded CD25+Foxp3- T cells in both CD4+ and CD8+ subsets …….” (page 10, lines 228-231).

Further, we rephrased the sentence:

“We focused on CD25+Foxp3-CD4+ and CD8+ T cells induced by IL-2/JES6 treatment”

as follows:

“We focused on CD25+Foxp3-CD4+ and CD8+ T cells robustly expanded in the spleen of mice treated with IL-2/JES6.” (page 11, line 236-237).

We hope that this makes the issue more comprehensible for the readers and we are very sorry for a confusing statement in the previous version of our manuscript.

2. The transient nature of the IL-2/JES6-1 complex-induced sensitization to LPS (Figure 1C) is an interesting observation that was not followed up on and why does this occur?

The study on kinetics of sensitization to LPS via IL-2/JES6 was performed to determine whether the standard time schedule selected for LPS administration (Figure 1A) in ongoing experiments is appropriate in terms of maximal sensitivity to LPS. The experiment shown in Figure 1C confirmed that administration of LPS 2 days after the last dose IL-2/JES6 is still at the plateau of the maximal sensitivity to LPS. Thus, this kinetics experiment provided us a clear answer to our question and we did not see any need to continue in this kind of experiments (however, we completely agree with the reviewer that the observation is interesting). We think that the transient nature of the IL-2/JES6-induced sensitization to LPS could be explained by short-term duration of IFN-γ production (predominantly by CD25+Foxp3- CD8+ and CD4+ T cells) upon IL-2/JES6 administration and sensitization of myeloid cells (increased in counts in IL-2/JES6 treated mice) to LPS by such produced IFN-γ. Thus, the production of IFN-γ probably rapidly diminishes after the last dose of IL-2/JES6 leading to the loss of increased sensitivity to LPS after about 4 days as shown in Figure 1C.

3. The examination of TLR4 expression on different immune cell population following IL-2/JES6-1 complex administration would be telling, for example, Is the increased sensitivity to LPS due to increased number of cells (such as myeloid cells) responsive to LPS or increased TLR4 expression or both?

We definitely agree with the reviewer that it would be useful to investigate TLR4 expression on LPS responsive cells upon IL-2/JES6 treatment. Thus, we treated B6 mice with IL-2/JES6 or IL-2/S4B6 as shown in the Figure 1A and analyzed first the Tlr4 expression in splenocytes of these mice by quantitative RT-PCR. We found that neither treatment affected the expression of Tlr4 on mRNA level. Next, we analyzed TLR4 expression in various subsets of myeloid cells from the spleen of B6 mice treated as described above via flow cytometry. Surprisingly, we found decent but still statistically significant decrease of TLR4 levels in CD11b+Ly6G+ (granulocytes) and CD11b+Ly6G-Ly6Clow cells upon IL-2/JES6 treatment in comparison to controls. No statistically significant difference in TLR4 level upon IL-2/JES6 treatment in comparison to controls was found in CD11b+Ly6G-Ly6Chigh cells (monocytes/macrophages). Thus, we conclude that increased sensitivity of B6 mice treated with IL-2/JES6 to LPS is not due to the increased TLR4 expression but rather due to the increased counts of cells responsive to LPS as shown in the manuscript. The results described above are now included in the revised version of the manuscript (Figure 3 —figure supplement 4 and 5). We also added the following text (page 9, lines 185-194):

“We asked a question whether this increased responsiveness of myeloid cells to LPS was due to the increased expression of TLR4. Thus, we analyzed Tlr4 expression in spleen cells via quantitative RT-PCR and in various myeloid cell subsets via flow cytometry. Treatment with IL-2/JES6 did not affect the Tlr4 expression in splenocytes on mRNA level (Figure 3 —figure supplement 4). No statistically significant difference in TLR4 level upon IL-2/JES6 treatment in comparison to control was found in CD11b+Ly6G-Ly6Chigh cells. Surprisingly, IL-2/JES6 treatment decently but statistically significantly decreased TLR4 levels in CD11b+Ly6G+ cells and CD11b+Ly6G-Ly6Clowcells (Figure 3 —figure supplement 5). IL-2/JES6 thus did not increased the sensitivity to LPS via increased expression of TLR4.”

4. A more detailed examination of the myeloid cells in Figure 3 is required, to define if these cells are monocytes, macrophages, neutrophils, or another cell type?

We thank the reviewer for this suggestion and we completely agree that a more detailed examination of the myeloid cells expanded in response to IL-2/JES6 administration would improve the manuscript. Thus, we performed an experiment where we treated B6 mice with IL-2/JES6 or IL-2/S4B6 as shown in the Figure 1A and analyzed the myeloid cells from the spleen by flow cytometry 2 d after the last dose of IL-2 complexes (at time when LPS is injected in other experiments). We also confirmed proliferation of myeloid cells upon various single doses of IL-2/JES6 via BrdU incorporation. These results are now included in revised version of the manuscript (Figure 3 —figure supplements 1, 2 and 3). We also added the following text (page 8, lines 173-179):

“We also found that treatment with IL-2/JES6 expands myeloid cells in general. IL-2/JES6 expanded significantly granulocytes, eosinophils and DCs and elevated, though not significantly, relative counts of monocytes and macrophages (Figure 3 —figure supplement 1). Of note, treatment with IL-2/JES6 increased MHC II expression on monocytes and macrophages (Figure 3 —figure supplement 2). The proliferation of myeloid cells driven by IL-2/JES6 was further confirmed by BrdU incorporation (Figure 3 —figure supplement 3).”

5. Figure 4 F-G demonstrates the effect of IL-2/JES6-1 complex on the T cell compartment, however, this only assesses the proliferative response of these cells. The focus on the CD25+Foxp3- CD4 and CD8 T cells in Figure 5 is not well justified. What happens to the number of CD25+Foxp3+ CD4 T cells?

The primary purpose we show Figure 4F and G is to demonstrate that treatment with IL-2/JES6 dramatically expands CD25+Foxp3-CD4+ and CD8+ T cells (originally very tiny population representing ~ 0.1 % of these T cell subsets, respectively) through potent stimulation of their proliferation as shown by BrdU incorporation assay. These cells proliferate even more vigorously in response to IL-2/JES6 than Treg cells as shown in Figure 4F and G (mentioned in the manuscript, page 10, lines 228-231). Such finding was made for the first time in the spleen and later on the robust expansion of CD25+Foxp3-CD4+ and CD8+ T cells after IL-2/JES6 treatment was found also in other (non-lymphoid) organs, particularly in the liver and lungs (shown in the Figure 5A and B). We agree with the reviewer that focus on CD25+Foxp3-CD4+ and CD8+ T cells was not well justified in the previous version of our manuscript. Thus, we rewrote the beginning of Results section “IL-2/JES6 drive expansion of CD25+Foxp3- T cells producing IFN-γ in lymphoid as well as non-lymphoid tissues” as follows (page 11, lines 236-240):

“We focused on CD25+Foxp3-CD4+ and CD8+ T cells robustly expanded in the spleen of mice treated with IL-2/JES6. Since these cells resemble by their phenotype activated T cells, we presumed that these cells could be a key producers of IFN-γ in IL-2/JES6 treated mice causing the increased sensitivity to LPS. Thus, we decided to investigate whether these cells were expanded also in other organs except of spleen and whether they produced IFN-γ.”

The reviewer also asked what happens to the number of CD25+Foxp3+CD4+ T cells (i.e. Treg cells)? Treg cells are also significantly expanded by IL-2/JES6 as shown in Figure 5A, left part of the graph (though the percentage of CD25+Foxp3+ in CD4+ T cell population is not shown) via stimulation of their proliferation (Figure 4F, BrdU incorporation assay part of the panel). The treatment with IL-2/JES6 (using the schedule and dosage shown in Figure 1A) usually expands Treg cells in the spleen to about 25-45 % out of total CD4+ T cells. The corresponding number in the liver and spleen is about 10-20 %.

Surprisingly, Treg cells were found also to produce IFN-γ in mice treated with IL-2/JES6, particularly in the liver (Figure 5C and D, middle part of the graphs). This is mentioned in the Results (page 11, lines 251-253) and also in the Discussion (page 14, lines 320-322) where we hypothesize why Treg cells upon IL-2/JES6 administration produce IFN-γ, which is rather unusual and surprising feature of these cells. However, the fraction of IFN-γ producing Treg cells was significantly smaller in comparison to that found in CD25+CD8+ and CD25+Foxp3-CD4+ T cells. Altogether, we conclude that Treg cells upon IL-2/JES6 administration participate to IFN-γ production in the organism and thus to LPS hypersensitivity, however, the key producers are CD25+Foxp3-CD4+ and CD8+ T cells.

6. In Figure 6 IL-2/JES6-1 complexes were overlooked in the mice that received the activated OT-I and OT-II T cells? The authors transferred 2 and 4 million OT-I and OT-II T cells, respectively, prior to in vivo peptide stimulation. This number is exceeding higher than the number of endogenous OVA-specific CD8 and CD4 T cells. What happens to naïve mice immunized with OVA that do not receive any OT-I or OT-II cells? There are a lot of steps bypassed between IL-2/JES6-1 administration and IFNγ production by T cells after LPS administration. Are the T cells being directly stimulated by the LPS? The authors should transfer TLR4-/- T cells to see what happens.

IL-2/JES6 were not overlooked (or missed) in the Figure 6. The data in Figure 6 A-C should demonstrate that potentially any T cells producing IFN-γ, if present in the body at sufficiently high numbers, are capable of sensitization to LPS. We wanted to mimic the situation there is a high number of IFN-γ producing T cells but without the use of IL-2/JES6. Thus, we first show clonal expansion of OT-I CD8+ and OT-II CD4+ T cells after adoptive transfer into congeneic Ly5.1 mice and treatment of mice with respective cognate peptides plus polyI:C. These cells formed approximately 8 and 4 % of total CD8+ and CD4+ T cells after their expansion, respectively, and their clonal expansion was not affected by injection of anti-IFN-γ mAb (Figure 6 A and B). These cells should moreover produce IFN-γ due to the TCR stimulation in the presence of adjuvant. Next, we demonstrate that mice with adoptively transferred OT-I CD8+ and OT-II CD4+ T cells and stimulated with cognate peptides plus polyI:C, but not unstimulated ones, are sensitized to LPS (Figure 6C). Importantly, injection of anti-IFN-γ mAb abrogated the sensitization to LPS. It is true that the number of transferred OT-I CD8+ and OT-II CD4+ T cells enormously exceeds the number of endogenous OVA-specific T cells (however, it was done intentionally). The reviewer asks what happens to naïve mice immunize with OVA that do not receive any OT-I CD8+ and OT-II CD4+ T cells? To answer this question, we performed an experiment where we immunized B6 mice with OVA (0.5 mg/mice i.p.) plus poly I:C (75 µg/mice i.p.) and challenged with LPS 4 d after immunization. Positive controls were treated with IL-2/JES6 as in Figure 1A and Control mice were injected with PBS. As expected, mice immunized with OVA plus poly I:C showed no sensitization to LPS. This result is included in the revised version of the manuscript (Figure 6 —figure supplement 1). We also included following sentence into revised version of the manuscript (page 12, lines 271-273):

“C56BL/6 mice without adoptively transferred CD8+ OT-I and CD4+ OT-II T cells and immunized with OVA plus polyI:C showed no increased sensitivity to LPS (Figure 6 —figure supplement 1).”

The other question of the reviewer was whether T cells could be directly stimulated by LPS and that we should transfer Tlr4-/- T cells to see what happens. To address this issue, we did an experiment where we employed Myd88-/- mice. We used these mice since we had Tlr4-/- mice available on BALB/c background but not on C57BL/6 background. Since the experiment required the transfer of T cells, which would be capable of producing substantial levels of IFN-γ, we decided not to use Tlr4-/- mice on BALB/c background since BALB/c mice are known to be a poor IFN-γ responders (contrary to C57BL/6 mice which are a high IFN-γ responders). This is reflected also in sensitization to LPS via IL-2/JES6 as BALB/c mice are sensitized much weaker in comparison to B6 mice (Figure 4B versus Figure 1B). Myd88-/- mice have severely impaired TLR4 downstream signaling; only TRIF signaling pathway leading to IRF3 activation is functional whereas IRAK and TAK1 signaling pathways essential for activation of NF-κB and AP-1 are abrogated. It has been demonstrated that Myd88-/- mice are unresponsive to LPS (Kawai et al., Immunity, 11: 115-122, 1999) and thereby we considered them as convenient model for our experiment. Thus, we treated Myd88-/- mice on C57BL/6 background for 3 consecutive days with IL-2/JES6 in order to expand CD25+Foxp3- T cells (and similarly to experiment using nude mice shown in Figure 4E). Mice were euthanized 1 d after the last dose and T cells were purified from their spleens and lymph nodes by MACS (using negative selection). T cells were adoptively transferred (5.6 x 106 per mice) into Rag1-/- mice and the mice were either left untreated or were treated with IL-2/JES6 as in Figure 1A. Rag1-/- mice without adoptively transferred T cells either treated with IL-2/JES6 or untreated (Control) were also involved. All experimental groups were challenged with LPS. We found that mice with adoptively transferred T cells and treated with IL-2/JES6 (but no any other groups) showed profound sensitivity to LPS demonstrating that even T cells unable to respond to LPS sensitizes the mice when stimulated with IL-2/JES6. This finding is included in revised version of the manuscript (Figure 4 —figure supplement 1). We also included following sentence into revised version of the manuscript (page 10, lines 221-224):

“TLR4 expression on T cells seems to be irrelevant for their ability to sensitize the mice to LPS since Rag1-/- mice with adoptively transferred T cells from Myd88-/- mice, i.e. with severely impaired TLR4 downstream signaling, showed profound LPS sensitivity upon treatment with IL-2/JES6 (Figure 4 —figure supplement 1).”

7. IL-2 treatment had a toxic side effect, especially as an inducer of vascular leak syndrome (VLS). Vascular leakage is also attributed to LPS and IFNγ inflammatory response. Did the authors consider showing a manifestation of VLS in the lungs of mice treated with IL2/JES6 compared to other treatments? Showing, or describing previous work, the outcome of this well-documented phenomena following the injection of IL2/JES6 will give a clinical significance to the findings presented.

IL-2 treatment causes vascular leak syndrome (VLS) accompanied by lung oedema, indeed. Lung oedema was described to be a serious side toxicity in IL-2-treated patients and also in mice treated with IL-2 or IL-2/anti-IL-2 mAb complexes. We completely agree with the reviewer that showing lung oedema in mice treated with IL-2/JES6 in comparison to IL-2/S4B6 treated mice (i.e. comparison of IL-2 complex inducing high LPS sensitivity versus IL-2 complex inducing only decent LPS sensitivity) would improve the manuscript and provide clinical significance to our findings. Thus, we performed an experiment where we injected the B6 mice with either IL-2/JES6 or IL-2/S4B6 using schedule and dosage shown in Figure 1A. Mice were euthanized 1 d after the last dose of IL-2 complexes and wet weight of their lungs was determined. The result recapitulates the previously described finding (Krieg et al., PNAS, 109: 11906-1191, 2012) that both IL-2 complexes induce lung oedema but IL-2/JES6 do it significantly more vigorously. This data is now included in the revised version of the manuscript (Figure 1 —figure supplement 2) and mentioned in the Discussion (page 16, lines 368-371):

“Further, treatment with IL-2/JES6 per se induces more severe lung oedema in comparison to treatment with IL-2/S4B6, which could contribute to the morbidity and mortality after LPS challenge to some extent (Figure 1 —figure supplement 2).”

https://doi.org/10.7554/eLife.62432.sa2

Article and author information

Author details

  1. Jakub Tomala

    Laboratory of Tumor Immunology, Institute of Microbiology, Czech Academy of Sciences, Prague, Czech Republic
    Contribution
    Data curation, Investigation, Methodology, Validation, Writing - original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6315-2832
  2. Petra Weberova

    Laboratory of Tumor Immunology, Institute of Microbiology, Czech Academy of Sciences, Prague, Czech Republic
    Contribution
    Investigation, Methodology, Validation
    Competing interests
    No competing interests declared
  3. Barbora Tomalova

    Laboratory of Tumor Immunology, Institute of Microbiology, Czech Academy of Sciences, Prague, Czech Republic
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Validation, Visualization, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Zuzana Jiraskova Zakostelska

    Laboratory of Cellular and Molecular Immunology, Institute of Microbiology, Czech Academy of Sciences, Prague, Czech Republic
    Contribution
    Data curation, Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Ladislav Sivak

    Laboratory of Tumor Immunology, Institute of Microbiology, Czech Academy of Sciences, Prague, Czech Republic
    Contribution
    Data curation, Formal analysis, Investigation, Visualization
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2623-8458
  6. Jirina Kovarova

    Laboratory of Tumor Immunology, Institute of Microbiology, Czech Academy of Sciences, Prague, Czech Republic
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  7. Marek Kovar

    Laboratory of Tumor Immunology, Institute of Microbiology, Czech Academy of Sciences, Prague, Czech Republic
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Project administration, Supervision, Visualization, Writing - original draft, Writing - review and editing
    For correspondence
    makovar@biomed.cas.cz
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6602-1678

Funding

Czech Science Foundation (13-12885S)

  • Jakub Tomala
  • Petra Weberova
  • Barbora Tomalova
  • Ladislav Sivak
  • Marek Kovar

Institutional Research Concept RVO (61388971)

  • Jakub Tomala
  • Petra Weberova
  • Barbora Tomalova
  • Zuzana Jiraskova Zakostelska
  • Ladislav Sivak
  • Jirina Kovarova
  • Marek Kovar

Czech Science Foundation (18-12973S)

  • Jakub Tomala
  • Petra Weberova
  • Barbora Tomalova
  • Ladislav Sivak
  • Marek Kovar

Ministry of Health of the Czech Republic (NV19-03-00179)

  • Zuzana Jiraskova Zakostelska

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank to Helena Misurcova and Pavlina Jungrova for excellent technical help and to Dr. H Nikaido (University of California, Berkeley, USA) for providing S. typhymurium LT2, S-strain. We thank to Dr. Dominik Filipp (Institute of Molecular Genetics, Czech Academy of Sciences, Prague, Czech Republic) for kind providing Rag1-/- and MyD88-/- mice. We thank to the Czech Centre for Phenogenomics (Czech Academy of Sciences, Vestec, Czech Republic) for the help with breeding the MyD88-/- mice. We also thank to Tomas Etrych and his laboratory from Institute of Macromolecular Chemistry (Czech Academy of Sciences, Prague, Czech Republic) for providing HPMA copolymer-bound IL-2.

Ethics

All experiments were approved by the Animal Welfare Committee at the Institute of Microbiology of the Czech Academy of Sciences (Prague, Czech Republic) and performed in strict accordance with the recommendations of local and European guidelines. Every effort was made to minimize animal suffering. This work was approved by protocol number 112/2012. Accreditation number of the animal facility where the research was conducted: 51205/2018-MZE-17214.

Senior Editor

  1. Jos W Van der Meer, Radboud University Medical Centre, Netherlands

Reviewing Editor

  1. Simon Yona, The Hebrew University of Jerusalem, Israel

Reviewers

  1. Thomas S Griffith, University of Minnesota, United States
  2. Angel Porgador, Ben-Gurion University of the Negev, Israel

Publication history

  1. Received: August 25, 2020
  2. Accepted: December 12, 2021
  3. Version of Record published: December 21, 2021 (version 1)

Copyright

© 2021, Tomala et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 653
    Page views
  • 101
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Jakub Tomala
  2. Petra Weberova
  3. Barbora Tomalova
  4. Zuzana Jiraskova Zakostelska
  5. Ladislav Sivak
  6. Jirina Kovarova
  7. Marek Kovar
(2021)
IL-2/JES6-1 mAb complexes dramatically increase sensitivity to LPS through IFN-γ production by CD25+Foxp3- T cells
eLife 10:e62432.
https://doi.org/10.7554/eLife.62432
  1. Further reading

Further reading

    1. Immunology and Inflammation
    Lyra O Randzavola, Paige M Mortimer ... David C Thomas
    Research Article

    EROS (Essential for Reactive Oxygen Species) protein is indispensable for expression of gp91phox, the catalytic core of the phagocyte NADPH oxidase. EROS deficiency in humans is a novel cause of the severe immunodeficiency, chronic granulomatous disease (CGD), but its mechanism of action was unknown until now. We elucidate the role of EROS, showing it acts at the earliest stages of gp91phox maturation. It binds the immature 58kDa gp91phox directly, preventing gp91phox degradation and allowing glycosylation via the oligosaccharyltransferase (OST) machinery and the incorporation of the heme prosthetic groups essential for catalysis. EROS also regulates the purine receptors P2X7 and P2X1 through direct interactions and P2X7 is almost absent in EROS deficient mouse and human primary cells. Accordingly, lack of murine EROS results in markedly abnormal P2X7 signalling, inflammasome activation and T cell responses. The loss of both ROS and P2X7 signalling leads to resistance to influenza infection in mice. Our work identifies EROS as a highly selective chaperone for key proteins in innate and adaptive immunity and a rheostat for immunity to infection. It has profound implications for our understanding of immune physiology, ROS dysregulation and possibly gene therapy.

    1. Computational and Systems Biology
    2. Immunology and Inflammation
    Mingyao Pan, Bo Li
    Short Report Updated

    T cells are potent at eliminating pathogens and playing a crucial role in the adaptive immune response. T cell receptor (TCR) convergence describes T cells that share identical TCRs with the same amino acid sequences but have different DNA sequences due to codon degeneracy. We conducted a systematic investigation of TCR convergence using single-cell immune profiling and bulk TCRβ-sequence (TCR-seq) data obtained from both mouse and human samples and uncovered a strong link between antigen-specificity and convergence. This association was stronger than T cell expansion, a putative indicator of antigen-specific T cells. By using flow-sorted tetramer+ single T cell data, we discovered that convergent T cells were enriched for a neoantigen-specific CD8+ effector phenotype in the tumor microenvironment. Moreover, TCR convergence demonstrated better prediction accuracy for immunotherapy response than the existing TCR repertoire indexes. In conclusion, convergent T cells are likely to be antigen-specific and might be a novel prognostic biomarker for anti-cancer immunotherapy.
