Abstract

Insights into the conformational organization and dynamics of proteins complexes at membranes is essential for our mechanistic understanding of numerous key biological processes. Here, we introduce graphene-induced energy transfer (GIET) to probe axial orientation of arrested macromolecules at lipid monolayers. Based on a calibrated distance-dependent efficiency within a dynamic range of 25 nm, we analyzed the conformational organization of proteins and complexes involved in tethering and fusion at the lysosome-like yeast vacuole. We observed that the membrane-anchored Rab7-like GTPase Ypt7 shows conformational reorganization upon interactions with effector proteins. Ensemble and time-resolved single-molecule GIET experiments revealed that the HOPS tethering complex, when recruited via Ypt7 to membranes, is dynamically alternating between a ‘closed’ and an ‘open’ conformation, with the latter possibly interacting with incoming vesicles. Our work highlights GIET as a unique spectroscopic ruler to reveal the axial orientation and dynamics of macromolecular complexes at biological membranes with sub-nanometer resolution.

eLife digest

Proteins are part of the building blocks of life and are essential for structure, function and regulation of every cell, tissue and organ of the body. Proteins adopt different conformations to work efficiently within the various environments of a cell. They can also switch between shapes.

One way to monitor how proteins change their shapes involves energy transfer. This approach can measure how close two proteins, or two parts of the same protein, are, by using dye labels that respond to each other when they are close together.

For example, in a method called FRET, one dye label absorbs light and transfers the energy to the other label, which emits it as a different color of light. However, FRET only works over short distances (less than 10nm apart or 1/100,000th of a millimeter), so it is not useful for larger proteins.

Here, Füllbrunn, Li et al. developed a method called GIET that uses graphene to analyze the dynamic structures of proteins on membrane surfaces. Graphene is a type of carbon nanomaterial that can absorb energy from dye labels and could provide a way to study protein interactions over longer distances.

Graphene was deposited on a glass surface where it was coated with single layer of membrane, which could then be used to capture specific proteins. The results showed that GIET worked over longer distances (up to 30 nm) than FRET and could be used to study proteins attached to the membrane around graphene. Füllbrunn, Li et al. used it to examine a specific complex of proteins called HOPS, which is linked to multiple diseases, including Ebola, measuring distances between the head or tail of HOPS and the membrane to understand protein shapes. This revealed that HOPS adopts an upright position on membranes and alternates between open and closed shapes.

The study of Füllbrunn, Li et al. highlights the ability of GIET to address unanswered questions about the function of protein complexes on membrane surfaces and sheds new light on the structural dynamics of HOPS in living cells. As it allows protein interactions to be studied over much greater distances, GIET could be a powerful new tool for cell biology research. Moreover, graphene is also useful in electron microscopy and both approaches combined could achieve a detailed structural picture of proteins in action.

Introduction

Numerous fundamental cellular processes such as energy conversion, signal transduction, and transport occur in the context of lipid membranes. In animals, approximately one-third of the proteome is localized at the various membranes of the cell, while more than 50% of the currently available pharmaceuticals target membrane proteins (Santos et al., 2017). The mechanistic understanding of these proteins has been mainly addressed by techniques that arrest them in particular conformations, and take them out of their biological membrane context (Fernandez-Leiro and Scheres, 2016; Kosol et al., 2013). Even more critical, we largely lack techniques to address the orientation and organization of large and highly flexible protein complexes at membranes involved in signaling or interorganellar communication and fusion.

The structurally highly heterogeneous and dynamic systems are extremely difficult to tackle by traditional structural techniques that average ensembles. Single-molecule Förster resonance energy transfer (smFRET) has been used successfully to shed light on the structural heterogeneity of proteins lacking structural definition (Roy et al., 2008; Yang et al., 2018; Zhu et al., 2017). However, with its limited dynamic range covering <10 nm as well as the need to introduce both donor and acceptor dyes with high fidelity and efficiency often obstructs its application. Membrane protein complexes, which often involve intrinsically disordered proteins or phase separation causing large-scale spatial re-arrangement, are therefore not amenable to smFRET. Single-molecule localization microscopy in turn is limited by axial localization precision of ~10 nm (Gwosch et al., 2020; Schmidt et al., 2008; Shtengel et al., 2009). Thus, single-molecule-based techniques providing sufficient spatiotemporal resolution in the 10–20 nm regime, which is relevant for multi-protein complexes, are currently not available.

Here, we introduce a novel approach for quantifying the axial organization and dynamics of large membrane protein complexes based on distance-dependent fluorescence quenching by graphene. This phenomenon is caused by radiation-less electromagnetic coupling of the excited fluorophore with graphene plasmons, which decays with the axial distance d by d4 (Swathi and Sebastian, 2009). The atomic thickness of graphene ensures high optical transparency and an extremely high confinement of plasmons (106 times the diffraction limit) (Koppens et al., 2011). Compared to metal-induced energy transfer (MIET) (Chizhik et al., 2014), with a dynamic range that extends over a distance of ~150 nm, graphene-induced energy transfer (GIET) occurs within a dynamic range of ~30 nm, thus covering the dimensions of large membrane protein complexes (Ghosh et al., 2019). For exploiting GIET to probe axial organization of proteins in the context of membranes, we here developed a lipid monolayer assembly on graphene for site-specific protein capturing. We confirmed the theoretical distance-dependence of GIET within a dynamic range of 25 nm on graphene-supported lipid monolayers using DNA oligonucleotides as a nanoscale ruler. We successfully applied this approach for unraveling the axial organization and dynamics of large multi-protein complexes involved in vesicular transport and fusion, which is critically required for delivery of proteins and lipids in organellar homeostasis (Bröcker et al., 2010; Yu and Hughson, 2010). We reconstituted the entire protein machinery required for tethering late endosomal vesicles, autophagosomes, and AP-3 vesicles to the vacuolar target membrane (Bröcker et al., 2010; Nickerson et al., 2009), including the Rab7-like Ypt7, its guanine nucleotide exchange factor (GEF) Mon1-Ccz1 and the homotypic fusion and vacuole protein sorting (HOPS) complex (Brett et al., 2008; Nordmann et al., 2010; Ostrowicz et al., 2010). In animal cells, HOPS is responsible for autophagy, the infectivity of Ebola virus, and linked to multiple diseases (van der Beek et al., 2019). Based on ensemble and single-molecule GIET, we quantitatively unraveled the axial organization and dynamics of Ypt7 and its interacting HOPS complex. Our data reveal that HOPS adopts an upright orientation on membranes with characteristic axial dynamics. We thus introduce GIET as a powerful novel technique to uncover the nanoscale spatiotemporal architecture of extended multi-protein complexes at membranes.

Results

Functional protein capturing onto graphene-supported lipid monolayers

To apply GIET to explore the structural and functional organization of protein complexes at membranes, we established lipid monolayer coating of graphene. Solid-supported graphene monolayers were prepared by transferring commercially available graphene sheets onto glass substrates. Coating of lipid on graphene was carried out by either liposome fusion or solution-assisted lipid deposition as reported previously (Blaschke et al., 2018; Lima et al., 2016; Tabaei et al., 2016). For site-specific capturing of His-tagged proteins, tris-nitrilotriacetic acid (trisNTA) moieties were incorporated into the lipid monolayer. For this purpose, vesicles made from 1,2-dioleoyl-sn-glycero-3-phosphocholine (DOPC) containing 5% trisNTA conjugated with dioctadecyl amine (trisNTA-DODA) (Beutel et al., 2014; Lata et al., 2005) were fused on freshly prepared graphene slides (Figure 1A). Lipid monolayer formation, protein immobilization, and interactions were monitored in real-time using simultaneous total internal reflection fluorescence spectroscopy and reflectance interference (TIRFS-RIF) detection (Gavutis et al., 2005). A mass signal of lipid deposition on graphene of 2.5 ng/mm² was observed after washing out excess vesicles (Figure 1B). For trisNTA-functionalized lipid bilayer formation by vesicle fusion on a silica surface, which has been previously established for protein interaction analysis at membranes (Beutel et al., 2014; Gavutis et al., 2005; Lata et al., 2006), a lipid deposition of 5 ng/mm² was observed (Figure 1—figure supplement 1). These results confirmed formation of a lipid monolayer on the hydrophobic graphene surface. Stable, Ni(II) ion specific immobilization of an anti-GFP nanobody fused to a C-terminal His-tag (NB-H6) was observed on the graphene-supported lipid monolayer. Upon injection of monomeric enhanced green fluorescence protein (mEGFP), we detected fast binding to the immobilized NB (Figure 1B). The same binding assays were carried out with silica-supported lipid bilayers, yielding very similar binding kinetics for NB-H6 and mEGFP (Figure 1—figure supplement 1). Furthermore, quantitative removal of immobilized protein by imidazole was observed (Figure 1B), which enabled for repeated immobilization. These experiments verified the functional integrity of His-tagged proteins captured onto graphene-supported lipid monolayers. The interaction with mEGFP was simultaneously quantified by TIRFS detection (Figure 1C). Comparing the mEGFP fluorescence signal observed on graphene (IG) to that on the silica substrate (I0) confirmed strong quenching by GIET with an efficiency of 83.6% for mEGFP bound to NB-H6. Direct immobilization of H6-tagged mEGFP on graphene resulted into even stronger GIET (Figure 1D) with an efficiency of 92.4%. As the size of NB is ~2 nm based on the crystal structure (Kirchhofer et al., 2010), these results highlight that GIET can reveal nanoscale distances of proteins immobilized on a graphene-supported lipid monolayer.

Figure 1 with 1 supplement see all

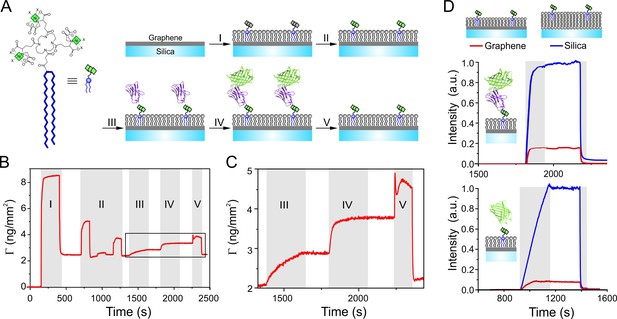

Functional protein reconstitution onto graphene-supported lipid monolayers.

(A) Scheme of the graphene-supported lipid monolayer doped with trisNTA-DODA for site-specific capturing of His-tagged proteins. (B, C) Label-free detection of protein binding on graphene monitored by reflectance interference (RIF): (I) lipid coating; (II) conditioning of tris-NTA chelator by EDTA, Ni2+, imidazole; (III) binding of anti-GFP nanobody fused with H6 tag (NB-H6); (IV) binding of tagless mEGFP; (V) imidazole wash. (C) Zoom-up showing immobilization of NB-H6 and interaction with tagless mEGFP. (D) Fluorescence quenching by GIET quantified in real-time by simultaneous TIRFS-RIF detection for mEGFP using trisNTA-functionalized lipid monolayer on graphene (red) or lipid bilayer on silica (blue), respectively. Upper panel: normalized fluorescence intensities for tagless mEGFP binding to immobilized NB-H6 (as in panels A–C). Lower panel: Fluorescence intensities of H6-mEGFP directly bound to trisNTA-DODA. Normalized fluorescence intensities were calculated according to Equation (1) taking the mass signals into account.

DNA nanoruler calibration confirms distance-dependent GIET efficiency

To determine axial distances from the membrane, we calibrated the distance-dependent GIET efficiencies by using fluorescent-labeled DNA strands attached to the lipid monolayer. Four single strand DNA (ssDNA) with 20mer, 25mer, 35mer, and 50mer nucleotides were designed as the scaffold of nanorulers (Figure 2A, DNA sequences in Supplementary file 1A). These ssDNAs share a common 20mer sequence at the 5´-end and cholesterol modification at the 3´-end for anchoring into the lipid monolayer (Johnson-Buck et al., 2014) (anchor strand). To promote, by electrostatic repulsion, perpendicular orientation of oligonucleotides with respect to lipid layer, 5% negatively charged 1,2-di-(9Z-octadecenoyl)-sn-glycero-3-phospho-L-serine (DOPS) was incorporated into the DOPC matrix. The probe strands have a common 20mer ssDNA sequence complementary to the anchor strand and were conjugated with 6-carboxyfluorescein (FAM) at either 3´- or 5´- end, respectively, for fluorescence read-out. By hybridization of the probe and anchor strands, eight distinct fluorophore distances from the monolayer surface were obtained, which are denoted as anchor strand-3´F or 5´F. For the 35mer and 50mer anchor strands, additional complementary 15mer and 30mer ssDNA were used as blockers, respectively, to obtain the fully length double strand DNA nanorulers (Figure 2A). For the 25mer anchor strand, a 5mer unpaired region remained after hybridization with the probe strands, which may enhance the flexibility of this system.

Figure 2 with 5 supplements see all

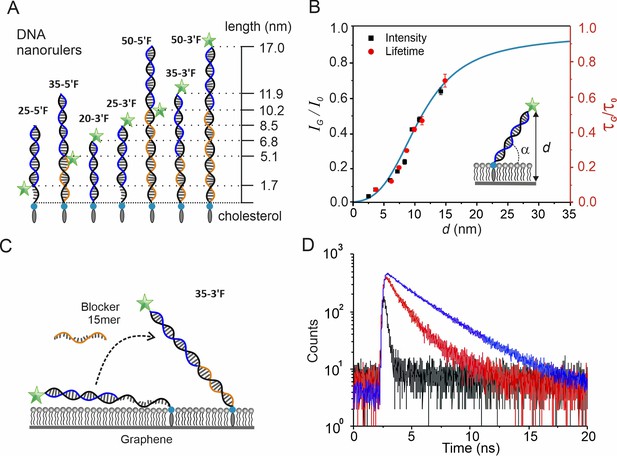

Calibration of distance-dependent GIET using DNA nanorulers.

(A) Architecture and theoretical distances of membrane-anchored DNA nanorulers. Anchor strands (black) are modified with a 3´-end cholesterol. Probe strands (blue) are conjugated with fluorescein at either 3´- or 5´- end. Blocker strand (orange) for complementing the unpaired regions. Nomenclature is based on combinations of anchor and probe strands. (B) Calibration obtained from intensity ratios (black squares, black axis) and from lifetime ratios (red dots, red axis) as a function of distance from the fluorophore to graphene. Calibration at 2.5 nm by lifetime is not available due to detection limitation. The inset illustrates the model used for calculating the vertical distance d with a globally fitted tilting angle α = (43 ± 1)°. Values are mean ±s.d. from three independent measurements. The simulated distance-dependent relation for FAM dye is shown in cyan. (C) Schematic illustration of the 35mer ssDNA anchor strand’s conformational changes on graphene. (D) Fluorescence lifetime histogram of the probe strand bound to the 35mer anchor DNA strand in the absence (black) and presence (red) of the 15mer blocker strand. For comparison, the experiment on a glass-supported lipid bilayer is shown (blue).

Using real-time, surface sensitive detection of TIRFS-RIF, we monitored formation of the lipid monolayer on graphene, integration of anchor strands, and hybridization with probe strands (Figure 2—figure supplement 1). For all probe-anchor hybridizations, detection of combination 20–5´F was not feasible, probably due to the steric hindrance upon inserting a FAM dye proximal to the lipid head groups. Instead, we used 2′,7′-difluorofluorescein-1,2-dihexadecanoyl-sn-glycero-3-phosphoethanolamine (OG488-DHPE), in which the dye molecule is directly linked to the lipid head group. In parallel, the same experiments were performed using silica-supported lipid bilayers. Simultaneous quantification of mass deposition and fluorescence intensity on both substrates ensured reliable quantification of GIET efficiencies (Supplementary file 1B). Significantly reduced fluorescence intensities on graphene (IG) were observed compared to those on silica (I0). The IG/I0 ratios increased with the end-to-end distances of the seven different FAM positions on DNA nanorulers. However, the increase was significantly lower than the theoretical prediction from electromagnetic simulations, which assumed fully perpendicular orientation on top of the lipid monolayer coating (Materials and methods: Electromagnetic simulation of GIET, and Figure 2—figure supplement 2 for sensitivity analysis). Since we have previously validated our simulations using well-defined silica adlayers on the graphene surface (Ghosh et al., 2019), we wondered whether tilting of DNA strands on surface was the reason for the discrepancy (Kabeláč et al., 2012; Wong and Pettitt, 2004). By assuming a tilting angle α between DNA and graphene, we calculated the vertical distance d by taking the 2.5 nm thickness of the lipid monolayer into account (Attwood et al., 2013; Blaschke et al., 2018) (Materials and methods: Validation of distance-dependent GIET by DNA nanorulers). Strikingly, the obtained correlation of IG/I0 vs d matches the predicted GIET curve well with a globally fitted tilting angle of (43 ± 1)° (Figure 2B), confirming the distance-dependent GIET on graphene-supported lipid monolayer. We also observed systematic deviations to higher experimental intensities at very short distances including OG488-DHPE, which may be ascribed to the fluorophores being attached via flexible linkers take a more distant position from the surface due repulsion from the negatively charged membrane surface.

Axial distances can be reliably quantified via fluorescence lifetimes

GIET efficiencies were furthermore quantified by time-correlated single photon counting (TCSPC) using confocal laser-scanning microscopy (cLSM, Figure 2—figure supplement 3). Lifetime histograms could be nicely fitted with mono-exponential decay functions in all cases (Figure 2—figure supplement 4), indicating a homogenous structural organization of the DNA rulers. On glass surfaces, constant fluorescence lifetimes of FAM were observed for DNA nanorulers, either 2.8 ns for 3´ labeling or 3.3 ns for 5´ labeling (Figure 2—figure supplement 4). The shorter lifetime at 3´-end could be attributed to quenching by the adjacent G-C base pair as reported previously (Nazarenko et al., 2002). Ratios of fluorescence lifetimes on graphene (τG) to those on glass (τ0) closely matched the corresponding intensity ratios, which further corroborated the simulated distance-dependent GIET efficiency (Figure 2B, Supplementary file 1C). Results of both intensity and lifetime measurements showed a dynamic range within 3–25 nm corresponding to changes in GIET efficiency from 93–15%. A significant difference was detected for nanorulers between 35–5´F and 35–3´F, confirming that GIET is robust for detecting distance changes of ~1.2 nm between 6 nm and 11 nm.

These consistent calibrations via fluorescent intensities and lifetime measurements corroborated the validity of our GIET model, with systematic deviations likely to be related to positional uncertainty caused by inherent flexibility of the nanoruler system. We therefore applied the theoretical GIET curve for subsequent quantification of distances from experimental IG/I0. For the axial organization of mEGFP and mEGFP:NB complex tethered to the DOPC monolayer surface via trisNTA-DODA, distances 1.3 nm for H6-mEGFP directly tethered to the membrane (IG/I0: 7.6%) and 3.0 nm for mEGFP captured via NB-H6 (IG/I0: 16.4%) were estimated. The distance of 1.7 nm induced by the nanobody is in good agreement with the crystal structure of the GFP-NB complex (Kirchhofer et al., 2010), highlighting the nanometer sensitivity of quantifying the axial position of proteins onto lipid monolayers by GIET.

Axial reorganization at the lipid monolayer surface can be quantified by GIET

We next asked whether GIET is capable to measure distance changes larger than 10 nm. For this purpose, we chose the 35mer anchor strand with a fully extended length of 11.9 nm from 3´-end to 5´-end (Figure 2C). Upon hybridizing with the 20mer 3´ FAM probe strand, a fluorescence lifetime τG of 0.24 ± 0.02 ns was detected (Figure 2D). Comparing to τ0 of 3.04 ns on glass, the obtained τG/τ0 ratio of 8.0 ± 0.6% corresponds to a distance of 4.4 ± 0.2 nm from the graphene (1.9 nm from the lipid headgroups), suggesting that the hybridized probe-anchor DNA strand collapses onto the surface of the lipid monolayer due to the flexible, unpaired 15mer gap. To test the hypothesis, a 15mer ssDNA blocker strand was added, resulting into a ~ sixfold increase of the fluorescence lifetime (1.50 ± 0.03 ns, Figure 2D). The τG/τ0 ratio of 49 ± 1.0% corresponds to a distance of 10.9 ± 0.2 nm, that is a height of 8.4 nm above the lipid layer. Compared to the length of the 35mer DNA nanoruler (11.9 nm), the height corresponds to a tilting angle α = 45°, which is in good agreement with the tilting angle α obtained for the calibration. This observation not only supports the validation of the calibration, but also suggests loss in flexibility upon hybridization with the 15mer blocker strand forces the full duplex strand into an upstanding position (Figure 2C). These results demonstrate the potential of GIET to quantify large-scale conformational rearrangements of biomolecules on membrane surfaces with nanometer precision. However, we did not observe lateral diffusion dynamics of anchored DNA strands as explored by fluorescence recovery after photobleaching (FRAP, Figure 2—figure supplement 5), thus ensuring that changes in fluorescence lifetime are not related to changes in the lateral organization within the lipid monolayer.

Reconstitution of the HOPS tethering axis for structural analysis by GIET

We applied our new method to unravel the orientation and organization of proteins involved in vesicle tethering and fusion at the yeast vacuole. This process is initiated by the Rab7-like GTPase Ypt7 as a functional marker of the late endosomal membrane (Figure 3A). Upon activation by its guanine nucleotide exchange factor (GEF) Mon1-Ccz1 on endosomes and vacuoles (Nordmann et al., 2010), Ypt7-GTP recruits the 650 kDa heterohexameric HOPS tethering complex (Brett et al., 2008; Ostrowicz et al., 2010). This complex then tethers Ypt7-bearing membranes (Hickey and Wickner, 2010; Ho and Stroupe, 2015; Lürick et al., 2017; Orr et al., 2015), and catalyzes fusion of vacuoles or SNARE-carrying proteoliposomes (Stroupe et al., 2009; Wickner and Haas, 2000). Our structural studies revealed that HOPS adopts a flexible tadpole-like conformation (Bröcker et al., 2012; Lürick et al., 2017). HOPS has four central subunits Vps11, Vps18, Vps16, and Vps33 (Rieder and Emr, 1997), which are flanked by Vps39 and Vps41 as Rab-specific subunits at its tail and head, respectively (Brett et al., 2008; Bröcker et al., 2012; Ostrowicz et al., 2010). However, the overall architecture and thus function of HOPS is controversial as two different structures have been observed by negative-stain electron microscopy (Bröcker et al., 2012; Chou et al., 2016). In its compact form, HOPS is about 30 nm in length and 10 nm in width (Bröcker et al., 2012), whereas the more open conformation of a second study suggests an even longer particle (Chou et al., 2016). Importantly, both structures were obtained from purified complexes in solution, bearing the question, how the functional complex is organized on membranes. To tackle this question by GIET, we reconstituted the entire tethering machinery on graphene-supported lipid monolayers using recombinantly expressed and purified components (Figure 3B,C). Like all Rabs, Ypt7 has an N-terminal GTPase domain, followed by a hypervariable domain (HVD), and a C-terminal prenyl group (Goody et al., 2017). The HVD varies in length between different Rab proteins and is critical for functionality (Li et al., 2014). Due to its composition, it has been assumed that the HVD adopts an extended conformation and would position the N-terminal GTPase domain of the Rab away from the membrane (Burguete et al., 2008). However, this assumption has not been tested, neither alone nor in the presence of GEFs or effectors.

Figure 3 with 5 supplements see all

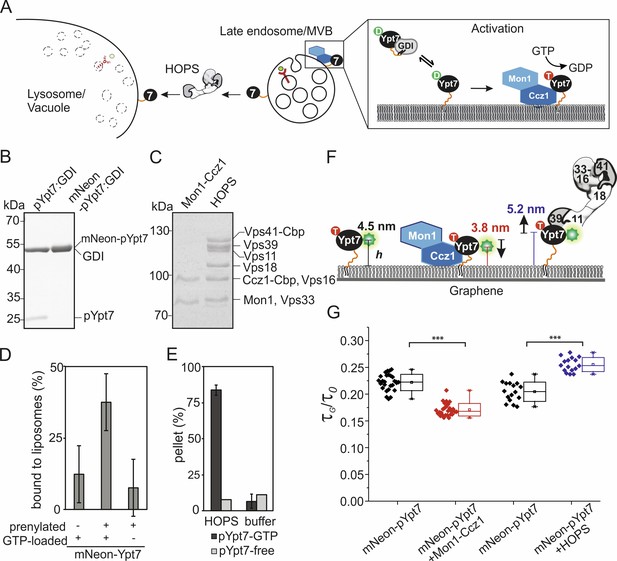

Conformational dynamics of membrane-associated mNeon-Ypt7 upon interaction with Mon1-Ccz1 and HOPS.

(A) Schematic overview of delivery, activation, and function of Ypt7. GDI delivers prenylated GDP-bound Ypt7 to membranes of the late endosome/multivesicular body (MVB). Once Ypt7 is activated by its specific GEF Mon1-Ccz1 through GDP to GTP exchange, it stably associates with membranes. Activated Ypt7 recruits effector proteins, for example the HOPS tethering complex at the vacuolar membrane. (B) In vitro prenylation of Ypt7 (pYpt7) and mNeon-fused Ypt7 (mNeon-pYpt7) analyzed by SDS-PAGE and Coomassie staining (5 µg). (C) Tandem affinity purification of Mon1-Ccz1 and HOPS analyzed by SDS-PAGE and Coomassie staining (5 µg). (D) Membrane association of prenylated mNeon-Ypt7 with (middle bar) and without (left bar) GTP-loading. Fraction of membrane-bound mNeon-pYpt7 based on the fluorescent signal in the supernatant before and after sedimentation (n = 3). As a negative control, liposomes were incubated with unprenylated mNeon-Ypt7 in the presence of GTP (left bar). (E) Interaction of HOPS (350 nM) with pYpt7-GTP-loaded liposomes (dark gray bars) or pYpt7-free liposomes (light gray bars), respectively. The fraction of clustered liposomes in the pellet was calculated on the basis of fluorescent signal in the supernatant before and after sedimentation (n = 3). (F) Putative architecture of membrane-associated mNeon-pYpt7-GTP, and its complexes with Mon1-Ccz1 and HOPS, respectively. The flexible HVD domain is highlighted by an orange strand. (G) Box chart of fluorescence lifetime ratios of mNeon-pYpt7-GTP (black) on graphene-coated glass coverslip to glass (τG0), and its complexes with Mon1-Ccz1 (red) and HOPS (blue), respectively. Significance: ***p<0.001 (two t-test, n > 17).

GIET reveals an extended HVD of Ypt7 on membranes

To analyze the conformational organization of Ypt7 on membranes, we produced this protein N-terminally fused to mNeonGreen (mNeon-Ypt7). The purified protein was prenylated in vitro (mNeon-pYpt7) in the presence of the chaperone GDI (mNeon-pYpt7:GDI), and the complex was used for reconstitution into lipid layers (Langemeyer et al., 2018; Thomas and Fromme, 2016; Figure 3B, Figure 3—figure supplement 1). In parallel, we generated a strain with mNeon-pYpt7 in vivo and observed full complementation (Langemeyer et al., 2020). Full-length complexes of Mon1-Ccz1 and HOPS were purified to homogeneity and monodispersity (Figure 3C), and we have previously shown that both function together with prenylated Ypt7 to promote fusion of proteoliposomes (Langemeyer et al., 2018). To test membrane binding, we incubated mNeon-pYpt7:GDI with liposomes by destabilizing the interaction with GDI, and observed that Ypt7 recruitment required the prenyl anchor and GTP to prevent GDI-mediated extraction (Figure 3D). We further analyzed the ability of activated pYpt7 to interact with HOPS, and thus incubated pYpt7-GTP carrying liposomes with purified HOPS (Figure 3E). In agreement with previous work (Lürick et al., 2017; Orr et al., 2015), HOPS triggered liposome clustering in a pYpt7 and concentration-dependent manner (Figure 3—figure supplement 2).

Efficient transfer of prenylated mNeon-pYpt7 to lipid monolayers (on graphene) and bilayers (on glass) and homogeneous distribution were confirmed by cLSM imaging (Figure 3—figure supplement 3). Binding of Mon1-Ccz1 to lipid mono- and bilayers (Cabrera et al., 2014; Poteryaev et al., 2010) was confirmed by label-free RIF detection (Figure 3—figure supplement 4A). Recruitment of HOPS to membrane-anchored mNeon-pYpt7-GTP resulted into significant changes of its mobility and the organization into dot-like structures (Figure 3—figure supplement 5, Video 1, Video 2). Such lateral heterogeneity of mNeon-pYpt7-GTP:HOPS was not observed for graphene-supported monolayers, in line with the lack of lateral mobility of this architecture. By quantifying the fluorescence lifetime of mNeonGreen on graphene and glass (Figure 3—figure supplement 4B), the axial distances of active mNeon-pYpt7 from the membrane surface were determined based on the τG/τ0 ratio in the absence of additional effector proteins and in the presence of Mon1-Ccz1 and HOPS (Figure 3G). pYpt7 was located surprisingly distal from the membrane in the absence of effector proteins with the mNeon fluorophore being located 4.5 ± 0.3 nm above the lipid monolayer surface. The site of mNeon fusion on Ypt7 is only ~1 nm away from the N-terminus of the HVD (Wiegandt et al., 2015) and therefore this observation suggests a rather extended conformation of the HVD. Upon interaction with Mon1-Ccz1 the distance of mNeon-pYpt7 decreased by 0.7 nm, while a further increase in the axial distance by 0.7 nm was observed in the presence of HOPS (Figure 3F). The total of 30% distance difference suggests the large conformational changes of the HVD are functionally relevant for the interaction of Ypt7 with each complex.

Video 1
Mobility of mNeon-Ypt7-GTP anchored into a glass-supported lipid bilayer probed by FRAP.

Scale bar: 10 µm.

Video 2
FRAP of mNeon-Ypt7-GTP in interaction with HOPS on glass-supported lipid bilayer.

Scale bar: 10 µm.

The HOPS complex adopts an upright orientation upon binding Ypt7 on membranes

The HOPS complex binds Ypt7-GTP via its subunits Vps39 and Vps41 (Brett et al., 2008; Ostrowicz et al., 2010). Since these subunits have been mapped to opposite ends of the HOPS complex (Bröcker et al., 2012), HOPS may be oriented differently on membranes, depending whether it binds Ypt7 via one or both sites. We therefore systematically mapped the axial arrangement of the HOPS complex bound to membrane-inserted pYpt7-GTP by GIET. Thus, we used HOPS variants with C-terminal yeast-enhanced GFP (yEGFP) on Vps39, Vps11, Vps18, Vps16, and Vps33, respectively, and overexpressed and purified the complexes from yeast. Uncompromised complex assembly was verified by SDS-PAGE (Figure 4A). yEGFP-tagged HOPS was specifically captured to lipid mono- and bilayers only after anchoring pYpt7-GTP (Figure 4B). Significantly heterogeneous intensity distribution of yEGFP-tagged HOPS was observed on lipid bilayers but not on lipid monolayers on graphene (Figure 4B, Figure 4—figure supplement 1). These results suggest that HOPS clusters upon binding to diffusive membrane-anchored pYpt7-GTP, in line with the above-mentioned clustering and loss in mobility of mNeon-pYpt7-GTP upon binding to untagged HOPS (Figure 3—figure supplement 5).

Figure 4 with 2 supplements see all

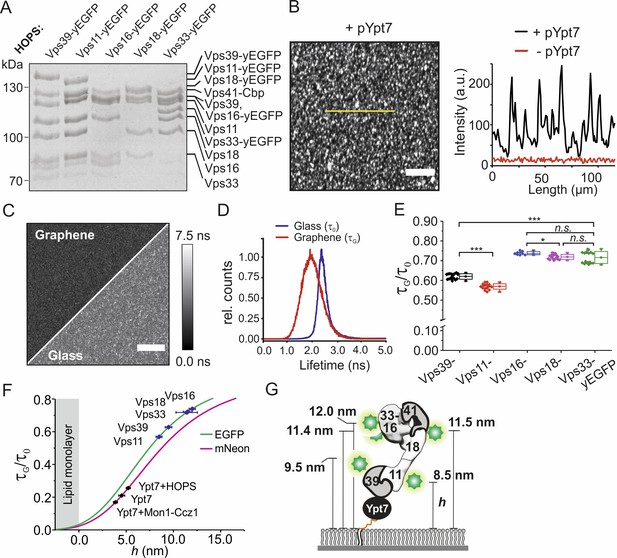

Axial architecture of pYpt7-bound HOPS on membranes explored by GIET.

(A) Integrity of HOPS complexes containing different yEGFP-fused subunits analyzed by SDS-PAGE and Coomassie staining. (B) Confocal laser-scanning microscopy image of HOPS Vps16-yEGFP bound to pYpt7-GTP-loaded membrane on glass. Scale bar: 50 µm. Fluorescence intensity profile along the yellow line in the image is shown aside (black). As a negative control, fluorescence intensity profile of HOPS (Vps16-yEGFP) in the absence of pYpt7-GTP is shown (red). (C) Fluorescence lifetime imaging of HOPS (Vps16-yEGFP) bound to pYpt7-GTP-loaded membranes on glass and graphene, respectively. Scale bar: 50 µm. (D) Normalized fluorescence lifetime histograms of FLIM images shown in panel C. (E) Fluorescence lifetime ratios of different yEGFP-fused subunits in HOPS complex. The HOPS complexes were bound to pYpt7-GTP-loaded membranes on glass and graphene, respectively. Significance: ***p<0.001 (two t-test, n > 9), *p<0.05 (two t-test, n > 9). (F) Axial distances of yEGFP-fused HOPS subunits above membrane determined according to the GIET-distance correlation for EGFP (green). The range of distance is shown by mean ±s.d of the lifetime ratio. Axial distances of Ypt7 and Ypt7 bound to complexes are shown for reference (magenta, correlation curve of mNeon). (G) Putative orientation of pYpt7-GTP bound HOPS complex on membranes.

To determine the axial orientation of Ypt7-bound HOPS on membranes, GIET efficiencies were quantified by measuring fluorescence lifetimes on graphene (τG) and glass support (τ0). FLIM images of yEGFP-tagged HOPS bound to pYpt7-GTP showed homogeneous distribution on graphene, yielding a Gaussian-like distribution of fluorescence lifetimes (Figure 4C,D). Interestingly, τG showed a broader distribution than τ0, in line with some heterogeneity of the axial arrangement. The mean fluorescence lifetimes were used to estimate the average distance from the lipid head groups. For all yEGFP-fused subunits of HOPS, a significant decrease of τG compared to τ0 was found. The axial distances calculated for the different HOPS subunits are in line with an upright position of the complex bound to Ypt7 (Figure 4E,F, Figure 4—figure supplement 2): The two subunits at the putative HOPS tail, Vps39 (9.5 nm) and Vps11 (8.5 nm), were found to be much closer to the membrane than those of the previously annotated head (Vps16 at 12.0 nm, Vps18 at 11.4 nm, and Vps33 at 11.5 nm) (Figure 4G). These results suggest membrane anchoring of HOPS with membrane-anchored Ypt7-GTP occurs exclusively via interaction of Vps39, in line with its higher affinity as compared to Vps41 (Lürick et al., 2017; Plemel et al., 2011). The ~8 nm distance of the head subunits Vps33 and Vps16 from Ypt7-GTP found by GIET analyses, however, is significantly lower than the ~20 nm head-to-tail distance (between Vps33/16 and Vps39) observed in the EM structure of isolated HOPS (Bröcker et al., 2012). These findings suggest that the HOPS complex adopts a more compact structure upon docking to membrane-anchored Ypt7-GTP.

Structural dynamics of HOPS complex at the membrane

Negative-stain EM studies revealed that the HOPS complex can adopt different conformations in solution (Bröcker et al., 2012; Chou et al., 2016), which is in line with the broad distribution of GIET efficiencies observed in fluorescence lifetime histograms (Figure 4D). To resolve such potential conformational heterogeneity of HOPS when bound to Ypt7 on membranes and possible transitions between these conformations, we turned to single-molecule imaging. The 97.7% transparency of graphene monolayer for visible light (Nair et al., 2008) allows single-molecule imaging on graphene by total internal reflection fluorescence (TIRF) microscopy with minimum loss of photons. For robust single-molecule GIET (smGIET) analysis, we used an anti-GFP nanobody site-specifically coupled to a photostable fluorophore (Dy647NB) at very low concentration (50 pM) to sub-stochiometrically label yEGFP-tagged subunits in the HOPS complex at the head (Vps33) and the tail (Vps11), respectively. Under these conditions, signals from specifically labeled individual HOPS complexes were detected by TIRF microscopy, as confirmed by photobleaching analyses on glass and graphene (Figure 5A,B, Figure 5—figure supplement 1A). Analysis of ~100 single step bleaching fluorescence traces yielded IG/I0 of 0.76 ± 0.20 for HOPS Vps33 and 0.53 ± 0.14 for HOPS Vps11 (Figure 5—figure supplement 1B,C). These mean values were in a good agreement with the ensemble lifetime measurements (Supplementary file 2). However, the large standard deviations corroborated significant structural heterogeneity in HOPS complexes that was already suggested by the broad fluorescence lifetime distribution observed in the ensemble experiments (Figure 4D).

Figure 5 with 3 supplements see all

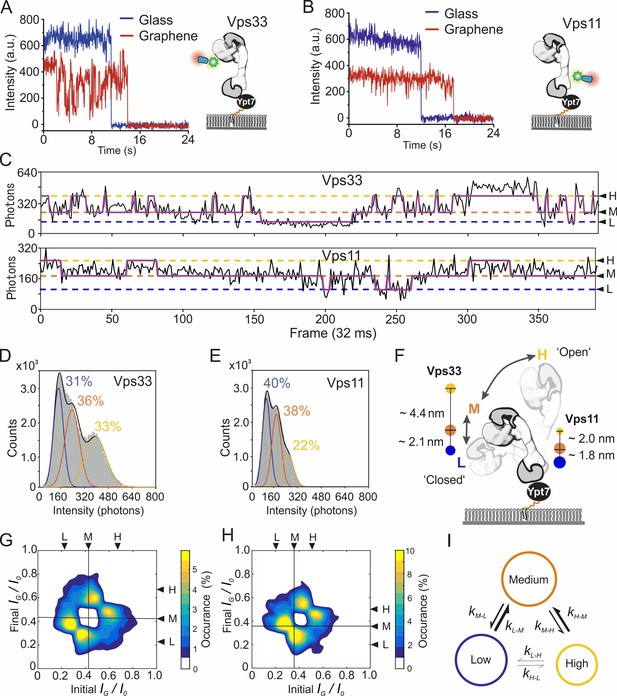

Dynamics of the pYpt7-bound HOPS complex on a lipid layer explored by single-molecule GIET.

(A, B) Representative time-lapse single-molecule intensity traces of Dy647NB-labeled HOPS Vps33-yEGFP (A) and HOPS Vps11-yEGFP (B) on glass (blue) and graphene (red). (C) Enlarged representation of the smGIET intensity fluctuations and fit by an HMM using a three-state segmentation. (D, E) Pooled single-molecule intensity distribution of Dy647NB-labeled HOPS Vps33-yEGFP (D, n = 101615) and HOPS Vps33-yEGFP (E, n = 84218) immobilized on graphene-supported monolayers via Ypt7-GTP. Intensities were classified by Gaussian fits as states of low (L, blue), medium (M, orange), and high (H, yellow), respectively. (F) Model schematically depicting possible conformational changes of HOPS in the L, M, and H state. State occupancies and distance changes of Vps11 and Vps33 are indicated. (G, H) Transition density plots of HOPS Vps33-yEGFP (G) and Vps11-yEGFP (H). The crosslines on M state are guide for the eye. (I) Conformational transition kinetics obtained from HMM. Diameters of the circles and sizes of the arrows are proportional to the averaged state occupancy and transition rates from results of HOPS Vps33 and Vps11, respectively.

Strikingly, single-molecule fluorescence of the HOPS complex bound to graphene-supported lipid monolayers showed pronounced fluctuations, which was not observed on glass (Figure 5A,B, Video 3). These fluctuations therefore indicate axial conformational dynamics of pYpt7-GTP bound HOPS on the membrane, which is monitored faithfully by distance sensitive smGIET. To quantify the conformational dynamics of the HOPS complex, we recorded time-lapse intensity traces of individual HOPS complexes on graphene and glass (Figure 5C). HOPS Vps33-yEGFP was chosen based on its pronounced two lifetime populations observed on graphene in the ensemble experiments (Figure 4E, Figure 4—figure supplement 2). For pooled single-molecule intensities from traces of HOPS Vps33-yEGFP and HOPS Vps11-yEGFP, broad distributions were observed on graphene (Figure 5D,E) but not on glass (Figure 5—figure supplement 2). Analysis by Hidden Markov Modeling (HMM) (McKinney et al., 2006) identified three distinct states with ‘low’ (L), ‘medium’ (M), and ‘high’ (H) intensity, respectively, for both HOPS variants on graphene. The characteristic IG/I0 ratios, axial distances, and occupancies for each state are summarized in Table 1. The similar changes of mean axial distance from L to M state (~2 nm) in both HOPS Vps33-yEGFP and HOPS Vps11-yEGFP suggest a largely concerted axial movement of the entire HOPS complex. By contrast, the high discrepancy of distance changes during transitions from M to H (Vps33: 4.4 nm; Vps11: 2 nm) indicate a conformational re-organization of the HOPS complex itself, thus adopting an elongated conformation (Figure 5F). In total, the conformational dynamic distance range on the membrane was ~7 nm for HOPS Vps33-yEGFP and 4 nm for HOPS Vps11-yEGFP, respectively. Furthermore, we obtained rate constants of the transition between L, M, and H states from HMM analysis for HOPS Vps33-yEGFP and HOPS Vps11-yEGFP (Supplementary file 4). Striking similarity of the transition probability densities were obtained for both labeled subunits, with the dominant transitions between L-M and M-H states (Figure 5G,H). This observation supports correlated conformational dynamics of the L, M, and H states observed for HOPS Vps33-yEGFP and HOPS Vps11-yEGFP. Together, the time-resolved smGIET experiments reveal a 2-step conformational transition of the Ypt7-anchored HOPS complex from the ‘closed’ state L to the ‘open’ state H via an intermediate state M (Figure 5I).

Table 1
Conformational states characterized by HMM analysis of smGIET.
ProteinHOPS Vps33-yEGFPHOPS Vps11-yEGFP
StateLMHLMH
IG/I0a0.25 ± 0.060.41 ± 0.080.69 ± 0.130.22 ± 0.050.36 ± 0.060.51 ± 0.08
h (nm) b4.7
(3.9–5.5)
6.8
(5.7–7.9)
11.2
(8.9–14.9)
4.3
(3.6–5.0)
6.1
(5.3–6.9)
8.1
(7.0–9.3)
Occup. (%)c30.9 ± 0.135.7 ± 0.233.5 ± 0.140.4 ± 0.238.0 ± 0.221.6 ± 0.1
  1. *: mean ±s.d. based on IG of the Gaussian fits in single-molecule intensity distribution on graphene. I0 is the mean value of Gaussian fit on glass. b: h is the average height of NB-labeled HOPS on the membrane. Values in brackets are the range of h determined by mean ±s.d of IG/I0. c: mean ± s.e.m. of state occupancy.

Video 3
Single-molecule fluorescence images of NB labeled HOPS Vps33-yEGFP on glass and graphene, respectively, imaged under the same conditions.

Scale bar: 2 µm.

Discussion

Quantitative insights into the structural organization and dynamics of protein complexes and large machineries at membranes is important to understand their function. Methods based on fluorescence-interference-contrast (FLIC) microscopy (Braun and Fromherz, 1998) have been successfully employed to determine the axial organization of membrane proteins at ensemble level with at ~1 nm resolution (Kiessling and Tamm, 2003; Kiessling et al., 2018). Resolving the axial conformational dynamics that involved in many membrane-associated processes, however, requires methods that provide sub-nanometer resolution with single-molecule sensitivity at sub-second timescale. To tackle this challenge, we have here introduced fluorescence quenching by GIET using graphene-supported lipid monolayer as a membrane model. Detailed calibration with DNA rulers confirmed excellent correlation of simulated and measured distance-GIET relationships between 3 nm and 15 nm, promising very good sensitivity up to a distance of ~25 nm from the graphene surface, thus substantially exceeding the ~10 nm limit of FRET. Next to rapid and robust ensemble measurements, we demonstrate highly sensitive single-molecule GIET detection yielding relative axial localization precision of 10% at video rate temporal resolution (Materials and methods: Axial localization precision of smGIET). Thus, the spatial regime covered by GIET ideally fills the gap left by FRET and localization microscopy.

Proof-of-concept experiments demonstrate the feasibility to reconstitute complex membrane-anchored multi-protein machineries onto graphene-supported lipid monolayers and to quantify their axial architecture and dynamics. We show that the HVD domain of Ypt7 adopts a strongly extended conformation, locating Ypt7 at a 4.5 nm distance above the membrane surface. This surprising observation could be explained by electrostatic repulsion of the negatively charged HVD. Significant changes in the axial positioning of Ypt7 were observed upon interaction with Mon1-Ccz1 and HOPS. Since Mon1-Ccz1 directly binds to the membrane (Cabrera et al., 2014), its Ypt7 binding site appears to be located distally to the membrane and the HVD allows unhindered access. Importantly, ensemble and single-molecule GIET furthermore revealed the nanoscale organization and dynamics of the HOPS tethering complex upon recruitment to the membrane surface. While ensemble GIET measurements clearly identified the HOPS subunit Vps39 as the primary binding site to lipid-anchored Ypt7, single-molecule GIET revealed rapid transition between three different conformational states with kinetics in the second to sub-second regime. Quantitative analysis of the kinetics suggests a 2-step transition from a ‘closed’ into an ‘open’ state involving concerted axial movement and conformational changes. Given the impaired diffusion in the graphene-supported lipid monolayer, however, the conformationally highly dynamic HOPS complex observed in our studies may represent an intermediate state prior to lateral HOPS clustering, which in turn could increase the efficiency of HOPS to tether incoming vesicles. By developing freely diffusive lipid architectures for graphene support, GIET will allow to dissect conformational organization and rearrangement of large protein complexes on membranes. Since GIET has negligible variation between spectrally different fluorophores (Figure 2—figure supplement 2), concerted conformational changes and axial movement can be potentially resolved by multicolor GIET. With graphene emerging as a routine support for transmission electron microscopy, correlative approaches using the same surface architecture can be envisioned.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene (Saccharomyces cerevisiae)mNeon-Ypt7Thermo Fisher Scientific
Strain, strain background (S. cerevisiae)BY4732Euroscarf libraryMATa his3∆200 leu2∆0 met15∆0 trp1∆63 ura3∆0
Strain, strain background (S. cerevisiae)BY4727Euroscarf libraryMATalpha his3∆200 leu2∆0 lys2∆0 met15∆0 trp1∆63 ura3∆0
Strain, strain background (S. cerevisiae)CUY2470doi: 10.1016/j.cub.2010.08.002BY4732; CCZ1::TRP1-GAL1pr MON1::HIS3M × 6-GAL1pr
CCZ1::TAP-URA3
Strain, strain background (S. cerevisiae)CUY2675doi:10.1111/j.1600-0854.2010.01097.xBY4732xBY4727 VPS41::TRP1-GAL1pr VPS41::TAP-URA3 VPS39::KanMX-GAL1pr VPS33::HIS3-GAL1pr
VPS11::HIS3-GAL1pr VPS16::natNT2-GAL1pr VPS18::kanMX-GAL1pr-3HA
Strain, strain background (S. cerevisiae)CUY4391doi: 10.1073/pnas.1117797109BY4732xBY4727 VPS41::TRP1-GAL1pr VPS41::TAP-URA3 VPS39::KanMX-GAL1pr VPS39::yEGFP-hphNT1 VPS33::HIS3-GAL1pr VPS11::HIS3-GAL1pr
VPS16::natNT2-GAL1pr VPS18::kanMX-GAL1pr-3HA
Strain, strain background (S. cerevisiae)CUY4392doi: 10.1073/pnas.1117797109BY4732xBY4727 VPS41::TRP1-GAL1pr VPS41::TAP-URA3 VPS39::KanMX-GAL1pr VPS33::HIS3-GAL1pr
VPS11::HIS3-GAL1pr VPS11::yEGFP-hphNT1 VPS16::natNT2-GAL1pr VPS18::kanMX-GAL1pr-3HA
Strain, strain background (S. cerevisiae)CUY4393doi: 10.1073/pnas.1117797109BY4732xBY4727 VPS41::TRP1-GAL1pr VPS41::TAP-URA3 VPS39::KanMX-GAL1pr VPS33::HIS3-GAL1pr
VPS11::HIS3-GAL1pr VPS16::natNT2-GAL1pr VPS16::yEGFP-hphNT1 VPS18::kanMX-GAL1pr-3HA
Strain, strain background (S. cerevisiae)CUY4394doi: 10.1073/pnas.1117797109BY4732xBY4727 VPS41::TRP1-GAL1pr VPS41::TAP-URA3 VPS39::KanMX-GAL1pr VPS33::HIS3-GAL1pr
VPS11::HIS3-GAL1pr VPS16::natNT2-GAL1pr VPS18::kanMX-GAL1pr-3HA VPS18::yEGFP-hphNT1
Strain, strain background (S. cerevisiae)CUY4395doi: 10.1073/pnas.1117797109BY4732xBY4727 VPS41::TRP1-GAL1pr VPS41::TAP-URA3 VPS39::KanMX-GAL1pr VPS33::HIS3-GAL1pr
VPS33::yEGFP-hphNT1 VPS11::HIS3-GAL1pr VPS16::natNT2-GAL1pr VPS18::kanMX-GAL1pr-3HA
Recombinant DNA reagentpET21a-EGFPNovagen
Recombinant DNA reagentpET21a-NB-H6Novagen
Recombinant DNA reagentpET24b-Ypt7doi: 10.1242/jcs.140921
Recombinant DNA reagentpET24d-GST-TEV-Ypt7doi: 10.1091/mbc.e11-12-1030
Recombinant DNA reagentpET24d-GST-TEV-mNeon-Ypt7this papermNeon-Ypt7 gene was synthesized by Thermo Fisher Scientific, provided in a pMA-T backbone and subcloned into a pET24d vector.
Recombinant DNA reagentpGEX-6P-Gdi1doi: 10.1083/jcb.201608123
Recombinant DNA reagentpCDF-DUET-1-Bet2-Bet4doi: 10.1083/jcb.201608123
Recombinant DNA reagentpET30-Mrs6otherGift from K. Alexandrov laboratory, Institute for Molecular Bioscience, The University of Queensland, Australia
Sequenced-based reagent20mer anchor DNA oligonucleotideIDT5’- GATGAATGGTGGGTGAGAGG-3´-TEG-Cholesterol
Sequenced-based reagent25mer anchor DNA oligonucleotideIDT5’- GATGAATGGTGGGTGAGAGGTGAGG-3´-TEG-Cholesterol
Sequenced-based reagent35mer anchor DNA oligonucleotideIDT5’- GATGAATGGTGGGTGAGAGGTGAGGAGTAAGAGGA-3´-TEG-Cholesterol
Sequenced-based reagent50mer anchor DNA oligonucleotideIDT5’- GATGAATGGTGGGTGAGAGGTGAGGAGTAAGA
GGATGTGTTAGAGGGATG-3´-TEG-Cholesterol
Sequenced-based reagent3´-FAM probe DNA oligonucleotideIDT5’-CCTCTCACCCACCATTCATC-3´-FAM
Sequenced-based reagent5´-FAM probe DNA oligonucleotideIDT5’- FAM-CCTCTCACCCACCATTCATC-3´
Sequenced-based reagent15mer blocker DNA oligonucleotideIDT5’-TCCTCTTACTCCTCA-3´
Sequenced-based reagent30mer blocker DNA oligonucleotideIDT5’-CATCCCTCTAACACATCCTCTTACTCCTCA-3´
Peptide, recombinant proteinH6-mEGFPdoi: 10.1021/acs.nanolett.5b01153purified from E. coli BL21- DE3 cells
Peptide, recombinant proteinGPF NB ‘enhancer’doi: 10.1002/smll.201502132purified from E. coli BL21- DE3 cells
Software, algorithmOrigin8OriginLab
Software, algorithmImageJNIH1.53eTime Series Analyzer plugin for extracting single-molecule intensity traces, Author: Balaji J http://rsb.info.nih.gov/ij/plugins/time-series.html
Software, algorithmMATLABMathworksR2019bCode availability for calculating the GIET efficiency was documented in Nature Photonics 2019, 13: 860–865.
doi: 10.1038/s41566-019-0510-7.
Software, algorithmHMMotherHidden Markov Model (HMM) Toolbox for Matlab written by Kevin Murphy https://www.cs.ubc.ca/~murphyk/Software/HMM/hmm.html
Software, algorithmSTaSIdoi: 10.1021/jz501435pAlgorithm of step transition and state identification for single-molecule data analysis.

Materials

Graphene monolayer was purchased from Graphenea, Spain (Easy Transfer Monolayer, G/P-25–25). Glass microscopy coverslips with thickness #1.5 and diameter of 24 mm were purchased from Carl Roth (PK26.1). 1,2-dioleoyl-sn-glycero-3-phosphocholine (DOPC), 1,2-dioleoyl-sn-glycero-3-phosphoserine (DOPS), 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine (POPC), 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphatidylethanolamine (POPE), diacylglycerol (DAG) and DOGS-NTA were purchased from Avanti Polar Lipids, Alabama, USA. Phosphatidylinositol 3-phosphate (PI-3-P) was purchased from Echelon Biosciences Inc, Utah, USA. 2′,7′-difluoro-fluorescein conjugated with 1,2-dihexadecanoyl-sn-glycero-3-phosphoethanolamine (OG488-DHPE) was purchased from Thermo Fisher Scientific. ATTO488-1,2-dipalmitoyl-sn-glycero-3-phosphoethanolamine (ATTO488-DPPE) was obtained from ATTO-TEC GmbH, Siegen, Germany. DY647P1 maleimide was purchased from Dyomics GmbH, Jena, Germany. TrisNTA-DODA was synthesized as previously reported (Beutel et al., 2014). DNA oligonucleotides were ordered from Integrated DNA Technologies, Inc The sequences and modifications are listed in Supplementary file 1A. Acetone was purchased from Merck (Uvasol for spectroscopy, 100022). Other reagents were purchased from Sigma Aldrich.

Protein expression, purification and labeling mEGFP with an N-terminal hexahistidine tag (H6-mEGFP) was cloned in the plasmid pET21a. The protein was expressed in Escherichia coli BL21 (DE 3) Rosetta cells, followed by purification of immobilized metal affinity chromatography (IMAC) and size exclusion chromatography (SEC) (Wedeking et al., 2015b). mEGFP without oligohistidine tag (tagless mEGFP) was expressed in E. coli. Lysed cells were heated to 80°C, centrifuged and the supernatant was purified by anion exchange column and SEC. Anti-GPF nanobody ‘enhancer’ (Kirchhofer et al., 2010) with a C-terminal hexahistidine tag (NB-H6) was expressed in E. coli Rosetta as described previously (Wedeking et al., 2015a). For fluorescence labeling, a C-terminal cysteine was appended to the NB for conjugating with Dy647P1-malemide. The anti-GFP nanobody ‘enhancer’ fused to a C-terminal hexahistidine tag was cloned into pET21a (pET21a-NB-H6) and expressed in E. coli BL21 (DE 3) Rosetta cells. After cell lyses by sonication, NB-H6 was purified by immobilized metal affinity chromatography (IMAC) and size exclusion chromatography (SEC). For fluorescence labeling, a short linker including an additional cysteine residue followed by an ybbR-tag, a PAS repeat sequence and a terminal hexahistidine tag (a.a.: GSCGSGSKLDSLEFIASKLAPASPASPASPASPASLEHHHHHH) was C-terminally fused to the NB. Expression and purification was performed as described for NB-H6. The purified proteins were reacted with a twofold molar ratio of DY647P1 maleimide for 30 min and then purified by size exclusion chromatography. A degree of labeling close to 1.0 was obtained as quantified by UV-Vis spectroscopy.

Endocytic proteins and protein complexes: (1) Rab GTPases and Gdi1. pET24b-Ypt7 (Cabrera et al., 2014), pET24d-GST-TEV-Ypt7 (Lachmann et al., 2012), pET24d-GST-TEV-mNeon-Ypt7 and pGEX-6P-Gdi1 (Thomas and Fromme, 2016) were transformed into competent E. coli BL21 (DE 3) Rosetta cells. Rab GTPases and Gdi1 were purified as previously described with slight modifications (Langemeyer et al., 2018; Lürick et al., 2017; Nordmann et al., 2010). The pET24b-Ypt7, pET24d-GST-TEV-Ypt7, pET24d-GST-TEV-mNeon-Ypt7 (mNeon fused to Ypt7 via a GGSGx3 linker) and pGEX-6P-Gdi1 were expressed in E. coli BL21 (DE 3) Rosetta cells. Cells were grown in Luria broth (LB) medium containing the specific antibiotics until an OD600 of around 0.8, before they were induced with 0.25 mM isopropyl-β-D-thiogalactoside (IPTG) for 18 hr at 16°C. For purification of the Rab GTPases, harvested cells were lysed by a Microfluidizer, Model M-110L (Microfluidics, Newton, MA) in 50 mM HEPES, pH 7.5, 150 mM NaCl, 1 mM MgCl2, 1 mM DTT, 1 mM phenylmethylsulfonyl fluoride (PMSF), and 0.05-fold protease inhibitor cocktail. For purification of Gdi1, lysis was performed in PBS supplemented with 5 mM β-mercaptoethanol and 1 mM PMSF. The lysate was centrifuged at 40,000 g for 30 min at 4°C, and the supernatant was incubated for 2 hr at 4°C with pre-equilibrated Ni-NTA agarose (Macherey-Nagel, Germany) for His-fused proteins or Glutathione Sepharose (GSH) 4B beads (GE Healthcare) for GST-fused proteins. Ni-NTA beads were washed with 50 ml lysis buffer lacking PMSF and protease inhibitor but supplemented with 10 mM imidazole. For elution, the imidazole concentration was increased to 300 mM. After elution, the buffer was exchanged via a PD10 column (GE Healthcare) containing no imidazole. GSH beads were extensively washed with 120 ml lysis buffer lacking PMSF and protease inhibitor cocktail, and proteins were eluted by cleaving the affinity-tag with TEV- or Precision-protease, respectively, for 2 hr at 16°C.

(2)Rab GGTase and Rab Escort Protein. pET30-Mrs6 (Pylypenko et al., 2003) and pCDF-Duet-1-Bet2-Bet4 (Thomas and Fromme, 2016) were transformed into E. coli BL21 (DE 3) Rosetta cells. The Rab GGTase and the Rab escort protein were expressed and induced as Rab GTPases and Gdi1. The Rab GGTase (pCDF-Duet-1-Bet2-Bet4) and the Rab escort protein (pET-Mrs6) were expressed and induced as described in 1.2. Harvested cells were lysed in 50 mM Tris, pH 8.0, 300 mM NaCl, 2 mM β-mercaptoethanol and 1 mM PMSF and centrifuged as described above. The supernatant was loaded on a pre-equilibrated Hi-Trap Ni-Sepharose column (GE Healthcare). After extensive washing of the column with lysis buffer containing 30 mM imidazole but lacking PMSF, bound protein was eluted in a linear 30–300 mM imidazole gradient over 30 column volumes. Protein-containing fractions were pooled and dialyzed against buffer containing 50 mM HEPES, pH 7.5, 150 mM NaCl, and 1 mM MgCl2. The buffer was exchanged twice.

(3) HOPS, yEGFP-fused HOPS and Mon1-Ccz1. HOPS, yEGFP-fused HOPS and Mon1-Ccz1 were expressed in Saccharomyces cerevisiae and purified essentially as described before (Lürick et al., 2017). For yEGFP-fused HOPS, yEGFP was fused to the C-terminus of Vps proteins via a linker of RTLNVDGSGAGAGAGAGAIL. yEGFP-fused HOPS and Mon1-Ccz1 complexes were expressed in S. cerevisiae. In short, cells were grown until an OD600 of around 8. Harvested cells were resuspended in 50 mM HEPES, pH 7.4, 300 mM NaCl, 1.5 mM MgCl2, 1 mM DTT, 0.5 mM PMSF, 1x FY protease inhibitor mix (Serva, Germany), and 10% glycerol. For purification of Mon1-Ccz1, the salt concentration was decreased to 150 mM NaCl. Cell lysis in the presence of glass beads was conducted in a FastPrep-24 5G (MP, Germany). After removal of the glass beads, the supernatant was centrifuged at 120,000 g for 1 hr at 4°C. Centrifuged lysate was incubated with pre-equilibrated immunoglobulin G (IgG) Sepharose (GE Healthcare) for 2 hr at 4°C. IgG beads were washed with 15 ml lysis buffer lacking PMSF and FY, and bound proteins were eluted by cleavage with TEV protease for 1 hr at 16°C.

Strains and plasmids used in this study are listed in Supplementary file 3.

In vitro prenylation of Rab GTPases

Request a detailed protocol

Rab–GDI complexes were obtained from prenylation reactions (Thomas and Fromme, 2016). 10 μM Rab GTPase pre-loaded with GDP was incubated with 9 μM GDI, 1 μM Rab escort protein (REP) Mrs6, 1 μM geranylgeranyl transferase (Bet2-Bet4), and a sixfold excess of geranylgeranyl pyrophosphate in assay buffer (50 mM HEPES, pH 7.5, 150 mM NaCl, 2 mM MgCl2, 1 mM DTT) for 1 hr at 37°C. Mrs6 and Bet2-Bet4 fused to a His6 tag were removed by subsequent incubation of the reaction with Ni-NTA Agarose (Macherey-Nagel, Germany) for 1 hr at 4°C. The stoichiometric complex containing the prenylated Rab and GDI was isolated from the supernatant by size exclusion chromatography. The functionality of prenylated Rabs was tested in membrane association and tethering assays as described before with modifications (Lürick et al., 2017).

For membrane association and tethering assays, lipid films were evaporated by a SpeedVac (CHRIST, Germany) and resuspended in HEPES-KOAc (HK) buffer (50 mM HEPES, pH 7.4, and 120 mM KOAc). Liposomes as unilamellar vesicles were obtained by five freeze and thaw cycles in liquid nitrogen. For tethering assays, the 2 mM liposome suspension was extruded through polycarbonate filters (400 nm, 200 nm, and 100 nm pore size) using a hand extruder (Avanti Polar Lipids, Inc). To analyze the membrane association of mNeon-Ypt7, 50 pmole mNeon-Ypt7 complexed with GDI was incubated with 50 nmole liposomes (62 mol % POPC, 18 mol % POPE, 10 mol % POPS, 8 mol % ergosterol, 1 mol % DAG, and 1 mol % PI-3-P) in the presence or absence of GTP for 30 min at 27°C. Liposomes were sedimented by centrifugation for 20 min at 20,000 g. The fraction of membrane-bound mNeon-Ypt7 was determined by the fluorescent signal of the supernatant before and after sedimentation, which was quantified in a SpectraMax M3 fluorescence plate reader (Molecular Devices, Germany).

For analysis of HOPS-mediated tethering, liposomes containing 69 mol % POPC, 18 mol % POPE, 8 mol % ergosterol, 1 mol % DAG, 1 mol % ATTO488-DPPE, and 3 mol % DOGS-NTA or compensatory amounts of POPC were used. Ypt7 C-terminally fused to a His6 tag was loaded with GDP or GTP and afterwards targeted to liposomes via the lipid analogue DOGS-NTA (Lürick et al., 2017). Liposomes lacking DOGS-NTA were directly loaded with prenylated Ypt7. In this case, 50 pmole pYpt7:GDI complex was incubated with 50 nmole liposomes in the presence of GTP for 30 min at 27°C. For tethering reactions, 0.170 mM Ypt7-loaded liposomes were incubated with 50–350 nM HOPS complex or buffer, respectively, for 10 min at 27°C. Liposomal clusters were sedimented for 5 min at 1,000 g. The fraction of tethered liposomes in the pellet was determined on the basis of the ATTO488 fluorescent signal in the supernatant before and after sedimentation, using a SpectraMax M3 fluorescence plate reader.

Coating graphene monolayer on substrates

Request a detailed protocol

Silica-type substrates were used for coating with graphene monolayer. These include 1 × 1 cm2 silica-coated transducers for TIRFS-RIF detection and glass coverslips for microscopy imaging. Before coating, the substrates were cleaned by plasma cleaner (Femto plasma system, Diener electronic GmbH/Germany). Coating of graphene monolayer on substrate was based on the manufacturer’s instruction. Briefly, the Easy Transfer Monolayer containing graphene monolayer with a thin protecting polymer film was cut into 0.5 × 0.5 cm2 pieces. The obtained piece was slowly emerged into MilliQ water to float on top of water. The polymer-protected graphene monolayer was fished out by a clean glass coverslip or TIRFS-RIF transducer from below, resulting in face-to-face contact of graphene monolayer with the substrate. The obtained substrate was left drying at room temperature for 30 min, followed by heating in a 150°C oven for 2 hr. The hot substrate was taken out and immediately stored under vacuum for 24 hr for cooling down. With the protecting polymer film, the obtained graphene-coated substrate could be stored at ambient conditions for weeks. Immediately before the experiments, the graphene-coated substrate was incubated in acetone for 1 hr, sequentially in isopropanol for another 1 hr, to remove the protecting polymer film on graphene. By blow-drying with N2 stream, the graphene monolayer-coated substrate was ready for use.

Preparation of liposomes and formation of solid-supported membranes

Request a detailed protocol

For preparation of DOPC liposomes, 2.5 µmol DOPC was dissolved in chloroform in a 50 ml round bottom flask. For preparation of liposomes containing DOPC:DOPS (95:5 molar ratio), 2.4 µmol DOPC and 0.12 µmol DOPS dissolved in chloroform were mixed in a 50 ml round bottom flask. Similarly, a lipid mixture of 2.4 µmol DOPC and 0.125 µmol trisNTA-DODA was used for preparing liposomes of DOPC:trisNTA-DODA (95:5 molar ratio). Liposomes were prepared as small unilamellar vesicles (SUVs) by probe sonication as described before (Beutel et al., 2014). To form solid-supported membranes on glass coverslips, 800 µl of liposome solution was added on top of a freshly cleaned coverslip. After incubation at room temperature for 20 min, the coverslip was rinsed with excess HBS to remove free vesicles. For binding His-tagged proteins on solid-supported membranes of DOPC:trisNTA-DODA, conditioning of trisNTA-DODA was carried out by loading with Ni2+ ions. The coverslip was rinsed with 250 mM EDTA and 200 mM imidazole, sequentially. After incubation with 10 mM NiCl2 for 10 min, the coverslip was washed by HBS buffer and 200 mM imidazole to remove possible non-specifically bound Ni2+ ions.

Surface sensitive TIRFS-RIF detection

Request a detailed protocol

A home-built set-up for simultaneous total internal reflection fluorescence spectroscopy (TIRFS) (Gavutis et al., 2006) and reflectance interference (RIF) detection (Piehler and Schreiber, 2001; Schmitt et al., 1997) has been described in detail before. For TIRFS-RIF detection of His-tagged protein binding, DOPC/trisNTA-DODA (95:5 molar ratio) was injected into the flow chamber to form lipid bilayers on silica substrate, or lipid monolayer on graphene. Alternatively, solution-assisted lipid deposition (SALD) was used for forming lipid monolayer on graphene, in which ethanol was added to HBS to obtain a final mixture of HBS:EtOH (90:10 v/v). Conditioning of trisNTA-DODA by Ni2+ ion loading follows the same protocol as in vitro by using the flow-through system in the TIRFS-RIF setup. On the Ni2+-loaded trisNTA-DODA/DOPC lipid mono-/bilayers, 1 µM NB-H6 was injected, followed by injections of 100 nM tagless mEGFP, HBS buffer rinsing and imidazole washing for surface regeneration. For direct immobilization of H6-mEGFP, 1 µM H6-mEGFP was injected followed by imidazole washing. Mass signals of protein binding and fluorescence signals were recorded simultaneously in RIF channel and TIRFS channel, respectively. The ratio of fluorescence intensity IG/I0 was normalized to the amount of immobilized mEGFP according to Equation (1).

(1) IGI0 = (m0mG )(IG_rawI0_raw )

where m0 and  mG are the mass signals of mEGFP immobilized on silica and graphene, respectively, and I0_raw and IG_raw  are the fluorescence intensities of mEGFP immobilized on silica and graphene, respectively.

For DNA hybridization, liposomes with 250 µM DOPC/DOPS (95:5 molar ratio) was injected to the surface of TIRFS-RIF transducer to form lipid layers on the solid support. Anchor strands with cholesterol modification were injected for immobilization on the surface. Sequentially, probe strand labeled with FAM was injected for hybridization with the anchor strand. All DNA concentrations were 1 µM. The running buffer was HBS buffer containing 5 mM Mg2+ for DNA hybridization (HBS-Mg buffer, 20 mM HEPES, 150 mM NaCl, and 5 mM MgCl2, pH 7.5). Fluorescence ratio of IG/I0 was normalized to the amount of immobilized DNA according to Equation (1). For calibration experiments using OG488-DHPE, liposomes containing 250 µM DOPC mixed with 0.1% molar ratio OG488-DHPE was used. IG/I0 was obtained by normalizing to the mass signals according to Equation (1).

Binding of Mon1-Ccz1 to lipid layers was probed as described before (Cabrera et al., 2014). 250 µM DOPC was injected to the substrates for formation of lipid monolayers on graphene or lipid bilayers on silica, respectively, followed by injection of 100 nM Mon1-Ccz1.

Electromagnetic simulation of GIET

Request a detailed protocol

For simulating the electrodynamic coupling of the excited fluorophore to graphene, the excited fluorophore was treated as an ideal electric dipole emitter and the graphene as a layer of matter with specific thickness and (complex-valued) bulk refractive index as described before (Ghosh et al., 2019). Solving Maxwell’s equations of such a system leads to an expression for the emission power, S(θ, d), of the electric dipole emitter as a function of dipole distance d and orientation (described by the angle θ between the dipole axis and the vertical axis) to the substrate. Considering the flexible linker and rapid rotation of the fluorophore in biomolecules, S(θ, d) was averaged over random orientations as a simplified S(d). The relative fluorescence lifetime (τG/τ0) was calculated as:

(2) τGτ0 =S01ϕS0+ϕSd

where ϕ is the quantum yield (QY), τ0 is the free-space lifetime in the absence of GIET, S0 is the free-space emission power of an ideal electric dipole emitter, S0=cnk04p2/3, with c being the vacuum speed of light, k0is the wave vector in vacuum, n is the refractive index of water (n = 1.33), and p is the amplitude of the dipole moment vector.

The τG/τ0 as a function of distance d was calculated for the following geometry: glass substrate (n = 1.52) covered with single sheet graphene (thickness = 0.34 nm, n = 2.76 + 1.40i for emission at 670 nm, or n = 2.68 + 1.21i for emission at 520 nm) coated with lipid monolayer (n = 1.44, thickness = 2.5 nm), topped with water (n = 1.33). The emission maximum, QY, and τ0 of the fluorophores were: FAM (518 nm, 0.75, 3.0 ns), EGFP (507 nm, 0.60, 2.1 ns), mNeonGreen (517 nm, 0.80, 2.8 ns), and Dy647P1 (667 nm, 0.27, 1.3 ns). The emission maximum and QY were taken from the literature (Mujumdar et al., 1993; Shaner et al., 2013; Zhang et al., 2014), values of τ0 were measured on glass-supported lipid bilayer in this work. Results of distance dependency and sensitivity analysis are summarized in Figure 2—figure supplement 2. In the absence of static quenching, fluorescence intensity of fluorophore is proportional to its lifetime. Thus the relative fluorescence intensity follows the same theoretical prediction based on Equation (2).

Validation of distance-dependent GIET by DNA nanorulers

Request a detailed protocol

To calibrate the distance-dependent GIET, the measured intensity ratios and lifetime ratios of DNA nanorulers need to be plotted vs the vertical distance of the FAM dye above graphene. The vertical distance d was calculated by considering tilting of the DNA strands on surface (Wong and Pettitt, 2004):

(3) d=lDNA*sinα+lML

where lDNA is the end-to-end length of FAM dye on the hybridized probe strand to the 3´ end of the anchor strand. lDNA = 1.7, 5.1, 6.8, 8.5, 10.2, 11.9, and 17.0 nm. It is set as 0 nm for OG488-DHPE. α is the tilting angle between DNA and graphene surface. lML = 2.5 nm, is the thickness of lipid monolayer on graphene. The anchor DNA strands were modified with a cholesterol at 3´ end via a tri-ethylene glycol phosphate linker (‘Spacer 9’ of Integrated DNA Technologies, Inc). A full integration of the anchoring group into the phospholipid monolayer was assumed. Using the ‘lsqcurvefit’ function in Matlab, a global fitting of the intensity or lifetime ratios vs d to the simulated GIET curve of FAM yielded α of 42° (intensity) or 44° (lifetime).

Confocal laser-scanning microscopy and lifetime measurements

Request a detailed protocol

Lifetime measurements were carried out on a confocal laser-scanning microscope (FluoView 1000, Olympus) equipped with a FLIM/FCS upgrade kit from PicoQuant using a 60× (NA 1.2) water-immersion objective (UPLSAPO, Olympus). EGFP/mNeonGreen was excited either by the 488 nm line of an argon laser (Olympus) for cLSM/FRAP or by a picosecond pulsed 485 nm laser diode at 40 MHz repetition rate (LDH-D-C-485, Picoquant). Time-correlated single photon counting (TCSPC) was performed using the TCSPC module PicoHarp 300 (PicoQuant together with a picosecond laser driver Sepia II (PicoQuant) and a single photon avalanche detector (PicoQuant)). Emission photons were filtered by a 500–550 nm bandpass filter (BrightLine HC 525/50, Semrock). TCSPC was acquired using point measurement or image mode (i.e. FLIM mode). Acquisition time was more than 90 s to obtain >105 counts per sample for robust lifetime analyses. If not mentioned elsewhere, the TCSPC histograms were tail-fit with mono-exponential decay function using SymPhoTime64 integrated in the PicoQuant system. Only for mNeon-Ypt7 on graphene, the TCSPC histograms were fit with bi-exponential decay functions by fixing one component to the obtained average lifetime of mNeon-Ypt7 on glass (<15%).

Fluorescence lifetime and FRAP of DNA strands

Request a detailed protocol

800 µl 250 µM DOPC/DOPS (95:5 molar ratio) was added on top of graphene-coated glass coverslips. After incubation at room temperature for 5 min, the coverslips were washed for 5 times with 1 ml HBS-Mg buffer. The cholesterol-modified ssDNA anchor strands were added in the solution with a final concentration of 200 nM. After 5 min incubation, excess anchor strands were removed by washing for 5 times with HBS-Mg buffer. Probe strands of FAM-labeled ssDNA were added with a final concentration of 200 nM. After 5 min incubation, excess probe strands were removed by washing for 10 times with HBS buffer. For fluorescence lifetime measurements, a final concentration of 10 µM EDTA was added to the solution for preventing possible metal ion-mediated fluorescence quenching. TCSPC was acquired by point measurement mode. Lifetimes were obtained by monoexponential fitting of TCSPC curves. For FRAP experiments of DNA strands, a region of interest (ROI) was placed in areas with and without graphene, respectively.

In FRAP experiments of DNA strands, a circular region of interest (ROI) with a radius of 10 μm was selected. Five pre-bleach images were recorded before the ROI was illuminated by 405 nm in 10 s. A background signal IBG was recorded from the center of the ROI immediately after photobleaching. Fluorescence recovery was monitored at a time resolution of 0.8 s for glass or 3.2 s for graphene. The fluorescence intensity in the ROI (IROI) was obtained by subtracting the background. A reference region outside the photobleached ROI was processed in the same way to obtain IREF. ROI intensity was normalized to the reference (IROI/IREF) for each time interval using Equation (4):

(4) IROIIREF= IROI_insideIBGIROI_outsideIBG

where IBG is the background signal, IROI_inside is the fluorescence intensity within the ROI, and IROI_outside is the intensity outside the photobleaching ROI. Plotting IROI/IREF vs time yields the time-lapse FRAP curve.

FLIM and FRAP of mNeon-pYpt7 and yEGFP-fused HOPS

Request a detailed protocol

Graphene-coated glass coverslips were incubated with 800 µl DOPC and washed as described above. Membrane association of 200 nM prenylated mNeon-Ypt7 or 150 nM prenylated Ypt7 complexed with GDI was conducted in the presence of 20 mM EDTA, pH 8.0 and 1 mM GTP for 30 min at 30°C. The loading reaction was stopped by addition of 25 mM MgCl2 and incubation for 10 min at room temperature. The coverslip was washed extensively with HBS (>15 times) to remove excess EDTA and Mg2+ ions. Where indicated, 100 nM Mon1-Ccz1 or HOPS were added to mNeon-pYpt7-GTP-loaded membranes for 5 min at room temperature. Before fluorescence lifetime determination, the unbound complexes in solution were removed by washing for 8 times with HBS. For loading of HOPS complexes containing yEGFP-fused subunits on membranes, 50 nM HOPS carrying one subunit (Vps39, Vps11, Vps18, Vps33 or Vps16) fused to yEGFP was added to pYpt7-GTP-loaded membranes for 5 min at room temperature. Before fluorescence lifetime determination, the coverslip was washed 5 times with HBS to remove unbound HOPS in solution. Fluorescent lifetimes of mNeon and yEGFP, respectively, were determined by TCSPC acquired in image mode (FLIM). Fluorescence lifetime ratios were determined based on lifetimes obtained on graphene and glass, respectively, and the distance from the graphene surface d were calculated based on the calibration curve (Supplementary file 2). The distances from the monolayer surface h were calculated from d by subtracting the thickness of lipid monolayer (2.5 nm).

For FRAP experiments of mNeon-pYpt7-GTP and mNeon-pYpt7-GTP in complex with Mon1-Ccz1 and HOPS, respectively, a ROI with a radius of 7.5 µm was illuminated with a 405 nm laser for 8.2 s. The fluorescence recovery was monitored for 72 s at a time resolution of 1.8 s (excitation: 488 nm). The IROI/IREF  for each time interval was obtained using Equation (4) as described above. All FRAP experiments were carried out at room temperature.

Single-molecule fluorescence microscopy

Request a detailed protocol

Single-molecule imaging experiments were conducted by total internal reflection fluorescence (TIRF) microscopy with an inverted microscope (Olympus IX71) equipped with a triple-line total internal reflection (TIR) illumination condenser (Olympus) and a back-illuminated electron multiplying (EM) CCD camera (iXon DU897D, Andor Technology) as described before (Wilmes et al., 2020). A 150 × magnification objective (UAPO 150×/NA 1.45 TIRFM, Olympus) was used for TIR illumination resulting in an image pixel size of 107 nm. Image acquisition was performed at 30 frames per second using an exposure time of 32 ms per frame. All experiments were carried out at room temperature in presence of oxygen scavenger, that is 0.5 mg/ml glucose oxidase, 0.04 mg/ml catalase, 5% w/v glucose. 150 nM pYpt7-GTP was loaded onto glass-supported lipid bilayers and graphene-supported lipid monolayers for 30 min at 30°C. 50 nM HOPS with Vps33 or Vps11 fused to yEGFP was added in solution, respectively, followed by 10 times buffer washing. To ensure reliable single-molecule detection, 50 pM of dye-labeled NB was used to label the yEGFP-fused HOPS complex. The typical density of NB-labeled HOPS was ~0.2–1 molecule/µm2.

Single-molecule photobleaching

Request a detailed protocol

Photobleaching steps were counted manually from time-lapse single-molecule intensity traces as before (Wedeking et al., 2015b). The single-molecule intensity traces were obtained by using ImageJ software, in which a 5 × 5 pixel region of interest (sROI) was used for cropping individual molecules. More than 100 intensity traces were screened for counting the discrete steps for each sample (Figure 5—figure supplement 1).

Single-molecule intensity analysis and hidden Markov modeling

Request a detailed protocol

Single emitters in time-lapse TIRFM images were localized via a 2D Gaussian mask (Arnauld et al., 2008; Thompson et al., 2002). Intensity-time traces were built by grouping localizations within a 150 nm search radius of each other with a minimum observation time of 100 frames as described before (Niewidok et al., 2018). In order to exclude crosstalk between traces only identified immobilization events with a minimum center-to-center distance of 500 nm apart were selected for further analysis. Individual traces were initially analyzed and evaluated for goodness-of-fit using the step transition and state identification (STaSI) algorithm (Shuang et al., 2014; Wedeking et al., 2015b). The best fitting 33% of these traces were used to estimate optimal initial values (initial state distribution, transition matrix and state emission functions) for subsequent training of a Hidden Markov Model (HMM) with Gaussian state emissions (Rabiner, 1989). To the end, the most probable state sequence (Viterbi path) was calculated for each trace by assigning a state to each single-molecule localization. The relative state occupations were calculated as the number of localizations classified into the specific state with respect to all observations. State transition rates were calculated by estimating the dwell time of each state using a mono-exponential fit of identified state segments as well as the number of observed state transitions according to the method described before (Yang et al., 2018). The state definition, occupancy and transition rates were summarized in Supplementary file 4.

Axial localization precision of smGIET

Request a detailed protocol

The axial localization precision of smGIET was determined by comparing the root mean square deviation (RMSD) with the mean intensity of individual molecules. To avoid intensity fluctuations on graphene due to GIET, RMSD and mean intensities were quantified based on single-molecule detections on glass coverslips (Figure 5—figure supplement 3). For intensities in the range of 300–700 a.u., the obtained ratios of RMSD to mean were very similar (Supplementary file 5). Based on the ratios, a relative error of 7.5 ± 0.5% was obtained for single-molecule detections. The axial localization precision depends on IG/I0, which has a propagated relative error of 2 × 7.5% = 10.6%. Thus, the relative single-molecule axial localization precision was 10.6% of the corresponding distance. Given the sensitive range of GIET in 3–30 nm, the corresponding axial precision is in the range of 0.3–3 nm.

Data and materials availability

Request a detailed protocol

All data needed to evaluate the conclusions in the paper are present in the paper and/or the Supplementary Materials. Additional data related to this paper may be requested from the authors.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files.

References

Decision letter

  1. Felix Campelo
    Reviewing Editor; The Barcelona Institute of Science and Technology, Spain
  2. José D Faraldo-Gómez
    Senior Editor; National Heart, Lung and Blood Institute, National Institutes of Health, United States
  3. Volker Kiessling
    Reviewer; University of Virginia, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The authors use graphene-induced energy transfer as a unique spectroscopic ruler to reveal the axial orientation and dynamics of macromolecular complexes in biological membranes with sub-nanometer resolution. This development is a very significant contribution that can help in future mechanistic studies of numerous key biological processes. To illustrate this approach, the authors determine the orientation of the Rab7-like GTPase Ypt7 and of the multi-protein HOPS tethering complex at a lipid monolayer surface.

Decision letter after peer review:

Thank you for submitting your article "Nanoscopic anatomy of dynamic multi-protein complexes at membranes resolved by graphene induced energy transfer" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Felix Campelo as Reviewing Editor and José Faraldo-Gómez as Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Volker Kiessling (Reviewer #1).

The reviewers have discussed the reviews with one another and with the Reviewing Editor. Based on these discussions, we have concluded that a revised version of your manuscript might be suitable for publication in eLife. The Editors has drafted this decision letter to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either (a) include the new data, if this is possible; otherwise, (b) limit claims to those supported by data in hand; or (c) explicitly state that the relevant conclusions require additional supporting data. In the latter case, our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

Summary

The authors use GIET as a unique spectroscopic ruler to reveal the axial orientation and dynamics of macromolecular complexes at biological membranes with sub nanometer resolution, which is a very significant contribution that can help in the future mechanistic understanding of numerous key biological processes. GIET is based on the fluorescence quenching in close proximity to a graphene surface. The system is calibrated by utilizing "DNA nanorulers" of different length and with fluorescent labels at different specific positions. Measuring the fluorescence intensities and fluorescence lifetimes relative to unquenched samples. The calibrated system was then used to determine the orientation of the Rab7-like GTPase Ypt7 and of the multiprotein HOPS tethering complex at a lipid monolayer surface. The normal distances of specific residues to the monolayer surface are determined in ensemble measurements and the transition between three distinguishable conformations are measured in single molecule imaging experiments.

All three reviewers highlighted the importance and the quality of the research presented in this manuscript. However, the reviewers also raised important questions and concerns, detailed below, which must be satisfactorily addressed before the manuscript can be accepted for publication. Given that this manuscript is being considered for a "Tools and Resources" article, it will be crucial for the authors to carefully address the reviewers' comments to further establish the validity and scope of the methodology and the clarity of the manuscript.

In particular, it will be important to fully clarify the results shown in Figure 2 (distance calibration with the nanorulers), in the context of reviewer #2 comments. It will also be important that the authors discuss in more detail the limitations of their technique and the expected errors in the measurements. The authors are also very strongly encouraged to perform the additional control experiments suggested by the reviewers, which appear relatively straightforward and not very time-consuming, as they would greatly strengthen the significance and impact of the study.

Essential revisions

Reviewer #1:

Nadia Fuellbrunn and co-workers present their work about a new fluorescence method to determine the conformation and its dynamic of protein complexes by measuring the normal distance of site-specific fluorophores relative to a lipid monolayer. The graphene induced energy transfer (GIET) assay is based on the fluorescence quenching in close proximity to a graphene surface. The system is calibrated by utilizing "DNA nanorulers" of different length and with fluorescent labels at different specific positions. Measuring the fluorescence intensities and fluorescence lifetimes relative to unquenched samples. The calibrated system was then used to determine the orientation of the Rab7-like GTPase Ypt7 and of the multiprotein HOPS tethering complex at a lipid monolayer surface. Both proteins are part of the yeast vacuolar fusion and tethering machinery. The normal distances of specific residues to the monolayer surface are determined in ensemble measurements and the transition between three distinguishable conformations are measured in single molecule imaging experiments.

The authors present a very nice and useful new method with a lot of potential in particular if it could be used to follow conformational changes of membrane proteins. The approach of measuring the normal distance of site-specific labeled residues is very similar to the method of site-specific fluorescence interference microscopy (sdFLIC, e.g. Nature structural and molecular biology 25 (10), 911), where the conformation of SNARE proteins reconstituted in supported membranes had been investigated. Although the overall strategy seems very similar, sdFLIC hasn't been mentioned in the Introduction where the authors discuss several methods by which protein conformations in membranes can be investigated.

The authors clearly show the usefulness of this new method especially in the dynamic measurements on single molecules. However, there are a couple of open questions and issues that should be addressed and clarified:

A lipid monolayer is not a membrane and the authors should be clear and consistent in their writing in the whole manuscript (e.g. “…nanometer sensitivity of quantifying the axial position of membrane-bound proteins by GIET, 215.how the functional complex is organized on membranes,…”). Proteins are not reconstituted into a membrane on graphene. The fact that the HOPS complex clusters in a diffusible membrane shows that this situation (and potentially the conformation) is very different from the one at the monolayer. This raises another question. Is it justifiable to use the membrane system to measure the unquenched intensities/lifetimes to normalize the monolayer data? Shouldn't this be done on a monolayer too?

A thorough and extensive error discussion is missing. Since this work is presented as a first application of this method, a detailed discussion and quantification of all error sources (statistical and systematic) is necessary. One would expect these errors to be different for distance changes of one fluorophore compared to the errors of absolute distances.

The data points in the calibration Figure 2B are already deviating from the fit curve especially in the range between 3 and 8 nm. This should be quantified and reported. Wouldn't this be a minimum systematic error? The deviation looks systematic, so there might be something missing in the theory? Could a fluorescein labeled lipid be used to determine the 0 nm (2.5 nm from graphene) point in the calibration curve?

Related to the previous point. Without error discussion can the absolute distances really be reported with Å accuracy as in Figures 3 and 4.

Could some of the observed distance changes be due to orientation changes of the dipole? The theoretical curve assumes isotropic orientation. Is this justified under all conditions (different conformations, binding of HOPS to Ypt7)?

In ensemble experiments where a distance change upon binding of a ligand is observed like in Figure 2D or in Figure 3G, the authors should show the specificity and concentration dependence of the result. Titrating the ligand should confirm that the reaction and with that the observed distance changes are in saturation. A comparison with a non-specific membrane binding protein or protein domain should confirm the specificity of the observed distance change on pYpt7.

Related to this issue: How reproducible are the pYpt7 densities in the monolayer or membrane? If ligand binding is in saturation small density differences might not matter, but the authors should show that.

Figure 3—figure supplement 4 shows that the measured lifetimes of mNeon-pYpt7 in membranes on glass are split into two populations. This is not discussed, and it looks like the mean value of the two components was used to normalize the graphene data. The graphene data either doesn't show or resolve different populations on a monolayer.

Similar to the glass data above, the graphene data of Vps33-yEGFP in Figure 4—figure supplement 2 shows two populations (possibly even Vps39). The mean of the two doesn't seem to represent any data points but it was used for the result. Please comment and discuss.

The statistics of the results are not clear. How many measurements were performed per sample, how many independently prepared samples were used?

Reviewer #2:

This is a well-written and comprehensive manuscript describing a novel methodological approach to probe axial organization of proteins labeled with fluorescence dyes in the nanometer range and in the context of membranes. For this, the authors developed a lipid monolayer assembly on graphene for site-specific protein capturing. Graphene-induced energy transfer (GIET) was adapted by replacing metal with graphene, an optical transparent material. GIET has advantages analogous to FRET as well as TIRF, such as a strong distance dependence and the ability to measure nanometer-range distances. The specific properties of graphene lead to a ~30 nm axial resolution, according to the author's calculations. The authors first validated GIET's ability to measure distance within a dynamic range of 25 nm on graphene-supported lipid monolayers using DNA oligonucleotides as a nanoscale ruler. The authors applied this approach to dissecting the axial organization and dynamics of HOPS-mediated large multi-protein complex regulated by Rab7-like Ypt7, involved in vesicular transport and fusion.

Strengths of this manuscript are the comprehensive nature of the methodological approach described. The authors provide validation of GMIET distance-based measurements. The authors indicate that HOPS complex adopts an upright orientation on membranes with interesting axial dynamics. Their results introduce GIET to significant biological problems as a powerful technique to characterize nanoscale spatiotemporal organization of multi protein complexes at membranes. Another strength of this paper is the ability to use GIET distance measurements to monitor conformational transitions dynamics, e.g. "breathing" of the HOPS complex.

Weaknesses are inherent to the probing of higher-order complexes at membranes using a complex methodology like GMIET, which requires taking those complexes out of their biological membrane background for the analysis. In fact, that contradiction reveals itself in the Introduction, where the authors first mention that "mechanistic understanding of large membrane protein complexes has been addressed by techniques […] that […] take them out of their biological membrane context". Later the authors similarly propose to use distance dependent fluorescence quenching by graphene as a novel technique to quantify the axial organization and dynamics of large membrane protein complexes upon taking them out of their native membrane context. It would be good for the authors to accept that their methodology does indeed provide an improvement in the ability to provide spatiotemporal solution in the 20-30nm but still works within a reconstructed system framework that as some of the other experimental approaches that the authors criticize, attempts to reconstruct large membrane complexes in an artificial lipid monolayer and thus out of their native environment and thus out of context.

Nevertheless, this is a tour de force by the authors to completely reconstruct the HOPS-complex regulated by Rab7-like Ypt7, to highlight the value of the GIET technique to measure distances between fluorophore and graphene layer.

A few comments should be addressed:

– Figure 2 is the core of the paper and the ability to validate the distances of the ssDNA designed as nanorulers sustains all the remaining results. If the results in Figure 2 are questionable, then all other results would be problematic. So, it is important to question why the authors need to include undefined parameters to match their results to the ground truth distance measurements provided by the DNA nanoruler system. The consideration of the tilting parameter is unfortunate and would be important to find a system in which ground truth can be measured without data processing and calculation to match model to experimental data.

– Also is not clear why the authors rely on the ratio between the measurements generated from graphene vs silica layers?

There should be a theoretical explanation for these statements:

– "Strikingly, the obtained correlation of IG/I0 vs d matches the predicted GIET curve well with a globally fitted tilting angle of (43 ±1)o (Figure 2B), confirming the distance-dependent GIET on graphene-supported lipid monolayer."

– "Ratios of fluorescence lifetimes on graphene (τG) to those on glass (τ0) closely matched the corresponding intensity ratios, which also confirmed the simulated distance dependent GIET efficiency (Figure 2B, Supplementary file 1C)".

– Similarly, for longer distances >10nm it would be important to have a DNA ruler than could directly be measured as ground truth using GIET on graphene-supported lipid monolayer without needing comparison with silica substrate measurements.

– Also it is interesting that a similar angle of 45o is found for calibration curve as well as for the measurements of 35mer DNA nanoruler: "Comparing to the length of the 35mer DNA nanoruler (11.9 nm), the height corresponds to a tilting angle α = 45{degree sign}, which is in good agreement with the tilting angle α obtained for the calibration." Is there an explanation for this finding/coincidence?

Reviewer #3:

In brief, this work highlights GIET as a unique spectroscopic ruler to reveal the axial orientation and dynamics of macromolecular complexes at biological membranes with sub nanometer resolution, which is a very significant contribution to the mechanistic understanding of numerous key biological processes.

Surface plasmon enhancement of electromagnetic field on metals, semiconductors and graphene has been implemented in various biosensing applications, covering a spectral region from UV-visible to IR. Comparing to the broad applications of surface enhancement, the nearfield radiationless electromagnetic coupling between the surface plasmon and excited fluorephores is less harnessed for biosensing. The situation is changing. Metal induced energy transfer (MIET) and graphene-based MIET (equivalent to “GIET” of graphene induced energy transfer) have emerged recently. In this manuscript, Fullbrunn et al. have set up the first step of using GIET in the field of protein structural biology. In contrast of detecting the structures of DNA origami or likely robust antibody-based biomolecular analysis, the current work draws a high standard by using lipidated membrane association protein and a tricky multiprotein complex. The authors' strategy is straightforward which achieved their goals efficiently: biofunctionalizing graphene on glass, validating the distance dependent GIET, and determining the structure of protein complexes. With the interdisciplinary expertise, the authors successfully used GIET as a spectroscopic ruler mapping the axial distance of the ~20 nm long HOPS complex on graphene. Very impressively, the structural dynamics of HOPS complexes was quantified by single molecule GIET on graphene-coated microscopy coverslips. I found this research was very well designed and carried out carefully. The manuscript was written in a good logical flow. The conclusions were supported by sufficient figures, tables and their supplementary.

The longer sensitive range of GIET than FRET is indeed very suitable to obtain the structural overview of many extended proteins. As demonstrated in this work, GIET could be a powerful tool for determining the structure of membrane proteins. However, being a surface plasmon-based method, GIET is limited by immobilizing target proteins on the surface. From this aspect, one must point out GIET is not as feasible as FRET for applications in solution. Another disadvantage of the current method is that the coating on graphene is a non-fluidic lipid monolayer (See FRAP experiments in subsection “Axial reorganization at the lipid monolayer surface can be quantified by GIET” and Figure 2—figure supplement 5, Figure 3—figure supplement 4). The authors has noticed in the conclusions “GIET will allow to dissect.… large protein complexes on membranes upon interaction with membrane-bound ligands, and thus test molecular hypotheses in real time”. Actually, instead of considering “interaction of membrane-bound ligands”, surface architectures of fluidic lipid bilayer will be urgently needed for the applications of a large number of biologically important transmembrane proteins.

https://doi.org/10.7554/eLife.62501.sa1

Author response

Essential revisions

Reviewer #1:

Nadia Fuellbrunn and co-workers present their work about a new fluorescence method to determine the conformation and its dynamic of protein complexes by measuring the normal distance of site-specific fluorophores relative to a lipid monolayer. The graphene induced energy transfer (GIET) assay is based on the fluorescence quenching in close proximity to a graphene surface. The system is calibrated by utilizing "DNA nanorulers" of different length and with fluorescent labels at different specific positions. Measuring the fluorescence intensities and fluorescence lifetimes relative to unquenched samples. The calibrated system was then used to determine the orientation of the Rab7-like GTPase Ypt7 and of the multiprotein HOPS tethering complex at a lipid monolayer surface. Both proteins are part of the yeast vacuolar fusion and tethering machinery. The normal distances of specific residues to the monolayer surface are determined in ensemble measurements and the transition between three distinguishable conformations are measured in single molecule imaging experiments.

The authors present a very nice and useful new method with a lot of potential in particular if it could be used to follow conformational changes of membrane proteins. The approach of measuring the normal distance of site-specific labeled residues is very similar to the method of site-specific fluorescence interference microscopy (sdFLIC, e.g. Nature structural and molecular biology 25 (10), 911), where the conformation of SNARE proteins reconstituted in supported membranes had been investigated. Although the overall strategy seems very similar, sdFLIC hasn't been mentioned in the Introduction where the authors discuss several methods by which protein conformations in membranes can be investigated.

The sdFLIC is indeed a very useful method to detect distance changes of proteins on membranes that we, while being aware of the pioneering work, unfortunately neglected to include into our considerations. In the revised discussion, we now included a thorough discussion of sdFLIC including key references.

The authors clearly show the usefulness of this new method especially in the dynamic measurements on single molecules. However, there are a couple of open questions and issues that should be addressed and clarified:

A lipid monolayer is not a membrane and the authors should be clear and consistent in their writing in the whole manuscript (e.g. “…nanometer sensitivity of quantifying the axial position of membrane-bound proteins by GIET, 215.how the functional complex is organized on membranes,...”). Proteins are not reconstituted into a membrane on graphene. The fact that the HOPS complex clusters in a diffusible membrane shows that this situation (and potentially the conformation) is very different from the one at the monolayer. This raises another question. Is it justifiable to use the membrane system to measure the unquenched intensities/lifetimes to normalize the monolayer data? Shouldn't this be done on a monolayer too?

We fully agree with the reviewer that the behavior of proteins in a diffusive membrane is likely very different from their behavior on a lipid monolayer. We particularly emphasized this for the HOPS complex “Given the impaired diffusion in the graphene-supported lipid monolayer, however, the conformationally highly dynamic HOPS complex observed in our studies may represent an intermediate state prior to lateral HOPS clustering, which in turn could increase the efficiency of HOPS to tether incoming vesicles”. This description is based on our observations of: (1) identical binding behavior of Ypt7 and Mon1-Ccz1 on diffusive membranes on glass and on a lipid monolayer on graphene (Results of Mon1-Ccz1 binding are shown in Figure 3—figure supplement 4), and (2) pYpt7-specific binding of HOPS on lipid mono- and bilayers (Figure 4—figure supplement 1). These results suggest that HOPS maintains its functionality and the conformation on both the diffusive membrane and on a lipid monolayer.

We have carefully revised the manuscript to only use the term “membrane” in case of lipid bilayers and otherwise stick to the term “lipid monolayer”. Particularly, the description has been changed to “quantifying the axial position of proteins onto lipid monolayers by GIET” in the revised manuscript.

Regarding the use of the unquenched intensities/lifetimes on a silica-supported membrane for normalization: the lipid composition (e.g. DOPC, DOPS) is the same for lipid mono- and bilayers ensuring very similar dielectric environment that may alter photophysical properties of fluorophores in addition to the effects caused by the molecular context within labeled DNA or proteins. However, these lipids do not absorb visible light and therefore are not expected to affect the fluorescence by inelastic interaction. Therefore, we can safely assume that fluorescence intensity and lifetime are similarly affected on lipid mono- and bilayers. We prefer lipid bilayers for practical reasons, because lipid monolayer formation on silanized, hydrophobic glass surfaces in our hands is much more prone for defect formation, probably due to lack of a perfect hydrophobic silane monolayer.

A thorough and extensive error discussion is missing. Since this work is presented as a first application of this method, a detailed discussion and quantification of all error sources (statistical and systematic) is necessary. One would expect these errors to be different for distance changes of one fluorophore compared to the errors of absolute distances.

The data points in the calibration Figure 2B are already deviating from the fit curve especially in the range between 3 and 8 nm. This should be quantified and reported. Wouldn't this be a minimum systematic error? The deviation looks systematic, so there might be something missing in the theory? Could a fluorescein labeled lipid be used to determine the 0 nm (2.5 nm from graphene) point in the calibration curve?

We thank the reviewer for his suggestions. A detailed theoretical error analysis was presented in Figure 2—figure supplement 2: The systematic error is shown in panel B using FAM dye as an example, where the yellow regions mark the variation of d within ±5% τG. By plotting the derivative of FAM’s lifetime to distance, a distance dependent sensitivity was obtained, which is presented in panel D. Even though the systematic error increases with distance, accurate distance measurements can still be obtained by increasing the precision of measurement (e.g. reducing the τG variation as shown by Ghosh et al., 2019). Panel C summarizes the GIET curves of four different fluorophores: FAM, mNeonGreen, EGFP and DY647P1. These curves share a similar distance dependency. Moreover, statistical error of single-molecule GIET was evaluated using the root mean square deviation (RMSD). A relative 10% axial localization precision was obtained for single molecule detection at video rate (Supplementary file 5). Information of these error analyses was mentioned in the manuscript: Similarity of GIET curves for different dyes was described in Discussion paragraph two. Relative axial localization precision for single molecule detection was mentioned in Discussion paragraph one and in Materials and methods (Axial localization precision of smGIET). In the revised manuscript, we now emphasize the results in Figure 2—figure supplement 2 regarding the error analysis in the context of its first citation in subsection “DNA nanoruler calibration confirms distance-dependent GIET efficiency”. We furthermore now cite Figure 2—figure supplement 2 in paragraph two of the Discussion to guide the readers to GIET curves of different fluorophores.

Regarding systematic errors and the deviation of curve fitting in the range of 3-8 nm, we think that this is due to our experiments rather than the theory: (1) The dramatically decreased fluorescence signals at short distance induce errors in measurements. For distances below 5 nm above graphene, less than 10% of the fluorescence signal is left due to strong GIET and therefore potential background signals have stronger bias to both intensity and lifetime measurements. (2) Several flexible linkers are involved in our nanoruler system, which allow increased distances of the fluorophores. Since the fluorophores and the lipid monolayer surface are negatively charged, strong electrostatic repulsion can be expected when fluorophores are dragged into close proximity of the lipid headgroups. Therefore, we took up the reviewer’s excellent suggestion and performed an additional GIET calibration with OG488-DHPE (2′,7′‐difluoro-fluorescein conjugated with 1,2-dihexadecanoyl-sn-glycero-3-phosphoethanolamine) integrated into the lipid monolayer. OG488 and fluorescein share largely identical excitation/emission spectra, yielding very similar calculated IG/I0 for the “zero position” measurement (2.5% for FAM and 2.4% for OG488). However, we obtained IG/I0 = 3.8 ± 0.2% for OG488-DHPE (see Figure 2—figure supplement 1) which is in line with the tendency of systematically decreased GIET-efficiency close to the lipid monolayer surface. Reliable determination of the fluorescence lifetime was not possible for OG488-DHPE integrated into graphene-supported lipid monolayers (Author response image 1A,B). While sufficient number of photons could be collected upon extended acquisition, the close overlap with the instrumental response function (IRF) prohibited deconvolution of the curve. This is in line with a predicted fluorescence lifetime below 100ps, which cannot be reliable quantified by our TCSPC system.

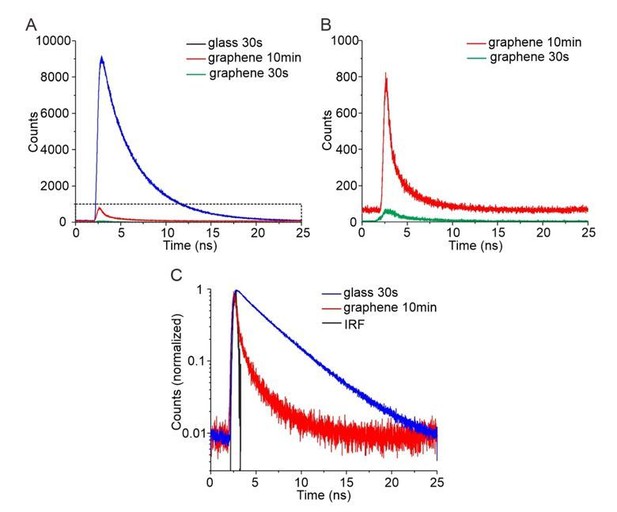

Author response image 1
Time-correlated single photon counting (TCSPC) for quantification of GIET efficiency on lipid monolayer.

(A) TCSPC curves of OG488-DHPE recorded on glass with 30s (blue), on graphene with 30 s (green) and on graphene with 10 min (red). (B) Zoom up of TCSPC curves obtained on graphene with 30 s (green) and with 10 min (red). (C) Logarithmic diagram of the normalized time-correlated counts obtained on glass 30 s (blue) and graphene 10 min (red), in comparison with the instrument response function (IRF, black).

In the revised manuscript, we have now added the experimental details of the additional experiment in Materials and methods. The intensity measurement for OG488-DHPE have been included into Figure 2B and Supplementary files.

Related to the previous point. Without error discussion can the absolute distances really be reported with Å accuracy as in Figures 3 and 4.

While there is indeed a residual uncertainty concerning the absolute distances, we have very good evidence that the theoretical curve correctly reflects the distance-dependence of GIET, as our electromagnetic calculation of GIET has been previously validated (Ghosh et al., 2019). Under this assumption, we consider it being justified to provide distance data based on the experimental errors of the measurements. For the results of mNeon-Ypt7 (Figure 3), the standard deviation (s.d.) is less than 2%. For HOPS-Vps-yEGFP (Figure 4), the s.d. is less than 4.4%. All the distances of proteins were calculated by considering the s.d. of lifetime measurements. There results were summarized as mean ± s.d. in Supplementary file 2. As shown in Supplementary file 2, the distances can be reported with sub-nanometer precision except for HOPS Vps33-yEGFP.

In the revised manuscript, we have stressed that all experimental distances are based on the assumption that the theoretical curve applies.

Could some of the observed distance changes be due to orientation changes of the dipole? The theoretical curve assumes isotropic orientation. Is this justified under all conditions (different conformations, binding of HOPS to Ypt7)?

Since both yEGFP and mNeonGreen are fused to proteins via long flexible amino acid linkers (12 and 20 residues, respectively), we can confidently assume largely isotropic orientations. While the linker sequence of mNeon-fused Ypt7 was already specified (Materials and methods) we have now also included the linker sequence in yEGFP-fused HOPS subunits. In case of the systems used for calibration – specifically the variants with surface-proximal fluorophore localization – bias by limited flexibility cannot be ruled out entirely. This may also contribute to the systematic deviations observed for these data points.

In ensemble experiments where a distance change upon binding of a ligand is observed like in Figure 2D or in Figure 3G, the authors should show the specificity and concentration dependence of the result. Titrating the ligand should confirm that the reaction and with that the observed distance changes are in saturation. A comparison with a non-specific membrane binding protein or protein domain should confirm the specificity of the observed distance change on pYpt7.

Related to this issue: How reproducible are the pYpt7 densities in the monolayer or membrane? If ligand binding is in saturation small density differences might not matter, but the authors should show that.

We agree with the reviewer that it is important to point out that the observed distance changes upon ligand binding are in saturation and specific. We should emphasize that the transfer of pYpt7 to the lipid mono- and bilayers is rather less efficient and thus densities are far below a monolayer and therefore cannot be reliably quantified by our label-free detection. By contrast, binding of Mon1-Ccz1 is very efficient with a density >1 ng/mm² achieved under our experimental conditions (cf. Figure 3—figure supplement 4A), i.e. more than 1/5 of a protein monolayer. This means that Mon1-Ccz1 is available in at least 10-fold excess over pYpt7, thus ensuring pseudo-first order reaction conditions. We actually refrained from further increasing the Mon1-Ccz1 density to prevent bias by crowding the surface.

Since we do not have available another protein that efficiently binds to lipid mono- or bilayer surfaces and we could not use Ni-trisNTA lipids due to His-tagged proteins involved in the reconstitution of pYpt7, we could not perform meaningful negative control experiments. However, we would like to emphasize that Figure 3G itself displays the specificity of observed distance changes for mNeon-Ypt7. Whereas interaction with the guanine nucleotide exchange factor Mon1-Ccz1 leads to an increase in the axial distance by 0.7 nm, the addition of the tethering complex HOPS leads to a decrease by 0.7 nm. Thus, observed distance changes for mNeon-Ypt7-GTP are likely to be related to the function of the ligand and are highly specific.

Figure 3—figure supplement 4 shows that the measured lifetimes of mNeon-pYpt7 in membranes on glass are split into two populations. This is not discussed, and it looks like the mean value of the two components was used to normalize the graphene data. The graphene data either doesn't show or resolve different populations on a monolayer.

This is indeed a somewhat surprising result that may be related to two fluorescent forms of mNeonGreen observed at physiological pH (Steiert, et.al. Biophysical J, 2018): a neutral form (relative quantum yield, QY=1.0, population 60%) and a basic form (relative QY=0.9, population 30%). The population of basic form increases with pH value. The observed two lifetimes in Figure 3—figure supplement 4 have a ratio of 0.9 that matches the previous report. Detection of two lifetimes could be due to changes of the dominant form by heterogeneous surface properties of lipid bilayers on glass. However, the two-population behavior was not repeatedly observed on other glass substrates. We thus treated the two populations as variations in the experiment and used the mean value for normalization. We did not observe two populations of lifetime on graphene, indicating that the possible difference of lifetimes cannot be resolved on graphene. In the revised Figure caption of Figure 3—figure supplement 4, we have noted that mean values of fluorescence lifetimes were used for calculating the ratios.

Similar to the glass data above, the graphene data of Vps33-yEGFP in Figure 4—figure supplement 2 shows two populations (possibly even Vps39). The mean of the two doesn't seem to represent any data points but it was used for the result. Please comment and discuss.

The observation of two populations of the lifetime for Vps33-yEGFP on graphene is indeed intriguing. The situation is different to the abovementioned situation that yEGFP has shown a consistent fluorescence lifetime on glass as shown in Figure 4—figure supplement 2. Most prominently, repeating the experiments of Vps33-yEGFP on graphene resulted in the same two-lifetime profile. Thus, accidental heterogeneity of surface properties can be excluded. Together with the broad lifetime distribution of Vps16-yEGFP shown in Figure 4D, these results may be related to the different HOPS conformations that we identified by single molecule GIET analysis.

In the revised manuscript, we have now specified the reason by choosing HOPS Vps33-yEGFP for single molecule GIET analysis in the revised manuscript (subsection “Structural dynamics of HOPS complex at the membrane”) to emphasize this observation.

The statistics of the results are not clear. How many measurements were performed per sample, how many independently prepared samples were used?

Thank you for pointing this out. Within our manuscript, we describe the sample volumes for all experiments. They are shown in figure captions and notes for tables (also in all supplementary files): see Figures 2, 3, 4 and 5, and their figure supplements; Supplementary files 1, 2, and 4; Table 1, etc. To highlight the robustness of our work, we summarized all information on statistics in eLife’s transparent reporting form during submission of the manuscript. With the information now provided in the manuscript and summarized in the transparent reporting form, this information should be provided in sufficient detail.

Reviewer #2:

This is a well-written and comprehensive manuscript describing a novel methodological approach to probe axial organization of proteins labeled with fluorescence dyes in the nanometer range and in the context of membranes. For this, the authors developed a lipid monolayer assembly on graphene for site-specific protein capturing. Graphene-induced energy transfer (GIET) was adapted by replacing metal with graphene, an optical transparent material. GIET has advantages analogous to FRET as well as TIRF, such as a strong distance dependence and the ability to measure nanometer-range distances. The specific properties of graphene lead to a ~30 nm axial resolution, according to the author's calculations. The authors first validated GIET's ability to measure distance within a dynamic range of 25 nm on graphene-supported lipid monolayers using DNA oligonucleotides as a nanoscale ruler. The authors applied this approach to dissecting the axial organization and dynamics of HOPS-mediated large multi-protein complex regulated by Rab7-like Ypt7, involved in vesicular transport and fusion.

Strengths of this manuscript are the comprehensive nature of the methodological approach described. The authors provide validation of GMIET distance-based measurements. The authors indicate that HOPS complex adopts an upright orientation on membranes with interesting axial dynamics. Their results introduce GIET to significant biological problems as a powerful technique to characterize nanoscale spatiotemporal organization of multi protein complexes at membranes. Another strength of this paper is the ability to use GIET distance measurements to monitor conformational transitions dynamics, e.g. "breathing" of the HOPS complex.

Weaknesses are inherent to the probing of higher-order complexes at membranes using a complex methodology like GMIET, which requires taking those complexes out of their biological membrane background for the analysis. In fact, that contradiction reveals itself in the Introduction, where the authors first mention that "mechanistic understanding of large membrane protein complexes has been addressed by techniques… that.… take them out of their biological membrane context". Later the authors similarly propose to use distance dependent fluorescence quenching by graphene as a novel technique to quantify the axial organization and dynamics of large membrane protein complexes upon taking them out of their native membrane context. It would be good for the authors to accept that their methodology does indeed provide an improvement in the ability to provide spatiotemporal solution in the 20-30nm but still works within a reconstructed system framework that as some of the other experimental approaches that the authors criticize, attempts to reconstruct large membrane complexes in an artificial lipid monolayer and thus out of their native environment and thus out of context.

Nevertheless, this is a tour de force by the authors to completely reconstruct the HOPS-complex regulated by Rab7-like Ypt7, to highlight the value of the GIET technique to measure distances between fluorophore and graphene layer.

We agree with the reviewer’s insightful comments that our method as currently presented is limited to reconstituting protein complexes after taking them out of their biological membrane context. This approach is similar to traditional high-resolution structural analysis and consequently we aim in the future to combine GIET with single particle transmission electron microscopy using the same graphene supported lipid monolayer system for reconstitution of these complexes on an TEM grid. This will enable powerful correlation of structure and dynamics. Reconstitution furthermore ensures full control on the system with respect to protein and lipid composition and enables sequentially building up the system in situ. In addition, site-specific labeling of purified compounds will in the future enable to interrogate conformational changes much more specifically.

However, our goal is also to extend GIET to analyzing axial organization of membrane proteins in their physiological context, e.g. signaling complexes in the plasma membrane, which are extremely challenging to isolate and reconstitute in a functional manner. We are confident that we can in the future interface cells with glass-supported graphene in a manner that will enable such measurements.

In light of the reviewer’s comment for avoiding possible misleading, we have strengthened the inherent advantage of exploring heterogeneity by single molecule methods in the revised Introduction. It is thus more specific to the present work of characterizing structural dynamics of HOPS by using single molecule GIET with extended sensitive range.

A few comments should be addressed:

– Figure 2 is the core of the paper and the ability to validate the distances of the ssDNA designed as nanorulers sustains all the remaining results. If the results in Figure 2 are questionable, then all other results would be problematic. So, it is important to question why the authors need to include undefined parameters to match their results to the ground truth distance measurements provided by the DNA nanoruler system. The consideration of the tilting parameter is unfortunate and would be important to find a system in which ground truth can be measured without data processing and calculation to match model to experimental data.

We agree with the reviewer that a calibration without a variable parameter would be preferable. However, we have previously confirmed the validity of our electromagnetic simulations of GIET efficiencies using coating with silica layers with different thicknesses (Ghosh et al., 2019). Based on this “ground truth”, we here needed to confirm the possibility of applying this method for distance measurements over a large dynamic range under biologically relevant conditions on a graphene-supported lipid monolayer. This was achieved by using the DNA nanoruler system, for which a robust tilting angle of 43±1 degree was obtained for both intensity and lifetime measurements. In addition, the structural dynamics observed for a 35mer DNA after hybridizing with the 15mer blocker strand confirmed a very similar tilting angle of 45 degree. These self-consistent results furthermore support our calibration by introducing the tilting angle. While additional approaches using cholesterol-modified DNA origami could be envisaged for a more robust distance measurement, establishing such a method is beyond the scope of this study. Rather, we took up the suggestion from reviewer 1 and added one more calibration data using dye-labeled lipid OG488-DHPE (Figure 2—figure supplement 1). When use the additional data point for global fitting, we have obtained the same tilting angle as before, i.e. average 43±1 degree. The new results furthermore confirm the robustness of calibration. In the revised manuscript, we have updated the calibration curve shown in Figure 2B, Figure 2—figure supplement 1, and Supplementary file 1.

– Also is not clear why the authors rely on the ratio between the measurements generated from graphene vs silica layers?

Our measurements are based on the quantum yield (intensity) and the excited state decay kinetics (fluorescence lifetime) as key photophysical properties of the fluorophore that are altered in vicinity of graphene. These properties, however, are also affected by the molecular environment of the fluorophore – as nicely demonstrated by the different τ0 of FAM when attached to 3´and 5´ ends of the oligonucleotides (cf. Supplementary file 1C). Such effects were reliably referenced out by measuring intensities (I0) and lifetimes (τ0) under exactly the same conditions (i.e. for the same molecules at a lipid-water interface) but in the absence of GIET. Therefore, we determined I0 and τ0 on silica-supported membranes, thus ensuring that the ratios IG/I0 and τG0 only comprise GIET-based quenching effects. Such reference measurements were particularly important for intensity measurements, which strongly depend on molecule densities and acquisition properties that may vary between different measurements. To robustly consider these effects, we applied simultaneous label-free and fluorescence detection side-by-side on silica and graphene surfaces.

In the revised manuscript, we have added an explanation in Materials and methods: Electromagnetic simulation of GIET to clarify this point.

There should be a theoretical explanation for these statements:

– "Strikingly, the obtained correlation of IG/I0 vs d matches the predicted GIET curve well with a globally fitted tilting angle of (43 ±1)o (Figure 2B), confirming the distance-dependent GIET on graphene-supported lipid monolayer."

– "Ratios of fluorescence lifetimes on graphene (τG) to those on glass (τ0) closely matched the corresponding intensity ratios, which also confirmed the simulated distance dependent GIET efficiency (Figure 2B, Supplementary file 1C)".

These two comments are related to whether the ratios of fluorescence intensity and lifetime can be used for GIET experiments. As mentioned above, the ratio of intensities measured on graphene and glass normalizes the influence of experimental conditions, and the fluorescence intensity is proportional to the lifetime since there is no static quenching in our experiments. Thus the relative fluorescence intensity and relative lifetime both allow reliable quantification of the distance.

We have now added the necessary explanation in the revised Materials and methods: Electromagnetic simulation of GIET.

– Similarly, for longer distances >10nm it would be important to have a DNA ruler than could directly be measured as ground truth using GIET on graphene-supported lipid monolayer without needing comparison with silica substrate measurements.

As we have answered to the previous comments, measurements on silica were performed to robustly determine I0 and τ0, which were applied for all rulers, independent on the fluorophore distance from the surface. Such reference measurements are integral part of determining the GIET efficiencies and thus the distances from the graphene surface.

In the revised manuscript, we have updated the results of calibration shown in Figure 2B, Figure 2—figure supplement 1 and Supplementary file 1. We have also added the necessary explanations in Materials and methods: Electromagnetic simulation of GIET for using the ratios.

– Also it is interesting that a similar angle of 45o is found for calibration curve as well as for the measurements of 35mer DNA nanoruler: "Comparing to the length of the 35mer DNA nanoruler (11.9 nm), the height corresponds to a tilting angle α = 45{degree sign}, which is in good agreement with the tilting angle α obtained for the calibration." Is there an explanation for this finding/coincidence?

The “coincidence” as reviewer pointed out is indeed a very important evidence supporting the validation by using the DNA nanorulers. We have shown global fitting of 7 intensity measurements (now 8 with the additional data at position zero) and 7 lifetime measurements to a highly conserved 43±1 degree tilting angle. Based on the calibration, an independent experiment for exploring the structural dynamics of 35mer DNA obtains a tilting angle of 45 degree. The self-consistent result of the tilting angles, i.e. 45 degree vs the globally fitted 43±1 degree, thus confirm the justification of introducing tilting of DNA nanorulers in the calibration.

In the revised manuscript, we have now emphasized this point.

Reviewer #3:

In brief, this work highlights GIET as a unique spectroscopic ruler to reveal the axial orientation and dynamics of macromolecular complexes at biological membranes with sub nanometer resolution, which is a very significant contribution to the mechanistic understanding of numerous key biological processes.

Surface plasmon enhancement of electromagnetic field on metals, semiconductors and graphene has been implemented in various biosensing applications, covering a spectral region from UV-visible to IR. Comparing to the broad applications of surface enhancement, the nearfield radiationless electromagnetic coupling between the surface plasmon and excited fluorephores is less harnessed for biosensing. The situation is changing. Metal induced energy transfer (MIET) and graphene-based MIET (equivalent to “GIET” of graphene induced energy transfer) have emerged recently. In this manuscript, Fullbrunn et al. have set up the first step of using GIET in the field of protein structural biology. In contrast of detecting the structures of DNA origami or likely robust antibody-based biomolecular analysis, the current work draws a high standard by using lipidated membrane association protein and a tricky multiprotein complex. The authors' strategy is straightforward which achieved their goals efficiently: biofunctionalizing graphene on glass, validating the distance dependent GIET, and determining the structure of protein complexes. With the interdisciplinary expertise, the authors successfully used GIET as a spectroscopic ruler mapping the axial distance of the ~20 nm long HOPS complex on graphene. Very impressively, the structural dynamics of HOPS complexes was quantified by single molecule GIET on graphene-coated microscopy coverslips. I found this research was very well designed and carried out carefully. The manuscript was written in a good logical flow. The conclusions were supported by sufficient figures, tables and their supplementary.

The longer sensitive range of GIET than FRET is indeed very suitable to obtain the structural overview of many extended proteins. As demonstrated in this work, GIET could be a powerful tool for determining the structure of membrane proteins. However, being a surface plasmon-based method, GIET is limited by immobilizing target proteins on the surface. From this aspect, one must point out GIET is not as feasible as FRET for applications in solution. Another disadvantage of the current method is that the coating on graphene is a non-fluidic lipid monolayer (See FRAP experiments in subsection “Axial reorganization at the lipid monolayer surface can be quantified by GIET” and Figure 2—figure supplement 5, Figure 3—figure supplement 4). The authors has noticed in the conclusions “GIET will allow to dissect.… large protein complexes on membranes upon interaction with membrane-bound ligands, and thus test molecular hypotheses in real time”. Actually, instead of considering “interaction of membrane-bound ligands”, surface architectures of fluidic lipid bilayer will be urgently needed for the applications of a large number of biologically important transmembrane proteins.

It is true that GIET is a surface-based structural analysis tool and therefore we clearly identified its potential for structural analysis of protein complexes in the context of membranes. We also agree with the importance of extending this methodology towards fluid lipid bilayer architectures stressed by the reviewer and we are currently pushing our efforts into this direction. For our proof-of-concept experiments, however, the well-defined monolayer architecture used in this study clearly provided important advantages for quantifying distances with minimum bias.

https://doi.org/10.7554/eLife.62501.sa2

Article and author information

Author details

  1. Nadia Füllbrunn

    1. Department of Biology/Chemistry, University of Osnabrück, Osnabrück, Germany
    2. Center of Cellular Nanoanalytics (CellNanOs), University of Osnabrück, Osnabrück, Germany
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Zehao Li
    Competing interests
    No competing interests declared
  2. Zehao Li

    1. Department of Biology/Chemistry, University of Osnabrück, Osnabrück, Germany
    2. Center of Cellular Nanoanalytics (CellNanOs), University of Osnabrück, Osnabrück, Germany
    3. College of Life Sciences, Beijing University of Chemical Technology, Beijing, China
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft
    Contributed equally with
    Nadia Füllbrunn
    Competing interests
    No competing interests declared
  3. Lara Jorde

    Department of Physics, University of Osnabrück, Osnabrück, Germany
    Contribution
    Data curation, Methodology
    Competing interests
    No competing interests declared
  4. Christian P Richter

    Department of Biology/Chemistry, University of Osnabrück, Osnabrück, Germany
    Contribution
    Software, Validation, Investigation, Visualization, Writing - original draft
    Competing interests
    No competing interests declared
  5. Rainer Kurre

    1. Department of Biology/Chemistry, University of Osnabrück, Osnabrück, Germany
    2. Center of Cellular Nanoanalytics (CellNanOs), University of Osnabrück, Osnabrück, Germany
    Contribution
    Formal analysis, Funding acquisition, Validation, Visualization, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Lars Langemeyer

    Department of Biology/Chemistry, University of Osnabrück, Osnabrück, Germany
    Contribution
    Data curation, Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4309-0910
  7. Changyuan Yu

    College of Life Sciences, Beijing University of Chemical Technology, Beijing, China
    Contribution
    Funding acquisition, Investigation, Methodology
    Competing interests
    No competing interests declared
  8. Carola Meyer

    1. Center of Cellular Nanoanalytics (CellNanOs), University of Osnabrück, Osnabrück, Germany
    2. Department of Physics, University of Osnabrück, Osnabrück, Germany
    Contribution
    Conceptualization, Funding acquisition, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0851-2767
  9. Jörg Enderlein

    1. 3rd Institute of Physics - Biophysics, Georg August University, Göttingen, Germany
    2. Cluster of Excellence “Multiscale Bioimaging: from Molecular Machines to Networks of Excitable Cells” (MBExC), Georg August University, Göttingen, Germany
    Contribution
    Conceptualization, Software, Formal analysis, Visualization, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5091-7157
  10. Christian Ungermann

    1. Department of Biology/Chemistry, University of Osnabrück, Osnabrück, Germany
    2. Center of Cellular Nanoanalytics (CellNanOs), University of Osnabrück, Osnabrück, Germany
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    For correspondence
    cu@uos.de
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4331-8695
  11. Jacob Piehler

    1. Department of Biology/Chemistry, University of Osnabrück, Osnabrück, Germany
    2. Center of Cellular Nanoanalytics (CellNanOs), University of Osnabrück, Osnabrück, Germany
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    For correspondence
    piehler@uos.de
    Competing interests
    Inventor on a patent application submitted by University of Osnabrück that covers the use of GIET for biomolecule detection (EP 20 175 412.4).
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2143-2270
  12. Changjiang You

    1. Department of Biology/Chemistry, University of Osnabrück, Osnabrück, Germany
    2. Center of Cellular Nanoanalytics (CellNanOs), University of Osnabrück, Osnabrück, Germany
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    cyou@uni-osnabrueck.de
    Competing interests
    Inventor on a patent application submitted by University of Osnabrück that covers the use of GIET for biomolecule detection (EP 20 175 412.4).
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7839-6397

Funding

Deutsche Forschungsgemeinschaft (INST 190/146-3 (SFB944-P8))

  • Jacob Piehler

National Natural Science Foundation of China (31870976)

  • Zehao Li
  • Changyuan Yu

Intramural funding from Osnabrueck University (Integrated Science)

  • Carola Meyer
  • Christian Ungermann
  • Jacob Piehler
  • Changjiang You

Deutsche Forschungsgemeinschaft (EXC 2067/1- 390729940)

  • Jörg Enderlein

Deutsche Forschungsgemeinschaft (INST 190/182-1)

  • Rainer Kurre
  • Jacob Piehler

Deutsche Forschungsgemeinschaft (INST 190/149-3 (SFB944-P11))

  • Christian Ungermann

Deutsche Forschungsgemeinschaft (INST190/152-3 (SFB944-Z))

  • Jacob Piehler

Deutsche Forschungsgemeinschaft (UN 111/12-1)

  • Christian Ungermann

Deutsche Forschungsgemeinschaft (YO 166/1-1)

  • Changjiang You

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank Anna Lürick and Cornelia Bröcker for HOPS characterizations, and Gabriele Hikade, Hella Kenneweg, Kathrin Auffarth, and Angela Perz for expert technical assistance. Funding: The work was funded by the DFG (SFB 944 P8, SFB 944 P11, SFB 944 Z, INST 190/182–1, UN 111/12-1, and YO 166/1-1), NSFC (31870976) and by intramural funding from Osnabrück University within the profile line ‘Integrated Science’. JE acknowledges support by the DFG under Germany’s Excellence Strategy (EXC 2067/1- 390729940).

Senior Editor

  1. José D Faraldo-Gómez, National Heart, Lung and Blood Institute, National Institutes of Health, United States

Reviewing Editor

  1. Felix Campelo, The Barcelona Institute of Science and Technology, Spain

Reviewer

  1. Volker Kiessling, University of Virginia, United States

Publication history

  1. Received: August 26, 2020
  2. Accepted: December 28, 2020
  3. Version of Record published: January 29, 2021 (version 1)

Copyright

© 2021, Füllbrunn et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 999
    Page views
  • 103
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Physics of Living Systems
    2. Structural Biology and Molecular Biophysics
    Cameron Hill et al.
    Research Article

    Time-resolved X-ray diffraction from isolated fast-twitch muscles of the mouse was used to show how structural changes in the myosin-containing thick filaments contribute to the regulation of muscle contraction, extending the previous focus on regulation by the actin-containing thin filaments. This study shows that muscle activation involves the following sequence of structural changes: thin filament activation, disruption of the helical array of myosin motors characteristic of resting muscle, release of myosin motor domains from the folded conformation on the filament backbone, and actin attachment. Physiological force generation in the 'twitch' response of skeletal muscle to single action potential stimulation is limited by incomplete activation of the thick filament and the rapid inactivation of both filaments. Muscle relaxation after repetitive stimulation is accompanied by complete recovery of the folded motor conformation on the filament backbone but incomplete reformation of the helical array, revealing a structural basis for post-tetanic potentiation in isolated muscle.

    1. Structural Biology and Molecular Biophysics
    Bronwyn A Lucas et al.
    Tools and Resources

    For a more complete understanding of molecular mechanisms, it is important to study macromolecules and their assemblies in the broader context of the cell. This context can be visualized at nanometer resolution in three dimensions (3D) using electron cryo-tomography, which requires tilt series to be recorded and computationally aligned, currently limiting throughput. Additionally, the high-resolution signal preserved in the raw tomograms is currently limited by a number of technical difficulties, leading to an increased false-positive detection rate when using 3D template matching to find molecular complexes in tomograms. We have recently described a 2D template matching approach that addresses these issues by including high-resolution signal preserved in single-tilt images. A current limitation of this approach is the high computational cost that limits throughput. We describe here a GPU-accelerated implementation of 2D template matching in the image processing software cisTEM that allows for easy scaling and improves the accessibility of this approach. We apply 2D template matching to identify ribosomes in images of frozen-hydrated Mycoplasma pneumoniae cells with high precision and sensitivity, demonstrating that this is a versatile tool for in situ visual proteomics and in situ structure determination. We benchmark the results with 3D template matching of tomograms acquired on identical sample locations and identify strengths and weaknesses of both techniques, which offer complementary information about target localization and identity.
