Two opposite voltage-dependent currents control the unusual early development pattern of embryonic Renshaw cell electrical activity

  1. Juliette Boeri
  2. Claude Meunier
  3. Hervé Le Corronc
  4. Pascal Branchereau
  5. Yulia Timofeeva
  6. François-Xavier Lejeune
  7. Christine Mouffle
  8. Hervé Arulkandarajah
  9. Jean Marie Mangin
  10. Pascal Legendre  Is a corresponding author
  11. Antonny Czarnecki  Is a corresponding author
  1. INSERM, UMR_S 1130, CNRS, UMR 8246, Neuroscience Paris Seine, Institute of Biology Paris Seine, Sorbonne Univ, France
  2. Centre de Neurosciences Intégratives et Cognition, CNRS UMR 8002, Institut Neurosciences et Cognition, Université de Paris, France
  3. Univ Angers, France
  4. Univ. Bordeaux, CNRS, EPHE, INCIA, France
  5. Department of Computer Science and Centre for Complexity Science, University of Warwick, United Kingdom
  6. Department of Clinical and Experimental Epilepsy, UCL Queen Square Institute of Neurology, University College London, United Kingdom
  7. Institut du Cerveau et de la Moelle Epinière, Centre de Recherche CHU Pitié-Salpétrière, INSERM, U975, CNRS, UMR 7225, Sorbonne Univ, France

Abstract

Renshaw cells (V1R) are excitable as soon as they reach their final location next to the spinal motoneurons and are functionally heterogeneous. Using multiple experimental approaches, in combination with biophysical modeling and dynamical systems theory, we analyzed, for the first time, the mechanisms underlying the electrophysiological properties of V1R during early embryonic development of the mouse spinal cord locomotor networks (E11.5–E16.5). We found that these interneurons are subdivided into several functional clusters from E11.5 and then display an unexpected transitory involution process during which they lose their ability to sustain tonic firing. We demonstrated that the essential factor controlling the diversity of the discharge pattern of embryonic V1R is the ratio of a persistent sodium conductance to a delayed rectifier potassium conductance. Taken together, our results reveal how a simple mechanism, based on the synergy of two voltage-dependent conductances that are ubiquitous in neurons, can produce functional diversity in embryonic V1R and control their early developmental trajectory.

Introduction

The development of the central nervous system (CNS) follows complex steps, which depend on genetic and environmental factors and involve interactions between multiple elements of the neural tissue. Remarkably, emergent neurons begin to synchronize soon after the onset of synapse formation, generating long episodes of low-frequency (<0.01 Hz) correlated spontaneous network activity (SNA) (O'Donovan, 1999; Saint-Amant, 2010; Blankenship and Feller, 2010; Myers et al., 2005; Milner and Landmesser, 1999; Hanson and Landmesser, 2003; Momose-Sato and Sato, 2013; Khazipov and Luhmann, 2006). In the mouse embryonic spinal cord (SC), SNA is driven by an excitatory cholinergic-GABAergic loop between motoneurons (MNs) and interneurons (INs), GABA being depolarizing before embryonic day 16.5 (E16.5) (Allain et al., 2011). SNA emerges around E12.5 (Myers et al., 2005; Hanson and Landmesser, 2003; Branchereau et al., 2002; Yvert et al., 2004; Czarnecki et al., 2014), at a time when functional neuromuscular junctions are not yet established (Pun et al., 2002), and sensory and supraspinal inputs have not yet reached the spinal motor networks (Angelim et al., 2018; Marmigère and Ernfors, 2007; Ozaki and Snider, 1997; Ballion et al., 2002).

Several studies pointed out that SNA is an essential component in neuronal networks formation (Moody and Bosma, 2005; Spitzer, 2006; Katz and Shatz, 1996; Hanson et al., 2008). In the SC, pharmacologically induced disturbances of SNA between E12.5 and E14.5 induce defects in the formation of motor pools, in motor axon guidance to their target muscles, and in the development of motor networks (Myers et al., 2005; Hanson et al., 2008; Hanson and Landmesser, 2004; Hanson and Landmesser, 2006). During SNA episodes, long-lasting giant depolarization potentials (GDPs) are evoked in the SC, mainly by the massive release of GABA onto MNs (Czarnecki et al., 2014). Immature Renshaw cells (V1R) are likely the first GABAergic partners of MNs in the mouse embryo (Benito-Gonzalez and Alvarez, 2012; Boeri et al., 2018), and the massive release of GABA during SNA probably requires that many of them display repetitive action potential (AP) firing or plateau potential (PP) activity (Boeri et al., 2018).

However, little is known about the firing pattern of embryonic V1R and the maturation of their intrinsic properties. We recently found that V1R exhibit heterogeneous excitability properties when SNA emerges in the SC (Boeri et al., 2018) in contrast to adult Renshaw cells that constitute a functionally homogeneous population (Perry et al., 2015; Bikoff et al., 2016). Whether this early functional diversity really reflects distinct functional classes of V1R, how this diversity evolves during development, and what are the underlying biophysical mechanisms remain open questions. The present study addresses these issues using multiple approaches, including patch-clamp recordings, cluster analysis, biophysical modeling, and dynamical systems theory. The firing patterns of V1R and the mechanisms underlying their functional diversity are analyzed during a developmental period covering the initial phase of development of SC activity in the mouse embryo (E11.5–E14.5), when SNA is present, and during the critical period (E14.5–E16.5), when GABAergic neurotransmission gradually shifts from excitation to inhibition (Delpy et al., 2008) and locomotor-like activity emerges (Myers et al., 2005; Branchereau et al., 2002; Yvert et al., 2004).

We discover that the balance between the slowly inactivating subthreshold persistent sodium inward current (INap, Crill, 1996) and the delayed rectifier potassium outward current (IKdr), accounts for the heterogeneity of embryonic V1R and the changes in firing pattern during development. The heterogeneity of V1R at E12.5 arises from the existence of distinct functional groups. Surprisingly, and in opposition to the classically accepted development scheme (Sillar et al., 1992; Gao and Ziskind-Conhaim, 1998; Gao and Lu, 2008; McKay and Turner, 2005; Liu et al., 2016; Pineda and Ribera, 2010), we show that the embryonic V1R population loses its ability to support tonic firing from E13.5 to E15.5, exhibiting a transient functional involution during its development. Our experimental and theoretical results provide a global view of the developmental trajectories of embryonic V1R. They demonstrate that a simple mechanism, based on the synergy of only two major opposing voltage-dependent currents, accounts for functional diversity in these immature neurons.

Results

The delayed rectifier potassium current IKdr is a key partner of the persistent sodium current INap in controlling embryonic V1R firing patterns during development

We previously highlighted that V1R are spontaneously active at E12.5. Their response to a 2 s suprathreshold depolarizing current steps revealed four main patterns, depending on the recorded IN (Boeri et al., 2018): (1) single spiking (SS) V1R that fires only 1–3 APs at the onset of the depolarizing pulse, (2) repetitive spiking (RS) V1R, (3) mixed events (ME) V1R that show an alternation of APs and PPs, or (4) V1R that displays a long-lasting sodium-dependent PP (Figure 1A1–A4).

GKdr and GNap in embryonic V1R at E12.5 and E14.5.

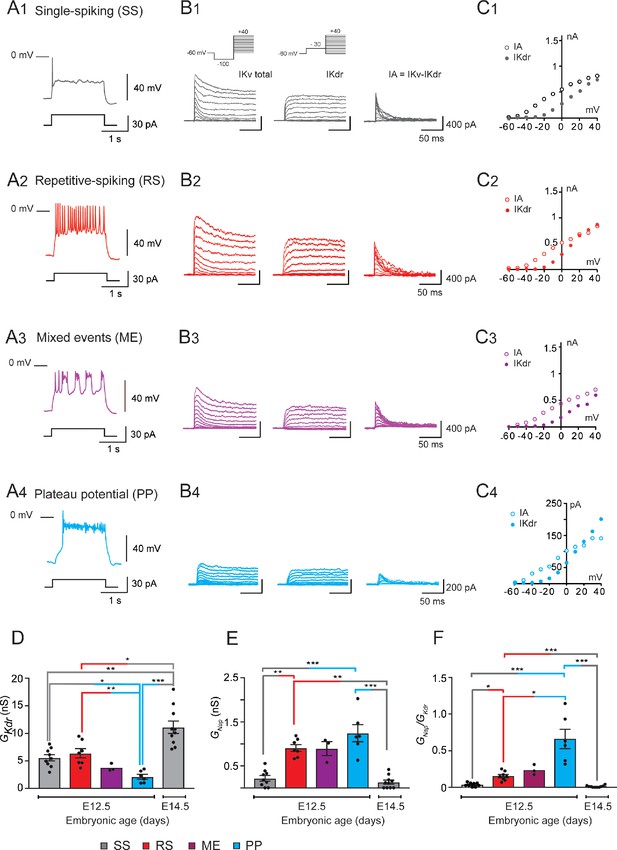

(A) Representative traces of voltage responses showing single spiking (SS) activity in E12.5 SS V1R (A1), repetitive action potential firing in repetitive spiking (RS) V1R (A2), mixed plateau potential activity (PP) and repetitive action potential firing in mixed event (ME) V1R (A3), and PP activity in PP V1R (A4). (B) Representative examples of the total outward K+ currents (IKV total) obtained from VH = –100 mV (left traces), of IKdr (VH = –30 mV, middle traces), and of isolated IA (left traces) recorded at E12.5 in SS V1R (B1), RS V1R (B2), ME V1R (B3), and PP V1R (B4). Voltage-dependent potassium currents were evoked in response to 10 mV membrane potential steps (200 ms) from –100 or from –30 mV to +40 mV (10 s interval between pulses). V1R were voltage clamped at VH = –60 mV. A prepulse of –40 mV (300 ms) was applied to activate both IA and IKdr. IKdr was isolated by applying a prepulse of -30 mV (300 ms) to inactivate IA (B1 inset). IA was isolated by subtracting step-by-step the currents obtained using a prepulse of -30 mV (VH = –30 mV) from the currents obtained using a prepulse of –40 mV (VH = –100 mV). (C) Current-voltage relationship (I-V curves) of IKdr (filled circles) and of IA (open circles) recorded in SS V1R (C1), RS V1R (C2), ME V1R (C3), and PP V1R (C4). I-V curves were obtained from currents shown in (B1), (B2), (B3), and (B4). Note that I-V curves are similar between SS V1R, RS V1R, ME V1R, and PP V1R. (D) Bar graph showing maximal GKdr value (Max GKdr) in SS V1R at E12.5 (n = 9; N = 9; gray bar) and at E14.5 (n = 10; N = 10 gray bar), and in RS V1R (n = 7; N = 7; red bar), ME V1R (n = 3; N = 3 purple bar), and PP V1R at E12.5 (n = 7; N = 7 blue bar) was calculated from IKdr at VH = + 20 mV, assuming a K+ equilibrium potential of –96 mV. There is no significant difference in GKdr between SS V1R and RS V1R, while GKdr is significantly smaller in PP V1R as compared to GKdr SS V1R and RS V1R was significantly higher in SS V1R at E14.5 than in SS V1R, RS V1R, and PP V1R at E12.5 (Kruskal–Wallis test p<0.0001; SS V1R versus RS V1R at E12.5, p=0.5864; SS V1R versus PP V1R at E12.5, p=0.0243; RS V1R versus PP V1R at E12.5, p=0.0086; E14.5 SS V1R versus E12.5 SS V1R, p=0.0048; E14.5 SS V1R versus E12.5 RS V1R, p=0.0384, E14.5 SS V1R versus E12.5 PP V1R, p<0.0001). The increase in GKdr density between E12.5 and E14.5 is likely to be due to the increase in neuronal size (input capacitance; Figure 2A). Indeed, there was no significant difference (Mann–Whitney test, p=0.133) in GNap between SS V1R at E12.5 (n = 9; N = 9 gray bar) and at E14.5 (n = 10; N = 10 gray bar). (E) Bar graph showing the maximal Max GNap value (MaxGNap) in SS V1R at E12.5 (n = 9; N = 9 gray bar) and E14.5 (n = 10; N = 10 gray bar), and in RS V1R (n = 8; N = 8 red bar), ME V1R (n = 3; N = 3 purple bar), and PP V1R (n = 6; N = 6 blue bar) at E12.5. Max GNap was calculated from maximal INap value measured on current evoked by assuming a Na+ equilibrium potential of +60 mV. There was no difference in GNap between RS V1R and PP V1R. On the contrary, GNap measured in SS V1R at E12.5 or at E14.5 was significantly smaller as compared to GNap measured at E12.5 in RS V1R or in PP V1R measured at E12.5 and E14.5 in SS V1R were not significantly different (Kruskal–Wallis test p<0.0001; E12.5 SS V1R versus E12.5 RS V1R, p=0.0034; E12.5 SS V1R versus E12.5 PP V1R, p=0.0006; E12.5 RS V1R versus E12.5 PP V1R, p=0.5494; E14.5 SS V1R versus E12.5 SS V1R, p=0.5896; E14.5 SS V1R versus E12.5 RS V1R, p=0.0005; E14.5 SS V1R versus E12.5 PP V1R, p<0.0001). (F) Histograms showing the GNap / GKdr ratio in SS V1R at E12.5 (n = 9; gray bar) and E14.5 (n = 10; green bar) and in RS V1R (n = 8; red bar), ME V1R (n = 3; purple bar), and PP V1R (n = 6; blue bar) at E12.5. Note that the GNap / GKdr ratio differs significantly between SS V1R, RS V1R, and PP V1R at E12.5, while it is not different between SS V1R recorded at E12.5 and at E14.5 (Kruskal–Wallis test p<0.0001; SS V1R versus RS V1R at E12.5, p=0.0367; SS V1R versus PP V1R at E12.5, p<0.0001; RS V1R versus PP V1R at E12.5, p=0.0159; E14.5 SS V1R versus E12.5 SS V1R, p=0.2319; E14.5 SS V1R versus E12.5 RS V1R, p=0.0017; E14.5 SS V1R versus E12.5 PP V1Rp<0.0001). Data shown in (A) and (B) were used to calculate GNap/GKdr ratio shown in (C) (*p<0.05, **p<0.01, ***p<0.001).

We also uncovered a relationship between INap and the ability of embryonic V1R to sustain repetitive firing (Boeri et al., 2018). However, the heterogeneous firing patterns of V1R observed at E12.5 could not be fully explained by variations in INap (Boeri et al., 2018), suggesting the involvement of other voltage-gated channels in the control of the firing pattern of V1R, in particular potassium channels, known to control firing and AP repolarization. Our voltage clamp protocol, performed in the presence of tetrodotoxin (TTX) (1 μM), did not disclose any inward rectifying current (hyperpolarizing voltage steps to –100 mV from VH = –20 mV, data not shown), but revealed two voltage-dependent outward potassium currents, a delayed rectifier current (IKdr), and a transient potassium current (IA) in all embryonic V1R, whatever the firing pattern; Figure 1B1–B4. These currents are known to control AP duration (IKdr) or firing rate (IA), respectively (Coetzee et al., 1999). The activation threshold of IKdr lied between –30 mV and –20 mV and the threshold of IA between –60 mV and –50 mV, (n = 27; N = 27 embryos) (Figure 1C1–C4). Removing external calcium had no effect on potassium current I/V curves (data not shown), suggesting that calcium-dependent potassium currents are not yet present at E12.5.

It was unlikely that the heterogeneity of V1R firing patterns resulted from variations in the intensity of IA. Indeed, its voltage-dependent inactivation (time constant: 23.3 ± 2.6 ms, n = 8; N = 8), which occurs during the depolarizing phase of an AP, makes it ineffective to control AP or PP durations. This was confirmed by our theoretical analysis (Figure 7—figure supplement 1). We thus focused our study on IKdr. At E12.5, PP V1R had a significantly lower GKdr (2.12 ± 0.44 nS, n = 6; N = 6) than SS V1R (5.57 ± 0.56 nS, n = 9; N = 9) and RS V1R (6.39 ± 0.83 nS, n = 7; N = 7) (Figure 1D). However, there was no significant difference in GKdr between SS V1R and RS V1R at E12.5 (Figure 1D), which indicated that variations in GKdr alone could not explain all the firing patterns observed at E12.5. Similarly, there was no significant difference in GNap between RS V1R (0.91 ± 0.21nS, n = 8; N = 8) and PP V1R (1.24 ± 0.19 nS, n = 6; N = 6) at E12.5 (Figure 1E), indicating that variations in GNap alone could not explain all the firing patterns of V1R at E12.5 (Boeri et al., 2018). In contrast, GNap measured in SS V1R at E12.5 (0.21 ± 0.20 nS, n = 9; N = 9) were significantly lower compared to GNap measured in RS V1R and in PP V1R at E12.5 (Figure 1E).

Mature neurons often display multiple stable firing patterns (O'Leary et al., 2013; Taylor et al., 2009; Alonso and Marder, 2019). This usually depends on the combination of several outward and inward voltage- or calcium-dependent conductances and on their spatial localization (O'Leary et al., 2013; Taylor et al., 2009; Alonso and Marder, 2019). In contrast, immature V1R have a limited repertoire of voltage-dependent currents (INat and INap, IKdr and IA) at E12.5, and we did not find any evidence of voltage-dependent calcium currents at this age (Boeri et al., 2018). Blocking INap prevented PP activity, PP-V1R becoming unexcitable, and turned RS V1R into SS V1R (Boeri et al., 2018). Therefore, we hypothesized that the different firing patterns of V1R observed at E12.5 were related to the GNap/GKdr ratio only, with variations in the intensity of IA being unlikely to account for the heterogeneity of firing pattern. We found that this ratio was significantly lower for SS V1R recorded at E12.5 (GNap/GKdr = 0.043 ± 0.015, n = 9) compared to RS V1R (0.154 ± 0.022, n = 8) and PP V1R (0.66 ± 0.132, n = 6) (Figure 1F). We also found that the GNap/GKdr ratio was significantly lower for RS V1R compared to PP V1R (Figure 1F).

Altogether, these results strongly suggest that, although the presence of INap is required for embryonic V1R to fire repetitively or to generate PPs (Boeri et al., 2018), the heterogeneity of the firing pattern observed between E12.5 is not determined by INap per se but likely by the balance between INap and IKdr.

Manipulating the balance between GNap and GKdr changes embryonic V1R firing patterns

We previously showed that blocking INap with riluzole converted PP V1R or RS V1R into SS V1R (Boeri et al., 2018). To confirm further that the balance between GNap and GKdr was the key factor in the heterogeneity of V1R firing patterns, we assessed to what extent a given E12.5 SS V1R cell could change its firing pattern when IKdr was gradually blocked by 4-aminopiridine (4-AP). We found that IKdr could be blocked by micromolar concentrations of 4-AP without affecting IA (Figure 2—figure supplement 1). 4-AP, applied at concentrations ranging from 0.3 μM to 300 μM, specifically inhibited IKdr with an IC50 of 2.9 μM (Figure 2—figure supplement 1C1).

We then determined to what extent increasing the concentration of 4-AP modified the firing pattern of V1R at E12.5. Applying 4-AP at concentrations ranging from 3 μM to 300 μM changed the firing pattern of SS V1R (n = 10; N = 10) in a concentration-dependent manner (Figure 2A1–A3). In 50% of the recorded V1R, increasing 4-AP concentrations successfully transformed SS V1R into PP V1R with the following sequence: SS → RS → ME → PP (Figure 2A1). In a second group of embryonic V1R (25%), 4-AP application only evoked mixed activity, with the same sequence as aforementioned (SS → RS → ME) (data not shown). In the remaining SS V1R (25%), increasing 4-AP concentration only led to sustained AP firing (Figure 2A2). Application of 300 μM 4-AP on RS V1R at E12.5 evoked MEs or PPs (Figure 2—figure supplement 2). PPs and RS evoked in the presence of 300 μM 4-AP were fully blocked by 0.5–1 μM TTX, indicating that they were generated by voltage-gated Na+ channels (Figure 2B, C, Figure 2—figure supplement 2). It should be noted that the application of 300 μM of 4-AP induced a significant 30.5 ± 12.4% increase (p=0.0137; Wilcoxon test) of the input resistance (1.11 ± 0.08 GΩ versus 1.41 ± 0.12 GΩ; n = 11; N = 11).

Figure 2 with 2 supplements see all

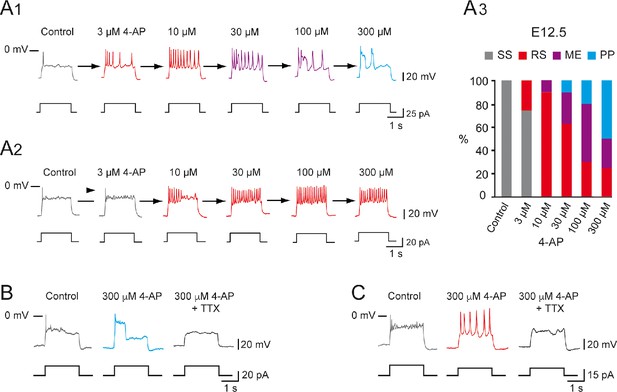

Increasing 4-aminopiridine (4-AP) concentration changed the firing pattern of single spiking (SS) embryonic V1R recorded at E12.5.

The firing pattern of embryonic V1R was evoked by 2 s suprathreshold depolarizing current steps. (A) Representative traces showing examples of the effect of increasing concentration of 4-AP (from 3 to 300 μM) on the firing pattern of a SS V1R recorded at E12.5. Note that in (A1) increasing 4-AP concentration converted SS (gray trace) to repetitive spiking (red trace), repetitive spiking to a mixed event pattern (purple trace), and mixed events to plateau potential (blue trace). (A2) Example of SS V1R in which increasing 4-AP concentration converted SS to repetitive spiking only. (A3) Bar plots showing the change in the firing pattern of SS V1R according to 4-AP concentrations (control n = 10; N = 10, 3 μM 4-AP n = 8; N = 8, 10 μM 4-AP n = 10; N = 10, 30 μM 4-AP n = 10; N = 10, 100 μM 4-AP n = 10; N = 10, 300 μM 4-AP n = 8; N = 8). (B) Representative traces showing the effect of 0.5 μM tetrodotoxin (TTX) on a plateau potential evoked in a SS V1R in the presence of 300 μM 4-AP. (C) Representative traces showing the effect of 0.5 μM TTX on repetitive action potential firing evoked in a SS V1R in the presence of 300 μM 4-AP. In both cases, the application of TTX fully blocked the responses evoked in the presence of 4-AP, indicating that they were underlain by the activation of voltage-gated Na+ channels.

These results show that, in addition to INap, IKdr is also a major determinant of the firing pattern of embryonic V1R. The above suggests that the firing patterns depend on a synergy between INap and IKdr and that the different patterns can be ordered along the following sequence SS → RS → ME → PP when the ratio GNap/GKdr is increased.

The heterogeneity of the V1R firing patterns decreases during embryonic development

It was initially unclear whether these different firing patterns corresponded to well-separated classes within the E12.5 V1R population or not. To address this question, we performed a hierarchical cluster analysis on 163 embryonic V1R based on three quantitative parameters describing the firing pattern elicited by the depolarizing pulse: the mean duration of evoked APs or PPs measured at half-amplitude (mean ½Ad), the variability of the event duration during repetitive firing (coefficient of variation of ½Ad [CV ½Ad]), and the total duration of all events, expressed in percentage of the pulse duration (depolarizing duration ratio [ddr]) (Figure 3A insets). In view of the large dispersion of mean ½Ad and ddr values, cluster analysis was performed using the (decimal) logarithm of these two quantities (Sigworth and Sine, 1987). The analysis of the distribution of log mean ½Ad, CV ½Ad, and log ddr revealed multimodal histograms that could be fitted with several Gaussians (Figure 3—figure supplement 1A1–C1). Cluster analysis based on these three parameters showed that the most likely number of clusters was 5 (Figure 3A, B), as determined by the silhouette width measurement (Figure 3B). Two clearly separated embryonic V1R groups with CV ½Ad = 0 stood out, as shown in the 3D plot in Figure 3C. The cluster with the largest ½Ad (mean ½Ad = 833.5 ± 89.99 ms) and the largest ddr (0.441 ± 0.044) contained all PP V1R (n = 35; N = 29) (Figure 3C, D, Figure 3—figure supplement 1A2, C2). Similarly, the cluster with the shortest ½Ad (9.73 ± 0.66 ms) and the lowest ddr (0.0051 ± 0.0004) contained all SS V1R (n = 46; N = 37) (Figure 3C, D, Figure 3—figure supplement 1A2, C2).

Figure 3 with 1 supplement see all

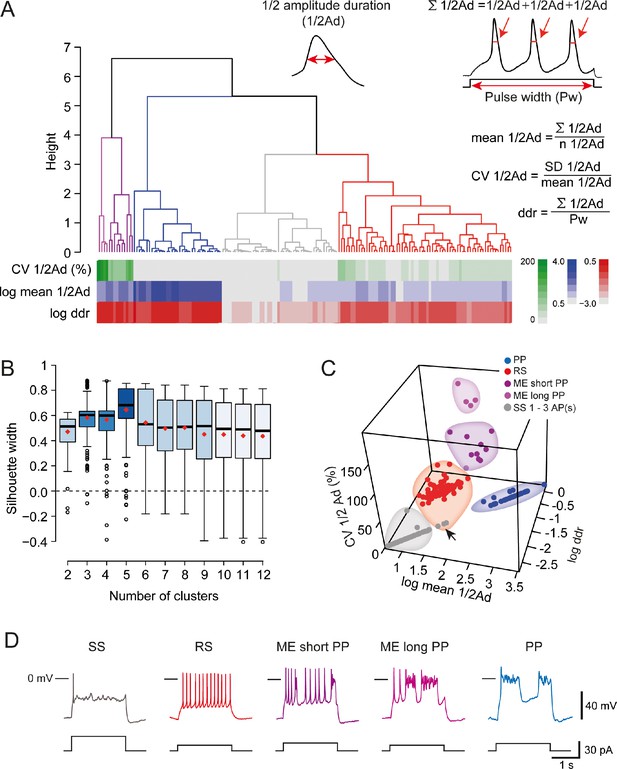

Cluster analysis of V1R firing pattern at E12.5.

(A, insets) Cluster analysis of embryonic V1R firing pattern was performed using three parameters that describe the firing pattern during a 2 s suprathreshold depolarizing pulses: the mean of the half-amplitude event duration (mean ½Ad), the coefficient of variation of ½ Ad (CV ½Ad) allowing to quantify the action potential variation within a train (CV was set to 0 when the number of spikes evoked by a depolarizing pulse was ≤3) and the duration ratio ddr = Σ½ Ad/Pw, obtained by dividing the sum of ½ Ad by the pulse duration Pw, that indicates the total time spent in the depolarized state. For example, ddr = 1 when a plateau potential (PP) lasts as long as the depolarizing pulse. Conversely, its value is low when the depolarizing pulse evokes a single AP only. (A) Dendrogram for complete linkage hierarchical clustering of 164 embryonic V1R (N = 140) according to the values of log mean ½Ad, CV ½Ad, and log ddr. The colored matrix below the dendrogram shows the variations of these three parameters for all the cells in the clusters (colored trees) extracted from the dendrogram. (B) The number of clusters was determined by analyzing the distribution of silhouette width values (see Materials and methods). The box plots show the distribution of silhouette width values when the number of clusters k varies from 2 to 12. The mean silhouette width values (red diamond-shaped points) attained their maximum when the estimated cluster number was 5. (C) 3D plot showing cluster distribution of embryonic V1R according to log mean ½Ad, CV ½Ad, and log ddr. Each cluster corresponds to a particular firing pattern as illustrated in (D). V1R that cannot sustain repetitive firing of APs (1–3 AP/pulse only, gray, single spiking [SS]), V1R that can fire tonically (red, repetitive spiking [RS]), V1R with a firing pattern characterized by a mix of APs and relatively short PPs (dark purple, mixed event short PP [ME short PP]), V1R with a firing pattern characterized by a mix of APs and relatively long plateau potentials (light purple, mixed event long PP [ME long PP]), and V1R with evoked PPs only (blue, PP). The arrow in (C) indicates three misclassified V1R that could not sustain repetitive firing although they were assigned to the cluster of repetitively firing V1R (see text).

Figure 3—source data 1

Numerical data used to perform cluster analysis shown in Figure 3.

https://cdn.elifesciences.org/articles/62639/elife-62639-fig3-data1-v3.docx

The three other clusters corresponded to V1R with nonzero values of CV ½Ad (Figure 3C). A first cluster regrouping all RS V1R (n = 69; N = 61) was characterized by smaller values of ½Ad (23.91 ± 1.43 ms), CV ½Ad (27.36 ± 1.64%), and ddr (0.11 ± 0.01) (Figure 3C–D, Figure 3—figure supplement 1A2, C2). The last two clusters corresponded to ME V1R (Figure 3C, D). The smaller cluster, characterized by a larger CV ½Ad (170.9 ± 8.9%; n = 4; N = 4), displayed a mix of APs and short PPs, while the second cluster, with smaller CV ½Ad (87.61 ± 7.37%; n = 9; N = 9), displayed a mix of APs and long-lasting PPs (Figure 3D, Figure 3—figure supplement 1B2). Their ½Ad and ddr values were not significantly different (Figure 3—figure supplement 1A2, C2).

It must be noted that three embryonic V1R (1.8%) were apparently misclassified since they were aggregated within the RS cluster although having zero CV ½Ad (Figure 3C, arrows). Examination of their firing pattern revealed that this was because they generated only two APs, although their ddr (0.16–0.2) and ½ Ad values (31.6–40.3 ms) were well in the range corresponding tto the RS cluster.

These different firing patterns of V1R might reflect different states of neuronal development (Gao and Ziskind-Conhaim, 1998; Ramoa and McCormick, 1994; Belleau and Warren, 2000; Picken Bahrey and Moody, 2003). SS and/or PPs are generally believed to be the most immature forms of firing pattern, RS constituting the most mature form (Spitzer, 2006; Tong and McDearmid, 2012). If it were so, the firing patterns of embryonic V1R would evolve during embryonic development from SS or PP to RS, this latter firing pattern becoming the only one in neonates (Perry et al., 2015) and at early postnatal stages (Bikoff et al., 2016). However, RS neurons already represent 41% of V1R at E12.5. We therefore analyzed the development of firing patterns from E11.5, when V1R terminate their migration and reach their final position (Alvarez et al., 2013), to E16.5. This developmental period covers a first phase of development (E11.5–E14.5), where lumbar spinal networks exhibit SNA, and a second phase (E14.5–E16.5), where locomotor-like activity emerges (Myers et al., 2005; Yvert et al., 2004; Allain et al., 2010; Branchereau et al., 2000). We first analyzed changes in the intrinsic properties (input capacitance Cin, input resistance Rin = 1/Gin, and spike voltage threshold) of V1R. Cin did not change significantly from E11.5 to E13.5 (Figure 4A1), remaining of the order of 12 pF, in agreement with our previous work (Boeri et al., 2018). However, it increased significantly at the transition between the two developmental periods (E13.5–E15.5) to reach about 23.5 pF at E15.5 (Figure 4A1). A similar developmental pattern was observed for Rin, which remained stable during the first phase from E11.5 to E14.5 (Rin ≈ 1–1.2 GΩ) but decreased significantly after E14.5 to reach about 0.7 GΩ at E15.5 (Figure 4A2). Spike threshold also decreased significantly between the first and the second developmental phases, dropping from about –34 mV at E12.5 to about –41 mV at E16.5 (Figure 4A3). Interestingly, this developmental transition around E14.5 corresponds to the critical stage at which SNA gives way to a locomotor-like activity (Yvert et al., 2004; Allain et al., 2010; Branchereau et al., 2000) and rhythmic activity becomes dominated by glutamate release rather than acetylcholine release (Myers et al., 2005).

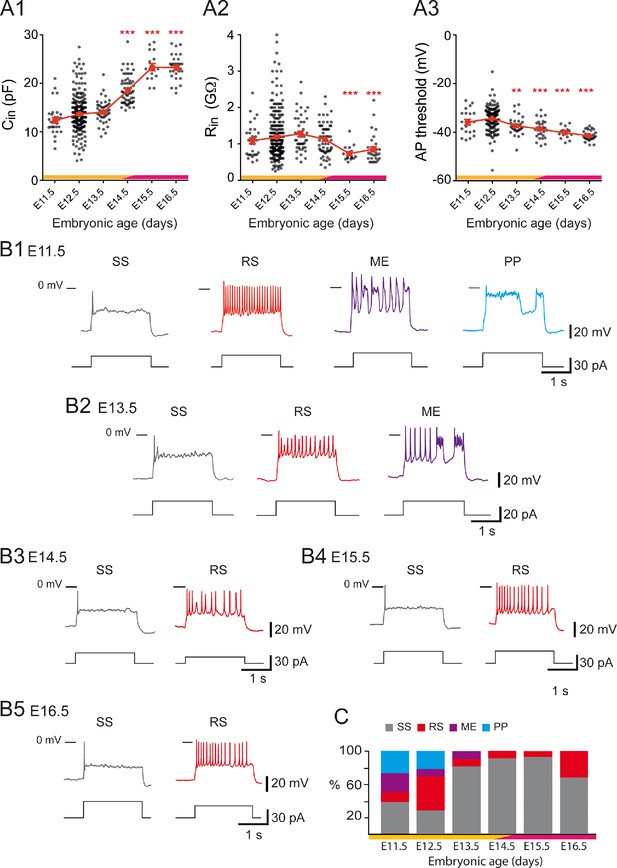

Developmental changes of embryonic V1R firing patterns from E11.5 to E16.5.

(A1) Graph showing how the input capacitance Cin of V1R changes with embryonic age. Cin significantly increased between E12.5 or E13.5 and E14.5 (Kruskal–Wallis test p<0.0001; E12.5 versus E11.5 p=0.258, E12.5 versus E13.5 p=0.904, E12.5 versus E14.5 p<0.0001, E12.5 versus E15.5 p<0.0001, E12.5 versus E16.5 p<0.0001, E13.5 versus E14.5 p<0.0001, E13.5 versus E15.5 p<0.0001, E13.5 versus E16.5 p<0.0001; E11.5 n = 31; N = 27, E12.5 n = 267; N = 152, E13.5 n = 43; N = 40, E14.5 n = 61; N = 49, E15.5 n = 16; N = 4, E16.5 n = 30; N = 9). (A2) Graph showing how the input resistance Rin of V1R changes with embryonic age. Rin significantly decreased between E12.5 or E14.5 and E15.5 (Kruskal–Wallis test p<0.0001; E12.5 versus E11.5 p>0.999, E12.5 versus E13.5 p=0.724, E12.5 versus E14.5 p>0.999, E12.5 versus E15.5 p=0.0004, E12.5 versus E16.5 p=0.0005, E14.5 versus E15.5 p=0.0019, E14.5 versus E16.5 p<0.0058; E11.5 n = 31, E12.5 n = 261; N = 146, E13.5 n = 43; N = 40, E14.5 n = 60; N = 48, E15.5 n = 16; N = 4, E16.5 n = 30; N = 9). (A3) Graph showing how the threshold of regenerative events (action potentials [APs] and plateau potentials [PP]) of V1R changes with embryonic age. The average threshold became significantly more hyperpolarized after E12.5 (Kruskal–Wallis test p<0.0001; E12.5 versus E11.5 p=0.676, E12.5 versus E13.5 p=0.0039, E12.5 versus E14.5 p<0.0001, E12.5 versus E15.5 p<0.0001, E12.5 versus E16.5 p<0.0001, E13.5 versus E14.5 p>0.999, E13.5 versus E15.5 p=0.1398, E13.5 versus E16.5 p=0.0013; E14.5 versus E15.5 p>0.999, E14.5 versus E16.5 p=0.0634, E15.5 versus E16.5 p>0.999; E11.5 n = 20; N = 16, E12.5 n = 162; N = 139, E13.5 n = 31; N = 28, E14.5 n = 30; N = 26, E15.5 n = 16; N = 4, E16.5 n = 30; N = 9). Yellow and purple bars below the graphs indicate the two important phases of the functional development of spinal cord networks. The first one is characterized by synchronized neuronal activity (SNA), and the second one is characterized by the emergence of a locomotor-like activity (see text). Note that changes in Cin and Rin occurred at the end of the first developmental phase (*p<0.05, **p<0.01, ***p<0.001; control, E12.5). The intrinsic activation properties were analyzed using 2 s suprathreshold depolarizing current steps. (B) Representative traces of voltage responses showing single spiking (SS) V1R (gray), repetitive spiking (RS) V1R (red), mixed events (ME) V1R (purple), and PP V1R (blue) at E11.5 (B1), E13.5 (B2), E14.5 (B3) E15.5 (B4), and E16.5 (B5). (C) Bar graph showing how the proportions of the different firing patterns change from E11.5 to E16.5 (E11.5 n = 22; N = 18, E12.5 n = 163; N = 140, E13.5 n = 32; N = 29, E14.5 n = 57; N = 45, E15.5 n = 15; N = 4, E16.5 n = 28; N = 9). Yellow and purple bars below the graphs indicate the first and the second phase of functional embryonic spinal cord networks. The proportions of the different firing patterns significantly changed between E11.5 to E12.5 (Fisher's exact test, p=0.0052) with a significant increase in the proportion of RS V1R (Fisher's exact test, p=0.0336) and a significant decrease in the proportion of ME V1R (Fisher's exact test, p=0.01071) at E12.5. Only two firing patterns (SS and RS) were observed after E13.5 and most embryonic V1R lost their ability to sustain tonic firing after E13.5. However, at E16.5 the proportion of RS V1R significantly increased at the expense of SS V1R when compared to E14.5 (Fisher's exact test, p=0.0112), indicating that embryonic V1R began to recover the ability to sustain tonic firing after E15.5.

This led us to hypothesize that this developmental transition could be also critical for the maturation of V1R firing patterns. The distinct firing patterns observed at E12.5 were already present at E11.5 (Figure 4B1, C), but the percentage of RS V1R strongly increased from E11.5 to E12.5, while the percentage of ME V1R decreased significantly (Figure 4C). The heterogeneity of V1R firing patterns then substantially diminished. PPs were no longer observed at E13.5 (Figure 4B2, C) and ME V1R disappeared at E14.5 (Figure 4B3, C). Interestingly, the proportion of SS V1R remained high from E13.5 to E15.5 and even slightly increased (91.23% at E14.5% and 93.33% at E15.5; Figure 4C). This trend was partially reversed at E16.5 as the percentage of RS V1R increased at the expense of SS V1R (67.86% SS V1R and 32.34% RS V1R; Figure 4B5, C). This decrease in repetitive firing capability after E13.5 was surprising in view of what is classically admitted on the developmental pattern of neuronal excitability (Moody and Bosma, 2005; Spitzer et al., 2000). Therefore, we verified that it did not reflect the death of some V1R after E13.5. Our data did not reveal any activated caspase3 (aCaspase3) staining in V1R (FoxD3 staining) at E14.5 (n = 10 SCs; N = 10) (Figure 5), in agreement with previous reports showing that developmental cell death of V1R does not occur before birth (Prasad et al., 2008).

Activated caspase3 (aCaspase3) is not observed in embryonic V1R at E14.5.

Representative confocal image of the ventral part of an isolated lumbar spinal cord of E14.5 GAD67-eGFP mouse embryo showing immunostainings using antibodies against eGFP (A), FoxD3 (B), and aCaspase3 (C). (D) Superimposition of the three stainings shows that embryonic V1R (eGFP+ and FoxD3+) were not aCaspase three immunoreactive. (A1, B1, C1, and D1). Enlarged images from (A), (B), and (C) showing that aCaspase3 staining is localized in areas where eGFP and Foxd3 staining were absent. (A2, B2, C2, and D2) Enlarged images from (A), (B), and (C) showing that aCaspase3 staining is absent in the area where V1R (eGFP+ and FoxD3+) are located. aCaspase3 staining that did not co-localize with GAD67eGFP likely indicates motoneuron developmental cell death.

To determine whether GNap and GKdr also controlled the firing pattern of V1R at E14.5 (see Figure 4B3, C), we assessed the presence of INap and IKdr in SS V1R at this embryonic age. Both INap and IKdr were present in V1R at E14.5 (Figure 6—figure supplement 1, Figure 6—figure supplement 2), whereas, as in V1R at E12.5, no calcium-dependent potassium current was detected at this developmental age (not shown). In SS V1R, GKdr was significantly higher at E14.5 (11.11 ± 1.12 nS, n = 10; N = 10) than at E12.5 (Figure 1D). In contrast, GNap was similar at E14.5 (0.13 ± 0.14 nS, n = 10; N = 10) and E12.5 (Figure 1E). We also found that the GNap/GKdr ratio was significantly lower for SS V1R recorded at E14.5 (0.012 ± 0.004, n = 10) compared to RS V1R (0.154 ± 0.022, n = 8) and PP V1R (0.66 ± 0.132, n = 6) recorded at E12.5 (Figure 1F).

We tested the effect of 4-AP in SS V1R at E14.5. At this embryonic age, 300 μM 4-AP inhibited only 59.2% of IKdr. Increasing 4-AP concentration to 600 μM did not inhibit IKdr significantly more (60.2%) (Figure 6—figure supplement 2), indicating that inhibition of IKdr by 4-AP reached a plateau at around 300 μM. 600 μM 4-AP application had no significant effect on IA (Figure 6—figure supplement 2). The application of the maximal concentration of 4-AP tested (600 μM) converted SS V1R (n = 13; N = 13) to PP V1R (23.1%; Figure 6A1, B), RS V1R (38.5%; Figure 6A2, B), or ME V1R (38.4%; Figure 6B), as was observed at E12.5, thus indicating that the firing pattern of V1R depends on the balance between INap and IKdr also at E14.5. PP and RS recorded in the presence of 4-AP at E14.5 were fully blocked by 0.5–1 μM TTX, indicating that they were generated by voltage-gated sodium channels (Figure 6A1, A2), as observed at E12.5.

Figure 6 with 2 supplements see all
600 μM 4-aminopiridine (4-AP) changed the firing pattern of single spiking (SS) embryonic V1R recorded at E14.5.

The firing pattern of embryonic V1R was evoked by 2 s suprathreshold depolarizing current steps. (A) Representative traces showing the effect of 4-AP application (600 μM) on the firing pattern of SS V1R recorded at E14.5. Note that the applications of 600 μM 4-AP evoked either a plateau potential (PP, A1) or repetitive spiking (RS, A2), both fully blocked by tetrodotoxin. (B) Bar plots showing the proportions of the different firing patterns observed in the presence of 600 μM 4-AP versus control recorded in SS V1R at E14.5 (n = 14; N = 14). SS V1R (gray), RS V1R (red), mixed Events (ME) V1R (purple), and PP V1R (blue).

Theoretical analysis: the basic model

As shown in Figure 7A for 26 cells, in which both GNap and GKdr were measured, the three largest clusters revealed by the hierarchical clustering analysis (SS, RS, and PP, which account together for the discharge of more than 95% of cells, see Figure 3) correspond to well-defined regions of the GNap - GKdr plane. SS is observed only when GNap is smaller than 0.6 nS. For larger values of GNap, RS occurs when GKdr is larger than 3.5 nS, and V1R display PPs when GKdr is smaller than 3.5 nS. ME (4.5% of the 163 cells used in the cluster analysis), where plateaus and spiking episodes alternate, are observed at the boundary of RS and PP clusters. This suggested to us that a conductance-based model incorporating only the leak current, INat, INap, and IKdr (see Materials and methods), could account for most experimental observations, the observed zonation being explained in terms of bifurcations between the different stable states of the model. Therefore, we first investigated a simplified version of the model without IA and slow inactivation of INap.

Figure 7 with 2 supplements see all

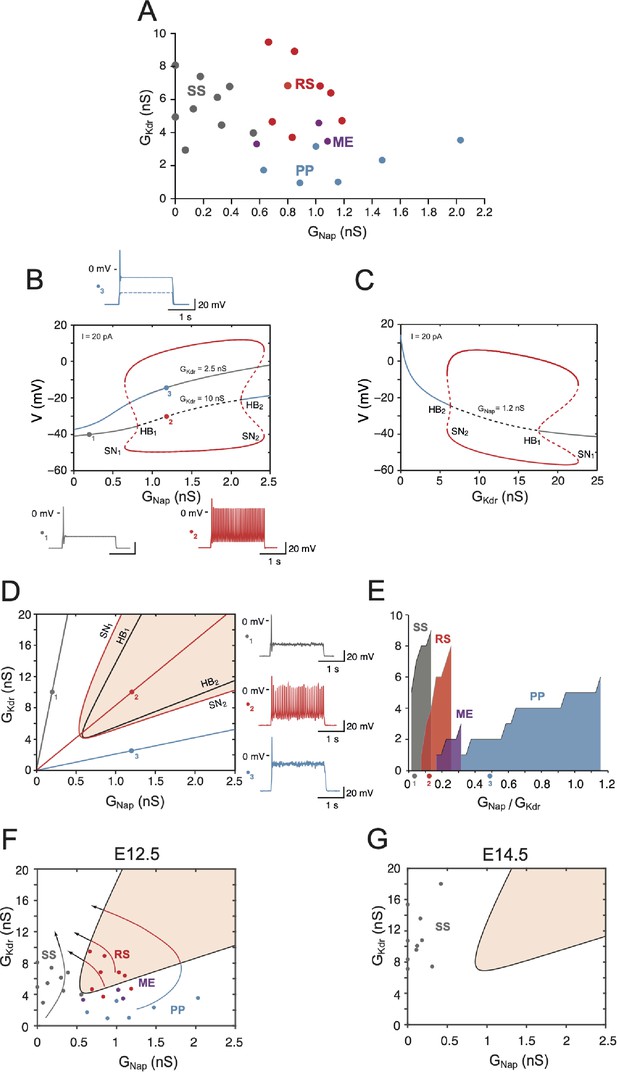

Embryonic V1R firing patterns predicted by computational modeling.

(A) Firing patterns of 26 recorded cells, in which both GNap and GKdr were measured. Gray: single spiking (SS); red: repetitive spiking (RS); blue: plateau potential (PP). The three purple points located at the boundary between the RS and PP regions correspond to mixed events (ME), where plateau potentials alternate with spiking episodes. Note that no cell exhibited low values of both GNap and GKdr (lower left) or large values of both conductances (upper right). (B) Bifurcation diagram of the deterministic model when GKdr is kept fixed to 2.5 nS or 10 nS while GNap is varied between 0 and 2.5 nS. Gin = 1 nS and I = 20 pA. For GKdr = 10 nS (i.e., in the top experimental range), the red curves indicate the maximal and minimal voltages achieved on the stable limit cycle associated with repetitive firing (solid lines) and on the unstable limit cycle (dashed lines). The fixed point of the model is indicated by a gray solid line when it corresponds to the stable quiescent state, a gray dashed line when it is unstable, and a solid blue line when it corresponds to a stable plateau potential. The two Hopf bifurcations (HB) corresponding to the change of stability of the quiescence state (HB1, GNap = 0.81 nS) and the voltage plateau (HB2, GNap = 2.13 nS) are indicated, as well as the two saddle node (SN) bifurcations of limit cycles associated with the onset (SN1, GNap= 0.65 nS) and offset (SN2, GNap = 2.42 nS) of repetitive spiking as GNap is increased. For GKdr = 2.5 nS, the model does not display repetitive firing; it possesses a unique fixed point, which is always stable (blue-gray curve). The transition from quiescence to plateau is gradual with no intervening bifurcation. Representative voltage traces of the three different activity patterns are shown: SS in response to a 2 s current pulse (gray, GNap= 0.2 nS, GKdr= 10 nS), RS (red, GNap= 1.2 nS, GKdr= 10 nS), and PP (blue, GNap= 1.2 nS, GKdr= 2.5 nS). Note that the plateau never outlasts the current pulse. (C) Bifurcation diagram when GNap is kept fixed at 1.2 nS and GKdr is varied between 0 and 25 nS (I = 20 pA). Same conventions as in (B). PP is stable until the subcritical HB2 (GKdr = 6.34 nS) is reached, repetitive firing can be observed between SN2 (GKdr = 5.93 nS) and SN1 (GKdr = 22.65 nS). The quiescent state is stable from point HB1 (GKdr= 17.59 nS) onward. (D) Two-parameter bifurcation diagram of the model in the GNap - GKdr plane (I = 20 pA). The black curves indicate the bifurcations HB1 and HB2. The red curves indicate the SN bifurcations of limit cycles SN1 and SN2. The shaded area indicates the region where repetitive firing can occur. The oblique lines through the points labeled 1, 2, and 3, the same as in (B), correspond to three different values of the ratio of GNap / GKdr: 0.02 (gray), 0.12 (red), and 0.48 (blue). Voltage traces on the right display the response to a 2 s current pulse when channel noise is taken into account for the three regimes: SS (top, gray trace and dot in the diagram), RS (middle, red), and PP (bottom, blue). They correspond to the three deterministic voltage traces shown in (B). Note that the one-parameter bifurcation diagrams shown in (B) correspond to horizontal lines through points 1 and 2 (GKdr = 10 nS) and through point 3 (GKdr = 2.5 nS), respectively. The bifurcation diagram in (C) corresponds to a vertical line through points 2 and 3 (GNap = 1.2 nS). (E) Cumulative distribution function of the ratio GNap/GKdr for the four clusters in (A), showing the sequencing SS (gray) → RS (red) → ME (purple, three cells only) → PP (blue) predicted by the two-parameter bifurcation diagram in (D). The wide PP range, as compared to SS and RS, merely comes from the fact that GKdr is small for cells in this cluster. The three colored points indicate the slopes of the oblique lines displayed in (D) . (F) The data points in (A) are superimposed on the two-parameter bifurcation diagram shown in (D), demonstrating a good agreement between our basic model and experimental data (same color code as in A for the different clusters). The bifurcation diagram is simplified compared to (A), only the region where repetitive spiking is possible (i.e., between the lines SN1 and SN2 in A) being displayed (shaded area). Notice that three ME cells (purple dots) are located close to the transition between the RS and PP regions. The four arrows indicate the presumable evolution of GNap and GKdr for SS, RS, ME, and PP cells between E12.5 and E14.5–15.5. GNap eventually decreases while GKdr keeps on increasing. (G) Distribution of a sample of cells in the GNap - GKdr plane at E14.5. All the cells are located well within the SS region far from bifurcation lines because of the decreased GNap compared to E12.5, the increased GKdr, and the shift of the RS region (shaded) due to capacitance increase (18 versus 13 pF).

A one-parameter bifurcation diagram of this 'basic' model is shown in Figure 7B for two values of GKdr (2.5 nS and 10 nS) and a constant injected current I = 20 pA. In both cases, the steady-state membrane voltage (stable or unstable) and the peak and trough voltages of stable and unstable periodic solutions are shown as a function of the maximal conductance GNap of the INap current, all other parameters being kept constant. For GKdr = 10 nS, the steady-state membrane voltage progressively increases (in gray) with GNap, but RS (in red, see voltage trace for GNap = 1.2 nS) is not achieved until GNap reaches point SN1, where a saddle node (SN) bifurcation of limit cycles occurs. This fits with the experimental data, where a minimal value of GNap is required for RS (see also Boeri et al., 2018), and is in agreement with the known role of INap in promoting repetitive discharge (Taddese and Bean, 2002; Kuo et al., 2006). Below SN1, the model responds to the onset of a current pulse by firing only one spike before returning to quiescence (see voltage trace for GNap = 0.2 nS) or a few spikes when close to SN1 (not shown) before returning to quiescence. The quiescent state becomes unstable through a subcritical Hopf bifurcation (HB) at point HB1, with bistability between quiescence and spiking occurring between SN1 and HB1 points. Repetitive firing persists when GNap is increased further and eventually disappears at point SN2. The firing rate does not increase much throughout the RS range (Figure 7—figure supplement 1C), remaining between 11.5 Hz (at SN1) and 20.1 Hz (at SN2). A stable plateau appears at point HB2 through a subcritical HB. The model is bistable between HB2 and SN2, with plateau and large amplitude APs coexisting in this range.

The model behaves very differently when GKdr is reduced to 2.5 nS (gray-blue curve in Figure 7B). It exhibits a unique stable fixed point whatever the value of GNap is, and the transition from quiescence to plateau is gradual as GNap is increased. No RS is ever observed. This indicates that the activity pattern is controlled not only by GNap but also by GKdr. This is demonstrated further in Figure 7C, where GNap was fixed at 1.2 nS while GKdr was increased from 0 to 25 nS. The model exhibits a PP until GKdr is increased past point the subcritical HB point HB2, RS sets in before at point SN2 via a SN of limit cycles bifurcation. When GKdr is further increased, repetitive firing eventually disappears through a SN bifurcation of limit cycles at point SN1, the quiescent state becomes stable through a subcritical HB at point HB1, and bistability occurs between these two points. This behavior is in agreement with Figure 7A.

Since both conductances GNap and GKdr control the firing pattern of embryonic V1R cells, we computed a two-parameter bifurcation diagram (Figure 7D), where the stability regions of the different possible activity states and the transition lines between them are plotted in the GNap - GKdr plane. The black curves correspond to the bifurcations HB1 and HB2 and delimit a region where only repetitive firing occurs. The red curves correspond to the SN bifurcations of periodic orbits associated with the transition from quiescence to firing (SN1) and the transition from plateau to firing (SN2). They encompass a region (shaded area) where RS can be achieved but may coexist with SS (between the HB1 and SN1 lines) or PP (in the narrow region between the HB2 and SN2 lines).

Some important features of the diagram must be emphasized: (1) minimal values of both GNap (to ensure sufficient excitability) and GKdr (to ensure proper spike repolarization) are required for RS; (2) SS and PP can be clearly distinguished only when they are separated by a region of RS (see also Figure 7B for GKdr = 10 nS), otherwise the transition is gradual (Figure 7B for GKdr = 2.5 nS); and (3) only oblique lines with an intermediate slope cross the bifurcation curve and enter the RS region (e.g., see the red line in Figure 7D). This means that RS requires an appropriate balance between INap and IKdr. If the ratio GNap/GKdr is too large (blue line) or too small (gray line), only PPs or SS will be observed at steady state. This is exactly what is observed in experiments, as shown by the cumulative distribution function of the ratio GNap/GKdr for the different clusters of embryonic V1R in Figure 7E (same cells as in Figure 7A). The ratio increases according to the sequence SS → RS → ME → PP, with an overlap of the distributions for SS V1R and RS V1R. Note also that the ratio for ME cells (around 0.25) corresponds to the transition between RS and PP (more on this below).

Embryonic V1R cells display voltage fluctuations that may exceed 5 mV and are presumably due to channel noise. The relatively low number of sodium and potassium channels (of the order of a few thousands) led to voltage fluctuations in the stochastic version of our model comparable to those seen experimentally when the cell was quiescent (top voltage trace in Figure 7D) or when a voltage plateau occurred (bottom trace). Channel noise caused some jitter during RS (middle trace) and induced clearly visible variations in the amplitude of APs. However, RS proved to be very robust and was not disrupted by voltage fluctuations. Altogether, channel noise little alters the dynamics (compare the deterministic voltage traces in Figure 7B and the noisy traces in Figure 7D). This is likely because channel noise has a broad power spectrum and displays no resonance with the deterministic solutions of the model.

The one-parameter bifurcation diagram of the model was not substantially modified when we took IA into account, as shown in Figure 7—figure supplement 1. It just elicited a slight membrane hyperpolarization, an increase in the minimal value of GNap required for firing, and a decrease of the firing frequency. The transition from repetitive firing to plateau was not affected because IA is then inactivated by depolarization.

The bifurcation diagram of Figure 7D accounts qualitatively for the physiological data on V1R at E12.5 presented in Figure 7A, as shown in Figure 7F where the conductance data of Figure 7A were superimposed on it. However, one must beware of making a more quantitative comparison because the theoretical bifurcation diagram was established for a constant injected current of 20 pA, whereas the current injected in experiments data varied from neuron to neuron and ranged from 10 to 30 pA in the sample shown in Figure 7A. The position of bifurcation lines in the GNap - GKdr plane depends not only on the value of the injected current, but on the values chosen for the other parameters, which also vary from cell to cell but were kept at fixed values in the model (Ori et al., 2018). For instance, the diagrams were computed in Figure 7D, F for Gin = 1 nS and Cin = 13 pF, the median values of the input conductance and capacitance at E12.5, taking no account of the cell-to-cell variations of these quantities. Between E12.5 and E14.5, Cin, which provides an estimate of the cell size, increases by 38% in average, whereas Gin is not significantly modified (see Figure 4). As illustrated in Figure 7G, the two-parameter bifurcation diagram is then shifted upward and rightward compared to Figure 7F because larger conductances are required to obtain the same firing pattern. The observed regression of excitability from E12.5 to E14.5–E15.5 (see Figure 4C) thus comes from a decrease in GNap density (see presumable developmental trajectories indicated by arrows in Figure 7F) together with a shift of the RS region as cell size increases. As a result, all 10 cells shown in Figure 7G are deeply inside the SS region at E14.5.

It is less straightforward to explain on the basis of our model the experiments where 4-AP changed the firing pattern of SS V1R (Figure 2). Indeed, the decrease of GKdr (Figure 7—figure supplement 2), although it may exceed 70% at the higher concentrations of 4-AP we used, is not sufficient by itself to account for the change in the firing pattern of V1R because data points in the SS cluster will not cross the bifurcation lines between SS and RS (SN1) and between RS and PP (SN2) when displaced downward in the GNap - GKdr plane. However, 4-AP at a 300 μM concentration also decreased Gin (by 23% in average and up to 50% in some neurons), the rheobase current with it, and the current that was injected in cells during experiments was reduced accordingly. When we take into account this reduction of both Gin and I, the two-parameter bifurcation diagram of the model remains qualitatively the same, but it is shifted leftwards and downwards in the GNap - GKdr plane (Figure 7—figure supplement 2). As a consequence, the bifurcation lines between SS and RS (SN1) and between RS and PP (SN2) are then successively crossed when GKdr is reduced, in accordance with experimental results.

Theoretical analysis: slow inactivation of INap and bursting

Our basic model accounts for the firing pattern of 73% of the 163 cells used in the cluster analysis. However, bursting, under the form of recurring plateaus separated by brief repolarization episodes (see a typical trace in Figure 8A, left), was experimentally observed in half of PP V1R (24 out of 46), and plateaus intertwined with spiking episodes were recorded in the 13 cells of the ME cluster (8% of the total sample, see Figure 8A, right, for a typical example). Recurrent plateaus indicate membrane bistability and require that the I-V curve be S-shaped. This occurs when GNap is large and GKdr small (Figure 8B1, B2). However, our basic model lacks a mechanism for switching between quiescent state and plateau, even in this case. Channel noise might induce such transitions, but our numerical simulations showed that this is too infrequent to account for bursting (see voltage trace in Figure 8B1 where the plateau state is maintained despite channel noise).

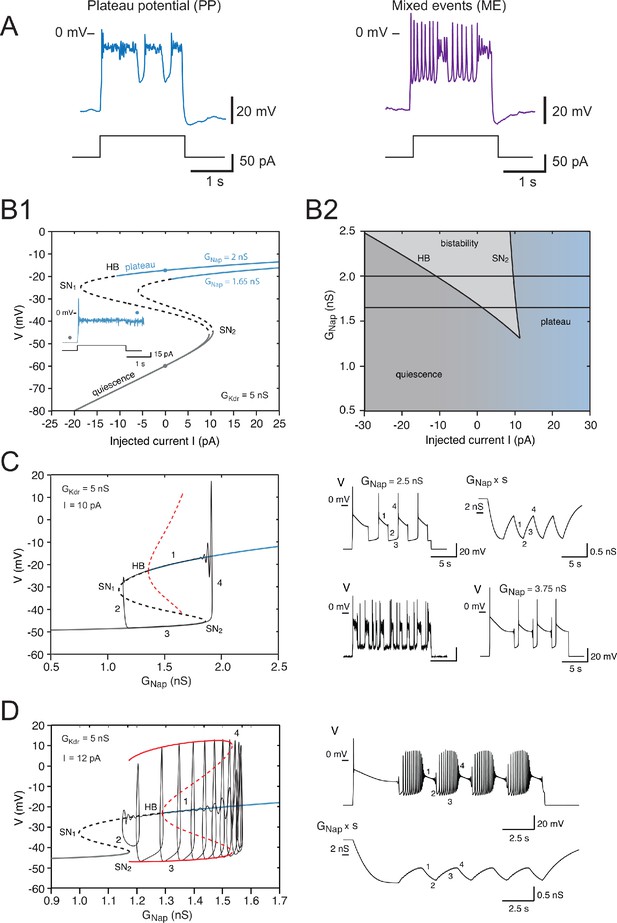

Effects of the slow inactivation of INap on firing patterns predicted by computational modeling.

(A) Examples of repetitive plateaus (left) and mixed events (right) recorded in V1R at E12.5 during a 2 s current pulse. (B1) Current-voltage curve of the basic model (without slow inactivation of INap and without IA or channel noise) for GKdr = 5 nS and for GNap = 1.65 nS (lower curve) and 2 nS (upper curve). Solid lines denote stable fixed points and dashed lines unstable ones. For GNap = 1.65 nS, bistability between quiescence and plateau occurs between 1.39 and 10.48 pA. When GNap is increased to 2 nS, the bistability region ranges from –10.84 to 9.70 pA, thus extending into the negative current range. This implies that once a plateau has been elicited, the model will stay in that stable state and not return to the resting state, even though current injection is switched off (see inset). (B1 inset) Voltage response to a 2 s current pulse of 15 pA for GNap = 2 nS. The resting state (gray dot on the lower curve in B1) is destabilized at pulse onset and a plateau is elicited (blue dot on the upper curve in B1). At pulse offset, the plateau is maintained, even though the injected current is brought back to zero, and channel noise is not sufficient to go back to the resting state. (B2) Domain of bistability between quiescence and plateau (shaded) in the IGNap plane for GKdr = 5 nS. It is delimited by the line SN2 where a SN bifurcation of fixed points occurs and by the subcritical Hopf bifurcation line HB where the plateau becomes unstable. Bistability requires that GNap exceeds 1.35 nS, and the domain of bistability enlarges as GNap is increased further. The two horizontal lines correspond to the two cases shown in (B1) GNap = 1.65 nS and 2 nS. (C) Behavior of the model when slow inactivation is incorporated. The bifurcation diagram of the basic model (without slow inactivation) for I = 10 pA and GKdr = 5 nS (same conventions as in Figure 7B) and the stable limit cycle (black solid curve) obtained when slow inactivation is added are superimposed. The limit cycle is comprised of four successive phases (see labels): (1) long plateau during which INap slowly inactivates, (2) fast transition to the quiescent state, (3) repolarization episode during which INap slowly de-inactivates, and (4) fast transition back to the plateau. Each plateau starts with a full-blown action potential followed by rapidly decaying spikelets. Note that the bifurcation HB is subcritical here (unstable limit cycle shown by dashed red curve), at variance with square wave bursting (supercritical bifurcation and stable limit cycle); this is a characteristic feature of pseudo-plateau bursting. Note also that the plateau extends beyond the bifurcation HB because it is only weakly unstable then. Responses to a 15 s current pulse are shown on the right side. Top left: voltage response (GNap = 2.5 nS); top right: behavior of the 'effective' conductance of the INap channels, that is, the maximal conductance GNap multiplied by the slow inactivation variable s. Bottom left: voltage trace when channel noise is added to fast and slow gating variables; bottom right: voltage trace when GNap is increased by 50% to 3.75 nS. (D) Mixed events. The bifurcation diagram of the basic model for GKdr = 5 nS and I = 12 pA and the stable limit cycle obtained in the presence of slow inactivation (GNap = 2.5 nS) are superimposed. Here again, the limit cycle comprises four successive phases (see labels): (1) slow inactivation of INap that leads to the crossing of the bifurcation point HB2 and then to the destabilization of the plateau potential; (2) fast transition to the spiking regime; (3) repetitive spiking during which INap slowly de-inactivates, which leads to the crossing of the bifurcation point SN2 and terminates the spiking episode; and (4) fast transition back to the stable plateau potential. Response to a 15 s current pulse of 12 pA is shown on the right in the absence of any channel noise. Top: voltage trace (same labels as in the bifurcation diagram on the left); bottom: variations of the 'effective' conductance GNaps (same labels as in the voltage trace). Note that de-inactivation sufficient to trigger a new plateau occurs over a series of successive spikes, hence the small oscillations visible on the trace. Note also that in (C) and (D) the first plateau lasts longer than the following ones, as in electrophysiological recordings of embryonic V1R cells displaying repetitive plateaus. This form of adaptation is caused by the slow inactivation of the persistent sodium current.

To explain recurrent plateaus during a constant current pulse, we have to incorporate in our model an additional slow dynamical process. Therefore, we took into account the slow inactivation of INap that is observed in experiments. IKdr also inactivates slowly but over times that are much longer than the timescale of bursting, which is why we did not take its slow inactivation into account. The one-parameter bifurcation diagram of the basic model without slow inactivation of INap is shown in Figure 8C for GKdr = 5 nS and an injected current reduced to 10 pA (as compared to 20 pA in the previous section), so as to allow for bistability (see Figure 8B2). The GNap-V curve is then S-shaped, as shown in Figure 8B1, with a bistability region for GNap between 1.36 and 1.85 nS. This is in contrast with Figure 7B where the GNap-V curve was monotonic. Adding the slow (de)inactivation of INap then causes periodic transitions between up (plateau) and down (quiescent) states, as illustrated by the top voltage trace on the right of Figure 8C, and the model displayed a stable limit cycle (shown in black in the bifurcation diagram on the left of Figure 8C). This mechanism is known as pseudo-plateau or plateau-like bursting (a.k.a. fold-subcritical HB bursting) (Teka et al., 2011). In contrast with square wave bursting (Bertram et al., 1995; Izhikevich, 2000a; Borisyuk and Rinzel, 2005; Rinzel, 1985), where the up state is a stable limit cycle arising from a supercritical Hopf bifurcation (Stern et al., 2008; Osinga and Tsaneva-Atanasova, 2010; Osinga and Tsaneva-Atanasova, 2010; Osinga et al., 2012), the up state here is a stable fixed point (which coexists with an unstable limit cycle). This is why one does not observe bursts of APs separated by quiescent periods as, for instance, observed in postnatal CA1 pyramidal cells (Golomb et al., 2006) and in neurons of neonatal pre-Bötzinger Complex (Del Negro et al., 2002; Rybak et al., 2004), but recurrent plateaus. The duration of the plateaus and repolarization episodes depends on the values of GNap and GKdr. A voltage-independent time constant τs= 2 ms leads to up and down states of comparable durations (see top-left voltage trace in Figure 8C). In agreement with the bifurcation diagram of Figure 8C, the persistent sodium current inactivates during plateaus (phase 1, see top-right trace in Figure 8C) and de-inactivates during quiescent episodes (phase 3, see top-right trace). Transitions from the up state to the down state occurs when inactivation is maximal (phase 2) and transition from the down state to the up state when it is minimal (phase 4). Adding channel noise preserves bursting but introduces substantial randomness in the duration of plateaus and repolarization episodes (bottom-left voltage trace in Figure 8C). Moreover, it substantially decreases the duration of both plateaus and quiescent episodes by making transition between the two states easier (compare the top and bottom voltage traces on the left, both computed for τs=2ms).

Increasing GNap (or decreasing GKdr) makes plateaus much longer than quiescent episodes (see bottom-right voltage trace in Figure 8C). This again points out to the fact that the ratio of these two conductances is an important control parameter. We also noted that adding the IA current lengthened the quiescent episodes (Figure 7—figure supplement 1).

Slow inactivation of INap also provides an explanation for mixed patterns, where plateaus alternate with spiking episodes (Figure 8A, right). They take place in our model near the transition between RS and PP, as in experiments (see Figure 8A). Slow inactivation can lead to elliptic bursting, notably when the bifurcation HB is subcritical (Izhikevich, 2000b; Su et al., 2004), which is the case here (Figure 8D). The model then displays a stable limit cycle with alternating plateaus and spiking episodes, arising from crossing the bifurcation points HB2 and SN2 back and forth (see bifurcation diagram in Figure 8D and top voltage trace). We note that sufficient de-inactivation of INap for triggering a new plateau (phase 1 in the bottom trace of Figure 8D) may be difficult to achieve during spiking episodes because voltage oscillates over a large range, which tends to average out the variations of the inactivation level. If de-inactivation is not sufficient, the model keeps on spiking repetitively without returning to the plateau state. This is what occurs for cells well within the RS region, far away from the RS-PP transition. It also probably explains why it was difficult in many recorded cells to elicit plateaus by increasing the injected current, activation of INap induced by the larger current being balanced by the increased inactivation.

Altogether, our study shows that a model incorporating the slow inactivation of INap accounts for all the firing patterns displayed by cells from the PP and ME clusters.

Discussion

V1R constitute a homogeneous population when referring to their transcription factor program during development (Benito-Gonzalez and Alvarez, 2012; Stam et al., 2012), their physiological function (Eccles et al., 1956), and their firing pattern at postnatal stages (Bikoff et al., 2016). Surprisingly, our electrophysiological recordings and our cluster analysis clearly indicate that distinct functional classes of V1R are transiently present during development at the onset of the SNA (E11.5–E12.5). Five different groups of embryonic V1R were defined using cluster analysis, according to their firing properties.

Development of the firing pattern of embryonic V1R during SNA

It is generally assumed that, during early development, newborn neurons cannot sustain repetitive firing (Pineda and Ribera, 2010; Spitzer et al., 2000). Later on, neurons progressively acquire the ability to fire repetitively, APs become sharper, and neurons eventually reach their mature firing pattern due to the progressive appearance of a panoply of voltage-gated channels with different kinetics (Moody and Bosma, 2005; Pineda and Ribera, 2010; Spitzer et al., 2000). Our results challenge the general view that SS is a more primitive form of excitability (Pineda and Ribera, 2010). Indeed, we show that repetitive firing and PPs dominated at early stages (E11.5–E12.5), while SS was prevailing only later (E13.5–E16.5).

The different V1R firing patterns observed at E11.5–E12.5 might reflect variability in the maturation level between V1R at a given developmental stage, as suggested for developing MNs (Vinay et al., 2000; Durand et al., 2015). However, this is unlikely since V1R transiently lose their ability to sustain tonic firing or PP after E13.5. The heterogeneous discharge patterns of V1R observed before E13.5 contrast with the unique firing pattern of V1R at postnatal age (Bikoff et al., 2016). Accordingly, the transient functional heterogeneity of V1R rather reflects an early initial developmental stage (E11.5–E13.5) of intrinsic excitability.

The physiological meaning of the transient functional involution of V1R that follows, after E12.5, is puzzling. To our knowledge, such a phenomenon was never described in vertebrates during CNS development. So far, a functional involution was described only for inner hair cells between E16 and P12 (Marcotti et al., 2003a; Marcotti et al., 2003b) and cultured oligodendrocytes (Sontheimer et al., 1989), and it was irreversible. Because most V1R cannot sustain tonic firing after E12.5, it is likely that their participation to SNA is limited to the developmental period before other GABAergic IN subtypes mature and start to produce GABA and glycine (Allain et al., 2004). Interestingly, embryonic V1R begin to recover their capability to sustain tonic firing when locomotor-like activity emerges (Myers et al., 2005; Yvert et al., 2004), a few days before they form their recurrent synaptic loop with MNs (around E18.5 in the mouse embryos; Sapir et al., 2004). One possible function of the transient involution between E12.5 and E15.5 could be to regulate the growth of V1R axons toward their targets. It is indeed known that low calcium fluctuations within growth cones are required for axon growth while high calcium fluctuations stop axon growth and promote growth cone differentiation (Henley and Poo, 2004).

Ion channels mechanisms underlying the functional heterogeneity of embryonic V1R

Blockade of INap leads to single spiking (Boeri et al., 2018), which emphasizes the importance of this current for the occurrence of repetitive firing and plateau potentials in V1R at early developmental stages. But these neurons can also switch from one firing pattern to another, when GKdr is decreased by 4-AP, which emphasizes the importance of IKdr. We found that the main determinant of embryonic V1R firing pattern is the balance between GNap and GKdr.

A Hodgkin–Huxley-type model incorporating a persistent sodium current INap provided a parsimonious explanation of all five firing patterns recorded in the V1R population at E12.5. It provided a mathematical interpretation for the clustering of embryonic V1R shown by the hierarchical analysis and accounted for the effect of 4-AP and riluzole (Boeri et al., 2018) on the discharge. Remarkably, it highlighted how a simple mechanism involving only the two opposing currents INap and IKdr, could produce functional diversity in a population of developing neurons. The model explained why minimal GNap and GKdr are required for firing, and how a synergy between GNap and GKdr controls the firing pattern and accounts for the zonation of the GNap-GKdr plane that is observed experimentally.

Taking into account the slow inactivation of INap to the model allowed us to explain the bursting patterns displayed by cells of the PP and ME clusters. We showed, in particular, that smooth repetitive plateaus could be explained by a pseudo-plateau bursting mechanism (Teka et al., 2011; Osinga and Tsaneva-Atanasova, 2010). Such bursting scenario has been previously studied in models of endocrine cells (Stern et al., 2008; Tsaneva-Atanasova et al., 2010; Tagliavini et al., 2016) and adult neurons (Oster et al., 2015), but rarely observed in experiments (Chevalier et al., 2016). It contrasts with the more common square wave bursting at firing onset, that is, alternating bursts of APs and quiescent episodes, on which most studies of bursting focused (Golomb et al., 2006; Del Negro et al., 2002; Rybak et al., 2004). Our model can also display such square wave bursting, but this occurs for physiologically unrealistic parameter values, so we did not dwell on that bursting mode that we never observed in embryonic V1R. The model also provides a mathematical explanation for mixed events, where bursts of APs alternate with plateau episodes. It is due to an elliptic bursting scenario at the RS-PP transition, a firing range that the aforementioned studies did not examine. This further emphasizes the capacity of our simple model to account for a wide diversity of firing patterns.

Pseudo-plateau bursting has also been observed in the embryonic pre-Bötzinger network (Chevalier et al., 2016). However, it is produced there by the calcium-activated nonselective cationic current ICAN, while INap leads to square wave bursting. Pseudo-plateau bursting, displayed by half of the cells at E16.5, largely disappears at E18.5 because of the change in the balance between ICAN and INap during embryonic maturation (Chevalier et al., 2016). Such a scenario cannot account for the variety of discharge patterns observed in embryonic V1R at the E11.5–12.5 stage of development. Our theoretical analysis and experimental data clearly indicate that the interplay between two opposing currents is necessary to explain all the firing patterns of V1R. Our model is of course not restricted to embryonic V1R, but may also apply to any electrically compact cell, the firing activity of which is dominated by INap and delayed rectifier potassium currents. This is the case of many classes of embryonic cells in mammals at an early stage of their development. It can also apply to the axon initial segment, where GNap and GKdr are known to play the major role in the occurrence of repetitive firing (Kole and Stuart, 2012).

Altogether, our experimental and theoretical results provide a global view of the developmental trajectories of embryonic V1R (see Figure 7F, G). At E12.5, conductances of embryonic V1R are widely spread in the GNap-GKdr plane, which explains the heterogeneity of their firing patterns. This likely results from the random and uncorrelated expression of sodium and potassium channels from cell to cell at this early stage. Between E12.5 and E14.5–15.5, cell size increases, and GKdr with it, while the density of sodium channels decreases (see Figures 1 and 4). The functional involution displayed by V1R between E12.5 and E15.5 thus mainly results from a decrease of GNap coordinated with an increase of GKdr. How these synergistic processes are controlled during this developmental period remains an open issue.

It is important to note that the presence of INap is required for the functional diversity of V1R. Indeed, in the absence of INap, V1R lose their ability to generate plateau potentials or to fire repetitively. More generally, when the diversity of voltage-gated channels is limited, as observed in embryonic neurons (Moody and Bosma, 2005), changes in the balance between IKdr and non inactivating inward currents can modify the firing pattern. This can be achieved not only by INap, but also by other slowly or non-inactivating inward conductances, such as ICAN (Chevalier et al., 2016). Our work also clearly indicates that a change in the firing pattern can only occur if a change in inward conductances cannot be counterbalanced by a corresponding change in outward conductances. This implies that there is no homeostatic regulation of channel density to ensure the robustness of V1R excitability during its early development, contrarily to the mature CNS (O'Leary et al., 2013). In addition, the poor repertoire of voltage-gated channels at this developmental stage precludes channel degeneracy, which is also known to ensure the robustness of excitability in mature neurons (O'Leary et al., 2013).

In conclusion, our study shows that there is no universal pattern of development in embryonic neurons, and it demonstrates that a simple general mechanism involving only two slowly inactivating voltage-gated channels with opposite effects is sufficient to produce a wide variety of firing patterns in immature neurons having a limited repertoire of voltage-gated channels.

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
Genetic reagent
(Mus musculus Swiss)
male and female
GAD1GFPPMID:14574680A cDNA encoding
enhanced GFP (eGFP)
was targeted to the
locus encoding the
gene Gad1
AntibodyAnti-FoxD3
(Guinea pig
polyclonal)
PMID:19088088IF(1:5000)
AntibodyAnti-cleaved
Caspase-3 (Asp175)
(Rabbit polyclonal)
Cell Signaling
Technology
Cat# 9661,
RRID:AB_2341188
IF(1:1000)
Chemical compound, drugTetrodotoxinAlomone LabsCat# T550, CAS No.: 18660-81-61 µM
Chemical compound, drug4-AminopyridineSigma-AldrichCat# A78403,
CAS No.: 504-24-5
0.3–600 µM
Software, algorithmpCLAMP 10.5Molecular DevicesRRID:SCR_014284
Software, algorithmAxograph 1.7.2AxoGraphRRID:SCR_014284
Software, algorithmPRISM 7.0eGraphPad SoftwareRRID:SCR_002798
Software, algorithmImageJ 1.5N.I.H. (USA)RRID:SCR_003070
Software, algorithmAdobe Photoshop CS6Adobe, USARRID:SCR_014199
Software, algorithmR software 3.3.2Cran project
(https://cran.r-project.org/)
RRID:SCR_001905
Software, algorithmXPP-Aut 8.0University of
Pittsburgh;
Pennsylvania; USA
RRID:SCR_001996

Isolated SC preparation

Request a detailed protocol

Experiments were performed in accordance with European Community guiding principles on the care and use of animals (86/609/CEE, CE Off J no. L358, 18 December 1986), French decree no. 97/748 of 19 October 1987 (J Off République Française, 20 October 1987, pp. 12245–12248). All procedures were carried out in accordance with the local ethics committee of local universities and recommendations from the CNRS. We used Gad1GFP knock-in mice to visualize putative GABAergic INs (Tamamaki et al., 2003), as in our previous study (Boeri et al., 2018). To obtain E12.5–E16.5 Gad1GFP embryos, 8–12-week-old wild-type Swiss female mice were crossed with Gad1GFP Swiss male mice.

Isolated mouse SCs from 420 embryos were used in this work and obtained as previously described (Delpy et al., 2008; Scain et al., 2010). Briefly, pregnant mice were anesthetized by intramuscular injection of a mix of ketamine and xylazine and sacrificed using a lethal dose of CO2 after embryos of either sex were removed. Whole SCs were isolated from eGFP-positive embryos and maintained in an artificial cerebrospinal fluid (ACSF) containing 135 mM NaCl, 25 mM NaHCO3, 1 mM NaH2PO4, 3 mM KCl, 11 mM glucose, 2 mM CaCl2, and 1 mM MgCl2 (307 mOsm/kg H2O), continuously bubbled with a 95% O2-5% CO2 gas mixture.

In the lumbar SC of Gad1GFP mouse embryos, eGFP neurons were detected using 488 nm UV light. They were localized in the ventrolateral marginal zone between the motor columns and the ventral funiculi (Stam et al., 2012). Embryonic V1R identity was confirmed by the expression of the forkhead transcription factor Foxd3 (Boeri et al., 2018).

Whole-cell recordings and analysis

Request a detailed protocol

The isolated SC was placed in a recording chamber and was continuously perfused (2 ml/min) at room temperature (RT) (22–26°C) with oxygenated ACSF. Whole-cell patch-clamp recordings of lumbar spinal embryonic V1R were carried out under direct visualization using an infrared-sensitive CCD video camera. Whole-cell patch-clamp electrodes with a resistance of 4–7 MΩ were pulled from thick-wall borosilicate glass using a P-97 horizontal puller (Sutter Instrument Co., USA). They were filled with a solution containing (in mM): 96.4 K methanesulfonate, 33.6 KCl, 4 MgCl2, 4 Na2ATP, 0.3 Na3GTP, 10 EGTA, and 10 HEPES (pH 7.2; 290 mOsm/kg-H2O). This intracellular solution led to an equilibrium potential of chloride ions, ECl, of about –30 mV, close to the physiological values measured at E12.5 in spinal MNs (Delpy et al., 2008). The junction potential (6.6 mV) was systematically corrected offline.

Signals were recorded using Multiclamp 700B amplifiers (Molecular Devices, USA). Data were low-pass filtered (2 kHz), digitized (20 kHz) online using Digidata 1440A or 1550B interfaces, and acquired using pCLAMP 10.5 software (Molecular Devices, USA). Analyses were performed offline using pCLAMP 10.5 software packages (Molecular Devices; RRID:SCR_014284) and Axograph 1.7.2 (AxoGraph; RRID:SCR_002798).

In voltage-clamp mode, voltage-dependent K+ currents (IKv) were elicited in the presence of 1 μM TTX (Alomone Labs, Cat# T550, CAS No.: 18660-81-6) by 500 ms depolarizing voltage steps (10 mV increments, 10 s interval) after a prepulse of 300 ms at VH = –100 mV. To isolate IKdr, voltage steps were applied after a 300 ms prepulse at VH = –30 mV that inactivated the low threshold transient potassium current IA. IA was then obtained by subtracting offline IKdr from the total potassium current IKv. Capacitance and leak current were subtracted using online P/4 protocol provided by pCLAMP 10.5.

In current-clamp mode, V1R discharge was elicited using 2 s depolarizing current steps (from 0 to ≈ 50 pA in 5–10 pA increments, depending on the input resistance of the cell) with an 8 s interval to ensure that the membrane potential returned to VH. When a cell generated a sustained discharge, the intensity of the depolarizing pulse was reduced to the minimal value compatible with repetitive firing.

INap was measured in voltage-clamp mode using a 70 mV/s depolarizing voltage ramp (Huang and Trussell, 2008). This speed was slow enough to preclude substantial contamination by the inactivating transient current and fast enough to avoid substantial inactivation of INap. Subtraction of the current evoked by the voltage ramp in the presence of 1 μM TTX from the control voltage ramp-evoked current revealed INap.

Pharmacological reagents

Request a detailed protocol

During patch-clamp recordings, bath application of TTX (1 µM, Alomone Labs, Cat# T550, CAS No.: 18660-81-6) or 4-AP (Sigma-Aldrich Cat# T550, CAS No.: 18660-81-6) was done using 0.5 mm diameter quartz tubing positioned, under direct visual control, 50 µm away from the recording area. The quartz tubing was connected to six solenoid valves linked with six reservoirs via a manifold. Solutions were gravity-fed into the quartz tubing. Their application was controlled using a VC-8 valve controller (Warner Instruments, USA).

4-AP was used to block IKdr. To determine the concentration–response curve, I-V curves of IKdr for different concentrations of 4-AP (0.3–300 μM) were compared to the control curve obtained in the absence of 4-AP. The percentage of inhibition for a given concentration was calculated by dividing the peak intensity of IKdr by the peak value obtained in control condition. The obtained normalized concentration–response curves were fitted using the Hill equation:

100-Imin1+([4-AP]/IC50)nH+Imin

where [4-AP] is the 4-AP concentration, Imin is the residual current (in percentage of the peak IKdr), 100-Imin is the maximal inhibition achieved for saturating concentration of 4-AP, IC50 is the 4-AP concentration producing half of the maximal inhibition, and nH is the Hill coefficient. Curve fitting was performed using KaleidaGraph 4.5 (Synergy Software, USA).

Immunohistochemistry and confocal microscopy

Request a detailed protocol

E14.5 embryos were collected from pregnant females. Once dissected out of their yolk sac, SCs were dissected and immediately immersion-fixed in phosphate buffer (PB 0.1 M) containing 4% paraformaldehyde (PFA; freshly prepared in PB, pH 7.4) for 1 hr at 4°C. Whole SCs were then rinsed out in 0.12 M PB at 4°C, thawed at RT, washed in PBS, incubated in NH4Cl (50 mM), diluted in PBS for 20 min, and then permeabilized for 30 min in a blocking solution (10% goat serum in PBS) with 0.2% Triton X-100. They were incubated for 48 hr at 4°C in the presence of the following primary antibodies: guinea pig anti-FoxD3 (1:5000, gift from Carmen Birchmeier and Thomas Müller of the Max Delbrück Center for Molecular Medicine in Berlin) and rabbit anti-cleaved Caspase-3 (1:1000, Cell Signaling Technology Cat# 9661, RRID:AB_2341188). SCs were then washed in PBS and incubated for 2 hr at RT with secondary fluorescent antibodies (goat anti-rabbit-conjugated 649; donkey anti-guinea pig-conjugated Alexa Fluor 405 [1:1000, ThermoFisher]) diluted in 0.2% Triton X-100 blocking solution. After washing in PBS, SCs were dried and mounted in Mowiol medium (Millipore, Molsheim, France). Preparations were then imaged using a Leica SP5 confocal microscope. Immunostaining was observed using a 40× oil-immersion objective with a numerical aperture of 1.25, as well as with a 63× oil-immersion objective with a numerical aperture of 1.32. Serial optical sections were obtained with a Z-step of 1 µm (40×) and 0.2–0.3 µm (63×). Images (1024 × 1024; 12-bit color scale) were stored using Leica software LAS-AF and analyzed using ImageJ 1.5 (N.I.H., USA, RRID:SCR_003070) and Adobe Photoshop CS6 (Adobe, USA, RRID:SCR_014199) software.

Cluster analysis

Request a detailed protocol

To classify the firing patterns of embryonic V1R, we performed a hierarchical cluster analysis on a population of 163 cells. Each cell was characterized by three quantitative measures of its firing pattern (see legend of Figure 5). After normalizing these quantities to zero mean and unit variance, we performed a hierarchical cluster analysis using the hclust function in R 3.3.2 software (Cran project; https://cran.r-project.org/; RRID:SCR_001905) that implements the complete linkage method. The intercluster distance was defined as the maximum Euclidean distance between the points of two clusters, and, at each step of the process, the two closest clusters were merged into a single one, thus constructing progressively a dendrogram. Clusters were then displayed in data space using the dendromat function in the R package ‘squash’ dedicated to color-based visualization of multivariate data. The best clustering was determined using the silhouette measure of clustering consistency (Rousseeuw, 1987). The silhouette of a data point, based on the comparison of its distance to other points in the same cluster and to points in the closest cluster, ranges from −1 to 1. A value near 1 indicates that the point is well assigned to its cluster, a value near 0 indicates that it is close to the decision boundary between two neighboring clusters, and negative values may indicate incorrect assignment to the cluster. This allowed us to identify an optimal number k of clusters by maximizing the overall average silhouette over a range of possible values for k (Rousseeuw, 1987) using the silhouette function in the R package ‘cluster’.

Biophysical modeling

Request a detailed protocol

To understand the relationship between the voltage-dependent membrane conductances and the firing patterns of embryonic V1R, we relied on a single-compartment conductance-based model that included the leak current, the transient and persistent components of the sodium current, INat and INap, a delayed rectifier potassium current IKdr, and the inactivating potassium current IA revealed by experiments. Voltage evolution then followed the equation

(1) CindVdt=Gin(VrV)+GNatm3h(ENaV)+GNapmp3s(VNaV)+GKdrn3(EKV)+GAmAhA(EKV)+I

where Cin is the input capacitance; Gin the input conductance; GNat, GNap, GKdr, and GA the maximal conductances of the aforementioned currents; m,mp, n, and mA their activation variables; h the inactivation variable of INat; s the slow inactivation variable of INap; and hA the inactivation variable of IA. Vr is the baseline potential imposed by ad hoc current injection in current-clamp experiments; ENa and EK are the Nernst potentials of sodium and potassium ions, and I the injected current. All gating variables satisfied equations of the form

τxdxdt=x(V)x,

where the (in)activation curves were modeled by a sigmoid function of the form

x=11+exp(-(V-Vx)/kx)

with kx being positive for activation and negative for inactivation. The time constant τx was voltage-independent except for the inactivation variables h and s. The activation variable mA of IA was assumed to follow instantaneously voltage changes.

The effect of channel noise was investigated with a stochastic realization of the model, where channels kinetics were described by Markov-type models, assuming a unitary channel conductance of 10 pS for all channels.

Choice of model parameters

Request a detailed protocol

Most model parameters were chosen on the basis of experimental measurements performed in the present study or already reported (Boeri et al., 2018). Parameters that could not be constrained from our experimental data were chosen from an experimentally realistic range of values. Vr was set at –60 mV as in experiments (see Table 1). Cin (average 13.15 pF, 50% between 11.9 and 15.1 pF, only 18 cells out of 246 in the first quartile below 7.2 pF or in the fourth quartile above 19 pF) and Gin (50% of cells between 0.71 and 1.18 nS, only 7 out of 242 with input conductance above 2 nS) were not spread much in the cells recorded at E12.5, which showed that most embryonic V1R were of comparable size. Interestingly, Cin and Gin were not correlated, which indicated that the input conductance was determined by the density of leak channels rather than by the sheer size of the cell. Moreover, no correlation was observed between the passive properties and the firing pattern (Boeri et al., 2018). Therefore, we always set Gin and Cin to 1 nS and 13 pF in the model (except in Figure 6—figure supplement 2), close to the experimental medians (0.96 nS and 13.15 pF, respectively). The membrane time constant Cin/Gin was then equal to 13 ms, which was also close to the experimental median (13.9 ms, N = 241).

Table 1
Model parameters.
ParameterBasic modelModel with slow inactivation of INap
Passive parameters
Input conductance Gin1 nSSame
Input capacitance Cin13 pF (E12.5, Figures 7B, C, D, F and 8B– D) or 18 pF (E14.5, Figure 7G)13 pF
Resting potential Vr−60 mVSame
Injected current I20 pA (Figure 7B–G)10 pA (Figure 8C) or 12 pA (Figure 8D) variable in Figure 8B
Transient sodium current Inat
Maximal conductance GNat20 nSSame
Reversal potential ENa60 mV
Activation exponent3
Mid-activation Vm−26 mV
Steepness of activation km9.5 mV
Activation time constant1.5 ms
Mid-inactivation Vh−45 mV
Steepness of inactivation Kh−5 mV
Inactivation time constant τmVoltage-dependent (see Material s and methods)
Persistent sodium current INap
Maximal conductanceVariable (see text and figure captions)Same
Mid-activation voltage−36 mVSame
Mid-inactivation Vs−30 mV
Steepness of inactivation ks−5 mV
Inactivation time constantSlow inactivation not included2 s
Delayed rectifier potassium current IKdr
Maximal conductance GKdrVariable (see text and figure captions)Same
Reversal potential EK−96 mV
Activation exponent3
Mid-activation Vn−20 mV
Steepness of activation kn15 mV
Activation time constant τm10 ms
Potassium A current IA (when included in the basic model)
Maximal conductance GAEqual to GKdrNever included
Mid-activation VmA−30 mV
Steepness of activation kmA12 mV
Activation time constantInstantaneous activation
Mid-inactivation VhA−70 mV
Steepness of inactivation khA−7 mV
Inactivation time constant τhA23 ms

ENa was set to 60 mV (see Boeri et al., 2018). The activation curve of INap was obtained by fitting experimental data, leading to an average mid-activation of –36 mV and an average steepness of 9.5 mV. The experimentally measured values of GNap were in the range 0–2.2 nS. We assumed that the activation curve of INat was shifted rightward by 10 mV in comparison to INap. No experimental data was available for the inactivation of INat. We chose a mid-inactivation voltage Vh = –45 mV and a steepness kh = –5 mV. We also assumed that the activation time constant of both INat and INap was 1.5 ms, and that the inactivation time constant was voltage-dependent: τhV=16.5-13.5tanh((V+20)/15), decreasing by one order of magnitude (from 30 ms down to 3 ms) with the voltage increase. This enabled us to account for the shape of the APs recorded in experiments, showing a slow rise time and rather long duration. The conductance GNat was not measured experimentally. When choosing a reasonable value of 20 nS for GNat, the model behaved very much as recorded embryonic V1R: with similar current threshold (typically 10–20 pA) and stable plateau potentials obtained for the largest values of GNap.

When taking into account slow inactivation of INap (see Figure 8), we chose Vs = –30 mV for the mid-inactivation voltage and set the steepness ks at –5 mV (as for the inactivation of INat). For simplicity, we assumed that the inactivation time constant was voltage-independent and set at 2 s.

EK was set to the experimentally measured value of –96 mV (Boeri et al., 2018). The activation parameters of IKdr were obtained by fitting the experimental data: Vn = –20 mV, kn = 15 mV, τn = 10 ms, and an activation exponent of 3. The activation and inactivation properties of IA were also chosen based on experimental measurements. Accordingly, VmA = –30 mV, kmA = –12 mV, VhA = –70 mV, khA = –7 mV, and τhA = 23 ms. When IA was taken into account, we assumed that GA=GKdr, consistently with experimental data (see Figure 6—figure supplement 1).

Numerical simulations and dynamical systems analysis

Request a detailed protocol

We integrated numerically the deterministic model using the freeware XPPAUT 8.0 (University of Pittsburgh; Pennsylvania; USA; RRID:SCR_001996) (Ermentrout, 2002) and a standard fourth-order Runge–Kutta algorithm. XPPAUT was also used to compute one-parameter and two-parameter bifurcation diagrams. The stochastic version of the model was also implemented in XPPAUT and computed with a Gillespie’s algorithm (Gillespie, 1976).

To investigate the dynamics of the model with slow inactivation of INap, we relied on numerical simulations together with fast/slow dynamics analysis (Witelski and Bowen, 2015). In this approach, one distinguishes slow dynamical variables (here only s) and fast dynamical variables. Slow variables vary little at the time scale of fast variables and may therefore be considered as constant parameters of the fast dynamics in first approximation. In contrast, slow variables are essentially sensitive to the time average of the fast variables, much more than to their instantaneous values. This separation of time scales allows one to conduct a phase plane analysis of the full dynamics.

Statistics

Samples sizes (n) were determined based on previous experience. The number of embryos (N) is indicated in the main text and figure captions. No power analysis was employed, but sample sizes are comparable to those typically used in the field. All values were expressed as mean with standard error of mean (SEM). Statistical significance was assessed by non-parametric Kruskal–Wallis test with Dunn’s post hoc test for multiple comparisons, Mann–Whitney test for unpaired data or Wilcoxon matched pairs test for paired data using GraphPad Prism 7.0e Software (USA). Significant changes in the proportions of firing patterns with age were assessed by chi-square test for large sample and by Fisher's exact test for small sample using GraphPad Prism 7.0e Software (GraphPad Software; RRID:SCR_002798). Significance was determined as *p<0.05, **p<0.01, or ***p<0.001. The exact p values are mentioned in the result section or in the figure captions.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for Figures 3 (Source data files for cluster analysis).

References

  1. Book
    1. Borisyuk A
    2. Rinzel J
    (2005)
    Understanding neuronal dynamics by geometrical dissection of minimal models
    In: Chow C, Gutkin B, Hansel D, Meunier C, Dalibard J, editors. Models and Methods in Neurophysics. Proc Les Houches Summer School 2003, (Session LXXX). Elsevier. pp. 19–72.
    1. Izhikevich EM
    (2000a) Neural excitability, spiking and bursting
    International Journal of Bifurcation and Chaos 10:1171–1266.
    https://doi.org/10.1142/S0218127400000840
  2. Book
    1. Pineda R
    2. Ribera A
    (2010)
    Evolution of the Action Potential
    In: Kaas JH, editors. Evolution of Nervous System. Elsevier. pp. 211–238.
  3. Book
    1. Rinzel J
    (1985) Bursting oscillations in an excitable membrane model
    In: Sleeman B, Jarvis R, editors. Ordinary and Partial Differential Equations Lecture Notes in Mathematics. Berlin, Heidelberg: Springer. pp. 304–316.
    https://doi.org/10.1007/BFb0074739
    1. Witelski T
    2. Bowen M
    (2015)
    Methods of Mathematical Modelling
    201–213, Fast/slow Dynamical Systems, Methods of Mathematical Modelling, Cham, Springer, 10.1007/978-3-319-23042-9_10.

Article and author information

Author details

  1. Juliette Boeri

    INSERM, UMR_S 1130, CNRS, UMR 8246, Neuroscience Paris Seine, Institute of Biology Paris Seine, Sorbonne Univ, Paris, France
    Contribution
    Formal analysis, Investigation
    Contributed equally with
    Claude Meunier and Hervé Le Corronc
    Competing interests
    No competing interests declared
  2. Claude Meunier

    Centre de Neurosciences Intégratives et Cognition, CNRS UMR 8002, Institut Neurosciences et Cognition, Université de Paris, Paris, France
    Contribution
    Conceptualization, Resources, Software, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology, Writing - review and editing
    Contributed equally with
    Juliette Boeri and Hervé Le Corronc
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8216-3991
  3. Hervé Le Corronc

    1. INSERM, UMR_S 1130, CNRS, UMR 8246, Neuroscience Paris Seine, Institute of Biology Paris Seine, Sorbonne Univ, Paris, France
    2. Univ Angers, Angers, France
    Contribution
    Formal analysis, Validation, Investigation, Visualization, Methodology
    Contributed equally with
    Juliette Boeri and Claude Meunier
    Competing interests
    No competing interests declared
  4. Pascal Branchereau

    Univ. Bordeaux, CNRS, EPHE, INCIA, Bordeaux, France
    Contribution
    Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3972-8229
  5. Yulia Timofeeva

    1. Department of Computer Science and Centre for Complexity Science, University of Warwick, Coventry, United Kingdom
    2. Department of Clinical and Experimental Epilepsy, UCL Queen Square Institute of Neurology, University College London, London, United Kingdom
    Contribution
    Conceptualization, Resources, Software, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3178-7830
  6. François-Xavier Lejeune

    Institut du Cerveau et de la Moelle Epinière, Centre de Recherche CHU Pitié-Salpétrière, INSERM, U975, CNRS, UMR 7225, Sorbonne Univ, Paris, France
    Contribution
    Data curation, Software, Formal analysis, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  7. Christine Mouffle

    INSERM, UMR_S 1130, CNRS, UMR 8246, Neuroscience Paris Seine, Institute of Biology Paris Seine, Sorbonne Univ, Paris, France
    Contribution
    Resources, Data curation
    Competing interests
    No competing interests declared
  8. Hervé Arulkandarajah

    INSERM, UMR_S 1130, CNRS, UMR 8246, Neuroscience Paris Seine, Institute of Biology Paris Seine, Sorbonne Univ, Paris, France
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  9. Jean Marie Mangin

    INSERM, UMR_S 1130, CNRS, UMR 8246, Neuroscience Paris Seine, Institute of Biology Paris Seine, Sorbonne Univ, Paris, France
    Contribution
    Writing - review and editing
    Competing interests
    No competing interests declared
  10. Pascal Legendre

    INSERM, UMR_S 1130, CNRS, UMR 8246, Neuroscience Paris Seine, Institute of Biology Paris Seine, Sorbonne Univ, Paris, France
    Contribution
    Conceptualization, Resources, Data curation, Software, Supervision, Funding acquisition, Validation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Antonny Czarnecki
    For correspondence
    pascal.legendre@inserm.fr
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5086-4515
  11. Antonny Czarnecki

    1. INSERM, UMR_S 1130, CNRS, UMR 8246, Neuroscience Paris Seine, Institute of Biology Paris Seine, Sorbonne Univ, Paris, France
    2. Univ. Bordeaux, CNRS, EPHE, INCIA, Bordeaux, France
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Validation, Investigation, Methodology, Writing - original draft
    Contributed equally with
    Pascal Legendre
    For correspondence
    antonny.czarnecki@u-bordeaux.fr
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5104-034X

Funding

Fondation pour la Recherche Médicale (DEQ20160334891)

  • Pascal Legendre

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Susanne Bolte, Jean-François Gilles, and France Lam for assistance with confocal imaging (IBPS imaging facility) and IBPS rodent facility team for animal care and production. We thank University Paris Descartes for hosting Yulia Timofeeva as an invited professor. This work was supported by INSERM, CNRS, Sorbonne Université (Paris), Université de Bordeaux, Université Paris Descartes, and Fondation pour la Recherche Médicale.

Ethics

Animal experimentation: Experiments were performed in accordance with European Community guiding principles on the care and use of animals (86/609/CEE, CE Off J no. L358, 18 December 1986), French decree no. 97/748 of October 19, 1987 (Journal Officiel République Française, 20 October 1987, pp. 12245-12248). All procedures were carried out in accordance with the local ethics committee of local Universities and recommendations from the CNRS. pregnant mice were anesthetized by intramuscular injection of a mix of ketamine and xylazine and sacrificed using a lethal dose of CO2 after embryos of either sex were removed. Every effort was made to minimize suffering.

Copyright

© 2021, Boeri et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 734
    views
  • 137
    downloads
  • 5
    citations

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Juliette Boeri
  2. Claude Meunier
  3. Hervé Le Corronc
  4. Pascal Branchereau
  5. Yulia Timofeeva
  6. François-Xavier Lejeune
  7. Christine Mouffle
  8. Hervé Arulkandarajah
  9. Jean Marie Mangin
  10. Pascal Legendre
  11. Antonny Czarnecki
(2021)
Two opposite voltage-dependent currents control the unusual early development pattern of embryonic Renshaw cell electrical activity
eLife 10:e62639.
https://doi.org/10.7554/eLife.62639

Share this article

https://doi.org/10.7554/eLife.62639

Further reading

    1. Neuroscience
    Ana Maria Ichim, Harald Barzan ... Raul Cristian Muresan
    Review Article

    Gamma oscillations in brain activity (30–150 Hz) have been studied for over 80 years. Although in the past three decades significant progress has been made to try to understand their functional role, a definitive answer regarding their causal implication in perception, cognition, and behavior still lies ahead of us. Here, we first review the basic neural mechanisms that give rise to gamma oscillations and then focus on two main pillars of exploration. The first pillar examines the major theories regarding their functional role in information processing in the brain, also highlighting critical viewpoints. The second pillar reviews a novel research direction that proposes a therapeutic role for gamma oscillations, namely the gamma entrainment using sensory stimulation (GENUS). We extensively discuss both the positive findings and the issues regarding reproducibility of GENUS. Going beyond the functional and therapeutic role of gamma, we propose a third pillar of exploration, where gamma, generated endogenously by cortical circuits, is essential for maintenance of healthy circuit function. We propose that four classes of interneurons, namely those expressing parvalbumin (PV), vasointestinal peptide (VIP), somatostatin (SST), and nitric oxide synthase (NOS) take advantage of endogenous gamma to perform active vasomotor control that maintains homeostasis in the neuronal tissue. According to this hypothesis, which we call GAMER (GAmma MEdiated ciRcuit maintenance), gamma oscillations act as a ‘servicing’ rhythm that enables efficient translation of neural activity into vascular responses that are essential for optimal neurometabolic processes. GAMER is an extension of GENUS, where endogenous rather than entrained gamma plays a fundamental role. Finally, we propose several critical experiments to test the GAMER hypothesis.

    1. Neuroscience
    John P Grogan, Matthias Raemaekers ... Sanjay G Manohar
    Research Article

    Motivation depends on dopamine, but might be modulated by acetylcholine which influences dopamine release in the striatum, and amplifies motivation in animal studies. A corresponding effect in humans would be important clinically, since anticholinergic drugs are frequently used in Parkinson’s disease, a condition that can also disrupt motivation. Reward and dopamine make us more ready to respond, as indexed by reaction times (RT), and move faster, sometimes termed vigour. These effects may be controlled by preparatory processes that can be tracked using electroencephalography (EEG). We measured vigour in a placebo-controlled, double-blinded study of trihexyphenidyl (THP), a muscarinic antagonist, with an incentivised eye movement task and EEG. Participants responded faster and with greater vigour when incentives were high, but THP blunted these motivational effects, suggesting that muscarinic receptors facilitate invigoration by reward. Preparatory EEG build-up (contingent negative variation [CNV]) was strengthened by high incentives and by muscarinic blockade, although THP reduced the incentive effect. The amplitude of preparatory activity predicted both vigour and RT, although over distinct scalp regions; frontal activity predicted vigour, whereas a larger, earlier, central component predicted RT. The incentivisation of RT was partly mediated by the CNV, though vigour was not. Moreover, the CNV mediated the drug’s effect on dampening incentives, suggesting that muscarinic receptors underlie the motivational influence on this preparatory activity. Taken together, these findings show that a muscarinic blocker impairs motivated action in healthy people, and that medial frontal preparatory neural activity mediates this for RT.
