Investigation of Drosophila fruitless neurons that express Dpr/DIP cell adhesion molecules

  1. Savannah G Brovero
  2. Julia C Fortier
  3. Hongru Hu
  4. Pamela C Lovejoy
  5. Nicole R Newell
  6. Colleen M Palmateer
  7. Ruei-Ying Tzeng
  8. Pei-Tseng Lee
  9. Kai Zinn
  10. Michelle N Arbeitman  Is a corresponding author
  1. Department of Biomedical Sciences and Program of Neuroscience, Florida State University, College of Medicine, United States
  2. Department of Molecular and Human Genetics, Baylor College of Medicine, United States
  3. Division of Biology and Biological Engineering, California Institute of Technology, United States
Research Article
  • Cited 0
  • Views 858
  • Annotations
Cite this article as: eLife 2021;10:e63101 doi: 10.7554/eLife.63101
Voice your concerns about research culture and research communication: Have your say in our 7th annual survey.

Abstract

Drosophila reproductive behaviors are directed by fruitless neurons. A reanalysis of genomic studies shows that genes encoding dpr and DIP immunoglobulin superfamily (IgSF) members are expressed in fru P1 neurons. We find that each fru P1 and dpr/DIP (fru P1dpr/DIP) overlapping expression pattern is similar in both sexes, but there are dimorphisms in neuronal morphology and cell number. Behavioral studies of fru P1dpr/DIP perturbation genotypes indicate that the mushroom body functions together with the lateral protocerebral complex to direct courtship behavior. A single-cell RNA-seq analysis of fru P1 neurons shows that many DIPs have high expression in a small set of neurons, whereas the dprs are often expressed in a larger set of neurons at intermediate levels, with a myriad of dpr/DIP expression combinations. Functionally, we find that perturbations of sex hierarchy genes and of DIP-ε change the sex-specific morphologies of fru P1DIP-α neurons.

Introduction

A goal of neuroscience research is to gain molecular, physiological and circuit-level understanding of complex behavior. Drosophila melanogaster reproductive behaviors are a powerful and tractable model, given our knowledge of the molecular-genetic and neural anatomical basis of these behaviors in both sexes. Small subsets of neurons have been identified as critical for all aspects of reproductive behaviors. These neurons express sex-specific transcription factors encoded by doublesex (dsx) and fruitless (fru; fru P1 transcripts are spliced under sex hierarchy regulation; Figure 1A) (reviewed in Dauwalder, 2011; Yamamoto et al., 2014; Andrew et al., 2019; Leitner and Ben-Shahar, 2020). dsx- and fru P1-expressing neurons are present in males and females in similar positions, and arise through a shared developmental trajectory (Ren et al., 2016), although these neurons direct very different behaviors in males and females. Males display an elaborate courtship ritual that includes chasing the female, tapping her with his leg, and production of song with wing vibration (reviewed in Greenspan and Ferveur, 2000). The female decides whether she will mate and then, if mated, displays post-mating behaviors that include egg laying, changes in diet, and changes in receptivity to courtship (see Laturney and Billeter, 2014; Aranha and Vasconcelos, 2018; Newell et al., 2020).

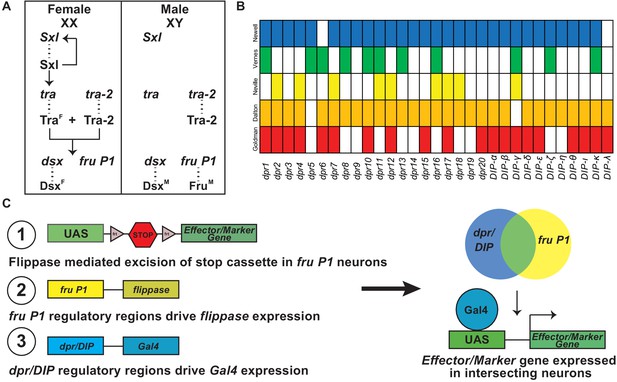

Overview of sex hierarchy and experimental design.

(A) The Drosophila somatic sex determination hierarchy is an alternative pre-mRNA splicing cascade (reviewed in Andrew et al., 2019). The presence of two X chromosomes in females results in splicing of Sxl pre-mRNA, such that functional Sxl is produced. Sxl regulates Sxl and tra pre-mRNA splicing, resulting in continued production of functional Sxl and Tra in females. Tra and Tra-2 regulate the pre-mRNA splicing of dsx and fru P1 in females, whereas in males dsx and fru P1 are spliced by the default pre-mRNA splicing pathway. The sex-specific splicing results in production of sex-specific Dsx and Fru transcription factors (Burtis and Baker, 1989; Ito et al., 1996; Ryner et al., 1996). dsx regulates sex differences that lead to both dimorphic behavior and gross anatomical morphological differences, whereas fru P1 regulates sex differences that lead to dimorphic behaviors. (B) Previous genome-wide studies found that dpr/DIPs are regulated downstream of fru P1, FruM, and/or are expressed in fru P1 neurons (Goldman and Arbeitman, 2007; Dalton et al., 2013; Neville et al., 2014; Vernes, 2015; Newell et al., 2016). (C) A genetic intersectional strategy was used to express marker or effector genes in fru P1dpr/DIP neurons. This strategy takes advantage of the two-component Gal4/UAS expression system, and Flippase-mediated removal of a stop cassette within an expression vector. Expression of the marker/effector gene requires both removal of the stop cassette via fru P1-flippase (flp) expression and expression of Gal4 via dpr/DIP regulation. Therefore, only neurons that express both fru P1 and one of the dpr/DIPs have expression of the effector or marker (shown on right).

Figure 1—source data 1

Data table of FruM binding sites in dpr and DIP genes for three FruM isoforms.

This is an excel table that contains the number of times a FruM binding site is found in either a dpr or DIP gene.

https://cdn.elifesciences.org/articles/63101/elife-63101-fig1-data1-v2.docx

Sex differences in the nervous system that contribute to reproductive behaviors include dimorphism in dsx and fru P1 neuron number, connectivity, and physiology. The molecules and mechanisms that direct these differences are beginning to be elucidated. Several genome-wide studies have been performed to find genes that are regulated by male-specific Fru (FruM) or are expressed in fru P1 neurons. These independent studies examined fru P1 loss-of-function and gain-of-function gene expression changes, fru P1 cell-type-specific gene expression, and the direct targets for FruM binding (Goldman and Arbeitman, 2007; Dalton et al., 2013; Neville et al., 2014; Vernes, 2015; Newell et al., 2016). A reanalysis of these genomic studies demonstrates that cell adhesion molecules that are members of the immunoglobulin superfamily (IgSF) are regulated by male-specific Fru (FruM) or are expressed in fru P1 neurons (see Figure 1B). In this study, we focus on an interacting set of IgSF molecules encoded by dprs/DIPs.

The Dpr and DIP proteins are membrane-linked cell adhesion molecules with N-terminal extracellular Ig domains and C-terminal glycosyl-phosphatidylinositol (GPI) linkage sequences or transmembrane domains. The Dpr proteins have two extracellular Ig domains, whereas DIPs have three (reviewed in Zinn and Özkan, 2017; Sanes and Zipursky, 2020). In addition to the genomic studies, our previous work showed that dpr1, the founding member of the dpr family (Nakamura et al., 2002), has a role in gating the timing of the male courtship steps (Goldman and Arbeitman, 2007). The finding that cell adhesion molecules are regulated by FruM fits well with studies that showed that there are sex-differences in arborization volumes throughout the central nervous system (Cachero et al., 2010; Yu et al., 2010). Thus, it was predicted that differences in neuronal connectivity are one mechanism to generate behavioral dimorphism (Cachero et al., 2010; Yu et al., 2010).

In-depth, in vitro analyses of Dpr/DIP protein-protein interactions have shown that most DIPs interact with multiple Dprs, and vice versa. Additionally, 4 of the 11 DIPs and 2 of the 21 Dprs display homophilic interactions, and there are two heterophilic interactions between Dprs (Özkan et al., 2013; Carrillo et al., 2015; Cosmanescu et al., 2018). Functional analyses of the Dprs and DIPs have revealed roles in synaptic connectivity and specificity of neuronal targeting in the Drosophila neuromuscular junction, visual system, and olfactory system (Carrillo et al., 2015; Tan et al., 2015; Barish et al., 2018; Xu et al., 2018; Ashley et al., 2019; Courgeon and Desplan, 2019; Menon et al., 2019; Venkatasubramanian et al., 2019; Xu et al., 2019). Additionally, cell adhesion molecules have already been shown to be important for sculpting dimorphism in fru P1 neurons, with studies of the IgSF member encoded by roundabout (robo) shown to be a direct target of FruM and responsible for dimorphic projections and morphology (Mellert et al., 2010; Ito et al., 2016). Thus, the Dprs/DIPs are good candidates for directing sexual dimorphisms in connectivity and morphology that may underlie differences in reproductive behavior.

Here, we further examine the expression repertoires of dprs/DIPs in fru P1 neurons using immunofluorescence analyses. We examine the sets of neurons that express fru P1 and one of the dprs or DIPs, using a genetic intersectional strategy (fru P1dpr/DIP; Figure 1C). Additionally, this genetic strategy provides a method to examine the roles of neurons expressing fru P1 and a dpr or DIP in directing male reproductive behaviors. Here, we elucidate which combinations of neurons lead to atypical courtship behaviors when activated or silenced. A single-cell RNA-seq analysis shows the myriad and unique combinations of dprs/DIPs expressed in individual fru P1 neurons, with expression of at least one dpr or DIP in every fru P1 neuron examined. Additionally, the single-cell RNA-seq analyses show that many dprs are expressed in a large number of neurons at intermediate levels, whereas most DIPs have higher expression in fewer neurons. Genetic perturbation screens reveal functional roles of the sex hierarchy, and DIP-ε, in establishing sex-specific architecture of fru P1 ∩ DIP-α neurons.

Results

dprs and DIPs are expressed in fru P1 neurons, with expression regulated by FruM

A reanalysis of previous genomic studies shows that dprs and DIPs are regulated by FruM and are expressed in fru P1 neurons (Figure 1B). These independent studies examined fru P1 loss-of-function (Goldman and Arbeitman, 2007) and FruM gain-of-function/overexpression (Dalton et al., 2013) gene expression changes, fru P1 cell-type-specific gene expression in males and females (Newell et al., 2016), and identified direct genomic targets of FruM (Neville et al., 2014; Vernes, 2015). The majority of the dpr/DIP genes are identified as regulated by FruM or expressed in fru P1 neurons in at least three of these independent genome-wide studies (Figure 1B). Furthermore, a computational DNA-binding site analysis confirms FruM regulation. There is alternative splicing at the 3’ end of fru P1 transcripts that results in one DNA-binding-domain-encoding-exon being retained out of five potential exons. The predominant isoforms of FruM contain either the A, B, or C DNA-binding domain that each bind a different DNA sequence motif (genome-wide analysis described in Dalton et al., 2013). When we search for the presence of the three DNA sequence motifs near/in the dpr/DIP loci, FruM binding sites were found near/in all but two dpr/DIP loci that are examined (Figure 1—source data 1). Further evidence that dprs/DIPs have a role in fru P1 neurons comes from a live-tissue staining approach, using epitope-tagged, extracellular regions of a Dpr or DIP to examine binding (as done in Fox and Zinn, 2005; Lee et al., 2009; Özkan et al., 2013). This revealed sexual dimorphism in binding of tagged Dpr/DIP proteins to fru P1 neurons in the subesophageal ganglion brain region, with more neurons with overlap detected in males (Brovero et al., 2020). Together, these results demonstrate that every dpr and DIP gene is either regulated by FruM or expressed in fru P1 neurons in either males and females.

A genetic intersectional approach identifies neurons that express both fru P1 and a dpr or DIP in males and females

The above results led us to examine the expression patterns in the central nervous system of neurons that express both fru P1 and a dpr or DIP, using a genetic intersectional approach (Figure 1C). This approach restricts expression of a membrane-bound-GFP marker to neurons with intersecting expression of fru P1 and a dpr or DIP (fru P1dpr/DIP). This is accomplished using a UAS-membrane-bound GFP reporter transgene that requires removal of an FRT-flanked stop cassette for expression. Removal of the stop cassette is mediated by fru P1-driven FLP recombinase (Yu et al., 2010). This system is used in combination with a collection of dpr- and DIP-Gal4 transgenic strains (Figure 1CVenken et al., 2011; Nagarkar-Jaiswal et al., 2015a; Nagarkar-Jaiswal et al., 2015b; Tan et al., 2015; Lee et al., 2018). We primarily focused the analysis on 4- to 7-day-old adults (Figure 2 and Figure 3), which are sexually mature, and 0- to 24-hr adults to determine if the expression patterns change during adult stages (Figure 2—figure supplement 1 and Figure 3—figure supplement 1). Additionally, behavioral studies were performed on 4–7 day adults (Figure 4, Figure 5, Figure 6), so the expression and behavioral data can be co-analyzed (Figure 7). At a gross morphological level, the patterns we observe in older 4- to 7-day-old adults are also present in 0–24 hr adults, though in some cases expression in the mushroom body was not robust at the earlier 0–24 hr time point.

Figure 2 with 1 supplement see all
Visualization of fru P1 ∩ dpr neurons.

Maximum intensity projections of brain and ventral nerve cord tissues from 4- to 7-day-old male and female flies. The fru P1 ∩ dpr intersecting neurons are labeled with green (rabbit α-GFP Alexa Flour 488), and neuropil are labeled with magenta (mouse α-nc82, Alexa Flour 633). The genotype is dpr-Gal4/10xUAS > stop > GFP.Myr; fru P1FLP, except for dpr4dpr14dpr18, and dpr19. These Gal4 transgenic strains were generated using a CRISPR-mediated insertion of the T2A-Gal4 with the dominant 3xP3-GFP marker. For this strain, 10xUAS > stop > myr::smGdP-cMyc was used and fru P1  dpr intersecting neurons are labeled with red (rabbit α-Myc, Alexa Flour 568) and then false-colored to green. The neuropil are labeled with magenta (mouse α-nc82, Alexa Flour 633). These Gal4s did not show consistent fru P1 intersecting expression: dpr7dpr13, and dpr19. The dpr7 and dpr13 Gal4s have expression with 10xUASmCD8gfp, confirming the Gal4s can drive expression outside of fru P1 neurons. dpr19 was tested with 10xUAS-RFP and did not show expression outside of fru P1 neurons.

Figure 3 with 1 supplement see all
Visualization of fru P1 ∩ DIP neurons.

Maximum intensity projections of brain and ventral nerve cord tissues from 4- to 7-days old male and female flies. The fru P1 ∩ DIP intersecting neurons are labeled with green (rabbit α-GFP Alexa Flour 488), and neuropil are labeled with magenta (mouse α-nc82, Alexa Flour 633). The genotype is DIP-Gal4/10xUAS > stop > GFP.Myr; fru P1FLP, except for DIP-ι. This Gal4 transgenic strains was generated using a CRISPR-mediated insertion of the T2A-Gal4 with the dominant 3xP3-GFP marker. For this strain, 10xUAS > stop > myr::smGdP-cMyc was used and fru P1 ∩ DIP intersecting neurons are labeled with red (rabbit α-Myc, Alexa Flour 568) and then false-colored to green. The neuropil are labeled with magenta (mouse α-nc82, Alexa Flour 633). One Gal4 did not show consistent expression upon intersecting: DIP-iota. DIP-iota was tested with 10xUAS-RFP, and showed expression outside of fru P1 neurons.

Figure 4 with 1 supplement see all

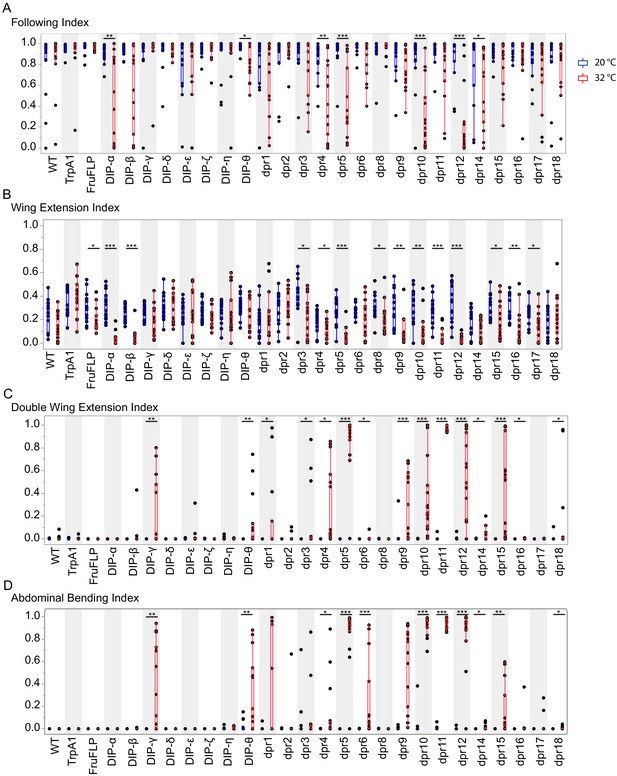

Activation of fru P1dpr/DIP intersecting neurons results in atypical courtship behaviors.

Courtship behaviors of dpr/DIP-Gal4/ UAS > stop > TrpA1; fru P1FLP males were recorded at the control temperature (20°C, blue box plots) and the activating temperature for TrpA1 (32°C, red box plots). The control genotypes are the wild-type strain Canton S, and the UAS > stop > TrpA1 and fru P1FLP single transgenes, which were crossed to Canton S. Virgin Canton S (white) females were used as targets. (A) Following index is the fraction of time the male spent oriented toward or chasing the female around the chamber. (B) Wing extension index is the fraction of time the male spent unilaterally extending and vibrating his wing. (C) Double wing extension index is the fraction of time the male spent extending and vibrating both wings simultaneously. (D) Abdominal bending index is the fraction of time the male spent curling his abdomen under. A movie is provided to show a male with atypical abdominal bending (fru P1dpr1 genotype; Figure 4—video 1). The lines on the quantile box plot correspond to the quantiles in the distribution output, with the center line as the median. The whiskers extend from the 1st and 3rd quartiles to the edges, which correspond to the minimum and maximum values, excluding outliers. The nonparametric Wilcoxon rank sum test was used to test for significant difference between control and activating temperature within each genotype. n = 15. *p<0.05, **p<0.005, ***p<0.0005. All lines were examined for expression of TrpA1 to confirm the system was working effectively (data not shown).

Activation of fru P1 dpr/DIP intersecting neurons is sufficient to induce courtship behaviors in solitary males.

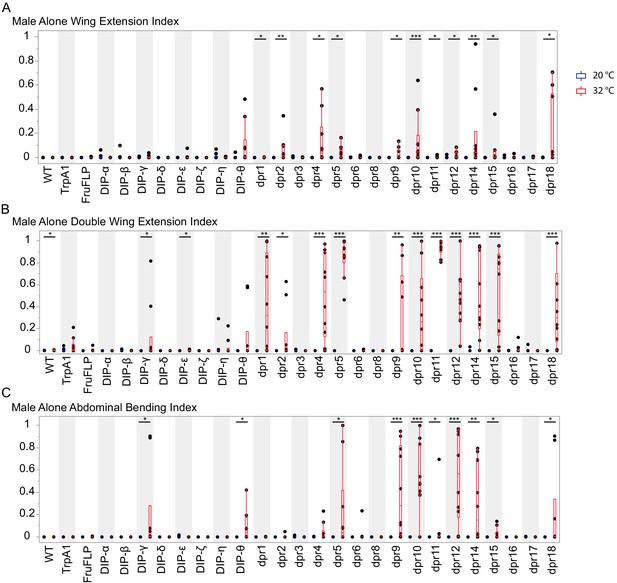

Courtship behaviors of dpr/DIP-Gal4/ UAS > stop > TrpA1; fru P1FLP solitary males were recorded at the control temperature (20°C, blue box plots) and the activating temperature (32°C, red box plots). The control genotypes are the wild type strain Canton S, and the UAS > stop > TrpA1 and fru P1FLP single transgenes, which were crossed to Canton S. (A) Wing extension index, (B) Double wing extension index (C) Abdominal bending index, and quantile box plots are as described in Figure 3. The nonparametric Wilcoxon rank sum test was used to test for significant difference between control and activating temperature within each genotype. n = 10. *p<0.05, **p<0.005, ***p<0.0005.

Silencing fru P1dpr/DIP intersecting neurons results in atypical courtship and severe motor defects.

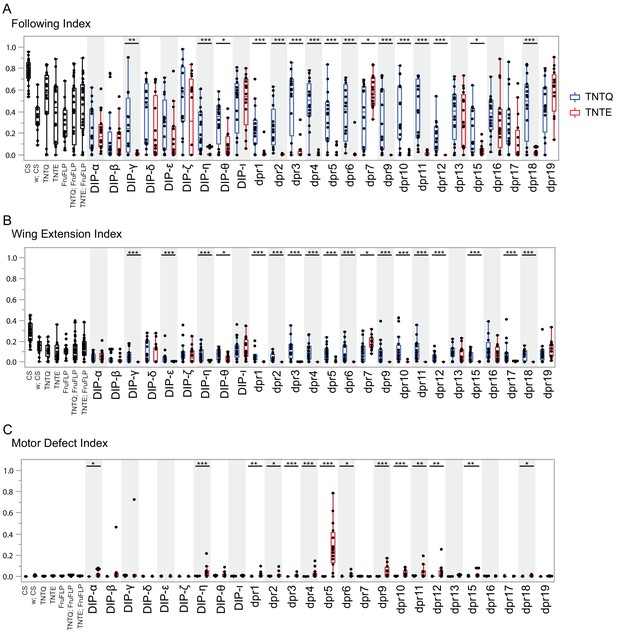

Courtship behaviors of dpr/DIP-Gal4/ UAS > stop > TNTQ; fru P1FLP (control condition, blue boxplots) and of dpr/DIP-Gal4/ UAS > stop > TNTE; fru P1FLP (experimental condition, red boxplots) males were quantified. Control genotypes (black boxplots) are the wild-type strain Canton S and Canton S (white), fru P1FLP, UAS > stop > TNTQ, and UAS > stop > TNTE single transgenes, as well as UAS > stop > TNTQ; fru P1FLP and UAS > stop > TNTE; fru P1FLP double transgenes. The single and double transgene controls were crossed to Canton S (white). The dpr- or DIP- Gal4 is listed on the x-axis and the fraction of time spent performing the behavior is on the y-axis. (A) Following index, (B) wing extension index, and the quantile box plots are as described in Figure 4. (C) Motor defect index is the fraction of time the fly spent on his back after falling. The nonparametric Wilcoxon rank sum test was performed to determine significant differences between experimental and control conditions with the same dpr/DIP-Gal4. n = 16 for all genotypes except for Canton S, and the double transgene controls, which have n = 32. Those three genotypes were assayed twice, n = 16 each time, to ensure consistency throughout the duration of the experiment and pooled for this analysis. fru P1 DIP- ι and dpr7 were not included in the activating experiments, but are here, as those lines were not available until after completion of the activation assays. The dpr19-Gal4 did not produce an expression pattern in the nervous system, using both a 10XUAS-RFP reporter and the intersectional approach, at the time points examined. n = 16. *p<0.05, **p<0.005, ***p<0.0005.

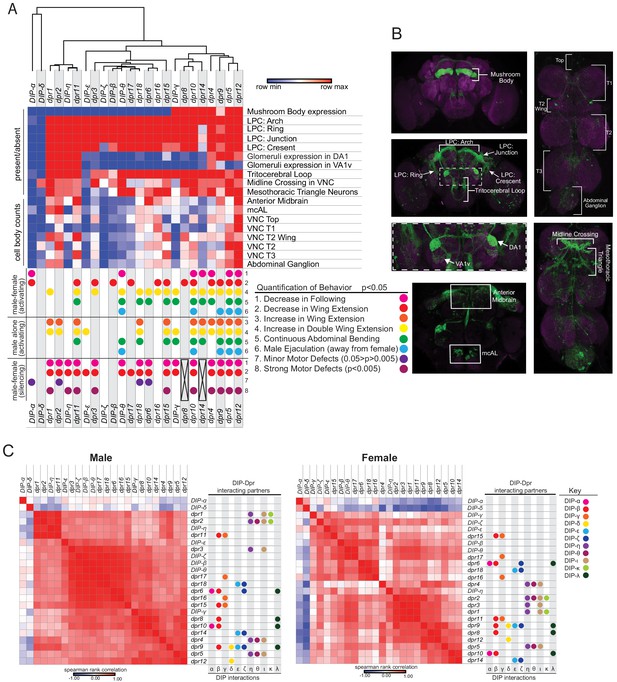

Meta-analysis of expression patterns of fru P1dpr/DIP intersecting neurons and behavior data.

Meta-analysis using behavior data and image analysis data of 4- to 7-day-old flies. (A) Heatmap of fru P1dpr/DIP intersecting neurons expression patterns in the male adult CNS. For each row, the minimum (blue), middle (white), and maximum (red) values are indicated. The top of the heatmap shows the relationship across the expression patterns of the dprs and DIPs, with a dendrogram. The summary of phenotypic analyses of male sexual behaviors, using either activating or silencing effector genes (see Figures 46), is shown below the heatmap. The dot indicates a significant change in behavior (p<0.05, unless indicated). The black X indicates that there was no experimental progeny from the cross, due to lethality, and therefore were not tested behaviorally. (B) Labeled confocal images showing the morphological featured scored. (C) Correlation analysis of GFP expression results (male on left and female on right). The scale for the spearman correlation is −1 (blue) to 1 (red). The dots to the right indicate the DIP interacting partners for each Dpr (left-hand side of each graph) (Dpr-DIP interactome based on Cosmanescu et al., 2018). The full data set is provided (Source data 1).

Based on our examination of the expression patterns in 27 intersecting genotypes, we find that 24 genotypes showed clear and consistent, membrane-bound GFP expression in the central nervous system. Of these, only two fru P1DIP genotypes have restricted and unique patterns (fru P1DIP-δ and fru P1DIP-α), whereas the other genotypes have broader expression, with many in similar regions/patterns (Figures 2 and 3). fru P1DIP-δ neuronal projections are near the anterior surface of the protocerebrum and appear to be near the γ -lobe of the mushroom body, based on visual inspection (Aso et al., 2014). The fru P1DIP-α expression pattern is described in detail below. The 22 intersecting genotypes with broad expression, in both males and females, have consistent expression in the brain lateral protocerebral complex, including within the arch, ring, junction, and crescent (for summary see Figure 7 and Source data 1). This region has been shown to have fru P1 neurons with sexually dimorphic arbor volumes (Cachero et al., 2010; Yu et al., 2010). Furthermore, the lateral protocerebral complex has inputs from sensory neurons and is predicted to be a site of sensory integration, to direct motor output necessary for coordinating courtship activity (Yu et al., 2010). We find eight intersecting genotypes have expression in mushroom bodies in both males and females. This region has a well-established role in learning and memory, including learning in the context of courtship rejection (Jones et al., 2018; McBride et al., 1999; Montague and Baker, 2016; Zhao et al., 2018). Overall, the majority of fru P1dpr/DIP genotypes have expression in similar regions, suggesting that some may function in a combinatorial manner within a neuron to direct patterning and/or synaptic targeting, consistent with the single-cell RNA-sequencing data presented below.

We observe sex differences in morphological features and cell body number in regions we scored (Figures 2 and 3). These regions were largely chosen because they were previously reported to have fru P1 neurons that display sex differences downstream of sex hierarchy genes transformer and fru P1 (Cachero et al., 2010; Yu et al., 2010). For example, 18 intersecting genotypes show consistent presence of signal in the mesothoracic triangle neuronal projections in males, but only two genotypes do so in females. While both males and female have expression in the DA1 and VA1v antennal lobe glomeruli in several intersecting genotypes, we also observe sexual dimorphism, with four genotypes having consistent expression in only female DA1 glomeruli (fru P1dpr3, dpr10, dpr17, DIP-θ). In the ventral nerve cord, neurons that cross the midline are consistently observed only in males and not females. Previous work found a midline crossing phenotype that was also male-specific for a set of gustatory neurons (Mellert et al., 2010). For all regions where cell bodies are counted, the trend was that there are more cell bodies in males than females. Thus, the differences in the patterns of expression between males and females are not large, with several genotypes having quantitative differences in the numbers of cell bodies present. It is possible that there are additional quantitative differences that are not detected based on the resolution of the analyses, including quantitative differences in expression level of dpr/DIPs, or their subcellular localization, or in regions/features that are not quantified here.

Activation of fru P1 ∩ dpr/DIP neurons results in atypical courtship behaviors

fru P1 neurons have critical roles in reproductive behaviors. Studies have already determined the function of small subsets of neurons that are responsible for different aspects of behavior (reviewed in Auer and Benton, 2016). The dpr/DIP tools in hand can further address if additional combinations and/or quantitative differences in the number of fru P1 neurons are important for behavioral outcomes, given the fru P1dpr/DIP subsets and combinations we examine are distinct from those previously studied. We used the genetic intersectional strategy to selectively activate intersecting neurons by driving expression of TrpA1, a heat-activated cation channel (Figure 1Cvon Philipsborn et al., 2011). This allows for temporal control of neuronal activation by an acute increase of temperature in the courtship chambers (32°C; controls at 20°C). We note that quantitative differences in TrpA1 expression levels may account for some behavioral differences, in addition to the differences in the spatial expression patterns observed (Figures 2 and 3).

We find that neuronal activation resulted in decreases in male following and wing extending toward females for several genotypes (Figure 4 and Source data 2). We also observe that neuronal activation of fru P1dpr (13 of 16) and fru P1DIP (2 of 8) genotypes caused atypical courtship behavior toward a female, including double wing extension, and continuous abdominal bending, even if the female had moved away (Figures 4 and 7; for abdominal bending phenotype see Figure 4—video 1). These atypical behaviors could account for some of the decreases in following and wing extension. For example, if a male is locked into abdominal bending, this would reduce courtship following behavior. Additionally, we found that some males ejaculated on the chamber in five intersecting genotypes: dpr5 (5 of 15 animals), dpr9 (3 of 15 animals), dpr10 (3 of 15 animals), dpr12 (2 of 15 animals), and DIP-θ (4 of 15 animals). Of note, fru P1DIP-α is the only strain that showed a decrease in courtship activities without a concomitant increase in atypical courtship behaviors. This suggests that fru P1DIP-α neurons may normally inhibit courtship behaviors when they are activated.

We next determined if the males require females to reach an arousal threshold needed to perform typical and atypical courtship behaviors, given that several of the courtship behaviors described above occur when the male was not oriented toward the female. To address this question, we examine courtship behaviors in solitary males, using the same temporal activation strategy as above. We find that activation of the fru P1dpr/DIP neurons is sufficient to elicit single wing extension, double wing extension, and abdominal bending in fru P1dprs (11 of 16 genotypes) and fru P1DIPs (3 of 8 genotypes) (Figures 5 and 7). Similarly, activating the intersecting fru P1 neuronal populations of fru P1dpr5 (5 of 10 animals), dpr9 (1 of 10 animals), dpr10 (1 of 10 animals), dpr12 (3 of 10 animals), and DIP-θ (1of 10 animals) causes males to ejaculate without a female present. Overall, activation of these subsets of fru P1 neurons is sufficient to direct reproductive behaviors, even if a female is not present, consistent with other neuronal activation experiments (reviewed in Auer and Benton, 2016).

Silencing fru P1 ∩ dpr/DIP neurons result in courtship changes

Given that activation of fru P1dpr/DIP neuronal subsets resulted in changes in courtship behaviors, we next determine how silencing these neurons impacts male-female courtship, to gain further insight into their roles. To test this, we use the genetic intersectional approach with a UAS > stop > TNT transgene (Figure 1CStockinger et al., 2005). The intersecting genotypes express tetanus toxin light chain, which cleaves synaptobrevin, resulting in synaptic inhibition (Sweeney et al., 1995). For the control conditions, we also examine courtship behaviors of flies expressing an inactive form of TNT (TNTQ), using the genetic intersectional approach.

In addition to scoring courtship behaviors, overall motor defects were also scored (Figure 6). Given that neuronal silencing in several genotypes resulted in motor defects, in which the male fell and was unable to quickly right himself (p<0.005 for strong motor defects; 0.05>p>0.005 for minor motor defects in Figure 6), we quantify the time when the fly could not right himself as ‘motor defect’ and subtracted this from the overall courtship time for behavioral indices (Figure 6). The intersecting genotypes that consistently demonstrate motor defects additionally show decreases in following and wing extension upon silencing, likely due to some motor defect (fru P1dpr1, dpr3, dpr4, dpr5, dpr9, dpr10, dpr11, dpr12, dpr15, and DIP-η). Additional courtship behavioral indices and latencies were quantified and those with motor defects show additional courtship phenotypes (Source data 2). However, seven intersecting genotypes had a decrease in following/wing extension indices and only minor or no motor defect (fru P1dpr2, dpr6, dpr17, dpr18, DIP-ε, DIP-θ, and DIP-γ). One genotype, fru P1dpr7, has an increase in following/wing extension with neuronal silencing. In the case of fru P1dpr7, we do not detect GFP expression in the central or peripheral nervous system in adults, so the neurons underlying this phenotype remain to be determined.

The seven intersecting genotypes with no or minor motor defects, in the courtship assay, were further analyzed for locomotor defects using the Drosophila Activity Monitor (DAM) Assay (Trikinetics; Source data 2), along with genotypes fru P1dpr7, and fru P1dpr10, which has a strong motor defect in the courtship assay. If there is a significant difference, the intersecting genotype with neuronal silencing has increased locomotor activity in the DAM assay, suggesting that the courtship phenotypes are not due to overall loss in locomotor activity.

As above in the neuronal activating experiments, silencing fru P1dprs (13 of 17 genotypes) is more likely to cause a courtship defect than silencing fru P1DIPs (4 of 9 genotypes). Given the large effect size of the courtship defects compared to the smaller effect size of the motor defect, it is clear that silencing fru P1dpr/DIP neurons in the central nervous system, for most genotypes, suppresses courtship (Figure 6). This is consistent with previous studies that have found that silencing fru P1 neurons in males leads to decreased courtship toward a female (Manoli et al., 2005; Stockinger et al., 2005). Interestingly, fru P1DIP-α is the only strain to demonstrate motor defects, but no change in courtship behaviors upon silencing, underscoring the previous hypothesis that these neurons may normally be inhibitory for courtship.

Meta-analysis of male fru P1dpr/DIP expression patterns and behavioral data

Next, we determine if intersecting genotypes with similar expression patterns also have similar behavioral outcomes in the neuronal activating and silencing experiments described above. This allows us to determine if behavioral phenotypes are most often seen when there are large numbers of neurons activated, or when certain combinations of neurons are activated. We used a heuristic approach and generated a heatmap that groups dprs and DIPs based on similarity of the fru P1dpr/DIP membrane-bound-GFP expression data (Figure 7A). At the top of the heatmap is a dendrogram showing the relationships in expression data, grouping those that are most similar together (from data in Source data 1). The bottom has colored dots that indicate the behavioral changes observed in the three different behavioral perturbation data sets. The scoring key for the GFP expression phenotypes is shown (Figure 7B and Source data 1). Only the 24 intersecting genotypes with quantified GFP expression data are included in the heatmap.

There is a set of eight intersecting genotypes grouped together on the right of the dendrogram that all have expression in the mushroom body and several regions within the lateral protocerebral complex, but varied expression across the other morphological features (Figure 7A; fru P1dpr4, dpr5, dpr8, dpr9, dpr10, dpr12, dpr14, and DIP-γ). Seven have similar types of atypical courtship behaviors in the activating experiments (excluding fru P1dpr8), in the male-female courtship assays. These seven also have similar behavioral phenotypes in the male-alone condition, indicating that the activation threshold in these lines can be achieved without a female present (Figure 5).

Furthermore, among the eight genotypes, there are four intersecting genotypes that have male ejaculates in the chamber, in both the male-female and male-alone neuronal activation assays. Among the eight intersecting genotypes, the four with the male ejaculates have the highest cell body counts in the abdominal ganglion, a region in the ventral nerve cord that has previously been shown to drive ejaculation (Source data 1; Tayler et al., 2012). However, not all intersecting genotypes with expression in the abdominal ganglion show the ejaculation phenotype, even those with a relatively high number of neuronal cell body counts in the abdominal ganglion (see fru P1dpr1 and dpr2), suggesting that it is the combination of neurons that are activated that is critical for this phenotype. Furthermore, there is an intersecting genotype that does not have mushroom body expression, but also has the ejaculation phenotype (fru P1 ∩ DIP-θ). These results reveal how different combinations and numbers of neurons can direct a similar behavioral outcome. Overall, the results point to a critical role for interactions between the mushroom body and protocerebral complex in directing courtship behaviors, which are modified by being activated in combination with other neuronal populations. This is consistent with an idea put forth previously that posited connections between these two brain regions may integrate diverse external stimuli with internal physiological state and previous behavioral experience (Yu et al., 2010).

Twenty-two intersecting genotypes have expression in different regions of lateral protocerebral complex, but no consistent expression in the mushroom body. An examination of the behavioral data reveals no phenotypes correlated with the lateral protocerebral complex expression data. While the lateral protocerebral complex is critical for higher order processing, the data further supports the idea that interactions across different combinations of activated neurons, in each intersecting genotype, are critical for the behavioral outcomes and underscores how different patterns of neuronal activity can direct similar behavioral outcomes.

Correlation of fru P1dpr/DIP expression patterns

As an additional heuristic tool, we plot the correlation of the GFP expression patterns for the male and female data (Figure 7C). One goal is to gain insight into whether Dprs with the same DIP interacting partners are co-expressed in the same regions of the central nervous system. This allows us to gain understanding into the mechanisms used by these IgSF molecules to direct cell adhesion. Another goal is to determine if protein-protein interactions may occur through cis (within the same neuron) vs trans (across neurons) interactions. For example, if protein-protein interactions are in trans, then the Dpr/DIP interacting partners will be expressed in different neurons and may not have correlated expression patterns. Experimental evidence suggests trans interaction are functionally important, but there is currently no evidence that interactions in cis are important (Xu et al., 2018; Ashley et al., 2019; Courgeon and Desplan, 2019; Menon et al., 2019; Venkatasubramanian et al., 2019; Xu et al., 2019). To address these questions, the plots are annotated with DIPs (colored dots) that each Dpr interacts with on the right (based on interactome from Cosmanescu et al., 2018).

It appears that some Dprs/DIPs that bind the same partner have the most similar expression patterns. For example, in males fru P1dpr1 and dpr2 have highly correlated expression and both Dpr1 and Dpr2 interact with DIP-η, DIP- ι, and DIP- κ. In addition, the male fru P1DIP- η expression pattern is highly correlated with fru P1dpr1, and dpr2. Similarly, in females, fru P1dpr1, dpr2, and dpr3 have highly correlated expression, with Dpr1, Dpr2, and Dpr3 interacting with DIP-η and DIP- ι, and Dpr1 and Dpr2 interacting with DIP- κ. Therefore, in both males and females, fru P1 neurons may express a reporter for both a DIP and a dpr that can bind to it. In both males and females fru P1dpr11 has correlated expression with fru P1dpr1 and dpr2, but Dpr11 interacts with DIPs that Dpr1, and Dpr2 do not interact with. This suggests that expression of different combinations of Dprs that interact with different DIPs is a mechanism used to direct the specificity and strength of interactions. fru P1DIP-α and DIP-δ have the most restricted expression patterns and they are not highly correlated with the expression patterns of their interacting Dpr partners, in either males or females. Consistent with the single-cell RNA-seq analysis (below), these data show that reporters for Dprs that bind the same DIP can be expressed in the same neurons, as well as in different neurons. Additionally, some Dprs with different binding partners have correlated expression, which could be a mechanism to mediate the specificity and strength of neuronal adhesion.

Single-cell mRNA sequencing analysis of male fru P1 neurons

To determine the repertoires of dprs/DIPs expressed in individual fru P1 neurons, we perform single-cell RNA-sequencing (10X Genomics platform). The analysis was performed on male central nervous system tissues (48 hr pupal stage), from flies expressing membrane-bound GFP in fru P1 neurons. We chose this stage to gain further insight into how the dprs/DIPs direct development of fru P1 neurons, as this is the stage where FruM has peak expression (~1,700 FruM neruons, Lee et al., 2000). The data were filtered to include only the fru P1 neurons, based on detection of the membrane-bound GFP mRNA, resulting in 5621 neurons. We find that all fru P1 neurons express at least one dpr/DIP. A principal component analysis (PCA) was performed using only dpr/DIP gene expression values, and the dimensionality was reduced with the UMAP algorithm (McInnes et al., 2018 and Stuart et al., 2019). Cells with similar dpr/DIP expression will cluster closely with one another in the UMAP plot (Figure 8A). A visual inspection of the UMAP plot reveals that the patterns of dpr/DIP expression are not distinct enough to generate clusters that have large separation in the UMAP plot. We note that previous single-cell RNA-seq studies from adult central nervous system tissues found that dprs/DIPs are cell identity marker genes (Croset et al., 2018; Davie et al., 2018; Allen et al., 2020), with higher, enriched expression in subsets of neurons, rather than pan-neuronal expression, consistent with our results.

Figure 8 with 2 supplements see all

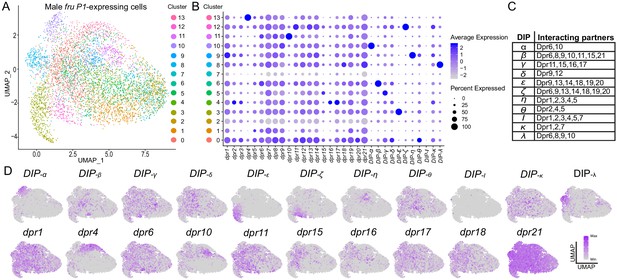

Single-cell RNA-sequencing analysis of dpr/DIP expression analysis in male fru P1 neurons.

(A) UMAP plot of 5621 fru P1 neurons, isolated from male tissue 48-hr after puparium formation. The data are clustered on dpr/DIP gene expression. (B) Dot plot showing the expression of dpr/DIP genes across all clusters identified in UMAP. Dot diameter indicates the fraction of cells expressing each gene in each cluster, as shown in legend. Color intensity indicates the average normalized expression levels. (C) Heterophilic interactions that have been demonstrated between DIPs and Dprs (Cosmanescu et al., 2018). (D) A subset of expression visualization of DIPs (top row) and subset of dprs (bottom row) in the UMAP-clustered cells. dpr or DIP-positive cells are labeled purple and color intensity is proportional to log normalized expression level shown in legend. The UMAP visualization for all dprs/DIPs is provided (Figure 8—figure supplement 1). The numerical expression values are in Source data 3.

For each cluster, we next determine if a combination of dprs/DIPs are responsible for each cluster identity. We examine the average expression and the percent of cells with expression of each dpr/DIP in each cluster (Figure 8B). The UMAP clustering patterning is not due to co-expression of Dpr/DIP interacting partners (Figure 8C), based on a visual inspection, which might be expected if Dprs/DIPs predominantly interact in cis. We find that the majority of the DIPs have high average expression in one cluster, with a large percent of the cells in the cluster having expression. This is distinct from the majority of the dprs, where the average expression and the percent of cells that express the dpr is moderate and similar across many clusters. Furthermore, the distribution of the expression patterns overlaid on the UMAP plot for each dpr/DIP shows that the DIPs have more restricted expression. For example, dpr21 is broadly detected across the UMAP plot, whereas DIP-α has restricted expression in cluster 10, at the upper left-hand side of the UMAP plot (subset of expression patterns in Figure 8D; for all dprs/DIPs see Figure 8—figure supplement 1). This observation is consistent with cell-type-specific RNA-seq data from the Drosophila visual system (Tan et al., 2015; Cosmanescu et al., 2018; Davis et al., 2020), where the DIPs were among the most specifically expressed genes and dprs were more broadly expressed. This suggests that DIPs may have different functional roles, compared to Dprs, in terms of directing synaptic specificity or cell adhesion properties of the neuron.

We also generated a dendrogram by hierarchical clustering to visualize which dprs and DIPs have the most similar expression patterns across the fru P1 neurons (Figure 8—figure supplement 2). We find that some dprs and DIPs that have shared interacting partners have the most similar expression to each other. This includes the following pairs: dpr2 and dpr3; dpr6 and dpr10; dpr16 and dpr17; and DIP-ζ and DIP-ε. We find that DIP-α, and DIP-ι have the most distinct expression patterns from the rest of the interactome, which may be due to the low number of cells in which they are detected (see Upset plot described below; Source data 3). For some neurons, co-expression of dprs and DIPs with the same interacting partners may be a mechanism to generate different adhesion properties, as noted above.

Next, we examine the number of different combinations of dpr and DIP expression repertoires. A dpr/DIP gene is considered expressed if the normalized and scaled expression data value is >1, excluding those that may have stochastic expression detection due to low expression levels (5218 neurons remain). There are 458 neurons that express only one dpr or DIP. The range of neurons that express 2–8 dprs and DIPs is between 451–653 neurons (4024 neurons total); that express 9–11 dprs and DIPs is between 105–332 neurons (657 neurons total); and that express 12–15 dprs and DIPs is between 5–45 neurons (79 neurons total; Source data 3). Next, we look at the number of neurons with the same expression repertoire. This can be ascertained using an ‘Upset’ plot, which is conceptually similar to a Venn Diagram, but accommodates a large number of conditions. Here, there are the 5218 single neuron expression conditions. The majority of expression repertoires that are detected in more than one neuron are those for which the neuron only expresses one dpr or DIP (single dots on bottom of Upset Plot, 457 neurons; Source data 3). There were also 466 neurons that had shared co-expression combinations due to expression of 2–5 dprs and DIPs. The majority of fru P1 neurons had a unique repertoire of dpr/DIP expression (4295 neurons), due to expression of different combinations of 2–15 dprs and DIPs (Source data 3). In developing fru P1 neurons, this range of expression patterns of the dprs and DIPs may provide a mechanism to generate different connectivity properties for each neuron.

A higher resolution analysis of fru P1 ∩ DIP-α reveals additional sexually dimorphic expression patterns

After examining all the fru P1 ∩ dpr/DIP patterns, and the single-cell RNA-seq data, it became apparent that fru P1 ∩ DIP-α neurons are sexually dimorphic, and that this is one of the genotypes with the fewest cells among the genotypes that were scored (Source data 1). Additionally, the fru P1 ∩ DIP-α neurons have arborization patterns that facilitate analysis of sex-differences in fine-scale processes that would be obscured in intersecting genotypes with broad expression. There are sex-differences in the superior medial protocerebrum region (SMP; Figure 9A and B, subpanels I), where females have a longer (dotted-line) and broader projection (arrowhead), as compared to males. Moreover, in the medial part of the midbrain, an ‘M’ shaped peak forms (‘M’-like) in males that is not typically observed in females (curved dotted-line, Figure 9A and B, subpanels II and III). Additionally, in the ventral lateral protocerebrum region (VLP) there are neuronal cell bodies (arrowhead, Figure 9A and B, subpanels II and III), and projections in a ‘square’ shaped pattern that are more frequently observed in females (closed dotted-line, Figure 9A and B, subpanels II and III). There is also a greater frequency of neuronal cell bodies present in the subesophageal ganglion (SEG) in females, as compared to males (arrowhead, Figure 9A and B, subpanels IV). In the abdominal ganglia (AbG) of the ventral nerve cord there is a higher density of projections in males (Figure 9A and B, subpanels V). In contrast, females have a distinct ‘forceps’ shaped pattern in the AbG region (arrowhead, Figure 9A and B, subpanels V). Taken together, it appears that the sex differences are due to differences in the number of neurons and also in the morphology of projections and arborizations (Figure 9).

Figure 9 with 1 supplement see all
Higher resolution analyses of fru P1DIP-α neurons with sex hierarchy perturbations.

Confocal maximum intensity projections of brains and ventral nerve cords from 4- to 7-day-old adult flies. fru P1 DIP-α neurons are in green (rabbit α-GFP Alexa Flour 488). Staining with the α-nc82 neuropil maker shows brain morphology in magenta (mouse α-nc82, goat α-mouse Alexa Flour 633). Image data were captured with ×20 objective, with scale bars showing 50 µM (A-J). Higher magnification images were generated using the Zeiss Zen software package (B, D, F, H, and J). Roman numerals are consistent across the panels in the same row. Venn diagrams show where membrane-bound GFP and sex hierarchy transgenes are expressed. (A) fru P1DIP-α expression patterns in males and females. (B) Computationally magnified images, with sexually dimorphic regions indicated. Subpanels show: [I] superior medial protocerebrum (SMP) region of the brain; [II and III] medial part of midbrain region, where there are horizontal projections, and the ‘M’-like pattern (more frequent in males). The square pattern (more frequent in females) is in the ventral lateral protocerebrum (VLP) region of the brain. The medial horizontal projection is in a more exterior section of the confocal stack then the other features [II and III]; [IV] Subesophageal ganglion region of the brain (SEG). The U-like pattern and a set of cell bodies more frequently found in females are shown; [V] The abdominal ganglion of the ventral nerve cord (AbG). (C-J) Examination of morphology of fru P1 DIP-α neurons when sex hierarchy transgenes are expressed in DIP-α neurons. The quantification and statistics are provided in a table within the subpanel on the right of each row. This figure only shows regions that had significant changes due to sex hierarchy perturbation (full dataset provided; Source data 4). (C-D) TraF overexpression in DIP-α neurons. [III] a lateral projection in females that is not shown in wild-type data in panel B. (E-F) FruMB overexpression in DIP-α neurons. (G-H) FruMC overexpression in DIP-α neurons, (I-J) FruC isoform deletion. FruMC is absent or highly reduced in fru P1 neurons in this genotype, as transheterozygous for fruFLP/ fruΔC. Statistical significance of the differences in morphological features, between same sex control and genotypes with sex hierarchy transgene expression are indicated. Comparisons were done using the Fisher’s exact test (*p<0.05, **p<0.005, ***p<0.0005). The morphological features with significant differences are indicated by lines below the table (male in blue and female in red). n > 15 for each category. The genotypes of the samples shown are: DIP-αGal4; UAS>stop>GFP.Myr/+; fruFLP/+ (A-B), DIP- αGal4; UAS>stop>GFP.Myr/ UAS-TraF; fruFLP/+ (C-D), DIP- αGal4; UAS>stop>GFP.Myr/ UAS-FruMB; fruFLP/+ (E-F), DIP- αGal4; UAS>stop>GFP.Myr/ UAS-FruMC; fruFLP/+ (G-H), DIP- αGal4; UAS>stop>GFP.Myr/+; fruFLP/ fruΔC (I-J). Brain region nomenclature are consistent with previous reports (Insect Brain Name Working Group et al., 2014).

Changing the sex of DIP-α neurons alters the fru P1 ∩ DIP-α co-expressing patterns

We next investigated whether perturbations of the sex hierarchy genes impact fine-scale sex differences in fru P1 ∩ DIP-α neurons (Figure 9 and Source data 4). In this screen, DIP-α-Gal4 drives broad expression of each transgene (see Source data 4 for DIP-α-Gal4 expression), and the fru P1 ∩ DIP-α patterns are visualized. First, we examine the phenotypes when we overexpressed the female-isoform of the sex hierarchy gene tra (traF). This is expected to feminize the neurons by switching to female-specific splicing of fru P1 (Figure 1). In males, the projections in the SMP became more female-like (Figure 9C–D, subpanels I). In the medial part of midbrain, the horizontal projections in half of the male samples were either more female-like or not detected (Figure 9C–D, subpanels II). Similarly, among half of the male samples, the neuronal patterns within the AbG are either more female-like or absent (Figure 9C–D, subpanels V). We observed unexpected phenotypes in females upon overexpressing TraF, which suggests that quantitative differences in TraF have biological outcomes, as we previously suggested (Arbeitman et al., 2016). For instance, a lateral ascending neuronal projection was observed more frequently in the VLP region (Figure 9C–D, subpanels III dotted line). However, the neuronal cell bodies in the VLP, the adjacent ‘square’ shaped projection patterns (closed dotted-line, Figure 9C–D, subpanels III) and the medial horizontal projection (Figure 9C–D, subpanels III) were less frequently observed, as compared to control females.

We also examined phenotypes after FruM over-expression, by driving broad expression in DIP-α cells and visualizing the fru P1 ∩ DIP-α neurons. We tested three isoforms of FruM (UAS-FruMA, UAS-FruMB, and UAS-FruMC) and found that they could effectively produce FruM in the expected DIP-α pattern (Source data 4). Overexpression of FruMB and FruMC had large phenotypic impacts, whereas FruMA did not, consistent with previous functional studies of the FruM isoforms (Nojima et al., 2014; von Philipsborn et al., 2014). Overexpression of FruMB resulted in a higher frequency of the ‘M’ shaped projection pattern in males (curved dotted-line, ‘M’-like, Figure 9E–F, subpanels II), while the ‘U’ shaped SEG projection was not observed as frequently (‘U’-like, Figure 9E–F, subpanels IV). The density of the neuronal projections in the AbG was also reduced. In females, the lateral ascending neuronal projection in the VLP region is observed more frequently (Figure 9E–F,III). The overexpression of FruMC led to substantial reduction of fru P1 ∩ DIP-α intersecting neurons in both males and females (Figure 9G–H, subpanels III), which could be due to a loss of neurons and/or their projections. The phenotype could also be due to reduced DIP-α-Gal4 expression, given overexpression of FruM was previously shown to reduce expression of some IgSFs (Dalton et al., 2013).

A loss of the FruMC isoform, only in fru P1 neurons, had less strong phenotypic consequences (fruFLP/ fruΔC; Figure 9I–J). In males, the SMP projections appeared more female-like and there was an increase in neurons with a lateral projection, due to loss of the FruMC isoform. Therefore, overexpressing FruMC isoform in the broad DIP-α-Gal4 pattern impacts fru P1 ∩ DIP-α neurons more substantially than loss of FruMC isoform in only fru P1 neurons. This suggests that the wildtype FruMC spatial expression pattern is critical for function. It is also possible that overexpression of FruMC interferes with other Fru isoform functions, since all Fru isoforms have a BTB domain thought to mediate dimerization. Furthermore, overexpression could titrate out co-transcriptional regulators leading to larger impacts. If we limit the overexpression of TraF and FruM to only fru P1 ∩ DIP-α neurons using an additional transgene (tub>GAL80>), we also see phenotypes that are less severe than observed when overexpression is in all DIP-α neurons (see Figure 9—figure supplement 1). Overall, quantitative and spatial changes in the expression of sex hierarchy genes alters the sexually dimorphic fru P1 ∩ DIP-α patterns. This demonstrates that sex differences in morphology are downstream of sex hierarchy regulation, through both cell autonomous and non-autonomous mechanisms.

Knockdown of DIP-ε in fru P1 ∩ DIP-α co-expressing neurons alters the expression patterns

To determine the functional roles of dprs/DIPs in fru P1 neurons, we conducted an RNAi and over-expressor screen. We use the DIP-α and DIP-δ drivers, given that they have the most restricted intersecting expression patterns, with the fewest neuronal cell bodies among the genotypes scored (Source data 1), which facilitates visually identifying altered patterns in fru P1 ∩ DIP neurons, as discussed above. Here, the DIP-Gal4 drives expression of an RNAi or over-expressor transgene of other dprs/DIPs. It should be noted that while these fru P1 ∩ DIP intersecting patterns are highly restricted, the DIP-Gal4 patterns that drive the perturbation are broader. Out of the 36 genotypes screened, only one perturbation robustly alters the fru P1 ∩ DIP expression pattern (Source data 5). Knocking down DIP-ε in all DIP-α neurons changes the fru P1 ∩ DIP-α pattern (Figure 10). Males show a significant loss of neuronal projections that have ‘U’ shaped arbors (see Figure 10C, subpanel I). Both males and females show a reduction of a set of descending neurons when compared to control flies expressing RFP RNAi (see Figure 10C, subpanel II). In addition, females show an enhancement of projections in the SMP region of the brain (see Figure 10C, subpanel III). These enhanced SMP projections have longer and more extensive projections that are not observed in males. Given that no other dpr or DIP RNAi perturbation shows these three phenotypes, this suggests that they are specific to the DIP-ε perturbation (Source data 5). No obvious morphological changes are observed in the ventral nerve cord.

RNAi mediated knockdown of DIP-ε in fru P1DIP-α neurons results in perturbations.

Maximum intensity projections of brains of 4–7 days old adult flies showing fru P1DIP-α neurons stained with anti-GFP (green; rabbit α-GFP Alexa Flour 488) and the neuropil marker nc82 (magenta; mouse α-nc82, Alexa Flour 633). (A) fru P1DIP-α neurons with DIP-ε or RFP (control) knockdown in all DIP-α expressing neurons. Genotypes are DIP-α Gal4; UAS > stop > GFP.Myr / RNAi; fruFLP / + with RNAi indicating either RFP or DIP-ε RNAi. (B) fru P1DIP-α neurons with DIP-ε or no knockdown (control) restricted to only the visualized neurons (GFP+) through use of tub>GAL80>. Genotypes are DIP-α Gal4; UAS > stop > GFP.Myr / RNAi; fruFLP / tub>GAL80> with RNAi indicating either DIP-ε or no RNAi. The neuronal populations with RNAi expression are illustrated in the Venn diagrams. White dashed boxes indicate phenotypes of interest, which are located in (C) and include (subpanel I) presence of the U-shaped arbors, (subpanel II) presence of at least one descending neuron, and (subpanel III) enhancement of protocerebral projections. All phenotypes were scored blind and are quantified in (D). Statistical significance in between control flies and DIP-ε RNAi flies was evaluated by the Fisher’s exact test. In this figure, signicance is indicated as follows: *p<0.05, **p<0.01, ***p<0.001. n = 20 brains for each category. Magnification is ×20 and scale bars represent 50 µM.

We next examined the phenotypes when the DIP-ε RNAi knockdown is limited to only the fru P1 ∩ DIP-α co-expressing neurons, rather than all DIP-α neurons. We continue to use the genetic intersecting approach to visualize the neurons with GFP. To restrict expression of DIP-ε RNAi to fru P1 ∩ DIP-α neurons, we use an additional construct (tub>GAL80>), such that Gal4 is now only transcriptionally active in fru P1 ∩ DIP-α (Figure 10B). Males no longer show a significant reduction of the ‘U’ shaped projections, and neither sex shows a significant reduction of descending neurons (Figure 10). This suggests that these phenotypes are due to reduction of DIP-ε outside of fru P1 ∩ DIP-α neurons, in a non-cell-autonomous manner. Conversely, females still have the enhanced projections in the protocerebrum. This suggests that this phenotype is cell autonomous and driven by a reduction in DIP-ε expression inside the fru P1 DIP-α neurons. The results are consistent with the observation that both fru P1DIP-α and DIP-ε are expressed in similar patterns in the SMP (Figure 3) and so it is not unexpected that expression of DIP-ε RNAi can have a functional impact in fru P1DIP-α. Taken together, these results suggests that DIP-ε plays a critical role in establishing wildtype fru P1 neuronal patterns, in both a cell-autonomous and non-cell-autonomous manner.

Discussion

Based on our reevaluation of previous genomic data sets and the microscopy results presented, we show that dprs/DIPs are regulated by FruM and expressed in fru P1 neurons in both males and females (Figures 13). A reanalysis of five genomic studies showed that nearly all the dprs/DIPs are found in at least three of the fru P1 analyses (Goldman and Arbeitman, 2007; Dalton et al., 2013; Neville et al., 2014; Vernes, 2015; Newell et al., 2016). It is not unexpected that there are differences across the genomic studies, given the differences in technologies (microarray and Illumina platforms), genomic approaches (RNA-seq, ChIP-seq and DAM-ID), cell types and life stages (tissue culture, pupae, adult heads, and adult fru P1 neurons), and statistical criteria used across these studies. The expression pattern for each fru P1dpr/DIP genotype is unique, although many genotypes have expression in the same brain regions, including the lateral protocerebral complex, mushroom body, antennal lobe, tritocerebral loop, mesothoracic triangle, and abdominal ganglion (Figure 7). These regions were previously shown to be among those with the most pronounced sexual dimorphism in fru P1 neurons (Cachero et al., 2010; Yu et al., 2010). Furthermore, while the patterns for each genotype are similar between males and females, we find sexual dimorphism in some of the projection patterns and in neuron numbers (Figures 2 and 3). Given that the dprs/DIPs are not sex-specifically expressed, this suggests that their role in generating sexual dimorphism may be quantitative, due to sexual dimorphism in expression levels or differences in the number of neurons in which they are expressed in a given region.

A single-cell RNA-seq analysis of fru P1 neurons shows that dprs/DIPs are expressed in every fru P1 neuron, with the majority having a unique expression combination. Consistent with other single-cell and cell-type-specific studies of the Drosophila nervous system (Cosmanescu et al., 2018; Croset et al., 2018; Davie et al., 2018; Allen et al., 2020; Davis et al., 2020), our UMAP cluster analysis shows that DIPs generally have high average expression in a small set of neurons, whereas dprs have moderate average expression levels in a larger set of neurons (Figure 8). This suggests that dprs and DIPs may have different functional roles. Understanding how single-cell RNA-seq expression values correlate with whether the protein is produced is an important next goal, especially since the single-cell RNA-seq expression values for dprs/DIPs in fru P1 neurons appears to be broader than observed in our immunofluorescence analyses presented here.

A higher resolution analysis of fru P1 ∩ DIP-α neurons found additional sexual dimorphism in projections and neuron number that are downstream of the sex hierarchy (Figure 9). Regulation by the sex hierarchy of fru P1 ∩ DIP-α neurons is both cell-autonomous and cell non-autonomous. These results point to the importance of understanding the development and function of fru P1 neurons in a broad context, taking into account interactions with both fru P1 and non-fru P1 neurons. Furthermore, an RNAi and overexpression screen show there is functional redundancy in patterning, with only DIP- ε RNAi generating phenotypes (Figure 10). Functional redundancy has been observed for other IgSF members (see Schwarz et al., 2009; Li et al., 2017; Sanes and Zipursky, 2020). In the single-cell RNA-seq analysis, DIP- ε had restricted expression, with limited overlap with other dprs/DIPs in the UMAP plot, which may point to an essential function in these cells, consistent with DIP- ε having an RNAi phenotype.

Role of Dprs and DIPs in sexual dimorphism of fru P1 neurons

In the optic lobe, antennal lobe and neuromuscular junction, genetic analyses have demonstrated that Dprs/DIPs have a role in synaptic specificity and connectivity, with Dpr-DIP interactome partner pairs mediating these critical functions (Carrillo et al., 2015; Tan et al., 2015; Barish et al., 2018; Xu et al., 2018; Ashley et al., 2019; Courgeon and Desplan, 2019; Menon et al., 2019; Venkatasubramanian et al., 2019; Xu et al., 2019). Our screen to identify morphological or synaptic changes in fru P1 ∩ DIP-α and DIP-δ neurons, using dpr/DIP RNAi or overexpression transgenes identified only one perturbation with an impact: reduction of DIP-ε by RNAi on the fru P1 ∩ DIP-α pattern, with both cell autonomous and non-autonomous roles (Figure 10). This suggests that there is sufficient redundancy in these neurons that removal or addition of one member of the Dpr/DIP interactome cannot change patterning robustly. DIP-ε interacts with a large number of Dprs, which may be one of the reasons a reduction of DIP-ε results in morphological changes. We found that some Dprs that interact with the same DIP are expressed in the same brain regions (Figure 7), and/or are detected in the same neurons, consistent with the idea of redundancy. This could also be due to other members of the IgSF that were identified by our genomic-scale screens as expressed in fru P1 neurons and/or are regulated by FruM, or other adhesion molecules. The enhanced set of projections in the superior medial protocerebrum region of the brain due to reduced DIP-ε is reminiscent of the synaptic targeting phenotypes seen in the optic lobe due to dpr/DIP perturbations (Carrillo et al., 2015; Tan et al., 2015; Courgeon and Desplan, 2019; Menon et al., 2019; Xu et al., 2019), which supports a role of dprs/DIPs in the development of fru P1 neuroanatomical projection patterns and/or synaptic targets.

Future studies that are performed with genetic tools that yield more penetrant phenotypes than RNAi, including CRISPR/Cas9 generated alleles, will likely reveal additional roles for Dprs/DIPs and can provide further confirmation of the RNAi results presented. Furthermore, CRISPR/Cas9 gene knock-out approaches can target multiple dprs/DIPs, allowing one to test for functional redundancy. Additional analyses to determine the subcellular localization of each Dpr/DIP will also be important to understand their roles in the nervous system, especially to determine if they are present in synaptic termini and dendrites, which would be consistent with a role of directing synaptic specificity. It is clear that higher resolution analyses of the fru P1 ∩ DIP-α pattern revealed more sexual dimorphism, so additional analysis of other genotypes at this resolution will be important, including determining developmental patterns to gain insight into mechanisms that underlie sexual dimorphism. Furthermore, our expression data reveal expression beyond development, well into adult stages. Adult roles of the dprs/DIPs may include mediating neuronal connectivity changes due to reproductive experiences.

fru P1dpr/DIP neurons and male courtship behaviors

We find that activating and silencing the subsets of neurons defined by each fru P1dpr/DIP genotype differentially impacts male courtship behaviors, with the results highlighting that the activity of different combinations of neurons can generate a similar behavioral outcome (Figure 7). This analysis provides further insight into how similar behavioral outcomes can be generated in different ethological contexts, through the integration of information across many different neuronal subtypes. An examination of the similarities of fru P1dpr/DIP expression patterns and behavioral outcomes suggests that interactions between the mushroom body and lateral protocerebral complex are critical to reach a certain threshold of activation for male courtship behaviors, in both the male-female and male-alone paradigm, given that the genotypes with expression in those two regions had the most consistent and robust behavioral phenotypes. Interactions between neurons in these two regions have previously been proposed to integrate disparate sensory information and behavioral experiences in order to direct courtship outcomes (Yu et al., 2010).

While there has been an impressive effort to map functions onto small subsets of neurons (Robie et al., 2017), our results suggest that it will also be important to understand the roles of different combinations of neurons to fully understand behavioral outcomes. This will facilitate understanding of how different sensory and courtship experiences impart physiological changes to direct behavior. Furthermore, these activation experiments may also reveal insights about evolution of behavior. In some Drosophila species, males perform a double wing extension during courtship (reviewed in Anholt et al., 2020). We observe double wing extension in several genotypes in the neuronal activation experiments, suggesting that changing levels of neuronal activity are a way to evolve a new behavior. Although this study focused on male reproductive behaviors, it will also be interesting to examine the role of fru P1dpr/DIP neurons on female behavioral outcomes.

Conclusions

Over the last several years, genomic studies have pointed to a role of the dprs/DIPs in fru P1 neurons (Goldman and Arbeitman, 2007; Dalton et al., 2013; Neville et al., 2014; Vernes, 2015; Newell et al., 2016). Indeed, our early study showed that dpr1 had a role in courtship gating, or the timing of the steps that the male performs (Goldman and Arbeitman, 2007). Until recently, a systematic analysis of the role of fru P1 neurons that express dprs/DIPs was not possible. The use of the intersecting genetic strategy with the set of dpr/DIP Gal4 tools revealed their expression patterns and that there is an interplay between mushroom body and lateral protocerebral complex neurons, with respect to coordinating behavioral outcomes. In addition, focused experiments on the fru P1 ∩ DIP-α pattern revealed roles for the sex hierarchy and the functional redundancy of dprs/DIPs, based on the RNAi perturbation results. Future functional studies aimed at a systematic analysis of the Dpr/DIP interactome will further elucidate the role of these cell adhesion molecules in terms of specifying neuroanatomy and also as a powerful tool to gain insight into the functions of different sets of fru P1 neurons.

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
Genetic reagent (D. melanogaster)dpr1-Gal4Provided by Zinn labw;dpr1-T2A-GAL4/cyo
Genetic reagent (D. melanogaster)dpr2-Gal4Provided by Zinn labw;dpr2-T2A-GAL4/cyo
Genetic reagent (D. melanogaster)dpr3-Gal4Provided by Zinn labw;dpr3-T2A-GAL4/cyo (#2)
Genetic reagent (D. melanogaster)dpr4-Gal4
Flybase symbol:
Dmel\TI{CRIMIC.TG4.1}dpr4CR00485-TG4.1
Hugo Bellen/ Gene Disruption Project (GDP)
Lee et al., 2018
PMID:29565247
RRID:BDSC_79271y(1) w[*]; TI{GFP[3xP3.cLa]=CRIMIC.TG4.1}dpr4[CR00485-TG4.1]/TM3, Sb(1) Ser(1)
Genetic reagent (D. melanogaster)dpr5-Gal4Provided by Zinn labw;;dpr5-T2A-GAL4/TM6b (#2)
Genetic reagent (D. melanogaster)dpr6-Gal4Provided by Zipursky
Tan et al., 2015
PMID:26687360
dpr6-T2A-GAL4/TM6b
Genetic reagent (D. melanogaster)dpr7-Gal4
Flybase symbol:
Dmel\Mi{MIC}dpr7MI05719
Hugo Bellen/ Gene Disruption Project (GDP)
Nagarkar-Jaiswal et al., 2015a
PMID:25824290
RRID:BDSC_60786Y(1)Mi{y[+Dint2]=MIC}dpr7[MI05719]
Genetic reagent (D. melanogaster)dpr8-Gal4Provided by Zinn labdpr8-GAL4/Fm7a
Genetic reagent (D. melanogaster)dpr9-Gal4Provided by Zinn labw; BL/Cyo; dpr9-T2A-GAL4/TM6b
Genetic reagent (D. melanogaster)dpr10-Gal4Provided by Zinn labw;;dpr10-T2A-GAL4/TM6b (#3)
Genetic reagent (D. melanogaster)dpr11-Gal4Provided by Zinn labw; BL/Cyo; dpr11-GAL4/TM6b
Genetic reagent (D. melanogaster)dpr12-Gal4Provided by Zinn labw; dpr12-GAL4/cyo; TM2/TM6b
Genetic reagent (D. melanogaster)dpr13-Gal4Provided by Zinn labw;dpr13-GAL4/cyo; TM2/TM6b
Genetic reagent (D. melanogaster)dpr14-Gal4
Flybase symbol:
Dmel\TI{CRIMIC.TG4.1}dpr14CR00516-TG4.1
Hugo Bellen/ Gene Disruption Project (GDP)
Lee et al., 2018
PMID:29565247
RRID:BDSC_80586y(1) TI{GFP[3xP3.cLa]=CRIMIC.TG4.1}dpr14[CR00516-TG4.1] w[*]
Genetic reagent (D. melanogaster)dpr15-Gal4
Flybase symbol:
Dmel\Mi{Trojan-GAL4.1}dpr15MI01408-TG4.1
Hugo Bellen/ Gene Disruption Project (GDP)
Lee et al., 2018
PMID:29565247
RRID:BDSC_66827y(1) w[*];; Mi{Trojan-GAL4.1}dpr15[MI01408-TG4.1]/TM3, Sb(1) Ser(1)
Genetic reagent (D. melanogaster)dpr16-Gal4Provided by Zinn labw;;dpr16-T2A-GAL4/TM6b (#3)
Genetic reagent (D. melanogaster)dpr17-Gal4
Flybase symbol:
Dmel\Mi{Trojan-GAL4.1}dpr17MI08707-TG4.1
Hugo Bellen/ Gene Disruption Project (GDP)
Lee et al., 2018
PMID:29565247
RRID:BDSC_76200 y(1) w[*]; Mi{Trojan-GAL4.1}dpr17[MI08707-TG4.1]/TM3, Sb(1) Ser(1)
Genetic reagent (D. melanogaster)dpr18-Gal4
Flybase symbol:
Dmel\TI{CRIMIC.TG4.1}dpr18CR01004-TG4.1
Hugo Bellen/ Gene Disruption Project (GDP)
Lee et al., 2018
PMID:29565247
RRID:BDSC_83245y(1) w[*]; TI{GFP[3xP3.cLa]=CRIMIC.TG4.1}dpr18[CR01004-TG4.1]
Genetic reagent (D. melanogaster)dpr19-Gal4
Flybase symbol:
Dmel\TI{CRIMIC.TG4.1}dpr19CR00996-TG4.1
Hugo Bellen/ Gene Disruption Project (GDP)
Lee et al., 2018
PMID:29565247
RRID:BDSC_83242y(1) w[*]; TI{GFP[3xP3.cLa]=CRIMIC.TG4.1}dpr19[CR00996-TG4.1]/SM6a
Genetic reagent (D. melanogaster)DIP-α-Gal4Provided by Zinn labDIP-alpha-T2A-GAL4/(Fm7)
Genetic reagent (D. melanogaster)DIP-β-Gal4Provided by Zinn labDIP-beta--T2A-GAL4GAL4
Genetic reagent (D. melanogaster)DIP-γ-Gal4Provided by Zinn labw;;DIP-gamma--T2A-GAL4GAL4/TM3, Sb (#8)
Genetic reagent (D. melanogaster)DIP-δ-Gal4Provided by Zinn labw;;DIP-delta--T2A-GAL4GAL4/TM6b (#3)
Genetic reagent (D. melanogaster)DIP-ε-Gal4
Flybase symbol:Dmel\Mi{Trojan-GAL4.1}DIP-εMI11827-TG4.1
Hugo Bellen/ Gene Disruption Project (GDP)
Lee et al., 2018
PMID:29565247
RRID:BDSC_67502
Genetic reagent (D. melanogaster)DIP-ζ-Gal4Provided by Zinn labw;DIP-zeta-T2A-GAL4/Cyo
Genetic reagent (D. melanogaster)DIP-η-Gal4Provided by Zinn labw;DIP-eta-T2A-GAL4/Cyo
Genetic reagent (D. melanogaster)DIP-θ-Gal4Provided by Zinn labw;DIP-theta-Gal4/cyo;TM2/TM6b
Genetic reagent (D. melanogaster)DIP-ι-Gal4
Flybase symbol:
Dmel\TI{CRIMIC.TG4.1}DIP-ιCR00997-TG4.1
Hugo Bellen/ Gene Disruption Project (GDP)
Lee et al., 2018
PMID:29565247
RRID:BDSC_83243y(1) w[*]; TI{GFP[3xP3.cLa]=CRIMIC.TG4.1}DIP-iota[CR00997-TG4.1]/SM6a
Genetic reagent (D. melanogaster)10xUAS > stop > myr::smGdP-cMyc
Flybase symbol:
Dmel\P{10XUAS(FRT.stop)GFP.Myr}su(Hw)attP5
Pfeiffer, B., Rubin, G. (2014.4.16). Recombinase and tester constructs and insertions.
Flybase ID: FBrf0224689
RRID:BDSC_55810+/+; P{10XUAS(FRT.stop)GFP.Myr}su(Hw)attP5; +/+
Genetic reagent (D. melanogaster)Canton SUlrike HeberleinWild type
Genetic reagent (D. melanogaster)Canton S
(white)
Ulrike HeberleinWild type with white mutation introgression
Genetic reagent (D. melanogaster)UAS > stop > TrpA1
Flybase symbol:
Dmel\P{UAS(FRT.stop)TrpA1myc}VIE-260B
Dickson, B. (2017.1.31). Barry Dickson Stocks.
Flybase ID:
FBrf0234603
RRID:BDSC_66871w[*]; P{y[+t*] w[+mC]=UAS(FRT.stop)TrpA1[myc]}VIE-260B
Genetic reagent (D. melanogaster)fru P1FLP
Flybase symbol:
Dmel\TI{FLP}fruFLP
Donor: Barry Dickson, Howard Hughes Medical Institute, Janelia Research CampusRRID:BDSC_66870w[*]; TI{FLP}fru[FLP]/TM3, Sb(1)
Genetic reagent (D. melanogaster)UAS > stop > TNTQ
Flybase symbol:
P{UAS(FRT.stop)Ctet\tetXin}
Barry Dickson
Stockinger et al., 2005
PMID:15935765
w[*]; P{w[+m*]=UAS(FRT.stop)Ctet\tetXin}VIE-19A/CyO
Genetic reagent (D. melanogaster)UAS > stop > TNTE
Flybase symbol:
Dmel\P{UAS(FRT.stop)Ctet\tetX}VIE-19A
Barry Dickson, Howard Hughes Medical Institute, Janelia Research CampusRRID:BDSC_67690w[*]; P{w[+m*]=UAS(FRT.stop)Ctet\tetX}VIE-19A/CyO
Genetic reagent (D. melanogaster)tub >GAL80>
Flybase symbol:
Dmel\P{αTub84B(FRT.GAL80)}3
Zhang, B. (2012.5.29). P{alphaTub84B(FRT.GAL80)} insertions from Bing Zhang
Flybase ID:
FBrf0218396
RRID:BDSC_38881w[*]; Bl(1)/CyO; P{w[+mC]=alphaTub84B(FRT.GAL80)}3
Genetic reagent (D. melanogaster)UAS-DIP-αProvided by Zipursky
Xu et al., 2018
PMID:30467079
w;BL/CyO;UAS-Dipalpha-2ATdTom/TM6b
Genetic reagent (D. melanogaster)RFP-RNAi
Flybase symbol:
Dmel\P{TRiP.HMS05847}attP40
Donor: Transgenic RNAi Project
Perkins et al., 2015
PMID:26320097
RRID:BDSC_67984y(1) v(1); P{y[+t7.7] v[+t1.8]=TRiP.HMS05847}attP40
Genetic reagent (D. melanogaster)DIP-α-RNAi
Flybase symbol:
Dmel\P{TRiP.HMS05847}attP40
Donor: Transgenic RNAi Project
Perkins et al., 2015
PMID:26320097
RRID:BDSC_67984y(1) v(1); P{y[+t7.7] v[+t1.8]=TRiP.HMS01879}attP40/CyO
Genetic reagent (D. melanogaster)DIP-β RNAi
Flybase symbol:
Dmel\P{TRiP.HMS01774}attP40
Donor: Transgenic RNAi Project
Perkins et al., 2015
PMID:26320097
RRID:BDSC_38310y(1) sc[*] v(1); P{y[+t7.7] v[+t1.8]=TRiP.HMS01774}attP40
Genetic reagent (D. melanogaster)DIP-ε-RNAi
Flybase symbol:
Dmel\P{TRiP.HMS01718}attP40
Donor: Transgenic RNAi Project
Perkins et al., 2015
PMID:26320097
RRID:BDSC_38936y(1) sc[*] v(1); P{y[+t7.7] v[+t1.8]=TRiP.HMS01718}attP40
Genetic reagent (D. melanogaster)DIP-η-RNAi
Flybase symbol:
Dmel\P{TRiP.HMS01673}attP40
Donor: Transgenic RNAi Project
Perkins et al., 2015
PMID:26320097
RRID:BDSC_38229y(1) sc[*] v(1); P{y[+t7.7] v[+t1.8]=TRiP.HMS01673}attP40
Genetic reagent (D. melanogaster)DIP-ι-RNAi
Flybase symbol:
Dmel\P{TRiP.HMS01675}attP40
Donor: Transgenic RNAi Project
Perkins et al., 2015
PMID:26320097
RRID:BDSC_38231y(1) sc[*] v(1); P{y[+t7.7] v[+t1.8]=TRiP.HMS01675}attP40
Genetic reagent (D. melanogaster)DIP-θ-RNAi
Flybase symbol:
Dmel\P{TRiP.JF03069}attP2
Donor: Transgenic RNAi Project
Perkins et al., 2015
PMID:26320097
RRID:BDSC_28654y(1) v(1);; P{y[+t7.7] v[+t1.8]=TRiP.JF03069}attP2
Genetic reagent (D. melanogaster)DIP-ζ-RNAi
Flybase symbol:
Dmel\P{TRiP.HMS01671}attP40
Donor: Transgenic RNAi Project
Perkins et al., 2015
PMID:26320097
RRID:BDSC_38227y(1) sc[*] v(1); P{y[+t7.7] v[+t1.8]=TRiP.HMS01671}attP40
Genetic reagent (D. melanogaster)dpr5-RNAi
Flybase symbol:
Dmel\P{TRiP.JF03306}attP2
Donor: Transgenic RNAi Project
Perkins et al., 2015
PMID:26320097
RRID:BDSC_29627y(1) v(1);; P{y[+t7.7] v[+t1.8]=TRiP.JF03306}attP2
Genetic reagent (D. melanogaster)dpr10-RNAi
Flybase symbol:
Dmel\P{TRiP.JF02920}attP2
Donor: Transgenic RNAi Project
Perkins et al., 2015
PMID:26320097
RRID:BDSC_27991y(1) v(1);; P{y[+t7.7] v[+t1.8]=TRiP.JF02920}attP2
Genetic reagent (D. melanogaster)dpr12-RNAi
Flybase symbol: Dmel\P{TRiP.JF03210}attP2
Donor: Transgenic RNAi Project
Perkins et al., 2015
PMID:26320097
RRID:BDSC_28782y(1) v(1);; P{y[+t7.7] v[+t1.8]=TRiP.JF03210}attP2
Genetic reagent (D. melanogaster)UAS-DIP-εFlyORF
PMID:23637332 and 24922270
Fly line ID:
F004486
;;M{UAS-DIP-epsilon.ORF.3xHA.GW}ZH-86Fb*
Genetic reagent (D. melanogaster)UAS-DIP-γFlyORF
PMID:23637332 and 24922270
Fly line ID:
F003086
;;M{UAS-DIP-gamma.ORF.3xHA.GW}ZH-86Fb*
Genetic reagent (D. melanogaster)UAS-DIP-ιFlyORF
PMID:23637332 and 24922270
Fly line ID:
F004254
;;M{UAS-DIP-iota.ORF.3xHA.GW}ZH-86Fb*
Genetic reagent (D. melanogaster)UAS-dpr1FlyORF
PMID:23637332 and 24922270
Fly line ID:
F004145
;;M{UAS-dpr1.ORF.3xHA.GW}ZH-86Fb
Genetic reagent (D. melanogaster)UAS-dpr4FlyORF
PMID:23637332 and 24922270
Fly line ID:
F002762
;;M{UAS-dpr4.ORF.3xHA.GW}ZH-86Fb
Genetic reagent (D. melanogaster)UAS-dpr6Provided by Zipursky
Xu et al., 2018
PMID:30467079
w;UAS-Dpr6F-V5/CyO;TM2/TM6b
Genetic reagent (D. melanogaster)UAS-dpr10Provided by Zipursky
Xu et al., 2018
PMID:30467079
w;UAS-Dpr10D-V5/CyO;TM2/TM6b
Genetic reagent (D. melanogaster)UAS-dpr18FlyORF
PMID:23637332 and 24922270
;;M{UAS-dpr18.ORF.3xHA.GW}ZH-86Fb*
Genetic reagent (D. melanogaster)UAS-TraF
Flybase symbol:
Dmel\P{UAS-tra.F}20J7
Donor: Ralph Greenspan, New York UniversityRRID:BDSC_4590w[1118]; P{w[+mC]=UAS-tra.F}20J7
Genetic reagent (D. melanogaster)UAS-FruMA7Provided by Stephen Goodwin
Genetic reagent (D. melanogaster)UAS-FruMB25Provided by Stephen Goodwin
Genetic reagent (D. melanogaster)UAS-FruMC1Provided by Stephen Goodwin
Genetic reagent (D. melanogaster)FruΔCPMID:16753560
Genetic reagent (D. melanogaster)Flybase symbol:
Dmel\P{10XUAS-IVS-mCD8::GFP}attP40
Donor: Gerald M. Rubin and Barret Pfeiffer, Howard Hughes Medical Institute, Janelia Research CampusRRID:BDSC_32186w[*]; P{y[+t7.7] w[+mC]=10XUAS-IVS-mCD8::GFP }attP40
Genetic reagent (D. melanogaster)fru P1-Gal4Provided by Baker lab
PMID:15959468

Fly husbandry and stocks

Request a detailed protocol

All flies were raised at 25°C on a 12:12 hr light-dark cycle. The flies were grown using standard cornmeal food media (33 L H2O, 237 g Agar, 825 g dried deactivated yeast, 1560 g cornmeal, 3300 g dextrose, 52.5 g Tegosept in 270 ml 95% ethanol and 60 ml Propionic acid).

A list of Drosophila strains is provided (Key Resources Table).

Immunohistochemistry and confocal microscopy

Request a detailed protocol

Brain and ventral nerve cord (VNC) tissues were dissected from animals that were either 0–24 hr adults, or 4–7 day adults. Samples were dissected in 1x Phosphate Buffered Saline (PBS; 140 mM NaCl, 10 mM phosphate buffer, and 3 mM KCl, pH 7.4) and immediately transferred to fix (4% paraformaldehyde, 1x PBS) for 25 min at room temperature. Samples were washed for 5 min with 1x PBS, three times. The tissue was then permeabilized with TNT (0.1 M Tris-HCl [pH 7.4], 0.3 M NaCl, 0.5% Triton X-100), for 15 min, followed by two additional 5 min TNT washes. The tissue was rinsed in 1x PBS, and then Image-iT FX Signal Enhancer (Invitrogen) was applied for 25 min. Finally, the tissue was washed in TNT for two washes of 5 min each. Diluted primary antibody in TNT was applied, and samples were incubated overnight at 4°C. Next, the tissue was washed six times in TNT for 5 min each, and then secondary antibody diluted in TNT and applied. The samples were then incubated for 2 hr at room temperature or overnight at 4°C. Following this incubation, samples were washed six times in TNT for 5 min each and then mounted in Secureseal Image Spacers (Electron Microscopy Services), on glass slides with VectaShield Mounting Medium (Vector Laboratories; H-1000), and covered with #1.5 coverslips. Primary antibodies were used in the following dilutions, as indicated in the figure legends: mouse α-nc82 (1:20; Developmental Studies Hybridoma Bank, AB_2314866), rabbit α-Myc (1:6050; abcam, ab9106), rabbit α-GFP Alexa Fluor 488 (1:600; Invitrogen, A21311). Secondary antibodies were used in the following dilutions: goat α-rabbit Alexa Fluor 568 (1:500; Invitrogen, A11036), goat α-mouse Alexa Fluor 633 (1:500; Invitrogen A21052). For labeling of three MCFO markers (FLAG, V5, and HA), brains and VNCs samples were dissected and stained by following the method modified from Nern et al., 2015. The primary antibodies rabbit α-HA (1:300; Cell Signaling, 3724S), mouse α-FLAG (1:500; Sigma, F1804), and rabbit α-V5 DyLight 549 (Rockland, 600-442-378), and the secondary antibodies goat α-rabbit Alexa Fluor 633 (1:500; Invitrogen A21071) and goat α-mouse Alexa Fluor 488 (1:500; Invitrogen A11001) were used. All the antibodies were diluted in TNT.

Images were acquired on a Zeiss LSM 700 confocal microscope with a 20x objective and bidirectional scanning. The interval of each slice was set as 1.0 μm. Zeiss Zen software (Black edition, 2012) was used to make adjustments to laser power and detector gain to enhance the signal to noise ratio.

Image analysis and quantification of fru P1dpr/DIP neurons

Request a detailed protocol

Brain and VNC confocal images of 4- to 7-day-old male or female adults were analyzed for the presence of certain morphological features and cell body numbers of select neurons. The images were scored blind, in randomized batches, by three independent people. The analysis was performed using Fiji-ImageJ 14.1, with the cell counter Janelia version 1.47 hr plugin. To determine which regions to analyze, the following criteria were used: (1) regions that had sexually dimorphic structures, (2) were present in many of the different genotypes, and/or (3) are known to be important for reproductive behaviors. A template of example images, with regions indicated, was used to ensure accurate and similar image analyses across all researchers (Source data 1). As a test to ensure accuracy of scoring across the three individuals, a round-robin scoring design was employed, with each image scored by three individuals, for a subset of 26 images, which showed high concordance. The raw cell count numbers and morphological observations were recorded in excel, compiled and then unblinded (Source data 1).

Generation of heatmaps

Request a detailed protocol

Heatmaps and correlation plots of the image analysis data were generated using Morpheus (Broad Institute; https://software.broadinstitute.org/morpheus). For features that were scored as present or absent, a value of 0 or one was calculated as the number of samples with the feature present divided by total number of samples. For the cell count data, the replicate data was averaged, and then all data was divided by the highest value for that cell count feature, so all data were between 0 and 1. The hierarchal cluster heatmap was made using the following parameters: one minus spearman rank correlation as the metric, average for linkage method, and clustering by the columns (data for each dpr/DIP). The correlation heatmaps were created using the Morpheus similarity matrix tools, using the following parameters: spearman rank as the metric, computed for the columns.

Courtship behavior assays and analyses

Request a detailed protocol

For all behavior, male flies were collected 0–6 hr post-eclosion, housed individually in small vials, and aged for 4–7 days. Canton S virgin females (white) were also collected 0–6 hr post-eclosion, and aged for 4–7 days in groups to be used as female targets for courtship with males containing the UAS > stop > TrpA1:myc transgene. Canton S virgin females were collected and kept in a similar manner to be used for courtship with male flies containing the UAS > stop > TNT/TNTQ transgenes. Flies were kept in a 25°C incubator on a 12:12 hr light:dark cycle, unless otherwise noted. Courtship chambers were placed on a temperature-controlled metal block at 25°C and videos were recorded between ZT 5–10, in a 10 mm chamber for 10 min, or until successful copulation occurred, whichever came first. For courtship using male flies harboring the UAS > stop > TrpA1:myc transgene, the male flies were reared and housed in a 19°C incubator, on a 12:12 light:dark cycle, so the Trp channel would not be activated. Courtship chambers were placed on a temperature-controlled metal block for ten minutes prior to the courtship assay, at either 20°C or 32°C.

The courtship video recordings were analyzed using The Observer XT (Noldus) (version 14.0), with an n = 14–16 for male-female behavior and n = 10 for male alone behavior. Coded behaviors included: following (a start-stop event defined as any time the male is oriented toward the female and is less than half a chamber distance away from the female), wing extension (a start-stop event defined as any time one wing is extended from the fly and is vibrating), double wing extension (a start-stop event when both wings are extended from the body and are vibrating), abdominal bending (a start-stop event when the abdomen is curled under and is not thrusting or is not in the correct position to copulate with the female), motor defect (a start-stop event when the male falls onto his back and is unable to right himself), attempted copulation (a point event when the male attempts to copulate with the female but is not successful), and successful copulation (a point event when the male is able to attach and successfully copulate with the female).

These data were graphed and analyzed using the JMP Pro 14.0.0 statistical software. A non-parametric Wilcoxon test was used to compare differences between the control and experimental temperature (for TrpA1 experiments) or between control and experimental strains (for TNT experiments), for the data for which an index is calculated. The unpaired t-test was used to determine significant differences between experimental and control conditions, with the same dpr/DIP-Gal4, to determine if the number of attempted copulations were different (test assumes equal variance).

Drosophila activity monitor behavioral assay

Request a detailed protocol

Males were collected 0–6 hr post-eclosion and aged for 3 days in a 25°C incubator on a 12:12 hr light:dark cycle. On day three, they were individually loaded into 5 × 65 mm glass tubes (Trikinetics Inc), plugged on one end with standard cornmeal food media dipped in paraffin wax to seal. The non-food end was sealed with parafilm, with small air holes. The vials were loaded into Drosophila activity monitors (TriKinetics Inc), and placed in a 25°C incubator in 12:12 hr light:dark. Each condition was run for five days. The data from the first day of activity was not used in the analysis, as flies were recovering from CO2 anesthesia. Activity was measured as the number of beam breaks and collected in 5-min bins. Beam crossings were summed over the 24 hr period from day 5 ZT0 (lights-on) to day 6 ZT0 per individual fly (Source data 2). These data were graphed and analyzed using the JMP Pro 14.0.0 statistical software. A non-parametric Wilcoxon test was used to compare differences between the control (TNTQ) and experimental (TNT) strains with the same dpr/DIP-Gal4.

Dissociation of CNS for single-cell mRNA sequencing analyses

Request a detailed protocol

Twenty freshly dissected male brains and ventral nerve cords, from 48 hr after puparium formation (APF) stage, were used. The flies had expression of membrane-bound GFP in fru P1 neurons and were the following genotype: w[*]; P{y[+t7.7] w[+mC]=10XUAS-IVS-mCD8::GFP}attP40/UAS-Gal4; fru P1-Gal4/+. The tissue was dissected in cold Schneider 2 Drosophila culture medium (S2 medium, Gibco) and transferred to a LoBind tube (Eppendorf), containing 200 μl of S2 medium. The tissue was centrifuged at 500 g for 5 min, and then was washed with 300 μl of EBSS (Earle’s Balanced Salt Solution), and centrifuged again at 500 g for 5 min. After centrifugation, the supernatant was replaced with 100 μl of papain for disassociation (50 units/ml, Worthington) diluted in EBSS. Brains were dissociated at 25°C in a LoBind tube for 30 min., with pipette mixing to reinforce dissociation every 3 min with a P200 tip during the first 15 min, and a P10 tip for the final 15 min. Cells were washed twice with 700 μl cold S2 medium containing 10% FBS (Gibco) and centrifuged at 700 g for 10 min to quench the papain. Cell suspensions were passed through a 30 μM pre-separation filter (Miltenyi Biotech). Cell viability and concentration were assessed by hemocytometer using Trypan blue.

10x Genomics library preparation and sequencing

Request a detailed protocol

Single-cell libraries were generated using Single Cell 3′ Library and Gel Bead Kit v2, Chip Kit, and the GemCode 10X Chromium instrument (10X Genomics, CA), according to the manufacturer’s protocol (Zheng et al., 2017). In brief, single cells were suspended in S2 medium with 10% FBS and the maximum volume of cells, 34 μl, was added to a single chip channel. After the generation of nanoliter-scale Gel bead-in-EMulsions (GEMs), the mRNA in GEMs underwent reverse transcription. Next, GEMs were broken, and the single-stranded cDNA was isolated, cleaned with Cleanup Mix containing DynaBeads MyOne Silane beads (Thermo Fisher Scientific). cDNA was then amplified with the following PCR machine settings: 98°C for 3 min, 9 cycles of (98°C for 15 s, 67°C for 20 s), 72°C for 1 min, held at 4°C. Subsequently, the amplified cDNA was cleaned up with SPRIslect Reagent kit (Beckman Coulter), fragmented, end-repaired, A-tailed, adaptor ligated, and cleaned with SPRIselect magnetic beads between steps. This product was PCR amplified with the following PCR machine settings: 98°C for 45 s, 12 cycles of (98°C for 20 s, 54°C for 30 s, 72°C for 20 s), 72°C for 1 min, and hold at 4°C. The library was cleaned and size-selected with SPRIselect beads, followed by Pippin size selection for a 350–450 bp library size range. Single cell libraries were sequenced on the Illumina NovaSeq with 150 bp paired-end reads on an S2 flowcell. This produced 1,870,220,065 reads. The sequence data are available through the GEO repository (GSE162098).

Single-cell data pre-processing and analysis

Request a detailed protocol

Raw reads were processed using the CellRanger software pipeline (v.2.1.1) ‘cellranger count’ command to align reads to the Drosophila melanogaster (BDGP6.92) STAR reference genome, customized to contain the sequence for the mCD8-GFP cDNA. The ‘force-cells’ command was used to call 25,000 single cells, based on the inflection point of the CellRanger barcode rank plot, a criterion for dividing single cells from empty GEM droplets (Source data 3). The recovered 25,000 single cells had a mean sequencing depth of 74,808 reads per cell. We detected a median of 2118 genes per cell. The obtained feature-barcode matrix was further processed and analyzed in the R package Seurat (v3.0) (Stuart et al., 2019). To filter the expression matrix for high quality cells we removed cells with >5% mitochondrial transcripts (dying cells),<200 genes (empty droplets), and/or expressing more than 6000 genes (potential doublets or triplets). This filtering produced a matrix of 24,902 high-quality cells which were computationally subset to the population of fru P1 neurons, based on mCD8-GFP expression, obtaining 5,621 cells. We next followed the Seurat ‘Guided clustering tutorial’ for default normalization and scaling steps (https://satijalab.org/seurat/v3.0/pbmc3k_tutorial.html). Expression was normalized using the ‘NormalizeData’ function where gene counts within each cell are divided by the total gene counts for that cell, multiplied by a scaling factor of 10000, and natural-log transformed (log1p). A linear transformation was applied to the normalized gene counts, to make genes more comparable to one another, using the default ‘ScaleData’ function to center the mean expression to 0 and set the variance at 1. We performed a principal component analysis (PCA) using only the data from 33 dpr/DIP genes. We used the top 20 principal components based on visual inspection of DimHeatmap outputs and the ElbowPlot. Selecting more than 20 PCs did not dramatically change our results. We then continued to follow Seurat’s standard workflow to reduce dimensionality and cluster cells using the default ‘FindNeighbors’, ‘FindClusters’, and ‘runUMAP’ functions (resolution = 1.3).

To evaluate expression combinations of the dpr/DIPs within our single cells we used an UpSet plot analysis (Conway et al., 2017). To do this, we transposed our matrix which contained normalized, log-transformed, and scaled expression data (Source data 3) for dpr/DIPs for each single cell barcode and binarized the data (any expression of a dpr or DIP >1 = 1, and >1 is considered as no expression = 0, Source data 3). All plots generated are ordered by the highest frequency of an expression combination occurring within single cells (order.by = ‘freq’). A single-cell expression hierarchical clustering dendrogram was produced using the normalized, log-transformed, and scaled expression data (Source data 3). A Pearson correlation distance measure was calculated using the factoextra (v. 1.0.7) ‘get_dist’ function and hierarchical cluster analysis was performed using the ‘hclust’ core R statistics function with the argument method = ‘average’.

Image analyses of RNAi and over-expression perturbations

Sex hierarchy perturbations

Request a detailed protocol

The DIP-α subset of fru P1 neurons were analyzed to determine the impact of sex hierarchy perturbations. Flies bearing RNAi and over-expressor constructs were raised to 4- to 7-day-old adults, stained, and imaged as described above. Both RNAi knockdown and overexpression experiments were first performed in all DIP-α expressing cells. In addition, the over-expressors were also restricted to the visualized fru P1 DIP-α neurons with the use of tub>GAL80>.

The fru P1 DIP-α neuronal patterns were analyzed blind in at least 15 brains and ventral nerve cords, in males and females, to determine the effect of sex hierarchy perturbations on neuronal morphology (Source data 4), for a set of morphological features (Source data 4). The ratios of different types of the morphological features and presence or absence of morphological features were compared within sex, between sex hierarchy perturbation groups and the corresponding controls using Fisher’s exact test (tests were conducted in R version 3.5.1, R Core Team, 2019).

Functional roles of dpr/DIPs

Request a detailed protocol

Initially, several different combinations of one dpr/DIP-Gal4 driver, and either a UAS-RNAi dpr/DIP, or a UAS-dpr/DIP expression transgene were assayed, using the intersectional genetic approach for visualization of small sets of fru P1 neurons (Figure 1C; Source data 5). For the RNAi screen, parents laid eggs at 25°C for 2–3 days, and then the vials with eggs were transferred to 29°C, to increase effectiveness of RNAi constructs. For the over-expression screen, flies were raised at 25°C. Staining and confocal imaging was performed as described above. Through this initial screen, we found that knocking down DIP-ε in DIP-α fru P1 neurons at 4–7 days was the only condition to yield a robust phenotype. Knockdowns were analyzed, with DIP-ε or RFP RNAi active in all DIP-α expressing cells. In addition, knockdowns were restricted to the visualized fru P1 DIP-α neurons with the use of tub>GAL80>.

The fru P1 DIP-α neurons were analyzed blind in 20 brains, in male and female controls and mutants, to determine the effect of DIP-ε knockdown on neuronal morphology (Source data 5). The presence or absence of morphological features were compared within sex between DIP-ε knockdowns and the corresponding control using a Fisher’s exact test (R version 3.5.1, R Core Team, 2019).

Data availability

All raw data are provided in the supplementary materials. The sequencing data have been deposited in GEO under accession number GSE162098.

The following data sets were generated
    1. Palmateer CM
    2. Arbeitman MN
    (2020) NCBI Gene Expression Omnibus
    ID GSE162098. Investigation of Drosophila fruitless neurons that express Dpr/DIP cell adhesion molecules.

References

Decision letter

  1. Michael B Eisen
    Senior and Reviewing Editor; University of California, Berkeley, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Drosophila reproductive behaviors are directed by a subset of neurons that express the gene fruitless. This paper uses a diverse set of analyses and experiments to investigate the sexually dimorphic morphology and activity of a subset of these neurons characterized by expression of a family of cell:cell adhesion molecules, with the overarching suggestion that these adhesion molecules play a role in shaping the neuroanatomical differences that drive subtle behavioral differences.

Decision letter after peer review:

Thank you for submitting your article "Neurogenetic and genomic approaches reveal roles for Dpr/DIP cell adhesion molecules in Drosophila reproductive behavior" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by Michael Eisen as the Senior Editor and Reviewing Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

This study by Brovero et al. identifies DIP and Dpr expression in fruitless positive neurons of the courtship circuits in the nervous system. Fruitless positive neurons/circuit shows sexual dimorphism in the number and morphology of the neurons, which is regulated by the function of male splice isoform of fruitless transcripts from the P1 promoter. One hypothesis is that sex-specific differences in the cell surface receptors might regulate morphological aspects of sexually dimorphic neuroanatomy within fruitless positive courtship circuit driving behavioral differences between sexes.

To test this, the authors use intersectional genetic approaches to determine sexually dimorphic fruitless positive neuronal subpopulations based on their combinatorial DIP/Dpr expression. They find that each fruitless positive neuron has a unique DIP/Dpr expression pattern. The expression patterns for some are sexually dimorphic. Elimination of sex specific splicing of fruitless or knock down of fruitlessM disrupts sexual dimorphism in neuronal morphology. Genetically silencing or activating small subpopulations of fruitless positive neurons using the DIP-/Dpr-GAL4fruFLP intersectional methods, the authors also systematically delineate different neuronal contributions to different components of the courtship ritual. In addition, knock down of some DIPs also disrupt the sexually dimorphic neuroanatomy.

This paper systematically uncovers the expression of the large family of DIP/Dpr cell adhesion molecules in defining neuronal subpopulations within the courtship circuit, as well as their contribution to neuroanatomical differences of these neurons between males and females and their contribution to courtship behaviors.

While the paper reports a lot of solid data and analyses, there was a consensus among the editor and reviewers that the manuscript is unfocused and covers many things without going into depth in any, and as a result, the conclusions are not at a sufficiently high resolution to reveal much new about either the Fru circuit or DIP/Dpr function.

Essential revisions:

As described below, we would above all like to see a clearer and more focused revised manuscript, with the addition of some additional data to provide depth where the authors choose to pursue it. In particular, the revised manuscript should focus on the novel points you are trying to make and/or hypotheses they are trying to test, which were not clear in this submission. There is also interest in more clarity on the mechanism underlying the expression pattern of DIP/Dpr family members in fruitless positive neurons, in particular an answer to the question of whether fru regulates the expression of even a subset of DIPs and Dprs in different fru+ neurons in the circuit.

1) The experiments nicely show the sexual dimorphisms of DIP/Dpr expression profiles in subpopulations of fru positive neurons as well as the structure of these neurons. It is also nicely demonstrated that disrupting sex-specific splicing of fru as well as fru mutants disrupt the sexual dimorphism of these neuronal subpopulations. So it is clear that both DIP/Dprs and the morphology of the neurons are sexually dimorphic and likely are regulated by the sex determination pathway.

One question that arises from these experiments is whether fruM regulates the expression of DIP/Dprs. Can the authors pick a few of the DIP/Dprs and ask if their expression patterns are feminized in fruM mutants?

2) Subsection “Live tissue staining shows sexual dimorphism in the number of cells that overlap with Dpr/DIP binding and fru P1 neurons”: What was the purpose of this experiment? Why didn't you use the existing antibodies and GAL4 T2A or MIMIC GFP lines?

3) Subsection “Activation of fru P1dpr/DIP neurons results in atypical courtship behaviors”: You are basically inactivating subsets of fru neurons and assaying their function in reproductive behaviors. this region is not relevant to dip/dpr function in those fru positive neurons, right? Maybe this needs to be spelled out better to set the context. The paper reads with the expectation that this experiment will be done to test dip dpr function in structure and function of the courtship circuits.

4) Subsection “Silencing fru P1dpr/DIP neurons result in courtship changes”: What is the difference between motor defects and motor impairment? Aren't they related?

5) "Not all the intersection genotypes with expression in the abdominal ganglion show the ejaculation phenotype" Are they labeling different subpopulations neurons in the abdominal ganglion or is this phenotypic difference due to GAL4 efficiency in driving TrpA1?

6) "Therefore, there are sex-differences in the co-expression patterns…" How do you explain this? Please elaborate.

7) Subsection “Changing the sex of DIP-α neurons alters the fru P1DIP-α co-expressing patterns”: Is it possible that maybe fruMC overexpression titrates out interactors or compete for binding sites for regulating differential sets of genes? Does fru dimerize and regulate itself? Can you elaborate a little more on why you get no phenotype in loss of function of fruMC compared to overexpression?

8) Figure 1A – the sex determination pathway is missing arrows in the PDF.

9) I understand that the authors analyzed different profiling studies for DIP/Dprs. But what accounts for the differences in the DIP/Dpr gene expression profiles in Figure 1B coming from different profiling studies? It would be good to elaborate either in the Results section or in the Discussion.

10) Structurally, I felt like the scRNAseq section perhaps belongs to the earlier part of the Results when the authors are describing expression patterns of DIP/Dprs.

11) What is the value of the data in Supplementary Figure 1 – the images are very hard to interpret and don't always make sense (e.g. why are the control Fru-labeled neurons not visible in the 48 hr pupa images?).

12) There were issues with file formats in several of the supplementary tables, e.g. the ones referenced as having the Upset plots (Source data 3), which we had trouble opening.

13) Will all the scRNA data be uploaded somewhere? How do these data compare to other single cell data of fly neurons (e.g. in the VNC, 10.7554/eLife.54074)?

14) Some of the choices of intersections for further study seem a bit arbitrary since several combinations that were not pursued in Figures 2 and 3 seem to also have less dense patterns. Is it possible to come up with a more principled set of criteria and numbers of labeled neurons, e.g. by using a nuclear marker?

https://doi.org/10.7554/eLife.63101.sa1

Author response

Essential revisions:

As described below, we would above all like to see a clearer and more focused revised manuscript, with the addition of some additional data to provide depth where the authors choose to pursue it. In particular, the revised manuscript should focus on the novel points you are trying to make and/or hypotheses they are trying to test, which were not clear in this submission. There is also interest in more clarity on the mechanism underlying the expression pattern of DIP/Dpr family members in fruitless positive neurons, in particular an answer to the question of whether fru regulates the expression of even a subset of DIPs and Dprs in different fru+ neurons in the circuit.

We thank the reviewers for their thoughtful comments that have improved our manuscript. Overall, the manuscript has been shortened and revised to focus on novel points and to clarify the hypotheses. One large editorial change is that we moved the single-cell RNA-seq data as requested.

1) The experiments nicely show the sexual dimorphisms of DIP/Dpr expression profiles in subpopulations of fru positive neurons as well as the structure of these neurons. It is also nicely demonstrated that disrupting sex-specific splicing of fru as well as fru mutants disrupt the sexual dimorphism of these neuronal subpopulations. So it is clear that both DIP/Dprs and the morphology of the neurons are sexually dimorphic and likely are regulated by the sex determination pathway.

One question that arises from these experiments is whether fruM regulates the expression of DIP/Dprs. Can the authors pick a few of the DIP/Dprs and ask if their expression patterns are feminized in fruM mutants?

We did not perform the additional loss-of-function confocal microscopy experiments requested to determine if fruP1 regulates dpr/DIP gene expression because we did not think these experiments would address the question. If the GFP pattern in the fru P1dpr/DIP neurons changed/feminized in the fruP1 mutant background it does not prove that this is due to direct regulation of dpr/DIP gene expression by FruM, just that FruM regulates something in those neurons that is required for wild type male morphology.

Additionally, we think that the five genome-wide studies that are summarized in Figure 1B address the question better, since they directly examine dpr/DIP gene expression in different fruP1 perturbation conditions, and also FruM genomic binding sites. The genomics experiments in Figure 1B use both fru P1 loss-of-function and fru P1 gain-of-function to directly examine FruM-regulated gene expression of all dprs/DIPs. One study examines fru P1 cell-type specific gene expression in males and females (ribosome affinity profiling). In addition, two studies examine direct DNA binding of FruM. An additional FruM computational binding site analysis is also presented in the supplementary materials. Given that the majority of the dpr/DIPs are significantly identified in at least three of these independent genomics studies provides strong and more comprehensive support that FruM regulates the expression of dprs/DIPs than microscopy experiments on a few genotypes. A more thorough description of these genomic-scale experiments is also now provided in the Results and Discussion.

We also do present an extensive and comprehensive analysis of sex hierarchy perturbations, including fru P1 perturbations on one set of intersecting neurons. We present loss-of-function and gain-of-function studies, in both cell-autonomous and non-autonomous conditions, in fru P1∩ DIP-α neurons and show that these perturbations impact expression patterns, with feminization occurring (please see Figure 9). As prompted by a reviewer comment below, we also elaborate on the potential mechanisms (see comment #7). We also note that the field has comprehensively examined whether removing fru P1 function from fru P1 neurons results in feminized morphology. Two studies we cite throughout the paper were the first to systematically address this question and show feminization (Cachero et al., 2010; Yu et al., 2010)(Results). The neurons examined in these previous studies are in all the regions where the fru P1dpr/DIP GFP patterns are detected. We now make clear that these two previous studies systematically examined fru P1 feminization phenotypes in fru P1 mutants.

2) Subsection “Live tissue staining shows sexual dimorphism in the number of cells that overlap with Dpr/DIP binding and fru P1 neurons”: What was the purpose of this experiment? Why didn't you use the existing antibodies and GAL4 T2A or MIMIC GFP lines?

The live staining experiments were initiated before the GAL4 T2A/MIMIC Drosophila lines were available. There are not antibodies for each Dpr/DIP, as far as we know. The goal was to comprehensively assess Dpr/DIP binding to fru P1-expressing neurons, to gain a more systems-level understanding of the Dpr/DIP spatial distributions in the nervous system that is not afforded by the genomic analyses. Given the request to focus the paper, the live staining analysis is not in the current version of the paper, as it is not central to the study. These data are now referenced (Brovero et al., 2020) and so are available to the public.

3) Subsection “Activation of fru P1 ∩ dpr/DIP neurons results in atypical courtship behaviors”: You are basically inactivating subsets of fru neurons and assaying their function in reproductive behaviors. this region is not relevant to dip/dpr function in those fru positive neurons, right? Maybe this needs to be spelled out better to set the context. The paper reads with the expectation that this experiment will be done to test dip dpr function in structure and function of the courtship circuits.

We agree with the reviewer and made changes throughout the manuscript to have the expectations more concordant with the data presented, including a new title, and edits to all the sections.

4) Subsection “Silencing fru P1 ∩ dpr/DIP neurons result in courtship changes”: What is the difference between motor defects and motor impairment? Aren't they related?

They both are describing the same phenotype. We have now modified the manuscript so only “motor defect” is used to describe the phenotype where the male fly falls and is not able to quickly right himself in the courtship chambers. We also made it clear when we used the Trikinetics Drosophila Activity Monitor (DAM) assay to assess “locomotor activity”.

5) "Not all the intersection genotypes with expression in the abdominal ganglion show the ejaculation phenotype" Are they labeling different subpopulations neurons in the abdominal ganglion or is this phenotypic difference due to GAL4 efficiency in driving TrpA1?

Of the eight intersecting genotypes that have expression in the lateral protocerebral complex and mushroom body, the four that have the male ejaculation phenotype also have the highest number of neurons in the abdominal ganglion. This is now indicated in the Results. Given the tools in hand it is not possible to determine with certainty if these are the same subpopulations of neurons, as we would need to generate LexA driver tools that would be beyond the scope of this study.

There are intersecting genotypes with high numbers of neurons in the abdominal ganglion, but that do not show the ejaculation phenotype, as indicated in the Results. These genotypes do not have expression in the lateral protocerebral complex and mushroom body, which is one of the points we are making in this section—that the combinations of neurons are also critical.

While it is formally possible that differences in TrpA1 expression levels could be contributing to differences in behavioral outcomes, our tests of expression indicated that TrpA1 levels (detected by myc antibody staining) followed the levels/patterns of GFP expression in a large set of genotypes. We could not find reports in the literature that describe whether there is threshold amount of TrpA1 expression needed to generate neuronal activation. We note this caveat to our interpretation (Results).

6) "Therefore, there are sex-differences in the co-expression patterns…" How do you explain this? Please elaborate.

To focus the paper the section on correlation analyses of the expression patterns has been shortened. We no longer make the statement noted above.

7) Subsection “Changing the sex of DIP-α neurons alters the fru P1 ∩ DIP-α co-expressing patterns”: Is it possible that maybe fruMC overexpression titrates out interactors or compete for binding sites for regulating differential sets of genes? Does fru dimerize and regulate itself? Can you elaborate a little more on why you get no phenotype in loss of function of fruMC compared to overexpression?

We had described fruMC loss-of-function as having a less severe phenotype than FruMC overexpression due to the fact that the overexpression of FruMC is in the broad DIP-alpha-Gal4 pattern, whereas the loss-of-function is only in fru P1 neurons. The reviewer raises good points about the possibility that overexpression may also have other impacts. We now note these additional ideas the reviewer suggested in the paper (Results).

To address the review question: FruM is a member of the BTB-zinc finger family. The BTB domain has predicted dimerization functions, so it has been postulated that FruM/Fru isoforms function as a dimer (either homodimer or heterodimer). To our knowledge, FruM/Fru dimerization has not been demonstrated in published manuscripts.

8) Figure 1A – the sex determination pathway is missing arrows in the PDF.

Thank you for pointing this out. We will be sure that the manuscript conversion to pdf includes the arrow on publication.

9) I understand that the authors analyzed different profiling studies for DIP/Dprs. But what accounts for the differences in the DIP/Dpr gene expression profiles in Figure 1B coming from different profiling studies? It would be good to elaborate either in the Results section or in the Discussion.

Thank you for this suggestion. We have now added text to indicate the different types of genomic studies: Gene expression studies were fru P1 loss-of-function, FruM gain-of-function (overexpression), and fru P1 cell-type specific expression in males and females. The additional two genomic studies assess direct FruM binding targets. These studies were also done in different tissues/time points and have different statistical criteria. We considered a gene to be significant if the authors from the original study called the gene significant by their criteria. We have added text to the Results and Discussion to make clear that given the many types of analyses, genomic tools and statistical criteria it is not unexpected that each study may have some differences.

10) Structurally, I felt like the scRNAseq section perhaps belongs to the earlier part of the Results when the authors are describing expression patterns of DIP/Dprs.

Thank you for this suggestion. The single cell section is now after the results describing the meta-analysis of the GFP expression patterns with the behavioral data. The analysis of fru P1∩ DIP-α GFP expression with sex hierarchy and dpr/DIP perturbations follows.

11) What is the value of the data in Supplementary Figure 1 – the images are very hard to interpret and don't always make sense (e.g. why are the control Fru-labeled neurons not visible in the 48 hr pupa images?).

Given the advice to focus the paper, this supplementary figure is no longer part of this version of the manuscript. It is published in Brovero et al., 2020 (see response to comment 2 please). The version the reviewer saw had z-stack projections where the 48 hr pupa control sample were imaged starting from the posterior of the brain. The experimental samples were imaged with the anterior of the brain as the first section of the presented z-stack projection. This did not impact the cell quantification presented in the graphs.

12) There were issues with file formats in several of the supplementary tables, e.g. the ones referenced as having the Upset plots (Source data 3), which we had trouble opening.

We apologize that the reviewer was not able to open this file. On resubmission we will check with the eLife team to make sure all the files can be opened.

13) Will all the scRNA data be uploaded somewhere? How do these data compare to other single cell data of fly neurons (e.g. in the VNC, 10.7554/eLife.54074)?

The scRNA-seq data has been uploaded to the GEO repository (GSE162098) and this is provided in the Materials and methods section. There are no other data sets that examine pupal neurons. The one the reviewer points to is from the adult, and there are additional adult studies. These studies find dpr/DIP as cluster marker genes, or genes that have enriched expression in a cluster of neurons. We have added this information to the Results and Discussion.

14) Some of the choices of intersections for further study seem a bit arbitrary since several combinations that were not pursued in Figures 2 and 3 seem to also have less dense patterns. Is it possible to come up with a more principled set of criteria and numbers of labeled neurons, e.g. by using a nuclear marker?

We have modified the text to provide additional rationales:

“After examining all the fru P1∩ dpr/DIP patterns, and the single-cell RNA-seq data, it became apparent that fru P1∩ DIP-α neurons are sexually dimorphic, and that this is one of the genotypes with the fewest cells among the genotypes that were scored (Source data 1). Additionally, the fru P1∩ DIP-α neurons have arborization patterns that facilitate analysis of sex-differences in fine-scale processes that would be obscured in intersecting genotypes with broad expression.”

“To determine the functional roles of dprs/DIPs in fru P1-expressing neurons, we conducted an RNAi and over-expressor screen. We use the DIP-α and DIP-δ drivers, given that they have the most restricted intersecting expression patterns, with the fewest neuronal cell bodies among the genotypes scored (Source data 1), which facilitates visually identifying altered patterns in fru P1∩ DIP neurons, as discussed above.”

https://doi.org/10.7554/eLife.63101.sa2

Article and author information

Author details

  1. Savannah G Brovero

    Department of Biomedical Sciences and Program of Neuroscience, Florida State University, College of Medicine, Tallahassee, United States
    Contribution
    Formal analysis, Validation, Investigation, Writing - original draft, Writing - review and editing
    Contributed equally with
    Julia C Fortier, Hongru Hu, Pamela C Lovejoy, Nicole R Newell, Colleen M Palmateer and Ruei-Ying Tzeng
    Competing interests
    No competing interests declared
  2. Julia C Fortier

    Department of Biomedical Sciences and Program of Neuroscience, Florida State University, College of Medicine, Tallahassee, United States
    Contribution
    Formal analysis, Validation, Investigation, Writing - original draft, Writing - review and editing
    Contributed equally with
    Savannah G Brovero, Hongru Hu, Pamela C Lovejoy, Nicole R Newell, Colleen M Palmateer and Ruei-Ying Tzeng
    Competing interests
    No competing interests declared
  3. Hongru Hu

    Department of Biomedical Sciences and Program of Neuroscience, Florida State University, College of Medicine, Tallahassee, United States
    Contribution
    Formal analysis, Validation, Investigation, Writing - original draft, Writing - review and editing
    Contributed equally with
    Savannah G Brovero, Julia C Fortier, Pamela C Lovejoy, Nicole R Newell, Colleen M Palmateer and Ruei-Ying Tzeng
    Competing interests
    No competing interests declared
  4. Pamela C Lovejoy

    Department of Biomedical Sciences and Program of Neuroscience, Florida State University, College of Medicine, Tallahassee, United States
    Present address
    Department of Biology, St. Joseph’s College, New York, United States
    Contribution
    Formal analysis, Validation, Investigation, Writing - original draft, Writing - review and editing
    Contributed equally with
    Savannah G Brovero, Julia C Fortier, Hongru Hu, Nicole R Newell, Colleen M Palmateer and Ruei-Ying Tzeng
    Competing interests
    No competing interests declared
  5. Nicole R Newell

    Department of Biomedical Sciences and Program of Neuroscience, Florida State University, College of Medicine, Tallahassee, United States
    Contribution
    Formal analysis, Validation, Investigation, Writing - original draft, Writing - review and editing
    Contributed equally with
    Savannah G Brovero, Julia C Fortier, Hongru Hu, Pamela C Lovejoy, Colleen M Palmateer and Ruei-Ying Tzeng
    Competing interests
    No competing interests declared
  6. Colleen M Palmateer

    Department of Biomedical Sciences and Program of Neuroscience, Florida State University, College of Medicine, Tallahassee, United States
    Contribution
    Formal analysis, Validation, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Savannah G Brovero, Julia C Fortier, Hongru Hu, Pamela C Lovejoy, Nicole R Newell and Ruei-Ying Tzeng
    Competing interests
    No competing interests declared
  7. Ruei-Ying Tzeng

    Department of Biomedical Sciences and Program of Neuroscience, Florida State University, College of Medicine, Tallahassee, United States
    Contribution
    Formal analysis, Validation, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Savannah G Brovero, Julia C Fortier, Hongru Hu, Pamela C Lovejoy, Nicole R Newell and Colleen M Palmateer
    Competing interests
    No competing interests declared
  8. Pei-Tseng Lee

    Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    Contribution
    Resources
    Competing interests
    No competing interests declared
  9. Kai Zinn

    Division of Biology and Biological Engineering, California Institute of Technology, Pasadena, United States
    Contribution
    Resources, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6706-5605
  10. Michelle N Arbeitman

    Department of Biomedical Sciences and Program of Neuroscience, Florida State University, College of Medicine, Tallahassee, United States
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    michelle.arbeitman@med.fsu.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2437-4352

Funding

National Institutes of Health (R01GM073039)

  • Savannah G Brovero
  • Julia C Fortier
  • Hongru Hu
  • Pamela C Lovejoy
  • Nicole R Newell
  • Colleen M Palmateer
  • Ruei-Ying Tzeng
  • Michelle N Arbeitman

National Institutes of Health (R03NS090184)

  • Ruei-Ying Tzeng

Florida State University (Department of Biomedical Sciences)

  • Hongru Hu
  • Nicole R Newell
  • Colleen M Palmateer

National Institutes of Health (R01GM116998)

  • Savannah G Brovero
  • Hongru Hu
  • Pamela C Lovejoy
  • Michelle N Arbeitman

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The work presented was supported by NIH grants awarded to MNA: R01GM073039, R01GM116998, R03NS090184. This work was also supported by funds from the Biomedical Sciences Department, College of Medicine, Florida State University. We are grateful for the support. We appreciate that colleagues sent Drosophila stocks (Key Resources Table). Stocks were also obtained from the Bloomington Drosophila Stock Center (NIH P40OD018537). Several antibodies used in this study were obtained from the Developmental Studies Hybridoma Bank, created by the NICHD of the NIH and maintained at The University of Iowa, Department of Biology, Iowa City, IA 52242. We thank Batory foods (Lithia Springs, GA) for the cornmeal used in the fly media. We appreciate experimental assistance from Catherina Artikis.

Senior and Reviewing Editor

  1. Michael B Eisen, University of California, Berkeley, United States

Publication history

  1. Received: September 17, 2020
  2. Accepted: February 22, 2021
  3. Accepted Manuscript published: February 22, 2021 (version 1)
  4. Version of Record published: March 18, 2021 (version 2)

Copyright

© 2021, Brovero et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 858
    Page views
  • 126
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Genetics and Genomics
    Paolo Garagnani et al.
    Research Article

    Extreme longevity is the paradigm of healthy aging as individuals who reached the extreme decades of human life avoided or largely postponed all major age-related diseases. In this study, we sequenced at high coverage (90X) the whole genome of 81 semi-supercentenarians and supercentenarians [105+/110+] (mean age: 106.6 ± 1.6) and of 36 healthy unrelated geographically matched controls (mean age 68.0 ± 5.9) recruited in Italy. The results showed that 105+/110+ are characterized by a peculiar genetic background associated with efficient DNA repair mechanisms, as evidenced by both germline data (common and rare variants) and somatic mutations patterns (lower mutation load if compared to younger healthy controls). Results were replicated in a second independent cohort of 333 Italian centenarians and 358 geographically matched controls. The genetics of 105+/110+ identified DNA repair and clonal haematopoiesis as crucial players for healthy aging and for the protection from cardiovascular events.

    1. Evolutionary Biology
    2. Genetics and Genomics
    Jordan A Anderson et al.
    Research Article Updated

    Aging, for virtually all life, is inescapable. However, within populations, biological aging rates vary. Understanding sources of variation in this process is central to understanding the biodemography of natural populations. We constructed a DNA methylation-based age predictor for an intensively studied wild baboon population in Kenya. Consistent with findings in humans, the resulting ‘epigenetic clock’ closely tracks chronological age, but individuals are predicted to be somewhat older or younger than their known ages. Surprisingly, these deviations are not explained by the strongest predictors of lifespan in this population, early adversity and social integration. Instead, they are best predicted by male dominance rank: high-ranking males are predicted to be older than their true ages, and epigenetic age tracks changes in rank over time. Our results argue that achieving high rank for male baboons – the best predictor of reproductive success – imposes costs consistent with a ‘live fast, die young’ life-history strategy.
