RAL GTPases mediate EGFR-driven intestinal stem cell proliferation and tumourigenesis

  1. Máté Nászai
  2. Karen Bellec
  3. Yachuan Yu
  4. Alvaro Román-Fernández
  5. Emma Sandilands
  6. Joel Johansson
  7. Andrew D Campbell
  8. Jim C Norman
  9. Owen J Sansom
  10. David M Bryant
  11. Julia B Cordero  Is a corresponding author
  1. Wolfson Wohl Cancer Research Centre, United Kingdom
  2. Institute of Cancer Sciences, University of Glasgow, United Kingdom
  3. Cancer Research UK Beatson Institute, United Kingdom
Research Article
  • Cited 1
  • Views 765
  • Annotations
Cite this article as: eLife 2021;10:e63807 doi: 10.7554/eLife.63807

Abstract

RAS-like (RAL) GTPases function in Wnt signalling-dependent intestinal stem cell proliferation and regeneration. Whether RAL proteins work as canonical RAS effectors in the intestine and the mechanisms of how they contribute to tumourigenesis remain unclear. Here, we show that RAL GTPases are necessary and sufficient to activate EGFR/MAPK signalling in the intestine, via induction of EGFR internalisation. Knocking down Drosophila RalA from intestinal stem and progenitor cells leads to increased levels of plasma membrane-associated EGFR and decreased MAPK pathway activation. Importantly, in addition to influencing stem cell proliferation during damage-induced intestinal regeneration, this role of RAL GTPases impacts on EGFR-dependent tumourigenic growth in the intestine and in human mammary epithelium. However, the effect of oncogenic RAS in the intestine is independent from RAL function. Altogether, our results reveal previously unrecognised cellular and molecular contexts where RAL GTPases become essential mediators of adult tissue homeostasis and malignant transformation.

Introduction

The precise spatial and temporal regulation of signalling pathway activity is essential for organ development and adult tissue homeostasis. The latter is particularly important in stem cell maintained self-renewing epithelia, such as that of the gastrointestinal tract (Richardson et al., 2014), where cell loss needs to be counteracted by stem cell proliferation and differentiation while limiting the potential for unwanted overgrowth (Radtke and Clevers, 2005). Progressive loss of control over proliferative pathways either through loss of tumour suppressor genes or the activation of oncogenes is associated with tumour development and progression (Hanahan and Weinberg, 2011).

Regulation of intestinal homeostasis involves the coordinated action of multiple evolutionarily conserved signalling pathways, which relay environmental and niche-derived signals to stem cells to ultimately determine their activity (Gehart and Clevers, 2019; Nászai et al., 2015; Scoville et al., 2008). Increasing understanding of how these pathways are regulated not only provides insight into basic stem cell biology, but also sheds light onto pathological conditions often associated with uncontrolled stem cell proliferation, such as cancer (Biteau et al., 2011; Sell, 2010).

Epidermal growth factor receptor (EGFR, also known as ErbB1 or HER1) is a member of the ErbB family of growth factor receptors, which play essential roles in regulating cell proliferation, differentiation, and survival (Citri and Yarden, 2006; Wee and Wang, 2017). In the mammalian intestinal epithelium, EGFR is highly expressed in intestinal stem cells (ISCs) and transit-amplifying cells (Yang et al., 2017). EGFR ligands, such as EGF, are released by Paneth cells and the mesenchyme and are required for the maintenance and proliferation of ISCs (Dvorák et al., 1994; Jardé et al., 2020; Poulsen et al., 1986). Ectopic activation of EGFR signalling in the intestine by luminal application or genetic overexpression of pathway ligands (Bongers et al., 2012; Kitchen et al., 2005; Marchbank et al., 1995), or deletion of the negative regulator leucine-rich repeats and immunoglobulin-like domains protein 1 (Lrig1) (Powell et al., 2012; Wong et al., 2012), leads to elevated ISC proliferation. On the other hand, loss of EGFR signalling induces quiescence of Lgr5 + ISCs in vitro (Basak et al., 2017).

Gene amplification and activating point mutations of EGFR are highly prevalent in cancer (Santarius et al., 2010; Yarden and Pines, 2012). Ectopic EGFR/Ras/MAPK signalling is thought to be an early step in colorectal cancer (CRC) development (Calcagno et al., 2008). Hyperactivation of the pathway accelerates intestinal tumourigenesis driven by Adenomatous polyposis coli loss (Apcmin/+ mice) (Luo et al., 2009), while a genetic background of partial loss-of-function of EGFR (Roberts et al., 2002) or small-molecule inhibitor treatment reduces cancer incidence (Roberts et al., 2002; Torrance et al., 2000).

The Drosophila intestinal epithelium shares remarkable homology with its mammalian counterpart. The tissue is maintained by ISCs that replenish the epithelium through progenitor cells called enteroblasts (EBs), which differentiate into either secretory enteroendocrine (EE) cells or absorptive enterocytes (ECs) (Micchelli and Perrimon, 2006; Ohlstein and Spradling, 2006). Importantly, signalling pathways governing intestinal proliferation and differentiation are highly conserved between fruit flies and mammals (Nászai et al., 2015; Miguel-Aliaga et al., 2018). Activation of EGFR/Ras/MAPK within ISCs by niche-derived EGF-like ligands is essential to sustain homeostatic and regenerative proliferation of the adult fly midgut, while constitutive pathway activation in ISCs is sufficient to drive intestinal hyperplasia (Biteau and Jasper, 2011; Buchon et al., 2010; Jiang et al., 2011; Xu et al., 2011).

Regulation of EGFR signalling activity is highly dependent on various modes of receptor trafficking throughout the endocytic pathway. Indeed, abnormal trafficking of receptor tyrosine kinases is linked to cancer (Lanzetti and Di Fiore, 2017; Mosesson et al., 2008). Following internalisation through Clathrin-mediated (CME) or Clathrin-independent endocytosis (CIE) (Sorkin and Goh, 2009), EGF ligand/receptor complexes can either be targeted for recycling into the plasma membrane (PM) or ubiquitinated and targeted to late endosomes for lysosomal degradation (Sigismund et al., 2008; Sigismund et al., 2013). Most recently, autophagy has emerged as an important mechanism implicated in the termination of EGFR/MAPK signalling in the intestine (Zhang et al., 2019). While endocytosis is classically considered as a process to terminate pathway activity (Tomas et al., 2014), significant evidence suggests that receptors retain their ability to relay their signal even after internalisation, hence signalling is not limited to the PM (Sadowski et al., 2009). The relative contribution of PM versus intracellular EGFR to downstream signalling in vivo remains unclear (Sousa et al., 2012; Teis et al., 2006).

RAL small GTPases are best recognised for their role as effectors of Ras signalling, which has attracted basic and translational research into their potential in cancer development and progression (Moghadam et al., 2017). Mammalian RAL GTPases, RALA and RALB, have well-characterised roles in membrane trafficking through their involvement in the exocyst complex (Bodemann and White, 2008; Chen et al., 2007; Chien et al., 2006) and in the regulation of Clathrin (Jullien-Flores et al., 2000) and caveolar-dependent endocytosis (Jiang et al., 2016). RAL signalling is potentiated by RALGEFs and negatively regulated by RALGAPs (Neel et al., 2011). RALGEF, such as RALGDS, can be activated upon association with oncogenic RAS (Koyama and Kikuchi, 2001) and mediate Ras-driven skin tumourigenesis (González-García et al., 2005).

We recently identified a novel role of RAL GTPases in the regulation of Wnt signalling activity in ISCs through the regulation of Wnt receptor trafficking into intracellular compartments (Johansson et al., 2019). The relevance of RAL GTPases in intestinal tumourigenesis remained unaddressed as their function in the intestine became redundant upon loss of Apc, a key driver of CRC (Johansson et al., 2019). Furthermore, whether RAL proteins (RALs) can impact intestinal biology beyond Wnt signalling and through their classical role as Ras effectors is unclear.

Here, using the Drosophila intestine and human lung and breast cancer cell lines we uncover an important role of RAL GTPases activating EGFR/MAPK signalling-driven cell proliferation through induction of EGFR internalisation. Our results show that, while RAL inhibition is an efficient means of attenuating intestinal hyperplasia caused by constitutively active forms of EGFR, the effect of oncogenic Ras in the intestine is insensitive to attenuation of RAL function. Our findings support a positive role of receptor tyrosine kinase internalisation in signalling activation in vivo and identify physiological and pathological settings highly sensitive to the presence of RAL proteins, which may provide ideal platforms for the development of therapeutic approaches geared towards the modulation of RAL function.

Results

RAL GTPases are necessary for EGFR/MAPK signalling activation following damage to the intestinal epithelium

We have previously demonstrated that RalA, the single Ral gene in Drosophila, is required for Wnt signalling activation in the developing Drosophila wing and adult midgut (Johansson et al., 2019). A canonical role of RalA as RAS effector remained unaddressed.

EGFR/Ras signalling is an important determinant of wing tissue patterning (Wang et al., 2000; Zecca and Struhl, 2002) and ISC proliferation in the adult Drosophila midgut (Biteau and Jasper, 2011; Buchon et al., 2010; Jiang et al., 2011; Xu et al., 2011). We observed that adult wings resulting from RNAi-driven knockdown of RalA using the engrailed-gal4 driver (en>RalA RNAi) showed a more severely dysmorphic phenotype than that caused by wingless knockdown (en>wg RNAi) or EGFR knockdown (en>EGFR RNAi) only (Figure 1A, B). Instead, adult wings from en>RalA RNAi animals displayed a dysmorphic phenotype more similar to that resulting from combined knockdown of both wg and EGFR downregulation (en>wg RNAi+EGFR RNAi) (Figure 1A, B). These results led us to hypothesise that RalA may regulate pathways other than Wnt signalling, including EGFR/Ras signalling. To address this, we turned to the adult Drosophila midgut, a robust paradigm for the study of signal transduction in adult tissue homeostasis, where RalA plays a pivotal role (Johansson et al., 2019).

Figure 1 with 1 supplement see all

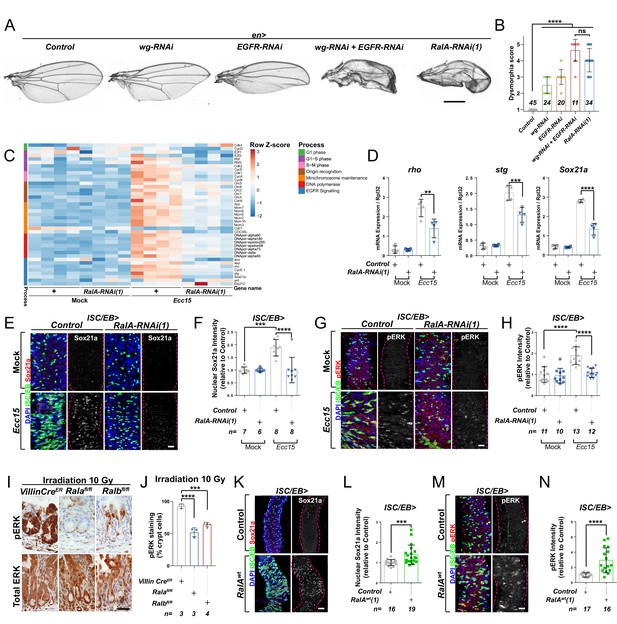

Ral GTPases are necessary and sufficient to induce EGFR/MAPK signalling in intestinal stem cells (ISCs).

(A) Adult Drosophila wings from control animals and with posterior compartment knockdown of wg (wg-RNAi), Egfr (Egfr-RNAi), or RalA using one of two previously validated RNAi lines (RalA-RNAi(1)) or combined wg and Egfr knockdown (wg-RNAi+Egfr RNAi). Scale bar = 500 µm. (B) Blind scoring of wing dysmorphia on a scale of 1–5. Numbers inside bars represent the total number of wings scored. Kruskal–Wallis test followed by Dunn’s multiple comparisons test. (C) Heat map from transcriptomic analysis of adult whole midguts from mock-treated and Ecc15-infected control animals (+) or following adult-restricted knockdown of RalA (RalA-RNAi(1)) using the escargot-gal4, UAS-gfp driver (ISC/EB>). RNA was extracted from >25 whole midguts per replicate, and four biological replicates per genotype/per condition were processed for sequencing. (D) RT-qPCR confirmation of genes associated with EGFR/MAPK signalling in whole midguts from genotypes and conditions as in (C) expressed relative to rpl32 levels. n (number of biological replicates) = 4, each dot represents an independent RNA sample from >25 midguts per sample. Two-way ANOVA followed by Sidak’s multiple comparisons test. (E) Representative confocal images of Sox21a immunofluorescence staining (red/grey) of adult posterior midguts from Mock-treated or Ecc15-infected wild-type control animals or following knockdown of RalA (RalA-RNAi(1)) in stem/progenitor cells using escargot-gal4, UAS-gfp (ISC/EB>; green). (F) Quantification of average Sox21a staining intensity within the nuclear compartment (DAPI positive) in midguts as in (E). Two-way ANOVA followed by Sidak’s multiple comparisons test; n = number of z-stack confocal images quantified, each from an independent posterior midgut. (G) Representative confocal images of pERK immunofluorescence staining (red/grey) of adult posterior midguts from Mock-treated or Ecc15-infected control animals or following knockdown of RalA (RalA-RNAi(1)) within stem/progenitor cells (ISC/EB>; green). (H) Quantification of average pERK staining intensity within the ISC/EB compartment (GFP positive) of midguts as in (G). Two-way ANOVA followed by Sidak’s multiple comparisons test; n = number of z-stack confocal images quantified, each from an independent posterior midgut. (I) Immunohistochemistry images of total (bottom panels) and pERK (top panels) in small intestinal regenerating crypts 3 days after whole-body irradiation of control mice (left panels) or mice following conditional intestinal epithelial knockout of Rala or Ralb. Scale bar = 50 µm. (J) Quantification of the percentage of cells with pERK staining in regenerating small intestinal crypts as in (I). n = number of mice, with >12 crypts quantified per animal, each dot represents the average percentage from a given mouse. One-way ANOVA followed by Tukey’s multiple comparisons test. (K) Representative confocal images of Sox21a immunofluorescence staining (red/grey) of adult posterior midguts from control animals or animals overexpressing wild-type Rala within stem/progenitor cells (ISC/EB>; green). Scale bar = 50 µm. (L) Quantification of average Sox21a staining intensity within the nuclear compartment (DAPI positive; blue) of midguts as in (K). Student’s t-test; n = number of z-stack confocal images quantified, each from an independent posterior midgut. (M) Representative confocal images of pERK immunofluorescence staining (red/grey) in control animals or animals overexpressing wild-type Rala within stem/progenitor cells (ISC/EB>; green). (N) Quantification of average pERK staining intensity within the ISC/EB compartment (GFP positive) of midguts as in (M). Student’s t-test; n = number of z-stack confocal images quantified, each from an independent posterior midgut. Where indicated: *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001, ns: not significant. All error bars represent SD. Scale bars = 20 µm, unless otherwise stated.

Figure 1—source data 1

Ral GTPases are necessary and sufficient to induce EGFR/MAPK signalling in intestinal stem cells.

https://cdn.elifesciences.org/articles/63807/elife-63807-fig1-data1-v2.xlsx

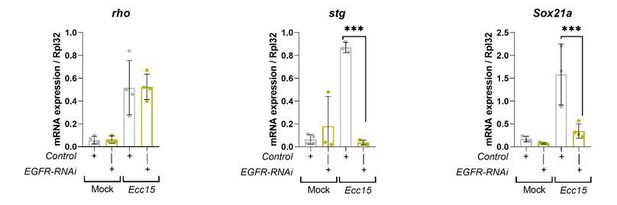

RalA is required within ISCs to induce adult midgut regeneration following damage by oral infection with Erwinia carotovora carotovora 15 (Ecc15) (Johansson et al., 2019). To achieve a global view of intestinal pathways affected by RalA, we performed a transcriptomic analysis by RNAseq of whole midguts from vehicle-treated (Mock) or damaged (Ecc15 fed) control animals or following adult-restricted RalA knockdown in intestinal stem and progenitor cells using the escargot-gal4 driver (ISC/EB>) (Micchelli and Perrimon, 2006). Consistent with its effect on ISC proliferation (Johansson et al., 2019), RalA knockdown significantly impaired damage-induced upregulation of cell cycle genes in the midgut (Figure 1C). Additionally, levels of genes associated with the EGFR/MAPK pathway, such as argos (aos), rhomboid (rho), Sox21a, and string (stg), appeared increased following Ecc15 infection in control midguts in a RalA-dependent manner (Figure 1C). RT-qPCR confirmed RNAseq results on rho, a well-characterised activator of EGFR/MAPK signalling in ISCs (Liang et al., 2017; Ngo et al., 2020), and two downstream targets of the pathway required for ISC proliferation, Sox21a and stg (Jin et al., 2015; Meng and Biteau, 2015; Figure 1D). Furthermore, immunofluorescence staining for the transcription factor Sox21a (Meng and Biteau, 2015) and the activated form of the MAPK, phosphorylated ERK (pERK), in control animals and following RalA knockdown from ISCs/EBs confirmed the need for RalA for upregulation of MAPK signalling and downstream targets following damage to the midgut (Figure 1E–H and Figure 1—figure supplement 1A–D). Together, these results suggest that RalA is necessary for damage-induced EGFR/MAPK signalling activation in the Drosophila adult midgut.

Previously, we showed that the role of RAL proteins in Wnt signalling activation and intestinal regeneration is conserved between Drosophila and mice (Johansson et al., 2019). The mouse intestine has a robust capacity to regenerate following damage by gamma irradiation, as demonstrated by an increase in the number of regenerating crypts 72 hr following irradiation (Cordero et al., 2014; Johansson et al., 2019). We next assessed whether MAPK activation in the regenerating mouse intestine required RAL GTPases. Single conditional knockout of either Rala (Ralafl/fl) or Ralb (Ralbfl/fl) in the murine intestinal epithelium using the Villin-CreER driver impaired ERK activation in regenerating intestines when compared to control (VillinCreER) (Figure 1I, J and Figure 1—figure supplement 1E). Therefore, RAL GTPases' requirement for EGFR/MAPK pathway activation in the intestinal epithelia is evolutionarily conserved between fruit flies and mammals.

RAL GTPases are sufficient for EGFR/MAPK signalling activation in the Drosophila midgut

Ectopic expression of wild-type RalA in ISC/EB is sufficient to induce Wnt pathway activation and intestinal proliferation in the Drosophila midgut (Johansson et al., 2019). To determine whether RalA is also sufficient to induce EGFR/MAPK signalling, we assessed Sox21a (Figure 1K, L), pERK (Figure 1M, N), and total ERK (Figure 1—figure supplement 1F, G) levels by immunostaining following RalA overexpression in midgut ISCs/EBs. While levels of Sox21a and pERK were increased in RalA overexpressing midguts compared to wild-type control ones (Figure 1K–N), total levels of ERK in the midgut remained unchanged across genotypes (Figure 1—figure supplement 1F, G). Immunostaining results for ERK and pERK were confirmed by western blot (Figure 1—figure supplement 1H) and are consistent with ERK activation and not total protein levels being increased upon midgut injury (Figure 1—figure supplement 1H–J). Altogether, our data suggest that RAL GTPases are necessary and sufficient for EGFR/MAPK pathway activation within the intestinal epithelium.

RalA activation is necessary for ISC proliferation in Drosophila

Small GTPases cycle between two alternative conformations: inactive (GDP-bound) and active (GTP-bound). The balance between these states is determined by the activity of guanine nucleotide exchange factors (GEF) and GTPase activating proteins (GAP), which activate and inactivate GTPases, respectively (Neel et al., 2011). There are seven Ral GEFs in the human genome, RALGDS, RALGPS1-2, and RGL1-4, which are often found misregulated in cancer (González-García et al., 2005; Koyama and Kikuchi, 2001; Rodriguez-Viciana and McCormick, 2005) and are considered emerging therapeutic targets (Neel et al., 2011; Vigil et al., 2010). However, the in vivo role of RAL GEFs in the intestine remains unknown. Several Ral GEFs are conserved in Drosophila (Gentry et al., 2014): Rgl, GEFmeso and CG5522 (RalGPS). Rgl is a close orthologue of mammalian RGL (Mirey et al., 2003), GEFmeso was identified in a yeast two hybrid screen using active RalA as bait (Blanke and Jäckle, 2006), while CG5522 was identified based on its close homology to mammalian RalGPS1 (Hu et al., 2011).

We next tested the functional role of each of these Ral GEFs in the fly midgut though RNAi-driven targeted knockdown and assessment of their impact on intestinal regeneration following oral infection with Ecc15 (Basset et al., 2000). The regenerative capacity of the adult posterior midgut (R4-R5) was quantified as per the number of proliferating ISCs, identified by staining with phosphorylated histone H3 antibody (pH3). As expected, Ecc15 infection induced significant increase in ISC proliferation relative to mock-treated control animals (Figure 2A–D). Knocking down either of the three Ral GEFs of interest significantly impaired regenerative ISC proliferation in the midgut (Figure 2A–D) to levels comparable to those observed upon RalA knockdown (Johansson et al., 2019). Furthermore, Ral GEF knockdown led to a significant reduction in MAPK activation in the midgut following damage (Figure 2E, F). These results provide evidence highlighting the importance of maintaining the active status of RalA for robust stem cell proliferation and MAPK activation in the intestine.

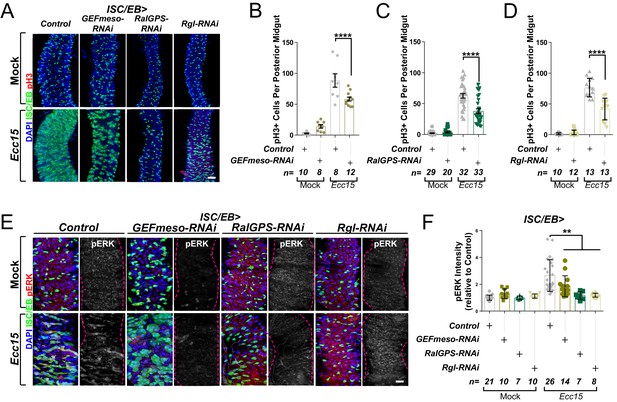

Ral GTPase activation is necessary for EGFR/MAPK signalling in regenerating intestinal stem cells/enteroblasts (ISCs/EBs).

(A) Representative confocal images of pH3 staining (red) within the ISC/EB compartment (green) in mock-treated or regenerating posterior midguts. Scale bar = 50 µm. (B) Quantification of pH3-positive nuclei in control or GEFmeso-RNAi posterior midguts as in (A). Two-way ANOVA followed by Sidak’s multiple comparisons test. n = number of midguts. (C) Quantification of pH3-positive nuclei in control or RalGPS-RNAi posterior midguts as in (A). Two-way ANOVA followed by Sidak’s multiple comparisons test. n = number of midguts. (D) Quantification of pH3-positive nuclei in control or Rgl-RNAi posterior midguts as in (A). Two-way ANOVA followed by Sidak’s multiple comparisons test. n = number of midguts. (E) Representative confocal images of pERK staining (red/grey) in mock-treated or regenerating control animals or animals with knockdown of GEFmeso, RalGPS, or Rgl within the ISC/EB compartment (green). Scale bar = 20 µm. (F) Quantification of average pERK staining intensity within the ISC/EB compartment (GFP positive) as in (E). Two-way ANOVA followed by Sidak’s multiple comparisons test; n = number of z-stack confocal images quantified, each from an independent posterior midgut. Where indicated: *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001, ns: not significant. All error bars represent SD. Scale bars = 20 µm, unless otherwise stated.

Figure 2—source data 1

Ral GTPase activation is necessary for EGFR/MAPK signalling in regenerating ISCs/EBs.

https://cdn.elifesciences.org/articles/63807/elife-63807-fig2-data1-v2.xlsx

RalA regulates EGFR- but not oncogenic Ras-driven hyperplasia in the intestine

During our initial assessment of genetic interactions between EGFR signalling and RalA in adult wings, we observed that constitutive overexpression of EGFR under engrailed-gal4 (en>EGFRwt) caused severe organismal lethality, which was greatly suppressed by concomitant knockdown of RalA (Figure 3—figure supplement 1A). Wing vein patterning defects observed in rare en>EGFRwt adult escapers was also suppressed by RalA knockdown (Figure 3—figure supplement 1B). These results reinforced the importance of RalA as a broad mediator of EGFR signalling.

EGFR is overexpressed in ~20% of breast and ~80% of CRCs (Rimawi et al., 2010; Spano et al., 2005), and activating mutations of Ras are one of the most common cancer-associated genetic alterations (Prior et al., 2012). Activation of the EGFR/MAPK pathway in the adult Drosophila midgut by ISC/EB-specific overexpression of wild-type EGFR (EGFRWT) or constitutively active Ras (RasV12) was sufficient to induce intestinal hyperproliferation (Figure 3A, B; Jiang et al., 2011; Zhang et al., 2019). Downregulation of RalA suppressed EGFRWT- but not RasV12-driven ISC hyperproliferation (Figure 3A, B and Figure 3—figure supplement 1C, D). Consistently, RalA knockdown impaired activation of ERK following EGFRwt, but not RasV12 overexpression (Figure 3C, D and Figure 3—figure supplement 1E, F).

Figure 3 with 1 supplement see all

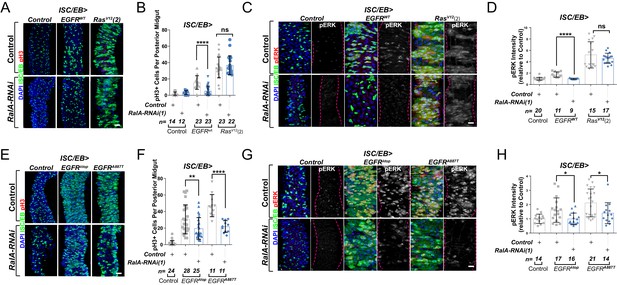

Ral GTPases are required for EGFR/MAPK signalling upstream of Ras.

(A) Representative confocal images of pH3 staining (red) within the intestinal stem cell/enteroblast (ISC/EB) compartment (green) of control animals or animals overexpressing wild-type Egfr (EGFRWT) or one of two constitutive Ras constructs used in this paper (RasV12(2)) with or without RalA knockdown within stem/progenitor cells (ISC/EB>; green). Scale bar = 50 µm. (B) Quantification of pH3-positive nuclei in posterior midguts as in (A). Two-way ANOVA followed by Sidak’s multiple comparisons test. n = number of midguts. (C) Representative confocal images of pERK staining (red/grey) of control animals or animals overexpressing wild-type Egfr (EGFRWT) or one of two constitutive Ras constructs used in this paper (RasV12(2)) with or without RalA knockdown within stem/progenitor cells (ISC/EB>; green). (D) Quantification of average pERK staining intensity as seen in (C) within the ISC/EB compartment (GFP positive). Two-way ANOVA followed by Sidak’s multiple comparisons test; n = number of z-stack confocal images quantified, each from an independent posterior midgut. (E) Representative confocal images of pH3 staining (red) within the ISC/EB compartment (green) of control animals or animals overexpressing two types of constitutively active Egfr constructs (EGFRλtop or EGFRA887T) with or without RalA knockdown within stem/progenitor cells (ISC/EB>; green). Scale bar = 50 µm. (F) Quantification of pH3-positive nuclei in posterior midguts as in (E). Two-way ANOVA followed by Sidak’s multiple comparisons test. Error bars represent SEM. n = number of midguts. (G) Representative confocal images of pERK staining (red/grey) within the ISC/EB compartment (green) of control animals or animals overexpressing two types of constitutively active Egfr constructs (EGFRλtop or EGFRA887T) with or without RalA knockdown within stem/progenitor cells (ISC/EB>; green). (H) Quantification of average pERK staining intensity as in (G) within the ISC/EB compartment (GFP positive). Two-way ANOVA followed by Sidak’s multiple comparisons test; n = number of z-stack confocal images quantified, each from an independent posterior midgut. Where indicated: *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001, ns: not significant. All error bars represent SD. Scale bars = 20 µm, unless otherwise stated.

Figure 3—source data 1

Ral GTPases are required for EGFR/MAPK signalling upstream of Ras.

https://cdn.elifesciences.org/articles/63807/elife-63807-fig3-data1-v2.xlsx

RalA potentiates EGFR signalling activity downstream of ligand binding

Increasing the pool of receptors available for ligand binding, such as through recycling of intracellular receptor towards the PM or inhibition of receptor degradation, favours activation of receptor tyrosine kinase signalling, including EGFR (von Zastrow and Sorkin, 2007; Zhang et al., 2019). Therefore, one possible mechanism by which RAL proteins may potentiate EGFR signalling in the intestine is by facilitating ligand/receptor interactions. In that case, ligand-independent, constitutively active forms of EGFR, which are linked to cancer (Endres et al., 2014), should be insensitive to RAL deficiency. To test this prediction, we co-expressed RalA-RNAi with two active mutant forms of EGFR – EGFRλtopand EGFRA887T – in Drosophila intestinal stem and progenitor cells (Figure 3E, F). EGFRλtop includes an extracellular dimerisation domain that causes receptor activation even in the absence of ligand (Queenan et al., 1997), and EGFRA887T contains an activating point mutation in the receptor kinase domain (Lesokhin et al., 1999). Importantly, overexpression of EGFRλtop or EGFRA887T led to ISC hyperproliferation levels comparable to those observed following RasV12 overexpression (Figure 3E, F compare with Figure 3A, B and Figure 3—figure supplement 1C, D). However, unlike in the case of RasV12, knocking down RalA significantly impaired EGFRλtop- or EGFRA887T-driven ISC proliferation (Figure 3E, F). Consistently, EGFRλtop- or EGFRA887T-dependent ERK activation was also suppressed by RalA-RNAi (Figure 3G, H). These results suggest that RalA influences EGFR signalling activity downstream of ligand/receptor binding.

RAL GTPases are required for EGFR internalisation

RAL GTPases are key mediators of Ras-regulated membrane trafficking (Bodemann and White, 2008; Chen et al., 2007; Chien et al., 2006; Jiang et al., 2016; Jullien-Flores et al., 2000). We next asked whether, as in the case of the Wnt receptor Frizzled (Johansson et al., 2019), RAL GTPases may induce EGFR/MAPK signalling through regulation of EGFR cellular localisation in the intestine. We used a well-established immunostaining approach (Cordero et al., 2014; Kim-Yip and Nystul, 2018; Zhang et al., 2019) and a custom-developed macro to visualise EGFR cellular localisation in the adult Drosophila midgut (Figure 4—figure supplement 1). Firstly, we assessed EGFR localisation in control adult Drosophila midguts or following genetic manipulation of RalA expression. Knocking down RalA in ISCs/EBs led to significantly increased levels of PM-associated EGFR wild-type (Figure 4A, B) and A887T mutant (Figure 4C, D). Conversely, overexpression of wild-type RalA decreased membrane localisation of EGFR (Figure 4E, F). We were unable to assess the impact of knocking down RalA on EGFRλtop localisation as our antibody, designed to bind the extracellular domain of EGFR, failed to recognise this mutant version of the receptor. Consistent with the role of RAL GTPases as effectors of Ras, knocking down endogenous Ras from ISCs/EBs caused a similar effect on EGFR localisation than that observed upon RalA downregulation (Figure 4—figure supplement 2). Altogether, these results strongly suggest that activation of RalA induces EGFR/MAPK signalling in the intestine by increasing the intracellular pool of EGFR. Consequently, oncogenic Ras, whose activation is independent of EGFR signalling, is refractory to RalA function in the intestine (Figure 3A–D and Figure 3—figure supplement 1C, D).

Figure 4 with 3 supplements see all

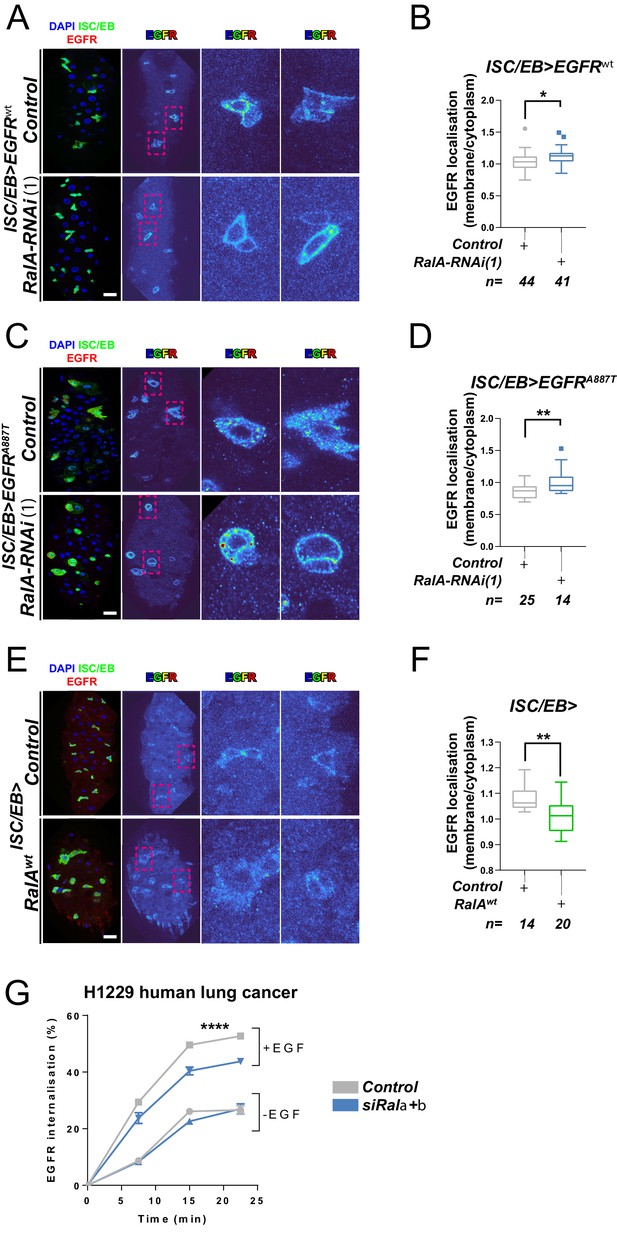

Ral GTPases are required for EGFR internalisation.

(A) Representative images of wild-type EGFR staining (red/turbo colour map) in adult Drosophila midgut stem/progenitor cells (intestinal stem cell/enteroblast [ISC/EB>]; green) without (Control) or with RalA knockdown (RalA-RNAi). (B) Quantification of EGFR plasma membrane staining localisation in midguts as in (A) relative to the cytoplasm. Data is presented as Tukey's box and whiskers plot. Data were analysed by Student’s t-test. n = number of z-stack confocal images quantified, each from an independent posterior midgut. (C) Representative images of EGFRA887T staining (red/turbo colour map) in adult Drosophila midgut stem/progenitor cells (ISC/EB>; green) without (Control) or with RalA knockdown (RalA-RNAi). (D) Quantification of EGFRA887Tplasma membrane staining localisation as in (C) relative to the cytoplasm presented as Tukey's box and whiskers plot. Student’s t-test. n = number of z-stack confocal images quantified, each from an independent posterior midgut. (E) Representative images of EGFR staining in (red/turbo colour map) in adult Drosophila midgut stem/progenitor cells (ISC/EB>; green) without (Control) or with wild-type RalA overexpression (RalAwt). (F) Quantification of EGFR plasma membrane staining localisation in midguts as in (E) relative to the cytoplasm. Data is presented as Tukey's box and whiskers plot. Student’s t-test. n = number of z-stack confocal images quantified, each from an independent posterior midgut. (G) Internalisation of EGFR over time determined by a surface biotinylation ELISA-based assay in H1299 human non-small cell lung cancer cells transfected with a non-targeting (Control) or combined Rala and Ralb knockdown constructs (siRala +b) and incubated in the presence or absence of EGF ligand. Data from one experiment with three technical replicates and representative of three independently performed experiments is presented. Two-way ANOVA followed by Bonferroni's multiple comparisons test. Error bars represent SEM. Where indicated: *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001. All error bars represent SD. Scale bars = 20 µm.

Figure 4—source data 1

Ral GTPases are required for EGFR internalisation.

https://cdn.elifesciences.org/articles/63807/elife-63807-fig4-data1-v2.xlsx

Next, we used a surface biotinylation-based biochemical assay to directly quantify the rate of EGFR internalisation in H1299, a human non-small cell lung cancer (NSCLC) cell line with intact EGFR signalling (Amann et al., 2005). To obtain a measure of endocytosis that was not influenced by the rate at which the receptor returns, or ‘recycles’, to the cell surface from endosomes, we performed the surface biotinylation-based assay in the presence of the receptor recycling inhibitor, primaquine. This clearly indicated that EGF-driven (but not EGF-independent) endocytosis of EGFR was significantly reduced by combined knockdown of Rala and Ralb (Figure 4G and Figure 4—figure supplement 3A, B). By contrast, integrin α5β1, transferrin (hTfnR), or ligand-induced c-Met receptor internalisation were not affected by Rala/b knockdown (Figure 4—figure supplement 3C–F). These results suggest that the effect of RAL GTPases on EGFR cellular localisation is conserved between Drosophila and mammals, and that RAL proteins function in a context-dependent manner, as opposed to being generally required for transmembrane or tyrosine kinase receptor trafficking dynamics.

RAL proteins are necessary for EGFR-dependent tumorigenesis

Given that intestinal hyperplasia caused by hyperactivation of β-catenin or oncogenic RAS is independent of RAL proteins (Johansson et al., 2019; Figure 3A, B and Figure 3—figure supplement 1C, D), the importance of RAL GTPases in intestinal malignancy remains unaddressed. The effect of RalA knockdown on intestinal hyperproliferation caused by overexpression of wild-type or constitutively active mutants of EGFR in the intestine (Figure 3) suggests that other pathological settings driven by exacerbated EGFR activity might also be sensitive to RAL function.

c-Src is a conserved non-receptor tyrosine kinase whose expression is necessary and sufficient to drive regeneration and tumourigenesis of both the Drosophila and mouse intestine through EGFR/MAPK activation (Cordero et al., 2014; Kohlmaier et al., 2015; Figure 5A, B). Consistently, Src overexpression in ISCs/EBs (esgts>Src64wt)-induced expression of the MAPK pathway transcriptional target Sox21a (Figure 5C, D) and pERK levels (Figure 5E, F; Cordero et al., 2014; Kohlmaier et al., 2015). Importantly, knocking down RalA (ISC/EB>Src64wt; RalA-RNAi) suppressed Src-driven ISC hyperproliferation and MAPK signalling activation in the Drosophila midgut (Figure 5A-F), which correlated with an increase in membrane versus intracellular levels of EGFR in ISC/EB>Src64wt; RalA-RNAi midguts when compared to ISC/wt>Src64wt counterparts (Figure 5G, H).

Figure 5 with 1 supplement see all

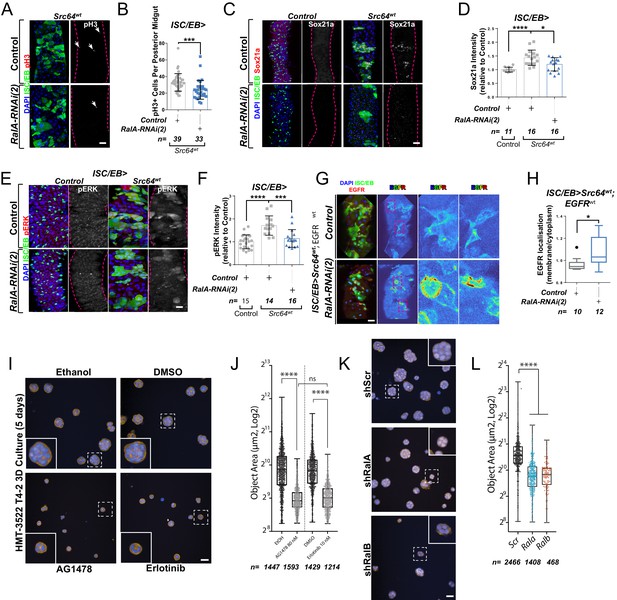

Ral GTPases mediate malignant transformation of the intestinal and mammary epithelium.

(A) Representative confocal images of pH3 staining (red/grey) in midguts overexpressing Src-kinase (Src64wt) with or without Rala knockdown (RalA-RNAi(2)) in stem/progenitor cells (intestinal stem cell/enteroblast [ISC/EB>]; green). White arrows indicate pH3-positive nuclei. (B) Quantification of pH3-positive nuclei in posterior midguts as in (A). Data were analysed by Student’s t-test. n = number of midguts. (C) Representative confocal images of Sox21a staining (red/grey) in midguts overexpressing Src-kinase (Src64wt) with or without Rala knockdown (RalA-RNAi(2)) in stem/progenitor cells (ISC/EB>; green). Scale bar = 50 µm. (D) Quantification of average Sox21a staining intensity within the nuclear compartment (DAPI positive) as in (C). Two-way ANOVA followed by Sidak’s multiple comparisons test; n = number of z-stack confocal images quantified, each from an independent posterior midgut. (E) Representative confocal images of pERK staining (red/grey) in midguts overexpressing Src-kinase (Src64wt) with or without Rala knockdown (RalA-RNAi(2)) in stem/progenitor cells (ISC/EB>; green). (F) Quantification of average pERK staining intensity within the ISC/EB compartment (GFP positive) as in (E). Two-way ANOVA followed by Sidak’s multiple comparisons test; n = number of z-stack confocal images quantified, each from an independent posterior midgut. Error bars represent SD. (G) Representative images of EGFR staining (red/grey) in midguts overexpressing Src-kinase (Src64wt) and EGFRwt with or without Rala knockdown (RalA-RNAi(2)) in stem/progenitor cells (ISC/EB>; green). (H) Quantification of EGFR plasma membrane staining localisation relative to the cytoplasm as in (G) presented as Tukey's box and whiskers plot. Data were analysed by Student’s t-test. n = number of z-stack confocal images quantified, each from an independent posterior midgut. (I) Confocal fluorescence microscopy images of HMT3522 T4-2 3D cultures, treated with EGFR inhibitors (tyrphostin AG1478 and erlotinib) or corresponding vehicle controls (ethanol and DMSO, respectively) followed by fixation after 5 days and staining for F-actin (yellow) and nuclei (blue, Hoechst). Scale bar = 40 µm. (J) Quantification of area of 5 days T4-2 cysts treated as in (I). n ≥ 1214 cysts assessed from four wells/condition/experiment, two independent experiments. One-way ANOVA, Tukey’s multiple comparisons test. (K) Confocal fluorescence microscopy images of HMT3522 T4-2 cysts of 5 days expressing either scramble, RalA or RalB shRNA. Cysts were fixed and stained for F-actin (yellow) and nuclei (blue, Hoechst). Scale bar = 40 µm. (L) Quantification of 5 days T4-2 cysts as in (K). n ≥ 468 cysts assessed from four wells/condition/experiment, three independent experiments. One-way ANOVA, Tukey’s multiple comparisons test. Where indicated: *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001, ns: not significant. All error bars represent SD. Scale bars = 20 µm, unless otherwise stated.

Figure 5—source data 1

Ral GTPases mediate malignant transformation of the intestinal and mammary epithelium.

https://cdn.elifesciences.org/articles/63807/elife-63807-fig5-data1-v2.xlsx

As a proof of principle in an orthogonal mammalian system dependent on EGFR for morphogenesis, we employed the human breast tumour cell line HMT3522 T4-2 (henceforth referred to as ‘T4-2’) as a paradigm to test the role of mammalian RAL GTPases in malignant growth. T4-2 is a subline obtained after spontaneous malignant transformation of the benign breast tumour cell line HMT3522 S1 (henceforth ‘S1’). Compared to the S1 predecessor, T4-2 cells grow as disorganised aggregates of cells when cultured in 3D extracellular matrix gels such as Matrigel. This growth and morphogenesis in 3D of T4-2 cells is EGFR-dependent: T4-2 show robustly upregulated EGFR levels and activation, their growth is independent of exogenous EGF, and they are acutely sensitive to EGFR inhibitors (Madsen et al., 1992; Wang et al., 1998). Thus, we hypothesised that T4-2 growth would be dependent on RAL function.

Consistent with previous reports (Madsen et al., 1992; Wang et al., 1998), treating T4-2 cells with two structurally independent EGFR inhibitors, tyrphostin (AG1478) and erlotinib, resulted in defective growth as determined by a reduction in 3D acinus size (Figure 5I, J). Importantly, stable depletion of Rala or Ralb in T4-2 by shRNA (Figure 5K, L and Figure 5—figure supplement 1A, B) phenocopied EGFR inhibition, as determined by a significant reduction in 3D acinus size (Figure 5K, L). Therefore, RALA/B function is similarly required for a mammalian morphogenetic function that is dependent on EGFR. Altogether, our results uncover a conserved role of RAL GTPases mediating EGFR/MAPK-dependent tissue homeostasis and transformation.

Discussion

Spatial and temporal regulation of signal transduction by the endocytic pathway plays a key role in health and pathophysiology (Casaletto and McClatchey, 2012; von Zastrow and Sorkin, 2007). The impact of this process in adult stem cells and tissue homeostasis is only recently becoming evident from reports on the effect of endocytosis and autophagy on ISC proliferation through modulation of Wnt/β-catenin and EGFR/MAPK activity, respectively (Johansson et al., 2019; Zhang et al., 2019).

In this study, we identify a role for the Ras-related protein RAL in the activation of EGFR/MAPK signalling activity through regulation of EGFR internalisation (Figure 6). Preventing RAL function in Drosophila intestinal stem/progenitor cells reduces the intracellular pool of EGFR, leading to decreased MAPK activation and downstream signalling. This role of RAL proteins impacts stem cell proliferation and regeneration of the intestinal epithelium and has implications in pathological settings that depend on active EGFR signalling, including intestinal hyperplasia and breast cancer cell growth. However, oncogenic Ras expression in the intestine escapes the antiproliferative effect of Ral knockdown.

Working model depicting the role of RAL GTPases in EGFR/MAPK signalling.

(A) Experimental contexts used. Most results were acquired from Drosophila intestinal epithelial stem progenitor cells. Key findings were confirmed using mammalian intestine and human lung and breast cancer cell lines. (B) RalA is necessary for EGFR internalisation and MAPK activation, leading to mitogenic signalling.

RAL GTPases as regulators of signal transduction

While internalisation is recognised as the initial means to attenuate signal transduction through reduction of PM receptors available for activation by extracellular ligands (Goh et al., 2010; Sousa et al., 2012; Vieira et al., 1996; von Zastrow, 2003), the subsequent outcome of endocytosis on signalling is dependent on the trafficking pathway followed by internalised receptors. Internalisation of membrane EGFR through Clathrin-mediated endocytosis results in prolonged EGFR signalling by favouring receptor recycling back to the PM, while Clathrin-independent endocytosis leads to EGFR degradation and signalling attenuation (Sigismund et al., 2008). The differential effect of endocytic trafficking on EGFR has therapeutic implications as Clathrin inhibition can divert a tyrosine kinase inhibitor (TKI)-resistant form of EGFR from Clathrin-mediated endocytosis and recycling to pinocytosis and degradation in non-small cell lung carcinoma (Ménard et al., 2018).

Here, we provide robust evidence of physiological and pathological contexts in the intestine where the internalisation of EGFR mediated by RAL GTPases directly correlates with potentiation of downstream MAPK signalling (Figure 6). We recently reported a similar effect of RAL proteins on the seven transmembrane class receptor, Frizzled, leading to high threshold of Wnt signalling activity (Johansson et al., 2019). In both cases, the ultimate outcome of RAL action is an efficient acute proliferative response of intestinal stem cells during tissue regeneration following damage. Therefore, RAL GTPases are effectors of two pivotal signal transduction pathways within the intestinal epithelium (Biteau and Jasper, 2011; Buchon et al., 2010; Jardé et al., 2020; Jiang et al., 2011; Perochon et al., 2018; Sato et al., 2009; Xu et al., 2011). The effect of knocking down RalA in the Drosophila midgut is, however, milder than that observed upon individual or combined impairment of Wnt/β-catenin and EGFR/MAPK signalling reception in ISCs (Xu et al., 2011). This suggests that RalA is only partly responsible for the activation of these signalling pathways and its effect is only evident in the regenerative response to damage, which requires high thresholds of signalling activity to allow acute stem cell proliferation for tissue regeneration. The scenario is different in the mammalian intestine, where combined knockout of Rala and Ralb leads to complete disruption of intestinal epithelial homeostasis (Johansson et al., 2019). This may relate to inherent differences in the signalling activity levels needed to maintain homeostatic ISC proliferation in the fly midgut versus the mouse intestine. Compared to its murine counterpart, basal proliferation in the adult fly midgut is relatively low and there is no transit-amplifying proliferative zone (Micchelli and Perrimon, 2006; Ohlstein and Spradling, 2006). Alternatively, the difference could lie in the different experimental approaches taken, namely the use of gene knockout in the mouse versus partial knockdown in the fly. Our efforts to generate FRT-mediated Rala knockout clones in the adult Drosophila midgut were unsuccessful (data not shown), and full mutant animals are not viable. Therefore, any potential residual activity due to incomplete knockdown could lead to milder Drosophila phenotypes.

RAL GTPases have been linked to Clathrin-mediated endocytosis via interaction of their effector protein, RAL binding protein (RALBP1), with the Clathrin adaptor AP2 (Jullien-Flores et al., 2000). More recently, RAL proteins have also been shown to engage in Caveolin-mediated endocytosis (Jiang et al., 2016). While the potentiating effect of RALs on EGFR signalling activity would favour a role of the small GTPases in Clathrin-mediated endocytosis in the system, this needs to be directly assessed. Experiments to functionally connect RalA with specific endocytic trafficking pathways using Drosophila genetics have been unsuccessful as, consistent with recently published work (Zhang et al., 2019), global perturbation of the trafficking machinery within ISCs leads to very severe disruption of intestinal homeostasis (data not shown), precluding the establishment of meaningful genetic interactions.

Future research will need to be done to better elucidate the place of action of RAL GTPases within the endocytic trafficking pathway and its connection with EGF and Wnt receptors in the intestine. The use of fluorescently tagged endocytic proteins (Dunst et al., 2015) combined with recently developed live imaging approaches in the adult Drosophila intestine (Koyama et al., 2020; Martin et al., 2018) offers a clear opportunity to visualise spatial and temporal receptor/endosome interactions in vivo.

RAL GTPases as potential therapeutic targets in cancer

EGFR function is frequently altered in cancer (Santarius et al., 2010; Yarden and Pines, 2012). Excessive protein levels due to gene amplification or increased-transcription are the most common EGFR perturbations found in gastrointestinal and lung adenocarcinoma as well as in cholangiocarcinoma (Birkman et al., 2016; Jung et al., 2017; Li et al., 2008). On the other hand, EGFR kinase domain activating point mutations are associated with non-small cell lung carcinoma and glioblastoma, but are rarely seen in other types of cancer (Li et al., 2008; Siegelin and Borczuk, 2014; Zhang et al., 2016). Extracellular domain truncating mutations yielding to constitutively active receptor through ligand-independent dimerisation have also been observed in glioblastomas (Furnari et al., 2015; Guo et al., 2015; Huang et al., 1997). We have utilised Drosophila genetic constructs that mimic all three main classes of EGFR common to human cancers and which lead to intestinal hyperplasia when overexpressed in intestinal stem/progenitor cells (Figure 3). Genetic inhibition of Ral GTPase activity consistently prevented hyperproliferation in these models, suggesting that targeting RAL function could be a potentially effective therapeutic approach in the treatment of multiple highly aggressive cancer types.

Current EGFR-targeted therapies include small-molecule TKIs and monoclonal antibodies (mAbs) against the extracellular domain of the receptor (Xu et al., 2017). A number of resistance mechanisms arise secondary to treatment. Specific kinase domain mutations desensitise cells against TKI (Sequist et al., 2011; Yu et al., 2015), while alterations of the antibody binding site are observed in CRC (Arena et al., 2015). There is also a tendency for downstream mutations (Raf, Ras, MAPK, MET) to uncouple pathway activity from the receptor (Camidge et al., 2014; Mancini and Yarden, 2016). The most common form of resistance to EGFR-targeted therapies is believed to be innate rather than adaptive (Parseghian et al., 2019). Indeed, about 80% of CRCs are refractive to EGFR therapy (Bardelli and Siena, 2010). Several reports highlight how cancer cells co-opt the endocytic pathway for growth and survival benefits (Mosesson et al., 2008). In fact, these have been proposed as a potential venue for drug development (Mellman and Yarden, 2013). However, based on the current evidence, we propose that targeting RAL function versus a broader component of the endocytic machinery may prove a more refined approach, leading to lower toxic effects (Zhang et al., 2019).

RAL effector proteins, including RALGEFs and RALBP1, have emerged as important mediators of malignant growth in pancreatic, colorectal, prostate, bladder, and other tumour cell lines characterised by the presence of oncogenic RAS mutations (Neel et al., 2011). Furthermore, genetic knockout of the RALGEF, RALGDS, ameliorates tumour growth in a mouse model of Ras-driven skin tumourigenesis (González-García et al., 2005). Unexpectedly, our results show that, at least in the intestine, oncogenic mutations in Ras are refractory to Ral GTPase inhibition. These apparently discrepant results could be due to context-dependent requirements for RAL function in malignancy, differences between in vitro and in vivo experimental settings, and/or a potential promiscuous role of RAL effectors on small GTPase signalling.

Previously, we have shown that fly and murine intestines bearing loss of Apc, a key initiating event in up to 80% of human CRC, also overcome the need for RAL GTPases to proliferate (Johansson et al., 2019). Taken together, our results argue against an effective role of anti-RAL therapies to treat CRCs carrying Apc loss-of-function and/or hyperactivating Ras mutations. On the other hand, tumours with overexpression or activating mutations in EGFR, such as carcinomas of the upper gastrointestinal tract, lung and mammary tissue, or glioblastomas (Birkman et al., 2016; Furnari et al., 2015; Guo et al., 2015; Huang et al., 1997; Li et al., 2008; Siegelin and Borczuk, 2014; Zhang et al., 2016), might be responsive to impairment of RAL function. Ultimately, taking into consideration the genetic composition of the tumour is of outmost importance when considering the use of RAL inhibition as a therapeutic approach.

Materials and methods

Key resources table is included as Appendix 1.

Experimental models and organisms

Species used

Request a detailed protocol

Drosophila melanogaster and Mus musculus.

Only mated females were used for Drosophila experiments.

Cell lines

Request a detailed protocol

HMT3522 T4-2 (human breast cancer derived; from Valerie Weaver), NCI-H1299 (human lung cancer derived; from ATCC), HEK293-FT (human kidney derived; from Thermo Fisher Scientific). All cell lines used in this study were authenticated through STR profiling using Promega Geneprint 10 Kit. Gene fragment analysis was performed on a 3130xl Genetic Analyser, and Genemapper v5 was used for analysis. Cell lines were confirmed negative for mycoplasma.

Drosophila breeding and maintenance

Request a detailed protocol

Flies were maintained in humidity and temperature-controlled incubators with a 12–12 hr light-dark cycle. Crosses were kept at 18°C. F1s of the desired genotype were collected 2–3 days after adult eclosion and aged at 29°C for the time needed to allow for transgene activation. Only female midguts were used. Standard rearing medium used 10 g agar, 15 g sucrose, 30 g glucose, 15 g maize meal, 10 g wheat germ, 30 g treacle, and 10 g soya flour per litre of distilled water.

Exact genotypes for all figure panels are listed in Supplementary file 1.

Mouse work

Request a detailed protocol

Mouse experiments were performed as described in Johansson et al., 2019 according to the UK Home Office regulations and designed in accordance with the ARRIVE guidelines. Animals were fed on standard diet and water ad libitum, and under non‐barrier conditions. Genotypes used are indicated in the Key resources table. Vil1CreER recombinase was induced using 80 mg/kg Tamoxifen (Sigma) IP. Regeneration was induced using caesium-137 γ-radiation sources delivering 0.423 Gy min−1 to a total of 10 Gy. Mice were sampled 3 days following irradiation damage. No distinction was made between males and females in the mouse experiments. All animals used in experiments were above 20 g of weight. Experiments were performed on a C57BL/6 background and using a minimum of three mice per condition/genotype.

IHC of mouse tissue

Request a detailed protocol

Formalin-fixed paraffin-embedded (FFPE) tissues were cut into 4 µm sections and mounted onto adhesive slides, followed by a 2-hr-long oven-incubation step at 60°C. Samples were dewaxed in xylene for 5 min before rehydration through serial washes in decreasing concentrations of alcohol followed by washing with H2O for 5 min. For heat-induced epitope, retrieval sections were heated for 20 min at 97°C in sodium citrate pH6 retrieval buffer (Thermo, TA-250-PM1X) before cooling to 65°C. This was followed by washing in Tris Buffered Saline with Tween (TBT) (Thermo, TA-999-TT). Sections were loaded onto the Dako autostainer link48 platform, washed with TBT, then peroxidase blocking solution (Agilent, S2023) for 5 min. Sections were washed with TBT, then appropriate antibody was applied to specific slides. Phospho-p44/42 MAPK (Erk1/2) (Cell Signalling, 9101) was applied at 1/400 dilution, and p44/42 MAPK (Erk1/2) (Cell Signalling 9102) was applied at 1/40 dilution for 30 min. After another TBT wash, secondary antibody (Rabbit Envision, Agilent, K4003) was applied for 30 min before washing with TBT again. 3,3′ diaminobenzidine (Agilent, K3468) was then applied for 10 min before washing in H2O to terminate the reaction. Finally, slides were counterstained with haematoxylin and dehydrated in increasing concentrations of alcohol, then taken through three changes of xylene prior to sealing with glass coverslips using DPX mounting media for microscopy.

Quantification of pERK and total ERK staining in mouse tissues

Request a detailed protocol

A minimum of 12 and up to 30 randomly selected crypts per animal from at least three mice per genotype, per condition were quantified. Data are expressed as the percentage of crypt cells positively stained for a marker of interest per crypt. Finally, the percentage of positively stained cells was averaged for each animal.

Brightfield microscopy and scoring of adult wing patterning

Request a detailed protocol

Drosophila wings were mounted onto glass slides (VWR) with 13 mm × 0.12 mm spacers (Electron Microscopy Science). Images were obtained on the ZEISS Axio Observer system. Images were focus stacked using the ZEN 2 software (ZEISS). Wing dysmorphia was blindly scored on a scale from 1 to 5 using a previously developed macro https://github.com/emltwc/TracheaProject/blob/master/Blind_scoring.ijm (copy archived at swh:1:rev:2ef7574e3c9bbb7ef852655511a86ef7531d35bb); Naszai, 2021a, where 1 is a normal, wild-type wing and 5 refers to the most severely disrupted adult wings.

Immunofluorescence of Drosophila tissues

Request a detailed protocol

Immunofluorescent staining was performed as described in Johansson et al., 2019. Briefly, tissues were dissected in PBS and immediately fixed in 4% paraformaldehyde (PFA; Polysciences Inc) at room temperature for a minimum of 30 min. Once fixed, 20-min-long washes in PBS + 0.2% Triton X-100 (PBST) were repeated three times, followed by overnight incubation at 4°C with primary antibodies in PBST + 0.5% bovine serum albumin (BSA) (PBT). Prior to applying the secondary antibodies, tissues were washed in PBST three times 20 min and then incubated with the appropriate antibodies in PBT for 3 hr at room temperature, followed by washing and mounting.

Midguts stained for pERK and tERK included a methanol fixation step between PFA fixation and PBST washing steps of the standard protocol. Following PFA, fixation methanol was added dropwise to the solution, with the tissues in it until the volume of the liquid is at least double. Tissues were transferred into 100% methanol for minimum 1 min. PBS was added to the methanol dropwise to rehydrate the tissues after which the samples were subjected to the standard staining protocol.

All samples were mounted onto glass slides (VWR) with 13 mm × 0.12 mm spacers (Electron Microscopy Science) and VECTASHIELD antifade mounting medium containing DAPI (Vector Laboratories, Inc). Confocal images were obtained on a ZEISS LSM 780 and processed in the ZEISS ZEN software.

Antibody concentrations used were as follows: anti-GFP (1:2000), anti-pERK (1:100), anti-tERK (1:100), anti-EGFR (1:50), anti-Sox21a (1:2000), and anti-pH3S10 (1:100). Secondary antibodies were used as follows: anti-chicken-IgY-488 (1:200), anti-rabbit-IgG-594 (1:100), and anti-mouse-IgG-594 (1:100).

Drosophila midgut regeneration assay

Request a detailed protocol

Drosophila intestinal regeneration was induced through oral infection using Erwinia carotovora subsp. carotovora 15 (Ecc15) (Basset et al., 2000), as described in Neyen et al., 2014. Briefly, bacteria were cultured overnight in LB medium in an orbital shaker incubator at 29°C, 200 rpm. Samples were pelleted (Beckman Coulter JS-4.2 rotor, 10 min @3000 rpm) and adjusted to OD600 = 200. Flies used for regeneration experiments were starved in empty vials for 2 hr prior to infection to synchronise feeding. Animals were moved into vials containing filter paper (Whatman) soaked into vehicle control, 5% sucrose solution (Mock), or the prepared bacterial solution mixed with 5% sucrose 1:1. Flies were dissected 12–16 hr after infection.

Staining quantification

Request a detailed protocol

pERK and tERK intensity were quantified in 16-bit z-stack confocal images as the average staining intensity within the GFP-positive compartment. Sox21a staining was quantified in 16-bit z-stack confocal images as the average staining intensity within the entire DAPI-positive compartment. pERK, tERK, and Sox21a were quantified using the custom ImageJ macro: BatchQuantify (https://github.com/emltwc/2018-Cell-Stem-Cell, copy archived at swh:1:rev:e45f961ed6217ecc0bece566a76a633fd2b47ec0), Naszai, 2021b. EGFR membrane/cytoplasmic staining was quantified in 16-bit z-stack confocal images using the custom ImageJ macro: EGFR_quant (https://github.com/emltwc/EGFRProject, (copy archived at swh:1:rev:4888f27a6766694b33a8b25bcb42a078fa786f8d)).

Survival quantification

Request a detailed protocol

Relative survival was calculated by counting the proportion of adult flies emerging from crosses, which carried the desired experimental genotypes, as per the expected Mendelian ratio. When the proportion of animals of a given genotype emerged at the expected Mendelian ratio, this genotype was deemed to be 100% viable.

Drosophila RNA extraction, RNA-sequencing, and RT-qPCR

Request a detailed protocol

Total RNA from a minimum of 25 midguts was extracted using QIAGEN RNAeasy kit, following the manufacturer’s instructions, including the on-column DNase digestion step. For RNA-seq, an RNA integrity score was determined (average = 9.4, SD = 0.6, lowest score used = 8.2; Agilent Technologies 2200 Tapestation, RNA Screen Tape). Libraries for cluster generation and DNA sequencing were prepared following Fisher et al., 2011 using Illumina TruSeq RNA library Preparation Kit v2. Libraries were run on the Next Seq 500 platform (Illumina) using the High Output 75 cycles kit (2 × 36 cycles, paired end reads, single index).

For RT-qPCR, RNA was quantified using a NanoDrop 2000c Spectrophotometer. cDNA was synthesised using the High-Capacity cDNA reverse transcription kit (Applied Biosystems) according to the manufacturer’s recommendations using a maximum of 2 µg RNA per 20 µL final volume. Quanta SYBR Green Master Mix (Low ROX, Fermentas) was used following the manufacturer’s instructions. Data were obtained and analysed using the Applied Biosystems 7500 software. Results represent four independent replicates ± SEM. Expression of target genes was measured and normalised to rpl32 using standard curves.

Western blot

Request a detailed protocol

Protein was extracted from 12 adult female Drosophila midguts dissected in ice-cold PBS. The tissues were lysed in 20 µL RIPA buffer (Sigma) using a microcentrifuge pestle. Samples were spun down at 13,000 rpm for 10 min at 4°C and the supernatant was collected. Protein concentration was determined using Bradford reaction (Abcam) following the manufacturer’s recommendations. 40 µg of total protein was loaded onto NuPAGE 10% Bis-Tris gel (Thermo Fisher Scientific) and run using NuPAGE MOPS buffer (Thermo Fisher Scientific). Protein was transferred to a membrane (Bio-Rad) using the Trans-Blot Turbo system (Bio-Rad) following the manufacturer’s instructions. Membranes were blocked overnight at 4°C in 5% BSA (Sigma), then probed using pERK and tERK antibodies (Cell Signalling) at 1:1000 concentration. Antibody signal was detected using the SuperSignal West Pico Chemiluminescent Substrate (Thermo Fisher Scientific) system.

Cell culture

Request a detailed protocol

HMT3522 T4-2 (V. Weaver, UCSF) cells were cultured in precoated collagen plates using DMEM/Ham's F12 (1:1) medium supplemented with 2 mM glutamine (Life Technologies), 250 ng/mL insulin solution from bovine pancreas (Sigma-Aldrich), 10 µg/mL transferrin (Sigma-Aldrich), 2.6 ng/mL sodium selenite (Sigma-Aldrich), 10−10 M 17 β-estradiol (Sigma-Aldrich), 1.4 × 10−6 M hydrocortisone (Sigma-Aldrich), and 10 ng/mL human prolactin (Miltenyi Biotec).

3D acini were grown as follows: single-cell suspensions (1.5 × 104 cells per mL) were plated in the appropriate medium supplemented with 2% Growth Factor Reduced Matrigel (GFRM; BD Biosciences). 100 μL of this mix were added per well in a 96-well ImageLock plate (Essen Biosciences) precoated with 10 μL of pure GFRM for 15 min at 37°C. Cells were incubated at 37°C for 5 days, changing the media every two days, before IF.

For inhibitor studies, cells were treated from the time of plating with Tyrphostin-AG1478 (80 nM in ethanol, Sigma-Aldrich), erlotinib (100 nM in DMSO), and ethanol or DMSO as appropriate controls, respectively.

HEK293-FT (Thermo Fisher Scientific) were cultured in DMEM supplemented with 10% FBS, 6 mM L-glutamine, and 0.1 mM non-essential amino acids (NEAA) (all reagents from Life Technologies/Thermo Fisher).

Generation of stable cell lines

Request a detailed protocol

Stable cell lines were performed by co-transfecting HEK293-FT packaging cells with a pLKO.1-puromycin shRNA plasmid with VSVG and SPAX2 lentiviral packaging vectors using Lipofectamine 2000 according to the manufacturer's instructions (Invitrogen). Viral supernatants were collected, filtered using PES 0.45 μm syringe filters (Starlab), and concentrated using Lenti-X Concentrator (Clontech) as per the manufacturer’s instructions. Cells were then transduced with the lentivirus for 3 days before selection with 1 μg/mL puromycin (Thermo Fisher Scientific). shRNA target sequences: non-targeting control shScr (5′CCGCAGGTATGCACGCGT3′), shRalA (5′GGAGGAAGTCCAGATCGATAT3′), and shRalB (5′CAAGGTGTTCTTTGACCTAAT3′). To knockdown RAL protein expression in H1229 cells, cells were transfected with Dharmacon ON-TARGETplus siRNAs using the Amaxa Nucleofector system (Lonza).

RNA extraction and RT-qPCR in cell culture samples

Request a detailed protocol

RT-qPCR on human samples was performed following the same protocol used for Drosophila samples, except using human β-actin or GAPDH to normalise transcript levels using the delta-delta-CT method.

Cyst growth assay

Request a detailed protocol

Acini labelling was adapted from previously described protocols. Briefly, cultures were fixed in 4% PFA (Affymetrix) for 10 min at room temperature (RT), washed twice in PBS, blocked for 1 hr in PFS buffer (PBS, 0.7% w/v fish skin gelatin; Sigma-Aldrich), 0.5% saponin (Sigma-Aldrich), and incubated with primary antibodies diluted in PFS at 4°C overnight with gentle rocking. Then, cyst cultures were washed three times with PFS and incubated with secondary antibodies diluted in PFS for 1 hr at RT, followed by washing twice in PFS and twice in PBS. Labelling was performed using Phalloidin (1:200) (Invitrogen) and Hoechst to label nuclei (10 μg/mL).

Acquisition of confocal images was performed using Opera Phenix Z9501 high-content imaging system (PerkinElmer), imaging at least 10 optical sections every 2 µM, imaging 25 fields at 20×. Images were analysed using Harmony imaging analysis software (PerkinElmer).

Internalisation assay

Request a detailed protocol

Internalisation assays were performed as described in Roberts et al., 2001. Briefly, cells were surface labelled at 4°C with 0.13 mg/mL NHS-SS-biotin (Pierce) in PBS for 30 min. Following surface labelling, cells were transferred to complete medium at 37°C to allow internalisation in the presence of 0.6 mM primaquine for the indicated times. Biotin was then removed from the cell surface by treatment with the cell-impermeable-reducing agent MesNa. Cells were then lysed and the quantity of biotinylated receptors determined using a capture-ELISA. The following antibodies were used for capture-ELISA: clone VC5 (BDPharmingen, Cat# 555651) for α5β1, anti-CD71 (BDPharmingen, Cat# 555534) for the TfnR, anti-HGFR (R&D Systems, Cat# AF276), and anti-EGFR1 (BDPharmingen, Cat# 555996).

Statistical analysis

Request a detailed protocol

GraphPad Prism 8 software was used for statistical analyses. Information on sample size and statistical tests used for each experiment is indicated in the figure legends.

Appendix 1

Appendix 1—key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
Strain, strain background (Mus musculus)VillinCreERel Marjou et al., 200410.1002/gene.20042NA
Strain, strain background (Mus musculus)Ralafl/flPeschard et al., 2012 10.1016/j.cub.2012.09.013RRID:MGI:5505291
Strain, strain background (Mus musculus)Ralbfl/flPeschard et al., 201210.1016/j.cub.2012.09.013RRID:MGI:5505291
Strain, strain background (Erwinia carotovora carotovora 15)Ecc15B. Lemaitre; (Basset et al., 2000)10.1073/pnas.97.7.3376NA
Genetic reagent (Drosophila melanogaster)en>BDSCRRID:BDSC_30564y1 w*; P{w+mW.hs=en2.4 GAL4}e16E
Genetic reagent (Drosophila melanogaster)ISC/EB>S. Hayashi; Goto and Hayashi, 1999
PMID:10393119
NAyw;esg-Gal4NP5130,UAS-GFP,UAS-GFPnLacZ/Cyo;tub-Gal80ts/Tm6B
Genetic reagent (Drosophila melanogaster)ControlR. CaganNAw[1118]
Genetic reagent (Drosophila melanogaster)RalA-RNAi(1)VDRCRRID:FlyBase_FBst0477124P{KK108989}VIE-260B
Genetic reagent (Drosophila melanogaster)RalA-RNAi(2)BDSCRRID:BDSC_29580y1 v1; P{y+t7.7v+t1.8=TRiP.JF03259}attP2
Genetic reagent (Drosophila melanogaster)wg-RNAiVDRCRRID:FlyBase_FBst0476437P{KK108857}VIE-260B
Genetic reagent (Drosophila melanogaster)wg-RNAiVDRCRRID:FlyBase_FBst0450965P{GD5007}v13351
Genetic reagent (Drosophila melanogaster)EGFR-RNAiVDRCRRID:FlyBase_FBst0478953P{KK100051}VIE-260B
Genetic reagent (Drosophila melanogaster)RalAwtG. Hasan; (Richhariya et al., 2017); 10.1038/srep42586NAP{UAS-RalA}3
Genetic reagent (Drosophila melanogaster)GEFmeso-RNAiBDSCRRID:BDSC_42545y1 v1; P{y[+t7.7] v[+t1.8]=TRiP.HMJ02116}attP40
Genetic reagent (Drosophila melanogaster)RalGPS-RNAiVDRCRRID:FlyBase_FBst0463650w[1118]; P{GD11683}v40596/TM3
Genetic reagent (Drosophila melanogaster)Rgl-RNAiBDSCRRID:BDSC_28938y1 v1; P{y[+t7.7] v[+t1.8]=TRiP.HM05149}attP2
Genetic reagent (Drosophila melanogaster)EGFRwtBDSCRRID:BDSC_5368y1 w[*]; P{w[+mc]=UAS Egfr.B}32-26-1
Genetic reagent (Drosophila melanogaster)EGFRA887TBDSCRRID:BDSC_9533w[*]; P{w[+mC]=Egfr0.2.A887T.UAS}8-2
Genetic reagent (Drosophila melanogaster)EGFRλtopBDSCRRID:BDSC_59843w[*]; P{w[+mC]=UAS Egfr.lambdatop}3/TM6C, Sb1
Genetic reagent (Drosophila melanogaster)RasV12(1)BDSCRRID:BDSC_64196 w[*]; P{w[+mC]=UAS-Ras85D.V12}2
Genetic reagent (Drosophila melanogaster)RasV12(2)BDSCRRID:BDSC_64195w[*]; P{w[+mC]=UAS-Ras85D.V12}TL1
Genetic reagent (Drosophila melanogaster)Ras-RNAiVDRCRRID:FlyBase_FBst0478466P{KK108029}VIE-260B
Genetic reagent (Drosophila melanogaster)Src64wtBDSCRRID:BDSC_8477w[*]; P{w[+mC]=UAS-Src64B.C}2
Cell line (Homo sapiens)H1299ATCC CRL-5803RRID:CVCL_0060Authenticated through STR profiling
Mycoplasma negative
Cell line (Homo sapiens)HMT3522 T4-2V. Weaver, UCSFRRID:CVCL_2501Authenticated through STR profiling
Mycoplasma negative
Cell line (Homo sapiens)HEK293-FTThermo Fisher ScientificRRID:CVCL_6911Authenticated through STR profiling
Mycoplasma negative
AntibodyAnti-GFP (Chicken polyclonal)AbcamRRID:AB_300798Drosophila IF (1:2000)
AntibodyAnti-Sox21a (Rabbit polyclonal)B. Biteau; (Meng and Biteau, 2015) 10.1016/j.celrep.2015.09.061NADrosophila IF (1:2000)
AntibodyAnti-pERK (Rabbit polyclonal)Cell Signalling TechnologyRRID:AB_331646Drosophila IF (1:100); mouse IHC (1:400); western blot (1:1000)
AntibodyAnti-ERK (Rabbit polyclonal)Cell Signalling TechnologyRRID:AB_390779Drosophila IF (1:100); western blot (1:1000)
AntibodyAnti-ERK (Rabbit polyclonal)Cell Signalling TechnologyRRID:AB_330744Mouse IHC (1:40)
AntibodyAnti-rabbit IgG HRP-linked antibody (Goat polyclonal)Cell Signalling TechnologyRRID:AB_2099233Western blot (1:10,000)
AntibodyAnti-Phospho-Histone 3 Ser 10 (Rabbit polyclonal)Cell Signalling TechnologyRRID:AB_331535Drosophila IF (1:100)
AntibodyAnti-EGFR extracellular domain (Mouse monoclonal)Sigma-AldrichRRID:AB_609900Drosophila IF (1:50)
AntibodyAnti-EGFR1 (Mouse monoclonal)BDPharmingenRRID:AB_2096589Capture-ELISA (5 µg/mL)
AntibodyAnti-c-MET (Goat polyclonal)R&D SystemsRRID:AB_355289Capture-ELISA anti-HGFR (5 µg/mL)
AntibodyAnti-Alpha5 beta1 integrin (Mouse monoclonal, Clone V5)BDPharmingenRRID:AB_396007Capture-ELISA
Anti-CD49e (5 µg/mL)
AntibodyAnti-Transferrin receptor (Human monoclonal)BDPharmingenRRID:AB_395918Capture-ELISA
CD71 antibody (5 µg/mL)
AntibodyAlexa Fluor 488 anti-chicken-IgY (H + L) (Goat polyclonal secondary antibody)InvitrogenCat#A-11039
RRID:AB_142924
Drosophila IF (1:100)
AntibodyAlexa Fluor 594 anti-rabbit-IgG (H + L) (Goat polyclonal secondary antibody)InvitrogenCat#A-11037
RRID:AB_2534095
Drosophila IF (1:100)
AntibodyAlexa Fluor 594 anti-mouse-IgG (H + L) (Goat polyclonal secondary antibody)Molecular ProbesRRID:AB_141672Drosophila IF (1:100)
AntibodyAlexa Fluor 594 anti-mouse-IgG (H + L) (Goat polyclonal secondary antibody)InvitrogenRRID:AB_2534091Drosophila IF (1:100)
Recombinant DNA reagentpLKO.1-puromycinMoffat et al. Cell. 2006 Mar 24. 124(6):1283–98RRID:Addgene_10878
Recombinant DNA reagentVSVGTrono lab, unpublished, donated to AddgeneRRID:Addgene_12259
Recombinant DNA reagentSPAX2Trono lab, unpublished, donated to AddgeneRRID:Addgene_12260
Sequence-based reagentRho_FwdThis paperNATTGTCATCTTTGTCTCCTGCGA
Sequence-based reagentRho_RevThis paperNAGTCAGGTGGGCAATGTACGA
Sequence-based reagentStg_FwdThis paperNACAGTAATAACACCAGCAGTTCGAG
Sequence-based reagentStg_RevThis paperNAGTAGAACGACAGCTCCTCCT
Sequence-based reagentSox21a_FwdThis paperNAAGACAATTAATACAGAGCTCGAGG
Sequence-based reagentSox21a_RevThis paperNAGAGATGCTCGTCATGATGCC
Sequence-based reagentRpl32_FwdThis paperNAAGGCCCAAGATCGTGAAGAA
Sequence-based reagentRpl32_RevThis paperNATGTGCACCAGGAACTTCTTGAA
Sequence-based reagentRala_FwdPrimerBankID#324072795 c2GCAGACAGCTATCGGAAGAAG
Sequence-based reagentRala_RevPrimerBankID#324072795 c2TCTCTAATTGCAGCGTAGTCCT
Sequence-based reagentRalb_FwdPrimerBankID#48762927 c1AGCCCTGACGCTTCAGTTC
Sequence-based reagentRalb_RevPrimerBankID#48762927 c1AGCGGTGTCCAGAATATCTATCT
Sequence-based reagentActB_FwdLiu et al., 201510.1371/journal.pone.0117058NATGACGTGGACATCCGCAAAG
Sequence-based reagentActB_Rev Liu et al., 2015 10.1371/journal.pone.0117058NACTGGAAGGTGGACAGCGAGG
Sequence-based reagentshScrThis paperNACCGCAGGTATGCACGCGT
Sequence-based reagentshRalaThis paperNAGGAGGAAGTCCAGATCGATAT
Sequence-based reagentshRalbThis paperNACAAGGTGTTCTTTGACCTAAT
Sequence-based reagentsiRNA Rala (human)DharmaconONTARGETplus – Cat# L-009235-00-0005
Sequence-based reagentsiRNA Ralb (human)DharmaconONTARGETplus – Cat# L-008403-00-0005
Peptide, recombinant proteinEGFSigmaCat# 11376454001
Peptide, recombinant proteinHGFSigmaCat# H9661
Commercial assay or kitHigh Capacity cDNA Reverse Transcription KitApplied BiosystemsCat# 4368813
Commercial assay or kitPerfeCTa SYBR Green FastMix (Low ROX)Quanta BioCat# 95074–012
Commercial assay or kitVECTASHIELD Mounting Medium with DAPIVector Laboratories, IncRRID:AB_2336790
Commercial assay or kitSuperSignal West Pico Chemiluminescent SubstrateThermo Fisher ScientificCat# 34077
Commercial assay or kitRNAeasy Mini Kit (50)QIAGENCat# 74104
Commercial assay or kitGrowth Factor Reduced MatrigelBD Biosciences354230
Commercial assay or kitLipofectamine 2000Thermo Fisher ScientificCat# 11668027
Commercial assay or kitLenti-X ConcentratorClontech
Chemical compound, drugGlutamineThermo Fisher Scientific25030081
Chemical compound, drugDMEMThermo Fisher Scientific12491015
Chemical compound, drugFBSThermo Fisher Scientific26140079
Chemical compound, drugL-GlutamineThermo Fisher Scientific25030081
Chemical compound, drugNon-essential amino acidsThermo Fisher Scientific11140050
Chemical compound, drugInsulinSigma-AldrichI0516Insulin solution from bovine pancreas, 10 mg/mL insulin in25 mm HEPES, pH 8.2, BioReagent, sterile-filtered, suitable for cell culture
Chemical compound, drugTransferrinSigma-AldrichT2252
Chemical compound, drugSodium seleniteSigma-AldrichS5261
Chemical compound, drugβ-EstradiolSigma-AldrichE2758
Chemical compound, drugHydrocortisoneSigma-AldrichH0888
Chemical compound, drugProlactinMiltenyi Biotech130-093-985
Chemical compound, drugTyrphostin-AG1478Sigma-AldrichT4182
Chemical compound, drugErlotinib, HCLSigma-AldrichSML2156
Chemical compound, drugPuromycinThermo Fisher ScientificA1113803
Chemical compound, drugPhalloidinInvitrogenA12380, A22287
Chemical compound, drugHoechstH21486
Chemical compound, drugRIPA bufferSigmaR0278
Chemical compound, drugBradford reagentAbcamAB119216
Chemical compound, drugNuPAGE 10% Bis-Tris gelThermo Fisher ScientificNP0301BOX
Chemical compound, drugNuPAGE MOPS SDS running buffer
Chemical compound, drugTrans-Blot Turbo PVDF membraneBio-Rad1704157
Chemical compound, drugBSASigmaA3294
Chemical compound, drugSuper Signal West Pico Chemiluminescent SubstrateThermo Fisher Scientific34077
Software, algorithmFijiNIH1.51n; https://fiji.sc/
Software, algorithmGraphPad Prism 6GraphPadRRID:SCR_002798
Software, algorithmZEN 2 liteZEISSRRID:SCR_013672
Software, algorithm7500 Real-Time PCR SoftwareApplied BiosystemsRRID:SCR_014596
Software, algorithmHarmonyPerkinElmer
Software, algorithmBatchQuantify(Johansson et al., 2019)
10.1016/j.stem.2019.02.002
NAhttps://github.com/emltwc/2018-Cell-Stem-Cell
Software, algorithmEGFR_quantThis paperNAhttps://github.com/emltwc/EGFRProject
Software, algorithmBlind scoring(Perochon et al., 2021)https://doi.org/10.1038/s41556-021-00676-zNAhttps://github.com/emltwc/TracheaProject/blob/master/Blind_scoring.ijm
OtherAxio ObserverZEISS
OtherLSM780 microscopeZEISS
OtherBX51 microscopeOlympus
OtherOpera Phenix Z9501PerkinElmer
Other7500 Fast Real-Time PCR SystemApplied Biosystems
OtherTrans-Blot Turbo systemBio-Rad1704150
OtherHiSeq 2000Illumina
OtherImageLock plateEssen Biosciences

Data availability

All data underlying the findings of this study are included in the manuscript and supporting file. Source data files have been provided for all figures containing numeric data. The entire raw dataset corresponding to the work in this paper is publicly available from our institutional repository at http://dx.doi.org/10.5525/gla.researchdata.1142. RNA sequencing data has been deposited in GEO (accession GSE162421) and can be accessed through https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE162421. Custom scripts used for quantification are available at Github: https://github.com/emltwc/TracheaProject/blob/master/Blind_scoring.ijm (copy archived at https://archive.softwareheritage.org/swh:1:rev:2ef7574e3c9bbb7ef852655511a86ef7531d35bb); https://github.com/emltwc/2018-Cell-Stem-Cell (copy archived at https://archive.softwareheritage.org/swh:1:rev:e45f961ed6217ecc0bece566a76a633fd2b47ec0) and https://github.com/emltwc/EGFRProject (copy archived at https://archive.softwareheritage.org/swh:1:rev:4888f27a6766694b33a8b25bcb42a078fa786f8d).

The following data sets were generated
    1. Naszai M
    2. Cordero JB
    (2021) NCBI Gene Expression Omnibus
    ID GSE162421. RAL GTPases mediate EGFR/MAPK signalling-driven intestinal stem cell proliferation and tumourigenesis upstream of RAS activation.
    1. Nászai M
    2. Bellec
    3. K
    4. Yu Y
    5. Román-Fernández Á
    6. Sandilands E
    7. Johansson
    8. J
    9. Campbell A
    10. Norman J
    11. Sansom O
    12. Bryant D
    13. Cordero J
    (2021) Research Data
    RAL GTPases mediate EGFR-driven intestinal stem cell hyperproliferation and tumourigenesis.
    https://doi.org/10.5525/gla.researchdata.1142

References

    1. Amann J
    2. Kalyankrishna S
    3. Massion PP
    4. Ohm JE
    5. Girard L
    6. Shigematsu H
    7. Peyton M
    8. Juroske D
    9. Huang Y
    10. Stuart Salmon J
    11. Kim YH
    12. Pollack JR
    13. Yanagisawa K
    14. Gazdar A
    15. Minna JD
    16. Kurie JM
    17. Carbone DP
    (2005)
    Aberrant epidermal growth factor receptor signaling and enhanced sensitivity to EGFR inhibitors in lung Cancer
    Cancer Research 65:226–235.
    1. Madsen MW
    2. Lykkesfeldt AE
    3. Laursen I
    4. Nielsen KV
    5. Briand P
    (1992)
    Altered gene expression of c-myc, epidermal growth factor receptor, transforming growth factor-alpha, and c-erb-B2 in an immortalized human breast epithelial cell line, HMT-3522, is associated with decreased growth factor requirements
    Cancer Research 52:1210–1217.
    1. Mellman I
    2. Yarden Y
    (2013) Endocytosis and cancer
    Cold Spring Harbor Perspectives in Biology 5:a016949.
    https://doi.org/10.1101/cshperspect.a016949

Decision letter

  1. Hugo J Bellen
    Reviewing Editor; Baylor College of Medicine, United States
  2. Utpal Banerjee
    Senior Editor; University of California, Los Angeles, United States
  3. Kartik Venkatachalam
    Reviewer; McGovern Medical School at the University of Texas Health Sciences Center (UTHealth), United States
  4. Barry Thompson
    Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

By studying the small GTPase, RalA, in EGFR/MAPK signaling using both flies and human cancer cell lines you show that RalA determines the gain of EGFR signaling upstream of RAS activation. You document a role for RalA in internalization of ligand-bound EGFR, which is known to potentiate signaling downstream of the receptor. This is a new role for Ras related small GTPases in EGFR-MAPK signaling.

Decision letter after peer review:

Thank you for submitting your article "RAL GTPases mediate EGFR/MAPK driven intestinal stem cell proliferation and tumourigenesis upstream of RAS activation" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Utpal Banerjee as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Kartik Venkatachalam (Reviewer #1); Barry Thompson (Reviewer #2).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

We would like to draw your attention to changes in our policy on revisions we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

We also enclose all the reviewers comments so you can address their concerns and issues. Please write a detailed rebuttal when you resubmit the manuscript.

Reviewer #1:

In this manuscript, the authors examine the role of the small GTPase, RalA, in EGFR/MAPK signaling using both flies and human cancer cell lines. They find that RalA determines the gain of EGFR signaling upstream of RAS activation. The authors then. attributed the regulation of EGFR/MAPK signaling to a role for RalA in internalization of ligand-bound EGFR, which is known to potentiate signaling downstream of the receptor. Strengths of the manuscript include an exciting and new description of Ras related small GTPases in determining EGFR-MAPK signaling and the utilization of a powerful combination of genetic interactions in flies and studies in human cancer cells. Indeed, the relevance of their finding to EGFR-driven malignancies is also a strength. Weaknesses are mostly technical and include the absence of key controls and need for improved assays for examining EGFR localization at the plasma membrane.

1. The data in Figure 1A would be more compelling if the authors quantify the reported changes. That would allow the reader to see the spread of the data. Also, they should overexpress wg and/or EGFR in the RalA knockdown wings to examine suppression of wing dysmorphia. This is needed to ascertain that the phenotypes in the RalA knockdown wings are related to those seen upon combined knockdown of wg and EGFR.

2. For the data shown in Figure 1C, it would be worthwhile to have positive controls showing that inhibition of EGFR/MAPK pathways in Ecc15-treated guts is sufficient to mitigate the upregulation of rho, stg, and Sox21a. The authors could do this genetically, or by using well established pharmacological inhibitors of MEK and ERK.

3. Does this change in pERK (as shown in Figure 1K) represent an increase in ERK phosphorylation, as would be expected upon the engagement of EGFR signaling? This question is also relevant to other figures in the manuscript that show pERK staining in the gut cells. The authors should examine the levels of total ERK as well to examine whether the elevation of pERK represents an increase in ERK phosphorylation. Alternatively (or in addition), the authors could check whether pharmacological inhibition of MEK decreases pERK levels. The most compelling data, of course, would be Western blots of fly tissues (perhaps the fat bodies or something similar) that examine both pERK and ERK upon expressing EGFR and/or RalA RNAi.

4. These data shown in Figures 4A-4D are not compelling. It is hard to appreciate PM localization of EGFR upon RalA knockdown. The authors most certainly need a significantly improved readout of EGFR PM localization in the fly cells. This concern also applies to data shown in other figures. Possibilities include staining of an extracellular epitope of EGFR in non-permeabilized cells and/or biotin labeling (similar to what they have done with H1299 cells.) In the event that these experiments are not possible in fly cells, the authors need to clearly explain why that is the case and use genetic strategies (e.g., dominant negative dynamin or something to that effect) to change the rates of receptor internalization and examine genetic interaction of these manipulations with RalA knockdown and overexpression.

5. Do the data shown in Figure 5 imply the purported effect of RalA on receptor internalization is specific for EGFR? Can the authors examine the localization of other receptors that signal to RAS/MAPK and see if this is dependent on RalA?

Reviewer #2:

This is an interesting manuscript that addresses a fundamental problem of the molecular regulation of intestinal stem cells in regeneration and in cancer, focusing on the role of the Ras-like (RAL) GTPases and their ability to regulate EGFR/MAPK signalling in the intestine. A novel molecular mechanism – regulation of EGFR internalisation – is identified. The experiments are well performed and the conclusions are justified by the data.

The major strengths include the combination of two model organisms, Drosophila and mammalian cells, which together provide compelling evidence for their novel molecular mechanism of RAL GTPase action in regulation of EGFR internalisation and signalling to p-ERK. Most of the genetic and mechanistic experiments are performed in Drosophila.

However, the role of RAL GTPases in regulating EGFR internalisation is also shown in mammalian cells by a surface biotinylation assay.

Given the importance of EGFR signalling in intestinal cancer, the results will be of broad interest to the community. In addition, RAL GTPases are potential therapeutic targets for cancer therapy.

Reviewer #3:

RAL GTPases are key effectors of EGFR signaling, a signaling pathway important for a variety of biological functions whose activity is highly regulated at multiple levels. The authors previously discovered a novel role for RAL in Wnt signaling pathway regulation through receptor trafficking. Here, they set out to investigate whether RAL also has a similar non-canonical role in regulating EGRF signaling.

Their main experimental system is the adult fly intestine where both Wnt and EGFR pathways have important and interdependent functions in regulating stem cell behavior. A key strength of the paper is that they validate their key findings in multiple (mammalian) experimental systems where EGFR signaling plays a key role and use a variety of experimental approaches. This rigorous approach increases both the significance and biological relevance of their findings.

Through their work, they demonstrate that:

1. RAL is necessary for the activation of EGFR/MAPK signaling following intestinal damage

2. Ectopic RAL is sufficient to activate EGFR/MAPK signaling

3. RAL is necessary for intestinal regeneration through increased stem cell division following intestinal damage

4. RAL regulates EGFR signaling by mediating EGF ligand induced EGFR endocytosis. Reduced RAL activity leads to reduced endocytosis, increased plasma membrane localization of EGFR and reduced signaling output.

All of these conclusions are well supported by their data. One key weakness of the manuscript is the claim that this is a non-canonical function of RAL that is upstream of RAS. The reader should consider alternative explanations for the results the authors base this claim on. The RasV12 phenotype shown in the manuscript is much stronger than that of ectopic EGFR and the RAL knockdown is unlikely to be complete. It is reasonable to conclude that RAL works still downstream of RAS to regulate EGFR localization as part of a feedback loop and that RasV12 phenotype is simply too strong to be rescued by a partial reduction of RAL activity. On a related note, placing RAL upstream of RAS in this particular context implies that RAS has a role downstream of RAL in EGFR internalization, which has not been demonstrated.

1. Additional evidence will be necessary to support the claim that EGFR internalization is a non-canonical role of RAL that is upstream of RAS. First, the authors should determine whether this function of RAL is independent of or downstream of RAS. For instance, does knocking down RAS has any effect on EGFR internalization? Testing additional RAS effectors downstream of RAL will also be helpful to determine whether EGRF internalization is regulated by the canonical RAL pathway downstream of RAS in a feedback loop.

The authors could also repeat the RAL knock down experiments using phenotypes induced by lower levels of ectopic RasV12 expression to obtain a phenotype comparable to that or ectopic EGFR for their genetic interaction experiments. They can increase the level of RAL knock down by introducing two copies of their RNA lines or combining the two independent RAL RNAi lines. These experiments will not provide a definitive answer so they not ideal but they can help support their claim if it is correct.

Alternatively, the authors could remove the claim that RAL is upstream of RAS from the paper (and the title) This would be acceptable to me as a reviewer since their findings are significant and relevant regardless of whether this claim is correct. In summary, this claim should either be removed or supported by additional data.

2. In Figure 1, sox21a appears to be also lost in non-GFP cells upon RAL knockdown. Possible explanations for this non-autonomous effect should be provided. A related point is that quantifications for this figure have been done within the ISC/EB compartment (GFP positive) for pERK staining and within the nuclear compartment of sox21a. It was not clear to me from looking at the figure annotations whether the authors looked at the nuclear compartment of all cells or GFP positive cells only This should be clarified.

3. In the introduction, the authors pose the question whether RAL proteins impact intestinal biology beyond Wnt signaling. As their analysis is largely focused on intestinal cell types with high Wnt signaling, it is understandably challenging to fully address this question in these cells. It would be interesting to include a discussion about the context dependence of their findings. Do they expect the role for RAL they uncovered to be unique to cells with relatively high WNT signaling? Do they expect to see a similar role for RAL in cells with no Wnt pathway activity? How does this relate to the potential of RAL as a drug target in different tumor types? What is known about the state of Wnt signaling in the mammalian cells they used? The authors can further contextualize their findings and increase the significance and impact of their work by elaborating on these questions in the discussion

4. Given the broad relevance of their work, the manuscript will also be of interest to scientists who are not deeply familiar with the details of RAS/RAL signaling. It would be helpful to include additional information regarding the canonical role of RAL downstream of RAS. Providing additional context would really emphasize the novel nature of their findings and help the work reach a broader audience.

https://doi.org/10.7554/eLife.63807.sa1

Author response

Reviewer #1:

In this manuscript, the authors examine the role of the small GTPase, RalA, in EGFR/MAPK signaling using both flies and human cancer cell lines. They find that RalA determines the gain of EGFR signaling upstream of RAS activation. The authors then. attributed the regulation of EGFR/MAPK signaling to a role for RalA in internalization of ligand-bound EGFR, which is known to potentiate signaling downstream of the receptor. Strengths of the manuscript include an exciting and new description of Ras related small GTPases in determining EGFR-MAPK signaling and the utilization of a powerful combination of genetic interactions in flies and studies in human cancer cells. Indeed, the relevance of their finding to EGFR-driven malignancies is also a strength. Weaknesses are mostly technical and include the absence of key controls and need for improved assays for examining EGFR localization at the plasma membrane.

1. The data in Figure 1A would be more compelling if the authors quantify the reported changes. That would allow the reader to see the spread of the data. Also, they should overexpress wg and/or EGFR in the RalA knockdown wings to examine suppression of wing dysmorphia. This is needed to ascertain that the phenotypes in the RalA knockdown wings are related to those seen upon combined knockdown of wg and EGFR.

We now provide quantification of our wing phenotypes as requested by the Reviewer (Figure 1 A, B). Wing dysmorphia is a multi-dimensional phenotype, which includes defects in wing size and patterning. Therefore, we have quantified this phenotype using a blind scoring method previously developed in our lab (Perochon et al., 2021). Information of the methods used for quantification and associated macro is provided in the manuscript.

Furthermore, we have performed the additional genetic interactions suggested by the Reviewer. Unfortunately, overexpression of wg (eng>wg) led to early organismal lethality, which precluded us from performing the eng>wg;RalA-RNAi experiment. However, EGFR overexpression (eng>EGFR) was partially lethal and we were able to assess the role of RalA in this setting (Figure 3- supplement 1 A, B). Consistent with our genetic interactions in the adult midgut, RalA knockdown (eng>EGFR; RalA-IR) suppressed organismal lethality and adult wing vein patterning defects caused by EGFR overexpression (eng>EGFR) (Figure 3- supplement 1 A, B). We believe these results reinforce the critical role of RAL as an effector of EGFR signaling in multiple contexts.

2. For the data shown in Figure 1C, it would be worthwhile to have positive controls showing that inhibition of EGFR/MAPK pathways in Ecc15-treated guts is sufficient to mitigate the upregulation of rho, stg, and Sox21a. The authors could do this genetically, or by using well established pharmacological inhibitors of MEK and ERK.

Please note that stg and Sox21a have already been identified as transcriptional targets of EGFR/MAPK signaling within ISCs in the regenerating adult Drosophila midgut (Jin et al., 2015; Meng and Biteau, 2015). We have confirmed this through RT-qPCR of esgts>GFP (control) and esgts>EGFR-RNAi midguts mock treated or following Ecc15 infection (Author response image 1). Rho is an important activator of EGFR signaling in the adult midgut. However, rho has been shown to work in cells other than those expressing the receptor, by potentiating ligand availability to the receptor (Liang et al., 2017; Ngo et al., 2020). While there’s is evidence in the embryo suggesting that rho expression can be indirectly regulated by EGFR/MAPK signaling (Hsu et al., 2001), we found no published evidence indicating rho as a target of EGFR/MAPK signaling in the midgut. It rather works upstream of EGFR activation. We have clarified this in the text. Consistently, knocking down EGFR does not impact upregulation of rho upon infection (Author response image 1). This indicates that the regulation of rho expression by RalA in the regenerating midgut is rather indirect/non-cell autonomous and it might represent a distinct mechanism of EGFR signaling regulation by RalA, which we don’t understand at the moment.

Author response image 1
Transcriptional readouts of EGFR/MAPK pathway activation.

RT-qPCR confirmation of transcriptional targets of EGFR/MAPK signalling in whole midguts from wild-type control and EGFR knockdown in stem/progenitor cells using escargot-gal4, UAS-gfp. Results are presented relative to rpl32 levels. n (number of biological replicates) = 4 or 3, each dot represents an independent RNA sample from >10 midguts per sample. Where indicated: *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001; Two-way ANOVA followed by Sidak’s multiple comparisons test. All error bars represent SD.

3. Does this change in pERK (as shown in Figure 1K) represent an increase in ERK phosphorylation, as would be expected upon the engagement of EGFR signaling? This question is also relevant to other figures in the manuscript that show pERK staining in the gut cells. The authors should examine the levels of total ERK as well to examine whether the elevation of pERK represents an increase in ERK phosphorylation. Alternatively (or in addition), the authors could check whether pharmacological inhibition of MEK decreases pERK levels. The most compelling data, of course, would be Western blots of fly tissues (perhaps the fat bodies or something similar) that examine both pERK and ERK upon expressing EGFR and/or RalA RNAi.

This is indeed an important control, which we have now added to our studies. As we are not sure what is the relationship between RalA and EGFR in tissues like the fat body and to keep consistency with the rest of our studies, we have chosen to quantify total-ERK levels by immunofluorescence in the midgut in multiple contexts where we measured pERK levels. That is: in esgts>w1118 Mock treated; esgts>w1118 Ecc15 infected (Figure 1-supplement 1 I, J); esgts>EGFRwt; esgts>RalA-RNAi;EGFRwt (Figure 3-supplement 1 E, F) and esgts>RalAwt fly midguts (Figure 1-supplement 1 F, G). Also, we now provide quantifications of pERK (Figure 1J) and total ERK (Figure 1-supplement 1E) in Wild type; Rala KO and Ralb KO damaged mouse intestines. We found no change in total ERK in either of these contexts, suggesting that our findings represent an effect of RAL GTPases in ERK activation.

Additionally, we have performed western blot of whole midguts from esg>w1118 Mock treated; esg>w1118 Ecc15 infected and esg>RalAwt fly midguts, which confirmed the results of the immunofluorescence (Figure 1-supplement 1H). We have only performed a subset of the genetic conditions for western blot as we have previously experienced that, while we can consistently and robustly detect the increase in basal levels of pERK in whole gut western blot (e.g. infected vs mock treated and control vsRalA overexpressing midguts) it is much more difficult to capture partial decrease in pERK levels as observed in situ (e.g. control infected vsRalA-RNAi infected midguts) from whole tissue preparation.

4. These data shown in Figures 4A-4D are not compelling. It is hard to appreciate PM localization of EGFR upon RalA knockdown. The authors most certainly need a significantly improved readout of EGFR PM localization in the fly cells. This concern also applies to data shown in other figures. Possibilities include staining of an extracellular epitope of EGFR in non-permeabilized cells and/or biotin labeling (similar to what they have done with H1299 cells.) In the event that these experiments are not possible in fly cells, the authors need to clearly explain why that is the case and use genetic strategies (e.g., dominant negative dynamin or something to that effect) to change the rates of receptor internalization and examine genetic interaction of these manipulations with RalA knockdown and overexpression.

We appreciate the Reviewer’s concerns regarding EGFR membrane localization in the fly gut. Unfortunately, there are significant technical challenges to the experimental approaches suggested by the Reviewer. The EGFR antibody we have used in our Drosophila immunostaining indeed recognises an extracellular epitope of the receptor. However, our attempts to do immunostaining of the fly gut epithelium without tissue permeabilization have not been successful. The problem is most likely due to the layers of visceral muscle and basement membrane surrounding the basal side of the gut tube, which prevents antibody from penetrating into the epithelium in the absence of permeabilization. This is precisely one of the reasons why we have complemented our fly work with the biochemical studies in cell lines, which quantitatively assess EGFR internalization. We also tried performing co-localization studies between EGFR and cell-junction proteins. However, the best available antibody to label cell junctions in ISCs/EBs is anti-Armadillo/β-Catenin, which is unfortunately the same species as the EGFR antibody, precluding their combined use. As an alternative, we have tried co-staining experiments using anti-EGFR and anti-E-cadherin or anti-Discs Large but none of the two latter showed robust labelling of ISC/EBs to produce better data than what we have.

As an additional attempt to address the reviewers concern, we have tried to perform the genetic interactions suggested. However, consistent with published reports (Nagy et al., 2016; Zhang et al., 2019), global blockade of endocytosis in ISCs/EBs by overexpression of dominant negative Rab5 (esgts>Rab5DN) or temperature sensitive dominant negative dynamin (Shibire) (esg>Shits) induces massive intestinal hyperplasia (Author response image 2), which precludes their use in meaningful genetic interactions. Admittedly, these genetic approaches are much broader than knocking down RalA and likely lead to pleotropic effects in signaling activity amongst other things.

Author response image 2
Inhibition of cell membrane internalisation induces hyperproliferation.

Representative confocal images of adult posterior midguts from wild-type control animals, or following the overexpression of temperature sensitive dominant negative dynamin (shiDN), or dominant negative Rab5 (Rab5DN) in stem/progenitor cells using escargot-gal4, UAS-gfp (ISC/EB>; green). Scale bar = 50 µ. Quantification of pH3 counts, as in A, in guts expressing dominant negative dynamin. Quantification of pH3 counts, as in A, in guts expressing dominant negative Rab5. Where indicated: *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001; Student’s t-test. All error bars represent SD.

We have used CD8-GFP driven by escargot-Gal4 (esg>GFP) to label cell membranes and estimate EGFR localization in our original studies. As a means to improve this part of our manuscript and address as best as we can the Reviewer’s concern, we now provide improved images and also a detailed account of the approach and criteria used to define membrane versus intracellular EGFR localization in our system (Figure 4; Figure 4-supplement 1 and 2; Figure 5G)

Specifically, we now provide:

a. Representative single z-stack slice of the original data.

b. Pseudo-coloured image using the turbo colour map to better highlight intensity differences.

c. Closeup of multiple regions of interest.

5. Do the data shown in Figure 5 imply the purported effect of RalA on receptor internalization is specific for EGFR? Can the authors examine the localization of other receptors that signal to RAS/MAPK and see if this is dependent on RalA?

As shown in our previous paper, RAL GTPases are involved in the internalisation of the Wnt receptor Frizzled (Johansson et al., 2019). Here, we show that RALs are also necessary for the internalization of EGFR. Our experiments in H1299 cells show that steady state turnover of α5β1 integrin, human transferrin receptor or indeed EGFR was not affected (Figure 4-supplement 3 E, F). However, ligand-induced EGFR internalisation was significantly reduced in the absence of RAL GTPases (Figure 4G). We now include additional receptor localisation data on the receptor tyrosine kinase c-Met that also signals through RAS/MAPK when exposed to its ligand, Hepatocyte Growth Factor (HGF). Unlike with EGFR, Ral knockdown had no impact on HGF-driven internalisation of cMet (Figure 4-supplement 3 C, D). This evidence points to at least some degree of specificity in the action of RAL proteins on signaling receptor internalization. We have now discussed this in the appropriate Results section.

Reviewer #3:

RAL GTPases are key effectors of EGFR signaling, a signaling pathway important for a variety of biological functions whose activity is highly regulated at multiple levels. The authors previously discovered a novel role for RAL in Wnt signaling pathway regulation through receptor trafficking. Here, they set out to investigate whether RAL also has a similar non-canonical role in regulating EGRF signaling.

Their main experimental system is the adult fly intestine where both Wnt and EGFR pathways have important and interdependent functions in regulating stem cell behavior. A key strength of the paper is that they validate their key findings in multiple (mammalian) experimental systems where EGFR signaling plays a key role and use a variety of experimental approaches. This rigorous approach increases both the significance and biological relevance of their findings.

Through their work, they demonstrate that:

1. RAL is necessary for the activation of EGFR/MAPK signaling following intestinal damage

2. Ectopic RAL is sufficient to activate EGFR/MAPK signaling

3. RAL is necessary for intestinal regeneration through increased stem cell division following intestinal damage

4. RAL regulates EGFR signaling by mediating EGF ligand induced EGFR endocytosis. Reduced RAL activity leads to reduced endocytosis, increased plasma membrane localization of EGFR and reduced signaling output.

All of these conclusions are well supported by their data. One key weakness of the manuscript is the claim that this is a non-canonical function of RAL that is upstream of RAS. The reader should consider alternative explanations for the results the authors base this claim on. The RasV12 phenotype shown in the manuscript is much stronger than that of ectopic EGFR and the RAL knockdown is unlikely to be complete. It is reasonable to conclude that RAL works still downstream of RAS to regulate EGFR localization as part of a feedback loop and that RasV12 phenotype is simply too strong to be rescued by a partial reduction of RAL activity. On a related note, placing RAL upstream of RAS in this particular context implies that RAS has a role downstream of RAL in EGFR internalization, which has not been demonstrated.

These are all very valid criticisms by the Reviewer. Our statement in the original title and text refers to the fact that ISC hyperproliferation and MAPK activation caused upon activation of EGFR but not Ras activation are sensitive to RAL presence. We have now modified the title and worked through the text to better reflect on this and avoid misinterpretation. The potential effect of differential phenotypic strength resulting from the various genetic manipulations to hyperactivate EGFR/MAPK signaling is one that we have worked hard at addressing in our manuscript:

a. We consistently used Dicer to improve RNAi efficiency in all the genetic combinations.

b. We have kept a consistent timing of overexpression for all the transgenes used.

c. Overexpression of constitutively active forms of EGFR leads to levels of ISC proliferation much higher than those upon wild-type EGFR overexpression and very much comparable or even higher than those observed upon Rasv12 overexpression (Figure 3A, B and E, F; Figure 3-supplement 1 C, D). Nevertheless, only ISC hyperproliferation driven by constitutively active EGFR is sensitive to RalA knockdown (Figure 3A, B and E, F; Figure 3-supplement 1 C, D). Importantly, the RalA-RNAi used in these contexts was the same.

d. We also assessed the effect of RalA knockdown on the overexpression of two independent Rasv12 constructs, which led to significantly different levels of ISC proliferation and did not observe an effect of RalA knockdown in either case (Figure 3A, B; Figure 3-supplement 1 C, D).

Altogether, we believe this evidence strongly supports a role of RalA mediating intestinal hyperplasia caused by hyperactivation of EGFR but not upon constitutively active Ras. However, we agree we need to avoid a general statement of non-canonical action of RAL and be more specific of what we refer to when we place RAL upstream of Ras activation.

1. Additional evidence will be necessary to support the claim that EGFR internalization is a non-canonical role of RAL that is upstream of RAS. First, the authors should determine whether this function of RAL is independent of or downstream of RAS. For instance, does knocking down RAS has any effect on EGFR internalization? Testing additional RAS effectors downstream of RAL will also be helpful to determine whether EGRF internalization is regulated by the canonical RAL pathway downstream of RAS in a feedback loop.

This very valid point. As suggested by the Reviewer, we have now tested and confirmed that, indeed, Ras also influences EGFR membrane localization in the midgut in (Figure 4-supplement 2). Our statement in the original title and abstract refers to the fact that ISC proliferation and MAPK activation caused upon Ras hyperactivation is refractory to RAL’s action. We have now modified the title and the manuscript, including removing our ‘non-canonical role of RAL’ statement to more accurately represent the conclusions of our results. We have also included a working model figure.

The authors could also repeat the RAL knock down experiments using phenotypes induced by lower levels of ectopic RasV12 expression to obtain a phenotype comparable to that or ectopic EGFR for their genetic interaction experiments. They can increase the level of RAL knock down by introducing two copies of their RNA lines or combining the two independent RAL RNAi lines. These experiments will not provide a definitive answer so they not ideal but they can help support their claim if it is correct.

Alternatively, the authors could remove the claim that RAL is upstream of RAS from the paper (and the title) This would be acceptable to me as a reviewer since their findings are significant and relevant regardless of whether this claim is correct. In summary, this claim should either be removed or supported by additional data.

As detailed in points a-d of our first response to the Reviewer, we have taken several steps to ensure to the best of our capabilities that the differential impact of RalA knockdown in EGFR versus Ras hyperactivation is not a consequence of differential phenotypic strength. As pointed by the Reviewer, while not perfect, we believe the evidence presented in this regard helps support our claim that RalA mediates EGFR but not Ras driven ISC hyperproliferation. We have additionally modified the title and text to more clearly present our results.

2. In Figure 1, sox21a appears to be also lost in non-GFP cells upon RAL knockdown. Possible explanations for this non-autonomous effect should be provided. A related point is that quantifications for this figure have been done within the ISC/EB compartment (GFP positive) for pERK staining and within the nuclear compartment of sox21a. It was not clear to me from looking at the figure annotations whether the authors looked at the nuclear compartment of all cells or GFP positive cells only This should be clarified.

Thank you for this observation. The figure panel in question (Figure 1E; mock treated control) that was originally included in our submitted manuscript has some IF staining artefacts. Upon closer examination, what appears to be staining in non-GFP cells is background specs and non-specific labelling of tracheal tissue outside of the nuclear compartment. Our quantification of Sox21a measures staining intensity within the nuclei of all cells, therefore this noise is not included. The image was changed to a different picture from the same experiment that did not have the staining artefacts. Our methods have now been updated to clarify what compartments are quantified in each experiment.

3. In the introduction, the authors pose the question whether RAL proteins impact intestinal biology beyond Wnt signaling. As their analysis is largely focused on intestinal cell types with high Wnt signaling, it is understandably challenging to fully address this question in these cells. It would be interesting to include a discussion about the context dependence of their findings. Do they expect the role for RAL they uncovered to be unique to cells with relatively high WNT signaling? Do they expect to see a similar role for RAL in cells with no Wnt pathway activity? How does this relate to the potential of RAL as a drug target in different tumor types? What is known about the state of Wnt signaling in the mammalian cells they used? The authors can further contextualize their findings and increase the significance and impact of their work by elaborating on these questions in the discussion.

A report from the literature shows that H1299 are proficient to activate Wnt signaling upon addition of exogenous Wnt3a (Melnik et al., 2018). However, we have not added Wnt3a in our experiments. Importantly, we observed that the effect of RAL proteins on EGFR internalization in these cells requires the addition of EGF ligand (Figure 4G). Therefore, in this context, it seems that the role of RAL is linked to high levels of EGFR signaling.

Similarly, the growth of HMT-3522 T4-2 cells is heavily dependent on EGFR activation and they are highly sensitive to EGFR inhibitors (Madsen et al., 1992; Wang et al., 1998) (Figure 5I, J). Therefore, our results do suggest a potential role of RalA and value as a therapeutic target in contexts beyond the intestine and upon high levels of EGFR activity. In fact, we have previously shown that loss of Apc in the intestine, the most predominant mutation leading to intestinal malignancy through constitutive activation of Wnt signaling, is refractive to RAL inhibition (Johansson et al., 2019). We included some of this information in the discussion but have now expanded on these points as suggested by the Reviewer.

4. Given the broad relevance of their work, the manuscript will also be of interest to scientists who are not deeply familiar with the details of RAS/RAL signaling. It would be helpful to include additional information regarding the canonical role of RAL downstream of RAS. Providing additional context would really emphasize the novel nature of their findings and help the work reach a broader audience.

A report from the literature shows that H1299 are proficient to activate Wnt signaling upon addition of exogenous Wnt3a (Melnik et al., 2018). However, we have not added Wnt3a in our experiments. Importantly, we observed that the effect of RAL proteins on EGFR internalization in these cells requires the addition of EGF ligand (Figure 4G). Therefore, in this context, it seems that the role of RAL is linked to high levels of EGFR signaling.

Similarly, the growth of HMT-3522 T4-2 cells is heavily dependent on EGFR activation and they are highly sensitive to EGFR inhibitors (Madsen et al., 1992; Wang et al., 1998) (Figure 5I, J). Therefore, our results do suggest a potential role of RalA and value as a therapeutic target in contexts beyond the intestine and upon high levels of EGFR activity. In fact, we have previously shown that loss of Apc in the intestine, the most predominant mutation leading to intestinal malignancy through constitutive activation of Wnt signaling, is refractive to RAL inhibition (Johansson et al., 2019). We included some of this information in the discussion but have now expanded on these points as suggested by the Reviewer.

References:

Hsu, T., McRackan, D., Vincent, T. S., and Gert de Couet, H. (2001). Drosophila Pin1 prolyl isomerase Dodo is a MAP kinase signal responder during oogenesis. Nature Cell Biology, 3(6), 538–543. https://doi.org/10.1038/35078508

Jin, Y., Ha, N., Forés, M., Xiang, J., Gläßer, C., Maldera, J., Jiménez, G., and Edgar, B. A. (2015). EGFR/Ras Signaling Controls Drosophila Intestinal Stem Cell Proliferation via Capicua-Regulated Genes. PLOS Genetics, 11(12), e1005634. https://doi.org/10.1371/journal.pgen.1005634

Johansson, J., Naszai, M., Hodder, M. C., Pickering, K. A., Miller, B. W., Ridgway, R. A., Yu, Y., Peschard, P., Brachmann, S., Campbell, A. D., Cordero, J. B., and Sansom, O. J. (2019). RAL GTPases Drive Intestinal Stem Cell Function and Regeneration through Internalization of WNT Signalosomes. Cell Stem Cell, 24(4), 592-607.e7. https://doi.org/10.1016/j.stem.2019.02.002

Liang, J., Balachandra, S., Ngo, S., and O’Brien, L. E. (2017). Feedback regulation of steady-state epithelial turnover and organ size. Nature, 548(7669), 588–591. https://doi.org/10.1038/nature23678

Madsen, M. W., Lykkesfeldt, A. E., Laursen, I., Nielsen, K. V, and Briand, P. (1992). Altered gene expression of c-myc, epidermal growth factor receptor, transforming growth factor-α, and c-erb-B2 in an immortalized human breast epithelial cell line, HMT-3522, is associated with decreased growth factor requirements. Cancer Research, 52(5), 1210–1217. http://www.ncbi.nlm.nih.gov/pubmed/1737382

Melnik, S., Dvornikov, D., Müller-Decker, K., Depner, S., Stannek, P., Meister, M., Warth, A., Thomas, M., Muley, T., Risch, A., Plass, C., Klingmüller, U., Niehrs, C., and Glinka, A. (2018). Cancer cell specific inhibition of Wnt/β-catenin signaling by forced intracellular acidification. Cell Discovery, 4(1), 37. https://doi.org/10.1038/s41421-018-0033-2

Meng, F. W., and Biteau, B. (2015). A Sox Transcription Factor Is a Critical Regulator of Adult Stem Cell Proliferation in the Drosophila Intestine. Cell Reports, 13(5), 906–914. https://doi.org/10.1016/j.celrep.2015.09.061

Nagy, P., Kovács, L., Sándor, G. O., and Juhász, G. (2016). Stem-cell-specific endocytic degradation defects lead to intestinal dysplasia in Drosophila. Disease Models and Mechanisms, 9(5), 501–512. https://doi.org/10.1242/dmm.023416

Ngo, S., Liang, J., Su, Y.-H., and O’Brien, L. E. (2020). Disruption of EGF Feedback by Intestinal Tumors and Neighboring Cells in Drosophila. Current Biology, 30(8), 1537-1546.e3. https://doi.org/10.1016/j.cub.2020.01.082

Perochon, J., Yu, Y., Aughey, G. N., Medina, A. B., Southall, T. D., and Cordero, J. B. (2021). Dynamic adult tracheal plasticity drives stem cell adaptation to changes in intestinal homeostasis in Drosophila. Nature Cell Biology, 23(5), 485–496. https://doi.org/10.1038/s41556-021-00676-z

Wang, F., Weaver, V. M., Petersen, O. W., Larabell, C. A., Dedhar, S., Briand, P., Lupu, R., and Bissell, M. J. (1998). Reciprocal interactions between beta1-integrin and epidermal growth factor receptor in three-dimensional basement membrane breast cultures: a different perspective in epithelial biology. Proceedings of the National Academy of Sciences of the United States of America, 95(25), 14821–14826. https://doi.org/10.1073/pnas.95.25.14821

Zhang, P., Holowatyj, A. N., Roy, T., Pronovost, S. M., Marchetti, M., Liu, H., Ulrich, C. M., and Edgar, B. A. (2019). An SH3PX1-Dependent Endocytosis-Autophagy Network Restrains Intestinal Stem Cell Proliferation by Counteracting EGFR-ERK Signaling. Developmental Cell, 49(4), 574-589.e5. https://doi.org/10.1016/j.devcel.2019.03.029

https://doi.org/10.7554/eLife.63807.sa2

Article and author information

Author details

  1. Máté Nászai

    1. Wolfson Wohl Cancer Research Centre, Glasgow, United Kingdom
    2. Institute of Cancer Sciences, University of Glasgow, Glasgow, United Kingdom
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Writing - original draft, Writing - review and editing, Designed, performed and analysed most experiments
    Competing interests
    No competing interests declared
  2. Karen Bellec

    1. Wolfson Wohl Cancer Research Centre, Glasgow, United Kingdom
    2. Institute of Cancer Sciences, University of Glasgow, Glasgow, United Kingdom
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Writing - review and editing, Designed perform and analysed experiments required for the revision of the manuscript
    Competing interests
    No competing interests declared
  3. Yachuan Yu

    1. Wolfson Wohl Cancer Research Centre, Glasgow, United Kingdom
    2. Institute of Cancer Sciences, University of Glasgow, Glasgow, United Kingdom
    3. Cancer Research UK Beatson Institute, Glasgow, United Kingdom
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  4. Alvaro Román-Fernández

    1. Institute of Cancer Sciences, University of Glasgow, Glasgow, United Kingdom
    2. Cancer Research UK Beatson Institute, Glasgow, United Kingdom
    Contribution
    Data curation, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Emma Sandilands

    1. Institute of Cancer Sciences, University of Glasgow, Glasgow, United Kingdom
    2. Cancer Research UK Beatson Institute, Glasgow, United Kingdom
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  6. Joel Johansson

    Cancer Research UK Beatson Institute, Glasgow, United Kingdom
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  7. Andrew D Campbell

    Cancer Research UK Beatson Institute, Glasgow, United Kingdom
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  8. Jim C Norman

    1. Institute of Cancer Sciences, University of Glasgow, Glasgow, United Kingdom
    2. Cancer Research UK Beatson Institute, Glasgow, United Kingdom
    Contribution
    Formal analysis, Investigation, Methodology, Writing - review and editing, Designed, performed and analysed the EGFR internalisation experiments
    Competing interests
    No competing interests declared
  9. Owen J Sansom

    1. Institute of Cancer Sciences, University of Glasgow, Glasgow, United Kingdom
    2. Cancer Research UK Beatson Institute, Glasgow, United Kingdom
    Contribution
    Formal analysis, Supervision, Writing - review and editing, Supervised the mouse intestinal regeneration experiment
    Competing interests
    O.J.S. has received funding from Novartis to examine RAL and RAL GEFs in malignancy.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9540-3010
  10. David M Bryant

    1. Institute of Cancer Sciences, University of Glasgow, Glasgow, United Kingdom
    2. Cancer Research UK Beatson Institute, Glasgow, United Kingdom
    Contribution
    Data curation, Formal analysis, Supervision, Supervised 3D mammary tumour cell growth assays
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2721-5012
  11. Julia B Cordero

    1. Wolfson Wohl Cancer Research Centre, Glasgow, United Kingdom
    2. Institute of Cancer Sciences, University of Glasgow, Glasgow, United Kingdom
    3. Cancer Research UK Beatson Institute, Glasgow, United Kingdom
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    julia.cordero@glasgow.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1701-9480

Funding

Wellcome Trust (104103/Z/14/Z)

  • Julia B Cordero

Cancer Research UK (A17196)

  • Yachuan Yu
  • Alvaro Román-Fernández
  • Emma Sandilands
  • David M Bryant

Cancer Research UK (A18277)

  • Jim C Norman

Cancer Research UK (C596/A18076)

  • Jim C Norman

Cancer Research UK (A21139)

  • Joel Johansson
  • Andrew D Campbell
  • Owen J Sansom

University of Glasgow (Leadership Fellowship)

  • Máté Nászai

Royal Society (104103/Z/14/Z)

  • Julia B Cordero

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We would like to thank Björn Kruspig, Sergi Marco, Martha Maria Zarou, Gaiti Hasan, Valerie Weaver, and Benoit Biteau for reagents and cell lines, Ann Hedley (CRUK Beatson) for help with bioinformatic analysis of the RNAseq data, and William Clark and Jillian Murray (CRUK Beartson) for cell line authentication and mycoplasma testing, respectively. We thank the Vienna Drosophila RNAi Center, the Bloomington Drosophila Stock Center, and the Developmental Studies Hybridoma Bank for providing Drosophila lines and reagents. MN was supported by a Leadership Fellowship from the University of Glasgow to (JBC). YY was supported by CRUK core funding to the CRUK Beatson Institute (A17196). The work from the Norman laboratory was funded by CRUK core funding for his laboratory (A18277), and JCN acknowledges the CRUK Glasgow Centre (C596/A18076). JJ, ADC, and OJS are funded by CRUK core funding for OJS laboratory (A21139). DMB, ARF, and ES are supported by the University of Glasgow and CRUK core funding (A17196). JBC is a Sir Henry Dale Fellow jointly funded by the Wellcome Trust and the Royal Society (grant number 104103/Z/14/Z).

Ethics

Animal experimentation: All animal work has been approved by a University of Glasgow internal ethics committee and performed in accordance with institutional guidelines under personal and project licenses granted by the UK Home Office (PPL PCD3046BA).

Senior Editor

  1. Utpal Banerjee, University of California, Los Angeles, United States

Reviewing Editor

  1. Hugo J Bellen, Baylor College of Medicine, United States

Reviewers

  1. Kartik Venkatachalam, McGovern Medical School at the University of Texas Health Sciences Center (UTHealth), United States
  2. Barry Thompson

Publication history

  1. Received: October 7, 2020
  2. Accepted: June 3, 2021
  3. Accepted Manuscript published: June 7, 2021 (version 1)
  4. Version of Record published: June 21, 2021 (version 2)

Copyright

© 2021, Nászai et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 765
    Page views
  • 128
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cancer Biology
    2. Medicine
    Maria Ochoa de Olza
    Insight

    Organ-on-chip approaches could help researchers to better predict the toxicity of cancer immunotherapy drugs.

    1. Cancer Biology
    2. Cell Biology
    Brian Spurlock et al.
    Short Report

    Gene knockout of the master regulator of mitochondrial fission, Drp1, prevents neoplastic transformation. Also, mitochondrial fission and its opposing process of mitochondrial fusion are emerging as crucial regulators of stemness. Intriguingly, stem/progenitor cells maintaining repressed mitochondrial fission are primed for self-renewal and proliferation. Using our newly derived carcinogen transformed human cell model we demonstrate that fine-tuned Drp1 repression primes a slow cycling 'stem/progenitor-like state', which is characterized by small networks of fused mitochondria and a gene-expression profile with elevated functional stem/progenitor markers (Krt15, Sox2 etc) and their regulators (Cyclin E). Fine tuning Drp1 protein by reducing its activating phosphorylation sustains the neoplastic stem cell markers. Whereas, fine-tuned reduction of Drp1 protein maintains the characteristic mitochondrial shape and gene-expression of the primed 'stem/progenitor-like state' to accelerate neoplastic transformation, and more complete reduction of Drp1 protein prevents it. Therefore, our data highlights a 'goldilocks'; level of Drp1 repression supporting stem/progenitor state dependent neoplastic transformation.
