NirD curtails the stringent response by inhibiting RelA activity in Escherichia coli

  1. Loïc Léger
  2. Deborah Byrne
  3. Paul Guiraud
  4. Elsa Germain
  5. Etienne Maisonneuve  Is a corresponding author
  1. Laboratoire de Chimie Bactérienne, Institut de Microbiologie de la Méditerranée, CNRS-Aix Marseille Univ (UMR7283), France
  2. Protein Expression Facility, Institut de Microbiologie de la Méditerranée, CNRS-Aix Marseille Univ, France
Research Article
  • Cited 0
  • Views 404
  • Annotations
Cite this article as: eLife 2021;10:e64092 doi: 10.7554/eLife.64092

Abstract

Bacteria regulate their metabolism to adapt and survive adverse conditions, in particular to stressful downshifts in nutrient availability. These shifts trigger the so-called stringent response, coordinated by the signaling molecules guanosine tetra and pentaphosphate collectively referred to as (p)ppGpp. In Escherichia coli, accumulation of theses alarmones depends on the (p)ppGpp synthetase RelA and the bifunctional (p)ppGpp synthetase/hydrolase SpoT. A tight regulation of these intracellular activities is therefore crucial to rapidly adjust the (p)ppGpp levels in response to environmental stresses but also to avoid toxic consequences of (p)ppGpp over-accumulation. In this study, we show that the small protein NirD restrains RelA-dependent accumulation of (p)ppGpp and can inhibit the stringent response in E. coli. Mechanistically, our in vivo and in vitro studies reveal that NirD directly binds the catalytic domains of RelA to balance (p)ppGpp accumulation. Finally, we show that NirD can control RelA activity by directly inhibiting the rate of (p)ppGpp synthesis.

Introduction

Bacteria have evolved numerous molecular mechanisms to detect and cope with environmental stress, including the use of nucleotide-based signaling pathways to efficiently coordinate cellular processes and provide a fast response. Among these signaling pathways, the stringent response is a general stress response that is mediated by the accumulation of the nucleotides guanosine 5′-diphosphate 3′-diphosphate (ppGpp) and guanosine 5′-triphosphate 3′-diphosphate (pppGpp), collectively known as (p)ppGpp (Potrykus and Cashel, 2008). These alarmones allow bacteria to rapidly respond and adapt to various conditions of nutritional and environmental stress by affecting gene expression and metabolism. In Gram-negative bacteria, (p)ppGpp binds RNA polymerase, thereby altering its promoter selectivity, which results in genome-wide transcriptional reprograming (Durfee et al., 2008; Ross et al., 2013; Ross et al., 2016; Sanchez-Vazquez et al., 2019; Traxler et al., 2008). Additionally, (p)ppGpp also binds directly and alters the activity of several enzymes including DNA primase, translation factors, lysine decarboxylase, and polyphosphate kinase (Corrigan et al., 2016; Kanjee et al., 2012; Wang et al., 2019a; Zhang et al., 2018). Importantly, this rewiring of cell physiology also appears to play a critical role in the regulation of bacterial virulence, survival during host invasion, and antibiotic resistance and tolerance (Hauryliuk et al., 2015; Hengge, 2020; Irving et al., 2021; Potrykus and Cashel, 2008).

In Escherichia coli, (p)ppGpp synthesis and hydrolysis are regulated by RelA and SpoT, which are members of RelA/SpoT homologue (RSH) (Atkinson et al., 2011) enzymes and share similar domain architecture. The enzymatic N-terminal half (NTD) has the synthetase (SYN) and the hydrolase (HYD) domains, and the C-terminal half (CTD) of the protein contains conserved domains, which play a critical role in sensing and transducing stress signals to the catalytic domains (Gratani et al., 2018; Hauryliuk et al., 2015; Hogg et al., 2004; Mechold et al., 2002; Pausch et al., 2020; Takada et al., 2020; Tamman et al., 2020). SpoT is a bifunctional enzyme with both hydrolytic and synthetic activities while RelA is a monofunctional (p)ppGpp synthetase. Indeed, despite close sequence similarity between RelA and SpoT, RelA maintains a ‘pseudo’-hydrolase domain that is structurally conserved but enzymatically inactive. The regulation of RelA and SpoT activities represents an obvious checkpoint for (p)ppGpp levels which reveals many complexities (reviewed in Irving and Corrigan, 2018; Ronneau and Hallez, 2019).

Activation of the (p)ppGpp synthetase RelA occurs via a ribosomal mechanism in response to amino acid starvation or other stressful conditions, which ultimately result in amino acid starvation, for example, fatty acid starvation, that leads to lysine starvation (Haseltine and Block, 1973; Sinha et al., 2019). Under this condition, deacylated tRNAs accumulate and RelA interacts with uncharged tRNA at the vacant ribosomal A-site causing the activation of its (p)ppGpp synthetic activity (Arenz et al., 2016; Brown et al., 2016; Loveland et al., 2016; Winther et al., 2018). Inversely, RelA is suggested to be inhibited by intra- and/or inter-molecular interactions under replete conditions (Gropp et al., 2001; Turnbull et al., 2019; Yang and Ishiguro, 2001), even though it retains residual activity (Murray and Bremer, 1996). Importantly, the hydrolysis function of SpoT provides an opposing activity that is crucial for balancing the basal activity of RelA. Indeed, disruption of the spoT gene results in a toxic accumulation of (p)ppGpp and is therefore lethal (Xiao et al., 1991).

The regulation of SpoT activities involves sources of nutritional stress other than amino acid starvation. These include the deficiency of fatty acid (Seyfzadeh et al., 1993), phosphate (Spira et al., 1995), carbon (Xiao et al., 1991), and iron (Vinella et al., 2005). Interaction of SpoT with other factors seems to regulate the catalytic balance between the synthetic and hydrolytic activities. During fatty acid starvation, the accumulation of (p)ppGpp required a specific interaction between the acyl carrier protein and SpoT (Battesti and Bouveret, 2006). Similarly, the binding of the protein YtfK with the catalytic domains of SpoT triggers (p)ppGpp accumulation during phosphate or fatty acid starvation (Germain et al., 2019). In addition, stimulation of the SpoT hydrolase activity is driven through direct interaction with the anti-σ70 factor Rsd upon carbon downshift (Lee et al., 2018).

Given the importance of (p)ppGpp in stress survival, virulence, and antibiotic tolerance, we have designed a genetic assay for the identification of new protein candidates that can modulate (p)ppGpp homeostasis in E. coli. We thereby discovered that overproduction of NirD, the small subunit of the nitrite reductase, decreases intracellular levels of (p)ppGpp. Importantly, our results show that overexpression of nirD limits RelA-dependent accumulation of (p)ppGpp in vivo and can prevent activation of the stringent response during amino acid starvation. Moreover, our results show that NirD is not involved in (p)ppGpp breakdown. Rather we convincingly show that, mechanistically, NirD inhibits the (p)ppGpp synthetase activity of RelA through a specific and direct interaction with the catalytic domains of RelA in vivo and in vitro.

Results

Identification of genes counteracting the toxicity of (p)ppGpp over-accumulation mediated by RelA

At high concentrations, (p)ppGpp becomes a potent inhibitor of bacterial cell growth. Indeed, rising (p)ppGpp levels by overexpression of the relA gene has been shown to inhibit E. coli growth in amino acid-rich media (Schreiber et al., 1991). To gain further insights into (p)ppGpp homeostasis, we developed a screening assay to identify genes that in multiple copies could reverse this toxicity (Figure 1A). In this study, the toxic accumulation of (p)ppGpp is achieved by induction of the relA gene cloned in the low-copy-number plasmid pBbS2k under the control of the anhydrotetracycline (aTc)-inducible Ptet promoter (Figure 1A). E. coli MG1655 cells harboring the pBbS2k-relA were transformed with a pooled collection of plasmids obtained from the ASKA library containing almost all E. coli K-12 genes (Kitagawa et al., 2005), each cloned into the high-copy-number vector pCA24N downstream of the isopropyl β-D-1-thiogalactopyranoside (IPTG)-inducible PT5-lac promoter (Figure 1A). This genetic screen led us to identify 88 clones that repetitively grow on non-permissive conditions. Sequence analysis of the pCA24N derivatives from these 88 clones enabled the identification of four different genes. The spoT, gppA, and nirD genes were predominant with each one accounting for almost a third of the genes carried by the sequenced plasmids (33.0, 36.4, and 29.5%, respectively) while uhpA was only identified once (1.1%). Our observations that spoT and gppA revert toxicity associated to (p)ppGpp accumulation is consistent with previous observations (Germain et al., 2019; Murray and Bremer, 1996; Sanyal and Harinarayanan, 2020). Considering the gppA and spoT genes as internal controls of the screen, we further focused our work on nirD.

Figure 1 with 1 supplement see all

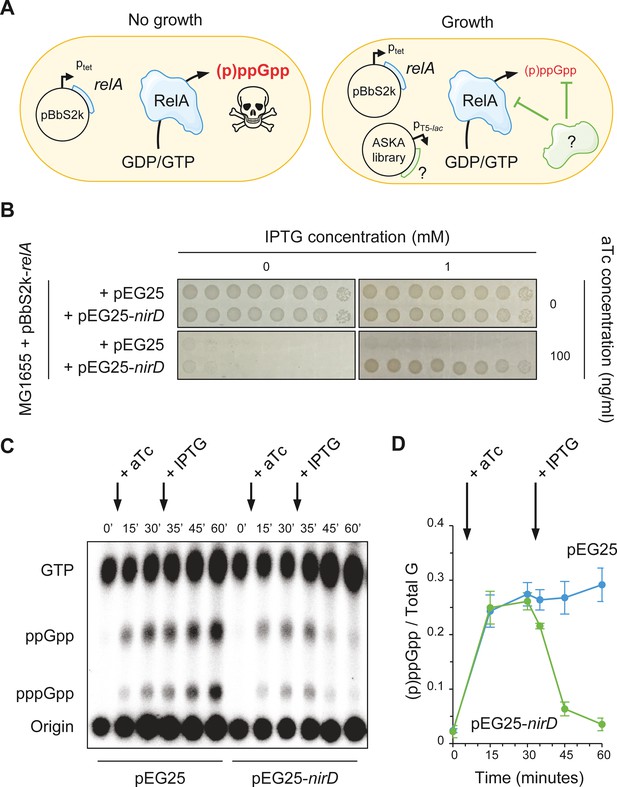

NirD can limit the RelA-dependent accumulation of (p)ppGpp.

(A) Schematic representation of the genetic assay using ASKA library to identify genes that in multiple copies would suppress the growth defect associated with toxic over-accumulation of (p)ppGpp. Question marks denote a putative candidate that limits RelA-dependent accumulation of (p)ppGpp. (B) NirD suppresses the growth defect associated with RelA overproduction. Wild-type E. coli MG1655 cells were co-transformed with the plasmid derivatives pBbS2k-relA and pEG25-nirD inducible by anhydrotetracycline (aTc) and isopropyl β-D-1-thiogalactopyranoside (IPTG), respectively. Serial dilutions of stationary-phase cultures were spotted on NA plates containing the indicated concentrations of inducers. Additional controls and inducer concentrations are shown in Figure 1—figure supplement 1A. The results are representative of three independent experiments with similar results. (C, D) In vivo (p)ppGpp dynamic in E. coli MG1655 cells carrying pBbS2k-relA and pEG25-nirD after consecutive expression of the relA and nirD genes using 100 ng/mL aTc and 1 mM IPTG, respectively. Nucleotides extracted from samples collected at the indicated times were separated by thin layer chromatography. The autoradiogram (C) is representative of three independent experiments, and the curves of the relative levels of (p)ppGpp (D) are represented as the means of the three independent experiments, the error bars depicting the SDs.

Figure 1—source data 1

Raw autoradiogram.

https://cdn.elifesciences.org/articles/64092/elife-64092-fig1-data1-v1.zip
Figure 1—source data 2

Quantification of (p)ppGpp.

The amount of (p)ppGpp was normalized to total amount of G nucleotides observed in each sample. Total G is the sum of GTP and (p)ppGpp detected. The source data are provided for the relative levels of (p)ppGpp in Figure 1D, which are represented as the means and SDs of three independent experiments.

https://cdn.elifesciences.org/articles/64092/elife-64092-fig1-data2-v1.zip

NirD balances (p)ppGpp level produced by RelA

nirD encodes the small subunit of the cytoplasmic nitrite reductase (Harborne et al., 1992; Peakman et al., 1990a) and has never been linked to the (p)ppGpp metabolism. We first confirmed the result obtained with the high-copy-number vector pCA24N-nirD from the ASKA library by re-cloning the coding region of nirD (untagged) in a more suitable physiological plasmid harboring a tight IPTG-inducible PT5-lac promoter (pEG25). Indeed, as shown in Figure 1B, NirD can robustly overcome the toxicity associated to (p)ppGpp over-accumulation mediated by RelA. To further assess the role of NirD in the stringent response, we monitored (p)ppGpp levels in vivo after consecutive inductions of RelA and NirD in a double expression system assay. As shown in Figure 1C, D, induction of RelA is associated with a massive accumulation of (p)ppGpp, which is sharply stopped and then decreased upon NirD induction.

The rapid (p)ppGpp decay observed following NirD induction raises the possibility that NirD may trigger SpoT-dependent (p)ppGpp hydrolysis. However, NirD still suppresses toxicity associated to RelA overproduction when the double expression assay experiment is performed in a ΔrelA spoT background (Figure 1—figure supplement 1A). These results show that the hydrolase activity of SpoT is not involved in the reduced (p)ppGpp accumulation observed upon NirD induction. Importantly, overexpression of nirD in a ΔrelA strain failed to phenocopy the well-known amino acid auxotrophic characteristic of a ppGpp0 strain (ΔrelA spoT mutant) (Xiao et al., 1991), strongly arguing that NirD does not act as a small alarmone hydrolase (Figure 1—figure supplement 1B). Taken together, our results show that NirD impairs RelA-dependent (p)ppGpp synthesis in E. coli.

NirD can prevent the stringent response in E. coli

Since NirD can efficiently overcome toxicity associated to artificial level of (p)ppGpp when RelA is overproduced (Figure 1B), we next address whether similar effect is observed during physiological condition known to activate RelA. In natural environment, RelA synthesizes the alarmones in response to amino acid deprivation. Indeed during amino acid starvation, deacylated tRNAs accumulate and RelA interacts with uncharged tRNA at the vacant ribosomal A-site causing the activation of its (p)ppGpp synthetic activity (Arenz et al., 2016; Brown et al., 2016; Loveland et al., 2016; Winther et al., 2018). RelA activity is therefore required to survive under amino acid starvation, and as a result a ΔrelA mutant is not able to grow in the presence of 1 mM serine, methionine, and glycine (SMG), which induces isoleucine starvation (Uzan and Danchin, 1978). Interestingly, we observed that overexpression of nirD in wild-type (WT) strain phenocopies the growth defect of a ΔrelA mutant on SMG plate (Figure 2A), suggesting that nirD also prevents (p)ppGpp accumulation from endogenous RelA under these conditions. To further address this possibility, we monitored the dynamics of (p)ppGpp levels under amino acid starvation upon the addition of L-valine (which also induces isoleucine starvation). As shown in Figure 2B, C, and as previously observed (p)ppGpp rapidly increases in WT strain and reaches maximum levels within 5 min (Cashel and Gallant, 1969). Remarkably, when NirD is induced prior to amino acid starvation, no significant accumulation of (p)ppGpp is detected (Figure 2B, C). Taken together, our results show that once induced NirD abolishes the stringent response in E. coli.

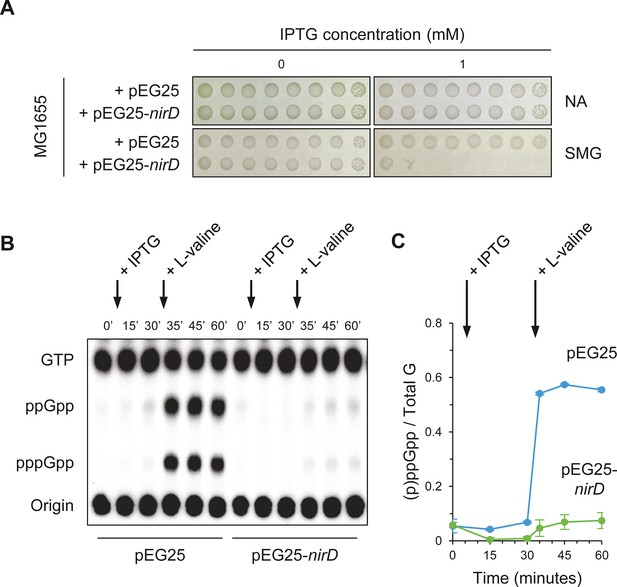

NirD inhibits accumulation of (p)ppGpp upon amino acid starvation.

(A) NirD inhibits cell growth on M9-glucose minimal medium supplemented with serine, methionine, and glycine (SMG). Stationary-phase cultures of wild-type E. coli MG1655 strain harboring pEG25-nirD or pEG25-spoT were spotted on NA and SMG plates containing the indicated concentrations of isopropyl β-D-1-thiogalactopyranoside (IPTG). The results are representative of three independent experiments. (B, C) Exponentially growing cells of wild-type E. coli MG1655 harboring pEG25 or pEG25-nirD were challenged for amino acid starvation by addition of 500 µg/mL of L-valine. nirD is induced by the addition of 1 mM of IPTG. Nucleotides were extracted and separated by thin layer chromatography. The autoradiogram (B) is representative of three independent experiments, and the curves of the relative levels of (p)ppGpp (C) are represented as the means of the three independent experiments, the error bars depicting the SDs.

Figure 2—source data 1

Raw autoradiogram.

https://cdn.elifesciences.org/articles/64092/elife-64092-fig2-data1-v1.zip
Figure 2—source data 2

Quantification of (p)ppGpp.

The amount of (p)ppGpp was normalized to total amount of G nucleotides observed in each sample. Total G is the sum of GTP and (p)ppGpp detected. The source data are provided for the relative levels of (p)ppGpp in Figure 2C, which are represented as the means and SDs of three independent experiments.

https://cdn.elifesciences.org/articles/64092/elife-64092-fig2-data2-v1.xlsx

NirD functionally interacts with RelA in vivo

Regulation of RSH activities through protein–protein interactions has been previously reported (Battesti and Bouveret, 2006; Germain et al., 2019; Hahn et al., 2015; Karstens et al., 2014; Krüger et al., 2020; Lee et al., 2018; Peterson et al., 2020; Raskin et al., 2007; Ronneau et al., 2016; Ronneau et al., 2019; Wout et al., 2004). We therefore tested whether NirD is able to interact with RelA in vivo using a bacterial two-hybrid (BTH) assay (Karimova et al., 1998). For that purpose, the complementary T18 and T25 domains of Bordetella pertussis adenylate cyclase (CyA) were fused to the N-terminus of NirD and RelA proteins using the two compatible vectors pUT18C and pKT25, respectively. When the E. coli BTH101 strain (cya deficient) is co-transformed with plasmids harboring T18 and T25 fusions, NirD exhibited a strong interaction in vivo with RelA (Figure 3A). However, despite the strong sequence homologies between the paralogous RelA and SpoT proteins (Metzger et al., 1989), no physical interaction is observed between SpoT and NirD in vivo by BTH assay (Figure 3A). This result therefore supports a strong specificity of the interaction between NirD and RelA.

Figure 3 with 1 supplement see all

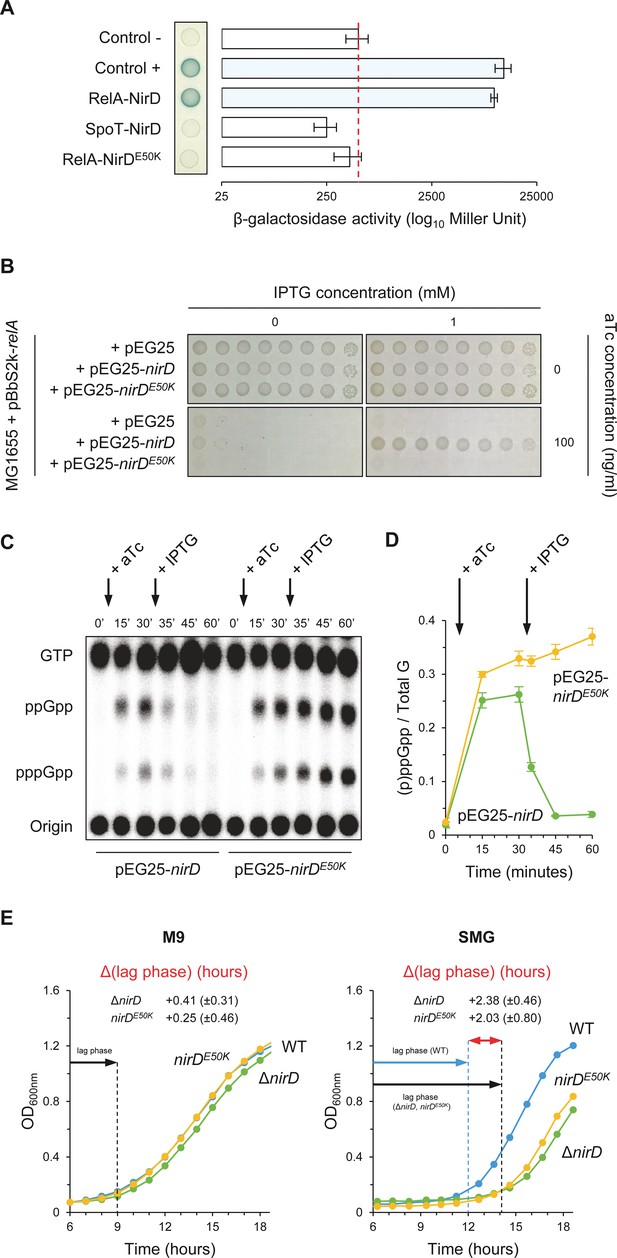

NirD can inhibit RelA-dependent accumulation through physical interaction in vivo.

(A) Bacterial two-hybrid assay using E. coli BTH101 cells co-transformed with plasmid derivatives pKT25-relA or pKT25-spoT and pUT18C-nirD or pUT18C-nirDE50K. Stationary-phase cultures were spotted on NA plates containing X-Gal as a blue color reporter for positive interaction. The bars showing β-galactosidase activity are represented as the means of three independent experiments, and the error bars depict the SDs. (B) Growth assay of E. coli MG1655 cells co-transformed with the plasmid derivatives pBbS2k-relA and pEG25-nirD or pEG25-nirDE50K inducible by anhydrotetracycline (aTc) and isopropyl β-D-1-thiogalactopyranoside (IPTG), respectively. Serial dilutions of stationary-phase cultures were spotted on NA plates containing the indicated concentrations of inducers. The results are representative of three independent experiments. (C, D) In vivo (p)ppGpp level dynamic in E. coli MG1655 cells carrying pBbS2k-relA and pEG25-nirD or pEG25-nirDE50K after successive inductions of expression of the relA and nirD or nirDE50K genes using 100 ng/mL aTc and 1 mM IPTG, respectively. Nucleotides extracted from samples collected at the indicated times were separated by thin layer chromatography. The autoradiogram (C) is representative of three independent experiments, and the curves of the relative levels of (p)ppGpp (D) are represented as the means of the three independent experiments, the error bars depicting the SDs. (E) Growth curves of wild-type (WT) cells, ΔnirD, and nirDE50K mutants under anaerobiosis in M9-glucose minimal medium without amino acids (left panel) or supplemented with 1 mM serine, methionine, and glycine (SMG) (right panel) (see Materials and methods). The growth curves are representative of at least three independent experiments, and the Δ(lag phase) are represented as the means (± SD) of the independent experiments.

Figure 3—source data 1

Determination of β-galactosidase activity.

The relative β-galactosidase activity was calculated as follows:1000×Slope(ΔOD420nmΔt)V×OD600nm. Slope is estimated by linear regression, and V is the volume of culture used (in mL). The source data are provided for the bar chart showing β-galactosidase activity in Figure 3A, which is represented as the means and SDs of three independent experiments.

https://cdn.elifesciences.org/articles/64092/elife-64092-fig3-data1-v1.xlsx
Figure 3—source data 2

Raw autoradiogram.

https://cdn.elifesciences.org/articles/64092/elife-64092-fig3-data2-v1.zip
Figure 3—source data 3

Quantification of (p)ppGpp.

The amount of (p)ppGpp was normalized to total amount of G nucleotides observed in each sample. Total G is the sum of GTP and (p)ppGpp detected. The source data are provided for the relative levels of (p)ppGpp in Figure 3D, which are represented as the means and SDs of three independent experiments.

https://cdn.elifesciences.org/articles/64092/elife-64092-fig3-data3-v1.xlsx
Figure 3—source data 4

Determination of Δ(lag phase).

The Δ(lag phase) corresponds to the time that separates the growth recovery of the wild-type (WT) (lag phase [WT]) from that of the ΔnirD or nirDE50K (lag phase [ΔnirD, nirDE50K]). For each strain, the duration of the lag phase was calculated for an OD600nm corresponding to the entry into the exponential growth phase. The equation for this calculation was estimated by linear regression on the log phase of each growth curve. The source data are provided for the Δ(lag phase) in Figure 3E, which are represented as the means and SDs of at least three experiments.

https://cdn.elifesciences.org/articles/64092/elife-64092-fig3-data4-v1.xlsx

To further assess the significance of the NirD-RelA interaction in vivo and its role in (p)ppGpp homeostasis, we randomly mutagenized nirD and searched for defective mutants unable to interact with RelA. One of such mutants that had charge reversal amino acid substitution, glutamate 50 to lysine (E50K), displayed compromised interaction with RelA (Figure 3A). Importantly, we confirm that both T18-NirD and T18-NirDE50K recombinant proteins were correctly expressed and folded as shown by their ability to strongly interact with the catalytic subunit of the nitrite reductase NirB (Figure 3—figure supplement 1) (Harborne et al., 1992). Importantly and on the contrary to the results obtained with the WT copy of nirD, we observed that overexpression of nirDE50K is not able to suppress toxicity associated to RelA overproduction on plate (Figure 3B). This result predicts that breaking the interaction with RelA abolishes the inhibitory effect of NirD on (p)ppGpp accumulation. Indeed, as shown in Figure 3C, D, nirDE50K failed to stop the massive accumulation of (p)ppGpp observed in vivo after RelA overproduction as compared to the fast decay of (p)ppGpp observed when the WT copy of nirD is expressed (Figure 3C and D).

nirD is a second gene of a four-gene operon (nirBDC-cysG) strongly induced under anaerobic growth (Harborne et al., 1992; Peakman et al., 1990b). Interestingly, we observed that ΔnirD mutant presents an extended growth recovery in anaerobic SMG liquid medium consistent with a toxic over-accumulation of (p)ppGpp in this strain (Figure 3E). Indeed, a chromosomal encoded nirDE50K mutant, which is functional for the nitrite reductase activity (Figure 3—figure supplement 1C) but failed to interact with RelA, displays the same growth defect, suggesting that the NirD-RelA interaction is important to adjust proper (p)ppGpp level under this specific growth condition. Taken together, our results show that a specific functional interaction between RelA and NirD can lower RelA-dependent accumulation of (p)ppGpp in vivo.

NirD targets the catalytic N-terminal region of RelA

RelA consists of several protein domains that have been encompassed in two functional regions, the catalytic NTD and the regulatory CTD. The N-terminal region includes the enzymatically inactive (p)ppGpp hydrolase domain (HYD) as well as the functional (p)ppGpp synthetase domain (SYN), while the CTD comprises the Thr-tRNA synthetase, GTPase and SpoT domain (TGS), the alpha helical domain (AH), the zinc finger domain (ZFD), and finally the RNA recognition motif domain (RRM) (Figure 4A) (Brown et al., 2016; Loveland et al., 2016). To determine which of these domains are required for the interaction with NirD, we assayed the interaction between NirD and several truncated RelA proteins using the BTH assay.

Figure 4 with 1 supplement see all

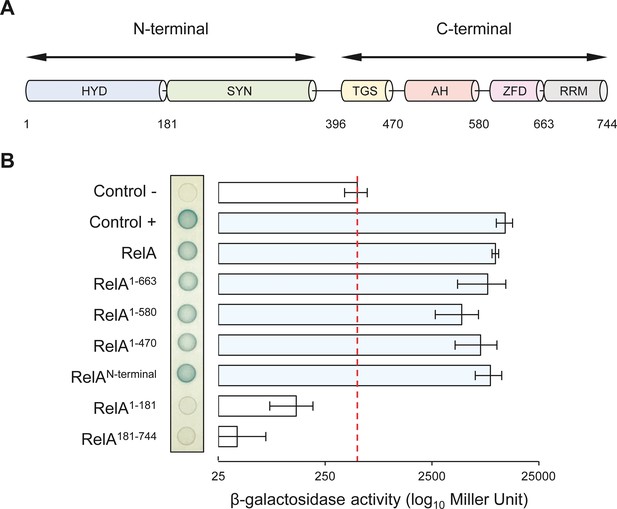

NirD can interact with the catalytic N-terminal region of RelA.

(A) Schematic representation of RelA and its protein domains. (B) Bacterial two-hybrid assay using E. coli BTH101 cells co-transformed with plasmid derivatives pUT18C-nirD and pKT25 with the full-length or truncated relA gene as indicated. Stationary-phase cultures were spotted on NA plates containing X-Gal as a blue color reporter for positive interaction. The bars showing β-galactosidase activity are represented as the means of three independent experiments, and the error bars depict the SDs.

Figure 4—source data 1

Determination of β-galactosidase activity.

The relative β-galactosidase activity was calculated as follows:1000×Slope(ΔOD420nmΔt)V×OD600nm. Slope is estimated by linear regression, and V is the volume of culture used (in mL). The source data are provided for the bar chart showing β-galactosidase activity in Figure 4B, which is represented as the means and SDs of three independent experiments.

https://cdn.elifesciences.org/articles/64092/elife-64092-fig4-data1-v1.xlsx

Truncated RelA proteins were fused to the T25 domain of the B. pertussis adenylate cyclase and transformed together with NirD fused to the T18 domain in a cya-deficient E. coli strain (BTH101). BTH analysis revealed that NirD interacts with the RelAN-terminal fusion comprising the catalytic domains (Figure 4B). Moreover, careful quantification of β-galactosidase activity revealed that none of the four domains encompassing the CTD of RelA is required for this interaction in vivo. However, truncated RelA fusion lacking either the synthetase domain (RelA1-181) or the ‘pseudo’ hydrolase domain (RelA181-744) failed to interact in vivo with NirD. Therefore, the catalytic domains of RelA seem necessary and sufficient to interact with NirD in vivo. The specificity of the interaction between NirD and RelA was further reinforced by the absence of interaction observed between NirD and SpoTN-terminal as well as NirDE50K and RelAN-terminal (Figure 4—figure supplement 1A). Interestingly, the C-terminal region of RelA is proposed to play a key role in the autoregulation of the enzymatic activity, and as a result the RelAN-terminal truncated protein is constitutively active (Schreiber et al., 1991). Given that NirD interacts with RelAN-terminal, we therefore tested the intriguing possibility that NirD may also be able to inhibit this dysregulated variant. Remarkably, as shown in Figure 4—figure supplement 1B, we observed that NirD but not NirDE50K inhibits the toxicity associated with (p)ppGpp over-accumulation mediated by the constitutively active RelAN-terminal. Taken together, our results show that NirD can inhibit RelA activity by interacting with its catalytic N-terminal region in vivo.

NirD directly binds RelA to inhibit the rate of (p)ppGpp synthesis in vitro

To confirm the in vivo interaction of NirD at the catalytic N-terminal region of RelA, we used different complementary in vitro methods. For that purpose, the RelA catalytic domains (RelAN-terminal), NirD, and NirDE50K were individually produced and purified by two consecutive chromatographies, affinity and size-exclusion (Figure 5—figure supplement 1A–C). We first performed size-exclusion chromatography (SEC) experiment separating RelAN-terminal and NirD alone or pre-mixed. As shown in Figure 5—figure supplement 1D, co-elution resulted in an earlier eluting peak, suggesting the formation of a stable complex. Indeed, SDS-PAGE analysis confirmed that the two proteins were co-eluted from the column (Figure 5—figure supplement 1E).

To further characterize the NirD-RelAN-terminal interaction, we then used biolayer interferometry (BLI), an in vitro approach for measuring biomolecular interactions. Biotinylated NirD was immobilized on streptavidin biosensors as ligand, and RelAN-terminal was used as the analyte. By adding RelA at concentrations ranging from 0.1 to 30 µM, a dose-response association is recorded and decreased during the dissociation step corresponding to the washing of the sensor (Figure 5A), showing that NirD directly interact with the catalytic N-terminal region of RelA. Moreover, by plotting the maximum binding response against the corresponding concentrations of RelA, we calculated a dissociation constant (KD) of 0.55 µM (± 0.053 µM) (Figure 5A). In addition, and in agreement with the BTH assays (Figure 4—figure supplement 1A), RelAN-terminal did not interact with the NirDE50K variant in vitro (Figure 5A). Finally, to further determine the thermodynamic parameters of the NirD-RelAN-terminal interaction, we performed isothermal titration calorimetry (ITC) experiment. The assay first confirmed the direct interaction between the two proteins with an estimated KD of 0.34 µM (Figure 5B), very similar to that estimated by BLI (Figure 5A). This reaction is a favorable spontaneous exothermic reaction with a ΔH kcal/mol of −3.63 ± 0.208 and is enthalpy driven at 25°C. On the contrary and consistent with BLI experiments, no heat exchange was recorded upon titration of RelAN-terminal by NirDE50K, further supporting the strong specificity of the interaction between NirD and RelA (Figure 5B). Collectively, these results show that NirD interacts directly and specifically with the catalytic domains of RelA in vitro.

Figure 5 with 1 supplement see all

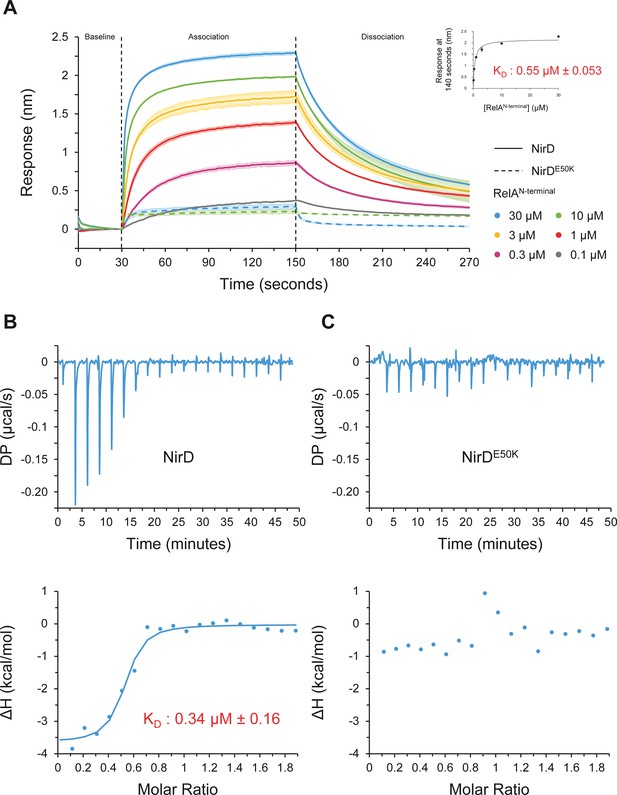

NirD directly interact with the catalytic N-terminal region of RelA.

(A) Biolayer interferometric assay of RelAN-terminal on NirD or NirDE50K. Biotinylated NirD or NirDE50K were immobilized on streptavidin biosensors and probed with RelAN-terminal at concentrations ranging from 0.1 to 30 µM. The curves are represented as the means of the subtracted reference binding responses during association and dissociation from three experiments, the error bars depicting the SDs. The inset curve shows the specific biolayer interferometry (BLI) response (nm) 10 s before the end of association as a function of RelAN-terminal concentration. Data are represented as the means of the three experiments, the error bars depicting the SDs. (B, C) Isothermal titration calorimetry profiles corresponding to the binding of RelAN-terminal 30–300 µM NirD (B) or 300 µM NirDE50K (C) at 25°C. The upper panels show raw data for titration of NirD or NirDE50K with RelAN-terminal, and the lower panels show the integrated heats of binding obtained from the raw data. The data were fitted using a ‘One Set of Sites’ model in the PEAQ-ITC Analysis Software.

Figure 5—source data 1

Raw data for biolayer interferometry (BLI) experiments.

The source data are provided for the BLI experiments in Figure 5A, which are represented as the means and SDs of three independent experiments.

https://cdn.elifesciences.org/articles/64092/elife-64092-fig5-data1-v1.xlsx
Figure 5—source data 2

Raw data for isothermal titration calorimetry experiment run with NirD.

https://cdn.elifesciences.org/articles/64092/elife-64092-fig5-data2-v1.xlsx
Figure 5—source data 3

Raw data for isothermal titration calorimetry experiment run with NirDE50K.

https://cdn.elifesciences.org/articles/64092/elife-64092-fig5-data3-v1.xlsx

Finally, these results are in line with our in vivo results showing that NirD inhibits accumulation of (p)ppGpp from the constitutively active RelAN-terminal protein (Figure 4—figure supplement 1B) and therefore support a rather simple model where NirD would directly inhibit RelA synthetic activity through direct binding. To challenge this hypothesis, we performed in vitro pppGpp synthesis assay with purified proteins. We observed that RelAN-terminal protein could efficiently synthetize [32P]-pppGpp, but the addition of NirD strongly affected the synthetase activity in vitro. Indeed, 80% of GTP are converted to pppGpp within 60 min by RelA, whereas only 30% are converted when NirD is added (Figure 6A, B). Importantly, addition of the NirDE50K does not affect the RelA synthetic activity (Figure 6A, B). Finally, careful examination of the initial rates (calculated over the first 150 s) shows a concentration-dependent inhibition of RelA’s (p)ppGpp synthetic activity by NirD with a half-inhibition occurring at ∼1:1 molar ratio and a near complete inhibition for the highest tested concentration of NirD (1:16 molar ratio) (Figure 6C). Taken together, these results show that NirD can block pppGpp synthetase activity of RelA through a direct interaction with the catalytic domains.

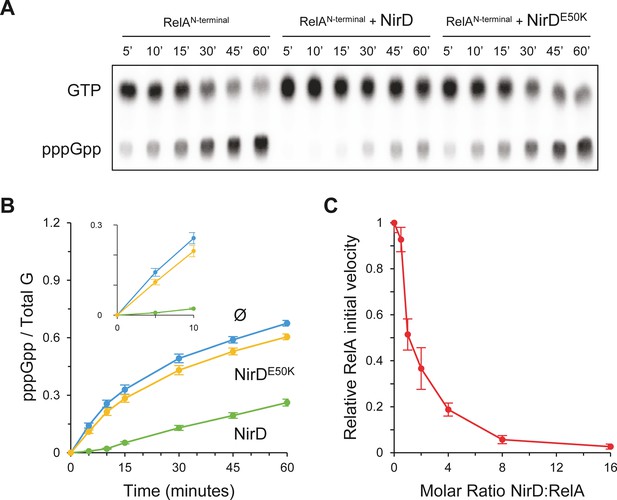

NirD inhibits RelA activity in vitro.

(A, B) In vitro pppGpp formation by 1 µM RelAN-terminal in the presence or absence of 4 µM NirD or NirDE50K. Samples collected at the indicated times were separated by thin layer chromatography (TLC). The autoradiogram (A) is representative of three experiments, and the curves of the relative levels of pppGpp (B) are represented as the means of the three experiments, the error bars depicting the SDs. (C) Relative initial velocity of RelA as a function of NirD:RelA molar ratio. The in vitro formation of pppGpp by 1 µM RelAN-terminal was assayed in the presence or absence of NirD at concentrations ranging from 0.5 to 16 µM. Samples were collected every 30 s over a period of 150 s and separated by TLC to determine the relative initial velocity (estimated by linear regression using five data points). Results are represented as the means of three experiments, and the error bars depict the SDs.

Figure 6—source data 1

Raw autoradiogram.

https://cdn.elifesciences.org/articles/64092/elife-64092-fig6-data1-v1.zip
Figure 6—source data 2

Quantification of pppGpp.

The amount of pppGpp was normalized to total amount of G nucleotides observed in each sample. Total G is the sum of GTP and pppGpp detected. The source data are provided for the relative levels of pppGpp in Figure 6B, which are represented as the means and SDs of three independent experiments.

https://cdn.elifesciences.org/articles/64092/elife-64092-fig6-data2-v1.xlsx
Figure 6—source data 3

Determination of the relative initial velocity.

The relative initial velocity was estimated on the linear part of the in vitro pppGpp formation by linear regression at the very beginning of the reaction. The source data are provided for the results in Figure 6C, which are represented as the means and SDs of three experiments.

https://cdn.elifesciences.org/articles/64092/elife-64092-fig6-data3-v1.xlsx

Discussion

E. coli contains two long RSH enzymes, RelA and SpoT, that synthesize the alarmones (p)ppGpp. While SpoT is a bifunctional enzyme, RelA is monofunctional with a degenerated hydrolase domain, making SpoT the primary source of hydrolysis (Xiao et al., 1991). Therefore, a fine-tune regulation of the intracellular (p)ppGpp synthetic and hydrolytic activities in bacteria is crucial to rapidly adjust (p)ppGpp level in response to environmental stress but also to prevent toxic consequences due to (p)ppGpp over-accumulation (Xiao et al., 1991). Over the past decade, several molecular mechanisms regulating the activity of (p)ppGpp synthetase and/or hydrolase have been characterized (Battesti and Bouveret, 2006; Germain et al., 2019; Hahn et al., 2015; Karstens et al., 2014; Krüger et al., 2020; Lee et al., 2018; Peterson et al., 2020; Raskin et al., 2007; Ronneau et al., 2016; Ronneau et al., 2019; Wout et al., 2004). In this study, we uncovered an unprecedented mode of regulation that can prevent accumulation of (p)ppGpp in E. coli. This regulation implicates physical interaction in vivo and in vitro between the catalytic domains of RelA and the protein NirD, the small subunit of the cytoplasmic NADH-dependent nitrite reductase complex NirBD (Harborne et al., 1992). We show that NirD can functionally and directly inhibit the RelA (p)ppGpp synthetic activity. RelA and SpoT are paralogous proteins; however, despite strong sequence homologies and similar domain architecture we were not able to notice physical interaction between NirD and SpoT (Figure 3A and Figure 4—figure supplement 1A), supporting a specific physiological role of NirD in inhibiting RelA synthetic activity. The absence of a functional link between NirD and SpoT is further reinforced by the observation that NirD does not seem to lower basal (p)ppGpp level produced by the weak (p)ppGpp synthetase activity encoded by SpoT in the absence of RelA (Figure 1—figure supplement 1B).

Stimulation of RelA synthetase activity in E. coli is driven by stalled ribosomes upon amino acid starvation (Haseltine and Block, 1973; Wendrich et al., 2002; Winther et al., 2018). In addition, NtrC-dependent transcription of relA takes an important role in (p)ppGpp accumulation (Brown et al., 2014). Therefore, the identification of a potent intracellular inhibitor of RelA (p)ppGpp synthetase represents an additional level of complexity in the regulation to the current stringent model mediated by RelA. Our results show that the NirD protein level can play an important role for adjusting intracellular (p)ppGpp levels. Indeed, ectopic induction of NirD is sufficient to prevent accumulation of (p)ppGpp mediated by RelA in the absence of nutritional stress (Figure 1C, D). Moreover, we show that once expressed, nirD can also totally abolish activation of the stringent response during amino acid starvation (Figure 2C, D). The estimated concentration of RelA is in the range of 100–400 nM in E. coli (Li et al., 2014; Pedersen and Kjeldgaard, 1977). Importantly, we found in vitro that the NirD-RelA affinity is characterized by a KD in this concentration range (300–550 nM) (Figure 5A, B). Therefore, at concentrations above the KD, NirD would interact with RelA to catalytically inhibit its activity. nirD is a second gene of a four-gene operon (nirBDC-cysG) expressed under anaerobic growth (Harborne et al., 1992; Peakman et al., 1990b) and maximally induced in the presence of glucose and nitrate (Tyson et al., 1997; Wang and Gunsalus, 2000). Under these conditions, NirD is predicted to reach µM range (Khlebodarova et al., 2016) and regulation of RelA by NirD would therefore become physiologically relevant. Importantly, while NirB and NirD can form a stable complex needed for the NADH-dependent nitrite reductase activity, we observed that coexpression of nirB and nirD can still counteract RelA-dependent (p)ppGpp accumulation (Figure 3—figure supplement 1B). The cytoplasmic nitrite reductase NirBD has emerged as a key regulator of the nitric oxide (NO) level during nitrate respiration (Bulot et al., 2019). Indeed, by reducing nitrite generated during nitrate reduction, NirBD would limit the level of toxic nitrite and thus its further reduction to NO (Bulot et al., 2019). In addition, our results present evidence that NirD can also promote bacterial fitness by adjusting (p)ppGpp levels in response to amino acid starvation under anaerobic glucose fermentation, a condition where the nitrite reductase is expressed but where the substrate is missing (Figure 3E). This regulation is dependent on the RelA-NirD interaction since NirDE50K, which is not affected for the nitrite reductase activity (Figure 3—figure supplement 1C) but failed to interact with RelA (Figure 3A), does not enhance bacterial fitness in response to amino acid starvation under anaerobic glucose fermentation (Figure 3E). Therefore, our results suggest that NirD can link (p)ppGpp homeostasis to anaerobic metabolism in E. coli. Additional analyses are currently underway to further investigate the physiological roles of the RelA-NirD interaction in E. coli.

The CTD of RSH enzymes is assumed to play key roles in sensing nutrient starvation and adjusting the enzymatic state of the NTD. In that sense, the RelA structures on stalled ribosomes emphasized the role of CTD in sensing nutrient availability. Once bound to the ribosome, RelA adopts an open extended conformation, which is thought to release the autoinhibitory effect of the CTD on the NTD, therefore promoting (p)ppGpp synthesis (Arenz et al., 2016; Brown et al., 2016; Loveland et al., 2016). Interestingly, we observed that the NTD region of RelA is necessary and sufficient for NirD binding (Figure 4B and Figure 5). Moreover, our in vivo and in vitro results convincingly show that NirD can inhibit the (p)ppGpp synthesis from the constitutively active truncated RelAN-terminal (Figure 6 and Figure 4—figure supplement 1B), supporting the idea of a ribosome-independent inhibition of the stringent response. Therefore, rather than preventing activation of RelA our results support a simple model of regulation in which NirD directly interacts with the catalytic domains of RelA to inhibit the synthetic activity. Such inhibition might be mediated by directly introducing structural changes in the catalytic domains. Alternatively, NirD may interact with RelA to avoid nucleotide binding by masking the nucleotide-binding site. Structural and functional analyses are currently under investigation to test whether direct binding of NirD inhibits RelA activity.

Finally, (p)ppGpp has emerged as an important regulator of not only the bacterial stress response but also of many aspects of bacterial physiology including virulence, immune evasion, and antibiotic tolerance. Therefore, strategies to inhibit RelA activity and the subsequent production of (p)ppGpp represent an attractive approach for the success of antimicrobial therapy. Currently, there are only a limited number of synthetic inhibitors known to target RelA, mainly based on the design of (p)ppGpp analogues (Wexselblatt et al., 2012; Wexselblatt et al., 2013). Hence, our identification that NirD constitutes a natural potent inhibitor of RelA in vivo and in vitro could represent an important resource for the future design of new drug compounds. Importantly, it is also likely to be a fascinating molecular tool to further tackle the functional and structural determinant of the stringent response.

Materials and methods

Experimental model and subject details

Request a detailed protocol

The E. coli strains and plasmids used in this study are listed in Appendix 1—key resources table. Cells were grown in lysogeny broth (LB) broth (Miller, 1972) with agitation or on NA (Thermo Fisher Scientific, MA). For cells containing plasmid(s), the media were appropriately supplemented with the antibiotic(s) kanamycin (25 µg/mL), chloramphenicol (50 µg/mL), and/or ampicillin (50 µg/mL).

Plasmids construction

Request a detailed protocol

The plasmid derivatives were constructed by cloning into a plasmid a gene amplified by PCR from template DNA (chromosomal or plasmid) using the primers listed in Appendix 1—key resources table. The restriction enzymes as well as Shine-Dalgarno sequence for the pEG25 and pBbS2k plasmids are also indicated (Appendix 1—key resources table).

Multicopy suppressor screen

Request a detailed protocol

The genetic assay for the identification of new regulator of (p)ppGpp homeostasis in E. coli was carried out as follows. A pool of plasmids from the ASKA library (Kitagawa et al., 2005) was introduced by electroporation into E. coli MG1655 cells containing the pBbS2k-relA. The transformed cells were then spread on NA plates containing the appropriate antibiotics and the inducers aTc (0 or 100 ng/mL) and IPTG (0, 100, or 200 µM) for induction of pBbS2k-relA and pCA24N derivatives from the ASKA library, respectively. After 36 hr of incubation at 37°C, clones that were able to form colonies under these non-permissive conditions were chosen for the plasmid preparation and sequencing. The pool of plasmids from the ASKA library was obtained by Germain et al., 2019.

Growth assay

Request a detailed protocol

The ability of E. coli cells to grow under specific conditions was tested as follows. Single colonies were inoculated into 2 mL of LB broth, supplemented with the appropriate antibiotic(s), and cultured at 37°C until stationary phase (~8 hr). The cultures were then serially diluted and spotted on NA, M9-glucose minimal medium, or SMG plates (Supplementary file 1) containing the appropriate antibiotic(s) and plasmid inducer(s). For growth assays on M9-glucose minimal medium or SMG, the cultures were washed twice and diluted in PBS before being serially diluted and spotted on agar plates. The cells were finally incubated at 37°C overnight or ~36 hr depending on whether they were spotted on NA or minimal medium, respectively.

In vivo (p)ppGpp measurement

Request a detailed protocol

The levels of (p)ppGpp in the cells were determined as described by Germain et al., 2019. Briefly, 100 µL of 32P-labeled cell samples were taken at set times and added to 40 µL of ice-cold 21 M formic acid to stop the reactions. The mixtures were then placed on ice for 20 min before being centrifuged at 4°C for 20 min at 14,000 g to pellet cell debris and avoid them on chromatograms. 5 µL of each were loaded onto PEI-Cellulose thin layer chromatography (TLC) plates (Merck-Millipore) prior to ascending development with 1.5 M KH2PO4 solution (pH 3.4). Once fully developed, the TLC plates were dry at room temperature, separated from their upper part containing free 32P, and exposed overnight with a phosphor screen. The signals from the phosphor screen were then captured and quantified using an Amersham Typhoon Biomolecular Imager and ImageQuant TL 8.1 (GE Healthcare). We normalized the amount of (p)ppGpp to the total amount of G nucleotides observed in each sample, the total G being the sum of GTP, ppGpp, and pppGpp detected.

Regarding the preparation of the media, the labeling with 32P, and the induction of stress or starvation, they were carried out as follows. For overnight cultures, cells were grown in MOPS minimal medium (Neidhardt et al., 1974) supplemented with 0.2% glucose, 2 mM phosphate, and amino acids at 40 µg/mL (except for amino acid starvation experiment). Cultures were diluted 100 times in the same medium with 0.4 mM phosphate and incubated at 37°C with shaking. At an OD600nm of ~0.5, they were diluted to an OD600nm of 0.05, labeled with 150 µCi of 32P, and grew to an OD600nm of ~0.20. At this point and 30 min later, inducers (100 ng/mL aTc or 1 mM IPTG) or 500 µg/mL L-valine were added for gene overexpression or induction of isoleucine starvation, respectively.

Bacterial two-hybrid assay

Request a detailed protocol

In vivo protein-protein interactions were tested using the bacterial two-hybrid system (Karimova et al., 1998). Briefly, protein pairs were fused to the T18 and T25 domains of B. pertussis adenylate cyclase using the two compatible vectors pUT18C and pKT25, respectively. Co-transformed with the pairs of plasmids, single colonies of the cya-deficient strain BTH101 were inoculated into 2 mL of LB broth supplemented with ampicillin and kanamycin, and grown at 30°C to stationary phase (~12 hr). 5 µL of the cultures were then spotted on NA plates containing the two antibiotics and 40 µg/mL X-gal as a color reporter for β-galactosidase and adenylate cyclase activities. The cells were finally incubated at 30°C ~36 hr. To quantify the strength of the interaction, β-galactosidase activity was determined as described by Miller, 1992 using stationary phase culture (~12 hr).

Screening for loss of interaction by nirD random mutagenesis

Request a detailed protocol

nirD DNA coding sequence was mutagenized randomly through low-fidelity GoTaq polymerase amplification from pUT18C-nirD plasmid using 441 and 443 oligonucleotides (Appendix 1—key resources table). After 30 PCR cycles, amplified DNA was purified, diluted to 1:100,000 and further amplified for 30 cycles. Purified DNA were cloned into pUT18C plasmid. BTH101 cells harboring pKT25-relA were then transformed with the resulting pUT18C-nirD mutated library and screened on X-Gal plates. White colonies were selected and sequenced.

MG1655 nirDE50K construction

Request a detailed protocol

The chromosomal mutant strain nirDE50K was constructed by scarless mutagenesis using a two-step lambda Red system adapted from Blank et al., 2011. DNA fragments containing a chloramphenicol resistance marker and the meganuclease I-SceI recognition site were amplified by PCR using primers 629 and 630 with pWRG100 as template. The resulting PCR product was electroporated into MG1655 cells, which had induced lambda recombinase expression for 1 hr from plasmid pKD46 (Datsenko and Wanner, 2000). After 1 hr of phenotypic expression, the cells were plated on NA plates containing 25 µg/mL chloramphenicol. Selected colonies contained the nirD::cat I-SceI allele, which was subsequently transduced in MG1655 cells harboring the pWRG99 plasmid (Blank et al., 2011). The mutant allele nirDE50K was amplified from pEG25-nirDE50K using primers 655 and 656. The PCR product was then electroporated into MG1655 nirD::cat I-SceI expressing lambda recombinase from pWRG99 and after 1 hr of phenotypic expression, cells were serially diluted and plated on NA plates containing 100 µg/mL ampicillin and 1 µg/mL aTc. pWRG99 also encoded for the meganuclease I-SceI under the control of an aTc-inducible promoter. The proper integration of the nirDE50K was confirmed by diagnostic PCR and sequencing.

Growth curves

Request a detailed protocol

Growth of WT cells, ΔnirD, and nirDE50K mutants was measured under anaerobiosis as follows. Stationary-phase cultures were washed in PBS, diluted to an OD600nm of ~0.03 in M9-glucose minimal medium without amino acids or supplement with 1 mM SMG in Hungate tubes, and air was evacuated and replaced with N2. The cultures were then incubated at 37°C and growth was followed by measurement of OD600nm. Although at least three independent experiments were performed, representative growth curves are shown. Indeed, day-to-day variations in medium composition shifted the curves slightly, but the sample-to-sample comparisons were invariable.

For the functional test of the NADH-dependent nitrite reductase activity, the cultures were prepared as described above except that they were diluted in a defined medium supplemented with 140 mM glycerol and 100 mM nitrate. The defined medium is composed of Na2HPO4 (60 mM), KH2PO4 (22 mM), NaCl (8 mM), MgSO4 (1 mM), CaCl2 (100 µM), thiamine (1 µg/mL), sodium molybdate (5 µM), sodium selenite (1 µM), and FeSO4 (10 µM).

Protein expression and production

Request a detailed protocol

BL21 (DE3)-competent cells were transformed with the pEG25-relAN-terminal, pET28a(+)-nirD or pET28a(+)-nirDE50K and plated on selective NA. For RelAN-terminal production, several colonies were picked up and inoculated into 100 mL LB containing 100 µg/mL ampicillin. The cultures were grown with shaking at 30°C overnight. Overnight cultures were dispersed as inoculum of 20 mL aliquots into 1 L Terrific Broth media with 100 µg/mL ampicillin and shaken at 30°C until OD600nm ~0.5, then cells were induced with 0.5 mM IPTG and incubated at 30°C for 4 hr. For NirD and NirDE50K production, several colonies were picked up and inoculated into 100 mL LB containing 50 µg/mL kanamycin. The cultures were grown with shaking at 30°C overnight. Overnight cultures were dispersed as inoculum of 20 mL aliquots into 1 L LB media with 50 µg/mL kanamycin and shaken at 30°C until OD600nm ~0.5, then cells were induced with 0.5 mM IPTG and incubated at 30°C for 4 hr. Finally, cells were centrifuged at 9000 g for 20 min at 4°C. Dry cell pellet was stored at −80°C.

Protein purification

Request a detailed protocol

For NirD and NirDE50K purification, cells were suspended in lysis buffer (50 mM Tris-HCl [pH 8.0], 300 mM NaCl, 1 mM EDTA, 0.5 mg/mL lysozyme, 1 mM phenylmethylsulfonyl fluoride [PMSF], 20 µg/mL DNase, and 20 mM MgCl2), incubated for 1 hr at 4°C with gentle shaking, and then subjected to three cycles of French-press lysis steps. The soluble fraction was obtained by centrifugation for 20 min at 200,000 g. Recombinant proteins were purified by ion metal affinity chromatography using a 5 mL nickel (HiTrapHP) column on an ÄKTA pure 25 (GE Healthcare) pre-equilibrated in 50 mM Tris-HCl (pH 8.0), 300 mM NaCl, and 10 mM imidazole (buffer A). After several washes in buffer A, His-tagged proteins were eluted in buffer A supplemented with 250 mM imidazole and directly desalted using HiPrep 26/10 Desalting column pre-equilibrated with buffer A. The desalted proteins were mixed with 0.2 mg/mL of TEV protease, incubated for 2 hr at 25°C, and then loaded onto a HisTrap column pre-equilibrated in buffer A to retain TEV, TRX, uncleaved proteins, and contaminants. Untagged NirD or NirDE50K were collected in the flow-through, concentrated on a Centricon (Millipore; cutoff of 3 kDa), and passed through a HiLoad 16/600 Superdex 200 column pre-equilibrated with 50 mM Tris-HCl (pH 8.0), 300 mM NaCl, 2 mM β-mercaptoethanol, and 2% glycerol. The purity of NirD preparations was assessed by SDS-PAGE (Figure 5—figure supplement 1B, C).

For RelAN-terminal purification, cells were suspended in lysis buffer (50 mM Tris-HCl [pH 8.0], 500 mM NaCl, 10 mM imidazole, 2 mM β-mercaptoethanol, 0.5% CHAPS, 2% glycerol, 1 mM EDTA, 0.5 mg/mL lysozyme, 1 mM PMSF, 20 µg/mL DNase, and 20 mM MgCl2), incubated for 1 hr at 4°C with gentle shaking, and then subjected to three cycles of French-press lysis steps. The soluble fraction was obtained by centrifugation for 20 min at 200,000 g. Recombinant proteins were purified by ion metal affinity chromatography using a 5 mL nickel (HiTrapHP) column on an ÄKTA pure 25 (GE Healthcare) pre-equilibrated with equilibrium buffer (50 mM Tris-HCl [pH 8.0], 500 mM NaCl, 10 mM imidazole, 2 mM β-mercaptoethanol, and 2% glycerol), eluted in elution buffer (50 mM Tris-HCl [pH 8.0], 250 mM NaCl, 500 mM imidazole, 2 mM β-mercaptoethanol, and 2% glycerol), and directly desalted using HiPrep 26/10 Desalting column pre-equilibrated with buffer containing 50 mM Tris-HCl (pH 8.0), 500 mM NaCl, 500 mM KCl, 2 mM β-mercaptoethanol, and 2% glycerol. Desalted proteins were concentrated on a Centricon (Millipore; cutoff of 10 kDa) and then subjected to SEC purification using a HiLoad 16/600 Superdex 200 column pre-equilibrated with 50 mM Tris-HCl (pH 8.0), 500 mM NaCl, 500 mM KCl, 2 mM β-mercaptoethanol, and 2% glycerol. The purity of RelA preparations was assessed by SDS-PAGE (Figure 5—figure supplement 1A).

Protein-protein interaction analysis by SEC

Request a detailed protocol

Purified RelAN-terminal and NirD were either alone or pre-mixed in a 1:1 ratio (10 µM each) in buffer containing 50 mM Tris-HCl (pH 8.0), 500 mM NaCl, 500 mM KCl, 2 mM β-mercaptoethanol, and 2% glycerol prior separation on a Superdex 200 10/300 GL using an ÄKTA pure 25 apparatus (GE Healthcare) pre-equilibrated with the same buffer. Elution fractions were then analyzed with SDS-PAGE.

Biolayer interferometry

Request a detailed protocol

NirD or NirDE50K were biotinylated using the EZ-Link NHS-PEG4-Biotin (Thermo Scientific) at 4°C for 2 hr. The reaction was stopped by removing the excess of the biotin using a Zeba Spin Desalting column (Thermo Scientific). BLI studies were performed at 25°C using the Blitz apparatus (FortéBio) with shaking at 2200 rpm with the following steps: 30 s baseline, 120 s association, and 120 s dissociation. Streptavidin biosensor tips (FortéBio) were hydrated with 0.350 mL of 50 mM Tris-HCl (pH 8.0), 500 mM NaCl, 500 mM KCl, 2 mM β-mercaptoethanol, and 2% glycerol for 10 min and then loaded with 3 µM of biotinylated NirD or NirDE50K in the same buffer. The biosensors were then incubated with 10 µg/mL biocytin in interaction buffer (50 mM Tris-HCl [pH 8.0], 500 mM NaCl, 500 mM KCl, 2 mM β-mercaptoethanol, 2% glycerol, and 1 mg/mL) for 90 s to avoid the non-specific binding RelAN-terminal to the streptavidin biosensors. To study the binding of NirD or NirDE50K to RelAN-terminal, increasing concentrations RelAN-terminal (1–30 µM) in interaction buffer were used and the association and dissociation phases were monitored, respectively. In all experiments, the BLItz Pro Software performed a reference subtraction of the RelAN-terminal protein response on the uncoated biosensors for each tested concentration. The dissociation constant (KD), that is affinity of NirD to RelAN-terminal, was estimated using the GraphPad Prism 5.0 software on the basis of the steady-state-level responses in nm at equilibrium. The KD was estimated by plotting on x axis the different concentrations and the different responses of RelAN-terminal at the saturation (10 s before the end of the association) on the y axis. For KD calculation, a nonlinear regression fit for xy analysis was used and one site (specific binding) as a model [corresponding to the equation y=Bmax*x/(KD+x)].

Isothermal titration calorimetry

Request a detailed protocol

ITC was performed to determine the affinity between NirD and RelAN-terminal. In a typical setup, RelAN-terminal (30 µM) in buffer containing 50 mM Tris-HCl (pH 8.0), 500 mM NaCl, 500 mM KCl, 2 mM β-mercaptoethanol, and 2% glycerol was placed in the cell, and NirD (or NirDE50K) ligand (300 μM in the same buffer) was placed in the titration syringe. All experiments were carried out at 25°C with a stirring speed of 750 rpm and a reference power of 5 µcal/s using the MicroCal PEAQ-ITC (Malvern Panalytical) with 19 injections (0.4 µL for the initial injection and 2 µL for the next 18). Each injection lasted for 4 s with a space of 150 s between each injection. ITC measures the energy released or absorbed by a chemical reaction, and the energy of the interaction is proportional to the amount of ligand that binds to the protein. These heat pulses are recorded for each injection and then integrated with respect to time and are normalized to the concentration of the reaction to generate kcal/mol versus the molar ratio (ligand/sample). The enthalpy of the reaction is obtained, and with a ‘One Set of Sites’ model in the PEAQ-ITC Analysis Software, the KD and stoichiometry is determined. The fitted offset option in the PEAQ-ITC Analysis Software was used to correct for the heat of the dilution.

pppGpp synthesis assay

Request a detailed protocol

The pppGpp synthetic activity of RelAN-terminal was assayed at 37°C in a buffer containing 50 mM Tris-HCl (pH 8.0), 300 mM NaCl, 2 mM β-mercaptoethanol, 2% glycerol, and 15 mM Mg2+. Typically, reaction mixtures contained 8 mM ATP, 6 mM GTP and [α-32P]GTP, 1 µM RelAN-terminal with or without NirD (or NirDE50K) at concentrations ranging from 0.5 to 16 µM, and reactions were started by adding pre-warmed nucleotides to the protein(s). During the time course of the reaction, 20 µL samples were taken and added to 8 µL of ice-cold 21 M formic acid to stop the reactions. The time points were resolved by TLC, and radio-labeled nucleotides were quantified as described in the ‘In vivo (p)ppGpp measurement’ section.

Appendix 1

Appendix 1—key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
strain, strain background (Escherichia coli)BTH101Karimova et al., 1998 doi: 10.1073/pnas.95.10.5752F cya-99 araD139 galE15 galK16 rpsL(StrR) hsdR2 mcrA1 mcrB1 relA1
strain, strain background (E. coli)BL21 (DE3)New England BiolabsB F ompT gal
strain, strain background (E. coli)MG1655; WTLab collectionWild-type
strain, strain background (E. coli)nirDE50KThis paperMG1655 nirDE50K
strain, strain background (E. coli)ΔnirDThis paperMG1655 nirD::FRT; P1 from KEIO collection (resistance cassette has been flipped out) (Baba et al., 2006)
strain, strain background (E. coli)ΔrelAGermain et al., 2019 doi: 10.1038/s41467-019-13764-4MG1655 relA::FRT
strain, strain background (E. coli)ΔrelA spoTThis paperMG1655 relA::FRT spoT207::cat; P1 transduction from CF1693 (Baba et al., 2006) in MG1655 relA::FRT
recombinant DNA reagentpBbS2k-rfpLee et al., 2011 doi: 10.1186/1754-1611-5-12KanR, Ptet, rfp
recombinant DNA reagentpBbS2k-relAThis paperKanR, Ptet, relA; primers 16/17; Maisonneuve lab
recombinant DNA reagentpBbS2k-relA (sd4)This paperKanR, Ptet, sd4, relA; primers 163/17; Maisonneuve lab
recombinant DNA reagentpBbS2k-relAN-terminalThis paperKanR, Ptet, relAN-terminal; primers 16/557; Maisonneuve lab
recombinant DNA reagentpEG25Germain et al., 2019 doi: 10.1038/s41467-019-13764-4AmpR, PT5-lac
recombinant DNA reagentpEG25-nirDThis paperAmpR, PT5-lac, nirD; primers 386/387; Maisonneuve lab
recombinant DNA reagentpEG25-spoT (sd8U)Germain et al., 2019 doi: 10.1038/s41467-019-13764-4AmpR, PT5-lac, sd8U, spoT
recombinant DNA reagentpEG25-nirDE50KThis paperAmpR, PT5-lac, nirDE50K; primers 386/387; Maisonneuve lab
recombinant DNA reagentpEG25-nirD (WTsd)This paperAmpR, PT5-lac, WTsd, nirD; primers 555/387; Maisonneuve lab
recombinant DNA reagentpEG25-nirBD (WTsd)This paperAmpR, PT5-lac, WTsd, nirBD; primers 553/544; Maisonneuve lab
recombinant DNA reagentpEG25-relAN-terminalGermain et al., 2019 doi: 10.1038/s41467-019-13764-4AmpR, PT5-lac, relAN-terminal
recombinant DNA reagentpKD46Datsenko and Wanner, 2000 doi: 10.1073/pnas.120163297AmpR, Para, λ Red
recombinant DNA reagentpKT25Karimova et al., 1998 doi: 10.1073/pnas.95.10.5752KanR
recombinant DNA reagentpKT25-zipKarimova et al., 1998 doi: 10.1073/pnas.95.10.5752KanR, zip
recombinant DNA reagentpKT25-relAGermain et al., 2019 doi: 10.1038/s41467-019-13764-4KanR, relA
recombinant DNA reagentpKT25-spoTGermain et al., 2019 doi: 10.1038/s41467-019-13764-4KanR, spoT
recombinant DNA reagentpKT25-nirBThis paperKanR, nirB; primers 617/618; Maisonneuve lab
recombinant DNA reagentpKT25-relA1-663This paperKanR, relA1-663; primers 497/502; Maisonneuve lab
recombinant DNA reagentpKT25-relA1-580This paperKanR, relA1-580; primers 497/501; Maisonneuve lab
recombinant DNA reagentpKT25-relA1-470This paperKanR, relA1-470; primers 497/500; Maisonneuve lab
recombinant DNA reagentpKT25-relAN-terminalThis paperKanR, relAN-terminal; primers 497/499; Maisonneuve lab
recombinant DNA reagentpKT25-relA1-181This paperKanR, relA1-181; primers 497/498; Maisonneuve lab
recombinant DNA reagentpKT25-relA181-744This paperKanR, relA181-744; primers 531/533; Maisonneuve lab
recombinant DNA reagentpKT25-spoTN-terminalGermain et al., 2019 doi: 10.1038/s41467-019-13764-4KanR, relAN-terminal
recombinant DNA reagentpUT18CKarimova et al., 1998 doi: 10.1073/pnas.95.10.5752AmpR
recombinant DNA reagentpUT18C-zipKarimova et al., 1998 doi: 10.1073/pnas.95.10.5752AmpR, zip
recombinant DNA reagentpUT18C-nirDThis paperAmpR, nirD; primers 441/443; Maisonneuve lab
recombinant DNA reagentpUT18C-nirDE50KThis paperAmpR, nirDE50K; primers 441/443; Maisonneuve lab
recombinant DNA reagentpET28a(+)Germain et al., 2019 doi: 10.1038/s41467-019-13764-4KanR, Trx, His
recombinant DNA reagentpET28a(+)-nirDThis paperKanR, Trx, His, TEV, nirD; primers 558/544; Maisonneuve lab
recombinant DNA reagentpET28a(+)-nirDE50KThis paperKanR, Trx, His, TEV, nirDE50K; primers 558/544; Maisonneuve lab
recombinant DNA reagentpWRG99Blank et al., 2011 doi: 10.1371/journal.pone.0015763pKD46 with Ptet, I-SceI
recombinant DNA reagentpWRG100
Karimova et al., 1998 doi: 10.1073/pnas.95.10.5752 doi: 10.1371/journal.pone.0015763
pKD3 with I-SceI recognition site
sequence-based reagentPrimer 16This paperCCCCGAATTCGTCGACTCAAGGAGGTTTTATAAATGGTTGCGGTAAGAAGTGCA; restriction enzyme EcoRI; Maisonneuve lab
sequence-based reagentPrimer 17This paperCCCCGGATCCCTAACTCCCGTGCAACCGAC; restriction enzyme BamHI; Maisonneuve lab
sequence-based reagentPrimer 163This paperCCCCGAATTCGTCGACTCAAGGATTAAATGGTTGCGGTAAGAAGTGCA; restriction enzyme EcoRI; Maisonneuve lab
sequence-based reagentPrimer 386This paperCCCCGAATTCGTCGACTCAAGGAGGTTTTATAAATGAGCCAGTGGAAAGACAT; restriction enzyme EcoRI; Maisonneuve lab
sequence-based reagentPrimer 387This paperCCCCGGATCCTTAACCGCGCAGCTGCACCA; restriction enzyme BamHI; Maisonneuve lab
sequence-based reagentPrimer 441This paperCCCCTCTAGAAATGAGCCAGTGGAAAGACAT; restriction enzyme XbaI; Maisonneuve lab
sequence-based reagentPrimer 443This paperCCCCGGTACCTTAACCGCGCAGCTGCACCA; restriction enzyme KpnI; Maisonneuve lab
sequence-based reagentPrimer 497This paperCCCCTCTAGAAATGGTTGCGGTAAGAAGTGC; restriction enzyme XbaI; Maisonneuve lab
sequence-based reagentPrimer 498This paperCCCCGGTACCGATGTTGGTACACTCTTTTG; restriction enzyme KpnI; Maisonneuve lab
sequence-based reagentPrimer 499This paperCCCCGGTACCTTCGTCGAGCATTTCGCCGG; restriction enzyme KpnI; Maisonneuve lab
sequence-based reagentPrimer 500This paperCCCCGGTACCGTTCGGCTGTTTCTGGGTGA; restriction enzyme KpnI; Maisonneuve lab
sequence-based reagentPrimer 501This paperCCCCGGTACCAAGTTGCTTCAGCGCGGCGG; restriction enzyme KpnI; Maisonneuve lab
sequence-based reagentPrimer 502This paperCCCCGGTACCGGCGGAGTAGCTCTCACCCC; restriction enzyme KpnI; Maisonneuve lab
sequence-based reagentPrimer 531This paperCCCCTCTAGAATACGCACCGCTGGCTAACCG; restriction enzyme XbaI; Maisonneuve lab
sequence-based reagentPrimer 533This paperCCCCGGTACCCTAACTCCCGTGCAACCGAC; restriction enzyme KpnI; Maisonneuve lab
sequence-based reagentPrimer 544This paperCCCCAAGCTTTTAACCGCGCAGCTGCACCA; restriction enzyme HindIII; Maisonneuve lab
sequence-based reagentPrimer 553This paperCCCCGAATTCAATAGAAAAGAAATCGAGGCAAAAATGAGCAAAGTCAGACTCGC; restriction enzyme EcoRI; Maisonneuve lab
sequence-based reagentPrimer 555This paperCCCCGAATTCAGTAACTCTGGTGGAGGACAACGCATGAGCCAGTGGAAAGACAT; restriction enzyme EcoRI; Maisonneuve lab
sequence-based reagentPrimer 557This paperCCCCGGATCCTTATTCGTCGAGCATTTCGCCGG; restriction enzyme BamHI; Maisonneuve lab
sequence-based reagentPrimer 558This paperCCCCGGATCCGAGAACCTGTACTTCCAATCAATGAGCCAGTGGAAAGACAT; restriction enzyme BamHI; Maisonneuve lab
sequence-based reagentPrimer 617This paperCCCCTCTAGAAATGAGCAAAGTCAGACTCGC; restriction enzyme XbaI; Maisonneuve lab
sequence-based reagentPrimer 618This paperCCCCGGTACCTCATGCGTTGTCCTCCACCA; restriction enzyme KpnI; Maisonneuve lab
sequence-based reagentPrimer 629This paperATGAGCCAGTGGAAAGACATCTGCAAAATCGATGACATCCTGCCTGAAACCGCCTTACGCCCCGCCCTGC; Maisonneuve lab
sequence-based reagentPrimer 630This paperTTAACCGCGCAGCTGCACCACGCCGTCTTTCACTCGCGCTTCGTAATGTTCTAGACTATATTACCCTGTT; Maisonneuve lab
sequence-based reagentPrimer 655This paperATGAGCCAGTGGAAAGACAT; Maisonneuve lab
sequence-based reagentPrimer 656This paperTTAACCGCGCAGCTGCACCA; Maisonneuve lab
chemical compound, drug32P]GTPPerkinElmerCatalog number: BLU006H250UC
chemical compound, drug32PPerkinElmerCatalog number: NEX053H001MC
chemical compound, drugEZ-Link NHS-PEG4-BiotinThermo ScientificCatalog number: 21330
software, algorithmBLItz Pro Softwarehttps://www.sartorius.com/en/products/protein-analysis
software, algorithmMicroCal PEAQ-ITC Analysis SoftwareMalvern Panalyticalhttps://www.malvernpanalytical.com/fr/products/product-range/microcal-range/microcal-itc-range/microcal-peaq-itc
software, algorithmPrism 5.0 softwareGraphPadhttps://www.graphpad.com/scientific-software/prism/
otherHiLoad 16/600 Superdex 200 columnGE HealthcareCatalog number: GE28-9893-35
otherHiPrep 26/10 Desalting columnGE HealthcareCatalog number: GE17-5087-01
otherHisTrap columnGE HealthcareCatalog number: GE17-5248-02
otherStreptavidin BiosensorsFortéBioCatalog number: 18-5117
otherSuperdex 200 10/300 GLGE HealthcareCatalog number: GE28-9909-44
otherZeba Spin Desalting columnThermo ScientificCatalog number: 89882

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for Figure 1, Figure 2, Figure 3, Figure 4, Figure 5, Figure 6, Figure 3-figure supplement 1, Figure 4-figure supplement 1 and Figure 5-figure supplement 1.

References

  1. Book
    1. Miller JH
    (1972)
    Experiments in Molecular Genetics
    Cold Spring Harbor, N.Y: Cold Spring Harbor Laboratory Press.
  2. Book
    1. Miller JH
    (1992)
    A Short Course in Bacterial Genetics: A Laboratory Manual and Handbookfor Escherichia Coli and Related Bacteria
    Cold Spring Harbor, N.Y: Cold Spring Harbor Laboratory Press.

Decision letter

  1. Sophie Helaine
    Reviewing Editor; Harvard Medical School, United States
  2. Gisela Storz
    Senior Editor; National Institute of Child Health and Human Development, United States
  3. Severin Ronneau
    Reviewer; Harvard Medical School, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The reviewers all agreed that the work is very interesting and intriguing and potentially of great interest as you report the identification of NirD, the small subunit of a nitrite reductase, as a new negative regulator of the stringent response in E. coli. Seeing the importance of the stringent response in bacterial adaptation to environmental stresses, it is potentially a significant advance.

Decision letter after peer review:

Thank you for submitting your article "NirD Curtails the Stringent Response by Inhibiting RelA Activity in Escherichia coli" for consideration by eLife. Your article has been reviewed by 4 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Gisela Storz as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Severin Ronneau (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

The reviewers all agreed that the work is very interesting and intriguing and potentially of great interest as you report through a multicopy suppressor screen the identification of NirD, the small subunit of a nitrite reductase, as a new negative regulator of the stringent response in E. coli. Seeing the importance of the stringent response in bacterial adaptation to environmental stresses, it is potentially a significant advance. Specifically, overexpression of NirD very convincingly inhibits RelA-dependent production of (p)ppGpp, NirD interacts with the N-terminal domain of RelA, both in vitro and in E. coli, leading to reduction of (p)ppGpp synthesis.

However, all reviewers were in agreement that additional work is needed to establish the physiological relevance of this regulation. Although solid and well controlled, all the experiments rely on overexpression of NirD. Reviewers reckon that evidence of the importance of the interaction between NirD and RelA through phenotypic and molecular characterizations of null and point mutants is required before we can accept the manuscript for publication. They have agreed on a minimal set of experiments that are essential if you chose to revise the manuscript. In addition, they were also all of the opinion that the text should be revised to reflect the most up-to-date and relevant literature, and add depth to the discussion. Their main requests are the following:

Essential revisions:

– Measure levels of (p)ppGpp in wild-type E. coli, nirD, nirD_E50K, nirB and nirBD mutants in aa starvation, stationary phase, aerobic and anaerobic growth.

– Report the effects of nirD or nirBD mutations on growth under the above environmental conditions.

– Document the ratio of RelA:NirD. Is RelA in a much higher abundance than NirD? How does this relate to the importance of the interaction?

– Revise the text according to the following remarks:

a – Page 3, lines 12-17: with reference to the targets and roles of (p)ppGpp, the authors cite Atkinson et al., 2011; Kanjee et al. 2012; Hauryliuk et al. 2015 and Potrykus and Cashel 2008.

Remove here the reference of Atkinson et al., 2011, which described the phylogenic distribution of RSH enzymes.

– Add to or replace Kanjee et al. 2012 more recent papers in which they identified (p)ppGpp targets: Corrigan et al., 2016 (PMID: 26951678); Zhang et al., 2018 (PMID: 29511080); Wang et al., 2019 (PMID: 30559427)

– Add to or replace Hauryliuk et al. 2015 and Potrykus and Cashel 2008 by updated reviews: Hengge 2020 (PMID: 32244175); Irving et al. 2020 (PMID: 33149273)

b – Page 3, Line 23: in relation to the CTD, references Pausch 2020 Cell Reports, Takada 2020 Front Microbiol, and Gratani 2018 Plos Genetics should be included.

c – When describing RelA and SpoT as well as the mechanisms regulating their activities, the authors refer to only two research papers (Hogg et al., 2004; Mechold et al., 2002) and again the same reviews (Hauryliuk et al., 2015; Potrykus and Cashel 2008). Add Tamman et al., 2020 (PMID: 32393900)

d – Page 4, Line 4: two recent reviews extensively describe how stress signals are sensed by RSH enzymes. In place of Potrykus and Cashel, 2008, cite these:

Irving SE, Corrigan RM. (PMID: 29493495); Ronneau S, Hallez R. (PMID: 30980074)

e – Page 4, line 24, remove the "in" after Rsd.

f – Page 4: It would be interesting to add that RelA can also be activated by other stressful conditions than aa starvation which ultimately leads to aa starvation, e.g. fatty acid starvation that leads to lysine starvation (Sinha et al., 2019, PMID: 31400173).

g – Comment on why GppA relieves toxicity? pppGpp is less toxic than ppGpp, why?

h – Page 8, line 20 and page 13, line 9: add reports describing RSH regulation by

– the competence proteins ComGA: Hahn et al., 2015 (PMC4722805)

– the phosphotransferase system: Karstens et al., 2014 (PMID: 24515609); Ronneau et al., 2016 (PMID: 27109061); Ronneau et al., 2019 (PMID: 30496454).

i – Page 8, line 3, "zing" correct the typo.

j – Page 11, line7 – change to S5B and C to S4B and C. Also include A-E labels in figure S4 and a specific legend for S4E.

k – Page 19 line 15 – change broh to broth.

l – What do you mean by "ribosome-independent inhibition of the stringent response"?

https://doi.org/10.7554/eLife.64092.sa1

Author response

Essential revisions:

– Measure levels of (p)ppGpp in wild-type E. coli, nirD, nirD_E50K, nirB and nirBD mutants in aa starvation, stationary phase, aerobic and anaerobic growth.

We measured (p)ppGpp level of wild-type (WT), ΔnirD, and ΔrelA mutants during aerobic amino acid starvation and stationary phase entry (when (p)ppGpp rised). As shown, no significant difference is observed between WT and ΔnirD. These results are not unexpected given that nirD is not induced under these growth conditions. Indeed, nirD is induced during anaerobic growth (Harborne et al., 1992; Peakman et al., 1990) and its expression is maximized in the presence of glucose and nitrate (Tyson et al., 1997; Wang and Gunsalus, 2000).

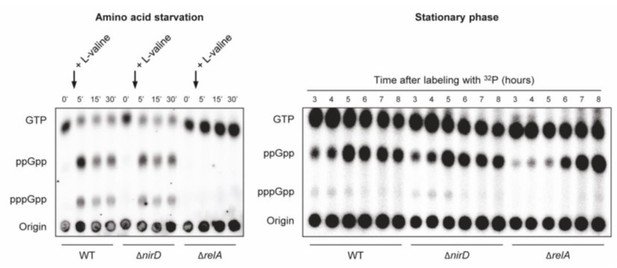

For amino acid starvation (Author response image 1, left panel), exponentially growing cells of WT, ΔnirD, and ΔrelA were challenged by addition of 500 μg/mL of L-valine. Nucleotides were extracted from samples collected at the indicated times and separated by TLC. The autoradiogram is representative of 3 independent experiments. For measurement of stationary phase (p)ppGpp levels (Author response image 1, right panel), exponentially growing cells of WT, ΔnirD, and ΔrelA were labeled at OD600nm ~0.25 and samples were collected from 3 hours later, at the entrance into stationary phase. Nucleotides were extracted and separated by TLC. The autoradiogram is representative of 3 independent experiments.

Author response image 1
nirD does not seem to impact accumulation of (p)ppGpp during amino acid starvation or in stationary phase under aerobic conditions.

Unfortunately, with respect to safety rules, we were technically not able to address this question during anaerobic growth conditions. Indeed, rules regarding the use of radioelements are strictly controlled and experiments have to be performed in a restricted area which is not equipped with an anaerobic glove box. Moreover, experiments using hungate tubes are not tolerated since tubes are under pressure and required needles for sampling and finally would also require massive and unwarranted use of radioelements.

– Report the effects of nirD or nirBD mutations on growth under the above environmental conditions.

We first performed growth experiments in aerobic conditions and as shown, no significant difference is observed between WT and ΔnirD mutant. As explained above, nirD is maximally expressed in anaerobic growth conditions in presence of glucose and nitrate. Note also that the relA mutant does not display a significant phenotype under these conditions.

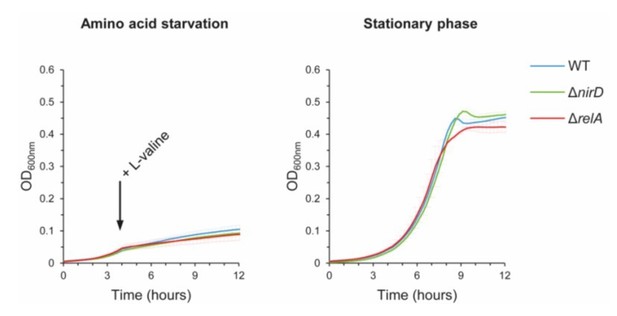

Growth curves of WT cells, ΔnirD and ΔrelA mutants under aerobic amino acid starvation (Author response image 2, left panel) and stationary phase (Author response image 2, right panel). Stationary-phase cultures were diluted 100 times in MOPS-glucose minimal medium. The cultures were then incubated at 37°C and growth was followed by measurement of OD600nm using microplate reader. To induce amino acid starvation, 500 μg/mL of L-valine was added at the indicated time. Data are represented as the means of 3 independent experiments, error bars depict the SDs.

Author response image 2
nirD does not seem to affect growth during amino acid starvation or in stationary phase under aerobic conditions.

As mentioned above, nirD is induced during anaerobic growth and its expression is maximized in the presence of glucose and nitrate. Moreover, the cytoplasmic nitrite reductase NirBD is a key regulator of the nitric oxide level during nitrate respiration and as a result a strain devoid of nitrite reductase activity presents a severe growth defect under nitrate respiration (Bulot et al., 2019). This led us to the conclusion that these conditions were not appropriated to dissociate the importance of NirD in the nitrite reductase activity to that of the regulation of RelA activity.

Therefore, to present evidence of a physiological relevance of the RelA-NirD in vivo, we decided to follow the growth of WT and ΔnirD mutant during anaerobic glucose fermentation, a condition where the nitrite reductase is expressed but where the substrate is missing. As shown in the new Figure 3E, no difference is observed between WT and ΔnirD mutant under unstressed conditions. However, addition of high concentrations of SMG (which induces isoleucine starvation) significantly increases the growth recovery of a ΔnirD mutant consistent with an elevated level of (p)ppGpp in this strain. To further confirm that the RelA-NirD interaction is important to adjust (p)ppGpp levels under these specific growth conditions, we have created a chromosomal nirDE50K mutant. We first confirmed that this mutant has a functional nitrite reductase activity. Indeed, the nirDE50K mutant grows similarly to the WT in presence of nitrate as sole nitrogen source (new Figure 3—figure supplement 1C). Finally, we observed that nirDE50K mutant displays the same growth defect recovery as the nirD mutant in presence of SMG.

Growth curves of WT cells, ΔnirD and nirDE50K mutants under anaerobiosis in M9-glucose minimal medium without amino acids (Figure 3E left panel) or supplemented with 1 mM serine, methionine, and glycine (SMG) (Figure 3E right panel) (see Materials and methods). The growth curves are representative of at least 3 independent experiments and the Δ(lag phase) are represented as the means (± SD) of the independent experiments.

Growth curves of WT cells, ΔnirD and nirDE50K mutants under anaerobiosis in defined glycerol minimal medium supplemented with nitrate as the sole electron acceptor and as sole nitrogen source (see Materials and methods and Figure 3—figure supplement 1C). Under nitrate respiration, nitrate is converted to nitrite which is subsequently converted to ammonium (NH4) by the cytosolic NADH-dependent nitrite reductase NirBD. Bacteria can then utilize NH4 as nitrogen source. Therefore, an active NADH-dependent nitrite reductase activity is required for anaerobic growth when nitrate is the sole nitrogen source (Wang et al., 2019).

Therefore, our results present physiological evidence that a specific RelA-NirD interaction can adjust (p)pGpp level in vivo.

A full paragraph explaining these new results is now provided in the revised manuscript.

– Document the ratio of RelA:NirD. Is RelA in a much higher abundance than NirD? How does this relate to the importance of the interaction?

The equilibrium affinity constant (KD) of the RelA-NirD interaction obtained in vitro is around 300 nM and the concentration of RelA in E. coli is in the same range (100-400 nM) (Li et al., 2014; Pedersen and Kjeldgaard, 1977). Therefore, at the concentrations above the KD, NirD would interact with RelA and inhibit (p)ppGpp synthetase activity. Under aerobic conditions, NirD is not expressed and concentration is below 20 nM and regulation of RelA by NirD is probably meaningless. These results are consistent with the results presented above. However, under anaerobic growth conditions, NirD is predicted to reache μM range (Khlebodarova et al., 2016) and can therefore saturate RelA to catalytically inhibit its activity. These results are consistent with the observation that deletion of nirD in presence of RelA severely impaired growth recovery under anaerobic glucose fermentation conditions in presence of SMG.

The physiological relevance of the RelA-NirD interaction is now discussed in the revised manuscript.

– Revise the text according to the following remarks:

a – Page 3, lines 12-17: with reference to the targets and roles of (p)ppGpp, the authors cite Atkinson et al., 2011; Kanjee et al. 2012; Hauryliuk et al. 2015 and Potrykus and Cashel 2008.

Remove here the reference of Atkinson et al., 2011, which described the phylogenic distribution of RSH enzymes.

We agree, the reference has been removed.

– Add to or replace Kanjee et al. 2012 more recent papers in which they identified (p)ppGpp targets: Corrigan et al., 2016 (PMID: 26951678); Zhang et al., 2018 (PMID: 29511080); Wang et al., 2019 (PMID: 30559427).

– Add to or replace Hauryliuk et al. 2015 and Potrykus and Cashel 2008 by updated reviews: Hengge 2020 (PMID: 32244175); Irving et al. 2020 (PMID: 33149273).

We thank the referees, changes have been made accordingly.

b – Page 3, Line 23: in relation to the CTD, references Pausch 2020 Cell Reports, Takada 2020 Front Microbiol, and Gratani 2018 Plos Genetics should be included.

c – When describing RelA and SpoT as well as the mechanisms regulating their activities, the authors refer to only two research papers (Hogg et al., 2004; Mechold et al., 2002) and again the same reviews (Hauryliuk et al., 2015; Potrykus and Cashel 2008). Add Tamman et al., 2020 (PMID: 32393900).

We apologize, changes have been made accordingly.

d – Page 4, Line 4: two recent reviews extensively describe how stress signals are sensed by RSH enzymes. In place of Potrykus and Cashel, 2008, cite these:

Irving SE, Corrigan RM. (PMID: 29493495); Ronneau S, Hallez R. (PMID: 30980074).

We agree, changes have been made accordingly.

e – Page 4, line 24, remove the "in" after Rsd.

We agree, the change has been made accordingly.

f – Page 4: It would be interesting to add that RelA can also be activated by other stressful conditions than aa starvation which ultimately leads to aa starvation, e.g. fatty acid starvation that leads to lysine starvation (Sinha et al., 2019, PMID: 31400173).

We agree, changes have been made accordingly.

g – Comment on why GppA relieves toxicity? pppGpp is less toxic than ppGpp, why?

Cited in the manuscript, Sanyal and Harinarayanan (2020) describe interesting in vivo findings regarding the pivotal role of SpoT and GppA hydrolase in lowering activation of RelA by the alarmone guanosine penta phosphate (pppGpp). Indeed, they present genetic evidence that pppGpp exerts heightened toxicity compare to that of ppGpp. The authors provide a simple model in which toxicity of pppGpp is mediated by its positive feedback activation of RelA (even in absence of activating signal) and thus setting up massive (p)ppGpp accumulation in E. coli cells. While the exact molecular mechanisms are not known, we believe that our observations that gppA reverts toxicity associated to (p)ppGpp accumulation are consistent with these findings.

Note also that early on, Kudrin et al. (2018) reported in vitro that RelA’s synthetic activity is adjusted by pppGpp, which stimulates synthesis of ppGpp from GDP to maximize (p)ppGpp accumulation.

h – Page 8, line 20 and page 13, line 9: add reports describing RSH regulation by

– the competence proteins ComGA: Hahn et al., 2015 (PMC4722805)

– the phosphotransferase system: Karstens et al., 2014 (PMID: 24515609); Ronneau et al., 2016 (PMID: 27109061); Ronneau et al., 2019 (PMID: 30496454).

The referee is correct, changes have been made accordingly.

i – Page 8, line 3, "zing" correct the typo.

We apologize, the change has been made.

j – Page 11, line7 – change to S5B and C to S4B and C. Also include A-E labels in figure S4 and a specific legend for S4E.

We apologize, changes have been made.

k – Page 19 line 15 – change broh to broth.

We apologize, the change has been made.

l – What do you mean by "ribosome-independent inhibition of the stringent response"?

NirD can inhibit the (p)ppGpp synthesis from the constitutively active truncated RelAN-terminal both in vivo and in vitro. Given that the CTD region is responsible for anchoring RelA to the ribosome and that ribosome is missing in our in vitro assay, our results support the notion that inactivation of RelA is possible even when the protein is not associated to the ribosome. Therefore, rather than preventing activation of RelA, our results support a simple model of regulation in which NirD directly interacts with the catalytic domains of RelA to inhibit the synthetic activity.

https://doi.org/10.7554/eLife.64092.sa2

Article and author information

Author details

  1. Loïc Léger

    Laboratoire de Chimie Bactérienne, Institut de Microbiologie de la Méditerranée, CNRS-Aix Marseille Univ (UMR7283), Marseille, France
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3641-3697
  2. Deborah Byrne

    Protein Expression Facility, Institut de Microbiologie de la Méditerranée, CNRS-Aix Marseille Univ, Marseille, France
    Contribution
    Data curation, Formal analysis, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Paul Guiraud

    Laboratoire de Chimie Bactérienne, Institut de Microbiologie de la Méditerranée, CNRS-Aix Marseille Univ (UMR7283), Marseille, France
    Contribution
    Data curation, Formal analysis, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Elsa Germain

    Laboratoire de Chimie Bactérienne, Institut de Microbiologie de la Méditerranée, CNRS-Aix Marseille Univ (UMR7283), Marseille, France
    Contribution
    Conceptualization, Supervision, Validation, Methodology, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Etienne Maisonneuve

    Laboratoire de Chimie Bactérienne, Institut de Microbiologie de la Méditerranée, CNRS-Aix Marseille Univ (UMR7283), Marseille, France
    Contribution
    Conceptualization, Data curation, Supervision, Funding acquisition, Validation, Investigation, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    emaisonneuve@imm.cnrs.fr
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3451-1223

Funding

H2020 European Research Council (714934)

  • Etienne Maisonneuve

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by the European Research Council starting grant (ERC StG) under the European Union’s Horizon 2020 and innovation program grant agreement no. 714934 ‘Stringency’ to EM. We thank Farida Seduk, Aurore Jacq-Bailly, Gaël Brasseur, Axel Magalon, and Benjamin Ezraty for advices and stimulating discussions for anaerobic experiments.

Senior Editor

  1. Gisela Storz, National Institute of Child Health and Human Development, United States

Reviewing Editor

  1. Sophie Helaine, Harvard Medical School, United States

Reviewer

  1. Severin Ronneau, Harvard Medical School, United States

Publication history

  1. Received: October 16, 2020
  2. Accepted: July 8, 2021
  3. Version of Record published: July 29, 2021 (version 1)

Copyright

© 2021, Léger et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 404
    Page views
  • 43
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Medicine
    2. Microbiology and Infectious Disease
    Alexander O Pasternak et al.
    Research Article Updated

    Background:

    It remains unclear whether combination antiretroviral therapy (ART) regimens differ in their ability to fully suppress human immunodeficiency virus (HIV) replication. Here, we report the results of two cross-sectional studies that compared levels of cell-associated (CA) HIV markers between individuals receiving suppressive ART containing either a non-nucleoside reverse transcriptase inhibitor (NNRTI) or a protease inhibitor (PI).

    Methods:

    CA HIV unspliced RNA and total HIV DNA were quantified in two cohorts (n = 100, n = 124) of individuals treated with triple ART regimens consisting of two nucleoside reverse transcriptase inhibitors (NRTIs) plus either an NNRTI or a PI. To compare CA HIV RNA and DNA levels between the regimens, we built multivariable models adjusting for age, gender, current and nadir CD4+ count, plasma viral load zenith, duration of virological suppression, NRTI backbone composition, low-level plasma HIV RNA detectability, and electronically measured adherence to ART.

    Results:

    In both cohorts, levels of CA HIV RNA and DNA strongly correlated (rho = 0.70 and rho = 0.54) and both markers were lower in NNRTI-treated than in PI-treated individuals. In the multivariable analysis, CA RNA in both cohorts remained significantly reduced in NNRTI-treated individuals (padj = 0.02 in both cohorts), with a similar but weaker association between the ART regimen and total HIV DNA (padj = 0.048 and padj = 0.10). No differences in CA HIV RNA or DNA levels were observed between individual NNRTIs or individual PIs, but CA HIV RNA was lower in individuals treated with either nevirapine or efavirenz, compared to PI-treated individuals.

    Conclusions:

    All current classes of antiretroviral drugs only prevent infection of new cells but do not inhibit HIV RNA transcription in long-lived reservoir cells. Therefore, these differences in CA HIV RNA and DNA levels by treatment regimen suggest that NNRTIs are more potent in suppressing HIV residual replication than PIs, which may result in a smaller viral reservoir size.

    Funding:

    This work was supported by ZonMw (09120011910035) and FP7 Health (305522).

    1. Evolutionary Biology
    2. Microbiology and Infectious Disease
    Emily R Ebel et al.
    Research Article

    The replication of Plasmodium falciparum parasites within red blood cells (RBCs) causes severe disease in humans, especially in Africa. Deleterious alleles like hemoglobin S are well-known to confer strong resistance to malaria, but the effects of common RBC variation are largely undetermined. Here we collected fresh blood samples from 121 healthy donors, most with African ancestry, and performed exome sequencing, detailed RBC phenotyping, and parasite fitness assays. Over one third of healthy donors unknowingly carried alleles for G6PD deficiency or hemoglobinopathies, which were associated with characteristic RBC phenotypes. Among non-carriers alone, variation in RBC hydration, membrane deformability, and volume was strongly associated with P. falciparum growth rate. Common genetic variants in PIEZO1, SPTA1/SPTB, and several P. falciparum invasion receptors were also associated with parasite growth rate. Interestingly, we observed little or negative evidence for divergent selection on non-pathogenic RBC variation between Africans and Europeans. These findings suggest a model in which globally widespread variation in a moderate number of genes and phenotypes modulates P. falciparum fitness in RBCs.
