Occurrence of foamy macrophages during the innate response of zebrafish to trypanosome infections

  1. Sem H Jacobs
  2. Eva Dóró
  3. Ffion R Hammond
  4. Mai E Nguyen-Chi
  5. Georges Lutfalla
  6. Geert F Wiegertjes
  7. Maria Forlenza  Is a corresponding author
  1. Cell Biology and Immunology Group, Department of Animal Sciences, Wageningen University & Research, Netherlands
  2. Experimental Zoology Group, Department of Animal Sciences, Wageningen University & Research, Netherlands
  3. DIMNP, CNRS, University of Montpellier, France
  4. Aquaculture and Fisheries Group, Department of Animal Sciences, Wageningen University & Research, Netherlands
Research Article
  • Cited 0
  • Views 600
  • Annotations
Cite this article as: eLife 2021;10:e64520 doi: 10.7554/eLife.64520

Abstract

A tightly regulated innate immune response to trypanosome infections is critical to strike a balance between parasite control and inflammation-associated pathology. In this study, we make use of the recently established Trypanosoma carassii infection model in larval zebrafish to study the early response of macrophages and neutrophils to trypanosome infections in vivo. We consistently identified high- and low-infected individuals and were able to simultaneously characterise their differential innate response. Not only did macrophage and neutrophil number and distribution differ between the two groups, but also macrophage morphology and activation state. Exclusive to high-infected zebrafish, was the occurrence of foamy macrophages characterised by a strong pro-inflammatory profile and potentially associated with an exacerbated immune response as well as susceptibility to the infection. To our knowledge, this is the first report of the occurrence of foamy macrophages during an extracellular trypanosome infection.

Introduction

Trypanosomes of the Trypanosoma genus are protozoan haemoflagellates that can infect animals from all vertebrate classes, including warm-blooded mammals and birds as well as cold-blooded amphibians, reptiles, and fish. This genus contains human and animal pathogens, including the intracellular Trypanosoma cruzi (causing Human American Trypanosomiasis or Chagas’ disease), the extracellular T. brucei rhodesiense and T. brucei gambiense (causing Human African Trypanosomiasis or Sleeping Sickness) and T. congolense, T. vivax and T. b. brucei (causing Animal African Trypanosomiasis or Nagana) (Radwanska et al., 2018; Simpson et al., 2006). Among these, salivarian trypanosomes such as T. brucei ssp. live extracellularly in the bloodstream or tissue fluids of their host. For example, T. vivax can multiply rapidly and is evenly distributed throughout the cardiovascular system, T. congolense tends to aggregate in small blood vessels, whereas T. brucei especially can extravasate and multiply in interstitial tissues (reviewed by Magez and Caljon, 2011). Pathologically, anaemia appears to be a factor common to infections with most if not all trypanosomes although with different underlying causative mechanisms. These include, among others, erythrophagocytosis by macrophages (Cnops et al., 2015; Guegan et al., 2013), hemodilution (Naessens, 2006), erythrolysis through intermembrane transfer of variant surface glycoprotein (VSG) from trypanosomes to erythrocytes (Rifkin and Landsberger, 1990), oxidative stress from free radicals (Mishra et al., 2017) and mechanical damage through direct interaction of trypanosomes with erythrocytes surface (Boada-Sucre et al., 2016).

Immunologically, infections with trypanosomes are often associated with dysfunction and pathology related to exacerbated innate and adaptive immune responses (reviewed by Radwanska et al., 2018; Stijlemans et al., 2016). Initially, it was believed that antibody-dependent complement-mediated lysis was the major protective mechanism involved in early parasite control (Krettli et al., 1979; Musoke and Barbet, 1977). However, later studies revealed that at low antibody levels, trypanosomes can efficiently remove surface-bound antibodies through an endocytosis-mediated mechanisms (Engstler et al., 2007), and that complement C5-deficient mice are able to control the first-peak parasitaemia similarly to wild-type mice (La Greca et al., 2014). Instead, innate immune mediators such as IFNγ, TNFα, and nitric oxide (NO) were shown to be indispensable for the control of first-peak parasitaemia, through direct and indirect mechanisms (reviewed by Radwanska et al., 2018). In the early phase of infection, the timely induction of IFNγ by NK, NKT, and CD8+ cells Cnops et al., 2015 followed by the production of TNFα and NO by IFNγ-primed macrophages (Baral et al., 2007; Iraqi et al., 2001; Lopez et al., 2008; Lucas et al., 1994; Magez et al., 1993; Magez et al., 2007; Magez et al., 2006; Magez et al., 2001; Magez et al., 1999; O'Gorman et al., 2006; Sternberg and Mabbott, 1996; Wu et al., 2017) leads to effective control of first-peak parasitaemia. Glycosyl-inositol-phosphate soluble variant surface glycoproteins (GPI-VSG) released from the surface of trypanosomes were found to be the major inducers of TNFα in macrophages, and that such response could be primed by IFNγ (Coller et al., 2003; Magez et al., 2002). When macrophages would encounter GPI-VSG prior to IFNγ exposure, however, their TNFα and NO response would dramatically be reduced (Coller et al., 2003) which, depending on the timing, could either lead to macrophage unresponsiveness or prevent exacerbated inflammatory responses during the first-peak of parasite clearance. Altogether, these data made clear that an early innate immune response is crucial to control the acute phase of trypanosome infection, but that its tight regulation is critical to ensure parasite control as opposed to pathology.

All the findings above took advantage of the availability of several mice models for trypanosome infection using trypanosusceptible or trypanotolerant as well as mutant ‘knock-out’ mice strains. Although mice cannot be considered natural hosts of trypanosomes and do not always recapitulate all features of natural infections, the availability of such models allowed to gain insights into the general biology of trypanosomes, their interaction with and evasion of the host immune system, as well as into various aspects related to vaccine failure, antigenic variation, and (uncontrolled) inflammation (Magez and Caljon, 2011). The use of knock-out strains for example, shed specific light on the role of various cytokines, particularly TNFα, IFNγ, and IL-10, in the control of parasitaemia and in the induction of pathological conditions during infection (reviewed in Magez and Caljon, 2011). It would be ideal to be able to follow, in vivo, the early host responses to the infection and visualise the trypanosome response to the host’s attack. However, due to the lack of transparency of most mammalian hosts, this has not yet been feasible.

We recently reported the establishment of an experimental trypanosome infection of zebrafish (Danio rerio) with the fish-specific trypanosome Trypanosoma carassii (Dóró et al., 2019). In the latter study, by combining T. carassii infection of transparent zebrafish with high-resolution high-speed microscopy, we were able to describe in detail the swimming behaviour of trypanosomes in vivo, in the natural environment of blood and tissues of a live vertebrate host. This led to the discovery of novel attachment mechanisms as well as trypanosome swimming behaviours that otherwise would not have been observed in vitro (Dóró et al., 2019). Previous studies in common carp (Cyprinus carpio), goldfish (Carrassius aurata) and more recently zebrafish, demonstrated that infections with T. carassii present many of the pathological features observed during human or animal trypanosomiasis, including a pro-inflammatory response during first-peak parasitaemia (Kovacevic et al., 2015; Oladiran et al., 2011; Oladiran and Belosevic, 2009) polyclonal B and T cell activation (Joerink et al., 2007; Joerink et al., 2004; Lischke et al., 2000; Ribeiro et al., 2010; Woo and Ardelli, 2014) and anaemia (Dóró et al., 2019; Islam and Woo, 1991; McAllister et al., 2019). These shared features among human and animal (including fish) trypanosomiases suggest a commonality in (innate) immune responses to trypanosomes across different vertebrates.

Zebrafish are fresh water cyprinid fish closely related to many of the natural hosts of T. carassii (Kent et al., 1993; Simpson et al., 2006) and are a powerful model species owing to, among others, their genetic tractability, large number of transgenic lines marking several immune cell types, knock-out mutant lines and most importantly, the transparency of developing embryos allowing high-resolution in vivo visualisation of cell behaviour (Benard et al., 2015; Bertrand et al., 2010; Ellett et al., 2011; Langenau et al., 2004; Lawson and Weinstein, 2002; Page et al., 2013; Petrie-Hanson et al., 2009; Renshaw et al., 2006; White et al., 2008). During the first 2–3 weeks of development, zebrafish are devoid of mature T and B lymphocytes and thus offer a window of opportunity to study innate immune responses (Torraca et al., 2014; Torraca and Mostowy, 2018), especially those driven by neutrophils and macrophages. The response of macrophages and neutrophilic granulocytes towards several viral, fungal and bacterial pathogens has been studied in detail using zebrafish (Cronan and Tobin, 2014; García-Valtanen et al., 2017; Nguyen-Chi et al., 2014; Palha et al., 2013; Ramakrishnan, 2013; Renshaw and Trede, 2012; Rosowski et al., 2018; Torraca and Mostowy, 2018) but never before in the context of trypanosome infections.

Taking advantage of the recently established zebrafish-T. carassii infection model and of the availability of zebrafish transgenic lines marking macrophages and neutrophils as well as il1b- and tnfa-expressing cells, in the current study, we describe the early events of the innate immune response of zebrafish to T. carassii infections. Based on a novel clinical scoring system relying, amongst other criteria, on in vivo real-time monitoring of parasitaemia, we could consistently segregate larvae in high- and low-infected individuals without having to sacrifice the larvae. Between these individuals we always observed a marked differential response between macrophages and neutrophils, especially with respect to their proliferative capacity and redistribution in tissues or major blood vessels during infection. Significant differences were observed in the inflammatory response of macrophages in high- and low-infected individuals and in their susceptibility to the infection. In low-infected individuals, despite an early increase in macrophage number, a mild inflammatory response strongly associated with control of parasitaemia and survival to the infection was observed. Conversely, exclusively in high-infected individuals, we describe the occurrence of large, granular macrophages, reminiscent of foamy macrophages (Vallochi et al., 2018), characterised by a strong inflammatory profile and association to susceptibility to the infection. This is the first report of the occurrence of foamy macrophages during an extracellular trypanosome infection.

Results

Susceptibility of zebrafish larvae to T. carassii infection

We recently reported the establishment of a trypanosome infection in zebrafish larvae using a natural fish parasite, Trypanosoma carassii (Dóró et al., 2019). To further investigate the immune response to T. carassii infection, we first investigated the kinetics of susceptibility of zebrafish larvae as well as the kinetics of expression of various immune-related genes. Similar to the previous report, T. carassii infection of 5 dpf zebrafish larvae leads to approximately 10–20% survival by 15 days post infection (dpi) with the highest incidence of mortality between 4 and 7dpi (Figure 1A). The onset of mortality coincided with the peak of parasitaemia as assessed by real-time quantitative gene expression analysis of a T. carassii-specific gene (Figure 1B). Nevertheless, we consistently observed 10–20% survival in the T. carassii-infected group, suggesting that zebrafish larvae can control T. carassii infection. This observation prompted us to investigate the kinetics of parasitaemia and development of (innate) immune responses at the individual level.

T. carassii infection of larval zebrafish.

(A) Tg(mpeg1:mCherry-F;mpx:GFP) larvae (5 dpf) were injected intravenously with n = 200 T. carassii/fish or with PVP as control and survival was monitored over a period of 15 days. (B) Tg(mpeg1:mCherry-F;mpx:GFP) zebrafish (5 dpf) were treated as in A and sampled at various time points. At each time point, three pools of 3–5 larvae were sampled for real-time quantitative PCR analysis. Relative fold change of the T. carassii-specific heat-shock protein-70 (hsp70) was normalised to the zebrafish-specific ef1α and expressed relative to the trypanosome-injected group at time point zero. Bars indicate average and standard deviation (SD) on n = 3 pools per time point. Letters indicate significant differences (p<0.05), as assessed using One-way ANOVA followed by Tukey’s multiple comparisons test.

Clinical signs of T. carassii infection and clinical scoring system

To characterise the response to T. carassii infection in individual zebrafish larvae, we developed a clinical scoring system to determine individual infection levels, enabling us to group individual larvae based on severity of infection. From 4 dpi onwards, we could consistently sort larvae into groups of high- or low-infected individuals based on in vivo observations, without the need to sacrifice animals (Video 1). Infection levels were categorised using four criteria: (1) escape reflex (slow vs fast) upon contact with a pipette tip, (2) infection scores (1–10, see details in Materials and methods), based on the ratio of blood cells and parasites passing through an intersegmental capillary (ISC) in 100 events (Figure 2A,B) (Video 1, 00:06-00:39 s), (3) extravasation, based on the presence of parasites outside of blood vessels (Figure 2C) (Video 1, 00:40-1:20 s) and (4) vasodilation, based on the diameter of the caudal vein (Figure 2D,E). The first criterion defined all individuals with a minimal escape reflex (slow swimmers) as high-infected individuals: they were mostly located at the bottom of the tank and showed minimal reaction upon direct contact with a pipette. Larvae with a normal escape reflex (fast swimmers), however, were not exclusively low-infected individuals. Therefore, a second criterion was used based on trypanosome counting in ISC (Video 1, 00:06-00:39 s). Individuals with an infection score of 1 (no parasites) were never observed, indicating that larvae cannot clear the infection, at least not within 4 days. Individuals with an infection score between 2 and 3 (~80%, Figure 2F) were categorised as low-infected and had a high survival rate (relative percent survival, 82%; Figure 2G). Individuals with an infection score between 6 and 10 (~20%, Figure 2F) were categorised as high-infected and generally succumbed to the infection (Figure 2G). Individuals with an intermediate score of 4–5 (~5%, Figure 2F) were re-evaluated at 5 dpi and could go both ways: they either showed a delayed parasitaemia and later developed high parasitaemia (common) or recovered from the infection (rare). The third criterion clearly identified high-infected individuals as those showing extensive extravasation at two or more of the following locations: peritoneal cavity (Figure 2C) (Video 1, 00, 00:40-00:59 s), interstitial space lining the blood vessels, muscle tissue (Video 1, 00:00-01:07 s) or fins (Video 1, 01:08-01:20 s), in particular the anal fin. At these locations, in high-infected individuals, trypanosomes could accumulate in high numbers, filling up all available spaces. Extravasation however could also occur in low-infected individuals, but to a lesser extent. The fourth criterion, vasodilation of the caudal vein associated with high numbers of trypanosomes in the blood vessels, was a definitive sign of high infection level, and never occurred in low-infected larvae. To validate our scoring system, expression of a T. carassii-specific gene was analysed in pools of larvae classified as high- or low-infected. As expected, in individuals categorised as high-infected, T. carassii-specific gene expression increased more than 60-fold, whereas in low-infected individuals the increase was less than 20-fold (Figure 2H). Altogether these data show that T. carassii infects zebrafish larvae, but that the infection can develop differently among individuals, leading to different outcomes. The clinical scoring system based on numerous criteria is suitable to reliably separate high- and low-infected larvae to further investigate individual immune responses. A preliminary gene expression analysis of a panel of immune-related genes was performed on pools of larvae classified as high- or low-infected according to our clinical scoring system. Analysis revealed a general trend for higher pro-inflammatory genes expression, including il1b, tnfb, and il6, in the high-infected group, but due to the large variation between pools, the differences were not significant (Figure 2—figure supplement 1). Furthermore, it has to be considered that the analysis was performed on pools of whole larvae, which may have obscured tissue- or cell-specific responses. For these reasons, taking advantage of the transparency of zebrafish larvae and of the established clinical scoring system, subsequent characterisation of the inflammatory response to T. carassii infection, was performed on individual larvae, focusing on innate immune cells.

Figure 2 with 1 supplement see all
Progression of T.carassii infection in zebrafish larvae.

Tg(mpeg1:mCherry-F;mpx:GFP) 5 dpf zebrafish were injected intravenously with n = 200 T. carassii or with PVP and imaged at 2 dpi (A), 5 dpi (B-C), 7 dpi (D-E). Shown are representative images of intersegmental capillaries (ISC) containing various numbers of T. carassii (white arrows) (A-B); extravasated T. carassii (only some indicated with white arrows) in the intraperitoneal cavity (C); caudal vein diameter in PVP (D) or in T. carassii-infected larvae (E). Square brackets indicate the diameter of the caudal vein. Whenever visible, the caudal aorta is also indicated. Images are extracted from high-speed videos acquired with a Leica DMi8 inverted microscope at a ×40 magnification. (F) Tg(mpeg1:mCherry-F;mpx:GFP) were injected intravenously at 5 dpf with n = 200 T. carassii and at 4 dpi the number of low-infected (clinical scores 1–3) or high-infected (score 6–10) was determined. Larvae scored between 4 and 5 were re-evaluated at 5 dpi. The bar indicates the proportion of larvae assigned to each group out of a total of 350 infected individual. (G) Tg(mpeg1:mCherry-F;mpx:GFP) were injected intravenously at 5 dpf with n = 200 T. carassii or with PVP. At 4 dpi, larvae were separated in high- and low-infected individuals (50 larvae per group) based on our clinical scoring criteria and survival was monitored over a period of 14 days. (H) Tg(mpeg1:mCherry-F;mpx:GFP) were treated as described in (G). At each time point, three pools of 3–5 larvae were sampled for subsequent real-time quantitative gene expression analysis. Each data point represents the mean of three pools, except for the low-infected group at 16 dpi and high-infected group at 10 dpi where only two and one pool could be made, respectively. Relative fold change of the T. carassii-specific hsp70 was normalised relative to the zebrafish-specific ef1α housekeeping gene and expressed relative to the trypanosome-injected group at time point zero.

Figure 2—source data 1

Progression of T. carassii infection in zebrafish larvae.

https://cdn.elifesciences.org/articles/64520/elife-64520-fig2-data1-v2.xlsx
Video 1
Clinical signs of T. carassii infection in high- and low-infected zebrafish larvae.

Tg(mpeg1:mCherry-F;mpx:GFP) 5 dpf zebrafish were injected with n = 200 T. carassii or with PVP and imaged at various time points after infection. Shown are high-speed videos (500 frames/s, fps) or real-time videos (20 fps) capturing trypanosomes in vivo in blood or in tissues, as well as describing typical signs of anaemia and vasodilation.

T. carassii infection induces a strong macrophage response in zebrafish larvae

After having established a method to determine infection levels in each larva, we next investigated whether a differential innate immune response would be mounted in high- and low-infected fish. To this end, using double-transgenic Tg(mpeg1:mCherry-F;mpx:GFP) zebrafish, we first analysed macrophage and neutrophil responses in whole larvae by quantifying total cell fluorescence in high- and low-infected individuals (Figure 3). Total neutrophil response (total green fluorescence) was not significantly affected by the infection (Figure 3A and C). In contrast, the macrophage response (total red fluorescence) increased significantly in infected individuals from 3 dpi onwards, and was most prominent in the head region and along the posterior cardinal vein and caudal vein (Figure 3B). In low-infected larvae, a significant increase in red fluorescence was observed already by 5 dpi and remained high up until 9 dpi; in high-infected larvae, despite a marginal but not significant increase at 5 and 7 dpi, significant differences to the PVP group were observed at day nine after infection (Figure 3C). Interestingly, no significant differences were observed between high- or low-infected individuals, suggesting that despite the clear differences in trypanosome levels (Figure 2H), overall macrophages number appeared to be influenced more by the presence than by the total number of trypanosomes.

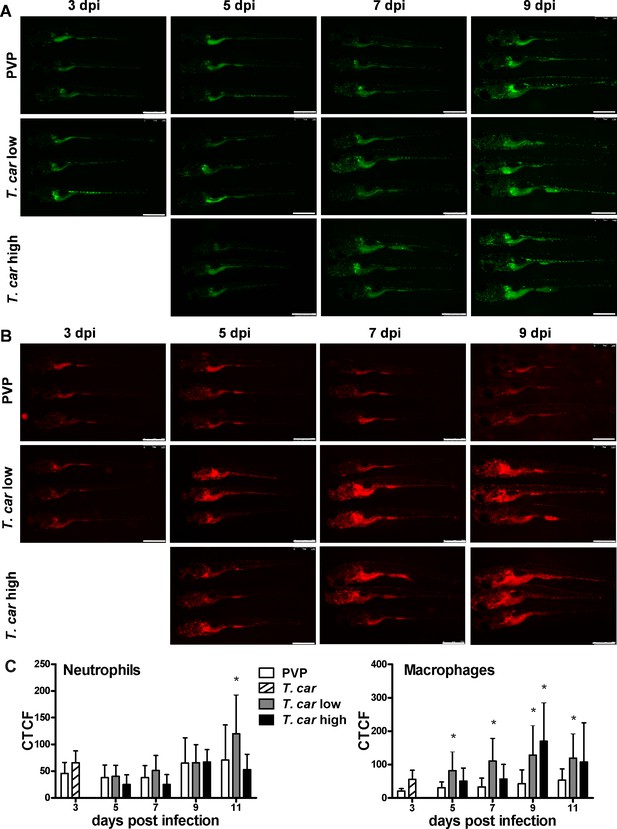

Macrophages respond more prominently than neutrophils to T. carassii infection.

Tg(mpeg1:mCherry-F;mpx:GFP) were injected intravenously at 5 dpf with n = 200 T. carassii or with PVP. At 4 dpi, larvae were separated in high- and low-infected individuals. (A–B) At the indicated time points, images were acquired with Leica M205FA Fluorescence Stereo Microscope with 1.79x zoom. Images are representatives of n = 5–47 larvae per group, depending on the number of high- or low-infected larvae categorised at each time point, derived from two independent experiments. Scale bar indicates 750 μm. (C) Corrected Total Cell Fluorescence (CTCF) quantification of infected and non-infected larvae. Owing to the high auto-fluorescence, the gut area was excluded from the total fluorescence signal as described in the Materials and methods section. Bars represent average and standard deviation of red and green fluorescence in n = 5–47 whole larvae, from two independent experiments. * indicates significant differences (p<0.05) to the respective PVP control as assessed by Two-Way ANOVA followed by Bonferroni post-hoc test.

Figure 3—source data 1

Macrophages respond more prominently than neutrophils to T. carassii infection.

https://cdn.elifesciences.org/articles/64520/elife-64520-fig3-data1-v2.xlsx

T. carassii infection leads to an increase in number of macrophages and neutrophils

The increase in overall red fluorescence can be indicative of activation of the mpeg1 promotor driving mCherry expression, but also of macrophage proliferation. To address the latter hypothesis, Tg(mpeg1:eGFP) or Tg(mpx:GFP) zebrafish larvae were infected with T. carassii, and subsequently injected with iCLICK EdU for identification of dividing cells. With respect to proliferation, developing larvae display a generalised high rate of cell division throughout the body that increases overtime particularly in hematopoietic organs such as the thymus or the head kidney. Thus, for a more sensitive quantification of the response of macrophages and neutrophils to the infection, EdU was injected at 3 dpi (8 dpf), and at 4 dpi, larvae were separated in high- and low-infected individuals, followed by fixation and whole mount immunohistochemistry 6–8 hr later (30–32 hr after EdU injection). This allowed evaluating the number of dividing macrophage and neutrophil right at the onset of the macrophage response observed in (Figure 3C) and concomitantly with the development of differences in parasitaemia. As expected, EdU+ nuclei could be identified throughout the body of developing larvae. When specifically looking at EdU+ macrophage (Figure 4) and neutrophils (Figure 5) we selected the area of the head (left panels) and trunk (right panels) region, where previously (Figure 3B) the highest increase in red fluorescence was observed.

Figure 4 with 1 supplement see all

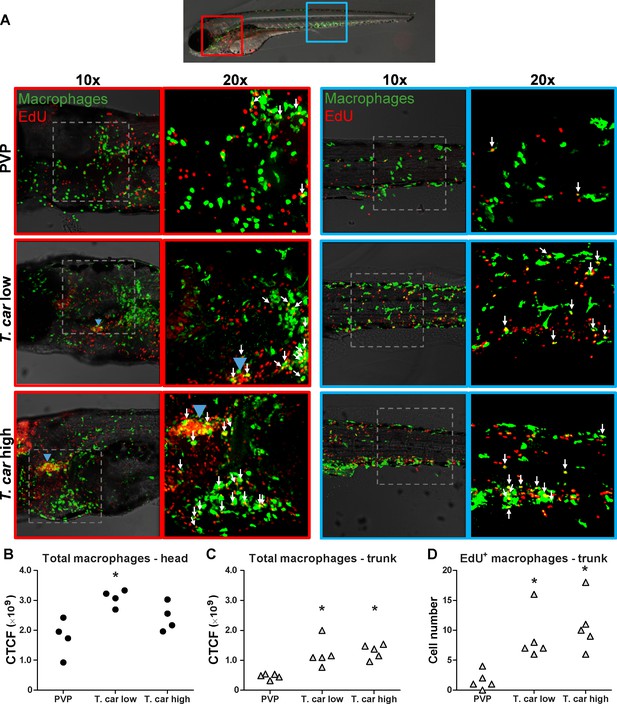

T. carassii infection triggers macrophage division.

(A) Tg(mpeg1:eGFP) zebrafish larvae were infected intravenously at 5 dpf with n = 200 T. carassii or with PVP control. At 3 dpi, larvae received 2 nl 1.13 mM iCLICKTM EdU, at 4 dpi were separated in high- and low-infected individuals and were imaged after fixation and whole mount immunohistochemistry 6–8 hr later (30–32 hr after EdU injection, ~9 dpf). Larvae were fixed and treated with iCLICK EdU ANDY FLUOR 555 (Red) development to identify EdU+ nuclei and with anti-GFP antibody to retrieve the position of macrophages, as described in the Materials and methods section. Larvae were imaged with Andor Spinning Disc Confocal Microscope using ×10 and ×20 magnifications. Maximum projections of the head (left panels, red boxes) and trunk (right panels, blue boxes) regions of one representative individual in PVP control, low- and high-infected zebrafish. Images capture macrophages (green) and EdU+ nuclei (red). In the PVP control group, EdU+ nuclei and GFP+ macrophages only rarely overlapped (white arrows, 20x), indicating limited proliferation of macrophages. In high- and low-infected individuals, the number of EdU+ macrophages increased (white arrows, 20x), indicating proliferation of macrophages in response to T. carassii infection. Blue arrowhead in the head of low and high-infected larvae, indicates the position of the thymus, an actively proliferating organ at this time point. The identification of EdU+ macrophages (white arrows) was performed upon detailed analysis of the separate stacks used to generate the overlay images, and are provided in Video 2. (B–C) Corrected total cell fluorescence (CTCF) calculated in the head (B) and trunk (C) region of larvae described in A. Symbols indicate individual larvae (n = 4–5 per group from two independent experiments). * indicates significant differences to the PVP control as assessed by One-Way ANOVA followed by Bonferroni post-hoc test. (D) Tg(mpeg1:eGFP) zebrafish larvae were treated as described in A and the number of EdU+ macrophages in the trunk region of PVP, low- and high-infected larvae was calculated. Symbols indicate individual larvae (n = 5 per group from two independent experiments). * indicates significant differences to the PVP control as assessed by One-Way ANOVA followed by Bonferroni post-hoc test.

Figure 4—source data 1

T. carassii infection triggers macrophage division.

https://cdn.elifesciences.org/articles/64520/elife-64520-fig4-data1-v2.xlsx

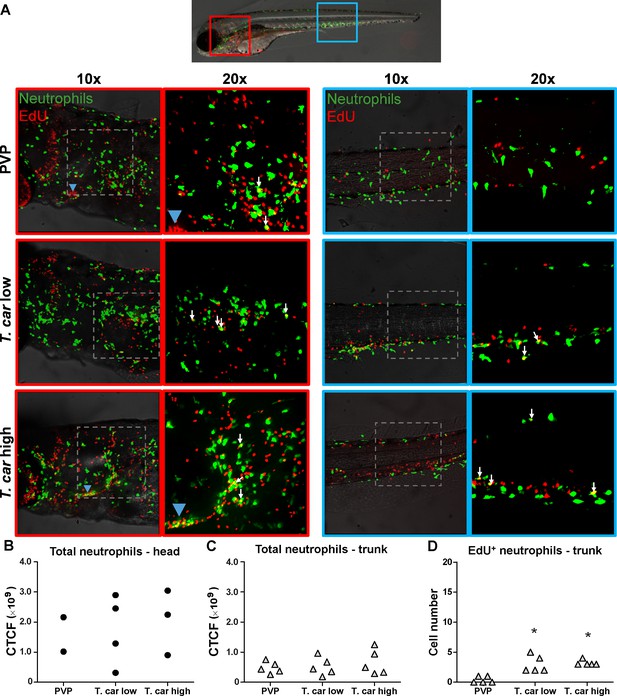

T. carassii infection triggers neutrophil division.

(A) Tg(mpx:GFP) were treated as described in Figure 4 (n = 4–5 larvae per group). Maximum projections of the head (left panels, red boxes) and trunk (right panels, blue boxes) regions of one representative individual in PVP, low- and high-infected zebrafish. Images capture neutrophils (green) and EdU+ nuclei (red). The images acquired at a ×20 magnification show that in all groups, EdU+ nuclei and GFP+ neutrophils only rarely overlapped (white arrows), and was marginally higher in infected than in non-infected PVP controls. Detailed analysis of the separate stacks selected to compose the overlay image of the head region of the high-infected larva (bottom left panel), revealed that none of the neutrophils in the area indicated by the blue arrowhead (thymus) were EdU+ (Video 3). (B–C) Corrected total cell fluorescence (CTCF) calculated in the head (B) and trunk (C) region of larvae described in A. Symbols indicate individual larvae (n = 4–5 per group from two independent experiments). ** indicates significant differences between CTCF in the head and trunk regions, as assessed by Two-Way ANOVA followed by Bonferroni post-hoc test. (D) Tg(mpx:GFP) were treated as described in A and the number of EdU+ neutrophils in the trunk region of PVP, low- and high-infected larvae was calculated. Symbols indicate individual larvae (n = 5 per group from two independent experiments). * indicates significant differences to the PVP control as assessed by One-Way ANOVA followed by Bonferroni post-hoc test.

Figure 5—source data 1

T. carassii infection triggers neutrophil division.

https://cdn.elifesciences.org/articles/64520/elife-64520-fig5-data1-v2.xlsx

When analysing the macrophage response, a greater number of macrophages was observed in the head and trunk of both high- and low-infected larvae compared to PVP-injected individuals (Figures 4A, ×10 magnifications). In the head, macrophages were scattered throughout the region but in infected larvae they were most abundant in the area corresponding to the haematopoietic tissue (head kidney), posterior to the branchial arches, indicative of proliferation of progenitor cells. In the trunk, macrophages were scattered throughout the tissue, and in high-infected larvae in particular, macrophages generally clustered in the posterior cardinal vein and caudal vein (Figure 4A, right panels). In agreement with previous observations (Figure 3C), quantification of total green fluorescence confirmed a significant increase in the head and trunk of low-infected larvae (Figure 4B–C). In high-infected individuals, a significant increase was observed in the trunk (Figure 4C), whereas in the head the number of macrophages was clearly elevated although not significantly when compared to the PVP-injected controls (Figure 4B). In all groups, total cell fluorescence in the head region was higher than in the trunk region (Figure 4B–C), and thus largely contributed to the total cell fluorescence previously measured in whole larvae (Figure 3C). The difference in CTCF values between Figure 3 and Figure 4 can be attributed to the different microscopes and magnification used for the acquisition as well as fluorescence source (GFP or mCherry in Figure 3 and Alexa-488 fluorophore in Figure 4). Given the high number of macrophages in the head region, their heterogeneous morphology, the thickness of the tissue and the overall high number of EdU+ nuclei, it was not possible to reliably count single (EdU+) macrophages in this area. Therefore, when quantifying the number of EdU + cells, we focused on the trunk region only. There, EdU+ macrophages could be observed in all groups, and in agreement with the total cell fluorescence measured in the same region (Figure 4C), their number was higher in low- and high-infected individuals compared to PVP-injected controls (Figure 4D and corresponding Video 2). No significant difference was observed between high- and low-infected fish, confirming that the macrophage number is affected by the presence and not by the number of trypanosomes. Within the trunk region of high-infected larvae, a large proportion of macrophages were observed around and inside the caudal vein, the majority of which were EdU+ (Figure 4—figure supplement 1A), suggesting that in high-infected larvae, recently divided macrophages migrated to the vessels. Altogether, these data confirm that T. carassii infection triggers macrophage division and that this is higher in infected compared to non-infected individuals, possibly due to a higher haematopoietic activity.

Video 2
T. carassii infection triggers macrophage division.

AVI files corresponding to the maximum projection images shown in Figure 5; Arrows are positioned as in Figure 5, and indicate the location of EdU+ macrophages.

When analysing the neutrophils response, in agreement with the previous observation, the number of neutrophils in the head and trunk regions was not apparently different between infected and non-infected larvae (Figure 5A). Neutrophils were scattered throughout the head region, but differently from macrophages, their number did not increase in the area corresponding to the haematopoietic tissue. Quantification of total cell fluorescence in the head and trunk revealed no significant differences between groups (Figure 5B–C, Video 3). Interestingly, quantification of EdU+ neutrophils in the trunk region, revealed that while in PVP-injected individuals EdU+ neutrophils were rarely observed, in infected fish, a significant, although low number of EdU+ neutrophils was present (Figure 5D). These data indicate that neutrophils also respond to the infection by dividing, but their number is relatively low and may not significantly contribute to changes in total cell fluorescence. In contrast to macrophages, within the analysed trunk region, neutrophils were never observed within the posterior cardinal vein or caudal vein, and independently of whether they were EdU+ or not, were mostly observed lining the vessel (Figure 4—figure supplement 1B). Altogether, these data indicate that, independent of the trypanosome number, T. carassii triggers a differential macrophage and neutrophil response, with a significant increase in macrophages number likely due to enhanced myelopoiesis.

Video 3
T. carassii infection triggers neutrophils division.

AVI files corresponding to the maximum projection images shown in Figure 6; Arrows are positioned as in Figure 6, and indicate the location of EdU+ neutrophils.

Differential distribution of neutrophils and macrophages in high- and low-infected zebrafish larvae

After having established that T. carassii infection triggers macrophage, and to a lesser extent, neutrophil division, we next investigated whether a differential distribution of these cells occurred during infection. Considering that trypanosomes are blood dwelling parasites and the kinetics of parasitaemia, we focused on the caudal vein at 4 dpi, a time point at which clear differences in parasitaemia (Figure 2) and a differential distribution of macrophages and neutrophils (Figures 45 and Figure 4—figure supplement 1) were observed between high- and low-infected larvae. To this end, crosses between transgenic lines marking the blood vessels and those marking either macrophages or neutrophils were used. Tg(kdrl:caax-mCherry;mpx:GFP) or Tg(fli1:eGFP x mpeg1:mCherry-F) were infected with T. carassii, separated into high- and low-infected larvae at 4 dpi, and imaged with Roper Spinning Disk Confocal Microscope using ×40 magnification. Longitudinal and orthogonal images were analysed to visualise the exact location of cells along the caudal vessels (Figure 6A and Video 4). In general, macrophages and neutrophils were never observed along or inside the caudal artery allowing us to focus on the caudal vein. In PVP controls, both macrophages and neutrophils were exclusively located outside the caudal vein in close contact with the endothelium or in the tissue adjacent the vessel. In infected fish, while neutrophils remained exclusively outside the vessels (Figure 6A, left panel and 7B), macrophages could be seen both inside (white arrows) and outside (blue arrows) the caudal vein (Figure 6A, right panel and Figure 6C, left plot). Whilst in low-infected individuals macrophage morphology was similar to that observed in non-infected fish, in high-infected larvae, macrophages inside the caudal vein clearly had a more rounded morphology (Figure 6A, right panel and Figure 6D, right plot). Altogether these data indicate that differently from neutrophils, macrophages increase in number in infected fish, are recruited inside the caudal vein and, depending on the infection level, their morphology can be greatly affected.

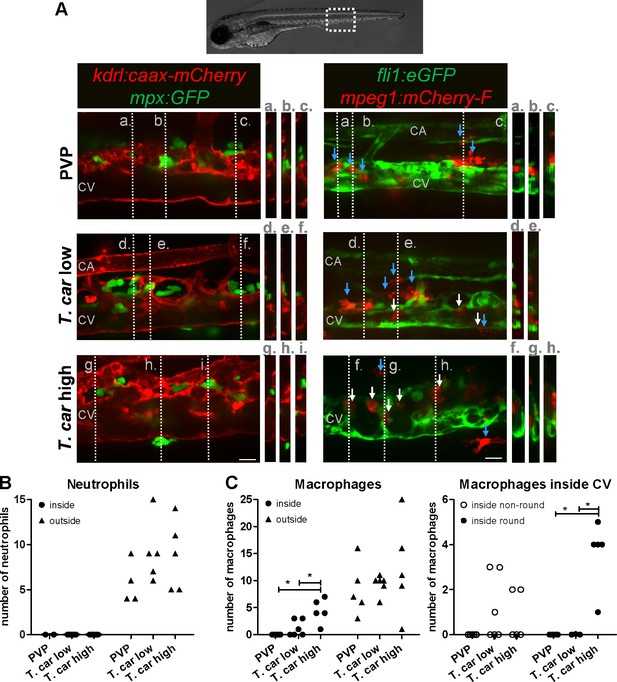

Macrophages are recruited into the cardinal caudal vein of high-infected zebrafish larvae.

Tg(kdrl:caax-mCherry;mpx:GFP) and Tg(fli1:eGFP x mpeg1:mCherry-F) zebrafish larvae were injected intravenously at 5 dpf with n = 200 T. carassii or with PVP. At 4 dpi larvae were separated in high- and low-infected groups and imaged with a Roper Spinning Disk Confocal Microscope using ×40 magnification. Scale bars indicate 25 μm. CA: caudal artery; CV: caudal vein. (A) Left panel: representative images of the longitudinal view of the caudal vessels (red), capturing the location of neutrophils (green). Orthogonal views of the locations marked with grey dashed lines (a,b,c,d,e,f,g,h,i), confirm that in all groups, neutrophils are present exclusively outside the vessels. Right panel: representative images of the longitudinal view of the vessels, capturing the position of macrophages (red) outside the vessels (blue arrowheads) or inside (white arrowheads) the caudal vein (green). Orthogonal views of the locations marked with grey dashed lines (a,b,c,d,e,f,g,h) confirm that in PVP controls, macrophages are present exclusively outside the vessels (blue arrows); in low-infected larvae, most macrophages are outside the vessels (blue arrows) having an elongated or dendritic morphology, although seldomly macrophages can also be observed within the caudal vein (white arrows); in high-infected larvae, although macrophages with dendritic morphology can be seen outside the vessels, the majority of the macrophages resides inside the caudal vein, clearly having a rounded morphology. Video 4 provides the stacks used for the orthogonal views. (B–C) quantification of the number of neutrophils (B) and macrophages (C) (left panel) inside or outside the caudal vein; of the macrophages observed inside in (C), we quantified the number of those with a round or non-round morphology C (right panel). Symbols indicate individual larvae (n = 4–6 larvae per group, from two independent experiments). * indicates significant differences as assessed by One-Way ANOVA, followed by Tukey’s post-hoc test.

Figure 6—source data 1

Macrophages are recruited into the cardinal caudal vein of high-infected zebrafish larvae.

https://cdn.elifesciences.org/articles/64520/elife-64520-fig6-data1-v2.xlsx
Video 4
Macrophages are recruited into the cardinal caudal vein of high-infected zebrafish larvae.

Zebrafish larvae were treated and imaged as described in Figure 7. Shown are the AVI files corresponding to the maximum projection images shown in Figure 7; Neutrophils were never observed within the vessel independently of the infection level (left panels). Macrophages, however, could be seen outside (blue arrows) and inside the vessel (white arrows). The number of rounded macrophages inside the vessel increased with the infection level.

T. carassii infection triggers the formation of foamy macrophages in high-infected zebrafish

When analysing macrophage morphology and location, clear differences could be observed between control and high- or low-infected larvae when examined in greater detail. In control fish, macrophages generally exhibited an elongated and dendritic morphology, were very rarely observed inside the caudal vein and were mostly located along the vessel endothelium, in the tissue between the caudal vessels or in the ventral fin (Figure 7A, left). A similar morphology and distribution were observed in low-infected larvae (not shown, see also Figure 6A). Strikingly, in high-infected larvae, we consistently observed large, dark, granular and round macrophages located inside the caudal vein generally on the dorsal luminal side. These dark macrophages were clearly visible already in bright-field images due to their size, colour, and location, and could be present as single cells or as aggregates (Figure 7A, right). The occurrence of these large, granular macrophages increased with the progression of the infection (Video 5) and was exclusive to high-infected individuals as they were never observed in low-infected or control larvae.

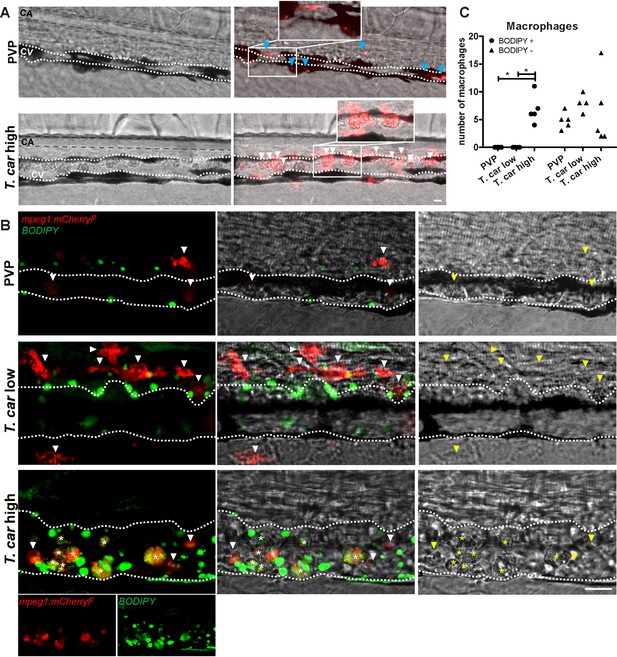

The large macrophages inside the caudal vein of high-infected zebrafish are foamy macrophages.

(A) Tg(mpeg1:mCherry-F;mpx:GFP) zebrafish larvae were infected intravenously at 5 dpf with n = 200 T. carassii or with PVP and imaged at 4 dpi using an Andor Spinning Disc Confocal Microscope at a ×20 magnification. Representative images from three independent experiments are shown, with blue arrowheads pointing at macrophages outside the caudal vein (CV) and white arrowheads indicating large round macrophages inside the caudal vein (white dashed line). Gray dashed line indicated the caudal aorta (CA). Note, how the large macrophages are readily visible in bright field images. Scale bar indicates 25 μm. (B) Tg(mpeg1:mCherry-F) were treated as in A (n = 5 larvae per group). At 3 dpi, larvae received 1 nl of 30 µM BODIPY-FLC5 and were imaged 18–20 hr later using a Roper Spinning Disc Confocal Microscope at a ×40 magnification. Representative images from three independent experiments are shown. *, indicate foamy macrophages: macrophages (red) that are also BODIPY+ (green). Note that foamy macrophages are present only in the vein of high-infected individuals. Arrowheads indicate non-foamy macrophages (BODIPY-). Scale bar indicates 25 μm. Video 6 provides the stacks used in B. (C) Tg(mpeg1:mCherry-F) were treated as in A and the number of macrophages positive for BODIPY was quantified. BODIPY+ macrophages are observed only in high-infected individuals. Symbols indicate individual larvae (n = 4–5 per group, from two independent experiments). * indicates significant differences as assessed by One-Way ANOVA, followed by Tukey’s post-hoc test.

Figure 7—source data 1

The large macrophages inside the caudal vein of high-infected zebrafish are foamy macrophages.

https://cdn.elifesciences.org/articles/64520/elife-64520-fig7-data1-v2.xlsx
Video 5
The occurrence of large granular macrophages increases with the progression of the infection in high-infected individuals.

Tg(mpeg1:mCherry-F;mpx:GFP) zebrafish larvae were injected intravenously at 5 dpf with n = 200 T. carassii or with PVP. At 4 dpi, larvae were separated into high- and low-infected individuals and imaged with a DMi8 inverted digital Leica microscope. The occurrence of large macrophages (arrows) in the cardinal caudal vessel increased with the progression of the infection and was exclusive to high infected individuals (4 and 7 dpi).

The rounded morphology, granularity, size and dark appearance of these cells was reminiscent of that of foamy macrophages. Therefore, to further investigate the nature of these cells, the green fluorescent fatty acid BODIPY-FLC5 was used to track lipid accumulation in infected larvae (Figure 7B). BODIPY-FLC5 was selected due to its ability to be actively metabolised in de novo triacylglycerides synthesis (Carten et al., 2011). This would not only lead to accumulation of the dye in cells with high lipid content, but its accumulation might also be indicative of a change in lipid metabolism, also typical of foamy macrophages. Interestingly, administration of BODIPY-FL5 in infected larvae one day prior to the expected appearance of the large macrophages, revealed the accumulation of lipids in these cells (Video 6). Quantification of the number of BODIPY+ and BODIPY- macrophages, confirmed that BODIPY+ macrophages occur only in high-infected individuals (Figure 7C). Macrophages without the large, dark, granular appearance did not show lipid accumulation, independently of the infection level (Figure 7B). These results therefore confirms that the large, rounded, granular macrophages in the caudal vein are indeed foamy macrophages.

Video 6
Large granular macrophages inside the vessel of high-infected larvae are rich in lipid bodies.

Tg(mpeg1:mCherry-F) zebrafish larvae were infected intravenously at five dpf with n = 200 T. carassii or with PVP. At 3 dpi, larvae received 1 nl of 30 µM BODIPY-FLC5 and were imaged 18–20 hr later using a Roper Spinning Disc Confocal Microscope at a ×40 magnification. The AVI files corresponding to the maximum projection images shown in Figure 8, as well as a second individual, are shown. Asterisks indicate the position of foamy macrophages inside the caudal vessel (dashed line).

Foamy macrophages have a pro-inflammatory activation state

To further investigate the activation state of foamy macrophages, we made use of the Tg(tnfa:eGFP-F;mpeg1:mCherry-F) and Tg(il1b:eGFP-F x mpeg1:mCherry-F) double transgenic zebrafish lines, having macrophages in red and tnfa- or Il1b-expressing cells in green (Figure 8 and Figure 9). We first focused on the time point at which the foamy macrophages were most clearly present in highly infected individuals, 4 dpi. Our results clearly show that all large foamy macrophages, were strongly positive for tnfa, suggesting an inflammatory activation state (Figure 8A). Interestingly, not only the large foamy macrophages within the caudal vein, but also dendritic or lobulated macrophages outside or lining the vessel showed various degrees of activation. Macrophages that were still partly in the caudal vein (Figure 8B, yellow arrowhead) displayed higher tnfa expression than macrophages lining the outer endothelium (white arrow heads). This could suggest that the presence of T. carassii components within the vessels might trigger macrophage activation.

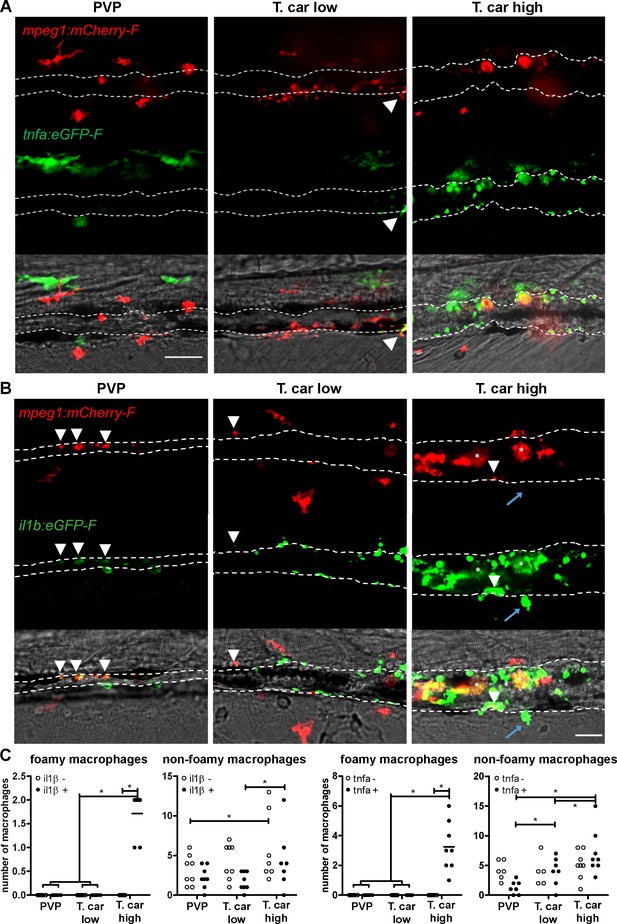

Foamy macrophages have an inflammatory profile.

Tg(tnfa:eGFP-F;mpeg1:mCherry-F) (A-B) or Tg(il1b:eGFP-F x mpeg1:mcherry-F) (C) zebrafish larvae (5dpf), were injected with n = 200 T. carassii or with PVP. At 4 dpi, high-infected individuals were imaged with an Andor (A-B) or Roper (C) Spinning Disk Confocal Microscope using ×40 magnification. Scale bar indicates 25 μm. Foamy macrophages (asterisks) were easily identified within the caudal vein (dashed lines) and were strongly positive for tnfa (A) and il1b (C) expression (GFP signal). (B) Same as A, but a few stacks up, focusing on the cells lining the endothelium. Macrophages that were partly inside and partly outside the vessel (yellow arrowhead) were also strongly positive for tnfa, whereas macrophages lining the outer endothelium had a lower tnfa expression (white arrowheads). (C) A foamy macrophage (asterisk) within the caudal vein (dashed lines) positive for il1b. Endothelial cells were also strongly positive for il1b, a selection of which is indicated by white arrows. A mCherry-negative-il1b positive cell is present outside the vessel (blue arrow). Given its position, it is likely a neutrophil.

Figure 9 with 1 supplement see all
High-infected zebrafish have a strong inflammatory profile.

Zebrafish larvae (5 dpf), either (A) Tg(tnfa:eGFP-F x mpeg1:mCherry-F) (n = 8–13 larvae per group from four independent experiments), or (B) Tg(il1b:eGFP-F;mpeg1:mCherry-F) (n = 7–8 larvae per group from two independent experiments), were infected as described in Figure 7. At 4 dpi, larvae were separated in high- and low-infected individuals and imaged with a Roper Spinning Disk Confocal Microscope. Scale bar indicate 25 μm. (A) In non-infected PVP controls (left panel), several macrophages can be observed outside the vessel but none was positive for tnfa. In low-infected individuals (middle panel), macrophages were present inside and outside the vessel. Except the occasional macrophage showing tnfa-eGFP expression (white arrowhead), they generally did not exhibit strong eGFP signal. In high-infected individuals however, foamy macrophages (asterisks) as well as endothelial cells (bright green cells) or other leukocytes, were strongly positive for tnfa-eGFP expression. (B) il1b-eGFP expression was generally low in non-infected PVP controls. In low-infected larvae, il1b-positive macrophages were rarely observed (white arrowhead). In both high- and low-infected fish, some endothelium cells in the cardinal caudal vein show high il1b-eGFP expression (bright green cells in middle and right panel). In high-infected individual, however (right panel), foamy macrophages inside the vessel (asterisks) as well as other macrophages lining the vessel (white arrowhead) and leukocytes in the tissue (blue arrow), were positive for il1b-eGFP expression. (C) Quantification of the total number of foamy and non-foamy macrophages and of the number of those that are positive or not for il1b or tnfa. All foamy macrophages are positive for il1b or tnfa, and high-infected individuals have generally a higher number of il1b or tnfa positive macrophages than low-infected or PVP individuals. *, indicate significant differences as assessed by Two-Way ANOVA followed by Bonferroni post-hoc test.

Figure 9—source data 1

High-infected zebrafish have a strong inflammatory profile.

https://cdn.elifesciences.org/articles/64520/elife-64520-fig9-data1-v2.xlsx

Similar to what observed for tnfa expression, all foamy macrophages within the caudal vein were also positive for il1b (Figure 8C, asterisk), confirming their pro-inflammatory profile. Interestingly, not only macrophages but also endothelial cells (a selection is indicated by white arrows) were strongly positive for il1b. Outside the vessel, cells that were mCherry negative but strongly positive for il1b could also be observed (Figure 8C, blue arrow); given their position outside the vessel, these are most likely neutrophils. Altogether these data indicate that foamy macrophages occur in high-infected larvae and have a strong pro-inflammatory profile.

High-infected zebrafish have a strong inflammatory profile associated with susceptibility to infection

When comparing the overall inflammatory state in high- and low-infected larvae it was apparent that high-infected individuals exhibited a higher pro-inflammatory response (Figure 9). Although tnfa- and il1b-positive macrophages could be seen in low-infected individuals, these were generally few (Figure 9A and Figure 9B middle panels, Figure 9C) and a higher number of tnfa- and il1b-expressing cells was observed in high-infected larvae (Figure 9A and Figure 9B right panels, Figure 9C). In these fish, il1b and tnfa expression was observed not only in (foamy) macrophages (asterisk), but also in mCherry negative cells outside the vessel (blue arrow, likely neutrophils) and in endothelial cells lining the caudal vein (bright green). To visualise how widespread the inflammatory response was in the embryo, the distribution of tnfa-expressing cells was analysed in four different locations spanning the entire trunk and tail of PVP, low- and high-infected individuals (Figure 9—figure supplement 1). In these images we appreciate that, in zebrafish as in mammals, tnfa expression (eGFP) is not exclusive to immune cells only. In fact, in infected as in non-infected individuals, low constitutive tnfa expression is observed in some skin keratinocytes, endothelial cells of the caudal vein and, as previously reported, also enterocytes in the gut villi (Marjoram et al., 2015; Nguyen-Chi et al., 2015); tnfa:eGFP+ leukocytes were easily distinguishable by their typical morphology and, in agreements with the distribution of macrophages and neutrophils observed in Figure 3, were present mostly in the trunk, distributed along the major vessels, and in the tail, along the tail tip loop and in the fin. Images were acquired with the same settings, thus allowing direct comparison of the intensity of the green signal. The images confirm that tnfa expression is strongly inducible in leukocytes and that not only the number of tnfa:eGFP+ cells but also the intensity of their eGFP signal is higher in high-infected compared to PVP or low-infected individuals. Thus, confirming the overall higher inflammatory state in high-infected individuals. Similar results were observed using the il1b:eGFP-F line (data not shown). Altogether, these results suggest that in high-infected individuals, uncontrolled parasitaemia leads to an exacerbated pro-inflammatory response associated with susceptibility to the infection. Low-infected individuals, however, with moderate il1b and tnfa responses, are able to control parasitaemia and to recover from the infection.

Discussion

In this study, we describe the differential response of macrophages and neutrophils in vivo, during the early phase of trypanosome infection of larval zebrafish. Considering the prominent role of innate immune factors in determining the balance between pathology and control of first-peak parasitaemia in mammalian models of trypanosomiasis (Magez and Caljon, 2011; Radwanska et al., 2018; Stijlemans et al., 2017), the use of transparent zebrafish larvae, devoid of a fully developed adaptive immune system, allowed us to investigate the early events of the innate immune response to T. carassii infection in vivo. After having established a clinical scoring system of infected larvae, we were able to consistently differentiate high- and low-infected individuals, each associated with opposing susceptibility to the infection. In high-infected larvae, which fail to control first-peak parasitaemia, we observed a strong inflammatory response associated with the occurrence of foamy macrophages and susceptibility to the infection. Conversely, in low-infected individuals, which succeeded in controlling parasitaemia, we observed a moderate inflammatory response associated with resistance to the infection. Altogether these data confirm that also during trypanosome infection of zebrafish, innate immunity is sufficient to control first-peak parasitaemia and that a controlled inflammatory response is beneficial to the host.

Using transgenic lines marking macrophages and neutrophils, total cell fluorescence and cell proliferation analysis revealed that T. carassii infection triggers macrophage division, particularly in low-infected individuals. Although to a much lesser extent, neutrophils also responded to the infection by dividing. The total number of neutrophils, however, was comparatively low and likely did not contribute to the total cell fluorescence measured in our whole larvae analysis. It cannot be excluded however, that neutrophils’ viability was affected by the infection and that the number of newly divided neutrophils is only slightly higher than the dying ones. Although neutrophils were recently implicated in promoting the onset of tsetse fly-mediated trypanosome infections in mouse dermis, macrophage-derived immune mediators, such as NO and TNFα were confirmed to played a more prominent role in the control of first-peak parasitaemia and in the regulation of the overall inflammatory response (Caljon et al., 2018).

The observation that in low-infected individuals the number of macrophages was significantly increased by 4–5 dpi, the time point at which clear differences in parasitaemia were apparent between the two infected groups, suggests a role for macrophages, or for macrophage-derived factors in first-peak parasitaemia control. Phagocytosis however, can be excluded as one of the possible contributing factors since motile T. carassii, similar to other extracellular trypanosomes (Caljon et al., 2018; Saeij et al., 2003; Scharsack et al., 2003), cannot be engulfed by any innate immune cell (Video 7). A strong inflammatory response is also not required for trypanosomes control, since in low-infected individuals, only moderate il1b or tnfα expression was observed, mostly in macrophages, as assessed using transgenic zebrafish reporter lines. Our data are in agreement with several previous studies using trypanoresistant (BALB/c) or trypanosusceptible (C57Bl/6) mice that revealed the double-edge sword of pro-inflammatory mediators such as TNFα or IFNγ during trypanosome infection in mammalian models (reviewed by Radwanska et al., 2018; Stijlemans et al., 2007). These studies showed that a timely but controlled expression of IFNγ, TNFα, and NO, contributed to trypanosomes control via direct (Daulouède et al., 2001; Iraqi et al., 2001; Lucas et al., 1994) or indirect mechanisms (Kaushik et al., 1999; Magez et al., 2007; Magez et al., 2006; Mansfield and Paulnock, 2005; Namangala et al., 2001; Noël et al., 2002). Conversely, in individuals in which an uncontrolled inflammatory response took place, immunosuppression and inflammation-related pathology occurred (Namangala et al., 2009; Namangala et al., 2001; Noël et al., 2004; Stijlemans et al., 2016). The stark contrast between the mild inflammatory response observed in low-infected individuals and the exacerbated response observed in high-infected larvae, strongly resembles the opposing responses generally observed in the aforementioned studies in mice. Owing to the possibility to monitor the infection at the individual level, it was possible to observe such responses within a population of outbred zebrafish larvae. Although we were unable to investigate the specific role of Tnfα during T. carassii infection of zebrafish, due to the unavailability of tnfα-/- zebrafish lines or the unsuitability of morpholinos for transient knock-down at late stages of development, we previously reported that recombinant zebrafish (as well as carp and trout) Tnfα, are all able to directly lyse T. brucei (Forlenza et al., 2009). In the same study, we reported that also during Trypanoplasma borreli (kinetoplastid) infection of common carp, soluble as well as transmembrane carp Tnfα play a crucial role in both, trypanosome control and susceptibility to the infection. Thus, considering the evolutionary conservation of the lectin-like activity among vertebrate’s TNFα (Daulouède et al., 2001; Forlenza et al., 2009; Lucas et al., 1994; Magez et al., 1997), it is possible that the direct lytic activity of zebrafish Tnfα may have played a role in the control of first-peak parasitaemia in low-infected individuals. In the future, using tnfα-/- zebrafish lines, possibly in combination with ifnγ reporter or ifnγ-/- lines, it will be possible to investigate in detail the relative contribution of these inflammatory mediators in the control of parasitaemia as well as onset of inflammation.

Video 7
Motile T. carassii cannot be engulfed by innate immune cells.

Tg(mpx:GFP) zebrafish larvae were injected intravenously at 5 dpf with n = 200 T. carassii and two infected individuals were imaged at 7 dpi with a DMi8 inverted digital Leica microscope. Note how motile parasites are relative to static neutrophils (GFP), making it impossible for neutrophils, or any other immune cell, to engulf live parasite.

There are multiple potential explanations for the inability of high-infected larvae to control parasitaemia and the overt inflammatory response. Using various comparative mice infection models, it became apparent that while TNFα production is required for parasitaemia control, a timely shedding of TNFα Receptor-2 (TNFR2) is necessary to limit TNFα-mediated infection-associated immunopathology (Radwanska et al., 2018). Furthermore, during T. brucei infection in mice and cattle, continuous cleavage of membrane glycosyl-phosphatidyl-inisotol (GPI)-anchored VSG (mVSG-GPI) leads to shedding of the soluble VSG-GIP (sVSG-GPI), while the di-myristoyl-glycerol compound (DMG) is left in the membrane. While the galactose-residues of sVSG-GPI constituted the minimal moiety required for optimal TNFα production, the DMG compound of mVSG contributed to macrophage overactivation (TNFα and IL-1β secretion) (Magez et al., 2002; Magez et al., 1998; Sileghem et al., 2001). Although T. carassii was shown to possess a surface dominated by GPI-anchored carbohydrate-rich mucin-like glycoproteins, not subject to antigenic variation (Lischke et al., 2000; Overath et al., 2001), components of its excreted/secreted proteome, together with phospholipase C-cleaved GPI-anchored surface proteins, have all been shown to play a role in immunogenicity (Joerink et al., 2007), inflammation (Oladiran and Belosevic, 2010; Oladiran and Belosevic, 2009; Ribeiro et al., 2010) as well as immunosuppression (Oladiran and Belosevic, 2012). Thus, the over-activation caused by the presence of elevated levels of pro-inflammatory trypanosome-derived moieties, combined with the lack of a timely secretion of regulatory molecules (e.g. soluble TNFR2) that could control the host response, may all have contributed to the exacerbated inflammation observed in high-infected individuals.

Given the differential response observed in low- and high-infected individuals, especially with respect to macrophage distribution and activation, we attempted to investigate the specific role of macrophages in the protection or susceptibility to T. carassii infection. To this end, the use of a cross between the Tg(mpeg1:Gal4FF)gl2 (Ellett et al., 2011) and the Tg(UAS-E1b:Eco.NfsB-mCherry)c26 (Davison et al., 2007) line, which would have allowed the timed metronidazole (MTZ)-mediated depletion of macrophages in zebrafish larvae, was considered. Unfortunately, in vitro analysis of the effect of MTZ on the trypanosome itself, revealed that trypanosomes are susceptible to MTZ, rendering the nfsB line not suitable to investigate the role of macrophages (nor neutrophils) during this particular type of infection. Alternatively, we attempted to administer liposome-encapsulated clodronate (Lipo-clodronate) as described previously (Nguyen-Chi et al., 2017; Phan et al., 2018; Travnickova et al., 2015). In our hands, however, administration of 5 mg/ml Lipo-clodronate (3 nl) to five dpf larvae (instead of 2–3 dpf larvae), led to the rapid development of oedema.

Besides differences between the overall macrophage and neutrophil (inflammatory) response, the differential distribution of these cells was also investigated in vivo during infection utilising the transparency of the zebrafish and the availability of transgenic lines marking the vasculature. Neutrophils were never observed inside the cardinal caudal vein although in infected individuals they were certainly recruited and were observed in close contact with the outer vessel’s endothelium. Conversely, macrophages could be seen both outside and inside the vessel and the total proportion differed between high- and low-infected individuals. While in low-infected individuals the majority of macrophages recruited to the cardinal caudal vein remained outside the vessel in close contact with the endothelium, in high-infected individuals the majority of macrophages were recruited inside the caudal vein and were tightly attached to the luminal vessel wall. To our knowledge, such detailed description of the relative (re)distribution of neutrophils and macrophages, in vivo, during a trypanosome infection, has not been reported before.

Interestingly, exclusively in high-infected individuals, by 4 dpi large, round, dark, and granular cells were observed, already under the bright field view, in the lumen of the cardinal caudal vein. These cells were confirmed to be foamy macrophages with high cytoplasmic lipid content. Foam cells, or foamy macrophages have been named after the lipid bodies accumulated in their cytoplasm leading to their typical enlarged morphological appearance (Dvorak et al., 1983), but are also distinguished by the presence of diverse cytoplasmic organelles (Melo et al., 2003). Foam cells have been shown to be typical of atherosclerotic plaques associated to various inflammatory metabolic diseases (e.g. hyperlipidemia, diabetes, insulin resistance and obesity) as well as cancer (e.g. Papillary renal cell carcinoma, Esophageal xanthoma and non-small cell lung carcinoma) and autoimmune diseases e.g. multiple sclerosis, systemic lupus erythematosus, rheumatoid arthritis (reviewed in Guerrini and Gennaro, 2019; Saka and Valdivia, 2012). Besides inflammatory diseases, they have also been associated with several (intracellular) infectious diseases, including Leishmaniasis, Chagas disease, experimental malaria, toxoplasmosis, tuberculosis and other intracellular bacterial infections (reviewed in Guerrini and Gennaro, 2019; López-Muñoz et al., 2018; Vallochi et al., 2018) but never before with (extracellular) trypanosome infection. For example, during T. cruzi infection of rat, increased numbers of activated monocytes or macrophages were reported in the blood or heart (Melo and Machado, 2001). Interestingly, trypanosome uptake was shown to directly initiate the formation of lipid bodies in macrophages, leading to the appearance of foamy macrophages (D'Avila et al., 2011). During human Mycobacterium tuberculosis infections, foamy macrophages play a role in sustaining the presence of bacteria and contribute to tissue cavitation enabling the spread of the infection (Russell et al., 2009). Independently of the disease, it is clear that foamy macrophages are generally associated with inflammation, since their cytoplasmic lipid bodies are a source of eicosanoids, strong mediators of inflammation (Melo et al., 2006; Wymann and Schneiter, 2008). In turn, inflammatory mediators such as Prostaglandin E2 benefit trypanosome survival, as shown in Trypanosoma, Leishmania, Plasmodium, and Toxoplasma infections (reviewed in Vallochi et al., 2018). Our results are consistent with these reports as we show the occurrence of foamy macrophages exclusively in individuals that developed high parasitaemia, characterised by a strong pro-inflammatory response, and ultimately succumbed to the infection. Although we did not systematically investigate the exact kinetics of parasitaemia development in correlation with foamy macrophages occurrence, during our in vivo monitoring, we consistently observed that the increase in trypanosome number preceded the appearance of foamy macrophages. It is possible that, in high-infected individuals, foamy macrophages are formed due to the necessity to clear the increasing concentration of circulating trypanosome-derived moieties or of dying trypanosomes. The interaction with trypanosome-derived molecules, including soluble surface (glyco)proteins or trypanosome DNA, may not only be responsible for the activation of pro-inflammatory pathways, but also for a change in cell metabolism. The occurrence of foamy macrophages has been reported for intracellular trypanosomatids (T. cruzi, Leishmania), and arachidonic acid-derived lipids were reported to act as regulators of the host immune response and trypanosome burden during T. brucei infections (López-Muñoz et al., 2018). To our knowledge, our study is the first to report the presence of foamy macrophages during an extracellular trypanosome infection.

The possibility to detect the occurrence of large, granular cells already in the bright field and the availability of transgenic lines that allowed us to identify these cells as macrophages, further emphasizes the power of the zebrafish model. It allowed us to visualise in vivo, in real time, not only their occurrence but also their differential distribution with respect to other macrophages or neutrophils. Observations that we might have missed if we for example were to bleed an animal, perform immunohistochemistry or gene expression analysis. Thus, the possibility to separate high- and low-infected animals without the need to sacrifice them, allowed us to follow at the individual level the progression of the infection and the ensuing differential immune response.

In the future, it will be interesting to analyse the transcription profiles of sorted macrophage populations from low- and high-infected larvae. Given the marked heterogeneity in macrophage activation observed especially within high-infected individuals, single-cell transcriptome analysis, of foamy macrophages in particular, may provide insights in the differential activation state of the various macrophage phenotypes. Furthermore, the zebrafish has already emerged as a valuable animal model to study inflammation and host-pathogen interaction and can be a powerful complementary tool to examine macrophage plasticity and polarisation in vivo, by truly reflecting the complex nature of the environment during an ongoing infection in a live host. Finally, the availability of (partly) transparent adult zebrafish lines (Antinucci and Hindges, 2016; White et al., 2008), may aid the in vivo analysis of macrophage activation in adult individuals.

Altogether, in this study, we describe the innate immune response of zebrafish larvae to T. carassii infection. The transparency and availability of various transgenic zebrafish lines, enabled us to establish a clinical scoring system that allowed us to monitor parasitaemia development and describe the differential response of neutrophils and macrophages at the individual level. Interestingly, for the first time in an extracellular trypanosome infection, we report the occurrence of foamy macrophages, characterised by a high-lipid content and strong inflammatory profile, associated with susceptibility to the infection. Our model paves the way to investigate which mediators of the trypanosomes are responsible for the induction of such inflammatory response as well as study the conditions that lead to the formation of foamy macrophages in vivo.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Gene (Danio rerio)elongation factor-1α (ef1a)DOI:10.7554/eLife.48388ZDB-GENE-990415–52template for primers for RQ-PCR analysis
Gene (Danio rerio)interleukin-1 beta (il1β)ZFIN.orgZDB-GENE-040702–2template for primers for RQ-PCR analysis
Gene (Danio rerio)interleukin-10 (il10)ZFIN.orgZDB-GENE-051111–1template for primers for RQ-PCR analysis
Gene (Danio rerio)tumor necrosis factor alpha, gene a (tnfa)ZFIN.orgZDB-GENE-050317–1template for primers for RQ-PCR analysis
Gene (Danio rerio)tumor necrosis factor alpha, gene b (tnfb)ZFIN.orgZDB-GENE-050601–2template for primers for RQ-PCR analysis
Gene (Danio rerio)interleukin-6 (il6)ZFIN.orgZDB-GENE-120509–1template for primers for RQ-PCR analysis
Gene (Trypanosoma carassii)heat-shock protein-70 (hsp70)DOI:10.7554/eLife.48388GeneBank-FJ970030.1template for primers for RQ-PCR analysis
Strain, strain background
(Cyprinus carpio)
Wild type common carp, R3xR8 strainDOI:10.1016/0044-8486(95)91961 Tused to passage Trypanosoma carassii in vivo
Strain, strain background (Danio rerio)Wild type zebrafish, AB strainZebrafish International Resource CenterRRID:SCR_005065; Cat#ZL1used for backcrossing of all Tg
Strain, strain background (Danio rerio)casper strainDOI:10.1016/j.stem.2007.11.002optically transparent
Strain, strain background (Danio rerio)AB:Tg(mpx:GFP)i114DOI:10.1182/blood-2006-05-024075wild type line marking neutrophils with green fluorescent protein (GFP) under the control of thempx (myeloperoxidase) promotor
Strain, strain background (Danio rerio)Tg(mpeg1:mCherry-F)ump2TgDOI:10.1242/dmm.014498wild type line marking macrophages with farnesylated red fluorescent protein (mCherry) under the control of the mpeg1 (Macrophage expressed gene-1) promotor
Strain, strain background (Danio rerio)Tg(mpeg1:eGFP)gl22DOI:10.1182/blood-2010-10-314120wild type line marking macrophages with green fluorescent protein (GFP) under the control of the mpeg1 (Macrophage expressed gene-1) promotor
Strain, strain background (Danio rerio)AB:Tg(kdrl:caax-mCherry)DOI:10.1101/gad.1629408.734wild type line marking the vasculature with green fluorescent protein (GFP) under the control of the kdrl (Vascular endothelial growth factor receptor kdr-like) promotor. Old name: Tg(flk1:ras-cherry)s896
Strain, strain background (Danio rerio)casper Tg(fli:egfp)y1DOI:10.1038/nrg888optically transparent line, marking the vasculature with green fluorescent protein (GFP) under the control of the endothelial cell marker fli1 (friend leukemia integration-1) promotor
Strain, strain background (Danio rerio)Tg(il1b:eGFP-F)ump3TgDOI:10.1242/dmm.014498wild type line marking tnfa-expressing cells with farnesylated green fluorescent protein (GFP-F) under the control of the zebrafish tnfa (tumor necrosis factor alpha a) promotor
Strain, strain background (Danio rerio)Tg(tnfa:eGFP-F)ump5TgDOI:10.7554/eLife.07288wild type line marking il1b-expressing cells with farnesylated green fluorescent protein (GFP-F) under the control of the zebrafish il1b (interleukin 1-beta) promotor
Strain, strain background (Trypanosoma carassii)TsCc-NEM straindoi:10.1007/s004360050408
AntibodyChicken polyclonal anti-GFPAves LabsCat# GFP-1010, RRID:AB_2307313primary antibody, whole mount: 1:500
AntibodyGoat polyclonal anti-chicken-Alexa 488AbcamCat# ab150169, RRID:AB_2636803Secondary antibody, whole mount: 1:500
Chemical compound, drugBODIPYTM FL pentanoic acidInvitrogenBODIPY-FL5: Cat# D-3834
Commercial assay or kitiCLICKTM EdU (5- ethynyl-2’- deoxyuridine, component A)ABP BiosciencesANDY FLUOR 555 Imaging Kit: Cat# A004

Zebrafish lines and maintenance

Request a detailed protocol

Zebrafish were kept and handled according to the Zebrafish Book (zfin.org) and local animal welfare regulations of The Netherlands. Zebrafish embryo (0–5 days post fertilisation (dpf)) were raised at 27°C with a 12:12 light-dark cycle in egg water (0.6 g/L sea salt, Sera Marin, Heinsberg, Germany) and at five dpf transferred to E2 water (NaCl 15 mM, KCl 0.5 mM, MgSO4 1 mM, KH2PO40.15 mM, Na2HPO40.05 mM, CaCl 1 mM, NaHCO30.7 mM). From 5 days post fertilisation (dpf) until 14 dpf larvae were fed Tetrahymena once a day. From 10 dpf, larvae were also daily fed dry food ZM-100 (ZM systems, UK). The following zebrafish lines or crosses thereof were used in this study: transgenic Tg(mpx:GFP)i114 (Renshaw et al., 2006) marking neutrophils, Tg(kdrl:hras-mCherry)s896 referred as Tg(kdrl:caax-mCherry) (Chi et al., 2008; Jin et al., 2005) and Tg(fli1:eGFP)y1 (Lawson and Weinstein, 2002) marking the vasculature, Tg(mpeg1:eGFP)gl22 (Ellett et al., 2011) and Tg(mpeg1:mCherry-F)ump2Tg marking macrophages, Tg(il1b:eGFP-F)ump3Tg, (Nguyen-Chi et al., 2014), Tg(tnfa:eGFP-F)ump5Tg(Nguyen-Chi et al., 2015) marking cytokine-expressing cells. The latter three transgenic zebrafish lines express a farnesylated (membrane-bound) mCherry (mCherry-F) or eGFP (eGFP-F) under the control of the mpeg1, il1b or tnfa promoter, respectively. All lines have a AB (wild type) background except for the Tg(fli1:eGFP)y1 which was kept as optically transparent casper line (White et al., 2008) and crossed with the specified lines.

Trypanosoma carassii culture and infection of zebrafish larvae

Request a detailed protocol

Trypanosoma carassii (strain TsCc-NEM) was cloned and characterised previously (Overath et al., 1998) and maintained in our laboratory by syringe passage through common carp (Cyprinus carpio) as described previously (Dóró et al., 2019). Blood was drawn from infected carp and kept at 4°C overnight in siliconised tubes. Trypanosomes enriched at the interface between the red blood cells and plasma were collected and centrifuged at 800 xg for 8 min at room temperature. Trypanosomes were resuspended at a density of 5 × 105–1×106 ml and cultured in 75 or 165 cm2 flasks at 27°C without CO2 in complete medium as described previously (Dóró et al., 2019). T. carassii were kept at a density below 5 × 106/ml, and sub-cultured 1–3 times a week. In this way T. carassii could be kept in culture without losing infectivity for up to 2 months. The majority of carp white blood cells present in the enriched trypanosome fraction immediately after isolation, died within the first 3–5 days of culture and any remaining blood cell was removed prior to T. carassii injection into zebrafish. To this end, cells were centrifuged at 800 xg for 5 min in a 50 ml Falcon tube and the tube was subsequently tilted in a 20° angle in relation to the table surface, facilitating the separation of the motile trypanosomes along the conical part of the tube from the static pellet of white blood cells at the bottom of the tube.

For zebrafish infection, trypanosomes were cultured for 1 week and no longer than 3 weeks. Infection of zebrafish larvae was performed as described previously (Dóró et al., 2019). Briefly, prior to injection, 5 days post fertilisation (dpf) zebrafish larvae were anaesthetised with 0.017% Ethyl 3-aminobenzoate methanesulfonate (MS-222, Tricaine, Sigma-Aldrich) in egg water. T. carassii were resuspended in 2% polyvinylpyrrolidone (PVP, Sigma-Aldrich) and injected (n = 200) intravenously in the Duct of Cuvier. After injection, infected and non-infected larvae were kept in separate tanks at a density of 60 larvae per 1L water.

Clinical scoring system of the severity of infection

Request a detailed protocol

Careful monitoring of the swimming behaviour of zebrafish larvae after infection (five dpf onwards) as well as in vivo observation of parasitaemia development in transparent larvae, led to the observation that from 4 dpi onwards larvae could generally be segregated into high- and low-infected individuals. To objectively assign zebrafish to either one of these two groups, we developed a clinical scoring system (Figure 10). The first criterion looked at the escape reflex upon contact with a pipette and was sufficient to identify high-infected individuals as those not reacting to the pipet (slow swimmers). To categorise the remaining individuals, a second criterion based on counting parasite:blood cell ratios in 100 events passing through the intersegmental capillary (ISC) above the cloaca was developed. The infection scores on a scale from 1 to 10 were assigned as follows: 1 = no parasites observed, 2 = 1–10% parasite, 3 = 11–20% parasite, 4 = 21–30% parasite, 5 = 31–40% parasite, 6 = 41–55% parasite, 7 = 56–70% parasite, 8 = 71–85% parasite, 9 = 86–99%, 10 = no blood cells observed. Larvae with infection scores between 1–3 were categorised as low-infected while scores between 6 and 10 were categorised as high infected. Larvae with scores 4–5 were reassessed 1 day later, at 5 dpi, and then categorised as high- or low-infected. Since handing may affect larval behaviour or overall gene expression, larvae with scores 4–5 were re-assessed at 5 dpi only when image analysis was performed and not when survival or gene expression analysis were carried out. Larvae with a score of 1 (no parasites observed in ISC) where immediately assessed using the third criterion (extravasation, see below) and were never found to be parasite-free. Thus, remained assigned to the low-infected group. Next to that, heartbeat of the larvae was monitored and noted if it was slower than the control. The third criterion considered extravasation and the location of extravasated parasites (e.g. fins, muscle, intraperitoneal cavity, and interstitial space lining the blood vessels). Finally, for the fourth criterion the diameter of the caudal vein in the trunk area after the cloaca region was measured in ImageJ 1.49o to quantify the degree of vasodilation. Eventual blockage of tail tip vessel-loop was also noted. In general, the swimming behaviour of larvae was observed and compared to the control group.

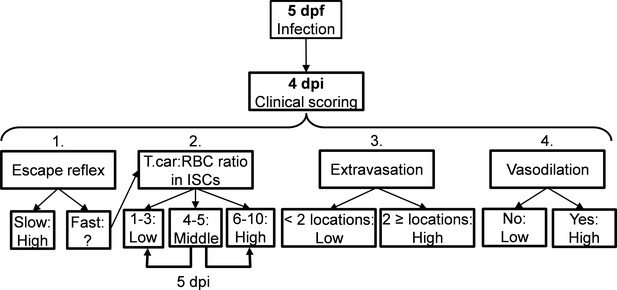

Schematic overview of the clinical scoring system used to determine individual infection levels of T.carassii-infected zebrafish larvae.

Zebrafish larvae infected with T. carassii can be analysed at 4 dpi; based on up to four different parameters including (1) visual monitoring of larval behaviour, (2) parasite numbers, (3) location, or (4) vasodilation, larvae could be segregated into high- and low-infected individuals. See details in the text in the corresponding Materials and methods section.

Real-time quantitative PCR

Request a detailed protocol

Zebrafish were sacrificed by an overdose of MS-222 anaesthetic (50 mg/L). At each time point, 3–6 zebrafish larvae were sacrificed and pooled. The control at time point zero, was a group of larvae injected with n = 200 T. carassii and immediately sacrificed. Pools were transferred to RNA later (Ambion), kept at 4°C overnight and then transferred to −20°C for further storage. Total RNA isolation was performed with the Qiagen RNeasy Micro Kit (QIAgen, Venlo, The Netherlands) according to manufacturer’s protocol. Next, 250–500 ng total RNA was used as template for cDNA synthesis using SuperScript III Reverse Transcriptase and random hexamers (Invitrogen, Carlsbad, CA, USA), following the manufacturer’s instructions with an additional DNase step using DNase I Amplification Grade (Invitrogen, Carlsbad, CA, USA). cDNA was then diluted 25 times to serve as template for real-time quantitative PCR (RT-qPCR) using Rotor-Gene 6000 (Corbett Research, QIAgen), as previously described (Forlenza et al., 2012). Primers (Table 1) were obtained from Eurogentec (Liège, Belgium). Gene expression was normalised to the expression of elongation factor-1 alpha (ef1a) housekeeping gene and expressed relative to the T. carassii-injected control at 0 dpi.

Table 1
List of primers used in this study.
Gene nameFw primer sequenceRV primer sequenceAcc. number (zfin.org)
ef1aCTGGAGGCCAGCTCAAACATATCAAGAAGAGTAGTAGTACCGZDB-GENE-990415–52
il1βTTGTGGGAGACAGACAGTGCGATTGGGGTTTGATGTGCTTZDB-GENE-040702–2
il10ACTTGGAGACCATTCTGCCCACCATATCCCGCTTGAGTTZDB-GENE-051111–1
tnfaAAGTGCTTATGAGCCATGCCTGTGCCCAGTCTGTCTCZDB-GENE-050317–1
tnfbAAACAACAAATCACCACACCACACAAAGTAAAGACCATCCZDB-GENE-050601–2
il6ACTCCTCTCCTCAAACCTCATCTCTCCGTCTCTCACZDB-GENE-120509–1
T. car. hsp70CAGCCGGTGGAGCGCGTAGTTCCTTGCCGCCGAAGAFJ970030.1 (GeneBank)

In vivo imaging and videography of zebrafish

Request a detailed protocol

Prior to imaging, zebrafish larvae were anaesthetised with 0.017% MS-222 (Sigma-Aldrich). For total fluorescence acquisition, double transgenic Tg(mpeg1:mCherry-F;mpx:GFP) were positioned on preheated flat agar plates (1% agar in egg water with 0.017% MS-222) and imaged with Fluorescence Stereo Microscope (Leica M205 FA). The image acquisition settings were as following: Zoom: 2.0–2.2, Gain: 1, Exposure time (ms): 70 (BF)/700 (GFP)/1500 (mCherry), Intensity: 60 (BF)/700 (GFP)/700 (mCherry), Contrast: 255/255 (BF)/70/255 (GFP)/15/255 (mCherry).

Alternatively, anaesthetised larvae were embedded in UltraPure LMP Agarose (Invitrogen) and positioned on the coverglass of a 35 mm petri dish, (14 mm microwell, coverglass No. 0 (0.085–0.13 mm), MatTek corporation) prior to imaging. A Roper Spinning Disk Confocal (Yokogawa) on Nikon Ti Eclipse microscope with 13 × 13 Photometrics Evolve camera (512 × 512 Pixels 16 × 16 micron) equipped with a 40x (1.30 NA, 0.24 mm WD) OI objective, was used with the following settings: GFP excitation: 491 nm, emission: 496–560 nm, digitizer: 200 MHz (12-bit); 561 BP excitation: 561 nm; emission: 570–620 nm, digitizer: 200 MHz (12-bit); BF: digitizer: 200 MHz (12-bit). Z-stacks of 1 or 0.5 µm. An Andor-Revolution Spinning Disk Confocal (Yokogawa) on a Nikon Ti Eclipse microscope with Andor iXon888 camera (1024 × 1024 Pixels 13 × 13 micron) equipped with 40x (0.75 NA, 0.66 mm WD) objective, 40x (1.15 NA, 0.61–0.59 mm WD) WI objective, 20x (0.75 NA, 1.0 mm WD) objective and 10x (0.50 NA, 16 mm WD) objective was used with the following settings: dual pass 523/561: GFP excitation: 488 nm, emission: 510–540 nm, EM gain: 20–300 ms, digitizer: 10 MHz (14-bit); RFP excitation: 561 nm; emission: 589–628 nm, EM gain: 20–300 ms, digitizer: 10 MHz (14-bit); BF DIC EM gain: 20–300 ms, digitizer: 10 MHz (14-bit). Z-stacks of 1 µm. A Zeiss lsm-510 confocal microscope equipped with 20x long-distance objective was used with the following settings: laser excitation = 488 nm with 73% transmission; HFT filter = 488 nm; BP filter = 505–550; detection gain = 800; amplifier offset = −0.01; amplifier gain = 1.1; bright field channel was opened with Detection Gain = 130; frame size (pixels) = 2048×2048; pinhole = 300 (optical slice < 28.3 μm, pinhole ø = 6.26 airy units). Images were analysed with ImageJ-Fijii (version 1.52 p).

High-speed videography of T. carassii swimming behaviour in vivo was performed as described previously (Dóró et al., 2019). Briefly, the high-speed camera was mounted on a DMi8 inverted digital microscope (Leica Microsystems), controlled by Leica LASX software (version 3.4.2.) and equipped with 40x (NA 0.6) and 20x (NA 0.4) long distance objectives (Leica Microsystems). For high-speed light microscopy a (eight bits) EoSens MC1362 (Mikrotron GmbH, resolution 1280 × 1024 pixels), with Leica HC 1x Microscope C-mount Camera Adapter, was used, controlled by XCAP-Std software (version 3.8, EPIX inc). Images were acquired at a resolution of 900 × 900 or 640 × 640 pixels. Zebrafish larvae were anaesthetised with 0.017% MS-222 and embedded in UltraPure LMP Agarose (Invitrogen) on a microscope slide (1.4–1.6 mm) with a well depth of 0.5–0.8 mm (Electron Microscopy Sciences). Upon solidification of the agarose, the specimen was covered with 3–4 drops of egg water containing 0.017% MS-222, by a 24 × 50 mm coverslip and imaged immediately. For all high-speed videography, image series were acquired at 480–500 frames per second (fps) and analysed using a PFV software (version 3.2.8.2) or MiDAS Player v5.0.0.3 (Xcite, USA).

Fluorescence quantification

Request a detailed protocol

Quantification of total cell fluorescence in zebrafish larvae was performed in ImageJ (version 1.49o) using the free-form selection tool and by accurately selecting the larvae area. Owing to the high auto-fluorescence of the gut or gut content, and large individual variation, the gut area was excluded from the total fluorescence signal. Area integrated intensity and mean grey values of each selected larva were measured by the software. To correct for the background, three consistent black areas were selected in each image. Analysis was performed using the following formula: corrected total cell fluorescence (CTCF) = Integrated density – (Area X Mean background value).

EdU proliferation assay and immunohistochemistry

Request a detailed protocol

iCLICK EdU (5- ethynyl-2’- deoxyuridine, component A) from ANDY FLUOR 555 Imaging Kit (ABP Biosciences) at a stock concentration of 10 mM, was diluted in PVP to 1.13 mM. Infected Tg(mpeg1:eGFP) or Tg(mpx:GFP) larvae were injected in the heart cavity at 3 dpi (8dpf) with 2 nl of solution, separated in high- and low-infected individuals at 4 dpi and euthanised 6–8 hr later (30–32 hr after EdU injection) with an overdose of anaesthetic (0.4% MS-222 in egg water). Following fixation in 4% paraformaldehyde (PFA, Thermo Scientific) in PBS, o/n at 4°C, larvae were washed three times in buffer A (0.1% (v/v) tween-20, 0.05% (w/v) azide in PBS), followed by dehydration: 50% MeOH in PBS, 80% MeOH in H20 and 100% MeOH, for 15 min each, at room temperature (RT), with gentle agitation. To remove background pigmentation, larvae were incubated in bleach solution (5% (v/v) H2O2 and 20% (v/v) DMSO in MeOH) for 1 hr at 4°C, followed by rehydration: 100% MeOH, 80% MeOH in H2O, 50% MeOH in PBS for 15 min each, at room temperature (RT), with gentle agitation. Next, larvae were incubated three times for 5 min each in buffer B (0.2%(v/v) triton-x100, 0.05% azide in PBS) at RT with gentle agitation followed by incubation in EdU iCLICK development solution for 30 min at RT in the dark and three rapid washes with buffer B.

The described EdU development led to loss of GFP signal in the transgenic zebrafish. Therefore, to retrieve the position of neutrophils or macrophages, wholemount immunohistochemistry was performed. Larvae were blocked in 0.2% triton-x100, 10% DMSO, 6% (v/v) normal goat serum and 0.05% azide in PBS, for 3 hr, at RT with gentle agitation. Next, the primary antibody Chicken anti-GFP (Aves labs.Inc, 1:500) in Antibody buffer (0.2% tween-20, 0.1% heparin, 10% DMSO, 3% normal goat serum and 0.05% azide in PBS) was added and incubated overnight (o/n) at 37°C. After three rapid and three 5 min washes in buffer C (0.1% tween-20, 0.1% (v/v) heparin in PBS), at RT with gentle agitation, the secondary antibody goat anti-chicken-Alexa 488 (Abcam, 1:500) was added in Antibody buffer and incubated o/n at 37°C. After three rapid and three 5 min washes in buffer C, at RT with gentle agitation, larvae were imaged with Andor Spinning Disk Confocal Microscope.

BODIPY injection

Request a detailed protocol

BODIPY FL pentanoic acid (BODIPY-FL5, Invitrogen) was diluted in DMSO to a 3 mM stock solution. Stock solution was diluted 100x (30 µM) with PVP. Infected larvae 3 dpi (8 dpf) were injected with 1 nl of the solution i.p. (heart cavity) and imaged 18–20 hr later.

Statistical analysis

Request a detailed protocol

Analysis of gene expression and total fluorescence data were performed in GraphPad PRISM 5. Statistical analysis of gene expression data was performed on Log(2) transformed values by One-way ANOVA followed by Tukey’s or Bonferroni multiple comparisons test. Analysis of Corrected Total Cell Fluorescence was performed on Log(10) transformed values followed by Two-Way ANOVA and Bonferroni multiple comparisons post-hoc test. Analysis of EdU+ macrophages was performed on Log(10) transformed values followed by One-way ANOVA and Bonferroni multiple comparisons post-hoc test. In all cases, p<0.05 was considered significant.

Data availability

All data generated or analyzed during this study are included in the manuscript and supporting files. Source data files have been provided for Figures 1, 2, 4, 5, 6, 7, and 9.

References

    1. Dvorak AM
    2. Dvorak HF
    3. Peters SP
    4. Shulman ES
    5. MacGlashan DW
    6. Pyne K
    7. Harvey VS
    8. Galli SJ
    9. Lichtenstein LM
    (1983)
    Lipid bodies: cytoplasmic organelles important to arachidonate metabolism in macrophages and mast cells
    Journal of Immunology 131:2965–2976.
  1. Conference
    1. Joerink M
    2. Saeij J
    3. Stafford J
    4. Belosevic M
    5. Wiegertjes G
    (2004)
    Animal models for the study of innate immunity: protozoan infections in fish
    Symposia of the Society for Experimental Biology. pp. 67–89.
    1. Krettli AU
    2. Weisz-Carrington P
    3. Nussenzweig RS
    (1979)
    Membrane-bound antibodies to bloodstream Trypanosoma cruzi in mice: strain differences in susceptibility to complement-mediated lysis
    Clinical and Experimental Immunology 37:416–423.
    1. Magez S
    2. Stijlemans B
    3. Radwanska M
    4. Pays E
    5. Ferguson MA
    6. De Baetselier P
    (1998)
    The Glycosyl-Inositol-Phosphate and dimyristoylglycerol moieties of the glycosylphosphatidylinositol anchor of the trypanosome Variant-Specific surface glycoprotein are distinct Macrophage-Activating factors
    Journal of Immunology 160:1949–1956.
    1. Mishra RR
    2. Senapati SK
    3. Sahoo SC
    (2017)
    Trypanosomiasis induced oxidative stress and hemato-biochemical alteration in cattle
    Artic J Entomol Zool Stud 5:721–727.
  2. Conference
    1. Ramakrishnan L
    (2013)
    The zebrafish guide to tuberculosis immunity and treatment
    Cold Spring Harbor Symposia on Quantitative Biology. pp. 179–192.

Decision letter

  1. Malcolm J McConville
    Reviewing Editor; The University of Melbourne, Australia
  2. Carla V Rothlin
    Senior Editor; Yale School of Medicine, United States
  3. Malcolm J McConville
    Reviewer; The University of Melbourne, Australia
  4. Carl De Trez
    Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

In this study, Jacobs and colleagues use a zebrafish infection model to investigate innate immune responses to extracellular trypanosome infections. Differences in early macrophage responses in individual animals strongly influenced infection outcomes. In particular, induction of a controlled inflammatory response was associated with low parasitaemia and host survival, while failure to control infection was associated with an exacerbated inflammatory response and the appearance of foamy macrophages. Thus trypanosome infections can be controlled by innate immune responses, although the over-activation of these responses and formation of foamy macrophages exacerbates disease.

Decision letter after peer review:

Thank you for submitting your article "Occurrence of foamy macrophages during the innate response of zebrafish to trypanosome infections" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Malcolm J McConville as the Reviewing Editor, and the evaluation has been overseen by Carla Rothlin as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Carl De Trez.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

This study investigates the role of the innate immune response in controlling bloodstream trypanosome infection in the zebrafish infection model recently developed by the authors. The study found that an innate immune response, characterized by controlled inflammatory response was sufficient to control infection in some individuals, while failure to control infection was associated with a strong inflammatory response characterized by expansion of foamy macrophages. The findings highlight the importance of a balanced immune response in controlling bloodstream trypanosome infections that are likely relevant to mammalian infections.

Essential revisions:

1. Can the authors provide further quantification and statistical analysis of some of the interesting phenotypes reported in Figure 7, 8, 9 and 10. In particular:

– The authors report that macrophages, but not neutrophils, infiltrate in the cardinal vein, although both cell populations are accumulating on the outer side of the vasculature during infection. Also, do neutrophils ever interact with trypanosomes in other sections of the vasculature, if not in the cardinal vein? Do trypanosomes ever escape from the circulation and interact with neutrophils elsewhere?

– The authors report that foamy macrophages occur inside the vasculature and are exclusive to high-infected larvae. Can they quantitate these associations and perform statistical tests (i.e. count foamy/non-foamy mpeg+ cells inside/outside the vessels in the PVP, T. car-low and T. car-high groups)? Is there a possibility that macrophages are scavenging dead Trypanosoma from the circulation, and is this leading to the foamy macrophage phenotype? Trypanosomes are also leading to hemolysis and this could lead to increased phagocytosis of red blood cell debris by macrophages. Could this be linked to the foamy appearance? How specific is BODIPY, to distinguish cholesterol (typical of foamy macrophages), vs lipids derived by phagocytosis of cell debris (i.e. high in membrane phospholipids?)

– The authors report that foamy macrophages occurring in T. car-infected larvae are characterised by a strong pro-inflammatory profile and are all il1beta and all tnfa positive. Significant differences are observed in the inflammatory response of macrophages in high- and low-infected individuals and in their susceptibility to infection. Can the authors show that foamy macrophages are indeed more frequently il1b positive/tnfa positive than neighbouring non-foamy mpeg+ cells?

– The authors report that a strong inflammatory profile is associated with the occurrence of foamy macrophages. However, it is not clear how widely spread the inflammation is and only images of macrophages and endothelial cells in the cardinal vein are shown. Moreover, only tnfa and il1b are assessed (using transgenic reporters). The authors also mention that they observe a mild inflammatory response in low-infected individuals and that this is strongly associated with control of parasitaemia and survival to the infection. Can they confirm strong vs mild inflammatory profiles and different association with survival in the 2 infection categories and PVP control with a panel of qRT-PCR for several inflammatory markers (i.e. il1beta, tnfa and other relevant cytokines and chemokines)?

2. Figure 1 diagram is very useful, but could be enhanced by inclusion of a representative quantification in an additional panel. For example, when injecting 200 T. carassii, what % of larvae is classified in the two infection categories? Could the authors also further discuss the % of T. low larvae where no parasites were observed during the clinical scoring? Have these larvae (or some of them) cleared the infection completely?

3. Figure 2: Is the clinical scoring predictive of early death onset (or likelihood of death)? To show this, can the authors divide the T. car 200 survival curve into 2 separate curves, based on the clinical scoring at day 4-5.

4. Authors are discouraged from using the term macrophage/neutrophil proliferation In Figure 5 and Figure 6 and related text. Normally "macrophage proliferation" is used to refer to resident tissue macrophages that occasionally are seen to divide/proliferate. The authors are more likely detecting myelopoiesis (in agreement, Edu staining most commonly is seen in hematopoietic tissues) and the EdU staining in mature macrophages/neutrophils is the result of a (recent) cell division of a hematopoietic progenitor cell. In the absence of a more specific mechanistic insight, the use of much broader terms, such as "increased production/number of macrophages/neutrophils" rather than "macrophage/neutrophil proliferation", is encouraged.

5. The authors refer to the trypanosuceptible vs. trypanotolerant background of the host observed in non-zebrafish models. However, in this particular setting, all the larvae possess an identical genetic background. Therefore, why would the larvae behave differently in response to a similar pathogen? In addition, there is no clear differences in neither parasitic load at 2 dpi (figure 3F) nor myeloid cells accumulation at 3 dpi (figure 4AB), which could lead to a drastic difference in parasitic load based on mRNA expression at 4 dpi (figure 3F). The authors should discuss this shortly.

6. Figure 4: the representative pictures from FigB do not seem to clearly match the histograms depicted in Figure 4C. For example, from the pictures in Figure 4B, it seems that there is a decrease in red fluorescence in the representative pictures from 7 dpi to 9 dpi low-infected larvae, which is not reflected in the histogram. Also, representative picture of 7 hi-infected larvae seems to show at least equal or even more red fluorescence compared to 9 dpi low-infected larvae.

https://doi.org/10.7554/eLife.64520.sa1

Author response

Essential revisions:

1. Can the authors provide further quantification and statistical analysis of some of the interesting phenotypes reported in Figure 7, 8, 9 and 10. In particular:

– The authors report that macrophages, but not neutrophils, infiltrate in the cardinal vein, although both cell populations are accumulating on the outer side of the vasculature during infection. Also, do neutrophils ever interact with trypanosomes in other sections of the vasculature, if not in the cardinal vein? Do trypanosomes ever escape from the circulation and interact with neutrophils elsewhere?

Trypanosomes certainly do extravasate, not only to the peritoneal cavity but also to tissues and interstitial fluids (See figure 2, Supplementary Video 1 and previous report Doro et al. 2019, eLife; DOI:10.7554/eLife.48388). Trypanosomes however are very motile parasites and, especially in compact tissues of the fins and muscle, can tumble very rapidly or swim directionally at speeds ranging between 45 and 57 µm/sec (Video 7 – 27 sec, in Doro et al. 2019, eLife). We believe that given the high motility of trypanosomes, either as directional swimmers as well as tumblers, it is unlikely for immune cells to phagocytose, or ‘chase’ and directly interact with trypanosomes.

Nevertheless, we realize that supplementary video 1 in the current manuscript does not provide a reference for trypanosome motility relative to neutrophil location or motility. Therefore, we now provide an additional supplementary video showing neutrophils surrounded by motile trypanosomes; this video shows how fast a single trypanosome can pass by or swim away from a neutrophil (or any other immune cell). Currently, we find it most suited to add the video in the Discussion section after the current sentence ‘Phagocytosis however, can be excluded as one of the possible contributing factors since motile T. carassii, similar to other extracellular trypanosomes (Caljon et al., 2018; Saeij et al., 2003; Scharsack et al., 2003), cannot be engulfed by any innate immune cell (Video 7).’ Line 630.

– The authors report that foamy macrophages occur inside the vasculature and are exclusive to high-infected larvae. Can they quantitate these associations and perform statistical tests (i.e. count foamy/non-foamy mpeg+ cells inside/outside the vessels in the PVP, T. car-low and T. car-high groups)?

Following the reviewers’ suggestions, in figure 6 we now provide a quantification of the total number of mpx:GFP+ (neutrophils) and mpeg1.4:mCherry-F+ (macrophages) inside/outside the vessels. Of the macrophages that were inside the vessels, we also quantified the proportion of those having a rounded, granular morphology and confirm that rounded and granular macrophages are exclusively found inside the vessel of high-infected individuals.

Next, in figure 7, we established that the rounded, granular macrophages found exclusively inside the vessel in figure 6 and 7A, stain positive for the BODIPY FLC5. Thus, we established that these are foamy macrophages. Following the reviewers request, we now provide a quantification of their number and confirm that these occur exclusively in high-infected individuals. In the revised figure 7, we now also provide a representative image of a lowinfected individual, showing no positivity for the BODIPY FLC5 dye in any of the macrophages present, specifying that BODIPY+ foamy macrophages only occur in high-infected individuals. Video 6 was updated accordingly.

Is there a possibility that macrophages are scavenging dead Trypanosoma from the circulation, and is this leading to the foamy macrophage phenotype? Trypanosomes are also leading to hemolysis and this could lead to increased phagocytosis of red blood cell debris by macrophages. Could this be linked to the foamy appearance? How specific is BODIPY, to distinguish cholesterol (typical of foamy macrophages), vs lipids derived by phagocytosis of cell debris (i.e. high in membrane phospholipids?)

Both hypotheses suggested by the reviewers are possible and we believe both can contribute/have contributed to the foamy macrophage phenotype. However, a third option that may explain the foamy appearance, which does not exclude the previous two and may rather be a consequence of those, is a change in macrophage lipid metabolism in response to phagocytosis of trypanosome-derived PAMPs and/or host DAMPs.

As also referred to later by the reviewers (comment 14), foam cells [macrophages with lipid droplets (LDs) which are stores of triacylglycerols (TAGs) AND/OR cholesterol esters (CEs)], are found in various disease states. CE-rich foam cells are typical of atherosclerotic plaques whereas TAG-rich foam cells are most commonly found in tuberculi formed during Mycobacterium tuberculosis infections and were described also during T. cruzi and Leishmania infections (Guerrini et al. 2019. doi:10.1016/j.it.2019.10.002; Saka HA and Valdivia R. 2012. doi:10.1146/annurev-cellbio-092910-153958). Thus both, CE-rich and TAG-rich foam cells exist and represent two different paradigms of foam cell formation during disease, although mixed phenotypes have also been observed.

Furthermore, most if not all studies investigating foam cells, labelled the lipid droplets in in vitro cell cultures of foamy macrophages or in fixed tissues isolated from individuals post-mortem. Most of these studies used either the neutral lipid dyes Nile Red or BODIPY 493/503, which require short incubation time but are NOT specific for foamy macrophages as they bind to anything which has neutral lipids (cholesterol) in/on it. BODIPY-FLCx (where x indicates the number of carbon atoms in fatty acids moieties of various lengths) can directly bind to lipids but can also be actively incorporated into phospholipids membranes and triacylglycerol (TAG) and can therefore be used to also investigate changes in lipid metabolism within live cells, but requires different kinetics of uptake.

In our case, wanting to investigate the formation and occurrence of foamy macrophages in vivo, during an ongoing infection in a live developing embryo, we had to consider the presence of several lipid-rich (digestive) organs (intestine, pancreas, liver, gall bladder, etc) in which lipid accumulation occurs (Carten JD, et al. 2011. doi:10.1016/j.ydbio.2011.09.010), as well as the presence of soluble lipid/cholesterol-binding proteins in the serum. As suggested by the reviewers, we also considered that foamy macrophages could be scavenging dead trypanosomes and damaged red blood cells, but we considered these stimuli triggers of a metabolic change leading to the foamy macrophage phenotype and did not consider these stimuli binders of the lipid dye for the reasons explained below.

Thus, in our study we considered both commonly used dyes, BODIPY 493/503 (labelling mostly CE) and BODIPY FLC5 (actively incorporated in TGA) and allowed them to accumulate in lipid rich cells for 20h. As expected, both dyes labelled lipid-rich organs (as previously shown in zebrafish, Carten JD, et al. 2011. doi:10.1016/j.ydbio.2011.09.010), and both were able to label the large, granular macrophages observed in the vessel of high-infected individuals (see figure 8 in manuscript and Author response image 1). Thus, we used these two labels to confirm that these cells are indeed foamy macrophages rich not only in TGA but also cholesterol. Nevertheless, a higher background was observed when using the neutral-lipid dye BODIPY 493/503, especially in serum of both, infected and non-infected individuals. The background staining was most likely due to the abundance of soluble neutral-lipids (including cholesterol) in the serum of young larvae to which the dye could directly bind. This background staining would not be seen when working with in vitro cell cultures, or with fixed tissues.

In Author response image 1 we provide images of a control (PVP) and of a high-infected individual obtained after administration of BODIPY 493/503. In the vessel of the infected individual, accumulation of the dye in foamy macrophages is clearly visible (yellow arrowheads). In the vessel of non-infected individuals, BODIPY 493/503-negative leukocytes rolling on the vessel wall (blue arrowheads) are clearly visible, confirming the absence of staining of other cells residing in the blood stream and thus the specificity of staining for foamy macrophages.

Author response image 1

For the reasons mentioned above, and since BODIPY FLC5 can be incorporated into de novo TAG, dead parasites or damaged red blood cells that may have been phagocytosed may not contribute to de novo TGA synthesis and thus to the labelling in macrophages. Furthermore, if the dye would specifically bind to cell membranes (phospholipids), at 20h after BODIPY administration we should have observed a much higher background labelling in parasites or red blood cells circulating in the blood stream, or in parasites or cells surrounding the blood vessels, that was the case.In the revised figure 7 it is clearly visible that, except for endothelial cells, which are positively labelled by the Bodipy in all groups, only foamy macrophages in high-infected individuals are positive for the BODIPY FLC5, and none of the neighbouring (non-foamy) macrophages in the same individual, or in PVP or low-infected individuals, are positive for the dye. These observations now have been quantified in Figure 7C.

For all of the above reasons, we prefer to show in the paper the data obtained using the BODIPY FLC5 dye.

– The authors report that foamy macrophages occurring in T. car-infected larvae are characterised by a strong pro-inflammatory profile and are all il1beta and all tnfa positive. Significant differences are observed in the inflammatory response of macrophages in high- and low-infected individuals and in their susceptibility to infection. Can the authors show that foamy macrophages are indeed more frequently il1b positive/tnfa positive than neighbouring non-foamy mpeg+ cells?

As requested by the reviewers, in figure 9C of the revised manuscript, we now quantified the number of foamy and non-foamy macrophages being positive for Il1b or tnfa. The new data confirm that 100% of the foamy macrophages is positive for Il1b or tnfa and that high-infected individuals generally have a higher number of il1b or tnfa positive macrophages then low-infected or PVP individuals.

– The authors report that a strong inflammatory profile is associated with the occurrence of foamy macrophages. However, it is not clear how widely spread the inflammation is and only images of macrophages and endothelial cells in the cardinal vein are shown. Moreover, only tnfa and il1b are assessed (using transgenic reporters). The authors also mention that they observe a mild inflammatory response in low-infected individuals and that this is strongly associated with control of parasitaemia and survival to the infection. Can they confirm strong vs mild inflammatory profiles and different association with survival in the 2 infection categories and PVP control with a panel of qRT-PCR for several inflammatory markers (i.e. il1beta, tnfa and other relevant cytokines and chemokines)?

At the start of our study, prior to the provision of the tnfa and il1b transgenic lines, we had performed the gene expression analysis also suggested by the reviewers. However, based on the obtained results and the overall pattern of expression of tnfa:gfpF and il1b:gfpF in zebrafish larvae obtained later, we realized that measuring gene expression in whole larvae at this developmental stage may not be very sensitive in revealing (subtle) differences in inflammatory responses during infection. In fact, in fish as in mammals, expression of most immune genes of interest is not specific to immune cells only. For example, when the il1b:gfpF transgenic line was established by our collaborators (Nguyen-Chi et al. 2014, DMM; doi:10.1242/dmm.014498) it was shown that although GFP expression was highly inducible in cells of myeloid origin (macrophages and neutrophils), a generalized basal expression of il1b:gfp was detected in skin keratinocytes, neuromasts and gut enterocytes, all cell types in direct contact with the environment. Those data were supported by in situ hybridization and also by comparison with the ‘spontaneous expression of GFP in the Tg(NFκB:EGFP) reporter transgenic zebrafish line (Kanther and Rawls, 2010), which is in agreement with the well-known contribution of NF-κB to il1b induction (Ogryzko et al., 2014)’. Similar observations were made for the tnfa:gfpF line. Furthermore, in our study, we noticed that larvae older than 5 dpf (thus older than in the original study), show tnfa:gfpF and il1b:gfpF expression also in the developing haematopoietic organs (head kidney and spleen in the head region) and in endothelial cells of the caudal vein.

Taking all this into account we propose to provide the gene expression analysis data as supplementary figure (Figure 2-supplement 1) with the accompanying text. Lines 219-229.

A preliminary gene expression analysis of a panel of immune-related genes was performed on pools of larvae classified as high- or low-infected. […] For these reasons, taking advantage of the transparency of zebrafish larvae and of the established clinical scoring system, subsequent characterization of the inflammatory response to T. carassii infection, was performed on individual larvae, focusing on innate immune cells.”

To better address the first part of the question of the reviewers (“how widely spread the inflammation is”) we first would like to remind the reviewers that, besides the head region (where haematopoiesis takes place in the developing larvae), the majority of leukocytes in larval zebrafish are concentrated in the trunk and tail region, distributed along the two major blood vessels (dorsal aorta/caudal artery and posterior cardinal vein/caudal vein) including the tail tip loop. See also figure 4 in the manuscript and the examples provided in Author response image 2 (4 dpi embryo, macrophages (red) and neutrophils (green)).Also relevant is that, for the images used in the main paper, to be able to reliably count macrophages and neutrophils, or to identify cytokine-expressing macrophages and their specific location (in/outside vessels), we had to work with confocal images acquired at 40x magnification, which explains why often only a small section of the caudal vein is shown.

Author response image 2

We certainly agree that it is interesting to show how widely spread the inflammation is. To this end, in the revised manuscript we now provide an additional supplementary figure (S3 Fig) showing the widespread distribution of tnfa:GFP positive (tnfa:GFP+) cells in four subsequent locations, covering the entire trunk and tail region. As expected, tnfa:GFP+ leukocytes are distributed mostly along the major vessels in the trunk region, and along the tail tip loop and fin of the tail region. The images also show that not only the number of tnfa:GFP+ cells but also the intensity of their GFP signal is higher in high-infected individuals, compared to PVP or low-infected individuals, confirming a widely spread and higher inflammatory state in high-infected individuals. It may also be clear from these images that, as mentioned earlier, in zebrafish as in mammals, tnfa expression is not always exclusive to immune cells only. The widespread expression of tnfa in non-immune cells can have a confounding effect when it comes to measuring gene expression in whole larvae, we therefore think that (also) showing these images can be more informative than showing (only) gene expression. Imaging allows us to maximally take advantage of the zebrafish model to visualize and describe responses where they occur.Furthermore, based on the comments of the reviewers we realised that we indeed drew attention to the caudal vein, whereas the caudal vein is NOT the only vessel shown in our images. The dorsal aorta (DA) or caudal artery (CA) are right above the posterior cardinal vein (PCV) and caudal vein (CV), respectively and, depending on the orientation of the embryo and specific focus or zoom level shown, all are often visible in our images or in the supplementary videos. In the revised manuscript, whenever possible, and if it did not interfere with the clarity of the image (e.g Figure 2, 6, 7A etc.), we now also indicate the presence of the DA or CA, and when relevant, also refer to these vessels in the main text.

2. Figure 1 diagram is very useful, but could be enhanced by inclusion of a representative quantification in an additional panel. For example, when injecting 200 T. carassii, what % of larvae is classified in the two infection categories? Could the authors also further discuss the % of T. low larvae where no parasites were observed during the clinical scoring? Have these larvae (or some of them) cleared the infection completely?

In response to the reviewer’s suggestion, we have added a new graph to figure 2 (Figure 2F) showing the proportion of larvae allocated to each clinical score of a total of 350 larvae. In the corresponding Results section, we now mention that larvae with a score equal to 1, in which no parasites were observed using the second criterion (ratio of parasite:RBC in intersegmental capillary (ISC)), where still found to be infected when using the third criterion, extravasation. Thus, although parasites could not be seen in the ISC, they already extravasated to the tissue, indicating that at this point after infection larvae cannot clear the infection. We have further clarified this in the methods section of the revised manuscript and in the corresponding Results section of figure 2.

3. Figure 2: Is the clinical scoring predictive of early death onset (or likelihood of death)? To show this, can the authors divide the T. car 200 survival curve into 2 separate curves, based on the clinical scoring at day 4-5.

In response to the reviewers’ suggestion, we have added a new graph to figure 2 (Figure 2G) showing the survival rate of the control (PVP), T. carassii-low and -high groups (50 larvae per group). All high-infected individuals succumbed to the infection, whereas low-infected individuals had a high relative percent survival (82%) when compared to the PVP group. Of the low-infected individuals that were removed from the experiment, none displayed high parasitaemia, indicating that they did not succumb due to the infection. Instead, they showed developmental delays such as block in blood circulation, stunt growth, etc., similar to those observed in non-infected control individuals in the PVP group.

4. Authors are discouraged from using the term macrophage/neutrophil proliferation In Figure 5 and Figure 6 and related text. Normally "macrophage proliferation" is used to refer to resident tissue macrophages that occasionally are seen to divide/proliferate. The authors are more likely detecting myelopoiesis (in agreement, Edu staining most commonly is seen in hematopoietic tissues) and the EdU staining in mature macrophages/neutrophils is the result of a (recent) cell division of a hematopoietic progenitor cell. In the absence of a more specific mechanistic insight, the use of much broader terms, such as "increased production/number of macrophages/neutrophils" rather than "macrophage/neutrophil proliferation", is encouraged.

Thank you for the suggestion, we have now amended the text and either refer to EdU+ or to (recently) divided neutrophils/macrophages.

5. The authors refer to the trypanosuceptible vs. trypanotolerant background of the host observed in non-zebrafish models. However, in this particular setting, all the larvae possess an identical genetic background. Therefore, why would the larvae behave differently in response to a similar pathogen? In addition, there is no clear differences in neither parasitic load at 2 dpi (figure 3F) nor myeloid cells accumulation at 3 dpi (figure 4AB), which could lead to a drastic difference in parasitic load based on mRNA expression at 4 dpi (figure 3F). The authors should discuss this shortly.

We are not sure whether we fully understand this comment of the reviewer, therefore we first would like to clarify the following points. Trypanosusceptible and trypanotolerant mice are inbred and therefore the response to trypanosomes infection will be very similar among individuals within each of these population/strains, but will be contrasted between the two mouse strains. Our zebrafish have indeed a similar genetic background because they come from the same parental line but they are not identical, therefore individual differences can and will occur in response to infections, as observed in the current study. Although the parasite load and myeloid cell number did not differ at 2 and 3 dpi, respectively, other factors can be different between individuals, likely due to genetic differences, and may account for part of the observed variation.

It was not our intention to draw attention to the genetic background of mice or zebrafish, but rather to the fact that by using transparent animals we were able to detect differences in response at the individual level. The contrasting responses in high- and low-infected zebrafish may resemble the contrasting responses in trypanosusceptible and trypanotolerant mice. We merely aimed to address the similarity in response rather than address genetic influences. To not confuse the future readership, we therefore removed the specific reference to trypanosusceptible and trypanotolerant mice and simply refer to the studies that have used these mice strains to elucidate the type of response considered beneficial or detrimental to the infection. Line 646-648.

6. Figure 4: the representative pictures from FigB do not seem to clearly match the histograms depicted in Figure 4C. For example, from the pictures in Figure 4B, it seems that there is a decrease in red fluorescence in the representative pictures from 7 dpi to 9 dpi low-infected larvae, which is not reflected in the histogram. Also, representative picture of 7 hi-infected larvae seems to show at least equal or even more red fluorescence compared to 9 dpi low-infected larvae.

We thank the reviewers for such precise observation. We have now updated the representative images in the figure 3B.

https://doi.org/10.7554/eLife.64520.sa2

Article and author information

Author details

  1. Sem H Jacobs

    1. Cell Biology and Immunology Group, Department of Animal Sciences, Wageningen University & Research, Wageningen, Netherlands
    2. Experimental Zoology Group, Department of Animal Sciences, Wageningen University & Research, Wageningen, Netherlands
    Contribution
    Conceptualization, Data curation, Formal analysis, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7482-3438
  2. Eva Dóró

    Cell Biology and Immunology Group, Department of Animal Sciences, Wageningen University & Research, Wageningen, Netherlands
    Present address
    Institute of Physiology, Faculty of Medicine, University of Pécs, Pécs, Hungary
    Contribution
    Data curation, Formal analysis, Visualization, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Ffion R Hammond

    Cell Biology and Immunology Group, Department of Animal Sciences, Wageningen University & Research, Wageningen, Netherlands
    Present address
    Department of Infection, Immunity & Cardiovascular Disease, University of Sheffield, Sheffield, United Kingdom
    Contribution
    Formal analysis, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Mai E Nguyen-Chi

    DIMNP, CNRS, University of Montpellier, Montpellier, France
    Contribution
    Conceptualization, Supervision, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Georges Lutfalla

    DIMNP, CNRS, University of Montpellier, Montpellier, France
    Contribution
    Conceptualization, Supervision, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Geert F Wiegertjes

    1. Cell Biology and Immunology Group, Department of Animal Sciences, Wageningen University & Research, Wageningen, Netherlands
    2. Aquaculture and Fisheries Group, Department of Animal Sciences, Wageningen University & Research, Wageningen, Netherlands
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing - original draft, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
  7. Maria Forlenza

    Cell Biology and Immunology Group, Department of Animal Sciences, Wageningen University & Research, Wageningen, Netherlands
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    maria.forlenza@wur.nl
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9026-7320

Funding

European Union 7th Framework Programme (PITN-GA-2011-289209)

  • Eva Dóró

Nederlandse Organisatie voor Wetenschappelijk Onderzoek (022.004.005)

  • Sem H Jacobs

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

Dr. Christelle Langevin from Institut National de la Recherche Agronomique (INRA) is greatly acknowledged for her assistance with immunohistochemical analysis (IHC). IHC analyses benefited from the expertise of the Fish phenotyping platform IERP-UE907, Jouy-en-Josas Research Center, France DOI: 10.15454/1.5572427140471238E12 belonging to the National Distributed Research Infrastructure for the Control of Animal and Zoonotic Emerging Infectious Diseases through In Vivo Investigation (EMERG'IN DOI: 10.15454/1.5572352821559333E12). The authors like to thank Dr. Danilo Pietretti, Marleen Scheer, and Dr. Sylvia Brugman from the Cell Biology and Immunology Group of Wageningen University and Research (WUR) for technical support with the RQ-PCR analysis, parasite isolation and for fruitful discussions; the CARUS Aquatic Research Facility of WUR is acknowledged for fish rearing and husbandry. Prof. Mark Carrington, Cambridge University, is acknowledged for the fruitful discussions and for revising the manuscript. Furthermore, the authors like to thank Dr. Norbert de Ruijter from the Wageningen Light Microscopy Centre, and the Montpellier Resources Imagerie facility for their assistance.

Ethics

Animal experimentation: All animals were handled in accordance with good animal practice as defined by the European Union guidelines for handling of laboratory animals (http://ec.europa.eu/environment/ chemicals/lab_animals/home_en.htm). All animal work at Wageningen University was approved by the local experimental animal committee (DEC number 2014095).

Senior Editor

  1. Carla V Rothlin, Yale School of Medicine, United States

Reviewing Editor

  1. Malcolm J McConville, The University of Melbourne, Australia

Reviewers

  1. Malcolm J McConville, The University of Melbourne, Australia
  2. Carl De Trez

Publication history

  1. Received: November 1, 2020
  2. Accepted: June 9, 2021
  3. Accepted Manuscript published: June 11, 2021 (version 1)
  4. Version of Record published: June 28, 2021 (version 2)

Copyright

© 2021, Jacobs et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 600
    Page views
  • 51
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Medicine
    2. Microbiology and Infectious Disease
    Alexander O Pasternak et al.
    Research Article Updated

    Background:

    It remains unclear whether combination antiretroviral therapy (ART) regimens differ in their ability to fully suppress human immunodeficiency virus (HIV) replication. Here, we report the results of two cross-sectional studies that compared levels of cell-associated (CA) HIV markers between individuals receiving suppressive ART containing either a non-nucleoside reverse transcriptase inhibitor (NNRTI) or a protease inhibitor (PI).

    Methods:

    CA HIV unspliced RNA and total HIV DNA were quantified in two cohorts (n = 100, n = 124) of individuals treated with triple ART regimens consisting of two nucleoside reverse transcriptase inhibitors (NRTIs) plus either an NNRTI or a PI. To compare CA HIV RNA and DNA levels between the regimens, we built multivariable models adjusting for age, gender, current and nadir CD4+ count, plasma viral load zenith, duration of virological suppression, NRTI backbone composition, low-level plasma HIV RNA detectability, and electronically measured adherence to ART.

    Results:

    In both cohorts, levels of CA HIV RNA and DNA strongly correlated (rho = 0.70 and rho = 0.54) and both markers were lower in NNRTI-treated than in PI-treated individuals. In the multivariable analysis, CA RNA in both cohorts remained significantly reduced in NNRTI-treated individuals (padj = 0.02 in both cohorts), with a similar but weaker association between the ART regimen and total HIV DNA (padj = 0.048 and padj = 0.10). No differences in CA HIV RNA or DNA levels were observed between individual NNRTIs or individual PIs, but CA HIV RNA was lower in individuals treated with either nevirapine or efavirenz, compared to PI-treated individuals.

    Conclusions:

    All current classes of antiretroviral drugs only prevent infection of new cells but do not inhibit HIV RNA transcription in long-lived reservoir cells. Therefore, these differences in CA HIV RNA and DNA levels by treatment regimen suggest that NNRTIs are more potent in suppressing HIV residual replication than PIs, which may result in a smaller viral reservoir size.

    Funding:

    This work was supported by ZonMw (09120011910035) and FP7 Health (305522).

    1. Evolutionary Biology
    2. Microbiology and Infectious Disease
    Emily R Ebel et al.
    Research Article

    The replication of Plasmodium falciparum parasites within red blood cells (RBCs) causes severe disease in humans, especially in Africa. Deleterious alleles like hemoglobin S are well-known to confer strong resistance to malaria, but the effects of common RBC variation are largely undetermined. Here we collected fresh blood samples from 121 healthy donors, most with African ancestry, and performed exome sequencing, detailed RBC phenotyping, and parasite fitness assays. Over one third of healthy donors unknowingly carried alleles for G6PD deficiency or hemoglobinopathies, which were associated with characteristic RBC phenotypes. Among non-carriers alone, variation in RBC hydration, membrane deformability, and volume was strongly associated with P. falciparum growth rate. Common genetic variants in PIEZO1, SPTA1/SPTB, and several P. falciparum invasion receptors were also associated with parasite growth rate. Interestingly, we observed little or negative evidence for divergent selection on non-pathogenic RBC variation between Africans and Europeans. These findings suggest a model in which globally widespread variation in a moderate number of genes and phenotypes modulates P. falciparum fitness in RBCs.
